PART Ⅰ: Generic Version
Please read this manual carefully
before using the dishwasher and
Keep this manual for future reference.
TORRINO
SAFETY INFORMATION
3
CONTENTS
PRODUCT OVERVIEW
8
USING YOUR DISHWASHER
Loading The Salt Into The Softener
Basket Used Tips
9
9
11
MAINTENANCE AND CLEANING
External Care
Internal Care
Caring For The Dishwasher
13
13
13
16
INSTALLATION INSTRUCTION
About Power Connection
Water Supply And Drain
Connection Of Drain Hoses
Position The Appliance
Free Standing Installation
17
17
18
19
20
20
NOTE:
Reviewing the section on troubleshooting Tips will help you solve some
common problems by yourself.
If you cannot solve the problems by yourself, please ask for help from a
professional technician.
The manufacturer, following a policy of constant development and updating of
the product, may make modifications without giving prior notice.
If lost or out-of-date, you can receive a new user manual from the manufacturer
or responsible vendor.
TROUBLESHOOTING TIPS
2
LOADING THE BASKETS
2
26
SAFETY INFORMATION
WARNING
When using your dishwasher, follow the
precautions listed below:
Installation and repair can only be carried out by a
qualified technician
This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments;
-farm houses;
-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be done by children
without supervision.
This appliance is not intended for use by persons
(including children ) with reduced physical, sensory or
3
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety. (For IEC60335-1 )
Packaging material could be dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and performing
maintenance on the appliance.
Use a soft cloth moistened with mild soap, and then
use a dry cloth to wipe it again.
Earthing Instructions
4
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is
equipped with an earthing conductor plug.
The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
Do not modify the plug provided with the
appliance; If it does not fit the outlet.
Have a proper outlet installed by a qualified
electrician.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2
Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door
is open.
Check that the detergent powder is empty after
completion of the wash cycle.
5
Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points facing down or placed in a horizontal
position.
)
6
Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent.
For unmarked plastic items not so marked, check the
manufacturer's recommendations.
Use only detergent and rinse agents recommended for
use in an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
The door should not be left open, since this could
increase the risk of tripping.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance needs to be connected to the main
water valve using new hose sets. Old sets should not be
reused.
To save energy, in stand by mode, the appliance will
switch off automatically while there is no any operation
in 30 minutes .
The maximum number of place settings to be washed
is 13.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is
0.04MPa.
Disposal
For disposing of package and the
appliance please go to a recycling center.
Therefore cut off the power supply cable
and make the door closing device
unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product.
For more detailed information about recycling of this
product, please contact your local city office and
your household waste disposal service.
DISPOSAL: Do not dispose this product as
unsorted municipal waste. Collection of such
waste separately for special treatment is
necessary.
7

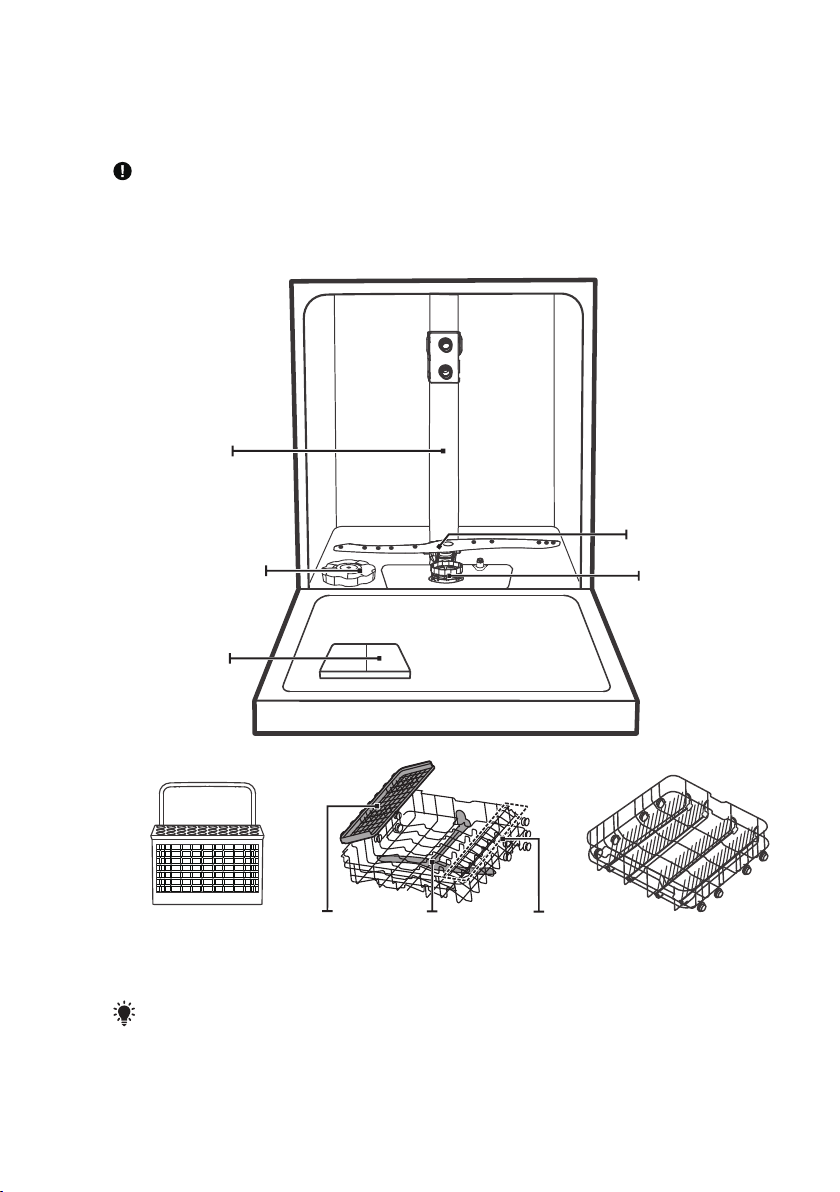

Cutlery basket
Lower basket
Upper spray arm
Upper basket
Cutlery rack
Cup rack
PRODUCT OVERVIEW
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
IMPORTANT:
8
Pictures are only for reference, different models may be different.
NOTE:
Dispenser
Salt container
Filter assembly
Lower spray arm
Inner pipe
Loading The Salt Into The Softener
Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use,
especially table salt, will damage the water softener. In case of damages
caused by the use of unsuitable salt the manufacturer does not give any
warranty nor is liable for any damages caused.
Only fill with salt before running a cycle.
This will prevent any grains of salt or salty water, which may have been
spilled, remaining on the bottom of the machine for any period of time,
which may cause corrosion.
WARNING
Always use salt intended for dishwasher use.
The salt container is located beneath the lower basket and should be filled as
explained in the following:

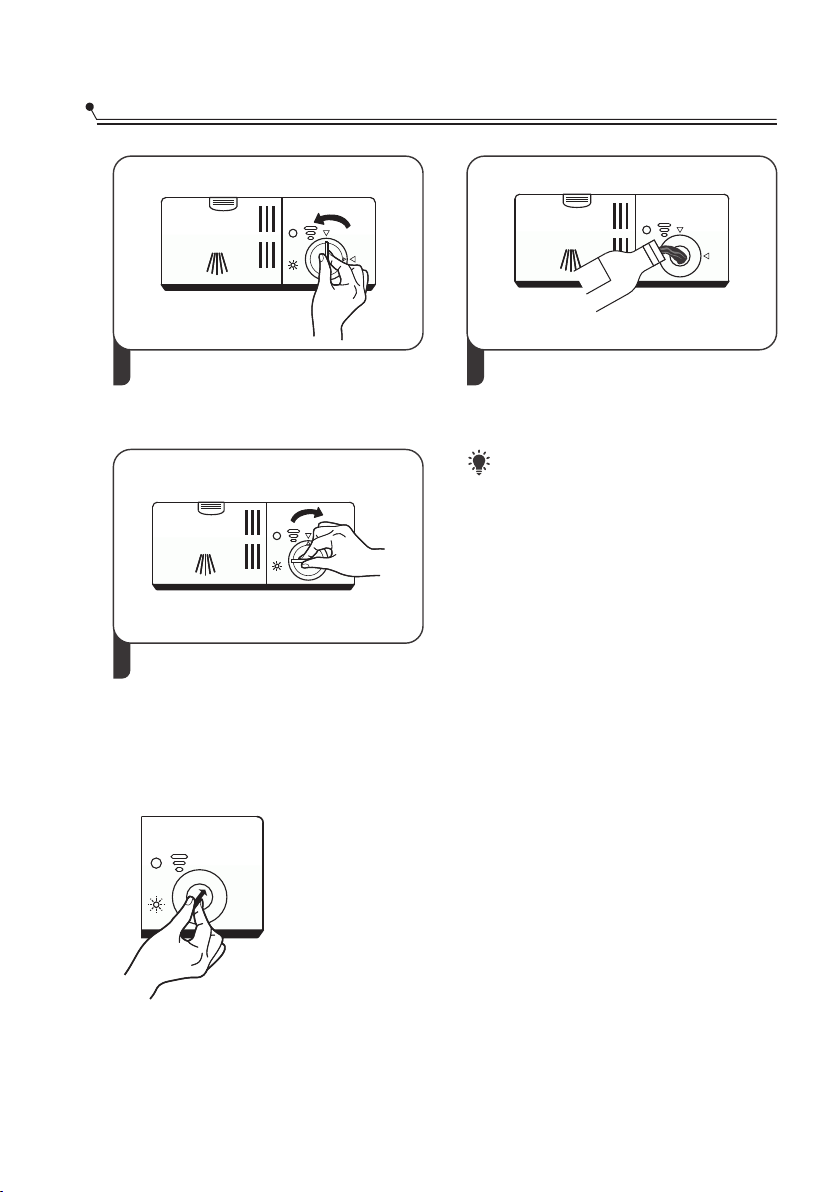

Please check the section 1 “Water Softener” of PART Ⅱ: Special Version,
If you need to set the water softener .
Please check the section 1 “Water Softener” of PART Ⅱ: Special Version,
If you need to set the water softener .
9
If your model does not have any water softener, you may skip this section.
NOTE:
USING YOUR DISHWASHER
Before using your dishwasher :
Inside Outside
1. Set the water softener
2. Loading the salt Into the softener
3. Loading the basket

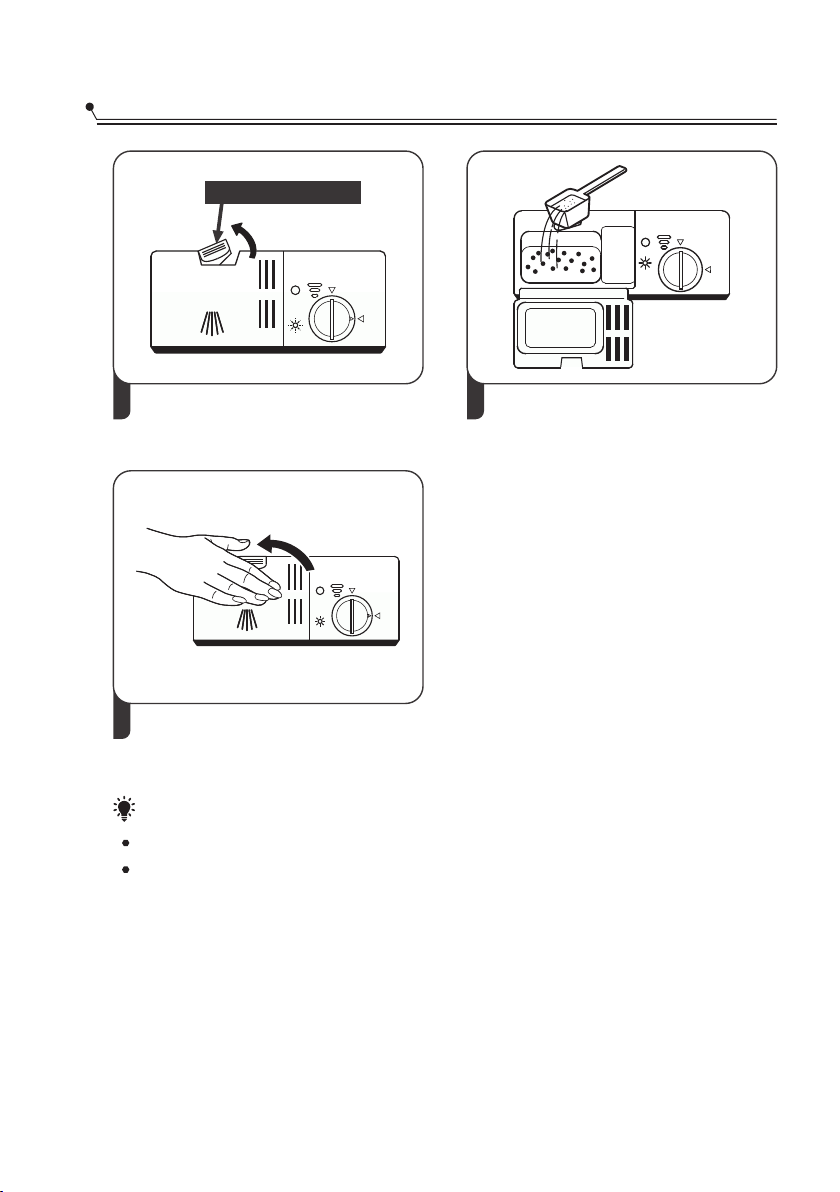

4. Fill the dispenser
10

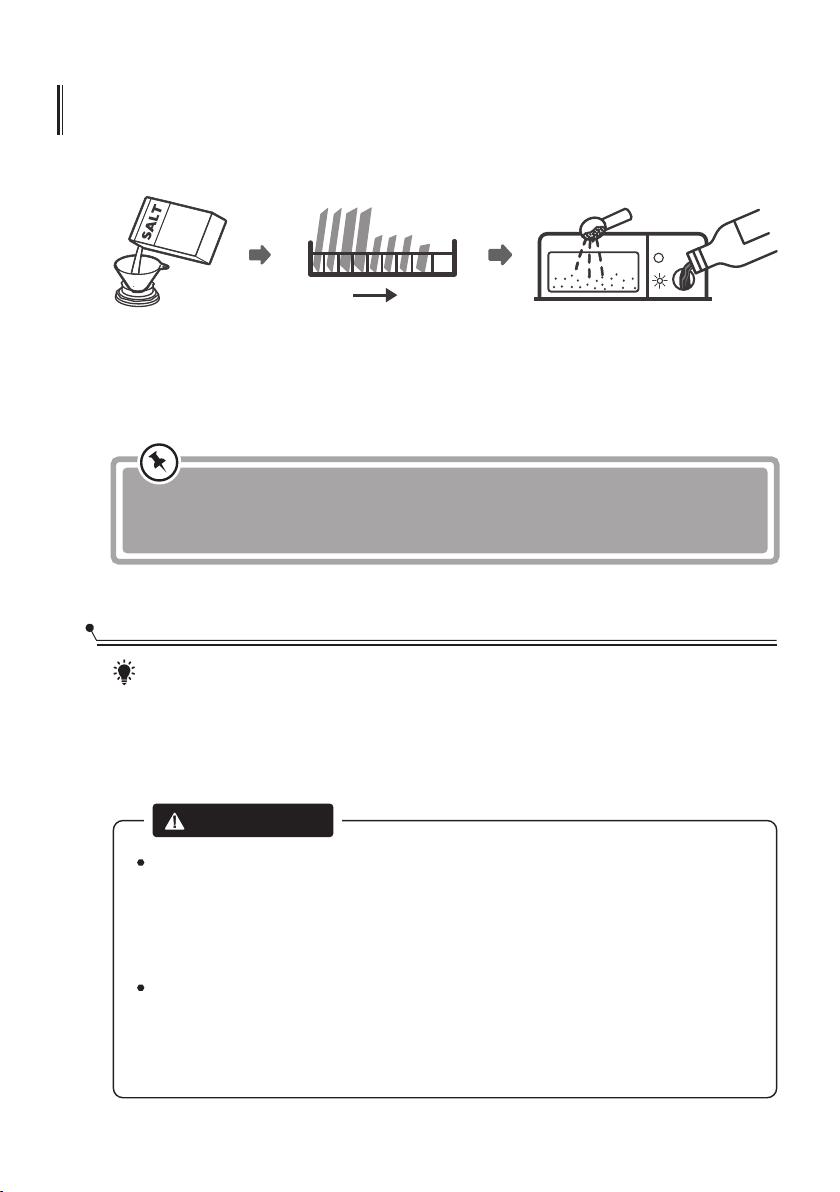

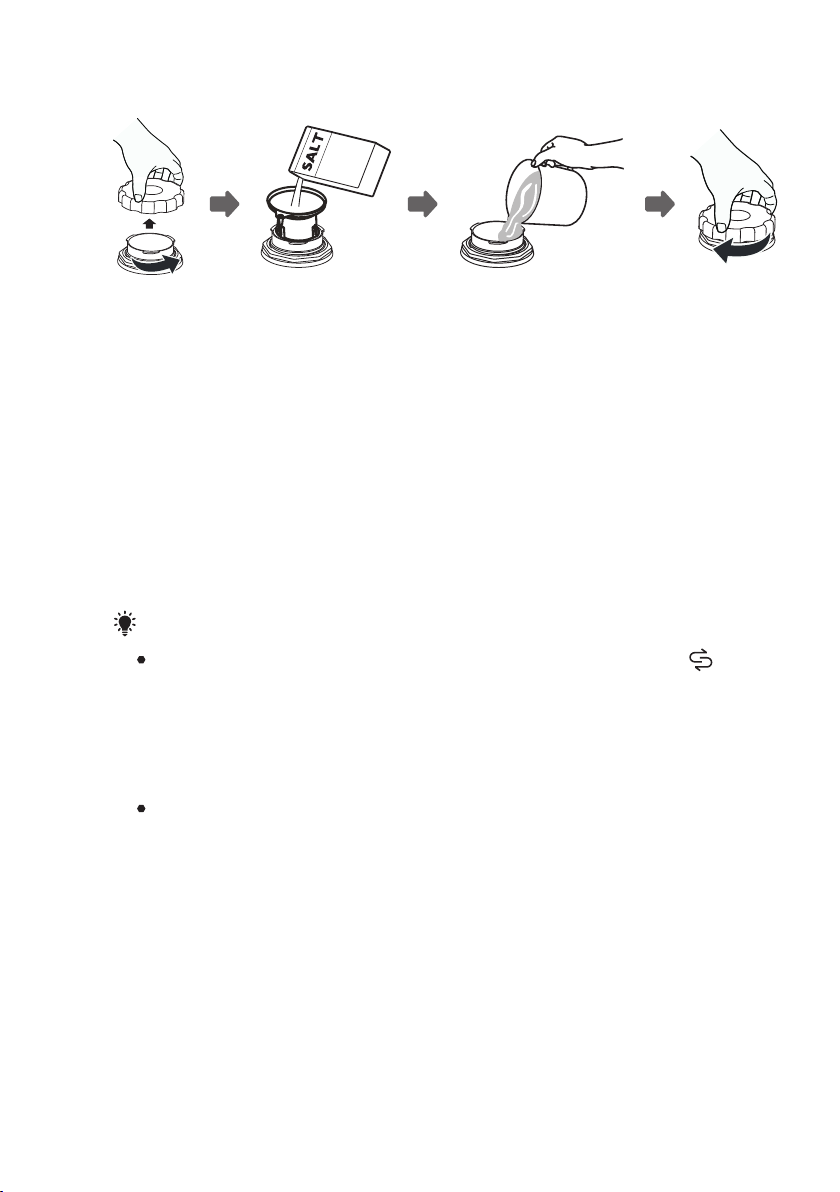

1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (supplied) into the hole and pour in about 1.5kg of
dishwasher salt.
3. Fill the salt container to its maximum limit with water, It is normal for a small
amount of water to come out of the salt container.
4. After filling the container, screw back the cap tightly.
5. The salt warning light will stop being after the salt container has been filled with salt.
6. Immediately after filling the salt into the salt container, a washing program should
be started (We suggest to use a short program). Otherwise the filter system, pump
or other important parts of the machine may be damaged by salty water. This is
out of warranty.
NOTE:
The salt container must only be refilled when the salt warning light ( ) in the
control panel comes on. Depending on how well the salt dissolves, the salt
warning light may still be on even though the salt container is filled.
If there is no salt warning light in the control panel (for some Models), you can
estimate when to fill the salt into the softener by the cycles that the dishwasher
has run.
If salt has spilled, run a soak or quick program to remove it.
Please follow the steps below for adding dishwasher salt:
11

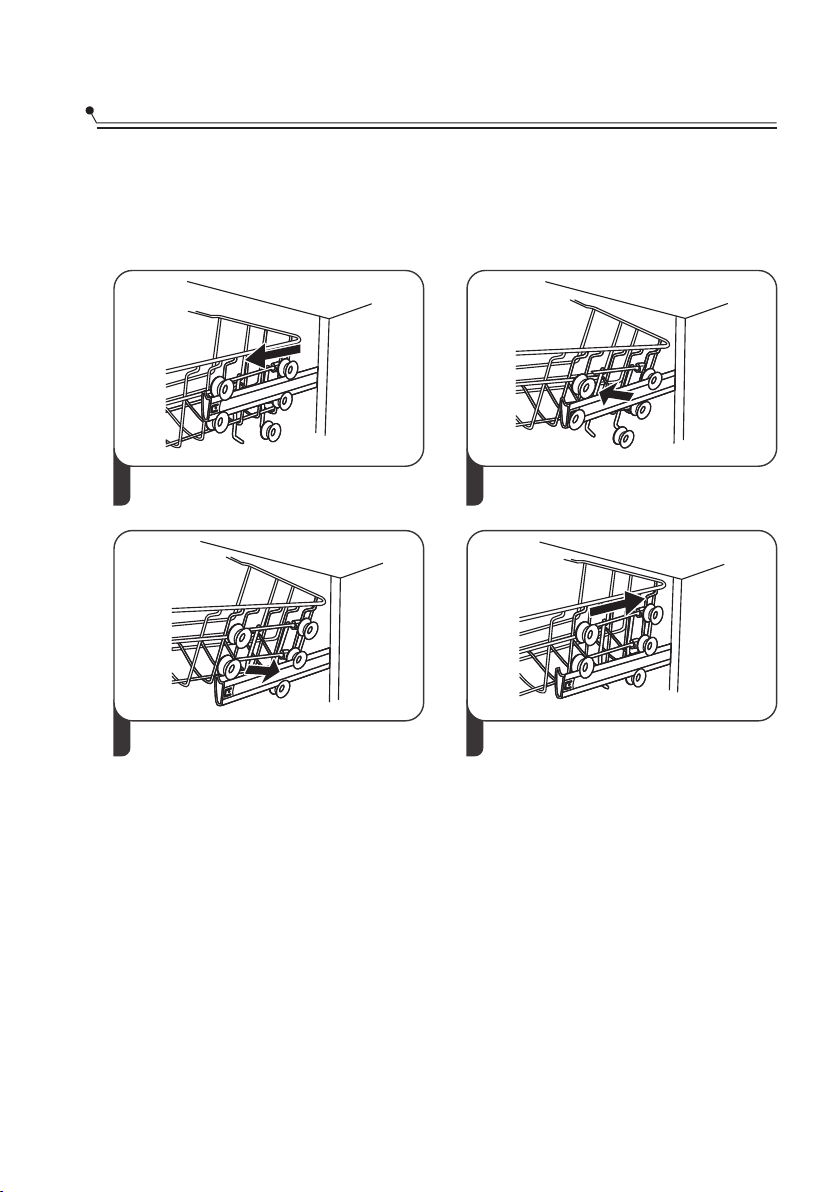

Adjusting the upper basket
The height of the upper basket can be easily adjusted to accommodate taller dishes
in either the upper or lower basket.
To adjust the height of the upper rack, follow these steps:
4
1
Pull out the upper basket.
2
Remove the upper basket.
3
Re-attach the upper basket to upper
or lower rollers.
Push in the upper basket.
lower position
upper position
Basket Used Tips
12

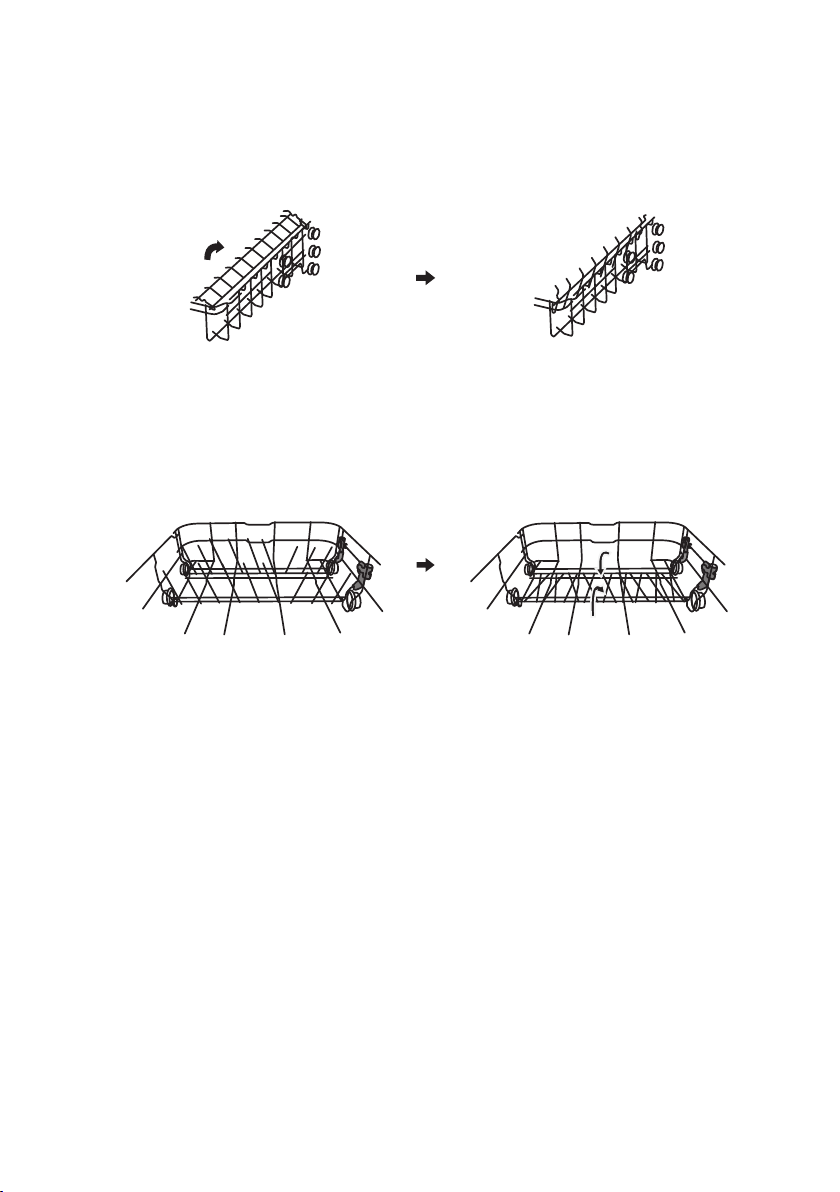

Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack upwards.
You can then lean the tall glasses against it. You can also remove it when it is not
required for use.

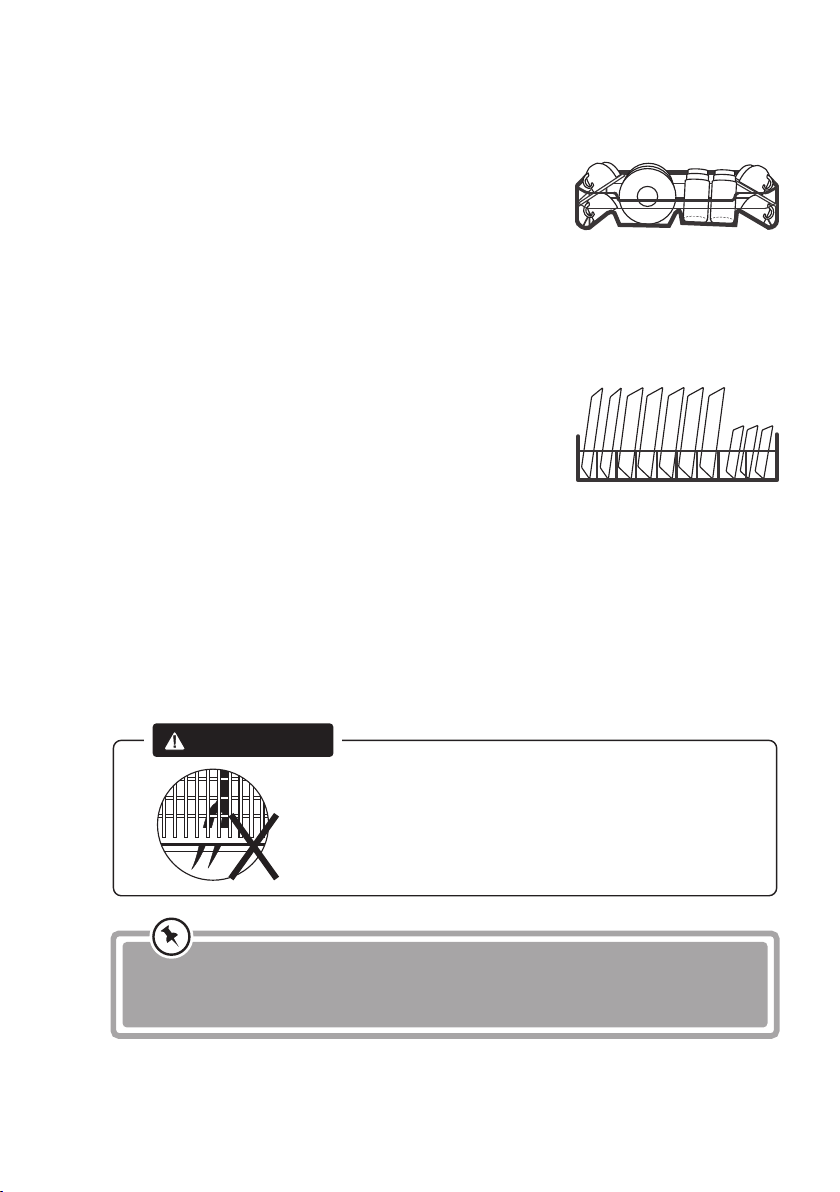

Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter.
They can be lowered to make more room for large items.
raise upwards fold backwards
13
MAINTENANCE AND CLEANING
External Care
The door and the door seal
Clean the door seals regularly with a soft damp cloth to remove food deposits.
When the dishwasher is being loaded, food and drink residues may drip onto the
sides of the dishwasher door. These surfaces are outside the wash cabinet and are not
accessed by water from the spray arms. Any deposits should be wiped off before the
door is closed.
The control panel
If cleaning is required, the control panel should be wiped with a soft damp cloth only.
To avoid penetration of water into the door lock and electrical components,
do not use a spray cleaner of any kind.
Never use abrasive cleaners or scouring pads on the outer surfaces because
they may scratch the finish. Some paper towels may also scratch or leave
marks on the surface.
WARNING
Internal Care
Filtering system
The filtering system in the base of the wash cabinet retains coarse debris from the
washing cycle. The collected coarse debris may cause the filters to clog. Check the
condition of the filters regularly and clean them if necessary under running water.
Follow the steps below to clean the filters in the wash cabinet.
NOTE:
Pictures are only for reference, different models of the filtering system and spray
arms may be different.

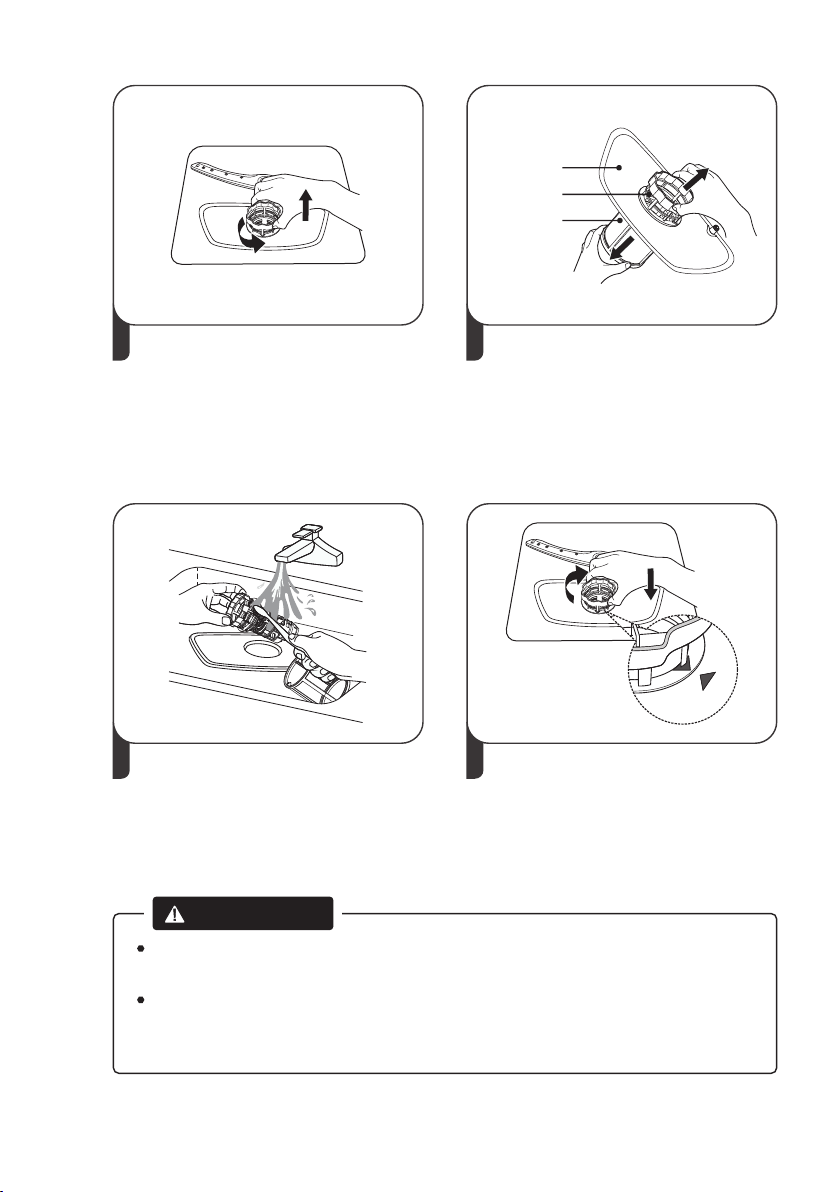

1 2
Hold the coarse filter and rotate it
anticlockwise to unlock the filter.
Lift the filter upwards and out of
the dishwasher.
The fine filter can be pulled off the
bottom of the filter assembly.
The coarse filter can be detached
from the main filter by gently
squeezing the tabs at the top and
pulling it away.
3 4
Larger food remnants can be
cleaned by rinsing the filter under
running water.
For a more thorough clean, use a
soft cleaning brush.
Reassemble the filters in the reverse
order of the disassembly, replace the
filter insert, and rotate clockwise to
the close arrow.
Do not over tighten the filters. Put the filters back in sequence securely,
otherwise coarse debris could get into the system and cause a blockage.
Never use the dishwasher without filters in place. Improper replacement of
the filter may reduce the performance level of the appliance and damage
dishes and utensils.
WARNING
14
Main filter Main filter
Coarse filterCoarse filter
Fine filter
Spray arms
Wash the arms in soapy and warm
water and use a soft brush to clean
the jets. Replace them after rinsing
them thoroughly.
It is necessary to clean the spray arms regularly for hard water chemicals will clog the
spray arm jets and bearings.
To clean the spray arms, follow the instructions below:
2
3
To remove the lower spray arm, pull
out the spray arm upward.
15
1
To remove the upper spray arm,
hold the nut, rotate the arm
clockwise to remove it.
16
Caring For The Dishwasher
Frost precaution
Please take frost protection measures on the dishwasher in winter. Every time after
washing cycles, please operate as follows:
1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in
the sump.
After every wash
After every wash, turn off the water supply to the appliance and leave the door slightly
open so that moisture and odors are not trapped inside.
Remove the plug
Before cleaning or performing maintenance, always remove the plug from the socket.
No solvents or abrasive cleaning
To clean the exterior and rubber parts of the dishwasher, do not use solvents or
abrasive cleaning products. Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with
water an a little vinegar, or a cleaning product made specifically for dishwashers.
When not in use for a longtime
It is recommend that you run a wash cycle with the dishwasher empty and then remove
the plug from the socket, turn off the water supply and leave the door of the
appliance slightly open. This will help the door seals to last longer and prevent odors
from forming within the appliance.
Moving the appliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely
necessary, it can be positioned on its back.
Seals
One of the factors that cause odours to form in the dishwasher is food that remains
trapped in the seals. Periodic cleaning with a damp sponge will prevent this from
occurring.
17
INSTALLATION INSTRUCTION
Ensure the voltage and frequency of the power being corresponds to those on the
rating plate. Only insert the plug into an electrical socket which is earthed properly. If
the electrical socket to which the appliance must be connected is not appropriate for
the plug, replace the socket, rather than using a adaptors or the like as they could
cause overheating and burns.
Electrical requirements
Electrical connection
Ensure that proper earthing exists before use
About Power Connection
WARNING
For personal safety:
Do not use an extension cord or an adapter
plug with this appliance.
Do not, under any circumstances, cut or remove
the earthing connection from the power cord.
The installation of the pipes and electrical equipments should be done by professionals.
Attention
WARNING
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so could result in death or
electrical shock.
Please look at the rating label to know the rating voltage and connect the dishwasher
to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse
or circuit breaker recommended and provide separate circuit serving only this appliance.
Water Supply And Drain
Cold water connection
Connect the cold water supply hose to
a threaded 3/4(inch) connector and
make sure that it is fastened tightly in
place.
If the water pipes are new or have not
been used for an extended period of
time, let the water run to make sure
that the water is clear. This precaution
is needed to avoid the risk of the
water inlet to be blocked and damage
the appliance.
safety supply hose
ordinary supply hose
About the safety supply hose
The safety supply hose consists of the double walls. The hose's system guarantees its
intervention by blocking the flow of water in case of the supply hose breaking and
when the air space between the supply hose itself and the outer corrugated hose is
full of water.
How to connect the safety supply hose
1. Pull The safety supply hoses completely out from storage compartment located at
rear of dishwasher.
2. Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
3. Turn water fully on before starting the dishwasher.
WARNING
A hose that attaches to a sink spray can burst if it is installed on the same
water line as the dishwasher. If your sink has one, it is recommended that
the hose be disconnected and the hole plugged.
How to disconnect the safety supply hose
1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.
18
Connection Of Drain Hoses
Please securely fix the drain hose in either position A or position B
B
A
MAX 1000mm
Counter
Drain hose
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run
into the sink, making sure to avoid bending or crimping it. The height of drain pipe
must be less than 1000mm. The free end of the hose must not be immersed in water
to avoid the back flow of it.
Extension hose
Water outlet
How to drain excess water from hoses
Syphon connection
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained
directly into the sink. It will be necessary to drain excess water from hoses into a bowl
or suitable container that is held outside and lower than the sink.
Connect the water drain hose. The drain hose must be correctly fitted to avoid water
leaks. Ensure that the water drain hose is not kinked or squashed.
The waste connection must be at a height less than 100 cm (maximum) from the
bottom of the dish. The water drain hose should be fixed .
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher
could be reduced.
19
Back of dishwasher
Water Inlet
Drain Pipe
Mains Cable
20
Position The Appliance
Position the appliance in the desired location. The back should rest against the wall
behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is
equipped with water supply and drain hoses that can be positioned either to the right
or the left sides to facilitate proper installation.

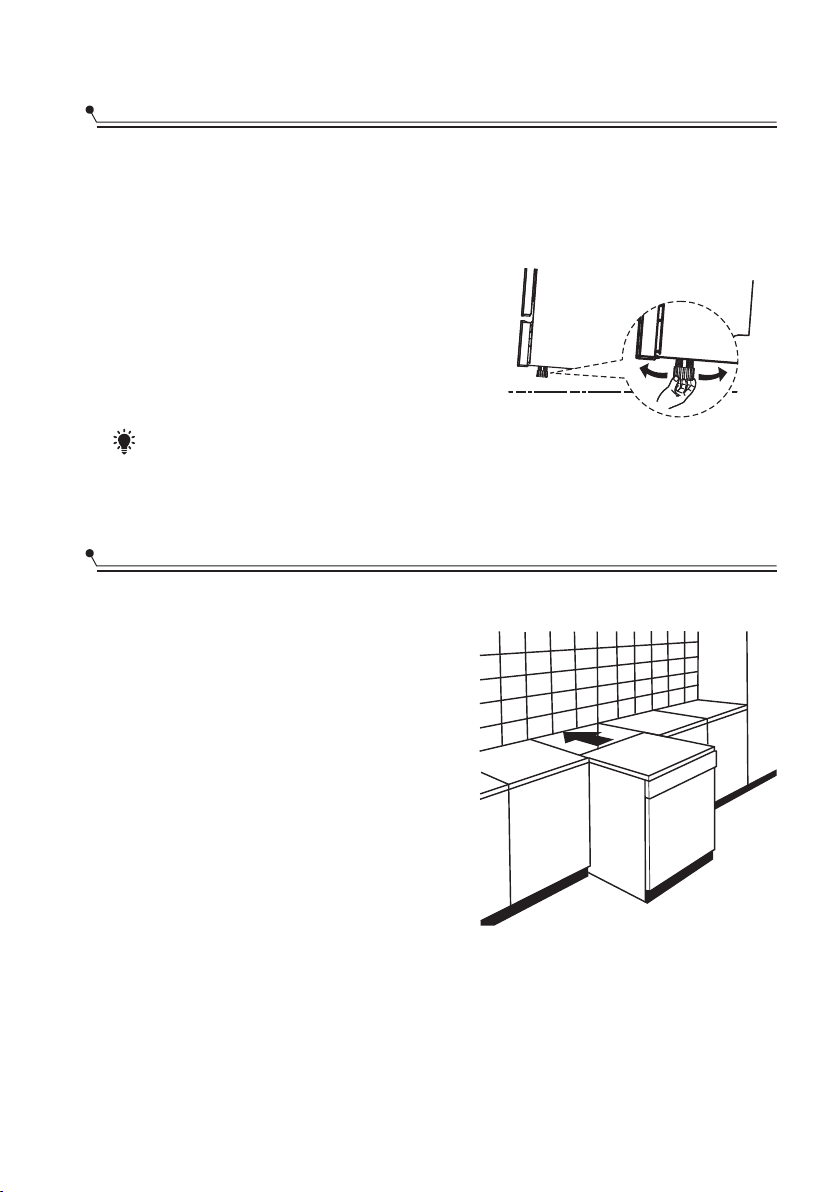

Levelling the appliance
Once the appliance is positioned for levelling,
the height of the dishwasher may be altered via
adjustment of the screwing level of the feet.
In any case, the appliance should not be inclined
more than 2°.
NOTE:
Only apply to the free standing dishwasher.
Free Standing Installation
Fitting between existing carbinets
The height of the dishwasher, 845 mm, has
been designed in order to allow the machine
to be fitted between existing cabinets of the
same height in modern fitted kitchens. The
feet can be adjusted so that correct height is
reached.
The laminated top of the machine does not
require any particular care since it is
heatproof, scratchproof and stainproof.
21
Underneath existing work top
(When fitting beneath a work top)
In most modern fitted kitchens there is only one
single work top under which cabinets and
electrical appliances are fitted. In this case remove
the work top of the dishwasher by unscrewing the
screws under the rear edge of the top (a).
a
a
b
b
After removing the work top, the screws must be screwed again under the rear edge
of the top (b).
Attention
The height will then be reduced to 815 mm, as scheduled by the International
Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top
22
TROUBLESHOOTING TIPS
Before Calling For Service
Reviewing the charts on the following pages may save you from calling for service.
Problem Possible Causes What To Do
Dishwasher doesn't
start
Fuse blown, or the
circuit break tripped.
Replace fuse or reset circuit breaker.
Remove any other appliances sharing
the same circuit with the dishwasher.
Power supply is not
turned on.
Make sure the dishwasher is turned
on and the door is closed securely.
Make sure the power cord is
properly plugged into the wall socket.
Check that the water supply is
connected properly and the water
is turned on.
Door of dishwasher
not properly closed.
Make sure to close the door
properly and latch it.
Water not pumped
form dishwasher
Twisted or trapped
drain hose.
Filter clogged.
Kitchen sink clogged.
Check the drain hose.
Check coarse the filter.
Check the kitchen sink to make sure
it is draining well. If the problem is
the kitchen sink that is not draining ,
you may need a plumber rather than
a serviceman for dishwashers.
Suds in the tub Wrong detergent.
Water pressure is low
Use only the special dishwasher
detergent to avoid suds. If this occurs,
open the dishwasher and let suds
evaporate. Add 1 gallon of cold water
to the bottom of the dishwasher.
Close the dishwasher door, then select
any cycle. Initially, the dishwasher will
drain out the water. Open the door
after draining stage is complete and
check if the suds have disappeared.
Repeat if necessary.
23
Spilled rinse-aid. Always wipe up rinse-aid spills
immediately.
Stained tub interior Detergent with
colourant may
have been used.
Make sure that the detergent has no
colourant.
White film on
inside surface
Hard water minerals. To clean the interior, use a damp
sponge with dishwasher detergent
and wear rubber gloves. Never use
any other cleaner than dishwasher
detergent otherwise, it may cause
foaming or suds.
There are rust
stains on cutlery
The affected items
are not corrosion
resistant.
A program
was not run after
dishwasher salt was
added. Traces of
salt have gotten
into the wash cycle.
Always run a wash program
without any crockery after adding
salt. Do not select the Turbo function
(if present), after adding dishwasher
salt.
The lid of the softer
is loose.
Check the softener lid is secure.
Problem Possible Causes What To Do
Avoid washing items that are not
corrosion resistant in the dishwasher.
Knocking noise in
the dishwasher
A spray arm is knocking
against an item in a
basket
Interrupt the program and
rearrange the items which are
obstructing the spray arm.
Rattling noise in
the dishwasher
Items of crockery
are loose in the
dishwasher.
Interrupt the program and
rearrange the items of crockery.
Knocking noise in
the water pipes
This may be caused
by on-site installation
or the cross-section
of the piping.
This has no influence on the
dishwasher function. If in doubt,
contact a qualified plumber.
The dishes
are not clean
The dishes were not
loaded correctly.
See PART Ⅱ “Preparing And Loading
Dishes”.
The program was
not powerful enough.
Select a more intensive program.
24
Not enough detergent
was dispensed.
Use more detergent, or change
your detergent.
Items are blocking
the movement of
the spray arms.
Rearrange the items so that the spray
can rotate freely.
The filter combination
is not clean or is not
correctly fitted in the
base of wash cabinet.
This may cause the spray
arm jets to get blocked.
Clean and/or fit the filter correctly.
Clean the spray arm jets.
Cloudiness on
glassware.
Combination of soft
water and too much
detergent.
Use less detergent if you have soft
water and select a shorter cycle to
wash the glassware and to get
them clean.
Problem Possible Causes What To Do
The dishes
are not clean.
White spots
appear on dishes
and glasses.
Add more detergent.
Black or grey
marks on dishes
Aluminium utensils
have rubbed against
dishes
Use a mild abrasive cleaner to
eliminate those marks.
Hard water area
can cause limescale
deposits.
Improper loading Load the dishwasher as suggested in
the directions.
Dishes are removed
too soon
Do not empty your dishwasher
immediately after washing. Open
the door slightly so that the steam
can come out. Take out the dishes
until the inside temperature is safe
to touch. Unload the lower basket
first to prevent the dropping water
from the upper basket.
Detergent left in
dispenser
Dishes block
detergent dispenser
Re-loading the dishes properly.
The dishes aren't
drying
Problem
Wrong program has
been selected.
With a short program, the
washing temperature is lower,
decreasing cleaning performance.
Choose a program with a long
washing time.
Use of cutlery with a
low-quality coating.
Water drainage is more difficult with
these items. Cutlery or dishes of this
type are not suitable for washing in
the dishwasher.
Possible Causes What To Do
25
The dishes aren't
drying
1.Upper basket:
2.Lower basket:
1
2
3
4
5
6
Cups
Small serving bowl
Medium serving bowl
Saucers
Glasses
Large serving bowl
Item
Number
LOADING THE BASKETS
7
8
9
10
11
Dessert dishes
Dinner plates
Soup plates
Oval platter
Cutlery basker
Item
Number
66
33
22
11
33
33
44
55
RackRack
11
33
11
77
77
99
88
88
1010
77
1111
26
3.Cutlery rack:
1 32 6444 5 7 8
1
2
3
4
5
6
7
8
Soup spoons
Forks
Knives
Teaspoons
Dessert spoons
Serving spoons
Serving forks
Gravy ladles
Item
Number
Information for comparability
Capacity: 13 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: 6
Softener setting: H3
Please place the light flat wares on the shelf. The total weight is less than 1.5kg.
22
3
66
66
4.Cutlery basket:
44
77
11 11 11 11
11
11
11 11 11
11 11 11 11
22 22 22
33 33 33
44 44
44 44 44 44
4444444444
44
55 55
55 55
55 55 55 55 55
55
55 55 55
88
NOTE:
27
PART Ⅱ: Special Version
TORRINO
CONTENTS
ERROR CODES
NOTE:
If you cannot solve the problems by yourself, please ask for help from a
professional technician.
The manufacturer, following a policy of constant development and updating of
the product, may make modifications without giving prior notice.
If lost or out-of-date, you can receive a new user manual from the manufacturer
or responsible vendor.
PROGRAMMING THE DISHWASHER
Wash Cycle Table
Starting A Cycle Wash
Changing The Program Mid-cycle
Forget To Add A Dish?
USING YOUR DISHWASHER
Control Panel
Water Softener
Preparing And Loading Dishes
Function Of The Rinse Aid And Detergent
Filling The Rinse Aid Reservoir
Filling The Detergent Dispenser
4
4
6
12
7
10
11
13
13
14
14
15
TECHNICAL INFORMATION
17
16
WARRANTY TERMS AND CONDITIONS
19
5

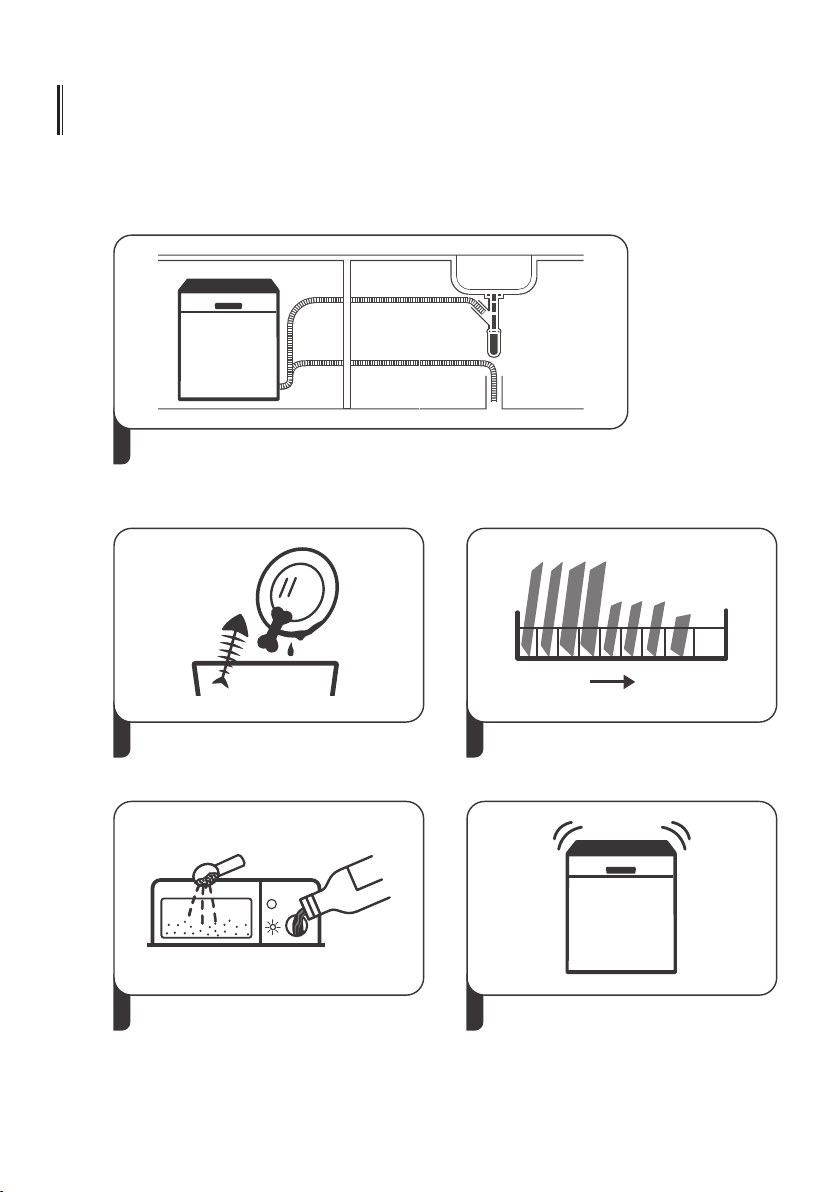

QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.
2
Removing the larger residue on the
cutlery
3
Loading the baskets
4
Filling the dispenser Selecting a program and running
the dishwasher
Inside Outside
3
1
Install the dishwasher
(Please check the section 5 “INSTALLATION INSTRUCTION ”
of PART Ⅰ: Generic Version.)
USING YOUR DISHWASHER
Control Panel
Operation (Button)
Power
Child lock
Function
Press this button to turn on your dishwasher.
This option allows you to lock the buttons on the control panel -
except the Power button - so children cannot accidently start the
dishwasher by pressing the buttons on the panel.
To lock or unlock the buttons on the control panel, press and
hold the Half-load button + Extra drying button for 3 seconds
simultaneously.
Press the button to select the”Extra Drying” function,
“ ” indicator will be lit.
This function can make the drying effect better. (It can only be
used with Intensive, ECO, Glass and 90 min.)
4
1
6
4
Program
Select the appropriate washing program, the selected program
indicator will be lit.
2
Delay
Press the Delay button to increase the delay start time. Delay a
cycle for up to 24 hours in one-hour increments.
3
Half-load
When you have about or less than 6 place setting dishware to
wash, you can choose this function to save energy and water.
(It can only be used with Intensive, ECO, Glass and 90 min.)
5
To start the selected washing program or pause it when the
dishwasher is working.
Start/Pause7
1 2 3 4 5 76
9
10
8
Rapid
A shorter wash for lightly soiled loads that do not
need drying.
90 min
For normally soiled loads that need quick wash.
Display
Program
indicator
5
8
Glass
For lightly soiled crockery and glass.
Intensive
For heaviest soiled crockery, and normally soiled pots,
pans, dishes etc. With dried-on food.
ECO
This is standard program, it is suitable to clean normally
soiled tableware and it is the most efficient program
in terms of its combined energy and water consumption
for that type of tableware.
Warning
indicator
9
Screen10
To show the reminding time, delay time, error code etc.
Self-Cleaning
This program provides an effective cleaning of the
dishwasher itself.
Soak
To rinse dishes that you plan to wash later that day.
Water Faucet
Salt
If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher salt and needs to be refilled.
Rinse Aid
If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher rinse aid and requires a refill.
If the “ ” indicator is lit, it means the water faucet closed.
Water Softener
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which
would have a detrimental or adverse effect on the operation of the appliance.
The more minerals there are, the harder your water is.
The softener should be adjusted according to the hardness of the water in your area.
Your local Water Authority can advise you on the hardness of the water in your area.
Adjusting salt consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed
based on the hardness of the water used. This is intended to optimise and customise
the level of salt consumption.
1. Switch on the appliance;
2. Press the Start/Pause button for more than 5 seconds to start the water softener set
model within 60 seconds after the appliance was switched on;
3. Press the Start/Pause button to select the proper set according to your local
environment, the sets will change in the following sequence:
H1->H2->H3->H4->H5->H6;
4. Press the Start/Pause button to end the set up model.
Please follow the steps below for adjustment in salt consumption.
dH=1.25 Clarke=1.78 fH=0.178mmol/l
°
°
°
1
The manufactory setting: H3
Contact your local water board for information on the hardness of your water supply.
6
0 - 5
6 - 11
12 - 17
18 - 22
23 - 34
35 - 55
German
dH
German
dH
Salt consumption
(gram/cycle)
Salt consumption
(gram/cycle)
0 - 9
10 - 20
21 - 30
31 - 40
41 - 60
61 - 98
0 - 6
7 - 14
15 - 21
22 - 28
29 - 42
43 - 69
0 - 0.94
1.0 - 2.0
2.1 - 3.0
3.1 - 4.0
4.1 - 6.0
6.1 - 9.8
0
9
12
20
30
60
French
fH
French
fH
Mmol/lMmol/l
Water softener levelWater softener level
British
Clarke
British
Clarke
WATER HARDNESS
H1
H2
H3
H4
H5
H6
NOTE:
If your model does not have any water softener, you may skip this section.
Water Softener
The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container
specifically designed to eliminate lime and minerals from the water.
Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolor during washing
Glazed patterns may fade if machine washed frequently
For washing the following cutlery/dishes
Are not suitable
Are of limited suitability
7
Please check the section 3 “Loading The Salt Into The Softener”
of PART Generic Version, If your dishwasher lacks salt.Ⅰ:
Please check the section 3 “Loading The Salt Into The Softener”
of PART Ⅰ: Generic Version, If your dishwasher lacks salt.
Items such as cups, glasses, pots/pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded aslant so that water can run
off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotate freely during
washing.
Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage, glasses should not touch one another.
The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and / or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall
out of the basket.
To prevent water dripping from the upper basket into the lower basket, we
recommend that you empty the lower basket first, followed by the upper basket.
Removing the dishes
WARNING
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
8
Recommendations for loading the dishwasher
Scrap off any large amounts of leftover food. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from
your model.)
Place objects in the dishwasher in following way:
Loading the upper basket
The upper basket is designed to hold more delicate and
lighter dishware such as glasses, coffee and tea cups
and saucers, as well as plates, small bowls and shallow
pans (as long as they are not too dirty). Position the
dishes and cookware so that they will not get moved by
the spray of water.
9
WARNING
Do not let any item extend through
the bottom.
Always load sharp utensils with the
sharp point down!
Loading the cutlery basket
Cutlery should be placed in the cutlery rack separately from each other in the
appropriate positions, and do make sure the utensils do not nest together, this may
cause bad performance.
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Generic VersionⅠ:
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Ⅰ: Generic Version
Loading the lower basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and bowls,
as shown in the figure below. It is preferable to place
serving dishes and lids on the side of the racks in order to
avoid blocking the rotation of the top spray arm.
The maximum diameter advised for plates in front of the
detergent dispenser is of 19 cm, this not to hamper the
opening of it.
The rinse aid is released during the final rinse to prevent water from forming droplets
on your dishes, which can leave spots and streaks. It also improves drying by allowing
water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
WARNING
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser
with any other substances (e.g. Dishwasher cleaning agent, liquid detergent).
This would damage the appliance.
Function Of The Rinse Aid And Detergent
10
When to refill the rinse aid dispenser
Unless the rinse-aid warning light ( ) on the control
panel is on, you can always estimate the amount from the
color of the optical level indicator located next to the cap.
When the rinse-aid container is full, the indicator will be
fully dark. The size of the dark dot decreases as the rinse-
aid diminishes. You should never let the rinse aid level be
less than 1/4 full.
Full
3/4 full 1/2 full 1/4 full
Empty
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are
suitable for this purpose.
WARNING
Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent
fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash
dishes.
Dishwasher detergent is corrosive! Keep dishwasher
detergent out of the reach of children.
Rinse aid level indicator
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator
changes, as illustrated below.
11
3
Close the rinse aid reservoir cap by
rotating it clockwise.
NOTE:
Clean up any spilled rinse aid with
an absorbent cloth to avoid
excessive foaming during the next
wash.
1 2
Remove the rinse aid reservoir cap
by rotating it counterclockwise.
Carefully pour in the rinse-aid into
its dispenser, whilst avoiding it to
overflow.
Filling The Rinse Aid Reservoir
Adjusting the rinse aid reservoir
Turn the rinse aid indicator dial to a number. The higher the
number, the more rinse aid the dishwasher uses.
If the dishes are not drying properly or are spotted, adjust the
dial to the next higher number until your dishes are spot-free.
Reduce it if there are sticky whitish stains on your dishes or a
bluish film on glassware or knife blades.
12
Filling The Detergent Dispenser
1 2
Press the release catch on the detergent
dispenser to open the cover.
Push latch to open
AA
B
Add detergent into the larger cavity
(A) for the main wash cycle .
For more heavily soiled wash loads,
also add some detergent into the
smaller cavity (B) for the pre-wash
cycle .
3
Close the cover and press on it until
it locks into place.
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.
PROGRAMMING THE DISHWASHER
Wash Cycle Table
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs.
( )Means: need to fill rinse into the Rinse-Aid Dispenser.
Program
Running
Time(min)
Energy
(Kwh)
Water
(L)
Description
Of Cycle
Rinse
Aid
Detergent
Pre/Main
13
170
225
30
1.6
0.92
0.75
17.5
11
11
Pre-wash(50℃)
Wash(60℃)
Rinse
Rinse
Rinse(70℃)
Drying
Pre-wash
Wash(45℃)
Rinse(60℃)
Drying
Wash(45℃)
Rinse(50℃)
Rinse(55℃)
20g
(1 or 2 pieces)
5/25g
(1 or 2 pieces)
5/25g
90 1.35 12.5
130 0.9 13
Pre-wash
Wash(40℃)
Rinse
Rinse(60℃)
Drying
5/25g
(1 piece)
Wash(65℃)
Rinse
Rinse(65℃)
Drying
30g
(1 piece)
Intensive
(*EN 5 0242)
Glass
90 min
Rapid
Self-
Cleaning
100 1.2 11
Wash(70℃)
Rinse(60℃)
Rinse(70℃)
30g
(1 piece)
EN 50242:
accordance with EN 50242.
This program is the test cycle. The information for comparability test in
NOTE:
Starting A Cycle Wash
1. Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page ”Product fiche”.
Make sure that the water supply is turned on to full pressure.
4. Close the door, press the Power button, to switch on the machine.
5. Choose a program, the response light will turn on. Then press the Start/Pause
button, the dishwasher will start its cycle.
Changing The Program Mid-cycle
A wash cycle can only be changed if it has been running for a short time otherwise,
the detergent may have already been released and the dishwasher may have already
drained the wash water. If this is the case, the dishwasher needs to be reset and the
detergent dispenser must be refilled. To reset the dishwasher, follow the
instructions below:
1. Press the Start/Pause button to pause the washing.
2. Press Program button for more than 3 seconds - the program will cancel.
3. Press the Program button to select the desired program.
4. Press the Start/Pause button, after 10 seconds, the dishwasher will start.
3 sec
14
Program
Running
Time(min)
Energy
(Kwh)
Water
(L)
Description
Of Cycle
Rinse
Aid
Detergent
Pre/Main
15
0.02 4
Pre-wash
/
Soak
Forget To Add A Dish?
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
1. Press the Start/Pause button to pause the washing.
2. Wait 5 seconds then open the door.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button after 10 seconds, the dishwasher will start.
After 5 sec
WARNING
It is dangerous to open the door
mid-cycle, as hot steam may
scald you.
15
16
ERROR CODES
If there is a malfunction, the dishwasher will display error codes to identify these:
Codes
Meanings
Possible Causes
Longer inlet time.
Not reaching required
temperature.
Overflow.
Malfunction of heating element .
Some element of dishwasher leaks .
E1
E3
E4
Faucets is not opened, or water intake is
restricted, or water pressure is too low.
WARNING
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water
should be removed before restarting the dishwasher.
Ed
Open circuit or break wiring for the
communication.
Failure of communication
between main PCB with
display pcb.

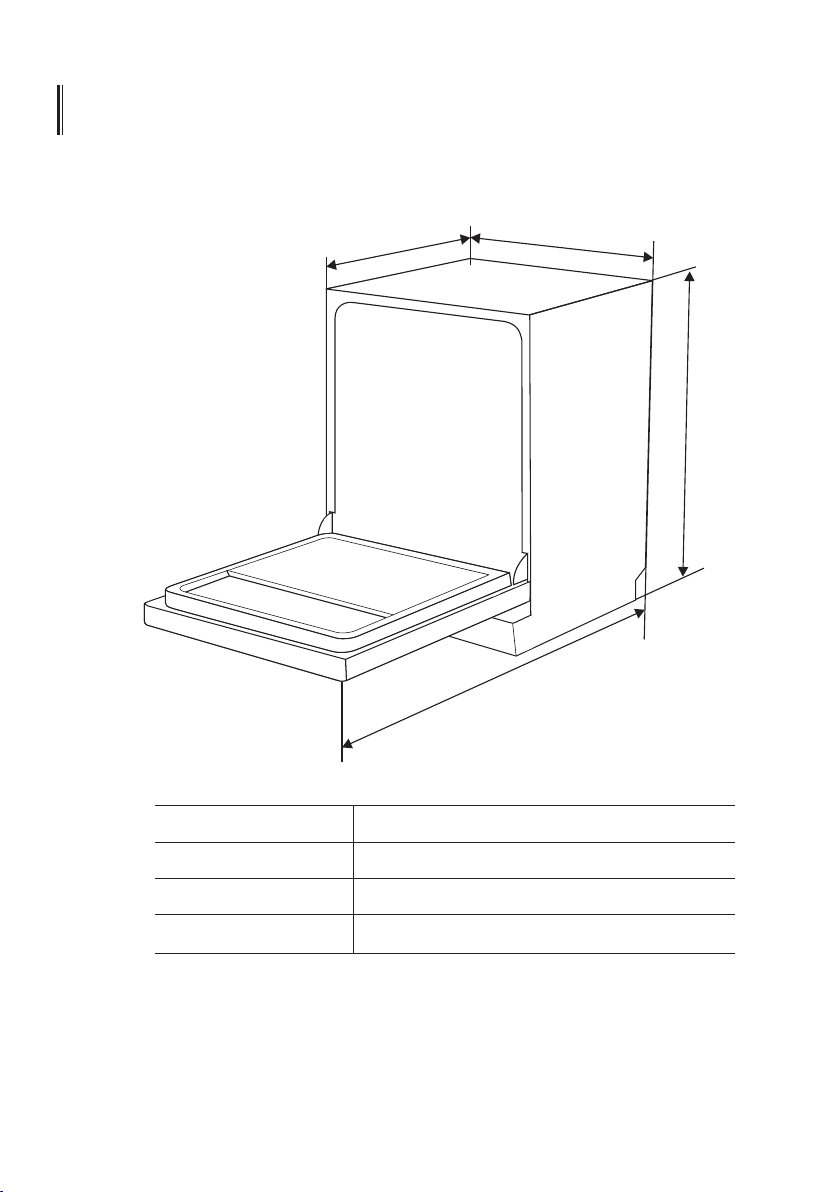

TECHNICAL INFORMATION
Height (H)
Width (W)
Depth (D1)
Depth (D2)
845mm
598mm
600mm (with the door closed)
1175mm (with the door opened 90°)
WW
D
1
D
1
H
H
17
D2D2
Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010:
A + + + (highest efficiency) to D (lowest efficiency)
Energy consumption based on 280 standard cleaning cycles using cold water fill and the
consumption of the low power modes. Actual energy consumption will depend on how the
appliance is used.
Water consumption based on 280 standard cleaning cycles. Actual water consumption will depend
on how the appliance is used.
A (highest efficiency) to G (lowest efficiency)
This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient
program in terms of its combined energy and water consumption for that type of tableware.
NOTE：
1
2
3
4
5
Product Information
18
MIDEA
13
A++
262 kWh
0.92 kWh
0.45 W
0.49W
3080 liter
A
225 min
Manufacturer
Type / Description
Standard place settings
Energy efficiency class
Annual energy consumption
Energy consumption of the standard cleaning cycle
Power consumption of off-mode
Power consumption of left-on mode
Annual water consumption
Drying efficiency class
Standard cleaning cycle
Program duration of the standard cleaning cycle
Noise level
Mounting
Rated voltage / frequency
1
2
3
4
5
ECO 45℃
52 dB(A) re 1 pW
Free standing
220-240V/50Hz
Water pressure (flow pressure)
0.04-1.0MPa=0.4-10 bar
Could be built-in
YES
1760-2100W
Power consumption
TORRINO
19
MIDEA INDIA PRIVATE LIMITED (hereinafter referred to as the “company”), hereby warrants to the original domestic purchaser (here in after called the “Purchaser”) of the
product(as detailed within the warranty Registration Card and herein after referred to as the “said unit”) that the said unit is free from defects in material and workmanship
under normal use and service and under specified voltage conditions , and that during a period of twenty four (24) months commencing from date of invoice , as provided in
Warranty Registration Card, the company undertakes to repair or to replace as it deems fit in sole discretion, free of charge , any part or parts of the said unit (including
accessories) which proves to be defective in material or workmanship.
CONDITIONS OF WARRANTY
1. The warranty shall be valid if and only if the purchaser has duly intimated
the fault to the company or its authorized dealer and that the unit is in the
possession of and is used by the Purchaser.
2. At the time of repair/service, the Purchaser is mandatorily required to show
the original invoice to the authorized service personnel of the Company. If
the Purchaser fails to do so, then all repair work and service shall be carried
out on a chargeable basis;
3. The warranty will shall be valid only for the said period as specified above,
irrespective of whether the said unit has been in use or not for any reason
whatsoever, or the unit is moved from one location to another. The
warranty period specified above shall include time taken for repairs,
replacements, testing of unit, technical breakdowns, transit time etc. This
warranty shall automatically expire by efflux of time on completion of the
period indicated herein above and no notice of such expiry will be given by
the company.
4. This warranty shall stand automatically terminated in the event of the said
unit being serviced, repaired, installed, de-installed, re-installed or otherwise
attended to by any person, organization, agency or by the Purchaser himself
(by whatever name called), other than the authorized representative/Dealer
of the company.
5. Parts of the units replaced or repaired under the terms of this warranty are
warranted only for the remaining period of the original warranty period.
6. For attending any service call under this warranty beyond the Municipal limit
of the locality in which the authorized representative/dealer is situated
(outstation locations), all to & fro travelling and other incidental expenses as
prevailing from time to time incurred in connection with visit of service
personnel, technicians etc., shall be borne by the purchaser and shall be
payable in advance. Additionally, all expenses incurred by authorized
representative/dealer in collecting the unit or any part thereof from such
outstation locations and its return to the original location shall be borne
exclusively by the Purchaser.
7. Any damage/fault caused due to sabotage, improper handling or treatment,
carelessness, accident fire, flood, earthquake or any act of god, or any
corrosive action on the original fittings, valves etc. for whatever reasons ,
shall not be covered under this warranty.
8. While the Authorized Dealers/Company will make every effort to carry out
repairs/replacement of parts under this warranty as soon as the complaint is
received, it is expressively made clear that the Authorized Dealer/Company
shall not be liable to do so within any specified period of time.
9. It shall be absolute discretion of the company to (a) effect the repairs or
replacement of parts whether at the site of installation or at any service
center; and (b) have the job attended to either by the Company’s service
personnel or its authorized dealers/service centers. (c) This warranty shall be
strictly limited to the repairs or replacement of defective parts specified in
the warranty. This warranty shall not cover any consequential or resulting
liability.(d) The warranty shall not in any case extend towards payments of
an monetary consideration whatsoever or replacement or return of the
product. (e) The parts shall be replaced by functionally operating equivalent
material only and the same may be different from the one originally fitted.
The parts replaced during warranty period shall be taken back by the
company at its sole discretion.
10. This warranty is in the nature of and for the purpose as set forth herein
above and in particular, the Company shall not in any event be liable for any
indirect, incidental or consequential loss or damages to the said purchaser
and/or his property or any other third party in course of attending to any
complaint.
11. In the event of any change in the location of the unit, during the warranty
period, this warranty shall become null and void unless the fact of the
proposed change is communicated in writing to the authorized dealer at
least seven (7) days prior to the said change. On receipt of such information,
the authorized dealer or any of its counterparts shall arrange for de-
installation of the said unit on a chargeable basis. However, it is expressly
stated that in the event of any damage occurring to the unit or to any of its
parts during the course of its transit by the Purchaser, repair or replacement
of the said unit or any part thereof so damaged shall not be covered by this
warranty.
12. While the Authorized Dealers/Company will make every effort to carry out
repairs/replacement of parts under this warranty as soon as the complaint is
received, it is expressly made clear that the Authorized Dealer/Company shall
not be liable to do so within any specified period of time.
13. Exclusions from warranty:
i. Noise or vibration that is considered normal for product operations like
warning beeps, water drain sound , spin sound etc.;
ii. Correcting the installation, for example levelling the product,
adjustment of inlet tap/drain hose etc.;
iii. Normal Maintenance which is recommended by the user’s manual;
iv. Removal of foreign objects/substances from the machine, including
the pump and inlet hose filter for example grit, nails buttons etc.;
v. Replace fuses in or correct house wiring or correct house plumbing;
vi. On-line filter, inlet/exhaust extension hoses , tap adapter , extended
power supply cable, adjustment feet cover etc. thereof;
vii. This warranty does not cover any type of painting, plating including
rusting etc. or defects thereof.
viii. Plastic & glass parts such as door, Lid assembly, Control Panel ,
Window, Knobs, Cabinet , Dispenser assembly , Drain Pipe , Lint Filter ,
Wheels / Foot etc. are also not covered in warranty.
14. Limitation of Warranty : Company shall not be responsible for providing
any warranty under the following situations :
i. If the product is used for commercial purpose. (example: Public places
such as hotels, lodging house, restaurants, dormitory etc.);
ii. Any damage caused by any accident, mishandling, tampering with
installation, or negligent in following instructions of the user manual
issued by the company. If the products has been
installed/serviced/repaired/opened or tampered by any unauthorized
personnel;
iii. Any damage caused by power surges and dips, improper electric
circuit outside the unit or by any defective electrical supply.
iv. If the defect is caused by insects, rats, birds, squirrels, pests or any
other external factors like fire, flood, earthquake, lightening and /or
any other act of God/Natural calamities;
v. Any defect due to substitution of original components with duplicate,
fake or non-genuine components;
vi. At any time, during the currency of the warranty period, if any part of
the unit is tampered with altered, repaired or serviced by any
unauthorized person, not being the authorized representative of the
company or its authorized dealers;
vii. If defects arises due to optional accessories like trolleys, rat mesh ,
machine cover etc.;
viii. The serial no on the unit or any part thereof is damaged, defaced,
altered, obliterated, or tampered with or removed for any reason
whatsoever;
ix. The product is shifted outside India;
x. Damage to the product due to operation in an abnormally corrosive
alkaline/acidic atmosphere or near muddy sewages because toxic
gases are harmful for the product;
15. None of the employees and/or Authorized dealers of the Company have the
authority whatsoever to vary the terms and conditions of this warranty.
16. This warranty shall be deemed to have been issued at Gurugram in the State of
Haryana, and courts at Gurugram shall have exclusive jurisdiction on matters
covered by or following from this warranty and the Purchaser alone shall have
cause of action arising out of transaction.
WARRANTY TERMS AND CONDITIONS
COPY
MIDEA COPY
Customer
Midea India Private Limited
1 st Floor, Pearl Tower, Plot No.51, Institutional Area,
Sector-32, Gurugram, Haryana-122001, India
Phone No.:01246144300
CIN No.U31906HR2017PTC067945
Customer care No.:180041933333
