E-MANUAL
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model
Serial No.

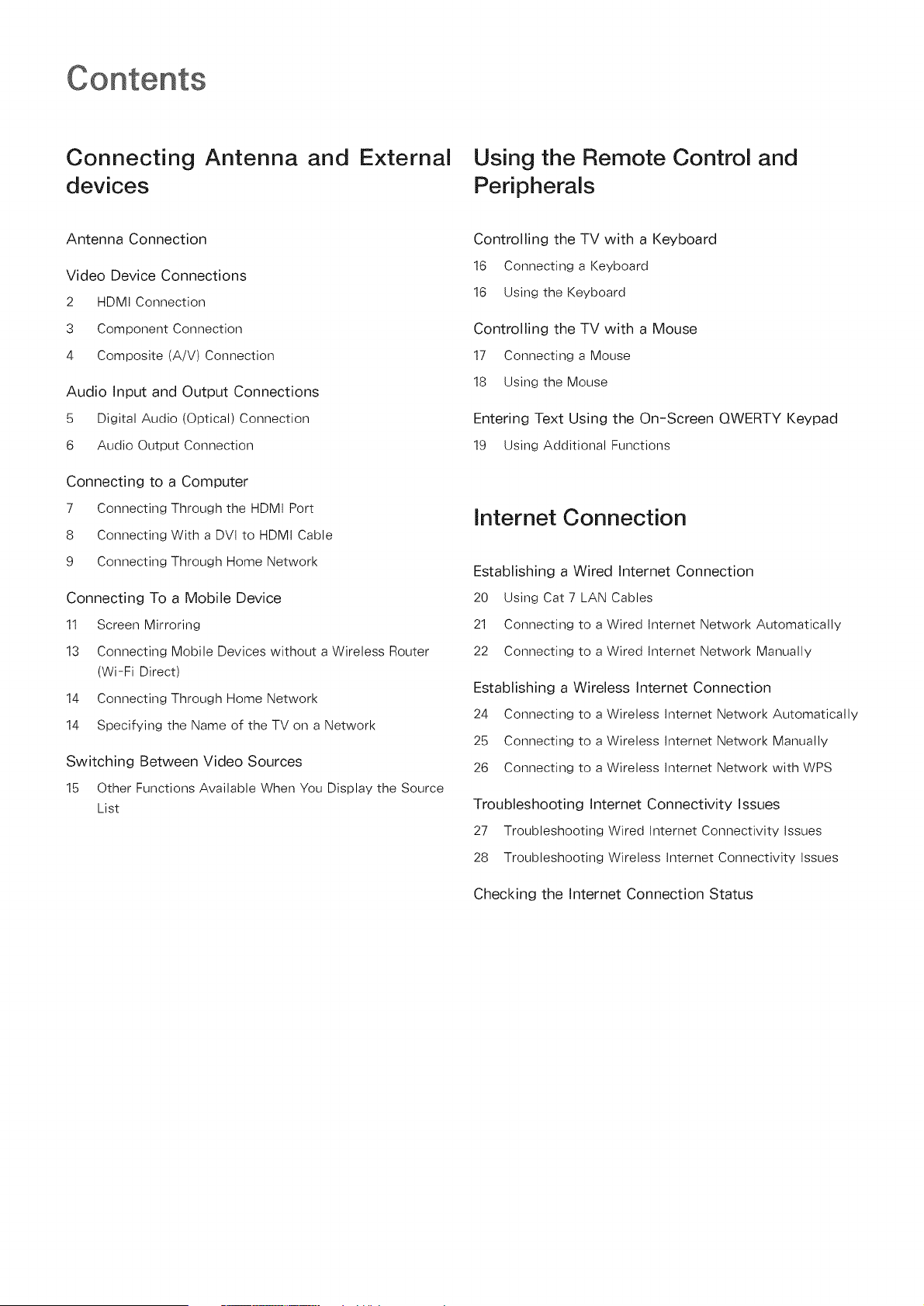

Connecting Antenna and External
devices
Using the Remote Control and
Peripherals
Antenna Connection
Video Device Connections
2 HDMI Connection
3 Component Connection
4 Composite (A/V) Connection
Audio Input and Output Connections
5 Digital Audio (Optical) Connection
6 Audio Output Connection
Connecting to a Computer
7 Connecting Through the HDMI Port

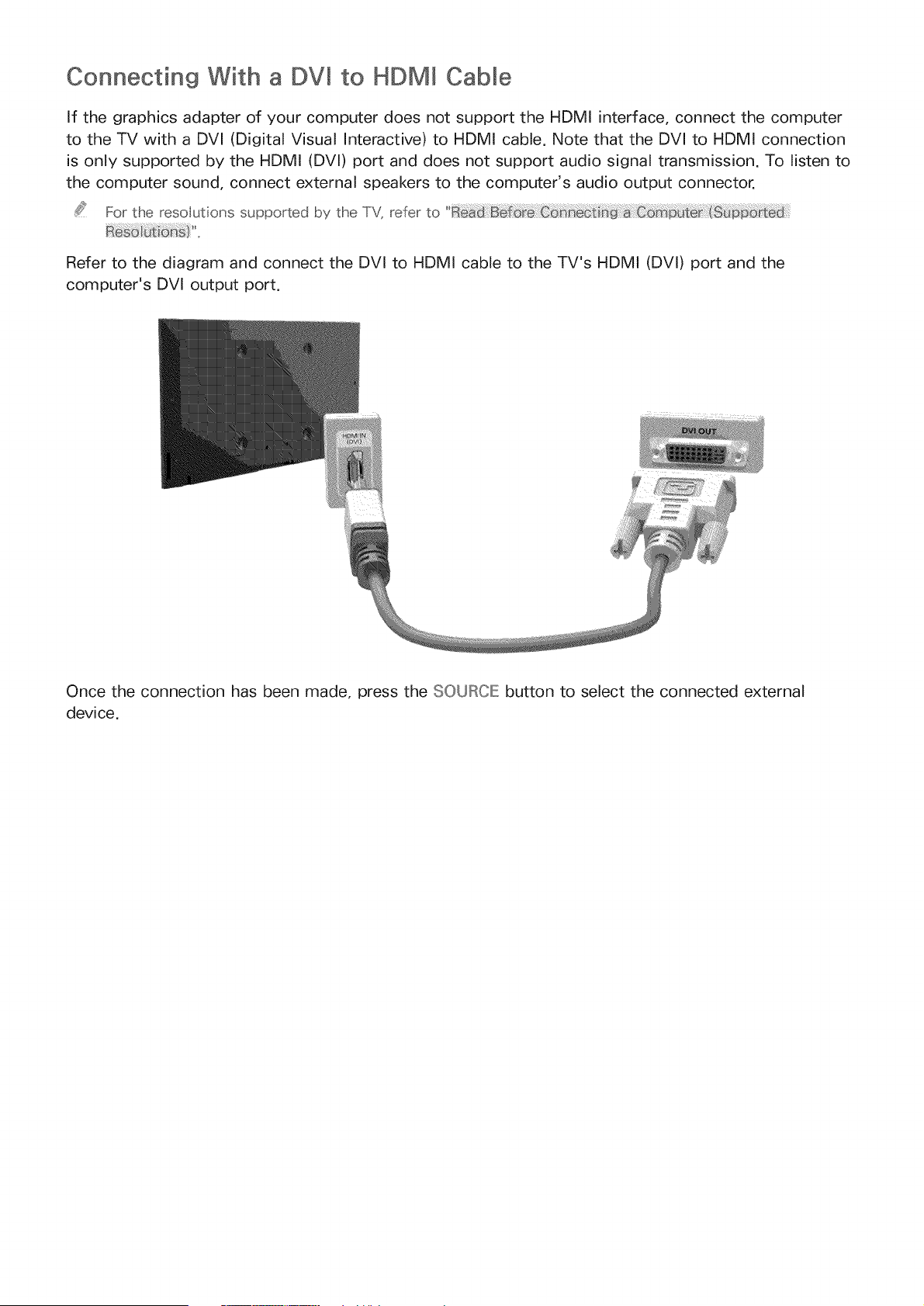

8 Connecting With a DVI to HDMI Cable

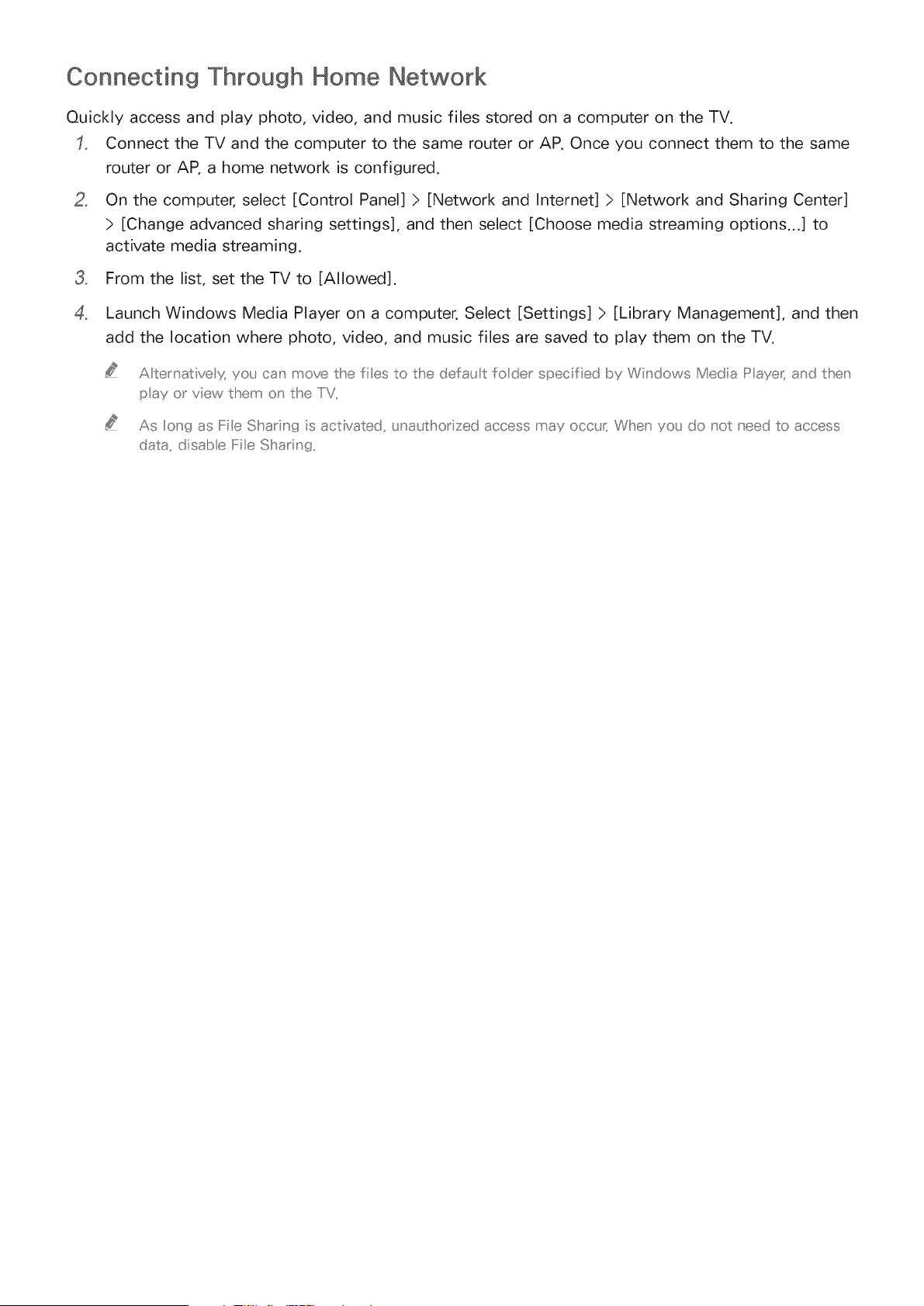

9 Connecting Through Home Network

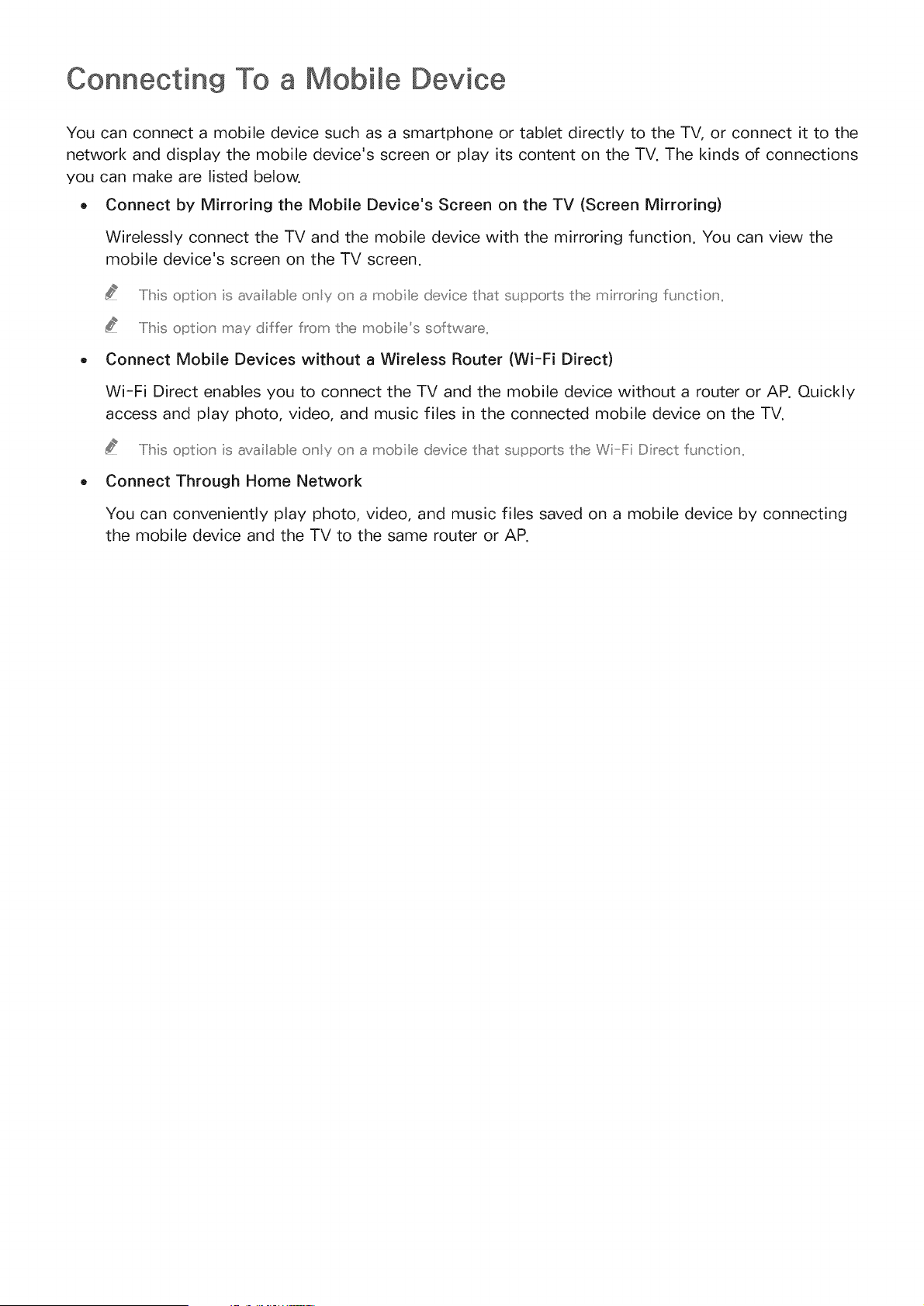

Connecting To a Mobile Device

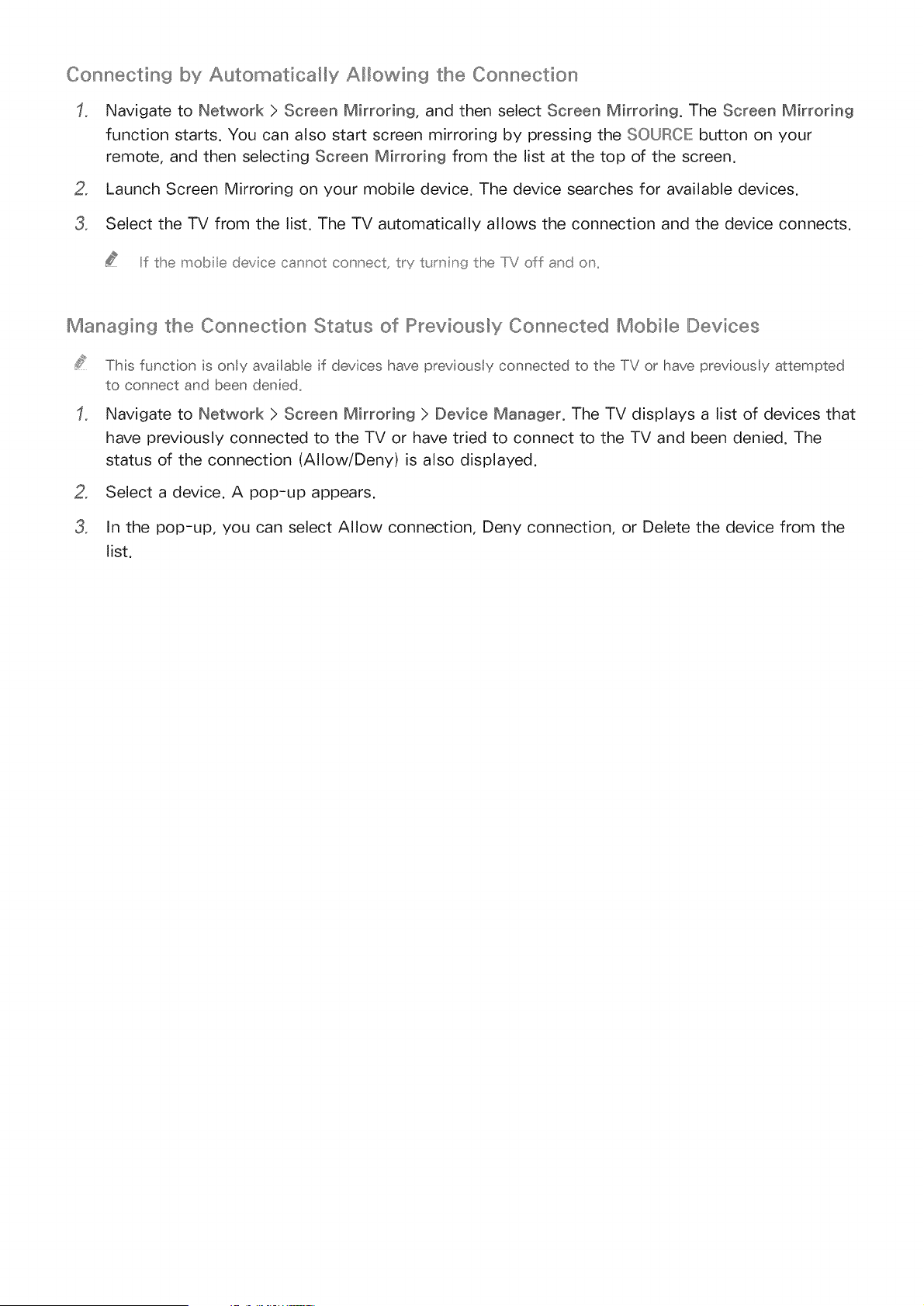

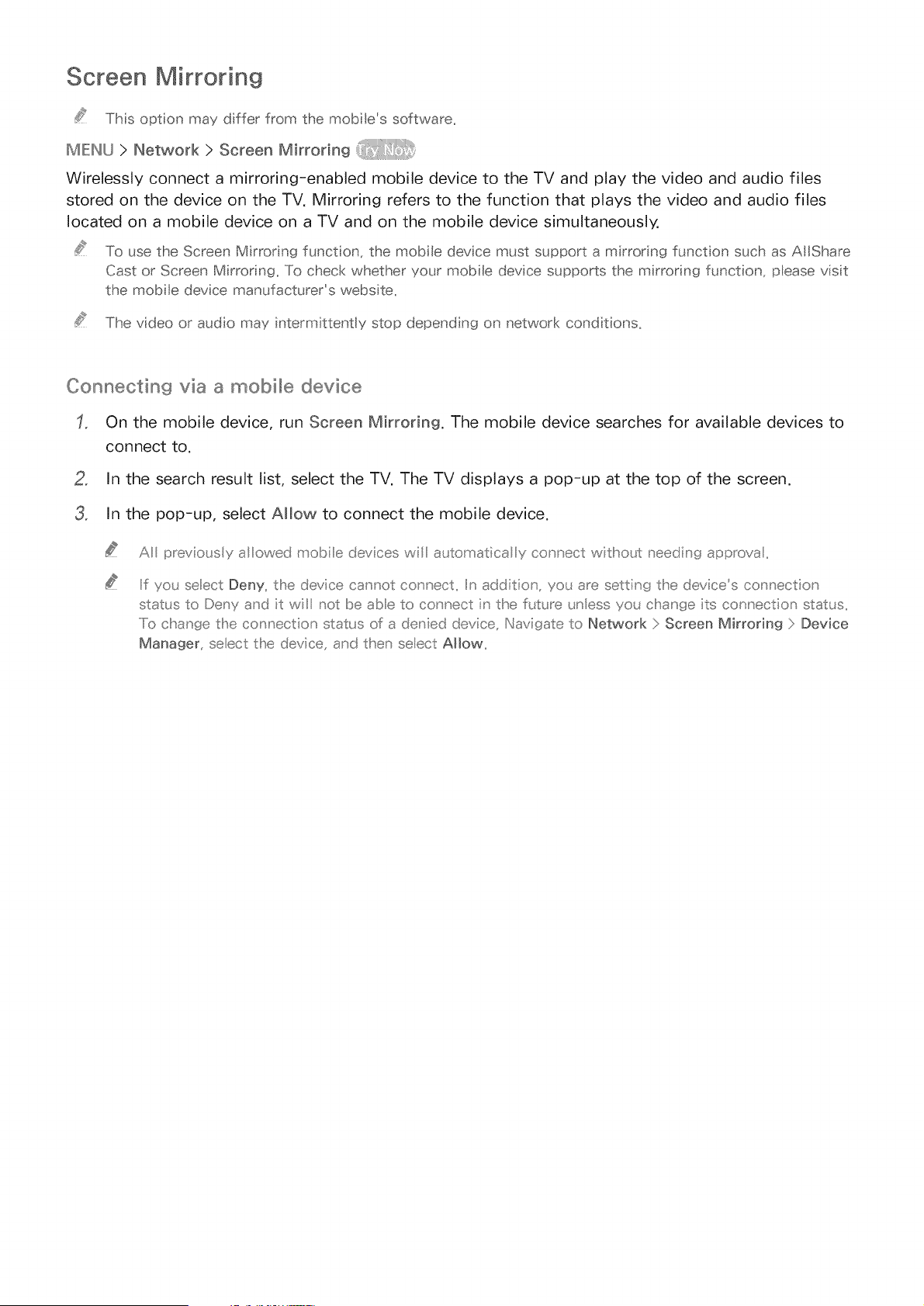

11 Screen Mirroring

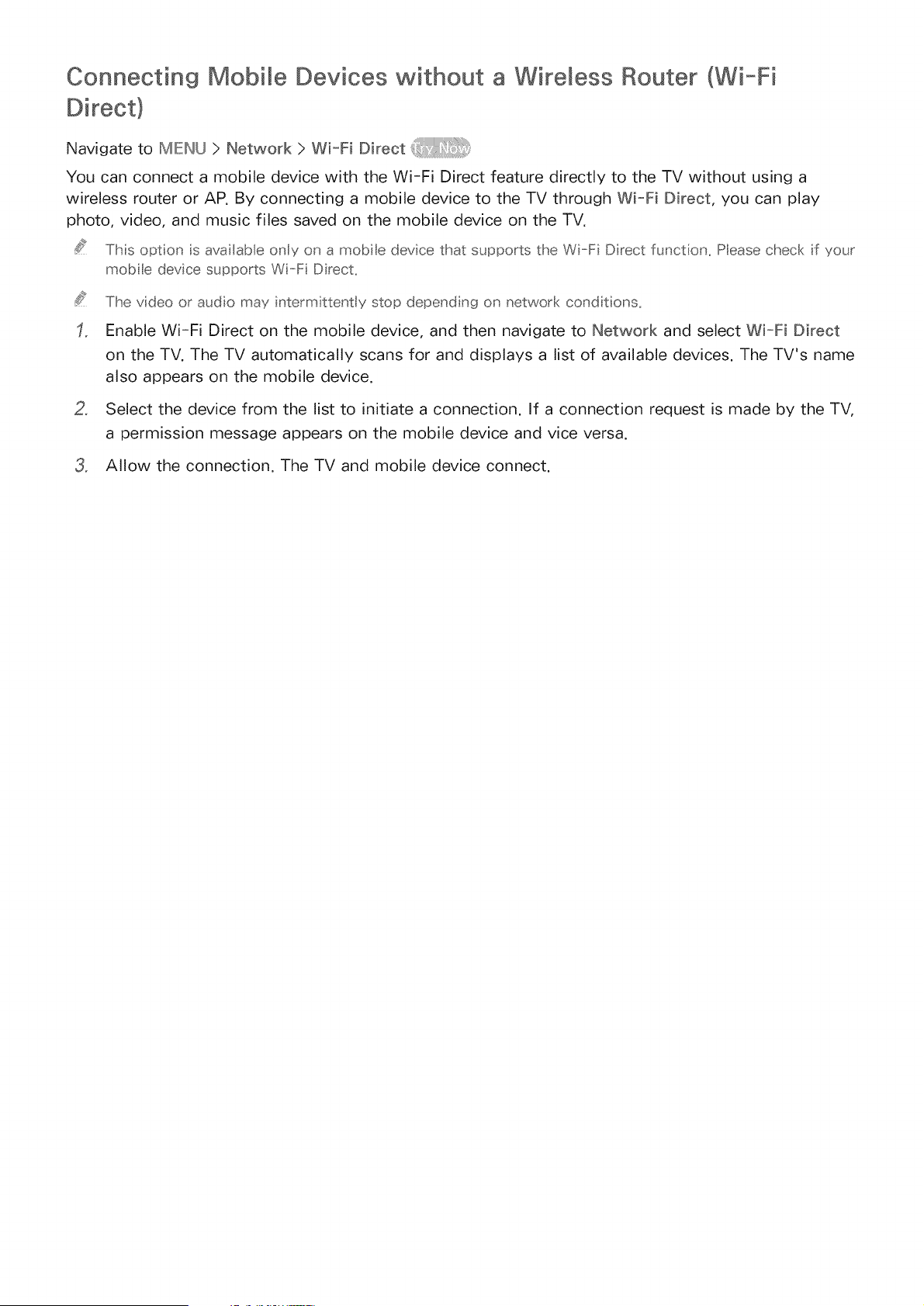

13 Connecting Mobile Devices without a Wireless Router
(Wi-Fi Direct)

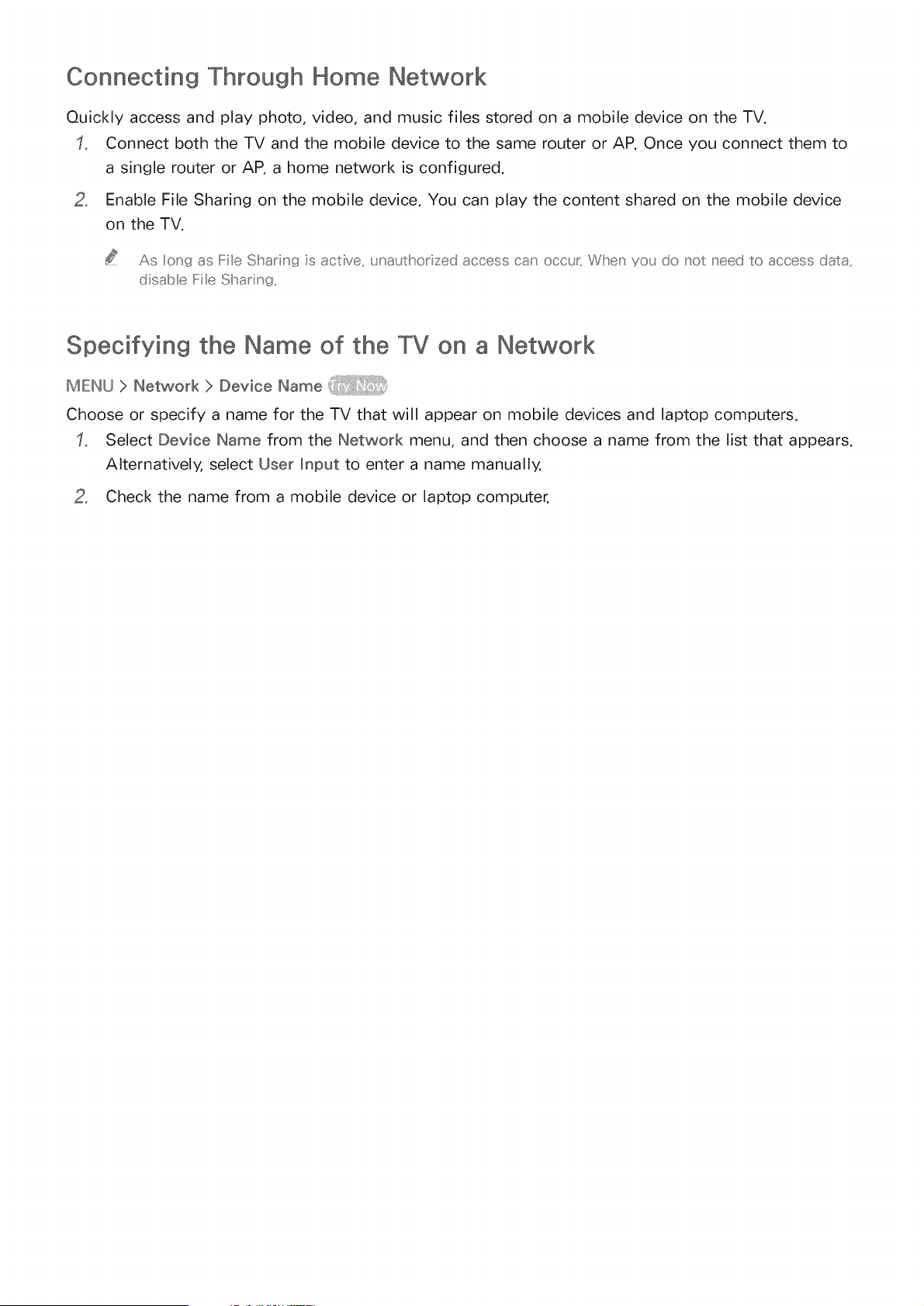

14 Connecting Through Home Network
14 Specifying the Name of the TV on a Network
Switching Between Video Sources
15 Other Functions Available When You Display the Source
List

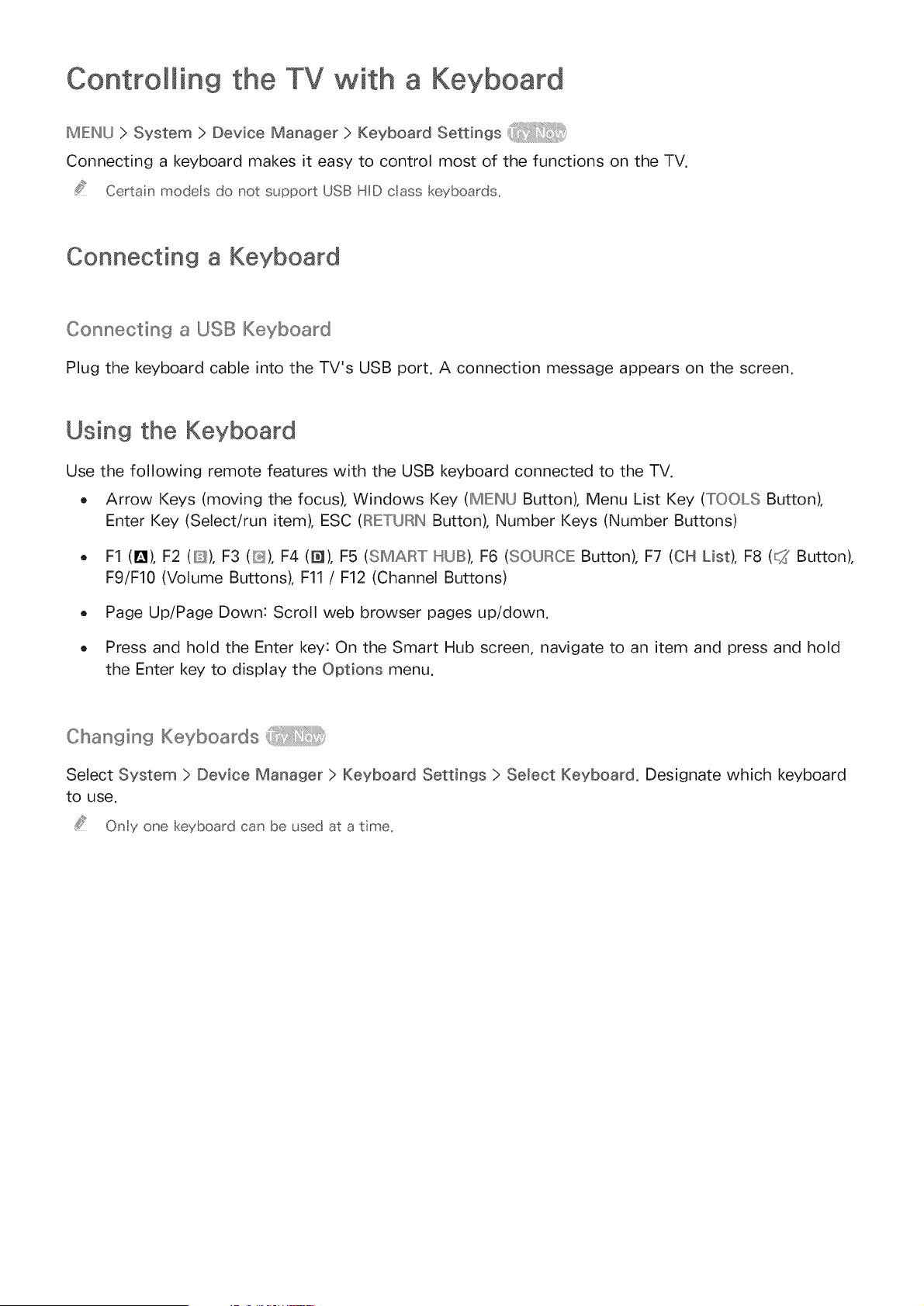

Controlling the TV with a Keyboard
16 Connecting a Keyboard
16 Using the Keyboard

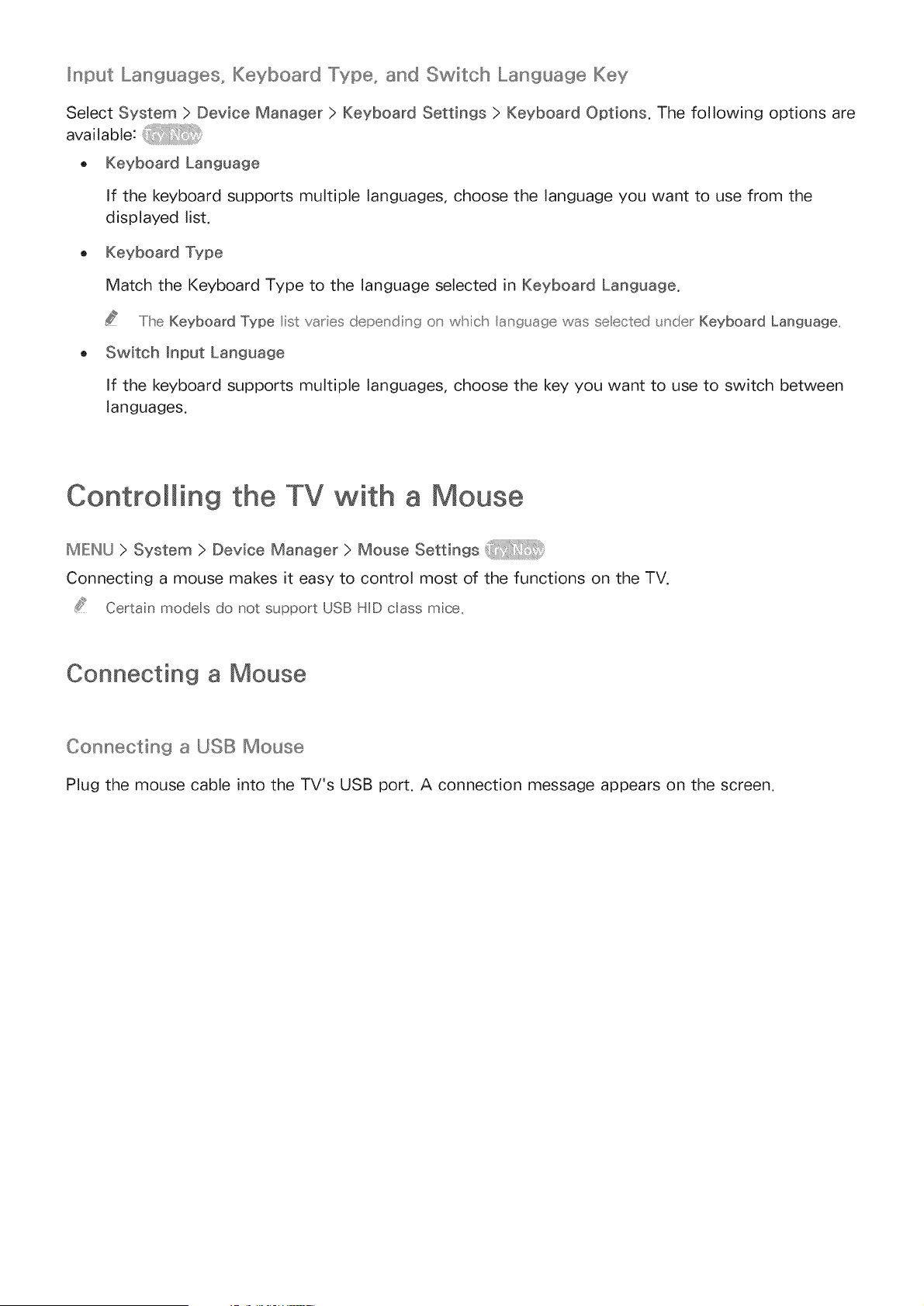

Controlling the TV with a Mouse
17 Connecting a Mouse

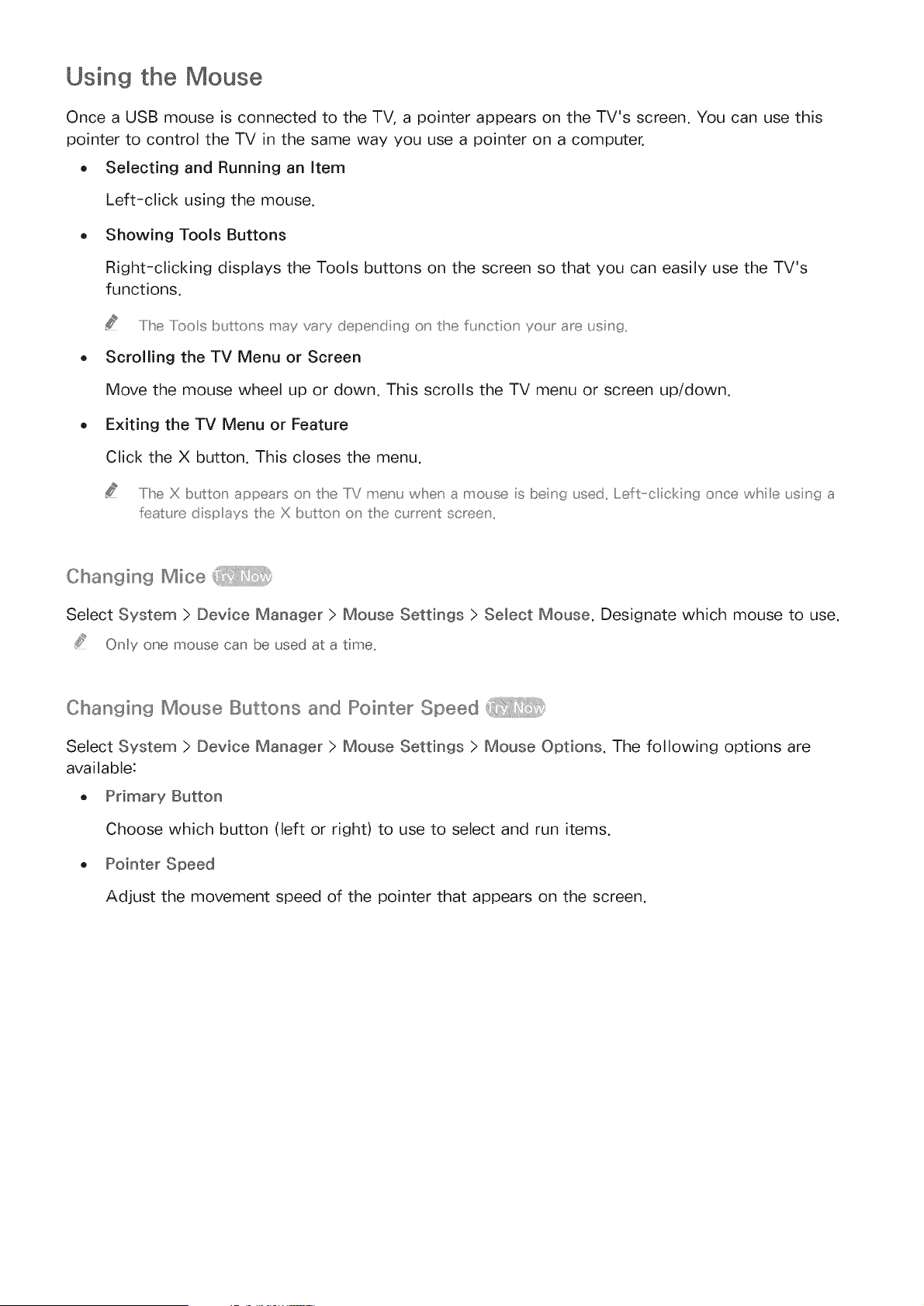

18 Using the Mouse

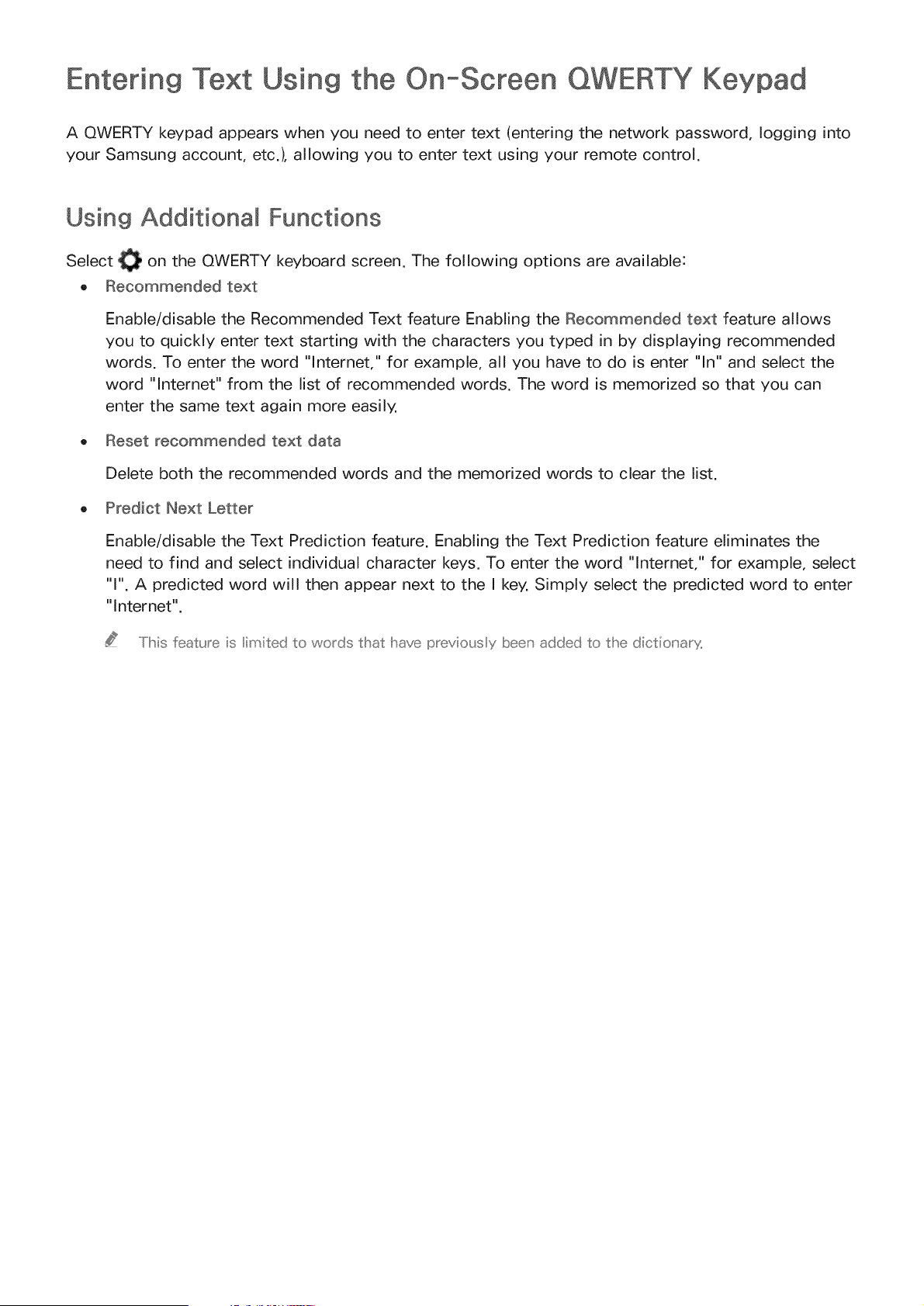

Entering Text Using the On-Screen QWERTY Keypad
19 Using Additional Functions
internet Connection

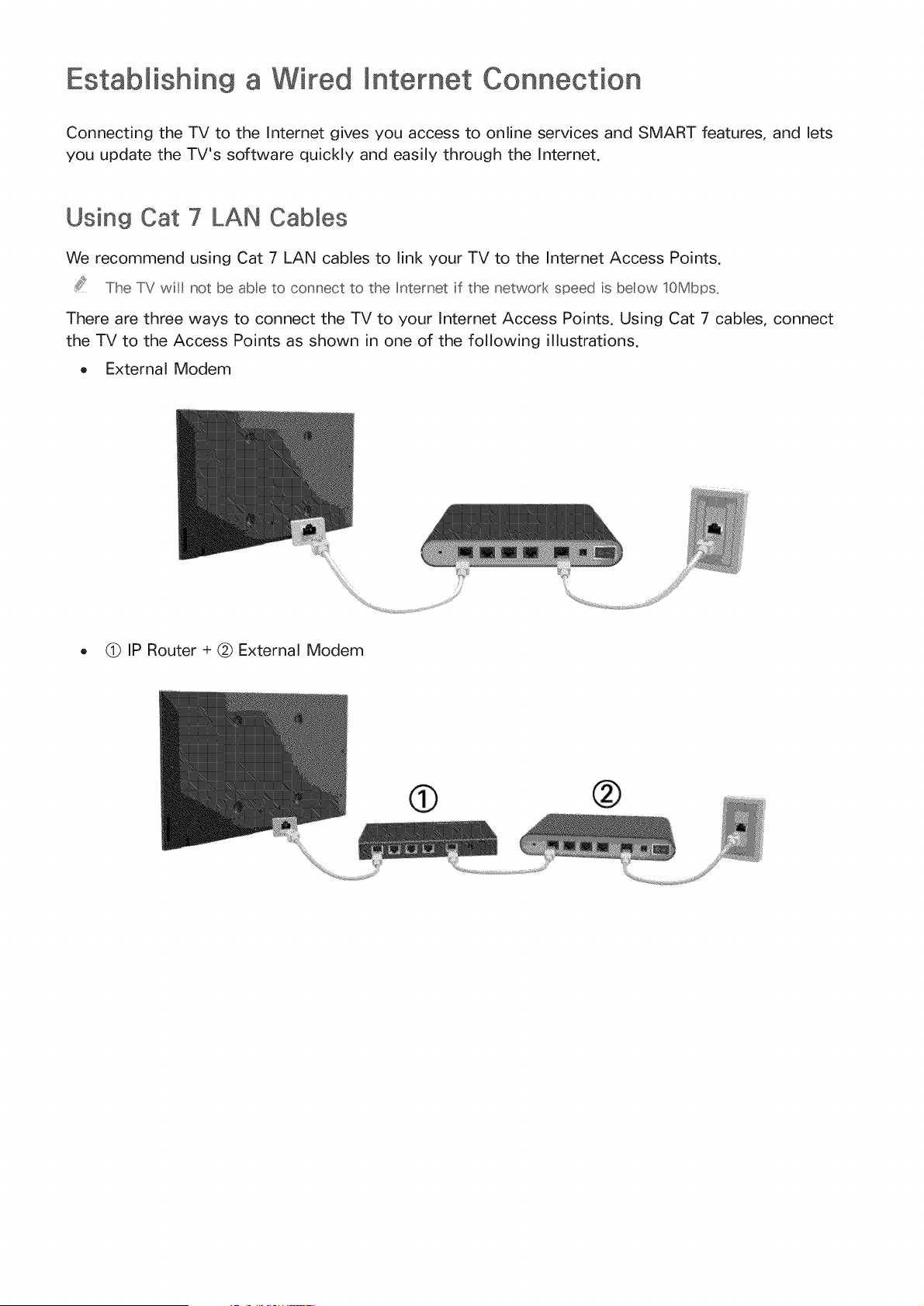

Establishing a Wired Internet Connection
20 Using Cat 7 LAN Cables
21 Connecting to a Wired Internet Network Automatically

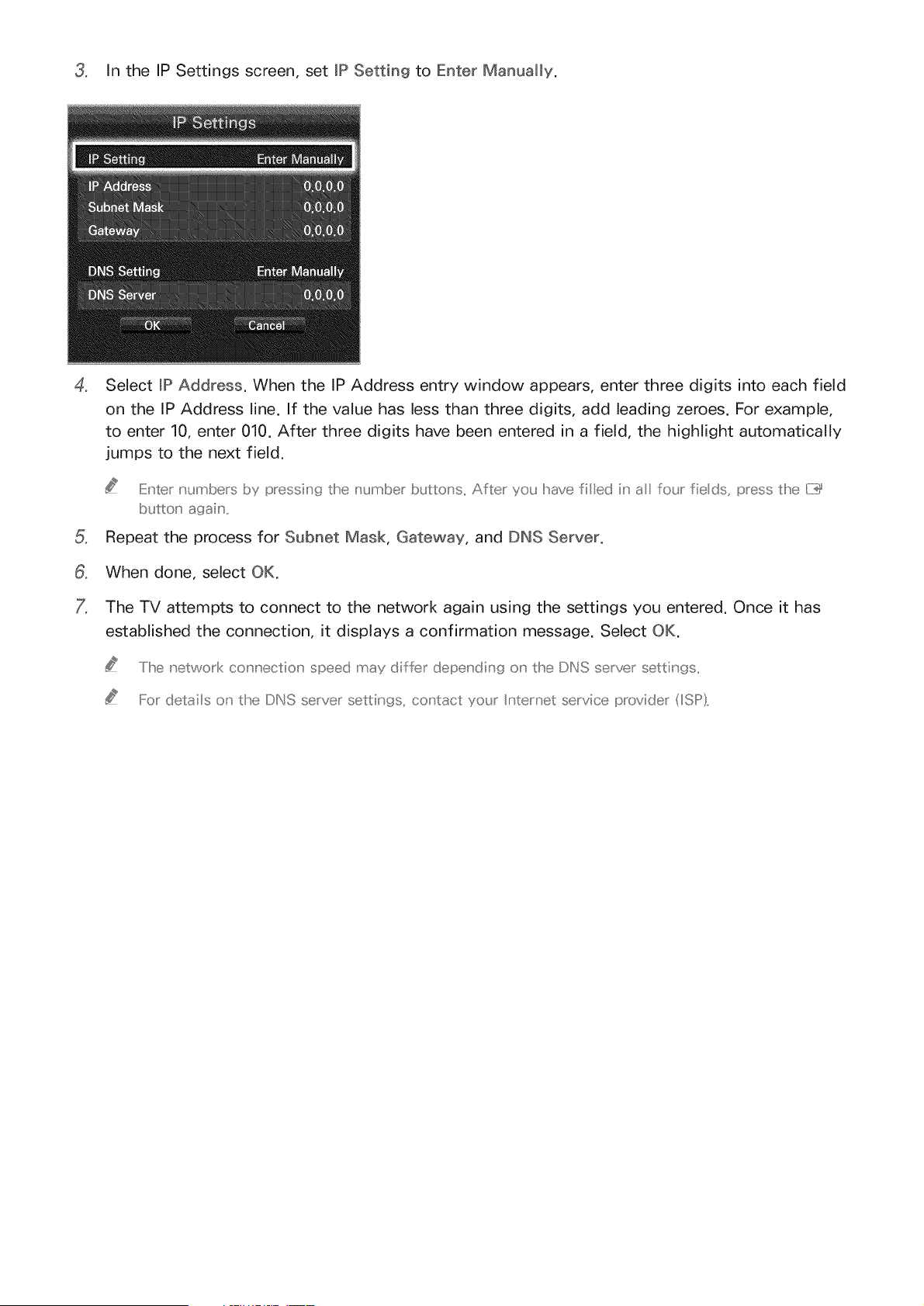

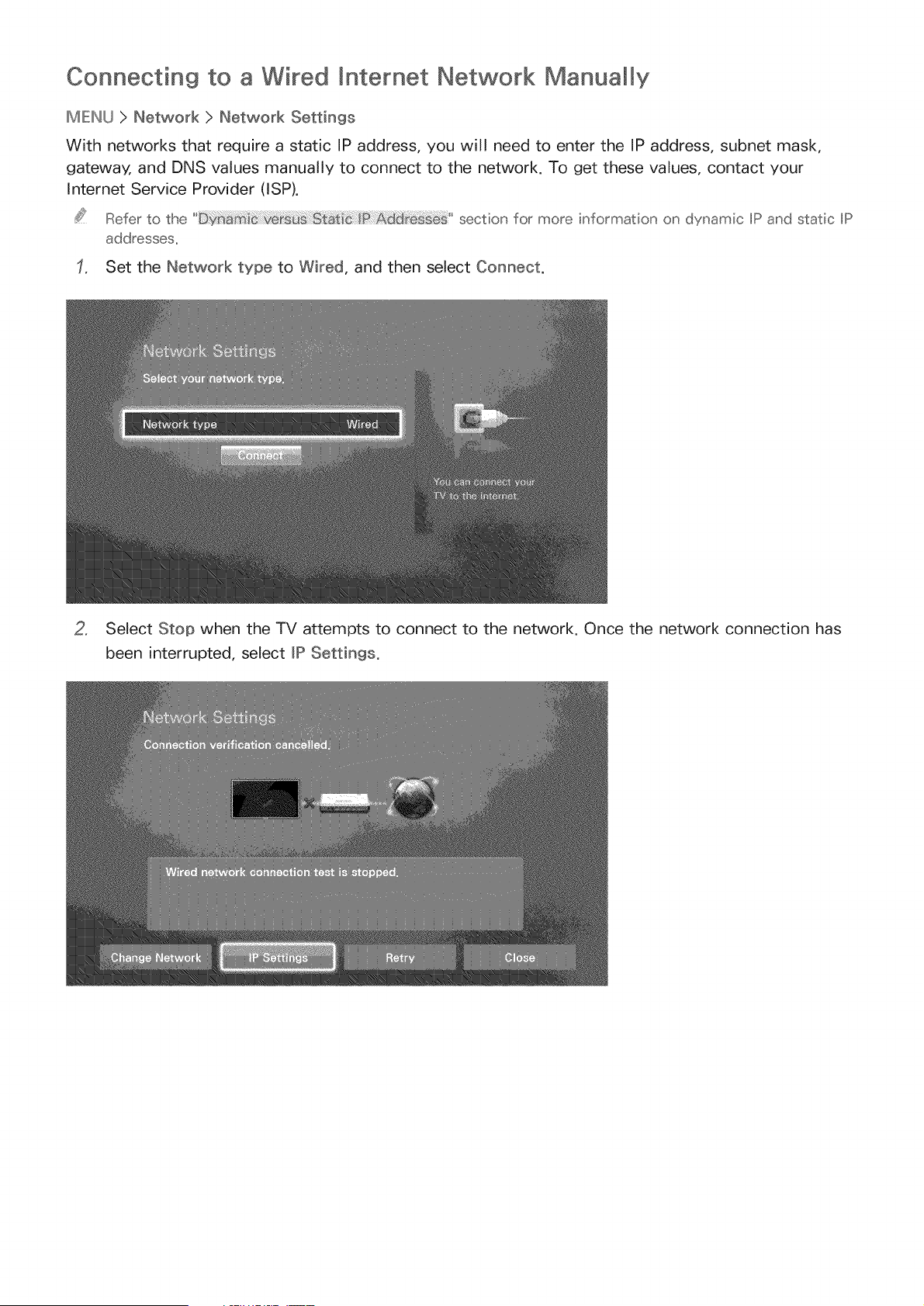

22 Connecting to a Wired Internet Network Manually

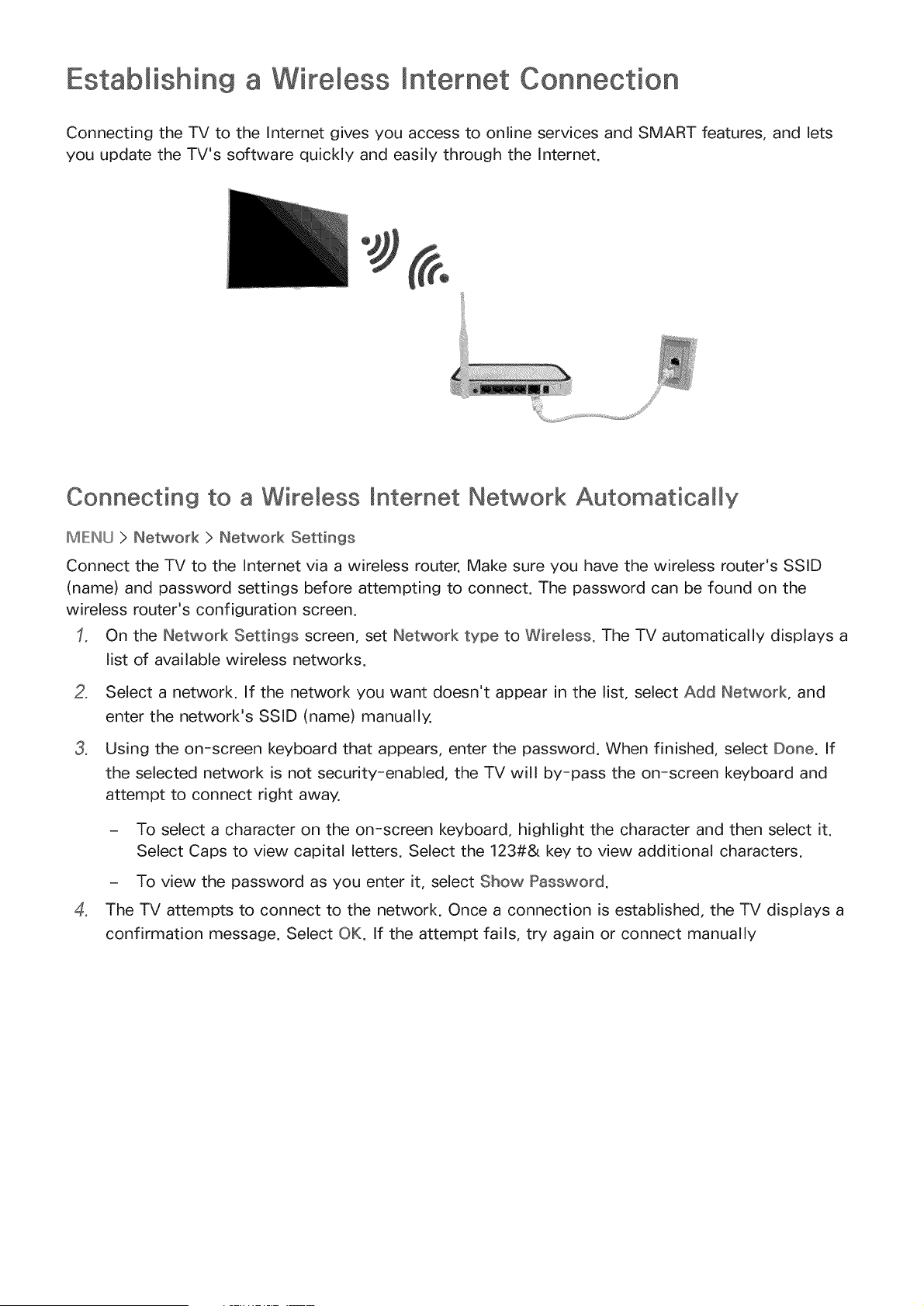

Establishing a Wireless Internet Connection
24 Connecting to a Wireless Internet Network Automatically

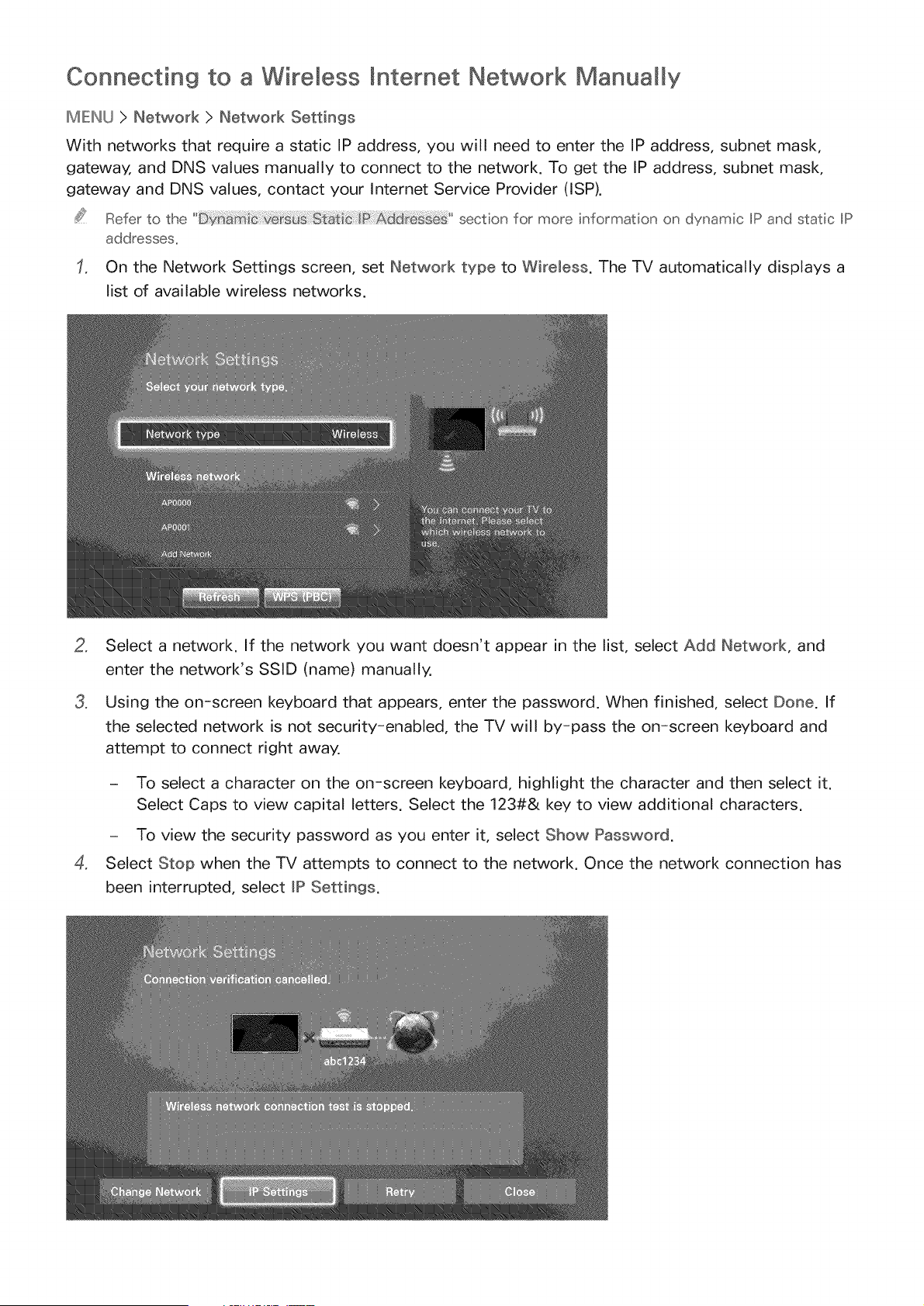

25 Connecting to a Wireless Internet Network Manually

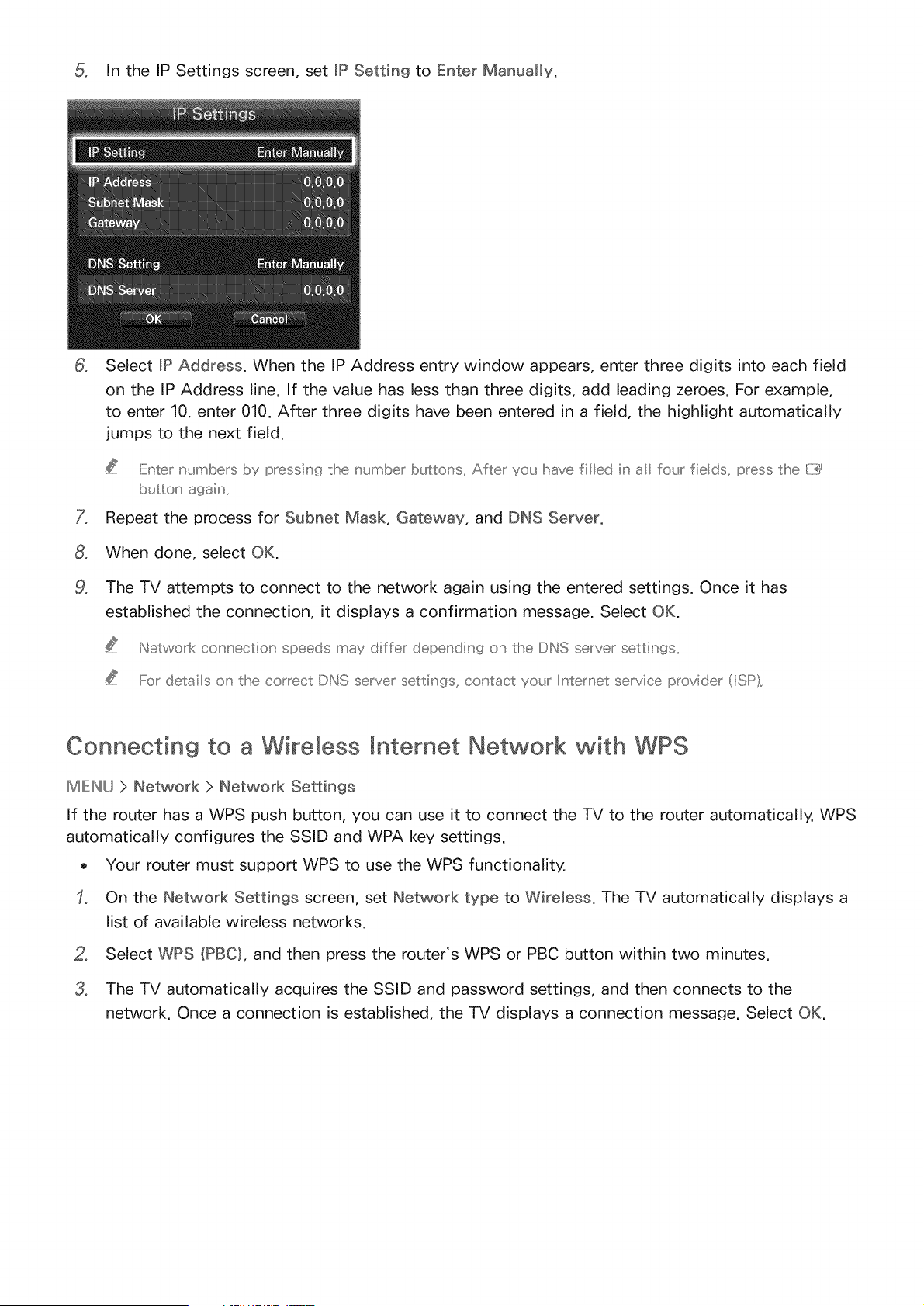

26 Connecting to a Wireless Internet Network with WPS

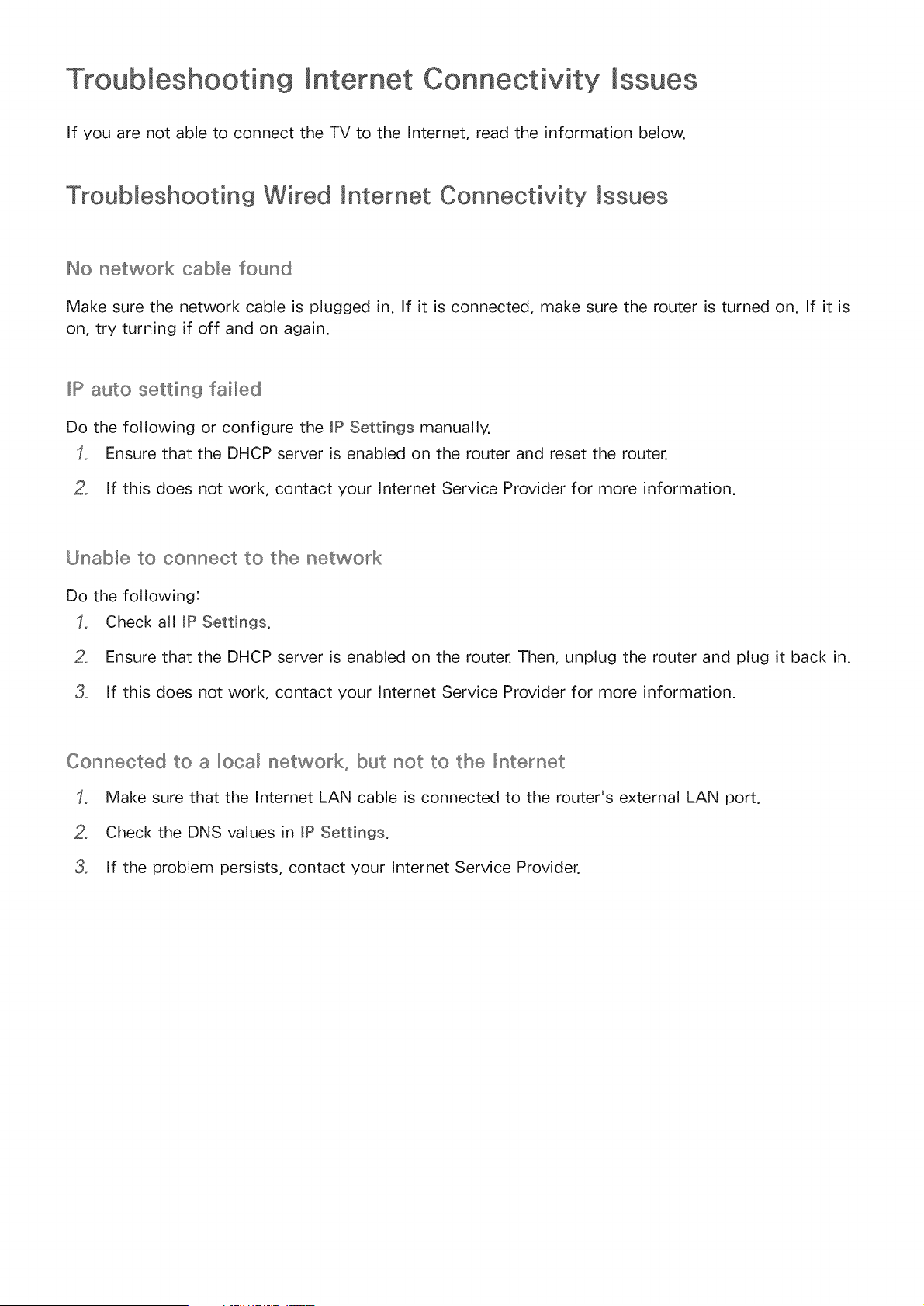

Troubleshooting Internet Connectivity Issues
27 Troubleshooting Wired Internet Connectivity Issues

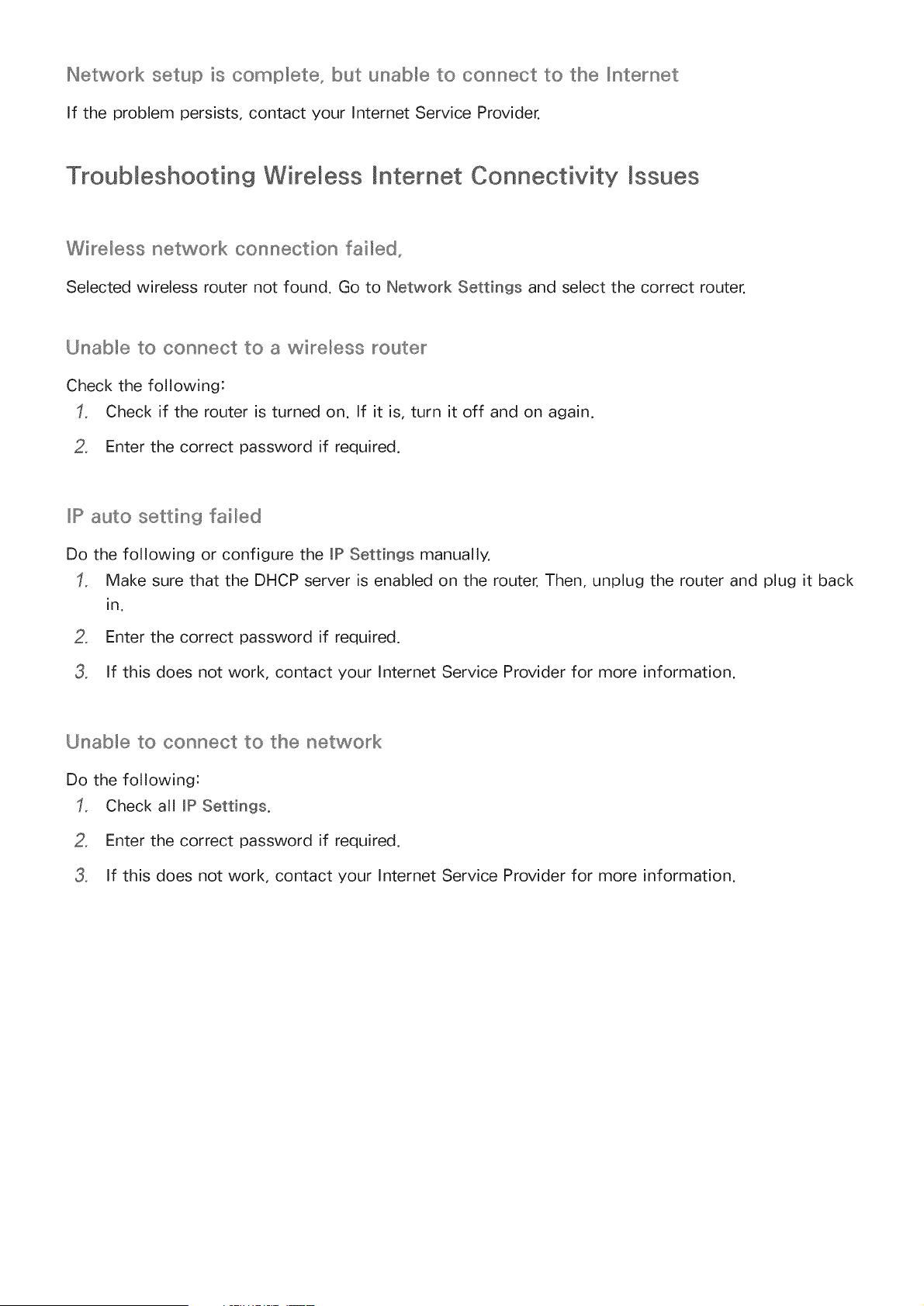

28 Troubleshooting Wireless Internet Connectivity Issues
Checking the Internet Connection Status

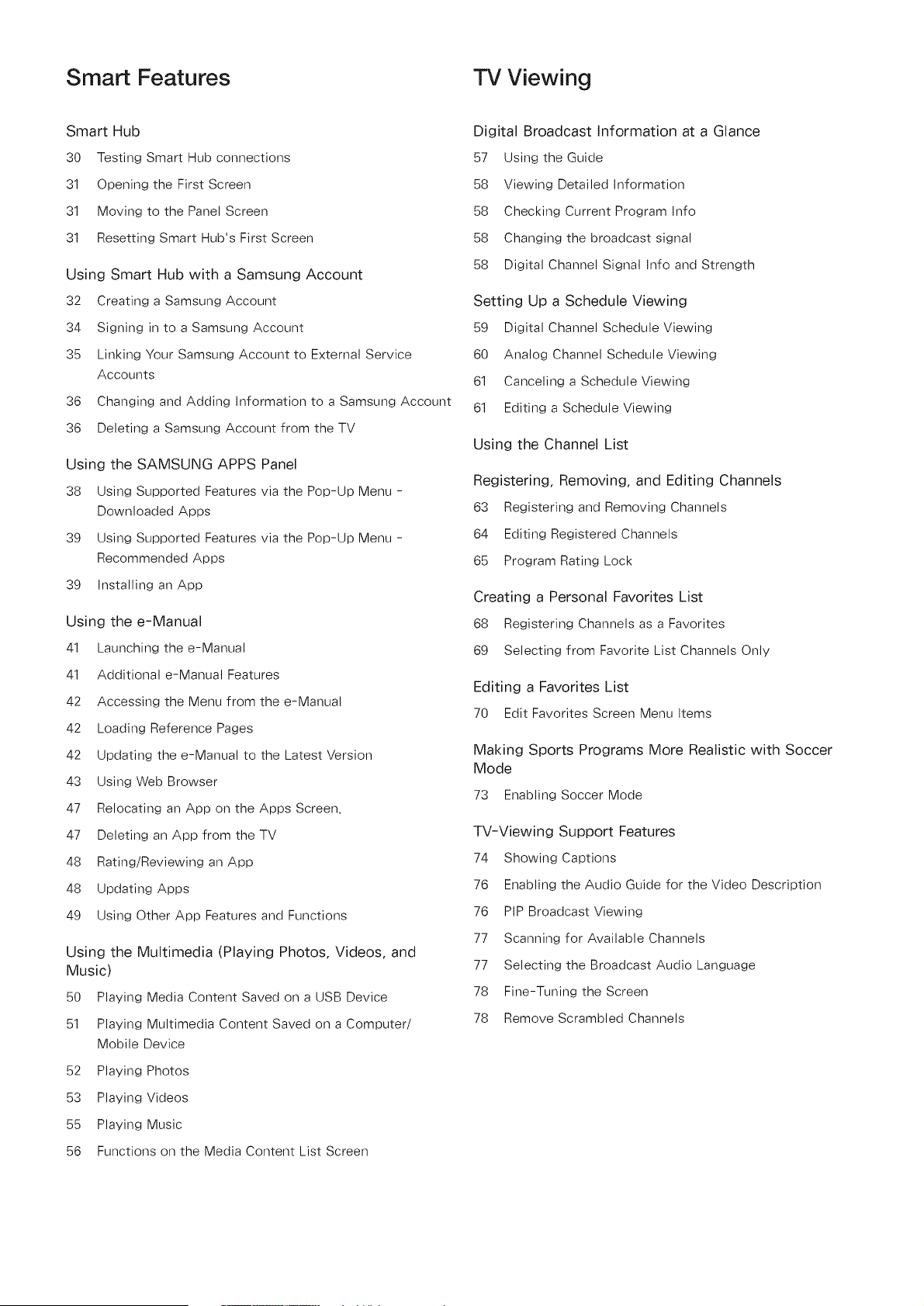

Smart Features TV Viewing
Smart Hub
30 Testing Smart Hub connections

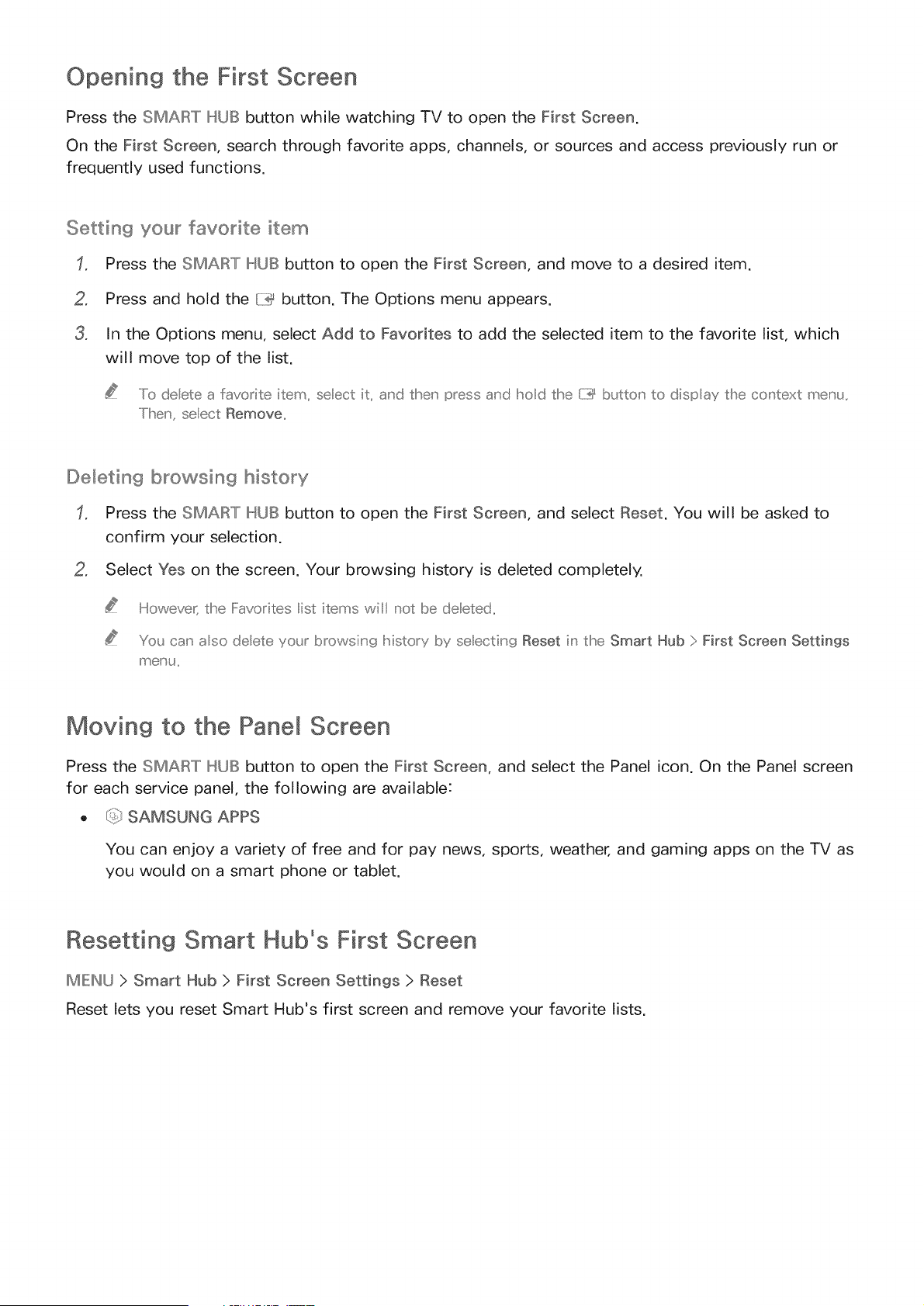

31 Opening the First Screen
31 Moving to the Panel Screen
31 Resetting Smart Hub's First Screen
Using Smart Hub with a Samsung Account
32 Creating a Samsung Account

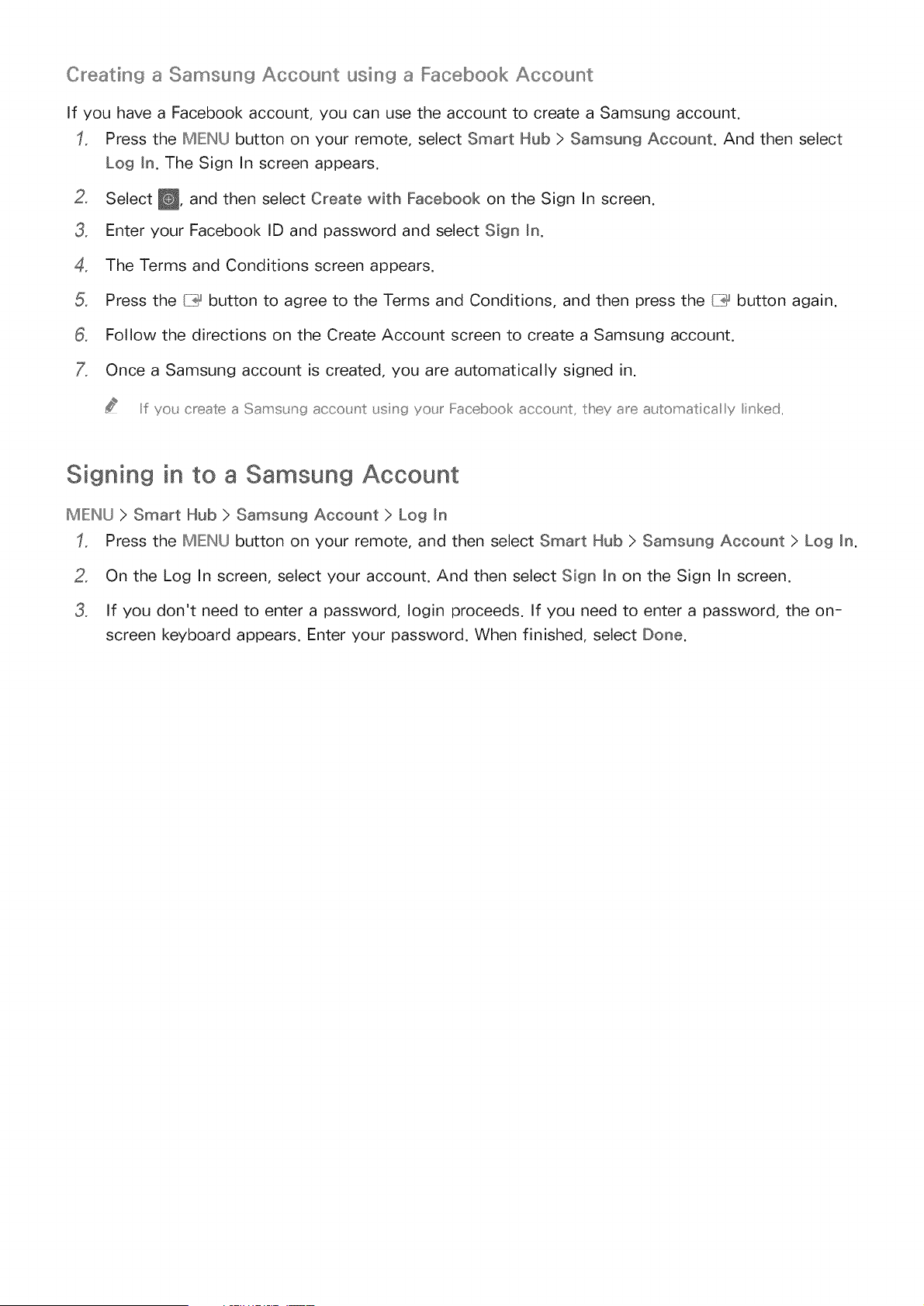

34 Signing in to a Samsung Account

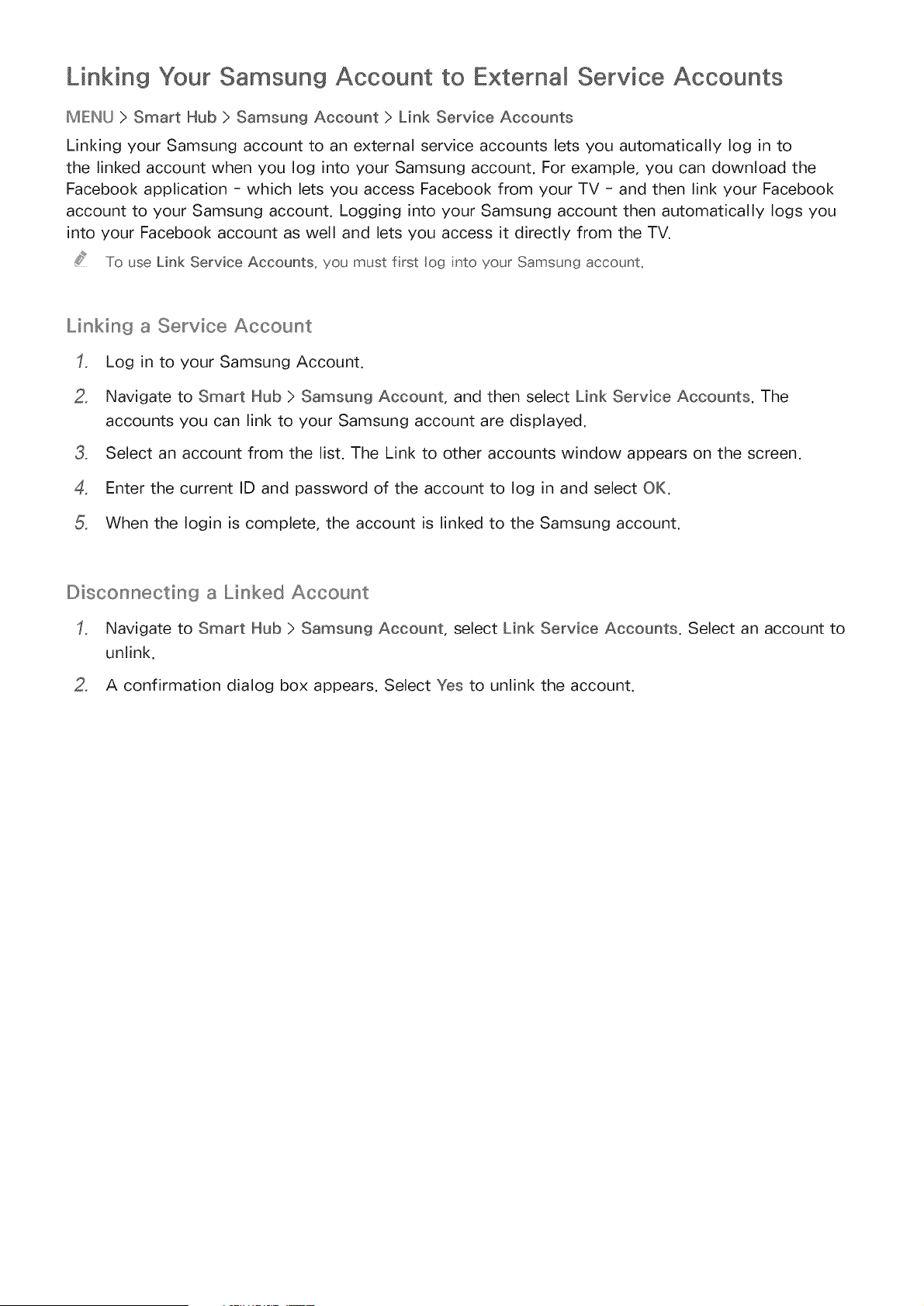

35 Linking Your Samsung Account to External Service
Accounts

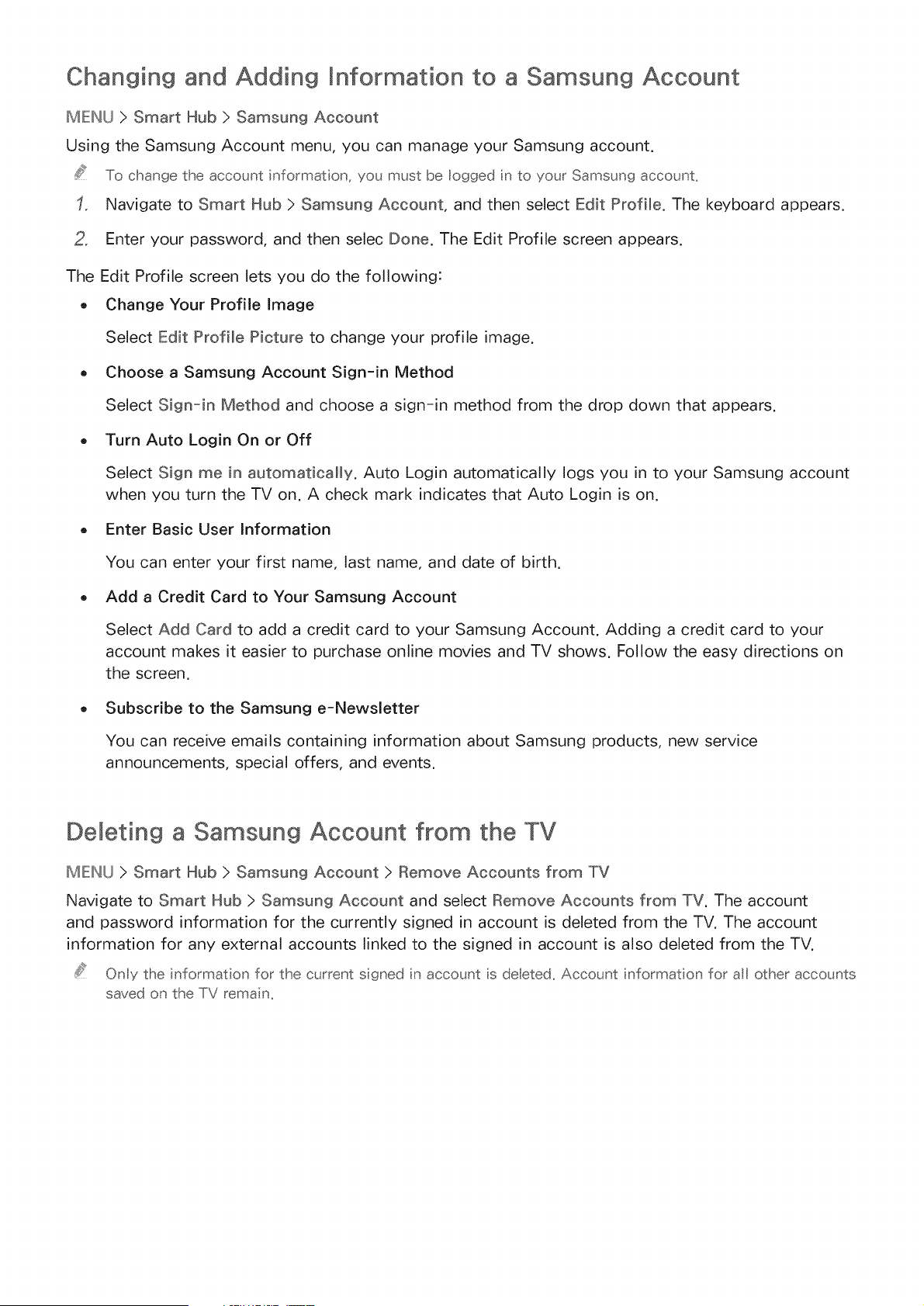

36 Changing and Adding Information to a Samsung Account
36 Deleting a Samsung Account from the TV

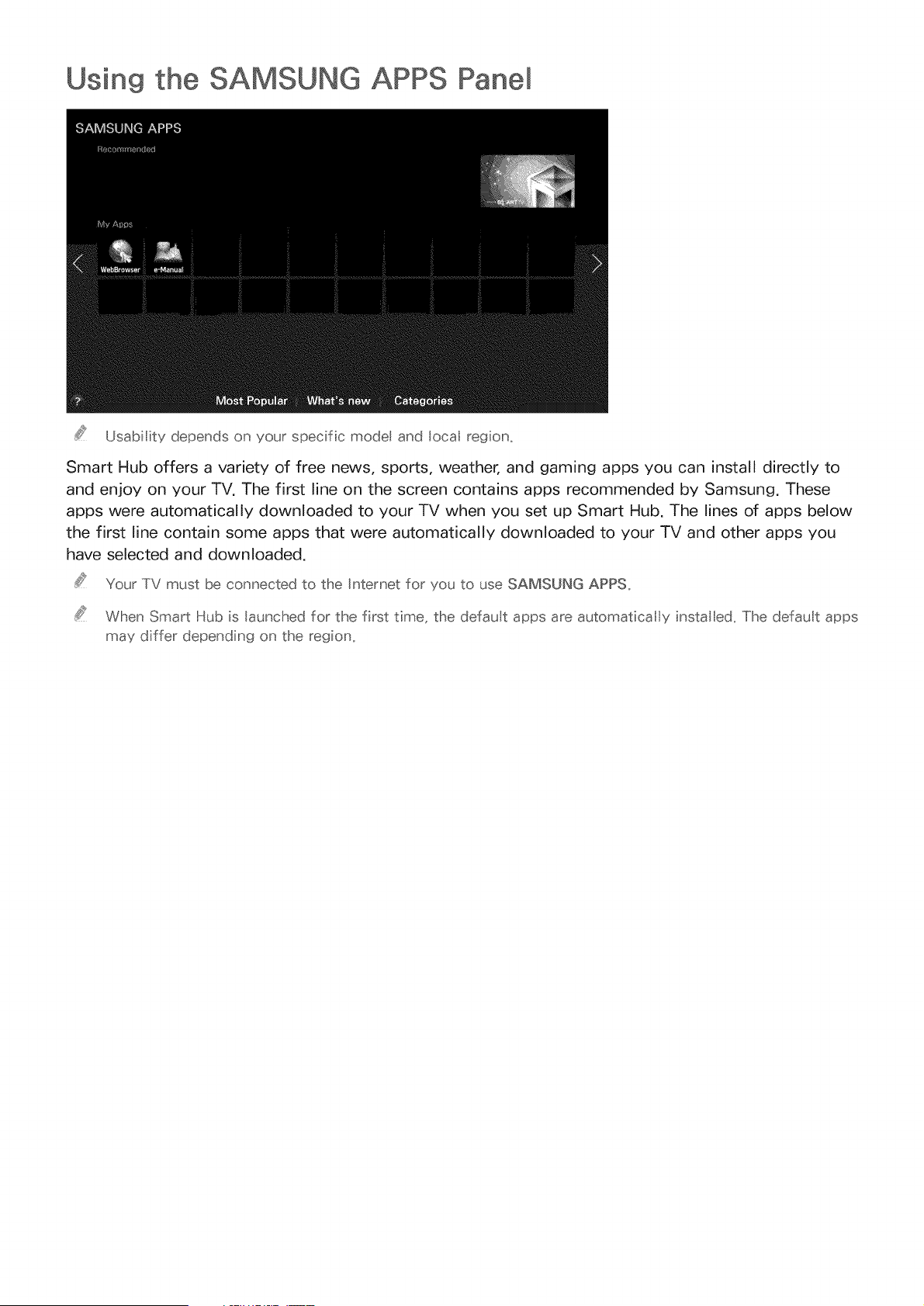

Using the SAMSUNG APPS Panel

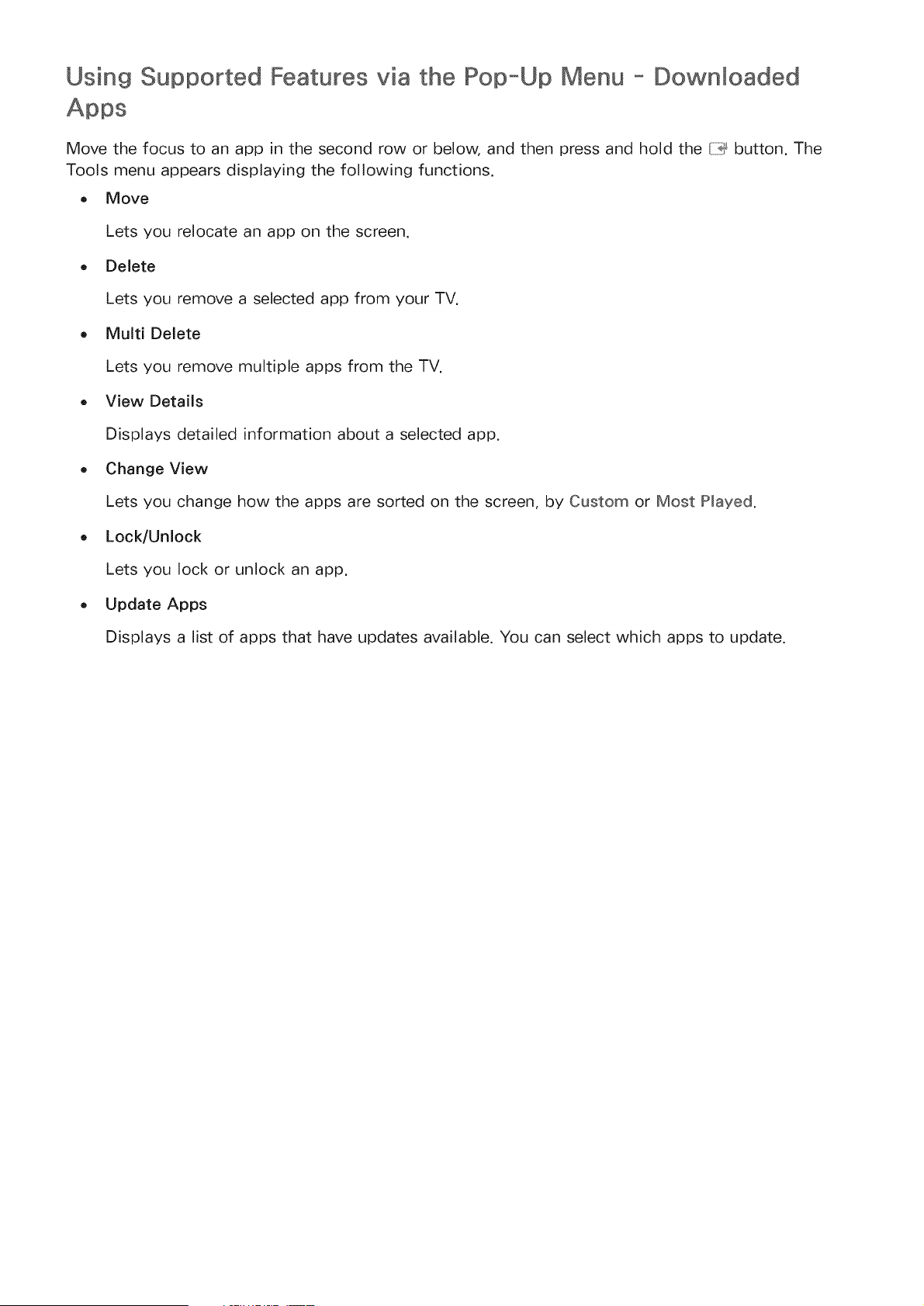

38 Using Supported Features via the Pop-Up Menu -
Downloaded Apps

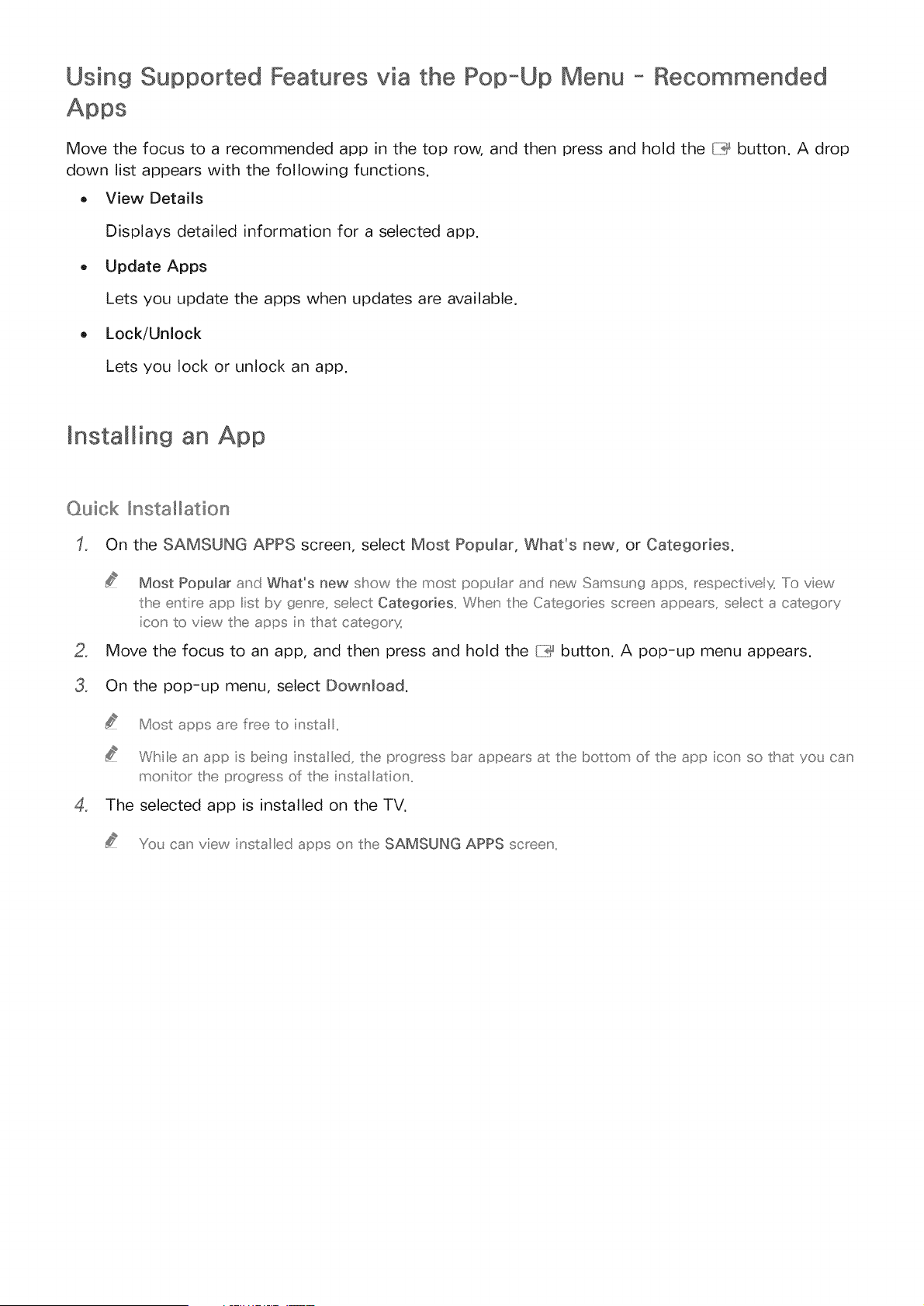

39 Using Supported Features via the Pop-Up Menu -
Recommended Apps

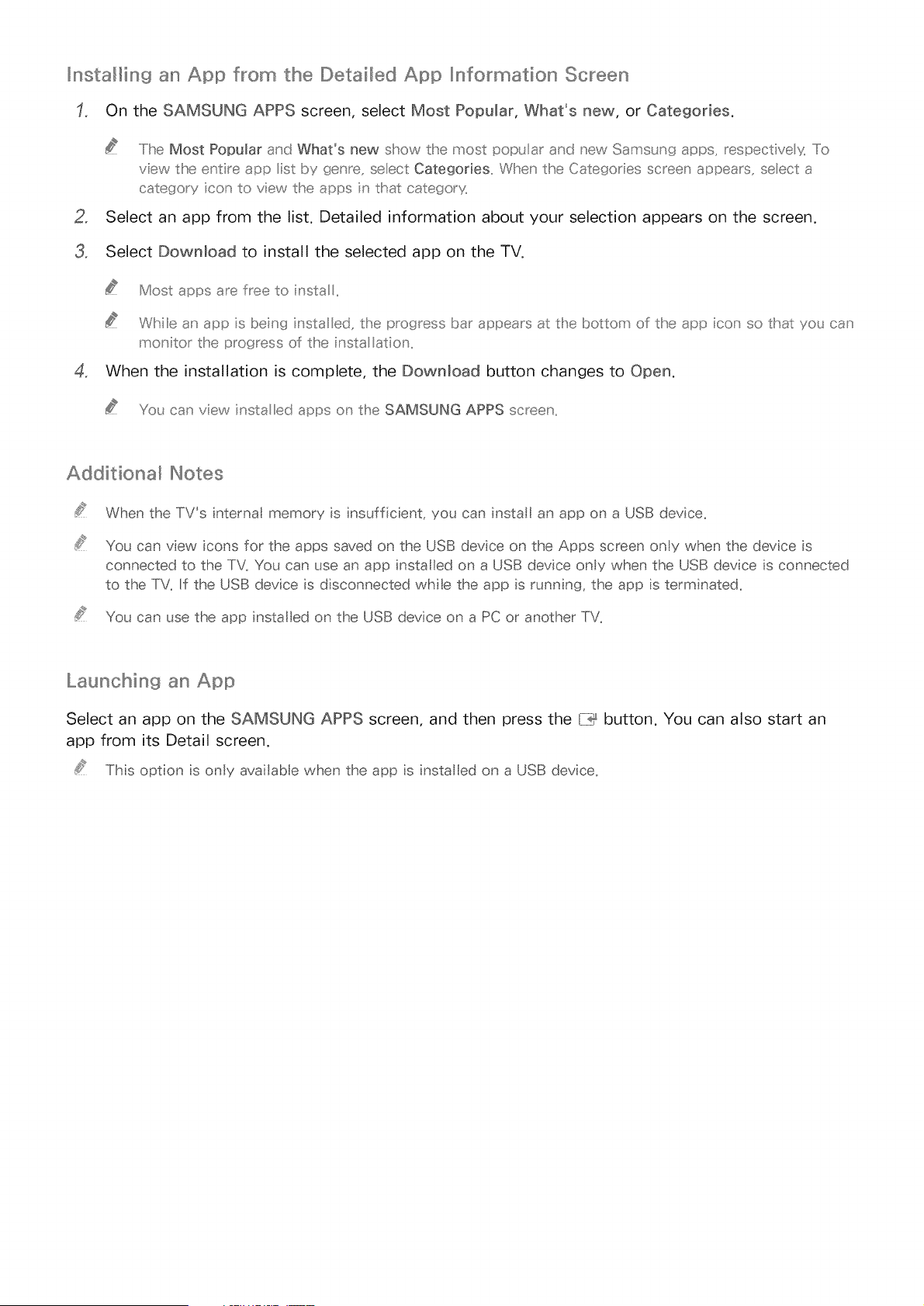

39 installing an App

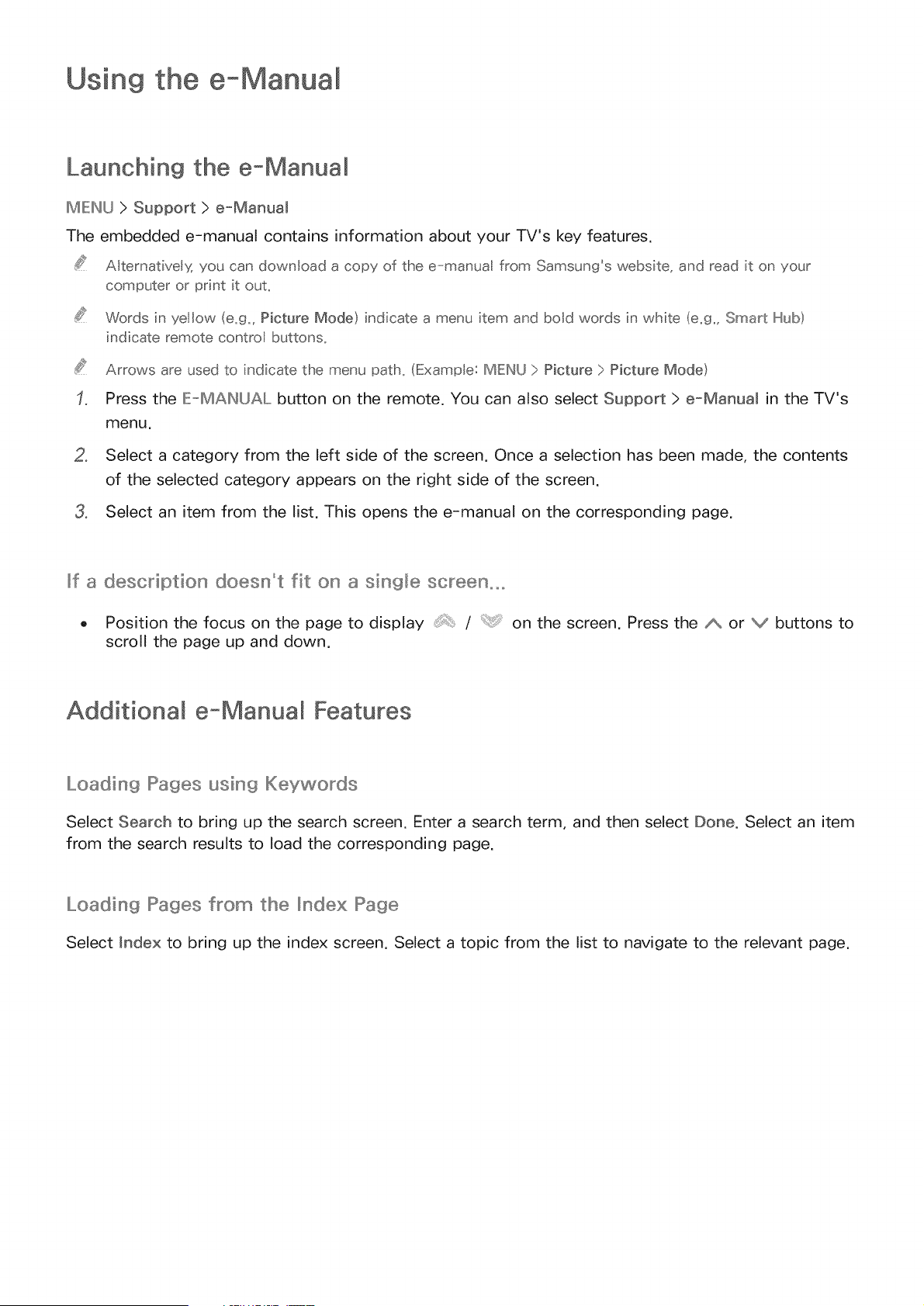

Using the e-Manual
41 Launching the e-Manual
41 Additional e-Manual Features
42 Accessing the Menu from the e-Manual
42 Loading Reference Pages
42 Updating the e-Manual to the Latest Version

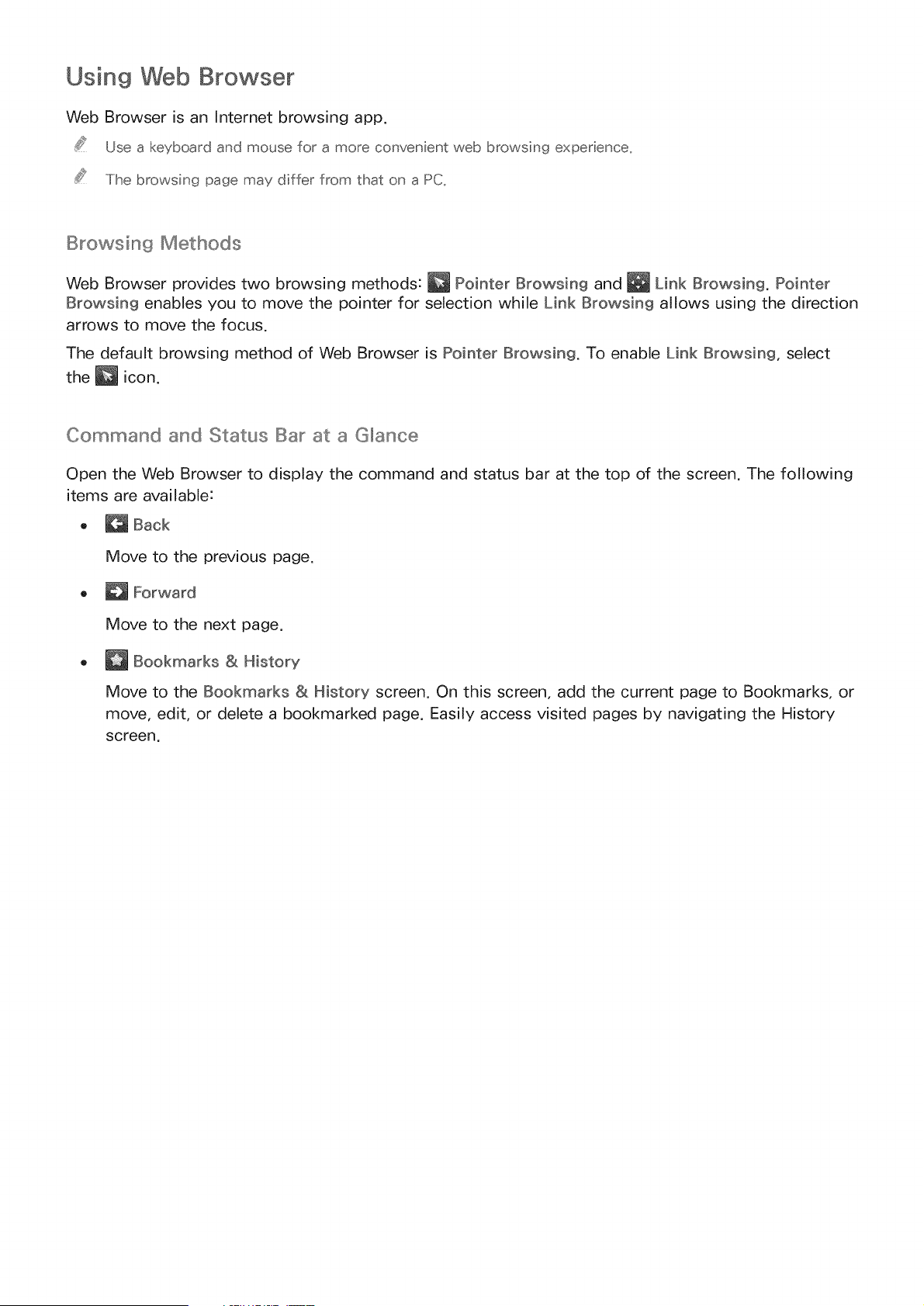

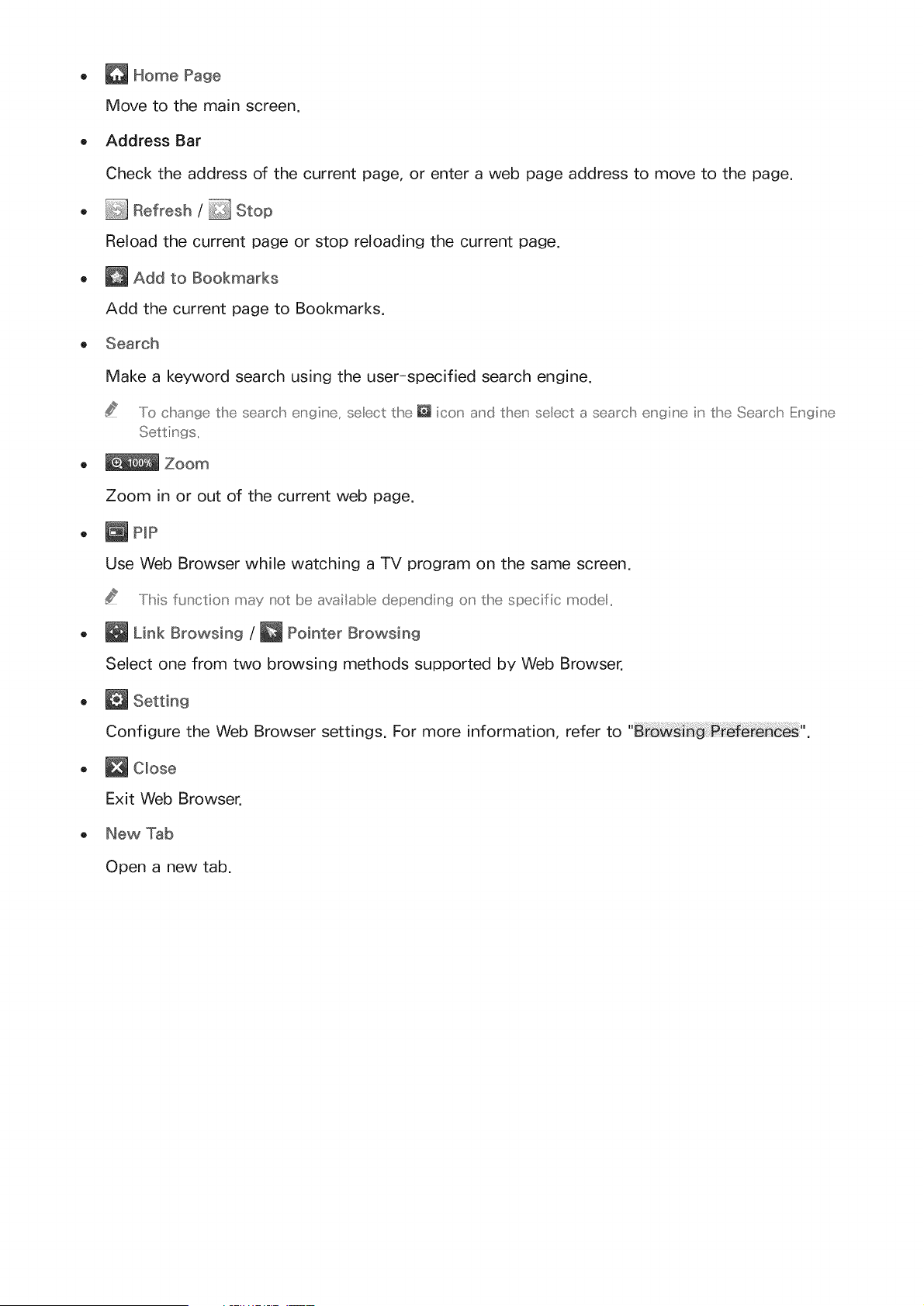

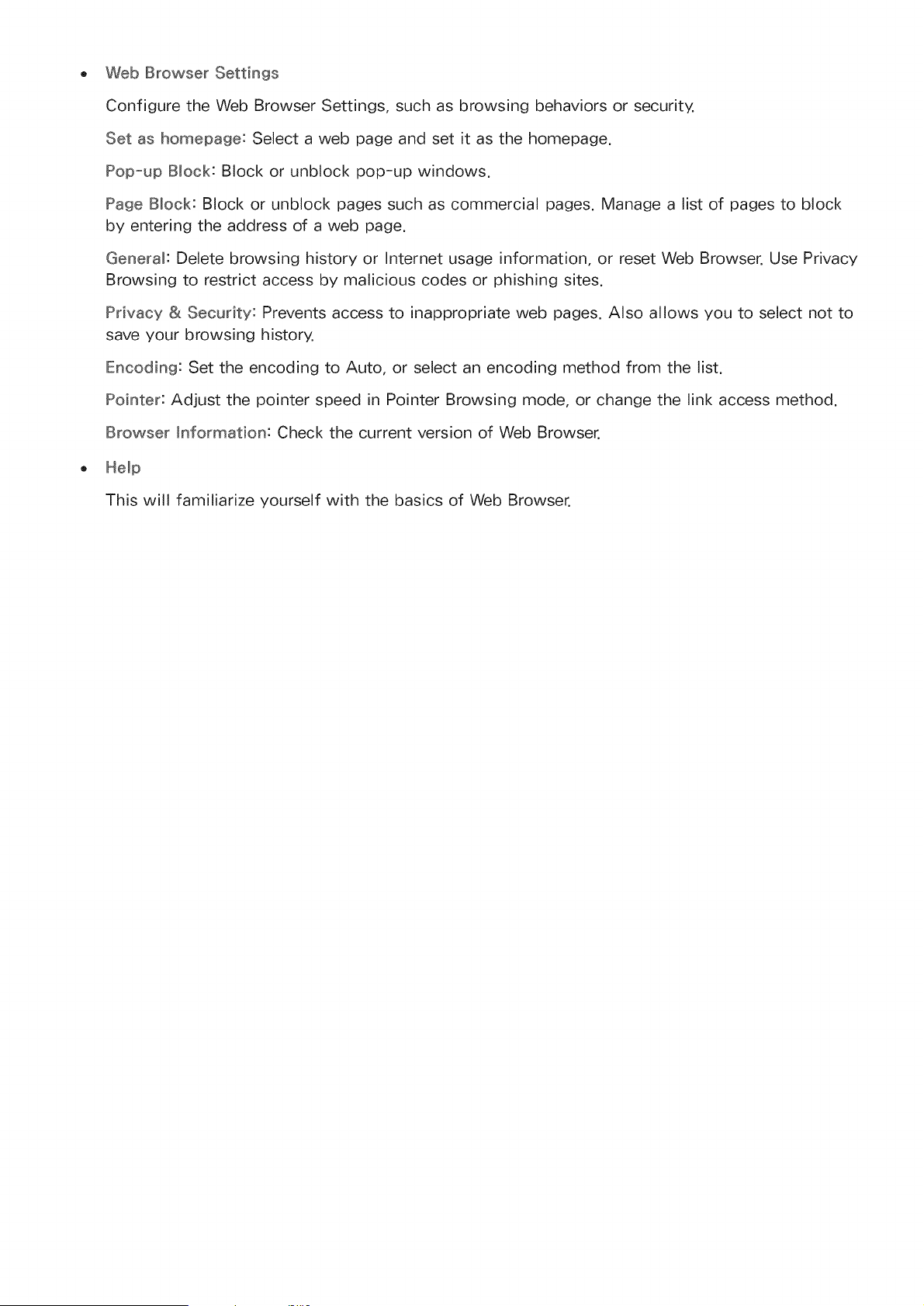

43 Using Web Browser

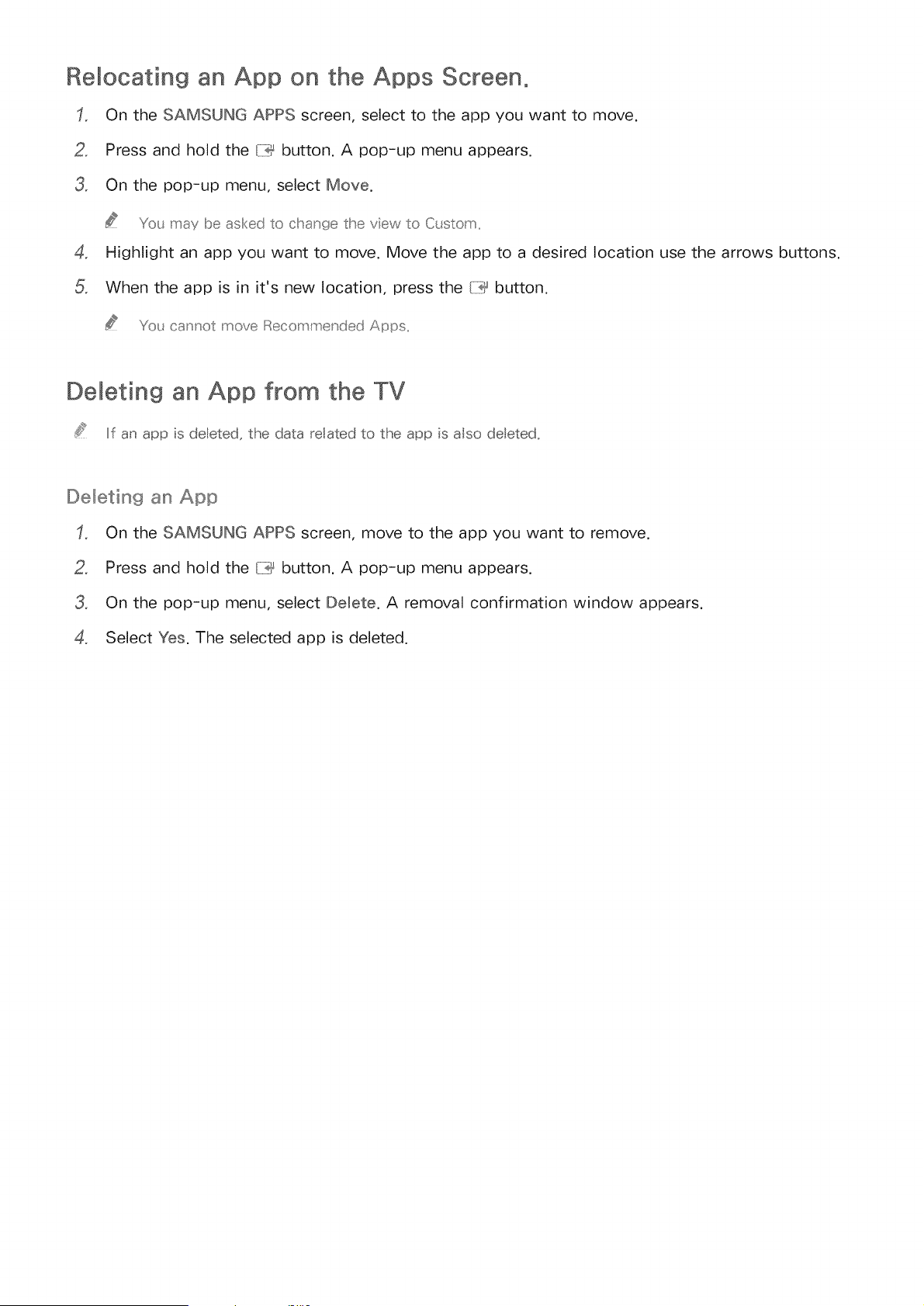

47 Relocating an App on the Apps Screen.
47 Deleting an App from the TV

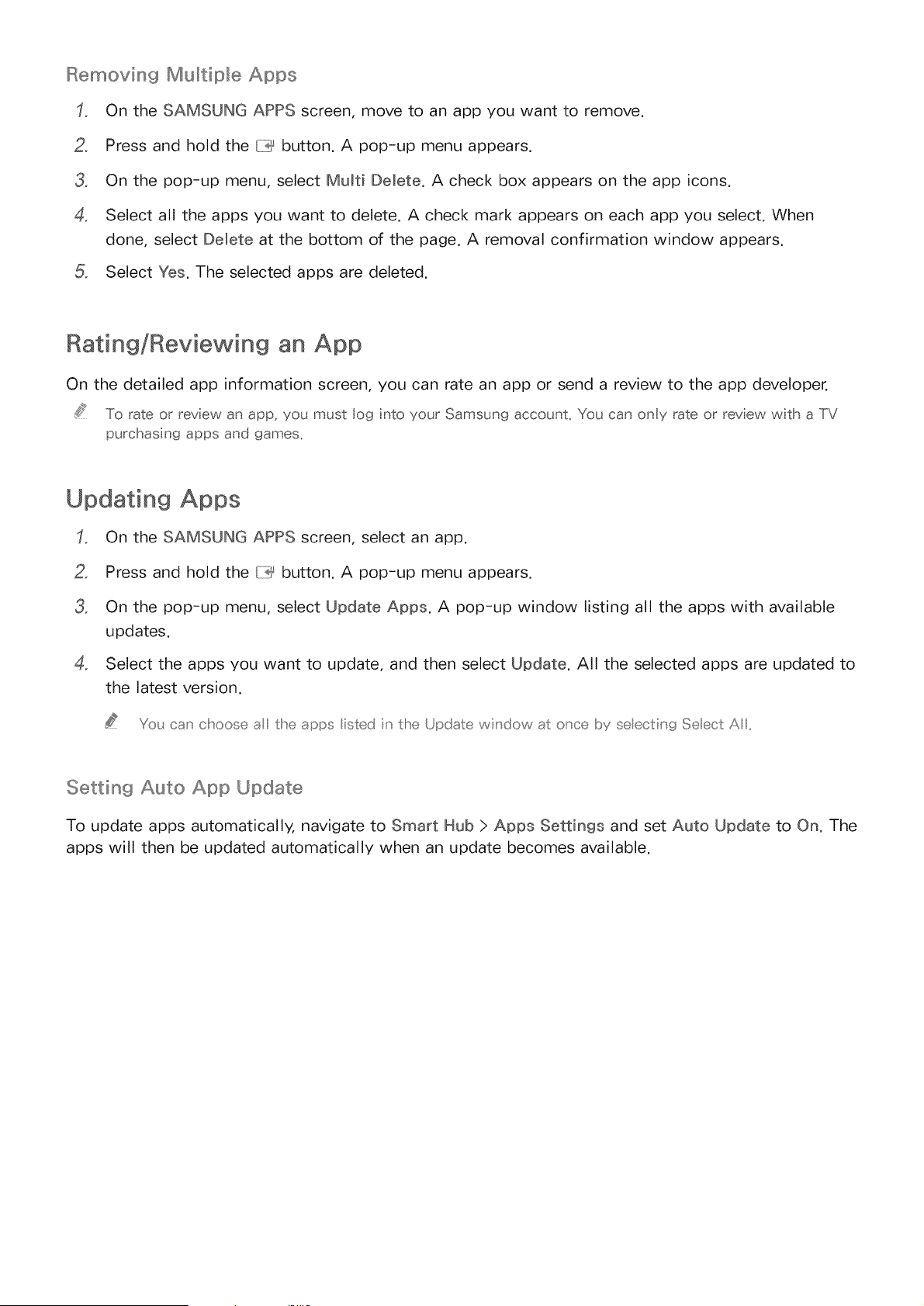

48 Rating/Reviewing an App
48 Updating Apps
49 Using Other App Features and Functions

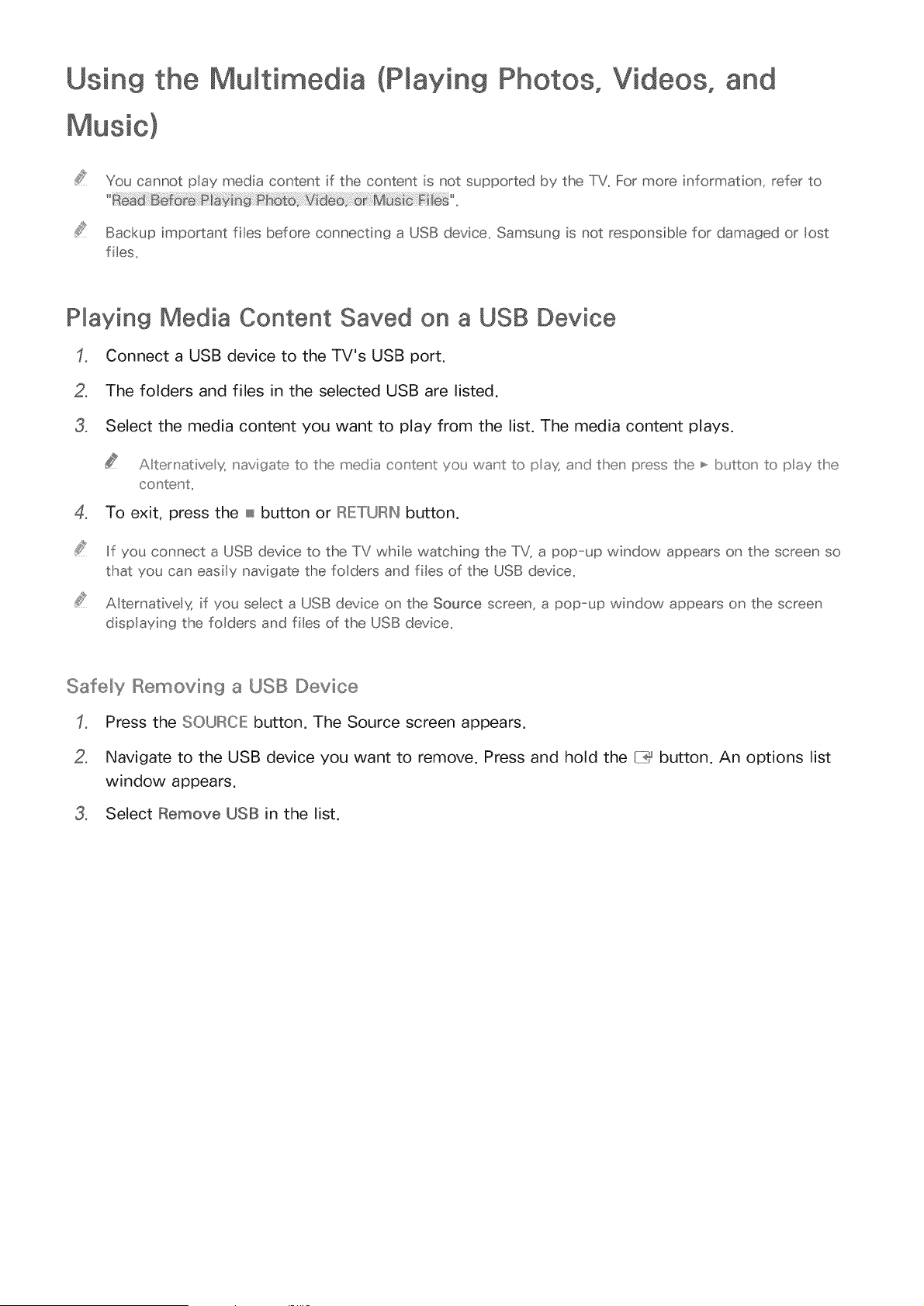

Using the Multimedia (Playing Photos, Videos, and
Music)
50 Playing Media Content Saved on a USB Device

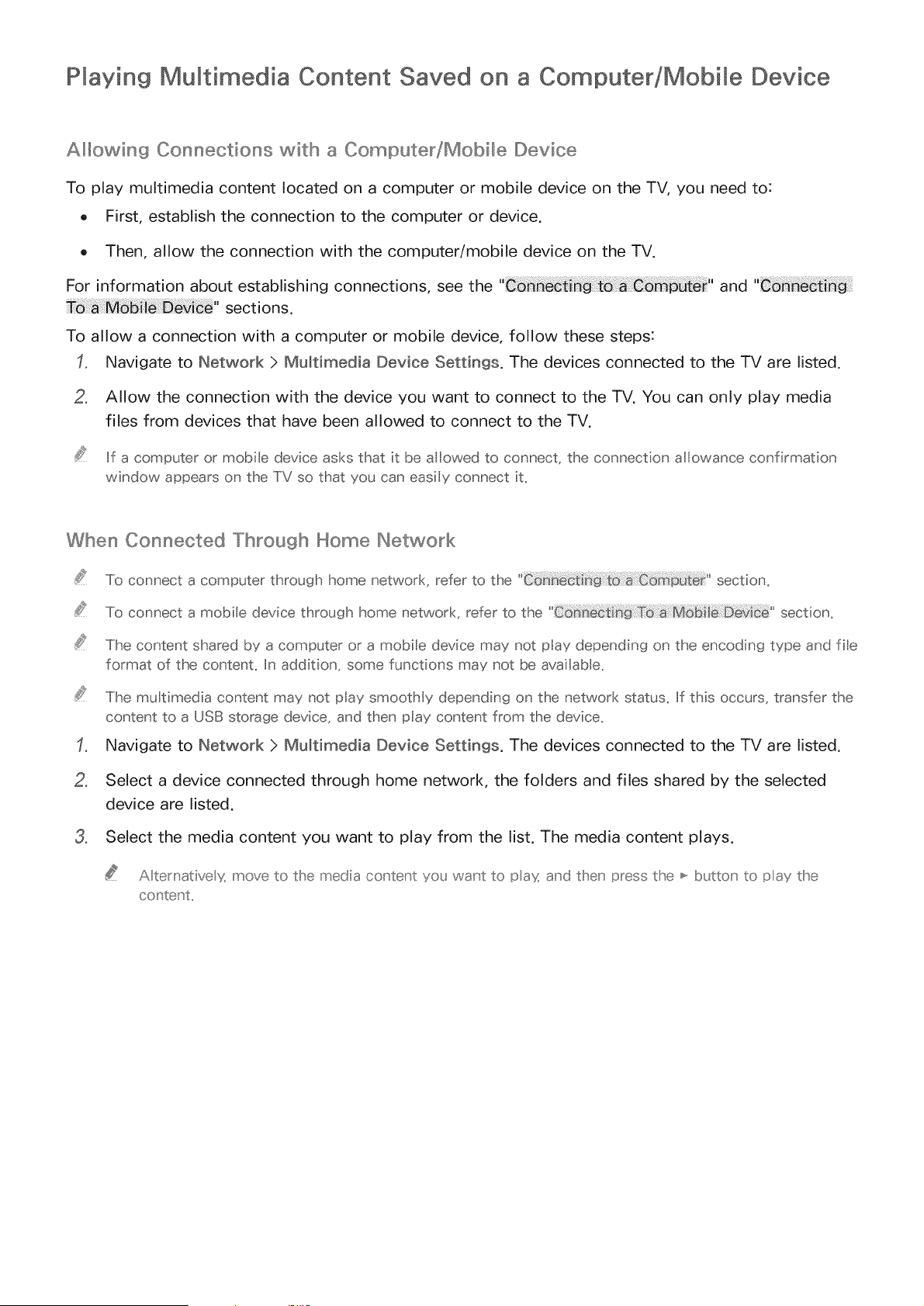

51 Playing Multimedia Content Saved on a Computer/
Mobile Device

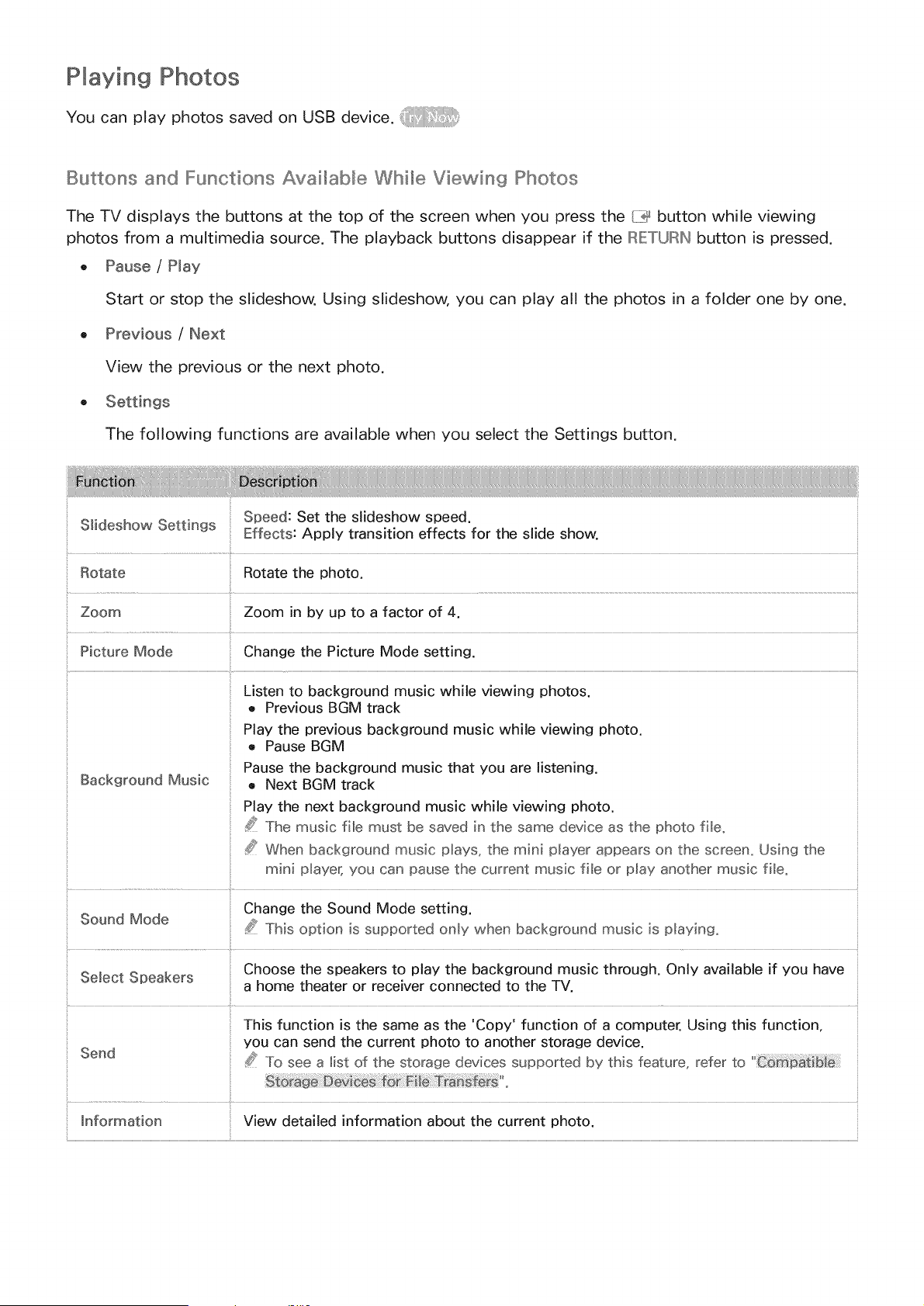

52 Playing Photos
53 Playing Videos

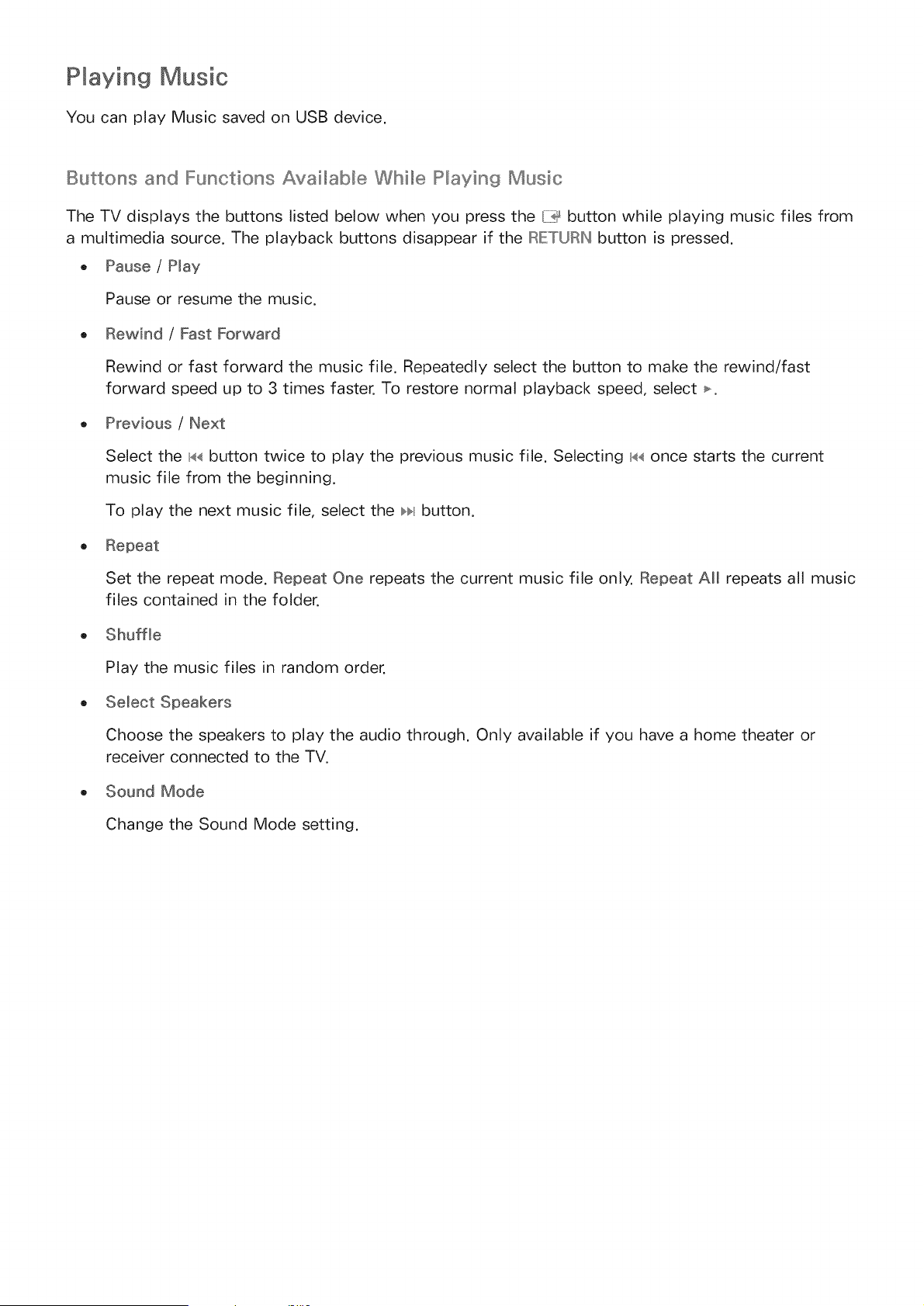

55 Playing Music

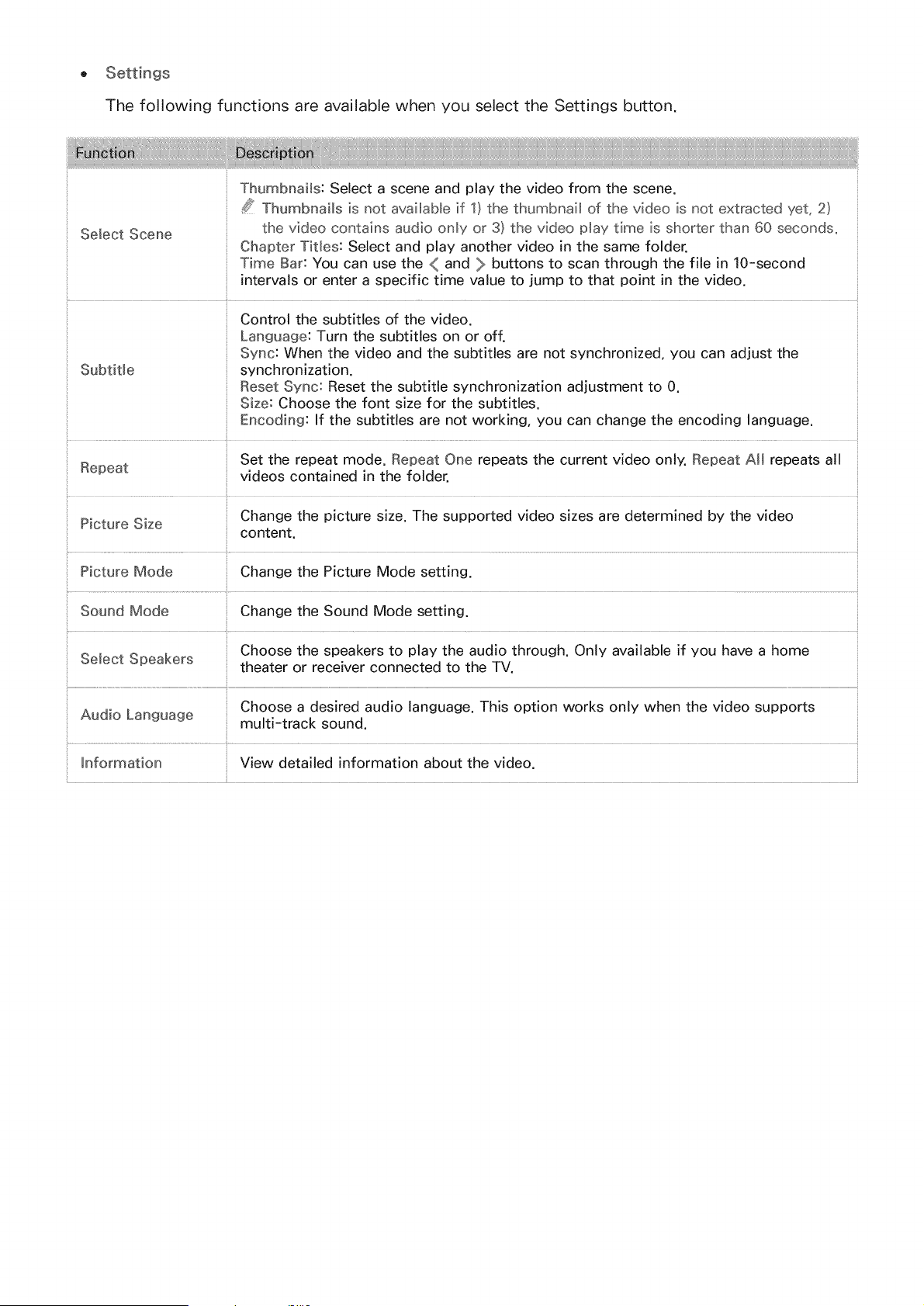

56 Functions on the Media Content List Screen
Digital Broadcast Information at a Glance
57 Using the Guide

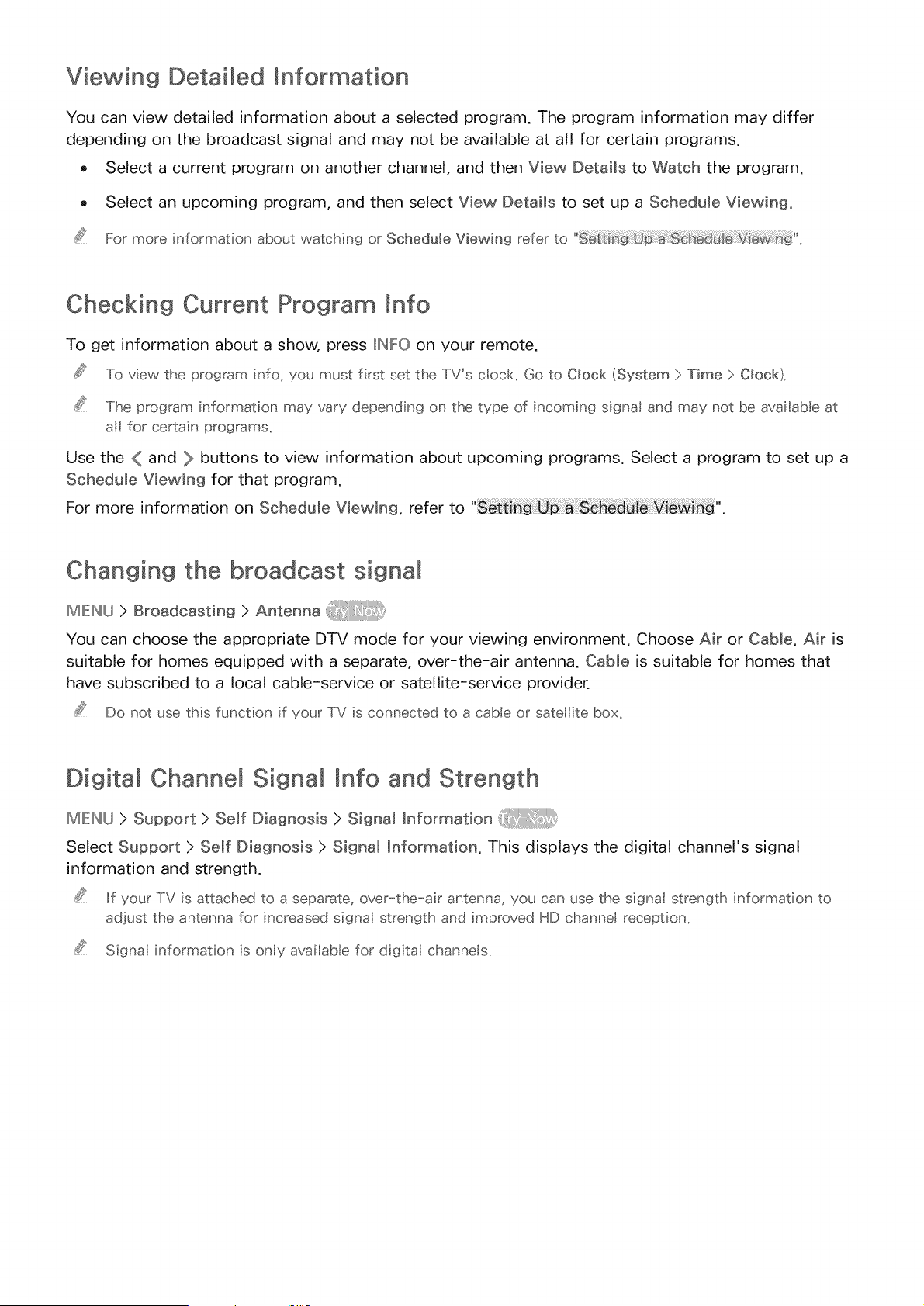

58 Viewing Detailed Information
58 Checking Current Program Info
58 Changing the broadcast signal
58 Digital Channel Signal Info and Strength

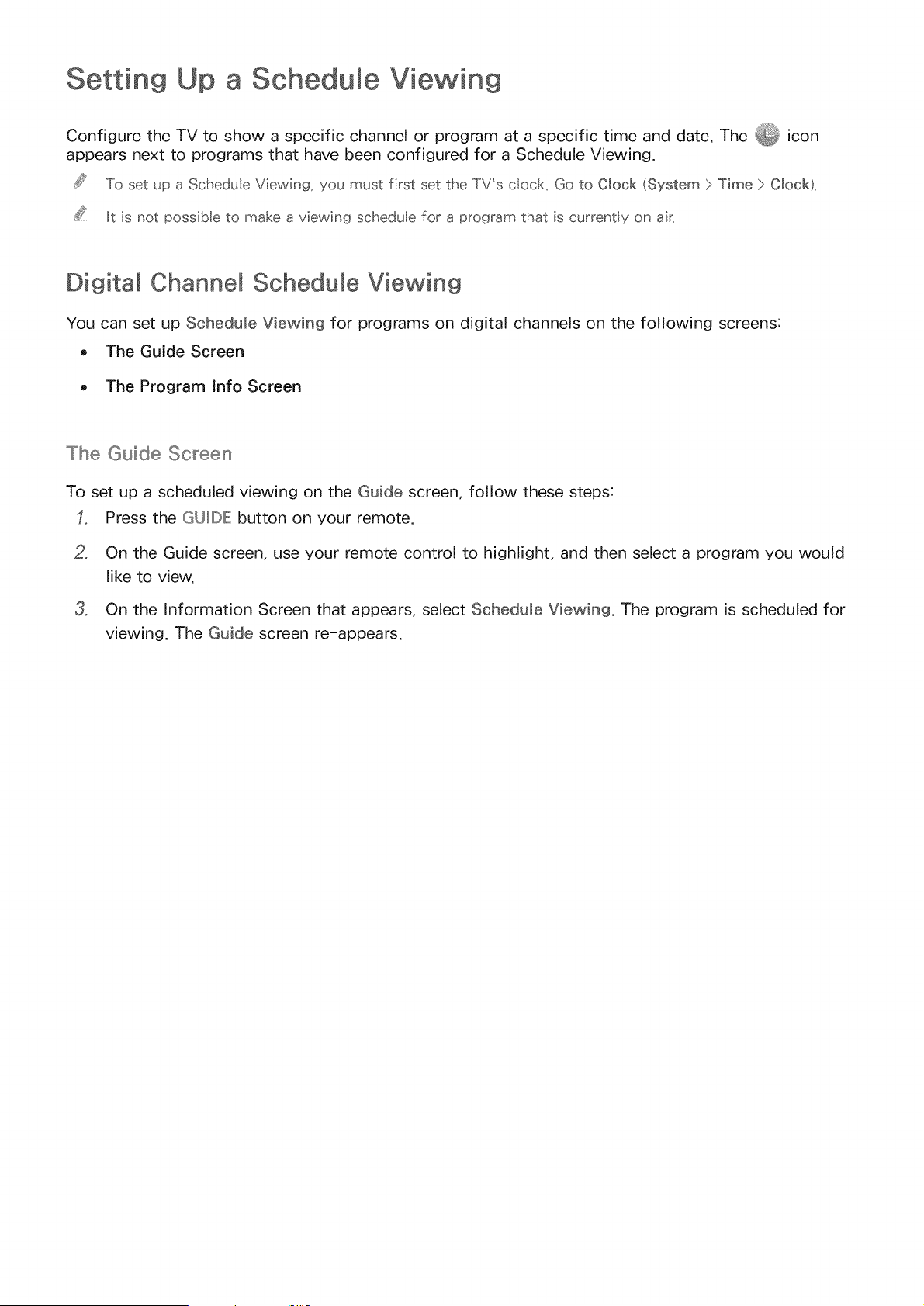

Setting Up a Schedule Viewing
59 Digital Channel Schedule Viewing
60 Analog Channel Schedule Viewing

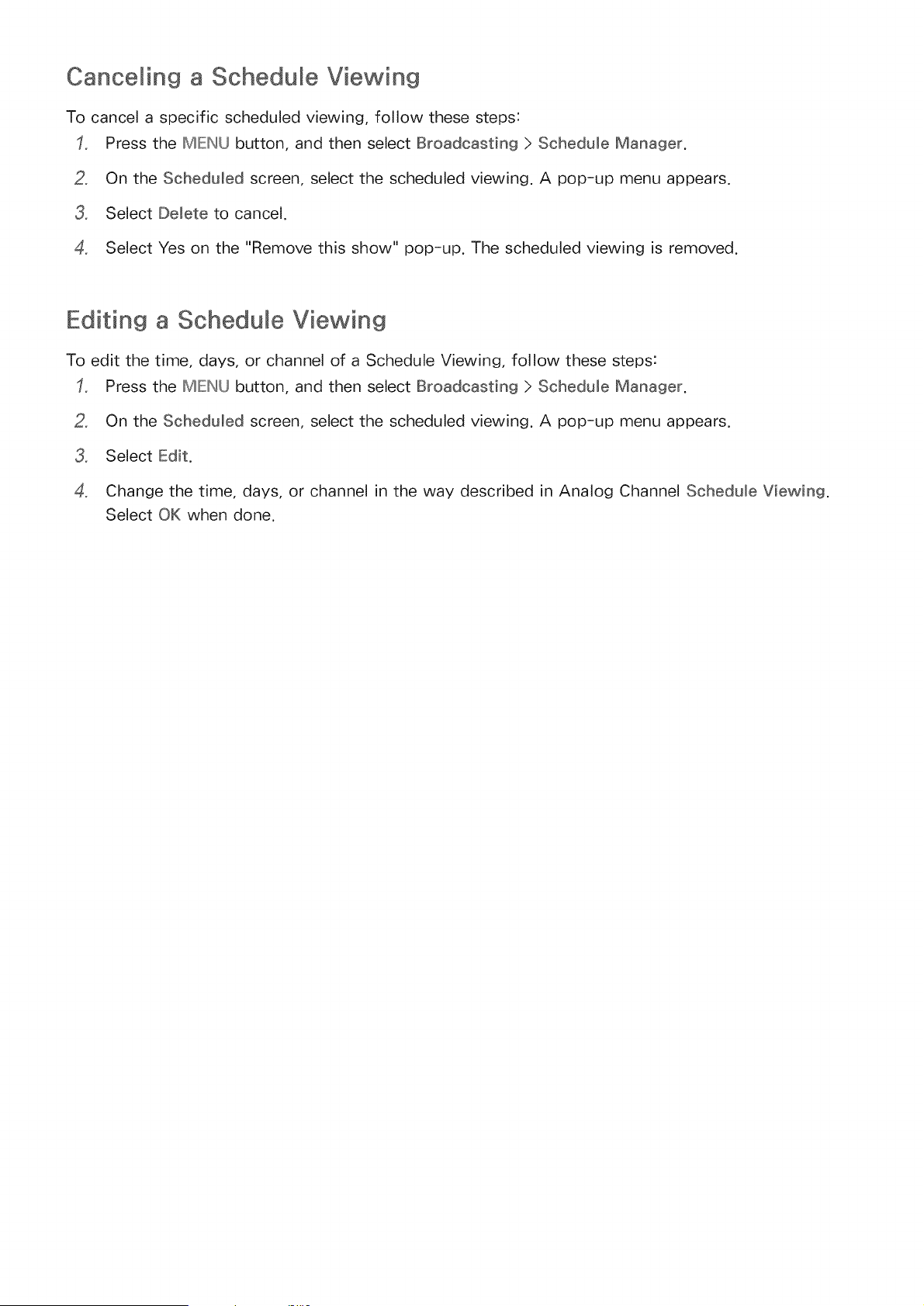

61 Canceling a Schedule Viewing
61 Editing a Schedule Viewing

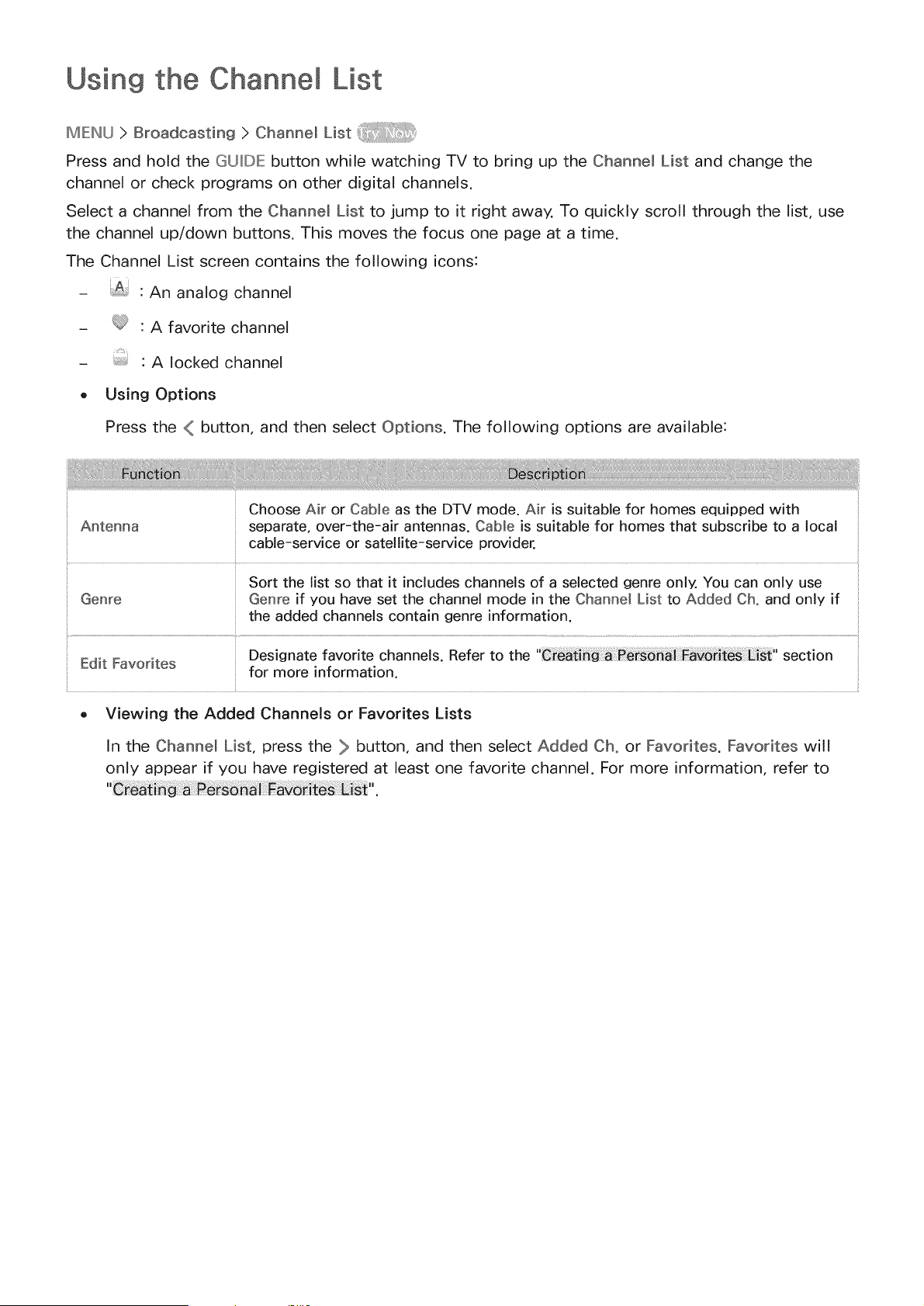

Using the Channel List

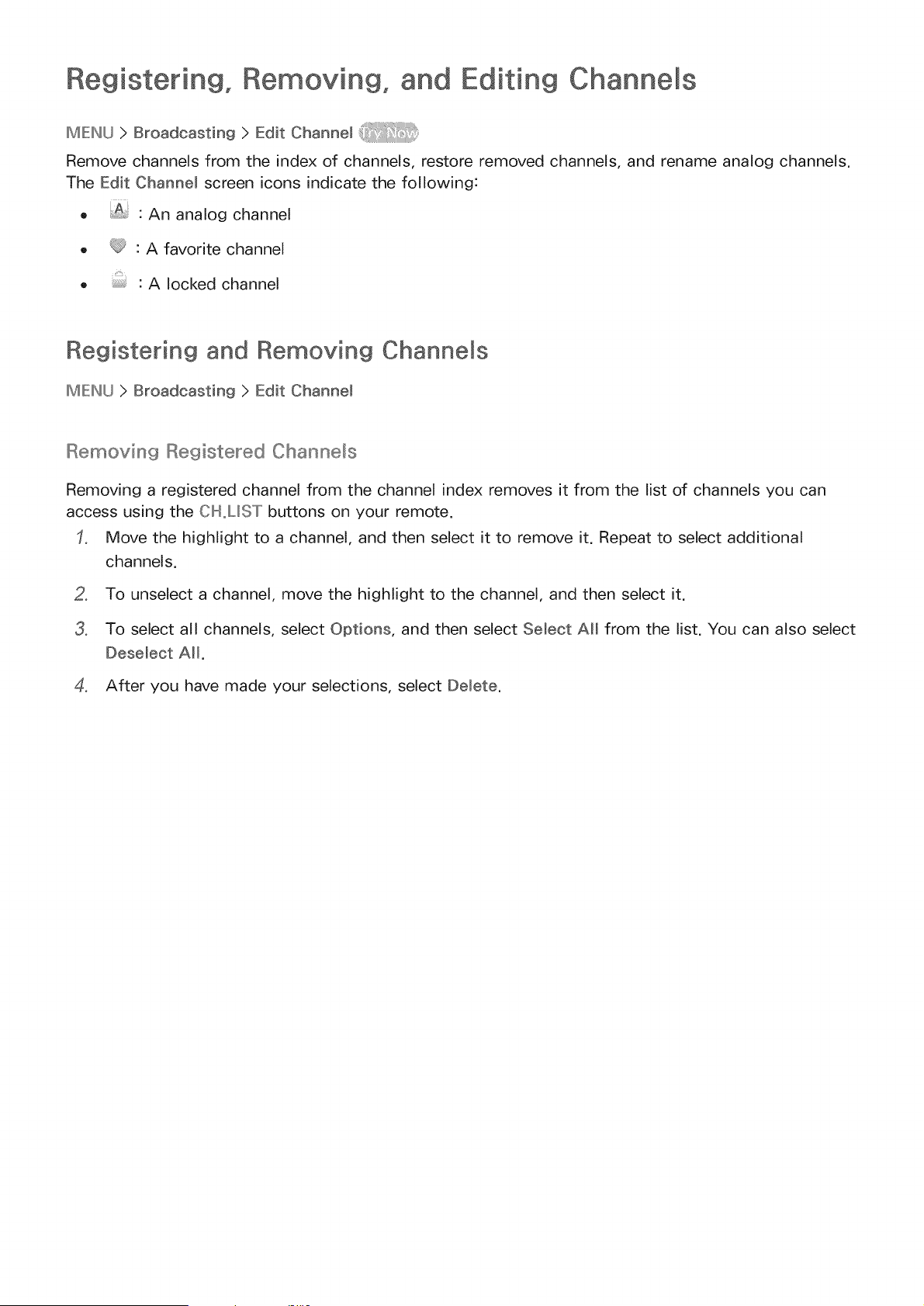

Registering, Removing, and Editing Channels
63 Registering and Removing Channels

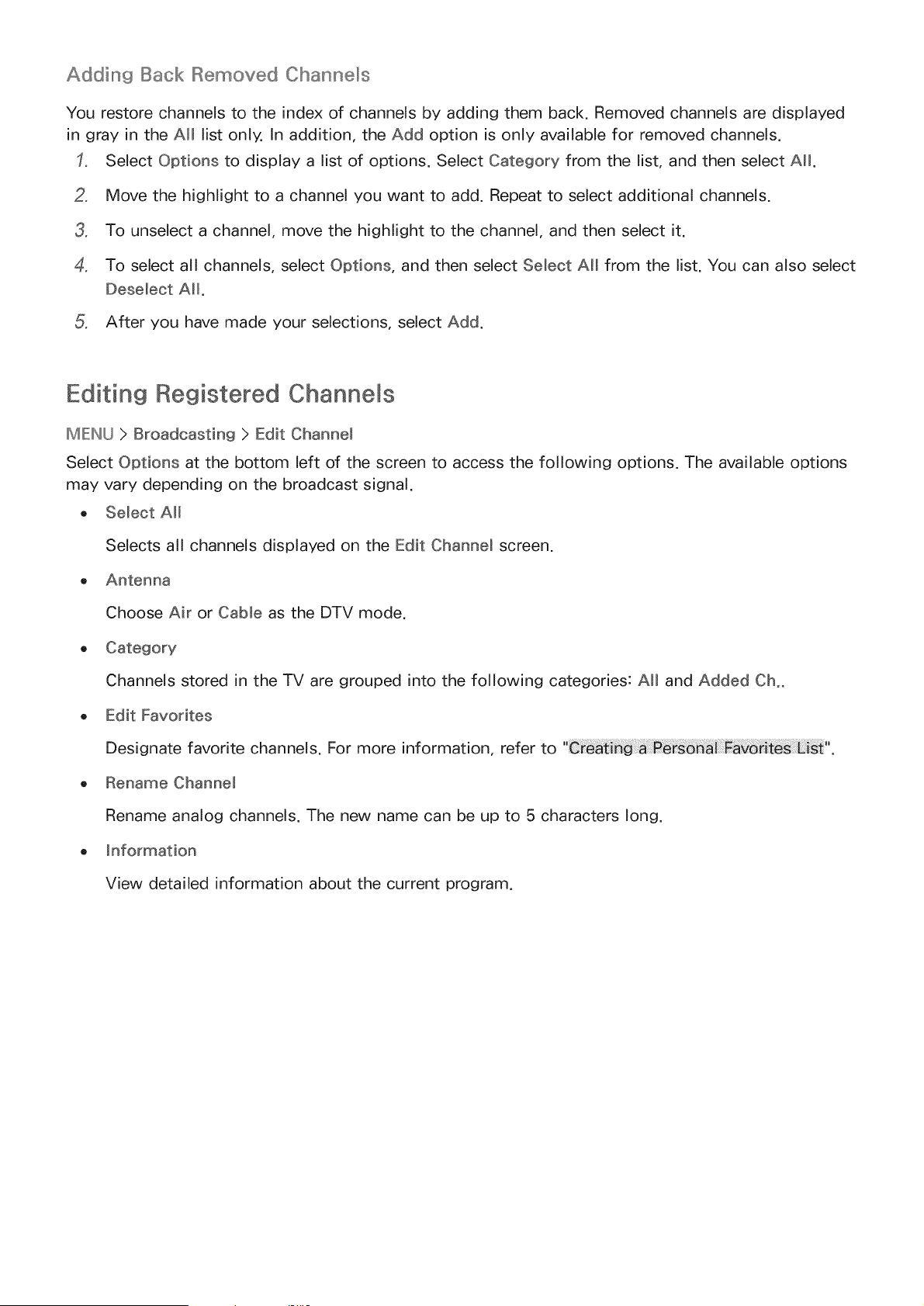

64 Editing Registered Channels

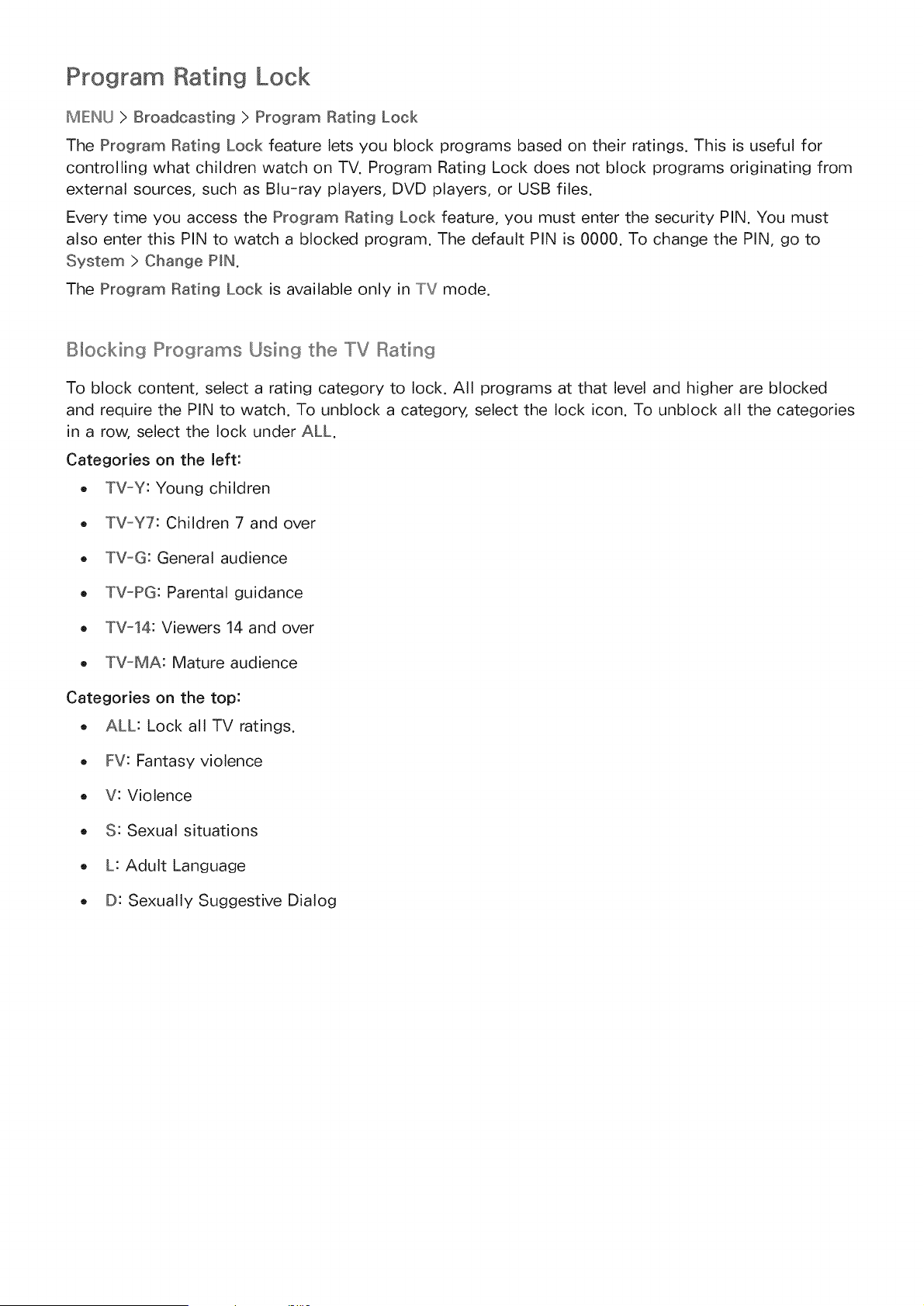

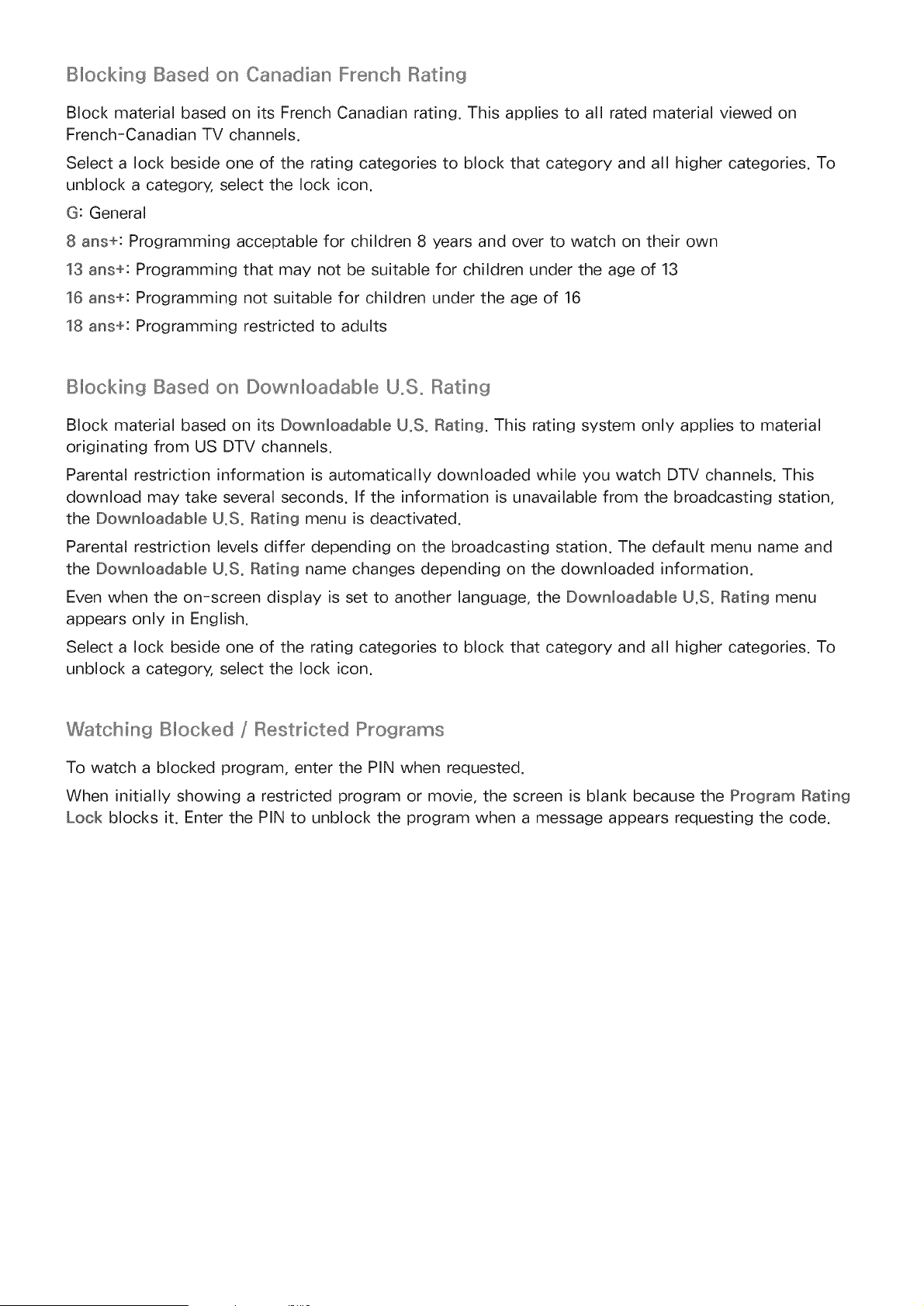

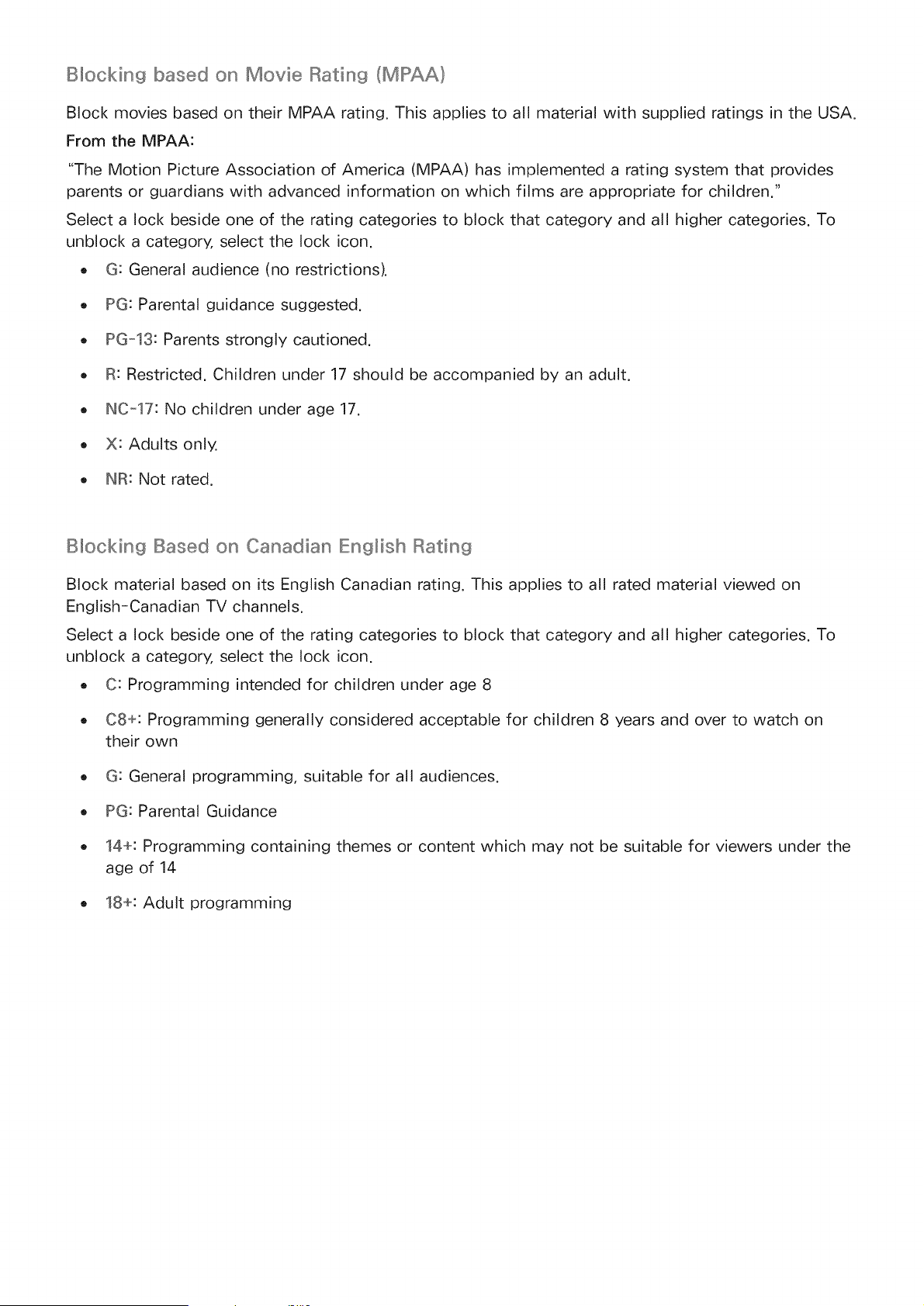

65 Program Rating Lock

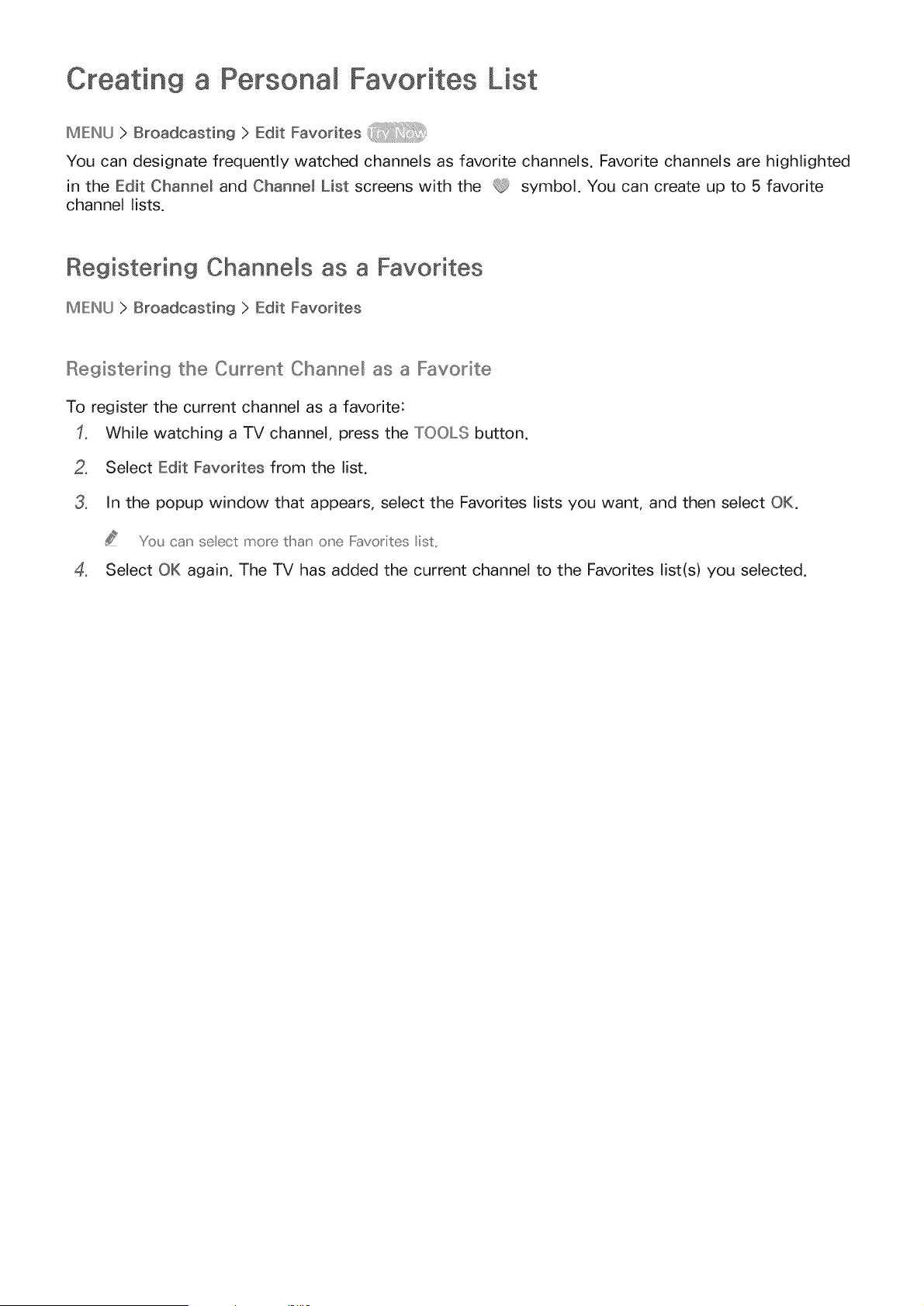

Creating a Personal Favorites List

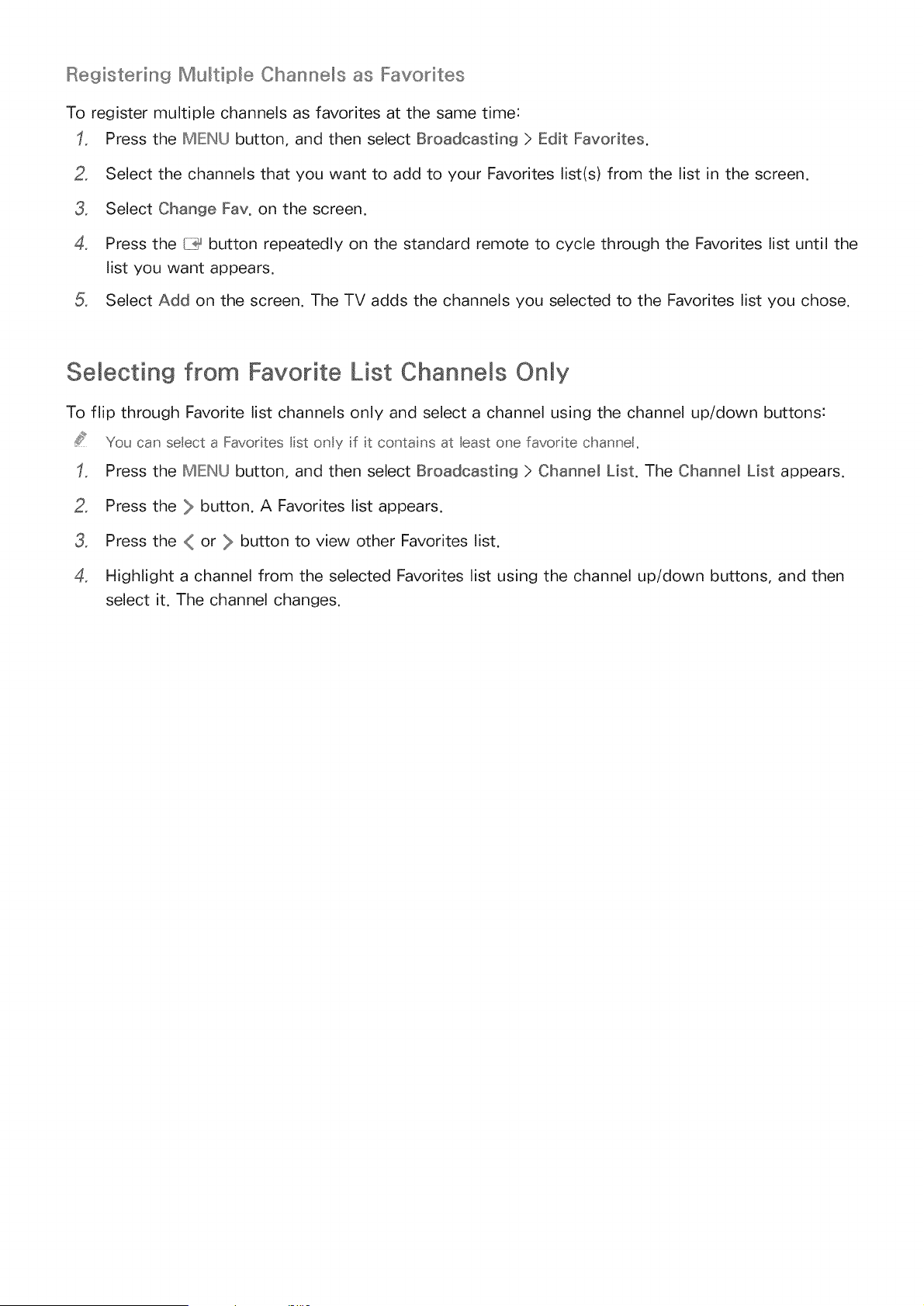

68 Registering Channels as a Favorites
69 Selecting from Favorite List Channels Only

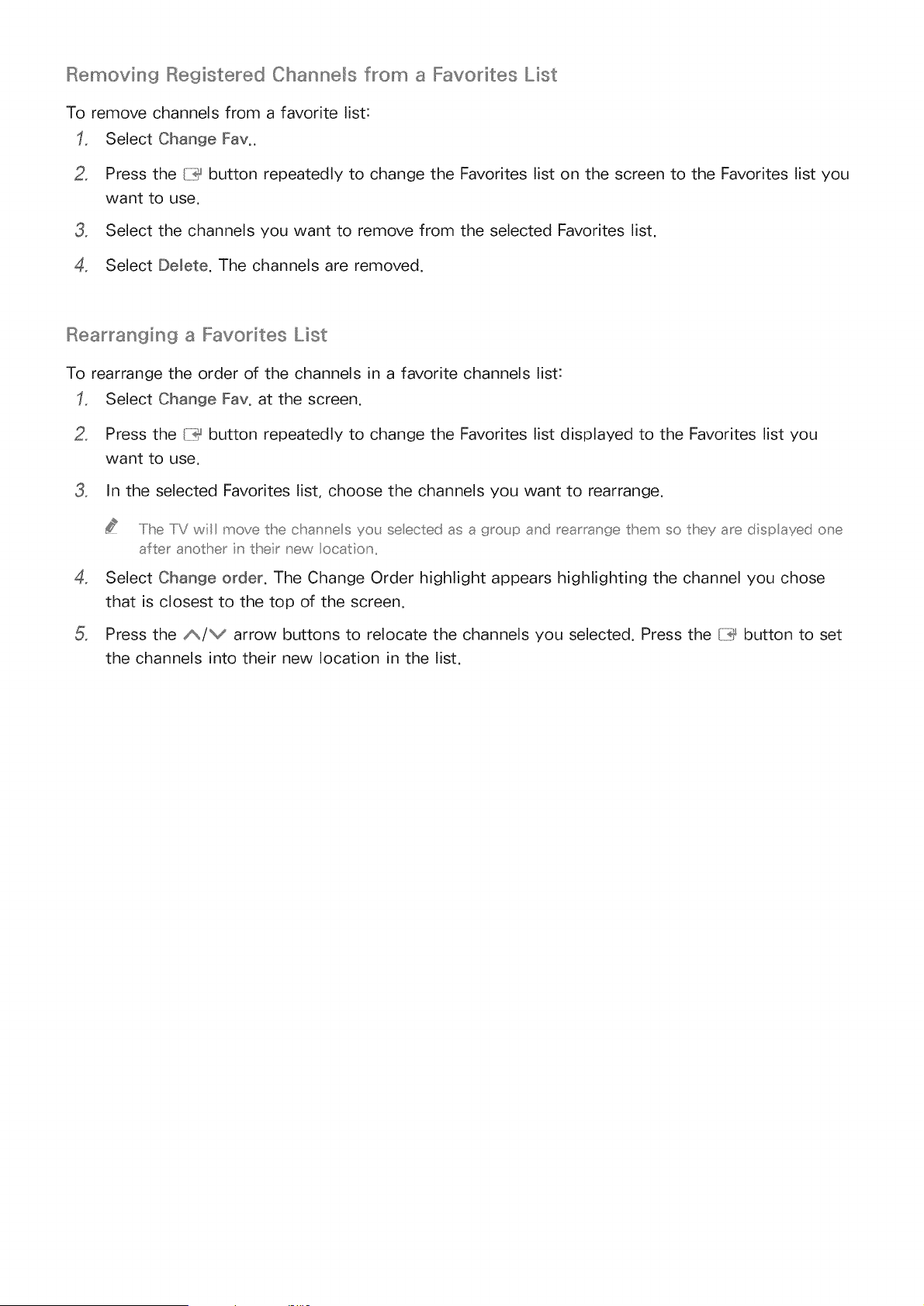

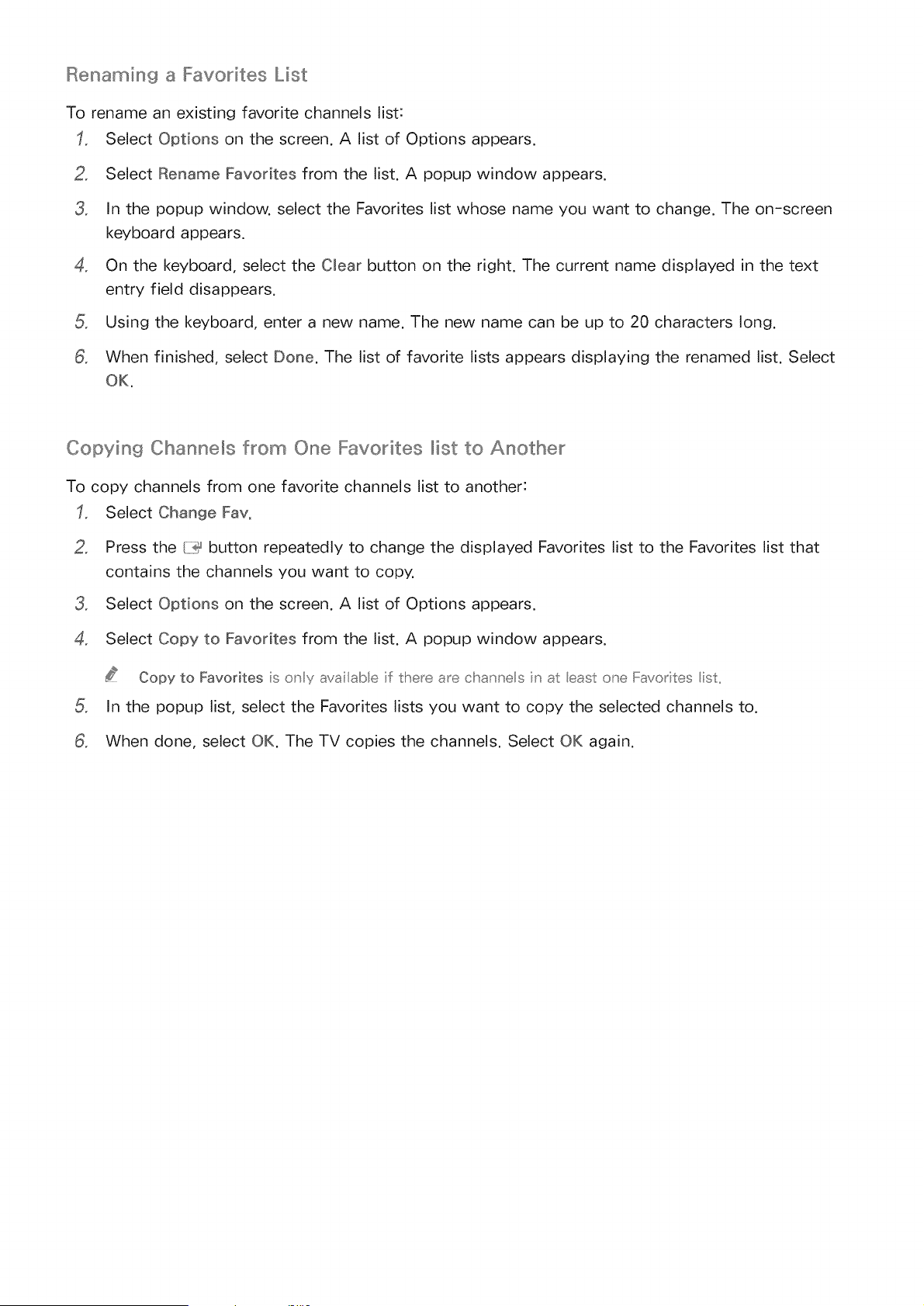

Editing a Favorites List
70 Edit Favorites Screen Menu Items

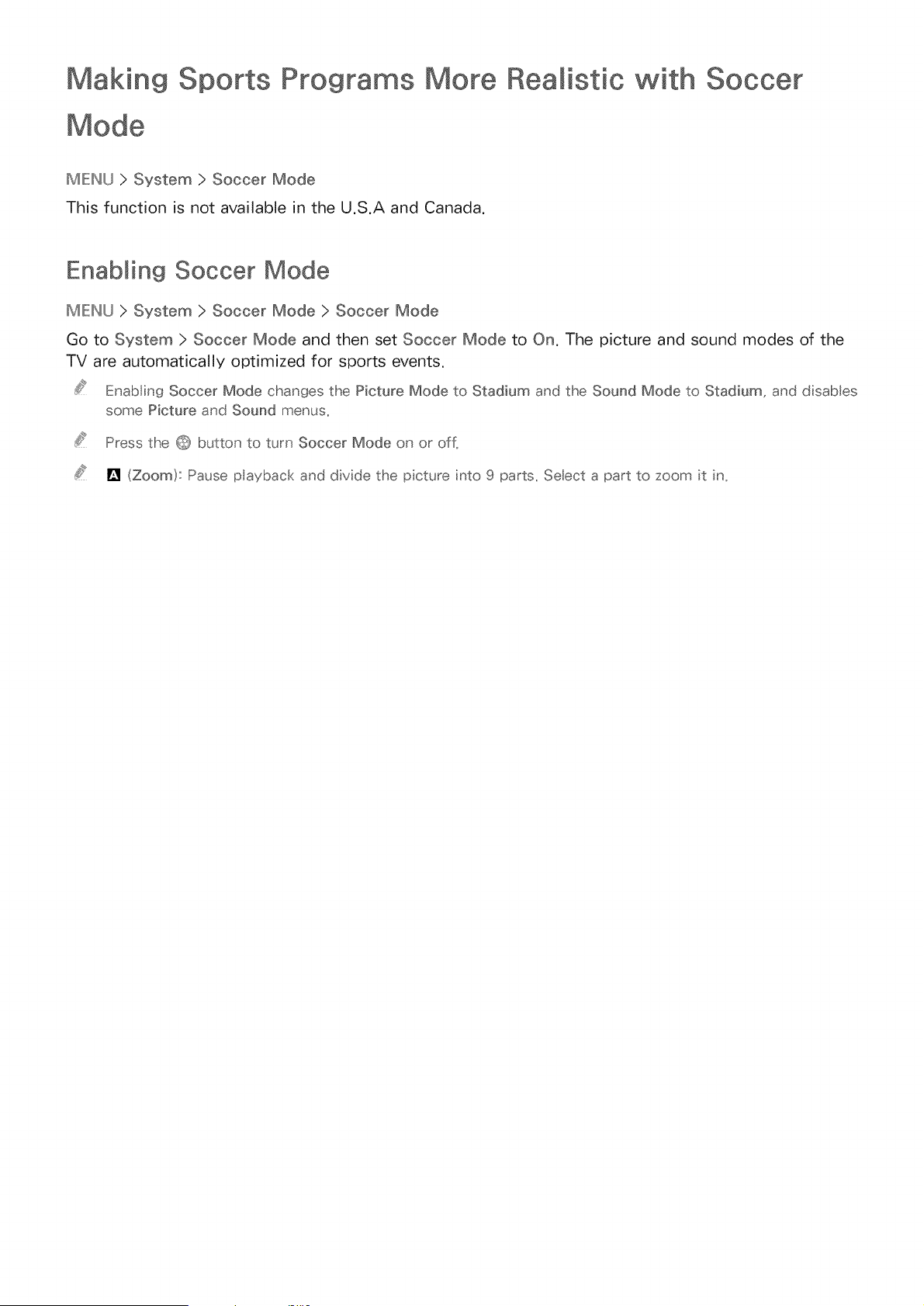

Making Sports Programs More Realistic with Soccer
Mode
73 Enabling Soccer Mode

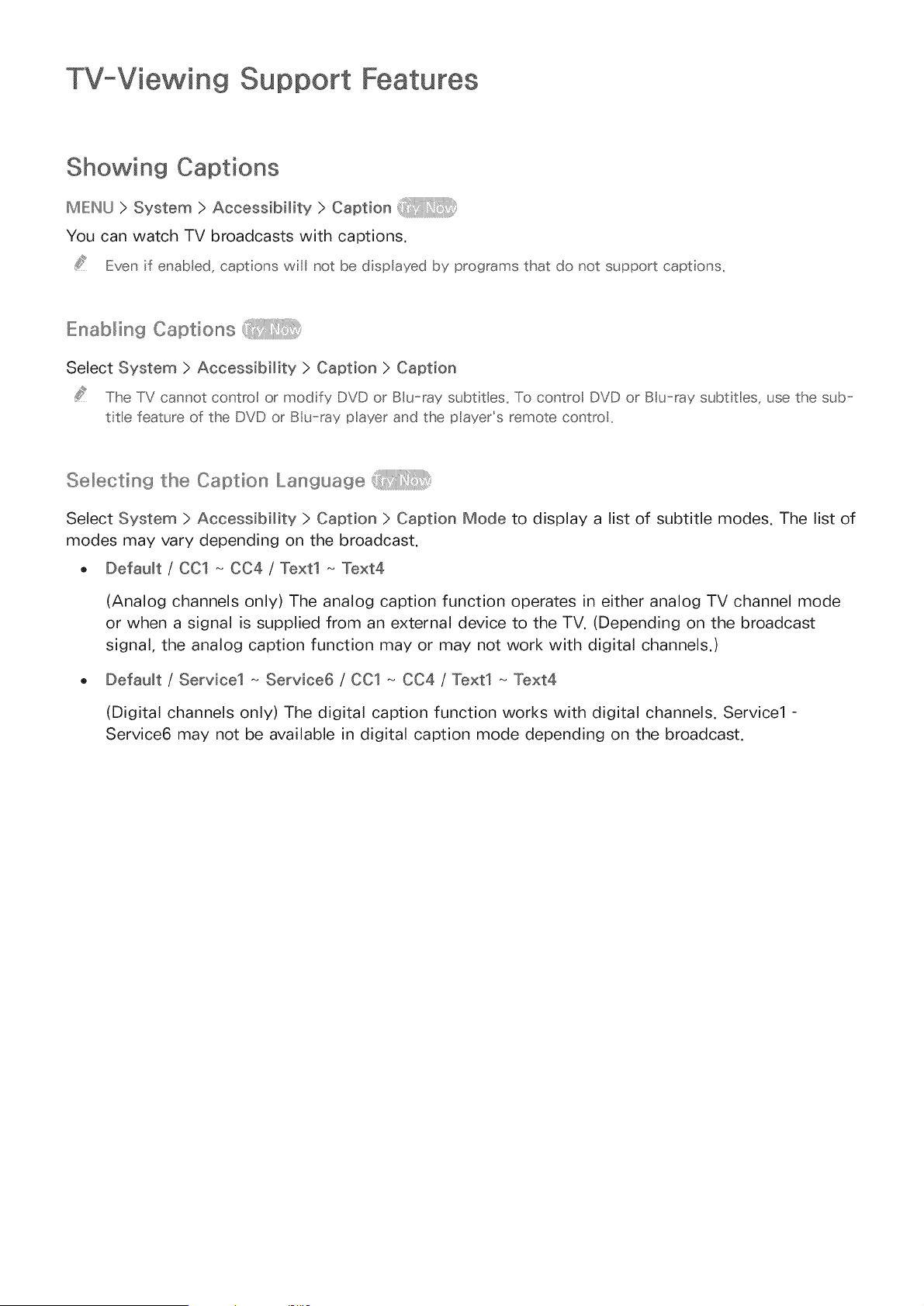

TV-Viewing Support Features

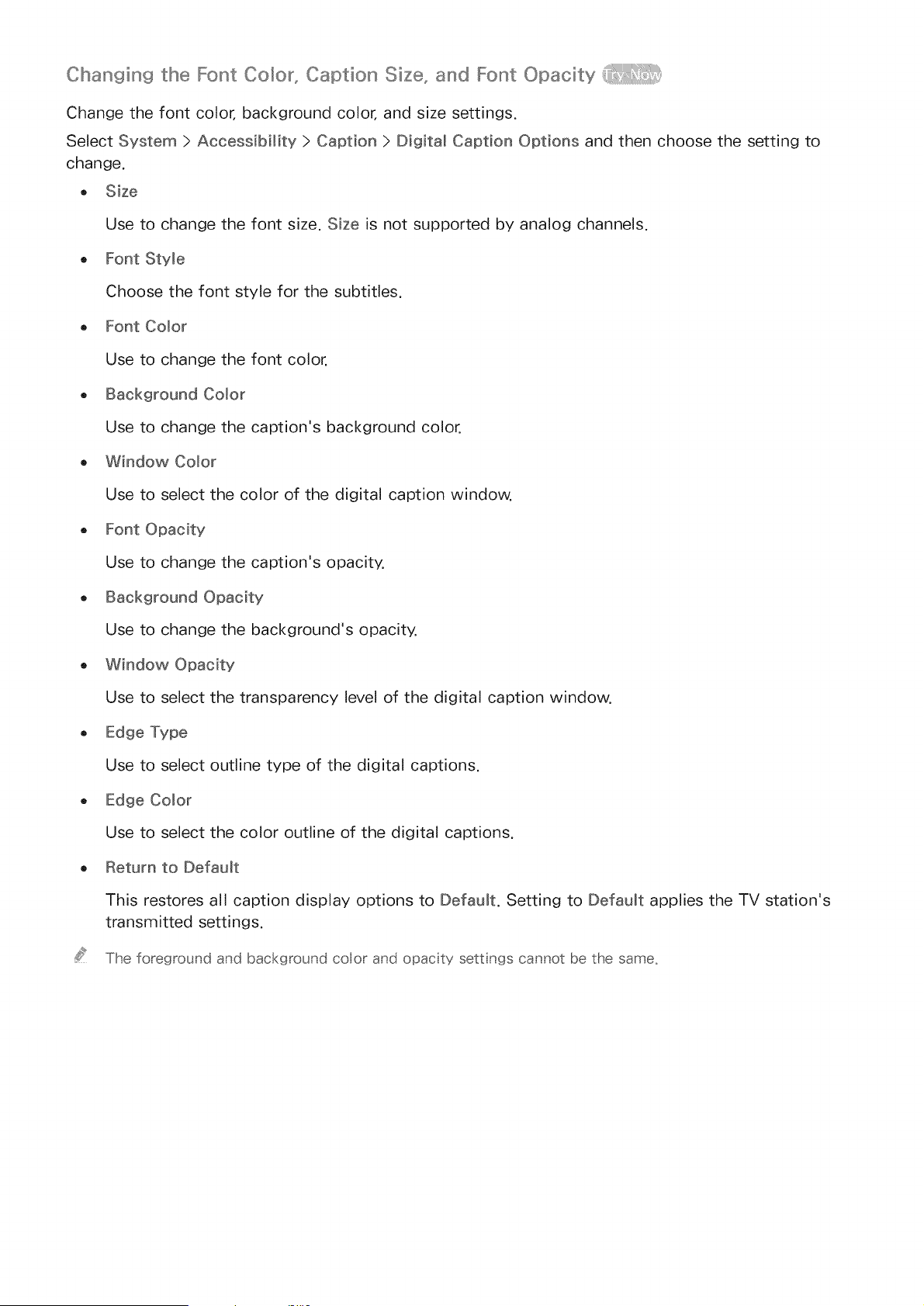

74 Showing Captions

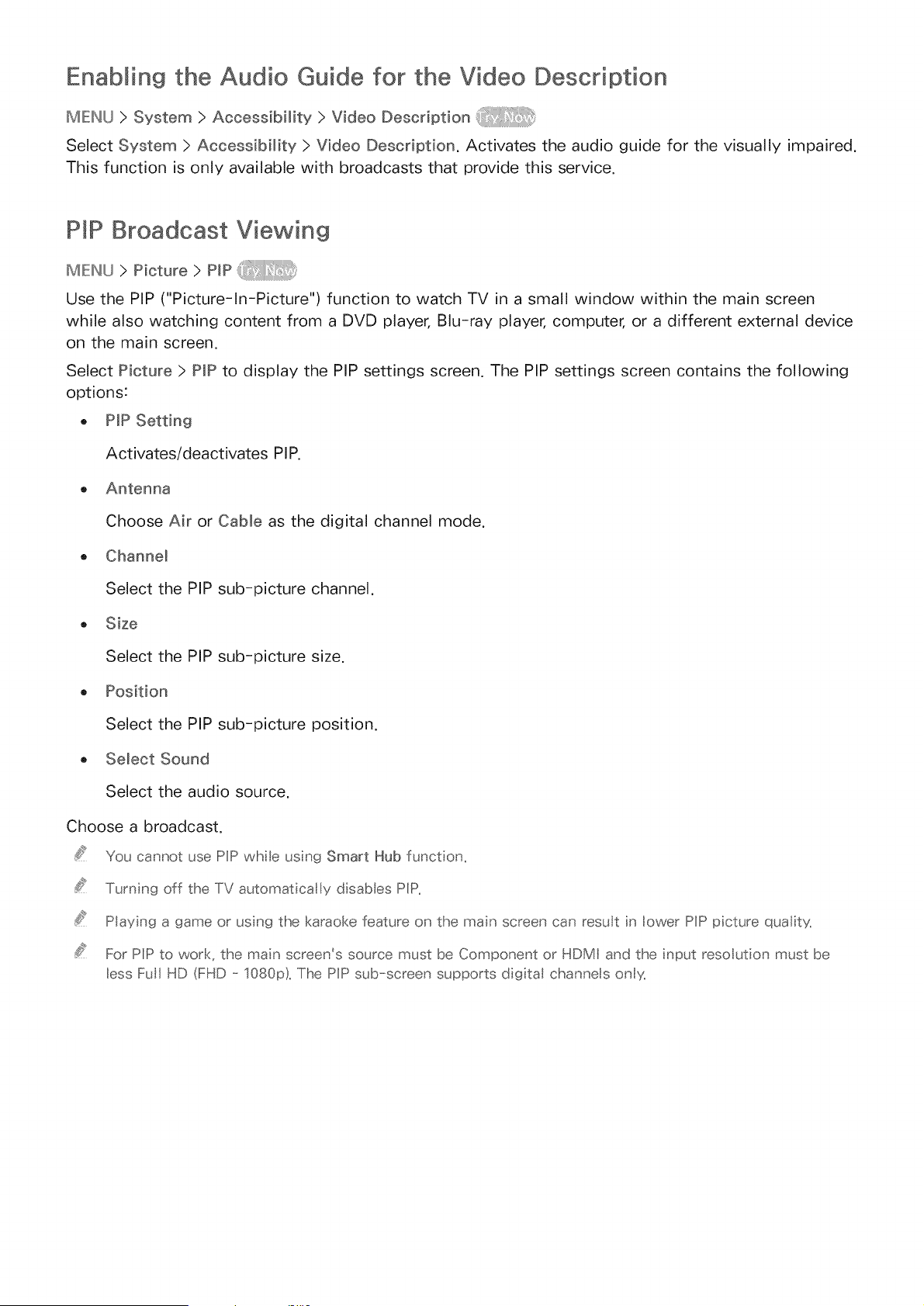

76 Enabling the Audio Guide for the Video Description
76 PIP Broadcast Viewing

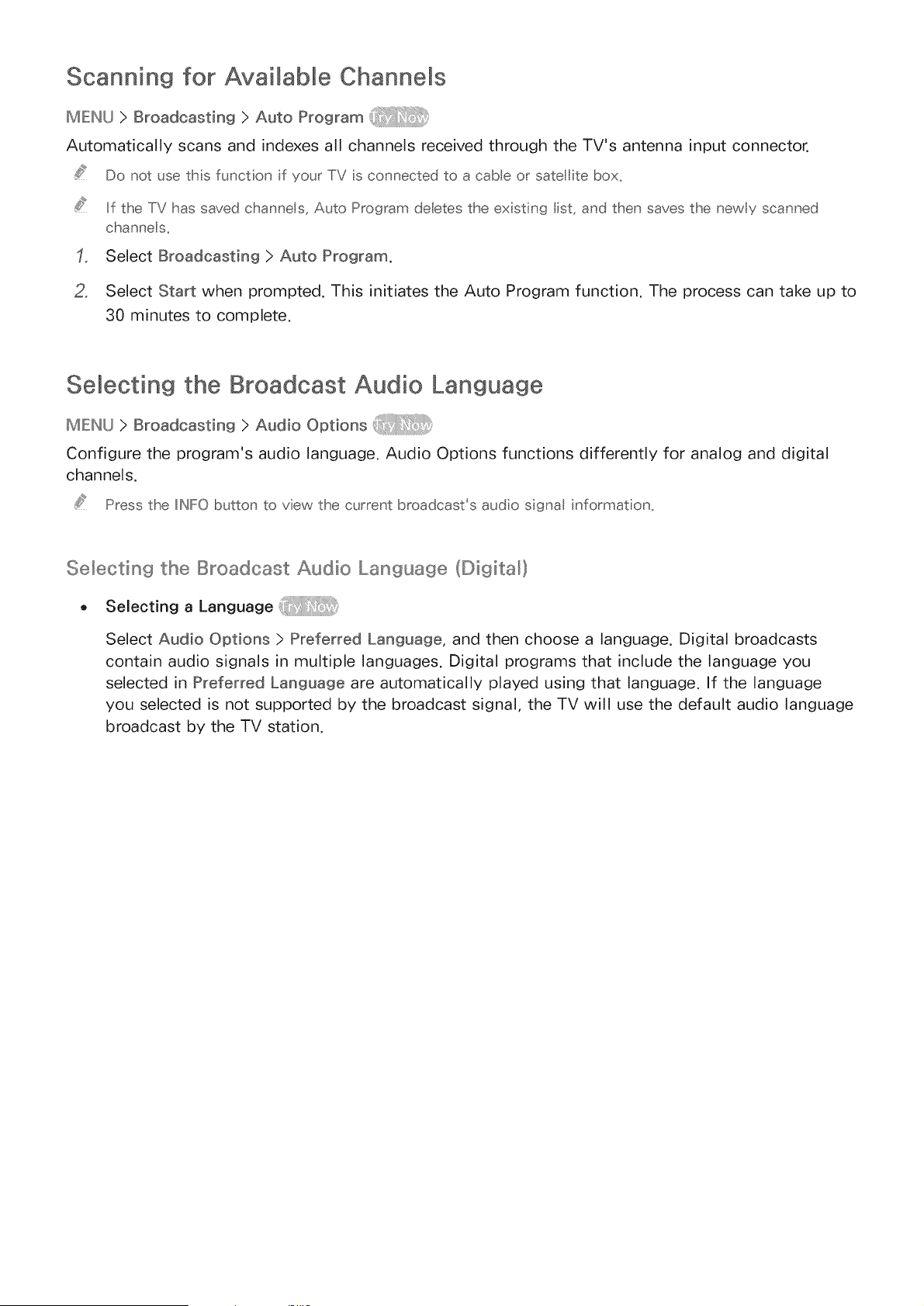

77 Scanning for Available Channels

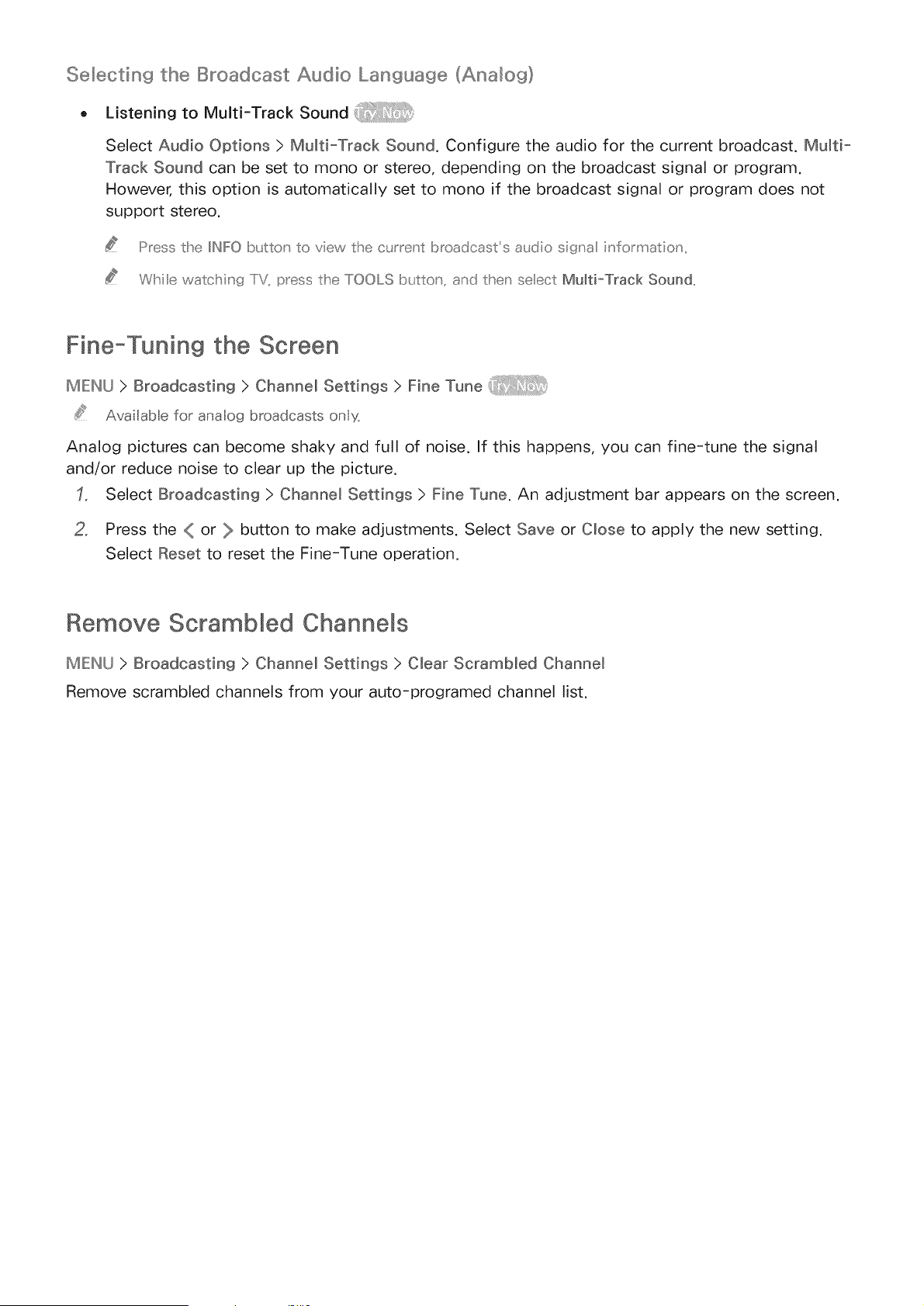

77 Selecting the Broadcast Audio Language
78 Fine-Tuning the Screen
78 Remove Scrambled Channels

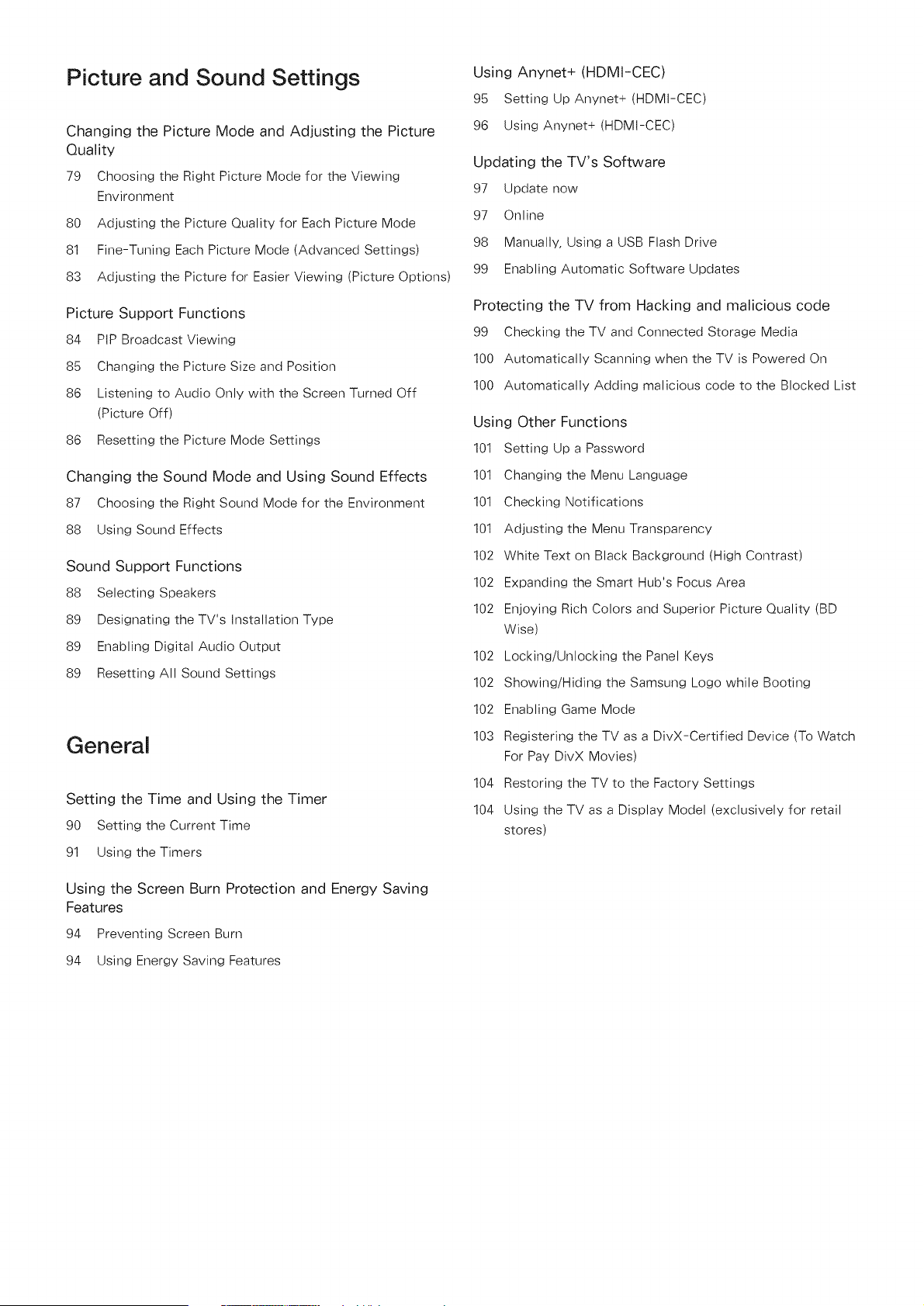

Picture and Sound Settings

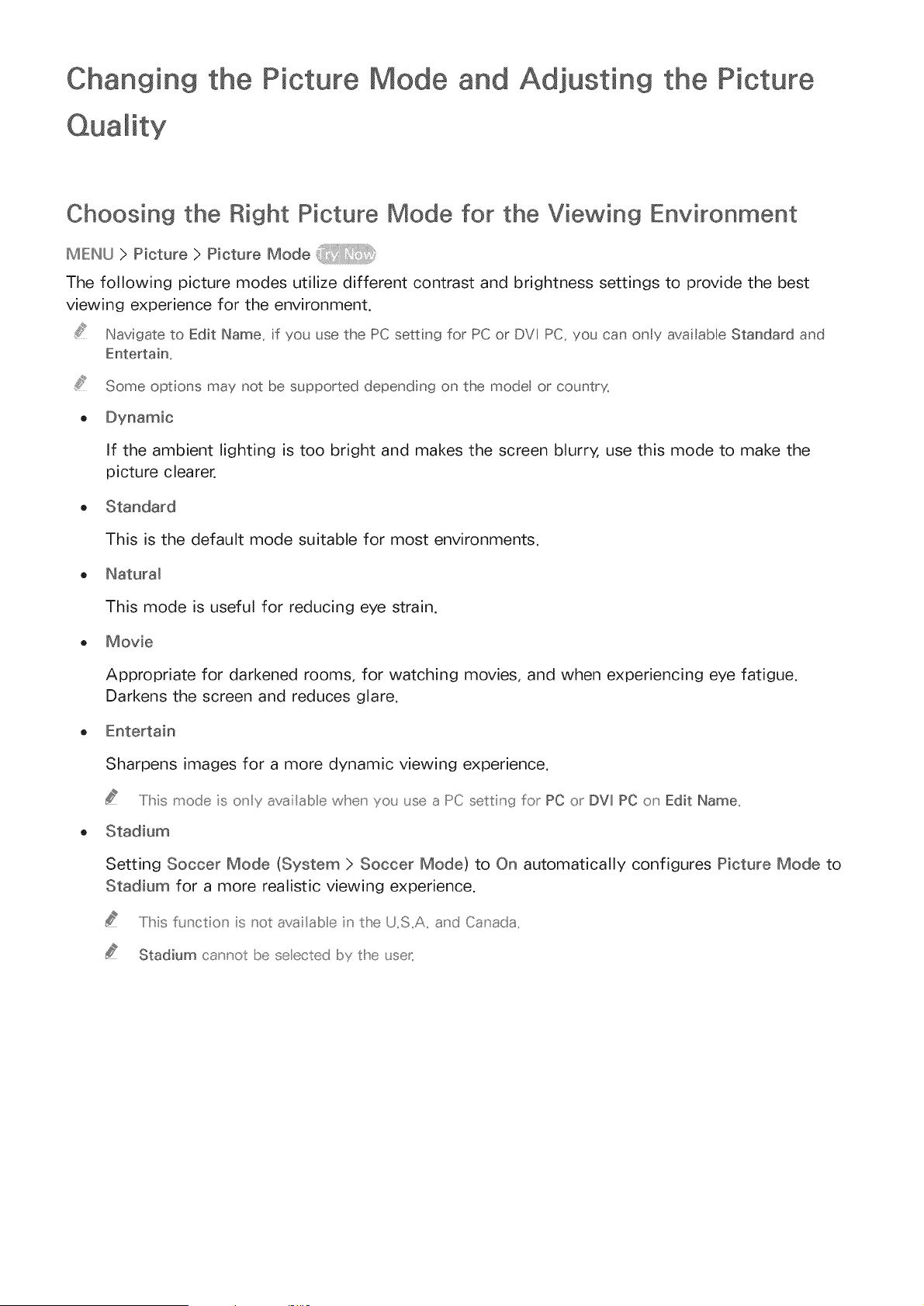

Changing the Picture Mode and Adjusting the Picture
Quality
79 Choosing the Right Picture Mode for the Viewing
Environment

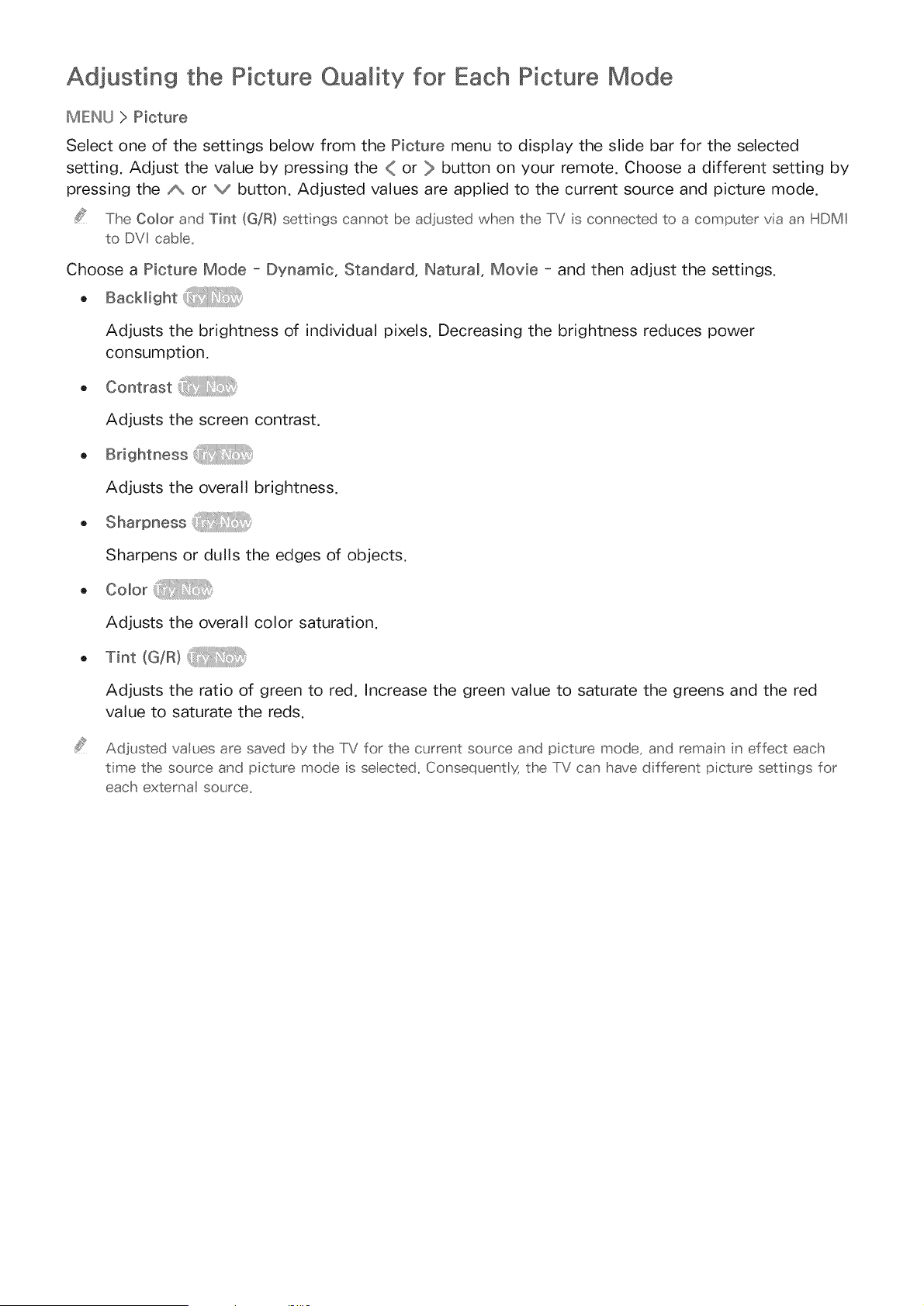

80 Adjusting the Picture Quality for Each Picture Mode

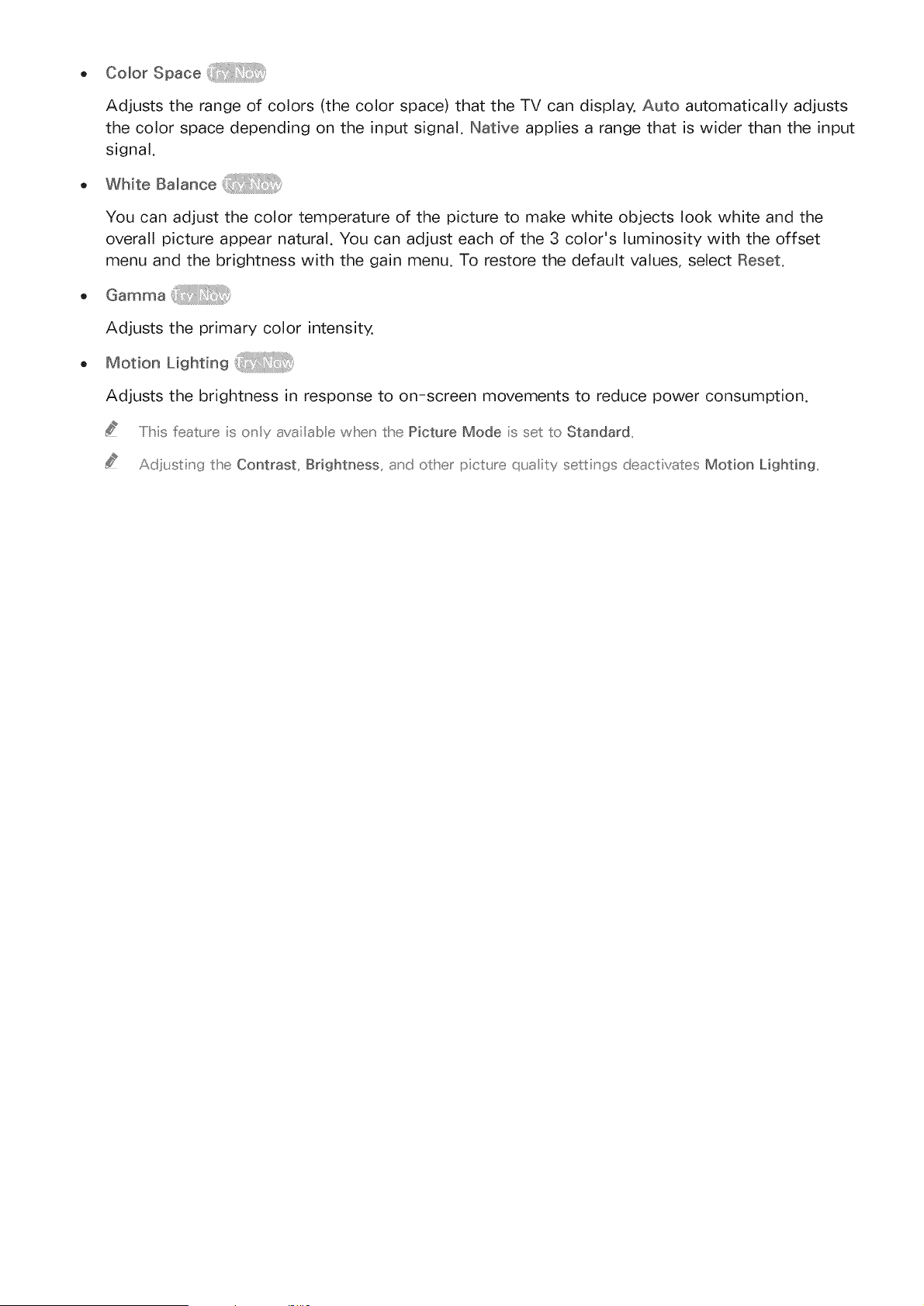

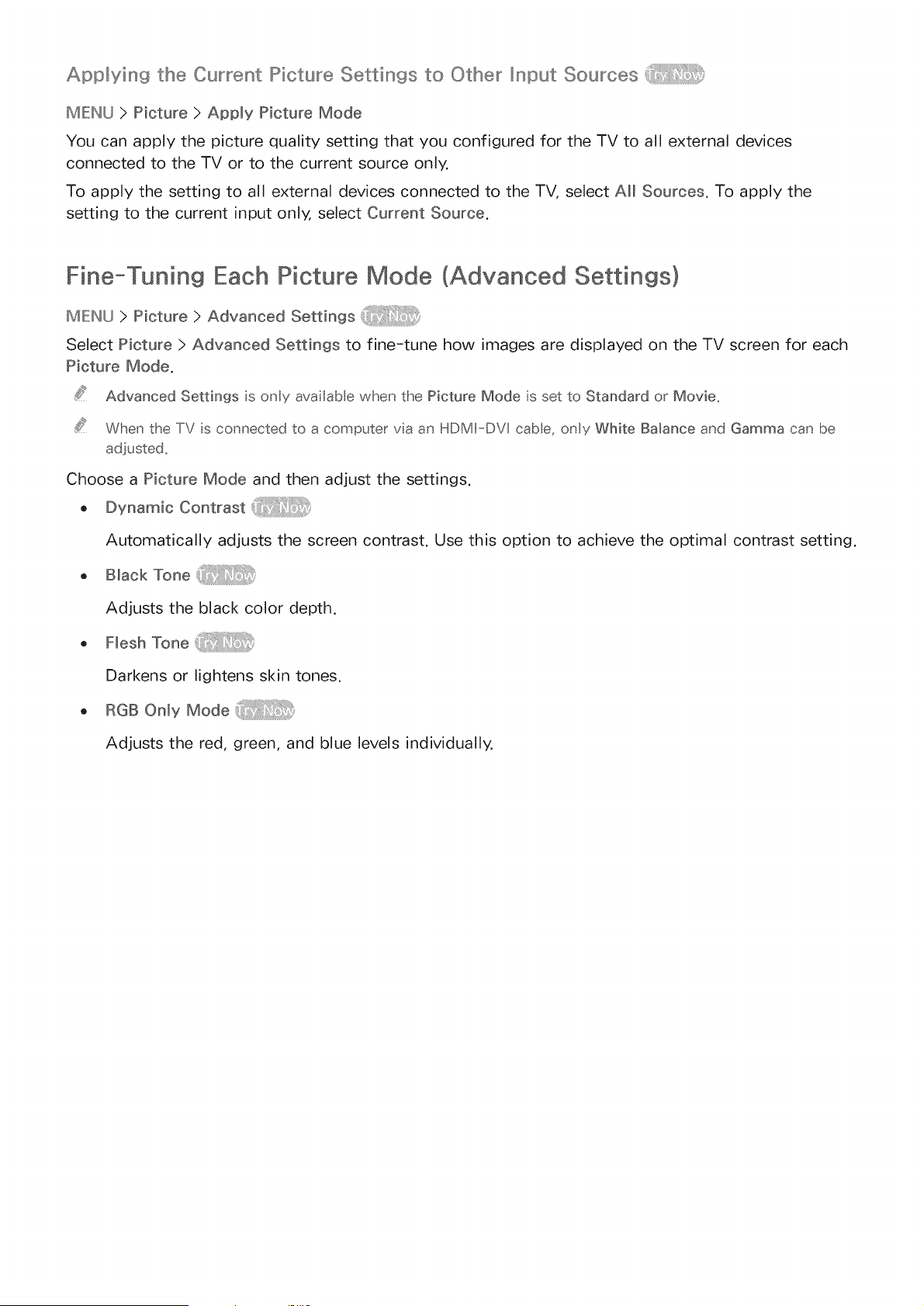

81 Fine-Tuning Each Picture Mode (Advanced Settings)
83 Adjusting the Picture for Easier Viewing (Picture Options)
Picture Support Functions

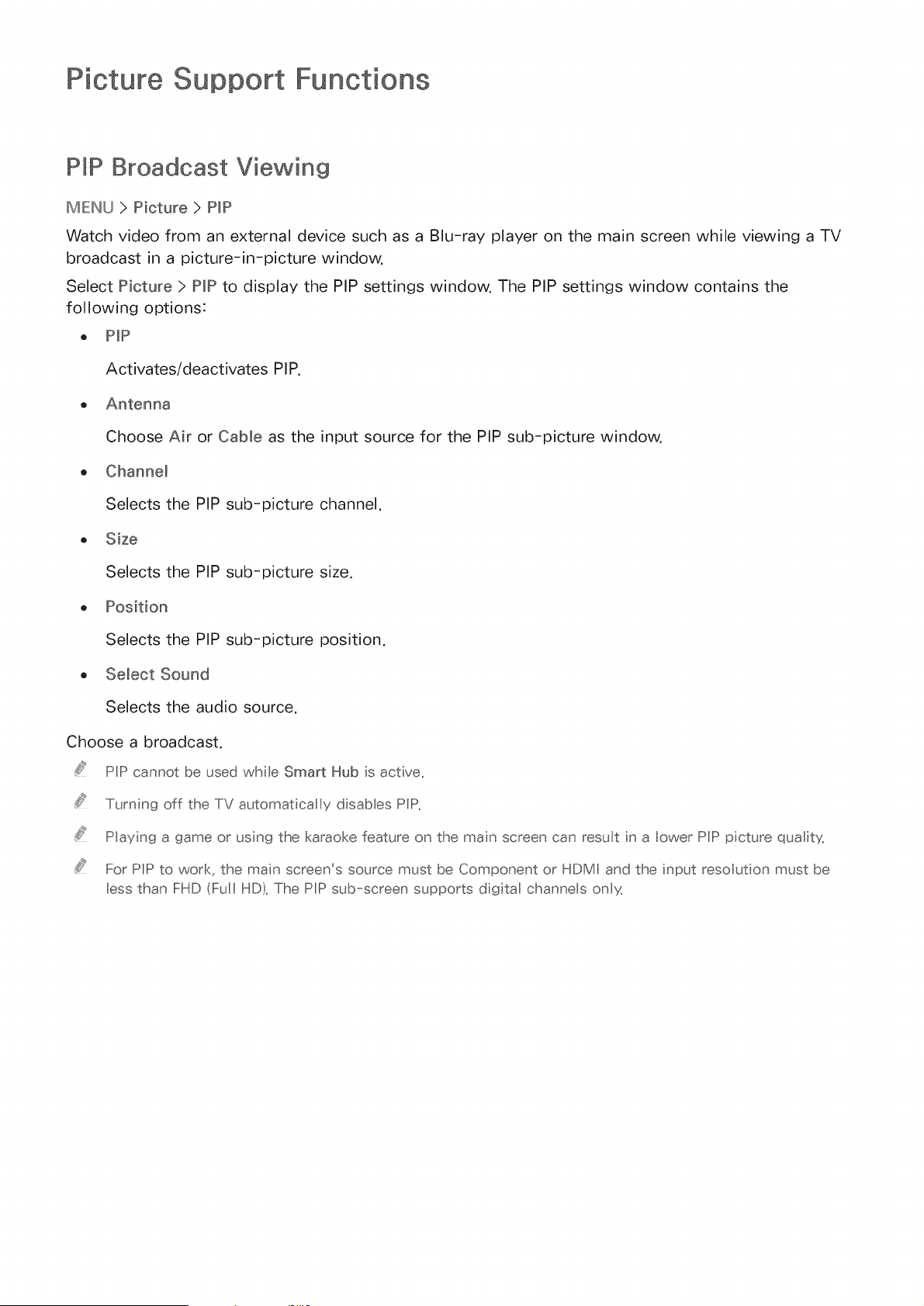

84 PIP Broadcast Viewing

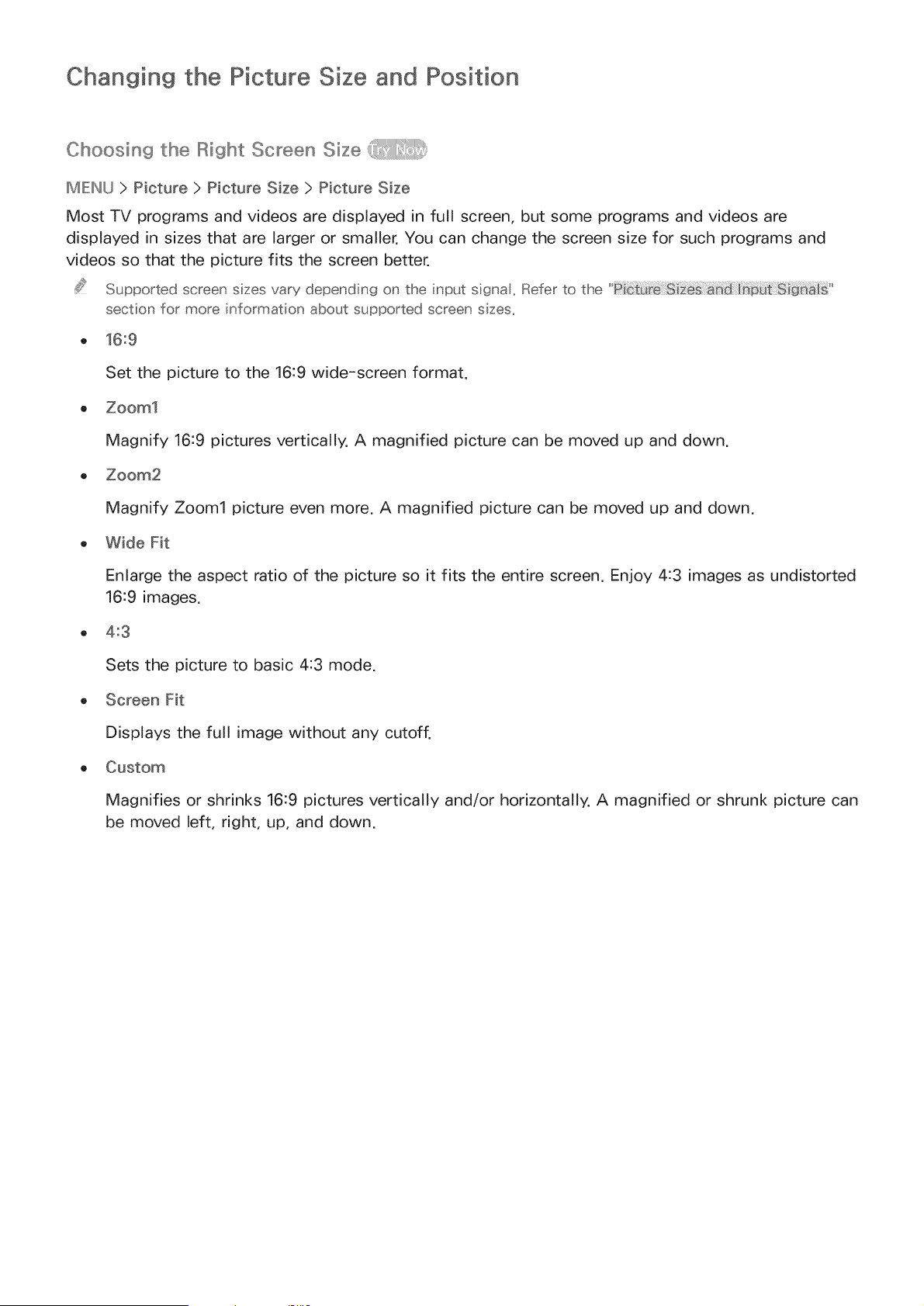

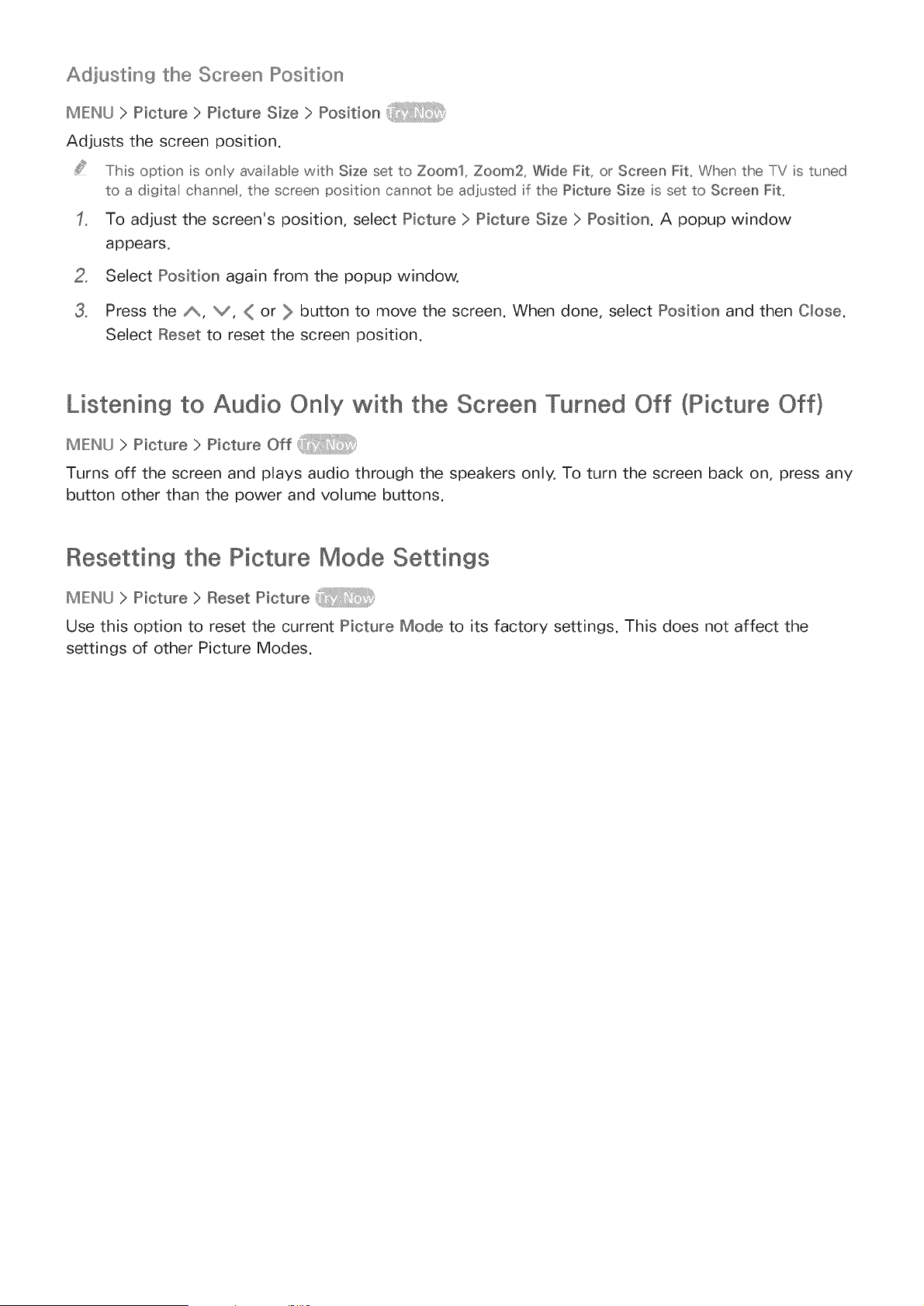

85 Changing the Picture Size and Position
86 Listening to Audio Only with the Screen Turned Off
(Picture Off)
86 Resetting the Picture Mode Settings

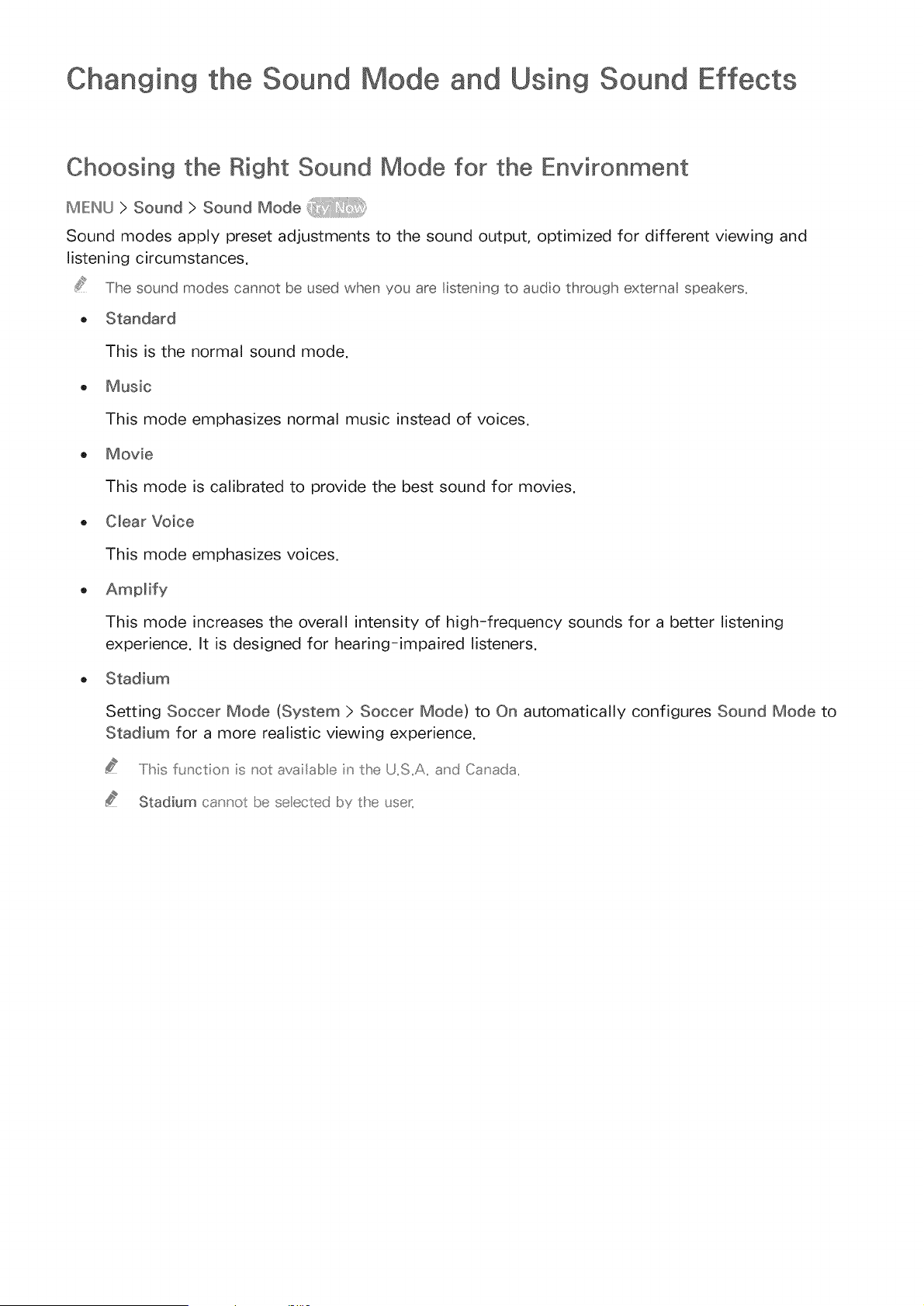

Changing the Sound Mode and Using Sound Effects
87 Choosing the Right Sound Mode for the Environment

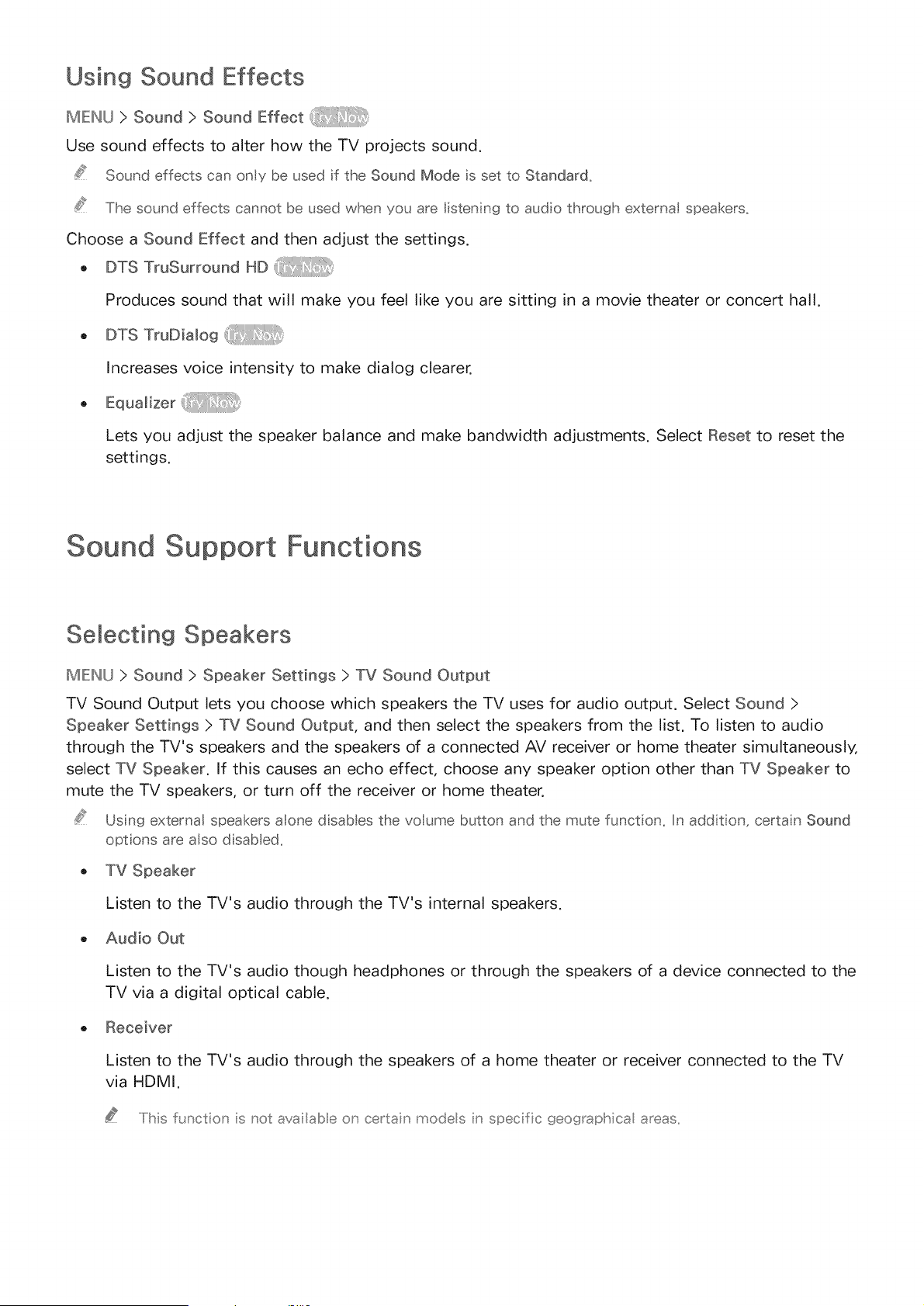

88 Using Sound Effects
Sound Support Functions
88 Selecting Speakers

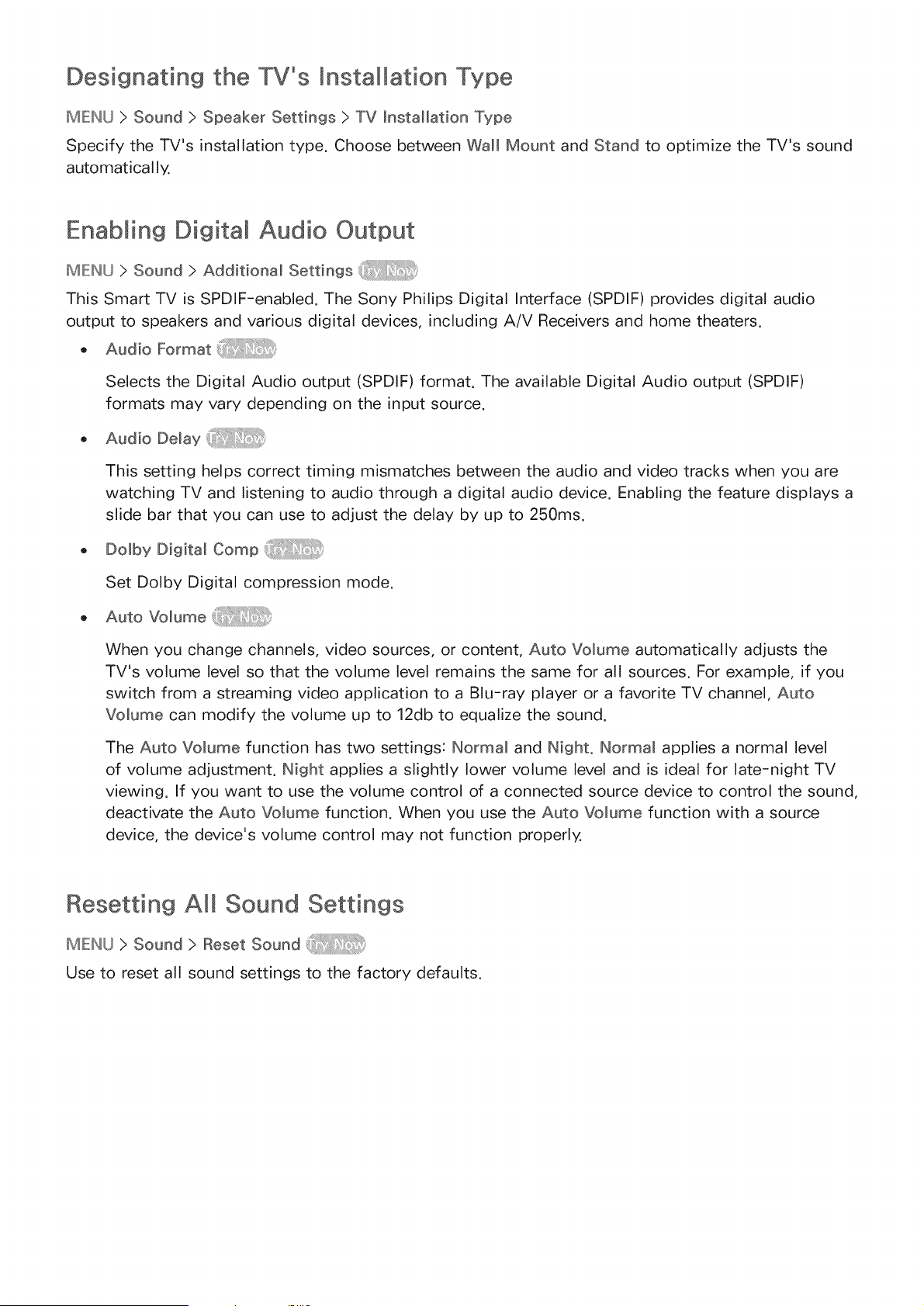

89 Designating the TV's Installation Type
89 Enabling Digital Audio Output
89 Resetting All Sound Settings
General

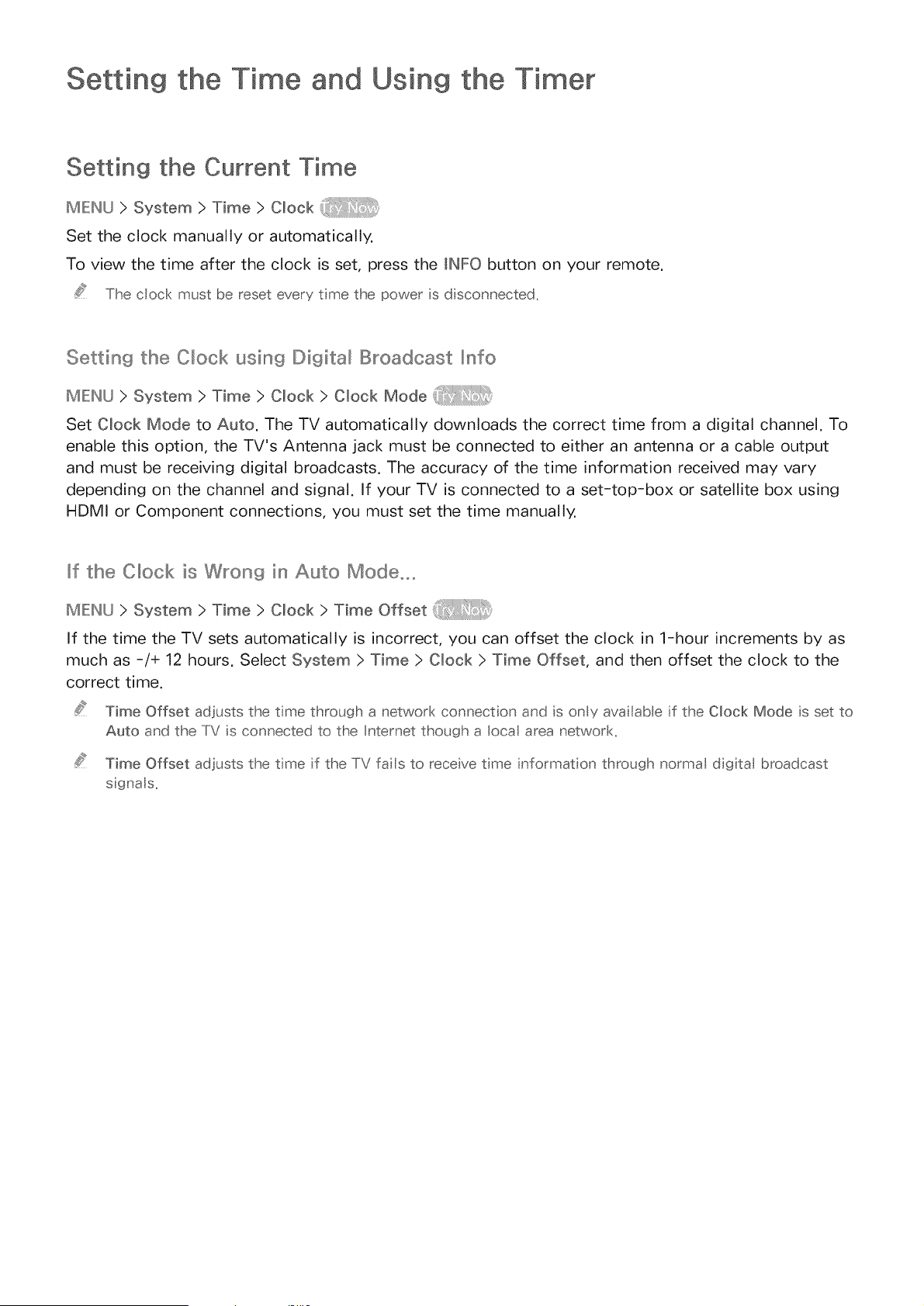

Setting the Time and Using the Timer

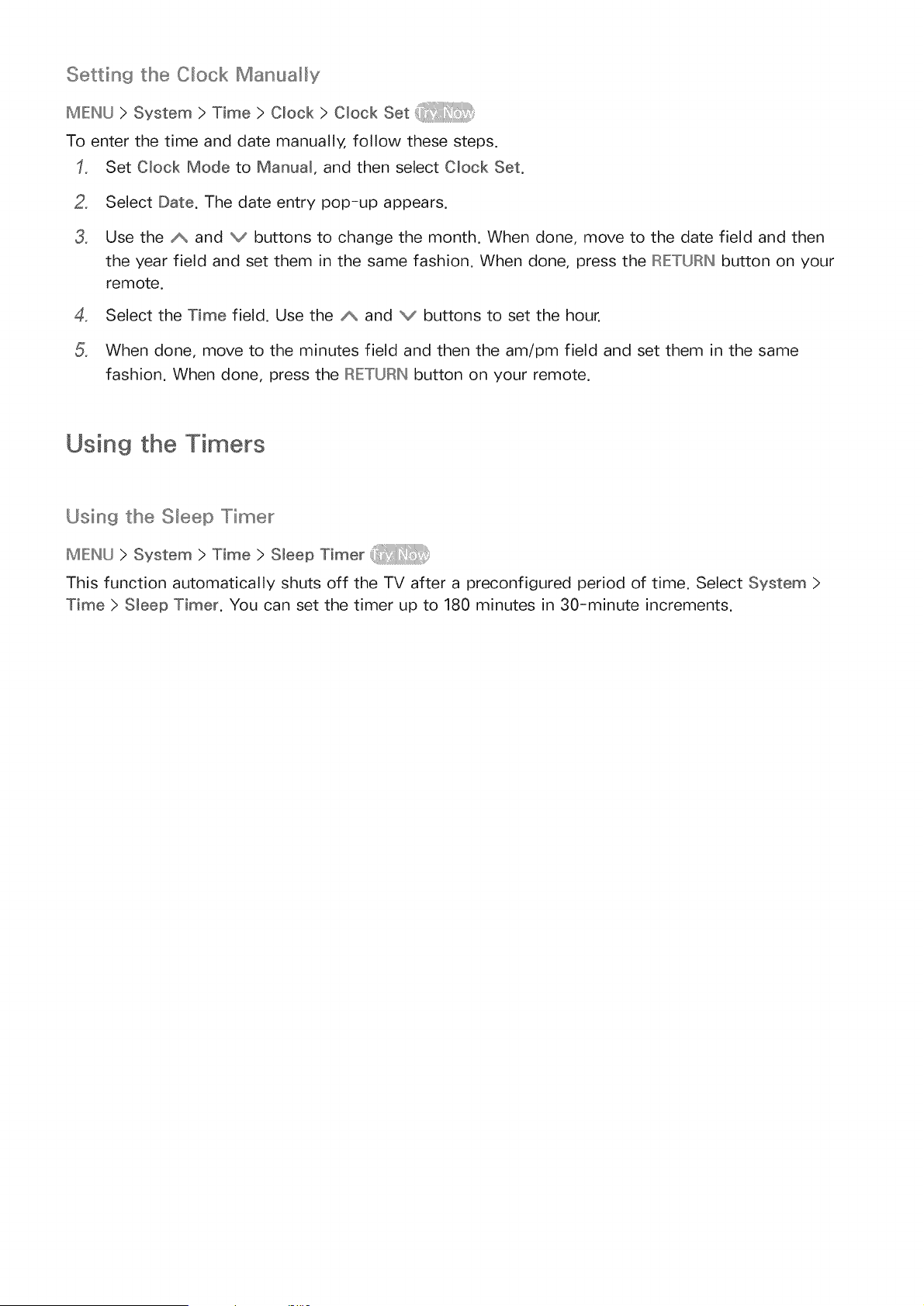

90 Setting the Current Time

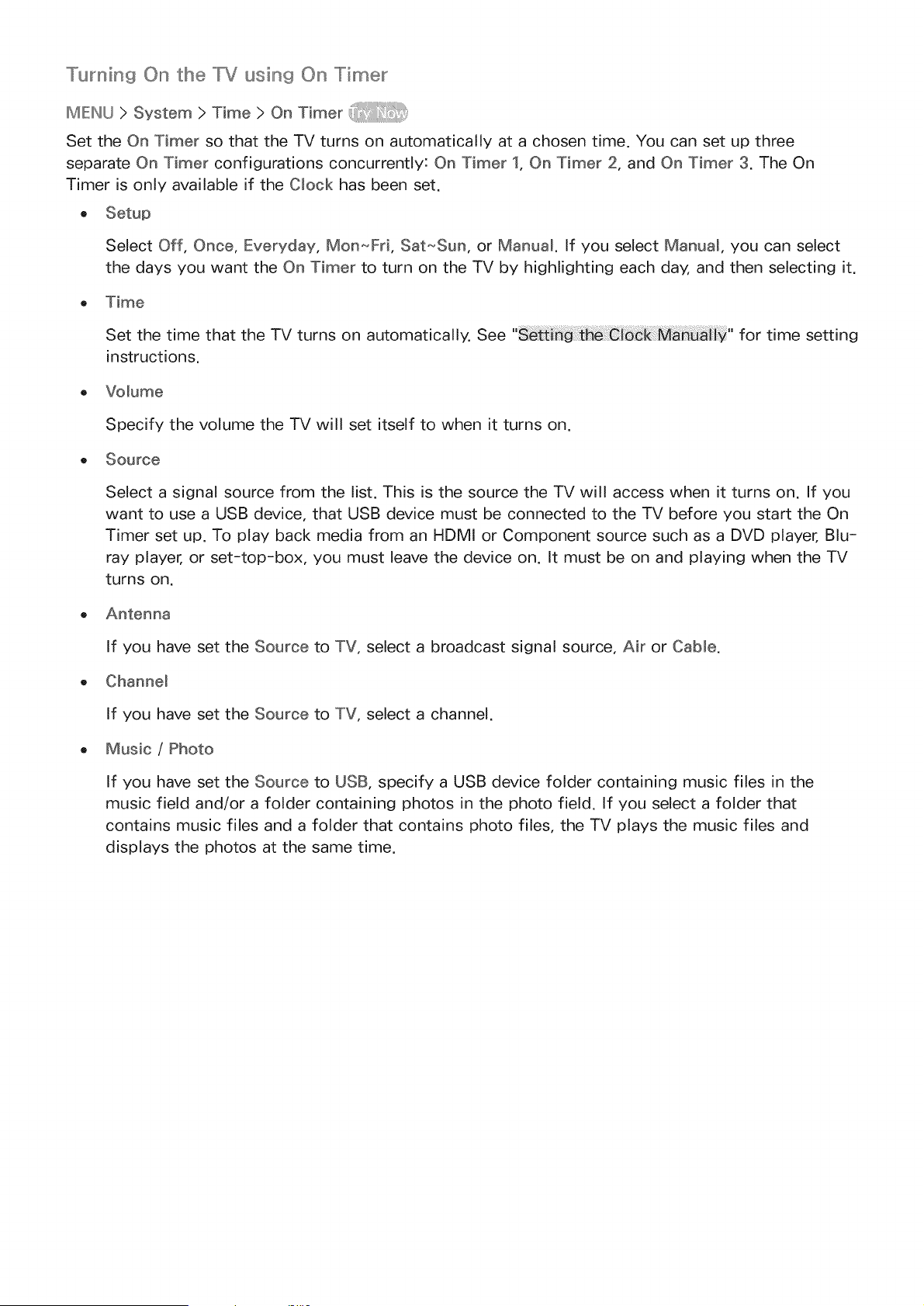

91 Using the Timers

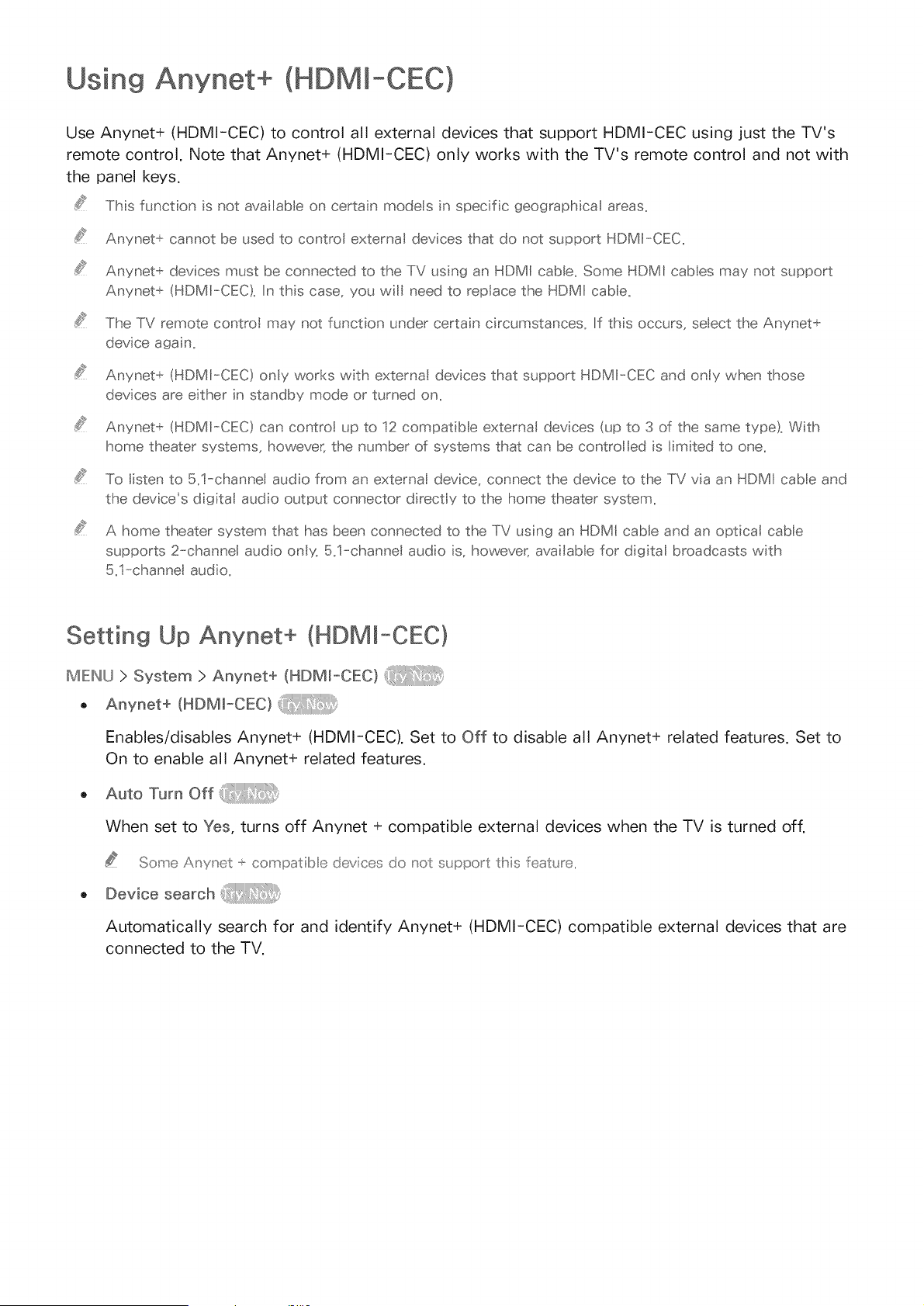

Using Anynet+ (HDMI-CEC)
95 Setting Up Anynet+ (HDMI-CEC

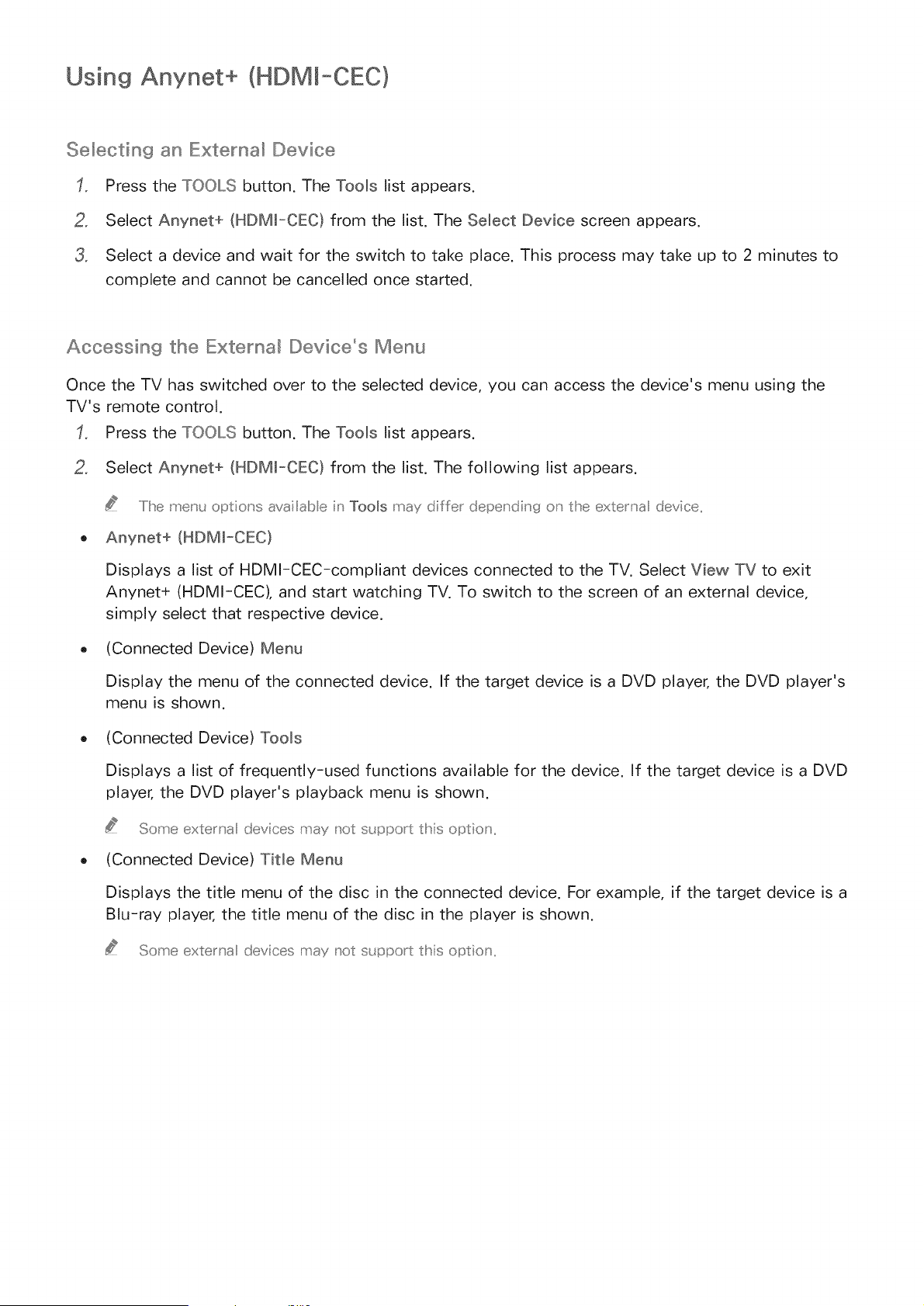

96 Using Anynet+ (HDMI-CEC)
Updating the TV's Software
97 Update now
97 Online
98 Manually, Using a USB Flash Drive

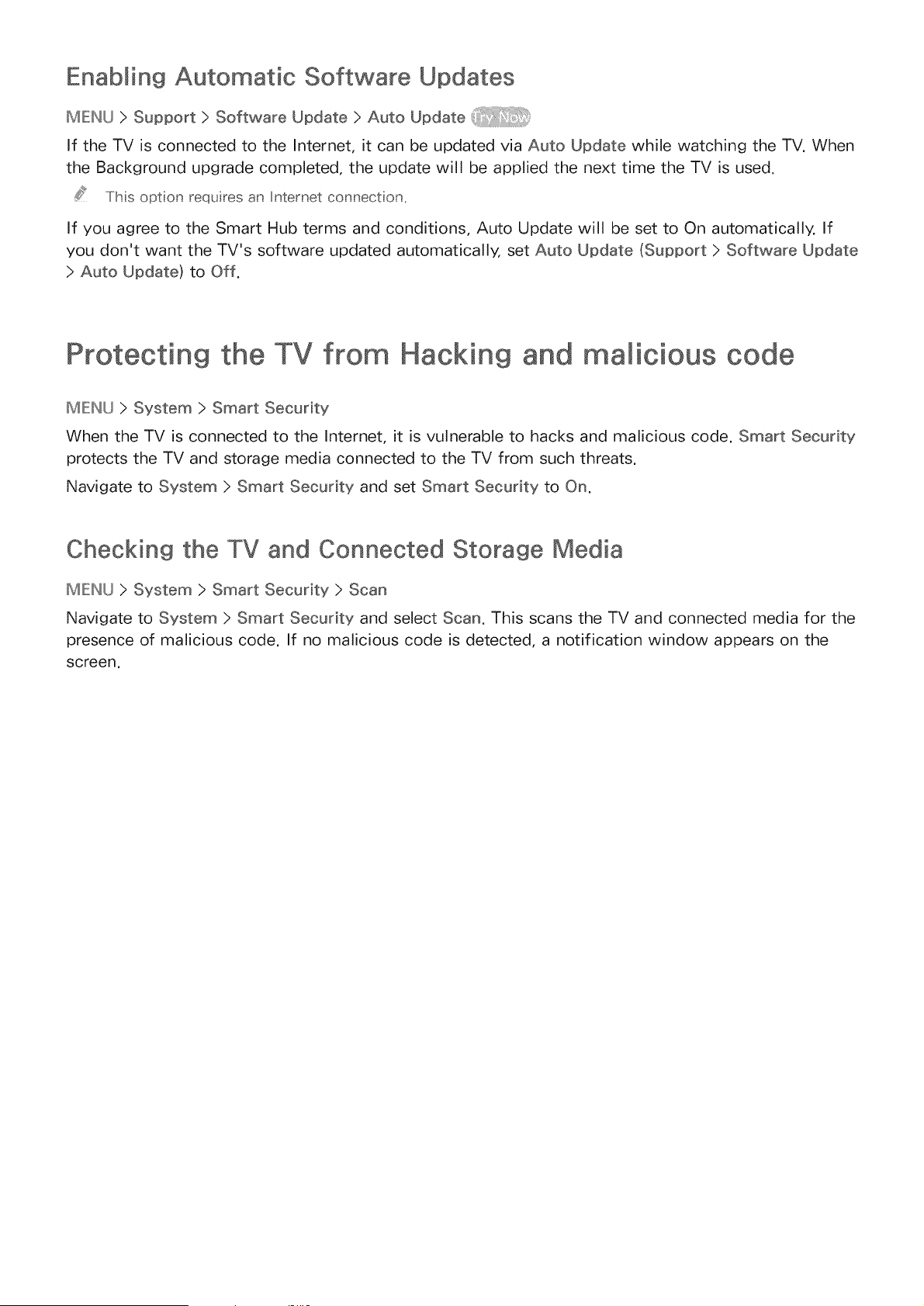

99 Enabling Automatic Software Updates
Protecting the TV from Hacking and malicious code
99 Checking the TV and Connected Storage Media
100 Automatically Scanning when the TV is Powered On

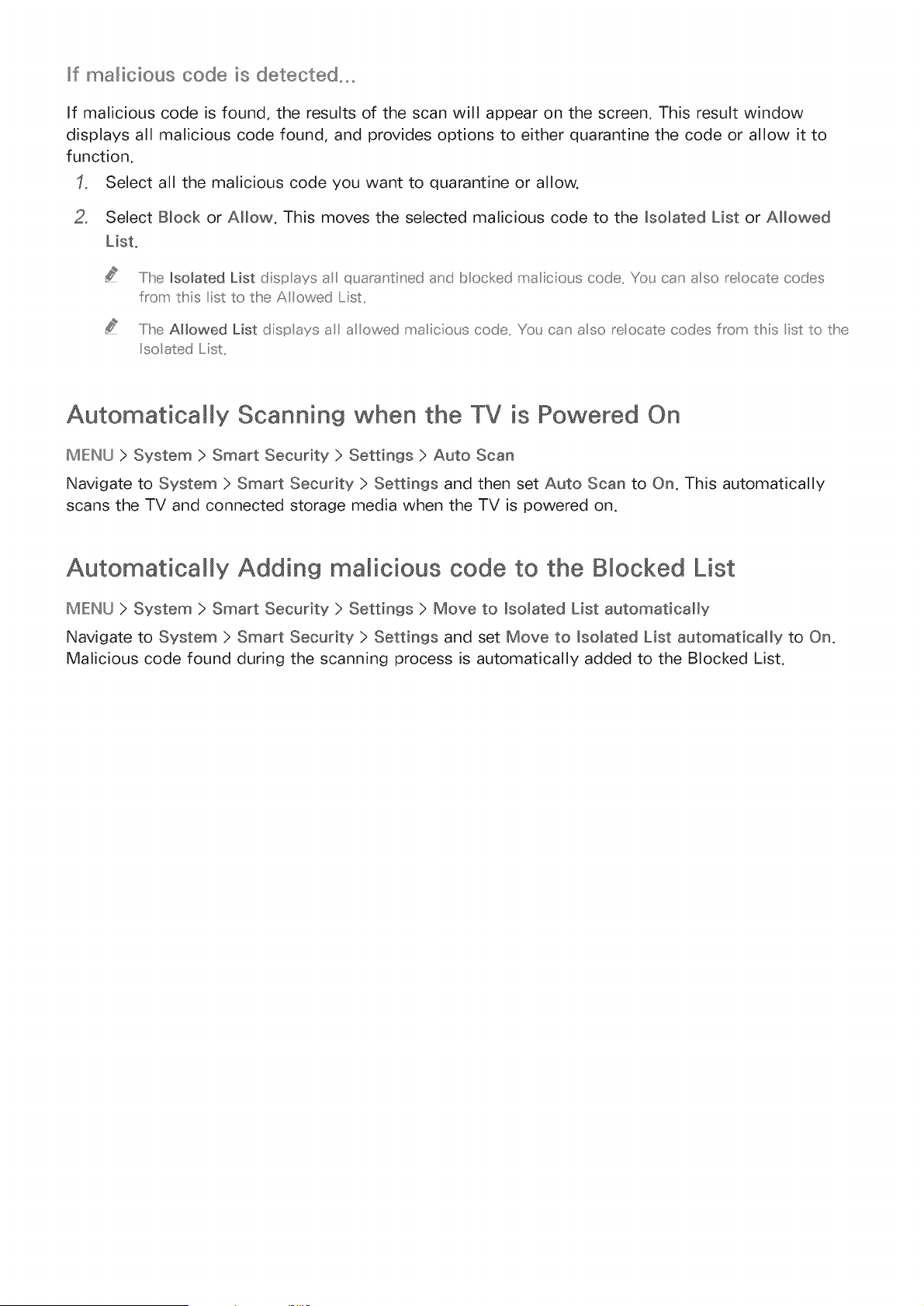

100 Automatically Adding malicious code to the Blocked List

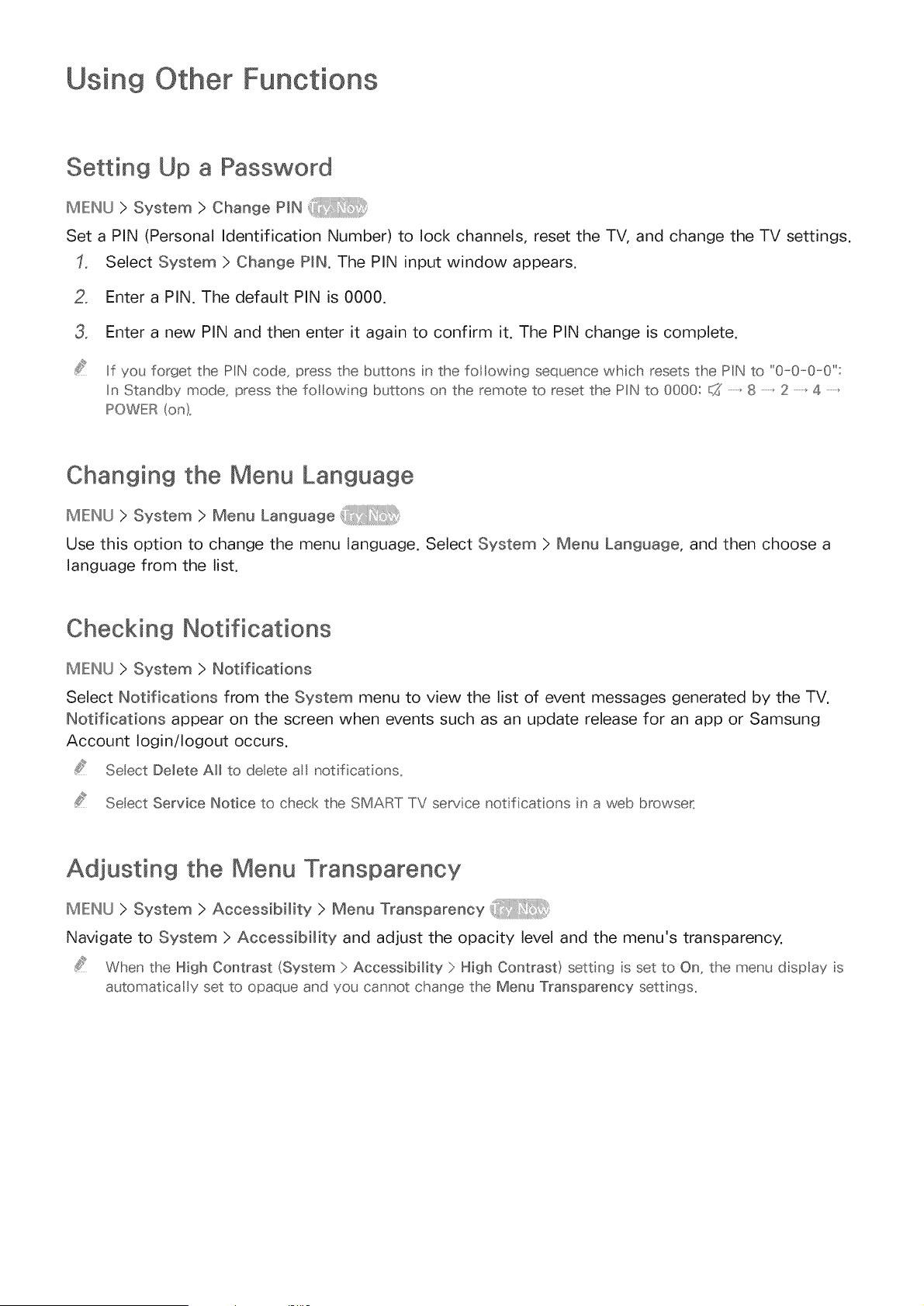

Using Other Functions
101 Setting Up a Password
101 Changing the Menu Language
101 Checking Notifications
101 Adjusting the Menu Transparency

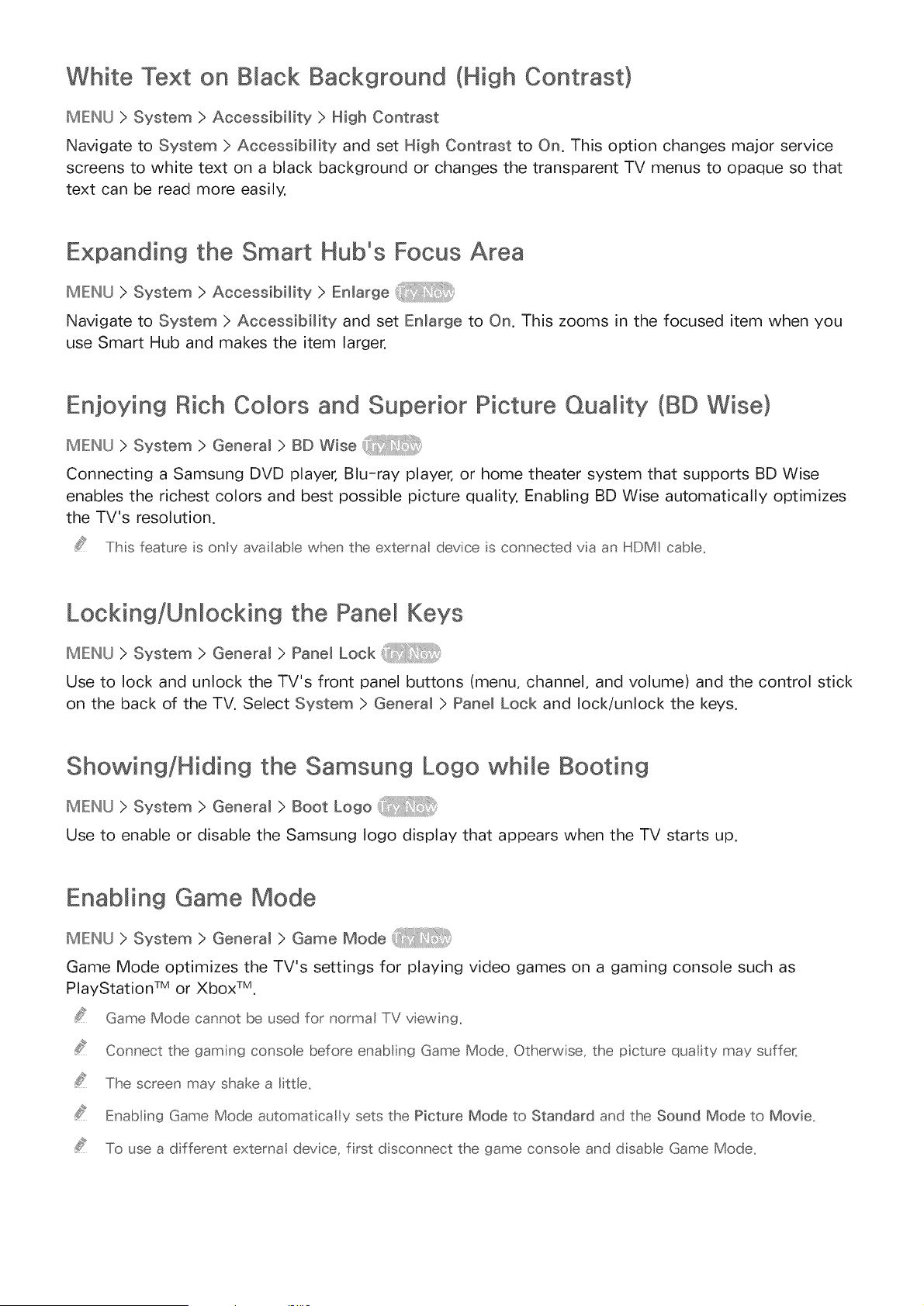

102 White Text on Black Background (High Contrast)
102 Expanding the Smart Hub's Focus Area
102 Enjoying Rich Colors and Superior Picture Quality (BD
Wise)
102 Locking/Unlocking the Panel Keys
102 Showing/Hiding the Samsung Logo while Booting
102 Enabling Game Mode

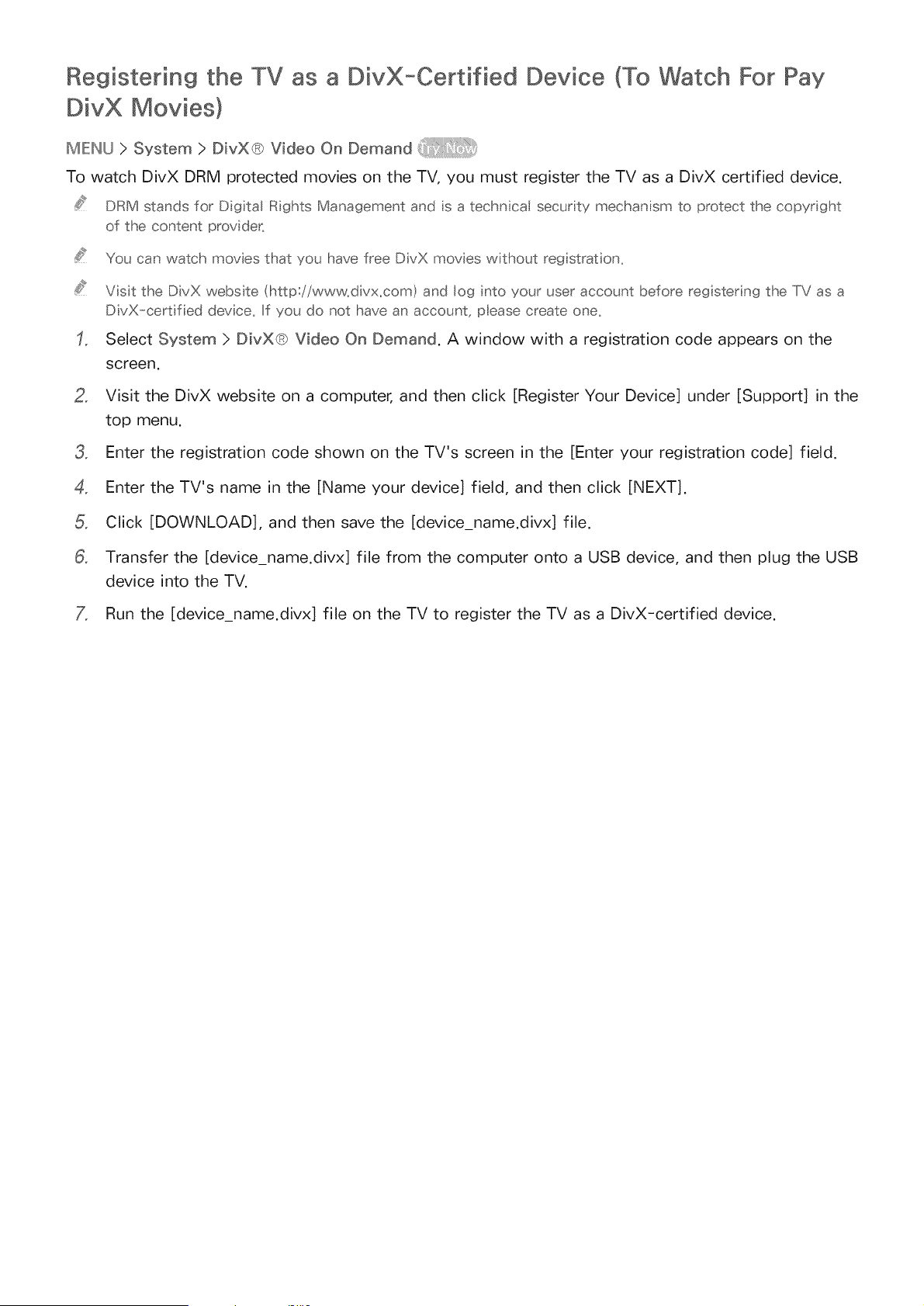

103 Registering the TV as a DivX-Certified Device (To Watch
For Pay DivX Movies)
104 Restoring the TV to the Factory Settings
104 Using the TV as a Display Model (exclusively for retail
stores)
Using the Screen Burn Protection and Energy Saving
Features

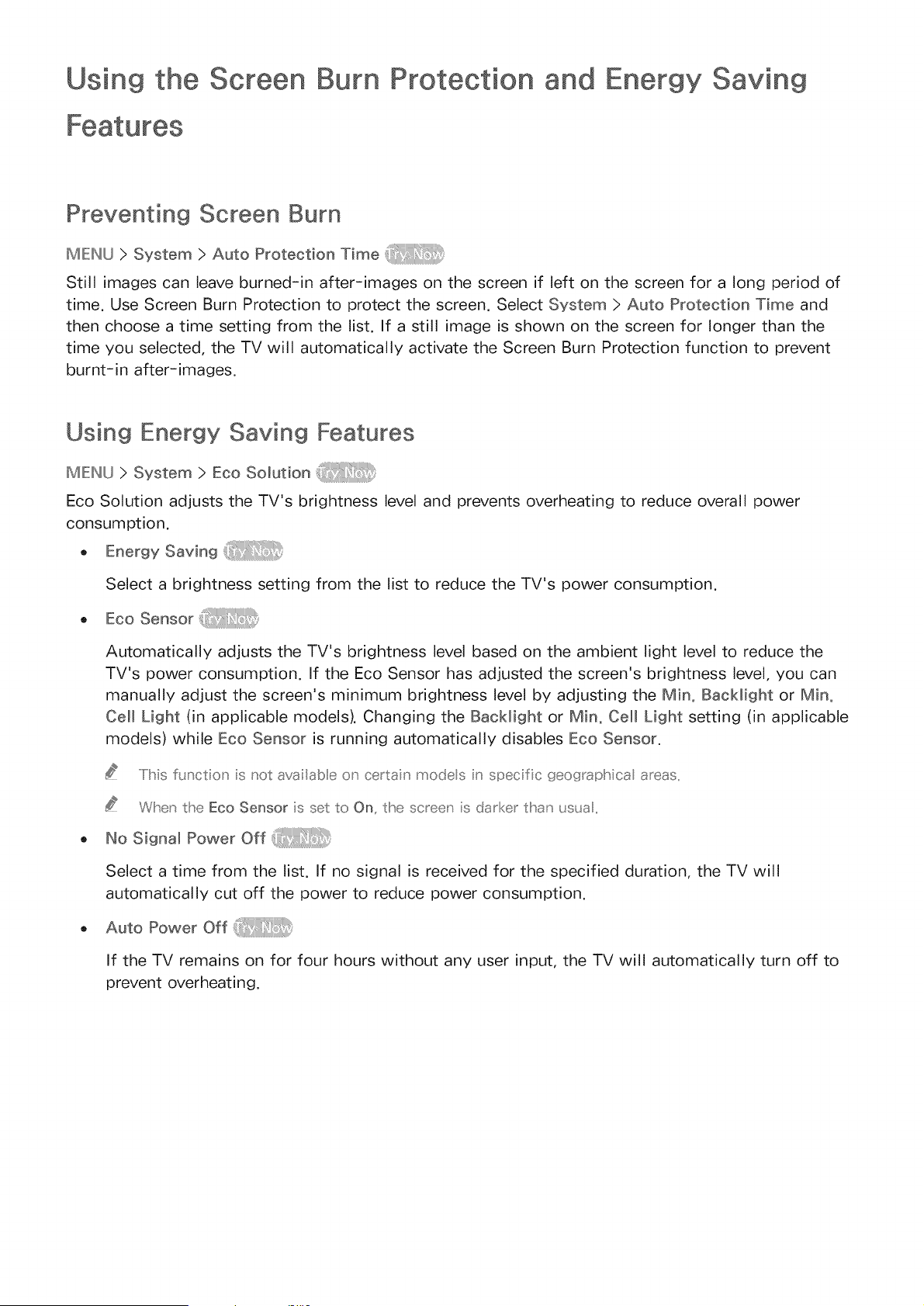

94 Preventing Screen Burn
94 Using Energy Saving Features
Troubleshooting

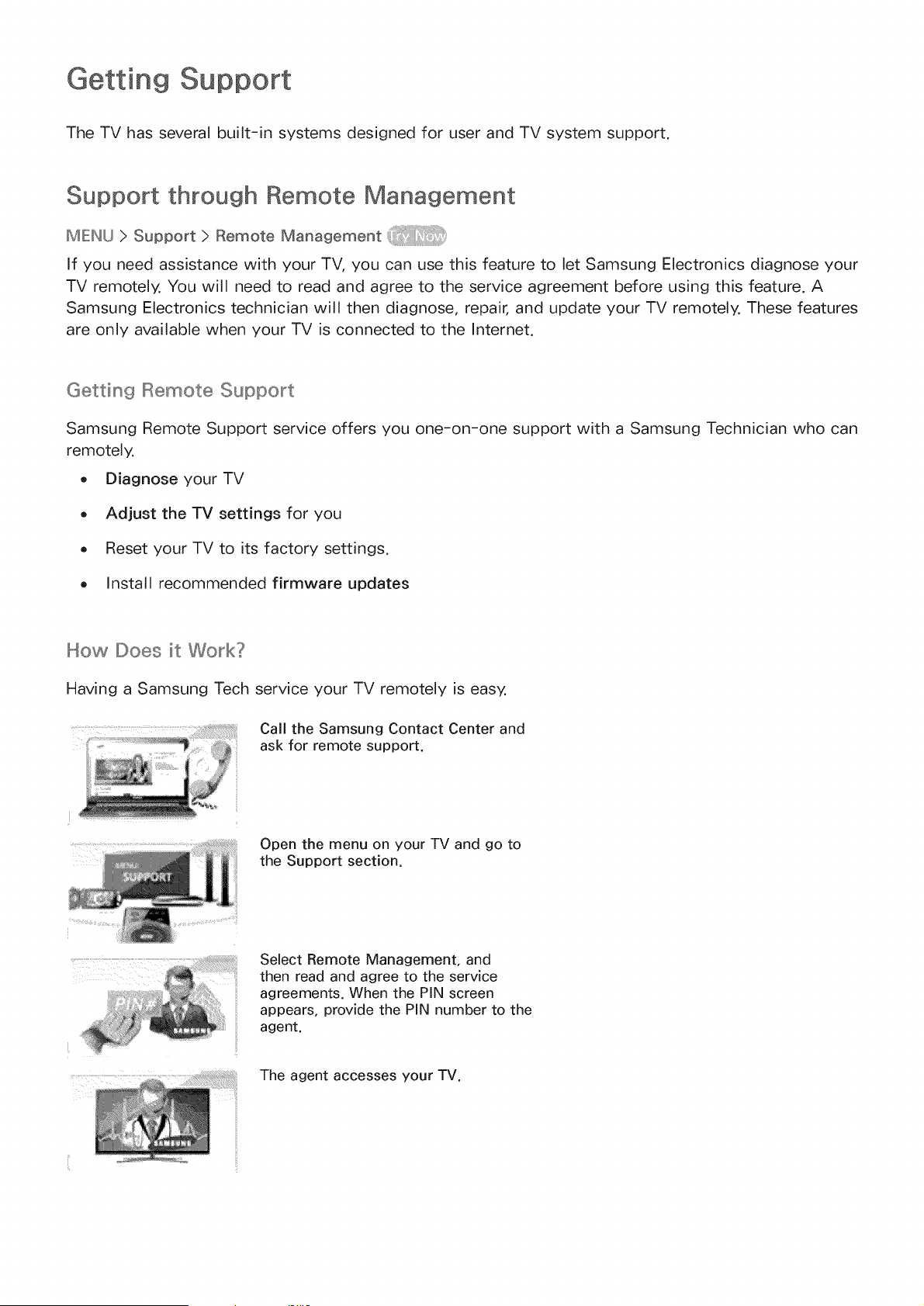

Getting Support
105 Support through Remote Management

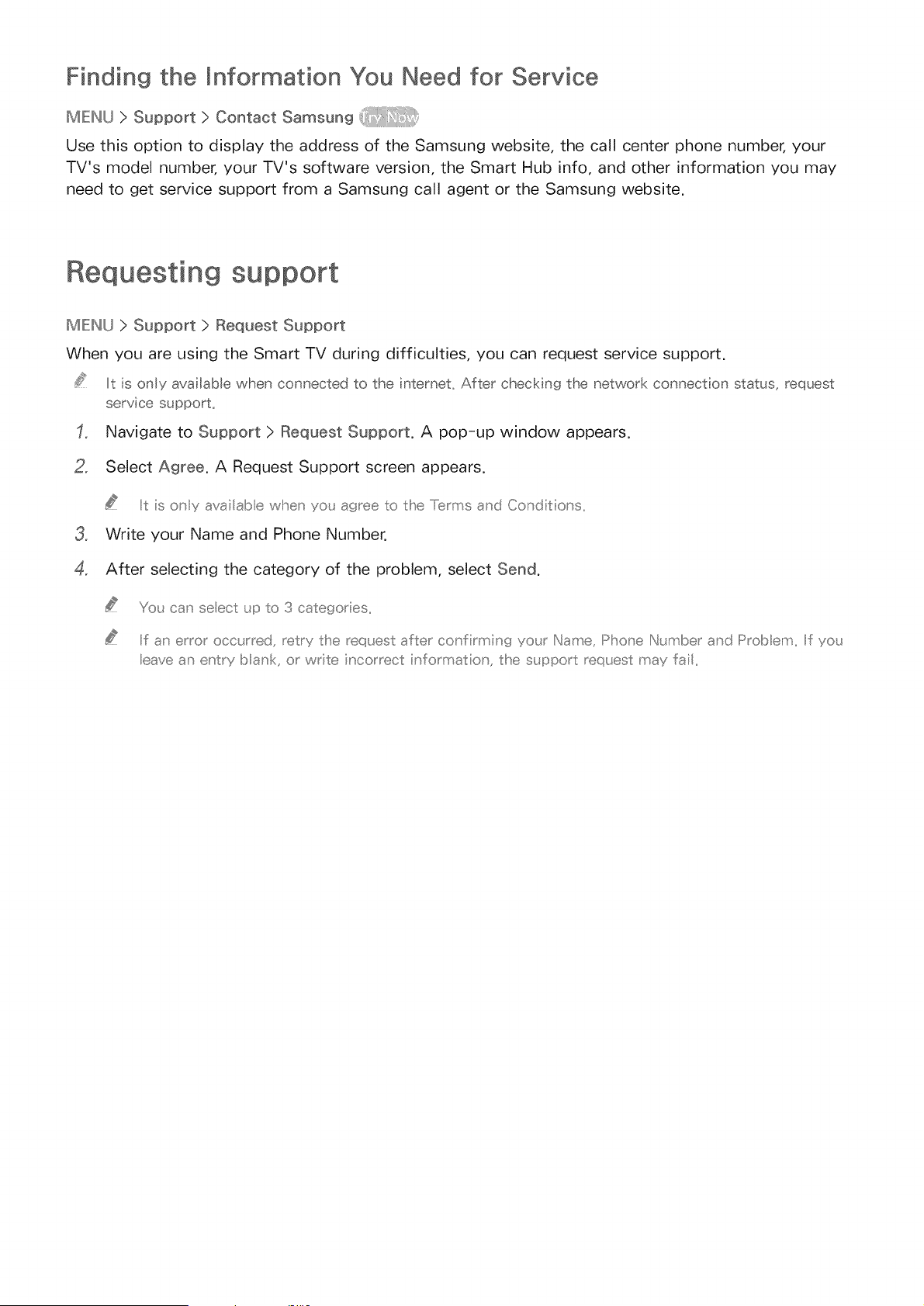

106 Finding the Information You Need for Service
Requesting support

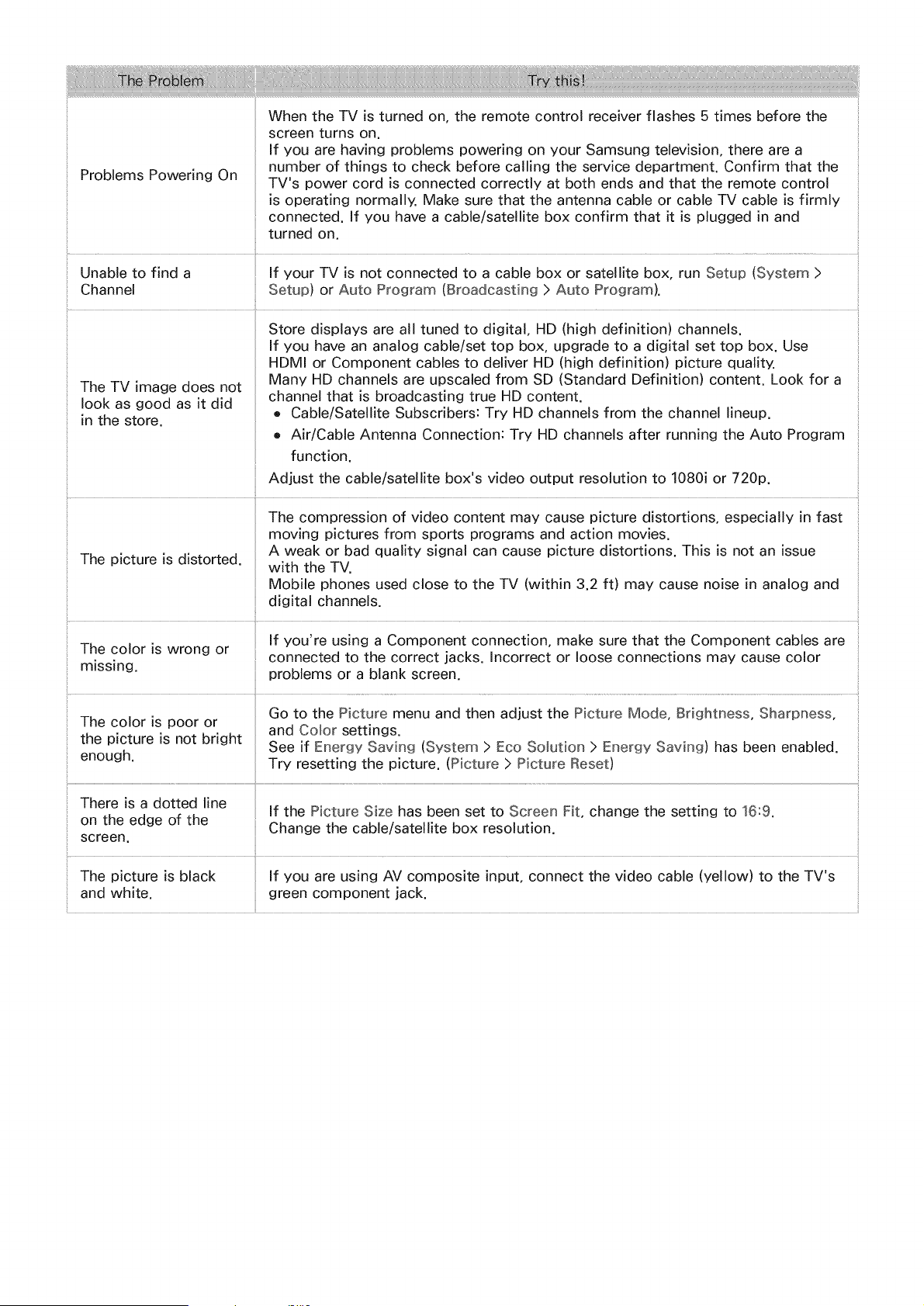

There is a problem with the picture
107 Testing the Picture

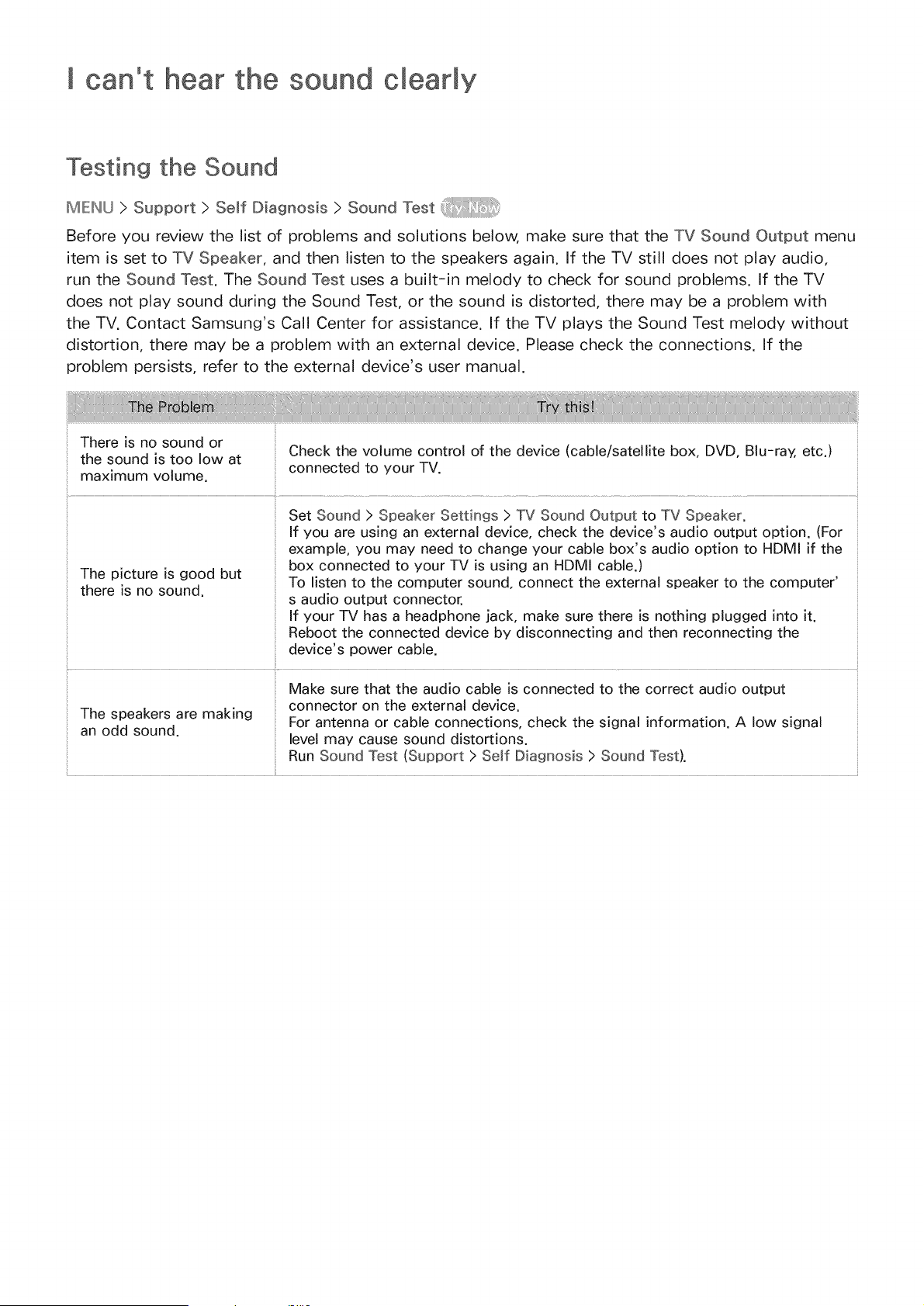

I can't hear the sound clearly
109 Testing the Sound

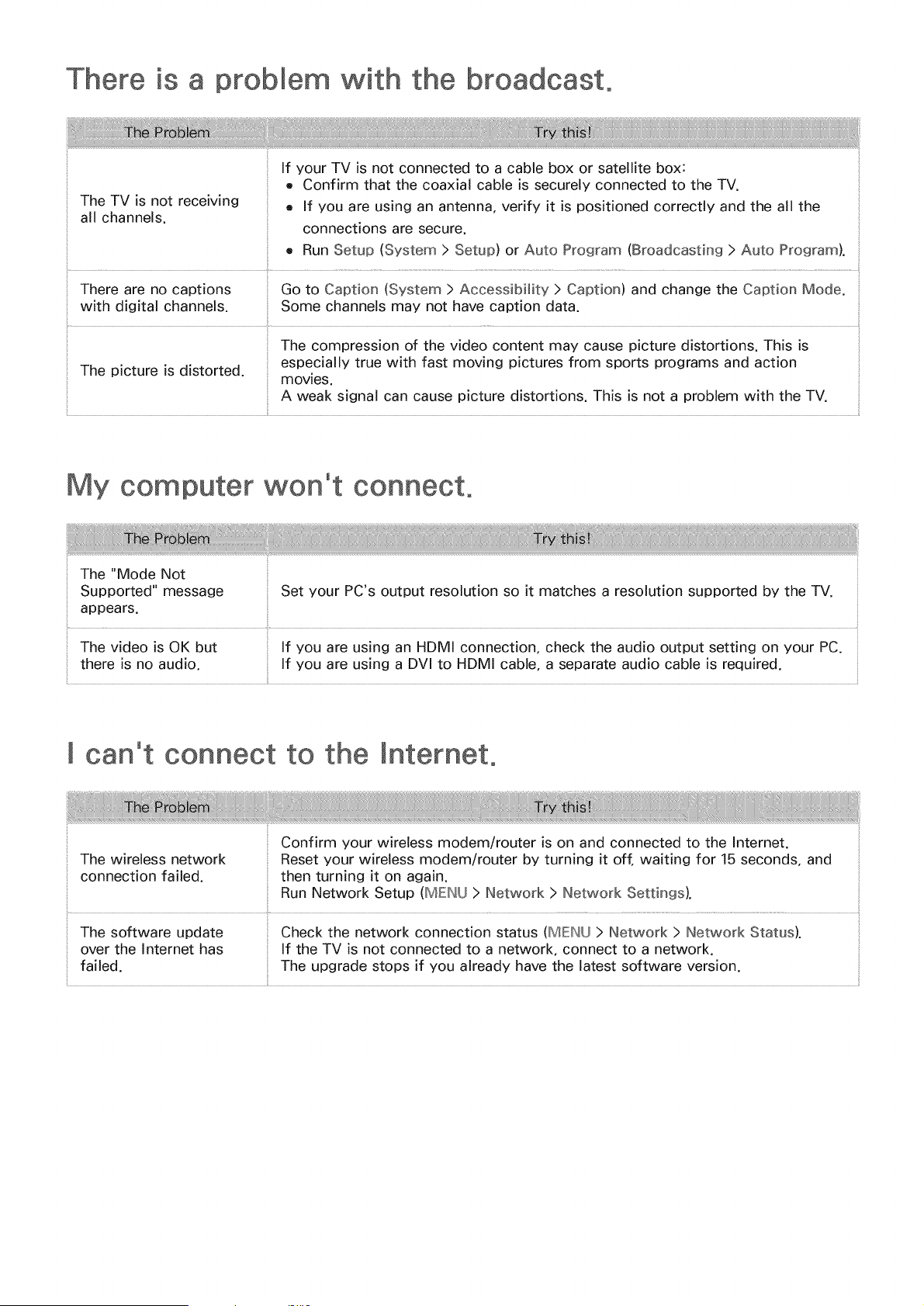

There is a problem with the broadcast.
My computer won't connect.
I can't connect to the Internet.
I am having trouble launching/using apps.
My file won't play.
I want to reset the TV.

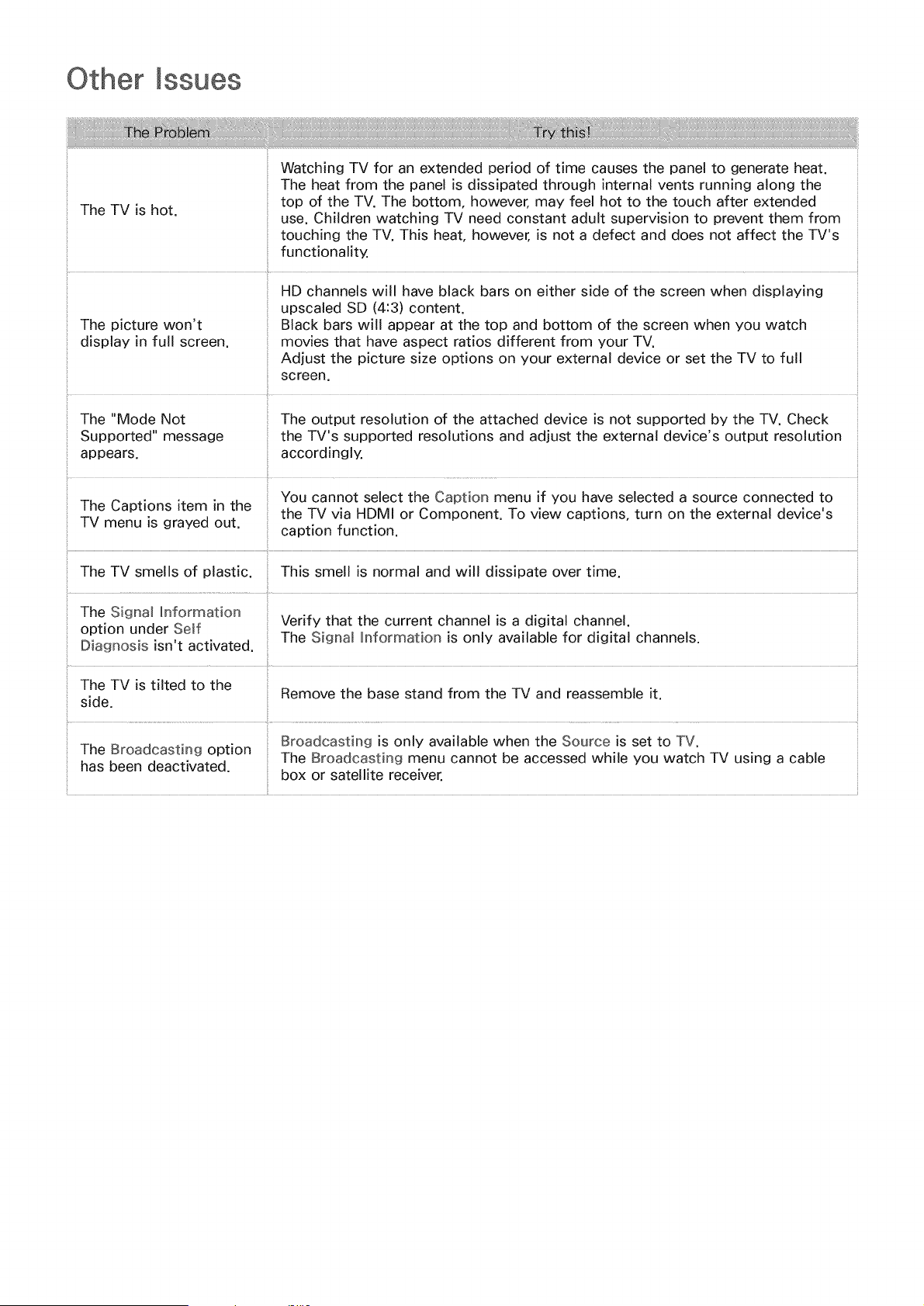

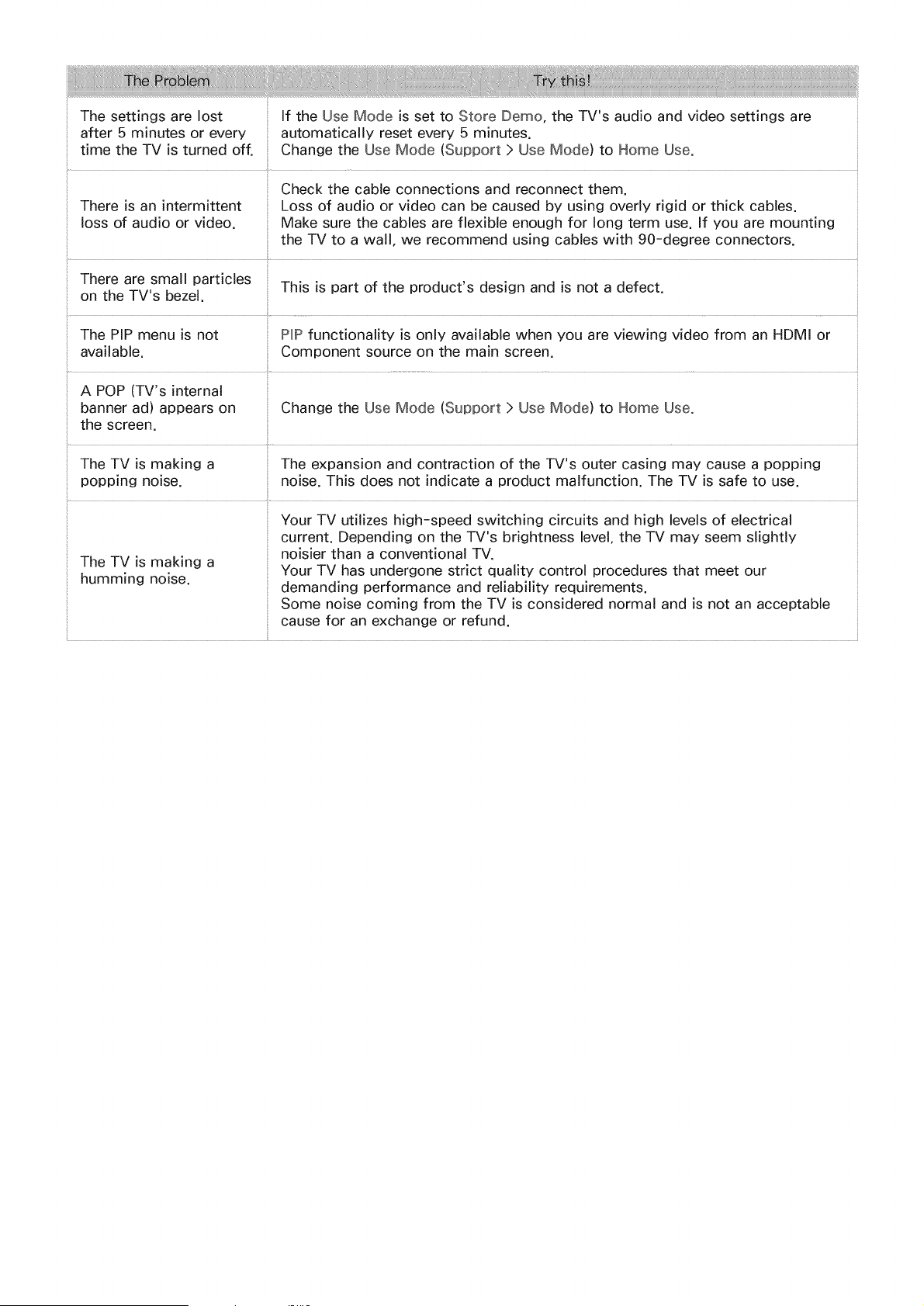

Other Issues
Appendix
Read Before Using Apps

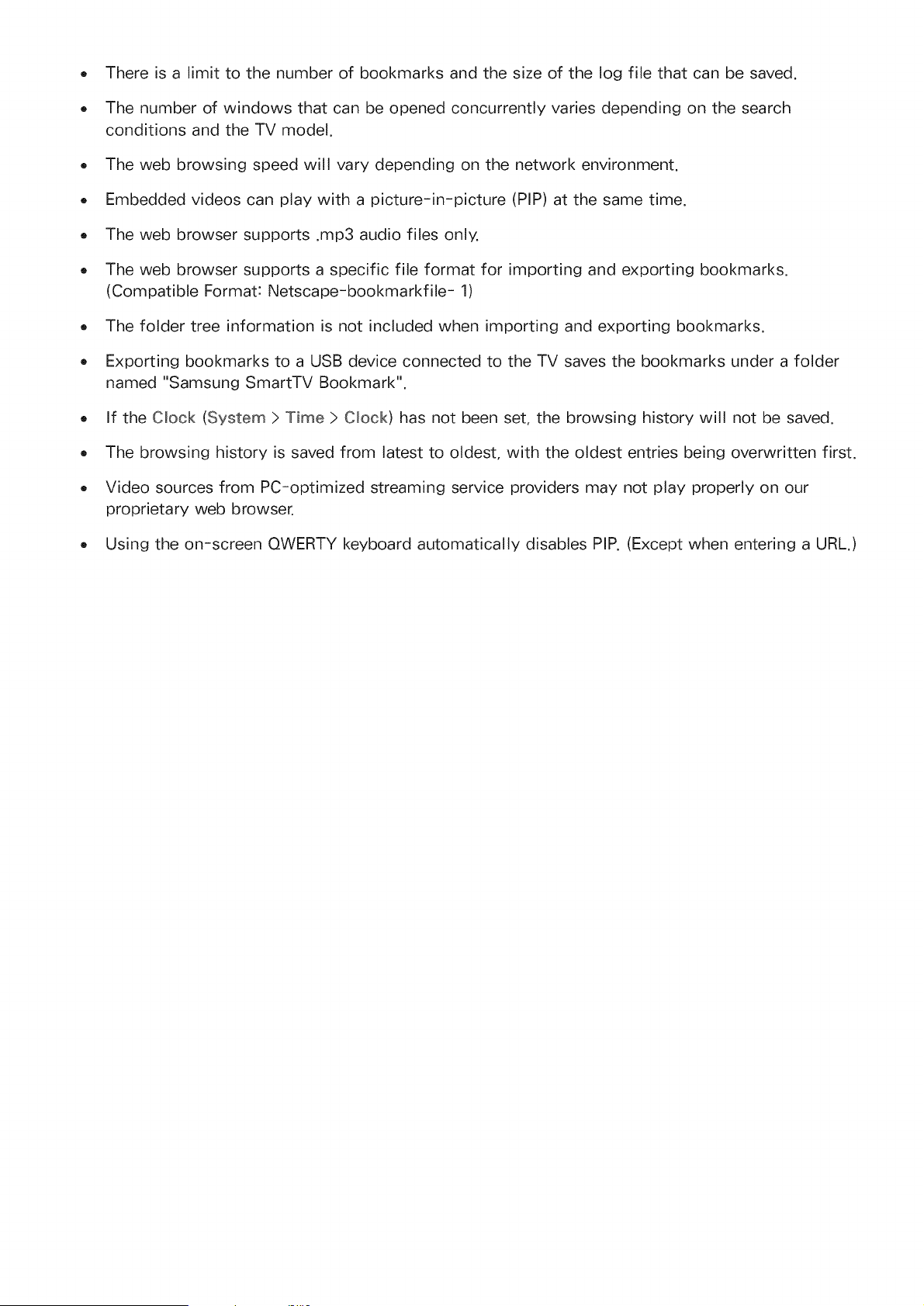

Read Before Using the Web Browser

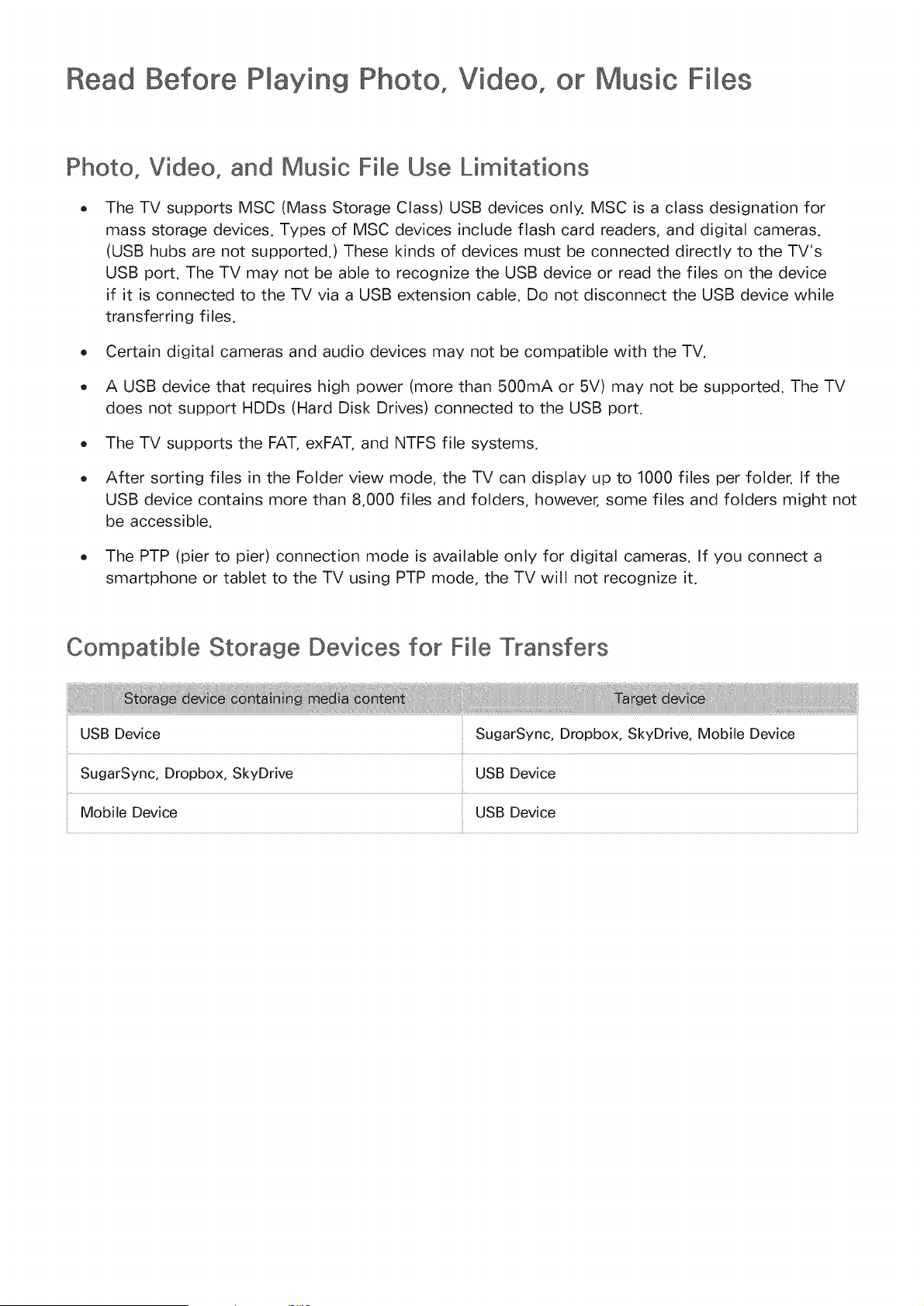

Read Before Playing Photo, Video, or Music Files
117 Photo, Video, and Music File Use Limitations
117 Compatible Storage Devices for File Transfers

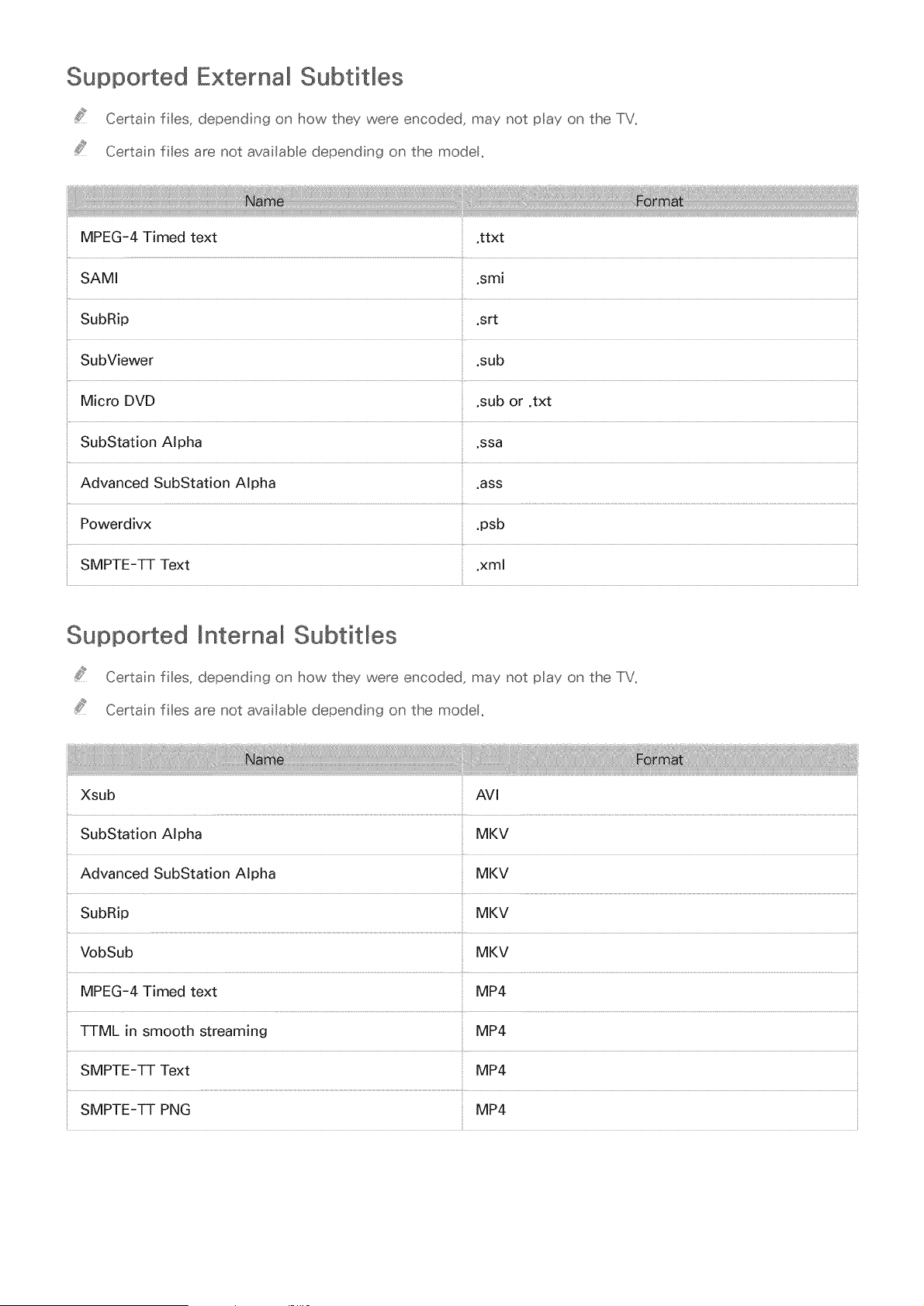

118 Supported External Subtitles
118 Supported Internal Subtitles

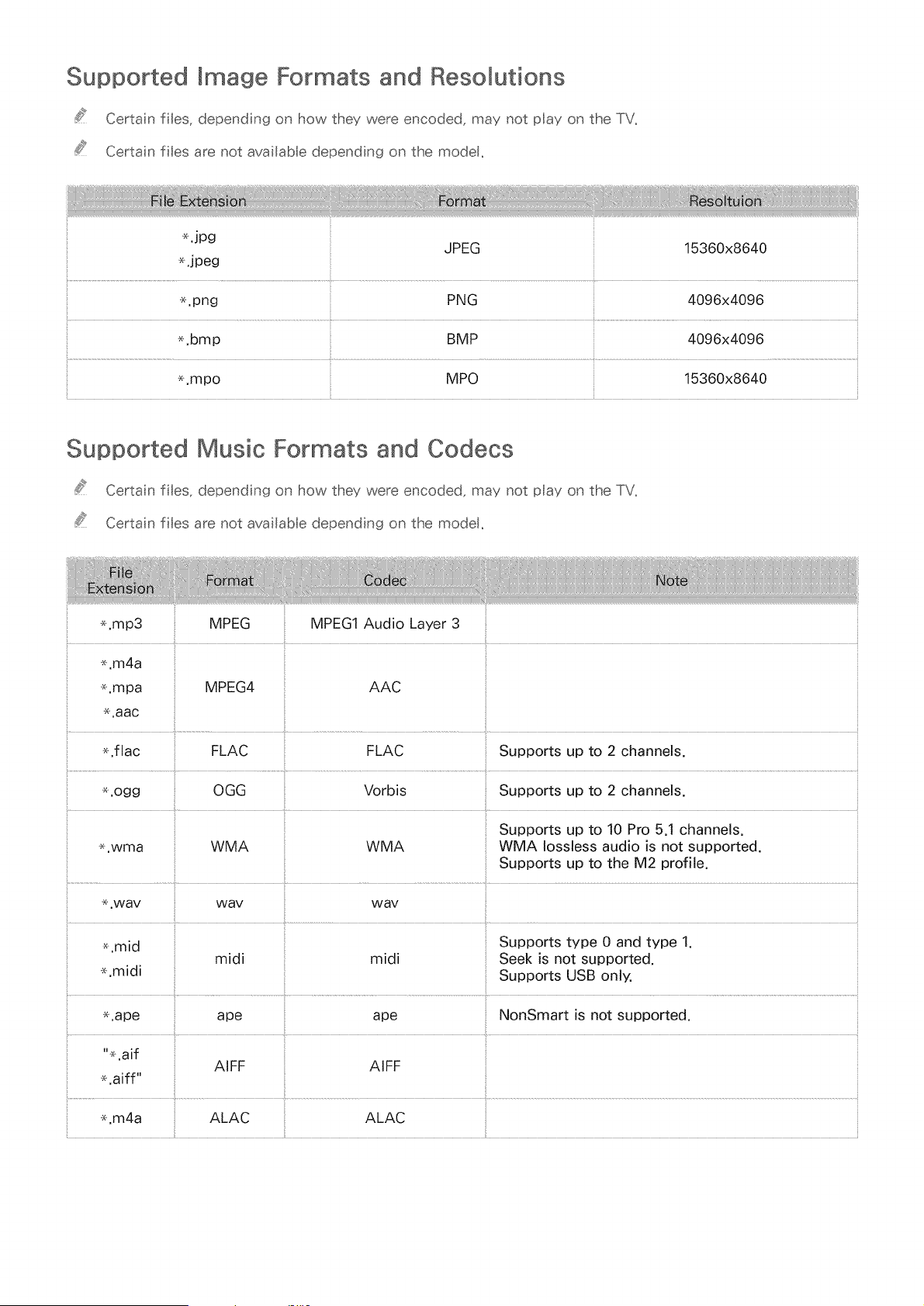

119 Supported Image Formats and Resolutions
119 Supported Music Formats and Codecs

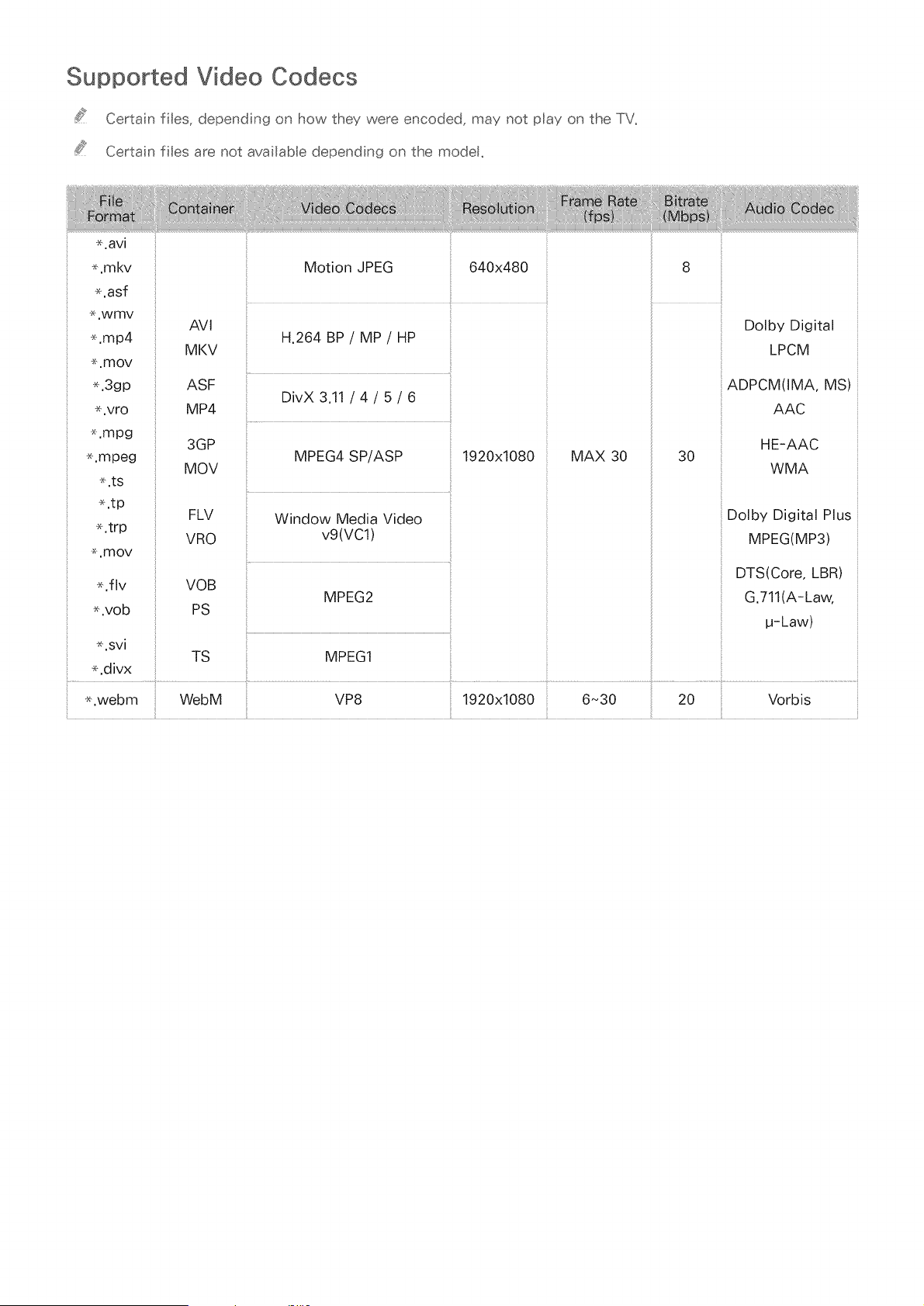

120 Supported Video Codecs

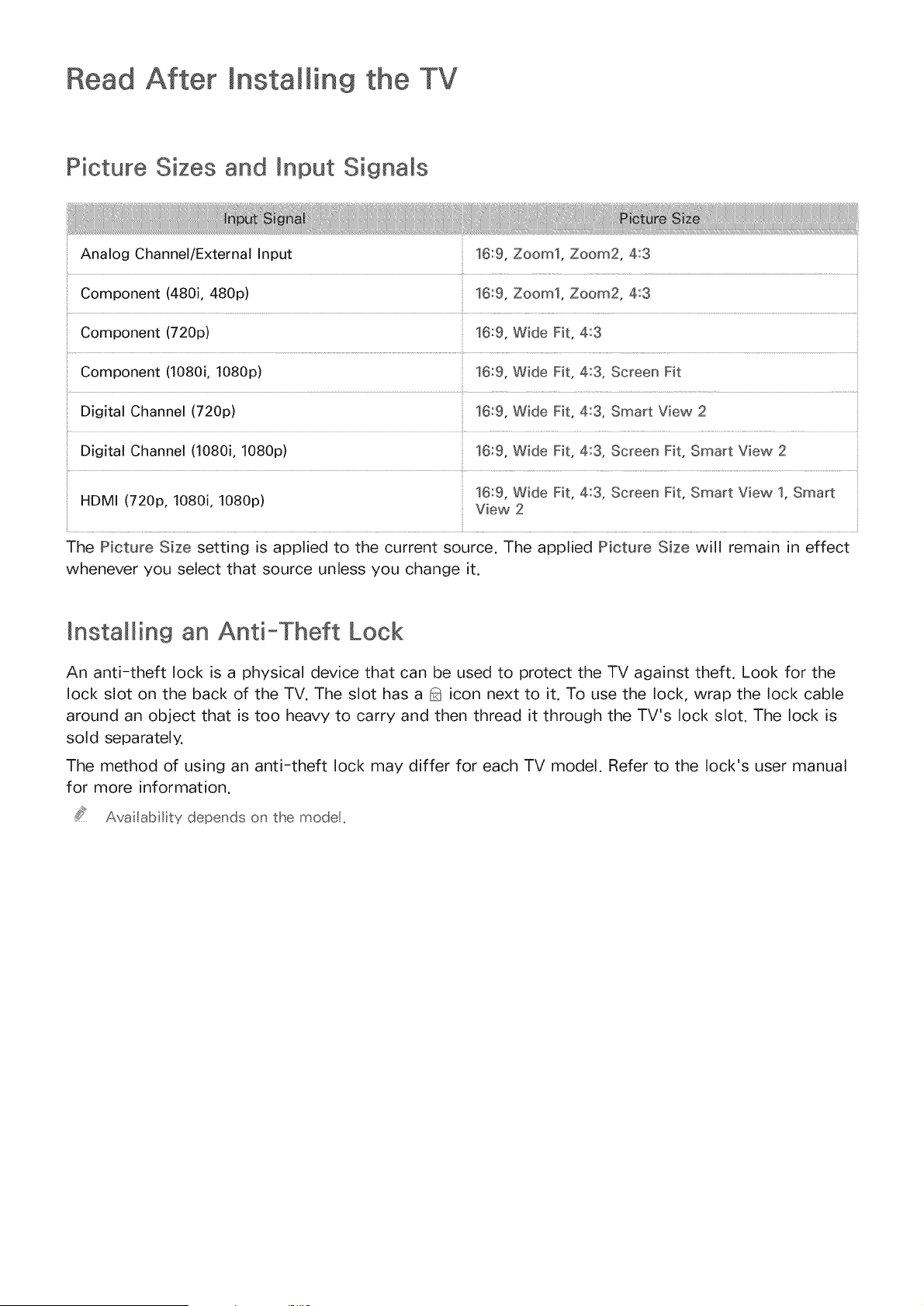

Read After Installing the TV
122 Picture Sizes and Input Signals
122 Installing an Anti-Theft Lock

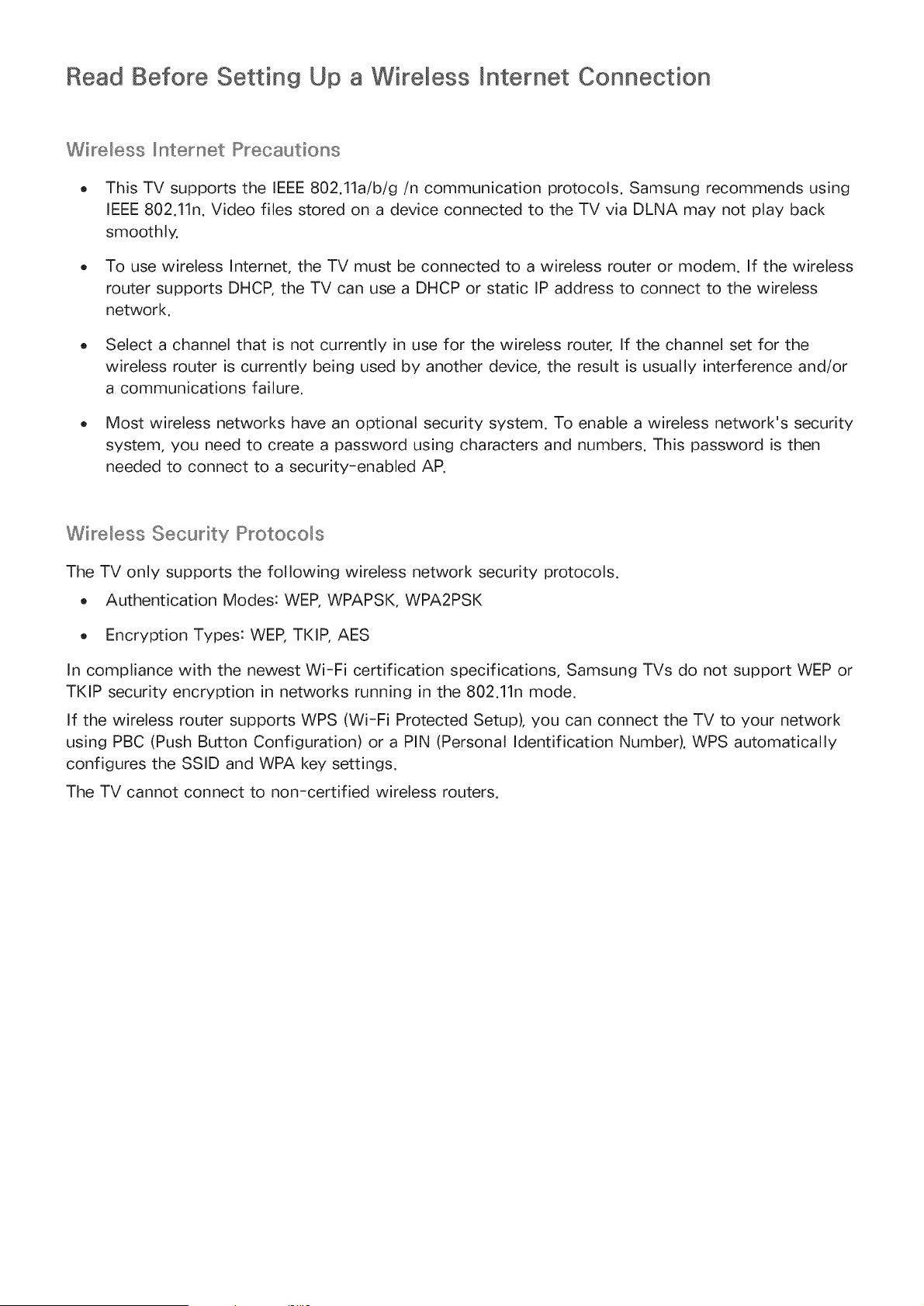

123 Read Before Setting Up a Wireless Internet Connection

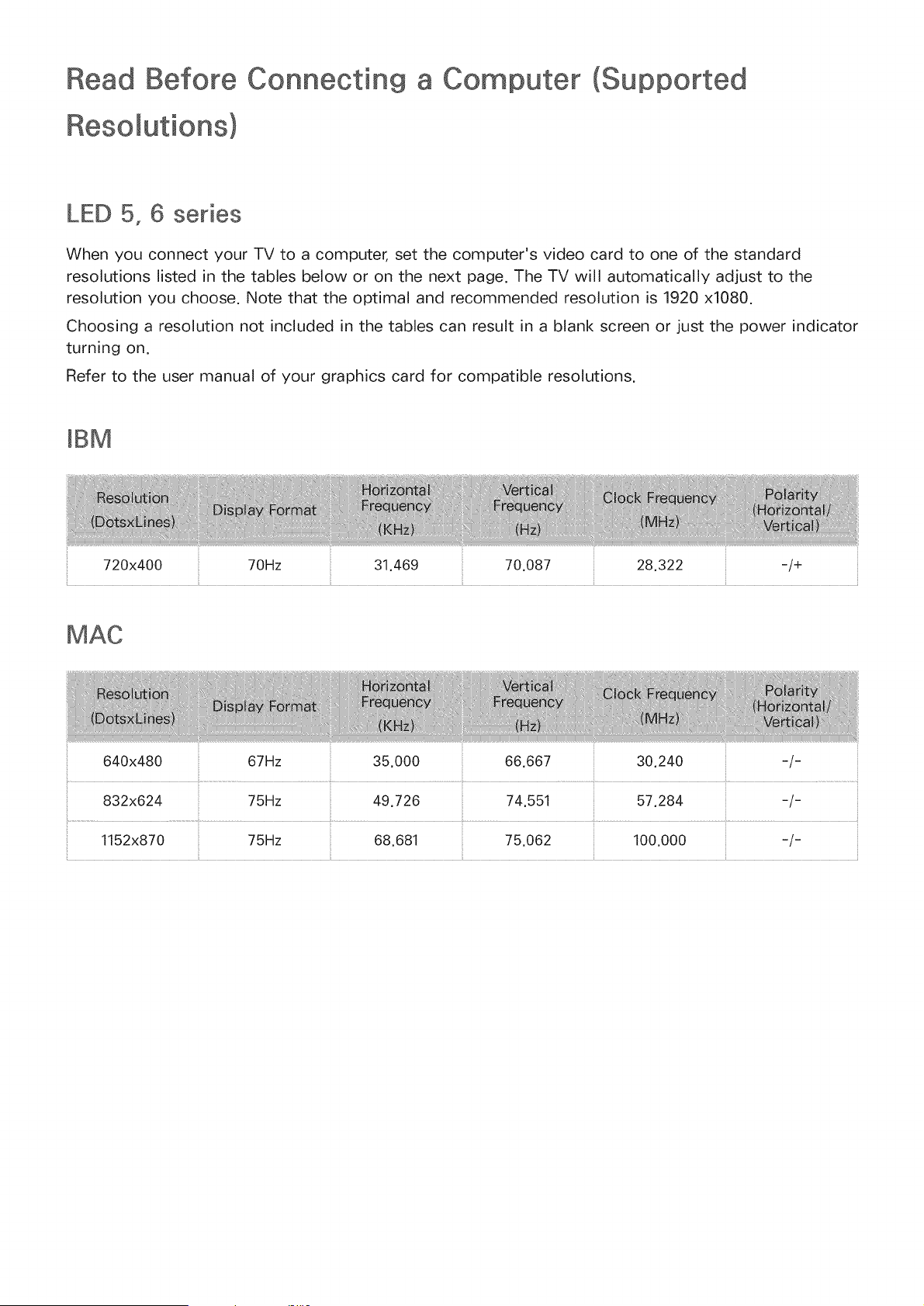

Read Before Connecting a Computer (Supported
Resolutions)
124 LED 5, 6 series
124 IBM
124 MAC

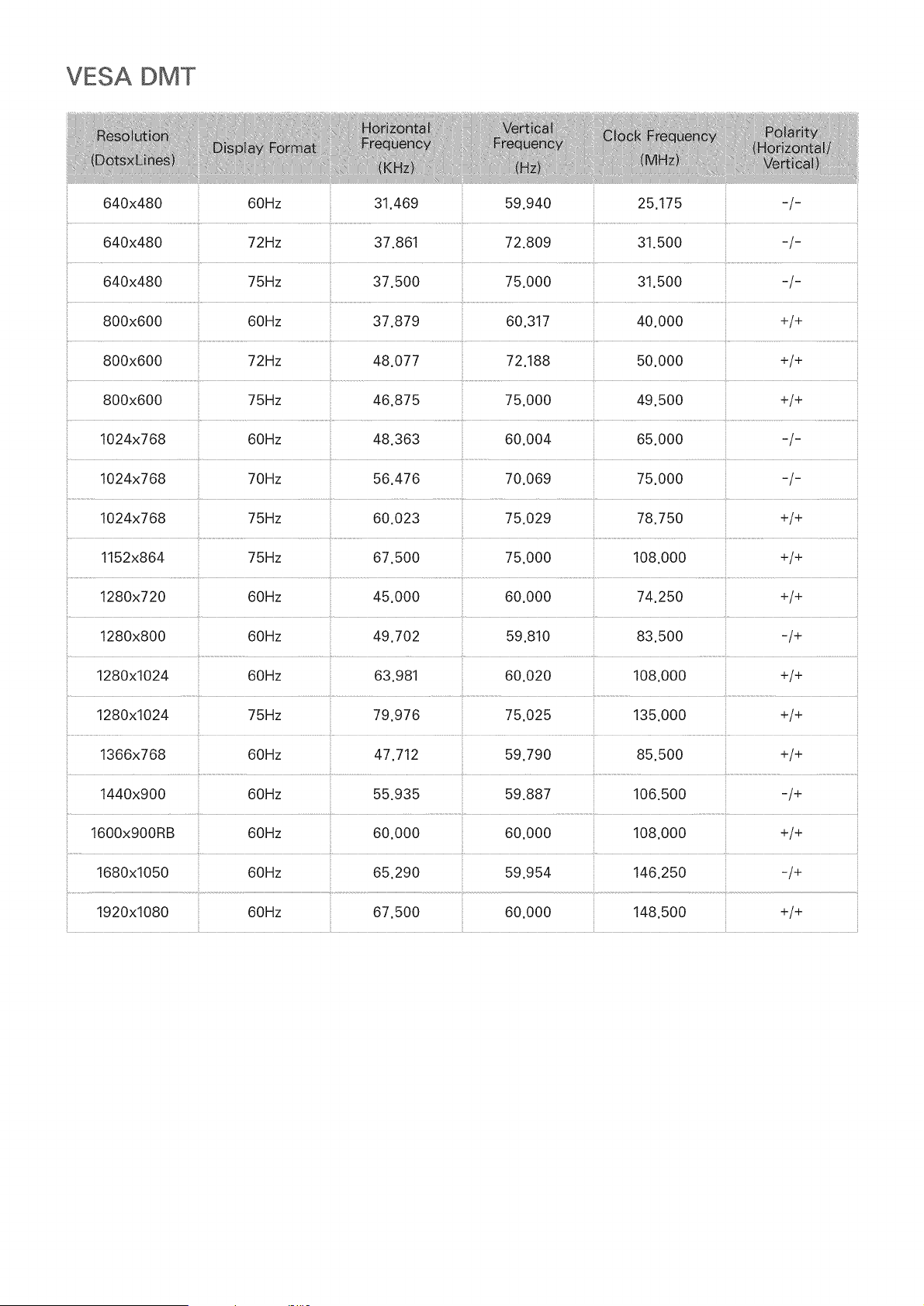

125 VESA DMT

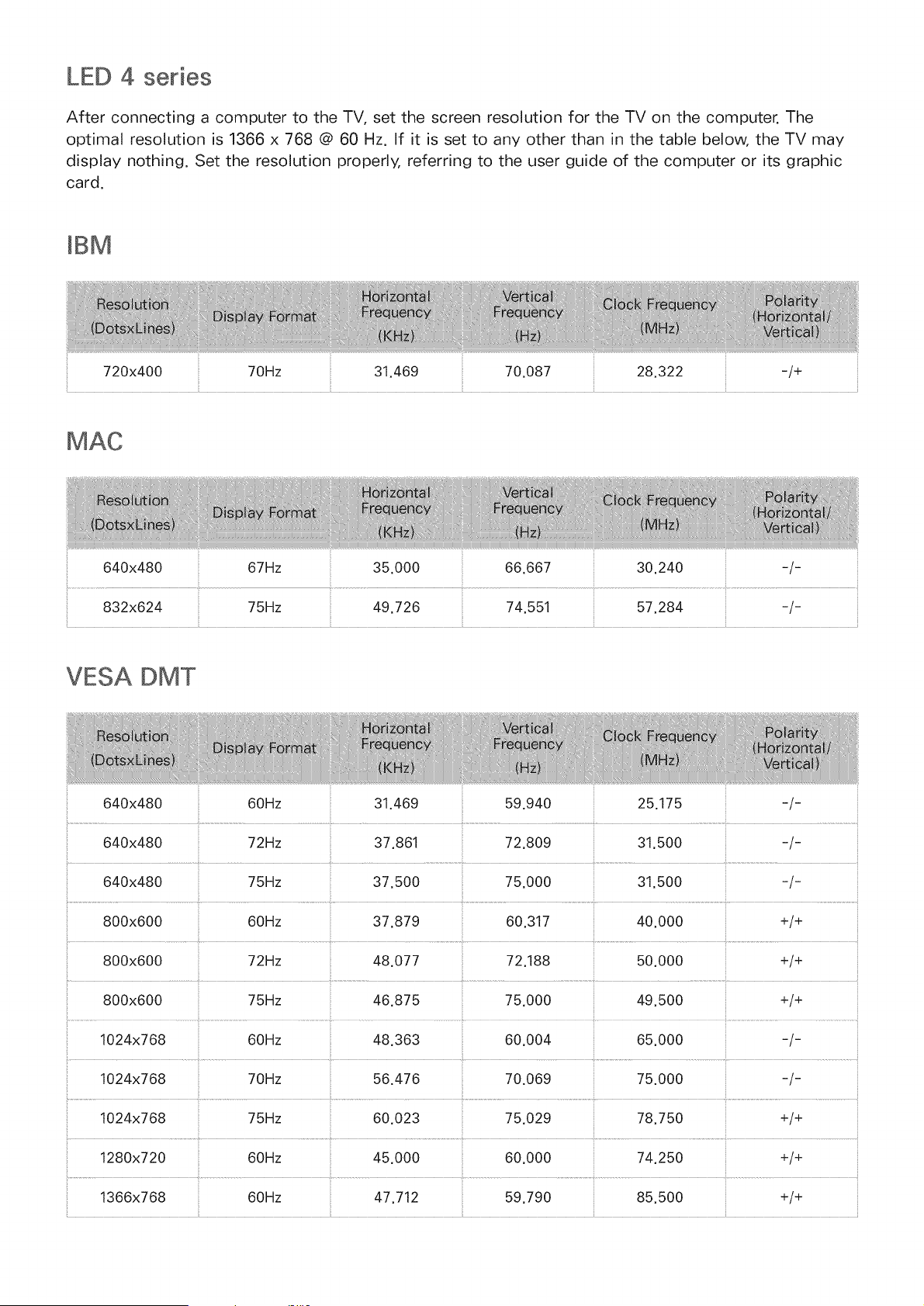

126 LED 4 series
126 IBM
126 MAC
126 VESA DMT

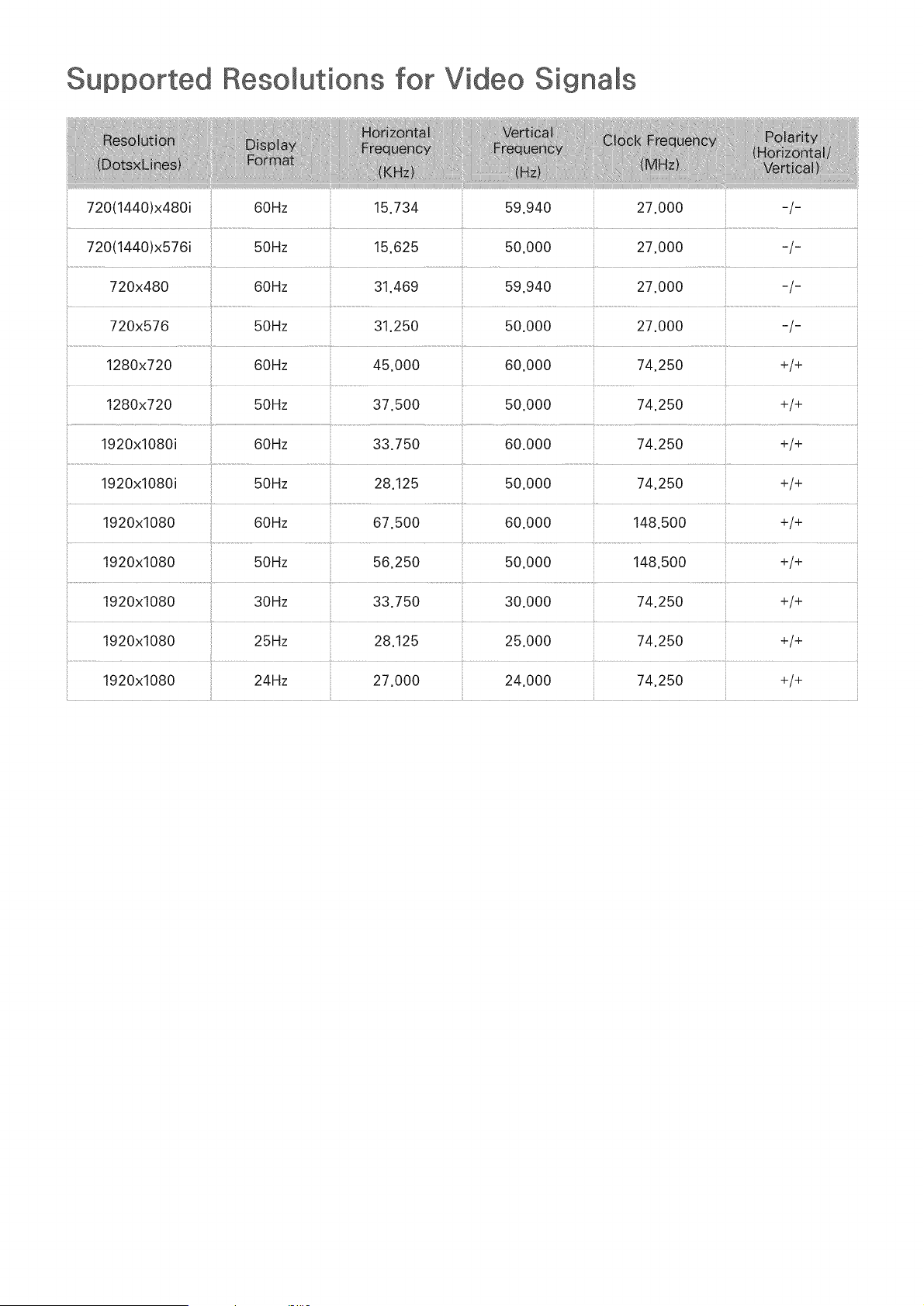

Supported Resolutions for Video Signals

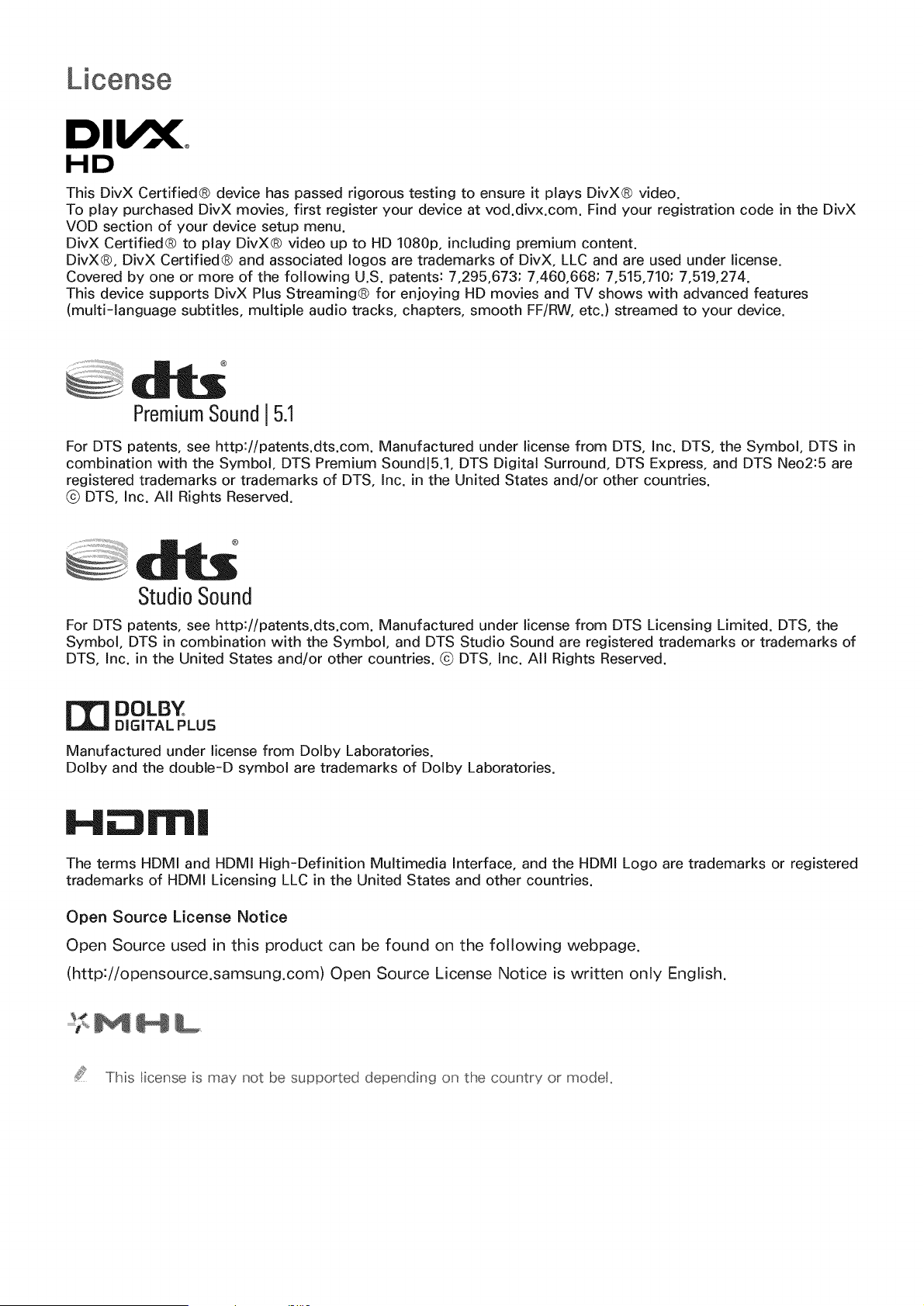

License

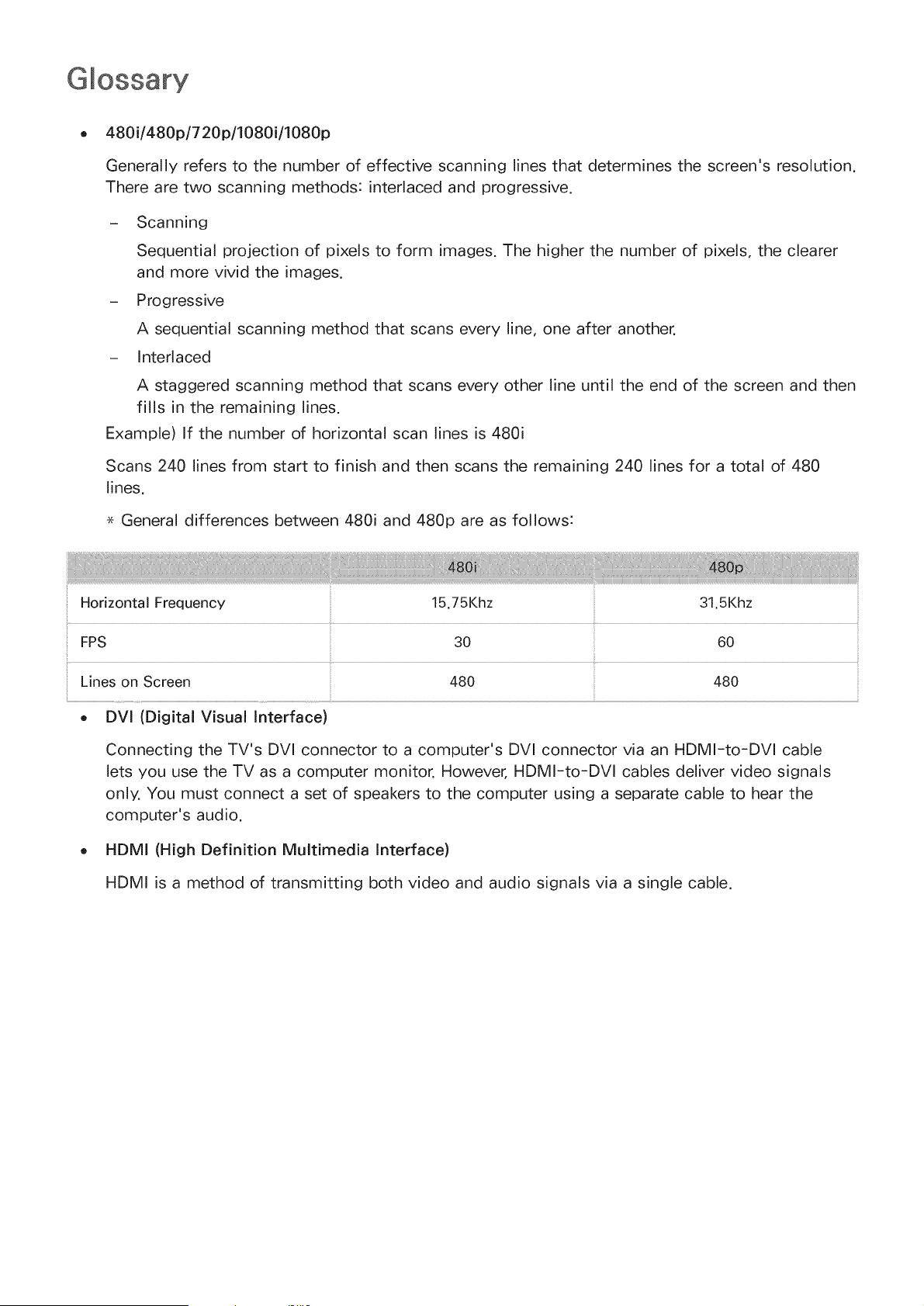

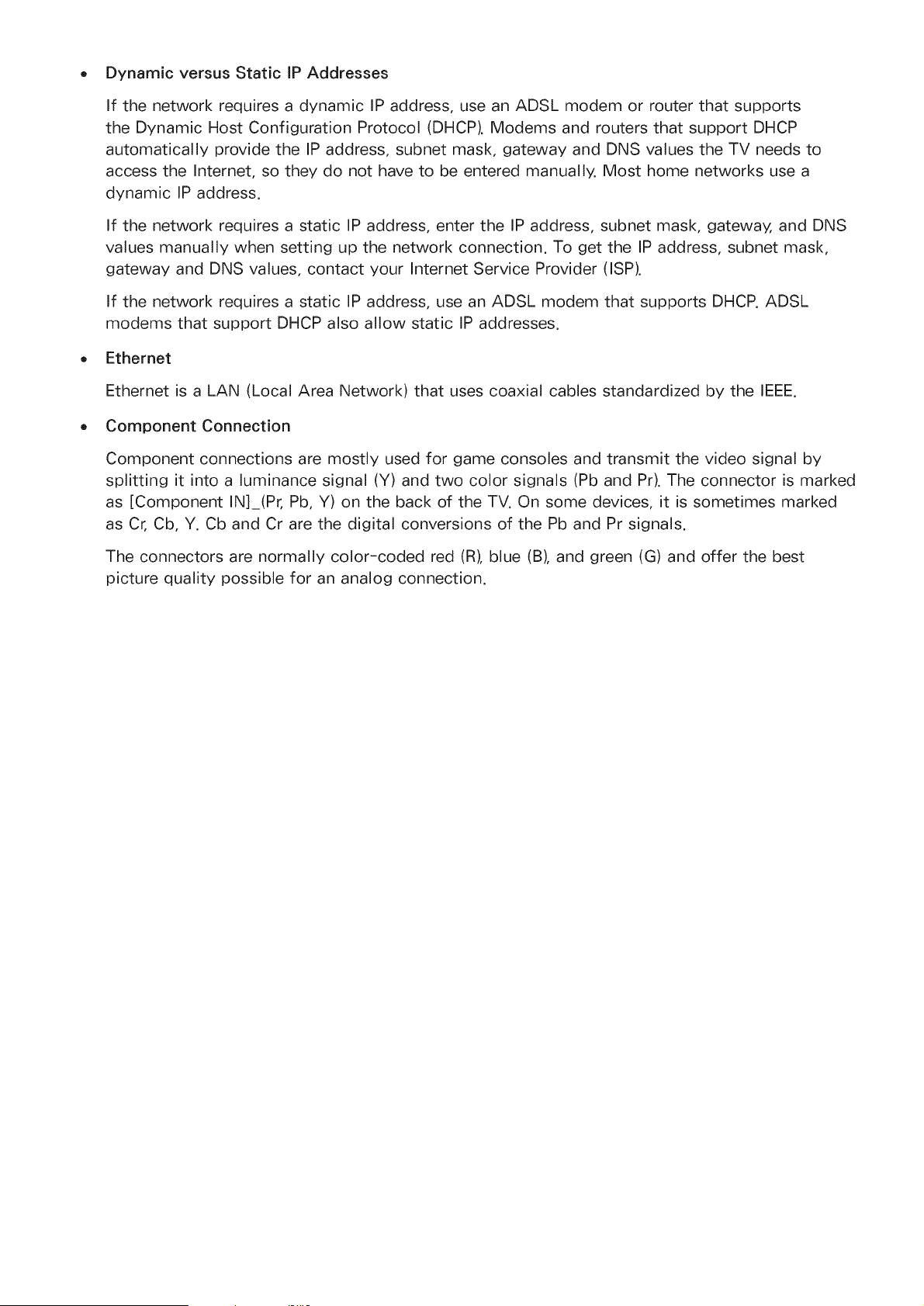

Glossary

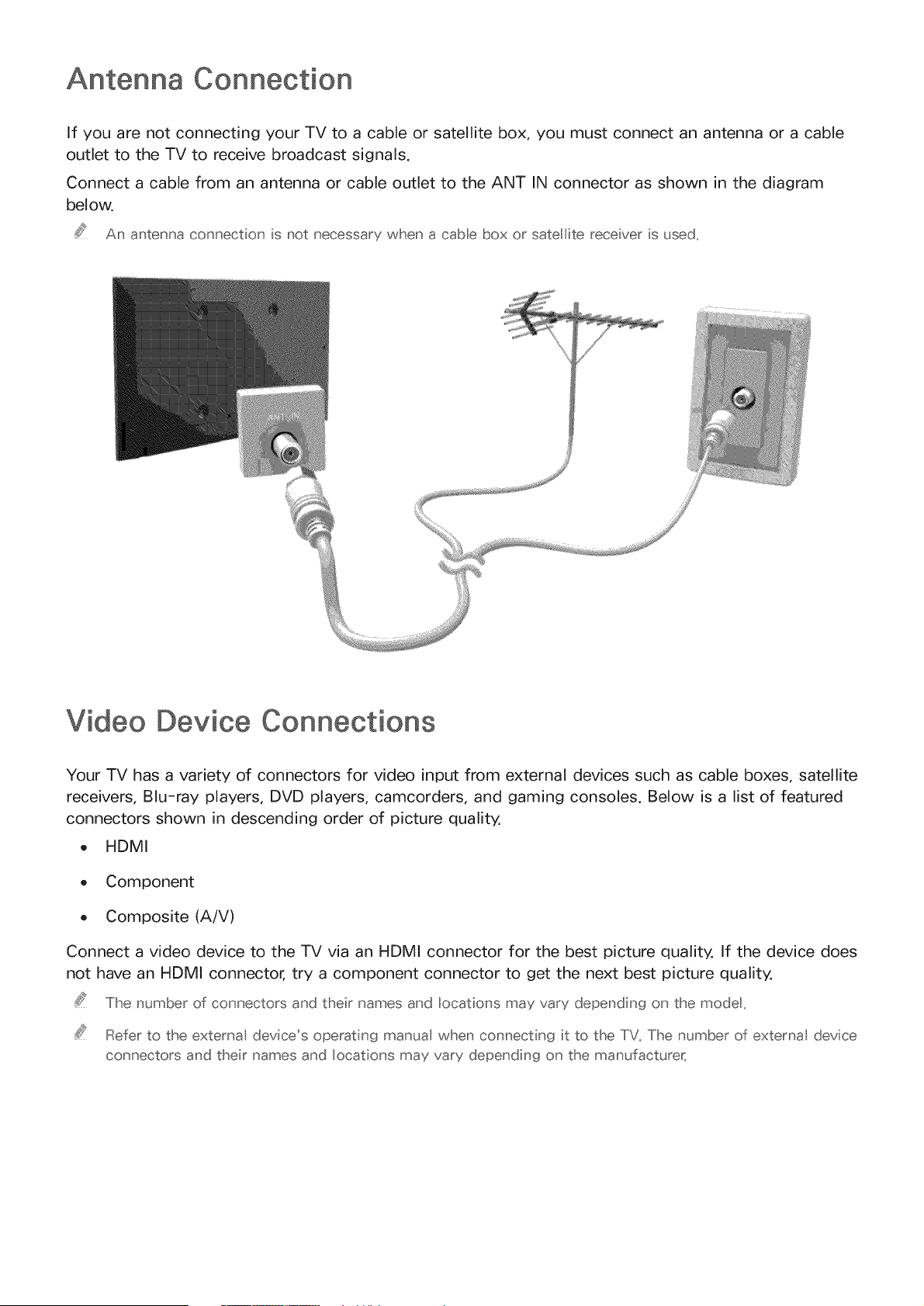

Antenna Connection
If you are not connecting your TV to a cable or satellite box, you must connect an antenna or a cable
outlet to the TV to receive broadcast signals.
Connect a cable from an antenna or cable outlet to the ANT IN connector as shown in the diagram
below.
An antenna connection is not necessary when a cabe box or satellite receiver is used,
Video Device Connections
Your TV has a variety of connectors for video input from external devices such as cable boxes, satellite
receivers, Blu-ray players, DVD players, camcorders, and gaming consoles. Below is a list of featured
connectors shown in descending order of picture quality.
o HDMI
o Component
Composite (A/V)
Connect a video device to the TV via an HDMI connector for the best picture quality. If the device does
not have an HDMI connector, try a component connector to get the next best picture quality.
The number of connectors and their names and locations may vary depending on the modet,
Refer to the external device's operating manual when connecting it to the TV. The number of external device
connectors and their names and locations may vary depending on the manufacturer_
HDMI Connection
The following types of HDMI cables are recommended:
o High-Speed HDMI Cable
o High-Speed HDMI Cable with Ethernet
Use an HDMI cable with a thickness of 0,55 inches (14mm) or less,
Using a non-certified HDMI cable may result in a blank screen or a connection error_
Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications_
This TV does not support HDMI Ethernet Channe, Ethernet is a LAN (Loca Area Network) buit with coaxial
cables standardized by the IEEE_
Refer to the diagram and connect the HDMI cable to the video device's HDMI output connector and the
TV's HDMI input connector.
The number of connectors and their names and locations may vary depending on the modet_
Once the connection has been made, press the SOURCE: button to select the connected external
device.

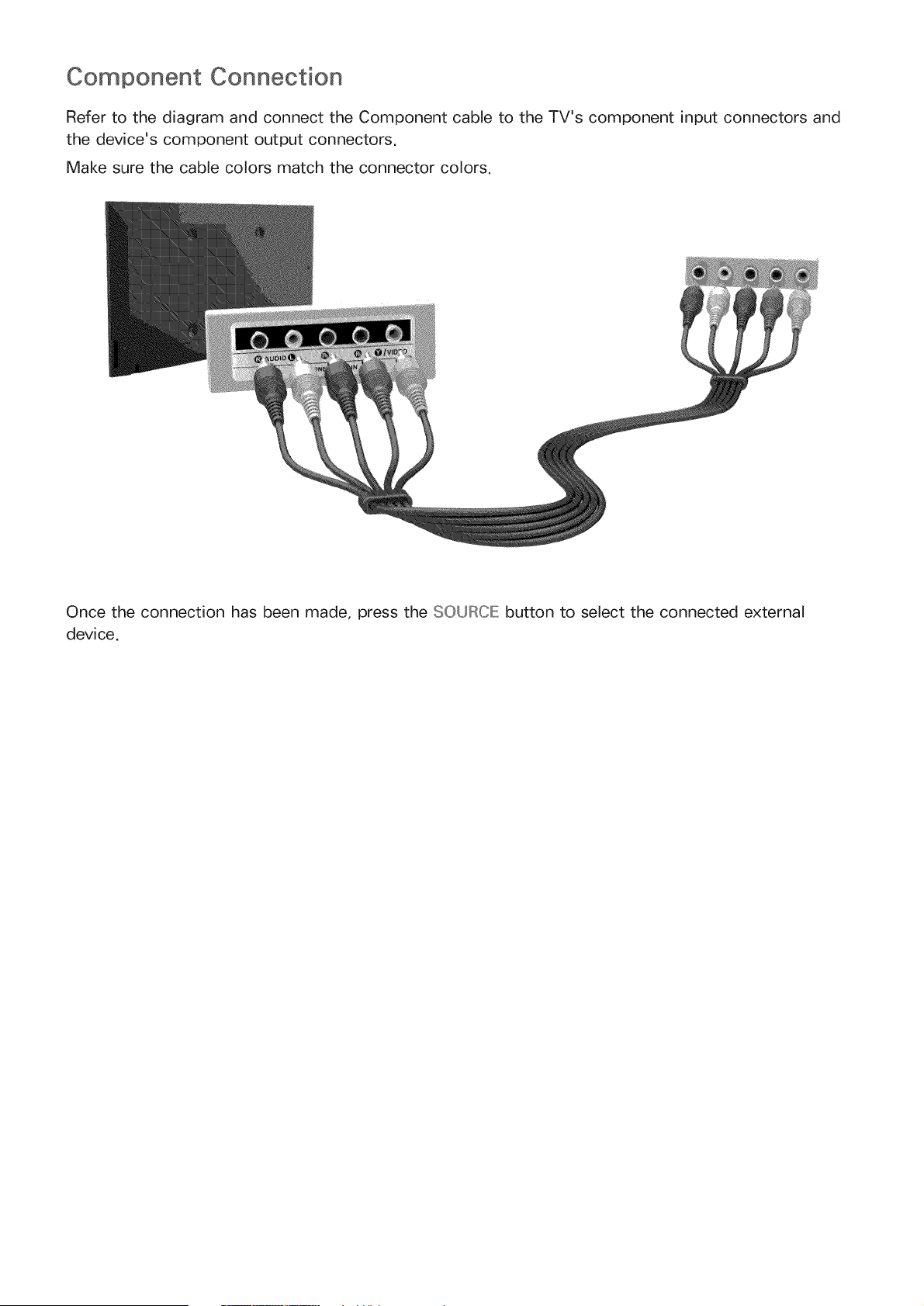

Component Connection
Refer to the diagram and connect the Component cable to the TV's component input connectors and
the device's component output connectors.
Make sure the cable colors match the connector colors.
Once the connection has been made, press the SOURCE: button to select the connected external
device.

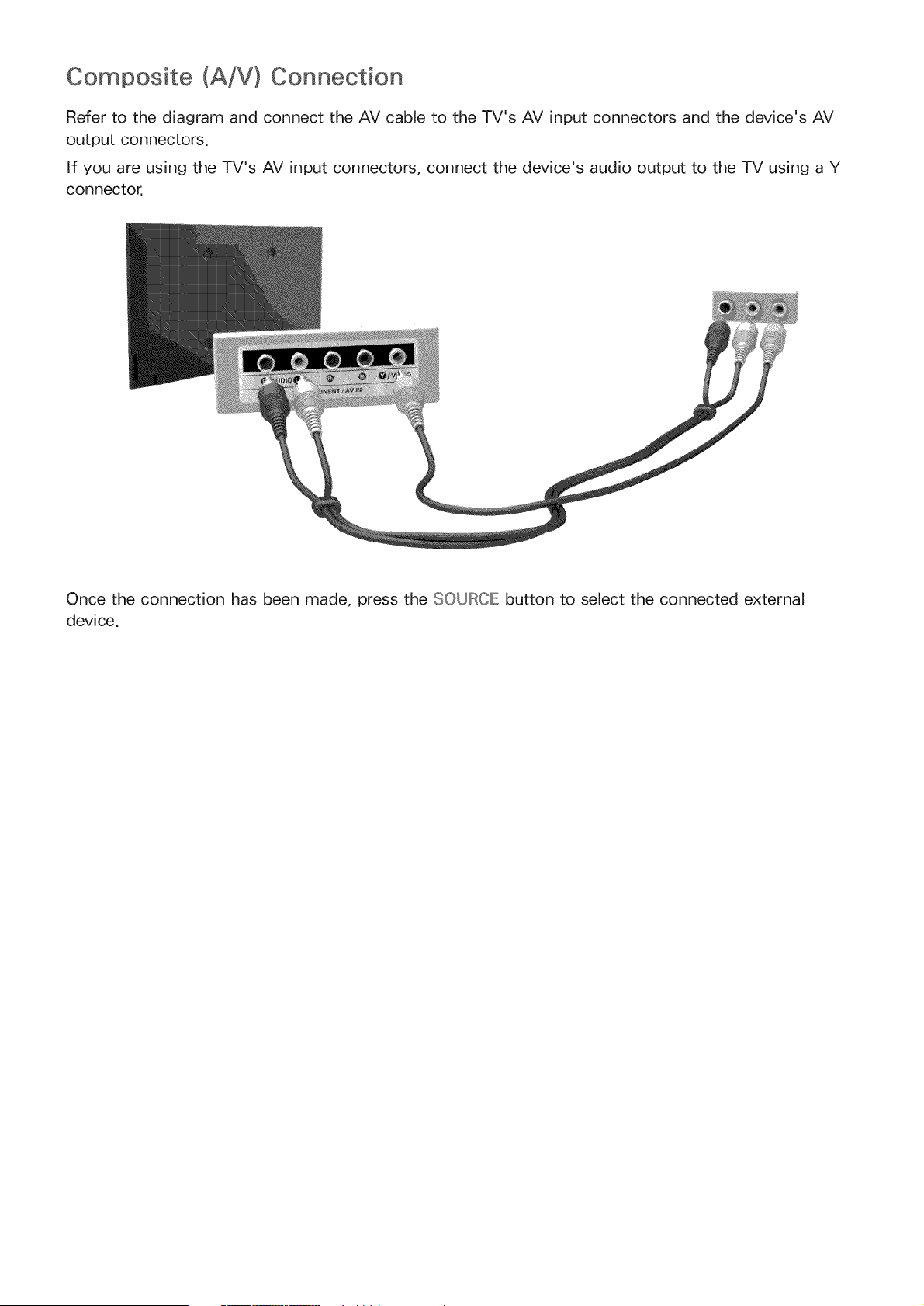

Composite (A/V) Connection
Refer to the diagram and connect the AV cable to the TV's AV input connectors and the device's AV
output connectors.
If you are using the TV's AV input connectors, connect the device's audio output to the TV using a Y
connector.
Once the connection has been made, press the SOURCE button to select the connected external
device.

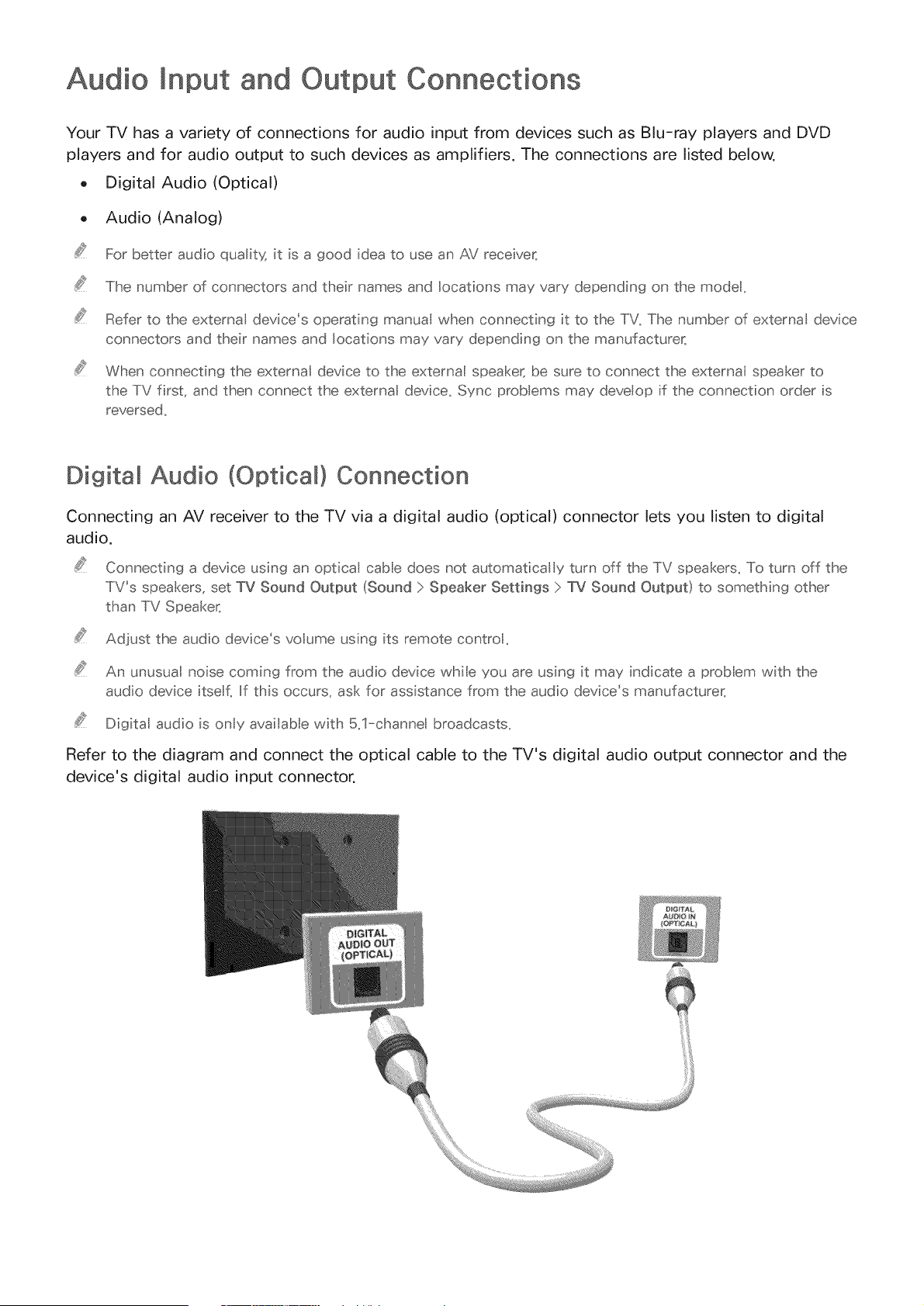

Input and Output Connections
Your TV has a variety of connections for audio input from devices such as Blu-ray players and DVD
players and for audio output to such devices as amplifiers. The connections are listed below.
o Digital Audio (Optical)
Audio (Analog)
For better audio quality it is a good idea to use an AV receiver:
The number of connectors and their names and locations may vary depending on the modet.
Refer to the external device's operating manua when connecting it to the TV. The number of external device
connectors and their names and locations may vary depending on the manufacturer.
When connecting the external device to the external speake_i be sure to connect the external speaker to
the TV first, and then connect the extema device. Sync problems may develop if the connection order is
reversed_
Digital Audio (Optical} Connection
Connecting an AV receiver to the TV via a digital audio (optical) connector lets you listen to digital
audio.
Connecting a device using an optical cable does not automatical y turn off the TV speakers. To turn off the
TV's speakers, set TV Sound Output (Sound :> Speaker Settings :> TV Sound Output) to something other
than TV Speaker_
Adjust the audio device's volume using its remote control,
An unusual noise coming from the audio device while you are using it may indicate a problem with the
audio device itse{ If this occurs, ask for assistance from the audio device's manufacturer_
Digital audio is ony available with 5,1-channe broadcasts,
Refer to the diagram and connect the optical cable to the TV's digital audio output connector and the
device's digital audio input connector.

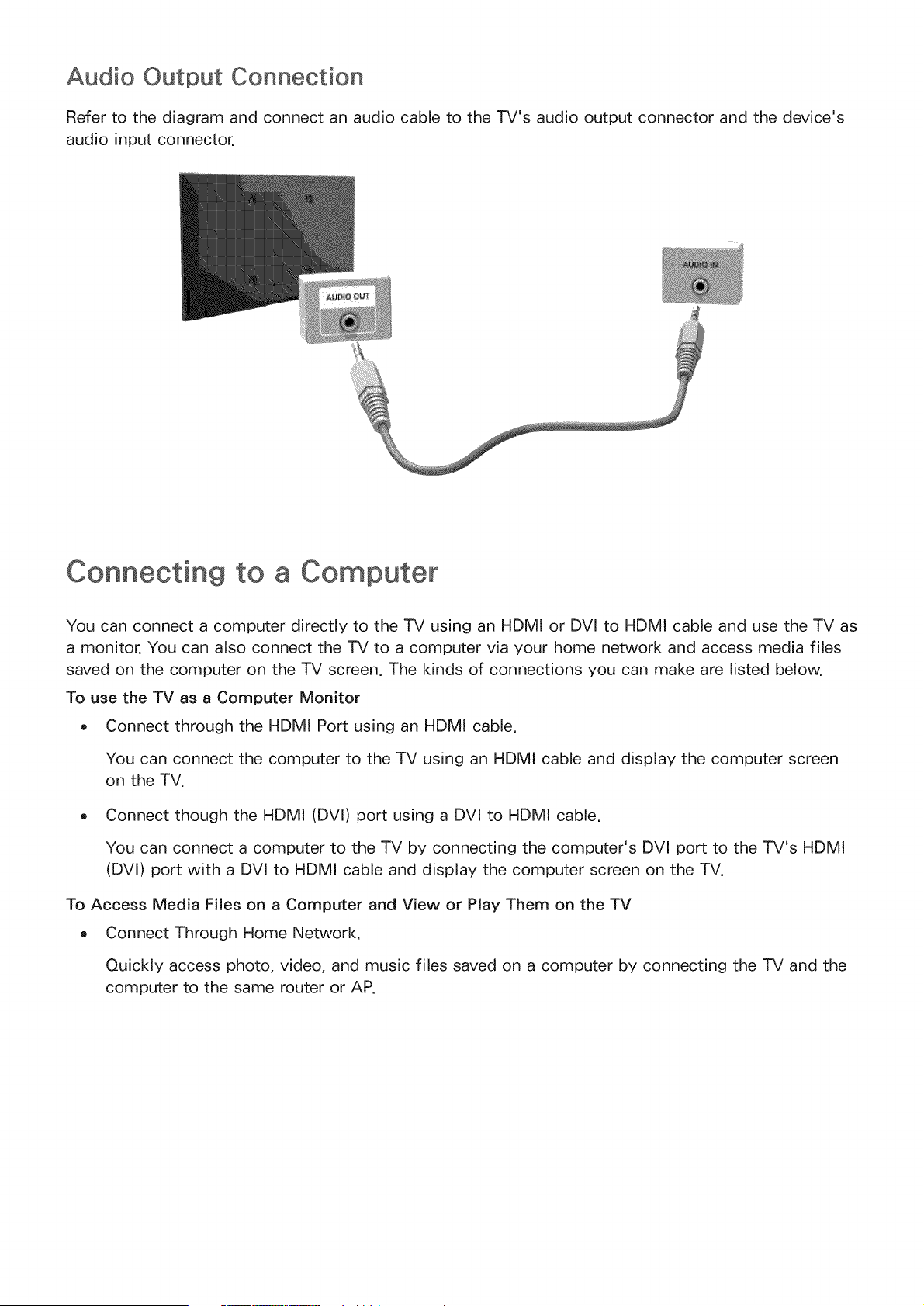

Audio Output Connection
Refer to the diagram and connect an audio cable to the TV's audio output connector and the device's
audio input connector.
Connecting to a Computer
You can connect a computer directly to the TV using an HDMI or DVI to HDMI cable and use the TV as
a monitor. You can also connect the TV to a computer via your home network and access media files
saved on the computer on the TV screen. The kinds of connections you can make are listed below.
To use the TV as a Computer Monitor
o Connect through the HDMI Port using an HDMI cable.
You can connect the computer to the TV using an HDMI cable and display the computer screen
on the TV.
Connect though the HDMI (DVI) port using a DVI to HDMI cable.
You can connect a computer to the TV by connecting the computer's DVl port to the TV's HDMI
(DVl) port with a DVl to HDMI cable and display the computer screen on the TV.
To Access Media Files on a Computer and View or Play Them on the TV
o Connect Through Home Network.
Quickly access photo, video, and music files saved on a computer by connecting the TV and the
computer to the same router or AP.
Connecting Through the HDMI Port
For an HDMI connection, we recommend one of the following HDMI cable types:
o High-Speed HDMI Cable
o High-Speed HDMI Cable with Ethernet
Use an HDMI cable with a thickness of 0_55 inches (14mm) or less_ Using a non-certified HDMI cable may
result in a blank screen or a connection error,
Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications_
This TV does not support HDMI Ethernet Channe _ Ethernet is a LAN (Loca Area Network) buit on coaxia
cables standardized by the IEEE
Many computer graphics adaptors do not have HDMI ports, but have DVI ports instead_ If your computer
graphics adaptor has a DVI port_ use a DVI to HDMI cable to connect the computer to the TV_ For more
informatior_, refer to
Refer to the diagram and connect an HDMI cable to the computer's HDMI output connector and the
TV's HDMI input connector.
The number of ports, and their names and locations may vary depending on the modet_
Once the connection has been made, press the SOURCE: button to select the connected external
device.
Connecting With a DVmto HDMI Cable
If the graphics adapter of your computer does not support the HDMI interface, connect the computer
to the TV with a DVl (Digital Visual Interactive) to HDMI cable. Note that the DVl to HDMI connection
is only supported by the HDMI (DVl) port and does not support audio signal transmission. To listen to
the computer sound, connect external speakers to the computer's audio output connector.
For the resolutions supported by the TV, refer to
Refer to the diagram and connect the DVI to HDMI cable to the TV's HDMI (DVI) port and the
computer's DVl output port.
Once the connection has been made, press the SOURCE button to select the connected external
device.
Connecting Through Home Network
Quickly access and play photo, video, and music files stored on a computer on the TV.
Connect the TV and the computer to the same router or AP. Once you connect them to the same
router or AP, a home network is configured.
2, On the computer, select [Control Panel] > [Network and Internet] > [Network and Sharing Center]
> [Change advanced sharing settings], and then select [Choose media streaming options...] to
activate media streaming.
3, From the list, set the TV to [Allowed].
4, Launch Windows Media Player on a computer. Select [Settings] > [Library Management], and then
add the location where photo, video, and music files are saved to play them on the TV.
A te_ _ative y, you ca[] move tlhe fles to the defa_ It foder specif ed HayW []dows Media Ii:::>ayec and then
pay or view them on tlhe IIV
As ong as Fie Sha_ ng s activated, {_na_tl"_o_zed access may occtc When yot_ do _ot _eed to access
data, disab e Fie Sha_ n9,,
Connecting To a Mobile Device
You can connect a mobile device such as a smartphone or tablet directly to the TV, or connect it to the
network and display the mobile device's screen or play its content on the TV. The kinds of connections
you can make are listed below.
o Connect by Mirroring the Mobile Device's Screen on the TV (Screen Mirroring)
Wirelessly connect the TV and the mobile device with the mirroring function. You can view the
mobile device's screen on the TV screen.
.....lihis ol_tion s ava abe O_y 0_ 8 moble device ha s_ pl/_o_s he rni__o_n_:_f_nctio_,,
.....lihis optio _ may dil_e_ flom he mobiles so_ wa_e,,
Connect Mobile Devices without a Wireless Router (Wi-Fi Direct)
Wi-Fi Direct enables you to connect the TV and the mobile device without a router or AP. Quickly
access and play photo, video, and music files in the connected mobile device on the TV.
.....lihis ol_tio_ sava abe O_y 0_ 8 moble device ha s_ pl;_o_s he W F Direct fi_nctio_,,
Connect Through Home Network
You can conveniently play photo, video, and music files saved on a mobile device by connecting
the mobile device and the TV to the same router or AP.
Screen Mirroring
This option may differ from the mobile's software.
Wirelessly connect a mirroring-enabled mobile device to the TV and play the video and audio files
stored on the device on the TV. Mirroring refers to the function that plays the video and audio files
located on a mobile device on a TV and on the mobile device simultaneously,
To use the Screen Mirroring funct on, the mobile devce must support a mirroring funct on such as A tShare
Cast or Screen Mirror ng. To check whether your mobb device supports the m rroring funct on, please vist
the moble device manufacturer's webs te.
The video oraudomay ntermttenttystopdependngonnetworkcondtons_
Connecting via a mobile device
On the mobile device, run Screen Mirroring. The mobile device searches for available devices to
connect to.
2, In the search result list, select the TV. The TV displays a pop-up at the top of the screen.
3, In the pop-up, select Allow to connect the mobile device.
A previously al owed moble dev ces wl a_tomatica y connect wtho_ t needing approval,,
Iif yo_. select Deny, the device cannot connect,, Iinadditio _, yo_ are setting the devices connection
stat_,s to Deny and it wl not Be abe to connect n the f_ ture unless you change its connection status,,
.....Iio clilange the connection status of a denied device, Navigate to Network > Screen Mirroring > Device
Manager, seect the device, and then seect Allow,,
Connecting by Automatically A_owin9 the Connection
Navigate to Network > Screen Mirroring, and then select Screen Mirroring. The Screen Mirroring
function starts. You can also start screen mirroring by pressing the SOURCE button on your
remote, and then selecting Screen Mirroring from the list at the top of the screen.
2_ Launch Screen Mirroring on your mobile device. The device searches for available devices.
3_ Select the TV from the list. The TV automatically allows the connection and the device connects.
Iif the moble device cannot co _nect, tr_yt_ ruing the IiV off and o_,,
Managing the Connection Status of P_"_eviously Connected Mobile Devices
2_
3_
This funct on is only ava labte f dev ces have previously connected to the TV or have pr°eviously attempted
to connect and been denied.
Navigate to Network > Screen Mirroring > Device Manager. The TV displays a list of devices that
have previously connected to the TV or have tried to connect to the TV and been denied. The
status of the connection (Allow/Deny) is also displayed.
Select a device. A pop-up appears.
In the pop-up, you can select Allow connection, Deny connection, or Delete the device from the
list.
Connecting Mobime Devices without a Wireless Router (Wi-Fi
Navigate to MIE:INU> Network > Wi-Fi Direct
You can connect a mobile device with the Wi-Fi Direct feature directly to the TV without using a
wireless router or AP. By connecting a mobile device to the TV through Wi-Fi Direct, you can play
photo, video, and music files saved on the mobile device on the TV.
This option is ava Iab[e ony on a mob[e device that supports the W-F Direct funct on, Pease chec< f your
mobte device supports Wi-F DrecL
2_
The video or audo may nterm ttently stop depend ng on network cond t}ons.
Enable Wi-Fi Direct on the mobile device, and then navigate to Network and select Wi-Fi Direct
on the TV. The TV automatically scans for and displays a list of available devices. The TV's name
also appears on the mobile device.
Select the device from the list to initiate a connection. If a connection request is made by the TV,
a permission message appears on the mobile device and vice versa.
3_ Allow the connection. The TV and mobile device connect.
Connecting Through Home Network
Quickly access and play photo, video, and music files stored on a mobile device on the TV.
Connect both the TV and the mobile device to the same router or AP. Once you connect them to
a single router or AP, a home network is configured.
2, Enable File Sharing on the mobile device. You can play the content shared on the mobile device
on the TV.
As ong as Fie Shadng s " _act_,e, _na_ tho_ zed access can occ_ {. When yo_ do _ot _eed to access data,
d_sab e Fie Sha_ ng.
Specifying the Name of the TV on a Network
MEW_U>network>Dev_oen_me_:_
Choose or specify a name for the TV that will appear on mobile devices and laptop computers.
Select Device Name from the Network menu, and then choose a name from the list that appears.
Alternatively, select User input to enter a name manually.
2, Check the name from a mobile device or laptop computer.
Switching Between Video
Press the SOURCE button to switch between external devices connected to the TV. For example, to
switch to a game console connected to the second HDMI connector, press the SOURCE: button. The
Source List appears across the top of the screen. From the Source List, select HDMm2.
The connector names may vary depend ng on the product_
Other Functions Available When You Display the Source List
A number of functions are available in the pop-up Options menu when the TV displays the Source
List. The functions that appear in the Options menu vary, depending on the source you selected in the
Source List and the external device connected to the source.
To view the Options menu, press the TOOLS button or press and hold the {ii@button.
The functions that appear in the Options menu can include any of the following:
o Edit Name: Lets you assign a device name to an input source, for example, Blu-ray to HDMI1. To
assign a device name to an input source, follow these steps:
Open the Source List. The list appears in a horizontal line across the top of the TV. Using your
remote, highlight the source you want to assign a device name to.
2, Select Edit Name in the Options menu. The on-screen keyboard appears.
3, Using the keyboard, enter a new name. You can enter up to 15 characters.
4, When finished, select DOINIE on the keyboard, and then press the {7_ button.
_nformation: View information about the connected devices.
Remove USB: Use to safely remove a USB device connected to the TV. This option is only
available when a USB device has been selected.
Anynet+ (HDM_-CEC}: Displays a list of Anynet+ (HDMl-CEC)-compliant devices that are
connected to the TV.
.....Iihis f_nction s _ot ava labe o_ certain models in specific geographical areas,,
.....Iihis optio _ s o_y ava labe when Anynet+ (HDM_-CEC) s set to On,,
Contromming the TV with a Keyboard
MEINU > System > Device Manager > Keyboard Settings
Connecting a keyboard makes it easy to control most of the functions on the TV.
Certa n modes do not support USB HID cass keyboards.
Connecting a Keyboard
Connectin9 a USB Keyboa_'d
Plug the keyboard cable into the TV's USB port. A connection message appears on the screen.
Using the Keyboard
Use the following remote features with the USB keyboard connected to the TV.
o Arrow Keys (moving the focus), Windows Key (MIEINU Button), Menu List Key (TOOLS Button),
Enter Key (Select/run item), ESC (RIETURIN Button), Number Keys (Number Buttons
F1 ([]), F2 (@), F3 (_), F4 (El), F5 (SIMART HUB), F6 (SOURCIE Button), F7 (OH List), F8 (_Z Button),
F9/F10 (Volume Buttons), Fll / F12 (Channel Buttons)
Page Up/Page Down: Scroll web browser pages up/down.
Press and hold the Enter key: On the Smart Hub screen, navigate to an item and press and hold
the Enter key to display the Options menu.
Chan_Si,,ngKeyboards
Select System > Device Manager > Keyboard Settings > Select Keyboard. Designate which keyboard
to use.
Only one keyboard can be used at a tree.
_nput Lang_,,,_ages, Keyboard "_ype_ and Switch Language Key
Select System > Device Manager > Keyboard Settings > Keyboard Options. The following options are
available:
- Keyboard Language
If the keyboard supports multiple languages, choose the language you want to use from the
displayed list.
. Keyboard Type
Match the Keyboard Type to the language selected in Keyboard Language.
.....Ilhe Keyboard Type list vares depending os which ang_ age was se ected _nder Keyboard Language,,
- Switch input Language
if the keyboard supports multiple languages, choose the key you want to use to switch between
languages.
Contromling the TV with a
MEINU > System > Device Manager > Mouse Settings
Connecting a mouse makes it easy to control most of the functions on the TV.
Certa n modes do not support USB HID cass race,
Connecting a Mouse
Connecting a USB Mouse
Plug the mouse cable into the TV's USB port. A connection message appears on the screen.
Using the Mouse
Once a USB mouse is connected to the TV, a pointer appears on the TV's screen. You can use this
pointer to control the TV in the same way you use a pointer on a computer.
o Selecting and Running an Item
Left-click using the mouse.
Showing Tools Buttons
Right-clicking displays the Tools buttons on the screen so that you can easily use the TV's
functions.
.....Iihe Iioos b_£to_s may va[y depending o_ the fi;nct[o_ yo_J a_e _;sin((_,,
Scrolling the TV Menu or Screen
Move the mouse wheel up or down. This scrolls the TV menu or screen up/down.
Exiting the TV Menu or Feature
Click the X button. This closes the menu.
.....Iihe X b_tton appears on the IIV men_ when a mouse [s being _sed,, eft clicking o_ce while _sing a
feat_ re disp ays the X b_tton on rise c_trent screen..
Chan singMice
Select System > Device Manager > Mouse Settings > Select Mouse, Designate which mouse to use.
Only one mouse can be used at a tree,
Changing Mouse Buttons and Pointer Speed
Select System > Device Manager > Mouse Settings > Mouse Options. The following options are
available:
Primary Button
Choose which button (left or right) to use to select and run items.
Pointer Speed
Adjust the movement speed of the pointer that appears on the screen.
Entering Text Using the On-Screen QWERTY Keypad
A QWERTY keypad appears when you need to enter text (entering the network password, logging into
your Samsung account, etc.), allowing you to enter text using your remote control.
Using Additional Functions
Select 0 on the QWERTY keyboard screen. The following options are available:
o Recommended text
Enable/disable the Recommended Text feature Enabling the Recommended text feature allows
you to quickly enter text starting with the characters you typed in by displaying recommended
words. To enter the word "lnternet," for example, all you have to do is enter "In" and select the
word "lnternet" from the list of recommended words. The word is memorized so that you can
enter the same text again more easily.
o Reset recommended text data
Delete both the recommended words and the memorized words to clear the list.
Predict Next Letter
Enable/disable the Text Prediction feature. Enabling the Text Prediction feature eliminates the
need to find and select individual character keys. To enter the word "lnternet," for example, select
"1". A predicted word will then appear next to the I key. Simply select the predicted word to enter
"Inter net".
.....Ibis feature is imited to words that have previous y beeu' added to the diction' ary,
Estabmishin9 a Wired Internet Connection
Connecting the TV to the Internet gives you access to online services and SMART features, and lets
you update the TV's software quickly and easily through the Internet.
Using Cat 7 LAN Cables
We recommend using Cat 7 LAN cables to link your TV to the Internet Access Points.
The TV wi not be abe to connect to the Intemet if the network speed is below 10Mbps,
There are three ways to connect the TV to your Internet Access Points. Using Cat 7 cables, connect
the TV to the Access Points as shown in one of the following illustrations.
o External Modem
o (_ IP Router + @ External Modem
o Wall-mounted LAN Outlet
Connecting to a Wired _nternet Network Automatically
IMIEINU> Network > Network Settings
Automatically connect to an available network.
Set the Network type to Wired, and then select Connect.
2. The TV attempts to connect to an available network. Once it is successful, you will see a
confirmation message. Select OK. If the attempt fails, try again, or connect manually,
Connecting to a Wired Intemet Network Manually
IMIENU > Network > Network Settings
With networks that require a static IP address, you will need to enter the IP address, subnet mask,
gateway, and DNS values manually to connect to the network. To get these values, contact your
Internet Service Provider (ISP).
Refe_"to the section for more information on dynamic IP and static IP
addresses_
Set the Network type to Wired, and then select Connect.
2, Select Stop when the TV attempts to connect to the network. Once the network connection has
been interrupted, select _PSettings.
3. In the IP Settings screen, set IP Setting to Enter Manually.
o
Select IP Address. When the IP Address entry window appears, enter three digits into each field
on the IP Address line. If the value has less than three digits, add leading zeroes. For example,
to enter 10, enter 010. After three digits have been entered in a field, the highlight automatically
jumps to the next field.
IiiE_'ter numbers I)y pressing the number buttons. Mfter you have filed h' _ fo_.Jrfie ds, press the [TY
Repeat the process for Subnet Mask, Gateway, and DNS Server.
When done, select OK.
The TV attempts to connect to the network again using the settings you entered. Once it has
established the connection, it displays a confirmation message. Select OK.
..../he network co_','ectio_' speed may differ depe,' din9 o_' the DNS server settings..
For details o_' the DNS server settings, co_'tact yo_J Intemet service provider (ISP)..
Estabmishing a Wireless Internet Connection
Connecting the TV to the Internet gives you access to online services and SMART features, and lets
you update the TV's software quickly and easily through the Internet.
Connecting to a Wireless mnternet Network Automatically
IMIENU > Network > Network Settings
Connect the TV to the Internet via a wireless router. Make sure you have the wireless router's SSID
(name) and password settings before attempting to connect. The password can be found on the
wireless router's configuration screen.
On the Network Settings screen, set Network type to Wireless. The TV automatically displays a
list of available wireless networks.
o
o
Select a network. If the network you want doesn't appear in the list, select Add Network, and
enter the network's SSID (name) manually.
Using the on-screen keyboard that appears, enter the password. When finished, select Done. If
the selected network is not security-enabled, the TV will by-pass the on-screen keyboard and
attempt to connect right away.
o
- To select a character on the on-screen keyboard, highlight the character and then select it.
Select Caps to view capital letters. Select the 123#& key to view additional characters.
- To view the password as you enter it, select Show Password.
The TV attempts to connect to the network. Once a connection is established, the TV displays a
confirmation message. Select OK. If the attempt fails, try again or connect manually
Connecting to a Wireless mnternet Network Manually
IMIENU > Network > Network Settings
With networks that require a static IP address, you will need to enter the IP address, subnet mask,
gateway, and DNS values manually to connect to the network. To get the IP address, subnet mask,
gateway and DNS values, contact your Internet Service Provider (ISP).
Refer to the section for more information on dynamic IP and static IP
addresses.
On the Network Settings screen, set Network type to Wireless. The TV automatically displays a
list of available wireless networks.
o
o
o
Select a network. If the network you want doesn't appear in the list, select Add Network, and
enter the network's SSID (name) manually,
Using the on-screen keyboard that appears, enter the password. When finished, select Done. If
the selected network is not security-enabled, the TV will by-pass the on-screen keyboard and
attempt to connect right away.
- To select a character on the on-screen keyboard, highlight the character and then select it.
Select Caps to view capital letters. Select the 123#& key to view additional characters.
- To view the security password as you enter it, select Show Password.
Select Stop when the TV attempts to connect to the network. Once the network connection has
been interrupted, select JP Settings.
In the IPSettings screen,set JPSetting to EnterManually.
o
Select JP Address. When the IP Address entry window appears, enter three digits into each field
on the IP Address line. If the value has less than three digits, add leading zeroes. For example,
to enter 10, enter 010. After three digits have been entered in a field, the highlight automatically
jumps to the next field.
IiiE_'ter numbers H)y pressing the number buttons, After you have filed iu' a four fie ds, press the [:::Y
Repeat the process for Subnet Mask, Gateway, and DNS Server.
When done, select OK.
The TV attempts to connect to the network again using the entered settings. Once it has
established the connection, it displays a confirmation message. Select OK.
Network con'rnection'r speeds may differ depending on'r the DNS server settings,
For details o_' the correct DNS server settinc_s, co_' tact yo_Jr Internet service provider {ISP),
Connecting to a Wireless lnternet Network with WPS
MENU > Network > Network Settings
If the router has a WPS push button, you can use it to connect the TV to the router automatically. WPS
automatically configures the SSID and WPA key settings.
o Your router must support WPS to use the WPS functionality.
On the Network Settings screen, set Network type to Wireless. The TV automatically displays a
list of available wireless networks.
Select WPS (PBC}, and then press the router's WPS or PBC button within two minutes.
o
The TV automatically acquires the SSID and password settings, and then connects to the
network. Once a connection is established, the TV displays a connection message. Select OK.
Troubleshooting Internet Connectivity Issues
If you are not able to connect the TV to the Internet, read the information below.
Troubleshooting Wired mnternet Connectivity mssues
No network caUe found
Make sure the network cable is plugged in. If it is connected, make sure the router is turned on. If it is
on, try turning if off and on again.
_P auto setting fai_ed
Do the following or configure the _P Settings manually.
Ensure that the DHCP server is enabled on the router and reset the router.
2, If this does not work, contact your Internet Service Provider for more information.
UnaUe to connect to the network
Do the following:
Check all JP Settings.
Ensure that the DHCP server is enabled on the router. Then, unplug the router and plug it back in.
3, If this does not work, contact your Internet Service Provider for more information.
Connected to a Ioca_ network_ but not to the _nternet
Make sure that the Internet LAN cable is connected to the router's external LAN port.
2, Check the DNS values in JP Settings.
3, If the problem persists, contact your Internet Service Provider.
Network setup is comp_ete_ but unable to connect to the Internet
If the problem persists, contact your Internet Service Provider.
Troubleshooting Wireless mnternet Connectivity mssues
Wireless network connection fai_ed_
Selected wireless router not found. Go to Network Settings and select the correct router.
UnaMe to connect to a wireless router
Check the following:
Check if the router is turned on. If it is, turn it off and on again.
2, Enter the correct password if required.
_P auto setting fai_ed
Do the following or configure the _P Settings manually.
Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back
in.
2, Enter the correct password if required.
3, If this does not work, contact your Internet Service Provider for more information.
UnaUe to connect to the network
Do the following:
Check all JP Settings.
2, Enter the correct password if required.
3, If this does not work, contact your Internet Service Provider for more information.
Connected to a Ioca_ network_ but not to the _ntemet
Make sure that the Internet LAN cable is connected to the router's external LAN port,
2, Check the DNS values in JP Settings,
3, If the problem persists, contact your Internet Service Provider,
Network setup is complete_ but unable to connect to the _nternet
If the problem persists, contact your Internet Service Provider,
Checking the Internet Connection Status
MIEINU > Network > Network Status
Your TV's menu may differ from the image above, depending on the modet,
View the current network and Internet status,
Smart Hub
IMIEINU> Smart Hub > Open Smart Hub
With Smart Hub, you can surf the web and download apps.
Some of the Smart Hub services are for pay services. To use a for pay service, you must have an account
with the service provider or a Samsung Apps TV accounL Refer to the
section for more information_
The TV must be connected to the Intemet to access Smart Hub.
Some Smart Hub features may not be availaMe depending on the service provider: language, or region.
To use Smart Hub, you must agree to the end user agreement and privacy poJic% Otherwise, you wil! not be
able to access the features and services associated with them. You can view the entire text of the Terms &
Policy by navigating to Smart Hub 1>Terms & Policy_ if you want to stop using Smart Hub, you can cance
theagreement
Smart Hub service outages can be caused by disruptions in your Intemet service.
Testing Smart Hub connections
IMIEINU> Support > Self Diagnosis > Smart Hub Connection Test
If Smart Hub is not functioning, navigate to Support > SeJf Diagnosis > Smart Hub Connection Test,
Diagnose the problem by checking the internet connection, your ISP, the Samsung server and the
Samsung Apps panels,
After compIeting the test, if Smart Hub continues to have prob eros, contact your Intemet Service Provider
or a Samsung Contact Center_
Opening the First Screen
Press the SMART HUB button while watching TV to open the First Screen.
On the First Screen, search through favorite apps, channels, or sources and access previously run or
frequently used functions.
Setting you_ _ favorite item
Press the SMART HUB button to open the First Screen, and move to a desired item.
2, Press and hold the/ii_ button. The Options menu appears.
3, In the Options menu, select Add to Favorites to add the selected item to the favorite list, which
will move top of the list.
..../o deete a favodte item, seect it, a_'d theu' press a_'d hod the [7::_button' to disp ay the co_'text meu'u,,
..../ Ii'se,',seect Remove,,
Deleting browsing history
Press the SMART HUB button to open the First Screen, and select Reset. You will be asked to
confirm your selection.
2, Select Yes on the screen. Your browsing history is deleted completely.
However: the Favorites ist items wil not be deeted,,
Yo_Jca_' aso deete yo_J_browsiu' g history by seecting Reset iu' the Smart Hub > First Screen Settings
mr}H' u ,,
Moving to the Panel Screen
Press the SMART HUB button to open the First Screen, and select the Panel icon. On the Panel screen
for each service panel, the following are available:
o /'ill!i!SAMSUNG APPS
You can enjoy a variety of free and for pay news, sports, weather, and gaming apps on the TV as
you would on a smart phone or tablet.
Resetting Smart Hub's First Screen
IMIEINU> Smart Hub > First Screen Settings > Reset
Reset lets you reset Smart Hub's first screen and remove your favorite lists.
Using Smart Hub with a Samsun9 Account
Your TV's menu may differ from the image above, depending on the rood@.
Creating a Samsun9 Account
IMIEIN/J> Smart Hub > Samsung Account
Some of the Smart Hub services are for pay services, To use a for pay service, you must have an
account with the service provider or a Samsung Apps TV account (a Samsung account),
You can create a Samsung account using your email address as your ID,
To create a Samsung account, you must agree to the Samsung account end user agreement and privacy
policy, Otherwise, you cannot create a Samsung account. You can view the entire content of the agreement
by navigating to Smart Hub > Samsung Account > Terms and Conditions, Privacy Policy.
You can aso create a Samsung account at http://contenLsamsung.com. Once you have an account, you can
use the same ID on both the TV and the Samsung website.
Creating a Samsung Account Using the Create Samsung Account Menu
Press the MIEINU button on your remote, and then select Smart Hub > Samsung Account > Create
Account > Create Samsung Account. The Terms and Conditions screen appears.
2. Press the {7_ button to agree to the Terms and Conditions, and then press {7_ button again.
3.
Iif yot want to mveiw the and Conditio _s, seect the Vew Deta Is btttons,,
Select the Email field. The keyboard pop-up appears. Enter your e-mail address. Use the
directional keys to move from character to character, and then press the (_i_ button to select a
character. Select the Caps button on the left to enter capital letters. Select the 123#& button to
view and select additional symbols. Select .corn at the bottom of the keyboard to enter .com.
4. When finished, select Done on the keyboard. The Create Account screen reappears.
Enter a password, your first name, and last name in the same fashion.
.
Iif yo_, want your accoLJ_l: to be password protected, selecl: "Password (Sect, r ty: Hgh" n the fed
below the Password field Iif you don_t, seect "No password req_.ired_ You st;I need to create a
password, howeve_ Otlher f_ nctions n yo_r acco_nt req_ ire that yo_ enter a password
eave "Sign me n a_.tomatica y" checked f you want the IlV to og you n to yotJ accot_nt
a_ tomatical y when yo_. t_.r _ the IIV o_,,
Select the Date of Birth field, and then select numbers pressing the up or down directional
buttons, or, on a standard remote, using the number pad. Move from month to day to year by
pressing the left or right directional buttons. Press the IRIETURINbutton on the remote when done.
After you have finished with all the fields, select Next. The Image Selection screen appears.
Select an image to use to identify your account. The Account Created screen appears. Press the
{7_ button. You are signed in to your Samsung account.
Iif yo_ have an existing acco_nt saved o_ the IiV_ yo_ m_st be ogged o_£ of the acco_nt to create _ew
acco_nts o_ the liT,,
Creating a Samsung Account using a Facebook Account
if you have a Facebook account, you can use the account to create a Samsung account.
Press the MIEINU button on your remote, select Smart Hub > Samsung Account. And then select
Log in. The Sign In screen appears.
2, Select _, and then select Create with Facebook on the Sign In screen.
3, Enter your Facebook ID and password and select Sign in.
4, The Terms and Conditions screen appears.
Press the [iii_ button to agree to the Terms and Conditions, and then press the [iii_ button again.
6, Follow the directions on the Create Account screen to create a Samsung account.
Once a Samsung account is created, you are automatically signed in.
Iif yo_; create a S;J_ss_ng acco_;nt _;sing yo_J Facebook acco_;nt, they are a_tom;£[ca y inked
Signing in to a Samsung Account
MIEINU > Smart Hub ) Samsung Account ) Log In
Press the MIEINU button on your remote, and then select Smart Hub ) Samsung Account ) Log In.
2, On the Log In screen, select your account. And then select Sign In on the Sign In screen.
3, If you don't need to enter a password, Iogin proceeds. If you need to enter a password, the on-
screen keyboard appears. Enter your password. When finished, select Done.
Linking Your Samsung Account to External Service Accounts
MIEINU > Smart Hub > Samsung Account > Link Service Accounts
Linking your Samsung account to an external service accounts lets you automatically log in to
the linked account when you log into your Samsung account. For example, you can download the
Facebook application - which lets you access Facebook from your TV - and then link your Facebook
account to your Samsung account. Logging into your Samsung account then automatically logs you
into your Facebook account as well and lets you access it directly from the TV.
To use Link Service Accounts, you must frst log nto your Samsung account.
Linking a Service Account
Log in to your Samsung Account.
2, Navigate to Smart Hub ) Samsung Account, and then select Link Service Accounts. The
accounts you can link to your Samsung account are displayed.
3, Select an account from the list. The Link to other accounts window appears on the screen.
4, Enter the current ID and password of the account to log in and select OK.
When the Iogin is complete, the account is linked to the Samsung account.
Disconnectin9 a Linked Account
Navigate to Smart Hub ) Samsung Account, select Link Service Accounts. Select an account to
unlink.
2, A confirmation dialog box appears. Select Yes to unlink the account.
Changing and Adding Information to a Samsung Account
MEINU > Smart Hub > Samsung Account
Using the Samsung Account menu, you can manage your Samsung account.
To change the account nformation, you must be logged n to your Samsung account_
Navigate to Smart Hub > Samsung Account, and then select Edit Profile. The keyboard appears.
2, Enter your password, and then selec Done. The Edit Profile screen appears.
The Edit Profile screen lets you do the following:
o Change Your Profile Image
Select Edit Profile Picture to change your profile image.
Choose a Samsung Account Sign-in Method
Select Sign-in Method and choose a sign-in method from the drop down that appears.
Turn Auto Login On or Off
Select Sign me in automatically. Auto Login automatically logs you in to your Samsung account
when you turn the TV on. A check mark indicates that Auto Login is on.
Enter Basic User Information
You can enter your first name, last name, and date of birth.
Add a Credit Card to Your Samsung Account
Select Add Card to add a credit card to your Samsung Account. Adding a credit card to your
account makes it easier to purchase online movies and TV shows. Follow the easy directions on
the screen.
Subscribe to the Samsung e-Newsletter
You can receive emails containing information about Samsung products, new service
announcements, special offers, and events.
Deleting a Samsung Account from the TV
MIEINU > Smart Hub > Samsung Account > Remove Accounts from TV
Navigate to Smart Hub > Samsung Account and select Remove Accounts from TV. The account
and password information for the currently signed in account is deleted from the TV. The account
information for any external accounts linked to the signed in account is also deleted from the TV.
Only the informat on for the current sgned n account s de[eted_ Account nformat on for all other accounts
saved on the TV rema n_
Using the SAMSUNG APPS Pane[
Usability depends on your specific modet and locaI region_
Smart Hub offers a variety of free news, sports, weather, and gaming apps you can install directly to
and enjoy on your TV. The first line on the screen contains apps recommended by Samsung. These
apps were automatically downloaded to your TV when you set up Smart Hub. The lines of apps below
the first line contain some apps that were automatically downloaded to your TV and other apps you
have selected and downloaded.
Your TV must be connected to the Internet for you to use SAMSUNG APPS,
When Smart Hub is launched for the first time, the default apps are automatical y insta ed, The default apps
may differ depending on the region,
Using Supported Features via the Pop-Up Menu - Downloaded
Move the focus to an app in the second row or below, and then press and hold the {:i:_ button. The
Tools menu appears displaying the following functions.
o Move
Lets you relocate an app on the screen.
Delete
Lets you remove a selected app from your TV.
Multi Delete
Lets you remove multiple apps from the TV.
View Details
Displays detailed information about a selected app.
Change View
Lets you change how the apps are sorted on the screen, by Custom or Most Played.
Lock/Unlock
Lets you lock or unlock an app.
Update Apps
Displays a list of apps that have updates available. You can select which apps to update.
Using Supported Features via the Pop-Up Menu - Recommended
Move the focus to a recommended app in the top row, and then press and hold the {:i:_ button. A drop
down list appears with the following functions.
. View Details
Displays detailed information for a selected app.
Update Apps
Lets you update the apps when updates are available.
,, Lock/Unlock
Lets you lock or unlock an app.
mnstalMin9 an App
Quick _nstalllation
On the SAMSUNG APPS screen, select Most Popular, What's new, or Categories.
Most Popular arid What's new show the most popL lar and new SamsL ng apps, respective _ Iio view
the entire app st by _enre, seect Categories When the Categories screen appea_s, seect a catego_y
;co_ to view the apps in that catego_y
Move the focus to an app, and then press and hold the I:i}_ button. A pop-up menu appears.
3_ On the pop-up menu, select Downmoad.
4_
Most apps are flee to nsta
While an app ;s being ;nstal ed, the p_og_ess ba_ appea_s at the bottom of the app ;co_ so that yo_ can
monitor the p_ogress of the ;nsta atio _L
The selected app is installed on the TV.
You can view nsta ed apps o_ the SAMSUNG APPS screen
_nsta_in9 an App from the Detailed App _nformation Screen
On the SAMSUNG APPS screen, select Most PopuNar, What's new, or Categories.
.....Iihe Most Popular and What's new show the most popL lar and new Sams_ ng aDDs, respective y, Iio
view the enl:ire app ist by genre seect Categories,, When the Categor es screen appears, seect a
category con to vew tlBe apps n that categorx
2_ Select an app from the list. Detailed information about your selection appears on the screen.
3_ Select Download to install the selected app on the TV.
Most apps are free to nsta .
While an app s being nsta ed the progress bar appears at the bottom of the spp cos so that yo_ can
mostortlbeprogressofthe nsta ation.
4, When the installation is complete, the Download button changes to Open.
Y(£_ can view nsta ed apps o] the 8AMSUNG APPS screen.
Additiona_ Notes
When the TV's nterna memory is insufficient, you can nstal an app on a USB device_
You can vew icons for the apps saved on the USB devce on the Apps screen only when the device _s
connected to the TV. You can use an app insta led on a USB device ony when the USB devce s connected
to the TV. If the USB device is disconnected whe the app s running, the app s term hated.
You can use the app nsta ed on the USB device on a PC or another TV.
Launching an App
Select an app on the SAMSUNG APPS screen, and then press the {7_ button. You can also start an
app from its Detail screen.
Ths opton s only ava abe when the app s nsta ed on a USB device_
Using the e-Manua
Launching the e-Manual
IMIEINU> Support > e-Manual
The embedded e-manual contains information about your TV's key features,
A ternatively, you can download a copy of the e-manua from Samsung's website, and read it on your
computer or' print it out_
Words in yellow (e.g. Picture Mode} indicate a menu item and bold words in white (e.g. Smart Hub}
indicate remote control buttons_
Arrows are used to indicate the menu path, (ExampIe: MENU > Picture > Picture Mode}
Press the IEHMAINkJAL button on the remote, You can also select Support > e-Manual in the TV's
menu,
2, Select a category from the left side of the screen, Once a selection has been made, the contents
of the selected category appears on the right side of the screen,
3, Select an item from the list, This opens the e-manual on the corresponding page,
_f a description doesn°t fit on a single screen,°
o Position the focus on the page to display / on the screen, Press the _ or V buttons to
scroll the page up and down,
Additionam e Manual Features
Loading Pages using Keywords
Select Search to bring up the search screen. Enter a search term, and then select Done. Select an item
from the search results to load the corresponding page.
Loading Pages fl'om the Index Page
Select Index to bring up the index screen. Select a topic from the list to navigate to the relevant page.
Using Nistory to Load P_eviously Read Pages
Select Opened page. A list of previously read pages is shown. Select a page. The e-Manual jumps to
the selected page.
Accessing the Menu from the e-Manual
Select _ (Try Now) from the right side of a feature-description page to access the corresponding
menu item and try out the feature right away. If you want to read the e-Manual entry on a specific
screen menu feature:
- Press the IEq_AINUAL button on the remote to load the corresponding e-Manual page.
The e-Manua cannot be accessed from some menu screens.
Loading Reference Pages
Select _ (Link) from the right side of a feature-description page to access the corresponding
reference page.
Updating the e,-Manual to the Latest Version
You can update the e-Manual in the same way you update apps.
Press the SMAIRT 14UB button to open the First Screen, and then select the Panel icon. The Panel
screen appears.
2, Go to the SAMSUNG APPS screen and the highlight the e-Manual.
3, Press and hold the/ii_ button. The Tools menu appears.
4, Select Update Apps from the Tools menu. A popup window appears.
Select e-Manual in the popup window, and then select Update.
Configu_'ing Auto Update
MIEINU > Smart Hub > Apps Settings
To update the e-Manual automatically, navigate to the Smart Hub > Apps Settings menu, and then
set the Auto Update option to On. The e-manual is updated automatically when an update becomes
available.
Using Web Browser
Web Browser is an Internet browsing app.
Use a keyboard and mouse for a more convenient web browsing expedence_
The browsing page may differ from that on a PC_
Browsing Methods
Web Browser provides two browsing methods: _ Pointer Browsing and _ Link Browsing. Pointer
Browsing enables you to move the pointer for selection while Link Browsing allows using the direction
arrows to move the focus.
The default browsing method of Web Browser is Pointer Browsing. To enable Link Browsing, select
the _ icon.
Command and Status Bar at a Glance
Open the Web Browser to display the command and status bar at the top of the screen. The following
items are available:
o _ Back
Move to the previous page.
o _ Forward
Move to the next page.
o _ Bookmarks & History
Move to the Bookmarks & History screen. On this screen, add the current page to Bookmarks, or
move, edit, or delete a bookmarked page. Easily access visited pages by navigating the History
screen.
o [] HomePage
Moveto the mainscreen.
o AddressBar
Checkthe addressof the currentpage,or enter aweb pageaddressto moveto the page.
o _ Refresh/ _ Stop
Reload the current page or stop reloading the current page.
[] Add to Bookmarks
Add the current page to Bookmarks.
o Search
Make a keyword search using the user-specified search engine.
..../o change the search eu'gi,' e, seect the _ icon' a_'d theu' seect a search eu'gi,' e i,' the Search IEn'gi,' e
Settings,,
., Zoom
Zoom in or out of the current web page.
_ P_P
Use Web Browser while watching a TV program on the same screen.
..../his function may not be availab e dependiu' g o_' the specific mode,,
o _ Link Browsing / _ Pointer Browsing
Select one from two browsing methods supported by Web Browser,
o _ Setting
Configure the Web Browser settings. For more information, refer to
_ Close
Exit Web Browser.
o New Tab
Open a new tab.
Browsing P_efetences
Selectthe [] item on the screen.Configurethe browsingsettingsto your needsor convenience.
Someitemsmaynotbeavailabe dependingonthewebpage,Unavailableitemsaregrayedout,
o Approved Sites
To preventchildrenfrom accessinginappropriateweb pages,limit accessto pre-registeredweb
pages.
Youwil beaskedto enter_ passwordwlheu'seectin{xApprovedSites,,IEu'terthepassword,,Thedefa_.Jt
passwordis0000,,
Approved Sitesfeature: Enable/disablethe Approved Sitesfeature.
Resetpasswordfor Approved Sites: Changethe password.
Add current site: Add the currentweb pageto ApprovedSites.
ManageApproved Sites: Enterthe addressof the web pagethat you want to addto Approved
Sites,or selectone from the list and delete it.
Iliiiiii[nabi_r_gtheApprovedSitesfeaturewid_nowebpaf_eistedwil restrictaccessto anywebpaf_e,,
o Private BrowsingOn/ Private Browsing Off
Enable/disable the Private Browsing feature. Enabling Private Browsing will not save the
browsing history.
When enab in{j Private Browsing, the _ icon' appears at the start of the address ba:,
- Set Search Engine
Set the default search engine from the list.
WebBrowserSettings
Configurethe WebBrowserSettings, suchas browsingbehaviorsor security.
Set as homepage:Selecta web pageand set it as the homepage.
Pop-upBlock: Blockor unblockpop-up windows.
PageBNock:Block or unblock pagessuch ascommercialpages.Managea list of pagesto block
by enteringthe addressof a web page.
GeneraN:Deletebrowsinghistory or Internetusageinformation,or resetWebBrowser.UsePrivacy
Browsingto restrict accessby maliciouscodesor phishingsites.
Privacy& Security: Preventsaccessto inappropriateweb pages.Also allows you to selectnot to
saveyour browsinghistory.
Encoding:Set the encodingto Auto, or selectan encodingmethodfrom the list.
Pointer:Adjust the pointerspeed in PointerBrowsingmode, or changethe link accessmethod.
Browser information: Checkthe currentversionof WebBrowser.
Thiswill familiarizeyourselfwith the basicsof WebBrowser.
Relocating an App on the Apps Screen.
On the SAMSUNG APPS screen, select to the app you want to move.
2. Press and hold the {:::_ button. A pop-up menu appears.
3. On the pop-up menu, select Move.
Y(£ r_ay be asked to change the view to C_stor_
4. Highlight an app you want to move. Move the app to a desired location use the arrows buttons.
When the app is in it's new location, press the {iii_ button.
Y(£_cannot move Recommended Apl/_s
Deleting an App from the TV
If an app s deleted, the data re ated to the app s aso deleted_
Deleting an App
On the SAMSUNG APPS screen, move to the app you want to remove.
2. Press and hold the {7_ button. A pop-up menu appears.
3. On the pop-up menu, select Demete. A removal confirmation window appears.
4. Select Yes. The selected app is deleted.
Removin9 Multiple Apps
On the SAMSUNG APPS screen, move to an app you want to remove.
2. Press and hold the [:i:_ button. A pop-up menu appears.
3. On the pop-up menu, select Multi Delete. A check box appears on the app icons.
4. Select all the apps you want to delete. A check mark appears on each app you select. When
done, select Delete at the bottom of the page. A removal confirmation window appears.
Select Yes. The selected apps are deleted.
Rating/Reviewing an App
On the detailed app information screen, you can rate an app or send a review to the app developer.
To rate or review an app, you must log nto your Samsung accounL You can only rate or review with a TV
purchasing apps and games_
Updating Apps
On the SAMSUNG APPS screen, select an app.
2. Press and hold the {iii_ button. A pop-up menu appears.
3. On the pop-up menu, select Update Apps. A pop-up window listing all the apps with available
updates.
4. Select the apps you want to update, and then select Update. All the selected apps are updated to
the latest version.
Y(£_can choose a the apps isted n the Update wndow at o_ce by seectin(t_ Seect A
Setting Auto App Update
To update apps automatically, navigate to Smart Hub > Apps Settings and set Auto Update to On. The
apps will then be updated automatically when an update becomes available.
Using Other App Features and Functions
MIEINU)SmartHub)AppsSettings(_ ::! !
You can configure additional app features and functions.
Setting Push Notification
The Push notification function lets publishers of some apps installed on the TV send alarm messages
containing news about their apps, modification information, etc. The messages are displayed on your
screen as you watch TV.
Navigate to Smart Hub ) Apps Settings ) Push Notification Settings, and then set Push
Notification to On.
2, On the Push Notification screen, select the apps you want push notifications for.
.....Iihe Push Notification app ists o_y the apps that s_ pport Push Notification Settings,,
Usin9 Channel Bound Apps,
A Channel-Bound App is an app that is linked to a particular channel. These apps provide services for
or information about programs on the linked channel while you are watching the programs.
Navigate to Smart Hub ) Apps Settings and set Channel-Bound Apps to On.
You can use ths feature only when an app supportng Channel-Bound Apps s nsta ed on the TV_
Using the Multimedia (Playing Photos, Videos, and
You cannot play media content if the content is not supported by the TV_ For more information, refer to
Backup important ties before connecting a USB device, Samsung is not responsible for damaged or lost
lies,
PMaying Media Content Saved on a USB Device
Connect a USB device to the TV's USB port.
o
3,
The folders and files in the selected USB are listed.
Select the media content you want to play from the list. The media content plays.
A temative g navigate to the media content you wau't to pax and theu' press the ,,,_button' to pay the
co_' teu' t,,
4, To exit, press the _ button or IRETURIN button.
If you connect a USB device to the TV while watching the TV, a pop-up window appears on the screen so
that you can easily navigate the fo ders and files of the USB device,
Alternative _; if you select a USB device on the Source screen, a pop-up window appears on the screen
dispIaying the fo ders and ties of the USB device,
Safely Removing a USB Device
Press the SOURCE button, The Source screen appears,
,
Navigate to the USB device you want to remove. Press and hold the/::_ button. An options list
window appears.
3, Select Remove USB in the list.
PMaying Multimedia Content Saved on a Computer/Mobile Device
Al_owin9 Connections with a Computer/Mobile Device
To play multimedia content located on a computer or mobile device on the TV, you need to:
o First, establish the connection to the computer or device.
o Then, allow the connection with the computer/mobile device on the TV.
For information about establishing connections, see the and
sections.
To allow a connection with a computer or mobile device, follow these steps:
Navigate to Network > Mumtimedia Device Settings. The devices connected to the TV are listed.
2o Allow the connection with the device you want to connect to the TV. You can only play media
files from devices that have been allowed to connect to the TV.
if a computer or mobile device asks that it be allowed to connect_ the connection al owance confirmation
window appears on the TV so that you can easiy connect it,
When Connected "Fhrough H©rme INetw©rk
To connect a computer through home network_ refer to the C@ section_
To connect a mobile device through home network_ refer to the section_
The content shared by a computer or' a mobie device may not play depending on the encoding type and fie
format of the content, In addition_ some functions may not be availab[e_
The multimedia content may not play smoothly depending on the network status_ If this occurs_ transfer the
content to a USB storage device_ and then play content from the device_
Navigate to Network > Mumtimedia Device Settings. The devices connected to the TV are listed.
2o Select a device connected through home network, the folders and files shared by the selected
device are listed.
3o Select the media content you want to play from the list. The media content plays.
A ternative % move to the media co_'tent you wau't to pax a_'d theu' press the ,,,_butto_' to pay the
co_'teu't,,
PMaying Photos
You can play photos saved on USB device.
Buttons and Functions Avai_aMe Whi_e Viewing Photos
The TV displays the buttons at the top of the screen when you press the {:,;# button while viewing
ohotos from a multimedia source. The playback buttons disappear if the RIETLJRIN button is pressed.
o Pause / Play
Start or stop the slideshow. Using slideshow, you can play all the photos in a folder one by one.
o Previous / Next
View the previous or the next photo.
0
The following functions are available when you select the Settings button.
Speed: Set the slideshow speed.
S_ideshow Settings Effects: Apply transition effects for the slide show.
:: Rotate Rotate the photo.
:: Zoom Zoom in by up to a factor of 4.
Picture Mode Change the Picture Mode setting.
Listen to background music while viewing photos.
o Previous BGM track
Play the previous background music while viewing photo.
o Pause BGM
Pause the background music that you are listening.
Background Music o Next BGM track
Play the next background music while viewing photo.
_J The music file must be saved in the same device as the photo fib,
_Q When background music plays, the mini player appears on the screen, Using the
mini player; you can pause the current music fite or play another music fite,
Sound Mode
Change the Sound Mode setting.
Ss This option is supported only when background music is ptaying,
Select Speakers
Choose the speakers to play the background music through. Only available if you have
a home theater or receiver connected to the TV.
Send
This function is the same as the 'Copy' function of a computer. Using this function,
you can send the current photo to another storage device.
_£5_÷To see a list of the storage devices supported by this feature, refer to " m_ti#[_
Information View detailed information about the current photo.
Playing Videos
You can play Videos saved on USB device.
Buttons and Functions AvailaUe While Viewing Videos
The TV displays the buttons listed at the top of the screen when you press the {lilly button while
viewing videos from a multimedia source. The playback buttons disappear if the IRIETUH_ button is
pressed.
e Pause / Play
Pause or play the video.
When the video is paused, you can use the following functions. The TV does not play audio when
the video is paused or when you are using the Step or Slow Motion functions described below.
- Step: Whenever you press the H button, it scans the paused video one frame at a time.
- Slow Motion: Select the ÷ button to play the video in slow playback speed (1/8, 1/4, 1/2).
o Rewind / Fast Forward
Rewind or fast forward the video.
Previous / Next
Select the n,<,_button twice to play the previous video. Selecting n,<,4once starts the current video
from the beginning.
To play the next video, select the _bl button.
o
The following functions are available when you select the Settings button.
Select Scene
Thumbnails: Select a scene and play the video from the scene.
/_ Thumbnails is not avai[aMe if 1) the thumbnail of the video is not extracted yet, 2)
the video contains audio only or 3) the video p_ay time is shorter than 60 seconds.
Chapter Titles: Select and play another video in the same folder.
Time Bar: You can use the _ and > buttons to scan through the file in 10-second
intervals or enter a specific time value to jump to that point in the video.
Control the subtitles of the video.
Language: Turn the subtitles on or off.
Sync: When the video and the subtitles are not synchronized, you can adjust the
Subtitle synchronization.
Reset Sync: Reset the subtitle synchronization adjustment to 0.
Size: Choose the font size for the subtitles.
Encoding: If the subtitles are not working, you can change the encoding language.
_ Set the repeat mode. Repeat One repeats the current video only. Repeat A[[ repeats all
_epea[ videos contained in the folder.
Picture Size Change the picture size. The supported video sizes are determined by the video
content.
Picture Mode Change the Picture Mode setting.
Sound Mode Change the Sound Mode setting.
Select Speakers
Choose the speakers to play the audio through. Only available if you have a home
theater or receiver connected to the TV.
Choose a desired audio language. This option works only when the video supports
Audio Language multi-track sound.
_nformation View detailed information about the video.
Playing Music
You can play Music saved on USB device.
Buttons and Functions AvailaMe While Pbyin9 Music
The TV displays the buttons listed below when you press the [T_ button while playing music files from
a multimedia source. The playback buttons disappear if the RIETURIN button is pressed.
e Pause / Play
Pause or resume the music.
o Rewind / Fast Forward
Rewind or fast forward the music file. Repeatedly select the button to make the rewind/fast
forward speed up to 3 times faster. To restore normal playback speed, select _.
Previous / Next
Select the n,_<button twice to play the previous music file. Selecting n,<<once starts the current
music file from the beginning.
To play the next music file, select the _1 button.
Set the repeat mode. Repeat One repeats the current music file only. Repeat ANI repeats all music
files contained in the folder.
Shuffle
Play the music files in random order.
Select Speakers
Choose the speakers to play the audio through, Only available if you have a home theater or
receiver connected to the TV.
Sound Mode
Change the Sound Mode setting.
Functions on the Media Content List Screen
On the media content list screen of a storage device, the following functions are provided.
o Filter
Filters the media content so only one type of content - photo, video, or music - is displayed.
Displays viewing and playing options. The options displayed vary, depending on the type of
content you have selected. Not all options listed below are displayed at the same time.
.....Ill'sis fur ctior is not availab e wlher Filter is set to AlL
The following options are available when you select the Options button.
f
Start the slide show,
S_ide Show _}_ Available for photos only.
P_ay Selected Play only content you want from the media content list.
This function is the same as the 'Copy' function of a computer. Using this function,
you can send media content to another storage device.
Send To see a list of the storage devices supported by this feature, refer to " :m:p_ iS:i_:
If the media content's title will not display properly, you can change the encoding
Encoding language.
Sf_'Available for music files only:.
You can change the name of the playlist you created.
Rename P_aylist _ Available for music only.
Delete a playlist that you created.
Delete P_aylist /:_ Available for music only.
Add a file to a playlist that you created or create a new playlist.
Add to P_ay_ist #_ Avaitabb for music fibs onP%
Digital nformation at a Glance
IMIEINU> Broadcasting > Guide
The Guide provides an overview of each digital channel's program lineup. You can check the program
schedules and set up a Schedule Viewing.
Press the GUIIDIE button on the remote to launch the Guide.
The information in the Guide is for digita channe s only, Anaog channe s are not supported,
Using the Guide
To access the Guide functions, press and hold the/ii_ button. A popup window listing the following
functions appears.
Channe_ Filter
Channel filter lets you filter the channels in the Guide by the following categories: Added Oh, and
Favorites 1 - Favorites 5.
Navigatin9 the Program Schedule
You can move the Guide by 2 hours in either direction each time you press the _ or _ button. You can
only view programs scheduled after the current time.
Schedule Manager
This displays the schedule manager. For information about the Schedule Manager, see Se_ gUpa
Edit Favorite Channels
Edit favorites lets you designate a channel you have selected in the Guide as a favorite.
To use Edit Favorite Channels:
Highlight a channel you want to add to your favorites in the Guide.
2. Press the TOOLS button. The Guide functions pop-up window appears.
3. Select Edit Favorite Channels. The Edit Favorites window appears.
4. Select the Favorites list you want to put the channel into.
Viewing Detailed Information
You can view detailed information about a selected program. The program information may differ
depending on the broadcast signal and may not be available at all for certain programs.
o Select a current program on another channel, and then View Details to Watch the program.
o Select an upcoming program, and then select View Details to set up a Schedule Viewing.
For more information about watching or Schedule Viewing refer to
Checking Current Program [nfo
To get information about a show, press IINFO on your remote.
To view the program info, you must first set the TV_s clock, Go to C_ock (System }>Time :> C_ock),
The program information may vary depending on the type of incoming signa and may not be available at
al for certain programs_
Use the ( and > buttons to view information about upcoming programs. Select a program to set up a
Schedule Viewing for that program.
For more information on Schedule Viewing, refer to
Changing the broadcast signal
IMIEINU) Broadcasting ) Antenna
You can choose the appropriate DTV mode for your viewing environment. Choose Air or Cable. Air is
suitable for homes equipped with a separate, over-the-air antenna. Cable is suitable for homes that
have subscribed to a local cable-service or satellite-service provider.
Do not use this function if your TV is connected to a cable or satellite box,
Digital Channel Signa lnfo and Strength
IMIEINU) Support ) Self Diagnosis ) Signal Information
Select Support ) Self Diagnosis ) Signal Information. This displays the digital channel's signal
information and strength.
If your FV is attached to a separate, ovePthe-air antenna, you can use the signal strength information to
ad}ust the antenna for increased signa strength and improved HD channe reception,
Signal information is only available for digital channels,
Setting Up a Schedule Viewing
Configure the TV to show a specific channel or program at a specific time and date. The _ icon
appears next to programs that have been configured for a Schedule Viewing.
To set up a Schedule Viewing, you must first set the TVs clock, Go to C_ock (System :>Time :>Clock),
It is not possible to ma<e a viewing schedule for a program that is currently on air_
Digital Channel Schedule Viewing
You can set up Schedule Viewing for programs on digital channels on the following screens:
o The Guide Screen
o The Program Info Screen
The Guide Screen
To set up a scheduled viewing on the Guide screen, follow these steps:
Press the GUIIDIE button on your remote.
o
o
On the Guide screen, use your remote control to highlight, and then select a program you would
like to view.
On the Information Screen that appears, select Schedule Viewing. The program is scheduled for
viewing. The Guide screen re-appears.
The Program _nfo Screen
To set up a ScheduNe Viewing on the JNFO screen, follow these steps:
Change the channel to the channel that will be broadcasting the program you want to schedule.
2, Press the IINIFObutton.
3, Move right to see program information for later broadcasts. The program information for the
programs that will be broadcast later on that channel is displayed on the screen.
d, Highlight and then select the program you want to schedule. The Information screen appears.
Select ScheduNe Viewing. The program is scheduled for viewing. Press the IRIETURINbutton on
your remote.
Analog Channel Schedule Viewing
MEINU>Broadcaating>SchedoleManager
When you set up a scheduled viewing for an analog channel, you need to know the channel, day or
days of the week the program is airing, and the time the program is airing.
To set up a schedule viewing for an analog station, follow theses steps:
Press the MENU button, and then select Broadcasting > Schedule Manager.
2, On the Schedule Manager screen, select Schedub. The ScheduNe Viewing screen appears.
3, On the Schedume Viewing screen, select the Antenna connection (Air or Cable), and then move to
the Channel field.
Iif yo[_ only rece ve your FV b_oadcasts thro_gh Air o_ CaMe, the Antenna co_nect[o_ fed disp ays
ony Air o_ ony CaUe,,
4, Highlight the Channel field, and then select it. Scroll it up or down, find the desired channel, and
then select it. Move to the Repeat field.
Highlight the Repeat filed, and then select it. Select Once, Manual Sat-Sun, Mon-Fri, or
Everyday. If you select manual, you must also highlight and select the days you want.
6, Move to the Time field, and then select it. Set the hours by using the Up/Down directional
buttons to move the numbers up or down. Do the same for the am/pm and minutes fields.
When done entering the time, press RETURN.
Select OK at the bottom of the Schedule Viewing screen.
Canceling a Schedume Viewing
To cancel a specific scheduled viewing, follow these steps:
Press the MIEINU button, and then select Broadcasting > Schedule Manager.
2, On the Scheduled screen, select the scheduled viewing. A pop-up menu appears.
3, Select Delete to cancel.
4, Select Yes on the "Remove this show" pop-up. The scheduled viewing is removed.
Editing a Schedume Viewing
To edit the time, days, or channel of a Schedule Viewing, follow these steps:
Press the MIEINU button, and then select Broadcasting > Schedule Manager.
2, On the Scheduled screen, select the scheduled viewing. A pop-up menu appears.
3, Select Edit.
4, Change the time, days, or channel in the way described in Analog Channel ScheduNe Viewing.
Select OK when done.
Using the Channel
ME:INU>B oodoostiog>ChaooolLiat
Press and hold the GU_IDIEbutton while watching TV to bring up the Channel List and change the
channel or check programs on other digital channels.
Select a channel from the Channel List to jump to it right away. To quickly scroll through the list, use
the channel up/down buttons. This moves the focus one page at a time.
The Channel List screen contains the following icons:
....... "An analog channel
- " A favorite channel
- • A locked channel
o Using Options
Press the < button, and then select Options. The following options are available:
Antenna
Choose Air or CaMe as the DTV mode. Air is suitable for homes equipped with
separate, over-the-air antennas, CaMe is suitable for homes that subscribe to a local
cable-service or satellite-service provider.
Sort the list so that it includes channels of a selected genre only. You can only use
Genre Genre if you have set the channel mode in the Channel List to Added Oh, and only if
the added channels contain genre information.
Edit Favorites Designate favorite channels. Refer to the "C_i_ _ P_s_ai _vo_i_ Else" section
for more information.
Viewing the Added Channels or Favorites Lists
In the Channel List, press the _ button, and then select Added Cho or Favorites. Favorites will
only appear if you have registered at least one favorite channel. For more information, refer to
.
Registering, Removing, and Editing Channels
IMIEINU) Broadcasting ) Edit Channel
Remove channels from the index of channels, restore removed channels, and rename analog channels.
The Edit Channel screen icons indicate the following:
o "An analog channel
_ " A favorite channel
1
• A locked channel
Registering and Removing Channels
IMIEINU) Broadcastin9 ) Edit Channel
Removin9 Registered Channels
Removing a registered channel from the channel index removes it from the list of channels you can
access using the ClH_LIST buttons on your remote.
Move the highlight to a channel, and then select it to remove it. Repeat to select additional
channels.
2. To unselect a channel, move the highlight to the channel, and then select it.
3. To select all channels, select Options, and then select Select All from the list. You can also select
Deselect All.
4. After you have made your selections, select Delete.
Adding Back Removed Channels
You restore channels to the index of channels by adding them back. Removed channels are displayed
in gray in the All list only. in addition, the Add option is only available for removed channels.
Select Options to display a list of options. Select Category from the list, and then select All.
2. Move the highlight to a channel you want to add. Repeat to select additional channels.
3. To unselect a channel, move the highlight to the channel, and then select it.
4. To select all channels, select Options, and then select Select All from the list. You can also select
Deselect All.
After you have made your selections, select Add.
Editing Registered Channels
IMEINU > Broadcasting > Edit Channel
Select Options at the bottom left of the screen to access the following options. The available options
may vary depending on the broadcast signal.
o Select All
Selects all channels displayed on the Edit Channel screen.
o Antenna
Choose Air or Cable as the DTV mode.
Channels stored in the TV are grouped into the following categories: All and Added Oh..
o Edit Favorites
Designate favorite channels. For more information, refer to
o Rename Channel
Rename analog channels. The new name can be up to 5 characters long.
o information
View detailed information about the current program.
Program Rating Lock
MENU > Broadcasting > Program Rating Lock
The Program Rating Lock feature lets you block programs based on their ratings. This is useful for
controlling what children watch on TV. Program Rating Lock does not block programs originating from
external sources, such as Blu-ray players, DVD players, or USB files.
Every time you access the Program Rating Lock feature, you must enter the security PIN. You must
also enter this PIN to watch a blocked program. The default PIN is 0000. To change the PIN, go to
System > Change P_N.
The Program Rating Lock is available only in TV mode.
Blocking Programs Using the TV Rating
To block content, select a rating category to lock. All programs at that level and higher are blocked
and require the PIN to watch. To unblock a category, select the lock icon. To unblock all the categories
in a row, select the lock under ALL.
Categories on the left:
o TWY: Young children
TWY7: Children 7 and over
TWG: General audience
TWPG: Parental guidance
TW14: Viewers 14 and over
TWMA: Mature audience
Categories on the top:
ALL: Lock all TV ratings.
FV: Fantasy violence
V: Violence
S: Sexual situations
L: Adult Language
D: Sexually Suggestive Dialog
Blocking based on Movie Bating (MPAA)
Block movies based on their MPAA rating. This applies to all material with supplied ratings in the USA.
From the MPAA:
"The Motion Picture Association of America (MPAA) has implemented a rating system that provides
parents or guardians with advanced information on which films are appropriate for children."
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
o G: General audience (no restrictions).
PG: Parental guidance suggested.
PGm13: Parents strongly cautioned.
R: Restricted. Children under 17 should be accompanied by an adult.
NC-17: No children under age 17.
X: Adults only.
NR: Not rated.
Blocking Based on Canadian English Bating
Block material based on its English Canadian rating. This applies to all rated material viewed on
English-Canadian TV channels.
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
6: Programming intended for children under age 8
68+: Programming generally considered acceptable for children 8 years and over to watch on
their own
G: General programming, suitable for all audiences.
PG: Parental Guidance
14+: Programming containing themes or content which may not be suitable for viewers under the
age of 14
18+: Adult programming
Blocking Based on Canadian French Ratin9
Block material based on its French Canadian rating. This applies to all rated material viewed on
French-Canadian TV channels.
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
G: General
8 ans+: Programming acceptable for children 8 years and over to watch on their own
13 ans+: Programming that may not be suitable for children under the age of 13
16 ans+: Programming not suitable for children under the age of 16
18 ans+: Programming restricted to adults
Blocking Based on Downloadablle US Rating
Block material based on its Downloadable U,S, Rating. This rating system only applies to material
originating from US DTV channels.
Parental restriction information is automatically downloaded while you watch DTV channels. This
download may take several seconds. If the information is unavailable from the broadcasting station,
the Downloadable U°S° Rating menu is deactivated.
Parental restriction levels differ depending on the broadcasting station. The default menu name and
the Downloadable U.S. Rating name changes depending on the downloaded information.
Even when the on-screen display is set to another language, the Downmoadabb U.S. Rating menu
appears only in English.
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
Watching Blocked / Restricted Programs
To watch a blocked program, enter the PIN when requested.
When initially showing a restricted program or movie, the screen is blank because the Program Rating
Lock blocks it. Enter the PIN to unblock the program when a message appears requesting the code.
Creating a Persona Favorites List
II%FII_LJ> Broadcasting > Edit Favorites
You can designate frequently watched channels as favorite channels. Favorite channels are highlighted
in the Edit Channel and Channel List screens with the _s,_ symbol. You can create up to 5 favorite
channel lists.
Registering Channels as a
Favorites
IMIEINLJ> Broadcasting > Edit Favorites
Registerin9 the Current Channel as a Favorite
To register the current channel as a favorite:
While watching a TV channel, press the TOOLS button.
2. Select Edit Favorites from the list.
3. In the popup window that appears, select the Favorites lists you want, and then select OK.
You can seect more tha_' o_'e IFavodtes ist,
4, Select OK again. The TV has added the current channel to the Favorites list(s) you selected.
Registerin9 Multiple Channels as Favorites
To register multiple channels as favorites at the same time:
Press the MIEINU button, and then select Broadcasting ) Edit Favorites.
2, Select the channels that you want to add to your Favorites list(s) from the list in the screen.
3, Select Change Favo on the screen.
4, Press the IiT_button repeatedly on the standard remote to cycle through the Favorites list until the
list you want appears.
Select Add on the screen. The TV adds the channels you selected to the Favorites list you chose.
Selecting from Favorite List Channels Only
To flip through Favorite list channels only and select a channel using the channel up/down buttons:
You can select a Favorites Ist only f t contains at least one favor te channet.
Press the MIEINU button, and then select Broadcasting > Channe_ List. The Channem List appears.
2, Press the > button. A Favorites list appears.
3, Press the _ or > button to view other Favorites list.
4, Highlight a channel from the selected Favorites list using the channel up/down buttons, and then
select it. The channel changes.
Editing a Favorites List
IMIEINU> Broadcasting > Edit Favorites
You can rename and edit Favorites lists.
Edit Favorites Screen Menu totems
Select Options on the Edit Favorites screen to access the following options:
o Copy to Favorites
Copy channels from one favorite channels list to another. Refer to the
section for more information.
You can use Copy to Favorites o_'y if you Ihave registered o_'e or mo_e channels to at east o_'e
II::::::avodtes ist.
, Rename Favorites
Rename an existing favorite channels list. Refer to the "R_6_i6@ _ E_ _i_ Ei_:_" section for
more information.
You can use IReu'ame o_'y if you Ihave registered o_'e or more cha_','e s to at east o_'e IFavodtes ist.
- Antenna
Choose between Air and Cable.
, Edit Channel
Lets you manage the channels saved on the TV. For more information, refer to
, information
View detailed information about the current program.
Removing Registered Channels from a Favorites List
To remove channels from a favorite list:
Select Change Favo.
2.
3.
4.
Press the [iii_ button repeatedly to change the Favorites list on the screen to the Favorites list you
want to use.
Select the channels you want to remove from the selected Favorites list.
Select Delete. The channels are removed.
Rearranging a Favorites List
To rearrange the order of the channels in a favorite channels list:
Select Change Favo at the screen,
2.
Press the [iii_ button repeatedly to change the Favorites list displayed to the Favorites list you
want to use.
3, In the selected Favorites list, choose the channels you want to rearrange.
.....Iihe liT vvl move tlqe cbanne s yot seected as a g_'OL_©and rearrange them so they are disp ayed o_e
after ar_other n their _ew ocat[o_,,
4. Select Change order. The Change Order highlight appears highlighting the channel you chose
that is closest to the top of the screen.
Press the _/V arrow buttons to relocate the channels you selected. Press the {7_ button to set
the channels into their new location in the list.
Renaming a Favorites List
To rename an existing favorite channels list:
Select Options on the screen. A list of Options appears.
2. Select Rename Favorites from the list. A popup window appears.
3. In the popup window, select the Favorites list whose name you want to change. The on-screen
keyboard appears.
4. On the keyboard, select the Clear button on the right. The current name displayed in the text
entry field disappears.
Using the keyboard, enter a new name. The new name can be up to 20 characters long.
6. When finished, select Done. The list of favorite lists appears displaying the renamed list. Select
OK.
Copying Channels from One Favorites list to Another
To copy channels from one favorite channels list to another:
Select Change Favo
2. Press the C_ button repeatedly to change the displayed Favorites list to the Favorites list that
contains the channels you want to copy.
3. Select Options on the screen. A list of Options appears.
4. Select Copy to Favorites from the list. A popup window appears.
Copy to Favorites sony _v_ d:_e f there _re ch_nne s n _t e_:_sto_e F_vor tes [st
In the popup list, select the Favorites lists you want to copy the selected channels to.
6. When done, select OK. The TV copies the channels. Select OK again.
Making Sports Programs More Realistic with
MIE:INU> System ) Soccer Mode
This function is not available in the U.S.A and Canada.
Enabling Soccer Mode
MIE:INU> System > Soccer Mode > Soccer Mode
Go to System ) Soccer Mode and then set Soccer Mode to On. The picture and sound modes of the
TV are automatically optimized for sports events.
Enabling Soccer Mode changes the Picture Mode to Stadium and the Sound Mode to Stadium, and d sab es
some Picture and Sound menus.
Press the Q) button to turn Soccer Mode on or of{
[] (Zoom): Pause p aybac< and dvide the p cture nto 9 parts, Seect a part to zoom t n_
TV-Viewin9 Support Features
Showing Captions
MIE:INU> System > Accessibility > Caption
You can watch TV broadcasts with captions.
Even f enab ed, capt;ons wll not be displayed by programs that do not support captions.
E
na b_in9 Ca pti o ns
Select System > Accessibility > Caption > Caption
The TV cannot controt or modfy DVD or B u-ray subtit es. To control DVD or BIu-ray subt t es, use the sub-
t;tte feature of the DVD or BIu-ray player and the payer's remote centre.
S elect in g t he Ca ptio n L a n 9 u a 9 e
Select System > Accessibility > Caption > Caption Mode to display a list of subtitle modes. The list of
modes may vary depending on the broadcast.
o DefauNt / 001 ~ 004 / Text1 ~ Text4
(Analog channels only) The analog caption function operates in either analog TV channel mode
or when a signal is supplied from an external device to the TV. (Depending on the broadcast
signal, the analog caption function may or may not work with digital channels.)
DefauNt / Service1 _ Service6 / CO1 _ 004 / Text1 _ Text4
(Digital channels only) The digital caption function works with digital channels. Service1 -
Service6 may not be available in digital caption mode depending on the broadcast.
Changing the Font Co_or_ Caption Size_ and Font Opacity
Change the font color, background color, and size settings.
Select System > Accessibility > Caption > Digital Caption Options and then choose the setting to
change.
o Size
Use to change the font size. Size is not supported by analog channels.
Font Styme
Choose the font style for the subtitles.
Font Color
Use to change the font color,
Background Color
Use to change the caption's background color.
Window Color
Use to select the color of the digital caption window.
Font Opacity
Use to change the caption's opacity.
Background Opacity
Use to change the background's opacity.
e Window Opacity
Use to select the transparency level of the digital caption window.
Edge Type
Use to select outline type of the digital captions,
Edge Color
Use to select the color outline of the digital captions,
Return to Default
This restores all caption display options to Default. Setting to Default applies the TV station's
transmitted settings.
The foreground and background color and opac ty sett ngs cannot be the same_
Enabling the Audio Guide for the Video Description
MIEINU > System > Accessibility > Video Description
Select System > AccessibiJity > Video Description. Activates the audio guide for the visually impaired.
This function is only available with broadcasts that provide this service.
Broadcast Viewing
MENU > Picture> ProP
Use the PiP ("Picture-ln-Picture")functionto watch TV in a small window within the main screen
while also watching content from a DVD player,Blu-ray player,computer, or a differentexternaldevice
on the main screen.
Select Picture> PiP to display the PIP settingsscreen. The PIP settingsscreen contains the following
options:
o PiP Setting
Activates/deactivatesPIP.
Antenna
Choose Air or Cable as the digitalchannel mode.
Channem
Select the PiP sub-picture channel.
Size
Select the PIP sub-picture size.
Position
Select the PIP sub-picture position.
Select Sound
Select the audio source.
Choose a broadcast.
You cannot use PIP whe usng Smart Hub funct on,
Tumng off the TV automatica ly disables PIP,
Playing a game or usng the karaoke feature on the main screen can resut in lower PIP picture qual ty_
For PIP to work, the main screen's source must be Component or HDMI and the nput reso ut on must be
lessFuIHD(FHD-1080p),The PIP sub-screen supportsdgta channesonly_
Scanning for Available Channels
MIE:INU> Broadcasting ) Auto Program _
Automatically scans and indexes all channels received through the TV's antenna input connector.
Do not use ths function if your TV s connected to a cabe or satellite box.
If the TV has saved channe s, Auto Program detetes the ex st ng Ist, and then saves the newly scanned
channe s.
Select Broadcasting > Auto Program.
2, Select Start when prompted. This initiates the Auto Program function. The process can take up to
30 minutes to complete.
Selecting the Broadcast Audio Language
MEINU ) Broadcasting ) Audio Options
Configure the program's audio language. Audio Options functions differently for analog and digital
channels.
Press the IINFObutton to view the current broadcast's aud;o sgna nformat on.
Selecting the Broadcast Audio Language (Digital}
Selecting a Language
Select Audio Options > Preferred Language, and then choose a language. Digital broadcasts
contain audio signals in multiple languages. Digital programs that include the language you
selected in Preferred Language are automatically played using that language. If the language
you selected is not supported by the broadcast signal, the TV will use the default audio language
broadcast by the TV station.
Selectin9 the Broadcast Audio Language (Analog/
Listening to MultFTrack Sound
Select Audio Options > MuEti-Track Sound. Configure the audio for the current broadcast. MuEti-
Track Sound can be set to mono or stereo, depending on the broadcast signal or program.
However, this option is automatically set to mono if the broadcast signal or program does not
support stereo.
Press the IIINFObLtto _to view the current broadcast s a_dio signal information,,
While watching IiV, press the TOOLS b_£to _, and then seect Multi-Track Sound
Fine-Tuning the Screen
MIEI_U > Broadcasting > Channel Settings > Fine Tune _
Ava abe for anaIog broadcasts ony,
Analog pictures can become shaky and full of noise. If this happens, you can fine-tune the signal
and/or reduce noise to clear up the picture.
Select Broadcasting > Channel Settings > Fine Tune. An adjustment bar appears on the screen.
2, Press the < or > button to make adjustments. Select Save or Close to apply the new setting.
Select Reset to reset the Fine-Tune operation.
Remove Scrambled Channels
MIE:INU> Broadcasting > Channel Settings > Clear Scrambled Channem
Remove scrambled channels from your auto-programed channel list.
Changing the Picture Mode and Adjusting the
Choosing the Right Picture Mode for the Viewing Environment
ME:INU>P_ctore>P_ctoreMode
The following picture modes utilize different contrast and brightness settings to provide the best
viewing experience for the environment.
Navigate to Edit Name, f you use the PC sett ng for PC or DVI PC, you can only ava abe Standard and
Entertain_
Some opt ons may not be supported depend ng on the model or country_
If the ambient lighting is too bright and makes the screen blurry, use this mode to make the
picture clearer.
. Standard
This is the default mode suitable for most environments.
,, Natural
This mode is useful for reducing eye strain.
,, Movie
Appropriate for darkened rooms, for watching movies, and when experiencing eye fatigue.
Darkens the screen and reduces glare.
Entertain
Sharpens images for a more dynamic viewing experience.
.....I!his mode s Ony ava labe when yo_ _.sea PC setting for PC or DVI PC o_ Edit Name,,
Stadium
Setting Soccer Mode (System > Soccer Mode) to On automatically configures Picture Mode to
Stadium for a more realistic viewing experience.
.....Iihis functio _ ;s _ot ava labe in the U..S..A..and Canada..
Stadium cannot be se ected by the _sec
Adjusting the Picture Quality for Each Picture Mode
MIE:INU> Picture
Select one of the settings below from the Picture menu to display the slide bar for the selected
setting. Adjust the value by pressing the ( or > button on your remote. Choose a different setting by
pressing the A or V button. Adjusted values are applied to the current source and picture mode.
The Co,or and Tint (G/R} sett ngs cannot be adjusted when the TV s connected to a computer via an HDMI
to DVI cabte.
Choose a Picture Mode - Dynamic, Standard, Natural, Movie - and then adjust the settings.
. Baok,ght_:_
Adjusts the brightness of individual pixels. Decreasing the brightness reduces power
consumption.
- Contrast
Adjusts the screen contrast.
- Brightness_::_
Adjusts the overall brightness.
o Sharpness _
Sharpens or dulls the edges of objects.
o Comor_:_
Adjusts the overall color saturation.
Tint (G/R)
Adjusts the ratio of green to red. Increase the green value to saturate the greens and the red
value to saturate the reds.
Adjusted vaIues are saved by the TV for the current source and picture mode, and reman n effect each
tree the source and p cture mode s seected, Consequent y, the TV can have d fferent p cture sett ngs for
each externa source,
App_yi,n9 the Curr®,nt Picture Settings to Other _nput Sources _/}{: ;/}
MIEINU > Picture > Apply Picture Mode
You can apply the picture quality setting that you configured for the TV to all external devices
connected to the TV or to the current source only.
To apply the setting to all external devices connected to the TV, select ANI Sources. To apply the
setting to the current input only, select Current Source.
Fine-Tuning Each Picture Mode (Advanced Settings}
MIE:INU> Picture > Advanced Settings
Select Picture > Advanced Settings to fine-tune how images are displayed on the TV screen for each
Picture Mode.
Advanced Settings is only available when the Picture Mode s set to Standard or Movie.
When the TV is connected to a computer via an HDMHDVI cabe, only White BaJance and Gamma can be
adiusted.
Choose a Picture Mode and then adjust the settings.
- Dynamic Contrast
Automatically adjusts the screen contrast. Use this option to achieve the optimal contrast setting.
- Black Tone
Adjusts the black color depth.
- Flesh Tone
Darkens or lightens skin tones.
o RGBonlyMode i!:
Adjusts the red, green, and blue levels individually.
o ColorSpace
Adjusts the range of colors (the color space) that the TV can display. Auto automatically adjusts
the color space depending on the input signal. Native applies a range that is wider than the input
signal.
. White Balance _
You can adjust the color temperature of the picture to make white objects look white and the
overall picture appear natural. You can adjust each of the 3 color's luminosity with the offset
menu and the brightness with the gain menu. To restore the default values, select Reset.
. Gomma
Adjusts the primary color intensity,
° MotionLighting
Adjusts the brightness in response to on-screen movements to reduce power consumption.
.....Iihis feat_ re ;s only availab e when the Picture Mode ;s set to Standard,,
Ad]_ sting the Contrast, Brightness, and other p ct_ re q_a ;_y setdngs deactivates Motion Lighting,,
Adjusting the Picture for Easier Viewing (Picture Options)
MEINU>Pioture>PiotureOpt_oos
Select Picture )> Picture Options to make additional adjustments for a better viewing experience.
When the TV s connected to a computer via an HDMFDVl cabe, only Color Tone can be adjusted,
Choose a Picture Mode and then adjust the settings.
. comorTone
Adjusts the color tone. The setting is applied on an individual Picture Mode basis. When
you select a new Picture Mode, the TV applies the Color Tone you selected for that mode
automatical ly.
I!f the Picture Mode is set to Dynamic, yo_ wl O_y be abe to choose Cool or Standard,,
. Dig_to_aeaoView
Reduces static and ghosting caused by a weak signal. Selecting Auto Visualization displays the
signal strength on the screen. Green indicates the best possible signal.
.....Ilhis function is only availab e for anaog channe s,,
- MPEG Noise Filter
Reduces MPEG noise and improves video quality.
. .DM_BmaokLevem
Some external devices connected to the TV via an HDMI cable can have issues such as low black
level, low contrast, and dull colors. Use HDMI Black Level to adjust the black level to compensate.
....[his is only availab e when the Iinput Sgna, connected to the IiV via an HDMI! connector: s set to
IRGB444,,
. rumMode
Optimizes the picture quality for movies. Select this mode for watching movies.
.....Iihis feat_,re is ony availabe when yOL aro watching a IlV broadcast or when the nput signs s/W,
Componer_t (480 10801 or HDMI! (1080).
- LED Clear Motion
This function is not available on certain models in specific geographical areas.
Removes drag from fast scenes with a lot of movement to provide a clear picture.
Picture Support Functions
PIP Broadcast Viewing
MIEINU ) Picture ) P_P
Watch video from an external device such as a Blu-ray player on the main screen while viewing a TV
broadcast in a picture-in-picture window.
Select Picture ) HP to display the PIP settings window. The PIP settings window contains the
following options:
o P_P
Activates/deactivates PIP.
Antenna
Choose Air or Cable as the input source for the PIP sub-picture window.
Channem
Selects the PIP sub-picture channel.
Size
Selects the PIP sub-picture size.
Position
Selects the PIP sub-picture position.
Select Sound
Selects the audio source.
Choose a broadcast.
PIP cannot be used whe Smart Hub is active,
Tumng off the TV automat ca ly d sabes PIP,
Playing a game or usng the karaoke feature on the man screen can resut in a lower PIP picture quality_
For PIP to work, the main screen's source must be Component or HDMI and the nput reso ut on must be
less than FHD (FuI HD), The PIP sub-screen supports dgta channe s only,
Changing the Picture Size and Position
Choosing the Right Screen Size
IMIEINU> Picture > Picture Size > Picture Size
Most TV programs and videos are displayed in full screen, but some programs and videos are
displayed in sizes that are larger or smaller. You can change the screen size for such programs and
videos so that the picture fits the screen better.
Supported screen sizes vary depending on the input signal. Refer to the
section for' more information about supported screen sizes.
- 16:9
Set the picture to the 16:9 wide-screen format.
o Zoom1
Magnify 16:9 pictures vertically. A magnified picture can be moved up and down.
- Zoom2
Magnify Zoom1 picture even more. A magnified picture can be moved up and down.
o Wide Fit
Enlarge the aspect ratio of the picture so it fits the entire screen. Enjoy 4:3 images as undistorted
16:9 images.
- 4:3
Sets the picture to basic 4:3 mode.
, Screen Fit
Displays the full image without any cutoff.
, Custom
Magnifies or shrinks 16:9 pictures vertically and/or horizontally. A magnified or shrunk picture can
be moved left, right, up, and down.
Adiustin9 the Screen Position
MIE:INU> Picture > Picture Size > Position _
Adjusts the screen position.
Ths option is ony avaitab e with Size set to Zoom1, Zoom2, Wide Fit, or Screen Fit, When the TV is tuned
to a dgta channel, the screen pos t on cannot be adjusted if the Picture Size s set to Screen Fit.
To adjust the screen's position, select Picture > Picture Size > Position. A popup window
appears.
2, Select Position again from the popup window.
3, Press the A, V, ( or _ button to move the screen. When done, select Position and then Close.
Select Reset to reset the screen position.
Listening to Audio Only with the Screen Turned Off (Picture Off}
MIE:INU> Picture > Picture Off
Turns off the screen and plays audio through the speakers only, To turn the screen back on, press any
button other than the power and volume buttons,
Resetting the Picture Mode Settings
MEINU > Picture > Reset Picture
Use this option to reset the current Picture Mode to its factory settings. This does not affect the
settings of other Picture Modes.
Changing the Sound Mode and Using Sound Effects
Choosing the Right Sound Mode for the Environment
ME_NU>Sound>SoundMode
Sound modes apply preset adjustments to the sound output, optimized for different viewing and
listening circumstances.
The sound modes cannot be used when you are I stening to aud;o through externa speakers.
o Standard
This is the normal sound mode.
Music
This mode emphasizes normal music instead of voices.
Movie
This mode is calibrated to orovide the best sound for movies.
Clear Voice
This mode emphasizes voices.
This mode increases the overall intensity of high-frequency sounds for a better listening
experience. It is designed for hearing-impaired listeners.
Stadium
Setting Soccer Mode (System > Soccer Mode) to On automatically configures Sound Mode to
Stadium for a more realistic viewing experience.
.....Iihi_ functio_ s _ot ava labe n the U,,S,,A,, and Canada,,
Stadium cannot be se ected by the {_se8
Using Sound Effects
MENU ) Sound ) Sound Effect
Use sound effects to alter how the TV projects sound.
Sound effects can only be used if the Sound Mode is set to Standard_
The sound effects cannot be used when you are I stening to audo through externa speakers_
Choose a Sound Effect and then adjust the settings.
. DTSTruSurround.D
Produces sound that will make you feel like you are sitting in a movie theater or concert hall.
. DTSTruDialog
Increases voice intensity to make dialog clearer.
. Equa,zer
Lets you adjust the speaker balance and make bandwidth adjustments. Select Reset to reset the
settings.
Sound Support Functions
Selecting Speakers
MENU > Sound ) Speaker Settings ) TV Sound Output
TV Sound Output lets you choose which speakers the TV uses for audio output. Select Sound )
Speaker Settings ) TV Sound Output, and then select the speakers from the list. To listen to audio
through the TV's speakers and the speakers of a connected AV receiver or home theater simultaneously,
select TV Speaker. If this causes an echo effect, choose any speaker option other than TV Speaker to
mute the TV speakers, or turn off the receiver or home theater.
Usng external speakers aone d sabes the voume button and the mute funct on, In add t on, certa n Sound
opt ons are aso d sab ed,
o TV Speaker
Listen to the TV's audio through the TV's internal speakers.
Audio Out
Listen to the TV's audio though headphones or through the speakers of a device connected to the
TV via a digital optical cable.
Receiver
Listen to the TV's audio through the speakers of a home theater or receiver connected to the TV
via HDMI.
.....Iihis functio_ s _ot ava labe o_ certa n modes n specif c 9eographica areas.
Designating the TV°s mnsta lation Type
MIE:INU> Sound > Speaker Settings > TV hstallation Type
Specify the TV's installation type. Choose between Wall Mount and Stand to optimize the TV's sound
automatically,
Enabling Digita Audio Output
MIEINU > Sound > Additional Settings
This Smart TV is SPDIF-enabled. The Sony Philips Digital Interface (SPDIF) provides digital audio
output to speakers and various digital devices, including A/V Receivers and home theaters.
o AudioFormat
Selects the Digital Audio output (SPDIF) format. The available Digital Audio output (SPDIF)
formats may vary depending on the input source
- Audio Demay
This settinghelps correcttiming mismatches between the audio and video trackswhen you are
watching TV and listeningto audio through a digitalaudio device.Enabling the featuredisplays a
slidebar that you can use to adjustthe delay by up to 250ms.
o Dolby Digita_ Comp _
Set Dolby Digital compression mode.
. Auto Volume _
When you change channels, video sources, or content, Auto Volume automatically adjusts the
TV's volume level so that the volume level remains the same for all sources. For example, if you
switch from a streaming video application to a Blu-ray player or a favorite TV channel, Auto
Volume can modify the volume up to 12db to equalize the sound.
The Auto Volume function has two settings: Normal and Night. Normal applies a normal level
of volume adjustment. Night applies a slightly lower volume level and is ideal for late-night TV
viewing. If you want to use the volume control of a connected source device to control the sound,
deactivate the Auto Volume function. When you use the Auto Volume function with a source
device, the device's volume control may not function properly,
Resetting AIM Sound Settings
MENU > Sound > Reset Sound
Use to reset allsound settingsto the factory defaults.
Setting the Time and Using the Timer
Setting the Current Time
MIEINU > System > Time > Clock
Set the clock manually or automatically.
To view the time after the clock is set, press the JNFO button on your remote.
The coc< must be reset every tree the power s d sconnected.
Setting the Clliook using II©igita_ Broadcast _nfo
ME:INU>System>Time>Clook>ClookMode
Set Clock Mode to Auto. The TV automatically downloads the correct time from a digital channel. To
enable this option, the TV's Antenna jack must be connected to either an antenna or a cable output
and must be receiving digital broadcasts. The accuracy of the time information received may vary
depending on the channel and signal. If your TV is connected to a set-top-box or satellite box using
HDMI or Component connections, you must set the time manually.
_f the ClfFookis Wrong in Auto Mode
MIEINU > System > Time > Clook > Time Offset
If the time the TV sets automatically is incorrect, you can offset the clock in 1-hour increments by as
much as -/+ 12 hours. Select System > Time > Clook > Time Offset, and then offset the clock to the
correct time.
Time Offset adjusts the tme through a network connection and is only ava abe f the Clock Mode s set to
Auto and the TV is connected to the Internet though a locaI area networlq
Time Offset adiusts the t me ftheTVfa storecevetme nformatonthroughnormaIdgta broadcast
s gnaIs_
Setting the Clock Manually
MIEINU } System } Time } Clock } Clock Set
To enter the time and date manually, follow these steps.
Set Clock Mode to Manual, and then select Clock Set.
2, Select Date. The date entry pop-up appears.
3, Use the A and V buttons to change the month. When done, move to the date field and then
the year field and set them in the same fashion. When done, press the IRIETURINbutton on your
remote.
4, Select the Time field. Use the A and V buttons to set the hour.
When done, move to the minutes field and then the am/pm field and set them in the same
fashion. When done, press the IRIETURINbutton on your remote.
Using the Timers
Using the SIieep "[ime_ _
ME Nu>System>T me>
This function automatically shuts off the TV after a preconfigured period of time. Select System >
Time > SJeep Timer. You can set the timer up to 180 minutes in 30-minute increments.
Turning On the TV using On Time_
IMIEINU> System > Time > On Timer
Set the On Timer so that the TV turns on automatically at a chosen time, You can set up three
separate On Timer configurations concurrently: On Timer 1, On Timer 2, and On Timer 3, The On
Timer is only available if the Clock has been set,
Select Off, Once, Everyday, Mon~Fri, Sat~Sun, or Manual. If you select Manual, you can select
the days you want the On Timer to turn on the TV by highlighting each day, and then selecting it.
Time
Set the time that the TV turns on automatically. See "8_i_ _ _iS_k. @_ii@" for time setting
instructions.
Volume
Specify the volume the TV will set itself to when it turns on.
Source
Select a signal source from the list. This is the source the TV will access when it turns on. If you
want to use a USB device, that USB device must be connected to the TV before you start the On
Timer set up. To play back media from an HDMI or Component source such as a DVD player, Blu-
ray player, or set-top-box, you must leave the device on. It must be on and playing when the TV
turns on.
o Antenna
If you have set the Source to TV, select a broadcast signal source, Air or Cable.
o Channel
If you have set the Source to TV, select a channel.
Music / Photo
If you have set the Source to USB, specify a USB device folder containing music files in the
music field and/or a folder containing photos in the photo field. If you select a folder that
contains music files and a folder that contains photo files, the TV plays the music files and
displays the photos at the same time.
To select (for example)a music folder,follow these steps:
Selectthe musicfield. Themusic screenappears.
2, If you have no folders in the USB drive and all your music files are in the root directory, highlight,
and then select the Sellect button. The USB drive is selected and the On Timer screen reappears
displaying the name of the USB drive in the music field.
3, If you have folders with music on the USB drive, press the C_ button. The TV displays all the
folders on the drive.
4, Scroll the list of folders until the folder you want appears. Move the highlight to the Sellect
button to the right of the folder. Press the C_ button. The On Timer screen reappears displaying
the folder name in the music field.
Iif the foder yo_ choose has s_b fo ders yo_Jcan seect a s_,b fo der n the same fashion
If you want, select a photo folder in the same way. Start by selecting the photo field.
This feature wit not funct on properly f the seected USB device does not conta n meda ftes or a foder
has not been spec fed,
The sideshow wil not start f there s only one mage fte on the USB device_
Fo ders with long names cannot be seected,
Always use d fferent foder names for mu t pie USB devices,
Use a USB memory stick or multi-card reader_The On Timer may not work wth certain battery-powered
USB devices, MP3 players, or PMPs because the TV may take too long to recognize the device,
Turning Off the TV Using the Off Timer
MEINU>Syate >T me>OffT mer
Set the Off Timer to turn the TV off automatically at a specific time. You can set up three separate
Off Timer configurations concurrently: Off Timer 1, Off Timer 2, and Off Timer 3. The Off Timer is
available only if the Clock has been set.
Select Off, Once, Everyday, Mon~Fri, Sat._Sun, or Manual. If you select Manual, you can select
the days you want the Off Timer to turn off the TV by highlighting each day, and then selecting
it.
Time
Set the time that the TV turns off automatically.
Using the Screen Burn Protection and Energy Saving
Preventing Screen Burn
MIE:INU> System > Auto Protection Time
Still images can leave burned-in after-images on the screen if left on the screen for a long period of
time. Use Screen Burn Protection to protect the screen. Select System > Auto Protection Time and
then choose a time setting from the list. If a still image is shown on the screen for longer than the
time you selected, the TV will automatically activate the Screen Burn Protection function to prevent
burnt-in after-images.
Using Energy Saving Features
MIE:INU} System } Eco Solution
Eco Solution adjusts the TV's brightness level and prevents overheating to reduce overall power
consumption.
. EnergyS ving
Select a brightness setting from the list to reduce the TV's power consumption.
. EcoSensor
Automatically adjusts the TV's brightness level based on the ambient light level to reduce the
TV's power consumption. If the Eco Sensor has adjusted the screen's brightness level, you can
manually adjust the screen's minimum brightness level by adjusting the Min. BacMight or Min_
Cell Light (in applicable models). Changing the BacMight or Min. Cell Light setting (in applicable
models) while Eco Sensor is running automatically disables Eco Sensor.
.....Iihis fl nction s not availabe on certa n modes n specif c geographica a_eas,,
Wlhen the Eco Sensor is set to On, the sc_een s da_ke_ than _s_a
No Signal Power Off
Select a time from the list. If no signal is received for the specified duration, the TV will
automatically cut off the power to reduce power consumption.
Auto Power Off
If the TV remains on for four hours without any user input, the TV will automatically turn off to
prevent overheating.
Using Anynet+ (HDMi-CEC)
Use Anynet+ (HDMI-CEC) to control all external devices that support HDMI-CEC using just the TV's
remote control. Note that Anynet+ (HDMI-CEC) only works with the TV's remote control and not with
the panel keys.
Thsfuncton snotava abeoncertan models n specific geographical areas,
Anynet+ cannot be used to control external devices that do not support HDMI-CEC,
Anynet+ devices must be connected to the TV using an HDMI cabb. Some HDMI cabes may not support
Anynet+ (HDMI-CEC), In ths case, you wi need to replace the HDMI cabe.
The TV remote contro may not function under certain circumstances, If this occurs, seect the Anynet+
device again,
Anynet+ (HDMI--CEC) only works wth externaJ devices that support HDMI-CEC and only when those
devices are either in standby mode or turned on_
Anynet+ (HDMI-CEC) can control up to 12 compatibe external dev ces (up to 3 of the same type), With
home theater systems, however:, the number of systems that can be controlled is lim ted to one,
To listen to 5,1-channel audio from an externa device, connect the device to the TV via an HDMI cabe and
the device's d gital audio output connector directly to the home theater system.
A home theater system that has been connected to the TV using an HDMI cable and an opt cal cabe
supports 2-channel audo only_ 5,1-channe audo s, however:, ava abe for dgta broadcasts with
5,l-channe audo,
Setting Up Anynet+ (HDMm-CEC}
MIE:INU > System ) Anynet+ (HDMJ-CEC}
- Anynet+ (HDM_-CEC)_:_
Enables/disables Anynet+ (HDMI-CEC). Set to Off to disable all Anynet+ related features. Set to
On to enable all Anynet+ related features.
,, Auto Turn Off
When set to Yes, turns off Anynet + compatible external devices when the TV is turned off.
Some Anynet + compat[b e devices do _ot s_ pport this feat_ re
. Oev oese roh
Automatically search for and identify Anynet+ (HDMI-CEC) compatible external devices that are
connected to the TV.
Using Anynet+ (HDMm-CEC}
Selecting an Extenaa_ Device
Press the TOOLS button. The Tools list appears.
2, Select Anynet+ (HDM_-CEC) from the list. The Select Device screen appears.
3, Select a device and wait for the switch to take place. This process may take up to 2 minutes to
complete and cannot be cancelled once started.
Accessin9 the Externa_ Device°s Menu
Once the TV has switched over to the selected device, you can access the device's menu using the
TV's remote control.
Press the TOOLS button. The Tools list appears.
2, Select Anynet+ (HDM_-CEC} from the list. The following list appears.
.....Ilhe me[_u options ava [abe n Tools may differ depending o_ the exte__a device,,
o Anynet+ (HDMJ-CEC}
Displays a list of HDMI-CEC-compliant devices connected to the TV. Select View TV to exit
Anynet+ (HDMI-CEC), and start watching TV. To switch to the screen of an external device,
simply select that respective device.
(Connected Device) Menu
Display the menu of the connected device, if the target device is a DVD player, the DVD player's
menu is shown.
(Connected Device) Tools
Displays a list of frequently-used functions available for the device, if the target device is a DVD
player, the DVD player's playback menu is shown.
Some exte_ sa dev ces may not s_ ppo_t this optio s
- (Connected Device) Title Menu
Displays the title menu of the disc in the connected device. For example, if the target device is a
Blu-ray player, the title menu of the disc in the player is shown.
Some exte__a devices rosy _ot s_ pport this optio_
Updating the TV's Software
MIE:INU> Support > Software Update
View your TV's software version and update it if necessary.
The TV is set to update software automatically via the internet by default. If you don't want to update
it automatically, set Auto Update (Support > Software Update > Auto Update) to Off.
/k DO NOT turn off the TV's power until the update is complete. The TV will turn off and on
automatically after completing the software update. All video and audio settings return to the
default settings after a software update.
Update now
MIE:INU> Support > Software Update > Update now
Update now lets you update your TV's software in three ways:
o Online, by downloading the update from the Internet directly to your TV.
Manually, using a USB flash drive.
Automatically (Auto Update), while the TV is in Standby Mode.
Each method is explained below.
Online
To update your TV using the Online method, follow these steps:
Make sure that your TV is connected to your local network and the Internet. The connection can
be wired or wireless.
2, All video and audio settings return to their default settings after a software update. We
recommend you record your current settings now so you can easily re-establish your settings
when the update is complete.
3, Press the MIEINU button, and then select Support > Software Update > Update now. The Update
now pop-up appears.
4, The TV searches on line for the latest software version for your TV.
If it does not find an update, the "No new updates" pop-up appears. Press the EXIT button to
exit.
6, If the TV finds a new version, the Update Request pop-up appears.
Select OK. The TV updates the software, turns off, and then turns on automatically.
Do _ot t_rn off the liT dt_ ng the Softwa_e Update,, lit may catse the liT to r_saft_nctio _,,
Manua My, Using a USB Flash Drive
To update your TV using the Manual method, follow these steps:
All video and audio settings return to their default settings after a software update. We
recommend you record your current settings so you can easily re-establish these settings when
the update is complete.
2. On a computer, visit www.samsung.com.
3. Select GET SUPPORT > Get Downloads.
4. Enter the product's model number into the search field. As you enter the model number, a drop
down will display products that match the model number.
Click your product's model number in the drop down list.
6. On the page that appears, scroll down to and then click Downloads.
Click Firmware in the center of the page.
Click the ZIP button in the File column.
Click Send in the first pop-up that appears.
10. Click Save in the second pop-up to download, and then save the firmware file to your computer.
Unzip the zip archive to your computer. You should have a single folder with the same name as
the zip file.
Copy the folder to a USB flash drive.
13. Insert the USB flash drive into a USB port of the TV.
In the TV's menu, go to Support > Software Update > Update now. The TV searches for the
software on the USB drive. When it finds the software, the Update Request pop-up appears.
Select OK. The TV updates the software, turns off, and then turns back on automatically.
Do _ot t_m off the IiV d__n_(_the Softwa_e Upd_te,, lit may cause the IiV to ma f_;nctio_,,
Enabling Automatic Software Updates
MIE:INU) Support ) Software Update ) Auto Update
If the TV is connected to the Internet, it can be updated via Auto Update while watching the TV. When
the Background upgrade completed, the update will be applied the next time the TV is used.
Ths opt;on requires an Internet connect;on,
If you agree to the Smart Hub terms and conditions, Auto Update will be set to On automatically. If
you don't want the TV's software updated automatically, set Auto Update (Support) Software Update
) Auto Update) to Off.
Protecting the TV from Hacking and mamicious
MIEINU > System ) Smart Security
When the TV is connected to the Internet, it is vulnerable to hacks and malicious code. Smart Security
protects the TV and storage media connected to the TV from such threats.
Navigate to System ) Smart Security and set Smart Security to On.
Checking the TV and Connected Storage Media
MEINU ) System ) Smart Security ) Scan
Navigate to System ) Smart Security and select Scan. This scans the TV and connected media for the
presence of malicious code. If no malicious code is detected, a notification window appears on the
screen.
_f malicious code is detected...
If malicious code is found, the results of the scan will appear on the screen. This result window
displays all malicious code found, and provides options to either quarantine the code or allow it to
function.
Select all the malicious code you want to quarantine or allow.
2. Select Block or Allow. This moves the selected malicious code to the isolated List or AHowed
List,
.....Iihe _soJated List disp ays a quarantined and b ocked r_s8 icious code,, You can aso _e ocate codes
from this ist to the A owed I st.
.....Iihe AlJowed List disp ays a aowed ma icicles code.. Yo_ can aso _eocate codes flom this ist to the
Iiso ated Ist..
Automatically Scanning when the TV is Powered On
MIEINU > System > Smart Security > Settings > Auto Scan
Navigate to System > Smart Security > Settings and then set Auto Scan to On, This automatically
scans the TV and connected storage media when the TV is powered on,
Automatically Adding malicious code to the Blocked List
MIEINU > System > Smart Security > Settings > Move to isolated List automatically
Navigate to System > Smart Security > Settings and set Move to isolated List automatically to On.
Malicious code found during the scanning process is automatically added to the Blocked List.
Using Other Functions
Setting Up a Password
MENU ) System ) Change PIN _S:_
Set a PIN (Personal Identification Number) to lock channels, reset the TV, and change the TV settings.
Select System ) Change PIN. The PIN input window appears.
2, Enter a PIN. The default PIN is 0000.
3, Enter a new PIN and then enter it again to confirm it. The PIN change is complete.
If you forget the PIN code, press the buttons in the follow ng sequence which resets the PIN to '0-0-0-0":
In Standby mode, press the fo owing buttons on the remote to reset the PIN to 0000: _:_ _8 _ 2 _4
POWER (on)_
Changing the Menu Language
MENU > System > Menu Language
Use this option to change the menu language. Select System > Menu Language, and then choose a
language from the list.
Checking Notifications
MENU > System ) Notifications
Select Notifications from the System menu to view the list of event messages generated by the TV.
Notifications appear on the screen when events such as an update release for an app or Samsung
Account Iogin/Iogout occurs.
Seect Delete All to delete atl notif cations,
Seect Service Notice to chec< the SMART TV service not ficat ons n a web browser_
Adjusting the Menu Transparency
MENU ) System ) Accessibility ) Menu Transparency
Navigate to System ) Accessibility and adjust the opacity level and the menu's transparency.
When the High Contrast (System > Accessibility > High Contrast) setting is set to On, the menu d splay s
automat caI y set to opaque and you cannot change the Menu Transparency sett ngs_
White Text on Black Background (High Contrast)
MIEINU > System > Accessibility > High Contrast
Navigate to System > AccessibiNity and set High Contrast to On. This option changes major service
screens to white text on a black background or changes the transparent TV menus to opaque so that
text can be read more easily.
Expanding the Smart Hub°s Focus Area
MIEINU > System > Accessibility > Enlarge
Navigate to System > Accessibility and set Enlarge to On. This zooms in the focused item when you
use Smart Hub and makes the item larger.
Enjoying Rich Colors and Superior Picture QuaJity (BD Wise)
MEINU > System > General > BD Wise
Connecting a Samsung DVD player, Blu-ray player, or home theater system that supports BD Wise
enables the richest colors and best possible picture quality. Enabling BD Wise automatically optimizes
the TV's resolution.
Ths feature s only ava abe when the externa device s connected via an HDM[ cabe,
LocMng/UnlocMng the Panel Keys
MEINU > System > General > Panel Lock
Use to lock and unlock the TV's front panel buttons (menu, channel, and volume) and the control stick
on the back of the TV. Select System > General > Panem Lock and lock/unlock the keys.
Showing/Hiding the Samsung Logo while Booting
MENU ) System ) General ) Boot Logo
Use to enable or disable the Samsung logo display that appears when the TV starts up.
Enabling Game Mode
M,E:,NU>System>Generam>GameMode_:_::_
Game Mode optimizes the TV's settings for playing video games on a gaming console such as
PlayStation TM or Xbox TM.
Game Mode cannot be used for normal TV viewing,
Connect the gamng console before enab ing Game Mode. Otherwise, the picture qual;ty may suffer,
The screen may shake a little.
Enab ing Game Mode automatical y sets the Picture Mode to Standard and the Sound Mode to Movie.
To use a d fferent externaI device, frst d sconnect the game conso e and dsabe Game Mode.
Registering the TV as a DivX-Certified Device (To Watch For Pay
DivX Movies)
MIEINU ) System ) DivX@ Video On Demand _
To watch DivX DRM protected movies on the TV, you must register the TV as a DivX certified device.
DRM stands for" Digital Rghts Management and s a technical security mechanism to protect the copyright
of the content provider,
You can watch movies that you have free DivX movies without reg stration.
Visit the DivX website (http:/iwww, divx.com) and log nto your user account before reg stering the TV as a
DivX-certif ed device. If you do not have an account, please create one.
Select System ) DivX@ Video On Demand. A window with a registration code appears on the
screen.
2, Visit the DivX website on a computer, and then click [Register Your Device] under [Support] in the
top menu.
3, Enter the registration code shown on the TV's screen in the [Enter your registration code] field.
4, Enter the TV's name in the [Name your device] field, and then click [NEXT].
Click [DOWNLOAD], and then save the [device name.divx] file.
8, Transfer the [device name.divx] file from the computer onto a USB device, and then plug the USB
device into the TV.
Run the [device name.divx] file on the TV to register the TV as a DivX-certified device.
Restodng the TV to the Factory Settings
ME:INU>Support>SemfDiagoosis>Reset
This option restores all TV settings (excluding the Internet and network settings) to the factory
defaults.
Select Support > Se_f Diagnosis > Reset. The Security PIN entry window appears on the screen.
2. Enter the Security PIN, and then select Yes. All settings are then reset. The TV turns off and on
again automatically, and then displays the Setup screen.
For more ;nfomsatio _ o_ Set_ p, refer to the {_ser man_a that came w;th the liT,,
Using the TV as a Display Model (exclusively for retaiM stores}
MIE:INU> Support > Use Mode
Select Support > Use Mode > Store Demo. This turns the TV into a display model for use in a retail
environment.
For"at! other" uses, seect Home Use,
Store Demo shoud be used n retait environments ony. With Store Demo, certa n funct ons are d sabed and
the TV automat caI y resets tsef after a certa n amount of tree,
Getting Support
The TV has several built-in systems designed for user and TV system support.
Support through Remote Management
MIE:INU> Support > Remote Management
If you need assistance with your TV, you can use this feature to let Samsung Electronics diagnose your
TV remotely. You will need to read and agree to the service agreement before using this feature. A
Samsung Electronics technician will then diagnose, repair, and update your TV remotely. These features
are only available when your TV is connected to the Internet.
Getting Remote Support
Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can
remotely.
e Diagnose your TV
o Adjust the TV settings for you
Reset your TV to its factory settings.
Install recommended firmware updates
How Does it Work?
Having a Samsung Tech service your TV remotely is easy.
Call the Samsung Contact Center and
ask for remote support.
Open the menu on your TV and go to
the Support section.
Select Remote Management, and
then read and agree to the service
agreements. When the PIN screen
appears, provide the PIN number to the
agent.
The agent accesses your TV.
Finding the Information You Need for Service
MEINU ) Support ) Contact Samsung
Use this option to display the address of the Samsung website, the call center phone number, your
TV's model number, your TV's software version, the Smart Hub info, and other information you may
need to get service support from a Samsung call agent or the Samsung website.
Requesting support
MIEINU > Support ) Request Support
When you are using the Smart TV during difficulties, you can request service support.
It is ony available when connected to the internet. After check ng the network connect on status, request
service support.
Navigate to Support ) Request Support. A pop-up window appears.
2, Select Agree. A Request Support screen appears.
lit s O_y ava labe when yo_ agree to the and Co_ditio_s,,
3, Write your Name and Phone Number,
4, After selecting the category of the problem, select Send,
You can seect up to 3 categores,,:'<
Iif an error occ_ fred, retry the req_ est after co sf rming yo_r Name, Ii:::>hose N_ tuber and Prob era,, Iif yo_
ea:,'_,eanentrybank, orwrte ncorrect nformatioythes_pport request mayfal,,
There is a problem with the p
Testing the Picture
MEINU>Sopport>somfDiagoosis>Piotor÷z÷at
Before you review the list of problems and solutions below, use Picture Test to determine if the
problem is caused by the TV. The Picture Test displays a high definition picture you can examine for
flaws or faults. If the test picture does not appear or there is noise or distortion, the TV may have a
problem. Contact Samsung's Call Center for assistance. If the test picture is displayed properly, there
may be a problem with an external device. Please check the connections. If the problem persists,
check the signal strength or refer to the external device's user manual.
Sey_sor).
If the color on your Samsung television screen is not correct or the black and
white colors are off, run Picture Test (Support > Self Diagnosis > Picture Test).
If the test results indicate that the problem is not caused by the TV, do the
following:
Component e Confirm that the TV's video input connectors are connected to the correct
Connections/Screen
Color external device video output connectors.
e Check the other connections as well. If the TV is connected to an external
device via a component cable, confirm that the Pb, Pr, and Y jacks are plugged
into their proper connectors.
If the colors on your Samsung TV are correct but just a little too dark or bright, try
adjusting the following settings first.
Screen Brightness • Go to the Picture menu and adjust the Backlight/Cel[ Light (available on
different models) Contrast, Brightness, Sharpness, Color, and Tint (G/R)
settings.
Ghosting, Blurring, or If you notice ghosting or blurring on the screen, use the LED Clear Motion option
Juddering (Picture > Picture Options > LED Clear Motion) to resolve the issue.
If your Samsung TV appears to turn off by itself, try disabling some of the TV's
energy efficiency features. See if Sleep Timer (System > Time > Sleep Timer) has
Unwanted Powering been enabled. The Sleep Timer automatically turns the TV off after a specified
Off period of time. If the Sleep Timer has not been enabled, see if No Signal Power
Off (System > Eco Solution > No Signal Power Off) or Auto Power Off (System >
Eco Solution > Auto Power Off) has been enabled and disable them.
iiiiiiiii/iili/ iii '''''' iiii¸iJii¸iiiii¸iiiiiii!iii!iii!iiillii!iii¸ il......................................................................................................................................................................................................................................................................................................
..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................._i_
When the TV is turned on, the remote control receiver flashes 5 times before the
screen turns on.
If you are having problems powering on your Samsung television, there are a
Problems Powering On number of things to check before calling the service department. Confirm that the
TV's power cord is connected correctly at both ends and that the remote control
is operating normally. Make sure that the antenna cable or cable TV cable is firmly
connected. If you have a cable/satellite box confirm that it is plugged in and
turned on.
Unable to find a If your TV is not connected to a cable box or satellite box, run Setup (System >
Channel Setup) or Auto Program (Broadcasting > Auto Program).
Store displays are all tuned to digital, HD (high definition) channels.
If you have an analog cable/set top box, upgrade to a digital set top box. Use
HDMI or Component cables to deliver HD (high definition) picture quality.
The TV image does not Many HD channels are upscaled from SD (Standard Definition) content. Look for a
look as good as it did channel that is broadcasting true HD content.
o Cable/Satellite Subscribers: Try HD channels from the channel lineup.
in the store.
Air/Cable Antenna Connection: Try HD channels after running the Auto Program
function.
Adjust the cable/satellite box's video output resolution to 1080i or 720p.
The compression of video content may cause picture distortions, especially in fast
moving pictures from sports programs and action movies.
A weak or bad quality signal can cause picture distortions. This is not an issue
The picture is distorted, with the TV.
Mobile phones used close to the TV (within 3.2 ft) may cause noise in analog and
digital channels.
_, . If you're using a Component connection make sure that the Component cables are
/ne co_or ts wrong or
. . connected to the correct jacks. Incorrect or loose connections may cause color
: m_sslng, problems or a blank screen
The color is poor or
the picture is not bright
enough.
There is a dotted line
on the edge of the
screen.
Go to the Picture menu and then adjust the Picture Mode, Brightness, Sharpness,
and Color settings.
See if Energy Saving (System > Eco Solution > Energy Saving) has been enabled.
Try resetting the picture. (Picture > Picture Reset)
If the Picture Size has been set to Screen Fit, change the setting to 16:9.
Change the cable/satellite box resolution.
.... il ....
The picture is black If you are using AV composite input, connect the video cable (yellow) to the TV's
and white, green component jack.
I can't hear the sound clearmy
Testing the Sound
MIE:INU> Support > Semf Diagnosis > Sound Test
Before you review the list of problems and solutions below, make sure that the TV Sound Output menu
item is set to TV Speaker, and then listen to the speakers again. If the TV still does not play audio,
run the Sound Test. The Sound Test uses a built-in melody to check for sound problems. If the TV
does not play sound during the Sound Test, or the sound is distorted, there may be a problem with
the TV. Contact Samsung's Call Center for assistance. If the TV plays the Sound Test melody without
distortion, there may be a problem with an external device. Please check the connections. If the
problem persists, refer to the external device's user manual.
There is no sound or
the sound is too low at
maximum volume.
Check the volume control of the device (cable/satellite box, DVD, Blu-ray, etc.)
connected to your TV.
Set Sound > Speaker Settings > TV Sound Output to TV Speaker.
If you are using an external device, check the device's audio output option. (For
example, you may need to change your cable box's audio option to HDMI if the
box connected to your TV is using an HDMI cable.)
The picture is good but
To listen to the computer sound, connect the external speaker to the computer'
there is no sound.
s audio output connector.
If your TV has a headphone jack, make sure there is nothing plugged into it.
Reboot the connected device by disconnecting and then reconnecting the
device's power cable.
Make sure that the audio cable is connected to the correct audio output ::
: ..... connector on the external device
_ne_l_ea(Kersdare maK.ng For antenna or cable connections check the signal information A low signal
level may cause sound distortions.
Run Sound Test (Support > Se_f Diagnosis > Sound Test).
is a problem with the broadcast°
The TV is not receiving
all channels.
e If you are using an antenna, verify it is positioned correctly and the all the
connections are secure.
e Run Setup (System > Setup) or Auto Program (Broadcasting > Auto Program).
There are no captions Go to Caption (System > Accessibility > Caption) and change the Caption Mode.
with digital channels. Some channels may not have caption data.
:: The compression of the video content may cause picture distortions. This is
The picture is distorted, especially true with fast moving pictures from sports programs and action
movies.
A weak signal can cause picture distortions. This is not a problem with the TV.
My computer won't connect,
The "Mode Not
Supported" message Set your PC's output resolution so it matches a resolution supported by the TV.
appears.
The video is OK but If you are using an HDMI connection, check the audio output setting on your PC.
there is no audio. If you are using a DVl to HDMI cable, a separate audio cable is required.
I can't connect to the
The wireless network
connection failed.
Confirm your wireless modem/router is on and connected to the Internet.
Reset your wireless modem/router by turning it off, waiting for 15 seconds, and
then turning it on again.
Run Network Setup (MENU > Network > Network Settings).
The software update Check the network connection status (MENU > Network > Network Status).
over the Internet has If the TV is not connected to a network, connect to a network.
failed. The upgrade stops if you already have the latest software version.
I am having Maunching/usin9
I launched an app,
but it's in English. Languages supported by the app may be different from the user interface language.
How can I change the The ability to change the language depends on the service provider.
language?
My application is not Check with the service provider.
working. Refer to the help section on the application service provider's website.
My flee won't play,
Some files can't be
played.
This problem may occur with high-bitrate flies. Most files can be played back, but
you might experience problems with high-bitrate files.
I want to reset the TV,
MENU > Support > Self
Reset Settings
Diagnosis > Reset
Resetting Smart
Hub
MENU > Smart Hub >
Smart Hub Reset
Reset Picture, Sound, Channel, Smart Hub, and all other
settings, except for the network settings, default settings.
Resets all Smart Hub settings to their factory defaults and
deletes all information related to Samsung accounts, linked
service accounts, Smart Hub service agreements, and
Smart Hub applications.
Other mssues
The TV is hot.
use. Children watching TV need constant adult supervision to prevent them from
touching the TV. This heat, however, is not a defect and does not affect the TV's
functionality.
The picture won't
display in full screen.
..... ii¸
The "Mode Not
Supported" message
appears.
HD channels will have black bars on either side of the screen when displaying
upscaled SD (4:3) content.
Black bars will appear at the top and bottom of the screen when you watch
movies that have aspect ratios different from your TV.
Adjust the picture size options on your external device or set the TV to full
screen.
The output resolution of the attached device is not supported by the TV. Check
the TV's supported resolutions and adjust the external device's output resolution
accordingly.
The Captions item in the
TV menu is grayed out.
You cannot select the Caption menu if you have selected a source connected to
the TV via HDMI or Component. To view captions, turn on the external device's
caption function.
The TV smells of plastic. This smell is normal and will dissipate over time.
The Signa_ hformation
option under Self Verify that the current channel is a digital channel.
Diagnosis isn't activated. The SignaJ Information is only available for digital channels.
The TV is tilted to the
side. Remove the base stand from the TV and reassemble it.
The Broadcasting option Broadcasting is only available when the Source is set to TV.
has been deactivated. The Broadcasting menu cannot be accessed while you watch TV using a cable
box or satellite receiver.
Thesettingsarelost If theUseModeis setto StoreDemo,theTV'saudioandvideosettingsare
after5minutesor every automaticallyresetevery5 minutes.
timetheTVis turnedoff. Changethe UseMode(Support>UseMode)to HomeUse.
Checkthecableconnectionsandreconnectthem.
Thereisanintermittent Lossof audioorvideocanbecausedbyusingoverlyrigidor thick cables.
lossof audioorvideo. Makesurethecablesareflexibleenoughfor longtermuse.If youaremounting
theTVto a wall,werecommendusingcableswith 90-degreeconnectors.
Therearesmallparticles Thisispartof the product'sdesignandisnota defect.
ontheTV'sbezel.
ThePIPmenuisnot ProPfunctionalityisonlyavailablewhenyouareviewingvideofromanHDMIor
available. Componentsourceonthe mainscreen.
A POP(TV'sinternal
bannerad)appearson ChangetheUseMode(Support>UseMode)to HomeUse.
thescreen.
...... !
The TV is making a The expansion and contraction of the TV's outer casing may cause a popping
popping noise, noise. This does not indicate a product malfunction. The TV is safe to use.
Your TV utilizes high-speed switching circuits and high levels of electrical
current. Depending on the TV's brightness level, the TV may seem slightly
noisier than a conventional TV.
The TV is making a
Your TV has undergone strict quality control procedures that meet our
humming noise.
demanding performance and reliability requirements.
Some noise coming from the TV is considered normal and is not an acceptable
cause for an exchange or refund.
Read Before Using Apps
o
o
o
o
o
o
Due to the product characteristics featured on the Samsung Smart Hub, as well as limitations in
available content, certain features, applications, and services may not be available on all devices
or in all territories. Some Smart Hub features may also require additional peripheral devices
or membership fees. Visit http://www.samsung.com for more information on specific device
information and content availability. Services and content availability are subject to change
without prior notice.
Samsung Electronics takes no legal responsibility whatsoever for any interruption of app services
caused by the service provider for any reason.
Application services may be provided in English only and available content may vary depending
on the area.
For more information about applications, visit the applicable service provider's website.
An unstable Internet connection may cause delays or interruptions. In addition, applications may
terminate automatically depending on the network environment. If this occurs, check your Internet
connection and try again.
Application services and updates may become unavailable.
Application content is subject to change by the service provider without prior notice
Specific services may vary depending on the version of the application installed on the TV.
An application's functionality may change in future versions of the application. If this occurs, run
the application's tutorial or visit the service provider's website.
o Depending on the service provider's policies, certain applications may not support multitasking.
Read Before Using the Browser
o
o
o
o
o
o
o
o
o
o
o
o
Select Web Browser. The browsing screen may differ from the one on your computer.
The web browser is not compatible with Java applications.
You cannot download files. If you attempt to download a file, you will receive an error message
instead.
The web browser may not be able to access certain websites.
Playing Flash videos is not supported.
E-commerce for online purchases is not supported.
With websites that have scrollable windows, scrolling a window can result in corrupted
characters.
ActiveX is not supported.
Certain options are not accessible in Link Browsing mode. Switch to Pointer Browsing to activate
those options.)
Only a limited number of fonts are supported. Certain symbols and characters may not be
displayed properly,
The response to remote commands and the resulting on-screen display may be delayed while a
webpage is loading.
Loading a webpage may be delayed or suspended completely with certain operating systems.
The copy and paste operations are not supported.
When composing an email or a simple message, certain functions such as the font size and color
selection may not be available.
o Thereis a limit to the numberof bookmarksand the size of the log file that canbe saved.
Thenumberof windowsthat can be openedconcurrentlyvariesdependingon the search
conditionsand the TV model.
Theweb browsingspeedwill vary dependingon the networkenvironment.
Embeddedvideoscan play with a picture-in-picture (PIP)at the sametime.
Theweb browsersupports .mp3audio files only.
Theweb browsersupportsa specific file format for importingand exporting bookmarks.
(CompatibleFormat:Netscape-bookmarkfile-1)
Thefolder tree information is not includedwhen importing and exporting bookmarks.
Exportingbookmarksto a USBdeviceconnectedto the TV savesthe bookmarksundera folder
named"SamsungSmartTVBookmark".
If the Clock (System>Time > Clock)has not beenset, the browsinghistorywill not be saved.
Thebrowsinghistory is savedfrom latestto oldest, with the oldest entriesbeing overwrittenfirst.
Videosourcesfrom PC-optimizedstreamingserviceprovidersmay not play properlyon our
proprietaryweb browser.
Usingthe on-screenQWERTYkeyboardautomaticallydisablesPIP.(Exceptwhenenteringa URL.)
Read Before Playing Photo, Video, or Music Files
Photo, Video, and Music File Use Limitations
The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for
mass storage devices. Types of MSC devices include flash card readers, and digital cameras.
(USB hubs are not supported.) These kinds of devices must be connected directly to the TV's
USB port. The TV may not be able to recognize the USB device or read the files on the device
if it is connected to the TV via a USB extension cable. Do not disconnect the USB device while
transferring files.
o Certain digital cameras and audio devices may not be compatible with the TV.
A USB device that requires high power (more than 500mA or 5V) may not be supported. The TV
does not support HDDs (Hard Disk Drives) connected to the USB port.
The TV supports the FAT, exFAT, and NTFS file systems.
After sorting files in the Folder view mode, the TV can display up to 1000 files per folder. If the
USB device contains more than 8,000 files and folders, however, some files and folders might not
be accessible.
The PTP (pier to pier) connection mode is available only for digital cameras. If you connect a
smartphone or tablet to the TV using PTP mode, the TV will not recognize it.
Compatible Storage Devices for File Transfers
USB Device SugarSync, Dropbox, SkyDrive, Mobile Device
SugarSync, Dropbox, SkyDrive USB Device
Mobile Device USB Device
Supported External Subtitles
Certain files, depending on how they were encoded, may not play on the TV_
Certain files are not available dependin9 on the model,
MPEG-4 Timed text .ttxt
SAMI .smi
SubStation Alpha ssa
i
Advanced SubStation Alpha ass
Powerdivx .psb
SMPTE-TT Text .xml
Supported mntemal Subtitles
Certain files, depending on how they were encoded, may not pay on the TV.
Certain files are not available depending on the model.
Advanced SubStation Alpha MKV
SubRip MKV
VobSub
MPEG-4 Timed text MP4
TTML in smooth streaming MP4
SMPTE-TT Text MP4
SMPTE-TT PNG MP4
Supported mmage Formats and Resolutions
Certa n fibs, depending on how they were encoded, may not play on the TV_
Certain files are not available depending on the model
15360x8640
%jpeg
%png PNG 4096x4096
_.bmp BMP 4096x4096
_.mpo MPO 15360x8640
Supported Music Formats and Codecs
Certain fibs, depending on how they were encoded, may not ptay on the TV.
Certain files are not available depending on the model
_.mp3
.m4a
_.mpa
_.aac
MPEG
MPEG4
MPEG1 Audio Layer 3
AAC
Supports up to 2 channels.
Supports up to 10 Pro 5.1 channels.
_.wma WMA WMA WMA Iossless audio is not supported.
Supports up to the M2 profile.
.way way way
_.mid Supports type 0 and type 1.
midi midi Seek is not supported.
_.midi Supports USB only.
_.ape ape ape NonSmart is not supported.
%.aif
AIFF AIFF
_.aiff"
_.m4a ALAC ALAC
Supported Video Codecs
Certa n flies, depending on how they were encoded, may not play on the TV_
Certain files are not available depending on the model.
*.avi
.mkv
*.asf
,wmv
.mp4
*,mov
*.3gp
,vro
.mpg
.mpeg
.ts
.tp
.trp
*,mov
.flv
.vob
*.svi
*.divx
AVI
MKV
ASF
MP4
3GP
MOV
FLV
VRO
VOB
PS
Motion JPEG 640x480
H.264 BP / MP / HP
DivX 3.11 / 4 / 5 / 6
MPEG4 SP/ASP
Window Media Video
v9(VC1)
TS MPEG1
*.webm WebM VP8
1920x1080
1920x1080
MAX 30
8
3O
Dolby Digital
LPCM
ADPCM(IMA, MS)
AAC
HE-AAC
WMA
Dolby Digital Plus
MPEG(MP3)
DTS(Core, LBR)
G.711(A-Law,
u-Law)
Other Restrictions
o Codecs may not function properly if there is a problem with the content.
Video content does not play or does not play correctly if there is an error in the content or
container.
Sound or video may not work if they have standard bit rates/frame rates above the TV's
compatibility ratings.
If the Index Table is has an error, the Seek (Jump) function will not work.
When playing video over a network connection, the video may not play smoothly because of data
transmission speeds.
Some USB/digital camera devices may not be compatible with the TV.
The menu display is delayed when transmitting at or higher than 10Mbps.
Video Decoders
Supports up to H.264, Level 4.1 (does not support FMO/ASO/RS)
VC1 AP L4 is not supported.
GMC 2 or above is not supported.
Audio Decoders
. WMA 10 Pro supports up to 5.1 channels. Supports up to the M2 profile. WMA Iossless audio is
not supported.
- WMA 10 pro M3 is not supported.
. QCELP and AMR NB/WB are not supported.
. Vorbis is supported for up to 2 channels.
. Dolby Digital Plus is supported for up to 5.1 channels.
. The DTS LBR codec is only available for MKV / MP4 / TS containers.
Read After Installing the TV
Picture Sizes and Input Signals
Analog Channel/External Input 16:9, Zoom1, Zoom2, 4:3
Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3
Component (720p) 16:9, Wide Fit, 4:3
Component (1080i, 1080p) 16:9, Wide Fit, 4:3, Screen Fit
Digital Channel (1080i, 1080p) 16:9, Wide Fit, 4:3, Screen Fit, Smart View 2
16:9, Wide Fit, 4:3, Screen Fit, Smart View 1, Smart
HDMI (720p, 1080i, 1080p) View 2
The Picture Size setting is applied to the current source. The applied Picture Size will remain in effect
whenever you select that source unless you change it.
Installing an Anti-Theft Lock
An anti-theft lock is a physical device that can be used to protect the TV against theft. Look for the
lock slot on the back of the TV. The slot has a _ icon next to it. To use the lock, wrap the lock cable
around an object that is too heavy to carry and then thread it through the TV's lock slot. The lock is
sold separately.
The method of using an anti-theft lock may differ for each TV model. Refer to the lock's user manual
for more information.
Ava lability depends on the model,
Read Before Setting Up a Wireless mnternet Connection
Wireless _nternet Precautions
This TV supports the IEEE 802.11a/b/g/n communication protocols. Samsung recommends using
IEEE 802.11n. Video flies stored on a device connected to the TV via DLNA may not play back
smoothly.
To use wireless Internet, the TV must be connected to a wireless router or modem. If the wireless
router supports DHCP, the TV can use a DHCP or static IP address to connect to the wireless
network.
o Select a channel that is not currently in use for the wireless router. If the channel set for the
wireless router is currently being used by another device, the result is usually interference and/or
a communications failure.
Most wireless networks have an optional security system. To enable a wireless network's security
system, you need to create a password using characters and numbers. This password is then
needed to connect to a security-enabled AP.
Wireless Security Protocols
The TV only supports the following wireless network security protocols.
Authentication Modes: WEP, WPAPSK, WPA2PSK
Encryption Types: WEP, TKIP, AES
In compliance with the newest Wi-Fi certification specifications, Samsung TVs do not support WEP or
TKIP security encryption in networks running in the 802.11n mode.
If the wireless router supports WPS (Wi-Fi Protected Setup), you can connect the TV to your network
using PBC (Push Button Configuration) or a PIN (Personal Identification Number). WPS automatically
configures the SSID and WPA key settings.
The TV cannot connect to non-certified wireless routers.
Before Connecting
Resomutions)
a Computer (Supported
LED 5, 6 series
When you connect your TV to a computer, set the computer's video card to one of the standard
resolutions listed in the tables below or on the next page. The TV will automatically adjust to the
resolution you choose. Note that the optimal and recommended resolution is 1920 x1080.
Choosing a resolution not included in the tables can result in a blank screen or just the power indicator
turning on.
Refer to the user manual of your graphics card for compatible resolutions.
mBM
720x400 70Hz 31.469 70.087 28.322
-/+
640x480 67Hz 35.000 66.667 30.240 -/-
832x624 75Hz 49.726 74.551 57.284 -/-
1152x870 75Hz 68.681 75.062 100.000 -/-
VESA DMT
640x480 60Hz 31.469 59.940 25.175 -/-
37.861 72.809 31.500 -/-
640x480 75Hz 37.500 75.000 31.500 -/-
800x600 60Hz 37.879 60.317 40.000 +/+
800x600 72Hz 48.077 72.188 50.000 +/+
800x600 75Hz 46.875 75.000 49.500 +/+
I .......................................... ..................................... ÷.........................................................................................................................................................
1024x768 60Hz 48.363 60.004 65.000 -/-
1024x768 70Hz 56.476 70.069 75.000 -/-
1024x768 75Hz 60.023 75.029 78.750 +/+
1152x864 75Hz 67.500 75.000 108.000 +/+
1280x720 60Hz 45.000 60.000 74.250 +/+
1280x800 60Hz 49.702 59.810 83.500 -/+
1280x1024 60Hz 63.981 60.020 108.000 +/+
1280x1024 75Hz 79.976 75.025 135.000 +/+
1366x768 60Hz 47.712 59.790 85.500 +/+
1440x900 60Hz 55.935 59.887 106.500 -/+
1600x900RB 60Hz 60.000 60.000 108.000 +/+
1680x1050 60Hz 65.290 59.954 146.250 -/+
1920x1080 60Hz 67.500 60.000 148.500 +/+
LED 4 series
After connecting a computer to the TV, set the screen resolution for the TV on the computer. The
optimal resolution is 1366 x 768 @ 60 Hz. If it is set to any other than in the table below, the TV may
display nothing. Set the resolution properly, referring to the user guide of the computer or its graphic
card.
mBM
720x400 70Hz 31.469 70.087 28.322
-/+
640x480 67Hz
832x624 75Hz
35.000
49.726
66.667 30.240 -/-
VESA DMT
640x480 60Hz 31.469 59.940 25.175 -/-
i
640x480 75Hz 37.500 75.000 31.500 -/-
800x600 60Hz 37.879 60.317 40.000 +/+
800x600 72Hz 48.077 72.188 50.000 +/+
800x600 75Hz 46.875 75.000 49.500 +/+
1024x768 60Hz 48.363 60.004 65.000 -/-
1024x768 70Hz 56.476 70.069 75.000 -/-
1024x768 75Hz 60.023 75.029 78.750 +/+
1280x720 60Hz 45.000 60.000 74.250 +/+
1366x768 60Hz 47.712 59.790 85.500 +/+
Resolutions for Video Signals
720(1440)x480i 60Hz 15.734 59.940 27.000 -/-
720(1440)x576i 50Hz 15.625 50.000 27.000 -/-
720x480 60Hz 31.469 59.940 27.000 -/-
720x576 50Hz 31.250 50.000 27.000 -/-
1280x720 60Hz 45.000 60.000 74.250
+/+
1920x1080i 60Hz 33.750 60.000 74.250 +/+
1920x1080i 50Hz 28.125 50.000 74.250 +/+
1920x1080 60Hz 67.500 60.000 148.500 +/+
1920x1080 50Hz 56.250 50.000 148.500 +/+
1920x1080 30Hz 33.750 30.000 74.250 +/+
1920x1080 25Hz 28.125 25.000 :: 74.250 +/+
1920x1080 24Hz 27.000 +/+
License
HD
This DivX Certified@ device has passed rigorous testing to ensure it plays DivX@ video.
To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX
VOD section of your device setup menu.
DivX Certified@ to play DivX@ video up to HD 1080p, including premium content.
DivX@, DivX Certified@ and associated Iogos are trademarks of DivX, LLC and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274.
This device supports DivX Plus Streaming@ for enjoying HD movies and TV shows with advanced features
(multHanguage subtitles, multiple audio tracks, chapters, smooth FF/RW, etc.) streamed to your device.
PremiumS0und 15.1
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS in
combination with the Symbol, DTS Premium Soundl5.1, DTS Digital Surround, DTS Express, and DTS Neo2:5 are
registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries.
@ DTS, hc. All Rights Reserved.
StudioSound
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the
Symbol, DTS in combination with the Symbol, and DTS Studio Sound are registered trademarks or trademarks of
DTS, Inc. in the United States and/or other countries. @ DTS, Inc. All Rights Reserved.
DOLBY
DIGITAL PLUS
Manufactured under license from DoJby Laboratories.
DoJby and the doubJe-D symbol are trademarks of Dolby Laboratories.
The terms HDMm and HDMI High-Definition Multimedia hterface, and the HDMm Logo are trademarks or registered
trademarks of HDMm Licensing LLC in the United States and other countries.
Open Source License Notice
Open Source used in this product can be found on the following webpage.
(http://opensource.samsung.com) Open Source License Notice is written only English.
............/4
This license is may not be supported depending on the country or modet_
480i/480p/720p/1080i/1080p
Generally refers to the number of effective scanning lines that determines the screen's resolution.
There are two scanning methods: interlaced and progressive.
- Scanning
Sequential projection of pixels to form images. The higher the number of pixels, the clearer
and more vivid the images.
- Progressive
A sequential scanning method that scans every line, one after another.
- Interlaced
A staggered scanning method that scans every other line until the end of the screen and then
fills in the remaining lines.
Example) If the number of horizontal scan lines is 480i
Scans 240 lines from start to finish and then scans the remaining 240 lines for a total of 480
lines.
General differences between 480i and 480p are as follows:
30 60
:: Lines on Screen 480 480 ::
o DVl (Digital Visual interface)
Connecting the TV's DVI connector to a computer's DVI connector via an HDMI-to-DVI cable
lets you use the TV as a computer monitor. However, HDMI-to-DVl cables deliver video signals
only. You must connect a set of speakers to the computer using a separate cable to hear the
computer's audio.
HDMI (High Definition Multimedia interface)
HDMI is a method of transmitting both video and audio signals via a single cable.
Dynamicversus Static IPAddresses
If the networkrequiresa dynamic IPaddress,usean ADSL modemor routerthat supports
the DynamicHostConfigurationProtocol(DHCP).Modemsand toutersthat supportDHCP
automaticallyprovidethe IP address,subnetmask,gatewayand DNSvaluesthe TV needsto
accessthe Internet,so they do not haveto be enteredmanually.Most homenetworksuse a
dynamicIPaddress.
If the networkrequiresa static IP address,enterthe IPaddress,subnetmask,gateway,and DNS
valuesmanuallywhen setting up the networkconnection.To get the IPaddress,subnetmask,
gatewayand DNSvalues,contactyour InternetServiceProvider(ISP).
If the networkrequiresa static IP address,usean ADSL modemthat supportsDHCP.ADSL
modemsthat support DHCPalso allow static IPaddresses.
Ethernet
Ethernetis a LAN (LocalArea Network)that usescoaxial cablesstandardizedby the IEEE.
ComponentConnection
Componentconnectionsare mostly usedfor gameconsolesandtransmit the videosignal by
splitting it into a luminancesignal (Y)and two color signals (Pband Pr).Theconnectoris marked
as [ComponentIN]_(Pr,Pb,Y) on the back of the TV.On somedevices,it is sometimesmarked
as Cr,Cb, Y. Cb and Cr arethe digital conversionsof the Pband Prsignals.
Theconnectorsare normally color-coded red (R),blue (B),and green(G) andoffer the best
picturequality possiblefor an analogconnection.
