Thankyou for purchasingthis Samsungproducl
To receive more complete service, please register
your product at
www.samsung.com/register
Model SerialNo,
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice,
_ See the warranty card for more information on warranty terms.
Wide screen format LED Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video.
The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and
the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on no expanded standard format
television video and programming, should be limited to no more than 5% of the total televisionviewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station Iogos, web sites or computer graphics
and patterns, should be limited as described above for all televisions. Displayingstationary images that exceed the above guidelines can cause uneven
aging of LED Displays that leave subtle, but permanent bumeddn ghost images in the LED picture. To avoid this, vary the programming and images, and
primarilydisplay full screen moving images, not stationary patterns or dark bars. On LED models that offer picture sizing features, use these controls to
view different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven LED aging as a result of format selection and use, as well as burned
in images, are not covered by your Samsung limited warranty.

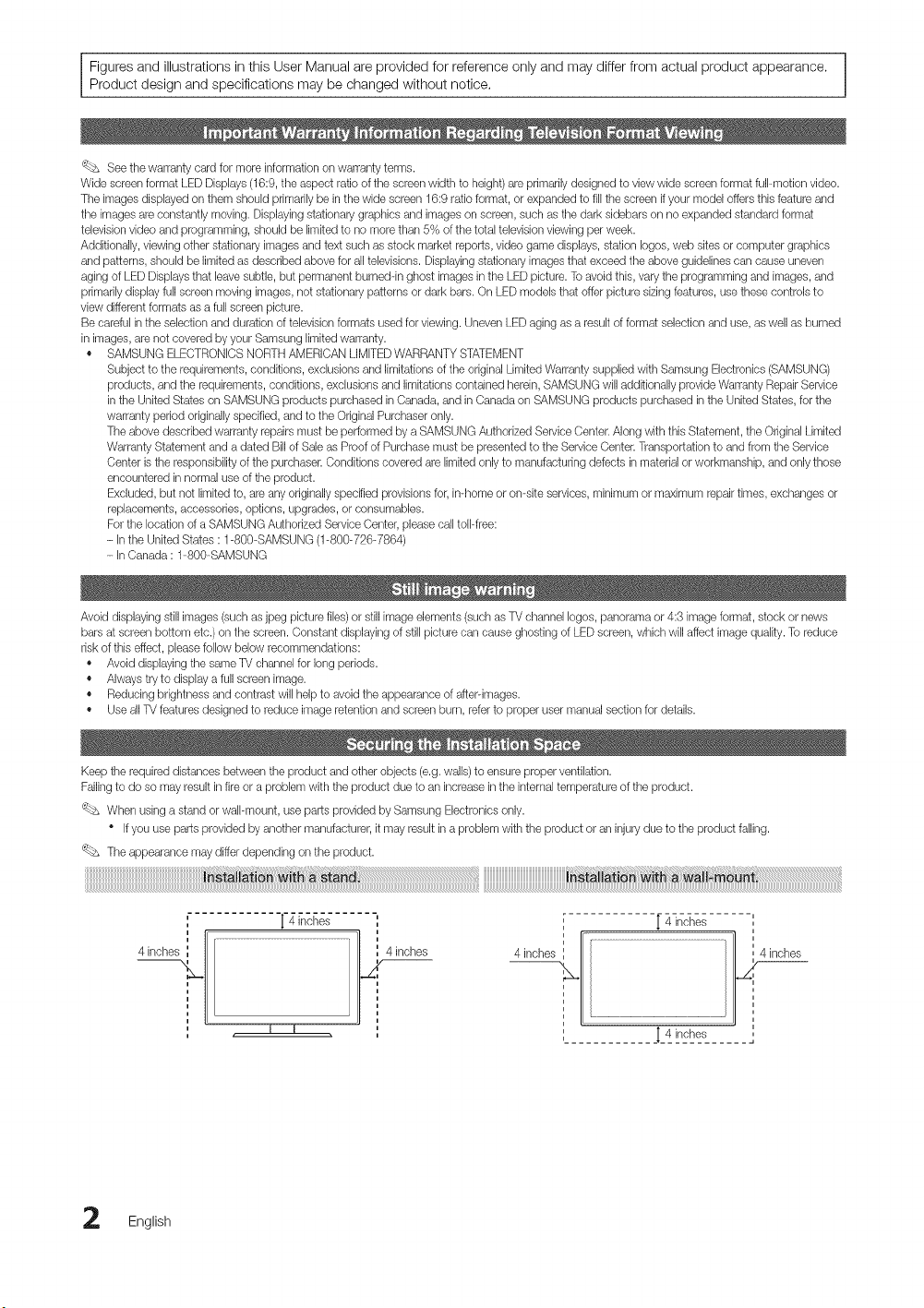

• SAMSUNG ELECTRONICSNORTH AMERICAN UMFED WARRANTY STATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG)
products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service
in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased inthe United States, for the
warranty period originally specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized Service (}enter. Along with this Statement, the Original Limited
Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center.Transportation to and from the Service
Center isthe responsibilityof the purchaser.Conditions covered are limited only to manufacturing defects in material or workmanship, and only those
encountered in normal use of the product.
Excluded, but not limited to, are any originallyspecified provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or
replacements, accessories, options, upgrades, or consumables.
For the location of a SAMSUNGAuthorized Service Center,please call toll-free:
- In the United States : 1-800-SAMSUNG (1-800-726-7864)
- In Canada : 1-800-SAMSUNG
Avoid displaying still images (such asjpeg picture files) or still image elements (such as W channel Iogos, panorama or 4:3 image format, stock or news
bars at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce
riskof this effect, please follow below recommendations:
• Avoid displaying the same TV channel for long periods.
• Always try to display a full screen image.
• Reducing brightness and contrast will help to avoid the appearance of after-images.
• Use all TV features designed to reduce image retention and screen burn, refer to proper user manual section for details.
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failingto do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
'_ When using a stand or wall-mount, use parts provided by Samsung Electronics only.
If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.
The appearance may differ depending on the product.
I 4 inches
4 inchesx_ ..................................................................................................._/_ 4inches 4 inch ,_
[ 4 inches
J 4 inches
L_,4 inche_s
English
Contents
• List of Features ......................................................... 4
• Accessories .............................................................. 4
• Viewing the Control Panel ......................................... 5
• Viewing the Remote Control ...................................... 6
• Connecting to an Antenna ........................................ 7
• Plug & Play (Initial Setup) ........................................... 7
• Connecting to an AV Device ...................................... 8
• Connecting to an Audio Device ................................. 9
• Connecting to a PC ................................................ 10
• Changing the Input Source ..................................... 11
• How to Navigate Menus .......................................... 11
• Channel Menu ........................................................ 12
Seeing Channels 12
Using Favorite Channels 12
Memorizing Channels 12
Editing Channels 13
Other Features 13
• Picture Menu .......................................................... 14
Changing the Preset Picture Mode 14
Adjusting Picture Settings 14
Economical Solutions 14
Changing the Picture Options 14
Setting up the TV with Your PC 16
• Sound Menu ........................................................... 17
Changing the Preset Sound Mode 17
Adjusting Sound Settings 17
Sound Settings 17
• Setup Menu ............................................................ 18
Setting the Time 18
Using the Sleep Timer 18
Setting the On / Off Timer 19
Locking Programs 19
Other Features 20
Picture in Picture (PIP) 22
Support Menu ......................................................... 22
• Network Connection ............................................... 24
Connecting to a Wired Network 24
Connecting to a Wireless Network 26
• Media Play .............................................................. 31
Connecting a USB Device 31
Connecting to your PC through a network 31
Screen Display 33
Playing Multiple Files 36
Media Play - Additional Functions 36
• Anynet+ .................................................................. 38
Setting Up Anynet+ 39
Switching between Anynet+ Devices 39
Recording 39
Listening through a Receiver 40
Troubleshootingfor Anynet+ 40
• AIIShare .................................................................. 41
About AlIShare 41
Setting Up AlIShare 41
• Assembling the Cables ........................................... 43
• Installing theWall Mount ......................................... 44
• Securing the TV to the Wall ..................................... 46
• Troubleshooting ...................................................... 47
• License ................................................................... 50
• Specifications ......................................................... 51
• Dimensions ............................................................. 52
• Index ...................................................................... 53
This function can be used by pressing tile
TOOLS button on tile remote contrq.
Check the Symbol!
%x
Note
indicatesadditionalinformation.
®
Step by Step Guide
Check here for instructions on how to open
the relevant submenu within the OSD
(on screen display).
English 3
Getting Started
• Excellent Digital interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed
without a cable box / STB (Set-Top-Box) satellite receiver.
• Media Play: Allows you to play music files, pictures and movies saved on a USB device (p. 81).
• AllShare: AIIShare connects your TV and compatible Samsung mobile phones/devices through a network (p. 41).
• Self Diagnosis: You can check to make sure picture and sound operate normally (p. 22).
Please make sure the following items are included with your LED TV. if any items are missing, contact your dealer.
_£ The items' colors and shapes may vary depending on the models.
(M4 X L8)
(M8XL19)
For best cable connection to this product, be sure to use cables with a maximum thickness as below:
_ i • Maximumthickness-O.55inches(14mm)
input Cables (Sold Separately)
Dvi ito _i v
English
Theproductcolorandshapemayvarydependingonthemodel.

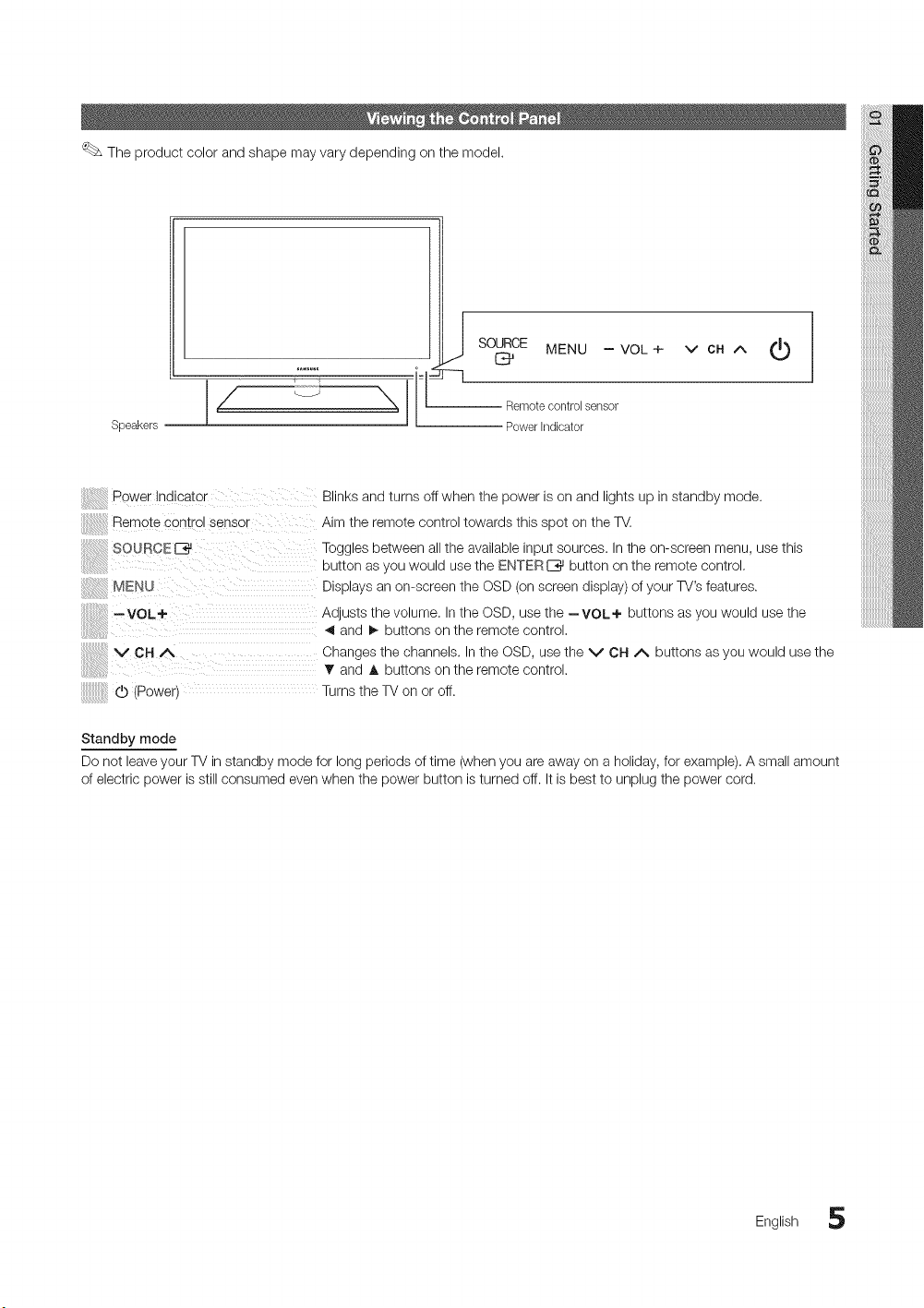

Speakers
rI
_J SOURCE
--1
MENU -VOL+ v CH A (,_
Remote control sensor
Power hTdicator
Power Indicator
Remote control senso _
MEN_.
--VOL+
V Cl-I A
Blinks and turns off when the power is on and lights up in standby mode.
Aim the remote control towards this spot on the 77/.
Toggles between all the available input sources. In the on-screen menu, use this
Dut_on as you would use the ENTERI_ button on the remote control,
Displays an on-screen the OSD (on screen display) of your TV's features.
Adjusts the volume, In the OSD, use the --VOL+ buttons as you would use the
4 and !_ buttons on the remote control,
Changes the channels. In the OSD, use the V CI-I A buttons as you would use the
T and A buttons on the remote control.
d) (Powerl Turns the 77/on or off.
Standby mode
Do not leave your 77/in standby mode for long periods of time (when you are away on a holiday, for example), A small amount
of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.
English 5
Getting Started
This is a special remote control for the visually impaired and has Braille points on the Power, Channel and Volume
buttons.
Turnsthe TV on and off.
Dbp[ays and selects the availablevideo
sources (p. 11).
Pressto directly access channeb.
Pressto select additional channels
(digital)being broadcasted by the same
station. For example,to select channel
"54-3", press "54", then press "-" and
"3".
Adjusts the volume.
Brings up tile OSD.
Displays Media Play (p. 31).
Quickly select frequently used functions.
Returns to tile previous menu.
Turnsthe remote control light on or
off. When on, the buttons become
illuminated for a moment when pressed.
(Usingthe remote control with this button
set to ON will reduce the battery usage
time.)
Returns to tile previous channel.
Cuts off tile sound temporarily.
Changes channels.
Displays tile channel liston the screen
(p. 12).
Displays Favorite Channel Lists on tile
screen (p. 12).
Displays information on the TV screen.
Selects tile on-screen menu items and
changes the values seerson the menu.
Exits the menu.
Ttsese buttons are for tlqe Channel list,
Media Play menu, etc.
Usethese buttons in Media Play
and Anynet+ (HDMI-CEC) modes
(p. 31,38).
([_3: Controls recording for Samsung
recorders that have the Anynet+
feature)
S.MODE: Pressto select the sound
mode (p. 17).
SLEEP: Use to set the sleep timer
function (p. 18).
MTS: Pressto choose stereo, mono
or Separate Audio Program (SAP
broadcast) (p. 17, 18).
RMODE: Pressto select the picture
mode (p. 14).
RSlZE: Selects the picture size (p. 15).
CC: Controls the caption decoder
(p. 20).
Installing batteries (Battery size: AAA)
Z
Z
NOTE
* Use the remote control within 23 feet from the TV,
* Bright light may affect the performance of the remote control.
Avoid use when nearby fluorescent lights or neon signs.
* The color and shape may vary depending on the model.
English
WhentheTVisinitiallypoweredon,basicsettingsproceedautomatically.
Connectingthepowercordandantenna.
.......:.....................................!N!!................................_:.....
VHF/UHFAntenna
Antenna Oabe (No_ Supplied) ] _%
o[
When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the
POWER (!) button. Plug & Play is available only when the Input source is set to TV.
To return to the previous step, press the Red button.
Selecting a language
Selecting Store Demo
or Home Use
Selecting an antenna
Se,ecting a channel
Setting the
Clock Mode
Viewing l:ne
_ection Guide.
Press tne A or T button, then press the ENTERI_%_button. Select the POWER
]eslrea OSD (On Screen Display)language. f_l_
Press tne _ or I_ button, then press the ENTERE_ button.
• Select the Home Use mode. Store Demo Mode is for retail
environments
• To return the unit's settings from Store Demo to Home Use
stanaara): Press the volume button on the T_. When you see the
volume OSD, press and hold MENU for 5 sec.
Press tne A or T button, then press the ENTERI_ button.
3elect Air, Cable or Auto.
Press tne A or T button, then press the ENTERIZ_ button. Select the channel source
to memorize. When setting the antenna source to Cable, a step appears allowing you to
assign numerical values (channel frequencies) to the channels. For more information, refer to
Channel _ Auto Program (p. 12).
Press the ENTERIZ_J button at any time to interrupt the memorization process.
Set the Clock Mode automatically or manually.
• Auto: Allows you to select DST (Daylight Saving Time) mode and time zone.
• Manual: Allows you to manually set the current date and time (p. 18).
• The connection method for the best HD screen quality is displayed.
Enjoy your TV. Press the ENTER I_ button.
If You Want to Reset This Feature...
(_ MENUiTrl _ Setup --_ Plug & Play _ ENTERI_
English 7
Connections
The product color and shape may vary depending on the model.

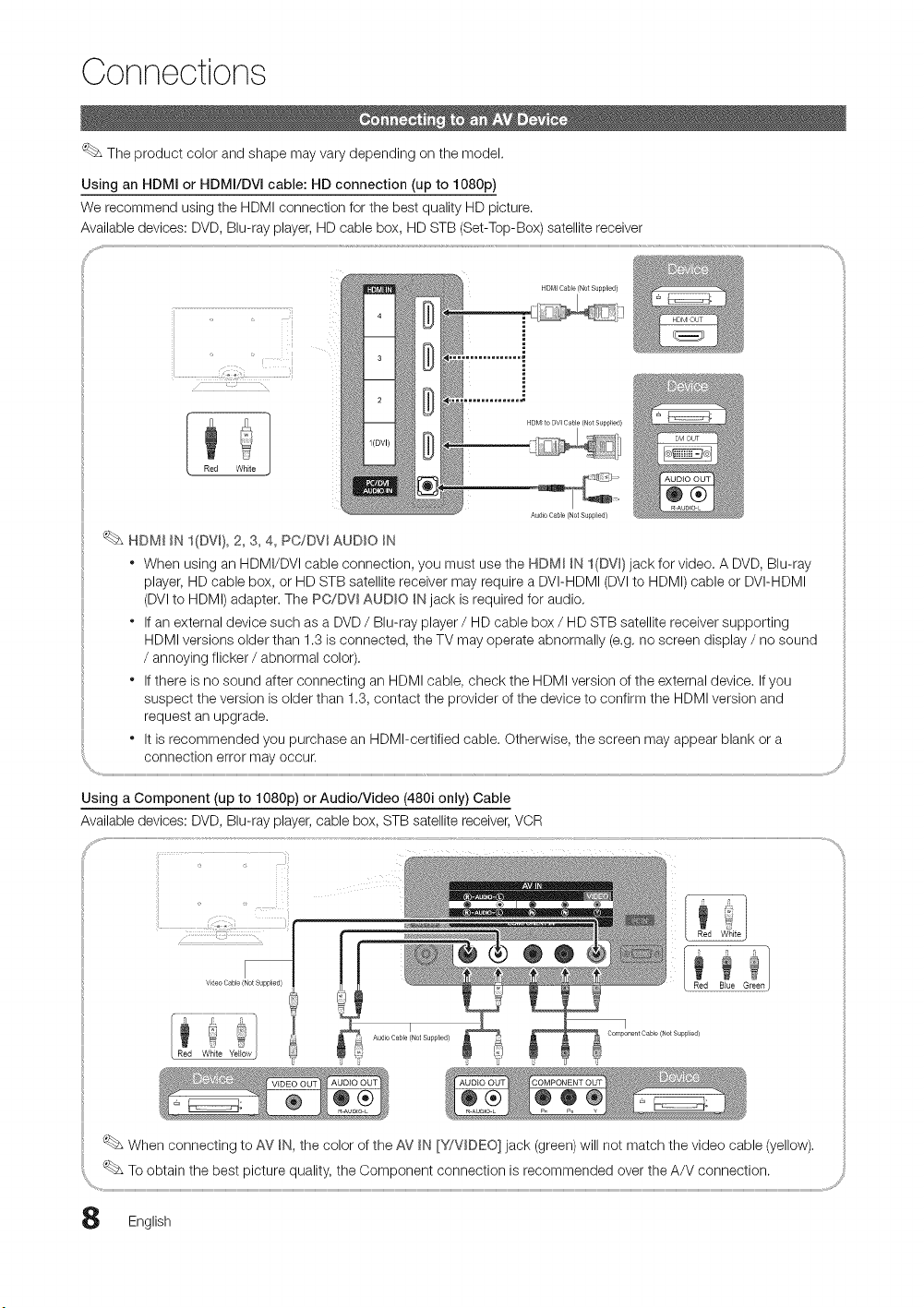

Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
ii
,_ i!i
HOfv}]Cable/Not Supplied)
Red White
HDM_ _N I(DW), 2, 3, 4, PC/DW AUDIO _N
* When using an HDMI/DVI cable connection, you must use the HDM_ _N I(DV_)jack for video. A DVD, Blu-ray
player, HD cable box, or HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI
(DVI to HDMI) adapter. The PC/DW AUDIO _Njack is required for audio.
* If an external device such as a DVD / Blu-ray player / HD cable box / HD STB satellite receiver supporting
HDMI versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound
/ annoying flicker/abnormal color).
* If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you
suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and
request an upgrade.
* It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a
connection error may occur,
Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
iilili
Vdeo Cable/Not Supplied)
t I
} _ Audio Cable (Not Supplied/
When connecting to AV _N, the color of the AV _N [Y/WDEO] jack (green) will not match the video cable (yellow).
English

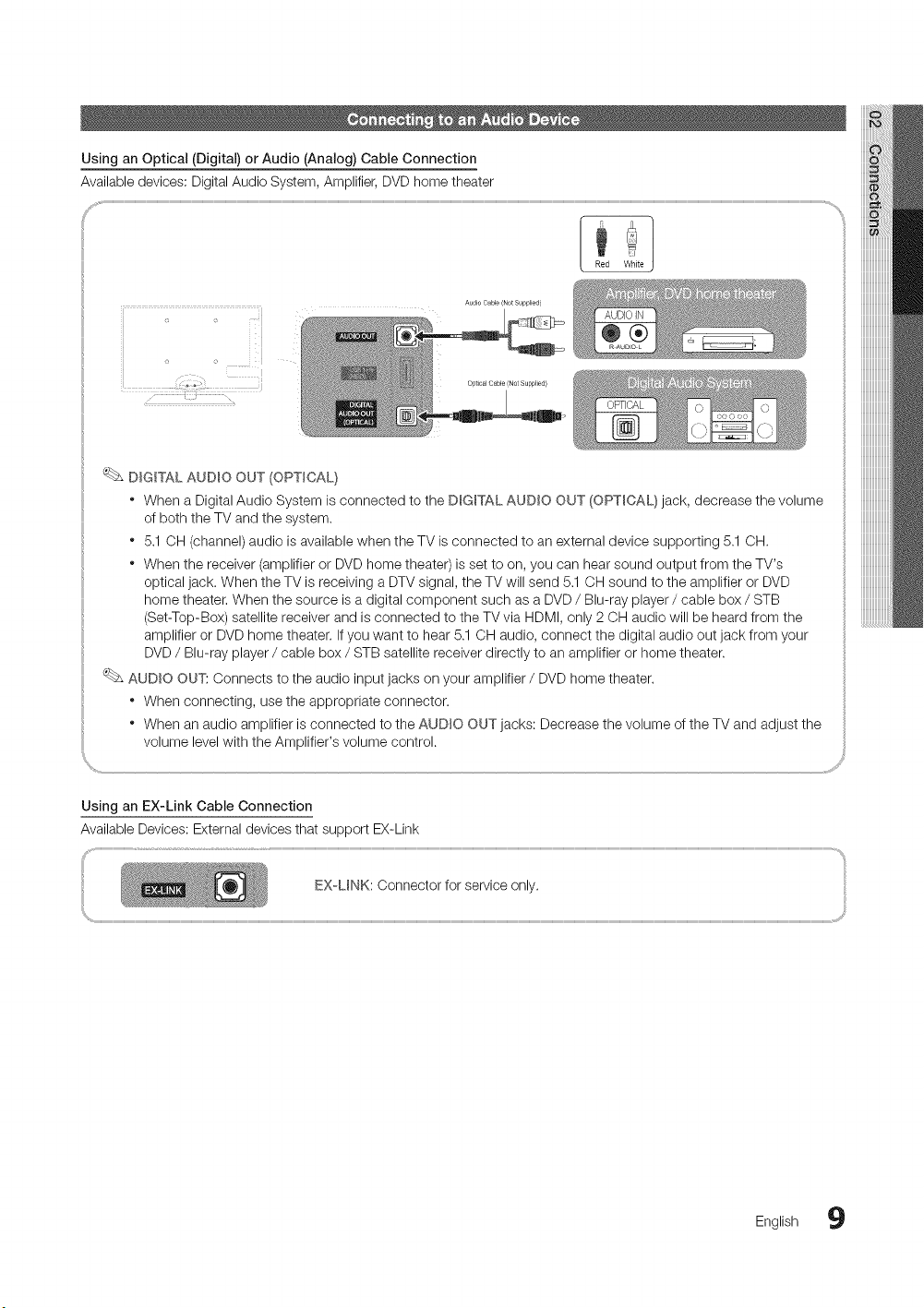

Using an Optical (Digital) or Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, DVD home theater
,:, o _ i
.................!!i;iiiJ_iii_!_..............._i
,, H_J ,,
Audio Cable/Not Supplied)
DIGITAL AUDIO OUT (OPTICAL}
" When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL} jack, decrease the volume
of both the TV and the system.
* 5.1 OH (channel) audio is available when the TV is connected to an external device supporting 5.1 OH.
* When the receiver (amplifier or DVD home theater) is set to on, you can hear sound output from the TV's
optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 OH sound to the amplifier or DVD
home theater. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB
(Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 OH audio will be heard from the
amplifier or DVD home theater. If you want to hear 5.1 OH audio, connect the digital audio out jack from your
DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theater.
AUDIO OUT: Connects to the audio input jacks on your amplifier / DVD home theater.
* When connecting, use the appropriate connector.
* When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the
volume level with the Amplifier's volume control. /
Using an EX-Link Cable Connection
Available Devices: External devices that support EX-Link
EXLINK: Connector for service only. i!
English 9
Connections
Using an HDMI/DVI Cable or a D-sub Cable
J2
HDMt to DVI Cable/Not Supplied)
D Sub Cabe (Not Supplied)

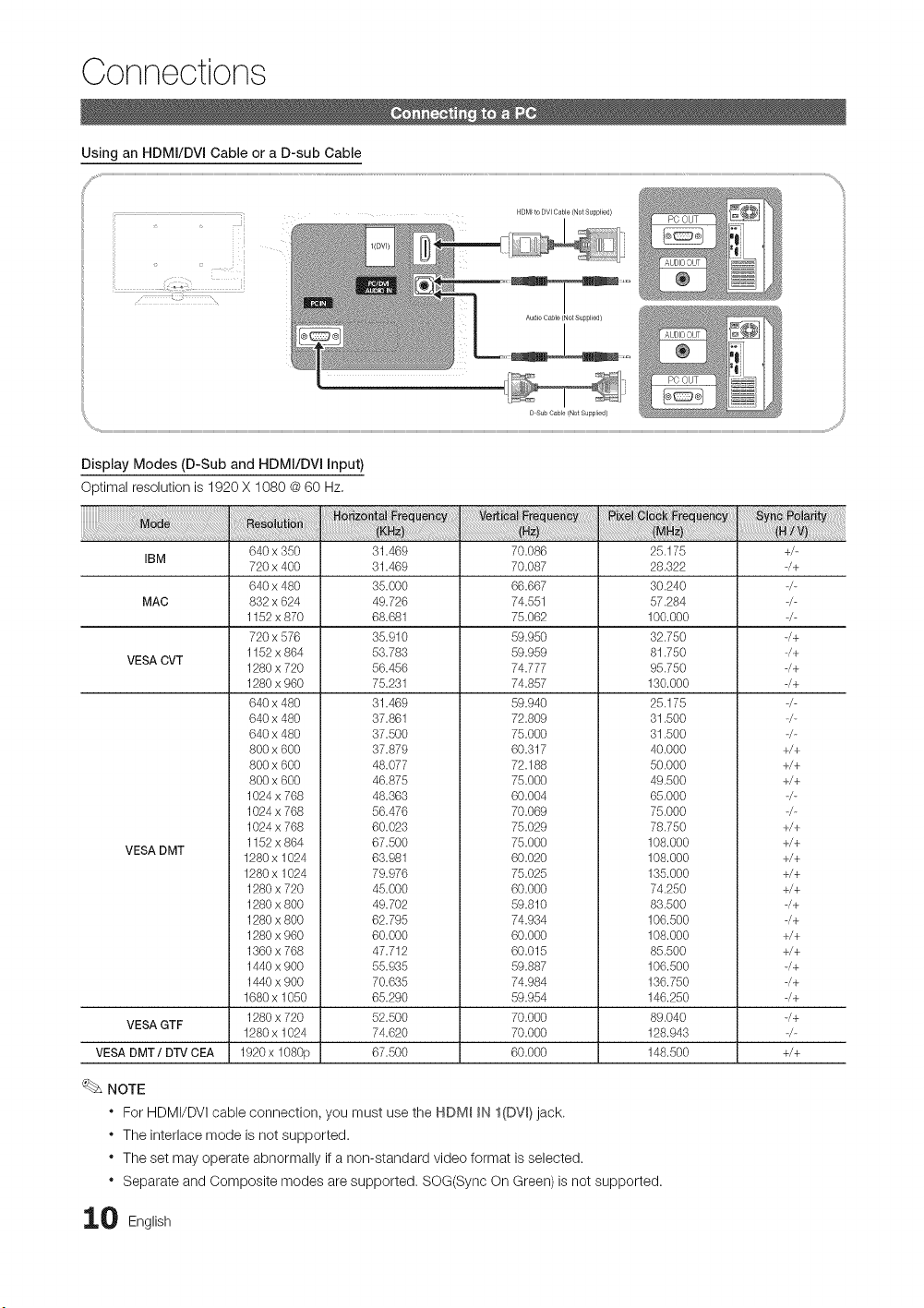

Display Modes (D-Sub and HDMI/DVI Input)
Optimal resolution is 1920 X 1080 @ 60 Hz,
IBM
MAC
VESA CVT
VESA DMT
VESA GTF
VESA DMT/DTV CEA
640 x 350
720 x 400
640 x 480
832 x 624
1152 x 870
720 x 576
1152 x 864
1280 x 720
1280 x 960
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
1280 x 720
1280 x 800
1280 x 800
1280 x 960
1360 x 768
1440 x 900
1440 x 900
1680 x 1050
1280 x 720
1280 x 1024
1920x 1080p
31.469
31.469
35.000
49.726
68.681
35.910
53.783
56.456
75.231
31.469
37.861
37.500
37.879
48.077
46.875
48.363
56.476
60.023
67.500
63.981
79.976
45.000
49.702
62.795
60.000
47.712
55.935
70.635
65.290
52.500
74.620
67.500
70.086
70.087
66.667
74.551
75.062
59.950
59.959
74.777
74.857
59.940
72.809
75.000
60.317
72.188
75.000
60.004
70.069
75.029
75.000
60.020
75.025
60.000
59.810
74.934
60.000
60.015
59.887
74.984
59.954
70.000
70.000
60.000
25.175
28.322
30.240
57.284
100.000
32.750
81.750
95.750
130.000
25.175
31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
108.000
108.000
135.000
74.250
83.500
106.500
108.000
85.500
106.500
136.750
146.250
89.040
128.943
148.500
NOTE
* For HDMI/DVI cable connection, you must use the HDM_ _N I(DV_)jack.
* The interlace mode is not supported.
* The set may operate abnormally if a non-standard video format is selected.
* Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
+/-
-/+
_/+
-/+
_/+
_/+
+/+
+/+
+/+
+/+
+/+
+/+
+/+
+/+
_/+
_/+
+/+
+/+
_/+
-/+
_/+
_/+
+/+
0 English
Source List
Use to select TV or an external input sources SOURCE
such as a DVD / Blu-ray player / cable box /
STB satellite receiver.
MENU rrrl _ Input _ Source List -_
ENTER I_
IV / AV / Component / PC / HDMI1/DVI / HDMI2 /
HDMI3 / HDMI4 / USB
You can only choose external devices that
are connected to the TV, In the Source List,
connected inputs will be highlighted.
In the Source List, PC is always activated.
Edit Name
MENU rrrl -_ Input _ Edit Name _ ENTERE_
Ill VCR / DVD / Cable STB / Satellite STB / PVR STB /
AV Receiver / Game / Camcorder / PC / DVi PC /
DVi Devices / TV / iPrV / Blu-ray / HD DVD / DMA:
Name the device connected to the input jacks to make
your input source selection easier.
When a PC with a resolution of 1920 x 1080 @ 60Hz is
connected to the HDM_ _N I(DV_) port, you should set
the TV to DVi PC mode under Edit Name.
When connecting an HDMI/DVI cable to the
HDMI _N I(DVl) port, you should set the TV to DVi PC
or DVi Devices mode under Edit Name.

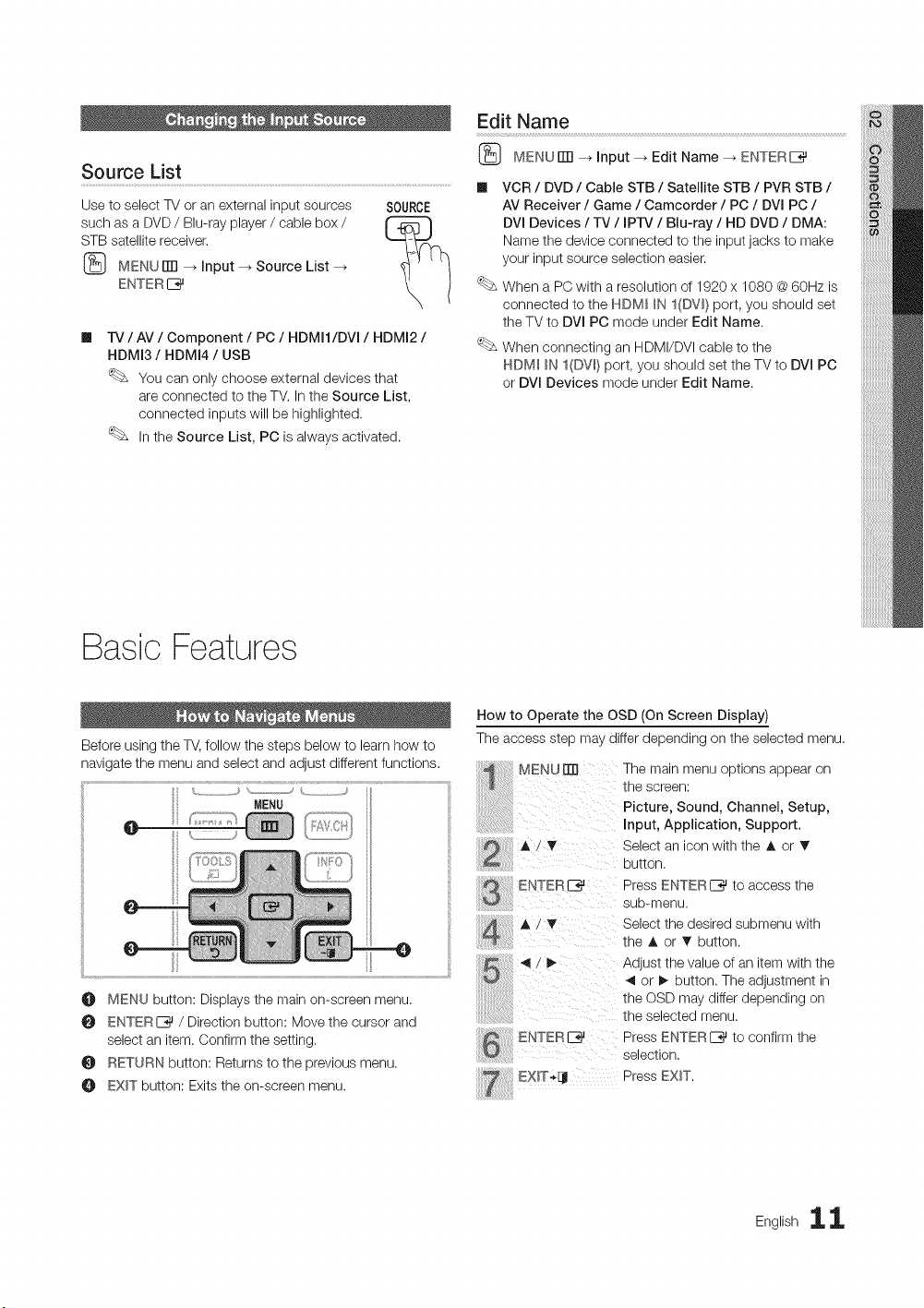

Basic Features
Before using the TV, follow the steps below to learn how to
navigate the menu and select and adjust different functions.
MENU
k.....................S
O MENU button: Displays the main on-screen menu,
ENTERE_ / Direction button: Move the cursor and
select an item. Confirm the setting,
RETURN button: Returns to the previous menu.
EXIT button: Exits the on-screen menu.
How to Operate the OSD (On Screen Display)
The access step may differ depending on the selected menu.
A T Select an icon with the A or
button,
ENTER C_ Press ENTER I_ to access the
sub-menu
,L / T Select the desired submenu with
the A or T button.
ENTERE_ Press ENTERI_ to confirm the
selection,
_EX_T-_IJ Press EXIT.
English 11
Basic Features
Seeing Channels
Channel List
Add, delete or set Favorite channels and use
the program guide for digital broadcasts,
_} MENUrITI --_Channel --_ Channel List
ENTERI_
Select a channel in the All Channels,
Added Channels, Favorite or Programmed
screen by pressing the A / _ and ENTERI_
buttons, Then you can watch the selected
channel.
Using Favorite Channels
(_ MENUITTI --_ Channel _ Channel List _ ENTERI_
Add to Favorite / Delete from Favorite
Set channels you watch frequently as Favorites.
1. Select a channel and press the TOOLS button.
2. Add or delete a channel using the Add to Favorite or
Delete from Favorite menu respectively,
m {_ All Channels: Shows all currently available channels.
m _ Added Channels: Shows all added channels.
m _ Favorite: Shows all favorite channels.
m _ Programmed: Shows all currently reserved
programs.
Using the color buttons with the Channel List
* D Red (Antenna): Switches to Air or Cable.
* ,_ Green (Zoom): Enlarges or shrinks a channel
number,
* Yellow (Select): Selects multiple channel lists,
Select desired channels and press the Yellow button
to set all the selected channels at the same time. The
_/ mark appears to the left of the selected channels.
* 0 (Page): Move to next or previous page,
* _-_ (Tools): Displays the Channel List option menu
(The options menus may differ depending on the
situation,).
Channel Status Display icons
_/ A channel selected.
V A channel set as a Favorite.
(_) A reserved Program.
To show all Favorite channels, click on the
button shown on the right.
Memorizing Channels
(_ MENUITTI --_ Channel _ ENTERI_
Antenna (Air / Cable) _ ..........................................................................................
Before your television can begin memorizing the available
channels, you must specify the type of signal source that is
connected to the TV (i.e. an Air or a Cable system).
Auto Program
m Air: Air antenna signal.
m Cable: Cable antenna signal.
m Auto: Air and Cable antenna,
NOTE
* When selecting the Cable TV system: STD, HRC
and IRC identify various types of cable TV systems.
Contact your local cable company to identify the
type of cable system that exists in your particular
area. At this point, the signal source has been
selected.
2 English
* Afteralltheavailablechannelsarestored,itstarts
toremovescrambledchannels.TheAutoprogram
menuthenreappears.
Editing Channels
(_ MENUiTrl _ Channel --_ Channel List --_ ENTERI_
Channel Name Edit
1. Select a channel and press the TOOLS button.
2. Edit the channel name using the Channel Name Edit
menu.
Ill Channel Name Edit (analog channels only): Assign your
own channel name.
Other Features
(_ MENUiTrl _ Channel _ ENTERI_
Clear Scrambled Channel
This function is used to filter out scrambled channels after
Auto Program is completed. This process may take up to
20-30 minutes.
How to Stop Searching Scrambled Channels
1. Press the ENTERIZ_ button to select Stop.
2. Press the _ button to select Yes.
3. Press the ENTERI_ button.
This function is only available in Cable mode.
Channel List
Channel List Option Menu
Set each channel using the Channel List menu options
(Add / Delete, Timer Viewing, Select All / Deselect All).
Option menu items may differ depending on the channel
status.
1. Select a channel and press the TOOLS button.
2. Select a function and change its settings.
Ill Add / Delete: Delete or add a channel to display the
channels you want.
NOTE
All deleted channels will be shown on the
All Channels menu.
A gray-colored channel indicates the channel
has been deleted.
The Add menu only appears for deleted
channels.
Delete a channel from the Added Channels or
Favorite menu in the same manner.
m
m
m
Timer Viewing: You can set a desired channel to be
displayed automatically at the reserved time. Set the
current time first to use this function.
1. Press the _ / _, / A / T buttons to select the
desired channel in Channel List,
2. Press the TOOLS button, then select
Timer Viewing.
3. Scroll up or down to adjust the settings in the box,
or use the numeric buttons on your remote to enter
the date and time.
If you selected Once, Every Week or
EveryDay in Repeat, you can enter the date
you want.
4. Select OK, then _ress the ENTERI_ button when
done.
NOTE
* Only memorized channels can be reserved.
* Reserved programs will be displayed in the
Programmed menu.
* When a digital channel is selected, press the _,
button to view the digital program.
Select All: Select all the channels in the channel list.
Deselect All: Deselect all the selected channels.
You can only select Deselect All when one or
more channels are selected.
¢ Programmed .......................................................................................................................................................................
(in Channel List)
You can view, modify or delete a show you have reserved
to watch. Programmed timer viewing is displayed here.
Highlight a program and press the TOOLS button to display
Options.
Ill Change mnfo:Change a show you have reserved to
watch. Begin with step 3 of "Timer Viewing," above.
Ill Cancel Schedules: Cancel a show you have reserved
to watch.
This deletes the highlighted or selected
program(s).
Ill Information: Display a show you have reserved to watch
(You can also change the reservation Information.).
Alternatively, you can view Information by
highlighting a program and pressing the
ENTERE_ button.
m Select All / Deselect All: Select or deselect all reserved
programs.
English 13
Basic Features
Fine Tune ......................................................................................................................................................................................................................
(analog channels only)
If the reception is clear,you do not have to fine tune the
channel, as this is done automatically during the search and
store operation. If the signal is weak or distorted, fine tune
the channel manually. Scroll to the left or right until the image
is clear.
Settings are applied to the channel you're currently
watching.
Fine tuned channels that have been saved are marked
with an asterisk .....on the right-hand side of the
channel number in the channel banner.
To reset the fine-tuning, select Reset.

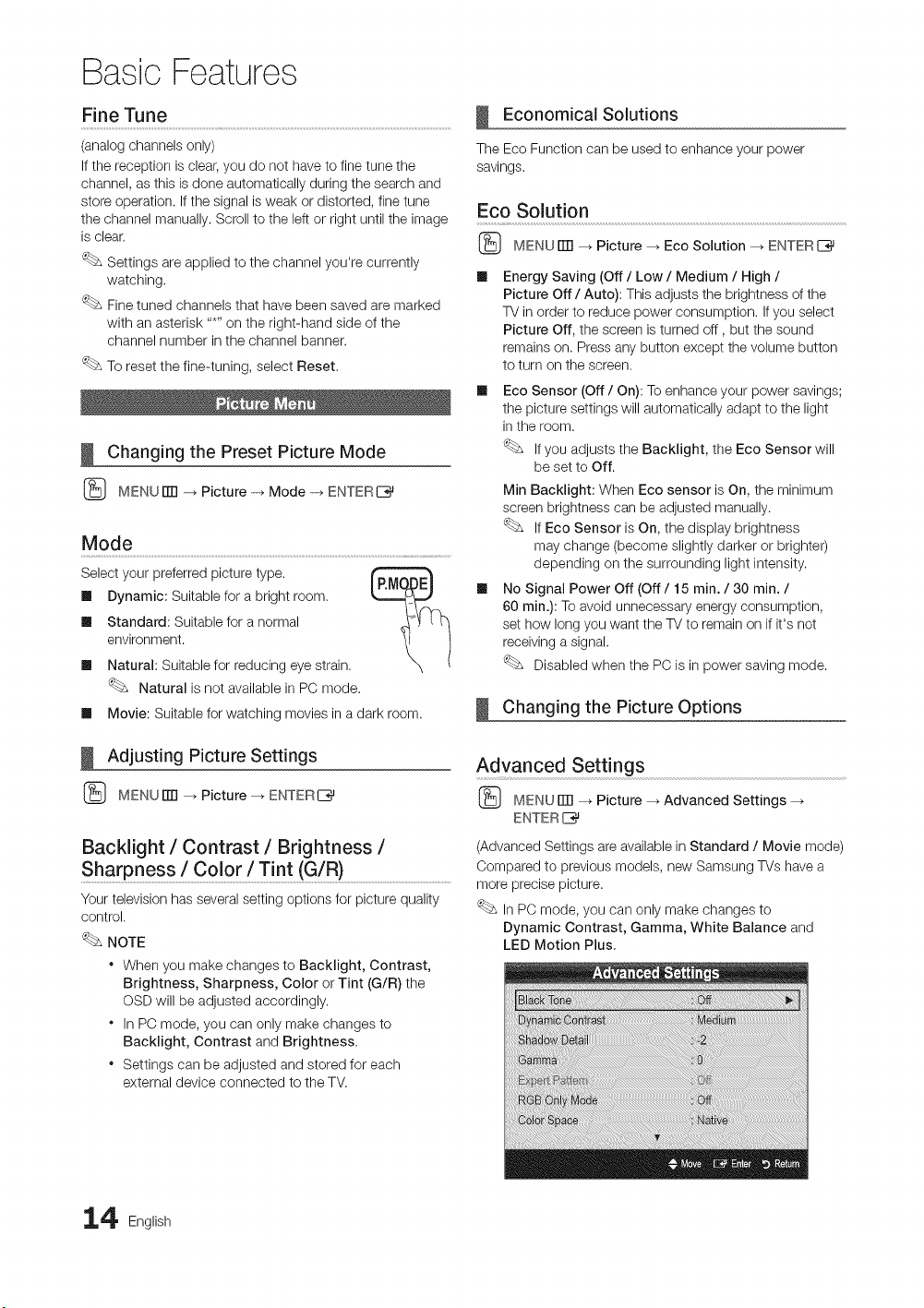

Changing the Preset Picture Mode
(_ MENUiTR -_ Picture -_ Mode -_ ENTERE_
Mode
Economical Solutions
The Eco Function can be used to enhance your power
savings.
Eco Solution
(_ MENU iTR --_ Picture _ Eco Solution --_ ENTER I_
m
m
Select your preferred picture type.
Ill Dynamic: Suitable for a bright room. _ Ill
Ill Standard: Suitable for a normal
environment.
Ill Natural: Suitable for reducing eye strain.
Natural is not available in PC mode.
Ill Movie: Suitable for watching movies in a dark room. !
Adjusting Picture Settings
(_ MENUiTrl _ Picture --_ ENTERI_
Energy Saving (Off / Low / Medium / High /
Picture Off / Auto): This adjusts the brightness of the
TV in order to reduce power consumption. If you select
Picture Off, the screen is turned off, but the sound
remains on. Press any button except the volume button
to turn on the screen.
Backlight / Contrast / Brightness /
Sharpness / Color / Tint (G/R)
Your television has several setting options for picture quality
control.
NOTE
" When you make changes to Backlight, Contrast,
Brightness, Sharpness, Color or Tint (G/R) the
OSD will be adjusted accordingly.
In PC mode, you can only make changes to
BacMight, Contrast and Brightness.
Settings can be adjusted and stored for each
external device connected to the TV.
Eco Sensor (Off / On): To enhance your power savings;
the picture settings will automatically adapt to the light
in the room.
If you adjusts the Backlight, the Eco Sensor will
be set to Off.
Min Backlight: When Eco sensor is On, the minimum
screen brightness can be adjusted manually.
If Eco Sensor is On, the display brightness
may change (become slightly darker or brighter)
depending on the surrounding light intensity.
No Signal Power Off (Off/15 rain./30 rain./
60 rain.): To avoid unnecessary energy consumption,
set how long you want the TV to remain on if it's not
receiving a signal.
Disabled when the PC is in power saving mode.
Changing the Picture Options
Advanced Settings
(_ MENU iTR --_ Picture _ Advanced Settings --_
ENTER I_
(Advanced Settings are available in Standard / Movie mode)
Compared to previous models, new Samsung TVs have a
more precise picture.
In PC mode, you can only make changes to
Dynamic Contrast, Gamma, White Balance and
LED Motion Plus,
4 English
m
m
m
m
m

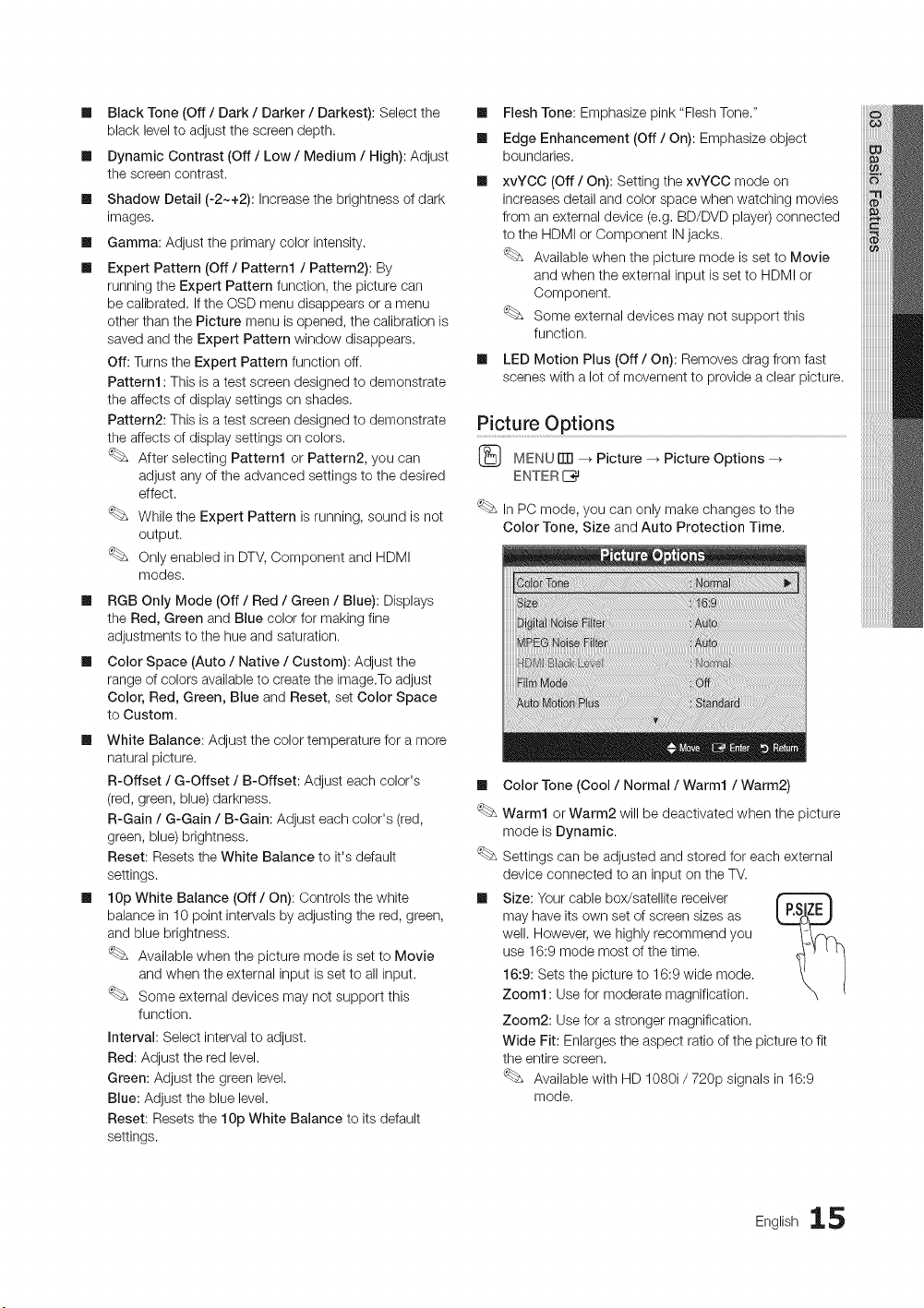

BlackTone(Off/ Dark / Darker / Darkest): Select the
black levelto adjust the screen depth.
Dynamic Contrast (Off/Low/Medium / High): Adjust
the screen contrast,
Shadow Detail (-2-+2): Increase the brightness of dark
images,
Gamma: Adjust the primary color intensity.
Expert Pattern (Off / Pattern1 / Pattern2): By
running the Expert Pattern function, the picture can
be calibrated. If the OSD menu disappears or a menu
other than the Picture menu is opened, the calibration is
saved and the Expert Pattern window disappears.
Off: Turns the Expert Pattern function off.
Pattern1 : This is a test screen designed to demonstrate
the affects of display settings on shades.
Pattern2: This is a test screen designed to demonstrate
the affects of display settings on colors,
After selecting Pattern1 or Pattern2, you can
adjust any of the advanced settings to the desired
effect.
While the Expert Pattern is running, sound is not
output.
Only enabled in DTV, Component and HDMI
modes.
Ill RGB Only Mode (Off / Red / Green / Blue): Displays
the Red, Green and Blue color for making fine
adjustments to the hue and saturation.
Ill Color Space (Auto / Native / Custom): Adjust the
range of colors available to create the image,To adjust
Color, Red, Green, Blue and Reset, set Color Space
to Custom.
White Balance: Adjust the color temperature for a more
natural picture.
R-Offset / G-Offset / B-Offset: Adjust each color's
(red, green, blue) darkness,
R-Gain / G-Gain / B-Gain: Adjust each color's (red,
green, blue) brightness.
Reset: Resets the White Balance to it's default
settings.
10p White Balance (Off / On): Controls the white
balance in 10 point intervals by adjusting the red, green,
and blue brightness.
Available when the picture mode is set to Movie
and when the external input is set to all input.
Some external devices may not support this
function.
Interval: Select interval to adjust.
Red: Adjust the red level.
Green: Adjust the green level.
Blue: Adjust the blue level,
Reset: Resets the 10p White Balance to its default
settings.
Ill Flesh Tone: Emphasize pink "Flesh Tone."
Ill Edge Enhancement (Off / On): Emphasize object
boundaries,
m
m
xvYCC (Off / On): Setting the xvYCC mode on
increases detail and color space when watching movies
from an external device (e.g, BD/DVD player) connected
to the HDMI or Component IN jacks.
Available when the picture mode is set to Movie
and when the external input is set to HDMI or
Component.
Some external devices may not support this
function,
LED Motion Plus (Off / On): Removes drag from fast
scenes with a lot of movement to provide a clear picture.
Picture Options
(_ MENU iTR --_ Picture _ Picture Options --_
ENTER I_
In PC mode, you can only make changes to the
Color Tone, Size and Auto Protection Time.
Ill Color Tone (Cool / Normal / Warm1 / Warm2)
Warm1 or Warm2 will be deactivated when the picture
mode is Dynamic.
Settings can be adjusted and stored for each external
device connected to an input on the TV.
m Size: Your cable box/satellite receiver
may have its own set of screen sizes as
well. However, we highly recommend you
use 16:9 mode most of the time,
16:9: Sets the picture to 16:9 wide mode.
Zoom1: Use for moderate magnification.
Zoom2: Use for a stronger magnification.
Wide Fit: Enlarges the aspect ratio of the picture to fit
the entire screen.
Available with HD 1080i / 720p signals in 16:9
mode.
English 15
Basic Features
4:3: Sets the picture to basic (4:3) mode.
Do not watch in 4:3 format for a long time. Traces
of borders displayed on the left, right and center
of the screen may cause image retention (screen
burn) which are not covered by the warranty.
Screen Fit: Displays the full image without any cut-off
when HDMI (720p / 1080i / 1080p) or Component
(1080i / 1080p) signals are inputted.
NOTE
" After selecting Zoom1, Zoom2 or Wide Fit:
1. Press the !_ button to select Position.
2. Press the ENTERE_ button.
3. Press the A or T button to move the picture up
or down.
4. Press the ENTER_ button.
5. Press the _ button to select Reset.
6. Press the ENTERC_ button to reset the picture
to its default position.
After selecting Screen Fit in HDMI (1080i/1080p) or
Component (1080i/1080p) mode, you may need to
center the picture:
1. Press the _ or _ button to select Position.
2. Press the ENTER_ button.
3. Press the A, _, _ or _, button to move the
picture.
4. Press the ENTERE_ button,
5. Press the _ or _ button to select Reset,
6. Press the ENTER_ button.
* HD (High Definition): 16:9 - 1080i/1080p (1920x1080),
720p (1280x720)
* Settings can be adjusted and stored for each
external device you have connected to an input on
the TV.
ATV,AV, 16:9, Zoom1,
Component (480i, 480p) Zoom2, 4:3
DTV(1080i), 16:9, 4:3, Wide Fit,
Component (1080i, 1080p), Screen Fit
HDMI (720p, 1080i, 1080p)
PC 16:9, 4:3
Digital Noise Filter (Off / Low / Medium / High / Auto
/ Auto Visualization ): If the broadcast signal received
by your TV is weak, you can activate the
Digital Noise Filter feature to reduce any static and
ghosting that may appear on the screen.
When the signal is weak, try other options until the
best picture is displayed.
Auto Visualization : When changing analog channels,
displays signal strength.
Only available for analog channels.
When bar is green, is that the best possible signal.
_1 MPEG Noise Filter (Off / Low / Medium / High /
Auto): Reduces MPEG noise to provide improved
picture quality.
_1 HDMI Black Level (Normal / Low): Selects the black
level on the screen to adjust the screen depth.
Available only in HDMI mode.
_1 Film Mode (Off/Auto1/Auto2): Sets the TV to
automatically sense and process film signals from all
sources and adjusts the picture for optimum quality.
Available in TV, AV, COMPONENT (480i/1080i)
and HDMI (480i/1080i).
_1 Auto Motion Plus (Off / Clear / Standard / Smooth /
Custom / Demo): Removes drag from fast scenes with
a lot of movement to provide a clearer picture.
If noise occurs on the screen, please set the
Auto Motion Plus to Off. If Auto Motion Plus is
Custom, you can set the Blur Reduction,
Judder Reduction or Reset manually.
If Auto Motion Plus is Demo, you can compare
the difference between on and off modes.
Blur Reduction: Adjusts the blur reduction level from
video sources.
Judder Reduction: Adjusts the judder reduction level
from video sources when playing films.
Reset: Reset the custom settings.
II Auto Protection Time (2 hours / 4 hours / 8 hours
/ 10 hours / Off): Set the time the screen remains idle
with a still image until the screen saver is activated. The
screen saver prevents the formation of ghost images on
the screen.
Picture Reset (OK / Cancel)
Resets your current picture mode to its default settings.
Setting up the TV with Your PC
Set the input source to PC.
(_ MENUrlTI --_ Picture _ ENTER[_
Auto Adjustment
Adjust frequency values/positions and fine tune the settings
automatically.
Not available when connecting with an HDMI/DVI cable.
6 English

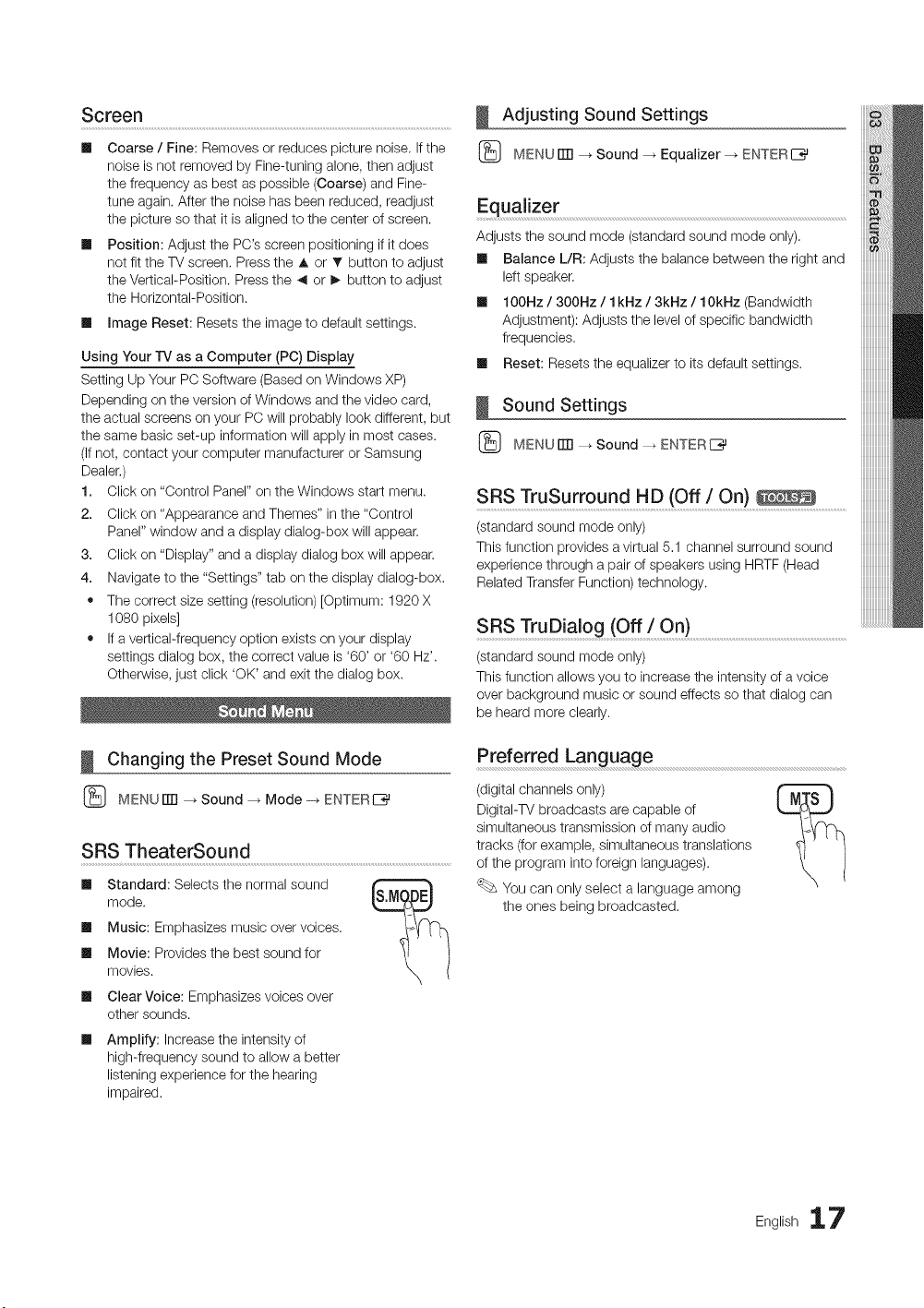

Screen .........................................................................................................................................................................................................................................
Ill Coarse / Fine: Removes or reduces picture noise, If the
noise is not removed by Fine-tuning alone, then adjust
the frequency as best as possible [Coarse) and Fine-
tune again, After the noise has been reduced, readjust
the picture so that it is aligned to the center of screen.
Ill Position: Adjust the PC's screen positioning if it does
not fit the TV screen, Press the A or T button to adjust
the Vertical-Position. Press the 41 or I_ button to adjust
the Horizontal-Position.
Ill Image Reset: Resets the image to default settings.
Using Your IV as a Computer (PC) Display
Setting Up Your PC Software [Based on Windows XP)
Depending on the version of Windows and the video card,
the actual screens on your PC will probably look different, but
the same basic set-up information will apply in most cases.
(Ifnot, contact your computer manufacturer or Samsung
Dealer.)
1. Click on "Control Panel" on the Windows start menu.
2. Click on "Appearance and Themes" in the "Control
Panel" window and a display dialog-box will appear.
3. Click on "Display" and a display dialog box will appear.
4. Navigate to the "Settings" tab on the display dialog-box.
• The correct size setting (resolution) [Optimum: 1920 X
1080 pixels]
• If a vertical-frequency option exists on your display
settings dialog box, the correct value is '60' or '60 Hz'.
Otherwise, just click 'OK' and exit the dialog box.
Changing the Preset Sound Mode
MENU[[]] _ Sound _ Mode -_ ENTER E_
SRS TheaterSound
Ill Standard: Selects the normal sound
mode.
Ill Music: Emphasizes music over voices.
Ill Movie: Provides the best sound for
movies.
Ill Clear Voice: Emphasizes voices over
other sounds.
Amplify: Increase the intensity of
high-frequency sound to allow a better
listening experience for the hearing
impaired.
Adjusting Sound Settings
MENU ITTI--_ Sound _ Equalizer _ ENTERE_
Equalizer
Adjusts the sound mode (standard sound mode only).
Ill Balance L/R: Adjusts the balance between the right and
left speaker.
Ill 100Hz / 300Hz / lkHz / 3kHz / 10kHz (Bandwidth
Adjustment): Adjusts the level of specific bandwidth
frequencies.
Ill Reset: Resets the equalizer to its default settings.
Sound Settings
MENU ITTI--_ Sound _ ENTERI_
SRS TruSurround HD (Off / On)
(standard sound mode only)
This function provides a virtual 5.1 channel surround sound
experience through a pair of speakers using HRTF (Head
Related Transfer Function) technology.
SRSTru D!alo g(Off/On) ......................................................................................................................
(standard sound mode only)
This function allows you to increase the intensity of a voice
over background music or sound effects so that dialog can
be heard more clearly.
Preferred Language
(digital channels only)
DigitaI-TV broadcasts are capable of
simultaneous transmission of many audio
tracks (for example, simultaneous translations
of the program into foreign languages).
You can only select a language among
the ones being broadcasted.
English 17

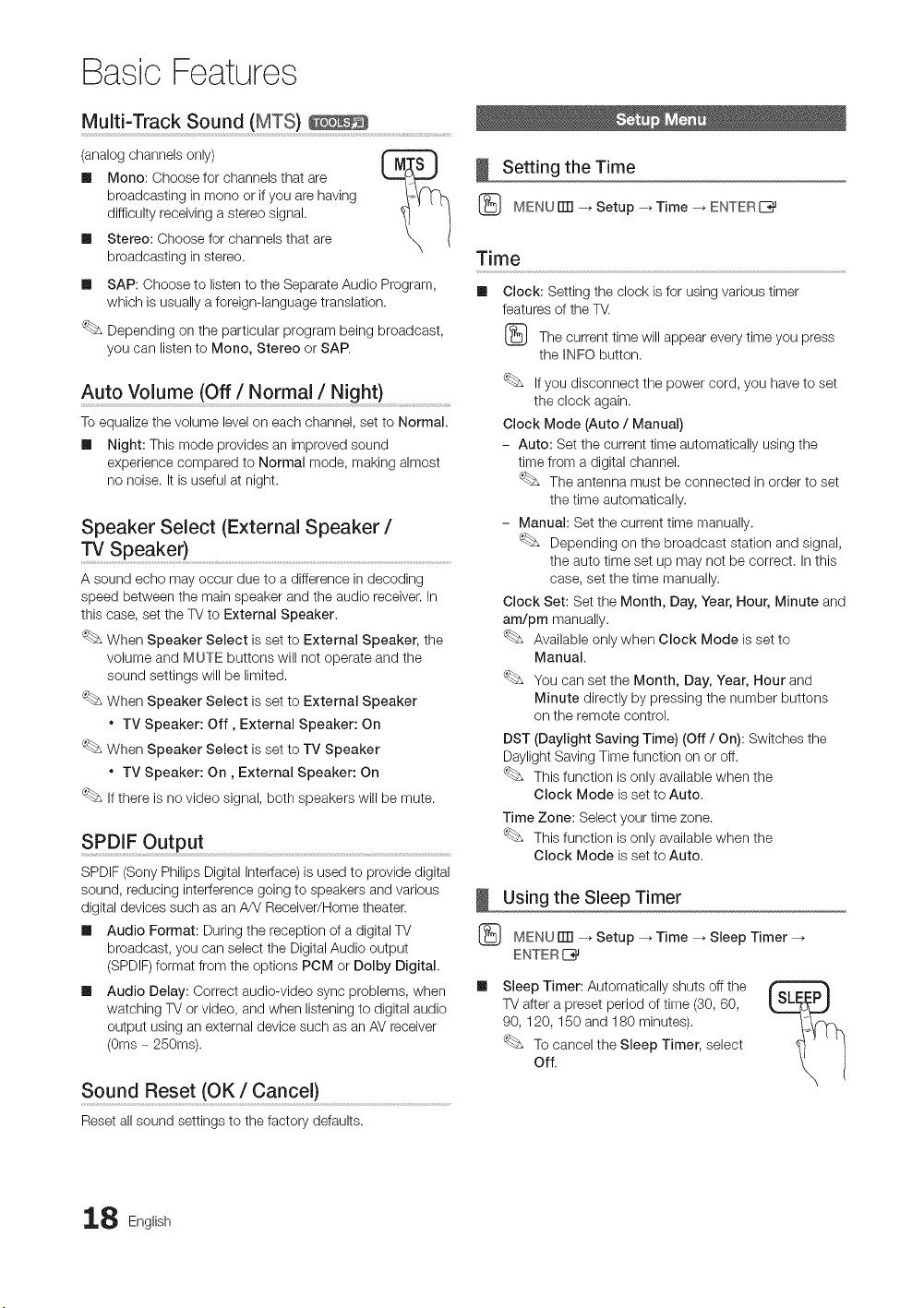

Basic Features
Multi-Track Sound (MTS)
(analog channels only)
Ill Mono: Choose for channels that are
broadcasting in mono or if you are having
difficulty receiving a stereo signal.
Ill Stereo: Choose for channels that are
broadcasting in stereo.
Ill SAP: Choose to listen to the Separate Audio Program,
which is usually a foreign-language translation.
Depending on the particular program being broadcast,
you can listen to Mono, Stereo or SAP.
Auto Volume (Off / Normal / Night)
To equalize the volume level on each channel, set to Normal.
Ill Night: This mode provides an improved sound
experience compared to Normal mode, making almost
no noise. It is useful at night.
Speaker Select (External Speaker /
W Speaker} ...................................................................................................................................................................................................
A sound echo may occur due to a difference in decoding
speed between the main speaker and the audio receiver. In
this case, set the TV to External Speaker.
When Speaker Select is set to External Speaker, the
volume and MUTE buttons will not operate and the
sound settings will be limited.
When Speaker Select is set to External Speaker
* TV Speaker: Off, External Speaker: On
When Speaker Select is set to TV Speaker
* TV Speaker: On, External Speaker: On
If there is no video signal, both speakers will be mute.
SPDIF Output
SPDIF (Sony Philips Digital Interface) is used to provide digital
sound, reducing interference going to speakers and various
digital devices such as an A/V Receiver/Home theater.
Ill Audio Format: During the reception of a digital TV
broadcast, you can select the Digital Audio output
(SPDIF)format from the options PCM or Dolby Digital.
Ill Audio Delay: Correct audio-video sync problems, when
watching TV or video, and when listening to digital audio
output using an external device such as an AV receiver
(0ms - 250ms).
S0und Reset (OK! C anceO ....................................................................................................
Reset all sound settings to the factory defaults.
Setting the Time
{_ MENUrlTI -_ Setup -_ Time -_ ENTERE_
Time
m
Clock: Setting the clock is for using various timer
features of the TV.
{_ The current time will appear every time you press
the _NFO button.
If you disconnect the power cord, you have to set
the clock again.
Clock Mode (Auto / Manual)
- Auto: Set the current time automatically using the
time from a digital channel.
The antenna must be connected in order to set
the time automatically.
- Manual: Set the current time manually.
Depending on the broadcast station and signal,
the auto time set up may not be correct. In this
case, set the time manually.
Clock Set: Set the Month, Day, Year, Hour, Minute and
am/pm manually.
Available only when Clock Mode is set to
Manual.
You can set the Month, Day, Year, Hour and
Minute directly by pressing the number buttons
on the remote control.
DST (Daylight Saving Time) (Off / On): Switches the
Daylight Saving Time function on or off.
This function is only available when the
Clock Mode is set to Auto.
Time Zone: Select your time zone.
This function is only available when the
Clock Mode is set to Auto.
Using the Sleep Timer
(_ MENUiTFI --_ Setup _ Time _ Sleep Timer --_
ENTER E_
m
Sleep Timer: Automatically shuts off the
TV after a preset period of time (30, 60,
90, 120, 150 and 180 minutes).
To cancel the Sleep Timer, select
Off.
8 English

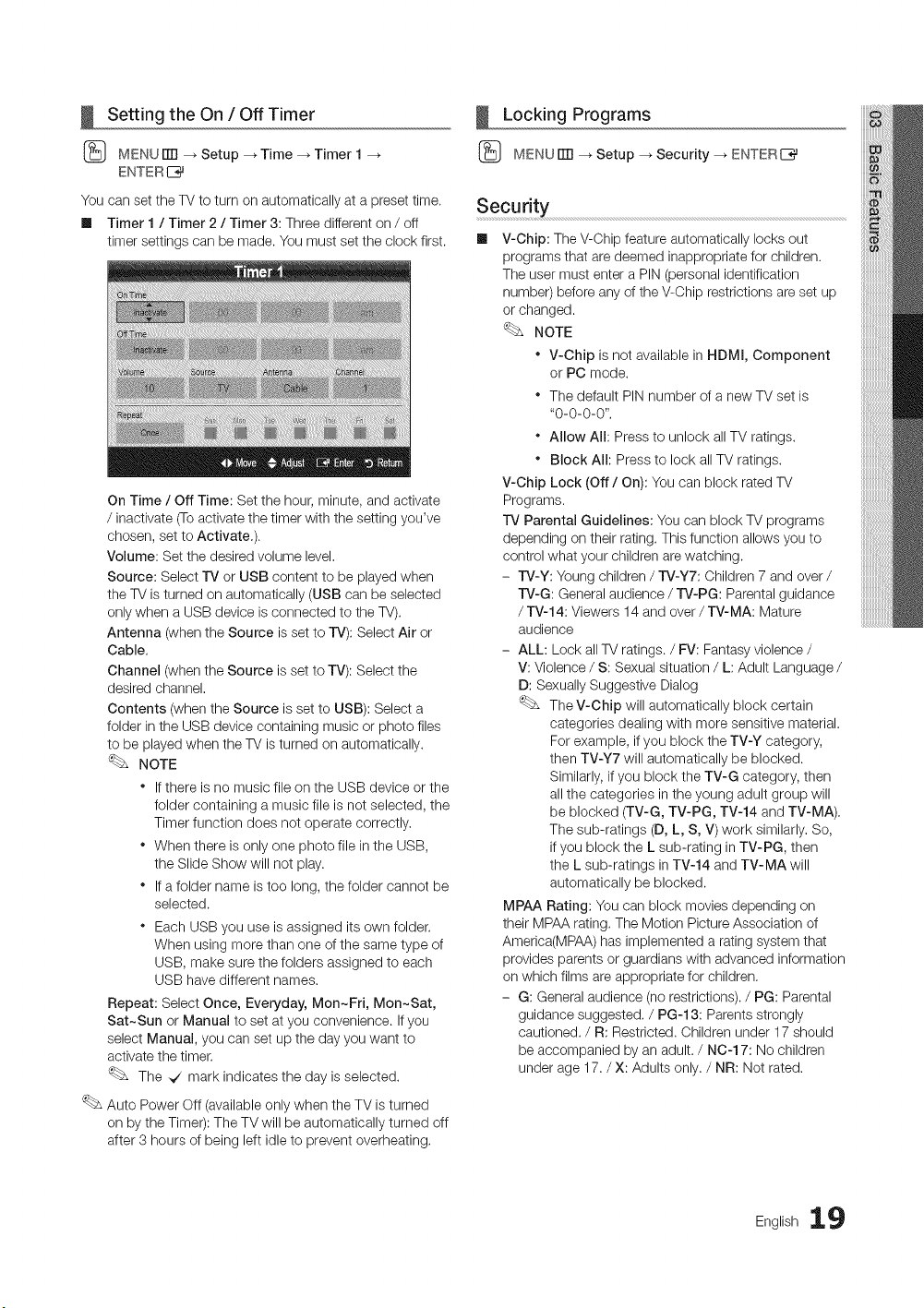

Setting the On / Off Timer
(_ MENU FITI_ Setup _ Time _ Timer 1
ENTER {_
You can set the TV to turn on automatically at a preset time.
m Timer 1 / Timer 2 / Timer 3: Three different on / off
timer settings can be made. You must set the clock first.
On Time / Off Time: Set the hour, minute, and activate
/ inactivate (To activate the timer with the setting you've
chosen, set to Activate.).
Volume: Set the desired volume level.
Source: Select IV or USB content to be played when
the TV is turned on automatically (USB can be selected
only when a USB device is connected to the TV).
Antenna (when the Source is set to rv): Select Air or
Cable.
Channel (when the Source is set to TV): Select the
desired channel.
Contents (when the Source is set to USB): Select a
folder in the USB device containing music or photo files
to be played when the TV is turned on automatically.
NOTE
If there is no music file on the USB device or the
folder containing a music file is not selected, the
Timer function does not operate correctly.
* When there is only one photo file in the USB,
the Slide Show will not play.
* If a folder name is too long, the folder cannot be
selected.
* Each USB you use is assigned its own folder.
When using more than one of the same type of
USB, make sure the folders assigned to each
USB have different names.
Repeat: Select Once, Everyday, Mon~Fri, Mort~Sat,
Sat~Sun or Manual to set at you convenience. If you
select Manual, you can set up the day you want to
activate the timer.
The _/mark indicates the day is selected.
Auto Power Off (available only when the TV is turned
on by the Timer): The TV will be automatically turned off
after 3 hours of being left idle to prevent overheating.
Locking Programs
(_ MENUiTrl --_ Setup _ Security _ ENTERE_
Security
Ill V-Chip: The V-Chip feature automatically locks out
programs that are deemed inappropriate for children.
The user must enter a PIN (personal identification
number) before any of the V-Chip restrictions are set up
or changed.
NOTE
* V-Chip is not available in HDMI, Component
or PC mode.
* The default PIN number of a new TV set is
"0-0-0-0".
" Allow All: Press to unlock all TV ratings.
" Block All: Press to lock all TV ratings.
V-Chip Lock (Off/On): You can block rated TV
Programs.
IV Parental Guidelines: You can block TV programs
depending on their rating. This function allows you to
control what your children are watching.
- TV-Y: Young children / TV-Y7: Children 7 and over /
rV-G: General audience / rV-PG: Parental guidance
/ TV-14: Viewers 14 and over / TV-MA: Mature
audience
- ALL: Lock all TV ratings. / FV: Fantasy violence /
V: Violence / S: Sexual situation / L: Adult Language /
D: Sexually Suggestive Dialog
The V-Chip will automatically block certain
categories dealing with more sensitive material.
For example, if you block the TV-Y category,
then TV-Y7 will automatically be blocked.
Similarly, if you block the TV-G category, then
all the categories in the young adult group will
be blocked (TV-G, TV-PG, TV-14 and TV-MA).
The sub-ratings (D, L, S, V) work similarly. So,
if you block the L sub-rating in TV-PG, then
the L sub-ratings in TV-14 and TV-MA will
automatically be blocked.
MPAA Rating: You can block movies depending on
their MPAA rating. The Motion Picture Association of
America(MPAA) has implemented a rating system that
provides parents or guardians with advanced information
on which films are appropriate for children.
- G: General audience (no restrictions). / PG: Parental
guidance suggested. / PG-13: Parents strongly
cautioned. / R: Restricted. Children under 17 should
be accompanied by an adult. / NO-17: No children
under age 17. / X: Adults only. / NR: Not rated.
English 19

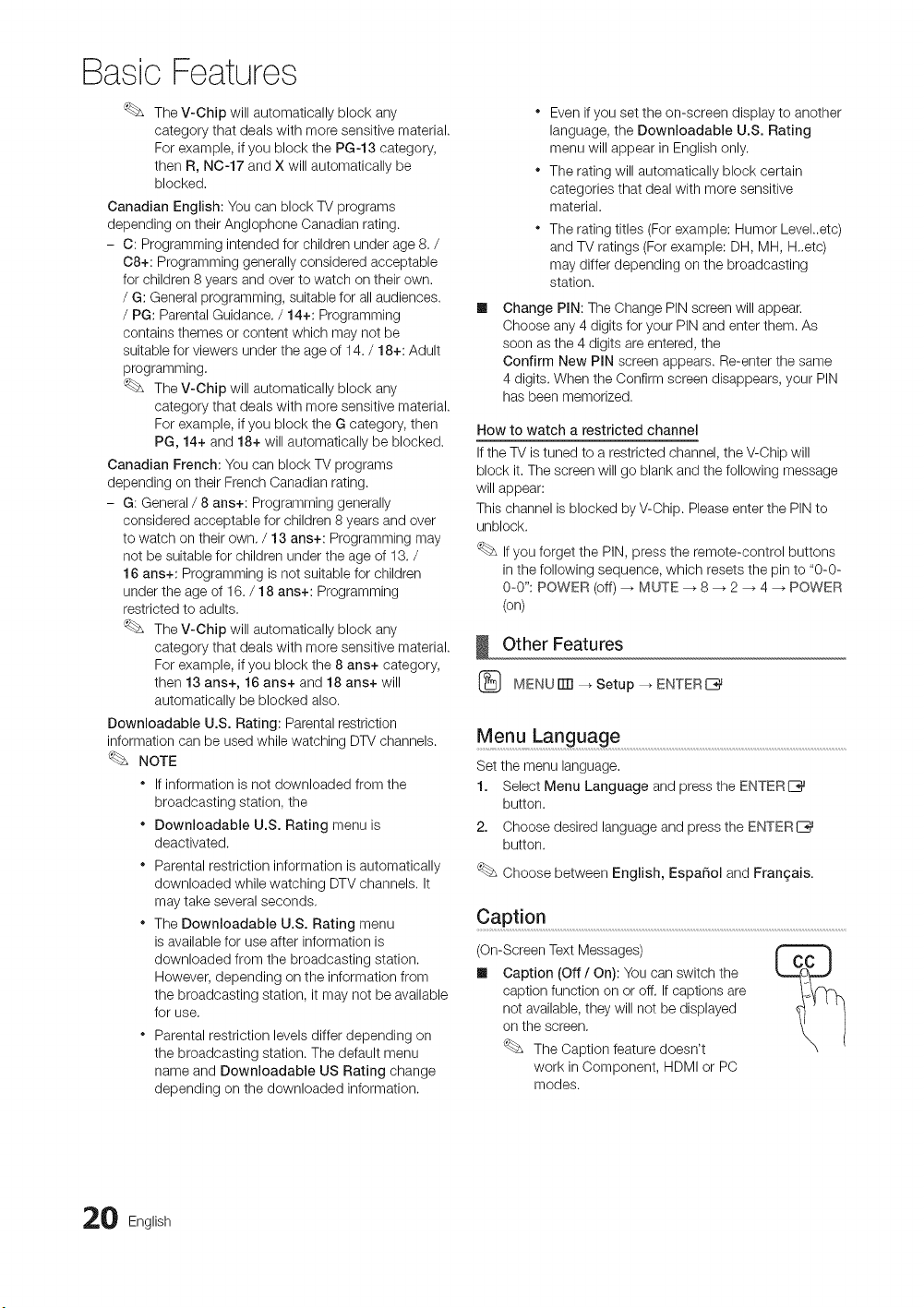

Basic Features
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the PC-13 category,
then R, N0-17 and X will automatically be
blocked.
Canadian English: You can block TV programs
depending on their Anglophone Canadian rating.
- C: Programming intended for children under age 8. /
08+: Programming generally considered acceptable
for children 8 years and over to watch on their own.
/ G: General programming, suitable for all audiences.
/ PC: Parental Guidance. / 14+: Programming
contains themes or content which may not be
suitable for viewers under the age of 14. / 18+: Adult
programming.
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the G category, then
PC, 14+ and 18+ will automatically be blocked.
Canadian French: You can block TV programs
depending on their French Canadian rating.
- G: General / 8 ans+: Programming generally
considered acceptable for children 8 years and over
to watch on their own. / 13 ans+: Programming may
not be suitable for children under the age of 13. /
16 arts+: Programming is not suitable for children
under the age of 16. / 18 arts+: Programming
restricted to adults.
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the 8 arts+ category,
then 13 ans+, 16 arts+ and 18 arts+ will
automatically be blocked also.
Downloadable U.S. Rating: Parental restriction
information can be used while watching DTV channels.
NOTE
If information is not downloaded from the
broadcasting station, the
Downloadable U.S. Rating menu is
deactivated.
Parental restriction information is automatically
downloaded while watching DTV channels. It
may take several seconds,
The Downloadable U.S. Rating menu
is available for use after information is
downloaded from the broadcasting station.
However, depending on the information from
the broadcasting station, it may not be available
for use,
Parental restriction levels differ depending on
the broadcasting station. The default menu
name and Downloadable US Rating change
depending on the downloaded information.
m
* Even if you set the on-screen display to another
language, the Downloadable U.S. Rating
menu will appear in English only.
* The rating will automatically block certain
categories that deal with more sensitive
material.
* The rating titles (For example: Humor Level..etc)
and TV ratings (For example: DH, MH, H..etc)
may differ depending on the broadcasting
station.
Change PIN: The Change PIN screen will appear.
Choose any 4 digits for your PIN and enter them. As
soon as the 4 digits are entered, the
Confirm New PIN screen appears. Re-enter the same
4 digits. When the Confirm screen disappears, your PIN
has been memorized.
How to watch a restricted channel
If the TV is tuned to a restricted channel, the V-Chip will
block it. The screen will go blank and the following message
will appear:
This channel is blocked by V-Chip. Please enter the PIN to
unblock.
If you forget the PIN, press the remote-control buttons
in the following sequence, which resets the pin to "0-0-
0-0": POWER (off) _ MUTE --_ 8 --_ 2 --_ 4 --_ POWER
(on)
Other Features
[_ MENUITTI --_ Setup _ ENTERE_
Menu Language ...........................................................................................................................................................................
Set the menu language.
1. Select Menu Language and press the ENTERI_
button.
2. Choose desired language and press the ENTERI_
button.
Choose between English, Espa_ol and Fran_ais.
Caption ...................................................................................................................................................................................................................................
(On-Screen Text Messages)
m Caption (Off / On): You can switch the
caption function on or off. If captions are
not available, they will not be displayed
on the screen.
The Caption feature doesn't
work in Component, HDMI or PC
modes.
0 English

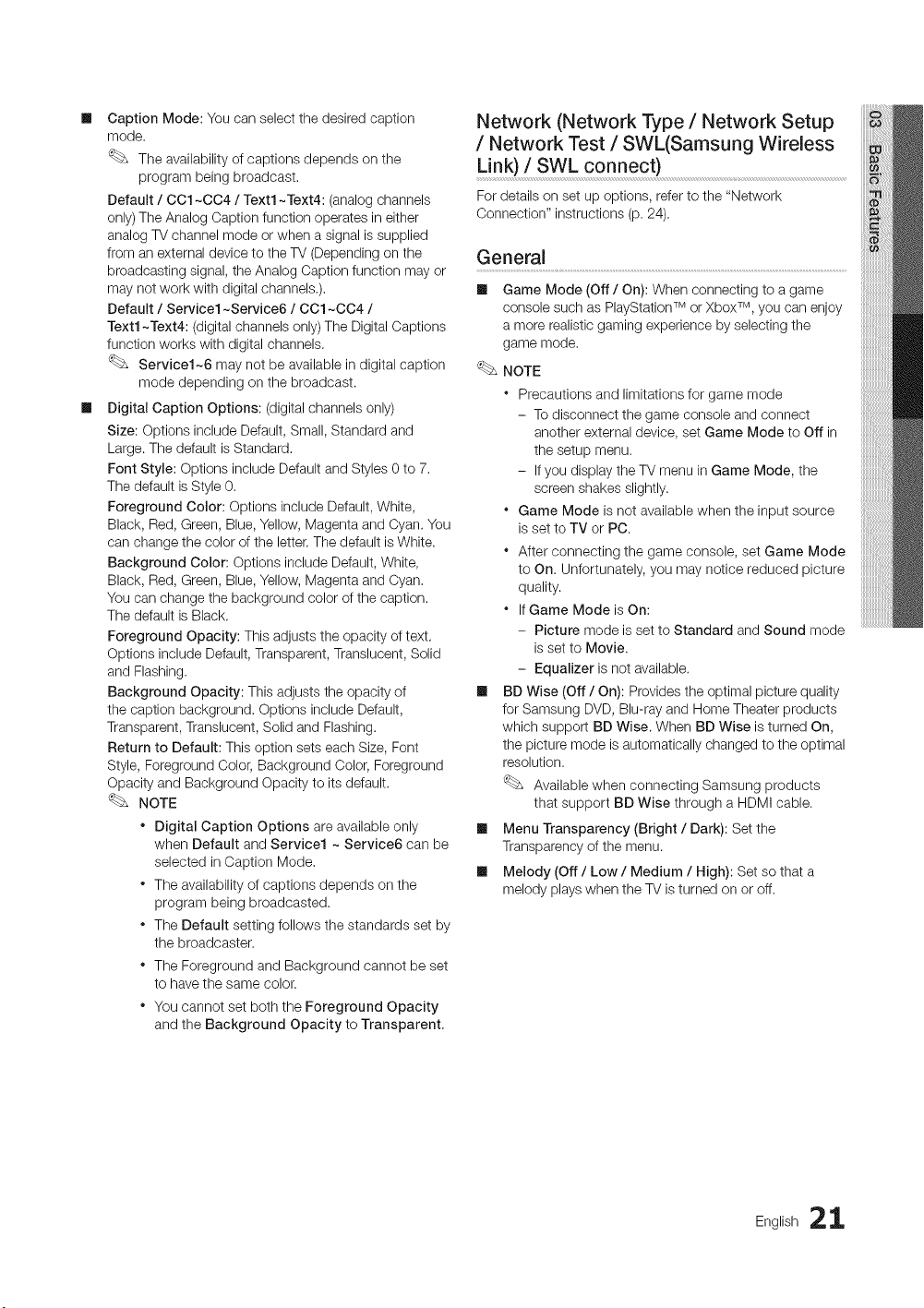

CaptionMode:Youcanselectthedesiredcaption
mode.
Theavailabilityofcaptionsdependsonthe
programbeingbroadcast.
Default/ OO1-004 / Text1 ~Text4: (analog channels
only) The Analog Caption function operates in either
analog TV channel mode or when a signal is supplied
from an external device to the TV (Depending on the
broadcasting signal, the Analog Caption function may or
may not work with digital channels,).
Default / Service1 ~Service6 / OO1~OO4 /
Text1 ~Text4: (digital channels only) The Digital Captions
function works with digital channels,
Service1~6 may not be available in digital caption
mode depending on the broadcast.
Digital Caption Options: (digital channels only)
Size: Options include Default, Small, Standard and
Large. The default is Standard.
Font Style: Options include Default and Styles 0 to 7.
The default is Style 0,
Foreground Color: Options include Default, White,
Black, Red, Green, Blue, Yellow, Magenta and Cyan. You
can change the color of the letter, The default is White.
Background Color: Options include Default, White,
Black, Red, Green, Blue, Yellow, Magenta and Cyan,
You can change the background color of the caption.
The default is Black,
Foreground Opacity: This adjusts the opacity of text.
Options include Default, Transparent, Translucent, Solid
and Flashing.
Background Opacity: This adjusts the opacity of
the caption background. Options include Default,
Transparent, Translucent, Solid and Flashing.
Return to Default: This option sets each Size, Font
Style, Foreground Color, Background Color, Foreground
Opacity and Background Opacity to its default.
NOTE
* Digital Caption Options are available only
when Default and Service1 ~ Service6 can be
selected in Caption Mode,
* The availability of captions depends on the
program being broadcasted.
* The Default setting follows the standards set by
the broadcaster.
* The Foreground and Background cannot be set
to have the same color.
* You cannot set both the Foreground Opacity
and the Background Opacity to Transparent,
Network (Network Type / Network Setup
/ Network Test / SWL(Samsung Wireless
Link) / SWL connect)
For details on set up options, refer to the "Network
Connection" instructions (p. 24).
General
Ill Game Mode (Off / On): When connecting to a game
console such as PlayStation TM or Xbox TM, you can enjoy
a more realistic gaming experience by selecting the
game mode.
NOTE
* Precautions and limitations for game mode
- To disconnect the game console and connect
another external device, set Game Mode to Off in
the setup menu.
- If you display the TV menu in Game Mode, the
screen shakes slightly.
* Game Mode is not available when the input source
is set to TV or PC.
* After connecting the game console, set Game Mode
to On. Unfortunately, you may notice reduced picture
quality.
* If Game Mode is On:
- Picture mode is set to Standard and Sound mode
is set to Movie.
- Equalizer is not available.
Ill BD Wise (Off / On): Provides the optimal picture quality
for Samsung DVD, Blu-ray and Home Theater products
which support BD Wise. When BD Wise is turned On,
the picture mode is automatically changed to the optimal
resolution.
Available when connecting Samsung products
that support BD Wise through a HDMI cable.
Ill Menu Transparency (Bright / Dark): Set the
Transparency of the menu.
Ill Melody (Off / Low / Medium / High): Set so that a
melody plays when the TV is turned on or off.
English 21
Basic Features
Picture (n Picture (PIP)
PIP
You can watch the TV tuner and one external video source
simultaneously, PIP (Picture-in-Picture) does not function in
the same mode.
(_ MENUiTrl _ Setup --_ PiP --_ ENTERI_
NOTE
" For PIP sound, refer to the Sound Select
instructions.
" If you turn the TV off while watching in PIP mode, the
PIP window will disappear.
" You may notice that the picture in the PIP window
becomes slightly unnatural when you use the main
screen to view a game or karaoke.
" While V-Chip is in operation, the PIP function cannot
be used.
" PIP Settings
re
Component, HDMI1/DVl, I
HDMI2, HDMI3, HDMI4, I rv
PC I
Ill PIP (Off / On): Activate or deactivate the PIP function.
m Air/Cable (Air / Cable): Select either Air or Cable as the
input source for the sub-screen.
Ill Channel: Select the channel for the sub-screen.
Ill Size ([_ / [_): Select a size for the sub-picture.
Ill Position ([_ / [Z_ / P_ / [_): Select a position for the
sub-picture.
Ill Sound Select (Main / Sub): You can choose the
desired sound (Main / Sub) in PIP mode.
(_ MENU rlTl --_ Support-_ ENTERE_
Lega ( Notice ...................................................................................................................................................................................................
The Legal Notice may differ depending on the country.
Self Diagnosis .......................................................................................................................................................................................
Self Diagnostic might take few seconds, this is part of
the normal operation of the TM
Ill Picture Test: Use to check for picture problems.
Yes: If the test pattern does not appear or there is
noise in the test pattern, select Yes. There may be a
problem with the T_. Contact Samsung's Call Center for
assistance (1-800-SAMSUNG).
No: If the test pattern is properly displayed, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device's user manual.
Ill Sound Test: Use the built-in melody sound to check for
sound problems.
If you hear no sound from the TV's speakers,
before performing the sound test, make sure
Speaker Select is set to TV Speaker in the
Sound menu.
The melody will be heard during the test even if
Speaker Select is set to External Speaker or the
sound is muted by pressing the MUTE button.
Yes: If you can hear sound only from one speaker or not
at all during the sound test, select Yes. There may be a
problem with the T_. Contact Samsung's Call Center for
assistance (1-800-SAMSUNG).
No: If you can hear sound from the speakers, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device's user manual.
Ill Signal information: (Digital channels only) An HD
channel's reception quality is either perfect or the
channels are unavailable. Adjust your antenna to
increase signal strength.
Ill Troubleshooting: If the TV seems to have a problem,
refer to this description.
If none of these troubleshooting tips apply, contact
the Samsung customer service center.
2 English

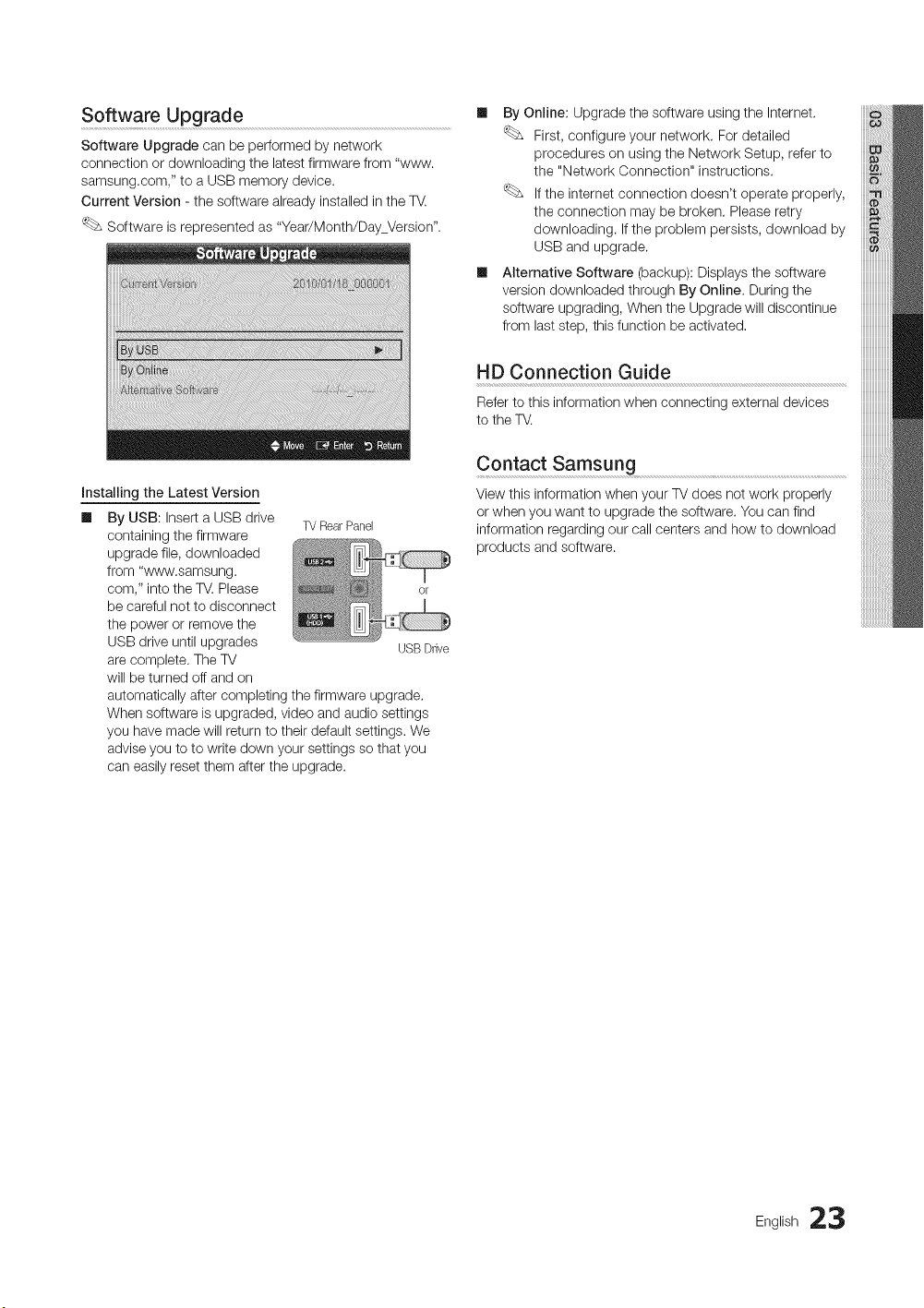

Software Upgrade
Software Upgrade can be performed by network
connection or downloading the latest firmware from "www.
samsung,com," to a USB memory device.
Current Version - the software already installed in the T_.
Software is represented as "Year/Month/DayVersion".
mnstalling the Latest Version
Ill By USB: Insert a USB drive
TV RearPanel
containing the firmware
upgrade file, downloaded
from "www,samsung.
corn," into the TV. Please
be careful not to disconnect
the power or remove the
USB drive until upgrades USBDrive
are complete, The TV
will be turned off and on
automatically after completing the firmware upgrade,
When software is upgraded, video and audio settings
you have made will return to their default settings. We
advise you to to write down your settings so that you
can easily reset them after the upgrade.
Ill By Online: Upgrade the software using the Internet.
First, configure your network, For detailed
procedures on using the Network Setup, refer to
the "Network Connection" instructions.
If the internet connection doesn't operate properly,
the connection may be broken, Please retry
downloading. If the problem persists, download by
USB and upgrade.
Ill Alternative Software (backup): Displays the software
version downloaded through By Online, During the
software upgrading, When the Upgrade will discontinue
from last step, this function be activated,
HD Connection Guide
Refer to this information when connecting external devices
to the TV.
Contact Samsung
View this information when your TV does not work properly
or when you want to upgrade the software. You can find
information regarding our call centers and how to download
products and software.
English 23

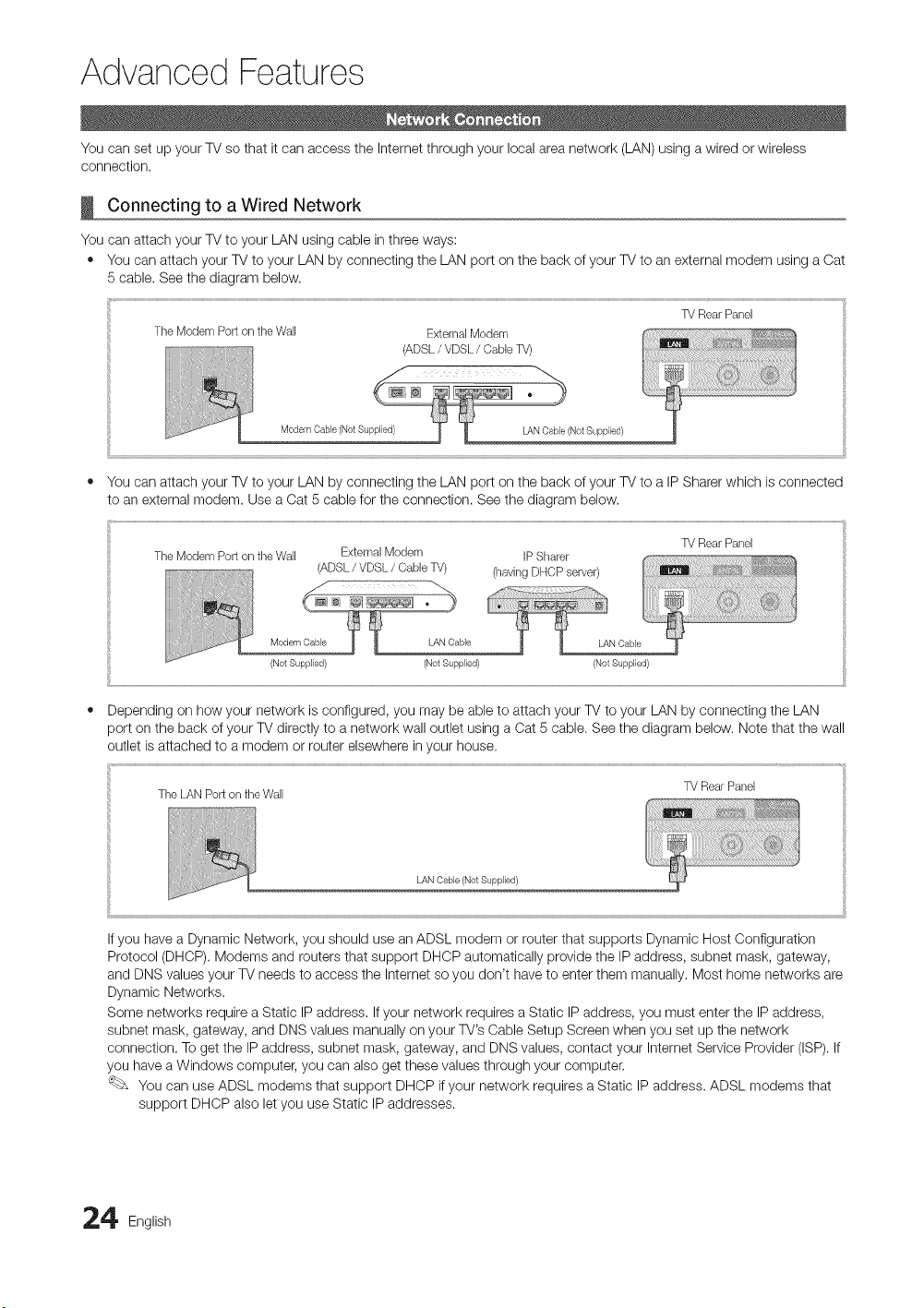

Advanced Features
You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless
connection.
Connecting to a Wired Network
You can attach your TV to your LAN using cable in three ways:
• You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat
5 cable. See the diagram below.
TV RearPanel
TheModemPorton theWall ExternalModem
(ADSL/ VDSL/ (}ableTV)
Modem Cable (Not Supp ed) _ _ _(Not Supplied)
J
6
• You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected
to an external modem. Use a Cat 5 cable for the connection. See the diagram below.
TheModemPorton theWall ExternalModem
IP Sharer
(having DHCP server)
{NotSupplied)
TV Rear Panel
_JJ
Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN
port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall
outlet is attached to a modem or router elsewhere in your house.
TVRearPanel
The LAN Port on the Wall
LAN Cable (Not Supplied)
If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration
Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway,
and DNS values your TV needs to access the Internet so you don't have to enter them manually. Most home networks are
Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address,
subnet mask, gateway, and DNS values manually on your TV's Cable Setup Screen when you set up the network
connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If
you have a Windows computer, you can also get these values through your computer.
You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that
support DHCP also let you use Static IP addresses.
4 English

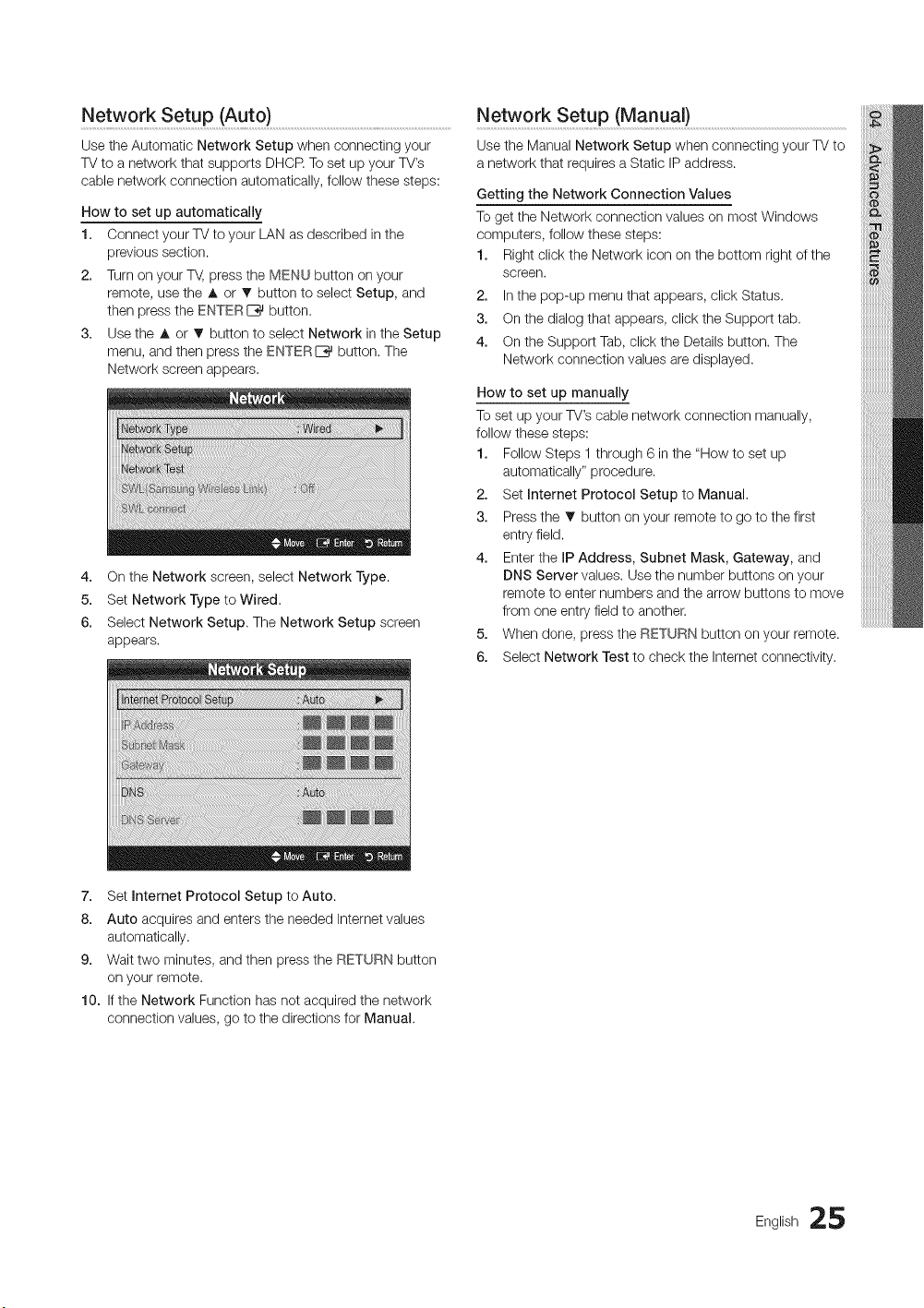

Network Setup (Auto) ........................................................................................................................................
Use the Automatic Network Setup when connecting your
TV to a network that supports DHCR To set up your TV's
cable network connection automatically, follow these steps:
How to set up automatically
1. Connect your TV to your LAN as described in the
previous section.
2. Turn on your T_, press the MENU button on your
remote, use the A or _' button to select Setup, and
then press the ENTERI_ button.
3. Use the A or • button to select Network in the Setup
menu, and then press the ENTERI_ button. The
Network screen appears.
4. On the Network screen, select Network Type.
5. Set Network Type to Wired.
6. Select Network Setup. The Network Setup screen
appears.
Network Setup (Manual) .................................
Use the Manual Network Setup when connecting your TV to
a network that requires a Static IP address.
Getting the Network Connection Values
To get the Network connection values on most Windows
computers, follow these steps:
1. Right click the Network icon on the bottom right of the
screen.
2. In the pop-up menu that appears, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support Tab, click the Details button. The
Network connection values are displayed.
How to set up manually
To set up your TV's cable network connection manually,
follow these steps:
1. Follow Steps 1 through 6 in the "How to set up
automatically" procedure.
2. Set Internet Protocol Setup to Manual,
3. Press the T button on your remote to go to the first
entry field.
4. Enter the IP Address, Subnet Mask, Gateway, and
DNS Server values. Use the number buttons on your
remote to enter numbers and the arrow buttons to move
from one entry field to another.
5. When done, press the RETURN button on your remote.
6. Select Network Test to check the Internet connectivity.
7. Set Intemet Protocol Setup to Auto.
8. Auto acquires and enters the needed Internet values
automatically.
9. Wait two minutes, and then press the RETURN button
on your remote.
10. If the Network Function has not acquired the network
connection values, go to the directions for Manual.
English 25
Advanced Features

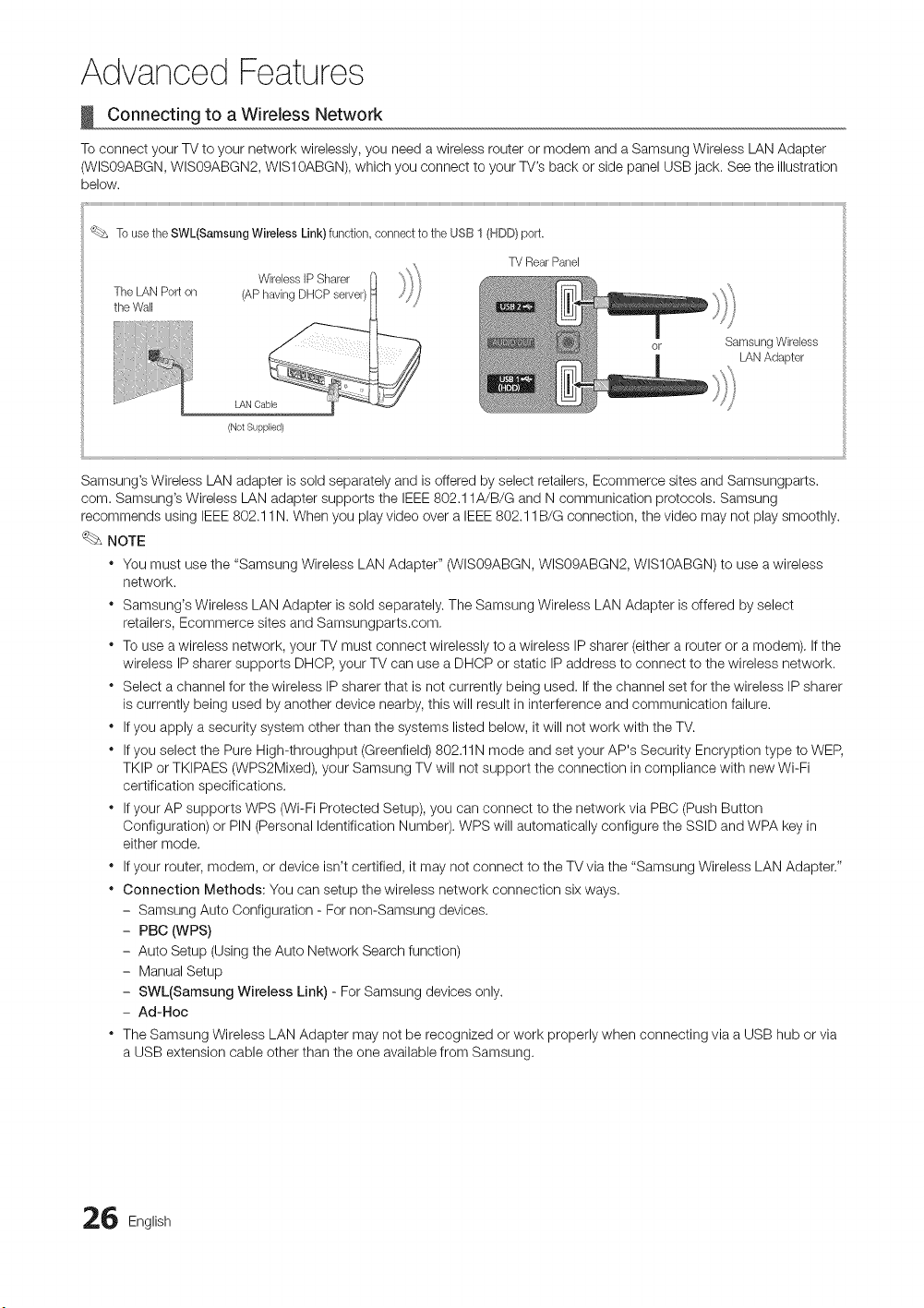

Connecting to a Wireless Network
To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter
(WIS09ABGN, WIS09ABGN2, WIS10ABGN), which you connect to your TV's back or side panel USB jack. See the illustration
below.
'(_ To use the SWL(Samsung Wireless Link} function, connect to the USB 1 (HDD} port,
TV Rear Panel
The LAN Port on
the Wall
Wireless IP Sharer
(AP having DHCP sewer)
Samsung Wireless
LAN Adapter
LAN Oable
(Not Supplied)
Samsung's Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts.
com. Samsung's Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung
recommends using IEEE 802.11N. When you play video over a IEEE 802.11B/G connection, the video may not play smoothly.
NOTE
* You must use the "Samsung Wireless LAN Adapter" (WIS09ABGN, WIS09ABGN2, WIS10ABGN) to use a wireless
network.
* Samsung's Wireless LAN Adapter is sold separately. The Samsung Wireless LAN Adapter is offered by select
retailers, Ecommerce sites and Samsungparts.com.
* To use a wireless network, your TV must connect wirelessly to a wireless IP sharer (either a router or a modem). If the
wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network.
* Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer
is currently being used by another device nearby, this will result in interference and communication failure.
* If you apply a security system other than the systems listed below, it will not work with the TV.
* If you select the Pure High-throughput (Greenfield) 802.11N mode and set your AP's Security Encryption type to WEP,
TKIP or TKIPAES (WPS2Mixed), your Samsung TV will not support the connection in compliance with new Wi-Fi
certification specifications.
* If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button
Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in
either mode.
* If your router, modem, or device isn't certified, it may not connect to the TV via the "Samsung Wireless LAN Adapter."
* Connection Methods: You can setup the wireless network connection six ways.
- Samsung Auto Configuration - For non-Samsung devices.
- PBC (WPS)
- Auto Setup (Using the Auto Network Search function)
- Manual Setup
- SWL(Samsung Wireless Link) - For Samsung devices only.
- Ad-Hoc
* The Samsung Wireless LAN Adapter may not be recognized or work properly when connecting via a USB hub or via
a USB extension cable other than the one available from Samsung.
6 English
Notice
The picture may appear corrupted or have static for some channels when the TV is connected to the Samsung Wireless LAN
Adapter. In such a case, establish a connection using one of the following methods or connect the Samsung Wireless LAN
Adapter using a USB cable in a place that is not affected by radio interference.
ConnectusingtheUSBrightangleadapter Connectviaan extensioncable
_ TheSamsungWirelessLANAdaptershouldbe installedinan
interference-freeareainorderto avoidinterferencebetweenthe
adapterandtuner.
To connect the Samsung Wireless LAN Adapter using the USB right angle
adapter, follow these steps:
1. Connect the USB right angle adapter to the Samsung Wireless LAN
Adapter.
2. Connect the other end of the right angle adapter to the
USB 1 (HDD} port.
To connect the Samsung Wireless LAN Adapter using an extension
cable, follow these steps:
1. Connect the extension cable to the USB 1 (HDD} port.
2. Connect the extension cable and Samsung Wireless LAN
Adapter.
3. Attach the Samsung Wireless LAN Adapter to the back of the TV
near the top, using double-sided adhesive tape.
Network Setup (Samsung Auto
Configuration) .......................................................................................................................................................................................
The Samsung Auto Configuration function lets you connect
your Samsung TV automatically to non-Samsung wireless
APs. If your non-Samsung AP does not support Samsung
Auto Configuraton, you must connect using one of the
other methods: PBC 6NPS), auto configuration, or manual
configuration.
To use this function, you must set
SWL(Samsung Wireless Link) to Off in the TV's on-
screen menu.
You can check for equipment that supports Samsung
Auto Configuration on www.samsung.com.
How to set up using Samsung Auto Configuration
1. Place the AP and TV next to each other and turn them
on,
Because AP booting times vary, you may have
to wait approximately two minutes for your AP to
boot up.
Ensure the LAN cable is connected to the
WAN port of the AP during Samsung Auto
Configuration. If it is not connected, Samsung
Auto Configuration only confirms that the TV is
connected to the AP, but does not confirm it is
connected to the Internet.
2. After 2 minutes, connect the Samsung Wireless LAN
Adapter to the TV. When the Samsung Wireless LAN
Adapter establishes a connection with your W, a pop-up
window appears.
3. As soon as a connection is established, place the AP
parallel to the Samsung Wireless LAN Adapter and not
farther than than 9 and 7/8s inches (25cm) from it.
4. Wait until the connection is automatically established.
If Samsung Auto Configuration does not connect
your TV to your AP, a pop-up window appears on
the screen notifying you of the failure. If you want
to try using Samsung Auto Configuration again,
reset the AP, disconnect the Samsung Wireless
LAN Adapter and then try again from Step 1. You
can also choose one of the other connection
setup methods: PBC (WPS), auto, or manual.
5. Place the AP in a desired location.
If the AP settings change or you install a new
AP, you must perform the Samsung Auto
Configuration procedure again, beginning from
Step 1.
English 27

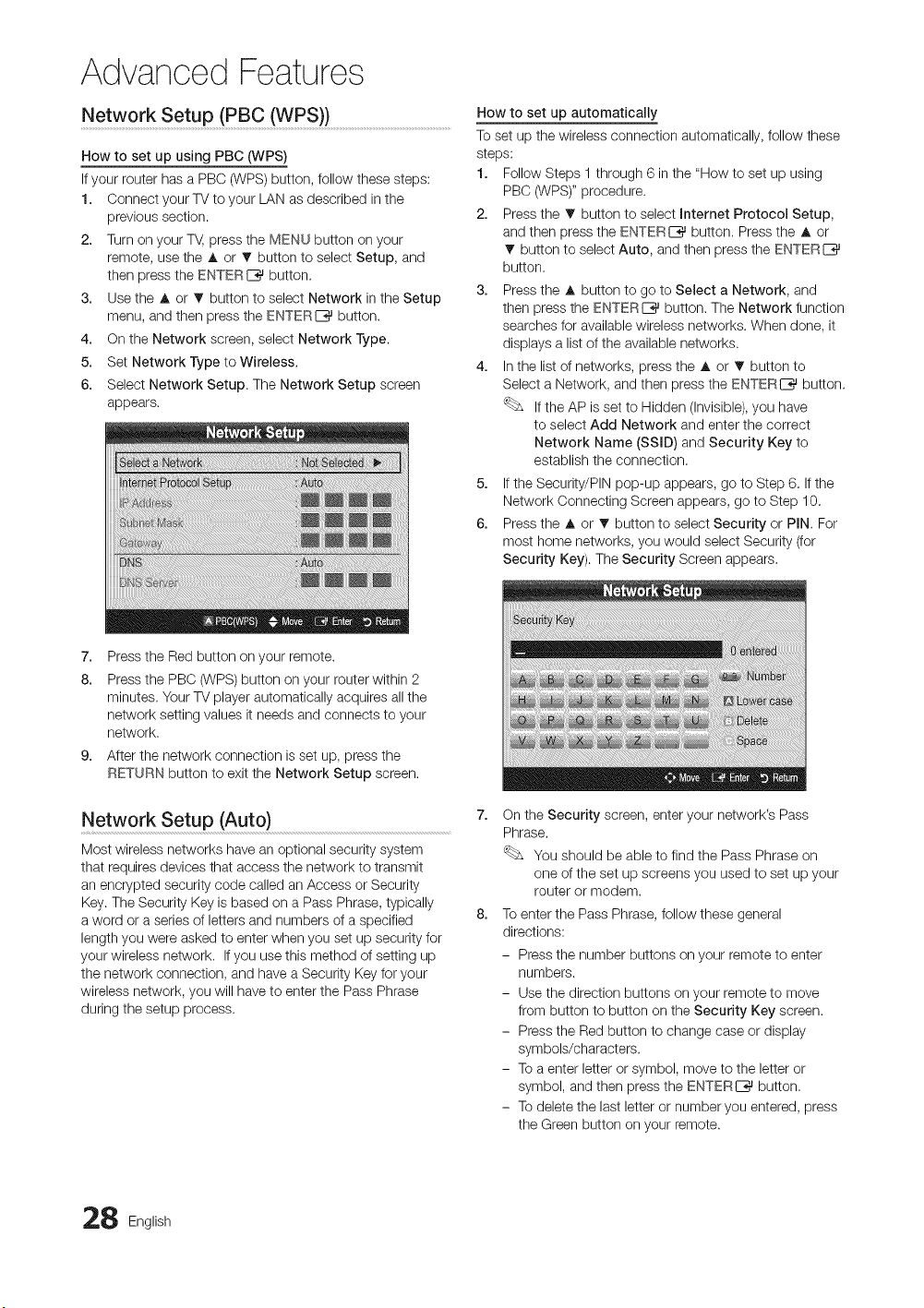

Advanced Features
Network Setup (PBC 0NPS))
How to set up using PBC (WPS)
If your router has a PBC (WPS) button, follow these steps:
1. Connect your TV to your LAN as described in the
previous section.
2. Turn on your W, press the MENU button on your
remote, use the A or _' button to select Setup, and
then press the ENTERI_ button.
3. Use the A or • button to select Network in the Setup
menu, and then press the ENTERIZ_ button.
4. On the Network screen, select Network Type.
5. Set Network Type to Wireless.
6. Select Network Setup. The Network Setup screen
appears.
How to set up automatically
To set up the wireless connection automatically, follow these
steps:
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" procedure.
2. Press the 1!' button to select Internet Protocol Setup,
and then press the ENTERE_ button. Press the A or
T button to select Auto, and then press the ENTERI_
button.
3. Press the A button to go to Select a Network, and
then press the ENTERIZ_ button. The Network function
searches for available wireless networks. When done, it
displays a list of the available networks.
4. In the list of networks, press the A or T button to
Select a Network, and then press the ENTERI_ button.
If the AP is set to Hidden (Invisible), you have
to select Add Network and enter the correct
Network Name (SSID) and Security Key to
establish the connection.
5. If the Security/PIN pop-up appears, go to Step 6. If the
Network Connecting Screen appears, go to Step 10.
6. Press the A or I_' button to select Security or PIN. For
most home networks, you would select Security (for
Security Key). The Security Screen appears.
7. Press the Red button on your remote.
8. Press the PBC (WPS) button on your router within 2
minutes. Your TV player automatically acquires all the
network setting values it needs and connects to your
network.
9. After the network connection is set up, press the
RETURN button to exit the Network Setup screen.
Network Setup (Auto)
Most wireless networks have an optional security system
that requires devices that access the network to transmit
an encrypted security code called an Access or Security
Key. The Security Key is based on a Pass Phrase, typically
a word or a series of letters and numbers of a specified
length you were asked to enter when you set up security for
your wireless network. If you use this method of setting up
the network connection, and have a Security Key for your
wireless network, you will have to enter the Pass Phrase
during the setup process.
7,
8,
On the Security screen, enter your network's Pass
Phrase.
You should be able to find the Pass Phrase on
one of the set up screens you used to set up your
router or modem.
To enter the Pass Phrase, follow these general
directions:
- Press the number buttons on your remote to enter
numbers.
- Use the direction buttons on your remote to move
from button to button on the Security Key screen.
- Press the Red button to change case or display
symbols/characters.
- To a enter letter or symbol, move to the letter or
symbol, and then press the ENTERIZ_ button.
- To delete the last letter or number you entered, press
the Green button on your remote.
8 English

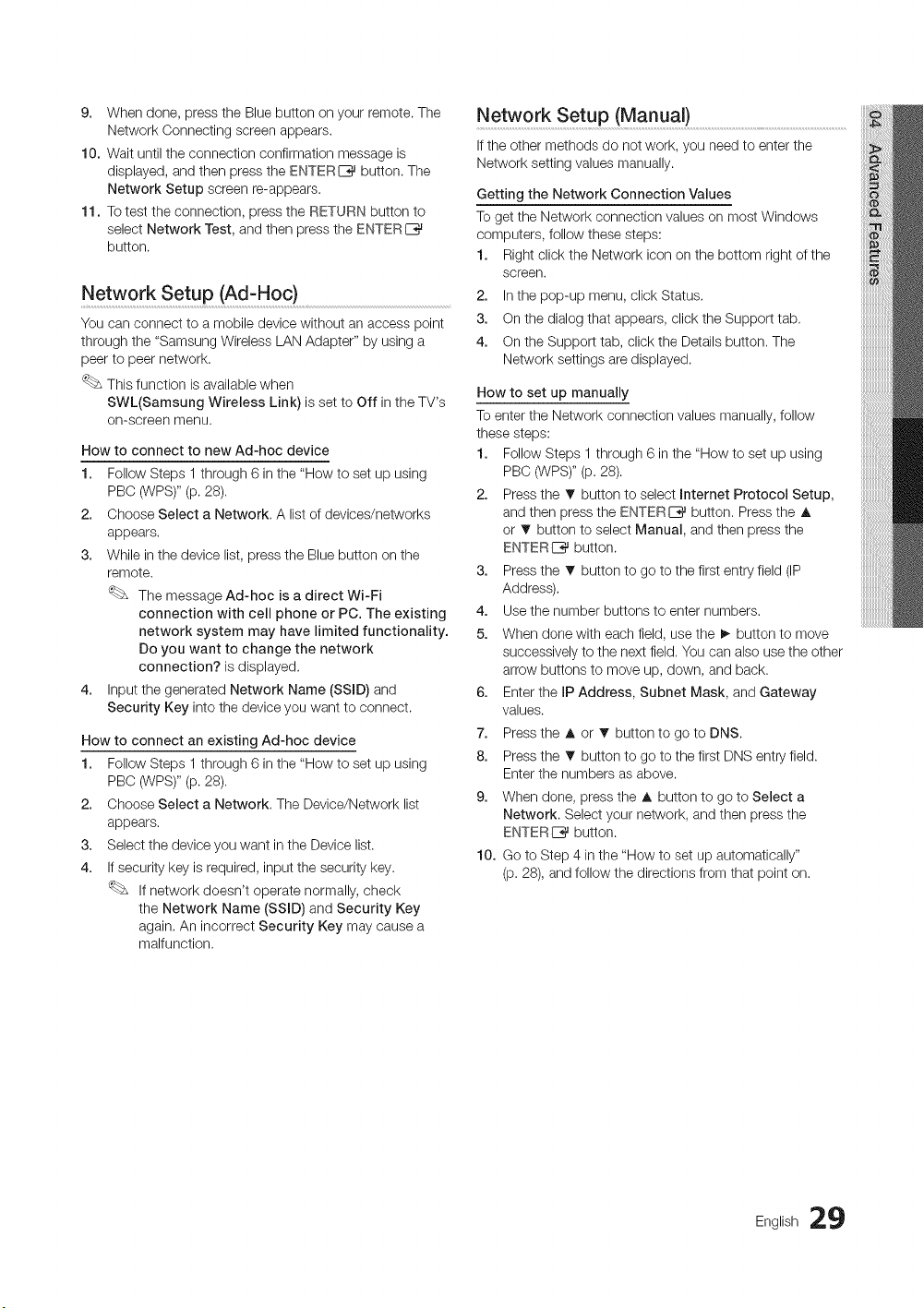

9. Whendone,presstheBluebuttononyourremote.The
NetworkConnectingscreenappears.
10.Waituntiltheconnectionconfirmationmessageis
displayed,andthenpresstheENTERI_button.The
NetworkSetupscreenre-appears.
11.Totesttheconnection,presstheRETURNbuttonto
selectNetworkTest,andthenpresstheENTERE_
button.
Network Setup (Ad-Hoc) ...........
You can connect to a mobile device without an access point
through the "Samsung Wireless LAN Adapter" by using a
peer to peer network.
This function is available when
SWL(Samsung Wireless Link) is set to Off in the TV's
on-screenmenu.
How to connect to new Ad-hoc device
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" (p. 28).
2. Choose Select a Network. A list of devices/networks
appears.
3. While in the device list, press the Blue button on the
remote.
The message Ad-hoc is a direct Wi-Fi
connection with cell phone or PC. The existing
network system may have limited functionality.
Do you want to change the network
connection? is displayed.
4. Input the generated Network Name (SSID) and
Security Key into the device you want to connect.
How to connect an existing Ad-hoc device
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" (p. 28).
2. Choose Select a Network. The Device/Network list
appears.
3. Select the device you want in the Device list.
4. If security key is required, input the security key.
If network doesn't operate normally, check
the Network Name (SSID) and Security Key
again. An incorrect Security Key may cause a
malfunction.
Network Setup (Manual) ......................................................................................................................
If the other methods do not work, you need to enter the
Network setting values manually.
Getting the Network Connection Values
To get the Network connection values on most Windows
computers, follow these steps:
1. Right click the Network icon on the bottom right of the
screen.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support tab, click the Details button. The
Network settings are displayed.
How to set up manually
To enter the Network connection values manually, follow
these steps:
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" (p. 28).
2. Press the _' button to select Internet Protocol Setup,
and then press the ENTERC_ button. Press the A
or _' button to select Manual, and then press the
ENTER E_ button.
3. Press the • button to go to the first entry field (IP
Address).
4. Use the number buttons to enter numbers.
5. When done with each field, use the _ button to move
successively to the next field. You can also use the other
arrow buttons to move up, down, and back.
6. Enter the IP Address, Subnet Mask, and Gateway
values.
7. Press the A or _' button to go to DNS.
8. Press the T button to go to the first DNS entry field.
Enter the numbers as above.
9. When done, press the A button to go to Select a
Network. Select your network, and then press the
ENTER E_ button.
10. Go to Step 4 in the "How to set up automatically"
(p. 28), and follow the directions from that point on.
English 29

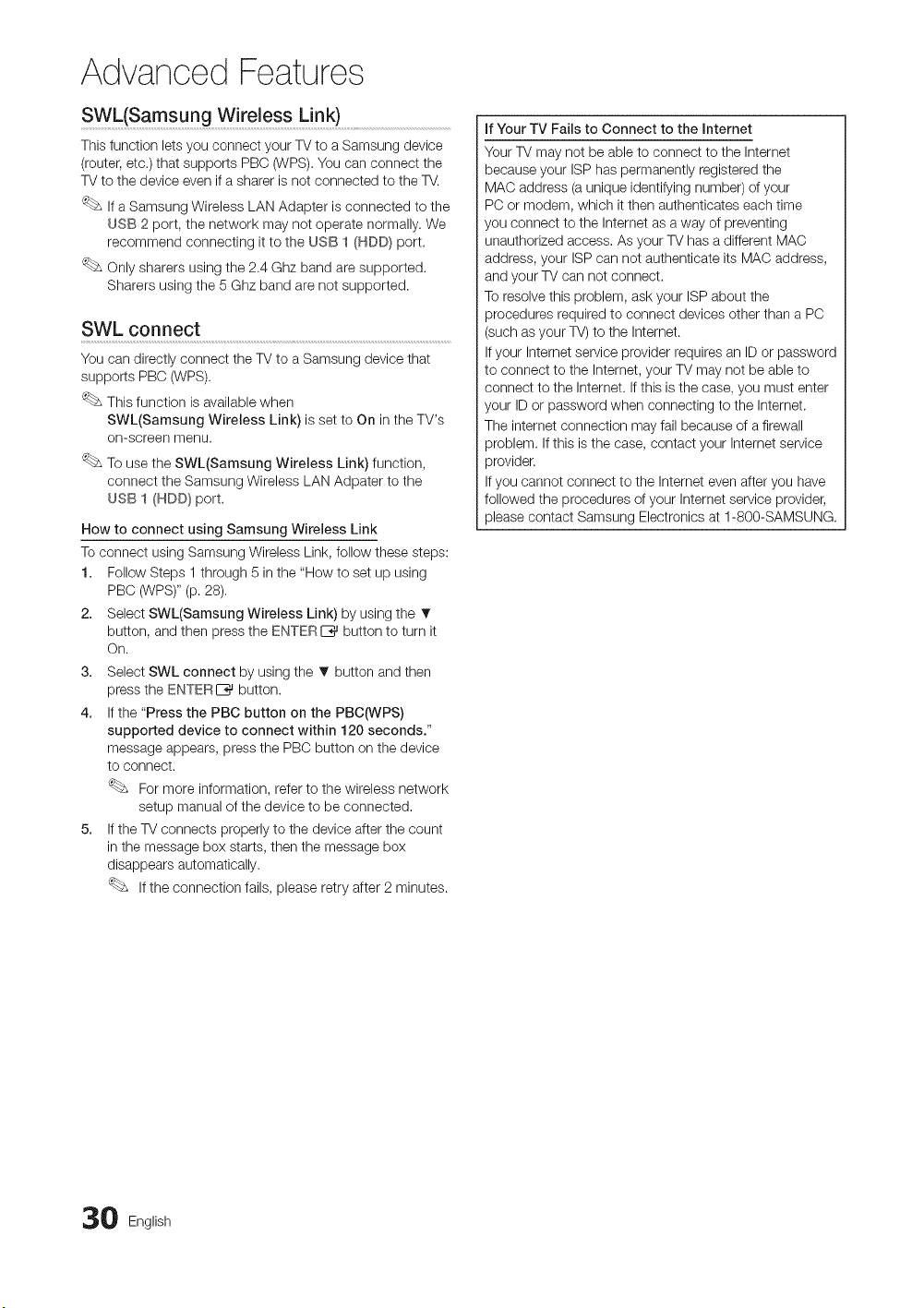

Advanced Features
SWL(Samsung Wireless Link) ..............
This function lets you connect your TV to a Samsung device
(router, etc.) that supports PBC (WPS). You can connect the
TV to the device even if a sharer is not connected to the TV.
If a Samsung Wireless LAN Adapter is connected to the
USB 2 port, the network may not operate normally. We
recommend connecting it to the USB 1 (NDD} port.
Only sharers using the 2.4 Ghz band are supported.
Sharers using the 5 Ghz band are not supported.
SWL connect
You can directly connect the TV to a Samsung device that
supports PBO (WPS).
This function is available when
SWL(Samsung Wireless Link) is set to On in the TV's
on-screen menu.
To use the SWL(Samsung Wireless Link) function,
connect the Samsung Wireless LAN Adpater to the
USB 1 (HDD} port.
How to connect using Samsung Wireless Link
To connect using Samsung Wireless Link, follow these steps:
1. Follow Steps 1 through 5 in the "How to set up using
PBC (WPS)" (p. 28),
2. Select SWL(Samsung Wireless Link) by using the
button, and then press the ENTERI_ button to turn it
On.
3. Select SWL connect by using the T button and then
press the ENTERIZ_ button.
4. If the "Press the PBC button on the PBC(WPS)
supported device to connect within 120 seconds."
message appears, press the PBC button on the device
to connect.
For more information, refer to the wireless network
setup manual of the device to be connected.
5. If the TV connects properly to the device after the count
in the message box starts, then the message box
disappears automatically.
If the connection fails, please retry after 2 minutes.
If Your TV Fails to Connect to the Internet
Your TV may not be able to connect to the Internet
because your ISP has permanently registered the
MAC address (a unique identifying number) of your
PC or modem, which it then authenticates each time
you connect to the Internet as a way of preventing
unauthorized access. As your TV has a different MAC
address, your ISP can not authenticate its MAC address,
and your TV can not connect.
To resolve this problem, ask your ISP about the
procedures required to connect devices other than a PC
(such as your TV) to the Internet.
If your Internet service provider requires an ID or password
to connect to the Internet, your TV may not be able to
connect to the Internet. If this is the case, you must enter
your ID or password when connecting to the Internet.
The internet connection may fail because of a firewall
problem. If this is the case, contact your Internet service
provider.
If you cannot connect to the Internet even after you have
followed the procedures of your Internet service provider,
please contact Samsung Electronics at 1-800-SAMSUNG.
0 English
Enjoyphotos,musicand/ormoviefilessavedon
aUSBMassStorageClass(MSC)device.
(_ MENUrm -_ Application _ Content
View -_ Media Play _ ENTERE_
i
1.
2.
Connecting a USB Device
Turn on your W.
Connect a USB device containing photo, music and/or movie files to the
USB 1 (HDD} or USB 2 jack on the side of the TV.
When USB is connected to the Tk4,a popup window appears. Then you can
select Media Play.
TV Rear Panel
USB Drive
Connecting to your PC through a network
You can play pictures, music and videos saved on your PC through a network connection in the Media Play mode.
If you want to use Media Play to play files saved on your PC over your TV, you should download "PC Share Manager"
and users manual from "www.samsung.com."
External Modem
(ADSL/VDSL/CabbTV)
PC
LAN Cable (Not Supplied)
TV Rear Panel
.........................................y_:_:................................... Samsung
J ............................::::............................\ Wireless
LAN
/i f Wireless IP sharer
Adapter
LAN Cable ,_ [AN Cable
(NotSupplied) (NotSupplied)
1. For more information on how to configure your network, refer to "Network Connection" (p. 24).
- You are recommended to locate both the TV and the PC in same subnet. The first 3 parts of the subnet address of the
TV and the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP
Address: 123.456.789.**)
2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager
Program will be installed.
- You can connect the TV to the PC directly without connecting it through a Sharer (Router).
English 31

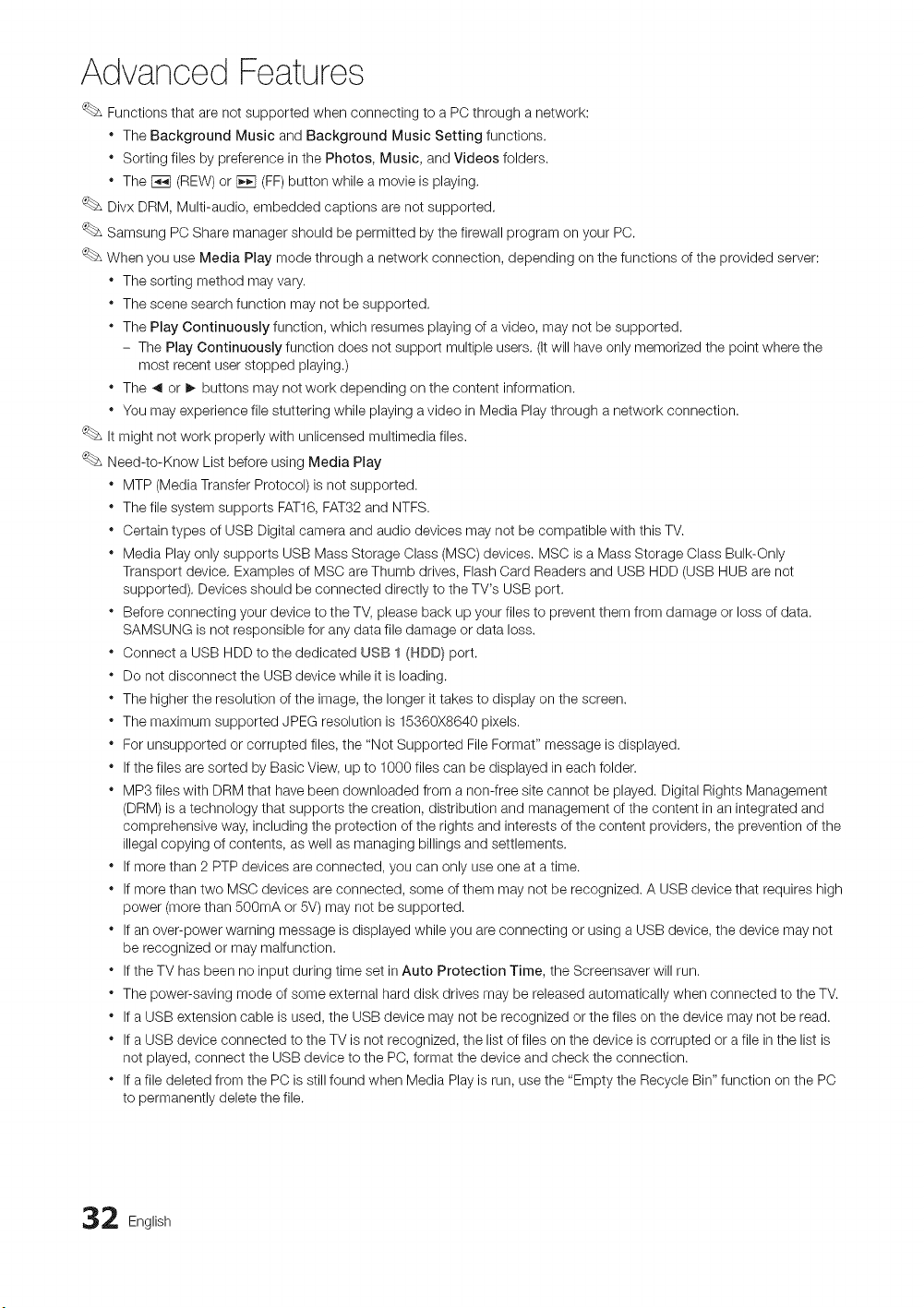

Advanced Features
Functions that are not supported when connecting to a PC through a network:
* The Background Music and Background Music Setting functions.
* Sorting files by preference in the Photos, Music, and Videos folders.
* The F_3 (REW) or F_q (FF) button while a movie is playing.
Divx DRM, Multi-audio, embedded captions are not supported.
Samsung PC Share manager should be permitted by the firewall program on your PC.
When you use Media Play mode through a network connection, depending on the functions of the provided server:
* The sorting method may vary.
* The scene search function may not be supported.
* The Play Continuously function, which resumes playing of a video, may not be supported.
- The Play Continuously function does not support multiple users. (It will have only memorized the point where the
most recent user stopped playing.)
* The _ or _, buttons may not work depending on the content information.
* You may experience file stuttering while playing a video in Media Play through a network connection.
It might not work properly with unlicensed multimedia files.
Need-to-Know List before using Media Play
* MTP (Media Transfer Protocol) is not supported.
* The file system supports FAT16, FAT32 and NTFS.
* Certain types of USB Digital camera and audio devices may not be compatible with this TV.
* Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only
Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not
supported). Devices should be connected directly to the TV's USB port.
* Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.
SAMSUNG is not responsible for any data file damage or data loss.
* Connect a USB HDD to the dedicated USB 1 (HDD) port.
* Do not disconnect the USB device while it is loading.
* The higher the resolution of the image, the longer it takes to display on the screen.
* The maximum supported JPEG resolution is 15360X8640 pixels.
* For unsupported or corrupted files, the "Not Supported File Format" message is displayed.
* If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.
* MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management
(DRM) is a technology that supports the creation, distribution and management of the content in an integrated and
comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the
illegal copying of contents, as well as managing billings and settlements.
* If more than 2 PTP devices are connected, you can only use one at a time.
* If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high
power (more than 500mA or 5V) may not be supported.
* If an over-power warning message is displayed while you are connecting or using a USB device, the device may not
be recognized or may malfunction.
* If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.
* The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.
* If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.
* If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is
not played, connect the USB device to the PC, format the device and check the connection.
* If a file deleted from the PC is still found when Media Play is run, use the "Empty the Recycle Bin" function on the PC
to permanently delete the file.
2 English
Screen Display
Move to the desired file using the up/down/right/left buttons and then press the ENTERI_ or [_q (Play)button. The file is
played.
Supports the View Devices and Home in Media Play homepage.
Information:
Youcan ascertain the selected
file name and the number of files
and page.
Sort List Section:
Displaysthe sorting standard. -
"'_b_The sorting standard is
different depending on the
contents.
File List Section:
You can confirm the files and
groups that are sorted by
category.
Operation Buttons
Red (Change Device): Selects a connected device.
_7'{sGreen (Preference): Sets the file preference. (not supported in Basic view)
_{ Yellow(Select): Selects multiple files from file list, Selected files are marked with a symbol.
Blue (Sorting): Selects the sort list.
_I Tools: Displays the option menu.
Using the [_ (REW)or _ (FF) button, file list can move to next or previous page.
Videos
Playing Video
1. Press the _ or I_ button to select Videos, then press the ENTERI_ button in the Media Play menu.
2. Press the _/_/A/T button to select the desired video in the file list.
3. Press the ENTERI_ button or [_q (Play) button.
- The selected file is displayed on the top with its playing time.
- If video time information is unknown, play time and progress bar are not displayed.
- During video playback, you can search using the 41and !_ button.
In this mode, you can enjoy movie clips contained on a Game,
but you cannot play the Game itself.
• Supported Subtitle Formats
XML
HTML
string-based
string-based
string-based
English 33

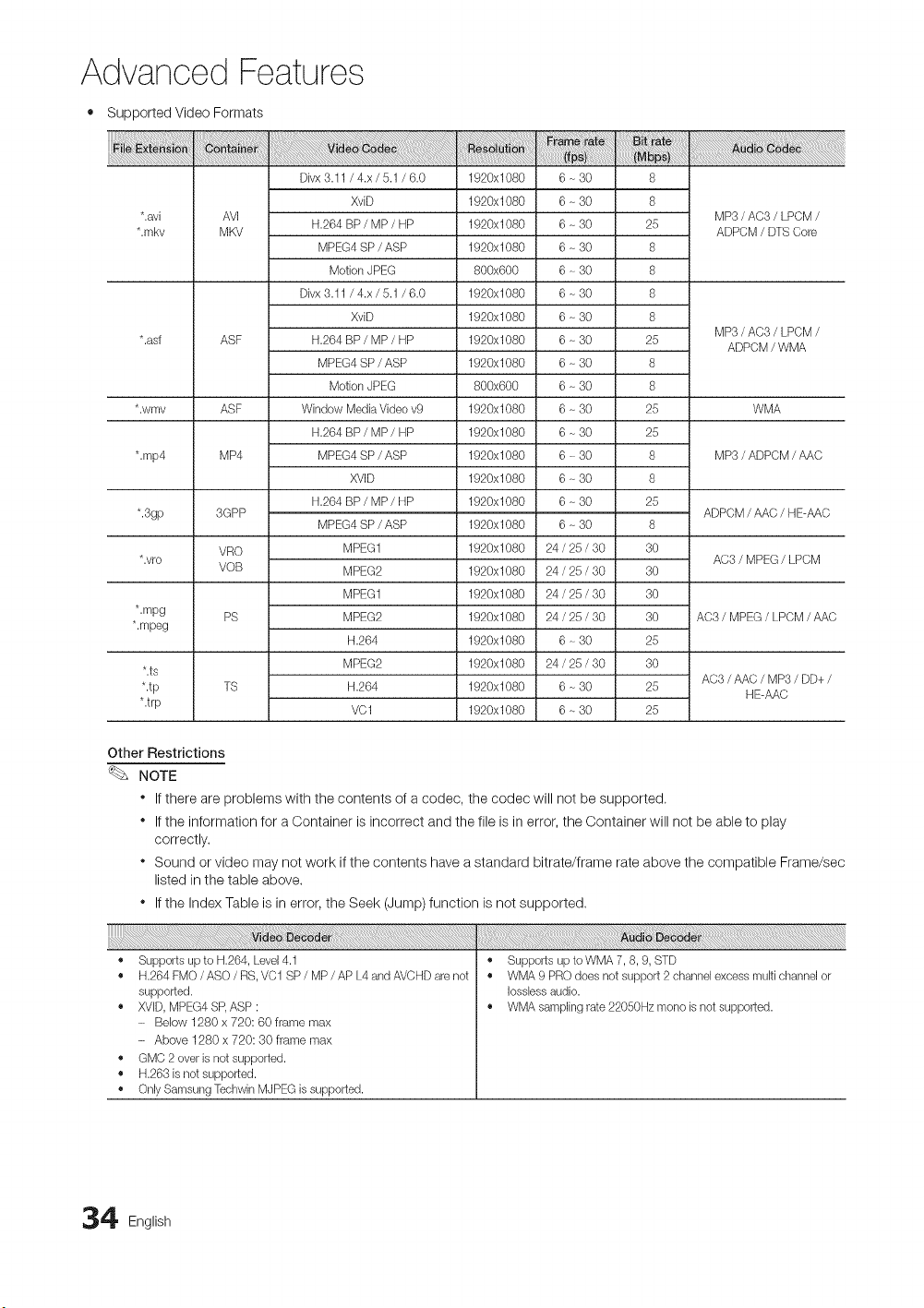

Advanced Features
• Supported Video Formats
i_;_JJJ@_!{¸;______{;t_££J_}_{,(_{{{_}_}_____
Divx 3.11 / 4.x / 5.1/6.0
XvD
*.avi AVI
H.264 BP / MP / HP
*.mkv MKV
MPEG4 SP / ASP
Motion JPEG
Divx 3.11 / 4.x / 5.1/6.0
XvD
Lad ASF H.264 BP / MP / HP
MPEG4 SP / ASP
Motion JPEG
*.wmv ASF %ndow Media Video v9
H.264 BP / MP / HP
*.mp4 MP4 MPEG4 SP / ASP
XVID
H.264 BP / MP / HP
*.3gp 3GPP
MPEG4 SP / ASP
VRO MPEG1
*.vro
VQB MPEG2
MPEG1
*.mpg PS MPEG2
*.mpeg
H.264
MPEG2
*.ts
*.tp TS H.264
*.trp VC1
1920x1080
1920x1080
1920x1080
1920x1080
800x600
1920x1080
1920x1080
1920x1080
1920x1080
800x600
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
1920x1080
6 - 30 8
6 - 30 8
MP3 / AC3 / LPCM /
6 _ 30 25
ADPCM / DTS Core
6 _ 30 8
6 _ 30 8
6 _ 30 8
6 - 30 8
MP3 / AC3 / LPCM /
6 _ 30 25
ADPCM / WMA
6 _ 30 8
6 _ 30 8
6 _ 30 25 WMA
6 - 30 25
6 _ 30 8 MP3 / ADPCM / AAC
6 _ 30 8
6 _ 30 25
ADPCM / AAC / HE-AAC
6 _ 30 8
24 / 25 / 30 30
AC3 / MPEG/ LPCM
24 / 25 / 30 30
24 / 25 / 30 30
24 / 25 / 30 30 AC3 / MPEG / LPCM / AAC
6 - 30 25
24 / 25 / 30 30
AC3 / AAC / MP3 / DD+ /
6 _ 30 25
HE-AAC
6 ~ 30 25
Other Restrictions
NOTE
* If there are problems with the contents of a codec, the codec will not be supported.
* If the information for a Container is incorrect and the file is in error, the Container will not be able to play
correctly.
* Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec
listed in the table above.
* If the Index Table is in error, the Seek (Jump) function is not supported.
• Supports up to H.264, Level4.1
• H.264FMO/ASO/RS, VC1 SP/MP/APL4andAVCHDarenot
supported.
• XVID, MPEG4 SP,ASP :
- Below 1280 x 720:60 frame max
- Above 1280 x 720:30 frame max
• GMC 2 over is not supported.
• H.263is not supported.
• OnlySamsung Techwin MJPEG issupported.
• Supports up to WMA 7, 8, 9, STD
• WMA 9 PRO does not support 2 channel excess multi channel or
Iossbss audio.
• WMA sampling rate 22050Hz mono is not supported.
4 English

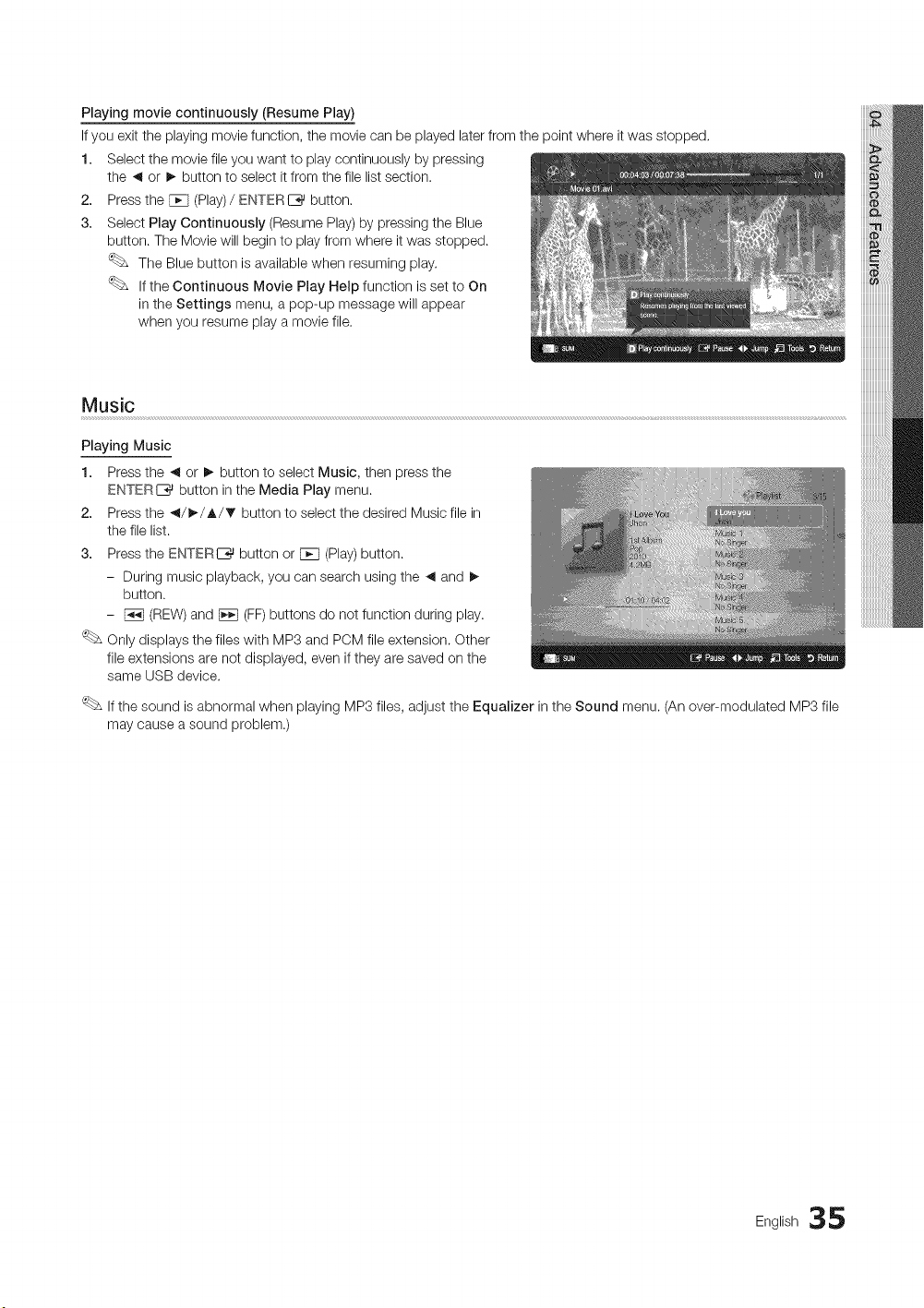

Playing movie continuously (Resume Play)
If you exit the playing movie function, the movie can be played later from the point where it was stopped,
1. Select the movie file you want to play continuously by pressing
the .4 or !_ button to select it from the file list section.
2. Press the F_q (Play) / ENTER I_ button.
3. Select Play Continuously (Resume Play) by pressing the Blue
button. The Movie will begin to play from where it was stopped.
The Blue button is available when resuming play.
If the Continuous Movie Play Help function is set to On
in the Settings menu, a pop-up message will appear
when you resume play a movie file.
Music
Playing Music
1. Press the .q or !_ button to select Music, then press the
ENTERE_ button in the Media Play menu.
2. Press the .4/_/A/T button to select the desired Music file in
the file list.
3. Press the ENTERIZ_ button or F_q (Play)button.
- During music playback, you can search using the 41and I_
button.
- _ (REW) and [_q (FF) buttons do not function during play.
Only displays the files with MP3 and PCM file extension. Other
file extensions are not displayed, even if they are saved on the
same USB device.
If the sound is abnormal when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file
may cause a sound problem.)
English 35

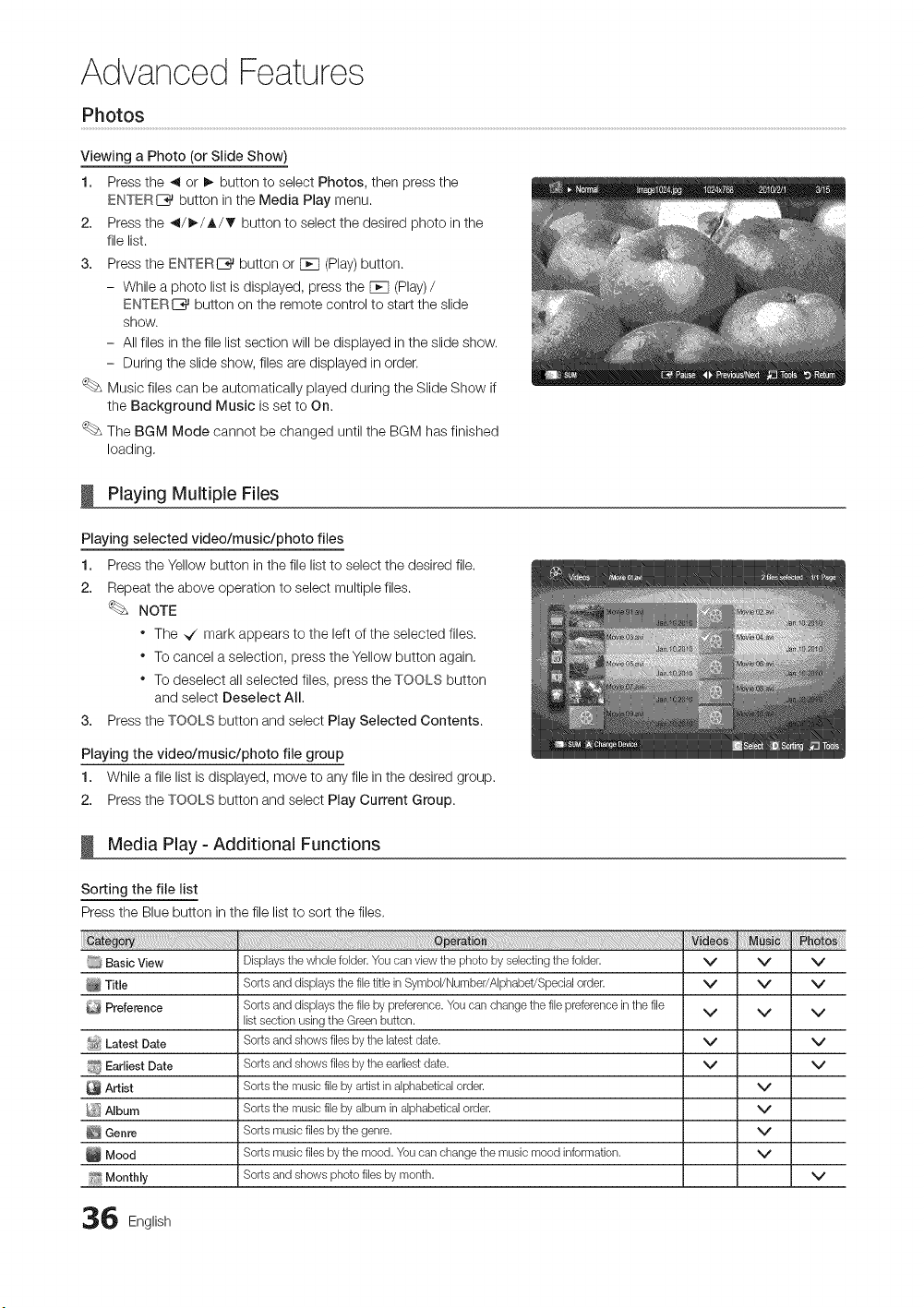

Advanced Features
Photos
Viewing a Photo (or Slide Show)
1. Press the ,_ or !_ button to select Photos, then press the
ENTER{Z_3J button in the Media Play menu.
2. Press the ,_/_/A/T button to select the desired photo in the
file list.
3. Press the ENTERE_ button or F_q (Play) button.
- While a photo list is displayed, press the FCq(Play) /
ENTERL%_ button on the remote control to start the slide
show.
- All files in the file list section will be displayed in the slide show.
- During the slide show, files are displayed in order.
Music files can be automatically played during the Slide Show if
the Background Music is set to On,
The BGM Mode cannot be changed until the BGM has finished
loading.
Playing Multiple Files
Playing selected video/music/photo files
1. Press the Yellow button in the file list to select the desired file.
2. Repeat the above operation to select multiple files.
NOTE
" The _ mark appears to the left of the selected files.
" To cancel a selection, press the Yellow button again.
" To deselect all selected files, press the TOOLS button
and select Deselect All.
3. Press the TOOLS button and select Play Selected Contents.
Playing the video/music/photo file group
1. While a file list is displayed, move to any file in the desired group.
2. Press the TOOLS button and select Play Current Group.
Media Play - Additional Functions
Sorting the file list
Press the Blue button in the file list to sort the files.
_ Basic View
Title
Preference
_ Latest Date
f_ Earliest Date
Artist
_i Album
_ Genre
Mood
_ Monthly
!_i!i!ii!i!!i!!i!¸i_!!!!!!!!!!!!!!!!!i!iiiiiiiiiiiiiiiililili!@iiiiiii!_!iii_!i_!i!i¸_l_l_l_l_l_l_l_l_:_i_i!l_@_@_@_l_B_@_l_l_lilil_lilili@_i_!_i_l_!_!i_iiii_i_!_i_:__:__:_
Displaysthewhob folder.Youcanviewthephotoby selectingthefolder.
Sortsanddisplaystl_efiletitlein SymboVNumber/AIpt_abet!Specialorder.
Sortsanddisplaystlsefile bypreference.Youcan changethefile preferenceinthefile
listsectionusingtheGreenbutton.
Sortsandstsowsfilesbythe latestdate.
Sortsandstsowsfilesbythe earliestdate.
Sortsthe musicfilebyartistinalphabeticalorder.
Sortsthe musicfilebyalbumin alptsabeticalorder.
Sortsmusicfilesby thegenre.
Sortsmusicfilesby themood.Youcan changetlsemusicmoodinformation.
Sortsandst_owsphotofilesbymonth.
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
6 English

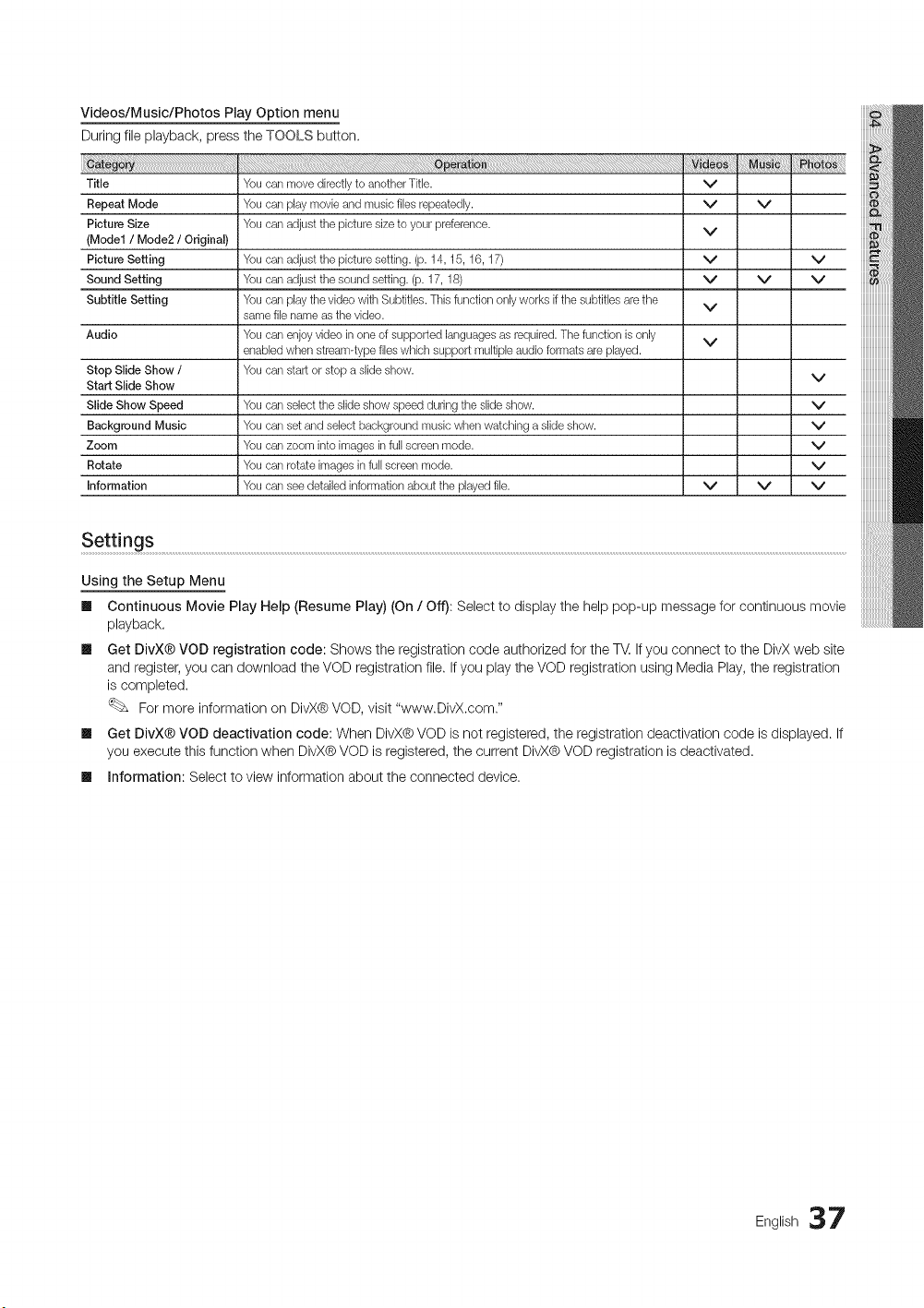

Videos/Music/Photos Play Option menu
During file playback, press the TOOLS button.
Title
Repeat Mode
Picture Size
(Model / Mode2 / Original)
Picture Setting
Sound Setting
Subtitle Setting
Audio
Stop Slide Show /
Start Slide Show
Slide Show Speed
Background Music
Zoom
Rotate
Information
You can adjust the picture setting. (p. 14, 15, 16, 17)
You can adjust the sound setting. (p. 17, 18)
You can play the video with Subtitles. This function only works if the subtitles are the
same file name asthe video.
You can enjoyvideo in one of supported languages as required. The fundion is only
enabled when stream-type files which support multiple audio formats are played.
You can start or stop a slide show.
You can select the slide show speed during the slide show.
You can set and select background music when watching a slide show.
You can zoom into images in full screen mode.
You can rotate images in full screen mode.
You can see detailed information about the played file.
v
v
v
v
v
v
v
v
v
v v
v
v
v
v
v
v
v
v
iiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiii
Settings ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Using the Setup Menu
Ill Continuous Movie Play Help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie
playback.
Get DivX® VOD registration code: Shows the registration code authorized for the T_. If you connect to the DivX web site
and register, you can download the VOD registration file. If you play the VOD registration using Media Play, the registration
is completed.
For more information on DivX® VOD, visit "www.DivX.com/'
Ill Get DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is displayed. If
you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.
Ill Information: Select to view information about the connected device.
English 37

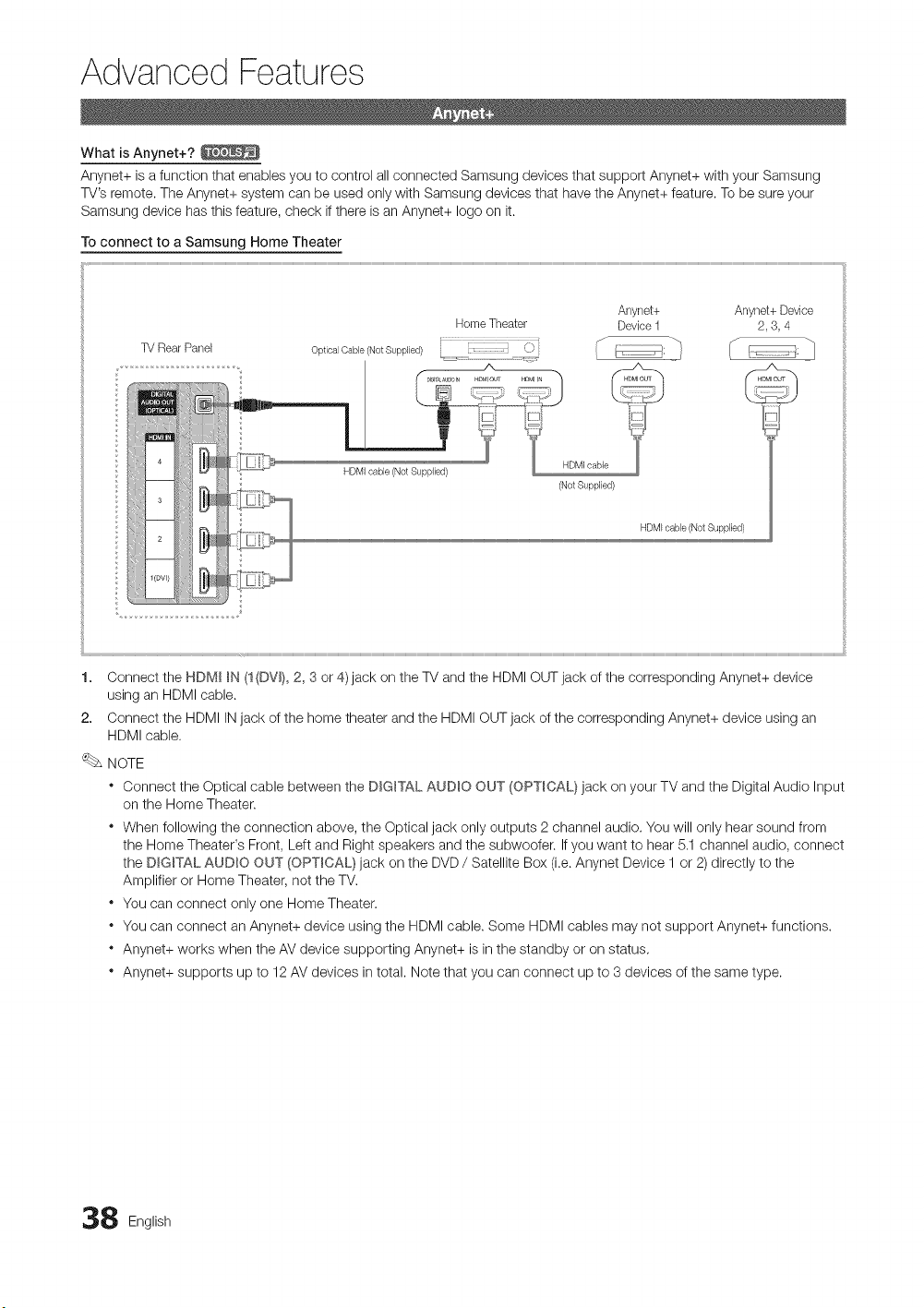

Advanced Features
What is Anynet+?
Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung
TV's remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your
Samsung device has this feature, check if there is an Anynet+ logo on it.
To connect to a Samsung Home Theater
TVRearPanel
Optical Cable (Not Supplied)
Anynet+ Anynet+Device
Device1 2, 3, 4
( "} / :"/
HDMI cable (Not Supplied)
HDMI cable
(Not Supplied)
HDMI cable (Not Supplied)
1. Connect the HDMI IN (1(DW}, 2, 3 or 4) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device
using an HDMI cable.
2. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using an
HDMI cable.
NOTE
* Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input
on the Home Theater.
* When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from
the Home Theater's Front, Left and Right speakers and the subwoofer. If you want to hear 5,1 channel audio, connect
the DIGITAL AUDIO OUT (OPTICAL} jack on the DVD / Satellite Box (i.e. Anynet Device 1 or 2) directly to the
Amplifier or Home Theater, not the TV.
* You can connect only one Home Theater.
* You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions.
* Anynet+ works when the AV device supporting Anynet+ is in the standby or on status,
* Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.
8 English

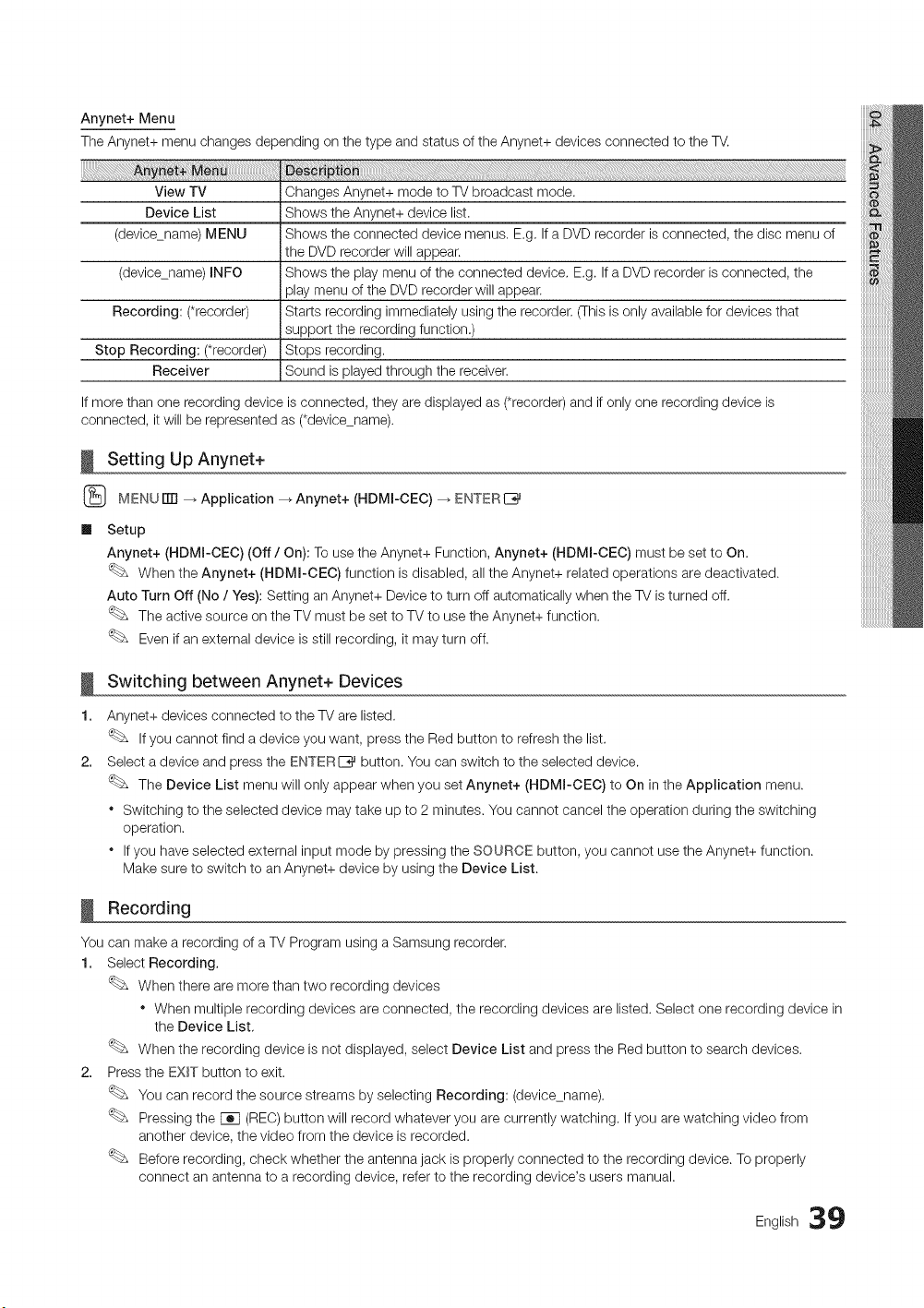

Anynet+ Menu
The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.
View TV Changes Anynet+ mode to TV broadcast mode.
Device List Shows the Anynet+ device list.
(devicename) MENU Shows the connected device menus, E.g, If a DVD recorder is connected, the disc menu of
the DVD recorder will appear.
(devicename) INFO Shows the play menu of the connected device, E.g. If a DVD recorder is connected, the
play menu of the DVD recorder will appear.
Recording: (*recorder) Starts recording immediately using the recorder. (This is only available for devices that
support the recording function.)
Stop Recording: (*recorder) Stops recording.
Receiver Sound is played through the receiver.
If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is
connected, it will be represented as (*devicename),
Setting Up Anynet+
(_ MENU ITTI_ Application --_ Anynet+ (HDMm-CEC) _ ENTERI_
Ill Setup
Anynet+ (HDMm-CEC) (Off / On): To use the Anynet+ Function, Anynet+ (HDMm-CEC) must be set to On.
When the Anynet+ (HDMm-CEC) function is disabled, all the Anynet+ related operations are deactivated.
Auto Turn Off (No / Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off.
The active source on the TV must be set to TV to use the Anynet+ function.
Even if an external device is still recording, it may turn off.
I
1.
Switching between Anynet+ Devices
Anynet+ devices connected to the TV are listed.
If you cannot find a device you want, press the Red button to refresh the list.
Select a device and press the ENTERL%_button. You can switch to the selected device.
The Device List menu will only appear when you set Anynet+ (HDMI-CEC) to On in the Application menu.
* Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching
operation.
* If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function.
Make sure to switch to an Anynet+ device by using the Device List.
Recording
You can make a recording of a TV Program using a Samsung recorder.
1. Select Recording,
When there are more than two recording devices
* When multiple recording devices are connected, the recording devices are listed. Select one recording device in
the Device List,
When the recording device is not displayed, select Device List and press the Red button to search devices.
2. Press the EXIT button to exit.
You can record the source streams by selecting Recording: (device_name).
Pressing the [_q (REC) button will record whatever you are currently watching. If you are watching video from
another device, the video from the device is recorded.
Before recording, check whether the antenna jack is properly connected to the recording device. To properly
connect an antenna to a recording device, refer to the recording device's users manual.
English 39
Advanced Features
Listening through a Receiver
You can listen to sound through a receiver (i,e Home Theater) instead of the TV Speaker.
1. Select Receiver and set to On.
2. Press the EXIT button to exit.
If your receiver supports audio only, it may not appear in the device list.
The receiver will work when you have properly connected the optical in jack of the receiver to the
D_GITAL AUDIO OUT (OPTICAL} jack of the TV.
When the receiver (i.e Home Theater) is set to On, you can hear sound output from the TV's Optical jack. When
the TV is displaying a DTV (air) signal, the TV will send out 5,1 channel sound to the receiver. When the source
is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard
from the receiver.
NOTE
You can only control Anynet+ devices using the TV remote control, not the buttons on the TV.
The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device.
The Anynet+ functions do not operate with other manufacturers' products.
Troubleshooting for Anynet+
Anynet+ does not work.
ii!ii#_i_i__!i!_!_i!_i!__!_i_'_i!_!_i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i_¸i¸_i¸¸i¸_i_:iii_ii,ii,i_i_i!i!ii!!!!!i!i_i_i_iiiiiiiiii!i_i_i_i!_ii_!!¸_____________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
• Check if the device isan Anynet+ device. The Anynet+ system supports Anynet+ devices only.
• Only one receiver (home theater) can be connected.
• Check if the Anynet+ device power cord is properly connected.
• Check the Anynet+ device's Video/Audio/HDMI cable connections.
• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.
• Check whether the TV remote control is in TV mode.
• Check whether the remote control isAnynet+ compatible.
• Anynet+ doesn't work in certain situations. (Searching channels, operating Media Play or Plug & Play (initial
setup), etc.)
• When connecting or removing the HDMI cable, please make sure to search devices again or turn your W off
and on again.
• Check if the Anynet+ Function of Anynet+ device is set on.
Iwant to start Anynet+. • Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-OEC) is set to
On in the Anynet+ Setup menu.
• Pressthe TOOLS button to display the Anynet+ menu and select a menu you waist.
Iwant to exit Anynet+. • Select View TV in the Anynet+ menu.
• Pressthe SOURCE button on the TV remote control and select a non- Anynet+ device.
• Press V CH A, PREoCN, and FAV,CN to change the TV mode. (Note that the channel button operates
only when atuner-embedded Anynet+ device is not connected.)
The message "Connecting to • You cannot use the remote control when you are configuring Anynet+ or switching to a view mode.
Anynet+ device..." appears on the • Use the remote control when the Anynet+ setting or switching to view mode is complete.
screen.
The Anynet+ device does not play. • You cannot use the play function when Plug & Play (initialsetup) is in progress.
The connected device is not
displayed.
The TV Program cannot be •
recorded.
The TV sound is not output • Connect the optical cable between TV and the receiver.
through the receiver.
• Check whether or not the device supports Anynet+ functions.
• Check whether or not the HDMI cable is properly connected.
Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.
Search Anynet+ devices again.
You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+
functions.
Ifconnection is terminated because there has been a power interruption or the HDMI cable has been
disconnected, please repeat the device scan.
Check whether the antenna jack on the recording device is properly connected.
0 English
(_ MENUm-I_ Application_ ContentView
AliShare_ ENTER[_
About AIIShare
AIIShare connects your TV and compatible Samsung mobile
phones/devices through a network. On your TV, you can
view call arrivals, SMS messages and schedules set on your
mobile phones. In addition, you can play media contents
including videos, photos and music saved on your mobile
phones or the other devices (such as your PC) by controlling
them on the TV via the network. Additionally, you can use
your TV for browsing web pages in your mobile phones.
For more information, visit "www.samsung.com" or
contact the Samsung call center. Mobile devices may
need additional software installation. For details, refer to
each device's user's guide.
Setting Up AIIShare
Setup ...............................................................................................................................................................................................................................................
Ill Message (On / Off): Enables or disables the message
function (for call arrivals, SMS messages and schedules
set on your mobile phones).
Ill Media (On / Off): Enables or disables the media
function. When the media function is on, it plays videos,
photos and music from a mobile phone or other device
that supports AliShare.
Ill ScreenShare (On / Off): Enables or disables the
ScreenShare function for using mobile phone as a
remote control.
-IV name: Sets the TV name so you can find it easily on
a mobile device.
If you select User Input, you can type on the TV
using the OSK (On Screen Keyboard).
Message / Media / ScreenShare
Shows a list of mobile phones or connected devices which
have been set up with this TV for using the Message,
Media, or ScreenShare function.
The Media function is available in all mobile devices
which support AIIShare.
Ill Allowed / Denied: Allows/Blocks the mobile phone.
Ill Delete: Deletes the mobile phone from the list.
This function only deletes the name of the mobile
from the list. If the deleted mobile device is turned
on or trys to connect to the TV, it may appear on
the list again.
Using the Message Function
Using this function, you view call arrivals, SMS messages
and schedules set on the mobile phone through the alarm
window while watching TV.
NOTE
To disable the alarm window, set Message to Off in
Setup of AIIShare.
If OK is selected, or if OK is not selected after the
message has appeared three times, the message
will be deleted. The message is not deleted from the
mobile phone.
* The alarm window can be displayed while using
some applications such as Media Play etc. To view
the contents of a message, switch to TV viewing
mode.
* When a message from an unknown mobile phone is
displayed, select the mobile phone on the message
menu in AIIShare and select Denied to block the
phone.
Message View
If a new SMS message arrives while you are watching
T_, the alarm window appears. If you click the OK
button, the contents of the message are displayed.
You can configure the viewing settings for SMS
messages on your mobile phones. For the
procedures, refer to the mobile phone manual.
Some types of characters may be displayed as
blank or broken characters.
English 41

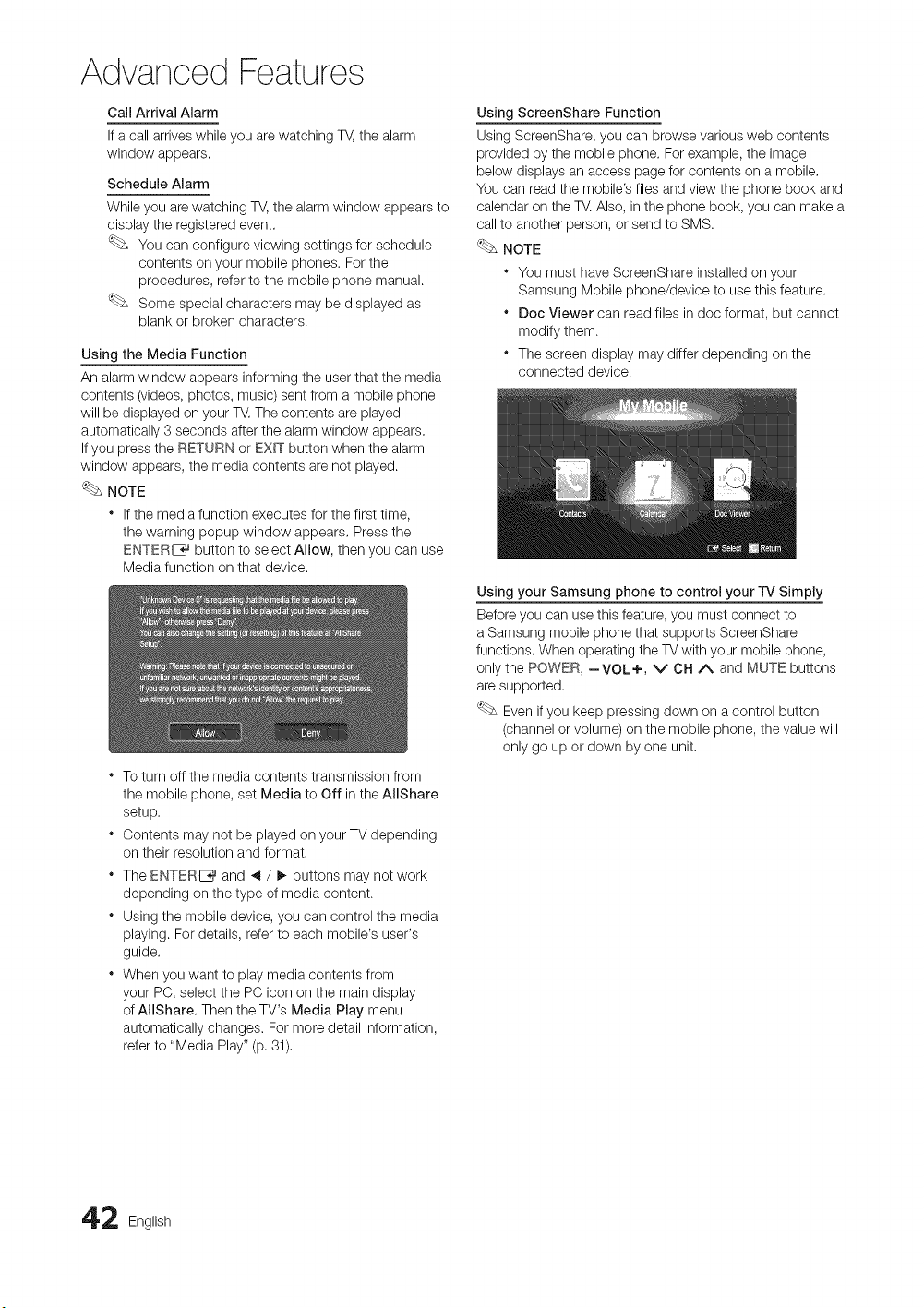

Advanced Features
Call Arrival Alarm
If a call arrives while you are watching T_, the alarm
window appears.
Schedule Alarm
While you are watching TV, the alarm window appears to
display the registered event.
You can configure viewing settings for schedule
contents on your mobile phones. For the
procedures, refer to the mobile phone manual.
Some special characters may be displayed as
blank or broken characters.
Using the Media Function
An alarm window appears informing the user that the media
contents (videos, photos, music) sent from a mobile phone
will be displayed on your TM The contents are played
automatically 3 seconds after the alarm window appears.
If you press the RETURN or EXiT button when the alarm
window appears, the media contents are not played.
NOTE
If the media function executes for the first time,
the warning popup window appears, Press the
ENTERE_ button to select Allow, then you can use
Media function on that device.
* To turn off the media contents transmission from
the mobile phone, set Media to Off in the AIIShare
setup.
* Contents may not be played on your TV depending
on their resolution and format.
* The ENTERC_ and _1 / I_ buttons may not work
depending on the type of media content.
* Using the mobile device, you can control the media
playing. For details, refer to each mobile's user's
guide.
* When you want to play media contents from
your PC, select the PC icon on the main display
of AIIShare. Then the TV's Media Play menu
automatically changes. For more detail information,
refer to "Media Play" (p. 31).
Using ScreenShare Function
Using ScreenShare, you can browse various web contents
provided by the mobile phone. For example, the image
below displays an access page for contents on a mobile.
You can read the mobile's files and view the phone book and
calendar on the TV. Also, in the phone book, you can make a
call to another person, or send to SMS.
NOTE
You must have ScreenShare installed on your
Samsung Mobile phone/device to use this feature.
Doc Viewer can read files in doc format, but cannot
modify them.
The screen display may differ depending on the
connected device.
Using your Samsung phone to control your TV Simply
Before you can use this feature, you must connect to
a Samsung mobile phone that supports ScreenShare
functions. When operating the TV with your mobile phone,
only the POWER, --VOL+, v CH A and MUTE buttons
are supported.
Even if you keep pressing down on a control button
(channel or volume) on the mobile phone, the value will
only go up or down by one unit.
2 English
Other Information
Stand Type
Enclose the cables in the Cable Tie so that the cables are not visible through the transparent stand.
® ®
Wall-Mount Type
Do not pull the cables too hard when arranging them. This may cause damage to the product's connection terminals.
English 43

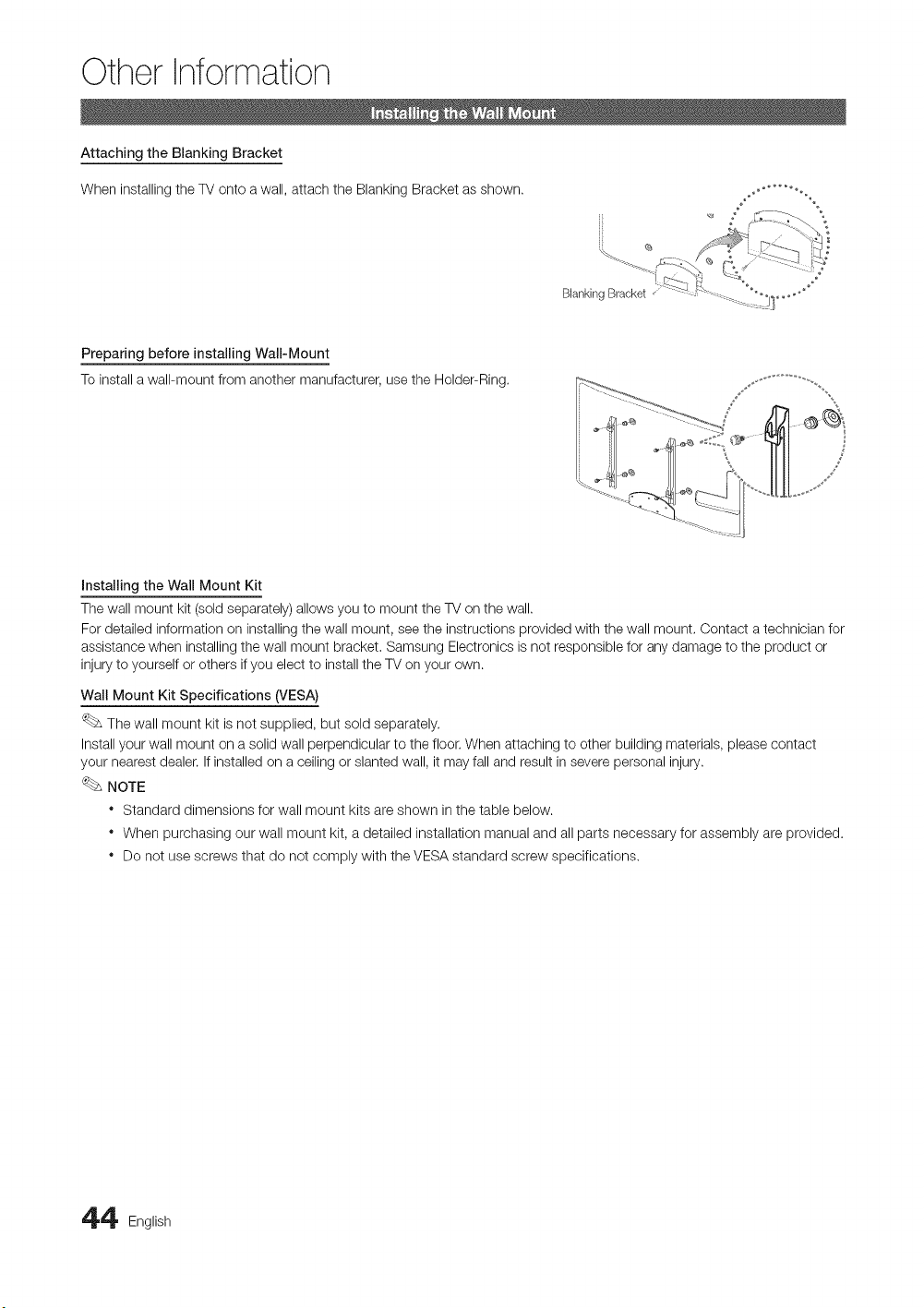

Other Information
Attaching the Blanking Bracket
When installing the TV onto a wall, attach the Blanking Bracket as shown.
Blanking Bracket
Preparing before installing Wall-Mount
To install a wall-mount from another manufacturer, use the Holder-Ring.
Installing the Wall Mount Kit
The wall mount kit (sold separately) allows you to mount the TV on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for
assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or
injury to yourself or others if you elect to install the TV on your own.
Wail Mount Kit Specifications (VESA)
The wall mount kit is not supplied, but sold separately.
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact
your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
NOTE
* Standard dimensions for wall mount kits are shown in the table below.
* When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
* Do not use screws that do not comply with the VESA standard screw specifications.
4 English

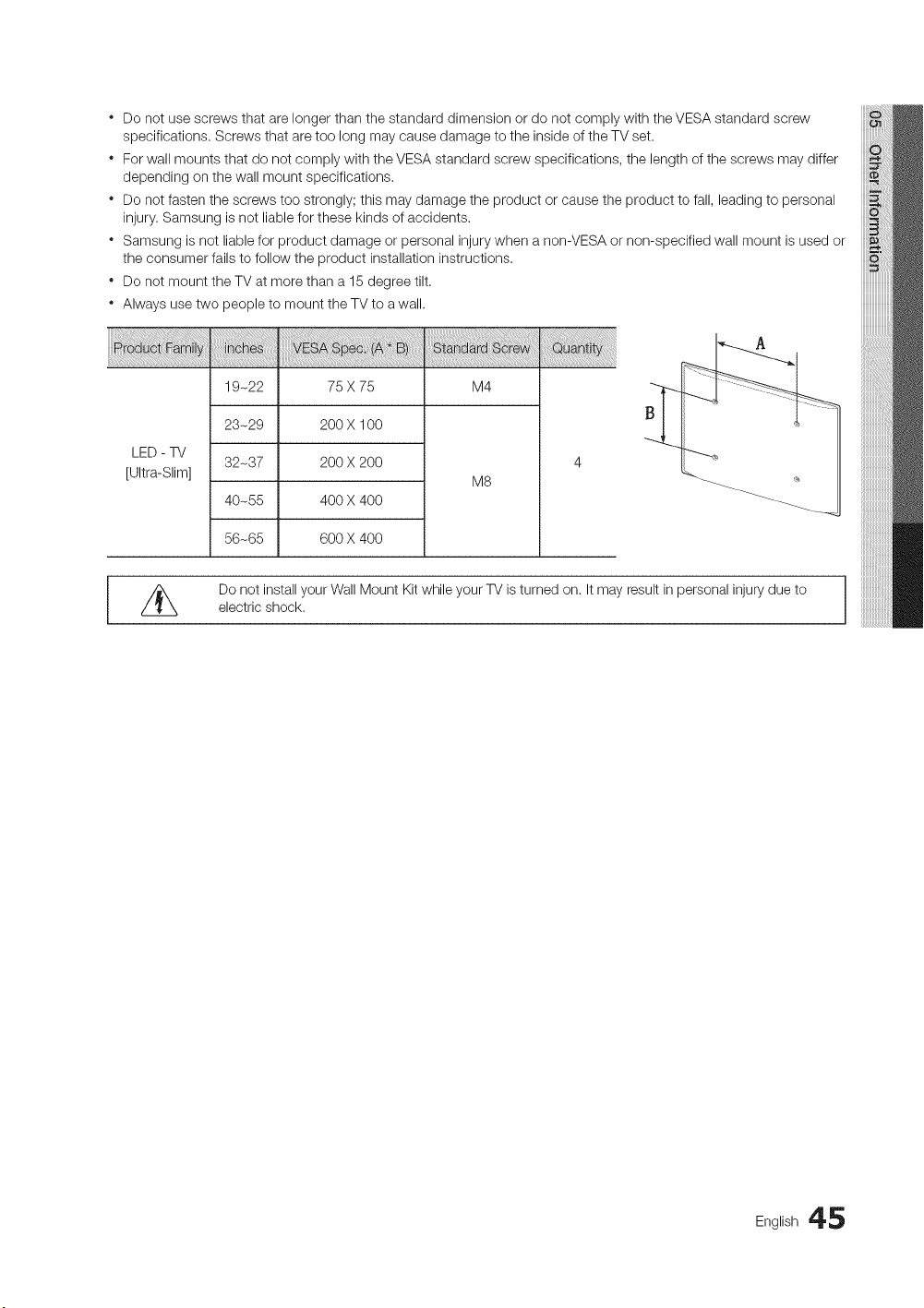

* DonotusescrewsthatarelongerthanthestandarddimensionordonotcomplywiththeVESAstandardscrew
specifications.ScrewsthataretoolongmaycausedamagetotheinsideoftheTVset.
* ForwallmountsthatdonotcomplywiththeVESAstandardscrewspecifications,thelengthofthescrewsmaydiffer
dependingonthewallmountspecifications.
* Donotfastenthescrewstoostrongly;thismaydamagetheproductorcausetheproducttofall,leadingtopersonal
injury.Samsungisnotliableforthesekindsofaccidents.
* Samsungisnotliableforproductdamageorpersonalinjurywhenanon-VESAornon-specifiedwallmountisusedor
theconsumerfailstofollowtheproductinstallationinstructions.
* DonotmounttheTVatmorethana15degreetilt.
* AlwaysusetwopeopletomounttheTVtoawall.
ii A
19-22 75 X 75 M4
LED - TV
[Ultra-Slim]
23-29 200 X 100
32-37 200 X 200
40-55 400 X 400
56-65 600 X 400
M8
//_ Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due toelectric shock.
English 4S

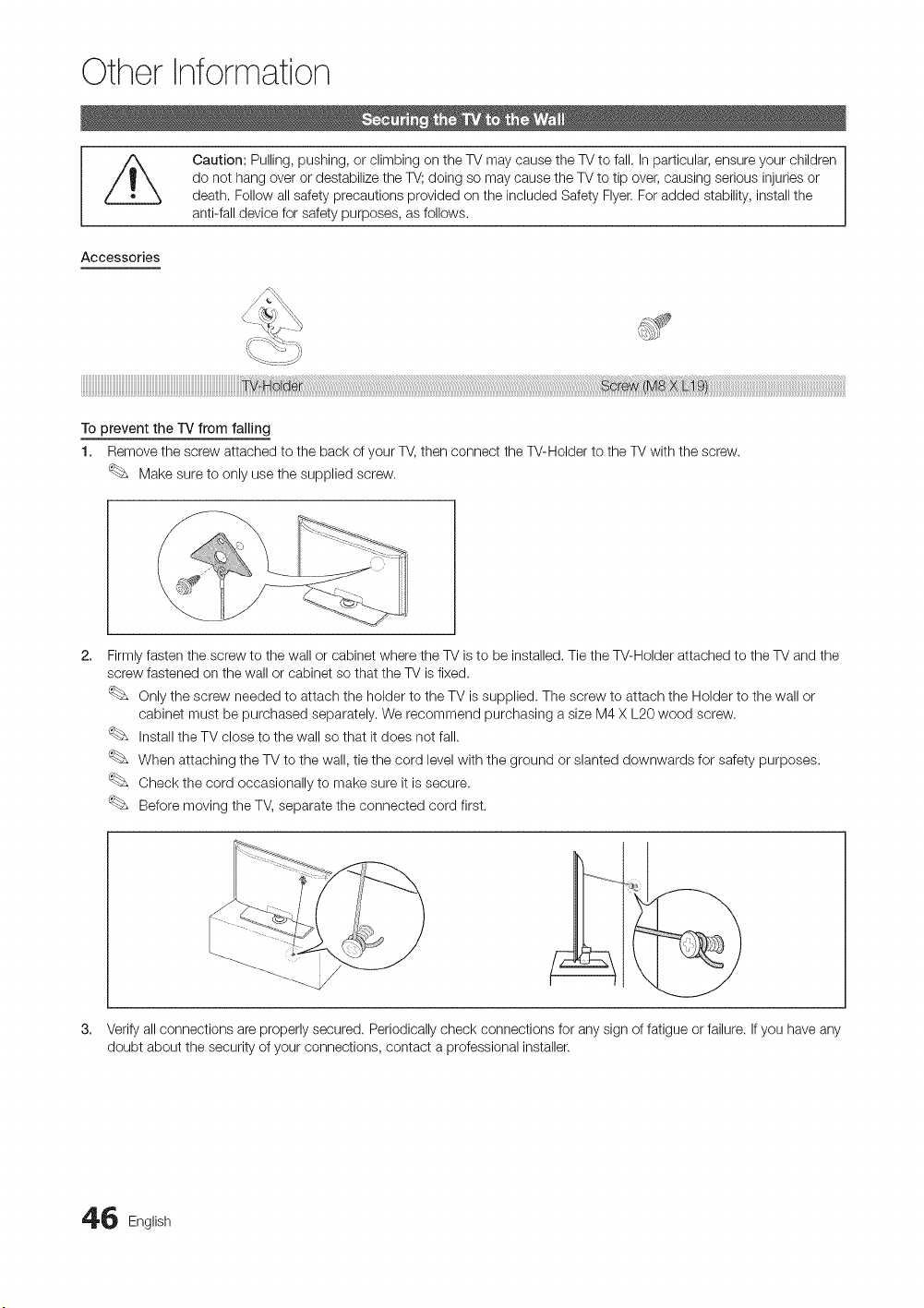

Other Information
Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children
do not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or
death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the
anti-fall device for safety purposes, as follows.
Accessories
To prevent the -iV from failing
1. Remove the screw attached to the back of your TV, then connect the W-Holder to the TV with the screw.
Make sure to only use the supplied screw.
Firmly fasten the screw to the wall or cabinet where the TV is to be installed. Tie the W-Holder attached to the TV and the
screw fastened on the wall or cabinet so that the TV is fixed.
Only the screw needed to attach the holder to the TV is supplied. The screw to attach the Holder to the wall or
cabinet must be purchased separately. We recommend purchasing a size M4 X L20 wood screw.
Install the TV close to the wall so that it does not fall.
When attaching the TV to the wall, tie the cord level with the ground or slanted downwards for safety purposes.
Check the cord occasionally to make sure it is secure.
Before moving the TV, separate the connected cord first.
L
Verify all connections are properly secured. Periodically check connections for any sign of fatigue or failure. If you have any
doubt about the security of your connections, contact a professional installer.
6 English
If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips
apply, visit "www.samsung.com," then click on Support, or call Samsung customer service at 1-800-SAMSUNG.
Eirst Ofall, please Performthe Picture Test and confirm that your TV is properly displaying test image.
(go to MENU Support Self Diagnosis _ Picture Test) (p. 22)
If the test image isproperly displayed, the poor picture may caused by the source or signal.
• If you have an analog cable/satelite box, upgrade to an HD digital set top box. HD Box Use HDMI or
Component cables to deliver HD (high definition) picture quality.
• Cable/Satelite subscribers: TryHD stations from the channel lineup.
• Antenna connection: Try HD stations after performing Auto program.
Many HD channels are upscaled from SD(Standard Definition)contents.
• Adjust the Cable/Sat box video output resolution to 1080i or 720p.
The picture is distorted: macroUock error, • Compression of video contents may cause picture distortion, especially in fast moving pictures such
small block, dots, pixeization, as sports and action movies.
• Low signal levelcan cause picture distortion. This is not a TV problem.
• Mobile phones used close to the TV (cca up to lm) may cause noisein picture on analog and digital
T_
Color iswrong or missing. • If you're using a component connection, make sure the component cables are connected to the
correct jacks. Incorrect or loose connections may cause color problems or a blank screen.
There is poor color or brightness. • Adjust the Picture options in the TV menu (go to Picture mode / Color / Brightness / Sharpness)
(p. 14)
• Adjust Energy Saving option in the TV menu (go to MENU - Picture - Eco Solution -
Energy Saving (p. 14).
• Try resetting the picture to view the default picture settings (goto MENU - Picture - Picture Reset)
(p. 16).
There is a dotted line on the edge of the • If the picture size is set to Screen Fit, change it to 16:9 (p. 16).
screen. * Change cable/satellite box resolution.
The picture is black and white. _ If you are using an AV composite input, connect the video cable (yelow) to the Green jack of
component input 1 on the T_
When changing channels, the picture • If connected with a cable box, please try to reset the cable box (reconnect the AC cord and wait until
freezes or is distorted or delayed, the cable box reboots. It may take up to 20 minutes).
• Set the output resolution of the cable box to 1080i or 720p.
Sound Problem First of all, please Perform the Sould Test to confirm that your TV audio is properly operating
(go to MENU 4 Support - Self Diagnosis : Sound Test) (p. 22).
If the audio is OK, the sound problem may caused by the source or signal.
• Please check thevolume of the device (Cable/Sat Box, DVD, Blu-ray ete) connected to your T_
There is no sound or the sound is too low
at maximum volume.
The picture is good but there isno sound.
The speakers are making an inappropriate
noise.
• Set the Speaker Select option to TV Speaker in the Sound menu (p. 18).
• If you are usingan external device, make sure the audio cables are connected to the correct audio
input jacks on the TM
• If you are usingan external device, check the device's audio output option (ex.you may need to
change your cable box's audio option to HDMI when you have a HDMI connected to your TV).
• If you are usinga DVIto HDMIcable, a separate audio cable is required.
• If your TV has a headphone jack, make sure there is nothing plugged into it.
• Reboot the connected device by reconnecting the device's power cable.
• Check cable connections. Make sure a video cable is not connected to an audio input.
• For antenna or Cable connections, check the signal strength. Low signal level may cause sound
distortion.
• Perform the Sound Test as explained above.
English4 7
Other Information
No Picture, No Video
The TV won't turn on. • Make sure the AC power cord b securely plugged in to the wall outbt and the TM
• Make sure the wail outbt b working.
• Try pressing the POWER button on the TV to make sure the probbm is not the remote, if the TV turns
on, refer to 'Remote control does not work' below.
The TV turns off automatically. • Ensure the Sleep Timer is set to Off in the Setup menu (p. 18).
• if your PC b connected to the T_,check your PC power settings.
• Make sure the AC power cord b plugged in securely to the wall outbt and the T_
• When watching TV from an antenna or cabb connection, the TV will turn off after 10 - 15 minutes if
there b no signal.
There b no pbture/video. • Check cabb connections (remove and reconnect all cabbs connected to the TV and external
devices).
• Set your external devbes' (Cabb/Sat Box, DVD, Blu-ray etc) video outputs to match the connections
to the TV input. For example, if an external device's output is : HDMI, TV's input : HDMI
• Make sure your connected devices are powered on.
• Be sure to select the TV's correct source by pressing the SOURCE button on the remote control.
• Reboot the connected device by reconnecting the device's power cable.
RF(Cable/Antenna)Connection
The TV is not receiving all channeb. • Make sure the coaxial cable is connected securely.
• Phase try Auto Program to add avaiiabb channels to the channel list.Go to MENU - Channel -
Auto Program then select Auto and make sure the correct Cable TV signaltype is set in the menu.
There are 3 options (STD, HRO and IRC) (p. 12)
• Verifythe Antenna is positioned correctly.
No Caption on digital channels. • Check Caption Setup menu. Try changing Caption Mode Service1 to OO1 (p. 21).
• Some channels may not have caption data.
The picture is distorted: macroUock error, • Compression of video contents may cause picture distortion, especially with fast moving pictures
small block, dots, pixelization, such as sports and action movies.
• A low signal can cause picture distortion. This is not a TV problem.
PCConnection
A "Mode Not Supported" message • Set your PC'soutput resolution so they match the resolutions supported by the TV (p. 10).
appears.
"PC" is always shown on the source list, • This is normal; "PC" is always shown on the source list, regardless of whether a PC is connected.
even if a PCis not connected.
The video is OK but there is no audio. • If you are using an HDMI connection, check the audio output setting on your PC.
Network Connection
The wireless network connection failed. • The Samsung Wireless USB dongle is required to use a wireless network.
• Make sure the Network Connection is set to Wireless (p. 26).
• Make sure the TV is connected to a wireless IP sharer (router).
Software Upgrade over the network fails. • Try network test in Setup menu (p. 21).
• If you have latest SW version, SW upgrade will not proceed.
Others
Purpldgreen rolling horizontal bars and • Remove the left and right audio connections from the set-top-box. If the buzzing stops, this indicates
buzzing noise frem the TV speakers with that the set-top-box has a grounding issue. Replace the Component video cables with an HDMI
Component cable connection, connection.
The picture won't display in full screen. • HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3)
contents.
• Black bars on the top and bottom will appear during movies that have aspect ratios different from
your TV.
• Adjust the picture size options on your external device or TV to full screen.
The remote control does not work. • Replace the remote control batterbs wkh the poles (+/-) in the right direction.
• Clean the sensor's transmission window on the remote.
• Try pointing the remote directly at the TV from 5-_6feet away.
The cabb/set top box remote control • Pregram the CaNe/Set remote control to operate the TM Referto the Cabb/Set user manual for the
doesn't turn the TV on or off, or adjust the SAMSUNG TV code.
volume.
8 English
A "Mode Not Supported" message • Check the supported resolution of the T_, and adjust the external device's output resolution
appears, accordingly. Refer to the resolution settings on page 10 of this manual.
Caption on TV menu is greyed out. • Caption can not be selected in the TV menu when connected via HDMI or Component (p. 20).
• Caption must be activated on the external device (p. 20).
There is a plastic smell from the T_ • This smell is normal and will dissipate over time.
The TV Signal Information is unavailable • This function is only available with digital channels from an Antenna / RF/Coax connection (p. 22).
in the Self Diagnostic Test menu.
The TV is tilted to the side. • Remove the base stand from the TV and reassemble it.
The channel menu isgreyed out • The Channel menu is only availablewhen the TV source is selected.
(unavailable).
Your settings are lost after 30 minutes or • If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change
every time the TV isturned off. the settings from Store Demo mode to Home Use mode in the Plug & Play procedure. Pressthe
SOURCE button to select rv mode, and go to MENU -_ Setup -_ Plug & Play _ ENTER _(p. 7).
You have intermittent loss of audio or • Check the cable connections and reconnect them.
video. • Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are
flexible enough for long term use. If mounting the TV to a wall, we recommend using cables with 90
degree connectors.
You see small particles when you look • This is part of the product's design and is not a defect.
closely at the edge of the frame of the T_
The PiP menu is not available. • PIP functionality is only availablewhen you are using a HDMI, PC or Component source.
POP 0V's internal banner ad) appears on • Select Home Use under Plug & Play mode. For details, refer to Plug & Play Feature(p. 7).
the screen.
This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce, However,
there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the
product.
English 49
Other Information
SfS_ TheaterSound, SRS and the _ symbol are trademarks of SRS Labs, Inc.
TheaterSound TheaterSound technology is incorporated under license form SRS Labs, Inc.
m DOLBY Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
DIGITAL PLUS I trademarks of Dolby Laboratories.
PULSE 1
Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
_-_ 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the
Symbol
are
2.0+DigitalOut registered trademarks. & DTS 2.0+ Digital Out and the DTS Iogos are trademarks of DTS, Inc.
Product Includes software. @ DTS, Inc. All Rights Reserved.
DivX Certified to play DivX video up to HD 1080p, including premium content.
ABOUT DIVX VIDEO: DivX@is a digital video format created by DivX,Inc. This is an official DivX Certified device that
plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified@ device must be registered in order to play DivXVideo-on-
Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu.
Go to vod.divx.com with this code to complete the registration process and learn more about DivXVOD.
Pat. 7,295,673; 7,460,688; 7,519,274
Open Source License Notice
In the case of using open source software, Open Source Licenses are available on the product menu.
Open Source License Notice is written only English.
0 English
Panelnative 1920 x 1080 @ 60 Hz
EnvironmentalConsiderations
Operating Temperature 50°F to 104°F (10°C to 40°C)
Operating Humidity 10% to 80%, non-condensing
Storage Temperature d°F to 113°F (-20°C to 45°C)
Storage Humidity 5% to 95%, non-condensing
Stand Swivel (Left / Right) -20° - 20°
Screen Size 60 inches
(Diagonal) (60.1 inches measured diagonally)
Sound
(Output) 15 W X 2
Dimensions (WxDxH)
Body 55.5 X 1.2 X 33.2 inches
(1410 X 31.65X 842 ram)
WithStand 55.5 X 13.2 X 35.8 inches
(1410 X 335 X 909 ram)
Without Stand 68.3 Ibs (31 kg)
With Stand 83.6 Ibs (37.9 kg)
Design and specifications are subject to change without prior notice.
This device is a Class B digital apparatus.
For information about power supply, and more about power consumption, refer to the label attached to the product.
English 51

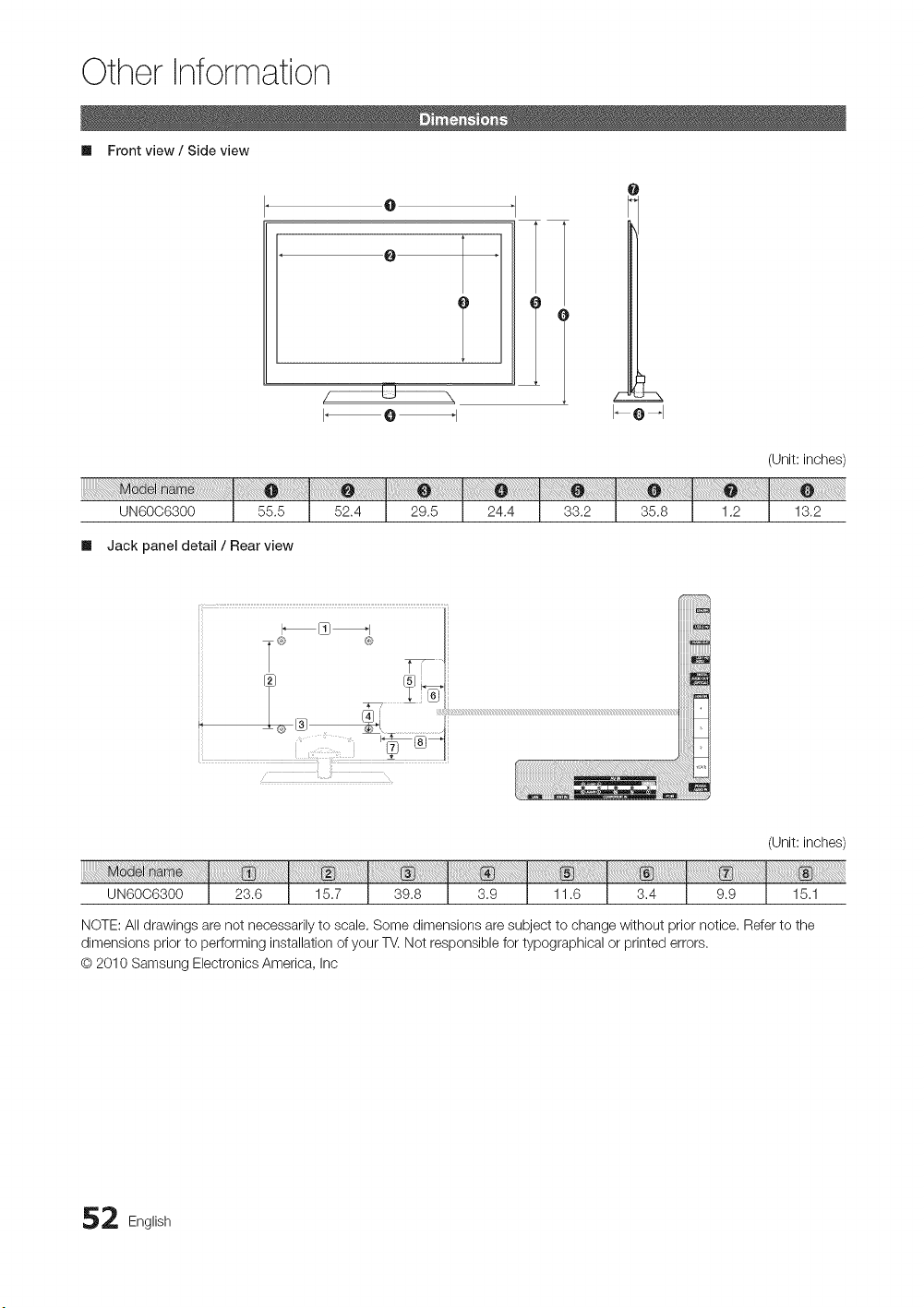

Other Information
Ill Front view / Side view
O
/-
(Unit: inches)
Ill Jack panel detail / Rear view
(Unit: inches)
NOTE: All drawings are not necessarily to scale, Some dimensions are subject to change without prior notice. Refer to the
dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.
@ 2010 Samsung Electronics America, Inc
2 English
A F R
AIIShare 41 FA_I,©Hbutton 6, 12 Receiver 40
Amplify 17 Favorite Channel 12 Recording 39
Antenna 12 Film Mode 16 Remote Control 6
Anynet+ 38 Fine Tune 14 Repeat Mode 37
AUDIO OUT 9 Flesh Tone 15 RGB Only Mode 15
Auto Adjustment 16 Frequency 10 Rotate 37
Auto Volume 18
H S
B .................................................................................................................................................................
HDMI 8, 38 Self Diagnosis
Background Music 37 Home Theater 9, 38 Sharpness
Balance L/R 17 Signal Information
Basic View 36 I Sleep Timer
Batteries 6 ....................................................................................Slide Show
Black Tone 15 Installation Space 2 Software Upgrade
Blanking Bracket 44 Source List
Brightness 14 L Speaker Select
Language 20 Specifications
C License 50 Standby mode
......................................................................................................................................................................Symbol
M
T
Media Play 31
Melody 21 Timer
Menu Transparency 21 Title
Mono 18 Tools
Music 35 Troubleshooting
TV Speaker
Cable Tie 4, 43
Change PIN 20
Channel Menu 12
Clock 18
Color Tone 15
Componet 8
Connecting to a PC 10
Connecting to an Audio Device 9
D
DIGITAL AUDIO ONT 9, 38
DivX® VOD 37
D-sub 10
Dynamic 14
Dynamic Contrast 15
O
ON/OFF button 6
Optimal resolution 10
E
Photos 36
Picture Size 15, 37
PIP (Picture in Picture) 22
Plug & Play 7
Power Indicator 5
Eco Sensor 14
Edit Name 11
Editing Channels 13
Energy Saving 14
Equalizer 17
External Speaker 18
22
14
22
18
36
23
11
18
51
5
3
19
36
3
47
18
23, 31
V
Video Formats 34
Videos 35
Volume 5
W
Wall Mount 44
Warm 15
White Balance 15
English 53
