Please read this manual before using the product!
Dear Customer,
We'd like you to make the best use of our product, which has been manufactured in modern facilities
with care and meticulous quality controls.
Thus, we advice you to read the entire user manual before you use the product. In case the product
changes hands, do not forget to hand the guide to its new owner along with the product.
This guide will help you use the product quickly and safely.
• Please read the user guide carefully before installing and operating the product.
• Always observe the applicable safety instructions.
• Keep the user guide within easy reach for future use.
• Please read any other documents provided with the product.
Keep in mind that this user guide may apply to several product models. The guide clearly indicates any
variations of different models.
C
Important information and useful
tips.
A
Risk of life and property.
B
Risk of electric shock.
The product’s packaging is made of
recyclable materials, in accordance
with the National Environment
Legislation.
2 /34 EN
Refrigerator / User Manual
1. Safety and environment instructions 3
2 Your Refrigerator 6
3 Installation 7
3.1 Appropriate installation location . . . . . . . . .7
3.2 Installing the plastic wedges. . . . . . . . . . . .7
3.3 Electrical connection . . . . . . . . . . . . . . . . .7
3.4 Adjusting the feet. . . . . . . . . . . . . . . . . . . .8
3.5 Illumination lamp . . . . . . . . . . . . . . . . . . . .8
3.6 Door open warning. . . . . . . . . . . . . . . . . . .8
3.7 Water connection. . . . . . . . . . . . . . . . . . . .9
3.7.1 Before Installation . . . . . . . . . . . . . . . . . .10
3.8 Connecting the water hose to the
refrigerator . . . . . . . . . . . . . . . . . . . . . . .10
3.9 Connecting the water line to the water
supply . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.10 Water filter . . . . . . . . . . . . . . . . . . . . . . . .10
3.10.1 Attaching the internal filter into the
refrigerator . . . . . . . . . . . . . . . . . . . . . . .10
3.11 Before starting to use the water/ice
dispenser . . . . . . . . . . . . . . . . . . . . . . . .12
3.12 Transportation of the product . . . . . . . . . .12
4 Preparation 13
4.1 Things to be done for energy saving . . . . .13
4.2 Recommendations for the fresh food
compartment. . . . . . . . . . . . . . . . . . . . . .13
4.3 Initial use. . . . . . . . . . . . . . . . . . . . . . . . .14
5 Operating the product 18
5.1 Indicator panel. . . . . . . . . . . . . . . . . . . . .18
5.2 Indicator panel . . . . . . . . . . . . . . . . . . . . . .20
5.3 Dual cooling system. . . . . . . . . . . . . . . . .24
5.4 Freezing fresh food . . . . . . . . . . . . . . . . .24
5.5 Recommendations for preserving the frozen
food . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
5.6 Placing the food. . . . . . . . . . . . . . . . . . . .25
5.7 Deep-freeze information. . . . . . . . . . . . . .25
5.8 Removing door shelves . . . . . . . . . . . . . .25
5.9 Moving door rack . . . . . . . . . . . . . . . . . . . .25
5.10 Glass shelves. . . . . . . . . . . . . . . . . . . . . .25
5.11 Frost Free Chill compartment . . . . . . . . . .26
5.12 Crisper . . . . . . . . . . . . . . . . . . . . . . . . . .26
5.13 Humidity controlled crisper . . . . . . . . . . . .26
(Everfresh+(R) . . . . . . . . . . . . . . . . . . . . . . . . .26
5.14 Butter & Cheese section . . . . . . . . . . . . .27
5.15 Egg holder. . . . . . . . . . . . . . . . . . . . . . . .27
5.16 Movable middle section . . . . . . . . . . . . . .28
5.17 Ice container . . . . . . . . . . . . . . . . . . . . . .28
5.18 Blue light. . . . . . . . . . . . . . . . . . . . . . . . .29
5.19 IonGuard . . . . . . . . . . . . . . . . . . . . . . . .29
5.20 Odour filter . . . . . . . . . . . . . . . . . . . . . . .29
5.21 Using inner water dispenser . . . . . . . . . . .29
5.22 Dispensing Water . . . . . . . . . . . . . . . . . . .29
5.23 Maintaining water dispenser. . . . . . . . . . .30
5.24 Icematic . . . . . . . . . . . . . . . . . . . . . . . . .30
5.26 Refrigerator Shelf Weight Limitations. . . . .31
6. Maintenance and cleaning 32
6.1 Avoiding bad odours. . . . . . . . . . . . . . . . .32
6.2 Protecting the plastic surfaces . . . . . . . . .32
7. Troubleshooting 33
3 / 34 EN
Refrigerator / User Manual
1. Safety and environment instructions
This section provides the safety
instructions necessary to prevent the risk
of injury and material damage. Failure to
observe these instructions will invalidate
all types of product warranty.
Intended use
A
WARNING:
Keep ventilation openings, in
the appliance enclosure or in
the built-instructure, clear of
obstruction.
A
WARNING:
Do not use mechanical
devices or other means to
accelerate the defrosting
process, other than those
recommended by the
manufacturer.
A
WARNING:
Do not damage the refrigerant
circuit.
A
WARNING:
Do not use electrical
appliances inside the food
storage compartments of the
appliance, unless they are of
the type recommended by the
manufacturer.
This appliance is intended to be used in
household and similar applications such
as
– staff kitchen areas in shops, offices and
other working environments;
– farm houses and by clients in hotels,
motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail
applications.
1.1. General safety
• This product should not be used by
persons with physical, sensory and
mental disabilities, without sufficient
knowledge and experience or by
children. The device can only be used
by such persons under supervision
and instruction of a person responsible
for their safety. Children should not be
allowed to play with this device.
• In case of malfunction, unplug the
device.
• After unplugging, wait at least 5
minutes before plugging in again.
• Unplug the product when not in use.
• Do not touch the plug with wet hands!
Do not pull the cable to plug off, always
hold the plug.
• Do not plug in the refrigerator if the
socket is loose.
• Unplug the product during installation,
maintenance, cleaning and repair.
• If the product will not be used for a
while, unplug the product and remove
any food inside.
• Do not use the product when the
compartment with circuit cards located
on the upper back part of the product
(electrical card box cover) (1) is open.
1
1
4 /34 EN
Refrigerator / User Manual
Important instructions for safety and environment
• Do not use steam or steamed cleaning
materials for cleaning the refrigerator
and melting the ice inside. Steam may
contact the electrified areas and cause
short circuit or electric shock!
• Do not wash the product by spraying or
pouring water on it! Danger of electric
shock!
• In case of malfunction, do not use the
product, as it may cause electric shock.
Contact the authorised service before
doing anything.
• Plug the product into an earthed
socket. Earthing must be done by a
qualified electrician.
• If the product has LED type lighting,
contact the authorised service for
replacing or in case of any problem.
• Do not touch frozen food with wet
hands! It may adhere to your hands!
• Do not place liquids in bottles and cans
into the freezer compartment. They
may explode.
• Place liquids in upright position after
tightly closing the lid.
• Do not spray flammable substances
near the product, as it may burn or
explode.
• Do not keep flammable materials and
products with flammable gas (sprays,
etc.) in the refrigerator.
• Do not place containers holding liquids
on top of the product. Splashing water
on an electrified part may cause
electric shock and risk of fire.
• Exposing the product to rain, snow,
sunlight and wind will cause electrical
danger. When relocating the product,
do not pull by holding the door handle.
The handle may come off.
• Take care to avoid trapping any part
of your hands or body in any of the
moving parts inside the product.
• Do not step or lean on the door,
drawers and similar parts of the
refrigerator. This will cause the product
to fall down and cause damage to the
parts.
• Take care not to trap the power cable.
1.1.1 HC warning
If the product comprises a cooling system
using R600a gas, take care to avoid
damaging the cooling system and its pipe
while using and moving the product. This
gas is flammable. If the cooling system
is damaged, keep the product away from
sources of fire and ventilate the room
immediately.
C
The label on the inner left side
indicates the type of gas used in
the product.
1.1.2 For models with
water dispenser
• Pressure for cold water inlet shall be
maximum 90 psi (6.2 bar). If your
water pressure exceeds 80 psi (5.5
bar), use a pressure limiting valve in
your mains system. If you do not know
how to check your water pressure, ask
for the help of a professional plumber.
• If there is risk of water hammer effect
in your installation, always use a water
hammer prevention equipment in
your installation. Consult Professional
plumbers if you are not sure that there
is no water hammer effect in your
installation.
5 / 34 EN
Refrigerator / User Manual
Important instructions for safety and environment
• Do not install on the hot water inlet.
Take precautions against of the
risk of freezing of the hoses. Water
temperature operating interval shall
be 33°F (0.6°C) minimum and 100°F
(38°C) maximum.
• Use drinking water only.
1.2. Intended use
• This product is designed for home use.
It is not intended for commercial use.
• The product should be used to store
food and beverages only.
• Do not keep sensitive products
requiring controlled temperatures
(vaccines, heat sensitive medication,
medical supplies, etc.) in the
refrigerator.
• The manufacturer assumes no
responsibility for any damage due to
misuse or mishandling.
• Original spare parts will be provided
for 10 years, following the product
purchasing date.
1.3. Child safety
• Keep packaging materials out of
children’s reach.
• Do not allow the children to play with
the product.
• If the product’s door comprises a lock,
keep the key out of children’s reach.
1.4. Compliance with WEEE Directive
and Disposing of the Waste Product
This product complies with EU WEEE
Directive (2012/19/EU). This product bears a
classification symbol for waste electrical and
electronic equipment (WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Do not dispose of the
waste product with normal domestic
and other wastes at the end of its
service life. Take it to the collection
center for the recycling of electrical and electronic
equipment. Please consult your local authorities to
learn about these collection centers.
1.5. Compliance with RoHS Directive
• This product complies with EU WEEE Directive
(2011/65/EU). It does not contain harmful and
prohibited materials specified in the Directive.
1.6. Package information
Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the packaging
materials together with the domestic or other
wastes. Take them to the packaging material
collection points designated by the local authorities.
6 /34 EN
Refrigerator / User Manual
2 Your Refrigerator
1- Fridge compartment
2- ButFreezer compartment
3- Display/indicator panel
4- Butter & cheese section
5- Fridge compartment door shelf
6- Egg tray
7- Bottle shelf
8- Chiller compartment
9- Crispers
10- İnner water dispenser
11- Adjustable glass shelf
12- Fan
13- Water filter
14- Ice container
15- Frozen food storage compartment (upper)
16- Frozen food storage compartment (upper)
17- Seperator
2
*3
1
*7
*5
*8
*9
10
12
*13
*11
6
*4
14 15
16
*17
C
Figures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are valid for other models.
7 / 34 EN
Refrigerator / User Manual
3 Installation
To make the product ready for use, make sure
that the electricity insert & water installation is
appropriate. If not, call a qualified electrician and
plumber to have any necessary arrangements
carried out.
C
Preparation of the location and electrical
installation at the place of installation is
under customer's responsibility.
B
Product must not be plugged in during
installation. Otherwise, there is the risk of
death or serious injury!
B
WARNING: Installation and electrical
connections of the product must be carried
out by the Authorised Service Agent.
Manufacturer shall not be held liable for
damages that may arise from procedures
carried out by unauthorised persons.
A
WARNING: Prior to installation, visually
check if the product has any defects on
it. If so, do not have it installed. Damaged
products cause risks for your safety.
C
Make sure that the power cable is not
pinched or crushed while pushing the
product into its place after installation or
cleaning procedures.
3.1 Appropriate installation location
A
WARNING: If the door of the room where
the product will be placed is too small for
the product to pass, then the product's
doors must be removed and the product
must be turned aside to pass it through.
•Chooseaplaceatwhereyouwouldusethe
product comfortably.
•Installtheproductatleast30cmawayfrom
heat sources such as hobs, ovens, heater
cores and stoves and at least 5 cm away from
electrical ovens. Product must not be subjected
to direct sun light and kept in humid places after
installation.
•Appropriateairventilationmustbeprovided
around your product in order to achieve an
efficient operation. If the product is to be placed
in a recess in the wall, pay attention to leave at
least 5 cm distance with the ceiling and side
walls.
•Donotplacetheproductonthematerialssuch
as rugs or carpets.
•Placetheproductonanevenfloorsurfaceto
prevent jolts.
•Donotinstalltheproductinplaceswherethe
temperature falls below 10ºC /50°F.
C
If two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.
3.2 Installing the plastic wedges
Plastic wedges are used to create the distance
for the air circulation between the product and
the rear wall. Insert the 2 plastic wedges onto the
rear ventilation cover as illustrated in the figure.
To install the wedges, remove the screws on the
product and use the screws given in the same
pouch with the wedges.
3.3 Electrical connection
Connect the product to a grounded outlet
protected by a fuse complying with the values in
the rating plate. The Manufacturer shall not be
liable for any damages that will arise when the
product is used without grounding in accordance
with the local regulations.
•Electricalconnectionmustcomplywithnational
regulations.
•Powercableplugmustbewithineasyreach
after installation.
•Thevoltageandallowedfuseorbreaker
protection are specified in the Rating Plate
which is affixed to interior of the product. If
the current value of the fuse or breaker in the
house does not comply with the value in the
rating plate, have a qualified electrician install a
suitable fuse.
•Thespecifiedvoltagemustbeequaltoyour
mains voltage.
•Donotmakeconnectionsviaextensioncables
or multi-plugs.
8 /34 EN
Refrigerator / User Manual
Installation
B
WARNING: Damaged power cable must
be replaced by the Authorised Service
Agents.
B
WARNING: If the product has a failure, it
should not be operated unless it is repaired
by the Authorised Service Agent! There is
the risk of electric shock!
3.4 Adjusting the feet
If the product stands unbalanced after installation
adjust the feet. Taking help from someone to
slightly lift the refrigerator will facilitate this
process.
B
WARNING: First unplug the product.
Product must not be plugged in when
adjusting the feet. There is the risk of
electric shock!
Turn the front feet to balance the product. The
corner where the foot exists is lowered when you
turn in the direction of arrow and raised when you
turn it in the opposite direction.
3.6 Door open warning
(This feature may vary depending on the door
of the product and may not exist in some
models.)
An audio warning signal will be given when the
door of your product is left open for 1 minute. This
warning will be muted when the door is closed or
any of the display buttons (if any) are pressed.
3.5 Illumination lamp
Do not attempt to repair yourself but call the
Authorised Service Agent if the LED illumination
lamps do not go on or are out of order.
The lamp(s) used in this appliance is not suitable
for household room illumination. The intended
purpose of this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in a safe and
comfortable way.
9 / 34 EN
Refrigerator / User Manual
Installation

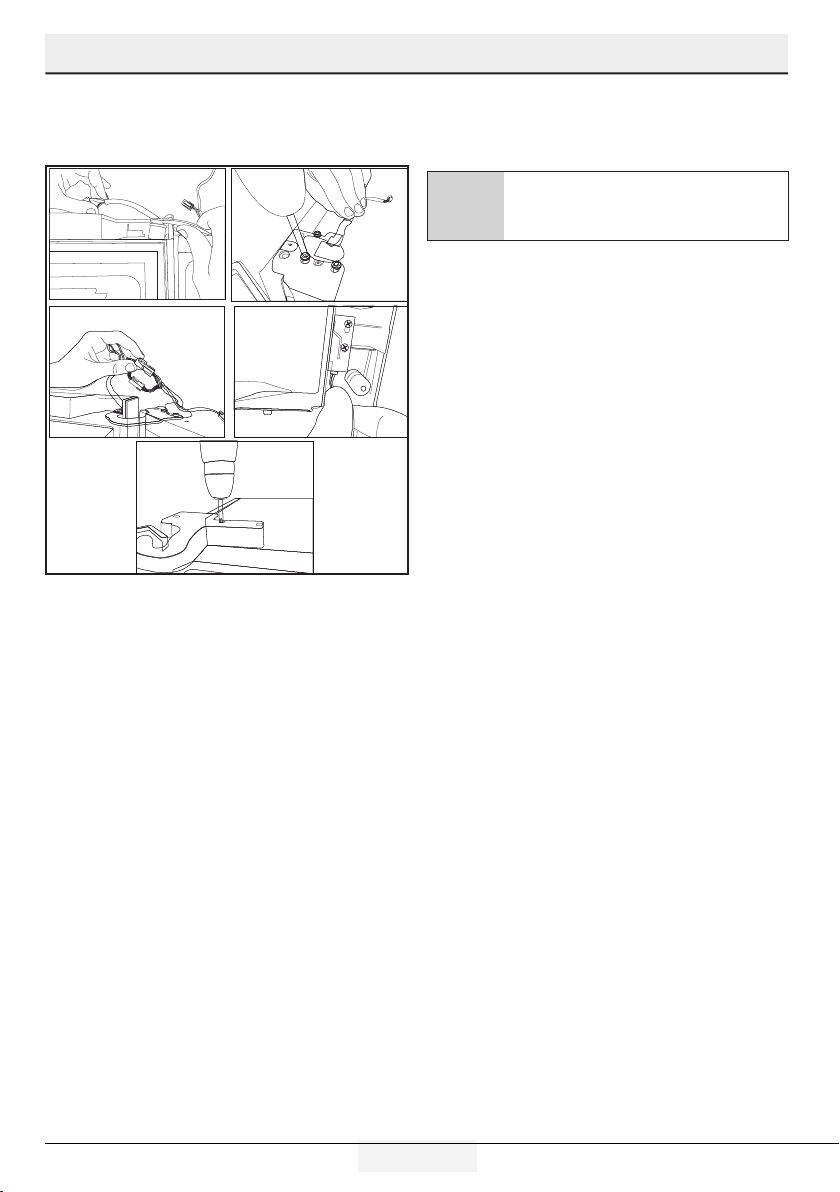

-Upper hinge group is fixed with 3 screws.
-The hinge cover is attached after the sockets are
installed.
- Then the hinge cover is fixed with two screws.
3.7 Water connection
Depending on the model of the refrigerator, you
can connect it either to water mains. First you
must connect the water hose to the refrigerator.
A
WARNING: Refrigerator and the pump, if
any, must be unplugged during connection.
Check that following part have been delivered
together with the product:
External water filter.
10 /34 EN
Refrigerator / User Manual
Installation
3.7.1 Before Installation
Make sure that you have everything necessary
to ensure proper installation before proceeding,
including:
Your product comes with an internal water filter for
use inside the fridge. Part number of the filter is
4918450200 and you can use this part number
when ordering replacement filters.
3.10.1 Attaching the internal
filter into the refrigerator
1. Pull the water filter cover slowly.
2. Remove the water filter bypass cover by turning
it downwards.
3.8 Connecting the water
hose to the refrigerator
1. Slip the union (B) onto the water hose (A).
2. Push the water hose downwards firmly to slip it
onto the water inlet valve (C).
3. Tighten the union (C) by hand to secure it onto
the water inlet valve.
C
Normally, you are not required to tighten
the union with a tool. However, you can use
a spanner or pliers to tighten the union if
there is a leakage.
3.9 Connecting the water line
to the water supply
Connect the water line to a water supply valve. If a
valve is not present or you are not sure, consult a
qualified plumber.
3.10 Water filter
(in some models)
Your refrigerator may be equipped with an external
or internal filter depending on its model. To fit the
water filter, follow the instructions below referring
to the figures supplied:
E
C
A
B
D
11 / 34 EN
Refrigerator / User Manual
Installation
A
WARNING: Ensure that the Ice Off mode
is enabled before removing the by-pass
cover.
C
It is normal that a few drops of water drip
after the cover has been removed.
3. Place the water filter cover into the mechanism
and push forwards to lock it in place.
4. Press “Ice Off” button on the display again to
exit this mode.
A
WARNING: Ensure that the Ice Off mode
is enabled before removing the by-pass
cover.
C
It is normal that a few drops of water drip
after the cover has been removed.
3. Place the water filter cover into the mechanism
and push forwards to lock it in place.
4. Press “Ice Off” button on the display again to
exit this mode.
C
Water filter must be replaced every 6
months. When replacing the water filter
or if you will not use the filter anymore,
remove it as illustrated in the figure and
install the bypass cover. Make sure that the
"Ice Off" mode is enabled before removing
the filter.
A
WARNING: Water filter cleans some
foreign particles in the water. It does not
purify water from microorganisms.
A
WARNING: Ice Off button must be
pressed before replacing the water filter or
installing the by-pass cover.
A
WARNING: Unplug the product during the
replacement of the filter.
12 /34 EN
Refrigerator / User Manual
Installation
3.11 Before starting to use the
water/ice dispenser
• If the water pressure is below 1 bar or a pump
demijohn will be used, than a separate must be
used as well.
• Water system of the refrigerator must be
connected to the cold water line. It must not
be connected to hot water line.
• No water may be obtained in the initial start-
up of the refrigerator. Because there is air in
the system. To discharge air from the system,
press dispenser latch for 1-2 minutes until
water comes from the dispenser. Water flow
may be irregular at the beginning. After the
air in the system is discharged, water flow will
return to normal.
• During initial use, you will have to wait
approximately 12 hours for the water to cool
down.
• It will take around 1-2 days for the system to
produce required amount of ice.
• The first 10 glasses of water should not be
consumed.
• First several glasses of water may be turbid
when the filter is used for the first time.
Therefore, do not consume the first several
glasses of water.
• If the water dispenser is not used for a long
period of time, first 1-2 glasses of water can
be hot.
• If a power outage or a temporary failure occurs
while the refrigerator is operating, ice can melt
down a little bit and then get frozen again. In
such a case, ice cubes can stick to each other.
If the outage or failure prolongs, ice can melt
down causing water leakage. If you experience
such a problem, empty and clean the ice
container.
• Ice cubes can stick to each other if they are left
in the container for a long time.
• Water system installation of the refrigerator
must be performed by a qualified plumber.
• If the product is to be connected to the water
mains, make sure that you use potable water.
• Water system of the product is designed to
operate only with water. Do not use beverage
such as soft drinks and/or juices in the water
system.
• It is recommended that the water is
disconnected if you will not be using the
refrigerator for a long period of time due to
vacation or similar reasons.
• Do not attempt to dismantle the ice container
group assembly parts.
• Do not attempt to clean the ice container
assembly without removing it from the
refrigerator.
• When taking water from the water dispenser,
remove the glass from the opening 1 second
after releasing the trigger. Thus, water in the
system will not drip into the drip tray.
3.12 Transportation of the product
1. Unplug the product before transporting it.
2. Remove water connections.
3. Secure the shelves, accessories, crisper and
etc. in the refrigerator by adhesive tape before
repackaging it.
C
Packaging must be tied with thick tapes or
strong ropes and the rules of transportation
printed on the package must be followed.
C
Original packaging and foam materials
should be kept for future transportations.
A
WARNING: Packaging materials
are dangerous for the children. Keep
packaging materials in a safe place away
from reach of the children.
13 / 34 EN
Refrigerator / User Manual
4 Preparation
4.2 Recommendations for the
fresh food compartment
• Do not allow the food to touch the temperature
sensor in fresh food compartment. To allow the
fresh food compartment keep its ideal storage
temperature, sensor must not be hindered by
food.
• Do not put hot food and beverages inside the
product.
4.1 Things to be done for
energy saving
A
Connecting the product to electric energy
saving systems is risky as it may cause
damage on the product.
• Do not leave the doors of your refrigerator open
for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload the refrigerator. Cooling
capacity will fall when the air circulation inside
is hindered.
• Do not place the refrigerator in places subject
to direct sunlight. Install the product at least
30 cm away from heat sources such as hobs,
ovens, heater cores and stoves and at least 5
cm away from electrical ovens.
• Pay attention to store your food in refrigerator
in closed containers.
• You can load maximum amount of food to the
freezer compartment of the refrigerator by
removing the freezer compartment shelf of
drawer. Declared energy consumption value
of the refrigerator was determined with the
freezer compartment shelf or drawer removed
and with maximum amount of food loaded.
There is no risk in using a shelf or drawer
suitable for the shapes and sizes of the foods
to be frozen.
• Thawing frozen food in fridge compartment will
both provide energy saving and preserve the
food quality.
C
The ambient temperature of the room
where you install the refrigerator should
at least be 10ºC /50°F. Operating your
refrigerator under cooler conditions than
this is not recommended.
C
Inside of your refrigerator must be cleaned
thoroughly.
C
If two coolers are to be installed side
by side, there should be at least 4 cm
distance between them.
14 /34 EN
Refrigerator / User Manual
Preparation
4.3 Initial use
Before starting to use the product, check that all
preparations are made in accordance with the
instructions in sections "Important instructions for
safety and environment" and "Installation".
• Clean the interior of the refrigerator as
recommended in the “Maintenance and
cleaning” section. Check that inside of it is dry
before operating it.
• Plug the refrigerator into the grounded wall
outlet. When the door is opened the interior
illumination will turn on.
• Run the refrigerator without putting any food
for 6 hours and do not open its door unless
certainly required.
C
You will hear a noise when the compressor
starts up. The liquids and gases sealed
within the refrigeration system may also
give rise to noise, even if the compressor is
not running and this is quite normal.
C
Front edges of the refrigerator may
feel warm. This is normal. These areas
are designed to be warm to avoid
condensation.
15 / 34 EN
Refrigerator / User Manual
Preparation

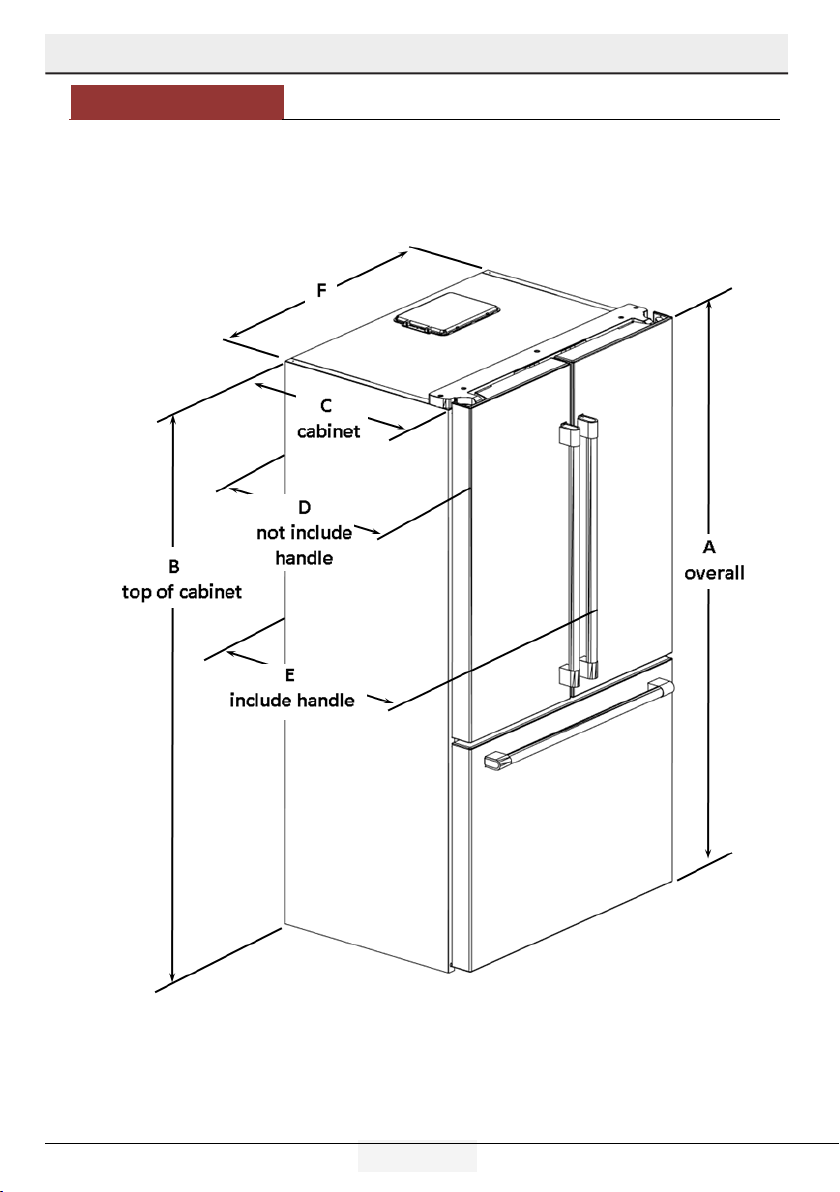

DIMENSIONS [36”FRENCHREFRIGERATOR]
1
PRODUCTDIMENSIONS
16 /34 EN
Refrigerator / User Manual
Preparation
DIMENSIONS [36”FRENCHREFRIGERATOR]
2
FreezerDoorOpenMax(Drawer)
Height
Overall
"A"
Height
TopOfCabinet
"B"
DepthCabinetOnly
"C""O"
DepthWithoutHandles
"D"
1771mm(69,72") 1710mm(67,32") 600mm(23,62") 680,5mm(26,79")
Depth
WithHandles
"E"
Width
Cabinet
"F"
Depth
DrawerOpen
"G"
TotalDepthDrawerOpen
"H"
737mm(29,01") 908mm(35,74") 1157mm(45,55") 1178,5mm(46,40”)
DepthDoorsOpen90°
"I"
TotalDepthDoors
Open90°"J"
WidthDoors
Open90°WithHandles
"K"
WidthDoorsOpen90°
FromCabinetToHandle
"L"
1072,6mm(42,22") 1094mm(43,07") 1059,2mm(41,70") 75,6mm(2,97")
WidthDoorsOpen130°
FromHandleToHandle
"M"
WidthDoorsOpen130°
FromCabinetToHandle
"N"
DepthDoorsOpen130°
"P"
DepthDoorsOpen130°
"R"
1530.2mm(41,70") 311,2mm(12,25") 391mm(15,39") 991mm(39.01")
Min Clearance From the Top: 50mm (2”)
Min Clearance From the Sides: 50mm (2”)
17 / 34 EN
Refrigerator / User Manual
Preparation

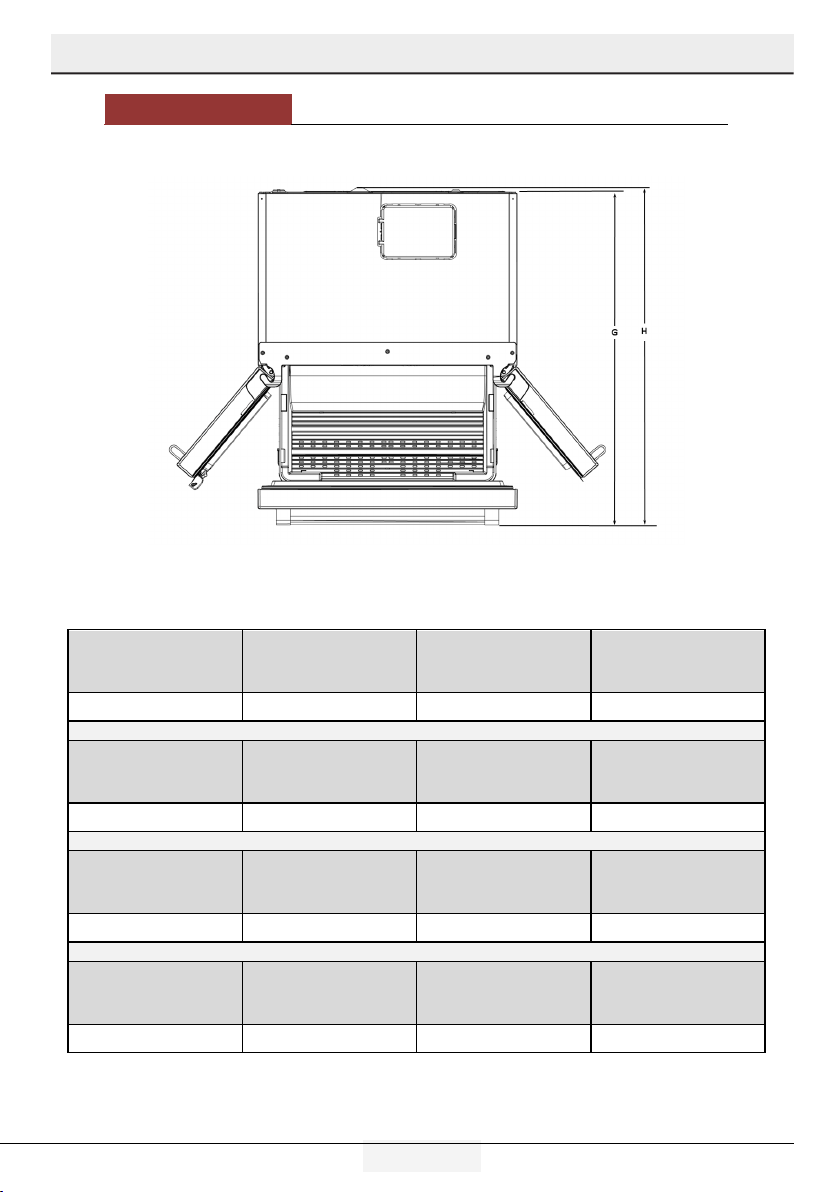

DIMENSIONS [36”FRENCHREFRIGERATOR]
3
FreshFoodDoorOpen90°
FreshFoodDoorOpen130°(Max)
18 /34 EN
Refrigerator / User Manual
5 Operating the product
C
Figures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are valid for other models.

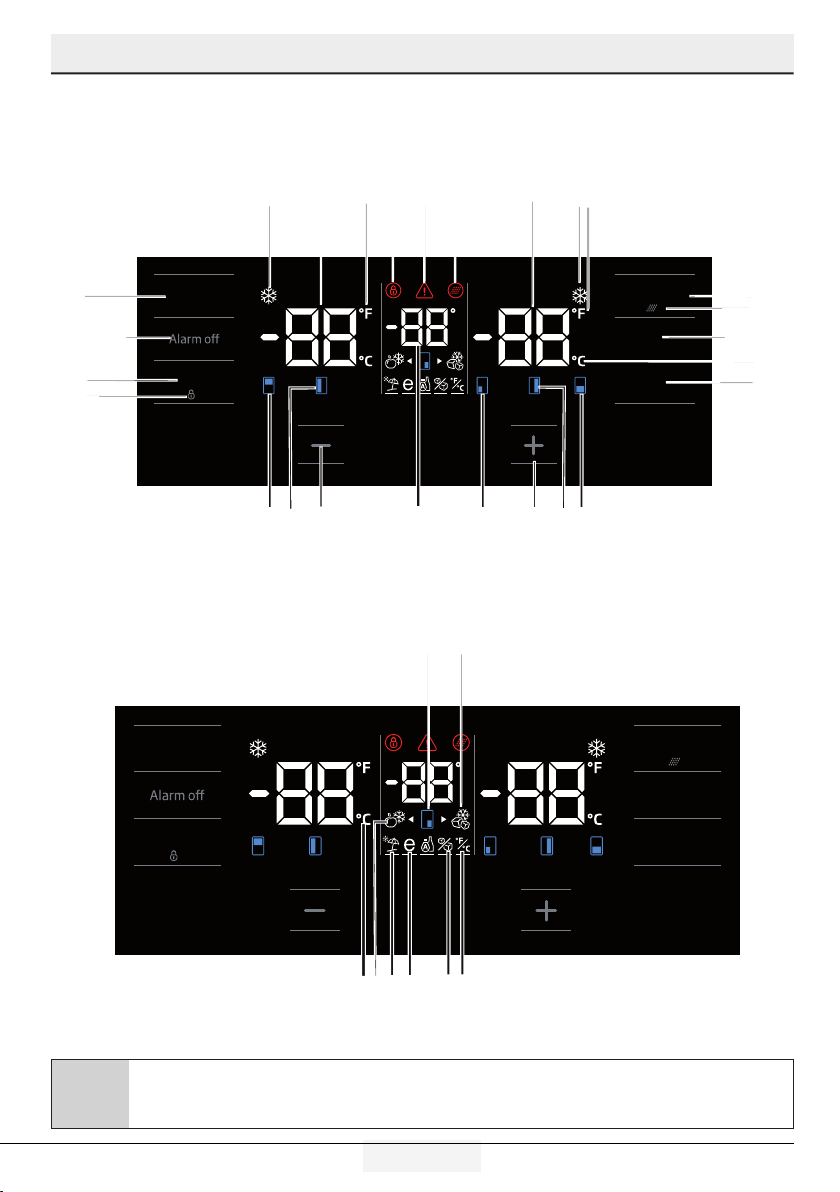

5.1 Indicator panel
Touch-control indicator panel allows you to set the temperature and control the other functions of the
refrigerator. Just press the relevant buttons for function settings.
1
2
3
4 5 6
7
8
9
10
11
12
13
14 15 16
1-On/Off function
Press the On/Off button for 3 seconds to turn off or
turn on the fridge.
2-Quick Fridge Function
When you press Quick Fridge button, the tempe-
rature of the compartment will be colder than the
adjusted values.
This function can be used for food placed in the
fridge compartment and required to be cooled
down rapidly.
If you want to cool large amounts of fresh food, it
is recommended to active this feature before put-
ting the food into the fridge. Quick Fridge indica-
tor will remain lit when the Quick Fridge function is
enabled. To cancel this function press Quick Fridge
button again. Quick Fridge indicator will turn off
and return to its normal settings.
If you do not cancel it, Quick Fridge will cancel it-
self automatically after 2 hours or when the fridge
compartment reaches to the required temperature.
This function is not recalled when power restores
after a power failure.
3-Vacation Function
Press the Quick Fridge\Vacation button for 3 se-
conds to activate Vacation function.”--” icon co-
mes on when the function is active. Function is
deactivated by pressing the same button for 3 se-
conds again or by pressing Fridge set button.
When vacation mode is activated, set values does
not seem for fresh food cabin. Line is occured on
segments of fresh food.
When vacation mode is activated, tempature of
fresh food is hotter than 50 Fahrenheit degree(
10 celcius degree) so please do not keep foods in
fresh food cabinet. Tempature of freezer is not af-
fected.
4-Fridge Set Function
This function allows you to make the fridge com-
partment temperature setting. Press this button to
set the temperature of the fridge compartment to
8, 7, 6, 5, 4, 3, 2 or 1°C respectively.
5-Off Indicator
Off Indicator lits when the fridge is “Off” mode.
6-Quick Fridge Indicator
This icon lits when the Quick Fridge function is ac-
tive.
7-Fridge Compartment Temperature Setting
Indicator
Indicates the temperature set for the Fridge
Compartment.
8-Vacation Indicator
This icon lits when the Vacation function is active.
9-High Temperature Error / Warning
Indicator
This icon comes on during high temperature failu-
res and error warnings.
10-Freezer Compartment
Temperature Setting Indicator Indicates the tempe-
rature set for the Freezer Compartment.
11-Eco-Extra Indicator
Eco-Extra Indicator lits when the Eco Extra functi-
on is active.
19 / 34 EN
Refrigerator / User Manual
Operating the product
5.1 Indicator panel
Touch-control indicator panel allows you to set the temperature and control the other functions of the
refrigerator. Just press the relevant buttons for function settings.
1
2
3
4 5 6
7
8
9
10
11
12
13
14 15 16
12-Quick Freeze Indicator
This indicator lits when the Quick Freezer functi-
on is active.
13-Freezer Set Function
This function allows you to make the freezer com-
partment temperature setting. Press this button to
set the temperature of the freezer compartment to
0, -2, -4, -6, -8, -10 and -12 respectively.
The Ice Machine can be activated/deactivated
when you press and hold the button for 3 seconds.
14-Quick Freeze Function
Quick Freeze indicator turns on when the Quick
Freeze function is on. To cancel this function press
Quick Freeze button again. Quick Freeze indicator
will turn off and return to its normal settings. If you
do not cancel it, Quick Freeze will cancel itself au-
tomatically after 4 hours or when the freezer com-
partment reaches to the required temperature.
If you want to freeze large amounts of fresh food,
press the Quick Freeze button before putting the
food into the freezer compartment. If you press the
Quick Freeze button repeatedly with short inter-
vals, the electronic circuit protection will be activa-
ted immediately.
This function is not recalled when power restores
after a power failure.
15-Eco-Extra (Special Economic Usage)
Function
Press the Quick Freeze\Eco Extra button for
3 seconds to activate the Eco Extra Function.
Refrigerator will start operating in the most eco-
nomic mode at least 6 hours later and the econo-
mic usage indicator will turn on when the function
is active. Press the Quick Freeze button for 3 se-
conds again to deactivate the Eco Fuzzy Function.
16-Alarm Off
When the fridge door is opened for 2 minutes or
when there a sensor failure, a sound alarm turns
on. Alarm can be turned off by pressing “Alarm
Off” button.
Sensor failure alarm will not sound till power
failure. If you close the door and then open again
“Door open alarm” will be activated again after 2
minutes later .
20 /34 EN
Refrigerator / User Manual
Operating the product
5.2 Indicator panel
Touch-controlled indicator panel allows you to set the temperature and control the other functions related
to the refrigerator. Just press the relevant buttons for function settings.
Select
Quick FreezeQuick Cool
FN
OK
3 “
3 “
1
2 3
4
5 6
9
10 11
12
13
14
15
16
1718
19
20
27
28
29
30
31
32
33
*34.1
*34.2
Select
Quick FreezeQuick Cool
FN
OK
3 “
3 “
7
*8
22
21
23
24
*25
26
C
Figures in this user manual are schematic and may not match the product exactly. If the subject parts
are not included in the product you have purchased, then those parts are valid for other models.
21 / 34 EN
Refrigerator / User Manual
Operating the product
1. Quick cooling function indicator
It turns on when the quick fridge function is
activated.
2. Fridge compartment temperature indicator
Temperature of the fridge compartment is shown;
it can be set to 8,7,6,5,4,3,2,1.
3. Fahrenheit indicator
It is a Fahrenheit indicator. When the Fahrenheit
indication is activated, the temperature set values
are shown in Fahrenheit and the relevant icon
turns on.
4. Key lock
Press key lock button simultaneously for 3
seconds. Key lock symbol
will light up and key lock mode will be activated.
Buttons will not function if the Key lock mode is
active. Press key lock button simultaneously for 3
seconds again. Key lock symbol will turn off and
the key lock mode will be exited.
Press the key lock button if you want to prevent
changing of the temperature setting of the
refrigerator.
5. Power failure/High temperature / error
warning
This indicator illuminates during power failure, high
temperature failures and error warnings. During
long-term power failures, the highest temperature
value that the freezer compartment reaches will
blink on the digital display. After checking the food
located in the freezer compartment, press the
alarm off button to clear the warning.
Please refer to "solutions recommended for
troubleshooting" section on your manual if you
observe that this indicator is illuminated.
6. Filter reset icon
This icon turns on when the filter needs to be
reset.
7. Temperature change cabin icon
Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.
8. Multizone freezer icon
Hover over the Multizone freezer icon using the FN button;
the icon will start to flash. When you press the OK key,
multizone cabin freezer icon turn on and operates as a
freezer.
9. Freezer compartment temperature
indicator
Temperature of the fridge compartment is shown;
it can be set to -18, -19, -20, -21, -22, -23, -24.
10. Quick freeze function indicator
It turns on when the quick freeze function is
activated.
11. Fahrenheit indicator
It is a Fahrenheit indicator. When the Fahrenheit
indication is activated, the temperature set values
are shown in Fahrenheit and the relevant icon
turns on.
12. Quick freeze function button
Press this button to activate or deactivate the quick
freeze function. When you activate the function,
the freezer compartment will be cooled to a
temperature lower than the set value.
C
Use the quick freeze function when you
want to quickly freeze the food placed
in freezer compartment. If you want
to freeze large amounts of fresh food,
activate this function before putting the
food into the product.
C
If you do not cancel it, Quick Freeze
will cancel itself automatically after 4
hours at the most or when the fridge
compartment reaches to the required
temperature.
C
This function is not recalled when
power restores after a power failure.
13. Filter reset
The filter is reset when the quick freeze button is
pressed for 3 seconds. Filter reset icon goes off.
22 /34 EN
Refrigerator / User Manual
Operating the product
14. FN button
Using this key, you can switch between the
functions that you want to select. Upon pressing
this key, the icon, whose function is required to be
activated or deactivated, and this icon's indicator
starts flashing. The FN button gets deactivated if
not pressed for 20 seconds. You need to press this
button to change the functions again.
15. Celsius indicator
It is a Celsius indicator. When the Celsius indication
is activated, the temperature set values are shown
in Celsius and the relevant icon turns on.
16. OK button
After navigating the functions using the FN button,
when the function is cancelled via the OK button,
the relevant icon and the indicator flashes. When
the function is activated, it remains on. The
indicator continues to flash in order to show the
icon it is on.
17. Temperature change cabin icon
Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.
18. Temperature change cabin icon
Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.
19. Set increasing button
Select the relevant cabin with the select button;
the cabin icon representing the relevant cabin will
start to flash. If you press the set increasing button
during this process, the set value gets increased. If
you keep pressing it in a loop, the set value returns
to the beginning.
20. Temperature change cabin icon
Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.
21. Setting the Celsius and Fahrenheit
indicator
Hover over this key using the FN key and select
Fahrenheit and Celsius via the OK key. When
the relevant temperature type is selected, the
Fahrenheit and Celsius indicator turns on.
22. Ice machine off icon
Press the FN key (until it reaches the ice icon and
the lower line) to switch off the ice machine. The
ice machine off icon and the ice machine function
indicator start flashing when you hover over them,
thus you can understand whether the ice machine
will be turned on or off. When you press the OK
button, the ice machine icon lights continuously
and the Indicator continues to flash during this
process. If you do not press any button after 20
seconds, the icon and the indicator remains on.
Thus, the ice machine is switched off. In order to
switch on the ice machine again, hover over the
icon and the indicator; thus, both the ice machine
off icon and the indicator will start flashing. If you
do not press any button within 20 seconds, the
icon and the indicator will go off and thus the ice
machine will be switched on again.
C
Indicates whether the icematic is
on or off.
C
Water flow from water tank
will stop when this function is
selected. However, ice made
previously can be taken from the
icematic.
23. Eco fuzzy function icon
Press the FN key (until it reaches the letter e
icon and the lower line) to activate the eco fuzzy.
When you hover over the eco fuzzy icon and the
eco fuzzy function indicator, they start flashing.
Thus, you can understand whether the eco fuzzy
function will be activated or deactivated. When you
press the OK button, the eco fuzzy function icon
lights continuously and the Indicator continues to
flash during this process. If you do not press any
button after 20 seconds, the icon and the indicator
remains on. Thus, the eco fuzzy function is
23 / 34 EN
Refrigerator / User Manual
Operating the product
activated. In order to cancel the eco fuzzy function,
hover over the icon and the indicator again and
press the OK key. Thus, both the eco fuzzy function
icon and the indicator will start flashing. If you do
not press any button within 20 seconds, the icon
and the indicator will go off and the eco fuzzy
function will be cancelled.
24. Vacation function icon
Press the FN key (until it reaches the umbrella
icon and the lower line) to activate the vacation
function. When you hover over the vacation
function icon and the vacation function indicator,
they start flashing. Thus, you can understand
whether the vacation function will be activated or
deactivated. When you press the OK button, the
vacation function icon lights continuously and thus
the Vacation function is activated. The Indicator
continues to flash during this process. Press the
OK key to cancel the vacation function. Thus, both
the vacation function icon and the indicator will
start flashing and the vacation function will be
cancelled.
25. Multizone fridge icon
When you select the multizone fridge icon using
the FN button and press the OK key, the multizone
cabin turns into a fridge cabin and operates as a
cooler.
26. Celsius indicator
It is a Celsius indicator. When the Celsius indication
is activated, the temperature set values are shown
in Celsius and the relevant icon turns on.
27. Set decreasing function
Select the relevant cabin with the select button;
the cabin icon representing the relevant cabin
will start to flash. If you press the set decreasing
button during this process, the set value gets
decreased. If you keep pressing it in a loop, the set
value returns to the beginning.
28. Temperature change cabin icon
Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.
29. Temperature change cabin icon
Indicates the cabin whose temperature is to be
changed. When the temperature change cabin icon
starts flashing, it is understood that the relevant
cabin has been selected.
30. Key lock
Press key lock button simultaneously for 3
seconds. Key lock symbol
will light up and key lock mode will be activated.
Buttons will not function if the Key lock mode is
active. Press key lock button simultaneously for 3
seconds again. Key lock symbol will turn off and
the key lock mode will be exited.
Press the key lock button if you want to prevent
changing of the temperature setting of the
refrigerator.
31.Select button
Use this button to select the cabin whose
temperature you want to change. Switch between
the cabins by pressing this button. The selected
cabin can be understood from the cabin icons
(7,17,18,20,28,29). Whichever cabin icon is
flashing, the cabin, whose temperature set value
you want to change, is selected. Then, you can
change the set value by pressing the cabin set
value decreasing button (27) and the cabin set
value increasing button (19). If you do not press
the select button for 20 seconds, the cabin icons
will go off. You need to press this key to select a
cabin again.
32. Alarm off warning
In case of power failure/high temperature
alarm, after checking the foods in the freezer
compartment, press the alarm off button to clear
the warning.
33. Quick cooling function button
The button has two functions. To activate or
deactivate the quick cool function, press it briefly.
Quick Cool indicator will turn off and the product
will return to its normal settings.
24 /34 EN
Refrigerator / User Manual
Operating the product
5.3 Dual cooling system
Your refrigerator is equipped with two separate
cooling systems to cool the fresh food
compartment and freezer compartment.Thus,
air and odour in the fresh food compartment and
frozen food compartment do not get mixed. Thanks
to these two separate cooling systems, cooling
speed is much higher then other refrigerators.
Also additional power saving is provided since the
defrosting is performed individually.
5.4 Freezing fresh food
•Wrapthefoodorplacetheminacovered
container before putting them in the refrigerator.
•Hotfoodandbeveragesmustcooldowntothe
room temperature before putting them in the
refrigerator.
•Thefoodthatyouwanttofreezemustbefresh
and in good quality.
•Dividedthefoodintoportionsaccordingtoyour
family’s daily or meal based consumption needs.
•Packthefoodinanairtightmannertoprevent
them from drying even if they are going to be
stored for a short time.
•Materialstobeusedforpackagingmustbe
tear-proof and resistant to cold, humidity, odour,
oils and acids and they must also be airtight.
Moreover, they must be well closed and they
must be made from easy-to-use materials that
are suitable for deep-freezers.
•Frozenfoodmustbeusedimmediatelyafter
they are thawed and they should never be re-
frozen.
•Donotfreezetoolargequantitiesoffoodatone
time. The quality of the food is best preserved
when it is frozen right through to the core as
quickly as possible.
•Placingwarmfoodintothefreezercompartment
causes the cooling system to operate
continuously until the food is frozen solid.
C
Use quick cooling function when you
want to quickly cool the food placed
in the fridge compartment. If you want
to cool large amounts of fresh food,
activate this function before putting the
food into the product.
C
If you do not cancel it, quick cooling
will cancel itself automatically after 8
hours at the most or when the fridge
compartment reaches to the required
temperature.
C
If you press the quick cooling button
repeatedly with short intervals, the
electronic circuit protection will be
activated and the compressor will not
start up immediately.
C
This function is not recalled when
power restores after a power failure.
34. Multizone temperature indicator
Temperature set values of the multizone cabin are
displayed.
25 / 34 EN
Refrigerator / User Manual
Operating the product
5.5 Recommendations for
preserving the frozen food
•Frozenfoodthatyouhavepurchasedshould
be stored in accordance with the frozen food
manufacturer’s instructions for a
( 4 star) frozen food storage compartment.
•Notethefollowingtoensurethatthehighquality
achieved by the frozen food manufacturer and
the food retailer is maintained:
1. Put packets in the freezer as quickly as possible
after purchase.
2. Make sure that contents of the package are
labelled and dated.
3. Check whether the “Use By” and “Best Before”
dates on the packaging are exceed or not.
5.6 Placing the food
Freezer
compartment
shelves
Various frozen food such
as meat, fish, ice cream,
vegetables and etc.
Egg holder Egg
Fridge
compartment
shelves
Food in pans, covered plates
and closed containers
Fridge
compartment
door shelves
Small and packaged food or
beverage (such as milk, fruit
juice, beer and etc.)
Crisper Vegetables and fruits
Fresh zone
compartment
Delicatessen products (cheese,
butter, salami and etc.)
5.7 Deep-freeze information
Food must be frozen as rapidly as possible when
they are put in a refrigerator in order to keep them
in good quality.
You can keep the freshness of food for many
months (at -18°C / 0°F or lower temperatures in
the deep freeze).
C
Pack the food in an airtight manner to
prevent them from drying even if they are
going to be stored for a short time.
Materials to be used for packaging the foodstuff
must be tear-proof and resistant to cold, humidity,
odour, oils and acids.
Foods to be frozen should not be allowed to come
in contact with the previously frozen items to
prevent them from getting thawed partially.
C
Frozen food must be used immediately
after they are thawed and they should
never be re-frozen.

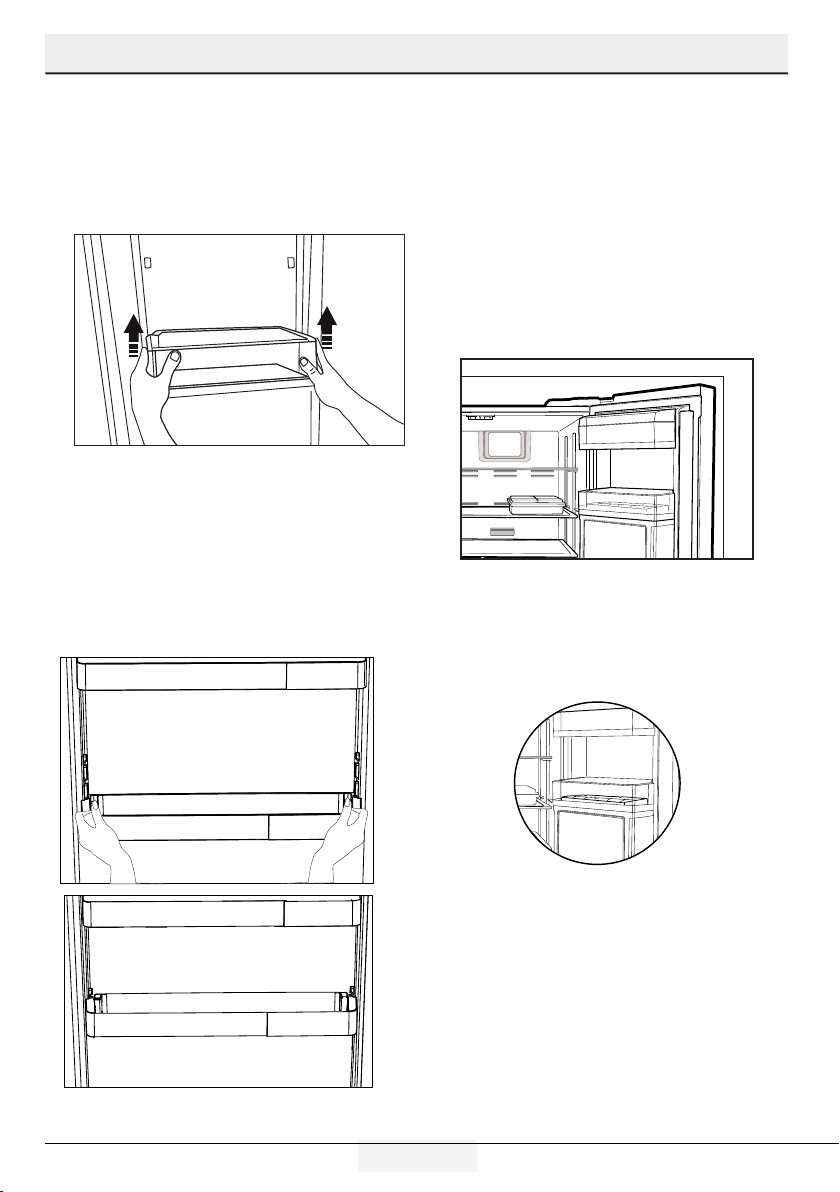

5.8 Removing door shelves
You can remove the door shelves to clean them.
Push the desired shelf up to remove it.
Do not remove the door shelf when there is food
in it.
First empty everything inside the fridge and
freezer.
5.9 Moving door rack
*optional
Moving door rack can be fixed in 3 different
positions.
In order to move the rack, push the buttons on the
side evenly. Rack will be movable.
Move the rack up or down.
When the rack is in the position that you want,
release the buttons. Rack will be fixed again in the
position where you have released the buttons.
5.10 Glass shelves
You can remove the glass shelves to clean them.
Be careful when removing the shelves since they
are heavy.
26 /34 EN
Refrigerator / User Manual
Operating the product
Freezer
Compartment
Setting
Fridge
Compartment
Setting
Explanations
-18°C / 0°F 4°C / 39°F This is the normal recommended setting.
-20°C / -4°F 3°C / 37°F
These settings are recommended when the ambient temperature
exceeds 30°C/86°F.
Quick Freeze 4°C / 39°F
Use when you wish to freeze your food in a short time. Your
refrigerator will return to its previous mode when the process is
over.
-24°C / -12°F 2°C / 35°F
Use these settings if you think that your fridge compartment is not
cold enough because of the hot ambient conditions or frequent
opening and closing of the door.
-18°C / 0°F or
colder
Quick Fridge
Use this function when you place too much into the fridge
compartment or when you need to cool your food quickly. It is
recommended that you activate Quick Fridge function 4-8 hours
before placing the food.
Recommended Using Temparature: FF: 4°C / 39°F Frz : -18°C / 0°F
5.11 Frost Free Chill compartment
(in some models)
Frost Free Chill compartments allow you to prepare
the food for freezing. You can also use these
compartments to store your food at a temperature
a few degrees below the fridge compartment.
You can increase the inner volume of your
refrigerator by removing any of the chiller
compartments:
1. Pull the compartment towards yourself until it
stops.
2. Lift the compartment about 1 cm up and pull
towards yourself to remove it from its seating.
5.12 Crisper
Crisper of the refrigerator is designed specially
to keep the vegetables fresh without losing their
humidity. For this purpose, cool air circulation is
intensified around the crisper in general. Remove
the door shelves that stand against the crisper
before removing the crispers.
5.13 Humidity controlled crisper
(Everfresh+(R)
Humidity rates of the vegetables and fruit are
kept under control with the feature of humidity-
controlled crisper and the food is ensured to stay
fresh for longer.
We recommend you to place the leafy vegetables
such as lettuce, spinach and the vegetables which
are sensitive to humidity loss, in a horizontal
manner as much as possible inside the crisper, not
on their roots in a vertical position.
27 / 34 EN
Refrigerator / User Manual
Operating the product
While the vegetables are being placed, specific
gravity of the vegetables should be taken into
consideration. Heavy and hard vegetables should
be put at the bottom of the crisper and the
lightweight and soft vegetables should be placed
over.
Do not place together the pear, apricot, peach,
etc. and apple in particular which have a high level
of generation of ethylene gas in the same crisper
with the other vegetables and fruit. The ethylene
gas which is emitted by these fruit may cause
the other fruit to ripen faster and decompose in a
shorter time.
5.14 Butter & Cheese section
(in some models)
Store food such as butter, cheese and margarine in
this section.
a
a
a
a
5.15 Egg holder
You can install the egg holder to the desired door
or body shelf.
Never keep the egg holder in the freezer
compartment.
Never leave the vegetables inside the crisper
in their bags. If the vegetables are left inside
their bags, this will cause them to decompose
in a short period of time. In case contacting with
other vegetables is not preferred for hygiene
concerns, use a perforated paper and other similar
packaging materials instead of a bag.
28 /34 EN
Refrigerator / User Manual
Operating the product
5.16 Movable middle section
Movable middle section is intended to prevent
the cold air inside the refrigerator from escaping
outside. Sealing is provided when the gaskets on
the door presses on the surface of the movable
middle section while the fridge compartment doors
are closed.
C
Movable middle section is closed when
the left door of the fridge compartment
is open. Movable middle section moves
with the aid of the plastic part on the body
while closing the door. Do not try to open
by hand.
A
When the rotating storage container
is open, do not close the door of the
refrigerator.
A
Do not overload the rotating storage con-
tainer by placing a lot of materials in it.
5.17 Ice container
The ice container is used for ice collection poured
ice machine. Do not put water in it to make ice
as it may break. The ice container is not used for
storing foods.
C
The ice machine may pour ices
when the ice container is opened.
29 / 34 EN
Refrigerator / User Manual
Operating the product
5.18 Blue light
Crispers of the refrigerator are illuminated with
blue light. Food stored in the crispers continue
their photosynthesis by means of the wavelength
effect of blue light and thus, preserve their
freshness and increase their vitamin content.
5.19 IonGuard
(in some models)
Air is ionized by means of the ionizer system in
the fridge compartment air duct. Thanks to this
system, air-borne bacteria and odorising molecules
are eliminated.
5.20 Odour filter
(in some models)
Odour filter in the air duct of the fridge
compartment prevents build-up of unpleasant
odours in the refrigerator.
5.21 Using inner water dispenser
(in some models)
After connecting the refrigerator to a water source
or replacing the water filter, flush the water
system. Use a sturdy container to depress and
hold the water dispenser lever for 5 seconds,
then release it for 5 seconds. Repeat until water
begins to flow. Once water begins to flow, continue
depressing and releasing the dispenser paddle
(5 seconds on, 5 seconds off) until a total of 4
gal. (15L) has been dispensed. This will flush air
from the filter and water dispensing system, and
prepare the water filter for use. Additional flushing
may be required in some households. As air is
cleared from the system, water may spurt out of
the dispenser.
Allow 24 hours for the refrigerator to cool down
and chill water. Dispense enough water every week
to maintain a fresh supply.
C
After 5 minutes of continuous
dispensing, the dispenser will stop
dispensing water to avoid flooding.
To continue dispensing, press the
dispenser paddle again.
5.22 Dispensing Water
Hold a container under the dispenser spout while
pressing the dispenser pad.
Release the dispenser pad to stop dispensing.
C
It is normal for the first few glasses of
water taken from the dispenser to be
warm.
C
If the water dispenser is not used for a long
period of time, dispose of first few glasses
of water to obtain fresh water.
During initial use, you will have to wait
approximately 24 hours for the water to cool down.
Take out the glass a little while after you pull the
trigger.
30 /34 EN
Refrigerator / User Manual
Operating the product
5.23 Maintaining water dispenser
A
Before using your fridge first time and
after replacing your water filter, water
dispenser may drip drops of water. To
prevent water dripping or leaking from
dispenser, please bleed the air from
the system by dispensing 5-6 gallons
(about 20 liter) of water through the
water dispenser before the first use
and every time after you change
the water filter. This will remove any
air trapped in the system and stop
the water dispenser from leaking.
Checking coupler position and the
straightness of water line at the back
of the unit will be required if there’s an
obstruction in water flow.
C
If your water dispenser is leaking just a few
drops of water after you have dispensed some
water, this is normal.
5.24 Icematic
(in some models)
To get ice from the icematic, fill the water tank
in the fridge compartment with water up to the
maximum level.
Ice cubes in the ice drawer may stick to each ot-
her and become a bulk due to hot and humid air in
approximately 15 days. This is normal. If you cannot
break the bulk apart, you can empty the ice contai-
ner and make ice again.
C
It is recommended to change the water
in the water tank if it remains in the wa-
ter tank for more then 2-3 weeks.
C
Strange noises you hear from the refrige-
rator at 120-minute intervals are the so-
unds of ice-making and pouring. This is
normal.
C
If you do not want to make ice, press the Ice
off icon to stop the icematic to save energy
and prolong the service life of your refrigerator.
C
It is normal that a few drops of water drop
from the dispenser after you have taken water.
5.25 Icematic and ice storage
container
(in some models)
Using the Icematic
Fill the Icematic with water and place it into its
seat. Your ice will be ready approximately in two
hours. Do not remove the Icematic from its seating
to take ice.
Turn the knobs on the ice reservoirs clockwise by
90 degrees.
Ice cubes in the reservoirs will fall down into the
ice storage container below.
You may take out the ice storage container and
serve the ice cubes.
If you wish, you may keep the ice cubes in the ice
storage container.
Ice storage container
Ice storage container is only intended for
accumulating the ice cubes. Do not put water in it.
Otherwise, it will break.
31 / 34 EN
Refrigerator / User Manual
Operating the product

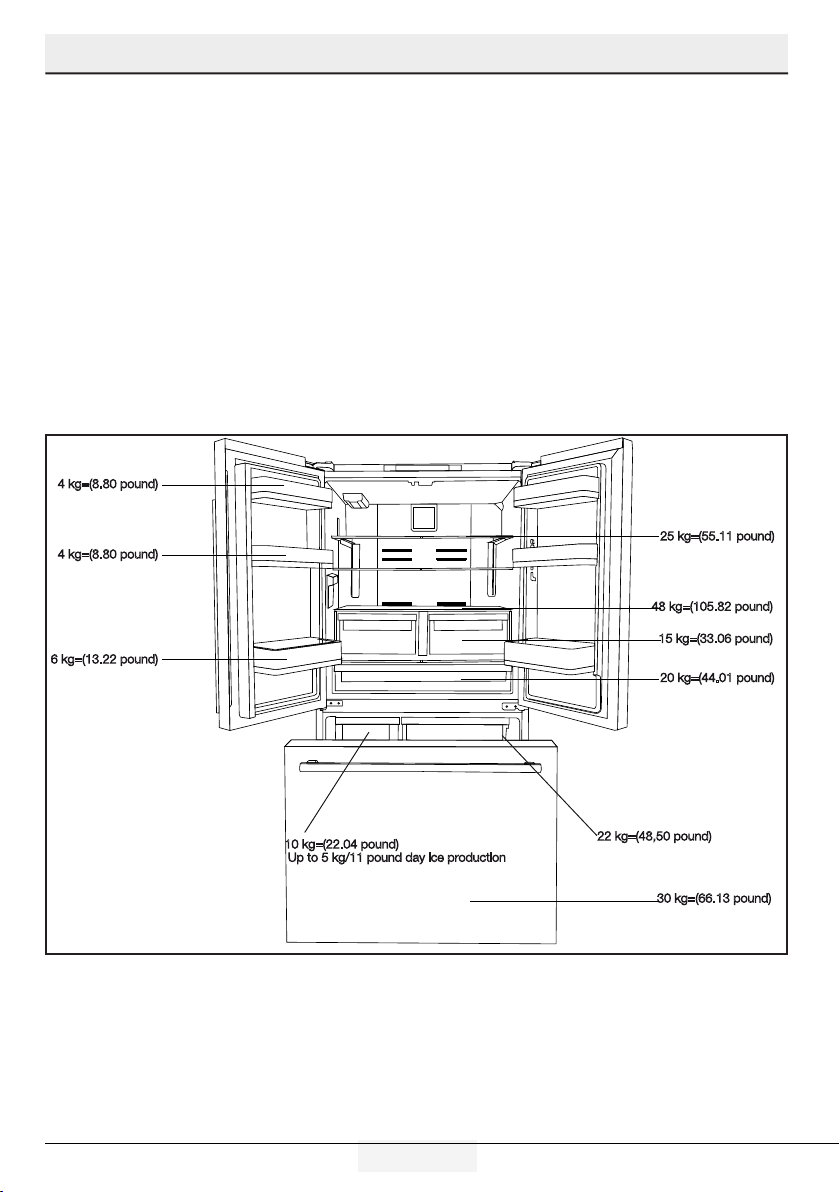

25 kg=(55.11 pound)
15 kg=(33.06 pound)
6 kg=(13.22 pound)
4 kg=(8.80 pound)
10 kg=(22.04 pound)
Up to 5 kg/11 pound day ice production
22 kg=(48,50 pound)
30 kg=(66.13 pound)
20 kg=(44.01 pound)
48 kg=(105.82 pound)
4 kg=(8.80 pound)
5.26 Refrigerator Shelf
Weight Limitations
Freshfood compartment centilever shelves, those
that only have rear supports, are tested for max
25kg (55pounds) per each part.
Crispers will hold up to 15kg (33pounds) per each
one. Chiller zone will hold up to 20kg (44pounds).
These are dynamic loads for crispers and chiller
zone.
Ice container bin holds up to 10kg (22pounds), it is
for usage without ice. Upper frezer bin will hold up
to 24kg (53 pounds) and drawer holds up to 30kg
(66pounds). These are dynamic loads for ice bin,
upper frezer bin and drawer.
32 /34 EN
Refrigerator / User Manual
6. Maintenance and cleaning
Service life of the product extends and frequently
faced problems decrease if cleaned at regular
intervals.
B
WARNING: Unplug the product before
cleaning it.
• Never use gasoline, benzene or similar
substances for cleaning purposes.
• Never use any sharp and abrasive tools, soap,
household cleaners, detergent and wax polish
for cleaning.
• Dissolve one teaspoon of baking soda in half
litre of water. Soak a cloth with the solution
and wrung it thoroughly. Wipe the interior of
the refrigerator with this cloth and the dry
thoroughly.
• Make sure that no water enters the lamp
housing and other electrical items.
• If you will not use the refrigerator for a long
period of time, unplug it, remove all food inside,
clean it and leave the door ajar.
• Check regularly that the door gaskets are clean.
If not, clean them.
• To remove door and body shelves, remove all of
its contents.
• Remove the door shelves by pulling them up.
After cleaning, slide them from top to bottom to
install.
• Never use cleaning agents or water that
contain chlorine to clean the outer surfaces and
chromium coated parts of the product. Chlorine
causes corrosion on such metal surfaces
6.1 Avoiding bad odors
Materials that may cause odor are not used in the
production of our refrigerators. However, due to
inappropriate food preserving conditions and not
cleaning the inner surface of the refrigerator as
required can bring forth the problem of odor . Pay
attention to following to avoid this problem:
• Keeping the refrigerator clean is important.
Food residuals, stains, etc. can cause odor .
Therefore, clean the refrigerator with baking
soda dissolved in water every 15 days. Never
use detergents or soap.
• Keep the food in closed containers.
Microorganisms spreading out from uncovered
containers can cause unpleasant odors.
• Never keep the food that have expired best
before dates and spoiled in the refrigerator.
6.2 Protecting the plastic surfaces
Do not put liquid oils or oil-cooked meals in your
refrigerator in unsealed containers as they damage
the plastic surfaces of the refrigerator. If oil is
spilled or smeared onto the plastic surfaces, clean
and rinse the relevant part of the surface at once
with warm water.
33 / 34 EN
Refrigerator / User Manual
7. Troubleshooting
Check this list before contacting the service.
Doing so will save you time and money. This list
includes frequent complaints that are not related to
faulty workmanship or materials. Certain features
mentioned herein may not apply to your product.
The refrigerator is not working.
• The power plug is not fully settled. >>> Plug it in
to settle completely into the socket.
• The fuse connected to the socket powering the
product or the main fuse is blown. >>> Check
the fuses.
Condensation on the side wall of the cooler
compartment (MULTI ZONE, COOL, CONTROL
and FLEXI ZONE).
• The door is opened too frequently >>> Take care
not to open the product’s door too frequently.
• The environment is too humid. >>> Do not install
the product in humid environments.
• Foods containing liquids are kept in unsealed
holders. >>> Keep the foods containing liquids in
sealed holders.
• The product’s door is left open. >>> Do not keep
the product’s door open for long periods.
• The thermostat is set to too low temperature.
>>> Set the thermostat to appropriate
temperature.
Compressor is not working.
• In case of sudden power failure or pulling the
power plug off and putting back on, the gas
pressure in the product’s cooling system is
not balanced, which triggers the compressor
thermic safeguard. The product will restart after
approximately 6 minutes. If the product does not
restart after this period, contact the service.
• Defrosting is active. >>> This is normal for a
fully-automatic defrosting product. The defrosting
is carried out periodically.
• The product is not plugged in. >>> Make sure
the power cord is plugged in.
• The temperature setting is incorrect. >>> Select
the appropriate temperature setting.
• The power is out. >>> The product will continue
to operate normally once the power is restored.
The refrigerator’s operating noise is increasing
while in use.
• The product’s operating performance may vary
depending on the ambient temperature variations.
This is normal and not a malfunction.
The refrigerator runs too often or for too
long.
• The new product may be larger than the
previous one. Larger products will run for longer
periods.
• The room temperature may be high. >>> The
product will normally run for long periods in
higher room temperature.
• The product may have been recently plugged
in or a new food item is placed inside. >>>
The product will take longer to reach the set
temperature when recently plugged in or a new
food item is placed inside. This is normal.
• Large quantities of hot food may have been
recently placed into the product. >>> Do not
place hot food into the product.
• The doors were opened frequently or kept open
for long periods. >>> The warm air moving
inside will cause the product to run longer. Do
not open the doors too frequently.
• The freezer or cooler door may be ajar. >>>
Check that the doors are fully closed.
• The product may be set to temperature too low.
>>> Set the temperature to a higher degree
and wait for the product to reach the adjusted
temperature.
• The cooler or freezer door washer may be
dirty, worn out, broken or not properly settled.
>>> Clean or replace the washer. Damaged
/ torn door washer will cause the product to
run for longer periods to preserve the current
temperature.
The freezer temperature is very low, but the
cooler temperature is adequate.
• The freezer compartment temperature is set
to a very low degree. >>> Set the freezer
compartment temperature to a higher degree
and check again.
The cooler temperature is very low, but the
freezer temperature is adequate.
• The cooler compartment temperature is set
to a very low degree. >>> Set the freezer
compartment temperature to a higher degree
and check again.
34 /34 EN
Refrigerator / User Manual
Troubleshooting
The food items kept in cooler compartment
drawers are frozen.
• The cooler compartment temperature is set to a
very low degree. >>> Set the freezer compartment
temperature to a higher degree and check again.
The temperature in the cooler or the freezer is
too high.
• The cooler compartment temperature is set to
a very high degree. >>> Temperature setting
of the cooler compartment has an effect on the
temperature in the freezer compartment. Wait
until the temperature of relevant parts reach the
sufficient level by changing the temperature of
cooler or freezer compartments.
• The doors were opened frequently or kept open
for long periods. >>> Do not open the doors too
frequently.
• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in
or a new food item is placed inside. >>> This is
normal. The product will take longer to reach the
set temperature when recently plugged in or a new
food item is placed inside.
• Large quantities of hot food may have been recently
placed into the product. >>> Do not place hot food
into the product.
Shaking or noise.
• The ground is not level or durable. >>> If the
product is shaking when moved slowly, adjust the
stands to balance the product. Also make sure the
ground is sufficiently durable to bear the product.
• Any items placed on the product may cause noise.
>>> Remove any items placed on the product.
The product is making noise of liquid flowing,
spraying etc.
• The product’s operating principles involve liquid
and gas flows. >>> This is normal and not a
malfunction.
There is sound of wind blowing coming from
the product.
• The product uses a fan for the cooling process. This
is normal and not a malfunction.
There is condensation on the product’s internal
walls.
• Hot or humid weather will increase icing and
condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open
for long periods. >>> Do not open the doors too
frequently; if open, close the door.
• The door may be ajar. >>> Fully close the door.
There is condensation on the product’s exterior or
between the doors.
• The ambient weather may be humid, this is quite
normal in humid weather. >>> The condensation will
dissipate when the humidity is reduced.
The interior smells bad.
• The product is not cleaned regularly. >>> Clean
the interior regularly using sponge, warm water and
carbonated water.
• Certain holders and packaging materials may cause
odour. >>> Use holders and packaging materials
without free of odour.
• The foods were placed in unsealed holders. >>>
Keep the foods in sealed holders. Micro-organisms
may spread out of unsealed food items and cause
malodour. Remove any expired or spoilt foods from the
product.
The door is not closing.
• Food packages may be blocking the door. >>>
Relocate any items blocking the doors.
• The product is not standing in full upright position on
the ground. >>> Adjust the stands to balance the
product.
• The ground is not level or durable. >>> Make sure
the ground is level and sufficiently durable to bear the
product.
The vegetable bin is jammed.
• The food items may be in contact with the upper
section of the drawer. >>> Reorganize the food items
in the drawer.
If The Surface Of The Product Is Hot.
• High temperatures may be observed between the two
doors, on the side panels and at the rear grill while
the product is operating. This is normal and does not
require service maintenance!Be careful when touching
these areas.
A WARNING:
If the problem persists after following the instructions
in this section, contact your vendor or an Authorised
Service. Do not try to repair the product.
www.beko.com.trwww.beko.com
.au
57 8373 0000/AG
EN
