USER MANUAL
Gaming Monitor
S32BG75*N S32BG85*N
The color and the appearance may differ depending on the product, and the specifications are subject to
change without prior notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality.
© Samsung
Samsung owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung is prohibited.
Trademarks other than that of Samsung are owned by their respective owners.
Table of contents
Before Using the Product
Safety Precautions 4
Electricity and Safety 4
Installation 5
Operation 6
Cleaning 8
Correct posture to use the product 8
Preparations
Installation 9
Attaching the Stand 9
Precautions for moving the product 11
Checking the space around the product 12
Adjusting the Product Tilt and Height 12
Rotating the Product 14
Anti-theft Lock 15
Attaching the BRACKET WALL 16
Control Panel 17
2
Menu
Game 25
Picture 30
PIP 33
OnScreen Display 34
System 34
Support 37
Installing the Software
Easy Setting Box 38
Restrictions and Problems with the Installation 38
System Requirements 38
Driver Installation 38
Connecting and Using a Source Device
Read below before connecting the product. 18
Ports 19
Connecting and Using a PC 20
Connection Using the HDMI Cable 20
Connection Using an HDMI-DVI Cable 20
Connection Using an DP Cable 20
Connecting to headphones or earphones 20
Connecting the Product to a PC as a USB HUB 21
Connecting the Power 22
Tidying Up the Connected Cables 23
Setting Optimum Resolution 24
List of graphic cards supporting HDR10 /
HDR 400 / QUANTOM HDR 2000 24
Table of contents
3
Appendix
Responsibility for the Pay Service (Cost to
Customers) 49
Not a product defect 49
A Product damage caused by customer's fault 49
Others 49
FreeSync (for AMD graphics card) 50
Troubleshooting Guide
Requirements Before Contacting Samsung
Customer Service Center 39
Product diagnosis (Screen issue) 39
Checking the Resolution and Frequency 39
Check the following. 39
Q & A 42
Specifications
General 43
Standard Signal Mode Table 45
4
Safety Precautions
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are
not followed.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE
NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high voltage
is present inside. It is dangerous to
make any kind of contact with any
internal part of this product.
AC voltage: Rated voltage marked with
this symbol is AC voltage.
This symbol indicates that this
product has included important
literature concerning operation and
maintenance.
DC voltage: Rated voltage marked with
this symbol is DC voltage.
Class II product: This symbol indicates
that a safety connection to electrical
earth (ground) is not required. If this
symbol is not present on a product
with a mains lead, the product
MUST have a reliable connection to
protective earth (ground).
Caution. Consult instructions for use:
This symbol instructs the user to
consult the user manual for further
safety related information.
Electricity and Safety
Warning
• Do not use a damaged power cord or plug, or a loose power socket.
• Do not use multiple products with a single power socket.
• Do not touch the power plug with wet hands.
• Insert the power plug all the way in so it is not loose.
• Connect the power plug to a grounded power socket (type 1 insulated devices only).
• Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy
object.
• Do not place the power cord or product near heat sources.
• Clean any dust around the pins of the power plug or the power socket with a dry cloth.
Caution
• Do not disconnect the power cord while the product is being used.
• Only use the power cord provided with your product by Samsung. Do not use the power cord with
other products.
• Keep the power socket where the power cord is connected unobstructed.
‒ The power cord must be disconnected to cut off power to the product when an issue occurs.
• Hold the plug when disconnecting the power cord from the power socket.
Before Using the Product
Chapter 01
5
Warning
• DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT
INSTALL THE PRODUCT NEAR HEAT SOURCES.
• Do not install the product in poorly ventilated spaces such as a bookcase or closet.
• Install the product at least 10cm away from the wall to allow ventilation.
• Keep the plastic packaging out of the reach of children.
‒ Children may suffocate.
• Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)
‒ The product may fall and become damaged and/or cause an injury.
‒ Using the product in an area with excess vibration may damage the product or cause a fire.
• Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or
smoke.
• Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
‒ The product lifespan may be reduced or a fire may result.
• Do not install the product within the reach of young children.
‒ The product may fall and injure children.
• Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a
kitchen or near a kitchen counter.
Caution
• Do not drop the product while moving.
• Do not set down the product on its front.
• When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the
product is not protruding.
‒ The product may fall and become damaged and/or cause an injury.
‒ Install the product only on cabinets or shelves of the right size.
• Set down the product gently.
‒ Product failure or personal injury may result.
• Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances,
extreme temperatures or a significant presence of moisture, or a place where the product will
operate continuously for an extended period of time) may seriously affect its performance.
‒ Be sure to consult Samsung Customer Service Center if you want to install the product at such a
place.
• Before assembling the product, place the product down on a flat and stable surface so that the
screen is facing downwards.
‒ The product is curved. Placing pressure on the product when on a flat surface may damage the
product. When the product is on the ground facing up or down, do not put pressure on it.
• In the same series, the color can vary depending on the size.
Installation
6
Warning
• There is a high voltage inside the product. Never disassemble, repair or modify the product yourself.
‒ Contact Samsung Customer Service Center for repairs.
• To move the product, first disconnect all the cables from it, including the power cable.
• If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord
immediately and contact Samsung Customer Service Center.
• Do not let children hang from the product or climb on top of it.
‒ Children may become injured or seriously harmed.
• If the product is dropped or the outer case is damaged, turn off the power and disconnect the power
cord. Then contact Samsung Customer Service Center.
‒ Continued use can result in a fire or electric shock.
• Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.
‒ The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a
serious injury.
• During a lightning or thunderstorm, power off the product and remove the power cable.
• Do not drop objects on the product or apply impact.
• Do not move the product by pulling the power cord or any cable.
• If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area
immediately.
• Do not lift or move the product by pulling the power cord or any cable.
• Do not use or keep combustible spray or an inflammable substance near the product.
• Ensure the vents are not blocked by tablecloths or curtains.
‒ An increased internal temperature may cause a fire.
• Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper,
matches, etc) into the product (via the vent or input/output ports, etc).
‒ Be sure to power off the product and disconnect the power cord when water or other foreign
substances have entered the product. Then contact Samsung Customer Service Center.
• Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the
product.
‒ Be sure to power off the product and disconnect the power cord when water or other foreign
substances have entered the product. Then contact Samsung Customer Service Center.
Operation
7
Caution
• Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage
burn-in or defective pixels.
‒ Set the screen to power-saving mode or moving-picture screen saver when not using the product
for an extended period of time.
• Disconnect the power cord from the power socket if you do not plan on using the product for an
extended period of time (vacation, etc).
‒ Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.
• Use the product at the recommended resolution and frequency.
‒ Your eyesight may deteriorate.
• Do not put AC/DC adapters together.
• Remove the plastic bag from the AC/DC adapter before you use it.
• Do not let water enter the AC/DC adapter device or get the device wet.
‒ An electric shock or fire may result.
‒ Avoid using the product outdoors where it can be exposed to rain or snow.
‒ Be careful not to get the AC/DC adapter wet when you wash the floor.
• Do not put the AC/DC adapter near to any heating apparatus.
‒ Otherwise, a fire may result.
• Keep the AC/DC adapter in a well-ventilated area.
• If you place the AC/DC power adapter hanging with the cord input facing upwards, water or other
foreign substances could enter the Adapter and cause the Adapter to malfunction.
Make sure to rest the AC/DC power adapter flat on a table or the floor.
• Do not hold the product upside-down or move it by holding the stand.
‒ The product may fall and become damaged or cause an injury.
• Looking at the screen too close for an extended period of time can deteriorate your eyesight.
• Do not use humidifiers or stoves around the product.
• Rest your eyes for more than 5 minutes or look at distance objects for every 1 hour of product use.
• Do not touch the screen when the product has been turned on for an extended period of time as it
will become hot.
• Store small accessories out of the reach of children.
• Exercise caution when adjusting the product angle.
‒ Your hand or finger may get stuck and injured.
‒ Tilting the product at an excessive angle may cause the product to fall and an injury may result.
• Do not place heavy objects on the product.
‒ Product failure or personal injury may result.
• When using headphones or earphones, do not turn the volume too high.
‒ Having the sound too loud may damage your hearing.
8
Cleaning
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used
nearby.
―
Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product (Service
fee will be charged.)
Do not press the product screen with hands or other objects. There is a risk of damaging the screen.
―
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1
Power off the product and PC.
2
Disconnect the power cord from the product.
―
Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock
may result.
3
Wipe the product with a clean, soft and dry cloth.
Wet a soft cloth in water, wing it out well, and then use the cloth to wipe the exterior of the product
clean.
‒ Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the product.
‒ Do not spray water or detergent directly on the product.
4
Connect the power cord to the product when cleaning is finished.
5
Power on the product and PC.
Correct posture to use the product
Use the product in the correct posture as follows:
• Straighten your back.
• Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at the
screen.
• Keep your eyes directly in front of the screen.
• Adjust the angle so light does not reflect on the screen.
• Keep your forearms perpendicular to your upper arms and level with the back of your hands.
• Keep your elbows at about a right angle.
• Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels
attached to the floor, and your arms lower than your heart.
• Do the Eye excercises or blink frequently, then eye fatigue will be relieved.
9
Preparations
Chapter 02
Installation
Attaching the Stand
―
Disassembly is the reverse order of assembly.
S32BG75*N
x 4
1 2 3 4 5

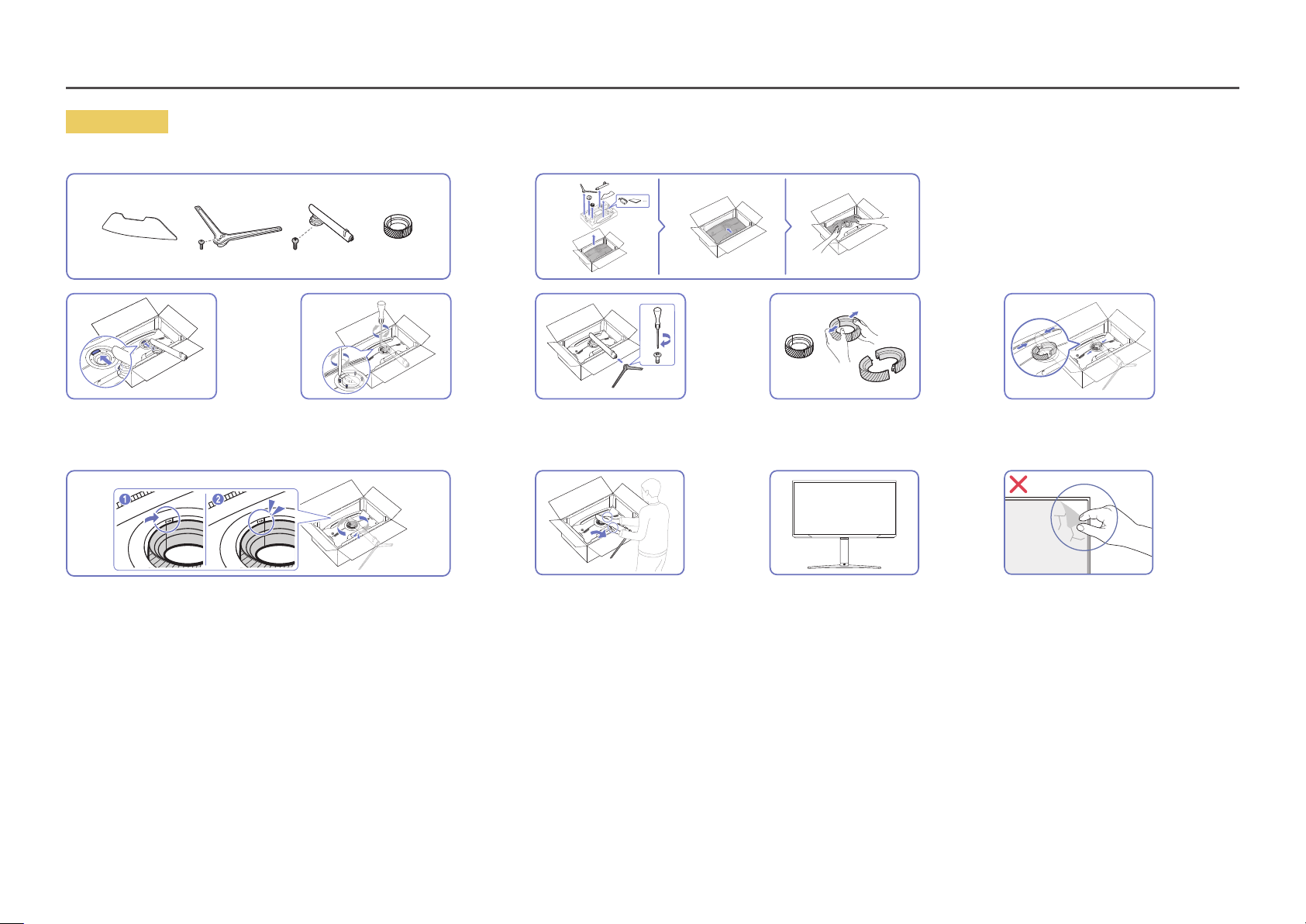

Place the stand neck on the monitor
as shown in the figure.
Fasten the screws at the top of the
stand neck.
Insert the stand base into the stand
neck in the direction as shown in the
figure.
Disassemble the COVER-REAR TOP. Assemble the COVER-REAR TOP to the stand
neck as shown in the figure.
6
7
8
Rotate the COVER-REAR TOP clockwise. Stand up the monitor as shown in
the figure.
After installing the stand, place the
product upright.
Caution
Do not arbitrarily remove the panel film. If
not observed, the warranty service may be
restricted.
10
S32BG85*N
x 4
1 2 3 4 5

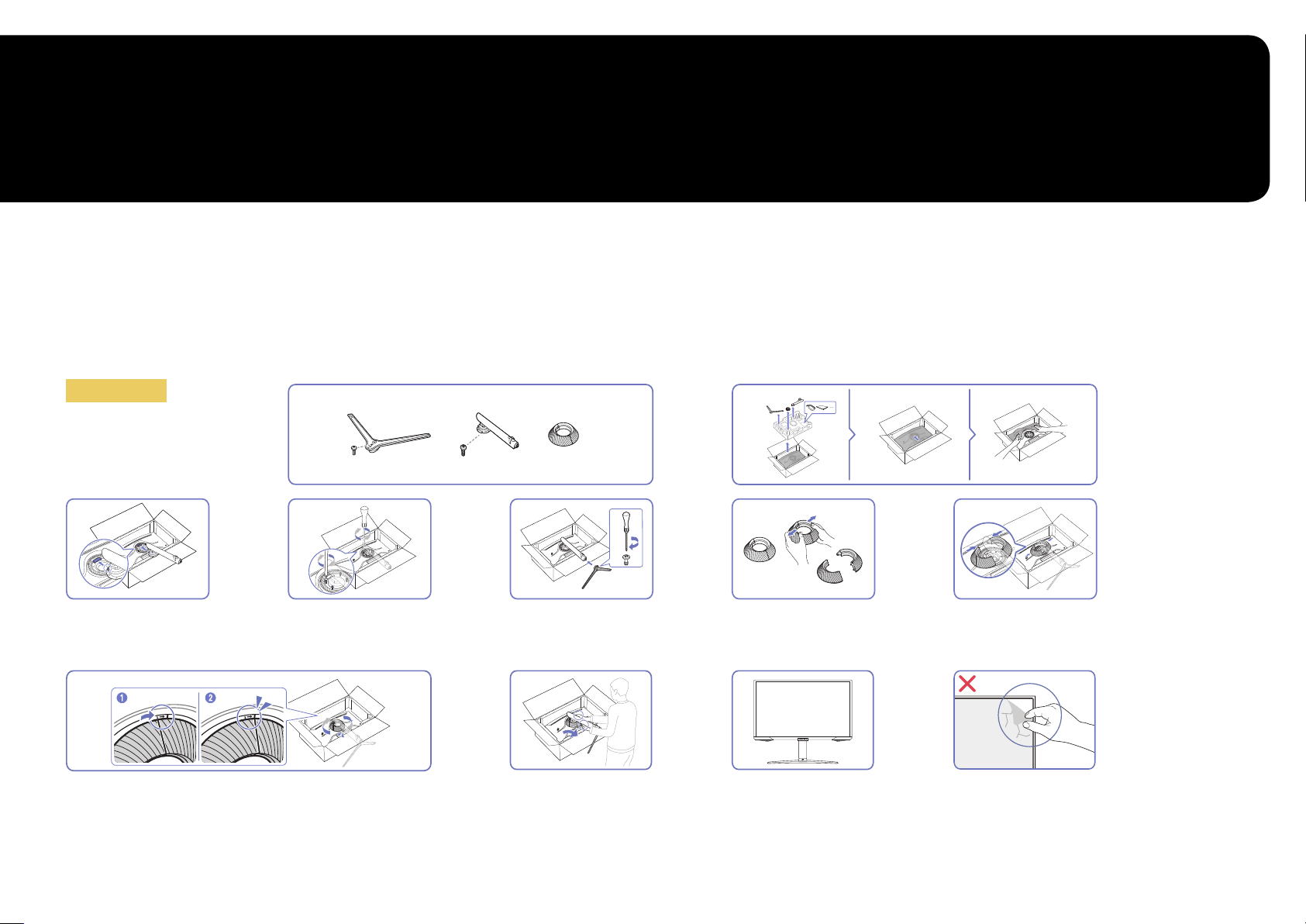

Place the stand neck on the monitor as
shown in the figure.
Fasten the screws at the top of the
stand neck.
Insert the stand base into the stand
neck in the direction as shown in the
figure.
Disassemble the COVER-REAR TOP. Assemble the COVER-REAR TOP to the
stand neck as shown in the figure.
6
7
8
Rotate the COVER-REAR TOP clockwise. Stand up the monitor as shown in the
figure.
After installing the stand, place the
product upright.
Caution
Do not arbitrarily remove the panel
film. If not observed, the warranty
service may be restricted.
11

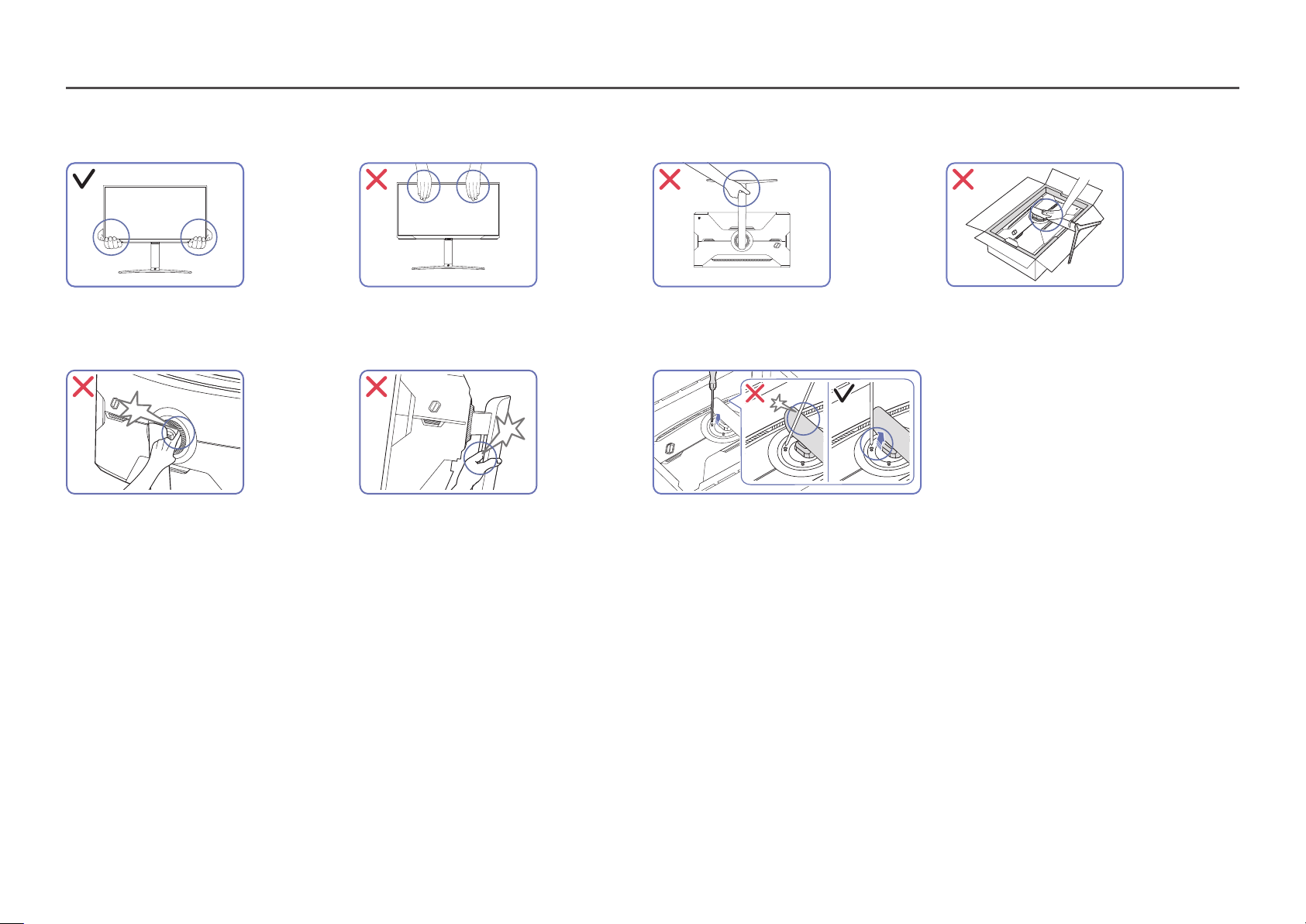

Precautions for moving the product
• Hold the lower corners or edges of the
product when moving it.
• Do not directly apply pressure on the screen.
• Do not hold the screen when moving the
product.
• Do not hold the product upside down only by
the stand.
• Do not press down on the product. There is a
risk of damaging the product.
• Be careful and ensure that your fingers are
not caught.
• Be careful and ensure that your fingers are
not caught.
• Tilt the stand neck to sides to avoid contact
with the screwdriver.
12

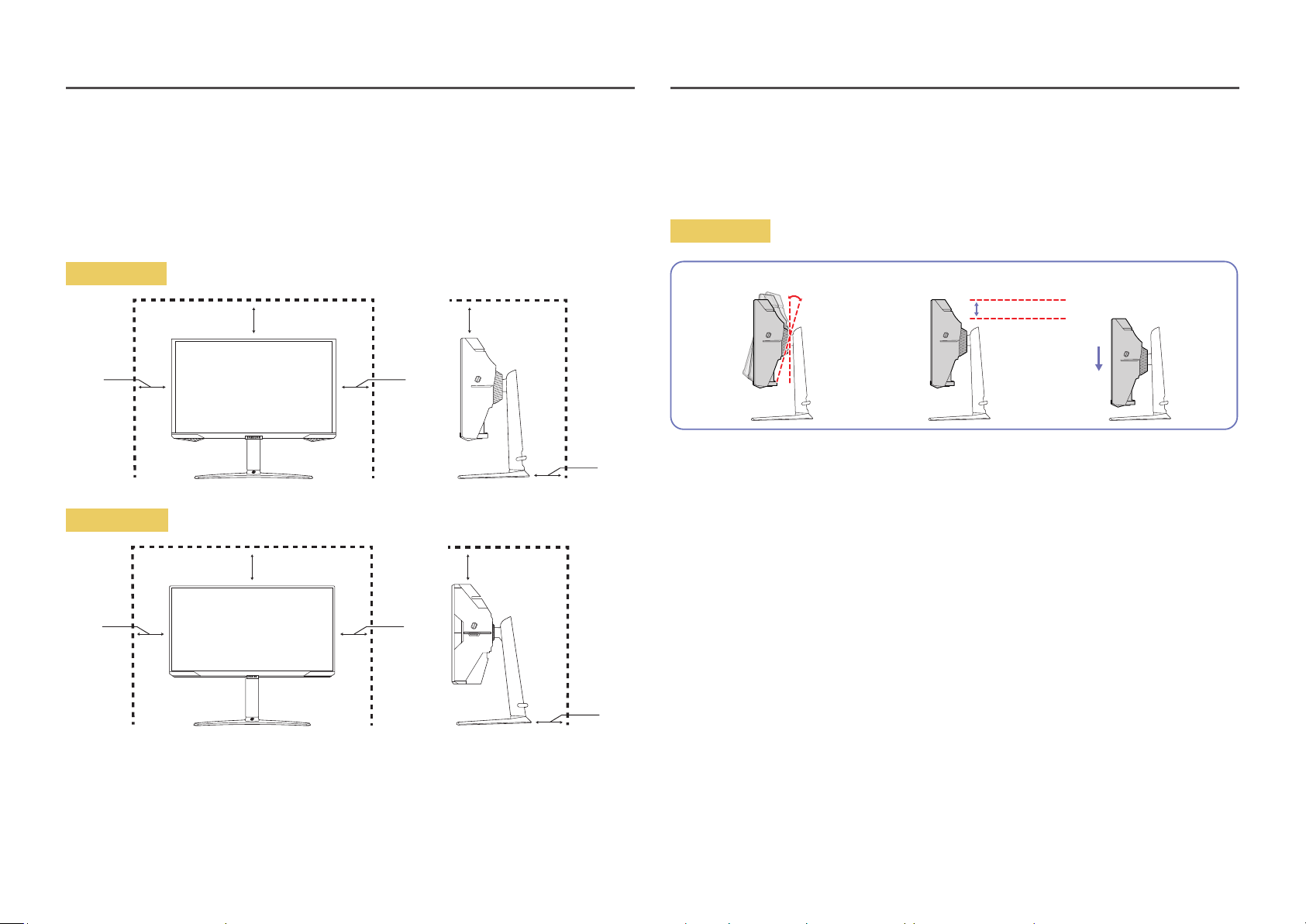

Checking the space around the product
Make sure to have enough space for ventilation when placing the product. An internal temperature rise
may cause fire and damage the product. Maintain enough space around the product as shown in the
diagram when installing the product.
―
The exterior may differ depending on the product.
S32BG75*N
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
S32BG85*N
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)

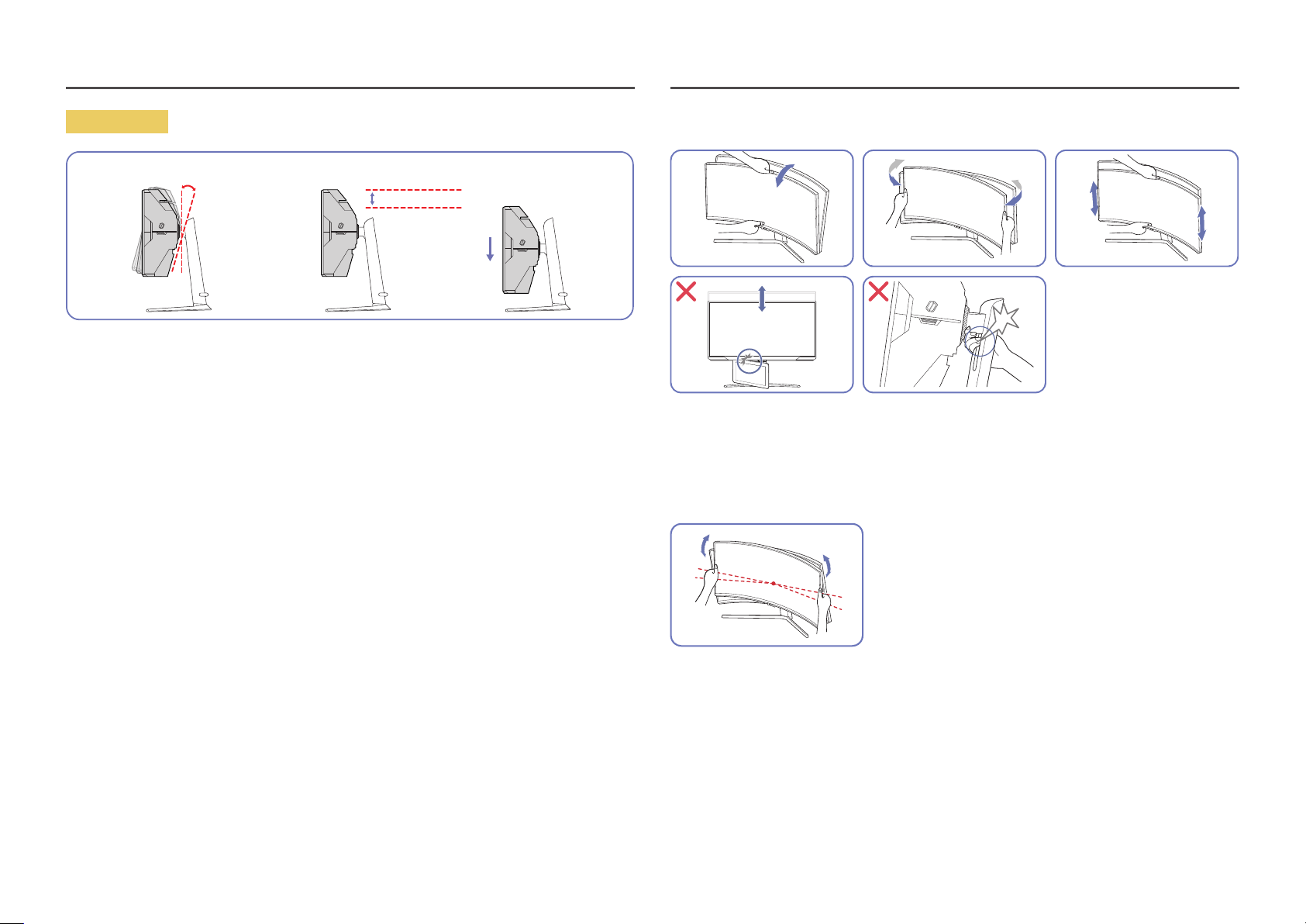

Adjusting the Product Tilt and Height
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
S32BG75*N
-9.0° (±2.0°) ~ 13.0° (±2.0°)
0 ~ 120.0 mm (±5.0 mm)
13
S32BG85*N
-9.0° (±2.0°) ~ 13.0° (±2.0°)
0 ~ 120.0 mm (±5.0 mm)
• The product tilt and height can be adjusted.
• Hold the top center of the product and adjust the height carefully.
• The height adjustment has a certain tolerance. Stay within the tolerances when adjusting the height
of the product.
Caution
• Grasp the left and right sides of the monitor and adjust the swivel.
• Grasp the center of the monitor and adjust the height.
• Do NOT hold the stand moving part with your hand when leveling the screen. Your hand may get
hurt.
After adjusting the product tilt and height, if the screen is not level, take the following actions.
+1˚
-1˚
• Hold the bezel at both side edges and adjust the monitor angle until the screen becomes level. (Be
careful not to directly hold the LCD display.)
• The monitor angle can be adjusted from -1° to +1°.
14

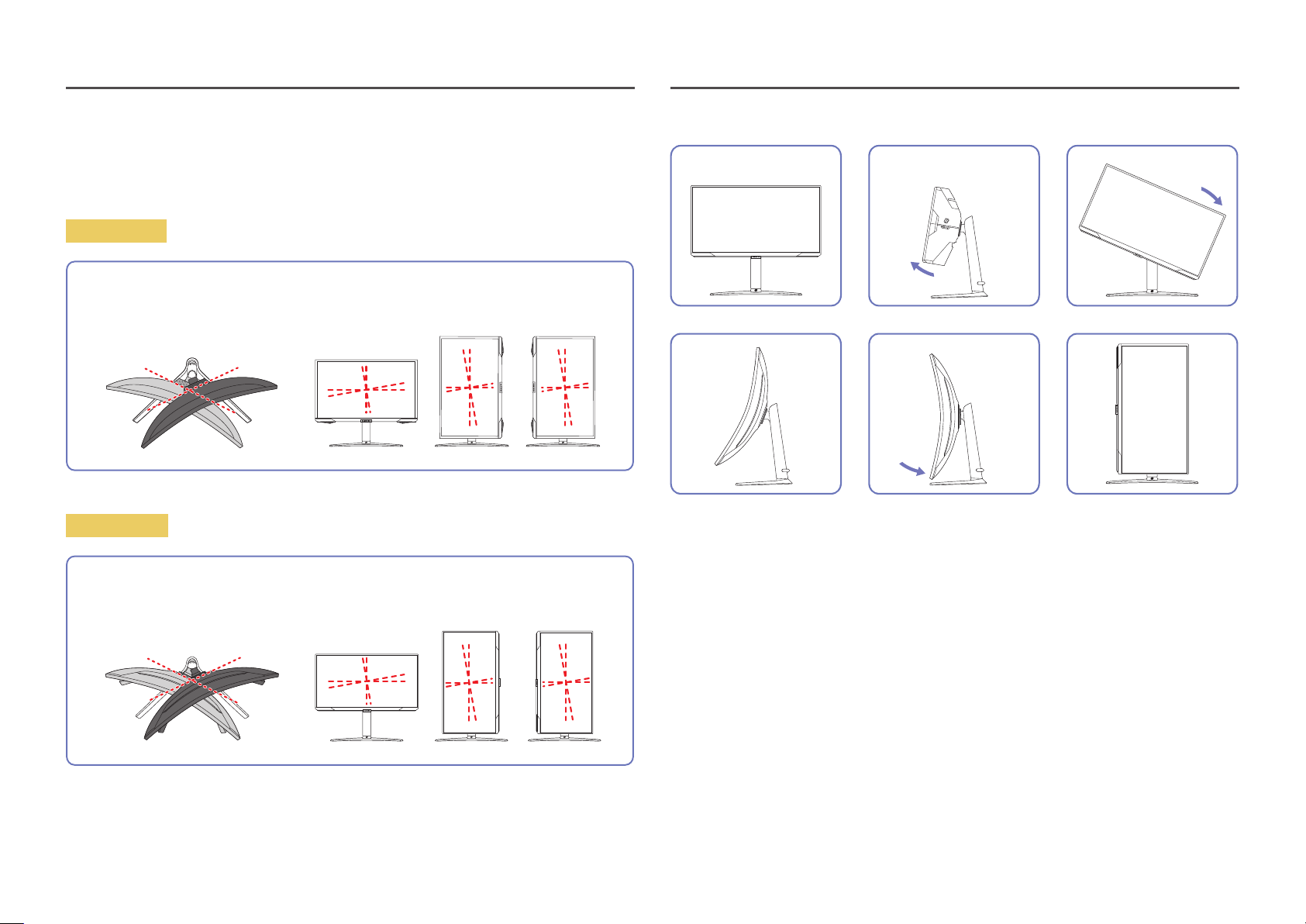

Rotating the Product
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
S32BG75*N
-15.0° (±2.0°) ~ 15.0° (±2.0°) -92.0° (±2.0°) ~ 92.0° (±2.0°)
S32BG85*N
-15.0° (±2.0°) ~ 15.0° (±2.0°)
-92.0° (±2.0°) ~ 92.0° (±2.0°)
You can rotate your product as shown below.
4 5 6
1 2 3
• To rotate the monitor, first adjust the stand to full height position and tilt the monitor back to full tilt
position.
• If the stand or monitor is not at full height or tilt position and you rotate the monitor, the monitor
corners may hit the floor and become damaged.
• When rotating the product, be careful not to damage the product by hitting the object or stand.
15
Anti-theft Lock
―
An anti-theft lock allows you to use the product securely even in public places.
―
The locking device shape and locking method depend on the manufacturer. Refer to the manuals provided
with your anti-theft locking device for details.
To lock an anti-theft locking device:
1
Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2
Put one end of the cable through the loop on the other end.
3
Insert the locking device into the anti-theft lock slot at the back of the product.
4
Lock the locking device.
‒ An anti-theft locking device can be purchased separately.
‒ Refer to the manuals provided with your anti-theft locking device for details.
‒ Anti-theft locking devices can be purchased at electronics retailers or online.
16

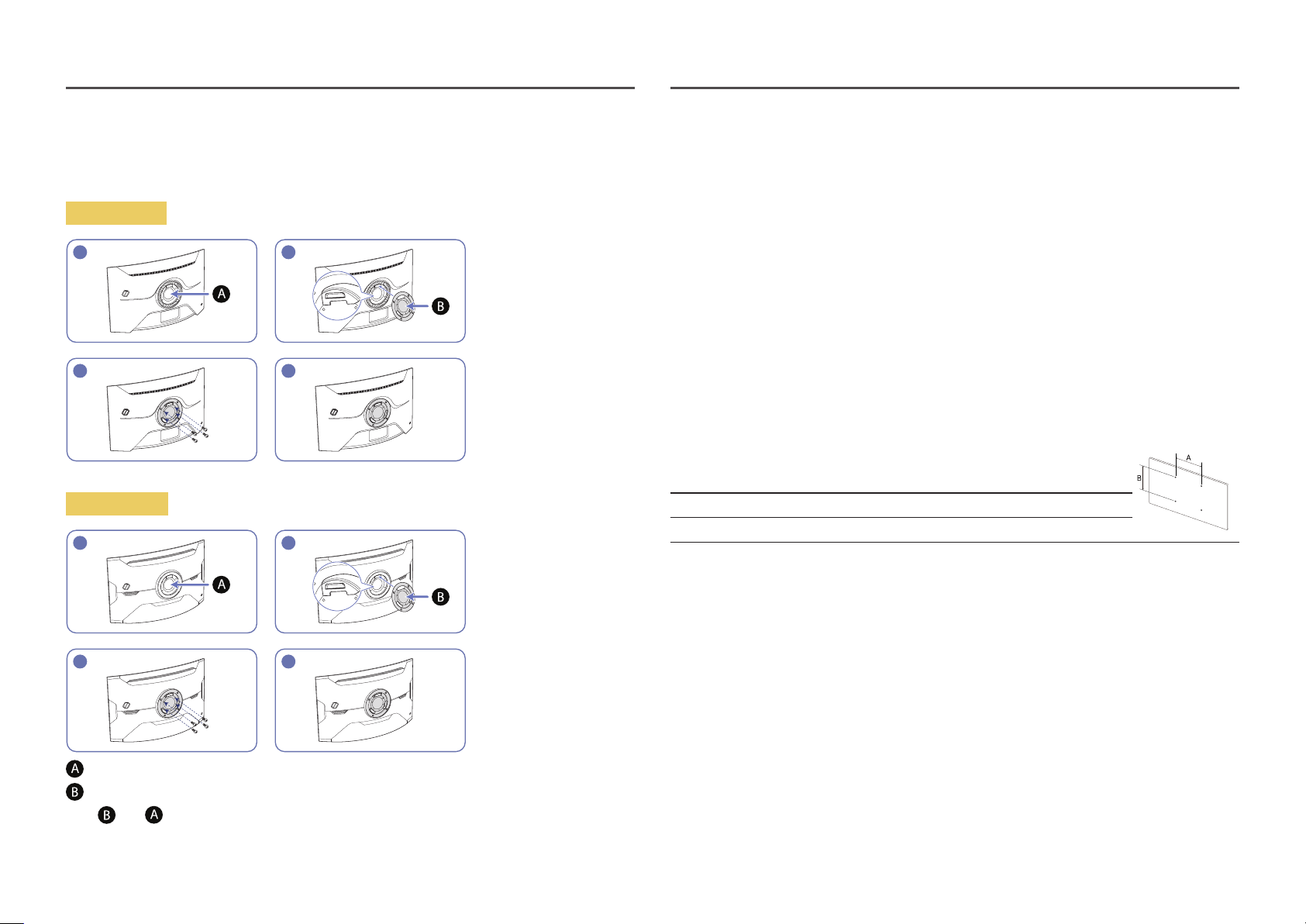

Attaching the BRACKET WALL
―
Power the product off and remove the power cable from the power socket.
S32BG75*N
3
1
4
2
S32BG85*N
3
1
4
2
Attach the BRACKET WALL here
BRACKET WALL
Align with on the monitor, then tightly fasten with the screws removed from the stand.
• Notes
‒ Using a screw longer than the standard length can damage the internal components of the
product.
‒ The length of screws required for a wall mount that does not comply with the VESA standards may
vary depending on the specifications.
‒ Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit
or desktop stand using excessive force. The product may get damaged or fall and cause personal
injury. Samsung shall not be held liable for any damage or injury caused by using improper screws
or attaching the wall-mount kit or desktop stand using excessive force.
‒ Samsung shall not be held liable for any product damage or personal injury caused by using a wall-
mount kit other than the one specified or from an attempt to install the wall-mount kit on your
own.
‒ To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10 cm
or farther away from the wall.
‒ Be sure to use a wall-mount kit that complies with the standards.
‒ To install the monitor using a wall mount, disconnect the stand base from the monitor.
Model name VESA screw hole specs
(A * B) in millimeters
Standard Screw Quantity
S32BG75*N 100.0 x 100.0 M4 4
S32BG85*N 100.0 x 100.0 M4 4
―
Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to
electric shock.
17
Control Panel
―
The color and shape of parts may differ from what is shown. Specifications are subject to change without
notice to improve quality.
Power LEDPower LED
PRESS(ENTER)
LEFT RIGHT
DOWN(FRONT)
5-Way Button
UP(REAR)
ReturnReturn
Custom KeyCustom Key
Function Key GuideFunction Key Guide
S32BG75*N S32BG85*N
Parts Description
5-Way Button Multi directional button that helps navigate.
Power LED
This LED is power status indicator.
―
You can select the power LED operation to be enabled or disabled on
the menu screen. (
→ System → Power LED On)
Function Key Guide
To use the Function Key Guide, press the 5-Way Button when the
screen is turned on.
Custom Key
• Custom Key is used to directly access the function set in Setup
Custom Key.
• Setup Custom Key
―
Go to
→ System → Setup Custom Key and change the custom
key.
Source
Changes the input source. A message will appear on the top left
corner of the screen if the input source has been changed.
Menu
Displays the main on-screen menu.
Power Off
Turns off the product.
Return
Exits from the menu page.
18
Connecting and Using a Source Device
Chapter 03
Read below before connecting the product.
1
Before connecting the product, check the shapes of both ports of the supplied signal cables and the
shapes and locations of the ports on the product and external device.
2
Before connecting the product, make sure you remove the power cables from both the product and
the external device to prevent damage to the product due to a short circuit or over current.
3
After all signal cables have been properly connected, connect the power cables back to the product
and the external device.
4
After connecting is completed, make sure you read the manuals to acquaint yourself with the
product functions, precautions and other information required to use the product properly.
5
To use Max specifications of our products, check the support specifications of the cable version you
use.
―
Connecting parts may differ in different products.
―
Provided ports may vary depending on the product.
19
Ports
―
The functions available may vary depending on the product model. The color and shape of parts may differ
from what is shown. Specifications are subject to change without notice to improve quality. Refer to the
actual product.
S32BG75*N / S32BG85*N
DC 20V
Port Description
Connects to a source device using an HDMI cable or HDMI-DVI cable.
Connects to a PC using a DP cable.
Connect to a USB device.
For more information, see Connecting the Product to a PC as a USB HUB,
Software Update page.
Connects to a PC using a USB cable. Compatible with a USB cable version 2.0.
Connect to an audio output device such as headphones or earphones.
DC 20V Connects to the AC/DC adapter.
20
Connecting and Using a PC
Select a connection method suitable for your PC.
Connection Using the HDMI Cable
―
It is recommended to use the HDMI cable provided as components. If not provided, be sure to use authorized
cable for HDMI cable connections. If you use a unauthorized HDMI cable, the image quality may be degrade.
―
To connect using an HDMI cable, it is recommended to use the Ultra High Speed HDMI (HDMI 2.1) cable.
Connection Using an HDMI-DVI Cable
―
The audio function is not supported if the source device is connected using the HDMI-DVI cable.
―
The optimum resolution may not be available with an HDMI-DVI cable.
―
If an HDMI-DVI cable has been connected, it is recommended to set Input Port Ver. to 1.4 from the OSD menu.
Connection Using an DP Cable
―
It is recommended to use the DP cable provided as an accessory. If not provided, be sure to use a DP cable of 1.5
m or below.
―
Use a VESA certified DP 1.2 cable or higher and its gender.
Connecting to headphones or earphones
―
Use headphones or earphones when activating sound with an HDMI-HDMI or DP cable.
21
Connecting the Product to a PC as a USB HUB
Using the product as a hub, connect and use various source devices with the product at a time.
S32BG75*N
S32BG85*N
―
To detect and start a USB device faster, connect the USB device to the
, port on the
product. The read/write rate will be affected by the USB device and your PC.
―
For USB-related problems caused by OS, drive programs or software, please contact relevant suppliers.
―
With the launch of various USB devices on the market, we cannot guarantee that our products are matched
with all USB devices.
―
For an external mass-storage HDD requiring external power supply, be sure to connect it to an external power
source.
―
USB devices requiring high current may not be supported.
, can support a maximum
current of 900mA.
―
The battery can be charged in the power-saving mode, but it cannot be charged when the product is powered
off.
―
Charging your USB device is not possible if the power cable is disconnected from the power socket.
―
The company is not liable for problems or damages to an external device caused by using an unauthorized
cable for the connection.
―
Some products do not follow the USB standard, and it may cause a malfunction of the device.
22

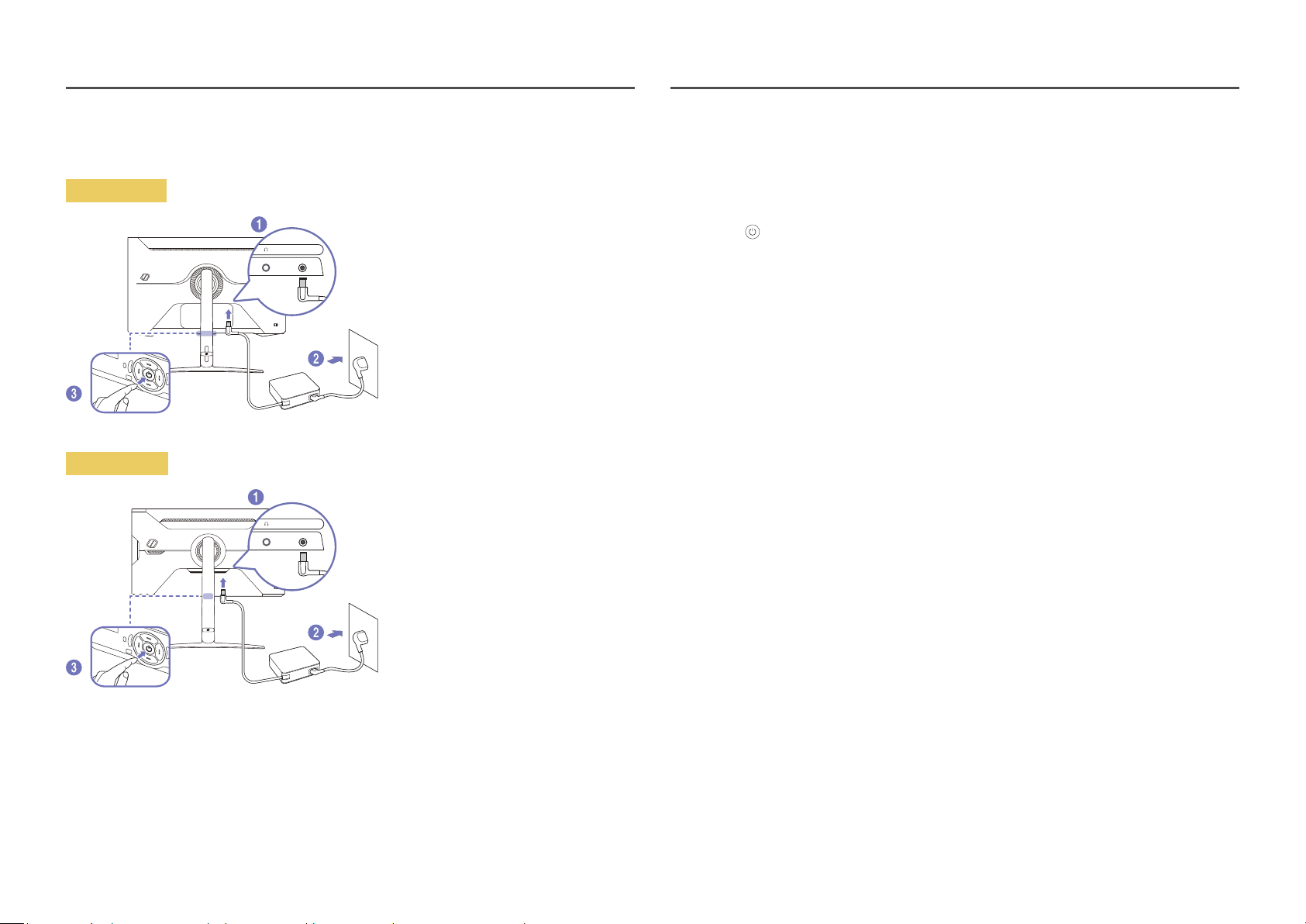

Connecting the Power
S32BG75*N
HDMI IN DP IN
DC 20V
S32BG85*N
HDMI IN DP IN
DC 20V
1
Connect the power cable to the AC/DC adapter. Then, connect the AC/DC adapter to the DC 20V port
on the back of the product.
‒ Rated power consumption for adapters differs depending on the model. Use an adapter that meets
the power consumption specification of the model.
2
Next, connect the power cable to the power outlet.
3
Press the button at the bottom of the product to turn it on.
―
The input voltage is switched automatically.
23
Tidying Up the Connected Cables
S32BG75*N
1
1
1
2

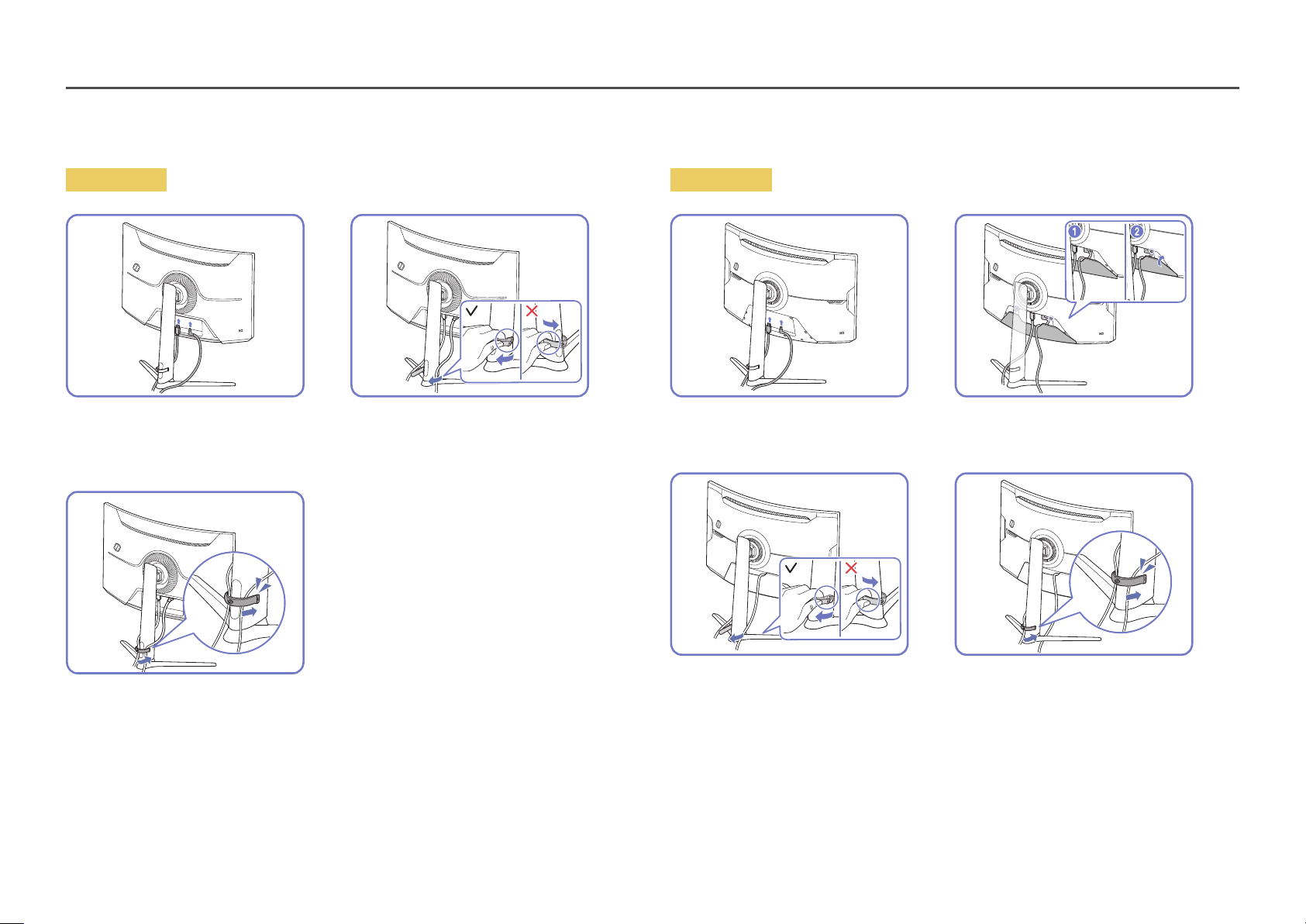

Connect the corresponding cables. Pull the right side of the HOLDER-STAND CABLE
to remove from the stand. The left side of the
HOLDER-STAND CABLE can be damaged when
pulled forcibly.
1
3
Put both cables in the cable holder on the stand
(HOLDER-STAND CABLE) to organize the cables,
as shown in the figure.
Assembly is complete.
S32BG85*N
1
1 2
Connect the corresponding cables. Arrange the cables against the bend tendency of
the cables and pull the cables out of the COVER-
REAR SUB grooves.
1
3
1
4
Pull the right side of the HOLDER-STAND CABLE
to remove from the stand. The left side of the
HOLDER-STAND CABLE can be damaged when
pulled forcibly.
Put both cables in the cable holder on the stand
(HOLDER-STAND CABLE) to organize the cables,
as shown in the figure.
Assembly is complete.
24
Setting Optimum Resolution
An information message about setting optimum resolution will appear if you power on the product for
the first time after purchase.
Select a language on information message and change the resolution on your PC to the optimum setting.
―
If the optimum resolution is not selected, the message will appear up to three times for a specified time even
when the product is turned off and on again.
―
If you want to set the optimum resolution for your computer, please refer to (Q&A) → “How can I change the
resolution?”
―
You can adjust the refresh rate according to the screen resolution by selecting Game → Refresh Rate in the
OSD menu.
―
To enable the maximum refresh rate, set Adaptive-Sync / FreeSync Premium Pro to On or set Refresh Rate to
165 Hz. (S32BG75*N model only.)
―
To enable the maximum refresh rate, set Adaptive-Sync / FreeSync Premium Pro to On or set Refresh Rate to
240 Hz. (S32BG85*N model only.)
―
This menu is only available when Refresh Rate is set to 165 Hz.(S32BG75*N model only.) (in DisplayPort
mode)
―
This menu is only available when Refresh Rate is set to 240 Hz.(S32BG85*N model only.) (in DisplayPort
mode)
List of graphic cards supporting HDR10 / HDR
400 / QUANTOM HDR 2000
HDR10 / HDR 400 / QUANTOM HDR 2000 is accessible only on Windows 10 systems equipped with
graphic cards that support Play Ready 3.0 Digital Rights Management (for protected HDR content). Use
graphic cards listed below for HDR10 / HDR 400 / QUANTOM HDR 2000.
• NVIDIA GeForce 1000 series or higher
• AMD Radeon™ RX 400 series or higher
• Intel UHD Graphics 600 series or higher
―
Graphic cards that support hardware-accelerated 10-bit video decoding for HDR video codecs are
recommended.
25
Menu
Function Key Guide →
Chapter 04
―
The functions available may vary depending on the product model. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
Game
2nd 3rd Description
Refresh Rate Change the screen refresh rate. A higher refresh rate can reduce eye strain.
• 120 Hz / 165 Hz
―
S32BG75*N model only.
• 120 Hz / 240 Hz
―
S32BG85*N model only.
―
This menu is not available when PIP Mode is enabled.
―
This option is not available when Adaptive-Sync is set to Off.
―
This option is not available when FreeSync Premium Pro is set to Off.
―
Changing the Refresh Rate may cause screen flickering, depending on the PC's graphics card.
―
The function is available in a PC equipped with the graphics card that can change the refresh rate.
It is unavailable in the devices (e.g. AV devices) with fixed refresh rates. If the function is applied, the screen may have malfunction.
―
If the Refresh Rate function is in use and the text displayed on the PC screen looks blurry or corrupted, resolve the issue by changing the resolution of the
PC screen to the recommended resolution.
26
2nd 3rd Description
Response Time Accelerate the panel response rate to make video appear more vivid and natural.
―
It is best to set Response Time to Standard or Faster when you are not viewing a movie or game.
―
This option is not available when Adaptive-Sync / FreeSync Premium Pro is set to On.
―
This menu is not available when PIP Mode is enabled.
―
When Local Dimming is set to Off, the Extreme (MBR) menu is activated.
―
When Picture Mode is set to Dynamic Contrast, the Extreme (MBR) menu is deactivated.
Adaptive-Sync Adaptive-Sync technology is solution that eliminates screen tearing without all the usual lag and latency.
―
This menu is not available when PIP Mode is enabled.
FreeSync Premium Pro FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency. FreeSync can be operated when you use AMD's
graphic card with supporting FreeSync solution.
For more information, see FreeSync (for AMD graphics card) page.
―
This menu is not available when PC/AV Mode is set to AV.
―
This menu is not available when PIP Mode is enabled.
Ultrawide Game View Set the game screen’s ratio to wide for more immersive gaming.
―
This menu is not available when PIP Mode is enabled.
―
This menu is not available when Adaptive-Sync is enabled.
27
2nd 3rd Description
Low Input Lag Minimize input lag for fast reactions by reducing the video processing time.
―
This menu is not available when Adaptive-Sync / FreeSync Premium Pro is enabled.
―
If the refresh rate of the PC is different from the setting for Refresh Rate on the product, the function may not be supported.
―
This menu is not available when PIP Mode is enabled.
Black Equalizer Adjust the brightness of the dark areas.
As the value gets closer to 1, the darker areas of the screen become brighter, making it easier to find enemies when playing a game. To find enemies
more easily during a game, use a lower value.
As the value gets closer to 20, the darker areas of the screen become darker and the contrast increases.
―
This menu is not available when Eye Saver Mode is enabled.
―
This menu is not available when Picture Mode is set to Cinema mode.
―
This menu is not available when the input signal is AV timing and the monitor is in AV mode.
―
This menu is not available when PIP Mode is enabled.
Virtual Aim Point • Off: Virtual Aim Point is not available while Off is selected.
• / / / / / : Select the preferred aim point style.
• Reset Position: Restore the aim point position to the default.
―
This menu is not available when PIP Mode is enabled.
Infinity Core Lighting Turn the LED lighting at the front and back of your product on or off.
28
2nd 3rd Description
Screen Size Select the best screen size and ratio.
―
This option is not available when Ultrawide Game View is set to On.
―
This menu is not available when Adaptive-Sync / FreeSync Premium Pro is enabled.
―
This menu is not available when PIP Mode is enabled.
In PC mode
• Auto: Display the picture according to the aspect ratio of the input source.
• Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
• 17" (4:3): Use a 4:3 aspect ratio on a 17-inch screen. Pictures with a different aspect ratio will not be displayed.
• 19" (4:3): Use a 4:3 aspect ratio on a 19-inch wide screen. Pictures with a different aspect ratio will not be displayed.
• 19" Wide (16:10): Use a 16:10 aspect ratio on a 19-inch wide screen. Pictures with a different aspect ratio will not be displayed.
• 21.5" Wide (16:9): Use a 16:9 aspect ratio on a 21.5-inch wide screen. Pictures with a different aspect ratio will not be displayed.
• 22" Wide (16:10): Use a 16:10 aspect ratio on a 22-inch wide screen. Pictures with a different aspect ratio will not be displayed.
• 23" Wide (16:9): Use a 16:9 aspect ratio on a 23-inch wide screen. Pictures with a different aspect ratio will not be displayed.
• 27" Wide (16:9): Use a 16:9 aspect ratio on a 27-inch wide screen. Pictures with a different aspect ratio will not be displayed.
29
2nd 3rd Description
Screen Size In AV mode
• 4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
• 16:9: Display the picture with an aspect ratio of 16:9.
• Screen Fit: Display the picture with the original aspect ratio without cutting off.
• 17" (4:3): Use a 4:3 aspect ratio on a 17-inch screen. Pictures with a different aspect ratio will not be displayed.
• 19" (4:3): Use a 4:3 aspect ratio on a 19-inch wide screen. Pictures with a different aspect ratio will not be displayed.
• 19" Wide (16:10): Use a 16:10 aspect ratio on a 19-inch wide screen. Pictures with a different aspect ratio will not be displayed.
• 21.5" Wide (16:9): Use a 16:9 aspect ratio on a 21.5-inch wide screen. Pictures with a different aspect ratio will not be displayed.
• 22" Wide (16:10): Use a 16:10 aspect ratio on a 22-inch wide screen. Pictures with a different aspect ratio will not be displayed.
• 23" Wide (16:9): Use a 16:9 aspect ratio on a 23-inch wide screen. Pictures with a different aspect ratio will not be displayed.
• 27" Wide (16:9): Use a 16:9 aspect ratio on a 27-inch wide screen. Pictures with a different aspect ratio will not be displayed.
―
The function may not be supported depending on the ports provided with the product.
―
Changing the Screen Size is available when the following conditions are satisfied.
―
The input source is 480p, 576p, 720p, 1080p or 2160p and product can display normally (Not every model can support all of these signals.).
―
This can only be set when the external input is connected through HDMI/DP and PC/AV Mode is set to AV.
―
This option is not available when Adaptive-Sync / FreeSync Premium Pro is set to On.
―
This option is not available when Ultrawide Game View is set to On.
30
2nd 3rd Description
Picture Mode This menu provides an optimum picture quality suitable for the environment where the product will be used.
―
This menu is not available when PIP Mode is enabled.
―
This menu is not available when Eye Saver Mode is enabled.
In PC mode
• Custom: Customize the screen settings.
• FPS: Increase the brightness of darker areas of the FPS (First-Person Shooter) game screen. This mode increases visibility of your enemies
during a FPS (First-Person Shooter) game.
• RTS: Increase the color temperature and contrast ratio to improve visibility of the RTS (Real-Time Strategy) screen and minimap.
• RPG: This mode is optimized for 3D graphics and instant messaging on the RPG (Role Playing Game) game screen.
• Sports: Obtain the brightness and sharpness of monitors suitable for enjoying sports contents.
• sRGB: Adjust the color system to sRGB mode. This is the standard mode of this monitor.
• Cinema: Obtain the brightness and sharpness of monitors suitable for enjoying video and DVD content.
• Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
In AV mode
When the external input is connected through HDMI/DP and PC/AV Mode is set to AV, Picture Mode has three picture settings (Dynamic, Standard
and Movie) that are preset at the factory. You can activate either Dynamic, Standard or Movie.
• Dynamic: Select this mode to view a sharper image than in Standard mode.
• Standard: Select this mode when the surroundings are bright.
• Movie: Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.
―
The Picture Mode feature is only activated at a certain AV resolution, such as 720P @ 60 Hz and 1080P @ 60 Hz.
31
2nd 3rd Description
Brightness You can adjust the general brightness of the picture. (Range: 0~100)
A higher value will make the picture appear brighter.
―
This menu is not available when Eye Saver Mode is enabled.
―
This menu is not available when Response Time is set to Extreme (MBR) mode.
Contrast Adjust the contrast between the objects and background. (Range: 0~100)
A higher value will increase the contrast to make the object appear clearer.
―
This menu is not available when Picture Mode is set to sRGB mode.
―
This menu is not available when PIP Mode is enabled.
Sharpness Make the outline of objects more clear or blurry. (Range: 0~100)
A higher value will make the outline of objects clearer.
―
This menu is not available when PIP Mode is enabled.
―
When the Sharpness is changed, it may affect picture quality.
Color Adjust the tint of the screen.
• Color Tone: Select a color tone that best suits your viewing needs.
―
When the external input is connected through HDMI/DP and PC/AV Mode is set to PC, Color Tone has seven color temperature settings (Cool 2, Cool 1,
Normal, Warm 1, Warm 2, Custom and Natural).
―
When the external input is connected through HDMI/DP and PC/AV Mode is set to AV (720P @ 60 Hz, 1080P @ 60 Hz and 2160P @ 60Hz), Color Tone has
five color temperature settings (Cool, Normal, Warm, Custom and Natural).
• Red: Adjust the red saturation level. Values closer to 100 mean greater intensity for the color.
• Green: Adjust the green saturation level. Values closer to 100 mean greater intensity for the color.
• Blue: Adjust the blue saturation level. Values closer to 100 mean greater intensity for the color.
• Gamma: Adjust the middle level of luminance.
• Saturation: Adjust the saturation level. Values closer to 100 mean greater intensity for the color.
―
Color Tone / Red / Green / Blue is not available when Picture Mode is set to sRGB mode.
―
This menu is not available when PIP Mode is enabled.
―
This menu is not available when Eye Saver Mode is enabled.
―
The Color feature is only activated at a certain AV resolution, such as 720P @ 60 Hz, 1080P @ 60 Hz and 2160P @ 60 Hz.
32
2nd 3rd Description
Contrast Enhancer Optimize HDMI picture brightness and contrast by adjusting the black level of the video signal.
Black Level If a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/color degradation, black level, etc.) may
occur, depending on the connected source device.
In such case, Black Level can be used to adjust the image quality.
• Normal: Select this mode when there is no contrast ratio degradation.
• Low: Select this mode to reduce the black level and increase the white level when there is a contrast ratio degradation.
―
This menu is not available when PIP Mode is enabled.
―
This function is only available in HDMI mode.
―
Black Level may not be compatible with some source devices.
―
The Black Level feature is only activated at a certain AV resolution, such as 720P @ 60 Hz, 1080P @ 60 Hz and 2160P @ 60 Hz.
―
Adjust the Black Level because the image quality may differ depending on the external device.
Eye Care Adaptive Picture Optimizes brightness and provides the best picture quality in real time, based on your lighting environment.
―
Adaptive Picture is disabled if Picture Mode is set to sRGB or Eco Sensor Mode is set to On.
Min. Backlight Minimizes screen backlight when running Adaptive Picture.
Eye Saver Mode Set to an optimum picture quality suitable for eye relaxation.
Screen Adjustment
• H-Position: Move the screen to the left or right.
• V-Position: Move the screen up or down.
―
This menu is not available when PIP Mode is enabled.
―
This option is only available when PC/AV Mode is set to AV.
―
This menu is only available when Screen Size is set to Screen Fit in AV Mode.
When a 480P, 576P, 720P, 1080p or 2160p signal is input in AV mode and the product can display normally, select Screen Fit to adjust horizontal position
and vertical position in 0-6 levels.
Calibration Report View the Calibration Report.
33
PIP
2nd 3rd Description
PIP Mode Turn PIP Mode on or off.
Screen Size Select sub-screen size.
• / /
Screen Position Select the position of the sub-screen from the available options.
• / / /
Source Select the source for each screen.
Sound Source Set which screen you want to hear the sound for.
• /
Screen Ratio Choose the size and aspect ratio of the picture displayed on screen.
In PC mode
• Auto / Wide
In AV mode
• 4:3 / 16:9 / Screen Fit
―
The function may not be supported depending on the ports provided with the product.
―
Changing the Screen Ratio is available when the following conditions are satisfied.
―
The input source is 480p, 576p, 720p, 1080p or 2160p and product can display normally (Not every model can support all of these signals.).
―
This can only be set when the external input is connected through HDMI, DP and PC/AV Mode is set to AV.
―
The Screen Ratio feature is only activated at a certain AV resolution, such as 720P @ 60 Hz, 1080P @ 60 Hz and 2160P @ 60 Hz.
Contrast Adjust the contrast level. Values closer to 100 mean a bigger light/dark contrast.
34
OnScreen Display
2nd 3rd Description
Language Set the menu language.
―
A change to the language setting will only be applied to the onscreen menu display.
―
It will not be applied to other functions on your PC.
Display Time Set how long the menu window will remain on screen for when it is not in use.
System
2nd 3rd Description
Local Dimming Control the brightness of individual areas on the screen to maximize contrast automatically.
―
This menu is not available when PIP Mode is enabled.
―
This menu is not available when Eye Saver Mode is enabled.
 Volume
Adjust the Volume controlling the 5-Way Button LEFT/RIGHT.
―
To activate the Mute function, access the Volume control screen, then use the 5-Way Button to move the focus down.
To deactivate the Mute function, access the Volume control screen, then increase or decrease the Volume.
Dynamic Brightness Automatically adjust the Brightness to provide the best possible screen contrast under the current conditions.
35
2nd 3rd Description
Off Timer Plus Off Timer • Off Timer: Turn on Off Timer mode.
• Turn Off After: The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of
hours.
―
This option is only available when Off Timer is set to On.
―
For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the product powers on. This is done in accordance
with power supply regulations. If you do not want the timer to activate, go to
→ System → Off Timer Plus and set Off Timer to Off.
Eco Timer • Eco Timer: Turn on Eco Timer mode.
• Eco Off After: The Eco Off After can be set between 10 and 180 minutes. The product will automatically power off after the specified time has
elapsed.
―
This option is only available when Eco Timer is set to On.
PC/AV Mode Set PC/AV Mode to AV. The picture size will be enlarged.
This option is useful when you view a movie.
―
Products with a display area of 16:9 or 16:10 are only supported.
―
If the product is in HDMI, DisplayPort mode and the screen says Check the cable connection and the settings of the source device. press the 5-Way Button
to display the Function Key Guide screen and then select
→ System → PC/AV Mode → HDMI, DisplayPort → PC or AV.
―
If input source is AV device, the screen may not display properly or there is no sound. Set PC/AV Mode to AV.
DisplayPort Ver. Select your Displayport.
―
Incorrect settings may cause the screen to go blank. If this occurs, check the device specifications.
―
If the product (in DisplayPort mode) is displaying the message Check the cable connection and the settings of the source device. press the 5-Way Button
to display the Function Key Guide screen and then select
→ System → DisplayPort Ver. → 1.1, 1.2 or 1.4.
―
If setting the DisplayPort Ver. to 1.1, for the bandwidth limitation of the DisplayPort 1.1 protocol, the actual maximum output refreshing rate of the graphics
cards cannot achieve the level of 120 Hz/240 Hz.
―
If the PC has entered BIOS mode and the BIOS screen does not appear, go to the following path and then select the mode.
→ System → DisplayPort Ver.
→ 1.1, 1.2 or 1.4.
36
2nd 3rd Description
Input Port Ver. Select an HDMI version.
• 1.4 / 2.0↑
―
The supportable device and resolution may differ depending on its version.
―
When the version is changed, the screen may blink.
―
If you set the HDMI Mode to 1.4, some high resolutions may not be supported because of bandwidth limitation of the HDMI 1.4 protocol.
―
When the setting is not appropriate, a blank screen may appear. In this case, check the specifications of the device.
―
Set HDMI Mode to 1.4 if the monitor is connected to an HDMI device and the monitor does not display the screen properly, displays a blank screen, or does
not play sound at all.
Auto Source Switch+ By activating, a new connected source is displayed automatically.
―
This function may not be supported depending on the model or geographical area.
Key Repeat Time Control the response rate of a button when the button is pressed.
Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once when a button is pressed.
Power LED On Configure the settings to enable or disable the power LED located at the lower part of the product.
• Working: The power LED is on when the product is turned on.
• Stand-by: The power LED is on when the product is turned off.
VRR Control By optimizing the video signal processing, this additional function mitigates screen flicker.
While playing any game or content that causes screen flicker, use the VRR Control function with setting it to On.
Setup Custom Key Set the custom key so that your chosen function can be set up directly.
• Eye Saver Mode / PIP / Refresh Rate / Ultrawide Game View / Low Input Lag / Black Equalizer / Virtual Aim Point / Infinity Core Lighting / Auto
Source Switch+ / Picture Mode / Response Time
Eco Sensor Mode Optimizes brightness in real time, based on your lighting environment.
37
Support
2nd 3rd Description
Self Diagnosis Perform this test when you experience a problem with your monitor's picture.
―
Never turn off the power nor change the input source during self diagnosis. If possible, try not to interrupt testing.
Software Update Update software using an update file on a USB device.
1
Save the update file (in .bin or .img format) that you downloaded from the Samsung website (http://www.samsung.com/sec) to a USB storage
device.
2
Connect the USB device to the port on the monitor.
Select → Support → Software Update.
3
Follow the instructions on the screen to proceed with update.
4
Your product will turn itself off and on again automatically after completing update, and then turn off your product.
5
Remove the power cord from the power outlet and then reconnect the cord after turning off.
―
To perform software update by using a USB memory, first format the USB memory to FAT32.
―
When performing update, make sure that only one BIN or IMG file (.bin or .img) is saved in the root directory.
―
Upon updates, save only either the .bin or .image file, downloaded from the Samsung website, to the root directory.
―
If the No update files found on your USB device. Please check your USB device and try again. message is displayed, this is probably due to the following
reasons.
―
A USB memory is not connected to the
port.
―
The files in the connected USB memory are not compatible formats.
―
There are no valid update files found in the connected USB memory. (There are no update files saved in the memory or the file names are incorrect.)
―
Do not turn off the product until the update is complete. And prevent the updating from any interruption as far as possible. In general, the product returns
to the previous version if an update is interrupted.
―
It may change the screen color or blink during USB update, but it is not a monitor problem. Since S/W update is performed normally, please wait until the
update is finished.
Information View the current software information. Refer to the actual monitor screen.
Register Product Discover how to register your product.
Reset All Return all the settings for the product to the default factory settings.
38
Installing the Software
Chapter 05
Easy Setting Box
Easy Setting Box enables users to use the product by partitioning multiple sections.
To install the latest version of Easy Setting Box, download it from the Samsung website (https://
displaysolutions.samsung.com/solutions/monitor-solution/easy-setting-box).
―
The software may not work properly if you do not restart the PC after the installation.
―
The Easy Setting Box icon may not appear depending on the PC system and the product specifications.
―
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation
The Easy Setting Box installation may be affected by the Graphics Card, Motherboard and the Networking
Environment.
System Requirements
OS Hardware
• Windows 7 32Bit/64Bit
• Windows 8 32Bit/64Bit
• Windows 8.1 32Bit/64Bit
• Windows 10 32Bit/64Bit
• At least 32MB of memory
• At least 60MB of free space on the hard disk drive
Driver Installation
To install the latest version of the product driver, download it from the Samsung website (http://www.
samsung.com).
―
You can set the optimum resolution and frequency for this product by installing the corresponding drivers.
39
Troubleshooting Guide
Chapter 06
Requirements Before Contacting Samsung
Customer Service Center
―
Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,
contact Samsung Customer Service Center.
Product diagnosis (Screen issue)
If a problem occurs with the monitor screen, run Self Diagnosis to check that the monitor is working
properly.
Checking the Resolution and Frequency
If a resolution that is not supported (see the Standard Signal Mode Table) is selected, the Not Optimum
Mode message may appear for a short time or the screen may not be displayed properly.
―
The displayed resolution may vary, depending on the PC system settings and cables.
Check the following.
Caution
When the product makes popping (cracking) sound.
The sound may be caused by contraction or expansion from temperature change of external
components or internal circuit of the product.
This is NOT a product failure and does not affect the life of the product.
Installation issue (PC mode)
Blank spaces are found on all four sides of the screen when an HDMI or HDMI-DVI cable is connected to
the product and PC.
The blank spaces found on the screen have nothing to do with the product.
Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the
screen size in the HDMI or DVI settings for the graphics card.
If the graphics card settings menu does not have an option to adjust the screen size, update the
graphics card driver to the latest version.
(Please contact the graphics card or PC manufacturer for further details about how to adjust the screen
settings.)
40
Screen issue
The power LED is off. The screen will not switch on.
Check that the power cable is connected properly.
If a problem occurs with the monitor screen, run Self Diagnosis to check that the monitor is working
properly.
The message Check the cable connection and the settings of the source device. appears.
Check that the cable is properly connected to the product.
If the monitor is in HDMI or DisplayPort mode, press the 5-Way Button to display the Function Key
Guide screen and select the
→ System → PC/AV Mode → HDMI, DisplayPort → PC or AV.
Not Optimum Mode is displayed.
This message appears when the signal from the graphics card exceeds the maximum resolution or
frequency for the product.
Change the maximum resolution and frequency to suit the product performance, referring to Standard
Signal Mode Table (P.45).
The images on the screen look distorted.
Check the cable connection to the product.
The screen is not clear. The screen is blurry.
Remove any accessories (video extension cable, etc.) and try again.
Set the resolution and frequency to the recommended level.
The screen appears unstable and shaky. There are shadows or ghost images left on the screen.
Check that the resolution and frequency for the PC are within the range of resolution and frequency
compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode
Table (P.45) in this manual and the Information menu on the product.
Change the Response Time in the Display OSD to Faster or Standard depending on your application and
usage.
The screen is too bright. The screen is too dark.
Adjust Brightness and Contrast.
Screen color is inconsistent.
Change the Color settings.
The colors on the screen have a shadow and are distorted.
Change the Color settings.
White does not really look white.
Change the Color settings.
There is no image on the screen and the power LED blinks every 0.5 to 1 second.
Check the cable connection between the product and PC, and ensure the connectors are locked.
Press any key on the keyboard or move the mouse to return to normal operating mode.
The product is operating in power-saving mode.
Text is blurry.
If using a Windows OS (e.g. Windows 7, Windows 8, Windows 8.1 or Windows 10): Go to Control Panel →
Fonts → Adjust ClearType text and change Turn on ClearType.
Video playback is choppy.
Playback of high-definition large video files can be choppy. This may be because the video player is not
optimized for the PC resource.
Try playing the file on another video player.
When setting the PIP Screen Size, the screen does not fit the PIP size.
Depending on the graphic card or graphic card driver, it may not be automatically set to the Optimum
resolution. If you set it properly for the first time, there will be no problems thereafter.
41
Sound issue
There is no sound.
Re-check the condition of the connected headphone or earphone and/or adjust the volume.
Check the volume.
Check whether the volume of the product or the source device is set to mute.
The volume is too low.
Adjust the volume.
If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound
card or software program.
Video is available but there is no sound.
Sound cannot be heard if an HDMI-DVI cable is used to connect the input device.
Connect the device using an HDMI cable or a DP cable.
Source device issue
A beeping sound is heard when my PC is booting.
If a beeping sound is heard when your PC is booting, have your PC serviced.
42
Q & A
―
Refer to the user manual for your PC or graphics card for further instructions on adjustment.
―
The path to the settings depends on the installed OS.
How can I change the frequency?
Set the frequency on your graphics card.
• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Screen Refresh Rate under Monitor settings.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Refresh rate under Monitor settings.
• Windows 10: Go to Settings → System → Display → Advanced display settings → Display adapter properties → Monitor, and adjust Screen refresh rate under Monitor settings.
How can I change the resolution?
• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Screen Resolution → Adjust Resolution.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Adjust Resolution, and adjust the resolution.
• Windows 10: Go to Settings → System → Display → Advanced display settings, and adjust the resolution.
How do I set power-saving mode?
• Windows 7: Go to Control Panel → Appearance and Personalization → Personalization → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 10: Go to Settings → Personalization → Lock screen → Screen timeout settings → Power & sleep or BIOS SETUP on the PC.
43
Specifications
Chapter 07
General
Model Name S32BG75*N S32BG85*N
Size 32 Class (31.5 Inches / 80.0 cm) 32 Class (31.5 Inches / 80.0 cm)
Display area 697.306 mm (H) x 392.234 mm (V) 697.306 mm (H) x 392.234 mm (V)
Pixel Pitch 0.18159 mm (H) x 0.18159 mm (V) 0.18159 mm (H) x 0.18159 mm (V)
Maximum Pixel Clock 1559.25 MHz 2376 MHz
Power Supply AC100-240V~ 50/60Hz
Based on the AC voltage of the adapter. For the DC voltage of the product, refer to the product label.
Signal connectors HDMI, DisplayPort
Environmental conditions Operating
Temperature: 50 °F – 104 °F (10 °C – 40 °C)
Humidity: 10 % – 80 %, non-condensing
Storage
Temperature: -4 °F – 113 °F (-20 °C – 45 °C)
Humidity: 5 % – 95 %, non-condensing
44
• Plug-and-Play
This product can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the product and PC system optimizes the product settings. Product installation takes place
automatically. However, you can customize the installation settings if desired.
• Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance.
• The above specifications are subject to change without notice to improve quality.
• For detailed device specifications, visit the Samsung website.
45
Standard Signal Mode Table
Model Name S32BG75*N S32BG85*N
Synchronization (Product Spec) Vertical Frequency 48 ~ 165 Hz 48 ~ 240 Hz
Resolution Optimum resolution 3840 x 2160 @ 165 Hz 3840 x 2160 @ 120 Hz
Maximum resolution 3840 x 2160 @ 165 Hz 3840 x 2160 @ 240 Hz
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal
modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.
S32BG75*N
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
Port
HDMI IN DP IN
VESA, 640 x 480 31.469 59.940 25.175 -/- O O
VESA, 640 x 480 37.500 75.000 31.500 -/- O O
VESA, 800 x 600 37.870 60.317 40.000 +/+ O O
VESA, 800 x 600 48.077 72.188 50.000 +/+ O O
VESA, 800 x 600 46.875 75.000 49.500 +/+ O O
VESA, 1024 x 768 48.363 60.004 65.000 -/- O O
VESA, 1024 x 768 56
.476 70.069 75.000 -/- O O
VESA, 1024 x 768 60.023 75.029 78.750 +/+ O O
VESA, 1152 x 864 67.500 75.000 108.000 +/+ O O
VESA, 1280 x 720 45.000 60.000 74.250 +/+ O O
VESA, 1280 x 800 49.702 59.810 83.500 -/+ O O
VESA, 1280 x 1024 63.981 60.020 108.000 +/+ O O
VESA, 1280 x 1024 79.976 75.025 135.000 +/+ O O
VESA, 1440 x 900 55.
935 59.887 106.500 -/+ O O
46
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
Port
HDMI IN DP IN
VESA, 1600 x 900 60.000 60.000 108.000 +/+ O O
VESA, 1680 x 1050 65.290 59.954 146.250 -/+ O O
VESA, 1920 x 1080 67.500 60.000 148.500 +/+ O O
CEA, 720 x 480 62.937 119.880 54.000 +/+ O O
CEA, 1280 x 720 90.000 120.000 148.500 +/+ O O
CEA, 1920 x 1080 135.000 120.000 297.000 +/+ O O
CEA, 3840 x 2160 135
.000 60.000 594.000 +/+ O O
CEA, 3840 x 2160 270.000 120.000 1188.000 +/+ O O
VESA, 2560 x 1440 88.787 59.951 241.500 +/- O O
VESA, 2560 x 1440 182.996 119.998 497.750 +/- O O
Custom Timing, 3840 x 1600 202.784 119.991 892.250 +/- O O
Custom Timing, 3840 x 1600 101.364 59.978 446.000 +/- O O
Custom Timing, 1920 x 1080 186.591 164.979 410.500 +/- O O
Custom Timing, 2560 x 1440 247.309 164.983 712.
250 +/- O O
Custom Timing, 3840 x 2160 371.250 165.000 1559.250 +/- O O
47
S32BG85*N
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
Port
HDMI IN DP IN
VESA, 640 x 480 31.469 59.940 25.175 -/- O O
VESA, 640 x 480 37.500 75.000 31.500 -/- O O
VESA, 800 x 600 37.870 60.317 40.000 +/+ O O
VESA, 800 x 600 48.077 72.188 50.000 +/+ O O
VESA, 800 x 600 46.875 75.000 49.500 +/+ O O
VESA, 1024 x 768 48.363 60.004 65.000 -/- O O
VESA, 1024 x 768 56
.476 70.069 75.000 -/- O O
VESA, 1024 x 768 60.023 75.029 78.750 +/+ O O
VESA, 1152 x 864 67.500 75.000 108.000 +/+ O O
VESA, 1280 x 720 45.000 60.000 74.250 +/+ O O
VESA, 1280 x 800 49.702 59.810 83.500 -/+ O O
VESA, 1280 x 1024 63.981 60.020 108.000 +/+ O O
VESA, 1280 x 1024 79.976 75.025 135.000 +/+ O O
VESA, 1440 x 900 55.
935 59.887 106.500 -/+ O O
VESA, 1600 x 900 60.000 60.000 108.000 +/+ O O
VESA, 1680 x 1050 65.290 59.954 146.250 -/+ O O
VESA, 1920 x 1080 67.500 60.000 148.500 +/+ O O
CEA, 720 x 480 62.937 119.880 54.000 +/+ O O
CEA, 1280 x 720 90.000 120.000 148.500 +/+ O O
CEA, 1920 x 1080 135.000 120.000 297.000 +/+ O O
CEA, 3840 x 2160 135.000
60.000 594.000 +/+ O O
CEA, 3840 x 2160 270.000 120.000 1188.000 +/+ O O
48
Resolution
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
Port
HDMI IN DP IN
VESA, 2560 x 1440 88.787 59.951 241.500 +/- O O
VESA, 2560 x 1440 182.996 119.998 497.750 +/- O O
Custom Timing, 3840 x 1600 202.784 119.991 892.250 +/- O O
Custom Timing, 3840 x 1600 101.364 59.978 446.000 +/- O O
Custom Timing, 1920 x 1080 271.364 239.932 597.000 +/- O O
Custom Timing, 2560 x 1440 359.722 239.975 1036.000 +/- O O
Custom Timing, 3840 x 2160 540.000 240.000 2376.
000 +/- O O
―
Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz.
―
Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
―
This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution other than the specified resolution may degrade the picture quality. To
avoid this, it is recommended that you select the optimum resolution specified for your product.
49
Appendix
Chapter 08
Responsibility for the Pay Service (Cost to
Customers)
―
When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician
in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
• If a service technician is requested to give instructions on how to use product or simply adjusts
options without disassembling product.
• If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
• If a product is reinstalled or devices are connected additionally after installing the purchased product
for the first time.
• If a product is reinstalled to move to a different spot or to move to a different house.
• If the customer requests instructions on how to use another company's product.
• If customer requests instructions on how to use the network or another company's program.
• If customer requests software installation and setup for the product.
• If a service technician removes/cleans dusts or foreign materials inside of the product.
• If customer requests an installation additionally after purchasing a product through home-shopping
or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
• External impact or drop.
• Use of supplies or separately sold product unspecified by Samsung.
• Repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
• Remodeling or repairing the product by customer.
• Using it with incorrect voltage or non-authorized electrical connections.
• Not following the "cautions" in User Manual.
Others
• If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
• If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp,
Filter, Ribbon, etc.)
―
If customer requests a service in case the product has no defect, service fee may be charged. So please read
User Manual first.
50
FreeSync (for AMD graphics card)
FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency.
This feature will eliminate screen tearing and lag during game play. Improve your gaming experience.
The displayed FreeSync menu items on the monitor may vary, depending on the monitor model and
compatibility with the AMD graphics card.
• Off: Disable FreeSync.
• On: Turn on the AMD graphics cards' FreeSync function. You may experience intermittent flickers
when playing some games.
Apply the optimum resolution when using FreeSync.
The refresh rate setting method please refer to Q & A → How can I change the frequency?
―
This menu is not available when PC/AV Mode is set to AV.
―
This menu is not available when PIP Mode is enabled.
―
The FreeSync function is only enabled in HDMI or DisplayPort mode.
Use the HDMI/DP cable provided by the manufacturer when using FreeSync.
―
If the FreeSync function is in use and the text displayed on the PC screen looks blurry or corrupted, resolve
the issue by changing the resolution of the PC screen to the recommended resolution.
―
If the DisplayPort Ver. is set to 1.1, the FreeSync Premium Pro mode is disabled.
―
If the DisplayPort Ver. is set to 1.2, the FreeSync Premium Pro mode is disabled.
―
If you set the HDMI Mode to 1.4, the FreeSync Premium Pro mode is disabled.
If you use the FreeSync function while playing a game, the following symptoms may occur:
• The screen may flicker depending on the type of graphics card, the game option settings, or the
video being played. Try the following actions: decrease the game setting values, change the current
FreeSync Premium Pro mode to Off, or visit the AMD website to check your graphics driver’s version
and update it with the latest one.
• While you are using the FreeSync function, the screen may flicker due to variation of the output
frequency from the graphics card.
• The response rate during the game may fluctuate depending on the resolution. A higher resolution
generally decreases the response rate.
• The sound quality of the monitor may be degraded.
―
If you encounter any issues when using the function, contact the Samsung Service Center.
―
If you change the screen resolution while the function is On, the screen may intermittently blank out due to
the graphic card. Set FreeSync Premium Pro to Off and change the resolution.
―
The function is unavailable in the devices (e.g. AV devices) that have no AMD graphic card. If the function is
applied, the screen may have malfunction.
The models in the Graphics Cards list supports FreeSync
FreeSync can only be used with specific AMD graphics card models. Refer to the following list for
supported graphics cards:
Make sure to install the latest official graphics drivers from AMD that support FreeSync.
―
For additional AMD graphics card models that support the FreeSync feature, visit the official AMD website.
―
Select FreeSync Premium Pro Off if you are using a graphics card from a different manufacturer.
―
When applying the FreeSync function via the HDMI cable, it may fail to work due to the bandwidth limitation
of certain AMD graphics card.
• Radeon™ RX Vega series
• Radeon™ RX 500 series
• Radeon™ RX 400 series
• Radeon™ R9/R7 300 series (excluding R9 370/
X, R7 370/X, R7 265)
• AMD Radeon™ 5500 Series
• AMD Radeon™ 5700 Series
• Radeon™ Pro Duo (2016 edition)
• Radeon™ R9 Nano series
• Radeon™ R9 Fury series
• Radeon™ R9/R7 200 series (excluding R9 270/
X, R9 280/X)
• AMD Radeon™ 5600 Series
• AMD Radeon™ RX 6000 Series
