User Manual
S34BG85*
Contents
Contents
Precautions and Notes
Read After Installing the product
24 Picture sizes and input signals
Read Before Connecting a Computer (Supported Resolutions)
25 VESA DMT
26 VESA CVT
26 CVT Custom
Supported Resolutions for Video Signals
27 CTA-861
28 List of graphic cards supporting HDR10
Specifications
General
Appendix
Responsibility for the Pay Service (Cost to Customers)
31 Not a product defect
32 A Product damage caused by customer’s fault
32 Others
FreeSync (for AMD graphics card)
34 The models in the Graphics Cards list supports FreeSync
Supported Resolutions for FreeSync (VRR)
Before Using the Product
Safety Precautions
3 Electricity and Safety
4 Installation
5 Operation
Cleaning
Correct posture to use the product
Preparations
Installation
9 Attaching the Stand
10 Attaching the Stand
11 Checking the space around the product
12 Adjusting the Product Tilt and Height
13 Attaching the BRACKET WALL
Control Panel
Connections
Ports

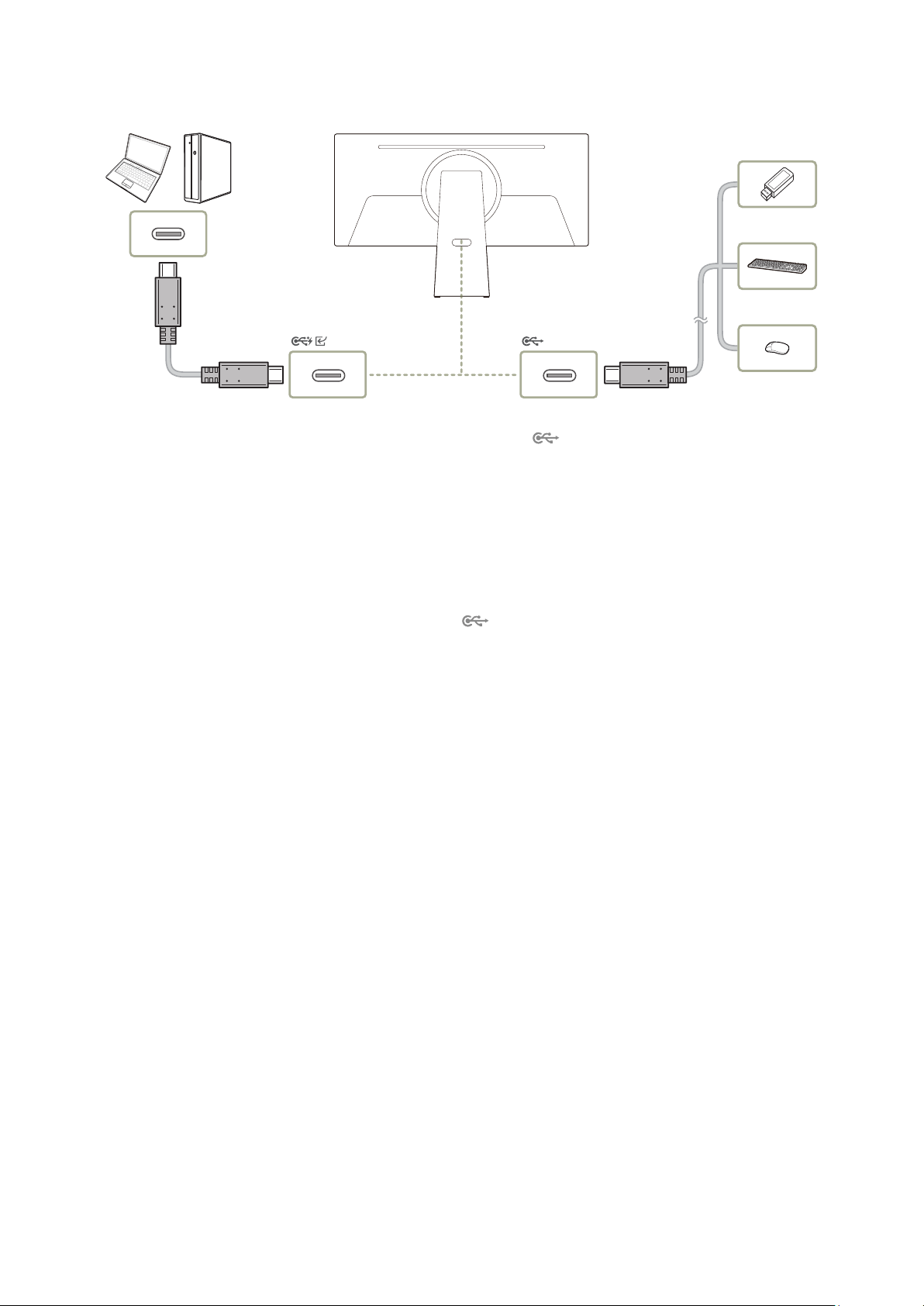

18 Connecting the Product to a PC as a USB HUB

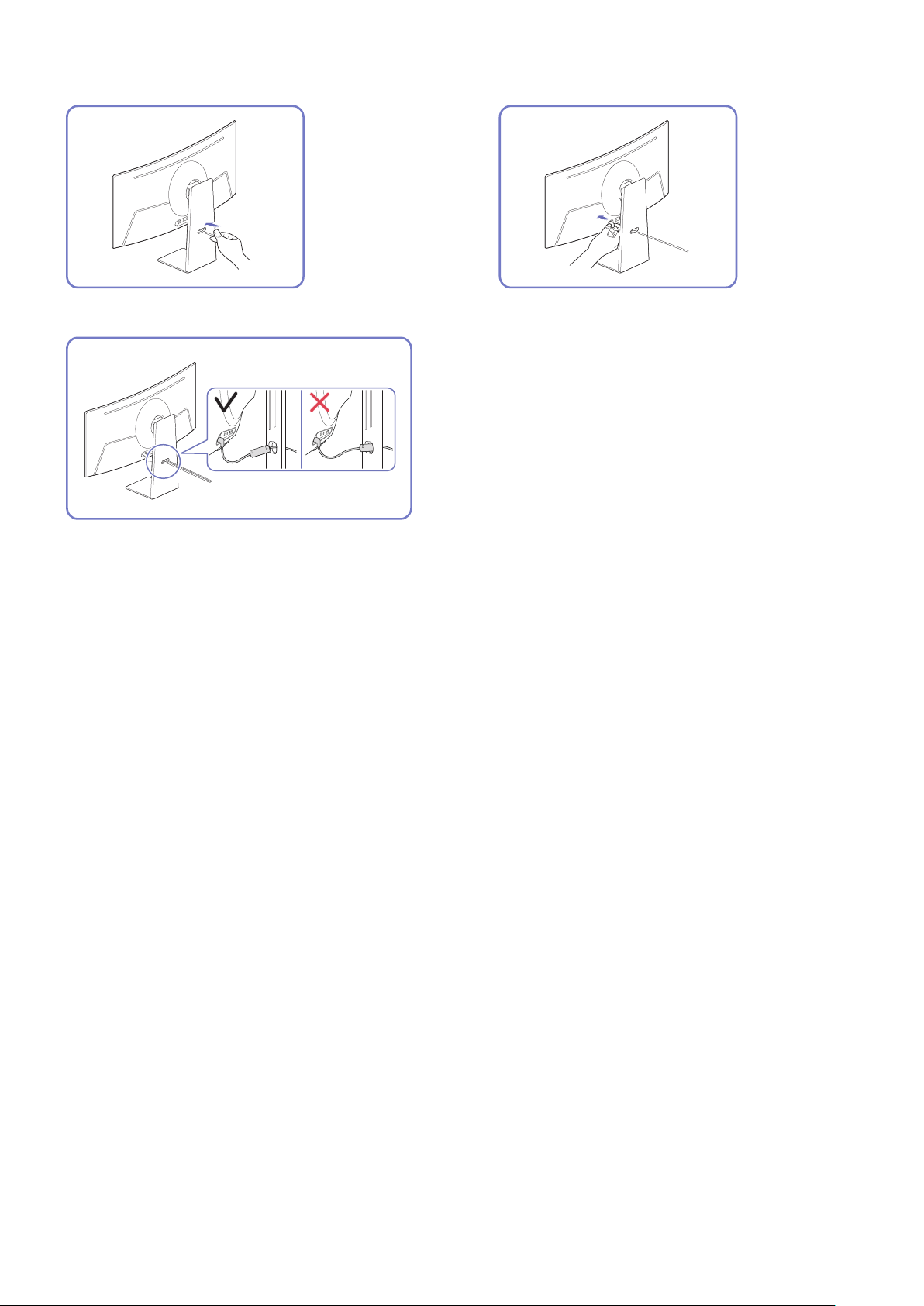

Tidying Up the Connected Cables
Remote Control and Peripherals
About the Samsung Smart Remote
23 Connecting the Samsung Smart Remote to the product
- 3 -
Before Using the Product
Safety Precautions
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are not followed.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE
PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of this
product.
AC voltage: Rated voltage marked with this
symbol is AC voltage.
This symbol indicates that this product has
included important literature concerning
operation and maintenance.
DC voltage: Rated voltage marked with this
symbol is DC voltage.
Class II product: This symbol indicates that a
safety connection to electrical earth (ground)
is not required. If this symbol is not present
on a product with a mains lead, the product
MUST have a reliable connection to protective
earth (ground).
Caution. Consult instructions for use: This
symbol instructs the user to consult the user
manual for further safety related information.
Electricity and Safety
Warning
● Do not use a damaged power cord or plug, or a loose power socket.
● Do not use multiple products with a single power socket.
● Do not touch the power plug with wet hands.
● Insert the power plug all the way in so it is not loose.
● Connect the power plug to a grounded power socket (type 1 insulated devices only).
- 4 -
● Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy object.
● Do not place the power cord or product near heat sources.
● Clean any dust around the pins of the power plug or the power socket with a dry cloth.
Caution
● Do not disconnect the power cord while the product is being used.
● Only use the power cord provided with your product by Samsung. Do not use the power cord with other
products.
● Keep the power socket where the power cord is connected unobstructed.
– The power cord must be disconnected to cut off power to the product when an issue occurs.
● Hold the plug when disconnecting the power cord from the power socket.
Installation
Warning
● DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL
THE PRODUCT NEAR HEAT SOURCES.
● Keep the plastic packaging out of the reach of children.
– Children may suffocate.
● Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)
– The product may fall and become damaged and/or cause an injury.
– Using the product in an area with excess vibration may damage the product or cause a fire.
● Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke.
● Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
– The product lifespan may be reduced or a fire may result.
● Do not install the product within the reach of young children.
– The product may fall and injure children.
● Edible oil (such as soybean oil) may damage or distort the product. Keep the product away from oil pollution.
And do not install or use the product in the kitchen or near the kitchen stove.
- 5 -
Caution
● Do not drop the product while moving.
● Do not set down the product on its front.
● When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product
is not protruding.
– The product may fall and become damaged and/or cause an injury.
– Install the product only on cabinets or shelves of the right size.
● Set down the product gently.
– Product failure or personal injury may result.
● Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme
temperatures or a significant presence of moisture, or a place where the product will operate continuously for
an extended period of time) may seriously affect its performance.
– Be sure to consult Samsung Customer Service Center if you want to install the product at such a place.
● Before assembling the product, place the product down on a flat and stable surface so that the screen is facing
downwards.
– The product is curved. Placing pressure on the product when on a flat surface may damage the product.
When the product is on the ground facing up or down, do not put pressure on it.
Operation
Warning
● There is a high voltage inside the product. Never disassemble, repair or modify the product yourself.
– Contact Samsung Customer Service Center for repairs.
● To move the product, first disconnect all the cables from it, including the power cable.
● If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord immediately
and contact Samsung Customer Service Center.
● Do not let children hang from the product or climb on top of it.
– Children may become injured or seriously harmed.
● If the product is dropped or the outer case is damaged, turn off the power and disconnect the power cord. Then
contact Samsung Customer Service Center.
– Continued use can result in a fire or electric shock.
- 6 -
● Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.
– The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a serious
injury.
● During a lightning or thunderstorm, power off the product and remove the power cable.
● Do not drop objects on the product or apply impact.
● Do not move the product by pulling the power cord or any cable.
● If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.
● Do not lift or move the product by pulling the power cord or any cable.
● Do not use or keep combustible spray or an inflammable substance near the product.
● Ensure the vents are not blocked by tablecloths or curtains.
– An increased internal temperature may cause a fire.
● Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches, etc)
into the product (via the vent or input/output ports, etc).
– Be sure to power off the product and disconnect the power cord when water or other foreign substances
have entered the product. Then contact Samsung Customer Service Center.
● Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.
– Be sure to power off the product and disconnect the power cord when water or other foreign substances
have entered the product. Then contact Samsung Customer Service Center.
Caution
● Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or
defective pixels.
– Set the screen to power-saving mode or moving-picture screen saver when not using the product for an
extended period of time.
● Disconnect the power cord from the power socket if you do not plan on using the product for an extended
period of time (vacation, etc).
– Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.
● Use the product at the recommended resolution and frequency.
– Your eyesight may deteriorate.
- 7 -
● Do not hold the product upside-down or move it by holding the stand.
– The product may fall and become damaged or cause an injury.
● Looking at the screen too close for an extended period of time can deteriorate your eyesight.
● Do not use humidifiers or stoves around the product.
● Rest your eyes for more than 5 minutes or look at distance objects for every 1 hour of product use.
● Do not touch the screen when the product has been turned on for an extended period of time as it will become
hot.
● Store small accessories out of the reach of children.
● Exercise caution when adjusting the product angle or stand height.
– Your hand or finger may get stuck and injured.
– Tilting the product at an excessive angle may cause the product to fall and an injury may result.
● Do not place heavy objects on the product.
– Product failure or personal injury may result.
Cleaning
High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used nearby.
" Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product (Service fee will be
charged.)
Do not press the product screen with hands or other objects. There is a risk of damaging the screen.
" Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1. Power off the product and PC.
2. Disconnect the power cord from the product.
" Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
3. Wipe the product with a clean, soft and dry cloth.
Wet a soft cloth in water, wing it out well, and then use the cloth to wipe the exterior of the product clean.
● Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the product.
● Do not spray water or detergent directly on the product.
4. Connect the power cord to the product when cleaning is finished.
5. Power on the product and PC.
- 8 -
Correct posture to use the product
Use the product in the correct posture as follows:
● Straighten your back.
● Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at the screen.
● Keep your eyes directly in front of the screen.
● Adjust the angle so light does not reflect on the screen.
● Keep your forearms perpendicular to your upper arms and level with the back of your hands.
● Keep your elbows at about a right angle.
● Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to
the floor, and your arms lower than your heart.
● Do the Eye excercises or blink frequently, then eye fatigue will be relieved.
- 9 -
Preparations
Installation
Attaching the Stand
" Before assembling the product, place the product down on a flat and stable surface so that the screen is facing
downwards.
" Disassembly is the reverse order of assembly.
1 2
Put the stand base onto the stand
neck as the direction shown in the
figure. Check that the stand neck is
firmly connected.
Tightly fasten the connecting screw
at the bottom of the stand base.
3
Push the assembled stand into the main body in the direction of the arrow
as shown in the figure.
4
5
Stand up the monitor as shown in
the figure.
Stand assembly is complete.
- 10 -
Attaching the Stand

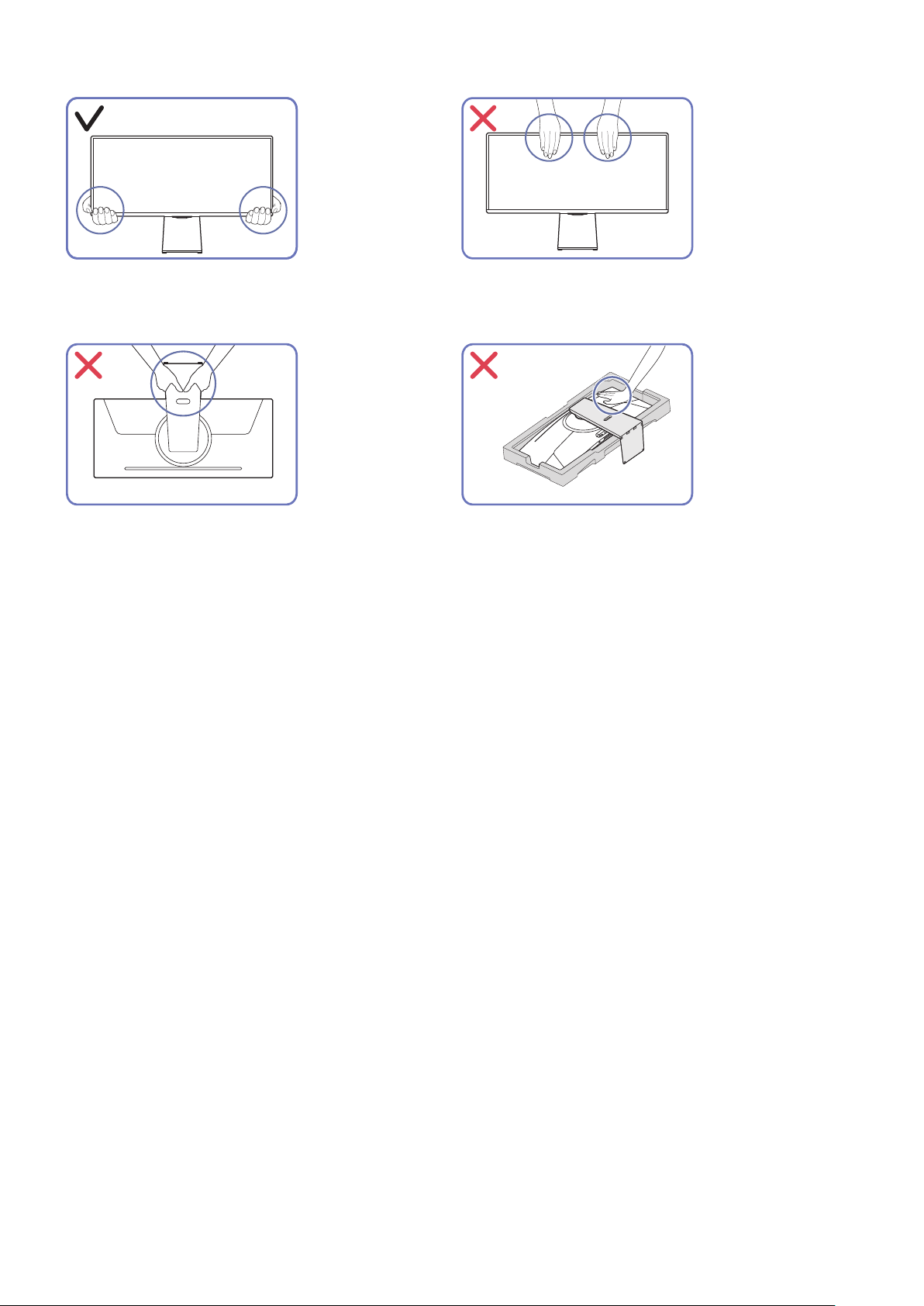

● Hold the lower corners or edges of the product
when moving it.
● Do not directly apply pressure on the screen.
● Do not hold the screen when moving the product.
● Do not hold the product upside down only by the
stand.
● Do not press down on the product. There is a risk
of damaging the product.
- 11 -
Checking the space around the product
Make sure to have enough space for ventilation when placing the product. An internal temperature rise may cause
fire and damage the product. Maintain enough space around the product as shown in the diagram when installing
the product.
" The exterior may differ depending on the product.
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
10 cm
(3.93 Inches)
- 12 -
Adjusting the Product Tilt and Height
" The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve
quality.
-2.0° ~ 20.0° 0 ~ 120.0 mm (±5.0 mm)
● The product tilt and height can be adjusted.
● When adjusting the tilt and height, hold both sides of the product and avoid using excessive force to prevent
damage.
● When adjusting the stand height, you may hear a noise. This noise is generated because the ball inside the
stand slides when the stand height is adjusted. It is a normal noise and not a product malfunction.
- 13 -
Attaching the BRACKET WALL
" The bracket may not be supplied, depending on the country and region.
" Power the product off and remove the power cable from the power socket.
1 2
3
Attach the BRACKET WALL here
BRACKET WALL
Align with on the monitor, and tightly fasten the screws on .
- 14 -
Notes
● Using a screw longer than the standard length can damage the internal components of the product.
● The length of screws required for a wall mount that does not comply with the VESA standards may vary
depending on the specifications.
● Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit or desktop
stand using excessive force. The product may get damaged or fall and cause personal injury. Samsung shall
not be held liable for any damage or injury caused by using improper screws or attaching the wall-mount kit or
desktop stand using excessive force.
● Samsung shall not be held liable for any product damage or personal injury caused by using a wall-mount kit
other than the one specified or from an attempt to install the wall-mount kit on your own.
● To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10 cm or farther
away from the wall.
● Be sure to use a wall-mount kit that complies with the standards.
● To install the monitor using a wall mount, disconnect the stand base from the monitor.
Model
name
VESA screw hole
specs (A * B) in
millimeters
C
Standard
Screw
Quantity
c
Product
Wall mount bracket
S34BG85* 100.0 x 100.0
3.5 ~ 5.5
mm
M4 4 EA
" The bracket may not be supplied, depending on the country and region.
" Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric shock.
" Do not mount the product at more than a 15 degree tilt.
- 15 -
Control Panel
" You can turn on the product with the Power button at the bottom of the product, and then use the Control menu. The
Control menu appears when the Power button is pressed while the product is On.
<Rear>
On
Off
Control menu
● Home
● Settings
● Return
● Source
● Power Off
Controller button
● Press button: Display the Control menu. Select or run a focused item on the menu.
● Press and hold button: The running function is terminated.
● Up/Down button: Changes the channel.
● Left/Right button: Changes the volume.
" The buttons may work differently depending on the situation.
- 16 -
Microphone
Microphone switch
You can turn on or off the microphone by using the switch at the bottom of the Product.
If microphone is turned off, All voice and sound features using microphone are not available.
● The position and shape of the microphone switch may differ depending on the model.
● During analysis using data from the microphone, the data is not saved.
Power indicator
● The LED turns on when the product is turned off.
● The LED blinks when the product enters the standby mode.
" When 60 seconds elapses with no signal, the product enters the standby mode. In standby mode, the screen turns on
again when any signal is input or any button is pressed on the remote control.
● The color and shape of parts may differ from what is shown.
● The screen may dim if the protective film on the SAMSUNG logo or the bottom of the product is not detached.
Please remove the protective film.
● When using the buttons (excluding Power) on the Samsung Smart Remote, the receiver LED does not blink.
- 17 -
Connections
Using various connectors, you can also connect external devices.
Ports
" The functions available may vary depending on the product model. The color and shape of parts may differ from what is
shown. Specifications are subject to change without notice to improve quality. Refer to the actual product.
Port
Description
Connects to the AC/DC adapter.
Connects to a PC using a MINI DP cable.
Connects to an external device using the HDMI cable supplied by Samsung (which is a High Speed
HDMI certied cable).
● Connects to a source device using a USB Type-C cable. When connecting a USB
Type-C source device, make sure to use the USB Type-C 3.1 Gen2 10G cable so that
the screen is displayed properly.
" Lower version cables do not support the video input function (Displayport ALT).
● The USB Type-C port can be connected to a notebook or mobile device for
charging.
" A maximum of 65 W charging power is supported. The charging speed may vary,
depending on the connected device.
● Use a camera from the PC connected to the USB Type-C port.
Connects to a USB device, such as a keyboard or mouse.
" A maximum of 15 W charging power is supported. The charging speed may vary, depending
on the connected device.
" For more information about connection to an external device, refer to Menu Connected Devices
Connection Guide.
- 18 -
Connecting the Product to a PC as a USB HUB
Using the product as a hub, connect and use various source devices with the product at a time.
" To detect and start a USB device faster, connect the USB device to the port on the product. The read/write rate will be
affected by the USB device and your PC.
" For USB-related problems caused by OS, drive programs or software, please contact relevant suppliers.
" With the launch of various USB devices on the market, we cannot guarantee that our products are matched with all USB
devices.
" For an external mass-storage HDD requiring external power supply, be sure to connect it to an external power source.
" USB devices requiring high current may not be supported. can support a maximum current of 900mA.
" The battery can be charged in the power-saving mode, but it cannot be charged when the product is powered off.
" Charging your USB device is not possible if the power cable is disconnected from the power socket.
" The company is not liable for problems or damages to an external device caused by using an unauthorized cable for the
connection.
" Some products do not follow the USB standard, and it may cause a malfunction of the device.
- 19 -
Tidying Up the Connected Cables
1
1
1
1
2
Pass cables through the hole on the stand.
Connect the cables to the corresponding ports.
1
3
Organize cables by passing them through the hole on the
stand, as shown in the figures.
- 20 -
Remote Control and Peripherals
You can control product operations with your Samsung Smart Remote or Remote Control. Pair external devices
such as a keyboard for ease of use.
About the Samsung Smart Remote
Learn about the buttons on the Samsung Smart Remote.
MIC / LED
- 21 -
Button Description
(Power)
Press to turn the Product on or off.
MIC / LED
Used as MIC when using voice recognition with the remote control.
The LED on the front will light when charging. When the battery is fully charged, the
LED will turn off.
" Do not impact the MIC hole or use a sharp object to poke into the hole.
" This function may not be supported depending on the model or geographical
area.
(Voice Assistant)
Runs Voice Assistant. Press and hold the button, say a command, and then release the
button to run Voice Assistant.
" The supported Voice Assistant's languages and features may differ by
geographical region.
" This function may not be supported depending on the model or geographical
area.
Directional button (up/down/
left/right)
Moves the focus.
Select
Selects or runs a focused item.
(Return)
Press to return to the previous menu.
- 22 -
Button Description
(Smart Hub + Control PAD)
Press to return to the Home Screen.
" When pressed for 1 second or more, the Control PAD appears. You can use
Settings menu / virtual numeric pad / Option pad with Color buttons by using
Control PAD.
(Play/pause)
Using these controls, you can control the media content that is playing.
(Volume)
Move the button up or down to adjust the volume. To mute the sound, press the
button. When pressed for 2 second or more, the Accessibility Shortcuts appears.
(Channel)
Move the button up or down to change the channel. When pressed for 1 second or
more, the Channel List screen appears.
(Launch app button)
Launch the app indicated by the button.
" App availability may vary by country.
" This function may not be supported depending on the model or geographical
area.
" In standby mode, press any button on the remote control to turn on the screen.
" The functions related to the broadcast and channel are available only in some apps or external devices.
" Use the Samsung Smart Remote less than 6 m from the product. The usable distance may vary with the wireless
environmental conditions.
" The images, buttons and functions of the Samsung Smart Remote may differ with the model or geographical area.
- 23 -
Connecting the Samsung Smart Remote to the product
Connect the Samsung Smart Remote to your product to operate the product.
When you turn on the product for the first time, the Samsung Smart Remote pairs to the product automatically. If
the Samsung Smart Remote does not pair to the product automatically, point it at the front of the product, and then
press and hold the
and buttons simultaneously for 3 seconds or more.
" The images, buttons and functions of the Samsung Smart Remote may differ with the model or geographical area.
" For more information about the Samsung Smart Remote, refer to “About the Samsung Smart Remote”.
- 24 -
Precautions and Notes
You can get instructions and information that you must read after installation.
Read After Installing the product
Read this information after installing the product.
Picture sizes and input signals
The Picture Size is applied to the current source. The applied Picture Size will remain in effect whenever you select
that source unless you change them.
Input signal Picture size
HDMI (3440 x 1440 @ 60 Hz) 21:9 Standard, 16:9 Standard, 4:3
HDMI (3440 x 1440 @ 120 / 175 Hz) 21:9 Standard, 16:9 Standard, 4:3 in Game Mode
DP / Type-C (3440 x 1440 @ 60 / 120 Hz) 21:9 Standard, 16:9 Standard, 4:3
DP (3440 x 1440 @ 120 / 175 Hz) 21:9 Standard, 16:9 Standard, 4:3 in Game Mode
Type-C (3440 x 1440 @ 120 Hz) 21:9 Standard, 16:9 Standard, 4:3 in Game Mode
" The input ports for external devices may differ depending on the model and geographical area.
" Available Picture Mode may differ depending on the external device.
- 25 -
Read Before Connecting a Computer (Supported Resolutions)
Check the resolutions supported for PC input signals.
When you connect your product to a computer, set the computer's video card to one of the standard resolutions
listed in the tables below or on the next pages. The product will automatically adjust to the resolution you choose.
The optimal resolution is 3440 x 1440 at 120 Hz and the recommended resolution is 3440 x 1440 at 120 Hz in Game
Mode on. Choosing a resolution not included in the tables can result in a blank screen or just the remote control
sensor turning on. Refer to the user manual of your graphics card for compatible resolutions.
" The native resolution is 3440 x 1440 at 60 Hz with the Input Signal Plus set to On. The native resolution is 3440 x 1440 at
60 Hz with the Input Signal Plus set to Off.
VESA DMT
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock
frequency
(MHz)
Polarity
(horizontal /
vertical)
Port
HDMI
DP /
Type-C
640 x 480 60 Hz 31.469 59.940 25.175 - / - O O / O
640 x 480 75 Hz 37.500 75.000 31.500 - / - O O / O
800 x 600 60 Hz 37.879 60.317 40.000 + / + O O / O
800 x 600 72 Hz 48.077 72.188 50.000 + / + O O / O
800 x 600 75 Hz 46.875 75.000 49.500 + / + O O / O
1024 x 768 60 Hz 48.363 60.004 65.000 - / - O O / O
1024 x 768 70 Hz 56.476 70.069 75.000 - / - O O / O
1024 x 768 75 Hz 60.023 75.029 78.750 + / + O O / O
1152 x 864 75 Hz 67.500 75.000 108.000 + / + O O / O
1280 x 720 60 Hz 45.000 60.000 74.250 + / + O O / O
1280 x 800 60 Hz 49.702 59.810 83.500 - / + O O / O
1280 x 1024 60 Hz 63.981 60.020 108.000 + / + O O / O
1280 x 1024 75 Hz 79.976 75.025 135.000 + / +
O O / O
- 26 -
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock
frequency
(MHz)
Polarity
(horizontal /
vertical)
Port
HDMI
DP /
Type-C
1440 x 900 60 Hz 55.935 59.887 106.500 - / + O O / O
1600 x 900RB 60 Hz 60.000 60.000 108.000 + / + O O / O
1680 x 1050 60 Hz 65.290 59.954 146.250 - / + O O / O
2560 x 1440RB 60 Hz 88.787 59.951 241.500 + / - O O / O
VESA CVT
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock
frequency
(MHz)
Polarity
(horizontal /
vertical)
Port
HDMI
DP /
Type-C
1920 x 1080RB 175 Hz 205.529 175.000 427.500 + / - O O / O
2560 x 1440RB 120 Hz 182.996 119.998 497.750 + / - O O / O
2560 x 1440RB 175 Hz 274.170 175.000 745.700 + / - O O / O
CVT Custom
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock
frequency
(MHz)
Polarity
(horizontal /
vertical)
Port
HDMI
DP /
Type-C
3440 x 1440 50 Hz 73.681 49.987 265.250 + / - O O / O
3440 x 1440 60 Hz 97.014 59.959 349.250 + / - O O / O
3440 x 1440 100 Hz 161.736 99.961 582.250 + / - O - / -
3440 x 1440 120 Hz 194.097 120.000 698.75 + / - O O / O
3440 x 1440 175 Hz 283.264 175.000 1019.750 + / - O O / -
- 27 -
Supported Resolutions for Video Signals
Check the resolutions supported for video signals.
CTA-861
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock
frequency
(MHz)
Polarity
(horizontal /
vertical)
Port
HDMI
DP /
Type-C
720 x 576 50 Hz 31.250 50.000 27.000 -/- O O / O
720 x 480 60 Hz 31.469 59.940 27.000 -/- O O / O
1280 x 720 50 Hz 37.500 50.000 74.250 +/+ O O / O
1280 x 720 60 Hz 45.000 60.000 74.250 +/+ O O / O
1920 x 1080 50 Hz 56.250 50.000 148.500 +/+ O O / O
1920 x 1080 60 Hz 67.500 60.000 148.500 +/+ O O / O
1920 x 1080 120 Hz 135.000 120.003 297.000 +/+ O O / O
3840 x 2160 30 Hz 67.500 30.000 297.000 +/+ O O / O
3840 x 2160 50 Hz 112.500 50.000 594.000 +/+ O O / O
3840 x 2160 60 Hz 135.000 60.000 594.000 +/+ O O / O
- 28 -
List of graphic cards supporting HDR10
HDR10 is accessible only on Windows 10 systems equipped with graphic cards that support Play Ready 3.0 Digital
Rights Management (for protected HDR content). Use graphic cards listed below for HDR10.
● NVIDIA GeForce 1000 series or higher
● AMD Radeon™ RX 400 series or higher
● Intel UHD Graphics 600 series or higher
" Graphic cards that support hardware-accelerated 10-bit video decoding for HDR video codecs are recommended.
- 29 -
Specifications
General
Model Name S34BG85*
Size
34 Class
(34.1 Inches / 86.8 cm)
Display area 800.1 mm (H) x 337.1 mm (V)
Pixel Pitch 0.2315 mm (H) x 0.2315 mm (V)
Maximum Pixel Frequency 63.48 MHz
Synchronization
(PANEL Spec)
Horizontal
Frequency
283.4 kHz
Vertical
Frequency
175 Hz
Resolution
Optimum
Resolution
3440 x 1440 @ 60 Hz (Game Mode off)
3440 x 1440 @ 120 Hz (Game Mode on)
Maximum
Resolution
3440 x 1440 @ 175 Hz (Game Mode on)
Power Supply
AC100-240V~ 50/60Hz
Based on the AC voltage of the adapter. For the DC voltage of the product, refer to the
product label.
Signal connectors
Micro HDMI
USB Type-C
Mini DisplayPort
Environmental conditions
Operating
Temperature: 50 °F – 104 °F (10 °C – 40 °C)
Humidity: 10 % – 80 %, non-condensing
Storage
Temperature: -4 °F – 113 °F (-20 °C – 45 °C)
Humidity: 5 % – 95 %, non-condensing
- 30 -
● Plug-and-Play
This product can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange
between the product and PC system optimizes the product settings. Product installation takes place
automatically. However, you can customize the installation settings if desired.
● Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be
brighter or darker on the LCD panel. This does not affect product performance.
● The specifications are subject to change without notice to improve quality.
● For detailed device specifications, visit the Samsung website.
- 31 -
Appendix
Responsibility for the Pay Service (Cost to Customers)
When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the
following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
● If a service technician is requested to give instructions on how to use product or simply adjusts options without
disassembling product.
● If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
● If a product is reinstalled or devices are connected additionally after installing the purchased product for the
first time.
● If a product is reinstalled to move to a different spot or to move to a different house.
● If the customer requests instructions on how to use another company’s product.
● If customer requests instructions on how to use the network or another company’s Programme.
● If customer requests software installation and setup for the product.
● If a service technician removes/cleans dusts or foreign materials inside of the product.
● If customer requests an installation additionally after purchasing a product through home-shopping or online.
- 32 -
A Product damage caused by customer’s fault
Product damage caused by customer’s mishandling or wrong repair
If a product damage is caused by;
● External impact or drop.
● Use of supplies or separately sold product unspecified by Samsung.
● Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics
Co., Ltd.
● Remodeling or repairing the product by customer.
● Using it with incorrect voltage or non-authorized electrical connections.
● Not following the “cautions” in User Manual.
Others
● If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
● If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter,
Ribbon, etc.)
" If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual
first.
- 33 -
FreeSync (for AMD graphics card)
FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency.
This feature will eliminate screen tearing and lag during game play. Improve your gaming experience.
● Game Mode - Off: Disable FreeSync.
● Game Mode - On: Turn on the AMD graphics cards’ FreeSync function. You may experience intermittent flickers
when playing some games.
Apply the optimum resolution when using FreeSync.
The refresh rate setting method please refer to Q & A → How can I change the frequency?
" This menu is not available when Multi View Mode is enabled.
" The FreeSync function is only enabled in HDMI or DisplayPort mode.
Use the HDMI/DP cable provided by the manufacturer when using FreeSync.
" If the FreeSync function is in use and the text displayed on the PC screen looks blurry or corrupted, resolve the issue by
changing the resolution of the PC screen to the recommended resolution.
" If you set the Input Signal Plus to Off, the FreeSync Premium function is disabled.
If you use the FreeSync function while playing a game, the following symptoms may occur:
● The screen may flicker depending on the type of graphics card, the game option settings, or the video being
played. Try the following actions: decrease the game setting values, change the current Game Mode to Off, or
visit the AMD website to check your graphics driver’s version and update it with the latest one.
● While you are using the FreeSync function, the screen may flicker due to variation of the output frequency
from the graphics card.
● The response rate during the game may fluctuate depending on the resolution. A higher resolution generally
decreases the response rate.
● The sound quality of the monitor may be degraded.
" If you encounter any issues when using the function, contact the Samsung Service Center.
" If you change the screen resolution while the function is On, the screen may intermittently blank out due to the graphic
card. Set FreeSync Premium to Off and change the resolution.
" The function is unavailable in the devices (e.g. AV devices) that have no AMD graphic card. If the function is applied, the
screen may have malfunction.
- 34 -
The models in the Graphics Cards list supports FreeSync
FreeSync can only be used with specific AMD graphics card models. Refer to the following list for supported graphics
cards:
Make sure to install the latest official graphics drivers from AMD that support FreeSync.
" For additional AMD graphics card models that support the FreeSync feature, visit the official AMD website.
" When applying the FreeSync function via the HDMI cable, it may fail to work due to the bandwidth limitation of certain
AMD graphics card.
● Radeon™ RX Vega series
● Radeon™ RX 500 series
● Radeon™ RX 400 series
● Radeon™ R9/R7 300 series (excluding R9 370/ X, R7 370/X, R7 265)
● AMD Radeon™ 5500 Series
● AMD Radeon™ 5700 Series
● Radeon™ Pro Duo (2016 edition)
● Radeon™ R9 Nano series
● Radeon™ R9 Fury series
● Radeon™ R9/R7 200 series (excluding R9 270/ X, R9 280/X)
● AMD Radeon™ 5600 Series
● AMD Radeon™ RX 6000 Series
- 35 -
Supported Resolutions for FreeSync (VRR)
Check the supported resolutions for the FreeSync (VRR) signal.
When Game Mode is set to On or Auto, the FreeSync (VRR) function is activated.
" FreeSync (VRR) is only available in select models.
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
SCAN
1920 x 1080 120 Hz 139.119 119.930 369.5 progressive
1920 x 1080 175 Hz 209.674 174.874 560.25 progressive
2560 x 1440 120 Hz 185.328 119.953 661.25 progressive
2560 x 1440 175 Hz 279.375 174.937 1005.75 progressive
3440 x 1440 120 Hz 185.365 119.977 889.75 progressive
3440 x 1440 175 Hz 279.387 174.345 1350 progressive
