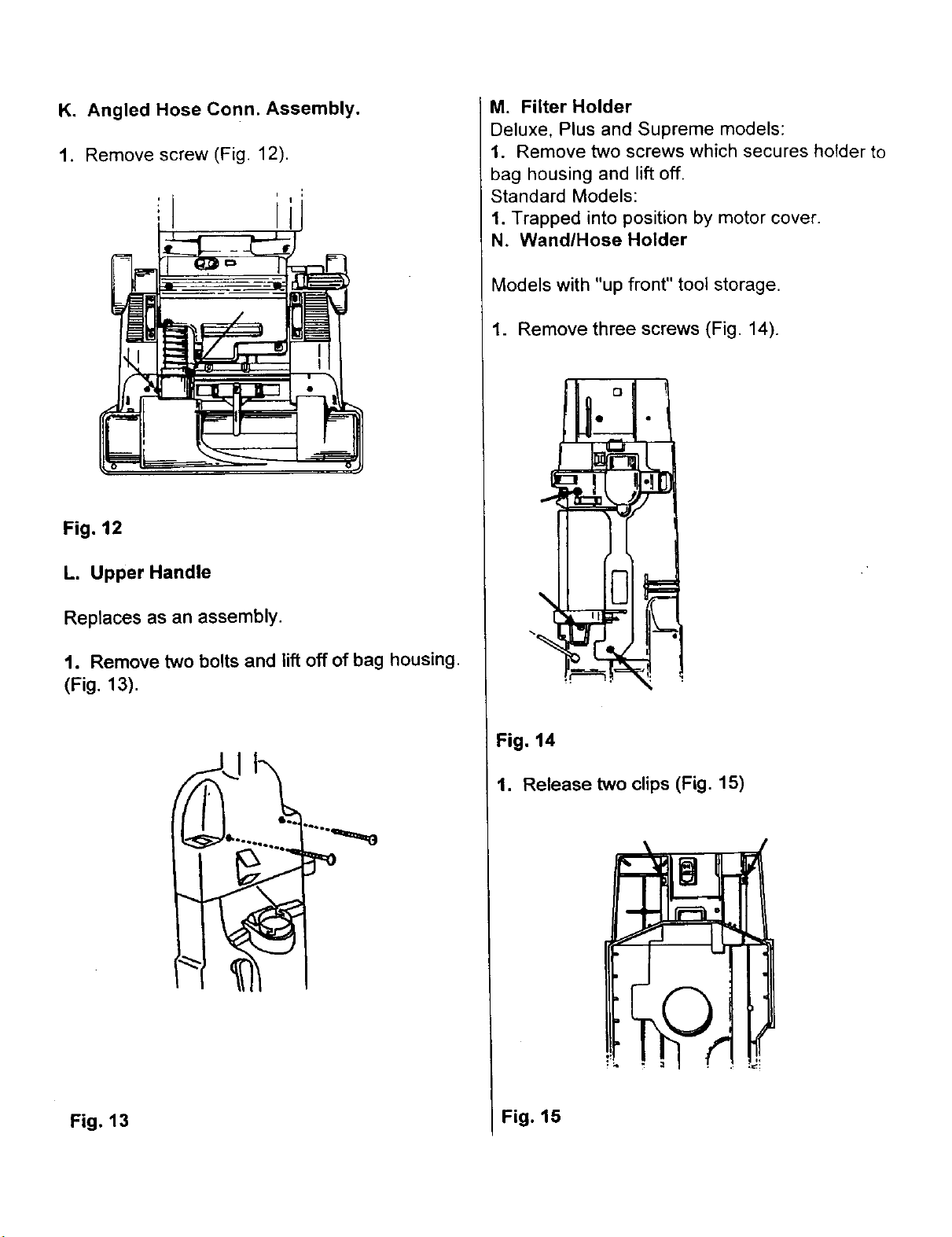

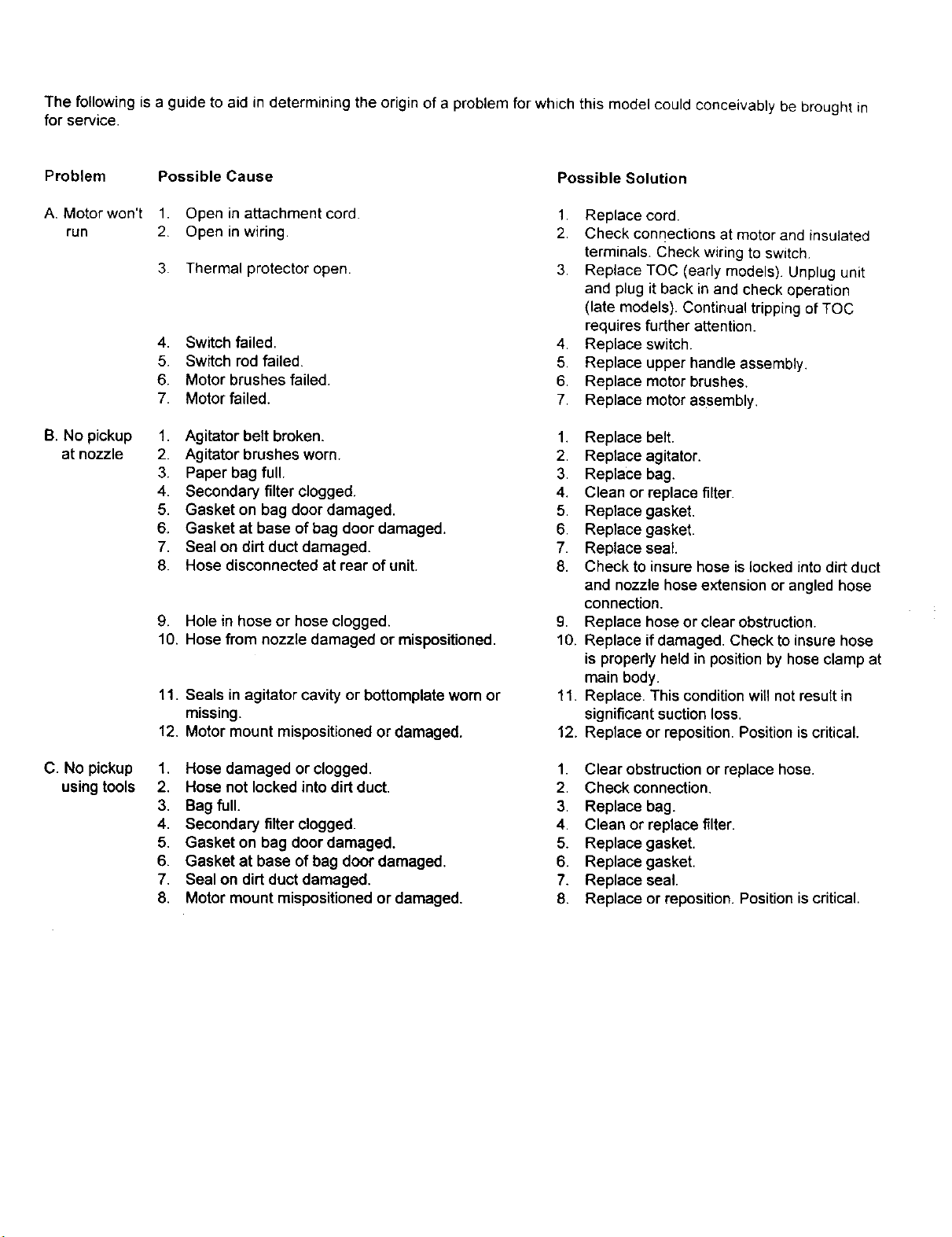

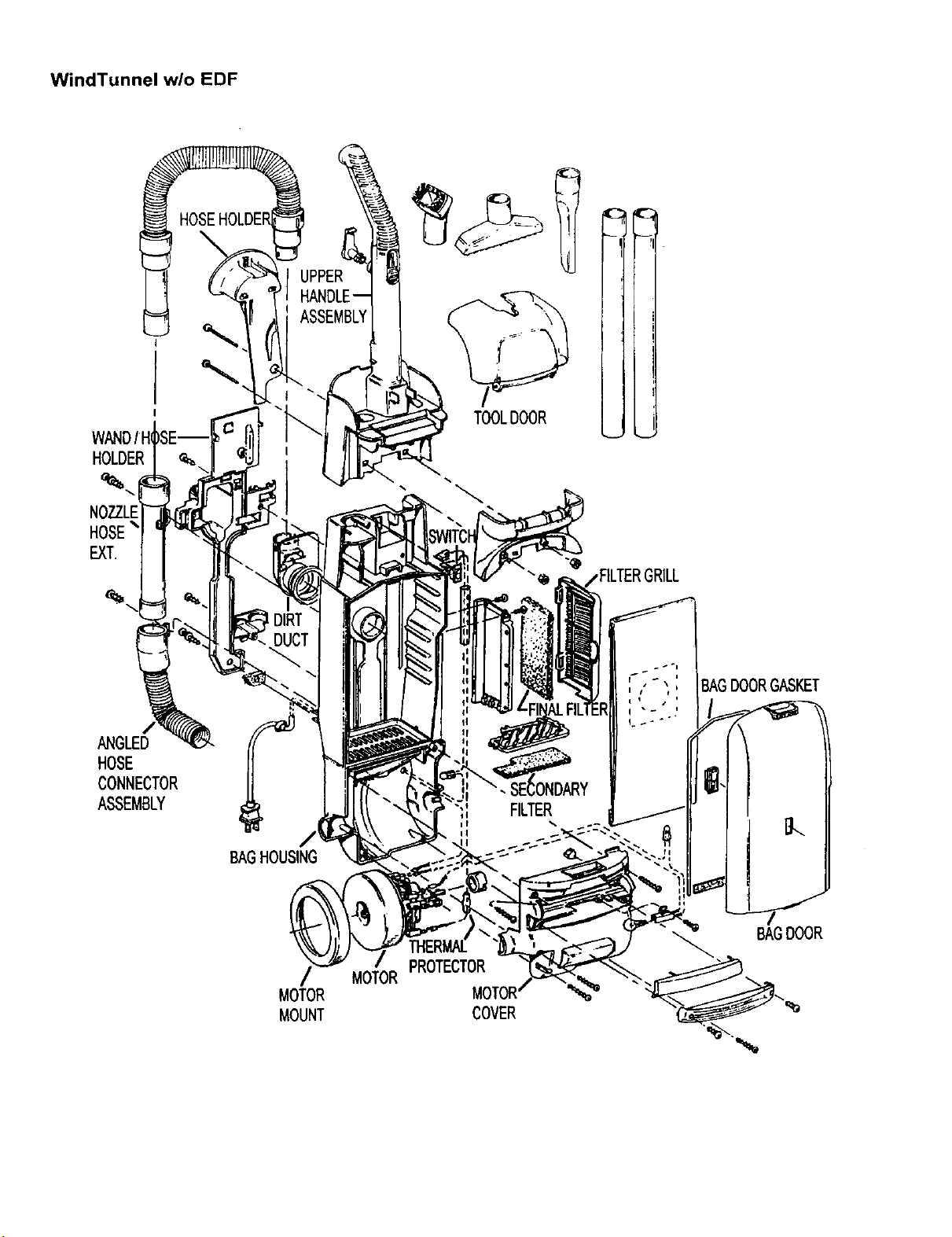

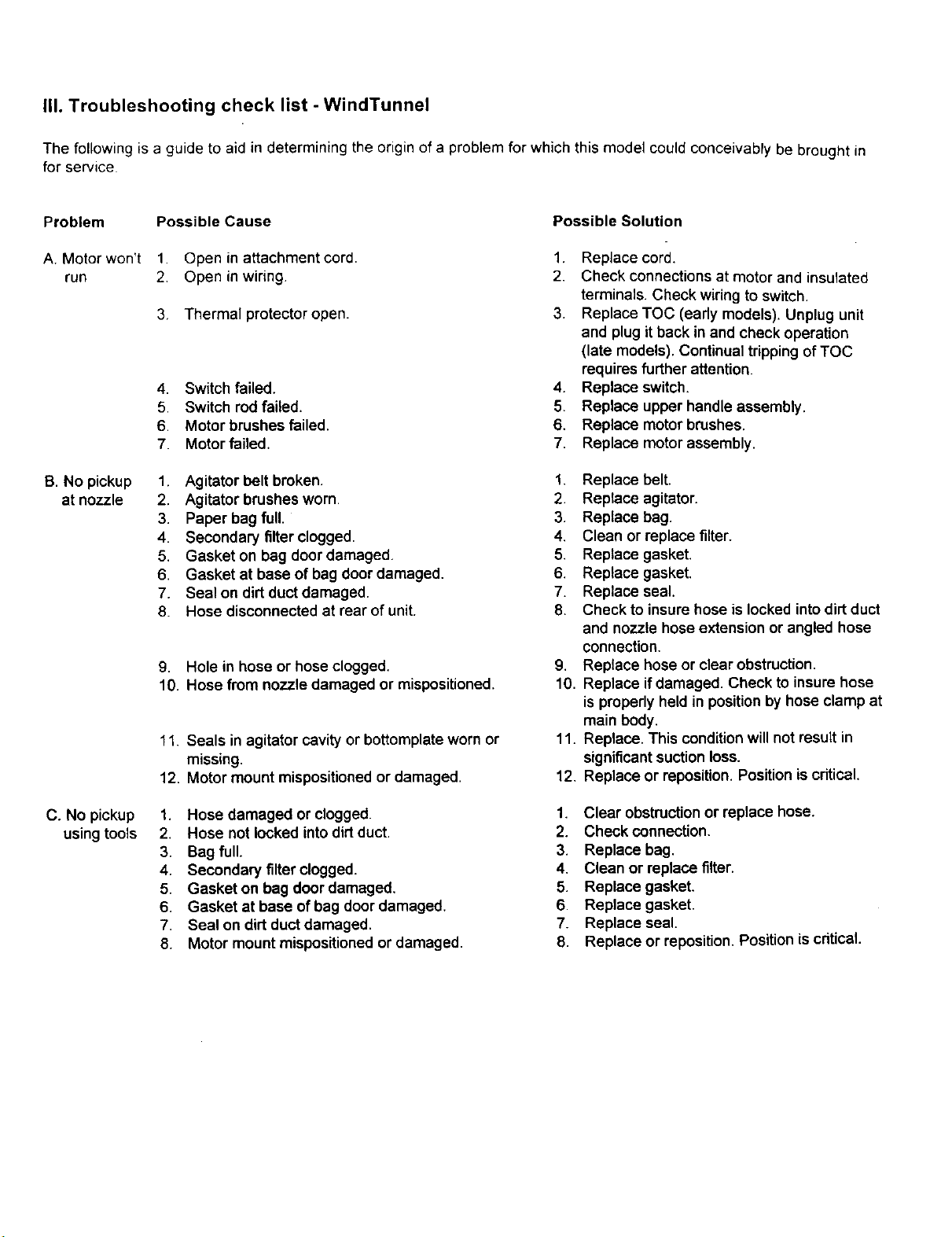

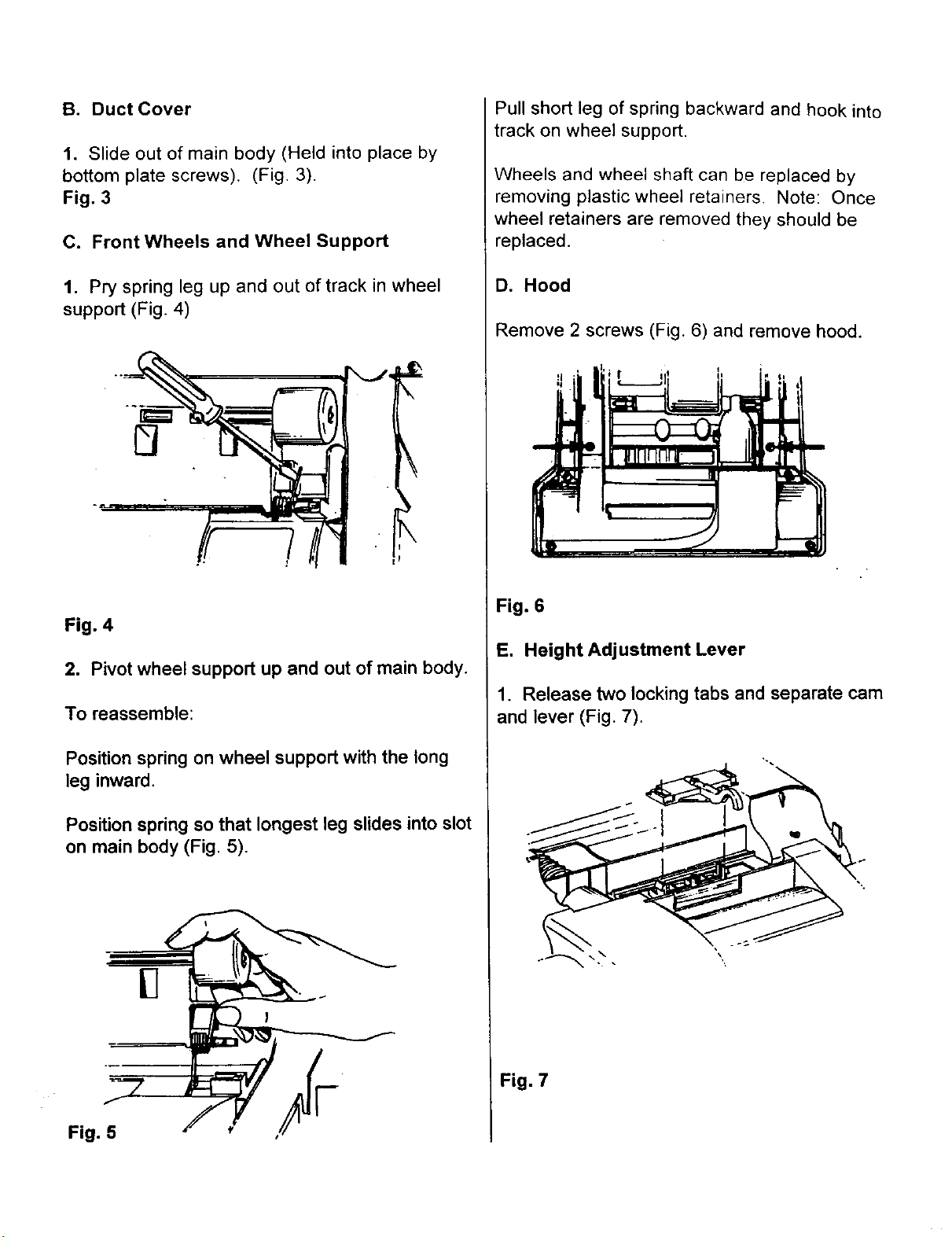

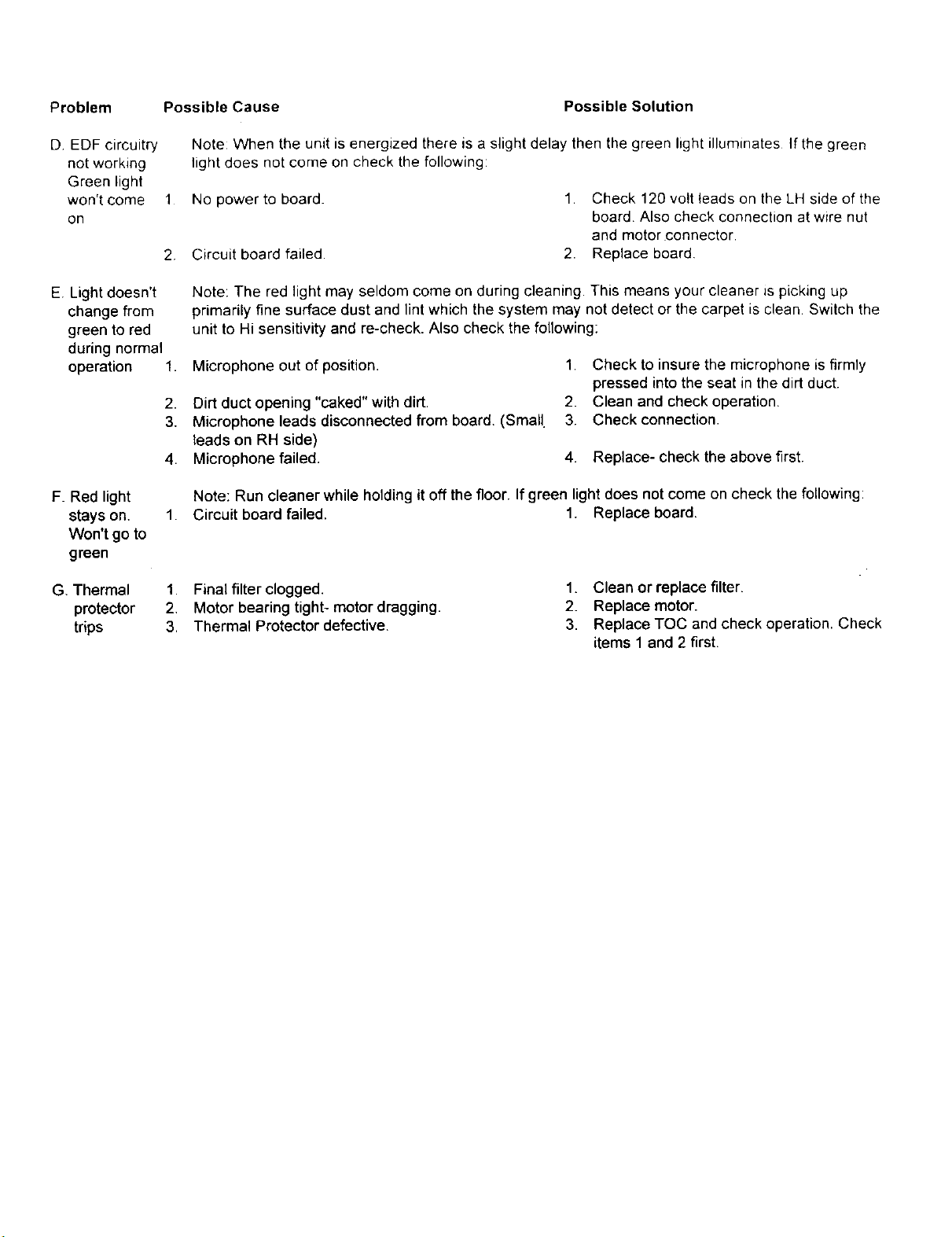

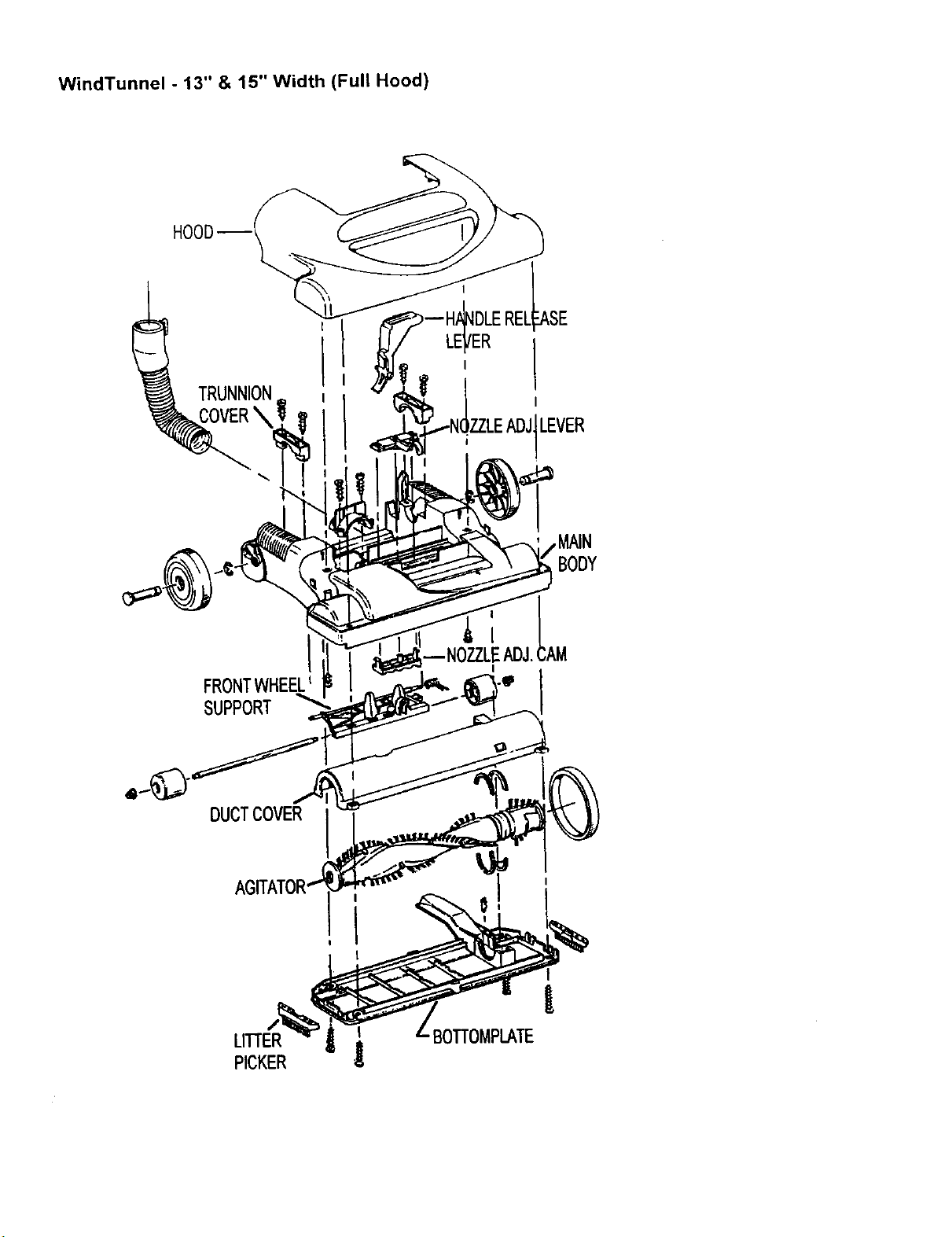

WINDTUNNEL TM
UPRIGHT
The WindTunnel TM series of uprights was first introduced
in mid 1997. Four deep wine colored models comprised
the line and all were similar in overall appearance like the
one in Figure 1.
Features included on the various models:

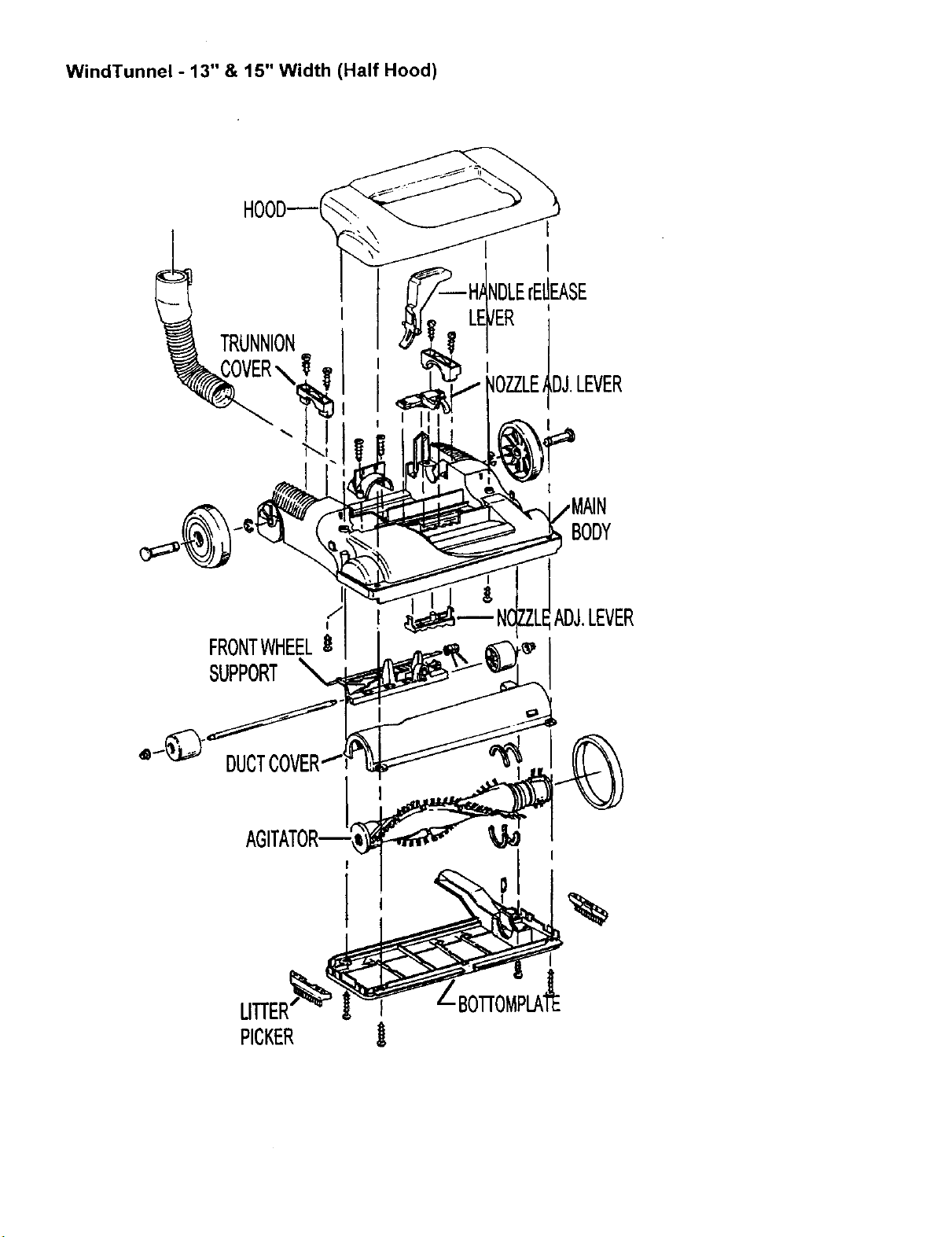

• 13" and 15" nozzles
• Embedded dirt finder (two models)
• Cords 31' and 35'
• Bag check indicator (three models)
• Agitator, replaceable roll sleeve type
• Headlight, one 12 volt 27313101
• Flat belt 38528033
• Hard bag enclosure
• One speed motor
• Stair cleaning handle
• Four position height adjustment
• Tool storage on the cleaner
Micro-filtration throw away bags Type "Y"
• Bag check indicator (three models)
• 4, 5 or 6 stage filtration
• Edge cleaning "Edgers"
• Rotating top cord hook
• 10' and 12' hose reach
Fig, 1
These cleaners operate on a clean air principle, i.e., where
the dirty air enters the bag or dirt receptacle before it goes
past the motor area. Since the same air is used to cool the
motor, it is extremely important that it be filtered ade-
quately to prevent dirt and dust from getting into the motor
and/or back into the room.

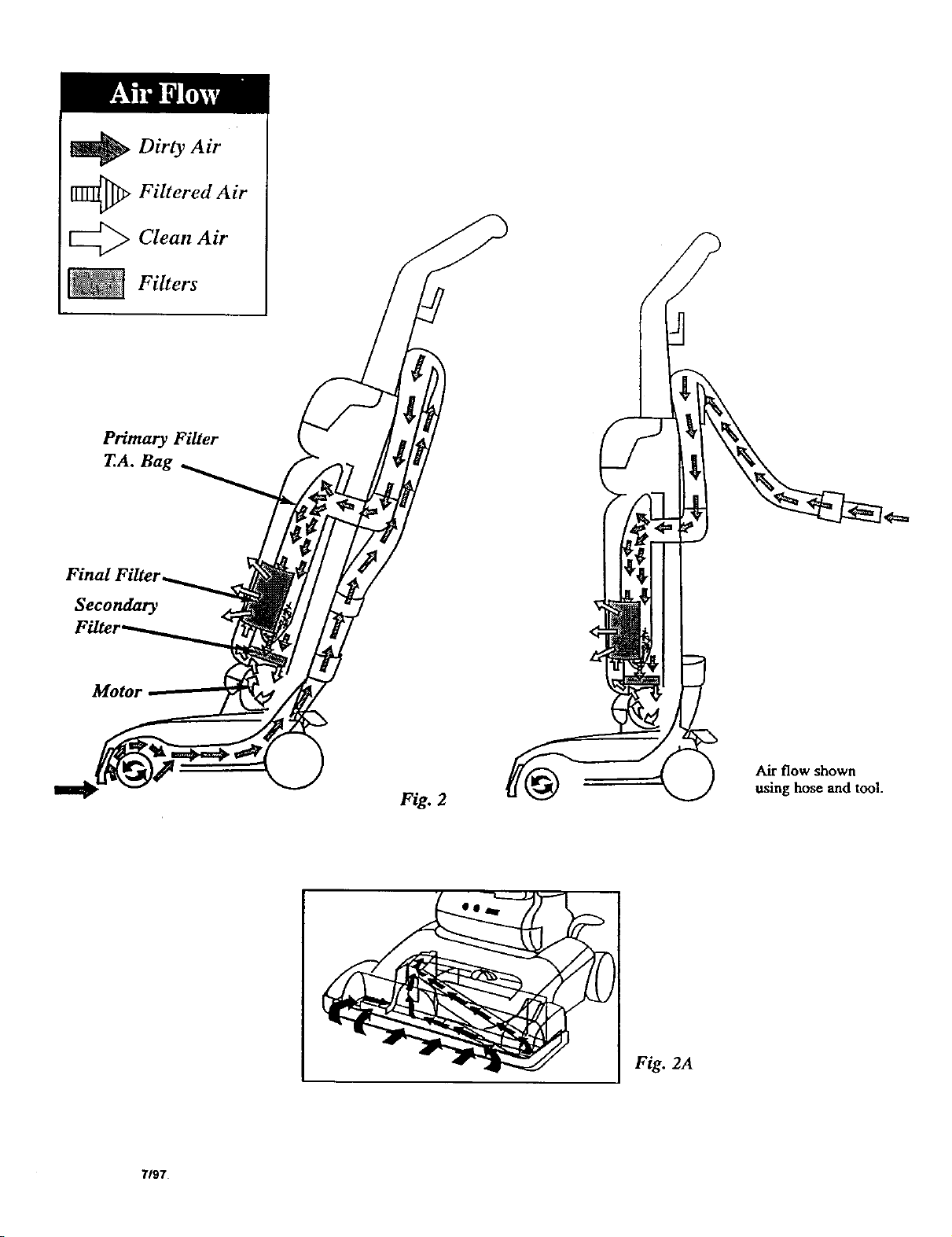

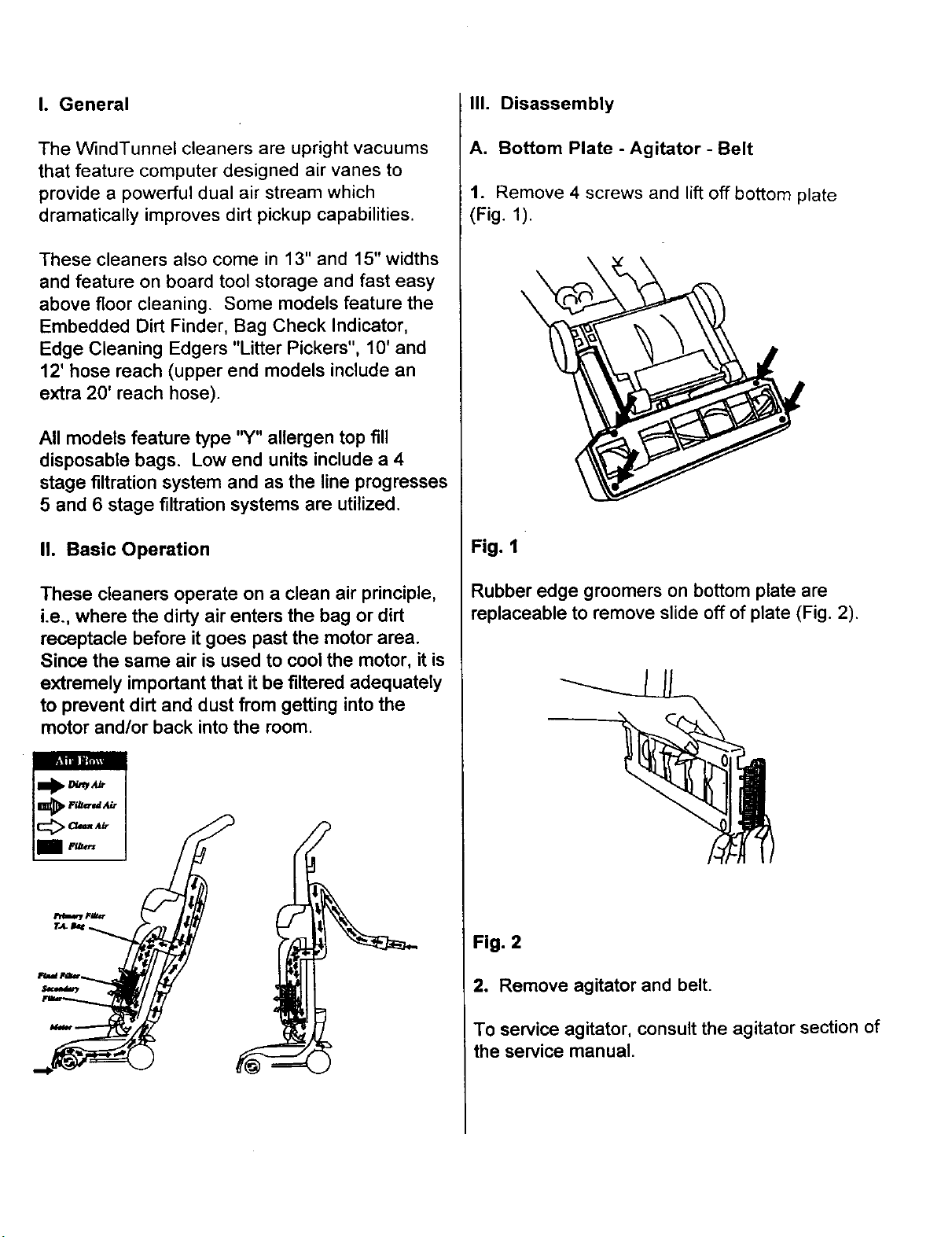

Basic operation of the clean air system in these units is
illustrated in Figure 2 on page 2.
Air fl0w in the WindTunnel is shown in Figure 2A on
page 2.
