E-MANUAL
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model
Serial No.
Quick Guide

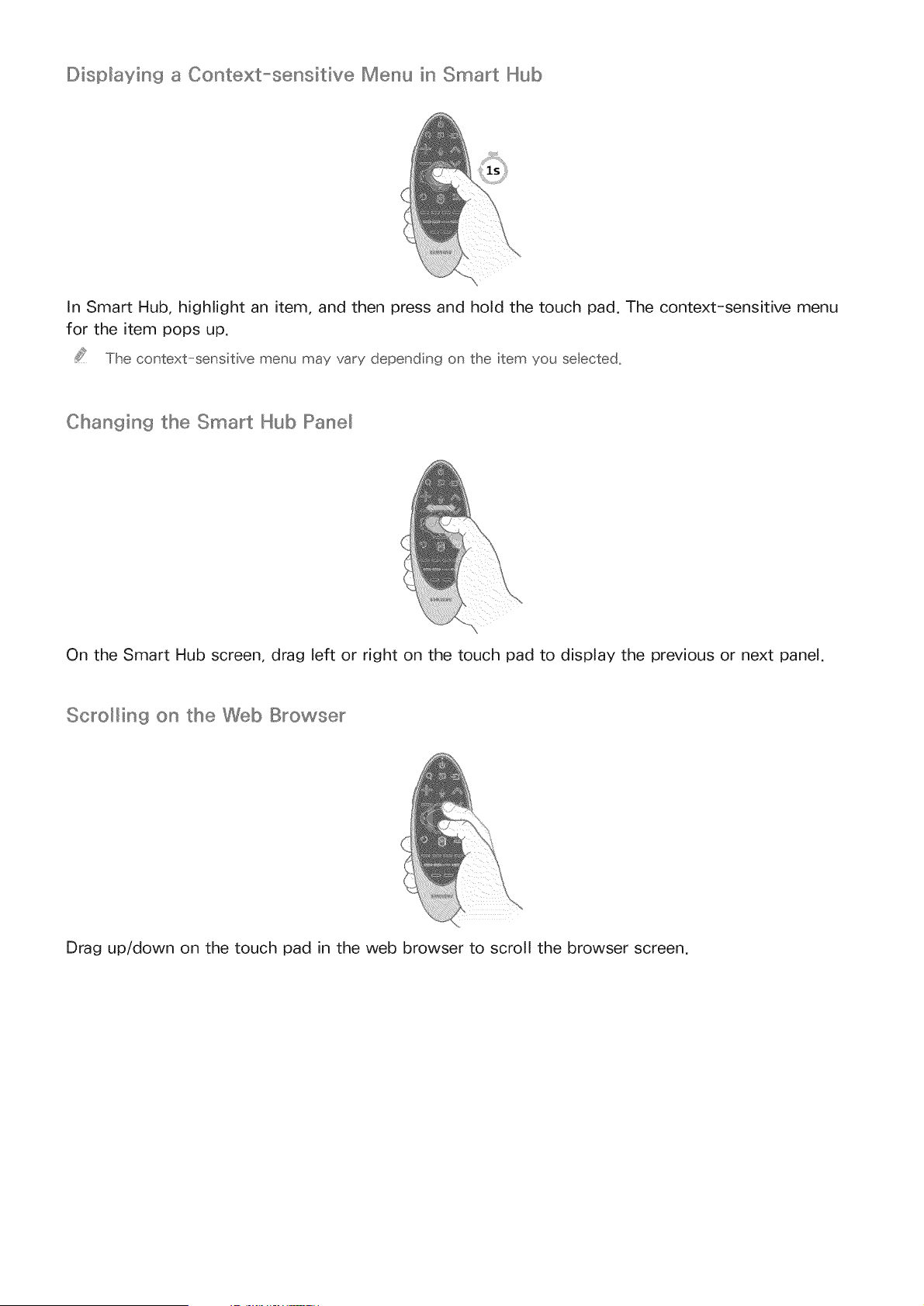

Using Smart Hub
Using Voice Control
Using Motion Control
Using the Samsung Smart Control
Using Multi-Link Screen
Connecting Antenna and External
devices

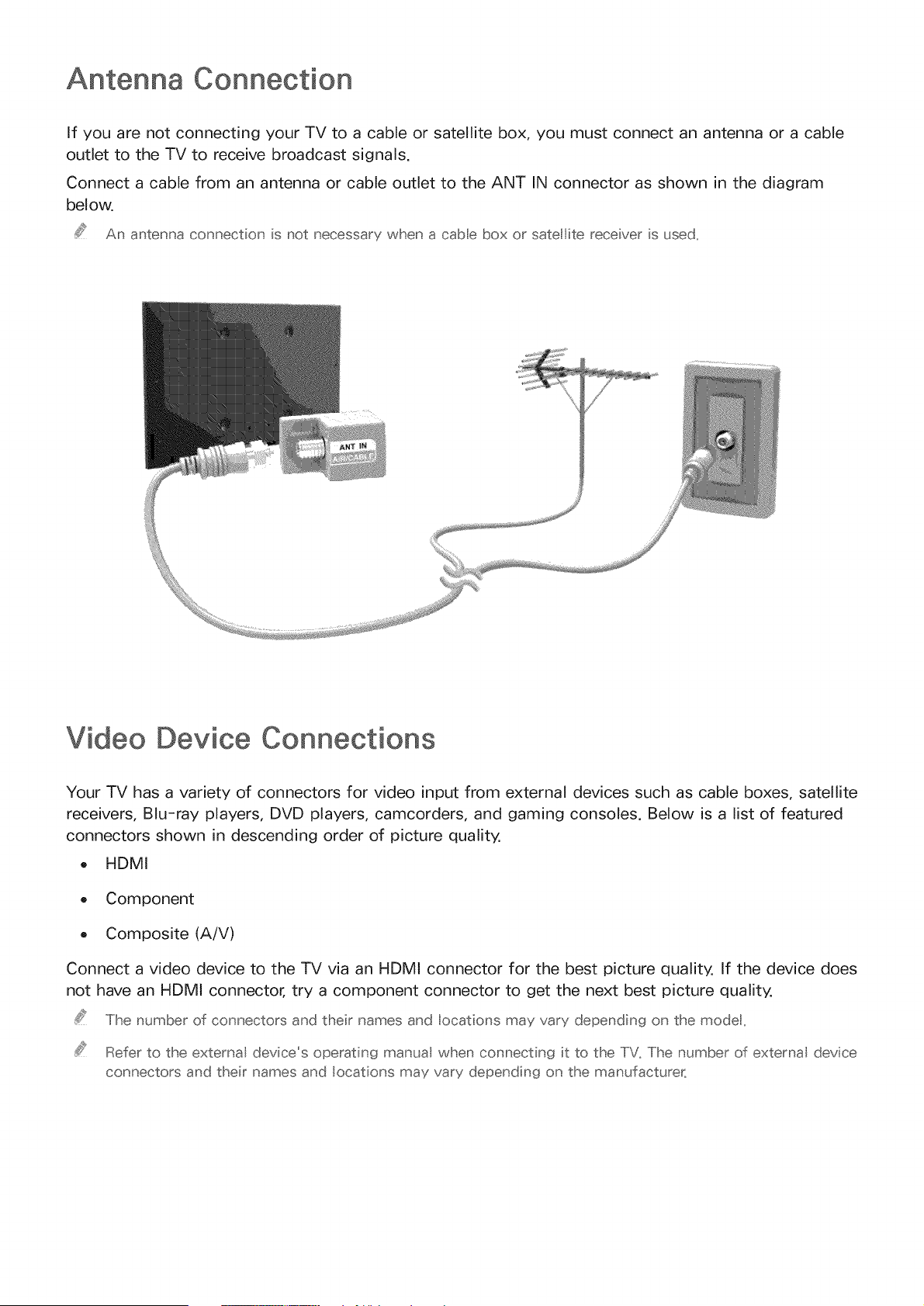

Antenna Connection
Video Device Connections
9 HDMI Connection
10 Component Connection
11 Composite (A/V) Connection

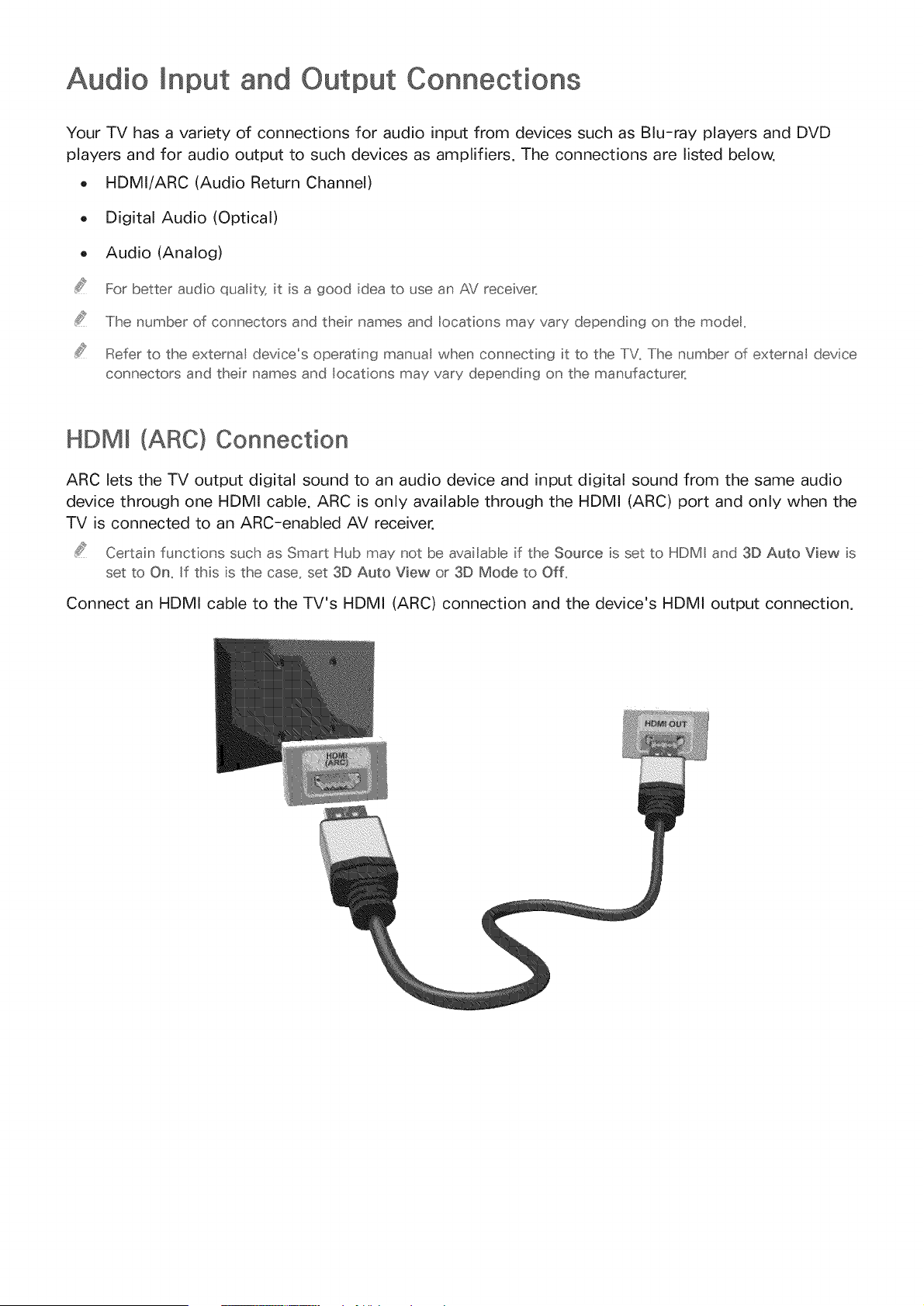

Audio Input and Output Connections
12 HDMI (ARC) Connection
13 Digital Audio (Optical) Connection
14 Audio Output Connection
Connecting to a Computer

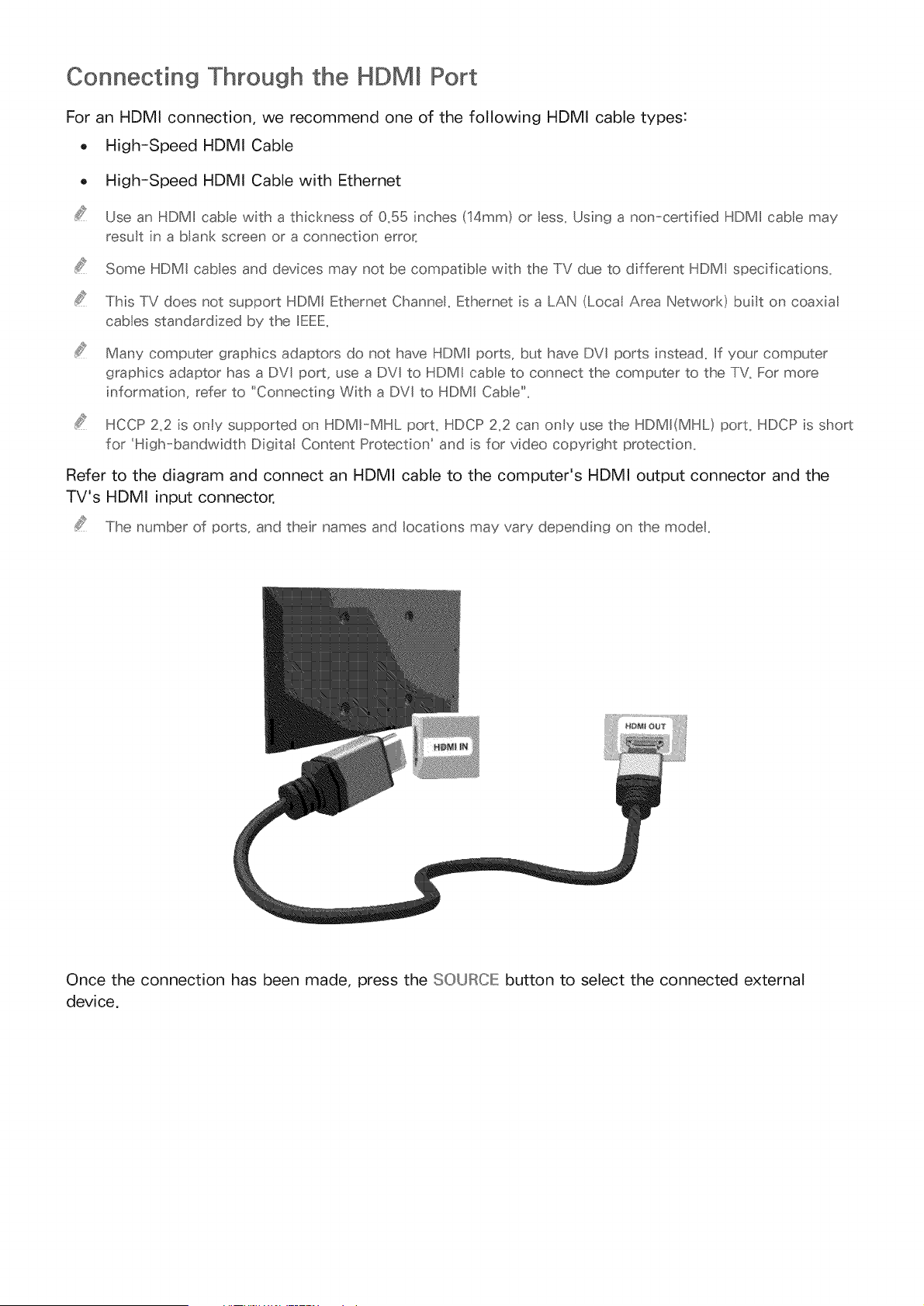

15 Connecting Through the HDMI Port
16 Connecting With a DVI to HDMI Cable
17 Connecting Through Samsung Link
17 Connecting Through DLNA Using Your Home Network
Connecting To
19 Connecting
2O
22
22
23
23
23
a Mobile Device
With an MHL to HDMI Cable
Screen Mirroring
Connecting Mobile Devices without a Wireless Router
(Wi-Fi Direct)
Connecting Through Samsung Link

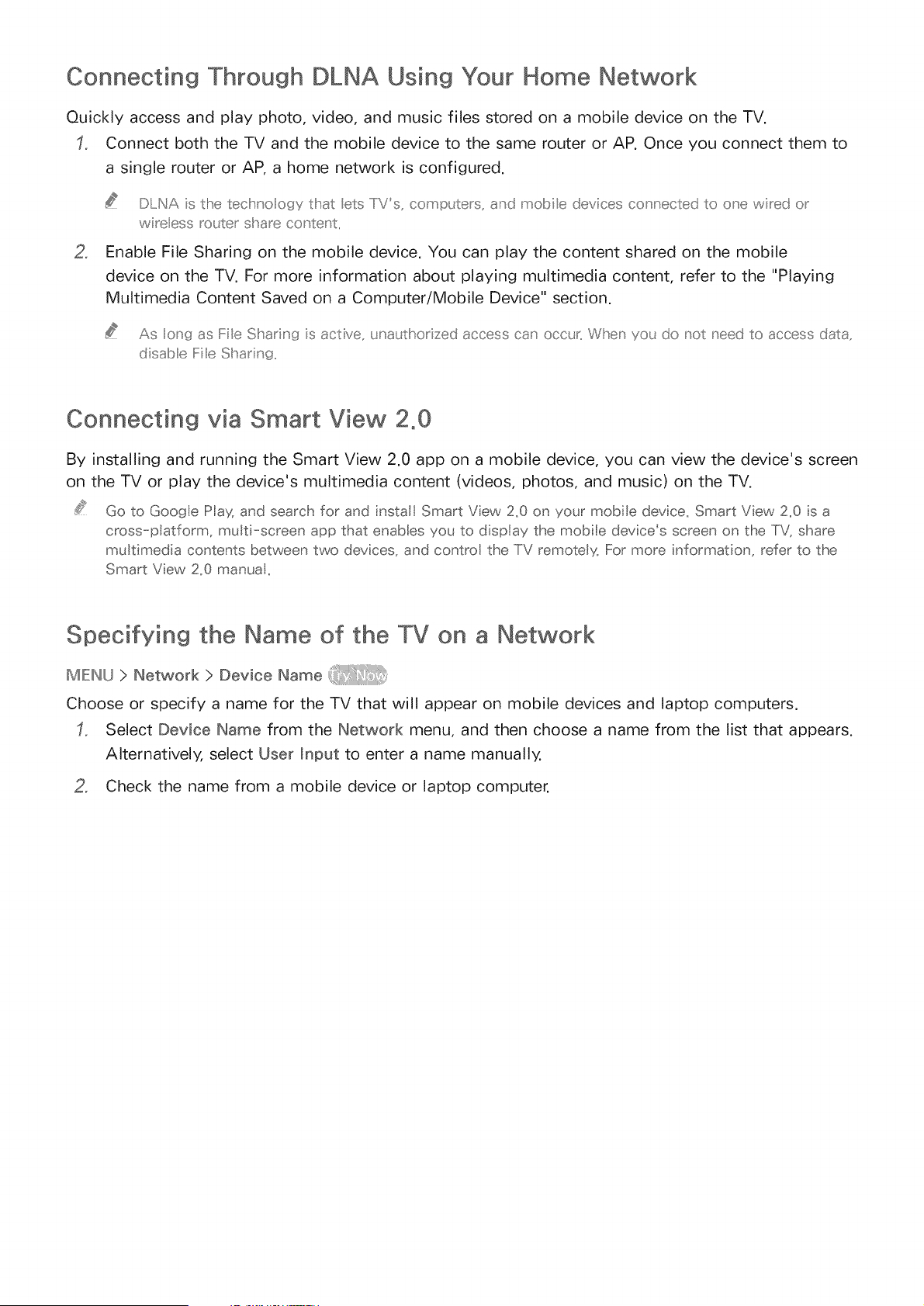

Connecting Through DLNA Using Your Home Network
Connecting via Smart View 2.0
Specifying the Name of the TV on a Network
Switching Between Video Sources
24 Other Functions Available When You Display the Source
List
24 The Universal Remote Function
Using the Remote Control and
Peripherals
Installing Batteries into the Samsung Smart Control
25 The Low Battery Alarm Window
Pairing the Samsung Smart Control
26 Reconnecting the Samsung Smart Control
Using the Samsung Smart Control
27 Button Functions
30 Operating the TV by Moving the Samsung Smart Control

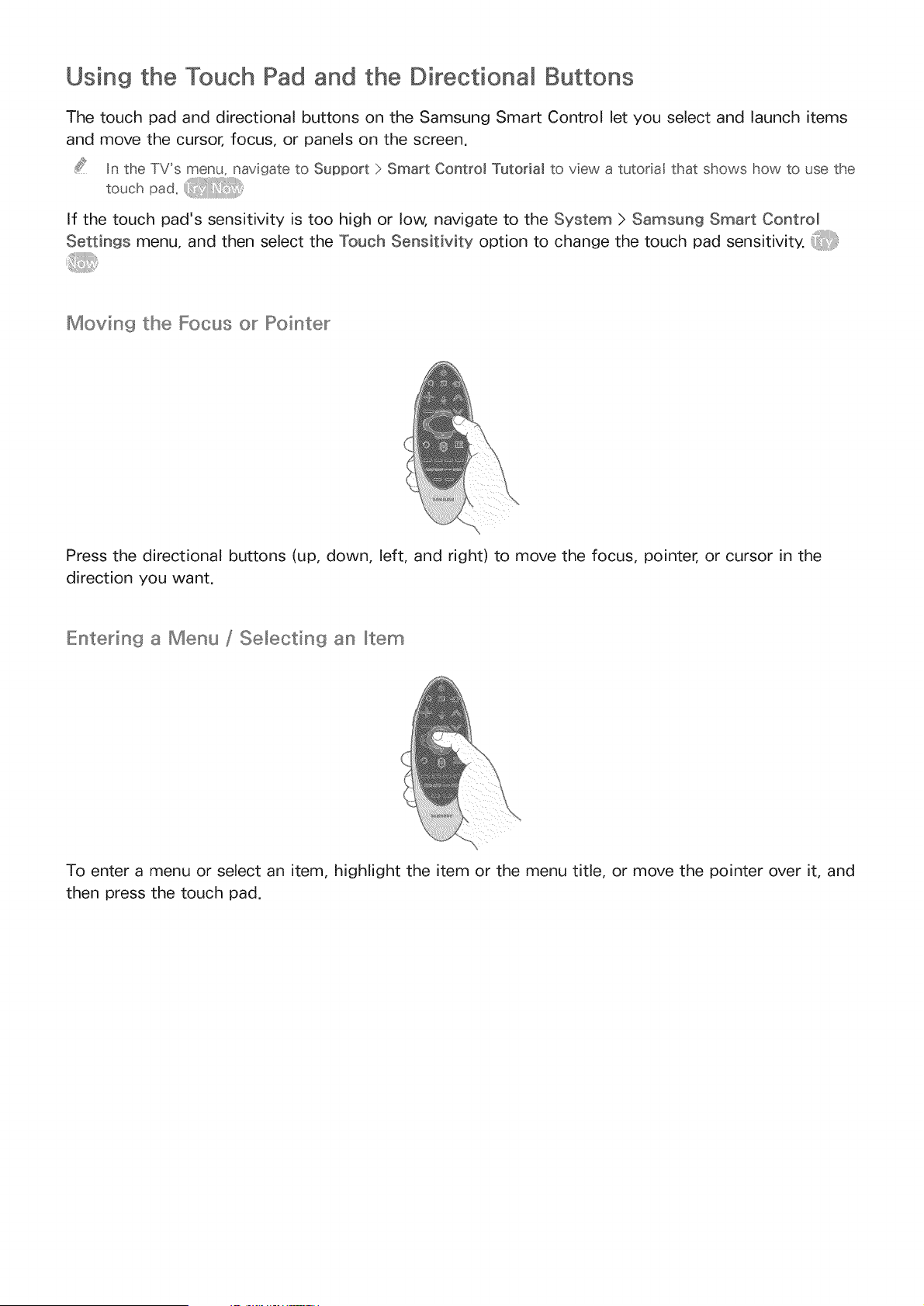

31 Using the Touch Pad and the Directional Buttons
33 Displaying and Using the On-Screen Remote
Controlling External Devices with the TV Remote -
Using the Universal Remote
35 Connecting the IR Extender Cable
36 Setting Up the Universal Remote Control
37 Universal Remote Features
Controlling the TV with a Keyboard
38 Connecting a Keyboard
39 Using the Keyboard
Controlling the TV with a Mouse
40 Connecting a Mouse
41 Using the Mouse

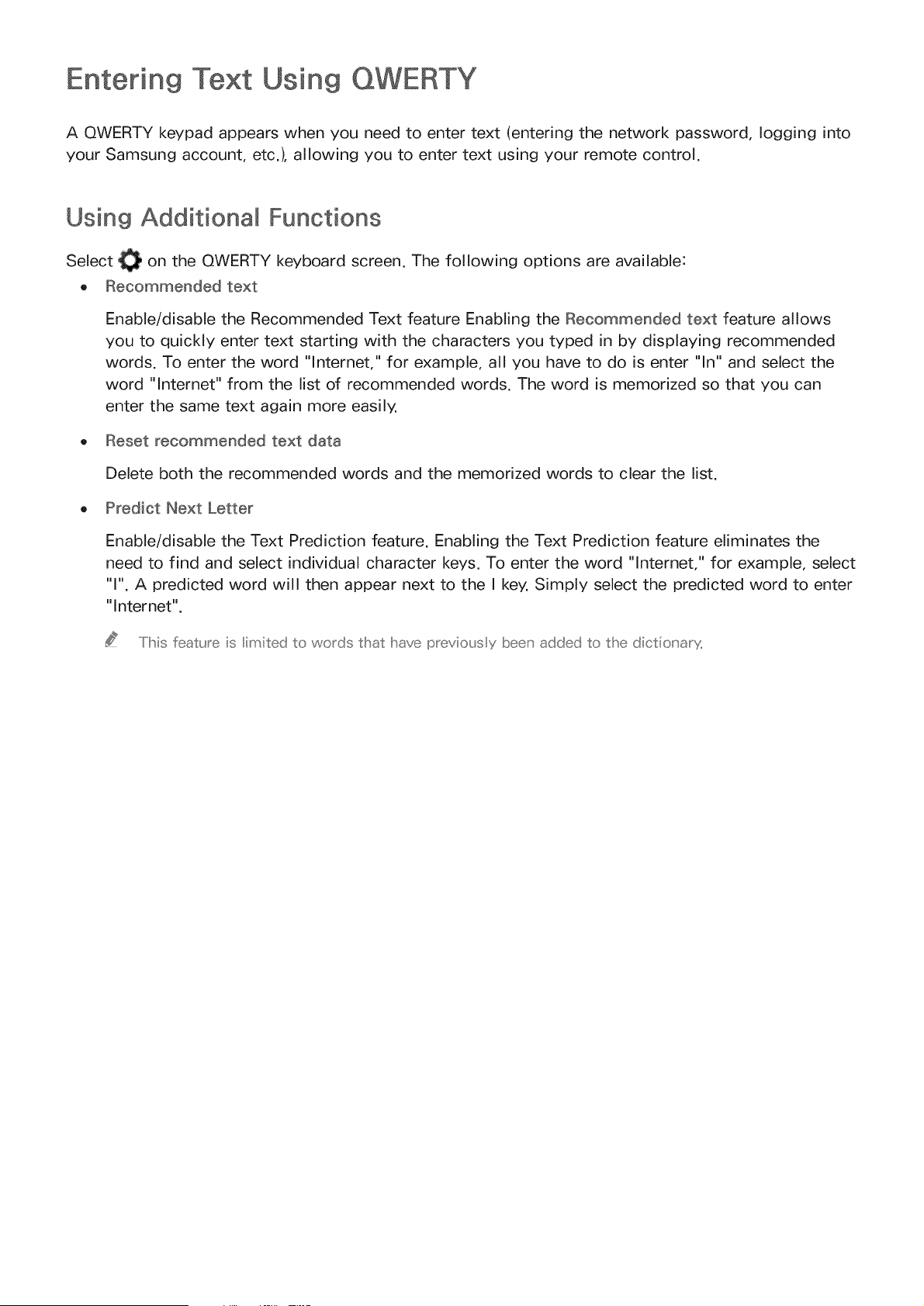

Entering Text Using QWERTY
42 Using Additional Functions
internet Connection

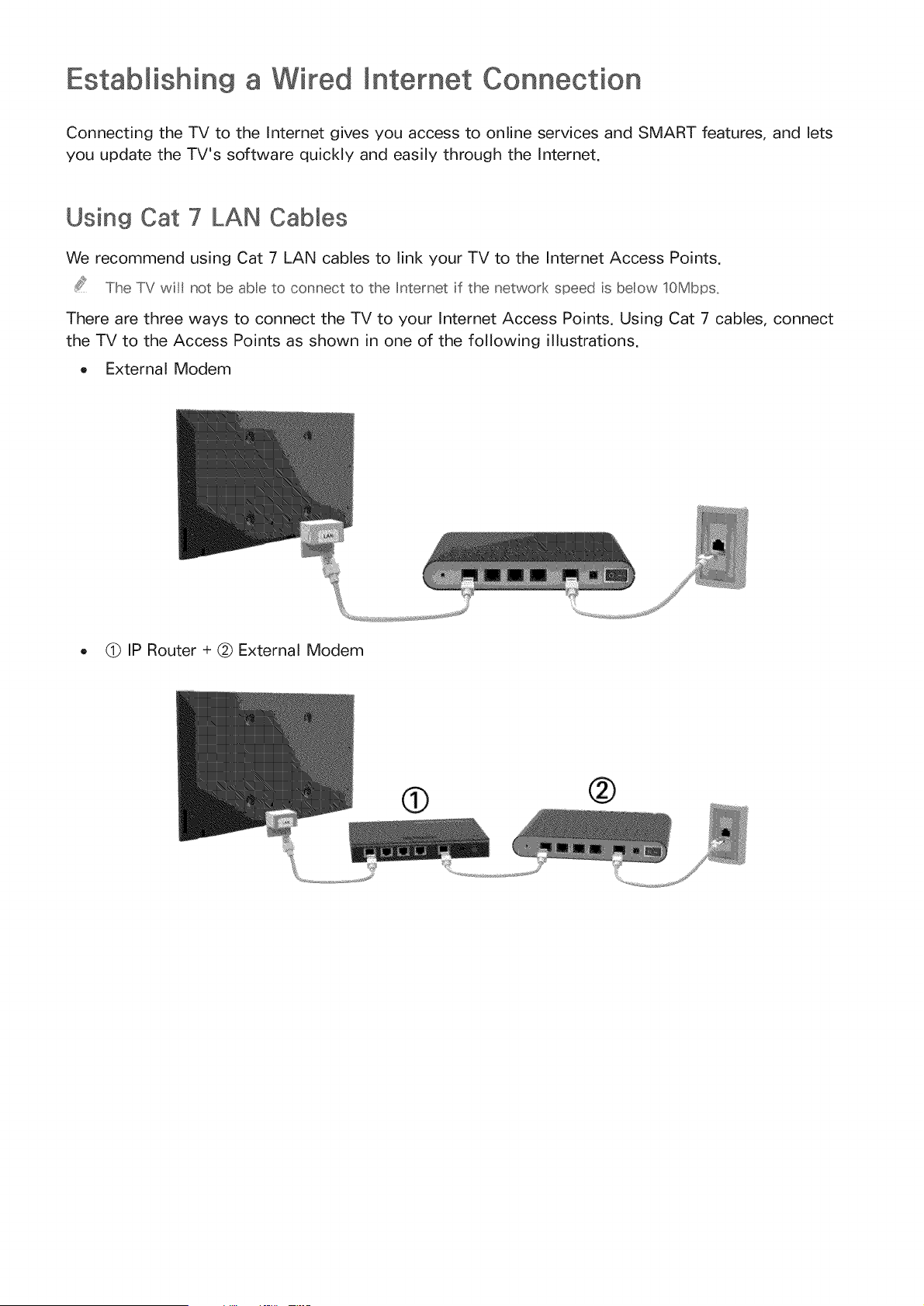

Establishing a Wired Internet Connection
43 Using Cat 7 LAN Cables
44 Connecting to a Wired Internet Network Automatically

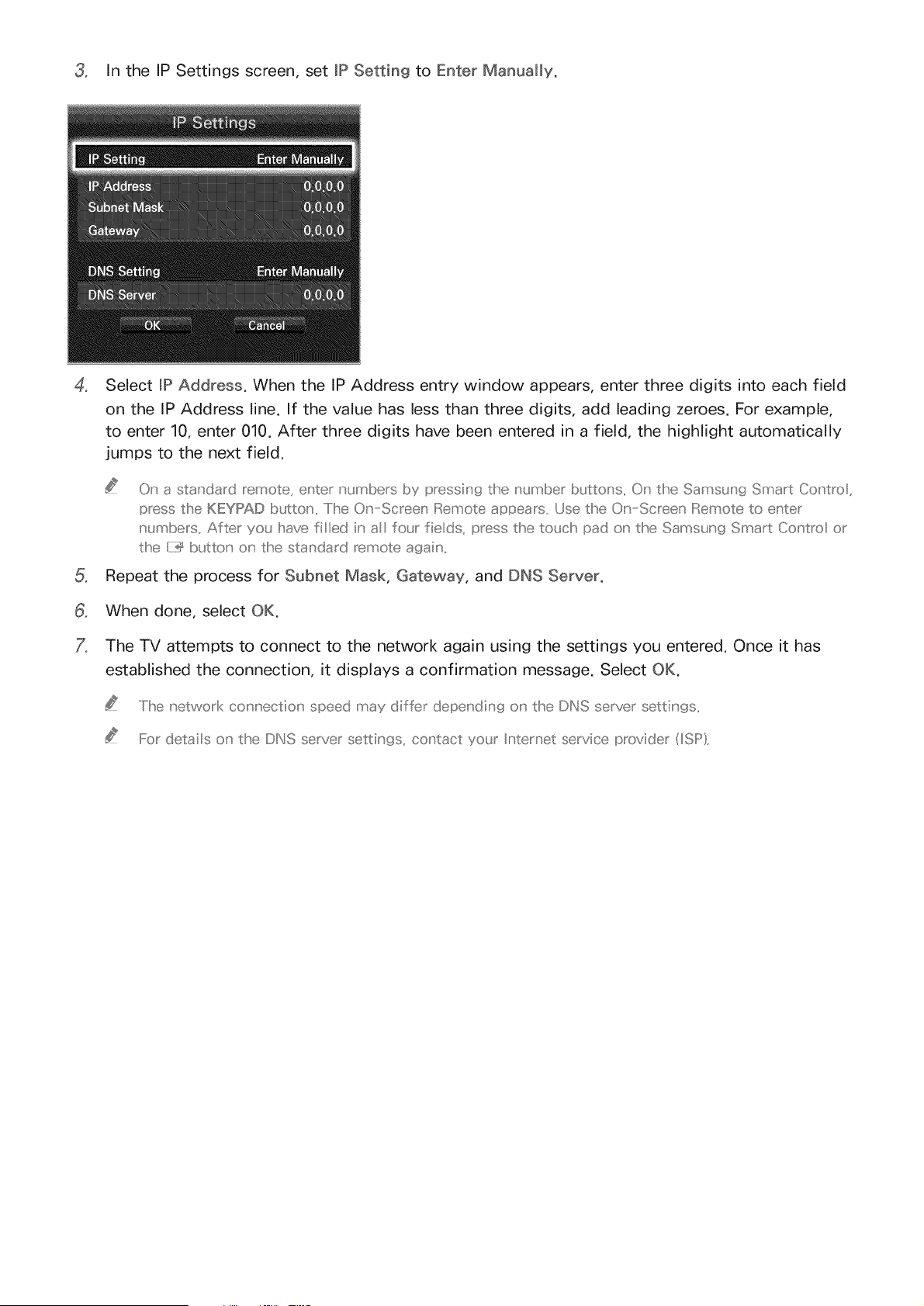

45 Connecting to a Wired Internet Network Manually
Establishing a Wireless Internet Connection
47 Connecting to a Wireless Internet Network Automatically
48 Connecting to a Wireless Internet Network Manually
49 Connecting to a Wireless Internet Network with WPS
Troubleshooting Internet Connectivity Issues
50 Troubleshooting Wired Internet Connectivity Issues

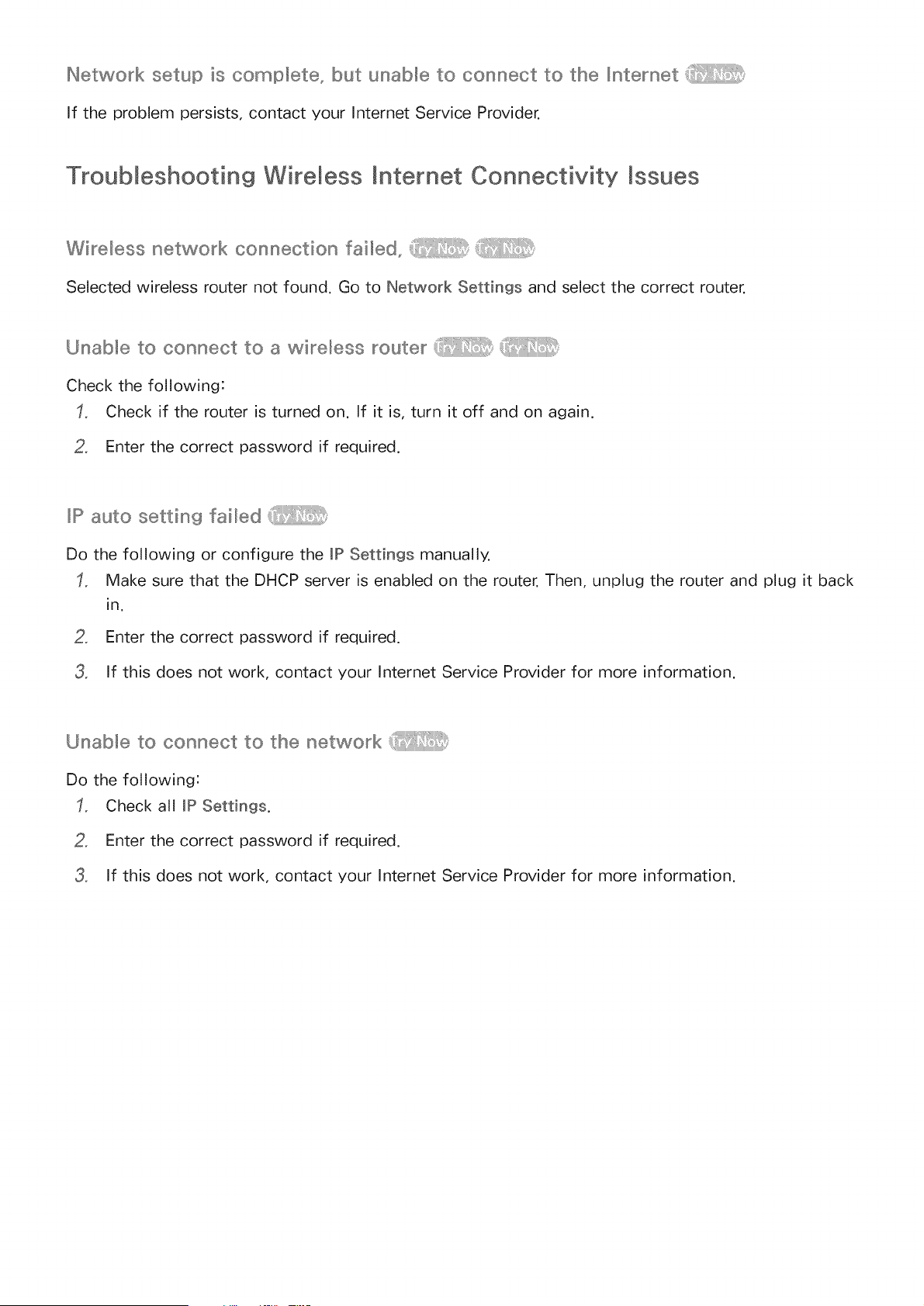

51 Troubleshooting Wireless Internet Connectivity Issues
Checking the Internet Connection Status
Using the SAMSUNG APPS Panel

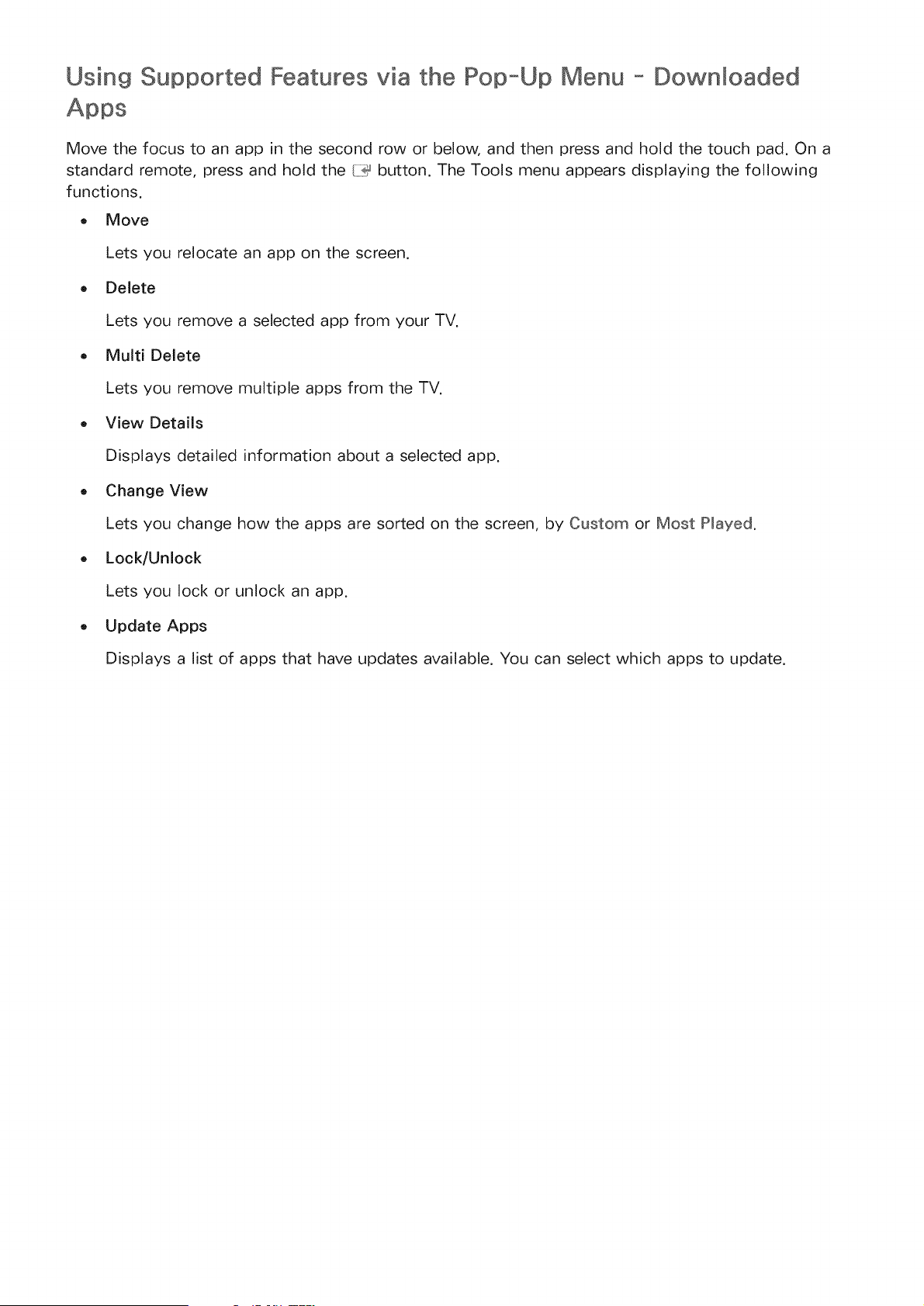

67 Using Supported Features via the Pop-Up Menu -
Downloaded Apps
68 Using Supported Features via the Pop-Up Menu -
Recommended Apps
68 installing an App
70 Default Apps
Relocating an App on the Apps Screen.
71 Deleting an App from the TV
72 Rating/Reviewing an App
72 Updating Apps
73 Using Other App Features and Functions
Using the On TV Panel
75 Using Supported Features via the Pop-Up Menu
75 Viewing Detailed Program Information
76 Configuring On TV Settings
Smart Features
Using Multiple Functions on a Single Screen (Multi-Link
Screen)
53 Launching Multi-Link Screen
53 Using Multi-Link Screen

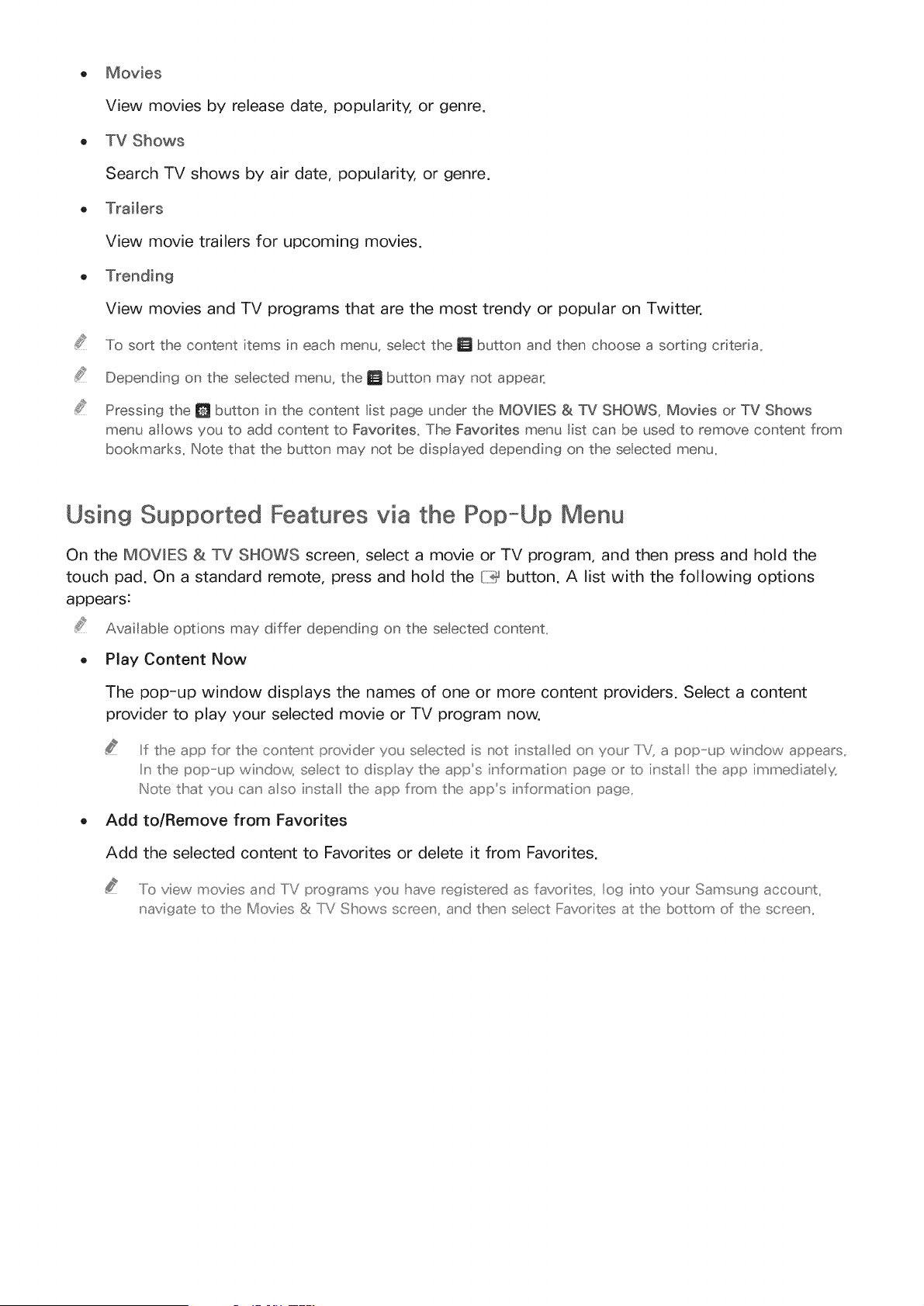

Using the MOVIES & TV SHOWS Panel
78 Using Supported Features via the Pop-Up Menu
79 Watching a Movie/TV Program
79 Preventing Children from Watching Adult Content
79 Adding Content to Favorites

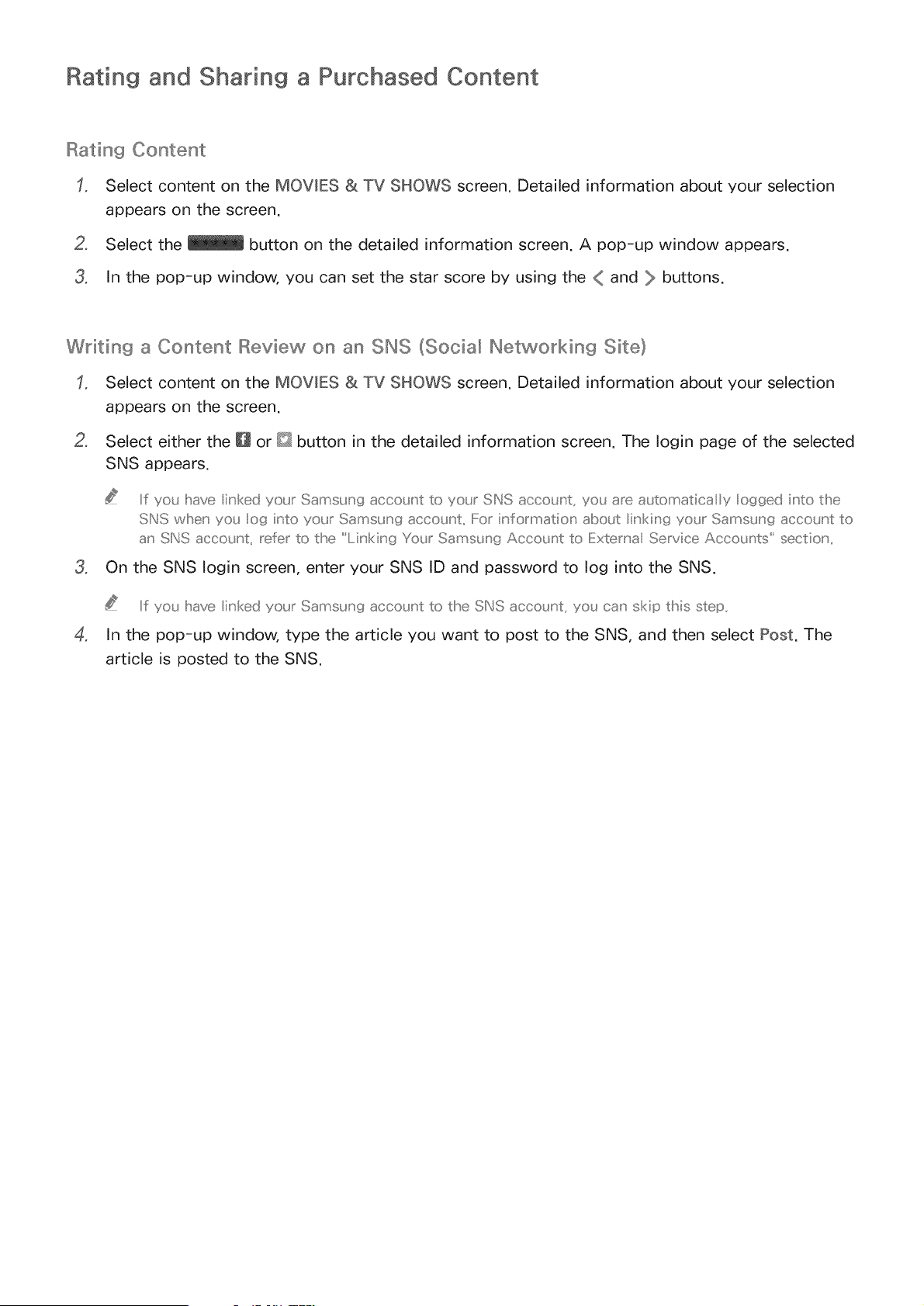

80 Rating and Sharing a Purchased Content
Smart Hub
55 Testing Smart Hub connections
56 Opening the First Screen Settings
57 Moving to the Panel Screen
57 Using the Smart Hub Tutorial
Using Smart Hub with a Samsung Account
58 Creating a Samsung Account
60 Signing in to a Samsung Account
61 Linking Your Samsung Account to External Service
Accounts
62 Changing and Adding Information to a Samsung Account
62 Deleting a Samsung Account from the TV

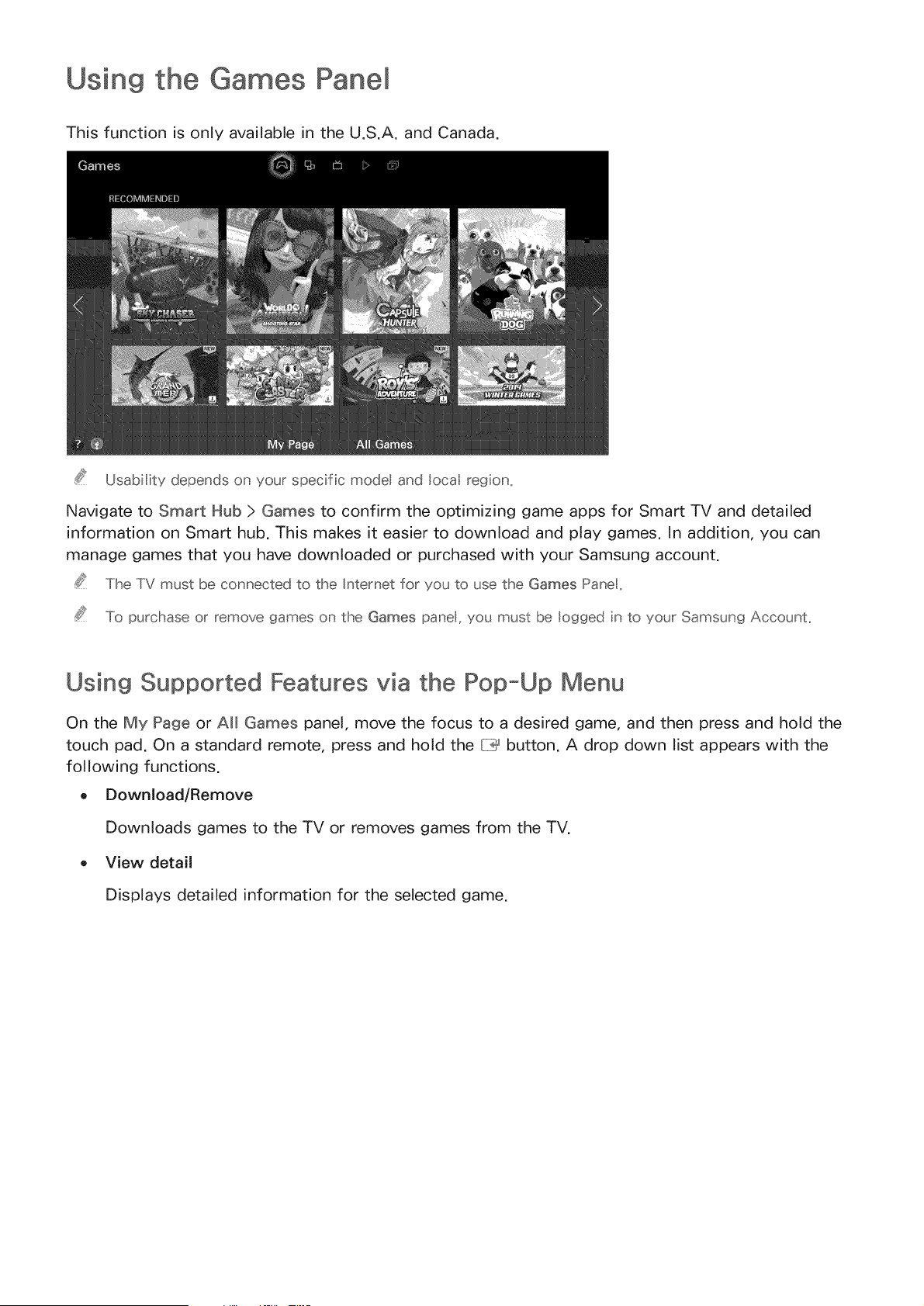

Using the Games Panel
63 Using Supported Features via the Pop-Up Menu
64 Installing and Running a Game
65 Managing Downloaded or Purchased Games
Using the Multimedia Panel (Playing Photos, Videos,
and Music)
82 Playing Media Content Saved on a USB Device
83 Playing Multimedia Content Saved on a Computer/
Mobile Device
86 Buttons and Functions Available While Viewing Photos
87 Buttons and Functions Available While Viewing Videos
89 Buttons and Functions Available While Playing Music

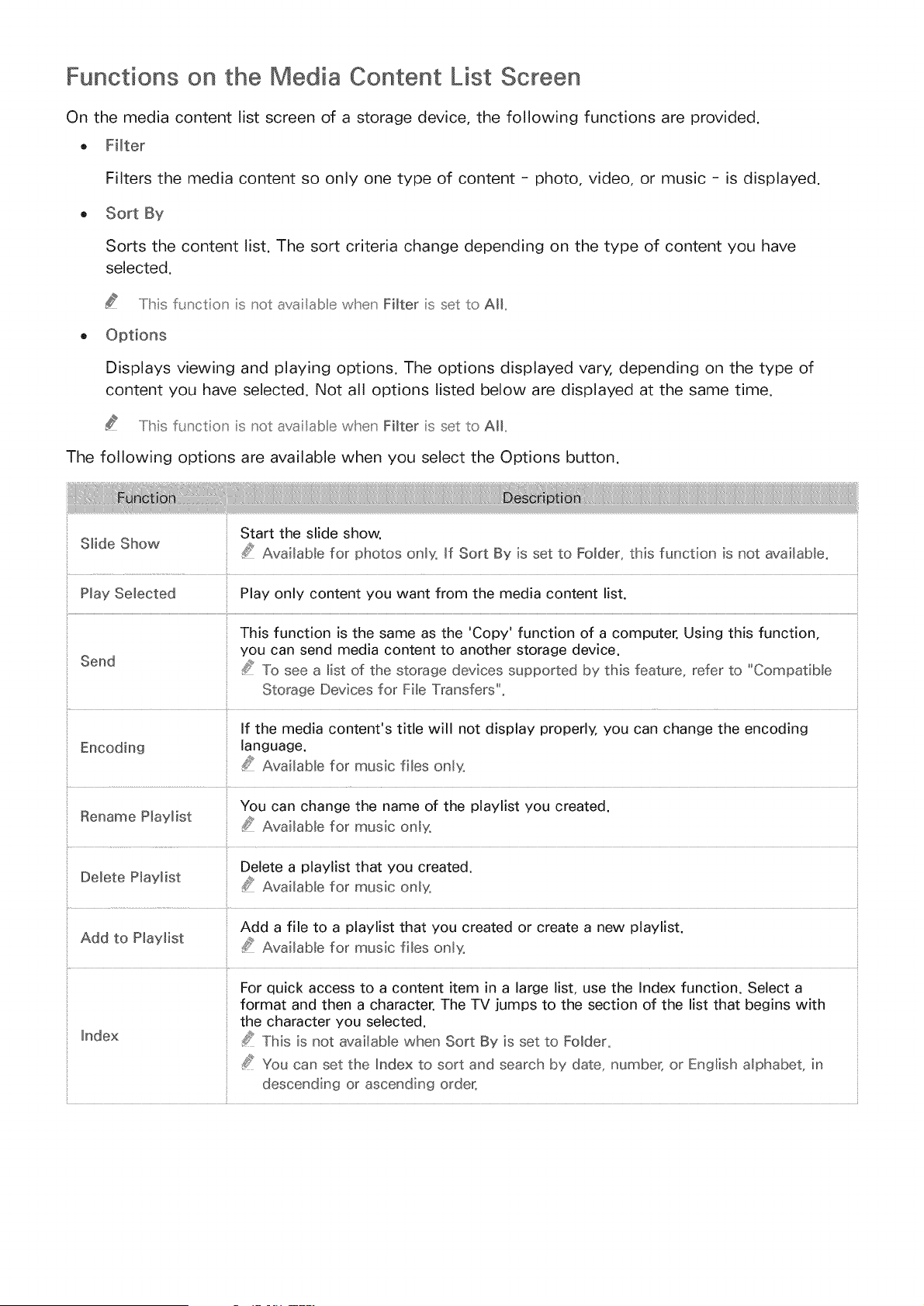

90 Functions on the Media Content List Screen
Using the NewsON Panel
91 News
91 Weather

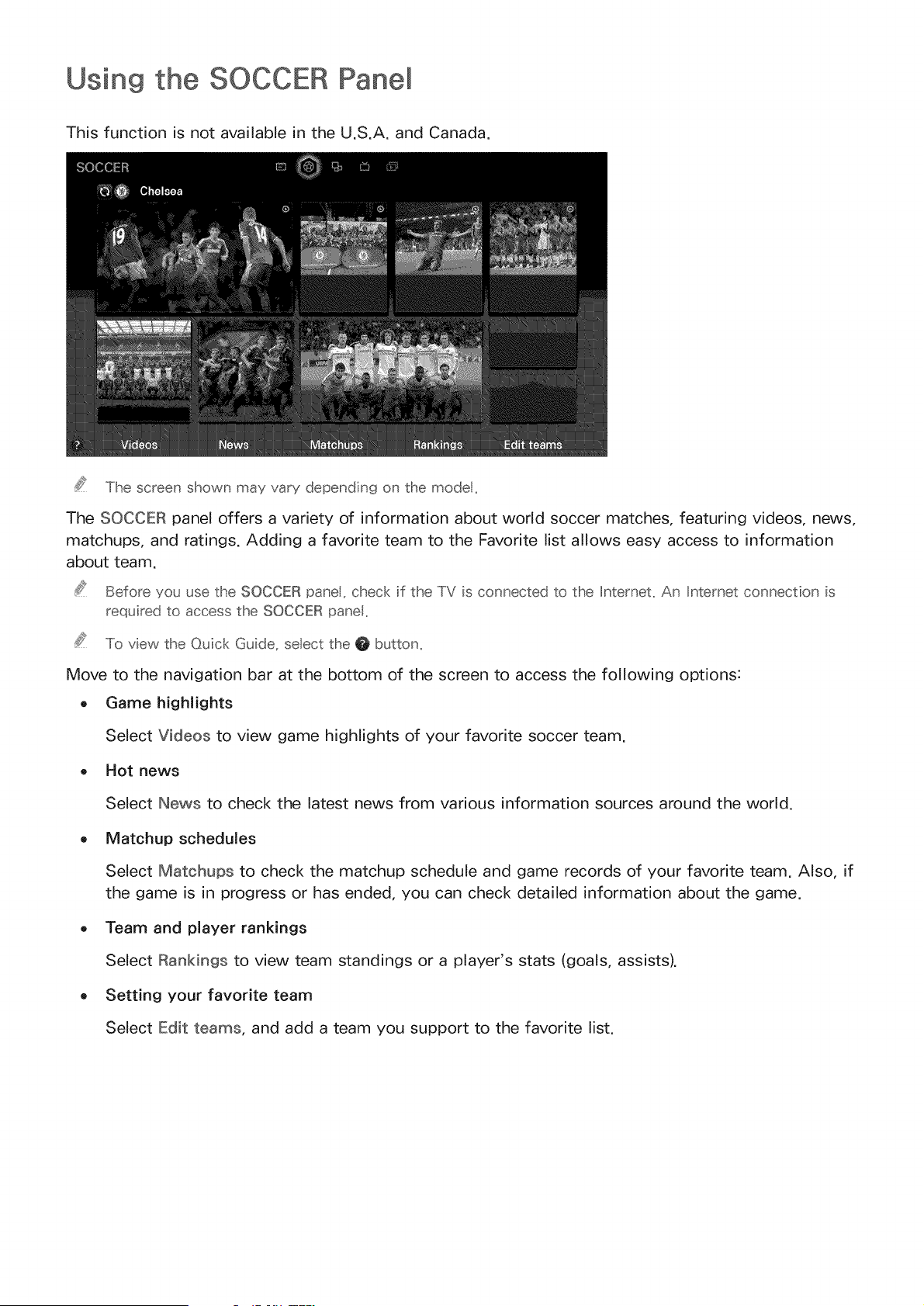

Using the SOCCER Panel
93 Setting Your Favorite Team
Controlling the TV with Your Voice (Voice Control)
94 Using Imperative Voice Control

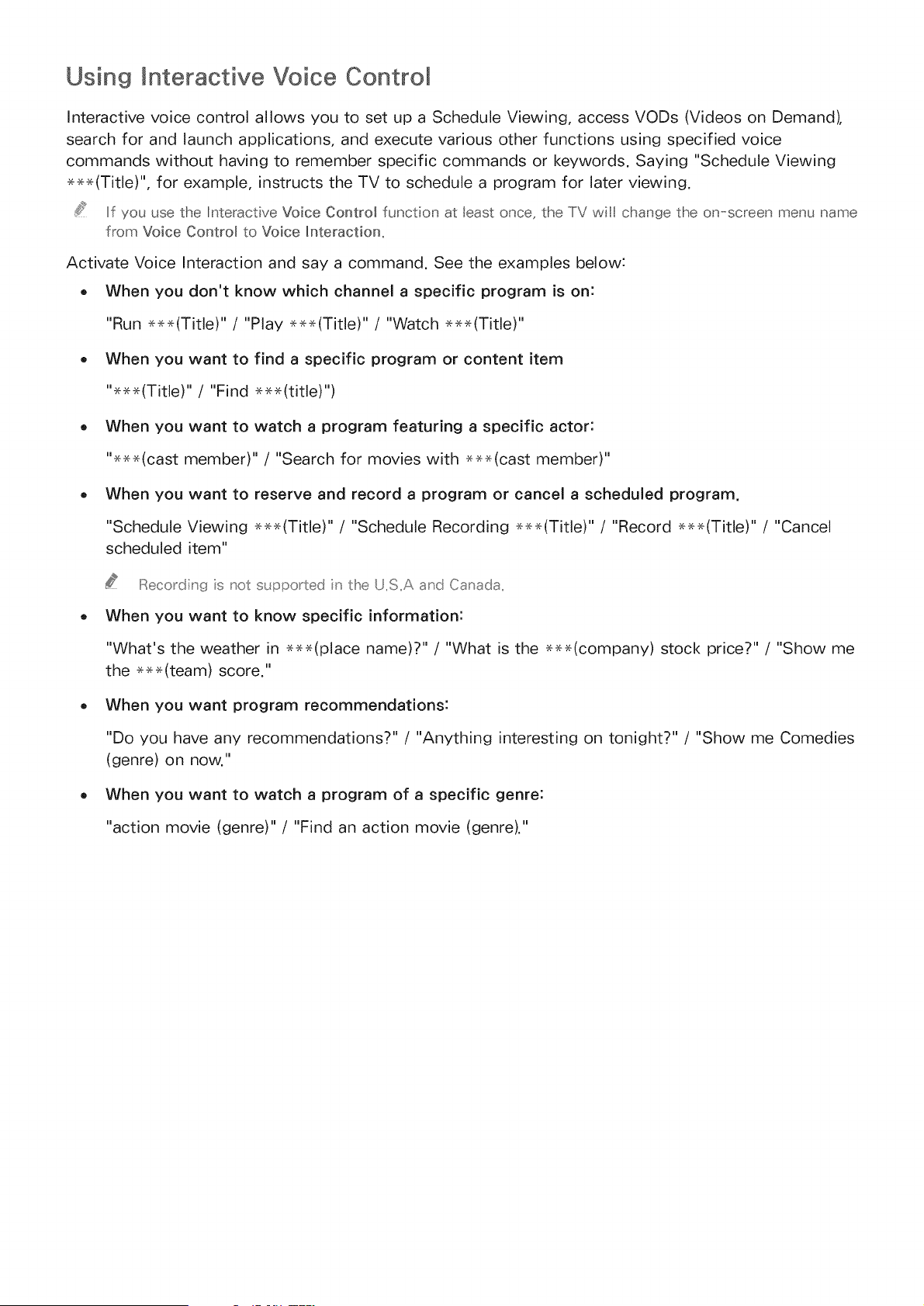

96 Using Interactive Voice Control
ControllingtheTVusingMotions(MotionControl)
98 TestingAmbientIlluminationUsingtheTVCamera
99 ActivatingMotionControl
101MotionControlScreenLayout

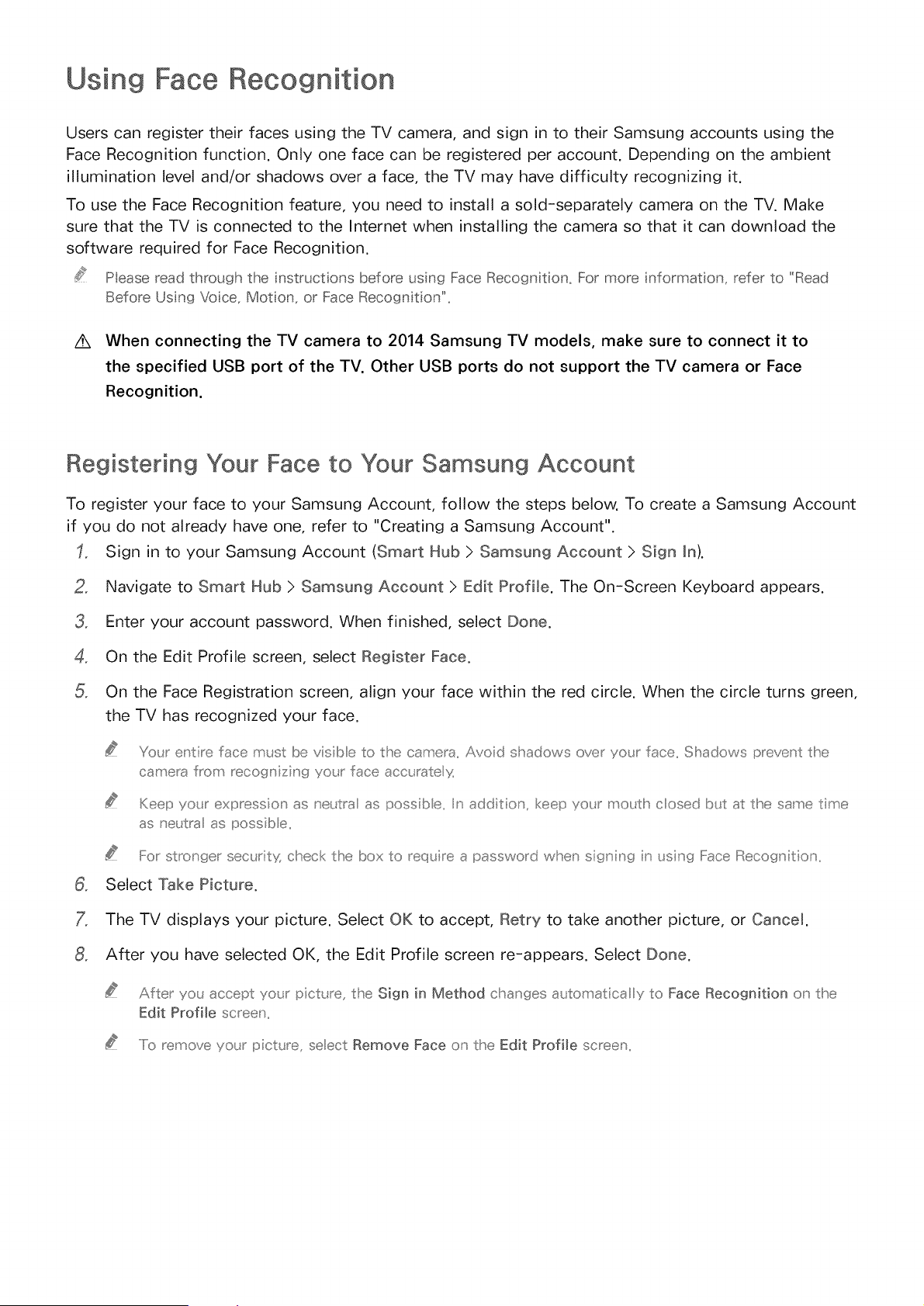

UsingFaceRecognition
104RegisteringYourFacetoYourSamsungAccount
105ChangingYourLoginMethodtoFaceRecognition
105SigningintoaSamsungAccountUsingFaceRecognition
TV Viewing
Digital Broadcast Information at a Glance
106 Using the Guide
107 Viewing Detailed Information

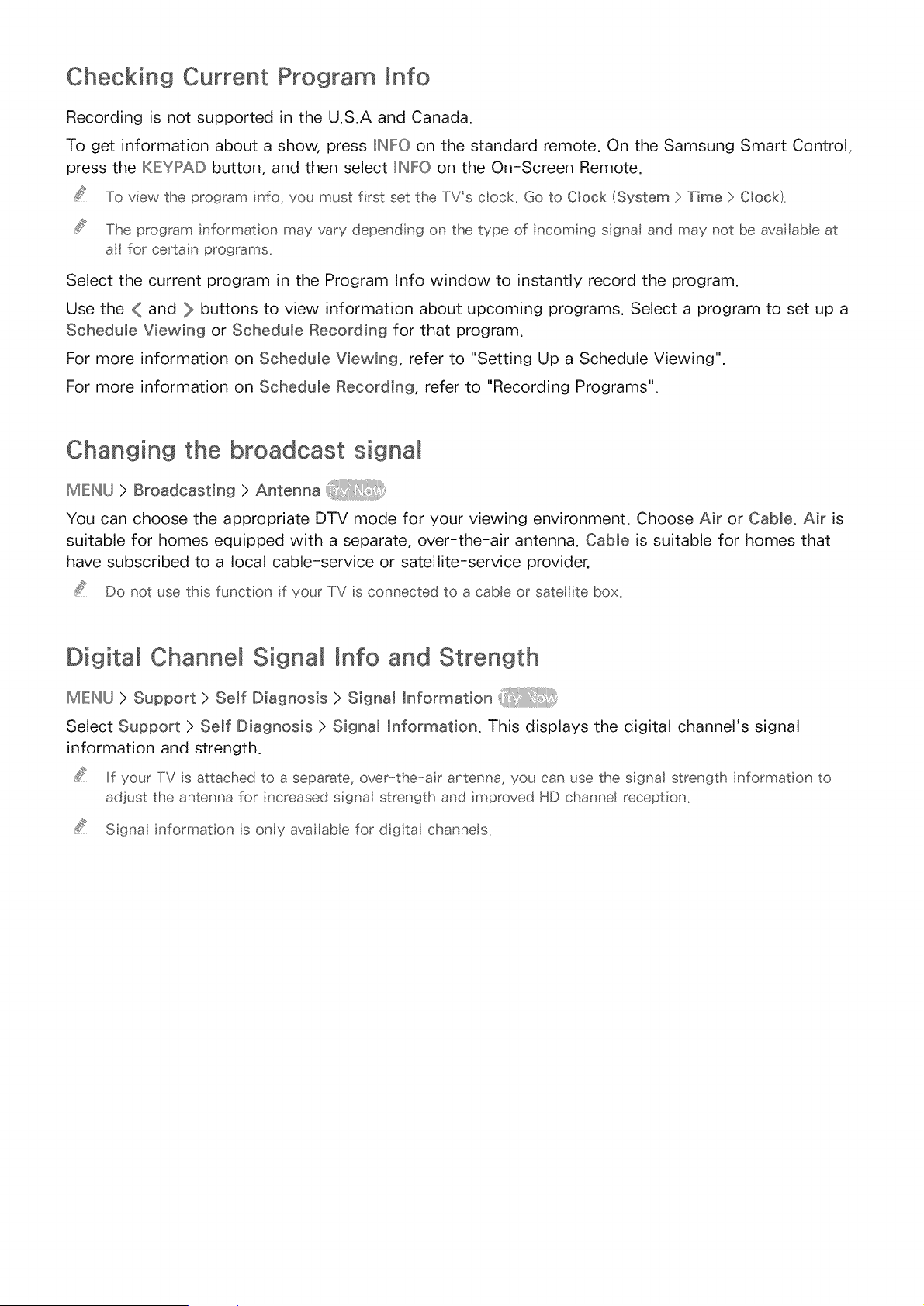

108 Checking Current Program Info
108 Changing the broadcast signal
108 Digital Channel Signal Info and Strength

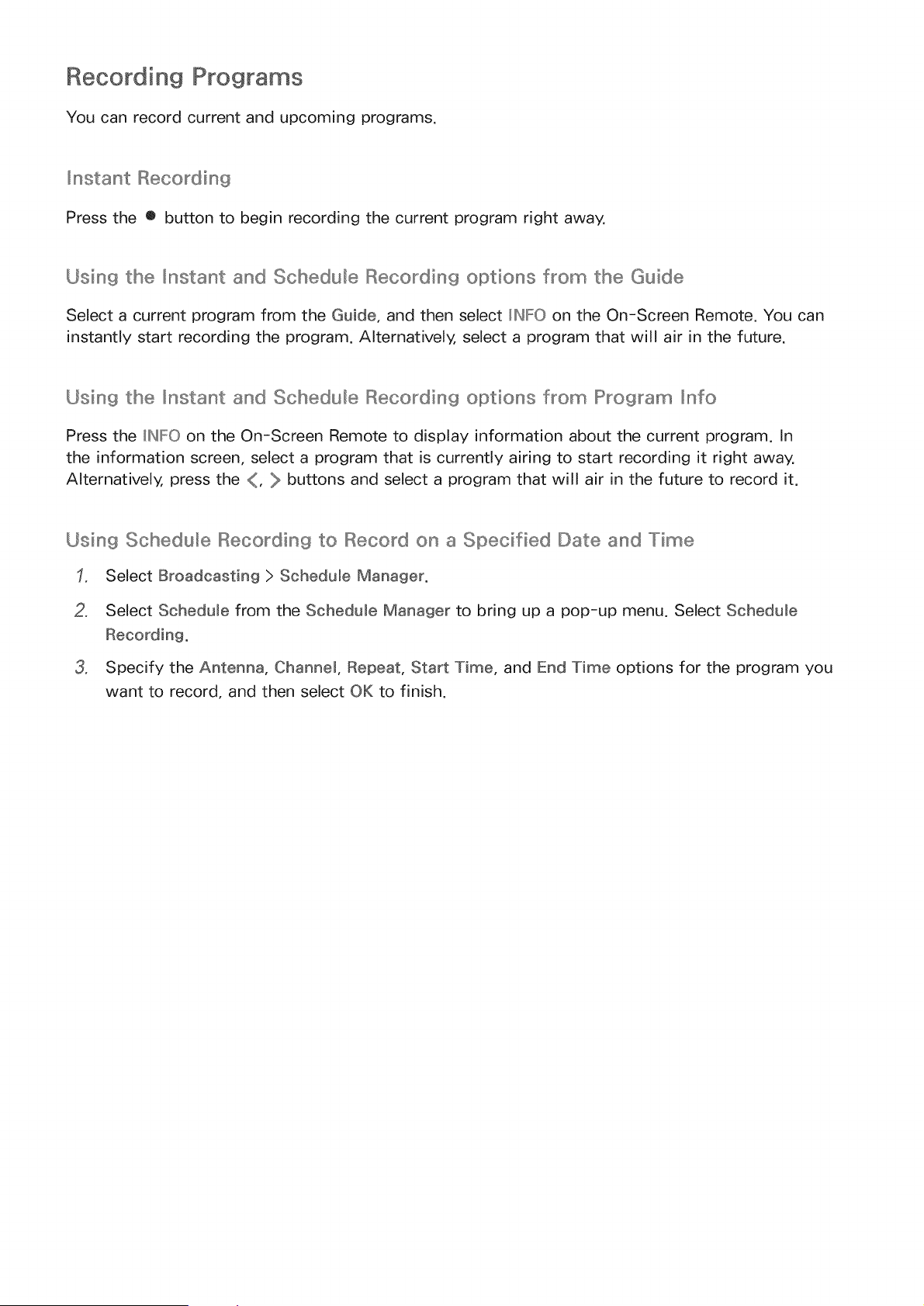

Recording Programs
109 Formatting a USB Recording Device
111 Recording Programs

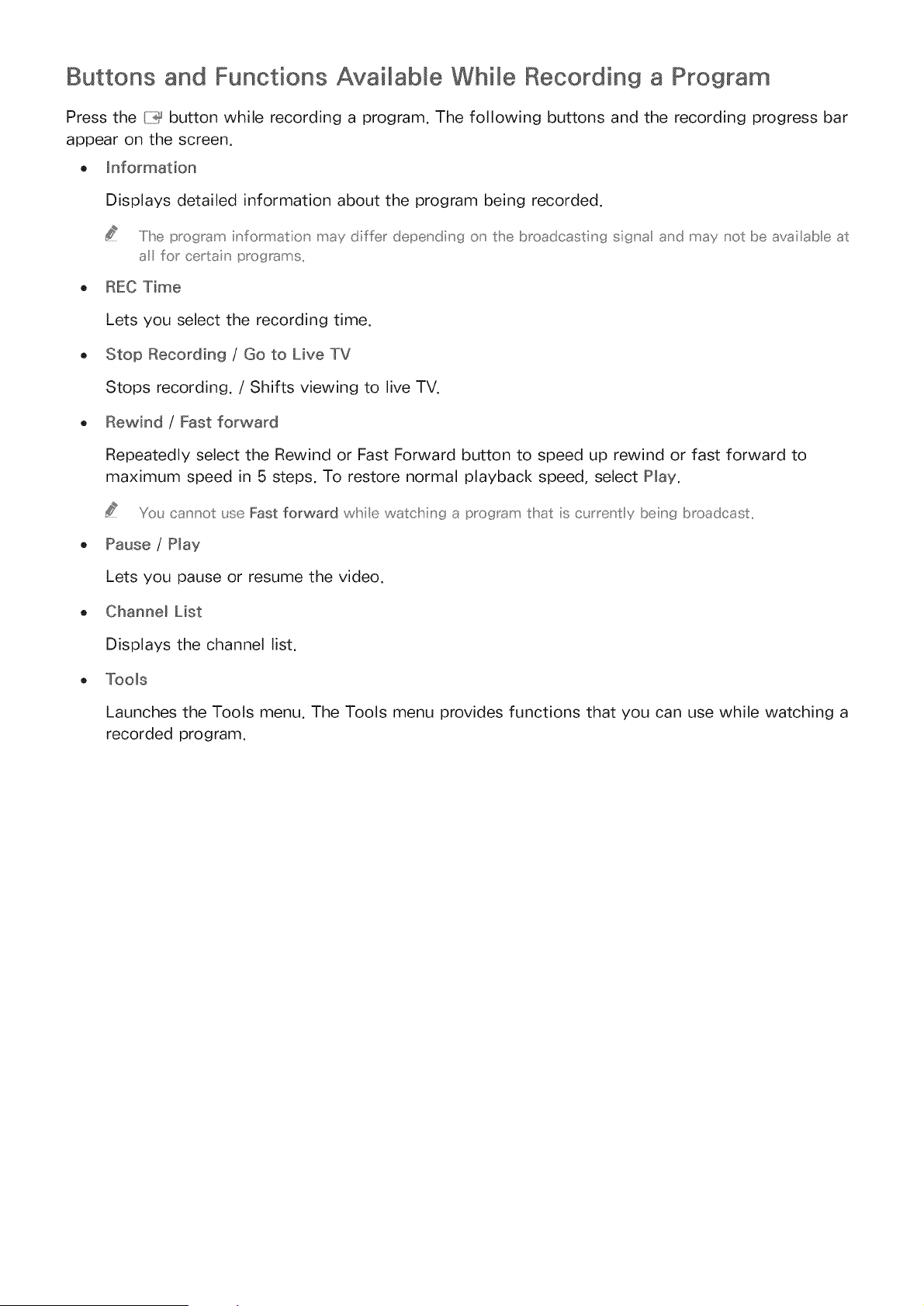

112 Buttons and Functions Available While Recording a
Program
113 Managing the Schedule Recording List

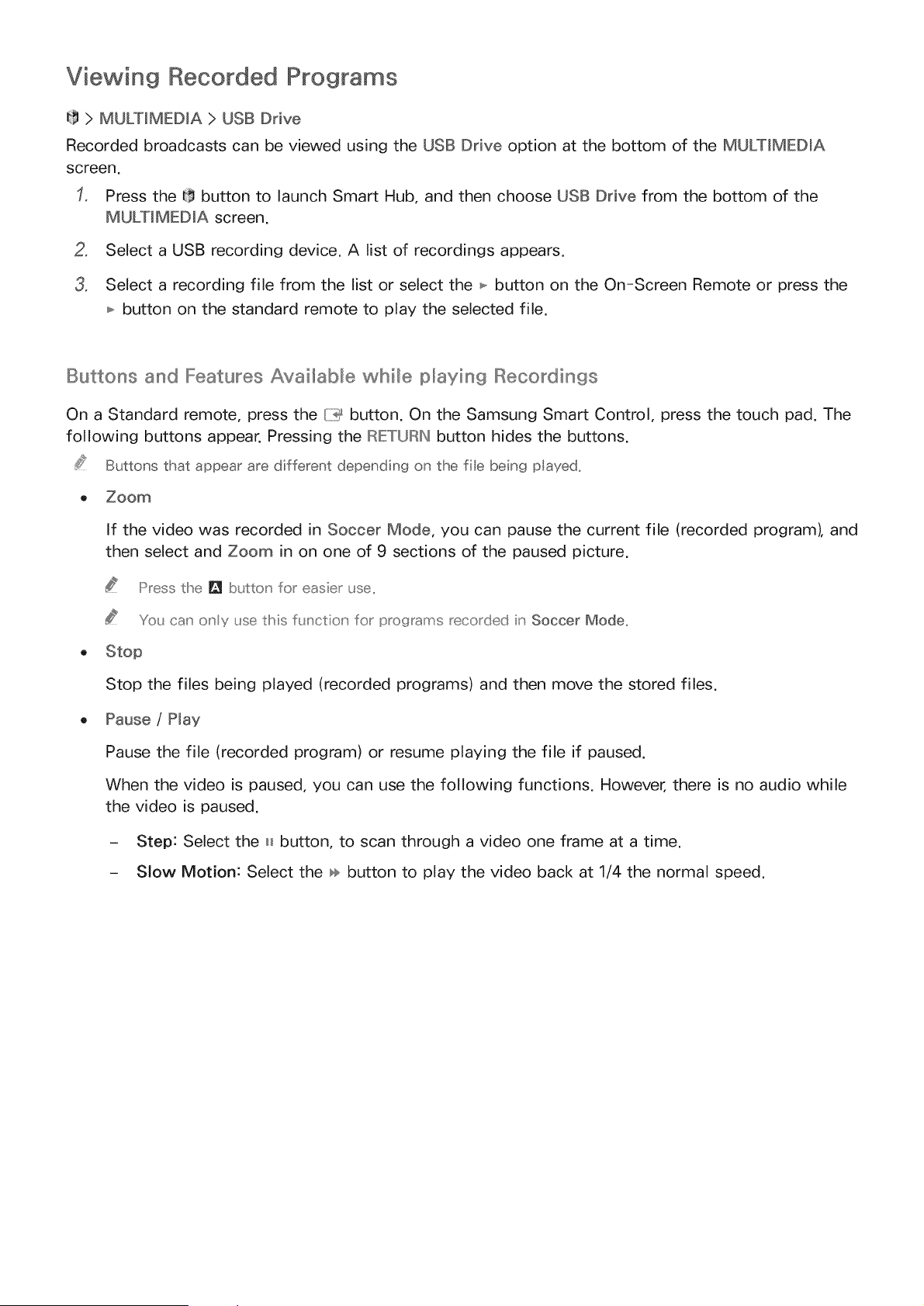

114 Viewing Recorded Programs
117 Managing Recorded Files
Setting Up a Schedule Viewing
118 Digital Channel Schedule Viewing

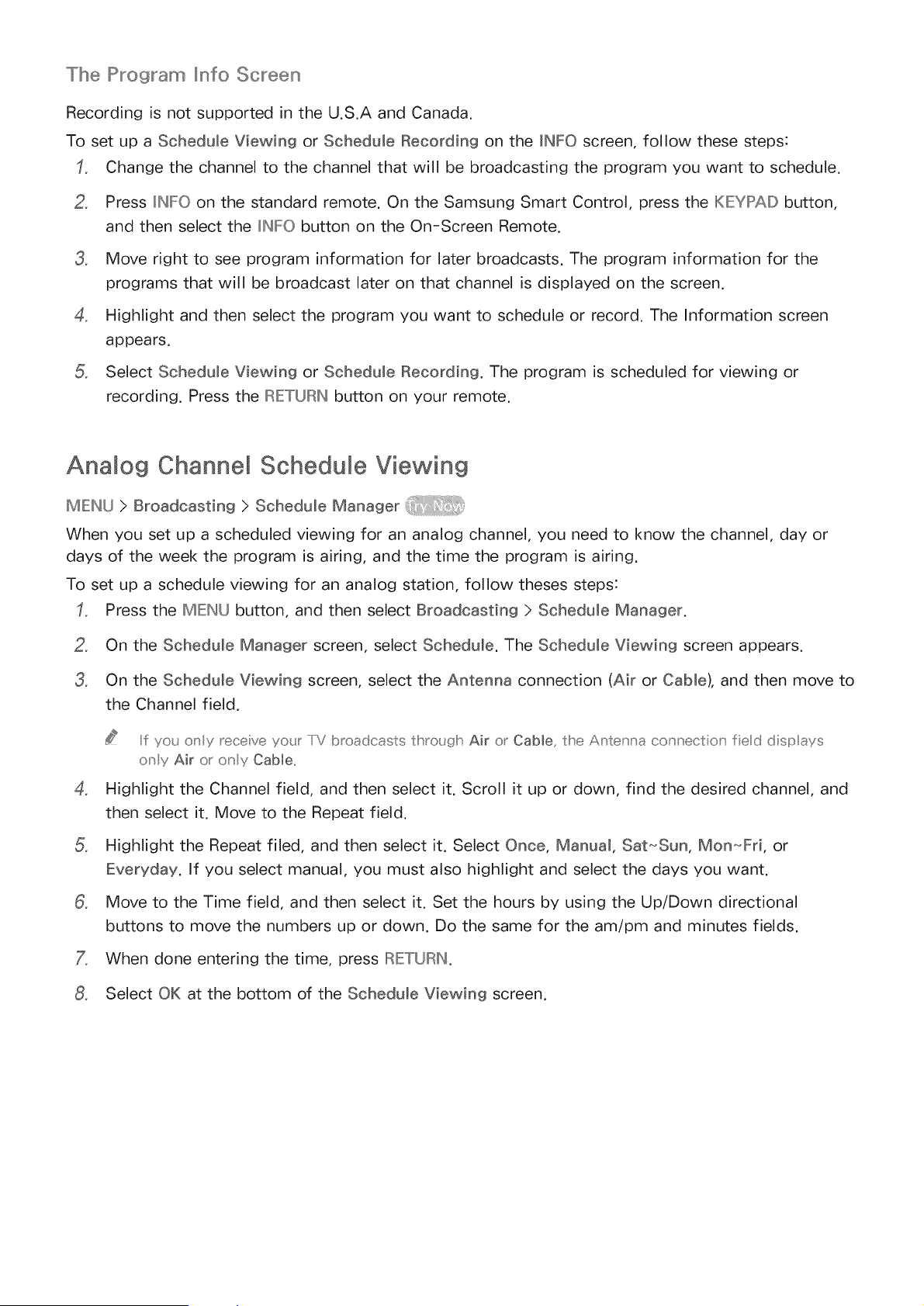

119 Analog Channel Schedule Viewing
120 Canceling a Schedule Viewing
120 Editing a Schedule Viewing
Using Timeshift

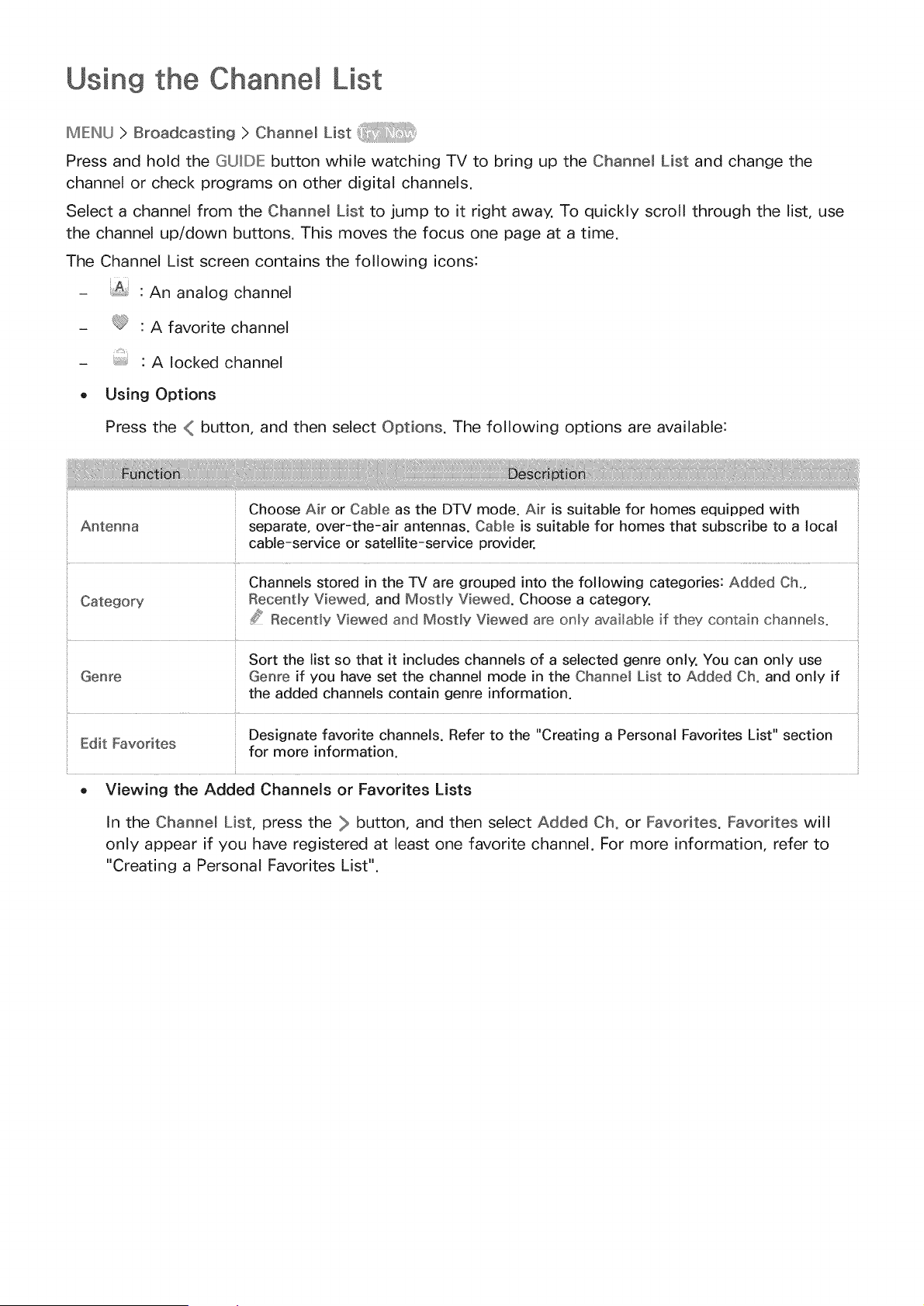

Using the Channel List
Registering, Removing, and Editing Channels
123 Registering and Removing Channels

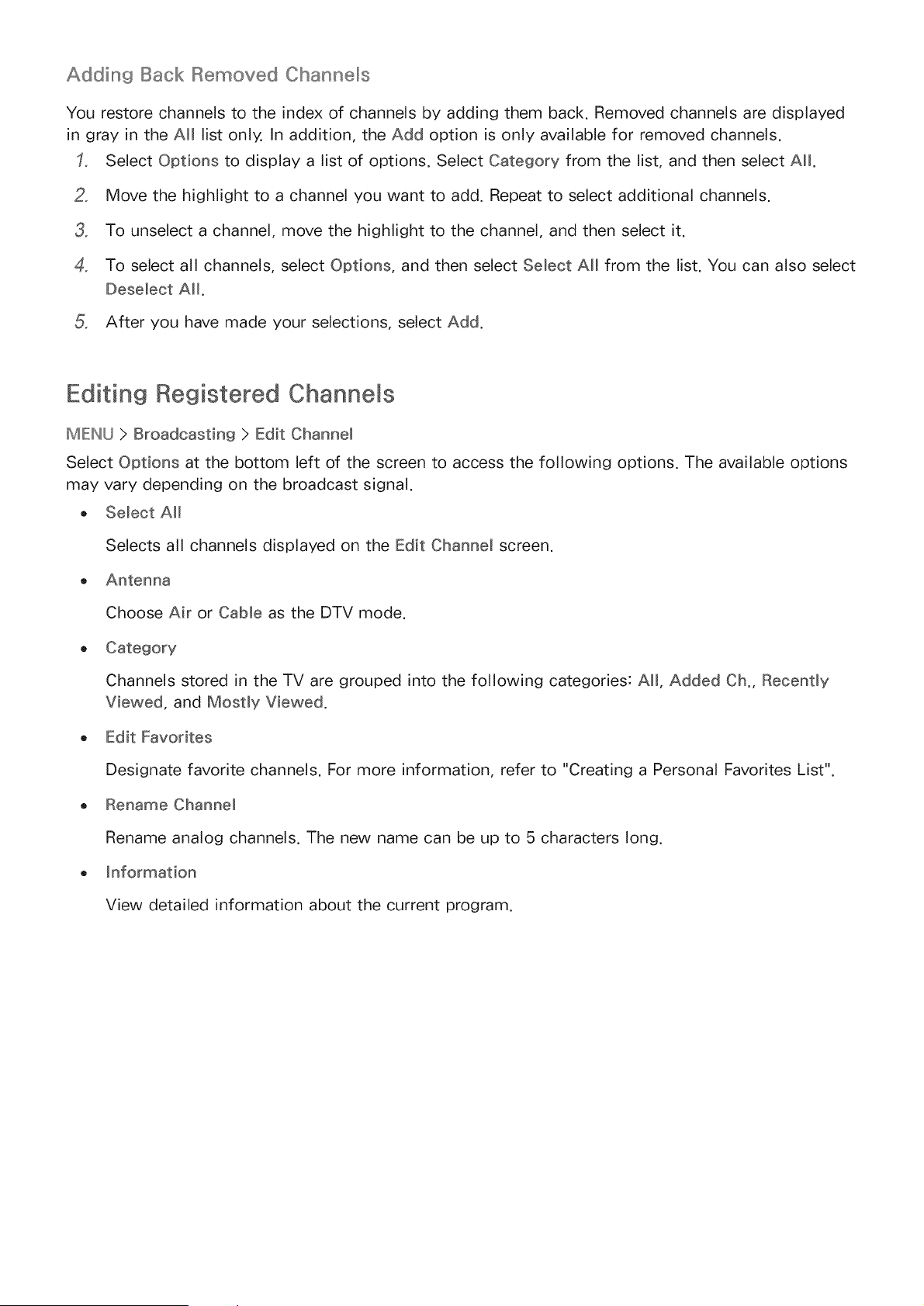

124 Editing Registered Channels

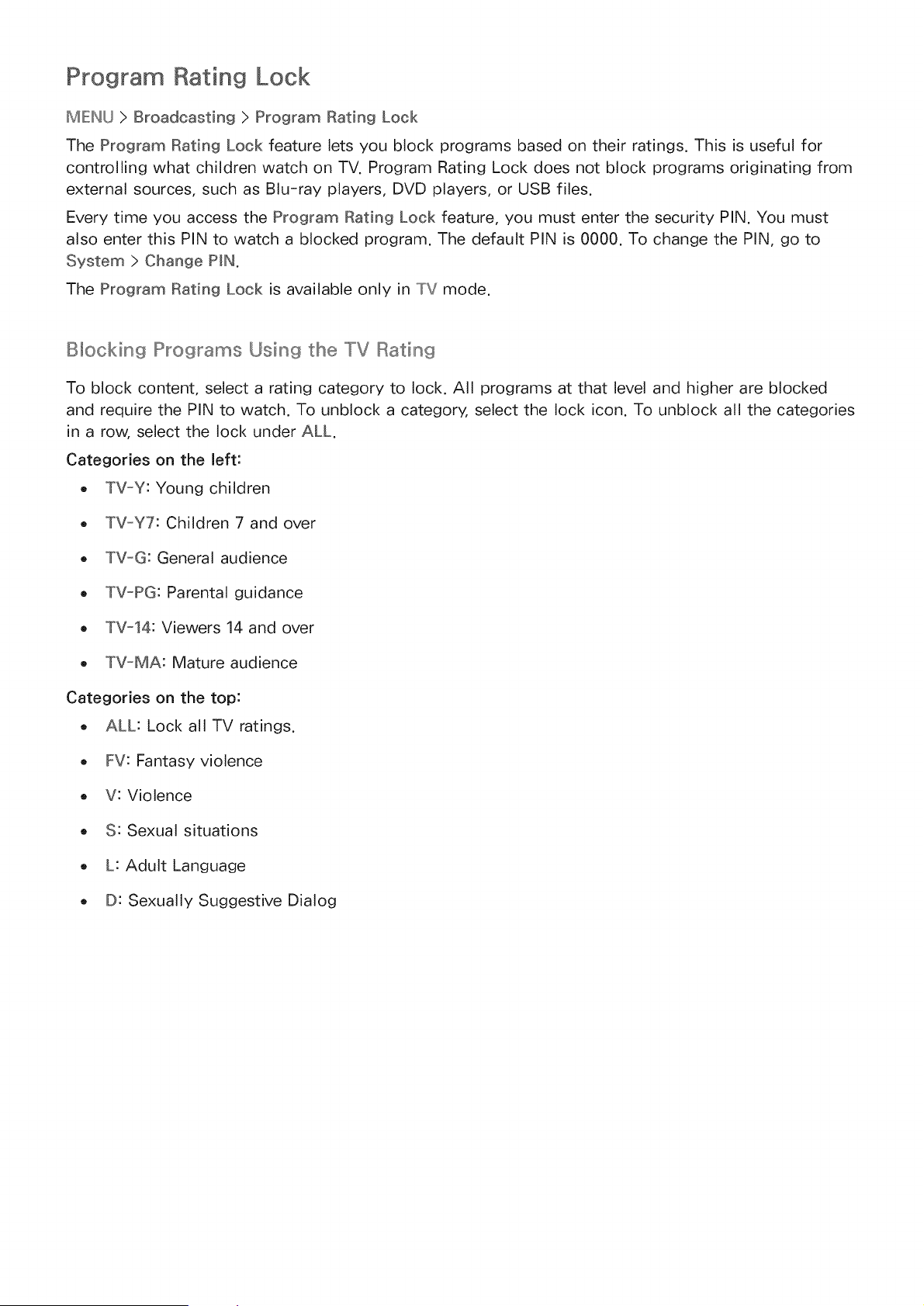

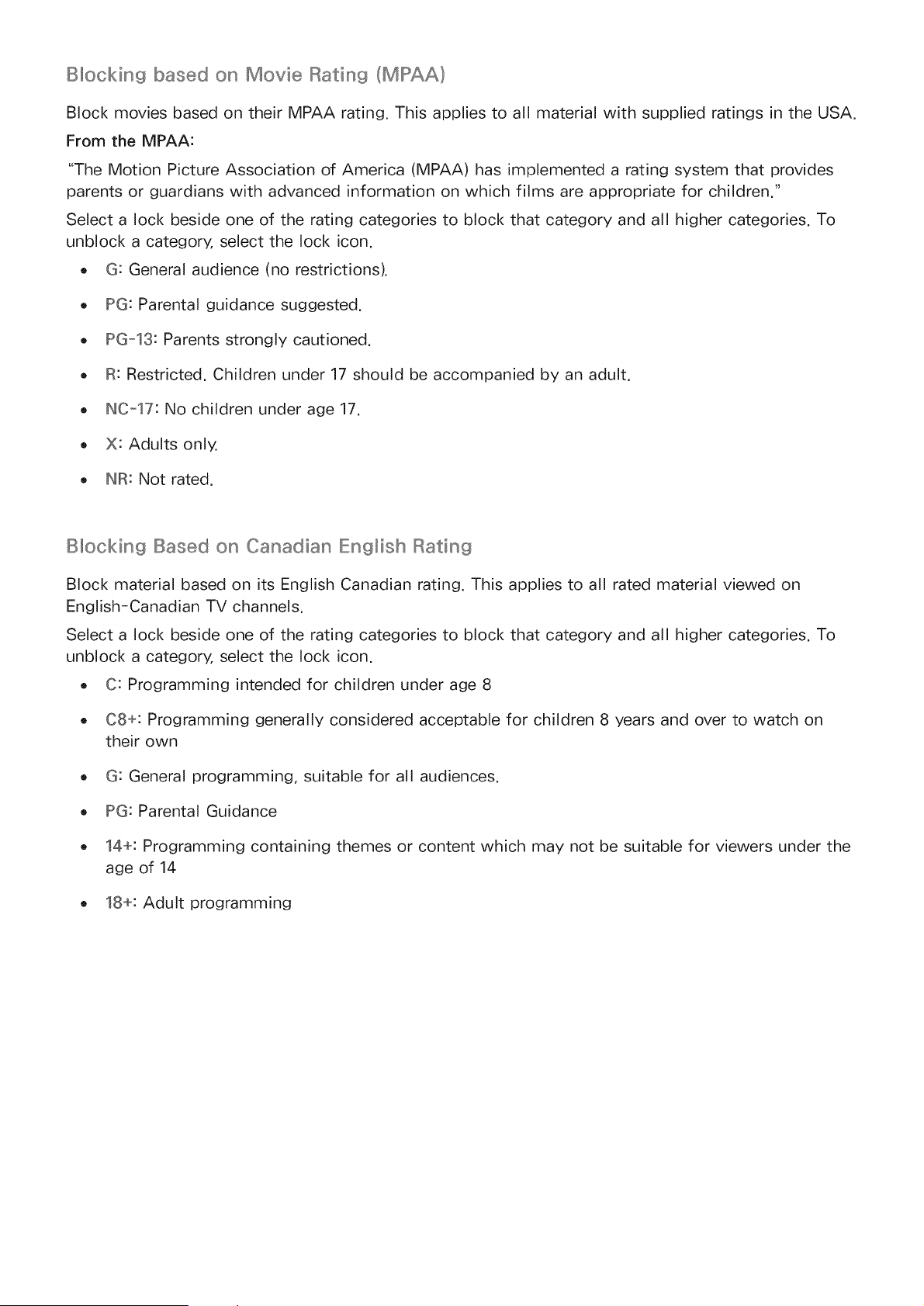

125 Program Rating Lock
Creating a Personal Favorites List
128 Registering Channels as a Favorites
129 Selecting from Favorite List Channels Only
Editing a Favorites List
130 Edit Favorites Screen Menu Items

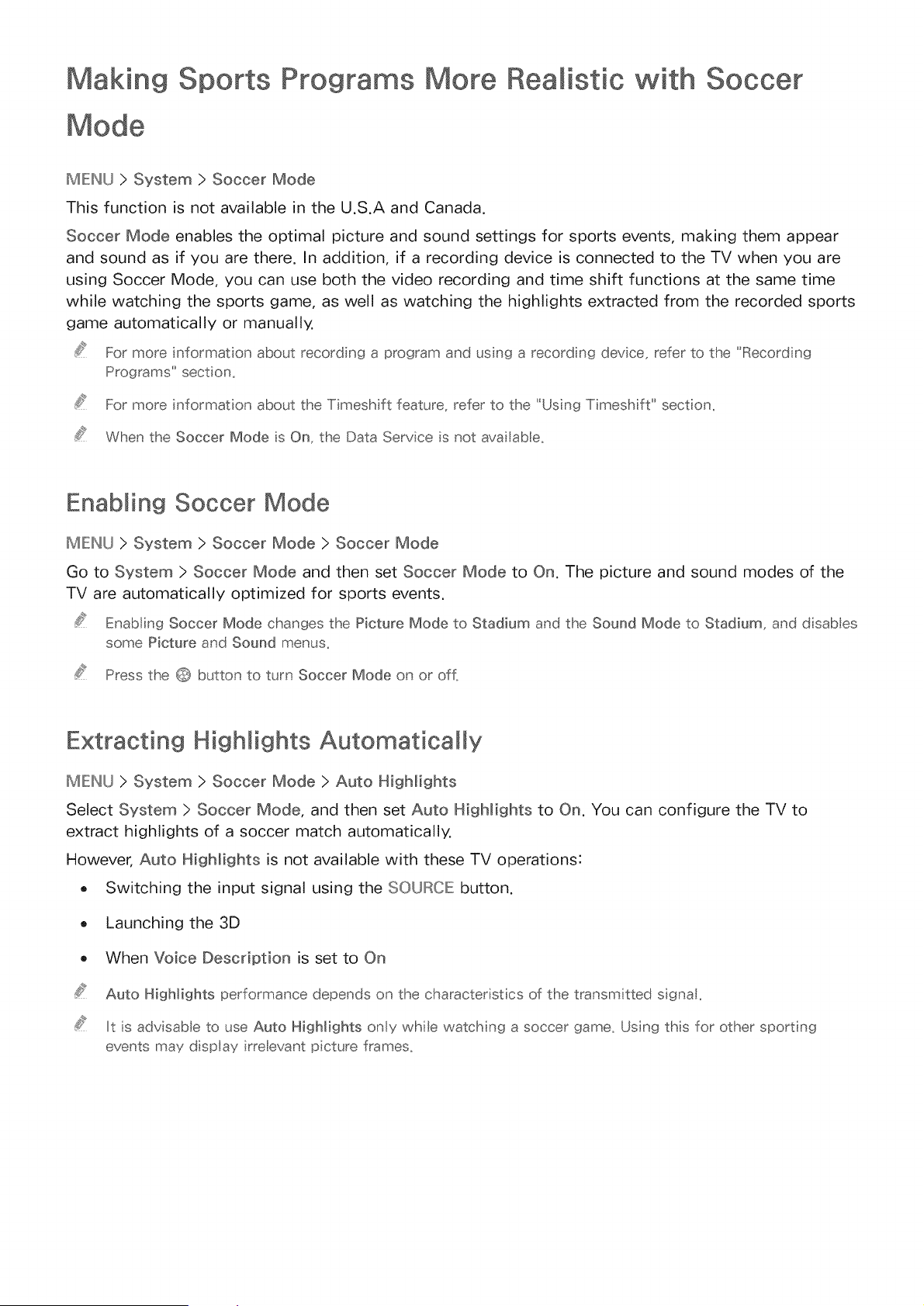

Making Sports Programs More Realistic with Soccer
Mode
133 Enabling Soccer Mode
133 Extracting Highlights Automatically
134 Functions Available While Watching Sports in Soccer
Mode

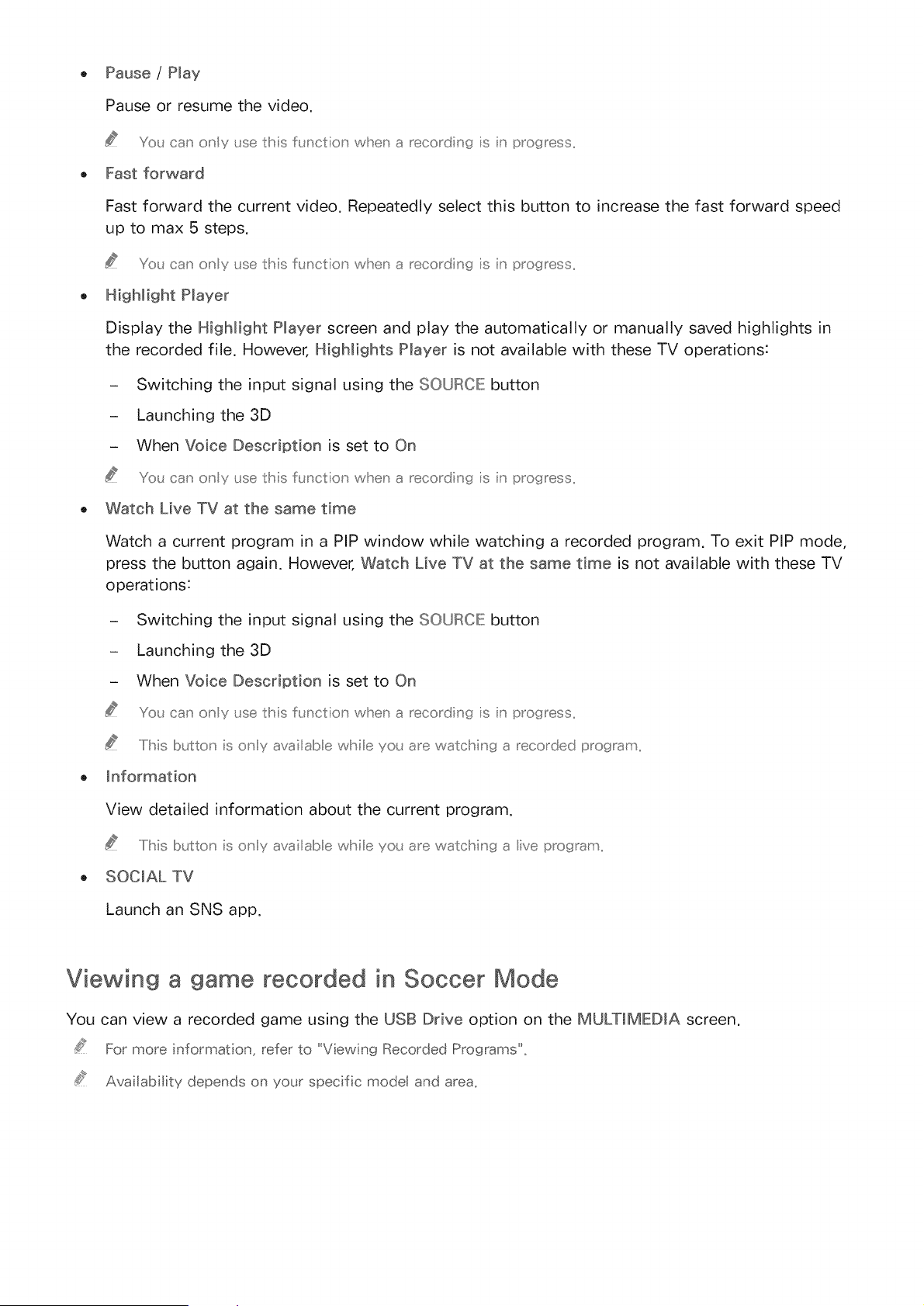

135 Viewing a game recorded in Soccer Mode
TV-Viewing Support Features
136 Showing Captions

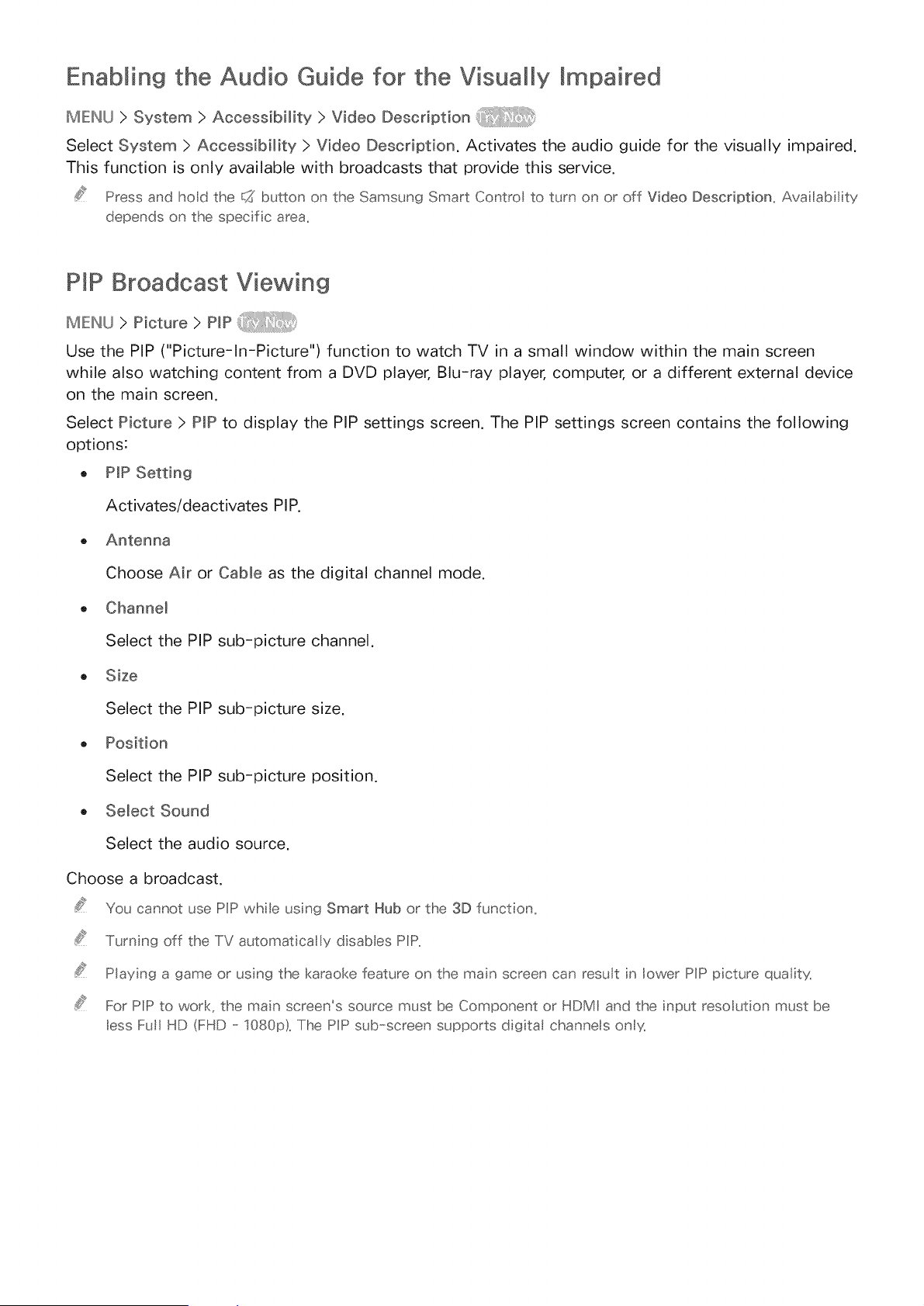

138 Enabling the Audio Guide for the Visually Impaired
138 PIP Broadcast Viewing
139 Scanning for Available Channels
139 Selecting the Broadcast Audio Language
140 Fine-Tuning the Screen
140 Remove Scrambled Channels
Picture and Sound Settings

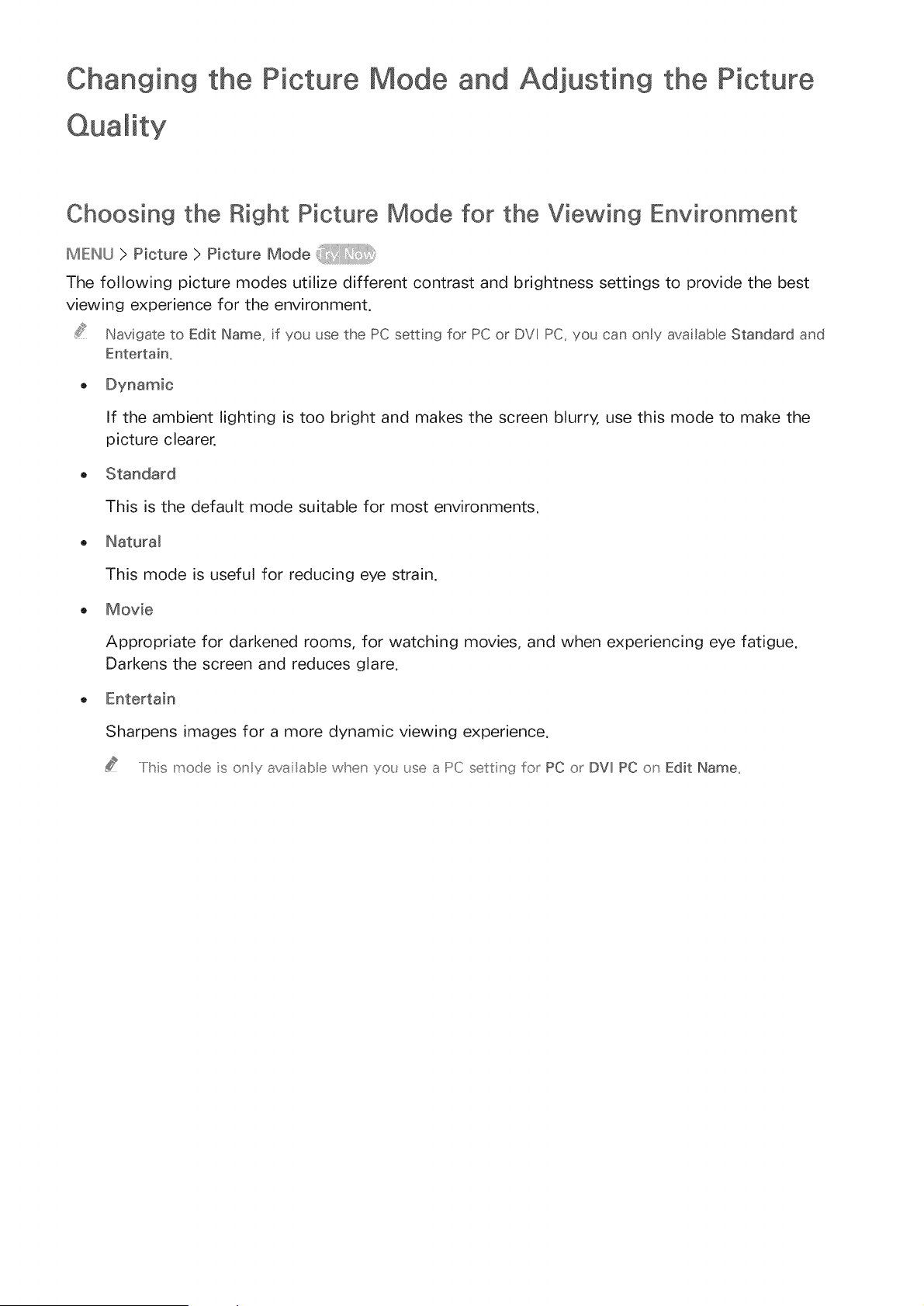

Changing the Picture Mode and Adjusting the Picture
Quality
141 Choosing the Right Picture Mode for the Viewing
Environment
142 Adjusting the Picture Quality for Each Picture Mode
143 Fine-Tuning Each Picture Mode (Advanced Settings)
145 Adjusting the Picture for Easier Viewing (Picture Options)
Viewing in 3D
147 Starting 3D
148 Changing the 3D Mode
149 Adjusting the 3D Effect

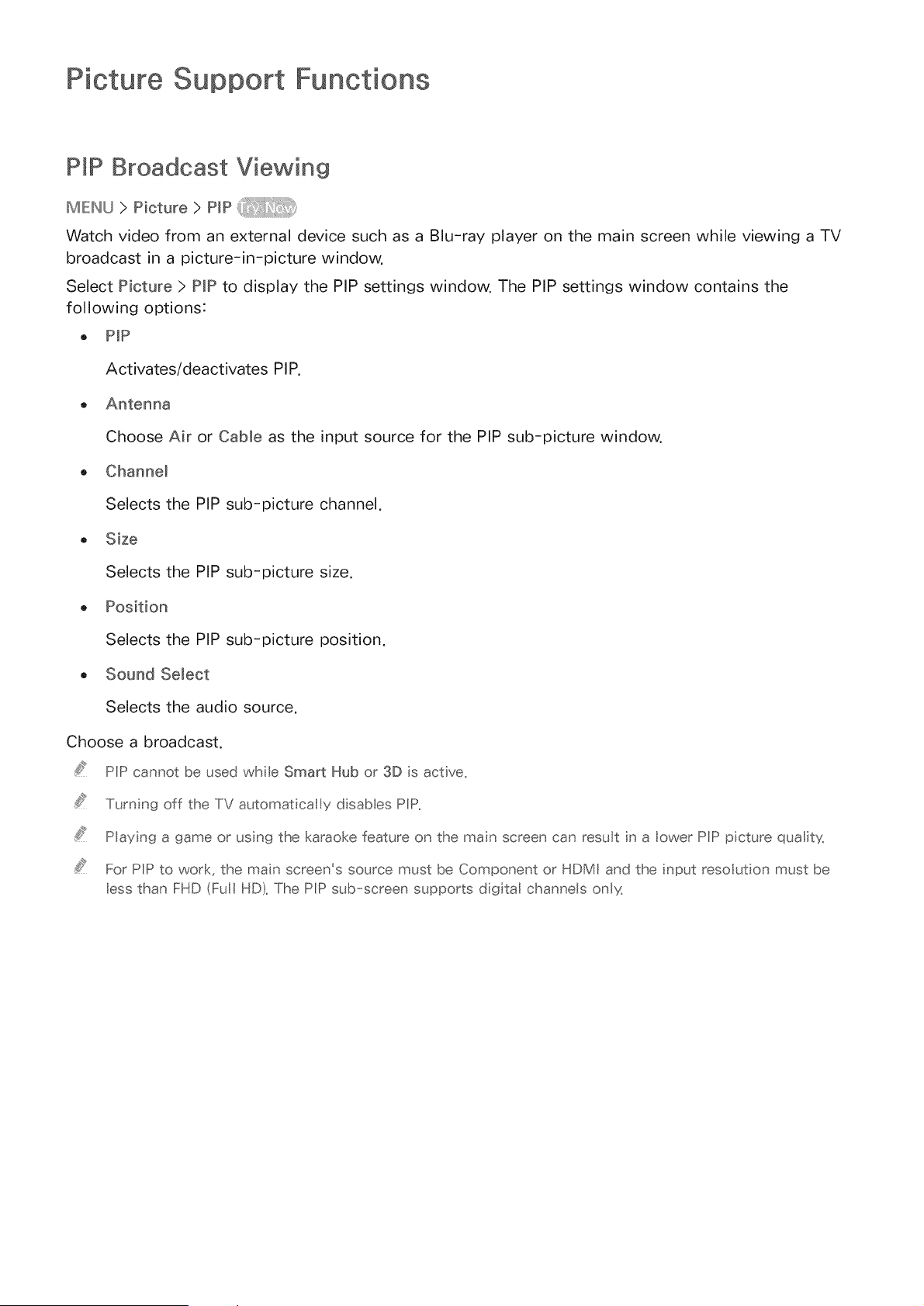

Picture Support Functions
150 PIP Broadcast Viewing
151 Changing the Picture Size and Position
152 Listening to Audio Only with the Screen Turned Off
(Picture Off)
152 Resetting the Picture Mode Settings
ChangingtheSoundModeandUsingSoundEffects
153ChoosingtheRightSoundModefortheEnvironment
153UsingSoundEffects
Sound Support Functions
154 Selecting Speakers
155 Designating the TV's Installation Type
155 Listening to TV Sound through Samsung Bluetooth Audio
156 Enabling Digital Audio Output
156 Listening to 3D Audio in 3D Mode
156 Resetting All Sound Settings
General
Setting the Time and Using the Timer
157 Setting the Current Time

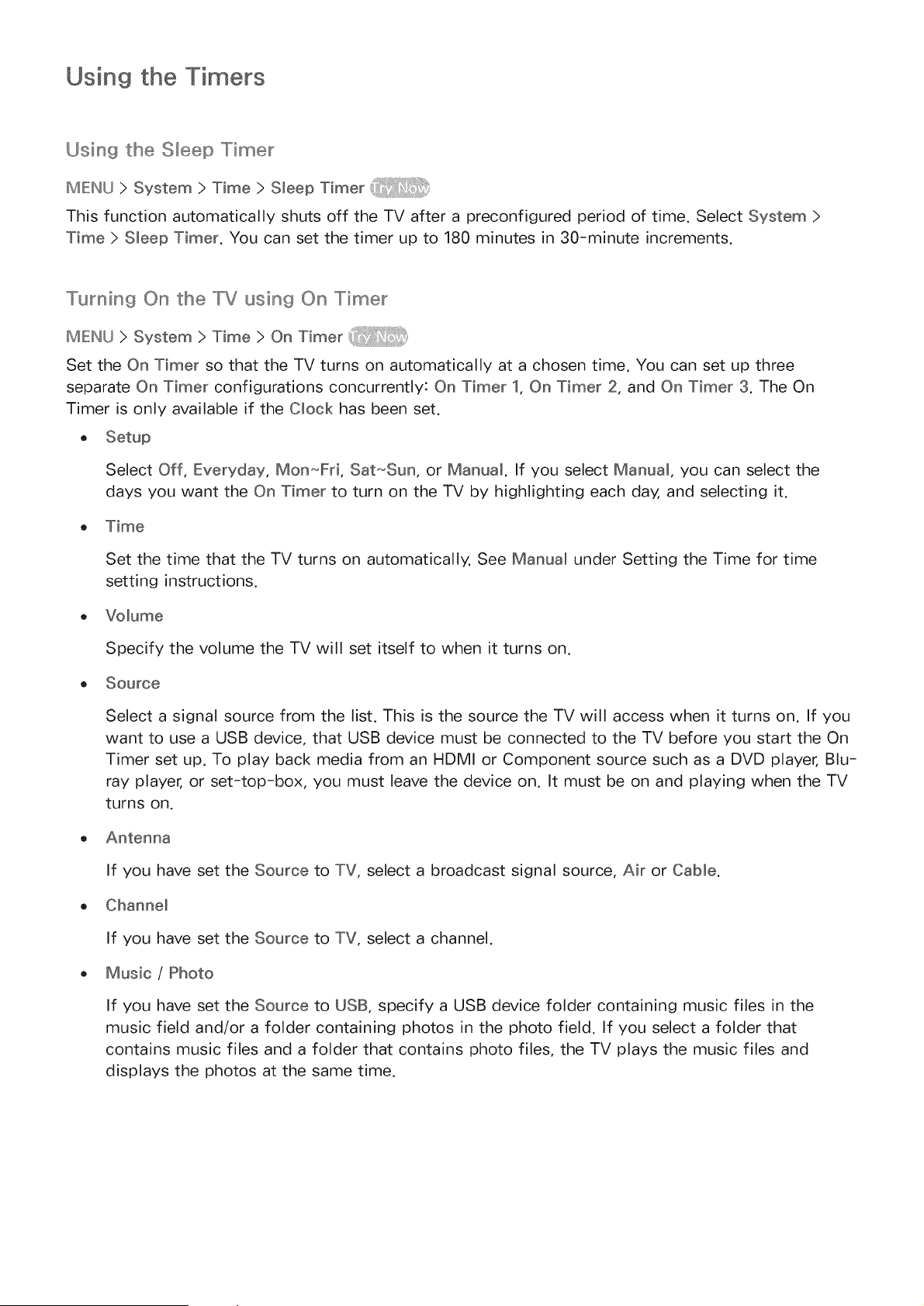

159 Using the Timers

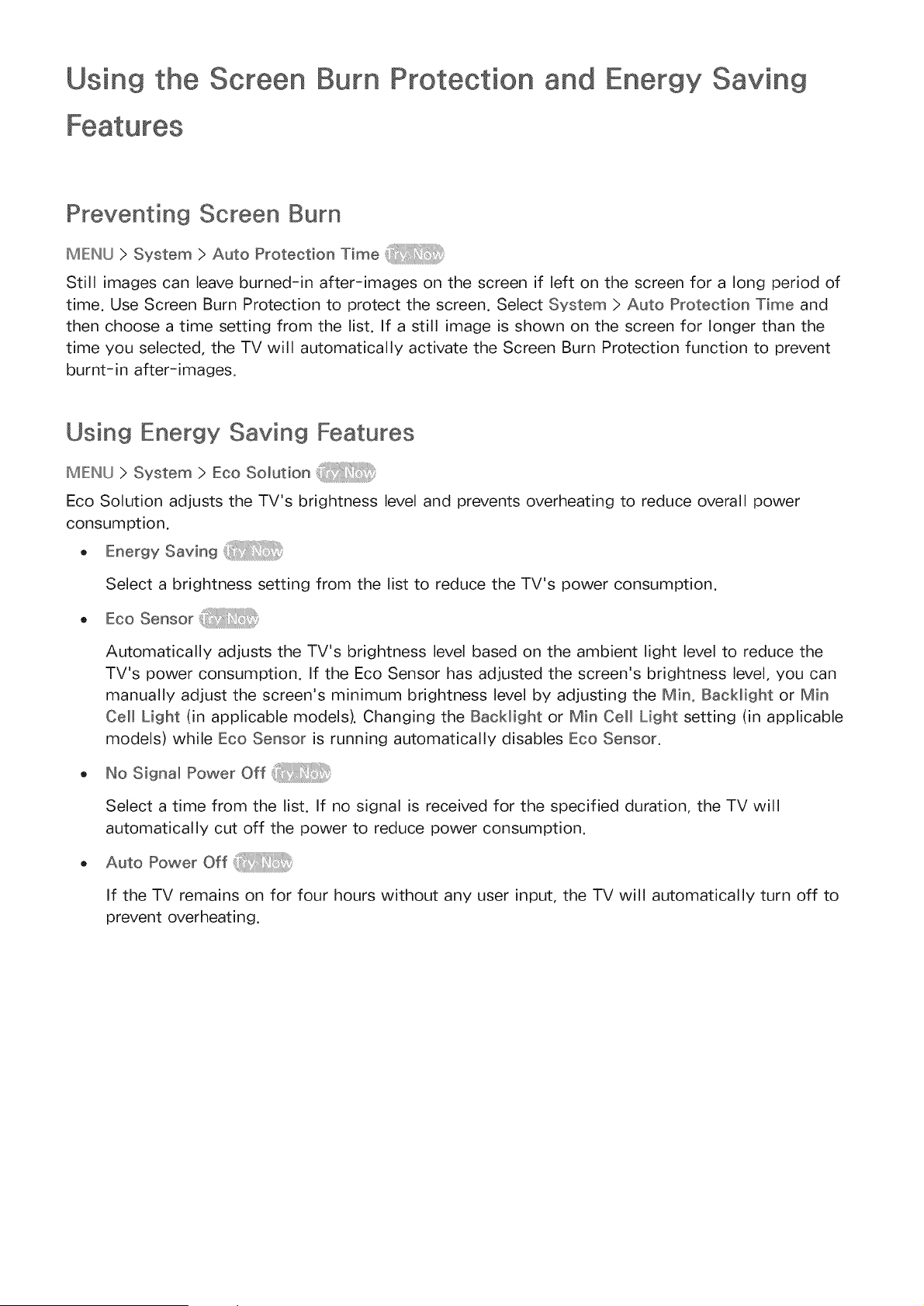

Using the Screen Burn Protection and Energy Saving
Features
161 Preventing Screen Burn
161 Using Energy Saving Features
Using Anynet+ (HDMI-CEC)
162 Setting Up Anynet+ (HDMI-CEC)
163 Using Anynet+ (HDMI-CEC)
Using the e-Manual
164 Launching the e-Manual
164 Additional e-Manual Features

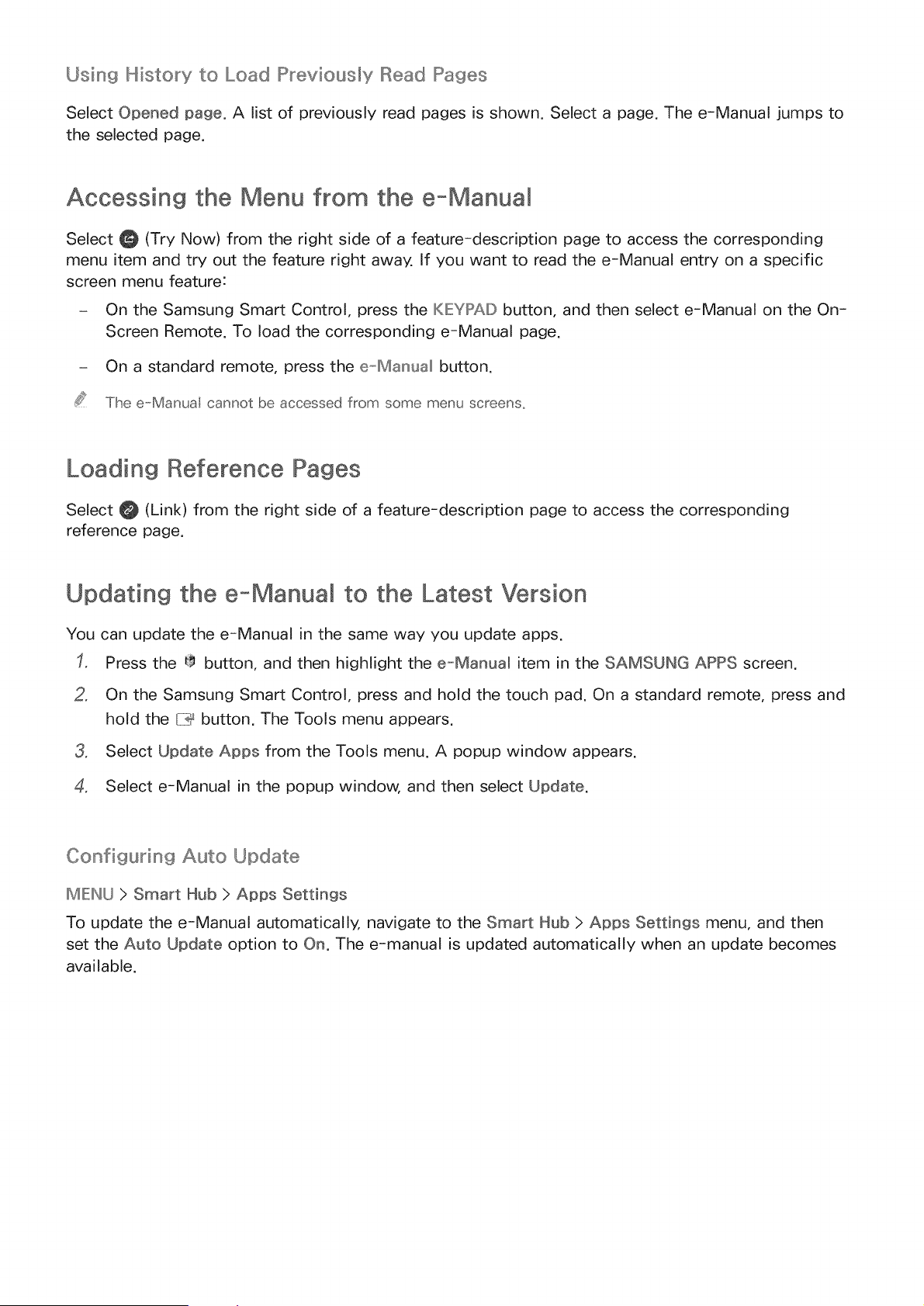

165 Accessing the Menu from the e-Manual
165 Loading Reference Pages
165 Updating the e-Manual to the Latest Version
Updating the TV's Software
166 Update now
166 Online

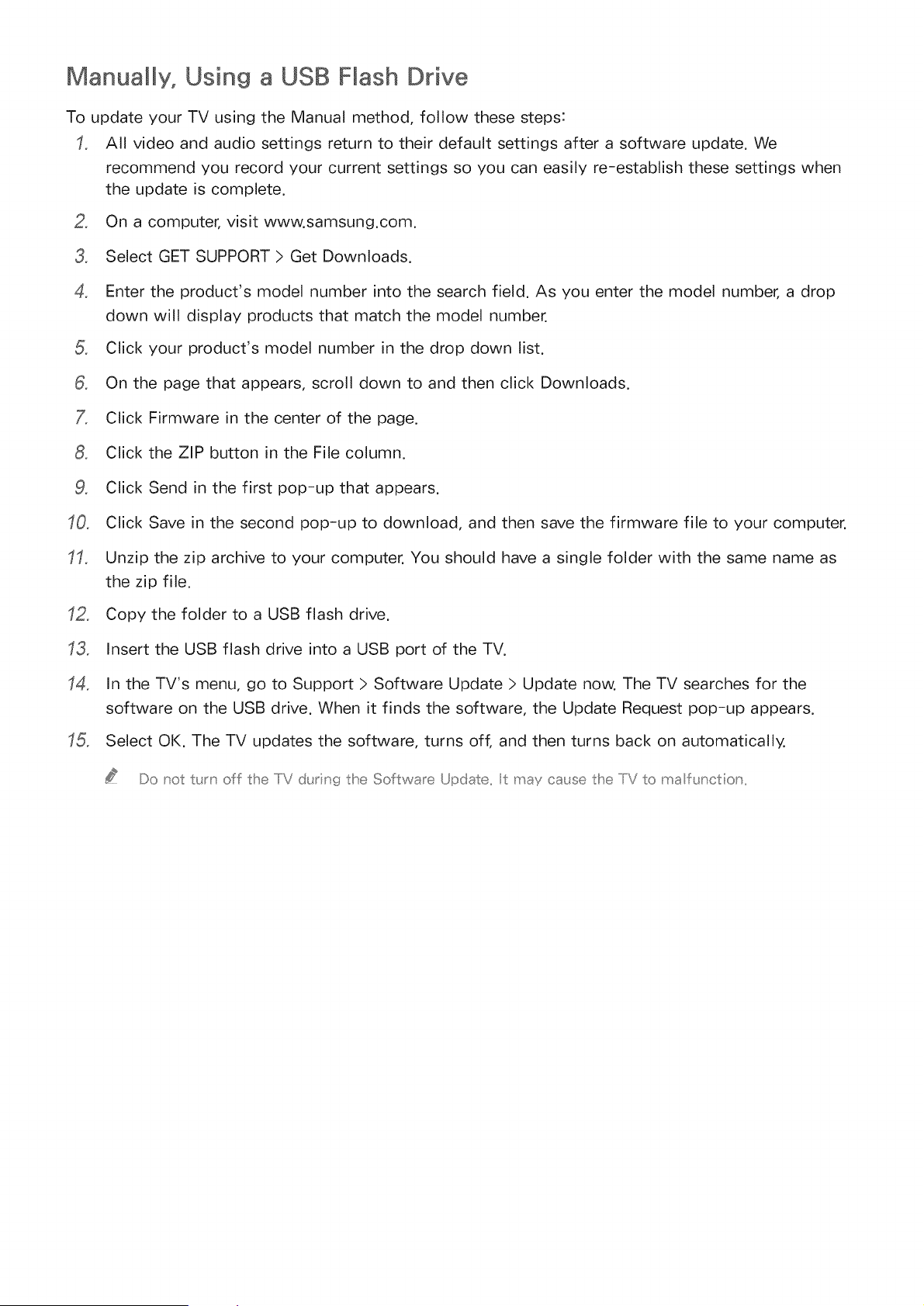

167 Manually, Using a USB Flash Drive
168 Enabling Automatic Software Updates
Protecting the TV from Hacking and malicious code
168 Checking the TV and Connected Storage Media
169 Automatically Scanning when the TV is Powered On
169 Automatically Adding malicious code to the Blocked List
Using Other Functions
170 Setting Up a Password
170 Changing the Menu Language
170 Checking Notifications

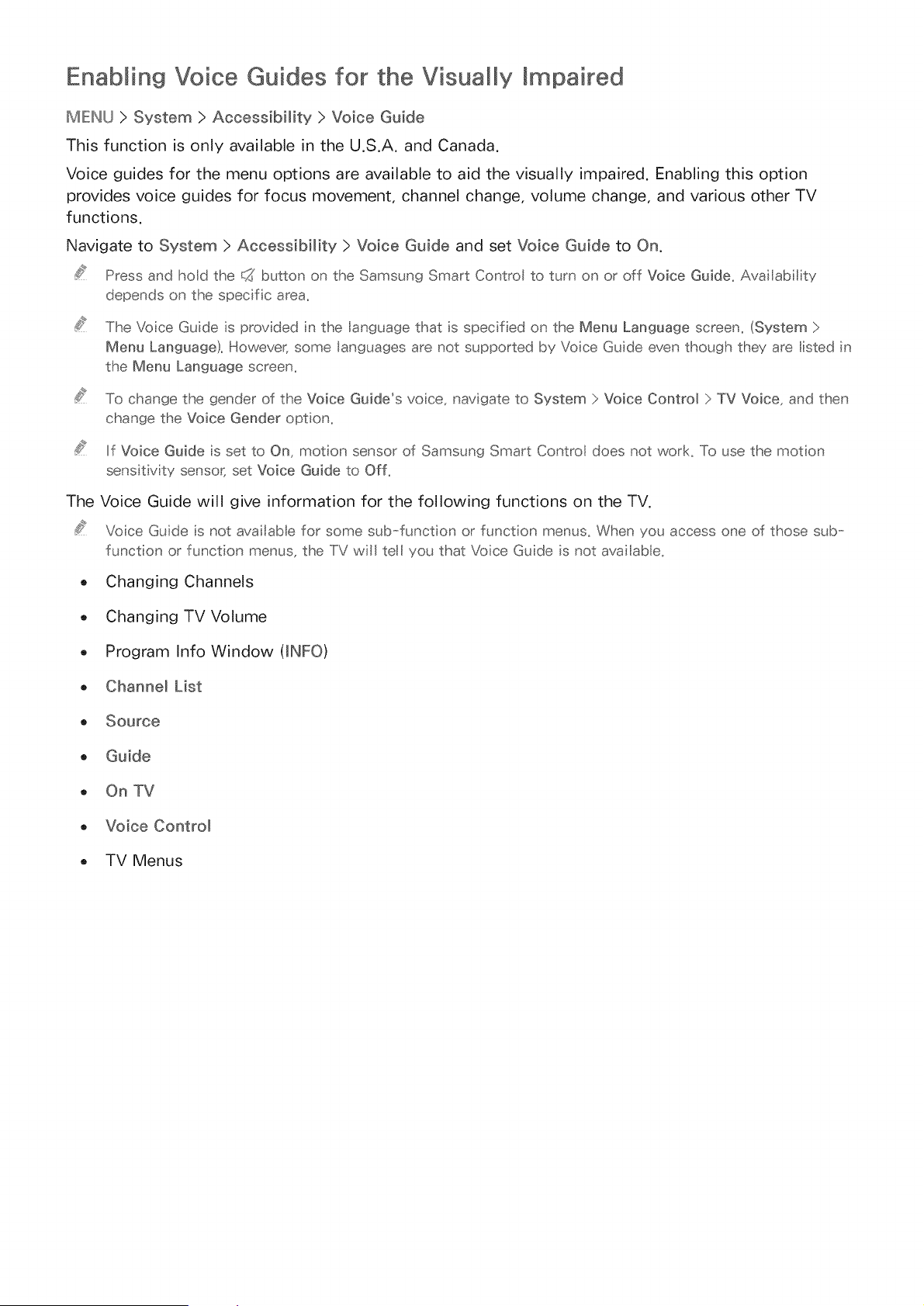

171 Enabling Voice Guides for the Visually Impaired
172 Adjusting the Menu Transparency
172 White Text on Black Background (High Contrast)
173 Expanding the Smart Hub's Focus Area
173 Enabling/Disabling Sound Feedback
173 Locking/Unlocking the Panel Keys
173 Showing/Hiding the Samsung Logo while Booting
173 Enabling the TV to Boot Faster
173 Enabling/Disabling the Front Indicators

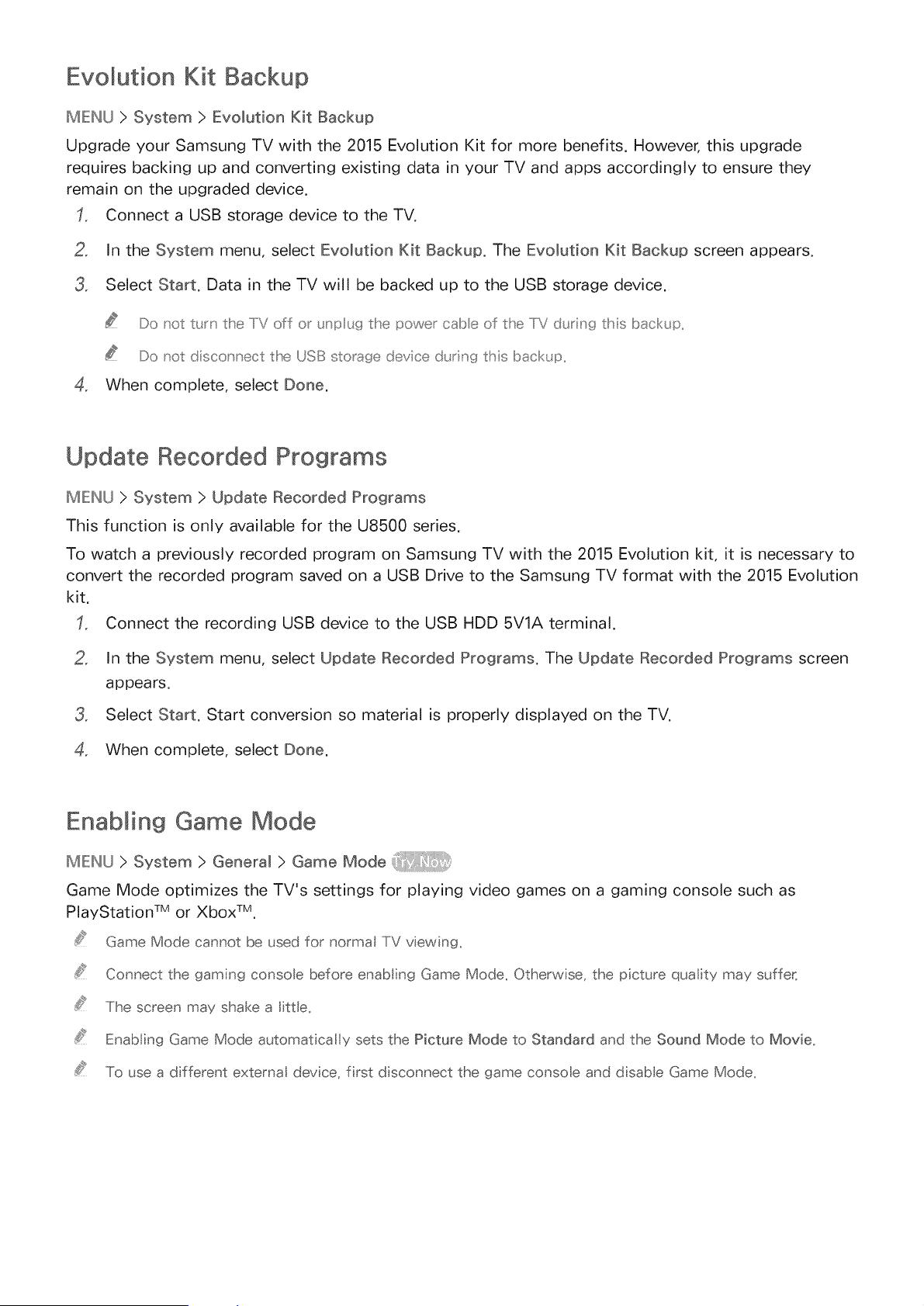

174 Evolution Kit Backup
174 Update Recorded Programs
174 Enabling Game Mode
175 Enjoying Rich Colors and Superior Picture Quality (BD
Wise)
175 Registering the TV as a DivX-Certified Device (Watching
For Pay DivX Movies)
176 Restoring the TV to the Factory Settings
176 Using the TV as a Display Model (exclusively for retail
stores)
Troubleshooting Appendix

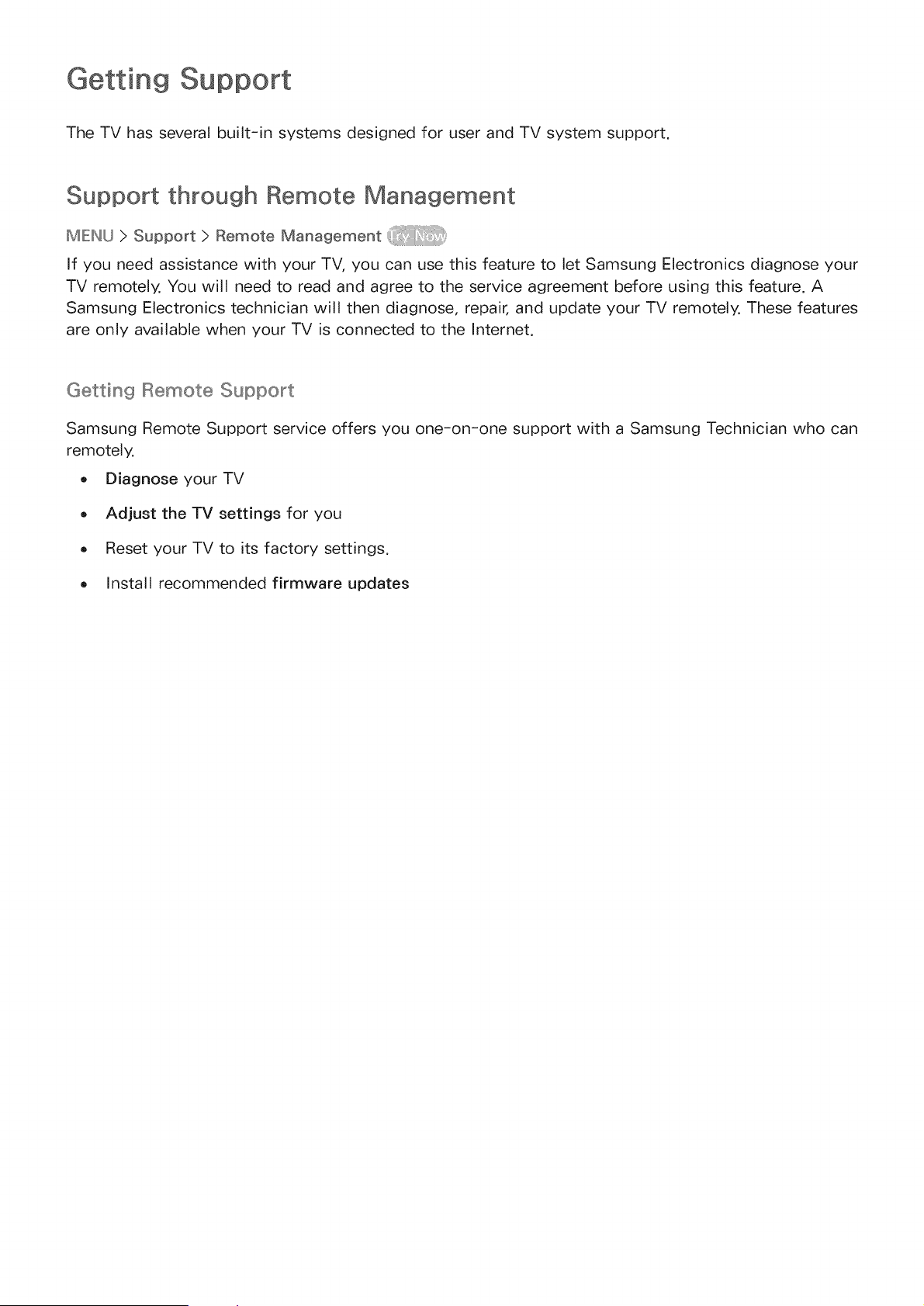

Getting Support

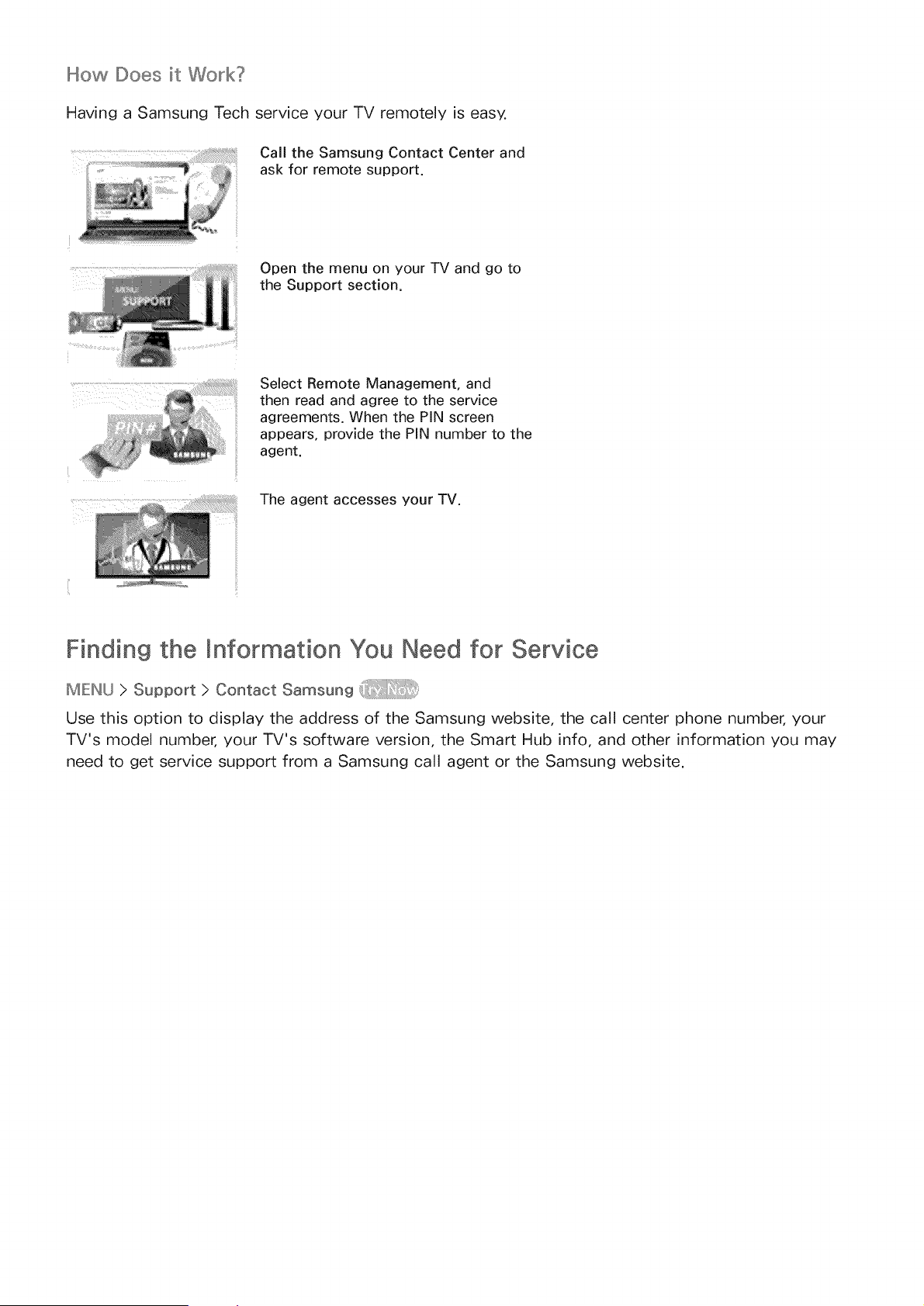

177 Support through Remote Management
178 Finding the Information You Need for Service

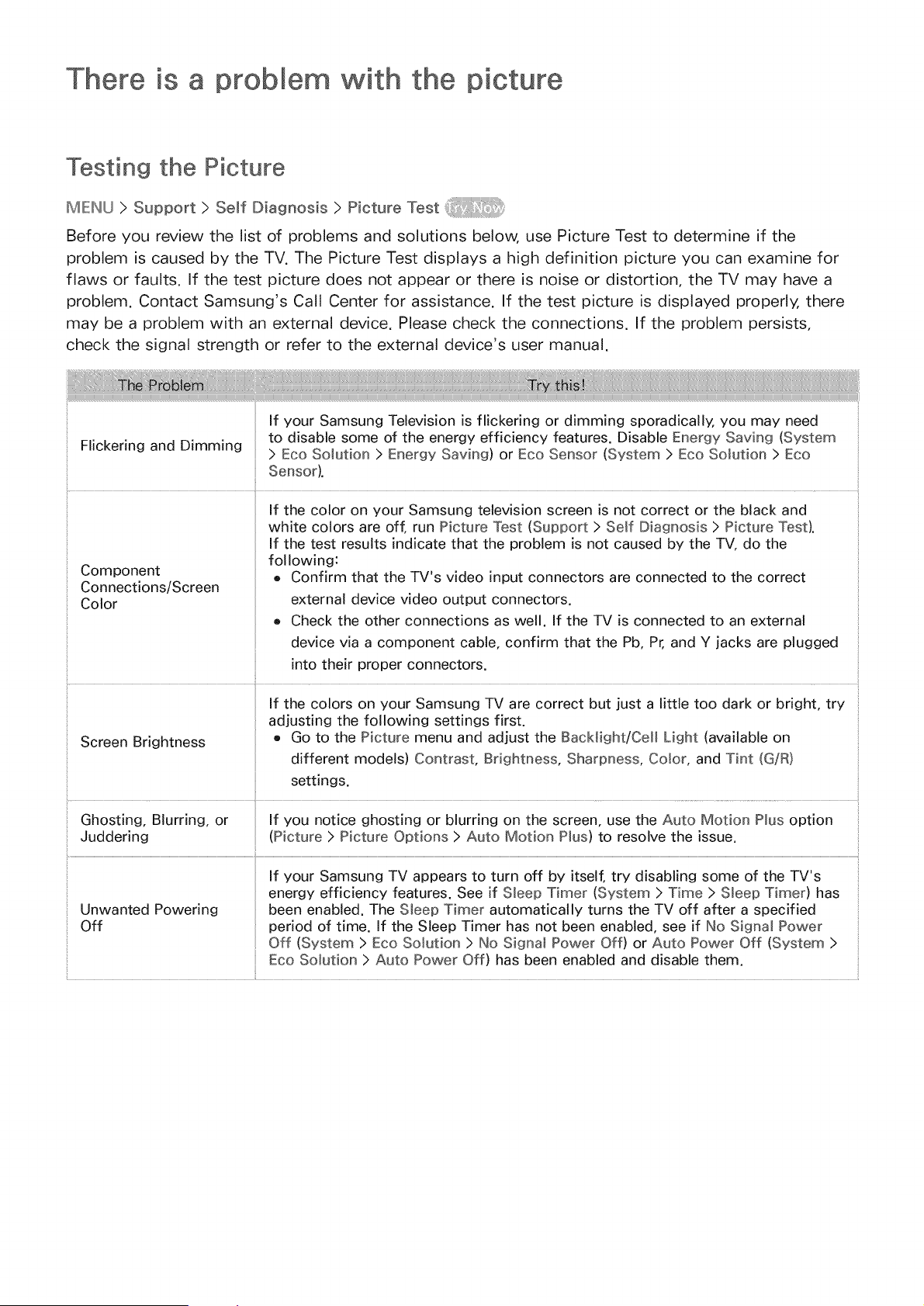

There is a problem with the picture
179 Testing the Picture
I can't hear the sound clearly
181 Testing the Sound
I can't see 3D images clearly.
182 Testing 3D Picture Quality
There is a problem with the broadcast.
My computer won't connect.
I can't connect to the Internet.
The Schedule Recording/Timeshift function isn't
working.
Anynet+ (HDMI-CEC) isn't working.
I am having trouble launching/using apps.
My file won't play.
I want to reset the TV.
Other Issues

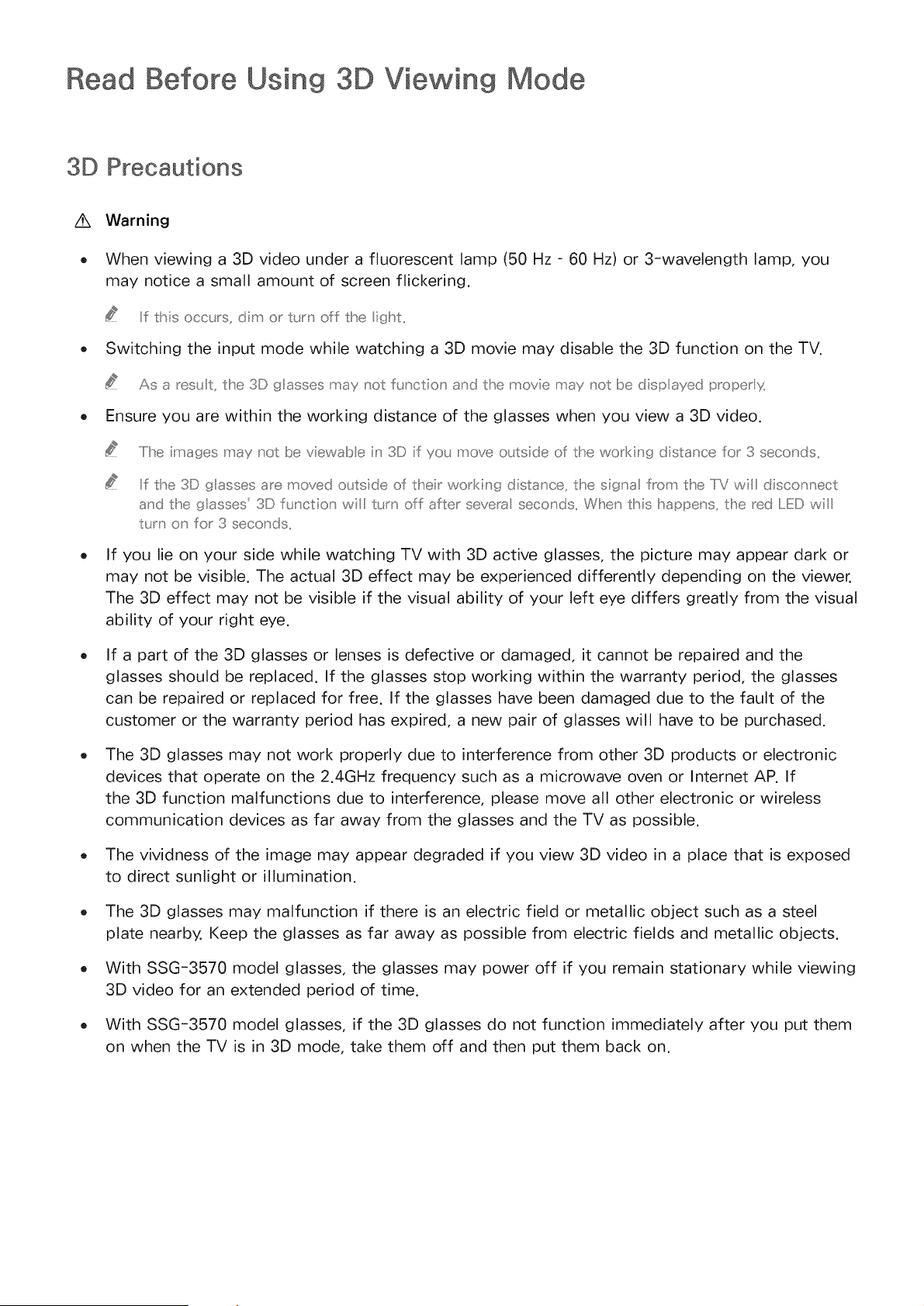

Read Before Using 3D Viewing Mode
189 3D Precautions
S-Recommendation Disclaimer
192 S Recommendation with Voice Interaction
192 S Recommendation
193 Supported Resolutions for 3D Modes
Supported Resolutions for UHD
Read Before Using Voice, Motion, or Face Recognition

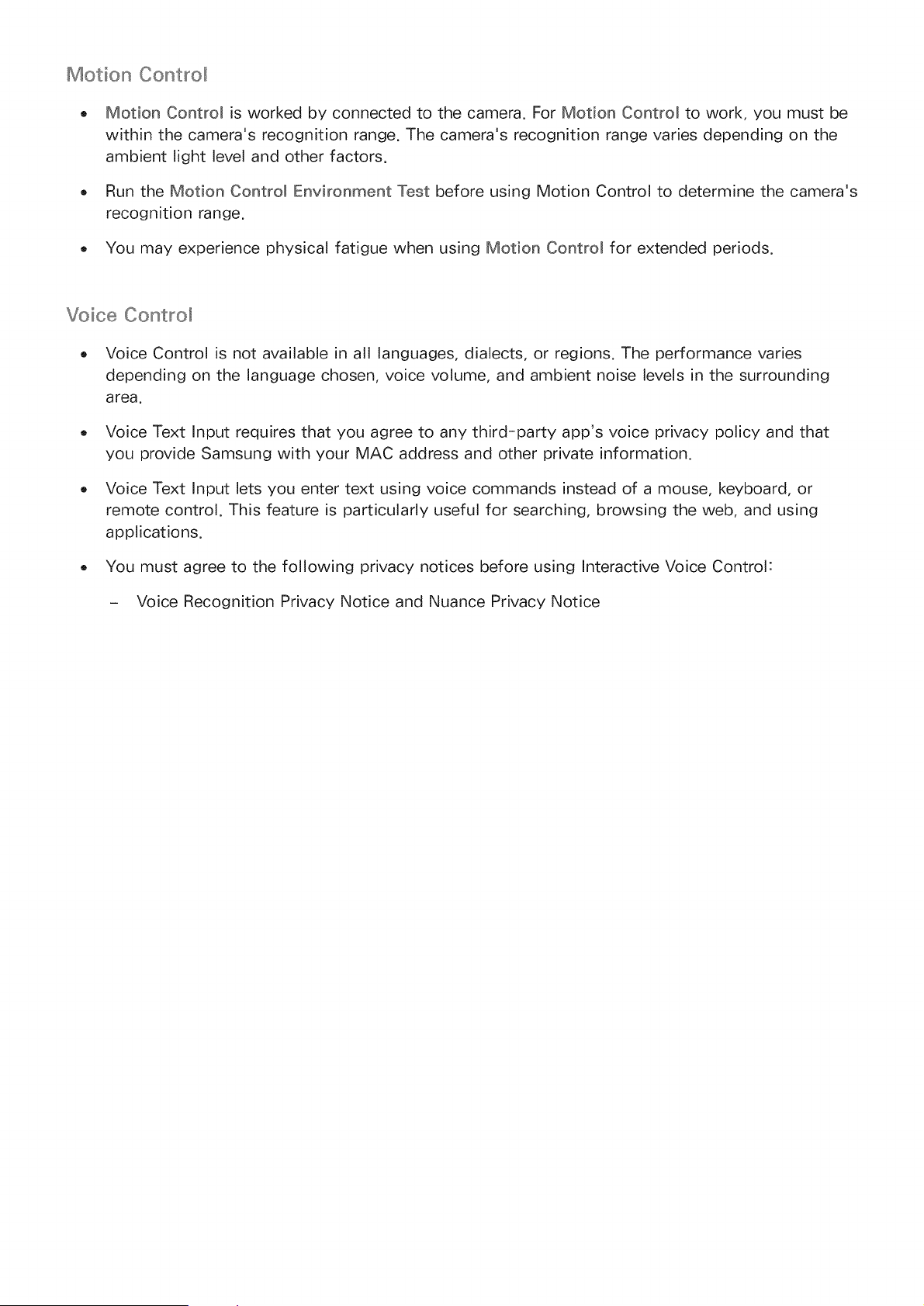

195 Voice, Motion, and Face Recognition Precautions

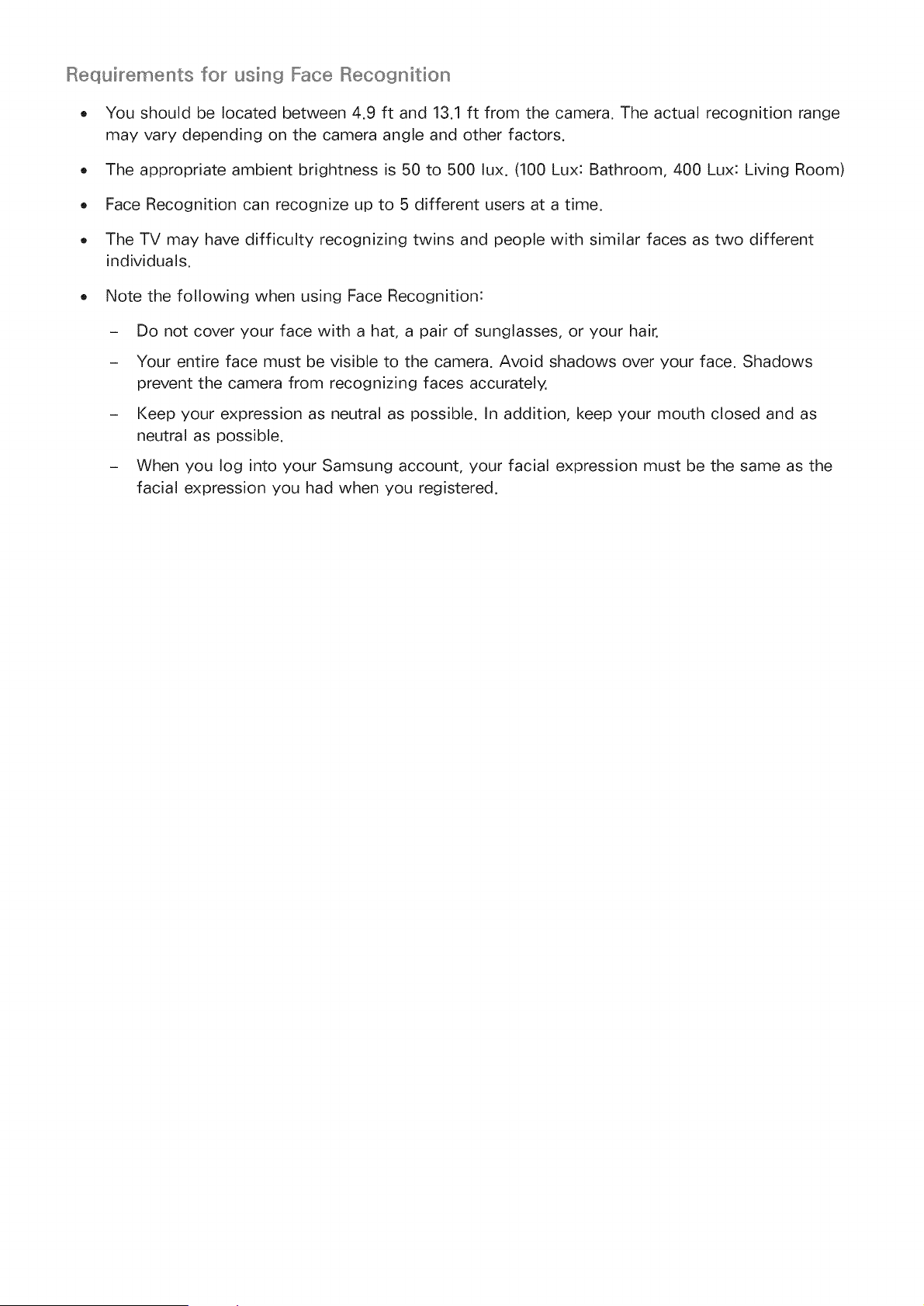

197 Requirements for Using Voice, Motion, or Face
Recognition
Read Before Using Apps
Read Before Using the WebBrowser
Read Before Playing Photo, Video, or Music Files
202 Photo, Video, and Music File Use Limitations
202 Compatible Storage Devices for File Transfers

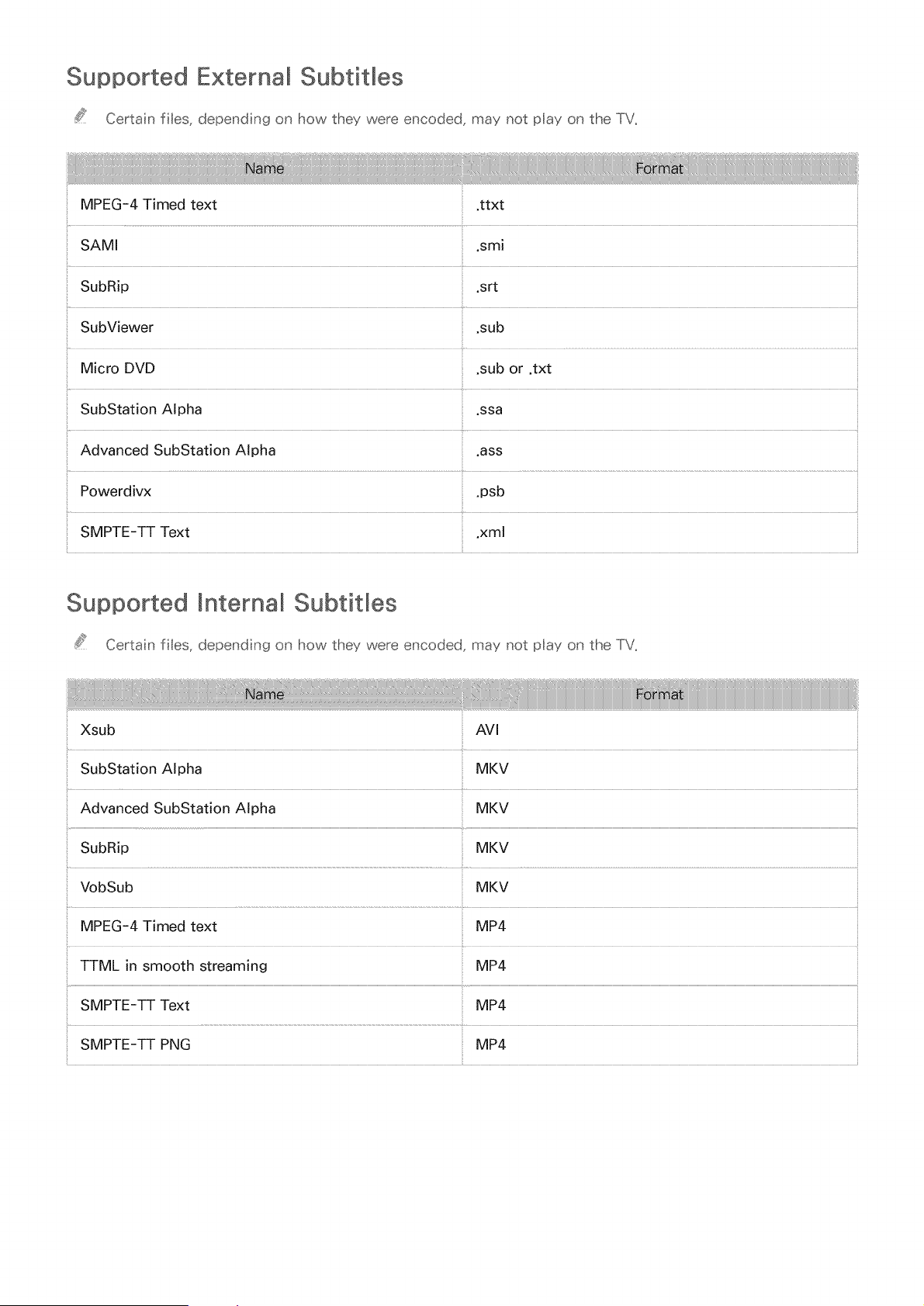

203 Supported External Subtitles
203 Supported Internal Subtitles

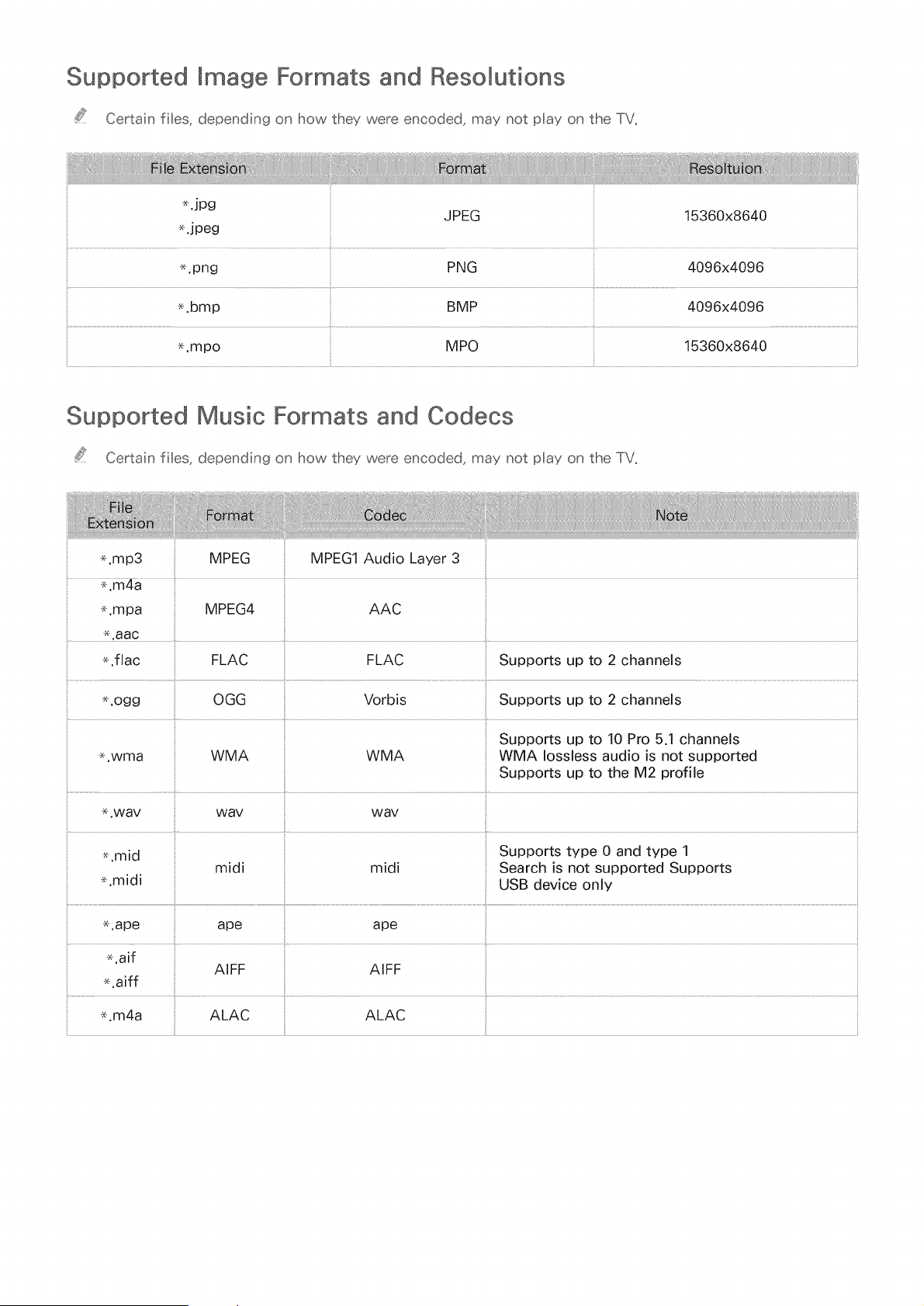

204 Supported Image Formats and Resolutions
204 Supported Music Formats and Codecs
205 Supported Video Codecs
Read After Installing the TV
207 Picture Sizes and Input Signals
207 Installing an Anti-Theft Lock
208 Read Before Setting Up a Wireless Internet Connection
Read Before Connecting a Computer (Supported
Resolutions)
209 IBM
2O9 MAC
210 VESA DMT

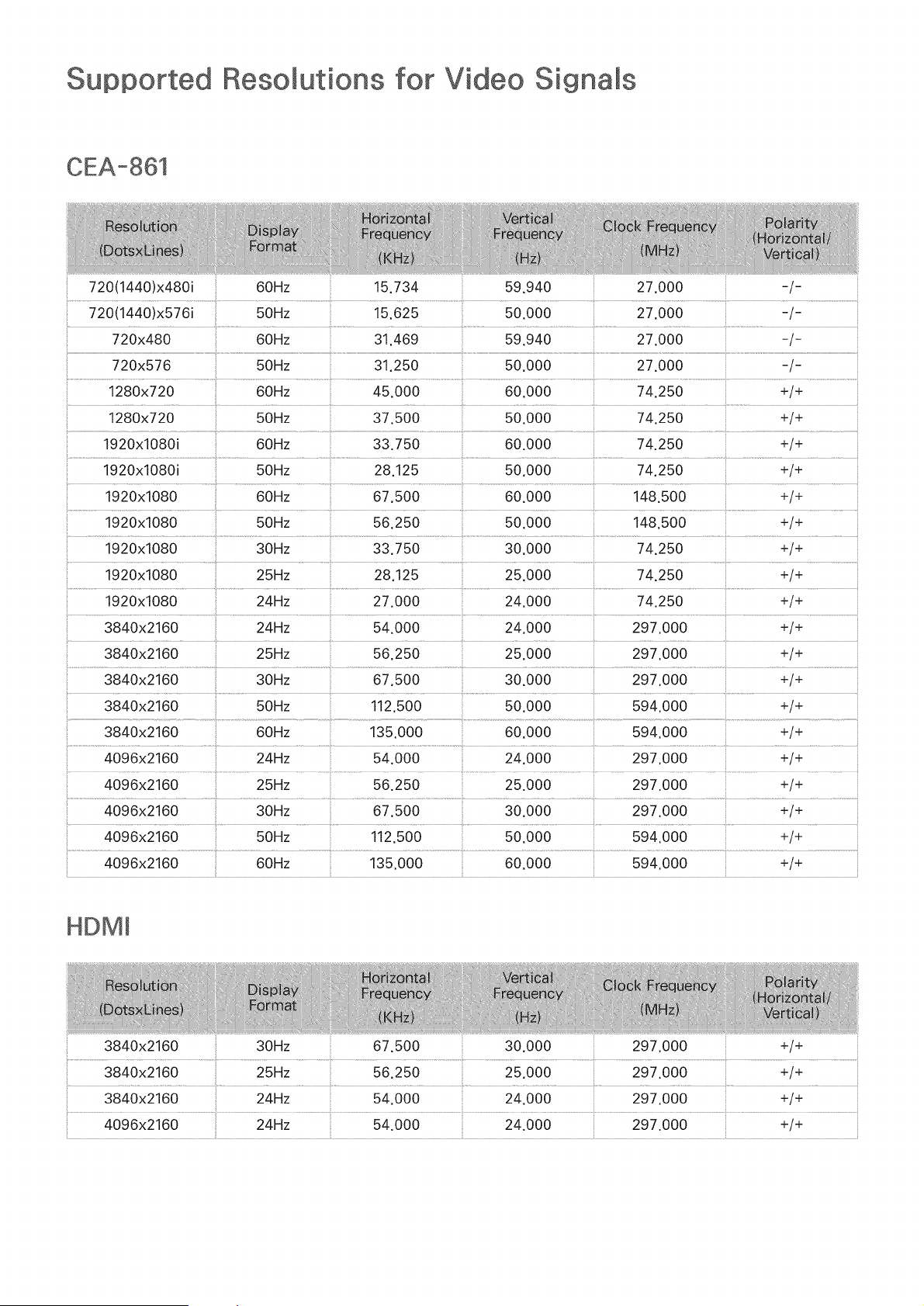

Supported Resolutions for Video Signals
211 CEA-861
211 HDMI
License
Glossary
Using Smart Hub
Usability depends on your specific model and local region.
Connection and set up is not necessary if you connected the TV to the Internet and set up Smart Hub during
the Initial Set up_
Formoreinformation,referto "SmartHub",
Using Voice Control
For more information, refer to "Controlling the TV with Your Voice (Voice Control)',
Using Motion Control
To use Motion Contro, you must connect a TV camera (sold separately) to the TV.
For more information, refer to "Contro Iing the TV using Motions (Motion Contro )"_
Using the Samsun9
Pair the Samsung Smart Control to the TV the first time by pressing the Power button on the Samsung
Smart Control. To pair again - if necessary - press the RIETURIN and GUIIDIE buttons simultaneously for
3 seconds.
For more information, refer to "Using the Samsung Smart Contro ' _
Using Multi-Link Screen
For more information, refer to "Using Multiple Functions on a Singte Screen (Multi-Lin< Screen)' _
Antenna Connection
If you are not connecting your TV to a cable or satellite box, you must connect an antenna or a cable
outlet to the TV to receive broadcast signals.
Connect a cable from an antenna or cable outlet to the ANT IN connector as shown in the diagram
below.
An antenna connection is not necessary when a cabe box or satellite receiver is used,
Video Device Connections
Your TV has a variety of connectors for video input from external devices such as cable boxes, satellite
receivers, Blu-ray players, DVD players, camcorders, and gaming consoles. Below is a list of featured
connectors shown in descending order of picture quality.
o HDMI
o Component
Composite (A/V)
Connect a video device to the TV via an HDMI connector for the best picture quality. If the device does
not have an HDMI connector, try a component connector to get the next best picture quality.
The number of connectors and their names and locations may vary depending on the modet,
Refer to the external device's operating manual when connecting it to the TV. The number of external device
connectors and their names and locations may vary depending on the manufacturer_
HDMI Connection
The following types of HDMI cables are recommended:
o High-Speed HDMI Cable
o High-Speed HDMI Cable with Ethernet
Use an HDMI cable with a thickness of 0,55 inches (14mm) or less,
Using a non-certified HDMI cable may result in a blank screen or a connection error_
Some HDMI cables and devices may not be compatiUe with the TV due to different HDMI specifications_
This TV does not support HDMI Ethernet Channel, Ethernet is a LAN (Local Area Network) buit with coaxial
cables standardized by the IEEE_
HCCP 2_2 is only supported on HDMI.-MHL port, HDCP 2_2 can ony use the HDMI(MHL) port, HDCP is short
for High-bandwidth Digital Content Protection' and is for video copyright protection_
Refer to the diagram and connect the HDMI cable to the video device's HDMI output connector and the
TV's HDMI input connector.
The number of connectors and their names and locations may vary depending on the modet_
Once the connection has been made, press the SOURCE button to select the connected external
device.
Component Connection
Refer to the diagram and connect the Component cable to the TV's component input connectors and
the device's component output connectors.
Make sure the cable colors match the connector colors.
Once the connection has been made, press the SOURCE: button to select the connected external
device.
Composite (A/V) Connection
Refer to the diagram and connect the AV cable to the TV's AV input connectors and the device's AV
output connectors.
If you are using the TV's AVl input connectors, connect the device's audio output to the TV using a Y
connector.
AV1
If you are using the TV's AV2 input connectors, use the included AV connection adapter to connect the
device's audio and video output to the TV.
AV2
AV connection adapter
Once the connection has been made, press the SOURCE button to select the connected external
device.
Input and Output Connections
Your TV has a variety of connections for audio input from devices such as Blu-ray players and DVD
players and for audio output to such devices as amplifiers. The connections are listed below.
o HDMI/ARC (Audio Return Channel)
Digital Audio (Optical)
Audio (Analog)
For better audio qualit'y; it is a good idea to use an _V receiver_
The number of connectors and their names and locations may vary depending on the modet,
Refer to the external device's operating manuat when connecting it to the TV. The number of external device
connectors and their names and locations may vary depending on the manufacturer_
HDM (ARC) Connection
ARC lets the TV output digital sound to an audio device and input digital sound from the same audio
device through one HDMI cable. ARC is only available through the HDMI (ARC) port and only when the
TV is connected to an ARC-enabled AV receiver.
Certain functions such as Smart Hub may not be availab e if the Source is set to HDMI and 3D Auto View is
set to On, if this is the case, set 3D Auto View or 3D Mode to Of£
Connect an HDMI cable to the TV's HDMI (ARC) connection and the device's HDMI output connection.
Digital Audio (Optical} Connection
Connecting an AV receiver to the TV via a digital audio (optical) connector lets you listen to digital
audio.
Connecting a device using an optical cable does not automatically turn off the TV speakers. To turn off the
TV's speakers, set TV Sound Output (Sound :> Speaker Settings :> TV Sound Output) to something other
than TV Speaker_
Adjust the audio device's voume using its remote control,
An unusual noise coming from the audio device whie you are using it may indicate a prob em with the
audio device itse{ if this occurs, ask for assistance from the audio device's manufacturer_
Digital audio is ony available with 5,1-channe broadcasts,
Refer to the diagram and connect the optical cable to the TV's digital audio output connector and the
device's digital audio input connector.
Audio Output Connection
Refer to the diagram and connect an audio cable to the TV's audio output connector and the device's
audio input connector.
Once the connection has been made, press the SOURCE button to select the connected external
device.
Connecting to a Computer
You can connect a computer directly to the TV using an HDMI or DVI to HDMI cable and use the TV as
a monitor. You can also connect the TV to a computer via your home network and access media files
saved on the computer on the TV screen. The kinds of connections you can make are listed below.
To use the TV as a Computer Monitor
o Connect through the HDMI Port using an HDMI cable.
You can connect the computer to the TV using an HDMI cable and display the computer screen
on the TV.
Connect though the HDMI (DVI) port using a DVI to HDMI cable.
You can connect a computer to the TV by connecting the computer's DVl port to the TV's HDMI
(DVl) port with a DVl to HDMI cable and display the computer screen on the TV.
To Access Media Files on a Computer and View or Play Them on the TV
o Connect Through Samsung Link.
Quickly access photo, video, and music files saved on a computer on which Samsung Link
software is installed, even if you do not connect the TV directly to the computer.
Connect Through DLNA Using Your Home Network.
Quickly access photo, video, and music files saved on a computer by connecting the TV and the
computer to the same router or AP.
Connecting Through the HDMI Port
For an HDMI connection, we recommend one of the following HDMI cable types:
o High-Speed HDMI Cable
o High-Speed HDMI Cable with Ethernet
Use an HDMI cable with a thickness of 0_55 inches (14ram) or less_ Using a non-certified HDMI cable may
result in a blank screen or a connection error,
Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications_
This TV does not support HDMI Ethernet Channe. Ethernet is a LAN (Local Area Network) buit on coaxia
cables standardized by the IEEE.
Many computer graphics adaptors do not have HDMI ports, but have DVI ports instead_ If your computer"
graphics adaptor has a DVI port, use a DVl to HDMI cable to connect the computer to the TV. For more
information, refer to "Connecting With a DVl to HDMI Cable".
HCCP 2_2 is only supported on HDMI-MHL port. HDCP 2_2 can only use the HDMI(MHL) port. HDCP is short
for 'High-bandwidth Digital Content Protection' and is for video copyright protection.
Refer to the diagram and connect an HDMI cable to the computer's HDMI output connector and the
TV's HDMI input connector.
The number of ports, and their names and locations may vary depending on the modet.
Once the connection has been made, press the SOURCE button to select the connected external
device.
Connecting With a DV[ to HDM[ Cable
If the graphics adapter of your computer does not support the HDMI interface, connect the computer
to the TV with a DVl (Digital Visual Interactive) to HDMI cable. Note that the DVl to HDMI connection
is only supported by the HDMI (DVl) port and does not support audio signal transmission. To listen to
the computer sound, connect external speakers to the computer's audio output connector.
For the reso utions supported by the TV, refer to "Read Before Connecting a Computer (Supported
Reso utions)"_
Refer to the diagram and connect the DVI to HDMI cable to the TV's HDMI (DVI) port and the
computer's DVl output port.
Once the connection has been made, press the SOURCE button to select the connected external
device.
Connecting Through Samsung Link
Quickly access photo, video, and music files saved on a computer on which Samsung Link software
is installed. In addition, using Samsung Link, you can view or play the content of a computer which is
registered with Samsung Link through your Samsung account, even if the computer and the TV are not
connected to the same router or AP.
On a computer, navigate to the Samsung content and service portal (http://link.samsung.com),
and then sign into your Samsung account.
2,
3,
.....Iio nstal tlhe Sams_.ng Lnk desktop software yotJ _eed to sign nto yotJ Sar_ss_ng account,, Iif yo_;
dont have a Sams_ ng acco_ nt c_eate one f _st,,
Install the Samsung Link desktop software. When the installation _s complete, the computer will
be registered with Samsung Link.
Specify a folder on the computer to connect to the TV. You can view or play the photo, video,
and music files in the specified folder on the TV. For more information about playing or viewing
multimedia content, refer to the "Playing Multimedia Content Saved on a Computer/Mobile
Device" section.
For more nfomsation abo_£ _;sing the Sams_ ng link desktop software, refe_ to the Hep sect[o_ of the
Sams_ ng Ink software,,
Connecting Through DLNA Using Your Home Network
Quickly access and play photo, video, and music files stored on a computer on the TV.
Connect the TV and the computer to the same router or AP. Once you connect them to the same
router or AP, a home network is configured.
2,
3,
4,
D NA s the techno ogy tlhat ets IiVs, computers, and moble devices co_nected to o_e wred or
w _eess ro_£e_ share content,,
On the computer, select [Control Panel] ) [Network and Internet] ) [Network and Sharing Center]
) [Change advanced sharing settings], and then select [Choose media streaming options...] to
activate media streaming.
From the list, set the TV to [Allowed].
Launch Windows Media Player on a computer. Select [Settings] ) [Library Management], and then
add the location where photo, video, and music files are saved to play them on the TV. For more
information about playing content, refer to "Playing Multimedia Content Saved on a Computer/
Mobile Device" section.
A te__ative y, you cars move tlhe fles to the defa_ It foder specif ed lay W []dows Media Ii:::>ayec and then
pay or view them on tlhe IIV
As ong as Fie Sha_ ng s activated, _na_ tl"_o_zed access may occtc When you do _ot _eed to access
data, disab e Fie Shar ng,,
Connecting To a Mobile Device
You can connect a mobile device such as a smartphone or tablet directly to the TV, or connect it to the
network and display the mobile device's screen or play its content on the TV. The kinds of connections
you can make are listed below.
o Connect Using an MHL to HDMI cable
Connect the USB port of the mobile device and the HDMI port of the TV with an MHL to HDMI
cable to view the mobile device's screen on the TV screen.
Connect by Mirroring the Mobile Device's Screen on the TV (Screen Mirroring)
Wirelessly connect the TV and the mobile device with the mirroring function. You can view the
mobile device's screen on the TV screen.
Connect Mobile Devices without a Wireless Router (Wi-Fi Direct)
Wi-Fi Direct enables you to connect the TV and the mobile device without a router or AP. Quickly
access and play photo, video, and music files in the connected mobile device on the TV.
.....lihis ol)tio_ s _ev_.elal:>e Ol}y 01} 8 moble device h8 s_ pl/)o_ s he W F Direct fi;nctio_,,
Connect Through Samsung Link
Samsung Link enables you to play photo, video, and music files saved on a Samsung Link-
enabled mobile device easily, without the need for a connection to the TV.
Connect Through DLNA Using Your Home Network
You can conveniently play photo, video, and music files saved on a mobile device by connecting
the mobile device and the TV to the same router or AP.
Connect via Smart View 2.0
Install and run the Smart View 2.0 app on your mobile device, and connect your mobile device to
the TV on the same network.
Connecting With an MHL to HDM[ Cable
MHL (Mobile High-definition Link) lets you display a mobile device's screen on the TV. However,
MHL is only available through the TV's HDMI (MHL) port and only when used in conjunction with an
MHL-enabled mobile device. For information on configuring MHL on your mobile device, refer to the
device's User Manual.
Connecting the MHL,-to,-HDM[ cable automatica y switches Picture Size to Screen Fit. This setting wi! not
change automatical y if you are using an HDMI adapter, In this case, change the settings manua Iy in the
menu_
If you are using an HDMI adapter, the TV recognizes the signal as an HDMI signal and may respond
differently than it would to an MHL to HDMI cable connection.
HCCP 2_2 is only supported on HDMI.-MHL port. HDCP 2_2 can only use the HDMI(MHL) port. HDCP is short
for 'High-bandwidth Digital Content Protection' and is for video copyright protection.
Refer to the diagram and connect the MHL-to-HDMI cable to the TV's HDMI (MHL) port and the
mobile device's USB port.
Once the connection has been made, press the SOURCE button to select the connected external
device.
Screen Mirroring
MIEINU > Network > Screen Mirroring
Wirelessly connect a mirroring-enabled mobile device to the TV and play the video and audio files
stored on the device on the TV. Mirroring refers to the function that plays the video and audio files
located on a mobile device on a TV and on the mobile device simultaneously.
To use the Screen Mirroring funct on, the mobile devce must support a mirroring funct on such as A tShare
Cast or Screen Mirror ng. To check whether your mobte device supports the m rroring funct on, please vist
the moble device manufacturer's webs te.
The video or audo may nterm ttentty stop depend ng on network cond tons.
Connecting via a mobile device
On the mobile device, run Screen Mirroring. The mobile device searches for available devices to
connect to.
2, In the search result list, select the TV. The TV displays a pop-up at the top of the screen.
3, In the pop-up, select ANIow to connect the mobile device.
A previo_sly al owed moble dev ces wl a_tomatica y connect wtho_£ needing approval,,
Iif yo_. select Deny, the deqce cannot connect,, Iinaddit[o_, yo[ are setting the devices connection
stat_,s to De[;y and it wl not be abe to connect n the f_ ture _;nless you change its connection status,,
.....Iio change tlhe connection status of a denied device, Navigate to Network > Screen Mirroring > Device
Manager, seect the device, and then seect Allow,,
Connecting by Automatically A_owing the Connection
Navigate to Network > Screen Mirroring, and then select Screen Mirroring. The Screen Mirroring
function starts. You can also start screen mirroring by pressing the SOURCE button on your
remote, and then selecting Screen Mirroring from the list at the top of the screen.
2_ Launch Screen Mirroring on your mobile device. The device searches for available devices.
3_ Select the TV from the list. The TV automatically allows the connection and the device connects.
Iif the moble device cannot co _nect, tr_yt_ ruing the IiV off and o_,,
Managing the Connection Status of P_"_eviously Connected Mobile Devices
2_
3_
This funct on is only ava labte f dev ces have previously connected to the TV or have pr°eviously attempted
to connect and been denied.
Navigate to Network > Screen Mirroring > Device Manager. The TV displays a list of devices that
have previously connected to the TV or have tried to connect to the TV and been denied. The
status of the connection (Allow/Deny) is also displayed.
Select a device. A pop-up appears.
In the pop-up, you can select Allow connection, Deny connection, or Delete the device from the
list.
Connecting Mobile Devices without a Wireless Router (Wi-Fi
Navigate to MIE:INU) Network ) Wi-Fi Direct
You can connect a mobile device with the Wi-Fi Direct feature directly to the TV without using a
wireless router or AP. By connecting a mobile device to the TV through Wi-Fi Direct, you can play
photo, video, and music files saved on the mobile device on the TV.
This option s available ony on a mobie device that supports the W-F Direct function, Pease check if your
mobte device supports Wi-F D rect.
Enable Wi-Fi Direct on the mobile device, and then navigate to Network and select Wi-Fi Direct
on the TV. The TV automatically scans for and displays a list of available devices. The TV's name
also appears on the mobile device.
2_ Select the device from the list to initiate a connection. If a connection request is made by the TV,
a permission message appears on the mobile device and vice versa.
3_ Allow the connection. The TV and mobile device connect. For more information on the
multimedia content, refer to the "Playing Multimedia Content Saved on a Computer/Mobile
Device" section.
Connecting Through Samsung Link
Samsung Link lets you play the photo, video, and music files saved on a Samsung Link-enabled
mobile device. In addition, using Samsung Link, you can play the content of a mobile device, which is
registered to Samsung Link through your Samsung account, even if the mobile device and the TV are
not connected to the same router or AP.
Run the Samsung Link app on the mobile device, and then sign in to your Samsung account.
2_
.....Ilo _.se Samsung I.nk, yoL have to sign n to yo_r Sams_ ng acco_nt.. Iif yo_ do_t have a Sams_ ng
acco_ nt, create o_e f rst..
Access and play photo, video, and music files saved on the mobile device. For more information
about playing multimedia content, refer to the "Playing Multimedia Content Saved on a Computer/
Mobile Device" section.
For more nforrnatio_ abo_£ _sing the Sams_ng I nk moble software, refer to the Hep sectio_ of the
software.
Connecting Through DLNA Using Your Home Network
Quickly access and play photo, video, and music files stored on a mobile device on the TV.
Connect both the TV and the mobile device to the same router or AP. Once you connect them to
a single router or AP, a home network is configured.
D NA s the techno ogy that ets IiVs, comp_£ers, and moble devices co snected to ose wred or
w reess ro_ter share content
2, Enable File Sharing on the mobile device. You can play the content shared on the mobile
device on the TV. For more information about playing multimedia content, refer to the "Playing
Multimedia Content Saved on a Computer/Mobile Device" section.
As ong as Fie Sharing s active, _na_ thor zed access can occ_ When yo_ do sot seed to access data,
disab e Fie Shar ng
Connecting via Smart View 2.0
By installing and running the Smart View 2.0 app on a mobile device, you can view the device's screen
on the TV or play the device's multimedia content (videos, photos, and music) on the TV.
Go to Googe Pay, and search for and instalt Smart View 2.0 on your moble device. Smart Vew 2.0 is a
cross_p atform, multi_screen app that enables you to disp ay the moble device's screen on the TV, share
muJt media contents between two devices, and contro the TV remotely, For more nformat on, refer to the
Smart Vew 2,0 manual,
Specifying the Name of the TV on a Network
MEI_U > Network > Device Name
Choose or specify a name for the TV that will appear on mobile devices and laptop computers.
Select Device Name from the Network menu, and then choose a name from the list that appears.
Alternatively, select User input to enter a name manually,
2, Check the name from a mobile device or laptop computer.
Switching Between Video
Press the SOURCE button to switch between external devices connected to the TV. For example, to
switch to a game console connected to the second HDMI connector, press the SOURCE: button. The
Source List appears across the top of the screen. From the Source List, select HDMm2.
The connector names may vary depend ng on the product_
Other Functions Available When You Display the Source List
A number of functions are available in the pop-up Options menu when the TV displays the Source
List. The functions that appear in the Options menu vary, depending on the source you selected in the
Source List and the external device connected to the source.
To view the Options menu, press the TOOLS button or press and hold the {i@ button on the standard
remote. On the Samsung Smart Control, press and hold the touch pad or press the KIE:YIPADbutton,
and then select TOOLS on the On-Screen Remote.
The functions that appear in the Options menu can include any of the following:
o Edit Name: Lets you assign a device name to an input source, for example, Blu-ray to HDMI1. To
assign a device name to an input source, follow these steps:
2_
Open the Source List. The list appears in a horizontal line across the top of the TV. Using your
remote, highlight the source you want to assign a device name to.
Select Edit Name in the Options menu. The on-screen keyboard appears.
Using the keyboard, enter a new name. You can enter up to 15 characters.
When finished, select DOINIE on the keyboard, and then press the touch pad or the {7_ button.
information: View information about the connected devices.
Anynet+ (HDM_-CEC}: Displays a list of Anynet+ (HDMl-CEC)-compliant devices that are
connected to the TV.
.....Ilhis option s ony ava labe when Anynet+ (HDM_-CEC) s set to On,,
Remove USB: Use to safely remove a USB device connected to the TV. This option is only
available when a USB device has been selected.
Delete: Use to delete an external device from a source. When you delete an external device
from a source, you erase the information the TV has stored about the device and you delete the
association the device has with the source.
The Universal Remote Function
When you display the Source List, the Universa_ Remote Setup button is displayed in the upper right
corner of the screen. Select this button to start the Universal Remote function. The Universal Remote
function lets you control cable boxes, Blu-ray players, home theaters, and other external devices using
your TV remote control. Refer to the "Controlling External Devices with the TV Remote - Using the
Universal Remote" section for more information on using the Universal Remote function.
Installing Batteries into the Samsung Smart Control
To use the Samsung Smart Control, insert the batteries into the device referring to the figure below.
O
O
O
Gently pull on the notch in the battery cover. When the cover comes loose, remove the cover
completely.
2, Insert 2 AA alkaline batteries, making sure to align the positive and negative polarities correctly.
3, Place the battery cover on the remote control, and then press the top part of the cover into the
remote control.
4, Press the catches on both sides of the battery cover in the order shown in the figure above until
the cover is completely attached to the remote control.
The Low Battery Amarm Window
If the Samsung Smart Control's batteries become low; the Low Battery Alarm appears on the screen.
When the Alarm appears, replace the batteries. We recommend using alkaline batteries for longer
operating life.
<Low battery Alarm Icon>
Pairing the Samsung Smart Control
To use the Samsung Smart Control with the TV, you must first pair it to the TV via Bluetooth. To pair
the Samsung Smart Control to the TV for the first time:
Turn on the TV by pointing the Samsung Smart Control at the remote control sensor of the TV, and
then pressing the TV button. The TV and Samsung Smart Control pair automatically.
The Samsung Smart Contro can only connect to one TV at a time_
The remote contro sensor's location may vary depending on the modet_
Reconnecting the Samsung Smart Control
If the Samsung Smart Control stops operating or works abnormally, try replacing the batteries. If the
problem persists, pair the Samsung Smart Control and TV again.
Move to between 1 foot and 13 feet of the TV (30cm to 4m), and then aim the Samsung Smart
Control at the TV's remote control sensor.
o
&
..../Ihe coser you are to the TV the better,
Press the RIETURIN and GUIDE buttons simultaneously for 3 seconds.
The Connection in Progress icon appears on the screen. A few moments later, the Connected icon
appears. The Samsung Smart Control is paired to the TV.
Using the Samsun9
The Samsung Smart Control makes it easier and more convenient to use the TV. Unlike conventional
remote controls that feature buttons only, the Samsung Smart Control has a motion sensor (gyro
sensor) that allows you to control the TV easily by holding and moving the Samsung Smart Control. If
you press the KIEYPA© button, an On-Screen Remote appears on the screen that allows you to enter
numbers, control content, and use functions easily.
We recommend using the Samsung Smart ControI at a distance of less than 20 feet (6m), The usable
distance may vary depending on the wireless env[ronmenta conditions_
Button Functions
Your Samsung Smart Contro may differ from the image above, depending on the modet,
Some buttons may differ depending on the country or modet,
TV TurnstheTVonandoff.
SEARC_ Pressthisbuttonto searchfor informationthroughthesearchwindowavailable
:_ ° in variousservices.
DisplaystheOn-ScreenRemote.WiththeOn-ScreenRemoteonthe screen,
KEYPAD youcaneasilyenternumbers,controlcontent,andusefunctions.Formore
information,referto the"DisplayingandUsingtheOn-ScreenRemote"section.
SOURCE Changesthesource.
VOL Changesthevolume.
Startsvoicerecognition.Whenthemicrophoneiconappearsonthescreen,
speakavoicecommandintothemicrophone.Say"Help"to learnaboutbasic
VOICE usageandvoicecommands.
_* Sayavoicecommand4 to 6 inches(10to 15cm)fromthemicrophoneat an
appropriatevolume.
Turnsthesoundoff andon.
CH Changesthechannel.
_, _, 4, _ Movesthepointerorfocus.
PlaceafingeronthetouchpadandmovetheSamsungSmartControl.The
Touchpad pointeronthescreenmovesinthesamedirection.Pressthetouchpadto select
orrunthefocuseditem.Formoreinformation,referto the "UsingtheTouchPad
andtheDirectionalButtons"section.
Blu-rayplayer).
Usethesecoloredbuttonsto accessadditionaloptionsspecificto thefeaturein
I_, [], [], [] use.
_ This buttons are not avai_aMe in the U_S_A_ and Canada_
RETURN
Returns to the previous menu. Additionally, when you press this button while
watching TV, you can return to the previous channel.
This launches the First Screen. From the First Screen, you can search through
favorite apps, channels or sources and quickly access previously run or
SMART IHUB
frequently used functions. Also, when you move to the Smart Hub, you can use
services provided for each service panel.
GUIDE Displays the digital channel broadcasting schedule. For more information, refer
to the "Digital Broadcast Information at a Glance" section.
3© (for U8500 series) Turns the 3D function on or off.
MTS Press to choose stereo, mono, or Separate Audio Program (SAP broadcast).
CC Displays captions. Controls the caption decoder.
PS_ZE Lets you choose the picture size.
MENU Displays the menu on the screen.
i
Enables/Disables Soccer Mode. For more information, refer to the "Making ::
Sports Programs More Realistic with Soccer Mode" section.
¢_ This flJnctions is not available in the U,S,A and Canada,
Lets you split the TV screen and use multiple functions - such as watching TV,
M,SCREEN surfing the web, and playing a video - at the same time. For more information,
refer to "Using Multiple Functions on a Single Screen (Multi-Link Screen)".
Additiona Functions
Press and hold the following buttons for 1 second to use additional functions.
RETURN (EXWT) Press and hold the RETURN button to exit all currently running applications
GUIDE (OH UST) Press and hold to launch the Charm@ List.
_ Availability depends on your specific area°
Operating the TV by Moving the Samsung Smart Control
The Samsung Smart Control has a motion sensor (gyro sensor) that lets you control the TV easily by
moving the Samsung Smart Control and using it much like a cordless mouse.
Place a finger on the Samsung Smart Control's touch pad. A pointer appears on the screen. Move the
Samsung Smart Control, and pointer moves on the screen in the direction you moved the Samsung
Smart Control and the same distance. Highlight an item on the screen with the pointer, and then press
the touch pad to select it.
You can also move the Samsung Smart Control in the same fashion to scroll scrollable screens up and
down.
When you remove your finger from the touch pad, the pointer disappears.
Navigate to System > Smart Contro_ Settings, and seect Motion Sensitivity to adjust the pointer speed.
If Voice Guide is set to On, the Samsung Smart Control's motion sensor does not wor<. For the motion
sensor in the Samsung Smart Contro to wor<, you must set Voice Guide to Of£
J
Using the Touch Pad and the Directionam Buttons
The touch pad and directional buttons on the Samsung Smart Control let you select and launch items
and move the cursor, focus, or panels on the screen.
in the TV's menu, navigate to Support :>Smart Contro_ Tutorial to view a tutorial that shows how to use the
tou_-hpad
If the touch pad's sensitivity is too high or low navigate to the System > Samsun9 Smart Control
Settings menu, and then select the Touch SensitMty option to change the touch pad sensitivity.
Moving the Focus or Pointer
Press the directional buttons (up, down, left, and right) to move the focus, pointer, or cursor in the
direction you want.
Enterin9 a Menu / Selectin9 an _tem
To enter a menu or select an item, highlight the item or the menu title, or move the pointer over it, and
then press the touch pad.
Displaying a Context-sensitive Menu in Smart Hub
In Smart Hub, highlight an item, and then press and hold the touch pad. The context-sensitive menu
for the item pops up.
The context-sensitive menu may vary depending on the item you se ected,
Changing the Smart Hub Panel
On the Smart Hub screen, drag left or right on the touch pad to display the previous or next panel.
Scrolling on the Web Browser
Drag up/down on the touch pad in the web browser to scroll the browser screen.
Displaying and Using the On-Screen Remote
Press the IKEYPAID button on the Samsung Smart Control to display the On-Screen Remote on the
TV's screen. Use the On-Screen Remote to enter numbers, control content playback, and use the
features and functions of the TV, just like a real remote.
The On-Screen Remote buttons may vary depending on the TV features or functions you are using_
Lets you switch channels by entering channel numbers directly. Select Pre-CH to
o,_ _, return to the previous channel.
Controls the playback of video, photo, or music files from all sources, and the
playback of media content on external devices (for example, a Blu-ray player).
Use these colored buttons to access additional options specific to the feature in
Q oIIZiS,_._,D use.
9> This buttons are only avai_abb in the U.S.A. and Canada.
Press to display the Tools menu while you are watching TV. The Tools menu gives
TOOLS you easy access to frequently used functions. The functions listed are context-
sensitive and vary depending on how you are currently using the TV.
[NFO Shows information about the current digital broadcast program or content.
MENU DisplaystheTV'smenuonthescreen.
...........................................................................................................
..... Letsyouselectthespeakerswhichwill playtheTV'saudioYoumustconnecta
bpeaKer be_z rigs . . . " . .
home theater or amphfler w_th external speakers to the TV to use thB function.
Lets you display video from an external device or computer on the main screen and
P_P
a TV broadcast in a picture-in-picture window.
Lets you split the TV screen and use multiple functions - such as watching TV,
Multi-Link Screen
surfing the web, and playing a video - at the same time.
3D (for U8500 series) Turns the 3D function on or off.
MTS Press to choose stereo, mono, or Separate Audio Program (SAP broadcast).
:: CC Select to turn subtitles on or off.
PoSize Changes the picture size.
This function automatically shuts off the TV after a preset period of time.
SLEEP _ This button is only available in the U,S,A, and Canada,
Lets you select the Picture Mode.
PoMode S" This button is only available in the U.S.A. and Canada.
Web Browser Launches the Web Browser.
e-Manu@ Opens the e-manual.
Sign In Select to log in to or out of your Samsung account.
Move to the right / Move to the left: Moves the On-Screen Remote on the screen.
Large size / Norm@ size: Resizes the On-Screen Remote on the screen,
S/_'Alternatively, navigate to the System > Smart Contro_ Settings menu, and then
select and set the Onscreen Remote Size option.
Touch Sensitivity: Lets you change the touch pad sensitivity,
S/_'Alternatively, navigate to the System > Smart Contro_ Settings menu, and then
sebct and set the Touch Sensitivity option,
Universal Remote Setup: Displays the Universal Remote Setup screen, For more
information, refer to the "Controlling External Devices with the TV Remote - Using
the Universal Remote" section,
Cancel: Close the pop-up menu,
ControMMing ExternaM
Using the Universal
Devices with the TV Remote
IMIEINU> System > Universal Remote Setup
The universal remote control feature lets you control cable boxes, Blu-ray players, home theaters,
and other third-party external devices connected to the TV using the TV's remote control. For each
external device you want to control, you must run the universal remote set up process. The first step
in the process is connecting the IR extender cable (included) to the TV and positioning the transmitter
end of the cable in front of the device you want to control.
You can also use the Anynet+ (HDMI-CEC) function to operate external Samsung devices with your TVs
remote contro without any additionaI setup, Refer to the "Using Anynet+ (HDMI-CECY' section for more
information_
Certain externa devices connected to the TV may not support the universa remote feature,
Connecting the mRExtender Cable
The coot and design of the IR extender cable may vary depending on the modet,
To begin the universal remote set up process, connect the IR extender cable (included) to the TV's IR
output connector as shown in the diagram. Then, position the transmitter end within 4 inches (10 cm)
of the external device's remote control sensor, pointing in the direction of the sensor.
There can be no obstacles between the transmitter end of the IR extender cable and the external
device. Any obstacles will interfere with the transmission of the remote control signals.
Setting Up the Universal Remote Control
If you want to control a set-top-box, you need to have your zip code and your cable provider's name and
locat on on hand before you begn. If you want to contro a BIu-ra, payer or home theater_ you need the
manufacturer's name and the device's mode number_
Turn on the external device you want to control with the universal remote function.
2,
3,
Important: If you want to control the external device without leaving the IR extender in front of
the device, you must use the Samsung Smart Control to set up the Universal Remote function for
the device. You must also use the Samsung Smart Control to control the device.
Press the SOUROIE button on your remote to bring up the Source screen.
Select the _ Universal Remote Setup icon.
,
,
You can also start Universa IRemote Setup thro_gh the IiVs men_ ,,Navigate to System > Universal
Remote Setup..
The TV checks if the IR Extender cable is connected. If it confirms the connection, press the
touch pad. On a standard remote, press the {7_ button.
Select the type of device you want to control - set-top-box, Blu-ray player, or home theater.
Follow the directions on the screen to complete the set up and register the device. The directions
will be different, depending on the device you want to control.
Iif the externa device does _ot respond after beng registered, register t agan _;sing ts mode _ mbe_,
Once set up is complete and you have confirmed that you can use the TV remote to control the
device, disconnect the IR extender cable from the TV and set it aside - if you ran set up using
the Samsung Smart Control. You can now control the device directly with the Samsung Smart
Control.
Iif you are usng the Standard remote, yot m_,Jst eave the IilRextender n pace so that t faces the
externa device to be abe to co_tro the device..
Controlling an Externa_ Device with the [V Remote
During the universal remote set up process, the TV registers the connector (source) the external device
is connected to. To control a registered external device with your TV's remote, select the external
device on the Source List.
Press the SOURCIE: button on your remote.
,
,
Select the source (connector) the device is connected to (HDMI1, HDMI2, etc.). If the external
device is a Blu-ray player, home theater, or similar kind of device, the external device's home
screen or menu appears on the TV screen. If the external device is a set-top-box, a channel
appears on the screen.
If you are using the Samsung Smart Control, aim the Samsung Smart Control at the device to
control it. If you are using the Standard remote, aim the remote at the IR sensor on the TV to
control the device.
Universa Remote Features
Press SOURCE to display the Source list.
2, Select _ Universal Remote Setup from the top of the screen. This initiates the universal remote
setup process.
3, Select an external registered device on the Universal Remote Setup screen. The following
options are available:
o Use External Speakers
Listen to the audio from an external device through the connected home theater.
.....Iihis ;s availab eony f you have seected a set top box or B _ _ay payer n Step 3 and you have
a home theater co x_ected to the liT,,
Link Set-top Box
Listen to the audio from a set-top box through the home theater that is connected to the TV.
.....Iihis ;s availabe ony ;f you have seected a set top box in Step 3 and you have a home theater
connected to the I!V..
Link Blu-ray Hayer
Listen to the audio from a Blu-ray player through the home theater that is connected to the
TV.
.....Iihis s availab e O_y f yo_ have seected a B _ _ay payer n Step 3 and you have a home theater
connected to the IiV..
Source Setup
Change the TV's input source of your selected external device.
Synced TV power
When set to On, the connected set-top-box turns off when you turn the TV off.
.....IiMs ;s ava labe O_y ;f yOU have se ected a set top box in Step 3. You can o_y SynC IiV power' to
aset top box..
e Rename
Rename the registered external device. The name can be up to 15 characters long.
Demete
Remove the external device from the list of registered devices. The device is de-registered
and you will no longer be able to control it with the Universal Remote function.
Contromming the TV with a Keyboard
MEINU > System > Device Manager > Keyboard Settings
Connecting a keyboard makes it easy to control most of the functions on the TV,
Certa n modes do not support USB HID cass keyboards,
Connecting a Keyboard
Connectin9 a USB Keyboa_'d
Plug the keyboard cable into the TV's USB port, A connection message appears on the screen,
CO n n e ctin 9 a B lu et oot h Key b o a rd
Place the Bluetooth keyboard into standby status.
Refer to the keyboard manual for nformation about putting the keyboard into standby start s,,
2, Select System > Device Manager > Keyboard Settings > Add Bluetooth Keyboard. The Add
Bluetooth Keyboard screen appears and the TV automatically scans for available keyboards.
Iif your keyboard was _ot detected position the keyboard cose to the IiV and tlhe__seect Refresh,, Iihe
.....IiV scans for ava lab e keyboards agan.
3, Select the Bluetooth keyboard from the scan list, and then select Pair and connect. A number
appears on the screen.
4, Enter the number using the Bluetooth keyboard. This pairs the Bluetooth keyboard to the TV.
Seect Yes to change the keyboard's options or No to ease tlhem as they are,, IRefer to the " Iinp_£
8n_(_ages, Keyboard Iiype, and Swtch I 8n_(_ age Key" sectio _ for more rfforr_atio _,,
Using the Keyboard
Use the following remote features with the USB or Bluetooth keyboard connected to the TV.
, Arrow Keys (moving the focus), Windows Key (IMIEINUButton), Menu List Key (TOOLS Button),
Enter Key (Select/run item), ESC (RIETURIN Button), Number Keys (Number Buttons)
F1 (1_), F2 (l[,iS),F3 (D), F4 (D), F5 ([_), F6 (SOURCE: Button), F7 (OH List), F8 (42 Button), F9/F10
(Volume Buttons), Fll / F12 (Channel Buttons)
Page Up/Page Down: Scroll web browser pages up/down.
Changing Keyboards
Select System > Device Manager > Keyboard Settings > Select Keyboard. Designate which keyboard
to use.
Only one keyboard can be used at a time,
_nput Languages, Keyboard [Ylpe, and Switch IIIanguage Key
Select System > Device Manager > Keyboard Settings > Keyboard Options. The following options are
ava UabJe:
,, Keyboard Language
If the keyboard supports multiple languages, choose the language you want to use from the
displayed list.
, Keyboard Type
Match the Keyboard Type to the language selected in Keyboard Language.
The Keyboard Type list varies depeu'diu'g o_' which anguage was seected under Keyboard Language.
, Switch input Language
If the keyboard supports multiple languages, choose the key you want to use to switch between
languages.
Contrommin9 the TV with a
MEINU > System > Device Manager > Mouse Settings
Connecting a mouse makes it easy to control most of the functions on the TV.
Certa n modes do not support USB HID cass mce_
Connecting a Mouse
Connecting a USB Mouse
Plug the mouse cable into the TV's USB port, A connection message appears on the screen,
Co n n e ctin 9 a B lu et o ot h M o u s e
Place the Bluetooth mouse in standby status,
2_
3_
Refer to the mouse manua for infomation about puttin_:,_the mouse into standby stat_,_s,,
Select System > Device Manager > Mouse Settings > Add Bluetooth Mouse, The Add Bluetooth
Mouse screen appears and the TV automatically scans for available mice,
Select the Bluetooth mouse from the scanned list, and then select Pair and connect. This pairs
the Bluetooth mouse to the TV.
Using the Mouse
Once a USB or Bluetooth mouse is connected to the TV, a pointer appears on the TV's screen. You can
use this pointer to control the TV in the same way you use a pointer on a computer.
o Selecting and Running an Item
Left-click using the mouse.
Showing Tools Buttons
Right-clicking displays the Tools buttons on the screen so that you can easily use the TV's
functions.
.....Iihe Iioos b_£to_s may va[y depending o_ the fi;nct[o_ yo_J a_e _;sin((_,,
Scrolling the TV Menu or Screen
Move the mouse wheel up or down. This scrolls the TV menu or screen up/down.
Exiting the TV Menu or Feature
Click the X button. This closes the menu.
.....Iihe X b_tton appears on the IIV men_ when a mouse [s being _sed,, eft clicking o_ce while _sing a
feat_ re disp ays the X b_tton on tlhe c_trent screen..
Chan singMice
Select System > Device Manager > Mouse Settings > Select Mouse, Designate which mouse to use.
Only one mouse can be used at a tree,
Cha ngin g M o use Butto ns and Point er S pe ed
Select System > Device Manager > Mouse Settings > Mouse Options. The following options are
available:
Primary Button
Choose which button (left or right) to use to select and run items.
Pointer Speed
Adjust the movement speed of the pointer that appears on the screen.
Entering Text Using QWERTY
A QWERTY keypad appears when you need to enter text (entering the network password, logging into
your Samsung account, etc.), allowing you to enter text using your remote control.
Using Additional Functions
Select 0 on the QWERTY keyboard screen. The following options are available:
o Recommended text
Enable/disable the Recommended Text feature Enabling the Recommended text feature allows
you to quickly enter text starting with the characters you typed in by displaying recommended
words. To enter the word "lnternet," for example, all you have to do is enter "In" and select the
word "lnternet" from the list of recommended words. The word is memorized so that you can
enter the same text again more easily.
o Reset recommended text data
Delete both the recommended words and the memorized words to clear the list.
Predict Next Letter
Enable/disable the Text Prediction feature. Enabling the Text Prediction feature eliminates the
need to find and select individual character keys. To enter the word "lnternet," for example, select
"1". A predicted word will then appear next to the I key. Simply select the predicted word to enter
"Inter net".
.....Ilhis featu_e is imited to words that have previous y beer added to the dictior ary,
Estabmishin9 a Wired Internet Connection
Connecting the TV to the Internet gives you access to online services and SMART features, and lets
you update the TV's software quickly and easily through the Internet.
Using Cat 7 LAN Cables
We recommend using Cat 7 LAN cables to link your TV to the Internet Access Points.
The TV wi not be abe to connect to the Intemet if the netwo_'k speed is below 10Mbps,
There are three ways to connect the TV to your Internet Access Points. Using Cat 7 cables, connect
the TV to the Access Points as shown in one of the following illustrations.
o External Modem
o (_ IP Router + @ External Modem
o Wall-mounted LAN Outlet
Connecting to a Wired Enternet Network Automatically
IMIENU > Network > Network Settings _:::_
Automatically connect to an available network.
Set the Network type to Wired, and then select Connect.
2, The TV attempts to connect to an available network. Once it is successful, you will see a
confirmation message. Select OK. If the attempt fails, try again, or connect manually.
Connecting to a Wired Internet Network Manua_My
MIENU > Network > Network Settings
With networks that require a static IP address, you will need to enter the IP address, subnet mask,
gateway, and DNS values manually to connect to the network. To get these values, contact your
Internet Service Provider (ISP).
Refer to the "Dynamic versus Statc IP Addresses" sect on for more nformat on on dynam c IP and statc IP
addresses_
Set the Network type to Wired, and then select Connect.
2, Select Stop when the TV attempts to connect to the network. Once the network connection has
been interrupted, select _P Settings.
3. In the IP Settings screen, set JP Setting to Enter Manually.
o
Select JP Address. When the IP Address entry window appears, enter three digits into each field
on the IP Address line. If the value has less than three digits, add leading zeroes. For example,
to enter 10, enter 010. After three digits have been entered in a field, the highlight automatically
jumps to the next field.
On a standard remote, enter numbers by pressing the number buttons,, On the Samsu,' g Smart Co_'tro,
press the KEYPAD button,, The On Screeu' IRemote appears,, Use the On Screen IRemote to enter
numbers,, After you have filed in a four fieRds, press the touch pad o_' the Samsung Smart Co_' tro or
the [:}_ button' o_' the standard remote again,,
Repeat the process for Subnet Mask, Gateway, and DNS Server.
When done, select OK.
The TV attempts to connect to the network again using the settings you entered. Once it has
established the connection, it displays a confirmation message. Select OK.
..../Ihe network co_' u'ectio_' speed may differ depeu' ding o_' the DNS server settings,,
For details o_' the DNS server settings, co_' tact yo_Jr Internet service provider {ISP},,
Estabmishin9 a Wireless Internet Connection
Connecting the TV to the Internet gives you access to online services and SMART features, and lets
you update the TV's software quickly and easily through the Internet.
Connecting to a Wireless mnternet Network Automatically
IMIEINU> Network > Network Settings
Connect the TV to the Internet via a wireless router. Make sure you have the wireless router's SSID
(name) and password settings before attempting to connect. The password can be found on the
wireless router's configuration screen.
On the Network Settings screen, set Network type to Wireless. The TV automatically displays a
list of available wireless networks.
o
o
Select a network. If the network you want doesn't appear in the list, select Add Network, and
enter the network's SSID (name) manually.
Using the on-screen keyboard that appears, enter the password. When finished, select Done. If
the selected network is not security-enabled, the TV will by-pass the on-screen keyboard and
attempt to connect right away.
o
- To select a character on the on-screen keyboard, highlight the character and then select it.
Select Caps to view capital letters. Select the 123#& key to view additional characters.
- To view the password as you enter it, select Show Password.
The TV attempts to connect to the network. Once a connection is established, the TV displays a
confirmation message. Select OK. If the attempt fails, try again or connect manually
Connecting to a Wireless mnternet Network Manua My
MIENU > Network > Network Settings
With networks that require a static IP address, you will need to enter the IP address, subnet mask,
gateway, and DNS values manually to connect to the network. To get the IP address, subnet mask,
gateway and DNS values, contact your Internet Service Provider (ISP).
Refer to the 'Dynam c versus Statc IP Addresses" sect on for more informat on on dynam c IP and statc IP
addresses_
On the Network Settings screen, set Network type to Wireless. The TV automatically displays a
list of available wireless networks.
2_
3_
4_
Select a network. If the network you want doesn't appear in the list, select Add Network, and
enter the network's SSID (name) manually.
Using the on-screen keyboard that appears, enter the password. When finished, select Done. If
the selected network is not security-enabled, the TV will by-pass the on-screen keyboard and
attempt to connect right away.
- To select a character on the on-screen keyboard, highlight the character and then select it.
Select Caps to view capital letters. Select the 123#& key to view additional characters.
- To view the security password as you enter it, select Show Password.
Select Stop when the TV attempts to connect to the network. Once the network connection has
been interrupted, select JP Settings.
In the IPSettings screen,set JPSetting to EnterManually.
o
Select JP Address. When the IP Address entry window appears, enter three digits into each field
on the IP Address line. If the value has less than three digits, add leading zeroes. For example,
to enter 10, enter 010. After three digits have been entered in a field, the highlight automatically
jumps to the next field.
On a standard remote, enter numbers by pressing the number buttons,, On the SamsuH' g Smart Co_'tro,
press the KEYPAD button,, The On Screeu' Remote appears,, Use the On Scree:_ IRemote to enter
numbers,, After you have filed in a four fields, press the touch pad o_' the Samsun9 Smart Co_' tro or
the I:}_ button' o_' the standard remote again,,
Repeat the process for Subnet Mask, Gateway, and DNS Server.
When done, select OK.
The TV attempts to connect to the network again using the entered settings. Once it has
established the connection, it displays a confirmation message. Select OK.
Network co_' u'ectio_' speeds may differ depeu' ding o_' the DNS server settings,,
For details o_' the correct DNS server settings, co_' tact your Intemet service provider {ISP),,
Connecting to a Wireless Jnternet Network with WPS
MENU > Network > Network Settings
If the router has a WPS push button, you can use it to connect the TV to the router automatically. WPS
automatically configures the SSID and WPA key settings.
o Your router must support WPS to use the WPS functionality.
On the Network Settings screen, set Network type to Wireless. The TV automatically displays a
list of available wireless networks.
Select WPS (PBC}, and then press the router's WPS or PBC button within two minutes.
o
The TV automatically acquires the SSID and password settings, and then connects to the
network. Once a connection is established, the TV displays a connection message. Select OK.
Troubleshooting Internet Connectivity Issues
If you are not able to connect the TV to the Internet, read the information below.
Troubleshooting Wired mnternet Connectivity mssues
HonetworkcaUefound ' [:}
Make sure the network cable is plugged in. If it is connected, make sure the router is turned on. If it is
on, try turning if off and on again.
_P auto settin 9 fai_ed
Do the following or configure the _P Settings manually,
Ensure that the DHCP server is enabled on the router and reset the router,
2, If this does not work, contact your Internet Service Provider for more information,
U n a b_e to co n n e ct t o t he netwo r k
Do the following:
Check all JP Settings.
Ensure that the DHCP server is enabled on the router. Then, unplug the router and plug it back in.
3, If this does not work, contact your Internet Service Provider for more information.
Connected to a Ioca_ network_ but not to the _nternet
Make sure that the Internet LAN cable is connected to the router's external LAN port.
2, Check the DNS values in JP Settings.
3, If the problem persists, contact your Internet Service Provider.
Network setup is comp_ete_ but unable to connect to the _nternet
if the problem persists, contact your Internet Service Provider.
Troubleshooting Wireless mnternet Connectivity mssues
wirebssnetworkconnectionfai ed ::!S
Selected wireless router not found. Go to Network Settings and select the correct router.
U na b_e to co nnect to a w irele ss router t:
Check the following:
Check if the router is turned on. If it is, turn it off and on again.
2, Enter the correct password if required.
_P auto setting fai_ed
Do the following or configure the _P Settings manually.
Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back
in.
2, Enter the correct password if required.
3, If this does not work, contact your Internet Service Provider for more information.
Unable to connect to the network
Do the following:
Check all JP Settings.
2, Enter the correct password if required.
3, If this does not work, contact your Internet Service Provider for more information.
Connected to a Ioca_ network_ but not to the _ntemet
Make sure that the Internet LAN cable is connected to the router's external LAN port.
2. Check the DNS values in JRSettings.
3. If the problem persists, contact your Internet Service Provider.
Network setup is complete_ but unable to connect to the _ntemet
If the problem persists, contact your Internet Service Provider,
Checking the Internet Connection Status
MIEINU > ,etwork > ,etwork Status
Your TV's menu may differ from the image above, depending on the modet.
View the current network and Internet status.
Using Mumt[pNeFunctions on a SingNe Screen (Mu t[-Link
MIE:INU) Picture ) Open Multi-Link Screen
Multi-Link Screen allows you to search the Web, use apps, and much more simultaneously while
watching TV.
Before using Multi-Link Screen, ma<e sure the TV is connected to the Internet. Using Mult -Link Screen
requires an Internet connect on.
(in the U.S.A and Canada) Before using Smart Hub with Mult-Link Screen, go to On TV Settings (Smart
Hub > On TV Settings > On TV Setup) and finish configuring Smart Hub if you haven't done so a ready_
(For other countries) If you aunch MuJt -Link Screen, but have not yet configured Smart Hub, a pop-up
wndow appears. In the pop-up windo,/_{ seect Set Up Smart Hub. You must conf gure Smart Hub before
you can use Mu t--Lin< Screen.
Launching Mumti-Link Screen
Press M,.SCRIEIEH on the Samsung Smart Control to launch Multi-Link Screen.
Using Mumti-Link Screen
UHD and FHD contents and channels cannot be viewed simultaneously,
Launchng Smart Hub wh e usng Mut--Link Screen automatcaIy termnates Mut-_Link Screen_
Certain TV features and apps may not be supported by Mu t-_Link Screen_ If ths s the case, ext from
Mu t-_Link Screen and then use the feature_
Selectin9 a Feature
Press the Samsung Smart Control's M,.SOIRIEIEH button while Multi-Link Screen is running. The
Options menu appears.
2, Select a feature from the Options menu. This initializes the selected feature.
Feat_ res s_ pported by M_ti nk Screen vary depending o_ yo_r coventry
Changing the Channel/Volume
Place the pointer or focus over the screen on which you want to change the channel or adjust the
volume.
2, Use the channel buttons to change the channel or the volume buttons to adjust the volume.
Pak_ing Bluetooth Headphones
Pairing Bluetooth headphones to the TV lets you to hear the audio from a different screen through the
headphones.
Compat bilty ssues may occur with Mobile headphones, which may not work.
Sync ssues may occur; depending on the video and audio and on the devices used.
The headphones and the TV may disconnect, depending on the d stance between them.
You can't use B uetooth headphones and SoundShare Settings (Sound > Speaker Settings > SoundShare
Settings) features simu taneous y_
Put the Bluetooth headphones in the pairing-ready status.
Refer to the headpho _es' man_a for nst_uctions on enab ing the par ng _eady stat_ s,,
2, Press the Samsung Smart Control's M,.SClRIEIEHbutton while Multi-Link Screen is running. The
Options menu appears.
3, Select Settings from the Options menu.
4, Select Connect Bluetooth Headphones from the Settings menu. The TV displays the Bluetooth-
pairing window, and then automatically scans for available headphones.
Iif the scan fails to ocate yo_J headpho _es, try pacing the headpho _es coser to the IiV, and then
seect Refresh,,
Select your headphones from the list of scanned headphones, and then select Pairing &
Connection to pair the headphones and the TV.
Selecting the Audio_Source Screen
You can listen to audio from one screen through the speakers and audio from a different screen
through the Bluetooth headphones.
Press the Samsung Smart Control's M,.SClRIEIEHbutton while Multi-Link Screen is running. The
Options menu appears.
2, Select Settings from the Options.
3, Select Speaker Settings from the Settings menu.
4, Select a screen for TV Speaker and another for Bluetooth Headphone.
.....Iihe same screen cannot be se ected for both TV Speaker and Bluetooth Headphone.
Auto s o_y s_ppo_ted by the IiV speaker, B _etooth headpho _es a_e _ot s_ppo_ted,,
Smart Hub
MIE:INU> Smart Hub > Open Smart Hub
With Smart Hub, you can surf the web, download apps, and stay in touch with family and friends
through social networking services. In addition, you can enjoy photo, video, and music files stored on
external storage devices.
Some of the Smart Hub serv ces are for pay services. To use a for pay service, you must have an account
with the serv ce provider or a Samsung Apps TV account, Refer to the "Using Smart Hub with a Samsung
Account" sect on for more nformat on,
The TV must be connected to the [nternet to access Smart Hub,
Some Smart Hub features may not be available depending on the service provider: language, or region.
To use Smart Hub, you must agree to the end user agreement and privacy policy, Otherw se, you w!l not be
able to access the features and serv ces associated wth them. You can v;ew the entre text of the Terms &
Policy by nav;gating to Smart Hub > Terms & Po[icy_ If you want to stop usng Smart Hub, you can cance
theagreement_
Testing Smart Hub connections
MIEINU > Support > Serf Diagnosis > Smart Hub Connection Test
If Smart Hub is not functioning, navigate to Support > Self Diagnosis > Smart Hub Connection Test.
Diagnose the problem by checking the internet connection, your ISR the Samsung server and the
Samsung Apps panels.
After compbt n9 the test, f Smart Hub cont hues to have probems, contact your [nternet Service Provider
or a Samsung Contact Centre_
Opening the First Screen Settings
Press the _ button while watching TV to open the First Screen Settings.
On the First Screen Settings, search through favorite apps, channels or sources and access previously
run or frequently used functions.
You can configure the TV to automatically open the First Screen Settings when it turns on. Navigate to
Smart Hub :> First Screen Settings, and set Auto Start to On.
Settin9 you_ _ favorite item
Press the [_ button to open the First Screen Settings, and move to a desired item.
2, Tap and hold the touchpad. The Options menu appears.
3, In the Options menu, select Add to Favorites to add the selected item to the favorite list, which
will move top of the list.
..../o deete a favorite item, selec_ it a_'d tap a_'d hod the to_Jchpad to disp ay the co_'text meu'_s,,/ he,',
seect Remove from Favorites,,
De_etin9 browsing history
Press the _fl button to open the First Screen Settings, and select Delete All. You will be asked to
confirm your selection.
2, Select Yes on the screen. Your browsing history is deleted completely.
Howevec the IFavodtes ist items wil not be deeted,,
You can aso deete yo_J_browsiu' 9 Msto_y by se ectin9 Delete Al_ ih, the Smart Hub > First Screen
Settings meu'_,,
Moving to the Panel Screen
Press the _P button to open the First Screen Settings, and select the Panel icon. On the Panel screen
for each service panel, the following are available:
o @ Games
This function is only available in the U.S.A. and Canada.
Navigate to Smart Hub > Games to confirm the optimizing game apps for Smart TV and detailed
information on Smart hub. This makes it easier to download and play games. In addition, you
can manage games that you have downloaded or purchased with your Samsung account.
o ¢_?SAMSUNG APPS
You can enjoy variety of free and for pay news, sports, weather, and gaming apps on the TV as
you would on a smart phone or tablet.
, i"}i_On TV
This function is only available in the U.S.A. and Canada.
You can view the current programs on TV at a glance and view Program Recommendations by
Channel or by Time for programs that will be broadcast later. In addition, you can watch recorded
videos.
o @sMOVIES & TV SHOWS
This function is only available in the U.S.A. and Canada.
You can buy or rent movies and TV shows online and stream them to your TV using apps
downloaded via Smart Hub.
o _1 MULTiMEDiA
You can play back photo, video, and music files from an external storage device or watch
recorded videos.
o ¢'}: NewsON
This function is not available in the U.S.A. and Canada.
NewsON provides real-world news and weather information all in on place - no need for a
newspaper, smartphone, or computer.
o ¢_,}SOCCER
This function is not available in the U.S.A. and Canada.
The SOCCER panel offers a variety of information about world soccer matches, featuring videos,
news, matchups, and ratings.
Using the Smart Hub Tutorial
IMENU > Support > Smart Hub Tutorial
Select Support > Smart Hub Tutorial. This will familiarize yourself with the basics of Smart Hub and
panels.
Using Smart Hub with a Samsung Account
Your TV's menu may differ from the image above, depending on the modek
Creating a Samsung Account
IMIEINU> Smart Hub > Samsung Account
Some of the Smart Hub services are for pay services, To use a for pay service, you must have an
account with the service provider or a Samsung Apps TV account (a Samsung account),
You can create a Samsung account using your email address as your ID,
To create a Samsung account, you must be over 14 years od,
To create a Samsung account, you must agree to the Samsung account end user agreement and privacy
polic% Otherwise, you cannot create a Samsung account. You can view the entire content of the agreement
by navigating to Smart Hub }>Samsung Account }>Terms and Conditions, Privacy Policy,
You can aso create a Samsung account at http://contenLsamsung.com. Once you have an account, you can
use the same ID on both the TV and the Samsung website.
Creatin9 a Samsung Account Usin9 the Create Samsung Account Menu
2_
Press the MIEINU button on your remote, and then select Smart Hub > Samsung Account > Create
Account > Create Samsung Account. The Terms and Conditions screen appears.
On the Samsung Smart Control, press the touch pad to agree to the Terms and Conditions, and
then press the touch pad again. On a standard remote, press the {7_ button to agree, and then
press {7_ again.
3_
Iif yot want to mvew the Femss and Conditio _s, seect the Vew Deta Is btttons,,
Select the Email field. The keyboard pop-up appears. Enter your e-mail address. On the Samsung
Smart Control use the directional buttons to move from character to character, or use the Motion
Sensor pointer. Press the touch pad to select a character. Select the Caps button on the left to
enter capital letters. Select the 123#& button to view and select additional symbols. Select ocom
at the bottom of the keyboard to enter the .com button. On a standard remote, use the directional
keys to move from character to character and press the {7_ button to select a character.
When finished, select Done on the keyboard. The Create Account screen reappears.
Enter a password, your first name, and last name in the same fashion.
6_
Iif yo_, want yo_,__accoL_nl: to be passwo_d p_otected, select "Password (Sect, r ty: Hgh" n the fed
below the IPasswo_d field Iif you don_t, seect "No password _eqL ired_ You st;I need to c_eate a
passwo_d, howeve_ Other f_ nctio _s n yo_J acco_nt _eq_ ire that yo_ enter a passwo_d
eave "Sign me r_ a_,tomatical y" checked f you want the IiV to og you n to yotJ accot_nt
a_ tomatical y when yoL tLrn the IiV on,,
Select the Date of Birth field, and then select numbers pressing the up or down directional
buttons, or, on a standard remote, using the number pad. Move from month to day to year by
pressing the left or right directional buttons. Press the IRIETURINbutton on the remote when done.
After you have finished with all the fields, select Next. The Image Selection screen appears.
Select an image to use to identify your account. The Account Created screen appears. Press the
touch pad or press the {iii_ button. You are signed in to your Samsung account.
Iif yo_ have an existing acco_nt saved o_ the IiV_ yo_ m_st be ogged o_£ of the acco_nt to c_eate _ew
acco_nts o_ the liT,,
Creating a Samsung Account using a Facebook Account
if you have a Facebook account, you can use the account to create a Samsung account.
Press the MIEINU button on your remote, select Smart Hub > Samsung Account. And then select
Log in. The Sign In screen appears.
2_ Select _, and then select Create with Facebook on the Sign In screen.
3_ Enter your Facebook ID and password and select Sign in.
4_ The Terms and Conditions screen appears.
On the Samsung Smart Control press the touch pad to agree to the Terms and Conditions, and
then press the touch pad again. On a standard remote, press the {7_ button to agree, and then
press the {7_ button again.
6_ Follow the directions on the Create Account screen to create a Samsung account.
Once a Samsung account is created, you are automatically signed in.
Iif yo_; c_eate a S;J_ss_ng acco_;nt _;sing yo_J Facebook acco_;r_t, they a_e a_tom;£[ca y inked
Signing in to a Samsung Account
MENU > Smart Hub ) Samsung Account ) Log In
Press the MIEINU button on your remote, and then select Smart Hub ) Samsung Account ) Log In.
2, On the Log In screen, select your account. And then select Sign In on the Sign In screen.
3, If you don't need to enter a password, Iogin proceeds. If you need to enter a password, the on-
screen keyboard appears. Enter your password. When finished, select Done.
Linking Your Samsung Account to External Service Accounts
MIEINU > Smart Hub > Samsung Account > Link Service Accounts
Linking your Samsung account to an external service accounts lets you automatically log in to
the linked account when you log into your Samsung account. For example, you can download the
Facebook application - which lets you access Facebook from your TV - and then link your Facebook
account to your Samsung account. Logging into your Samsung account then automatically logs you
into your Facebook account as well and lets you access it directly from the TV.
To use Link Service Accounts, you must frst log nto your Samsung account.
Linking a Service Account
Log in to your Samsung Account.
2, Navigate to Smart Hub ) Samsung Account, and then select Link Service Accounts. The
accounts you can link to your Samsung account are displayed.
3, Select an account from the list. The Link to other accounts window appears on the screen.
4, Enter the current ID and password of the account to log in and select OK.
When the Iogin is complete, the account is linked to the Samsung account.
Disconnectin9 a Linked Account
Navigate to Smart Hub ) Samsung Account, select Link Service Accounts. Select an account to
unlink.
2, A confirmation dialog box appears. Select Yes to unlink the account.
Changing and Adding Information to a Samsung Account
MEINU > Smart Hub > Samsung Account
Using the Samsung Account menu, you can manage your Samsung account.
To change the account nformation, you must be logged n to your" Samsung accounL
Navigate to Smart Hub > Samsung Account, and then select Edit Profile. The keyboard appears.
2, Enter your password, and then selec Done. The Edit Profile screen appears.
The Edit Profile screen lets you do the following:
o Change Your Profile Image
Select Edit Profile Picture to change your profile image.
Register Your Face to your Samsung Account
Select Register Face to register your face to your Samsung account. The registered face is used
by the Face recognition Sign-in method.
.....Iio _se his fi_nction yo_ m_st cox_ect a IiV camera (sod separa ey) 0 yo_J IiV,,
* Choose a Samsung Account Sign-in Method
Select Sign-in Method and choose a sign-in method from the drop down that appears.
. Turn Auto Login On or Off
Select Sign me in automatically. Auto Login automatically logs you in to your Samsung account
when you turn the TV on. A check mark indicates that Auto Login is on.
Enter Basic User Information
You can enter your first name, last name, and date of birth.
Add a Credit Card to Your Samsung Account
Select Add Card to add a credit card to your Samsung Account. Adding a credit card to your
account makes it easier to purchase online movies and TV shows. Follow the easy directions on
the screen.
Subscribe to the Samsung e-Newsletter
You can receive emails containing information about Samsung products, new service
announcements, special offers, and events.
Deleting a Samsung Account from the TV
MEINU > Smart Hub > Samsung Account > Remove Accounts from TV
Navigate to Smart Hub > Samsung Account and select Remove Accounts from TV. The account
and password information for the currently signed in account is deleted from the TV. The account
information for any external accounts linked to the signed in account is also deleted from the TV.
Onty the informat on for the current sgned n account s deleted, Account nformat on for atl other accounts
saved on the TV rema n_
Using the Games Panel
This function is only available in the U.S.A. and Canada.
Usability depends on your specific model and locaI region_
Navigate to Smart Hub > Games to confirm the optimizing game apps for Smart TV and detailed
information on Smart hub. This makes it easier to download and play games. In addition, you can
manage games that you have downloaded or purchased with your Samsung account.
The TV must be connected to the Internet for you to use the Games Pane,
To purchase or remove games on the Games pane, you must be logged in to your Samsung AccounL
Using Supported Features via the Pop-Up Menu
On the My Page or All Games panel, move the focus to a desired game, and then press and hold the
touch pad. On a standard remote, press and hold the/::_ button. A drop down list appears with the
following functions.
o Download/Remove
Downloads games to the TV or removes games from the TV.
o View detail
Displays detailed information for the selected game.
mnstalling and Running a Game
QuicMy _nsta_in9 Games
On the Games panel, select All Games and select a game from the list, then press and hold the
touch pad or the 8_ button. The Options drop down list appears.
0_' the AH Games screeu', seect the _ button' ../he screeu' wil disp ay o_'y 9ames that are compatib e
witlh the corstro er you chose..
0_' the Al_ Games screen, select the Q button', a_'d the,' seect a sorting criteria../he 9ames are sorted
accordiu' 9 to the criteria..
2, In the pop-up list, select Download. If you are on the Information screen, select Download.
3, If the game is free, the game you selected is installed on the TV. If the game is not free, follow
the directions on the screen to pay for and download the game.
- You can stop a game download by selecting the Cancel button.
- When the TV's internal memory is insufficient, you can install a game on a USB device.
- You can play a game installed on a USB device only when the USB device is connected to the TV.
If the USB device is disconnected during game playing, the game is terminated.
- You can play the game installed on the USB device on a PC or another TV.
_nsta_ing a Game from the Detai_ed Game _nformation Screen
On the Games panel screen, select a game you want to install. If you cannot find a desired game,
select All Games.
o
o
On the All Games screen, seect the _ button o_' the top ri@st of the screeu' ,,/Ihe screeu' disp ays o_'y
9ames that are compatib e wi_lls the co_'tro er you chose,,
O_' the All Games screen_ seect the Q button ir the upper right side of the screeu', a_'d theu' seect a
sortin_ criteria,,/he 9ames are sorted accordiu' 9 to the cdteria yo_J se ected,,
The Information screen for that game appears displaying information about the game and images
and a video from the game. Select the Download button to download the game.
If the game is free, the game you selected is installed on the TV. If the game is not free, follow
the directions on the screen to pay for and download the game.
Launching a Game
To run an installed game, select Play on the game's detailed game information screen.
Managing Downloaded or Purchased Games
In Smart Hub, move to the Games panel and select My Page at the bottom of the screen.
On the My Page screen, select the _ button on the top right of the screen. The screen dispIays only games
that are compatible with the contro Ier you chose.
On the My Page screen, seect the _ button in the upper right side of the screen, and then seect a sorting
criteria. The games are sorted according to the criteria you se ected.
Updating a Game
Select Update Game at top of the My Page screen to update games installed on the TV.
Update Game appears ony when there is a game that needs to be updated.
To update games automatically; select the D button at the top of My Page, and then set Auto Update
Games to On. Games wi now be updated automaticaI y when an update becomes available.
Removing a Game
Press the D button at top of the My Page screen, and then select Delete.
2, Select a game you want to remove by highlighting the game, and then pressing the touch pad or
/ii_ button. Repeat to select additional games to remove. To select all games, select Select All.
3, To deselect a game, highlight it again, and then press the touch pad or/ii_ button. When the
selection is complete, select Delete.
Rating/Sharing/Reviewing a Game
You can rate or share a game through a social network service or send a review to the developer on
the detailed information screen.
You can rate / share / review a game ony if the game has installed on the TV.
Using the SAMSUNG APPS Pane[
Usability depends on your specific modet and locaI region_
Smart Hub offers a variety of free news, sports, weather, and gaming apps you can install directly to
and enjoy on your TV. The first line on the screen contains apps recommended by Samsung. These
apps were automatically downloaded to your TV when you set up Smart Hub. The lines of apps below
the first line contain some apps that were automatically downloaded to your TV and other apps you
have selected and downloaded.
Your TV must be connected to the Internet for you to use SAMSUNG APPS,
When Smart Hub is launched for the first time, the default apps are automatical y insta ed, The default apps
may differ depending on the region,
Using Supported Features via the Pop-Up Menu - Downloaded
Move the focus to an app in the second row or below, and then press and hold the touch pad. On a
standard remote, press and hold the {:i:_ button. The Tools menu appears displaying the following
functions.
o Move
Lets you relocate an app on the screen.
Delete
Lets you remove a selected app from your TV.
Multi Delete
Lets you remove multiple apps from the TV.
View Details
Displays detailed information about a selected app.
Change View
Lets you change how the apps are sorted on the screen, by Custom or Most Played.
Lock/Unlock
Lets you lock or unlock an app.
e Update Apps
Displays a list of apps that have updates available. You can select which apps to update.
Using Supported Features via the Pop-Up Menu - Recommended
Move the focus to a recommended app in the top row, and then press and hold the touch pad. On a
standard remote, press and hold the {7_ button. A drop down list appears with the following functions.
. View Details
Displays detailed information for a selected app.
Update Apps
Lets you update the apps when updates are available.
,, Lock/Unlock
Lets you lock or unlock an app.
mnstalMin9 an App
Quick _nstalllation
On the SAMSUNG APPS screen, select Most Popular, What's new, or Categories.
Most Popular arid What's new show the most popL lar and new Samst ng apps, respective X Iio view
the entire app st by _enre, seect Categories,, When the Categories screen appea_s, seect a catego_y
;co_ to view the apps in that catego_y
Move the focus to an app, and then press and hold the touch pad. On a standard remote, press
and hold the {7_ button. A pop-up menu appears.
3_ On the pop-up menu, select Downmoad.
4_
Most apps are flee to nsta ,,
While an app s being nstal ed, the p_og_ess ba_ appea_s at the bottom of the app co_ so that yo_ can
monitor the p_ogress of the nsta atios.
The selected app is installed on the TV.
You can view nsta ed apps o_ the SAMSUNG APPS sc_een,,
_nsta_in9 an App from the Detailed App _nformation Screen
On the 8AMSUNG APP8 screen, select Most PopuNar, What's new, or Categories.
.....Iihe Most Popular and What's new show the most popL lar and new SamsL ng aDDs, respective y, Ii0
view the enl:ire app ist by genre seect Categories,, When the Categor es screen appears, seect a
category con to vew tlBe apps n that categorx
2_ Select an app from the list. Detailed information about your selection appears on the screen.
3_ Select Download to install the selected app on the TV.
Most apps are free to nsta ,,
While an app s being nsta ed the progress bar appears at the bottom of the spp cos so that yo_ can
mostortlbeprogressofthe nsta ation.
4. When the installation is complete, the Download button changes to Open.
Y(£_ can view nsta ed apps o] the SAMSUNG APPS screen.
Additiona_ Notes
When the TV's nterna memory is insufficient, you can nstal an app on a USB device_
You can vew icons for the apps saved on the USB devce on the Apps screen only when the device _s
connected to the TV. You can use an app insta led on a USB device ony when the USB devce s connected
to the TV. If the USB device is disconnected whe the app s running, the app s term hated.
You can use the app nsta ed on the USB device on a PC or another TV.
Launching an App
Select an app on the SAMSUNG APP$ screen, and then press the touch pad, On a standard remote,
press the 8_ button, You can also start an app from its Detail screen,
App Screen Icons
The icons below appear on the Apps screen and indicate the following:
o _{_i}:The app supports motion control,
To use the Motion' Co_'tro feature, you must iu'sta a separatey so d camera o_' the TV,,
o !,_! : The app supports voice control,
, : The app is installed on a USB device.
, : The app supports a pointer that can move by the Samsung Smart Control.
Defaumt Apps
Default apps download to your TV automatically during set up.
The embedded e-manual contains information about your TV's key features.
WebBrowser is an Internet browsing app. Using WebBrowser, you can surf the Internet on the TV in the
same manner as you would using a PC - even while watching a TV program using PIP. Use a keyboard
and mouse for a more convenient web browsing experience.
The browsing page may differ from that on a PC_
Remocatin9 an App on the Apps Screen°
On the SAMSUNG APPS screen, select to the app you want to move.
2_ Press and hold the touch pad. On a standard remote, press and hold the [:i:_ button. A pop-up
menu appears.
3_ On the pop-up menu, select Move.
YOL rxay be asl<e(:t to chan(:_e the view to CL store
4, Highlight an app you want to move. Move the app to a desired location use the arrows buttons.
When the app is in it's new location, press the touch pad or press the {:::_ button.
You cannot move IRecommendect Ap_:)s.
Deleting an App from the TV
If an app s deleted, the data re ated to the app s aso deleted_
Deletin9 an App
On the SAMSUNG APPS screen, move to the app you want to remove.
2_
3_
4_
Press and hold the touch pad. On a standard remote, press and hold the [:i:_ button. A pop-up
menu appears.
On the pop-up menu, select Demete. A removal confirmation window appears.
Select Yes. The selected app is deleted.
Removin9 Multiple Apps
On the SAMSUNG APPS screen, move to an app you want to remove.
2. Press and hold the touch pad. On a standard remote, press and hold the {7_ button. A pop-up
menu appears.
3. On the pop-up menu, select Multi De_ete. A check box appears on the app icons.
4. Select all the apps you want to delete. A check mark appears on each app you select. When
done, select Delete at the bottom of the page. A removal confirmation window appears.
Select Yes. The selected apps are deleted.
Rating/Reviewing an App
On the detailed app information screen, you can rate an app or send a review to the app developer.
To rate or review an app, you must log nto your" Samsung accounL You can only rate or review with a TV
purchasing apps and games_
Updating Apps
On the SAMSUNG APPS screen, select an app.
2, Press and hold the touch pad. On a standard remote, press and hold the {iii_ button. A pop-up
menu appears.
3, On the pop-up menu, select Update Apps. A pop-up window listing all the apps with available
updates.
4. Select the apps you want to update, and then select Update. All the selected apps are updated to
the latest version.
Y(£_can choose a the apps isted n the Update wndow at o_ce by seectin(t_ Seect A
Setting Auto App Update
To update apps automatically, navigate to Smart Hub > Apps Settings and set Auto Update to On. The
apps will then be updated automatically when an update becomes available.
Using Other App Features and Functions
MIE:INU> Smart Hub > Apps Settings
You can configure additional app features and functions.
Enabling Automatic [icke_s
Configure selected tickers to display automatically when the TV is turned on. A ticker is a service
that displays stock values, news, weather updates, etc. on the screen in real-time. Enabling the Ticker
service brings you up-to-the-minute information while you watch TV.
To use this feature, make sure that an app supporting the Auto Ticker funct on s nsta e6 on the TV_
Navigate to Smart Hub > Apps Settings and select Auto Ticker. The apps supporting Ticker
Autorun installed on the TV will appear.
2_ Select apps from the list that you want to run automatically when the TV is turned on.
Setting Push Notification
The Push notification function lets publishers of some apps installed on the TV send alarm messages
containing news about their apps, modification information, etc. The messages are displayed on your
screen as you watch TV.
Navigate to Smart Hub > Apps Settings > Push Notification Settings, and then set Push
Notification to On.
2_ On the Push Notification screen, select the apps you want push notifications for.
.....Iihe Push Notification app ists o_y the apps that s_ pport Push Notification Settings,,
Using Channel Bound Apps,
A Channel-Bound App is an app that is linked to a particular channel. These apps provide services for
or information about programs on the linked channel while you are watching the programs.
Navigate to Smart Hub > Apps Settings and set ChanneFBound Apps to On.
You can use ths feature only when an app supportng Channel-Bound Apps s nsta ed on the TV_
Using the On TV Pane[
This function is only available in the U.S.A. and Canada.
Usability depends on your specific model and locaI region_
On TV displays your current program live in a small window, a list of recommended programs currently
on other channels, and a list of of recommended programs that will air later. You can use these lists to
change the channel and watch another program. You can also use these lists to view more information
about recommended programs running later, including how much time is left until they air. In addition,
you can set up a Schedule Viewing of a program that hasn't aired.
To view a program recommended by On TV, select the image. The TV changes the channel and
displays the program you selected.
Availability of recommended content depends on the specific model and area,
You must connect the TV to the Internet to use On TV,
The channels or programs recommended by On TV may differ from the actua channe s or programs
depending on the broadcast information provider_
You can use the following features by selecting the buttons at the bottom of the screen.
o Viewing the Program Schedule of Digital Channels
Select Guide at the bottom of the screen to view the program schedule of each digital channel.
You can check the program schedule and even set up a Schedule Viewing. For more information
about Guide, refer to the "Using the Guide" section.
..../he Guide provides iu'formation' o_'y about digita cha_'u'e s,, Anaog cha_'u'e s are not supported,,
Program Recommendations by Time
Select Timeline View at the bottom of the screen to view program recommendations for different
times of the day.
Popular Videos
Select Trending at the bottom of the screen to see what is the most trendy or popular content on
Twitter, and then set up a Schedule Viewing to view or record that content.
Using Supported Features via the Pop-Up Menu
Move the focus to a desired program, and then press and hold the touch pad or press and hold the {:::_
button. The following options are available:
Ava abe optons may dffer dependn9 on the seected program.
- Viewing Detailed Information
Lets you view detailed information about the program you selected.
. Reserving
Lets you set up a Scheduled Viewing for the program you selected.
Viewing Detailed Program
Move the focus to a desired program, and then press and hold the touch pad or press and hold
the 17_button. A context-sensitive menu appears.
2, On the context-sensitive menu, select View details. Detailed information about the selected
program screen appears.
Select a program from the list to see more information about the program and to access the following
options:
. Moving to a Channe[
Jumps to the selected program's channel.
. Reserving
Lets you set up a Schedule or Schedule Recording for the program.
. Viewing Related Content
View a list of content related to the program. If you select an item from the list, the detailed
information screen of the selected item appears.
. Rate
Lets you rate the program.
. Sharing
You can share information about the selected program via an SNS.
Configuring On TV Settings
MIEINU > Smart Hub > On TV Settings > On TV Setup
Lets you select the source of your TV programs and the source of the program information that
appears on the On TV screen (the signal source, cable company provider, etc.). Follow the Instructions
that appear on your TV screen when you start this function. On TV Setup is only available if you have
not set up Smart Hub.
Receiving Recommended Content Notification
You can configure the TV to display a notification when a frequently watched program is broadcast.
Navigate to Smart Hub > On TV Settings and set Automatic Notifications to On.
Changing Recommendation Type
Lets you choose the kind of program notifications you will see. Select Preference to see notifications
for shows you watch often or PopuEarity to see notifications for popular shows. You must enable
Automatic Notifications for this function to work. See Automatic Notifications above.
Navigate to Smart Hub > On TV Settings, select Recommendation Type and set it to a desired type.
Removin9 Adult Content from the Recommended List
Enabling Block Adult Content prevents the On TV screen from listing TV programs with adult content.
Navigate to Smart Hub > On TV Settings and set Block Adult Content to On.
Using the MOVIES & TV SHOWS Panel
This function is only available in the U.S.A. and Canada.
Usability depends on your specific mode and locaI region.
The MOVIES & TV SHOWS screen lets you buy or rent movies and TV shows online and stream them
to your TV using apps you downloaded via Smart Hub. This is called Video on Demand or VOD. To
make browsing for VOD content easier, the MOVmES & TV SHOWS screen displays recommended
movies and TV shows and displays multiple VOD content sources so you can browse and watch all
you want in one place.
AI the MOWES & TV SHOWS options may not be available depending on the content you are trying to
access or your region.
The TV must be connected to the Internet for you to use MOWES & TV SHOWS.
Setect _ on the screen to change the recommended content list.
The following options are available at the bottom of the MOVIES & TV SHOWS screen:
o Favorites
View the movies and TV programs registered as Favorites.
.... view another account's favorites co_'tent ist iu' the Favorites meu'u, seect the D button' at the top of
the screeu' and seect a_' account,,
o Featured
View movies or TV programs grouped according to various themes such as movies of an actor/
actress who went to Hollywood, acted in a TV series, and so on.
, Movies
View moviesby releasedate,popularity,or genre.
TV Shows
SearchTV showsby air date,popularity,or genre.
,, Trailers
View movietrailersfor upcomingmovies.
View movies and TV programs that are the most trendy or popular on Twitter.
To sort the content items in each menu, seect the _ button and then choose a sorting criteria.
Depending on the se ected menu, the _ button may not appear.
Pressing the D button in the content list page under the MOWES & TV SHOWS, Movies or TV Shows
menu altows you to add content to Favorites. The Favorites menu Iist can be used to remove content from
bookmarks. Note that the button may not be dispIayed depending on the seected menu.
Using Supported Features via the Pop-Up Menu
On the MOVIES & TV SHOWS screen, select a movie or TV program, and then press and hold the
touch pad. On a standard remote, press and hold the/:i_ button. A list with the following options
appears:
Availab e options may differ depending on the seected content.
, Play Content Now
The pop-up window displays the names of one or more content providers. Select a content
provider to play your selected movie or TV program now:
If the app for the conteu' t provider you se ected is not insta ed on your IV} a popup window appears,,
In thepop upwindovv, seecttodispaytheapp'sinformation page or to k sta theappimmediate_,
Note that you ca_' aso irsta the app from the apps ir formation' page,,
Add to/Remove from Favorites
Add the selected content to Favorites or delete it from Favorites.
.... view movies a_'d TV programs you have registered as favorites, og into your Samsung account,
navigate to the Movies 8_ TV Shows screeu', a_'d tlheu' seect Favorites at the bottom of the screeu' ,,
Watching a Movb/TV Program
o
If yOU are using MOVIES & TV SHOWS for the first time, or you have not logged into your Samsung
account, the MOVIES & TV SHOWS screen displays only new and popular movies and TV shows. To view
a custom recommended list, you must have used MOWES & TV SHOWS for a period of time and you must
first log into your Samsung accounL
In addition, if you have been using MOVIES & TV SHOWS for a period of time, you can also view your
frequently played content list.
On MOVIES & TV SHOWS screen, select a movie or TV program you want to watch. Detailed
information about your selection appears on the screen.
On the detailed information screen, select a provider app icon to play the content. The selected
app is launched, and you can view detailed information about the content in the app.
If the app for the conteu' t provider you se ected is not insta ed on yo_r IV, a popup window appears,,
In the pop up window, seect to dispay the app's information page or to insta the app immediate_,
Note that you ca_' aso irsta the app from the apps ir formation' page,,
3. You can play the content by selecting Play or Start in the detailed information screen.
If the se ected content is free, you can instant y watch the content,, If the co_'tent is for pay co_' tent,
you must first purchase the content iu the app (In App Purchase),,
.....I Ii'sepurclhasinfj procedures in each app may differ dependinf_ on the app,, You may need to o9 iu'to the
service or site that provides the app, or eu'ter paymeu' tiu' formation' ,,
Preventing Chimdren from Watching Adumt Content
IMIEIHU > Smart Hub > VOD Rating Lock
You can lock content rated as adult so that children cannot access it.
Navigate to Smart Hub and set VOD Rating Lock to On.
To turn the VOD Rating Lock on or off, the security password is required.
Adding Content to Favorites
On MOWES a TV SHOWS screen, select a movie or TV program that you want to add to
Favorites. Detailed information about your selection appears on the screen.
2, Select the [] button on the detailed information screen. The content is added to Favorites.
Seect Favorites o_' the bottom of the MOVIES & TV SHOWS screeu' to view your favorite co_' tent ist,,
Seect the _ button' at the top of the co_' tent ist iu' each meu' _ to add m_Jtip e items to Favorites at
0_' ce,,
Rating and Sharing a Purchased Content
Ratin9 Content
Select content on the MOVIES a TV SHOWS screen. Detailed information about your selection
appears on the screen.
2, Select the _ button on the detailed information screen. A pop-up window appears.
3, In the pop-up window, you can set the star score by using the ( and _ buttons.
Writin9 a Content Review on an SNS (Socia_ Networkin9 Site}
Select content on the MOVIES a TV SHOWS screen. Detailed information about your selection
appears on the screen.
2, Select either the U or D button in the detailed information screen. The Iogin page of the selected
SNS appears.
If you have inked your Samsung accoul' t to your %_S account, you are automatica y ogged irto the
SNS wlhe,' you of_ into your Samsunf_ accouter,, For information about inking your Samsur_fj account to
a_' SNS account, refer to the _Lk kin9 Your Samsun9 Account to IExterna Service Accounts _ section' ,,
3, On the SNS Iogin screen, enter your SNS ID and password to log into the SNS.
o
If you have kked your Samsun9 account to the SNS account, you ca_' skip tMs step,,
In the pop-up window, type the article you want to post to the SNS, and then select Post, The
article is posted to the SNS,
Using the Mu_t
and Music)
imedia Pane_
(Pmaying
Usabi ity depends on your spec f c mode and local reg on.
The Multimedia Panel lets you play media content saved on USB devices, smartphones, cameras,
computers, or in a Storage Service site on the TV.
You cannot play media content if the content or the storage devce is not supported by the TV. For more
nformat on, refer to "Read Before Paying Photo, Vdeo, or Musc Fites".
Backup mportant ftes before connect ng a USB device. Samsung s not respons be for damaged or lost
fies_
Playing Media Content Saved on a USB Device
Select USB Drive on the MULTiMEDiA panel. The USB devices connected to the TV are listed.
2,
3,
Select the device you want to connect to. The folders and files in the selected USB are listed.
Select the media content you want to play from the list. The media content plays.
A ternat ve g _avigate to the media content yo_ want to pax and then press the _ b_£to _ to pay the
co _tent,,
4, To exit, press the _ button or IRETURIN button.
If you connect a USB device to the TV while watching the TV, the New Devce Connected pop-up appears,
Select AII, Musc, Videos, or Photos, and then press the touch pad, On a standard remote, press the ri]_
button, The folders and fibs on the USB device are Iisted,
ABernat vely, f you select a USB devce on the Source screen, a pop--up window appears on the screen
d splaying the fo ders and fbs of the USB device,
Safely Removing a USB Device
Press the SOURCE button. The Source screen appears.
2,
Navigate to the USB device you want to remove. Press and hold the touch pad on the Samsung
Smart Control or the {7_ button on a standard remote. An options list window appears.
3. Select Remove USB in the list.
Playing Mumtimedia Content Saved on a Computer/Mobile Device
To view a guide about Computer connect ons, seect Connect to a PC on the MULTIMEDIA pane_
To view a guide about Smartphone or tabet connect ons, seect Connect to a MobiJe Device on the
MULTIMEDIA pane_
All,owing Connections with a Computer/Mobile Device
To play multimedia content located on a computer or mobile device on the TV, you need to:
o First, establish the connection to the computer or device.
Then, allow the connection with the computer/mobile device on the TV.
For information about establishing connections, see the "Connecting to a Computer" and "Connecting
To a Mobile Device" sections.
To allow a connection with a computer or mobile device, follow these steps:
Select Network Device on the MULTiMEDiA panel. The devices connected to the TV are listed.
2_ Select Options, and then MuEtimedia device settings. The devices connected to the TV are listed
with their settings.
3_
A ternative g select Multimedia Device Settings from the Network men_ to see the ist of the devices
connected to the IiV wtlh tiber sett n(t_s
Allow the connection with the device you want to connect to the TV. You can only play media
files from devices that have been allowed to connect to the TV.
If a computer or moble device asks that it be allowed to connect, the connection allowance confirmation
window appears on the TV so that you can eas y connect t_
You can connect to a computer or mobb device on any DLNA DMC device, such as ths TV. The DLNA
DMC function enables you to connect a mobb device to the TV_ search for mu t reed a content and contro
play operat ons on the TV_
When Connected Through DLINA Using Your Home Network
To connect a computer through DLNA usng your home network, refer to the "Connect ng to a Computer"
sect on,
2_
3_
To connect a mobb device through DLNA usng your home network, refer to the "Connect ng To a Mobte
Device" sect on_
You may experiencecompatblity ssueswhenattemptngtopaymedaf esviaathrd-partyDLNAservert
The content shared by a computer or a mobile devce may not play depending on the encod ng type and fe
format of the content, In add tion, some functions may not be available,
The muB media content may not play smoothly depending on the network status_ If ths occurs, transfer the
content to a USB storage device, and then pay content from the device,
Select Network Device on the MULTiMEDiA panel, The devices connected to the TV are listed,
Select a device connected through DLNA using your home network, the folders and files shared
by the selected device are listed,
Select the media content you want to play from the list, The media content plays,
A ternat vex move to the media co_tent you want to pax and then press the _ butto _ to pay the
co _tent,,
When Connected Through Samsung Link
To connect a computer through Samsung Link, refer to the 'Connecting to a Computer" section_
To connect a mobile device through Samsung Link, refer to the "Connecting To a Mobile Device" sect on_
The content shared by a computer or a mob e device may not pay depending on the encoding type and f e
format of the content_ In addition, some functions may not be available_
The mu timed a content may not play smoothly depending on the network status_ If this occurs, transfer the
content to a USB storage dev ce, and then pay content from the device_
Navigate to the Smart Hub > Samsung Account menu, and then select Log Jn to sign in to your
the Samsung account,
2_ Select Storage Service on the MULTiMEDiA panel, The devices connected to the TV are listed,
3_ Select a device connected through Samsung Link, The folders and files shared by the selected
device are listed,
4_ Select the media content you want to play from the list, The media content plays,
A ternat vex move to the media co _tent yo_ want to pax and then press the _ b_£to _ to pay the
co stent,,
Playing Media Content Saved in a Storage Service
Storage Services such as Dropbox and SkyDrive save user content such as photos, videos, and music
files on a remote server accessible through the Internet, When your TV is connected to the Internet,
you can view or play the media content saved in a Storage Service on the TV,
2_
To pay the content n a Storage Serv ce, you must log in to your Samsung account and link the Samsung
account to the Storage Serv ce account. For the information about link ng your Samsung account to a
Storage Service account, refer to the "L nk ng Your Samsung Account to External Serv ce Accounts" sect on.
Navigate to the Smart Hub > Samsung Account menu, and then select Log Jn to sign in to your
the Samsung account,
Select Storage Service on the MULTiMEDiA panel, The devices linked with your Samsung
account appear,
3_ Select a desired Storage Service, The folders and files in the selected Storage Service are listed,
Select the media content you want to play from the list, The media content plays,
A ternat vex move to the media co _tent you want to pax and then press the _ burro _ to pay the
co _tent,,
Buttons and Functions Available While Viewing Photos
The TV displays the buttons below when you press the touch pad - or the {i:@button on a standard
remote - while viewing photos from a multimedia source. The playback buttons disappear if the
IRIETURINbutton is pressed.
o Pause / Hay
Start or stop the slideshow. Using slideshow, you can play all the photos in a folder one by one.
Previous / Next
View the previous or the next photo.
The following functions are available when you select the Settings button.
S[ideshow Settings Speed: Set the slideshow speed.
Effects: Apply transition effects for the slide show.
Rotate Rotate the photo.
Zoom Zoom in by up to a factor of 4.
Picture Mode Change the Picture Mode setting.
Background Music
dO"When background music plays, the mini player appears on the screen. Using the
mini playe_; you can pause the current music fib or play another music fib,
Change the Sound Mode setting.
Sound Mode _,
.... This option is supported only when background m_sic is p_ayin9.
Choose the speakers to play the background music through. Only available if you have
Select Speakers
a home theater or receiver connected to the TV.
.... i..............
This function is the same as the 'Copy' function of a computer. Using this function,
you can send the current photo to another storage device.
Send
To see a list of the storage devices supported by this feature, refer to "Compatible
Storage Devices for Fi_e Transfers".
_nformation
View detailed information about the current photo.
Buttons and Functions Available While Viewing Videos
The TV displays the buttons listed below when you press the touch pad - or the {Y:!_button on a
standard remote - while viewing videos from a multimedia source. The playback buttons disappear if
the IRIETURINbutton is pressed.
e Pause / Hay
Pause or play the video.
When the video is paused, you can use the following functions. The TV does not play audio when
the video is paused or when you are using the Step or Slow Motion functions described below.
- Step: Whenever you press the H button, it scans the paused video one frame at a time.
- Slow Motion: Select the ÷ button to play the video in slow playback speed (1/8, 1/4, 1/2).
Rewind / Fast Forward
Rewind or fast forward the video. Repeatedly select the button to make the rewind/fast forward
speed up to 3 times faster. To restore normal playback speed, select the _ button.
Previous / Next
Select the N< button twice to play the previous video. Selecting N< once starts the current video
from the beginning.
To play the next video, select the _1 button.
Functions on the Media Content List Screen
On the media content list screen of a storage device, the following functions are provided.
* Filter
Filters the media content so only one type of content - photo, video, or music - is displayed.
* Sort By
Sorts the content list. The sort criteria change depending on the type of content you have
selected.
.....Iihis f_ nctio _ ;s _ot ava labe when Filter ;s set to AiI,,
Displays viewing and playing options. The options displayed vary, depending on the type of
content you have selected. Not all options listed below are displayed at the same time.
.....Ilhis f_,mction s not availab e when Filter s set to AH,,
The following options are available when you select the Options button.
Start the slide show.
Slide Show _ Avai_aMe for photos on_y_ _f Sort By is set to Fo_der, this flsnctio_'_ is not avai_aMe.
P_ay Selected Play only content you want from the media content list.
This function is the same as the 'Copy' function of a computer. Using this function,
you can send media content to another storage device.
Send _f_
_:_ To see a list of the storage devices supported by this feature, refer to "Compatible
Storage Devices for Fib Transfers".
if the media content's title will not display properly, you can change the encoding
Encoding language.
_£¢*Available for music flies only,
You can change the name of the playlist you created.
Rename Haylist _ Available for music onb/,
Delete a playlist that you created.
Delete P_aylist _* Available for music only,
Add a file to a playlist that you created or create a new playlist.
Add to Playiist _ Avai_abb for music fibs onb¢,
For quick access to a content item in a large list, use the index function. Select a
format and then a character. The TV jumps to the section of the list that begins with
the character you selected.
hdex #_* This is not available when Sort By is set to Folder.
d!_ You can set the hdex to sort and search by date, number, or English a_phabet, in
descending or ascending order,
Using the NewsON Pane
This function is not available in the U.S.A. and Canada.
Usabil ty depends on your spec f c model and local reg on,
NewsON provides real-world news and weather information all in on place - no need for a newspaper,
smartphone, or computer.
You can find daily information on a wide variety of topics in a smart and convenient way, updated in
real time. NewsON brings you the latest headlines, top stories, popular issues, and weather forecasts.
News articles are updated in real time. Simply select an article on the screen. The selected article will
be displayed on the screen in detail.
For longer articles, press the A or _ button on the remote control to scroll the screen.
To move to a different article, press the < or _ button on the remote control.
Weather information is provided for major cities of your country. Select a weather-related item on the
screen. The selected item will be displayed in detail.
Using the SOCCER Panel
This function is not available in the U.S.A. and Canada.
The screen shown may vary depending on the modet_
The SOCCER panel offers a variety of information about world soccer matches, featuring videos, news,
matchups, and ratings. Adding a favorite team to the Favorite list allows easy access to information
about team.
Before you use the SOCCER pane, check if the TV is connected to the Internet. An Internet connection is
required to access the SOCCER panel.
To view the Quick Guide, seect the O button.
Move to the navigation bar at the bottom of the screen to access the following options:
,, Game highlights
Select Videos to view game highlights of your favorite soccer team.
, Hot news
Select News to check the latest news from various information sources around the world.
, Matchup schedules
Select Matchups to check the matchup schedule and game records of your favorite team. Also, if
the game is in progress or has ended, you can check detailed information about the game.
,, Team and player rankings
Select RanMngs to view team standings or a player's stats (goals, assists).
, Setting your favorite team
Select Edit teams, and add a team you support to the favorite list.
Setting Your Favorite Team
Once you set a favorite team, the SOCCER panel will be rearranged to offer information on your
favorite team.
if you have never set a favorite team. select Set your favorite team!! and simpIy add a team to the list.
You can add up to 6 teams to the ist.
Select Edit teams on the SOCCER panel.
2. Select +.
3. Select a league to which the selected team belongs.
4. Select the team.
If you have added mutip e teams to the ist. seect the _ burro,' o,' the SOCCER pa,'e to move to the
next team section' ..
Modifying the Favorite Team IIIist
Select Edit teams on the SOCCER panel.
2. Select a favorite team to change.
3. Select the league to which the favorite team belongs.
4. Select the team. The team you selected replaces the current team.
Deleting favorite teams
Select Edit teams on the SOCCER panel.
2. Select Options > Delete.
3. Select all of the teams you want to remove.
4. Select Delete to remove all the selected teams from the list.
O,' the Edit teams screen, you can'_aso delete teams.. Seect the team you wa,'t to de ere. and the,'
press a_'d hod the [Yii_button' or the touch pad..
Contrommin9 the TV with Your Voice (Voice Controm)
MIEINU>System>VoiceControl ' } !::'
This function may not be available depending on the country or region.
You can access and select certain menu options and functions using voice commands. For more
effective voice recognition, speak slowly and clearly in the language specified in the System > Voice
Control > Language option.
o Interactive and Imperative Voice Control
Voice Control has two modes: Interactive voice control and Imperative voice control. Interactive
voice control lets you give "conversational" instructions to the TV. Imperative voice control
requires you to use pre-defined commands. To use Interactive voice control, you must set up
Smart Hub, set the clock, and agree to the user's agreement on the use of terms. If you try to
use Interactive voice control without completing all of these requirements, the TV displays a
notification pop-up. If the pop-up appears, follow the on-screen instructions and complete the
necessary settings. Imperative voice control is available regardless of the Interactive voice control
settings.
Pease read th_otgh the nstr_ ctions before _.sng Voce Co_tr_o ,,For more nfonnatio_ refer to "Read
Before Using Voce, Motion, o__Face IRecognit_on',,
Iif you _.se tlhe Voice Control function interactively at east o_ce, the liT wI change the o_ screen
men_ _ame flom Voice Control to Voice hteraction.
Using mmperative Voice Control
2_
Press the VOIOIE button on the Samsung Smart Control. When the microphone icon appears on
the screen, you can use the Voice Control function.
Say a command. You can use Voice Control to operate the TV when you are watching a TV
program or other videos.
Say the command 4 to 6 nches from the mic_"ophone o_ the Sams_ n_:,_Smart Cont_o Voce commands
may not be recognized proper y f you speak too softly or o_dly Iihe optima vo_me for voce
commands s between 75 dB and 80dB
U sin g t h e Voic e Re c o g n itio n Tut o r ia_
MENU > Support > Voice Recognition Tutorial
The tutorial lets you familiarize yourself with the basics of using Voice Control. Run Voice Recognition
Tutorial from the Support menu, or run Voice Control and say "Quick Guide".
Leamin9 Voice Cont_o_ Basics
. Moving the focus
Say "Focus Left", "Focus Right", "Focus Up", or "Focus Down" to move the focus. These
commands can only be used in situations when the focus can be moved.
. Selecting an item
Say "Sebct" to confirm the selection.
. View available Voice Commands:
Say "View commands". A list of basic voice commands available in context is shown.
. View all Voice Commands:
Say "He_p" to display a complete list of voice commands by category. Say the name of a
category.
. Deactivating Voice Control
Say "Close Voice Recognition", or press the V©ICIE button. This terminates Voice Control.
The TV recogn zes predefined voce commands only_ These voce commands may dffer from the manual
depend ng on the version of the TV,
Chan9i,rs9 t he Voic e Cont ro_ Lain9 ua9e :_
MENU > System > Voice Control > Language
Navigate to System > Voice Control > Language, and then select a preferred language from the list.
Now you can use Voice Control in the specified language.
Interactive Voice Control is not ava labe n some languages_ If the language you wanted nit aIIy s not
ava abe, choose a d fferent language,
Using Interactive Voice Control
Interactive voice control allows you to set up a Schedule Viewing, access VODs (Videos on Demand),
search for and launch applications, and execute various other functions using specified voice
commands without having to remember specific commands or keywords. Saying "Schedule Viewing
_(Title)", for example, instructs the TV to schedule a program for later viewing.
If you use the Interactive Voice Contro_ funct on at least once, the TV wi change the on-screen menu name
from Voice Control to Voice Interaction_
Activate Voice Interaction and say a command. See the examples below:
o When you don't know which channel a specific program is on:
"Run _(Title)" / "Play _(Title)" / "Watch _(Title)"
When you want to find a specific program or content item
"_(Title)"/ "Find _(title)")
When you want to watch a program featuring a specific actor:
"_(cast member)" / "Search for movies with _(cast member)"
When you want to reserve and record a program or cancel a scheduled program.
"Schedule Viewing _(Title)" / "Schedule Recording _(Title)" / "Record _(Title)" / "Cancel
scheduled item"
IRecordin(3 s _ot s_pported n the USA and Canada
When you want to know specific information:
"What's the weather in _(place name)?" / "What is the _(company) stock price?" / "Show me
the _(team) score."
When you want program recommendations:
"Do you have any recommendations7" / "Anything interesting on tonight7" / "Show me Comedies
(genre) on now."
When you want to watch a program of a specific genre:
"action movie (genre)"/ "Find an action movie (genre)."
o Whenyou want to operatethe TV:
"_(channel name)"/ "Channel_(Number)" / "Volume _(level)"
When you want to install or remove an app:
"More information _(Title)" /"Install _(app name)" / "Delete _(app name)"
When you play an app for the camera, such as skype, or for fitness:
"Camera"/"Fitness"/ "Skype"
When you want to play for game:
"Play _(Game title)"
When you log in or out on Samsung Account:
"Sign In _(User name)" / "Sign Out <-_-_(User name)"
Enab_ing/Disab_in9 FV Voice
Enable/disable the TV's voice responses to your Voice Control commands. Navigate to System > Voice
Control menu, and then select TV Voice.
S e le c tin 9 a G e nd e r f o r t h e "_V Voic e /:_
Navigate to System > Voice Control > Voice Gender, and select a gender for the TV voice.
Contromming the TV using (Motion Controm)
ME:INU>System>MotiooCootrol
Motion Control lets you change channels, adjust the volume, and control the pointer while searching
the web using Smart Hub.
To use the Motion Control feature, you must install a separately-sold camera on the TV.
/iX When connecting the TV camera to 2014 Samsung TV models, make sure to connect it to the
specified USB port of the TV. Other USB ports do not support the TV camera or Motion Control.
Please note that not atl apps support Motion Controt.
Pease read through the instructions before using Motion Control. For more nformat on, refer to "Read
Before Using Voice, Mot on, or Face Recognit on"_
Testing Ambient Illumination Using the TV Camera
MIE:INU) System ) Motion Control ) Motion ControN Environment Test
Run this test before using Motion Control to ensure proper functionality.
Stand 5 to 11.5 feet (1.5 to 3.5m) from the TV screen. Initiate the Motion ControN Environment
Test, and then select Start. If the TV screen is reflecting light or there are objects moving in the
background, the TV may not recognize the motion of your hand.
2, Face the TV camera, and follow the onscreen instructions. Raise your hand from a comfortable
position with the index finger fully extended upwards, and then move your hand left or right
slowly. A pointer appears on the screen when the TV recognizes the action. If recognition fails,
change the hand position and try again.
Checking Ambient Noise and [Illumination (Motion Control Environment Check}
MIE:INU> Support > Self Diagnosis > Motion Control Environment Check
Navigate to the Support > Self Diagnosis menu, and then select Motion Control Environment Check.
This function measures the ambient noise and illumination levels around the camera and microphone
of the TV to ensure they are suitable for voice and motion control use.
Activating Motion Control
MEINU>Systom>MotiooControl>MotionControl
To enable Motion Control, face the TV camera and raise your hand from a comfortable position with
your index finger fully extended upwards, and then move your hand slowly left or right. When your
hand is successfully recognized by the TV camera, Motion Control is activated and a pointer appears
on the screen.
When Motion Control is activated, a pop--up window appears and guides you through the basics of using
Motion Contro.
Moving your hand out of the range of the TV camera deactivates Motion Contro. To reactivate Motion
Control, simply move your hand toward the TV camera within 3 seconds.
Motion Contro may be terminated if your index finger is not fuIfy extended or you move it to fasL
Using the Motion Contro_ TutoHal
IMIEINU> Support > Motion Control Tutorial
The tutorial lets you familiarize yourself with the basics of using Motion Control. From the Support
menu, run Motion Control Tutorial.
If Motion Control is activated, a pop-up window appears and guides you through the basics of using Motion
Contro.
Leansin9 Motion Contro_ Basics
The following basic motion control commands are available:
o Moving the pointer
Moving your hand moves the pointer accordingly.
o Selecting an item
Fold down and raise your index finger to select items. This is the equivalent of clicking a mouse
button. You can select a TV menu or run a function. Keeping your index finger lowered is like
holding down a remote control button.
o Returningto the previousmenu
Makea circle with your handin the counterclockwisedirection to returnto the previousmenu.
o Moving from one Smart Hubpanelto another
Moveyour handfrom left to right or from right to left asyou would turn a book page.Youcan
movedirectly from oneSmart Hubpanelto another.(Example:SAMSUNGAPPSpanel_ On TV
panel)
Displayingthe Context-sensitiveMenuon Smart Hub
Foldyour indexfinger down for 1secondandthen raiseit. This displaysthe context-sensitive
menuthat is availablefor the selecteditem.
showing and ill_iding A,r at÷d Motion Guid÷
Navigate to System > Motion Control, and then select Animated Motion Guide from the menu. The TV
will now display an animated guide when Motion Control is activated.
s diusting Poi,nt÷r sp÷÷d (_::!::::
Navigate to System > Motion Control > Pointer Speed, and then select a pointer speed.
Motion Control Screen Layout
Motion Contro_ Layout on the "[V Screen
Activating Motion Control while watching the TV activates the following screen icons. These icons
appear when you move the pointer to where they are positioned or when you initiate functions that
need them.
/ Adjusts the volume.
Mutes or unmutes the TV.
/ Changes the channel.
Launches Smart Hub.
You can split the TV screen and use a variety of functions simultaneously such
as watching a TV program, surfing the web, and watching a video. For more
information, refer to the "Using Multiple Functions on a Single Screen (Multi-Link
Screen)".
Press this button to search for information through the search window in various
services.
The On-Screen Remote Control appears. For more information, refer to the
"Displaying and Using the On-Screen Remote" section.
Changes the source.
Turns the TV off.
Motion Contro_ Layout on the Smart Hub Screen
Activating Motion Control while using Smart Hub activates the following screen icons. These icons
appear when you move the pointer to where they are positioned or when you initiate functions that
need them.
/ Adjusts the volume. Only available for On TV.
Mutes or unmutes the TV. Only available for On TV.
/ Changes the channel. Only available for On TV.
Returns to the previous menu.
Select this button to search for information through the search window in
various services.
The On-Screen Remote Control appears. For more information, refer to the
"Displaying and Using the On-Screen Remote" section.
Changes the source.
Turns the TV off.
Displaying Hi_en _cons When Using Smart Hub
When using Motion Control with Smart Hub, the icons will disappear automatically after 2 seconds of
inactivity. To display the hidden icons, move the pointer to one of the three edge areas shown below
(marked in blue) and then hold it there for 1 second. The icons will reappear on the screen.
@ / / / /
@ / /
®
Using Face Recognition
Users can register their faces using the TV camera, and sign in to their Samsung accounts using the
Face Recognition function. Only one face can be registered per account. Depending on the ambient
illumination level and/or shadows over a face, the TV may have difficulty recognizing it.
To use the Face Recognition feature, you need to install a sold-separately camera on the TV. Make
sure that the TV is connected to the Internet when installing the camera so that it can download the
software required for Face Recognition.
Pease read through the instructions before using Face Recognit on, For more nformat on, refer to "Read
Before Using Voice, Mot on, or Face Recognit on"_
/k When connecting the TV camera to 2014 Samsung TV models, make sure to connect it to
the specified USB port of the TV. Other USB ports do not support the TV camera or Face
Recognition.
Registering Your Face to Your Samsung Account
To register your face to your Samsung Account, follow the steps below. To create a Samsung Account
if you do not already have one, refer to "Creating a Samsung Account".
Sign in to your Samsung Account (Smart Hub > Samsung Account > Sign in).
2, Navigate to Smart Hub > Samsung Account > Edit Profile. The On-Screen Keyboard appears.
3, Enter your account password. When finished, select Done.
On the Edit Profile screen, select Register Face.
On the Face Registration screen, align your face within the red circle. When the circle turns green,
the TV has recognized your face.
Your e__tireface must be vsbe to the camera,, Avod shadows over yo_J face,, Shadows prevent the
camera from recogniz ng yo_r face acc_ rate _
Keep your express on as se_£ra as possib e,, Iin additio s, keep yo_r mo_£1hcosed b_£ at the same time
as se_£ra aspossbe.
For stronger secudt% check the box to req_ ire a password when sign ng n _sing Face IRecogn tio s,,
8, Select Take Picture.
The TV displays your picture. Select OK to accept, Retry to take another picture, or Cancel.
After you have selected OK, the Edit Profile screen re-appears. Select Done.
After you accept your p ct_ re, the Sign in Method changes automatica y to Face Recognition o_ the
Edit Profile screen,,
.....Iio remove yo_r p ct_ re, seect Remove Face o_ the Edit Profile screen,,
Changing Your Login Method to Face Recognition
To change your log in method to Face Recognition, follow these steps:
Sign in to your Samsung Account (Smart Hub > Samsung Account > Sign in).
2.
Navigate to Smart Hub > Samsung Account > Edit Profile. The on-screen keyboard appears.
Enter your password, and then select Done.
3. On the Edit Profile screen, select Signqn Method. In the drop down list that appears, select Face
4. Select Done.
Signing in to a Samsung Account Using Face Recognition
To log in using Face Recognition, follow these steps:
Navigate to Smart Hub > Samsung Account, and then select Sign in.
.
3.
Select your Samsung account.
If you have set the Samsung account sign in option to Face Recognition, the TV automatically
recognizes your face. If recognition fails, try again.
Iif yot checked the IPassword IF:::Req_ired box when yo_ set tip Face IRecogn rio _, yot_ m_st aso enter yotJ
password to of/a n
Your entire face must be vsibe to the cansera,, Avod shadows over yo_r face,, Shadows prevent the
camera from recogn z ng yo_J face acc_ rate _
Keep yoHr expressio _ as _e_tra as possib e,, Iin additio _, keep yo_r mo_£1"t cosed bt£ at the same time
as ne_tra aspossbe.
Once recognition s_,_cceeds, the IiV ogs n to Smart H_b automatica _ Iif the IiV recognizes two or
more registered faces, a st of corresponding accounts appears. Seect the appropr ate acco_nt. Iif the
.....IiV detects an _nregistered face, t disp ays Unregistered o_ the screen.
Digita_ Information at a Gmance
ME:_NU>Sroadoast_og>Go,de
The Guide provides an overview of each digital channel's program lineup. You can check the program
schedules and set up a Schedule Viewing.
Press the GUDE button on the remote to launch the Guide.
The nformaton ntheGuide sfordgta channesonly_Anaogchannesarenotsupported.
Using the Guide
To access the Guide functions, press and hold the touch pad. On a standard remote, press and hold
the {i_ button. A popup window listing the following functions appears.
Channel Fi_ter
Channel filter lets you filter the channels in the Guide by the following categories: Added Oh., and
Favorites 1 - Favorites 5.
Navigating the Program Schedule
You can move the Guide by 2 hours in either direction each time you press the _ or ÷ button. You can
only view programs scheduled after the current time.
Schedule Manager
This displays the schedule manager. For information about the Schedule Manager, see "Setting Up a
Schedule Vewng .
Edit Favorite Channels
Edit favorites lets you designate a channel you have selected in the Guide as a favorite.
To use Edit Favorite Channels:
Highlight a channel you want to add to your favorites in the Guide.
2_
3_
Press the TOOLS button on the standard remote or press and hold the touch pad on the Samsung
Smart Control. The Guide functions pop-up window appears.
Select Edit Favorite Channels. The Edit Favorites window appears.
Select the Favorites list you want to put the channel into.
Viewing DetaiJed mnformation
Recording is not supported in the U.S.A and Canada.
You can view detailed information about a selected program. The program information may differ
depending on the broadcast signal and may not be available at all for certain programs.
, Select a current program on another channel, and then View Details to Watch or Record the
program.
, Select an upcoming program, and then select View Details to set up a ScheduNe Viewing or
Schedule Recording.
For more nformation about watching or Schedule Viewing refer to "Sett ng Up a Schedu e V ewing".
For more nformat on on Schedule Recording. refer to "Record ng Programs".
Checking Current Program mnfo
Recording is not supported in the U.S.A and Canada.
To get information about a show, press II_lFO on the standard remote. On the Samsung Smart Control,
press the IKIEYIPAIDbutton, and then select H_FO on the On-Screen Remote.
To view the program info, you must frst set the TV's cock. Go to Clock (System > Time > Clock).
The program informaton may vary depend ng on the type of ncomngsgna and may not beava abeat
a for certain programs.
Select the current program in the Program Info window to instantly record the program.
Use the _ and _ buttons to view information about upcoming programs. Select a program to set up a
Schedule Viewing or Schedule Recording for that program.
For more information on Schedule Viewing, refer to "Setting Up a Schedule Viewing".
For more information on Schedule Recording, refer to "Recording Programs".
Changing the broadcast signam
MIE:INU> Broadcasting > Antenna
You can choose the appropriate DTV mode for your viewing environment. Choose Air or CaMe. Air is
suitable for homes equipped with a separate, over-the-air antenna. Cable is suitable for homes that
have subscribed to a local cable-service or satellite-service provider.
Do not use ths funct on f your TV s connected to a cabe or sate I te box,
Digital Channel SignaM Jnfo and Strength
MIE:INU} Support } Self Diagnosis } Signal Information
Select Support > Self Diagnosis > Signal Information. This displays the digital channel's signal
information and strength.
If your TV is attached to a separate, over-the-a r antenna, you can use the signal strength nformat on to
ad}ust the antenna for ncreased sgnal strength and improved HD channe recept on,
SgnaI nformaton sonlyava abefordgta channes,
Recording Programs
This function is not available in the U.S.A. and Canada.
You can record current and upcoming programs using a USB device instead of a video recorder.
However, this is only available for digital channels. The _ icon appears next to programs and
channels for which a Schedule Recording has been set.
We recommend a USB hard disk drive with a minimum speed of 5,400rpm for TV recording, USB memory
sticks are not supported,
Read all precautions before using the recording feature_
Formatting a USB Recording Device
_ > MULTiMEDiA > USB Drive
To record programs on a USB device connected to the TV, the device must first be formatted for the
TV. Use the Format Device option to prepare the USB device.
o
&
o
Formatting a USB device erases all data contained on the device. Back up data you want to retain before
proceeding, Samsung wil not be bed responsible for damaged or lost fites.
Press the [_ button to launch Smart Hub, and then choose USB Drive from the bottom of the
MULTH'V_ED_A screen. A list of connected devices appears.
Select the USB device to use. A pop-up window appears.
Select Yes. This will bring up the Format Device screen and allow you to format the device for
TV recordings.
Once formatting is complete, the USB device is tested to see if it has been properly formatted.
You will be able to start using the device after the test is completed. If the device fails the test, it
means that this device cannot be used to record TV programs.
Managing USB Recording Devices
To access functions that let you manage USB recording devices, follow these steps:
Press the t_ button to launch Smart Hub, and then choose USB Drive from the bottom of the
MULTiMEDiA screen. A list of connected devices appears.
2, Select a USB recording device from the list. The list of recordings contained on the device
appears.
3, Select Options from the top of the screen, and then Manage Device. The Manage Device screen
appears.
The following options are available on the Manage Device screen:
o Format Device
Formats the USB device for TV recordings.
o Check Device
Check the malfunctions of USB device. If the USB have a problem, try to recover,
o Device Performance Test
Tests the performance of the USB device. This test tells you whether the USB device can be used
for TV recordings.
o Default Recording Device
If there are multiple USB recording devices connected to the TV, use this option to specify the
default device.
Recording Programs
You can record current and upcoming programs.
_nstant Recording
Press the • button to begin recording the current program right away.
Usin9 the _nstant and Schedule Recordin9 options from the Guide
Select a current program from the Guide, and then select IINFO on the On-Screen Remote. You can
instantly start recording the program. Alternatively, select a program that will air in the future.
Using the _nstant and Schedule Recording options fl_om P_'ogram _nfo
Press the IW_FOon the On-Screen Remote to display information about the current program. In
the information screen, select a program that is currently airing to start recording it right away,
Alternatively, press the (, _ buttons and select a program that will air in the future to record it.
Using Schedule Recordin9 to Record on a Specified Date and "[ime
Select Broadcasting > Schedule Manager.
2, Select Schedule from the Schedule Manager to bring up a pop-up menu. Select Schedule
3, Specify the Antenna, Channel, Repeat, Start Time, and End Time options for the program you
want to record, and then select OK to finish.
Buttons and Functions Available While Recording a Program
Press the {iii_ button while recording a program. The following buttons and the recording progress bar
appear on the screen.
o information
Displays detailed information about the program being recorded.
.....Iihe p_ogram ;nfomsat;on may differ depending o_ the broadcasting signs and may _ot be ava labe at
al fo_ certa n programs
o REC Time
Lets you select the recording time.
Stop Recording / Go to Live TV
Stops recording. / Shifts viewing to live TV.
Rewind / Fast forward
Repeatedly select the Rewind or Fast Forward button to speed up rewind or fast forward to
maximum speed in 5 steps. To restore normal playback speed, select Play.
You cannot _se Fast forward while watching a program that ;s c_rrently being broadcast
e Pause / Play
Lets you pause or resume the video.
. Channel List
Displays the channel list.
o Tools
Launches the Tools menu. The Tools menu provides functions that you can use while watching a
recorded program.
Managing the ScheduMe Recording List
MIEINU > Broadcasting > Schedule Manager
You can change the settings of scheduled recording sessions or cancel scheduled sessions altogether.
Deleting Schedule Recording Sessions
You can delete scheduled recording sessions.
Select Broadcasting > Schedule Manager.
2, Select a session from the Schedule Manager. A pop-up window appears.
3, Select Delete. This cancels the selected recording session.
Editing Schedule Recordin9 Sessions
You can change the settings of scheduled recording sessions.
Select Broadcasting > Schedule Manager.
2, Select a session from the Schedule Manager. A pop-up window appears.
3, Select Edit, and then change the settings of the selected session.
4, Once finished, select OK. This applies the changes you made to the selected recording session.
Viewing Recorded Programs
> MULTiMEDiA > USB Drive
Recorded broadcasts can be viewed using the USB Drive option at the bottom of the MULTiMEDiA
screen.
Press the [_ button to launch Smart Hub, and then choose USB Drive from the bottom of the
MULTiMEDiA screen.
2. Select a USB recording device. A list of recordings appears.
3. Select a recording file from the list or select the _ button on the On-Screen Remote or press the
button on the standard remote to play the selected file.
Buttons and Features Avai_abllie while playing Recordings
On a Standard remote, press the/Z_ button. On the Samsung Smart Control, press the touch pad. The
following buttons appear. Pressing the IRIETURINbutton hides the buttons.
Buttons that appear are different depending on the fie being played,
o Zoom
If the video was recorded in Soccer Mode, you can pause the current file (recorded program), and
then select and Zoom in on one of 9 sections of the paused picture.
Press the _1 buttor for easier use,
You car cry use this flJnctior for programs recorded ir Soccer Mode,
o Stop
Stop the files being played (recorded programs) and then move the stored files.
o Pause / Play
Pause the file (recorded program) or resume playing the file if paused.
When the video is paused, you can use the following functions. However, there is no audio while
the video is paused.
- Step: Select the H button, to scan through a video one frame at a time.
- SJow Motion: Select the _ button to play the video back at 1/4 the normal speed.
o Rewind/ Fast forward
Rewind or fast forward the recorded program. Repeatedly select the Rewind or Fast Forward
button to speed up rewind or fast forward to maximum speed in 5 steps. To restore normal
playback speed, press the _ button.
You cannot use Fast forward while watching a program that ;s c_rrently being broadcast,,
Previous / Next
To play the previous file (recorded program), press n,<,<twice on the standard remote or select n,<,<
on the On-Screen Remote. Pressing n,<,<once reloads the current video from the beginning.
To play the next file (recorded program), press the _1 button on the standard remote or select _1
on the On-Screen Remote.
.....I!his function is _ot ava labe when the program s recorded n soccer mode..
Highlight Player
You can select Highlight Player and view highlights of the current recording.
Y(£ can ony {_sethis f_nctio _when highlights of a program which was recorded n Soccer Mode have
been saved..
Live TV
This function lets you watch a live program in the PIP window while watching a recorded video
on the main screen.
Switching channe s ;s _ot s_ pported..
Y(£_can O_y {_sethis f_nctio _for programs recorded in Soccer Mode..
• _ols
Search Titles: Select and play a different file located in the same folder.
Search Search Time bar: Press left/right button to scan through the file in 1-minute
increments or enter a specific time value to jump to that point in the video.
Caption Turn the subtitles On or Off.
Repeat Mode Changes the repeat mode. Choose Repeat One to play the current file repeatedly or
Repeat AH to play all files in the same folder repeatedly.
Use to change the size of the screen. The supported picture sizes vary depending on
Picture Size
the video.
Picture Mode Use to change the picture mode.
Sound Mode Use to change the sound mode.
Choose the speakers to play the audio through. Only available if you have a home
theater or receiver connected to the TV.
Select Speakers
Multi-Track Sound
Use to select a different audio language. This option is only available with files that
support multi-track sound.
Information Displays detailed information about the current file.
Managing Recorded Files
> MULTiMEDiA > USB Drive
Select USB Drive on the MULTiMEDiA screen to lock/unlock, rename, delete, and generally manage
recorded files.
Press the t_ button to launch Smart Hub, and then choose USB Drive from the MULTiMEDiA
screen.
2. Select a USB recording device. A list of recordings appears.
Saved File List Featu_'es
o Sorting the Saved File List
Sorting with Sort By: Select Sort By at the top of the screen, and then select a viewing mode.
The list is sorted based on the selected viewing mode.
Grouping with Filter: Select Filter at the top of the screen, and then select a filter. The list is
refreshed to show only files that match the selected filter.
. Options
P_ay Selected
Select files from the file list to create a playlist, and then select P_ay. The TV plays the
files you selected.
If the View mode is set to FoWer view, only the files contained in the same folder can
be selected. To add files from other folders to the playlist, change the View mode.
Lock
Locking files prevents them from being deleted. Select the files, and then select Lock.
This locks all selected files.
Use this option to unlock any locked files. Select the files, and then select Unlock.
Unlock
This unlocks all selected files.
Deletes recorded files. Select the files, and then select Delete. This deletes all selected
Delete
files, except files that are locked.
Rename
Renames a file. Enter the new name using the On-Screen Keyboard. When finished,
select Done. The new name can be up to 29 characters long.
When searching through a large number of media items, select a character. Media
#_dex items starting with that character appear,
_' This is not available when View is set to Folder view,
Used to manage USB recording devices connected to the TV. Refer to the "Managing
Manage Device
USB Recording Devices" section for more information.
Setting Up a Schedule Viewing
Configure the TV to show a specific channel or program at a specific time and date. The @ icon
appears next to programs that have been configured for a Schedule Viewing.
To set up a Schedule Viewing, you must first set the TVs cloc<, Go to C_ock (System :>Time :>Clock),
Digital Channel Schedule Viewing
You can set up Schedule Viewing for programs on digital channels on the following screens:
o The Guide Screen
o The Program Info Screen
The Guide Screen
To set up a scheduled viewing on the Guide screen, follow these steps:
Press the GUIIDIE button on your remote.
o
o
On the Guide screen, use your remote control to highlight, and then select a program you would
like to view.
On the Information Screen that appears, select Schedule Viewing. The program is scheduled for
viewing. The Guide screen re-appears.
The P_"ogram _nfo Screen
Recording is not supported in the U.S.A and Canada.
To set up a ScheduNe Viewing or Schedule Recording on the _NFO screen, follow these steps:
Change the channel to the channel that will be broadcasting the program you want to schedule.
2, Press IINIFO on the standard remote. On the Samsung Smart Control, press the KIE:YIPAIDbutton,
and then select the IINIFO button on the On-Screen Remote.
3, Move right to see program information for later broadcasts. The program information for the
programs that will be broadcast later on that channel is displayed on the screen.
4, Highlight and then select the program you want to schedule or record. The Information screen
appears.
Select Schedule Viewing or Schedule Recording. The program is scheduled for viewing or
recording. Press the IRETURIN button on your remote.
Analog Channel Schedule Viewing
ME,NU>Broadoaat ng>SohedomeManager
When you set up a scheduled viewing for an analog channel, you need to know the channel, day or
days of the week the program is airing, and the time the program is airing.
To set up a schedule viewing for an analog station, follow theses steps:
Press the MIE:INU button, and then select Broadcasting > Schedule Manager.
2, On the ScheduNe Manager screen, select Schedule. The ScheduNe Viewing screen appears.
3, On the Schedule Viewing screen, select the Antenna connection (Air or Cable), and then move to
the Channel field.
Iif you O['_ly _ece[ve your liT b_oadcasts thro_gh Air o_ CaMe, the Antenna co_nect[o_ fed disp ays
ony Air o_ ony CaUe,,
4, Highlight the Channel field, and then select it. Scroll it up or down, find the desired channel, and
6,
then select it. Move to the Repeat field.
Highlight the Repeat filed, and then select it. Select Once, Manual Sat-_Sun, Mon_Fri, or
Everyday. If you select manual, you must also highlight and select the days you want.
Move to the Time field, and then select it. Set the hours by using the Up/Down directional
buttons to move the numbers up or down. Do the same for the am/pm and minutes fields.
When done entering the time, press IRETURIN.
Select OK at the bottom of the Schedule Viewing screen.
Canceling a Schedume Viewing
To cancel a specific scheduled viewing, follow these steps:
Press the MIEINU button, and then select Broadcasting > Schedule Manager.
2, On the Schedumed screen, select the scheduled viewing. A pop-up menu appears.
3, Select Delete to cancel.
4, Select Yes on the "Remove this show" pop-up. The scheduled viewing is removed.
Editing a Schedume Viewing
To edit the time, days, or channel of a Schedule Viewing, follow these steps:
Press the MIEINU button, and then select Broadcasting > Schedule Manager.
2, On the ScheduNed screen, select the scheduled viewing. A pop-up menu appears.
3, Select Edit.
4, Change the time, days, or channel in the way described in Analog Channel ScheduNe Viewing.
Select OK when done.
Using Timeshift
This function is not available in the U.S.A. and Canada.
Timeshift lets you pause and rewind live TV as you would a DVD. Timeshift is only available for digital
channels. Activating Timeshift disables the Broadcasting option.
- To use Timeshift, you must connect a USB recording device to the TV. Refer to the "Formatting a
USB Recording Device" section for more information.
- We recommend a USB hard disk drive with a minimum speed of 5,400rpm for use with the TV's
Timeshift feature. USB memory sticks are not supported.
- Read all precautions before using the Timeshift function.
Press _ while watching TV to activate the Timeshift function. The TV displays a progress bar and the
following buttons at the top of the screen:
. information
Displays detailed information about the current program.
.....Iihe program information may va_y depending o_ the type of incoming signa and may _ot be ava lab e
at a for ce_tain p_ograms,,
.....I!his button is only available when yo_; are watching a ive progtam,,
- Go to Live TV / Stop Timeshift
Shift to live TV or exit Timeshift.
- Pause
Pauses the screen.
The following features are available while the screen is paused. However, there is no audio while
the video is paused.
- Step: Select the H button, to scan through a video one frame at a time.
- Slow Playback: Select the _ / ÷ to play the video back at 1/4 the normal speed.
. Rewind / Fast forward
Repeatedly select the Rewind or Fast Forward button to speed up rewind or fast forward up to 5
times. To restore the normal playback speed, select _.
You cannot _se Fast forward while watchin_t_a prof/_ramthat s c_r_ently bein_t_b_oadcast
- Channem List
Displays the channel list.
. Tools
Launches the Tools menu.
Using the Channel
ME:INU>B oodoost og>Chaooo uat
Press and hold the GU_IDIEbutton while watching TV to bring up the Channel List and change the
channel or check programs on other digital channels.
Select a channel from the Channel List to jump to it right away. To quickly scroll through the list, use
the channel up/down buttons. This moves the focus one page at a time.
The Channel List screen contains the following icons:
- :A "An analog channel
- " A favorite channel
- " A locked channel
o Using Options
Press the _ button, and then select Options. The following options are available:
Choose Air or CaMe as the DTV mode. Air is suitable for homes equipped with
Antenna separate, over-the-air antennas. CaMe is suitable for homes that subscribe to a local
cable-service or satellite-service provider.
Channels stored in the TV are grouped into the following categories: Added Ch_
Category Recently Viewed, and Mostly Viewed. Choose a category.
#_ Recently Viewed and Mostly Viewed are onty avai_aMe if they contain channels,
Sort the list so that it includes channels of a selected genre only. You can only use
Genre Genre if you have set the channel mode in the Channe_ List to Added Ch= and only if
the added channels contain genre information.
Edit Favorites Designate favorite channels. Refer to the "Creating a Personal Favorites List" section
for more information.
o Viewing the Added Channels or Favorites Lists
In the Channel List, press the _ button, and then select Added Ch, or Favorites. Favorites will
only appear if you have registered at least one favorite channel. For more information, refer to
"Creating a Personal Favorites List".
Registering, Removing, and Editing Channels
IMIEINU) Broadcasting ) Edit Channel
Remove channels from the index of channels, restore removed channels, and rename analog channels.
The Edit Channel screen icons indicate the following:
o "An analog channel
o _ " A favorite channel
1
• A locked channel
Registering and Removing Channels
IMIEINU) Broadcastin9 ) Edit Channel
Removin9 Registered Channels
Removing a registered channel from the channel index removes it from the list of channels you can
access using the ClH._LIST buttons on your remote. Removing channels appearing in the Recently
Viewed or Mostly Viewed list clears the channels from those lists only and does not remove them
from the index.
Move the highlight to a channel, and then select it to remove it. Repeat to select additional
channels.
o
3.
To unselect a channel, move the highlight to the channel, and then select it.
To select all channels, select Options, and then select Select All from the list. You can also select
Deselect All.
4. After you have made your selections, select Delete.
Adding Back Removed Channels
You restore channels to the index of channels by adding them back. Removed channels are displayed
in gray in the A_I list only. In addition, the Add option is only available for removed channels.
Select Options to display a list of options. Select Category from the list, and then select ANI.
2, Move the highlight to a channel you want to add. Repeat to select additional channels.
3, To unselect a channel, move the highlight to the channel, and then select it.
4. To select all channels, select Options, and then select Sebct ANI from the list. You can also select
Dese_ect ANI.
After you have made your selections, select Add.
Editing Registered Channels
MIEINU > Broadcasting > Edit Channem
Select Options at the bottom left of the screen to access the following options. The available options
may vary depending on the broadcast signal.
o Select AH
Selects all channels displayed on the Edit Channe_ screen.
Antenna
Choose Air or Cable as the DTV mode.
Channels stored in the TV are grouped into the following categories: AH, Added Cho, RecentNy
Viewed, and MostNy Viewed.
Edit Favorites
Designate favorite channels. For more information, refer to "Creating a Personal Favorites List".
Rename Channel
Rename analog channels. The new name can be up to 5 characters long.
information
View detailed information about the current program.
Program Rating Lock
MENU > Broadcasting > Program Rating Lock
The Program Rating Lock feature lets you block programs based on their ratings. This is useful for
controlling what children watch on TV. Program Rating Lock does not block programs originating from
external sources, such as Blu-ray players, DVD players, or USB files.
Every time you access the Program Rating Lock feature, you must enter the security PIN. You must
also enter this PIN to watch a blocked program. The default PIN is 0000. To change the PIN, go to
System > Change P_N.
The Program Rating Lock is available only in TV mode.
Blocking Programs Using the TV Rating
To block content, select a rating category to lock. All programs at that level and higher are blocked
and require the PIN to watch. To unblock a category, select the lock icon. To unblock all the categories
in a row, select the lock under ALL.
Categories on the left:
o TWY: Young children
TWY7: Children 7 and over
TWG: General audience
TWPG: Parental guidance
TW14: Viewers 14 and over
TWMA: Mature audience
Categories on the top:
ALL: Lock all TV ratings.
FV: Fantasy violence
V: Violence
S: Sexual situations
L: Adult Language
D: Sexually Suggestive Dialog
Blocking based on Movie Bating (MPAA)
Block movies based on their MPAA rating. This applies to all material with supplied ratings in the USA.
From the MPAA:
"The Motion Picture Association of America (MPAA) has implemented a rating system that provides
parents or guardians with advanced information on which films are appropriate for children."
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
o G: General audience (no restrictions).
PG: Parental guidance suggested.
PGm13: Parents strongly cautioned.
R: Restricted. Children under 17 should be accompanied by an adult.
NC-17: No children under age 17.
X: Adults only.
NR: Not rated.
Blocking Based on Canadian English Bating
Block material based on its English Canadian rating. This applies to all rated material viewed on
English-Canadian TV channels.
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
6: Programming intended for children under age 8
68+: Programming generally considered acceptable for children 8 years and over to watch on
their own
G: General programming, suitable for all audiences.
PG: Parental Guidance
14+: Programming containing themes or content which may not be suitable for viewers under the
age of 14
18+: Adult programming
Blocking Based on Canadian French Ratin9
Block material based on its French Canadian rating. This applies to all rated material viewed on
French-Canadian TV channels.
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
G: General
8 ans+: Programming acceptable for children 8 years and over to watch on their own
13 ans+: Programming that may not be suitable for children under the age of 13
16 ans+: Programming not suitable for children under the age of 16
18 ans+: Programming restricted to adults
Blocking Based on Downloadablle US Rating
Block material based on its Downloadable U,S, Rating. This rating system only applies to material
originating from US DTV channels.
Parental restriction information is automatically downloaded while you watch DTV channels. This
download may take several seconds. If the information is unavailable from the broadcasting station,
the Downloadable U°S° Rating menu is deactivated.
Parental restriction levels differ depending on the broadcasting station. The default menu name and
the Downloadable U.S. Rating name changes depending on the downloaded information.
Even when the on-screen display is set to another language, the Downloadable U.S. Rating menu
appears only in English.
Select a lock beside one of the rating categories to block that category and all higher categories. To
unblock a category, select the lock icon.
Watching Blocked / Restricted Programs
To watch a blocked program, enter the PIN when requested.
When initially showing a restricted program or movie, the screen is blank because the Program Rating
Lock blocks it. Enter the PIN to unblock the program when a message appears requesting the code.
Creating a Persona Favorites List
IMIEII_U) Broadcasting > Edit Favorites
You can designate frequently watched channels as favorite channels. Favorite channels are highlighted
in the Edit Channel and Channel List screens with the _ symbol. You can create up to 5 favorite
channel lists.
Registering Channels as a
Favorites
IMIEINU> Broadcasting > Edit Favorites
Registering the Current Channel as a Favorite
To register the current channel as a favorite:
While watching a TV channel, press the TOOLS button on the standard remote. On the Samsung
Smart Control, press the KEYPAD button, and then select TOOLS on the On-Screen Remote.
2, Select Edit Favorites from the list.
3, In the popup window that appears, select the Favorites lists you want, and then select OK.
You can seect more tha_' o_'e Favorites ist,,
4, Select OK again. The TV has added the current channel to the Favorites list(s) you selected.
Registering Multiple Channels as Favorites
To register multiple channels as favorites at the same time:
Press the MIEINU button, and then select Broadcasting ) Edit Favorites.
2, Select Category on the screen.
3, Press the touch pad repeatedly on the Samsung Smart Control or the [}i_ button repeatedly on
the standard remote to cycle through the Added Ch., Recently Viewed, and Mostly Viewed
categories until the screen displays the category list you want. These lists are displayed in the
center of the screen.
Recently Viewed and Mostly Viewed are o_y ava lab e f tlhey conta n channe s.
4, Select the channels that you want to add to your Favorites list(s) from the list in the screen.
Select Change Fay. on the screen.
8, Press the touch pad repeatedly on the Samsung Smart Control or the [iii_ button repeatedly on
the standard remote to cycle through the Favorites list until the list you want appears.
Select Add on the screen. The TV adds the channels you selected to the Favorites list you chose.
Selecting from Favorite List Channels Only
To flip through Favorite list channels only and select a channel using the channel up/down buttons:
You can select a Favorites Ist only f t conta ns at least one favor te channet.
Press the MIEINU button, and then select Broadcasting > Channe_ List. The Channem List appears.
2, Press the > button. A Favorites list appears.
3, Press the { or > button to view other Favorites list.
4, Highlight a channel from the selected Favorites list using the channel up/down buttons, and then
select it. The channel changes.
iting a Favorites List
MIE:INU> Broadcasting > Edit Favorites
You can rename and edit Favorites lists.
Edit Favorites Screen Menu Items
Select Options on the Edit Favorites screen to access the following options:
e Copy to Favorites
Copy channels from one favorite channels list to another. Refer to the "Copying Channels from
One Favorites list to Another" section for more information.
YoL can _se Copy to Favorites O_y f yo_ have ref;_istered o_e or more channe s to at east o_e
Favorites ist
Rename Favorites
Rename an existing favorite channels list. Refer to the "Renaming a Favorites List" section for
more information.
You can _se Rename O_y ;f yo_ have registered o_e or more channe s to at east o_e Favorites ist,,
Antenna
Choose between Air and Cable.
Edit Channem
Lets you manage the channels saved on the TV. For more information, refer to "Registering,
Removing, and Editing Channels".
information
View detailed information about the current program.
Removing Registered Channels from a Favorites List
To remove channels from a favorite list:
Select Change Fay°.
2_
3_
Press the touch pad repeatedly on the Samsung Smart Control or the {7_ button repeatedly on
the standard remote to change the Favorites list on the screen to the Favorites list you want to
use,
Select the channels you want to remove from the selected Favorites list.
Select Delete. The channels are removed.
Rearranging a Favorites List
To rearrange the order of the channels in a favorite channels list:
Select Change Fay° at the screen,
2_ Press the touch pad repeatedly on the Samsung Smart Control or the {7_ button repeatedly on
the standard remote to change the Favorites list displayed to the Favorites list you want to use.
3_ In the selected Favorites list, choose the channels you want to rearrange.
.....Iihe liT vvl move tlqe channe s you se ected as a g_ou© and rearrange them so they are disp ayed o_e
after another n their _ew ocat[o_,,
Select Change order. The Change Order highlight appears highlighting the channel you chose
that is closest to the top of the screen.
Press the _/V arrow buttons to relocate the channels you selected. Press the touch pad on the
Samsung Smart Control or the [7_ button on the standard remote to set the channels into their
new location in the list.
Renaming a Favorites List
To rename an existing favorite channels list:
Select Options on the screen. A list of Options appears.
2, Select Rename Favorites from the list. A popup window appears.
3, In the popup window, select the Favorites list whose name you want to change. The on-screen
keyboard appears.
4, On the keyboard, select the Clear button on the right. The current name displayed in the text
entry field disappears.
Using the keyboard, enter a new name. The new name can be up to 20 characters long.
6, When finished, select Done. The list of favorite lists appears displaying the renamed list. Select
OK.
Copying Channels from One Favorites list to Another
To copy channels from one favorite channels list to another:
Select Change Favo
2, Press the touch pad repeatedly on the Samsung Smart Control or the C_ button repeatedly on
the standard remote to change the displayed Favorites list to the Favorites list that contains the
channels you want to copy.
3, Select Options on the screen. A list of Options appears.
4, Select Copy to Favorites from the list. A popup window appears.
Copy to Favorites sony ava abe f there are ch_nne s n at e_:_sto_e Favor tes [st
In the popup list, select the Favorites lists you want to copy the selected channels to.
6, When done, select OK. The TV copies the channels. Select OK again.
Making Sports Programs More Realistic with
MIE:INU> System > Soccer Mode
This function is not available in the U.S.A and Canada.
Soccer Mode enables the optimal picture and sound settings for sports events, making them appear
and sound as if you are there. In addition, if a recording device is connected to the TV when you are
using Soccer Mode, you can use both the video recording and time shift functions at the same time
while watching the sports game, as well as watching the highlights extracted from the recorded sports
game automatically or manually,
For more information about recording a program and usng a record ng device, refer to the "Record ng
Programs" section_
For more nformation about the Timesh ft feature, refer" to the "Using Timesh ft" sect on,
When the Soccer Mode s On, the Data Service s not ava abe,
Enabling Soccer Mode
MIEINU > System > Soccer Mode > Soccer Mode
Go to System > Soccer Mode and then set Soccer Mode to On. The picture and sound modes of the
TV are automatically optimized for sports events.
Enabling Soccer Mode changes the Picture Mode to Stadium and the Sound Mode to Stadium, and d sab es
some Picture and Sound menus,
Press the Q button to turn Soccer Mode on or off_
Extracting Highlights Automatically
MIEINU > System > Soccer Mode > Auto Highlights
Select System > Soccer Mode, and then set Auto Highlights to On. You can configure the TV to
extract highlights of a soccer match automatically.
However, Auto Highlights is not available with these TV operations:
o Switching the input signal using the SOURCE button.
Launching the 3D
When Voice Description is set to On
Auto HigMights performance depends on the characteristics of the transm tted signa.
It s advsabe to use Auto HigHights only wh e watchng a soccer game_ Using ths for other sportng
events may d splay rrelevant p cture frames_
Functions Available While Watching Sports in Soccer Mode
Press the /ii_ button. The following buttons appear.
e Zoom
Pause the current video and select and zoom into one of the 9 blocks of the still picture. You can
pan out of the zoomed-in picture using the A, V, _ and > buttons.
Seect o_ p_ess rise [] b_£ton to a_nch the Zoom fl_nctio_ easib¢
Yc£ cannot use tlhis f_nctio _ when watching 3D channe s or when PIP or MULTIMEDIA s active,,
Save as Highlight
Save a video from 10 seconds before pressing the Save as a Highlight button to 10 seconds after.
Seect or press the [_ to a_nch the Save as H gM ght f_ nction easib¢
Yo_ ca_ Ony _se this f_nction when a _eco_ding s n p_ogress,,
You can set the IIV to automatically save hi@fights w tho_£ _ser nterventio _. Seect System > Soccer
Mode, and then set Auto Highlights to On,,
- Stop Recording / Go to Live TV
When you are watching a live program, you can stop a recording by pressing this button. When
you are watching a recorded program, you can switch to a live program by pressing this button.
Yol. ca[_ O_y _se this f_nctio _ when a recording is in progress,,
Record
Instantly record the game you are currently watching on the TV.
You can O_y _se this f_nctio _ when the recordin(3 fi_nctio _ s s_ pported,,
Rewind
Rewind the current video. Repeatedly select this button to increase the rewind speed up to max 5
steps.
Y(£_can O_y {_sethis f_nctio _when a recording is in progress,,
o Pause/ Play
Pause or resume the video.
You csn only _Jsethis f_Jnctio_ when a recording s n progress
Fast forward
Fast forward the current video. Repeatedly select this button to increase the fast forward speed
up to max 5 steps.
You can only use this f_ nction when a recording }s in progress
Highlight Player
Display the HighNight Hayer screen and play the automatically or manually saved highlights in
the recorded file. However, Highlights Player is not available with these TV operations:
- Switching the input signal using the SOURCE: button
- Launching the 3D
- When Voice Description is set to On
t/o_ ca__ O__lyuse this function when a recording s n progress
Watch Live TV at the same time
Watch a current program in a PIP window while watching a recorded program. To exit PIP mode,
press the button again. However, Watch Live TV at the same time is not available with these TV
operations:
- Switching the input signal using the SOURCE: button
- Launching the 3D
- When Voice Description is set to On
Y(£_can ony {_sethis f_nctio _when a recording s n progress
.....I!his button ;s O_y ava lab e while yo_ are watching a recorded program,,
, information
View detailed information about the current program.
.....Ilhis button ;s O_y ava lab e wMle yo_ are watching a ;ve program,,
* SOCIAL TV
Launch an SNS app.
Viewing a game recorded in Soccer Mode
You can view a recorded game using the USB Drive option on the MULTiMEDiA screen.
For more nformat on, refer to "Vewing Recorded Programs".
Ava ability depends on your spec fic model and area.
TV-Viewin9 Support Features
Showing Captions
MIE:INU> System > Accessibility > Caption
You can watch TV broadcasts with captions.
Even f enab ed, captions will not be d splayed by programs that do not support captions,
Press and hod the _:_button on the Samsung Smart Control to turn the Caption funct on on or off,
Enabling Captions
Select System > AccessibiNity > Caption > Caption
The TV cannot contro or modfy DVD or BIu-ray subtitles, To control DVD or BIu-ray subt t es, use the sub-
ttte feature of the DVD or BIu-ray player and the payer's remote contro,
S e lectin g t he Ca ptio n L a n 9 u a 9 e
Select System > Accessibility > Caption > Caption Mode to display a list of subtitle modes. The list of
modes may vary depending on the broadcast.
o DefauNt / 001 ~ 004 / Text1 ~ Text4
(Analog channels only) The analog caption function operates in either analog TV channel mode
or when a signal is supplied from an external device to the TV. (Depending on the broadcast
signal, the analog caption function may or may not work with digital channels.)
DefauNt / Service1 ~ Service6 / CO1 ~ 004 / Text1 ~ Text4
(Digital channels only) The digital caption function works with digital channels. Service1 -
Service6 may not be available in digital caption mode depending on the broadcast.
Changing the Font Co_or_ Caption Size_ and Font Opacity
Change the font color, background color, and size settings.
Select System > Accessibility > Caption > Digital Caption Options and then choose the setting to
change.
- Size
Use to change the font size. Size is not supported by analog channels.
Font Styme
Choose the font style for the subtitles.
Font Color
Use to change the font color,
Background Color
Use to change the caption's background color.
Window Color
Use to select the color of the digital caption window,
Font Opacity
Use to change the caption's opacity,
e Background Opacity
Use to change the background's opacity.
Window Opacity
Use to select the transparency level of the digital caption window.
,, Edge Type
Use to select outline type of the digital captions,
,, Edge Color
Use to select the color outline of the digital captions,
,, Return to Default
This restores all caption display options to Default. Setting to Default applies the TV station's
transmitted settings.
The foreground and background color and opac ty sett ngs cannot be the same_
Enabling the Audio Guide for the Visually Impaired
MIE:INU> System > Accessibility > Video Description
Select System > Accessibility > Video Description. Activates the audio guide for the visually impaired.
This function is only available with broadcasts that provide this service.
Press and hold the _:2 button on the Samsung Smart Contro to turn on or off Video Description, Ava ab tty
depends on the spec fic area,
PIP Broadcast Viewing
ME_NU>P_oture>PmP
Use the PIP ("Picture-In-Picture") function to watch TV in a small window within the main screen
while also watching content from a DVD player, Blu-ray player, computer, or a different external device
on the main screen.
Select Picture > PiP to display the PIP settings screen. The PIP settings screen contains the following
options:
o P_P Setting
Activates/deactivates PIP.
Antenna
Choose Air or Cable as the digital channel mode.
Channem
Select the PIP sub-picture channel.
Size
Select the PIP sub-picture size.
Position
Select the PIP sub-picture position.
Seleot Sound
Select the audio source.
Choose a broadcast.
You cannot use PIP whe using Smart Hub or the 3D funct on,
Tumng off the TV automatica ly disables PIP,
Playing a game or usng the karaoke feature on the main screen can result in lower PIP picture qua[ ty_
For PIP to work, the main screen's source must be Component or HDM[ anct the nput reso ut on must be
lessFuIHD(FHD-1080p),The P[Psub-screensupportsdgta channesonly_
Scanning for Avaimable Channels
MIEINU ) Broadcasting ) Auto Program _
Automatically scans and indexes all channels received through the TV's antenna input connector.
Do not use ths function if your TV s connected to a cabe or satellite bo×.
If the TV has saved channe s, Auto Program deletes the ex st ng Ist, and then saves the newly scanned
channe s.
Select Broadcasting ) Auto Program.
2, Select Start when prompted. This initiates the Auto Program function. The process can take up to
30 minutes to complete.
Selecting the Broadcast Audio Language
MEINU ) Broadcasting ) Audio Options
Configure the program's audio language. Audio Options functions differently for analog and digital
channels.
On the Samsung Smart Contro, press the KEYPAD button, and then select INFO to vew the current
broadcast's audo sgna nformat on, On the standard remote, press the IINFO button,
Selecting the Broadcast Audio Language (Digital}
Selecting a Language
Select Audio Options ) Preferred Language, and then choose a language. Digital broadcasts
contain audio signals in multiple languages. Digital programs that include the language you
selected in Preferred Language are automatically played using that language. If the language
you selected is not supported by the broadcast signal, the TV will use the default audio language
broadcast by the TV station.
Selectin9 the Broadcast Audio Language (Analog/
Listening to MultFTrack Sound
Select Audio Options > Multi-Track Sound. Configure the audio for the current broadcast. Multi-
Track Sound can be set to mono or stereo, depending on the broadcast signal or program.
However, this option is automatically set to mono if the broadcast signal or program does not
support stereo.
On the Samsunf;_ Smart Conl:ro press the KEYPAD btton, and tlhen seect Info to yew tlhe current
H}roadcast s a_do signa nfomation,, On the standard remote press the INFO b_£to_
While vvatcMng rv, press the KEYPAD button on the SamsLng Smart Contro, seect TOOLS on tlhe On
Screen Ii::::_emote_and then seect Multi-Track Sound On the standard remote, press the TOOILS b_£to _,
and then seect Multi-Track Sound
Fine-Tuning the Screen
MENU > Broadcasting ) Channel Settings ) Fine Tune
Ava abb for anaIog broadcasts ony,
Analog pictures can become shaky and full of noise. If this happens, you can fine-tune the signal
and/or reduce noise to clear up the picture.
Select Broadcasting > Channel Settings > Fine Tune. An adjustment bar appears on the screen.
2, Press the < or > button to make adjustments. Select Save or Close to apply the new setting.
Select Reset to reset the Fine-Tune operation.
Remove Scrambled Channels
MIEINU > Broadcasting > Channel Settings > Clear Scrambled Channe_
Remove scrambled channels from your auto-programed channel list.
Changing the Picture Mode and Adjusting the
Choosing the Right Picture Mode for the Viewing Environment
ME:INU>P_otor÷>P_otoremode
The following picture modes utilize different contrast and brightness settings to provide the best
viewing experience for the environment.
Nav gate to Edit Name, f you use the PC sett ng for PC or DVI PC, you can only ava abe Standard and
Entertain_
If the ambient lighting is too bright and makes the screen blurry, use this mode to make the
picture clearer.
. Standard
This is the default mode suitable for most environments.
,, Natural
This mode is useful for reducing eye strain.
,, Movie
Appropriate for darkened rooms, for watching movies, and when experiencing eye fatigue.
Darkens the screen and reduces glare.
,, Entertain
Sharpens images for a more dynamic viewing experience.
.....Iihis mode ;s O_y ava lab e when yo_ {_sea Ii:::>Csetting for PC or DVI PC o_ Edit Name,,
Adjusting the Picture Quality for Each Picture Mode
MIE:INU> Picture
Select one of the settings below from the Picture menu to display the slide bar for the selected
setting. Adjust the value by pressing the { or > button on your remote. Choose a different setting by
pressing the A or V button. Adjusted values are applied to the current source and picture mode.
The Co,or and Tint (G/R} sett ngs cannot be adiusted when the TV s connected to a computer via an HDMI
to DVI cabte.
Choose a Picture Mode - Dynamic, Standard, Natural, Movie - and then adjust the settings.
- BacMight _:_
Adjusts the brightness of individual pixels. Decreasing the brightness reduces power
consumption.
- Contrast
Adjusts the screen contrast.
- Brightness_::_
Adjusts the overall brightness.
o Sharpness _
Sharpens or dulls the edges of objects.
o comor
Adjusts the overall color saturation.
Tint (G/R)
Adjusts the ratio of green to red. Increase the green value to saturate the greens and the red
value to saturate the reds.
Adjusted vaIues are saved by the TV for the current source and picture mode, and reman n effect each
tree the source and p cture mode s seected, Consequent y, the TV can have d fferent p cture sett ngs for
each externa source,
App_yi,n9 the Curr®,nt Picture Settings to Other _nput Sources _/}{: ;/}
MIEINU > Picture > Apply Picture Mode
You can apply the picture quality setting that you configured for the TV to all external devices
connected to the TV or to the current source only.
To apply the setting to all external devices connected to the TV, select All Sources. To apply the
setting to the current input only, select Current Source.
Fine-Tuning Each Picture Mode (Advanced Settings}
MIE:INU> Picture > Advanced Settings
Select Picture > Advanced Settings to fine-tune how images are displayed on the TV screen for each
Picture Mode.
Advanced Settings is only available when the Picture Mode s set to Standard or Movie.
When the TV is connected to a computer via an HDMHDVI cabe, only White BaJance and Gamma can be
adiusted.
Choose a Picture Mode and then adjust the settings.
- Dynamic Contrast
Automatically adjusts the screen contrast. Use this option to achieve the optimal contrast setting.
- Black Tone
Adjusts the black color depth.
- Flesh Tone
Darkens or lightens skin tones.
o RGBonlyMode i!:
Adjusts the red, green, and blue levels individually.
o ColorSpace
Adjusts the range of colors (the color space) that the TV can display. Auto automatically adjusts
the color space depending on the input signal. Native applies a range that is wider than the input
signal. Custom allows you to adjust the color space manually.
. White Balance _
You can adjust the color temperature of the picture to make white objects look white, and the
overall picture appear natural.
2 Point: Lets you adjust red, green, and blue luminosity with the offset menu and brightness with
the gain menu. To restore the default values, select Reset.
10 Point: Divides red, green, and blue into 10 sections each, and lets you modify the white
balance by adjusting the brightness of each section. Select the section to adjust in the Leve_
field.
Y_L can use the 10 Point functio _O_y wher_ the Picture Mode s set to Movie,, Some exter _a devices
may not s_4ppor_tthis fi__ctio _,,
Gamma
Adjusts the primary color intensity.
Motion Lighting
Adjusts the brightness in response to on-screen movements to reduce power consumption.
.....Iihis featL_e s only avadal,_e when the Picture Mode s set to Standard and s not availab e in 3D mode,,
Adi_ sti_s9 the Contrast, Brightness, arid other p ct_ re q_a ity setd_sgs deact__ates Motion Lighting,,
Adjusting the Picture for Easier Viewing (Picture Options)
MEINU>P_oture>P_otureOpt_oos
Select Picture > Picture Options to make additional adjustments for a better viewing experience.
When the TV s connected to a computer via an HDMFDVl cabe, only Color Tone can be adjusted.
Choose a Picture Mode and then adjust the settings.
. comorTooe
Adjusts the color tone. The setting is applied on an individual Picture Mode basis. When
you select a new Picture Mode, the TV applies the Color Tone you selected for that mode
automatical ly.
I!f the Picture Mode is set to Dynamic, yo_ wl O_y be abe to choose Cool or Standard,,
- Digita_ Clean View
Reduces static and ghosting caused by a weak signal. Selecting Auto Visualization displays the
signal strength on the screen. Green indicates the best possible signal.
.....Ilhis function is only availab e for anaog channe s,,
- MPEG Noise Filter
Reduces MPEG noise and improves video quality.
. .DM_BmaokLevem
Some external devices connected to the TV via an HDMI cable can have issues such as low black
level, low contrast, and dull colors. Use HDMI Black Level to adjust the black level to compensate.
H©MI! Back Leve sony availabe when you are view n(?_ content from an externa device connected to
the IiV via an HDMI! co x_ectio s.
F,mMod,
Optimizes the picture quality for movies. Select this mode for watching movies.
.....Iihis feature s onY avaAal)e when yc£ a_e watching a liT b_oadcast o_ when the np_£ signa s/%
Component (480i, '1080i) o HDMI! (1080 }
Auto Motion Plus
Removes blurring and judder from scenes with rapid movement. If you select Custom, you can
configure Blur Reduction and Judder Reduction manually and set LED Clear Motion on for a
sharper LED image.
Iif yo_ have Auto Motion Plus on, and then b_ng _._pthe INFO sc_een, the INFO sc_'een disp ays the
_eso _,tion and frequency of tlhe ncoming video sgnal (60Hz),, Ilhis fleqkency s _ot the same as the
flequency of the pict_.re the IIV s disp ay ng when Auto Motion Plus s o_
IIf LED Clear Motion is On at 60Hz video signa, the screen may f icke_
Smart LED
This function is only available for the U8500 series.
This controls the brightness of individual areas on screen to maximize contrast automatically, This
function is not supported depending on the region or model.
in 3D
MIEINU > Picture > 3D
This function is only available for the U8500 series.
The 3D option lets you view 3D media content and broadcasts. You will need to wear Samsung 3D
Active Glasses to play 3D content. IR-type Samsung 3D Active Glasses and third-party 3D glasses are
not supported.
Carefully read the health and safety information concern ng 3D viewing before viewing 3D content_ Refer to
the "3D Precaut ons" sect on for more nformat on,
Whether 3D video s d splayed n true HD s usuatly determ ned by the quat ty and format of the video,
Starting 3D
Press the 31D button on your remote control or select the 3D On-Screen Remote.
2, Play 3D content.
3, Put on the Samsung 3D glasses, and then turn the glasses on. 3D viewing is enabled.
The ideal viewing distance is three times the height of the screen or more. 3D images may not appear
if you do not adhere to the recommended viewing angle or distance.
The 3D feature may not work properly if there is another 3D product or an electronic device running
nearby. If there is a problem, keep other electronic devices as far away as possible from the 3D Active
Glasses.
The left and right 3D images may initially overlap when the TV is turned on. It takes a moment for the
display to optimize and the overlapping to stop.
There are several restrictions when using 3D TV:
o Launching Smart Hub automatically disables 3D mode.
P_P cannot be used.
Certain Picture options are disabled.
Changing the 3D Mode
MIEINU ) Picture ) 3D ) 3D Mode
Press the 3D button on your remote to start the 3D function, and then select 3D Mode under
Picture ) 3D.
2. Choose from the 3D modes that appear on the screen. The supported 3D Modes may vary
depending on the 3D content.
3D Mode s a_tomatica y conf g_red for most 3D co _tent.
The following 3D Modes are available. However, mode availability may vary depending on the 3D
content's format.
The supported reso ut ons vary for each mode_ Refer to the 'Supported Reso ut ons for 3D Modes" sect on
for more nformaton_
_ (Off)
Deactivates 3D viewing.
_ (Normal)
Converts normal images to 3D images.
Some formats do _ot s_ pport this mode.
,, _ (L/R)
Splits a single image into left and right overlapping images to create the 3D effect.
. _ (T/B)
Splits a single image into top and bottom overlapping images to create the 3D effect.
_ (Horizontal Line)
Switches between left and right images one horizontal line at a time.
_ (Vertical Line)
Switches between left and right images one vertical line at a time.
- _ (Pixel)
Switches between left and right images one pixel at a time.
_ (Frame)
Switches between left and right images one frame at a time.
When the TV is connected to a computer:
The (Horizontal Lne), _ (Vertical Line) and _ (P xel) sett ngs can only be selected when the
computer's resolut on s set to 1920x1800, or the computer s connected to the TV via an HDMI-DV[ cabe,
The (Frame) sett ng can only be seected when the computer's reso ut on s set to 1920x1080 and the
frequency to 60Hz,
Adjusting the 3D Effect
MEINU ) Picture ) 3D
Configure the viewpoint, depth, and other 3D settings for a custom viewing experience.
Al! 3D effects with the except on of 3D Auto View can only be used whe watch ng 3D content.
o Adjusting the 3D Viewpoint
Select Picture ) 3D ) 3D Perspective. Use the adjustment bar shown on the screen to adjust the
viewpoint.
Adjusting the 3D Depth
Select Picture ) 3D ) Depth. Use the adjustment bar shown on the screen to adjust the depth.
.....Iihis OpI:;O _ cannot be {_sed ;f 3D mode ;s set to _ (L/IR} or _ ( I!/B),,
Reversing the Left/Right 3D Images
Select Picture ) 3D ) L/R Change. Use to reverse the left and right images.
Displaying 3D Content in 2D
Select Picture ) 3D ) 3D _2D. Use to enable 2D viewing of 3D content.
.....Iihis f_nctio _ ;s _ot ava labe ;f 3D mode ;s set to _ (Norma) or _ (Off},,
Picture Support Functions
Broadcast Viewing
ME:INU>Pioture>Prop
Watch video from an external device such as a Blu-ray player on the main screen while viewing a TV
broadcast in a picture-in-picture window.
Select Pioture > P_P to display the PIP settings window. The PIP settings window contains the
following options:
o P_P
Activates/deactivates PIP.
Antenna
Choose Air or Cable as the input source for the PiP sub-picture window.
Channem
Selects the PIP sub-picture channel.
Size
Selects the PIP sub-picture size.
Position
Selects the PIP sub-picture position.
Sound Select
Selects the audio source.
Choose a broadcast.
PIP cannot be used wh e Smart Hub or 3D is active,
Turn ng off the TV automat ca ly d sabes PIP,
Playing a game or usng the karaoke feature on the man screen can resut in a lower PIP picture quafity_
For PIP to work, the main screen"s source must be Component or HDMI and the nput reso ut on must be
less than FHD (Ful HD), The PIP sub-screen supports dgta channe s only_
Changing the Picture Size and Position
Choosin9 the Right Screen Size
MIE:INU> Picture > Picture Size > Picture Size
Most TV programs and videos are displayed in full screen, but some programs and videos are
displayed in sizes that are larger or smaller. You can change the screen size for such programs and
videos so that the picture fits the screen better.
Supported screen sizes vary depend ng on the input sgna_ Refer to the "Picture Szes and input S gna s"
sect on for more nformat on about supported screen szes,
The Picture Size opton s not ava abe with mages n the 3840 x 2160p resouton because the supported
screen sze s fxed,
o 16:9
Set the picture to the 16:9 wide-screen format.
Zoom1
Magnify 16:9 pictures vertically. A magnified picture can be moved up and down.
Zoom2
Magnify Zoom1 picture even more. A magnified picture can be moved up and down.
Wide Fit
Enlarge the aspect ratio of the picture so it fits the entire screen. Enjoy 4:3 images as undistorted
16:9 images.
4:3
Sets the picture to basic 4:3 mode.
Screen Fit
Displays the full image without any cutoff.
Smart View 1
Reduces a 16:9 picture by 50%.
Smart View 2
Reduces a 16:9 picture by 25%.
Adjusting the Screen Position
MIE:INU> Picture > Picture Size > Position
Adjusts the screen position.
This option is only ava Iable wth Size set to Zoom!, Zoom2, Wide Fit, or Screen Fit. When the TV is tuned
to a digital channel, the screen position cannot be adjusted if the Picture Size is set to Screen Fit_
The Picture Size option is not ava abe with mages in the 3840 x 2160p resolution because the supported
screen sze s fxed.
To adjust the screen's position, select Picture > Picture Size > Position. A popup window
appears.
2, Select Position again from the popup window.
3, Press the A, V, { or > button to move the screen. When done, select Position and then Close.
Select Reset to reset the screen position.
Listening to Audio Only with the Screen Turned Off (Picture Off}
MIE:INU> Picture > Picture Off
Turns off the screen and plays audio through the speakers only, To turn the screen back on, press any
button other than the power and volume buttons,
Resetting the Picture Mode Settings
IMEINU > Picture > Reset Picture
Use this option to reset the current Picture Mode to its factory settings, This does not affect the
settings of other Picture Modes,
Changing the Sound Mode and Using Sound Effects
Choosing the Right Sound Mode for the Environment
ME_NU>Sound>SoundMode
Sound modes apply preset adjustments to the sound output, optimized for different viewing and
listening circumstances.
The sound modes cannot be used when you are I stening to aud;o through externa speakers.
o Standard
This is the normal sound mode.
Music
This mode emphasizes normal music instead of voices.
Movie
This mode is calibrated to provide the best sound for movies.
Clear Voice
This mode emphasizes voices.
This mode increases the overall intensity of high-frequency sounds for a better listening
experience. It is designed for hearing-impaired listeners.
Using Sound Effects
MENU > Sound > Sound Effect
Use sound effects to alter how the TV projects sound.
Sound effects can only be used if the Sound Mode is set to Standard.
The sound effects cannot be used when you are I stening to audo through externa speakers.
Choose a Sound Effect and then adjust the settings.
. V_rtuamSurround_1:ii::::!::'
Produces sound that will make you feel like you are sitting in a movie theater or concert hall.
Increases voice intensity to make dialog clearer.
. Equa,zer
Lets you adjust the speaker balance and make bandwidth adjustments. Select Reset to reset the
settings.
Sound Support Functions
Selecting Speakers
MIEINU ) Sound ) Speaker Settings ) TV Sound Output
TV Sound Output lets you choose which speakers the TV uses for audio output. Select Sound )
Speaker Settings ) TV Sound Output and then select the speakers from the list. To listen to audio
through the TV's speakers and the speakers of a connected AV receiver or home theater simultaneously,
select TV Speaker. If this causes an echo effect, choose any speaker option other than TV Speaker to
mute the TV speakers, or turn off the receiver or home theater.
Usng extema speakers aone d sabes the voume button and the mute funct on, In add t on, certa n Sound
opt ons are aso d sab ed,
o TV Speaker
Listen to the TV's audio through the TV's internal speakers.
Audio Out
Listen to the TV's audio though headphones or through the speakers of a device connected to the
TV via a digital optical cable.
Receiver
Listen to the TV's audio through the speakers of a home theater or receiver connected to the TV
via HDMI.
TV Sound Connect
Listen to the TV's audio through the speakers of a Bluetooth device connected to the TV.
Designating the TV°s mnsta_lation Type
MIEINU > Sound > Speaker Settings > TV installation Type
Specify the TV's installation type. Choose between Wall Mount and Stand to optimize the TV's sound
automatically.
Listening to TV Sound through Samsung Bluetooth Audio
MEINU > Sound > Speaker Settings > SoundShare Settings
Connect the TV to a Samsung audio device for a richer, clearer sound.
Ths opton s only ava abe for Samsung audio devices that support SoundShare or TV SoundConnecL
You can't use BIuetooth headphones and SoundShare features s mu taneous y_
Pair the Samsung audio device using the TV's Bluetooth. Refer to the Samsung audio device's
operating manual for more information on pairing.
When istening to TV audio through a Samsung audo device, certa n types of content may produce video-
to-audio synch ng ssues_
e Samsun9 Audio Device List
Displays a list of paired Samsung audio devices. Select a device to display its menu options. You
can activate/deactivate the audio device or remove it from the list.
o Add New Device
Lets you add new devices to the list of paired devices. The connection signals from new devices
are ignored if Add New Device is set to Off.
Enabling Digital Audio Output
MENU ) Sound ) Additional Settings
This Smart TV is SPDIF-enabled. The Sony Philips Digital Interface (SPDIF) provides digital audio
output to speakers and various digital devices, including A/V Receivers and home theaters.
. AudioFormat
Selects the Digital Audio output (SPDIF) format. The available Digital Audio output (SPDIF)
formats may vary depending on the input source
- Audio Demay
This setting helps correct timing mismatches between the audio and video tracks when you are
watching TV and listening to audio through a digital audio device. Enabling the feature displays a
slide bar that you can use to adjust the delay by up to 250ms.
Do[by Digita_ Comp
Set Dolby Digital compression mode.
Auto Volume
When you change channels, video sources, or content, Auto Volume automatically adjusts the
TV's volume level so that the volume level remains the same for all sources. For example, if you
switch from a streaming video application to a Blu-ray player or a favorite TV channel, Auto
Volume can modify the volume up to 12db to equalize the sound.
The Auto Volume function has two settings: Normal and Night. Norman applies a normal level
of volume adjustment. Night applies a slightly lower volume level and is ideal for late-night TV
viewing. If you want to use the volume control of a connected source device to control the sound,
deactivate the Auto Volume function. When you use the Auto Volume function with a source
device, the device's volume control may not function properly.
Listening to 3D Audio in 3D Mode
MENU > Sound > 3D Audio
3D audio technology provides immersive sound that matches the pop-up effect of 3D video by using
perspective in the audio depth control.
Thsfuncton sonlyava abe n3Dmode,
Resetting All Sound Settings
MENU > Sound > Reset Sound
Use to reset allsound settingsto the factory defaults.
Setting the Time and Using the Timer
Setting the Current Time
MIEINU > System > Time > Clock
Set the clock manually or automatically.
To view the time after the clock is set:
- Samsung Smart Control: Select the IINIFO button on the On-Screen Remote. (IKIEYIPAID> IINIFO)
- Standard Remote: Press the Jnfo button.
The coc< must be reset every tree the power s d sconnected,
Setting the C_ock using IIDigita_ Broadcast _nfo
ME:INU>System>Time>aook>aookMode
Set Clock Mode to Auto. The TV automatically downloads the correct time from a digital channel. To
enable this option, the TV's Antenna jack must be connected to either an antenna or a cable output
and must be receiving digital broadcasts. The accuracy of the time information received may vary
depending on the channel and signal. If your TV is connected to a set-top-box or satellite box using
HDMI or Component connections, you must set the time manually.
_f the CliFook is Wrong in Auto Mode
ME:INU>System>T me>Cmook>T meOffset
If the time set automatically is incorrect, you can offset the clock in 1-hour increments by as much as
-/+ 12 hours, Select System > Time > Clock > Time Offset, and then offset the clock to the correct
time,
Time Offset adjusts the tree through a network connection and is only ava abe f the Clock Mode s set to
Auto and the TV is connected to the Internet though a locaI area network,
Time Offset adiusts the t me ftheTVfa storecevetme nformatonthroughnormaIdgta broadcast
s gnaIs_
Setting the Clock Manually
MIEINU > System > Time > Clook > Clook Set
To enter the time and date manually, follow these steps,
Set Clock Mode to Manual, and then select Clock Set,
2, Select Date, The date entry pop-up appears,
3, Use the A and V buttons to change the month, When done, move to the date field and then
the year field and set them in the same fashion, When done, press the IRIETURINbutton on your
remote,
4, Select the Time field, Use the A and V buttons to set the hour,
When done, move to the minutes field and then the am/pm field and set them in the same
fashion, When done, press the IRIETURINbutton on your remote,
Using the Timers
Using the SIieep "Fimer
MIEINU > System > Time > SJeep Timer _:i::/: i:
This function automatically shuts off the TV after a preconfigured period of time. Select System >
Time > SJeep Timer. You can set the timer up to 180 minutes in 30-minute increments.
Turning On the "_V using On Timer
MEINU } System } Time } On Timer
Set the On Timer so that the TV turns on automatically at a chosen time. You can set up three
separate On Timer configurations concurrently: On Timer 1, On Timer 2, and On Timer 3. The On
Timer is only available if the Clock has been set.
Select Off, Everyday, Mon_Fri, Sat-_Sun, or Manual. If you select Manual, you can select the
days you want the On Timer to turn on the TV by highlighting each day, and selecting it.
Time
Set the time that the TV turns on automatically. See Manual under Setting the Time for time
setting instructions.
Volume
Specify the volume the TV will set itself to when it turns on.
Source
Select a signal source from the list. This is the source the TV will access when it turns on. If you
want to use a USB device, that USB device must be connected to the TV before you start the On
Timer set up. To play back media from an HDMI or Component source such as a DVD player, Blu-
ray player, or set-top-box, you must leave the device on. It must be on and playing when the TV
turns on.
o Antenna
If you have set the Source to TV, select a broadcast signal source, Air or Cable.
Channem
If you have set the Source to TV, select a channel.
Music / Photo
If you have set the Source to USB, specify a USB device folder containing music files in the
music field and/or a folder containing photos in the photo field. If you select a folder that
contains music files and a folder that contains photo files, the TV plays the music files and
displays the photos at the same time.
To select (for example)a music folder,follow these steps:
Selectthe musicfield. Themusic screenappears.
2, If you have no folders in the USB drive and all your music files are in the root directory, highlight,
and then select the Select button. The USB drive is selected and the On Timer screen reappears
displaying the name of the USB drive in the music field.
3, If you have folders with music on the USB drive, press the touch pad on the Samsung Smart
Control or the C_ button on the standard remote. The TV displays all the folders on the drive.
4, Scroll the list of folders until the folder you want appears. Move the highlight to the Select
button to the right of the folder. Press the touch pad. On a standard remote, press and hold the
C_ button. The On Timer screen reappears displaying the folder name in the music field.
Iif the foder yo_ choose has s_b fo ders yo_J can seect a s_,b fo der n the same fashion
If you want, select a photo folder in the same way. Start by selecting the photo field.
This feature wit not funct on properly f the seected USB device does not conta n meda ftes or a foder
has not been spec fed.
The sideshow wil not start f there s only one mage fte on the USB device_
Fo ders with long names cannot be seected.
Always use d fferent foder names for mu t pie USB devices.
Use a USB memory stick or multi-card reader_ The On Timer may not work wth certain battery-powered
USB devices, MP3 players, or PMPs because the TV may take too long to recognize the device.
Tumin9 Off the TV Using the Off Timer
MEINU>Syate >T me>OffT mer
Set the Off Timer to turn the TV off automatically at a specific time. You can set up three separate
Off Timer configurations concurrently: Off Timer 1, Off Timer 2, and Off Timer 3. The Off Timer is
available only if the Clock has been set.
Select Off, Everyday, Mon~Fd, Sat~Sun, or Manual. if you select Manual, you can select the
days you want the Off Timer to turn off the TV by highlighting each day, and then selecting it.
Time
Set the time that the TV turns off automatically,
Using the Screen Burn Protection and Energy Saving
Preventing Screen Burn
HEINU > System > Auto Protection Time
Still images can leave burned-in after-images on the screen if left on the screen for a long period of
time. Use Screen Burn Protection to protect the screen. Select System > Auto Protection Time and
then choose a time setting from the list. If a still image is shown on the screen for longer than the
time you selected, the TV will automatically activate the Screen Burn Protection function to prevent
burnt-in after-images.
Using Energy Saving Features
MEINU > System > Eco Solution
Eco Solution adjusts the TV's brightness level and prevents overheating to reduce overall power
consumption.
e Energy Saving
Select a brightness setting from the list to reduce the TV's power consumption.
. EooSensor
Automatically adjusts the TV's brightness level based on the ambient light level to reduce the
TV's power consumption. If the Eco Sensor has adjusted the screen's brightness level, you can
manually adjust the screen's minimum brightness level by adjusting the Min. BacMight or Min
Cell Light (in applicable models). Changing the BacMight or Min Cell Light setting (in applicable
models) while Eco Sensor is running automatically disables Eco Sensor.
. No Signal Power Off _ii :::!:1!i:!:
Select a time from the list. If no signal is received for the specified duration, the TV will
automatically cut off the power to reduce power consumption.
- Auto Power Off
If the TV remains on for four hours without any user input, the TV will automatically turn off to
prevent overheating.
Using Anynet+ (HDMi-CEC)
Use Anynet+ (HDMI-CEC) to control all external devices that support HDMI-CEC using just the TV's
remote control. Note that Anynet+ (HDMI-CEC) only works with the TV's remote control and not with
the panel keys.
You can configure the TV_s universaI remote funct on to control - using the TV's remote control
third--party cable boxes, Blu-ray players, and home theaters that do not support HDMI-CEC. Refer to
the "Controtl ng Externa Devices with the TV Remote- Using the UniversaI Remote" sect on for more
nformat on.
Anynet+ cannot be used to control external devices that do not support HDMI_CEC.
Anynet+ devices must be connected to the TV using an HDMI cabb. Some HDMI cabes may not support
Anynet+ (HDMI-CEC). In ths case, you wi need to replace the HDMI cabe.
The TV remote contro may not function under certain circumstances. If this occurs, seect the Anynet+
device again.
Anynet+ (HDMI--CEC) onty works wth external devices that support HDMI-CEC and only when those
devices are either in standby mode or turned on.
Anynet+ (HDMI-CEC} can contro up to 12 compat bJe external dev ces (up to 3 of the same type). With
home theater systems, however_ the number of systems that can be contro Ied s 1mited to one.
To listen to 5.1-channe audio from an external dev ce, connect the devce to the TV via an HDMI cabe and
the device's dgtat audo output connector d rectly to the home theater system.
A home theater system that has been connected to the TV using an HDMI cable and an opt cal cabe
supports 2_channel audo only, 5.1_channe audo s, however:, ava abe for dgta broadcasts with
5.1_channe audo.
Setting Up Anynet+ (HDMI-CEC}
MIE:INU ) System ) Anynet+ (HDMJ-CEC}
. Anynet+ (HDM_-CEC}
Enables/disables Anynet+ (HDMI-CEC), Set to Off to disable all Anynet+ related features. Set to
On to enable all Anynet+ related features.
- Auto Srn Off q_
When set to Yes, turns off Anynet + compatible external devices when the TV is turned off.
Some Anynet + compatib e devices do _ot s_ pport this feat_ re
- Device search _
Automatically search for and identify Anynet+ (HDMI-CEC) compatible external devices that are
connected to the TV.
Using Anynet+ (HDMm-CEC}
Selecting an Externa_ Device
On the Samsung Smart Control, press the IKIEYIPADbutton, and then select TOOLS on the On-
Screen Remote, On a standard remote, press the TOOLS button, The Tools list appears,
2, Select Anynet+ (HDM_-CEC} from the list, The Sebct Device screen appears,
3, Select a device and wait for the switch to take place, This process may take up to 2 minutes to
complete and cannot be cancelled once started,
Accessin9 the Externa_ Device°s Menu
Once the TV has switched over to the selected device, you can access the device's menu using the
TV's remote control,
On the Samsung Smart Control, press the IKIEYIPADbutton, and then select TOOLS on the On-
Screen Remote, On a standard remote, press the TOOLS button, The Tools list appears,
2, Select Anynet+ (HDM_-CEC} from the list, The following list appears,
.....Ilhe me[_u options ava labe n Tools may differ depending o_ the exte_ _a device,,
Anynet+ (HDM_CEC}
Displays a list of HDMI-CEC-compliant devices connected to the TV, Select View TV to exit
Anynet+ (HDMI-CEC), and start watching TV, To switch to the screen of an external device,
simply select that respective device,
(Connected Device) Menu
Display the menu of the connected device, if the target device is a DVD player, the DVD player's
menu is shown,
(Connected Device) Tools
Displays a list of frequently-used functions available for the device, If the target device is a DVD
player, the DVD player's playback menu is shown,
Some exte_ _a dev ces may not sL ppo_t this optio _,,
(Connected Device) Title Menu
Displays the title menu of the disc in the connected device, For example, if the target device is a
Blu-ray player, the title menu of the disc in the player is shown,
Some exte__a devices may _ot s_ ppo_t this optio _,,
Using the e-Manua
Launching the e-Manual
IMIEINU> Support ) e-Manual
The embedded e-manual contains information about your TV's key features.
A ternativeb; you can download a copy of the e-manual from Samsung's website, and read it on your
computer or print it out_
Words in yellow (e_g. Picture Mode) indicate a menu item and bold words in white (e_g. Smart Hub)
indicate remote contro buttons,
Arrows are used to indicate the menu path, (Example: MENU }>Picture > Picture Mode)
On the Samsung Smart Control, press the KIEYPAD button, and then select e-Manual on the On-
Screen Remote. On a standard remote, press the IEHMAINUAL button. You can also select Support
) e-Manual in the TV's menu.
2. Select a category from the left side of the screen. Once a selection has been made, the contents
of the selected category appears on the right side of the screen.
3. Select an item from the list. This opens the e-manual on the corresponding page.
_f a description doesn't fit on a single screen,.
o Position the focus on the page to display / on the screen. Press the A or V buttons to
scroll the page up and down.
Additionam e,-Manual Features
Loading Pages using Keywords
Select Search to bring up the search screen. Enter a search term, and then select Done. Select an item
from the search results to load the corresponding page.
Loading Pages fl_om the Index Page
Select Index to bring up the index screen. Select a topic from the list to navigate to the relevant page.
Using Nistory to L,,,oad P_eviously Read Pages
Select Opened page. A list of previousJy read pages is shown. Select a page. The e-ManuaJ jumps to
the selected page.
Accessing the Menu from the e,-Manual
Select _ (Try Now) from the right side of a feature-description page to access the corresponding
menu item and try out the feature right away. If you want to read the e-Manual entry on a specific
screen menu feature:
- On the Samsung Smart Control, press the KEYPAD button, and then select e-Manual on the On-
Screen Remote. To load the corresponding e-Manual page.
- On a standard remote, press the eHManua_ button.
The e-Manua cannot be accessed from some menu screens_
Loading Reference Pages
Select _ (Link) from the right side of a feature-description page to access the corresponding
reference page.
Updating the e,-Manual to the Latest Version
You can update the e-Manual in the same way you update apps.
Press the @ button, and then highlight the e-Manual item in the SAMSUNG APPS screen.
o
o
4_
On the Samsung Smart Control, press and hold the touch pad. On a standard remote, press and
hold the l:..........button. The Tools menu appears.
Select Update Apps from the Tools menu. A popup window appears.
Select e-Manual in the popup window, and then select Update.
Configu_'ing Auto Update
MIEINU > Smart Hub > Apps Settings
To update the e-Manual automatically, navigate to the Smart Hub > Apps Settings menu, and then
set the Auto Update option to On. The e-manual is updated automatically when an update becomes
available.
Updating the TV's Software
MIE:INU> Support > Software Update
View your TV's software version and update it if necessary.
The TV is set to update software automatically via the internet by default. If you don't want to update
it automatically, set Auto Update (Support > Software Update > Auto Update) to Off.
/k DO NOT turn off the TV's power until the update is complete. The TV will turn off and on
automatically after completing the software update. All video and audio settings return to the
default settings after a software update.
Update now
MIE:INU> Support > Software Update > Update now
Update now lets you update your TV's software in three ways:
o Online, by downloading the update from the Internet directly to your TV.
Manually, using a USB flash drive.
Automatically (Auto Update), while the TV is in Standby Mode.
Each method is explained below.
Online
To update your TV using the Online method, follow these steps:
Make sure that your TV is connected to your local network and the Internet. The connection can
be wired or wireless.
2, All video and audio settings return to their default settings after a software update. We
recommend you record your current settings now so you can easily re-establish your settings
when the update is complete.
3, Press the MIEINU button, and then select Support > Software Update > Update now. The Update
now pop-up appears.
4, The TV searches on line for the latest software version for your TV.
If it does not find an update, the "No new updates" pop-up appears. Press the EXIT button to
exit.
6, If the TV finds a new version, the Update Request pop-up appears.
Select OK. The TV updates the software, turns off, and then turns on automatically.
Do _ot t_rn off the liT dt_ ng the Softwa_e Update,, lit may catse the liT to r_saft_nctio _,,
Manua My, Using a USB Flash Drive
To update your TV using the Manual method, follow these steps:
All video and audio settings return to their default settings after a software update. We
recommend you record your current settings so you can easily re-establish these settings when
the update is complete.
2. On a computer, visit www.samsung.com.
3. Select GET SUPPORT > Get Downloads.
4. Enter the product's model number into the search field. As you enter the model number, a drop
down will display products that match the model number.
Click your product's model number in the drop down list.
6. On the page that appears, scroll down to and then click Downloads.
Click Firmware in the center of the page.
Click the ZIP button in the File column.
Click Send in the first pop-up that appears.
10. Click Save in the second pop-up to download, and then save the firmware file to your computer.
Unzip the zip archive to your computer. You should have a single folder with the same name as
the zip file.
Copy the folder to a USB flash drive.
13. Insert the USB flash drive into a USB port of the TV.
In the TV's menu, go to Support > Software Update > Update now. The TV searches for the
software on the USB drive. When it finds the software, the Update Request pop-up appears.
Select OK. The TV updates the software, turns off, and then turns back on automatically.
Do _ot t_m off the IiV d__n_(_the Softwa_e Upd_te,, lit may cause the IiV to ma f_;nctio_,,
Enabling Automatic Software Updates
MIE:INU) Support ) Software Update ) Auto Update
If the TV is connected to the Internet, it can be updated via Auto Update while watching the TV. When
the Background upgrade completed, the update will be applied the next time the TV is used.
Ths opt;on requires an Internet connect;on,
If you agree to the Smart Hub terms and conditions, Auto Update will be set to On automatically. If
you don't want the TV's software updated automatically, set Auto Update (Support) Software Update
) Auto Update) to Off.
Protecting the TV from Hacking and mamicious
MIEINU > System ) Smart Security
When the TV is connected to the Internet, it is vulnerable to hacks and malicious code. Smart Security
protects the TV and storage media connected to the TV from such threats.
Navigate to System ) Smart Security and set Smart Security to On.
Checking the TV and Connected Storage Media
MEINU ) System ) Smart Security ) Scan
Navigate to System ) Smart Security and select Scan. This scans the TV and connected media for the
presence of malicious code. If no malicious code is detected, a notification window appears on the
screen.
_f malicious code is detected...
If malicious code is found, the results of the scan will appear on the screen, This result window
displays all malicious code found, and provides options to either quarantine the code or allow it to
function,
Select all the malicious code you want to quarantine or allow,
2, Select Block or Allow, This moves the selected malicious code to the isolated List or AHowed
List,
.....Iihe _soJated List disp ays a quarantined and b ocked r_s8 icious code,, You can aso _e ocate codes
from this ist to the A owed I st.
.....Iihe AlJowed List disp ays a aowed ma icicles code,, Yo_ can aso _eocate codes hom this ist to the
Iiso ated Ist,,
Automatically Scanning when the TV is Powered On
MIEINU > System > Smart Security > Settings > Auto Scan
Navigate to System > Smart Security > Settings and then set Auto Scan to On, This automatically
scans the TV and connected storage media when the TV is powered on,
Automatically Adding malicious code to the Blocked List
MIEINU > System > Smart Security > Settings > Move to isolated List automatically
Navigate to System > Smart Security > Settings and set Move to isolated List automatically to On.
Malicious code found during the scanning process is automatically added to the Blocked List.
Using Other Functions
Setting Up a Password
MIE:INU) System ) Change PiN _S:_
Set a PIN (Personal Identification Number) to lock channels, reset the TV, and change the TV settings.
Select System ) Change PiN. The PIN input window appears.
2, Enter a PIN. The default PIN is 0000.
3, Enter a new PIN and then enter it again to confirm it. The PIN change is complete.
If you forget your PPN,you can reset it using your remote control With the TV turned on, press the
following buttons on the remote to reset the PPNto 0000: MUTE _ o_ _RETURN _ o'-'-'o_RETURN _o_-
RETURN, "+" s the Volume Up button, "-" s the Volume Down button,
Changing the Menu Language
MEINU > System > Menu Language
Use this option to change the menu language. Select System > Menu Language, and then choose a
language from the list.
Checking Notifications
MEINU ) System ) Notifications
Select Notifications from the System menu to view the list of event messages generated by the TV,
Notifications appear on the screen when events such as an update release for an app or Samsung
Account Iogin/Iogout occurs,
Seect Delete All to delete atl notif cations,
Seect Service Notice to chec< the SMART TV service not ficat ons n a web browser_
Enabling Voice Guides for the Visua My mmpaired
MIEINU > System > AccessibiNity > Voice Guide
This function is only available in the U.S.A. and Canada.
Voice guides for the menu options are available to aid the visually impaired. Enabling this option
provides voice guides for focus movement, channel change, volume change, and various other TV
functions.
Navigate to System > Accessibility > Voice Guide and set Voice Guide to On.
Press and hold the F_ button on the Samsung Smart Control to turn on or off Voice Guide, Availab ! ty
depends on the spec fic area.
The Voice Guide is prov ded in the Ianguage that is spec lied on the Menu Language screen. (System >
Menu Language). However, some languages are not supported by Voce Guide even though they are Isted n
the Menu Language screen,
To change the gender of the Voice Guide's voce, navigate to System > Voice Control > TV Voice, and then
change the Voice Gender opt on.
If Voice Guide s set to On, moton sensor of Samsung Smart Contro does not work, To use the moton
sens t vity sensor: set Voice Guide to Off,
The Voice Guide will give information for the following functions on the TV.
Voce Guide is not avai abb for some sub-function or function menus, When you access one of those sub-
functon or functon menus, the TV wil te! you that Voice Gude s not ava abe,
- Changing Channels
Changing TV Volume
Program Info Window (mNFO)
Channel List
Source
,, Guide
. On TV
,, Voice Control
,, TV Menus
Changing the Volume, Speed, Pitch and Level of Voice Guide
Select System ) Accessibility ) Voice Guide. Using the following functions, you can configure the
Voice Guide feature's volume, speed, pitch and level settings.
Volume
Change the Voice Guide's volume level. The volume of the Voice Guide is determined by this
Volume setting. You cannot control the Voice Guard's volume with the TV's volume control.
The Voice Guide volume may vary occasionally, depending on the TV volume setting.
Change the Voice Guide's tempo.
Pitch
Tune the pitch of the Voice Guide.
Description Level
You can adjust the Voice Guide's expertise level to better suit the user's proficiency.
Adjusting the Menu Transparency
MEINU>System>Aooessibi,ty>MenuTransparency
Navigate to System ) Accessibility and adjust the opacity level and the menu's transparency.
When the High Contrast (System > Accessibility > High Contrast) setting is set to On, the menu d splay s
automat caI y set to opaque and you cannot change the Menu Transparency sett ngs.
White Text on Black Background (High Contrast}
MENU > System ) Accessibility ) High Contrast
Navigate to System ) Accessibility and set High Contrast to On. This option changes major service
screens to white text on a black background or changes the transparent TV menus to opaque so that
text can be read more easily.
Press and hold the _:2 button on the Samsung Smart Contro to turn on or off High ContrasL Ava ab Ity
depends on the spec fic area.
Expanding the Smart Hub°s Focus Area
MENU > System > Accessibility > Enlarge
Navigate to System > Accessibility and set Enlarge to On. This zooms in the focused item when you
use Smart Hub and makes the item larger.
Enab[ing/DisaMing Sound Feedback
MENU>System>Generam>SoundFeedback
Sound Feedback provides audio cues as you navigate through menus and select menu options. Sound
Feedback is on by default. You can set it to Low, Medium, High, or Off.
LocMng/Un[ocMng the Pane[ Keys
MENU > System > General > Pane[ Lock
Use to lock and unlock the TV's front panel buttons (menu, channel, and volume) and the control stick
on the back of the TV. Select System > General > Panem Lock and lock/unlock the keys.
Showing/Hiding the Samsung Logo while Booting
MENU > System > General > Boot Logo _{_i: ':!:1!
Use to enable or disable the Samsung logo display that appears when the TV starts up.
Enabling the TV to Boot Faster
MENU > System > General > Samsung Instant On
Set Fast Boot on to have the TV boot up faster.
Enab[ing/DisabJing the Front Indicators
MENU > System > Genera[ > Light Effect
This function is only available for the U8500 series.
Use to turn the indicators on the front of the TV on/off. Turning the Light Effect off reduces the TV's
power consumption.
The color of the TV's Ight may vary depend ng on the mode.
Ava ability depends on the model.
Evolution Kit Backup
MENU > System > Evolution Kit Backup
Upgrade your Samsung TV with the 2015 Evolution Kit for more benefits. However, this upgrade
requires backing up and converting existing data in your TV and apps accordingly to ensure they
remain on the upgraded device.
Connect a USB storage device to the TV.
2, In the System menu, select Evolution Kit Backup. The Evolution Kit Backup screen appears.
3, Select Start. Data in the TV will be backed up to the USB storage device.
Do _ot t_rn tlhe IiV off or _;np _,g the power cabe of the IiV d_ r n_(_this back_ p
Do _ot disco _nect the _JSBstorage device d_rng this back_ p
4, When complete, select Done.
Update Recorded Programs
MENU > System > Update Recorded Programs
This function is only available for the U8500 series.
To watch a previously recorded program on Samsung TV with the 2015 Evolution kit, it is necessary to
convert the recorded program saved on a USB Drive to the Samsung TV format with the 2015 Evolution
kit.
Connect the recording USB device to the USB HDD 5V1A terminal.
2. In the System menu, select Update Recorded Programs. The Update Recorded Programs screen
appears.
3, Select Start. Start conversion so material is properly displayed on the TV.
4. When complete, select Done.
Enabling Game Mode
MENU>System>Generam>GameMode
Game Mode optimizes the TV's settings for playing video games on a gaming console such as
PlayStation TM or Xbox TM.
Game Mode cannot be used for normal TV viewing.
Connect the gamng console before enab ing Game Mode. Otherwise, the picture quality may suffer:,
The screen may shake a little.
Enab ing Game Mode automatical y sets the Picture Mode to Standard and the Sound Mode to Movie.
To use a d fferent externaI device, frst d sconnect the game conso e and dsabe Game Mode.
Enjoying Rich Colors and Superior Picture Quality (BD Wise)
MEINU ) System ) General ) BD Wise
Connecting a Samsung DVD player, Blu-ray player, or home theater system that supports BD Wise
enables the richest colors and best possible picture quality. Enabling BD Wise automatically optimizes
the TV's resolution.
Ths feature s only ava abe when the externa device s connected via an HDMI cabe,
Registering the TV as a DivX-Certified Device (Watching For Pay
DivX Movies}
>System> V deoCoDemood i!
To watch DivX DRM protected movies on the TV, you must register the TV as a DivX certified device.
DRM stands for D}@tal R;ghts Management and s a technical secur;ty mechanism to protect the copyright
of the content providec
You can watch movies that you have recorded or free DivX movies without registration.
Visit the DivX website (http:/iwww.divx.com) and log nto your user account before reg stering the TV as a
DivX-certif ed device. If you do not have an account, please create one_
Select System ) DivX@ Video On Demand. A window with a registration code appears on the
screen.
2. Visit the DivX website on a computer, and then click [Register Your Device] under [Support] in the
top menu.
3. Enter the registration code shown on the TV's screen in the [Enter your registration code] field.
4. Enter the TV's name in the [Name your device] field, and then click [NEXT].
Click [DOWNLOAD], and then save the [device_name.divx] file.
6. Transfer the [device_name.divx] file from the computer onto a USB device, and then plug the USB
device into the TV.
Run the [device_name.divx] file on the TV to register the TV as a DivX-certified device.
Restoring the TV to the Factory Settings
ME:INU>Support>SemfDiagoosis>Reset
This option restores all TV settings (excluding the Internet and network settings) to the factory
defaults.
Select Support > Se_f Diagnosis > Reset. The Security PIN entry window appears on the screen.
2. Enter the Security PIN, and then select Yes. All settings are then reset. The TV turns off and on
again automatically, and then displays the Setup screen.
For more ;nformatio _ o_ Set_ p, refer to the {_ser man_a that came w;th the liT,,
Using the TV as a Display Model (exclusively for retaiM stores}
MIE:INU> Support > Use Mode
Select Support > Use Mode > Store Demo. This turns the TV into a display model for use in a retail
environment,
For at! other uses, seect Home Use,
Store Demo should be used n retait environments ony. With Store Demo, certa n funct ons are d sabed and
the TV automat caI y resets tsef after a certa n amount of tree,
Getting Support
The TV has several built-in systems designed for user and TV system support.
Support through Remote Management
MIE:INU> Support > Remote Management
If you need assistance with your TV, you can use this feature to let Samsung Electronics diagnose your
TV remotely. You will need to read and agree to the service agreement before using this feature. A
Samsung Electronics technician will then diagnose, repair, and update your TV remotely. These features
are only available when your TV is connected to the Internet.
Gettin_s Remote S_pport
Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can
remotely.
e Diagnose your TV
o Adjust the TV settings for you
Reset your TV to its factory settings.
Install recommended firmware updates
How Does it Work?
Having a Samsung Tech service your TV remotely is easy.
Call the Samsung Contact Center and
ask for remote support.
Open the menu on your TV and go to
the Support section.
Select Remote Management, and
then read and agree to the service
agreements. When the PiN screen
appears, provide the PiN number to the
agent.
The agent accesses your TV.
Finding the Information You Need for Service
MEINU } Support } Contact Samsung
Use this option to display the address of the Samsung website, the call center phone number, your
TV's model number, your TV's software version, the Smart Hub info, and other information you may
need to get service support from a Samsung call agent or the Samsung website.
There is a problem with the p
Testing the Picture
MEINU>Sopport>somfDiagoosis>Piotor÷z÷at
Before you review the list of problems and solutions below, use Picture Test to determine if the
problem is caused by the TV. The Picture Test displays a high definition picture you can examine for
flaws or faults. If the test picture does not appear or there is noise or distortion, the TV may have a
problem. Contact Samsung's Call Center for assistance. If the test picture is displayed properly, there
may be a problem with an external device. Please check the connections. If the problem persists,
check the signal strength or refer to the external device's user manual.
Sensor).
If the color on your Samsung television screen is not correct or the black and
white colors are off, run Picture Test (Support > Self Diagnosis > Picture Test).
If the test results indicate that the problem is not caused by the TV, do the
following:
Component e Confirm that the TV's video input connectors are connected to the correct
Connections/Screen
Color external device video output connectors.
e Check the other connections as well. If the TV is connected to an external
device via a component cable, confirm that the Pb, Pr, and Y jacks are plugged
into their proper connectors.
If the colors on your Samsung TV are correct but just a little too dark or bright, try
adjusting the following settings first.
Screen Brightness • Go to the Picture menu and adjust the BacMight/Ce[[ Light (available on
different models) Contrast, Brightness, Sharpness, Color, and Tint (G/R)
settings.
Ghosting, Blurring, or If you notice ghosting or blurring on the screen, use the Auto Motion Plus option
Juddering (Picture > Picture Options > Auto Motion Plus) to resolve the issue.
If your Samsung TV appears to turn off by itself, try disabling some of the TV's
energy efficiency features. See if Sleep Timer (System > Time > Sleep Timer) has
Unwanted Powering been enabled. The Sleep Timer automatically turns the TV off after a specified
Off period of time. If the Sleep Timer has not been enabled, see if No Signal Power
Off (System > Eco Solution > No Signal Power Off) or Auto Power Off (System >
Eco Solution > Auto Power Off) has been enabled and disable them.
WhentheTVisturnedon,theremotecontrolreceiverflashes5 timesbeforethe
screenturnson.
If youarehavingproblemspoweringonyourSamsungtelevision,therearea
numberof thingsto checkbeforecallingthe servicedepartment.Confirmthatthe
ProblemsPoweringOn
TV'spowercordisconnectedcorrectlyat bothendsandthattheremotecontrol
isoperatingnormally.Makesurethattheantennacableor cableTVcableisfirmly
connected.If youhavea cable/satellite box confirm that it is plugged in and
turned on.
i
Unable to find a If your TV is not connected to a cable box or satellite box, run Setup (System >
Channel Setup) or Auto Program (Broadcasting > Auto Program).
Store displays are all tuned to digital, HD (high definition) channels.
If you have an analog cable/set top box, upgrade to a digital set top box. Use
HDMI or Component cables to deliver HD (high definition) picture quality.
The TV image does not Many HD channels are upscaled from SD (Standard Definition) content. Look for a
look as good as it did channel that is broadcasting true HD content.
e Cable/Satellite Subscribers: Try HD channels from the channel lineup.
in the store.
e Air/Cable Antenna Connection: Try HD channels after running the Auto Program
function.
Adjust the cable/satellite box's video output resolution to 1080i or 720p.
The compression of video content may cause picture distortions, especially in fast
moving pictures from sports programs and action movies.
A weak or bad quality signal can cause picture distortions. This is not an issue
The picture is distorted, with the TV.
Mobile phones used close to the TV (within 3.2 ft) may cause noise in analog and
digital channels.
_, . If you're using a Component connection make sure that the Component cables are
/ne color ts wrong or . " .
connected to the correct jacks. Incorrect or loose connections may cause color
missing, problems or a blank screen.
Go to the Picture menu and then adjust the Picture Mode, Brightness, Sharpness,
The color is poor or and Color settings.
the picture is not bright See if Energy Saving (System > Eco Solution > Energy Saving) has been enabled.
enough. Try resetting the picture. (Picture > Picture Reset)
There is a dotted line
If the Picture Size has been set to Screen Fit, change the setting to 16:9.
on the edge of the
Change the cable/satellite box resolution.
screen.
.... il .....
The picture is black If you are using AV composite input, connect the video cable (yellow) to the TV's
and white, green component jack.
I can't hear the sound clearmy
Testing the Sound
ME:INU>Support>SemfD agnoa a>SoundTeat
Before you review the list of problems and solutions below, make sure that the TV Sound Output menu
item is set to TV Speaker, and then listen to the speakers again. If the TV still does not play audio,
run the Sound Test. The Sound Test uses a built-in melody to check for sound problems. If the TV
does not play sound during the Sound Test, or the sound is distorted, there may be a problem with
the TV. Contact Samsung's Call Center for assistance. If the TV plays the Sound Test melody without
distortion, there may be a problem with an external device. Please check the connections. If the
problem persists, refer to the external device's user manual.
There is no sound or
the sound is too low at
maximum volume.
Check the volume control of the device (cable/satellite box, DVD, Blu-ray, etc.)
connected to your TV.
Set Sound > Speaker Settings > TV Sound Output to TV Speaker.
If you are using an external device, check the device's audio output option. (For
example, you may need to change your cable box's audio option to HDMI if the
box connected to your TV is using an HDMI cable.)
The picture is good but
To listen to the computer sound, connect the external speaker to the computer'
there is no sound.
s audio output connector.
If your TV has a headphone jack, make sure there is nothing plugged into it.
Reboot the connected device by disconnecting and then reconnecting the
device's power cable.
Make sure that the audio cable is connected to the correct audio output ::
: ..... connector on the external device
/ne_l_eacKersdare maK.ng For antenna or cable connections check the signal information A low signal
level may cause sound distortions.
Run Sound Test (Support > Se_f Diagnosis > Sound Test).
I can't see 3D images clearmyo
Testing 3D Picture Quality
MIE:W_U> Support ) Self Diagnosis ) 3D Picture Test
To test 3D p cture quality, you must be wearing 3D glasses and the glasses and the TV must be paired,
Before you review the list of problems and solutions below, use 3D Picture Test to determine if the
problem is caused by the TV. The 3D Picture Test displays a high definition picture you can examine
for flaws or faults. If the test picture does not appear or there is noise or distortion, the TV may have
a problem. Contact Samsung's Call Center for assistance. If the test picture is displayed properly,
there may be a problem with an external device. Please check the connections. If the problem persists,
check the signal strength or refer to the external device's user manual.
ii } i:
Make sure the glasses are powered on.
...... The 3D feature may not work properly if there is another 3D product or an
/ne ,_u glasses are not
electronic device running nearby.
working correctly. If there is a problem, keep other electronic devices as far away as possible from
the 3D Active Glasses.
I can't see 3D images The ideal viewing distance is three times or more the height of the screen.
clearly. We also recommend watching 3D content with your eyes level with the screen.
.... ii....
The batteries in the 3D Turn off the 3D glasses when they are not in use. If you leave the 3D glasses on,
glasses are flat. the battery tifespan is shortened.
is a problem with the broadcast.
The TV is not receiving
all channels.
If your TV is not connected to a cable box or satellite box:
e Confirm that the coaxial cable is securely connected to the TV.
e If you are using an antenna, verify it is positioned correctly and the all the
connections are secure.
e Run Setup (System > Setup) or Auto Program (Broadcasting > Auto Program).
There are no captions Go to Caption (System > Accessibility > Caption) and change the Caption Mode.
with digital channels. Some channels may not have caption data.
:: The compression of the video content may cause picture distortions. This is
The picture is distorted, especially true with fast moving pictures from sports programs and action
movies.
A weak signal can cause picture distortions. This is not a problem with the TV.
My computer won't connect,
The "Mode Not
Supported" message Set your PC's output resolution so it matches a resolution supported by the TV.
appears.
The video is OK but If you are using an HDMI connection, check the audio output setting on your PC.
there is no audio. If you are using a DVl to HDMI cable, a separate audio cable is required.
[ can't connect to the
The wireless network
connection failed.
Confirm your wireless modem/router is on and connected to the Internet.
Reset your wireless modem/router by turning it off, waiting for 15 seconds, and
then turning it on again.
Run Network Setup (MENU > Network > Network Settings).
The software update Check the network connection status (MENU > Network > Network Status).
over the Internet has if the TV is not connected to a network, connect to a network.
failed. The upgrade stops if you already have the latest software version.
The Schedule
working°
Recording/Timeshift
function
This function is not available in the U.S.A. and Canada.
The TV cannot recognize the
USB device or the Format
Device, Check Device, or
Device Performance Test
has failed.
Refer to the USB device's manual and see if data can be stored on it.
Check if the USB device is in a locked state.
Check if the USB device was formatted when it was connected to a computer.
Formatting a USB device after connecting it to the TV may result in a
formatting failure. If Device Performance Test or Format Device has failed,
there may be a problem with the USB device or its specifications. Try using a
different USB device.
There is a message saying Check if the USB device is in a locked state.
I need to format the USB
Use the USB recovery function to recover the USB device.
storage device.
Check if there is a USB device connected to the TV.
Schedule Recording cannot Check if the channel is a digital channel that can be recorded. Recording will
be used. automatically stop if the signal becomes too weak. The Timeshift function
will not work if there isn't enough storage space on the USB device.
I get a performance test
failure message and then This problem can occur when using a low-performance USB storage device
Schedule Recording and the that does not support recording. A USB hard drive with a speed of 5,400rpm
Timeshift operation stops or above is recommended. A USB memory Stick is not supported.
working.
(HDMI-CEC) isn°t working°
Confirm that the device is an Anynet+ device. The Anynet+ system supports
Anynet+ devices only.
Check if the power cord of the Anynet+ device is properly connected.
Check the cable connections of the Anynet+ device.
Go to System and see if Anynet+ (HDMI-CEC) has been set to On.
Anynet+ does not
Check whether the TV remote control is in TV mode.
work. Check whether the remote control is Anynet+ compatible.
Anynet+ may not function when some other functions are active, including Channel
Search, Smart Hub, Start Up, etc.
if you have disconnected and then reconnected the HDMI cable, scan for devices
again or turn your TV off and on.
Check if the Anynet+ device is properly connected to the TV, and then navigate to
the System menu to see if Anynet+ (HDMI-CEC) is set to On.
Once you have verified that Anynet + is on:
On the Samsung Smart Control, press the KEYPAD button, and then select
I want to start
Anynet+. the TOOILS button on the On-Screen Remote, A list appears, Select Anynet+
(HDMI-CEC) from the list, and then a device,
On a standard remote, press the TOOLS button. A Iist appears_ Select
Anynet+ (HDMI-CEC) from the list, and then a device,
I want to exit Anynet+ Select View TV from the Anynet+ menu.
" Select a non-Anynet+ device from the Source list.
The message
"Connecting to
You cannot use the remote control when you are configuring Anynet+ or switching
Anynet+ device..."
to a viewing mode. Use the remote control after the TV has completed the Anynet+
or "Disconnecting
from Anynet+ device" configuration or has switched to a viewing mode.
appears on the screen.
The Anynet+ device
won't play. You cannot use the play function when Setup is in progress.
Check whether the device supports Anynet+.
Check whether the HDMI cable is properly connected.
Go to System and see if Anynet+ (HDMI_CEC) has been set to On.
Scan for Anynet+ devices again.
The connected device Anynet+ devices must be connected to the TV using an HDMI cable. Make sure the
is not displayed, device is connected to your TV with an HDMI cable. Some HDMI cables may not
support Anynet+.
If the connection is terminated because there has been a power failure or the HDMI
cable has been disconnected, please scan for the device again.
The TV audio is not Connect an optical cable to the TV and the receiver.
being played through ARC enables the TV to output digital sound via the HDMI (ARC) port.
the receiver. However, ARC is only available when the TV is connected to an audio receiver that
:i supports ARC.
I am having Maunching/using
I launched an app,
but it's in English. Languages supported by the app may be different from the user interface language.
How can I change the The ability to change the language depends on the service provider.
language?
My application is not Check with the service provider.
working. Refer to the help section on the application service provider's website.
My flee won't play,
Some files can't be
played.
This problem may occur with high-bitrate flies. Most files can be played back, but
you might experience problems with high-bitrate files.
I want to reset the TV,
MENU > Support > Self
Reset Settings
Diagnosis > Reset
Resetting Smart
Hub
MENU > Smart Hub >
Smart Hub Reset
Reset Picture, Sound, Channel, Smart Hub, and all other
settings, except for the network settings, default settings.
Resets all Smart Hub settings to their factory defaults and
deletes all information related to Samsung accounts, linked
service accounts, Smart Hub service agreements, and
Smart Hub applications.
Other mssues
The TV is hot.
use. Children watching TV need constant adult supervision to prevent them from
touching the TV. This heat, however, is not a defect and does not affect the TV's
functionality.
The picture won't
display in full screen.
..... ii¸
The "Mode Not
Supported" message
appears.
HD channels will have black bars on either side of the screen when displaying
upscaled SD (4:3) content.
Black bars will appear at the top and bottom of the screen when you watch
movies that have aspect ratios different from your TV.
Adjust the picture size options on your external device or set the TV to full
screen.
The output resolution of the attached device is not supported by the TV. Check
the TV's supported resolutions and adjust the external device's output resolution
accordingly.
You cannot select the Caption menu if you have selected a source connected to
The Captions item in the
the TV via HDMI or Component. To view captions, turn on the external device's
TV menu is grayed out. caption function.
The TV smells of plastic. This smell is normal and will dissipate over time.
The Signal hformation
option under Self Verify that the current channel is a digital channel.
Diagnosis isn't activated. The Signal Information is only available for digital channels.
The TV is tilted to the
Remove the base stand from the TV and reassemble it.
side.
BroadcastingisonlyavailablewhentheSourceis setto TV.
TheBroadcastingoption TheBroadcastingmenucannotbeaccessedwhileyouwatchTVusinga cable
hasbeendeactivated, boxor satellitereceiver.
Thesettingsarelost If theUseModeis setto StoreDemo,theTV'saudioandvideosettingsare
after30 minutesorevery automaticallyresetevery30minutes.
timetheTVisturnedoff. ChangetheUseMode(Support>UseMode)to HomeUse.
Checkthecableconnectionsandreconnectthem.
Thereisanintermittent Lossof audioor videocanbecausedbyusingoverlyrigidorthickcables.
lossof audioorvideo. Makesurethecablesareflexibleenoughfor longtermuse.If youaremounting
theTVto awal!,werecommendusingcableswith 90-degreeconnectors.
Therearesmallparticles Thisispartof theproduct'sdesignandisnota defect.
ontheTV'sbezel.
ThePIPmenuisnot ProPfunctionalityis onlyavailablewhenyouareviewingvideofromanHDMIor
available. Componentsourceonthemainscreen.
A POP(TV'sinternal
bannerad)appearson ChangetheUseMode(Support>UseMode)to HomeUse.
thescreen.
TheTVismakinga Theexpansionandcontractionof theTV'soutercasingmaycausea popping
poppingnoise, noise.Thisdoesnot indicatea productmalfunction.TheTVis safeto use.
TheTVismakinga
hummingnoise.
YourTVutilizeshigh-speedswitchingcircuitsandhighlevelsof electrical
current.DependingontheTV'sbrightnesslevel,theTV mayseemslightly
noisierthanaconventionalTV.
YourTVhasundergonestrictqualitycontrolproceduresthatmeetour
demandingperformanceandreliabilityrequirements.
SomenoisecomingfromtheTV is considerednormalandis notanacceptable
causefor anexchangeorrefund.
Read Before Using 3D Viewing Mode
3D Precautions
/k
o
Warning
When viewing a 3D video under a fluorescent lamp (50 Hz - 60 Hz) or 3-wavelength lamp, you
may notice a small amount of screen flickering.
Iif this occtrs dim or t_m off the ight
Switching the input mode while watching a 3D mowe may disable the 3D function on the TV.
As a _est t, the 3D glasses may _ot ft_nctio _ and the movie may _ot be disp ayed proper x
Ensure you are within the working distance of the glasses when you view a 3D video.
.....Iihe mages may _ot be vewabe n 3D f yo_ move o_ts de of rise wo_king distance for 3 seconds,,
Iif the 3D glasses a_e moved otts de of tl"te r wo_king distance_ the signa from the IiV wl disco_;nect
and tlhe glasses 3D ft nctio_ wl t_rn off after seve_a seco _ds,, When this happens, the _ed lED wl
t_rn on for 3 seconds.
If you lie on your side while watching TV with 3D active glasses, the picture may appear dark or
may not be visible. The actual 3D effect may be experienced differently depending on the viewer.
The 3D effect may not be visible if the visual ability of your left eye differs greatly from the visual
ability of your right eye.
If a part of the 3D glasses or lenses is defective or damaged, it cannot be repaired and the
glasses should be replaced. If the glasses stop working within the warranty period, the glasses
can be repaired or replaced for free. If the glasses have been damaged due to the fault of the
customer or the warranty period has expired, a new pair of glasses will have to be purchased.
The 3D glasses may not work properly due to interference from other 3D products or electronic
devices that operate on the 2.4GHz frequency such as a microwave oven or Internet AP. If
the 3D function malfunctions due to interference, please move all other electronic or wireless
communication devices as far away from the glasses and the TV as possible.
The vividness of the image may appear degraded if you view 3D video in a place that is exposed
to direct sunlight or illumination.
The 3D glasses may malfunction if there is an electric field or metallic object such as a steel
plate nearby. Keep the glasses as far away as possible from electric fields and metallic objects.
With SSG-3570 model glasses, the glasses may power off if you remain stationary while viewing
3D video for an extended period of time.
With SSG-3570 model glasses, if the 3D glasses do not function immediately after you put them
on when the TV is in 3D mode, take them off and then put them back on.
AX Caution
IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D IMAGES. READ THE FOLLOWING
CAUTIONS BEFORE YOU OR YOUR CHILD USE THE 3D FUNCTION.
. Adults should frequently check on children who are using the 3D function. If there are any
complaints of tired eyes, headaches, dizziness, or nausea, stop the child from viewing the 3D TV
and ensure that they rest.
o Do not use the 3D glasses for other purposes such as general wear, sunglasses, protective
goggles, etc.
Some viewers may experience discomfort such as dizziness, nausea, and headaches while viewing
3D TV. If you experience any of these symptoms, stop viewing the 3D TV, remove the 3D glasses,
and rest for awhile.
Watching 3D pictures for an extended period of time may cause eye strain. If you experience any
eye strain, stop viewing the 3D TV, remove the 3D glasses, and rest for awhile.
Do not use the 3D function or 3D glasses while walking or moving around. Using the 3D function
or 3D Active Glasses while moving around may result in injury from running into objects, tripping,
and/or falling.
Do not sleep with the 3D glasses on. You can damage or break the temples.
The temples on your 3D glasses are not foldable. Forcing the temples to fold will damage the 3D
glasses.
With SSG-3570 model glasses, do not shake your 3D glasses repeatedly. Shaking the glasses will
power them on and can cause the battery to discharge faster than it would normally.
/_ Safety Precautions
The following safety instructions are to ensure your personal safety and prevent property damage.
Please read the following to ensure the proper use of the product.
o Do not place the product in a location exposed to direct sunlight, heat, fire, or water. Exposure
may result in a product malfunction or fire.
Do not apply force to the lenses of the 3D glasses. Do not drop or bend the product. Applying
force, dropping, or bending may result in a 3D glasses malfunction.
Keep the components of the 3D glasses out of reach of children. Especially, ensure children do
not swallow any of the components. If your child swallows a component, consult your doctor
immediately.
When cleaning the product, do not spray water or cleaner directly onto the surface of the product.
Spraying water or cleaner directly onto the glasses may result in fire or electric shock, damage to
the product's surface, or cause the indicator labels on the product's surface to come loose.
Do not apply chemicals containing alcohol, solvent, or surfactant such as wax, benzene, thinner,
pesticide, air freshener, lubricant, or cleaner to the product. These chemicals may cause the
product's exterior to be discolored or cracked, or labels or instructions to be removed. Use only
a soft cloth such as superfine fibers or cotton flannels for cleaning the product as the surface
or the lenses easily crack. Because the product can be easily scratched with foreign substances,
make sure to dust off the cloth before using.
Do not disassemble, or attempt to repair or modify your 3D active glasses by yourself.
Be careful not to let the temple ends of the 3D active glasses harm your eye.
Do not sleep with the 3D glasses on. You can break the arms.
Use your hands to put on or remove the 3D glasses.
For SSG-5100 model glasses, use only the specified standard batteries. When replacing the
battery, insert the battery so that its polarity (+, -) is correct. Failing to do so may damage the
battery or result in fire, personal injury or environmental damage caused by liquid leaking from
the battery.
For SSG-5100 model glasses, keep the used battery out of the reach of children so that they do
not accidently swallow it. If your child swallows the battery, consult your doctor immediately.
Swallowing the cylindrical (button type) battery can cause serious damage to your internal
organs. If this happens, contact a doctor immediately.
S-Recommendation DiscNaimer
Some of the features recommended by S-Recommendation may not be available, depending on the
model.
For U.S.A. only
S Recommendation "with Voice mnteraction
For recommendations given in response to common speech commands:
Voice Interaction is limited to the official language of the country of purchase. Performance may vary
based on content availability, the clarity and volume of your voice, and ambient noise levels. Strong
regional accents may not be recognized.
Certain Samsung Smart TV features may not be available if you do not give your expressed consent to
the collection and use of personal information.
Certain features within S Recommendation require Internet access and may not be available based on
service provider, language, dialect, and region.
On TV listings are available from many major video providers and broadcasters. For a complete list of
supported video providers, visit www.samsung.com/OnTV.
Your remote control may differ from the images shown in this manual.
S Recommendation
For content recommendations given to fit your TV viewing preferences:
Certain Samsung Smart TV features may not be available if you do not give your expressed consent to
the collection and use of personal information.
Certain features within S Recommendation require Internet access and may not be available based on
service provider, language, dialect, and region.
On TV listings are available from many major video providers and broadcasters. For a complete list of
supported video providers, visit www.samsung.com/ONTV.
Your remote control may differ from the images shown in this manual.
Supported Resolutions for 3D Modes
These specifications apply to the 16:9 display ratio only.
e 3D Mode: _ (L/R), _ (T/B)
!280 x 720p 59.94 / 60
1920 x 1080i 59.94 / 60
1920 x 1080p 23.98 / 24 / 29.97 / 30 / 59.94 / 60
3840 x 2160p 24 / 25 / 30
• SD Mode: _ (Horizontal Line), _ (Vertical Line), _ (Pixel), _ (Frame)
59.94 / 6O
59.94 / 60
1920 x 1080p 23.98 / 24 / 29.97 / 30
!280 x 720p 59.94/60
59.94 / 60
1920 x 1080p 23.98 / 24 / 29.97 / 30 / 59.94 / 60
Digita_ Channel
1280 x 720p 59.94 / 60
!920 x 1080i 59.94 / 60
Refer to the "Read Before Playing Photo, Video, or Music Files" section.
Computer via HJfi,,,,,}MICab_e_
The optimal resolution for computers connected to the TV via an HDMI cable is 1920 x 1080. If you
select another resolution, the TV may not display 3D images correctly and may not be able to display
the computer video in full screen.
Resolutions for UHD
;; 3840 x 2160p 24 / 25 / 30 / 50 / 60
;; 4096 x 2160p
Read Before Using Voice, Motion, or Face Recognition
Voice, Motion, and Face Recognition Precautions
Face Recognition
o This product saves thumbnail images of users' faces for use during the Face Login,
Logging into the Smart Hub via Face Recognition may be less secure than logging in using an ID
and password,
Using the "[V Camera
Under some circumstances and under certain legal conditions, the use/misuse of the TV camera
may result in illegal actions, There may be obligations under local privacy laws regarding the
protection of individuals concerning personal data and on the free movement of such data, and
possibly other laws including criminal laws regulating camera surveillance both in the workplace
and elsewhere,
By using the TV camera, users agree that it will not be used (i) in locations where cameras are
generally prohibited (such as bathrooms, locker rooms or changing rooms), (ii) in any manner
that will result in an invasion of a person's privacy, or (iii) in violation of any applicable laws,
regulations or statutes,
When you are no longer using the camera, close the lens cover of the camera, This prevents any
inadvertent or unintentional camera operation,
Modon Cont o
o Motion ControN is worked by connected to the camera. For Motion Control to work, you must be
within the camera's recognition range. The camera's recognition range varies depending on the
ambient light level and other factors.
Run the Motion Control Environment Test before using Motion Control to determine the camera's
recognition range.
You may experience physical fatigue when using Motion Control for extended periods.
Voice Cont_o_
Voice Control is not available in all languages, dialects, or regions. The performance varies
depending on the language chosen, voice volume, and ambient noise levels in the surrounding
atea.
Voice Text Input requires that you agree to any third-party app's voice privacy policy and that
you provide Samsung with your MAC address and other private information.
Voice Text Input lets you enter text using voice commands instead of a mouse, keyboard, or
remote control. This feature is particularly useful for searching, browsing the web, and using
applications.
You must agree to the following privacy notices before using Interactive Voice Control:
- Voice Recognition Privacy Notice and Nuance Privacy Notice
Requirements for Using Voice, Motion, or Face Recognition
Requi_"_ements for Usin9 Voice Recognition
o The voice recognition rate varies depending on the volume/tone, pronunciation, and ambient
sound environment (TV sound and ambient noise),
Requi_"_ements for Usin9 Motion Reco%nition
Before using motion recognition, make sure the TV's camera has been turned on,
You should be located between 4,9 ft and 11,5 ft from the camera, The actual recognition range
may vary depending on the camera angle and other factors,
Motion Control relies on the TV camera and therefore will not function if the camera is pointed
up or down, Adjust the camera's position to toward front, Do not point the camera directly at the
sun or any other light source or obstruct its view,
For the camera to recognize movement, you must stand out from the background,
The appropriate ambient brightness is 50 to 500 lux, (100 Lux: Bathroom, 400 Lux: Living Room)
Avoid direct sunlight when using Motion Control,
Run the Motion Control Environment Test to assess the camera's recognition range before using
Motion Control,
Req_,,,ai_"ements for usin_j Face Reco%nition
o You should be located between 4,9 ft and 13,1 ft from the camera, The actual recognition range
may vary depending on the camera angle and other factors,
The appropriate ambient brightness is 50 to 500 lux, (100 Lux: Bathroom, 400 Lux: Living Room)
Face Recognition can recognize up to 5 different users at a time,
The TV may have difficulty recognizing twins and people with similar faces as two different
individuals,
Note the following when using Face Recognition:
- Do not cover your face with a hat, a pair of sunglasses, or your hair,
- Your entire face must be visible to the camera, Avoid shadows over your face, Shadows
prevent the camera from recognizing faces accurately,
- Keep your expression as neutral as possible, In addition, keep your mouth closed and as
neutral as possible,
- When you log into your Samsung account, your facial expression must be the same as the
facial expression you had when you registered,
Read Before Using Apps
o
o
o
o
o
o
Due to the product characteristics featured on the Samsung Smart Hub, as well as limitations in
available content, certain features, applications, and services may not be available on all devices
or in all territories. Some Smart Hub features may also require additional peripheral devices
or membership fees. Visit http://www.samsung.com for more information on specific device
information and content availability. Services and content availability are subject to change
without prior notice.
Samsung Electronics takes no legal responsibility whatsoever for any interruption of app services
caused by the service provider for any reason.
Application services may be provided in English only and available content may vary depending
on the area.
For more information about applications, visit the applicable service provider's website.
An unstable Internet connection may cause delays or interruptions. In addition, applications may
terminate automatically depending on the network environment. If this occurs, check your Internet
connection and try again.
Application services and updates may become unavailable.
Application content is subject to change by the service provider without prior notice
Specific services may vary depending on the version of the application installed on the TV.
An application's functionality may change in future versions of the application. If this occurs, run
the application's tutorial or visit the service provider's website.
o Depending on the service provider's policies, certain applications may not support multitasking.
Read Before Using the WebBrowser
o Select WebBrowser. The browsing screen may differ from the one on your computer.
The web browser is not compatible with Java applications.
You cannot download files. If you attempt to download a file, you will receive an error message
instead.
The web browser may not be able to access certain websites.
Playing Flash videos may be restricted.
E-commerce for online purchases is not supported.
With websites that have scrollable windows, scrolling a window can result in corrupted
characters.
ActiveX is not supported.
Certain options are not accessible in Link Browsing mode. (Switch to Pointer Browsing to activate
those options.)
Only a limited number of fonts are supported. Certain symbols and characters may not be
displayed properly,
The response to remote commands and the resulting on-screen display may be delayed while a
webpage is loading.
Loading a webpage may be delayed or suspended completely with certain operating systems.
The copy and paste operations are not supported.
When composing an email or a simple message, certain functions such as the font size and color
selection may not be available.
o Thereis a limit to the numberof bookmarksand the size of the log file that can be saved.
Thenumberof windowsthat can be openedconcurrentlyvariesdependingon the search
conditionsand the TVmodel.
Theweb browsingspeedwill vary dependingonthe networkenvironment.
Embeddedvideoscan play with a picture-in-picture (PIP)at the sametime.
Theweb browsersupports .mp3audio files only.
Theweb browsersupportsa specific file format for importingand exporting bookmarks.
(CompatibleFormat:Netscape-bookmarkfile-1)
Thefolder tree information is not includedwhen importing and exporting bookmarks.
Exportingbookmarksto a USBdeviceconnectedto the TV savesthe bookmarksundera folder
named"SamsungSmartTVBookmark".
If the Clock (System>Time > Clock)has not beenset, the browsinghistorywill not be saved.
Thebrowsinghistory is savedfrom latestto oldest, with the oldest entriesbeing overwrittenfirst.
Dependingon the types of video/audiocodecssupported,it might not be possibleto play certain
videoand audiofiles while playing Flashcontent.
Videosourcesfrom PC-optimizedstreamingserviceprovidersmay not play properlyon our
proprietaryweb browser.
Usingthe on-screenQWERTYkeyboardautomaticallydisablesPIP.(Exceptwhenenteringa URL.)
Read Before Pmaying Photo, Video, or Music Fi es
Photo, Video, and Music File Use Limitations
The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for
mass storage devices. Types of MSC devices include external hard drives, flash card readers, and
digital cameras. (USB hubs are not supported.) These kinds of devices must be connected directly
to the TV's USB port. The TV may not be able to recognize the USB device or read the files on
the device if it is connected to the TV via a USB extension cable. Do not disconnect the USB
device while transferring files.
o When connecting an external hard drive, use the USB (HDD) port. We recommend that you use an
external hard drive with its own power adapter.
Certain digital cameras and audio devices may not be compatible with the TV.
If there are multiple USB devices connected to the TV, the TV might not be able to recognize
some or all the devices. USB devices that use high-power input should be connect the USB [5V,
1A] port.
The TV supports the FAT, exFAT, and NTFS file systems.
After sorting files in the Folder view mode, the TV can display up to 1000 files per folder. If the
USB device contains more than 8,000 files and folders, however, some files and folders might not
be accessible.
The PTP (pier to pier) connection mode is available only for digital cameras. If you connect a
smartphone or tablet to the TV using PTP mode, the TV will not recognize it.
Compatible Storage Devices for File Transfers
USB Device DLNA Device, SugarSync, Dropbox, SkyDrive, Mobile
Device
Camera DLNA Device
DLNA Device USB Device
SugarSync,Dropbox,SkyDrive USB Device
MobileDevice USB Device
Supported External Subtitles
Certain fibs_ depending on how they were encoded_ may not play on the TV_
MPEG-4 Timed text .ttxt
SAMI .smi
SubRip srt
SubViewer sub
Micro DVD ,sub or ,txt
SubStation Alpha ,ssa
Advanced SubStation Alpha
.ass
Powerdivx .psb
SMPTE-TT Text .xml
Supported mnternal SubtitMes
Certa n ftes, depend ng on how they were encoded, may not play on the TV_
Xsub AVl
Advanced SubStation Alpha MKV
SubRip MKV
VobSub MKV
MPEG-4 Timed text MP4
TTML in smooth streaming MP4
SMPTE-TT Text MP4
SMPTE-TT PNG MP4
Supported Image Formats and Resolutions
Certain files, dependin9 on how they were encoded, may not play on the TV,
_JPg JPEG 15360x8640
e.png PNG 4096x4096
_.bmp BMP 4096x4096
_.mpo MPO 15360x8640
Supported Music Formats and Codecs
Certain files, depending on how they were encoded, may not play on the TV.
_.mp3 MPEG MPEG1 Audio Layer 3
.... _:N_a ................
.mpa MPEG4 AAC
e.aac
_.flac FLAC FLAC Supports up to 2 channels
e.ogg OGG Vorbis Supports up to 2 channels
Supports up to 10 Pro 5.1 channels
_.wma WMA WMA WMA Iossless audio is not supported
Supports up to the M2 profile
_+,wav wav wav
_.mid Supports type 0 and type 1
midi midi Search is not supported Supports
_.midi USB device only
i
ape ape
_.aif
AIFF AIFF
_.aiff
_.m4a ALAC ALAC
Supported Video Codecs
Certain files, depending on how they were encoded, may not play on the TV,
4096x2160:
MAX 30
3840x2160:
H.264 BP / MP / HP 4096x2160 MAX 30 50
FHD: MAX 30
HD: MAX 60
_.avi 4096x2160:
MAX 50
.mkv
3840x2160:
_.asf HEVC(H.265) 4096x2160 MAX 60 50
_.wmv FHD: MAX 30
_.mp4 HD: MAX 60
.mov AVI
MVC 60
%3gp MKV
.vro ASF AC3
DivX 3.11 / 4 / 5 / 6
.mpg MP4 LPCM
_.mpeg 3GP MPEG4 SP/ASP ADPCM(IMA, MS)
.ts MOV AAC
_.tp FLV Window Media Video FHD: MAX 30 HE-AAC
_.trp VRO v9(VC1) 1920x1080 HD: MAX 60 WMA
_.mov VOB DD+
MPEG2
_.flv PS MPEG(MP3)
_.vob TS DTS(Core, LBR)
.svi SVAF MPEG1 30 G.711 (A-Law,
_.m2ts IJ-Law)
.mts
Motion JPEG
_.divx
Microsoft MPEG-4 vl, v2, v3
Window Media Video 1280x720 MAX: 30
v7(WMVl), v8(WMV2)
H.263 Sorrenson
VP6
_.webm WebM VP8 1920x1080 6~30 20 Vorbis
Other Restrictions
- Codecs may not function properly if there is a problem with the content.
. Video content does not play or does not play correctly if there is an error in the content or
container.
. Sound or video may not work if they have standard bit rates/frame rates above the TV's
compatibility ratings.
. If the Index Table is has an error, the Seek (Jump) function will not work.
. When playing video over a network connection, the video may not play smoothly because of data
transmission speeds.
. Some USB/digital camera devices may not be compatible with the TV.
. HEVC codec is only available in MKV/MP4 / TS containers.Streaming and DLNA are not
supported.
Video Decoders
. H.264 FHD is supported for up to Level 5.1.
- H.264 UHD is supported for up to Level 5.1.
. HEVC FHD is supported for up to Level 5.1.
. HEVC UHD is supported for up to Level 5.1.
. VCl AP L4 is not supported.
. All video codecs excluding WMV v7, v8, MSMPEG4 v3, MVC, and VP6:
Below 1280x720:60 frame max
Above 1280x720:30 frame max
. GMC 2 or above is not supported.
. Supports SVAF Top/Botton, Side by Side and Left/Right view sequence type(2 ES) only.
. Supports BD MVC specs only.
Audio Decoders
. WMA supports up to 10 Pro 5.1 channels. Supports up to the M3 profile.
. WMA Iossless audio is not supported.
. QCELP and AMR NB/WB are not supported.
. Vorbis is supported for up to 5.1 channels.
. DD+ is supported for up to 5.1 channels.
. DTS LBR codec is only supported in MKV / MP4 / TS containers.
Read After Installing the TV
Picture Sizes and Input Signals
Analog Channel/Externa! Input 16:9, Zoom1, Zoom2, 4:3
Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3
Component (720p) 16:9, Wide Fit, 4:3
Component (1080i, 1080p) 16:9, Wide Fit, 4:3, Screen Fit
Digital Channel (720p) 16:9, Wide Fit, 4:3, Smart View 2
Digital Channel (1080i, 1080p) 16:9, Wide Fit, 4:3, Screen Fit, Smart View 2
16:9, Wide Fit, 4:3, Screen Fit, Smart View 1, Smart
HDMI (720p, 1080i, 1080p) View 2
HDMI (3840 x 2160p) Screen Fit
HDMI (4096 x 2!60p) 16:9, Screen Fit
The Picture Size setting is applied to the current source. The applied Picture Size will remain in effect
whenever you select that source unless you change it.
The Picture Size opton s not ava abe with mages n the 3840 x 2160p resouton because the supported
screen sze s fxed.
Installing an Anti-Theft Lock
An anti-theft lock is a physical device that can be used to protect the TV against theft. Look for the
lock slot on the back of the TV. The slot has a _ icon next to it. To use the lock, wrap the lock cable
around an object that is too heavy to carry and then thread it through the TV's lock slot. The lock is
sold separately.
The method of using an anti-theft lock may differ for each TV model. Refer to the lock's user manual
for more information.
Ava lability depends on the model,
Read Before Setting Up a Wireless mnternet Connection
Wireless _nternet Precautions
This TV supports the IEEE 802.11a/b/g/n communication protocols. Samsung recommends using
IEEE 802.11n. Video flies stored on a device connected to the TV via DLNA may not play back
smoothly.
To use wireless Internet, the TV must be connected to a wireless router or modem. If the wireless
router supports DHCP, the TV can use a DHCP or static IP address to connect to the wireless
network.
o Select a channel that is not currently in use for the wireless router. If the channel set for the
wireless router is currently being used by another device, the result is usually interference and/or
a communications failure.
Most wireless networks have an optional security system. To enable a wireless network's security
system, you need to create a password using characters and numbers. This password is then
needed to connect to a security-enabled AP.
Wireless Security Protocols
The TV only supports the following wireless network security protocols.
Authentication Modes: WEP, WPAPSK, WPA2PSK
Encryption Types: WEP, TKIP, AES
In compliance with the newest Wi-Fi certification specifications, Samsung TVs do not support WEP or
TKIP security encryption in networks running in the 802.11n mode.
If the wireless router supports WPS (Wi-Fi Protected Setup), you can connect the TV to your network
using PBC (Push Button Configuration) or a PIN (Personal Identification Number). WPS automatically
configures the SSID and WPA key settings.
The TV cannot connect to non-certified wireless routers.
Before Connecting
Resomutions)
a Computer (Supported
When you connect your TV to a computer, set the computer's video card to one of the standard
resolutions listed in the tables below or on the next page. The TV will automatically adjust to the
resolution you choose. Note that the optimal and recommended resolution is 1920 x1080.
Choosing a resolution not included in the tables can result in a blank screen or just the power indicator
turning on.
Refer to the user manual of your graphics card for compatible resolutions.
mBM
720x400
ii _i ii
70Hz 31.469 70.087 28.322 -/+
ii ii ii ii
640x480 67Hz 35.000 66.667 30.240 -/-
(
832x624 75Hz 49.726 74.551 57.284 -/-
1152x870 75Hz 68.681 75.062 100.000 -/-
VESA DMT
640x480 60Hz 31.469 59.940 25.175 -/-
640x480 72Hz 37.861 72.809 31.500 -/-
...... t .................................................. .................. ................
640x480 75Hz 37.500 75.000 31.500 -/-
800x600 60Hz 37.879 60.317 40.000 +/+
800x600 72Hz 48.077 72.188 50.000 +/+
800x600 75Hz 46.875 75.000 49.500 +/+
1024x768 60Hz 48.363 60.004 65.000 -/-
1024x768 70Hz 56.476 70.069 75.000 -/-
1024x768 75Hz 60.023 75.029 78.750 +/+
1152x864 75Hz 67.500 75.000 108.000 +/+
1280x720 60Hz 45.000 60.000 74.250 +/+
1280x800 60Hz 49.702 59.810 83.500 -/+
1280x1024 60Hz 63.981 60.020 108.000 +/+
1280x1024 75Hz 79.976 75.025 135.000 +/+
1366x768 60Hz 47.712 59.790 85.500 +/+
1440x900 60Hz 55.935 59.887 106.500 -/+
1600x900RB 60Hz 60.000 60.000 108.000 +/+
1680x1050 60Hz 65.290 59.954 146.250 -/+
1920x1080 60Hz 67.500 60.000 148 500 +/+
1920x1200 60Hz 74.556 59.885 193.250 -/+
Resomutions for Video Signams
HDMI
3840x2160 30Hz 67.500 30.000 297.000 +/+
..................................................................................................................................................................................................................................................................................................................................................................
3840x2160 25Hz 56.250 25.000 297.000 +/+
3840x2i60......!i.......24Hz......!i.......541000.......... ..... .......2;7.000.......... ;i; .......
License
HD
DivX Certified@ to play DivX@ video up to HD 1080p, including premium content.
ABOUT DIVX VIDEO: DivX@ is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This
is an official DivX Certified@ device that has passed rigorous testing to verify that it plays DivX video. Visit divx.
com for more information and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified@ device must be registered in order to play purchased
DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your
device setup menu. Go to vod.divx.com for more information on how to complete your registration.
DivX@, DivX Certified@ and associated Iogos are trademarks of Rovi Corporation or its subsidiaries and are used
under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274
PremiumSound 15.1
Manufactured under a license from U.S. Patent No's: 5,956,674, 5,974,380, 5,978,762, 6,487,535, 6,226,616,
7,212,872, 7,003,467, 7,272,567, 7,668,723, 7,392,195, 7,930,184, 7,333,929 and 7,548,853. DTS, the Symbol,
and DTS and the Symbol together are registered trademarks & DTS Premium Sound I 5.1 is a trademark of DTS,
Inc. @2012 DTS, Inc. All Rights Reserved.
StudioSound
Manufactured under a license from U.S. Patent No's: 6,285,767, 8,027,477, 5,319,713, 5,333,201, 5,638,452,
5,771,295, 5,970,152, 5,912,976, 7,200,236, 7,492,907, 8,050,434, 7,720,240, 7,031,474, 7,907,736 and
7,764,802. DTS, the Symbol, and DTS and the Symbol together are registered trademarks & DTS Studio Sound is
a trademark of DTS, inc. @2012 DTS, inc. All Rights Reserved.
DOLBY
DIGITAL PLUS
Manufactured under license from Dolby Laboratories.
Dolby and the doubte-D symbol are trademarks of Dolby Laboratories.
I-I--'11"111
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and other countries.
Open Source License Notice
Open Source used in this product can be found on the following webpage.
(http://opensource.samsung.com) Open Source License Notice is written only English.
480i/480p/720p/1080i/1080p
Generally refers to the number of effective scanning lines that determines the screen's resolution.
There are two scanning methods: interlaced and progressive.
- Scanning
Sequential projection of pixels to form images. The higher the number of pixels, the clearer
and more vivid the images.
- Progressive
A sequential scanning method that scans every line, one after another.
- Interlaced
A staggered scanning method that scans every other line until the end of the screen and then
fills in the remaining lines.
Example) If the number of horizontal scan lines is 480i
Scans 240 lines from start to finish and then scans the remaining 240 lines for a total of 480
lines.
General differences between 480i and 480p are as follows:
Lines on Screen 480 480
o ARC (Audio Return Channel
ARC lets the TV output digital sound to an audio device and input digital sound from the same
audio device through one HDMI cable. However, ARC is only available through the HDMI (ARC)
port and only when the TV is connected to an ARC-enabled AV receiver.
DVI (Digital Visual Interface)
Connecting the TV's DVI connector to a computer's DVI connector via an HDMI-to-DVI cable
lets you use the TV as a computer monitor. However, HDMI-to-DVl cables deliver video signals
only. You must connect a set of speakers to the computer using a separate cable to hear the
computer's audio.
HDMI (High Definition Multimedia Interface)
HDMI is a method of transmitting both video and audio signals via a single cable.
Dynamicversus Static IPAddresses
If the networkrequiresa dynamic IPaddress,usean ADSL modemor routerthat supports
the DynamicHostConfigurationProtocol(DHCP).Modemsand toutersthat supportDHCP
automaticallyprovidethe IP address,subnetmask,gatewayand DNSvaluesthe TV needsto
accessthe Internet,so they do not haveto be enteredmanually.Most homenetworksuse a
dynamicIPaddress.
If the networkrequiresa static IPaddress,enterthe IPaddress,subnetmask,gateway,and DNS
valuesmanuallywhensetting up the networkconnection.To get the IPaddress,subnetmask,
gatewayand DNSvalues,contactyour InternetServiceProvider(ISP).
If the networkrequiresa static IPaddress,usean ADSL modemthat supportsDHCP.ADSL
modemsthat support DHCPalso allow static IPaddresses.
Ethernet
Ethernetis a LAN (LocalArea Network)that usescoaxial cablesstandardizedby the IEEE.
ComponentConnection
Componentconnectionsare mostly usedfor gameconsolesandtransmit the video signal by
splitting it into a luminancesignal (Y)and two color signals (Pb and Pr).Theconnectoris marked
as [ComponentIN]_(Pr,Pb,Y) on the back of the TV.On somedevices,it is sometimesmarked
as Cr,Cb,Y. Cb and Cr arethe digital conversionsof the Pband Prsignals.
Theconnectorsare normally color-codedred (R),blue (B),and green(G) andoffer the best
picturequality possiblefor an analogconnection.
