CONTENTS
EN
CONTENTS
1 INTRODUCTION ........................................................................................ 3
2 DESCRIPTION AND USE OF THE CONTROLS .......................................... 5
2.1 Upper panel ............................................................................................... 5
2.2 Setting the washing program and switching on and off............................... 6
2.2.1 Switching on .............................................................................................. 9
2.2.2 Selecting and starting the program ............................................................. 9
2.2.3 End of program ........................................................................................ 10
2.2.4 Interrupting a program .............................................................................. 10
2.2.5 Changing the current program .................................................................10
2.2.6 Canceling the current program ................................................................. 11
2.2.7 Options .................................................................................................... 11
2.2.8 Switching off ............................................................................................ 13
2.3 Additional features .................................................................................... 13
2.3.1 Adjusting the water softener ..................................................................... 13
3 ENERGY SAVING AND ENVIRONMENTAL RESPECT .............................. 15
3.1 Reducing the consumption of detergent and respecting the environment .15
4 REMOVING THE DISHES ......................................................................... 16
5 TROUBLESHOOTING .............................................................................. 17
2 Rev 0.0
EN
Rev 0.0 3
INTRODUCTION
EN
1 INTRODUCTION
Thank you for choosing one of our products. To use this dishwasher
correctly and safely, please read this manual carefully. The manual is
divided into sections giving you a step-by-step guide to all your ap-
pliance’s functions. The texts are easy to understand and are com-
plete with detailed illustrations. This user-friendly manual will provide
answers to all your questions about use of the dishwasher.
Before using this dishwasher, carefully read chapter 2 “Use and
safety warnings” of the attached general manual.
For any other information about use and maintenance of the dish-
washer, read the enclosed general manual carefully.
This manual comprises the following sections:
INTRODUCTION: general information about the manual.
USER INSTRUCTIONS: advice on using the washing programs and
information about all the dishwasher functions.
Nomenclature of fi gures and tables:
The progressive number of each fi gure is shown in the bottom right-
hand corner of the relative box. An example of a progressive number
is “Fig. 4-01”, where the fi rst number (4) indicates the section to
which the fi gure belongs, while the second number (01) indicates
the progressive number of the fi gure in section 4 (Fig. 4-01 is the
fi rst fi gure in section 4). The tables are numbered in the same way,
bearing in mind that “Tab.” is used instead of “Fig.” (e.g.: Tab. 4-01
is the fi rst table in section 4). If a table occupies more than one page,
a letter is added after the progressive number (e.g.: “Tab. 4-01a”,
Tab. 4-01b”).
4 Rev 0.0
INTRODUCTION
EN
Symbols used in this manual (see tab. 1-01)
DANGER. This symbol highlights information and warnings which, if not
observed, may compromise personal safety or damage the appliance.
This symbol highlights general information and warnings.
Tab. 1-01
Rev 0.0 5
USER INSTRUCTIONS
EN
2 DESCRIPTION AND USE OF THE
CONTROLS
2.1 Upper panel
All the dishwasher controls are grouped on the upper panel (see fi g. 2-01). The
dishwasher can only be switched on, programmed, switched off, etc. with the
door open.
A brief description (see tab. 2-01) of the various controls on the upper panel is
given below.
Fig. 2-01
6 Rev 0.0
USER INSTRUCTIONS
EN
1
On/off button
Press to power the appliance.
2
Program indicator lights
These show which program is selected and whether there are any faults
(Troubleshooting).
3
Program selection button
Press in sequence to select the required program.
4
Add salt indicator light
Shows the appliance has run out of salt.
5
Add rinse aid
Shows the appliance has run out of rinse aid.
6
Supplementary program button
Press to select one of the fi ve supplementary programs (see table).
7
Supplementary program indicator light
Shows that one of the fi ve supplementary programs will be run (see table).
8
Sanitation indicator light
Shows that the function is active.
9
Multi-zone button
Press to select the zone where you wish to concentrate washing power.
10
Multi-zone indicator lights
One of these lights shines to show that the multi-zone wash function has been
selected.
11
Program delay button
Press to delay the start of the program up to 9 hours.
12 Display
Tab. 2-01
2.2 Setting the washing program and switching
on and off
The dishwasher is equipped with a control panel (see fi g. 2-02) which is used
to program the appliance and switch it on and off.
Fig. 2-02
Rev 0.0 7
USER INSTRUCTIONS
EN
To select the most suitable program for the dishes to wash, consult the fol-
lowing table which specifi es the most appropriate type of washing sequence
depending on the kind of dishes and how dirty they are (see tabs. 2-02a and
2-02b).
PROGRAM NUMBER
AND SYMBOL
DISHES AND
CUTLERY
PROGRAM
SEQUENCE
TIME CONSUMPTION
MINUTES
(2)
WATER
(1)
ENERGY
KWh (2)
1
RINSE
Mixed dishes
waiting to be
washed
Cold rinse (to
prevent the dirt
from drying).
15’
3.4 l
0.89 gal.
0.03
2
SHORT
Slightly dirty
dishes and
glasses
Wash at 38°C
(100.4°F).
Cold rinse.
Hot rinse at
58°C (136.4°F).
45’
9.4 l
2.48 gal.
0,4
3
AUTO
DELICATE
Normally dirty
mixed dishes
Cold pre-wash.
(depending of
the type of dirty)
Wash at 55°C
(131°F).
Cold rinse.
Hot rinse at
69°C (156.2°F).
Dry.
90’÷105’
9÷13 l
2.38÷3.43
gal.
from
0.7
to
0.9
4
HEAVY
WASH
Normally dirty
mixed dishes
and pans
Wash at 70°C
(158°F).
Cold rinse.
Hot rinse at
70°C (158°F).
Dry.
107’
13.2 l
3.88 gal.
0.91
5
QUICK &
INTENSE
Normally dirty
(not dried on)
mixed dishes
Wash at 65°C
(149°F).
Cold rinse.
Hot rinse at
70°C (158°F).
52’
9.2 l
2.43 gal.
0.77
Tab. 2-02a
8 Rev 0.0
USER INSTRUCTIONS
EN

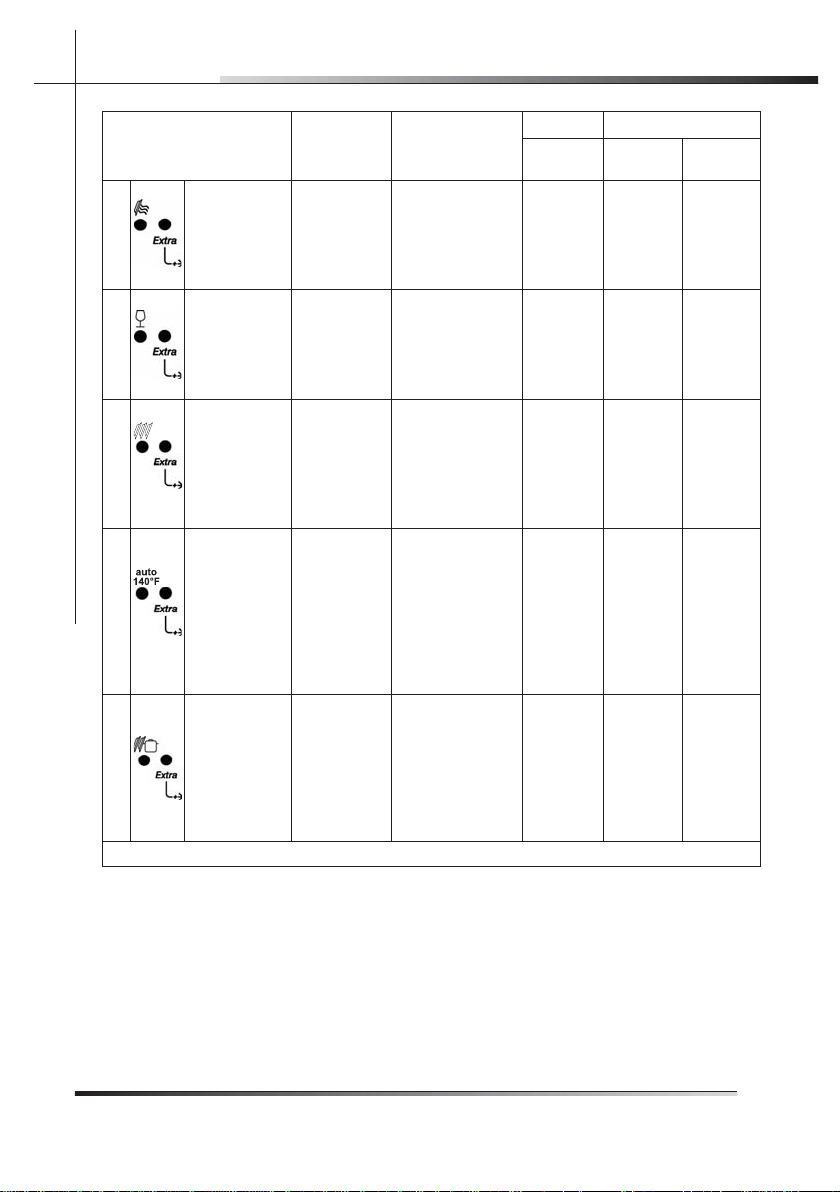

PROGRAM NUMBER
AND SYMBOL
DISHES AND
CUTLERY
PROGRAM
SEQUENCE
TIME CONSUMPTION
MINUTES
(2)
WATER
(1)
ENERGY
KWh (2)
6
DISH
WARMING
Clean mixed
dishes to
rinse and heat
before use
Hot rinse at 69°C
(156.2°F).
Dry.
50’
3.4 l
0.89 gal.
0.63
7
CRYSTAL
Slightly dirty
crystal,
porcelain and
mixed dishes
Wash at 45°C
(113°F).
Cold rinse.
Hot rinse at 69°C
(156.2°F).
Dry.
68’
9.4 l
2.48 gal.
0.61
8
NORMAL Normally dirty
mixed dishes
Cold pre-wash.
Extended wash at
55°C (131°F).
Cold rinse.
Hot rinse at 68°C
(154.4°F).
Extended dry.
112’
13.3 l
3.51 gal.
0.79
9
AUTO SUPER
WASH
ETL SANITATION
LISTED
Very dirty
mixed dishes
Cold pre-wash
(depending of the
type of dirty).
Wash at 65°C
(149°F).
Cold rinse.
Hot rinse at 70°C
(158°F).
Dry.
115’÷130’
9÷13 l
2.38÷3.43
gal.
0.9÷1.1
10
EXTREME
WASH
ETL SANITATION
LISTED
Very dirty
mixed dishes
and pans
Pre-wash at 45°C
(113°F).
Wash at 70°C
(158°F).
2 cold rinses.
Hot rinse at 70°C
(158°F).
Dry.
122’
16.2 l
4.28 gal.
1.09
Tab. 2-02b
(1) Average water consumption with the softener set to level 0 (zero).
Any other setting will increase water consumption till 2.5 l (0.66 gal.)/cycles with setting 5.
(2) The cycle times listed in the use and care manual are based on normal soil loads and 120°F
(49°C) incoming water and will vary based on your actual conditions.
- Only “AUTO SUPER WASH” and “EXTREME WASH” programmes conforms to NSF std 184 and
are certifi ed by INTERTEK with the ETL SANITATION LISTED.
- When the “AUTO PROGRAMMES” are selected, the dishwasher recognizes the type of dirt and
automatically adjusts the washing parameters as appropriate.
When the “Sani light” (sanitation light) appears on the display, it means that the dishwasher and its
contents have been sanitised according to the requirements of the National Sanitation Foundation
(NSF).
Rev 0.0 9
USER INSTRUCTIONS
EN
Only run the soak program with half loads.
The multi-zone option (ref. 9 fi g. 2-02) is available for all programs, except
soak.
To run programs 6, 7, 8, 9, 10 (see tab. 2-02b), select the required standard
program (see programs 1, 2, 3, 4, 5 in tab. 2-02a) and then press the supple-
mentary program button (ref. 6 fi g. 2-02).
After using the above tables to choose the most suitable washing cycle, pro-
gram the appliance.
Before starting a washing program, make sure that:
The water supply tap is open.
There is regenerating salt in the water softener tank (to add
salt, see the instructions in the general manual).
The correct amount of detergent has been added to the dis-
penser (to add detergent, see the instructions in the general
manual).
The spray arms are able to rotate freely and without obstruction.
The racks have been correctly loaded (see the instructions in the
general manual).
The dishwasher door is securely closed.
2.2.1 Switching on
Press the on/off button (ref. 1 fi g. 2-02) to start the dishwasher. Then wait for
one of the program indicator lights to turn on (ref. 2 fi g. 2-02).
2.2.2 Selecting and starting the program
Press the program selection button (ref. 3 fi g. 2-02) several times until
the indicator light corresponding to the required program turns on (ref. 2 fi g.
2-02);
if required, press the relative buttons to select any complementary functions
(e.g.: “half-load”, “program delay”; see para 2.2.7 “options”);
close the door; the program will start after about 2 seconds and the relative
indicator light will fl ash throughout the cycle (program¬ running signal).
If the door of the dishwasher has not been closed or has been incor-
rectly closed, the washing cycle will not begin.
•
•
•
•
•
•
•
•
•
10 Rev 0.0
USER INSTRUCTIONS
EN
SUPPLEMENTARY PROGRAMS
The supplementary program button (ref. 6 fi g. 2-02) adds fi ve extra programs
to the ones that can be directly selected with the program selection button.
Press the button (the indicator light turns on) after selecting the “main” pro-
gram (see 1, 2, 3, 4, 5 in tab. 2-02a).
As the function is memorized, press the button again (the indicator light turns
off) if you wish to run one of the 5 main programs for the next cycle.
2.2.3 End of program
The end of the program is signaled by a short beep. Additionally, the indicator
lights of the “heavy wash” and “quick & intense” programs fl ash.
2.2.4 Interrupting a program
To interrupt the current program simply open the door of the dishwasher; to
restart the program, simply close the door again. The program restarts from
where it was interrupted.
If it is necessary to open the door during the washing cycle, the
program will be interrupted, the relative indicator light will continue to
fl ash and a beep will indicate that the cycle has not terminated. Wait
for about 1 minute before closing the door and continuing with the
program. When the door closes, the program will start from where it
was interrupted. This operation should be performed only if neces-
sary as it could cause irregular program performance.
2.2.5 Changing the current program
To change the current program, simply open the door of the dishwasher and
select the new program. Close the door to run the new program automati-
cally.
2.2.6 Canceling the current program
To cancel the current program, open the door and press and hold down
the program selection button (ref. 3 fi g. 2-02) for a few seconds until the
indicator lights of the fourth and fi fth programs turn on (ref. pr. 4, pr. 5 fi g.
2-03).
•
Rev 0.0 11
USER INSTRUCTIONS
EN
Close the door again.
After about 1 minute, the dishwasher terminates the cycle and the indicator
lights of the fourth and fi fth programs (ref. pr. 4, pr. 5 fi g. 2-03) start fl ash-
ing.
pr. 4
pr. 5
2.2.7 Options
MULTI-ZONE SELECTION
(available for all programs except soak)
This function should be used when some dishes are dirtier than others; load the
dirtier dishes on the right- or left-hand side of the rack where washing power
will then be concentrated.
Before selecting the multi-zone wash option, open the dishwasher door and
choose the required washing program (see para 2.2 “Setting the washing pro-
gram and switching on and off”). Press the button (ref. 9 fi g. 2-02) repeatedly to
select the zone where to concentrate washing power, as follows:
right-hand zone 65% - left-hand zone 35% (right-hand indicator light on);
right-hand zone 35% - left-hand zone 65% (left-hand indicator light on);
both zones 50% (indicator lights off).
press the button once to select washing in the upper rack. This is con-
fi rmed by the relative indicator light (ref. 10a fi g. 2-02);
press the button twice to select washing in the lower rack. This is con-
fi rmed by the relative indicator light (ref. 10b fi g. 2-02);
press the button three times to return to the standard full load condition
(washing in both racks, both indicator lights off).
•
•
1.
2.
3.
•
•
•
Fig. 2-03
12 Rev 0.0
USER INSTRUCTIONS
EN
When washing in just the lower rack is selected, the cutlery bas-
ket can be separated and just half used.
PROGRAM DELAY
(available for all programs except soak)
The “Program delay” function delays the beginning of the washing program
up to 9 hours from the moment in which programming takes place. This makes
it possible to use the dishwasher at a certain time of day.
Before programming a delay, open the door of the dishwasher, select the
required washing program (see para 1.2 “Setting the washing program and
switching on and off”). Select the day by pressing the Program delay button
(ref. 12 fi g. 2); each time you press the button, the display increases the delay
before the appliance starts by 1 hour.
Rev 0.0 13
USER INSTRUCTIONS
EN
2.2.8 Switching off
At the end of the program, the dishwasher emits a short beep and the indica-
tor lights of the fourth and fi fth program (ref. pr. 4, pr. 5 fi g. 2-04) fl ash.
Turn off the appliance by opening the door and pressing the on/off button (ref.
1 fi g. 2-02).
pr. 4
pr. 5
2.3 Additional functions
2.3.1 Adjusting the water softener
N.B.: a different washing program from soak must be used to make
the following adjustmen t.
Press and hold down the program delay button (ref. 11 fi g. 2-05) until the
preset value appears followed by a dot (normally 3.). Release the button and
then press it again and again until the required value is displayed, as indicated
in the table (see tab. 2-03).
The 6 possible adjustment levels will appear in this sequence:
3., 4., 5., 0., 1., 2..
When the required value appears on the display, release the button; after 5
seconds the appliance automatically reverts to the program delay and the
adjustment is set to the chosen value.
Fig. 2-04
14 Rev 0.0
USER INSTRUCTIONS
EN
N.B.: the display indicates the water hardness adjustment and the
program delay. A dot (.) after the number means that the water hard-
ness adjustment is being displayed. If no dot (.) appears, the pro-
gram delay is being displayed.
11
Water hardness table (see tab. 2-03)
WATER HARDNESS
SETTING
German degrees
(°D)
French degrees (°F)
American degrees
grains/galls
0 - 4 0 - 7 0 - 4.5 0.
5 - 15 8 - 25 4.6 - 14.5 1.
16 - 23 26 - 40 14.6 - 23.5 2.
24 - 31 41 - 60 23.6 - 35 3.
32 - 47 61 - 80 35.1 - 46.5 4.
48 - 58 81 - 100 46.6 - 58.5 5.
Tab. 2-03
Contact your local water board for information on the hardness of your water
supply.
Fig. 2-05
Rev 0.0 15
USER INSTRUCTIONS
EN
3 ENERGY SAVING AND ENVIRONMENTAL
RESPECT
Always try to run the dishwasher fully loaded.
Do not wash the dishes under a running tap.
Use the most suitable washing program for each type of load.
Do not pre-rinse.
If available, connect the dishwasher to a hot water system with a tempera-
ture of up to 60°C (140°F).
When possible, skip the drying cycle by opening the door after washing:
the air and the residue heat will dry the dishes to perfection.
3.1 Reducing the consumption of detergent
and respecting the environment
The phosphates contained in dishwasher detergents are harmful to the envi-
ronment. To avoid using excessive amounts of detergent and to save on elec-
tricity:
Separate the more delicate items from those that are more resistant to ag-
gressive detergents and high temperatures;
Do not pour the detergent directly onto the dishes.
•
•
•
•
•
•
•
•
16 Rev 0.0
USER INSTRUCTIONS
EN
4 REMOVING THE DISHES
At the end of the washing program, wait at least 20 minute before
removing the dishes in order to allow them to cool.
Rev 0.0 17
USER INSTRUCTIONS
EN
5 TROUBLESHOOTING
The dishwasher can to signal a number of malfunctions by turning on various
indicator lights, as described below (see following table):

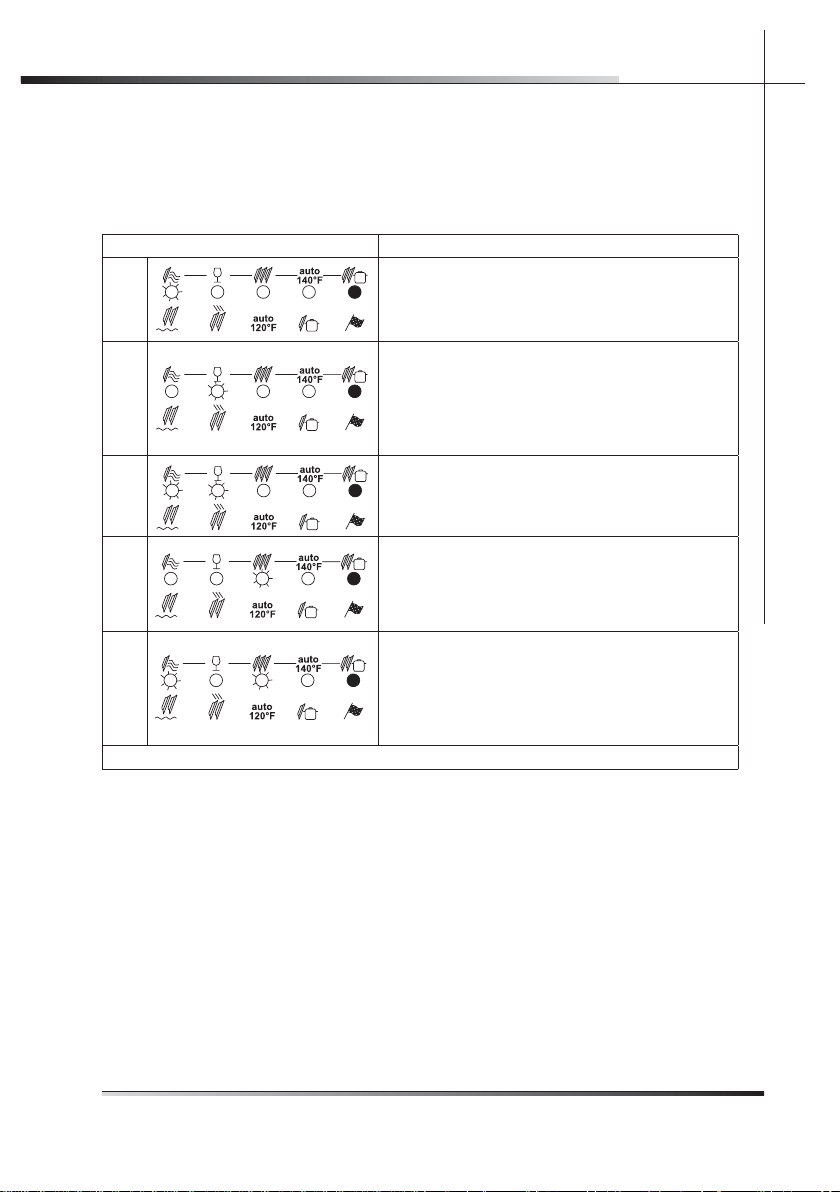

FAULT DESCRIPTION
E1
Acquastop failure
The anti-fl ooding system has tripped (only for models
fi tted with this feature). Activates in case of water leaks.
Contact the technical assistance service.
E2
Safety level
The system limiting the water level in the dishwasher
has tripped. Interrupt the current program. Switch off
the dishwasher, switch it back on again, program a new
cycle and press start. If the problem persists, contact
the technical assistance service.
E3
Water heating malfunction
The water is not heated or is incorrectly heated. Repeat
the washing program; if the problem persists, contact
the technical assistance service.
E4
Water temperature monitoring malfunction
Interrupt the current program. Switch off the dishwasher,
switch it back on again, program a new cycle and press
start. If the problem persists, contact the technical
assistance service.
E5
Water intake malfunction
The appliance does not take in water or does so
incorrectly. Make sure the water connections are
correct, that the water supply tap is open and that the
fi lter is not clogged. If the problem persists, contact the
technical assistance service.
Tab. 5-01a
18 Rev 0.0
USER INSTRUCTIONS
EN
FAULT DESCRIPTION
E6
Water pump-out malfunction
The appliance does not pump out the water or does so
incorrectly. Make sure the drain hose is not kinked or
crushed and that the siphon and fi lters are not clogged.
If the problem persists, contact the technical assistance
service.
E7
Turbine fl ow-regulator malfunction
(only for models fi tted with this feature)
The appliance is unable to precisely measure the
quantity of incoming water. Interrupt the current program
and switch off the dishwasher. Switch it back on again,
program a new cycle and press start. If the problem
persists, contact the technical assistance service.
E8
Alternate washing system malfunction
Interrupt the current program and switch off the
dishwasher. Switch it back on again, program a new
cycle and press start. If the problem persists, contact
the technical assistance service.
E9
Water intake system malfunction
Contact the technical assistance service.
Tab. 5-01b

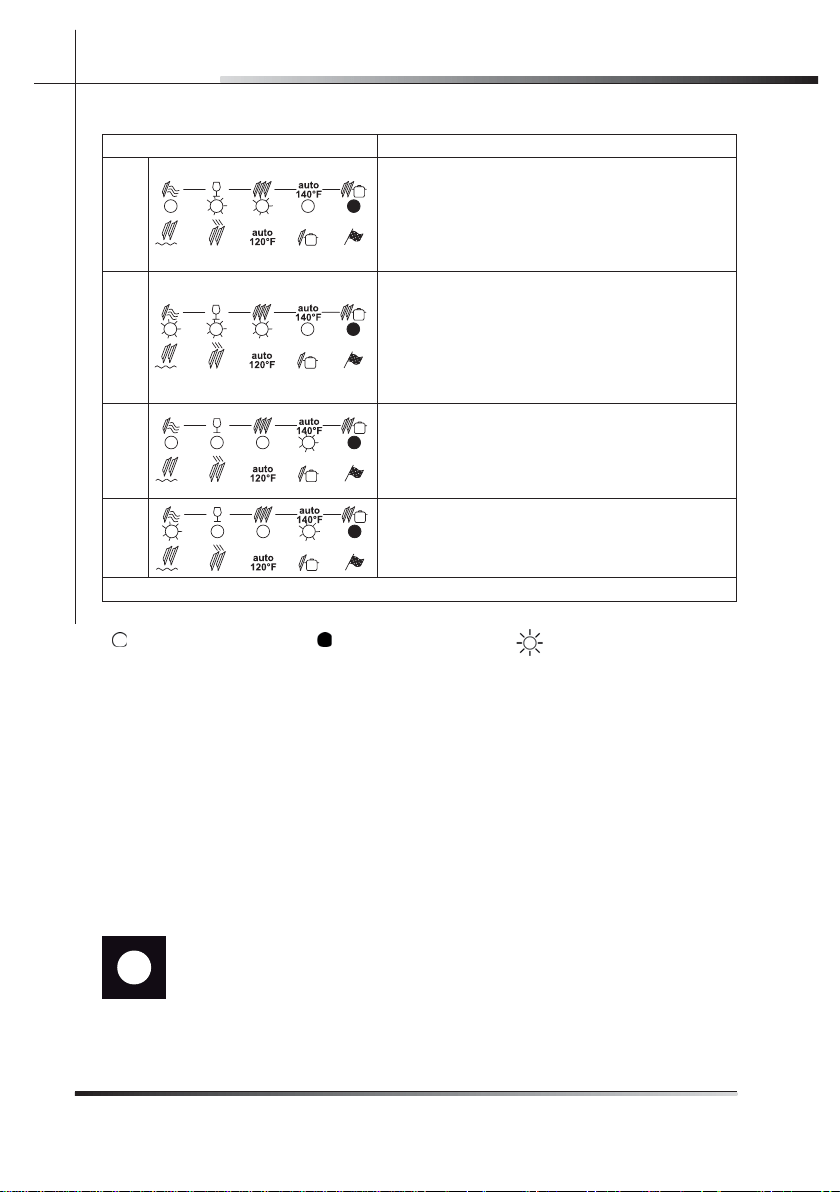

Light off Light on Light fl ashing
If an alarm situation occurs, the dishwasher interrupts the current program and
signals the fault.
Alarms E1, E2, E3, E4, E8, E9 immediately terminate the current program.
Alarms E5, E6 interrupt the current program and, after the problem has been
eliminated, resume the cycle.
Alarm E7 is displayed at the end of the cycle which, however, is completed
given that it does not jeopardize the operation of the dishwasher.
To “reset” an alarm:
open or close the door, or switch the appliance on and back off again. At this
point, the dishwasher can be programmed again.
If the fault persists, contact the Authorized Technical Assistance Ser-
vice.
•
•
•
•
Rev 0.0 1
CONTENTS
EN
Contents
1 INTRODUCTION ........................................................................................ 3
2 IMPORTANT SAFETY INSTRUCTION ......................................................... 5
3 INSTALLATION AND HOOK-UP ............................................................... 12
4 OPERATING INSTRUCTIONS .................................................................. 15
4.1 Using the water softening system ............................................................. 16
4.2 Using the rinse-aid and detergent dispensers ........................................... 18
4.2.1 Adding the rinse-aid ................................................................................. 19
4.2.2 Adjusting the rinse-aid dispenser system .................................................. 19
4.2.3 Adding the detergent ...............................................................................20
4.3 General warnings and recommendations ................................................. 22
4.4 Using the rack ......................................................................................... 24
4.4.1 Cutlery basket .......................................................................................... 26
5 CLEANING AND USER-MAINTENANCE .................................................. 28
5.1 General warnings and recommendations for correct maintenance ............ 28
5.2 Cleaning the water intake fi lter .................................................................. 29
5.3 Cleaning the spray arms ........................................................................... 29
5.4 Cleaning the fi lter unit ............................................................................... 31
5.5 Maintenance warnings and advice ........................................................... 32
5.6 Troubleshooting minor problems .............................................................. 33
6 TECHNICAL DATA ................................................................................... 35
2 Rev 0.0
EN
Rev 0.0 3
INTRODUCTION
EN
1 INTRODUCTION
Thank you for choosing one of our products. To use this dishwasher
correctly and safely, please read this manual carefully. The manual
is divided into sections giving you a step-by-step guide to all your
appliance’s functions. The texts are easy to understand and are
complete with detailed illustrations. Following the cleaning instruc-
tions provided here will keep dishwasher performance at peak levels
in the long term. This user-friendly manual will provide answers to all
your questions about use of the dishwasher.
This manual comprises the following sections:
INTRODUCTION: general information about the manual.
WARNINGS: a list of warnings concerning safety and use of the
dishwasher.
INSTALLATION INSTRUCTIONS: for the qualifi ed technician who
must carry out the installation, hook-up and testing of the appli-
ance.
USER INSTRUCTIONS: useful advice is provided for the use of
racks, spray arms, containers and fi lters.
Nomenclature of fi gures and tables:
The progressive number of each fi gure is shown in the bottom right-
hand corner of the relative box. An example of a progressive number
is “Fig. 4-01”, where the fi rst number (4) indicates the section to
which the fi gure belongs, while the second number (01) indicates
the progressive number of the fi gure in section 4 (Fig. 4-01 is the
fi rst fi gure in section 4). The tables are numbered in the same way,
bearing in mind that “Tab.” is used instead of “Fig.” (e.g.: Tab. 4-01
is the fi rst table in section 4). If a table occupies more than one page,
a letter is added after the progressive number (e.g.: “Tab. 4-01a”,
Tab. 4-01b”).
4 Rev 0.0
INTRODUCTION
EN
Symbols used in this manual (see tab. 1-01)
DANGER. This symbol highlights information and warnings which,
if not observed, may compromise personal safety or damage the
appliance.
DANGER OF ELECTROCUTION. This symbol highlights information
and warnings of an electrical nature which, if not observed, may
compromise personal safety or damage the appliance.
This symbol highlights general information and warnings.
Tab. 1-01
Rev 0.0 5
WARNINGS
EN
2 IMPORTANT SAFETY INSTRUCTION
(Save this instructions)
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLI-
ANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE
DISHWASHER (INCLUDING THE “INSTALLATION” AND “DESCRIP-
TION OF CONTROLS” MANUALS, IF ATTACHED). BEFORE USING
THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PER-
FORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH
THE REGULATIONS IN FORCE. THIS APPLIANCE IS INTENDED
FOR DOMESTIC USE, AND COMPLIES WITH THE DIRECTIVES
CURRENTLY IN FORCE, INCLUDING THE PREVENTION AND
ELIMINATION OF RADIO FREQUENCY INTERFERENCE. THE AP-
PLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASH-
ING AND DRYING OF DISHES; ANY OTHER USE SHALL BE
CONSIDERED IMPROPER. THE MANUFACTURER DECLINES
ALL RESPONSIBILITY FOR USES OTHER THAN THOSE DE-
SCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL
NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE IN-
NER EDGE OF THE DOOR. THE NAME PLATE MUST NEVER
BE REMOVED.
THIS APPLIANCE IS NOT SUITABLE FOR USE ON BOATS, CARA-
VANS OR THE LIKE.
DISHWASHERS CERTIFIED FOR DOMESTIC USE ARE NOT SUIT-
ABLE FOR AUTHORISED FOOD FACTORIES.
CHECK THAT THE VOLTAGE, FREQUENCY AND PROTECTION OF
THE DOMESTIC MAINS POWER SUPPLY MATCH THE RATINGS
ON THE NAME PLATE OF THE APPLIANCE.
DO NOT LEAVING DISCARDED PACKAGING MATERIALS UNSU-
PERVISED WITHIN THE HOME. SEPARATE THE VARIOUS PACK-
AGING MATERIALS AND TAKE THEM TO THE NEAREST SORTED
WASTE COLLECTION CENTRE. KEEP CHILDREN, PHYSICALLY
AND/OR MENTALLY IMPAIRED ADULTS, AND ANIMALS AWAY
FROM PACKAGING WASTE; DANGER OF SUFFOCATION.
6 Rev 0.0
WARNINGS
EN
BEFORE PROCEEDING WITH INSTALLATION, DISCONNECT THE
MAINS POWER SUPPLY FROM THE WORK AREA.
DO NOT USE EXTENSION CORDS, ADAPTORS OR SHUNT CON-
NECTIONS IN ORDER TO AVOID THE POSSIBILITY OF OVERHEAT-
ING OR BURNING WITH CONSEQUENT FIRE HAZARD.
DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF
ON THE SHARP EDGES OF THE APPLIANCE; WEAR SAFETY
GLOVES.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNEC-
TION IN ACCORDANCE WITH THE ELECTRICAL SAFETY REGU-
LATIONS IN FORCE. IF IN DOUBT, HAVE THE SYSTEM CHECKED
BY A QUALIFIED ELECTRICIAN (SEE ALSO THE WARNINGS INDI-
CATED IN CHAPTER 3).
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
DAMAGE TO PERSONS OR PROPERTY RESULTING FROM
THE FAILURE TO EARTH THE APPLIANCE OR FROM A DE-
FECTIVE EARTH CONNECTION.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO
AVOID WASTING ELECTRICITY.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER
FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE
WATER TAP.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DUR-
ING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. THE APPLI-
ANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER
OR BY A QUALIFIED TECHNICIAN.
Rev 0.0 7
WARNINGS
EN
ONLY USE DETERGENTS SPECIALLY FORMULATED FOR DISH-
WASHERS. DO NOT USE DETERGENTS FORMULATED FOR
WASHING DISHES BY HAND.
ONLY USE RINSE-AID SPECIALLY FORMULATED FOR DOMESTIC
DISHWASHERS.
DO NOT INHALE OR SWALLOW DETERGENT AS THIS MAY CAUSE
BURNS AND/OR PERMANENT DAMAGE TO THE NOSE, MOUTH
AND THROAT, AND EVEN LEADING TO SUFFOCATION; KEEP DE-
TERGENT AWAY FROM YOUR EYES. IF ONE OF THE ABOVE SITU-
ATIONS OCCURS, SEEK MEDICAL ASSISTANCE IMMEDIATELY.
TO PREVENT CHILDREN FROM COMING INTO CONTACT WITH
DETERGENT, FILL THE DISHWASHER JUST BEFORE STARTING
THE WORK PROGRAM AND THEN KEEP THE DETERGENT OUT
OF THE REACH OF CHILDREN.
THIS DISHWASHER MUST BE USED BY ADULTS. USE BY PER-
SONS WITH REDUCED MENTAL AND/OR PHYSICAL CAPABILI-
TIES IS ONLY PERMITTED UNDER THE SUPERVISION OF A PER-
SON RESPONSIBLE FOR THEIR SAFETY.
DO NOT ALLOW CHILDREN TO APPROACH AND/OR PLAY IN OR
ON THE DISHWASHER. THE APPLIANCE MAY CONTAIN RESI-
DUES OF DETERGENT WHICH CAN CAUSE PERMANENT DAM-
AGE TO THE EYES, MOUTH AND THROAT, AS WELL AS POS-
SIBLE DEATH BY SUFFOCATION; IF THE ABOVE OCCURS, SEEK
MEDICAL ASSISTANCE IMMEDIATELY.
BEWARE; IT IS POSSIBLE FOR CHILDREN TO GET TRAPPED IN-
SIDE THE DISHWASHER!
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TUR-
PENTINE WHICH MAY CAUSE AN EXPLOSION.
DO NOT POUR POWDER AND/OR LIQUID DETERGENT INTO THE
RINSE-AID CONTAINER AS THIS WILL DAMAGE THE CONTAINER.
DO NOT POUR POWDER AND/OR LIQUID DETERGENT INTO THE
WASTER SOFTENER TANK AS THIS WILL DAMAGE THE TANK.
DO NOT USE INDUSTRIAL DETERGENTS AS THIS MAY DAMAGE
THE APPLIANCE AND/OR TRIGGER VIOLENT CHEMICAL REAC-
TIONS (E.G. EXPLOSIVE GAS).
8 Rev 0.0
WARNINGS
EN
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR
PAINTS.
DO NOT INTRODUCE ITEMS IN HEAT-SENSITIVE PLASTI¬C,
SUCH AS DISPOSABLE CUTLERY OR PLATES, AS THESE MAY
BECOME DEFORMED. DO NOT WASH OBJECTS IN PLASTIC UN-
LESS THEY ARE MARKED “DISHWASHER PROOF” OR THE LIKE.
FOR UNMARKED OBJECTS, FOLLOW THE INSTRUCTIONS OF
THE MANUFACTURER; IF NO INFORMATION IS AVAILABLE, DO
NOT WASH THESE OBJECTS IN THE DISHWASHER.
DO NOT INTRODUCE ANIMALS INTO THE DISHWASHER.
WHEN OPENING THE DISHWASHER DOOR DURING A CYCLE
THERE IS A RISK OF SCALDING DUE TO THE HEAT CONTAINED
INSIDE; DO NOT GET IN THE WAY OF THE STEAM LEAVING THE
APPLIANCE AND DO NOT TOUCH THE COMPONENTS INSIDE.
WAIT 20 MINUTES AFTER THE END OF THE WASHING CYCLE
OR AFTER INTERRUPTING IT BEFORE REMOVING THE DISHES IN
ORDER TO ALLOW THEM TO DRY.
IN CERTAIN SITUATIONS, HYDROGEN MAY BE GENERATED IN-
SIDE A HOT WATER SYSTEM THAT HAS NOT BEEN USED FOR
OVER TWO WEEKS. HYDROGEN IS AN EXPLOSIVE GAS. IF THE
HOT WATER SYSTEM HAS NOT BEEN USED FOR TWO WEEKS
OR MORE, OPEN ALL THE HOT WATER TAPS AND ALLOW THE
WATER TO RUN FOR A FEW MINUTES BEFORE USING THE DISH-
WASHER. THIS WILL DISCHARGE ANY HYDROGEN BUILDUPS.
AS THIS GAS IS FLAMMABLE, DO NOT SMOKE OR USE NA-
KED FLAMES WHILE PERFORMING THIS OPERATION.
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN
OPEN MAY CAUSE THE APPLIANCE TO OVERTURN, PUT-
TING PEOPLE AT RISK. NEVER LEAVE THE DISHWASHER
DOOR OPEN; PEOPLE MIGHT TRIP OVER IT.
DO NOT LEAN AGAINST OR STAND ON THE DISHWASHER
RACKS.
Rev 0.0 9
WARNINGS
EN
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT
INSIDE THE DISHES OR DISHWASHER.
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST
BE PLACED IN THE CUTLERY BASKET BLADE-DOWN, OR LAID
HORIZONTAL IN THE RACK. TAKE CARE NOT TO CUT YOURSELF
AND ENSURE THAT THEY DO NOT PROJECT FROM THE RACK.
POSITION SHARP/POINTED OBJECTS SO AS TO PREVENT THEM
FROM DAMAGING THE DOOR GASKETS.
DO NOT OPERATE THE DISHWASHER UNLESS ALL THE OUTER
PANELS HAVE BEEN POSITIONED CORRECTLY.
DO NOT TAMPER WITH THE DISHWASHER CONTROLS.
AQUASTOP MODELS; THE AQUASTOP DEVICE PREVENTS
FLOODING IN THE EVENT OF A WATER LEAK. WHEN THE AQUA-
STOP DEVICE IS TRIPPED (THE ERROR IS INDICATED ON THE
DISPLAY), CALL IN A QUALIFIED TECHNICIAN TO IDENTIFY AND
REPAIR THE FAULT. IN MODELS EQUIPPED WITH THE AQUAS-
TOP DEVICE, THERE IS A SOLENOID VALVE INSIDE THE WATER
INTAKE HOSE. DO NOT CUT THE HOSE AND DO NOT ALLOW
THE SOLENOID VALVE TO DROP INTO WATER. IN THE EVENT
OF DAMAGE TO THE WATER INTAKE HOSE, DISCONNECT THE
APPLIANCE FROM THE ELECTRICAL POWER SUPPLY AND FROM
THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM
A QUICK TEST OF THE APPLIANCE (SEE “INSTALLATION” MAN-
UAL). IF THE DISHWASHER FAILS TO OPERATE CORRECTLY,
DISCONNECT IT FROM THE ELECTRICAL POWER SUPPLY AND
CALL THE NEAREST TECHNICAL SERVICE CENTRE. DO NOT
ATTEMPT TO REPAIR THE APPLIANCE.
10 Rev 0.0
WARNINGS
EN
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT
BY THE REGULATIONS IN FORCE CONCERNING SAFETY AND
ELECTRICAL EQUIPMENT. ANY TECHNICAL CHECKS SHOULD
BE CONDUCTED EXCLUSIVELY BY A TRAINED AND AUTHORIZED
TECHNICIAN: REPAIRS CARRIED OUT BY UNAUTHORIZED
PERSONS WILL INVALIDATE THE WARRANTY, AS WELL AS
POSING A POTENTIAL HAZARD TO THE USER.
BEFORE CLEANING OR SERVICING THE APPLIANCE, REMOVE
THE PLUG OR TURN OFF THE MULTI-POLE SWITCH.
REMOVE THE WASHING COMPARTMENT DOOR AND DISCON-
NECT THE MAINS POWER SUPPLY WHEN REMOVING THE OLD
DISHWASHER FOR MAINTENANCE OR DISPOSAL.
THE SYMBOL ON THE PRODUCT, OR ON THE DOCUMENTS
ACCOMPANYING THE PRODUCT, INDICATES THAT THIS APPLI-
ANCE MAY NOT BE TREATED AS HOUSEHOLD WASTE. INSTEAD
IT SHALL BE HANDED OVER TO THE APPLICABLE COLLECTION
POINT FOR THE RECYCLING OF ELECTRICAL AND ELECTRONIC
EQUIPMENT. DISPOSAL MUST BE CARRIED OUT IN ACCOR-
DANCE WITH LOCAL ENVIRONMENTAL REGULATIONS FOR
WASTE DISPOSAL. FOR MORE DETAILED INFORMATION ABOUT
TREATMENT, RECOVERY AND RECYCLING OF THIS PRODUCT,
PLEASE CONTACT YOUR LOCAL CITY OFFICE, YOUR HOUSE-
HOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU
PURCHASED THE PRODUCT.
Rev 0.0 11
WARNINGS
EN
BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY,
YOU WILL HELP PREVENT POTENTIAL NEGATIVE CONSEQUENC-
ES FOR THE ENVIRONMENT AND HUMAN HEALTH.
THE MANUFACTURER DECLINES ALL RESPONSIBIL-
ITY FOR DAMAGE TO PERSONS, ANIMALS OR PROPER-
TY RESULTING FROM FAILURE TO OBSERVE THE ABOVE
PRECAUTIONS, FROM TAMPERING WITH EVEN A SINGLE
COMPONENT OF THE APPLIANCE, OR FROM THE USE OF
UNORIGINAL SPARE PARTS.
IF IN DOUBT ABOUT THE CONTENTS OF THIS MANUAL,
CONTACT THE TECHNICAL ASSISTANCE SERVICE.
12 Rev 0.0
INSTALLATION INSTRUCTIONS
EN
3 INSTALLATION AND HOOK-UP
To install and hook up this appliance, consult the attached installation
manual.
Bear in mind the following warnings when installing and hooking up the dish-
washer.
DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF
ON THE SHARP EDGES OF THE APPLIANCE; WEAR SAFETY
GLOVES.
INSTALLATION, REPAIRS AND SERVICING MUST BE PER-
FORMED BY QUALIFIED AND AUTHORIZED TECHNICIANS.
AS WELL AS INVALIDATING THE WARRANTY, WORK CARRIED
OUT BY UNAUTHORIZED PERSONS MAY GENERATE HAZARDS.
INSTALLATION MUST BE PERFORMED IN COMPLIANCE WITH
ALL THE DIRECTIVES IN FORCE IN THE COUNTRY OF INSTALLA-
TION AND, IF THESE DO NOT EXIST: IN THE UNITED STATES THE
NATIONAL ELECTRIC CODE; IN CANADA THE CANADIAN ELEC-
TRIC CODE C22.1 - LATEST EDITION/PROVINCIAL AND MUNICI-
PAL CODES AND/OR LOCAL CODES.
BUILDING-IN A DISHWASHER UNDERNEATH A CERAMIC HOB IS
ABSOLUTELY FORBIDDEN. A DISHWASHER CAN BE BUILT-IN
UNDERNEATH A CONVENTIONAL HOB PROVIDED THERE IS NO
BREAK IN THE KITCHEN WORKTOP, AND THE DISHWASHER
AND HOB ARE INSTALLED AND SECURED CORRECTLY, SO
THAT NO HAZARDS ARE GENERATED .
PREVENTING THE RISK OF CLOGGING OR DAMAGE: IF THE
WATER PIPE IS NEW OR HAS NOT BEEN USED FOR A LONG
TIME, BEFORE CONNECTING TO THE WATER SUPPLY CHECK
THAT THE WATER IS CLEAR AND FREE OF IMPURITIES, TO PRE-
VENT DAMAGE TO THE APPLIANCE. THE DISHWASHER MUST
ALWAYS BE CONNECTED TO THE WATER SYSTEM WITH
NEW HOSES; OLD OR USED HOSES MUST NEVER BE RE-
USED.
Rev 0.0 13
INSTALLATION INSTRUCTIONS
EN
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE
MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE AP-
PLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT
REPLACED BY THE MANUFACTURER OR AN AUTHORIZED TECH-
NICAL SERVICE CENTRE.
THIS APPLIANCE MUST BE EARTHED. IN CASE OF A MALFUNC-
TION OF FAULT, THE EARTH REDUCES THE RISK OF ELECTRO-
CUTION BY PROVIDING THE ELECTRICAL CURRENT WITH AN
ALTERNATIVE, LESS RESISTANT PATH.
BEFORE MAKING ELECTRICAL CONNECTIONS, DISCONNECT
THE MAINS POWER SUPPLY FROM THE WORK AREA.
CHECK THAT THE MAINS SUPPLY IN THE PLACE OF INSTAL-
LATION COMPLIES WITH THE REGULATIONS IN FORCE IN THE
COUNTRY OF USE, AND THAT IT IS CORRECTLY EARTHED.
THIS APPLIANCE MUST BE EARTHED. IN CASE OF A MALFUNC-
TION OF FAULT, THE EARTH REDUCES THE RISK OF ELECTRO-
CUTION BY PROVIDING THE ELECTRICAL CURRENT WITH AN
ALTERNATIVE, LESS RESISTANT PATH. THIS APPLIANCE IS FIT-
TED WITH A SUPPLY CORD CONTAINING AN EARTH WIRE AND
PLUG. FIT THE PLUG INTO A SUITABLE SOCKET, INSTALLED
AND EARTHED IN COMPLIANCE WITH THE LAWS IN FORCE IN
THE COUNTRY OF INSTALLATION.
AN INCORRECTLY CONNECTED EARTH WIRE MAY GENERATE
THE RISK OF ELECTROCUTION. IF IN DOUBT AS TO THE COR-
RECT EARTHING OF THE APPLIANCE, CALL IN A QUALIFIED
ELECTRICIAN OR THE TECHNICAL ASSISTANCE SERVICE. DO
NOT CHANGE THE PLUG ATTACHED TO THE APPLIANCE. IF THE
PLUG IS NOT SUITABLE FOR THE SOCKET, CALL IN A QUALIFIED
ELECTRICIAN TO FIT A SUITABLE PLUG.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT RE-
PLACED BY THE MANUFACTURER OR AN AUTHORIZED TECHNI-
CAL SERVICE CENTRE IN ORDER TO AVOID ANY RISK.
14 Rev 0.0
INSTALLATION INSTRUCTIONS
EN
DO NOT USE EXTENSION CORDS, ADAPTORS OR SHUNT CON-
NECTIONS IN ORDER TO AVOID THE POSSIBILITY OF OVERHEAT-
ING OR BURNING, WITH CONSEQUENT FIRE HAZARD.
WARNING!
ACCESS TO THE DOOR OPENING AND CLOSING MECHANISMS
CAN ONLY PREVENTED AFTER INSTALLATION.
IF THE APPLIANCE IS NOT BUILT IN OR IS BUILT IN BUT ONE OR
BOTH FRONT PANELS HAVE NOT BEEN FITTED, SOME MECHA-
NICAL PARTS ARE ACCESSIBLE. WHEN OPENING OR CLOSING
THE DOOR, THESE MAY CAUSE SERIOUS INJURY TO LIMBS.
NEVER PUT YOUR HANDS IN THE SIDE OPENINGS OF THE
LOWER PANEL WHEN OPENING OR CLOSING THE DOOR.
NEVER OPEN THE DISHWASHER DOOR WITH THE LOWER
DRAWER PARTIALLY OR COMPLETELY OPEN. IF THERE IS A
DRAWER IN THE LOWER PART OF THE UNIT CONTAINING THE
DISHWASHER, MAKE SURE IT IS PERFECTLY CLOSED BEFORE
OPENING THE DISHWASHER DOOR.
PARTIALLY OR FULLY OPENING THE LOWER DRAWER MAY DA-
MAGE THE LOWER PANEL RETAINERS.
Rev 0.0 15
USER INSTRUCTIONS
EN
4 OPERATING INSTRUCTIONS
BEFORE STARTING TO USE THE APPLIANCE, MAKE SURE YOU
HAVE READ AND UNDERSTOOD ALL THE WARNINGS CONTAI-
NED IN CHAPTER 2 “IMPORTANT SAFETY INSTRUCTION”.
Once the dishwasher has been correctly installed, prepare for use as follows:
adjust the water softening system;
add the regenerating salt;
add the rinse-aid and detergent.
•
•
•
16 Rev 0.0
USER INSTRUCTIONS
EN
4.1 Using the water softening system
The amount of scale contained in the water (water hardness index) can cause
whitish staining on the dry dishes, which tend to become dull over time. The
dishwasher is equipped with an automatic softening system which uses a spe-
cial regenerating salt to reduce the hardness of the water. The dishwasher is
factory set for water hardness level 3 (average hardness 41-60°dF – 24-31°dH
/ 23.6-35 gpg). When using water of medium hardness, the regenerating salt
container should be refi lled after approximately 20 washing cycles. The salt
container can hold approximately 1.7 Kg (3.75 lb) of salt in grains. Some mod-
els are equipped with an optical no-salt indicator. In these models, the cap of
the salt container contains a green fl oat which descends as the salt concentra-
tion in the water drops. When the green fl oat can no longer be seen, the con-
tainer must be topped up with regenerating salt. The container is situated at
the bottom of the dishwasher. After removing the lower rack, unscrew the salt
container cap (ref. A fi g. 4-01) by turning it anticlockwise and pour in the salt
using the funnel (ref. A fi g. 4-02) supplied with the dishwasher. Before replacing
the cap (ref. A fi g. 4-01), remove any salt residues from around the opening.
A

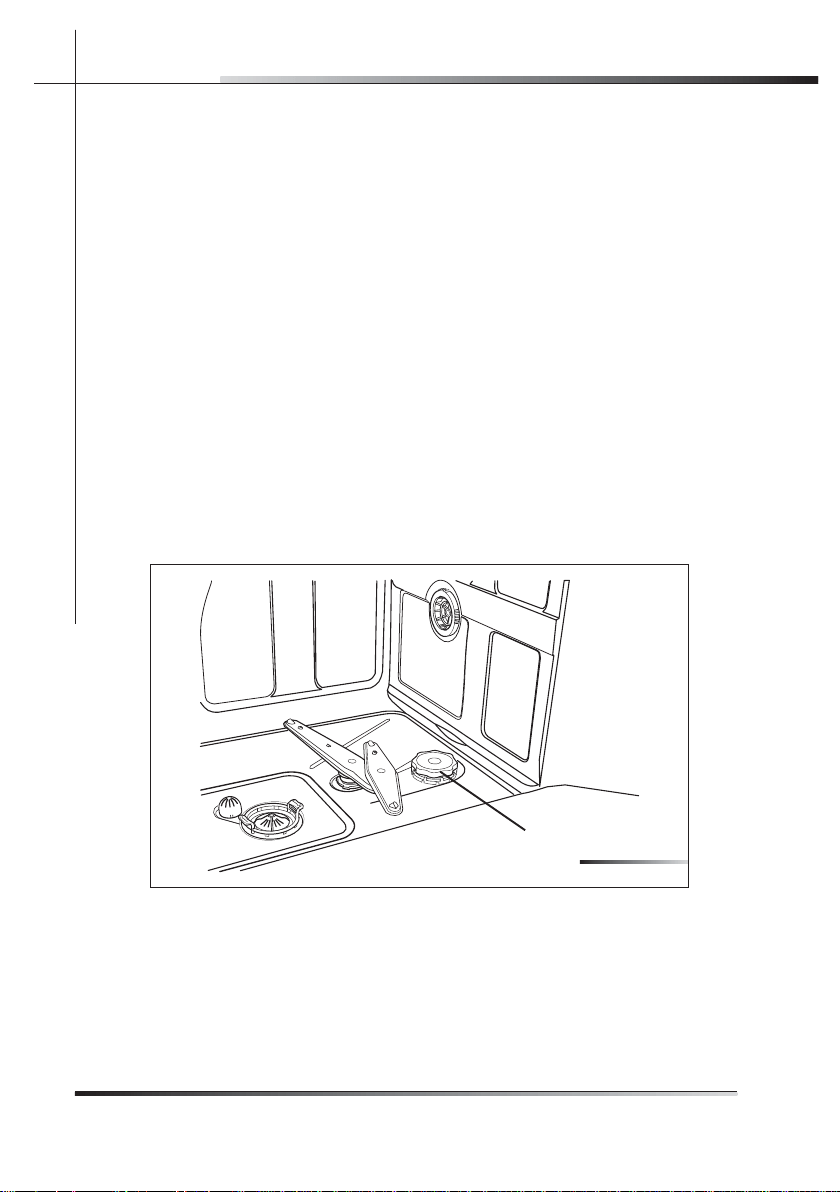

Fig. 4-01
Rev 0.0 17
USER INSTRUCTIONS
EN
A

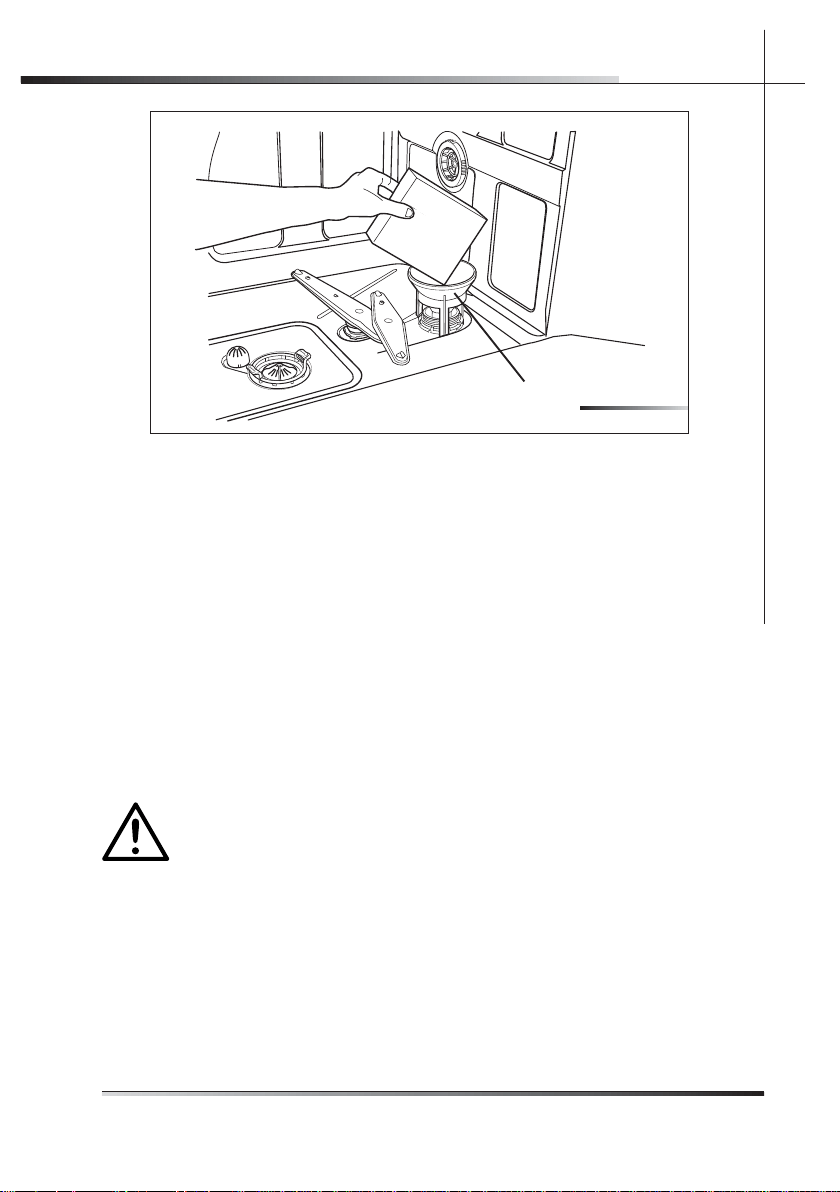

When using the dishwasher for the fi rst time, in addition to the salt it is also
necessary to add one liter of water to the container.
Each time the salt container is refi lled, make sure that the cap (ref. A fi g.
4-01) is securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation of the
regeneration system. In the event of this occurring, the warranty will be in-
validated.
Only use regenerating salt specially formulated for domestic dishwashers. If
using salt tablets, do not fi ll the container completely.
Do not use table salt as it contains insoluble substances which, over time,
may damage the water softening system.
When necessary, refi ll the regenerating salt container before starting the
washing program. In this way, the excess saline solution will be immedi-
ately removed by the water; the prolonged presence of salt water inside the
tank may lead to corrosion.
BE CAREFUL NOT TO CONFUSE THE SALT AND DETERGENT
PACKAGES; ADDING DETERGENT TO THE SALT CONTAINER
WILL DAMAGE THE WATER SOFTENING SYSTEM.
•
•
•
•
•
Fig. 4-02
S A LT
SALT
18 Rev 0.0
USER INSTRUCTIONS
EN
4.2 Using the rinse-aid and detergent
dispensers
The detergent and rinse aid dispensers are situated on the inner part of the
door: the rinse-aid dispenser (ref. A fi g. 4-03) is on the left, and the deter-
gent dispenser (ref. B fi g. 4-03) is on the right.
A
B
WITH THE EXCEPTION OF THE SOAK PROGRAM, BEFORE EV-
ERY WASHING CYCLE IT IS NECESSARY TO ADD THE REQUIRED
AMOUNT OF DETERGENT TO THE DETERGENT DISPENSER.
THE RINSE AID, ON THE OTHER HAND, SHOULD ONLY BE ADD-
ED AS REQUIRED.
Fig. 4-03
Rev 0.0 19
USER INSTRUCTIONS
EN
4.2.1 Adding the rinse-aid
The rinse aid helps the dishes dry faster and prevents the formation of scale de-
posits and staining; it is automatically added to the water during the fi nal rinse
cycle, from the container situated on the inner side of the door.
A
B
C
To add rinse aid:
Open the door.
Open the container cover (ref. A fi g. 4-04).
Add the rinse aid until the container is full (approximately 140 ml). The optical
level indicator (ref. B fi g. 4-04), on the side of the container should be com-
pletely obscured. Refi ll the rinse aid when the optical level indicator becomes
clear again, or when the rinse aid warning light on the panel illuminates (see
“Description of controls” manual).
Close the cover (ref. A fi g. 4-04).
Use a cloth to remove any spillage of rinse aid which might lead to the forma-
tion of excess foam.
4.2.2 Adjusting the rinse-aid dispenser setting
The rinse-aid dispenser can be set to one of 6 different levels. The dishwasher
is factory set for medium water hardness (selector set to “3”). To change the
setting, turn the dispenser selector (ref. c fi g. 4-04) to the desired position: the
amount of rinse-aid dispensed is proportional to the position of this selector.
Make sure that the minimum amount of rinse-aid (selector turned to “1”) is
approximately 1 ml and the maximum amount (selector turned to “6”) is ap-
proximately 6 ml.
•
•
•
•
•
Fig. 4-04
20 Rev 0.0
USER INSTRUCTIONS
EN
To adjust the rinse-aid setting, open the cover (ref. A fi g. 4-04).
Then use a screwdriver to rotate the rinse aid selector to the desired posi-
tion.
Close the cover (ref. A fi g. 4-04).
The amount of rinse aid must be increased if the washed dishes appear dull
or feature circular stains.
If, on the other hand, the dishes are sticky or have white streaks, it is neces-
sary to reduce the rinse aid setting.
4.2.3 Adding the detergent
DO NOT INHALE OR SWALLOW DETERGENT AS THIS MAY CAUSE
BURNS AND/OR PERMANENT DAMAGE TO THE NOSE, MOUTH
AND THROAT, AND EVEN LEADING TO SUFFOCATION; KEEP DE-
TERGENT AWAY FROM YOUR EYES. IF ONE OF THE ABOVE SITU-
ATIONS OCCURS, SEEK MEDICAL ASSISTANCE IMMEDIATELY.
PREVENT CHILDREN FROM COMING INTO CONTACT WITH DE-
TERGENT; KEEP THEM AWAY FROM THE DISHWASHER WHEN
THE DOOR IS OPEN AS IT MAY CONTAIN DETERGENT RESIDUES.
FILL THE DISHWASHER JUST BEFORE STARTING THE WASHING
CYCLE AND THEN KEEP THE DETERGENT OUT OF THE REACH
OF CHILDREN.

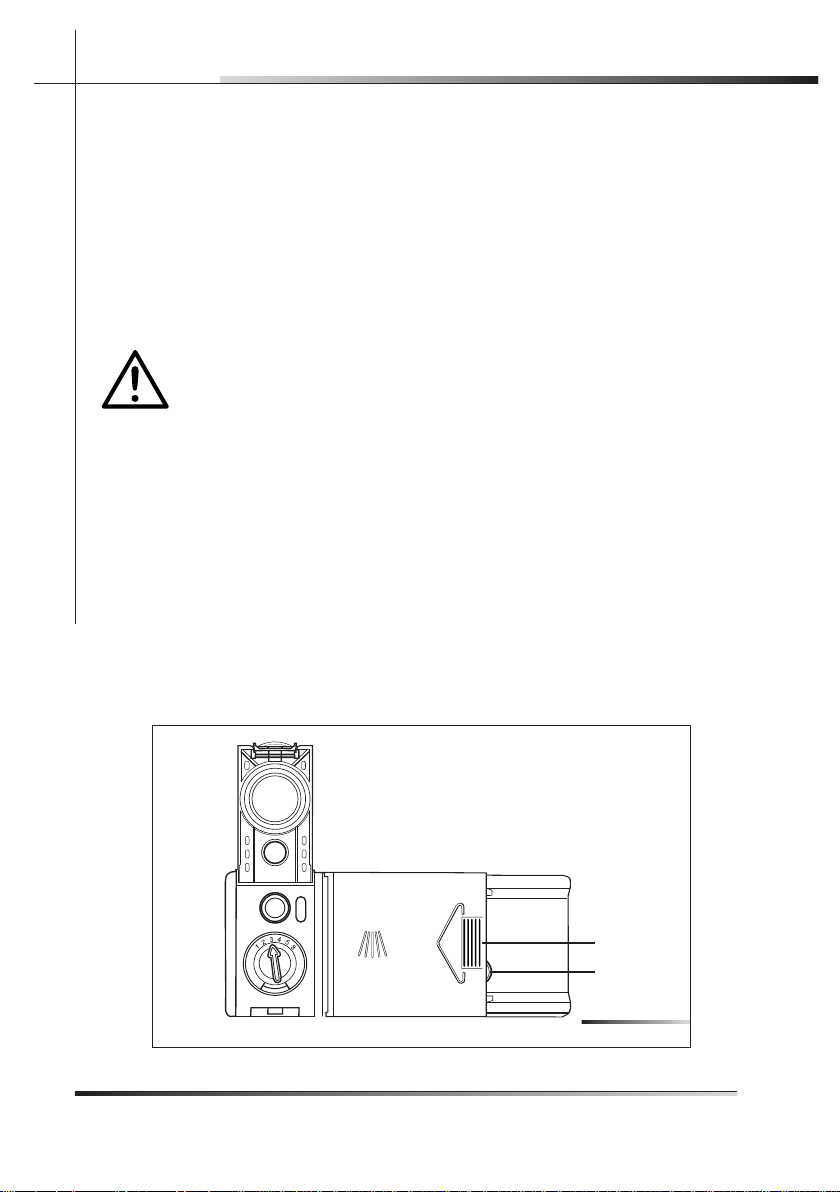

To open the detergent dispenser cover, lightly press the relative button (ref.
A fi g. 4-05). Add the detergent and close the cover carefully, pushing down
on the arrow (ref. B fi g. 4-05). During the washing cycle, the dispenser will be
opened automatically.
A
B
•
•
•
•
•
Fig. 4-05
Rev 0.0 21
USER INSTRUCTIONS
EN
A
When a program with hot prewash is selected (see program table in the
“Description of Controls” manual), extra detergent must be placed in the
cavity (ref. A fi g. 4-06).
Only use dishwasher-specifi c detergents. For optimal washing results it is
important to use a good quality detergent.
The detergent packs must be sealed and stored in a dry place to prevent
the formation of lumps which may negatively affect washing results. Once
opened the detergent packs should not be kept for too long, otherwise the
detergent loses its effectiveness.
Do not use detergents formulated for washing dishes by hand, because they
produce a great deal of foam and may negatively affect the operation of the
dishwasher.
Add the correct amount of detergent. An insuffi cient amount of detergent
will result in a partial removal of dirt from the dishes, whereas an excessive
amount is wasteful and does not improve the washing results.
The market offers liquid and powder detergents with differing chemical com-
positions, which may contain phosphates, or be phosphate-free but con-
tain natural enzymes.
Detergents containing phosphates are more effective against grease and
starch at temperatures above 60°C (140°F).
Enzyme detergents, on the other hand, are also effective at lower tempera-
tures (from 40 to 55°C / from 104 to 131°F) and are more easily biodegrad-
able. With enzyme detergents it is possible to obtain at low temperatures
comparable results to those which can only be achieved at 65°C (149°F)
using traditional detergents. For the safeguarding of the environment we
recommend the use of phosphate- and chlorine-free detergents.
When using detergent tabs, place them in the cutlery basket. The dispenser
has been designed for powder or liquid detergent. As the cover does not
•
•
•
•
•
•
•
•
•
Fig. 4-06
22 Rev 0.0
USER INSTRUCTIONS
EN
open completely during the washing cycle, tabs are not fully released (dis-
solved). This could generate the following problems:
- insuffi cient detergent released during the cycle and poor washing re-
sults;
- the detergent is compacted in the dispenser and is released during the
fi nal rinse cycle.
THE INTRODUCTION OF DETERGENT INTO THE RINSE AID
DISPENSER, EVEN IN LIQUID FORM, WILL DAMAGE THE DISH-
WASHER.
4.3 General warnings and recommendations
Before using the dishwasher for the fi rst time, it is advisable to read the follow-
ing recommendations concerning dish types to be washed and their loading.
There are generally no constraints on the washing of domestic dishes, but in
certain cases it is necessary to take their characteristics into account. Before
loading the dishes into the racks it is necessary to:
remove coarse food remains: e.g. bones, fi sh-bones, etc. which may clog
the fi lter or damage the wash pump;
soak any pots or pans with burnt-on food remains on the bottom to facilitate
removal, then load them into the RACK.
There is no need to pre-wash the dishes under running water before loading
them into the racks since this only wastes water. Correct loading of the
dishes helps ensure optimal washing results.
WARNING!
make sure that the dishes are securely in place so that they cannot tip over
or obstruct the rotation of the spray arms during the washing cycle;
do not place very small objects in the rack as these could fall and obstruct
the spray arms or the wash pump;
containers such as cups, bowls, glasses and pots should always be loaded
with the opening facing downwards and with any cavities at an angle, to al-
low the water to drain out;
do not stack dishes or place them in such a way that they cover one other;
do not place glasses too close together because they may knock against
each other and break, or there might be staining at the point where they
touch.
When using detergent tabs, take care not to place bulky pans or dishes im-
mediately underneath the detergent dispenser as otherwise the tab may fall
onto a pan and not fully dissolve.
•
•
•
•
•
•
•
•
Rev 0.0 23
USER INSTRUCTIONS
EN
MAKE SURE that the items being washed are dishwasher-safe
Items which are not dishwasher-safe:
Wooden dishes, pots or pans: these may be damaged by the high wash-
ing temperatures.
Handcrafted items: these are rarely suitable for washing in a dishwasher.
The relatively high water temperatures and the detergents used may dam-
age them.
Dishes and objects in copper, tin, zinc or brass: these tend to stain.
Aluminum dishes: items made from anodized aluminum may lose their
color.
Silverware: silver items may stain.
Glass and crystal: in general, glass and crystal objects can be washed in
the dishwasher. However, certain types of glass and crystal may become
dull and lose their clearness after many washings. Therefore, for these items
we recommend using the least aggressive program available (see “Descrip-
tion of controls” manual).
Decorated items: the decorated objects available on the market are gener-
ally able to withstand washing in the dishwasher, although the colors may
fade after a great many washes. If in doubt as to the fastness of the col-
ors, it is advisable to wash just a few items at a time for approximately one
month.
•
•
•
•
•
•
•
24 Rev 0.0
USER INSTRUCTIONS
EN
4.4 Using the rack
The dishwasher has a capacity of 12 place-settings, including serving dish-
es.
Examples of loading 12 place-settings in the rack (see fi gs. 4-07, 4-08).

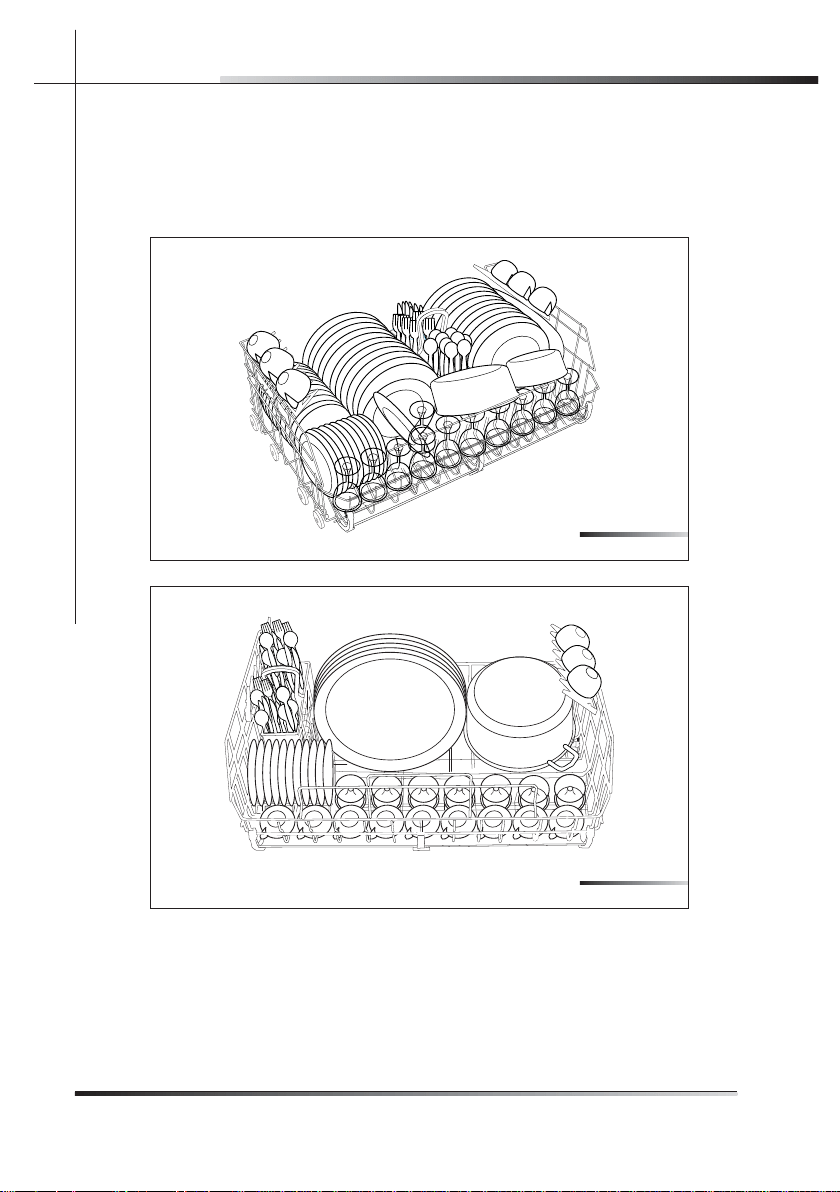

Fig. 4-07
Fig. 4-08
Rev 0.0 25
USER INSTRUCTIONS
EN

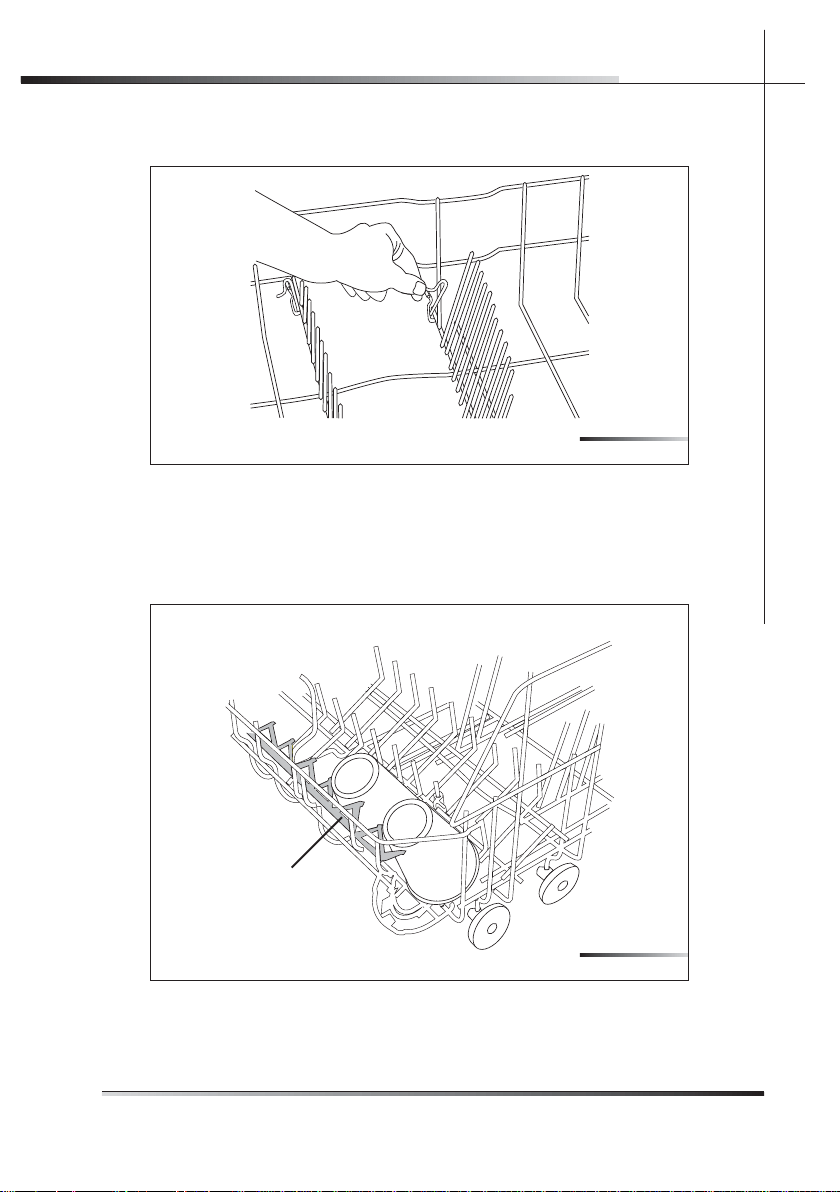

Fig. 4-09
Fig. 4-10
To make the most of the space inside the rack when loading large items, it is
equipped with tip-up supports for plates (see fi g. 4-09).
The rack is fi tted with a special support; if placed in the fi rst position (ref. A fi g.
4-10), it can hold normal glasses. In the second position, when locked with
the special retainers (e.g.: ref. A fi g. 4-11), the support can hold champagne
fl utes.
A
26 Rev 0.0
USER INSTRUCTIONS
EN
A
4.4.1 Cutlery basket (see fi g. 4-12, 4-13, 4-14)
The cutlery basket can be removed to simplify unloading.
Arrange the cutlery in an orderly manner inside the basket, with the handles
pointing downwards and taking care not to injure yourself with the knife
blades. The basket is suitable for all types of cutlery, except those long enough
to interfere with the upper spray arms.
Place long items (ladles, wooden spoons and cooking knives) that may in-
terfere with the spray arms in the rack making sure that knife tips do not
protrude.
The rack features an exclusive system of independent sliding tip-up supports,
offering a choice of combinations to allow optimum use of the available spa-
ce.
It can also be divided into two parts; simply release the retainer (ref. 1 fi g. 4-13)
on the handle and press the buttons (see fi g. 4-14) allowing the two parts to be
separated at the same time (ref. 2 fi g. 4-13).

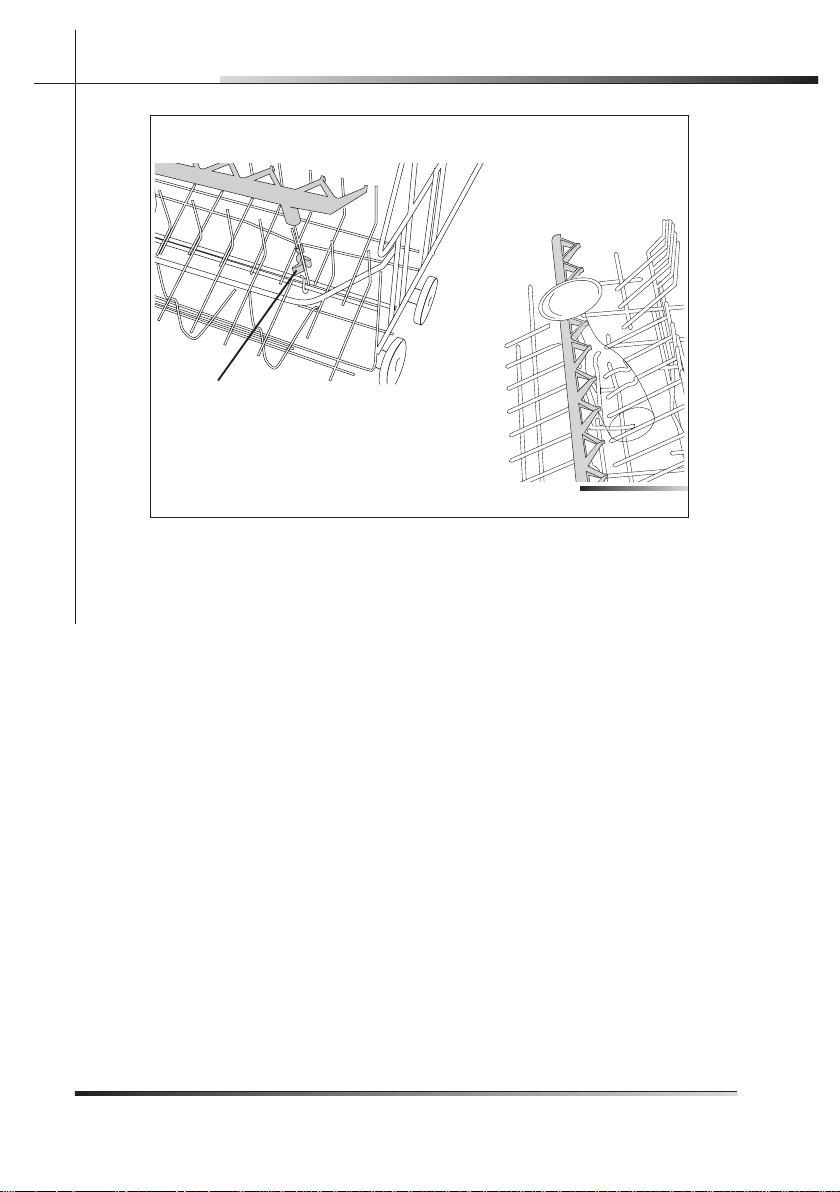

Fig. 4-11
Rev 0.0 27
USER INSTRUCTIONS
EN

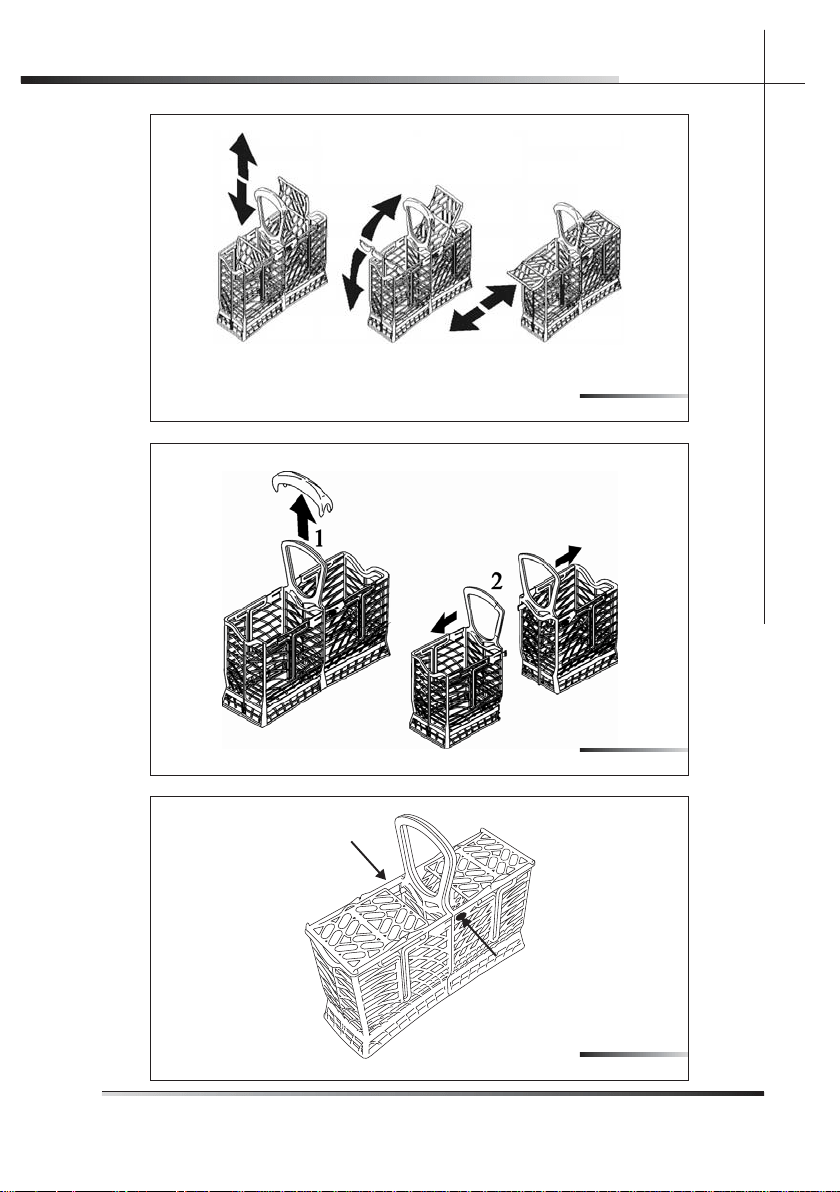

Inserti
verticali
Inserto
orizzontale
aperto
Inserto
orizzontale
chiuso
Movimento per l’estrazione
degli inserti
Fig. 4-12
Fig. 4-14
Fig. 4-13
Vertical inserts
Movement required
to extract the inserts
Horizontal
insert closed
Horizontal
insert open
28 Rev 0.0
USER INSTRUCTIONS
EN
5 CLEANING AND USER-MAINTENANCE
BEFORE CARRYING OUT ANY WORK, ALWAYS DISCONNECT
THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY.
5.1 General warnings and recommendations
NEVER USE ABRASIVE AND/OR CORROSIVE DETERGENTS TO
CLEAN THE APPLIANCE.
Clean the outer surfaces and door-lining of the dishwasher regularly using a
soft cloth moistened with a neutral detergent (not abrasive and/or corrosive)
suitable for painted surfaces. Clean the door gaskets with a damp sponge.
Periodically (once or twice a year) it is advisable to clean the tank and gaskets,
using a soft cloth and water to remove any deposits.
Do not clean the controls with too much water as this may leak onto the elec-
tronic components and damage them.
After cleaning, dry the appliance with a soft, lint-free cloth.
If stainless steel surfaces are preset, clean them with a non-abrasive product
specifi c for stainless steel. To prevent stains, a nebulizer may also be used,
though sparingly and at a moderate pressure.
Rev 0.0 29
USER INSTRUCTIONS
EN
5.2 Cleaning the water intake fi lter
The water intake fi lter located at the outlet of the water supply tap needs to be
cleaned periodically. After having closed the water supply tap, unscrew the end
(ref. A fi g. 5-01) of the water intake hose (use a pair of pliers, if necessary), and
clean it delicately carefully, screw the water intake hose back into position (ref.
A fi g. 5-01) (use a pair of pliers, if necessary).
A
5.3 Cleaning the spray arms
The spray arms can be easily removed for periodic cleaning of the nozzles,
to prevent possible clogging. Wash them under running water (at room tem-
perature) and carefully replace them in their seats, checking that their rotary
movement is in no way impeded; if this is not the case, make sure they have
been mounted properly.
Removing the spray arms
To remove an upper spray arm (ref. A fi g. 5-02), unscrew the locking ring
(ref. B fi g. 5-02) by turning it clockwise. After cleaning, remount the spray
arm in its seat and tighten the locking ring by turning it anti-clockwise.
To remove a lower spray arm (ref. A fi g. 5-03), simply lift it up, pulling by the
central part (see fi g. 5-03). To remove the orbital spray arm assembly (ref. B
fi g. 5-03), take hold of the lower arm (ref. A fi g. 5-03) and pull the orbital unit
upward (see fi g. 5-04). After cleaning, remount the orbital spray arm in its
seat and push it down slightly until it clicks into place on the lower spray arm.
Then remount the lower spray arm into its seat and push it down slightly until
it click into place (see fi g. 5-03).
•
•

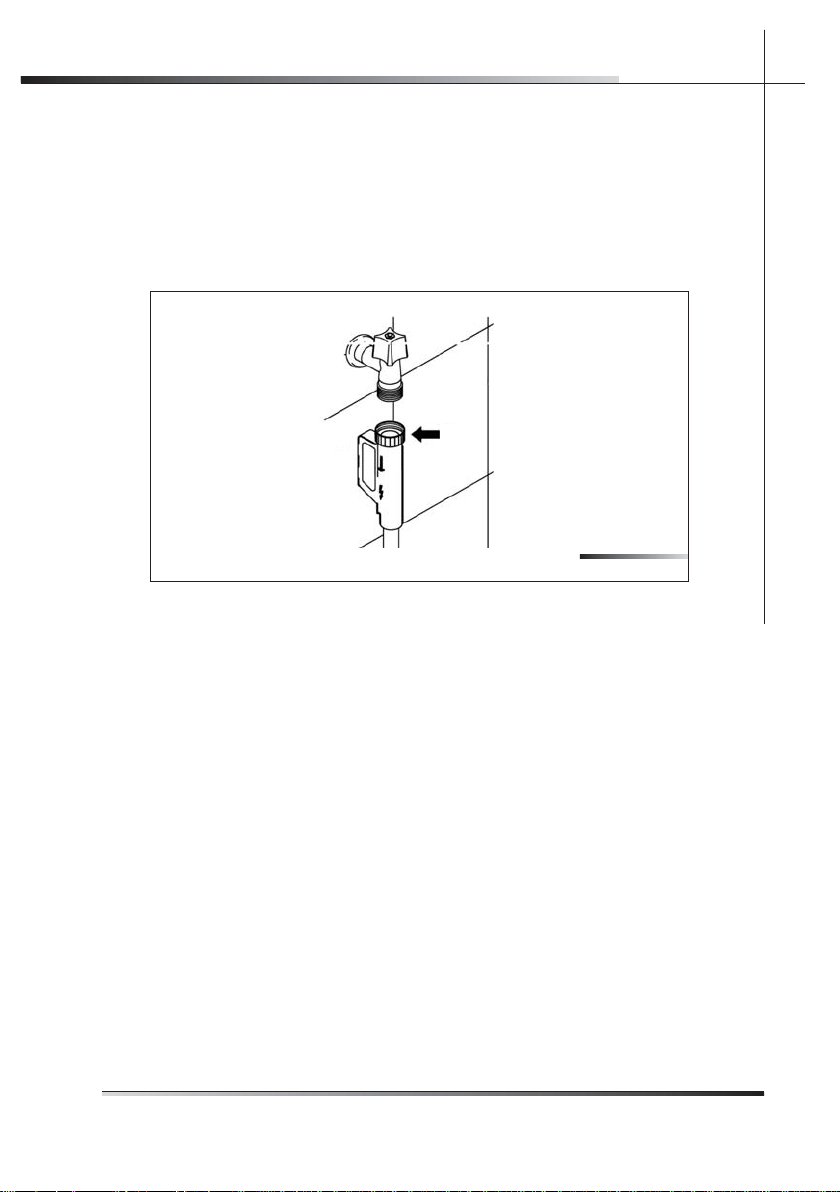

Fig. 5-01
30 Rev 0.0
USER INSTRUCTIONS
EN

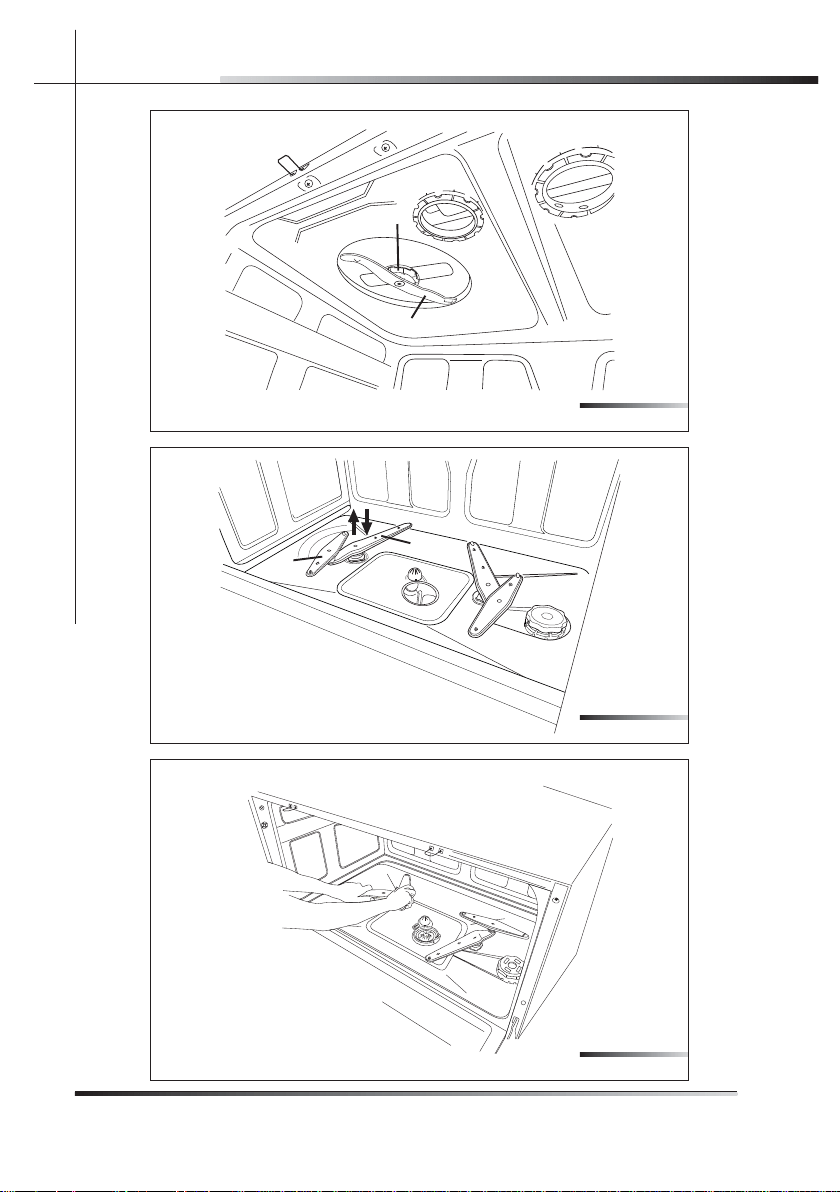

Fig. 5-03
Fig. 5-02
Fig. 5-04
A
B
A
B
.
•
•
•
•
•
•
•
Rev 0.0 31
USER INSTRUCTIONS
EN

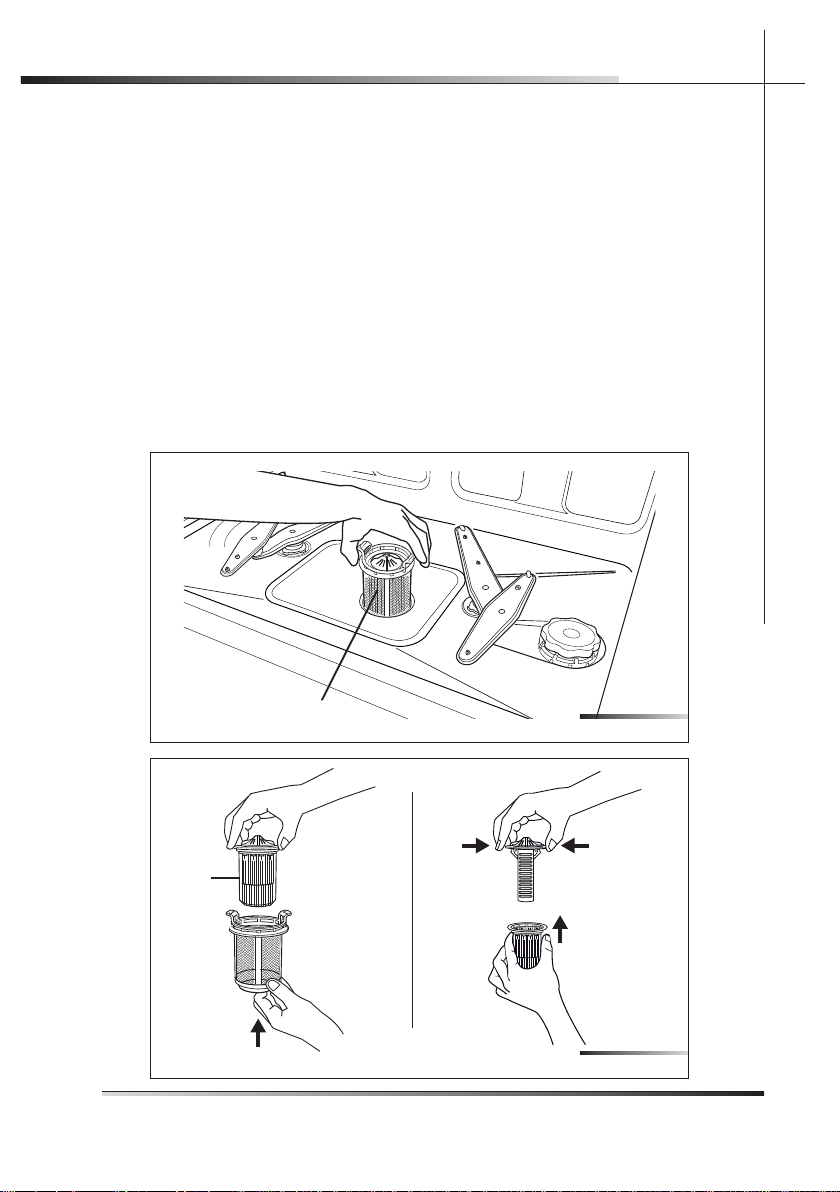

Fig. 5-05
Fig. 5-06
5.4 Cleaning the fi lter unit
Periodically inspect the fi lter unit (ref. A fi g. 5-05) and, if necessary, clean it
under running water (at room temperature), using a stiff brush. To remove
the fi lter, grip the tabs, turn anticlockwise and lift upwards;
push the centre fi lter (ref. A fi g. 5-06) from the underside to remove it from
the micro-fi lter;
separate the two parts which make up the plastic centre fi lter by pressing
the body of the fi lter in the zone shown by the arrows (ref. B fi g. 5-06);
remove the centre fi lter by lifting it upwards.
after cleaning, remount the fi lter unit, joining the two parts comprising the
centre fi lter by pushing slightly until they click into place; insert the centre
fi lter into the micro-fi lter (see fi g. 5-06). Reposition the fi lter unit (ref. A fi g.
5-05) into its seat, turning it clockwise until it locks.
A
BB
A
•
•
•
•
•
32 Rev 0.0
USER INSTRUCTIONS
EN

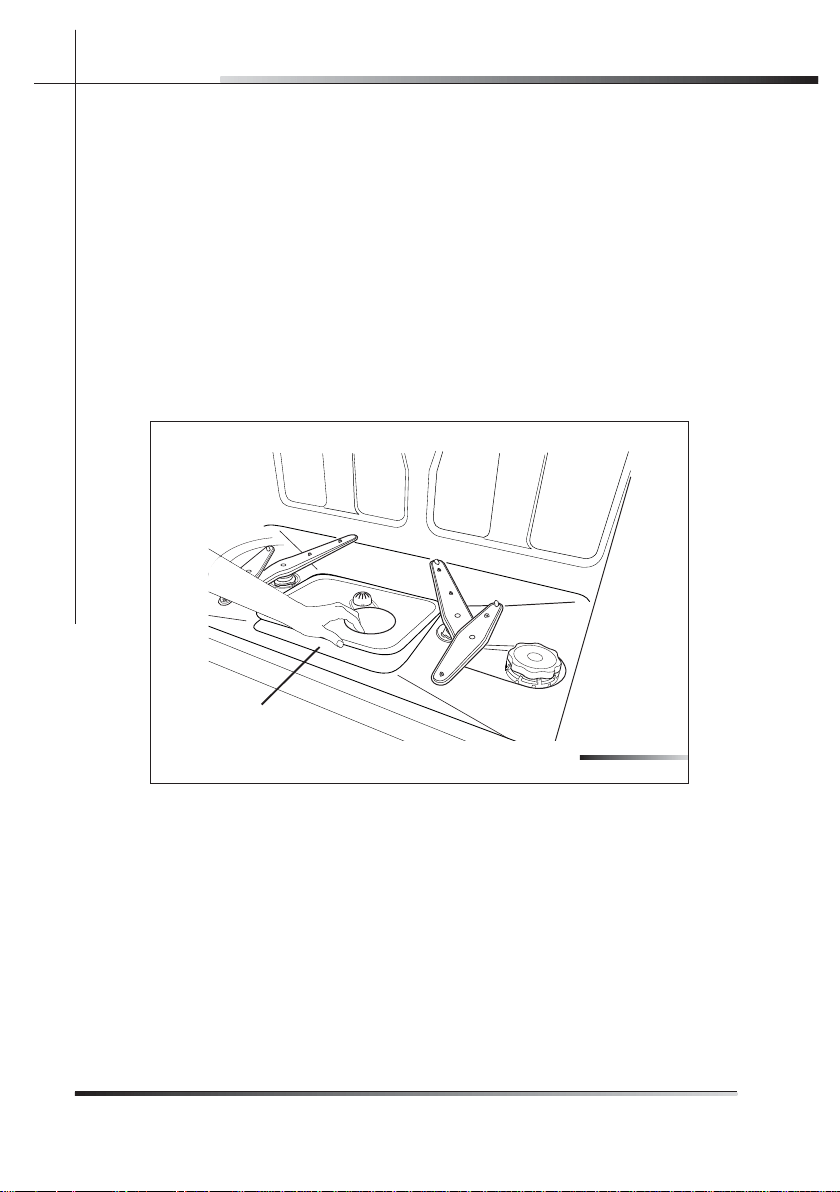

5.5 General warnings and recommendations
for correct maintenance
Clean the fi lters under running water (at room temperature) using a stiff
brush.
When removing the fi lter, take care that there are no food residues on
it. If any residues fall into the washing pit (ref. A fi g. 5-07), they might block
hydraulic components or foul the spray arm nozzles.
It is essential to thoroughly clean the fi lters according to the above in-
structions: the dishwasher cannot function if the fi lters are clogged.
Carefully replace the fi lters in their seats, to avoid damaging the wash
pump.
A
Prolonged disuse
Run the soak program twice in succession.
Unplug the power cord from the socket.
Leave the door slightly open in order to prevent the formation of unpleas-
ant odors inside the washing tank.
Fill the rinse-aid dispenser.
Shut off the water supply tap .
•
•
•
•
•
•
•
•
•
•
•
•
•
Fig. 5-07
Rev 0.0 33
USER INSTRUCTIONS
EN
Before starting the dishwasher after prolonged disuse
Check that there are no deposits of sludge or rust inside the water pipe: if
there are, allow the water to run from the water supply tap for a few min-
utes.
Plug the power cord back into the socket.
Reconnect the water intake hose and open the tap again.
5.6 Troubleshooting minor problems
In some cases it is possible to remedy minor problems by referring to the fol-
lowing instructions:
If the program fails to start, check that:
the dishwasher is connected to the electrical power supply;
there is no power failure;
the water tap is open;
the dishwasher door is properly closed.
If water remains inside the dishwasher, check that:
the drain hose is not kinked;
the drain siphon is not obstructed;
the dishwasher fi lters are not clogged.
If the dishes do not come out clean, check that:
the correct amount of detergent has been added;
there is regenerating salt inside the special container;
the dishes are being loaded correctly;
the selected program is suitable for the dish types and their degree of soil-
ing;
all the fi lters are clean and positioned correctly;
the spray arm nozzles are not obstructed;
there is no object obstructing the rotation of the spray arms.
If the dishes fail to dry or remain dull, check that:
there is rinse aid inside the special container;
the rinse-aid dispenser setting is correct;
the detergent used is of good quality and has not lost its effectiveness (for
example, through incorrect storage, with the box left open).
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
34 Rev 0.0
USER INSTRUCTIONS
EN
If the dishes show signs of streaking, staining, etc., check
that:
the rinse aid dispenser setting is not too high.
If there are visible traces of rust inside the tank:
the tank is made of steel, and therefore any rust marks are due to external
elements (fragments of rust from the water pipes, pots, cutlery, etc.). Special
products are commercially available to remove such marks.
check that the amount of detergent being used is correct. Certain deter-
gents can be more corrosive than others.
check that the cap of the salt container is securely closed, and that the water
softening setting is correct.
IF AFTER PERFORMING THE ABOVE TROUBLESHOOTING IN-
STRUCTIONS THE PROBLEM PERSISTS, CALL THE NEAREST
TECHNICAL ASSISTANCE CENTRE.
WARNING: ANY OPERATIONS PERFORMED ON THE APPLI-
ANCE BY UNAUTHORIZED PERSONS ARE NOT COVERED BY
THE WARRANTY AND SHALL BE PAID FOR BY THE USER.
•
•
•
•
Rev 0.0 35
USER INSTRUCTIONS
EN
6 TECHNICAL DATA (SEE TAB. 6-01)
Width
85,8 cm (33-13/16”)
Depth measured fl ush
with the outer edge of the
control panel
55 cm (21-21/32”)
Height
57,8 cm (22-3/4”)
Capacity
12 standard place-settings
Water supply pressure
min. 7 - max. 130 PSI (min. 0.5 – max. 9 bar)
Electrical characteristics
See rating plate
Tab. 6-01
Rev 0.0 1
CONTENTS
EN
Contents
1 INTRODUCTION .........................................................................................3
2 SAFETY INFORMATION ............................................................................ 5
3 INSTALLATION MATERIAL ......................................................................... 8
3.1 Kit supplied with dishwasher ...................................................................... 9
4 DIMENSIONS OF DISHWASHER ............................................................ 10
5 INSTALLATION AND HOOK-UP ............................................................... 11
5.1 Leveling .................................................................................................... 12
5.2 Connections ............................................................................................. 13
5.2.1 Connecting to the water supply ................................................................ 14
5.2.1.1 Connecting to the water tap ..................................................................... 15
5.2.1.2 Connecting the drain hose ....................................................................... 17
5.2.2 Electrical connections and warnings ......................................................... 22
5.3 Commissioninge ......................................................................................23
5.4 Testing ..................................................................................................... 35
2 Rev 0.0
EN
Rev 0.0 3
INTRODUCTION
EN
1 INTRODUCTION
Thank you for choosing one of our products. To install this dish-
washer correctly and safely, please read this manual carefully. The
manual is divided into sections giving you a step-by-step guide to
installation of the appliance. The texts are easy to understand and
are complete with detailed illustrations. This user-friendly manual will
provide answers to all your questions about installation of the dish-
washer.
This manual comprises the following sections:
INTRODUCTION: general information about the manual.
WARNINGS: a list of warnings concerning safety during installation.
INSTALLATION INSTRUCTIONS: for the qualifi ed technician who
must carry out the installation, hook-up and testing of the appli-
ance.
Nomenclature of fi gures and tables:
The progressive number of each fi gure is shown in the bottom right-
hand corner of the relative box. An example of a progressive number
is “Fig. 4-01”, where the fi rst number (4) indicates the section to
which the fi gure belongs, while the second number (01) indicates
the progressive number of the fi gure in section 4 (Fig. 4-01 is the
fi rst fi gure in section 4). The tables are numbered in the same way,
bearing in mind that “Tab.” is used instead of “Fig.” (e.g.: Tab. 4-01
is the fi rst table in section 4). If a table occupies more than one page,
a letter is added after the progressive number (e.g.: “Tab. 4-01a”,
Tab. 4-01b”).
4 Rev 0.0
INTRODUCTION
EN
Symbols used in this manual (see tab. 1-01)
DANGER. This symbol highlights information and warnings which,
if not observed, may compromise personal safety or damage the
appliance.
DANGER OF ELECTROCUTION. This symbol highlights information
and warnings of an electrical nature which, if not observed, may
compromise personal safety or damage the appliance.
This symbol highlights general information and warnings.
Tab. 1-01
Rev 0.0 5
WARNINGS
EN
2 SAFETY PRECAUTIONS
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE
AND MUST THEREFORE BE KEPT INTACT TOGETHER WITH THE
MACHINE. BEFORE USING THE APPLIANCE, CAREFULLY READ
ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTAL-
LATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN,
IN COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS AP-
PLIANCE IS INTENDED FOR DOMESTIC USE, AND COMPLIES
WITH THE DIRECTIVES CURRENTLY IN FORCE, INCLUDING THE
PREVENTION AND ELIMINATION OF RADIO FREQUENCY INTER-
FERENCE. THE APPLIANCE IS DESIGNED FOR THE FOLLOWING
PURPOSE: WASHING AND DRYING OF DISHES; ANY OTHER
USE SHALL BE CONSIDERED IMPROPER. THE MANUFAC-
TURER DECLINES ALL RESPONSIBILITY FOR USES OTHER
THAN THOSE DESCRIBED ABOVE.
INSTALLATION, REPAIRS AND SERVICING MUST BE PER-
FORMED BY QUALIFIED AND AUTHORIZED TECHNICIANS.
AS WELL AS INVALIDATING THE WARRANTY, WORK CARRIED
OUT BY UNAUTHORIZED PERSONS MAY GENERATE HAZARDS.
INSTALLATION MUST BE PERFORMED IN COMPLIANCE WITH
ALL THE DIRECTIVES IN FORCE IN THE COUNTRY OF INSTALLA-
TION AND, IF THESE DO NOT EXIST: IN THE UNITED STATES THE
NATIONAL ELECTRIC CODE; IN CANADA THE CANADIAN ELEC-
TRIC CODE C22.1 - LATEST EDITION/PROVINCIAL AND MUNICI-
PAL CODES AND/OR LOCAL CODES.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL
NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE IN-
NER EDGE OF THE DOOR. THE NAMEPLATE ON THE INNER
EDGE OF THE DOOR MUST NEVER BE REMOVED.
THIS APPLIANCE IS NOT SUITABLE FOR USE ON BOATS, CARA-
VANS OR THE LIKE . DISHWASHERS CERTIFIED FOR DOMESTIC
USE ARE NOT SUITABLE FOR AUTHORISED FOOD FACTORIES.
CHECK THAT THE VOLTAGE, FREQUENCY AND PROTECTION OF
THE DOMESTIC MAINS POWER SUPPLY MATCH THE RATINGS
ON THE NAME PLATE OF THE APPLIANCE.
6 Rev 0.0
WARNINGS
EN
TWO PEOPLE WEARING SAFETY GLOVES ARE REQUIRED
TO LIFT THE DISHWASHER.
DO NOT LEAVING DISCARDED PACKAGING MATERIALS UNSU-
PERVISED WITHIN THE HOME. SEPARATE THE VARIOUS PACK-
AGING MATERIALS AND TAKE THEM TO THE NEAREST SORTED
WASTE COLLECTION CENTRE. KEEP CHILDREN, PHYSICALLY
AND/OR MENTALLY IMPAIRED ADULTS, AND ANIMALS AWAY
FROM PACKAGING WASTE; DANGER OF SUFFOCATION.
BEFORE PROCEEDING WITH INSTALLATION, DISCONNECT THE
MAINS POWER SUPPLY FROM THE WORK AREA.
DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF
ON THE SHARP EDGES OF THE APPLIANCE; WEAR SAFETY
GLOVES.
THE APPLIANCE MUST BE PROVIDED WITH A GROUND CON-
NECTION IN ACCORDANCE WITH THE ELECTRICAL SAFETY
REGULATIONS IN FORCE. IF IN DOUBT, HAVE THE SYSTEM
CHECKED BY A QUALIFIED ELECTRICIAN.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
DAMAGE TO PERSONS OR PROPERTY RESULTING FROM
THE FAILURE TO GROUND THE APPLIANCE OR FROM A DE-
FECTIVE GROUND CONNECTION.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DUR-
ING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. THE APPLI-
ANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER
OR BY A QUALIFIED TECHNICIAN.
DO NOT OPERATE THE DISHWASHER UNLESS ALL THE OUTER
PANELS HAVE BEEN POSITIONED CORRECTLY.
IMMEDIATELY AFTER INSTALLATION, BRIEFLY TEST THE APPLI-
ANCE FOLLOWING THE INSTRUCTIONS INDICATED BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCON-
NECT IT FROM THE ELECTRICAL POWER SUPPLY AND CALL THE
NEAREST TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO
REPAIR THE APPLIANCE.
Rev 0.0 7
WARNINGS
EN
DO NOT USE EXTENSION CORDS, ADAPTORS OR SHUNT CON-
NECTIONS IN ORDER TO AVOID THE POSSIBILITY OF OVERHEAT-
ING OR BURNING, WITH CONSEQUENT FIRE HAZARD.
THE MANUFACTURER DECLINES ALL RESPONSIBIL-
ITY FOR DAMAGE TO PERSONS, ANIMALS OR PROPER-
TY RESULTING FROM FAILURE TO OBSERVE THE ABOVE
PRECAUTIONS, FROM TAMPERING WITH EVEN A SINGLE
COMPONENT OF THE APPLIANCE, OR FROM THE USE OF
UNORIGINAL SPARE PARTS.
IF IN DOUBT ABOUT THE CONTENTS OF THIS MANUAL,
CONTACT THE TECHNICAL ASSISTANCE SERVICE.
8 Rev 0.0
INSTALLATION INSTRUCTIONS
EN

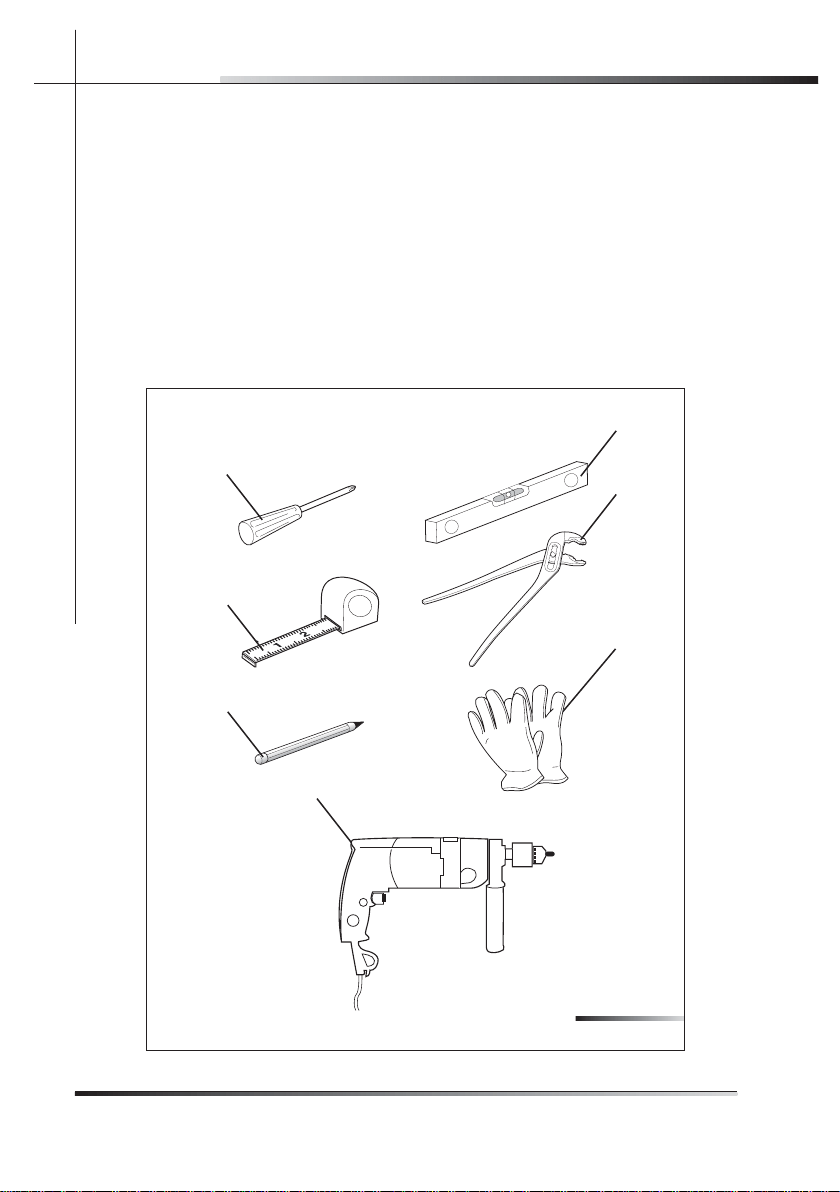

3 INSTALLATION MATERIAL
Per eseguire correttamente l’installazione della lavastoviglie, sono necessari i
seguenti materiali:
Philips screwdriver (ref. A fi g. 3-01);
spirit level (ref. B fi g. 3-01);
tape measure (ref. C fi g. 3-01);
plumbing pliers (ref. D fi g. 3-01);
pencil (ref. E fi g. 3-01);
safety gloves (ref. F fi g. 3-01);
drill (ref. G fi g. 3-01).
Fig. 3-01
G
E
F
C
D
A
B
•
•
•
•
•
•
•
Rev 0.0 9
INSTALLATION INSTRUCTIONS
EN
3.1 Kit supplied with dishwasher
The kit supplied with the dishwasher comprises:
adhesive steam guard (ref. A fi g. 3-02);
1 template for door panel (ref. B fi g. 3-02);
2 aluminium hooks for upper door panel (ref. C Fig. 3-02);
2 plastic hooks for lower door panel (ref. D Fig. 3-02);
2 shims (ref. E Fig. 3-02);
12 screws for securing the upper and lower door panel hooks (ref. F Fig.
3-02);
2 screws for securing the upper door panels (ref. G Fig. 3-02);
2 screws for securing the dishwasher to the adjacent walls (ref. H Fig. 3-
02);
2 screw caps (ref. I Fig. 3-02).

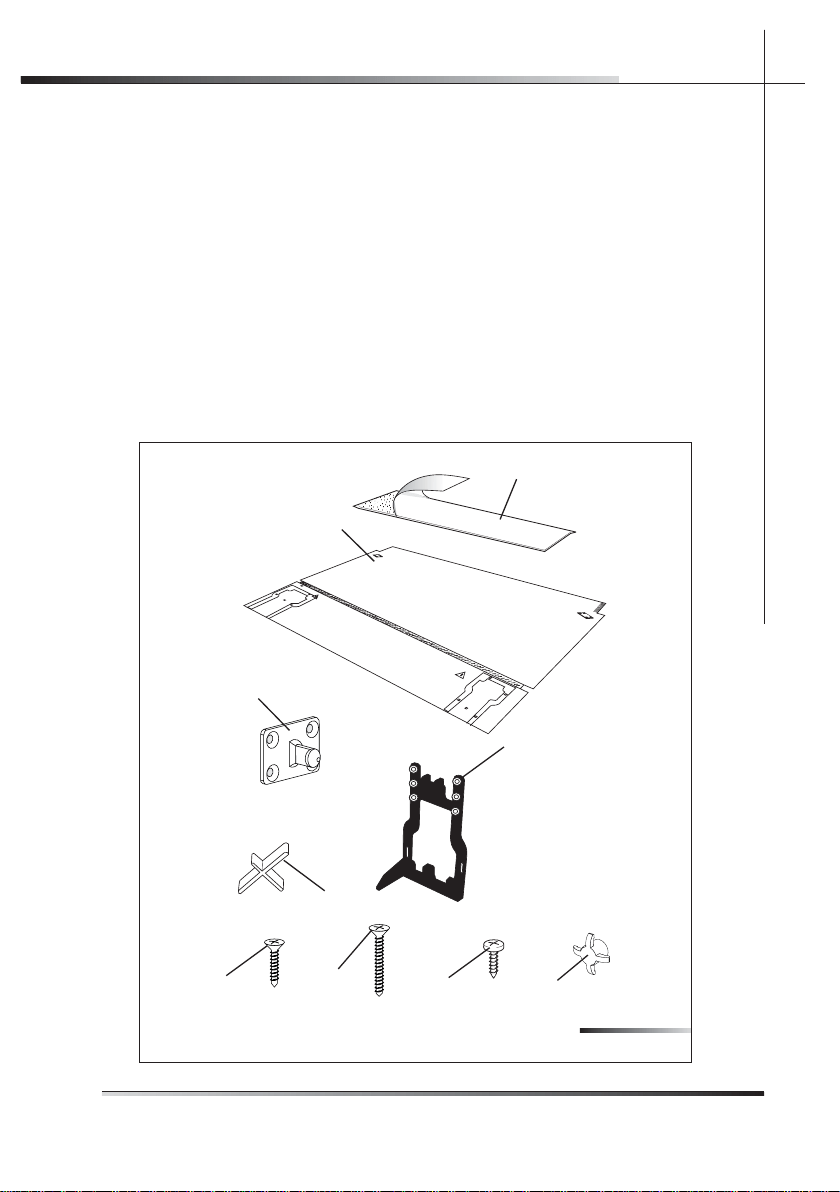

Fig. 3-02
A
B
C
D
E
F
G
H
I
•
•
•
•
•
•
•
•
•
•
10 Rev 0.0
INSTALLATION INSTRUCTIONS
EN
4 DIMENSIONS OF DISHWASHER (SEE FIG. 4-01)
Model A (height) B (width) C (depth)
STO905
578 mm
(22-3/4”)
859 mm
(33-13/16”)
550 mm
(21-21/32”)
Tab. 4-01
Fig. 4-01
A
C
B
Rev 0.0 11
INSTALLATION INSTRUCTIONS
EN
5 INSTALLATION AND HOOK-UP
DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF
ON THE SHARP EDGES OF THE APPLIANCE.
Remove the polystyrene rack blocks. Position the appliance in the chosen in-
stallation position. The sides and rear of the appliance can lie against kitchen
units or walls. If the dishwasher is installed next to a heat source, separate it
with a heat insulating panel in order to prevent overheating and malfunctions.
To assure stability, only install built-in appliances under continuous worktops,
securing them to the adjacent kitchen units or worktop with screws.
BUILDING-IN A DISHWASHER UNDERNEATH A CERAMIC HOB IS
ABSOLUTELY FORBIDDEN. A DISHWASHER CAN BE BUILT-IN
UNDERNEATH A CONVENTIONAL HOB PROVIDED THERE IS NO
BREAK IN THE KITCHEN WORKTOP, AND THE DISHWASHER
AND HOB ARE INSTALLED AND SECURED CORRECTLY, SO
THAT NO HAZARDS ARE GENERATED.
MAKE SURE THE DISHWASHER HAS BEEN CORRECTLY IN-
STALLED AND GROUNDED BY A QUALIFIED FITTER. THIS
SAFETY REQUIREMENT MUST BE MET. IN CASE OF DOUBT,
CALL IN A QUALIFIED FITTER. THE MANUFACTURER DE-
CLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS
OR PROPERTY RESULTING FROM THE FAILURE TO GROUND
THE APPLIANCE OR FROM A DEFECTIVE GROUND CON-
NECTION.
BEFORE PROCEEDING WITH INSTALLATION, DISCONNECT
THE MAINS POWER SUPPLY FROM THE WORK AREA.
Only for free-standing models
It is strictly forbidden to mount a hob over a free-standing dishwasher.
If the appliance is not in a niche and can therefore be accessed on one
side, cover the door hinge area for safety reasons (cutting hazard). Covers
are available as accessories from specialized retailers or from the Technical
Service Centre.
To build in the dishwasher, purchase the relative kit from specialized retail-
ers or from the Technical Service Centre.
•
•
•
12 Rev 0.0
INSTALLATION INSTRUCTIONS
EN
5.1 Leveling
Before pushing the dishwasher into position, make sure the supporting surface
is perfectly level; check with a spirit level (ref. A Fig. 5-01). If necessary, adjust
the supporting surface of the dishwasher in order to allow correct operation.
After doing this, push in the dishwasher.
Fig. 5-01
A
Rev 0.0 13
INSTALLATION INSTRUCTIONS
EN
5.2 Connections
Install the dishwasher so as to allow ease of access to the electrical and hy-
draulic connections through the adjacent unit. These connections must never
be behind the dishwasher.
The inlet and drain hoses can be pointed in all directions. make sure that they
are not bent, crushed or too tight. Tighten the ring nut after pointing the hoses
in the required direction.
Figure 5-02 indicates the distances to maintain between the dishwasher and
the various connections.
FIRE HAZARD!
DO NOT COVER OR CRUSH THE CORD PLUG.
A
A = 1200 mm / 47”
B = 1500 mm / 59”
C = 1600 mm / 63”
D = min. 400 mm / 16”
D
B
C
Fig. 5-02
14 Rev 0.0
INSTALLATION INSTRUCTIONS
EN

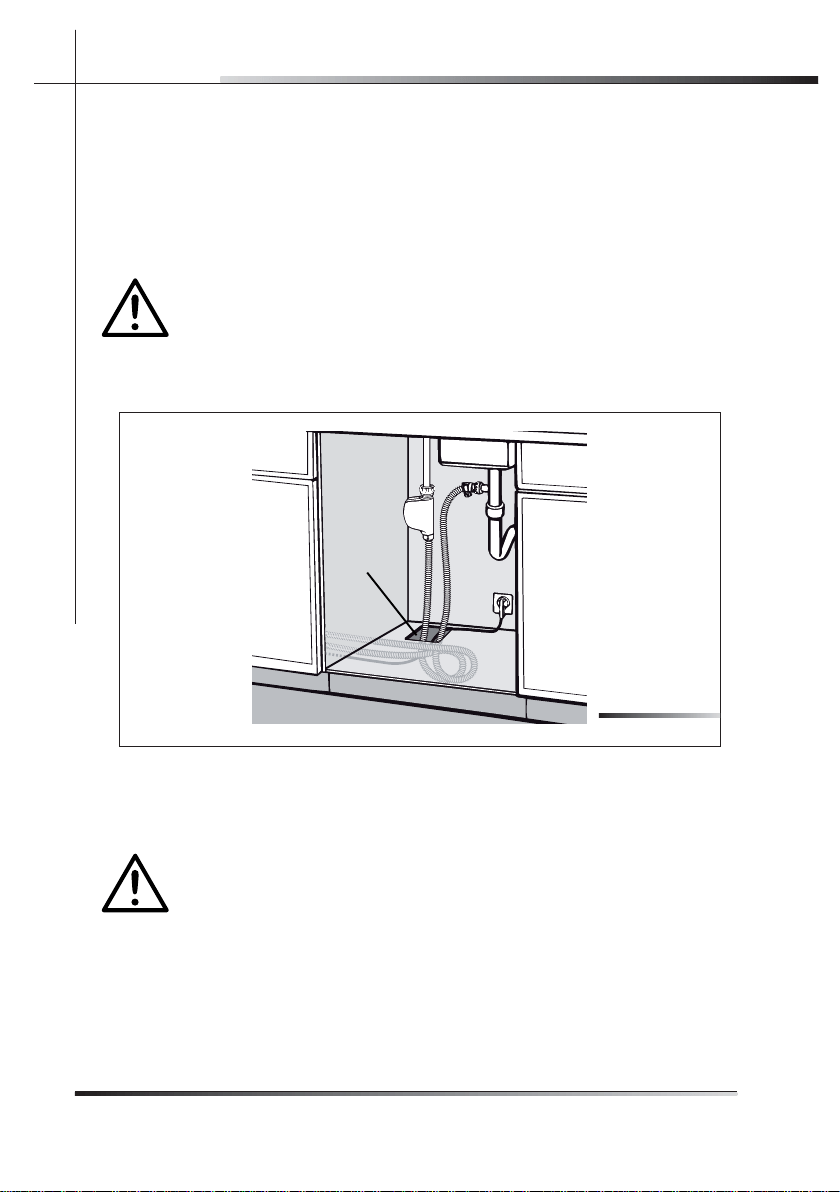

A through hole with a diameter of at least 8 cm (5/32”) is required to pass the
hoses and power cord (ref. A fi g. 5-03).
Make sure there area no rough edges that could damage the power cord or
hoses. If the dishwasher is installed in a metal unit protect the edge of the
through hole for the hoses and power cord with a gasket. Do not use exten-
sion cords when making the electrical connection as these do not guarantee
safety.
ATTENTION!
INSTALLING THE DISHWASHER IN A NARROW SPACE MAY BEND
OR CRUSH THE POWER CORD. TAKE GREAT CARE IN ORDER TO
REDUCE THE POSSIBILITY OF DAMAGING THE POWER CORD
WHEN INSTALLING OR REMOVING THE APPLIANCE.
A
5.2.1 Connecting to the water supply
PREVENTING THE RISK OF CLOGGING OR DAMAGE: IF THE
WATER PIPE IS NEW OR HAS NOT BEEN USED FOR A LONG
TIME, BEFORE CONNECTING TO THE WATER SUPPLY CHECK
THAT THE WATER IS CLEAR AND FREE OF IMPURITIES, TO PRE-
VENT DAMAGE TO THE APPLIANCE. THE DISHWASHER MUST
ALWAYS BE CONNECTED TO THE WATER SYSTEM WITH
NEW HOSES; OLD OR USED HOSES MUST NEVER BE RE-
USED.
Fig. 5-03
Rev 0.0 15
INSTALLATION INSTRUCTIONS
EN

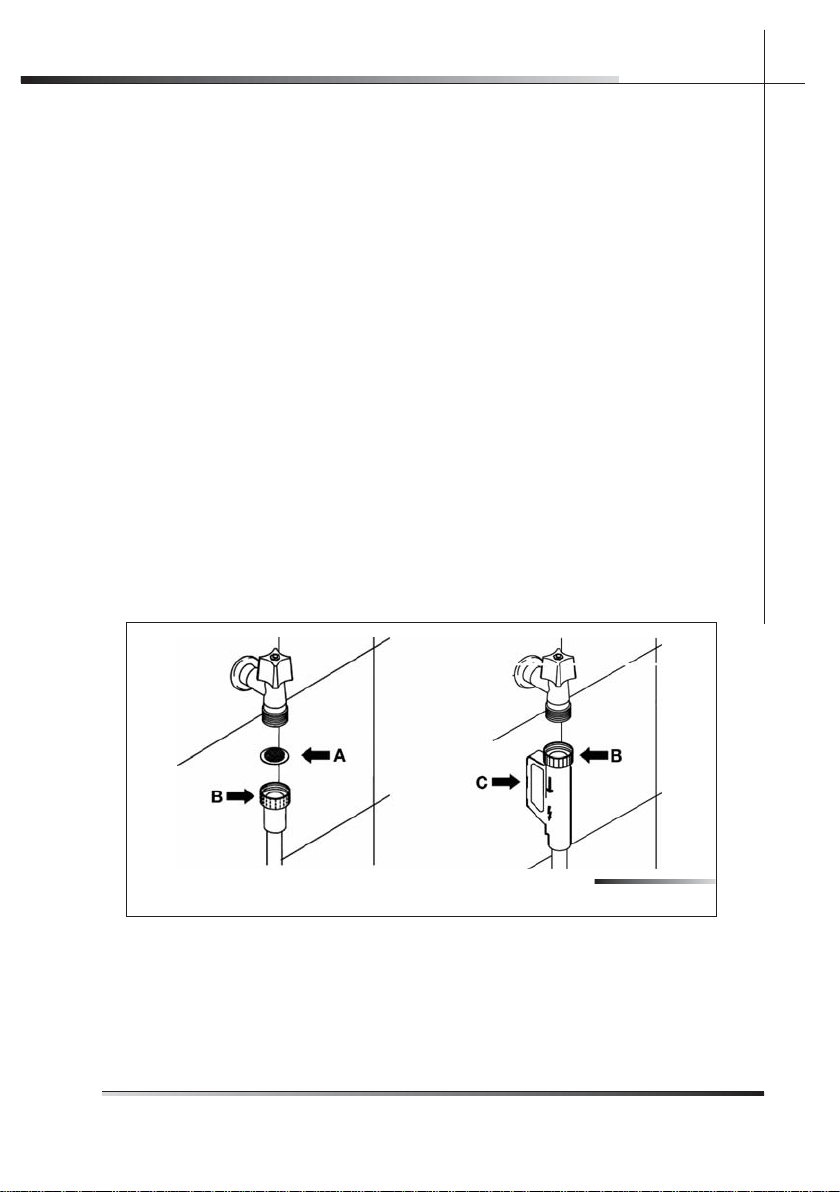

Fig. 5-04
5.2.1.1 Connecting to the water tap
Connect the inlet hose to a threaded ¾” gas cold water tap, fi tting the supplied
fi lter (ref. A fi g. 5-04). Firmly secure the hose by tightening the relative ring
nut with your hands (ref. B fi g. 5-04); fi nish by tightening another ¼ turn
using a pair of plumbing pliers. For models fi tted with ACQUASTOP
(ref. C fi g. 5-04) the fi lter is already present in the threaded ring nut.
The dishwasher can be fi lled with water at a temperature of less than
60°C (140°F).
If the appliance is fi lled with hot water, washing times will be reduced by about
20 minutes, but effi ciency will be slightly impaired. Make the connection to the
domestic hot water tap using the same methods described for connecting the
appliance to the cold water tap.
Recommended temperature: 49°C (120°F), max. 60 °C (140°F).
Recommended water pressure: 7 -130 PSI (0.5 - 9 bar).
If the pressure is too high, fi t a pressure reducer.
A rubber hose connected to a sink spray may burst if installed on the
same pipes feeding the dishwasher. If your sink is fi tted with this ac-
cessory, remove the hose and plug the hole.
•
•
16 Rev 0.0
INSTALLATION INSTRUCTIONS
EN

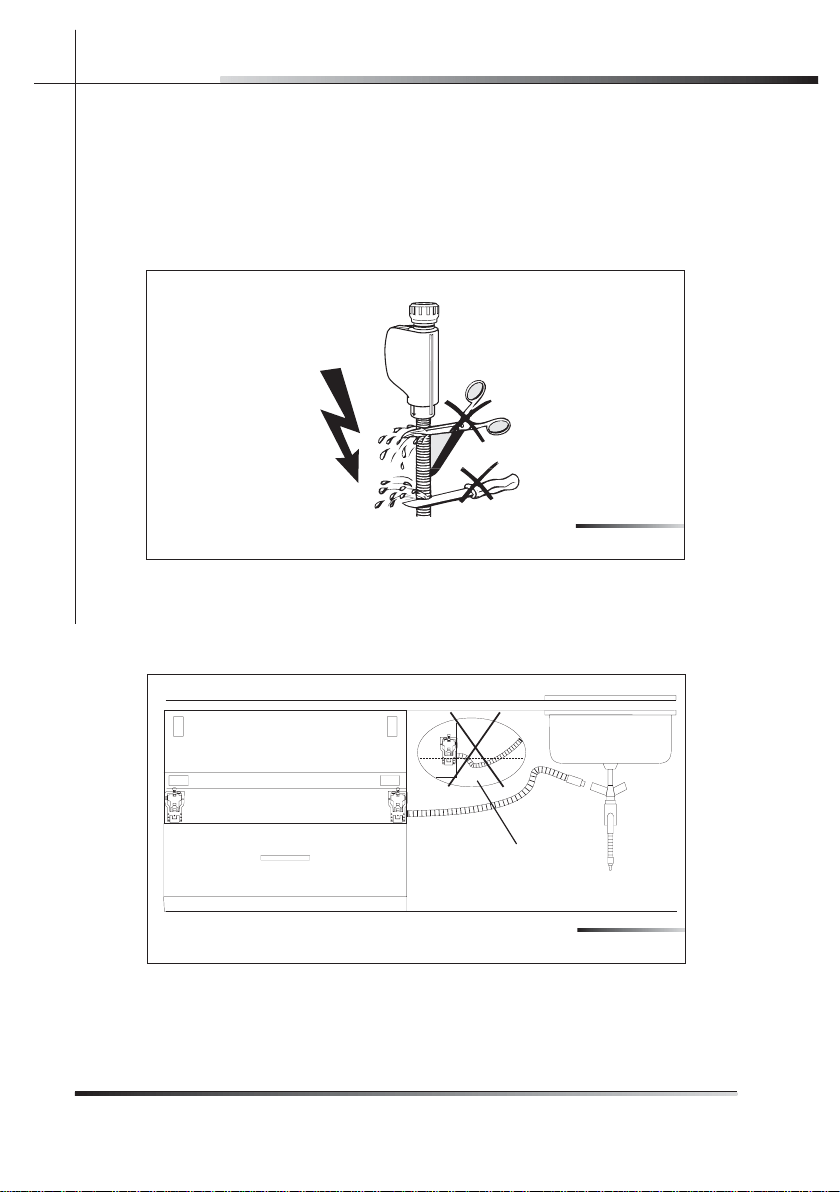

Do not cut the inlet hose (see fi g. 5-05).
If the hose is cut, the dishwasher will not work, water will leak and you may be
injured.
If the hose is too long, wind it up tidily and place it behind the appliance.
The cable harness and electrical components must not come into contact with
the hydraulic system and the water inlet and drain hoses.
When connecting the dishwasher drain hose to the sink make sure that the
hose is not bent (ref. A fi g. 5-06) in order to prevent cracks or breakages that
could damage it.
Fig. 5-06
A
Fig. 5-05
Rev 0.0 17
INSTALLATION INSTRUCTIONS
EN

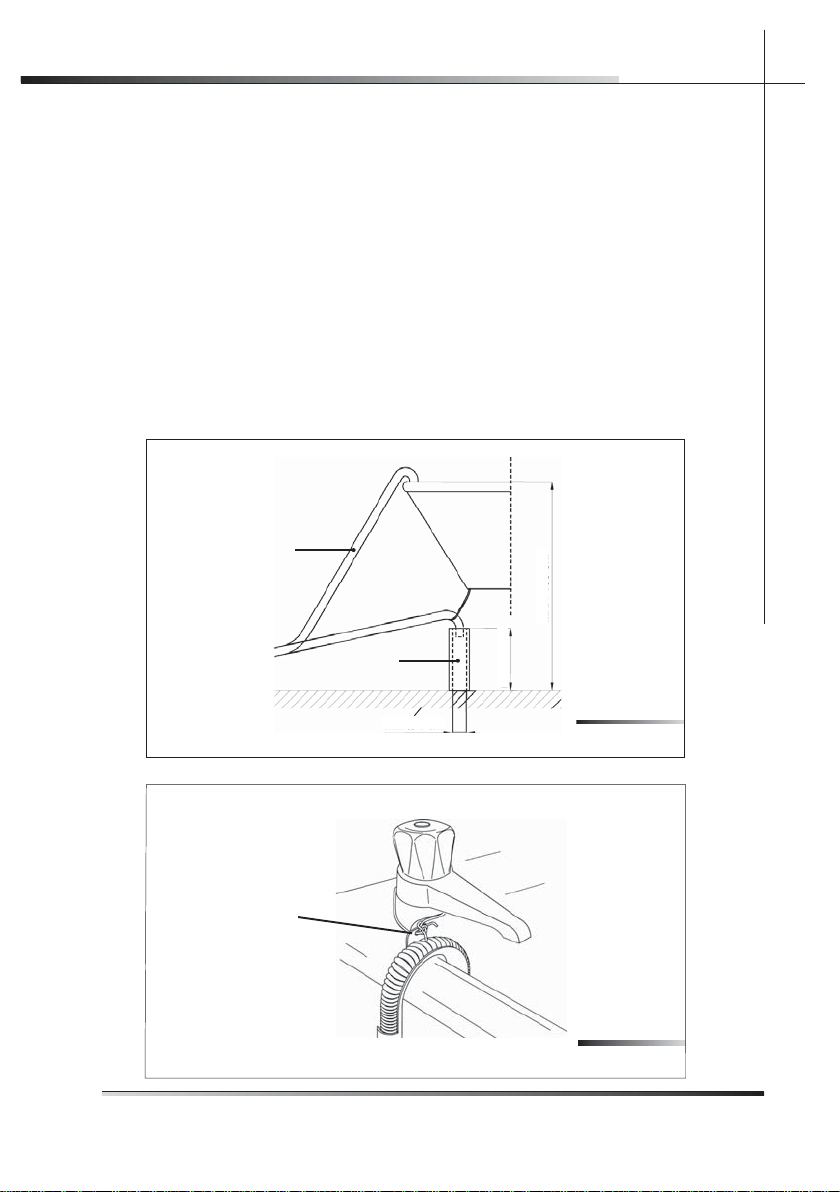

5.2.1.2 Connecting the drain hose
Connecting to a drain
Insert the relative hose into a drain with a minimum diameter of 4 cm (1-37/64”)
(ref. A fi g. 5-07); alternatively, place the hose on the sink (ref. B fi g. 5-07) using
the supplied hose support (see fi g. 5-08), but taking care to avoid obstructions
or excessive curving. Make sure the hose cannot fall out. For this purpose, the
hose support is fi tted with a hole (ref. A fi g. 5-08) which can be used to fi x it to
the wall or the tap with a piece of string. The free end must lie at a height rang-
ing from of 30 to 100 cm (from 1-7/32” to 3-59/64”) (see fi g. 5-07) and must
never be immerged in water. If horizontal extension hoses with a maximum
length of 3m are used, position the drain hose at a maximum height of 85 cm
(3-11/32”) above the fl oor.
Fig. 5-07
A
B
min O4 cm
1-37/64”
min 30 cm
1-7/32”
MAX 100 cm
3-59/64”
Fig. 5-08
A
18 Rev 0.0
INSTALLATION INSTRUCTIONS
EN

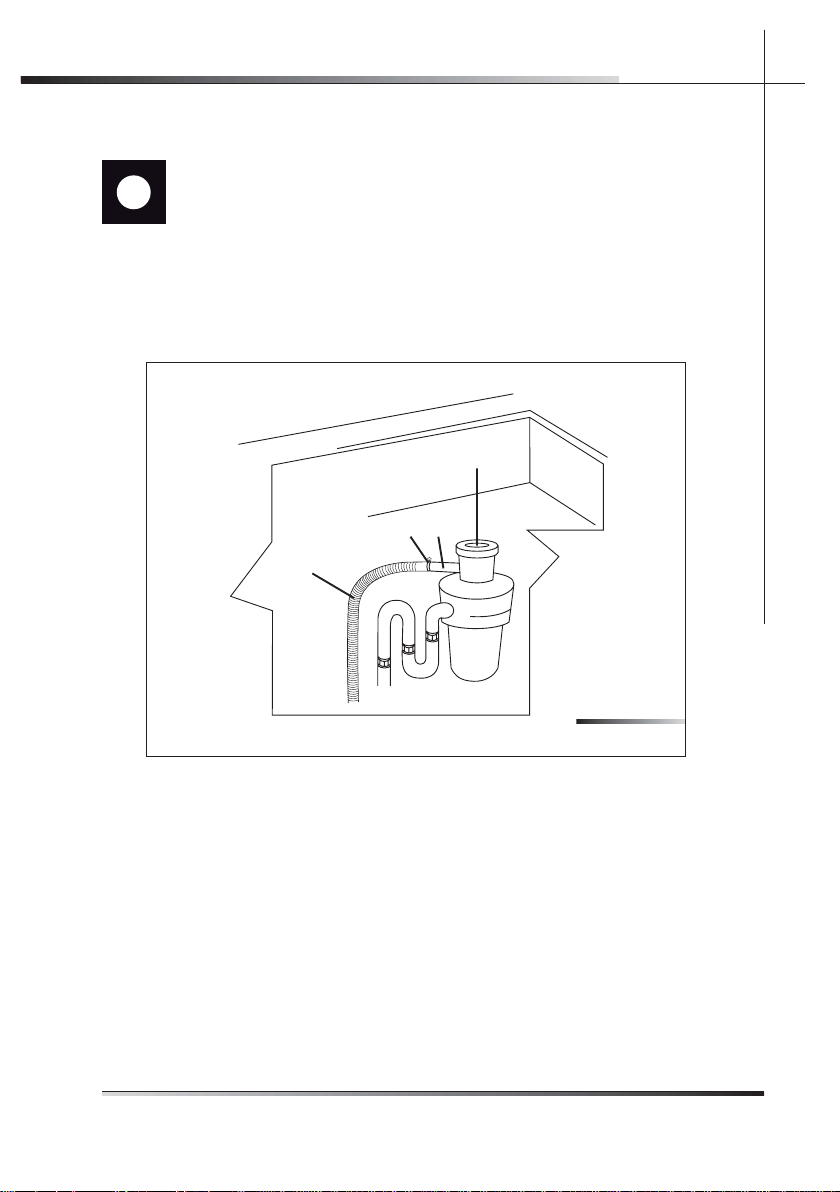

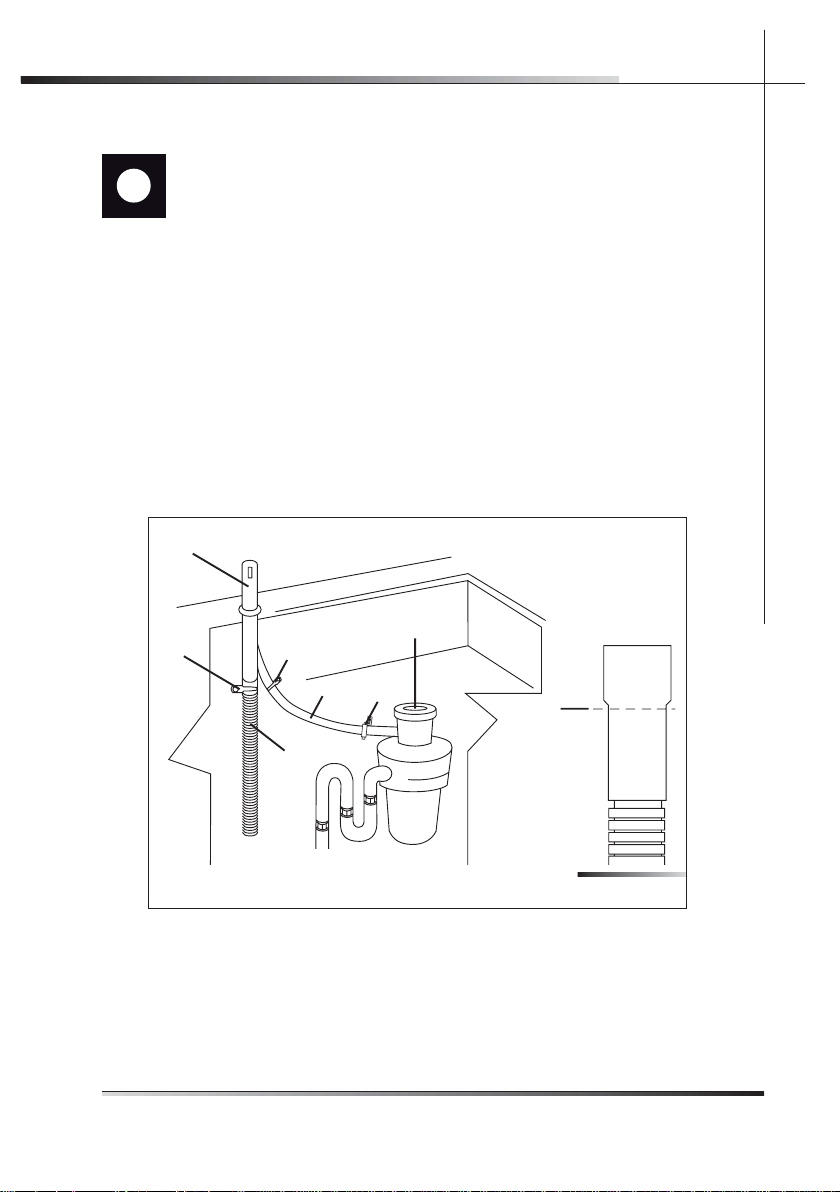

Connecting to a “T” union of the drain circuit
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm (15-3/4”) ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE INSTALLED.
Connect the dishwasher drain hose (ref. A fi g. 5-09) to the “T” union (ref. B
fi g. 5-09) of the drain circuit using a 38 to 50 mm (1-1/2 to 2”) screw clamp*
(ref. C fi g. 5-09); if necessary, cut the end of the dishwasher drain hose (ref.
D fi g. 5-09) (do not cut the corrugated section).
* Available from any plumbing stockist
Fig. 5-09
A
C
B
D
1.
Rev 0.0 19
INSTALLATION INSTRUCTIONS
EN
Connecting to a waste disposal unit with an air gap
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm (15-3/4”) ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE INSTALLED.
Remove the cover of the waste disposal unit (ref. A fi g. 5-10).
Connect the dishwasher drain hose (ref. B fi g. 5-10) to the air gap (ref. C
fi g. 5-10) using the wide spring clamp (ref. D fi g. 5-10); if necessary, cut the
end of the dishwasher drain hose (ref. E fi g. 5-10) (do not cut the corrugated
section). If the drain hose has been cut, use a 38 to 50 mm (1-1/2 to 2”)
screw clamp*.
To connect the air gap (ref. C fi g. 5-10) to the waste disposal unit inlet (ref. F
fi g. 5-10), use a rubber union* (ref. G fi g. 5-10) with spring or screw clamps*
(ref. H fi g. 5-10).
* Available from any plumbing stockis
Fig. 5-10
C
D
B
G
H
H
A
E
1.
2.
3.
20 Rev 0.0
INSTALLATION INSTRUCTIONS
EN

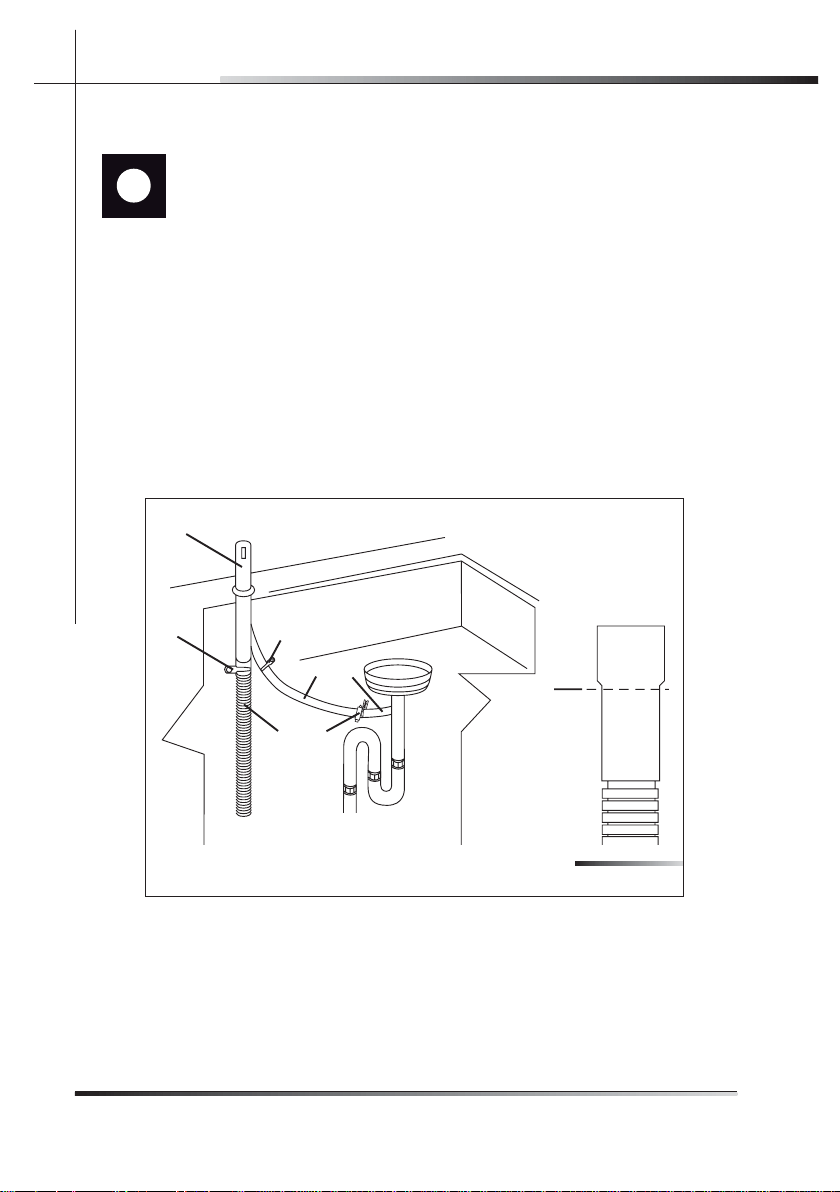

Connecting to the air gap (no waste disposal unit))
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm (15-3/4”) ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE INSTALLED.
Connect the dishwasher drain hose (ref. A fi g. 5-11) to the air gap (ref. B fi g.
5-11) using the wide spring clamp (ref. C fi g. 5-11); if necessary, cut the end
of the dishwasher drain hose (ref. D fi g. 5-11) (do not cut the corrugated
section). If the drain hose has been cut, use a 38 to 50 mm (1-1/2 to 2”)
screw clamp*.
To connect the air gap (ref. B fi g. 5-11) to the “T” union (ref. E fi g. 5-11) of the
drain line, use a rubber union* (ref. F fi g. 5-11) with spring or screw clamps*
(ref. G fi g. 5-11).
* Available from any plumbing stockist
Fig. 5-11
B
C
A
F
G
G
D
E
1.
2.
Rev 0.0 21
INSTALLATION INSTRUCTIONS
EN
Connecting to a waste disposal unit (no air gap)
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm (15-3/4”) ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE INSTALLED.
Remove the cover of the waste disposal unit (ref. A fi g. 5-12).
Connect the dishwasher drain hose (ref. B fi g. 5-12) to the waste disposal
unit inlet (ref. C fi g. 5-12), using the wide spring clamp (ref. D fi g. 5-12).
Fig. 5-12
B
D
C
A
1.
2.
22 Rev 0.0
INSTALLATION INSTRUCTIONS
EN
5.2.2 Electrical connections and warnings
CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE
MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE AP-
PLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR.
IN THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE
IT REPLACED BY THE MANUFACTURER OR AN AUTHORIZED
TECHNICAL SERVICE CENTRE.
THIS APPLIANCE MUST BE GROUNDED. IN CASE OF A MAL-
FUNCTION OF FAULT, THE GROUND REDUCES THE RISK OF
ELECTROCUTION BY PROVIDING THE ELECTRICAL CURRENT
WITH AN ALTERNATIVE, LESS RESISTANT PATH.
THIS APPLIANCE MUST BE GROUNDED. IN CASE OF A MAL-
FUNCTION OF FAULT, THE GROUND REDUCES THE RISK OF
ELECTROCUTION BY PROVIDING THE ELECTRICAL CURRENT
WITH AN ALTERNATIVE, LESS RESISTANT PATH. THIS APPLI-
ANCE IS FITTED WITH A SUPPLY CORD CONTAINING A GROUND
WIRE AND PLUG. FIT THE PLUG INTO A SUITABLE SOCKET, IN-
STALLED AND GROUNDED IN COMPLIANCE WITH THE LAWS IN
FORCE IN THE COUNTRY OF INSTALLATION.
BEFORE MAKING ELECTRICAL CONNECTIONS, DISCON-
NECT THE MAINS POWER SUPPLY FROM THE WORK
AREA.
Grounding instructions
This appliance is fi tted with a cord with ground wire and plug. Fit the plug into
a suitable socket, installed and grounded in compliance with the laws in force
in the country of installation.
CHECK THAT THE MAINS SUPPLY IN THE PLACE OF INSTAL-
LATION COMPLIES WITH THE REGULATIONS IN FORCE IN THE
COUNTRY OF USE, AND THAT IT IS CORRECTLY GROUNDED.
AN INCORRECTLY CONNECTED GROUND WIRE MAY GENERATE
THE RISK OF ELECTROCUTION. IF IN DOUBT AS TO THE COR-
RECT GROUNDING OF THE APPLIANCE, CALL IN A QUALIFIED
ELECTRICIAN OR THE TECHNICAL ASSISTANCE SERVICE. DO
NOT CHANGE THE PLUG ATTACHED TO THE APPLIANCE. IF THE
PLUG IS NOT SUITABLE FOR THE SOCKET, CALL IN A QUALIFIED
ELECTRICIAN TO FIT A SUITABLE PLUG.
Rev 0.0 23
INSTALLATION INSTRUCTIONS
EN

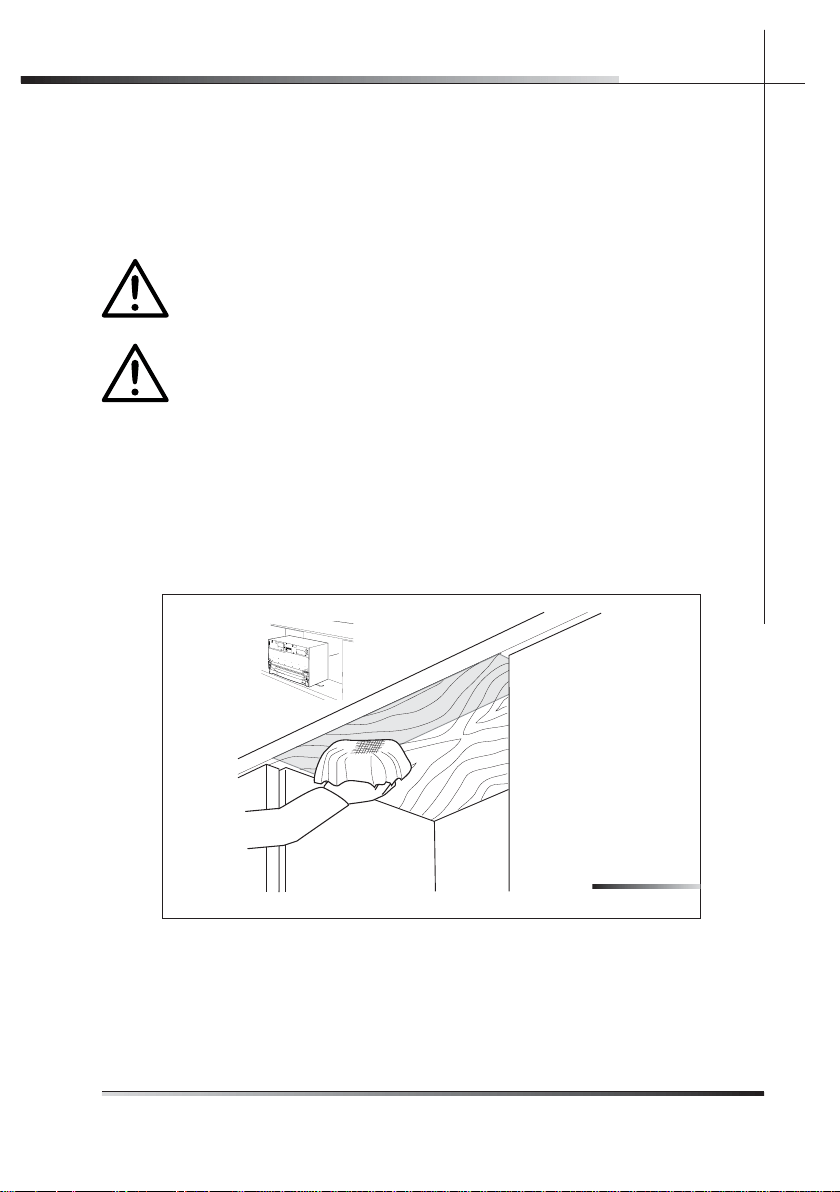

The plug at the end of the power cord and the corresponding socket must be
of the same type and must conform to current regulations governing electrical
appliances. The plug must be accessible after installation. Never remove the
plug by pulling on the wire. If the power cord is damaged, have it replaced
by the manufacturer or an authorized service centre.
DO NOT USE EXTENSION CORDS, ADAPTORS OR SHUNT CON-
NECTIONS IN ORDER TO AVOID THE POSSIBILITY OF OVER-
HEATING OR BURNING, WITH CONSEQUENT FIRE HAZARD.
N THE EVENT OF DAMAGE TO THE SUPPLY CORD, HAVE IT RE-
PLACED BY THE MANUFACTURER OR AN AUTHORIZED TECHNI-
CAL SERVICE CENTRE IN ORDER TO AVOID ANY RISK.
5.3 Commissioninge
Clean the underneath of the worktop lying over the dishwasher door (see fi g.
5-13) and apply the adhesive steam guard, as shown in fi g. 5-14. This guard
protects the worktop from steam and condensation when the door of the dish-
washer is opened at the end of the washing cycle.
Fig. 5-13
24 Rev 0.0
INSTALLATION INSTRUCTIONS
EN

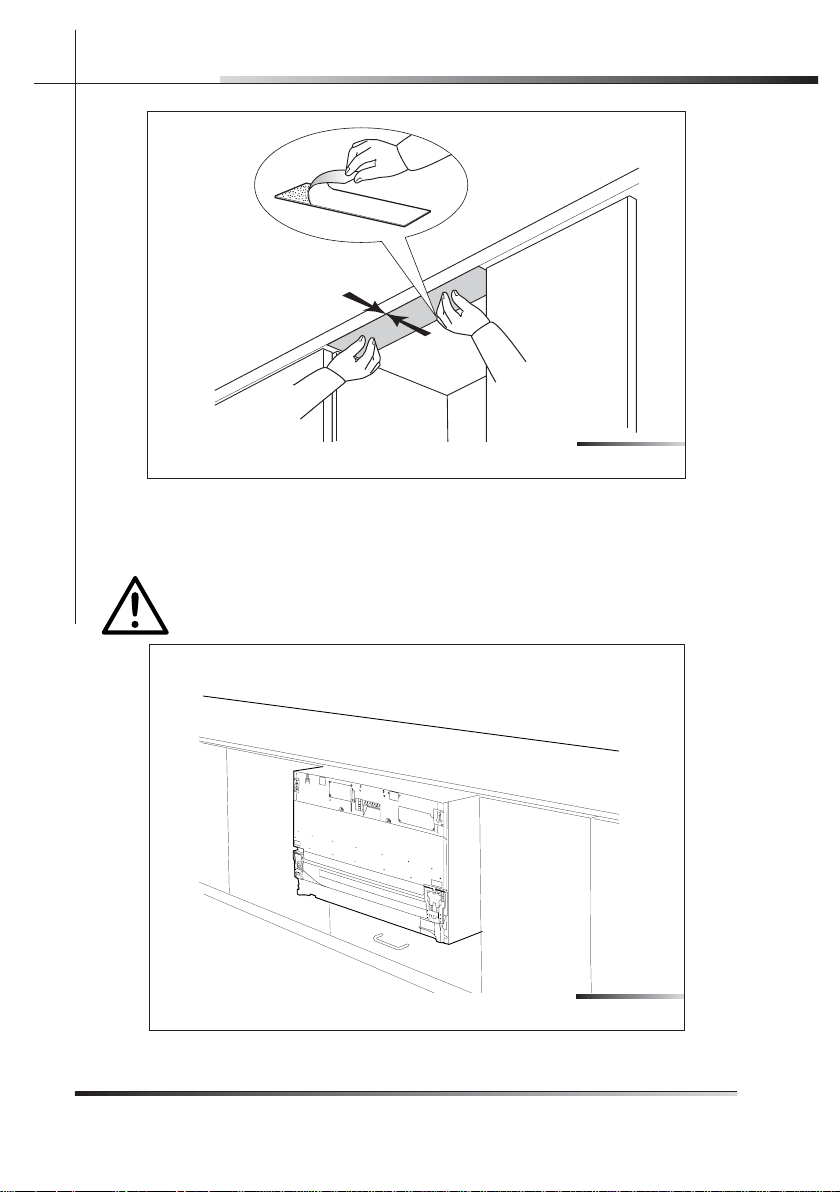

Push the dishwasher into position, taking care not to twist or crush the power
cord or hoses (see fi g. 5-15).
TWO PEOPLE WEARING SAFETY GLOVES ARE NEEDED TO PUSH
THE DISHWASHER INTO PLACE.
Fig. 5-15
Fig. 5-14
Rev 0.0 25
INSTALLATION INSTRUCTIONS
EN
Mount the door panels.
Correctly align the panels on a fl at surface and place the two 3 mm (0.12”)
shims between them (see fi g. 5-16).
ATTENTION: THE DOOR PANELS MUST NOT EXCEED A CERTAIN
WEIGHT AND HEIGHT, OTHERWISE THE DOOR WILL NOT OPEN
CORRECTLY. THE UPPER DOOR PANEL MUST WEIGH FROM 2.2
kg TO 7.2 kg (FROM 4.85 TO 15.87 lb) AND HAVE A MINIMUM
HEIGHT OF 358 mm (14-3/32”). THE LOWER DOOR PANEL MUST
WEIGH FROM 1.5 TO 5 kg (FROM 3.3 TO 11 lb) AND BE 178 TO 360
mm HIGH (FROM 7-1/6” TO 14-11/64”).
Fig. 5-16
26 Rev 0.0
INSTALLATION INSTRUCTIONS
EN
The template shows the reference marks (ref. A fi g. 5-17) required to indicate
any space created between the dishwasher door and the kitchen worktop: this
space must be compensated by the upper door panel. Measure this distance
and mark it with a pencil on relative reference marks of the template (ref. A fi g.
5-17).
Then centre the upper panel on the template using the relative reference marks
(ref. B fi g. 5-11); position it at the height of the reference marks (see ref. A fi g.
5. 17).
Mark the position of the door hooks with a pencil. Remove the template and
use a drill with an appropriate bit to make holes at the points marked on the
panels.
Fig. 5-17
A
B
B
A
Rev 0.0 27
INSTALLATION INSTRUCTIONS
EN

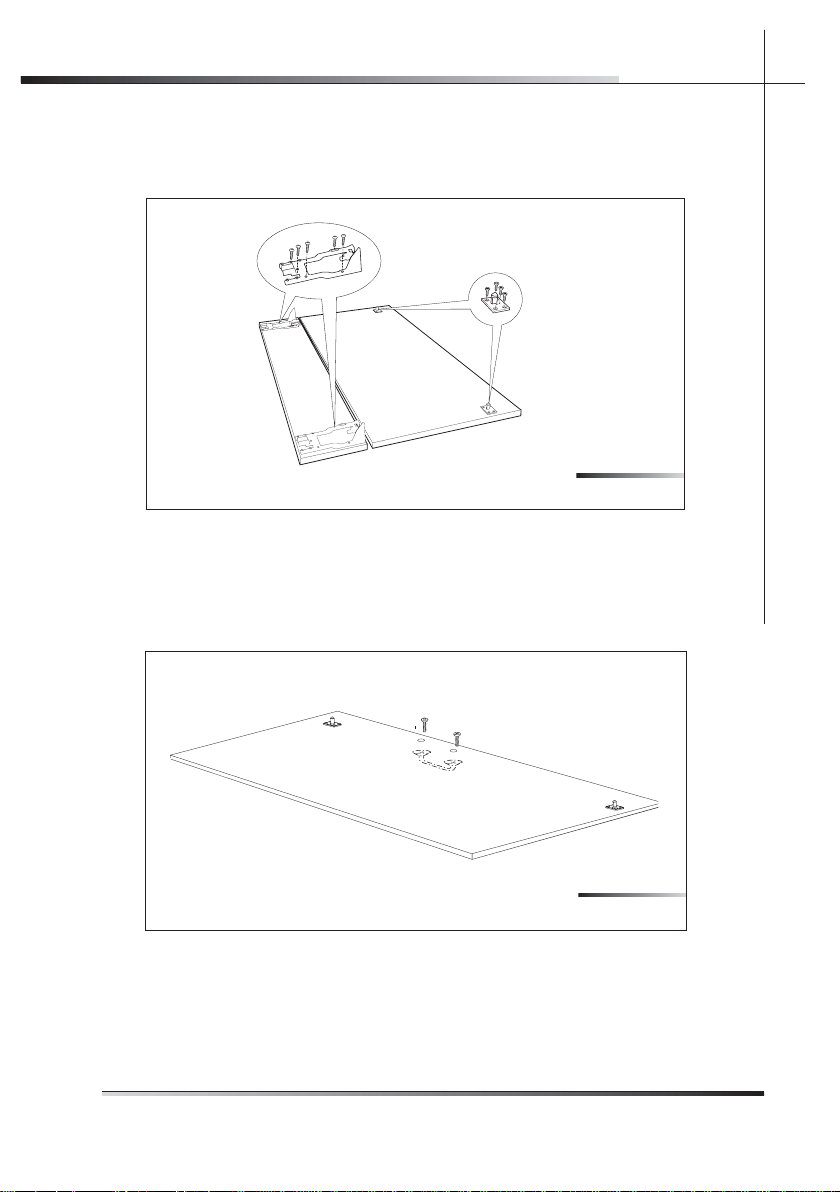

Use a suitable screwdriver to secure the four door hooks with the 12 supplied
screws (see fi g. 5-18) to the marked reference points. The aluminium hooks are
for the upper door panel while the plastic ones are for the lower door panel.
Fig. 5-18
Drill holes for the panel handle using a drill with a suitable bit. Use the screw-
driver to secure the door handle before hooking the panel to the dishwasher
(see fi g. 5-19).
N.B.: the screws are not supplied.
Fig. 5-19
28 Rev 0.0
INSTALLATION INSTRUCTIONS
EN

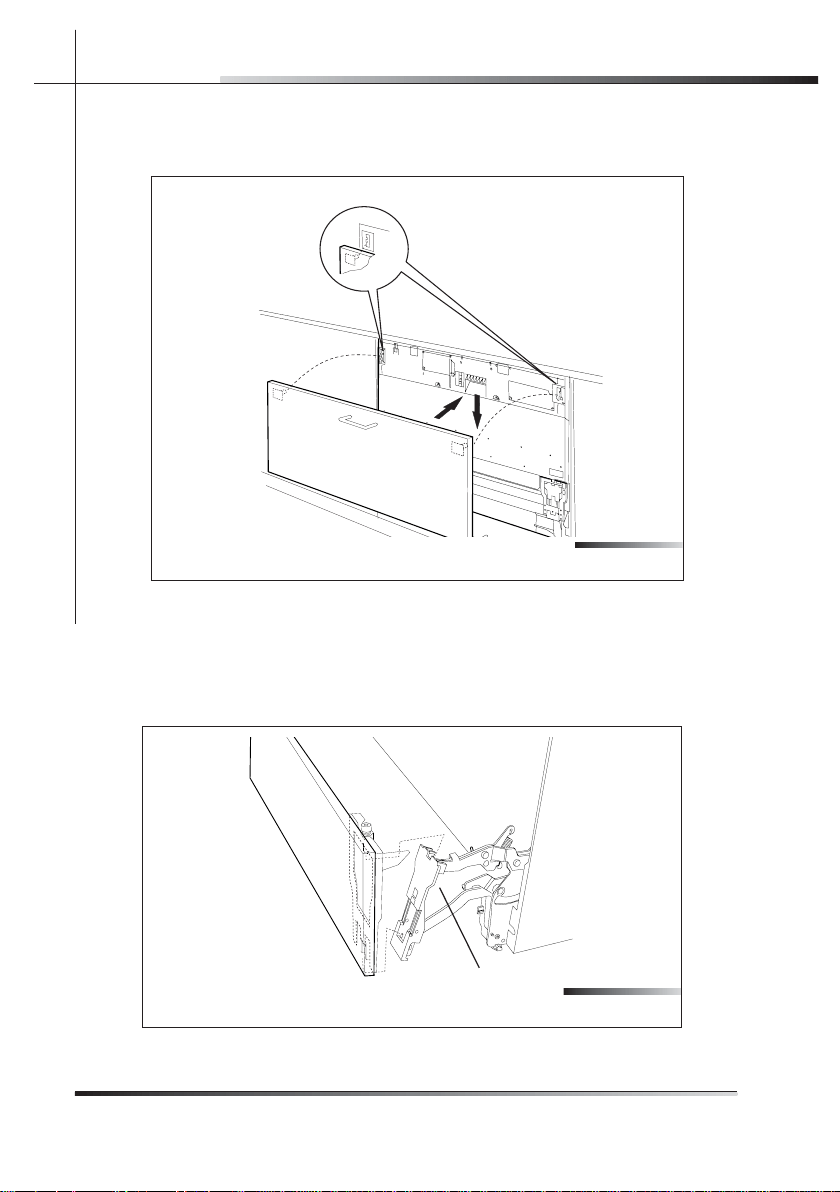

Attach the upper door panel: fi t the hooks into their slots on the dishwasher
and allow the panel to slide downwards and slip into place (see fi g. 5-20).
Fig. 5-20
Take the lower panel and fi x the hooks into their the slots on the dishwasher
(ref. A fi g. 5-21) in the same way as the upper door panel, allowing the panel to
slide downwards and slip into place. Do this with the upper door panel slightly
open to allow the lower panel to slip in.
A
Fig. 5-21
Rev 0.0 29
INSTALLATION INSTRUCTIONS
EN

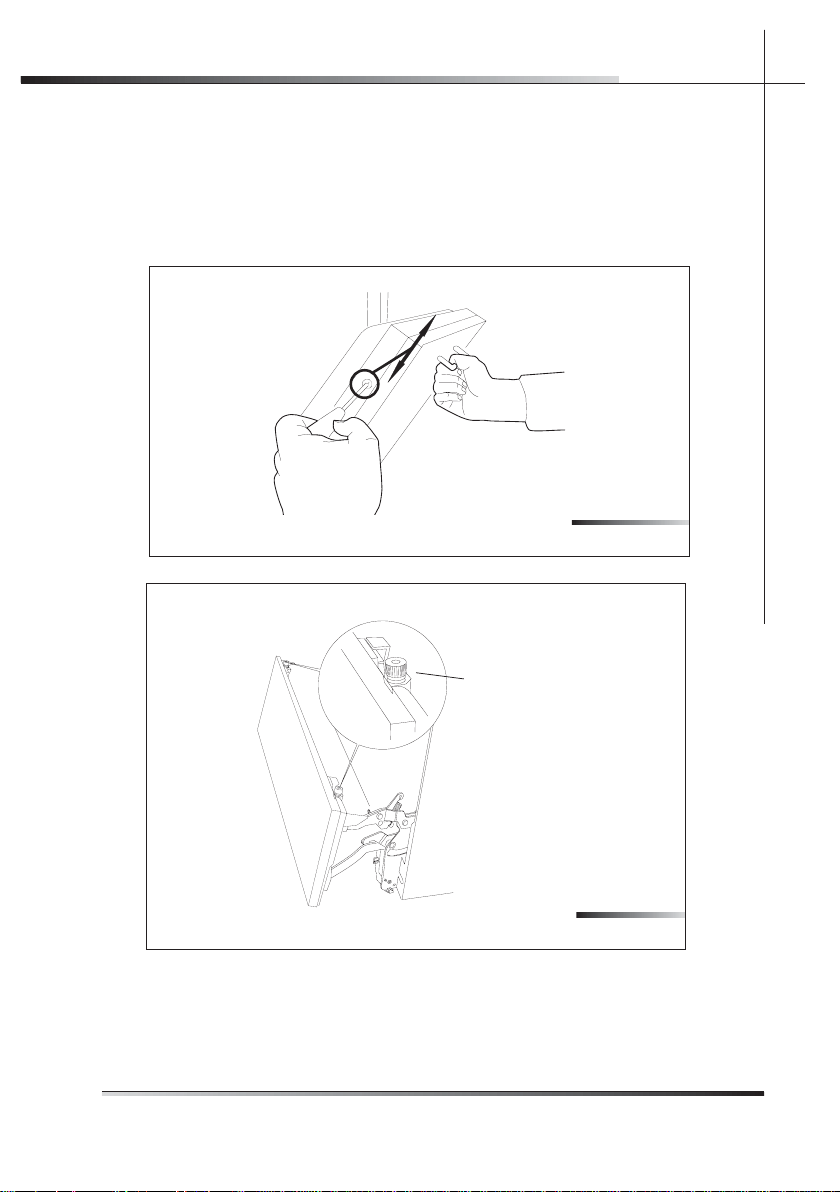

After performing opening and closing tests on the upper door panel, adjust
both panels: adjust the upper one by turning the grey screw on the left-hand
side of the door (see fi g. 5-22); this screw must be adjusted using an appropri-
ate screwdriver. Adjust the lower panel, instead, by turning the orange screw
inside the panel at the top (ref. A fi g. 5-23); to do this, simply turn it with your
hand.
Fig. 5-22
A
Fig. 5-23
30 Rev 0.0
INSTALLATION INSTRUCTIONS
EN

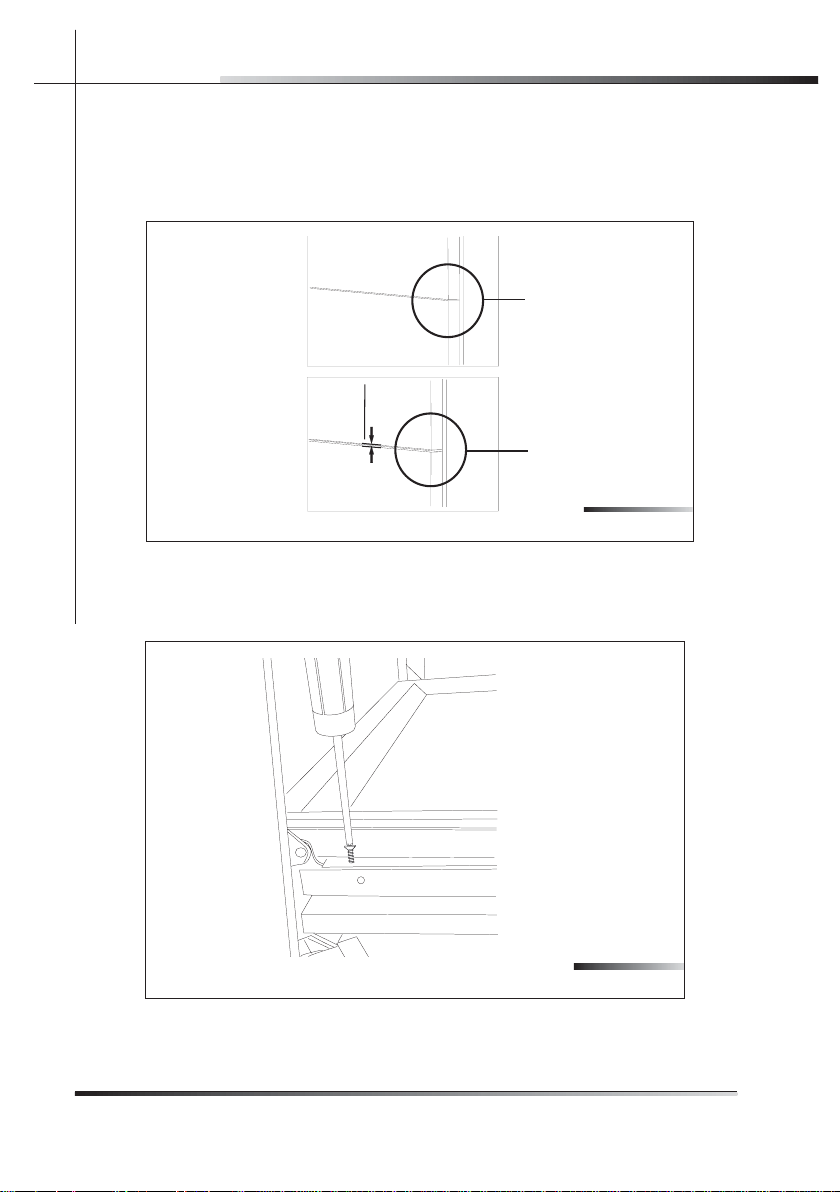

Make sure there is a minimum clearance of at least 2.5-3 mm (7/64”-1/8”) (see
fi g. 5-24) between the upper panel and the lower panel so as to avoid possible
friction between the two which would make it diffi cult to open the dishwasher
door.
Fig. 5-24
NO
OK
2.5-3 mm
7/64”-1/8”
After adjusting the door panels, fi x them to the dishwasher using a suitable
screwdriver and the supplied screws (see fi g. 5-25 for the upper panel and 5-
26 for the lower panel).
Fig. 5-25
Rev 0.0 31
INSTALLATION INSTRUCTIONS
EN

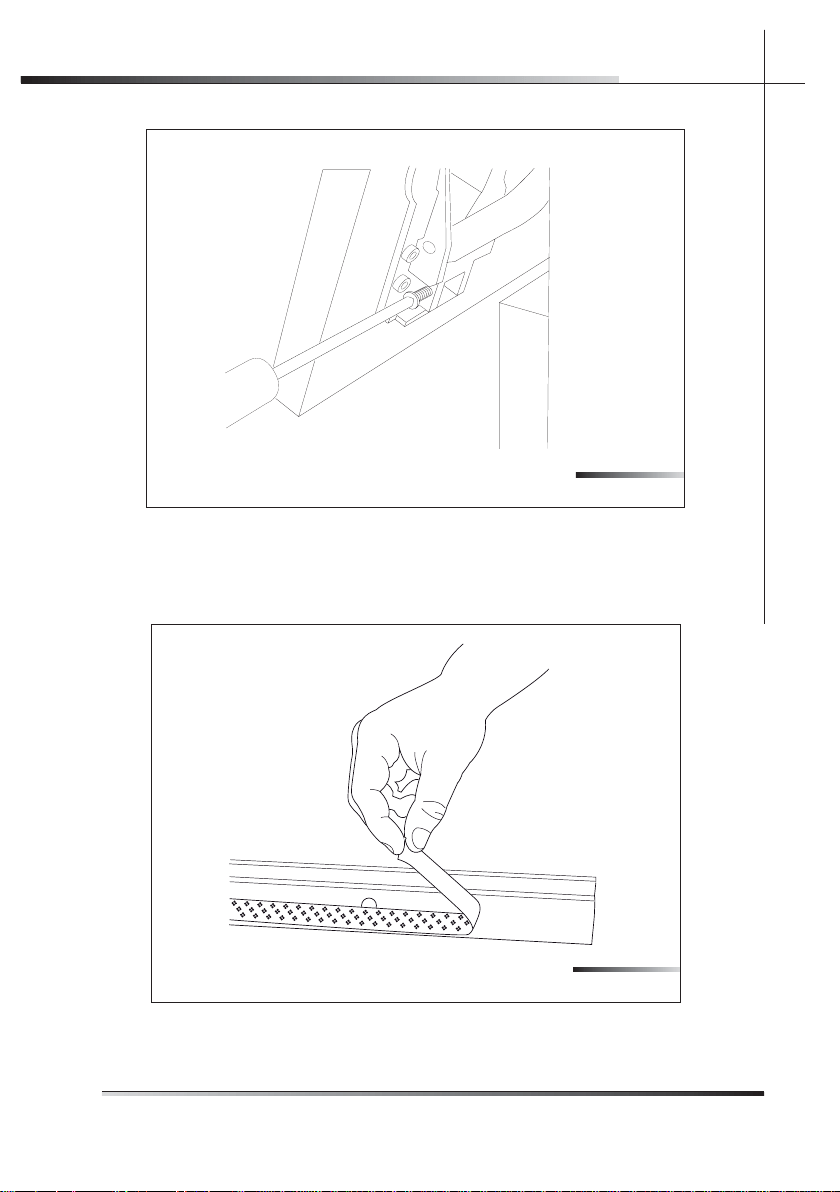

Fig. 5-26
Before securing the dishwasher to the adjacent units, attach the gaskets to
the sides.
Remove the adhesive band on the gasket (see fi g. 5-27).
Fig. 5-27
32 Rev 0.0
INSTALLATION INSTRUCTIONS
EN

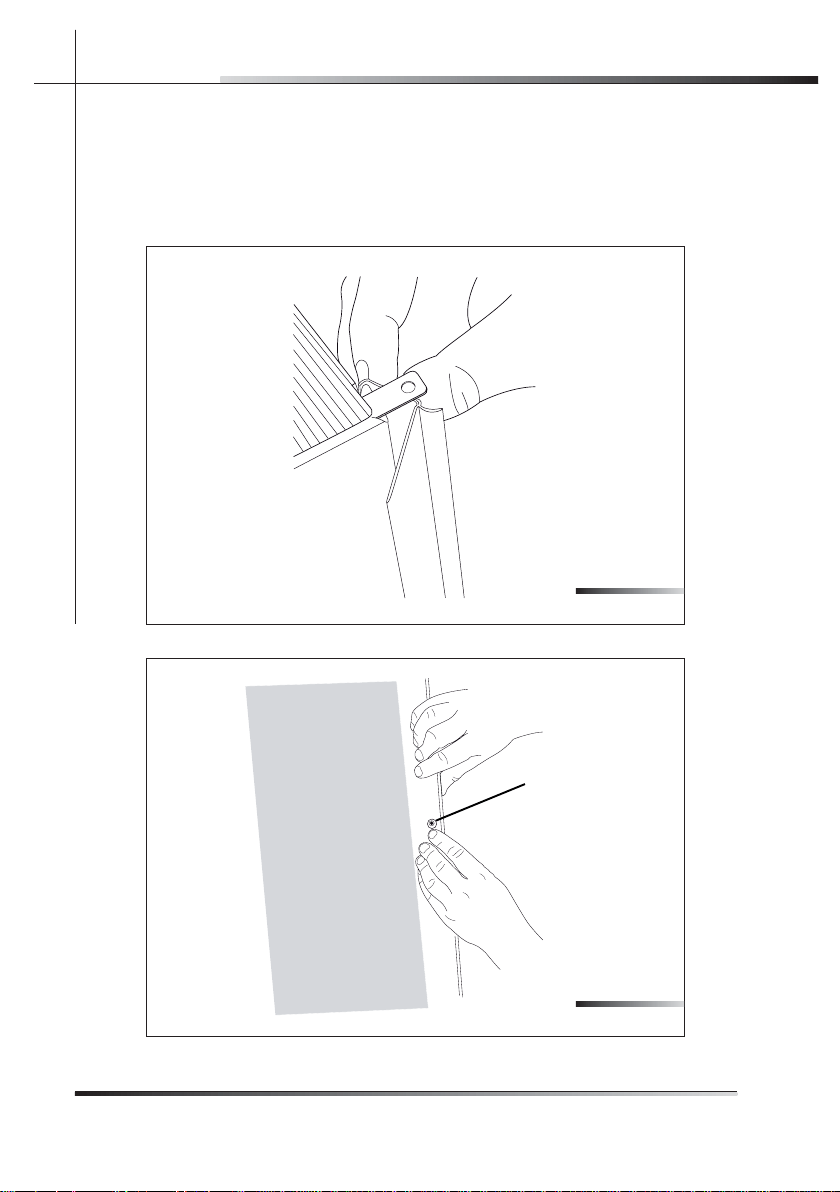

Fix the gasket to the dishwasher, inserting it in the seat on the sides towards
the front (see fi g. 5-28), and making sure that the long side of the gasket, the
one with the hole for inserting the screw, is attached to the outside of the
dishwasher; the hole in the long side must match the hole in the dishwasher (see
ref. A fi g. 5-29). Make sure the gasket adheres perfectly to the dishwasher.
Fig. 5-28
Fig. 5-29
A
Rev 0.0 33
INSTALLATION INSTRUCTIONS
EN

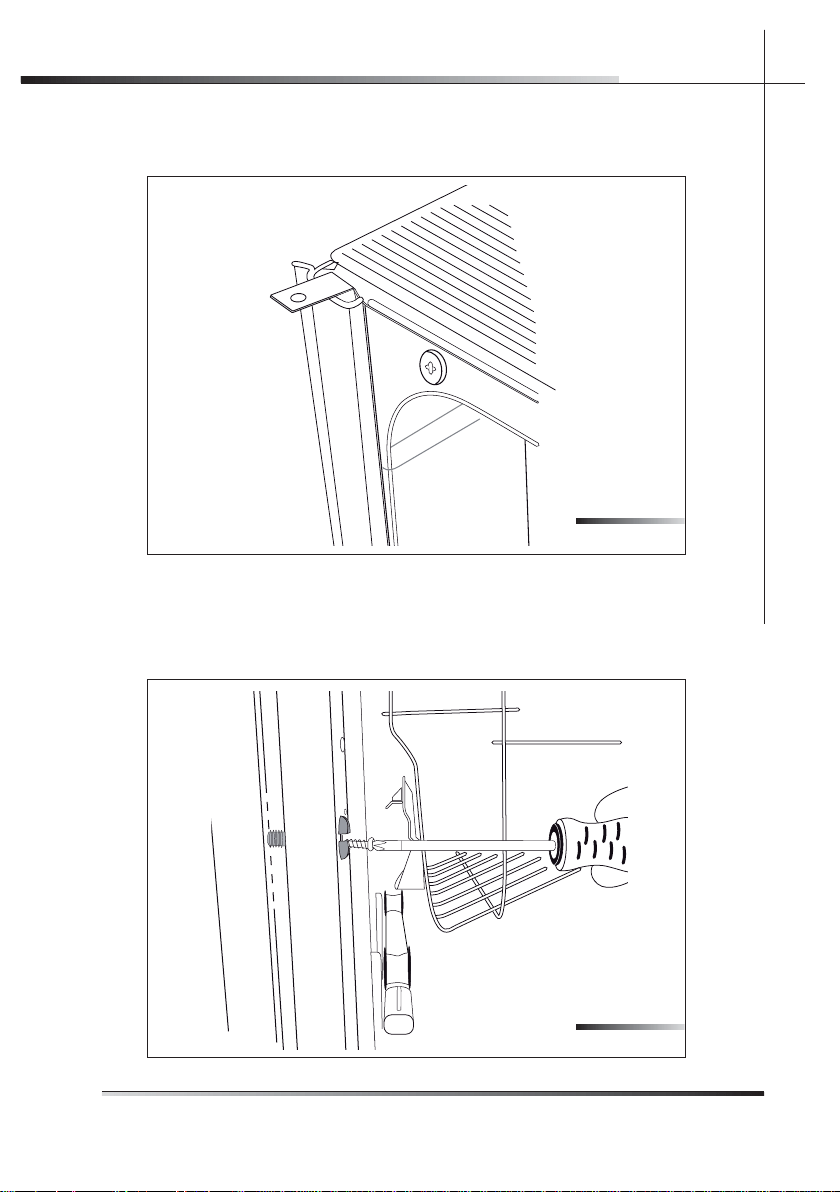

Fig. 5-30 shows the state of the dishwasher after the above operations are
performed.
Fig. 5-30
Tighten the supplied screws with a screwdriver (see fi g. 5-31); this operation
defi nitively fi xes the dishwasher to the adjacent units; cover the side holes using
the supplied plugs (see fi g. 5-32).
Fig. 5-31
34 Rev 0.0
INSTALLATION INSTRUCTIONS
EN
Fig. 5-32

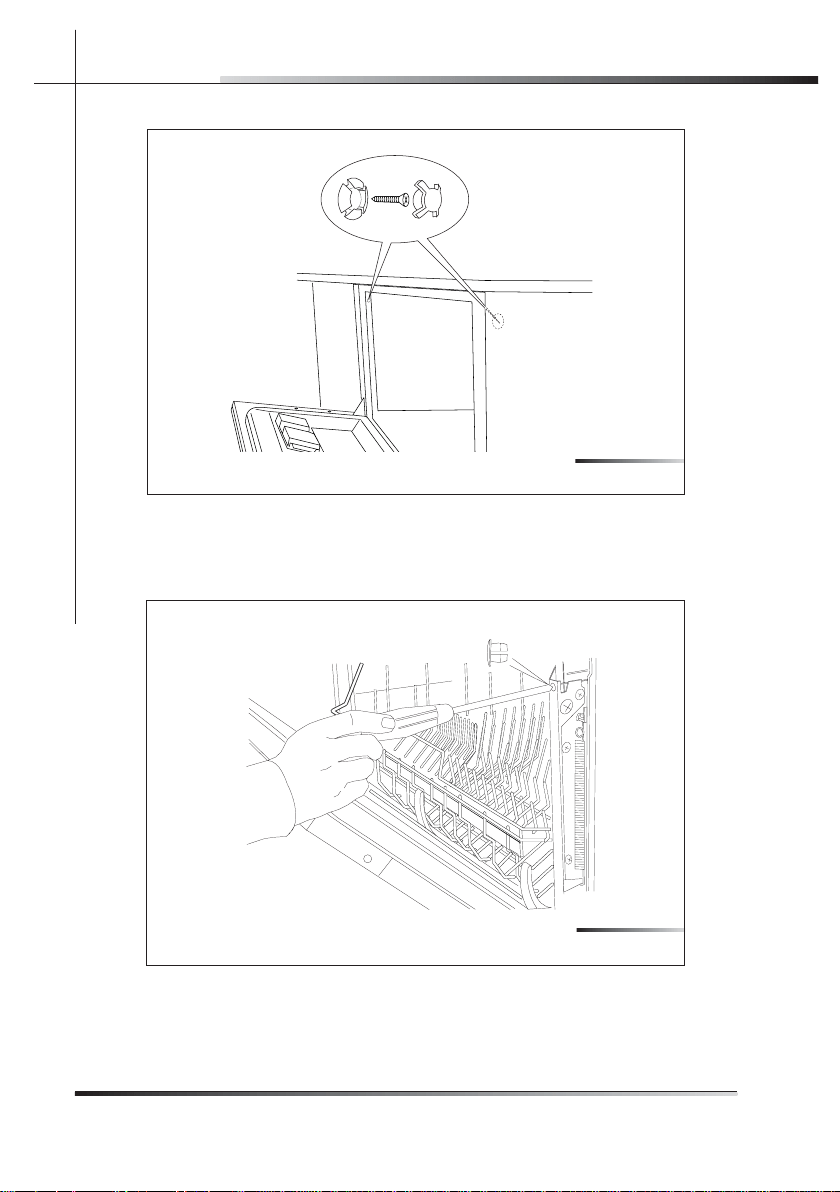

Adjust the springs on the dishwasher door; use a screwdriver to adjust the
tension of the springs on the right- and left-hand sides of the appliance (see
fi g. 5-33).
Fig. 5-33
Rev 0.0 35
INSTALLATION INSTRUCTIONS
EN
ATTENTION: THE SPRINGS OF THE DISHWASHER MUST NEI-
THER BE TOO TIGHT NOR TO LOW OTHERWISE THE DOOR WILL
BE UNBALANCED WHEN OPENING AND BE UNABLE TO REMAIN
FULLY OPEN (IF THE SPRING IS TOO TIGHT) OR THE ASSIST-
ED CLOSING SYSTEM WILL NOT OPERATE CORRECTLY (IF THE
SPRING IS TOO LOOSE): PERFORM TESTS TO FIND THE RIGHT
COMPROMISE.
5.4 Testing
After installation, test the dishwasher by starting a work cycle. Check for leaks
and make sure the appliance does not malfunction.

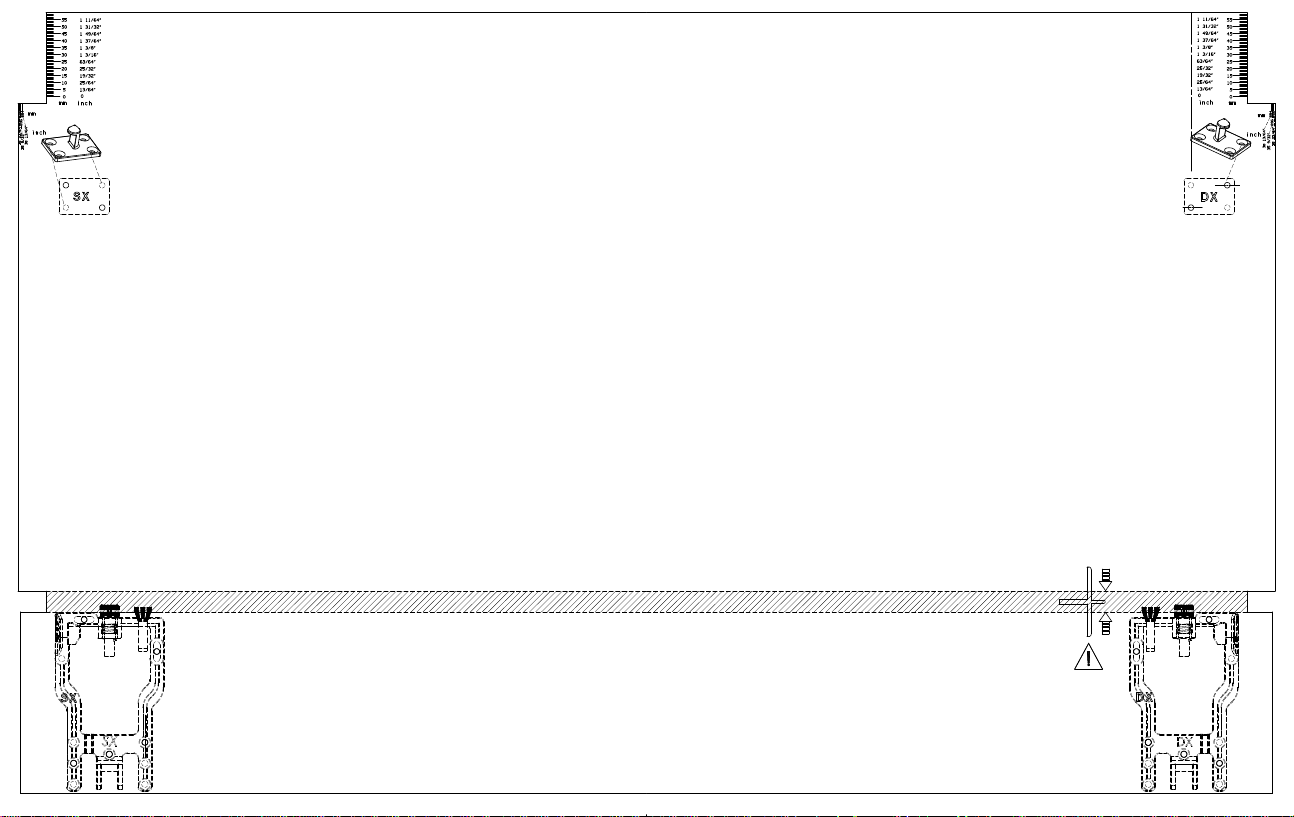

OK
21 45
76 9108
1211 14 1513
1716 19 2018
A
A
3
19 510 0372 02
2,5÷3 mm
min. 2,2 - max. 7 kg
min. 1,5 - max. 5 kg
+
min. 358
min. 178 - max. 360 mm
max 26 mm (1 ")
1/32
min. 4,8 - pounds
max. 15,5 pounds
min. 3,3 pounds
max. 11 pounds
(7 "-14 ")
1/64 1/64
(14 ")
3/32
(1"÷1 1/64")
