1x
B
B
2x
A
A
A
Club 322F
104.0
48.3
39.7
75.5
87.0
Specications
• Type: 3-1/2” (87mm) Two-Way Car
Speaker
• Power Handling: 25W RMS, 75W peak
• Sensitivity (@ 2.83V/m): 89dB
• Frequency Response: 90Hz – 20kHz
• Nominal Impedance: 3.0 ohms
Thiele-Small Parameters
• BL (Tm): 2.873
• DCR (ohms): 2.26
• Mms (g): 3.723
• Sd (cm2): 44.18
• Cms (μm/N): 0.491
• Vas (l): 1.3574
• Fs (Hz): 117.7
• Qes: 0.755
• Qms: 7.777
• Qts: 0.688
• Crossover Point: 4kHz
16.8
32.5

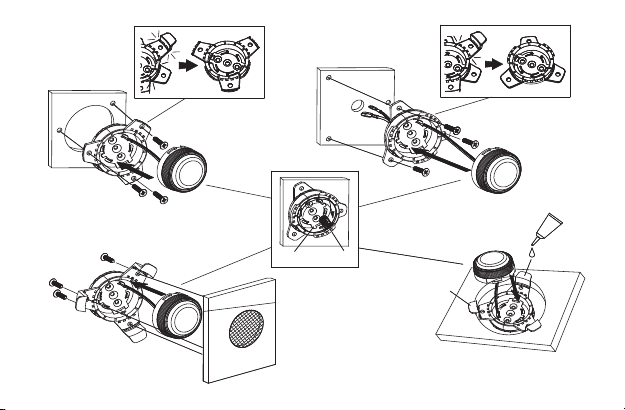

Club 3412T
BA
2x 2x2x2x2x2x 2x 6x2x
IHGFEDC
2x
J
H
G
D
C
B
B
G
H
C
A&B
A
A
I
E
E
A
A
F
I
I
I
I
I
F
F
A
A
A
F
FA
A
I
I
I
I

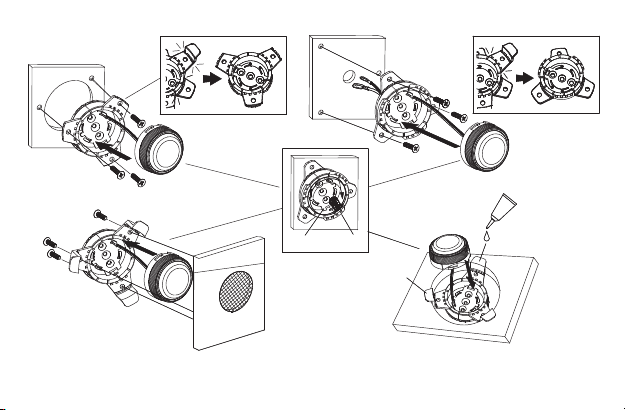

Specications
• Type: 3/4” (19mm) Edge-Driven dome
tweeter
• Power Handling: 50W RMS, 150W peak
• Sensitivity (@ 2.83V): 92dB
• Frequency Response: 3kHz – 20kHz
• Nominal Impedance: 3.0 ohms
B
A
A
B
1x2x
A
Club 422F
63.8
49.3
92.1
102.4
Specications
• Type: 4” (100mm) Two-Way Car Speaker
• Power Handling: 35W RMS, 105W peak
• Sensitivity (@ 2.83V): 90dB
• Frequency Response: 75Hz – 20kHz
• Nominal Impedance: 3.0 ohms
Thiele-Small Parameters
• BL (Tm): 3.783
• DCR (ohms): 2.46
• Mms (g): 6.608
• Sd (cm2): 63.62
• Cms (μm/N): 0.750
• Vas (l): 4.2937
• Fs (Hz): 71.5
• Qes: 0.510
• Qms: 6.495
• Qts: 0.473
• Crossover Point: 3kHz
B
1x2x
A
B
A
A
Club 522F
129.0
64.3
48.0
113.6

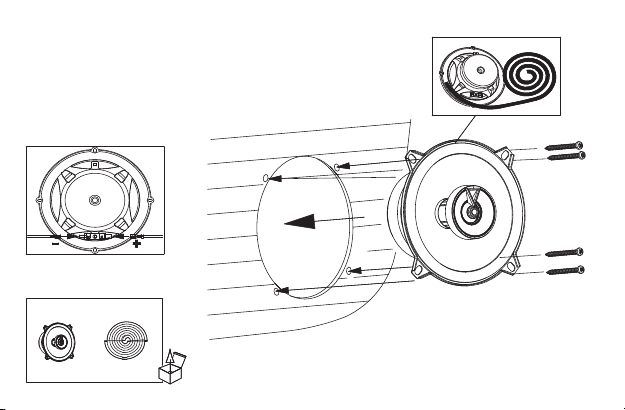

Specications
• Type: 5-1/4” (130mm) Two-Way Car
Speaker
• Power Handling: 45W RMS, 135W peak
• Sensitivity (@ 2.83V): 91dB
• Frequency Response: 75Hz – 20kHz
• Nominal Impedance: 3.0 ohms
Thiele-Small Parameters
• BL (Tm): 3.563
• DCR (ohms): 2.24
• Mms (g): 9.484
• Sd (cm2): 103.87
• Cms (μm/N): 0.274
• Vas (l): 4.1850
• Fs (Hz): 98.7
• Qes: 1.036
• Qms: 8.608
• Qts: 0.925
• Crossover Point: 3kHz

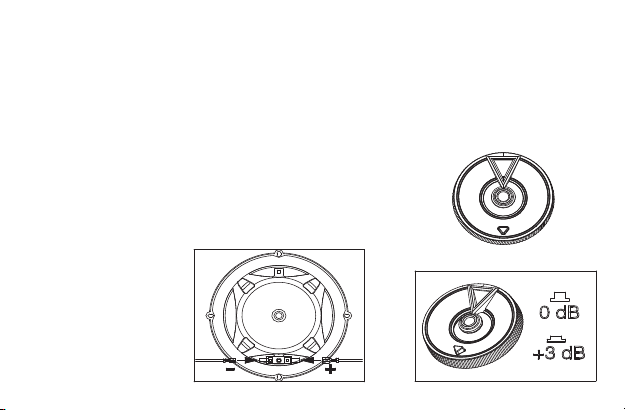

0dB
+3dB
R
A
E
S
S
S
S
Club 602C
J
N
N
N
N
N
J
J
E
E
E
J
JE
E
N
N
N
N
L
K
H
G
F
F
K
L
G
E&F
E
E
A D
B
O
O
M
M
O
O
M
M
A
1x
D
2x
C
2x
B
2x2x2x2x2x 2x6x 8x 8x8x2x2x
KJIHG QPONMLA
8x
R
E
2x 2x
F
DA
O
P
PED
P
P
O
O
O
N
I
I
E
E
16.8
29.0
28.0
80.0
100.3
158.0
64.8
51.5
127.0
32.5

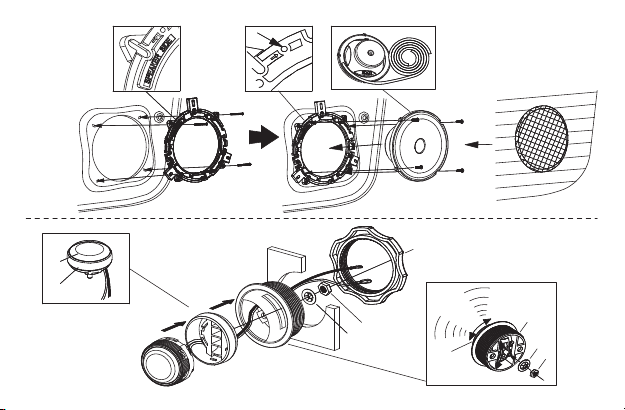

Specications
• Type: 6-1/2” (160mm) Two-Way
Component Speaker System
• Power Handling: 70W RMS, 210W peak
• Sensitivity (@ 2.83V): 92dB
• Frequency Response: 55Hz – 20kHz
• Nominal Impedance: 3.0 ohms
Thiele-Small Parameters
• BL (Tm): 3.635
• DCR (ohms): 2.37
• Mms (g): 14.409
• Sd (cm2): 132.73
• Cms (μm/N): 0.257
• Vas (l): 6.4107
• Fs (Hz): 82.7
• Qes: 1.340
• Qms: 10.965
• Qts: 1.194
• Crossover Point: 5.5kHz
0dB
+3dB
R
A
E
S
S
S
S

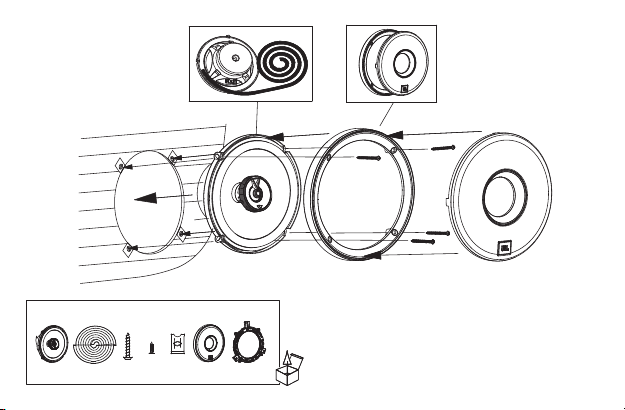

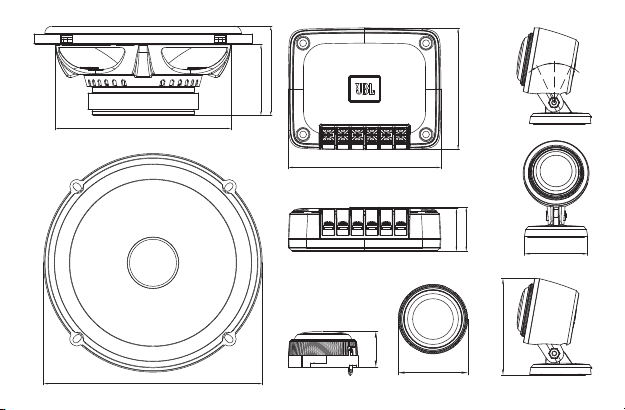

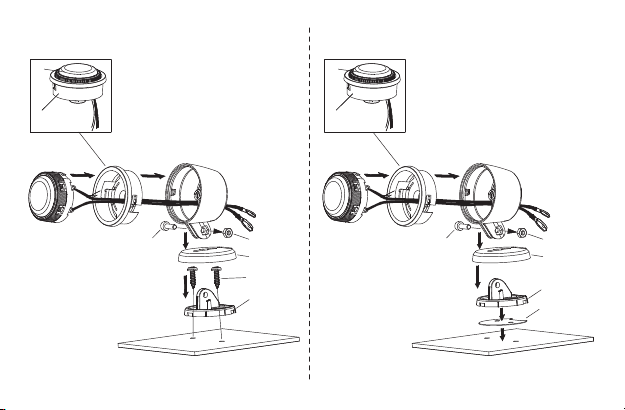

Club 602CTP
1x
ED
2x2x
C
2x
B
2x2x2x2x2x 2x 2x6x 8x 8x8x2x2x
KJIHGF QPONMLA
8x
R
2x4x 2x2x2x
XWVUTS Y
Z
2x 2x 2x
DA
O
P
PED
P
P
O
O
O
N
I
I
E
E
F
K
L
G
E&F
E
L
K
H
G
F
E
B
O
O
M
M
A D
O
O
M
M
A
J
N
N
N
N
N
J
J
E
E
E
J
JE
E
N
N
N
N
E
T
S
Z
U
X
V
Y
E
T
S
Z
U
V
Y
W
T
E
T
E
127.0
51.5
64.8
158.0
100.3
80.0
28.0
29.0
32.5
16.8
37.5
57.1
25°
25°
Specications
• Type: 6-1/2” (160mm) Two-Way
Component Speaker System with
tweeter Pod
• Power Handling: 70W RMS, 210W peak
• Sensitivity (@ 2.83V): 92dB
• Frequency Response: 55Hz – 20kHz
• Nominal Impedance: 3.0 ohms
Thiele-Small Parameters
• BL (Tm): 3.635
• DCR (ohms): 2.37
• Mms (g): 14.409
• Sd (cm2): 132.73
• Cms (μm/N): 0.257
• Vas (l): 6.4107
• Fs (Hz): 82.7
• Qes: 1.340
• Qms: 10.965
• Qts: 1.194
• Crossover Point: 5.5kHz
CB D F
8x 2x8x8x1x2x
EA
F
C
D
D
D
D
C
C
C
A
BA
Club 620F
58.4
47.7
123.4
158.0
Specications
• Type: Shallow-Mount 6-1/2” (160mm)
Two-Way Car Speaker
• Power Handling: 55W RMS, 165W peak
• Sensitivity (@ 2.83V): 92dB
• Frequency Response: 55Hz – 20kHz
• Nominal Impedance: 3.0 ohms
Thiele-Small Parameters
• BL (Tm): 3.739
• DCR (ohms): 2.41
• Mms (g): 9.934
• Sd (cm2): 122.72
• Cms (μm/N): 0.278
• Vas (l): 5.9287
• Fs (Hz): 95.7
• Qes: 1.032
• Qms: 11.357
• Qts: 0.946
• Crossover Point: 4kHz

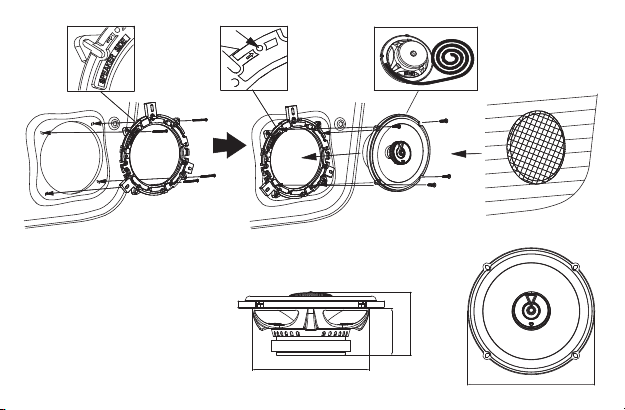

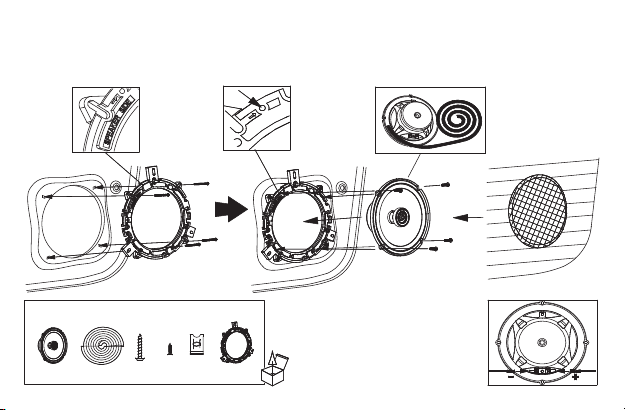

Club 622
CB D GF
8x 2x 2x8x8x1x2x
EA
B
E
C
F
C
C
E
E
E
A
A
C
G
C
D
D
D
D
C
C
C
A
BA
69.2
51.5
127.0
158.0
Specications
• Type: 6-1/2” (160mm) Two-way Car
Speaker , Engineered For Better Sound
Performance.
• Power Handling: 60W RMS, 180W peak
• Sensitivity (@ 2.83V): 93dB
• Frequency Response: 48Hz – 21kHz
• Nominal Impedance: 3.0 ohms
Thiele-Small Parameters
• BL (Tm): 3.632
• DCR (ohms): 2.36
• Mms (g): 13.758
• Sd (cm2): 132.73
• Cms (μm/N): 0.378
• Vas (l): 9.4253
• Fs (Hz): 69.8
• Qes: 1.080
• Qms: 10.655
• Qts: 0.980
• Crossover Point: 3.5kHz
1x
B
2x
A
A
A
BA

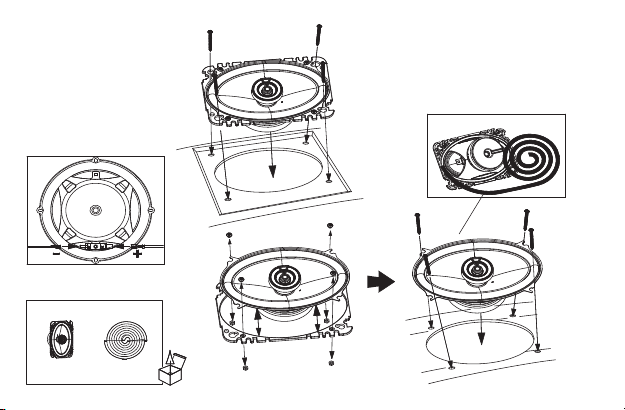

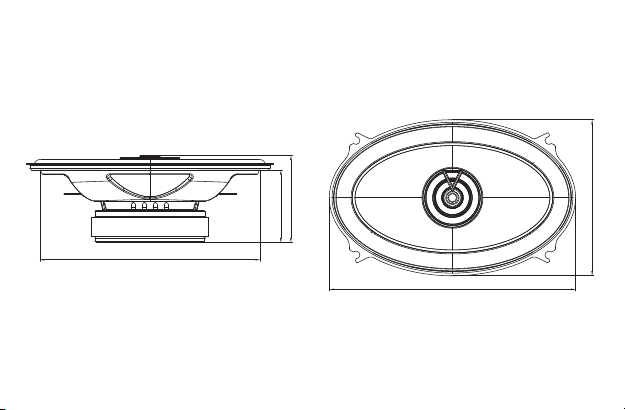

Club 6422F
99.5
157.0
55.6
46.4
140.4
Specications
• Type: 4”x 6” (100mm x 152mm) Two-
Way Car Speaker
• Power Handling: 40W RMS, 120W peak
• Sensitivity (@ 2.83V): 92dB
• Frequency Response: 75Hz – 20kHz
• Nominal Impedance: 3.0 ohms
Thiele-Small Parameters
• BL (Tm): 3.296
• DCR (ohms): 2.5
• Mms (g): 7.86
• Sd (cm2): 86.59
• Cms (μm/N): 0.245
• Vas (l): 2.5977
• Fs (Hz): 114.7
• Qes: 1.303
• Qms: 12.752
• Qts: 1.182
• Crossover Point: 3kHz
1x
B
2x
A
AA
BA BA
Club 8622F
142.2
220.0
67.9
58.5
182.6
Specications
• Type: 6”x8” (152mm x 203mm) two-way
car speaker, no grille
• Power Handling: 60W RMS, 180W peak
• Sensitivity (@ 2.83V): 93dB
• Frequency Response: 65Hz – 20kHz
• Nominal Impedance: 3.0 ohms
Thiele-Small Parameters
• BL (Tm): 3.785
• DCR (ohms): 2.39
• Mms (g): 17.718
• Sd (cm2): 165.13
• Cms (μm/N): 0.336
• Vas (l): 12.9798
• Fs (Hz): 65.2
• Qes: 1.210
• Qms: 14.592
• Qts: 1.118
• Crossover Point: 3.5kHz
8x
C
1x
2x
E
B
2x
8x
D
A
2x
F
C
C
C
C
E
D
D
D
D
A
A B

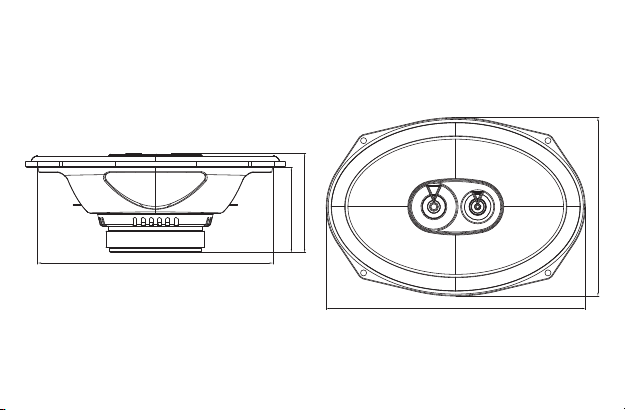

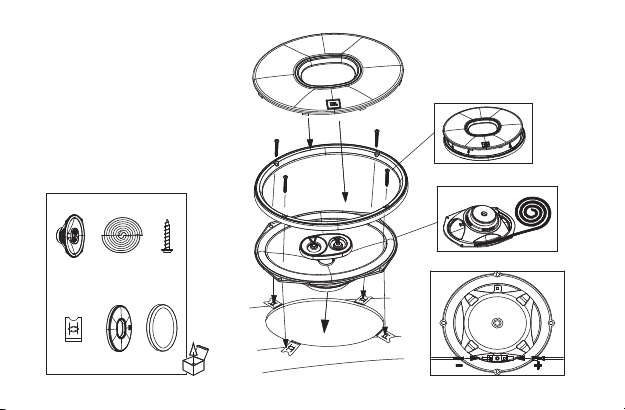

Club 9632
163.0
236.5
90.4
77.8
214.6
Specications
• Type: 6”x9” (152mm x 230mm) three-
way car speaker
• Power Handling: 85W RMS, 255W peak
• Sensitivity (@ 2.83V): 93dB
• Frequency Response: 50Hz – 20kHz
• Nominal Impedance: 3.0 ohms
Thiele-Small Parameters
• BL (Tm): 4.063
• DCR (ohms): 2.63
• Mms (g): 23.163
• Sd (cm2): 226.98
• Cms (μm/N): 0.337
• Vas (l): 24.5866
• Fs (Hz): 56.9
• Qes: 1.321
• Qms: 11.751
• Qts: 1.188
• Crossover Point: 3kHz
HARMAN International
Industries, Incorporated, 8500
Balboa Boulevard, Northridge,
CA 91329 USA
© 2019 HARMAN International
Industries, Incorporated.
All rights reserved. JBL is a
trademark of HARMAN International Industries, Incorporated,
registered in the United States and/or other countries.
Features, specifications and appearance are subject to change
without notice.
