SAMSUNG ELECTRONICS AMERICA, INC.
SERVICE DIVISION
400 Valley Road. Suite 201
Mount Arlington. NJ 07856
1-800-SAMSUNG (1-800-726-7864)
www.samsung.com
Instruction Manual
Safety Warnings
LASS 1 LASER PRODUCT I I
LASSE 1 LASER PRODUKT
OKAN 1 LASER LAITE
LASS 1 LASER APPARAT
RODUCTO LASER CLASE 1
Note to CATV system installer :
This reminder is provided to call the CATV system
installer's attention to Section 820-40 of the NEC
which provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be
connected to the grounding system of the building,
as close to the point of cable entry as practical
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFERSERVICING TO QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls, adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
CAUTION-INVISIBLE LASER RADIATIONWHEN OPEN
AND INTERLOCKS DEFEATED,AVOID
EXPOSURE TO BEAM.
/_ This symbol indicates that dangerous voltage which can cause electric shock is present inside
this unit.
This symbol alerts you to important operating and maintenance instructions accompanying
the unit.
WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCHWIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
Precautions
S S S
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii%..iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iJiiiiiiiiiiiiiiiiiii _iiiiiii iiiiiiiii....iiiiiiiiiii_ii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iiiii_iiii
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation
slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may
become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the Home
Theater to the stand-by mode does not disconnect the electrical supply, tn order to disconnect the player completely from the power
supply, remove the main plug from the wail outlet, especially when left unused for a long period of time.
Z - ,/ ))))))(
J I
During thunderstorms, disconnect AC main plug from the
wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of the unit.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_...........
Protectthe playerfrom moisture(i.e,vases), and excessheat
(e.g.firepiace) or equipment creating strong magnetic or electric fields
(i.e speakers...). Disconnect the power cable from the AC supply ifthe
playermalfunctionsYourplayeris not intendedfor industrialuse.
Use d this product is for personal use only.
Condensationmayoccur if your playeror disc hasbeenstoredin cold
temperatures.
If transporting the player duringthe winter, waitapproximately 2 hours
until the unit hasreachedroomtemperaturebeforeusing.
The batteries used with this product contain chemicals
that are harmful to the environment.
Do not dispose of batteries in the general household
trash.
SafetyInstructions
READ INSTRUCTIONS
All the safety and operating instructions should be
read before the appliance is operated.
RETAIN INSTRUCTIONS
The safety and operating instructions should be
retained for future reference.
HEED WARNINGS
All warnings on the appliance and in the operating
instructions should be adhered to.
FOLLOW INSTRUCTIONS
All operating and use instructions should be
followed.
WATER AND MOISTURE
Do not use this video product near water-
for example, near a bathtub, wash bowl,
kitchen sink, or laundry tub, in a wet basement,
or near a swimming pool, and the like.
OVERLOADING
Do not overload wall outlets and extension cords as
this can result in the risk of fire
or electric shock.
VENTILATION
Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of the
video product and to protect it from overheating
these openings must not be blocked or covered.
The openings should never be blocked
by placing the video product on a bed, sofa, rug, or
other similar surface. This video product
should never be placed near or over a radiator or
heat register.
This video product should not be placed
in a built-in installation such as a bookcase
or rack unless proper ventilation is provided
or the manufacturer's instructions have been fol-
lowed.
POWER CORD PROTECTION
Power-supply cords should be routed so that
they are not likely to be walked on or pinched
by items placed upon or against them paying
particular attention to cords at plugs,
convenience receptacles, and the point where
they exit from the appliance.
CLEANING
Unplug this video product from the wall outlet
before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
LIGHTNING
For added protection of this video product
receiver during a lightning storm, or when
it is left unattended and unused for long
periods of time, unplug it from the wall outlet
and disconnect the antenna or cable system.
This will prevent damage to the video product
due to lightning and power-line surges.
OBJECT AND LIQUID ENTRY
Never push objects of any kind into this
product through openings as they may touch
dangerous voltage points or short-out parts
that could result in a fire or electric shock.
Never spill liquid of any kind on the video
product.
ACCESSORIES
Do not place this video product on an unstable cart,
stand, tripod, bracket, or table.
The video product may fall, causing serious injury to
a child or adult, and serious damage
to the appliance.
Use only with a cart, stand, tripod, bracket,
or table recommended by the manufacturer,
or sold with the video product. Any mounting
of the appliance should follow the manufacturer's
instructions and should use a mounting accessory
recommended by the manufacturer.
CART
An appliance and cart combination should be moved
with care. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart combina-
tion to overturn.
POWER SOURCES
This video product should be operated only from the
type of power source indicated
on the marking label. If you are not sure
of the type of supply to your home, consult your
appliance dealer or local power company.
For video products intended to be operated from bat-
tery power, or other sources, refer
to the operating instructions.
POWER LINES
An outside antenna system should not be located in
the vicinity of overhead power lines or other electric
light or power circuits,
or where it can fall into such power lines
or circuits. When installing an outside antenna sys-
tem, extreme care should be taken to keep from
touching such power lines or circuits as contact with
them might be fatal.
POLARIZATION
This video product is equipped with a polarized
alternating current line plug (a plug having one
blade wider than the other.) This plug will fit into the
power outlet only one way.
This is a safety feature. If you are unable
to insert the plug fully into the outlet, try reversing the
plug. if the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
OUTDOOR ANTENNA GROUNDING
• If an outside antenna is connected to the
antenna terminal, be sure the antenna system
is grounded so as to provide some protection
against voltage surges and built-up static
charges.
• in the U.S.A section 810 of the National
Electrical Code, ANSI/NFPA No. 70-1984,
provides information with respect to proper
grounding of the mast and supporting
structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit,
connection to grounding electrodes, and
requirements for the grounding electrode.
See the figure below.
ATTACHMENTS
Do not use attachments not recommended
by the video product manufacturer as they may
cause hazards.
SERVICING
• Do not attempt to service this product yourself
as opening or removing covers may expose
you to dangerous voltage or other hazards.
• Refer all servicing to qualified service personnel.
REPLACEMENT PARTS
When replacement parts are required, be sure the
service technician has used replacement parts spec-
ified by the manufacturer or having the same charac-
teristics as the original part. Unauthorized substitu-
tions may result in fire, electric shock or other haz-
ards.
_ ANTENNA
LEAD IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION. 810-20)
_=. ROUNDING CONDUCTORS(NEC SECTION 810-21)
GROUND CLAMPS
ANTENNA
DISCHARGE UNIT
GROUNDING CONDUCTORS
-- (NEC SECTION 810-21)
OUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART N)
SAFETY CHECK
Upon completion of any service or repairs
to this video product, ask the service technician to
perform safety checks to determine that the video
product is in proper operating condition.
DAMAGE REQUIRING SERVICE
Unplug this video product from the wall outlet and
refer servicing to qualified service personnel under
the following conditions.
a. When the power-supply cord or plug is damaged.
b. if liquid has been spilled, or objects have
fallen into the video product.
c. If the video product has been exposed to rain
or water
d. If the video product does not operate normally
by following the operating instructions.
Adjust only those controls that are covered
by the operating instructions as an improper
adjustment of other controls may result
in damage and will often require extensive
work by a qualified technician to restore
the video product to its normal operation.
e. If the video product has been dropped
or the cabinet has been damaged.
f. When the video product exhibits a distinct
change in performance - this indicates
a need for service.
HEAT
This video unit should be situated away from heat
sources such as radiators, stoves, or other products
(including amplifiers) that produce heat.
Features
_i_Multi-Disc Playback & FM Tuner
The HT-HDP40 combines the convenience of multi-disc playback capability, including
DVD-AUDIO, DVD-VIDEO, CD, MP3-CD. CD-R/RW. and DVD-R/RW. with a
sophisticated AM/FM tuner, all in a single player•
DVD-Audio compatible
Experience the super high-quality audio performance of DVD-Audio.
The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound q uality in
terms of dynamic range, low-level resolution and high-frequency detail.
Dolby Pro Logic II
Dolby Pro Logic II is a new fol
that improves upon existing
audio signal decoding technology
DTS (Digital
DTS is an audio
It delivers full-frequency
_ITV Screen Saver
The
after 3 minutes in the stop
The HT-HDP40 automatically
after 20 minutes in the screen
screen
power saving mode
ii!Power Saving Function
The HT-HDP40automatically shuts itself off after 20 minutes in the stop mode.
Customized TV Screen Display
The HT-HDP40allows you to select your favorite image during JPEG and DVD playback
and set it as your background wallpaper.
Samsung AV Device Operation using Anynet
Using Anynet you can conveniently operate your Samsung DVD and AV devices with
your Samsung TV remote control.
HDMI transmits DVD video and audio signals simultaneously, and provides a clearer
picture,
Contents
PREPARATION
Safet
Safet_
Features ..........................
Notes on Discs ...........
Descri
Co
HDMt
Corm ling Extern_
How to Corm
...........................27
.29 /
.................................... IIIL.35
37
A_!
Zo_
Bez
Sel
Se"
Setting TV Screen type .................................................... 45
Setting 3arentat Controls (Rating Level)............................................................................................................................. 47
Setting the Password .......................................................................................................................................................... 48
Setting the Wallpaper .......................................................................................................................................................... 49
DVD Audio Disc Playback Mode ......................................................................................................................................... 51
Setting the Speaker Mode .................................................................................................................................................. 52
Setting the Delay Time........................................................................................................................................................ 53
Setting the Test Tone .......................................................................................................................................................... 55
Setting the DRC (Dynamic Range Compression) .............................................................................................................. 56
Setting the Audio ............................................................................................................................................................... 57
AV SYNC Setup.................................................................................................................................................................. 59
Sound Field (DSP)/EQ Function ......................................................................................................................................... 60
Dotby Pro Logic ti Mode ..................................................................................................................................................... 61
Doiby Pro Logic II Effect ..................................................................................................................................................... 62
_,.j RADIO OPERATION
Listeningto Radio ............................................................................................................................................................... 63
Presetting Stations.............................................................................................................................................................. 64
MISCELLANEOUS
Convenient Functions ......................................................................................................................................................... 65
Operating a TV with tile Remote Control............................................................................................................................ 67
Before Calling for Service ................................................................................................................................................... 69
Cautions on Handling and Storing Discs............................................................................................................................ 71
Language Code List............................................................................................................................................................ 72
Specifications ...................................................................................................................................................................... 73
WARRANTY ........................................................................................................................................................................ 74
Notes on Discs
O
VIDEO
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
Home Theaters and the discs are coded by region. These regional codes must match in
order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your Home Theater wilt only play DVDs that are labeled with identical region codes.)
Disc Type
DVD-AUDIO
DVD-VIDEO
AUDIO-CD
Mark (Logo)
o
AUDIO/VIDeO
DIGITALAd310
RecordedSignals
Audio + Video
Audio
Disc Size
5"
3 1/2"
5"
3 1/2"
Max. Playing Time
Approx. 240 rain.(single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min (single-sided)
Approx. 160 min. (double-sided)
74 min.
20 min.
• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.
• DVD discs purchased abroad may not play on this player.
If such discs are played, a "WRONG RECdON CODE" message appears on the TV screen.
Many DVD discs are encoded with copy protection. Because of this, you should only connect
your Home Theater directly to your TV, not to a VCR. Connecting to a VCR results in a distorted
picture from copy-protected DVD discs.
This product incorporates copyright protection technology that is protected by methods claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembiy is prohibited.
CD-R Discs
• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
condition of the disc.
• Use a 650MB/74 minute CD-R. Other CD-R media, may not be playable.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fuily played. If the session is ciosed but the disc is ieft open,
you may not be able to fully play the disc.
CD-R MP3 Discs
• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the ".mp3" and ".MP3" extensions can be played.
• Only a consecutively written Multisession disc can be played. If there is a biank segment in the Multisession disc,
the disc can be played only up to the blank segment.
• if the disc is not closed, it wiil take ionger to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both Iow bit rate and high bit rate (e.g.,
32Kbps ~ 320Kbps), the sound may skip during playback.
• A maximum of 500 tracks can be played per CD.
• A maximum of 300 folders can be played per CD.
CD-R JPEG Discs
• Only files with the ".jpeg" and ".JPEG" extensions can be played.
• if the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the
disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
Description

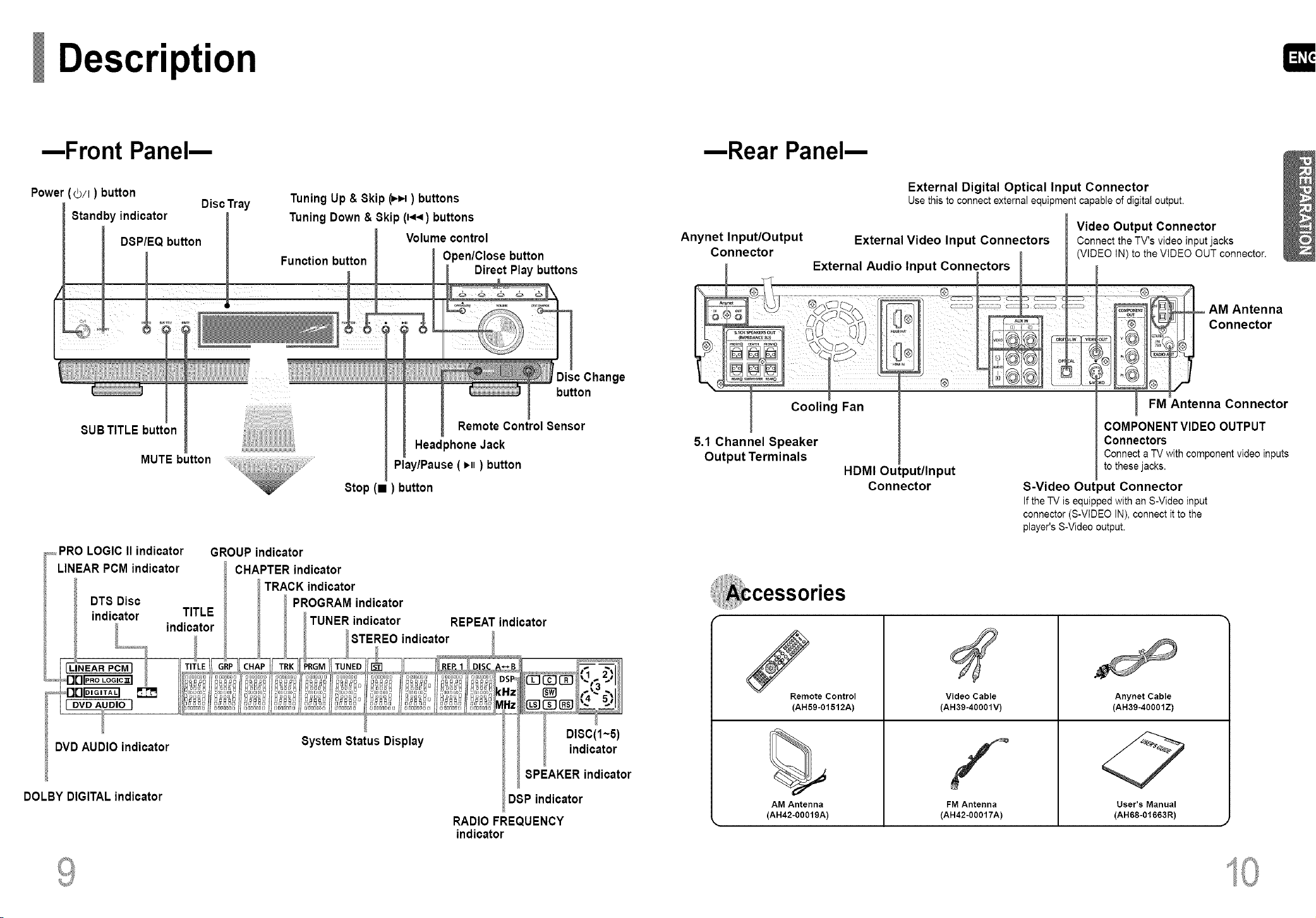

--Front Panel--
Power (_>/I) button
Standby indicator
Disc Tray
DSP/EQ button
Function button
Tuning Up & Skip pH ) buttons
Tuning Down & Skip (F,Fq)buttons
Volume control
Open/Close button
Direct Play buttons
SUB TITLE button
MUTE button
..... .......
Stop (11
Disc Change
button
Remote Control Sensor
Headphone Jack
Play/Pause ( _,, ) button
button
....PRO LOGIC II indicator
LINEAR PCM indicator
DOLBY DIGITAL indicator
GROUP indicator
CHAPTER indicator
TRACK indicator
PROGRAM indicator
TUNER indicator
REPEAT indicator
System Status Display
+z (]_]C_](]_] +_ +ll
DI8C(1-5)
indicator
SPEAKER indicator
DSP indicator
RADIO FREQUENCY
indicator
--Rear Panel--
External Digital Optical Input Connector
Usethis to connect external equipmentcapable of digitat output.
Anynet Input/Output
Connector
External Video Input Connectors
External Audio Input Connectors
Video Output Connector
Connect the TV's video input jacks
(VIDEO IN) to the VIDEO OUT connector.
Cooling Fan
5.1 Channel Speaker
Output Terminals
HDMI Output/Input
Connector
IAM Antenna
Connector
FM Antenna Connector
COMPONENT VIDEO OUTPUT
Connectors
Connecta TV with componentvideo inputs
to these jacks.
S-Video Output Connector
If the TV is equippedwith an S-Video input
connector(S-VIDEOIN), connect itto the
player'sS-Videooutput.
Remote Control
(AH59-01512A)
AM Antenna
(AH42-00019A)
Video Cable
(AH39-40001V)
FM Antenna
Anynet Cable
(AH39-40001Z)
(AH42-00017A)
User's Manual
(AH68-01663R)
Description
--Remote Control--
TV indicator
TV, DVD POWER button ,_
MODE button
DISC SKIP button
Number(O~9)buttons
REMAIN button ,_
E]DPL II MODE button
VOLUME button
MENU button
SUB TITLE button
RETURN button
REPEAT button
STEP button
ZOOM button,_
LOGO COPY button
SLEEP button
SLOW,MO/ST button
HDMI AUDIO button
DIGEST button
I1
RECEIVER indicator
button
DIMMER button
DVD button _ AUX button
_JN_R
TUNER button
button
Play/Pausebutton _ Stopbutton
L"_ TuningPreset/CDSkip butto
PL II EFFECT button
TUNING/CH button
INFO. button
AUDIO button
...... Cursor/Enter button
MUTE button
EZ VIEW button
_TEST TONE button
_8OUND EDIT button
_DSP/EQ button
_TUNER MEMORY, DCDi button
_8D/HD button
SLIDE MODE button
f
1 Remove the battery
cover on the back
of the remote by
pressing down and
sliding the cover in
the direction of the
arrow.
2
Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and -).
3 Replace the battery
cover.
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity:(+) to (+)and (-)to (-).
• Use the correct type of batteries.Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
of Operationof theRemoteControl
The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be
operated at a horizontal angle of up to 30 ° from the remote control sensor.
: ooo ooooo
J

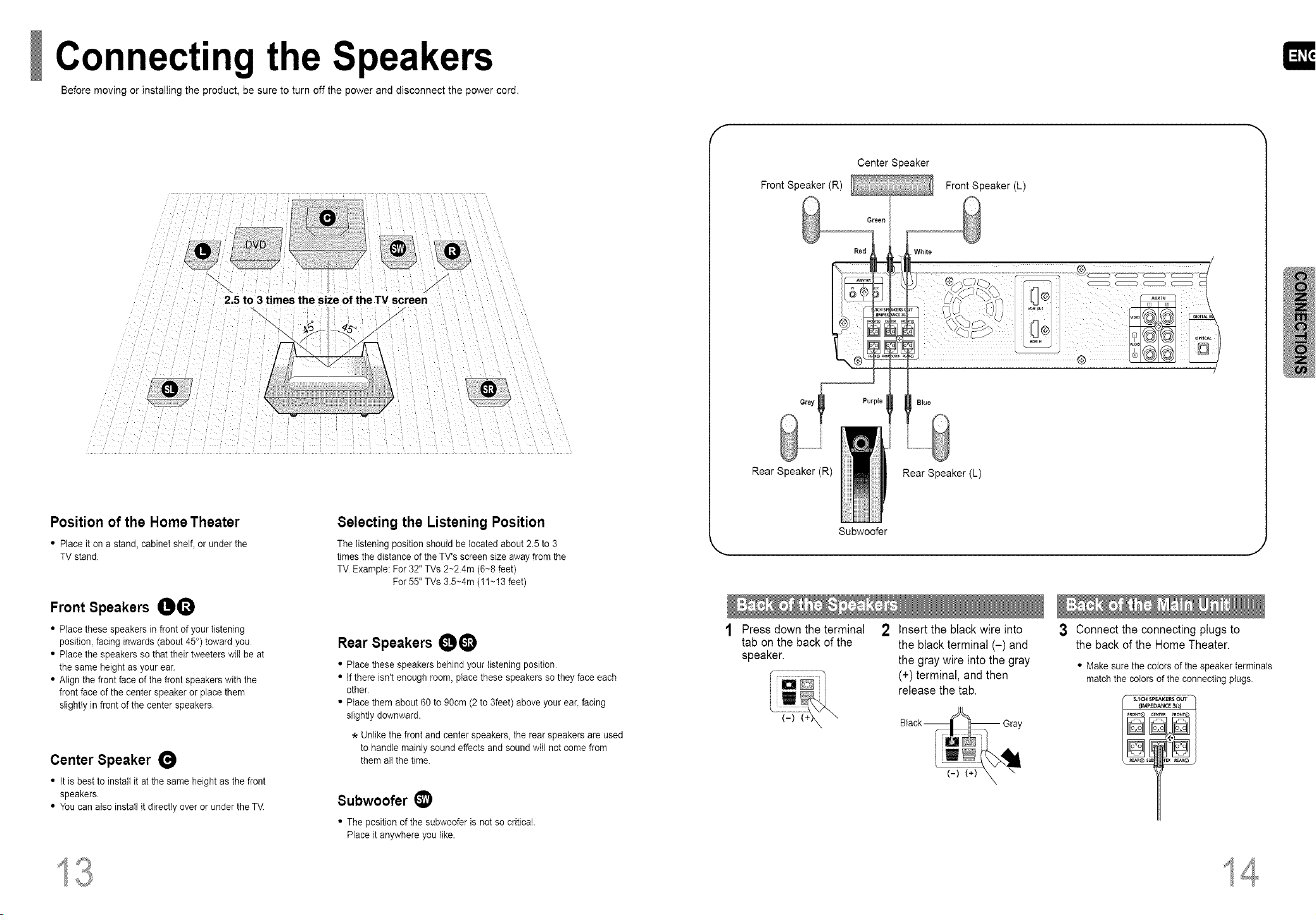

Connecting the Speakers
Before moving or instalIing the product, be sure to turn off the power and disconnect the power cord.
"-.
2.5 to 3 times the size of theTV screen
/
Position of the Home Theater
• Place it on a stand, cabinet shelf, or under the
TV stand.
Front Speakers 0_)
• Place these speakers in front of your listening
position, facing inwards (about 45°) toward you.
• Place the speakers so that their tweeters wili be at
the same height as your ear.
• Align the front face of the front speakers with the
front face of the center speaker or place them
slightly in front of the center speakers.
Center Speaker
• It is best to install it at the same height as the front
speakers.
• You can also install it directly over or under the TV.
Selecting the Listening Position
Tile listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example: For 32" TVs 2~2.4m (6-8 feet)
For 55" TVs 3.5~4m (11~13 feet)
Rear Speakers (_)
• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers so they face each
other.
• Place them about 60 to 90cm (2 to 3feet) above your ear, facing
slightly downward.
* Unlike the front and center speakers, the rear speakers are used
to handle mainly sound effects and sound will not come from
them all the time.
Subwoofer (_
• The position of the subwoofer is not so critical.
Place it anywhere you like.
f
Front Speaker (R)
Center Speaker
Front Speaker (L)
Green
Red
White
Rear Speaker (R)
Purple
Blue
Rear Speaker (L)
Subwoofer
Press down the terminal
tab on the back of the
speaker.
2 Insert the black wire into
the black terminal (-) and
the gray wire into the gray
(+) terminal, and then
release the tab.
3 Connect the connecting plugs to
the back of the Home Theater.
• Make sure the colors of the speaker terminals
match the colors of the connecting plugs.
I4
ConnectingtheVideoOutto TV
Choose one of the four methods for connecting to a TV.
HT-HDP40
Green
Green
TV
Composite Video ....... (Good Quality)
- Connect the supplied video cable from the VIDEO OUT jack on the back panel of the system
to the VIDEO IN jack on your TV.
S-Video ....... (Good Quality)
- If your television is equipped with an S-Video input, connect an S-Video cable (not supplied) from
the S-VIDEO OUT jack on the back panel of the system to the S-VIDEO IN jack on your television.
Component ....... (Better Quality)
- If your television is equipped with Component Video inputs, connect a component video cable
(not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the corresponding
jacks on your TV.
HDMI ....... (Best Quality)
- Connect the HDMI out to the HDMI input on your TV,
• This product operates in Progressive scan mode(480p Only ) for Component Output.
• If the TV only supports a resolution of 576i(480i), the screen may be divided into 2 screens, or
display nothing.
J Connectingthe HDMIIN/OUT
HDMI (High-Definition Multimedia Interface) is a next generation TV-type digital interface specification
that enables transmitting digital video and audio over a single cable. In addition, it enables you to enjoy
multi-channel digital audio.
#
not supplied
Set-top box or
DVD player
o°o J
< --
not supplied
1 Connect the HDMI IN port of this unit and the HDMI OUT port of a set-top box
or the DVD player.
2 Connect the HDMI OUT port of this unit and the HDMI IN port of your TV.
3
Press AUX on the remote control to select 'HDMI IN.
• Each time the button is pressed, the selection changes as follows:
HDMI IN-_ DIGITAL IN-* AUX 1 -_ AUX 2.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD -* HDMI IN -* DIGITAL IN -* AUX l -* AUX 2 -* FM -* AM.
• When this unit is turned off, no HDMI video or audio signal is output from this unit.
• In the HDMI IN Function, the video resolution switch button (SDIHD) does not work.
• When the output from an external device, which is connected to this device, is DVl, no audio wilI be
output. In this case, you can listen to the digital audio by connecting the Optical OUT of the source
device and the Optical IN of this device, even if the source device and this device is connected through
DVI interface.
HDMI Function
This device transmits DVD video signal digitally without the process of converting to analog.
You can get sharper digital pictures by connecting the video to your TV using an HDMI
connection cable.
HDMI Audio ON/OFF function
• The audio signals transmitted over the HDMI Cable can be toggled
ON/OFE
• The default setting value of this product is HDMI AUDIO OFF.
• HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
• If you turn the unit off and on, or switch functions when the HDMI AUDIO
is set to ON, the HDMI AUDIO is automatically set to OFF.
DCDi (DirectionalCorrelationalDeintertacing)Function
Converts the interlace signal to progressive to prevent flickering and to
remove distortion or noise on the edge of screen.
Press and hold DCDi button on the remote
control for over 3 seconds.
• Each time the button is pressed, the selection alternates between
DCDi ON and DCDi OFF.
HDM AUDIO SD/HD
_Q
Resolution Selection
• This function allows the user to select screen resolution for HDMI output.
• Since this product has an embedded Video Upscaler function with Faroudja DCDi technology, it can
enhance a 576i(480i) DVD resolution output to 480p/720p/1080i.
• You do not have to make separate adjustments, since the Home Theater and TV will be automatically
adjust themselves to the optimal resolution and aspect ratio if connected to HDMI. (If the TV is an HDTV
and has an HDMI Input jack, output is automatically converted to 1080i resolution (if supported by the TV).)
• For component video output, only 480P is supported.
• When both HDMI and COMPONENT jacks are connected, COMPONENT video is not displayed.
• See your TV owner's manual for more information on how to select the TV's Video Input source.

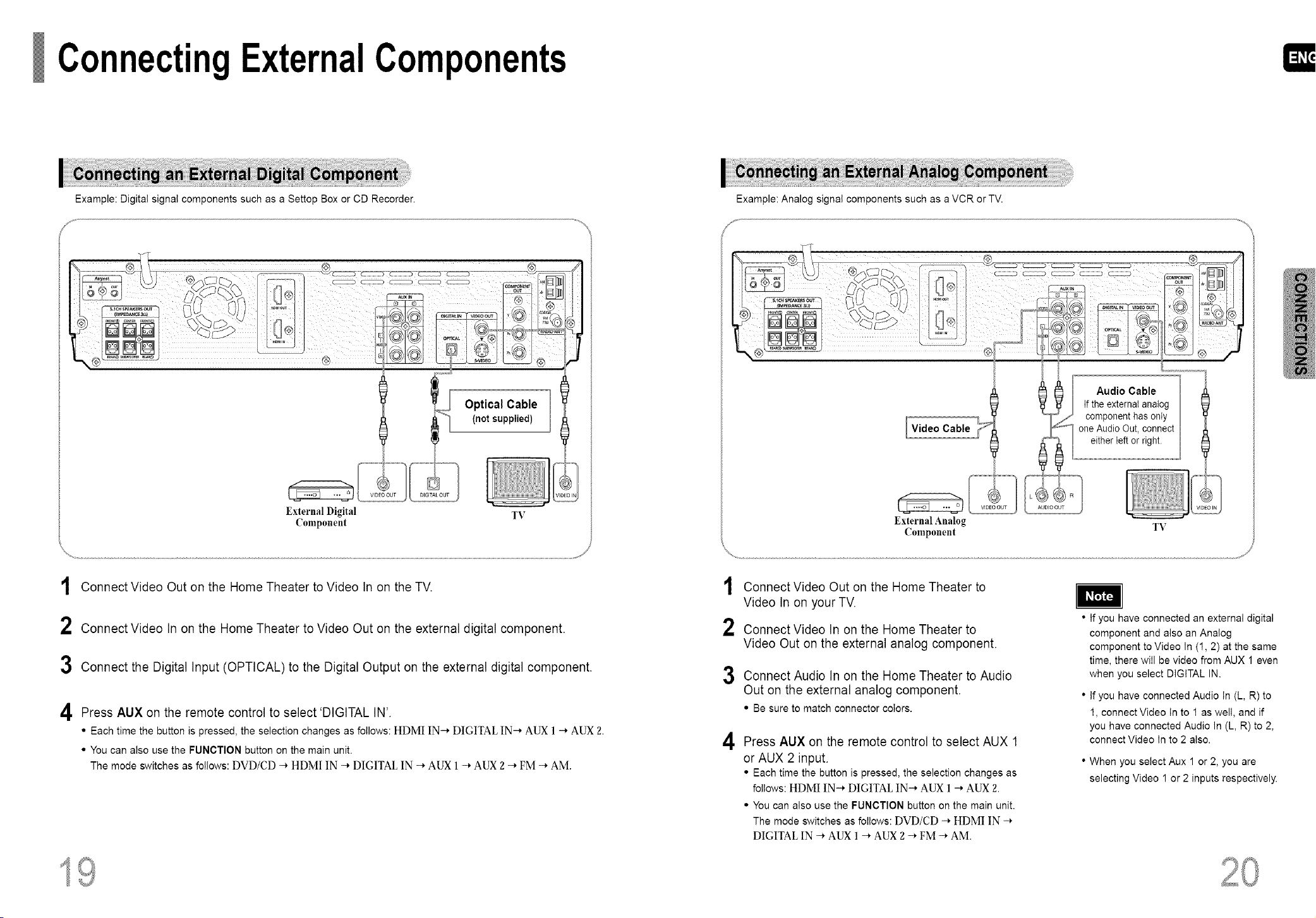

ConnectingExternalComponents
Example: Digital signal components such as a Settop Box or CD Recorder.
I_ ...£i
External Digital
Component
TV
1
2
3
4
Connect Video Out on the Home Theater to Video In on the TV.
Connect Video In on the Home Theater to Video Out on the external digital component.
Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component.
Press AUX on the remote control to select 'DIGITAL IN'.
• Each time the button is pressed, the selection changes as follows: HDMI IN-* DIGITAL IN-* AUX ] -* AUX 2.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD -* HDMI IN -* DIGITAL IN -* AUX 1 -* AUX 2 -* FM -* AM.
Example: Analog signal components such as a VCR or TV.
Video Cable
Audio Cable
If the extemaI anatog
component has only
one Audio Out, connect
either left or right.
External Analog
Component
TV
1 Connect Video Out on the Home Theater to
Video In on your TV.
2 Connect Video In on the Home Theater to
Video Out on the external analog component.
3 Connect Audio In on the Home Theater to Audio
Out on the external analog component.
• Be sure to match connector colors.
4 Press AUX on the remote control to select AUX 1
or AUX 2 input.
• Each time the button is pressed, the selection changes as
follows: HDMI IN-* DIGITAL IN-* AUX 1 -* AUX 2.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD -* HDMI IN -*
DIGITAL IN -_ AUX 1 -_ AUX 2 -_ FM -_ AM.
Ifyou have connected an external digital
component and also an Analog
component to Video In (1, 2) at the same
time, there will be video from AUX 1 even
when you select DIGITAL IN.
If you have connected Audio In (L, R) to
1, connect Video In to 1 as well, and if
you have connected Audio In (L, R) to 2,
connect Video in to 2 also.
When you select Aux 1 or 2, you are
selecting Video 1 or 2 inputs respectively.
I How to Connectto Anynet
Using a Samsung Anynet-enabled TV, you can control the DVD Home Theater System and any other
Samsung Anynet-enabled AV device. For detailed operation instructions and connection diagram, refer
to the user's manual of your Samsung Anynet-enabled TV.
What is Anynet?
• The Anynet function allows you to use your Samsung TV's remote control and menu to control all AV devices.
• However, this function is available only with 8amsung Anynet-enabled models.
Other AV devices
Samsung DVD player I
Samsung VCR I
Samsung Set-Top Box I
Use this to connect
Anynet-enabled AV
devices,
I
J
1 Connect the Anynet input terminal on the back of this unit to your Samsung TV's Anynet
output terminal.
2 Connect the Anynet Out Terminal on the back of this unit to the Anynet input of Samsung
external AV devices,
3 Refer to the user's manual of your Anynet-enabled TV and activate the Anynet function.
* This function is available only with Samsung Anynet-enabted TVs.
• If the Anynet input and output terminals are reversed, communication with the TV will fail and
you will not be able to use the Anynet function.
ConnectingtheFMandAMAntennas
If AM reception is poor, connect an
outdoor AM antenna(not supplied).
COAXIAL
AM Loop Antenna
(supplied)
FM Antenna (supplied) RADIO ANT
Snap the tabs on the loop into the
slots of the base to assemble the
AM loop antenna.
1. Connect the FM antenna supplied to the FM
75_ COAXIAL terminal.
2. Slowly move the antenna wire around until
you find a location where reception is good,
then fasten it to a wall or other rigid surface.
1. Connect the AM loop antenna supplied
to the AM and /17 terminals.
2. If reception is poor, connect an outdoor
single vinyl-covered wire to the AM
terminal. (Keep the AM loop antenna
connected).
Cooling Fan The coolingfan suppliescoolair to theunit to preventoverheating.
Please observe the following cautions for your safety.
• Makesure the unit is well-ventilated If the unit has poorventilation, the temperature inside the unit could rise
and may damage it
• Do not obstruct the cooling fan or ventilationholes. (If the cooling fan or ventilationholes are covered with a
newspaperor cloth, heat may build up inside the unit and fire may result)

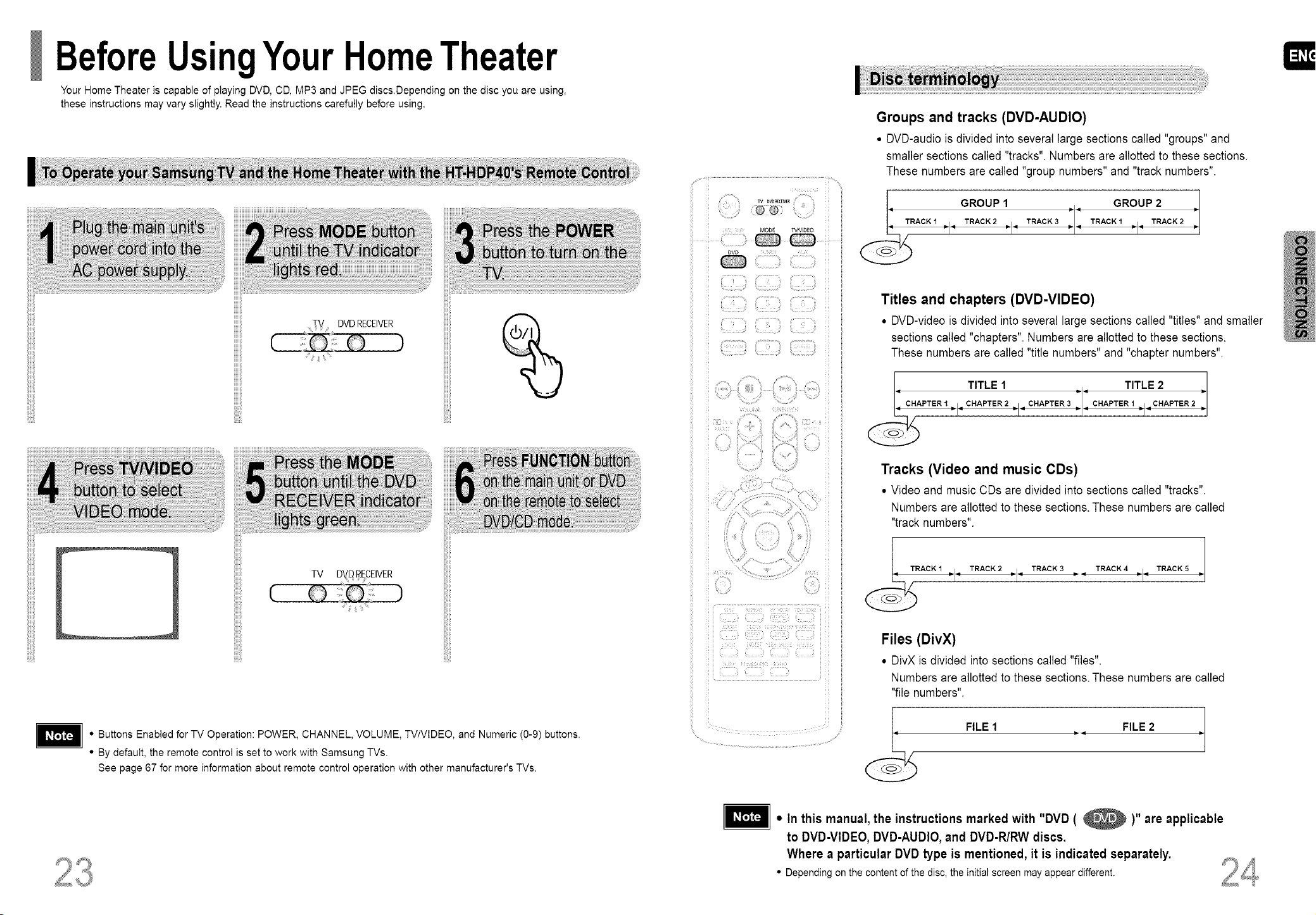

I BeforeUsingYourHomeTheater
Your Home Theater is capable of playing DVD, CD, MP3 and JPEG discs.Depending on the disc you are using,
these instructions may vary slightly. Read the instructions carefully before using.
¢ I !i i_¸¸_¸
_¢Ji!¸ ii !i%
• Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO, and Numeric (0-9) buttons.
• By default, the remote control is set to work with Samsung TVs.
See page 67 for more information about remote control operation with other manufacturer's TVs.
©O
MOD[ _//V 050
Groups and tracks (DVD-AUDIO)
• DVD-audio is divided into several large sections called "groups" and
smaller sections called "tracks". Numbers are allotted to these sections.
These numbers are called "group numbers" and "track numbers".
-_ GROUP1 GROUP2
TRACK 1 = I= TRACK 2 =1_ TRACK 3 {_1_ _1- _ _ TRACK1 = _ TRACK2
;i¸
Titles and chapters (DVD-VIDEO)
• DVD-video is divided into several large sections called "titles" and smaller
sections called "chapters". Numbers are allotted to these sections.
These numbers are called "title numbers" and "chapter numbers".
TITLE1 "1" TITLE2
CHAPTER 1 _1_ CHAPTER 2 _1_ CHAPTER 3 CHAPTER 1 =1_ CHAPTER 2
rl" _l-" -I"
Tracks (Video and music CDs)
• Video and music CDs are divided into sections called "tracks".
Numbers are allotted to these sections. These numbers are called
"track numbers".
_RACKI TRACK2 _1- TRACK3 TRACK4
" I _ _ _ _1_ TRACK 5
Files (DivX)
• DivX is divided into sections called "files".
Numbers are allotted to these sections. These numbers are called
"file numbers".
FILE 1 .. FILE 2
• In this manual, the instructions marked with "DVD ( ),,
are
applicable
to DVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs.
Where a particular DVD type is mentioned, it is indicated separately.
• Depending on the content of the disc, the initial screen may appear different.

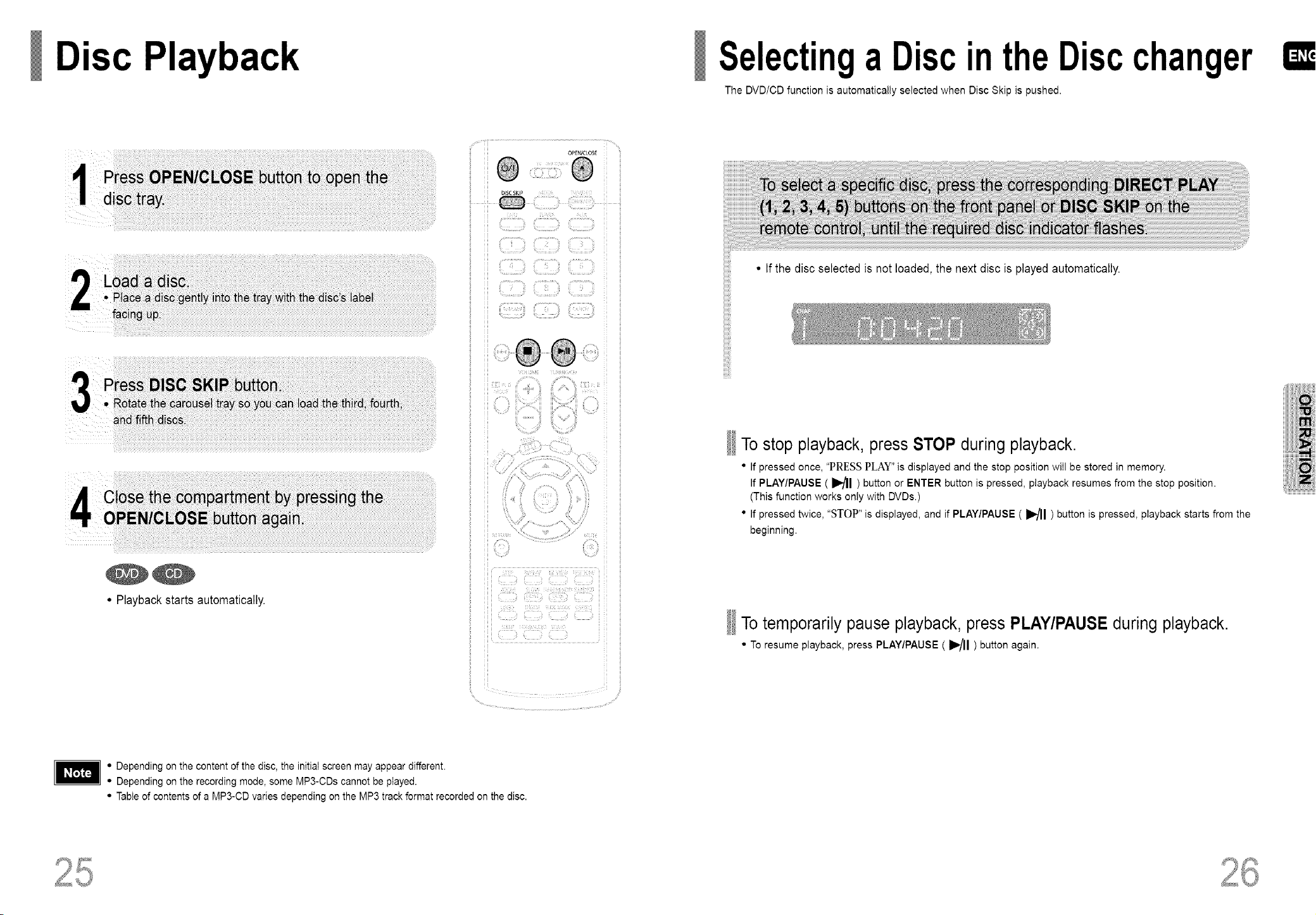

Disc Playback Selectinga DiscintheDiscchanger
The DVD/CD function is automatically selected when Disc Skip is pushed.
1 DSCSKP
• Playback starts automatically.
• If the disc selected is not loaded, the next disc is played automatically.
To stop playback, press STOP during playback.
• If pressed once, "PRESS PLAY" is displayed and the stop position wilI be stored in memory.
If PLAY/PAUSE ( HI ) button or ENTER button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)
• If pressed twice, "STOP" is displayed, and if PLAY/PAUSE ( I_l ) button is pressed, piayback starts from the
beginning.
To temporarily pause playback, press PLAY/PAUSE during playback.
• To resume playback, press PLAY/PAUSE ( I_1 ) button again.
• Depending on the content of the disc, the initiat screen may appear different.
• Depending on the recording mode, some MP3-CDs cannot be played.
• Table of contents of a MP3-CD varies depending on the MP3 track format recorded on the disc.
I MP3-CD Playback
Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3 format can be played.
P_S_ _h_
1 toi
an_ then I_a_
• The MP3 menu screen will appear and
playback will start.
• The appearance of the menu depends on
the MP3 disc.
• To select another album and track,
repeat Steps 2 and 3 above.
• Depending on the recording mode, some MP3-CDs may not play.
• Table of contents of a MP3-CD varies depending on the MP3 track format
recorded on the disc.
• MP3 file support: MPEG1 LAYER3 (BITRATE : 128KBPS~320KBPS,
SAMPLING FREQ.: 32K/44.1K/48KHz)
I To play a file icon in the screen,
Press the • • • • button when it is in stop
status and select a desired icon from the top
part of the menu.
• To play music files only, select the _ Icon.
• To view image files only, select the _ Icon.
• To view movie files only, select the _ Icon.
• To select all files select the _ Icon.
• Music File Icon
• Image File Icon
• Movie File Icon
•AII File Icon
DisplayingDisc Information
You can view disc playback information on the TV screen.
O
O
The information display
D MP31 I ZJ Withou_ You
DMP32 I_J_ILet_tBe I
[_ MP33 a'J Yesterday
O O
The information display The infoi'mation display
disappears from the screen disappears from the screen
• @ appears on the TV screen!
If this symbol appears on the TV screen while buttons are being operated,
that operation is not possible with the disc currently being played.
Depending on the disc, the disc information display may appear
different.
• Depending on the disc, you can also seiect DTS, DOLBY DIGITAL,
or PRO LOGIC.
DVD display
CD display
DivX display
MP3 CD display
TITLE display
GROUP display
,T&
_'AV CHAPTERdisplay
O ELAPSEDTIMEdisplay
d_ REPEATPLAYBACKdisplay
I_ AUDIOLANGUAGEdisplay
LR STEREO(L/R)display
E]_ BOLBYBIGFALdisplay
DIGITAL
ANGLEdisplay
DVD-AUDIOdisplay @ TRACK(FILE)display _ SUBTITLEdisplay
I JPEG File Playback
Images captured with a digital camera or camcorder, or JPEG flies on a PC can be stored on a CD and then
pIayed back with this Home Theater.
Slide Mode
1
il!¸
• Playback starts automatically.
• Each time the button is pressed, the image makes the transition as follows:
sure SHoWMODE:t _--
41-
SLIDESHowMODE: 2
0
II
II
"I"
SLIDESHOW MODE ; 10
41"
SLIDESHOW MoDE :11
SLIDE SHOW MODE : RAND
SLIDESHOW MODE i NONE
I
Fromtop to bottom
From bottom to top
Rectangular shape in the center
Vertical blinds effect
Each time a new image is displayed, slide modes
(1~11) will be applied randomly and automatically.
Cancels the slide mode.
iii ii
_s _ _ to skip to the next slide.
Digest Function
You can view 9 JPEG images on the TV screen.
• JPEG files will be shown in
9 windows.
• The selected image is played for 5 seconds before moving to
the next image.
O
the previous or next image with 9 windows, press_._ _H
t Rotate/Flip Function
Original Image
• button:FlipVertically
_i button:Rotate90°
Counterclockwise
• button: Rotate 90 ° Clockwise
• button: Flip Horizontally
I JPEG limitation
The maximum resolution is 5120 x 3840 (or 19.0 MPixei) for baseline images, and 2048 x !536
(3.0 MPixel) for progressive images.
There is no filesize limitation.
The decoder is device independent, thus above applies to USB and other devices as well.
• Each time the button is pressed, the slide moves backward or forward. _,'_ Progressive JPEG images -- those that appear gradually as the image is being downloaded.
DivX Playback
Skip Forward/Back
Fast playback
5 Minute Skip function
Zoom Function
• Each time you press the button,
your selection will toggle between
"ZOOM X2" and "ZOOM OFF",
• DIVX file can be zoomed only in ZOOM X2 mode.
• Zoom function is not available when playing a MPEG1 video file.
lOOM
l/Subtitle Display
• Each time you press the button, your selection will toggle between "SUBTITLE ON" (1/1, 1/2 ...) and
"SUBTITLE OFF".
• If the disc has only one subtitle file, it will be played automatically.
l/Audio Display
• Each time you press the button, your selection will toggle between "AUDIO ON" (1/1, 1/2 ...) and ,, _3 ""
• " __j " is displayed when there is one supported ianguage in the disc.
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft based on the MPEG4 to provide audio and video
data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie
at near DVD-quality video and audio.
1. Supported Formats
• This product only provides the following media formats. If both video and audio formats are not
supported, the user may experience problems such as broken images or no sound.
• Supported Video Formats
I Format t AVI
Supported Versions DivX3.11 ~ 5.1
• Supported Audio Formats
Format MP3 WMA
Bit Rate 80~384kbps 56~128kbps
SamptingFrequency 44.1khz
wMv tVl/V2/V3/V7
AC3 DT8
128~384kbps 1.5Mbps
44.1/48khz 44.1khz
• Aspect Ratio: Although default DivX resolution is 640*480 pixels (4:3), this product supports up to
720*480 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may
experience shaking on the screen during playback.
2. Caption Function
• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption fiie (*.smi) in the same fiie name as that of the DivX
media file (*.avi) within the same folder.
Example. Root Samsung_Bluetek_007CD 1.avi
Samsung_Bluetek_007CD 1.smi
• Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and
Chinese) for the fiie name.
/ Checking the RemainingTime
i_ _ _ _ _ _ = _ _ i/8 ¸¸¸¸¸_' i¸¸ _ iiiiiiii _ i_ _ _i!_
/..................s _heREMAIN b _te_,............................................._............................................................................../..........................
Each time the REMAIN button is pressed
"0-
"41-
I
,!,
,41-
I
41,
,!,
I
SLOW
/ Fast/Slow Playback
Fast Playback
Slow Playback
-,_ 2X 4"
41,
4!"
3=x
PLAY
_2x 4-
_,-4x
_8X
"tk
!_ 32X
PLAY
I_" 1/2
"e"
I_" 1/8
41 i/2
41 1/4
_l 1/8
• * PLAY
Skipping Scenes/Songs
• Reverse slow playback
does not work with DivX.
I=
iiiiiiii!iiiiiii!ii
iiiii!i_i!Ji!!!Xil....
iiiiiiii!iiiii/iiii_
I Repeat Playback
Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).
_ EPEAT : CHAPTER
REPEAT : TITLE
REPEAT : OFF
REPEAT : RANDOM
"41"
REPEAT : TRACK
41,
REPEAT :DIR
41,
REPEAT : DISC
REPEAT : OFF
REPEAT : TRACK
REPEAT : GROUF
41"
REPEAT : OFF
REPEAT:TRACK
REPEAT : DISC
REPEAT:OFF
CHAPTER
Repeatedly plays the selected chaoter.
TITLE
Repeatedly plays the selected title.
GROUP
Repeatedly plays the selected group.
RANDOM
=lays tracks q random order.
,A track that has already been playea may be
piayed again.)
TRACK
Repeatemy plays the selected track.
DIR
Repeatedly plays all tracks in the selected folder.
DISC
Repeatealy plays the entire disc.
OFF
Cancels Repeat PlayuacK.
_a_Select a Repeat Playback Mode in the Disc Information Screen
1 Press INFO button twice.
2 Press Cursor I_ button to move to
REPEAT PLAYBACK ((_)) display.
Press Cursor's' button to select the
desired Repeat Playback mode.
4 Press ENTER button.
C_OFF*--I
4-
(_A- /
41-
epA-
4.
(_}TRACK
* For MP3 and JPEG discs, you cannot select Repeat _"
_#DmC
Play from the information display screen. I

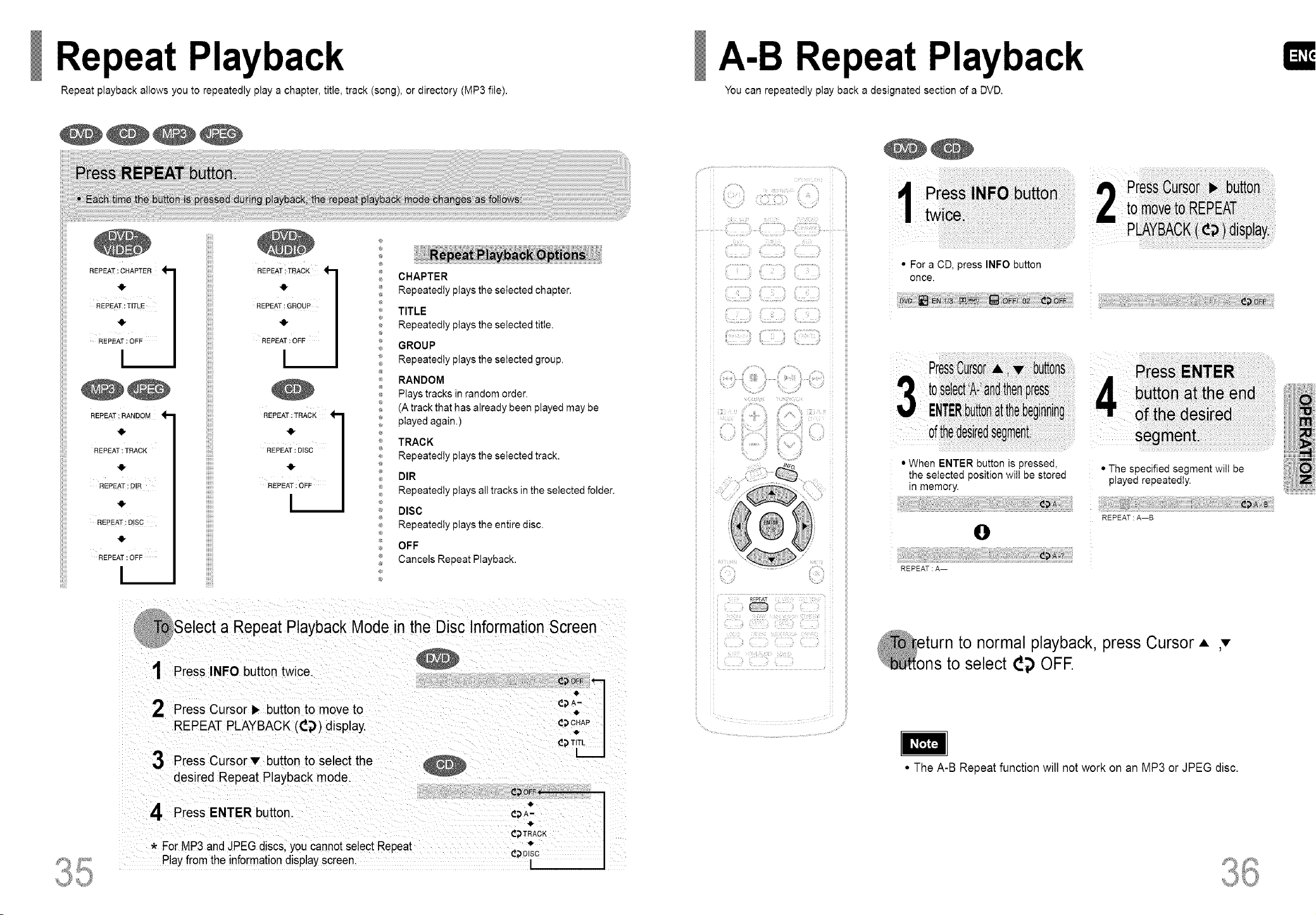

A-B Repeat Playback
You can repeatedly play back a designated section of a DVD.
il
• For a CD, press INFO button
once.
• When ENTER button is pressed,
the selected position will be stored
in memory.
O
i
• The specified segment will be
played repeatedly.
t
REPEAT : A--B
REPEAT : A--
to normal playback, press Cursor • ,_
to select (_;) OFE
• The A-B Repeat function will not work on an MP3 or JPEG disc.
I Step Function _ Zoom (Screen Enlarge) Function
This function allows you to enlarge a particular area of the displayed image.
• During fast playback of a CD or MP3-CD, sound is heard only at 2x speed,
and not at 4x, 8x, and 32x speeds.
• No sound is heard during slow playback and step motion playback.
I Angle Function
This function allows you to view the same scene in different angles.
1
• Each time the button is pressed, the angle changes as follows:
i /:'_'i_ _:i:_iii___ii:i_'_'
!i! i i ............." '
_i iii
ii _i;
ii i_i
^
EZ VIEW Function
• Each time the button is pressed, the zoom function will switch between On
and Off.
• When a movie is played in Widescreen format, black bars at the top and
bottom of the TV screen can be removed by pressing the EZVlEW button.
• Each time the button is pressed, the
zoom level changes as follows:
ZOOM x 1,5 _,=
41-
ZOOM x 2
€
ZOOM x 3
€
ZOOM OFF
• The Angle function works only with discs on which multiple
angles have been recorded.
- U
i "
• This function will not work if the DVD is recorded with multi-camera angle format.
• Biack bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.

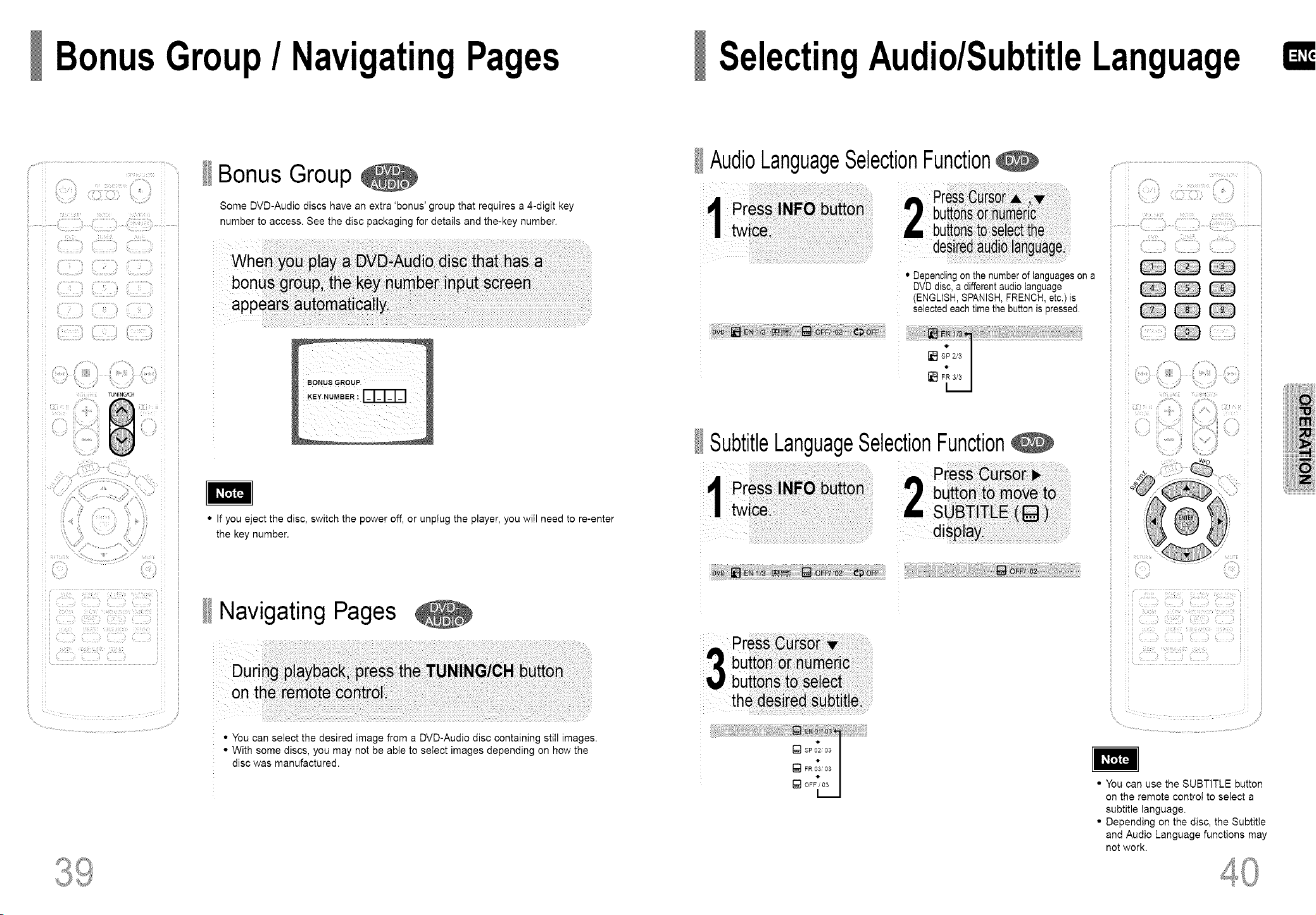

I BonusGroup/ NavigatingPages
i_ _i _i_ ____i_i_i _i i_'i
Bonus Group
Some DVD-Audio discs have an extra 'bonus' group that requires a 4-digit key
number to access. See the disc packaging for details and the-key number.
• If you eject the disc, switch the power off, or unplug the player, you wilI need to re-enter
the key number.
i_ii¸ i ¸/
ili _i
ii ii , _ ii
Navigating Pages
Durii
• You can select the desired image from a DVD-Audio disc containing still images.
• With some discs, you may not be able to seiect images depending on how the
disc was manufactured.
SelectingAudio/SubtitleLanguage
AudioLanguageSelectionFunction
SubtitleLanguageSelectionFunction
• You can use the SUBTITLE button
on the remote control to select a
subtitle language.
• Depending on the disc, the Subtitle
and Audio Language functions may
not work,
I MovingDirectlyto a Scene/Song Using Disc Menu
You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.
• When you select DiscMenu and it is not
supported by the disc, the "This menu is not
supported" messageappears on the screen.
4, _::
se
• Press ENTER button.
• The selected file will be played.
• An MP3 or JPEG disc cannot be moved
in the disc information screen.
• When playing an MP3 or JPEG disc, you
cannot use • ,V to move to a folder.
To move a folder, press • (Stop) and
then press • ,•.
{1 [ ;;
• You can press _ on the
remote control to move directly to the
desired title, chapter, or track.
• Depending on the disc, you may not
be able to move to the selected title
or time.
• Disc menu display may be different depending on the disc.
Using the Title Menu
For DVDs containing multiple titles, you can view the title of each movie.
Depending on the disc, the availability of this feature may vary.
MENU button to exit the setup screen.
• Title menu display may be different depending on the disc.
• The title menu appears.
I Setting the Language
OSD (On-Screen Display) language is set to English by default.
Sel
an(
EN
then
• Once the setup iscomplete, if the languagewas
setto Engllsn OSD wi Dealsplayed in Encisn
RETURN
®
• To select another language, select OTHER and enter the language code of your country.
(See page 72 for language codes)
AUDIO. SUB TITLE and DISC MENU language can be selected.
s RETURN button to return to the previous level.
R_essMENU button to exit the setup screen.
Selecting the Selecting the Selecting the Selecting the Disc Menu
OSD Language Audio Language Subtitle Language Language (recorded on the disc)
(recorded on the disc) (recorded on the disc
* If the language you selected is
not recorded on the disc. menu
anguage will not change even
if you set it [o your desired
anguage.
I SettingTV Screentype
Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.
i_' ii _...........ii _
1
• Once the setup is complete, you will
be taken to the previous screen.
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high
definition TVs is 16:9.This ratio is called the aspect ratio. When playing DVDs recorded in different
screen sizes, you should adjust the aspect ratio to fit your TV or monitor.
• For a standard TV, select either "4:3LB" or "4:3P8" option according to personal preference.
8elect "16:9" if you have a widescreen TV.
• Select this to view a 16:9 picture in the full-screen
mode on your widescreen TV.
• You can enjoy the widescreen aspect.
• Select this to play a 16:9 picture in the letter box
mode on a conventional TV.
• Black bars will appear at the top and bottom of the screen.
: Select this to play a 16:9 picture in the pan & scan
mode on a conventional TV.
• You can see the central portion of the screen only (with the
sides of the 16:9 picture cut off).
• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
• Since DVD discs are recorded in various image formats, they will look different depending on
the software, the type of TV, and the TV aspect ratio setting.
s RETURN button to return to the previous level.
_ss MENU button to exit the setup screen.

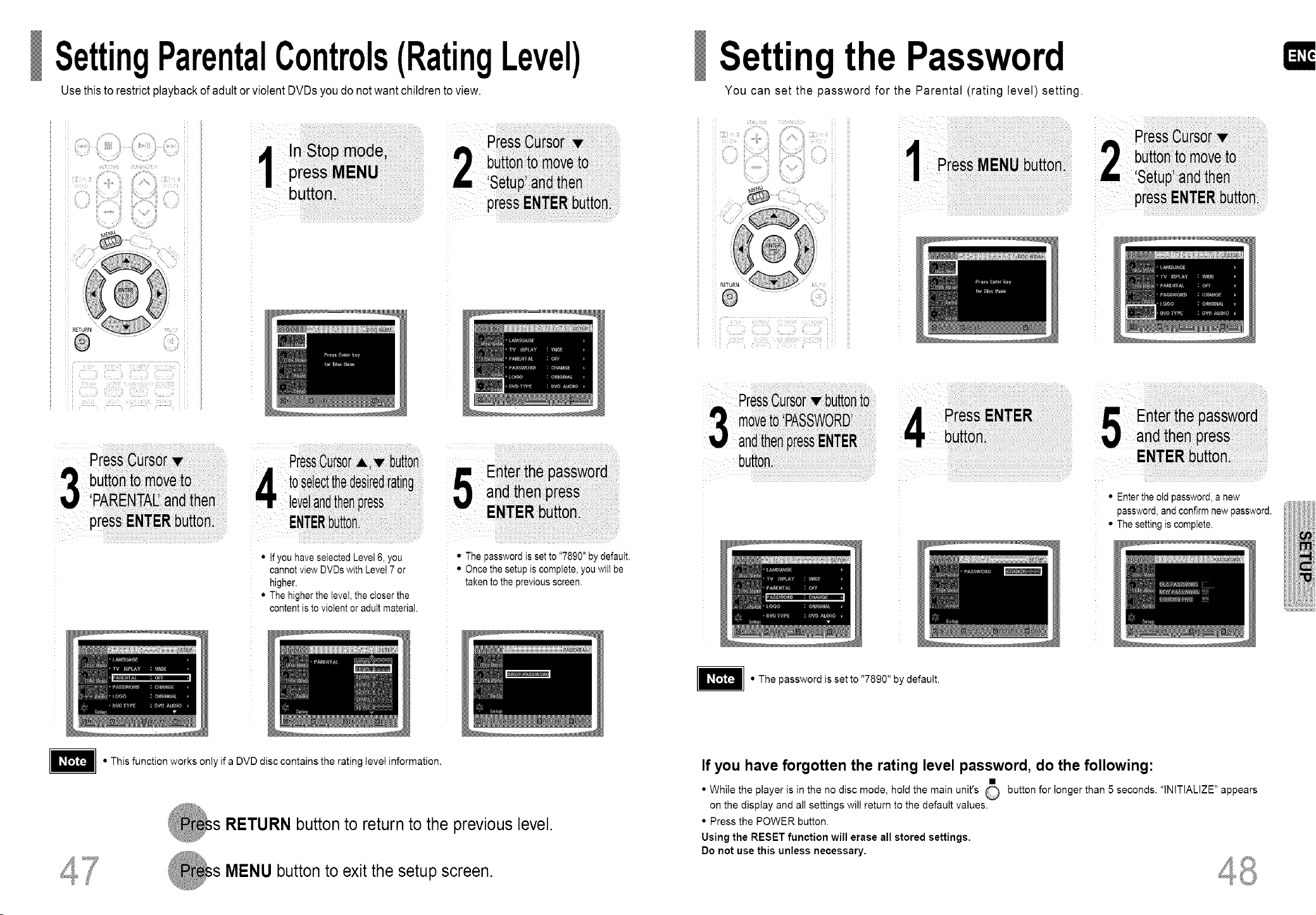

I SettingParentalControls(RatingLevel)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
ii -
A t0ii iiiiiiiiiiiii
ENTER_i
• tfyou have selected Level 6, you
cannot view DVDs with LeveJ7 or
higher.
• The higher the level, the closer the
content is to vioJent or adult material
L_
• The password is set to "7890" by defauit.
• Once the setup is compJete,you wilI be
taken to the previous screen.
Setting the Password
You can set the password for the Parental (rating level) setting.
Pre_ _:
m_:!ii :PA_:_
buit6
4
• The password is set to "7890" by default.
• Enter the old password, a new
password, and confirm new password.
• The setting is complete.
• This function works only if a DVD disc contains the rating levei information.
_s RETURN button to return to the previous level.
_s MENU button to exit the setup screen.
If you have forgotten the rating level password, do the following:
• While the player is in the no disc mode, hold the main unit's Q button for Ionger than 5 seconds. "INITIALIZE" appears
on the display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
I Setting the Wallpaper
While watching a DVD or JPEG CD, you can set the image you like as background wallpaper.
Setting the Wallpaper
To select one of the 3 wallpaper settings you've made
1 2 3
• "COPY LOGO DATA" will be
displayed on the TV screen.
3
• The selected wa bauer will De
displayed.
• You can selec_ uu to 3 wallDauer
settings.
.oco
4 5
s RETURN button to return to the previous level.
Select this to set the Select this to set the desired
Samsung Logo image as _mage as your wallpaper.
your wallpaper.
DVDAudio Disc PlaybackMode
Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.
To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.
• DVD Play mode is set to DVD Audio
as factory default setting.
I DivX (R) registration
• Set steps 1 ~ 4 again if you want to
switch to DVD AUDIO Play mode,
When Selecting DVD Play Mode:
• DVD VIDEO : set to play the DVD video
contents contained on a
DVD audio disc.
• DVD AUDIO : set to play the default
DVD audio.
• Please use the Registration code to register this player
with the DivX (R) video on demand format. To learn more,
go to www.divx.comtvod.
| Setting the Speaker Mode
Signal outputs and frequency responses from the speakers will automatically be adjusted according to your
speaker configuration and whether certain speakers are used or not.
El
pre,
• For C, SL, and SR, each time the button
is pressed, the mode switches
alternately as follows: SMALL _, NONE.
• For L and R, the mode is set to SMALL.
Select this when using the speakers.
Select this when no speakers are connected.
• Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 61).
I Setting the Delay Time
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of
the audio signals from the center and rear speakers.
i I ................,....................
Setting up the Speaker Delay Time
When 5.1CH Surround Sound is played, you can enjoy the best sound if
the distance between you and each speaker is the same. Since the sounds
arrive at the listening position at different times depending on the
placement of speakers, you can adjust this difference by adding a delay
effect to the sound of the Center Speaker and Surround Speakers.
• With DE]PL (Dolby Pro Logic II), the delay time may be different for each mode.
• With AC-3 and DTS. the delay time can be set between 0O and 15mSEC.
• The Center channel is only adjustable on 5.1 channel discs.
• Setting CENTER SPEAKER
If the distance of Dc is equal to or longer than the
distance of Df in the figure, set the mode as Oms
Otherwise change the setting accordingto the table
DistancebetweenDfandDc DelayTime
0iooh I 0 ms
13.6 inches ' I ms
i
27.2 Inches 2 ms
40.8 inches 3 ms
4.5 feet , 4 ms
5.6 feet ' 5 ms
• Setting REAR (SURROUND) SPEAKER8
If the distance of Df s equal to the distance of Ds
in the figure, set the mode as Ores. Otherwise.
change the setting according to the table.
DistancebetweenDfandDs DelayTime
0,och I 0ms
I0.0 feet 9 ms
I3.4 feet 12 ms
16.7 feet ' 15 ms
• You can set the delay time for C
between 00 and 05mSEC and for
SL and SR between 00 and
15mSEC.
f
Ideal CENTER
/
I
/
(
Dc
Ideal
SURROUND
SPEAKER
placement
It _s desirable to place a_l speakers within th_s circle.
Dr: The distance from FRONT SPEAKER
Dc: The a_s_aqce from CENTER SPEAKER
Ds: The distance from SURROUND SPEAKER
J
I Setting the Test Tone
Use the Test Tone feature to check the speaker connections.
SettingtheDRC(DynamicRangeCompression)
You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.
• The test tone will be sent to L -* C -*
R -* SR _ SL -* SW in order.
If the ENTER button is pressed again
at this time, the test tone will stop.
RETURN button to return to the previous level.
MENU buttonto exit the setup screen.
Press TEST TONE button.
• Test tone wilI be produced as follows:
When playing a DVD or CD, this will work only in Stop mode.
• Use this function to check that each speaker is correctly
connected and that there is no problem.
• When there is no input signal from the HDMI IN function, the
Test Tone will not work.
To end the test tone,
press TEST TONE button again.
L: FrontSpeaker (L) C: Center Speaker SW: Subwoofer
R: Front Speaker(R) SL: Rear Speaker (L) SR: RearSpeaker (R)
Start [
TLmTTONE
Q
HHH_
HHH_
iiiiiiii
iiiiiiii
iiiiiiii
iiiiiiii
• When the Cursor • button is pressed,
the effect is greater, and when the
Cursor• buttonis pressed,theeffectis
smaller.
RETURN button to return to the previous level.
_sMENU button to exit the setup screen.
I Settingthe Audio
You can adjust the balance and level for each speaker.
1
to
iii _i
',i_ _ _ _ _ _ _ _ _ _,_,:iI_
s RETURN button to return to the previous level.
P_sss MENU button to exit the setup screen.
• The adjustments will appear on the main unit's display, not on your TV screen
Adjusting Front/Rear Speaker Balance
• You can select between 00 and -06 and OFF.
° The volume decreases as you move closer to -6.
Adjusting Center/Rear/Subwoofer Speaker Level
° The volume level can be adjusted in steps from +6dB to -6dB.
° The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

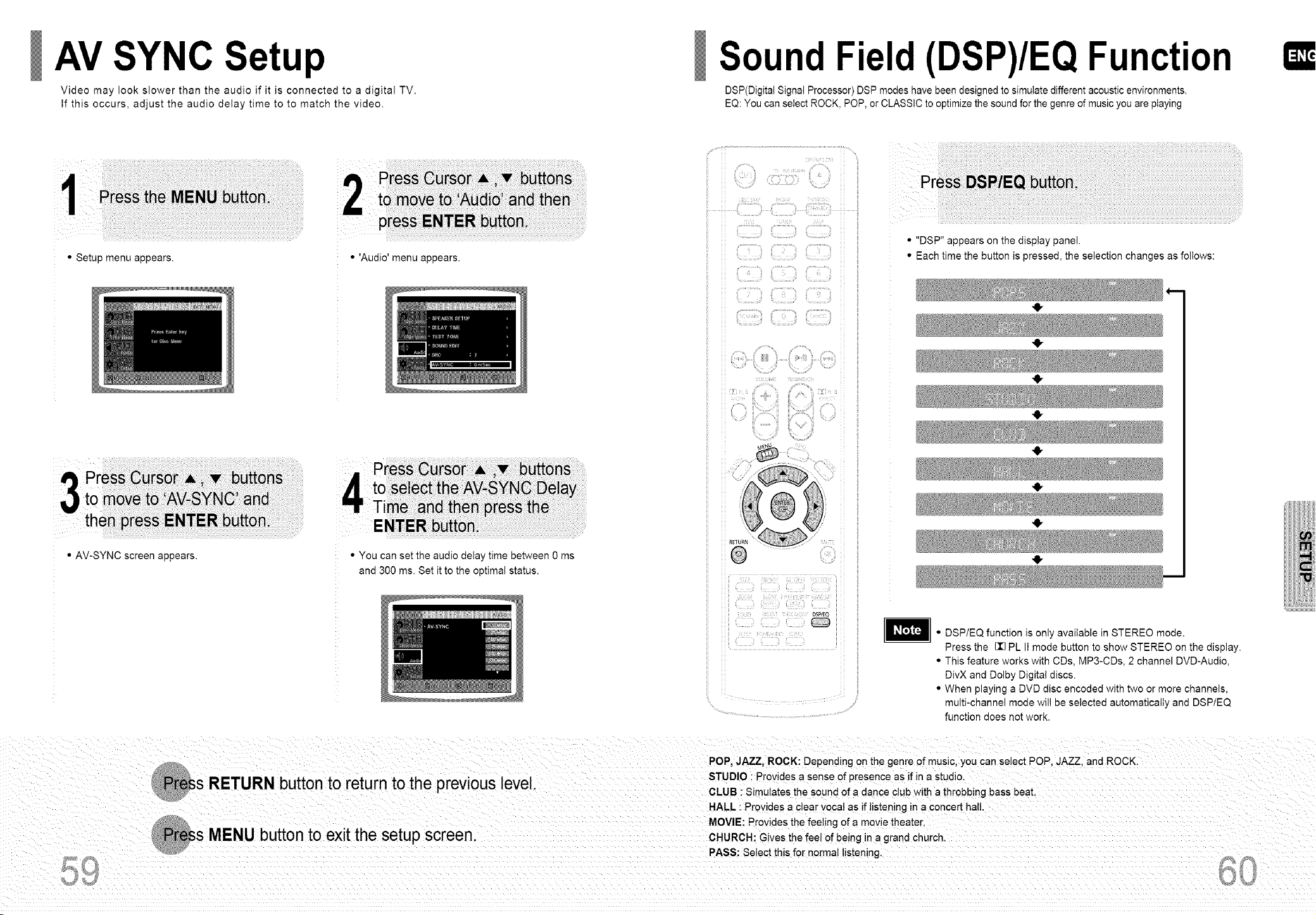

I AV SYNC Setup
Video may look slower than the audio if it is connected to a digital TV.
If this occurs, adjust the audio delay time to to match the video.
Sound Field (DSP)/EQ Function
DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments.
EQ: You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing
1
• Setup menu appears. • 'Audio' menu appears.
• You can set the audio delay time between 0 ms
and 300 ms. Set it to the optimal status.
ii i i
ii ii ¸¸ . _,<__ !:_:_!i ii
_ iii
i_ilii!i__III ii_i?
iil i i _" !
• "DSP" appears on the display panel.
• Each time the button is pressed, the selection changes as follows:
4!-
,!1-
,!1-
,!1-
• DSP/EQ function is only available in STEREO mode.
Press the I]3 PL I! mode button to show STEREO on the display.
• This feature works with CDs, MP3-CDs, 2 channel DVD-Audio,
DivX and Dolby Digital discs.
• When playing a DVD disc encoded with two or more channels,
multi-channel mode will be selected automatically and DSP/EQ
function does not work.
POP. JAZZ. ROCK: Depending on the genre of music, you can select POP. JAZZ. and ROCK.
_,,_'rev_ous level. STUDIO: Provides a sense of presence as if it" a studio.
RETURN buttonS to return to the
CLUB : Simulates the sound of a dance club with a throbbing bass beat.
HALL : Provides a clear vocal as if listening in a concert hall
MOVIE: Provides the feeling of a movie theater.
_s MENU button to exit the
setup screen. CHURCH: Gives the feel of being in a grand church.
PASS: Select this for normal listeninc
I DolbyPro LogicII Mode
You can select the desired Dolby Pro Logic II audio mode.
Dolby Pro LogicII Effect
This function works only in Dolby Pro Logic MUSIC mode.
41,
41'
41"
41,
_r]PL I [I]P_
MODE -FFEL7
• You can select either 0 or 1
• This mode extends the front stereo mage to
include the surround speakers for an exciting
"wrauaround" effect with side wa maglng.
• You can select between 0 and 7.
• This sets the width of the center image.
The h gher the setting, the Iess sound comes from
me center soeaKer.
• You can select between 0 and 6.
• Incrementally adjusts the sound field/DSPffrom
the front or rear
• When selecting Pro Log c I mode. connect your externa device to me
AUDIO NPUTjacks (L and R) on me player. If you connect to on _ one of
the nDuts (L or RL you cannot listen to surround sound.
• When playing a DVD disc encoded A!Ithtwo or more channels multi-channe mode will be
selected automatically and II]PL II (Dolby Pro Logic II button does not work
PRO LOGIC II
*' MUSIC: When listening _c music, you can experience sound effects as if you are listening to the actual 3erformance.
• CINEMA: Adds realism to the movie soundtrack
• PRO LOGIC: You wi! exuerience a realistic "nultl-channel effect, as if using five speakers, while using just the front let[
and right sueakers.
• MATRIX: You will hear 5.1 channel sun'ouna sound
STEREO: Select this to listen to sound from the front left and right speakers and the subwoofer only.
Listening to Radio
You can listen to the chosen band (FM, AM broadcast stations) by using either the automatic or
manual tuning operation.
/ PresettingStations
You can store up to:
15 FM stations • FM .......................... Frequency Modulation
¢ 15 AM stations • AM .......................... Medium Wave
1
• The selection toggles back and
forth between "FM -* AM" each
time the FM button is pressed.
When _,_ _ is pressed, a
preset broadcast station is
selected.
_ ress and hold TUNING/OH to
automatically search for active
broadcasting stations.
_ riefly press TUNING/OH to
increase or decrease the
frequency incrementally.
:,4 Pr
| de_
AMi
Press the STOP (m)
button to seIect
PRESET and then press 141_1I_m,-I
button to select the preset station.
Press the STOP (11) button
to select "MANUAL" and
then press and hotd _ _ button to
automatically search the band.
Press STOP (m) to select
MANUAL and then briefly
press I_ _ to tune in to a lower or
higher frequency,
Example: Presetting FM 89.1 in the memory
• Each time the button is pressed,
the band switches between
"FM -_ AM".
• Refer to Step 2 on page 63 to
automatically or manually tune in
to a station.
• You can select between 1 and
15.
• Pressthe TUNER MEMORYbutton before
'PRGM' disappearsfrom the display.
• 'PRGM' disappearsfrom the display and
the station is stored in memory.
• "PRGM" flashes in the display.
#
ST button to listen in Mono/Stereo.
applies only when listening tc an FM station.)
• Each time the button is pressed, the sound switches between "STEREO" and "MONO".
• In a poor reception area select MONO for a clear, interference-free broadcast,
_tune in to a preset station, press _ _ on the
remote control to select a channel.

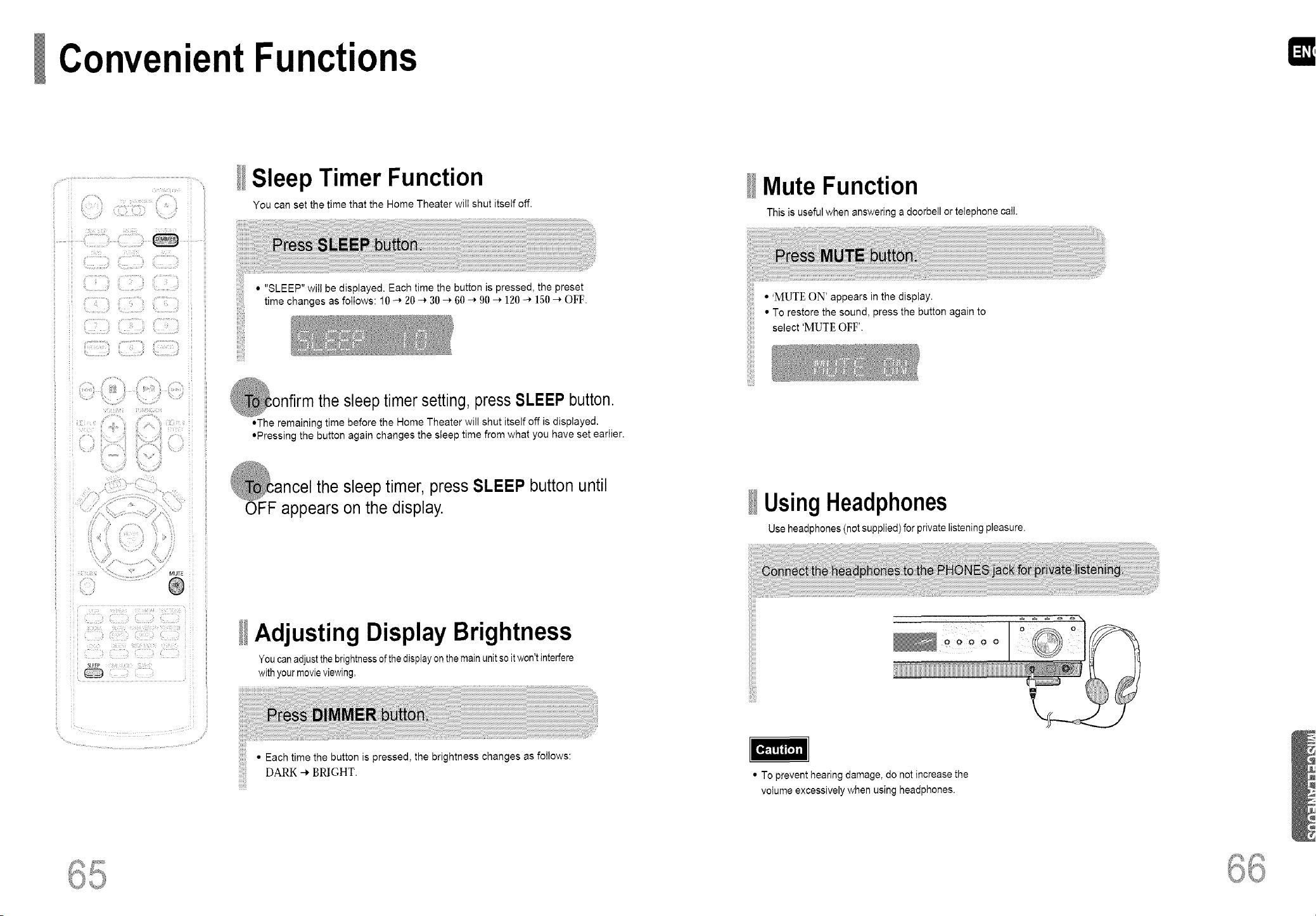

ConvenientFunctions
Sleep Timer Function
You can set the time that the Home Theater wilI shut itself off.
• "SLEEP" will be displayed. Each time the button is pressed, the preset
time changes as follows: 10 _ 20 _ 30 -* 60 -* 90 -* 120 -4, 150 -* OFF.
the sleep timer setting, press SLEEP button.
•The remaining time before the Home Theater will shut itself off is displayed.
• Pressing the button again changes the sleep time from what you have set earlier.
the sleep timer, press SLEEP button until
OFF appears on the display.
FFP
MUTE
@
Adjusting Display Brightness
You can adjust the brightness of the display on the main unit so it won't interfere
with your movie viewing.
• Each time the button is pressed, the brightness changes as follows:
DARK 4 BRIGHT.
i Mute Function
This is useful when answering a doorbell or telephone call.
• 'MUTE ON' appears in the display.
• To restore the sound, press the button again to
select 'MUTE OFF'.
I Using Headphones
Use headphones (not supplied) for private listening pleasure.
O O
• To prevent hearing damage, do not increase the
volume excessively when using headphones.
!
. OperatingaTVwiththeRemoteControl
V_ODE
!
• If the code matches the TV's code, the TV will be turned off.
• If there is more than one code listed for your TV in the table,
enter one at a time to determine which code works.
Example: For a Samsung TV
While holding down POWER, use the number buttons to enter 00,
01,02, 03, 04, and 05.
• You can use the TVPOWER, VOLUME, CHANNEL, and Numeric
buttons(0~9).
• The remote controi may not work on some brands of TVs. Also, some operations may not be
possible depending on your brand of TV.
• If you do not set the remote control with the code for your brand of TV, the remote control wilt
work on a Samsung TV by default.
I SAMSUNG 00(Initial VaIue), 01,02, 03, 04, 05, 73 30 BRANDT
2 ANAM 06~11,59 31 FERGUSON
3 DAEWOO 12~18, 20, 21 32 PIONEER
4 LG 05, 20, 21,22, 53 33 TELEAVA
5 HITACHI 23, 40, 41,49 34 FINLUX
6 JVC 24, 55 35 FISHER
7 SHARP 27, 33, 34, 35, 54 36 AKAI
8 SONY 27, 36 37 YOKO
9 TOSHIBA 27, 37, 42, 43, 44, 46 38 PHONOLA
10 SANYO 27, 30, 31,32 39 RADIOLA
11 MITSUBISHI 05, 27, 28 40 SCHNEIDER
12 MATSUSHITA 09, 26 41 NEWSAN
13 TELEFUNKEN 41,49, 51,57 42 CONTINENTAL EDISON
14 RCA 29, 61 43 SALORA
15 PANASONIC 07, 09, 26, 48, 49, 50 44 SELECO
16 SABA 40, 41,47, 48, 49 45 NOKtA
17 PH}LIPS 05,45,47,64,65,66,67,68,69 46 REX
18 GRUNDIG 39, 42, 46, 70, 71,72 47 MtVAR
19 ZENITH 38 48 IMPERIAL
20 MIVAL 52 49 CGE
21 NOBLEX 56 50 BANG & OLUFSEN
22 EMERSON 19 51 BRIONVEGA
23 MAGNAVOX 25 52 PORMENTI
24 LOEWE 05, 60 53 METZ
25 THOMSON 40, 41,49, 62, 63 54 WEGA
26 NORDMENDE 40, 41,49 55 RADIOMARELLt
27 LOEWE OPTA 36, 47, 05 56 SINGER
28 BLAUPUNKT 39 57 SINUDYNE
29 SIEMENS 39
41
41
41,48,74
41
05,42,47
31
31
O5
05,45,47
05,45
O5
58
49
48
48
48
48
46
46
46
47
47
47
47
47
47
47
47
!

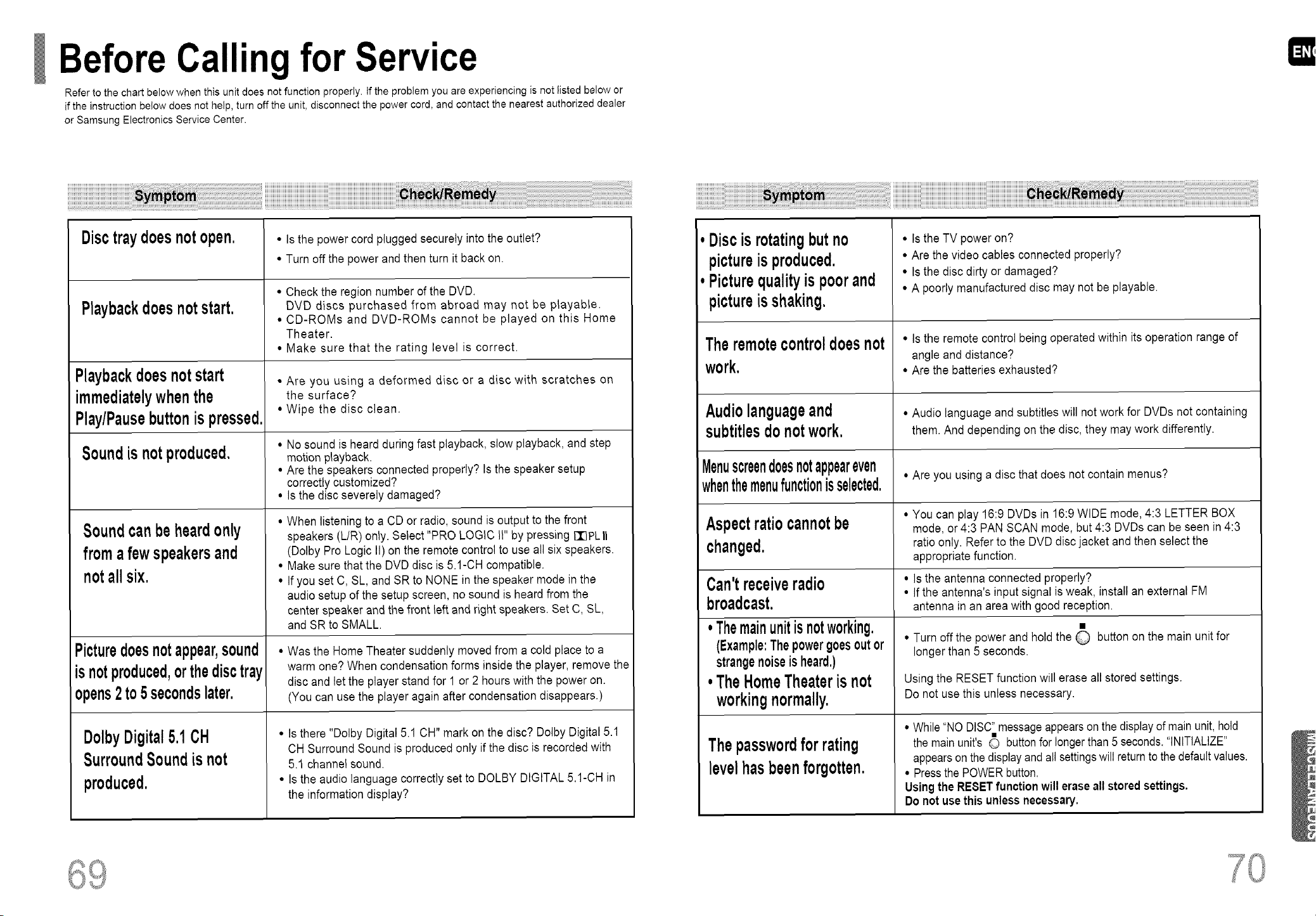

. BeforeCallingfor Service
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or
if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer
or Samsung Electronics Service Center.
!
Disctraydoesnotopen.
Playbackdoesnotstart.
Playbackdoesnotstart
immediatelywhenthe
Play/Pausebuttonispressed.
Soundis notproduced.
Soundcanbeheardonly
fromafewspeakersand
notallsix.
Picturedoesnotappear,sound
isnotproduced,orthedisctray
opens2to5secondslater.
DolbyDigital5.1CH
SurroundSoundisnot
produced.
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
• Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this Home
Theater.
• Make sure that the rating level is correct.
• Are you using a deformed disc or a disc with scratches on
the surface?
• Wipe the disc clean.
• No sound is heard during fast playback, slow playback, and step
motion playback.
• Are the speakers connected properly? Is the speaker setup
correctly customized?
• Is the disc severely damaged?
• When listening to a CD or radio, sound is output to the front
speakers (L/R) only. Select "PRO LOGIC li" by pressing I3BPLIt
(Dolby Pro Logic II) on the remote control to use all six speakers.
• Make sure that the DVD disc is 5.1-CH compatible.
• If you set C, SL, and SR to NONE in the speaker mode in the
audio setup of the setup screen, no sound is heard from the
center speaker and the front left and right speakers. Set C, SL,
and SR to SMALL.
• Was the Home Theater suddenly moved from a cold place to a
warm one? When condensation forms inside the player, remove the
disc and let the player stand for 1 or 2 hours with the power on.
(You can use the player again after condensation disappears.)
• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1
CH Surround Sound is produced only if the disc is recorded with
5.1 channel sound.
• Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in
the information display?
oDiscisrotatingbutno
pictureis produced.
oPicturequalityispoorand
pictureisshaking.
Theremotecontroldoesnot
work.
Audiolanguageand
subtitlesdonotwork.
Menuscreendoesnotappeareven
whenthemenufunctionisselected,
Aspectratiocannotbe
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
• Is the remote control being operated within its operation range of
angle and distance?
• Are the batteries exhausted?
• Audio language and subtitles will not work for DVDs not containing
them. And depending on the disc, they may work differently.
• Are you using a disc that does not contain menus?
changed.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM
antenna in an area with good reception.
Can'treceiveradio
broadcast.
oThemainunitisnotworking,
(Example:Thepowergoesoutor
strangenoiseisheard.)
oTheHomeTheaterisnot
workingnormally.
Thepasswordfor rating
levelhasbeenforgotten.
• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX
mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in4:3
ratio only. Refer to the DVD disc jacket and then select the
appropriate function.
• Turn off the power and hold the Q button on the main unit for
longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• While "NO DISC"messageappearson the display of main unit, hold
the main unit's © buttonfor longerthan 5 seconds."INITIALIZE"
appearson the displayand all settingswill return to the defaultvalues.
• Pressthe POWER button.
Usingthe RESETfunctionwill erase all storedsettings.
Do not use this unlessnecessary.
. CautionsonHandlingandStoringDiscs
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
@ Handling discs .................................................................................................................................................
Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.
_,_,,;,Disc Storage .......................................................................................................................................................
Do not keep in
direct sunlight
\\
Keep in a cool
ventilated area
sJ
Keep in a clean
Protection jacket.
Store vertically.
• Do not allow the discs to become contaminated with dirt.
• Do not load cracked or scratched discs.
@ Handling and Storing Discs .......................................................................................................
When you get fingerprints or dirt on the disc, clean it
with a mild detergent diluted in water and wipe with a
soft cloth.
• When cleaning, wipe gently from the inside to the outside of the disc.
• Condensation may form if warm air comes into contact with cold parts
inside the player. When condensation forms inside the player, the player
may not operate correctly. If this occurs, remove the disc and let the
player stand for 1 or 2 hours with the power on.
/ Language Code List
Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle"
and/or "Disc Menu" (See page 43).
1027 Afar ! 181 Frisian 1334 Latvian, Lettish 1506 Stovenian
1028 Abkhazian ! 183 Irish 1345 Malagasy !507 Samoan
1032 Afrikaans ! 186 Scots Gaelic 1347 Maori 1508 Shona
1039 Amharic 1194 Gatician 1349 Macedonian !509 Somali
1044 Arabic ! 196 Guarani 1350 Malayalam 1511 Albanian
1045 Assamese !203 Gujarati 1352 Mongolian 1512 Serbian
1051 Aymara !209 Hausa 1353 Moldavian 1513 Siswati
1052 Azerbaijani !217 Hindi 1356 Marathi 1514 Sesetho
1053 Bashkir !226 Croatian 1357 Malay 1515 Sundanese
1057 Byelorussian 1229 Hungarian 1358 Maltese 1516 Swedish
1059 Bulgarian 1233 Armenian 1363 Burmese 1517 Swahili
1060 Bihari !235 Interlingua 1365 Nauru !521 Tamii
1069 Bistama 1239 Interlingue 1369 Nepali !525 Tegulu
1066 Bengali; Bangla !245 Inupiak 1376 Dutch 1527 Tajik
1067 Tibetan !248 Indonesian 1379 Norwegian 1528 Thai
1070 Breton 1253 Icelandic 1393 Occitan 1529 Tigrinya
1079 Catalan !254 Italian 1403 (Afan) Oromo 1531 Turkmen
1093 Corsican !257 Hebrew 1408 Oriya 1532 Tagalog
1097 Czech 1261 Japanese 1417 Punjabi 1534 Setswana
1103 WeJsh !269 Yiddish 1428 Polish 1535 Tonga
1105 Danish !283 Javanese 1435 Pashto, Pushto 1538 Turkish
1109 German !287 Georgian 1436 Portuguese 1539 Tsonga
1130 Bhutani !297 Kazakh 1463 Quechua 1540 Tatar
1142 Greek !298 Greenlandic 1481 Rhaeto-Romance 1543 Twi
1144 English 1299 Cambodian 1482 Kirundi 1557 Ukrainian
1145 Esperanto 1300 Kannada 1483 Romanian 1564 Urdu
1149 Spanish !301 Korean 1489 Russian 1572 Uzbek
1150 Estonian !305 Kashmiri 1491 Kinyarwanda 1581 Vietnamese
1151 Basque 1307 Kurdish 1495 Sanskrit 1587 Volapuk
1157 Persian 1311 Kirghiz 1498 Sindhi 1613 Wolof
1165 Finnish 1313 Latin 1501 Sangro 1632 Xhosa
1166 Fiji 1326 Lingala 1502 Serbo-Croatian 1665 Yoruba
1171 Faeroese 1327 Laothian 1503 Singhalese 1684 Chinese
1174 French 1332 Lithuanian 1505 Slovak !697 Zulu
!
Specifications
G Power Consumption
E
N Weight
E Dimensions (W x H x D)
R
A Operating Temperature Range
L Operating Humidity Range
T Usable Sensitivity
F U
M N S/N Ratio
E
R DJstortlon
T Usable Senslhvlty
N SIN Ratio
E
R D_storhon
Composite Video
V o
I U
D T
P
E U
O T
A
M
P
L
I
F
I
E
R
S
P
E
A
K
E
R
S-VIDEO
Component Video
HDMI
Front speaker output
Center speaker output
Rear speaker output
Subwoofer speaker output
Frequency range
SIN Ratio
Channel separation
Input sensltwlty
Speaker system
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
140W
13 51bs
17x 34 x 16 inches
41°F ~ 95T
10% ~ 75%
10dB
60dB
0 5%
54dB
40dB
2%
1.0Vp-p(75_Qload)
Luminance Signal 1.0Vp-p(75(-)-load)
Color Signal 0 286Vp-p(75_Qload)
Y 1 0Vp-p(75(-)-load)
Pr:0 70Vp-p(75_Qload)
Pb.0 70Vp-p(75_Qload)
Impedance 85~115(-)-
134W x 2(3_(.))
134W(3(-._)
134W x 2(3_Q)
130W(3(-)-)
20Hz~20KHz
75dB
50dB
(AUX)400mV
5 lch speaker system
Front/Center/Rear speaker
3(.).x 5
130Hz~20KHz!125Hz~20KHz
84dB/WIM
134W
268W
Front/Rear 4 0 x 9 5 x 5 2 inches
Center 137x40x5 1 Inches
Front,,Rear 1.7 Ibs
Center 2 2 Ibs
Subwoofer speaker
3_Q
40Hz~250Hz
86dBlW/M
130W
260W
79x 159x 14 2 inches
13.4 Ibs
SAMSUNG Home Theater
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNGbrand product, as supplied and distributed bySamsung Electronics America, Inc (SAMSUNG) and dehveredne,':, _nthe onginal
carton to the ongEnalconsumerpurchaser, rswarranted by SAMSUNGagainst manufactunngdefects rnmatenals and ,vorkmanshipfor a limited
warranty period of
One (I) Year Parts and Labor*
{'g0 Days Partsand Labor for ComrnerctalUse1
This hmltedv'arranty begins on the orlgnal date of purchase, and _svahd only on products purchasedand used _nthe United States To recewe
warranty service, the purchaser must contact SAMSUNGfor problemdeterminationand service procedures Warranty service can only be
performed by a SAMSUNGauthorized servicecenter The onginal dated bill of sale mustbe presented upon requestas proof of purchaseto
SAMSUNGor SAMSUNG'sauthorized service center Transportation of the productto and from the servrce centeris the responsibEhtyof the
purchaser
SAMSUNG',,'_11repair or replace this product, at our option and at no chargeas stipulated herein, ',,'lthhe',"or recondltEonedparts or products if
foundto be defective dunngthe limited v,arranty period specified above All replaced parts and products becomethe property of SAMSUNGand
mustbe returned to SAMSUNG Replacement partsand products assumethe remainingorEglnalwarranty or ntnety(90_days, ,,vh[cheveris
longer
SAMSUNG'sobhgationswith respect to softwareproducts distributed by SAMSUNGunder the SAMSUNGbrand name are set forth in the
applicableend user licenseagreement Non-SAMSUNGhardv,areandsoft,,vareproducts ifprovided, areonan ASlS' basis Non-SAMSUNG
manufacturers,sapphers,publishers and servrceproviders may providetheir o,vn warranties
This limited,,',arrant7 covers manufacturingdefects _nmatenalsand ,,,,orkrnanshtpencountered Ill normal, and except to the extent otherz'Fse
expresslyprovided for inthis statement noncommercialuse of this product and shall not apply to the following, including but not hmitedto
damage ,vhlchoccurs rnsll[pment, delivery and installationapphcationsand uses for ,vhlchthis productwas not intended,altered product or
senal numbers, coame% damage or exteriorfinish accidents abuse, neglect,fire, water, lightning or other acts of nature, use of products,
equipment systems utlhtles serwces, parts, supphes accessories apphcatlons,installations,repairs external ,z,lrlllgor connectorsnot supplied
and authonzedby SAMSUNG,or which damage tills productor result inservice problems, incorrect electrical hnevoltage fluctuationsand surges,
customer adjustments and failure to follo,v operating instructions,cleaning, maintenance and environmentalinstructions that are covered and
prescribed[n the instruction book product removal or renstallat_on reception problems and d[stortronrelatedto noise echo, interferenceor other
s_gnaltransmissionand deh,,eryproblems SAMSUNGdoes not ,varrantuninterrupted or error-freeoperation of the product
THERE ARE NO EXPRESSWARRANTIESOTHER THAN THOSE LISTEDAND DESCRIBEDABOVE, AND NO WARRANTIESWHETHER
EXPRESSOR IMPLIED, INCLUDING,BUT NOT LIMITEDTO ANY IMPLIEDWARRANTIES OF MERCHANTABILITYOR FITNESS FORA
PARTICULARPURPOSE,SHALL APPLYAFTER THE EXPRESSWARRANTY PERIODSSTATED ABOVE AND NO OTHER EXPRESS
WARRANTY OR GUARANTY GIVEN BY ANY PERSON FIRM OR CORPORATIONWITH RESPECT TO THIS PRODUCTSHALL BE BINDING
ON SAMSUNG SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS,FAILURE TO REALIZE SAVINGS OR OTHER
BENEFITS,OR ANY OTHER SPECIAL, INCIDENTALOR CONSEQUENTIALDAMAGES CAUSEDBY THE USE MISUSE OR INABILITYTO
USETHIS PRODUCT REGARDLESS OFTHE LEGAL THEORY ON WHICH THE CLAIN IS BASED,AND EVEN IF SAMSUNG HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES NOR SHALL RECOVERYOF ANY KINDAGAINST SAMSUNG BEGREATER IN
AMOUNTTHAN THE PURCHASEPRICE OF THE PRODUCTSOLD BY SAMSUNGAND CAUSING THE ALLEGED DAMAGE WITHOUT
LI_.,IlTINGTHE FOREGOING,PURCHASERASSUMESALL RISK AND LIABILITYFOR LOSS DAMAGE OR INJURY TO PURCHASERAND
PURCHASER'S PROPERTYAND TO OTHERSAND THEIR PROPERTYARISING OUT OF THE USE, MISUSEOR INABILITY TO USE THIS
PRODUCT SOLD BY SAMSUNGNOT CAUSED DIRECTLYBY THE NEGLIGENCEOF SAMSUNG THIS LIMITEDWARRANTY SHALL NOT
EXTENDTO ANYONEOTHER THAN THE ORIGINAL PURCHASEROF THIS PRODUCT IS NONTRANSFERABLEAND STATES YOUR
EXCLUSIVEREMEDY
Some states do not allow limitations on ho,vlong an imphed,varrant7 lasts or the exclusionor hm_tationof [nc_dentalor consequential damages
so the above bin[rationsor exclusronsmaynot apply to you This warrantygives you specific legal rights and you mayalso have other rights
which vary from state to state
To obtanlwarranty hardware service, please contact SAMSUNGat
SAMSUNG CUSTOMERCARE CENTER
400 Valley Road Suite 201 Mt Arlington, NJ 07856
1-800-SAMSUNG(1-800-726-7864)and www.samsung,com
E
Ji,,,,_ !
