  • Owner's manual - (English)

User manual of Craftsman 917370920 (48 pages)
file thumbnail

Owner's Manual

OTARY LAWN MOWER

725 Series Briggs Power-Propelled 22" Multi-Cut

& Stratton Engine

Model No.

917.370920

• EspaSol. p. 20

CAUTION'.

Read and follow all

Safety Rules and Instructions before operating this equipment

Sears Brands Management Corp. Hoffman Estates.

IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

Warranty

Safety Rules Product Specifications

Assembly / Pre-Operation

Operation

7-11 Maintenance Schedule

Maintenance

12-15 Service and Adjustments

16-17 Storage .

17-18 Troubleshooting

18-19 Repair Parts 38-47 Sears Service ..

Back Cover

CRAFTSMAN 2=YEAR FULL WARRANTY For TWO YEARS from the date of purchase. this product is warranted against any defects in material or workmanship.

Defective product will receive free repair or replacement if repair is unavailable.

For warranty coverage details to obtain free repair or replacement. visit the web site: www.craftsman.com This warranty covers ONLY defects in material and workmanship.

Warranty coverage does NOT include: Expendable parts that can wear out from normal use within the warranty period. such as blades. blade adapters. belts. filters or spark plugs. Product damage resulting from user attempts at product modification or repair or caused by product accessories. Repairs necessary because of accident or failure to operate or maintain this product according to all supplied instructions. Preventative maintenance. or repairs necessary due to improper fuel mixture. contaminated or stale fuel.

This warranty is void if this product is ever used while providing commercial services or if rented to another person.

This warranty gives you specific legal rights. and you may also have other rights which vary from state to state.

Sears Brands Management Corporation.

Hoffman Estates.

IL 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw ing objects.

Failure to observe the following safety instructions could result in serious injury or death.

_. WARNING: In order to prevent ac cidental starting when setting up. trans porting. adjusting or making repairs. always disconnect spark plug wire and place wire where it cannot come in contact with plug.

_. ARNING: Engine exhaust. some of its constituents. and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

I. ARNING" Battery posts. terminals and related accessories contain lead and lead compounds. chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

CAUTION" Muffler and other engine parts become extremely hot during operation and remain hot after engine has stopped.

To avoid severe burns on contact. stay away from these areas.

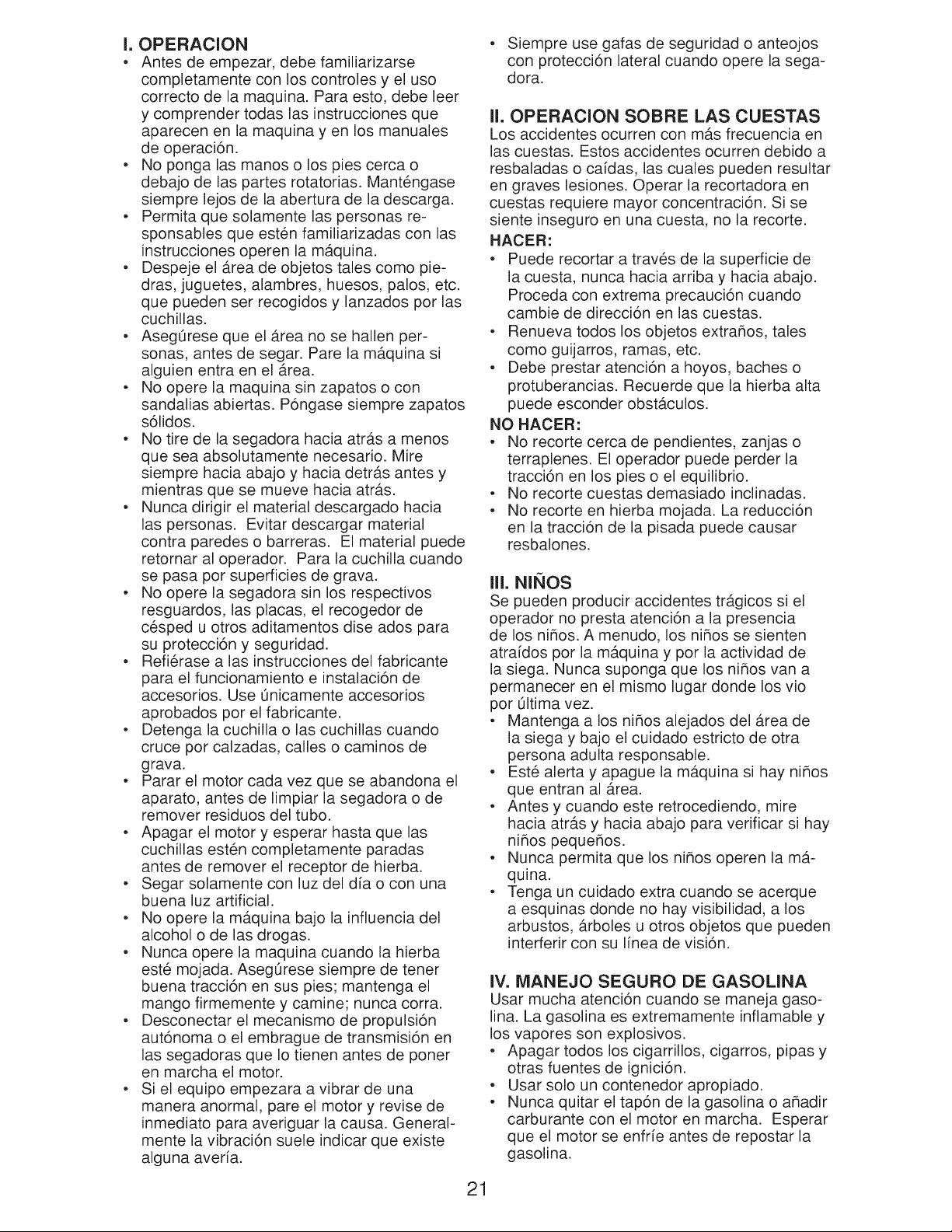

I. GENERAL OPERATION Read. understand. and follow all instructions on the machine and in the manual(s) before starting.

Be thoroughly familiar with the controls and the proper use of the machine before starting. Do not put hands or feet near or under rotating parts. Keep clear of the dis charge opening at all times.

• Only allow responsible individuals. who are familiar with the instructions. to oper ate the machine.

• Clear the area of objects such as rocks. toys. wire. bones. sticks. etc. which could be picked up and thrown by blade. Be sure the area is clear of other people before mowing.

Stop machine if anyone enters the area. Do not operate the mower when bare foot or wearing open sandals.

Always wear substantial foot wear. Do not pull mower backwards unless absolutely necessary.

Always look down and behind before and while moving backwards. Never direct discharged material toward anyone.

Avoid discharging material against a wall or obstruction.

Material may richochet back toward the opera tor.

Stop the blade when crossing gravel surfaces. Do not operate the mower without proper guards. plates. grass catcher or other safety protective devices in place.

• See manufacturer's instructions for proper operation and installation of accessories.

Only use accessories ap proved by the manufacturer.

• Stop the blade(s) when crossing gravel drives. walks. or roads.

• Stop the engine (motor) whenever you leave the equipment. before cleaning the mower or unclogging the chute.

• Shut the engine (motor) off and wait until the blade comes to complete stop before removing grass catcher. Mow only in daylight or good artificial light. Do not operate the machine while under the influence of alcohol or drugs. Never operate machine in wet grass.

Always be sure of your footing: keep a firm hold on the handle; walk. never run. Disengage the self-propelled mech anism or drive clutch on mowers so equipped before starting the engine. If the equipment should start to vibrate abnormally. stop the engine (motor) and check immediately for the cause. Vibra tion is generally WARNING of trouble.

Always wear safety goggles or safety glasses with side shields when operating mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip & fall accidents which can result in severe in jury. All slopes require extra caution.

If you feel uneasy on a slope. do not mow it.

DO:

Mow across the face of slopes: never up and down.

Exercise extreme caution when changing direction on slopes. Remove obstacles such as rocks. tree limbs. etc. Watch for holes. ruts. or bumps.

Tall grass can hide obstacles.

DO NOT:

Do not trim near drop-offs. ditches or embankments.

The operator could lose footing or balance. Do not trim excessively steep slopes. Do not mow on wet grass.

Reduced foot ing could cause slipping.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children.

Children are often attracted to the machine and the mowing activity.

Never assume that children will remain where you last saw them. Keep children out of the trimming area and under the watchful care of another responsible adult. Be alert and turn machine off if children enter the area. Before and while walking backwards. look behind and down for small children. Never allow children to operate the ma chine. Use extra care when approaching blind corners. shrubs. trees. or other objects that may obscure vision.

IV. SAFE HANDLING OF GASOLINE

Use extreme care in handling gasoline.

Gasoline is extremely flammable and the vapors are explosive. Extinguish all cigarettes. cigars. pipes and other sources of ignition. Use only an approved container. Never remove gas cap or add fuel with the engine running.

Allow engine to cool before refueling. Never refuel the machine indoors. Never store the machine or fuel contain er where there is an open flame. spark or pilot light such as a water heater or on other appliances.

Never fill containers inside a vehicle. on a truck or trailer bed with a plastic liner.

Always place containers on the ground away from your vehicle before filling. Remove gas-powered equipment from the truck or trailer and refuel it on the ground.

If this is not possible. then refuel such equipment with a portable container. rather than from a gasoline dispenser nozzle. Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete.

Do not use a nozzle lock-open device. If fuel is spilled on clothing. change clothing immediately. Never overfill fuel tank.

Replace gas cap and tighten securely.

V. GENERAL SERVICE Never run a machine inside a closed area.

Never make adjustments or repairs with the engine (motor) running.

Disconnect the spark plug wire. and keep the wire away from the plug to prevent accidental starting.

• Keep nuts and bolts. especially blade attachment bolts. tight and keep equip ment in good condition. Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass. leaves. or other debris build-up.

Clean oil or fuel spillage.

Allow machine to cool before storing. Stop and inspect the equipment if you strike an object.

Repair. if necessary. before restarting. Never attempt to make wheel height adjustments while the engine is running. Grass catcher components are subject to wear. damage. and deterioration. which could expose moving parts or allow objects to be thrown.

Frequently check components and replace with manufacturer's recommended parts. when necessary. Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves. and use extra caution when servicing them. Do not change the engine governor set ting or overspeed the engine. Maintain or replace safety and instruc tion labels. as necessary.

&WARNING: This lawn mower is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered. brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).

If a spark arrester is used. it should be maintained in effective working order by the operator.

In the state of California the above is required by law (Section 4442 of the California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands.

A spark arrester for the muffler is available through your nearest Sears Parts & Repair Center (See the REPAIR PARTS section of this manual).

Serial Number:

Date of Purchase:

Gasoline Capacity / Type: 1.6 Quarts (Unleaded Regular)

Oil Type (API SG-SL): SAE 30 (above 32°F); SAE 5W-30 (below 32°F)

Oil Capacity: 20 Ounces

Spark Plug (Gap: 030") Champion RJ2YXLE

Blade Bolt Torque: 35-40 ft. Ibs.

• The model and serial numbers will be found on a decal on the rear of the lawn mower housing.

Record both serial number and date of purchase in space provided above.

Repair Protection Agreements

Congratulations on making a smart pur chase. Your new Craftsman® product is designed and manufactured for years of dependable operation.

But like all prod ucts. it may require repair from time to time. That's when having a Repair Protec tion Agreement can save you money and aggravation.

Purchase a Repair Protection Agreement now and protect yourself from unexpected hassle and expense.

Here's what's included in the Agreement: Expert service by our 12. 00 profe sional repair specialists. Unlimited service and no charge for parts and labor on all covered repairs. Product replacement if your covered product can't be fixed. Discount of 10% from regular price of service and service-related parts not covered by the agreement; also. 10% off regular price of preventive mainte nance check.

Fast help by phone phone sup port from a Sears representative on products requiring in-home repair. plus convenient repair scheduling.

Once you purchase the Agreement. simple phone call is all that it takes for you to schedule service.

You can call anytime day or night. or schedule a service ap pointment online.

Sears has over 12. 00 professional repair specialists. who have access to over 4.5 million quality parts and accessories.

That's the kind of professionalism you can count on to help prolong the life of your new purchase for years to come.

Purchase your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information call 1-800-827-6655.

Sears Installation Service

For Sears professional installation of home appliances. garage door openers. water heaters. and other major home items. in the U.S.A. call 1-800-4-MY=HOME®.

These accessories were available when this lawn mower was produced.

They are not shipped with your mower.

They are also available at most Sears retail outlets and service centers.

Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTORS FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR REAR DISCHARGE

LAWN MOWERS

STABILIZER

GRASS CATCHERS

FOR SIDE DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES BLADE ADAPTERS

AIR FILTERS

WHEELS

SPARK PLUGS

ENGINE OIL

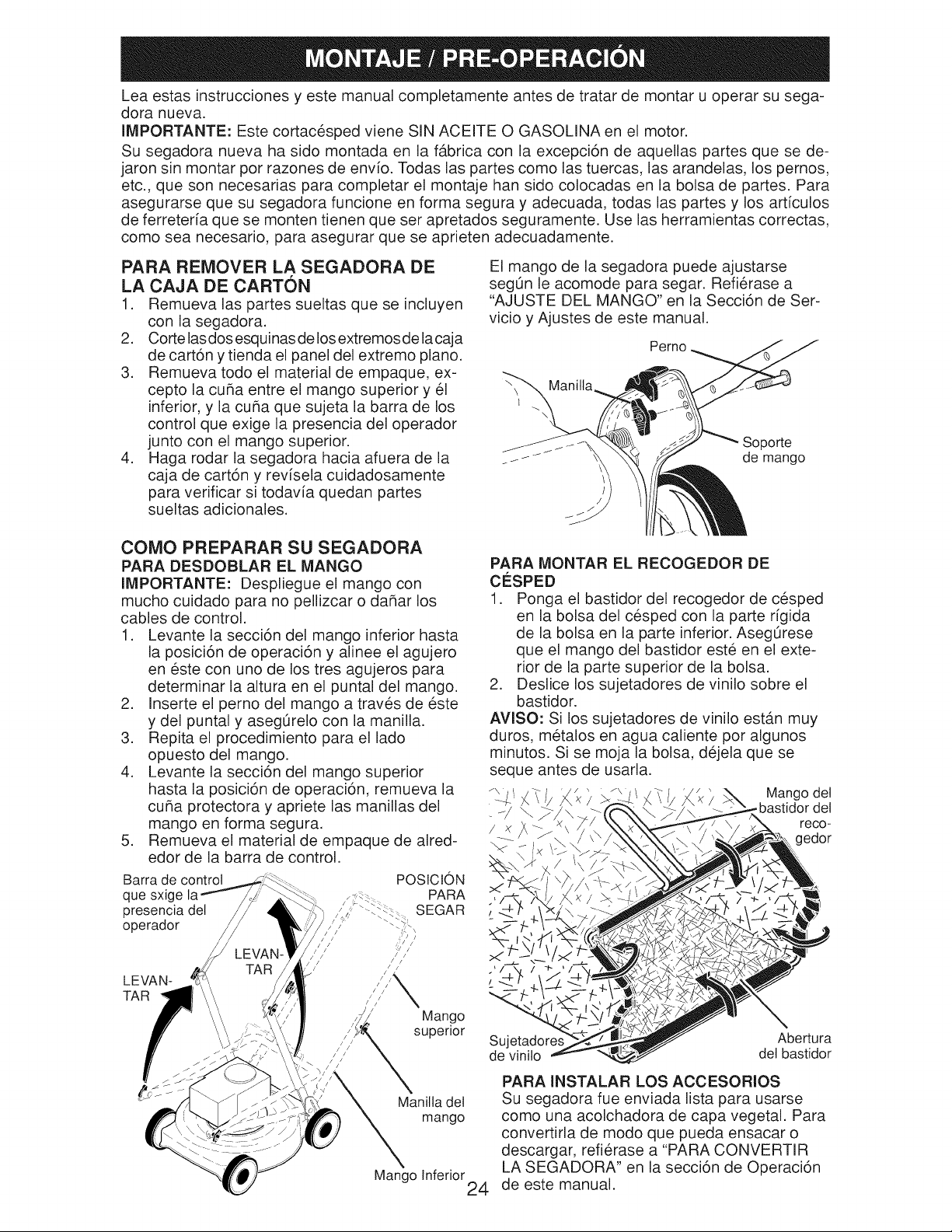

Read these instructions and this manual in its entirety before you attempt to assemble or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.

Your new lawn mower has been assembled at the factory with the exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your lawn mower. all parts and hardware you assemble must be tightened securely.

Use the correct tools as necessary to ensure proper tightness.

All parts such as nuts. washers. bolts. etc.. necessary to complete the assembly have been placed in the parts bag.

TO REMOVE MOWER FROM CARTON

Remove loose parts included with mower.

Cut down two end corners of carton and lay end panel down flat.

Remove all packing materials except padding between upper and lower handle and padding holding operator presence control bar to upper handle.

Roll lawn mower out of carton and check carton thoroughly for additional loose parts.

HOW TO SET UP YOUR LAWN MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so as not to pinch or damage control cables.

Raise lower handle section to operat ing position and align hole in handle with one of three height positioning holes.

Insert handle bolt through handle and bracket and secure with knob.

Repeat for opposite side of handle.

Remove protective padding. raise up per handle section into place on lower handle and tighten both handle knobs.

Remove any packing material from around control bar.

Operator MOWING presence POSITION control bar

///!

//////

Upper handle

Your lawn mower handle can be adjusted for your mowing comfort.

Refer to "AD JUST HANDLE" in the Service and Adjust ments section of this manual.

Bolt

Handle bracket

TO ASSEMBLE GRASS CATCHER

Put grass catcher frame into grass bag with rigid part of bag on the bottom.

Make sure the frame handle is outside of the bag top.

Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff. hold them in warm water for a few minutes.

If bag gets wet. let it dry before using.

Vinyl Frame bindings opening

Handle knob

Lower handle

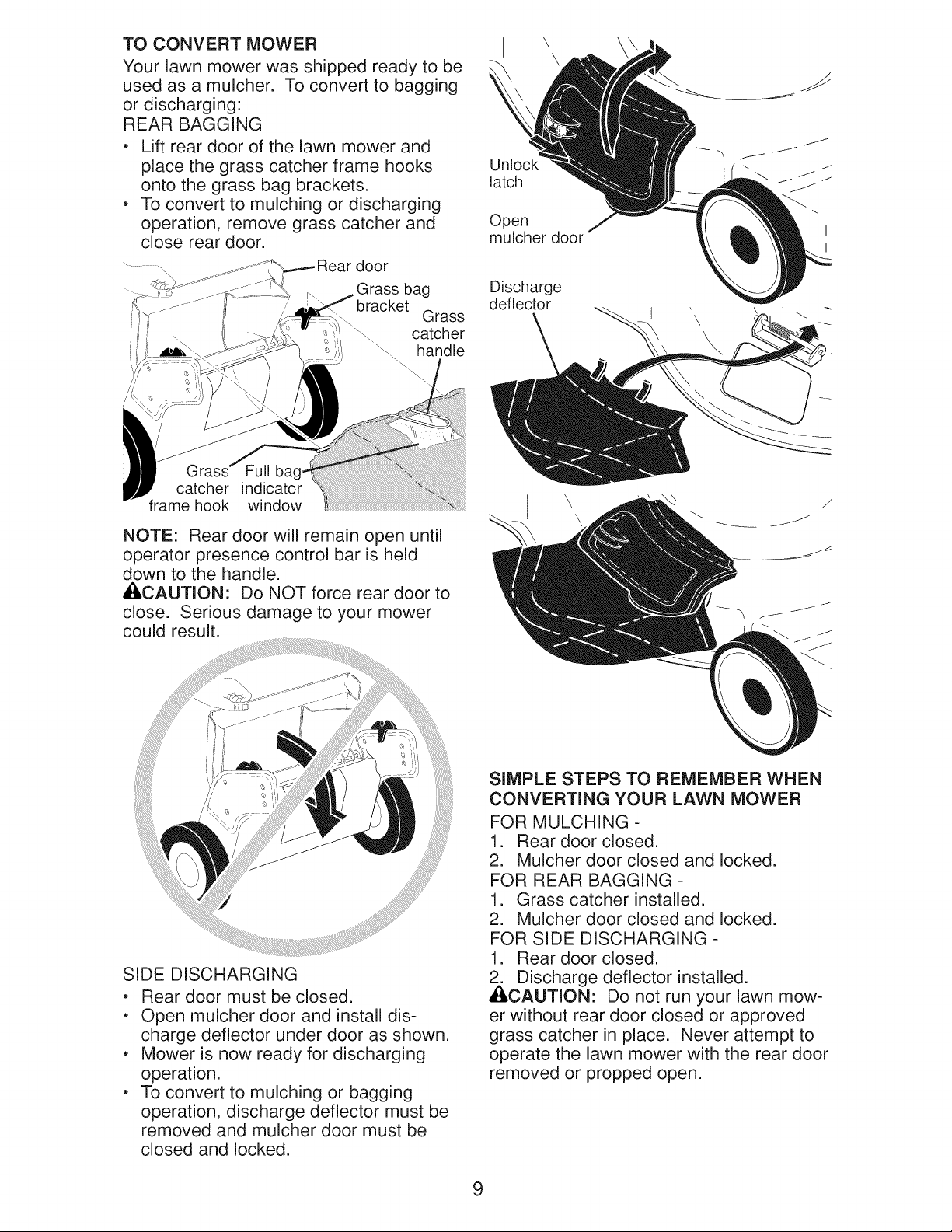

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to be used as a mulcher.

To convert mower to bagging or discharging. see "TO CON VERT MOWER" in the Operation section of this manual.

KNOW YOUR LAWN MOWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER.

Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments.

Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the product.

Learn and understand their meaning.

CAUTION ENGINE FAST SLOW CHOKE FUEL OIL DANGER.

KEEP HANDS OR WARNING ON OFF AND FEET AWAY

Operator presence control bar

Drive control levers

Starter handle

Handle knobs

Grass catche

Engine oil cap with dipstick

Spark plug

Single point height adjuster handle

Gasoline filler ca

Air filter

Muffler

Mulcher doo

IMPORTANT: This lawn mower is shipped Housing WITHOUT OIL OR GASOLINE in the engine.

NOTE: Gasoline containing up to 10% ethanol (El0) is acceptable for use in this machine.

The use of any gasoline exceeding 10% ethanol (El0) will void the product warranty.

MEETS CPSC SAFETY REQUIREMENTS Sears rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute and the U.S. Consumer Product Safety Com mission.

WARNING The blade turns when the engine is running.

Operator presence control bar must Starter handle used for starting engine. be held down to the handle to start the Mulcher door - allows conversion to engine.

Release to stop the engine. discharging or bagging operation.

Single point height adjuster used to Drive control levers used to engage adjust cutting height of lawn mower.

7 power-propelled forward motion of mower.

The operation of any lawn SAFETY GLASSES mower can result in foreign objects thrown into the eyes. which can result in severe eye damage.

Always wear safety glasses or eye shields while oper ating your lawn mower or performing any adjustments or repairs.

We recommend standard safety glasses or wide vision safety mask worn over spectacles.

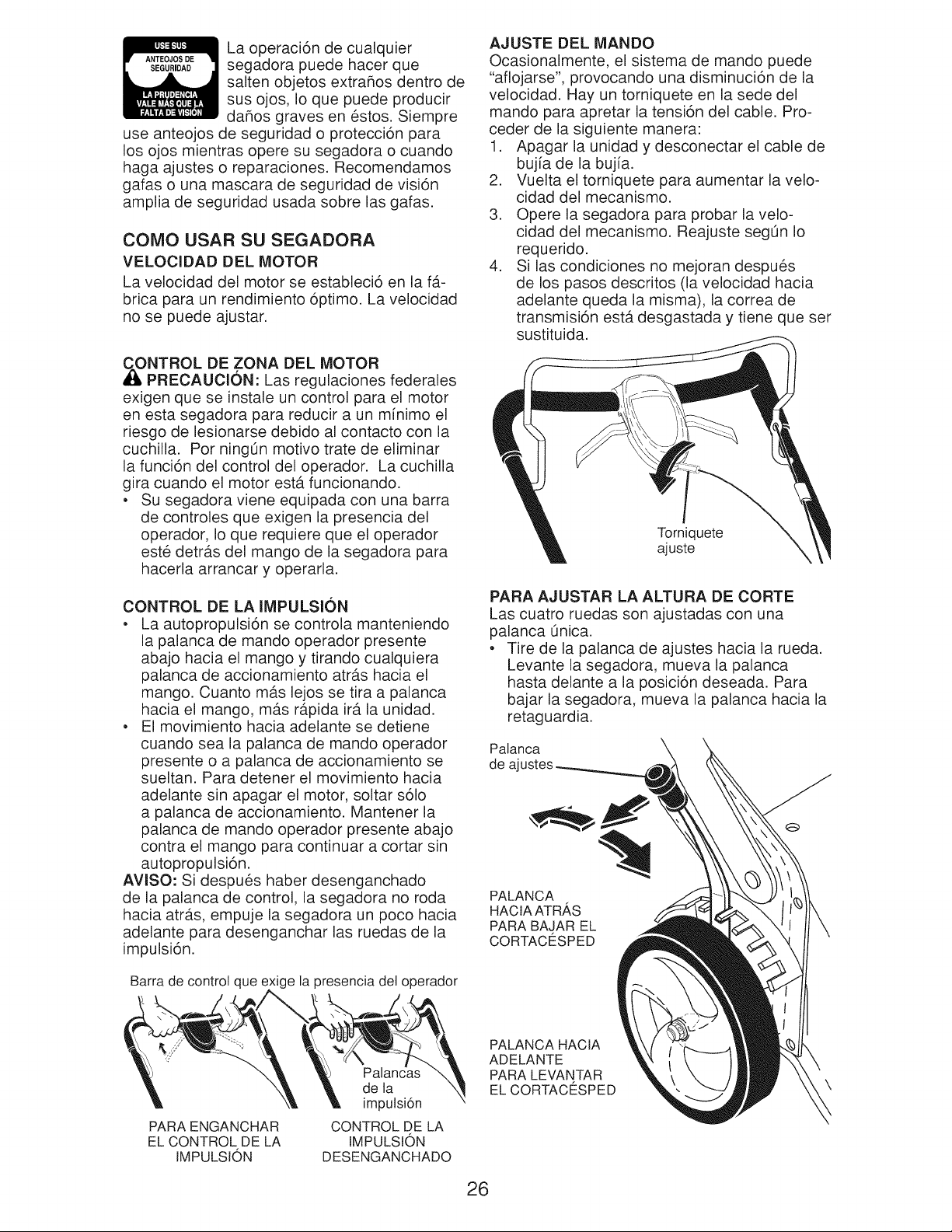

HOW TO USE YOUR LAWN MOWER ENGINE SPEED

Engine speed was set at the factory for optimum performance.

It is not adjustable.

DRIVE CONTROL ADJUSTMENT

Over time. the drive control system may become "loose". resulting in decreased speed.

There is a turnbuckle on the drive control housing to increase tension on the drive cable.

Proceed as follows:

Turn unit off and disconnect spark plug wire from spark plug.

Rotate turnbuckle on drive control to increase drive speed.

Operate mower to test drive speed.

Readjust as required.

If condition fails to improve after the above steps (forward speed remains the same). your drive belt is worn and should be replaced.

ENGINE ZONE CONTROL

DRIVE CONTROL

• Self-propelling is controlled by holding the operator presence control bar down to the handle and pulling either drive control lever rearward to the handle.

The further toward the handle a lever is pulled. the faster the unit will travel. Forward motion will stop when either the operator presence control bar or a drive control lever are released.

To stop forward motion without stopping engine. release a drive control lever only. Hold operator presence control bar down against handle to continue mowing without self-propelling.

NOTE: If after releasing the drive control the mower will not roll backwards. push the mower forward slightly to disengage drive wheels.

Operator presence control bar

Adjustment turnbuckle

TO ADJUST CUTTING HEIGHT

All four wheels are adjusted by a single lever. Pull adjuster lever toward wheel.

To raise mower. move lever forward to desired position.

To lower mower. move the lever toward the rear.

Height adjuster lever

LEVER BACKWARD TO LOWER MOWER

LEVER FORWARD TO RAISE MOWER

TO ENGAGE DRIVE CONTROL DISENGAGED

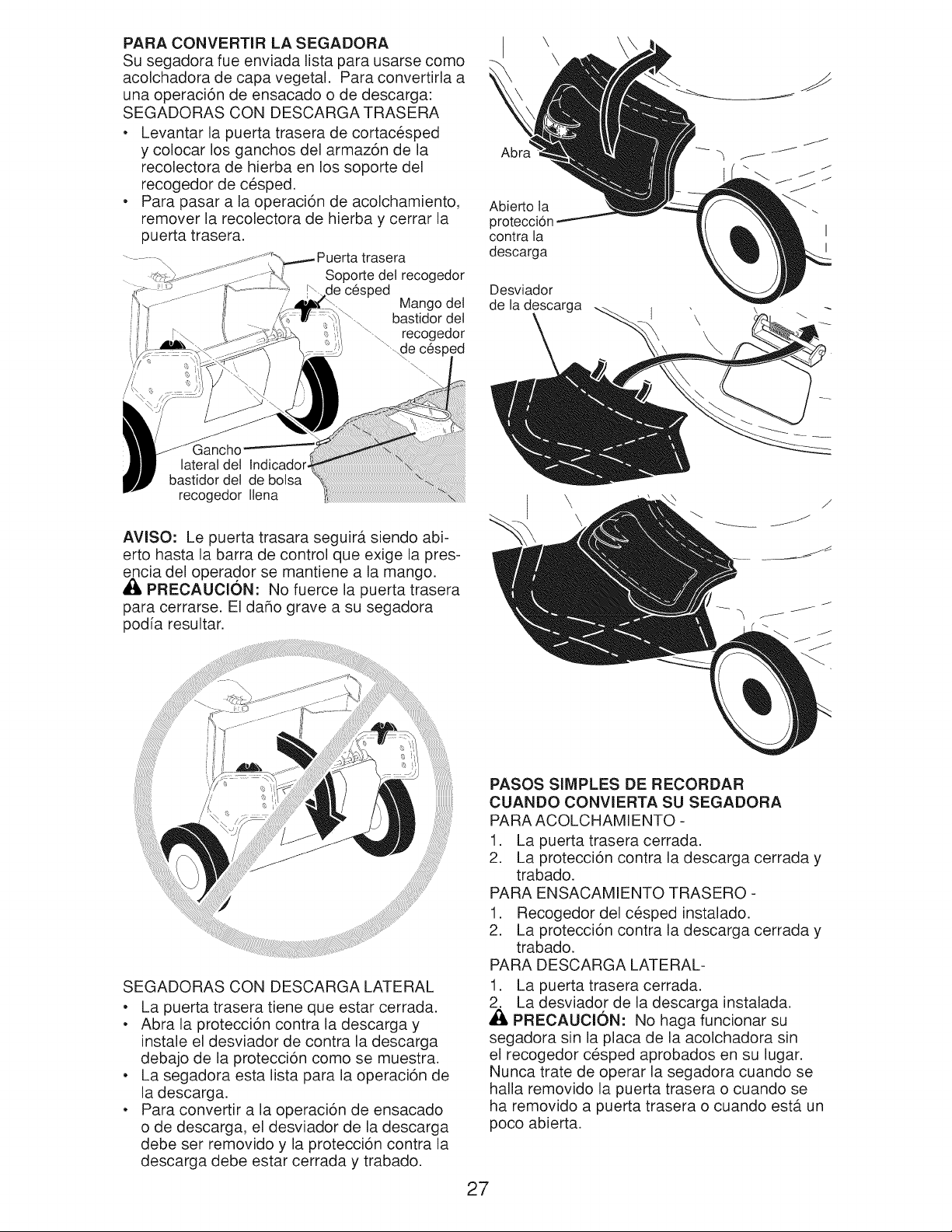

TO CONVERT MOWER

Your lawn mower was shipped ready to be used as a mulcher.

To convert to bagging or discharging: REAR BAGGING Lift rear door of the lawn mower and place the grass catcher frame hooks onto the grass bag brackets.

+ To convert to mulching or discharging operation. remove grass catcher and close rear door.

Grass bag bracket Grass catcher handle

Full bac catcher indicator frame hook window

NOTE: Rear door will remain open until operator presence control bar is held down to the handle.

CAUTION Do NOT force rear door to close.

Serious damage to your mower could result.

Open mulcher door

Discharge deflector

SIDE DISCHARGING Rear door must be closed.

+ Open mulcher door and install dis charge deflector under door as shown. Mower is now ready for discharging operation.

+ To convert to mulching or bagging operation. discharge deflector must be removed and mulcher door must be closed and locked.

SIMPLE STEPS TO REMEMBER WHEN CONVERTING YOUR LAWN MOWER FOR MULCHING

Rear door closed.

Mulcher door closed and locked.

FOR REAR BAGGING

Grass catcher installed.

Mulcher door closed and locked.

FOR SIDE DISCHARGING

Rear door closed.

Discharge deflector installed.

CAUTION Do not run your lawn mow er without rear door closed or approved grass catcher in place.

Never attempt to operate the lawn mower with the rear door removed or propped open.

TO EMPTY GRASS CATCHER

Empty the grass catcher when clippings are visible in the full bag indicator window.

Lift up on grass catcher using the frame handle.

Remove grass catcher with clippings from under lawn mower handle.

Empty clippings from bag using both frame handle and bag handle.

NOTE: Do not drag the bag when empty ing; it will cause unnecessary wear.

Grass catcher frame

Bag handle

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in the engine.

For type and grade of oil to use. see "ENGINE" in the Maintenance section of this manual.

• i. CAUTION: DO NOT overfill engine with oil. or it will smoke heavily from the muffler on startup.

Be sure lawnmower is level.

Remove oil dipstick from oil fill spout.

You receive a container of oil with the unit.

Slowly pour the entire container down the oil fill spout into the engine.

NOTE: Initial oil fill requires only 18 oz. due to residual oil in engine from the manufacturers 100% quality testing.

When changing oil you may need 20 oz.

Insert and tighten dipstick.

IMPORTANT:

• Check oil level before each use.

Add oil if needed.

Fill to full line on dipstick.

• Change the oil after every 25 hours of operation or each season.

You may need to change the oil more often under dusty. dirty conditions.

See "TO CHANGE ENGINE OIL" in the Mainte nance section of this manual.

ADD GASOLINE Fill fuel tank to bottom of tank filler neck.

Do not overfill.

Use fresh. clean. regular unleaded gasoline with a minimum of 87 octane.

Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30 days to assure fuel fresh ness. CAUTION" Wipe off any spilled oil or fuel.

Do not store. spill or use gasoline near an open flame. CAUTION: Alcohol blended fuels (called gasohol or using ethanol or metha nol) can attract moisture which leads to separation and formation of acids during storage.

Acidic gas can damage the fuel system of an engine while in storage.

To avoid engine problems. the fuel system should be emptied before storage of 30 days or longer.

Empty the gas tank. start the engine and let it run until the fuel lines and carburetor are empty.

Use fresh fuel next season.

See Storage Instructions for additional information.

Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

Engine oil cap

Gasoline filler cap

TO STOP ENGINE

To stop engine. release operator pres ence control bar.

TO START ENGINE

NOTE: Due to protective coatings on the engine. a small amount of smoke may be present during the initial use of the product and should be considered normal.

NOTE: Your engine is equipped with an automatic choke system.

No priming or choking is required before starting. To start engine. hold operator presence control bar down to the handle and pull starter handle quickly.

Do not allow starter rope to snap back.

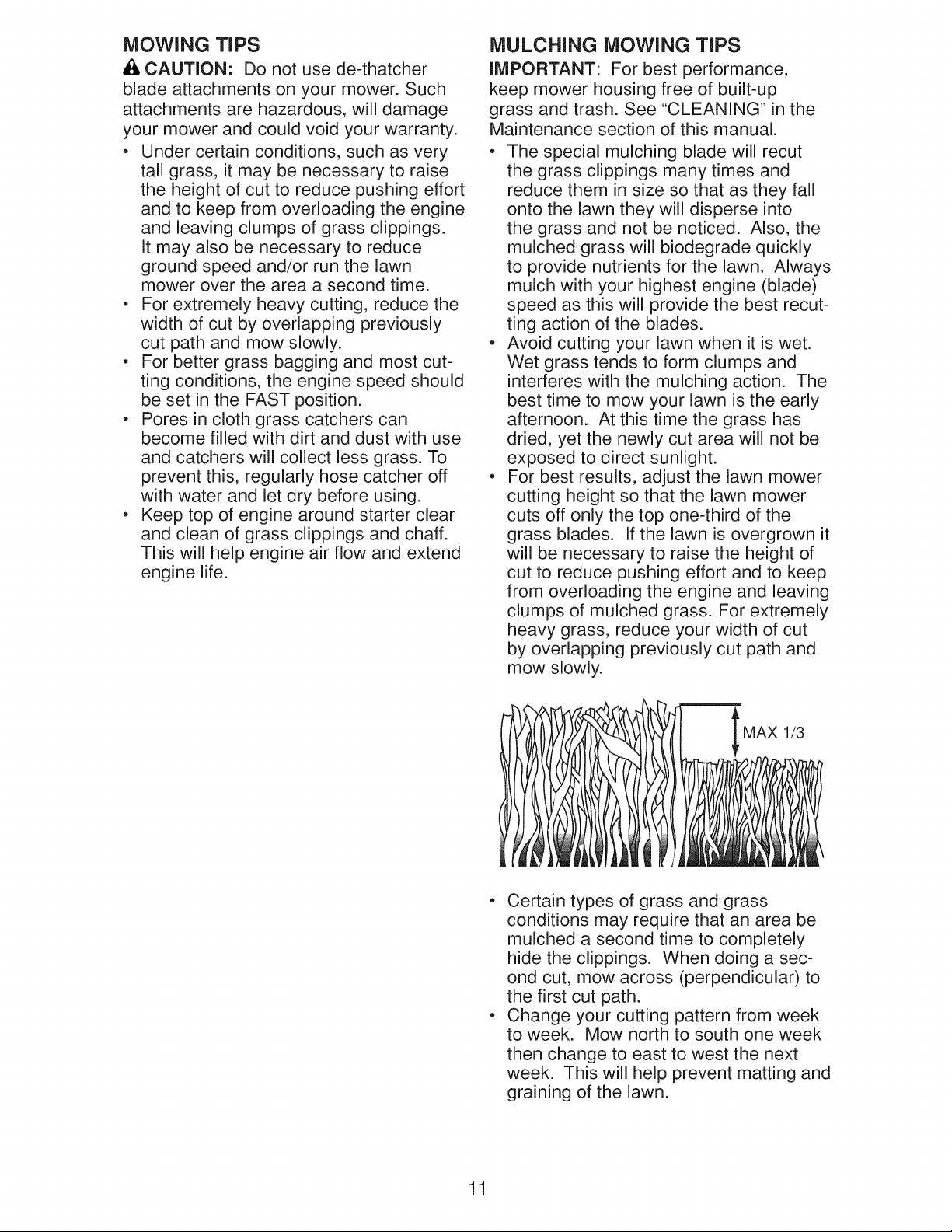

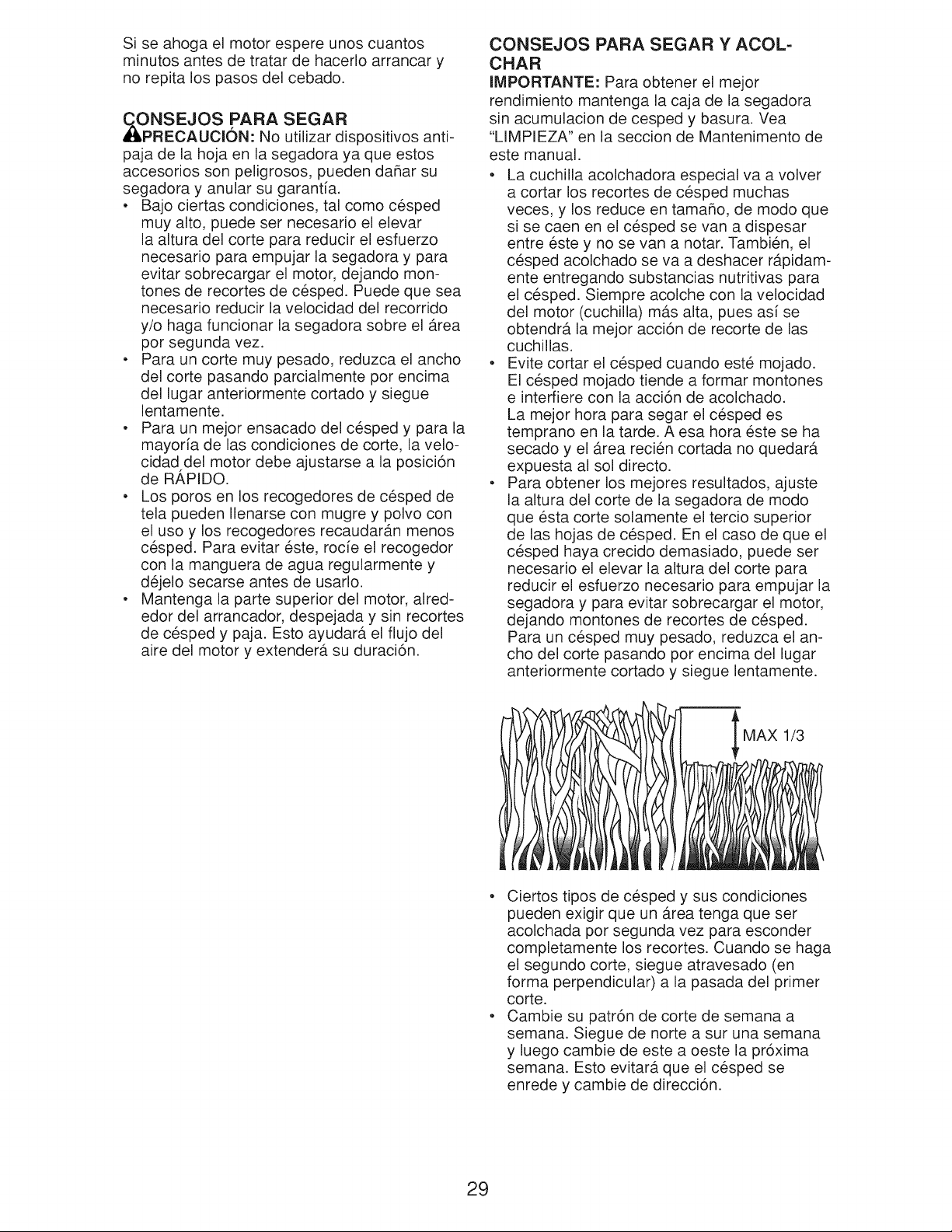

MOWING TiPS _. CAUTION: Do not use de-thatcher blade attachments on your mower. Such attachments are hazardous. will damage your mower and could void your warranty. Under certain conditions. such as very tall grass. it may be necessary to raise the height of cut to reduce pushing effort and to keep from overloading the engine and leaving clumps of grass clippings.

It may also be necessary to reduce ground speed and/or run the lawn mower over the area a second time. For extremely heavy cutting. reduce the width of cut by overlapping previously cut path and mow slowly. For better grass bagging and most cut ting conditions. the engine speed should be set in the FAST position. Pores in cloth grass catchers can become filled with dirt and dust with use and catchers will collect less grass. To prevent this. regularly hose catcher off with water and let dry before using. Keep top of engine around starter clear and clean of grass clippings and chaff.

This will help engine air flow and extend engine life.

MULCHING MOWING TiPS

IMPORTANT: For best performance. keep mower housing free of built-up grass and trash. See "CLEANING" in the Maintenance section of this manual.

The special mulching blade will recut the grass clippings many times and reduce them in size so that as they fall onto the lawn they will disperse into the grass and not be noticed.

Also. the mulched grass will biodegrade quickly to provide nutrients for the lawn.

Always mulch with your highest engine (blade) speed as this will provide the best recut ting action of the blades. Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon.

At this time the grass has dried. yet the newly cut area will not be exposed to direct sunlight. For best results. adjust the lawn mower cutting height so that the lawn mower cuts off only the top one-third of the grass blades.

If the lawn is overgrown it will be necessary to raise the height of cut to reduce pushing effort and to keep from overloading the engine and leaving clumps of mulched grass.

For extremely heavy grass. reduce your width of cut by overlapping previously cut path and mow slowly.

MAX 1/3

Certain types of grass and grass conditions may require that an area be mulched a second time to completely hide the clippings.

When doing a sec ond cut. mow across (perpendicular) to the first cut path. Change your cutting pattern from week to week.

Mow north to south one week then change to east to west the next week.

This will help prevent matting and graining of the lawn.

MAINTENANCE BEFOREAFTEREVERY EACH SCHEDULE USE USE HOURS

Check for Loose Fasteners

Clean / Inspect Grass Catcher * Check Tires

Check Drive Wheels Clean Lawn Mower .

Clean under Drive Cover ***

Check Drive Belt / Pulleys ***

Check / Sharpen / Replace Blade Lubrication Clean and Recharge Battery **

Check Engine Oil level IE Change Engine Oil Clean Air Filter

Inspect Muffler

Replace Spark Plug Replace Air Filter Paper Cartridge Empty fuel system or add Stabilizer

EVERY BEFORE 25 HOURS OR SEASON HOURS STORAGE

+ (if so equipped)

+* Electric-Start mowers

Power-Propelled mowers

+*** Use a scraper to clean under deck

1 - Change more often if operating under a heavy load or in high outdoor temperatures.

2 - Service more often if operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Charge 48 hours at end of season.

5 - And after each 5 hours of use.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not cover items that have been subjected to operator abuse or negligence.

To receive full value from the warranty. operator must maintain unit as instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your unit.

At least once a season. check to see if you should make any of the adjustments described in the Service and Adjustments section of this manual.

• At least once a year. replace the spark plug. clean or replace air filter element and check blade for wear.

A new spark plug and clean/new air filter element assure proper air-fuel mixture and help your engine run better and last longer. Follow the maintenance schedule in this manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICATION CHART").

LUBRICATION CHART

Wheel

(_ Engine oil

Mulcher door hinge pin

Rear door

Handle bracket mounting pins

(_) Spray lubricant See "ENGINE" in Maintenance section.

IMPORTANT: Do not oil or grease plastic wheel bearings.

Viscous lubricants will attract dust and dirt that will shorten the life of the self-lubricating bearings.

If you feel they must be lubricated. use only a dry. powdered

2graphite type lubricant sparingly.

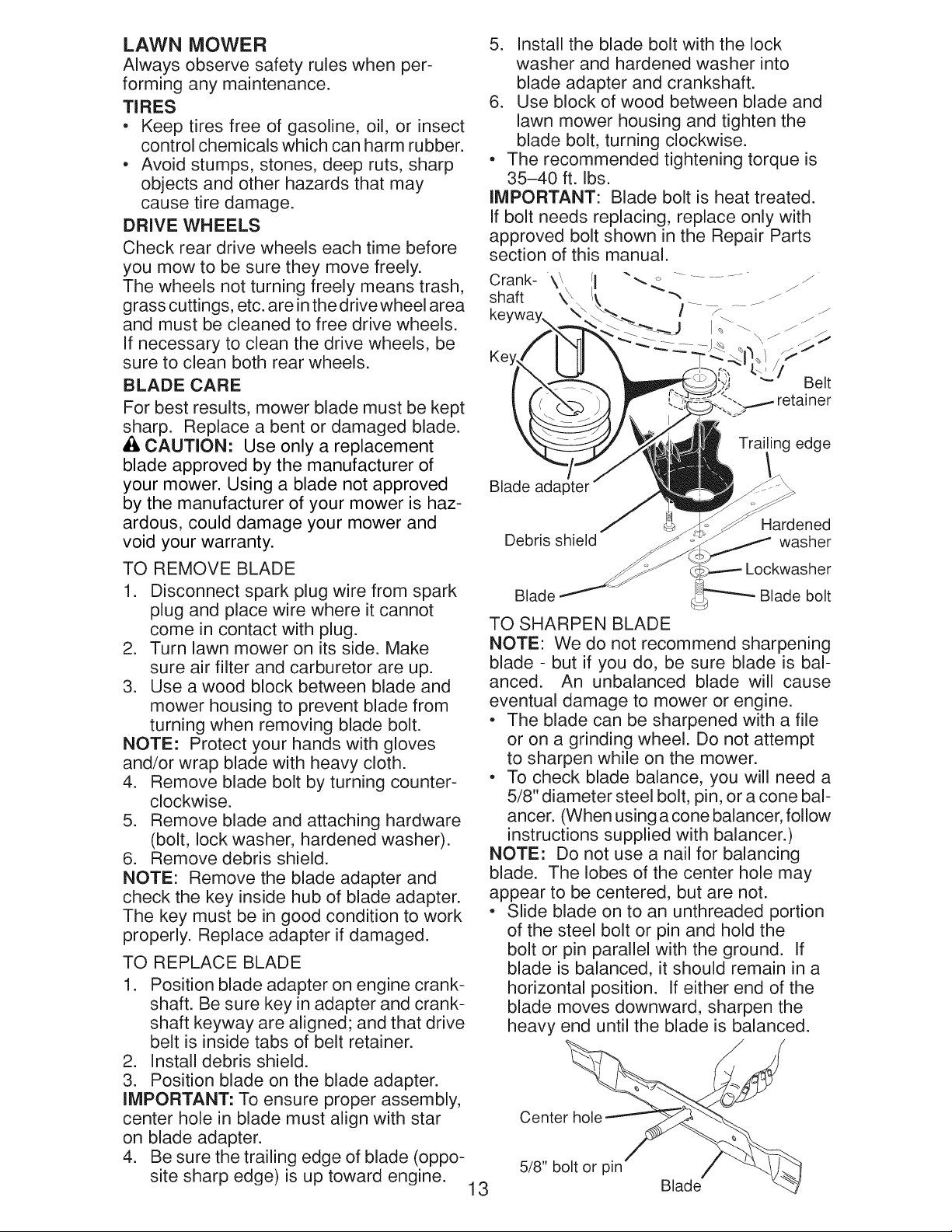

LAWN MOWER Always observe safety rules when per forming any maintenance.

TIRES Keep tires free of gasoline. oil. or insect control chemicals which can harm rubber.

• Avoid stumps. stones. deep ruts. sharp objects and other hazards that may cause tire damage.

DRIVE WHEELS Check rear drive wheels each time before you mow to be sure they move freely.

The wheels not turning freely means trash. grass cuttings. etc. are inthe drive wheel area and must be cleaned to free drive wheels.

If necessary to clean the drive wheels. be sure to clean both rear wheels.

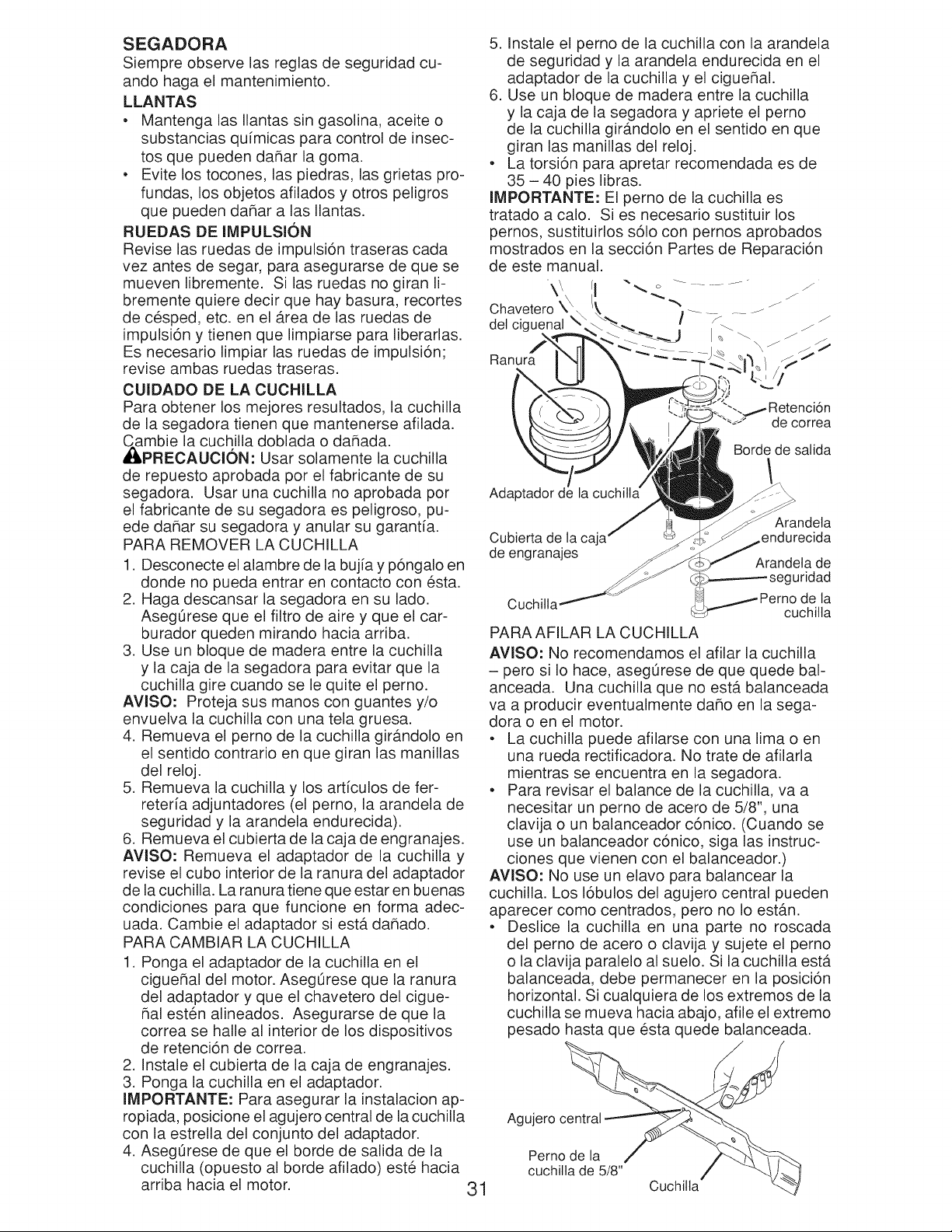

BLADE CARE

For best results. mower blade must be kept sharp.

Replace a bent or damaged blade. CAUTION: Use only a replacement blade approved by the manufacturer of your mower.

Using a blade not approved by the manufacturer of your mower is haz ardous. could damage your mower and void your warranty.

TO REMOVE BLADE

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

Turn lawn mower on its side. Make sure air filter and carburetor are up.

Use a wood block between blade and mower housing to prevent blade from turning when removing blade bolt.

NOTE: Protect your hands with gloves and/or wrap blade with heavy cloth.

Remove blade bolt by turning counter clockwise.

Remove blade and attaching hardware (bolt. lock washer. hardened washer).

Remove debris shield.

NOTE: Remove the blade adapter and check the key inside hub of blade adapter.

The key must be in good condition to work properly.

Replace adapter if damaged.

TO REPLACE BLADE

Position blade adapter on engine crank shaft. Be sure key in adapter and crank shaft keyway are aligned; and that drive belt is inside tabs of belt retainer.

Install debris shield.

Position blade on the blade adapter.

IMPORTANT: To ensure proper assembly. center hole in blade must align with star on blade adapter.

Be sure the trailing edge of blade (oppo site sharp edge) is up toward engine.

Install the blade bolt with the lock washer and hardened washer into blade adapter and crankshaft.

Use block of wood between blade and lawn mower housing and tighten the blade bolt. turning clockwise. The recommended tightening torque is 35-40 ft. Ibs.

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing. replace only with approved bolt shown in the Repair Parts section of this manual.

Belt

Trailing edge

Blade adapter

Hardened Debris shield washer

Blade Blade bolt

TO SHARPEN BLADE NOTE: We do not recommend sharpening blade - but if you do. be sure blade is bal anced.

An unbalanced blade will cause eventual damage to mower or engine. The blade can be sharpened with a file or on a grinding wheel.

Do not attempt to sharpen while on the mower. To check blade balance. you will need a 5/8" diameter steel bolt. pin. or a cone bal ancer. (When using a cone balancer. follow instructions supplied with balancer.) NOTE: Do not use a nail for balancing blade.

The lobes of the center hole may appear to be centered. but are not. Slide blade on to an unthreaded portion of the steel bolt or pin and hold the bolt or pin parallel with the ground.

If blade is balanced. it should remain in a horizontal position.

If either end of the blade moves downward. sharpen the heavy end until the blade is balanced.

Center hole

5/8" bolt or pin Blade

GRASS CATCHER

• The grass catcher may be hosed with water. but must be dry when used.

• Check your grass catcher often for dam age or deterioration.

Through normal use it will wear.

If catcher needs replac ing. replace only with approved replace ment catcher shown in the Repair Parts section of this manual.

Give the lawn mower model number when ordering.

Tip lawn mower on its side as shown and drain oil into a suitable container.

Rock lawn mower back and forth to re move any oil trapped inside of engine.

GEAR CASE

+ To keep your drive system working properly. the gear case and area around the drive should be kept clean and free of trash build-up.

Clean under the drive cover twice a season.

+ The gear case is filled with lubricant to the proper level at the factory.

The only time the lubricant needs attention is if service has been performed on the gear case.

ENGINE LUBRICATION Use only high quality detergent oil rated with API service classification SG-SL.

Select the oil's SAE viscosity grade according to your expected operating temperature.

SAE VISCOSITY GRADES

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE NOTE: Although multi-viscosity oils (5W30. W30 etc.) improve starting in cold weather. these multi-viscosity oils will result in increased oil consumption when used above 32°F.

Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of op eration orat least once a year if the mower is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine and after each five (5) hours of continuous use. Tighten oil plug securely each time you check the oil level.

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to drain oil. empty fuel tank by running engine until fuel tank is empty.

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

Remove engine oil cap; lay aside on a clean surface.

Wipe off any spilled oil from lawn mower or side of engine.

Slowly pour oil down the oil fill spout. stopping every few ounces to check the oil level with the dipstick.

Stop adding oil when you reach the FULL mark on the dipstick.

Wait a minute to allow oil to settle.

Continue adding small amounts of oil. rechecking the dipstick until oil level settles at FULL.

DO NOT overfill. or engine will smoke heavily from the muffler on startup.

Always be sure to retighten oil dipstick before starting engine.

Reconnect spark plug wire to spark plug.

AIR FILTER Your engine will not run properly and may be damaged by using a dirty air filter.

Replace the air filter cartridge every 100 hours of operation or every season. which ever occurs first.

Service air cleaner more often under dusty conditions.

TO CLEAN AIR FILTER

Loosen screw and tilt cover to remove.

Carefully remove cartridge.

Clean by gently tapping on a flat sur face. If very dirty. replace cartridge.

CAUTION: Petroleum solvents. such as kerosene. are not to be used to clean cartridge.

They may cause deterioration of the cartridge.

Do not oil cartridge.

Do not use pressurized air to clean or dry cartridge.

Install cartridge. then replace cover making sure the tabs are aligned with the slots in the back plate. Fasten screw securely.

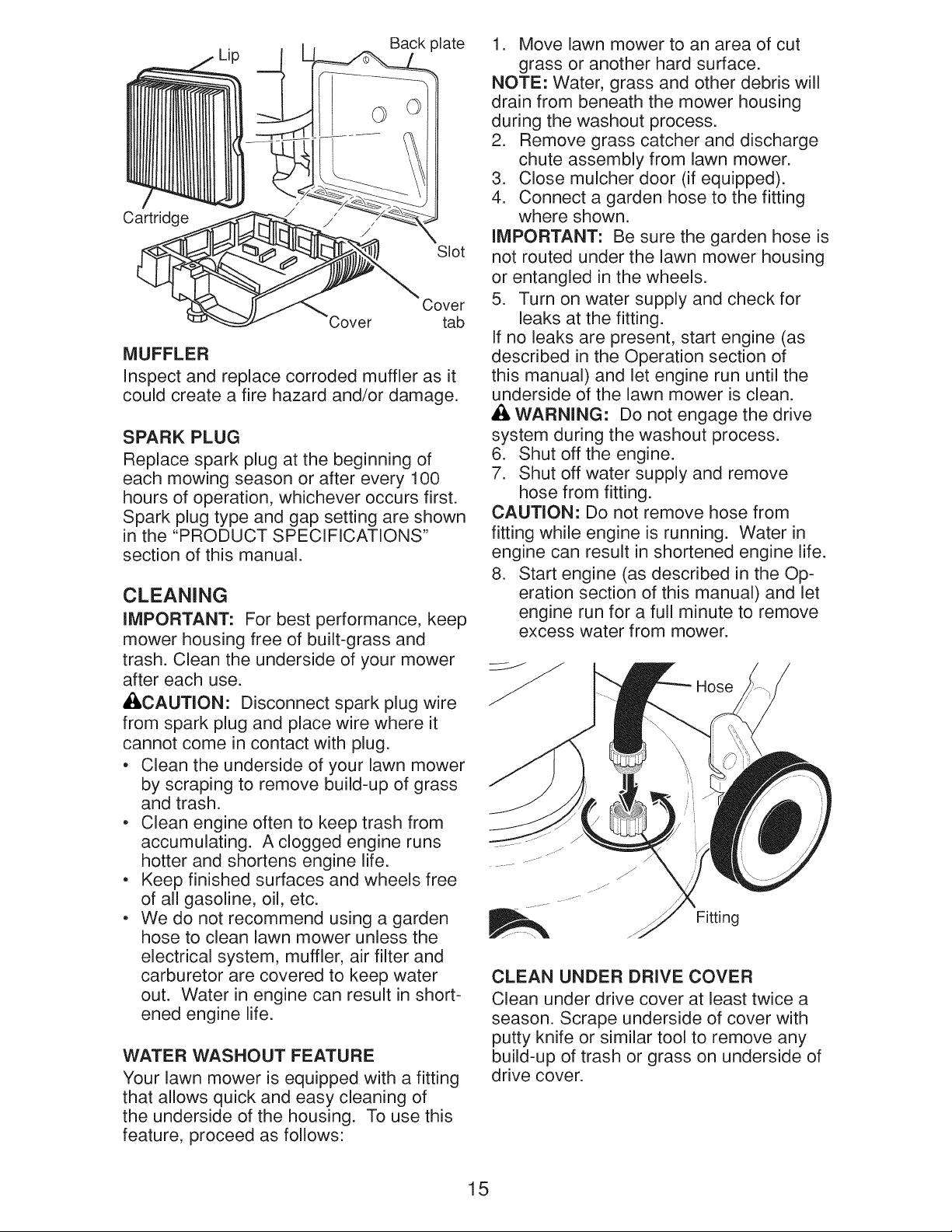

Lip Back plate

Cart sot "-. z Cover

Cover tab

MUFFLER

Inspect and replace corroded muffler as it could create a fire hazard and/or damage.

SPARK PLUG

Replace spark plug at the beginning of each mowing season or after every 100 hours of operation. whichever occurs first.

Spark plug type and gap setting are shown in the "PRODUCT SPECIFICATIONS" section of this manual.

CLEANING

IMPORTANT: For best performance. keep mower housing free of built-grass and trash. Clean the underside of your mower after each use.

&CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

• Clean the underside of your lawn mower by scraping to remove build-up of grass and trash.

• Clean engine often to keep trash from accumulating.

A clogged engine runs hotter and shortens engine life. Keep finished surfaces and wheels free of all gasoline. oil. etc.

• We do not recommend using a garden hose to clean lawn mower unless the electrical system. muffler. air filter and carburetor are covered to keep water out.

Water in engine can result in short ened engine life.

WATER WASHOUT FEATURE

Your lawn mower is equipped with a fitting that allows quick and easy cleaning of the underside of the housing.

To use this feature. proceed as follows:

Move lawn mower to an area of cut grass or another hard surface.

NOTE: Water. grass and other debris will drain from beneath the mower housing during the washout process.

Remove grass catcher and discharge chute assembly from lawn mower.

Close mulcher door (if equipped).

Connect a garden hose to the fitting where shown.

IMPORTANT: Be sure the garden hose is not routed under the lawn mower housing or entangled in the wheels.

Turn on water supply and check for leaks at the fitting.

If no leaks are present. start engine (as described in the Operation section of this manual) and let engine run until the underside of the lawn mower is clean.

WARNING: Do not engage the drive system during the washout process.

Shut off the engine.

Shut off water supply and remove hose from fitting.

CAUTION: Do not remove hose from fitting while engine is running.

Water in engine can result in shortened engine life.

Start engine (as described in the Op eration section of this manual) and let engine run for a full minute to remove excess water from mower.

Hose

Fitting

CLEAN UNDER DRIVE COVER Clean under drive cover at least twice a season.

Scrape underside of cover with putty knife or similar tool to remove any build-up of trash or grass on underside of drive cover.

• ILWARNING" To avoid serious injury. before performing any service and adjustments

Release control bar and stop engine.

Make sure the blade and all moving parts have completely stopped.

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

LAWN MOWER TO REPLACE DRIVE BELT

TO ADJUST CUTTING HEIGHT See "TO ADJUST CUTTING HEIGHT" in the Operation section of this manual.

REAR DEFLECTOR

The rear deflector. attached between the rear wheels of your mower. isprovided to minimize the possibility that objects will be thrown out of the rear of the mower into the operator mowing position.

If the deflector becomes damaged. it should be replaced.

TO REMOVE DRIVE BELT

Remove screws securing rear baffle.

Turn lawn mower on its side with air filter and carburetor up.

Remove rear baffle from mower.

Remove blade bolt. Iockwasher. hard ened washer and blade.

Remove debris shield.

Remove gearcase belt keeper.

Remove drive belt.

Gearcase belt keeper

Rear Belt baffle retainer

Gearcase pulley

Place new drive belt on gearcase pul ley.

NOTE: Always use factory approved belt to assure proper fit and long life.

Reinstall gearcase belt keeper.

Be sure the new drive belt is inside the tabs of the gearcase belt keeper.

Position the blade adapter on the en gine crankshaft.

Be sure key in adapter and crankshaft keyway are aligned; and that the new drive belt is inside the tabs of the belt retainer.

Place rear baffle in mower housing.

Reinstall debris shield.

Reinstall blade.

Return mower to upright position.

Reinstall rear baffle screws.

TO ADJUST HANDLE

The handle on your lawn mower has multiple height positions adjust to height that suits you.

Remove knob and carriage bolt on one side of the lower handle.

While holding handle assembly. remove knob and carriage bolt from opposite side. align hole in handle with desired hole in handle bracket and reassemble bolt and knob and tighten securely.

Align opposite side of handle with same positioning hole and secure with bolt and knob.

Handle Knob Bolt bracket

Debris shield

Hardened

Blade

Lockwasher

Blade bolt

ENGINE

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed or it may result in personal injury.

If you believe that engine is running too fast or too slow. take your mower to a Sears or other qualified service center for repair and adjustment.

CARBURETOR

Your carburetor is not adjustable.

If your engine does not operate properly due

Immediately prepare your lawn mower for storage at the end of the season or if the unit will not be used for 30 days or more.

LAWN MOWER When lawn mower is to be stored for a period of time. clean it thoroughly. remove all dirt. grease. leaves. etc.

Store in a clean. dry area.

Clean entire lawn mower (See "CLEANING" in the Maintenance sec tion of this manual).

Lubricate as shown in the Maintenance section of this manual.

Be sure that all nuts. bolts. screws. and pins are securely fastened.

Inspect moving parts for damage. breakage and wear.

Replace if necessary.

Touch up all rusted or chipped paint surfaces; sand lightly before painting.

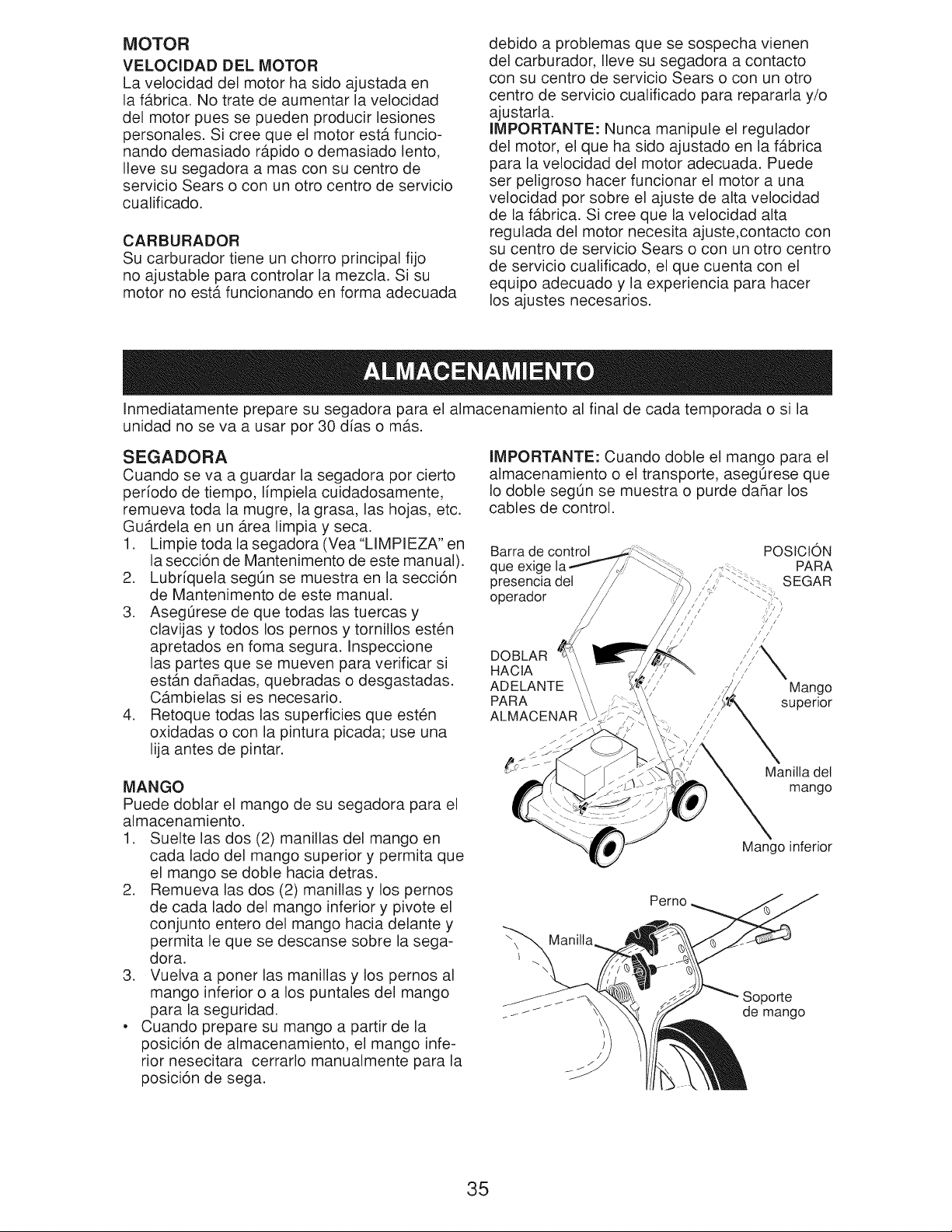

HANDLE

You can fold your lawn mower handle for storage.

Loosen the two (2) handle knobs on sides of the upper handle and allow handle to fold down to the rear.

Remove the two (2) handle knobs and carriage bolts on sides of the lower handle and pivot entire handle as sembly forward and allow it to rest on mower.

Reinstall knobs and carriage bolts to lower handle or handle brackets for safe keeping.

• When setting up your handle from the storage position. the lower handle will require manually locking into the mow ing position.

IMPORTANT: When folding the handle for storage or transportation. be sure to fold the handle as shown or you may damage the control cables.

Operator MOWING POSITION control bar

//// 7///

///// FOLD /'/'

FORWARD

Upper FOR handle STORAGE

Handle knob

Lower handle

Bolt

Handle bracket

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent gum deposits from forming in essential fuel system parts such as carburetor. fuel filter. fuel hose. or tank during storage.

Alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage.

Acidic gas can damage the fuel system of an engine while in storage. Empty the fuel tank by starting the en gine and letting it run until the fuel lines and carburetor are empty. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur. Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage.

Add stabilizer to gasoline in fuel tank or stor age container.

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to allow the stabilizer to reach the car buretor.

Do not empty the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil. (See "ENGINE" in the Maintenance section of this manual).

CYLINDER

Remove spark plug.

Pour one ounce (29 ml) of oil through spark plug hole into cylinder.

Pull starter handle slowly a few times to distribute oil.

Replace with new spark plug.

OTHER

Do not store gasoline from one season to another. Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems. If possible. store your unit indoors and cover it to protect it from dust and dirt.

• Cover your unit with a suitable protec tive cover that does not retain moisture.

Do not use plastic.

Plastic cannot breathe. which allows condensation to form and will cause your unit to rust.

IMPORTANT: Never cover mower while engine and exhaust areas are still warm. &CAUTION: Never store the lawn

TROUBLESHOOTING =See appropriate section in manual unless directed to a Sears Parts & Repair Center.

PROBLEM CAUSE

Does not start

Dirty air filter.

Out of fuel.

Stale fuel.

Water in fuel.

Spark plug wire disconnected.

Bad spark plug.

Loose blade or broken blade adapter.

Control bar in released position.

Control bar defective.

Fuel valve lever (if so equipped) in OFF position.

Weak battery (if equipped).

Disconnected battery connector (if equipped).

CORRECTION

Clean/replace air filter.

Fill fuel tank.

Empty fuel tank and refill tank with fresh. clean gasoline.

Empty fuel tank and refill tank with fresh. clean gasoline.

Connect wire to plug.

Replace spark plug.

Tighten blade bolt or replace blade adapter.

Depress control bar to handle.

Replace control bar.

10. Turn fuel valve lever to the ON position.

11. Charge battery.

12. Connect battery to engine.

TROUBLESHOOTING =See appropriate section in manual unless directed to a Sears Parts & Repair Center.

CAUSE PROBLEM

Loss of power

Poor cut uneven

Excessive vibration

Starter rope hard to pull

Grass catcher not filling (if so equipped)

Hard to push

Loss of drive or sJowing of drive speed

Rear of mower housing or blade dragging in grass.

Cutting too much grass.

Dirty air filter.

Buildup of grass. leaves. and trash under mower.

Too much oil in engine.

Walking speed too fast.

Worn. bent or loose blade.

Wheel heights uneven.

Buildup of grass. leaves and trash under mower.

Worn. bent or loose blade.

Bent engine crankshaft.

Engine flywheel brake is on when control bar is released.

Bent engine crankshaft.

Blade adapter broken.

Blade dragging in grass.

Cutting height too low.

Lift on blade worn off.

Catcher not venting air.

Grass is too high or wheel height is too low.

Rear of mower housing or blade dragging in grass.

Grass catcher too full.

Handle height position not right for you.

Belt wear.

Belt off of pulley.

Drive cable worn or broken. "Loose" drive control system.

CORRECTION

Raise cutting height.

Raise cutting height.

Clean/replace air filter.

Clean underside of mower housing.

Check oil level.

Cut at slower walking speed.

Replace blade. Tighten blade bolt.

Set all wheels at same height.

Clean underside of mower housing.

Replace blade. Tighten blade bolt.

Contact a Sears or other qualified service center.

Depress control bar to upper handle before pulling the starter rope.

Contact a Sears or other qualified service center.

Replace blade adapter.

Move lawn mower to cut grass or to hard surface.

Raise cutting height.

Replace blade.

Clean grass catcher.

Raise cutting height.

Raise rear of mower housing one (1) setting higher.

Empty grass catcher.

Adjust handle height to suit.

Check/replace drive belt.

Check/reinstall drive belt.

Replace drive cable.

Adjust drive control.

HEED MORE HELP?

You'll find the answer and more on managemyhome.com for free!

• Find this and all your other product manuals online.

• Get answers from our team of home experts.

• Get a personalized maintenance plan for your home.

• Find information and tools to help with home projects.

CRAFTSMAN ROTARY LAWN MOWER

MODEL NUMBER 917.3"/0920

KEY PART KEY PART KEY PART NO.

DESCRiPTiON NO.

DESCRiPTiON NO.

DESCRiPTiON

X479 Upper Handle 439332 Grassbag 430599 Front Baffle 438392 Cable. Engine Zone Control / 446432 Frame. Grass Catcher 404763 Decal. Danger Rear Door Prop X007 Latch. Mulcher Door 17000510 Screw. Hex Head 5-16-18 X004 Bracket.

Upstop 420019 Mulcher Door 17411312 Screw. Hex Washer Head 66426 Wire Tie X615 Bracket. Grassbag #13 x 3/4 182398 Handle Knob. Star 175735 Hinge Bracket Assembly 155377 Nut. Hex 178848 Screw #10-16 x 5/8 X428 Discharge Deflector X479 Lower Handle X428 Control Bar X479 Handle Bracket.

LH 191574 Handle Bolt 430653 Rear Door Assembly X479 Handle Bracket.

RH X004 Belt Retainer

72250505 Bolt. Carriage 5/16-18 x 5/8 English / Spanish

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

MPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous. damage your lawn mower and void your warranty.

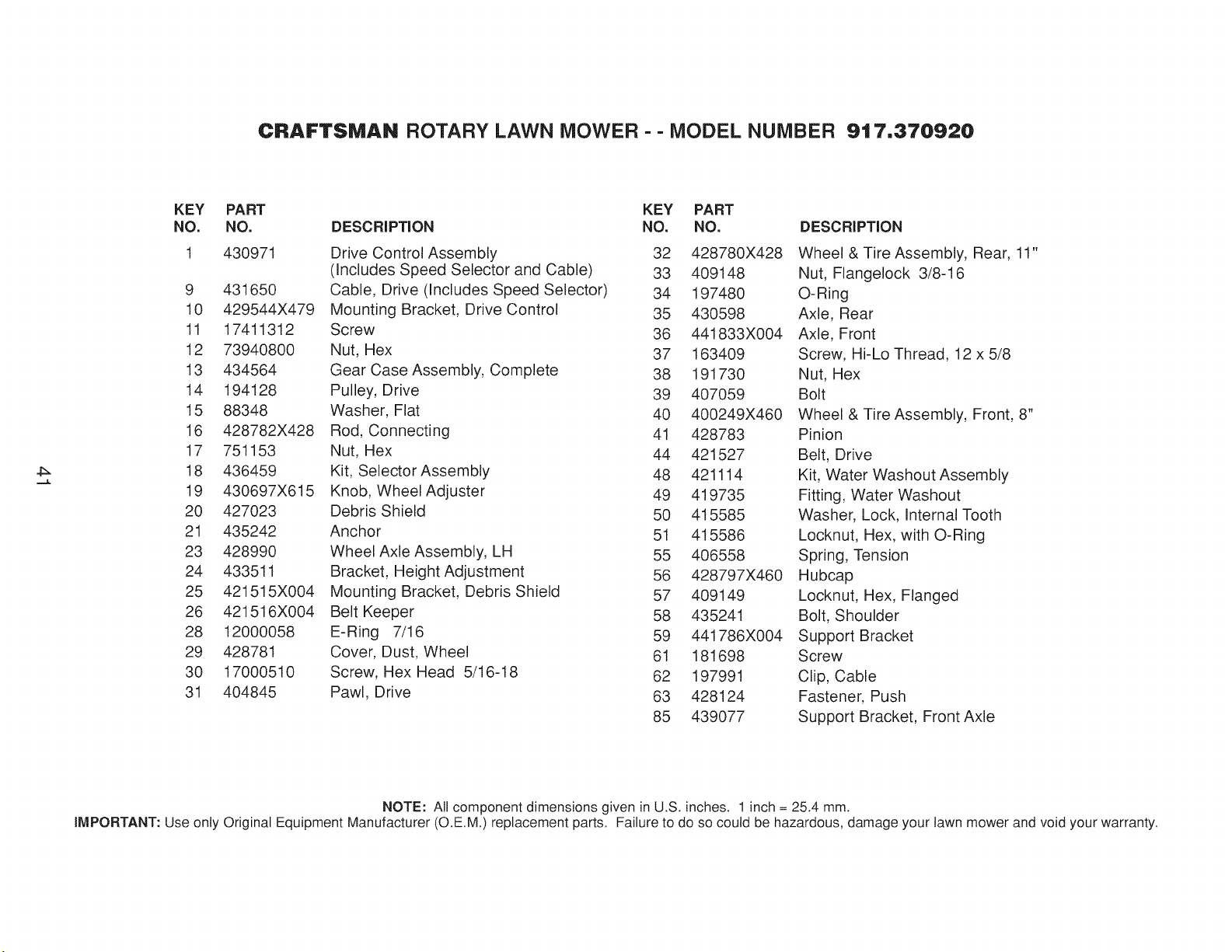

CRAFTSMAN ROTARY LAWN MOWER

MODEL NUMBER 917.3"/0920

KEY PART NO.

DESCRiPTiON KEY PART DESCRiPTiON NO.

430971 Drive Control Assembly X428 Wheel & Tire Assembly.

Rear. 11" (Includes Speed Selector and Cable) 409148 Nut. Flangelock 3/8-16 431650 Cable. Drive (Includes Speed Selector) 197480 O-Ring X479 Mounting Bracket.

Drive Control 430598 Axle. Rear 17411312 Screw X004 Axle. Front 73940800 Nut. Hex 163409 Screw. Hi-Lo Thread.

12 x 5/8 434564 Gear Case Assembly.

Complete 191730 Nut. Hex 194128 Pulley. Drive 407059 Bolt

88348 Washer.

Flat X460 Wheel & Tire Assembly.

Front. 8" X428 Rod. Connecting 428783 Pinion

751153 Nut. Hex 421527 Belt. Drive

436459 Kit. Selector Assembly 421114 Kit. Water Washout Assembly X615 Knob. WheelAdjuster 419735 Fitting. Water Washout 427023 Debris Shield 415585 Washer.

Lock. internal Tooth

435242 Anchor 415586 Locknut.

Hex. with O-Ring 428990 Wheel Axle Assembly.

LH 406558 Spring. Tension 433511 Bracket.

Height Adjustment X460 Hubcap X004 Mounting Bracket.

Debris Shield 409149 Locknut.

Hex. Flanged X004 Belt Keeper 435241 Bolt. Shoulder 12000058 E-Ring 7/16 X004 Support Bracket 428781 Cover. Dust. Wheel 181698 Screw

17000510 Screw. Hex Head 5/16-18 197991 Clip. Cable 404845 Pawl. Drive 428124 Fastener.

Push

439077 Support Bracket.

Front Axle

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm.

MPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous. damage your lawn mower and void your warranty.

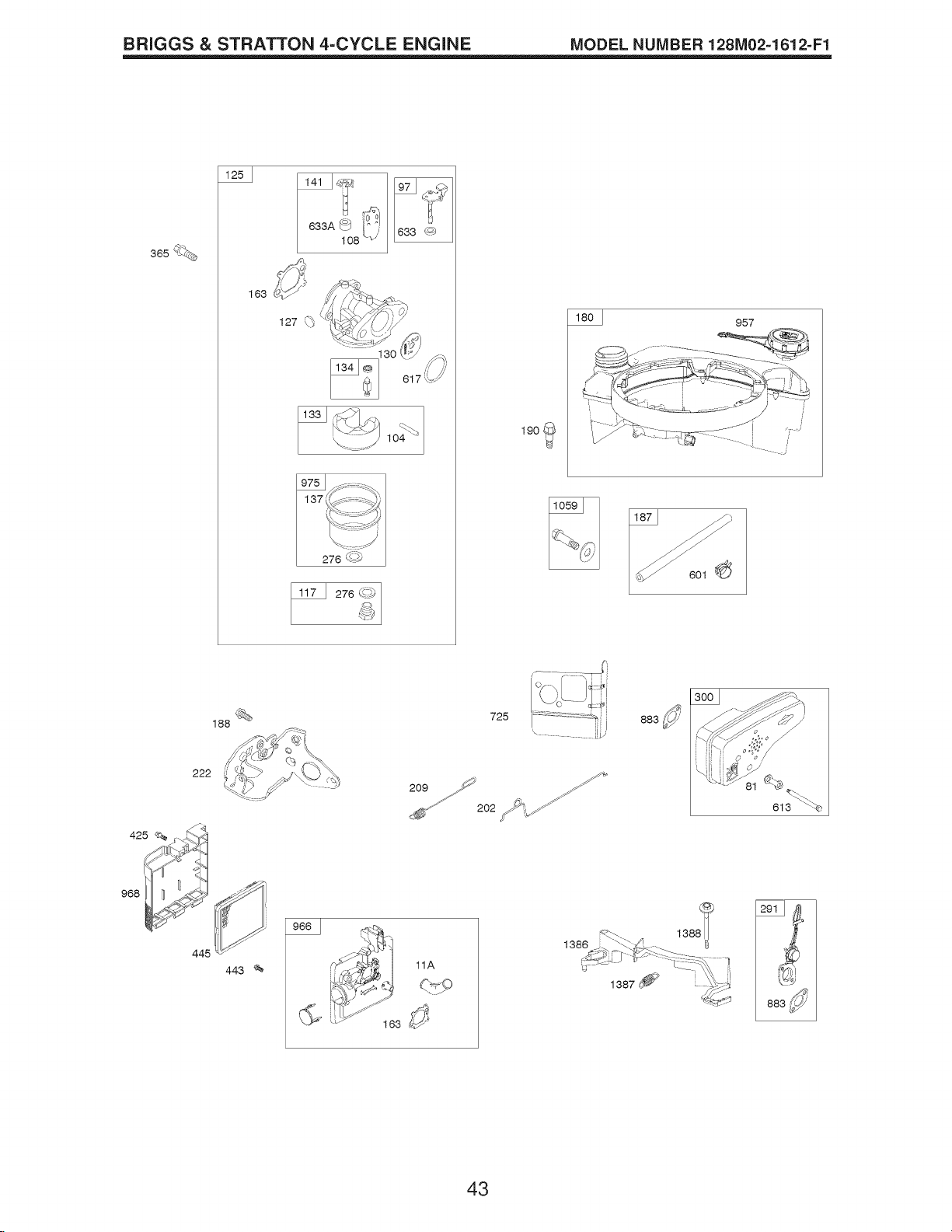

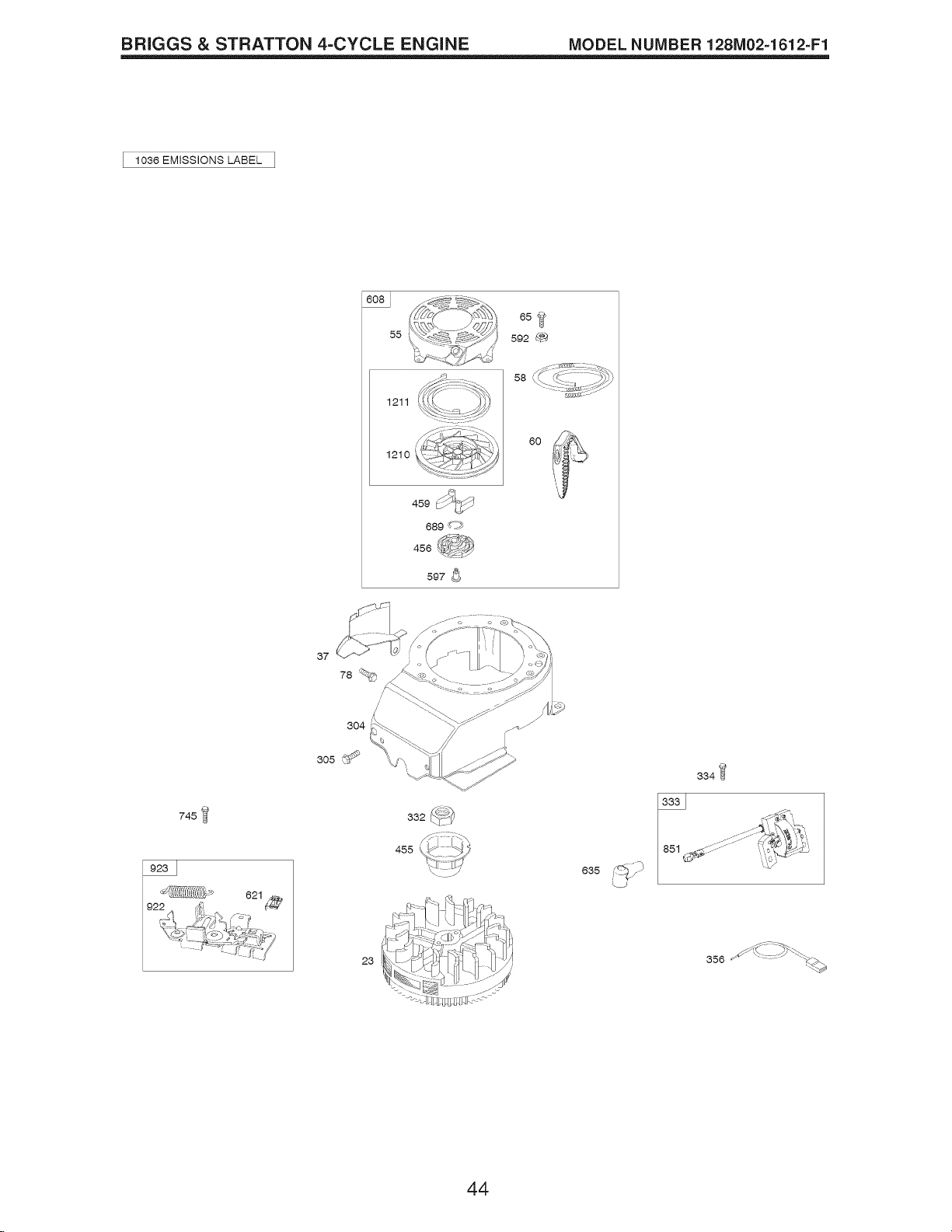

BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER M02=1612-F1

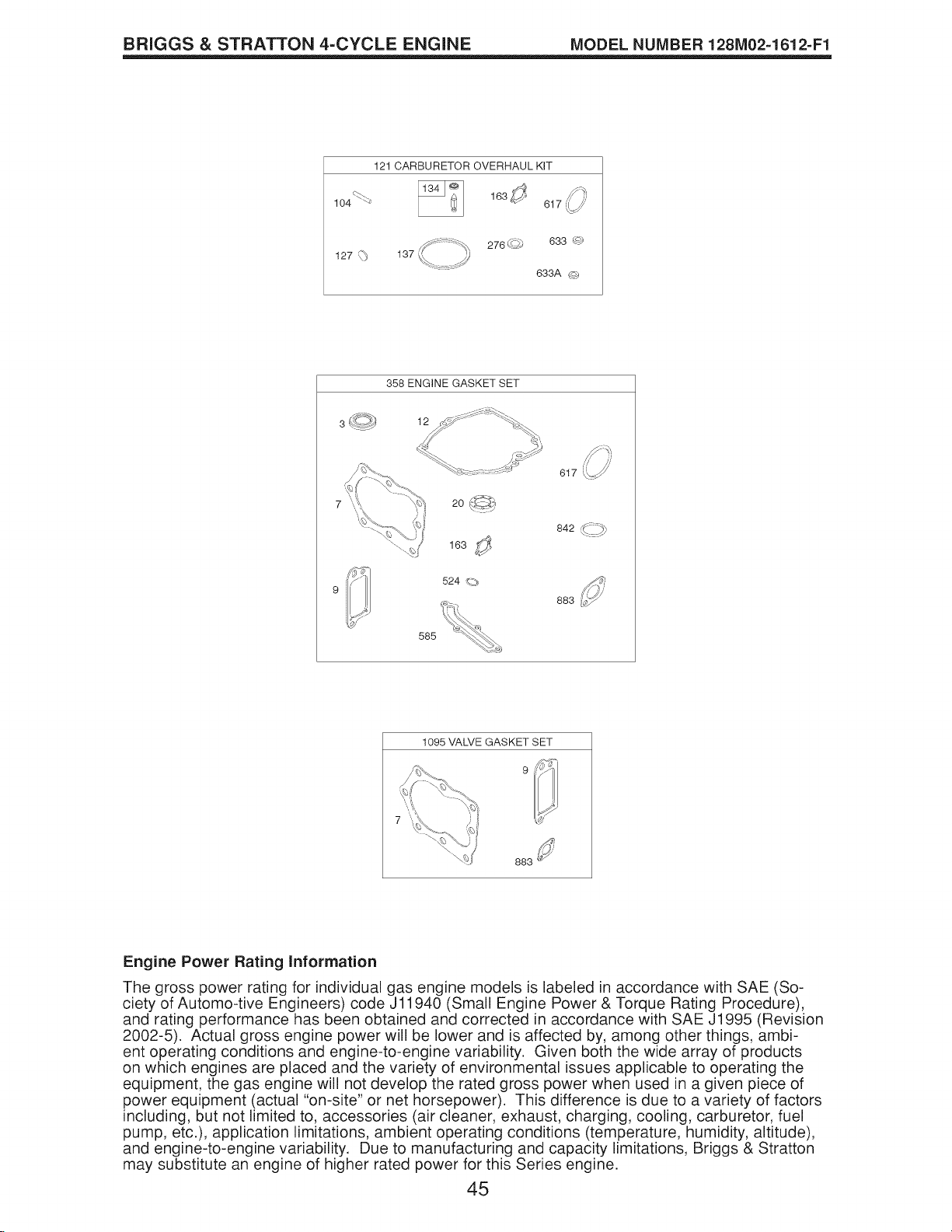

121 CARBURETOR OVERHAUL KIT

104 _'_>' 163 Ji!

358 ENGINE GASKET SET

1095 VALVE GASKET SET

Engine Power Rating information

The gross power rating for individual gas engine models is labeled in accordance with SAE (So ciety of Automo-tive Engineers) code J11940 (Small Engine Power & Torque Rating Procedure). and rating performance has been obtained and corrected in accordance with SAE J1995 (Revision 2002-5).

Actual gross engine power will be lower and is affected by. among other things. ambi ent operating conditions and engine-to-engine variability.

Given both the wide array of products on which engines are placed and the variety of environmental issues applicable to operating the equipment. the gas engine will not develop the rated gross power when used in a given piece of power equipment (actual "on-site" or net horsepower).

This difference is due to a variety of factors including. but not limited to. accessories (air cleaner. exhaust. charging. cooling. carburetor. fuel pump. etc.). application limitations. ambient operating conditions (temperature. humidity. altitude). and engine-to-engine variability.

Due to manufacturing and capacity limitations.

Briggs & Stratton may substitute an engine of higher rated power for this Series engine.

BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER M02=1612=F1

KEY PART KEY PART NO.

DESCRiPTiON NO.

DESCRiPTiON

590401 Cylinder Assembly N/A Short Block 299819s Seal-Oil (Magneto Side) 796703 Manifold-intake 493279 Sump-Engine 796704 Gasket-intake 590411 Head-Cylinder 691650 Screw (intake Manifold) 799875 Gasket-Cylinder Head 691421 Housing-Rewind Starter 590395 Breather Assembly 697316 Rope-Starter 699472 Gasket-Breather 795426 Grip-Starter Rope 691125 Screw 690837 Screw (Rewind Starter) (Breather Assembly) 691108 Screw (Flywheel Guard) 691781 Tube-Breather 691740 Lock-Muffler Screw

691923 Tube-Breather 692348 Plug-Oil (Cylinder) (Air Cleaner Primer Base) 696565 Shaft-Throttle 692232 Gasket-Crankcase 797622 Pin-Float Hinge 590422 Screw (Cylinder Head) 795935 Valve-Choke 691680 Plug-Oil Drain 795936 Shaft-Choke 797017 Crankshaft 590440 Jet-Main (Standard) 399781s Seal-Oil (PTO Side) 498260 Kit-Carburetor Overhaul 691092 Screw 799866 Carburetor

(Crankcase Cover/Sump) 694468 Plug-Welch 691987 Flywheel 696564 Valve-Th rottle 222698s Key-Flywheel 398187 Float-Carburetor 590404 Piston Assembly (Standard) 398188 Kit-Needle/Seat 590405 Piston Assembly 796610 Gasket-Float Bowl (.020" Oversize) 796193 Kit-Choke Shaft 590402 Ring Set (Standard) 795629 Gasket-Air Cleaner 590403 Ring Set (.020" Oversize) 590490 Tank-Fuel 691588 Lock-Piston Pin 791766 Line-Fuel

298909 Pin-Piston (Cut To Required Length) 797306 Rod-Connecting 693999 Screw (Control Bracket) 691664 Screw (Connecting Rod) 690940 Screw (Fuel Tank) (1/4-28 x 1.09) 691829 Link-Mechanical Governor 695759 Screw (Connecting Rod) 699056 Spring-Governor (No Color) (1/4-28 x 1.52) 793754 Bracket-Control 590394 Valve-Exhaust 690783 Lever-Governor Control

590393 Valve- Intake 271716 Washer-Seali ng 691270 Spring-Valve (intake) 690940 Screw (Dipstick Tube) 691270 Spring-Valve (Exhaust) 790830 Thermostat 793756 Guard-Flywheel 790828 Muffler 692194 Retainer-Valve 790826 Housing-Blower 691997 Slinger-Governor/Oil 691108 Screw (Blower Housing) 690548 Tappet-Valve 790836 Shield-Cylinder 590463 Camshaft 690345 Screw (Cylinder Shield)

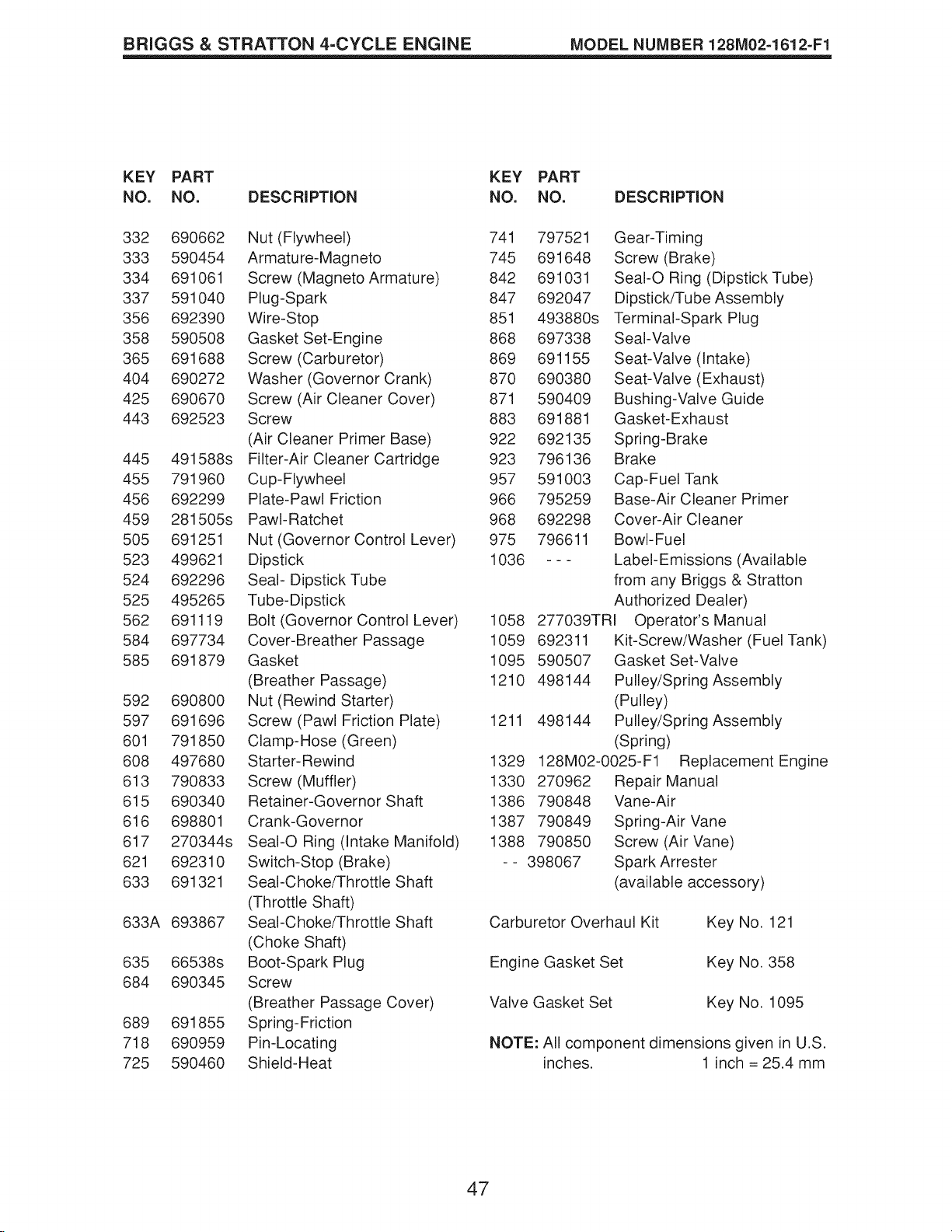

BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER M02=1612=F1

KEY PART KEY PART NO.

DESCRIPTION NO.

DESCRiPTiON

690662 590454 691061 591040 692390 590508 691688 690272 690670 692523

491588s 791960 692299 281505s O5 691251 499621 692296 495265 691119 697734 691879

690800 691696 791850 497680 790833 690340 698801 270344s 692310 691321

693867

66538s 690345

691855 690959 590460

Nut (Flywheel) Armature-Magneto Screw (Magneto Armature) Plug-Spark Wire-Stop Gasket Set-Engine Screw (Carburetor) Washer (Governor Crank) Screw (Air Cleaner Cover) Screw

(Air Cleaner Primer Base) Filter-Air Cleaner Cartridge Cup-Flywheel Piate-Pawl Friction Pawi- Ratchet

Nut (Governor Control Lever) Dipstick 1036 Seal- Dipstick Tube Tube-Dipstick Bolt (Governor Control Lever) Cover-Breather Passage Gasket

(Breather Passage) Nut (Rewind Starter) Screw (Pawl Friction Plate) Clamp-Hose (Green) Starter-Rewind

Screw (Muffler) Retainer-Governor Shaft Crank-Governor

SeaI-O Ring (intake Manifold) Switch-Stop (Brake) Seal-Choke/Throttle Shaft

(Throttle Shaft) Seal-Choke/Throttle Shaft

(Choke Shaft) Boot-Spark Plug Screw

(Breather Passage Cover) Spring-Friction Pin-Locating Shield-Heat

797521 691648 691031 692047 493880s 697338 691155 690380 590409 691881 692135 796136 591003 795259 692298 796611

Gear-Timing Screw (Brake) SeaI-O Ring (Dipstick Tube) Dipstick/Tube Assembly Terminal-Spark Plug Seal-Valve

Seat-Valve (intake) Seat-Valve (Exhaust) Bushing-Valve Guide Gasket-Exhaust

Spring-Brake Brake

Cap-Fuel Tank Base-Air Cleaner Primer Cover-Air Cleaner Bowl-Fuel

Label-Emissions (Available

1210 498144 Pulley/Spring Assembly (Pulley) 1211 498144 Pulley/Spring Assembly (Spring) M02-0025-F1 Replacement Engine 270962 Repair Manual 790848 Vane-Air

790849 Spring-Air Vane 790850 Screw (Air Vane)

398067 Spark Arrester (available accessory)

Carburetor Overhaul Kit Key No. 121

Engine Gasket Set Key No. 358

Valve Gasket Set Key No. 1095

NOTE: Allcomponentdimensions givenin U.S. inches.

1 inch = 25.4 mm

NEED HOR£ HELP?

Youq[find the aswer [email protected] more on managemyhOeoCO for fr'ee!

+ Find this and aLLyour other product manuals online.

+ Get answers from our team of home experts.

+ Get a personalized maintenance plan for your home.

+ Find information and tools to heLp with home projects.

Your Home

For repair - in your home - of aH major brand appliances. lawn and garden equipment. or heating and cooling systems. no matter who made it. no matter who sold it!

For the replacement parts. accessories and owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances and items like garage door openers and water heaters.

1-800-4-MY-HOME ® Anytime. day or night

(1-800-469-4663) (U.S.A. and Canada) www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums. lawn equipment. and electronics. call or go on-line for the nearest Sears Parts and Repair Center.

1-800-488-1222 Anytime. day or night (U.S.A. only)

To purchase a protection agreement (U.S.A.) or maintenance agreement (Canada) on a product serviced by Sears:

1-800=827-6655 (U.S.A.) 1-800=361-6665 (Canada)

446688

Para pedirservicio de reparaci6n a domicilio. paraordenar piezas: 1-888U-HOG/

(1-888-784-6427)

+ Sears Brands. LLC Serifs

Au Canada pour serviceen frangais: 1-800-LE-FOYERMc

(1-800-533-6937) www.sears.ca

TM SM ® Registered Trademark Trademark Service Mark of Sears Brands. LLC SM ® Marca Registrada / TMMarca de Fabrica / Marca de Servicio de Sears Brands.

LLC MCMarque de commerce / MDMarque d6pose de Sears Brands.

LLC

11.04.11 BY Printed in U.S.A.



Newest Added: 247887790 154740980 917376572 315218290 107280340

Tags: PDF USER MANUAL FOR CRAFTSMAN R 110 RIDING LAWN MOWER MANUAL, Craftsman 3300i Inverter Generator, Craftsman R110 Riding Lawnmower, Craftsman R110 Riding Lawnmower Manual, R110 Craftsman, Craftsman 3000i Manual, Craftsman R110 User Manual

Craftsman 917370920 | Pages: 48 | Created on: 2022-06-15 | File type: PDF | Filename: 80774826_917370920.pdf | Size: 9.03 MB | Language: English

Download User Manual

Product Infomation and Reviews - 917370920 photo

917370920 Photo

T: @manualsFile

https://manualsFile.com
