AV Control Receiver
Operating Instructions
Model No. SA-HE75
Table of contents
Dear customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please read these
instructions completely.
Please keep this manual for future reference.
IMPORTANT SAFETY INSTRUCTIONS ................2
Supplied accessories ...............................................
The remote control ...................................................
Speaker connections
4
connections
6

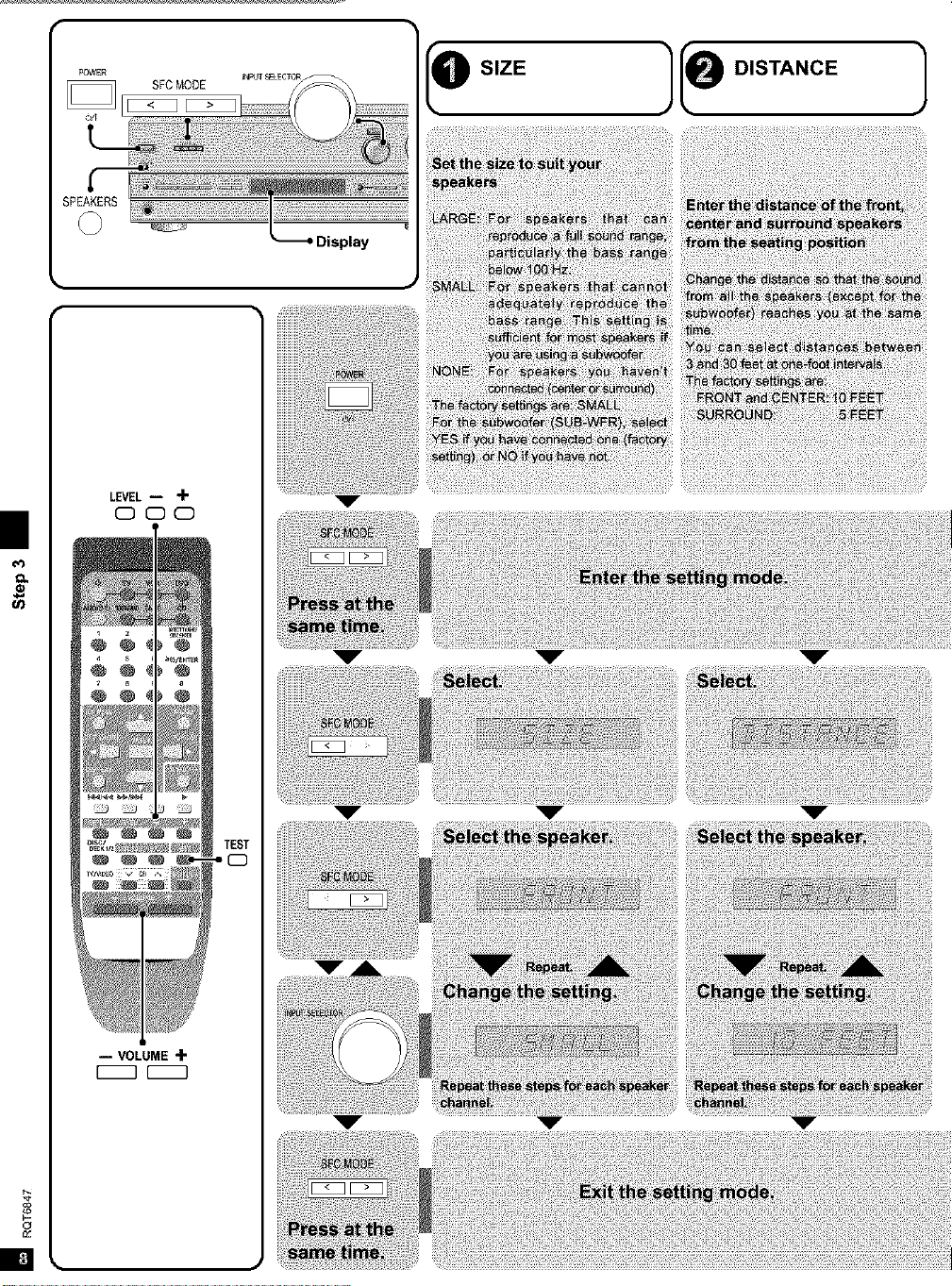

Settings
8

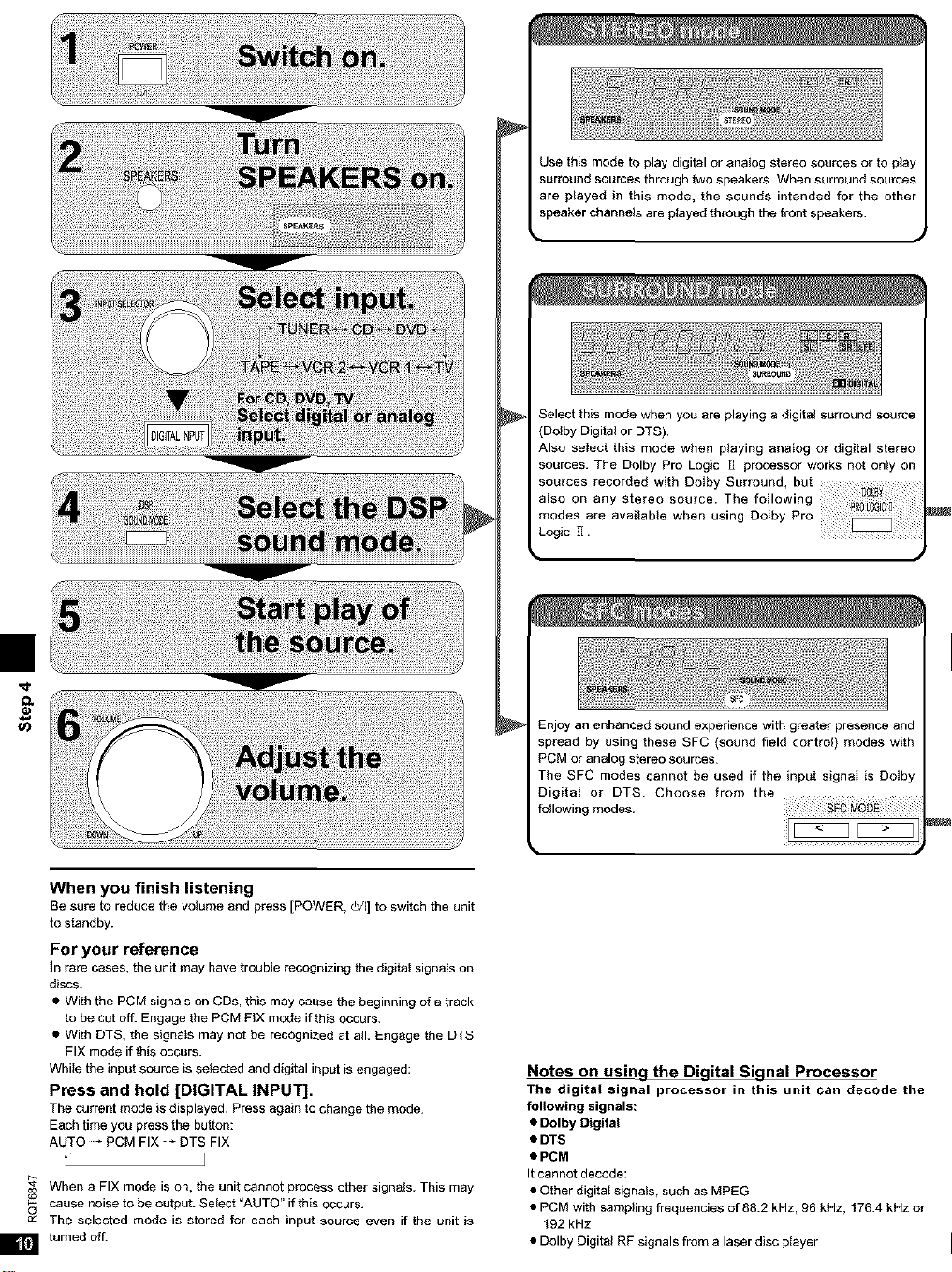

Basic operations
10

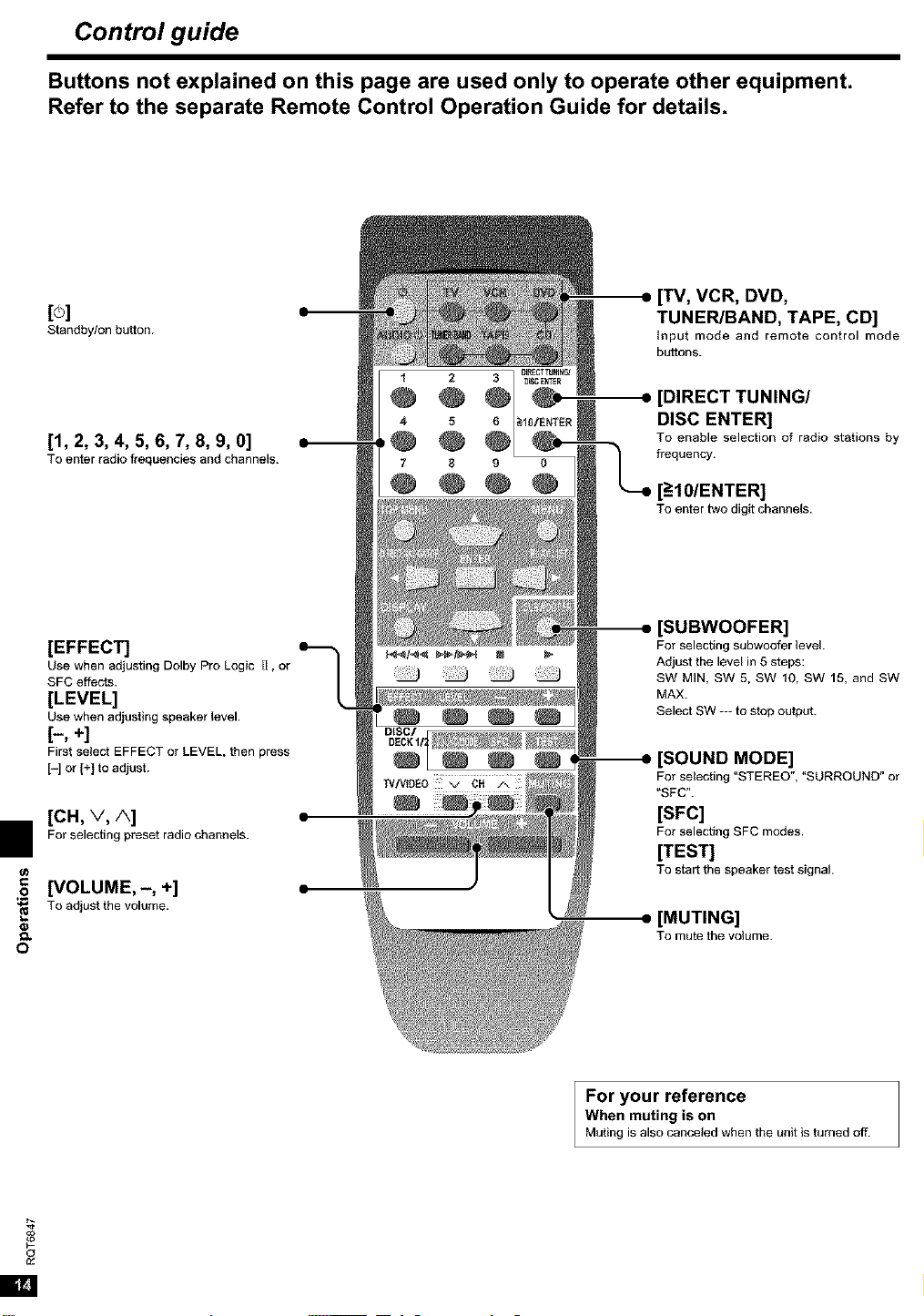

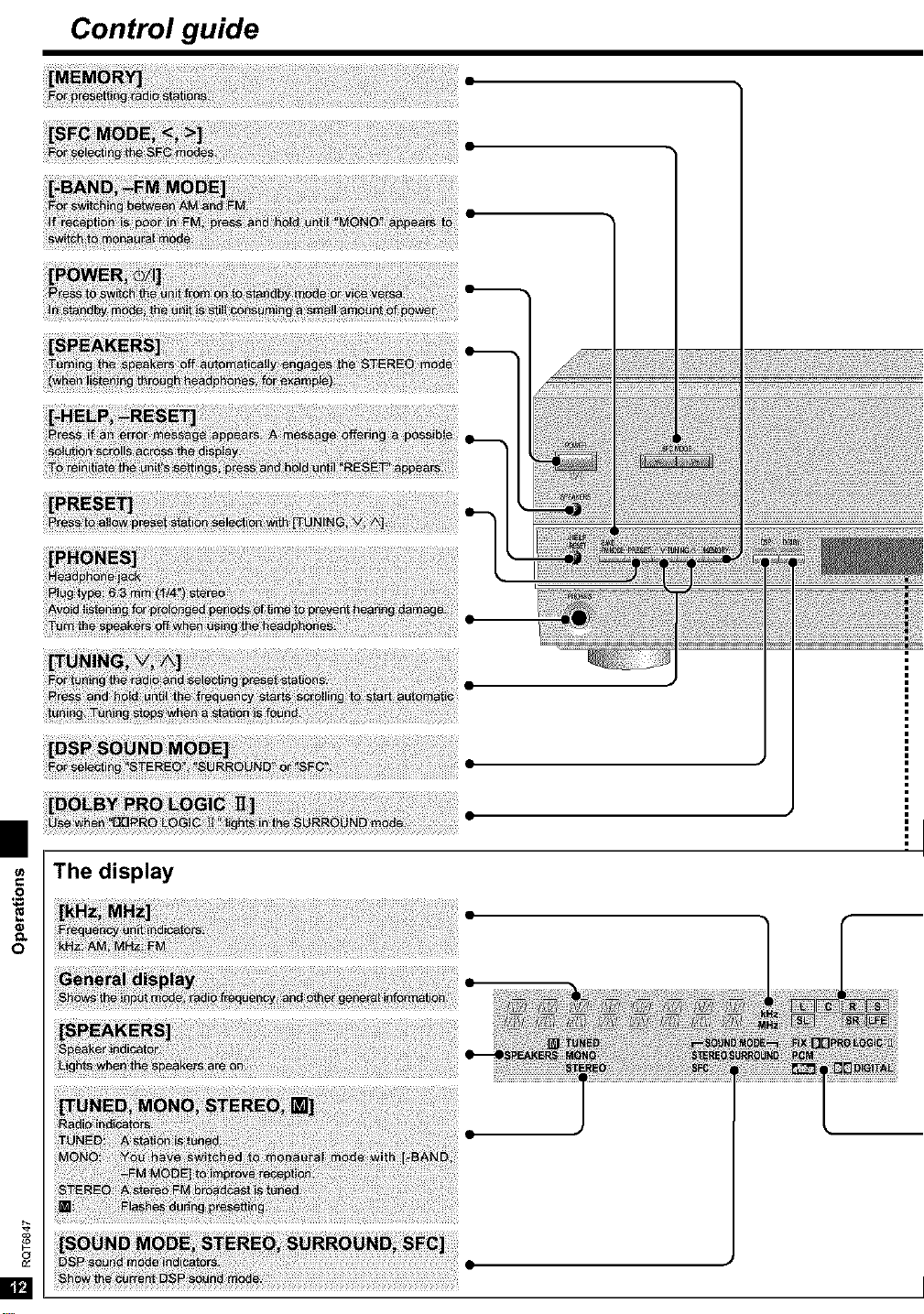

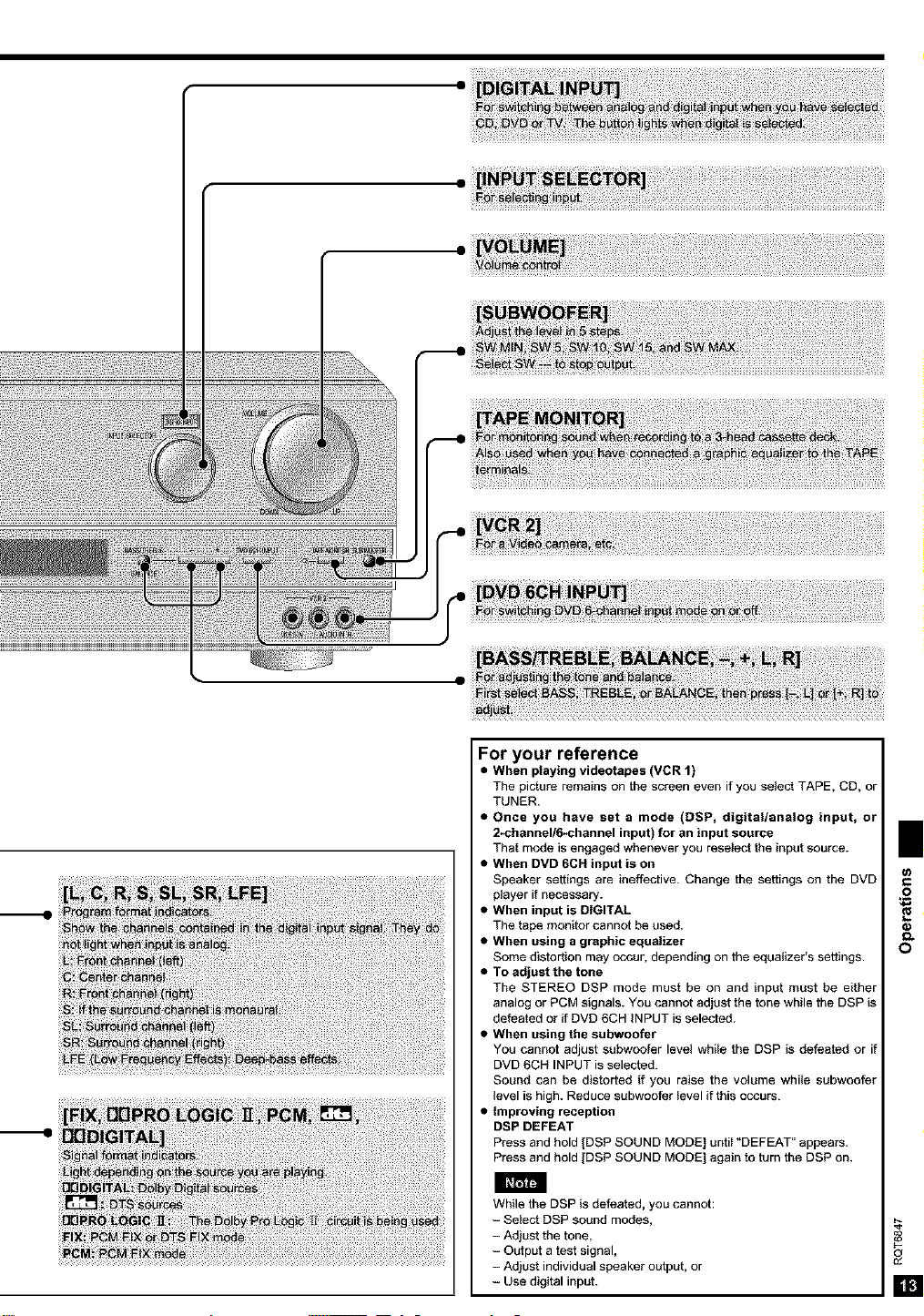

Control guide .............................................................12

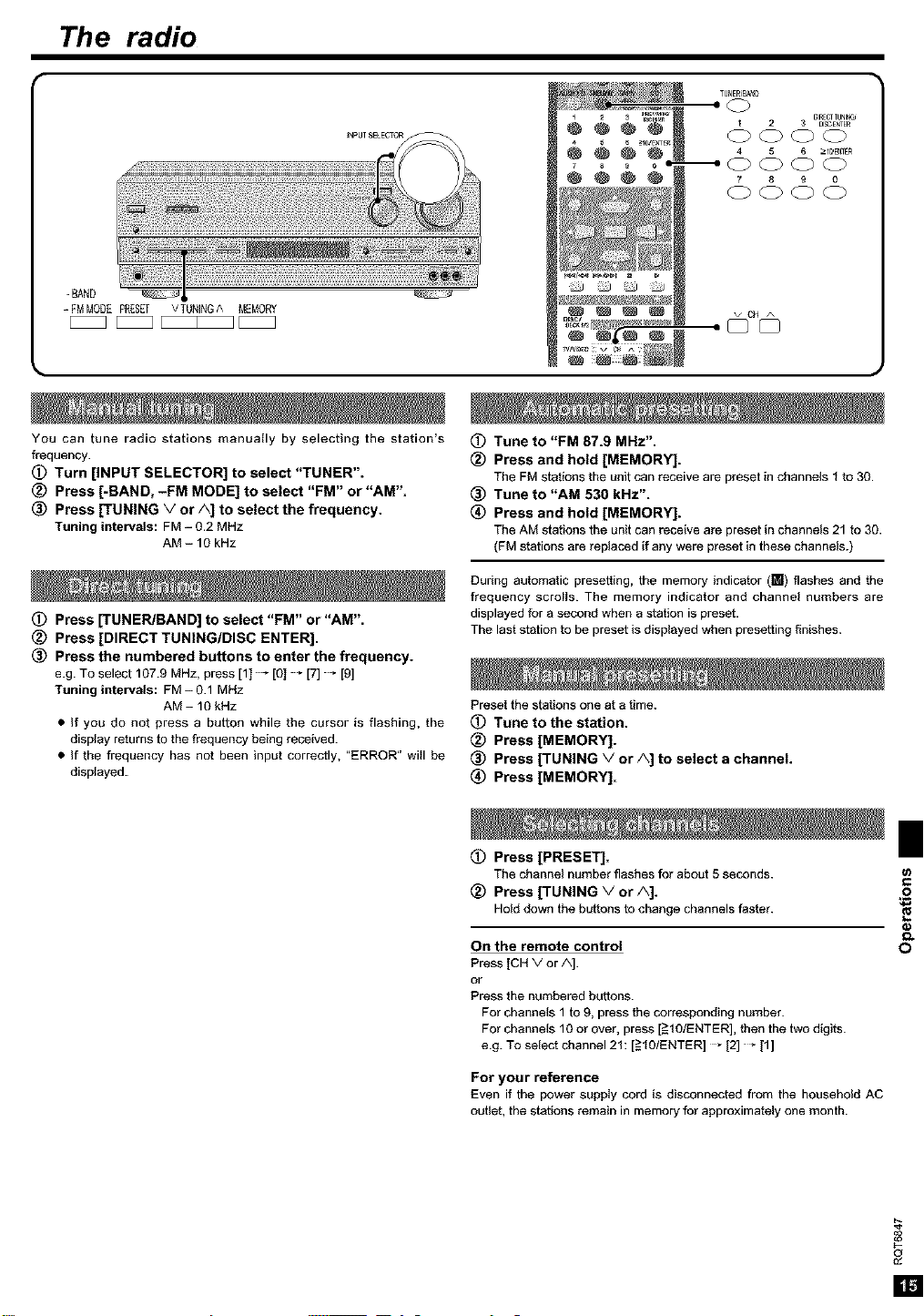

The radio .....................................................................15
Other settings ...........................................................16

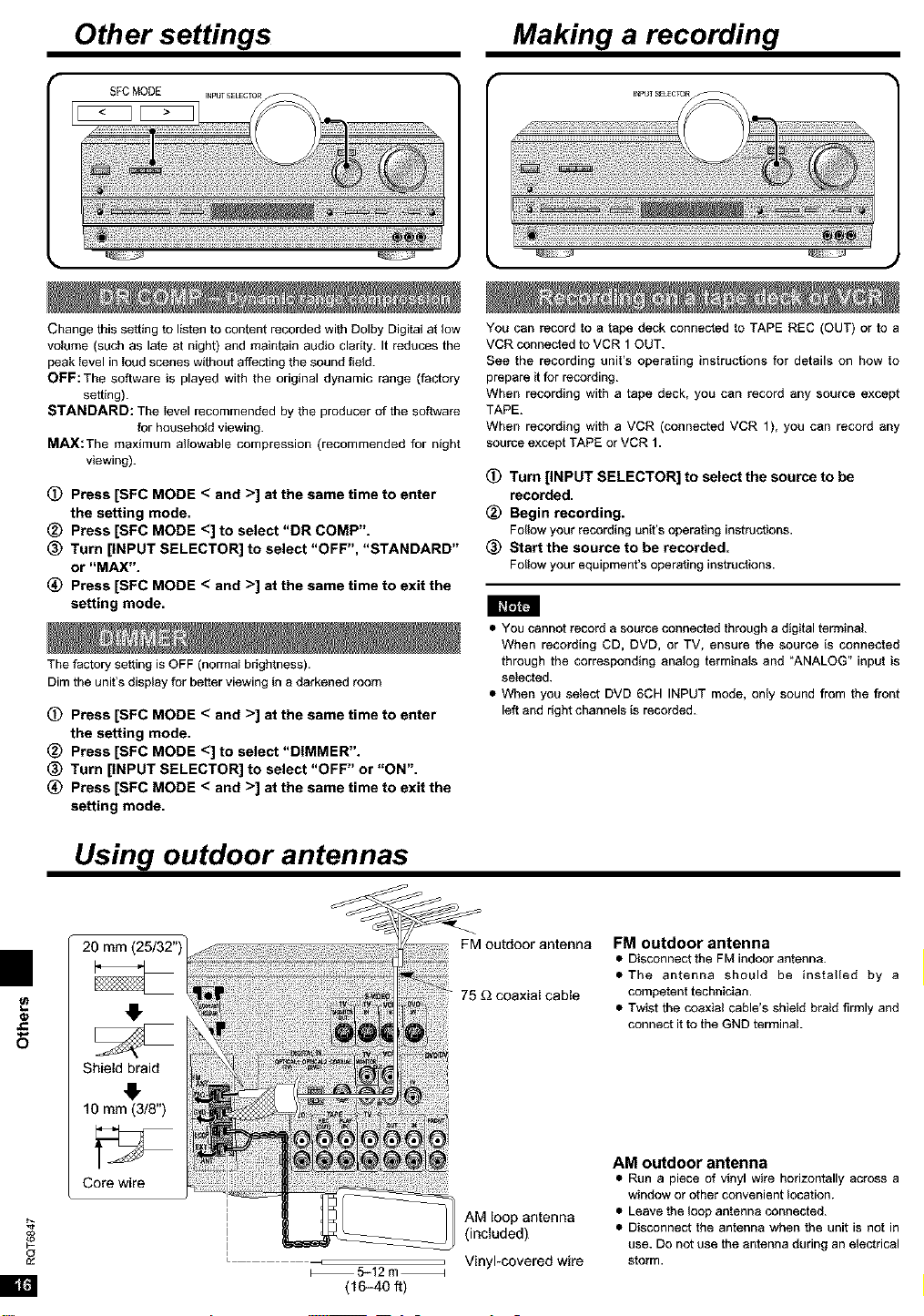

Making a recording ..................................................16
Using outdoor antennas ........................................16

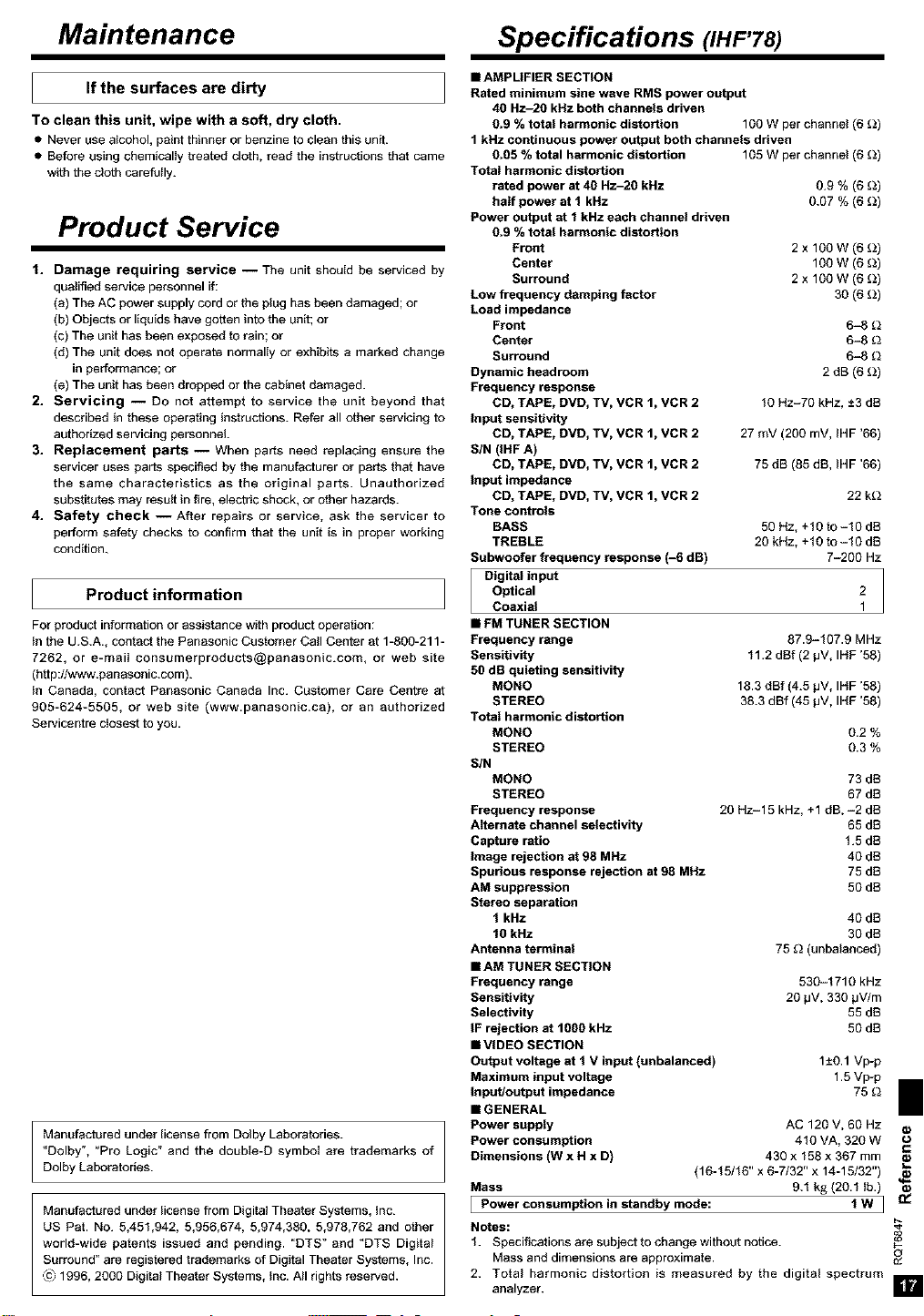

Maintenance ..............................................................17
Product Service ........................................................17
Specifications ...........................................................17

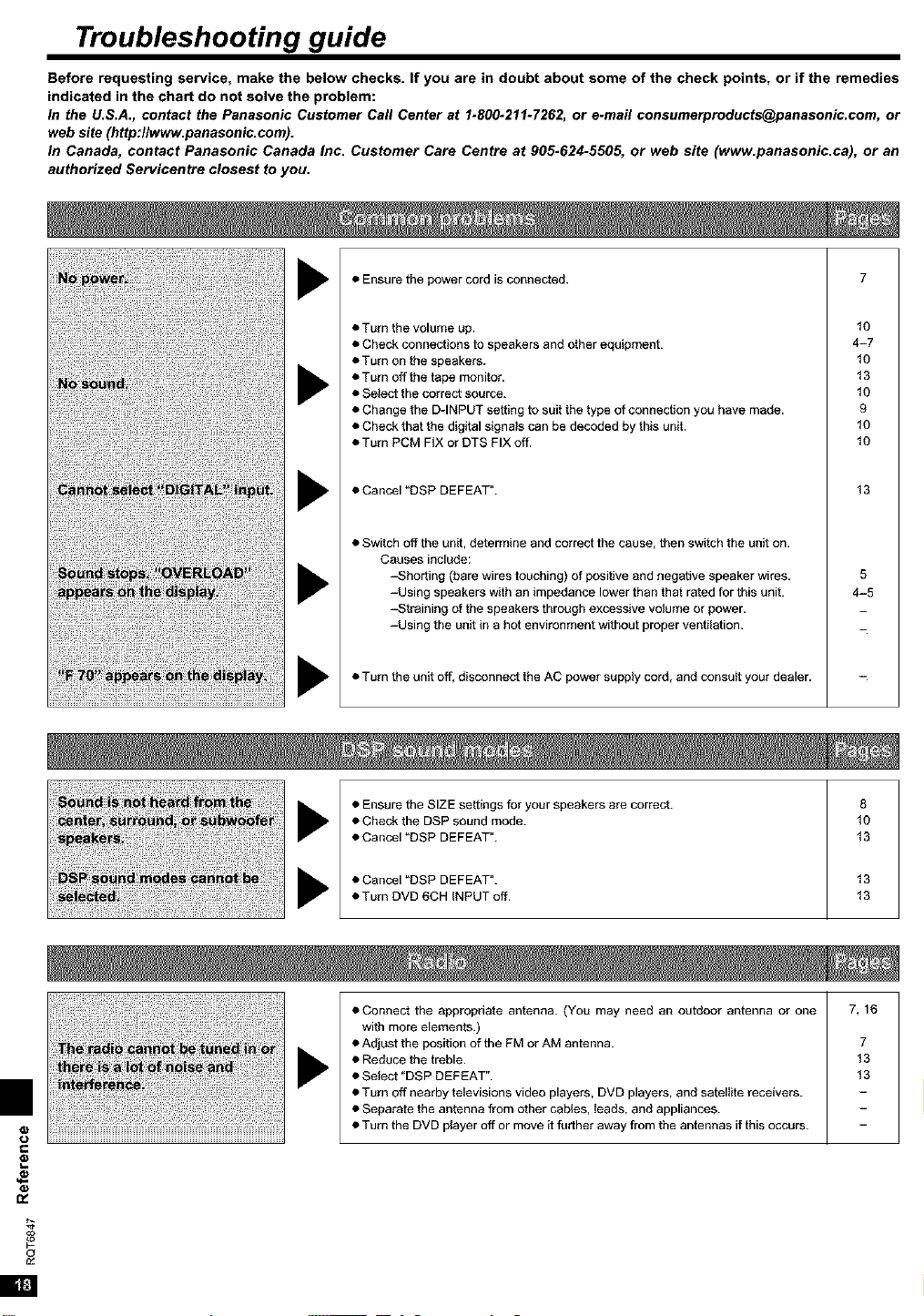

Troubleshooting guide ...........................................18

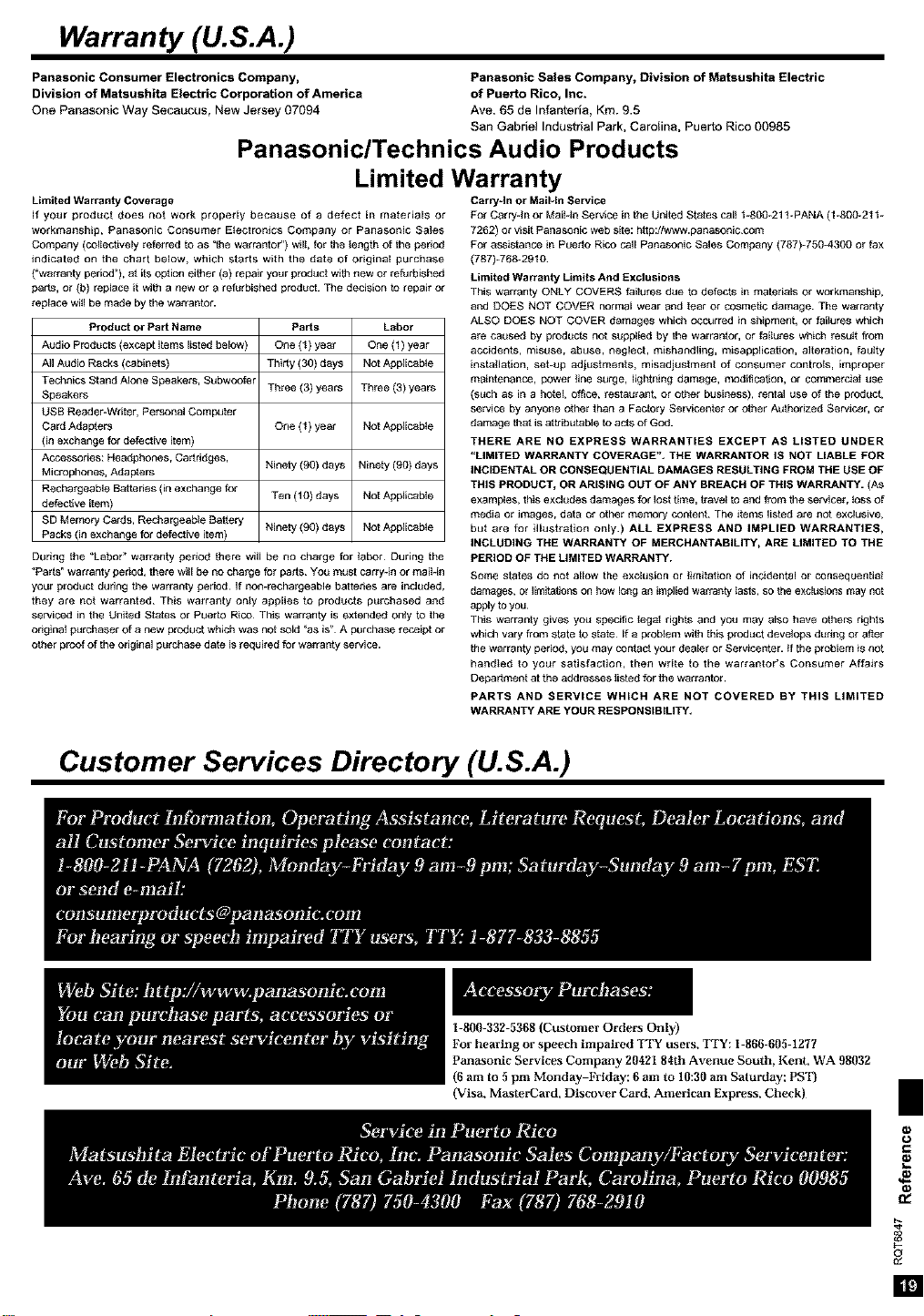

Warranty (U.S.A.) ......................................................19
Customer Services Directory (U.S.A.) ................19

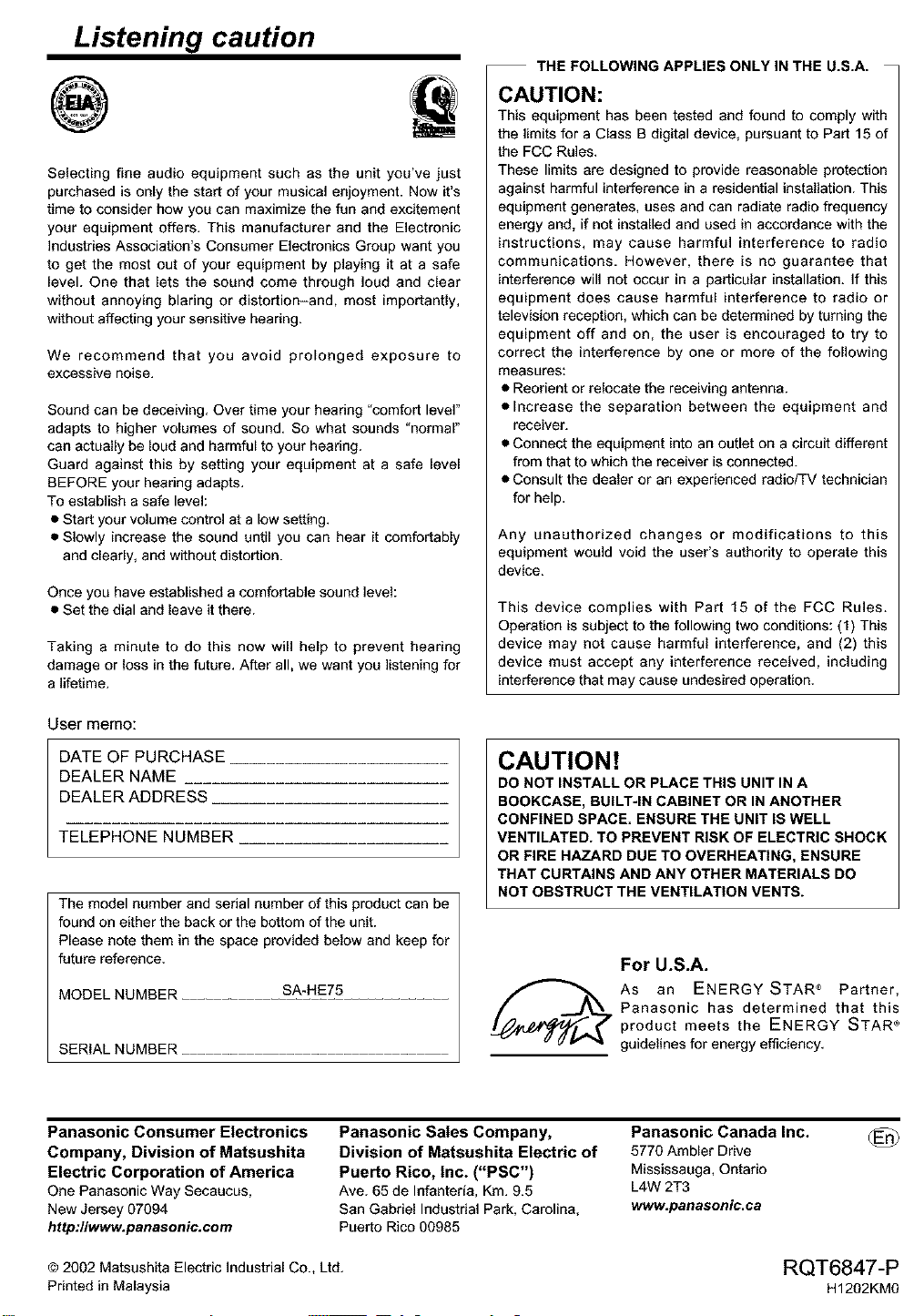

Listening caution ....................................Back cover
[_ [_ RQT6847-P
II
e}
ra

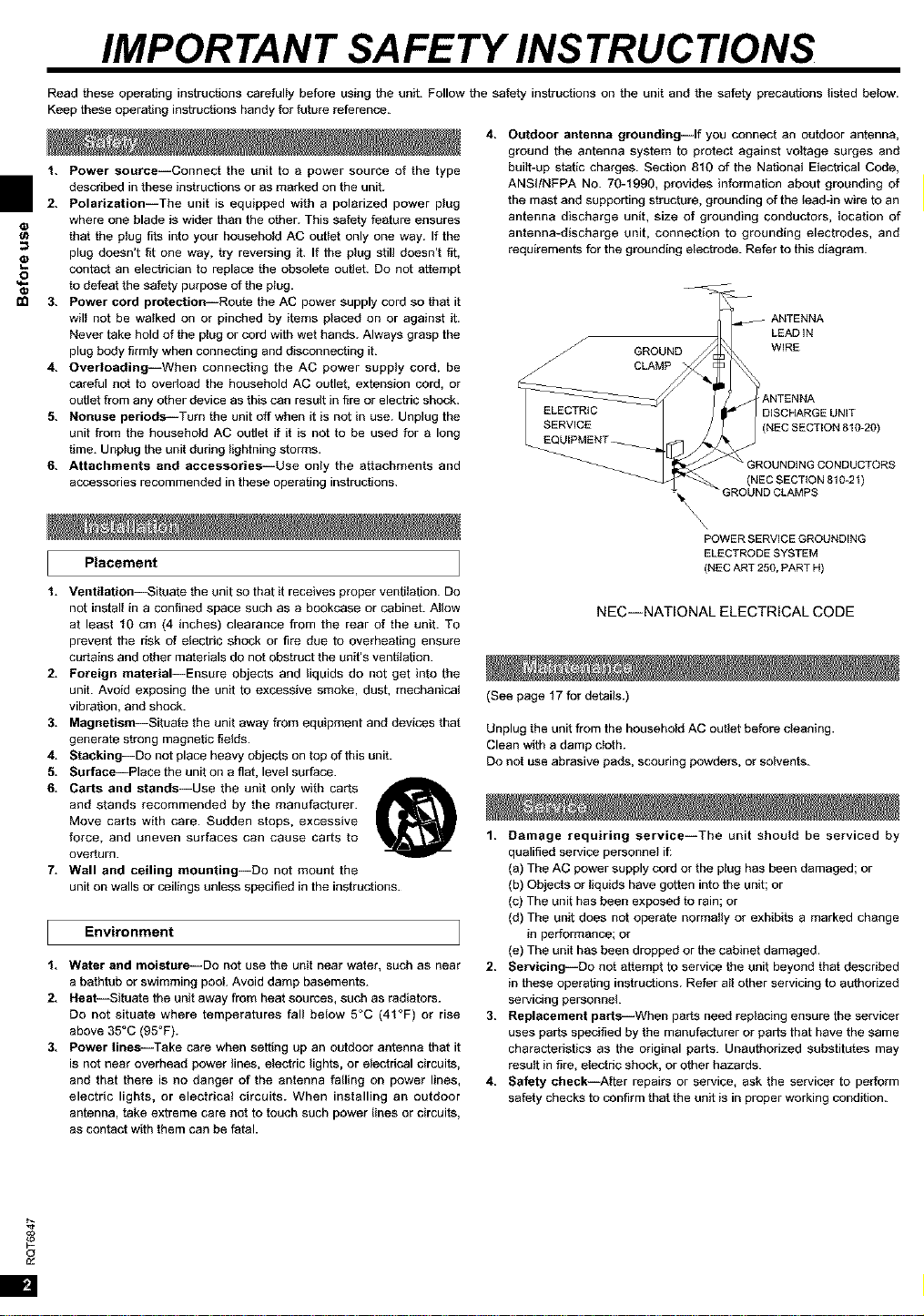

IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed below.
Keep these operating instructions handy for future reference.
t. Power source--Conneot the unit to a power source of the type
descdbed in these instructions or as marked on the unit.
2. PolarizationmThe unit is equipped with a polarized power plug
where one blade is wider than the other. This safety feature ensures
that the plug fits into your household AC outlet only one way. If the
plug doesn't fit one way, try reversing it. If the plug still doesn't fit,
contact an electrician to replace the obsolete outlet. Do not attempt
to defeat the safety purpose of the plug.
3. Power cord protection--Roote the AC power supply cord so that it
will not be walked on or pinched by items placed on or against it.
Never take hold of the plug or cord with wet hands. Always grasp the
plug body firmly when connecting and disconnecting it.
4. Overloading--When connecting the AC power supply cord, be
careful not to ovedoad the household AC outlet, extension cord, or
outlet from any other device as this can result in fire or electric shock.
5. Nonuse periods--Turn the unit off when it is not in use. Unplug the
unit from the household AC outlet if it is not to be used for a long
time. Unplug the unit during lightning storms.
6. Attachments and accessories--Use only the attachments and
accessories recommended in these operating instructions.
Placement
4. Outdoor antenna grounding--If you connect an outdoor antenna,
ground the antenna system to protect against voltege surges and
built-up static charges. Section 810 of the National Eleotdcal Code,
ANSI/NFPA No. 70-1990, provides information about grounding of
the mast and supporting structure, grounding of the read-in wire to an
antenna discharge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. Refer to this diagram.
_i NTENNA
LEAD IN
GROUND WIRE
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDINGCONDUCTORS
(NECSECTION810-21)
CLAMPS
\\\
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART250, PART H)
t. Ventgation--Situate the unit so that it receives proper ventilation. Do
not install in a confined space such as a bookcase or cabinet. Allow
at least 10 cm (4 inches) clearance from the rear of the unit. To
prevent the risk of eleotdc shock or fire due to overheating ensure
curtains and other materials do not obstruct the unit's venfitation.
2. Foreign material--Ensure objects and liquids do not get into the
unit. Avoid exposing the unit to excessive smoke, dust, mechanical
vibration, and shock.
3. Magnetism--Situate the unit away from equipment and devices that
generate strong magnetic fields.
4. Stacking=Do not place heavy objects on top of this unit.
5. Surface--Place the unit on a flat, level surface.
6. Carts and stands--Use the unit only with carts
and stands recommended by the manufacturer.
Move carts with care. Sudden stops, excessive
force, and uneven surfaces can cause carts to
overturn.
Y. Wall and ceiling mounting--Do not mount the
unit on walls or ceilings unless specified in the instructions.
Environment
t. Water and moisture--Do not use the unit near water, such as near
a bathtub or swimming pool Avoid damp basements.
2. Heat--Situate the unit away from heat sources, such as radiators.
Do not situate where temperatures fall below 5°C (4t°F) or rise
above 350C (95°F).
3. Power lines--Take care when setting up an outdoor antenna that it
is not near overhead power lines, electric lights, or efeotdcal circuits,
and that there is no danger of the antenna falling on power lines,
electric lights, or electrical circuits. When installing an outdoor
antenna, take extreme care not to touch such power lines or circuits,
NEC--NATIONAL ELECTRICAL CODE
(See page 17 for details.)
Unplug the unit from the househotd AC outlet before cleaning.
Clean with a damp cloth.
Do not use abrasive pads, scouring powders, or sotvents.
1. Damage requiring service--The unit should be serviced by
qualified service personnel i1_
(a) The AC power supply cord or the plug has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change
in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing--Do not attempt to service the unit beyond that described
in these operating instructions. Refer all other servicing to authorized
servicing personnel
3. Replacement parts--When parts need replacing ensure the servicer
uses parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may
result in fire, electdc shock, or other hazards.
4. Safety check--After repairs or service, ask the servicer to perform
safety checks to confirm that the unit is in proper working condition.
as contact with them can be fatal.
oo

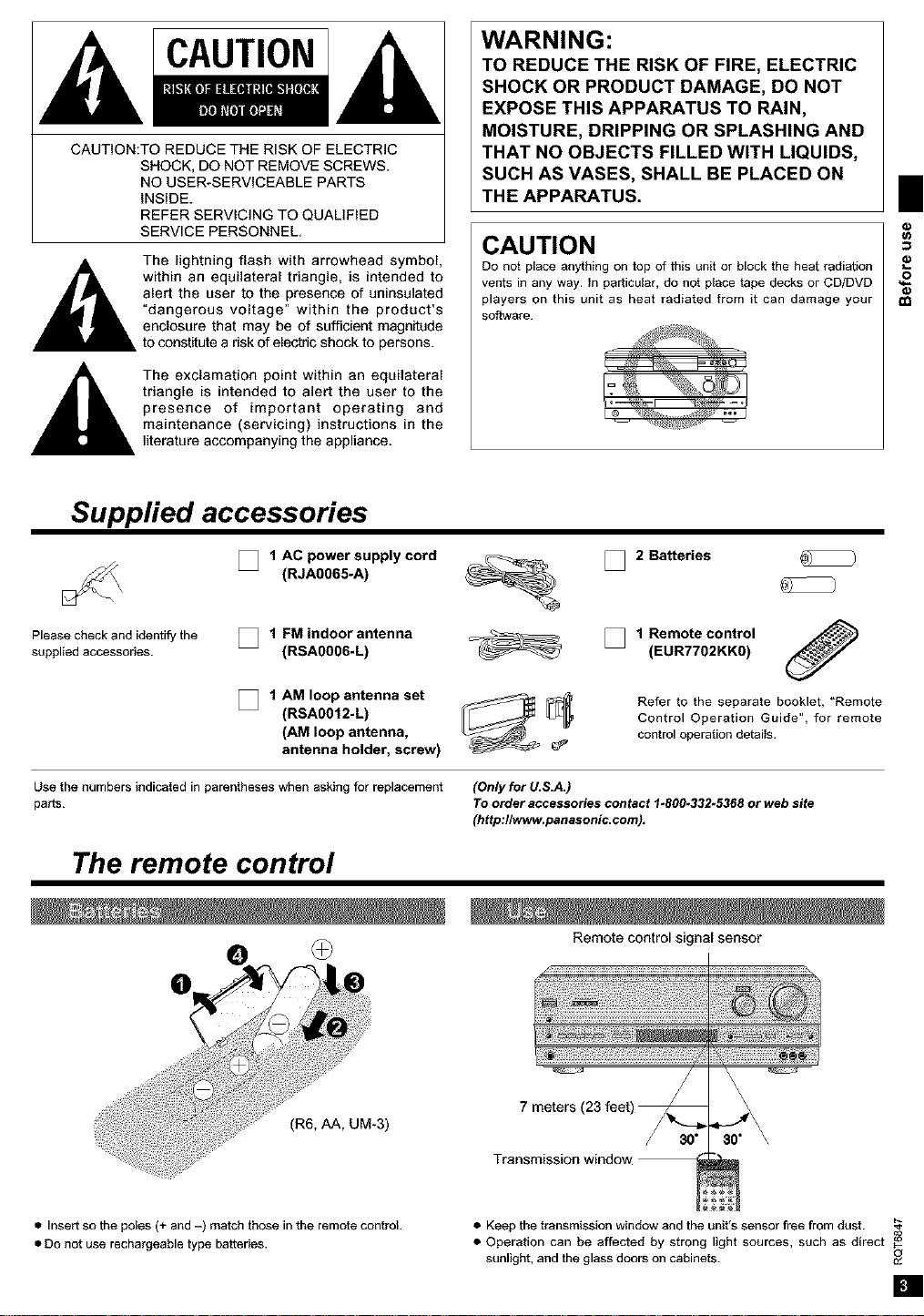

CAUTION
CAUTION:TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.
CAUTION
Do not place anything on top of this unit or block the heat radiation
vents in any way. tn particu{ar, do not place tape decks or CD/DVD
players on this unit as heat radiated from it can damage your
software.
I
.=
o
Supplied accessories
Please check and identify the
supplied accessories.
[] 1 AC power supply cord
(RJA0065-A)
] I FM indoorantenna
(RSAO006-L)
[] 2 Batteries
[] 1 AM loop antenna set _ FP_
(RSAO012-L)
(AM loop antenna,
antenna holder, screw)
] I Remote control ._.-_-_
(EUR7702KK0)
Refer to the separate booklet, "Remote
Control Operation Guide", for remote
control operation detaits.
Use the numbers indicated in parentheses when asking for replacement (Only for U.S.A.)
parts. TO order accessories contact 1.800_332.5368 or web site
(http://www.panasonic.com).
The remote control
Remote control signal sensor
(R6, AA, UM-3)
7 meters t
• Insert so the poles (+ and -) match those in the remote control • Keep the transmission window and the unit's sensor free from dust.
• Do not use rechargeable type batteries. • Operation can be affected by strong light sources, such as direct
sunlight, and the glass doors on cabinets. O

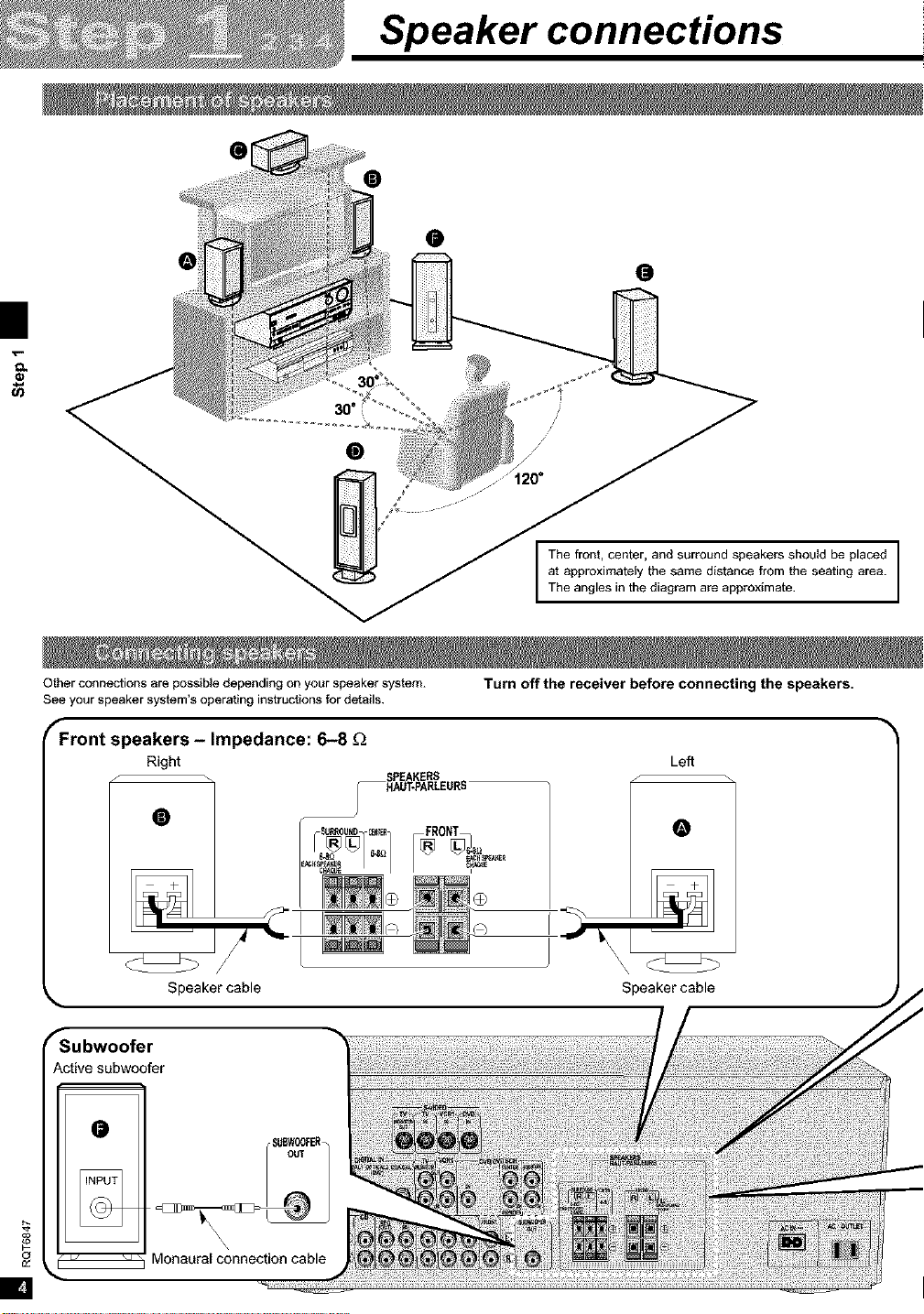

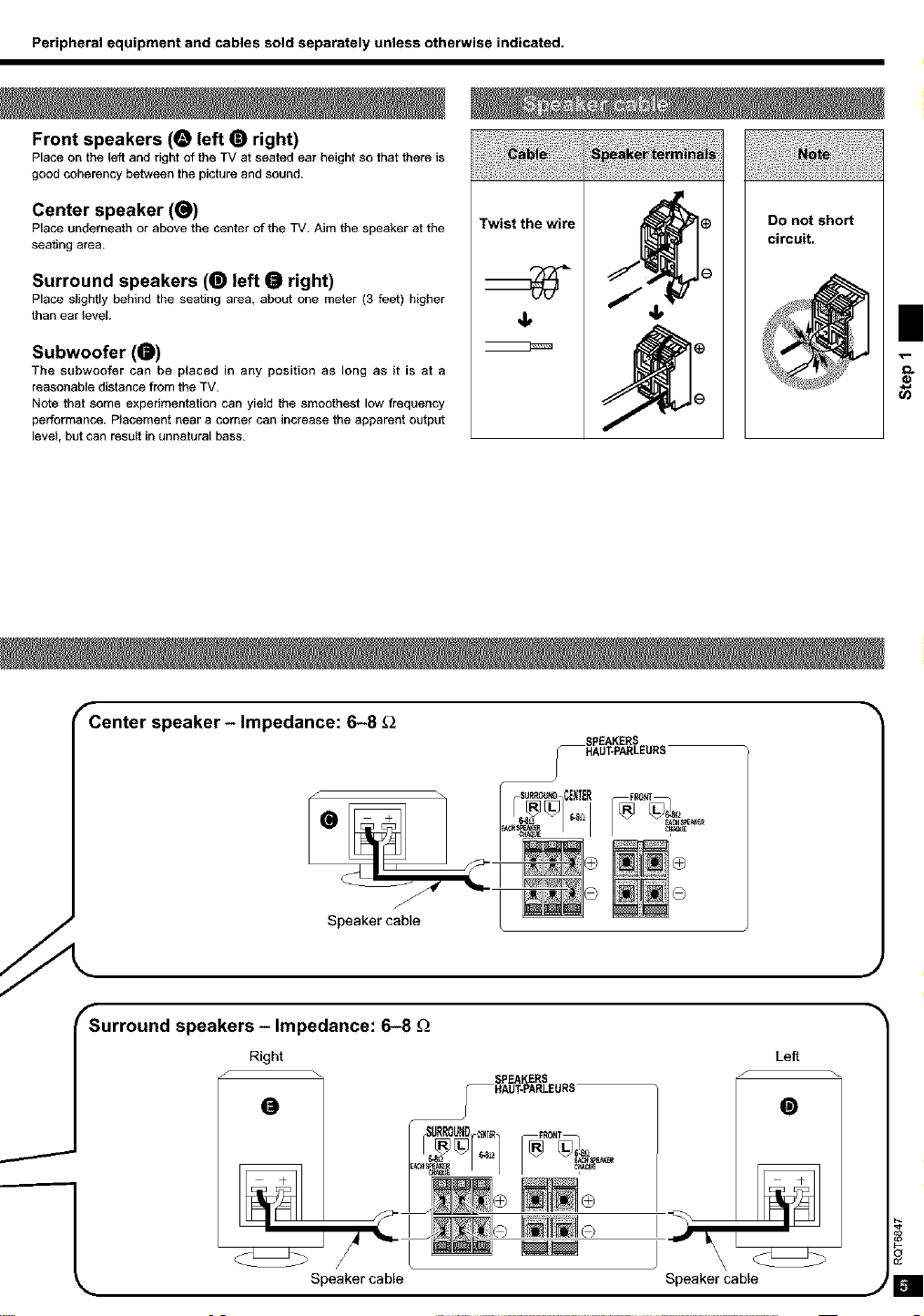

Speaker connections
®
/
/
/
//
120°
The front, center, and surround speakers shoutd be placed
at approximately the same distance from the seating area.
The angles in the diagram are approximate.
Other connections are possible depending on your speaker system.
See your speaker system's operating instructions for details.
Turn off the receiver before connecting the speakers.
Front speakers - Impedance: 6-8
Right
@ __,.%_.'#,_E0.s
Speaker cable
Left
0
Speakercable
Peripheral equipment and cables sold separately unless otherwise indicated.
Front speakers (O left O right)
Place on the left and right of the TV at seated ear height so that there is
good coherency between the picture and sound.
Center speaker (_)
Place underneath or above the center of the TV. Aim the speaker at the
seating area.
Surround speakers (_ left • right)
Place sIightly behind the seating area, about one meter (3 feet) higher
than ear level
Subwoofer (0)
The subwoofer can be placed in any position as long as it is at a
reasonable distance from the TV.
Note that some experimentation can yieId the smoothest low frequency
performance. Placement near a corner can increase the apparent output
level, but can result in unnatural bass.
Twist the wire
4,
Do not short
circuit.
r
Center speaker- Impedance: 6-8
J
J
Speakercable
I
_Surround speakers - Impedance: 6-8
Right
Speaker cable
Left
e
Speaker cable

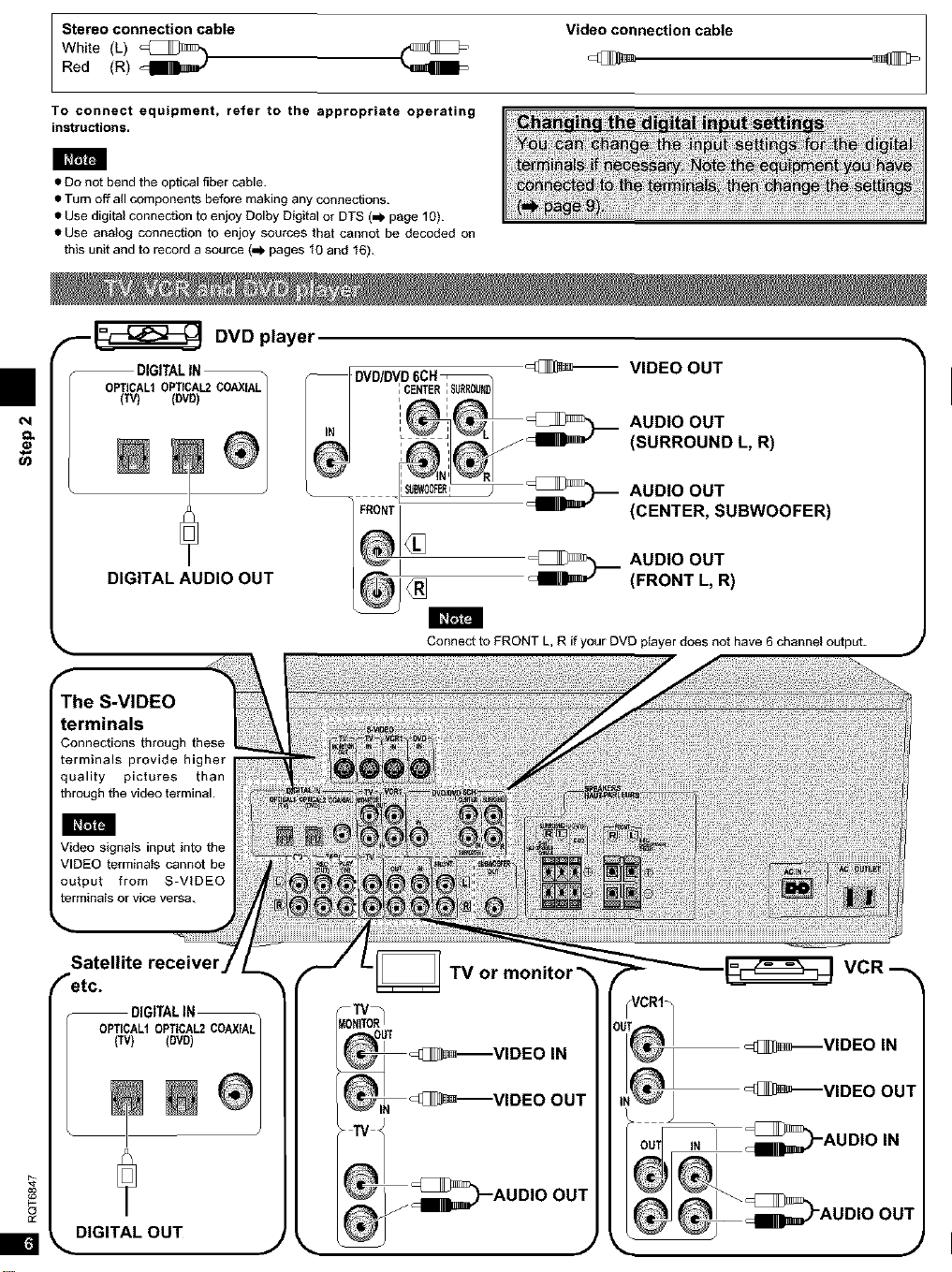

Stereo connection cable Video connection cable
White (L)
Red (R)
To connect equipment, refer to the appropriate operating
instructions.
• Do not bend the optical fiber cable.
• Turn off all components before making any connections.
• Use digital connection to enjoy Dolby Digital or DTS (=._ page 10).
• Use analog connection to enjoy sources that cannot be decoded on
this unit and to record a source (_,_ pages 10 and 16).
r_ DVD player
DIGITAL IN --
OPTICALt OPTICAL2COAXIAL
(TV) (DVD)
VIDEO OUT
DIGITAL AUDIO OUT
Connect to FRONT L, R if your DVD player does not have 6 channel output.
m
Satellite receiver
fetc.
-- DIGITAL IN --
OPTICAL1OPTICAL2
(TV) (DVD)
DIGITAL OUT
"IV or monitor"
J
_ _)'AUDIO OUT
J
Peripheral equipment and cables sold separately unless otherwise indicated.

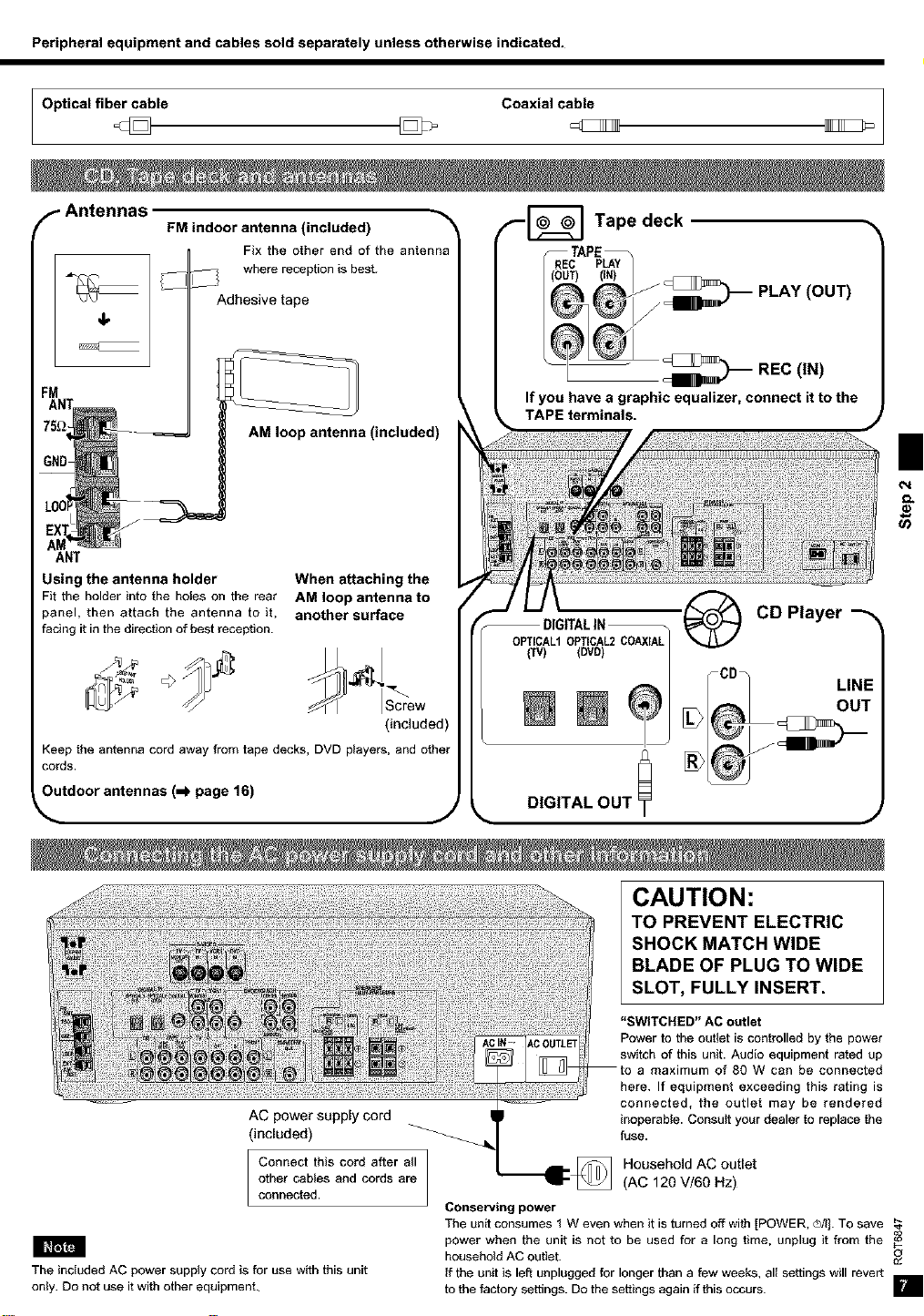

Optical fiber cable Coaxial cable
D
_- Antennas
FM
FM indoor antenna (included)
Fix the other end of the antenn;
where reception is best.
Adhesive tape
AM loop antenna (included)
ANT
Using the antenna holder
Fit the holder into the holes on the rear
panel, then attach the antenna to it,
facing it in the direction of best reception.
When attaching the
AM loop antenna to
another surface
IScrew
(included)
Keep the antenna cord away from tape decks, DVD players, and other
cords.
Outdoor antennas (=) page 16)
J
f-l-_--'] Tape deck
If you have a graphic equalizer, connect it to the
TAPE terminals.
AC powersupply cord
(included)
Connect this cord after all
other cables and cords are
connected.
I iilr_FJI
The included AC power supply cord is for use with this unit
only. Do not use it with other equipment.
CAUTION:
TO PREVENT ELECTRIC
SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT,
"SWITCHED" AC outlet
Power to the outlet is controlled by the power
switch of this unit. Audio equipment rated up
maximum of 80 W can be connected
here. If equipment exceeding this rating is
connected, the outlet may be rendered
inoperable. Consult your dealer to replace the
fuse.
Household AC outlet
(AC 120 V/60 Hz)
Conserving power
The unit consumes I W even when it is turned off with [POWER, O/I}. To save
power when the unit is not to be used for a long time, unplug it from the
household AC outlet. O
if the unit is lefl unplugged for longer than a few weeks, all settings will revert
to the factory settings. Do the settings again if this occurs.
SFCMODE
1_ DISTANCE }
LEVEL-- "1"
ooo
-- VOLUME -I-
.T_
v
v
v
v
v
v
V

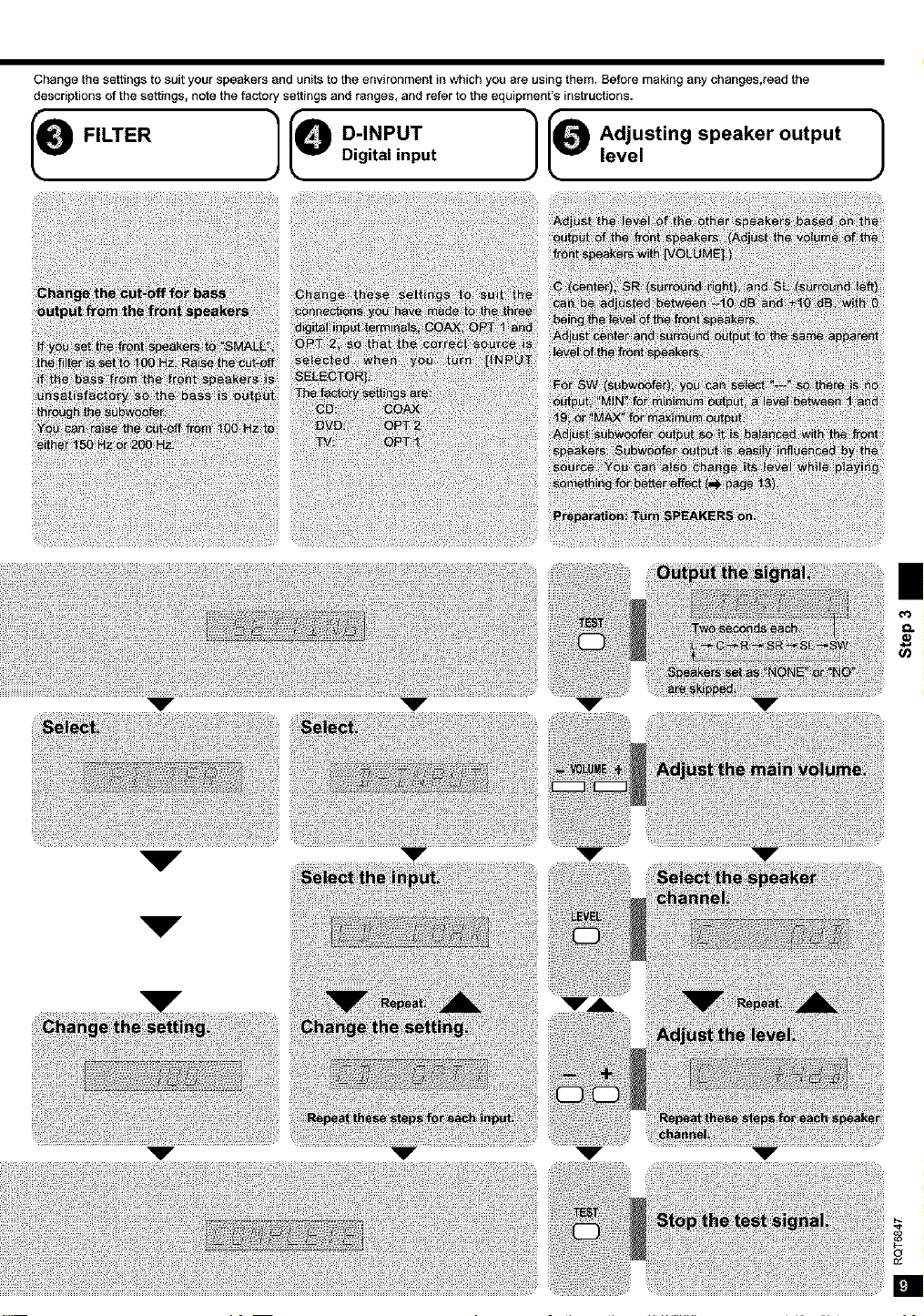

Change the settings to suit your speakers and units to the environment in which you are using them. Before making any changes,read the
descriptions of the settings, note the factory settings and ranges, and refer to the equipment's instructions.
FILTER I I0 DDi_itNIPiUpTut )I O iAed)_sting speaker output )
v v
v v
V
v V V
m
When you finish listening
Be sure to reduce tile volume and press [POWER, o/I] to switch the unit
to standby.
For your reference
In rare cases, the unit may have trouble recognizing the digital signals on
discs.
• With the PCM signals on CDs, this may cause the beginning of a track
to be cut off. Engage the PCM FIX mode if this occurs.
• With DTS, the signals may not be recognized at all. Engage the DTS
FIX mode if this occurs.
While the input source is selected and digital input is engaged:
Press and hold [DIGITAL INPUT].
The current mode is displayed. Press again to change the mode.
Each time you press the button:
AUTO * PCM FIX * DTS FIX
I
"_ When a FIX mode is on, the unit cannot process other signals. This may
cause noise to be output. Select "AUTO" if this occurs.
o The selected mode is stored for each input source even if the unit is
m turned off.
Use this mode to play digital or analog stereo sources or to play
surround sources through two speakers. When surround sources
are p_ayed in this mode, the sounds intended for the other
speaker channels are ptayed through the front speakers.
Select this mode when you are playing a digital surround source
(Dolby Digital or DTS).
Also select this mode when playing analog or digital stereo
sources. The Dolby Pro Logic H processor works not only on
sources recorded with Dolby Surround, but
also on any stereo source. The following
modes are available when using Dolby Pro
Logic U.
Enjoy an enhanced sound experience with greater presence and
spread by using these SFC (sound field control) modes with
PCM or analog stereo sources.
The SFC modes cannot be used if the input signaI is DoIby
Digital or DTS. Choose from the
following modes.
W
Notes on using the Digital Signal Processor
The digital signal processor in this unit can decode the
following signals_
• Dolby Digital
• DTS
• PCM
It cannot decode:
• Other digitaI signals, such as MPEG
• PCM with sampling frequencies of 88.2 kHz, 96 kHz, t 76.4 kHz or
192 kHz
• Dolby Digital RF signals from a laser disc ptayer

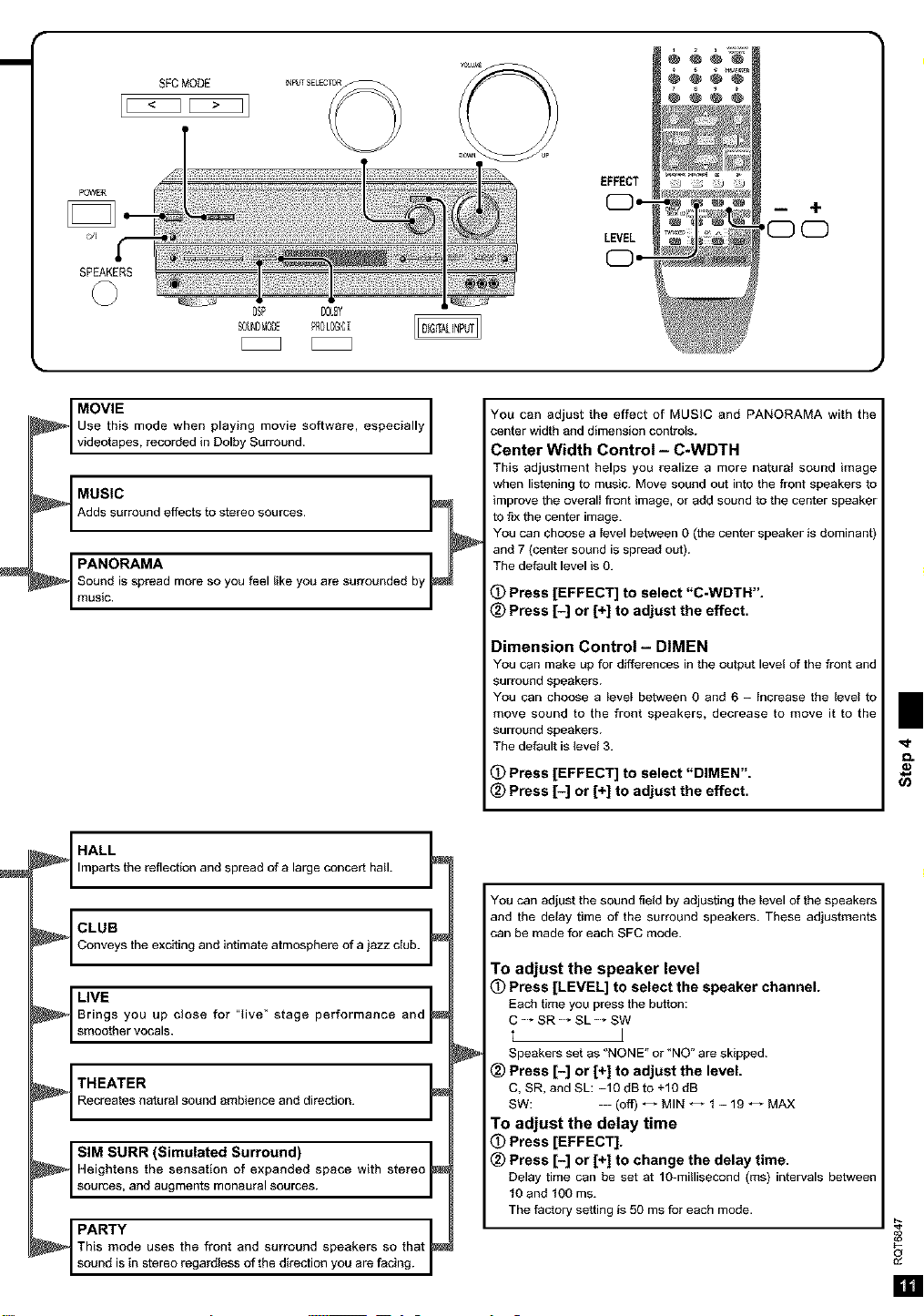

SFCMODE
pOWER
SPEAKERS
O@ DOLBY
SgJNDMg3E F_OL_IC'
EFFECT
LEVEL
-- ÷
I MOVIE especially
Use this mode when playing movie software,
vdectapes, recorded n Doby Surround.
_ MUSIC L
Adds surround effects to stereo sources.
IPAH° MA /
_ music.S°undis spread more so you feel like you are surrounded by F
You can adjust the effect of MUSIC and PANORAMA with the
center width and dimension controls.
Center Width Control - C-WDTH
This adjustment helps you realize a more naturaI sound image
when listening to music. Move sound out into the front speakers to
improve the overall front image, or add sound to the center speaker
to fix the center image.
You can choose a Ievel between 0 (the center speaker is dominant)
and 7 (center sound is spread out).
The default level is 0.
C) Press [EFFECT] to select "C-WDTH".
_) Press H or [+] to adjust the effect.
Dimension Control - DIMEN
You can make up for differences in the output level of tile front and
surround speakers.
You can choose a faveI between O and 6 - Increase the leve{ to
move sound to the front speakers, decrease to move it to the
surround speakers.
The default is level 3.
_) Press [EFFECT] to select "DIMEN".
_) Press [-] or [+] to adjust the effect,
J
HALL
l'mpa' sthere,,°ct,onandspreadofa,arg°conce hal,.
I_I CLUB
Conveys the exciting and intimate atmosphere of a jazz club.
LIVE
Brings you up close for "live" stage performance and
smoother vocals.
_I THEATER
_ Recreates natural sound ambience and direction.
o_ l SIM SURR (Simulated Surround)
Heightens the sensation of expanded space with stereo
_ soumes, and augments monaural sources.
_f PARTY
This mode uses the front and surround speakers so that
sound is in stereo regardless of the direction you are facing.
You can adjust the sound field by adjusting the favel of the speakers
and the delay time of the surround speakers. These adjustments
can he made for each SFC mode.
To adjust the speaker level
_) Press [LEVEL] to select the speaker channel.
Each time you press the button:
C *SR *SL *SW
J
Speakers set as "NONE" or "NO =are skipped.
(_) Press H or [+] to adjust the level.
C, SR, and SL: -10 dB to +10 dB
SW: --- (off) _ MIN _ I - 19 _ MAX
To adjust the delay time
(D Press [EFFECT[.
_) Press H or [+] to change the delay time.
Delay time can be set at 10-millisecond (ms) intervals between
10 and 100 ms.
The factory setting is 50 ms for each mode.
m
Control guide
The display
J
. " -
ii!iiiiiiii!i!i i!!iiiii!iii!ii!i!iii!ii!i!ili!ili!ii!i!
For your reference
• When playing videotapes (VCR 1)
The picture remains on the screen even if you select TAPE, CD, or
TUNER.
• Once you have set a mode (DSP, digital/analog input, or
2-channel/6-channel input) for an input source
That mode is engaged whenever you reselect the input source.
• When DVD 6OH input is on
Speaker settings are ineffective. Change the settings on the DVD
player if necessary.
• When input is DIGITAL
The tape monitor cannot be used.
• When using a graphic equalizer
Some distortion may occur, depending on the equalizer's settings.
• To adjust the tone
The STEREO DSP mode must be on and input must be either
analog or PCM signals. You cannot adjust the tone while the DSP is
defeated or if DVD 6CH INPUT is selected.
• When using the subwoofer
You cannot adjust subwoofer level while the DSP is defeated or if
DVD 6CH INPUT is selected.
Sound can he distorted if you raise the volume while subwoofer
level is high. Reduce subwoofer level if this occurs.
• Improving reception
DSP DEFEAT
Press and hold [DSP SOUND MODE] until "DEFEAT" appears.
Press and hold [DSP SOUND MODE] again to turn the DSP on.
While the DSP is defeated, you cannot:
- Select DSP sound modes,
- Adjust the tone,
- Output a test signal,
- Adjust individual speaker output, or
- Use digital input.
Control guide
Buttons not explained on this page are used only to operate other equipment.
Refer to the separate Remote Control Operation Guide for details.
II
o=
O
[_]
Standby/on button.
[1, 2, 3, 4, 5, 6, 7, 8, 9, 0]
To enter radio frequencies and channels.
[EFFECT]
Use when adjusting Dolby Pro Logic l_, or
SFC effects.
[LEVEL]
Use when adjusting speaker level.
[--, +1
First select EFFECT or LEVEL, then press
H or [+] to adjust.
[CH, v, A]
For selecting preset radio channels.
[VOLUME,-, +]
To adjust the volume.
[TV, VCR, DVD,
TUNER/BAND, TAPE, CD]
Input mode and remote control mode
buttons.
[DIRECT TUNING/
DISC ENTER]
To enable selection of radio stations by
frequency.
[-_10/ENTER]
To enter two digit channels.
[SUBWOOFER]
For selecting subwoofer level
Adjust the level in 5 steps:
SW MIN, SW 5, SW 10, SW 15, and SW
MAX.
Select SW --- to stop output.
[SOUND MODE]
For selecting "STEREO", "SURROUND" or
_SFC".
[SFC]
For selecting SFC modes.
[TEST]
To start the speaker test signal.
• [MUTING]
To mute the volume.
For your reference
When muting is on
Muting is also canceled when the unit is turned off.
_o
m
The radio
-BAND
-FNIMODE PRESET VTUNINGA MEMORY
@@@
You can tune radio stations manually by selecting the station's
frequency.
(_ Turn [INPUT SELECTOR[ to select "TUNER".
(_) Press [-BAND, -FM MODE] to select "FM" or "AM".
(_) Press [TUNING v or A] to select the frequency.
Tuning intervals: FM - 0.2 MHz
AM - 10 kHz
(_ Press [TUNER/BAND] to select "FM" or "AM".
(_) Press [DIRECTTUNING/DISC ENTER].
(_) Press the numbered buttons to enter the frequency.
e.g. TO select 107.9 MHz, press [1] + [O] , [7] * [9]
Tuning intervals: FM - 0.1 MHz
AM - 10 kHz
• If you do not press a button while the cursor is flashing, the
display returns to the frequency being received.
• If the frequency has not been input correctly, "ERROR" will be
displayed.
(_) Tune to "FM 87.9 MHz".
(_) Press and hold [MEMORY].
The FM stationsthe unit can receiveare preset in channels I to 30.
(_) Tune to "AM 530 kHz".
_) Press and hold [MEMORY].
The AM stations the unit can receive are preset inchannels21 to 30.
(FM stations are replaced if any were presetin these channels.)
During automatic presetting, the memory indicator (1_) flashes and the
frequency scrolls. The memory indicator and channel numbers are
displayed for a second when a station is preset.
The last station to be preset is displayed when presetting finishes.
Preset the stations oneat a time.
Tune to the station.
Press [MEMORY[.
Press [TUNING V or A] to select a channel.
(_ Press [MEMORY[.
(_) Press [PRESET].
The channelnumberflashes for about5 seconds.
(_) Press [TUNING V or/k].
Hold down thebuttons to change channels faster.
On the remote control
Press [CH V or/k].
or
Press the numbered buttons.
For channels 1 to 9, press the corresponding number.
For channels 10 or over, press [>10/ENTER], then the two digits.
e.g. To select channel 21: [>I0/ENTER] * [2] * [1]
For your reference
Even if the power supply cord is disconnected from the household AC
outlet, the stations remain in memory for approximately one month.
II
o_
c
o
g_
03
0
m
[
Other settings
• r
Making a recording
oo
m
Change this setting to listen to content recorded with Dolby Digital at low
volume (such as late at night) and maintain audio clarity. It reduces the
peak level in loud scenes without affecting the sound field.
OFF:The software is played with the original dynamic range (factory
setting).
STANDARD: The level recommended by the producer of the software
for household viewing.
MAX:The maximum allowable compression (recommended for night
viewing).
(_ Press [SFC MODE < and >] at the same time to enter
the setting mode.
(_ Press [SFC MODE <] to select "DR COMP".
_) Turn [INPUT SELECTOR[ to select "OFF", "STANDARD"
or "MAX".
Press [SFC MODE < and >] at the same time to exit the
setting mode.
The factory setting is OFF (normal brightness).
Dim the unit's display for better viewing in a darkened room
_) Press [SFC MODE < and >] at the same time to enter
the setting mode.
Press [SFC MODE <] to select "DIMMER".
(_ Turn [INPUT SELECTOR[ to select "OFF" or "ON".
(_ Press [SFC MODE < and >] at the same time to exit the
setting mode.
You can record to a tape deck connected to TAPE REC (OUT) or to a
VCR connected to VCR 1 OUT.
See the recording unit's operating instructions for details on how to
prepare it for recording.
When recording with a tape deck, you can record any source except
TAPE.
When recording with a VCR (connected VCR 1), you can record any
source except TAPE or VCR 1.
(_ Turn [INPUT SELECTOR[ to select the source to be
recorded.
(_) Begin recording.
Followyour recording unit's operating instructions.
(_) Start the source to be recorded.
Followyour equipmenrs operating instructions.
• You cannot record a source connected through a digital terminal
When recording CD, DVD, or TV, ensure the source is connected
through the corresponding analog terminals and "ANALOG" input is
selected.
• When you select DVD 6CH INPUT mode, only sound from the front
left and right channels is recorded.
Using outdoor antennas
20 mm (25/32")
,I,
Shield braid
4
10 mm (3/8")
Core wire
/ _ FM outdoor antenna
Vinyl-coveredwire
FM outdoor antenna
• Disconnect the FM indoor antenna.
• The antenna should be instaged by a
competent technician.
• Twist the coaxial cable's shield braid firmly and
connect it to the GND terminal
AM outdoor antenna
• Run a piece of vinyl wire horizontally across a
window or other convenient location.
• Leave the loop antenna connected.
• Disconnect the antenna when the unit is not in
use. Do not use the antenna during an electrical
storm.
(16_,0 ft)
Maintenance
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came
with the cloth carefully.
Product Service
1. Damage requiring service -- The unit should be serviced by
qualified service personnel if:
€a) The AC power supply cord or the plug has been damaged; or
(b) Objects or liquids have gotten into the unff; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change
in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing -- Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3. Replacement parts -- When parts need replacing ensure the
servicer uses parts specified by the manufacturer or pads that have
the same characteristics as the original parts. Unauthorized
substitutes may result in fire, eleotdc shock, or other hazards.
4. Safety check w After repairs or service, ask the servicer to
perform safety checks to confirm that the unit is in proper working
condition.
Product information
For product information or assistance with product operation:
In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211 -
(hftp://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at
905-624-5505, or web site (www.panasonic.ca), or an authorized
Servicentre closest to you.
Manufactured under license from Dotby Laboratories.
"Dolby °, "Pro Logic" and the double-D symbot are trademarks of
Dolby Laboratories.
Manufactured under license from Digital Theater Systems, Inc.
US Pat. No. 5,451,942, 5,956,674, 5,974,380. 5,978,762 and other
world-wide patents issued and pending. "DTS _ and "DTS Digga_
Surround" are registered trademarks of Digital Theater Systems, Inc.
_c_1996, 2000 Digital Theater Systems, Inc. All rights reserved.
Specifications (IHF'78)
• AMPLIFIER SECTION
Rated minimum sine wave RMS power output
40 Hz-20 kHz both channels driven
0.9 % total harmonic distortion 100 W per channel (6 _)
1 kHz continuous power Output both channels driven
0.05 % total harmonic distortion 105 W per channel (6 _)
Total harmonic distortion
rated power at 40 Hz-20 kHz 0.9 % (6 _)
half power at 1 kHz 0.07 % (6 _)
Power Output at 1 kHz each channel driven
0.9 % total harmonic distortion
Front 2 x 100 W (6 _)
Center 100 W (6 _)
Surround 2 x 100 W (6 _)
LOWfrequency damping factor 30 (6 _)
Load impedance
Front 6-6 _2
Center 6-6 _2
Surround 6-6 _2
Dynamic headroom 2 dB (6 _)
Frequency response
CD, TAPE, DVD, TV, VCR 1, VCR 2 fO Hz-70 kHz, -+3 dB
Input sensitivity
CD, TAPE, DMD, TV, MCR 1, MCR 2 27 mV (200 mV, IHF '66)
SIN (IHF A)
CD, TAPE, DMD, TV, MCR 1, MCR 2 75 dB (85 dB, IHF '66)
input impedance
CD, TAPE, DMD, TV, MCR 1, MCR 2 22 k_2
Tone controls
BASS 50 Hz, +f0 to -10 dB
TREBLE 20 kHz, +fO to -t0 dB
Subwoofer frequency response (-6 dB) 7-200 Hz
Digital input
Optical 2
Coaxial 1
• FM TUNER SECTION
Frequency range 87.9-107.9 MHz
Sensitivity 11.2 dBf (2 pV, IHF '58)
50 dB quieting sensitivity
MONO 18.3 dBf (4.5 pV, IHF '56)
STEREO 38.3 dBf (45 uV, IHF '56)
Total harmonic distortion
MONO 0,2 %
STEREO 0.3 %
SIN
MONO 73 dB
STEREO 57 dB
Frequency response 20 Hz-15 kHz, +1 dB. -2 dB
Alternate channel selectivity 65 dB
Capture ratio f.5 dB
Image rejection at 98 MHz 40 dB
Spudous response rejection at 98 MHz 75 dB
AM suppression 50 dB
Stereo separation
1 kHz 40 dB
10 kHz 30 dB
Antenna terminal 75 _2 (unbalanced)
• AM TUNER SECTION
Frequency range 530-1710 kHz
Sensitivity 20 pV, 330 pV/m
Selectivity 55 dB
IF rejection at 1000 kHz 50 dB
• VIDEO SECTION
Output voltage at I V input (unbalanced) 1-+0.1 Vp-p
Maximum input voltage 1.5 Vp-p
I
Input/output impedance 75 _2 m
• GENERAL
I
Power supply AC 120 V. 60 Hz
Power consumption 410 VA, 320 W
Dimensions (W x H x D) 430 x f 58 x 367 mm
(16-15/16" x 6-7/32" x 14-15/32") ._
Mass 9.1 kg (20.1 lb.)
[ Power consumption in standby mode: 1 W ] I_
Notes: *_
1. Specifications are subject to change without notice.
Mass and dimensions are approximate. O
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Troubleshooting guide
Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies
indicated in the chart do not solve the problem:
In the U.S.A., contact the Panasonic Customer Call Center at 1.800.211-7262, or e.mail [email protected], or
web site (http://www.panasonic.com).
In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905.624-5505 or web site (www.panasonic.ca), or an
authorized Servicentre closest to you.
• the cord connected. 7 I
Ensure
power
is
• Turn the volume up.
• Check connections to speakers and other equtpment.
• Turn on the speakers.
• Turn off the tape monitor.
• Select the correct source.
• Change the D-INPUT setting to suit the type of connection you have made.
• Check that the digital signals can he decoded by this unit.
• Turn PCM FIX or DTS FIX off.
• Cancel "DSP DEFEAT".
• Switch off the unit, determine and correct the cause, then switch the unit on.
Causes include:
-Shorting (bare wires touching) of positive and negative speaker wires.
-Using speakers with an impedance lower than that rated for this unit.
-Straining of the speakers through excessive volume or power.
-Using the unit in a hot environment without proper ventitation.
• Turn the unit off, disconnect the AC power supply cord, and consult your dealer.
i0 I
4-7 I
i0 I
13 I
i0 I
9 I
i0 I
i0 I
13 I
5 I
4-5 I
-- i
- i
• Ensure the SIZE settings for your speakers are correct.
• Check the DSP sound mode.
• Cancel "DSP DEFEAT".
• Cancel "DSP DEFEAT".
• Turn DVD 6CH iNPUT off.
8 I
10 I
13 I
13 I
13 I
oo
m
>
• Connect the appropriate antenna. (You may need an outdoor antenna or one
with more e_ementa.)
• Adjust the position of the FM or AM antenna.
• Reduce the treble.
• Select "DSP DEFEAT".
• Turn off nearby televisions video players, DVD players, and satellite receivers.
• Separate the antenna from other cables, Ieads, and appliances.
• Turn the DVD player off or move it further away from the antennas if this occurs.
7,16 I
7 I
13 I
13 I
-- i
-- i
-- i
Warranty (U.S.A.)
Panasonic Consumer Electronics Company, Panasonic Sales Company, Division of Matsushita Electric
Division of Matsushita Electric Corporation of America of Puerto Rico, Inc,
One Panasonic Way Secaucus, New Jersey 07094 Ave. 65 de Infanteda, Kin. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
PanasoniclTechnics Audio Products
Limited Warranty
Limited Warranty Coverage
If your prod=_ct does not work properly because of a defect in materiats or
workmanship, Panasonic Consumer Efectrontss Company or Panasonic Safes
Company (coElectiveEy referred to as "the warrantor 'r) wiEt, for the tsngth Of the bedod
fed[ealed on the chart below, which starts with the date of original purchase
("warranty period'), at its option either (a) repair your product with new or refo feished
pads, or (b) reptace it with a new or a refurbished product. The decision to repair or
reptace w[tl be made by the warrantor.
Product or Part Name Parts Labor
Audio Products (except items listed below) One (1) year One (1) year
All Audio Racks (cabinets) Thirty (30) days Not Applicabts
Technics Stand Alone Speakers, Subwcofer Three (3) years Three (3) years
Speakers
USB Reader-Writer, Personal Computer
Card Adapters One (1) year Not Applicabts
(in exchange for defective item)
Accessories: Heodphones, Cartridges, Ninety (90) days Ninety (90) days
Microphones, Adapters
Rechargeabts Batteries (in exchange for Ten (10) days Not Applicabts
defective item)
SD Memory Cards, Rechargeabts Battery Ninety (90) days Not Applicabts
Packs (in exchange for defective item)
During the "Labor" warranty period there will be no charge for labor During the
"Parts" warranty period, there wilebe no charge for parts¸ YOU must carry-in or mail-in
your product dudng the warranty period¸ If non-recha_geable batteries are included,
they are not warranted¸ This warranty onty applies to products purchased and
serviced in the Unifed States or Puerfo Rico¸ This warranty is extended only to the
o_ginal purchaser Of 8 new product which was not soEd "as is" A purchase receipt or
other proof of the original purchase date is required for warranty service.
Carry-In or Mail-In Service
For Carry-In or Ma[l-th Service in the United States calt 1-800-21 t -PANA (1-800-211 -
7262) or visit Panasonic web site: htt b://www.pa nasonic corn
For assistance in Puerto Rico call Panasonic Sales Compeny (787)-750-4300 or fax
(787)-768-2910¸
Lirnttett Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normaE wear and fear or cosme_c damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which
are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, negEect, mishandling, misapplication, alteration, faulty
ins_lEotion, set-up adjuslmenfe, misadjustment of consumer controls, improper
maintenance, power tthe surge, lightning damage, modification, or commercial use
(such as in a hotst, office, restaurant, or other business), rental use of the product,
service by anyone other than a Factory Servieenter or other Authorized Serwcer, or
damage that is 8th'[bu_bts to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
"LIMITED WARRANTY COVERAGE", THE WARRANTOR IS NOT LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, (As
examples, this excludes damages for lost time, travel to and from the servicer, _ss Of
media or images, data or other memory content. The items listed are not excEusive,
but are for ilEustrotion only¸) ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE
PERIOD OF THE LIMITED WARRANTY.
Some stales do not allow the exclusion or limitation of incidental or consequential
damages, or limitafJons on how long an implied warranty lasts, so the exeEusions may not
apply to you
This warranty gives you specific legal rights and you may also have others rights
which vary fcom state to state¸ Efa problem with this product develops during or after
the warranty period, you may contact your dealer or Servicenfer. if the brobEem is not
handfed to your satisfaction, then write to the warrantor's Consumer Affairs
Department at the addresses listed for the warranfor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY ARE YOUR RESPONSIBILITY,
Customer Services Directory (U.S.A.)
1 800 332 5368 (Customer Orders Only)
For hearing or speech impaired TTY users, TTY: 1 866 605 1277
Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032
(6 am to 5 pm Monday Friday; 6 am to 10:30 am Saturday; PST)
(Visa, MasterCard, Discover Card, American Express, Check)
i
0
t_
g
Listening caution
@
Selecting fine audio equipment such as the unit you've just
purchased is only the start of your musical enjoyment. Now it's
time to consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic
Industries Association's Consumer Electronics Group want you
to get the most out of your equipment by playing it at a safe
level. One that lets the sound come through loud and clear
without annoying blaring or distortion-and, most importantly,
without affecting your sensitive hearing.
We recommend that you avoid prolonged exposure to
excessive noise.
Sound can be deceiving. Over time your hearing "comfort level"
adapts to higher volumes of sound. So what sounds "normal"
can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level
BEFORE your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably
and clearly, and without distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After all, we want you listening for
a lifetime.
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.
MODELNUMBER
SA-HE75
SERIAL NUMBER
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radioFFV technician
for help.
Any unauthorized changes or modifications to this
equipment would void the user's authority to operate this
device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE
THAT CURTAINS AND ANY OTHER MATERIALS DO
NOT OBSTRUCT THE VENTILATION VENTS.
For U.S.A.
As an ENERGY STAR ® Partner,
Panasonic has determined that this
product meets the ENERGY STAR ®
guidelines for energy efficiency.
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way Secaucus,
New Jersey 07094
http:flwww.panasonic.com
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc. ("PSC")
Ave. 65 de Infanteria, Km.9.5
San Gabriel IndustrialPark, Carolina,
Puerto Rico 00985
© 2002 Matsushita Electric Industrial Co., Ltd.
Printed in Malaysia
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
@
RQT6847-P |
H1202KMO
