Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
PACKAGE CONTENTS
SKU Number: 356-9446
356-9447
QUAD HEAD SECURITY LIGHT
Model Number: E1211-WH
E1211-BZ
HARDWARE CONTENTS Note: Hardware not shown actual size.
220210
Wire Connector
X2
AA
CC
Gasket
X1
FF
BB
DD EE
Decorative cover
X1
Mounting Screw
X2
Mounting Strap
X1
Fixture Mounting Screw
X1
A
C
B
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape,
Wire Cutters, Safety Glasses, Ladder, Wire Stripper, Silicone Caulking Compound.
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching
off circuit breaker).
● Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury or
death from electric shock.
CAUTION
● All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
● Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
●
Only general ON/OFF wall switch applies for this fixture. A dimmable wall switch shouldn’t be used.
Rated Wattage: 39 W
Working Temperature Range: -13ºF ~ 113ºF
PREPARATION
SAFETY INFORMATION
ASSEMBLY INSTRUCTIONS
t
Important to Know
1. This fixture requires a 120 VAC, 60 Hz power source.
2. For general safety and to avoid any possible damage to he sensor, be sure the power is switched "off" before
adjustment.
3. Motion sensor: turns light ON automatically when motion is detected and turns light down to lower level or OFF
automatically when motion stops.
4. Photocell keeps the light OFF during daylight hours.

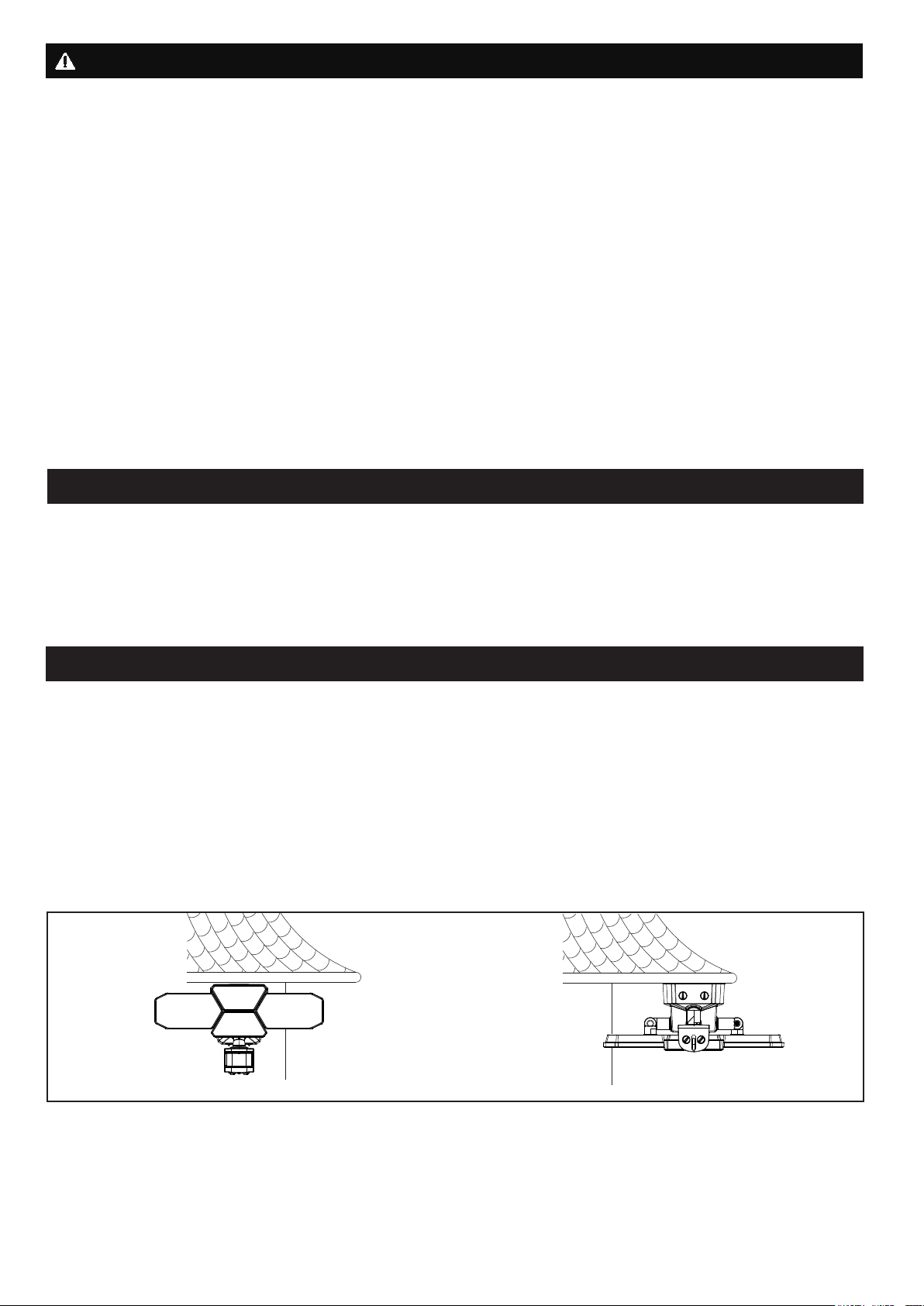

Note: Fixture can be wall mounted or eave mounted.
Wall Mounted
Eave Mounted
Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation).
Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for
proper operation and to avoid the risk of electrical shock.
Page 2 of 8
220210

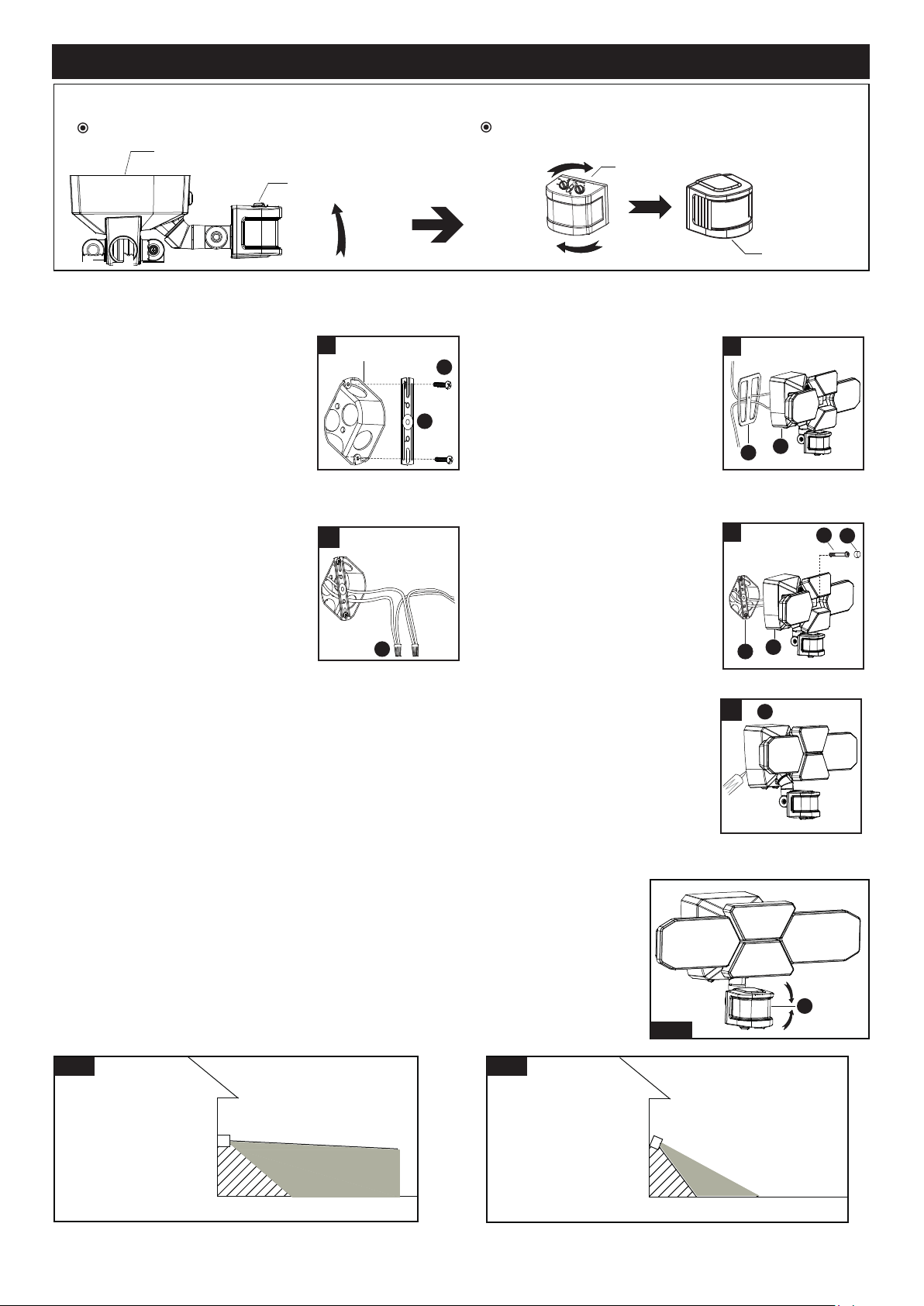

ASSEMBLY INSTRUCTIONS (continued)
For eave mounted only:
Swing the sensor head towards the mounting surface.
Rotate the sensor head clockwise 180˚ so the controls face down.
Turn off the power at fuse or circuit box.
Installation Steps
1. Install the mounting strap (BB) to
the outlet box with the stamped
word “FRONT” facing away from
the outlet box, using two mounting
screws (AA) that best fit the outlet
box. (Choose one matching pair of
suitable mounting screws from the
3 pairs provided)
3.
Connect the fixture black wire to
the house black wire and the fixture
white wire to the house white wire
using wire connectors (CC)
provided.
Carefully tuck the wires
back into
the outlet box.
Adjusting the Sensor Head:
1. a: Aim sensor head (C) toward desired detection area, maintaining a 5° - 40°
downward angle to allow moisture to drain.
Note: Make sure sensor head is positioned with control knob facing towards the
ground.
b: You can rotate the sensor head up and down to change the coverage area.
(See Fig.1)
2. Note: Range set too high may increase false triggering. (See Fig.2, Fig.3)
4. Attach the backplate of the light
fixture (A) to the mounting strap
(BB), by securing it with the
fixture mounting screw (EE).
Push the decorative cover (DD)
firmly into the fixture mounting
screw hole on the light fixture
(A).
Fig. 1
Sensor Adjustment Lower For Short Coverage
Sensor Adjustment Higher For Long Coverage
Fig. 2 Fig. 3
C
1
BB
AA
Outlet Box
3
CC
Pag e 3 of 8
220210
Controls
Controls
Backplate
Controls
4
DD
A
EE
BB
2.
Thread the fixture wires through
gasket (FF), and then attach the
gasket (FF) on the backplate of
the light fixture (A).
2
5
A
A
FF
5.
Using a silicone caulking compound (not included), caulk completely around where the
backplate of the light fixture (A) meets the wall surface.
CAUTION: Be sure to caulk completely where the backplate meets the wall surface to
prevent water from seeping into the light fixture (A) and outlet box.
Page 4 of 8
220210
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
Fig. 5
FUNCTION AND OPERATION

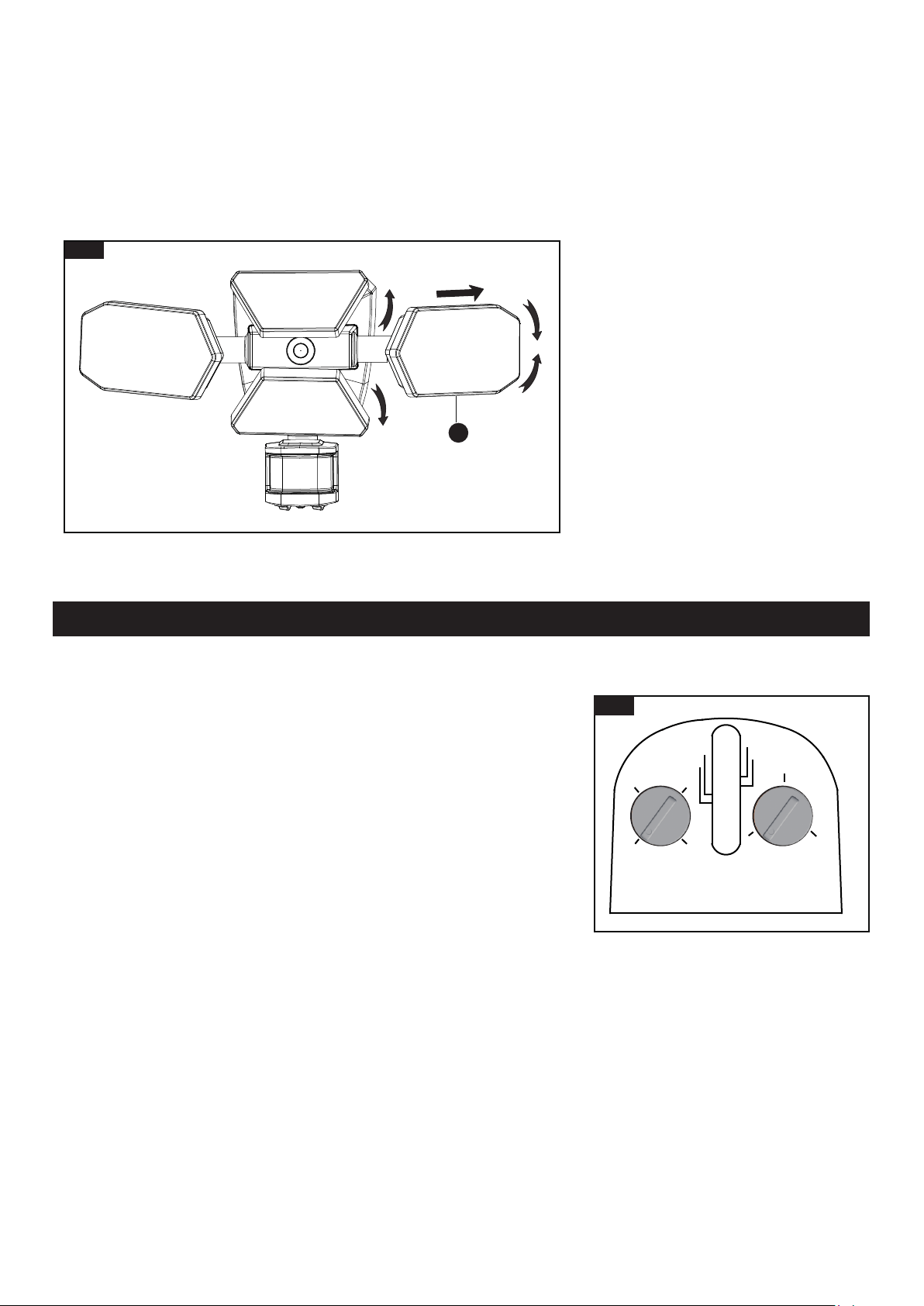

Adjusting the Light Head:
1. Adjust the left or right Light Head
Gently grasp the left or right light heads (B) and bend them towards the mounting surface away from
the center light heads before rotating up or down to desired angle (See Fig.4).
2. Adjust the center top and bottom Light Head
Gently grasp the center top light head and turn it upwards to desired angle.
Gently grasp the center bottom light head and turn it downwards to desired angle (Avoid light surface shine
directly towards the motion sensor for better sensing effect).
Sensitivity of Motion Sensor
● You can adjust the sensitivity of the motion sensor by using the “SENS”
selector located on the right side of the sensor head. (See Fig.5)
● Adjust motion sensor sensitivity to HIGH (H), MEDIUM (M), or LOW (L) to
achieve desired performance.
● Approximate range for each setting: 70 ft. (H), 50 ft. (M), 30 ft. (L).
PC
1min
Test
30s
M
L
H
3min
Auto
MODE
SENS
TIME
Custom
B
Fig. 4
3H
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
FUNCTION AND OPERATION (continued)
Page 5 of 8
220210
Low Level
0% 50%
1. TEST MODE (daytime and nighttime operation.)
●
Slide the Time switch to “Test” position.
● The light turns to high-level brightness (5000K) when motion is detected, and stays on as long as the motion continues.
Then it reverts back to low-level brightness (0~50%) and CCT (Correlated Color Temperature) color
(2200K~5000K) as per setting about 5 seconds after motion is no longer detected.
2. AUTO MODE (nighttime operation only)
●
In "AUTO" mode,
slide the Time switch to the desired time setting
(30s/1min/3min). At dusk, the light turns on to pre-selected low-level
brightness and CCT color. When motion is detected, the light turns
to full brightness (5000K) and stays on as long as motion continues.
When the motion is no longer detected, the light at full brightness (5000K),
remains on for predetermined time you set (30s/1min/3min), and then
switches back to the pre-selected low-level brightness and CCT color
automatically.
● The light turns off automatically at dawn.
Note: You can adjust the low-level brightness (0~50%) and CCT color (2200K~5000K) by using the
low-level brightness (0~50%) knob and CCT color (2200K~5000K) knob on the backplate (See Fig.6)
3. PC MODE (nighttime operation only)
● In "PC" mode, the light turns on at full brightness at dusk and remains on until dawn.
Note: You can adjust the CCT color (2200K~5000K) by using the CCT color (2200K ~5000K) knob on the
backplate. (See Fig.6)
4. 3 HOURS (3H) MODE (nighttime operation only)
● In “3H” mode, the light turns to high-level brightness (100%) and pre-selected CCT (2200K~5000K) at dusk, and
stays "ON" for 3 hours, then after 3 hours it turns to Auto Mode. It then turns to high-level brightness (100%)
when motion is detected, and stays on as long as motion continues. When motion is no longer detected, it
remains on for the predetermined shut-off delay time you set (30s/1min/3min), then returns to the predetermined
low level brightness and CCT color automatically.
● The light turns off automatically at dawn.
Note: You can adjust the low-level brightness (0~50%) and CCT color (2200K~5000K) by using the
low-level brightness (0~50%) knob and CCT color (2200K~5000K) knob on the backplate (See Fig.6)
5. CUSTOM MODE (nighttime operation only):
●
In "CUSTOM" mode, the light turns on at dusk and off at dawn automatically.
Note: You can adjust the CCT color (2200K~5000K) by using the CCT color (2200K~5000K) knob
on the backplate (See Fig.6)
● Set motion sensor operation to go on at a specific time. Turn the wall switch “OFF”, and turn it “ON” twice
within 3 seconds. The light will go into motion-sensor operation at the specified time every night. The light
turns off automatically at dawn.
For example, a homeowner wants to have the light stay on high-level brightness from dusk to 8pm, and would like
the light to go into "AUTO motion sensor mode. To achieve this, the homeowner will turn the wall switch “OFF”,
and turn it “ON” twice within 3 seconds. This sets the time the light goes into "AUTO" mode every day, the light
will behave the same way.
To revert back to Default, turn the wall switch “OFF” and then turn it “ON” after 5 seconds.
Note: You can adjust the low-level brightness (0~50%) and CCT color (2200K~5000K) by using the low-level
brightness (0~50%) knob and CCT color (2200K~5000K) knob on the backplate (See Fig.6)
Choose a mode by rotating the switch on the bottom of the sensor of the fixture. (See Fig.5)
Note: When power is first applied, the light will be on and warm up lasts 30 seconds.
Fig. 7
“AUTO” or
“3H” Mode
Manual
Override
Manual Override Operation Diagram
Turn wall switch OFF-ON-OFF-ON
in 0.5~3 Seconds
Turn wall switch OFF-ON-OFF-ON
in 0.5~3 Seconds
Fig. 6
ASSEMBLY INSTRUCTIONS (continue
ASSEMBLY INSTRUCTIONS (continue
FUNCTION AND OPERATION (continued)

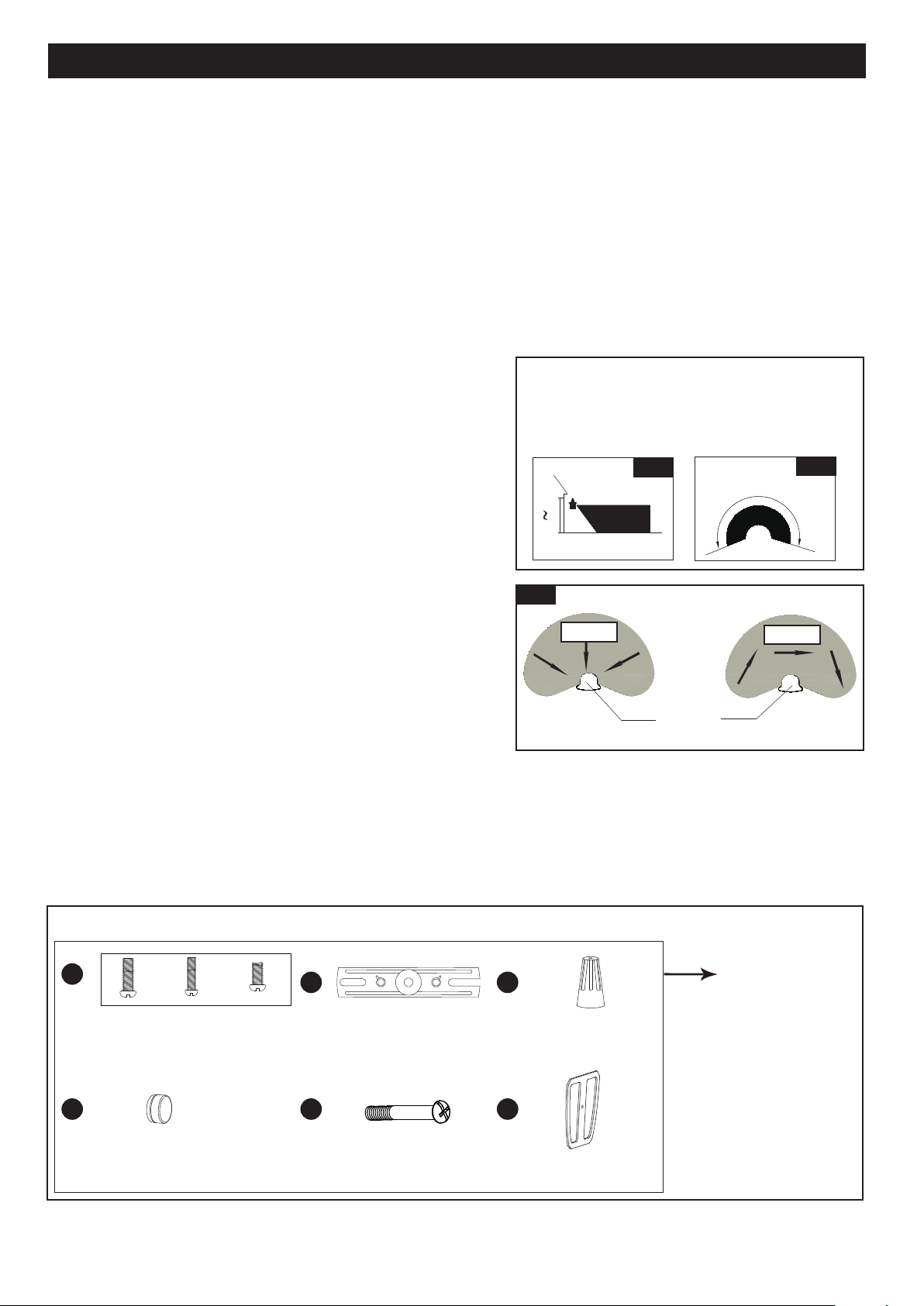

Customization Options:
Shut-off Delay
● The shut-off delay is the length of time the light will stay at
brightness after motion is detected.
●
Notes:
1. The sensitivity of the motion sensor will increase as the
environmental temperature gets cooler. For best performance,
gently clean the lens with a soft cloth every 1 or 2 months to
ensure maximum sensitivity.
2. For best performance, install fixture at least 8 feet above the
ground. At such a height, the fixture will provide a detection
distance of up to 70 feet at 77 degrees Fahrenheit. (See Fig.8)
3. The sensor detects movement across a detection range of
240 degrees. (See Fig.9)
4. The sensor will be more sensitive to motion across its detection path than motion directly towards it. (See Fig.10)
5. To reduce possible nuisances, do not mount the fixture near a heat source like an air conditioner, vent or furnace
exhaust, or in a direction facing any reflective object or other nearby light source.
Fig.8
Fig.9
10'
8.0'
12.0'
70'
Where you install your fixture is important:
Be sure the light is mounted straight on the wall
or eave; otherwise, the detection distance may
be limited.
240˚
Fig.10
Motion
Least sensitive
Motion
Most sensitive
Sensor
Spare Parts List:
The following parts are available for reorder if damaged or missing. Call our toll free at 1-800-887-6326.
Wire Connector
X2
AA
CCBB
DD EE
Decorative cover
X1
Mounting Screw
X2
Mounting Strap
X1
Fixture Mounting Screw
X1
FF
Gasket
X1
Assembly Kit
6437MM (1 SET) for 356-9446
6438MM (1 SET) for 356-9447
Page 6 of 8
220210
6. Manual Override (nighttime operation only)
● To temporarily override the settings in “AUTO” or “3H” mode for on-demand continuous high-level brightness at
night, turn the wall switch “OFF” then turn it “ON” twice within 3 seconds, the light remains on all night long.
To shift back to “AUTO” or “3H” mode, turn the wall switch “OFF” then turn it “ON” twice within 3 seconds again.
(See Fig.7)
● The light turns off automatically at dawn.
7. CCT Color Switching
●
CCT Color adjustable function applies to low-level brightness in Auto mode when no motion is detected, and
during the start of 3H, PC, and Custom mode.
Note: To make sure the above functions operate properly, always keep the wall switch in
the ″ON″ position (including the daytime).
You can set the shut-off delay by sliding the Time switch so
that points to the desired time setting (30s/1min/3min).
Page 7 of 8
211018
TROUBLESHOOTING
The lights turn off too late in
the PC setting.
The lights stay on continuously.
The light fixture may be installed in a
relatively dark location.
Relocate the light fixture or use the
3 hour setting.
The motion sensor may be picking up
a heat source, such as an air vent,
dryer vent, or brightly painted,
heat-reflective surface.
Decrease the “SENS” setting or
reposition the motion sensor.
Switch the motion sensor to auto.
See page 2 Fig.5.
Do not use a dimmer or timer to
control the light fixture. Replace the
dimmer or timer with a standard
on/off wall switch.
Install the light fixture on a circuit
without motors, transformers, or
fluorescent bulbs.
The motion sensor is in manual mode.
The light fixture is wired through a
dimmer or timer.
The light fixture is on the same circuit
as a motor, transformer, or fluorescent
bulb.
Problem
The light will not come on.
The light comes on during the
day.
The light comes on for no
apparent reason.
The light switch is turned off.
Possible Cause Solution
The fuse is blown or the circuit
breaker is turned off.
Turn the light switch on.
Replace the fuse or turn the circuit
breaker on.
Recheck after dark.
Verify the wiring is correct.
Re-aim the motion sensor to cover
the desired area.
Increase the “SENS” setting.
Daylight turn-off (photocell) is in
effect.
The circuit wiring is incorrect (if this
is a new installation).
The motion sensor is aimed in the
wrong direction.
The outside air temperature is close
to the same as a person’s body heat.
The motion sensor may be installed in
a relatively dark location.
The light fixture is operating
normally under these circumstances
Set the “TIME” switch to the 30s,
1min or 3min setting.
The “TIME” switch is in the “TEST”
position.
The motion sensor may be sensing
small animals or automobile traffic.
Decrease the “SENS” setting or
reposition the motion sensor.
Decrease the “SENS” setting.
Decrease the “SENS” setting.
Do not use a dimmer or timer to
control the light fixture. Replace the
dimmer or timer with a standard
on/off wall switch.
The “SENS” switch is set too high.
The outside temperature is much
warmer or cooler than a person’s body
heat (summer or winter).
The light fixture is wired through a
dimmer or timer.
Page 8 of 8
220210
TROUBLESHOOTING (CONTINUED)
The lights flash once then
stay off in manual mode.
The lights flash on and off.
The motion sensor is detecting light from
the lamp heads.
Reposition the lamp heads to keep
the area below the motion sensor
relatively dark.
Heat or light from the lamp heads may
be turning the motion sensor on and off.
Heat is being reflected from other objects
and may be turning the motion sensor on
and off.
The motion sensor is in “TEST” mode
and warming up.
Reposition the lamp heads away
from the motion sensor.
Decrease the “SENS” setting
or reposition the motion sensor.
While in “TEST” mode, the light only
stays on for 30 seconds. Set the
“TIME” switch to 30s,1min, or 3min.
Problem
Possible Cause Solution
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
If unable to fix any of the above issues, please consult a certified electrician.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
