Stock No.
33196 / 33162
Installing Back Panel /
Wall Cabinet with Wall
Brackets (Single & Double)

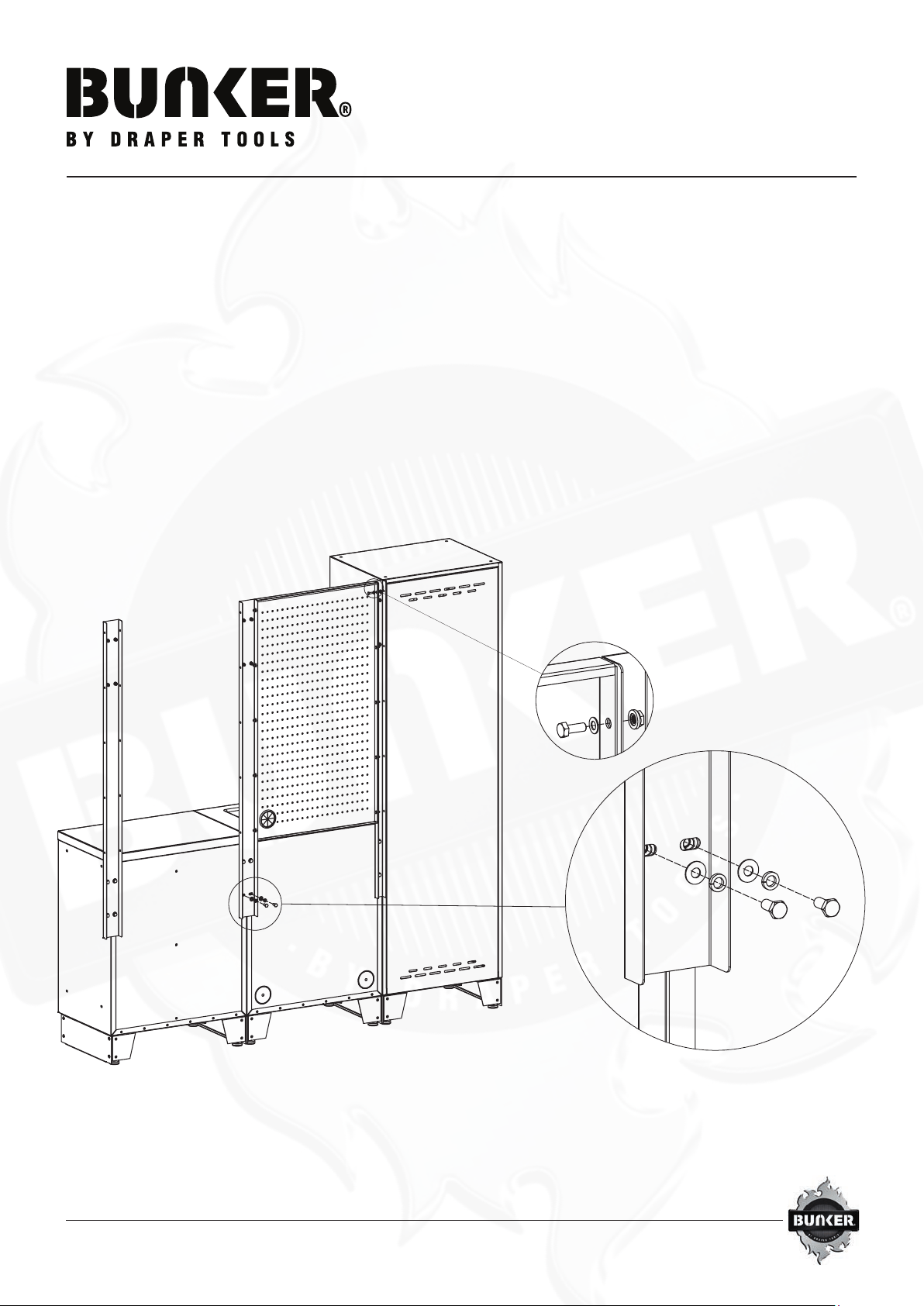

STEP 1:
Attach wall bracket (single and double) to cabinet
with bolt M8 x16mm, washer 18 x 8 x 1mm and spring
washer 14 x 8.8 x 2.6mm, and tighten with wrench
(not included).
STEP 2:
Attach back panel to wall bracket (single and double)
with bolt M6 x 16mm, nut M6 and spring washer
12 x 6.5 x 0.8mm, and tighten with wrench
(not included).
To make assembly easier we recommend having two persons aid one another in assembly.
drapertools.com
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF UK.

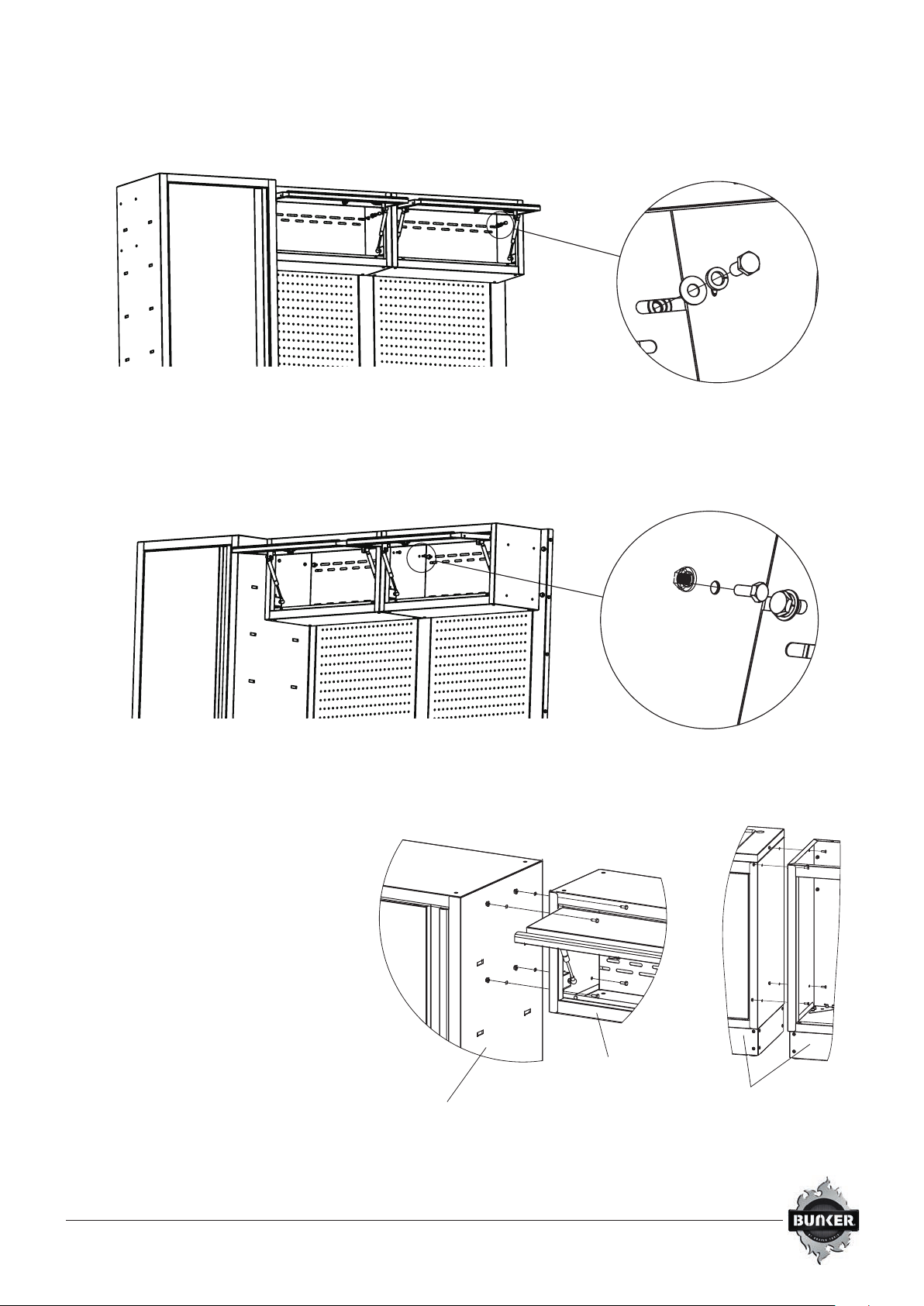

STEP 3:
Attach wall cabinet to wall bracket (single and double) with bolt M8 x 16mm, at washer 8 x 8 x 1mm
and spring washer 14 x 8.8 x 2.6mm, and tighten with wrench (not included)
STEP 4:
Connect the side panels of two cabinets with M6 x 16mm and nut M6, and tighten with wrench (not included).
tall cabinet
wall cabinet
floor cabinet
CABINET CONNECTION
Connect the side panels of two cabinets
with (4) bolt M6 x 16mm and nut M6,
and tighten with wrench (not included).
Note: remove the drawers and open the
doors before cabinet connection.
