instructions for
modular 2 door wall cabinet 665mm
model no: aPmS85
thank you for purchasing a Sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. Safety
1.1. General Safety
warninG! use the cabinet on level and solid ground, preferably concrete. Avoid tarmacadam since the cabinet may sink into the
surface.
9 locate the cabinet in a suitable working area.
9 Keep the cabinet clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the working area.
9 take care of sharp edges when assembling.
8 do not use the cabinet for any purpose other than that for which it is designed.
8 do not use the cabinet outside.
8 do not get the cabinet wet or use in damp or wet locations or areas where there is condensation.
8 do not clean the cabinet with any solvents which may damage the surfaces.
2. introduction
Modularstoragesystemidealforanygarageorworkshop.Canbeeasilyadjustedandupgradedtosuitspecicneeds.Purchasea
simple base cabinet or create a custom storage system.
standard features include:
•Ballbearingdrawerslidesthroughout.
•Basecabinetsaresuppliedwithaworktopasstandard.
•Floorcabinetsfeatureadjustableshelves.
•Eachunitissuppliedwithalockandtwokeys.
•Suppliedatpackedandwillrequiresomesimpleassembly.
•Twodooroorandwallcabinetsfeatureperforatedpegboardpanelsontheinsideofthedoors.
3. SPecification
model no. ........................................................ APMS85
overall size (W x d x H) .................665x305x360mm
4. contentS
APMS85|Issue108/02/18
Original Language Version
© Jack sealey limited
refer to
instructions
Wear protective
gloves
Wear safety
footwear
shelf weight limit .................................................... 18kg
cabinet weight limit ................................................ 36kg
APMS85|Issue108/02/18
Original Language Version
© Jack sealey limited

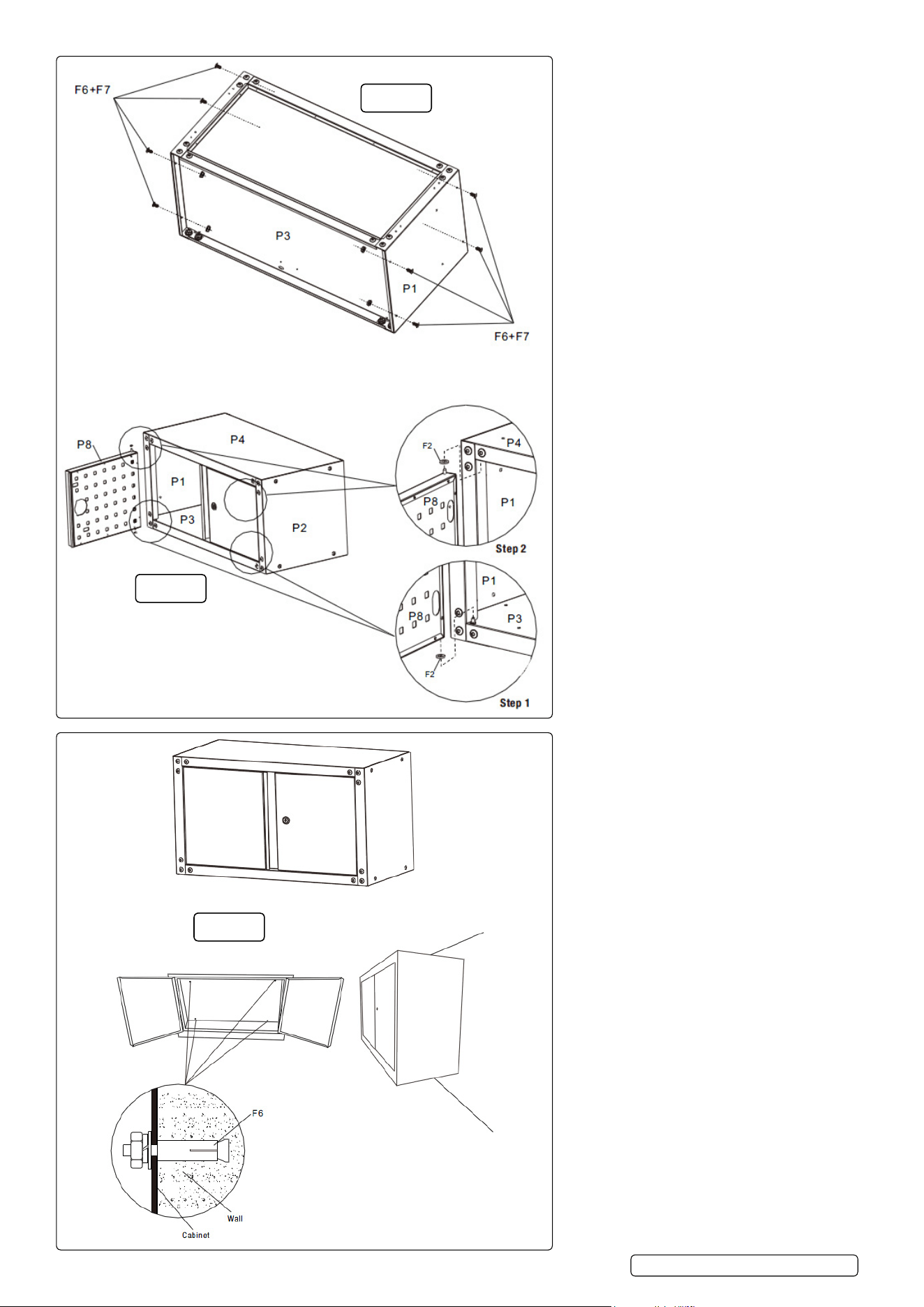

5. aSSembly
Squarethecabinetframe.Makesurethemeasurementfrom
cornertocornerareequalbeforecompletelytighteningthebolts.
L1=L2
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
fit side supports x 4
fit door pivots
fit side walls
fit internal supports.
fit cabinet top.
APMS85|Issue108/02/18
Original Language Version
© Jack sealey limited
drill12mmholesintothewall.
Placeexpansionscrewintothehole,t
washer, spring washer and nut. do the nut up to
expand the sleeve. remove nut and washers.
fit cabinet, secure washers and nut.
ensurethecabinetissecurelyxedtothewall.
Step 7
Step 8
Step 9
fitsidewalltoroof/oorbolts
fit doors on pivots.
APMS85|Issue108/02/18
Original Language Version
© Jack sealey limited
