• Page 1: USER MANUAL ACTON BLUETOOTH STEREO LOUDSPEAKER
• Page 2 - English - : LEGAL NOTICE 2016 Zound Industries International AB All Rights Reserved Zound Industries International AB will hereinafter referred to as Zound Industries Marshall Marshall Amps their respective logos Marshall Marshall trade dress as well as corporate and product identities used herein are trademarks and intellectual property of Marshall Amplication PLC and may not be used without permission The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG Inc and any use of such marks by Zound Industries International AB is under license All other trademarks are the property of their respective owners and may not be used without permission For more legal information related to the Marshall product and for information related to Zound Industries visit the website httpwww marshallheadphonescom IMPORTANT SAFETY INSTRUCTIONS This lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of noninsulated dangerous voltage within the products enclosure that may be of sufcient magnitude to constitute a risk of electric shock Warning To reduce the risk of electric shock do not remove cover or back as there are no userserviceable parts inside Refer servicing to qualied personnel The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance 1 Read these instructions All the safety and operating instructions should be read before this product is operated 2 Keep these instructions The safety and operating instructions should be retained for future reference 3 Heed all warnings All warnings on the appliance and in the operating instructions should be adhered to 4 Follow all instructions All operating and use instructions should be followed 5 Do not use this apparatus near water The appliance should not be used near water or moisture for example in a wet basement or near a swimming pool and the like 6 Clean only with dry cloth 7 Do not block any ventilation openings Install in accordance with the manufactures instructions 8 Do not install near any heat sources such as radiators heat registers stoves or other apparatus including ampliers that produce heat 9 Do not defeat the safety purpose of the polarized or grounding plug A polarized plug has two blades with one wider than the other A grounding plug has two blades and a third grounding prong The wide blade or the third prong is provided for your safety If the provided plug does not t into your outlet consult an electrician for replacement of the obsolete outlet 10 Protect the power cord from being walked on or pinched particularly at the plugs convenience receptacles and at the point where they exit from the apparatus 11 Only use attachmentsaccessories specied by the manufacturer 12 Use only with the cart stand tripod bracket or table specied by the manufacturer or sold with the apparatus When a cart or rack is used use caution when moving the cartapparatus combination to avoid injury from tipover 13 Unplug the apparatus during lightning storms or when unused for long periods of time 14 Refer all servicing to qualied personnel Servicing is required when the apparatus has been damaged in any way such as power supply cord or plug is damaged liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture does not operate normally or has been dropped This equipment is a Class II or double insulated electrical appliance It has been designed in such a way that it does not require a safety connection to electrical earth WARNING To reduce the risk of re or electric shock do not expose this apparatus to rain or moisture The apparatus shall not be exposed to dripping or splashing and that objects lled with liquids such as vases shall not be placed on apparatus The mains plug is used as disconnect device the disconnect device shall remain readily operable RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION
• Page 3 - English - : INSTALLATION amp CONNECTION Connect the product according to the instructions in this manual Connect the product only to the correct mains voltage as shown on the equipment Protect the power cord from being walked on or pinched particularly at plugs convenience receptacles and the point where they exit the apparatus Use only power cables of the type specied in the operating instructions or as marked on the product Do not defeat the safety purpose of the polarized or groundingtype plug A polarized plug has two blades with one wider than the other A grounding plug has two blades and a third grounding prong The wide blade or the third prongs are provided for your safety If the provided plug does not t into your outlet consult an electrician for replacement of the obsolete outlet Unplug the product during lightning storms or when unused for long periods of time Do not install this equipment in a conned or a builtin space Only install the equipment in a well ventilated and open location The ventilation should not be impeded by covering the ventilation openings with items such as newspaper tablecloths curtains etc No naked ame sources such as lighted candles should be placed on the apparatus CLEANING amp MAINTENANCE Refer all servicing to qualied service personnel Servicing is required when the apparatus has been damaged in any way such as power supply cord or plug is damaged liquid has been spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture does not operate normally or has been dropped Clean only with dry cloth For more detailed cleaning and maintenance instructions visit the website httpwwwmarshallheadphonescom DISPOSAL amp RECYCLING INFORMATION This appliance may not be treated as regular household waste Management of WEEE Waste Electrical and Electronic Equipment is applicable in member states of the European Union and other European countries with individual national policies on the management of WEEE If you need more information on the collection reuse and recycling systems please contact your local or regional waste administration facility FCC STATEMENT This device complies with part 15 of the FCC Rules Operation is subject to the following two conditions 1 This device may not cause harmful interference and 2 this device must accept any interference received including interference that may cause undesired operation To comply with FCCs and Industry Canadas RF radiation exposure limits for general populationuncontrolled exposure this device must be installed to provide a separation distance of at least 20cm from all persons This device must not be colocated or operating in conjunction with any other antenna or transmitter This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications However there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more of the following measures Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radioTV technician for help WARNING Any changes or modications to this unit not expressly approved by the party responsible for compliance could void the users authority to operate the equipment
• Page 4 - French - : IC STATEMENT This device complies with Industry Canada licenseexempt RSS standards Operation is subject to the following two conditions 1 this device may not cause interference and 2 this device must accept any interference including interference that may cause undesired operation of the device Le présent appareil est conforme aux CNR dIndustrie Canada applicables aux appareils radio exempts de licence Lexploitation est autorisée aux deux conditions suivantes 1 lappareil ne doit pas produire de brouillage et 2 lutilisateur de lappareil doit accepter tout brouillage radioélectrique subi même si le brouillage est susceptible den compromettre le fonctionnement The device is compliance with RF eld strength limits users can obtain Canadian information on RF exposure and compliance Le présent appareil est conforme de ce matériel aux conformités ou aux limites dintensité de champ RF les utilisateurs peuvent sur lexposition aux radiofréquences et la conformité dacquérir les informations correspondante This Class B digital apparatus complies with Canadian ICES003 Cet appareil numérique de la classe B est conforme à la norme NMB003 du Canada CAN ICES3 BNMB3B DECLARATION OF CONFORMITY For the declaration of conformity visit this website httpwwwmarshallheadphonescom Zound Industries International AB Centralplan 15 111 20 Stockholm Sweden Website httpwwwmarshallheadphonescom The user is recommended to visit the website regularly for uptodate information
• Page 5 - English - : ENGLISH SECTIONS PAGE INDEX 002 LEGAL NOTICE 002 IMPORTANT SAFETY INSTRUCTIONS 003 INSTALLATION amp CONNECTION 003 CLEANING amp MAINTENANCE 003 DISPOSAL amp RECYCLING INFORMATION 003 FCC STATEMENT 004 IC STATEMENT 004 DECLARATION OF CONFORMITY 006 BOX CONTENTS 008 GENERAL DESCRIPTION 010 PLUGGING IN THE ACTON BLUETOOTH 011 TURNING THE POWER ONOFF 012 USING THE ACTON BLUETOOTH WITH YOUR DEVICES 013 CONNECTING VIA BLUETOOTH PAIRING 015 BLUETOOTH AUTO CONNECTION 016 CONNECTING SOUND SOURCE VIA CABLE 017 INPUT 35MM STEREO PLUG 018 CHOOSING YOUR SOURCE 019 ADJUSTING THE VOLUMEBASSTREBLE SOUND 020 TECHNICAL INFORMATION 021 TROUBLESHOOTING
• Page 6: BOX CONTENTS 001 QUICKSTART MANUAL AND SAFETY INFORMATION 002 DOUBLEENDED COIL CORD WITH 35MM STEREO PLUGS TO CONNECT TO YOUR MUSIC PLAYER
• Page 7 - English - : BOX CONTENTS CONTINUED 003 MARSHALL ACTON BLUETOOTH ACTIVE STEREO LOUDSPEAKER 004 POWER CORD CAUTION LIFT ACTIVE LOUDSPEAKER FROM BOTTOM DO NOT LIFT BY PROTECTIVE BAG FOR RISK OF DROPPING THE PRODUCT
• Page 8 - German - : GENERAL DESCRIPTION 001 INPUT FOR 35MM STEREO PLUG 002 SOURCE INDICATORS 003 VOLUME KNOB 004 BASS KNOB 005 TREBLE KNOB 006 PAIR BUTTON 007 SOURCE BUTTON 008 POWER SWITCH
• Page 9 - English - : GENERAL DESCRIPTION CONTINUED 009 BACKPLATE 010 BASS PORT 011 POWER JACK 012 POWER CORD NOTE DATE CODE AND SERIAL NUM BER STICKER LOCATED HERE 011 012
• Page 10 - English - : PLUGGING IN THE ACTON BLUETOOTH 001 PLUG THE POWER CORD INTO THE POWER JACK ON THE BACK OF THE ACTON BLUETOOTH 002 PLUG THE POWER CORD INTO THE WALL SOCKET 002 002 CAUTION ALWAYS UNPLUG THE POWER CORD FROM THE WALL SOCKET BEFORE DISCONNECTING IT FROM THE SPEAKER
• Page 11 - English - : TURNING THE POWER ONOFF 001 SWITCH THE ONOFF SWITCH TO ON TO TURN ON THE ACTON BLUETOOTH 002 THE RED BLUETOOTH INDICATOR STARTS FLASHING AS THE SPEAKER SEARCHES FOR A BLUETOOTH DEVICE 003 TO TURN THE SPEAKER OFF SWITCH THE ONOFF SWITCH TO OFF 004 ALL INDICATORS WILL TURN OFF

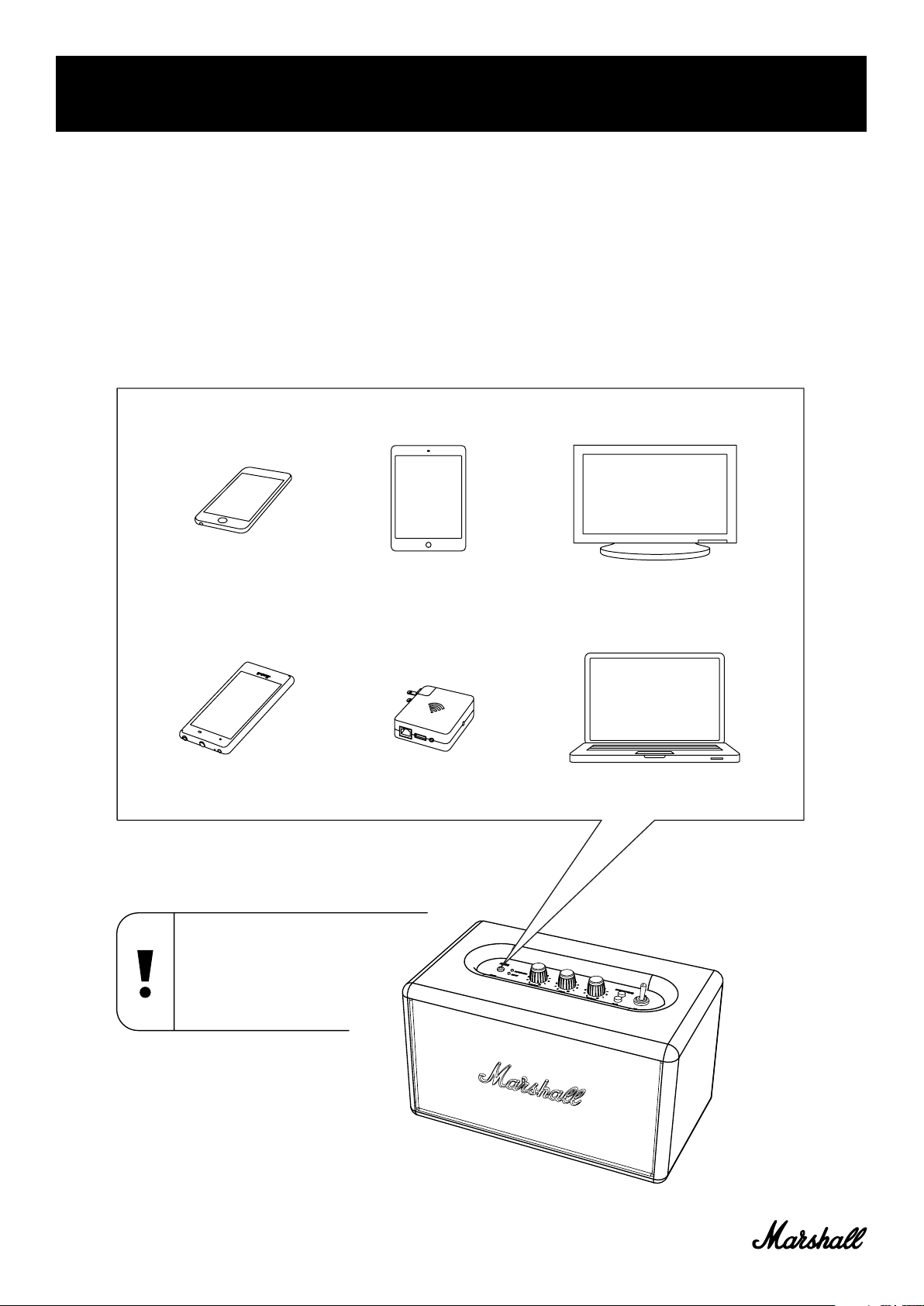

• Page 12 - English - : USING THE ACTON BLUETOOTH WITH YOUR DEVICES THERE ARE MANY WAYS TO CONNECT TO YOUR ACTON BLUETOOTH WHETHER VIA YOUR PHONE TV OR WIRELESSLY VIA WIRELESS BLUETOOTH TECHNOLOGY BELOW YOU WILL FIND MORE DETAILS ABOUT THE CONNECTION SOURCES WIRELESS CONNECTION VIA BLUETOOTH CONNECTION VIA THE 35MM STEREO PLUG CAUTION MAKE SURE THAT THE VOLUME IS SET TO LOW ON BOTH THE SPEAKER AND THE MUSIC PLAYER WHEN YOU START PLAYING MUSIC

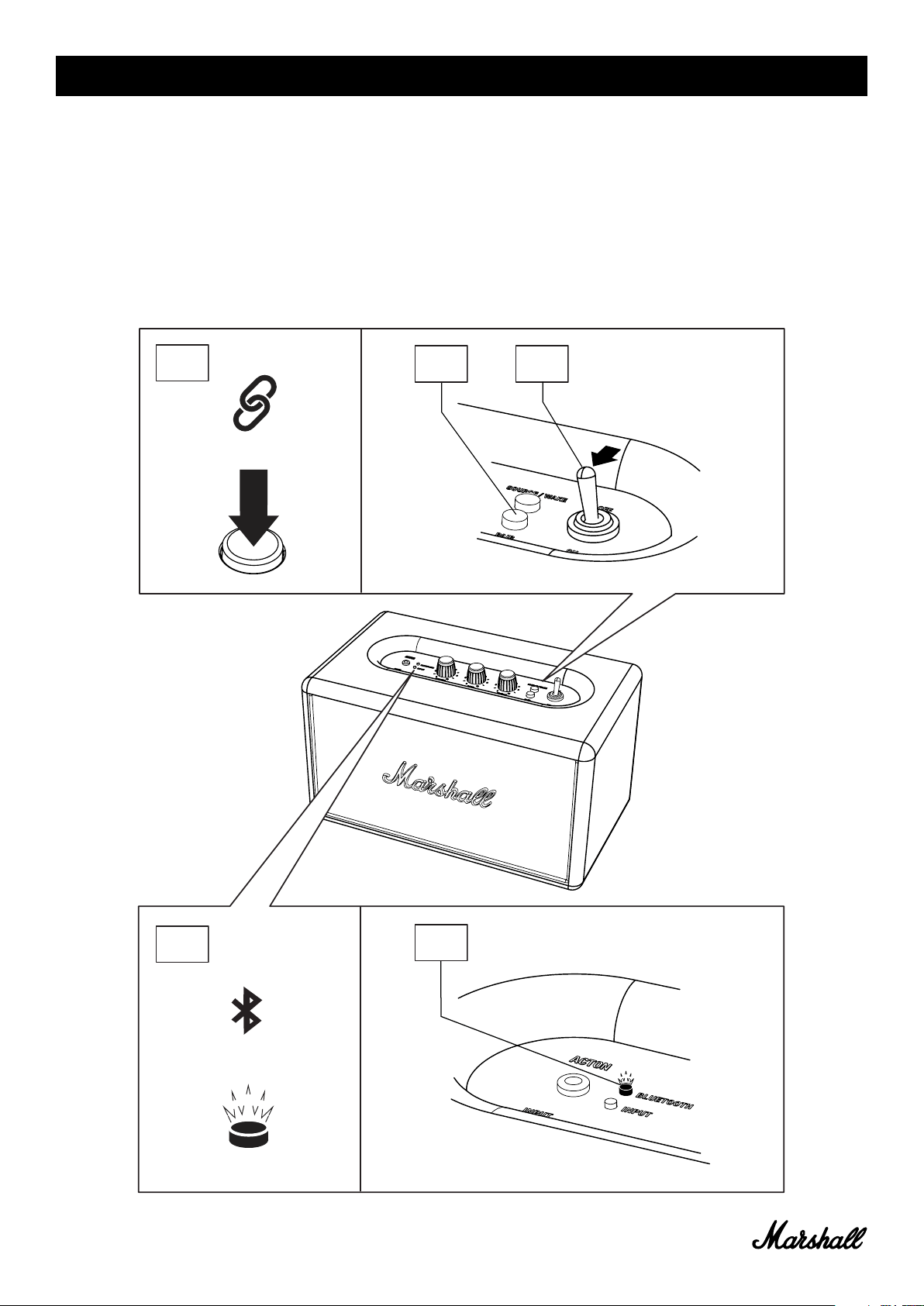

• Page 13 - English - : CONNECTING VIA BLUETOOTH PAIRING FOLLOW THESE STEPS TO PAIR THE ACTON BLUETOOTH WIRELESSLY TO YOUR BLUETOOTH DEVICE 001 ENSURE THAT THE SPEAKER IS POWERED ON 002 PUSH THE PAIR BUTTON 003 THE RED BLUETOOTH INDICATOR STARTS TO FLASH RAPIDLY
• Page 14 - English - : 004 ENABLE BLUETOOTH FUNCTIONALITY ON YOUR DEVICE SMARTPHONE TABLET COMPUTER 005 ON YOUR DEVICE SELECT ACTON BLUETOOTH FROM THE BLUETOOTH LIST AND ACCEPT PAIRING 006 THE BLUETOOTH INDICATOR ON THE SPEAKER TURNS TO A STEADY RED AND THE UNITS ARE NOW CONNECTED CONNECTING VIA BLUETOOTH PAIRING ACTON BLUETO OTH
• Page 15 - English - : BLUETOOTH AUTO CONNECTION IF A BLUETOOTH CONNECTED DEVICE IS MOVED OUTSIDE THE RANGE OF THE ACTON BLUETOOTH APPROXIMATELY 10 METRES WITHOUT OBSTACLES IT IS DISCONNECTED THE DEVICE IS AUTOMATICALLY CONNECTED AGAIN WHEN IT IS MOVED BACK WITHIN RANGE THE SPEAKER STORES UP TO SIX DEVICES AND TRIES TO CONNECT TO THE LAST CONNECTED BLUETOOTH DEVICE FIRST FOR EXAMPLE IF THE SPEAKER HAS BEEN CONNECTED TO THE DEVICES ABCDEF DEVICE F IS GIVEN FIRST PRIORITY WHILE DEVICE A IS GIVEN LAST PRIORITY EVERY TIME THE SPEAKER STARTS UP IT WILL DO AN AUTO CONNECTION OF DEVICES WITHIN ITS RANGE
• Page 16 - English - : CONNECTING SOUND SOURCE VIA CABLE THERE IS ANOTHER WAY TO CONNECT TO YOUR ACTON BLUETOOTH THE OLD FASHIONED WAY USING THE INCLUDED COIL CORD AND THE 35MM INPUT USE THE DOUBLEENDED COIL CORD WITH 35MM PLUGS TO CONNECT EXTERNAL AUDIO SOURCES
• Page 17 - English - : INPUT 35MM STEREO PLUG 001 ENSURE THAT THE ACTON BLUETOOTH IS TURNED OFF 002 CONNECT THE CORD WITH THE 35MM STEREO PLUG TO THE INPUT LABELLED INPUT ON THE SPEAKER CONNECT THE CORD WITH THE 35MM STEREO PLUG TO THE MUSIC PLAYER AND TURN ON THE SPEAKER 004 SELECT INPUT AS SOURCE BY PUSHING THE SOURCE BUTTON UNTIL THE INPUT INDICATOR IS LIT 004 003 003
• Page 18 - English - : CHOOSING YOUR SOURCE THE INPUT SOURCE THAT IS CURRENTLY SELECTED IS SHOWN BY A LIT INDICATOR TO SELECT A DIFFERENT SOUND SOURCE 001 PUSH THE SOURCE BUTTON TO CHOOSE YOUR SOURCE ANDOR TO SWITCH BETWEEN CONNECTED SOURCES 002 A LIT INDICATOR SHOWS WHICH SOURCE YOU HAVE SELECTED BLUETOOTH DEVICE INPUT 35MM STEREO PLUG

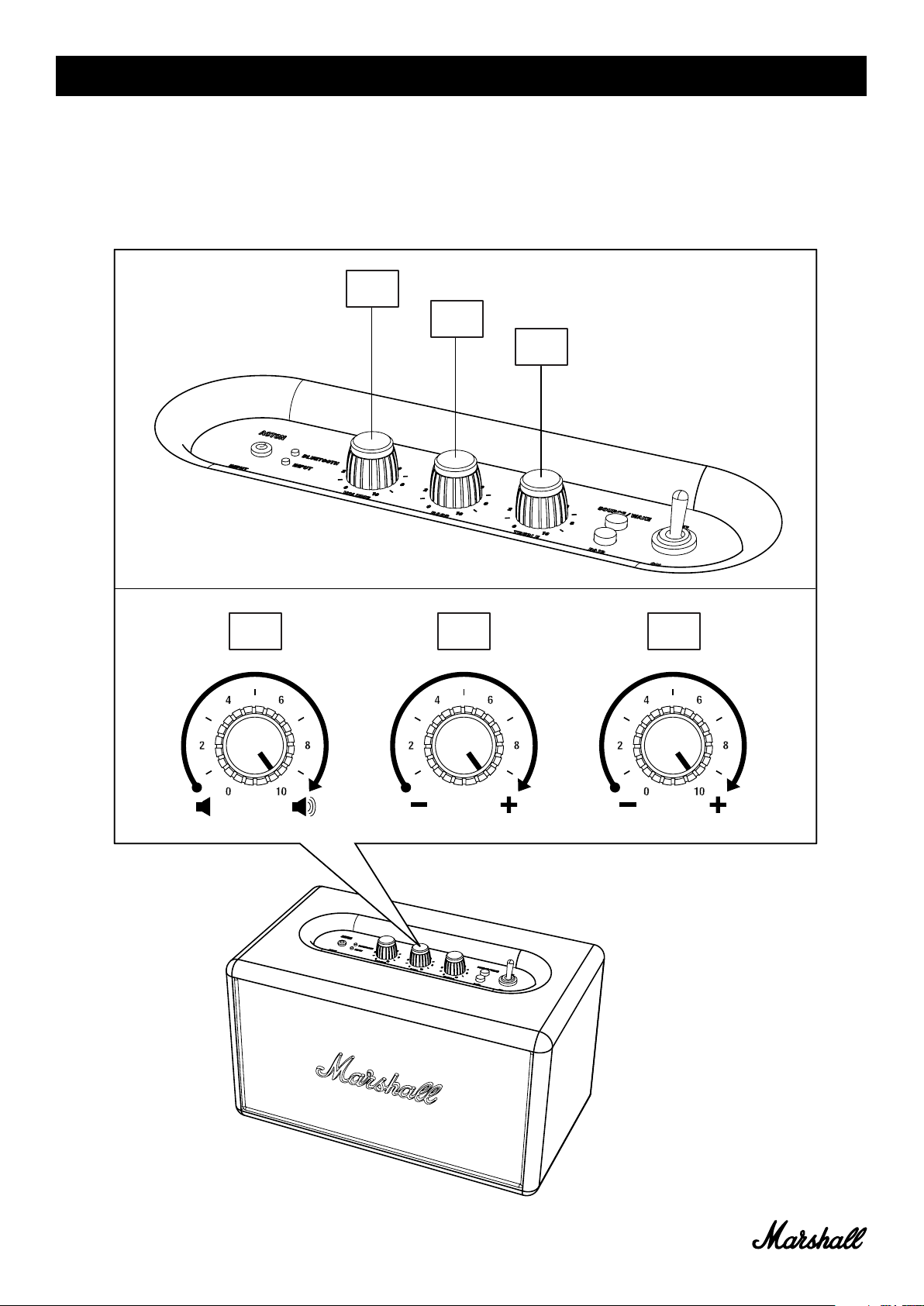

• Page 19: ADJUSTING THE VOLUMEBASSTREBLE SOUND THE ACTON BLUETOOTH HAS THREE KNOBS FOR ADJUSTING THE SOUND 001 VOLUME KNOB 002 BASS KNOB 003 TREBLE KNOB
• Page 20 - English - : TECHNICAL INFORMATION SOUND SPECIFICATION ACTIVE STEREO LOUDSPEAKER WITH BASS REFLEX SYSTEM DIGITAL CLASS D AMPLIFIER 2X8W 1X25W ¾ DOME TWEETERS 2X 4 WOOFER 1X BASS AND TREBLE TONE CONTROLS FREQUENCY RESPONSE 50 20000Hz 3dB CROSSOVER FREQUENCY 2500Hz CONNECTIVITY BLUETOOTH STANDARD V40 INPUT 35mm 1X MAX POWER OUTPUT 50W RMS TECHNICAL INFORMATION MAINS INPUT VOLTAGE 100240V 200W NOMINAL RATING 100240V ABSOLUTE MINMAX 90264V MAINS FREQUENCY 5060Hz MAX PEAK POWER CONSUMPTION 70W WEIGHT 300kg SIZE 265 X 160 X 150mm NOTE THE FRONT IS NOT REMOVABLE THIS ILLUSTRATION INTENDS TO SHOW THE INTERNAL SPEAKER LAYOUT DO NOT ATTEMPT TO REMOVE THE FRONT FRET FOR RISK OF DAMAGING YOUR SPEAKER
• Page 21 - English - : TROUBLESHOOTING THE ACTON BLUETOOTH DOES NOT TURN ON The speaker is not connected to AC mains Ensure that the ACTON BLUETOOTH is plugged into a working AC wall socket see page Slightly increase the volume on your sound source then slightly increase the volume on the speaker see Ensure that the audio cable is properly connected see page Slightly increase the volume on your sound source then slightly increase the volume on the speaker see Decrease the volume on your sound source Lower the volume or bass on the ACTON BLUETOOTH see page PROBLEM CAUSE ACTION THERE IS NO SOUND THE SOUND IS TO LOW THERE IS A CRACKLING SOUND Wrong input for audio source is selected Sound source not connected via Bluetooth or cable The audio cable is not properly connected Volume is set too low on either the sound source or the ACTON BLUETOOTH The amplifier is clipping as it has run out of output power Volume is set too low on either the sound source or the ACTON BLUETOOTH Connect the sound source to the speaker see page 013 or Change the selected sound source see page
• Page 22 - English - : TROUBLESHOOTING PROBLEM CAUSE ACTION Turn down the playback volume on the sound source Try another sound file mp3 or music player Lower the volume on the speaker see page Lower the basstreble on the speaker see page Move the ACTON BLUETOOTH to another spot Turn off or move the interfering electronic device Move the devices closer so that they are within10 metres and unobstructed by obstacles such as walls or doors Ensure that Bluetooth is enabled on your device When the pairing button is pressed the ACTON BLUETOOTH searches for devices for 3 minutes see page THE SOUND IS DISTORTED ERRATIC PERFORMANCE CANNOT CONNECT OR PAIR WITH A BLUETOOTH DEVICE Volume is set too high on the sound source The sound file mp3 is of poor quality Volume is set too high on the ACTON BLUETOOTH Too much basstreble on the speaker Interference from another electronic device The two Bluetooth devices are too far apart Bluetooth is not enabled on your device The pairing timed out
• Page 23 - English - : PROBLEM CAUSE ACTION TROUBLESHOOTING NOTES A BLUETOOTH DEVICE COULD CAUSE SOUNDRELATED OR TECHNICAL FAULTS DEPENDING ON USE IN THE FOLLOWING CASES WHEN SOME PART OF THE BODY IS IN CONTACT WITH THE RECEIVINGTRANSMITTING SYSTEM FOR THE BLUETOOTH DEVICE OR THE ACTON BLUETOOTH ELECTRICAL VARIATIONS DUE TO OBSTACLES IN THE FORM OF WALLS CORNERS ETC EXPOSURE TO ELECTRICAL DISRUPTIONS FROM DEVICES WITHIN THE SAME FREQUENCY BAND FOR EXAMPLE MEDICAL EQUIPMENT MICROWAVE OVENS AND WIRELESS NETWORKS THIS WIRELESS DEVICE MAY CAUSE ELECTRICAL DISRUPTIONS DURING USE In most cases you do not need to enter the pin code when connecting the Bluetooth device to the ACTON BLUETOOTH If the window for entering the pin code is displayed use the ACTON BLUETOOTH pin code The speaker cannot connect using Bluetooth HF area function Try instead to connect using the included coil cord see page Move the devices closer so that they are within10 metres and unobstructed by obstacles such as walls or doors Items such as microwave ovens wireless network adapters fluorescent lights and gas cookers use the same frequency range as the Bluetooth device This may lead to electrical disturbances CANNOT CONNECT OR PAIR WITH A BLUETOOTH DEVICE BLUETOOTH CONNECTION DROPS OUT Your device prompts you for a pin code The two Bluetooth devices are too far apart or the connection is affected due to obstacles There is a strong electric field surrounding the ACTON BLUETOOTH Your device only supports Bluetooth HF handsfree area function
