Owner's Manual /
CRAFTSMAN
9 Horse Power
26" Two-Stage Track Drive
Snow Thrower
Model No.
247.888510
I!
CAUTION: Before using this product,
read this manual and follow all Safety
Rules and Operating Instructions.
Sears, Roebuck And Co., Hoffman Estates, IL 60179, U.S.A.
Form No. 770-10051 B
Printed in U.S.A. (9/98)

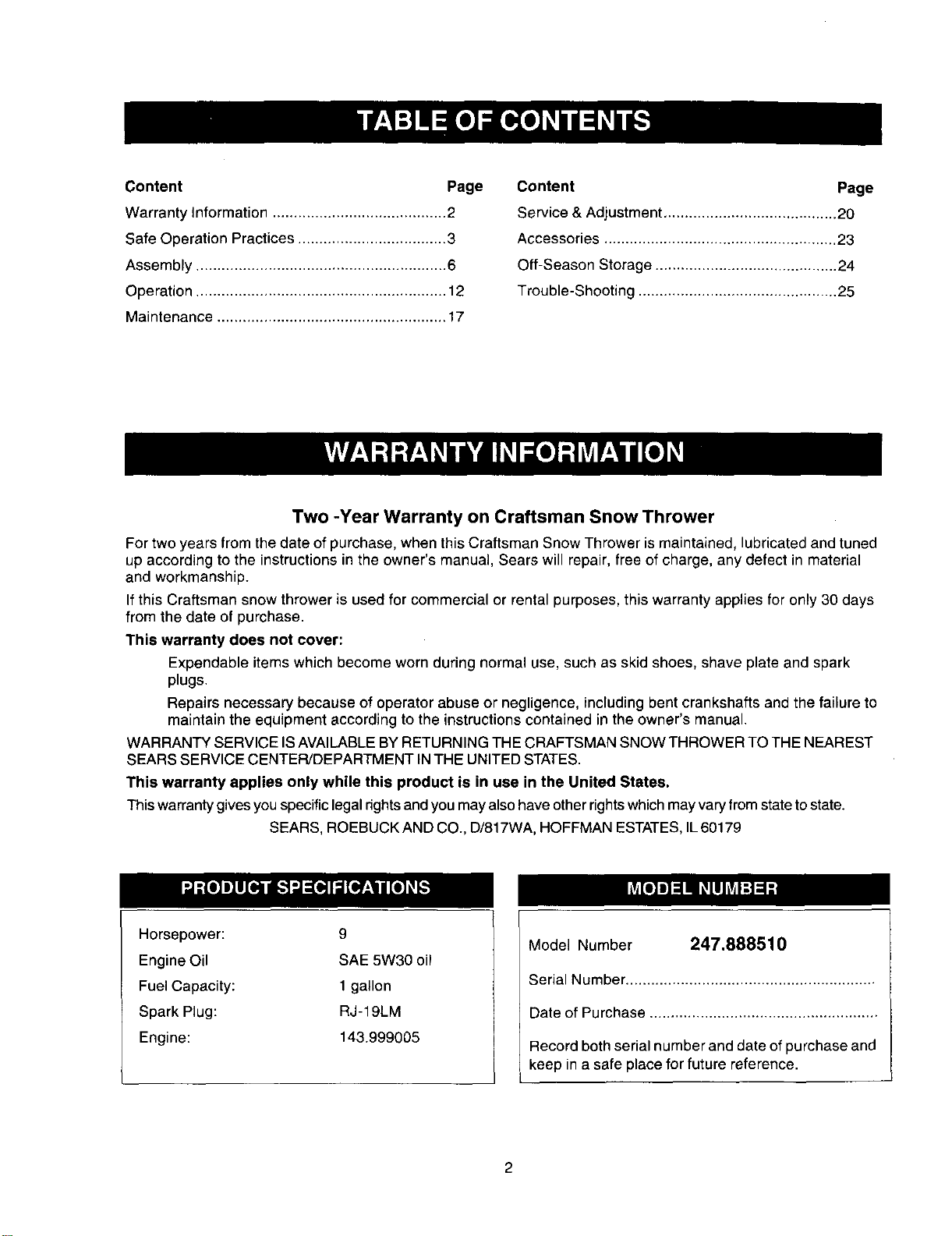

Content Page
Warranty Information ......................................... 2
Safe Operation Practices ................................... 3
Assembly ........................................................... 6
Operation ........................................................... 12
Maintenance ...................................................... 17
Content Page
Service & Adjustment ......................................... 20
Accessories ....................................................... 23
Oft-Season Storage ........................................... 24
Trouble-Shooting ............................................... 25
Two -Year Warranty on Craftsman Snow Thrower
For two years from the date of purchase, when this Craftsman Snow Thrower is maintained, lubricated and tuned
up according to the instructions in the owner's manual, Sears will repair, free of charge, any defect in material
and workmanship.
If this Craftsman snow thrower is used for commercial or rental purposes, this warranty applies for only 30 days
from the date of purchase.
This warranty does not cover:
Expendable items which become worn during normal use, such as skid shoes, shave plate and spark
plugs.
Repairs necessary because of operator abuse or negligence, includingbent crankshafts and the failure to
maintain the equipment according to the instructionscontained in the owner's manual.
WARRANTY SERVICE ISAVAILABLE BY RETURNING THE CRAFTSMAN SNOW THROWER TO THE NEAREST
SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES.
This warranty applies only while this product is in use in the United States.
Thiswarrantygivesyou specificlegalrightsand you mayalsohaveotherrightswhichmay varyfrom state tostate.
SEARS, ROEBUCK AND CO., D/817WA, HOFFMAN ESTATES,IL60179
Horsepower: 9
Engine Oil SAE 5W30 oil
Fuel Capacity: 1 gallon
Spark Plug: RJ-19LM
Engine: 143.999005
Model Number 247.888510
Serial Number ...........................................................
Date of Purchase ......................................................
Record both serial number and date of purchase and
keep in a safe place for future reference.
2

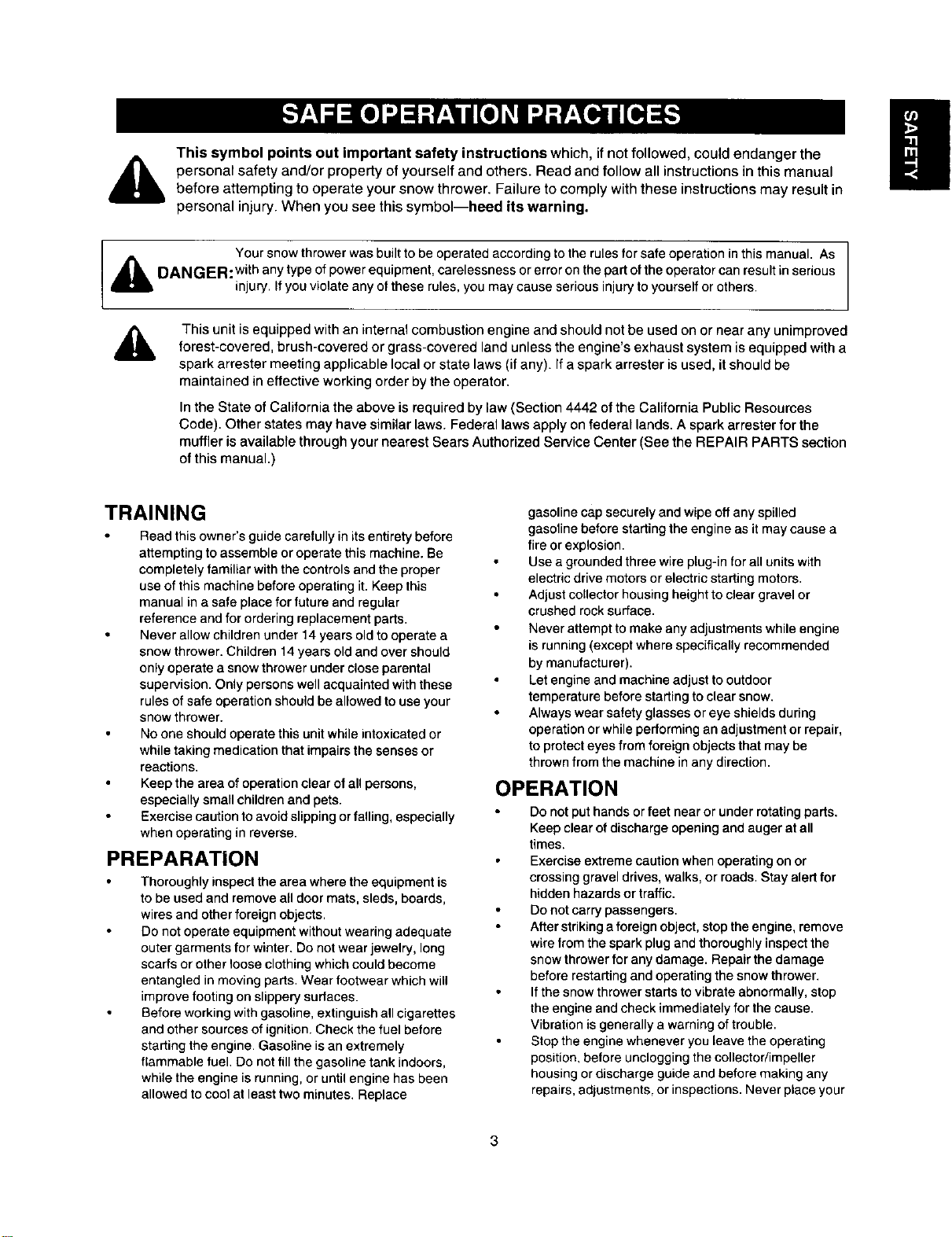

This symbol points out important safety instructions which, ifnotfollowed,could endangerthe
personal safetyand/or propertyofyourselfand others.Read and followallinstructionsin thismanual
before attempting tooperateyoursnow thrower.Failureto complywiththese instructionsmay resultin
personalinjury.When you see thissymbol--heed its warning.
|
Your snow thrower was built to be operated according to the rules for safe operation in thismanual. As
,_ DANG ER" with any type of power equipment carelessness or error on the part of the operator can result in serious
injury. If you violate any of these rules, you may cause serious injury to yourself or others.
,_ This unit is equipped with an internal combustion engine and should not be used on or near any unimprovedforest-covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a
spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be
maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources
Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the
muffler is available through your nearest Sears Authorized Service Center (See the REPAIR PARTS section
of this manual.)
TRAINING
Read thisowner's guide carefully in its entirety before
attempting to assemble or operate this machine. Be
completely familiar with the controls and the proper
use of this machine before operating it. Keep this
manual ina safe place for future and regular
reference and for ordering replacementparts.
Never allow children under 14 years old to operate a
snow thrower. Children 14 years old and over should
only operate a snow thrower under close parental
supervision. Only persons well acquainted with these
rules of safe operation should be allowed to use your
snow thrower.
No one should operate this unit while intoxicated or
while taking medication that impairs the senses or
reactions.
Keep the area of operation clear of all persons,
especially small children and pets.
Exercise caution to avoid slipping or falling, especially
when operating in reverse.
PREPARATION
Thoroughly inspect the area where the equipment is
to be used and remove all door mats, sleds, boards,
wires and other foreign objects.
Do not operate equipment without wearing adequate
outer garments for winter. Do not wear jewelry, long
scarfs or other loose clothing which could become
entangled in moving parts. Wear footwear which will
improve footing on slippery surfaces.
Before working with gasoline, extinguish all cigarettes
and other sources of ignition. Check the fuel before
starting the engine. Gasoline is an extremely
flammable fuel. Do not fill the gasoline tank indoors,
while the engine is running, or until engine has been
allowed to cool at least two minutes. Replace
gasoline cap securely and wipe off any spilled
gasoline before starting the engine as itmay cause a
fire or explosion.
Use agrounded three wire plug-in for all units with
electric drive motors or electric starting motors.
Adjust collector housing height to clear gravel or
crushed rock surface.
Never attempt to make any adjustments while engine
is running (except where specifically recommended
by manufacturer).
Let engine and machine adjust to outdoor
temperature before starting to clear snow.
Always wear safety glasses or eye shields during
operation or while performing an adjustment or repair,
to protect eyes from foreign objects that may be
thrown from the machine in any direction.
OPERATION
Do not put hands or feet near or under rotating parts.
Keep clear of discharge opening and auger at all
times.
Exercise extreme caution when operating on or
crossing gravel drives, walks, or roads. Stay alert for
hidden hazards or traffic.
Do not carry passengers.
After striking aforeign object, stop the engine, remove
wire from the spark plug and thoroughly inspect the
snow thrower for any damage. Repair the damage
before restarting and operating the snow thrower.
If the snow thrower starts to vibrate abnormally, stop
the engine and check immediately for the cause.
Vibration is generally a warning of trouble.
Stop the engine whenever you leave the operating
position, before unclogging the collector/impeller
housing or discharge guide and before making any
repairs, adjustments, or inspections. Never place your
handinthedischargeorcollectoropenings.Usea
stickorwoodenbroomhandletounclogthe
dischargeopening.
Takeallpossibleprecautionswhenleavingtheunit
unattended.Disengagethecollector/impeller,stop
theengineandremovethekey.
Whencleaning,repairing,orinspecting,makecertain
collectodimpellerandallmovingpartshavestopped.
Disconnectsparkplugwireandkeepawayfromplug
topreventaccidentalstarting.
Donotruntheengineindoors,exceptwhenstartingit
and/ortransportingthesnowthrowerinoroutof
building.Opendoorsbeforestartingtheengineinthat
case.Exhaustfumesaredangerous.
Donotclearsnowacrossthefaceofslopes.Exercise
extremecautionwhenchangingdirectiononslopes.
Donotattempttodearsteepslopes.
Neveroperatethesnowthrowerwithoutguards,
platesorothersafetyprotectiondevicesinplace.
Neveroperatethesnowthrowernearglass
enclosure,automobiles,windowwells,dropoff,etc.,
withoutproperadjustmentsofsnowthrower
dischargeaegte.Keep chitdren end pets away.
Do not overload machine capacity by attempting to
clear snow at too fast a rate. Never operate the
machine at high transport speeds on slippery
surfaces. Look behind and use care when backing.
Never direct discharge at bystanders or allow anyone
in front of unit while throwing snow.
Disengage power to collector/impeller ofthe snow
thrower when transporting itor when the unit isnot in use.
Use only attachments and accessories (such as
wheel weights, counter weights, cabs, etc.) approved
by the snow thrower manufacturer.
Never operate the snow thrower without good visibility
or light. Always be sure of your footing and keep afirm
hold on the handles. Walk, never run.
Muffler and engine become hot and can cause severe
burn injury. Do not touch the muffler or the engine
while starting or operating the snow thrower.
MAINTENANCE ANDSTORAGE
Check shear bolts, engine mounting bolts, etc., at
frequent intervals lor proper tightness, thus ensuring
that the equipment is in safe working condition.
Never store the machine with fuel inthe fuel tank
inside a building where ignition sources are present,
such as hot water heaters, space heaters, clothes
dryers and the like. Allow engine to cool before storing
in any enclosure.
Always refer to owner's guide instructions for
important details if the snow thrower is to be stored for
an extendedperiod.
Run machine a few minutes after throwing snow to
prevent freeze-up of the collector/impeller.
Chock clutch controls periodically to verify that these
engage and disengage properly and readjust if
necessary. Refer to Service and Adjustments section
page of this owner's guide.
YOUR RESPONSIBILITY
Restrict the use of this power machine to persons who
read, understand and follow the warnings and
instructions in this manual and on the machine.

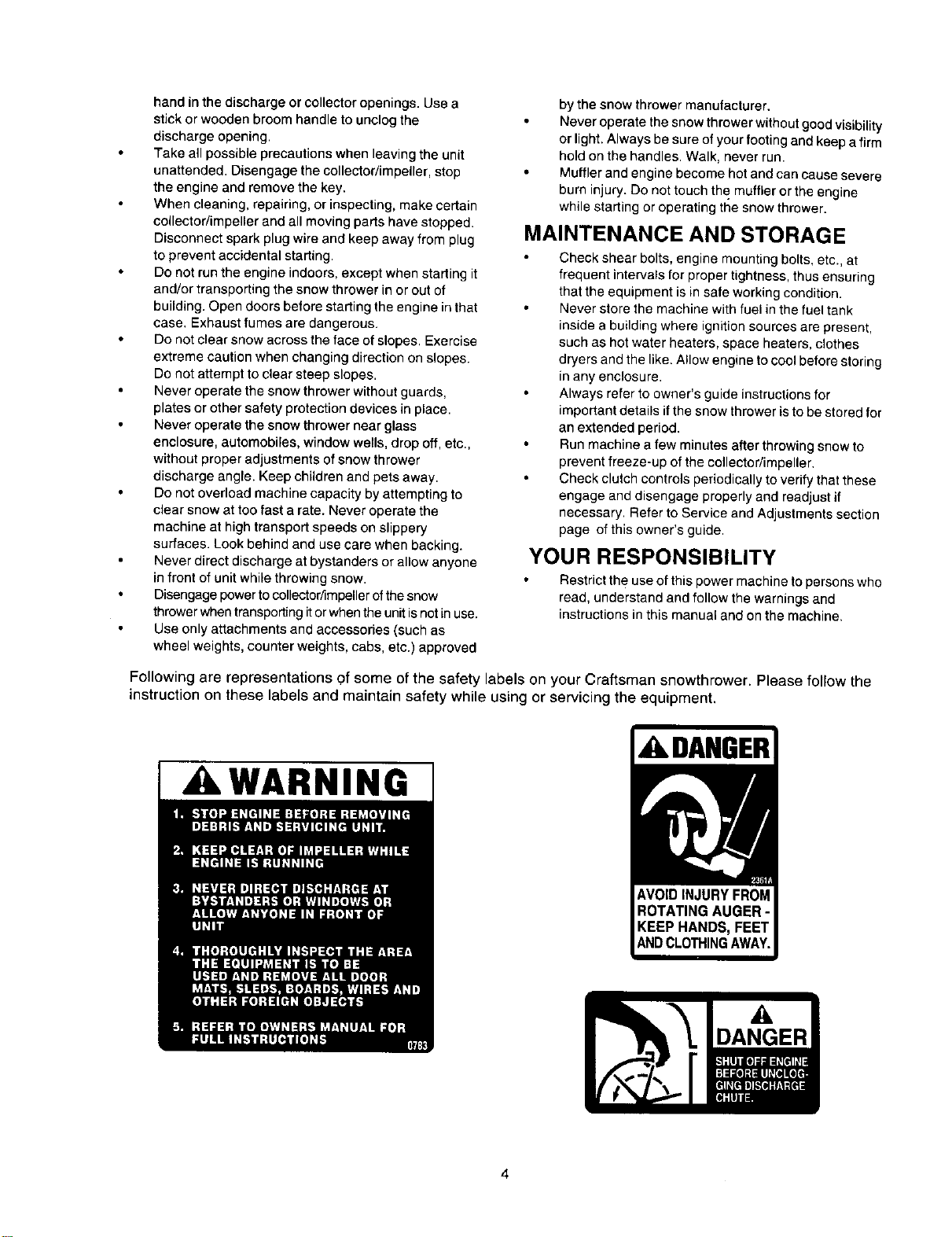

Fo ow ng are representations of some of the safety labels on your Craftsman snowthrower. Please follow the
instruction on these labels and maintain safety while using or servicing the equipment.
[ kWARNING ]
,a kDANGER
DANGER
4

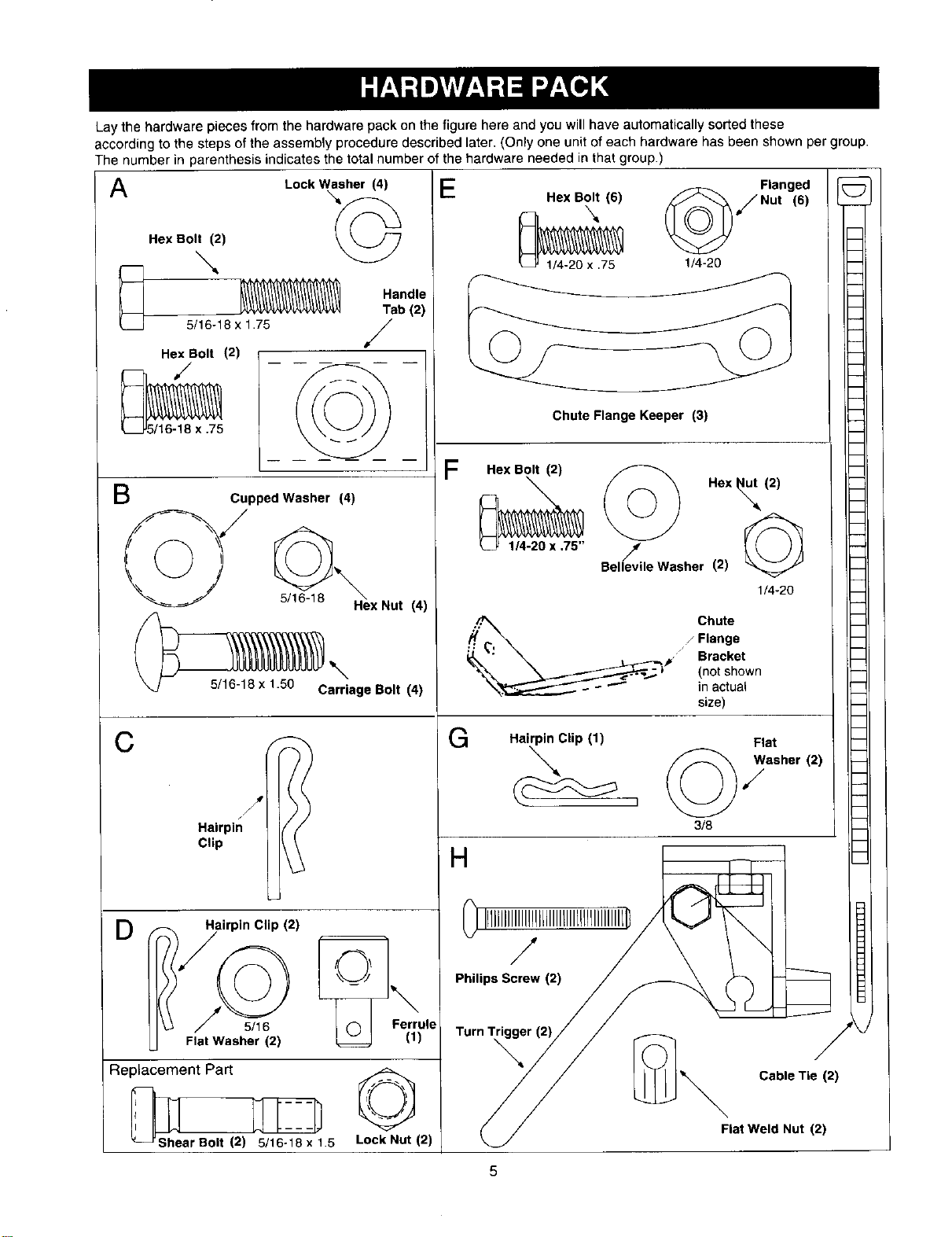

Lay the hardware pieces from the hardware pack on the figure here and you will have automatically sorted these
according to the steps of the assembly procedure described later. (Only one unit of each hardware has been shown per group.
The number in parenthesis indicates the total number of the hardware needed in that group.)
A Lock Washer (4)
HexBolt (2) / _ _
Hex Bolt (2)
Handle
Tab (2)
5/16-t8 x 1,75
B Cupped Washer (4)
C
5/16-18
Hex Nut (4)
_Carr_iage Bolt (4)
Hairpin
Clip
D _irpin Clip (2)
5/16 Ferrule
Flat Washer (2) (1)
Replacement_shePart _
ar Bolt (2) 5/16-18 x 1.5 Lock Nut (2)
--- _ Flanged
Chute Flange Keeper (3) _1
---- HexBo_ _-_ Hex _ (2) _!
Belle "e as e () _ _/
1/4-20 _l
_% / Clha_tge _l
{_'" _ " Bracket _1
\__ In°tc_h°lwn _!
____ s,ze) LHI
G Hairpin Clip (1) _ Flat 11--41
_-_ Washer (2) I_!
Philips Screw 12) _ !_l
Cable Tie (2)
Flat Weld Nut (2)
Chute /
Panel
IMPORTANT: This unit is shipped with engine oil, but
without gasoline, in the engine. After assembly, see
OPERATION section of this manual for fuel selection
and fill-up.
NOTE: To determine right and left hand sides of your
snow thrower, stand behind the unit with the engine
farthest away from you. See Figure I inset.
Your snow thrower has been completely assembled
at the factory, except the handle and the handle
panel, the discharge chute assembly, the chute crank
assembly and the shift rod. These parts are shipped
loose in the carton.

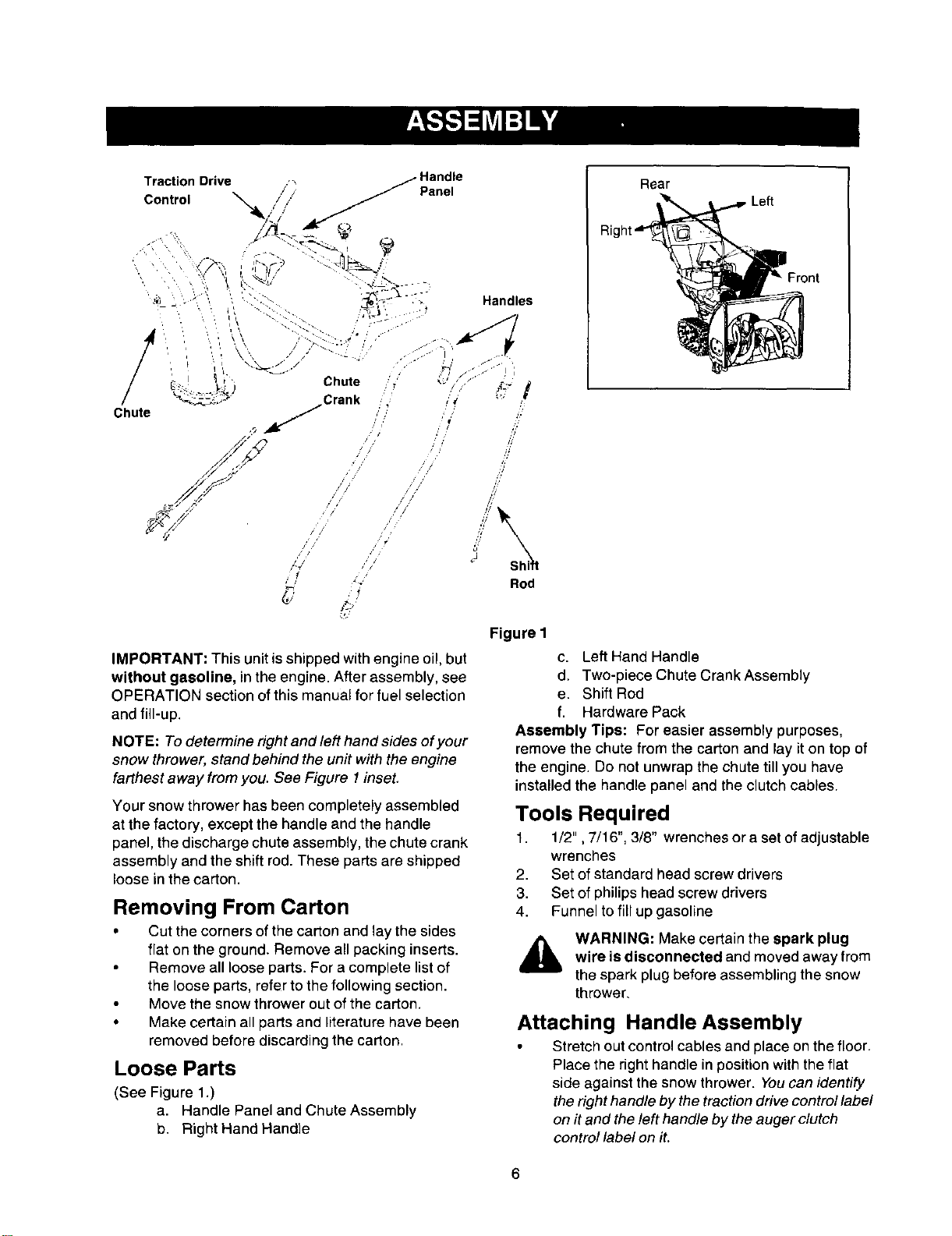

Removing From Carton
• Cut the corners of the carton and laythe sides
flat on the ground. Remove all packing inserts.
Remove all loose parts. For a complete list of
the loose parts, refer to the following section.
Move the snow thrower out of the carton.
• Make certain all parts and literature have been
removed before discarding the carton.
Loose Parts
(See Figure 1.)
a. Handle Panel and Chute Assembly
b. Right Hand Handle
Rear
Left
Rod
Figure I
c. Left Hand Handle
d. Two-piece Chute Crank Assembly
e. Shift Rod
f. Hardware Pack
Assembly Tips: For easier assembly purposes,
remove the chute from the carton and lay iton top of
the engine. Do not unwrap the chute tillyou have
installed the handle panel and the clutchcables.
Tools Required
1. 1/2", 7/16", 3/8" wrenches or a set ofadjustable
wrenches
2. Set of standard head screw drivers
3. Set of philips head screw drivers
4. Funnelto fill up gasoline
A
WARNING: Make certain the spark plug
wire is disconnected and moved away from
the spark plug before assemblingthe snow
thrower.

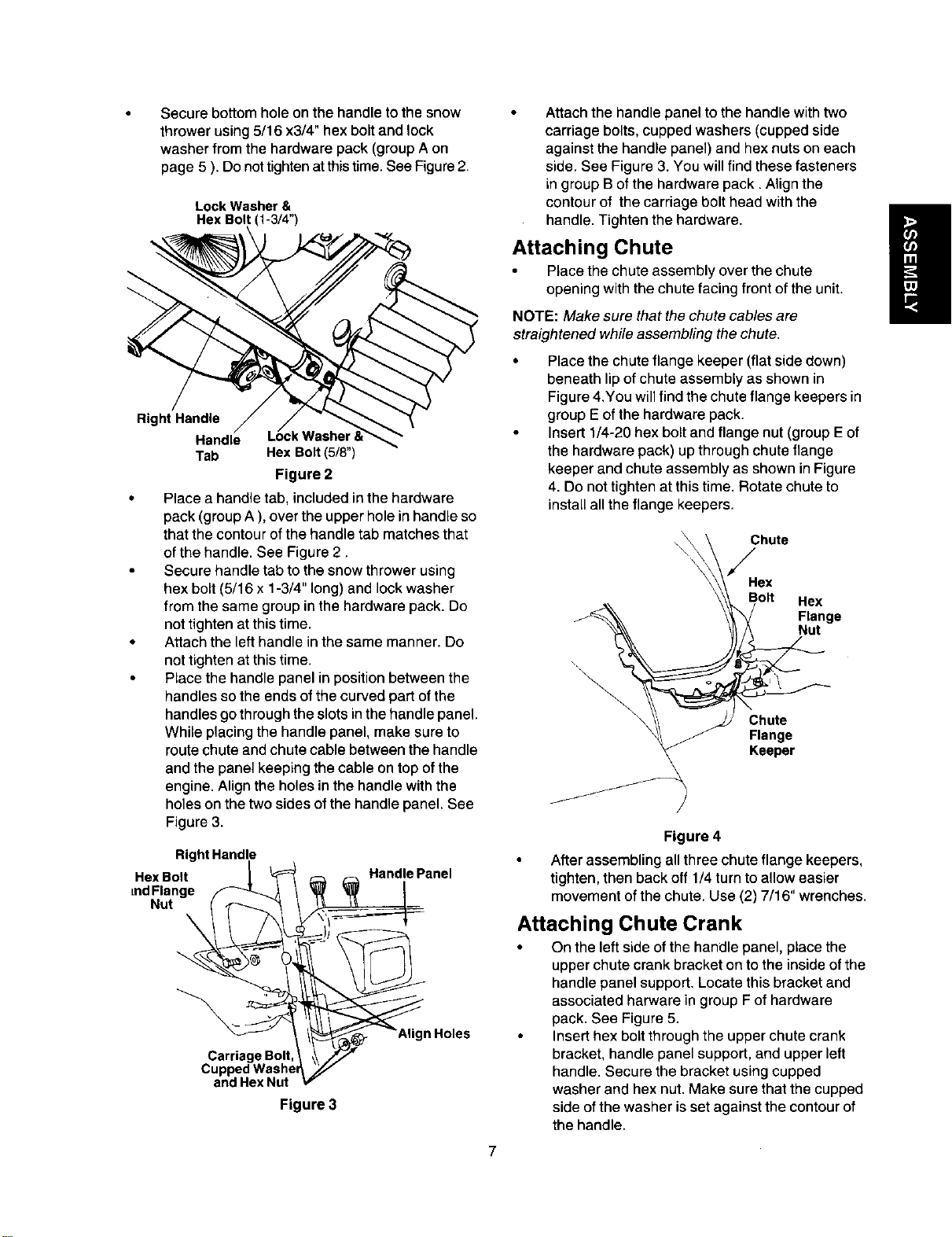

Attaching Handle Assembly
Stretch out control cables and place on the floor.
Place the right handle in position with the flat
side against the snow thrower. Youcan identify
the right handle by the traction drive control label
on it and the left handle by the auger clutch
control label on it.
Secure bottom hole on the handle to the snow
thrower using 5/16 x3/4" hex bolt and lock
washer from the hardware pack (group A on
page 5 ). Do nottightenat thistime. See Figure2.
Lock Washer &
Hex Bolt (1-3/4")
Right Handle
Handle
Tab Hex Bolt (5/8")
Figure 2
Place a handle tab, included in the hardware
pack (group A ), over the upper hole in handle so
that the contour of the handle tab matches that
of the handle. See Figure 2.
Secure handle tab to the snow thrower using
hex bolt (5/16 x 1-3/4" long) and lock washer
from the same group in the hardware pack. Do
not tighten at this time.
Attach the left handle in the same manner. Do
not tighten at this time.
Place the handle panel in position between the
handles so the ends of the curved part of the
handles go through the slots in the handle panel.
While placing the handle panel, make sure to
route chute and chute cable between the handle
and the panel keeping the cable on top of the
engine. Align the holes in the handle with the
holes on the two sides of the handle panel. See
Figure 3.
Right Handle
Hex Bolt
[ndFlange
Nut
Carriage Bolt,
and Hex Nut
Figure 3
1 Holes
Attachthe handle panel to the handle with two
carriage bolts, cupped washers (cupped side
against the handle panel) and hex nuts on each
side. See Figure 3. You will find these fasteners
ingroup B of the hardware pack. Align the
contour of the carriage bolt head with the
handle. Tighten the hardware.
Attaching Chute
Place the chute assembly over the chute
opening with the chute facing front of the unit.
NOTE: Make sure that the chute cables are
straightened while assembling the chute.
Place the chute flange keeper (flat side down)
beneath lip of chute assembly as shown in
Figure 4.You will find the chute flange keepers in
group E of the hardware pack.
Insert 1/4-20 hex bolt and flange nut (group E of
the hardware pack) up through chute flange
keeper and chute assembly as shown in Figure
4. Do not tighten at this time. Rotate chute to
install all the flange keepers.
Chute
/
Hex
Bolt Hex
CKIheaU_g:r
Figure 4
After assembling all three chute flange keepers,
tighten, then back off 1/4 turn to allow easier
movement ofthe chute. Use (2) 7/16" wrenches.
Attaching Chute Crank
• On the left side of the handle panel, place the
upper chute crank bracket on to the inside of the
handle panel support. Locate this bracket and
associated harware in group F of hardware
pack. See Figure 5.
Insert hex bolt through the upper chute crank
bracket, handle panel support, and upper left
handle. Secure the bracket using cupped
washer and hex nut. Make sure that the cupped
side ofthe washer is set against the contour of
the handle.
7
/
I
I
J
_ook
underthisfor i
HandlePanelJ
/ ,, Support
J
i
ChuteCrank
Bracket
Figure 5
You may have to loosen the carriage bolts and
hex lock nuts whichsecure the lower chute
crank bracket to the extension on the left side of
the chute assembly. See Figure 6.
Lower Chute Carriage Bolt,
Hex Lock Nut
Crank Bracket
Figure 6
• Place one 3/8 ID flat washer (from group G of
the hardware pack) on the end of the chute
crank, then insert the end of the crank into the
eye hole in the plastic bushing in the chute crank
bracket. See Figure 7.
[ Cotter Pin Flat Washer
Chute Crank
Flat Washer
LowerChute/,r
CrankBracket/ astic Bushing
L
Figure 7
Place the other 3/8 ID flat washer (from the
same group of hardware) on the end of the
chute crank and insert hairpin clip into eye hole
at the end of the chute crank. See Figure 7.
Slide the upper chute crank through the plastic
bushing in the upper chute crank bracket and
then into the lower chute crank. See Figure 8.
Align the holes on the two pieces of the chute
crank, and secure with hairpin clip from group C
of the hardware pack.
Adjust the chute bracket so that the spiral on the
chute crank fully engages the teeth on the chute
assembly.
Using a wrench, tighten the hex bolt and the hex
nut on the upper chute crank bracket.
Fully rotate the chute, using the chute crank, to
make sure that it moves freely. Tighten the nuts
on the lower chute crank bracket securely.
Tilt - Upper
_ Chute
Chute , ,_; ::_ Crank
Cables
- )_;- \ Bracket
f_
,Upper
.FJ Chute
\ Crank
Lower Chute
Crank
Figure 8
Slip the cables that run from the handle panel to
the chute into the cable guide located on top of
the engine. See Figure 9.
Cable Guide
Figure 9
Tighten all loose hardware on the handle
assembly in the following order -- first the hex
bolts at the bottom of the handle, then the
carriage bolts and lastly the hex bolts on the rear
of the handle panel.

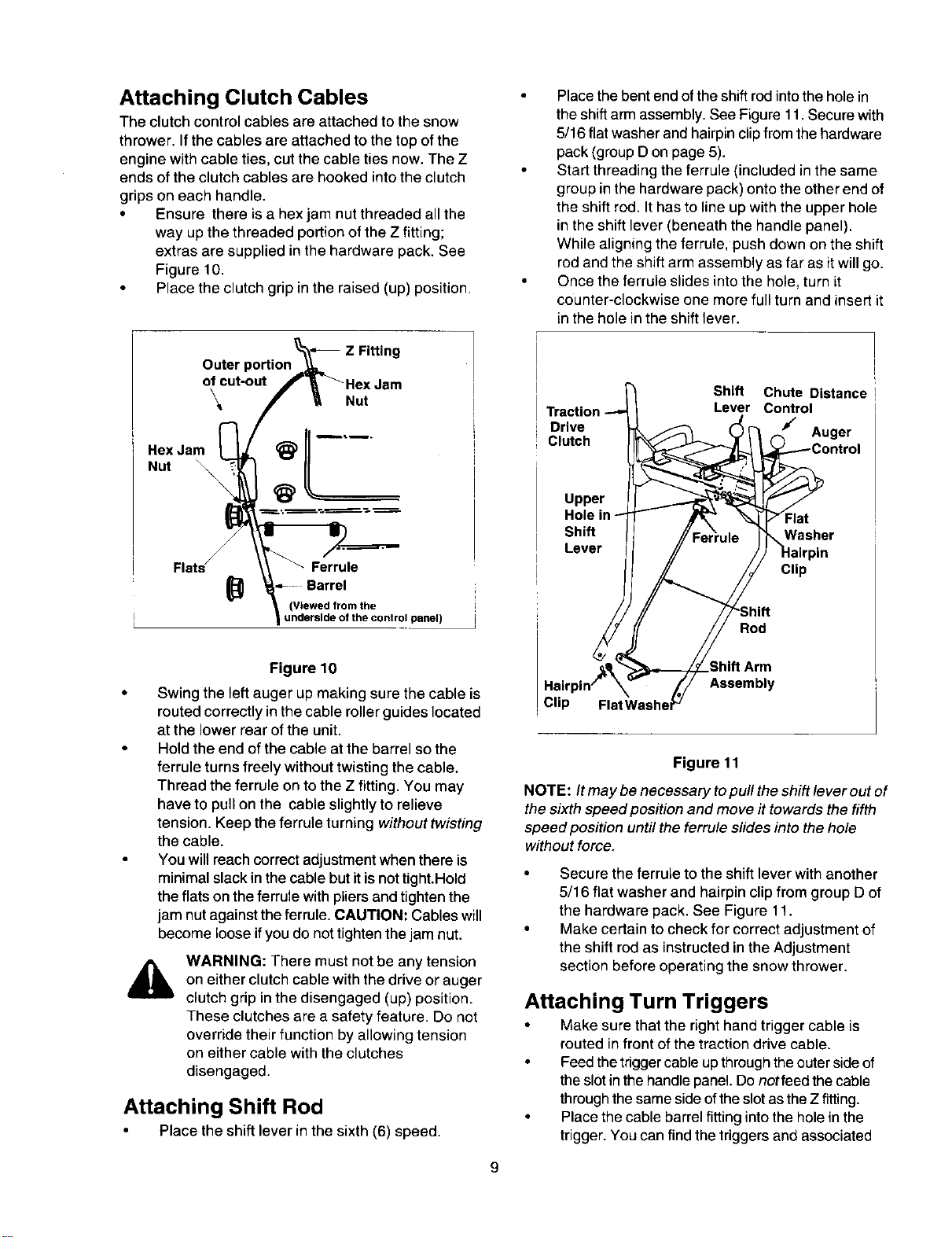

Attaching Clutch Cables
The clutch control cables are attached to the snow
thrower. Ifthe cables are attached to the top of the
engine with cable ties, cut the cable ties now. The Z
ends of the clutch cables are hooked into the clutch
grips on each handle.
• Ensure there is a hex jam nut threaded all the
way up the threaded portion of the Z fitting;
extras are supplied in the hardware pack. See
Figure 10.
• Place the clutch grip in the raised (up) position.
Z Fitting
Outer portion
of cut-out
Nut
Hex Jam
Nut
\
Ferrule
(Viewed from the
underside of the control panel)
A
Figure 10
Swing the left auger up making sure the cable is
routed correctly in the cable roller guides located
at the lower rear of the unit.
Hold the end of the cable at the barrel so the
ferrule turns freely without twisting the cable.
Thread the ferrule on to the Z fitting. You may
have to pull on the cable slightly to relieve
tension. Keep the ferrule turning without twisting
the cable.
You will reach correct adjustment when there is
minimal slack in the cable but itis not tight.Hold
the flats on the ferrule with pliers and tighten the
jam nut against the ferrule. CAUTION: Cables will
become loose ifyou do not tighten the jam nut.
WARNING: There must not be any tension
on either clutch cable with the drive or auger
clutch grip in the disengaged (up) position.
These clutches are a safety feature. Do not
override their function by allowing tension
on either cable with the clutches
disengaged.
Attaching Shift Rod
• Place the shift lever in the sixth (6) speed.
Place thebent end of the shift rod into the hole in
the shift arm assembly. See Figure 11.Secure with
5/16 flat washer and hairpin clip from the hardware
pack (group D on page 5).
Start threading the ferrule (included in the same
group in the hardware pack) onto the other end of
the shift rod. It has to line up with the upper hole
in the shift lever (beneath the handle panel).
While aligning the ferrule, push down on the shift
rod and the shift arm assembly as far as it will go.
Once the ferrule slides into the hole, turn it
counter-clockwise one more full turn and insert it
in the hole in the shift lever.
Shift Chute Distance
Lever Control
Drive Auger
Clutch
Upper
Shift
Lever
Washer
Clip
Rod
Clip
Assembly
Figure 11
NOTE: Itmay be necessary to pull the shift lever out of
the sixth speed position and move it towards the fifth
speed position until the ferrule slides into the hole
without force.
• Secure the ferrule to the shift lever with another
5/16 flat washer and hairpin clip from group D of
the hardware pack. See Figure 11.
• Make certain to check for correct adjustment of
the shift rod as instructed in the Adjustment
section before operating the snow thrower.

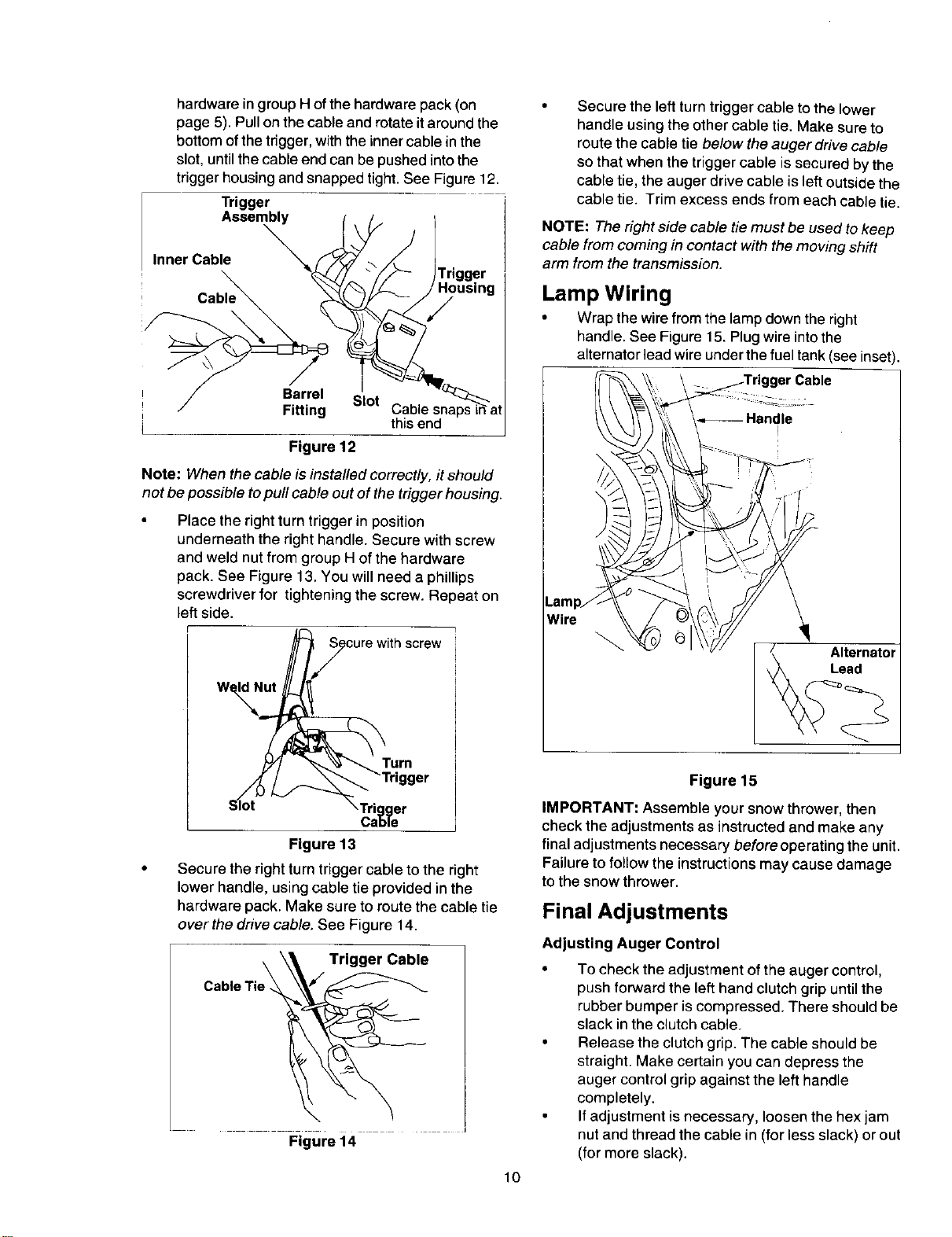

Attaching Turn Triggers
• Make sure that the right hand trigger cable is
routed in front of the traction drive cable.
Feed the trigger cable up through the outer side of
the slot in the handle panel. Do notfeed the cable
through the same sideof the slotas theZ fitting.
• Place the cable barrel fitting intothe hole in the
trigger. You can find the triggers and associated
hardwareingroupHofthehardwarepack(on
page5).Pullonthecableandrotateitaroundthe
bottomofthetrigger,withtheinnercableinthe
slot,untilthecableendcanbepushedintothe
triggerhousingandsnappedtight.SeeFigure12.
Trigger
Assembly
Inner Cable
Trigger
Housing
Barrel Slot
Fitting
this end
Figure 12
Note: When the cable is installed correctly, it should
not be possible topull cable out of the trigger housing.
Place the right turn trigger in position
underneath the right handle. Secure with screw
and weld nut from group H of the hardware
pack. See Figure 13. You will need a phillips
screwdriver for tightening the screw. Repeat on
left side.
Turn
S_ot rrigger
Cable
Figure 13
Secure the right turntriggercable to the right
lowerhandle, usingcable tie provided inthe
hardware pack. Make sure to route the cable tie
over the drivecable. See Figure 14.
Trigger Cable
Figure 14
10
Secure the left turn trigger cable to the lower
handle using the other cable tie. Make sure to
route the cable tie below the auger drive cable
so that when the trigger cable is secured by the
cable tie, the auger drive cable is left outsidethe
cable tie. Trim excess ends from each cable tie.
NOTE: The right side cable tie must be used to keep
cable from coming in contact with the moving shift
arm from the transmission.
Lamp Wiring
• Wrap the wire from the lamp down the right
handle. See Figure 15. Plug wire into the
alternator lead wire under the fuel tank (see inset).
_ Trlgger.C+able
aandle
_irm://_ _ :_t_/_ nator
Figure 15
IMPORTANT: Assemble your snow thrower,then
check the adjustments as instructed and make any
final adjustments necessary before operatingthe unit.
Failureto foltowthe instructionsmay cause damage
tothe snow thrower.
Final Adjustments
Adjusting Auger Control
To check the adjustment of the auger control,
push forward the left hand clutch grip until the
rubber bumper is compressed. There should be
slack in the clutch cable.
Release the clutch grip. The cable should be
straight. Make certain you can depress the
auger control grip against the left handle
completely.
If adjustment is necessary, loosen the hex jam
nut and thread the cable in (for less slack) or out
(for more slack).
Rechecktheadjustment.Tightenthejamnut
againstthecablewhencorrectadjustmentis
reached.
Adjusting Traction Drive Control
• To check the adjustment of the traction drive
controland shift lever, move the weighttransfer
lever to thetransportposition (shownin on ) and
the shift lever all the way forward to sixth (6)
position.
With the traction drive controlreleased, pullthe
triggersup tothe handle and then push the snow
thrower forward to check that the tracksturn.
• Squeeze tractiondrive controlagainstthe handle
and pullthe starter.The tracksshouldturn.
• Now release the traction drive control and pull
the starter again. The unit should not move.
Before proceeding with adjustment, check to
make sure that the spark plug is
disconnected.
• If the traction drive control needs adjustment,
loosen the jam nut on the traction drive cable
and thread the cable one turn. Recheck
adjustment and repeat as necessary.
• Tighten the jam nut to secure the cable when
correct adjustment is reached.
NOTE: Cables are out of adjustment if augers
continue to tum when auger clutch is released and/or
machine continues to run when drive clutch is
released. For more details, refer to the Service and
Adjustment section.
Adjusting Skid Shoe
The space between the shave plate and the ground
can be changed by adjusting the skid shoe.
• Return weight transfer lever to normal position
before adjusting skid shoes.
• For close snow removal, adjust skid shoes
higher to minimize gap between the shave plate
and the ground.
• For snow removal from uneven ground like
gravel, adjust skid shoes downward to create
sufficient clearance between the bottom edge of
shave plate and the ground. See Figure 16.
• Adjust the skid shoes by loosening the four hex
nuts and carriage bolts and moving skid shoes to
desired position. Make certain the entire bottom
surface of skid shoe is against the ground to
avoid uneven wear on the skid shoes. See
Figure 16.
• Retighten nuts and bolts securely.
Skid
•Hex Nut
Carriage Bo t
Figure 16
11

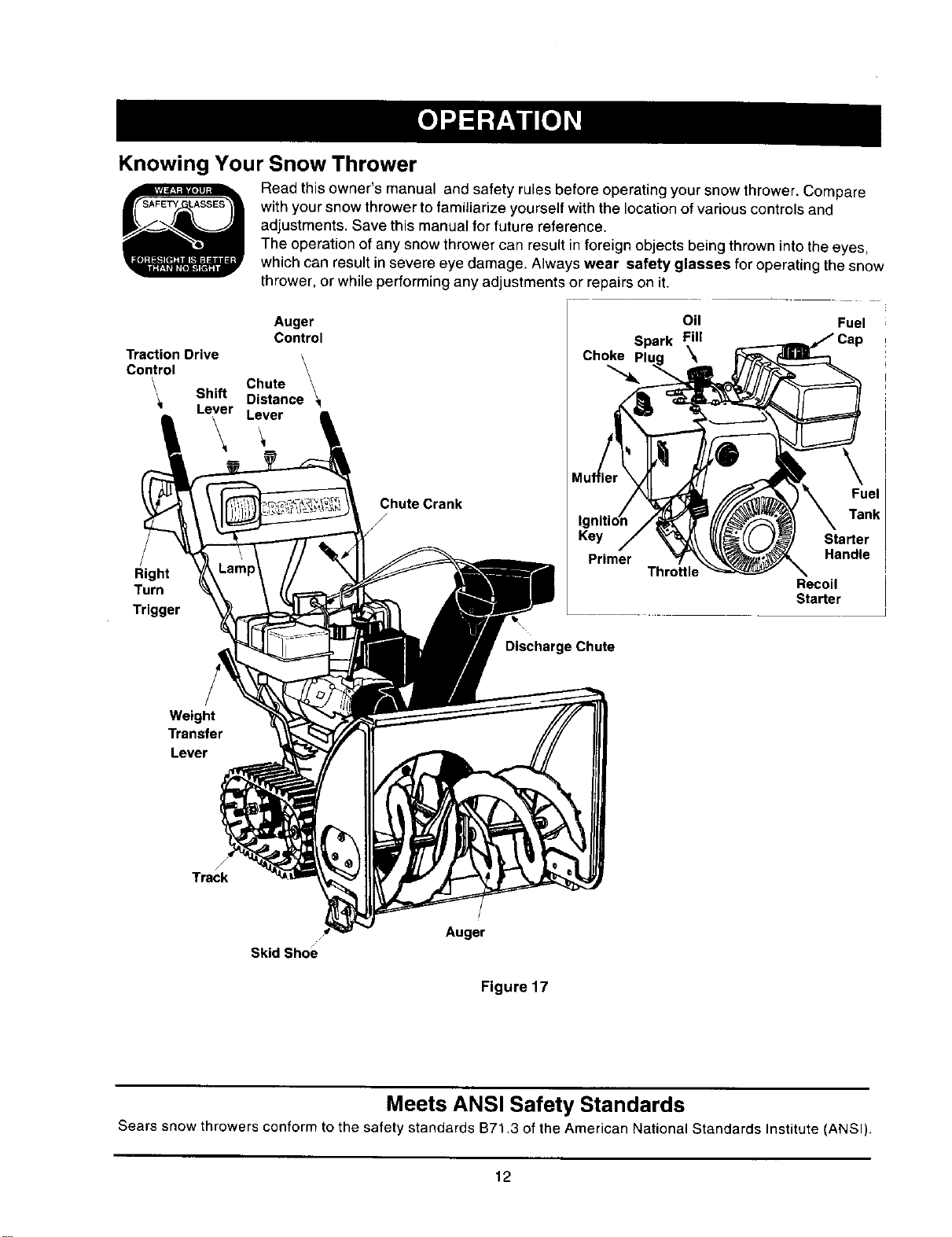

Knowing Your Snow Thrower
Read this owner's manual and safety rules before operating your snow thrower. Compare
with your snow thrower to familiarize yourself with the location of various controls and
adjustments. Save this manual for future reference.
The operation of any snow thrower can result in foreign objects being thrown into the eyes,
which can result in severe eye damage. Always wear safety glasses for operating the snow
thrower, or while performing any adjustments or repairs on it.
Auger
Control
Traction Drive
Control \
Chute \
Shift Distance _
Lever Lever
Oil
Spark Fill
Choke
Fuel
Right
Turn
Trigger
ChuteCrank
DischargeChute
Throttle
Fuel I
Tank
Sta_er
Handle
Recoil
Sta_er
Weight
Transfer
Lever
Track
Skid Shoe
/
Auger
Figure 17
Meets ANSI Safety Standards
Sears snow throwers conform to the safety standards B71.3 of the American National Standards Institute (ANSI).
12
Operating Controls
(See Figure 17.)
Chute Crank
The chute crank is located on the left hand side of the
snow thrower. To change the direction in which snow
is thrown, turn chute crank as follows:
turn clockwise to discharge to the left;
turn counterclockwise to discharge to the right.
Throttle Control
The throttle control is located on the engine. It
regulates the speed of the engine.
Safety Ignition Switch
The ignition key must be inserted into the switch for
the unit to start. Remove the ignition key when the
snow thrower is not in use.
Left And Right Turn Trigger
The leftand right turn triggers are located on the
underside of the handles and are used to assist in
steering your snow thrower. Squeeze the right turn
trigger when turning right, squeeze the left turn trigger
when turning left. Operate your snow thrower in open
areas until you become familiar with these controls.
Shift Lever
The shift lever islocated in the center of the handle
panel. It may be moved into one of eight positions:
a. Forward--one ofsix speeds; positionone (1)
isthe slowest and position six (6) isthe
fastest.
b. Reverse--two reverse (R) speeds; R2 is
faster.
Use the shift lever to determine ground speed. Do not
shift to different speed while the unit is moving.
Auger Control
The auger controlis locatedon the lefthandle.
Squeeze the auger controlagainst the handle to
engage theaugers;release todisengage the augers.
(Tractiondrive controlmust also be released.)
Traction Drive Control
The traction drive control is located on the right
handle. Squeeze the traction drive control to engage
the track drive; release to stop.
This same lever also locks the auger control so
thatyou can turn the chutecrank without interrupting
the snow throwingprocess. Ifthe auger control is
engaged withthetractiondrive controlengaged, you
can release the auger control(onthe lefthandle) and
the augerswillremain engaged. Release the traction
drive controltostop both the augers and thetrack
drive. (Auger controlmust also be released).
Chute Distance Control
The distance that snow is thrown can be adjusted by
adjusting the angle of the chute assembly. Move the
chute distance control forward to decrease the
distance, toward the rear to increase the distance.
Weight Transfer Lever
The weight transferlever islocated on the right side of
the snow thrower and is used to select the position of
the housing and the method of track operation. See
Figure 18. Move the lever to the right, then forward or
backward to one of the three positions.
Normal
Snow
Position
iPacked
p%nOtiWon ._ans portPosition
Figure 18
a. Transport_Raises the front end ofthe
snow throwerforeasy transport. Using
proper caution, this position may also be
used on many gravel driveways to clear
snow while leavinggravel undisturbed.
b. Normal Snow--Allows the tracks to be
suspended independently for continuous
ground contact.
c. Packed Snovv--Locks the front end of the
snow thrower down to the ground for hard-
packed or icy snow conditions.
To Stop The Snow Thrower
To stop the track, release the traction drive lever
of the snow thrower.
To stop throwingsnow, releas_the auger drive
leverandthe drive lever ifengaged.
To stop the engine, push the throttle control
lever to OFF and pull out the ignition key. Do not
turn key.
13

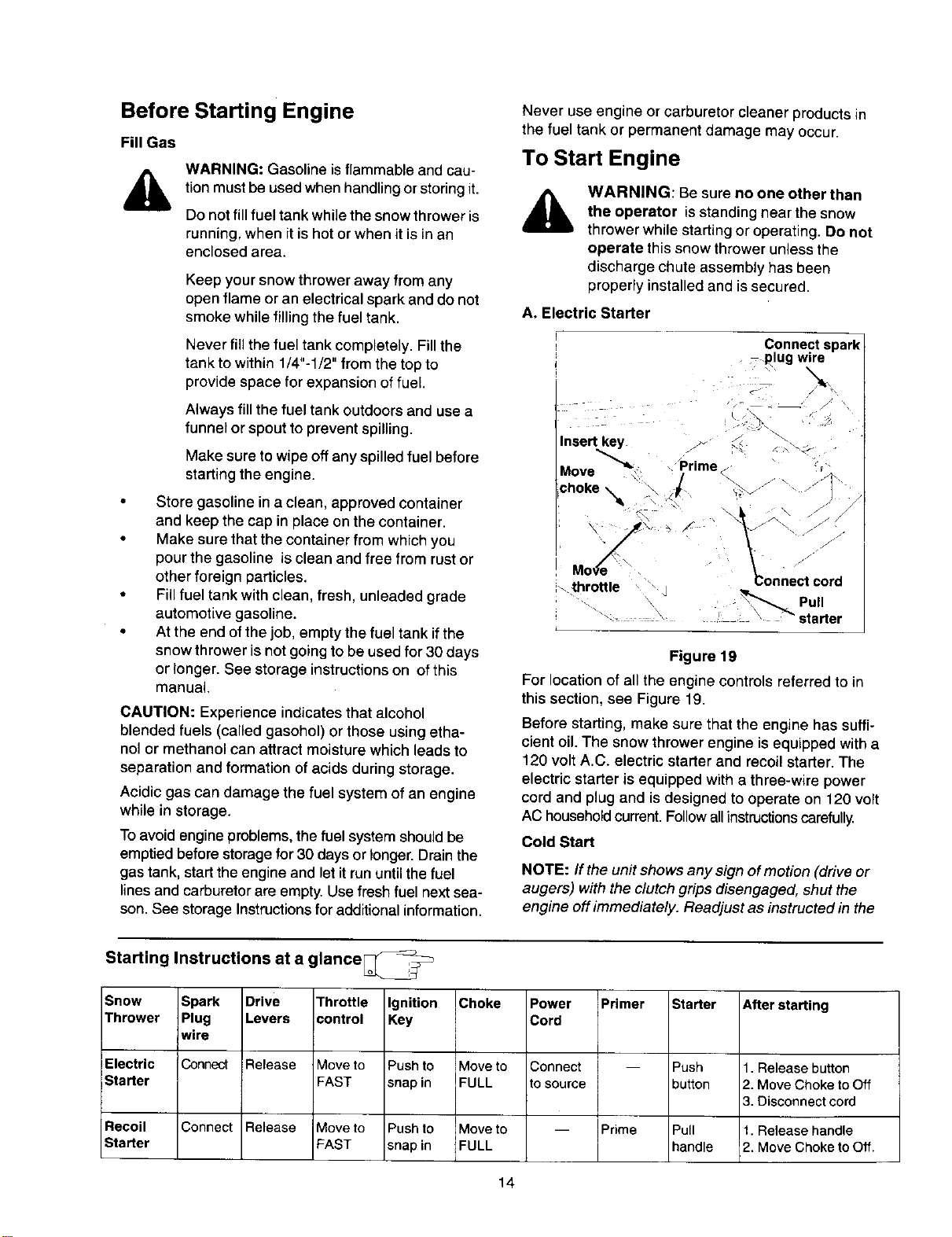

Before Starting Engine
Fill Gas
WARNING: Gasoline is flammable and cau-
tionmustbe used when handling or storing it.
Do not fillfuel tank while the snow thrower is
running, when it ishot or when itis inan
enclosed area.
Keep your snow thrower away from any
open flame or an electrical spark and do not
smoke while fillingthe fuel tank.
Never fill the fuel tank completely. Fill the
tank to within 1/4"-1/2" from the top to
provide space for expansion of fuel.
Always fill the fuel tank outdoors and use a
funnel or spout to prevent spilling.
Make sure to wipe off any spilled fuel before
starting the engine.
• Store gasoline in a clean, approved container
and keep the cap in place on the container.
• Make sure that the container from which you
pour the gasoline is clean and free from rust or
other foreign particles.
• Fill fuel tank with clean, fresh, unleaded grade
automotive gasoline.
• At the end of the job, empty the fuel tank if the
snow thrower is not going to be used for 30 days
or longer. See storage instructions on of this
manual.
CAUTION: Experience indicates that alcohol
blended fuels (called gasohol) or those using etha-
nol or methanol can attract moisture which leads to
separation and formation of acids during storage.
Acidic gas can damage the fuel system of an engine
while in storage.
Toavoid engine problems, the fuel system should be
emptied before storage for 30 days or longer. Drain the
gas tank, start the engine and let it run until the fuel
lines and carburetor are empty. Use fresh fuel next sea-
son. See storage Instructions for additional information.
Never use engine or carburetor cleaner products in
the fuel tank or permanent damage may occur.
To Start Engine
A
WARNING: Be sure no one other than
the operator is standing near the snow
thrower while starting or operating. Do not
operate this snow thrower unless the
discharge chute assembly has been
properly installed and is secured.
A, Electric Starter
throttle
_'_ Pull
- starter
Figure 19
For location of all the engine controls referred to in
this section, see Figure 19.
Before starting, make sure that the engine has suffi-
cient oil. The snow thrower engine is equipped with a
120 volt A.C. electric starter and recoil starter. The
electric starter is equipped with a three-wire power
cord and plug and is designed to operate on 120 volt
AC householdcurrent. Follow all instructionscarefully
Cold Start
NOTE: If the unit shows any sign ofmotion (drive or
augers) with the clutch grips disengaged, shut the
engine off immediately. Readjust as instructed in the
Starting Instructions at a glance_
Snow Spark Drive Throttle Ignition Choke Power Primer Starter After starting
Thrower Plug Levers control Key Cord
wire
Electric Connect Release Move to Push to Move to Connect -- Push 1. Release button
Starter FAST snap in FULL to source button 2. Move Choke to Off
3. Disconnect cord
Recoil Connect Release Move to Push to Move to -- Prime Pull 1. Release handle
Starter FAST snap in FULL handle 2. Move Choke to Off,
14
"FinalAdjustments" section of the Assembly
Instructions.
WARNING: The electric starter must be properly
grounded at all times to avoid the possibility of elec-
tric shock which may be injurious to the operator.
• Determine whether your house wiring is a three-
wire grounded system. Ask a licensed
electrician if you are not certain.
,_ WARNING: If your house wiring system is
not a three-wire grounded system, do not use
this electric starter under any conditions.
If your house wiring system is grounded and a
three-hole receptacle is not available at the point
the snow thrower starter will normally be used,
one should be installed by a licensed electrician.
When connecting the power cord, always
connect cord to starter on engine first, then plug
the other end into a three-hole grounded
receptacle.
• When disconnecting the power cord, always
unplug the end from the three-hole, grounded
receptacle first.
• Attach spark plug wire to spark plug.
Make sure that the auger drive and the traction
drive levers are in the disengaged RELEASED
position.
• Move throttle control lever to FAST position.
• Remove the keys from the plastic bag. Push key
into the ignition slot. Make sure it snaps into
place. Do not turn key. Keep the second key in a
safe place.
• Rotate the choke knob to FULL choke position.
• Connect the power cord to the switch box on the
engine.
• Plug the other end of the power cord into a
three-hole, grounded 120 volt A.C. receptacle.
,_. WARNING: Do not use primerwhile
starting the engine with an electric starter.
Push down on the starter button until the engine
starts. Do not crank for more than 10 seconds at
a time. This electric starter is thermally
protected. If overheated, it will stop
automatically and can be restarted only when it
has cooled to a safe temperature (a wait of
about 5 to 10 minutes is required).
When the engine starts, release the starter
button and slowly rotate the choke to OFF

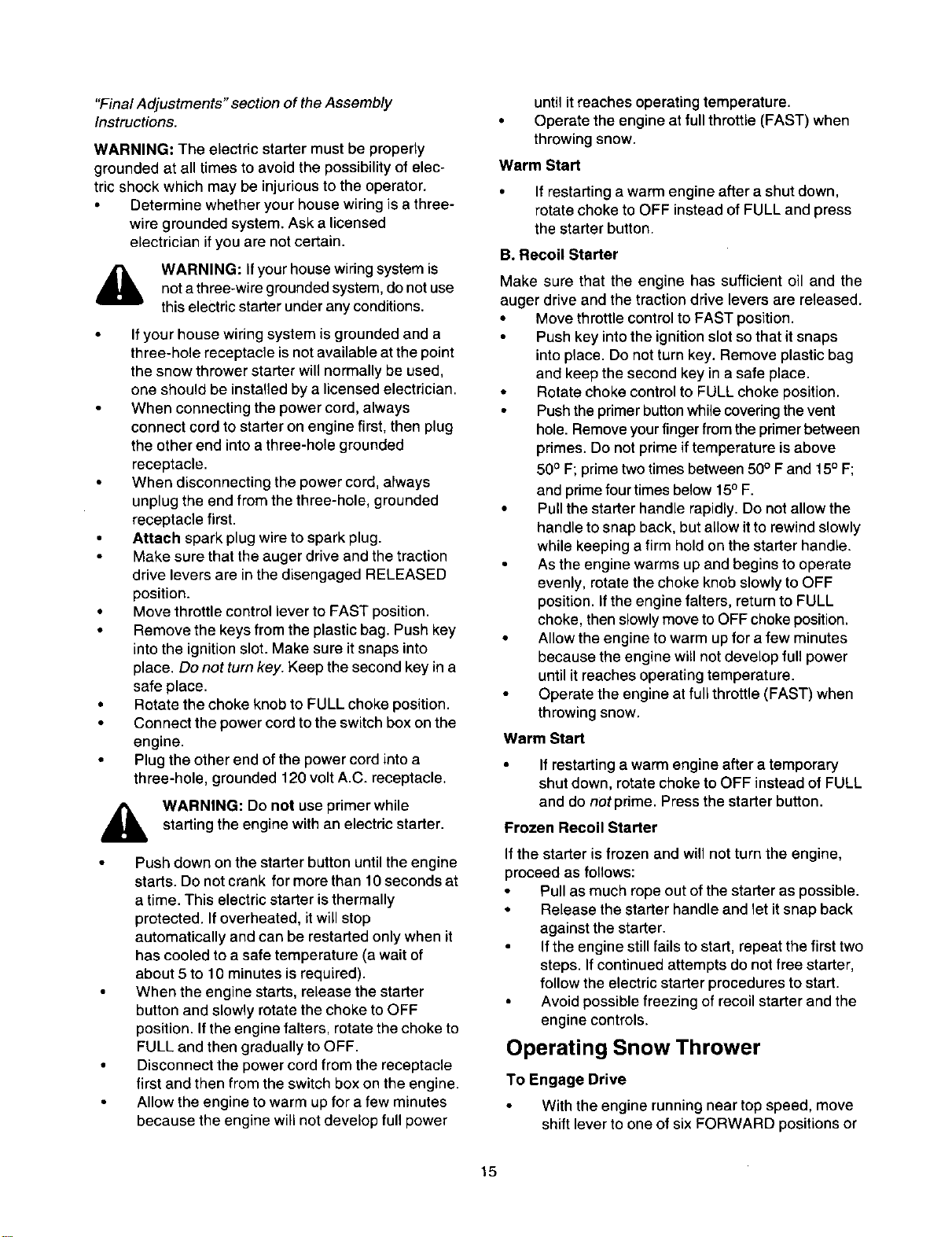

position. Ifthe engine falters, rotate the choke to
FULL and then gradually to OFF.
Disconnect the power cord from the receptacle
first and then from the switch box on the engine.
Allow the engine to warm up for a few minutes
because the engine will not develop full power
until it reaches operating temperature.
• Operate the engine at full throttle (FAST) when
throwing snow.
Warm Start
If restarting a warm engine after a shut down,
rotate choke to OFF instead of FULL and press
the starter button.
B. Recoil Starter
Make sure that the engine has sufficient oil and the
auger drive and the traction drive levers are released.
• Move throttle control to FAST position.
Push key into the ignition slot so that it snaps
into place. Do not turn key. Remove plastic bag
and keep the second key in a safe place.
• Rotate choke control to FULL choke position.
• Push the primer button while covering the vent
hole. Remove your finger from the primer between
primes. Do not prime iftemperature is above
50oF; prime two times between 50o F and 15° F;
and prime four times below 15oF.
• Pull the starter handle rapidly. Do not allow the
handle to snap back, but allow it to rewind slowly
while keeping a firm hold on the starter handle.
As the engine warms up and begins to operate
evenly, rotate the choke knob slowly to OFF
position. If the engine falters, return to FULL
choke, then slowly move to OFF choke position.
• Allow the engine to warm up for a few minutes
because the engine will not develop full power
until it reaches operating temperature.
• Operate the engine at full throttle (FAST) when
throwing snow.
Warm Start
If restarting a warm engine after a temporary
shut down, rotate choke to OFF instead of FULL
and do not prime. Press the starter button.
Frozen Recoil Starter
If the starter is frozen and will not turn the engine,
proceed as follows:
Pull as much rope out of the starter as possible.
• Release the starter handle and let itsnap back
against the starter.
If the engine still fails to start, repeat the first two
steps. If continued attempts do not free starter,
follow the electric starter procedures to start.
Avoid possible freezing of recoil starter and the
engine controls.
Operating Snow Thrower
To Engage Drive
• With the engine runningnear top speed, move
shift lever to one of six FORWARD positions or
15

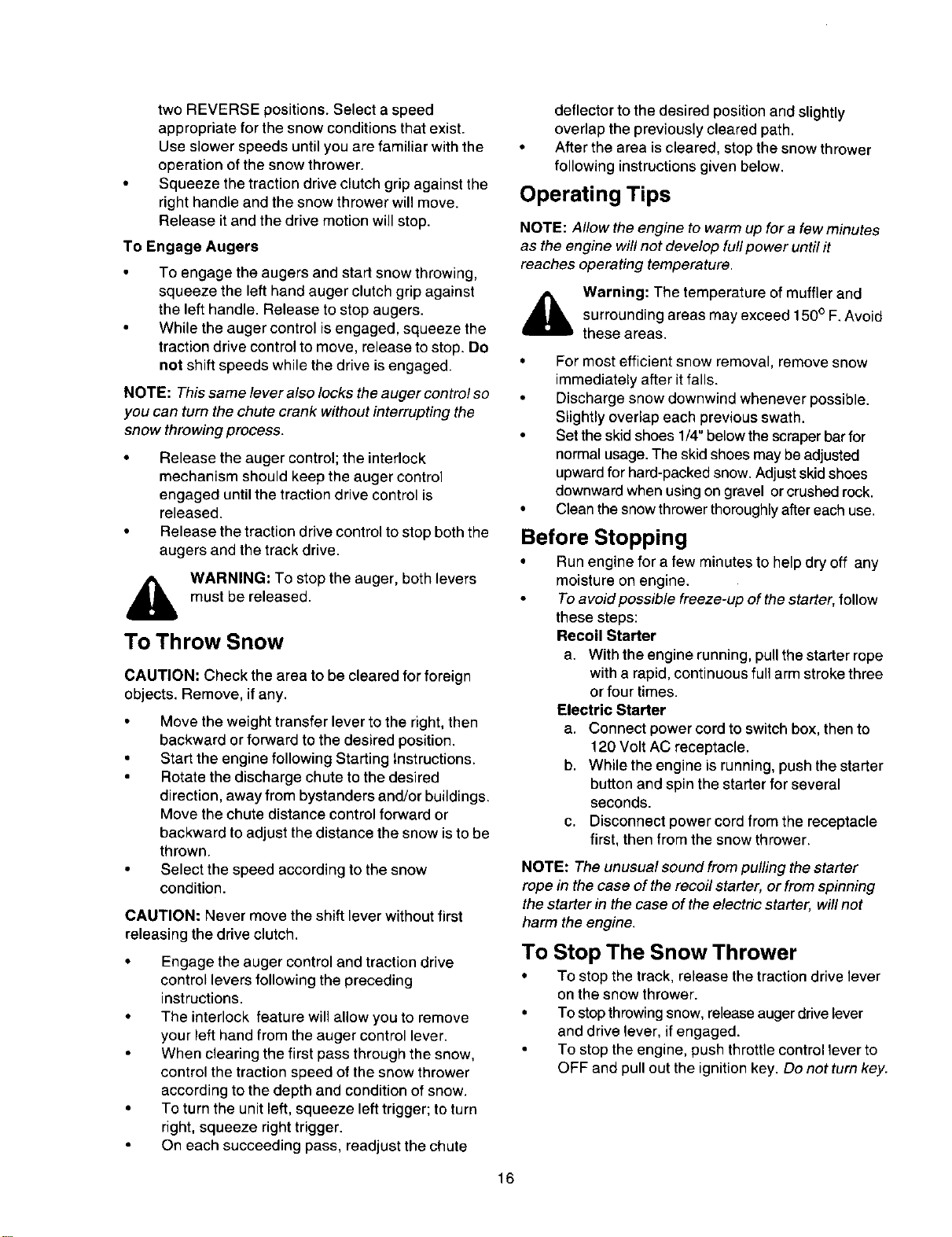

twoREVERSEpositions.Selectaspeed
appropriateforthesnowconditionsthatexist.
Useslowerspeedsuntilyouarefamiliarwiththe
operationofthesnowthrower.
• Squeezethetractiondriveclutchgripagainstthe
righthandleandthesnowthrowerwillmove.
Releaseitandthedrivemotionwillstop.
To Engage Augers
To engage the augers and start snow throwing,
squeeze the left hand auger clutch grip against
the left handle. Release to stop augers.
• While the auger control is engaged, squeeze the
traction drive control to move, release to stop. Do
not shift speeds while the drive is engaged.
NOTE: This same lever also locks the auger control so
you can turn the chute crank without interrupting the
snow throwing process.
• Release the auger control; the interlock
mechanism should keep the auger control
engaged until the traction drive control is
released.
• Release the traction drive control to stop both the
augers and the track drive.
,_ WARNING: To stopthe auger, both levers
must be released.
To Throw Snow
CAUTION: Check the area to be cleared for foreign
objects. Remove, ifany.
Move the weighttransfer lever to the right, then
backward orforward to the desired position.
• Start the engine following Starting Instructions.
• Rotate the discharge chute to the desired
direction, away from bystanders and/or buildings.
Move the chute distance control forward or
backward to adjust the distance the snow isto be
thrown.
• Select the speed according to the snow
condition.
CAUTION: Never move the shift lever without first
releasing the drive clutch.
• Engage the auger control and traction drive
control levers following the preceding
instructions.
• The interlock feature will allow you to remove
your left hand from the auger control lever.
When clearing the first pass through the snow,
control the traction speed of the snow thrower
according to the depth and condition of snow.
• To turn the unit left, squeeze left trigger; to turn
right, squeeze right trigger.
On each succeeding pass, readjust the chute
deflector to the desired position and slightly
overlap the previously cleared path.
After the area is cleared, stop the snow thrower
following instructions given below.
Operating Tips
NOTE: Allow the engine to warm up for a few minutes
as the engine will not develop full power until it
reaches operating temperature.
_ Warning: The temperature of mufflerand
surrounding areas may exceed 150° F.Avoid
these areas.
• For most efficient snow removal, remove snow
immediately after it falls.
• Discharge snow downwind whenever possible.
Slightly overlap each previous swath.
• Set the skid shoes 1/4" below the scraper bar for
normal usage. The skid shoes may be adjusted
upward for hard-packed snow. Adjust skid shoes
downward when using on gravel or crushed rock.
• Clean the snow thrower thoroughly after each use.
Before Stopping
• Run engine for a few minutes to help dry off any
moisture on engine.
• To avoidpossible freeze-up of the starter, follow
these steps:
Recoil Starter
a. Withthe engine running,pullthestarter rope
witha rapid,continuousfull arm strokethree
orfour times.
Electric Starter
a. Connect power cordto switchbox,then to
120 Volt AC receptacle.
b. While theengine is running,pushthe starter
button and spin the starter for several
seconds.
c. Disconnect power cord from the receptacle
first, then from the snow thrower.
NOTE: The unusual sound from pulling the starter
rope in the case of the recoil starter, or from spinning
the starter in the case of the electric starter, will not
harm the engine.
To Stop The Snow Thrower
• To stop the track, release the traction drive lever
on the snow thrower.
• To stop throwing snow, releaseauger drive lever
and drive lever, if engaged.
To stop the engine, push throttle control lever to
OFF and pull out the ignition key. Do not turn key.
16
General Recommendations
• Always observe safety rules when performing
any maintenance.
The warranty on this snow thrower does not •
cover items that have been subjected to
operator abuse or negligence. To receive full
value from the warranty, operator must maintain
A
the snow thrower as instructed in this manual. AL
• Some adjustments will have to be made
periodically to maintain your unit properly.
All adjustments in the Service and Adjustments
section of this manual should be checked at
least once each season.
Follow the maintenance schedule given below,
Periodically check all fasteners and make sure
these are tight.
WARNING: Alwaysstop the engine and
disconnect the spark plug wire before
performing any maintenance or
adjustments.
Customer Responsibilities
MAINTENANCE SCHEDULE
DATES*
o
O.
Z
tu
Lubricate pivot points
Clean snow thrower
Clean shave plate
Clean skid shoes
Check V-belts
Check friction wheel
rubber
Check engine oil
Change engine oil
Check spark plug
Check muffler
Empty fuel system
* Fill in dates as you complete regular service
,_ Check; service ifneeded
17
Lubrication
For a view of the lubrication points on the snow
thrower, see Figure 20.
Sprocket Shaft
Lubricate the sprocket shaft with grease at least
once a season or after every 25 hours of
operation.
IMPORTANT: Keep all grease and oil off of the
friction wheel and the drive plate.
Shifting Mechanism
Lubricate the shifting mechanism and pivot
points on the shift rod with engine oil at least
once a season or after every 25 hours of
operation.
Traction Drive Control
• Lubricatecams on the ends of the control rods
which interlock the traction drive and auger
controls at least once a season or every 25
hours of operation with grease. The cams can be
accessed beneath the handle panel.
Gear Case
• The gear case is lubricated with grease at the
factory and does not require checking. If
disassembled for any reason, lubricate with two
ounces of Shell AIvania grease.
Bearings
Once a season lubricate the auger bearings and
the bearings on the side of the frame with light
oil. See lube chart below.
Check V-belts
Followthe instructionsbelowto check the condition
of the drive belts every 50 hours of operation.
• Remove the plastic belt cover on the front of the
engine by removing two self-tapping screws.
Visually inspect for frayed, cracked, or
excessively worn out belts.
Check Friction Wheel
Follow the instructions below to check the condition of
the friction wheel rubber every 25 hours of operation.
Remove the four self-tapping screws from the
frame cover underneath the snow thrower.
• Visually inspect the friction wheel rubber for
excessive wear, cracks, or loose fit on the
friction wheel drive hub.
• Also engage traction drive control and check if
the friction wheel is making contact with the
friction plate.
• If it does not make contact, adjust the traction
drive cable following adjustment instructions.
Recheck the friction wheel.
• Replace friction wheel rubber if necessary.
Refer to instructions on page 22.
Engine Maintenance
Engine Oil
Only use high quality detergent oil rated with API
service classification SF, SG or SH. Select the oil's
II
Figure 20: Lubrication Chart
18

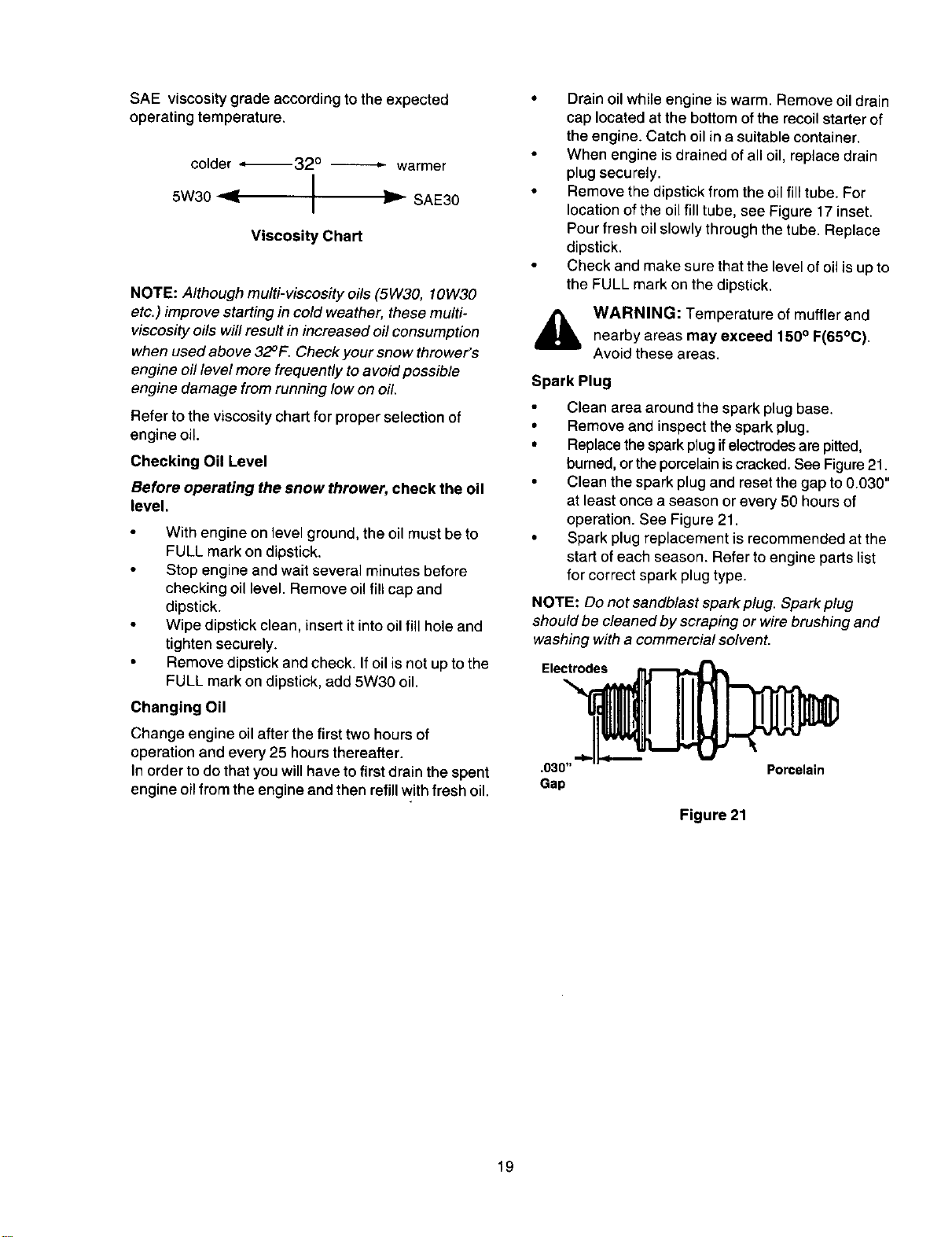

SAEviscositygradeaccordingtotheexpected
operatingtemperature.
colder .,_32 o --._ warmer
I
5W30 _ I
SAE30
I
Viscosity Chart
NOTE: Although multi-viscosity oils (5W30, 10W30
etc.) improve starting in cold weather, these multi-
viscosity oils will result in increased oil consumption
when used above 32°F. Check your snow thrower's
engine oil level more frequently to avoid possible
engine damage from running low on oil.
Refer to the viscosity chart for proper selection of
engine oil.
Checking Oil Level
Before operating the snow thrower, check the oil
level.
With engine on level ground, the oil must be to
FULL mark on dipstick.
Stop engine and wait several minutes before
checking oil level. Remove oil fill cap and
dipstick.
Wipe dipstick clean, insert it into oil fill hole and
tighten securely.
Remove dipstick and check. If oil is not up to the
FULL mark on dipstick, add 5W30 oil.
Changing Oil
Change engine oil after the firsttwo hours of
operation and every 25 hours thereafter.
In order to do that you will have to first drain the spent
engine oil from the engine and then refill with fresh oil.
• Drain oil while engine is warm. Remove oil drain
cap located at the bottom of the recoil starter of
the engine. Catch oil in a suitable container.
When engine is drained of all oil, replace drain
plug securely.
• Remove the dipstick from the oil fill tube. For
location of the oil fill tube, see Figure 17 inset.
Pour fresh oil slowly through the tube. Replace
dipstick.
• Check and make sure that the level of oil is up to
the FULL mark on the dipstick.
,_ WARNING: Temperature of muffler and
nearby areas may exceed 150° F(65°C).
Avoid these areas.
Spark Plug
Clean area around the spark plug base.
• Remove and inspect the spark plug.
• Replace the spark plug ifelectrodes are pitted,
burned, or the porcelain iscracked. See Figure21.
• Clean the spark plug and reset the gap to 0.030"
at least once a season or every 50 hours of
operation. See Figure 21.
• Spark plug replacement is recommended at the
start of each season. Refer to engine parts list
for correct spark plug type.
NOTE: Do not sandblast spark plug. Spark plug
should be cleaned by scraping or wire brushing and
washing with a commercial solvent.
Electrodes
.030" Porcelain
Gap
Figure 21
19
,&

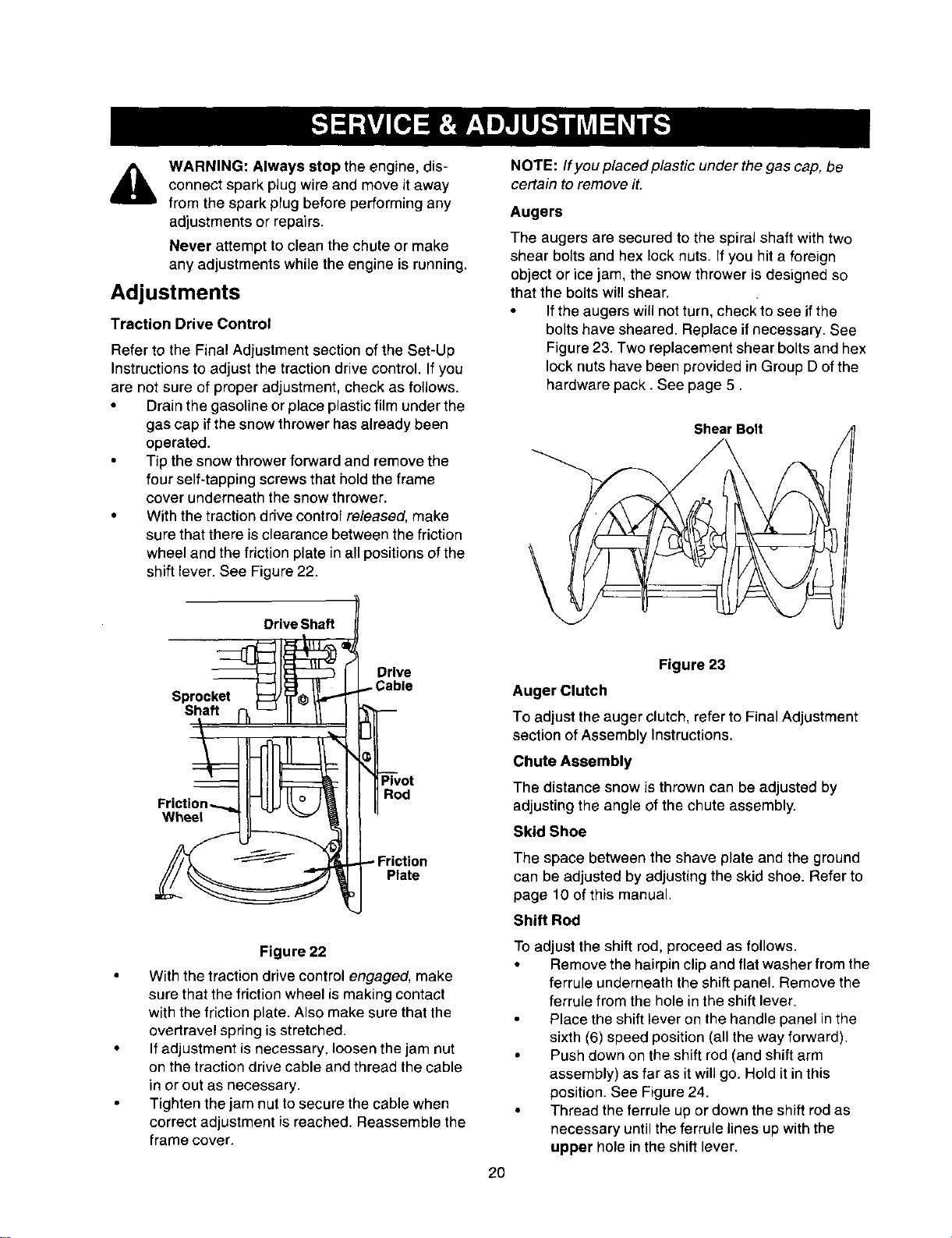

WARNING: Always stop the engine, dis-
connect spark plug wire and move it away
from the spark plug before performing any
adjustments or repairs,
Never attempt to clean the chute or make
any adjustments while the engine is running.
Adjustments
Traction Drive Control
Refer to the Final Adjustment section of the Set-Up
Instructions to adjust the traction drive control. If you
are not sure of proper adjustment, check as follows.
• Drain the gasoline or place plastic film under the
gas cap if the snow thrower has already been
operated.
• Tip the snow thrower forward and remove the
four self-tapping screws that hold the frame
cover underneath the snow thrower.
• With the traction drive control released, make
sure that there is clearance between the friction
wheel and the friction plate in all positions of the
shift lever. See Figure 22.
Drive Shaft I
NOTE: If you placed plastic under the gas cap, be
certain to remove iL
Augers
The augers are secured to the spiral shaft with two
shear bolts and hex lock nuts. If you hit a foreign
object or ice jam, the snow thrower is designed so
that the bolts will shear.
If the augers will not turn, check to see if the
bolts have sheared. Replace if necessary. See
Figure 23. Two replacement shear bolts and hex
lock nuts have been provided in Group D of the
hardware pack. See page 5.
Shear Bolt
\
Sprocket
Shaft
Drive
Wheel
Rod
Plate
Figure 22
With the traction drive control engaged, make
sure that the friction wheel is making contact
with the friction plate. Also make sure that the
overtravel spring is stretched.
If adjustment is necessary, loosen the jam nut
on the traction drive cable and thread the cable
in or out as necessary.
Tighten the jam nut to secure the cable when
correct adjustment isreached. Reassemble the
frame cover.
2O
Figure 23
Auger Clutch
To adjust the auger clutch, refer to Final Adjustment
sectionofAssembly Instructions.
Chute Assembly
The distance snow is thrown can be adjusted by
adjusting the angle ofthe chute assembly.
Skid Shoe
The space between the shave plate and the ground
can be adjusted by adjusting the skid shoe. Refer to
page 10 of this manual.
Shift Rod
To adjust the shift rod, proceed as follows.
• Remove the hairpin clip and flat washer from the
ferrule underneath the shift panel. Remove the
ferrule from the hole in the shift lever.
Place the shift lever on the handle panel in the
sixth (6) speed position (all the way forward).
Push down on the shift rod (and shift arm
assembly) as far as it will go. Hold it in this
position. See Figure 24.
• Thread the ferrule up or down the shift rod as
necessary until the ferrule lines up with the
upper hole in the shift lever.
Shift Chute Distance
Lever Control
Drive Auger
Clutch
Upper
Hole
Shift
Lever
Spring
Washer
Flat
Washer
Hak
Clip
Flat
Washer
Rod
Assembly
Auger Drive Belts
Disconnect the chute crank at the chute
assembly by removing the cotter pin and the flat
washer.
Remove the plastic belt cover on the front of the
engine by removing two self-tapping screws.
See Figure 25.
Self-Tapping
Belt Cover
Figure 24
Insertthe ferrule into the upper hole in the shift
lever from the right side when adjustment is
correct. Secure with the flat washer and the
hairpin clip that you had earlier removed. See
Figure 24.
Check for correct adjustment of the traction
drive control as instructed in the Final
Adjustment section.
Service
Shave Plate And Skid Shoes
The shave plate and skid shoes on the bottom of the
snow thrower are subject to wear. They should be
checked periodically and replaced when necessary.
To remove skid shoes, remove the two carriage
bolts, belleville washers and hex nuts (on each
side) which attach them to the snow thrower.
Reassemble new skid shoes with the hardware
earlier removed. Make sure to insertthe cupped
sideof the washeragainsttheskid shoe sothat the
skid shoe isadjustedto belevel.
To remove shave plate, remove the carriage
bolts, belleville washers and hex nuts which
attach itto the snow thrower housing.
Reassemble new shave plate, making sure
heads of the carriage bolts are to the inside of
the housing. Tighten securely.
Belt Removal And Replacement
,_. WARNING: Disconnect the spark plug wire
from the spark plug and ground it.
Self-Tapping
Screw
Figure 25
Unthread the bottom of the auger cable from the
top of the cable, leaving the hex nut inplace.
Remove the six lock washers and hex nuts which
attachthe auger housingassembly tothe frame.
See Figure26. (Onlytwopairs oflock washers and
hex nuts are shown inthe figure.)
Lock Washer
and Hex Nut
Figure 26
Separate the housing from the frame assembly
by standing in the operating position and lifting
up on the handles. The frame and housing will
separate and the rear auger drive belt will come
off the pulleys.
21

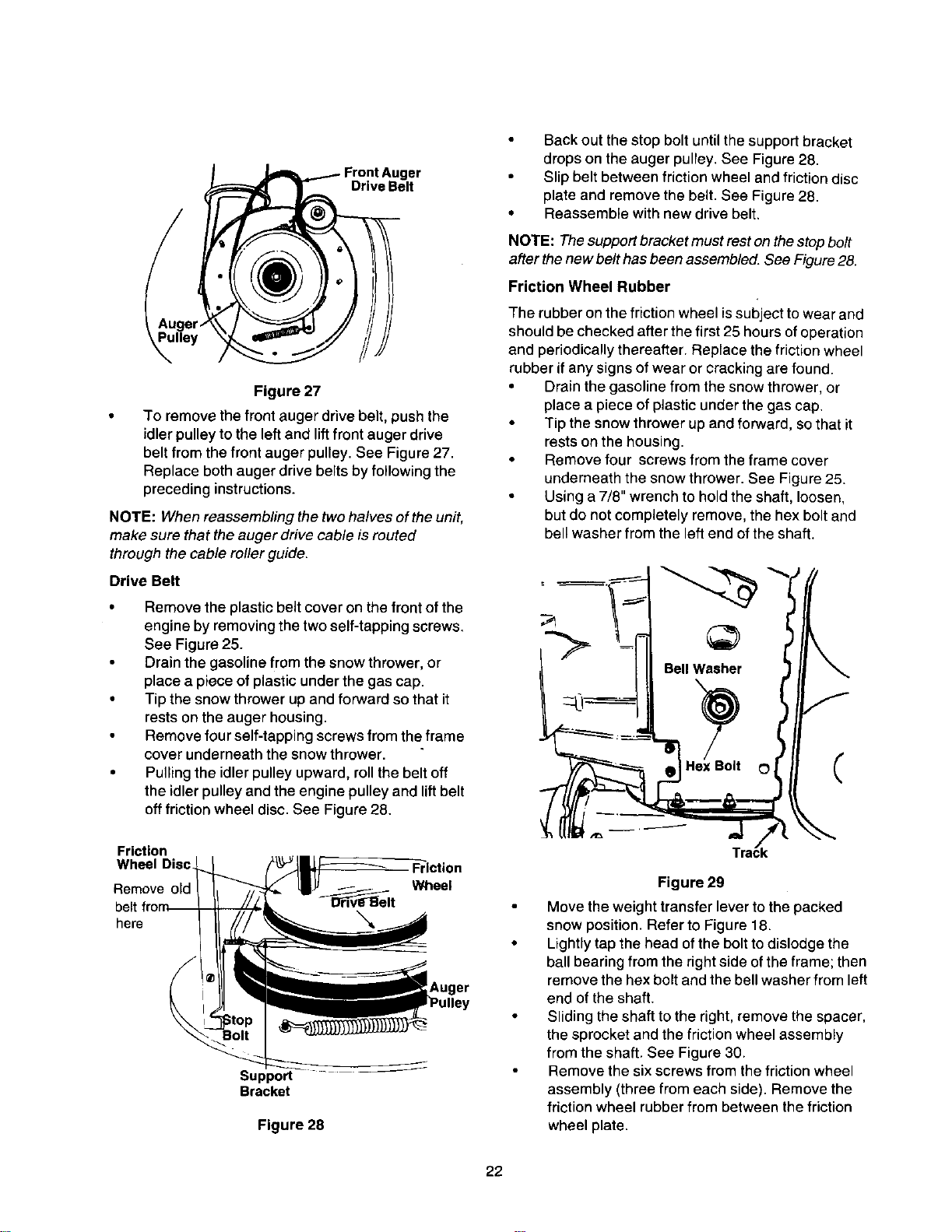

Drive Belt
Figure 27
To remove thefront auger drive belt, push the
idler pulley to the left and lift front auger drive
belt from the front auger pulley. See Figure 27.
Replace both auger drive belts by following the
preceding instructions.
NOTE: When reassembling the two halves of the unit,
make sure that the auger drive cable is routed
through the cable roller guide.
Drive Belt
• Remove the plastic belt cover on the frontof the
engine by removing the two self-tapping screws.
See Figure 25.
• Drain the gasoline from the snow thrower, or
place a piece of plastic under the gas cap.
• Tip the snow thrower up and forward so that it
rests on the auger housing.
Remove four self-tapping screws from the frame
cover underneath the snow thrower.
• Pulling the idler pulley upward, roll the belt off
the idler pulley and the engine pulley and lift belt
off friction wheel disc. See Figure 28.
Friction
Wheel Disc Friction
Remove Wheel
here
Auger
Support
Bracket
Figure 28
Back out the stop bolt until the support bracket
drops on the auger pulley. See Figure 28.
Slip belt between friction wheel and friction disc
plate and remove the belt. See Figure 28.
Reassemble with new drive belt.
NOTE: The support bracket must rest on the stop bolt
after the new belt has been assembled. See Figure 28.
Friction Wheel Rubber
The rubber on the friction wheel is subject to wear and
should be checked after the first 25 hours of operation
and periodically thereafter. Replace the friction wheel
rubber if any signs of wear or cracking are found.
• Drain the gasoline from the snow thrower, or
place a piece of plasticunder the gas cap.
• Tip the snow thrower up and forward, so that it
rests on the housing.
• Remove four screws from the frame cover
underneath the snow thrower. See Figure 25.
• Using a 7/8" wrench to hold the shaft, loosen,
but do not completely remove, the hex bolt and
bell washer from the left end of the shaft.
BellWasher
Hex Bolt
Figure 29
Move the weight transfer lever to the packed
snow position. Refer to Figure 18.
Lightly tap the head of the bolt to dislodge the
ball bearing from the right side of the frame; then
remove the hex bolt and the bell washer from left
end of the shaft.
Sliding the shaft to the right, remove the spacer,
the sprocket and the friction wheel assembly
from the shaft. See Figure 30.
Remove the six screws from the friction wheel
assembly (three from each side). Remove the
friction wheel rubber from between the friction
wheel plate.
22

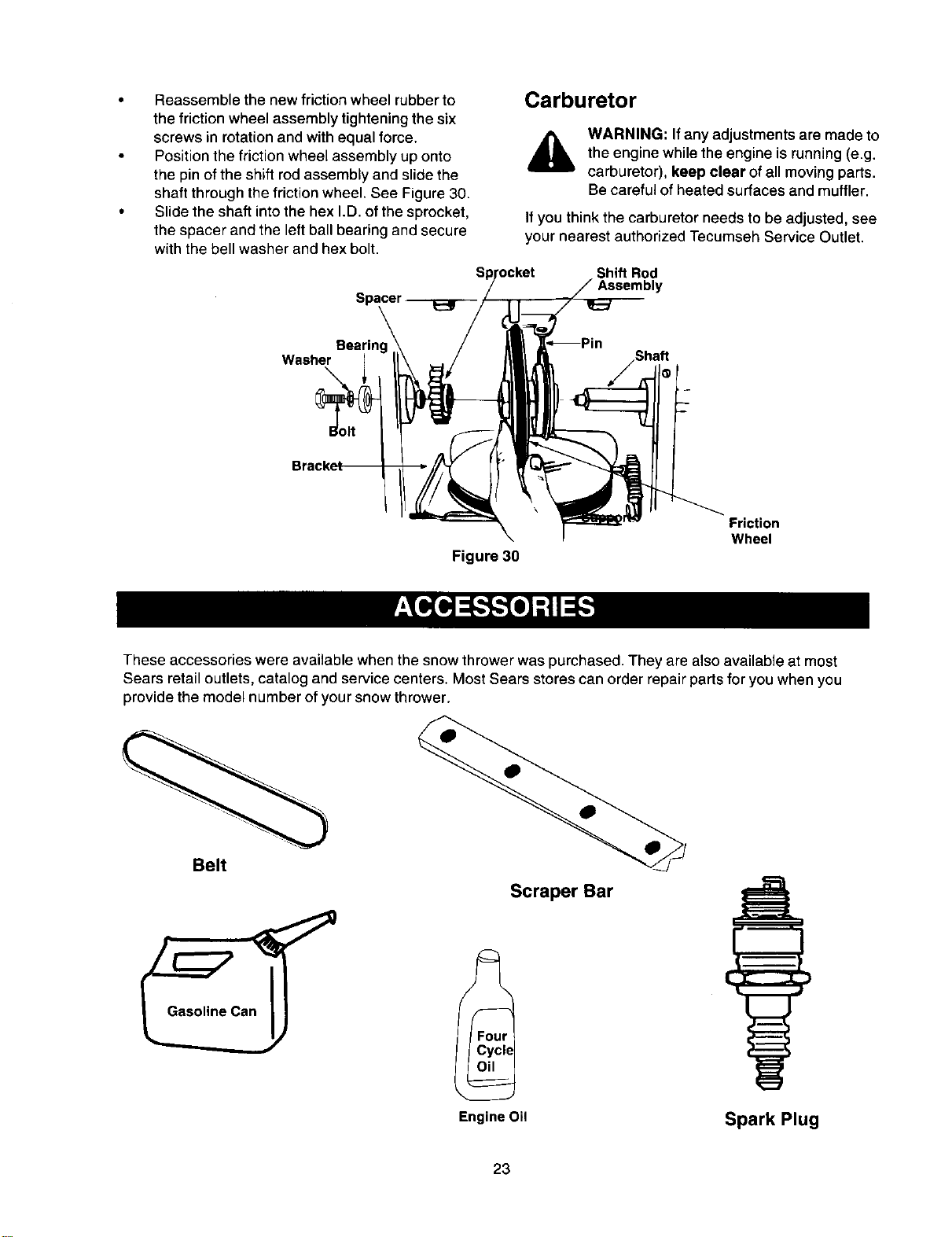

• Reassemblethenewfrictionwheelrubberto
thefrictionwheelassemblytighteningthesix
screwsinrotationandwithequalforce.
• Position the friction wheel assembly up onto
the pin of the shift rod assembly and slide the
shaft through the friction wheel. See Figure 30.
• Slide the shaft into the hex I.D. of the sprocket,
the spacer and the left ball bearing and secure
with the bell washer and hex bolt.
Carburetor
WARNING: If any adjustments are made to
the engine whilethe engine is running (e.g.
carburetor), keep clear ofall movingparts.
Be carefulof heated surfaces and muffler.
Ifyou think the carburetor needs to be adjusted, see
your nearest authorized Tecumseh Service Outlet.
Shift Rod
Assembly
Bearin,
Washer
\
Figure 30
Friction
Wheel
These accessories were available when the snow thrower was purchased. They are also available at most
Sears retail outlets, catalog and service centers. Most Sears stores can order repair parts for you when you
provide the model number of your snow thrower.
Belt
Scraper Bar
Engine Oil
Spark Plug
23

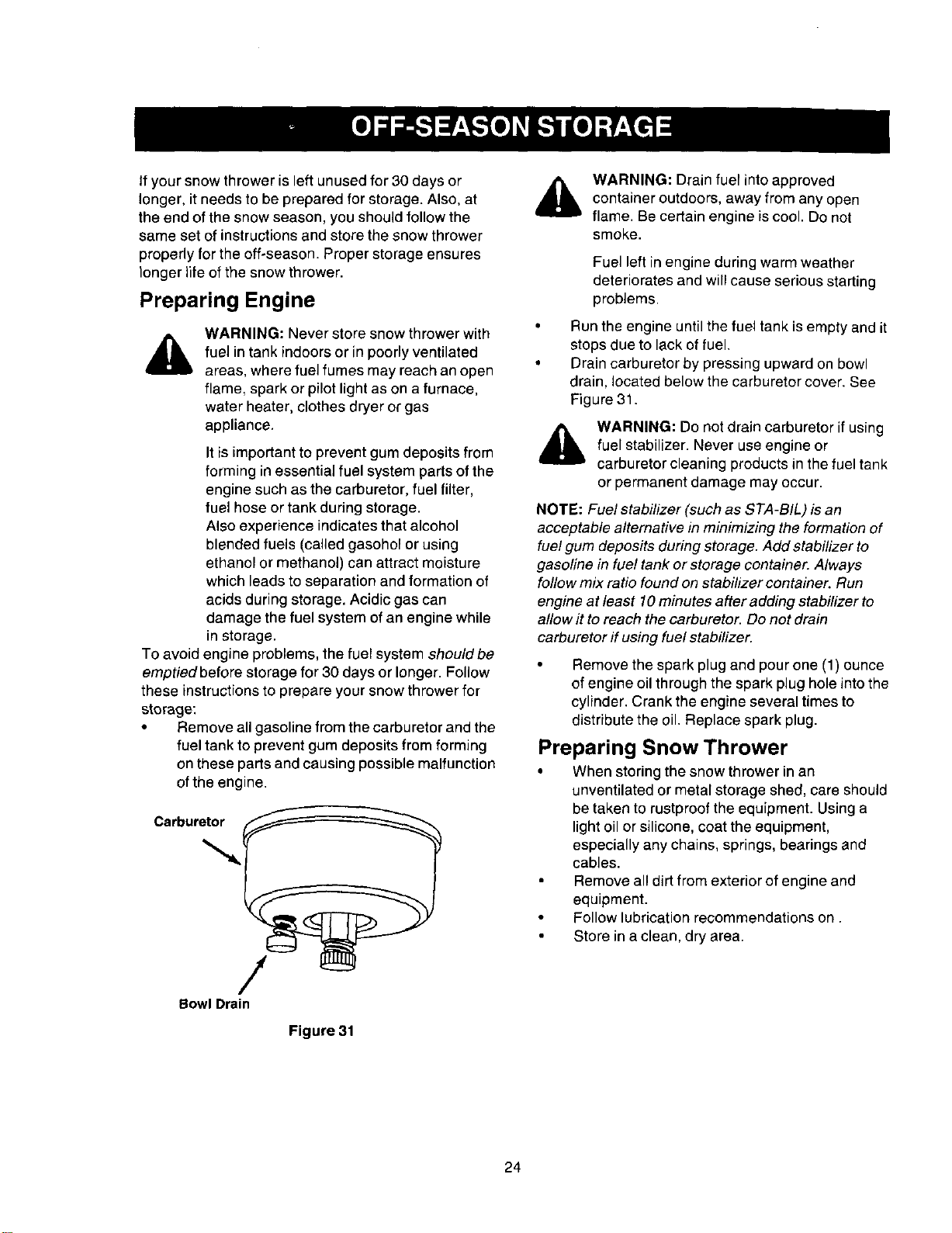

ifyoursnowthrowerisleftunusedfor30daysor
longer,itneedstobepreparedforstorage.Also,at
theendofthesnowseason,youshouldfollowthe
samesetofinstructionsandstorethesnowthrower
properlyfortheoff-season.Properstorageensures
longerlifeofthesnowthrower.
Preparing Engine
WARNING: Never store snow thrower with
fuel in tank indoors or in poorly ventilated
areas, where fuel fumes may reach an open
flame, spark or pilot light as on a furnace,
water heater, clothes dryer or gas
appliance.
It is important to prevent gum deposits from
forming in essential fuel system parts of the
engine such as the carburetor, fuel filter,
fuel hose or tank during storage.
Also experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation of
acids during storage. Acidic gas can
damage the fuel system of an engine while
in storage.
To avoid engine problems, the fuel system shouldbe
emptiedbefore storage for 30 days or longer. Follow
these instructions to prepare your snow thrower for
storage:
• Remove all gasoline from the carburetor and the
fuel tank to prevent gum deposits from forming
on these parts and causing possible malfunction
of the engine.
Bowl Drain
Figure 31
WARNING: Drain fuel into approved
container outdoors, away from any open
flame. Be certain engine is cool. Do not
smoke.
Fuel left in engine during warm weather
deteriorates and will cause serious starting
problems,
Run the engine until the fuel tank is empty and it
stops due to lack of fuel.
Drain carburetor by pressing upward on bowl
drain, located below the carburetor cover. See
Figure 31.
&
WARNING: Do not drain carburetor if using
fuel stabilizer. Never use engine or
carburetor cleaning products in the fuel tank
or permanent damage may occur.
NOTE: Fuel stabilizer (such as STA-BIL) is an
acceptable alternative in minimizing the formation of
fuel gum deposits during storage. Add stabilizer to
gasoline in fuel tank or storage container. Always
follow mix ratio found on stabilizer container. Run
engine at least 10 minutes after adding stabilizer to
allow it to reach the carburetor. Do not drain
carburetor if using fuel stabilizer.
• Remove the spark plug and pour one (1) ounce
of engine oil through the spark plug hole into the
cylinder. Crank the engine several times to
distribute the oil. Replace spark plug.
Preparing Snow Thrower
• When storingthe snow thrower inan
unventilated or metal storage shed, care should
be taken to rustproofthe equipment. Using a
lightoilor silicone, coatthe equipment,
especially any chains, springs,bearings and
cables.
Remove all dirt from exterior of engine and
equipment.
Follow lubrication recommendations on.
Store in a clean, dry area.
24

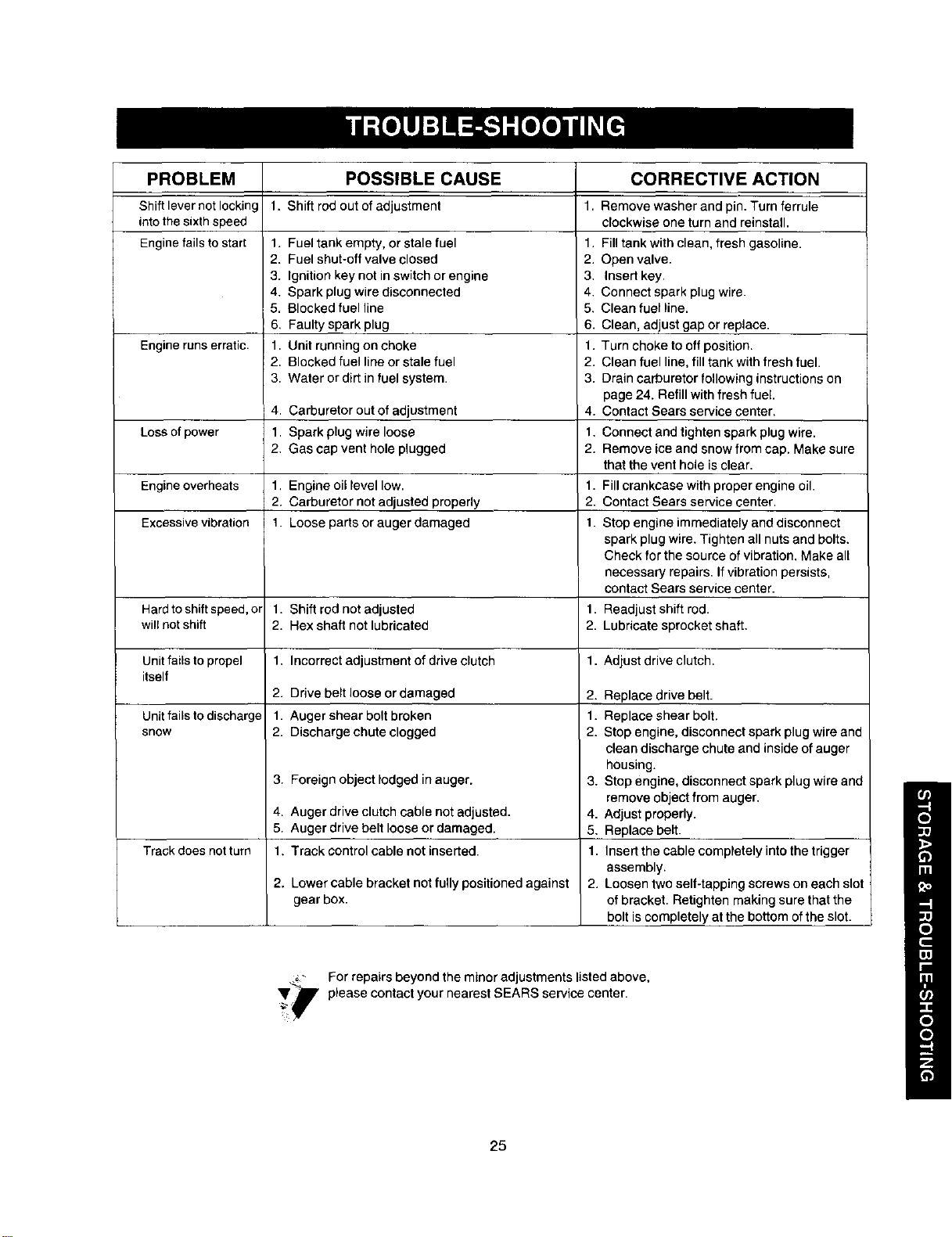

PROBLEM
Shiftlevernot locking
intothe sixthspeed
Enginefailstostart
Engine runs erratic.
Loss of power
Engine overheats
Excessive vibration
POSSIBLE CAUSE
1. Shift rod out of adjustment
CORRECTIVE ACTION
1. Remove washer and pin. Turn ferrule
clockwise one turn and reinstall.
1. Fuel tank empty, or stale fuel 1.
2. Fuel shut-off valve closed 2.
3. Ignition key not in switch or engine 3.
4. Spark plug wire disconnected 4.
5. Blocked fuel line 5.
6, Faulty spark plug 6.
1. Unit running on choke 1.
2. Blocked fuel line or stale fuel 2.
3. Water or dirt in fuel system. 3.
4. Carburetor out of adjustment 4.
1. Spark plug wire loose 1.
2. Gas cap vent hole plugged 2.
1. Engine oil level low. 1.
2. Carburetor not adjusted properly 2.
1. Loose parts or auger damaged
1. Shift rod not adjusted
2. Hex shaft not lubricated
Incorrect adjustment of drive clutch
Drive belt loose or damaged
Auger shear bolt broken
Discharge chute clogged
Foreign object lodged in auger.
Auger drive clutch cable not adjusted.
Auger drive belt loose or damaged.
Track control cable not inserted.
Lower cable bracket not fully positioned against
gear box.
Fill tank withclean, fresh gasoline.
Open valve.
Insert key,
Connect spark plug wire.
Clean fuel line.
Clean, adjust gap or replace.
Turn choke to off position.
Clean fuel line, fill tank with fresh fuel.
Drain carburetor following instructions on
page 24. Refill with fresh fuel
Contact Sears service center.
Connect and tightenspark plug wire.
Remove ice and snow from cap. Make sure
that the vent hole is clear.
Fillcrankcase with proper engine oil.
Contact Sears service center.
1. Stop engine immediately and disconnect
spark plug wire. Tighten all nuts and bolts.
Check for the source of vibration, Make all
necessary repairs, Ifvibration persists,
contact Sears service center.
Hardto shiftspeed, or 1. Readjust shift rod.
will not shift 2. Lubricate sprocket shaft.
1. Adjust drive clutch.
Unit fails to propel 1.
itself
2.
Unit fails to discharge 1.
snow 2.
3.
4.
5.
Track does not turn 1.
2.
2. Replace drive belt.
1. Replace shear bolt.
2. Stop engine, disconnect spark plug wire and
clean discharge chute and inside of auger
housing.
3. Stop engine, disconnect spark plug wire and
remove object from auger.
4. Adjust properly.
5. Replace belt.
1. Insert the cable completely into the trigger
assembly.
2. Loosen two self-tapping screws on each slot
of bracket. Retighten making sure that the
bolt is completely at the bottom of the slot.
_ For repairs beyond the minor adjustments listedabove,
_ please contact your nearest SEARS service center.
25

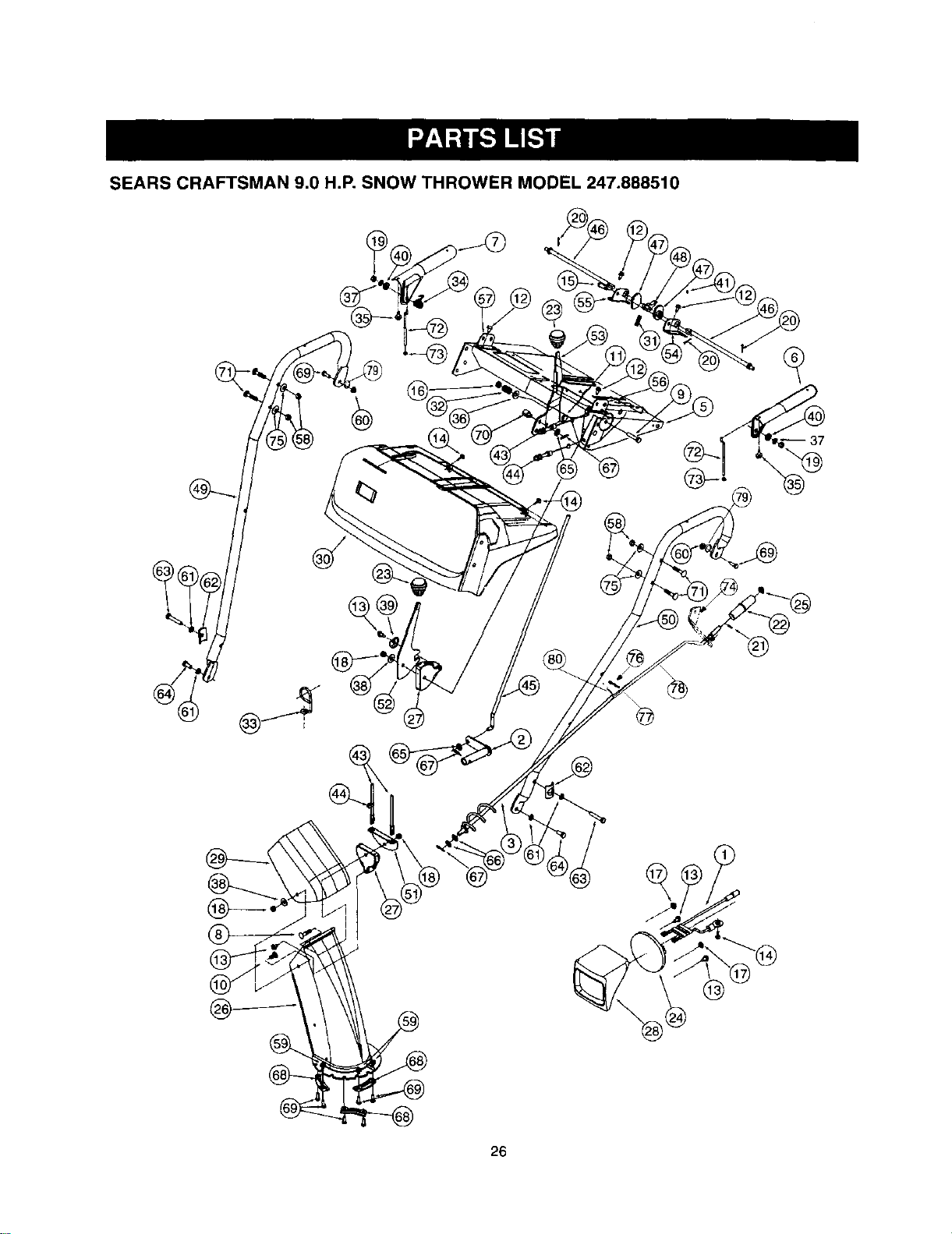

SEARS CRAFTSMAN 9.0 H.P. SNOW THROWER MODEL 247.888510
26

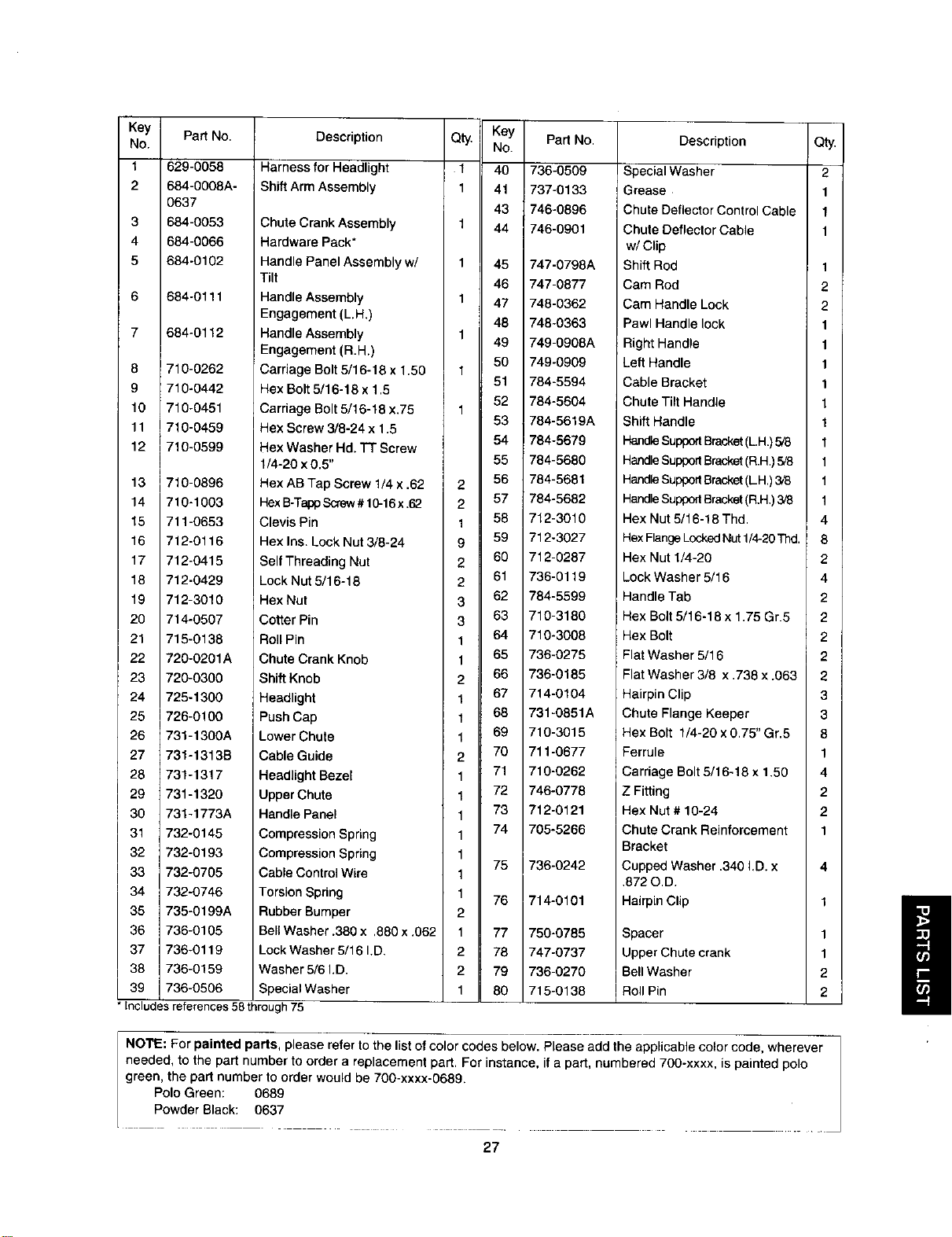

Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Pad No.
629-0058
684-0008A-
0637
684-0053
684-0066
684-0102
684-0111
684-0112
710-0262
710-0442
710-0451
710-0459
710-0599
710-0896
710-1003
711-0653
712-0116
712-0415
712-0429
712-3010
714-0507
715-0138
720-0201A
720-0300
725-1300
726-0!00
731-1300A
731-1313B
731-1317
731-1320
731-1773A
732-0145
732-0193
732-0705
732-0746
735-0199A
736-0105
736-0119
736-0159
736-0506
Description
Harness for Headlight
Shift Arm Assembly
Chute Crank Assembly
Hardware Pack*
Handle Panel Assembly w/
Tilt
Handle Assembly
Engagement (LH.)
Handle Assembly
Engagement (R.H.)
Carriage Bolt 5/16-18 x 1.50
Hex Bolt 5/16-18 x 1.5
Carriage Bolt 5/16-18 x.75
Hex Screw 3/8-24 x 1.5
Hex Washer Hd. TT Screw
1/4-20 x 0.5"
Hex AB Tap Screw 1/4 x .62
HexB-TappScrew#10-16x .62
Clevis Pin
Hex Ins. Lock Nut 3/8-24
Self Threading Nut
Lock Nut 5/16-18
Hex Nut
Cotter Pin
Roll Pin
Chute Crank Knob
Shift Knob
Headlight
Push Cap
Lower Chute
Cable Guide
Headlight Bezel
Upper Chute
Handle Panel
Compression Spring
Compression Spring
Cable Control Wire
Torsion Spring
Rubber Bumper
Bell Washer .380x ,880 x .062
Lock Washer 5/16 I.D.
Washer 5/6 I.D.
Special Washer
* Includes references 58 through 75
Qty
1
1
1
1
1
1
1
1
2
2
1
9
2
2
3
3
1
1
2
1
1
1
2
1
1
1
1
1
1
1
2
1
2
2
1
Key
No.
40
41
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
8O
Pad No.
736-0509
737-0133
746-0896
746-0901
747-0798A
747-0877
748-0362
748-0363
749-0908A
749-0909
784-5594
784-5604
784-5619A
784-5679
784-5680
784-5681
784-5682
712-3010
712-3027
712-0287
736-0119
784-5599
710-3180
710-3008
736-0275
736-0185
714-0104
731-0851A
710-3015
711-0677
710-0262
746-0778
712-0121
705-5266
736-0242
714-0101
750-0785
747-0737
736-0270
715-0138
Description
Special Washer
Grease
Chute Deflector Control Cable
Chute Deflector Cable
w/Clip
Shift Rod
Cam Rod
Cam Handle Lock
Pawl Handle lock
Right Handle
Left Handle
Cable Bracket
Chute Tilt Handle
Shift Handle
HandleSupportBracket(L.H.)5/8
HandleSupportBracket(R.H.)5/8
HandleSupportBracket(LH.)3,_
HandleSupportBracket(R.H.)3_8
Hex Nut 5/16-18 Thd.
HexFlangeLockedNut1/4-20Thd.
Hex Nut 1/4-20
Lock Washer 5/16
Handle Tab
Hex Bolt 5/16-18 x 1.75 Gr.5
Hex Bolt
FlatWasher 5/16
FlatWasher 3/8 x .738 x .063
Hairpin Clip
Chute Flange Keeper
Hex Bolt 1/4-20 x 0.75" Gr.5
Ferrule
Carriage Bolt 5/16-18 x 1.50
Z Fitting
Hex Nut # 10-24
Chute Crank Reinforcement
Bracket
Cupped Washer .340 I.D. x
.872 O.D.
Hairpin Clip
Spacer
Upper Chute crank
Bell Washer
Roll Pin
Qty.
2
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
4
8
2
4
2
2
2
2
2
3
3
8
1
4
2
2
1
4
1
1
1
2
2
NOTE: For painted parts, please refertothe list of color codes below. Please add the applicable color code, wherever
needed, to the part number to order a replacement part. For instance, if a part, numbered 700-xxxx, is painted polo
green, the part number to order would be 700-xxxx-0689.
Polo Green: 0689
Powder Black: 0637
27

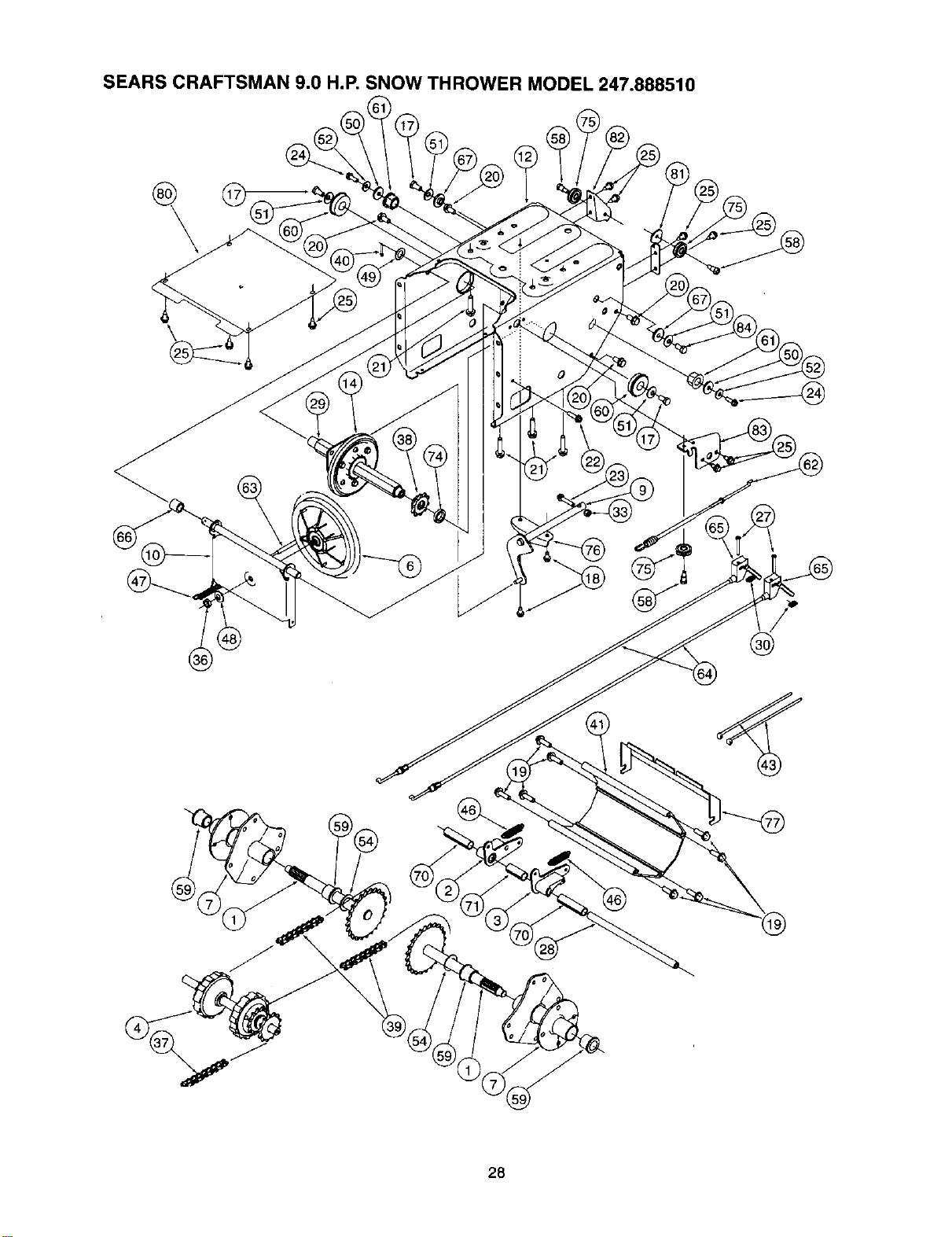

SEARS CRAFTSMAN 9.0 H.P. SNOW THROWER MODEL 247.888510
\
@
28
Key Part No.
No.
1 611-0053
2 618-0043
3 618-0044
4 618-0169
7 683-0024
9 684-0014B
10 684-0021
12 684-0031
14 684-0042B
17 710-0643
18 710-0599
19 710-0602
20 710-0604
21 710-0654A
22 710-0788
23 710-0809
24 710-0875
25 710-0896
27 710-1233
28 711-0911
29 711-1042
30 712-0127
33 712-0324
36 712-0711
37 713-0233
38 713-0413
39 713-0437
40 714-0474
Key Part No.
Description Qty. No.
Axle Assembly 2 41 719-0295A
Dogg Assembly: R.H, 1 43 725-0157
Dogg Assembly: L.H. 1 46 732-0209
Shift Assembly: Track Drive 1 47 732-0264
Hub Assembly: Track Drive 2 48 736-0105
Shift Rod Assembly 1 49 736-0160
Friction Wheel Support 1 50 736-0176
Bracket Assembly 51 736-0242
Frame Assembly 1 52 736-0270
Friction Wheel Bearing 1 54 736-0287
Assembly 58 738-0924
Hex Lock Screw 5/16-18 x 4
59 741-0339
.625 Grade 5
60 741-0563
Hex Washer Hd. TT Screw 2
61 741-0597
Hex Washer Hd. TT Screw 8
62 746-0897
Hex Washer Hd. TT Screw 6
63 746-0898
Hex Washer Hd. TT Screw 4
64 746-0948
Hex Washer Screw 1
65 746-0950
Hex Washer Screw 1
66 748-0190
TT Screw 2
67 748-0234
Hex Washer Head AB Screw 10
70 750-0903
Oval C-Sunk Screw 2
71 750-0904
Actuator Shaft 1
74 750-0997
Hex Shaft: Track Drive 1
75 756-0625
Flanged Weld Net #10-24 2
76 784-5590
Top Lock Nut 1/4-20 1
77 784-5609
Jam Nut 3/8-24 1
80 784-5648
Chain Links 1
81 784-5687
Sprocket: 10T 1
82 784-5688
Chain 2
83 784-5689A
Cotter Pin 1
Description
Track Housing 1
Cable Tie 2
Extension Spring 2
Extension Spring 1
Bell Washer 1
Flat Washer 1
Flat Washer 2
Bell Washer 5
Bell Washer 2
Flat Washer 2
Shoulder Screw 3
Flange Bearing 4
Ball Bearing 2
Hex Flange Bearing 2
Auger Clutch Cable 1
Drive Clutch Cable 1
Track Steering Cable 2
Trigger Control 2
Spacer 1
Shoulder Spacer 2
Split Spacer 2
Split Spacer 1
Spacer 1
Roller Cable 3
Shift Bracket 1
Steering Cable Bracket 1
Frame Cover 1
Auger Clutch Cable Bracket 1
Drive cable Bracket 1
Front Support Bracket 1
Qty.
NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code,
wherever needed, to the part number to order a replacement part. For instance, if a part, numbered 700-xxxx, is
painted polo green, the part number to order would be 700-xxxx-0689.
Polo Green: 0689
Powder Black: 0637
29

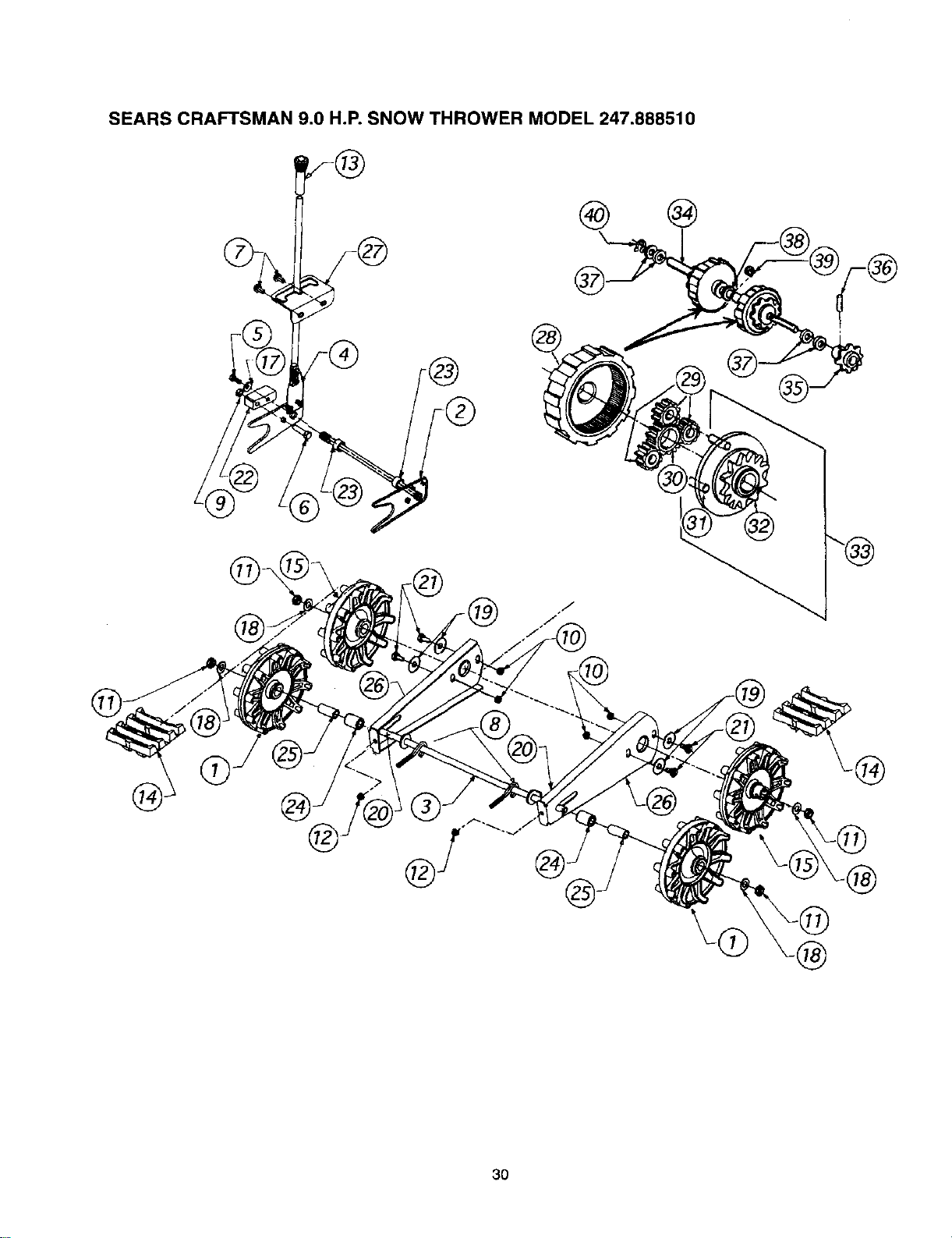

SEARS CRAFTSMAN 9.0 H.P. SNOW THROWER MODEL 247.888510
@
r®
@
3O

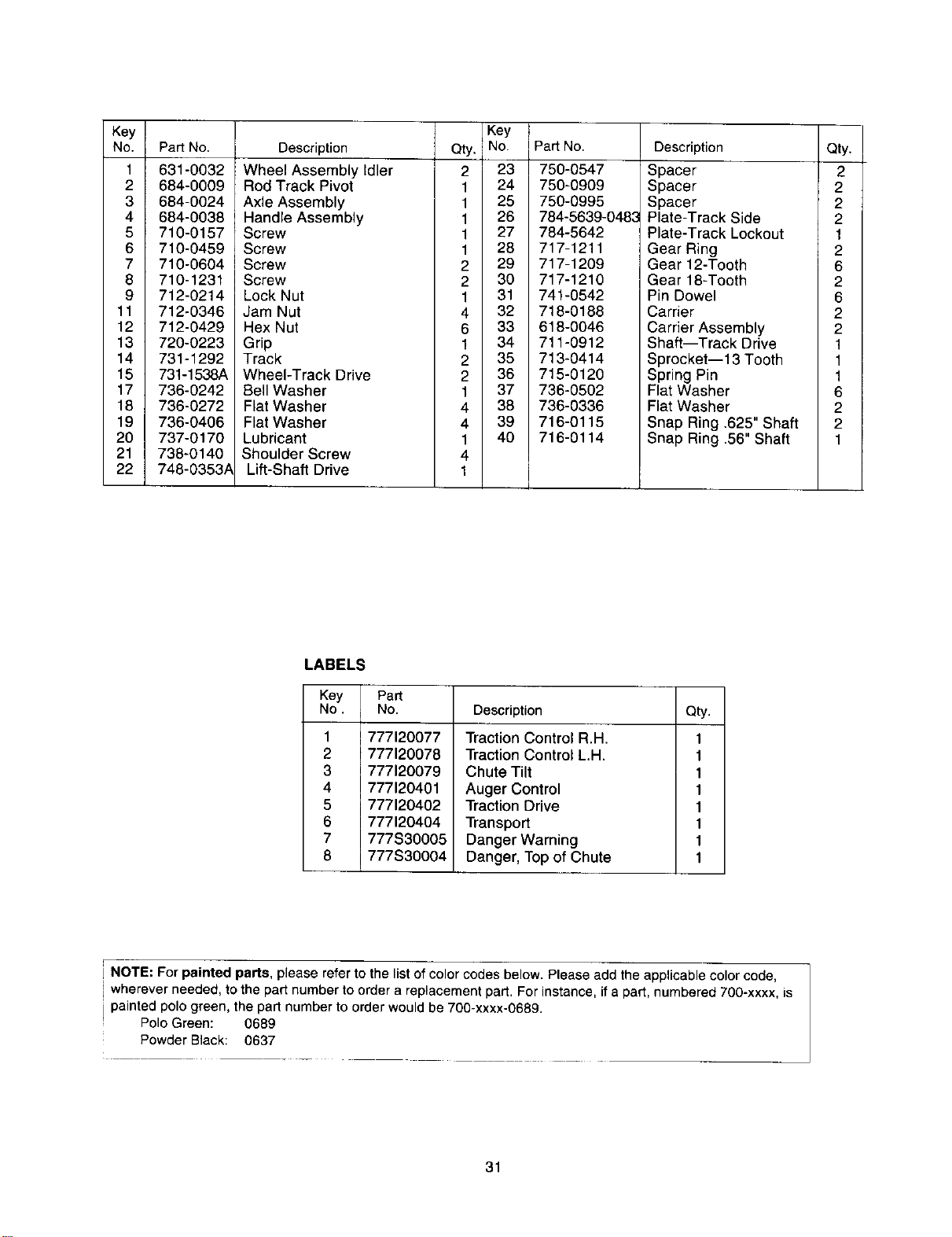

Key
No.
1
2
3
4
5
6
7
8
9
11
12
13
14
15
17
18
19
20
21
22
PaRNo.
631-0032
684-0009
684-0024
684-0038
710-0157
710-0459
710-0604
710-1231
712-0214
712-0346
712-0429
720-0223
731-1292
731-1538A
736-0242
736-0272
736-0406
737-0170
738-0140
748-0353#
Description
Wheel Assembly Idler
Rod Track Pivot
Axle Assembly
Handle Assembly
Screw
Screw
Screw
Screw
Lock Nut
Jam Nut
Hex Nut
Grip
Track
Wheel-Track Drive
Bell Washer
Fiat Washer
Flat Washer
Lubricant
Shoulder Screw
Lift-Shaft Drive
Key
Qty. No.
2 23
1 24
1 25
1 26
1 27
1 28
2 29
2 30
1 31
4 32
6 33
1 34
2 35
2 36
1 37
4 38
4 39
1 40
4
1
Pad No.
750-0547
750-0909
750-0995
784-5639-0483
784-5642
717-1211
717-1209
717-1210
741-0542
718-0188
618-0046
711-0912
713-0414
715-0120
736-0502
736-0336
716-0115
716-0114
Description
Spacer
Spacer
Spacer
Plate-Track Side
Plate-Track Lockout
Gear Ring
Gear 12-Tooth
Gear 18-Tooth
Pin Dowel
Carrier
Carrier Assembly
Shaft--Track Drive
Sprocket--13 Tooth
Spring Pin
Flat Washer
Flat Washer
Snap Ring .625" Shaft
Snap Ring .56" Shaft
Qty.
2
2
2
2
1
2
6
2
6
2
2
1
1
1
6
2
2
1
LABELS
Key Part
No. No. Description Qty.
1
2
3
4
5
6
7
8
777120077
777120078
777120079
777120401
777120402
777120404
777S30005
777S30004
Traction Control R.H.
Traction Control L.H.
Chute Tilt
Auger Control
Traction Drive
Transport
Danger Warning
Danger, Top of Chute
1
1
1
1
1
1
1
1
! NOTE: For painted parts, please refer to the list ofcolor codes below. Please add the applicable color code,
[ wherever needed, to the part number to order a replacement part. For instance, if a part, numbered 700-xxxx, is
i painted polo green, the part number to order would be 700-xxxx-0689.
Polo Green: 0689
Powder Black: 0637
31

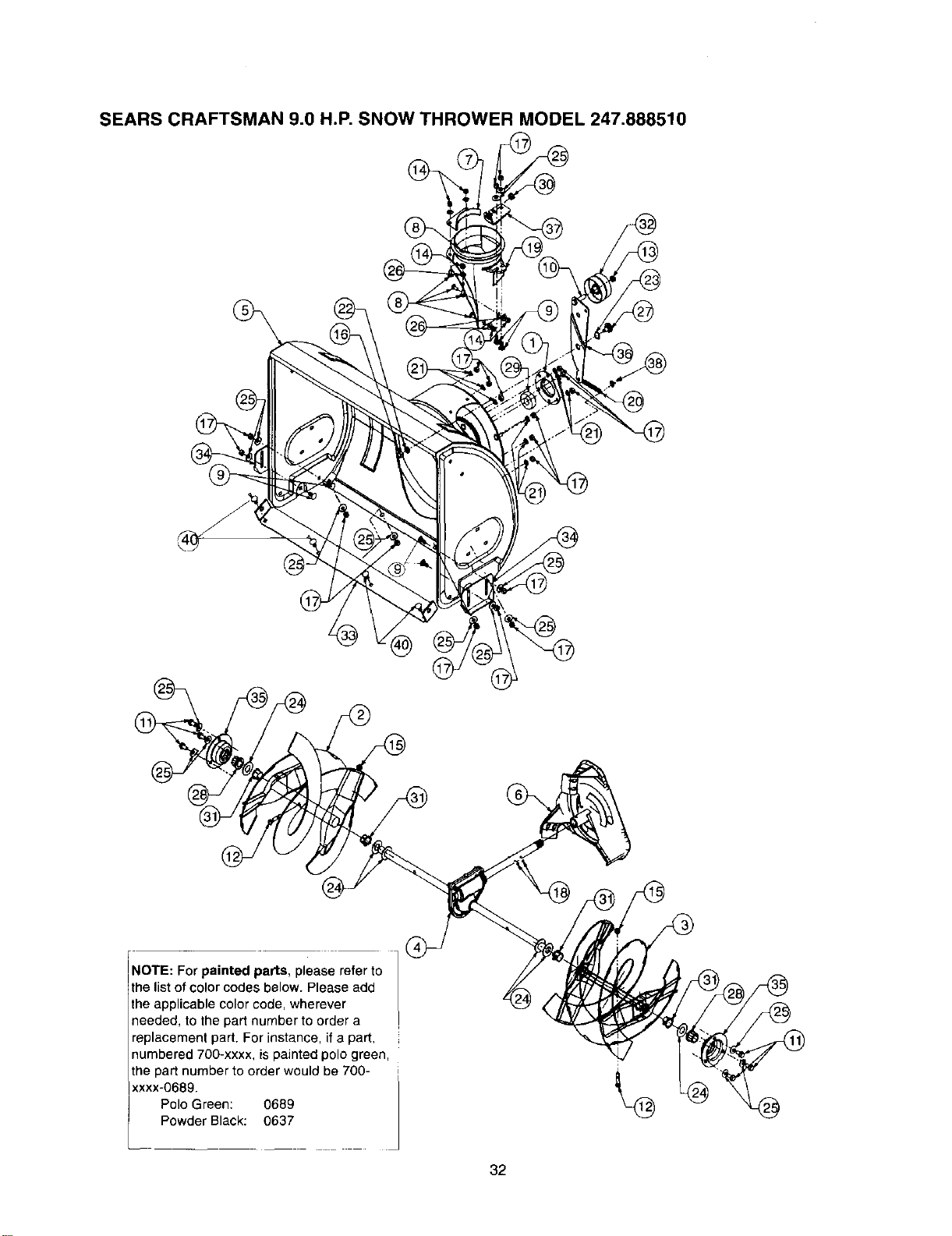

SEARS CRAFTSMAN 9.0 H.P, SNOW THROWER MODEL 247.888510
NOTE: For painted parts, please refer to
the listof color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part,
numbered 700-xxxx, is painted polo green,
the part number to order would be 700-
xxxx-0689.
Polo Green: 0689
Powder Black: 0637
32

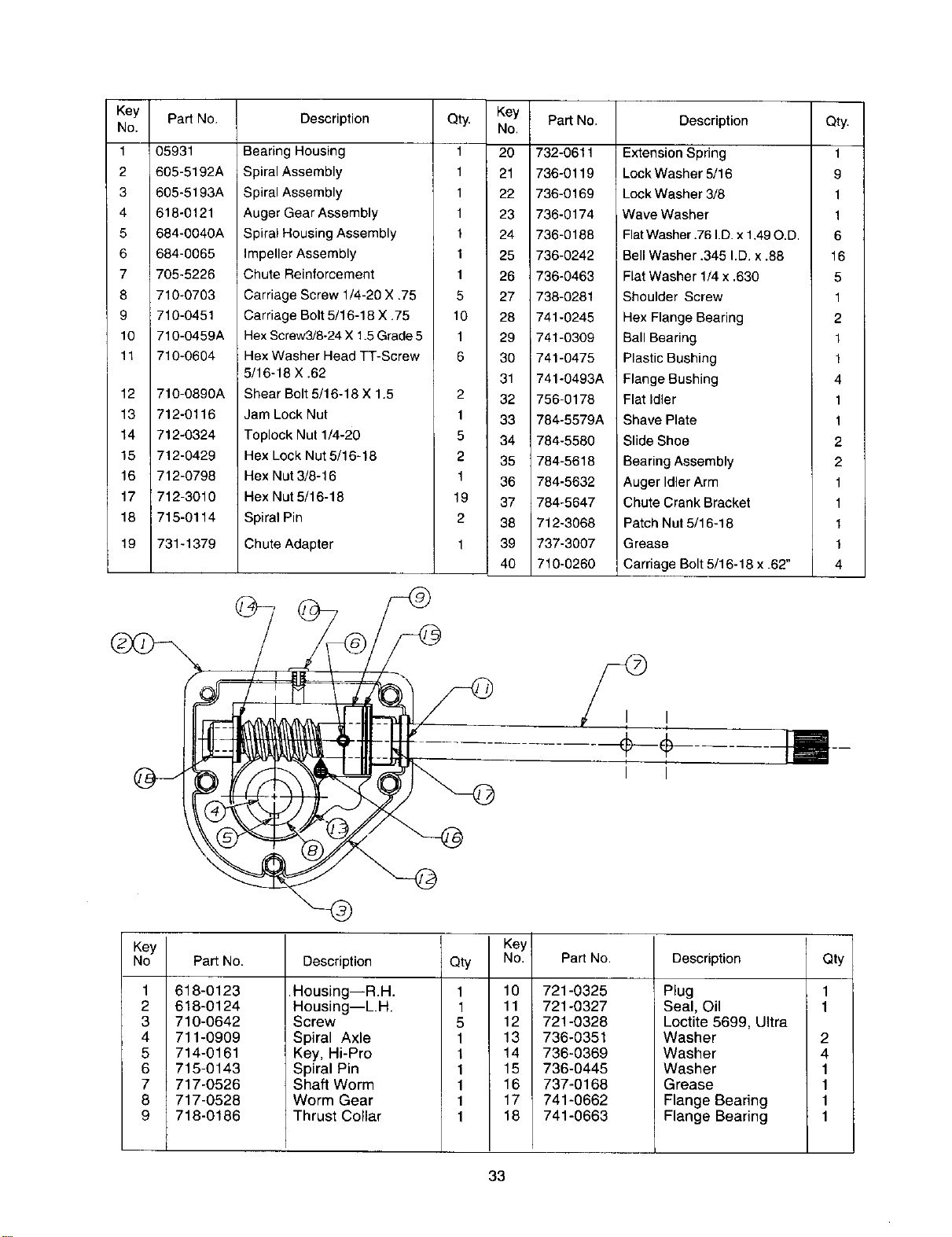

Key Part No.
No.
1 05931
2 605-5192A
3 605-5193A
4 618-0121
5 684-0040A
6 684-0065
7 705-5226
8 710-0703
9 710-0451
10 710-0459A
11 710-0604
12
13
14
15
16
17
18
19
710-0890A
712-0116
712-0324
712-0429
712-0798
712-3010
715-0114
731-1379
Description
Bearing Housing
Spiral Assembly
Spiral Assembly
Auger Gear Assembly
Spiral Housing Assembly
Impeller Assembly
Chute Reinforcement
Carriage Screw 1/4-20 X .75
Carriage Bolt 5/16-18 X .75
Hex Screw3/8-24 X 1.5Grade 5
Hex Washer Head TT-Screw
5/16-18 X .62
Shear Bolt 5/16-18 X 1.5
Jam Lock Nut
Toplock Nut 1/4-20
Hex Lock Nut 5/16-18
Hex Nut 3/8-16
Hex Nut 5/16-18
Spiral Pin
Chute Adapter
Qty. Key
No.
1 20
1 21
1 22
1 23
1 24
1 25
1 26
5 27
10 28
1 29
6 3O
31
2 32
1 33
5 34
2 35
1 36
19 37
2 38
1 39
4O
Part No. Description
732-0611
736-0119
736-0169
736-0174
736-0188
736-0242
736-0463
738-0281
741-0245
741-0309
741-0475
741-0493A
756-0178
784-5579A
784-5580
784-5618
784-5632
784-5647
712-3068
737-3007
710-0260
Extension Spring
Lock Washer 5/16
Lock Washer 3/8
Wave Washer
FlatWasher .76 I.D.x 1.49O.D.
Bell Washer .345 I.D. x .88
Flat Washer 1/4 x .630
Shoulder Screw
Hex Flange Bearing
Ball Bearing
Plastic Bushing
Flange Bushing
Flat Idler
Shave Plate
Slide Shoe
Bearing Assembly
Auger Idler Arm
Chute Crank Bracket
Patch Nut 5/16-18
Grease
Carriage Bolt 5/16-18 x .62"
I I
Qty.
1
9
1
1
6
16
5
1
2
1
1
4
1
1
2
2
1
1
1
1
4
Key
No
1
2
3
4
5
6
7
8
9
Pa_ No.
618-0123
618-0124
710-0642
711-0909
714-0161
715-0143
717-0526
717-0528
718-0186
Description Qty
.Housing--R.H. 1
Housing--L.H. 1
Screw 5
Spiral Axle 1
Key, Hi-Pro 1
Spiral Pin 1
Shaft Worm 1
Worm Gear 1
Thrust Collar 1
Key
No. Pa_ No.
10 721-0325
11 721-0327
12 721-0328
13 736-0351
14 736-0369
15 736-0445
16 737-0168
17 741-0662
18 741-0663
Description
Plug
Seal, Oil
Loctite 5699, Ultra
Washer
Washer
Washer
Grease
Flange Bearing
Flange Bearing
Qty
2
4
1
1
1
1
33

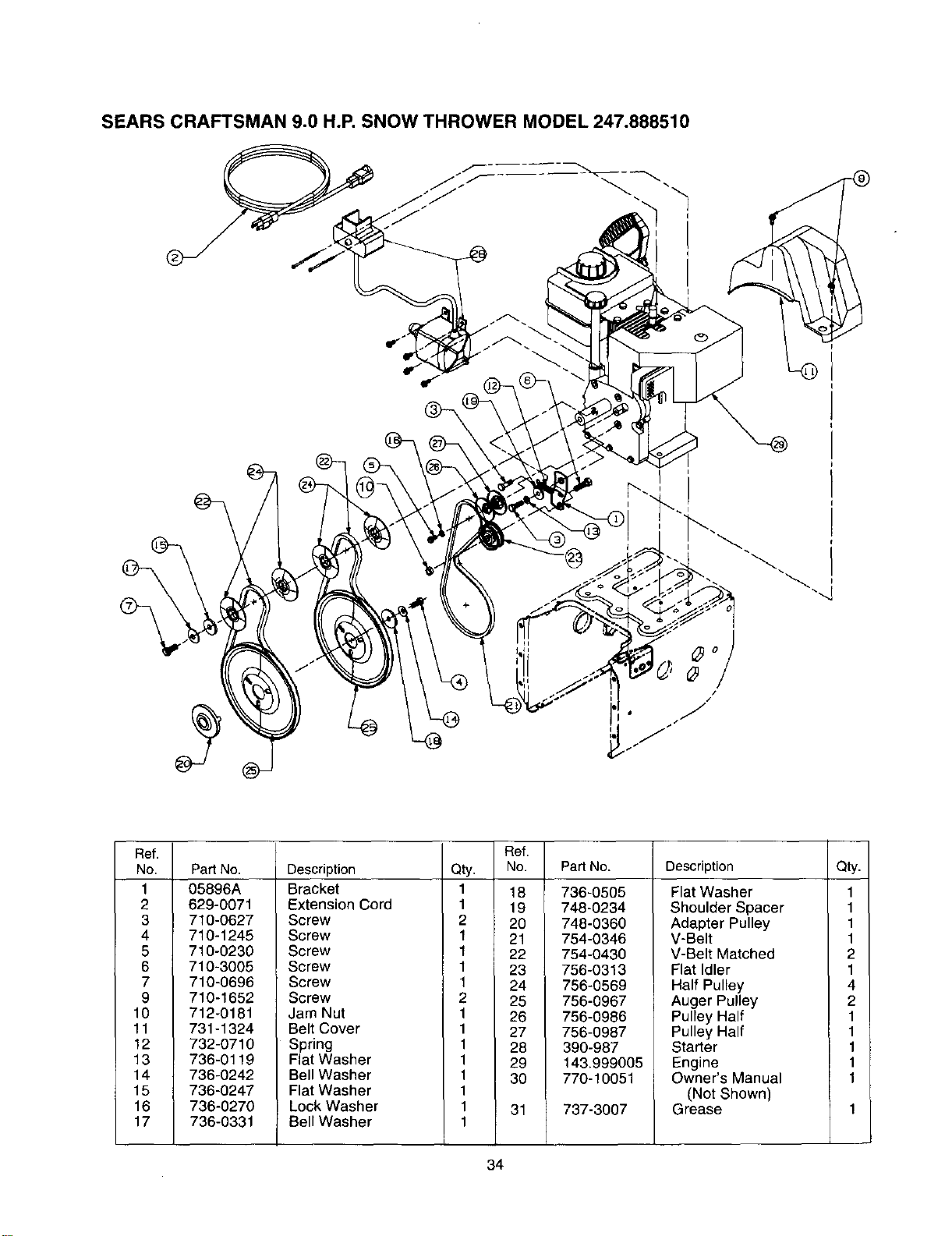

SEARS CRAFTSMAN 9.0 H.P. SNOW THROWER MODEL 247.888510
Ref.
No.
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
Pad No.
05896A
629-0071
710-0627
710-1245
710-0230
710-3005
710-0696
710-1652
712-0181
731-1324
732-0710
736-0119
736-O242
736-0247
736-0270
736-0331
Description
Bracket
Extension Cord
Screw
Screw
Screw
Screw
Screw
Screw
Jam Nut
Belt Cover
Spring
Fiat Washer
Bell Washer
Flat Washer
Lock Washer
Bell Washer
Qty.
1
1
2
1
1
1
1
2
1
1
1
1
1
1
1
1
Ref.
No.
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Pad No.
736-0505
748-0234
748-0360
754-0346
754-0430
756-0313
756-0569
756-0967
756-0986
756-O987
390-987
143.999005
770-10051
73713007
Description
Flat Washer
Shoulder Spacer
Adapter Pulley
V-Belt
V-Belt Matched
Flat Idler
Half Pulley
Auger Pulley
Pulley Half
Pulley Half
Starter
Engine
Owner's Manual
(Not Shown)
Grease
Qty.
1
1
1
1
2
1
4
2
1
1
1
1
1
34

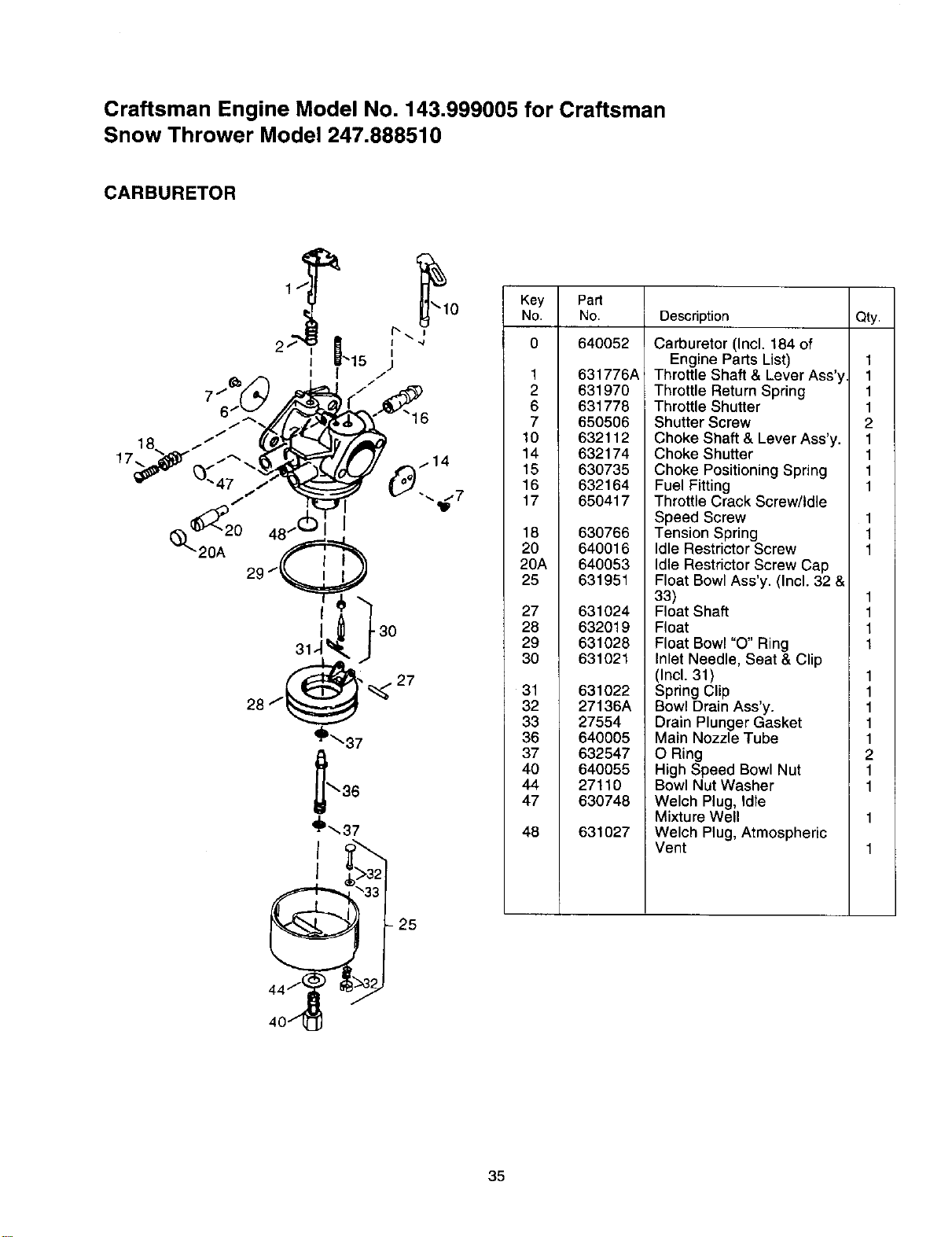

Craftsman Engine Model No. 143.999005 for Craftsman
Snow Thrower Model 247.888510
CARBURETOR
Key Pad
No. No. Description Qty.
0 640052
_'37
27 631024
28 632019
29 631028
30 631021
,_,,27 31 631O2232 27136A
33 27554
36 640005
37 632547
40 640055
44 27110
47 630748
_36
'1_,_37
I
I
]3
25
48 631027
Carburetor (Incl. 184 of
Engine Parts List)
Throttle Shaft & Lever Ass'y.
Throttle Return Spring
Throttle Shutter
Shutter Screw
Choke Shaft & Lever Ass'y.
Choke Shutter
Choke Positioning Spring
Fuel Fitting
Throttle Crack Screw/Idle
Speed Screw
Tension Spring
Idle Restrictor Screw
Idle Restrictor Screw Cap
Float Bowl Ass'y. (Incl. 32 &
33)
Float Shaft
Float
Float Bowl "O" Ring
Inlet Needle, Seat & Clip
(Incl. 31)
Spring Clip
Bowl Drain Ass'y.
Drain Plunger Gasket
Main Nozzle Tube
O Ring
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Idle
Mixture Well
Welch Plug, Atmospheric
Vent
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
35

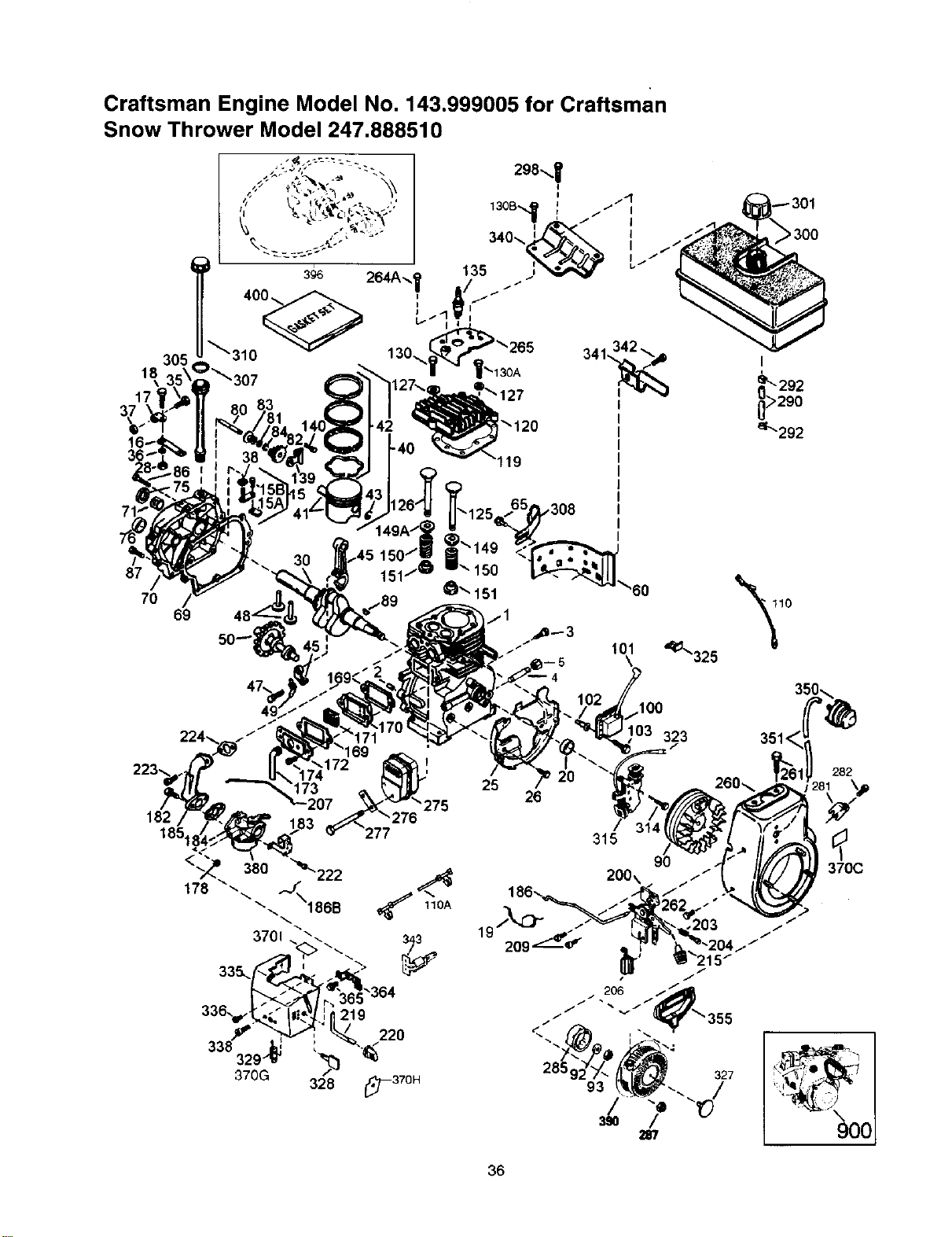

Craftsman Engine Model No, 143.999005 for Craftsman
Snow Thrower Model 247,888510
305
18
\
17 _
83
L40
>300
87
70
69
224_
182
185.
3O
100
110A
343
219
3"t0G
328 [_370H
25
26
315
/ 206 ..- "/
//1
285 92_/. '_O _.-..._27
3_ /
282
370C
90G
36
Craftsman Engine Model No. 143.999005 for Craftsman
Snow Thrower Model 247,888510
Key
No.
1
2
3
4
5
15
15A
15B
16
17
18
19
20
25
26
28
30
35
36
37
38
40
4O
41
41
42
42
43
45
47
48
49
5O
60
65
69
7O
71
75
76
80
81
82
83
84
86
87
89
Part
No.
35385
27652
650820
30969
30699C
30700
650494
33454
29916
651028
34663
35319
36460
650561
30322
35980A
29826
29918
29216
29642
40011
40012
40009
40010
40013
40014
27888
36897
651033
34034
36896
36655
33273A
650128
35262A
35445A
35377
35319
28926
31845
30590A
35378
30588A
29193
650833
650832
32589
Key Pad
Description Qty. No. No,
Cylinder 1 90
Dowel Pin 2 92
Screw 2 93
Oil Drain Extension 1 100
Extension Cap 1 101
Governor Rod 1 102
Governor Yoke 1 103
Screw 1 110
Governor Lever 1 110A
Governor Lever Clamp 1 119
Screw, Torx 1 120
Speed Control Spring 1 125
Oil Seal 1 125
Blower Housing Baffle 1 126
Screw 2 126
Lock Nut 1 127
Crankshaft 1 130
Screw 1 130A
Lock Washer 1 130B
Lock Nut 1 135
Retaining Ring 1 139
Piston, Pin & Ring Set (Std.) 1 140
Piston, Pin& RingSet (.010"O:;) 1 149
Piston, & Pin Ass'y.(Std.) 1 149A
Piston, & Pin Ass'y.(.010" OS) 1 150
Ring Set (Std.) 1 151
Ring Set (.010" OS) 1 169
Piston Pin Retaining Ring 2 170
Connecting Rod Ass'y. 1 171
Connecting Rod Bolt 2 172
Valve Lifter 2 173
Oil Dipper 1 174
Camshaft (MCR) 1 178
Blower Housing Extension 1 182
Screw 1 183
Cylinder Cover Gasket 1 184
Cylinder Cover 1
Crankshaft Bushing 1 185
Oil seal 1 186
Camshaft Seal 1 186B
Governor Shaft 1 200
Washer 1 203
Governor Gear Asss'y. 1 204
Governor Spool 1 206
Retaining Ring 1 207
Screw 7 209
Screw 1 215
Flywheel Key 1 219
611093
650880
650881
35135
610118
651024
651007
35187
37047
36448
36449
27878A
27880A
34035
34036
650691
6021A
650727
650727
35395
33369
650836
27882
35862
27881
32581
27896A
28423
28424
28425
35350
650128
29752
30088A
34587A
33263
33877
34667
36652
34677
31342
651029
610973
33878
650821
35440
34586
Description
Flywheel (W/Ring Gear)
Belleville Washer
Flywheel Nut
Solid State Ignition
Spark Plug Cover
Solid State Mounting Stud
Screw, Torx
Ground Wire
Ground Wire
Cylinder Head Gasket
Cylinder Head
Exhaust Valve (Std.)
Exhaust Valve (1/32" Os)
Intake Valve(Std.)
Intake Valve (1/32" Os)
Washer
Screw
Screw
Screw
Resistor Spark Plug
Governor Gear Bracket
Screw
Valve Spring Cap
Valve Spring Cap
Valve Spring
Valve Spring Keeper
Valve Cover Gasket
Breather Body
Breather Element
Valve Cover
Breather Tube
Screw
Nut & Lock Washer
Screw
Choke Bracket
Carburetor to intake
pipe gasket
Intake Pipe
Governor Link
Choke Spring
Control Bracket
Compression Spring
Torx. Screw
Terminal
Throttle Link
Screw
Control Knob
Choke Rod
Qty.
1
1
1
1
1
2
2
1
1
1
1
1
1
1
1
2
7
2
2
1
1
2
1
1
2
2
1
1
1
1
1
2
2
2
1
1
1
1
1
1
1
1
1
1
2
1
1
Table continued on next page
37

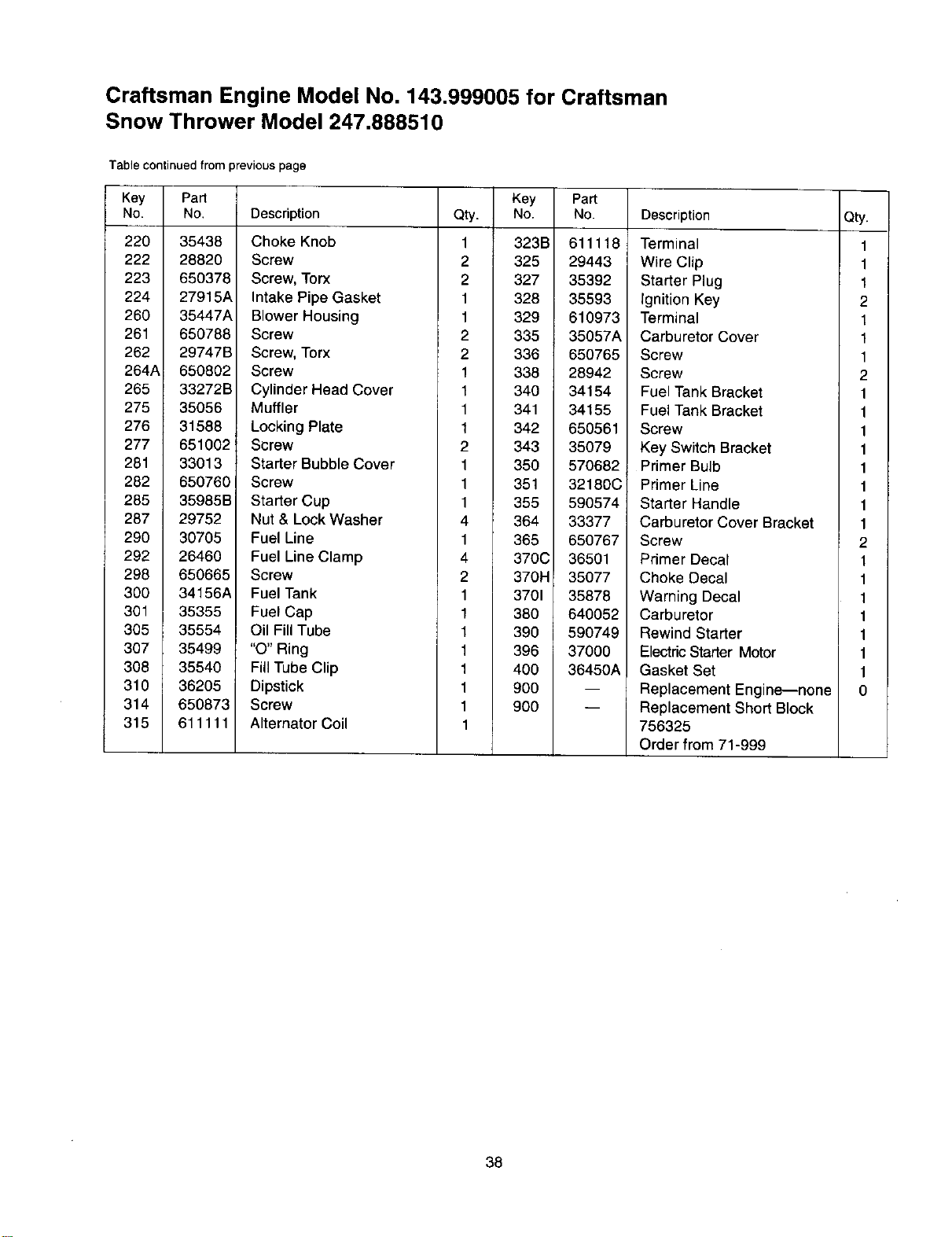

Craftsman Engine Model No, 143.999005 for Craftsman
Snow Thrower Model 247,888510
Table continued from previous page
Key Pad
No. No,
220 35438
222 28820
223 650376
224 27915A
260 35447A
261 650788
262 29747B
264A 650802
265 33272B
275 35056
276 31588
277 651002
281 33013
282 650760
285 35985Bi
287 29752
290 30705
292 26460
298 650665
300 34156A
301 35355
305 35554
307 35499
308 35540
310 36205
314 650873
315 611111
Key
Description Qty. No.
Choke Knob 1 323B
Screw 2 325
Screw, Torx 2 327
Intake Pipe Gasket 1 328
Blower Housing 1 329
Screw 2 335
Screw, Torx 2 336
Screw 1 338
Cylinder Head Cover 1 340
Muffler 1 341
Locking Plate 1 342
Screw 2 343
Starter Bubble Cover 1 350
Screw 1 351
Starter Cup 1 355
Nut & Lock Washer 4 364
Fuel Line 1 365
Fuel Line Clamp 4 370C
Screw 2 370H
Fuel Tank 1 3701
Fuel Cap 1 380
Oil Fill Tube 1 390
"O" Ring 1 396
Fill Tube Clip 1 400
Dipstick 1 900
Screw 1 900
Alternator Coil 1
Part
No.
611118
29443
35392
35593
610973
35057A
650765
28942
34154
34155
650561
35079
570682
32180C
590574
33377
650767
36501
35077
35878
640052
590749
37000
36450A
Description
Terminal
Wire Clip
Starter Plug
Ignition Key
Terminal
Carburetor Cover
Screw
Screw
Fuel Tank Bracket
Fuel Tank Bracket
Screw
Key Switch Bracket
Primer Bulb
Primer Line
Starter Handle
Carburetor Cover Bracket
Screw
Primer Decal
Choke Decal
Warning Decal
Carburetor
Rewind Starter
ElectricStarter Motor
Gasket Set
Replacement Engine--none
Replacement Short Block
756325
Order from 71-999
Qty.
1
1
1
2
1
1
1
2
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
0
38

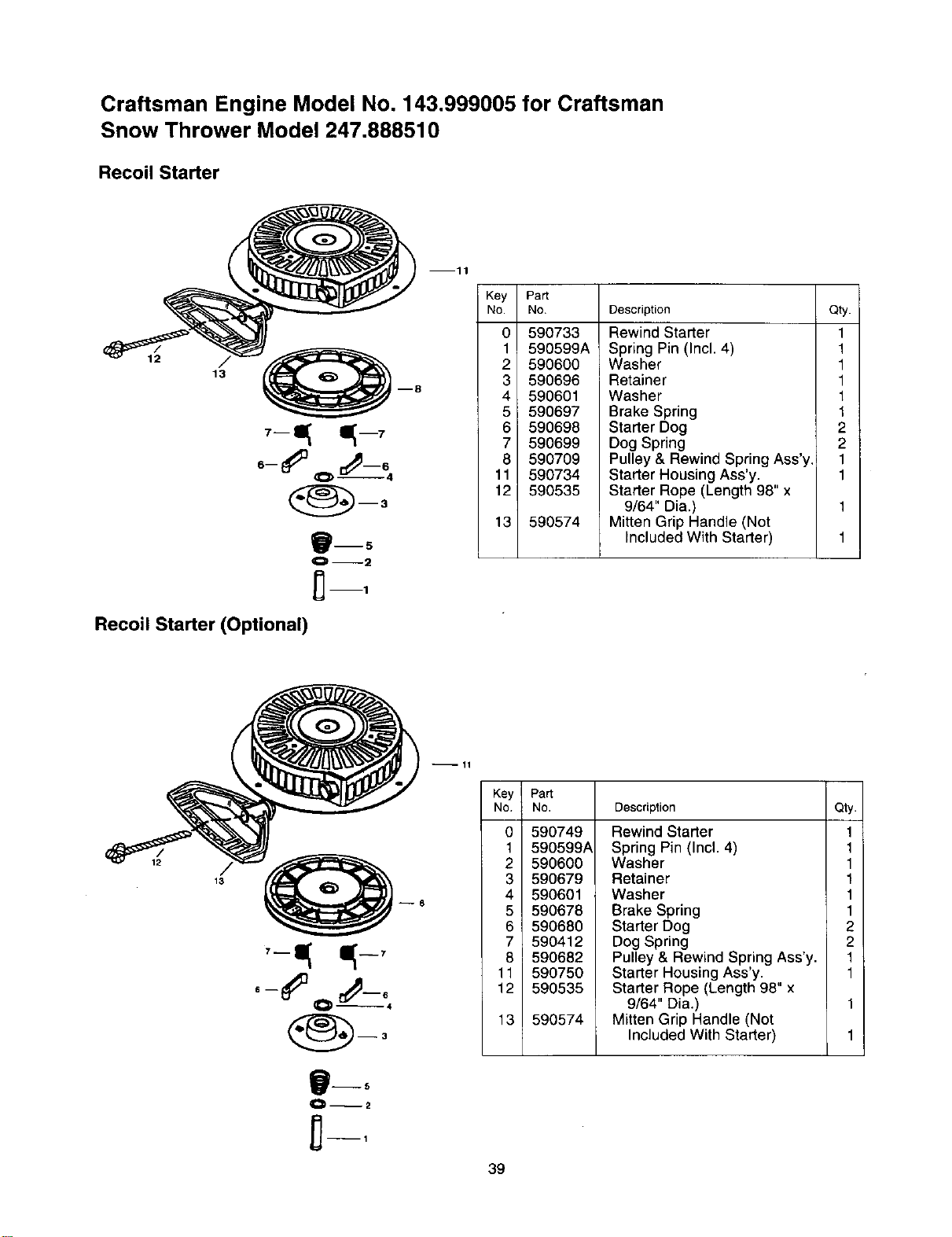

Craftsman Engine Model No. 143.999005 for Craftsman
Snow Thrower Model 247,888510
Recoil Starter
12
13
_m5
Recoil Starter (Optional)
mll
Key Part
No. No. Description
0 590733
1 590599A
2 590600
3 590696
4 590601
5 590697
6 590698
7 590699
8 590709
11 590734
12 590535
13 590574
Rewind Starter
Spring Pin (Incl. 4)
Washer
Retainer
Washer
Brake Spring
Starter Dog
Dog Spring
Pulley & Rewind Spring Ass'y.
Starter Housing Ass'y.
Starter Rope (Length 98" x
9/64" Dia.)
Mitten Grip Handle (Not
Included With Starter)
Qty.
1
1
1
1
1
1
2
2
1
1
13
B--5
--11
Key I Part
No. No. Description
0 590749
1 590599A
2 590600
3 590679
4 590601
5 590678
6 590680
7 590412
8 590682
11 590750
12 590535
13 590574
39
Qty.
Rewind Starter 1
Spring Pin (Incl. 4) 1
Washer 1
Retainer 1
Washer 1
Brake Spring 1
Starter Dog 2
Dog Spring 2
Pulley & Rewind Spring Ass'y. 1
Starter Housing Ass'y. 1
Starter Rope (Length 98" x
9/64" Dia.) 1
Mitten Grip Handle (Not
Included With Starter) 1
Forthe repair or replacementpartsyouneed
delivereddirectly to yourhome
Call7 am - 7 pm, 7 daysa week
1-800-366-PART
(1-800-366-7278)
For in-homemajorbrandrepair service
Call24 hours a day,7 daysa week
1-8OO-4-REPAIR
(1-800-473-7247)
Forthe locationof a
SearsPartsandRepairCenterinyourarea
Call24 hours a day,7 days aweek
1-800-488-1222
Immmmm
mm|m|
Forinformationon purchasinga Sears
MaintenanceAgreementor to inquire
about an existingAgreement
call 9 am - 5 pm, Monday-Saturday
1-800-827-6655
Amenca LsRepair SPecialists
