instruction Manual
CR!FTSMRN°
SNOW THROWER KiT
Model No. 486.24831
DO NOT RETURN TO STORE
For Missing Parts or Assembly
Questions Call 1-866-576-8388
CARTON CONTENTS
12/3 5
REF QTY PART NO
1 2 25301
2 1 64943
3 1 64944
DESCRIPTION REF QTY
Frame Bracket 4 1
Front Hanger Bracket, L.H. 54" 5 1
Front Hanger Bracket, R.H. 54" 6 2
7 1
PART NO
63571
63572
26557
26556
DESCRIPTION
Hanger Bracket, L.H.
Hanger Bracket, R.H.
Mounting Bracket
Side Plate, R.H.
HARDWARE PACKAGE CONTENTS
jA
SHOWN ACTUAL SIZE
BjC _jD E F
REF QTY PART NO
A 2 43087
B 14 43001
C 4 43350
DESCRIPTION
3/8" x 1-1/4" Hex Bolt
3/8" x 1" Hex Bolt
3/8" x 1" Carriage Bolt
REF QTY
D 12
E 12
F 2
PART NO
HA21362
43003
23625
DESCRIPTION
3/8" Nylock Nut
3/8" Lock Washer
Spacer

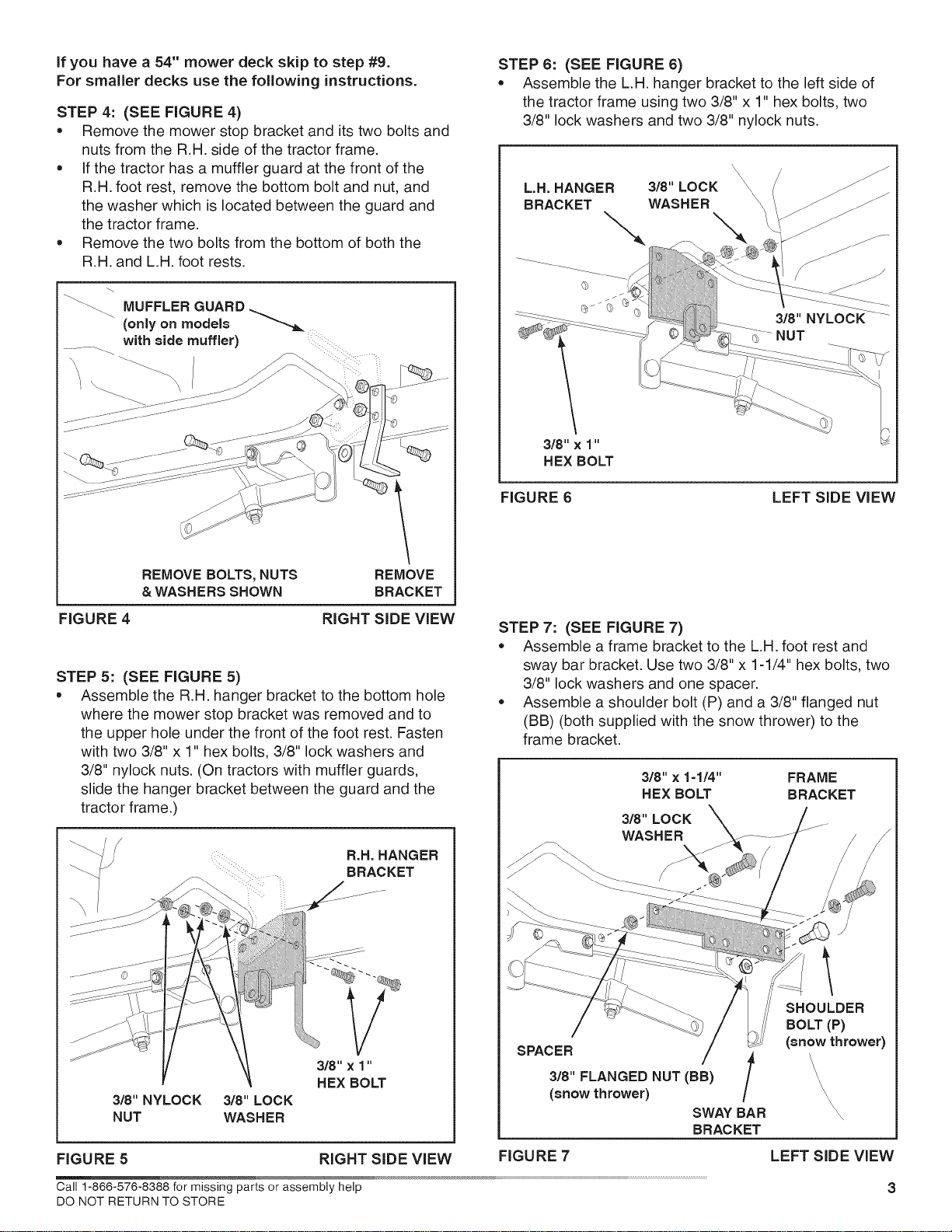

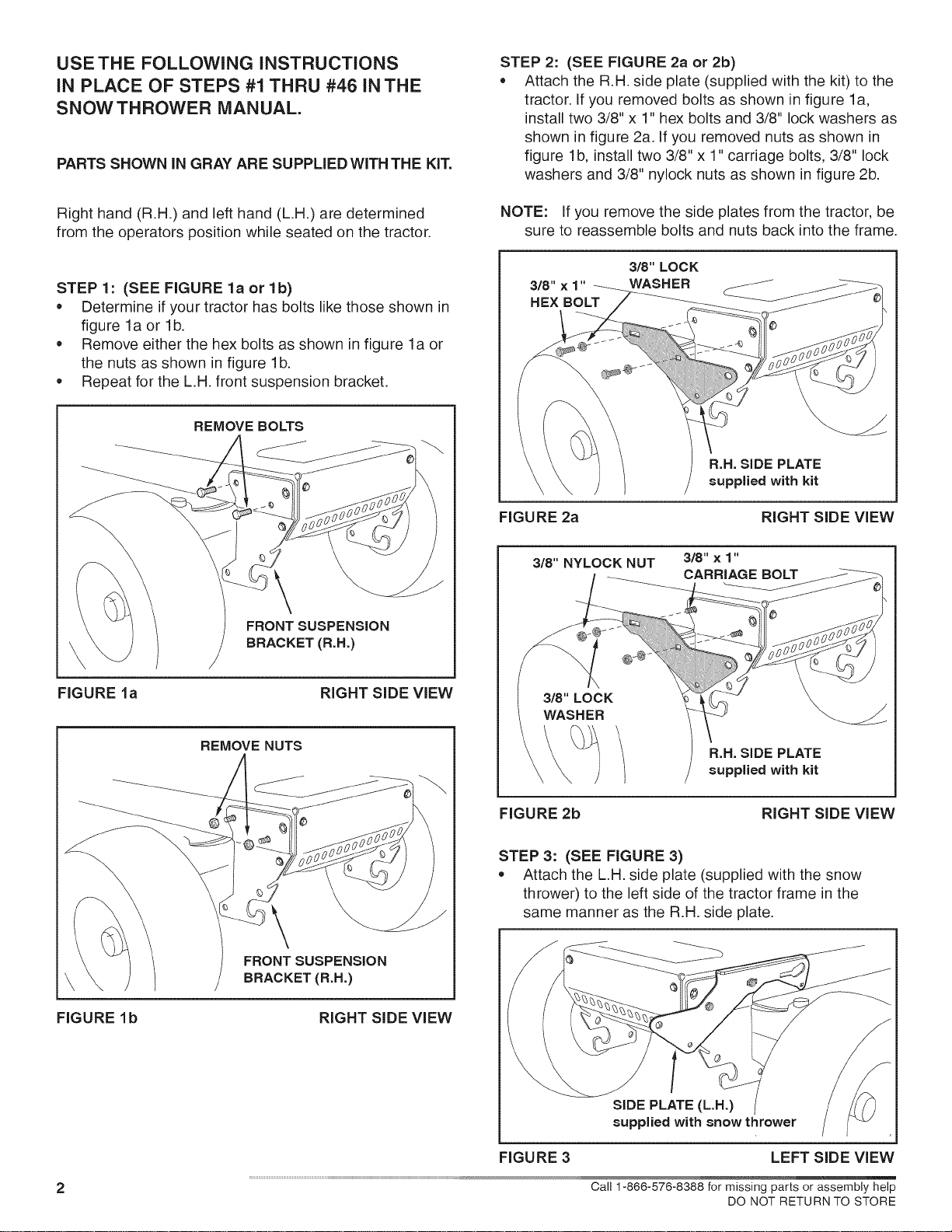

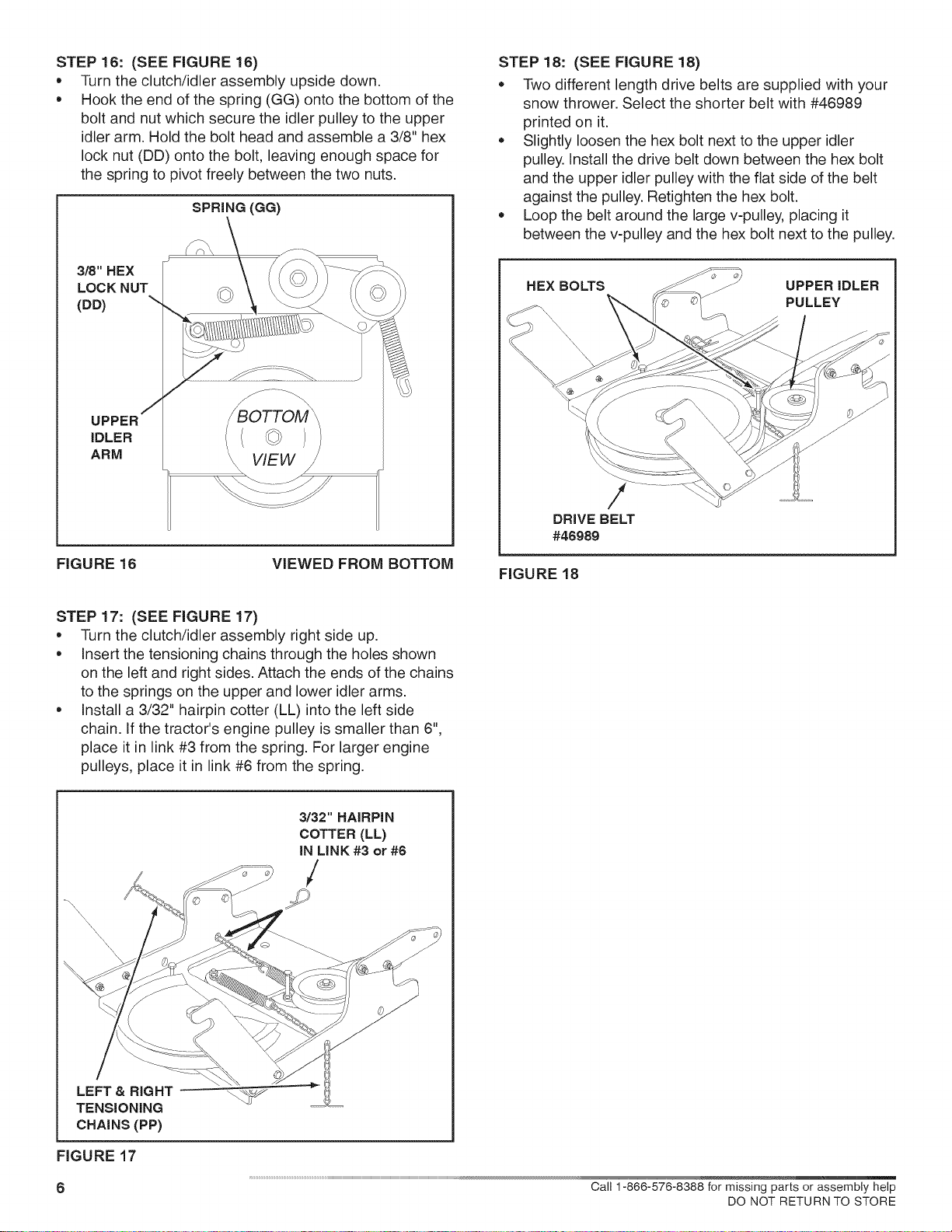

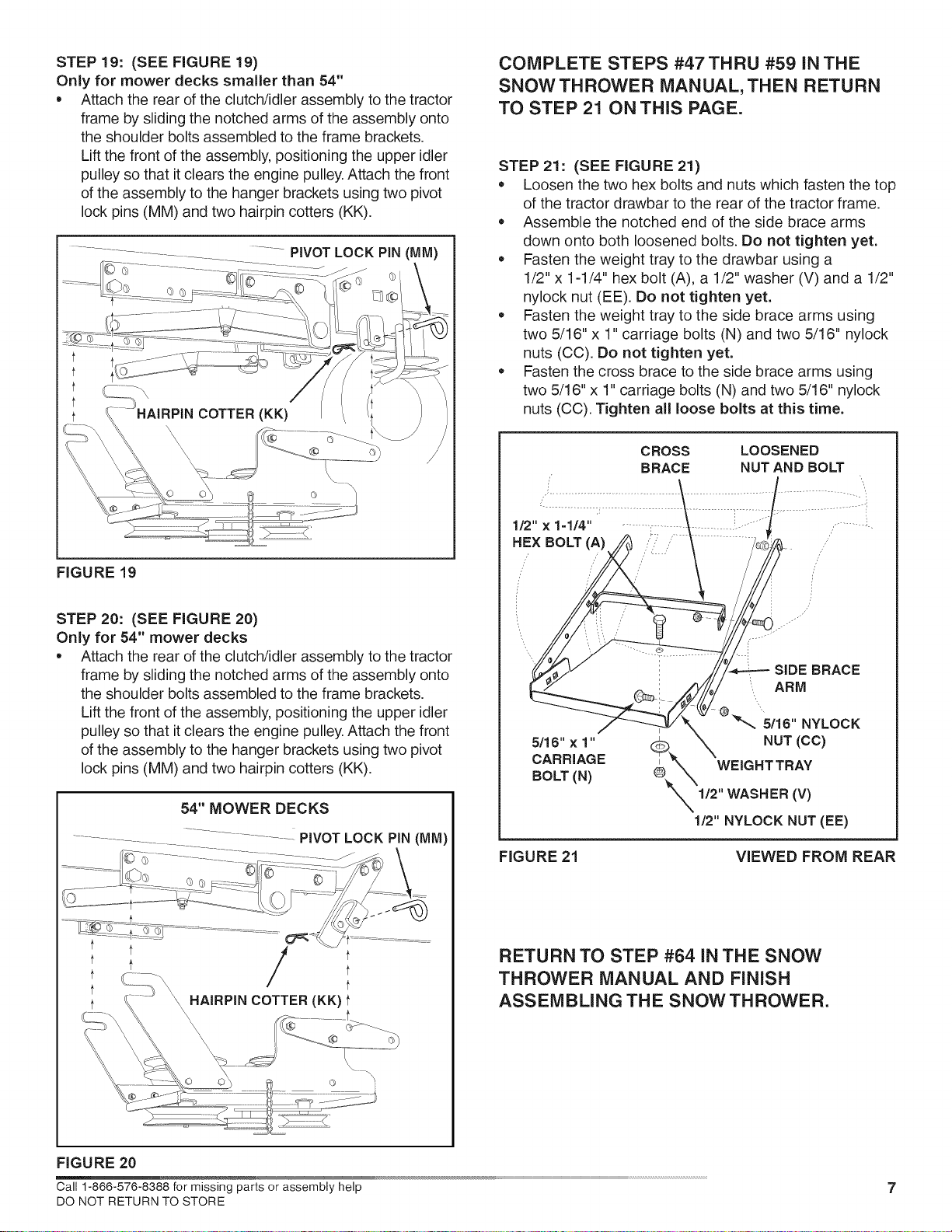

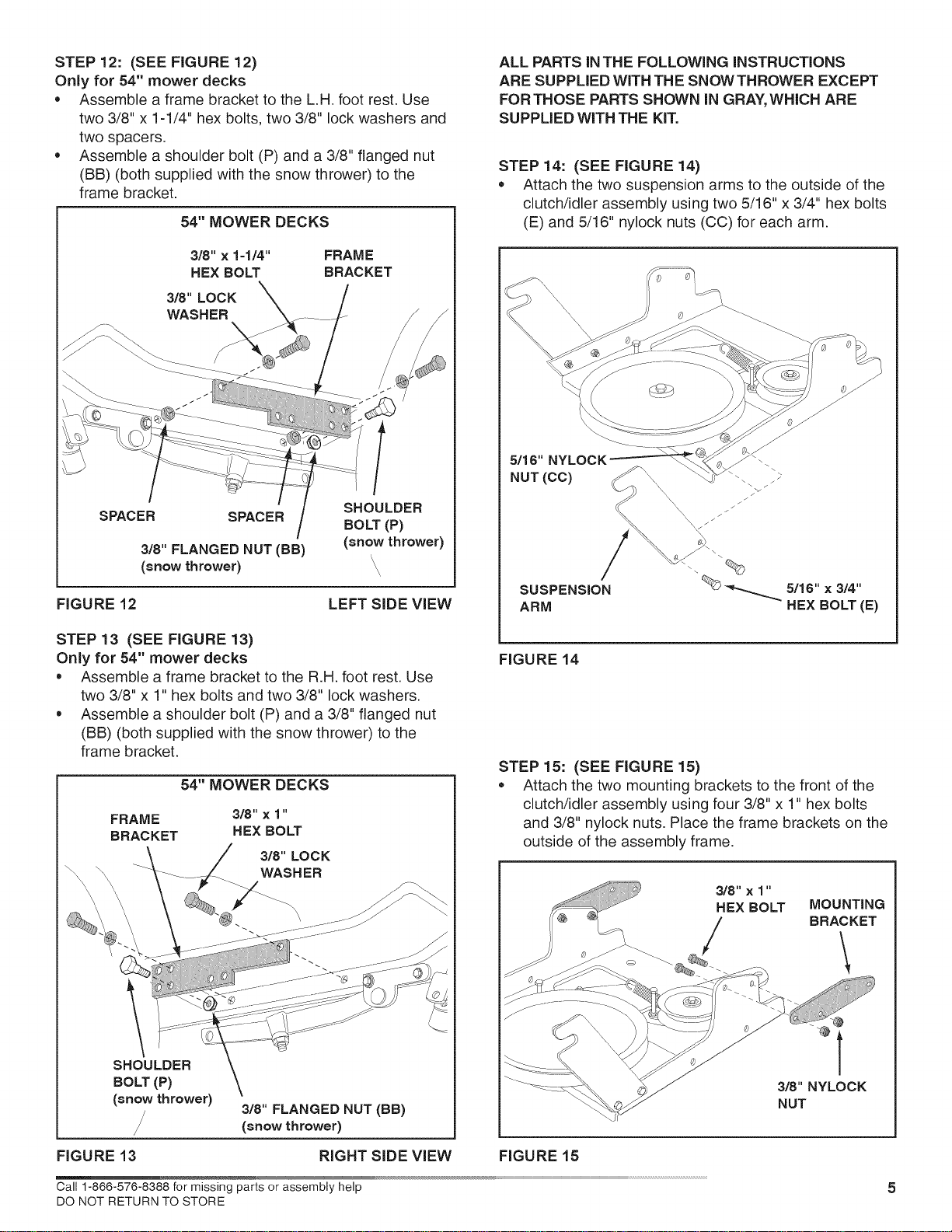

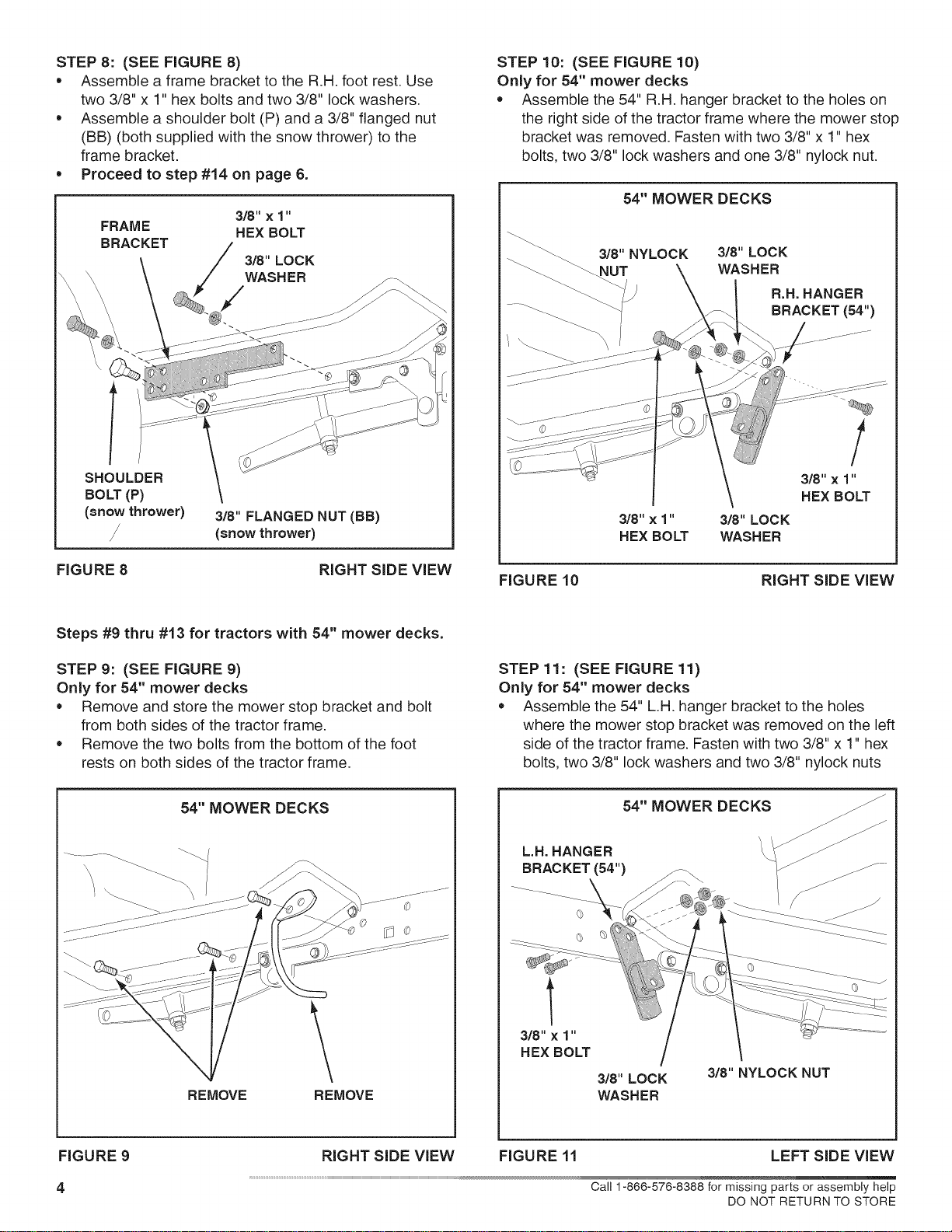

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
PRINTED IN U.S.A. FORM NO. 41039 rev. (12/10/08)
