height 377mm
width 357mm
depth 530mm
specifications for plumb-in.
disregard if using the internal water reservoir.
water flow rate 2GPM
dynamic water pressure † 45PSI
min.pipe size diameter* 3/8 “
water connection* 3/8 ” male comp
water quality water kits are provided
with your machine
See water specifications
max. dist* 2.74 m
drain slope* ‡ 30mm per metre
counter hole diameter 65mm
* suggested | † regulate as needed | ‡ this machine must be installed in accordance with the applicable federal, state and local
plumbing codes
shipping weight 43kg
operating weight 30kg
voltage (VAC) 220-240V Single Phase
Standard Watts 1820
waterdimensions
drainage
weights
power
linea mini installation guideline
La Marzocco recommends that your
filtration system produces water
with the following properties:

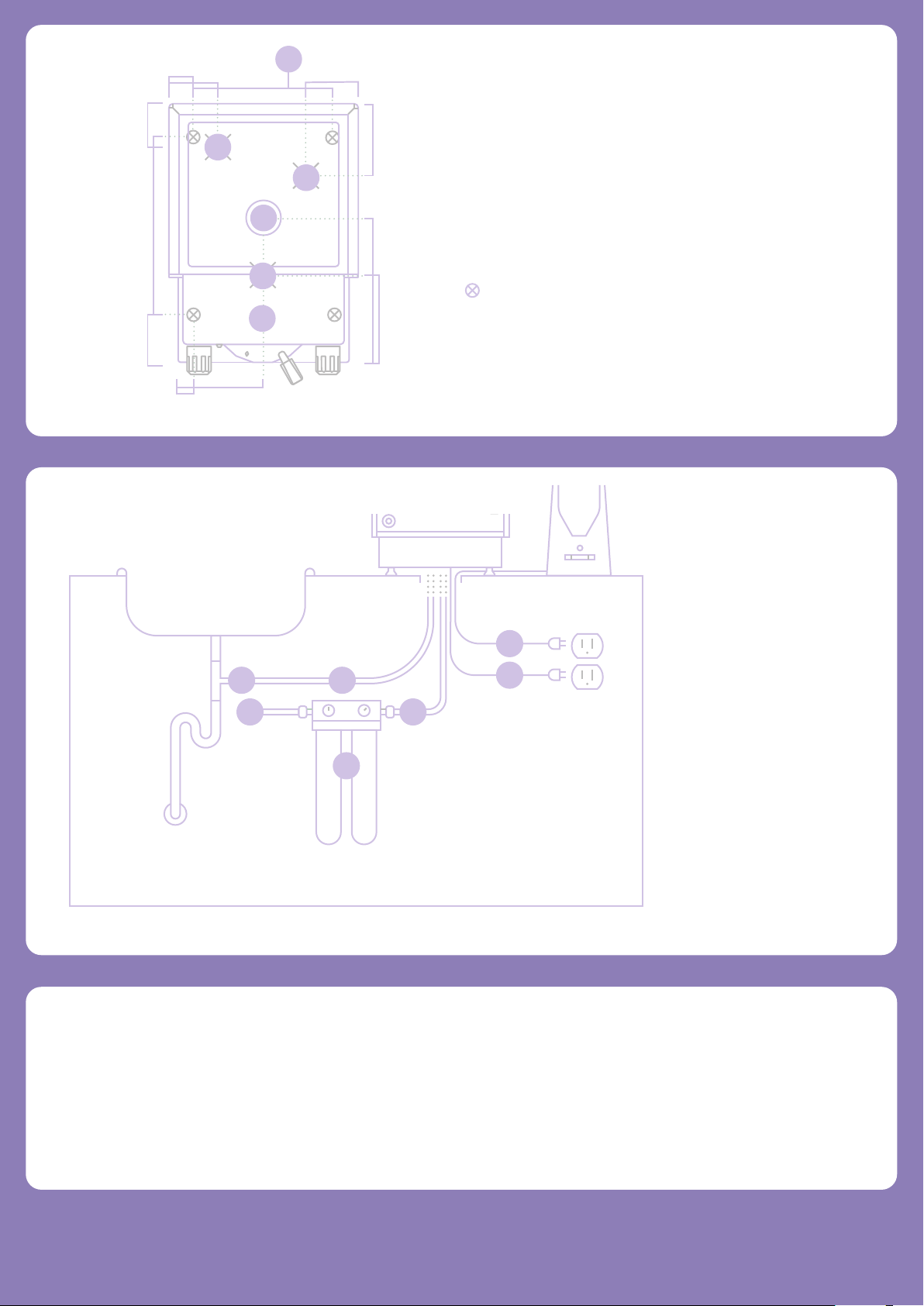

1. centre line of the machine
2. position of the power cord
3. suggested diameter of counter hole: 65mm
4. position of the drain tube
5. position of the water inlet hose
6. width of legs per model
machine leg location
specifications for plumb-in.
disregard if using the internal
water reservoir.
1. 3/8” cold water supply
2. water filter required if plumbed
(not provided)
see water specifications below.
3.3/8” BSPP cold water supply
line suggested max. dist. from
water supply 203mm
4. 3/4” flexible drainline
(min. 3cm per metre slope)
5. sink drain above p-trap
6. 220V electrical supply
to grinder
7. 220-240V, electrical supply to
espresso machine (10 amp plug included)
T.D.S
Total Hardness
Total Iron
Free Chlorine
Total Chlorine
90 -150ppm
70-100ppm
0-0.02ppm
0-0.05ppm
0-0.1ppm
pH
Alkalinity
Chloride
Line Pressure
Flow Rate
6.5 - 8
40-80ppm
0-30ppm
45-80PSI
2 GPM or 8 LPM
top view
front view
water specifications
for any queries please contact the tech team at [email protected]
1
2
3
4
5
6
7
2
5
264mm
96.5mm91.5mm
165mm
89mm
310mm
79mm
284mm
135mm
46mm
160mm
30mm
6
4
1
3
