PLASMA TV
MODELS: RU=42PZ61/71
RU=50PZ61
RU=60PZ61
this manual carefully and completely before
future reference.
and serial number of the TV in the
back cover and relate this
require service.
Warning
f
2

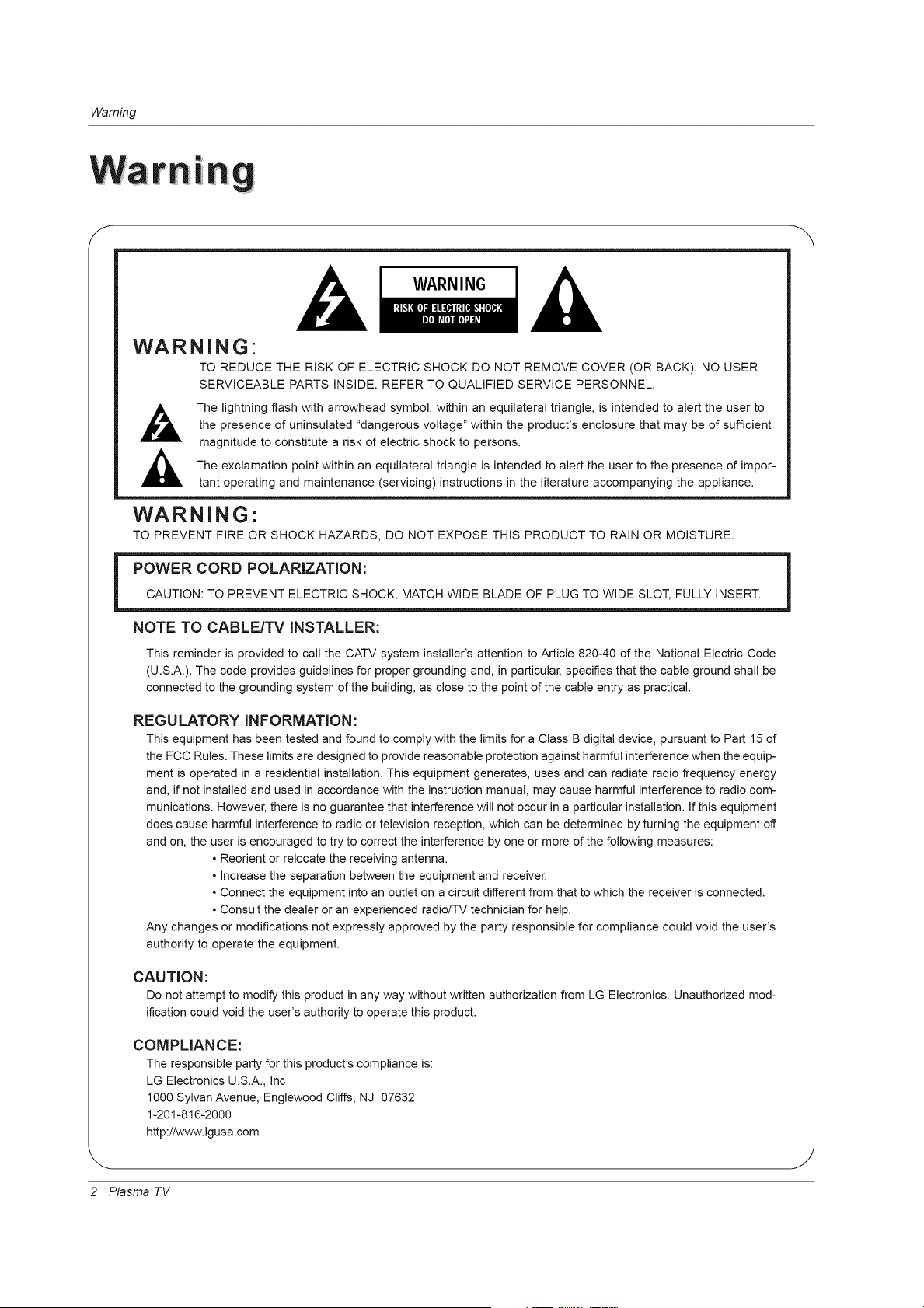

WARNING
WARNING
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The fightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor-
tant operating and maintenance (servicing) instructions in the fiterature accompanying the appfiance.
WARNING"
TO PREVENT FiRE OR SHOCK HAZARDS, DO NOT EXPOSE THiS PRODUCT TO RAiN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric Code
(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equip-
ment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized mod-
ification could void the user's authority to operate this product.
COMPLIANCE:
The responsible party for this product's compliance is:
LG Electronics U.S.A., Inc
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
1-201-816-2000
http://www.lgusa.com
Plasma TV

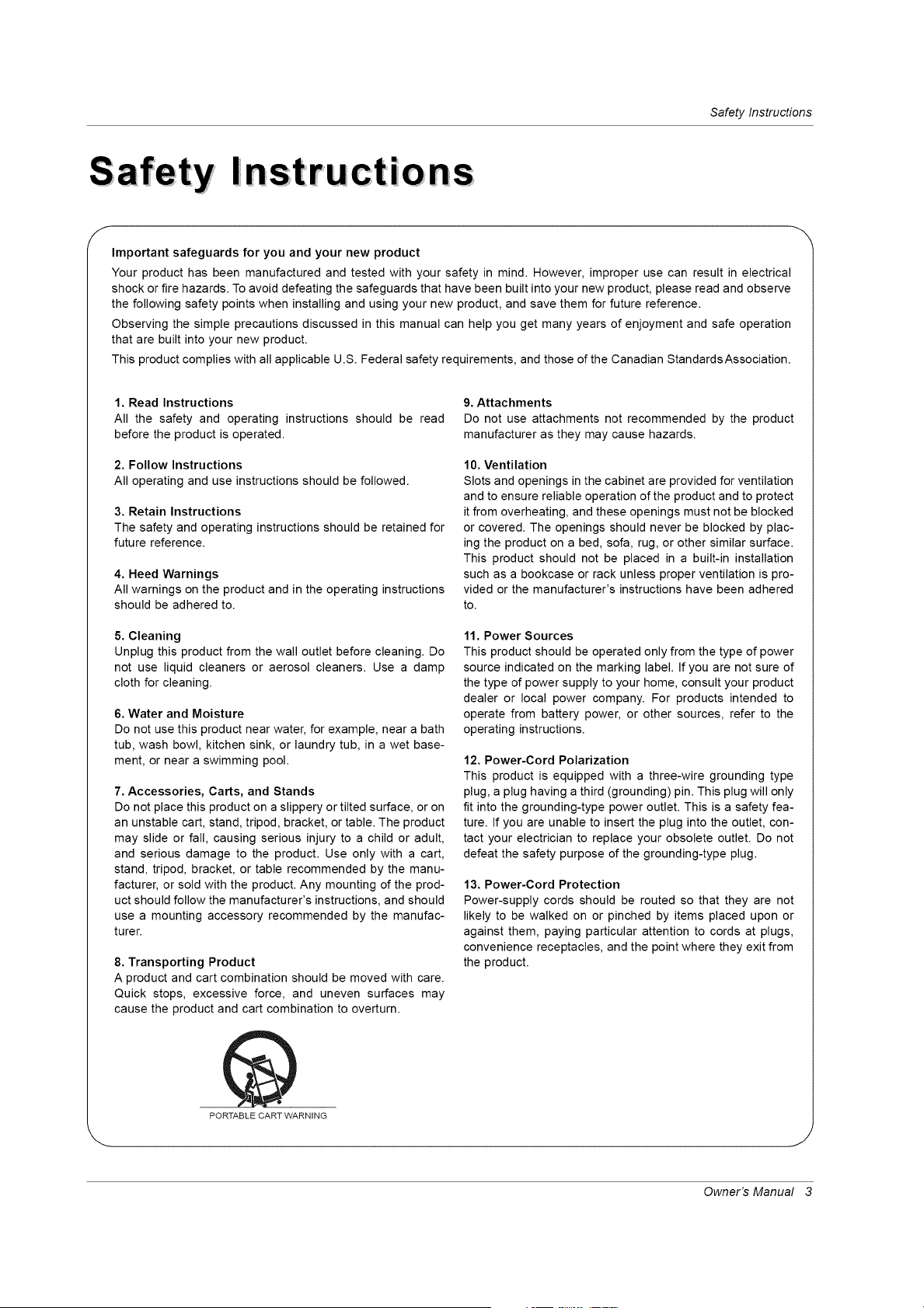

SafetyInstructions
!
lons
f
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper use can result in electrical
shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe
the following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this manual can help you get many years of enjoyment and safe operation
that are built into your new product.
This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian StandardsAssociation.
1. Read Instructions
All the safety and operating instructions should be read
before the product is operated.
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for
future reference.
4. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
6. Water and Moisture
Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub, in a wet base-
ment, or near a swimming pool.
7. Accessories, Carts, and Stands
Do not place this product on a slippery or tilted surface, or on
an unstable cart, stand, tripod, bracket, or table. The product
may slide or fall, causing serious injury to a child or adult,
and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manu-
facturer, or sold with the product. Any mounting of the prod-
uct should follow the manufacturer's instructions, and should
use a mounting accessory recommended by the manufac-
turer.
8. Transporting Product
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the product and cart combination to overturn.
Q
PORTABLE CART WARNING
9. Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect
it from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by plac-
ing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is pro-
vided or the manufacturer's instructions have been adhered
to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product
dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
12. Power-Cord Polarization
This product is equipped with a three-wire grounding type
plug, a plug having a third (grounding) pin. This plug will only
fit into the grounding-type power outlet. This is a safety fea-
ture. If you are unable to insert the plug into the outlet, con-
tact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.
13. Power-Cord Protection
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the product.
J
Owner's Manual 3
SafetyInstructions
Instructions continued
f

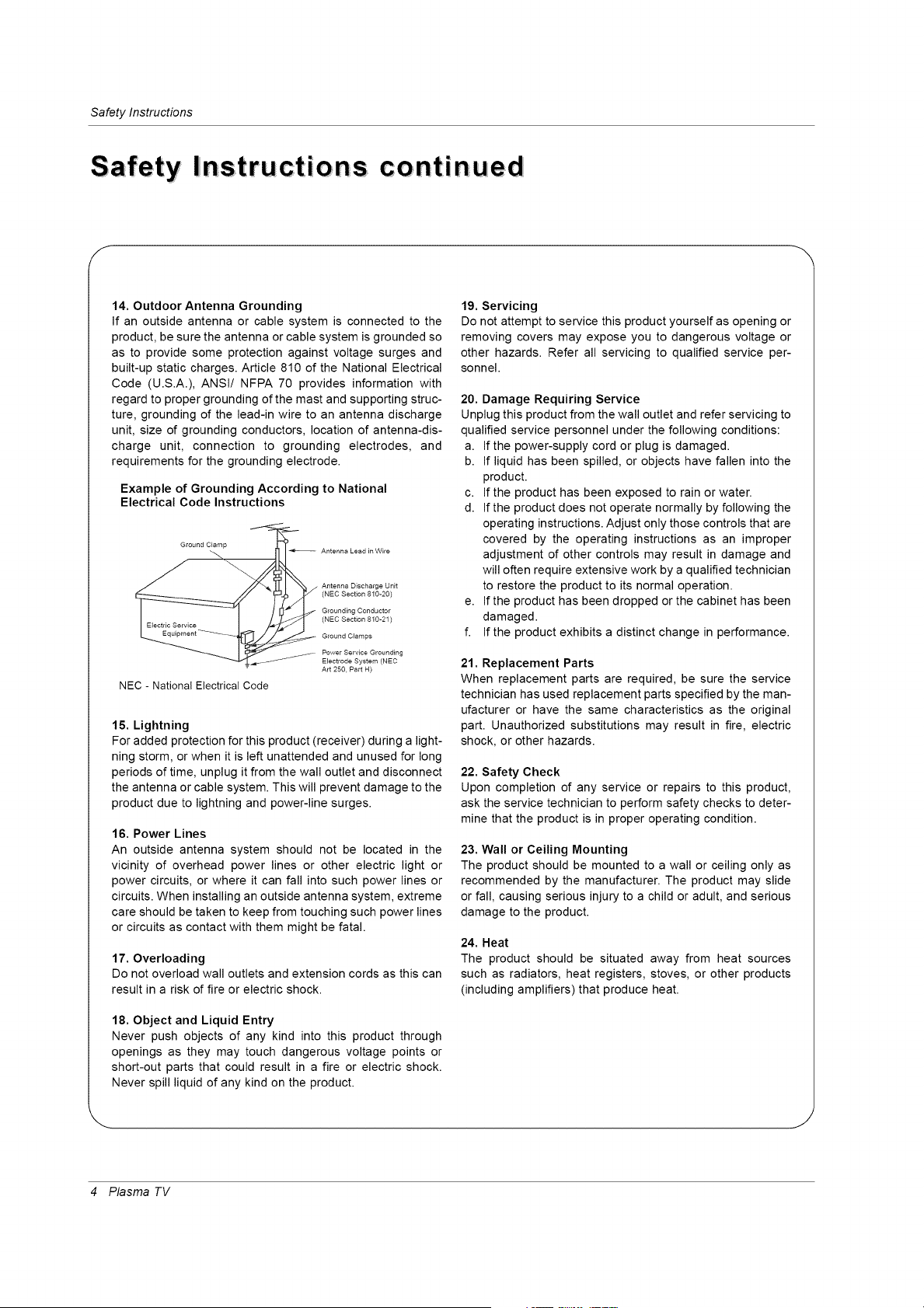

14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so
as to provide some protection against voltage surges and
built-up static charges. Article 810 of the National Electrical
Code (U.S.A.), ANSI/ NFPA 70 provides information with
regard to proper grounding of the mast and supporting struc-
ture, grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna-dis-
charge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Example of Grounding According to National
Electrical Code Instructions
Ground Clamp
NEC - National Electrical Code
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250. Part H)
15. Lightning
For added protection for this product (receiver) during a light-
ning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.
16. Power Lines
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, extreme
care should be taken to keep from touching such power lines
or circuits as contact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
19. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service per-
sonnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the
product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified technician
to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been
damaged.
f. If the product exhibits a distinct change in performance.
21. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the man-
ufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
22. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to deter-
mine that the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as
recommended by the manufacturer. The product may slide
or fall, causing serious injury to a child or adult, and serious
damage to the product.
24. Heat
The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
4 Plasma TV
Introduction
Con:
Warnings .................................... 2
Safety Instructions ............................. 3-4
Introduction
Controls ............................... 7
Connection Options ...................... 8
Remote Control Key Functions .............. 9
Installation
Installation Instruction ...................... 10
Joinning_he-iVassemblytothewalltoprotect_e set_umbling.11
Speakers mounted on the monitor ........... 11
Mounting speakers on TV ................ 11
Connecting Speakers to the Monitor using
the speaker wires provided ............... 11
Install the RING SPACER with the bolts on the set
as shown. (Only RU-60PZ61 series) ........... 12
External Equipment Connections ............. 12
Antenna Connection ..................... 12
VCR Setup I Cable TV Setup .............. 13
External A/V Source Setup ................ 14
DVD Setup ............................ 14
DTV Setup I Monitor Out Setup ............. 15
PC Setup ........................... 16-17
Operation
Turning the TV On ........................ 18
Menu Language Selection .................. 18
Channel Menu Options
Auto Program: Channel Search ............. 19
Manual Program: Adding/Deleting Channels ...19
Fine Tuning Adjustment .................. 19
Signal Reception Booster ................. 20
Favorite Channels Setup .................. 20
Picture Menu Options
APC (Auto Picture Control) ................ 21
XD .................................. 21
Color Temperature Control ................ 21
Fleshtone ............................. 22
sRGB ................................ 22
Manual Picture Control (APC set to Offoption) ..... 22
Sound Menu Options
DASP (Digital Auto Sound Processing) ....... 23
BBE ................................. 23
AVL (Auto Volume Leveler) ................ 23
Manual Sound Control(DASP off=op_onand balance)..24
Stereo/SAP Broadcasts Setup ............. 24
Timer Menu Options
Se t:up a n d
Auto Clock Setup ....................... 25
Manual Clock Setup ..................... 25
On/Off Timer Setup ..................... 25
Sleep Timer / Auto Off .................... 26
Special Menu Options
Key Lock ............................. 27
ISM (Image Sticking Minimization) Method .... 27
Low Power ............................ 28
XD Demo ............................. 28
Closed Captions ........................ 29
Captions .............................. 29
Caption/Text ........................... 29
Screen Menu Options
Auto Adjustment ....................... 30
Setting Picture Format ................... 30
Screen Position ........................ 30
Manual Configure ....................... 31
Setting VGA Mode ...................... 31
Setting XGA Mode ...................... 31
Screen Adjustments ..................... 32
Cinema Mode Setup ..................... 32
Luminance Noise Reduction ............... 32
Initializing (Reset to original factory value) ..... 33
Split Zoom ............................ 33
Lock Menu Options
Parental Lock Setup ..................... 34
PIP (Picture-ln-Picture)/Double Window Feature
Watching PIP/Double Window .............. 35
Swapping the PIP/Double Window .......... 35
TV Program selection for PIP .............. 35
Selectingan InputSignalSource for PIP/DoubleWindow .35
Moving the PIP ......................... 35
PIP Size .............................. 35
PIP Transparency ....................... 35
External Control Device Setup ................ 36-41
IR Codes ................................ 42-43
Programming the Remote ...................... 44
Programming Codes ....................... 45-46
Troubleshooting Checklist ...................... 47
Maintenance ................................. 48
Operation
Product Specifications ......................... 49
Warranty ................................ 51-52
Checklist
Setup and Operation Checklist
(See pages 12-16 for available connection and operational setup options.)
1. Unpack TV and all accessories. 5. Turn video source equipment on.
2. Connect all external video and audio equipment.
see pages 14 - 16.
6. Select viewing source for TV.
See page 21-22.
3 Install batteries in remote control.
See page 9.
4. Turn TV on.
See page 18.
7. Fine-tune source image and sound to your personal prefer-
ence or as required by source.
See pages 21 - 24.
8. Additional features set up
See Contents above.
Owner's Manual 5
Introduction
o ni
What is a Plasma Display Panel (PDP)?
A plasma display panel is the latest display technology. It is currently the best way to achieve flat panel displays with excellent
image quality and large screen sizes, that are easily viewable. The PDP can be thought of as a descendant of the neon lamp and
it can be also be viewed as a series of fluorescent lamps.
How does it work?
PDP is an array of cells, known as pixels, which are comprised of 3 sub pixels, corresponding to the colors red, green, and blue.
Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phos-
phors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.
You get the rich, dynamic colors that you expect. Each sub-pixel is individually controlled by advanced electronics to produce over
16 million different colors. All of this means that you get perfect images that are easily viewable in a display that is less than 5
inches thick.
160 ° - Wide angle range of vision
Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is
clear and visible to viewers anywhere in the room who can see the screen.
Wide Screen
The screen of the Plasma Display is so wide that your viewing experience is as if you are in a theater.
Multimedia
Connect your plasma display to a PC and you can use it for conferencing, games, and Internet browsing. The Picture-in-Picture
feature allows you to view your PC and video images simultaneously.
Versatile
The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs will not
fit.
The PDP Manufacturing Process: a few minute colored dots may be present on the PDP screen
The PDP (Plasma Display Panel), which is the display device of this product is composed of 0.9 to 2.2 million cells. Afew cell
defects will normally occur in the PDP manufacturing process. Several tiny, minute colored dots visible on the screen should be
acceptable. This also occurs in other PDP manufacturers' products. The tiny dots appearing does not mean that this PDP is defec-
tive. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology mini-
mizes these cell defects during the manufacture and operation of this product.
In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped with
cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans are operat-
ing and cooling the PDR
The fan noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal during the
operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is not suffi-
cient cause for the PDP to be exchanged or returned.
6 Plasma TV
Introduction
- This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.
4
78 9 10 11
6
8 9 10 11
RU-50PZ61
RU-60PZ61
_,RU-42PZ61
_, RU-42PZ71
1. ON/OFF Button
2. S-VIDEO Input
A connection available to provide better picture quality than
the video input.
3. VIDEO Input
Connects the video signal from a video device.
6. Remote Control Sensor
7. Power Standby Indicator
Illuminates red in standby mode, Illuminates green when the
TV is turned on.
8. TVNIDEO or ENTER Button
4. AUDIO Input
Use to connect to hear stereo sound from an external device.
5. INDEX
Switches LED Display on or off.
9. MENU Button
10. VOLUME (F,G) Buttons
11. CHANNEL (E, D) Buttons
Owner's Manual 7
Introduction
Options
Remote Control Port
Connect your wired RS-232C IN PUT
remote control here. (CONTROL/SER-
VICE) PORT
Connect to the RS-
232C port on a PC.
Monitor Output
Connect a second TV or
DVD/DTV Input (Component 1-2) Monitor.
I
Connect a component video/audio I S-Video Input
device to these jacks. I Connect S-Video out from an S-
VIDEO device to the S-VIDEO
input.
I!I
I
DVl Input/Audio Input/RGB
Input
Connect the monitor output con-
nector from a PC to the appropri-
i_iii!ii_ii:_iiiii_i:_Milil/!iil!ii/ii!ii/!.......................................................................................ii/liiil
I
AudioNideo Input 1
Connect audio/video
output from an external Antenna Input
device to these jacks. Connect cable or antenna
signals to the TV, either
ate input port.
External Speaker (8 ohm Output)
Connect to optional external speaker(s).
* For further information, refer to 'Speaker & Speaker
Stand' manual.
directly or through your
cable box.
Power Cord Socket
This TV operates on AC power. The voltage
is indicated on the Specifications page.
Never attempt to operate the TV on DC
power.
8 Plasma TV
Introduction
Contro! Key
- When using the remote control, aim it at the remote control sensor on the TV.
LIGHT
illuminates the remote control buttons.
TV/VlDEO \\
Selects: TV, Video1-2, Component 1-2,
RGB, and DVI input sources.\
MULTIMEDIA
Selects: Component 1-2, RGB, and
DVI input sources.
NUMBER buttons
FCR
Use to scroll the Surf channel list.
MUTE
Switches the sound on or off.
VOLUME UP/DOWN
Increases/decreases the sound level.
MENU
Brings up the main menu to the screen.
Switches between PIP, and
Double Window modes.
THUMBSTICK (Up/Down/Left/Right/ENTER)
Allows you to navigate the on-screen
menus and adjust the system settings to
your preference.
PIPCH-/PIPCH+
Changes to next lower/higher PIP channel.
WIN. SIZE
Adjusts the sub picture size.
MEMORY/ERASE /
Memorizes or erases selected channel.
A.PROG (AUTO PROGRAM)
Searches for available channels.
SPLIT ZOOM
Enlarges the picture.
/ MODE
J Selects the remote operating mode: TV,
VCR, DVD, CABLE, HDSTB orAUDIO.
Select other operating modes, for the
remote to operate external devices.
j POWER
Turns your TV or any other programmed
equipment on or off, depending on mode.
Changes the aspect ratio.
REVIEW
J Tunes to the last channel viewed.
j APC
Adjusts the factory preset picture according
to the room.
CHANNEL UP/DOWN
Selects available channels found
with Auto program.
CAPTION
Selects CAPTION mode.
EXIT
Clears all on-screen displays and returns
to TV viewing from any menu.
PIP INPUT
Selects the input source for the sub picture.
SWAP
Exchanges the sub/main images.
VCR/DVD BUTTONS
Control some video cassette recorders or
DVD player ("RECORD" button is not avail-
able for DVD player).
_ SLEEP
Sets the sleep timer.
MTS
Selects the MTS sound: Motto, Stereo, or
SAP.
DASP
Selects the sound appropriate for the pro-
ram's character.
\
WIN.POSITION
Moves the sub picture.
Installing Batteries
• Open the battery compartment cover on the back side and install the batteries
matching correct polarity (+ with +, - with -).
• Install two 1 .hV AA batteries. Don't mix old or used batteries with new ones.
Replace cover.
Owner's Manual 9
Installation
!
on
Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.
/
l i
l
l
/
;.......................I
Owner's Manual
Batteries
Remote Control
Power Cord
2-TV bracket bolts
(Only RU-42PZ61/71, 50PZ61 sedes)
4- Bolts
(Attach Supporter
Hanger to monitor-4)
(Only RU-42PZ61/71, 50PZ61 sedes)
6-RING SPACER
(Only RU-60PZ61 series)
6-Wall mounting bracket bolts
(Only RU-60PZ61 series)
75_2 Round Cable
2-TV brackets
2-Wall brackets
(Only RU-42PZ61/71,50PZ61 series)
2-Speaker Wires
(Only RU-42PZ61/71,50PZ61 sedes)
Cover Cable
(Only RU-42PZ61/71,50PZ61 series)
2-Speaker Wire Holders
(for arranging the speaker wires.)
(Only RU-42PZ61/71,50PZ61 series)
2-Speaker+2-su pporter hanger
(Only RU-42PZ61/71,50PZ61 series)
Instal!ation Instructions
GROUNDING
Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.
Power
Supply
Short-circuit
Breaker
10 Plasma TV
Installation
- Secure the TV assembly by joinning it to a wall by using the TV/Wall brackets.
- RU-60PZ61 series TV's stand is saled, separately.
- Here shown may be somewhat different from your TV.
....ii
iIiii ii !i ilil
J
J
J
J
f
J
f
f
J
J
f
J
f
f_fJJJJ.
After the set must be mounted on the desk top, install the
TV brackets on the TV as shown.
Install the TV brackets on the TV as shown.
Insert the 2 bolts and tighten securely, in the upper holes
on the bracket.
Install the wall brackets on the wall with 4 bolts*, (not
supplied with the product), as shown.
Match the height of the TV brackets and the wall brack-
ets.
Check to be sure the brackets are tightened securely.
• Secure the TV assembly to the wall with strong strings
or wound wire cables, (not supplied with the product), as
shown.
RU-60PZ61 series TV's speaker is saled, separately.
Here shown may be somewhat different from your TV.
• Mounting speakers on, TV
A
supporter hanger
\
Assemble the monitor to speaker with using the supporter
hanger and bolt. As shown above A, Assemble the a, b to
the TV with using the bolt.
If the bolts are tightened too much, the product could be
damaged.
Caution: Always lift the TV itself (not the speakers) when
handling or moving the monitor after speakers
have been installed.
• Connecting Speakers to the Monitor using the speaker wires provided.
Place the speakers in the position you want. Install the
speaker wires on the TV and speaker. Be sure to connect
the positive "+" wire to the "+" input and the negative "-"
wire to the "-" input. Connect left monitor input to left
speaker and right monitor input to right speaker. Any extra
speaker wire length remaining can be bunched into the
wire holders provided, see(_ above to install wire hold-
ers. (Caution: Once installed, the speaker wire holders
lock into position and can't be removed.)
Caution: Be sure TV power is turned off before making
any connections.
Owner's Manual 11
Installation
• Install the RING SPACER with the bolts on the set as shown. (Only RU-60PZ61 series)
1. Put the RING SPACER in the holes of the bolts before con- 2. When you connect the wall mounting bracket to the set,
necting to the wall mounting bracket, connect to it by using the bolts, (supplied with the product),
as shown.
E q u ipm e nt Co n n e ct io ns
- Antenna or Cable Service without a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
wall antenna
socket
Bronze Wire
RF coaxial wire (75 ohm) 1
I • I
,r............ __ "....... "
I
VHF antenna
UHF antenna
outdoor
antenna
Turn clockwise to tighten.
BronzeWire
Be careful not to bend the bronze wire when
connecting the antenna.
Single-family Dwellings/Houses
(Connect to wall jack for outdoor antenna)
• To improve picture quality in a poor signal area, purchase
and install a signal amplifier.
• If the antenna needs to be split for two TV's, install a "2-Way
Signal Splitter" in the connections.
• If the antenna is not installed properly, contact your dealer
for assistance.
12 Plasma TV
Installation
NOTE: All cables shown are not included with the TV
To avoid picture noise (interference), leave an adequate distance between the VCR and TV
Use the ISM Method (on the Option menu) feature to avoid having a fixed image remain on the screen for a long period of time.
Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of the screen may
remain visible on the screen.
Connection Option 1
Set VCR output switch to 3 or 4 and then tune
TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from the
VCR's output jacks to the TV input jacks, as
shown in the figure.
When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
If you connect an S-VIDEO output from VCR to
the S-VIDEO input, the picture quality is
improved; compared to connecting a regular
VCR to the Video input.
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner's T
manual.)
/
3. Select the input source by the TVNIDEO but- i ............
ton on the remote control. (If connected to A/V
INPUT 1, select Video 1 input source)
Do not connect to both Video and S-
Video at the same time. In the event
that you connect both Video and the
S-Video cables, only the S-Video will
work.)
[]
After subscribing to a cable TV service from a local provider you can watch cable TV programming. The TV cannot display TV
programming unless a TV tuner device or cable TV converter box is connected to the TV.
For further information regarding cable TV service, contact your local cable TV service provider(s).
Connection Option 1
1. Select 3 or 4 with channel switch on cable box.
2. Tune the TV channel to the same selected output channel on
cable box.
3. Select channels at the cable box or with the cable box remote
control.
Connection Option 2
1. Connect the audio and video cables from the Cable Box's output
jacks to the TV input jacks, as shown in the figure.
When connecting the TV to a Cable Box, match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
2. Select the input source by using the TVNIDEO button on the
remote control. (If connected to A/V INPUT 1, select Video 1
input source)
3. Select your desired channel with the remote control for cable
box.
[]
Cable Box
Owner3 Manual 13
Installation
How to connect
Connect the audio and video cables from the external
equipment's output jacks to the TV input jacks, as shown in
the figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).
How to use
1. Select the input source by using the TVNIDEO button on
the remote control. (If connected to A/V INPUT 1, select
Video 1 input source).
2. Operate the corresponding external equipment. Refer to
external equipment operating guide.
Z
]._ Camcorder
Video Game Set
How to connect
1. Connect the DVD video outputs (Y, PB, PR) to the COMPONENT
(Y, PB, PR) INPUT jacks on the TV and connect the DVD audio
outputs to the AUDIO INPUT jacks on the TV, as shown in the fig-
ure.
2. If your DVD only has an S-Video output jack, connect this to the
S-VIDEO input on the TV and connect the DVD audio outputs to
the AUDIO INPUT jacks on the TV, as shown in the figure.
NOTE: If your DVD player does not have component video output,
use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the TVNIDEO or MULTIMEDIA button on the remote control
to select Component 1 or Component 2. (If connected to S-
VIDEO, select the Video 1 or Video 2 external input source.)
3. Refer to the DVD player's manual for operating instructions.
Component Input ports
To get better picture quality, connect a DVD player to the compo-
nent input ports as shown below.
Component ports
on the TV
imiiii ii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iiii
Video output ports
on DVD player
or
DVD
14 Plasma TV
Installation
To watch digitally broadcast programs, purchase and connect a digital set-top box.
or
Digital Set-top Box
How to connect
Use the TV's COMPONENT (Y, PB, PR) INPUT jacks, RGB or DVI port for
video connections, depending on your set-top box connections available.
Then, make the corresponding audio connections.
How to use
1. Turn on the digital set-top box. (Refer to the owner's manual for the digital
set-top box.)
2. Use TVNIDEO or MULTIMEDIA on the remote control to select
Component 1, Component 2, RGB, or DVl source.
Signal Component 1/2 RGB,DVI
480i Yes No
480p Yes Yes
720p Yes Yes
1080i Yes Yes
The TV has a special signal output capability which allows you to
hook up a second TV or monitor.
Connect the second TV or monitor to the TV's MONITOR OUTPUT.
See the Operating Manual of the second TV or monitor for further
details regarding that device's input settings.
NOTE
• Component, RGB, DVI input sources cannot be used for Monitor out.
Owner's Manual 15
Operation
How to connect
1. To get the best picture quality, adjust the PC
graphics card to (RU-42PZ61->1024x768, RU-
42PZ71->852x480, RU-50/60PZ61-> 1366x768),
60Hz.
2. Use the TV's RGB INPUT or DVI (Digital Visual
Interface) INPUT port for video connections,
depending on your PC connector.
• If the graphic card on the PC does not output
analog and digital RGB simultaneously, connect
only one of either RGB INPUT or DVI INPUT to
display the PC on the TV.
• If the graphic card on the PC does output analog
and digital RGB simultaneously, set the TV to
either RGB or DVI; (the other mode is set to Plug
and Play automatically by the TV.)
3. Then, make the corresponding audio connection. If
using a sound card, adjust the PC sound as
required.
How to use
1. Turn on the PC and the TV.
2. Turn on the display by pressing the POWER button on the TV's remote control.
3. Use TV/VIDEO or MULTIMEDIA on the remote control to select RGB, or DVl source.
4. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC
mode. If noise is present, change the PC mode to another resolution, change the refresh rate to another rate or adjust the
brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed,
change the PC graphic card or consult the manufacturer of the PC graphic card.
NOTES: • Use a DVI cable.
• Avoid keeping a fixed image on the TV's screen for a long period of time. The fixed image may become permanently
imprinted on the screen. Use the Orbiter screen saver when possible.
• The synchronization input form for Horizontal and Vertical frequencies is separate.
16 Plasma TV
Operation
Displayable Monitor Specifications
RGB / DVI Mode
Horizontal
Resolution Frequency(KHz)
31.468
640x350
37.861
31.469
720x400
37.927
31.469
35.000
640x480 37.861
37.500
43.269
31.500
848x480 37.799
39.375
31.500
852x480 37.799
39.375
35.156
37.879
800x600 48.077
46.875
53.674
832x624 49.725
48.363
56.476
1024x768
60.023
68.677
1360x768 47.700
(XGA) 59.625
1366x768 47.700
(XGA) 59.625
54.348
1152x864 63.995
(RGB) 67.500
77.487
68.681
47,693
60.0911
68.504
60.023
63.981
1152x870(RGB)
1280x768
(XGA)
1280x960(RGB)
1280x1024(RGB)
Vertical
Frequency(Hz)
70.09
85.08
70.08
85.03
59.94
66.66
72.80
75.00
85.00
60.00
70.00
75.00
60.00
70.00
75.00
56.25
60.31
72.18
75.00
85.06
74.55
60.00
70.06
75.02
85.00
60.00
75.02
60.00
75.02
60.05
70.01
75.00
85.00
75.06
59.922
74.926
84.887
60.02
60.02
RU-42PZ61/71
RGB / DVI Mode
Horizontal
Resolution
Frequency(KHz)
31.468
640x350
37.861
31.469
720x400
37.927
31.469
35.000
640x480 37.861
37.500
43.269
31.500
848x480 37.799
39.375
31.500
852x480 37.799
39.375
35.156
37.879
800x600 48.077
46.875
53.674
832x624 49.725
48.363
56.476
1024x768
60.023
68.677
47.700
1360x768 59.625
68.500
47.700
1366x768 59.625
69.500
54.348
1152x864 63.995
(RGB) 67.500
77.487
68.681
47,693
60.0911
68.504
60.023
63.981
1152x870(RGB)
1280x768
1280x960(RGB)
1280x1024(RGB)
Ve_ical
Frequency(Hz)
70.09
85.08
70.08
85.03
59.94
66.66
72.80
75.00
85.00
60.00
70.00
75.00
60.00
70.00
75.00
56.25(RGB)
60.31
72.18
75.00
85.06
74.55
60.00
70.06
75.02
85.00
60.00
75.02
85.00
60.00
75.02
85.00
60.05
70.01
75.00
85.00
75.06
59.922
74.926
84.887
60.02
60.02
RU-50/60PZ61
Owner3 Manual 17
Operation
Turning TV On
* In this manual, the OSD (On Screen Display) may be different from your TV's because it is just an
example to help you with the TV operation.
1. Connect power cord correctly.
2. Press the O ON/OFF button on the TV. At this moment, the TV is switched to standby mode. Press
the TV/VlDEO, CH (D / E) button on the TV or press the POWER, TV/VlDEO, MULTIMEDIA,
Number (0 ~ 9) button on the remote control and then the TV will turn on.
1. If the TV was turned off with the (i) ON/OFF button on the TV
• Press the OON/OFF button on the TV to turn the TV on.
2. If the TV was turned off with the remote control and then the (D ON/OFF button on the TV
• Press the OON/OFF button on the TV and then press the TV/VlDEO, CH (D / E) button on the TV or
press the POWER, TV/VlDEO, MULTIMEDIA, Number (0 ~ 9) button on the remote control to turn
the TV on.
NOTE
• if you intend to be away on vacation, disconnect the power plug from the wall power outlet.
Language Se Iect ion
- The menus can be shown on the screen in the selected language. First select your language.
1. Press the MENU button and then use D / E button to select the SPECIAL menu.
2. Press the G button and then use D / E button to select Language.
3. Press the G button and then use D / E button to select your desired language.
From this point on, the on-screen menus will be shown in the language of your
choice.
4. Press the ENTER button to save.
18 Plasma TV
Operation
Me n u 0 ptio ns
Auto Program should be used to memorize all the active channels in your area before you are able to use the TV.
There are two ways of storing channels in the TV's memory. You can use either.
One is called AUTO PROGRAM and the other is called MANUAL PROGRAM.
In AUTO PROGRAM mode, the TV will memorize the channels in ascending numerical order. If there are additional channels you
want to add or delete, you can manually add or delete those channels with Manual Program.
- Redo Auto Program if the Plasma Display is ever moved to another location.
- Auto Program will search for channels only through the ANT IN jack.
- If channels numbers for broadcast over-the air TV and cable TV are duplicated
where different channels have the same number, press the same number but-
tons again to toggle between:
[ Broadcast TV Channels ] _ I Cable TV Channels ]
(For example, press 17 to go to the channel, press 17 again to go to the dupli-
cated channel.)
1. Press the A,PROG button and then press the G button.
AUTO PROGRAM starts the channel search.
If you want to stop auto programming, press the ENTER button. Only the chan-
nels found up to at that time are memorized.
• You can also select the Auto program option and do a channel search in
the CHANNEL menu.
You can add or delete channels from the channel scan manually.
1. Use the D / E or NUMBER buttons to select the channel number you want to add or delete.
2. Press the MEMORY/ERASE button.
3. Use the MEMORY/ERASE button to select Memory or Erase.
4. Press the ENTER button.
• You can also do Manual program with the CHANNEL menu.
Use this function to correct the picture's instability and condition if it is
poor.
1. Press the MENU button and then use D / E button to select the CHANNEL menu.
2. Press the G button and then use D / E button to select Manual program.
3. Press the G button and then use D / E button to select Fine.
4. Use the F / G button to adjust the picture to your preference.
5. Press the ENTER button to save.
Notes
• To remove fine tuning from a channel, reprogram the finely-tuned channel with
Auto program or Manual Program.
• If a finely-tuned channel is memorized, the color of the channel number changes
to yellow.
Owner3 Manual 19
Operation
Channel Menu Options continued
- If TV signal reception is poor because you are in a fringe area, set Booster to On.
If the picture condition is good, set Booster to Off.
- Adjustments for one channel don't affect the adjustment for other channels.
Set booster to on or off for each channel separately.
1. Press the MENU button and then use D / E button to select the CHANNEL menu.
2. Press the G button and then use D i E button to select Manual program.
3. Press the G button and then use D / E button to select Booster.
4. Use F / G button to select On or Off.
5. Press the ENTER button to save.
- Favorite Channels is a convenient feature that lets you quickly scan up to 8 channels of your choice without
having to wait for the TV to scan through all the in-between channels.
1. Press the MENU button and then use D / E button to select the CHANNEL menu.
2. Press the G button and then use D / E button to select Favorite channel.
3. Press the G button and then use D / E button to select the first favorite channel
position.
4. Use the F /G button to set the desired channel number for first favorite channel.
5. Repeat steps 3 to 4 to memorize other favorite channels.
6. Press the ENTER button to save.
• To tune to a favorite channel, press the FCR (Favorite Channel Review) but-
ton repeatedly. The eight favorite channels appear on the screen in numerical
order.
20 Plasma TV
Me n u 0 ptio n s
Operation
- APC adjusts the TV to the best picture appearance.
- If adjusting picture options (contrast, brightness, color, sharpness, or tint) manually, APC automatically
changes to Off.
1. Press the APC button repeatedly to select the picture appearance setup option as shown below.
i_4 DaylightI---_ IOptimumI---_1NighttimeI---_ I O,, I--I
• You can also adjust APC in the PICTURE menu.
• Daylight, Optimum, and Night time settings are preset for good picture quality at the factory and cannot be
changed.
XD is LG Electronic's unique picture improving technology to display a real HD
source through an advanced digital signal processing algorithm.
When selecting APC options (Clear, Optimum and Soft), XD is automatically
change to On.
1. Press the MENU button and then use D / E button to select the PICTURE menu.
2. Press the G button and then use D / E button to select XD.
3. Press the G button and then use D / E button to set On or Off.
4. Press the ENTER button to save.
Auto Color Temperature Control
To initialize values (reset to default settings), select the Normal option.
1. Press the MENU button and then use D / E button to select the PICTURE menu.
2. Press the G button and then use D _ E button to select ACC.
3. Press the G button and then use D / E button to select either: Cool (Preset),
Normal (Default), or Warm (Preset).
4. Press the ENTER button to save.
Manual Color Temperature Control (ACC set to Off option)
You can adjust red, green, or blue to any color temperature you prefer.
1. Press the MENU button and then use D i E button to select the PICTURE menu.
2. Press the G button and then use D / E button to select ACC.
3. Press the G button and then use D / E button to select Off.
4. Press the G button and then use D / E button to select Red, Green or Blue.
5. Use the F i G button to make appropriate adjustments.
• The adjustment range of Red, Green, and Blue is -30 ~ +30.
6. Press the ENTER button to save.
Owner's Manual 21
Operation
Picture Menu Options continued
Use Fleshtone to select the desired skin color option•
• Press the MENU button and then use D / E button to select the PICTURE menu•
2. Press the G button and then use D / E button to select Fleshtone.
3. Press the G button and then use F /G button to make appropriate adjustments•
• The adjustment range is 0 ~ 3.
4. Press the ENTER button to save•
If the TV is connected to external equipment using sRGB, set sRGB to On to
adjust for the color difference•
1. Press the MENU button and then use D / E button to select the PICTURE menu•
2. Press the G button and then use D _ E button to select sRGB.
3. Press the G button and then use D / E button to select On or Off.
4. Press the ENTER button to save•
- You can adjust picture contrast, brightness, color, sharpness, and tint options
to the levels you prefer•
1. Press the MENU button and then use D / E button to select the PICTURE menu•
2. Press the G button and then use D / E button to select the desired picture option
(Contrast, Brightness, Color, Sharpness, Tint).
3. Press the G button and then use F /G button to make appropriate adjustments•
4. Press the ENTER button to save.
22 Plasma TV
Operation
Options
- This function lets you enjoy the best sound without any special adjustment because the TV has the appropriate
sound options based on the program content.
If you adjust sound options (Treble and Bass) manually, DASP automatically changes to Off.
1. Press the DASP button repeatedly to select the appropriate sound setup as shown below.
,,ot I---"[ ,,u,ic ,,o,i° spo,t,I- "1 o,, 1__I
• You can also adjust DASP in the SOUND menu.
• SRS TSXT, Flat, Music, Movie, and Sports are preset for good sound quality at the factory and cannot be changed.
is a trademark of SRS Labs, Inc.
• TruSurround ×T technology is incorporated under license from SRS Labs, Inc.
BBE High Definition Sound restores clarity and presence for better speech
intelligibility and music realism.
1. Press the MENU button and then use D / E button to select the SOUND menu.
2. Press the G button and then use D / E button to select BBE.
3. Press the G button and then use D / E button to select On or Off.
4. Press the ENTER button to save.
• _ Manufactured under license from BBE Sound, Inc.
• Treble, Bass or BBE aren't suitable for SRS TSXT mode.
- AVL maintains an equal sound level; even if you change channels.
1. Press the MENU button and then use D / E button to select the SOUND menu.
2. Press the G button and then use D / E button to select AVL.
3. Press the G button and then use D / E button to select On or Off.
4. Press the ENTER button to save.
Owner's Manual 23
Operation
Sound Menu Options continued
- You can adjust sound options Balance, Treble, and Bass to the levels you prefer.
1. Press the MENU button and then use D / E button to select the SOUND menu.
2. Press the G button and then use D i E button to select the desired sound option
(Balance, Treble, Bass).
3. Press the G button and then use F /G button to make appropriate adjustments.
4. Press the ENTER button to save.
The TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the
stereo program; if the broadcaster transmits one additional sound signal in addition to the original one.
Mono: The primary language is heard from left and right speakers. Signal mode is mono.
Stereo: The primary language is heard from left and right speakers. Signal mode is stereo.
SAP: The secondary language is heard from left and right speakers in mono sound.
1. Press the MTS button repeatedly.
• Select mono sound mode if the signal is not clear or in poor signal reception areas.
• Stereo, SAP modes are available only if included on the broadcast signal.
24 Plasma TV
Timer
Menu Options
Operation
Set the time automatically through the PBS broadcast signal.
ThePBS channel signal includes information for the current time.
Set the clock manually, if the current time is set incorrectly programed by the auto clock function.
1. Press the MENU button and then use D / E button to select the TIMER menu.
2. Press the G button and then use D / E button to select Clock.
3. Press the G button and then use D / E button to select Auto.
4. Press the G button and then use D / E button to select the time zone for your
viewing area. Your choices are: Auto, EST. (Eastern Standard Time), C.S.T.
(Central Standard Time), M.S.T. (Mountain Standard Time), P.S.T. (Pacific
Standard Time), Alaska, and Hawaii.
5. Press the G button and then use D _ E button to set PBSChannel.
6. Press the G button and then use D / E button to set Daylight Saving Time
Auto, On or Off, depending on whether or not your viewing area observes
Daylight Saving Time.
7. Press the ENTER button to save.
If current time setting is wrong, reset the clock manually.
1. Press the MENU button and then use D / E button to select the TIMER menu.
2. Press the G button and then use D _ E button to select Clock.
3. Press the G button and then use D / E button to selectt Manual.
4. Press the G button and then use D / E button to set the hour.
5. Press the G button and then use D / E button to set the minutes.
6. Press the ENTER button to save.
Timer function operates only if current time has been set.
Off-Timer function overrides On-Timer function if they are set both set to the same time.
The TV must be in standby mode for the On-Timer to work.
If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to
standby mode.
1. Press the MENU button and then use D / E button to select the TIMER menu.
2. Press the G button and then use D / E button to select Off timer or On timer.
3. Press the G button and then use D / E button to select On.
• To cancel On/Off timer function, select Off.
4. Press the G button and then use D / E button to set the hour.
5. Press the G button and then use D / E button to set the minutes.
6. For only On timer function
Press the G button and then use D / E button to set the sound level at turn-on.
Press the G button and then use D / E button to select the channel at turn-on.
7. Press the ENTER button to save.
Owner's Manual 25
Operation
Timer Menu Options continued
- The Sleep Timer turns the TV off at the preset time. Note that this setting is cleared when the TV is turned off.
1. Press the SLEEP button repeatedly to select the number of preset minutes. First the _-- ]_-_Jnoption appears
on the screen, followed by the following sleep timer turn off times:
10, 20, 30, 60, 90, 120, 180, and 240 minutes.
2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to
count down from the number of minutes selected.
3. To check the remaining minutes before the TV turns off, press the SLEEP button once.
4. To cancel the Sleep Timer, press the SLEEP button repeatedly until _z____M_ appears.
If set to on and there is no input signal, the TV turns off automatically after 10
minutes.
1. Press the MENU button and then use D / E button to select the TIMER menu.
2. Press the G button and then use D / E button to select Autoof_.
3. Press the G button and then use D / E button to select On or Off
4. Press the ENTER button to save.
26 Plasma TV
Operation
The TV can be set up so that it can only be used with the remote control.
This feature can be used to prevent unauthorized viewing by locking out the
front panel controls.
This TV is programmed to remember which option it was last set to even if you
turn the TV off.
1. Press the MENU button and then use D / E button to select the SPECIAL menu.
2. Press the G button and then use D / E button to select Keylock.
3. Press the G button and then use D / E button to select On or Off.
4. Press the ENTER button to save.
• With the Key lock On, the display ' z_Key lock' appears on the screen if any
button on the front panel is pressed.
A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost image remaining
even when you change the image. Avoid allowing a fixed image to remain on the TV's screen for a long period of time.
1. Press the MENU button and then use D / E button to select the SPECIAL menu.
2. Press the G button and then use D / E button to select ISM Method.
3. Press the G button and then use D / E button to select either Normal, White
wash, Orbiter or Inversion.
• Normal
If image sticking is never a problem, ISM is not necessary - set to Normal.
• White wash
White Wash removes permanent images from the screen. Note: An excessive
permanent image may be impossible to clear entirely with White Wash. To
return to normal viewing, press any button.
• Orbiter
Orbiter may help prevent ghost images. However, it is best not to allow any
fixed image to remain on the screen. To avoid a permanent image on the
screen, the image will move every 2 minutes: Right -_ Right -_ Downside -_
Downside -+ Left -+ Left -+ Upside -+ Upside.
• Inversion
Inversion will automatically invert the TV panel color every 30 minutes.
4. Press the ENTER button to save.
Owner's Manual 27
Special Menu Options continued
- Low power reduces the plasma display power consumption.
1. Press the MENU button and then use D / E button to select the SPECIAL menu.
2. Press the G button and then use D / E button to select Low power.
3. Press the G button and then use D / E button to select On or Off.
• When you select On, the screen darkens.
4. Press the ENTER button to save.
- Use it to see the difference between XD Demo on and XD Demo off.
1. Press the MENU button and then use D / E button to select the SPECIAL menu.
2. Press the G button and then use D / E button to select _,,[3 Demo.
3. Press the G button to begin XD Demo.
4. Press the EXIT button to stop XD Demo.
28 Plasma TV
Operation
C Io s ed Ca pt io n s
Closed captioning is a process which converts the audio portion
of a television program into written words which then appear as
subtitles on the television screen. Closed captions allow viewers
to read the dialogue and narration of television programs.
Using Closed Captions
Captions are the subtitles of the dialogue and narration of tele-
vision programs. For prerecorded programs, program dialogue
can be arranged into captions in advance. Its possible to caption
a live program by using a process called real-time captioning,
which creates captions instantly. Real-time captioning is nor-
mally done by professional reporters using a machine shorthand
system and computer for trans-
lation into English.
Captioning is an effective sys-
tem for the hearing-impaired,
and it can also aid in teaching
language skills.
• The picture at left shows a
typical caption.
Caption Tips
• Not all TV broadcasts include closed caption signals.
• Sometimes TV stations broadcast four different caption sig-
nals on the same channel. By selecting CC 1 to CC 2, you
can choose which signal you view. CC 1 is usually the signal
with the captions, while Another mode might show demon-
stration or programming information.
• Your TV might not receive caption signals normally in the fol-
lowing situations.
1. Poor reception conditions are encountered:
• IGNITION:
Picture may flutter, drift, suffer from black
spots, or horizontal streaking. Usually
caused by interference from automobile
ignition systems, neon lamps, electrical
drills, and other electrical appliances.
• GHOSTS:
Ghosts are caused when the TV signal
splits and follows two paths. One is the
direct path and the other is reflected off
tall buildings, hills or other objects.
Changing the direction or position of the
antenna may improve reception.
• SNOW:
If your receiver is located at the weak,
fringe area of a TV signal, your picture
may be marred by small dots. It may be
necessary to install a special antenna to
improve the picture.
2. An old, bad, or illegally recorded tape is being played.
3. Strong, random signals from a car or airplane interfere with
the TV signal.
4. The signal from the antenna is weak.
5. The program wasn't captioned when it was produced, trans-
mitted, or taped.
1. Use the CAPTION button repeatedly to select Caption Off, EZ Mute, or On.
• EZ Mute shows the selected captions option (if available on program) when the TV sound is muted
2. Press the ENTER button to save.
1. Press the MENU button and then use D / E button to select the SPECIAL menu.
2. Press the G button and then use D / E button to select Caption / Text.
3. Press the G button and then use D / E button to select caption: CC1, CC2, CC3,
CC4, Textl, Text2, Text3, or Text4.
• CAPTION
The term for the words that scroll across the bottom of the TV screen; usually
the audio portion of the program provided for the hearing impaired.
• TEXT
The term for the words that appear in a large black frame and almost cover
the entire screen; usually messages provided by the broadcaster.
4. Press the ENTER button to save.
Owner's Manual 29
Operation
Screen Menu Options
RGB (PC) mode only; This function doesn't work for RGB-DTV mode.
- Automatically adjusts picture position and minimizes image shaking.
- After adjustment, if the image is still not correct, your TV is functioning properly but needs further adjustment.
- The Auto config, and Manual config, are not active in DVI mode.
1. Press the MENU button and then use D / E button to select the SCREEN menu.
2. Press the G button and then use D / E button to select Auto ¢onfig..
3. Press the G button to run Auto configure.
• When Auto ¢onfig. has finished, OK will be shown on screen.
• If the position of the image is still not correct, try Auto adjustment again.
4. In RGB (PC) mode, if the image needs to be adjusted more after using Auto
config., you can make further adjustments with the Manual config, option.
- Caution: If a 4:3 fixed image is on the screen for a long time, it may remain visible.
- Set every aspect ratio for TV, Video, Component 480i sources.
- Use 4:3, or 16:9 for other RGB-PC and DVI-PC sources.
- Horizon is not available for Component (480p,720p, 1080i), DTV (480p,720p,1080i) sources.
1. Press the ARC button repeatedly to select the desired picture format. You can also adjust ARC in the SCREEN menu.
• 4:3
Choose 4=3 when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both the
left and right sides.
• 16:9
Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.
• Horizon
Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both sides,
to create a spectacular view.
• zoom
- Choose Zoom when you want to view the picture without any alteration. However, the top and bottom portions of the
picture will be cropped.
- This function works in the following modes:
RGB-PC, RGB-DTV (480p,720p, 1080i), DVI-DTV (480p,720p, 1080i), COM-
PONENT (480p,720p,1080i).
1. Press the MENU button and then use D / E button to select the SCREEN menu.
2. Press the G button and then use D / E button to select Position.
3. Press the G button and then use D / E / F / G button to adjust the position.
4. Press the ENTER button to save.
30 Plasma TV
Operation
If the image still isn't clear after auto adjustment and especially if characters are
still jittery, adjust the picture Phase manually.
- To correct the screen size, adjust Clock.
1. Press the MENU button and then use D / E button to select the SCREEN menu.
2. Press the G button and then use D / E button to select Manual config..
3. Press the G button and then use D / E button to to select Phase or Clock.
4. Use the F / G button to make appropriate adjustments.
• The Phase adjustment range is 0 ~ 30.
• The Clock adjustment range is -127 ~ +128.
5. Press the ENTER button to save.
To see a normal picture, match the resolution of RGB mode and selection of
VGA mode.
RU-42PZ71 model only.
1. Press the MENU button and then use D / E button to select the SCREEN menu.
2. Press the G button and then use D / E button to select VGA Mode.
3. Press the G button and then use D / E button to select the desired VGA resolu-
tion.
4. Press the ENTER button to save.
To see a normal picture, match the resolution of RGB mode and selection of
XGA mode.
1. Press the MENU button and then use D / E button to select the SCREEN menu.
2. Press the G button and then use D / E button to select XGA Mode.
3. Press the G button and then use D / E button to select the desired XGA resolu-
tion.
4. Press the ENTER button to save.
Owner's Manual 31
Operation
- Use this function to correct jittering or picture instability while viewing a video
tape.
1. Press the MENU button and then use D / E button to select the SCREEN menu.
2. Press the G button and then use D / E button to select Screen adj,.
3. Press the G button and then use D / E button to select TV or VCR.
• Select the VCR option if watching a VCR.
• Select the TV option for other equipment. (Except VCR)
4. Press the ENTER button to save.
- Sets up the TV for the best picture appearance for viewing movies.
1. Press the MENU button and then use D / E button to select the SCREEN menu.
2. Press the G button and then use D / E button to select Cinema,.
3. Press the G button and then use D / E button to select On or Off.
4. Press the ENTER button to save.
- Use YNR to reduce the picture noise that may appear on the screen.
1. Press the MENU button and then use D / E button to select the SCREEN menu.
2. Press the G button and then use D / E button to select YNR.
3. Press the G button and then use D / E button to select On or Off.
4. Press the ENTER button to save.
32 Plasma TV
Operation
Screen Menu Options continued
Use the Reset option to initialize the adjusted settings.
1. Press the MENU button and then use D / E button to select the SCR££N menu.
2. Press the G button and then use D / E button to select Reset.
3. Press the G button.
• You can initialize Position, Split zoom, PIP Transparency, PIP position, PIP size
and sub picture size for double window.
Enlarges the picture in correct proportions.
Split Zoom can be used for all input sources.
In 2-Split Zoom mode, you can only move the image up or down.
If an image is enlarged, a section can be viewed without using Split Zoom.
1. Press the SPLIT ZOOM button repeatedly to select either 2, 4, or 9 Split Zoom.
2. Press the number button corresponding to the section you wish to enlarge. You can move within the enlarged pic-
ture using the D / E / F / G button. To return to normal viewing, press the SPLIT ZOOM button again.
Example of choosing 5.
Iii
Section 5 is enlarged to fill
the screen,
Owner's Manual 33
Operation
Menu Options
Parental Control can be used to block specific channels, ratings and other viewing sources.
The Parental Control Function (V-Chip) is used to block pro-
gram viewing based on the ratings sent by the broadcasting
station. The default setting is to allow all programs to be
viewed. Viewing can be blocked by the type of program and by
the categories chosen to be blocked. It is also possible to block
all program viewing for a time period. To use this function, the
following must be done :
1. Set ratings and categories to be blocked.
2. Specify a password
3. Enable the lock
V-Chip rating and categories
Rating guidelines are provided by broadcasting stations. Most
television programs and television movies can be blocked by
TV Rating and/or Individual Categories. Movies that have been
shown at the theaters or direct-to-video movies use the Movie
Rating System (MPAA) only.
Ratings for Movies previously shown in theaters:
Movie Ratings :
• Blocking Off (Permits all programs)
• G (General audience)
• PG (Parental guidance suggested)
• PG-13 (Parents strongly cautioned)
• R (Restricted)
• NC-17 (No one 17 and under admitted)
• X (Adult only)
If you set PG-13 : G and PG movies will be available, PG-13,
R, NC-17 and X will be blocked.
Ratings for Television programs including made-for-TV
movies :
General TV Ratings:
• Blocking Off
• TV-G (general audience) (individual categories do not apply)
• TV-PG (parental guidance suggested)
• TV-14 (14 years and older)
• TV-MA (mature audience)
Children TV Ratings:
• Blocking Off
• TV-Y (youth) (individual content categories do not apply)
• TV-Y7 (youth, 7 years and up)
Content Categories:
• Dialog - sexual dialogue (applies to TV-PG, TV-14)
• Language - adult language (applies to TV-PG, TV-14, TV-MA)
• Sex scenes - sexual situations (applies to TV-PG, TV-14, TV-
MA)
• Violence (applies to TV-PG, TV-14, TV-MA)
• F Violence - fantasy violence (applies only to TV-Y7)
Aux, Block
• Video 1,2 (On, Off)
• Component 1, 2 (On, Off)
• RGB, DVI (On, Off)
- Lets you set up blocking schemes to block specific channels, ratings, and external viewing sources.
- A password is required to gain access to this menu if the Lock System is turned on
1. Press the MENU button and then use D / E button to select the LOCK menu.
Then, press the G button
• If Lock is already set, enter the password as requested.
• The TV is set up with the initial password "0-0-0-0".
2. Use the D / E button to choose from the following Lock Menu options. Once the
option is selected, change the settings to your preference.
• Lock on/off: Activates or disables the blocking scheme you set up previ-
ously.
• Set Password: Change the password by inputting a new password twice.
• MPAA (Movie Rating): Blocks movies according to the movie ratings limits
specified, so children cannot view certain movies. You can set the ratings
limit by blocking out all the movies with the ratings above a specified level.
Keep in mind that the movie ratings limit only applies to movies shown on
TV, not TV programs, such as soap operas.
• TV Rating-Children: Prevents children from watching certain children's TV programs, according to the ratings limit set. The
children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in
the TV Rating - sub menu, your children can view those programs.
• TV Rating-General: Based on the ratings, blocks certain TV programs that you and your family do not want to view.
• Aux, Block: Enables you to select a source to block from the external source devices you have hooked up.
3. Press the ENTER button to save.
Note
• If you ever forget your password, key in '7', '7', '7', '7' on the remote control.
34 Plasma TV
Operation
(Picture-ln-Pictu re)!Dou ble Window Feature
PIP lets you view 2 different inputs pictures (sources) on your TV screen at the same time. One source will be large, and the
other source will show a smaller inset image.
Double Window mode splits the screen into 2, allowing 2 picture sources to be shown on the TV screen at the same time. Each
source is given half the screen.
Press the PIP/DW button to access the sub picture. Each
press of PIP changes the PIP options as shown below.
Press the POSITION button.
Press the D / E / F /G button repeatedly until desired posi-
tion is achieved. The sub picture moves up/down/left/right.
• You can also move the PIP position with Win.position in
the PIP/DW menu.
t
Use the SWAP button to switch the main and sub pictures.
[ MainPictureI ESubPictureI
Press the WIN,SIZE button and then use F / G button to
change the sub picture size.
• Using the Win.size function in Double Window mode, main
and sub picture sizes are changed simultaneously.
Using the Win.size function in PIP mode, sub picture size
is changed.
• You can also change the sub picture size with Win.size in
the PIP/DW menu.
I Main Picture Sub Picture
Press the PIPCH+ / PIPCH- button to select a channel for
the sub picture in PIP mode.
- To make the PIP clear or opaque
1. Press the MENU button and then use D / E button to
select the PIP/DW menu.
2. Press the G button and then use D / E button to select PIP
Transparency.
3. Press the G button and then use D / G button to adjust
PIP transparency.
4. Use the F /G button to make appropriate adjustments.
• The adjustment range of PIP Transparency is 0 ~ 10.
5. Press the ENTER button to save.
Use the PIP INPUT button to select the input source for the
sub picture. Each press of PIP INPUT button changes the
PIP source.
Main Picture Source Available Sub Picture Sources
TV, Video 1-2, Component 480i TV, Video 1-2, Component 480i/480p/720p/1080i, RGB and DVI
Component 480p/720p/1080i, RGB and DVI TV, Video 1-2, Component 480i
Owner's Manual 35
ExternalControlDeviceSetup
Device Set:up
- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor's functions externally.
- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
- RS-232C connection cables are not supplied with the Monitor.
PC
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
9
6
RXD
TXD
GND
DTR
DSR
RTS
CTS
7-Wire Configurations
(Standard RS-232C cable)
PC PDP
TXD
RXD
GND
DSR
DTR
CTS
RTS
RXD
TXD
GND
DTR
DSR
RTS
CTS
3-Wire Configurations
(Not standard)
PC PDP
TXD
RXD
GND
DTR
DSR
RTS
CTS
D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9
36 P_sma TV
ExternalControlDeviceSetup
Use this function to specify a monitor ID number.
Refer to 'Real Data Mapping 1'. See page 37.
1. Press the MENU button and then use D / E button to select the SPECIAl, menu.
2. Press the G button and then use D / E button to select Set ID.
3. Press the G button and then use F / (5 button to adjust Set ID to choose the
desired monitor ID number. The adjustment range of Set ID is 1 ~ 99.
4. Press the ENTER button to save.
• Baud rate :9600 bps (UART)
• Data length : 8 bits
• Parity : None
* Use a crossed (reverse) cable.
• Stop bit : 1 bit
• Communication code : ASCII code
COMMAND 1 COMMAND 2 DATA
(Hexadecimal)
01. Power k a 0 ~ 1
02. Input Select k b 0 ~ 6
03. Aspect Ratio k c 0 ~ 3
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k i 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD Select k I 0 ~ 1
13. Remote Control Lock Mode k m 0 ~ 1
14. PIP/DW k n 0 ~ 3
15. Split Zoom k p 0 ~99
16. PIP Position k q 0 ~ 3
17. Treble k r 0 ~ 64
18. Bass k s 0 ~ 64
19. Balance k t 0 ~ 64
20. Color Temperature k u 0 ~ 3
21. Red Adjustment k v 0 ~ 3C
22. Green Adjustment k w 0 ~ 3C
23. Blue Adjustment k $ 0 ~ 3C
24. PIP Input Source k y 0 ~ 6
25. Abnormal State k z 0 ~ a
26. ISM Method i p 0 ~ 3
27. Low Power j q 0 ~ 1
28. Orbiter Time Setting j r 1 ~ FE
29. Orbiter Pixel Setting j s 1~9
30. Picture Size j t 0 ~14
31. Auto Config j u 1
COM- COM- DATA0 DATA1 DATA2 DATA3
MAND1 MAND2 (Hexadecimal)(Hexadecimal)(Hexadecimal)(Hexadecimal)
32. Tune Command m a 01 ~ 7D 0 0 mainsub/Tunet3and
33. Channel Add/Del m b 0 ~ 1
34. Key m c Key code
Transmission
[C_ommand2][ ][Set ID][ ][Data][Cr]
* [Command 1]: First command to control PDP set. (j, k or m)
* [Command 2]: Second command to control PDP set.
* [Set ID]: You can adjust the set ID to choose desired monitor
ID number in Special menu. Adjustment range is 1
~ 99. When selecting Set ID 'O', every connected
PDP set is controlled. Set ID is indicated as deci-
mal (1~99) on menu and as Hexa decimal
(0xO~0x63) on transmission/receiving protocol.
* [DATA]: To transmit command data.
Transmit 'FF' data to read status of command.
* [Cr]: Carriage Return
ASCII code '0xOD'
* [ ]: ASCII code 'space (0x20)'
OK Acknowledgement
[[Command2][ ][Set ID][ ][OK][Data][x] [
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.
Error Acknowledgement
[[Command2][ ][Set ID][ ][NG][Data][x] [
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving abnormal data from non-viable
functions or communication errors.
Data l:lllegalCode
2: Not supported function
3: Wait more time
Owner's Manual 37
ExternalControlDeviceSetup
01. Power (Command2:a)
G To control Power On/Off of the TV.
Transmission
[[k][a][ ][Set ID][ ][Data][Cr] J
Data 0 • Power Off 1
Acknowledgement
[[a][ ][Set ID][ ][OK][Data][x] J
• Power On
* In a like manner, if other functions transmit 'FF' data
based on this format, Acknowledgement data feedback
presents status about each function.
02. Input Select (Command2:b) (Main Picture Input)
G To select input source for the TV.
You can also select an input source using the TV/VIDEO
button on the TV's remote control.
Transmission
[[k][b][ ][Set ID][ ][Data][Cr]
Data 0 :TV
1 : Video 1
2 : Video 2
3 : Component 1
Acknowledgement
[[b][ ][Set IU][ ][OK][Data][x]
J
4 • Component 2
5 • RGB
6 • DVI
03. Aspect Ratio (Command2:c) (Main picture format)
G To adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
Screen menu.
Transmission
[[k][c][ ][Set ID][ ][Data][Cr] J
Data 0 : Normal screen (4:3)
1 : Wide screen (16:9)
2 : Horizon
3 : Zoom
Acknowledgement
[[c][ ][Set ID][ ][OK][Data][x] J
04. Screen Mute (Command2:d)
G To select screen mute on/off•
Transmission
[[k][d][ ][Set ID][ ][Data][Cr] ]
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
Acknowledgement
[[d][ ][Set ID][ ][OK][Data][x] ]
38 Plasma TV
05. Volume Mute (Command2:e)
G To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
[[k][e][ ][Set ID][ ][Data][Cr] J
Data 0 • Volume mute on (Volume off)
1 • Volume mute off (Volume on)
Acknowledgement
[[e][ ][Set ID][ ][OK][Data][x] ]
06. Volume Control (Command2:f)
G To adjust volume.
You can also adjust volume with the volume buttons
on remote control•
Transmission
[[k][f][ ][Set ID][ ][Data][Cr] J
Data Min:0~Max:64
• Refer to 'Real data mapping 1' as shown below•
Acknowledgement
[[f][ ][Set ID][ ][OK][Data][x] J
07. Contrast (Command2:g)
G To adjust screen contrast.
You can also adjust contrast in the Picture menu•
Transmission
[[k][g][ ][Set ID][ ][Data][Cr] ]
Data Min:0~Max:64
• Refer to 'Real data mapping 1' as shown below•
Acknowledgement
[[g][ ][Set ID][ ][OK][Data][x] ]
08. Brightness (Command2:h)
G To adjust screen brightness•
You can also adjust brightness in the Picture menu.
Transmission
[[k][h][ ][Set ID][ ][Data][Cr] ]
Data Min:0~Max:64
• Refer to 'Real data mapping 1' as shown below•
Acknowledgement
[[h][ ][Set ID][ ][OK][Data][x] J
• Real data mapping 1
0 Step 0
A Step 10 (SET ID 10)
F Step 15 (SET ID 15)
10 Step 16 (SET ID 16)
63 Step 99 (SET ID 99)
64 Step 100
External Control Device Setup
09. Color (Command2:i)
G To adjust the screen color.
You can also adjust color in the Picture menu.
Transmission
[[k][i][ ][Set ID][ ][Data][Cr] I
Data Min:0~Max:64
• Refer to 'Real data mapping 1'. See page 38.
Acknowledgement
[[i][ ][Set ID][ ][OK][Data][x] I
10. Tint (Command2:j)
G To adjust the screen tint.
You can also adjust tint in the Picture menu.
Transmission
[[k][j ][ ][Set ID][ ][Data][Cr] I
Data Red : 0~ Green : 64
• Refer to 'Real data mapping 1'. See page 38.
Acknowledgement
[[j ][ ][Set ID][ ][OK][Data][x] I
11. Sharpness (Command2:k)
G To adjust the screen sharpness.
You can also adjust sharpness in the Picture menu.
Transmission
[[k][k][ ][Set ID][ ][Data][Cr] ]
Data Min: 0 ~ Max: 64
• Refer to 'Real data mapping 1'. See page 38.
Acknowledgement
[[k][ ][Set ID][ ][OK][Data][x] ]
12. OSD Select (Command2:l)
G To select OSD (On Screen Display) on/off.
Transmission
[[k][I][ ][Set ID][ ][Data][Cr] I
Data 0: OSD off 1: OSD on
Acknowledgement
I[I][ ][Set ID][ ][OK][Data][x]
13. Remote Control Lock Mode (Command2:m)
G To lock the remote control and the front panel controls on
the monitor.
Transmission
I[k][m][ ][Set ID][ ][Data][Cr] ]
Data 0: Lock off 1: Lock on
Acknowledgement
[[m][ ][Set ID][ ][OK][Data][x] J
• If you're not using the remote control and front panel controls
on the monitor, use this mode. When main power is on/off,
remote control lock is released.
14. PIP / DW (Command2:n)
G To control the PIP (Picture In picture)/DW (Double Window).
You can also control the PIP/DW using the PIP/DW button
on the remote control or in the PIP/DW menu.
Transmission
[[k][n][ ][Set ID][ ][Data][Cr] I
Data 0: PIP/DW off 2:DW1
1: PIP 3:DW2
Acknowledgement
[[n][ ][Set IU][ ][OK][Data][x] I
15. Split Zoom (Command2:p)
G To operate split zoom function and select the split
zoom section number.
Transmission
[[k][p][ ][Set ID][ ][Data][Cr] ]
Data Min: 0 ~ Max:99
• Refer to 'Real data mapping 2'.
Acknowledgement
[[p][ ][Set ID][ ][OK][Data][x] ]
* Real data mapping 2
0 : Reset split zoom
21 : Selection 1 of 2 split zoom
24: Selection 4 of 2 split zoom
41: Selection 1 of 4 split zoom
42: Selection 2 of 4 split zoom
44: Selection 4 of 4 split zoom
45: Selection 5 of 4 split zoom
91 : Selection 1 of 9 split zoom
99: Selection 9 of 9 split zoom
16. PIP Position (Command2:q)
G To select sub picture position for PIP.
You can also adjust the sub picture position using
WIN.POSITION on the remote control or in the PIP/DW menu.
Transmission
I[k][q][ ][Set ID][ ][Data][Cr] ]
Data 0: Right down on screen
1: Left down on screen
2: Left up on screen
3: Right up on screen
Acknowledgement
[[q][ ][Set ID][ ][OK][Data][x] ]
17. Treble (Command2:r)
G To adjust treble.
You can also adjust treble in the Sound menu.
Transmission
[[k][r][ ][Set ID][ ][Data][Cr] ]
Data Min: 0 ~ Max: 64
• Refer to 'Real data mapping 1'. See page 38.
Acknowledgement
[[r][ ][Set ID][ ][OK][Data][x] ]
Owner's Manual 39
External Control Device Setup
18. Bass (Command2:s)
G To adjust bass.
You can also adjust bass in the Sound menu.
Transmission
[[k][s][ ][Set ID][ ][Data][Cr] J
Data Min: 0 ~ Max: 64
° Refer to 'Real data mapping 1'. See page 38.
Acknowledgement
[[s][ ][Set ID][ ][OK][Data][x] J
19. Balance (Command2:t)
(3 To adjust balance.
You can also adjust balance in the Sound menu.
Transmission
[[k][t][ ][Set ID][ ][Data][Cr] J
Data Min: 0 ~ Max: 64
• Refer to 'Real data mapping 1'. See page 38.
Acknowledgement
[[t][ ][Set ID][ ][OK][Data][x] J
20. Color Temperature (Command2:u)
(3 To adjust color temperature.
You can also adjust ACC in the Picture menu.
Transmission
[[k][u][ ][Set ID][ ][Data][Cr] J
Data 0: Cool 1: Normal 2: Warm 3: Off
Acknowledgement
[[u][ ][Set ID][ ][OK][Data][x] J
21. Red Adjustment (Command2:v)
G To adjust red in color temperature.
Transmission
[[k][v][ ][Set ID][ ][Data][Cr] J
Data Min: 0 ~ Max: 3C
° Refer to 'Real data mapping 3' as shown right.
Acknowledgement
[[v][ ][Set ID][ ][OK][Data][x] J
22. Green Adjustment (Command2:w)
G To adjust green in color temperature.
Transmission
[[k][w][ ][Set ID][ ][Data][Cr] J
Data Min: 0 ~ Max: 3C
° Refer to 'Real data mapping 3' as shown right.
Acknowledgement
[[w][ ][Set ID][ ][OK][Data][x] J
40 Plasma TV
23. Blue Adjustment (Command2:$)
(3 To adjust blue in color temperature.
Transmission
[[k][$][ ][Set ID][ ][Data][Cr] I
Data Min: 0 ~ Max: 3C
• Refer to 'Real data mapping 3' as shown below.
Acknowledgement
[[$][ ][Set ID][ ][OK][Data][x] I
* Real data mapping 3
0 -30
1 -29
2 -28
1E 0
3A +28
3B +29
3C +30
24. PIP Input Select (Command2:y)
G To select input source for sub picture in PIP mode.
Transmission
I[k][y][ ][Set ID][ ][Data][Cr] I
Data 0 :TV 4 :Component2
1 :Video1 5 : RGB
2 :Video2 6 : DVI
3 : Component 1
Acknowledgement
I[y][ ][Set ID][ ][OK][Data][x] I
25. Abnormal State (Command2:z)
(3 To recognize an abnormal state.
Transmission
[[k][z][ ][Set ID][ ][FF][Cr]
Data FF:Read
Acknowledgement
I[z][ ][Set ID][ ][OK][Data][x] I
Data 0: Normal (Power on and signal exist)
1: No signal (Power on).
2: Turn the monitor off with remote control.
3: Turn the monitor off with Sleep Time function.
4: Turn the monitor off with RS-232C function.
5: 5V down.
6: AC down.
7: Turn the monitor off with Fan Alarm function.
8: Turn the monitor off with Off Time function.
9: Turn the monitor off with Auto Off function.
a: Turn the monitor off with On Time function.
(If you do not press any button within 2 hours after
the TV turns on with the On Timer function, the TV will
automatically revert to standby mode.)
26. ISM Method (Command2:p)
G To avoid having a fixed image remain on screen.
Transmission
[[j ][p][ ][Set ID][ ][Data][Cr] I
Data 0: Normal 2: Orbiter
1: White wash 3: Inversion
Acknowledgement
[[p][ ][Set ID][ ][OK][Data][x] I
27. Low Power (Command2:q)
G To control the low power function on/off.
Transmission
[[j ][q][ ][Set ID][ ][Data][Cr] I
Data 0: Low power off
1: Low power on
Acknowledgement
[[q][ ][Set ID][ ][OK][Data][x] I
28. Orbiter Time Setting (Command2:r)
G To adjust orbiter operation time term.
Transmission
[[j ][r][ ][Set ID][ ][Data][Cr] I
Data Min: 1 ~ Max: FE
Acknowledgement
[[r][ ][Set ID][ ][OK][Data][x] I
29. Orbiter Pixel Setting (Command2:s)
G To adjust pixel number in orbiter function.
Transmission
[[j ][s][ ][Set ID][ ][Data][Cr] I
Data Min: 1~Max:9
Acknowledgement
[[s][ ][Set ID][ ][OK][Data][x] I
30. Picture Size Setting for Double Window
mode (Command2:t)
G To adjust main window size in Double Window mode.
Transmission
[[j ][t][ ][Set ID][ ][Data][Cr] I
Data Min:0~Max:1E(or20)
• Refer to 'Real data mapping1 '. See page 38.
Acknowledgement
[[t][ ][Set ID][ ][OK][Data][x] I
External Control Device Setup
31. Auto Configure (Command2:u)
G To adjust picture position and minimize image shaking
automatically. It works only in RGB (PC) mode.
Transmission
[[j ][u][ ][Set ID][ ][Data][Cr] J
Data l:Toset
Acknowledgement
[[u][ ][Set ID][ ][OK][Data][x] J
32. Tune command (Command: m a)
G Tune channel to following physical number
Transmission
[[m][a][ ][Set ID][ ][Data0][ ][Data1][ ][Data2][ ][Data3][Cr] J
Data 0: Air: 02 ~ 45, Cable:01,0E~7D
1:0
2:0
3: High -_ Main Channel: 0, Sub Channel: 1
Low -_ Air: 0, CATV: 1
Acknowledgement
[[a][ ][Set IU][ ][OK][Data0][ ][Data1][ ][Data2][ ][Data3][x] J
33. Channel Add/Del (Command: m b)
G To add and delete the channels
Transmission
I[m][b][ ][Set ID][ ][Data][Cr] J
Data 0: Channel Memory
1: Channel Erase
Acknowledgement
I[b][ ][Set IU][ ][OK][Uata][x] J
34. Key (Command: m c)
G To send IR remote key code
Transmission
I[m][c][ ][Set ID][ ][Data][ ][Cr]
Data Key code: Refer to page 43.
Acknowledgement
[[c][ ][Set IU][ ][OK][Data][x]
Owner's Manual 41
IRCodes
IR Codes
G Connect your wired remote control to the Remote Control port on the Monitor.
G Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
Tc
_1 Carrier frequency
__[--[__[--]__ FeAR=1JTo=foscJ12
I_ T1 Duty ratio = T1/Tc = 1/3
G Configuration of frame
* 1st frame
I Lead Low I High
custom code custom code
_e CO C1 C2 C3 C4 C5 C6 C7 CO C1 C2 C3 C4 C5 C6 C7
* Repeat frame
__1 !__J-[
_ Repeat code
G Lead code
__1 k
4.5 ms
Data code Data code
DO D1 D2 D3 D4 D5 D6 D7 _DI-_ _ _
Tf
G Repeat code _-9.55 ms
__1 !__]q
2.25 ms
G Bit description
* Bit "0" * Bit "1"
G Frame interval : Tf
The waveform is transmitted as long as a key is depressed.
Tf
mJml !_!
Tf
Tf=108ms @455KHz
42 Plasma TV
IRCodes
Code (Hexa)
00
01
02
03
08
C4
C5
09
10
11
12
13
14
15
16
17
18
19
0B
98
D6
5A
DO
BF
D4
C6
D5
0E
43
44
4D
52
60
61
63
64
62
71
72
7B
79
76
77
AF
1E
1A
54
55
0A
39
99
Function
CH (D)
CH (E)
VOL (G)
VOL (F)
POWER
POWER ON
POWER OFF
MUTE
Number Key 0
Number Key 1
Number Key 2
Number Key 3
Number Key 4
Number Key 5
Number Key 6
Number Key 7
Number Key 8
Number Key 9
TV/VIDEO
MULTIMEDIA
TV
VIDEO1
VIDEO2
COMPONENT1
COMPONENT2
DVI
RGB
SLEEP
MENU
ENTER
APC
DASP
PIP/DW
PIP INPUT
SWAP
WIN.SIZE
POSITION
PIP CH+
PIP CH-
SPLIT ZOOM
ARC
ARC (4:3)
ARC (16:9)
ARC (Zoom)
FCR
REVIEW
AUTO PROGRAM
MEMORY/ERASE
MTS
CAPTION
AUTO CONFIG
Note
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
Discrete IR
Discrete IR
Discrete IR
Discrete IR
Discrete IR
Discrete IR
Discrete IR
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
Discrete IR Code (Only 4:3 mode)
Discrete IR Code (Only 16:9 mode)
Discrete IR Code (Only Zoom mode)
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
R/C Bu_on
DiscretelR Code
Code (Input TV Selection)
Code (Input VIDEO1 Selection)
Code (Input VIDEO2 Selection)
Code (Input COMPONENT1 Selection)
Code (Input COMPONENT2 Selection)
Code (Input DVI Selection)
Code (Input RGB Selection)
Owner's Manual 43
ProgrammingtheRemote
Programming the
G The remote control is a multi-brand or universal remote control. It can be programmed to operate most remote-controllable
devices of other manufacturers.
Note that the remote control may not control all models of other brands.
1. Test your remote control.
To find out whether your remote control can operate the component without programming, turn on the component such as a VCR
and press the corresponding MODE button (VCR) on the remote control, while pointing at the component. Test the POWER and
CH +/- buttons to see if the component responds properly. If not, the remote requires programming to operate the device.
2. Turn on the component to be programmed, then press the corresponding MODE button on the remote control.
3. Press the PIP CH- and MUTE buttons simultaneously, the remote control is ready to be programmed for the code.
4. There are two ways to find the right code for the component.
A. If you press the CH +/- buttons repeatedly, the codes will change one at-a-time. Press the POWER button after each code
change. If the right code is found, the device will turn off.
B. Enter a code number using the number buttons on the remote. Programming code numbers for the corresponding component
can be found on the following pages. Again, if the code is correct, the device will turn off.
5. Press the MENU button to store the code.
6. Test the remote control functions to see if the component responds properly. If not, repeat from step 2.
44 Plasma TV
ProgrammingCodes
Programming Codes
Brand Codes
glWA 034
gKAI 016 043 046 124
125 146
gMPRO 072
gNAM 031 033 103
_,UDIODYNAMICS 012 023 039 043
BROKSONIC 035 037 129
SANON 028 031 033
SAPEHART 108
SRAIG 003 040 135
SURTIS MATHES 031 033 041
DAEWOO 005 007 010 064
065 108 110 111
112 116 117 119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027
029 031 034 035
036 037 046 101
129 131 138 153
FISHER 003 008 009 010
FUNAI 034
SE 031 033 063 072
107 109 144 147
SO VIDEO 132 136
HARMAN KARDON 012 045
HITACHI 004 018 026 034
043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033
040 066 101
JENSEN 043
JVC 012 031 033 043
048 050 055 060
130 150 152
Brand Codes
KENWOOD 014 034 039 043
047 048
LG (GOLDSTAR) 001 012 013 020
101 106 114 123
LLOYD 034
LXt 003 009 013 014
017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041
067 068
MARANTZ 012 031 033 067
069
MARTA 101
MATSUI 027 030
MEt 031 033
MEMOREX 003 010 014 031
033 034 053 072
101 102 134 139
MGA 045 046 059
MINOLTA 013 020
MITSUBtSHI 013 020 045 046
049 051 059 061
151
MTC 034 040
MULTtTECH 024 034
NEC 012 023 039 043
048
NORDMENDE 043
OPTONtCA 053 054
PANASONtC 066 070 074 083
133 140 145
PENTAX 013 020 031 033
063
PHILCO 031 034 067
PHILtPS 031 033 034 054
067 071 101
PILOT 101
PIONEER 013 021 048
Brand
PORTLAND
PULSAR
QUARTZ
QUASAR
RCA
REALISTIC
RICO
RUNCO
SALORA
SAMSUNG
SANSUI
SANYO
SCOTT
SEARS
010
SHARP
SHINTOM
SONY
SOUNDESIGN
STS
SYLVANIA
SYMPHONIC
TANDY
Codes
108
O72
011 014
033 066 075 145
013 020 033 034
040 041 062 063
107 109 140 144
145 147
003 008 010 014
031 033 034 040
053 054 101
O58
148
014
032 040 102 104
105 107 109 112
113 115 120 122
125
022 043 048 135
003 007 010 014
102 134
017 037 112 129
131
003 00 009
013 014 017 020
031 042 073 081
101
031 054 149
024
003 009 031 052
056 057 058 076
077 078 149
O34
013
031 033 034 059
O67
O34
010 034
Brand Codes
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034
101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047
059 082 112 131
TOTEVIStON 040 101
UNITECH 040
VECTORRESEARCH 012
VICTOR 048
VIDEO CONCEPTS 012 034 046
VlDEOSONIC 040
WARDS 003 013 017 024
031 033 034 040
053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056
058 072 080 101
Brand Brand
gBC
Codes
003
046
gJtN 112
gNTRONtK 014
gRCHER 005
SABLE STAR 026
SENTU RtON 092
SENTURY 007
SITtZEN 007
SOLOUR VOICE 065 090
SOMBANO 080 081
SOMTRONtCS 019 030
DIAMOND 023
EAGLE 020
EASTERN 057
ELECTRICORD 032
SE 072
GEMINI 008
Gl 052
004 039 042
052 053
007 014 024
030 040
062 066
022 025 054
O74
Brand
GOLDEN CHANNEL
HAMLtN
HITACHI
HOSPITALITY
JERROLD
LG (GOLDSTAR)
M-NET
MACOM
MAGNAVOX
MEMOREX
MOVIE TIME
NSC
OAK
PANASONtC
PARAGON
PHILIPS
Codes
O3O
049 050 055
052 055
070 077
002 003 004 008
009 010 052 069
074
001 106 101 005
O37
O33
010 012 064 079
100
028 032
015 028 038 071
073
016 031 037 053
044 047
100
006 012 013 020
PIONEER
POST NEWS WEEK
PRUCER
PTS
PULSAR
RCA
REGAL
REGENCY
REMBRANT
RK
SAMSUNG
SC_ENTIFtCATLANTA
SHERITECH
SIGNAL
SIGNATURE
Codes
065 085 090
034 051 052 063
O76
016
O59
011 048 071 072
073 074
100
O47
049 050
O57
O25
091
102 107 030 068
003 011 041 042
043 045 046
O22
O3O
O52
Brand Codes
SL MARX 030
SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
SYLVAN IA 067
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029 067
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024
026 027 032 035
VlEWSTAR 012 015 018 086
087 088 089
ZENITH 100 114 060 093
Owner's Manual 45
ProgrammingCodes
Brand Codes
_,LPHASTAR DSR 123
_,MPLtCA 050
31RDVlEW 051 126 129
3SR 053
3APETRONICS 053
3HANNELMASTER 013 014 015 018
036 055
3HAPARRAL 008 009 012 077
3tTOH 054
3URTtS MATHES 050 145
_RAKE 005 006 007 010
011 052 112 116
141
_XANTENNA 024 046 056 076
-CHOSTAR 038 040 057 058
093 094 095 096
097 098 099 100
122
ELECTRO HOME 089
Brand Codes
EUROPLUS 114
FUJITSU 017 021 022 027
133 134
GENERALINSTRUMENT003 004 016 029
031 059 101
HITACHI 139 140
HOUSTONTRACKER 033 037 039 051
057 104
HUGHES 068
HYTEK 053
JANtEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 001
LUTRON 132
LUXOR 062 144
MACOM 010 059 063 064
O65
Brand Codes
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070
PACE SKY SATELLITE 143
PANASONtC 060 142
PAN SAT 121
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111
PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123
SATELLITESERVICE CO028 035 047 057
O85
SCIENTIFICATLANTA 032 138
SONY 103
Brand Codes
STARCAST 041
SUPER GUtDE 020 124 125
TEECOM 023 026 075 087
088 090 107 130
137
TOSHIBA 002 127
UNtDEN 016 025 042 043
044 045 048 049
078 079 080 086
101
UNtDEN 135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084
091 120
Brand Brand
_,IWA
_,KAt
_NAM
3URMECTER
3ARVER
3LARION
DAEWOO
DENON
:ANTASIA
:tNEARTS
:tSHER
_G(GOLDSTAR)
-IAITAI
-IARMAN/KARDON
NKEL
Codes
014
125
23O
163
OO3
O59
217
252
O86
199
O27
102
015
071
O22
O89
001
O87
190
211
O34
O68
O37
O78
122
152
157
189
225
247
028 070 096
129 139 229
014 017 023
106 189 216
235 236
053 060 084
148 198 221
075 130 143
099
021 024 029
107 108 110
191 192 210
212 239
035 188 222
058 062 069
079 095 121
149 150 151
153 154 155
158 159 160
207 222 224
226 227 243
Brand Codes
JVC 004 013 141
KEC 185 186 187
KENWOOD 038 050 067 089
170 171 197 206
215 222
KOHEL 030
NAD 045 046
LOTTE 014 016 036 098
100 172 173 174
175 176 177 178
179 180 181 183
201 202 208 213
214 219 223 232
238 240
LXI 103
MAGNAV©X 111
MARANTZ 002 018 020 025
034 041 081 090
097 112
MCINTOSH 049
MCS 104
MEMOREX 107
NAD 046
ONKYO 013 040 041 047
048 056 057 132
133 140
OPTIMUS 158
PANASONIC 007 033 064 113
142 220 241 251
PENNEY 104
Brand Codes
PHILIPS 026 112 143 253
PIONEER 039 042 043 063
065 091 093 094
115 123 127 250
QUASAR 113
RCA 080
RCX 092
REALISTIC 103 106
SAMSUNG 124 145 146 182
193 194 195 203
204 244 245 246
SANSUt 011 135 138 144
SANYO 019 083 234
SCOTT 106 186
SHARP 031 032 051 052
072 082 117 119
156 184 199 200
206 209
SHERWOOD 005 006 158
SONY 044 045 109 114
118 126 248 249
TAEKWANG 012 020 073 074
076 077 105 161
162 163 164 165
166 167 168 169
205 231 233 242
254
TEAC 010 085 106 136
185 187 237
TECHNICS 101 113 128 134
Codes
147 218
TOSHIBA 137
THE 061
VICTOR 088 131
WARDS 089
YAMAHA 054 055 066 092
199
Brand Codes Brand Codes Brand Codes Brand Codes
_,PEX DIGITAL 022 MAGNAVOX 013 PHILIPS 013 SONY 007
_ENON 020 014 MARANTZ 024 PIONEER 004 026 THOMPSON 005 006
3E 005 006 MITSUBISHt 002 PROCEED 021 TOSHIBA 019 008
-IARMAN KARDON 027 NAD 023 PROSCAN 005 006 YAMAHA 009 018
JVC 012 ONKYO 008 017 RCA 005 006 ZENITH 010 016 025
_G 001 010 016 025 PANASONIC 003 009 SAMSUNG 011 015
46 Plasma TV
TroubleshootingChecklist
Tro u b Ie s ho ot iiiin g C h e c k lis t
_ii )i i. CheckwhethertheTVisturnedon.
NO picture & • Is the power cord inserted into wall power outlet?
No sound
• Test the wall power outlet, plug another product's power cord into the outlet
where the TV's power cord was plugged in.
f PiCtureoK&
.osoun
• Press the VOLUME (c;) button.
Sound muted? Press MUTE button.
• Check to see if there is any object between the TV and the remote control
causing obstruction.
• Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.9)
• Correct remote operating mode set: TV, VCR etc.?
• Install new batteries. (Refer to p.9)
f Picture appears Slowly
/ after switching on
• This is normal, the image is muted during the TV startup process. Please
contact your service center, if the picture has not appeared after five minutes.
• Select Color in the Picture menu and press the VOLUME (G) button.
(Refer to p.21)
No or poor color
or poor picture
• Keep a sufficient distance between the TV and the VCR.
• Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the screen gets dark.)
f Horizontal/vertical bars
L orpicture shaking
• Check for local interference such as an electrical appliance or power tool.
• Adjust Balance in the Sound menu. (Refer to p.24)
iif! ¸¸_..,/o..._
Hn,,s,,a = =o,,n,.= ,to, _ • A change in ambient humidity or temperature may result in an unusual noise
L inside the TV when the plasma display is turned on or off and does not indicate a fault with
the TV.
i
i
iI
Owner's Manual 47
Maintenance
nance
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
1. Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use it to wipe the
screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
If you expect to leave your TV dormant for a long time (such as a vacation), it's a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.
48 Plasma TV
Specification
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Resolution
Power requirement
Television System
Program Coverage
External Antenna Impedance
Color
Operating Temperature Range
Operating Humidity Range
Maximum Elevation
49.6 / 1260
28.5 / 724.8
11.3 / 287
96.7 / 43.84
49.6 / 1260
28.6 / 726.2
11.3 / 287
96.7 / 43.84
57.7 / 1465
33.3/845.6
13.2 / 335
117.5 / 53.3
56.5 / 1436
36 / 913.2
3.9 / 98.6
172.3 / 78.15
1024 x 768 (Dot) 852 x 480 (Dot) 1366 x 768 (Dot)
AC100-240V, 60Hz
NTSC
VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 125
75_
16,770,000 (256 steps of each R, G and B)
32 ~ 104°F (0 ~ 40°C)
Less than 80%
6561 feet (2000m)
1366 x 768 (Dot)
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
4.3 / 110
26.4 / 669.3
3.7/95 I 3.6/90.5
4.5 / 2.03
4.7/120
30.7 / 779.4
3.9 / 98.2
5.7 / 2.57
• The specifications shown above may be changed without notice for quality improvement.
Owner's Manual 49
50 PlasmaTV
Your LG Plasma TV will be repaired OF replaced in accordance with the terms of this warranty, at LGE's option, if it
proves to be defective in material or workmanship under normal use, during the warranty period ("Warranty Period")
listed below, effective from the date ("Date of Purchase") of original consumer purchase of the product. This war-
ranty is good only to the original purchaser of the product and effective only when used in the United States, includ-
ing Alaska, Hawaii, and U.S. Territories.
WARRANTY PERIOD:
LABOR and PARTS: 2 YEARS from the Date of Purchase.
Your unit will be repaired OF replaced with a new, substitute
model or factory reconditioned unit, at LGE's option. If
repaired, parts used in the repair may be new OF remanufac-
tu red.
Replacement Units and Repair Parts are warranted for the
remaining portion of the original unit's warranty period.
EFFECTIVE DATE OF WARRANTY: Y0UF warranty period
begins on the date of sale to the original consumer/end user.
KEEP THE DEALER'S DATED BILL OF SALE OR PROOF OF
DELIVERY as evidence of the purchase date. You will be
required to submit a legible copy of your bill of sale OF proof
of delivery when requesting warranty service.
HOW SERVICE IS HANDLED:
In-Home Service: Please retain dealer's
dated bill of sale OF delivery ticket as evidence
of the Date of Purchase for proof of warranty,
and submit a copy of the bill of sale to the ser-
vice person at the time warranty service is pro-
vided.
Please call 1-201-816-2000 to locate your
nearest LGE Authorized Service Center,
Visit 0UF website at:
http://www,Igservice,corn
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE, NEITHER THE MANUFACTURER NOR ITS U,S, DISTRIBUTOR SHALL BE
LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY
NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR
DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE, Some states do
not allow the exclusion OF limitation of incidental or consequential damages OF limitations on how long an implied
warranty lasts, so the above exclusion OF limitation may not apply to you. This warranty gives you specific legal
rights and you may also have other rights that vary from state to state.
CONCERNING PIXEL FUNCTIONALITY: Your Plasma TV contains about one million individual pixels. Plasma TV
typically contain a small number of pixels that do not function normally. Your display has been inspected and is in
compliance with manufacturer's specifications, indicating that any pixel defects do not effect the operation OF use
of your display.
IMPORTANT: Please fill out and mail in your Product Registration Card OF go to www.lgservice.com to register your
product online. This information will allow us to reach you promptly should we discover a safety or reliability prob-
lem that could affect you.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
o damage caused in shipping or transit
o service required as a result of improper installation,
including incorrect or insufficient AC supply (please
consult the owner's manual for power supply
requirements)
o installation or repair of antenna systems, cable con-
verters, cable company supplied equipment, or
other components in a video system
o set-up or adjustment on consumer controls, or
damage caused by improper adjustments
o damage caused by other system components
oany panel that has been modified or incorporated
into any other product
o replacement of batteries on the remote control,
o damage (including cosmetic damage), failure, loss
or personal injury due to misuse, abuse, negli-
gence, improper maintenance or storage, or to acts
of nature or other causes beyond our control,
(Causes beyond our control include but are not lim-
ited to lightning strike, power surges, power out-
ages and water damage,)
o image burn-in
o repair or replacement of warranted parts by other
than LGF authorized service centers,
o units purchased or serviced outside of the coverage
area,
o product where the original factory serial numbers
have been removed, defaced or changed in any
way,
o product sold and labeled as "as is, where is" or sim-
ilar disclaimer,
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
CUSTOMER INTERACTIVE CENTER NUMBERS:
To obtain customer assistance, product
information or Dealer or Service locations
Call 1-201-816-2000
24 hours a day, 365 days per year
FOR SERVICE:
Before you call for warranty service, check your operating guide - you may avoid a service call.
For warranty service information, please contact the LGE Customer Interactive Center telephone number.
When calling for service, please have your product model number, serial number and the date of pur-
chase or the date of original installation available.
If a replacement unit is required, under some circumstances you may be asked to provide a reserve deposit to
the LGE Service Center againsta credit card number as surety for advanced shipment. Your credit card will not
be charged if you return the defective unit within 10 working days.
If a replacement unit is received, please use the carton and packaging from that unit in returning the defective
unit to the LG(_Brand Service Center.
Parts and service in accordance with the LGE warranty are LGE's responsibility and will be provided without
charge. Other service requirements will be at the owner's expense. If you have problems in obtaining satisfactory
warranty service, write or call the LGE Customer Interactive Center. Service may be provided by independently
owned and operated service organizations.
To assure proper credit and avoid unnecessary charges, you must obtain an LGE Return Authorization before
returning any product to the LGE Service Center. Contact the Customer Interactive Center for details.
TO CONTACT THE LGE CUSTOMER SERVICE CENTER BY MAIL:
LGE Customer Interactive Center
p.o. Box 240007
201 James Record Road
Huntsville, Alabama 35824
http://www.lgservice.com
P/N : 3828VA0470Q
