Use & Care Guide
Guía de uso y cuidada
English / Español
Model/Modelos:
Kenmore®
Electric Range
Estufa eléctrica
* = color number, código de color
790. 9001*, 9011*, 9083*, 9300*, 9302*
P/N 808529901 Rev B
Sears Brands Management Corporation
Homan Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
2
All rights reserved. Printed in the USA.
Table of Contents
Appliance Warranty ..............................................................................2
Important Safety Instructions ........................................................... 3-6
Product Record/Serial Plate Location .................................................6
Before Setting Oven Controls .............................................................. 7
Removing, replacing and arranging oven racks ........................... 7
Before Setting Surface Controls .......................................................8-9
Using proper cookware .....................................................................8
Cookware material types ..................................................................9
Home canning .....................................................................................9
Setting Surface Controls ...................................................................... 10
Surface element settings ................................................................. 10
Oven Control Features .......................................................................... 11
Setting Oven Controls ......................................................................11-14
Setting Clock ...................................................................................... 11
Changing oven temperature display (F° or C°) ............................11
Setting Timer ..................................................................................... 12
Setting Bake ...................................................................................... 12
Broil ..................................................................................................... 13
Adjusting Oven Temperature .......................................................... 14
Care & Cleaning .............................................................................. 15-19
Cleaning recommendation table ................................................... 15
General cleaning .............................................................................. 16
Surface elements and drip bowls .................................................. 17
Removing and replacing lift-o oven door .................................. 19
Before You Call - Solutions to common problems ..................... 20-21
Master Protection Agreement .............................................................23
Sears Service ..........................................................................back cover
KENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly installed, operated
and maintained according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option of seller.
For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty
This warranty applies for only 90 DAYS from the sale date in the United States, and is void in Canada, if this appliance is ever used for other than
private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
3. Discoloration of cooktop surfaces resulting from normal use.
4. Expendable items that can wear out from normal use, including but not limited to lters, belts, bags or screw-in base light bulbs.
5. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.
6. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit
breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
7. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was
not in accord with electrical, gas or plumbing codes.
8. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all sup-
plied instructions.
9. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other
than its intended purpose.
10. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other
than those recommended in all instructions supplied with the product.
11. Damage to or failure of parts or systems resulting from unauthorized modications made to this appliance.
12. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certication logo.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, includ-
ing warranties of merchantability or tness for a particular purpose, are limited to one year or the shortest period allowed by law. Seller shall not be lia-
ble for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages,
or limitation on the duration of implied warranties of merchantability or tness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada*.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
* In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user or servicer travel and transportation ex-
penses if this product is located in a remote area (as dened by Sears Canada Inc.) where an authorized servicer is not available.
Sears Brands Management Corporation, Homan Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3
3
Important Safety Instructions
Save these instructions for future reference.
Read all instructions before using this appliance.
This manual contains important safety symbols and
instructions. Please pay attention to these symbols and
follow all instructions given.
- indicates a potentially hazardous
situation which, if not avoided, may result in death or
serious injury.
- indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate injury.
Do not attempt to install or operate your appliance until
you have read the safety precautions in this manual. Safety
items throughout this manual are labeled with a WARNING
or CAUTION statement based on the risk type.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
Denitions
• Never modify or alter the construction of a range by
removing the leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the range.
• Remove the oven door from any unused range if it is to be
stored or discarded.
• Do not attempt to operate the range during a power
failure. If the power fails, always turn o the range. If the
range is not turned o and the power resumes, the range
will begin to operate again. Once the power resumes,
reset the clock and oven function.
• User servicing—Do not repair or replace any part of
the appliance unless specically recommended in the
manuals. All other servicing should be done only by a
qualied technician, This may reduce the risk of personal
injury and damage to the range.
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking
the range. Never allow children to play with packaging
material.
• Proper installation—Be sure your appliance is properly
installed and grounded by a qualied technician in
accordance with the National Electrical Code ANSI/
NFPA No. 70 latest edition and local electrical code
requirements. Install only per installation instructions
provided in the literature package for this range.
Ask your dealer to recommend a qualied technician and
an authorized repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in
case of an emergency.
Stepping, leaning or sitting on the door or
drawers of a range can result in serious injuries and also
cause damage to the appliance. DO NOT allow children
to climb or play around the range. The weight of a child on
an open oven door may cause the range to tip, resulting in
serious burns or other injury.
Storage in or on appliance — ammable
materials should not be stored in an oven, near surface
units or in the storage drawer, warmer drawer or lower
oven. This includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as ammable
liquids. Do not store explosives, such as aerosol cans, on or
near the range.

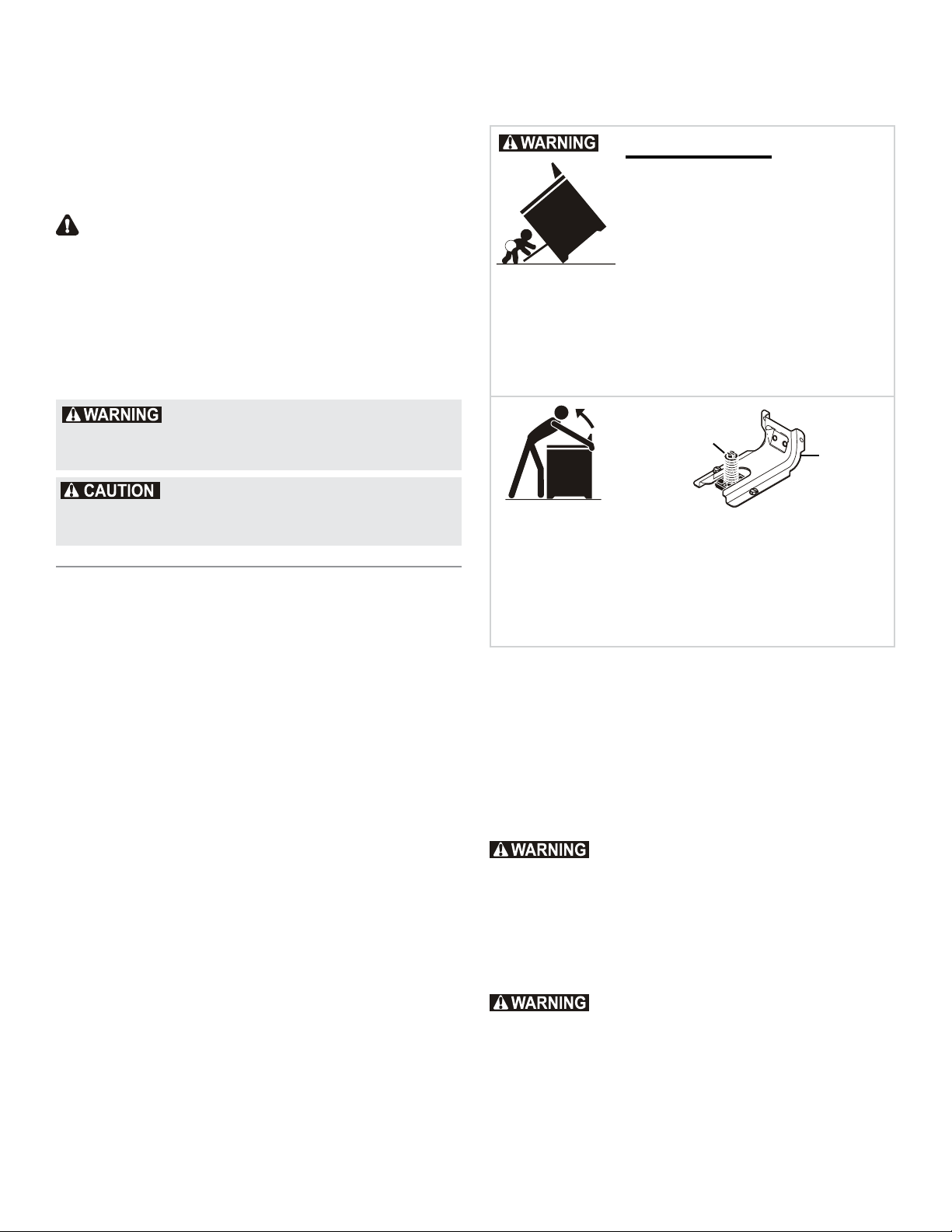

Tip Over Hazard
• A child or adult can tip the range
and be killed.
• Verify the anti-tip device has been
installed to oor or wall.
• Ensure the anti-tip device is re-engaged when the
range is moved to oor or wall.
• Do not operate the range without the anti-tip device in
place and engaged.
• Failure to follow these instructions can result in death
or serious burns to children and adults.
To check if the anti-tip bracket is installed properly,
use both arms and grasp the rear edge of range back.
Carefully attempt to tilt range forward. When properly
installed, the range should not tilt forward.
Refer to the anti-tip bracket installation instructions
supplied with your range for proper installation.
Range
leveling leg
Anti-Tip
bracket
4
DO NOT LEAVE CHILDREN ALONE —
children should not be left alone or unattended in the area
where appliance is in use. They should never be allowed
to sit or stand on any part of the appliance, including the
storage drawer, lower broiler drawer, warmer drawer or
lower double oven.
NEVER cover any slots, holes or passages
in the oven bottom or cover an entire oven rack with ma-
terials such as aluminum foil. Aluminum foil linings may
trap heat, causing a re hazard.
Do not store items of interest to children
in the cabinets above a range or on the backguard of the
range. Children climbing on the range to reach items could
be seriously injured.
DO NOT TOUCH SURFACE HEATING
UNITS, OR SURFACE COOKING ELEMENTS, AREAS
NEAR THESE SURFACE HEATING UNITS, OR INTERIOR
SURFACE OF THE OVEN. Both surface heating and oven
heating elements may be hot even though they are dark in
color. Areas near surface cooking units may become hot
enough to cause burns. During and after use, do not touch,
or let clothing or other ammable materials touch these
areas until they have had sucient time to cool. Among
these areas are the cook top, surfaces facing the cook top,
the oven vent openings and surfaces near these openings,
oven door and oven door window.
Wear proper apparel — loose-tting or
hanging garments should never be worn while using the
appliance. Do not let clothing or other ammable materials
contact hot surfaces.
DO NOT USE WATER OR FLOUR on grease
res — smother the re with a pan lid, or use baking
soda, a dry chemical or foam-type extinguisher.
When heating fat or grease, watch it
closely. Fat or grease may catch re if allowed to become
too hot.
Use dry potholders — moist or damp
potholders on hot surfaces may result in burns from steam.
Do not let potholders touch hot heating elements. Do not
use a towel or other bulky cloth instead of a potholder.
Important Safety Instructions
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects
or other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.
• Use care when opening oven door, warmer drawer or
lower oven door — Stand to the side of the range when
opening the door of a hot oven. Let hot air or steam
escape before you remove or replace food in the oven.
• Keep oven vent ducts unobstructed. The oven vent is
located below the backguard. Touching the surfaces in
this area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items on
or near the oven vent. These items could melt or ignite.
• Placement of interior oven racks. Always place oven
racks in desired location while oven is cool. If rack
must be moved while oven is hot use extreme caution.
Use potholders and grasp the rack with both hands to
reposition. Do not let potholders contact the hot heating
elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The broiler
pan and its insert allow dripping fat to drain and be kept
away from the high heat of the broiler.
• Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.
Protective Liners — DO NOT USE
ALUMINUM FOIL to line the oven bottom. Only use
aluminum foil as recommended in this manual. Improper
installation of these liners may result in risk of electric shock,
or re.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
Do not heat unopened food containers
— buildup of pressure may cause container to burst and
result in injury.
Save these instructions for future reference.
5
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOKTOP
• Know which knob controls each surface heating unit. Place
a pan of food on the surface element unit before turning
it on, and turn the element o before removing the pan.
• Use proper pan size — This appliance is equipped with
one or more surface units of dierent sizes. Select utensils
having at bottoms large enough to cover the surface
unit heating element. The use of undersized utensils will
expose a portion of the heating element to direct contact
and may result in ignition of clothing. Proper relationship
of utensil to element will also improve eciency.
• Utensil handles should be turned inward and not extend
over adjacent surface elements — To reduce the risk of
burns, ignition of ammable materials, and spillage due
to unintentional contact with the utensil, the handle of the
utensil should be positioned so that it is turned inward,
and does not extend over adjacent surface units.
• Never leave surface elements unattended at high heat
settings — Boilovers cause smoking and greasy spillovers
that may ignite, or a pan that has boiled dry may melt.
• Glazed cooking utensils — Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without breaking
due to the sudden change in temperature. Check the
manufacturer’s recommendations for cook top use.
• When aming foods under a ventilating hood, turn the fan
on.
Important Safety Instructions
Save these instructions for future reference.
COIL COOK TOP MODELS
Protective liners — Do not use aluminum foil
to line surface unit drip bowls, or reector pans. Only use
aluminum foil as recommended in this manual. Improper
installation of these liners may result in risk of electric shock,
or re.
• Make sure reector pans or drip bowls are in place —
Absence of these pans or bowls during cooking may
subject wiring or components underneath to damage.
• Carefully check the reector pans, drip bowls, and coils
for packaging material. Remove all packaging material
before using the cooktop.
• Do not use decorative surface burner covers. If an element
is accidentally turned on, the decorative cover will
become hot and possibly melt. Burns will occur if the hot
covers are touched. Damage may also be done to the
cooktop.
• Do not allow grease to accumulate around surface burners
and drip bowls.
• Do not immerse or soak removable heating elements—
Heating elements should never be immersed in water.
Heating elements clean themselves during normal
operation.
6
Important Safety Instructions
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of grease
that could catch re. Pay particular attention to the area
around each surface element. Do not allow grease to
accumulate.
• Kitchen cleaners and aerosols — Always follow the
manufacturer’s recommended directions for use. Be
aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.
• Clean ventilating hoods frequently — Grease should not
be allowed to accumulate on the hood or lter. Follow
the manufacturer’s instructions for cleaning hoods.
Before manually cleaning any part of the
range, be sure all controls are turned OFF and the range is
COOL. The range may be hot and can cause burns.
In this space below, record the date of purchase, model and
serial number of your product. You will nd the model and
serial number printed on an identication plate. See bottom
of this page for serial plate location.
Model No. _____________________________________
Serial No. ______________________________________
Date of Purchase ________________________________
Save sales receipt for future reference.
Product Record
790.
Save these instructions for future reference.
Serial Plate Location
To locate the serial plate open the storage drawer. The
serial plate is attached to the lower right oven frame.
7
Before Setting Oven Controls
oven vent
Fig. 1
Oven vent location
The oven vent is located under the left rear surface element
(See Fig. 1). When the oven is on, warm air passes through
this vent. This venting is necessary for proper air circulation
in the oven and good baking results. Do not block oven vent.
at handle
oven rack
oset
oven rack
at
oven rack
Arranging - always arrange
the oven racks when the oven
is cool (prior to operating the
oven).
To remove - pull the rack
forward until it stops. Lift up
front of rack and slide out.
To replace - t the rack onto
the guides on the oven walls.
Tilt the front of the rack
upward and slide the rack
back into place.
Removing, replacing and arranging racks

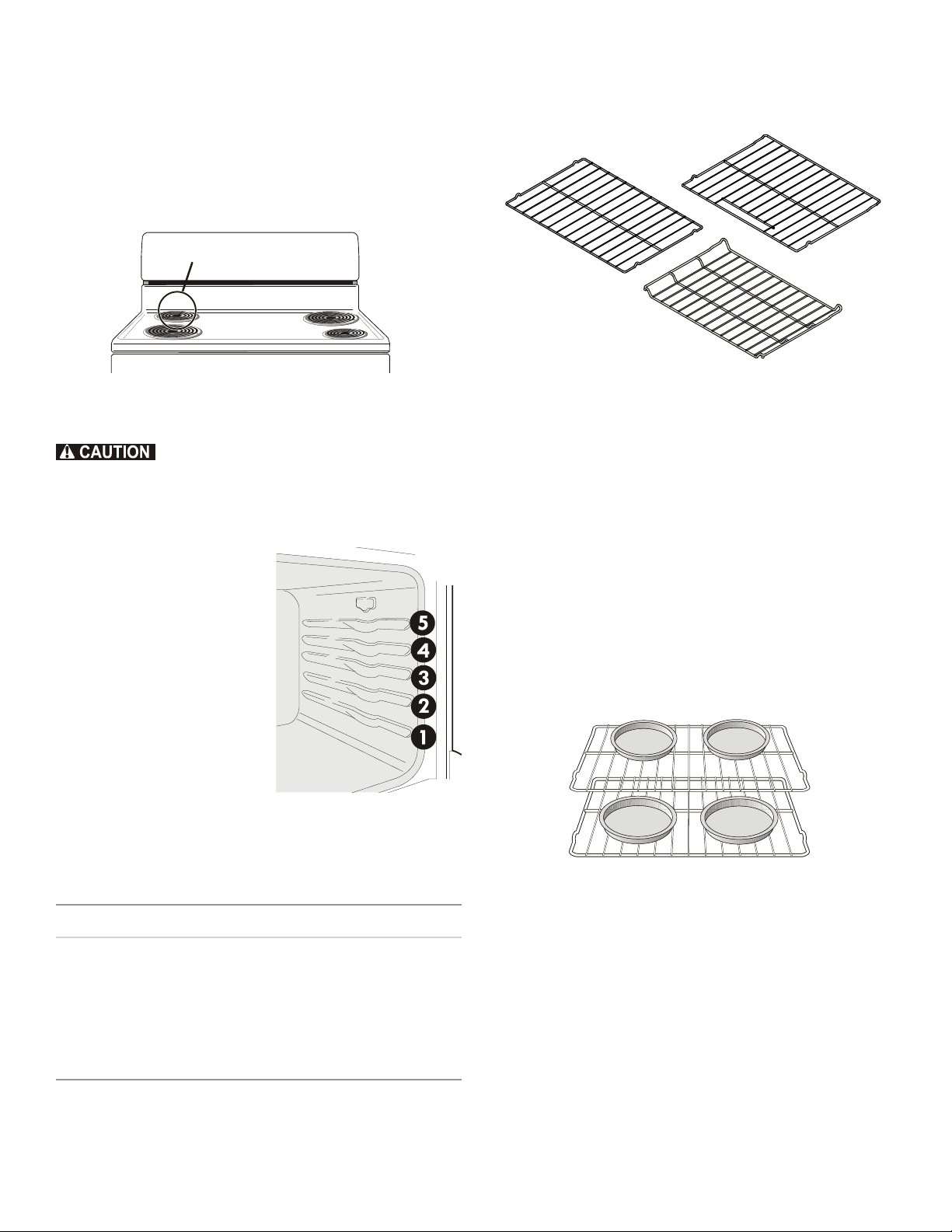

Recommended oven rack positions by food type:
(Refer to Fig. 2 for oven rack positions)
Food type Position
Broiling See broil
Cookies, cakes, pies, biscuits & muns 2 or 3
Frozen pies, angel food cake, yeast, bread
and casseroles 1 or 2
Small cuts of meat or poultry 1 or 2
Turkey, roast or ham 1
Types of oven racks
The at oven rack or at handle oven rack (on some
models) may be used for most cooking needs.
The oset oven rack (on some models) will place the base
of the rack about 1/2 of a rack position lower than a at
oven rack. This feature provides several additional possible
oven rack positions.
Air circulation in the oven
For best baking results allow 2-4” (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or
back of the oven cavity. Hot air must be able to circulate
around the pans and cookware in the oven for even heat to
reach around the food.
Fig. 2
Always use pot holders or oven mitts when
using the oven. When cooking, the oven interior, exterior,
oven racks and cooktop will become very hot which can
cause burns
8
About the surface elements
The element temperature rises gradually and evenly. As the
temperature rises, the element will glow red.
For ecient cooking, turn OFF the surface element just
before cooking is complete. This will allow residual heat to
complete the cooking process.
Before Setting Surface Controls
Using proper cookware
The size and type of
cookware used will
inuence the surface
element power level
setting needed for
best cooking results.
Be sure to follow the
recommendations for
using proper cookware as
illustrated in both Figs. 1
& 2.
Fig. 1

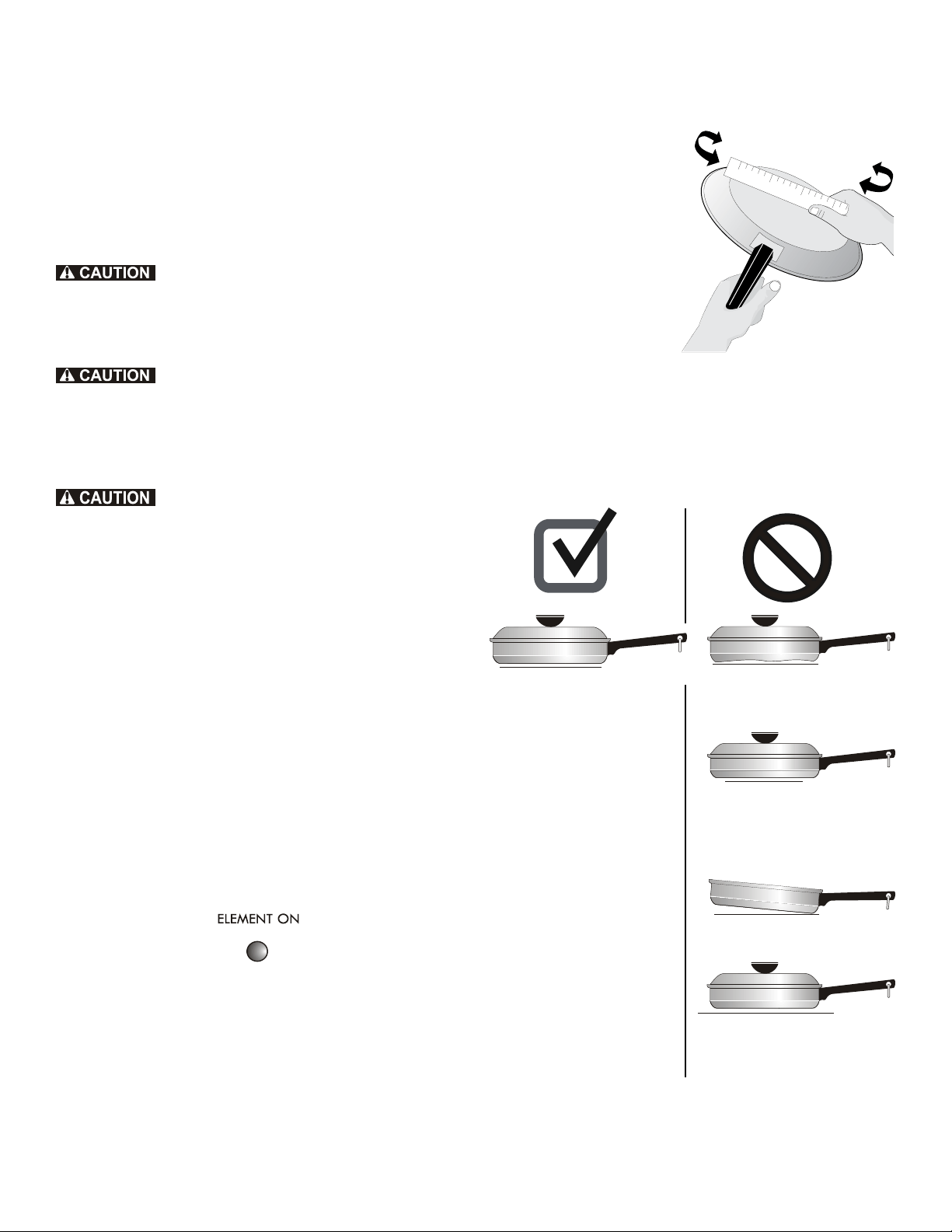

Check for atness by rotating a ruler across the bottom
of the cookware (See Fig. 1). Cookware should have at
bottoms that make good contact with the entire surface
heating element (See Fig. 2).
Element On indicator lights
The ELEMENT ON indicator lights are marked on the
control panel and will glow when a surface cooking element
is turned ON. A quick glance at these indicator lights after
cooking is an easy check to be sure ALL surface controls are
turned OFF.
Surface elements may appear to have
cooled after they have been turned o. The surface
element may still be hot and burns may occur if the surface
element is touched before it has cooled suciently.
Do not place plastic items such as salt and
pepper shakers, spoon holders or plastic wrappings on top
of the range when it is in use. These items could melt or
ignite. Potholders, towels or wooden spoons could catch re
if placed too close to the surface elements.
Do not use aluminum foil to line surface
unit drip bowls, or reector pans. Only use aluminum foil as
recommended in this manual. Improper installation of these
liners may result in risk of electric shock, or re.
Do not place aluminum foil or ANY material that could
melt on the surface elements.
Make sure reector pans or drip bowls are in place —
Absence of these pans or bowls during cooking may subject
wiring or components underneath to damage.
• Flat bottom and straight
sides.
• Tight tting lids.
• Weight of handle does
not tilt pan. Pan is well
balanced.
• Pan sizes match the
amount of food to be
prepared and the size of
the surface element.
• Made of material that
conducts heat well.
• Easy to clean.
• Always match pot
diameter to surface
element size.
Fig. 2
• Curved and warped pans.
• Cookware larger than
surface element on
cooktop by more than one-
half inch or 12mm.
• Heavy handle tilts pan.
• Pan is smaller than the
surface element on
cooktop.
9
Before Setting Surface Controls
Cookware material types
The cookware material determines how evenly and quickly
heat is transferred from the surface element to the pan
bottom. The most popular materials available are:
Aluminum - Excellent heat conductor. Some types of food
will cause it to darken (Anodized aluminum cookware resists
staining & pitting).
Copper - Excellent heat conductor but discolors easily.
Stainless - Slow heat conductor with uneven cooking results.
Is durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain
heat very well. Cooks evenly once cooking temperature is
reached.
Porcelain-enamel on metal - Heating characteristics will
vary depending on base material.
Glass - Slow heat conductor.
Home Canning
Be sure to read and observe all the following points when
home canning with your appliance. Check with the USDA
(United States Department of Agriculture) website and be
sure to read all the information they have available as
well as follow their recommendations for home canning
procedures.
• Use only quality at bottom canners when home canning.
Use a straight-edge to check canner bottom.
• Use only a completely at bottom canner with no ridges
that radiate from the bottom center when home canning
using a ceramic cooktop.
• Make sure the diameter of the canner does not exceed 1
inch beyond the surface element markings or burner. It is
recommended to use smaller diameter canners on electric
coil and ceramic glass cooktops.
• Start with hot tap water to bring water to boil more
quickly.
• Use the highest heat seating when rst bringing the water
to a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.
• NEVER place or straddle a cooking utensil over 2 dierent
surface cooking areas at the same time. This will cause
uneven heating results and may cause the ceramic
cooktop to fracture.
10
Setting Surface Controls
The size and type of utensil used, and the amount and type
of food being cooked will inuence the surface element
power level setting needed for best cooking results.
The suggested settings found in Fig. 1 below are based
when cooking with medium-weight aluminum pans with lids.
Settings may vary when using other types of pans.
Surface element settings
Suggested settings for surface elements
Settings Type of cooking
High (HI - 9) Start most foods, bring water to a
boil, pan broiling
Medium high (7 - 8) Continue a rapid boil, fry, deep fat
fry
Medium (5 - 6) Maintain a slow boil, thicken
sauces and gravies or
steam vegetables
Medium Low (2 - 4) Keep foods cooking, poach, stew
Low (LO - 1) Keep warm, melt, simmer
Fig. 1
To operate the surface element:
1. Place correctly sized cookware on surface element.

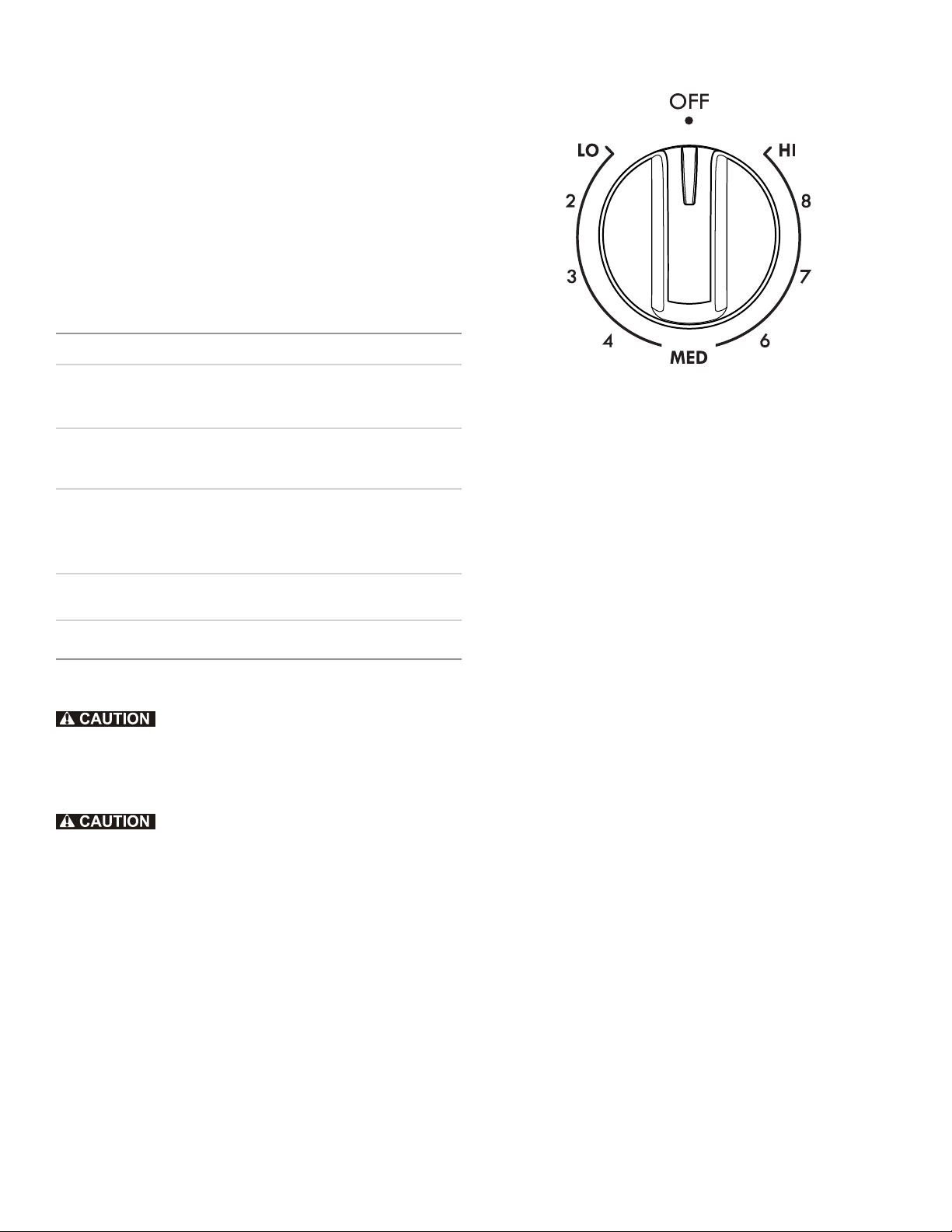

2. Push in and turn the surface control knob in either
direction to the desired setting (See Fig. 2).
3. When cooking is complete, turn the surface element OFF
before removing the cookware.
Important notes:
• The surface control knobs do not have to be set exactly
on a particular spot. Use the graphics provided as a
guide and adjust the control knob as needed. Refer to
Fig. 1 for suggested power level settings.
• Start most cooking operations on a higher setting and
then turn to a lower setting to nish cooking.
• The ELEMENT ON indicator light(s) will glow when one
or more surface elements are turned ON. A quick glance
at this indicator light when nished surface cooking is an
easy check to be sure all surface controls are turned OFF.
Fig. 2
Surface elements may appear to have
cooled after they have been turned o. The surface
element may still be hot and burns may occur if the surface
element is touched before it has cooled suciently.
Do not place plastic items such as salt and
pepper shakers, spoon holders or plastic wrappings on top
of the range when it is in use. These items could melt or
ignite. Potholders, towels or wooden spoons could catch re
if placed too close to the surface elements.
11
For satisfactory use of your oven, become familiar with the various pad features and functions of the oven as described
below.
Up and down
arrow pads— Use
with the feature or
function pads to set
oven temperature or
adjusting the clock
and minute timer.
Broil pad — Use to
select the variable broil
feature.
Bake pad — Use to select
the bake feature.
Indicator lights — These
indicator lights show if
Bake or Broil is active.
Clock pad — Use
to set the time of
day.
STOP pad — Use to clear any feature
previously entered except the time of day and
minute timer. Press STOP to end cooking.
Timer Set/O pad — Use to set or cancel
the minute timer. The minute timer does not
start or stop cooking.
Oven Control Features
Changing temperature display mode (°F or
°C) The electronic oven control is set to display °F
(Fahrenheit) when shipped from the factory. The display
may be changed to show either Fahrenheit or Celsius oven
temperatures.
Setting Clock
When the appliance is rst plugged in or when the power
supply to the appliance has been interrupted, the display
will ash “12:00”.
You must set the clock for the time of day before using the
appliance.
To set the clock:
1. Press key pad once (do not hold key pad down).
2. Within 5 seconds, press and hold the
or key
pad until the correct time of day appears in the display
and release key pad.
3. The clock should display the correct time of day.
Setting Oven Controls
To change temperature display mode from °F to °C
(Celsius) or from °C to °F (Fahrenheit):
1. Press and hold Broil key pad (for 6-8 seconds) until F
or C appears in the display. At this time the display will
show the current temperature display mode whether set
for F or C.
2. Press either
or key pad to toggle between F
(Fahrenheit) or C (Celsius) mode choices.
3. To accept the change, wait until the oven control
provides the acceptance beep (See Notes below).
4. The display will return to the time of day with the
temperature display mode changed the next time the
oven is set for Bake or Broil.
Important notes:
• If at any time during the process of changing the
temperature display mode you decide not to change
the mode, press the
key pad once before the
acceptance beep.
• The temperature display mode cannot be changed when
Bake or Broil is active.
12
Setting Oven Controls
To set Timer:
1. Press Timer Set/O.
2. Press the
to increase the time in one minute
increments. Press and hold the
to increase the
time in 10 minute increments. The timer can be set for
any amount of time from 1 minute to 11 hours and 59
minutes.
Note: If the
pad is pressed rst, the timer will
advance to 11 hours and 59 minutes.
3. When the set time has run out, the timer will sound a 3
second tone . 0:00 will show in the display until Timer
Set/O is pressed.
To change the time remaining in Timer:
While the timer is active, press and hold the
or
key pad to increase or decrease the time remaining.
To cancel the Timer before the set time has run out:
Press Timer Set/O key pad once.
Setting Bake
The oven may be programmed to Bake at any temperature
from 170°F to 550°F (77°C to 287°C). The factory preset
bake temperature is 350°F (177°C).
To set Bake:
1. Press Bake key pad. — — — appears in display.
2. Within 5 seconds, press
or key pad. The
display will show 350°F (177°C). By pressing and
holding
or key pad, the temperature can be
adjusted in 5°F increments (1°C if the control is set to
display Celsius).
3. As soon as the
or key pad is released, the
oven will begin preheating to the selected temperature.
As a reminder the control will beep when the oven
reaches the set baking temperature.
To cancel Bake at any time press the
key pad.
To change oven temperature after Bake has started:
1. Press Bake key pad once. Visually check the bake
temperature and that it needs to be changed.
2. Press the
or key pad to increase or
decrease the set temperature to the desired new oven
temperature.
The timer allows you to track your cooking times without
interferring the cooking process. The timer may be set from
1 minute up to 11 hours and 59 minutes.
Setting Timer
Important notes:
• The Timer will not start or stop the cooking process. It
serves as an extra timer in the kitchen that will beep
when the set time has run out. The minute timer can be
used alone or when Bake or Broil is active.
• If another feature is active when the Timer is running, the
minute timer will show in the display. To view information
about other active features, press the key pad for that
feature.
Important note:
Dark or dull pans absorb more heat than shiny bakeware
resulting in dark or overbrowning of foods. It may be
necessary to reduce the oven temperature or cook time
to prevent overbrowning of some foods. Dark pans are
recommended for pies. Shiny pans are recommended for
cakes, cookies and muns.
13
Broil
Setting Oven Controls
Fig. 3
Fig. 1
Should an oven re occur, close the oven
door and turn the oven OFF. If the re continues, use a re
extinguisher. DO NOT put water or our on the re. Flour
may be explosive.
Important notes:
• Always arrange oven racks when the oven is cool.
• For best results when broiling, use a quality broil pan
along with a broil pan insert. A broil pan is designed
to drain the fat from the food, help avoid spatter and
reduce smoking.
• When broiling, always pull the oven rack out to the stop
position before turning or removing food.
Always use pot holders or oven mitts when
using the oven. When cooking, the oven interior, exterior,
oven racks and cooktop will become very hot which can
cause burns
Fig. 2
Use the broil function to cook meats that require direct
exposure to radiant heat for optimum browning results. The
Broil function is factory preset to broil at 550°F.
The suggested broil settings (See Fig. 3) are provided for
recommendations only. Increase or decrease broiling times
or move to a dierent rack position to suit for doneness. If
the food you are broiling is not listed in the table, follow the
instructions provided in your cookbook and watch the item
closely.

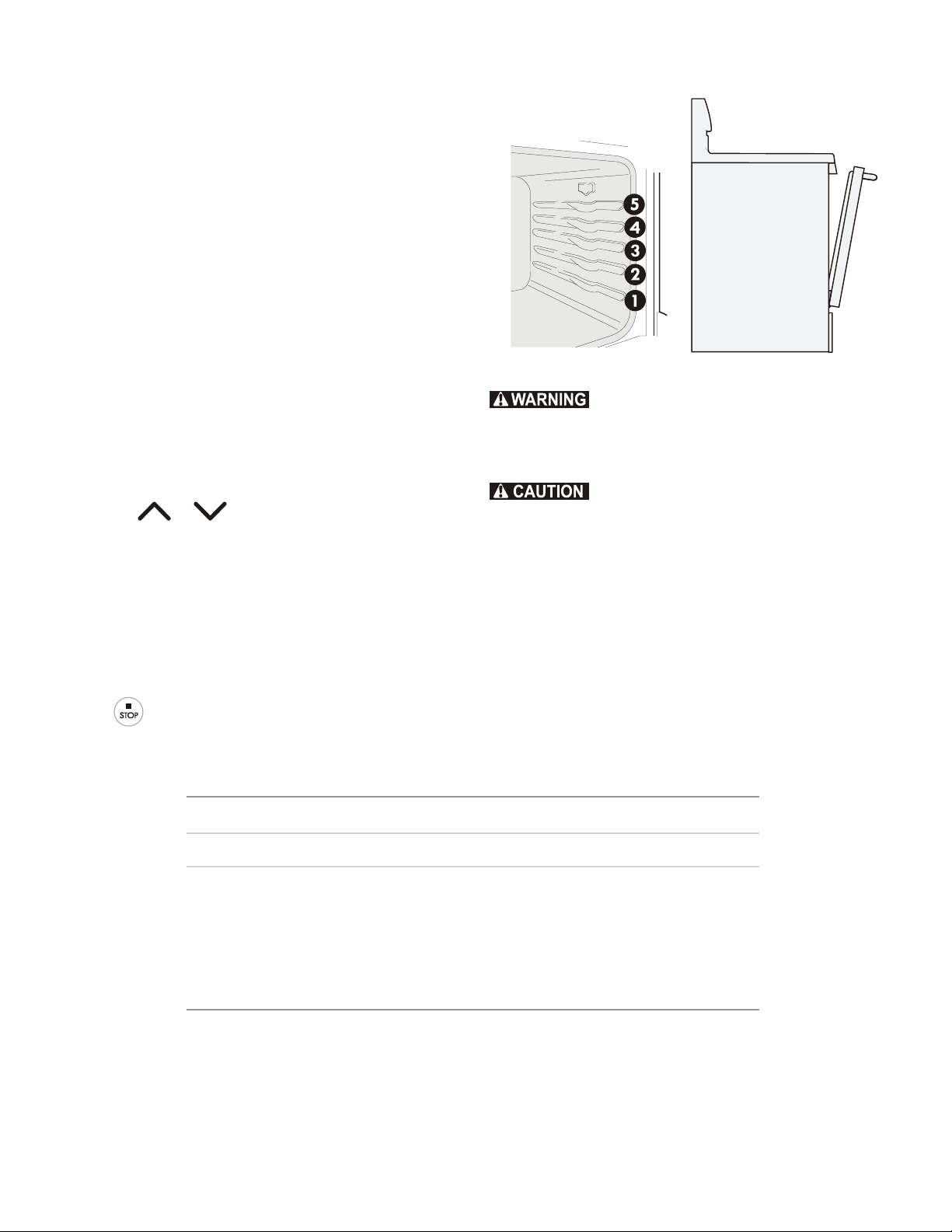

1. Arrange the oven racks when cool. For optimum
browning results, preheat oven for 5 minutes before
adding food.
2. Position cookware in oven. Leave oven door open at
broil stop position when broiling (See Fig. 2).
3. Press Broil key pad. — — will appear in display.
4. Press the
or key pad until the desired broil
setting level appears in the display. nor is for normal,
hi for high and lo is for low setting. Most foods can be
broiled at the hi broil setting. Select the lo broil setting to
avoid excess browning or drying of foods that should be
broiled to the well-done stage.
5. Broil on one side until food is browned. Turn and broil
food on 2nd side.
6. When nished broiling or to cancel broil at any time
press .
To set Broil:
Food Rack position Setting Doneness
Suggested broil settings (See Fig. 1)
Steak 1” thick 5th Hi Medium
Steak 1” thick 5th Normal Medium-well
Pork chops 3/4” thick 4th Normal Well
Chicken 4th Lo Well
Fish 4th Lo Well
Hamburger 1” thick 4th Hi Well
14
Setting Oven Controls
Adjusting oven temperature
Your appliance has been factory calibrated and tested
to ensure an accurate baking temperature. For the rst
few uses, follow your recipe times and temperature
recommendations carefully. If you think the oven is cooking
too hot or too cool for your recipe times, you may adjust
the control so the oven cooks hotter or cooler than the
temperature displayed.
To adjust oven temperature:
1. Press & hold the Bake key pad and release after the
display shows the factory temperature setting of 00. If
the oven temperature has been previously adjusted from
the factory setting, the latest adjusted value will appear
in the display instead.
2. You may increase the oven temperature in 5°F
increments with each press of the
key pad. You
may also adjust the oven temperature downward in 5°F
increments with each press of the
key pad (total
adjustment range is +35°F to -35° F).
3. To accept the change, wait until the oven control
provides the acceptance beep (See Notes).
4. The oven temperature adjustment has been accepted
by the oven control and the display will return to the
time of day.
Important notes:
• If at any time during the process of adjusting the oven
temperature feature you decide not to make the change,
press the
key pad once before the acceptance beep
tone.
• The oven temperature adjustment feature can not be
modied if Bake or Broil is active.
• The oven temperature adjustment may be made if your
oven control has been set for °C (Celsius) temperature
display mode. In this case each press of the
or
key pad will adjust in 1°C increments upward
(maximum +18°C) or downward (maximum -18°C),
depending on which arrow key pad is pressed.
• DO NOT USE oven thermometers such as those found in
grocery stores to check the temperature settings inside
your oven. These oven thermometers may vary as much
as 20 to 40°F from actual temperatures.
The interior oven light will automatically turn ON when the
oven door is opened.
Press the rocker switch marked OVEN LIGHT on the control
panel to turn the oven light ON and OFF whenever the oven
door is closed.
The interior oven light is located at the upper left rear wall
of the oven interior. To replace the interior oven light, see
Replacing oven light in the Care & Cleaning section.
Operating oven light (on some models)
15
Care & Cleaning
Control panel
Control key pad membrane
Decorative trim (some models)
Surface type Recommendation
Oven interior & door liner
Porcelain enamel broil pan and broil
pan insert (some models)
For general cleaning, use hot, soapy water and a cloth. For more dicult soils and
built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30-
60 minutes. Rinse with a damp cloth and dry. Do not use abrasive cleaners on any
of these materials; they can scratch. To remove control knobs, turn to OFF position;
grasp rmly and pull straight o the shaft. To replace knobs after cleaning, line up
the at sides of both knob and shaft; then push knob into place.
Control knobs
Painted body parts
Painted decorative trim
Aluminum, plastic or vinyl trim
Oven racks
Oven door
Remove oven racks from oven cavity before cleaning. Clean by using a mild, abrasive
cleaner following manufacturer’s instructions. Rinse with clean water, dry and then
replace in oven.
Cleaning recommendation table
Stainless Steel (on some models) Only use cleaners and polishes that are specically manufactured for cleaning
stainless steel. Always rub in direction of metal grain to avoid damaging. Do not use
cleaners with high concentrations of chlorides or chlorine. Do not use harsh scrub-
bing cleaners. Polish with a lint-free cloth. Always be sure to wipe excess cleaner/
polish o from the metal surface as bluish stains may occur during future oven heat-
ing that cannot be removed. Clean heavier soils with hot, soapy water and a dish-
cloth. Rinse and dry using clean water and a cloth.
Before cleaning the control panel, turn all controls OFF and if needed remove any
knobs from panel. Do not use abrasive cleaners on any of these materials; they can
scratch. Clean using hot, soapy water and a dishcloth. Be sure to squeeze excess
water from dishcloth before wiping control panel; especially when wiping around
the controls area. Excess water in or around the controls may cause damage to the
appliance. When rinsing, use clean water and a dishcloth and be sure to squeeze
excess water from dishcloth before wiping the control panel.
Use soap & water to thoroughly clean the top, sides and front of the oven door.
Rinse well. You may use a glass cleaner on the outside glass of the oven door. Do not
immerse the door in water. Do not spray or allow water or the glass cleaner to enter
the door vents. Do not use oven cleaners, cleaning powders or any harsh abrasive
cleaning materials on the outside of the oven door.
Gentle scubbing with a soapy no-scratch cleaning pad will remove most spots. Rinse
with a 1:1 solution of clear water and ammonia. If necessary, cover dicult spots with
an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and
a damp cloth, and then scrub with a soap-lled no-scratch cleaning pad. Rinse and
wipe dry with a clean cloth. Do not allow food spills with high sugar or acid content
(milk, tomatoes, sauerkraut, fruit juices or pie lling) to remain on the surface; they
may cause a dull spot even after cleaning.
The oven interior is porcelain coated and safe to clean with oven cleaners following
manufacturer’s instructions. After cleaning, remove any oven cleaner or the porcelain
may become damaged during future heating. Do not spray oven cleaner on any
electrical controls or switches. Do not spray or allow oven cleaner to build up on
oven temperature sensing bulb. Do not spray cleaner on oven door trim, door gasket,
plastic drawer glides, handles or any exterior surfaces of the range. Clean any soils
from oven frame and door liner outside the oven door gasket. Clean with hot, soapy
water. Rinse using clean water and a cloth. For additional cleaning information see
“General cleaning” in the Care & Cleaning section.
Surface elements and drip bowls
Do not use spray oven cleaners on the cooktop. See “Surface elements and drip
bowls” in the Care & Cleaning section.
16
Care & Cleaning
Follow these cleaning precautions:
• Allow the oven to cool before cleaning.
• Wear rubber gloves when cleaning the appliance
manually.
Remove soils using hot, soapy water. Do not allow food
spills with a high sugar or acid content (such as milk,
tomatoes, saukerkraut, fruit juices or pie lling) to remain
on the surface as they may cause a dull spot even after
cleaning. Remove spillovers and heavy soiling as soon as
possible. Regular cleaning will reduce the eort required for
major cleaning later.
Adhere to the following precautions when using spray
oven cleaners:
• DO NOT spray cleaner on the electrical controls or
switches because it could cause a short circuit and
result in sparking or re.
• DO NOT allow a lm from the cleaner to build up on
the temperature sensing bulb; it could cause the oven
to heat improperly. The bulb is located in the rear of
the oven. Carefully wipe the bulb clean after each oven
cleaning, being careful not to move the bulb. A change
in its position could aect how the oven bakes. Avoid
bending the bulb and capillary tube.
• DO NOT spray any cleaner on the oven door trim or
gasket, broiler drawer glides, handles or any exterior
surfaces of the range, plastic or painted surfaces. The
cleaner can damage these surfaces.
Cleaning porcelain enamel oven:
The oven interior is porcelain on steel, it is safe to clean
using oven cleaners.
To remove heavy soil:
1. Allow a dish of ammonia to sit in the oven overnight
or for several hours with the oven door closed. Clean
softened dirt spots using hot, soapy water. Rinse well
with water and a clean cloth.
2. If soil remains, use a nonabrasive scouring pad or a
nonabrasive cleaner. If necessary, use an oven cleaner
following manufacturer’s instructions. DO NOT mix
ammonia with other cleaners.
3. Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at the
front center of the oven bottom. Clean with hot, soapy
water. Rinse well using clean water and a cloth.
Ammonia must be rinsed before operating the
oven. Provide adequate ventilation.
General cleaning
Before manually cleaning any part of the range,
be sure all controls are turned OFF and the range is COOL.
The range may be hot and can cause burns.
Please note:
On some models the lower oven bake element is visible. The
following cleaning instruction applies ONLY for models that
have a visible lower bake element.
On models equipped
with a visible lower bake
element only; element
may be raised 4-5
inches to clean oven
bottom.
Oven elements may appear to have cooled
after they have been turned o. The oven bake and broil
elements may still be hot and burns may occur if touched
before they have cooled suciently.
The lower bake element may be tilted from the front for
better access to the oven bottom for cleaning purposes. Be
careful not to raise the element more than 4 or 5 inches
from the resting position.
Cleaning oven bottom (some models)
17
Care & Cleaning
Surface elements and drip bowls
Surface elements may be unplugged and removed to make
cleaning the drip pans easier. The surface elements clean
themselves when they are turned on. Food spilled on a hot
element will burn o. Food spilled on a COOL element may
be cleaned with a damp cloth — any remaining soil will
burn o the next time the element is used.
Important notes:
• Be sure the range is cool before removing surface
elements or drip bowls.
• Never immerse a surface element in water.
• Make sure drip bowls are in place - Absence of these
bowls during cooking may subject wiring or components
underneath to damage.
• Be careful not to bend terminal ends when replacing
surface elements after cleaning.

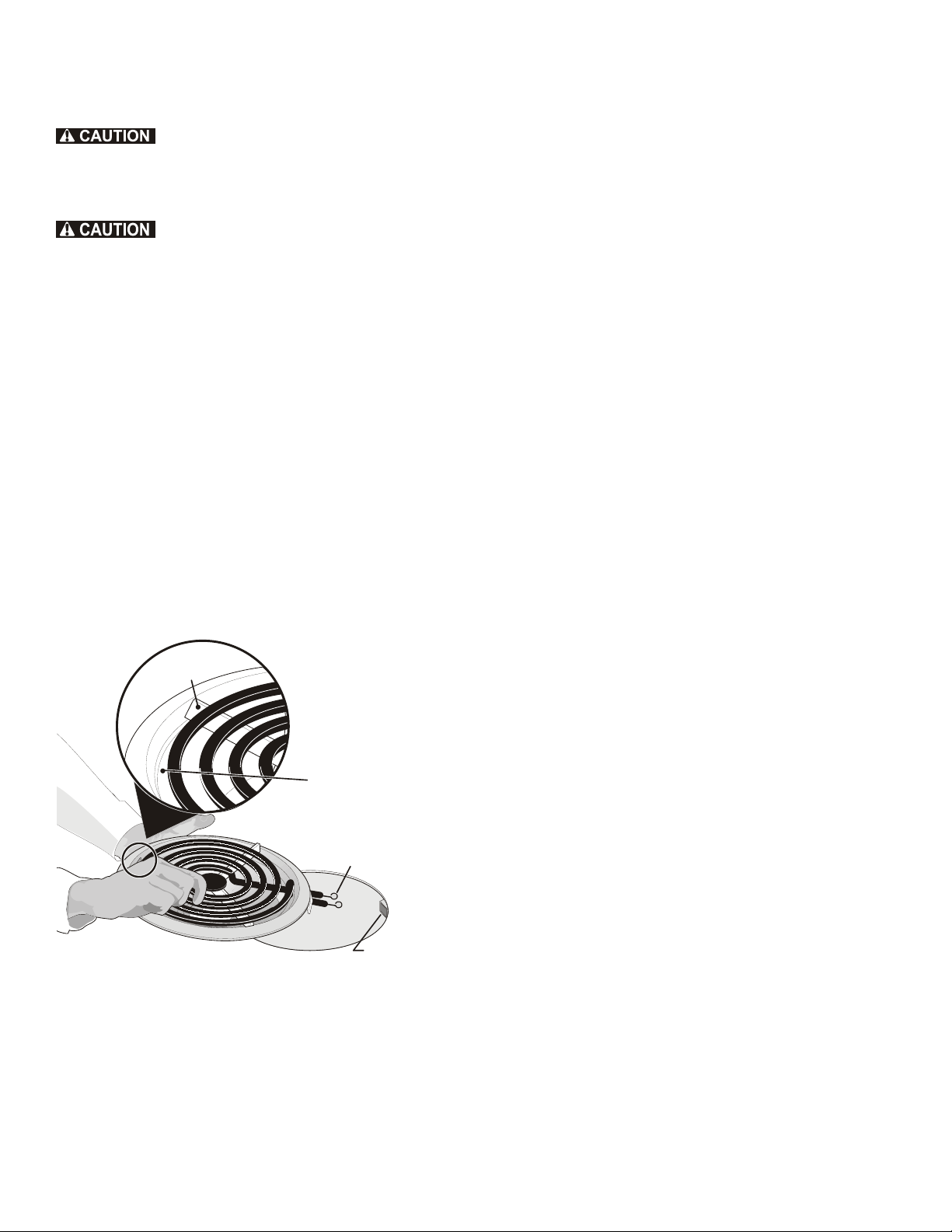

Terminal plug
Terminal end
Element
support
Allow element
support to rest on
drip pan inside rim.
Fig. 1
To remove the surface elements and drip bowls:
1. Lift the edge of the drip bowl across from the terminal
end. Lift the surface element and drip bowl together just
enough to clear the cooktop.
2. While holding the drip bowl and surface element, gently
pull the terminal end out from terminal plug (See Fig. 1).
Cleaning drip bowls
Wash in hot, soapy water or in the dishwasher. Rinse and
dry while still warm. Hard to remove, burned on soil can be
removed by soaking the drip bowls for about 20 minutes in
a lightly diluted liquid cleanser or a solution of ammonia
and water (1/2 cup ammonia to 1 gallon of water).
A no-scratch scrubbing pad may be used after soaking. DO
NOT use abrasive cleaners or steel wool, they will scratch
the surface. Always rinse with clean water and polish dry
with a soft cloth.
To replace drip bowls and surface elements:
1. Slide the terminal end on the surface element through
the opening in the drip bowl (Refer to Fig. 1).
2. Align the surface element support to rest on the rim
inside the drip bowl.
3. After the surface element is positioned in the drip bowl,
line up the terminal end with the terminal plug as shown
(Fig. 1).
4. Hold the surface element and drip bowl together as
level as possible and rmly push the terminal end into
the terminal plug. Make sure element terminal is seated
properly into terminal plug. Make sure the surface
element is level to reduce the hazard of cookware sliding
o the element.
Protective liners — Do not use aluminum
foil to line surface drip bowls, or reector pans. Only use
aluminum foil as recommended in this manual. Improper
installation of these liners may result in risk of electric shock,
or re.
Surface elements may appear to have
cooled after they have been turned o. The surface
elements may still be hot and burns may occur if touched
before they have cooled suciently.
18
Be sure the range is unplugged and all parts
are COOL before replacing oven light. Wear a leath-
er-faced glove for protection against possible broken glass.
To replace oven light:
1. Turn electrical power o at
the main source or unplug
the range.
2. Replace bulb with a new 40
watt appliance bulb.
3. Turn power back on again
at the main source (or plug
the range back in).
4. The clock will then need
to be reset. To reset see
“Setting clock”.
Care & Cleaning
Relacing oven light (some models)
Oven
light
To raise and lower the cooktop:
1. Remove all items from cooktop and set aside.
2. Grasp the sides of the cooktop and then lift from the
front (See Fig. 1).
3. Lift the cookop high enough to allow the support rods
to snap into place. The lift-up rods will support the
cooktop in the raised position.
4. If necessary, clean underneath using hot, soapy water
and a clean cloth; then dry.
5. To lower the cooktop, grasp the front corner of each
side of the top while pushing back on each rod with the
heel of your hand. This will release the notched support.
Hold the range cooktop and gently slide the top back
down level to the range.
To avoid possible burns DO NOT turn the
surface elements on when the cooktop is raised. Be sure
that the top is completely lowered and securely in place
before turning on any of the surface burners.

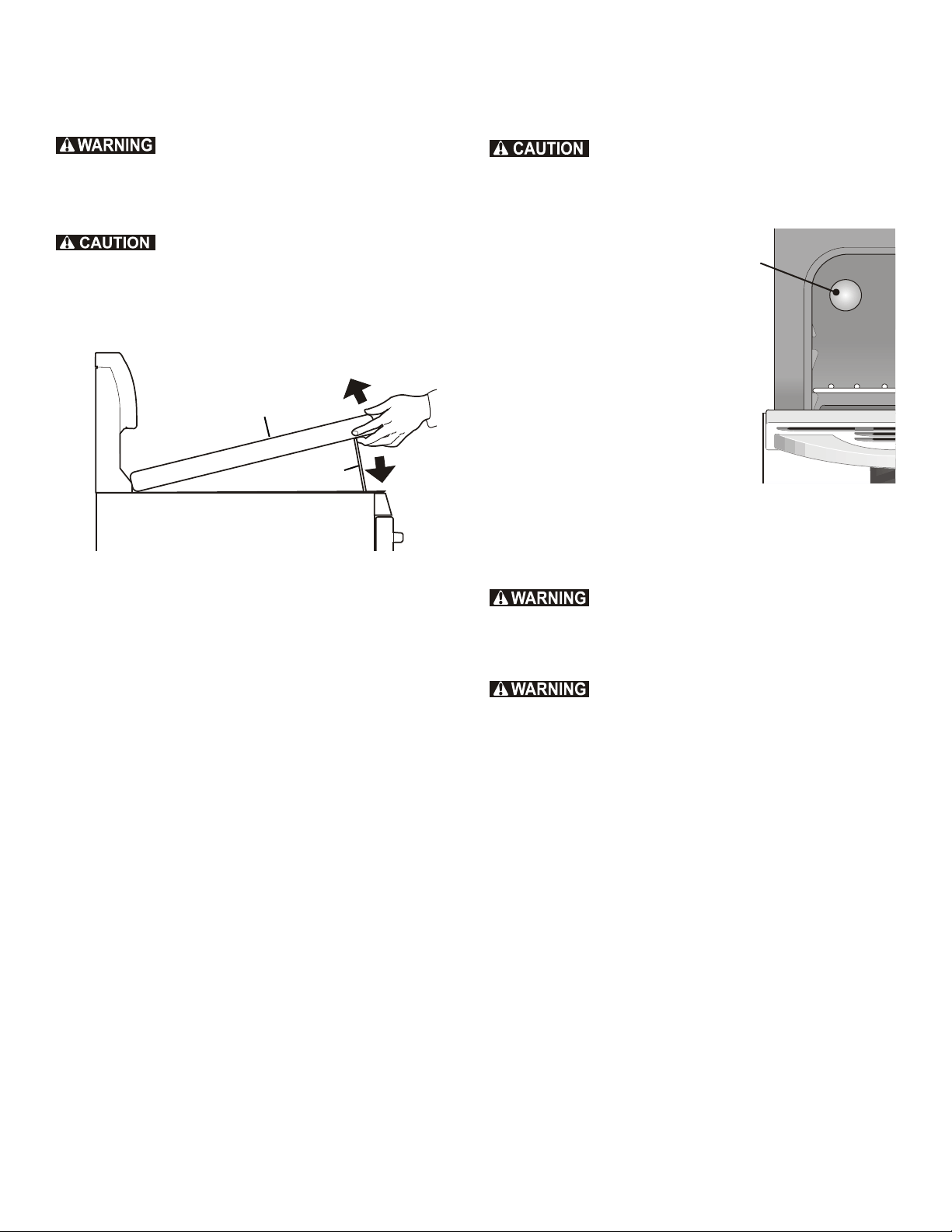

cooktop
lift-up rods
When lowering the lift-up range cooktop,
grasp the sides with ngertips only. Be careful not to
pinch ngers. Do not drop or bend the cooktop when
raising or lowering. This may permanently damage the
cooktop surface.
Raising and lowering the cooktop (some
models)
Aluminum foil and utensils
NEVER cover any slots, holes or passages
in the oven bottom or cover an entire oven rack with ma-
terials such as aluminum foil. Aluminum foil linings may
trap heat, causing a re hazard.
Protective liners — DO NOT USE
ALUMINUM FOIL to line the oven bottom. — DO NOT USE
aluminum foil to line surface drip bowls, or reector pans.
Only use aluminum foil as recommended in this manual.
Improper installation of these liners may result in risk of
electric shock, or re.
Fig. 1
19
Care & Cleaning

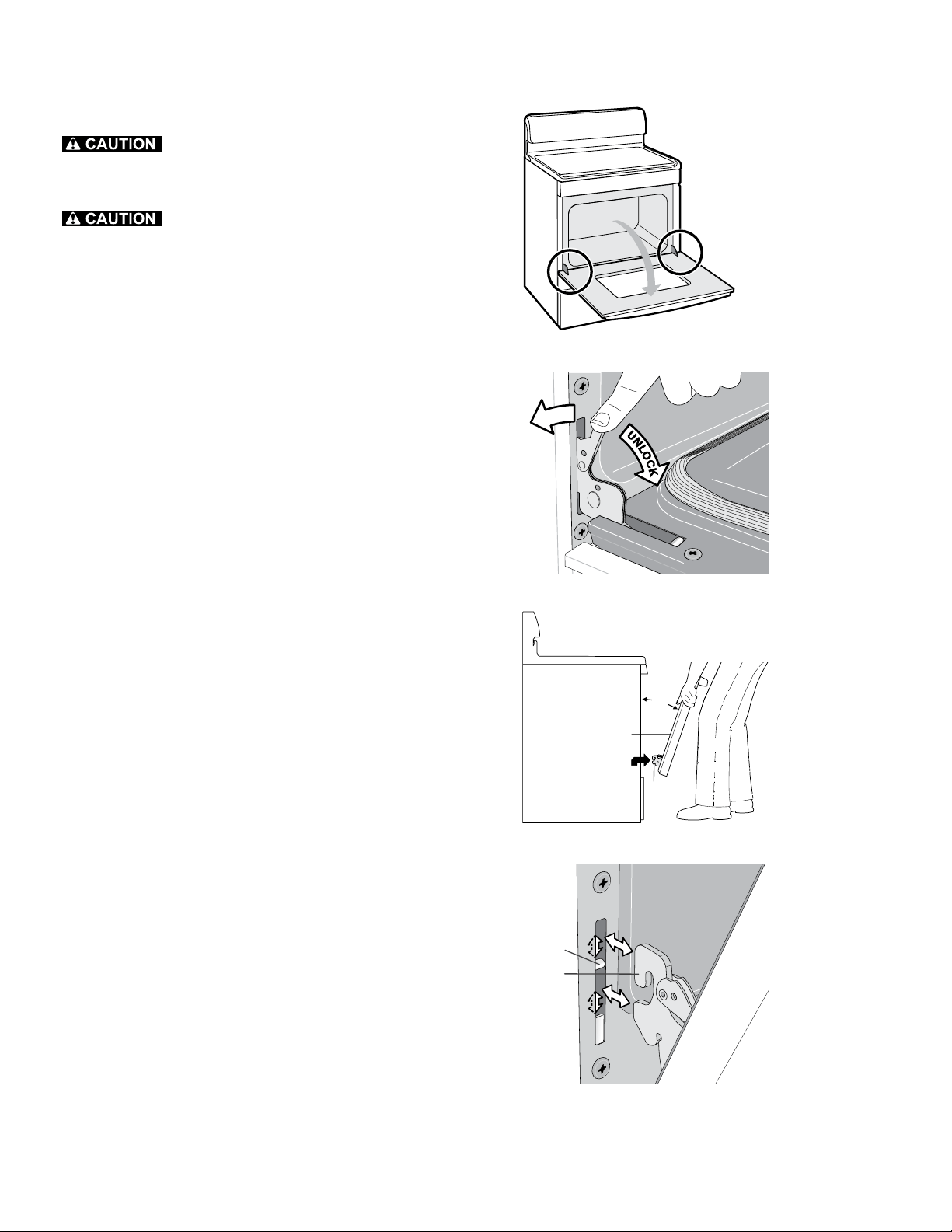

Removing and replacing the lift-o oven door
To avoid possible injury when removing or
replacing the oven door, follow the instructions below carefully
and always hold the oven door with both hands positioned
away from the door hinge area.
The door is heavy. For safe, temporary stor-
age, lay the door at with the inside of the door facing down.
To remove oven door:
1. Open oven door completely (horizontal with oor - See
Fig. 1).
2. Pull the door hinge locks on both left and right door
hinges down from the oven frame completely towards the
oven door (See Fig. 2). A tool such as a small at-blade
screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides
(Do not use the oven door handle - See Fig. 3).
4. Close the door to the broil stop position (the oven door will
stop into this position just before fully closing).
5. With the oven door in the broil stop position, lift the oven
door hinge arms over the roller pins located on each side
of the oven frame (See Fig. 4).
To replace oven door:
1. Firmly grasp both sides of oven door along the door sides
(Do not use the oven door handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal
position, seat the hook of the hinge arm over the roller pins
located on each side of the oven door frame (See Fig. 4).
The hook of the hinge arms must be fully seated onto the
roller pins.
3. Fully open the oven door (horizontal with oor - See Fig.
1).
4. Push the door hinge locks up towards and into the oven
frame on both left and right oven door hinges (See Fig. 2)
to the locked position.
5. Close the oven door.
Special door care instructions - Most oven doors contain glass
that can break. Read the following recommendations:
• Do not close the oven door until all the oven racks are fully
in place.
• Do not hit the glass with pots, pans, or any other object.
• Scratching, hitting, jarring or stressing the glass may
weaken its structure causing an increased risk of breakage
at a later time.
about
10°
hinge
oven
door
Oven door
hinge
locations
Fig. 3
Fig. 1
Fig. 4
Fig. 2
roller
pin
hing
e
arm
L
O
C
K
20
Before You Call • Solutions to common problems
Oven light does not work.
Cannot move appliance easily.
Appliance must be accessible for
service.
• Cabinets not square or are built in too tightly. Contact builder or installer to
make appliance accessible.
• Carpet interferes with appliance. Provide sucient space so appliance can
be lifted over carpet.
Appliance is not level.
• Be sure oor is level, strong & stable enough to adequately support range.
• If oor is sagging or sloping, contact a carpenter to correct the situation.
• Poor installation. Place oven rack in center of oven. Place a level on the oven
rack. Adjust leveling legs at base of appliance until the rack is level.
• Kitchen cabinet alignment may make range appear not level. Be sure
cabinets are square & have sucient room for appliance clearance.
• Be sure the oven light is secure in the socket. Also see Replacing oven light in
the Care & Cleaning section.
Before you call for service, review the following list. It may save you time & expense. Possible solutions to these problems are
provided with the problem listed:
Entire appliance does not operate.
• Make sure power cord is plugged properly into outlet.
• Electrical power outage. Check house lights to be sure. Call your local
electric company for service outage information.
• Service wiring is not complete. Call 1-800-4-MY-HOME® for assistance (See
back cover).
• The time of day is not set. The time of day must rst be set in order to
operate the oven. See Setting clock in Setting Oven Controls section.
• Be sure the oven controls are set properly for the desired function. See
Setting Oven Controls section and review instructions for the desired cooking
function in this manual or see “Entire appliance does not operate” in this
checklist.
Problem
Solution
Poor baking results.
• Many factors aect baking results. Make sure the proper oven rack position
is used. Center food in the oven and space pans to allow air to circulate.
Allow the oven to preheat to the set temperature before placing food in the
oven. Try adjusting the recipe’s recommended temperature or baking time.
If you feel the oven is too hot or cool, see Adjusting oven temperature in
Setting Oven Controls section.
Oven portion of appliance does not
operate.
• Be sure the correct surface control knob is turned ON for element needed.
Surface element is too hot or not hot
enough.
• Incorrect surface control setting. Adjust power level setting.
Surface element does not heat or does
not heat evenly.
• Lightweight or warped pans used. Use only at, evenly balanced, medium or
heavyweight cookware. Flat pans heat better than warped pans. Cookware
materials and weight of the material aect heating. Heavy & medium-weight
pans heat evenly. Because lightweight pans heat unevenly, foods may burn
easily.
21
Before You Call • Solutions to common problems
Oven smokes excessively when broiling.
Flames inside oven or smoking from oven
vent.
• Excessive spillovers in oven. For example this will happen for pie spillovers
or large amounts of grease left on the oven bottom. Wipe up excessive
spillovers before starting oven. If ames or excessive smoke are present
see Broil in Setting Oven Controls section.
Oven control panel beeps & displays
any F code error.
• Oven control has detected a fault or error condition. Press
key pad to
clear the error code. Try Bake or Broil function. If the F code error repeats,
remove power from appliance, wait 5 minutes and then repower appliance
and set clock with the correct time of day. Try Bake or Broil function again. If
the fault recurs, press
to clear and call 1-800-4-MY-HOME® for assis-
tance (See back cover).
Problem
Solution
• Incorrect setting. Follow broiling instructions in Setting Oven Controls
section.
• Be sure oven door is opened to broil stop position when broiling.
• Meat too close to the broil element. Reposition the broil rack to provide
proper clearance between the meat & the element. Preheat the broil
element for searing.
• Meat not properly prepared. Remove excess fat from meat. Cut remaining
fatty edges to prevent curling, but do not cut into lean.
• Grease has built up on oven surfaces. Regular cleaning is necessary when
broiling frequently. Old grease or food spatters cause excessive smoking.
Drip bowls are turning color or distorted.
• Bottom surface of cookware extends beyond surface element and touches
cooktop surface. This can cause high enough temperatures to discolor the
drip bowls. DO NOT use cookware of this type. Pan sizes should be matched
to the size of the element. Replacement drip bowls may be purchased from
your appliance dealer.
Drip bowls are pitting or rusting.
• Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause
corrosion. Remove and wash drip bowls as soon as possible after a spill over.
• Normal environment. Along coastal areas, houses are exposed to high salt
content in air. Protect bowls as much as possible from direct exposure to air
with high salt content.
22
Notes
23
Protection Agreements Acuerodes de protección
® Registered Trademark /
TM
Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada /
TM
Marca de Fábrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros países
MC
Marque de commerce /
MD
Marque déposée de Sears Brands, LLC
Get it fixed, at your home or ours!
Your Home
For troubleshooting, product manuals and expert advice:
www.managemylife.com
For repair – in your home – of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME
®
(1-800-469-4663)
Call anytime, day or night
(U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
®
(1-888-784-6427)
www.sears.com
Au Canada pour service en français:
1-800-LE-FOYER
MC
(1-800-533-6937)
www.sears.ca
