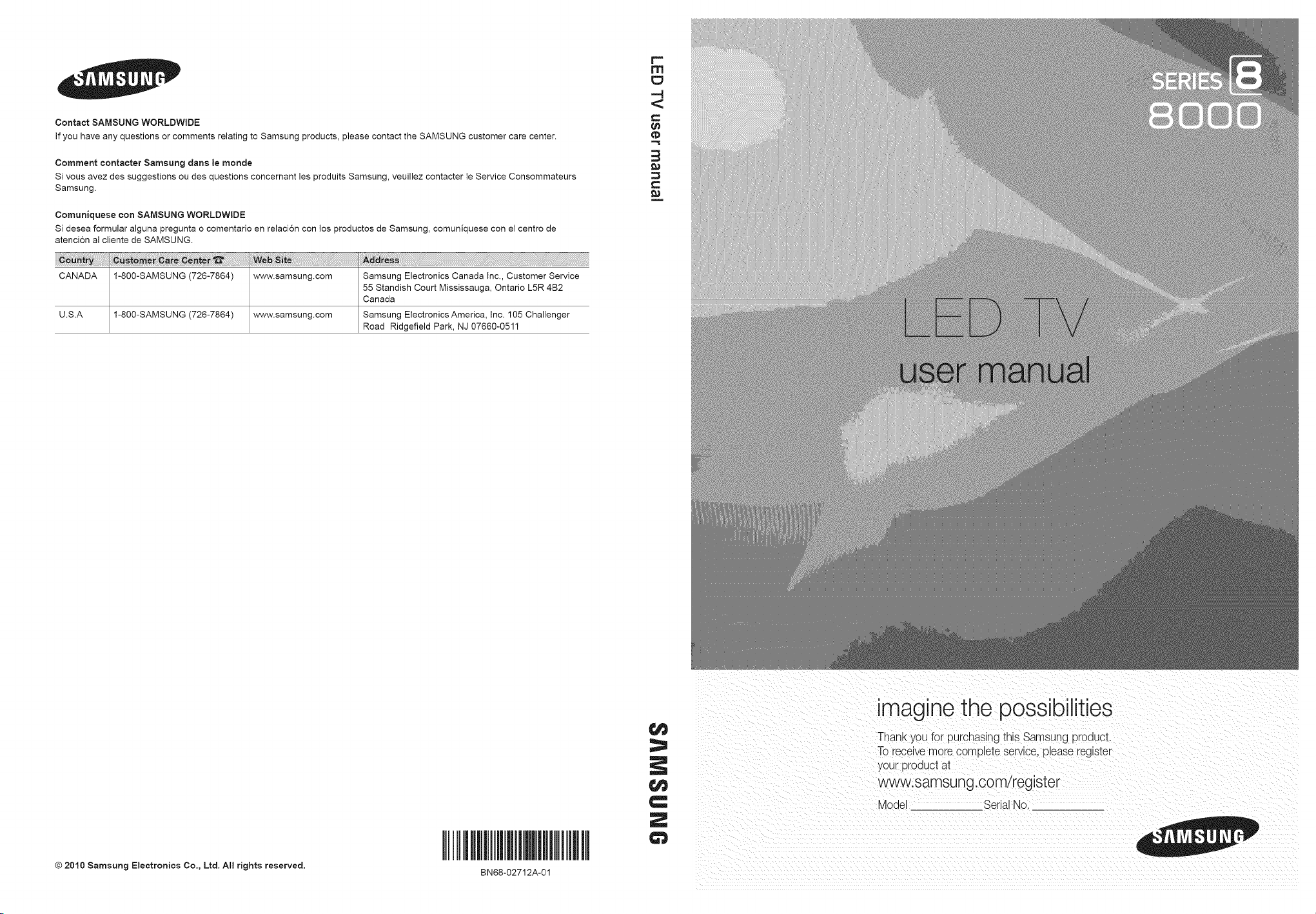

Contact SAMSUNG WORLDWIDE
if you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Comment oontacter Samsung darts le monde
Si vous avez des suggestions ou des questions concernant les produits Samsung, veuillez contacter le Service Consommateurs
Samsung.
Comuniquese con SAMSUNG WORLDWIDE
Si desea formular alguna pregunta o comentario en relaci6n con los productos de Samsung, comuniquese con el centro de
atenci6n al cliente de SAMSUNG.
CANADA 1-800-SAMSUNG (726-7864) www.samsung.com Samsung Electronics Canada Inc., Customer Service
55 Standish Court Mississauga, Ontario L5R 4B2
Canada
U.S.A I-8O0-SAMSUNG (726-7864) www.samsung.com Samsung Electronics America, Inc. 105 Challenger
Road Ridgefield Park, NJ 07660-0511
F-
FN
E:J
"'4
<
C
3
1,..
© 2010 Samsung Electronics Co., Ltd. All rights reserved.
I
BN68-02712A-01
==
C
Z
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more corn olete service, please register
your product at
www.samsung.com/register
Mode Serial No.
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice,
_ See thewarranty card for more information on warranty terms.
Wide screen format LED Displays (16:9,the aspect ratio of the screen width to height)are primarily designed to view wide screen format full-motion video.
The images displayed on them should pdmadly be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and
the imagesare constantly moving. Displayingstationary graphics and images on screen, such as the dark sidebars on no expanded standard format
television video and programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station Iogos, web sites or computer graphics
and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven
aging of LED Displaysthat leavesubtle, but permanent burned-in ghost images inthe LED picture. To avoid this, vary the programming and images, and
primarily display full screen moving images, not stationary _atternsor dark bars. On LED models that offer picture sizingfeatures, use these controls to
view different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven LED aging as a result of format selection and use, as well as burned
in images, are not covered by your Samsung limitedwarranty.
• SAMSUNG ELECTRONICSNORTH AMERICAN UMITED WARRANTYSTATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original LimitedWarranty supplied with Samsung Electronics (SAMSUNG)
products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service
in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the
warranty period originally specified, and to the Original Purchaser only.
The above described warranty repairsmust be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the OriginalLimited
Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center.Transportation to and from the Service
Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material orworkmanship, and only those
encountered in normal use of the product.
Excluded, but not limited to, are any originallyspecified provisions for, in-home or on-site services, minimum or maximum repairtimes, exchanges or
replacements, accessories, options, upgrades, or consumables.
For the location of a SAMSUNGAuthorized Service Center, please call toll-free:
- In the United States : 1-800-SAMSUNG (1-800-726-7864)
- In Canada : 1-800-SAMSUNG
Avoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel Iogos, panorama or 4:3 image format, stock or news
bars at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce
risk of this effect, please follow below recommendations:
• Avoid displaying the same TV channel for long periods.
• Always try to display a full screen image.
• Reducing brightness and contrast will help to avoid the appearance of afterdmages.
• Use all TV features designed to reduce image retention and screen burn, refer to proper user manual section for details.
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
'_bs When using a stand or wall-mount, use parts provided by Samsung Electronics only.
Ifyou use parts provided by another manufacturel it may result in a problem with the product or an injury due to the product failing.
The appearance may differ depending on the product.
4 inche_
•r 4 inches
I I
4 inch 4 inches,_
[ 4 inches
4 inches
_I_4__-,_ ......
English

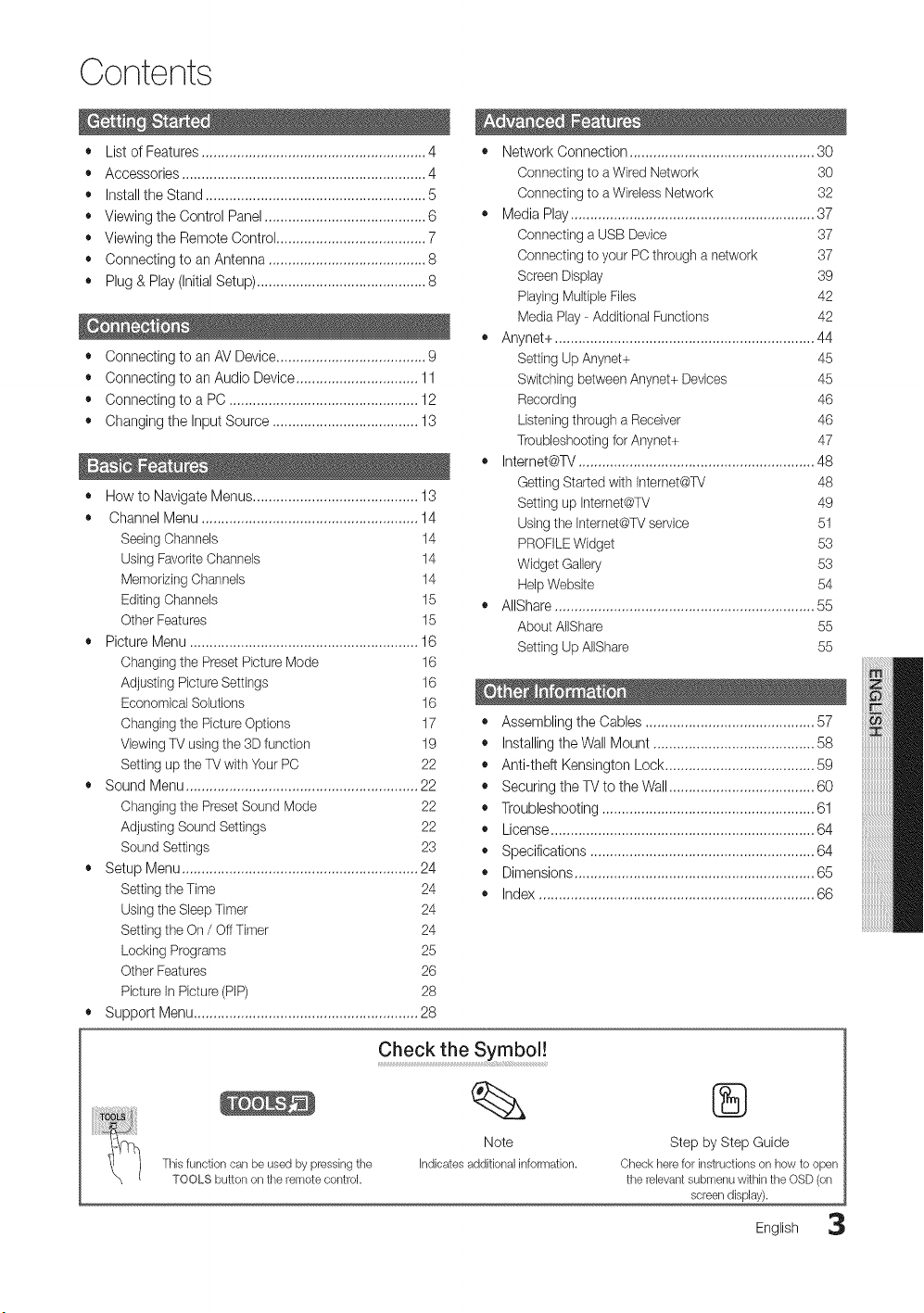

Contents
+ List of Features ......................................................... 4
+ Accessories .............................................................. 4
+ Installthe Stand ........................................................ 5
+ Viewing the Control Panel ......................................... 6
+ Viewing the Remote Control ...................................... 7
+ Connecting to an Antenna ........................................ 8
+ Plug & Play (Initial Setup) ........................................... 8
+ Connecting to an AV Device...................................... 9
+ Connecting to an Audio Device ............................... 11

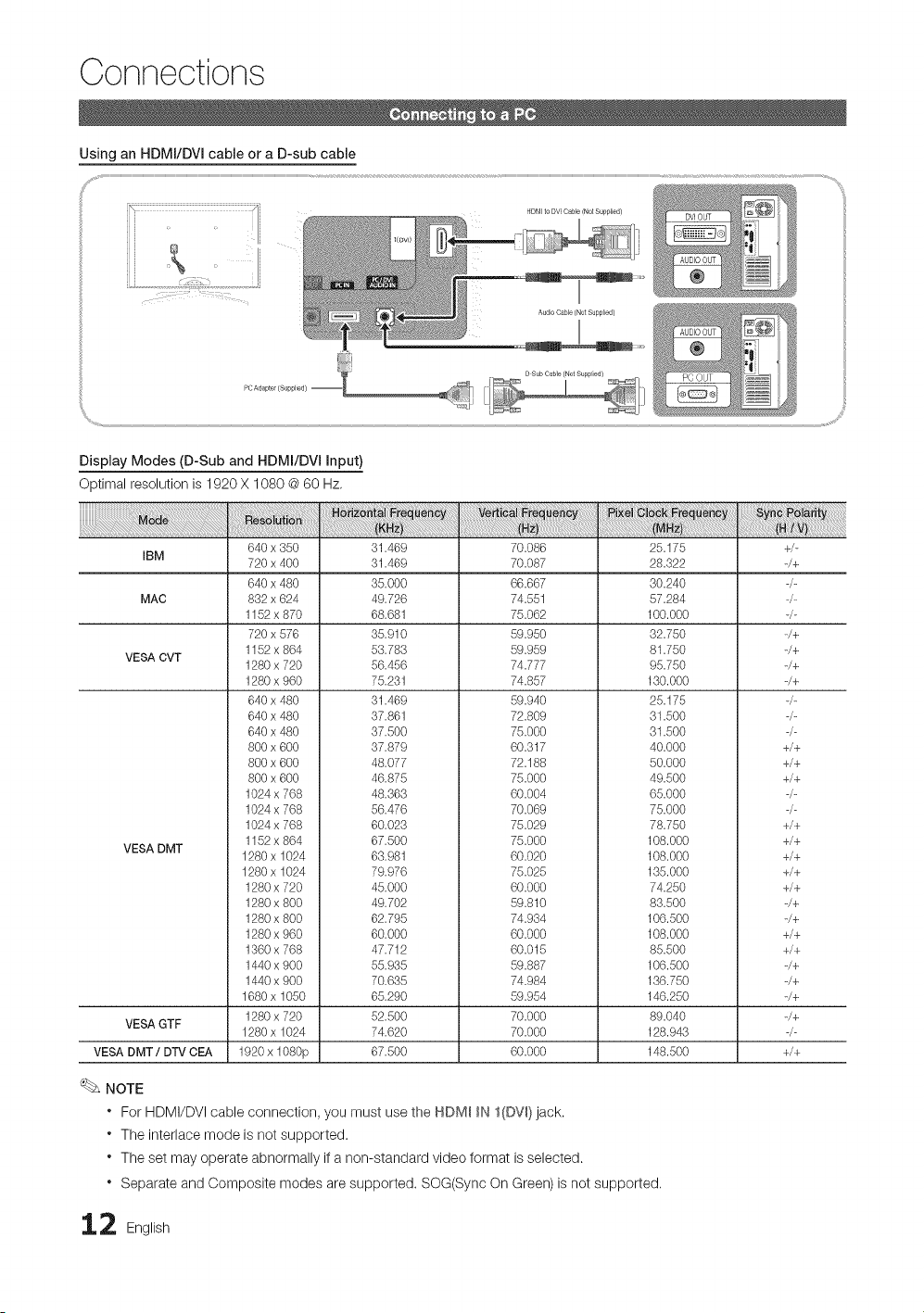

+ Connecting to a PC ................................................ 12
+ Changing the Input Source ..................................... 13
+ How to Navigate Menus .......................................... 13
+ Channel Menu ....................................................... 14
Seeing Channels 14
Using Favorite Channels 14
Memorizing Channels 14
Editing Channeb 15
Other Features 15

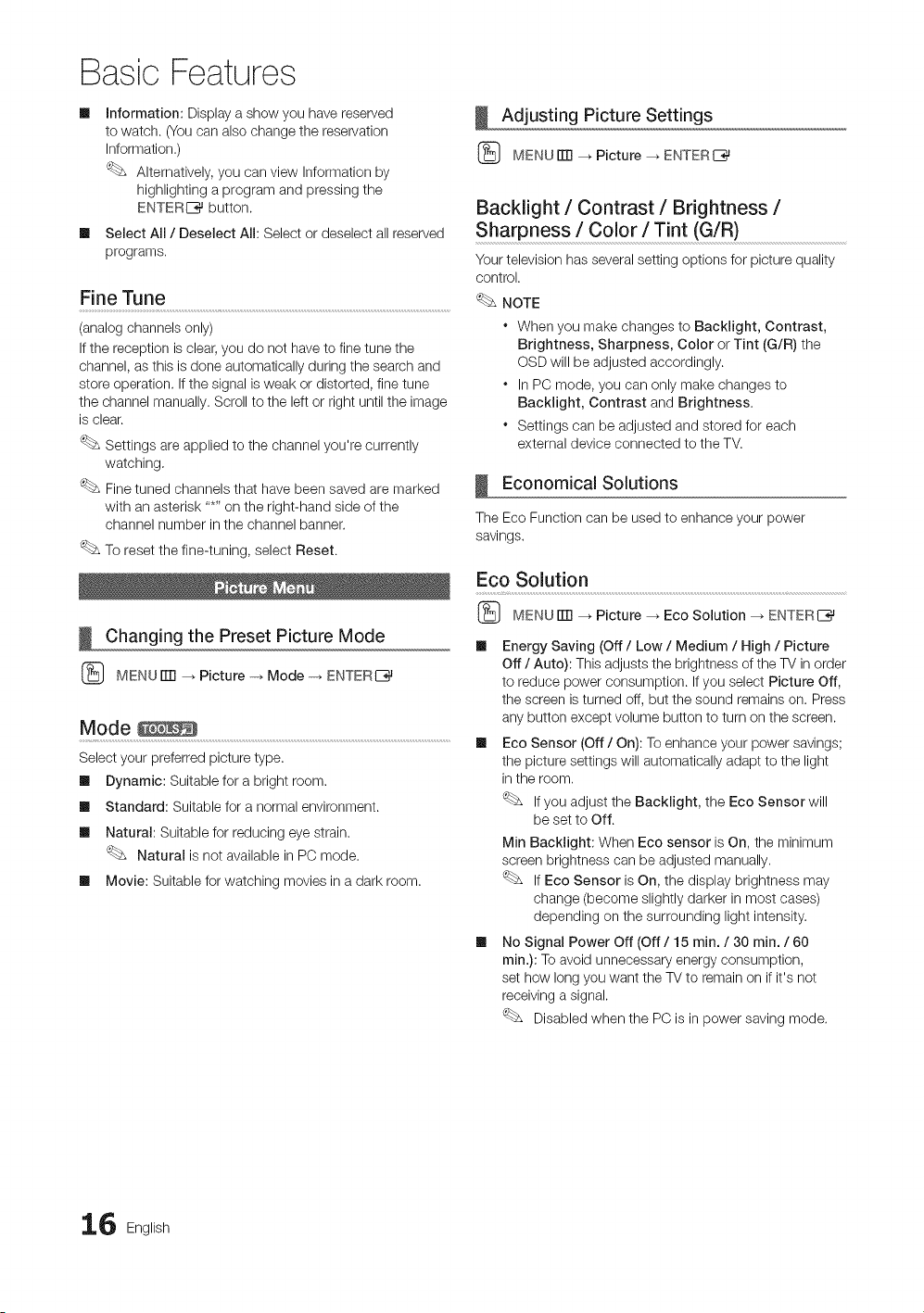

+ Picture Menu .......................................................... 16
Changing the Preset Picture Mode
Adjusting Picture Settings
Economical Solutions
Changing the Picture Options

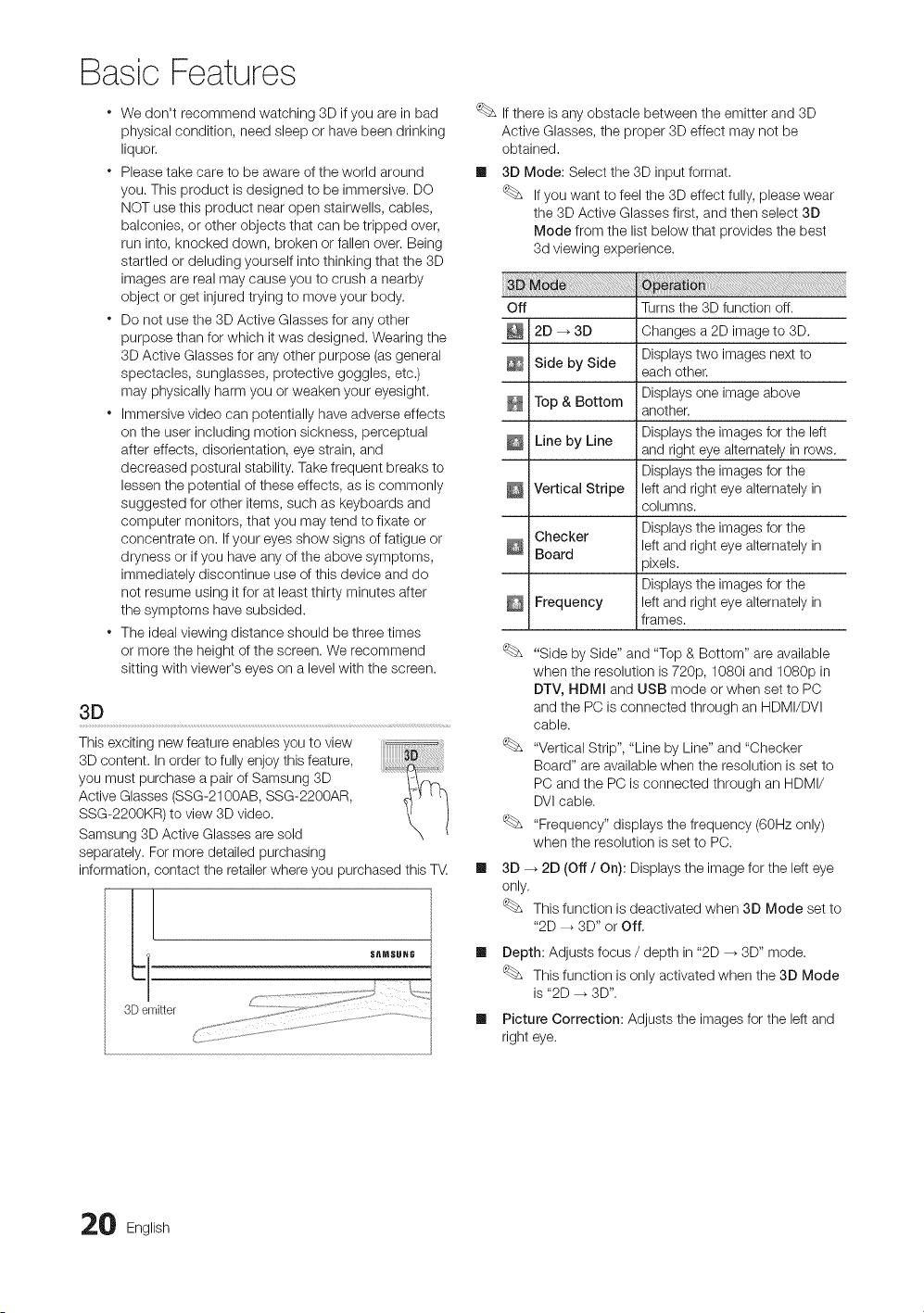

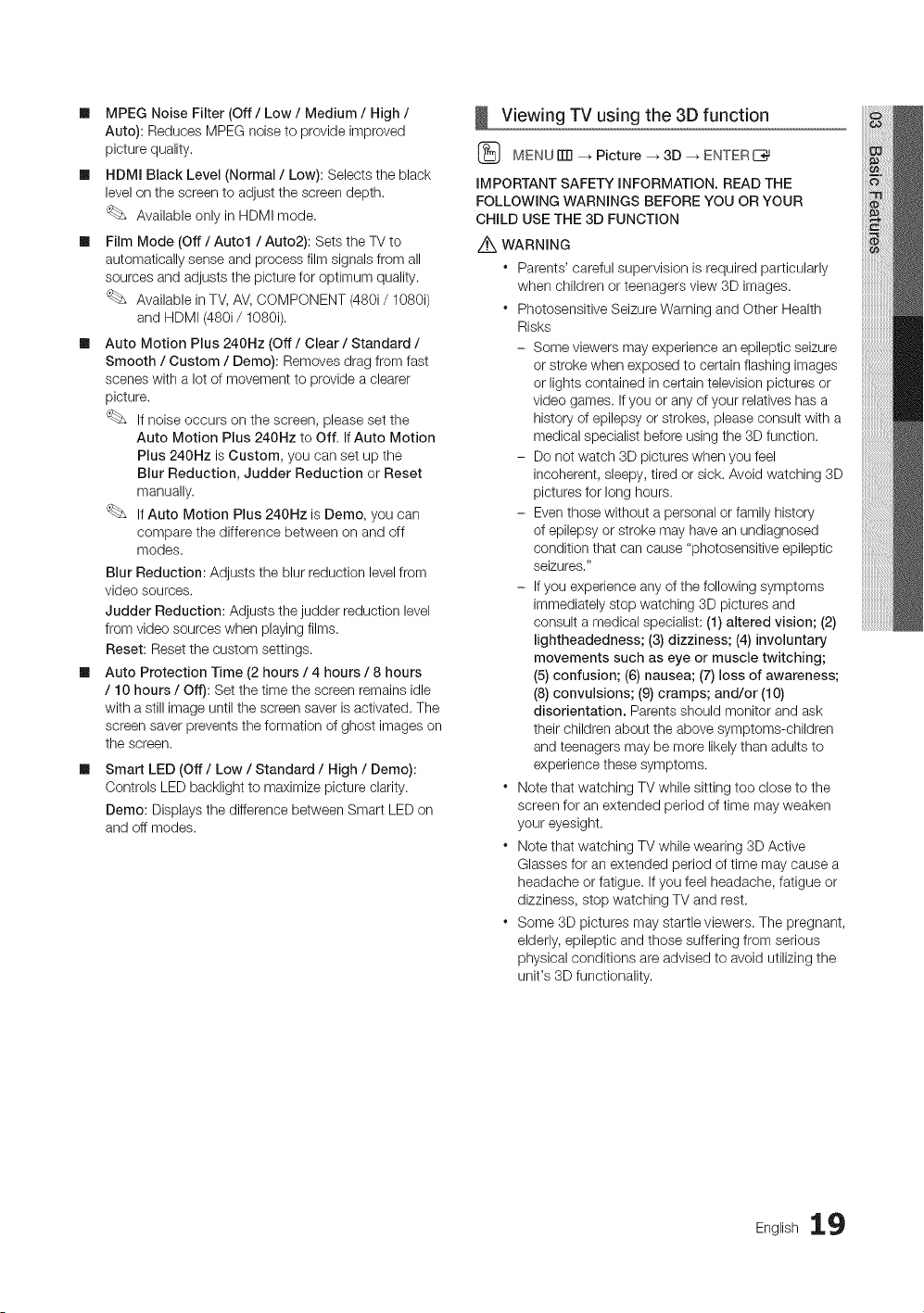

Viewing TV using the 3D function

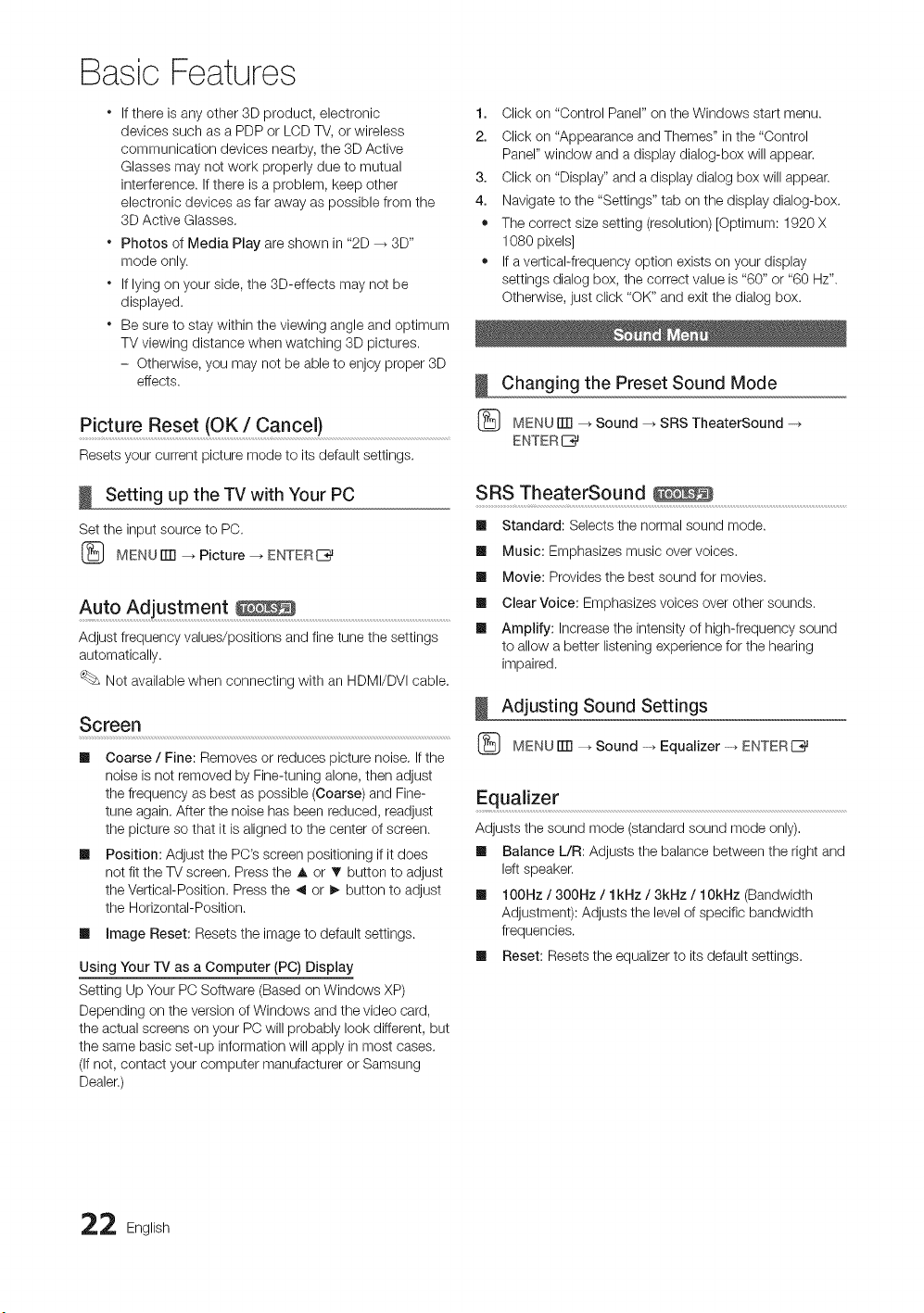

Setting up the TV with Your PC
16
16
16
17
19
22
+ Sound Menu ........................................................... 22
Changing the PresetSound Mode 22
Adjusting Sound Settings 22

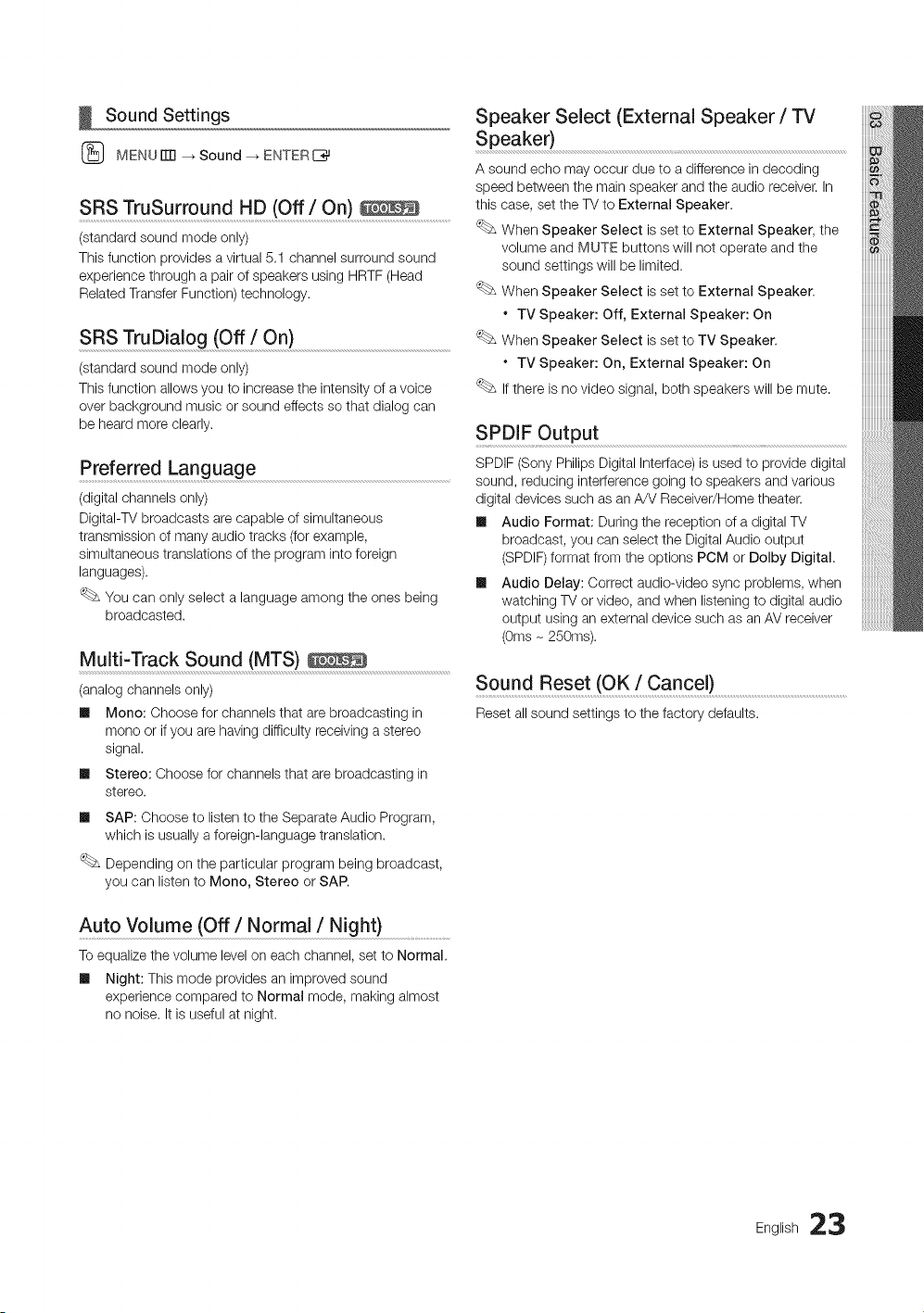

Sound Settings 23
+ Setup Menu ............................................................ 24
Setting the Time 24
Using the Sleep Timer 24
Setting the On/ Off Timer 24

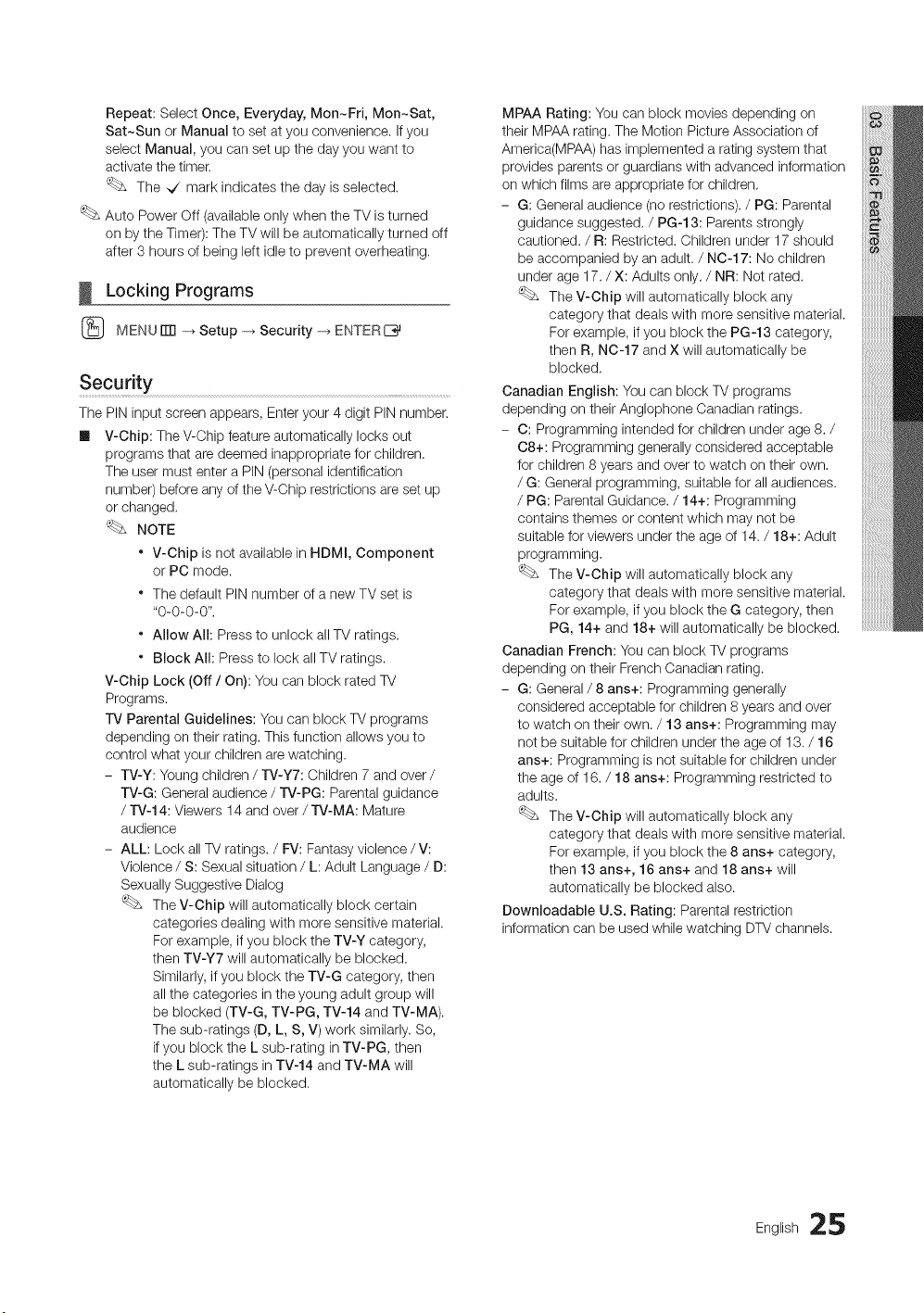

Locking Programs 25

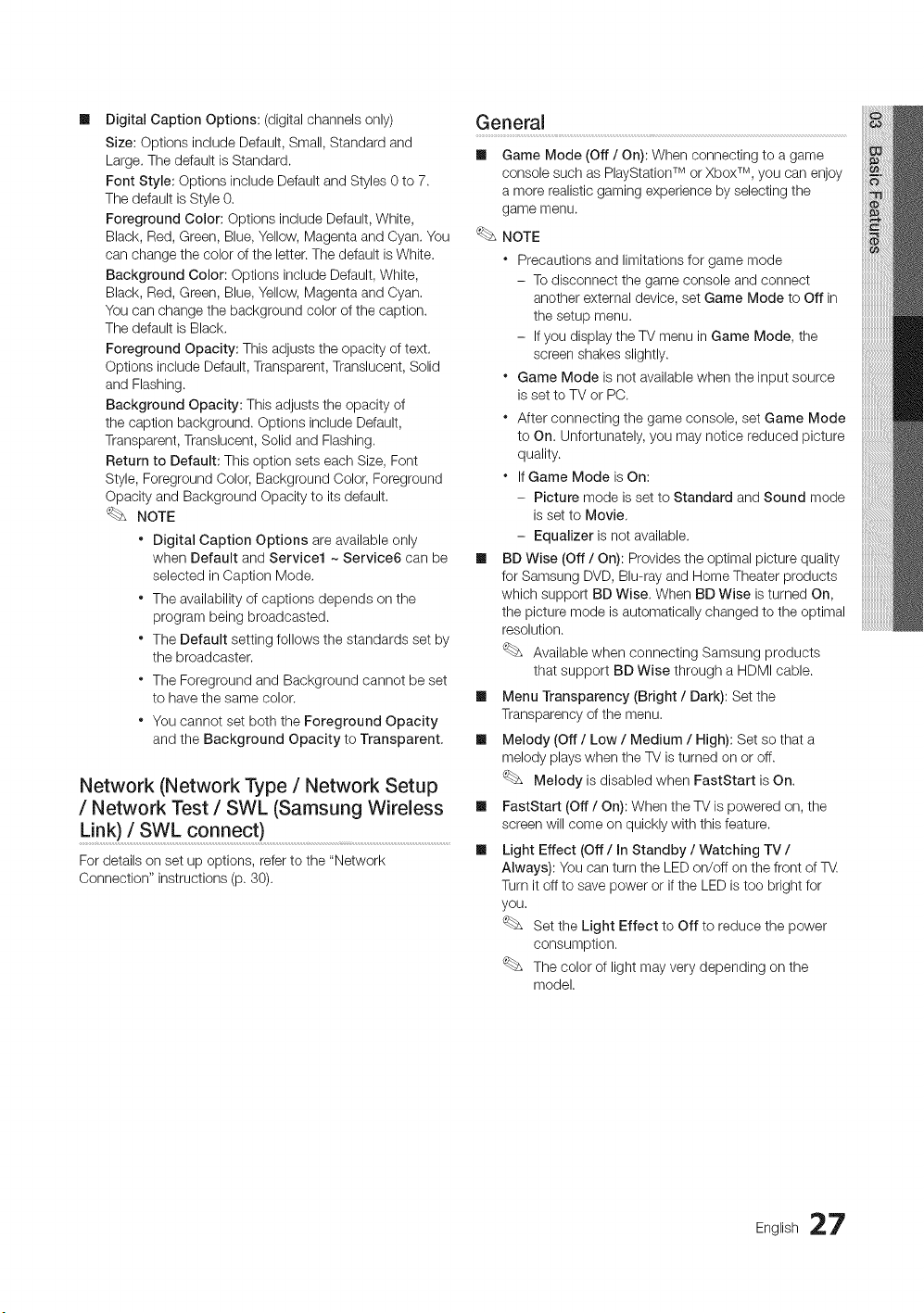

Other Features 26
Picture In Picture (PIP) 28
Support Menu......................................................... 28

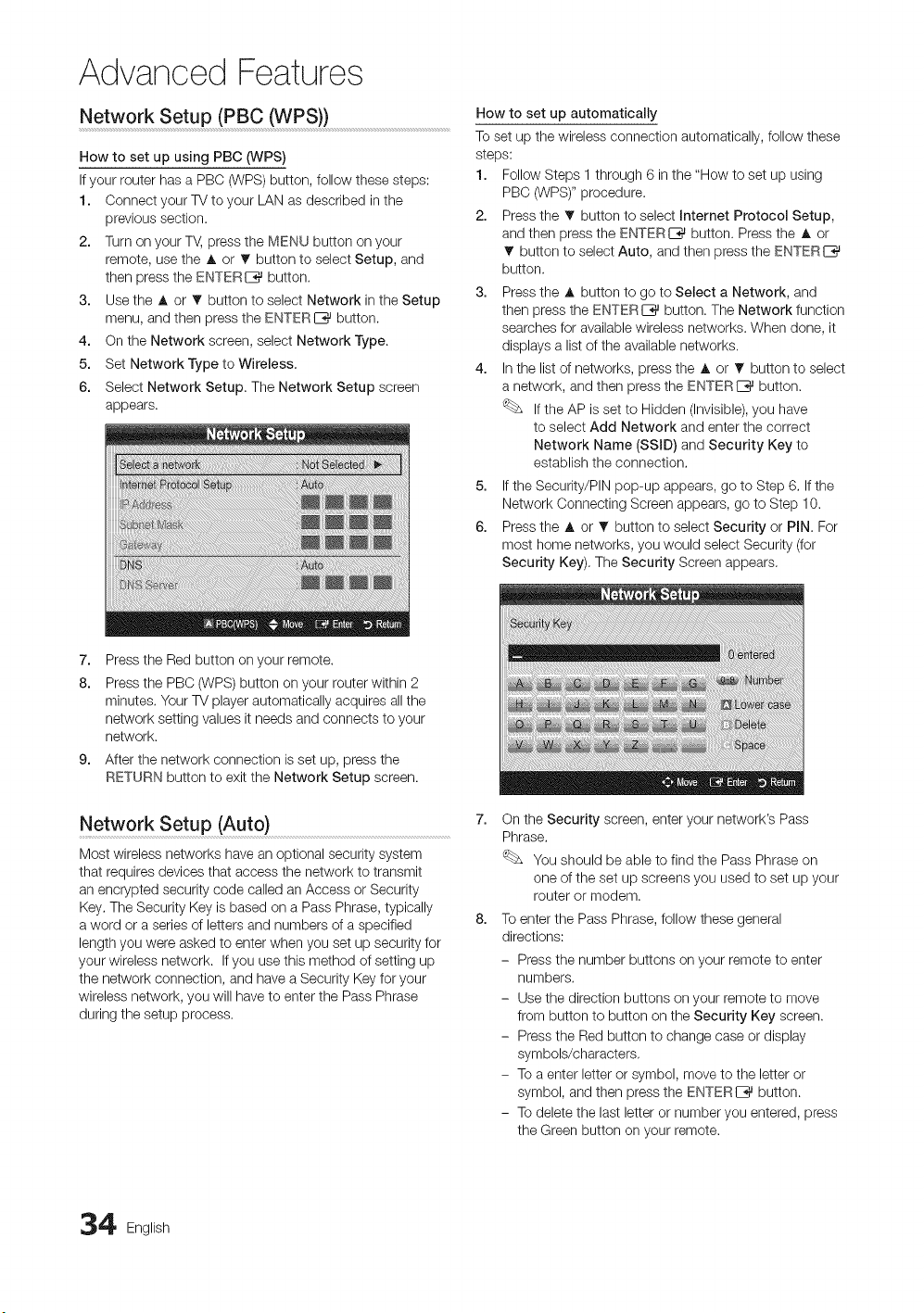

• Network Connection ............................................... 30
Connecting to a Wired Network 30

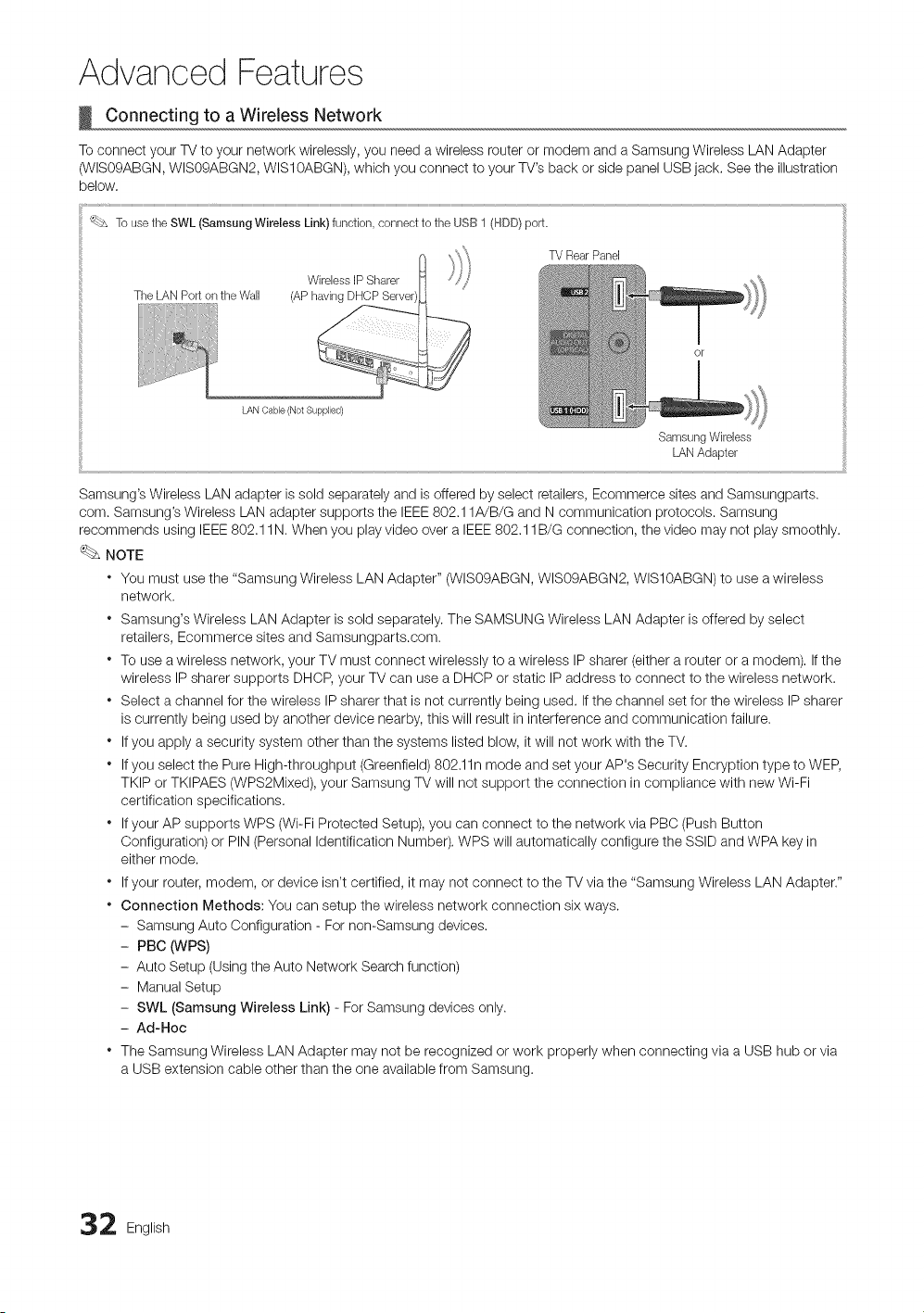

Connecting to a Wireless Network 32
,, Media Play .............................................................. 37
Connecting a USB Device 37
Connecting to your PC through a network 37

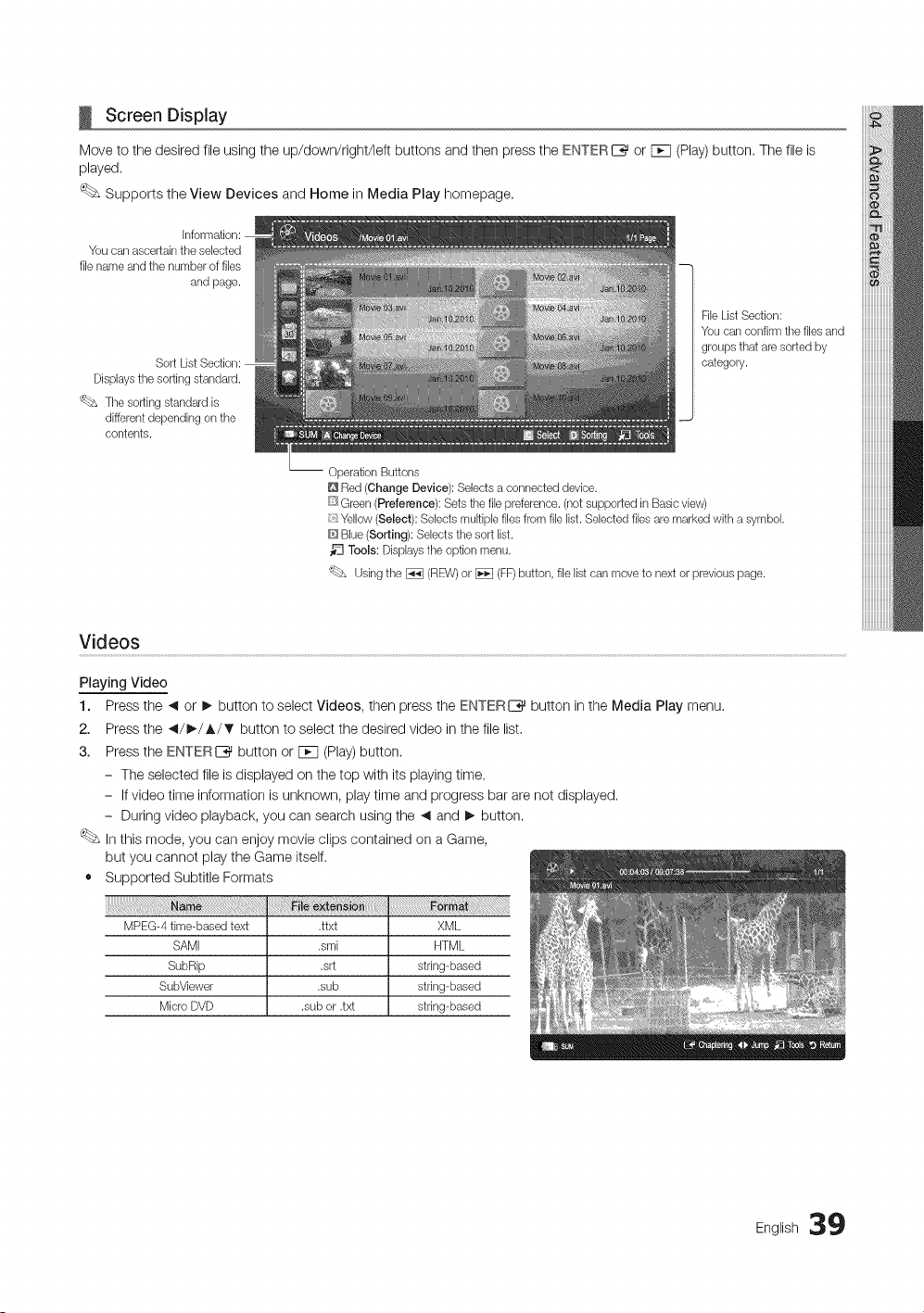

Screen Display 39

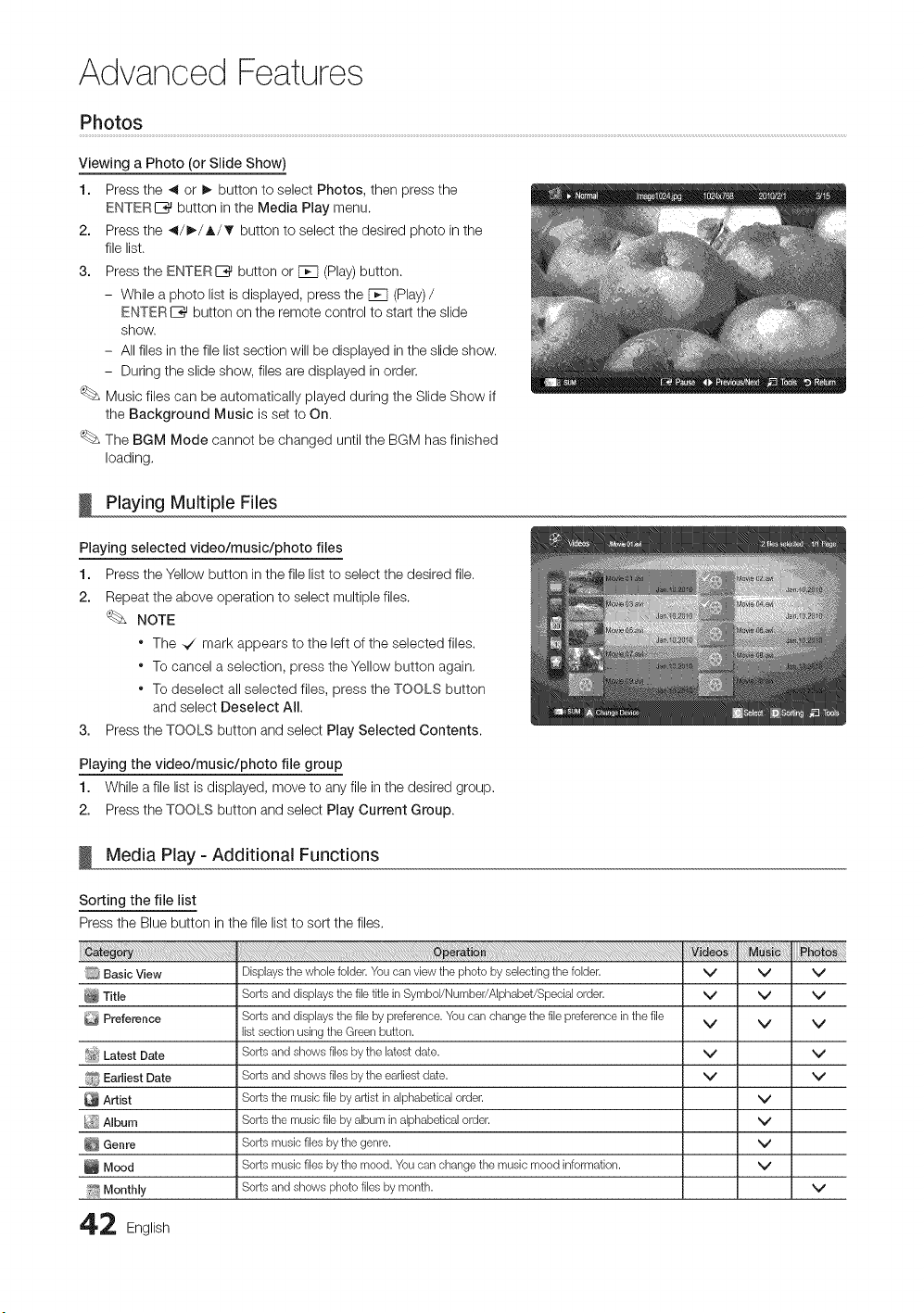

Playing Multiple Files 42
Media Play - Additional Functions 42
,, Anynet+ .................................................................. 44
Setting Up Anynet+ 45
Switching between Anynet+ Devices 45

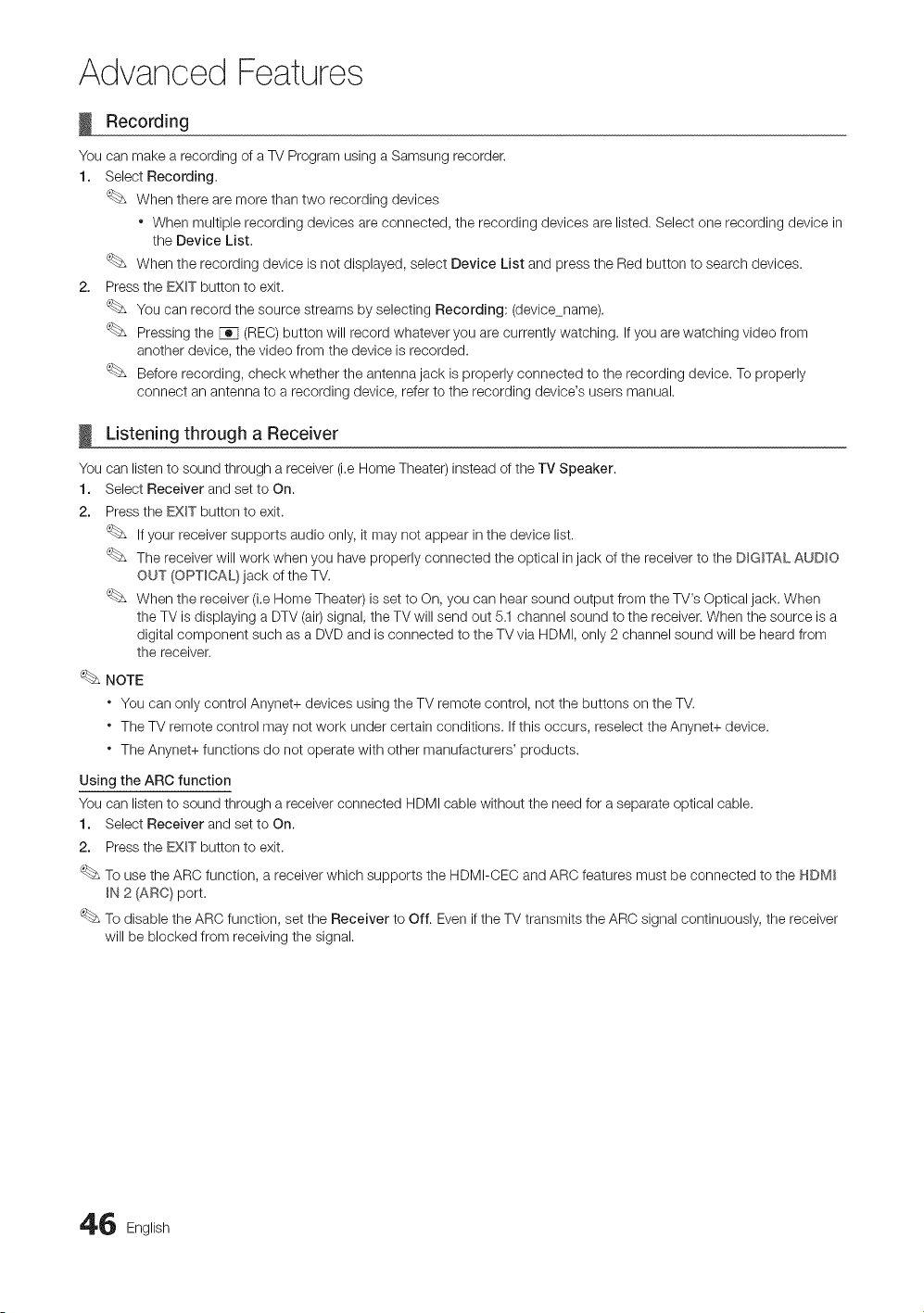

Recording 46
Listening through a Receiver 46
Troubleshootingfor Anynet+ 47
,, Internet@TV ............................................................ 48

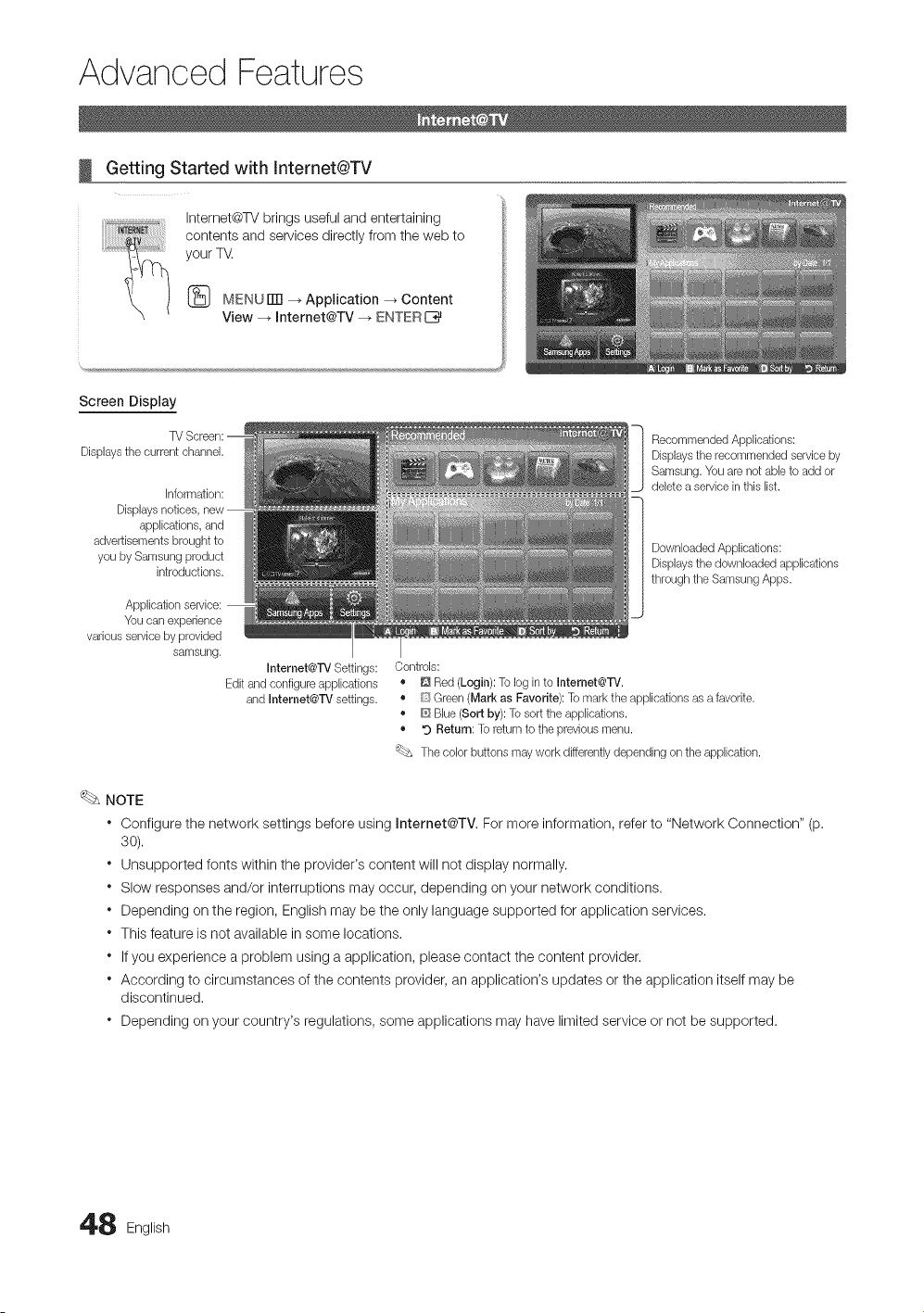

Getting Started with Internet@TV 48

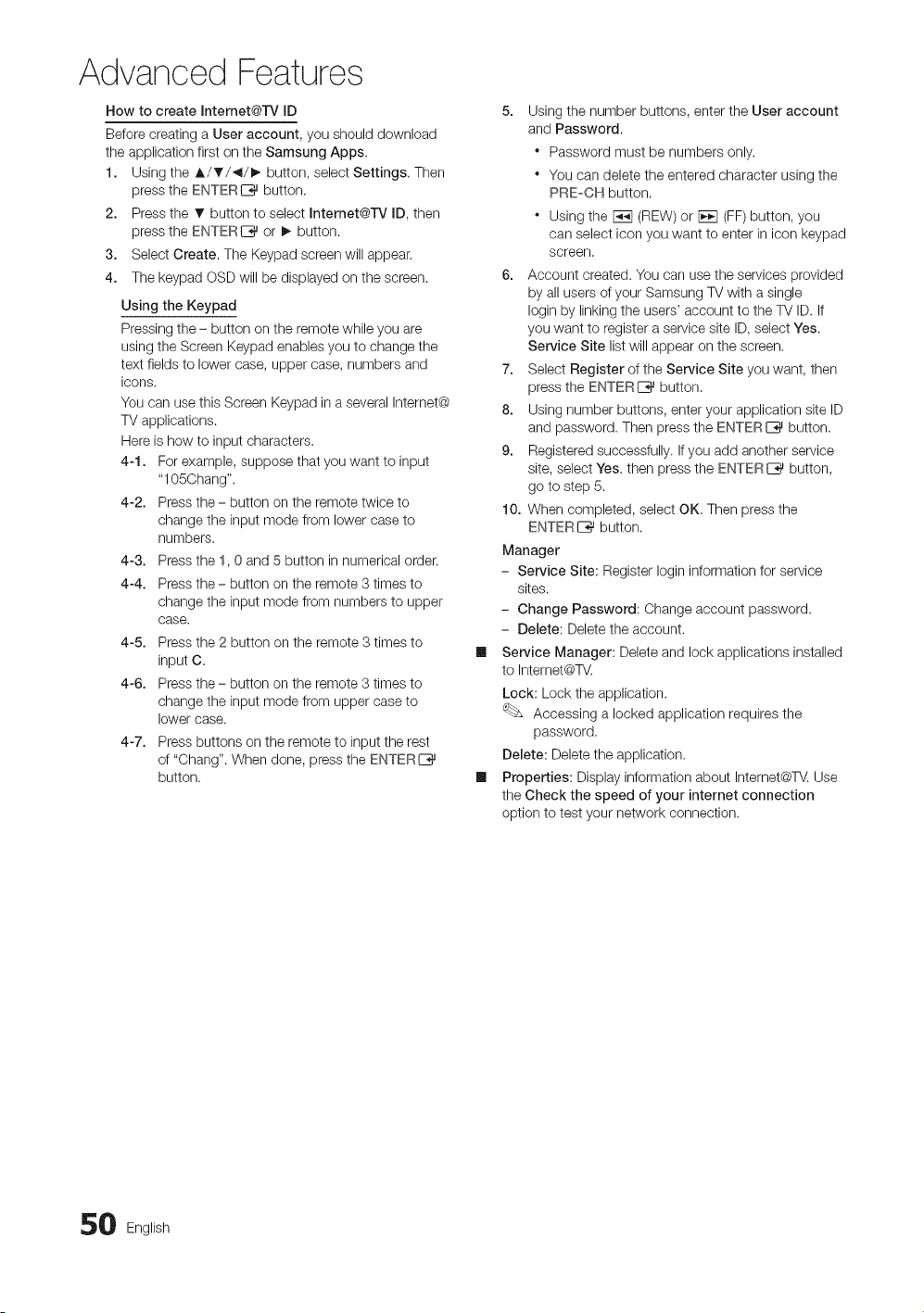

Setting up Internet@TV 49

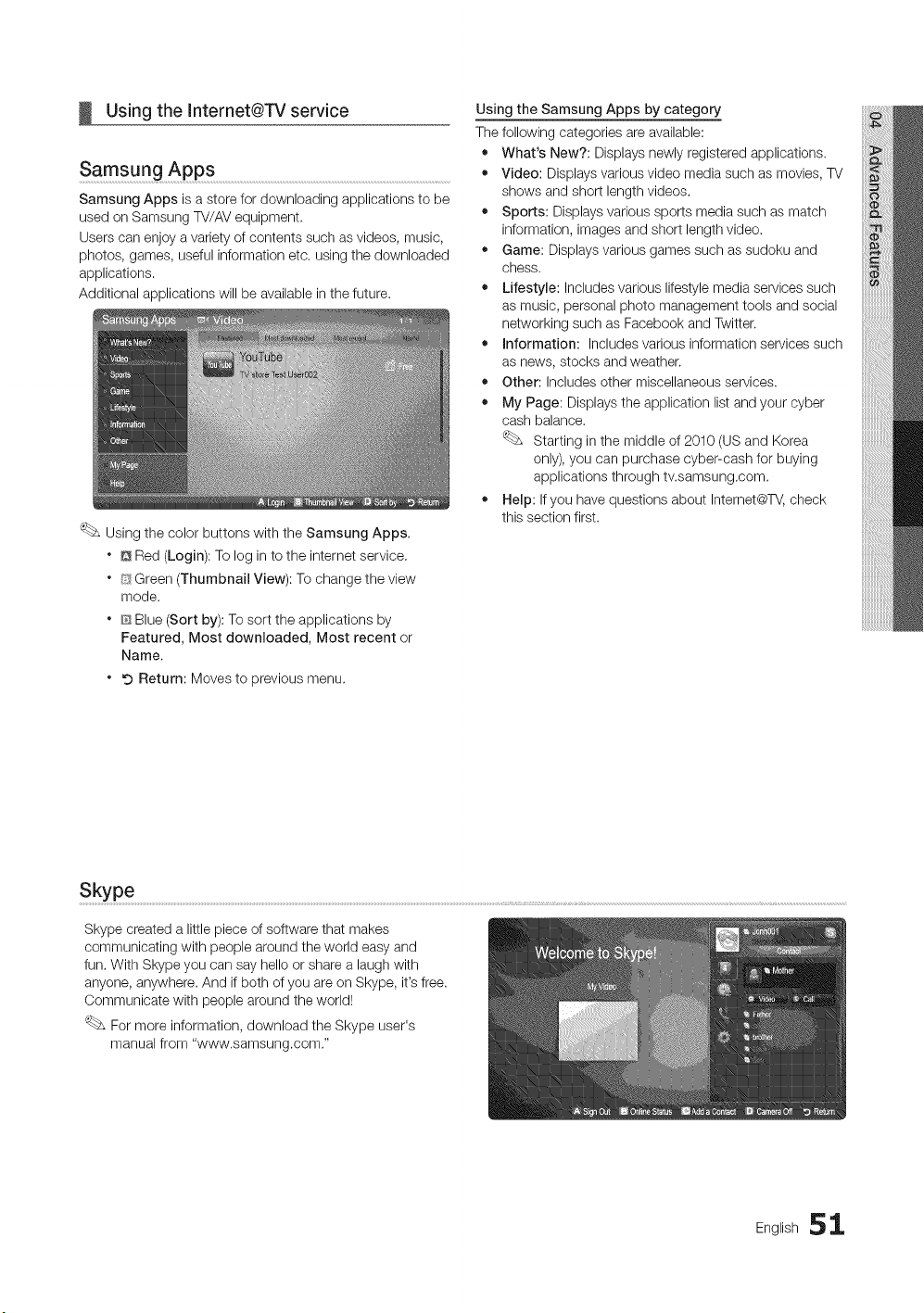

Using the Internet@TVservice 51
PROFILEWidget 53
Widget Galbry 53
Help Website 54
AIIShare .................................................................. 55
About AIIShare 55
Setting Up AIIShare 55
• Assembling the Cables ........................................... 57

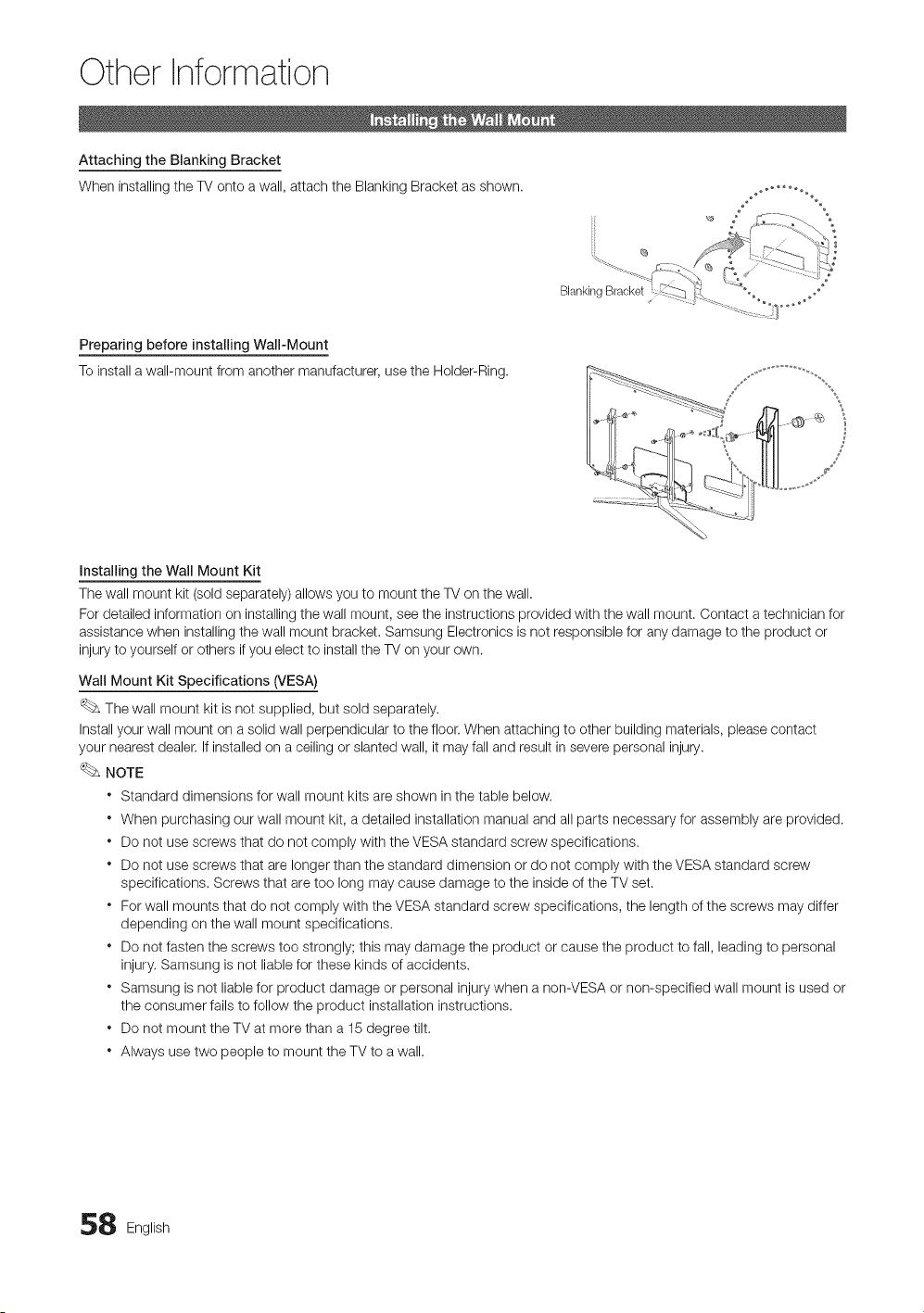

• Installing theWall Mount ......................................... 58

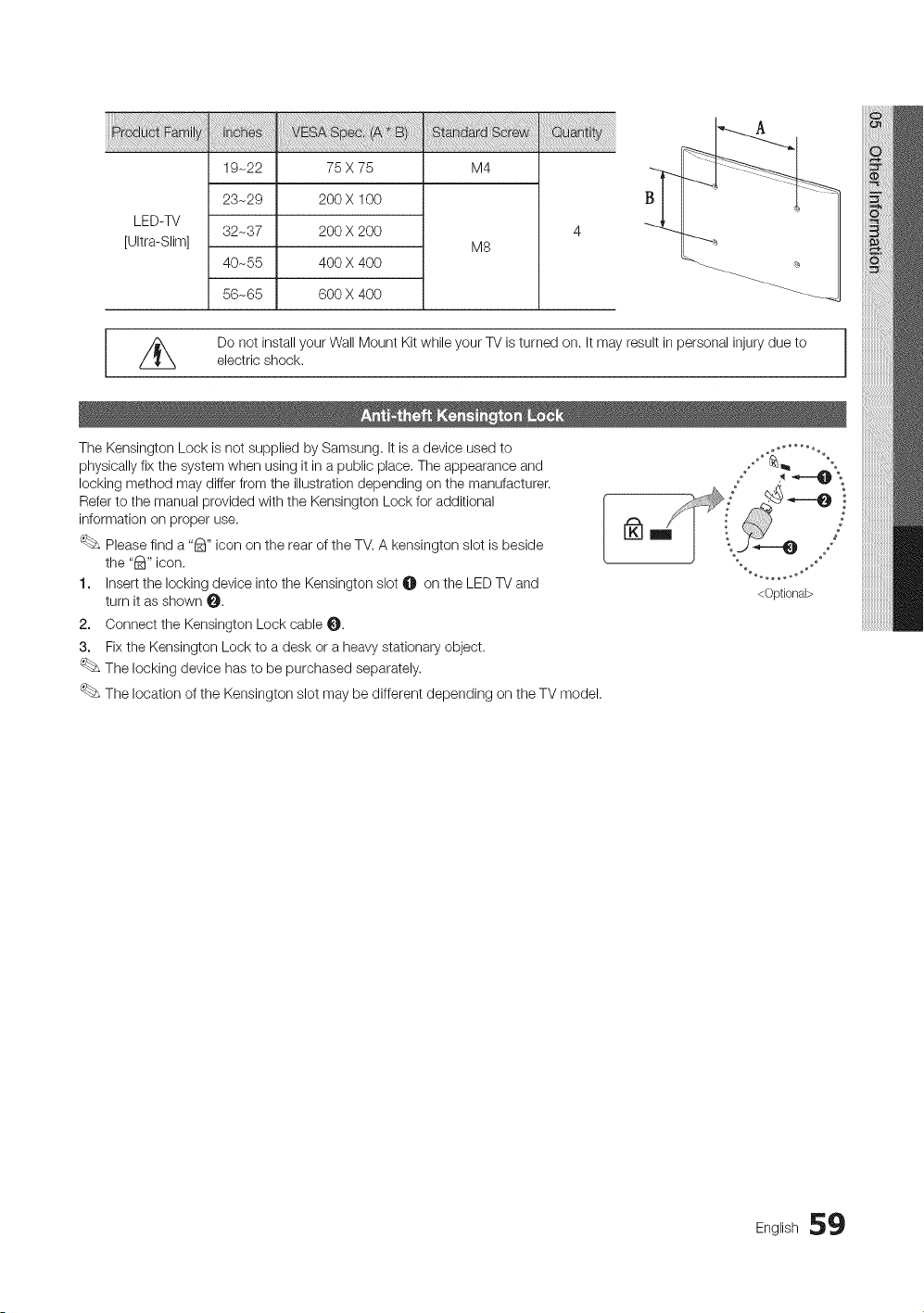

• Anti-theft Kensington Lock ...................................... 59
• Securing the TV to the Wall ..................................... 60
• Troubleshooting ...................................................... 61
• License ................................................................... 64
• Specifications ......................................................... 64
• Dimensions ............................................................. 65
• Index ...................................................................... 66
Check the Symbol!
%x
Tilis function can be used by pressing tile
TOOLS button on tile remote controk
Note
Indicatesadditionalinformation.
®
Step by Step Guide
Check here for instructions on how to open
the relevant submenu within the OSD (on
screen display).
English 3
Getting Started
• Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed
without a cable box / STB (Set-Top-Box) satellite receiver.
• Media Play: Allows you to play music files, pictures, and movies saved on a USB device (p. 37).
• Internet@TV: You can use various internet services and view useful information and entertaining content (p. 48).
• AIIShare: AIIShare connects your TV and compatible Samsung mobile phones/devices through a network (p. 55).
• Self Diagnosis: You can check whether picture or sound operate normally (p. 28).
Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.
The items' colors and shapes may vary depending on the models.
Z_ CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET
(M4 X LS) ............:z
_£ (M8 X L19)
English
Seeseparateguideforinstallingthestand.
_ (M4 LS)
9EA X
_______________________________________________________________________________________________________________________8iaSt
Fellow the steps below to connect the TV to the stand+
i Topview
Screws(M4X L8)...... .yI+_ I'
GuideStand........... __ i_
Stand--- _ i
Rear _......._ ............
1. Connect the Guide Stand to the Stand using four screws (M4 X L8) as shown.
c ++ ................ "
2. With your TV upright, connect the TV to the Stand. 3.
Screws(M4X LS).....
V+
Fasten two screws (M4 X LS) at position O, and then
fasten three screws (M4 X L8) at position O.
NOTE
+ Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
+ Make sure that at least two persons lift and move the LED TV.
+ Stand the product up and fasten the screws+ If you fasten the screws with the LED TV placed down, it may lean to
one side.
English 5
Getting Started
For best cable connection to this product, be sure to use cables with a maximum thickness as below:
i • Maximum thickness - 0.55 inches (14mm)
The product color and shape may vary depending on the model.
Remotecontrolsensor
Power indicator
SpeakersI SOURCE
MENU - VOL + v CH ^
Remote control sensor Aim the remote control towards this spot on the TV.
Power Indicator Blinks and turns off when the power is on and lights up in standby mode.
SOURCED Toggles between all the available input sources, In the on-screen menu, use this
button as you would use the ENTER IZ_ button on the remote control.
MENU Displays an on-screen menu, the OSD (on screen display) of your TV's features.
,VOL+ Adjusts the volume. In the OSD, use the --VOL÷ buttons as you would use the ,_
and I_ buttons on the remote control.
V CH/_ Changes the channels. In the OSD, use the V CH A buttons as you would use the
T and A buttons on the remote control.
(b (Power) Turns the TV on or off.
Standby mode
Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount
of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.
English
Turnsthe TV on and off.
Displays and selects the available video
sources (p. 13).
Press to directly access channels.
Pressto select additional channels
(digital)being broadcasted by the same
station. For example, to select channel
"54-3", press "54", then press "-" and
"3".
Adjusts the volume.
Brings up the OSD.
Displays the Content View, wtTich
includes Channel List, Internet@TV,
Media Play, AJlShareand 3D.
Quickly select frequently used functions.
Returns to the previous menu.
Buttons used in tlTeChannel List,
Intemet@TV, Media Play menu, etc.
Use these buttons in Media Play and
Anynet+ modes (p. 37, 44).
([_3: Controls recording for Samsung
recordersthat have the Anynet+ feature)
PowE o,io,F
II .!,, SOURCE_ II
II
+
VOL _ CH
_ c, LiT V
!:
[
I.
_ J
Turns the remote control light on or
off.When on, the buttons become
illuminated for a moment when pressed.
(Usingthe remote control with this button
set to ON will reduce the battery usage
time.)
Returns to the previous channel.
Cuts off the sound temporarily.
Changes channels.
Displays the channel list on the screen
(p. 14).
Link to various internet services (p. 48).
Displays information on the TV screen.
Selects the on-screen menu items and
changes the values seen on the menu.
Exits the menu.
MEDIA,P: Displays Media Play (p. 37).
YAHOO!: Runs the Yahoo widget. (p.
62).
3D: Sets the 3D mode. (p. 20).
FAV,CH: Displays Favorite Channel Lists
on the screen (p. 14).
RSlZE: Selects the picture size (p. 18).
CC: Controls the caption decoder (p.
26).
Installing batteries (Battery size: AAA)
S
NOTE
* Use the remote control within 23 feet from the TV,
* Bright light may affect the performance of the remote
control. Avoid use when nearby fluorescent lights or neon
signs,
* The color and shape may vary depending on the model.
English 7
I
When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the
POWER (b button. Plug & Play is available only when the Input source is set to TV.
To return to the previous step, press the Red button.
Selecting a language
Selecting Store Demo
or Home Use
Selecting an antenna
Press the A or T button, then press the ENTERE_ button. POWER
Select the desired OSD (On Screen Display) language.
Press the _ or I_ button, then press the ENTERIZ_ button.
• Select the Home Use mode. Store Demo Mode is for retail
environments.
• To return the unit's settings from Store Demo to Home Use
(standard): Press the volume button on the TV When you
see the volume OSD, press and hold MENU tor 5 sec.
Press the A or _r button, then press the ENTERI_%_button. Select Air, Cable or Auto.
Selecting a cnanne
Setting the Clock
Mode
View the HD
Connection Guide
Enjoy the TV.
Press the A or T button, then press the ENTERE_ button. Select the channel source
_o memorize. When setting the antenna source to Cable, a step appears allowing you to
assign numerical values (channel frequencies) to the channels. For more information, refer to
Channel _ Auto Program (p. 14).
Press the ENTERE*3J button at any time to interrupt the memorization process.
Set the Clock Mode automatically or manually.
• Auto: Allows you to select DST (Daylight Saving Time) mode and time zone.
• Manual: Allows you to manually set the current date and time (p. 24).
The connection method for the best HD screen quality is displayed.
Press the ENTERI_%_button.
If You Want to Reset This Feature...
(_ MENUiTrl _ Setup --_ Plug & Play _ ENTERI__
English
Connections
Using an HDMI or HDMI/DVI Cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
Audio Cable/Not Supplied}
HDM_ _N I(DV_), 2(ARC), 3, 4, PC./DV_ AUDIO _N
* When using an HDMI/DVI cable connection, you must use the HDM_ _N I(DV{)jack for video. A DVD, Blu-ray
player, HD cable box, or HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI
(DVI to HDMI) adapter. The PC/DW AUDIO _Njack is required for audio.
* If an external device such as a DVD / Blu-ray player / HD cable box / HD STB satellite receiver supporting
HDMI version older than 1.4 is connected, the TV may operate abnormally (e.g. no screen display / no sound /
annoying flicker / abnormal color).
* If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you
suspect the version is older than 1.4, contact the provider of the device to confirm the HDMI version and
request an upgrade.
* Samsung TVs support HDMI 1.4 (with 3D and Audio Return Channel). However, the ARC(Audio Return
Channel) function is only supported on HDM_ _N 2(ARC).
- If 3D Auto View is On, some functions, such as Yahoo or Internet@TV, are disabled. To use these functions,
set 3D Auto View or 3D Mode to Off.
* The ARC function enables digital output of sound using the HDM_ _N2(ARC} port and can only be operated
when the TV is connected to an audio receiver that supports ARC.
- The ARC mode is only enabled when the TV is connected to a device with an HDMI Standard cable, HDMI
High Speed cable, Hdmi Standard with Ethernet cable or HDMI High Speed with Ethernet cable.
- When the Input Source is the TV, the ARC function allows audio to be heard from a receiver. The audio is sent
to a receiver from the TV via an HDMI cable without the need for a separate optical cable.
* It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a
connection error may occur,
English 9
Connections
Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
)
[
For better picture quality, the Component connection is recommended over the A/V connection.
Using an EX-Link Cable Connection
Available Devices: External devices that support EX-Link.
0 English
Using an Optical (Digital) or Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, DVD home theater
opt ca( CaNe (No_ Suppl_ed)
Optical Adapter (Suppied}
I
DIGITAL AUDIO OUT (OPTICAL)
" When a Digital Audio System is connected to the DIGITAL AVDIO OUT (OPTICAL} jack, decrease the volume
of both the TV and the system.
" 5.1 OH (channel) audio is available when the TV is connected to an external device supporting 5.1 OH.
" When the receiver (home theater) is set to on, you can hear sound output from the TV's optical jack. When the
TV is receiving a DTV signal, the TV will send 5,1 CH sound to the home theater receiver. When the source is
a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is
connected to the TV via HDMI, only 2 OH audio will be heard from the home theater receiver. If you want to
hear 5.1 OH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite
receiver directly to an amplifier or home theater.
AUDIO OUT: Connects to the audio input jacks on your amplifier/DVD home theater.
" When connecting, use the appropriate connector.
" When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the
volume level with the amplifier's volume control,
Englishii
Connections
Using an HDMI/DVI cable or a D-sub cable
HDMI to BY] Cable (Not Supplied)
0¸:¸¸::¸¸¸¸¸?¸¸: x:i:x:
Display Modes (D-Sub and HDMI/DVI Input)
Optimal resolution is 1920 X 1080 @ 60 Hz,
J
.....s
IBM
MAC
VESA CVT
VESA DMT
VESA GTF
VESA DMT/DTV CEA
640 x 350
720 x 400
640 x 480
832 x 624
1152 x 870
720 x 576
1152 x 864
1280 x 720
1280 x 960
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024x 768
1152 x 864
1280 x 1024
1280 x 1024
1280x 720
1280x 800
1280x 800
1280x 960
1360 x 768
1440 x 900
1440x 900
1680 x 1050
1280 x 720
1280 x 1024
1920 x 1080p
31.469
31.469
35.000
49.726
68.681
35.910
53.783
56.456
75.231
31.469
37.861
37.500
37.879
48.077
46.875
48.363
56.476
60.023
67.500
63.981
79.976
45.000
49.702
62.795
60.000
47.712
55.935
70.635
65.290
52.500
74.620
67.500
70.086
70.087
66.667
74.551
75.062
59.950
59.959
74.777
74.857
59.940
72.809
75.000
60.317
72.188
75.000
60.004
70.069
75.029
75.000
60.020
75.025
60.000
59.810
74.934
60.000
60.015
59.887
74.984
59.954
70.000
70.000
60.000
25.175
28.322
30.240
57.284
100.000
32.750
81.750
95.750
130.000
25.175
31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
108.000
108.000
135.000
74.250
83.500
106.500
108.000
85.500
106.500
136.750
146.250
89.040
128.943
148.500
NOTE
* For HDMI/DVI cable connection, you must use the HDMI IN I(DVI)jack.
* The interlace mode is not supported.
* The set may operate abnormally if a non-standard video format is selected.
* Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
2 English
+/-
-/+
-/+
-/+
-/+
-/+
+/+
+/+
+/+
+/+
+/+
+/+
+/+
+/+
-/+
-/+
+/+
+/+
-/+
-/+
-/+
-/+
+/+
Edit Name
(_ MENUiTrl _ Input _ Source List _ ENTERI_
m
-IV / PC / AV / Component / HDMH/DVI / HDMI2 /
HDMI3 / HDMI4 / USB
You can only choose external devices that
are connected to the TM In the Source List,
connected inputs will be highlighted.
In the Source List, PC is always activated.
(_ MENUiTrl --_ Input _ Edit Name _ ENTERI_
VCR / DVD / Cable STB / Satellite STB / PVR STB /
AV Receiver / Game / Camcorder / PC / DVI PC / DVI
Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name
the device connected to the input jacks to make your
input source selection easier.
When a PC with a resolution of 1920 x 1080 @ 60Hz is
connected to the HDM_ _N I(DW) port, you should set
the TV to DVI PC mode under Edit Name.
When connecting an HDMI/DVI cable to the HDM_ IN
I(DW) port, you should set the TV to DVl PC or DVl
Devices mode under Edit Name.
Basic Features
Before using the TV,follow the steps below to learn how to
navigate the menu and select and adjust different functions.
O MENU button: Displays the main on-screen menu.
O ENTERI_ / Direction button: Move the cursor and
select an item. Confirm the setting.
RETURN button: Returns to the previous menu.
O EXIT button: Exits the on-screen menu.
How to Operate the OSD (On Screen Display)
The access step may differ depending on the selected menu.
MENU The main menu options appear on
the screen:
Picture, Sound, Channel, Setup,
Input, Application, Support.
A / • Select an icon with the A or T
........................ button.
_ ENTER[_ Press ENTERI_ to access the
..................................... sub-menu.
A! , Select the desired submenu with
.............................................the A or _r button.
:8 "J
ENTER _
Adjust the value of an item with the
4 or _ button. The adjustment in
the OSD may differ depending on
the selected menu.
Press ENTERI_ to confirm the
selection.
EXiT -_Fl_ Press EXIT.
English 13
Basic Features
Seeing Channels
Using Favorite Channels
(_ MENUITTI _ Channel _ Channel List _ ENTERI_
Channel List
Add, delete or set Favorite channels and use
the program guide for digital broadcasts.
(_ MENUrITI _ Channel --_ Channel List
ENTERI_
Select a channel in the All Channels, Added
Channels, Favorite or Programmed screen by
pressing the _, / T and ENTERC_ buttons.
Then you can watch the selected channel.
Add to Favorite / Delete from Favorite
Set channels you watch frequently as Favorites.
1. Select a channel and press the TOOLS button.
2. Add or delete a channel using the Add to Favorite or
Delete from Favorite menu respectively.
To show all Favorite channels, click on the
button shown on the right.
II {_H_AIIChannels: Shows all currently available channels.
Ill _Added Channels: Shows all added channels.
Ill _ Favorite: Shows all favorite channels.
Ill _ Programmed: Shows all currently reserved
programs.
Using the color buttons with the Channel List
* _ Red (Antenna): Switches to Air or Cable.
* [3 Green (Zoom): Enlarges or shrinks a channel
number.
* Yellow (Select): Selects multiple channel lists.
Select desired channels and press the Yellow button
to set all the selected channels at the same time. The
_/ mark appears to the left of the selected channels.
* 0 (Page): Move to next or previous page.
* _-_ (Tools): Displays the Channel List option menu.
(The options menus may differ depending on the
situation.)
Channel Status Display Icons
Memorizing Channels
(_ MENUITTI --_Channel _ ENTERI_
Antenna (Air / Cable)
Before your television can begin memorizing the available
channels, you must specify the type of signal source that is
connected to the TV (i.e. an Air or a Cable system).
Auto Program ..........................................................................................................................................................................................
Ill Air: Air antenna signal.
Ill Cable: Cable antenna signal.
Ill Auto: Air and Cable antenna,
4 English
NOTE
WhenselectingtheCableTVsystem:STD,HRC
andIRCidentifyvarioustypesofcableTVsystems.
Contactyourlocalcablecompanytoidentifythe
typeofcablesystemthatexistsinyourparticular
area.Atthispoint,thesignalsourcehasbeen
selected.
Afteralltheavailablechannelsarestored,itstarts
toremovescrambledchannels.TheAutoProgram
menuthenreappears.
Editing Channels
MENUiTrl _ Channel --_ Channel List --_ ENTERI_
Channel Name Edit
1. Select a channel and press the TOOLS button,
2. Edit the channel name using the Channel Name Edit
menu,
Ill Channel Name Edit (analog channels only): Assign your
own channel name.
Other Features
MENUiTrl _ Channel --_ ENTERI_
Clear Scrambled Channel
This function is used to filter out scrambled channels after
Auto Program is completed. This process may take up to
20-30 minutes.
How to Stop Searching Scrambled Channels
1. Press the ENTERE_ button to select Stop.
2. Press the _ button to select Yes.
3. Press the ENTERI_ button.
This function is only available in Cable mode,
Channel List
Channel List Option Menu
Set each channel using the Channel List menu options (Add
/ Delete, Timer Viewing, Select All/Deselect All). Option
menu items may differ depending on the channel status.
1. Select a channel and press the TOOLS button.
2. Select a function and change its settings.
Ill Add / Delete: Delete or add a channel to display the
channels you want.
m
m
m
NOTE
* All deleted channels will be shown on the All
Channels menu.
* A gray-colored channel indicates the channel
has been deleted.
* The Add menu only appears for deleted
channels,
* Delete a channel from the Added Channels or
Favorite menu in the same manner.
Timer Viewing: You can set a desired channel to be
displayed automatically at the reserved time. Set the
current time first to use this function.
1. Press the _ / I_ / A / _ buttons to select the
desired channel in Channel List,
2. Press the TOOLS button, then select Timer
Viewing,
3. Scroll up or down to adjust the settings in the box,
or use the numeric buttons on your remote to enter
the date and time.
If you selected Once, Every Week or EveryDay
in Repeat you can enter the date you want.
4. Select OK, then press the ENTERI_ button when
done.
NOTE
* Only memorized channels can be reserved.
* Reserved programs will be displayed in the
Programmed menu.
* When a digital channel is selected, press the I_
button to view the digital program.
Select All: Select all the channels in the channel list.
Deselect All: Deselect all the selected channels.
You can only select Deselect All when one or
more channels are selected.
Programmed
(in Channel List)
You can view, modify or delete a show you have reserved
to watch. Programmed timer viewing is displayed here.
Highlight a program and press the TOOLS button to display
Options.
Ill Change Info: Change a show you have reserved to
watch. Begin with step 3 of "Timer Viewing" above.
Ill Cancel Schedules: Cancel a show you have reserved
to watch.
This deletes the highlighted or selected
program(s).
English 15
Basic Features
m
m
information: Display a show you have reserved
to watch. (You can also change the reservation
Information.)
Alternatively, you can view Information by
highlighting a program and pressing the
ENTERIZ_ button.
Select All / Deselect All: Select or deselect all reserved
programs.
Fine Tune
(analog channels only)
if the reception is clear, you do not have to fine tune the
channel, as this is done automatically during the search and
store operation, if the signal is weak or distorted, fine tune
the channel manually. Scroll to the left or right until the image
is clear.
Settings are applied to the channel you're currently
watching,
Fine tuned channels that have been saved are marked
with an asterisk .....on the right-hand side of the
channel number in the channel banner.
To reset the fine-tuning, select Reset.
Changing the Preset Picture Mode
(_ MENUiTrl _ Picture -_ Mode -_ ENTERE_
Mode
Select your preferred picture type.
Ill Dynamic: Suitable for a bright room.
Ill Standard: Suitable for a normal environment.
Ill Natural: Suitable for reducing eye strain.
Natural is not available in PC mode.
Ill Movie: Suitable for watching movies in a dark room.
Adjusting Picture Settings
(_ MENUrlTI _ Picture _ ENTERI_
Backlight / Contrast / Brightness /
Sharpness / Color / Tint (G/R)
Your television has several setting options for picture quality
control.
NOTE
* When you make changes to Backlight, Contrast,
Brightness, Sharpness, Color or Tint (G/R) the
OSD will be adjusted accordingly.
* In PC mode, you can only make changes to
Backlight, Contrast and Brightness.
* Settings can be adjusted and stored for each
external device connected to the TV.
Economical Solutions
The Eco Function can be used to enhance your power
savings.
Eco Solution .........................................................................................................................................................
(_ MENU rlTl _ Picture _ Eco Solution _ ENTERI_
Ill Energy Saving (Off / Low / Medium / High / Picture
Off / Auto): This adjusts the brightness of the TV in order
to reduce power consumption. If you select Picture Off,
the screen is turned off, but the sound remains on. Press
any button except volume button to turn on the screen.
Ill Eco Sensor (Off / On): To enhance your power savings;
the picture settings will automatically adapt to the light
in the room.
If you adjust the Backlight, the Eco Sensor will
be set to Off.
Min Backlight: When Eco sensor is On, the minimum
screen brightness can be adjusted manually.
If Eco Sensor is On, the display brightness may
change (become slightly darker in most cases)
depending on the surrounding light intensity.
m No Signal Power Off (Off / 15 min. / 30 min. / 60
min.): To avoid unnecessary energy consumption,
set how long you want the TV to remain on if it's not
receiving a signal.
Disabled when the PC is in power saving mode.
6 English
Changing the Picture Options
Advanced Settings .......................................................................................................................................................
(_ MENU rlTI _ Picture _ Advanced Settings
ENTER C_
(Advanced Settings are available in Standard / Movie mode)
Compared to previous models, new Samsung TVs have a
more precise picture.
In PC mode, you can only make changes to Dynamic
Contrast, Gamma, White Balance and LED Motion
plus.
m
m
m
m
Black Tone (Off / Dark / Darker / Darkest): Select the
black level to adjust the screen depth.
Dynamic Contrast (Off / Low / Medium / High): Adjust
the screen contrast.
Gamma: Adjust the primary color intensity.
Expert Pattern (Off / Pattern1 / Pattern2): By
running the Expert Pattern function, the picture can
be calibrated. If the OSD menu disappears or a menu Ill
other than the Picture menu is opened, the calibration is
saved and the Expert Pattern window disappears.
Off: Turns the Expert Pattern function off.
Pattern1 : This is a test screen designed to demonstrate
the affects of display settings on shades.
Pattern2: This is a test screen designed to demonstrate
the affects of display settings on colors.
After selecting Pattern1 or Pattern2, you can
adjust any of the advanced settings to the desired Ill
effect.
While the Expert Pattern is running, sound is not
output.
Only enabled in DTV, Component and HDMI
modes.
Ill RGB Only Mode (Off / Red / Green / Blue): Displays
the Red, Green and Blue color for making fine
adjustments to the hue and saturation.
Ill Color Space (Auto / Native / Custom): Adjust the
range of colors available to create the image. To adjust
Color, Red, Green, Blue and Reset, set Color Space
to Custom.
Ill White Balance: Adjust the color temperature for a more
natural picture.
R-Offset / G-Offset / B-Offset: Adjust each color's
(red, green, blue) darkness.
R-Gain / G-Gain / B-Gain: Adjust each color's (red,
green, blue) brightness.
Reset: Resets the White Balance to it's default
settings.
Ill 10p White Balance (Off / On): Controls the white
balance in 10 point intervals by adjusting the red, green,
and blue brightness.
Available when the picture mode is set to Movie
and when the external input is set to HDMI or
Component.
Some external devices may not support this
function.
Interval: Select interval to adjust.
Red: Adjust the red level.
Green: Adjust the green level.
Blue: Adjust the blue level.
Reset: Resets the 10p White Balance to its default
settings.
Ill Flesh Tone: Emphasize pink "Flesh Tone."
Ill Edge Enhancement (Off / On): Emphasize object
boundaries.
xvYCC (Off / On): Setting the xvYCC mode on
increases detail and color space when watching movies
from an external device (e.g. BD/DVD player) connected
to the HDMI or Component IN jacks.
Available when the picture mode is set to Movie
and when the external input is set to HDMI or
Component.
Some external devices may not support this
function.
LED Motion Plus (Off/Normal/Cinema/Ticker):
Removes drag from fast scenes with a lot of movement
to provide a clear picture.
English 17
Basic Features
Picture Options
(_ MENU iTR _ Picture _ Picture Options
ENTER [_
In PC mode, you can only make changes to the Color
Tone, Size and Auto Protection Time,
NOTE
" When Double (_, iiq) mode has been set in PIP
(Picture-in-Picture), the Picture Size cannot be set.
" After selecting Zoom1, Zoom2 or Wide Fit:
1. Press the I_ button to select Position.
2. Press the ENTERIZ_ button.
3. Press the A or T button to move the picture up
or down.
4. Press the ENTERIZ_ button.
5. Press the I_ button to select Reset.
6. Press the ENTERIZ_ button to reset the picture
to its default position.
" After selecting Screen Fit in HDMI (1080i/1080p) or
Component (1080i/1080p) mode, you may need to
center the picture:
Ill Color Tone (Cool / Normal / Warm1 / Warm2)
Warm1 or Warm2 will be deactivated when the picture
mode is Dynamic.
Settings can be adjusted and stored for each external
device connected to an input on the TV.
Ill Size: Your cable box/satellite receiver may
have its own set of screen sizes as well.
However, we highly recommend you use
16:9 mode most of the time.
16:9 : Sets the picture to 16:9 wide mode.
Zoom1: Use for moderate magnification.
Zoom2: Use for a stronger magnification.
Wide Fit: Enlarges the aspect ratio of the picture to fit
the entire screen.
Available with HD 1080i / 720p signals in 16:9
mode.
4:3 : Sets the picture to basic (4:3) mode,
Do not watch in 4:3 format for a long time. Traces
of borders displayed on the left, right and center Ill
of the screen may cause image retention(screen
burn) which are not covered by the warranty.
Screen Fit: Displays the full image without any cut-off
when HDMI (720p / 1080i/1080p) or Component
(1080i / 1080p) signals are inputted.
1. Press the _ or I_ button to select Position.
2. Press the ENTERI_ button.
3. Press the A, _r, _ or I_ button to move the
picture.
4. Press the ENTERE_ button.
5. Press the _ or I_ button to select Reset,
6. Press the ENTERI_ button,
HD (High Definition): 16:9 - 1080i/1080p (1920x1080),
720p (1280x720)
Settings can be adjusted and stored for each
external device you have connected to an input on
the TV.
ATV,AV, 16:9, Zoom1,
Component (480i, 480p) Zoom2, 4:3
DTV(1080i), 16:9, 4:3, Wide Fit,
Component (1080i, 1080p), Screen Fit
HDMI (720p, 1080i, 1080p)
PC 16:9, 4:3
Digital Noise Filter (Off / Low / Medium / High / Auto
/ Auto Visualisation): If the broadcast signal received
by your TV is weak, you can activate the Digital Noise
Filter feature to reduce any static and ghosting that may
appear on the screen.
When the signal is weak, try other options until the
best picture is displayed.
Auto Visualisation: When changing analog channels,
displays signal strength.
Only available for analog channels.
When bar is green, you are receiving the best
possible signal.
8 English
Ill MPEGNoiseFilter(Off/ Low / Medium / High /
Auto): Reduces MPEG noise to provide improved
picture quality.
Ill HDMI Black Level (Normal / Low): Selects the black
level on the screen to adjust the screen depth.
Available only in HDMI mode.
Ill Film Mode (Off / Auto1 / Auto2): Sets the TV to
automatically sense and process film signals from all
sources and adjusts the picture for optimum quality.
Available in TV, AV, COMPONENT (480i/1080i)
and HDMI (480i/1080i).
Ill Auto Motion Plus 240Hz (Off / Clear / Standard /
Smooth / Custom / Demo): Removes drag from fast
scenes with a lot of movement to provide a clearer
picture.
If noise occurs on the screen, please set the
Auto Motion Plus 240Hz to Off. If Auto Motion
Plus 240Hz is Custom, you can set up the
Blur Reduction, Judder Reduction or Reset
manually.
If Auto Motion Plus 240Hz is Demo, you can
compare the difference between on and off
modes.
Blur Reduction: Adjusts the blur reduction level from
video sources.
Judder Reduction: Adjusts the judder reduction level
from video sources when playing films.
Reset: Reset the custom settings.
m Auto Protection Time (2 hours / 4 hours / 8 hours
/ 10 hours / Off): Set the time the screen remains idle
with a still image until the screen saver is activated. The
screen saver prevents the formation of ghost images on
the screen.
m
Smart LED (Off/Low / Standard / High / Demo):
Controls LED backlight to maximize picture clarity.
Demo: Displays the difference between Smart LED on
and off modes.
Viewing TV using the 3D function
{_ MENUITTI --_ Picture _ 3D _ ENTERI_
IMPORTANT SAFETY INFORMATION, READ THE
FOLLOWING WARNINGS BEFORE YOU OR YOUR
CHILD USE THE 3D FUNCTION
Z_XWARNING
" Parents' careful supervision is required particularly
when children or teenagers view 3D images.
* Photosensitive Seizure Warning and Other Health
Risks
- Some viewers may experience an epileptic seizure
or stroke when exposed to certain flashing images
or lights contained in certain television pictures or
video games. If you or any of your relatives has a
history of epilepsy or strokes, please consult with a
medical specialist before using the 3D function.
- Do not watch 3D pictures when you feel
incoherent, sleepy, tired or sick. Avoid watching 3D
pictures for long hours.
- Even those without a personal or family history
of epilepsy or stroke may have an undiagnosed
condition that can cause "photosensitive epileptic
seizures."
- If you experience any of the following symptoms
immediately stop watching 3D pictures and
consult a medical specialist: (1) altered vision; (2)
lightheadedness; (3) dizziness; (4) involuntary,
movements such as eye or muscle twitching;
(5) confusion; (6) nausea; (7) loss of awareness;
(8) convulsions; (9) cramps; and/or (10)
disorientation. Parents should monitor and ask
their children about the above symptoms-children
and teenagers may be more likely than adults to
experience these symptoms.
* Note that watching TV while sitting too close to the
screen for an extended period of time may weaken
your eyesight.
* Note that watching TV while wearing 3D Active
Glasses for an extended period of time may cause a
headache or fatigue. If you feel headache, fatigue or
dizziness, stop watching TV and rest.
* Some 3D pictures may startle viewers. The pregnant,
elderly, epileptic and those suffering from serious
physical conditions are advised to avoid utilizing the
unit's 3D functionality.
English 19
Basic Features
* We don't recommend watching 3D if you are in bad
physical condition, need sleep or have been drinking
liquor,
* Please take care to be aware of the world around
you. This product is designed to be immersive. DO
NOT use this product near open stairwells, cables,
balconies, or other objects that can be tripped over,
run into, knocked down, broken or fallen over. Being
startled or deluding yourself into thinking that the 3D
images are real may cause you to crush a nearby
object or get injured trying to move your body.
* Do not use the 3D Active Glasses for any other
purpose than for which it was designed. Wearing the
3D Active Glasses for any other purpose (as general
spectacles, sunglasses, protective goggles, etc.)
may physically harm you or weaken your eyesight.
* Immersive video can potentially have adverse effects
on the user including motion sickness, perceptual
after effects, disorientation, eye strain, and
decreased postural stability. Take frequent breaks to
lessen the potential of these effects, as is commonly
suggested for other items, such as keyboards and
computer monitors, that you may tend to fixate or
concentrate on. If your eyes show signs of fatigue or
dryness or if you have any of the above symptoms,
immediately discontinue use of this device and do
not resume using it for at least thirty minutes after
the symptoms have subsided.
* The ideal viewing distance should be three times
or more the height of the screen. We recommend
sitting with viewer's eyes on a level with the screen.
3D
This exciting new feature enables you to view
3D content. In order to fully enjoy this feature,
you must purchase a pair of Samsung 3D
Active Glasses (SSG-2100AB, SSG-2200AR,
SSG-2200KR) to view 3D video.
Samsung 3D Active Glasses are sold
separately. For more detailed purchasing
information, contact the retailer where you purchased this TV
3Demitter
S_MSUHG
#
If there is any obstacle between the emitter and 3D
Active Glasses, the proper 3D effect may not be
obtained.
II 3D Mode: Select the 3D input format.
If you want to feel the 3D effect fully, please wear
the 3D Active Glasses first, and then select 3D
Mode from the list below that provides the best
3d viewing experience.
II
II
II
Off Turns the 3D function off.
2D _ 3D Changes a 2D image to 3D.
Displays two images next to
Side by Side each other.
Displays one image above
Top & Bottom another.
Line by Line Displays the images for the left
and right eye alternately in rows.
Displays the images for the
Vertical Stripe left and right eye alternately in
columns.
Checker Displaystheimagesforthe
left and right eye alternately in
Board
_ixels.
Displays the images for the
Frequency left and right eye alternately in
frames.
"Side by Side" and "Top & Bottom" are available
when the resolution is 720p, 1080i and 1080p in
DTV, HDMI and USB mode or when set to PC
and the PC is connected through an HDMI/DVI
cable.
"Vertical Strip", "Line by Line" and "Checker
Board" are available when the resolution is set to
PC and the PC is connected through an HDMI/
DVI cable.
"Frequency" displays the frequency (60Hz only)
when the resolution is set to PC.
3D _ 2D (Off / On): Displays the image for the left eye
only,
This function is deactivated when 3D Mode set to
"2D --_ 3D" or Off,
Depth: Adjusts focus / depth in "2D _ 3D" mode.
This function is only activated when the 3D Mode
is "2D _ 3D".
Picture Correction: Adjusts the images for the left and
right eye.
0 English
m
3DAutoView(Off/ On): If 3D Auto View is set to On,
a "Side-By-Side" format HDMI signal with one of the
resolutions below is automatically switched to 3D. Here,
correct 3D information must be sent from the HDMI 1.3
transmitter.
If a 3D failure occurs due to a 3D information error,
set 3D Auto View to Off and manually select a
3D Mode using the 3D button or corresponding
menu.
Supportresolution(16:9only)
1280 x 720p 60 Hz
1920 x 1080i 60 Hz
1920 x 1080p 24 / 30 / 60 Hz
Resolution supported for HDMI PC mode
The resolution for HDMI PC mode is optimized to 1920 x
1080 input.
An input resolution other than 1920 x 1080 may not be
displayed properly in 3D display or full screen mode.
How to watch the 3D image
1. Press the CONTENT button, then the Content View
menu will appear.
2. Press the _ or I_ button, then select 3D,
To watch in 3D, wear 3D Active Glasses and press the
power button on the glasses.
3. Select OK, then press the ENTERI_ button.
4. Using the 41or I_ buttons on your remote control, select
the 3D Mode of the image you want to view.
Some 3D modes may not be available depending
on the format of the image source,
Supported formats and operating specifications for
HDMm1.4
1920x1080p@24Hzx2
1280x720p@60Hzx2
1280x720p@50Hzx2
1920x2205p@24Hz
1280xl470p@60Hz
1280xl470p@50Hz
The mode is automatically switched to 3D in one of the
source signal formats above,
For the HDMI 1.4@24Hz format, the TV is optimized as
follows:
- Resolution First Display Mode: If Auto Motion Plus
is set to Off, Clear or Standard, you can watch the
video at a high resolution optimized to the resolution
of the source video.
- Judder Reduction Display Mode: When Auto
Motion Plus is set to Smooth or Custom, you can
watch a smooth picture without judder.
Before using 3D function...
NOTE
* You may notice a small amount of screen flickering
when watching 3D images in poor light conditions
(from a strobe light, etc.), or under a fluorescent lamp
(50Hz _ 60Hz) or 3 wavelength lamp. If so, dim the
light or turn the lamp off.
* 3D mode is automatically disabled in following cases:
when changing a channel or the input source, or
accessing Media Play or Internet@TV.
* Some Picture functions are disabled in 3D mode.
* PIP is not supported in 3D mode.
* Auto Program is disabled in 3D mode.
* 3D Active Glasses from other manufacturers may not
be supported.
* When the TV is initially powered on, may take some
time until the 3D display is optimized.
English 21
Basic Features
" If there is any other 3D product, electronic
devices such as a PDP or LCD TV, or wireless
communication devices nearby, the 3D Active
Glasses may not work properly due to mutual
interference. If there is a problem, keep other
electronic devices as far away as possible from the
3D Active Glasses,
" Photos of Media Play are shown in "2D _ 3D"
mode only.
" If lying on your side, the 3D-effects may not be
displayed.
" Be sure to stay within the viewing angle and optimum
TV viewing distance when watching 3D pictures.
- Otherwise, you may not be able to enjoy proper 3D
effects.
Picture Reset (OK / Cance0
Resets your current picture mode to its default settings.
Setting up the TV with Your PC
Set the input source to PC.
(_ MENUITTI _ Picture --_ ENTERE_
Auto Adjustment ..........................................................................................................................
Adjust frequency values/positions and fine tune the settings
automatically.
Not available when connecting with an HDMI/DVI cable.
Screen
Ill Coarse / Fine: Removes or reduces picture noise, If the
noise is not removed by Fine-tuning alone, then adjust
the frequency as best as possible (Coarse) and Fine-
tune again. After the noise has been reduced, readjust
the picture so that it is aligned to the center of screen.
Ill Position: Adjust the PC's screen positioning if it does
not fit the TV screen, Press the A or T button to adjust
the Vertical-Position. Press the _ or I_ button to adjust
the Horizontal-Position.
Ill Image Reset: Resets the image to default settings.
Using Your iV as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows XP)
Depending on the version of Windows and the video card,
the actual screens on your PC will probably look different, but
the same basic set-up information will apply in most cases.
(If not, contact your computer manufacturer or Samsung
Dealer.)
1. Click on "Control Panel" on the Windows start menu.
2. Click on "Appearance and Themes" in the "Control
Panel" window and a display dialog-box will appear.
3. Click on "Display" and a display dialog box will appear.
4. Navigate to the "Settings" tab on the display dialog-box.
• The correct size setting (resolution) [Optimum: 1920 X
1080 pixels]
• If a vertical-frequency option exists on your display
settings dialog box, the correct value is "60" or "60 Hz".
Otherwise, just click "OK" and exit the dialog box.
Changing the Preset Sound Mode
(_ MENUiTFI --_Sound _ SRS TheaterSound -_
ENTER I_
SRS TheaterSound
Ill Standard: Selects the normal sound mode.
m Music: Emphasizes music over voices,
Ill Movie: Provides the best sound for movies.
Ill Clear Voice: Emphasizes voices over other sounds.
Ill Amplify: Increase the intensity of high-frequency sound
to allow a better listening experience for the hearing
impaired.
Adjusting Sound Settings
(_ MENU iTrl --_Sound -_ Equalizer -_ ENTER E_
Equalizer
Adjusts the sound mode (standard sound mode only).
Ill Balance L/R: Adjusts the balance between the right and
left speaker,
Ill 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth
Adjustment): Adjusts the level of specific bandwidth
frequencies.
Ill Reset: Resets the equalizer to its default settings.
2 English
Sound Settings
(_ MENUITTI _ Sound _ ENTERI_%_
SRS TruSurround HD (Off / On)
(standard sound mode only)
This function provides a virtual 5,1 channel surround sound
experience through a pair of speakers using HRTF (Head
Related Transfer Function) technology.
SRS TruDialog (Off / On)
(standard sound mode only)
This function allows you to increase the intensity of a voice
over background music or sound effects so that dialog can
be heard more clearly.
Preferred Language
(digital channels only)
DigitaI-TV broadcasts are capable of simultaneous
transmission of many audio tracks (for example,
simultaneous translations of the program into foreign
languages).
You can only select a language among the ones being
broadcasted.
MultFTrack Sound (MTS)
(analog channels only)
Ill Mono: Choose for channels that are broadcasting in
mono or if you are having difficulty receiving a stereo
signal,
Ill Stereo: Choose for channels that are broadcasting in
stereo.
Ill SAP: Choose to listen to the Separate Audio Program,
which is usually a foreign-language translation.
Depending on the particular program being broadcast,
you can listen to Mono, Stereo or SAP.
Auto Volume (Off / Normal / Night)
To equalize the volume level on each channel, set to Normal,
Ill Night: This mode provides an improved sound
experience compared to Normal mode, making almost
no noise. It is useful at night.
Speaker Select (External Speaker / TV
Speaker)
A sound echo may occur due to a difference in decoding
speed between the main speaker and the audio receiver. In
this case, set the TV to External Speaker.
When Speaker Select is set to External Speaker, the
volume and MUTE buttons will not operate and the
sound settings will be limited.
When Speaker Select is set to External Speaker.
* TV Speaker: Off, External Speaker: On
When Speaker Select is set to TV Speaker.
* TV Speaker: On, External Speaker: On
If there is no video signal, both speakers will be mute.
SPDIF Output
SPDIF (Sony Philips Digital Interface)is used to provide digital
sound, reducing interference going to speakers and various
digital devices such as an A/V Receiver/Home theater.
Ill Audio Format: During the reception of a digital TV
broadcast, you can select the Digital Audio output
(SPDIF)format from the options PCM or Dolby Digital.
Ill Audio Delay: Correct audio-video sync problems, when
watching TV or video, and when listening to digital audio
output using an external device such as an AV receiver
(0ms - 250ms).
Sound Reset( OK! Cancel) ....................................................................................................
Reset all sound settings to the factory defaults.
English 23
Basic Features
Setting the Time
{_ MENUrlTI -_ Setup -_ Time -_ ENTERE__}_
Time
Clock: Setting the clock is for using various timer
features of the 7_
{_ The current time will appear every time you press
the _NFO button.
if you disconnect the power cord, you have to set
the clock again,
Clock Mode (Auto / Manual)
- Auto: Set the current time automatically using the
time from a digital channel.
The antenna must be connected in order to set
the time automatically,
- Manual: Set the current time manually.
Depending on the broadcast station and signal,
the auto time set up may not be correct. In this
case, set the time manually,
Clock Set: Set the Month, Day, Year, Hour, Minute and
am/pm manually.
Available only when Clock Mode is set to
Manual.
You can set the Month, Day, Year, Hour and
Minute directly by pressing the number buttons
on the remote control.
DST (Daylight Saving Time) (Off / On): Switches the
Daylight Saving Time function on or off.
This function is only available when the Clock
Mode is set to Auto.
Time Zone: Select your time zone.
This function is only available when the Clock
Mode is set to Auto.
Using the Sleep Timer
{_ MENU rlTt _ Setup _ Time _ Sleep Timer
ENTER IZ_
m
Sleep Timer _ : Automatically shuts off the TV
after a preset period of time. (30, 60, 90, 120, 150 and
180 minutes),
To cancel the Sleep Timer, select Off.
Setting the On / Off Timer
{_ MENUrlTI _ Setup _ Time _ Timer 1
ENTER
You can set the TV to turn on automatically at a preset time.
Ill Timer 1 / Timer 2 / Timer 3: Three different on / off
timer settings can be made. You must set the clock first.
On Time / Off Time: Set the hour, minute, and activate
/ inactivate, (To activate the timer with the setting you've
chosen, set to Activate.)
Volume: Set the desired volume level.
Source: Select -iV or USB content to be played when
the TV is turned on automatically, (USB can be selected
only when a USB device is connected to the TV)
Antenna (when the Source is set to TV): Select Air or
Cable.
Channel (when the Source is set to TV): Select the
desired channel.
Contents (when the Source is set to USB): Select a
folder in the USB device containing music or photo files
to be played when the TV is turned on automatically.
NOTE
If there is no music file on the USB device or the
folder containing a music file is not selected, the
Timer function does not operate correctly.
* When there is only one photo file in the USB,
the Slide Show will not play.
* If a folder name is too long, the folder cannot be
selected.
* Each USB you use is assigned its own folder.
When using more than one of the same type of
USB, make sure the folders assigned to each
USB have different names.
4 English
Repeat:SelectOnce,Everyday,Mon~Fri,Mon~Sat,
Sat~SunorManualtosetatyouconvenience.Ifyou
selectManual,youcansetupthedayyouwantto
activatethetimer.
The_/markindicatesthedayisselected.
AutoPowerOff(availableonlywhentheTVisturned
onbytheTimer):TheTVwillbeautomaticallyturnedoff
after3hoursofbeingleftidletopreventoverheating,
Locking Programs
(_ MENUrm -_ Setup -_ Security -_ ENTERE_
Security
The PIN input screen appears, Enter your 4 digit PIN number.
m V-Chip: The V-Chip feature automatically locks out
programs that are deemed inappropriate for children.
The user must enter a PIN (personal identification
number) before any of the V-Chip restrictions are set up
or changed.
NOTE
* V-Chip is not available in HDMm, Component
or PC mode.
* The default PIN number of a new TV set is
"0-0-0-0",
* Allow All: Press to unlock all TV ratings.
" Block All: Press to lock all TV ratings.
V-Chip Lock (Off / On): You can block rated TV
Programs,
-IV Parental Guidelines: You can block TV programs
depending on their rating, This function allows you to
control what your children are watching.
- TV-Y: Young children / TV-Y7: Children 7 and over /
TV-G: General audience / rV-PG: Parental guidance
/ TV-14: Viewers 14 and over / TV-MA: Mature
audience
- ALL: Lock all TV ratings. / FV: Fantasy violence / V:
Violence / S: Sexual situation / L: Adult Language / D:
Sexually Suggestive Dialog
The V-Chip will automatically block certain
categories dealing with more sensitive material.
For example, if you block the TV-Y category,
then TV-Y7 will automatically be blocked,
Similarly, if you block the TV-G category, then
all the categories in the young adult group will
be blocked (TV-G, TV-PG, TV-14 and TV-MA).
The sub-ratings (D, L, S, V) work similarly. So,
if you block the L sub-rating in TV-PG, then
the L sub-ratings in TV-14 and TV-MA will
automatically be blocked.
MPAA Rating: You can block movies depending on
their MPAA rating. The Motion Picture Association of
America(MPAA) has implemented a rating system that
provides parents or guardians with advanced information
on which films are appropriate for children,
- G: General audience (no restrictions). / PG: Parental
guidance suggested, / PG-13: Parents strongly
cautioned. / R: Restricted. Children under 17 should
be accompanied by an adult. / NO-17: No children
under age 17. / X: Adults only, / NR: Not rated,
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the PG-13 category,
then R, N0-17 and X will automatically be
blocked,
Canadian English: You can block TV programs
depending on their Anglophone Canadian ratings.
- C: Programming intended for children under age 8, /
08+: Programming generally considered acceptable
for children 8 years and over to watch on their own,
/ G: General programming, suitable for all audiences.
/ PG: Parental Guidance. / 14+: Programming
contains themes or content which may not be
suitable for viewers under the age of 14. / 18+: Adult
programming,
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the G category, then
PG, 14+ and 18+ will automatically be blocked.
Canadian French: You can block TV programs
depending on their French Canadian rating.
- G: General / 8 ans+: Programming generally
considered acceptable for children 8 years and over
to watch on their own. / 13 ans+: Programming may
not be suitable for children under the age of 13. / 16
ans+: Programming is not suitable for children under
the age of 16. / 18 ans+: Programming restricted to
adults.
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the 8 ans+ category,
then 13 ans+, 16 ans+ and 18 ans+ will
automatically be blocked also.
Downloadable U.S. Rating: Parental restriction
information can be used while watching DTV channels.
English 25
Basic Features
m
NOTE
* If information is not downloaded from the
broadcasting station, the Downloadable U.S.
Rating menu is deactivated.
* Parental restriction information is automatically
downloaded while watching DTV channels. It
may take several seconds.
* The Downioadable U.S. Rating menu
is available for use after information is
downloaded from the broadcasting station.
However, depending on the information from
the broadcasting station, it may not be available
for use.
* Parental restriction levels differ depending on
the broadcasting station. The default menu
name and Downioadable US Rating change
depending on the downloaded information.
* Even if you set the on-screen display to another
language, the Downloadable U.S. Rating
menu will appear in English only.
* The rating will automatically block certain
categories that deal with more sensitive
material.
* The rating titles (For example: Humor Level..etc)
and TV ratings (For example: DH, MH, H..etc)
may differ depending on the broadcasting
station.
Change PIN: The Change PIN screen will appear.
Choose any 4 digits for your PIN and enter them. As
soon as the 4 digits are entered, the Confirm New
PIN screen appears. Re-enter the same 4 digits. When
the Confirm screen disappears, your PIN has been
memorized.
How to watch a restricted channel
If the TV is tuned to a restricted channel, the V-Chip will
block it. The screen will go blank and the following message
will appear:
This channel is blocked by V-Chip. Please enter the PIN to
unblock.
If you forget the PIN, press the remote-control buttons
in the following sequence, which resets the pin to '9-0-
0-0:" POWER (off) --_ MUTE _ 8 _ 2 --_ 4 --_ POWER
(on)
Other Features
(_ MENUiTR --_Setup _ ENTERE_
Menu Language ...........................................................................................................................................................................
Set the menu language.
1. Select Menu Language and press the ENTERI_
button.
2. Choose desired language and press the ENTERI_
button.
Choose between English, Espa_ol and Fran_;ais.
Caption .......................................................................................................................................................................................................................................
(On-Screen Text Messages)
m Caption (Off / On): You can switch the
caption function on or off. If captions are
not available, they will not be displayed on
the screen.
The Caption feature doesn't work in
Component, HDMI or PC modes.
m Caption Mode: You can select the desired
caption mode.
The availability of captions depends on the
program being broadcast.
Default / OO1~004 / Text1 ~Text4: (analog channels
only) The Analog Caption function operates in either
analog TV channel mode or when a signal is supplied
from an external device to the T_. (Depending on the
broadcasting signal, the Analog Caption function may or
may not work with digital channels.)
Default / Service1 ~Service6 / OO1~004 /
Text1 ~Text4: (digital channels only) The Digital Captions
function works with digital channels.
Service1~6 may not be available in digital caption
mode depending on the broadcast.
6 English
m
DigitalCaptionOptions:(digitalchannelsonly)
Size:OptionsincludeDefault,Small,Standardand
Large.ThedefaultisStandard.
FontStyle:OptionsincludeDefaultandStyles0to7.
ThedefaultisStyle0.
ForegroundColor:OptionsincludeDefault,White,
Black,Red,Green,Blue,Yellow,MagentaandCyan.You
canchangethecoloroftheletter.ThedefaultisWhite.
BackgroundColor:OptionsincludeDefault,White,
Black,Red,Green,Blue,Yellow,MagentaandCyan.
Youcanchangethebackgroundcolorofthecaption.
ThedefaultisBlack.
ForegroundOpacity:Thisadjuststheopacityoftext.
OptionsincludeDefault,Transparent,Translucent,Solid
andFlashing.
BackgroundOpacity:Thisadjuststheopacityof
thecaptionbackground.OptionsincludeDefault,
Transparent,Translucent,SolidandFlashing.
ReturntoDefault:ThisoptionsetseachSize,Font
Style,ForegroundColor,BackgroundColor,Foreground
OpacityandBackgroundOpacitytoitsdefault.
NOTE
* DigitalCaptionOptionsareavailableonly
whenDefaultandService1~ Service6 can be
selected in Caption Mode.
* The availability of captions depends on the
program being broadcasted.
* The Default setting follows the standards set by
the broadcaster.
* The Foreground and Background cannot be set
to have the same color.
* You cannot set both the Foreground Opacity
and the Background Opacity to Transparent,
Network (Network Type / Network Setup
/ Network Test / SWL (Samsung Wireless
Link) / SWL Connect )............................................................................................................................
For details on set up options, refer to the "Network
Connection" instructions (p. 30).
General
ml Game Mode (Off / On): When connecting to a game
console such as PlayStation TM or Xbox TM, you can enjoy
a more realistic gaming experience by selecting the
game menu.
NOTE
* Precautions and limitations for game mode
- To disconnect the game console and connect
another external device, set Game Mode to Off in
the setup menu.
- If you display the TV menu in Game Mode, the
screen shakes slightly.
* Game Mode is not available when the input source
is set to TV or PC.
* After connecting the game console, set Game Mode
to On. Unfortunately, you may notice reduced picture
quality.
* If Game Mode is On:
- Picture mode is set to Standard and Sound mode
is set to Movie.
- Equalizer is not available.
ml BD Wise (Off / On): Provides the optimal picture quality
for Samsung DVD, Blu-ray and Home Theater products
which support BD Wise. When BD Wise is turned On,
the picture mode is automatically changed to the optimal
resolution.
Available when connecting Samsung products
that support BD Wise through a HDMI cable.
ml Menu Transparency (Bright / Dark): Set the
Transparency of the menu.
ml Melody (Off / Low / Medium / High): Set so that a
melody plays when the TV is turned on or off.
Melody is disabled when FastStart is On.
ml FastStart (Off / On): When the TV is powered on, the
screen will come on quickly with this feature.
ml Light Effect (Off / In Standby / Watching TV /
Always): You can turn the LED on/off on the front of T_.
Turn it off to save power or if the LED is too bright for
you.
Set the Light Effect to Off to reduce the power
consumption.
The color of light may very depending on the
model.
English 27
Basic Features
Wirebss Remote Contro( (Off / On)................................................
Turn on/off or give permission to Samsung mobile phones/
devices.
You must have a Samsung Mobile phone/device which
supports Wireless Remote Control. For more details, refer
to each device's manual.
Picture In Picture (PIP)
PIP_
You can watch the TV tuner and one external video source
simultaneously, PIP (Picture-in-Picture) does not function in
the same mode.
(_ MENU rlTl _ Setup --_ PiP --_ ENTERI_
NOTE
For PIP sound, refer to the Sound Select
instructions.
If you turn the TV off while watching in PIP mode, the
PIP window will disappear.
You may notice that the picture in the PIP window
becomes slightly unnatural when you use the main
screen to view a game or karaoke.
While V-Chip or Internet@TV is in operation, the PiP
function cannot be used.
* PIP Settings
Im
Im
Im
Im
Im
Im
PC
PIP (Off / On): Activate or deactivate the PIP function.
Air/Cable (Air/Cable): Select either Air or Cable as the
input source for the sub-screen.
Channel: Select the channel for the sub-screen.
Size (F_I / _ / _ /iil): Select a size for the sub-
picture,
Position ([_;} / [Z / [_ / [_): Select a position for the
sub-picture,
In Double (_, iiq) mode, Position cannot be
selected.
Sound Select (Main / Sub): You can choose the
desired sound (Main / Sub) in PIP mode.
[_ MENU ITTI--_Support-_ ENTER IZ_
Legal Notice ...................................................................................................................................................................................................
The Legal Notice may differ depending on the country.
Self Diagnos!s .......................................................................................................................................................................................
Self Diagnostic might take few seconds, this is part of
the normal operation of the TM
m Picture Test: Use to check for picture problems.
Yes: If the test pattern does not appear or there is
noise in the test pattern, select Yes, There may be a
problem with the T_, Contact Samsung's Call Center for
assistance (1-800-SAMSUNG),
No: If the test pattern is properly displayed, select No.
There may be a problem with your external equipment,
Please check your connections, If the problem persists,
refer to the external device's user manual.
m Sound Test: Use the built-in melody sound to check for
sound problems.
If you hear no sound from the TV's speakers,
before performing the sound test, make sure
Speaker Select is set to TV Speaker in the
Sound menu.
The melody will be heard during the test even if
Speaker Select is set to External Speaker or the
sound is muted by pressing the MUTE button.
Yes: If you can hear sound only from one speaker or not
at all during the sound test, select Yes, There may be a
problem with the T_, Contact Samsung's Call Center for
assistance (1-800-SAMSUNG),
No: If you can hear sound from the speakers, select No.
There may be a problem with your external equipment,
Please check your connections, If the problem persists,
refer to the external device's user manual.
m Signal Information: (digital channels only)An HD
channel's reception quality is either perfect or the
channels are unavailable. Adjust your antenna to
increase signal strength.
m Troubleshooting: If the TV seems to have a problem,
refer to this description.
If none of these troubleshooting tips apply, contact
the Samsung customer service center.
8 English

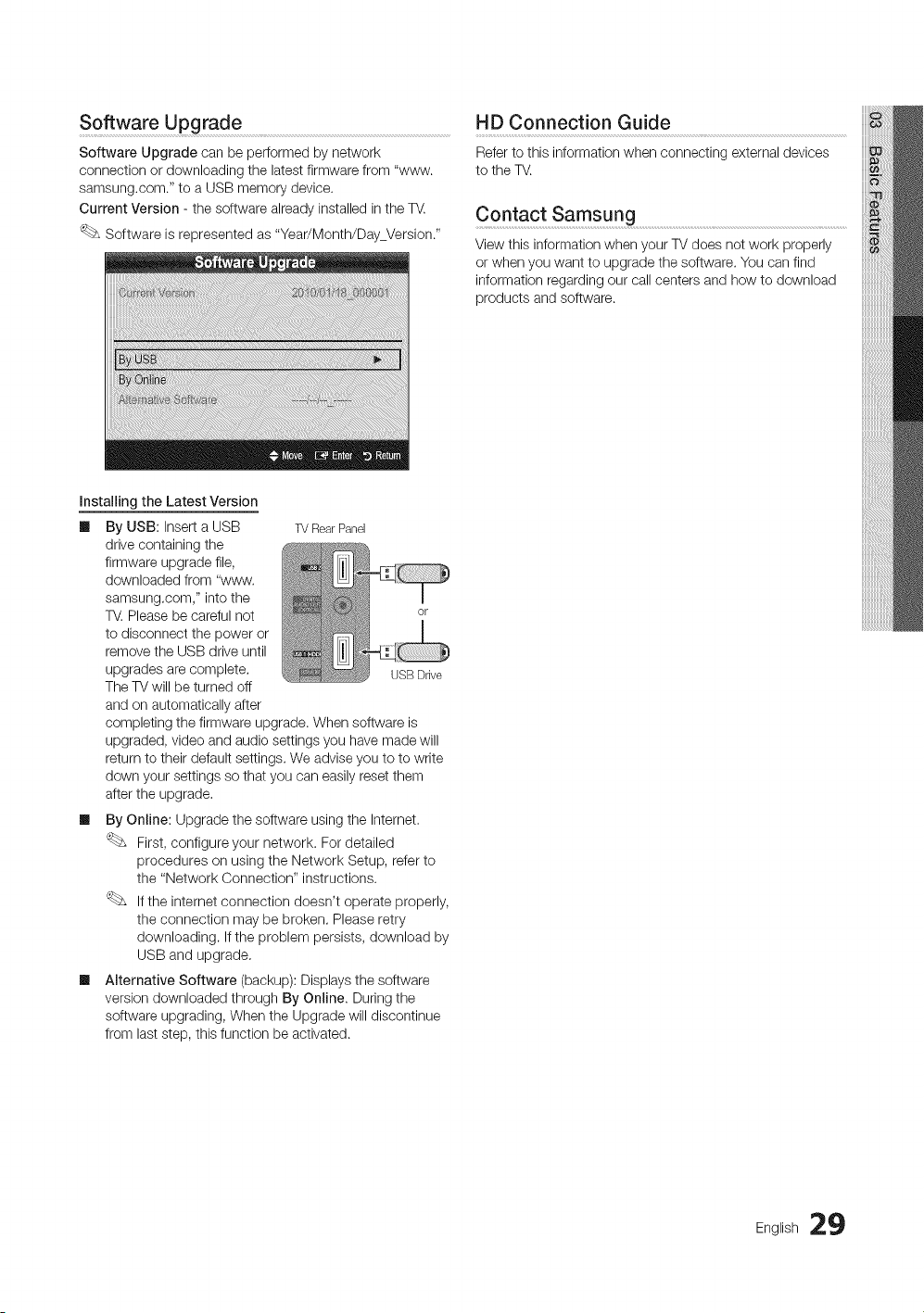

Software Upgrade
Software Upgrade can be performed by network
connection or downloading the latest firmware from "www.
samsung,com." to a USB memory device.
Current Version - the software already installed in the T_.
Software is represented as "Year/Month/DayVersion/'
HD Connection Guide
Refer to this information when connecting external devices
to the TV.
ContactSamsung..................................................................................
View this information when your TV does not work properly
or when you want to upgrade the software. You can find
information regarding our call centers and how to download
products and software.
Installing the Latest Version
Ill By USB: Insert a USB
drive containing the
firmware upgrade file,
downloaded from "www.
samsung.com," into the
TV. Please be careful not
to disconnect the power or
remove the USB drive until
upgrades are complete.
The TV will be turned off
and on automatically after
completing the firmware upgrade. When software is
upgraded, video and audio settings you have made will
return to their default settings. We advise you to to write
down your settings so that you can easily reset them
after the upgrade,
Ill By Online: Upgrade the software using the Internet.
First, configure your network. For detailed
procedures on using the Network Setup, refer to
the "Network Connection" instructions.
If the internet connection doesn't operate properly,
the connection may be broken. Please retry
downloading. If the problem persists, download by
USB and upgrade,
Ill Alternative Software (backup): Displays the software
version downloaded through By Online. During the
software upgrading, When the Upgrade will discontinue
from last step, this function be activated.
TVRearPanel
N
; _Z2"2
USBDrive
English 29
Advanced Features
You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless
connection.
Connecting to a Wired Network
You can attach your TV to your LAN using cable in three ways:
• You can attach your TV to your LAN by connecting the LAN port on the back of your 77/to an external modem using a Cat
5 cable. See the diagram below.
TheModemPortontheWall ExternalModem 77/RearPanel
(ADSL/ VDSL/ CableTV)
LAN Adapter (Supplied)
You can attach your TV to your LAN by connecting the LAN port on the back of your 77/to a IP Sharer which is connected
to an external modem. Use a Oat 5 cable for the connection. See the diagram below.
TheModemPortontheWall
ExternalModem
(ADSL/ VDSL/ CableTV)
Modem Cable (Not Supplied)
IP Sharer
(having DHCP server)
LAN Cable (Not Supplied) LAN Cable
(Not Supplied)
W Rear Panel
LAN Sable (Not Supplbd)
If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration
Protocol (DHCP). Modems and reuters that support DHCP automatically provide the IP address, subnet mask, gateway,
and DNS values your 77/needs to access the Internet so you don't have to enter them manually. Most home networks are
Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address,
subnet mask, gateway, and DNS values manually on your TV's Cable Setup Screen when you set up the network
connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If
you have a Windows computer, you can also get these values through your computer.
You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that
support DHCP also let you use Static IP addresses.
0 English
Network Setup (Auto) Network Setup (Manual)
Use the Automatic Network Setup when connecting your
TV to a network that supports DHCR To set up your TV's
cable network connection automatically, follow these steps:
How to set up automatically
1. Connect your TV to your LAN as described in the
previous section.
2. Turn on your W, press the MENU button on your
remote, use the A or T button to select Setup, and
then press the ENTERI_ button.
3. Use the A or T button to select Network in the Setup
menu, and then press the ENTERI_ button. The
Network screen appears.
4. On the Network screen, select Network Type.
5. Set Network Type to Wired.
6. Select Network Setup. The Network Setup screen
appears.
Use the Manual Network Setup when connecting your TV to
a network that requires a Static IP address.
Getting the Network Connection Values
To get the Network connection values on most Windows
computers, follow these steps:
1. Right click the Network icon on the bottom right of the
screen.
2. In the pop-up menu that appears, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support Tab, click the Details button. The
Network connection values are displayed.
How to set up manually
To set up your TV's cable network connection manually,
follow these steps:
1. Follow Steps 1 through 6 in the "How to set up
automatically" procedure.
2. Set Internet Protocol Setup to Manual,
3. Press the T button on your remote to go to the first
entry field.
4. Enter the IP Address, Subnet Mask, Gateway, and
DNS Server values. Use the number buttons on your
remote to enter numbers and the arrow buttons to move
from one entry field to another.
5. When done, press the RETURN button on your remote.
6. Select Network Test to check the Internet connectivity.
7. Set Internet Protocol Setup to Auto.
8. Auto acquires and enters the needed Internet values
automatically.
9. Wait two minutes, and then press the RETURN button
on your remote.
10. If the Network Function has not acquired the network
connection values, go to the directions for Manual.
English 31
Advanced Features
Connecting to a Wireless Network
To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter
(WIS09ABGN, WIS09ABGN2, WIS10ABGN), which you connect to your TV's back or side panel USB jack. See the illustration
below.
'_bs To use the SWL (Samsung Wireless Link) function, connect to the USB 1 (HDD} port,
TV Rear Panel
Wirebss IP Sharer
Tile LAN Port on the Wall (AP having DHCP Server)
LAN Cable (Not Supplied)
Samsung Wirebss
LAN Adapter
Samsung's Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts.
com. Samsung's Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung
recommends using IEEE 802.11N. When you play video over a IEEE 802.11B/G connection, the video may not play smoothly.
NOTE
* You must use the "Samsung Wireless LAN Adapter" (WIS09ABGN, WIS09ABGN2, WIS10ABGN) to use a wireless
network.
* Samsung's Wireless LAN Adapter is sold separately. The SAMSUNG Wireless LAN Adapter is offered by select
retailers, Ecommerce sites and Samsungparts.com.
* To use a wireless network, your TV must connect wirelessly to a wireless IP sharer (either a router or a modem). If the
wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network.
* Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer
is currently being used by another device nearby, this will result in interference and communication failure.
* If you apply a security system other than the systems listed blow, it will not work with the TV.
* If you select the Pure High-throughput (Greenfield) 802.11n mode and set your AP's Security Encryption type to WEP,
TKIP or TKIPAES (WPS2Mixed), your Samsung TV will not support the connection in compliance with new Wi-Fi
certification specifications.
* If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button
Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in
either mode.
* If your router, modem, or device isn't certified, it may not connect to the TV via the "Samsung Wireless LAN Adapter."
* Connection Methods: You can setup the wireless network connection six ways.
- Samsung Auto Configuration - For non-Samsung devices.
- PBC (WPS)
- Auto Setup (Using the Auto Network Search function
- Manual Setup
- SWL (Samsung Wireless Link) - For Samsung devices only.
- Ad-Hoc
* The Samsung Wireless LAN Adapter may not be recognized or work properly when connecting via a USB hub or via
a USB extension cable other than the one available from Samsung.
2 English
Notice
The picture may appear corrupted or have static for some channels when the TV is connected to the Samsung Wireless LAN
Adapter. In such a case, establish a connection using one of the following methods or connect the Samsung Wireless LAN
Adapter using a USB cable in a place that is not affected by radio interference.
Connect using the USB right angle adapter
To connect the Samsung Wireless LAN Adapter using the USB
right angle adapter, follow these steps:
1. Connect the USB right angle adapter to the Samsung
Wireless LAN Adapter.
2. Connect the other end of the right angle adapter to the USB
1 (HDD} port.
Connect via an extension cable
i
• L i '
To reconnect the Samsung Wireless LAN Adapter using
the extension cable, follow these steps:
The Samsung Wireless LAN Adapter should be
installed in an interference-free area in order to
avoid interference between the adapter and tuner.
1. Connect the extension cable to the USB 1 (HDD}
port.
2. Connect the extension cable and Samsung Wireless
LAN Adapter.
3. Attach the Samsung Wireless LAN Adapter to the
back of the TV near the top, using double-sided
adhesive tape.
Network Setup (Samsung Auto
Configuration) .....................................................................................................................................................................................
The Samsung Auto Configuration function lets you connect
your Samsung TV automatically to non-Samsung wireless
APs. If your non-Samsung AP does not support Samsung
Auto Configuration, you must connect using one of the
other methods: PBC 6NPS), auto configuration, or manual
configuration.
To use this function, you must set SWL (Samsung
Wireless Link) to Off in the TV's on-screen menu.
You can check for equipment that supports Samsung
Auto Configuration on www.samsung.com.
How to set up using Samsung Auto Configuration
1. Place the AP and TV next to each other and turn them
on,
Because AP booting times vary, you may have
to wait approximately two minutes for your AP to
boot up.
Ensure the LAN cable is connected to the
WAN port of the AP during Samsung Auto
Configuration. If it is not connected, Samsung
Auto Configuration only confirms that the TV is
connected to the AP, but does not confirm it is
connected to the Internet.
2. After 2 minutes, connect the Samsung Wireless LAN
Adapter to the TV When the Samsung Wireless LAN
Adapter establishes a connection with your W, a pop-up
window appears.
3. As soon as a connection is established, place the AP
parallel to the Samsung Wireless LAN Adapter and not
farther than 9 and 7/8s inches (25cm) from it.
4. Wait until the connection is automatically established.
If Samsung Auto Configuration does not connect
your TV to your AP, a pop-up window appears on
the screen notifying you of the failure. If you want
to try using Samsung Auto Configuration again,
reset the AP, disconnect the Samsung Wireless
LAN Adapter and then try again from Step 1. You
can also choose one of the other connection
setup methods: PBC (WPS), auto, or manual.
5. Place the AP in a desired location.
If the AP settings change or you install a new
AP, you must perform the Samsung Auto
Configuration procedure again, beginning from
Step 1.
English 33
Advanced Features
Network Setup (PBC (WPS)) ............................................................................................
How to set up using PBC (WPS)
If your router has a PBC (WPS) button, follow these steps:
1. Connect your TV to your LAN as described in the
previous section.
2. Turn on your W, press the MENU button on your
remote, use the A or T button to select Setup, and
then press the ENTERI_ button.
3. Use the A or T button to select Network in the Setup
menu, and then press the ENTERIZ_ button.
4. On the Network screen, select Network Type.
5. Set Network Type to Wireless.
6. Select Network Setup. The Network Setup screen
appears.
How to set up automatically
To set up the wireless connection automatically, follow these
steps:
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" procedure.
2. Press the T button to select Internet Protocol Setup,
and then press the ENTERE_ button. Press the A or
_r button to select Auto, and then press the ENTERI_
button.
3. Press the A button to go to Select a Network, and
then press the ENTERIZ_ button. The Network function
searches for available wireless networks. When done, it
displays a list of the available networks.
4. In the list of networks, press the A or _' button to select
a network, and then press the ENTERI_ button.
If the AP is set to Hidden (Invisible), you have
to select Add Network and enter the correct
Network Name (SSID) and Security Key to
establish the connection.
5. If the Security/PIN pop-up appears, go to Step 6. If the
Network Connecting Screen appears, go to Step 10.
6. Press the A or _' button to select Security or PIN. For
most home networks, you would select Security (for
Security Key). The Security Screen appears.
7. Press the Red button on your remote.
8. Press the PBC (WPS) button on your router within 2
minutes. Your TV player automatically acquires all the
network setting values it needs and connects to your
network.
9. After the network connection is set up, press the
RETURN button to exit the Network Setup screen.
Network Setup (Auto)
Most wireless networks have an optional security system
that requires devices that access the network to transmit
an encrypted security code called an Access or Security
Key. The Security Key is based on a Pass Phrase, typically
a word or a series of letters and numbers of a specified
length you were asked to enter when you set up security for
your wireless network. If you use this method of setting up
the network connection, and have a Security Key for your
wireless network, you will have to enter the Pass Phrase
during the setup process.
7.
8.
On the Security screen, enter your network's Pass
Phrase.
You should be able to find the Pass Phrase on
one of the set up screens you used to set up your
router or modem.
To enter the Pass Phrase, follow these general
directions:
- Press the number buttons on your remote to enter
numbers.
- Use the direction buttons on your remote to move
from button to button on the Security Key screen.
- Press the Red button to change case or display
symbols/characters.
- To a enter letter or symbol, move to the letter or
symbol, and then press the ENTERE_ button.
- To delete the last letter or number you entered, press
the Green button on your remote.
4 English
9. Whendone,presstheBluebuttononyourremote.The
NetworkConnectingscreenappears.
10.Waituntiltheconnectionconfirmationmessageis
displayed,andthenpresstheENTERI_button.The
NetworkSetupscreenre-appears.
11.Totesttheconnection,presstheRETURNbuttonto
selectNetworkTest,andthenpresstheENTERE_
button.
Network Setup (Ad-Hoc) ............................................................................................................
You can connect to a mobile device without an access point
through the "Samsung Wireless LAN Adapter" by using a
peer to peer network.
This function is available when SWL (Samsung
Wireless Link) is set to Off in the TV's on-screen
menu.
How to connect to new Ad-hoc device
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" (p. 34).
2. Choose Select a network. A list of devices/networks
appears.
3. While in the device list, press the Blue button on the
remote.
The message Ad-hoc is a direct Wi-Fi
connection with cell phone or PC. The existing
network system may have limited functionality.
Do you want to change the network
connection? is displayed.
4. Input the generated Network Name (SSID) and
Security Key into the device you want to connect.
How to connect an existing Ad-hoc device
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" (p. 34).
2. Choose Select a network. The Device/Network list
appears.
3. Select the device you want in the Device list.
4. If security key is required, input the security key.
If network doesn't operate normally, check
the Network Name (SSID) and Security Key
again. An incorrect Security Key may cause a
malfunction.
Network Setup (Manual)
If the other methods do not work, you need to enter the
Network setting values manually.
Getting the Network Connection Values
To get the Network connection values on most Windows
computers, follow these steps:
1. Right click the Network icon on the bottom right of the
screen.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support tab, click the Details button. The
Network settings are displayed.
How to set up manually
To enter the Network connection values manually, follow
these steps:
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" (p. 34).
2. Press the T button to select Internet Protocol Setup,
and then press the ENTERC_ button. Press the A
or T button to select Manual, and then press the
ENTER E_ button.
3. Press the T button to go to the first entry field (IP
Address).
4. Use the number buttons to enter numbers.
5. When done with each field, use the _,, button to move
successively to the next field. You can also use the other
arrow buttons to move up, down, and back.
6. Enter the IP Address, Subnet Mask, and Gateway
values.
7. Press the A or T button to go to DNS.
8. Press the T button to go to the first DNS entry field.
Enter the numbers as above.
9. When done, press the A button to go to Select a
Network. Select your network, and then press the
ENTER C_ button.
10. Go to Step 4 in the "How to set up automatically" (p.
34), and follow the directions from that point on.
English 35
Advanced Features
SWL (Samsung Wireless Link)
This function lets you connect your TV to a Samsung device
(router, etc.) that supports PBC (WPS), You can connect the
TV to the device even if a sharer is not connected to the TV.
For the TV to use Internet@TV, the AP (access point)
must be connected to the wireless network.
if a Samsung Wireless Lan Adapter is connected to the
USB 2 port, the network may not operate normally. We
recommend connecting it to the USB 1 (HDD} port.
Only sharers using the 2.4 Ghz band are supported.
Sharers using the 5 Ghz band are not supported.
SWL connect
You can directly connect the TV to a Samsung device that
supports PBO (WPS),
This function is available when SWL (Samsung
Wireless Link) is set to On,
To use the SWL (Samsung Wireless Link) function,
connect the Samsung Wireless LAN Adpater to the
USB 1 (HDD} port.
How to connect using Samsung Wireless Link
To connect using Samsung Wireless Link, follow these steps:
1. Follow Steps 1 through 5 in the "How to set up using
PBC (WPS)" (p. 34),
2. Select SWL(Samsung Wireless Link) by using the _r
button, and then press the ENTERI_ button to turn it
On.
3. Select SWL connect by using the _r button, and then
press the ENTERE_ button,
4. If the "Press the PBC button on the device which
supports PBC button to connect within 120
seconds" message appears, press the PBC button on
the device to connect.
For more information, refer to the wireless network
setup manual of the device to be connected.
5. If the TV connects properly to the device after the count
in the message box starts, then the message box
disappears automatically.
If the connection fails, please retry after 2 minutes.
If Your TV Fails to Connect to the Internet
Your TV may not be able to connect to the Internet
because your ISP has permanently registered the
MAO address (a unique identifying number) of your
PC or modem, which it then authenticates each time
you connect to the Internet as a way of preventing
unauthorized access. As your TV has a different MAC
address, your ISP can not authenticate its MAC address,
and your TV can not connect.
To resolve this problem, ask your ISP about the
procedures required to connect devices other than a PC
(such as your TV) to the Internet.
If your Internet service provider requires an ID or password
to connect to the Internet, your TV may not be able to
connect to the Internet. If this is the case, you must enter
your ID or password when connecting to the Internet.
The internet connection may fail because of a firewall
problem. If this is the case, contact your Internet service
provider.
If you cannot connect to the Internet even after you have
followed the procedures of your Internet service provider,
please contact Samsung Electronics at 1-800-SAMSUNG.
6 English
Enjoyphotos,musicand/ormoviefilessavedon
aUSBMassStorageClass(MSC)device.
(_ MENUiTrl --_Application -+ Content
View --_ Media Play _ ENTER E_
I
1.
2.
3.
Connecting a USB Device
Turn on your W,
Connect a USB device containing photo, music and/or movie files to the USB 1
(HDD} or USB 2 jack on the side of the TV,
When USB is connected to the W, a popup window appears. Then you can
select Media Play.
TV Rear Panel
USB Dnve
Connecting to your PC through a network
You can play pictures, music and videos saved on your PC through a network connection in the Media Play mode.
If you want to use Media Play to play files saved on your PC over your TV, you should download "PC Share Manager"
and users manual from "www.samsung.com."
PC TVRearPanel
LAN i i :::::::::::::::::::::::::::
;:::::::: =====================
LAN Ads ter ......................................................................... _t!_....................................................................... Samsung
(Suppli_ _ " Wireless
f WirelessIPSharerLANAdapter
[lii
LAN Cable (Not Supplied) LAN Cable (Not Supplied) LAN Cable (Not Supplied)
iiii
iiii
1. For more information on how to configure your network, refer to "Network Connection" (p. 30),
- You are recommended to locate both the TV and the PC in same subnet. The first 3 parts of the subnet address of the
TV and the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g, IP
Address: 123.456.789,**)
2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager
Program will be installed.
- You can connect the TV to the PC directly without connecting it through a Sharer (Router).
English 37
Advanced Features
Functions that are not supported when connecting to a PC through a network:
* The Background Music and Background Music Setting functions.
* Sorting files by preference in the Photos, Music, and Videos folders.
* The F_3 (REW) or F_q (FF) button while a movie is playing.
Divx DRM, Multi-audio, embedded captions are not supported.
Samsung PC Share manager should be permitted by the firewall program on your PC.
When you use Media Play mode through a network connection, depending on the functions of the provided server:
* The sorting method may vary.
* The scene search function may not be supported.
* The Play Continuously function, which resumes playing of a video, may not be supported.
- The Play Continuously function does not support multiple users. (It will have only memorized the point where the
most recent user stopped playing.)
* The _ or I_ buttons may not work depending on the content information.
* You may experience file stuttering while playing a video in Media Play through a network connection.
It might not work properly with unlicensed multimedia files.
Need-to-Know List before using Media Play
* MTP (Media Transfer Protocol) is not supported.
* The file system supports FAT16, FAT32 and NTFS.
* Certain types of USB Digital camera and audio devices may not be compatible with this TV.
* Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only
Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not
supported). Devices should be connected directly to the TV's USB port.
* Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.
SAMSUNG is not responsible for any data file damage or data loss.
* Connect a USB HDD to the dedicated USB 1 (HDD) port.
* Do not disconnect the USB device while it is loading.
* The higher the resolution of the image, the longer it takes to display on the screen.
* The maximum supported JPEG resolution is 15360X8640 pixels.
* For unsupported or corrupted files, the "Not Supported File Format" message is displayed.
* If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.
* MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management
(DRM) is a technology that supports the creation, distribution and management of the content in an integrated and
comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the
illegal copying of contents, as well as managing billings and settlements.
* If more than 2 PTP devices are connected, you can only use one at a time.
* If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high
power (more than 500mA or 5V) may not be supported.
* If an over-power warning message is displayed while you are connecting or using a USB device, the device may not
be recognized or may malfunction.
* If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.
* The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.
* If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.
* If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is
not played, connect the USB device to the PC, format the device and check the connection.
* If a file deleted from the PC is still found when Media Play is run, use the "Empty the Recycle Bin" function on the PC
to permanently delete the file.
8 English
Screen Display
Move to the desired file using the up/down/right/left buttons and then press the ENTERI_ or F_q (Play) button. The file is
played.
Supports the View Devices and Home in Media Play homepage.
You can ascertain the selected
file name and the number of files
and page.
Displays the sorting standard.
"''''"(_bsTtTesorting standard is
different depending on the
contents.
File List Section:
You can confirm the files and
groups that aresorted by
category.
-- Operation Buttons
D Red (Change Device): Selects a connected device.
_!/Green (Preference): Sets the file preference. (not supported in Basicview)
Yellow(Select): Selects multiple files from file list. Selected files are marked with a symbol.
Blue (Sorting): Selects the sort list.
_'3 Tools: Displays the option menu.
Using the _ (REW) or _ (FF) button, file list can move to next or previous page.
Videos
Playing Video
1. Press the _ or I_ button to select Videos, then press the ENTERI_ button in the Media Play menu.
2. Press the _/I_/_,/T button to select the desired video in the file list.
3. Press the ENTERI_ button or F_q (Play) button.
- The selected file is displayed on the top with its playing time.
- If video time information is unknown, play time and progress bar are not displayed.
- During video playback, you can search using the 41and I_ button.
In this mode, you can enjoy movie clips contained on a Game,
but you cannot play the Game itself.
• Supported Subtitle Formats
XML
HTML
string-based
string-based
string-based
English 39
Advanced Features
• Supported Video Formats
Divx 3.11 / 4.x / 5.1/6.0 1920x1080 6- 30 8
XvD 1920x1080 6 - 30 8
*.avi AVI MP3 / AC3 / LPCM /
H.264 BP / MP / HP 1920xl 080 6 - 30 25
*.mkv MKV ADPCM / DTS Core
MPEG4 SP/ASP 1920x1080 6-30 8
Motion JPEG 800x600 6 - 30 8
Divx 3.11 / 4.x / 5.1/6.0 1920x1080 6 - 30 8
XvD 1920x1080 6 - 30 8
MP3 / AC3 / LPCM /
*.asf ASF H.264 BP / MP / HP 1920x1080 6 - 30 25
ADPCM / WMA
MPEG4 SP / ASP 1920x1080 6-30 8
Motion JPEG 800x600 6 - 30 8
*.wmv ASF Window Media Video v9 1920x1080 6 - 30 25 WMA
H.264 BP / MP / HP 1920x1080 6 - 30 25
*.mp4 MP4 MPEG4 SP / ASP 1920x1080 6 - 30 8 MP3 / ADPCM / AAC
XVID 1920x1080 6 - 30 8
H.264 BP / MP / HP 1920x1080 6 - 30 25
*.3gp 3GPP ADPCM / AAC / HE-AAC
MPEG4 SP / ASP 1920x1080 6-30 8
VRO MPEG1 1920x1080 24 / 25 / 30 30
*.wo AC3 / MPEG / LPCM
VOB MPEG2 1920x1080 24 / 25 / 30 30
MPEG1 1920x1080 24 / 25 / 30 30
*.mpg PS MPEG2 1920x1080 24 / 25 / 30 30 AC3 / MPEG / LPCM / AAC
*.mpeg
H.264 1920x1080 6 - 30 25
MPEG2 1920x1080 24 / 25 / 30 30
*.ts
AC3 / AAC / MP3 / DD+ /
*.tp TS H.264 1920x1080 6 - 30 25
HE-AAC
*.trp VC1 1920x1080 6 ~ 30 25
Other Restrictions
NOTE
* If there are problems with the contents of a codec, the codec will not be supported.
* If the information for a Container is incorrect and the file is in error, the Container will not be able to play
correctly.
* Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec
listed in the table above.
* If the Index Table is in error, the Seek (Jump) function is not supported.
• Supports up to H.264, Level 4.1
• H.264FMO/ASO/RS, VC1 SP/MP/APL4andAVCHDarenot
supported.
• XVID, MPEG4 SR ASP :
- Below 1280 x 720:60 frame max
- Above 1280 x 720:30 frame max
• GMC 2 over is not supported.
• H.263is not supported.
• Only Samsung Techwin MJPEG is supported.
• Supports up to WMA 7, 8, 9, STD
• WMA 9 PRO does not support 2 channel excess multi channel or
Iosslessaudio.
• WMA sampling rate 22050Hz mono is not supported.
0 English
Playing movie continuously (Resume Play)
If you exit the playing movie function, the movie can be played later from the point where it was stopped.
If you press the ENTERL%_button (Chaptering) during playing the file, you can explore scene divided into 5 chapters
you want.
1. Select the movie file you want to play continuously by pressing
the ,4 or I_ button to select it from the file list section.
2. Press the F_q (Play) / ENTER I_ button.
3. Select Play Continuously (Resume Play) by pressing the Blue
button. The Movie will begin to play from where it was stopped.
The Blue button is available when resuming play.
If the Continuous Movie Play Help function is set to On
in the Settings menu, a pop-up message will appear
when you resume play a movie file.
Music
Playing Music
1. Press the ,_ or I_ button to select Music, then press the
ENTERE__ button in the Media Play menu.
2. Press the ,_/I_/A/T button to select the desired Music file in
the file list.
3. Press the ENTERIZ_ button or F_q (Play) button.
- During music playback, you can search using the 41 and I_
button.
- _ (REW) and [_3 (FF)buttons do not function during play.
Only displays the files with MP3 and PCM file extension. Other
file extensions are not displayed, even if they are saved on the
same USB device.
If the sound is abnormal when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file
may cause a sound problem.)
Creating My Playlist
1. Press the 4/I_/A/T button to select the tracks you want to add and press the TOOLS button.
2. Select Add My Playlist.
3. When the Add My Playlist menu appears, select New My Playlist.
To add to an old play list, simply select the play list you want to add music to.
4. The newly created or updated playlist will be in the main Music page.
Playing My Playlist
Select the My Playlist folder and it will play automatically. Press the A or T button to select a different music file within the
play list.
English 4 1
Advanced Features
Photos
Viewing a Photo (or Slide Show)
1. Press the ._ or I_ button to select Photos, then press the
ENTERE__ button in the Media Play menu.
2. Press the ._/I_/A/T button to select the desired photo in the
file list.
3. Press the ENTERIZ_ button or _ (Play) button.
- While a photo list is displayed, press the FCq(Play)/
ENTERL_ button on the remote control to start the slide
show.
- All files in the file list section will be displayed in the slide show.
- During the slide show, files are displayed in order.
Music files can be automatically played during the Slide Show if
the Background Music is set to On,
The BGM Mode cannot be changed until the BGM has finished
loading,
Playing Multiple Files
Playing selected video/music/photo files
1. Press the Yellow button in the file list to select the desired file.
2. Repeat the above operation to select multiple files.
NOTE
" The _ mark appears to the left of the selected files.
" To cancel a selection, press the Yellow button again,
. To deselect all selected files, press the TOOLS button
and select Deselect All.
3. Press the TOOLS button and select Play Selected Contents.
Playing the video/music/photo file group
1. While a file list is displayed, move to any file in the desired group.
2. Press the TOOLS button and select Play Current Group.
Media Play - Additional Functions
Sorting the file list
Press the Blue button in the file list to sort the files,
_ Basic View
Title
Preference
_a} Latest Date
f_ Earliest Date
Artist
_ Album
Genre
Mood
_ Monthly
42 English
___: _!_ii¸_!_!iii!i_iiiii_ii_ii_!i_iii_ii_ii_ii_ii_ili!ii!ii!ii!ii!i@!i_!i_!i_!i_!_i!ii!ii!ii!i_i_i!i!ii!ii!ii!ii!i¸i_i!i¸ii¸__!_
DisplaysthewholefoldenYoucan viewthephotobyselectingthefolden
SortsanddisplaysthefiletitleinSymbol/Number/Alphabet/Specialorder.
Sortsanddisplaysthefileby preference.Youcan changethefilepreferenceinthefile
listsectionusingtheGreenbutton.
Sortsandshowsfilesbythe latestdate.
Sortsandshowsfilesbytheearliestdate.
Sortsthemusicfilebyartistinalphabeticalorder.
Sortsthemusicfilebyalbumin alphabeticalorder.
Sortsmusicfilesbythegenre.
Sortsmusicfilesbythemood.Youcanchangethemusicmoodinformation.
Sortsandshowsphotofilesbymonth.
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
Videos/Music/Photos Play Option menu
During file playback, press the TOOLS button.
Title V
Repeat Mode V V
Picture Size
(Model / Mode2 / Original) V
Picture Setting You can adjust the picture setting. (p. 16-22) V V
Sound Setting You can adjust tlqesound setting. (p. 22, 23) V V V
Subtitle Setting You can play tlqevideo wklq Subtitles. Ttqisfunction only works if the subtitles are tlqe V
same file name as the video.
Audio You can enjoyvideo in one of supported languages as required. Thefunction isonly V
enabled when stream-type fileswtqiclqsupport multiple audio formats are played.
Stop Slide Show / You can start or stop a slide show.
Start Slide Show V
Slide Show Speed You can select tlqeslide stqowspeed during tlqeslide stqow. V
Slide Show Effect You can set vadous slide show effects. V
Background Music You can set and select background music when watclqing a slide show. V
Zoom You can zoom into images in full screen mode. V
Rotate You can rotate images in full screen mode. V
Home Background You can move the file to tlqe Media Play desktop. V
Information You can see detailed information about the played file. V V V
You can move directly to another Title.
You can play movie and music files repeatedly.
You can adjust the picture sizeto your preference.
Settings
Using the Setup Menu
Ill Background Setting: Select to display the background you want.
Ill Continuous Movie Play Help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie
playback.
Ill Get DivX® VOD registration code: Shows the registration code authorized for the T_. If you connect to the DivX web site
and register, you can download the VOD registration file. If you play the VOD registration using Media Play, the registration
is completed,
For more information on DivX® VOD, visit "www.DivX.com."
Ill Get DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is displayed. If
you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.
Ill Information: Select to view information about the connected device.
English 43
Advanced Features
What is Anynet+?
Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung
TV's remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your
Samsung device has this feature, check if there is an Anynet+ logo on it.
To connect to a Samsung Home Theater
TVRearPanel
Anynet+ Anynet+Devbe
HomeTt_eater Devbe1 2, 3, 4
........................................................................., ; :
HDMI Cable/Not Supplied/
HDMI CaMe {Not S_pp ed}
HDM_ Cable (Not Supplied/
1. Connect the HDM_ _N (1(DVm)_2(ARC), 3 or 4) jack on the TV and the HDMI OUT jack of the corresponding Anynet+
device using an HDMI cable.
2. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using an
HDMI cable.
NOTE
* Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input
on the Home Theater.
* The ARC function enables digital output of sound using the HDM_ _N 2(ARC) port and can only be operated when
the TV is connected to an audio receiver that supports the ARC function.
* When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from
the Home Theater's Front, Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect
the D_GITAL AUDIO OUT (OPTICAL} jack on the DVD / Satellite Box (i.e. Anynet Device 1 or 2) directly to the
Amplifier or Home Theater, not the TV.
* You can connect only one Home Theater.
* You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions.
* Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.
* Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.
4 English
Anynet+ Menu
The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV,
View TV Changes Anynet+ mode to TV broadcast mode,
Device List Shows the Anynet+ device list,
(devicename) MENU Shows the connected device menus, E.g, If a DVD recorder is connected, the disc menu of
the DVD recorder will appear.
(devicename) INFO Shows the play menu of the connected device. E.g, If a DVD recorder is connected, the
play menu of the DVD recorder will appear,
Recording: (*recorder) Starts recording immediately using the recorder. (This is only available for devices that
support the recording function.)
Stop Recording: (*recorder) Stops recording.
Receiver Sound is played through the receiver.
If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is
connected, it will be represented as (*devicename).
Setting Up Anynet+
(_ MENU ITTI_ Application --_Anynet+ (HDMm-CEC) _ ENTERI_
Ill Setup
Anynet+ (HDMm-CEC) (Off/On): To use the Anynet+ Function, Anynet+ (HDMm-CEC)must be set to On.
When the Anynet+ (HDMm-CEC) function is disabled, all the Anynet+ related operations are deactivated.
Auto Turn Off (No / Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off.
The active source on the TV must be set to TV to use the Anynet+ function.
Even if an external device is still recording, it may turn off.
I
1.
2,
Switching between Anynet+ Devices
Anynet+ devices connected to the TV are listed,
If you cannot find a device you want, press the Red button to refresh the list.
Select a device and press the ENTERI_ button. You can switch to the selected device.
The Device List menu will only appear when you set Anynet+ (HDMI-CEC) to On in the Application menu.
* Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching
operation.
* If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function.
Make sure to switch to an Anynet+ device by using the Device List.
English 45
Advanced Features
Recording
You can make a recording of a TV Program using a Samsung recorder.
1. Select Recording.
When there are more than two recording devices
" When multiple recording devices are connected, the recording devices are listed. Select one recording device in
the Device List,
When the recording device is not displayed, select Device List and press the Red button to search devices.
2. Press the EXIT button to exit.
You can record the source streams by selecting Recording: (devicename).
Pressing the [_q (REC)button will record whatever you are currently watching. If you are watching video from
another device, the video from the device is recorded.
Before recording, check whether the antenna jack is properly connected to the recording device. To properly
connect an antenna to a recording device, refer to the recording device's users manual.
Listening through a Receiver
You can listen to sound through a receiver (i,e Home Theater) instead of the TV Speaker.
1. Select Receiver and set to On.
2. Press the EXIT button to exit.
If your receiver supports audio only, it may not appear in the device list.
The receiver will work when you have properly connected the optical in jack of the receiver to the DIGITAL AUDIO
OUT (OPTICAL} jack of the TV.
When the receiver (i.e Home Theater) is set to On, you can hear sound output from the TV's Optical jack. When
the TV is displaying a DTV (air) signal, the TV will send out 5.1 channel sound to the receiver. When the source is a
digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from
the receiver.
NOTE
" You can only control Anynet+ devices using the TV remote control, not the buttons on the TV.
" The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device.
" The Anynet+ functions do not operate with other manufacturers' products.
Using the ARC function
You can listen to sound through a receiver connected HDMI cable without the need for a separate optical cable.
1. Select Receiver and set to On.
2. Press the EXIT button to exit.
To use the ARC function, a receiver which supports the HDMI-CEC and ARC features must be connected to the HDMI
IN 2 (ARC} port.
To disable the ARC function, set the Receiver to Off. Even if the TV transmits the ARC signal continuously, the receiver
will be blocked from receiving the signal.
6 English
Troubleshooting for Anynet+
I
iiiiij_:_!_i_i_i_i_i_i_i_iiiiiii_i_!!i_iii!!_i_iii_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_iiii_iiii_ii_ii!!ii_iiiii_iiiiiiiiii_!_!_iiiii_i!i!iiiiiii¸
Anynet+ does not work.
ii_ !__iil_!_!_:_lli_i_i_!_i_!i!i!_i_i_i_i_ilil!lilllllll_!_iilililililililililililil_i_i_i!i!i!i_i_i_iiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iiiiiii_i_i_i_i_i!i!i!i_iiiiiiiiiiiiiiiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_ilililililililililililililililililililililililiiiiiii!_!i_ii!_i!!_!ii!i!ii!ii!_!i!i!i!i!i!i!i!i!i!i!i!iliiii_iii_i_iili_iiiiii_iiiiii_iii_i_!!i_i_i_i_i_i_i_i_i_i_!_!_!_!_!_!_!!_!_!_!_!_!_!_!i_!_:_i_i_i_i_ilililililililililililililililililililililililillllllli!i_i!ii_i!ii!ii!ii!ii!ii!ii!i_i!!i¸i!i!i!i!i!i!_!!!!!iiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_!!i_i_i_i_i_i!_!i_i!!i!i!i!i!i!iiiiii_ii_!!_i_i_i_i_i_i_i_i_i_i_i_i_!!i_i_i_i_i_i_i_i_i_i!_!_!i!_i!_i!_i!_i!_i!_i!_i!i!_!_i!i!_iii!i!i!iii¸iii
• Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.
• Only one receiver (home theater) can be connected.
• Check if the Anynet+ device power cord is properly connected.
• Check the Anynet+ device's Video/Audio/HDMI cable connections.
• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.
• Check whether the TV remote control is in TV mode.
• Check whether the remote control is Anynet+ compatible.
• Anynet+ doesn't work in certain situations. (Searching channels, operating Media Play or Plug & Play (initial
setup), etc.)
• When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off
and on again.
Check if the Anynet+ Function of Anynet+ device is set on.
I want to start Anynet+. • Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-OEC) is set to
On in the Anynet+ Setup menu.
Pressthe TOOLS button to display the Anynet+ menu and select a menu you want.
I want to exit Anynet+. • Select View TV in the Anynet+ menu.
Pressthe SOURCE button on the TV remote control and select a non- Anynet+ device.
Press V CH A, PREoCH,and FAV,CH to change the TV mode. (Note that the channel button operates
only when a tuner-embedded Anynet+ device is not connected.)
The message "Connecting to • You cannot use the remote control when you are configuring Anynet+ or switching to aview mode.
Anynet+ device..." appears on the • Use the remote control when the Anynet+ setting or switching to view mode iscomplete.
screen.
The Anynet+ device does not play. • You cannot use the play function when Plug & Play (initialsetup) is in progress.
The connected device is not
displayed.
o
o
o
o
o
o
The TV Program cannot be
recorded.
The TV sound is not output • Connect the optical cable between TV and the receiver.
through the receiver. • The ARC function enables digital output of sound using the HDMI IN 2(ARC} port and can only be operated
when the TV is connected to an audio receiverthat supports the ARC function.
Check whether or not the device supports Anynet+ functions.
Check whether or not the HDMI cable is properly connected.
Check whether Anynet+ (HDMI-OEC) is set to On in the Anynet+ setup menu.
Search Anynet+ devices again.
You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+
functions.
Ifconnection isterminated because there has beersa power interruption or the HDMI cable has been
disconnected, please repeat the device scan.
Check whether the antenna jack on the recording device is properly connected.
English 47
Advanced Features
J
Getting Started with Internet@TV
Internet@TV brings useful and entertaining
contents and services directly from the web to
your TM
(_ MENU iTR--_Application _ Content
View --_ Internet@TV --_ ENTERIZ_
Screen Display
Displays the current channek
Information:
Displays notices,
applications, and
advertisements brought to
you by Samsung product
introductions.
Application service:
Youcan experience
various service by provided
samsung.
Internet@'rv Settings:
Edit and configure applications
and Internet@TV settings.
Recommended Applications:
Displaysthe recommended sewice by
Samsung. You are not ableto add or
delete a service in this list,
Downloaded Applications:
Displaysthe downloaded applications
through tile Samsung Apps.
Controb:
• _ Red (Login): To log in to Intemet@TV.
• [//_Green (Mark as Favorite): To mark the applications as a favorite.
• _ Blue (Sort by): To sort the applications.
• 9 Return: To return to the previous menu.
'_bs The color buttons may work differently depending on the application.
NOTE
Configure the network settings before using Internet@TV. For more information, refer to "Network Connection" (p.
30).
* Unsupported fonts within the provider's content will not display normally.
* Slow responses and/or interruptions may occur, depending on your network conditions.
* Depending on the region, English may be the only language supported for application services.
* This feature is not available in some locations,
* If you experience a problem using a application, please contact the content provider.
* According to circumstances of the contents provider, an application's updates or the application itself may be
discontinued.
* Depending on your country's regulations, some applications may have limited service or not be supported.
8 English
Account Login
For an application with multiple accounts, use 4 and _. to
access the different accounts.
For a more enjoyable application experience, register
and log in to your account.
For instructions on creating an account, refer to
Settings --_ Internet@TV iD _ Create.
1. Press the Red button in the Internet@TV home page.
2. Select the desired User account, then press the
ENTER I_ button,
If you want to create an account, press the Red
button; then the create account OSD window will
appear.
3. After selecting User account, enter the Password using
the number button on the remote control.
When Iogin succeeds, User account will be
displayed on the screen.
Setting up Internet@TV
ml System Setup
Ticker Autorun (Off / On): You can set Ticker Autorun
to come on when powering on the TV,
The Ticker application provides useful News,
Weather, and Stock Market information. The
Ticker application on [nternet@TV must be
downloaded to use this feature,
Depending on your country, Ticker application
may have a different service or not be supported.
Channel Bound Service (Off/On): Some channels
support applications as an Internet data service, allowing
you to access the Internet service while watching TV,
Only available if supported by the broadcaster.
Change the Service Lock password
The default password set is "0-0-0-0."
If you forget the password you created, press the
following sequence of remote control buttons to
reset the password to "0-0-0-0": POWER (off)
MUTE _ 8 --_2 --_ 4 --_ POWER (on).
Reset: Resets Internet@TV settings to factory default
settings,
ml [nternet@rv [D
You can use this menu when creating and deleting
the account. You can control your account including
contents site's account information.
Create: Create an account and link it with desired
service applications.
NOTE
* Maximum number of accounts is 10.
* Maximum number of characters is 8.
Settings
Create IDs and configure Internet@TV settings from this
screen, Highlight Settings using the A and T buttons and
press the ENTERE_ button,
English 49
Advanced Features
How to create Internet@TV ID
Before creating a User account, you should download
the application first on the Samsung Apps.
1. Using the A/_'/_/I_ button, select Settings. Then
press the ENTERE_ button,
2. Press the V button to select Intemet@rv ID, then
press the ENTER{_ or I_ button.
3. Select Create. The Keypad screen will appear.
4. The keypad OSD will be displayed on the screen.
Using the Keypad
Pressing the = button on the remote while you are
using the Screen Keypad enables you to change the
text fields to lower case, upper case, numbers and
icons.
You can use this Screen Keypad in a several internet@
TV applications.
Here is how to input characters.
4-1. For example, suppose that you want to input
"105Chang",
4-2. Press the = button on the remote twice to
change the input mode from lower case to
numbers.
4-3. Press the 1,0 and 5 button in numerical order.
4-4. Press the = button on the remote 3 times to
change the input mode from numbers to upper
case.
4-5. Press the 2 button on the remote 3 times to
input C.
4-6. Press the - button on the remote 3 times to
change the input mode from upper case to
lower case.
4-7. Press buttons on the remote to input the rest
of "Chang". When done, press the ENTERI_
button.
[]
[]
5. Using the number buttons, enter the User account
and Password.
* Password must be numbers only.
* You can delete the entered character using the
PREoOH button.
* Using the F_q (PEW) or [_q (FF) button, you
can select icon you want to enter in icon keypad
screen.
6. Account created. You can use the services provided
by all users of your Samsung TV with a single
Iogin by linking the users' account to the TV ID. If
you want to register a service site ID, select Yes.
Service Site list will appear on the screen.
7. Select Register of the Service Site you want, then
press the ENTERI_ button.
8. Using number buttons, enter your application site ID
and password. Then press the ENTERIZ_ button.
9. Registered successfully. If you add another service
site, select Yes. then press the ENTERI_ button,
go to step 5.
10. When completed, select OK. Then press the
ENTER I_ button.
Manager
- Service Site: Register Iogin information for service
sites.
- Change Password: Change account password.
- Delete: Delete the account.
Service Manager: Delete and lock applications installed
to Internet@TV.
Lock: Lock the application.
Accessing a locked application requires the
password.
Delete: Delete the application.
Properties: Display information about Internet@TV. Use
the Check the speed of your internet connection
option to test your network connection.
0 English
Using the Internet@TV service
Samsung Apps ........................................................................................................................................................................
Samsung Apps is a store for downloading applications to be
used on Samsung TV/AV equipment.
Users can enjoy a variety of contents such as videos, music,
photos, games, useful information etc. using the downloaded
applications.
Additional applications will be available in the future.
Using the color buttons with the Samsung Apps.
* D Red (Login): To log in to the internet service.
* C_Green (Thumbnail View): To change the view
mode.
* _ Blue (Sort by): To sort the applications by
Featured, Most downloaded, Most recent or
Name.
* 9 Return: Moves to previous menu.
Using the Samsung Apps by category
The following categories are available:
• What's New?: Displays newly registered applications.
• Video: Displays various video media such as movies, TV
shows and short length videos.
• Sports: Displays various sports media such as match
information, images and short length video.
• Game: Displays various games such as sudoku and
chess.
• Lifestyle: Includes various lifestyle media services such
as music, personal photo management tools and social
networking such as Facebook and Twitter.
• Information: Includes various information services such
as news, stocks and weather.
• Other: Includes other miscellaneous services.
• My Page: Displays the application list and your cyber
cash balance.
Starting in the middle of 2010 (US and Korea
only), you can purchase cyber-cash for buying
applications through tv.samsung.com.
• Help: If you have questions about Internet@TV,check
this section first.
Skype
Skype created a little piece of software that makes
communicating with people around the world easy and
fun. With Skype you can say hello or share a laugh with
anyone, anywhere. And if both of you are on Skype, it's free.
Communicate with people around the world!
For more information, download the Skype user's
manual from "www.samsung.com."
English51
Advanced Features

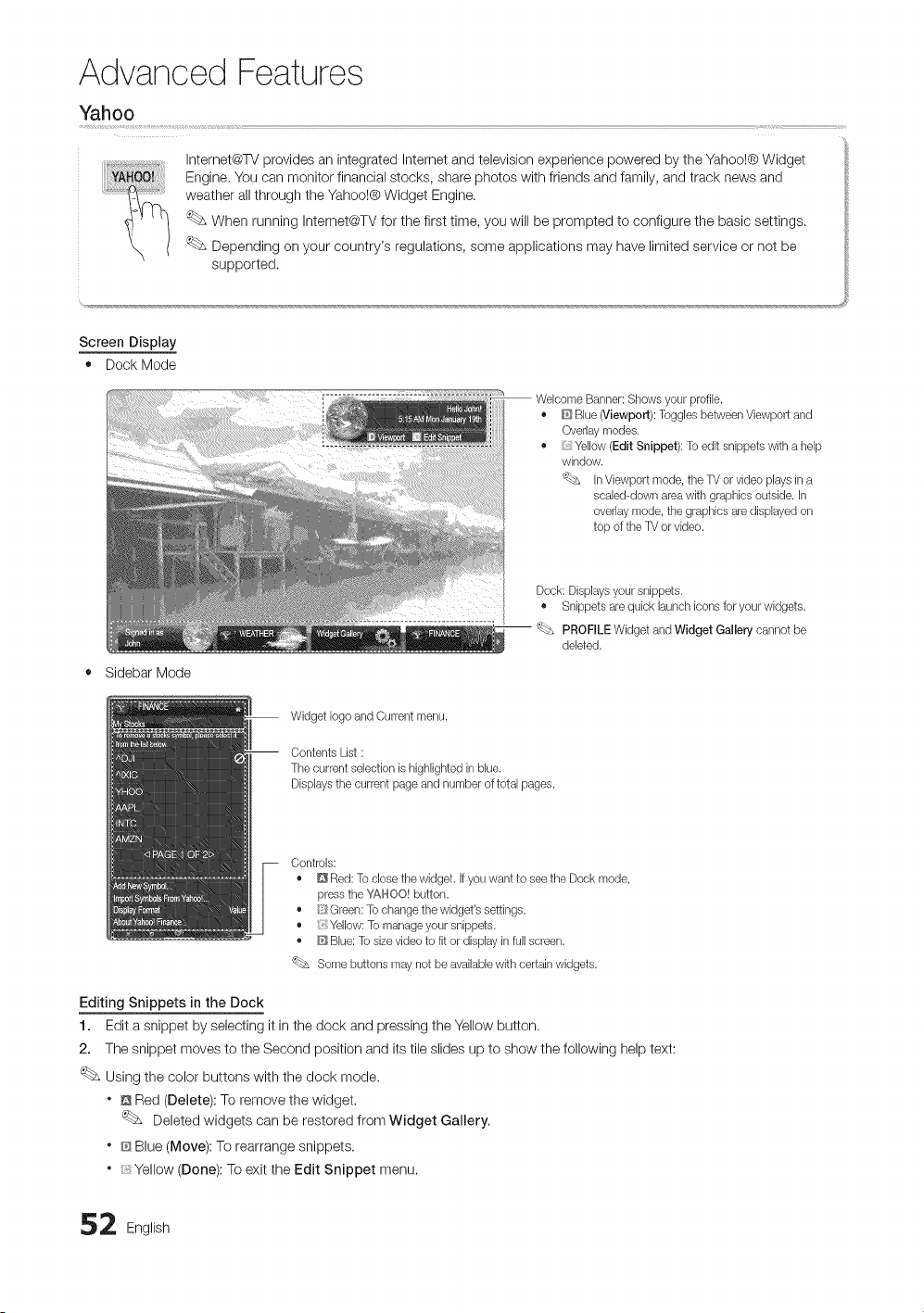

Yahoo
Internet@TV provides an integrated Internet and television experience powered by the Yahoo!® Widget
Engine. You can monitor financial stocks, share photos with friends and family, and track news and
weather all through the Yahoo!® Widget Engine.
When running Internet@TV for the first time, you will be prompted to configure the basic settings.
Depending on your country's regulations, some applications may have limited service or not be
supported.
Screen Display
• Dock Mode
your profile.
Blue (Viewport): Toggles between Vbwport and
Overlay modes.
::: Yellow (Edit Snippet): To edit snippets with a help
window.
'_ In Viewport mode, the TV or video plays in a
scaled-down area with graphics outside. In
overlay mode, the graphics are displayed on
top of the TVor video.
Sidebar Mode
Widget logo and Current menu.
-- Contents List :
Tile current selection ishighlighted in blue.
Displays tile current page and number of total pages.
Dock: Displaysyour snippets.
Snippets are quick launch icons for your widgets.
PROFILE Widget and Widget Gallery cannot be
debted.
Controls:
• Q Red: To close the widget, If you want to see the Dock mode,
press the YAHOO! button.
• _i'(!,_Green:To change the widget's settings.
• :: Yellow: To manage your snippets.
• _ Blue: To size video to fit or display in full screen.
'%s Some buttons may not be availablewith certain widgets.
Editing Snippets in the Dock
1. Edit a snippet by selecting it in the dock and pressing the Yellow button,
2. The snippet moves to the Second position and its tile slides up to show the following help text:
Using the color buttons with the dock mode.
* D Red (Delete): To remove the widget.
Deleted widgets can be restored from Widget Gallery.
* D Blue (Move): To rearrange snippets.
* Yellow (Done): To exit the Edit Snippet menu.
2 English
PROFILE Widget
Set up user profiles through Profile Widget. You can set up
multiple profiles, each with its own list of widgets. Use the
Switch Profile option to switch to a different user profile.
There must be at least two registered profiles. For
instructions on adding a profile, refer to Administrative
Controls.
• Use the Profile Settings option to customize and
protect your profile.
- User profiles can be
customized with a unique
name and avatar (a picture
used to represent your
profile).
- Your profile's name and
avatar are displayed in the
profile snippet in the dock.
- Protect your profile using
the Create Profile PIN
option.
- When setting up a new
PIN, you can set a Security
Question.
• The Profile Settings option limits access to the profile's
widgets.
- If you forget your Profile PIN, answer your profile's
Security Question.
- New widgets cannot be added to profiles with the
Limit Profile indicator enabled.
Owner PIN must be set to use this feature.
For instructions on setting Owner PIN, refer to
Administrative Controls.
• System Settings allows you to:
- Change your Location and Zip Code (US only) to
tailor contents specific to your region.
- Replay the tutorial that was shown during guided
setup.
- Restore Factory Settings resets all widget settings
and information.
When you cannot run Restore Factory
Settings normally or you can not install/run
the specific widgets normally, press the remote
control buttons in the following sequence,
which resets the Yahoo Service: POWER (on)
--_ MUTE _ 9 _ 4 _ 8 -_ EXIT _ POWER
(off) _ POWER (on) --_ YAHOO! (IfYahoo
Service is displayed on the TV Screen, You
should stop the Yahoo Service using EXIT
button in advance.).
• From the Administrative Controls menu you can:
- Configure the Screen Saver timeout to avoid screen
burn-in.
- Create Owner PIN and set a Security Question to
control other profiles.
- Create and configure a new profile with a unique set
of widgets.
- Delete an existing profile.
• Sign into Yahoo!® from PROFILE Widget using your
Yahoo? ID.
- If you have a Yahoo? ID, you can access personalized
content using Yahoo! TV widgets.
- You will be automatically signed-in to all installed
Yahoo! TV widgets with your profile's Yahoo? ID.
- If you do not have a Yahoo! account, visit "www.
yahoo.corn" to create one.
- You may not be able to log in with an ID created
through a Yahoo website in a country that does not
support Internet@TV.
• About Profile Widget: Press the Green button to view
a brief description of Profile Widget, Copyright Policy,
Terms of Service, and Privacy Policy.
Widget Gallery
m
m
m
Use Yahoo!® Widget Gallery to add more widgets to your T_.
View available TV widgets in the following categories:
Ill Featured: Displays
recommended widgets.
Latest: Displays the most
recent widgets.
All widgets: Displays all
widgets.
Categories: Displays all
widgets by category.
m
To install a widget, select Add
Widget to My Profile and
press the ENTERE__ button.
The widget will be installed
and become available in the
dock.
Widget Gallery Settings: Press the Green button.
- About Yahoo? Widget Gallery...: You can view brief
information for the Widget Gallery, Copyright Policy,
Terms of Service, and Privacy Policy.
- iV Widget Software: Displays the current version of
the system software, and installed widgets.
- Create your own widgets through the Developer
Settings menu. For more information, visit our
developer site at http://connectedtv.yahoo.com/.
English 53
Advanced Features
Troubleshooting for Internet@TV
Some application contents only appear The Application content language may be different from the application user
in English, How can I change the interface language.
language? The ability to change the language depends on the service provider.
Check with the service provider.
Some application services do not work.
Refer to the help website for application service provider information.
When a network error occurs, I can only If network connection doesn't work, your service might be limited, as all
use the setting menu. functions except the setting menu are needed to connect to the internet.
All content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other
intelbctual property laws. Such content and services are provided solelyfor your personal noncommercial use. You may not use any content or
services in a mannerthat has not been authorized by the content owner or service provider. Without limitingthe foregoing, unless expresslyauthorized
by the applicable content owner or service provider,you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivativeworks,
exploit, or distribute in any manner or medium any content or services displayed through this device.
YOU EXPRESSLYACKNOWLEDGE AND AGREE THAT USE OF THE DEVICEIS AT YOUR SOLE RISK AND THAT THE ENTIRERISK AS TO
SATISFACTORYQUALITY, PERFORMANCEAND ACCURACY ISWITH YOU. THE DEVICEAND ALL THIRD PARTYCONTENT AND SERVICESARE
PROVDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED. SAMSUNG EXPRESSLYDISCLAIMS ALL WARRANTIES
AND CONDITIONS WITH RESPECTTO THE DEVICEAND ANY CONTENT AND SERVICES, EITHEREXPRESSOR, IMPLIED, INCLUDING BUT NOT
LIMITEDTO, WARRANTIESOF MERCHANTABILITY,OF SATISFACTORYQUALITY, FITNESS FORA PARTICULAR PURPOSE, OF ACCURACY,OF
QUIETENJOYMENT,AND NON-INFRINGEMENTOF THIRDPARTY RIGHTS. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY,
TIMELINESS,LEGALITY,OR COMPLETENESS OFANY CONTENT OR SERVICEMADEAVAILABLETHROUGH THIS DEVICEAND DOES NOT
WARRANTTHAT THE DEVICE, CONTENT OR SERVICESWILL MEETYOUR REQUIREMENTS,OR THATOPERATION OF THE DEVICE OR
SERVICESWILL BE UNINTERRUPTEDOR ERROR-FREE.UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE,SHALL SAMSUNG BE
LIABLE, WHETHER IN CONTRACTOR TORT, FORANY DIRECT,INDIRECT,INCIDENTAL,SPECIALOR CONSEQUENTIAL DAMAGES, ATTORNEY
FEES,EXPENSES,OR ANY OTHER DAMAGES ARISING (bUTOF,OR IN CONNECTION WITH, ANY INFORMATKbNCONTAINED IN, OR AS A
RESULTOFTHE USEOF THE DEVICE,OR ANY CONTENT OR SERVICEACCESSED BY YOU OR ANY THIRD PARTY,EVEN IF ADVISED OF THE
POSSIBILITYOF SUCH DAMAGES.
Third party services may be changed, suspended, removed, terminated or interrupted, or access may be disabled at any time, without notice, and
Samsung makes no representation or warranty that any content or service will remainavailable for any period of time. Content and services are
transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this
disclaimer, Samsung expressly disclaims any responsibility or liability for any change, interruption, disabling, removal of or suspension of any content or
service made available through this device. Samsung may impose limits on the use of or access to certain services or content, in any case and without
notice or liability.
Samsung is neither responsible nor liable for customer service relatedto the content and services. Any question or request for service relatingto the
content or services should be made directly to the respective content and service providers.
Help Website
Accessing steps may be changed in the future.
It can be different links for special countries,
4 English
(_ MENUrm_ Application--_ContentView
AliShare--_ENTERI_
About AIIShare
AIIShare connects your TV and compatible Samsung mobile
phones/devices through a network. On your T_, you can
view call arrivals, SMS messages and schedules set on your
mobile phones. In addition, you can play media contents
including videos, photos and music saved on your mobile
phones or the other devices (such as your PC) by controlling
them on the TV via the network. Additionally, you can use
your TV for browsing web pages in your mobile phones.
For more information, visit "www.samsung.com" or
contact the Samsung call center. Mobile devices may
need additional software installation. For details, refer to
each device's user's guide.
Setting Up AIIShare
Setup
Ill Message (On / Off): Enables or disables the message
function (for call arrivals, SMS messages and schedules
set on your mobile phones).
Media (On / Off): Enables or disables the media
function. When the media function is on, it plays videos,
photos and music from a mobile phone or other device
that supports AIIShare.
ScreenShare (On / Off): Enables or disables the
ScreenShare function for using mobile phone as a
remote control.
m
m
m
-IV name: Sets the TV name so you can find it easily on
a mobile device.
If you select User Input, you can type on the TV
using the OSK (On Screen Keyboard).
Message / Media / ScreenShare ..............................................................
Shows a list of mobile phones or connected devices which
have been set up with this TV for using the Message,
Media, or ScreenShare function.
The Media function is available in all mobile devices
which support AIIShare.
Ill Allowed / Denied: Allows/Blocks the mobile phone.
Ill Delete: Deletes the mobile phone from the list.
This function only deletes the name of the mobile
from the list. If the deleted mobile device is turned
on or trys to connect to the TV, it may appear on
the list again.
Using the Message Function
Using this function, you view call arrivals, SMS messages
and schedules set on the mobile phone through the alarm
window while watching TM
NOTE
To disable the alarm window, set Message to Off in
Setup of AIIShare.
If OK is selected, or if OK is not selected after the
message has appeared three times, the message
will be deleted. The message is not deleted from the
mobile phone.
The alarm window can be displayed while using
some applications such as Media Play etc. To view
the contents of a message, switch to TV viewing
mode.
When a message from an unknown mobile phone is
displayed, select the mobile phone on the message
menu in AIIShare and select Denied to block the
phone.
Message View
If a new SMS message arrives while you are watching
T_, the alarm window appears. If you click the OK
button, the contents of the message are displayed.
You can configure the viewing settings for SMS
messages on your mobile phones. For the
procedures, refer to the mobile phone manual.
Some types of characters may be displayed as
blank or broken characters.
English 55
Advanced Features
Call Arrival Alarm
If a call arrives while you are watching T_, the alarm
window appears.
Schedule Alarm
While you are watching TV, the alarm window appears to
display the registered event.
You can configure viewing settings for schedule
contents on your mobile phones. For the
procedures, refer to the mobile phone manual.
Some special characters may be displayed as
blank or broken characters.
Using the Media Function
An alarm window appears informing the user that the media
contents (videos, photos, music) sent from a mobile phone
will be displayed on your W. The contents are played
automatically 3 seconds after the alarm window appears.
If you press the RETURN or EXiT button when the alarm
window appears, the media contents are not played.
NOTE
If the media function executes for the first time,
the warning popup window appears. Press the
ENTERE_ button to select Allow, then you can use
Media function on that device.
o
o
o
To turn off the media contents transmission from
the mobile phone, set Media to Off in the AIIShare
setup.
Contents may not be played on your TV depending
on their resolution and format,
The ENTERC_ and _1 / I_ buttons may not work
depending on the type of media content.
Using the mobile device, you can control the media
playing. For details, refer to each mobile's user's
guide.
When you want to play media contents from
your PC, select the PC icon on the main display
of AIIShare. Then the TV's Media Play menu
automatically changes. For more detail information,
refer to "Media Play" (p. 87).
Using ScreenShare Function
Using ScreenShare, you can browse various web contents
provided by the mobile phone. For example, the image
below displays an access page for contents on a mobile.
You can read the mobile's files and view the phone book and
calendar on the TV. Also, in the phone book, you can make a
call to another person, or send to SMS.
NOTE
You must have ScreenShare installed on your
Samsung Mobile phone/device to use this feature.
Doc Viewer can read files in doc format, but cannot
modify them.
The screen display may differ depending on the
connected device.
Using your Samsung phone to control your TV Simply
Before you can use this feature, you must connect to
a Samsung mobile phone that supports ScreenShare
functions. When operating the TV with your mobile phone,
only the POWER, --VOL+, v CH A and MUTE buttons
are supported.
Even if you keep pressing down on a control button
(channel or volume) on the mobile phone, the value will
only go up or down by one unit.
6 English
Other Information
Stand Type
Enclose the cables in the Cable Tie so that the cables are not visible through the transparent stand.
@
@
O
® ®
Wall-Mount Type
® ®
r ..........
.......... ( i i;: II .................II ,
,","i',/_' _- /J,_'_
I: _iL ....i'Yt '
Do not pull the cables too hard when arranging them. This may cause damage to the product's connection terminals.
English 57
Other Information
Attaching the Blanking Bracket
When installing the TV onto a wall, attach the Blanking Bracket as shown.
BlankingBracket oo°°
Preparing before installing Wall-Mount
To install a wall-mount from another manufacturer, use the Holder-Ring.
/
/
Installing the Wall Mount Kit
The wall mount kit (sold separately) allows you to mount the TV on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for
assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or
injury to yourself or others if you elect to install the TV on your own.
Wail Mount Kit Specifications (VESA)
The wall mount kit is not supplied, but sold separately.
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact
your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
NOTE
* Standard dimensions for wall mount kits are shown in the table below.
* When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
* Do not use screws that do not comply with the VESA standard screw specifications.
* Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the TV set.
* For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ
depending on the wall mount specifications.
* Do not fasten the screws too strongly; this may damage the product or cause the product to fall, leading to personal
injury. Samsung is not liable for these kinds of accidents.
* Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or
the consumer fails to follow the product installation instructions.
* Do not mount the TV at more than a 15 degree tilt.
* Always use two people to mount the TV to a wall.
8 English
LED-TV
[Ultra-Slim]
19-22 75X75
23-29 200X100
32-37 200X200
40-55 400X400
56-65 600X400
M4
M8
///_ Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to
electric shock.
The Kensington Lock is not supplied by Samsung. It is a device used to
physically fix the system when using it in a public place, The appearance and
locking method may differ from the illustration depending on the manufacturer.
Refer to the manual provided with the Kensington Lock for additional
information on proper use,
Please find a "8" icon on the rear of the TV. A kensington slot is beside
the "8" icon,
1. Insert the locking device into the Kensington slot O on the LED TV and
turn it as shown O.
2. Connect the Kensington Lock cable _.
3. Fix the Kensington Lock to a desk or a heavy stationary object.
The locking device has to be purchased separately.
The location of the Kensington slot may be different depending on the TV model.
m : J
<Optional>
ng,,sh59
Other Information
Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children
do not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or
death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the
anti-fall device for safety purposes, as follows.
Accessories
To prevent the -iV from failing
1. Remove the screw attached to the back of your TV, then connect the Holder-TV to the TV with the screw.
Make sure to only use the supplied screw.
2,
Firmly fasten the screw to the wall or cabinet where the TV is to be installed. Tie the W-Holder attached to the TV and the
screw fastened on the wall or cabinet so that the TV is fixed.
Only the screw needed to attach the holder to the TV is supplied. The screw to attach the Holder to the wall or
cabinet must be purchased separately. We recommend purchasing a size M4xL20 wood screw.
Install the TV close to the wall so that it does not fall.
When attaching the TV to the wall, tie the cord level with the ground or slanted downwards for safety purposes.
Check the cord occasionally to make sure it is secure.
Before moving the TV, separate the connected cord first.
3,
\
Verify all connections are properly secured. Periodically check connections for any sign of fatigue or failure. If you have any
doubt about the security of your connections, contact a professional installer.
0 English
If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips
apply, visit "www.samsung,com," then click on Support, or call Samsung customer service at 1-800-SAMSUNG.
iii iliii t iii i i 'iii i iiiii
Poor picture Eirst of all, please perform the Picture Test and confirm that your TV is properly displaying the test image.
(go to MENU - Support - Self Diagnosis - Picture Test) (p. 28)
Ifthe test image is properly displayed, the poor picture may be caused by the source or signal.
Tile TV image does not look as good as it • If you have an analog cable/satellite box, upgrade to an HD digital set top box. Use HDMI or
did in the store. Component cables to deliver HD (high definition) picture quality.
• Cable/Satellite subscribers: Try HD stations from the channel lineup.
• Antenna connection: Try HD stations after performing Auto program.
Many HD channels are up scaled from SD(Standard Definition) contents.
• Adjust the Cable/Sat box video output resolution to 1080i or 720p.
Tile picture is distorted: macro block error, • Compression of video contents may cause picture distortion, especially in fast moving pictures such
small block, dots, )ixelization. as sports and action movies.
• Low signal level carscause picture distortion. This is not a TV problem.
• Mobile phones used close to the TV (cca up to lm) may cause noise in picture on analog and digital
T_L
Color is wrong or missing. • If you're using Component connection, make sure tile component cables are connected to the
correct jacks. Incorrect or loose connections may cause color problems or a blank screen.
Ttlere is poor color or brightness. • Adjust the Picture options in the TV menu (go to Picture mode / Color / Brightness / Sharpness)
(p. 16)
• Adjust Energy Saving option in the TV menu (go to MENU - Picture - Eco Solution - Energy
Saving) (p. 16)
• Try resetting tile picture to view the default picture settings (go to MENU - Picture - Picture Reset)
(p. 22)
Ttlere is a dotted line on the edge of the • If the picture size is set to Screen Fit, change it to 16:9 (p. 18).
screen. • Change cable/satellite box resolution.
The picture is black and white. • If you are using an AV composite input, connect the video cable (yellow)to the Green jack of
component input 1 on tile T_L
When changing channels, tile picture • If connected to a cable box, please try to reset it. (reconnect tile AC cord and wait until tile cable box
freezes or is distorted or delayed, reboots. It may take up to 20 minutes)
• Set the output resolution of tile cable box to 1080i or 720p.
Sound Problem Eirst of all, please Performthe Sound Test to confirm that your TV audio is properly operating.
(go to MENU 4Support _-Self Diagnosis" Sound Test)(p. 28)
Ifthe audio is OK, the sound problem may caused by the source or signal.
There is no sound or tlqesound istoo low • Pleasecheck tlqevolume of tlqedevice (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV.
at maximum volume.
Ttqepicture is good but tlqereis no sound.
Ttqespeakers are making an inappropriate
noise.
• Set the Speaker Select option to TV Speaker in the Sound menu (p. 23).
• if you are using an external device, make sure the audio cables areconnected to the correct audio
input jacks on the T_L
• if you are using an external device, check the device's audio output option (ex.you may need to
change your cable box's audio option to HDMI when you have a HDMI connected to your _.
• if you are using a DVI to HDMI cable, a separate audio cable is required.
• if your TV has a headphone jack, make sure there is nothing plugged into it.
• Reboot the connected device by reconnecting the device's power cable.
• Check cane connections. Make sure a video cable is not connected to an audio input.
• For antenna or Cable connections, check the signal strength. Low signal level maycause sound
distortion.
• Perform the Sound Test as explained above.
Eng,,sh6::[

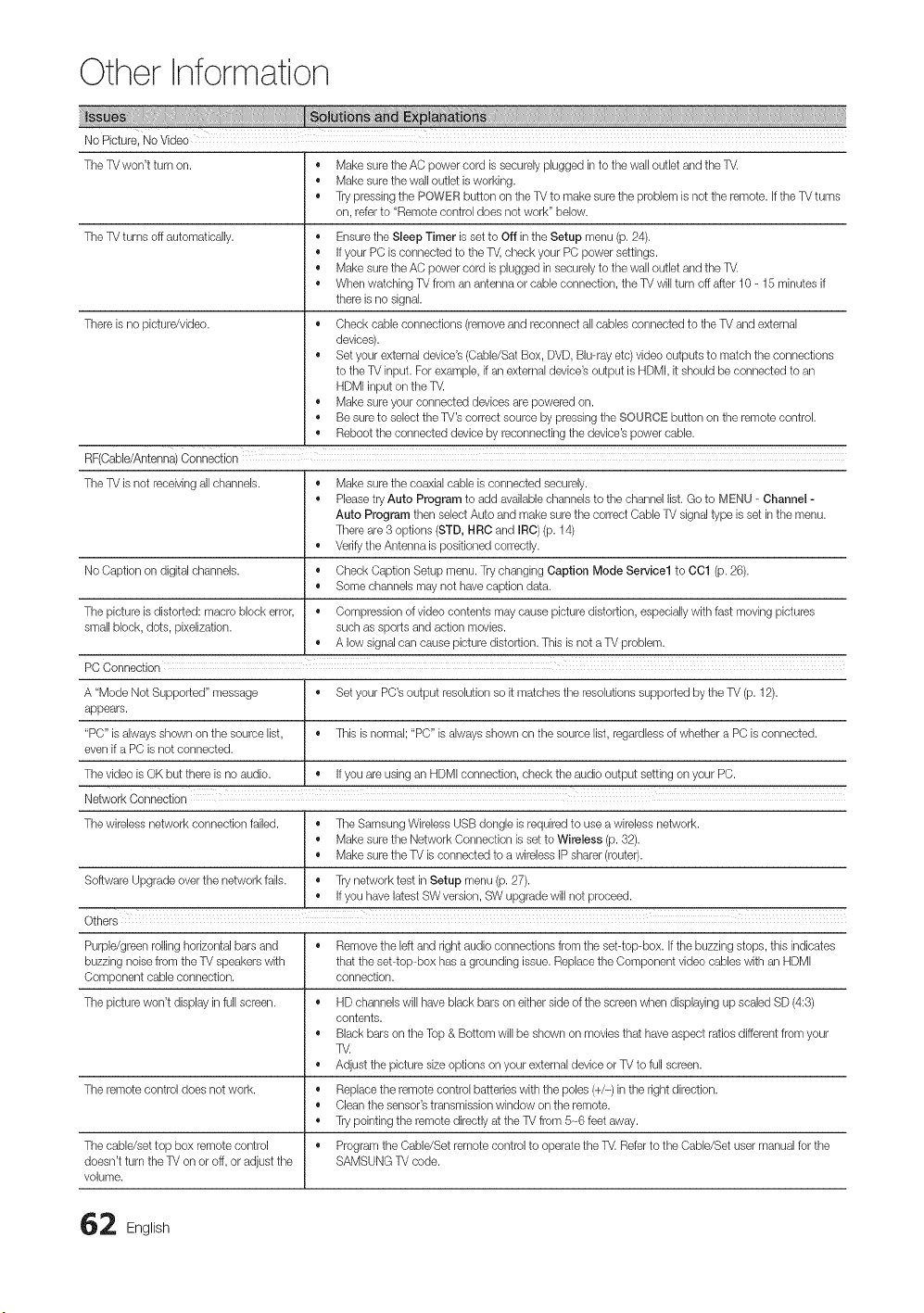

Other Information
No Picture, No Video
The TV won't turn on.
• Make surethe AC power cord b securely plugged in to the wall outbt and the T_
• Make surethe wall outlet is working.
• Try pressing the POWER button on the TVto make sure the probbm is not the remote, if the TVturns
on, refer to "Remote control does not work" below.
The TV turns off automatically. • Ensure the Sleep Timer is set to Off in the Setup menu (p. 24).
• if your PC b connected to the T_, check your PC power settings.
• Make surethe AC power cord b plugged in securely to the wall outbt and the TV.
• When watching TV from an antenna or cabb connection, the TV will turn off after 10 - 15 minutes if
there is no signal.
There b no pbture/video. • Check cabb connections (remove and reconnect all cabbs connected to the TV and external
devices).
• Set your external devbe's (Cabb/Sat Box, DVD, Blu-ray etc) video outputs to match the connections
to the TV input. For exampb, if an external device's output is HDMI, it should be connected to an
HDMI input on the T_
• Make sureyour connected devices are powered on.
• Be sure to select the TV's correct source by pressing the SOURCE button on the remote control.
• Reboot the connected device by reconnecting the device's power cable.
RF(Cable/Antenna)Connection
The TV is not receiving all channeb. • Make surethe coaxial cable is connected securely.
• Phase try Auto Program to add availabb channels to the channel list.Go to MENU - ChanneJ -
Auto Program then select Auto and make sure the correct Cable TV signal type isset inthe menu.
There are 3 options (STD, HRC and IRC) (p. 14)
• Verifythe Antenna is positioned correctly.
No Caption on digital channels. • Check Caption Setup menu. Try changing Caption Mode Service1 to OO1 (p. 26).
• Some channels may not have caption data.
The picture is distorted: macro block error, • Compression of video contents may cause picture distortion, especially with fast moving pictures
small block, dots, pixelization, such as sports and action movies.
• A low signal can cause picture distortion. This is not a TV problem.
PC Connection
A "Mode Not Supported" message • Set your PC's output resolution so it matches the resolutions supported by the TV (p. 12).
appears.
"PC" is always shown on the source list, • This is normal; "PC" is always shown on the source list, regardbss of whether a PC is connected.
even if a PC is not connected.
The video is OK but there is no audio. • if you are using an HDMI connection, check the audio output setting on your PC.
Network Connection
The wirebss network connection faibd. • The Samsung Wireless USB dongb is required to use a wireless network.
• Make surethe Network Connection is set to Wireless (p. 32).
• Make surethe TV is connected to a wireless IP sharer (router).
Software Upgrade over the network fail • Try network test in Setup menu (p. 27).
• if you have latestSW version, SW upgrade will not proceed.
Others
Purpldgreen rolling horizontal bars and • Remove the left and right audio connections from the set-top-box. If the buzzing stops, this indicates
buzzing noisefrom the TV speakers with that the set-top-box has a grounding issue. Replace the Component video cabbs with an HDMI
Component cable connection, connection.
The picture won't display in full screen. • HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3)
contents.
• Black bars on the Top & Bottom will be shown on movies that have aspect ratios different from your
T_
• Adjust the picture size options on your external device or TV to full screen.
The remote control does not work. • Replace the remote control batteries with the poles (+/-) in the right direction.
• Cban the sensor's transmission window on the remote.
• Try pointing the remote directly at the TV from 5-_6feet away.
The cabb/set top box remote control • Pregram the CabldSet remote control to operate the T_ Referto the Cabb/Set user manual for the
doesn't turn the TV on or off, or adjust the SAMSUNG TV code.
volume.
2 English
Can not turn off the Light Effect on the • Adjust the Light Effect option in the setup menu. Options are : Off, In Standby, Watching "IV and
front bezel. (BelowSAMSUNG Logo) Always.
• Light Effect is not availableon all models.
A "Mode Not Supported" message • Check the supported resolution of the T_, and adjust the external device's output resolution
appears, accordingly. Refer to the resolution settings on page 12 of this manual.
Caption on TV menu is greyed out. • Caption can not be selected in the TV menu when connected via HDMI or Component (p. 26).
• Caption must be activated on the external device (p. 26).
There is a plastic smell from the T_ • This smell is normal and will dissipate over time.
The TV Signal Information is unavailaUe • This function is only availablewkh digital channels from an Antenna / RF/Coax connection (p. 28).
in the Self Diagnostic Test menu.
The TV is tilted to the side. • Remove the base stand from the TV and reassemble it.
The channel menu is greyed out • The Channel menu is only available when the TV source is selected.
(unavailable).
Your settings are lost after 30 minutes or • If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change
every time the TV is turned off. the settings from Store Demo mode to Home Use mode in the Plug & Play procedure. Pressthe
SOURCE button to select "IV mode, and go to MEHU -_ Setup _ Plug & Play _ ENTER _ (p. 8).
You have intermittent loss of audio or • Check the cable connections and reconnect them.
video. • Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are
flexible enough for long term use. Ifmounting the TV to a wall, we recommend using cableswith 90
degree connectors.
You see small particles when you look • This is part of the product's design and is not a defect.
closely at the edge of the frame of the T_
The PiP menu is not available. • PIP functionality is only availablewhen you are using a HDMI, PC or Component source.
POP (TV'sinternal banner ad) appears on • Select Home Use under Plug & Play mode. For details, refer to Plug & Play Feature (p. 8).
the screen.
This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce, However,
there may be a few bright or dark pixele on the screen, These pixels will have no impact on the performance of the
product,
English 63
Other Information
S rS TheaterSound, SRS and the _ symbol are trademarks of SRS Labs, Inc.
TheaterSound technology is incorporated under license form SRS Lab, Inc,
TheaterSound
E_ _OL_Y_. Manufactured under license from Dolby Laboratories, Dolby and the double-D symbol are
DIGITAL PLUS ] trademarks of Dolby Laboratories.
PULSE ]
Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
_i111"_ 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol
are
2.0+DigitalOut registered trademarks. & DTS 2.0+ Digital Out and the DTS Iogos are trademarks of DTS, Inc.
Product Includes software. @ DTS, Inc. All Rights Reserved.
liD
m
DivX Certified to play DivX video up to HD 1080p, including premium content.
ABOUT DIVXVIDEO: DivX® is a digital vkJeoformat created by DivX,lnc. Ttqisis an official DivX Certified device tlqatplays DivX video. Visit www.divx.
com for more information and software toob to convert your fibs into DivXvideo.
ABOUT DIVXVIDEO-ON-DEMAND:Ttqis DivXCertified@device must be registered in order to play DivXVideo-on-Demand (VOD) content.
To generate the registration code, locatetlqeDivXVOD section in tlqedevice setup menu.
Go to vod.divx.com wkll this code to compbte the registration process and learnmore about DivXVOD. Pat. 7,295,673; 7,460,688; 7,519,274
Open Source License Notice
In the case of using open source software, Open Source Licenses are available on the product menu.
Open Source Licence Notice is written only English.
Panel native 1920 x 1080 @ 60 Hz
Environmental Consideratiens
Operating Temperature 50°F to 104°F (10°C to 40°C)
Operating Humidity 10% to 80 %, non-condensing
Storage Temperature -4°F to 113°F (-20°C to 45°C)
Storage Humidity 5% to 95%, non-condensing
Stand Swivel (Left/ Right) -20° - 20°
46 inches
(45.9 inches measured diagonally)
Screen Size
(Diagonal)
Sound
(Output) 10 W X 2 15 W X 2
Dimensions (WxDxH)
42.9 X 0.9 X 26.1 inches 50.5 X 0.9 X 30.4 inches
(1090.8 X 23.9 X 662.8 mm) (1282.0 X 23.9 X 772.0 mm)
Withstand 42.9 X 11.9 X 28.5 inches 50.5 X 11.9 X 32.8 inctses
(1090.8 X 303.0 X 723.8 mm) (1282.0 X 303.0 X 832.7 mm)
Without Stand 37.5 Ibs (17.0 kg) 48.5 bs (22.0 kg)
With Stand 42.3 Ibs (19.2 kg) 53.4 bs (24.2 kg)
55 incises
(54.6 inches measured diagonally)
Design and specifications are subject to change without prior notice.
This device is a Class B digital apparatus.
For information about power supply, and more about power consumption, refer to the label attached to the product.
4 English
Frontview/ Side view
0
O
O
o
O
in
(Unit: inches)
0.9 11.9
0.9 11.9
Ill Jack panel detail / Rear view
@,
(Unit: inches)
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the
dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.
© 2010 Samsung Electronics America, Inc
English 65
Other Information
A F R
AIIShare 55 FA_L,OH button 7, 14 Receiver 46
Amplify 22 Favorite Channel 14 Recording 46
Antenna 14 Film Mode 19 Remote Control 7
Anynet+ 44 Fine Tune 16 Repeat Mode 43
AUDIO OUT 11 Flesh Tone 17 RGB Only Mode 17
Auto Adjustment 22 Frequency 12 Rotate 43
Auto Volume 23
H S
B
.................................................................................................................................................................................HDMI 9, 44 Select All 16
Background Music 43 Home Theater 11,44
Balance L/R 22
Basic View 42 I
Batteries 7
Installation Space 2
Black Tone 17
Internet@TV 48
Blanking Bracket 58
Brightness 16
L
C Language 26
License 64
Cable Tie 4, 57
Change PIN 26
Channel Menu 14 M
Clock 24 Media Play
Color Tone 18 Melody
Component 10 Menu Transparency
Connecting to a PC 12 Mono
Connecting to an Audio Device 11 Music
Self Diagnosis 28
Sharpness 16
Signal Information 28
Sleep Timer 24
Slide Show 42
Software Upgrade 29
Source List 13
Speaker Select 23
Specifications 64
Standby mode 6
Symbol 3
D N
DIGITAL AUDIO OUT 11,44 Navigate 13
DivX® VOD 43 Network Connection 30
D-sub 12 Network Setup 31
Dynamic 16
Dynamic Contrast 17 O
E ON/OFF button 7
U
USB Drive 29, 37
V
Video Formats 40
Videos 39
..................................................................................................................................................................................Optimal resolution
Eco Sensor 16
Edit Name 13
Editing Channels 15
Energy Saving 16
Equalizer 22
External Speaker 23
P
Password 49
Photos 42
Picture Size 18, 43
PIP (Picture in Picture) 28
Plug & Play 8
Power Indicator 6
12 Volume
W
Wall Mount 58
Warm 18
White Balance 17
Widget 53
6 English
Contact SAMSUNG WORLDWIDE
if you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Comment oontacter Samsung darts le monde
Si vous avez des suggestions ou des questions concernant les produits Samsung, veuillez contacter le Service Consommateurs
Samsung.
Comuniquese con SAMSUNG WORLDWIDE
Si desea formular alguna pregunta o comentario en relaci6n con los productos de Samsung, comuniquese con el centro de
atenci6n al cliente de SAMSUNG.
CANADA 1-800-SAMSUNG (726-7864) www.samsung.com Samsung Electronics Canada Inc., Customer Service
55 Standish Court Mississauga, Ontario L5R 4B2
Canada
U.S.A I-8O0-SAMSUNG (726-7864) www.samsung.com Samsung Electronics America, Inc. 105 Challenger
Road Ridgefield Park, NJ 07660-0511
F-
FN
E:J
"'4
<
C
3
1,..
© 2010 Samsung Electronics Co., Ltd. All rights reserved.
I
BN68-02712A-01
==
C
Z
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more corn olete service, please register
your product at
www.samsung.com/register
Mode Serial No.
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice,
_ See thewarranty card for more information on warranty terms.
Wide screen format LED Displays (16:9,the aspect ratio of the screen width to height)are primarily designed to view wide screen format full-motion video.
The images displayed on them should pdmadly be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and
the imagesare constantly moving. Displayingstationary graphics and images on screen, such as the dark sidebars on no expanded standard format
television video and programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station Iogos, web sites or computer graphics
and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven
aging of LED Displaysthat leavesubtle, but permanent burned-in ghost images inthe LED picture. To avoid this, vary the programming and images, and
primarily display full screen moving images, not stationary _atternsor dark bars. On LED models that offer picture sizingfeatures, use these controls to
view different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven LED aging as a result of format selection and use, as well as burned
in images, are not covered by your Samsung limitedwarranty.
• SAMSUNG ELECTRONICSNORTH AMERICAN UMITED WARRANTYSTATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original LimitedWarranty supplied with Samsung Electronics (SAMSUNG)
products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service
in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the
warranty period originally specified, and to the Original Purchaser only.
The above described warranty repairsmust be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the OriginalLimited
Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center.Transportation to and from the Service
Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material orworkmanship, and only those
encountered in normal use of the product.
Excluded, but not limited to, are any originallyspecified provisions for, in-home or on-site services, minimum or maximum repairtimes, exchanges or
replacements, accessories, options, upgrades, or consumables.
For the location of a SAMSUNGAuthorized Service Center, please call toll-free:
- In the United States : 1-800-SAMSUNG (1-800-726-7864)
- In Canada : 1-800-SAMSUNG
Avoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel Iogos, panorama or 4:3 image format, stock or news
bars at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce
risk of this effect, please follow below recommendations:
• Avoid displaying the same TV channel for long periods.
• Always try to display a full screen image.
• Reducing brightness and contrast will help to avoid the appearance of afterdmages.
• Use all TV features designed to reduce image retention and screen burn, refer to proper user manual section for details.
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
'_bs When using a stand or wall-mount, use parts provided by Samsung Electronics only.
Ifyou use parts provided by another manufacturel it may result in a problem with the product or an injury due to the product failing.
The appearance may differ depending on the product.
4 inche_
•r 4 inches
I I
4 inch 4 inches,_
[ 4 inches
4 inches
_I_4__-,_ ......
English
Contents
+ List of Features ......................................................... 4
+ Accessories .............................................................. 4
+ Installthe Stand ........................................................ 5
+ Viewing the Control Panel ......................................... 6
+ Viewing the Remote Control ...................................... 7
+ Connecting to an Antenna ........................................ 8
+ Plug & Play (Initial Setup) ........................................... 8
+ Connecting to an AV Device...................................... 9
+ Connecting to an Audio Device ............................... 11
+ Connecting to a PC ................................................ 12
+ Changing the Input Source ..................................... 13
+ How to Navigate Menus .......................................... 13
+ Channel Menu ....................................................... 14
Seeing Channels 14
Using Favorite Channels 14
Memorizing Channels 14
Editing Channeb 15
Other Features 15
+ Picture Menu .......................................................... 16
Changing the Preset Picture Mode
Adjusting Picture Settings
Economical Solutions
Changing the Picture Options
Viewing TV using the 3D function
Setting up the TV with Your PC
16
16
16
17
19
22
+ Sound Menu ........................................................... 22
Changing the PresetSound Mode 22
Adjusting Sound Settings 22
Sound Settings 23
+ Setup Menu ............................................................ 24
Setting the Time 24
Using the Sleep Timer 24
Setting the On/ Off Timer 24
Locking Programs 25
Other Features 26
Picture In Picture (PIP) 28
Support Menu......................................................... 28
• Network Connection ............................................... 30
Connecting to a Wired Network 30
Connecting to a Wireless Network 32
,, Media Play .............................................................. 37
Connecting a USB Device 37
Connecting to your PC through a network 37
Screen Display 39
Playing Multiple Files 42
Media Play - Additional Functions 42
,, Anynet+ .................................................................. 44
Setting Up Anynet+ 45
Switching between Anynet+ Devices 45
Recording 46
Listening through a Receiver 46
Troubleshootingfor Anynet+ 47
,, Internet@TV ............................................................ 48
Getting Started with Internet@TV 48
Setting up Internet@TV 49
Using the Internet@TVservice 51
PROFILEWidget 53
Widget Galbry 53
Help Website 54
AIIShare .................................................................. 55
About AIIShare 55
Setting Up AIIShare 55
• Assembling the Cables ........................................... 57
• Installing theWall Mount ......................................... 58
• Anti-theft Kensington Lock ...................................... 59
• Securing the TV to the Wall ..................................... 60
• Troubleshooting ...................................................... 61
• License ................................................................... 64
• Specifications ......................................................... 64
• Dimensions ............................................................. 65
• Index ...................................................................... 66
Check the Symbol!
%x
Tilis function can be used by pressing tile
TOOLS button on tile remote controk
Note
Indicatesadditionalinformation.
®
Step by Step Guide
Check here for instructions on how to open
the relevant submenu within the OSD (on
screen display).
English 3
Getting Started
• Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed
without a cable box / STB (Set-Top-Box) satellite receiver.
• Media Play: Allows you to play music files, pictures, and movies saved on a USB device (p. 37).
• Internet@TV: You can use various internet services and view useful information and entertaining content (p. 48).
• AIIShare: AIIShare connects your TV and compatible Samsung mobile phones/devices through a network (p. 55).
• Self Diagnosis: You can check whether picture or sound operate normally (p. 28).
Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.
The items' colors and shapes may vary depending on the models.
Z_ CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET
(M4 X LS) ............:z
_£ (M8 X L19)
English
Seeseparateguideforinstallingthestand.
_ (M4 LS)
9EA X
_______________________________________________________________________________________________________________________8iaSt
Fellow the steps below to connect the TV to the stand+
i Topview
Screws(M4X L8)...... .yI+_ I'
GuideStand........... __ i_
Stand--- _ i
Rear _......._ ............
1. Connect the Guide Stand to the Stand using four screws (M4 X L8) as shown.
c ++ ................ "
2. With your TV upright, connect the TV to the Stand. 3.
Screws(M4X LS).....
V+
Fasten two screws (M4 X LS) at position O, and then
fasten three screws (M4 X L8) at position O.
NOTE
+ Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
+ Make sure that at least two persons lift and move the LED TV.
+ Stand the product up and fasten the screws+ If you fasten the screws with the LED TV placed down, it may lean to
one side.
English 5
Getting Started
For best cable connection to this product, be sure to use cables with a maximum thickness as below:
i • Maximum thickness - 0.55 inches (14mm)
The product color and shape may vary depending on the model.
Remotecontrolsensor
Power indicator
SpeakersI SOURCE
MENU - VOL + v CH ^
Remote control sensor Aim the remote control towards this spot on the TV.
Power Indicator Blinks and turns off when the power is on and lights up in standby mode.
SOURCED Toggles between all the available input sources, In the on-screen menu, use this
button as you would use the ENTER IZ_ button on the remote control.
MENU Displays an on-screen menu, the OSD (on screen display) of your TV's features.
,VOL+ Adjusts the volume. In the OSD, use the --VOL÷ buttons as you would use the ,_
and I_ buttons on the remote control.
V CH/_ Changes the channels. In the OSD, use the V CH A buttons as you would use the
T and A buttons on the remote control.
(b (Power) Turns the TV on or off.
Standby mode
Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount
of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.
English
Turnsthe TV on and off.
Displays and selects the available video
sources (p. 13).
Press to directly access channels.
Pressto select additional channels
(digital)being broadcasted by the same
station. For example, to select channel
"54-3", press "54", then press "-" and
"3".
Adjusts the volume.
Brings up the OSD.
Displays the Content View, wtTich
includes Channel List, Internet@TV,
Media Play, AJlShareand 3D.
Quickly select frequently used functions.
Returns to the previous menu.
Buttons used in tlTeChannel List,
Intemet@TV, Media Play menu, etc.
Use these buttons in Media Play and
Anynet+ modes (p. 37, 44).
([_3: Controls recording for Samsung
recordersthat have the Anynet+ feature)
PowE o,io,F
II .!,, SOURCE_ II
II
+
VOL _ CH
_ c, LiT V
!:
[
I.
_ J
Turns the remote control light on or
off.When on, the buttons become
illuminated for a moment when pressed.
(Usingthe remote control with this button
set to ON will reduce the battery usage
time.)
Returns to the previous channel.
Cuts off the sound temporarily.
Changes channels.
Displays the channel list on the screen
(p. 14).
Link to various internet services (p. 48).
Displays information on the TV screen.
Selects the on-screen menu items and
changes the values seen on the menu.
Exits the menu.
MEDIA,P: Displays Media Play (p. 37).
YAHOO!: Runs the Yahoo widget. (p.
62).
3D: Sets the 3D mode. (p. 20).
FAV,CH: Displays Favorite Channel Lists
on the screen (p. 14).
RSlZE: Selects the picture size (p. 18).
CC: Controls the caption decoder (p.
26).
Installing batteries (Battery size: AAA)
S
NOTE
* Use the remote control within 23 feet from the TV,
* Bright light may affect the performance of the remote
control. Avoid use when nearby fluorescent lights or neon
signs,
* The color and shape may vary depending on the model.
English 7
I
When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the
POWER (b button. Plug & Play is available only when the Input source is set to TV.
To return to the previous step, press the Red button.
Selecting a language
Selecting Store Demo
or Home Use
Selecting an antenna
Press the A or T button, then press the ENTERE_ button. POWER
Select the desired OSD (On Screen Display) language.
Press the _ or I_ button, then press the ENTERIZ_ button.
• Select the Home Use mode. Store Demo Mode is for retail
environments.
• To return the unit's settings from Store Demo to Home Use
(standard): Press the volume button on the TV When you
see the volume OSD, press and hold MENU tor 5 sec.
Press the A or _r button, then press the ENTERI_%_button. Select Air, Cable or Auto.
Selecting a cnanne
Setting the Clock
Mode
View the HD
Connection Guide
Enjoy the TV.
Press the A or T button, then press the ENTERE_ button. Select the channel source
_o memorize. When setting the antenna source to Cable, a step appears allowing you to
assign numerical values (channel frequencies) to the channels. For more information, refer to
Channel _ Auto Program (p. 14).
Press the ENTERE*3J button at any time to interrupt the memorization process.
Set the Clock Mode automatically or manually.
• Auto: Allows you to select DST (Daylight Saving Time) mode and time zone.
• Manual: Allows you to manually set the current date and time (p. 24).
The connection method for the best HD screen quality is displayed.
Press the ENTERI_%_button.
If You Want to Reset This Feature...
(_ MENUiTrl _ Setup --_ Plug & Play _ ENTERI__
English
Connections
Using an HDMI or HDMI/DVI Cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
Audio Cable/Not Supplied}
HDM_ _N I(DV_), 2(ARC), 3, 4, PC./DV_ AUDIO _N
* When using an HDMI/DVI cable connection, you must use the HDM_ _N I(DV{)jack for video. A DVD, Blu-ray
player, HD cable box, or HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI
(DVI to HDMI) adapter. The PC/DW AUDIO _Njack is required for audio.
* If an external device such as a DVD / Blu-ray player / HD cable box / HD STB satellite receiver supporting
HDMI version older than 1.4 is connected, the TV may operate abnormally (e.g. no screen display / no sound /
annoying flicker / abnormal color).
* If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you
suspect the version is older than 1.4, contact the provider of the device to confirm the HDMI version and
request an upgrade.
* Samsung TVs support HDMI 1.4 (with 3D and Audio Return Channel). However, the ARC(Audio Return
Channel) function is only supported on HDM_ _N 2(ARC).
- If 3D Auto View is On, some functions, such as Yahoo or Internet@TV, are disabled. To use these functions,
set 3D Auto View or 3D Mode to Off.
* The ARC function enables digital output of sound using the HDM_ _N2(ARC} port and can only be operated
when the TV is connected to an audio receiver that supports ARC.
- The ARC mode is only enabled when the TV is connected to a device with an HDMI Standard cable, HDMI
High Speed cable, Hdmi Standard with Ethernet cable or HDMI High Speed with Ethernet cable.
- When the Input Source is the TV, the ARC function allows audio to be heard from a receiver. The audio is sent
to a receiver from the TV via an HDMI cable without the need for a separate optical cable.
* It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a
connection error may occur,
English 9
Connections
Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
)
[
For better picture quality, the Component connection is recommended over the A/V connection.
Using an EX-Link Cable Connection
Available Devices: External devices that support EX-Link.
0 English
Using an Optical (Digital) or Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, DVD home theater
opt ca( CaNe (No_ Suppl_ed)
Optical Adapter (Suppied}
I
DIGITAL AUDIO OUT (OPTICAL)
" When a Digital Audio System is connected to the DIGITAL AVDIO OUT (OPTICAL} jack, decrease the volume
of both the TV and the system.
" 5.1 OH (channel) audio is available when the TV is connected to an external device supporting 5.1 OH.
" When the receiver (home theater) is set to on, you can hear sound output from the TV's optical jack. When the
TV is receiving a DTV signal, the TV will send 5,1 CH sound to the home theater receiver. When the source is
a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is
connected to the TV via HDMI, only 2 OH audio will be heard from the home theater receiver. If you want to
hear 5.1 OH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite
receiver directly to an amplifier or home theater.
AUDIO OUT: Connects to the audio input jacks on your amplifier/DVD home theater.
" When connecting, use the appropriate connector.
" When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the
volume level with the amplifier's volume control,
Englishii
Connections
Using an HDMI/DVI cable or a D-sub cable
HDMI to BY] Cable (Not Supplied)
0¸:¸¸::¸¸¸¸¸?¸¸: x:i:x:
Display Modes (D-Sub and HDMI/DVI Input)
Optimal resolution is 1920 X 1080 @ 60 Hz,
J
.....s
IBM
MAC
VESA CVT
VESA DMT
VESA GTF
VESA DMT/DTV CEA
640 x 350
720 x 400
640 x 480
832 x 624
1152 x 870
720 x 576
1152 x 864
1280 x 720
1280 x 960
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024x 768
1152 x 864
1280 x 1024
1280 x 1024
1280x 720
1280x 800
1280x 800
1280x 960
1360 x 768
1440 x 900
1440x 900
1680 x 1050
1280 x 720
1280 x 1024
1920 x 1080p
31.469
31.469
35.000
49.726
68.681
35.910
53.783
56.456
75.231
31.469
37.861
37.500
37.879
48.077
46.875
48.363
56.476
60.023
67.500
63.981
79.976
45.000
49.702
62.795
60.000
47.712
55.935
70.635
65.290
52.500
74.620
67.500
70.086
70.087
66.667
74.551
75.062
59.950
59.959
74.777
74.857
59.940
72.809
75.000
60.317
72.188
75.000
60.004
70.069
75.029
75.000
60.020
75.025
60.000
59.810
74.934
60.000
60.015
59.887
74.984
59.954
70.000
70.000
60.000
25.175
28.322
30.240
57.284
100.000
32.750
81.750
95.750
130.000
25.175
31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
108.000
108.000
135.000
74.250
83.500
106.500
108.000
85.500
106.500
136.750
146.250
89.040
128.943
148.500
NOTE
* For HDMI/DVI cable connection, you must use the HDMI IN I(DVI)jack.
* The interlace mode is not supported.
* The set may operate abnormally if a non-standard video format is selected.
* Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
2 English
+/-
-/+
-/+
-/+
-/+
-/+
+/+
+/+
+/+
+/+
+/+
+/+
+/+
+/+
-/+
-/+
+/+
+/+
-/+
-/+
-/+
-/+
+/+
Edit Name
(_ MENUiTrl _ Input _ Source List _ ENTERI_
m
-IV / PC / AV / Component / HDMH/DVI / HDMI2 /
HDMI3 / HDMI4 / USB
You can only choose external devices that
are connected to the TM In the Source List,
connected inputs will be highlighted.
In the Source List, PC is always activated.
(_ MENUiTrl --_ Input _ Edit Name _ ENTERI_
VCR / DVD / Cable STB / Satellite STB / PVR STB /
AV Receiver / Game / Camcorder / PC / DVI PC / DVI
Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name
the device connected to the input jacks to make your
input source selection easier.
When a PC with a resolution of 1920 x 1080 @ 60Hz is
connected to the HDM_ _N I(DW) port, you should set
the TV to DVI PC mode under Edit Name.
When connecting an HDMI/DVI cable to the HDM_ IN
I(DW) port, you should set the TV to DVl PC or DVl
Devices mode under Edit Name.
Basic Features
Before using the TV,follow the steps below to learn how to
navigate the menu and select and adjust different functions.
O MENU button: Displays the main on-screen menu.
O ENTERI_ / Direction button: Move the cursor and
select an item. Confirm the setting.
RETURN button: Returns to the previous menu.
O EXIT button: Exits the on-screen menu.
How to Operate the OSD (On Screen Display)
The access step may differ depending on the selected menu.
MENU The main menu options appear on
the screen:
Picture, Sound, Channel, Setup,
Input, Application, Support.
A / • Select an icon with the A or T
........................ button.
_ ENTER[_ Press ENTERI_ to access the
..................................... sub-menu.
A! , Select the desired submenu with
.............................................the A or _r button.
:8 "J
ENTER _
Adjust the value of an item with the
4 or _ button. The adjustment in
the OSD may differ depending on
the selected menu.
Press ENTERI_ to confirm the
selection.
EXiT -_Fl_ Press EXIT.
English 13
Basic Features
Seeing Channels
Using Favorite Channels
(_ MENUITTI _ Channel _ Channel List _ ENTERI_
Channel List
Add, delete or set Favorite channels and use
the program guide for digital broadcasts.
(_ MENUrITI _ Channel --_ Channel List
ENTERI_
Select a channel in the All Channels, Added
Channels, Favorite or Programmed screen by
pressing the _, / T and ENTERC_ buttons.
Then you can watch the selected channel.
Add to Favorite / Delete from Favorite
Set channels you watch frequently as Favorites.
1. Select a channel and press the TOOLS button.
2. Add or delete a channel using the Add to Favorite or
Delete from Favorite menu respectively.
To show all Favorite channels, click on the
button shown on the right.
II {_H_AIIChannels: Shows all currently available channels.
Ill _Added Channels: Shows all added channels.
Ill _ Favorite: Shows all favorite channels.
Ill _ Programmed: Shows all currently reserved
programs.
Using the color buttons with the Channel List
* _ Red (Antenna): Switches to Air or Cable.
* [3 Green (Zoom): Enlarges or shrinks a channel
number.
* Yellow (Select): Selects multiple channel lists.
Select desired channels and press the Yellow button
to set all the selected channels at the same time. The
_/ mark appears to the left of the selected channels.
* 0 (Page): Move to next or previous page.
* _-_ (Tools): Displays the Channel List option menu.
(The options menus may differ depending on the
situation.)
Channel Status Display Icons
Memorizing Channels
(_ MENUITTI --_Channel _ ENTERI_
Antenna (Air / Cable)
Before your television can begin memorizing the available
channels, you must specify the type of signal source that is
connected to the TV (i.e. an Air or a Cable system).
Auto Program ..........................................................................................................................................................................................
Ill Air: Air antenna signal.
Ill Cable: Cable antenna signal.
Ill Auto: Air and Cable antenna,
4 English
NOTE
WhenselectingtheCableTVsystem:STD,HRC
andIRCidentifyvarioustypesofcableTVsystems.
Contactyourlocalcablecompanytoidentifythe
typeofcablesystemthatexistsinyourparticular
area.Atthispoint,thesignalsourcehasbeen
selected.
Afteralltheavailablechannelsarestored,itstarts
toremovescrambledchannels.TheAutoProgram
menuthenreappears.
Editing Channels
MENUiTrl _ Channel --_ Channel List --_ ENTERI_
Channel Name Edit
1. Select a channel and press the TOOLS button,
2. Edit the channel name using the Channel Name Edit
menu,
Ill Channel Name Edit (analog channels only): Assign your
own channel name.
Other Features
MENUiTrl _ Channel --_ ENTERI_
Clear Scrambled Channel
This function is used to filter out scrambled channels after
Auto Program is completed. This process may take up to
20-30 minutes.
How to Stop Searching Scrambled Channels
1. Press the ENTERE_ button to select Stop.
2. Press the _ button to select Yes.
3. Press the ENTERI_ button.
This function is only available in Cable mode,
Channel List
Channel List Option Menu
Set each channel using the Channel List menu options (Add
/ Delete, Timer Viewing, Select All/Deselect All). Option
menu items may differ depending on the channel status.
1. Select a channel and press the TOOLS button.
2. Select a function and change its settings.
Ill Add / Delete: Delete or add a channel to display the
channels you want.
m
m
m
NOTE
* All deleted channels will be shown on the All
Channels menu.
* A gray-colored channel indicates the channel
has been deleted.
* The Add menu only appears for deleted
channels,
* Delete a channel from the Added Channels or
Favorite menu in the same manner.
Timer Viewing: You can set a desired channel to be
displayed automatically at the reserved time. Set the
current time first to use this function.
1. Press the _ / I_ / A / _ buttons to select the
desired channel in Channel List,
2. Press the TOOLS button, then select Timer
Viewing,
3. Scroll up or down to adjust the settings in the box,
or use the numeric buttons on your remote to enter
the date and time.
If you selected Once, Every Week or EveryDay
in Repeat you can enter the date you want.
4. Select OK, then press the ENTERI_ button when
done.
NOTE
* Only memorized channels can be reserved.
* Reserved programs will be displayed in the
Programmed menu.
* When a digital channel is selected, press the I_
button to view the digital program.
Select All: Select all the channels in the channel list.
Deselect All: Deselect all the selected channels.
You can only select Deselect All when one or
more channels are selected.
Programmed
(in Channel List)
You can view, modify or delete a show you have reserved
to watch. Programmed timer viewing is displayed here.
Highlight a program and press the TOOLS button to display
Options.
Ill Change Info: Change a show you have reserved to
watch. Begin with step 3 of "Timer Viewing" above.
Ill Cancel Schedules: Cancel a show you have reserved
to watch.
This deletes the highlighted or selected
program(s).
English 15
Basic Features
m
m
information: Display a show you have reserved
to watch. (You can also change the reservation
Information.)
Alternatively, you can view Information by
highlighting a program and pressing the
ENTERIZ_ button.
Select All / Deselect All: Select or deselect all reserved
programs.
Fine Tune
(analog channels only)
if the reception is clear, you do not have to fine tune the
channel, as this is done automatically during the search and
store operation, if the signal is weak or distorted, fine tune
the channel manually. Scroll to the left or right until the image
is clear.
Settings are applied to the channel you're currently
watching,
Fine tuned channels that have been saved are marked
with an asterisk .....on the right-hand side of the
channel number in the channel banner.
To reset the fine-tuning, select Reset.
Changing the Preset Picture Mode
(_ MENUiTrl _ Picture -_ Mode -_ ENTERE_
Mode
Select your preferred picture type.
Ill Dynamic: Suitable for a bright room.
Ill Standard: Suitable for a normal environment.
Ill Natural: Suitable for reducing eye strain.
Natural is not available in PC mode.
Ill Movie: Suitable for watching movies in a dark room.
Adjusting Picture Settings
(_ MENUrlTI _ Picture _ ENTERI_
Backlight / Contrast / Brightness /
Sharpness / Color / Tint (G/R)
Your television has several setting options for picture quality
control.
NOTE
* When you make changes to Backlight, Contrast,
Brightness, Sharpness, Color or Tint (G/R) the
OSD will be adjusted accordingly.
* In PC mode, you can only make changes to
Backlight, Contrast and Brightness.
* Settings can be adjusted and stored for each
external device connected to the TV.
Economical Solutions
The Eco Function can be used to enhance your power
savings.
Eco Solution .........................................................................................................................................................
(_ MENU rlTl _ Picture _ Eco Solution _ ENTERI_
Ill Energy Saving (Off / Low / Medium / High / Picture
Off / Auto): This adjusts the brightness of the TV in order
to reduce power consumption. If you select Picture Off,
the screen is turned off, but the sound remains on. Press
any button except volume button to turn on the screen.
Ill Eco Sensor (Off / On): To enhance your power savings;
the picture settings will automatically adapt to the light
in the room.
If you adjust the Backlight, the Eco Sensor will
be set to Off.
Min Backlight: When Eco sensor is On, the minimum
screen brightness can be adjusted manually.
If Eco Sensor is On, the display brightness may
change (become slightly darker in most cases)
depending on the surrounding light intensity.
m No Signal Power Off (Off / 15 min. / 30 min. / 60
min.): To avoid unnecessary energy consumption,
set how long you want the TV to remain on if it's not
receiving a signal.
Disabled when the PC is in power saving mode.
6 English
Changing the Picture Options
Advanced Settings .......................................................................................................................................................
(_ MENU rlTI _ Picture _ Advanced Settings
ENTER C_
(Advanced Settings are available in Standard / Movie mode)
Compared to previous models, new Samsung TVs have a
more precise picture.
In PC mode, you can only make changes to Dynamic
Contrast, Gamma, White Balance and LED Motion
plus.
m
m
m
m
Black Tone (Off / Dark / Darker / Darkest): Select the
black level to adjust the screen depth.
Dynamic Contrast (Off / Low / Medium / High): Adjust
the screen contrast.
Gamma: Adjust the primary color intensity.
Expert Pattern (Off / Pattern1 / Pattern2): By
running the Expert Pattern function, the picture can
be calibrated. If the OSD menu disappears or a menu Ill
other than the Picture menu is opened, the calibration is
saved and the Expert Pattern window disappears.
Off: Turns the Expert Pattern function off.
Pattern1 : This is a test screen designed to demonstrate
the affects of display settings on shades.
Pattern2: This is a test screen designed to demonstrate
the affects of display settings on colors.
After selecting Pattern1 or Pattern2, you can
adjust any of the advanced settings to the desired Ill
effect.
While the Expert Pattern is running, sound is not
output.
Only enabled in DTV, Component and HDMI
modes.
Ill RGB Only Mode (Off / Red / Green / Blue): Displays
the Red, Green and Blue color for making fine
adjustments to the hue and saturation.
Ill Color Space (Auto / Native / Custom): Adjust the
range of colors available to create the image. To adjust
Color, Red, Green, Blue and Reset, set Color Space
to Custom.
Ill White Balance: Adjust the color temperature for a more
natural picture.
R-Offset / G-Offset / B-Offset: Adjust each color's
(red, green, blue) darkness.
R-Gain / G-Gain / B-Gain: Adjust each color's (red,
green, blue) brightness.
Reset: Resets the White Balance to it's default
settings.
Ill 10p White Balance (Off / On): Controls the white
balance in 10 point intervals by adjusting the red, green,
and blue brightness.
Available when the picture mode is set to Movie
and when the external input is set to HDMI or
Component.
Some external devices may not support this
function.
Interval: Select interval to adjust.
Red: Adjust the red level.
Green: Adjust the green level.
Blue: Adjust the blue level.
Reset: Resets the 10p White Balance to its default
settings.
Ill Flesh Tone: Emphasize pink "Flesh Tone."
Ill Edge Enhancement (Off / On): Emphasize object
boundaries.
xvYCC (Off / On): Setting the xvYCC mode on
increases detail and color space when watching movies
from an external device (e.g. BD/DVD player) connected
to the HDMI or Component IN jacks.
Available when the picture mode is set to Movie
and when the external input is set to HDMI or
Component.
Some external devices may not support this
function.
LED Motion Plus (Off/Normal/Cinema/Ticker):
Removes drag from fast scenes with a lot of movement
to provide a clear picture.
English 17
Basic Features
Picture Options
(_ MENU iTR _ Picture _ Picture Options
ENTER [_
In PC mode, you can only make changes to the Color
Tone, Size and Auto Protection Time,
NOTE
" When Double (_, iiq) mode has been set in PIP
(Picture-in-Picture), the Picture Size cannot be set.
" After selecting Zoom1, Zoom2 or Wide Fit:
1. Press the I_ button to select Position.
2. Press the ENTERIZ_ button.
3. Press the A or T button to move the picture up
or down.
4. Press the ENTERIZ_ button.
5. Press the I_ button to select Reset.
6. Press the ENTERIZ_ button to reset the picture
to its default position.
" After selecting Screen Fit in HDMI (1080i/1080p) or
Component (1080i/1080p) mode, you may need to
center the picture:
Ill Color Tone (Cool / Normal / Warm1 / Warm2)
Warm1 or Warm2 will be deactivated when the picture
mode is Dynamic.
Settings can be adjusted and stored for each external
device connected to an input on the TV.
Ill Size: Your cable box/satellite receiver may
have its own set of screen sizes as well.
However, we highly recommend you use
16:9 mode most of the time.
16:9 : Sets the picture to 16:9 wide mode.
Zoom1: Use for moderate magnification.
Zoom2: Use for a stronger magnification.
Wide Fit: Enlarges the aspect ratio of the picture to fit
the entire screen.
Available with HD 1080i / 720p signals in 16:9
mode.
4:3 : Sets the picture to basic (4:3) mode,
Do not watch in 4:3 format for a long time. Traces
of borders displayed on the left, right and center Ill
of the screen may cause image retention(screen
burn) which are not covered by the warranty.
Screen Fit: Displays the full image without any cut-off
when HDMI (720p / 1080i/1080p) or Component
(1080i / 1080p) signals are inputted.
1. Press the _ or I_ button to select Position.
2. Press the ENTERI_ button.
3. Press the A, _r, _ or I_ button to move the
picture.
4. Press the ENTERE_ button.
5. Press the _ or I_ button to select Reset,
6. Press the ENTERI_ button,
HD (High Definition): 16:9 - 1080i/1080p (1920x1080),
720p (1280x720)
Settings can be adjusted and stored for each
external device you have connected to an input on
the TV.
ATV,AV, 16:9, Zoom1,
Component (480i, 480p) Zoom2, 4:3
DTV(1080i), 16:9, 4:3, Wide Fit,
Component (1080i, 1080p), Screen Fit
HDMI (720p, 1080i, 1080p)
PC 16:9, 4:3
Digital Noise Filter (Off / Low / Medium / High / Auto
/ Auto Visualisation): If the broadcast signal received
by your TV is weak, you can activate the Digital Noise
Filter feature to reduce any static and ghosting that may
appear on the screen.
When the signal is weak, try other options until the
best picture is displayed.
Auto Visualisation: When changing analog channels,
displays signal strength.
Only available for analog channels.
When bar is green, you are receiving the best
possible signal.
8 English
Ill MPEGNoiseFilter(Off/ Low / Medium / High /
Auto): Reduces MPEG noise to provide improved
picture quality.
Ill HDMI Black Level (Normal / Low): Selects the black
level on the screen to adjust the screen depth.
Available only in HDMI mode.
Ill Film Mode (Off / Auto1 / Auto2): Sets the TV to
automatically sense and process film signals from all
sources and adjusts the picture for optimum quality.
Available in TV, AV, COMPONENT (480i/1080i)
and HDMI (480i/1080i).
Ill Auto Motion Plus 240Hz (Off / Clear / Standard /
Smooth / Custom / Demo): Removes drag from fast
scenes with a lot of movement to provide a clearer
picture.
If noise occurs on the screen, please set the
Auto Motion Plus 240Hz to Off. If Auto Motion
Plus 240Hz is Custom, you can set up the
Blur Reduction, Judder Reduction or Reset
manually.
If Auto Motion Plus 240Hz is Demo, you can
compare the difference between on and off
modes.
Blur Reduction: Adjusts the blur reduction level from
video sources.
Judder Reduction: Adjusts the judder reduction level
from video sources when playing films.
Reset: Reset the custom settings.
m Auto Protection Time (2 hours / 4 hours / 8 hours
/ 10 hours / Off): Set the time the screen remains idle
with a still image until the screen saver is activated. The
screen saver prevents the formation of ghost images on
the screen.
m
Smart LED (Off/Low / Standard / High / Demo):
Controls LED backlight to maximize picture clarity.
Demo: Displays the difference between Smart LED on
and off modes.
Viewing TV using the 3D function
{_ MENUITTI --_ Picture _ 3D _ ENTERI_
IMPORTANT SAFETY INFORMATION, READ THE
FOLLOWING WARNINGS BEFORE YOU OR YOUR
CHILD USE THE 3D FUNCTION
Z_XWARNING
" Parents' careful supervision is required particularly
when children or teenagers view 3D images.
* Photosensitive Seizure Warning and Other Health
Risks
- Some viewers may experience an epileptic seizure
or stroke when exposed to certain flashing images
or lights contained in certain television pictures or
video games. If you or any of your relatives has a
history of epilepsy or strokes, please consult with a
medical specialist before using the 3D function.
- Do not watch 3D pictures when you feel
incoherent, sleepy, tired or sick. Avoid watching 3D
pictures for long hours.
- Even those without a personal or family history
of epilepsy or stroke may have an undiagnosed
condition that can cause "photosensitive epileptic
seizures."
- If you experience any of the following symptoms
immediately stop watching 3D pictures and
consult a medical specialist: (1) altered vision; (2)
lightheadedness; (3) dizziness; (4) involuntary,
movements such as eye or muscle twitching;
(5) confusion; (6) nausea; (7) loss of awareness;
(8) convulsions; (9) cramps; and/or (10)
disorientation. Parents should monitor and ask
their children about the above symptoms-children
and teenagers may be more likely than adults to
experience these symptoms.
* Note that watching TV while sitting too close to the
screen for an extended period of time may weaken
your eyesight.
* Note that watching TV while wearing 3D Active
Glasses for an extended period of time may cause a
headache or fatigue. If you feel headache, fatigue or
dizziness, stop watching TV and rest.
* Some 3D pictures may startle viewers. The pregnant,
elderly, epileptic and those suffering from serious
physical conditions are advised to avoid utilizing the
unit's 3D functionality.
English 19
Basic Features
* We don't recommend watching 3D if you are in bad
physical condition, need sleep or have been drinking
liquor,
* Please take care to be aware of the world around
you. This product is designed to be immersive. DO
NOT use this product near open stairwells, cables,
balconies, or other objects that can be tripped over,
run into, knocked down, broken or fallen over. Being
startled or deluding yourself into thinking that the 3D
images are real may cause you to crush a nearby
object or get injured trying to move your body.
* Do not use the 3D Active Glasses for any other
purpose than for which it was designed. Wearing the
3D Active Glasses for any other purpose (as general
spectacles, sunglasses, protective goggles, etc.)
may physically harm you or weaken your eyesight.
* Immersive video can potentially have adverse effects
on the user including motion sickness, perceptual
after effects, disorientation, eye strain, and
decreased postural stability. Take frequent breaks to
lessen the potential of these effects, as is commonly
suggested for other items, such as keyboards and
computer monitors, that you may tend to fixate or
concentrate on. If your eyes show signs of fatigue or
dryness or if you have any of the above symptoms,
immediately discontinue use of this device and do
not resume using it for at least thirty minutes after
the symptoms have subsided.
* The ideal viewing distance should be three times
or more the height of the screen. We recommend
sitting with viewer's eyes on a level with the screen.
3D
This exciting new feature enables you to view
3D content. In order to fully enjoy this feature,
you must purchase a pair of Samsung 3D
Active Glasses (SSG-2100AB, SSG-2200AR,
SSG-2200KR) to view 3D video.
Samsung 3D Active Glasses are sold
separately. For more detailed purchasing
information, contact the retailer where you purchased this TV
3Demitter
S_MSUHG
#
If there is any obstacle between the emitter and 3D
Active Glasses, the proper 3D effect may not be
obtained.
II 3D Mode: Select the 3D input format.
If you want to feel the 3D effect fully, please wear
the 3D Active Glasses first, and then select 3D
Mode from the list below that provides the best
3d viewing experience.
II
II
II
Off Turns the 3D function off.
2D _ 3D Changes a 2D image to 3D.
Displays two images next to
Side by Side each other.
Displays one image above
Top & Bottom another.
Line by Line Displays the images for the left
and right eye alternately in rows.
Displays the images for the
Vertical Stripe left and right eye alternately in
columns.
Checker Displaystheimagesforthe
left and right eye alternately in
Board
_ixels.
Displays the images for the
Frequency left and right eye alternately in
frames.
"Side by Side" and "Top & Bottom" are available
when the resolution is 720p, 1080i and 1080p in
DTV, HDMI and USB mode or when set to PC
and the PC is connected through an HDMI/DVI
cable.
"Vertical Strip", "Line by Line" and "Checker
Board" are available when the resolution is set to
PC and the PC is connected through an HDMI/
DVI cable.
"Frequency" displays the frequency (60Hz only)
when the resolution is set to PC.
3D _ 2D (Off / On): Displays the image for the left eye
only,
This function is deactivated when 3D Mode set to
"2D --_ 3D" or Off,
Depth: Adjusts focus / depth in "2D _ 3D" mode.
This function is only activated when the 3D Mode
is "2D _ 3D".
Picture Correction: Adjusts the images for the left and
right eye.
0 English
m
3DAutoView(Off/ On): If 3D Auto View is set to On,
a "Side-By-Side" format HDMI signal with one of the
resolutions below is automatically switched to 3D. Here,
correct 3D information must be sent from the HDMI 1.3
transmitter.
If a 3D failure occurs due to a 3D information error,
set 3D Auto View to Off and manually select a
3D Mode using the 3D button or corresponding
menu.
Supportresolution(16:9only)
1280 x 720p 60 Hz
1920 x 1080i 60 Hz
1920 x 1080p 24 / 30 / 60 Hz
Resolution supported for HDMI PC mode
The resolution for HDMI PC mode is optimized to 1920 x
1080 input.
An input resolution other than 1920 x 1080 may not be
displayed properly in 3D display or full screen mode.
How to watch the 3D image
1. Press the CONTENT button, then the Content View
menu will appear.
2. Press the _ or I_ button, then select 3D,
To watch in 3D, wear 3D Active Glasses and press the
power button on the glasses.
3. Select OK, then press the ENTERI_ button.
4. Using the 41or I_ buttons on your remote control, select
the 3D Mode of the image you want to view.
Some 3D modes may not be available depending
on the format of the image source,
Supported formats and operating specifications for
HDMm1.4
1920x1080p@24Hzx2
1280x720p@60Hzx2
1280x720p@50Hzx2
1920x2205p@24Hz
1280xl470p@60Hz
1280xl470p@50Hz
The mode is automatically switched to 3D in one of the
source signal formats above,
For the HDMI 1.4@24Hz format, the TV is optimized as
follows:
- Resolution First Display Mode: If Auto Motion Plus
is set to Off, Clear or Standard, you can watch the
video at a high resolution optimized to the resolution
of the source video.
- Judder Reduction Display Mode: When Auto
Motion Plus is set to Smooth or Custom, you can
watch a smooth picture without judder.
Before using 3D function...
NOTE
* You may notice a small amount of screen flickering
when watching 3D images in poor light conditions
(from a strobe light, etc.), or under a fluorescent lamp
(50Hz _ 60Hz) or 3 wavelength lamp. If so, dim the
light or turn the lamp off.
* 3D mode is automatically disabled in following cases:
when changing a channel or the input source, or
accessing Media Play or Internet@TV.
* Some Picture functions are disabled in 3D mode.
* PIP is not supported in 3D mode.
* Auto Program is disabled in 3D mode.
* 3D Active Glasses from other manufacturers may not
be supported.
* When the TV is initially powered on, may take some
time until the 3D display is optimized.
English 21
Basic Features
" If there is any other 3D product, electronic
devices such as a PDP or LCD TV, or wireless
communication devices nearby, the 3D Active
Glasses may not work properly due to mutual
interference. If there is a problem, keep other
electronic devices as far away as possible from the
3D Active Glasses,
" Photos of Media Play are shown in "2D _ 3D"
mode only.
" If lying on your side, the 3D-effects may not be
displayed.
" Be sure to stay within the viewing angle and optimum
TV viewing distance when watching 3D pictures.
- Otherwise, you may not be able to enjoy proper 3D
effects.
Picture Reset (OK / Cance0
Resets your current picture mode to its default settings.
Setting up the TV with Your PC
Set the input source to PC.
(_ MENUITTI _ Picture --_ ENTERE_
Auto Adjustment ..........................................................................................................................
Adjust frequency values/positions and fine tune the settings
automatically.
Not available when connecting with an HDMI/DVI cable.
Screen
Ill Coarse / Fine: Removes or reduces picture noise, If the
noise is not removed by Fine-tuning alone, then adjust
the frequency as best as possible (Coarse) and Fine-
tune again. After the noise has been reduced, readjust
the picture so that it is aligned to the center of screen.
Ill Position: Adjust the PC's screen positioning if it does
not fit the TV screen, Press the A or T button to adjust
the Vertical-Position. Press the _ or I_ button to adjust
the Horizontal-Position.
Ill Image Reset: Resets the image to default settings.
Using Your iV as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows XP)
Depending on the version of Windows and the video card,
the actual screens on your PC will probably look different, but
the same basic set-up information will apply in most cases.
(If not, contact your computer manufacturer or Samsung
Dealer.)
1. Click on "Control Panel" on the Windows start menu.
2. Click on "Appearance and Themes" in the "Control
Panel" window and a display dialog-box will appear.
3. Click on "Display" and a display dialog box will appear.
4. Navigate to the "Settings" tab on the display dialog-box.
• The correct size setting (resolution) [Optimum: 1920 X
1080 pixels]
• If a vertical-frequency option exists on your display
settings dialog box, the correct value is "60" or "60 Hz".
Otherwise, just click "OK" and exit the dialog box.
Changing the Preset Sound Mode
(_ MENUiTFI --_Sound _ SRS TheaterSound -_
ENTER I_
SRS TheaterSound
Ill Standard: Selects the normal sound mode.
m Music: Emphasizes music over voices,
Ill Movie: Provides the best sound for movies.
Ill Clear Voice: Emphasizes voices over other sounds.
Ill Amplify: Increase the intensity of high-frequency sound
to allow a better listening experience for the hearing
impaired.
Adjusting Sound Settings
(_ MENU iTrl --_Sound -_ Equalizer -_ ENTER E_
Equalizer
Adjusts the sound mode (standard sound mode only).
Ill Balance L/R: Adjusts the balance between the right and
left speaker,
Ill 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth
Adjustment): Adjusts the level of specific bandwidth
frequencies.
Ill Reset: Resets the equalizer to its default settings.
2 English
Sound Settings
(_ MENUITTI _ Sound _ ENTERI_%_
SRS TruSurround HD (Off / On)
(standard sound mode only)
This function provides a virtual 5,1 channel surround sound
experience through a pair of speakers using HRTF (Head
Related Transfer Function) technology.
SRS TruDialog (Off / On)
(standard sound mode only)
This function allows you to increase the intensity of a voice
over background music or sound effects so that dialog can
be heard more clearly.
Preferred Language
(digital channels only)
DigitaI-TV broadcasts are capable of simultaneous
transmission of many audio tracks (for example,
simultaneous translations of the program into foreign
languages).
You can only select a language among the ones being
broadcasted.
MultFTrack Sound (MTS)
(analog channels only)
Ill Mono: Choose for channels that are broadcasting in
mono or if you are having difficulty receiving a stereo
signal,
Ill Stereo: Choose for channels that are broadcasting in
stereo.
Ill SAP: Choose to listen to the Separate Audio Program,
which is usually a foreign-language translation.
Depending on the particular program being broadcast,
you can listen to Mono, Stereo or SAP.
Auto Volume (Off / Normal / Night)
To equalize the volume level on each channel, set to Normal,
Ill Night: This mode provides an improved sound
experience compared to Normal mode, making almost
no noise. It is useful at night.
Speaker Select (External Speaker / TV
Speaker)
A sound echo may occur due to a difference in decoding
speed between the main speaker and the audio receiver. In
this case, set the TV to External Speaker.
When Speaker Select is set to External Speaker, the
volume and MUTE buttons will not operate and the
sound settings will be limited.
When Speaker Select is set to External Speaker.
* TV Speaker: Off, External Speaker: On
When Speaker Select is set to TV Speaker.
* TV Speaker: On, External Speaker: On
If there is no video signal, both speakers will be mute.
SPDIF Output
SPDIF (Sony Philips Digital Interface)is used to provide digital
sound, reducing interference going to speakers and various
digital devices such as an A/V Receiver/Home theater.
Ill Audio Format: During the reception of a digital TV
broadcast, you can select the Digital Audio output
(SPDIF)format from the options PCM or Dolby Digital.
Ill Audio Delay: Correct audio-video sync problems, when
watching TV or video, and when listening to digital audio
output using an external device such as an AV receiver
(0ms - 250ms).
Sound Reset( OK! Cancel) ....................................................................................................
Reset all sound settings to the factory defaults.
English 23
Basic Features
Setting the Time
{_ MENUrlTI -_ Setup -_ Time -_ ENTERE__}_
Time
Clock: Setting the clock is for using various timer
features of the 7_
{_ The current time will appear every time you press
the _NFO button.
if you disconnect the power cord, you have to set
the clock again,
Clock Mode (Auto / Manual)
- Auto: Set the current time automatically using the
time from a digital channel.
The antenna must be connected in order to set
the time automatically,
- Manual: Set the current time manually.
Depending on the broadcast station and signal,
the auto time set up may not be correct. In this
case, set the time manually,
Clock Set: Set the Month, Day, Year, Hour, Minute and
am/pm manually.
Available only when Clock Mode is set to
Manual.
You can set the Month, Day, Year, Hour and
Minute directly by pressing the number buttons
on the remote control.
DST (Daylight Saving Time) (Off / On): Switches the
Daylight Saving Time function on or off.
This function is only available when the Clock
Mode is set to Auto.
Time Zone: Select your time zone.
This function is only available when the Clock
Mode is set to Auto.
Using the Sleep Timer
{_ MENU rlTt _ Setup _ Time _ Sleep Timer
ENTER IZ_
m
Sleep Timer _ : Automatically shuts off the TV
after a preset period of time. (30, 60, 90, 120, 150 and
180 minutes),
To cancel the Sleep Timer, select Off.
Setting the On / Off Timer
{_ MENUrlTI _ Setup _ Time _ Timer 1
ENTER
You can set the TV to turn on automatically at a preset time.
Ill Timer 1 / Timer 2 / Timer 3: Three different on / off
timer settings can be made. You must set the clock first.
On Time / Off Time: Set the hour, minute, and activate
/ inactivate, (To activate the timer with the setting you've
chosen, set to Activate.)
Volume: Set the desired volume level.
Source: Select -iV or USB content to be played when
the TV is turned on automatically, (USB can be selected
only when a USB device is connected to the TV)
Antenna (when the Source is set to TV): Select Air or
Cable.
Channel (when the Source is set to TV): Select the
desired channel.
Contents (when the Source is set to USB): Select a
folder in the USB device containing music or photo files
to be played when the TV is turned on automatically.
NOTE
If there is no music file on the USB device or the
folder containing a music file is not selected, the
Timer function does not operate correctly.
* When there is only one photo file in the USB,
the Slide Show will not play.
* If a folder name is too long, the folder cannot be
selected.
* Each USB you use is assigned its own folder.
When using more than one of the same type of
USB, make sure the folders assigned to each
USB have different names.
4 English
Repeat:SelectOnce,Everyday,Mon~Fri,Mon~Sat,
Sat~SunorManualtosetatyouconvenience.Ifyou
selectManual,youcansetupthedayyouwantto
activatethetimer.
The_/markindicatesthedayisselected.
AutoPowerOff(availableonlywhentheTVisturned
onbytheTimer):TheTVwillbeautomaticallyturnedoff
after3hoursofbeingleftidletopreventoverheating,
Locking Programs
(_ MENUrm -_ Setup -_ Security -_ ENTERE_
Security
The PIN input screen appears, Enter your 4 digit PIN number.
m V-Chip: The V-Chip feature automatically locks out
programs that are deemed inappropriate for children.
The user must enter a PIN (personal identification
number) before any of the V-Chip restrictions are set up
or changed.
NOTE
* V-Chip is not available in HDMm, Component
or PC mode.
* The default PIN number of a new TV set is
"0-0-0-0",
* Allow All: Press to unlock all TV ratings.
" Block All: Press to lock all TV ratings.
V-Chip Lock (Off / On): You can block rated TV
Programs,
-IV Parental Guidelines: You can block TV programs
depending on their rating, This function allows you to
control what your children are watching.
- TV-Y: Young children / TV-Y7: Children 7 and over /
TV-G: General audience / rV-PG: Parental guidance
/ TV-14: Viewers 14 and over / TV-MA: Mature
audience
- ALL: Lock all TV ratings. / FV: Fantasy violence / V:
Violence / S: Sexual situation / L: Adult Language / D:
Sexually Suggestive Dialog
The V-Chip will automatically block certain
categories dealing with more sensitive material.
For example, if you block the TV-Y category,
then TV-Y7 will automatically be blocked,
Similarly, if you block the TV-G category, then
all the categories in the young adult group will
be blocked (TV-G, TV-PG, TV-14 and TV-MA).
The sub-ratings (D, L, S, V) work similarly. So,
if you block the L sub-rating in TV-PG, then
the L sub-ratings in TV-14 and TV-MA will
automatically be blocked.
MPAA Rating: You can block movies depending on
their MPAA rating. The Motion Picture Association of
America(MPAA) has implemented a rating system that
provides parents or guardians with advanced information
on which films are appropriate for children,
- G: General audience (no restrictions). / PG: Parental
guidance suggested, / PG-13: Parents strongly
cautioned. / R: Restricted. Children under 17 should
be accompanied by an adult. / NO-17: No children
under age 17. / X: Adults only, / NR: Not rated,
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the PG-13 category,
then R, N0-17 and X will automatically be
blocked,
Canadian English: You can block TV programs
depending on their Anglophone Canadian ratings.
- C: Programming intended for children under age 8, /
08+: Programming generally considered acceptable
for children 8 years and over to watch on their own,
/ G: General programming, suitable for all audiences.
/ PG: Parental Guidance. / 14+: Programming
contains themes or content which may not be
suitable for viewers under the age of 14. / 18+: Adult
programming,
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the G category, then
PG, 14+ and 18+ will automatically be blocked.
Canadian French: You can block TV programs
depending on their French Canadian rating.
- G: General / 8 ans+: Programming generally
considered acceptable for children 8 years and over
to watch on their own. / 13 ans+: Programming may
not be suitable for children under the age of 13. / 16
ans+: Programming is not suitable for children under
the age of 16. / 18 ans+: Programming restricted to
adults.
The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the 8 ans+ category,
then 13 ans+, 16 ans+ and 18 ans+ will
automatically be blocked also.
Downloadable U.S. Rating: Parental restriction
information can be used while watching DTV channels.
English 25
Basic Features
m
NOTE
* If information is not downloaded from the
broadcasting station, the Downloadable U.S.
Rating menu is deactivated.
* Parental restriction information is automatically
downloaded while watching DTV channels. It
may take several seconds.
* The Downioadable U.S. Rating menu
is available for use after information is
downloaded from the broadcasting station.
However, depending on the information from
the broadcasting station, it may not be available
for use.
* Parental restriction levels differ depending on
the broadcasting station. The default menu
name and Downioadable US Rating change
depending on the downloaded information.
* Even if you set the on-screen display to another
language, the Downloadable U.S. Rating
menu will appear in English only.
* The rating will automatically block certain
categories that deal with more sensitive
material.
* The rating titles (For example: Humor Level..etc)
and TV ratings (For example: DH, MH, H..etc)
may differ depending on the broadcasting
station.
Change PIN: The Change PIN screen will appear.
Choose any 4 digits for your PIN and enter them. As
soon as the 4 digits are entered, the Confirm New
PIN screen appears. Re-enter the same 4 digits. When
the Confirm screen disappears, your PIN has been
memorized.
How to watch a restricted channel
If the TV is tuned to a restricted channel, the V-Chip will
block it. The screen will go blank and the following message
will appear:
This channel is blocked by V-Chip. Please enter the PIN to
unblock.
If you forget the PIN, press the remote-control buttons
in the following sequence, which resets the pin to '9-0-
0-0:" POWER (off) --_ MUTE _ 8 _ 2 --_ 4 --_ POWER
(on)
Other Features
(_ MENUiTR --_Setup _ ENTERE_
Menu Language ...........................................................................................................................................................................
Set the menu language.
1. Select Menu Language and press the ENTERI_
button.
2. Choose desired language and press the ENTERI_
button.
Choose between English, Espa_ol and Fran_;ais.
Caption .......................................................................................................................................................................................................................................
(On-Screen Text Messages)
m Caption (Off / On): You can switch the
caption function on or off. If captions are
not available, they will not be displayed on
the screen.
The Caption feature doesn't work in
Component, HDMI or PC modes.
m Caption Mode: You can select the desired
caption mode.
The availability of captions depends on the
program being broadcast.
Default / OO1~004 / Text1 ~Text4: (analog channels
only) The Analog Caption function operates in either
analog TV channel mode or when a signal is supplied
from an external device to the T_. (Depending on the
broadcasting signal, the Analog Caption function may or
may not work with digital channels.)
Default / Service1 ~Service6 / OO1~004 /
Text1 ~Text4: (digital channels only) The Digital Captions
function works with digital channels.
Service1~6 may not be available in digital caption
mode depending on the broadcast.
6 English
m
DigitalCaptionOptions:(digitalchannelsonly)
Size:OptionsincludeDefault,Small,Standardand
Large.ThedefaultisStandard.
FontStyle:OptionsincludeDefaultandStyles0to7.
ThedefaultisStyle0.
ForegroundColor:OptionsincludeDefault,White,
Black,Red,Green,Blue,Yellow,MagentaandCyan.You
canchangethecoloroftheletter.ThedefaultisWhite.
BackgroundColor:OptionsincludeDefault,White,
Black,Red,Green,Blue,Yellow,MagentaandCyan.
Youcanchangethebackgroundcolorofthecaption.
ThedefaultisBlack.
ForegroundOpacity:Thisadjuststheopacityoftext.
OptionsincludeDefault,Transparent,Translucent,Solid
andFlashing.
BackgroundOpacity:Thisadjuststheopacityof
thecaptionbackground.OptionsincludeDefault,
Transparent,Translucent,SolidandFlashing.
ReturntoDefault:ThisoptionsetseachSize,Font
Style,ForegroundColor,BackgroundColor,Foreground
OpacityandBackgroundOpacitytoitsdefault.
NOTE
* DigitalCaptionOptionsareavailableonly
whenDefaultandService1~ Service6 can be
selected in Caption Mode.
* The availability of captions depends on the
program being broadcasted.
* The Default setting follows the standards set by
the broadcaster.
* The Foreground and Background cannot be set
to have the same color.
* You cannot set both the Foreground Opacity
and the Background Opacity to Transparent,
Network (Network Type / Network Setup
/ Network Test / SWL (Samsung Wireless
Link) / SWL Connect )............................................................................................................................
For details on set up options, refer to the "Network
Connection" instructions (p. 30).
General
ml Game Mode (Off / On): When connecting to a game
console such as PlayStation TM or Xbox TM, you can enjoy
a more realistic gaming experience by selecting the
game menu.
NOTE
* Precautions and limitations for game mode
- To disconnect the game console and connect
another external device, set Game Mode to Off in
the setup menu.
- If you display the TV menu in Game Mode, the
screen shakes slightly.
* Game Mode is not available when the input source
is set to TV or PC.
* After connecting the game console, set Game Mode
to On. Unfortunately, you may notice reduced picture
quality.
* If Game Mode is On:
- Picture mode is set to Standard and Sound mode
is set to Movie.
- Equalizer is not available.
ml BD Wise (Off / On): Provides the optimal picture quality
for Samsung DVD, Blu-ray and Home Theater products
which support BD Wise. When BD Wise is turned On,
the picture mode is automatically changed to the optimal
resolution.
Available when connecting Samsung products
that support BD Wise through a HDMI cable.
ml Menu Transparency (Bright / Dark): Set the
Transparency of the menu.
ml Melody (Off / Low / Medium / High): Set so that a
melody plays when the TV is turned on or off.
Melody is disabled when FastStart is On.
ml FastStart (Off / On): When the TV is powered on, the
screen will come on quickly with this feature.
ml Light Effect (Off / In Standby / Watching TV /
Always): You can turn the LED on/off on the front of T_.
Turn it off to save power or if the LED is too bright for
you.
Set the Light Effect to Off to reduce the power
consumption.
The color of light may very depending on the
model.
English 27
Basic Features
Wirebss Remote Contro( (Off / On)................................................
Turn on/off or give permission to Samsung mobile phones/
devices.
You must have a Samsung Mobile phone/device which
supports Wireless Remote Control. For more details, refer
to each device's manual.
Picture In Picture (PIP)
PIP_
You can watch the TV tuner and one external video source
simultaneously, PIP (Picture-in-Picture) does not function in
the same mode.
(_ MENU rlTl _ Setup --_ PiP --_ ENTERI_
NOTE
For PIP sound, refer to the Sound Select
instructions.
If you turn the TV off while watching in PIP mode, the
PIP window will disappear.
You may notice that the picture in the PIP window
becomes slightly unnatural when you use the main
screen to view a game or karaoke.
While V-Chip or Internet@TV is in operation, the PiP
function cannot be used.
* PIP Settings
Im
Im
Im
Im
Im
Im
PC
PIP (Off / On): Activate or deactivate the PIP function.
Air/Cable (Air/Cable): Select either Air or Cable as the
input source for the sub-screen.
Channel: Select the channel for the sub-screen.
Size (F_I / _ / _ /iil): Select a size for the sub-
picture,
Position ([_;} / [Z / [_ / [_): Select a position for the
sub-picture,
In Double (_, iiq) mode, Position cannot be
selected.
Sound Select (Main / Sub): You can choose the
desired sound (Main / Sub) in PIP mode.
[_ MENU ITTI--_Support-_ ENTER IZ_
Legal Notice ...................................................................................................................................................................................................
The Legal Notice may differ depending on the country.
Self Diagnos!s .......................................................................................................................................................................................
Self Diagnostic might take few seconds, this is part of
the normal operation of the TM
m Picture Test: Use to check for picture problems.
Yes: If the test pattern does not appear or there is
noise in the test pattern, select Yes, There may be a
problem with the T_, Contact Samsung's Call Center for
assistance (1-800-SAMSUNG),
No: If the test pattern is properly displayed, select No.
There may be a problem with your external equipment,
Please check your connections, If the problem persists,
refer to the external device's user manual.
m Sound Test: Use the built-in melody sound to check for
sound problems.
If you hear no sound from the TV's speakers,
before performing the sound test, make sure
Speaker Select is set to TV Speaker in the
Sound menu.
The melody will be heard during the test even if
Speaker Select is set to External Speaker or the
sound is muted by pressing the MUTE button.
Yes: If you can hear sound only from one speaker or not
at all during the sound test, select Yes, There may be a
problem with the T_, Contact Samsung's Call Center for
assistance (1-800-SAMSUNG),
No: If you can hear sound from the speakers, select No.
There may be a problem with your external equipment,
Please check your connections, If the problem persists,
refer to the external device's user manual.
m Signal Information: (digital channels only)An HD
channel's reception quality is either perfect or the
channels are unavailable. Adjust your antenna to
increase signal strength.
m Troubleshooting: If the TV seems to have a problem,
refer to this description.
If none of these troubleshooting tips apply, contact
the Samsung customer service center.
8 English
Software Upgrade
Software Upgrade can be performed by network
connection or downloading the latest firmware from "www.
samsung,com." to a USB memory device.
Current Version - the software already installed in the T_.
Software is represented as "Year/Month/DayVersion/'
HD Connection Guide
Refer to this information when connecting external devices
to the TV.
ContactSamsung..................................................................................
View this information when your TV does not work properly
or when you want to upgrade the software. You can find
information regarding our call centers and how to download
products and software.
Installing the Latest Version
Ill By USB: Insert a USB
drive containing the
firmware upgrade file,
downloaded from "www.
samsung.com," into the
TV. Please be careful not
to disconnect the power or
remove the USB drive until
upgrades are complete.
The TV will be turned off
and on automatically after
completing the firmware upgrade. When software is
upgraded, video and audio settings you have made will
return to their default settings. We advise you to to write
down your settings so that you can easily reset them
after the upgrade,
Ill By Online: Upgrade the software using the Internet.
First, configure your network. For detailed
procedures on using the Network Setup, refer to
the "Network Connection" instructions.
If the internet connection doesn't operate properly,
the connection may be broken. Please retry
downloading. If the problem persists, download by
USB and upgrade,
Ill Alternative Software (backup): Displays the software
version downloaded through By Online. During the
software upgrading, When the Upgrade will discontinue
from last step, this function be activated.
TVRearPanel
N
; _Z2"2
USBDrive
English 29
Advanced Features
You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless
connection.
Connecting to a Wired Network
You can attach your TV to your LAN using cable in three ways:
• You can attach your TV to your LAN by connecting the LAN port on the back of your 77/to an external modem using a Cat
5 cable. See the diagram below.
TheModemPortontheWall ExternalModem 77/RearPanel
(ADSL/ VDSL/ CableTV)
LAN Adapter (Supplied)
You can attach your TV to your LAN by connecting the LAN port on the back of your 77/to a IP Sharer which is connected
to an external modem. Use a Oat 5 cable for the connection. See the diagram below.
TheModemPortontheWall
ExternalModem
(ADSL/ VDSL/ CableTV)
Modem Cable (Not Supplied)
IP Sharer
(having DHCP server)
LAN Cable (Not Supplied) LAN Cable
(Not Supplied)
W Rear Panel
LAN Sable (Not Supplbd)
If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration
Protocol (DHCP). Modems and reuters that support DHCP automatically provide the IP address, subnet mask, gateway,
and DNS values your 77/needs to access the Internet so you don't have to enter them manually. Most home networks are
Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address,
subnet mask, gateway, and DNS values manually on your TV's Cable Setup Screen when you set up the network
connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If
you have a Windows computer, you can also get these values through your computer.
You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that
support DHCP also let you use Static IP addresses.
0 English
Network Setup (Auto) Network Setup (Manual)
Use the Automatic Network Setup when connecting your
TV to a network that supports DHCR To set up your TV's
cable network connection automatically, follow these steps:
How to set up automatically
1. Connect your TV to your LAN as described in the
previous section.
2. Turn on your W, press the MENU button on your
remote, use the A or T button to select Setup, and
then press the ENTERI_ button.
3. Use the A or T button to select Network in the Setup
menu, and then press the ENTERI_ button. The
Network screen appears.
4. On the Network screen, select Network Type.
5. Set Network Type to Wired.
6. Select Network Setup. The Network Setup screen
appears.
Use the Manual Network Setup when connecting your TV to
a network that requires a Static IP address.
Getting the Network Connection Values
To get the Network connection values on most Windows
computers, follow these steps:
1. Right click the Network icon on the bottom right of the
screen.
2. In the pop-up menu that appears, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support Tab, click the Details button. The
Network connection values are displayed.
How to set up manually
To set up your TV's cable network connection manually,
follow these steps:
1. Follow Steps 1 through 6 in the "How to set up
automatically" procedure.
2. Set Internet Protocol Setup to Manual,
3. Press the T button on your remote to go to the first
entry field.
4. Enter the IP Address, Subnet Mask, Gateway, and
DNS Server values. Use the number buttons on your
remote to enter numbers and the arrow buttons to move
from one entry field to another.
5. When done, press the RETURN button on your remote.
6. Select Network Test to check the Internet connectivity.
7. Set Internet Protocol Setup to Auto.
8. Auto acquires and enters the needed Internet values
automatically.
9. Wait two minutes, and then press the RETURN button
on your remote.
10. If the Network Function has not acquired the network
connection values, go to the directions for Manual.
English 31
Advanced Features
Connecting to a Wireless Network
To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter
(WIS09ABGN, WIS09ABGN2, WIS10ABGN), which you connect to your TV's back or side panel USB jack. See the illustration
below.
'_bs To use the SWL (Samsung Wireless Link) function, connect to the USB 1 (HDD} port,
TV Rear Panel
Wirebss IP Sharer
Tile LAN Port on the Wall (AP having DHCP Server)
LAN Cable (Not Supplied)
Samsung Wirebss
LAN Adapter
Samsung's Wireless LAN adapter is sold separately and is offered by select retailers, Ecommerce sites and Samsungparts.
com. Samsung's Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung
recommends using IEEE 802.11N. When you play video over a IEEE 802.11B/G connection, the video may not play smoothly.
NOTE
* You must use the "Samsung Wireless LAN Adapter" (WIS09ABGN, WIS09ABGN2, WIS10ABGN) to use a wireless
network.
* Samsung's Wireless LAN Adapter is sold separately. The SAMSUNG Wireless LAN Adapter is offered by select
retailers, Ecommerce sites and Samsungparts.com.
* To use a wireless network, your TV must connect wirelessly to a wireless IP sharer (either a router or a modem). If the
wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network.
* Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer
is currently being used by another device nearby, this will result in interference and communication failure.
* If you apply a security system other than the systems listed blow, it will not work with the TV.
* If you select the Pure High-throughput (Greenfield) 802.11n mode and set your AP's Security Encryption type to WEP,
TKIP or TKIPAES (WPS2Mixed), your Samsung TV will not support the connection in compliance with new Wi-Fi
certification specifications.
* If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button
Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in
either mode.
* If your router, modem, or device isn't certified, it may not connect to the TV via the "Samsung Wireless LAN Adapter."
* Connection Methods: You can setup the wireless network connection six ways.
- Samsung Auto Configuration - For non-Samsung devices.
- PBC (WPS)
- Auto Setup (Using the Auto Network Search function
- Manual Setup
- SWL (Samsung Wireless Link) - For Samsung devices only.
- Ad-Hoc
* The Samsung Wireless LAN Adapter may not be recognized or work properly when connecting via a USB hub or via
a USB extension cable other than the one available from Samsung.
2 English
Notice
The picture may appear corrupted or have static for some channels when the TV is connected to the Samsung Wireless LAN
Adapter. In such a case, establish a connection using one of the following methods or connect the Samsung Wireless LAN
Adapter using a USB cable in a place that is not affected by radio interference.
Connect using the USB right angle adapter
To connect the Samsung Wireless LAN Adapter using the USB
right angle adapter, follow these steps:
1. Connect the USB right angle adapter to the Samsung
Wireless LAN Adapter.
2. Connect the other end of the right angle adapter to the USB
1 (HDD} port.
Connect via an extension cable
i
• L i '
To reconnect the Samsung Wireless LAN Adapter using
the extension cable, follow these steps:
The Samsung Wireless LAN Adapter should be
installed in an interference-free area in order to
avoid interference between the adapter and tuner.
1. Connect the extension cable to the USB 1 (HDD}
port.
2. Connect the extension cable and Samsung Wireless
LAN Adapter.
3. Attach the Samsung Wireless LAN Adapter to the
back of the TV near the top, using double-sided
adhesive tape.
Network Setup (Samsung Auto
Configuration) .....................................................................................................................................................................................
The Samsung Auto Configuration function lets you connect
your Samsung TV automatically to non-Samsung wireless
APs. If your non-Samsung AP does not support Samsung
Auto Configuration, you must connect using one of the
other methods: PBC 6NPS), auto configuration, or manual
configuration.
To use this function, you must set SWL (Samsung
Wireless Link) to Off in the TV's on-screen menu.
You can check for equipment that supports Samsung
Auto Configuration on www.samsung.com.
How to set up using Samsung Auto Configuration
1. Place the AP and TV next to each other and turn them
on,
Because AP booting times vary, you may have
to wait approximately two minutes for your AP to
boot up.
Ensure the LAN cable is connected to the
WAN port of the AP during Samsung Auto
Configuration. If it is not connected, Samsung
Auto Configuration only confirms that the TV is
connected to the AP, but does not confirm it is
connected to the Internet.
2. After 2 minutes, connect the Samsung Wireless LAN
Adapter to the TV When the Samsung Wireless LAN
Adapter establishes a connection with your W, a pop-up
window appears.
3. As soon as a connection is established, place the AP
parallel to the Samsung Wireless LAN Adapter and not
farther than 9 and 7/8s inches (25cm) from it.
4. Wait until the connection is automatically established.
If Samsung Auto Configuration does not connect
your TV to your AP, a pop-up window appears on
the screen notifying you of the failure. If you want
to try using Samsung Auto Configuration again,
reset the AP, disconnect the Samsung Wireless
LAN Adapter and then try again from Step 1. You
can also choose one of the other connection
setup methods: PBC (WPS), auto, or manual.
5. Place the AP in a desired location.
If the AP settings change or you install a new
AP, you must perform the Samsung Auto
Configuration procedure again, beginning from
Step 1.
English 33
Advanced Features
Network Setup (PBC (WPS)) ............................................................................................
How to set up using PBC (WPS)
If your router has a PBC (WPS) button, follow these steps:
1. Connect your TV to your LAN as described in the
previous section.
2. Turn on your W, press the MENU button on your
remote, use the A or T button to select Setup, and
then press the ENTERI_ button.
3. Use the A or T button to select Network in the Setup
menu, and then press the ENTERIZ_ button.
4. On the Network screen, select Network Type.
5. Set Network Type to Wireless.
6. Select Network Setup. The Network Setup screen
appears.
How to set up automatically
To set up the wireless connection automatically, follow these
steps:
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" procedure.
2. Press the T button to select Internet Protocol Setup,
and then press the ENTERE_ button. Press the A or
_r button to select Auto, and then press the ENTERI_
button.
3. Press the A button to go to Select a Network, and
then press the ENTERIZ_ button. The Network function
searches for available wireless networks. When done, it
displays a list of the available networks.
4. In the list of networks, press the A or _' button to select
a network, and then press the ENTERI_ button.
If the AP is set to Hidden (Invisible), you have
to select Add Network and enter the correct
Network Name (SSID) and Security Key to
establish the connection.
5. If the Security/PIN pop-up appears, go to Step 6. If the
Network Connecting Screen appears, go to Step 10.
6. Press the A or _' button to select Security or PIN. For
most home networks, you would select Security (for
Security Key). The Security Screen appears.
7. Press the Red button on your remote.
8. Press the PBC (WPS) button on your router within 2
minutes. Your TV player automatically acquires all the
network setting values it needs and connects to your
network.
9. After the network connection is set up, press the
RETURN button to exit the Network Setup screen.
Network Setup (Auto)
Most wireless networks have an optional security system
that requires devices that access the network to transmit
an encrypted security code called an Access or Security
Key. The Security Key is based on a Pass Phrase, typically
a word or a series of letters and numbers of a specified
length you were asked to enter when you set up security for
your wireless network. If you use this method of setting up
the network connection, and have a Security Key for your
wireless network, you will have to enter the Pass Phrase
during the setup process.
7.
8.
On the Security screen, enter your network's Pass
Phrase.
You should be able to find the Pass Phrase on
one of the set up screens you used to set up your
router or modem.
To enter the Pass Phrase, follow these general
directions:
- Press the number buttons on your remote to enter
numbers.
- Use the direction buttons on your remote to move
from button to button on the Security Key screen.
- Press the Red button to change case or display
symbols/characters.
- To a enter letter or symbol, move to the letter or
symbol, and then press the ENTERE_ button.
- To delete the last letter or number you entered, press
the Green button on your remote.
4 English
9. Whendone,presstheBluebuttononyourremote.The
NetworkConnectingscreenappears.
10.Waituntiltheconnectionconfirmationmessageis
displayed,andthenpresstheENTERI_button.The
NetworkSetupscreenre-appears.
11.Totesttheconnection,presstheRETURNbuttonto
selectNetworkTest,andthenpresstheENTERE_
button.
Network Setup (Ad-Hoc) ............................................................................................................
You can connect to a mobile device without an access point
through the "Samsung Wireless LAN Adapter" by using a
peer to peer network.
This function is available when SWL (Samsung
Wireless Link) is set to Off in the TV's on-screen
menu.
How to connect to new Ad-hoc device
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" (p. 34).
2. Choose Select a network. A list of devices/networks
appears.
3. While in the device list, press the Blue button on the
remote.
The message Ad-hoc is a direct Wi-Fi
connection with cell phone or PC. The existing
network system may have limited functionality.
Do you want to change the network
connection? is displayed.
4. Input the generated Network Name (SSID) and
Security Key into the device you want to connect.
How to connect an existing Ad-hoc device
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" (p. 34).
2. Choose Select a network. The Device/Network list
appears.
3. Select the device you want in the Device list.
4. If security key is required, input the security key.
If network doesn't operate normally, check
the Network Name (SSID) and Security Key
again. An incorrect Security Key may cause a
malfunction.
Network Setup (Manual)
If the other methods do not work, you need to enter the
Network setting values manually.
Getting the Network Connection Values
To get the Network connection values on most Windows
computers, follow these steps:
1. Right click the Network icon on the bottom right of the
screen.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support tab.
4. On the Support tab, click the Details button. The
Network settings are displayed.
How to set up manually
To enter the Network connection values manually, follow
these steps:
1. Follow Steps 1 through 6 in the "How to set up using
PBC (WPS)" (p. 34).
2. Press the T button to select Internet Protocol Setup,
and then press the ENTERC_ button. Press the A
or T button to select Manual, and then press the
ENTER E_ button.
3. Press the T button to go to the first entry field (IP
Address).
4. Use the number buttons to enter numbers.
5. When done with each field, use the _,, button to move
successively to the next field. You can also use the other
arrow buttons to move up, down, and back.
6. Enter the IP Address, Subnet Mask, and Gateway
values.
7. Press the A or T button to go to DNS.
8. Press the T button to go to the first DNS entry field.
Enter the numbers as above.
9. When done, press the A button to go to Select a
Network. Select your network, and then press the
ENTER C_ button.
10. Go to Step 4 in the "How to set up automatically" (p.
34), and follow the directions from that point on.
English 35
Advanced Features
SWL (Samsung Wireless Link)
This function lets you connect your TV to a Samsung device
(router, etc.) that supports PBC (WPS), You can connect the
TV to the device even if a sharer is not connected to the TV.
For the TV to use Internet@TV, the AP (access point)
must be connected to the wireless network.
if a Samsung Wireless Lan Adapter is connected to the
USB 2 port, the network may not operate normally. We
recommend connecting it to the USB 1 (HDD} port.
Only sharers using the 2.4 Ghz band are supported.
Sharers using the 5 Ghz band are not supported.
SWL connect
You can directly connect the TV to a Samsung device that
supports PBO (WPS),
This function is available when SWL (Samsung
Wireless Link) is set to On,
To use the SWL (Samsung Wireless Link) function,
connect the Samsung Wireless LAN Adpater to the
USB 1 (HDD} port.
How to connect using Samsung Wireless Link
To connect using Samsung Wireless Link, follow these steps:
1. Follow Steps 1 through 5 in the "How to set up using
PBC (WPS)" (p. 34),
2. Select SWL(Samsung Wireless Link) by using the _r
button, and then press the ENTERI_ button to turn it
On.
3. Select SWL connect by using the _r button, and then
press the ENTERE_ button,
4. If the "Press the PBC button on the device which
supports PBC button to connect within 120
seconds" message appears, press the PBC button on
the device to connect.
For more information, refer to the wireless network
setup manual of the device to be connected.
5. If the TV connects properly to the device after the count
in the message box starts, then the message box
disappears automatically.
If the connection fails, please retry after 2 minutes.
If Your TV Fails to Connect to the Internet
Your TV may not be able to connect to the Internet
because your ISP has permanently registered the
MAO address (a unique identifying number) of your
PC or modem, which it then authenticates each time
you connect to the Internet as a way of preventing
unauthorized access. As your TV has a different MAC
address, your ISP can not authenticate its MAC address,
and your TV can not connect.
To resolve this problem, ask your ISP about the
procedures required to connect devices other than a PC
(such as your TV) to the Internet.
If your Internet service provider requires an ID or password
to connect to the Internet, your TV may not be able to
connect to the Internet. If this is the case, you must enter
your ID or password when connecting to the Internet.
The internet connection may fail because of a firewall
problem. If this is the case, contact your Internet service
provider.
If you cannot connect to the Internet even after you have
followed the procedures of your Internet service provider,
please contact Samsung Electronics at 1-800-SAMSUNG.
6 English
Enjoyphotos,musicand/ormoviefilessavedon
aUSBMassStorageClass(MSC)device.
(_ MENUiTrl --_Application -+ Content
View --_ Media Play _ ENTER E_
I
1.
2.
3.
Connecting a USB Device
Turn on your W,
Connect a USB device containing photo, music and/or movie files to the USB 1
(HDD} or USB 2 jack on the side of the TV,
When USB is connected to the W, a popup window appears. Then you can
select Media Play.
TV Rear Panel
USB Dnve
Connecting to your PC through a network
You can play pictures, music and videos saved on your PC through a network connection in the Media Play mode.
If you want to use Media Play to play files saved on your PC over your TV, you should download "PC Share Manager"
and users manual from "www.samsung.com."
PC TVRearPanel
LAN i i :::::::::::::::::::::::::::
;:::::::: =====================
LAN Ads ter ......................................................................... _t!_....................................................................... Samsung
(Suppli_ _ " Wireless
f WirelessIPSharerLANAdapter
[lii
LAN Cable (Not Supplied) LAN Cable (Not Supplied) LAN Cable (Not Supplied)
iiii
iiii
1. For more information on how to configure your network, refer to "Network Connection" (p. 30),
- You are recommended to locate both the TV and the PC in same subnet. The first 3 parts of the subnet address of the
TV and the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g, IP
Address: 123.456.789,**)
2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager
Program will be installed.
- You can connect the TV to the PC directly without connecting it through a Sharer (Router).
English 37
Advanced Features
Functions that are not supported when connecting to a PC through a network:
* The Background Music and Background Music Setting functions.
* Sorting files by preference in the Photos, Music, and Videos folders.
* The F_3 (REW) or F_q (FF) button while a movie is playing.
Divx DRM, Multi-audio, embedded captions are not supported.
Samsung PC Share manager should be permitted by the firewall program on your PC.
When you use Media Play mode through a network connection, depending on the functions of the provided server:
* The sorting method may vary.
* The scene search function may not be supported.
* The Play Continuously function, which resumes playing of a video, may not be supported.
- The Play Continuously function does not support multiple users. (It will have only memorized the point where the
most recent user stopped playing.)
* The _ or I_ buttons may not work depending on the content information.
* You may experience file stuttering while playing a video in Media Play through a network connection.
It might not work properly with unlicensed multimedia files.
Need-to-Know List before using Media Play
* MTP (Media Transfer Protocol) is not supported.
* The file system supports FAT16, FAT32 and NTFS.
* Certain types of USB Digital camera and audio devices may not be compatible with this TV.
* Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only
Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not
supported). Devices should be connected directly to the TV's USB port.
* Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.
SAMSUNG is not responsible for any data file damage or data loss.
* Connect a USB HDD to the dedicated USB 1 (HDD) port.
* Do not disconnect the USB device while it is loading.
* The higher the resolution of the image, the longer it takes to display on the screen.
* The maximum supported JPEG resolution is 15360X8640 pixels.
* For unsupported or corrupted files, the "Not Supported File Format" message is displayed.
* If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.
* MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management
(DRM) is a technology that supports the creation, distribution and management of the content in an integrated and
comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the
illegal copying of contents, as well as managing billings and settlements.
* If more than 2 PTP devices are connected, you can only use one at a time.
* If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high
power (more than 500mA or 5V) may not be supported.
* If an over-power warning message is displayed while you are connecting or using a USB device, the device may not
be recognized or may malfunction.
* If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.
* The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.
* If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.
* If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is
not played, connect the USB device to the PC, format the device and check the connection.
* If a file deleted from the PC is still found when Media Play is run, use the "Empty the Recycle Bin" function on the PC
to permanently delete the file.
8 English
Screen Display
Move to the desired file using the up/down/right/left buttons and then press the ENTERI_ or F_q (Play) button. The file is
played.
Supports the View Devices and Home in Media Play homepage.
You can ascertain the selected
file name and the number of files
and page.
Displays the sorting standard.
"''''"(_bsTtTesorting standard is
different depending on the
contents.
File List Section:
You can confirm the files and
groups that aresorted by
category.
-- Operation Buttons
D Red (Change Device): Selects a connected device.
_!/Green (Preference): Sets the file preference. (not supported in Basicview)
Yellow(Select): Selects multiple files from file list. Selected files are marked with a symbol.
Blue (Sorting): Selects the sort list.
_'3 Tools: Displays the option menu.
Using the _ (REW) or _ (FF) button, file list can move to next or previous page.
Videos
Playing Video
1. Press the _ or I_ button to select Videos, then press the ENTERI_ button in the Media Play menu.
2. Press the _/I_/_,/T button to select the desired video in the file list.
3. Press the ENTERI_ button or F_q (Play) button.
- The selected file is displayed on the top with its playing time.
- If video time information is unknown, play time and progress bar are not displayed.
- During video playback, you can search using the 41and I_ button.
In this mode, you can enjoy movie clips contained on a Game,
but you cannot play the Game itself.
• Supported Subtitle Formats
XML
HTML
string-based
string-based
string-based
English 39
Advanced Features
• Supported Video Formats
Divx 3.11 / 4.x / 5.1/6.0 1920x1080 6- 30 8
XvD 1920x1080 6 - 30 8
*.avi AVI MP3 / AC3 / LPCM /
H.264 BP / MP / HP 1920xl 080 6 - 30 25
*.mkv MKV ADPCM / DTS Core
MPEG4 SP/ASP 1920x1080 6-30 8
Motion JPEG 800x600 6 - 30 8
Divx 3.11 / 4.x / 5.1/6.0 1920x1080 6 - 30 8
XvD 1920x1080 6 - 30 8
MP3 / AC3 / LPCM /
*.asf ASF H.264 BP / MP / HP 1920x1080 6 - 30 25
ADPCM / WMA
MPEG4 SP / ASP 1920x1080 6-30 8
Motion JPEG 800x600 6 - 30 8
*.wmv ASF Window Media Video v9 1920x1080 6 - 30 25 WMA
H.264 BP / MP / HP 1920x1080 6 - 30 25
*.mp4 MP4 MPEG4 SP / ASP 1920x1080 6 - 30 8 MP3 / ADPCM / AAC
XVID 1920x1080 6 - 30 8
H.264 BP / MP / HP 1920x1080 6 - 30 25
*.3gp 3GPP ADPCM / AAC / HE-AAC
MPEG4 SP / ASP 1920x1080 6-30 8
VRO MPEG1 1920x1080 24 / 25 / 30 30
*.wo AC3 / MPEG / LPCM
VOB MPEG2 1920x1080 24 / 25 / 30 30
MPEG1 1920x1080 24 / 25 / 30 30
*.mpg PS MPEG2 1920x1080 24 / 25 / 30 30 AC3 / MPEG / LPCM / AAC
*.mpeg
H.264 1920x1080 6 - 30 25
MPEG2 1920x1080 24 / 25 / 30 30
*.ts
AC3 / AAC / MP3 / DD+ /
*.tp TS H.264 1920x1080 6 - 30 25
HE-AAC
*.trp VC1 1920x1080 6 ~ 30 25
Other Restrictions
NOTE
* If there are problems with the contents of a codec, the codec will not be supported.
* If the information for a Container is incorrect and the file is in error, the Container will not be able to play
correctly.
* Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec
listed in the table above.
* If the Index Table is in error, the Seek (Jump) function is not supported.
• Supports up to H.264, Level 4.1
• H.264FMO/ASO/RS, VC1 SP/MP/APL4andAVCHDarenot
supported.
• XVID, MPEG4 SR ASP :
- Below 1280 x 720:60 frame max
- Above 1280 x 720:30 frame max
• GMC 2 over is not supported.
• H.263is not supported.
• Only Samsung Techwin MJPEG is supported.
• Supports up to WMA 7, 8, 9, STD
• WMA 9 PRO does not support 2 channel excess multi channel or
Iosslessaudio.
• WMA sampling rate 22050Hz mono is not supported.
0 English
Playing movie continuously (Resume Play)
If you exit the playing movie function, the movie can be played later from the point where it was stopped.
If you press the ENTERL%_button (Chaptering) during playing the file, you can explore scene divided into 5 chapters
you want.
1. Select the movie file you want to play continuously by pressing
the ,4 or I_ button to select it from the file list section.
2. Press the F_q (Play) / ENTER I_ button.
3. Select Play Continuously (Resume Play) by pressing the Blue
button. The Movie will begin to play from where it was stopped.
The Blue button is available when resuming play.
If the Continuous Movie Play Help function is set to On
in the Settings menu, a pop-up message will appear
when you resume play a movie file.
Music
Playing Music
1. Press the ,_ or I_ button to select Music, then press the
ENTERE__ button in the Media Play menu.
2. Press the ,_/I_/A/T button to select the desired Music file in
the file list.
3. Press the ENTERIZ_ button or F_q (Play) button.
- During music playback, you can search using the 41 and I_
button.
- _ (REW) and [_3 (FF)buttons do not function during play.
Only displays the files with MP3 and PCM file extension. Other
file extensions are not displayed, even if they are saved on the
same USB device.
If the sound is abnormal when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file
may cause a sound problem.)
Creating My Playlist
1. Press the 4/I_/A/T button to select the tracks you want to add and press the TOOLS button.
2. Select Add My Playlist.
3. When the Add My Playlist menu appears, select New My Playlist.
To add to an old play list, simply select the play list you want to add music to.
4. The newly created or updated playlist will be in the main Music page.
Playing My Playlist
Select the My Playlist folder and it will play automatically. Press the A or T button to select a different music file within the
play list.
English 4 1
Advanced Features
Photos
Viewing a Photo (or Slide Show)
1. Press the ._ or I_ button to select Photos, then press the
ENTERE__ button in the Media Play menu.
2. Press the ._/I_/A/T button to select the desired photo in the
file list.
3. Press the ENTERIZ_ button or _ (Play) button.
- While a photo list is displayed, press the FCq(Play)/
ENTERL_ button on the remote control to start the slide
show.
- All files in the file list section will be displayed in the slide show.
- During the slide show, files are displayed in order.
Music files can be automatically played during the Slide Show if
the Background Music is set to On,
The BGM Mode cannot be changed until the BGM has finished
loading,
Playing Multiple Files
Playing selected video/music/photo files
1. Press the Yellow button in the file list to select the desired file.
2. Repeat the above operation to select multiple files.
NOTE
" The _ mark appears to the left of the selected files.
" To cancel a selection, press the Yellow button again,
. To deselect all selected files, press the TOOLS button
and select Deselect All.
3. Press the TOOLS button and select Play Selected Contents.
Playing the video/music/photo file group
1. While a file list is displayed, move to any file in the desired group.
2. Press the TOOLS button and select Play Current Group.
Media Play - Additional Functions
Sorting the file list
Press the Blue button in the file list to sort the files,
_ Basic View
Title
Preference
_a} Latest Date
f_ Earliest Date
Artist
_ Album
Genre
Mood
_ Monthly
42 English
___: _!_ii¸_!_!iii!i_iiiii_ii_ii_!i_iii_ii_ii_ii_ii_ili!ii!ii!ii!ii!i@!i_!i_!i_!i_!_i!ii!ii!ii!i_i_i!i!ii!ii!ii!ii!i¸i_i!i¸ii¸__!_
DisplaysthewholefoldenYoucan viewthephotobyselectingthefolden
SortsanddisplaysthefiletitleinSymbol/Number/Alphabet/Specialorder.
Sortsanddisplaysthefileby preference.Youcan changethefilepreferenceinthefile
listsectionusingtheGreenbutton.
Sortsandshowsfilesbythe latestdate.
Sortsandshowsfilesbytheearliestdate.
Sortsthemusicfilebyartistinalphabeticalorder.
Sortsthemusicfilebyalbumin alphabeticalorder.
Sortsmusicfilesbythegenre.
Sortsmusicfilesbythemood.Youcanchangethemusicmoodinformation.
Sortsandshowsphotofilesbymonth.
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
v
Videos/Music/Photos Play Option menu
During file playback, press the TOOLS button.
Title V
Repeat Mode V V
Picture Size
(Model / Mode2 / Original) V
Picture Setting You can adjust the picture setting. (p. 16-22) V V
Sound Setting You can adjust tlqesound setting. (p. 22, 23) V V V
Subtitle Setting You can play tlqevideo wklq Subtitles. Ttqisfunction only works if the subtitles are tlqe V
same file name as the video.
Audio You can enjoyvideo in one of supported languages as required. Thefunction isonly V
enabled when stream-type fileswtqiclqsupport multiple audio formats are played.
Stop Slide Show / You can start or stop a slide show.
Start Slide Show V
Slide Show Speed You can select tlqeslide stqowspeed during tlqeslide stqow. V
Slide Show Effect You can set vadous slide show effects. V
Background Music You can set and select background music when watclqing a slide show. V
Zoom You can zoom into images in full screen mode. V
Rotate You can rotate images in full screen mode. V
Home Background You can move the file to tlqe Media Play desktop. V
Information You can see detailed information about the played file. V V V
You can move directly to another Title.
You can play movie and music files repeatedly.
You can adjust the picture sizeto your preference.
Settings
Using the Setup Menu
Ill Background Setting: Select to display the background you want.
Ill Continuous Movie Play Help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie
playback.
Ill Get DivX® VOD registration code: Shows the registration code authorized for the T_. If you connect to the DivX web site
and register, you can download the VOD registration file. If you play the VOD registration using Media Play, the registration
is completed,
For more information on DivX® VOD, visit "www.DivX.com."
Ill Get DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is displayed. If
you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.
Ill Information: Select to view information about the connected device.
English 43
Advanced Features
What is Anynet+?
Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung
TV's remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your
Samsung device has this feature, check if there is an Anynet+ logo on it.
To connect to a Samsung Home Theater
TVRearPanel
Anynet+ Anynet+Devbe
HomeTt_eater Devbe1 2, 3, 4
........................................................................., ; :
HDMI Cable/Not Supplied/
HDMI CaMe {Not S_pp ed}
HDM_ Cable (Not Supplied/
1. Connect the HDM_ _N (1(DVm)_2(ARC), 3 or 4) jack on the TV and the HDMI OUT jack of the corresponding Anynet+
device using an HDMI cable.
2. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using an
HDMI cable.
NOTE
* Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input
on the Home Theater.
* The ARC function enables digital output of sound using the HDM_ _N 2(ARC) port and can only be operated when
the TV is connected to an audio receiver that supports the ARC function.
* When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from
the Home Theater's Front, Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect
the D_GITAL AUDIO OUT (OPTICAL} jack on the DVD / Satellite Box (i.e. Anynet Device 1 or 2) directly to the
Amplifier or Home Theater, not the TV.
* You can connect only one Home Theater.
* You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions.
* Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.
* Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.
4 English
Anynet+ Menu
The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV,
View TV Changes Anynet+ mode to TV broadcast mode,
Device List Shows the Anynet+ device list,
(devicename) MENU Shows the connected device menus, E.g, If a DVD recorder is connected, the disc menu of
the DVD recorder will appear.
(devicename) INFO Shows the play menu of the connected device. E.g, If a DVD recorder is connected, the
play menu of the DVD recorder will appear,
Recording: (*recorder) Starts recording immediately using the recorder. (This is only available for devices that
support the recording function.)
Stop Recording: (*recorder) Stops recording.
Receiver Sound is played through the receiver.
If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is
connected, it will be represented as (*devicename).
Setting Up Anynet+
(_ MENU ITTI_ Application --_Anynet+ (HDMm-CEC) _ ENTERI_
Ill Setup
Anynet+ (HDMm-CEC) (Off/On): To use the Anynet+ Function, Anynet+ (HDMm-CEC)must be set to On.
When the Anynet+ (HDMm-CEC) function is disabled, all the Anynet+ related operations are deactivated.
Auto Turn Off (No / Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off.
The active source on the TV must be set to TV to use the Anynet+ function.
Even if an external device is still recording, it may turn off.
I
1.
2,
Switching between Anynet+ Devices
Anynet+ devices connected to the TV are listed,
If you cannot find a device you want, press the Red button to refresh the list.
Select a device and press the ENTERI_ button. You can switch to the selected device.
The Device List menu will only appear when you set Anynet+ (HDMI-CEC) to On in the Application menu.
* Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching
operation.
* If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function.
Make sure to switch to an Anynet+ device by using the Device List.
English 45
Advanced Features
Recording
You can make a recording of a TV Program using a Samsung recorder.
1. Select Recording.
When there are more than two recording devices
" When multiple recording devices are connected, the recording devices are listed. Select one recording device in
the Device List,
When the recording device is not displayed, select Device List and press the Red button to search devices.
2. Press the EXIT button to exit.
You can record the source streams by selecting Recording: (devicename).
Pressing the [_q (REC)button will record whatever you are currently watching. If you are watching video from
another device, the video from the device is recorded.
Before recording, check whether the antenna jack is properly connected to the recording device. To properly
connect an antenna to a recording device, refer to the recording device's users manual.
Listening through a Receiver
You can listen to sound through a receiver (i,e Home Theater) instead of the TV Speaker.
1. Select Receiver and set to On.
2. Press the EXIT button to exit.
If your receiver supports audio only, it may not appear in the device list.
The receiver will work when you have properly connected the optical in jack of the receiver to the DIGITAL AUDIO
OUT (OPTICAL} jack of the TV.
When the receiver (i.e Home Theater) is set to On, you can hear sound output from the TV's Optical jack. When
the TV is displaying a DTV (air) signal, the TV will send out 5.1 channel sound to the receiver. When the source is a
digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from
the receiver.
NOTE
" You can only control Anynet+ devices using the TV remote control, not the buttons on the TV.
" The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device.
" The Anynet+ functions do not operate with other manufacturers' products.
Using the ARC function
You can listen to sound through a receiver connected HDMI cable without the need for a separate optical cable.
1. Select Receiver and set to On.
2. Press the EXIT button to exit.
To use the ARC function, a receiver which supports the HDMI-CEC and ARC features must be connected to the HDMI
IN 2 (ARC} port.
To disable the ARC function, set the Receiver to Off. Even if the TV transmits the ARC signal continuously, the receiver
will be blocked from receiving the signal.
6 English
Troubleshooting for Anynet+
I
iiiiij_:_!_i_i_i_i_i_i_i_iiiiiii_i_!!i_iii!!_i_iii_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_iiii_iiii_ii_ii!!ii_iiiii_iiiiiiiiii_!_!_iiiii_i!i!iiiiiii¸
Anynet+ does not work.
ii_ !__iil_!_!_:_lli_i_i_!_i_!i!i!_i_i_i_i_ilil!lilllllll_!_iilililililililililililil_i_i_i!i!i!i_i_i_iiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iiiiiii_i_i_i_i_i!i!i!i_iiiiiiiiiiiiiiiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_ilililililililililililililililililililililililiiiiiii!_!i_ii!_i!!_!ii!i!ii!ii!_!i!i!i!i!i!i!i!i!i!i!i!iliiii_iii_i_iili_iiiiii_iiiiii_iii_i_!!i_i_i_i_i_i_i_i_i_i_!_!_!_!_!_!_!!_!_!_!_!_!_!_!i_!_:_i_i_i_i_ilililililililililililililililililililililililillllllli!i_i!ii_i!ii!ii!ii!ii!ii!ii!i_i!!i¸i!i!i!i!i!i!_!!!!!iiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_!!i_i_i_i_i_i!_!i_i!!i!i!i!i!i!iiiiii_ii_!!_i_i_i_i_i_i_i_i_i_i_i_i_!!i_i_i_i_i_i_i_i_i_i!_!_!i!_i!_i!_i!_i!_i!_i!_i!i!_!_i!i!_iii!i!i!iii¸iii
• Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.
• Only one receiver (home theater) can be connected.
• Check if the Anynet+ device power cord is properly connected.
• Check the Anynet+ device's Video/Audio/HDMI cable connections.
• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.
• Check whether the TV remote control is in TV mode.
• Check whether the remote control is Anynet+ compatible.
• Anynet+ doesn't work in certain situations. (Searching channels, operating Media Play or Plug & Play (initial
setup), etc.)
• When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off
and on again.
Check if the Anynet+ Function of Anynet+ device is set on.
I want to start Anynet+. • Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-OEC) is set to
On in the Anynet+ Setup menu.
Pressthe TOOLS button to display the Anynet+ menu and select a menu you want.
I want to exit Anynet+. • Select View TV in the Anynet+ menu.
Pressthe SOURCE button on the TV remote control and select a non- Anynet+ device.
Press V CH A, PREoCH,and FAV,CH to change the TV mode. (Note that the channel button operates
only when a tuner-embedded Anynet+ device is not connected.)
The message "Connecting to • You cannot use the remote control when you are configuring Anynet+ or switching to aview mode.
Anynet+ device..." appears on the • Use the remote control when the Anynet+ setting or switching to view mode iscomplete.
screen.
The Anynet+ device does not play. • You cannot use the play function when Plug & Play (initialsetup) is in progress.
The connected device is not
displayed.
o
o
o
o
o
o
The TV Program cannot be
recorded.
The TV sound is not output • Connect the optical cable between TV and the receiver.
through the receiver. • The ARC function enables digital output of sound using the HDMI IN 2(ARC} port and can only be operated
when the TV is connected to an audio receiverthat supports the ARC function.
Check whether or not the device supports Anynet+ functions.
Check whether or not the HDMI cable is properly connected.
Check whether Anynet+ (HDMI-OEC) is set to On in the Anynet+ setup menu.
Search Anynet+ devices again.
You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+
functions.
Ifconnection isterminated because there has beersa power interruption or the HDMI cable has been
disconnected, please repeat the device scan.
Check whether the antenna jack on the recording device is properly connected.
English 47
Advanced Features
J
Getting Started with Internet@TV
Internet@TV brings useful and entertaining
contents and services directly from the web to
your TM
(_ MENU iTR--_Application _ Content
View --_ Internet@TV --_ ENTERIZ_
Screen Display
Displays the current channek
Information:
Displays notices,
applications, and
advertisements brought to
you by Samsung product
introductions.
Application service:
Youcan experience
various service by provided
samsung.
Internet@'rv Settings:
Edit and configure applications
and Internet@TV settings.
Recommended Applications:
Displaysthe recommended sewice by
Samsung. You are not ableto add or
delete a service in this list,
Downloaded Applications:
Displaysthe downloaded applications
through tile Samsung Apps.
Controb:
• _ Red (Login): To log in to Intemet@TV.
• [//_Green (Mark as Favorite): To mark the applications as a favorite.
• _ Blue (Sort by): To sort the applications.
• 9 Return: To return to the previous menu.
'_bs The color buttons may work differently depending on the application.
NOTE
Configure the network settings before using Internet@TV. For more information, refer to "Network Connection" (p.
30).
* Unsupported fonts within the provider's content will not display normally.
* Slow responses and/or interruptions may occur, depending on your network conditions.
* Depending on the region, English may be the only language supported for application services.
* This feature is not available in some locations,
* If you experience a problem using a application, please contact the content provider.
* According to circumstances of the contents provider, an application's updates or the application itself may be
discontinued.
* Depending on your country's regulations, some applications may have limited service or not be supported.
8 English
Account Login
For an application with multiple accounts, use 4 and _. to
access the different accounts.
For a more enjoyable application experience, register
and log in to your account.
For instructions on creating an account, refer to
Settings --_ Internet@TV iD _ Create.
1. Press the Red button in the Internet@TV home page.
2. Select the desired User account, then press the
ENTER I_ button,
If you want to create an account, press the Red
button; then the create account OSD window will
appear.
3. After selecting User account, enter the Password using
the number button on the remote control.
When Iogin succeeds, User account will be
displayed on the screen.
Setting up Internet@TV
ml System Setup
Ticker Autorun (Off / On): You can set Ticker Autorun
to come on when powering on the TV,
The Ticker application provides useful News,
Weather, and Stock Market information. The
Ticker application on [nternet@TV must be
downloaded to use this feature,
Depending on your country, Ticker application
may have a different service or not be supported.
Channel Bound Service (Off/On): Some channels
support applications as an Internet data service, allowing
you to access the Internet service while watching TV,
Only available if supported by the broadcaster.
Change the Service Lock password
The default password set is "0-0-0-0."
If you forget the password you created, press the
following sequence of remote control buttons to
reset the password to "0-0-0-0": POWER (off)
MUTE _ 8 --_2 --_ 4 --_ POWER (on).
Reset: Resets Internet@TV settings to factory default
settings,
ml [nternet@rv [D
You can use this menu when creating and deleting
the account. You can control your account including
contents site's account information.
Create: Create an account and link it with desired
service applications.
NOTE
* Maximum number of accounts is 10.
* Maximum number of characters is 8.
Settings
Create IDs and configure Internet@TV settings from this
screen, Highlight Settings using the A and T buttons and
press the ENTERE_ button,
English 49
Advanced Features
How to create Internet@TV ID
Before creating a User account, you should download
the application first on the Samsung Apps.
1. Using the A/_'/_/I_ button, select Settings. Then
press the ENTERE_ button,
2. Press the V button to select Intemet@rv ID, then
press the ENTER{_ or I_ button.
3. Select Create. The Keypad screen will appear.
4. The keypad OSD will be displayed on the screen.
Using the Keypad
Pressing the = button on the remote while you are
using the Screen Keypad enables you to change the
text fields to lower case, upper case, numbers and
icons.
You can use this Screen Keypad in a several internet@
TV applications.
Here is how to input characters.
4-1. For example, suppose that you want to input
"105Chang",
4-2. Press the = button on the remote twice to
change the input mode from lower case to
numbers.
4-3. Press the 1,0 and 5 button in numerical order.
4-4. Press the = button on the remote 3 times to
change the input mode from numbers to upper
case.
4-5. Press the 2 button on the remote 3 times to
input C.
4-6. Press the - button on the remote 3 times to
change the input mode from upper case to
lower case.
4-7. Press buttons on the remote to input the rest
of "Chang". When done, press the ENTERI_
button.
[]
[]
5. Using the number buttons, enter the User account
and Password.
* Password must be numbers only.
* You can delete the entered character using the
PREoOH button.
* Using the F_q (PEW) or [_q (FF) button, you
can select icon you want to enter in icon keypad
screen.
6. Account created. You can use the services provided
by all users of your Samsung TV with a single
Iogin by linking the users' account to the TV ID. If
you want to register a service site ID, select Yes.
Service Site list will appear on the screen.
7. Select Register of the Service Site you want, then
press the ENTERI_ button.
8. Using number buttons, enter your application site ID
and password. Then press the ENTERIZ_ button.
9. Registered successfully. If you add another service
site, select Yes. then press the ENTERI_ button,
go to step 5.
10. When completed, select OK. Then press the
ENTER I_ button.
Manager
- Service Site: Register Iogin information for service
sites.
- Change Password: Change account password.
- Delete: Delete the account.
Service Manager: Delete and lock applications installed
to Internet@TV.
Lock: Lock the application.
Accessing a locked application requires the
password.
Delete: Delete the application.
Properties: Display information about Internet@TV. Use
the Check the speed of your internet connection
option to test your network connection.
0 English
Using the Internet@TV service
Samsung Apps ........................................................................................................................................................................
Samsung Apps is a store for downloading applications to be
used on Samsung TV/AV equipment.
Users can enjoy a variety of contents such as videos, music,
photos, games, useful information etc. using the downloaded
applications.
Additional applications will be available in the future.
Using the color buttons with the Samsung Apps.
* D Red (Login): To log in to the internet service.
* C_Green (Thumbnail View): To change the view
mode.
* _ Blue (Sort by): To sort the applications by
Featured, Most downloaded, Most recent or
Name.
* 9 Return: Moves to previous menu.
Using the Samsung Apps by category
The following categories are available:
• What's New?: Displays newly registered applications.
• Video: Displays various video media such as movies, TV
shows and short length videos.
• Sports: Displays various sports media such as match
information, images and short length video.
• Game: Displays various games such as sudoku and
chess.
• Lifestyle: Includes various lifestyle media services such
as music, personal photo management tools and social
networking such as Facebook and Twitter.
• Information: Includes various information services such
as news, stocks and weather.
• Other: Includes other miscellaneous services.
• My Page: Displays the application list and your cyber
cash balance.
Starting in the middle of 2010 (US and Korea
only), you can purchase cyber-cash for buying
applications through tv.samsung.com.
• Help: If you have questions about Internet@TV,check
this section first.
Skype
Skype created a little piece of software that makes
communicating with people around the world easy and
fun. With Skype you can say hello or share a laugh with
anyone, anywhere. And if both of you are on Skype, it's free.
Communicate with people around the world!
For more information, download the Skype user's
manual from "www.samsung.com."
English51
Advanced Features
Yahoo
Internet@TV provides an integrated Internet and television experience powered by the Yahoo!® Widget
Engine. You can monitor financial stocks, share photos with friends and family, and track news and
weather all through the Yahoo!® Widget Engine.
When running Internet@TV for the first time, you will be prompted to configure the basic settings.
Depending on your country's regulations, some applications may have limited service or not be
supported.
Screen Display
• Dock Mode
your profile.
Blue (Viewport): Toggles between Vbwport and
Overlay modes.
::: Yellow (Edit Snippet): To edit snippets with a help
window.
'_ In Viewport mode, the TV or video plays in a
scaled-down area with graphics outside. In
overlay mode, the graphics are displayed on
top of the TVor video.
Sidebar Mode
Widget logo and Current menu.
-- Contents List :
Tile current selection ishighlighted in blue.
Displays tile current page and number of total pages.
Dock: Displaysyour snippets.
Snippets are quick launch icons for your widgets.
PROFILE Widget and Widget Gallery cannot be
debted.
Controls:
• Q Red: To close the widget, If you want to see the Dock mode,
press the YAHOO! button.
• _i'(!,_Green:To change the widget's settings.
• :: Yellow: To manage your snippets.
• _ Blue: To size video to fit or display in full screen.
'%s Some buttons may not be availablewith certain widgets.
Editing Snippets in the Dock
1. Edit a snippet by selecting it in the dock and pressing the Yellow button,
2. The snippet moves to the Second position and its tile slides up to show the following help text:
Using the color buttons with the dock mode.
* D Red (Delete): To remove the widget.
Deleted widgets can be restored from Widget Gallery.
* D Blue (Move): To rearrange snippets.
* Yellow (Done): To exit the Edit Snippet menu.
2 English
PROFILE Widget
Set up user profiles through Profile Widget. You can set up
multiple profiles, each with its own list of widgets. Use the
Switch Profile option to switch to a different user profile.
There must be at least two registered profiles. For
instructions on adding a profile, refer to Administrative
Controls.
• Use the Profile Settings option to customize and
protect your profile.
- User profiles can be
customized with a unique
name and avatar (a picture
used to represent your
profile).
- Your profile's name and
avatar are displayed in the
profile snippet in the dock.
- Protect your profile using
the Create Profile PIN
option.
- When setting up a new
PIN, you can set a Security
Question.
• The Profile Settings option limits access to the profile's
widgets.
- If you forget your Profile PIN, answer your profile's
Security Question.
- New widgets cannot be added to profiles with the
Limit Profile indicator enabled.
Owner PIN must be set to use this feature.
For instructions on setting Owner PIN, refer to
Administrative Controls.
• System Settings allows you to:
- Change your Location and Zip Code (US only) to
tailor contents specific to your region.
- Replay the tutorial that was shown during guided
setup.
- Restore Factory Settings resets all widget settings
and information.
When you cannot run Restore Factory
Settings normally or you can not install/run
the specific widgets normally, press the remote
control buttons in the following sequence,
which resets the Yahoo Service: POWER (on)
--_ MUTE _ 9 _ 4 _ 8 -_ EXIT _ POWER
(off) _ POWER (on) --_ YAHOO! (IfYahoo
Service is displayed on the TV Screen, You
should stop the Yahoo Service using EXIT
button in advance.).
• From the Administrative Controls menu you can:
- Configure the Screen Saver timeout to avoid screen
burn-in.
- Create Owner PIN and set a Security Question to
control other profiles.
- Create and configure a new profile with a unique set
of widgets.
- Delete an existing profile.
• Sign into Yahoo!® from PROFILE Widget using your
Yahoo? ID.
- If you have a Yahoo? ID, you can access personalized
content using Yahoo! TV widgets.
- You will be automatically signed-in to all installed
Yahoo! TV widgets with your profile's Yahoo? ID.
- If you do not have a Yahoo! account, visit "www.
yahoo.corn" to create one.
- You may not be able to log in with an ID created
through a Yahoo website in a country that does not
support Internet@TV.
• About Profile Widget: Press the Green button to view
a brief description of Profile Widget, Copyright Policy,
Terms of Service, and Privacy Policy.
Widget Gallery
m
m
m
Use Yahoo!® Widget Gallery to add more widgets to your T_.
View available TV widgets in the following categories:
Ill Featured: Displays
recommended widgets.
Latest: Displays the most
recent widgets.
All widgets: Displays all
widgets.
Categories: Displays all
widgets by category.
m
To install a widget, select Add
Widget to My Profile and
press the ENTERE__ button.
The widget will be installed
and become available in the
dock.
Widget Gallery Settings: Press the Green button.
- About Yahoo? Widget Gallery...: You can view brief
information for the Widget Gallery, Copyright Policy,
Terms of Service, and Privacy Policy.
- iV Widget Software: Displays the current version of
the system software, and installed widgets.
- Create your own widgets through the Developer
Settings menu. For more information, visit our
developer site at http://connectedtv.yahoo.com/.
English 53
Advanced Features
Troubleshooting for Internet@TV
Some application contents only appear The Application content language may be different from the application user
in English, How can I change the interface language.
language? The ability to change the language depends on the service provider.
Check with the service provider.
Some application services do not work.
Refer to the help website for application service provider information.
When a network error occurs, I can only If network connection doesn't work, your service might be limited, as all
use the setting menu. functions except the setting menu are needed to connect to the internet.
All content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other
intelbctual property laws. Such content and services are provided solelyfor your personal noncommercial use. You may not use any content or
services in a mannerthat has not been authorized by the content owner or service provider. Without limitingthe foregoing, unless expresslyauthorized
by the applicable content owner or service provider,you may not modify, copy, republish, upload, post, transmit, translate, sell, create derivativeworks,
exploit, or distribute in any manner or medium any content or services displayed through this device.
YOU EXPRESSLYACKNOWLEDGE AND AGREE THAT USE OF THE DEVICEIS AT YOUR SOLE RISK AND THAT THE ENTIRERISK AS TO
SATISFACTORYQUALITY, PERFORMANCEAND ACCURACY ISWITH YOU. THE DEVICEAND ALL THIRD PARTYCONTENT AND SERVICESARE
PROVDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED. SAMSUNG EXPRESSLYDISCLAIMS ALL WARRANTIES
AND CONDITIONS WITH RESPECTTO THE DEVICEAND ANY CONTENT AND SERVICES, EITHEREXPRESSOR, IMPLIED, INCLUDING BUT NOT
LIMITEDTO, WARRANTIESOF MERCHANTABILITY,OF SATISFACTORYQUALITY, FITNESS FORA PARTICULAR PURPOSE, OF ACCURACY,OF
QUIETENJOYMENT,AND NON-INFRINGEMENTOF THIRDPARTY RIGHTS. SAMSUNG DOES NOT GUARANTEE THE ACCURACY, VALIDITY,
TIMELINESS,LEGALITY,OR COMPLETENESS OFANY CONTENT OR SERVICEMADEAVAILABLETHROUGH THIS DEVICEAND DOES NOT
WARRANTTHAT THE DEVICE, CONTENT OR SERVICESWILL MEETYOUR REQUIREMENTS,OR THATOPERATION OF THE DEVICE OR
SERVICESWILL BE UNINTERRUPTEDOR ERROR-FREE.UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE,SHALL SAMSUNG BE
LIABLE, WHETHER IN CONTRACTOR TORT, FORANY DIRECT,INDIRECT,INCIDENTAL,SPECIALOR CONSEQUENTIAL DAMAGES, ATTORNEY
FEES,EXPENSES,OR ANY OTHER DAMAGES ARISING (bUTOF,OR IN CONNECTION WITH, ANY INFORMATKbNCONTAINED IN, OR AS A
RESULTOFTHE USEOF THE DEVICE,OR ANY CONTENT OR SERVICEACCESSED BY YOU OR ANY THIRD PARTY,EVEN IF ADVISED OF THE
POSSIBILITYOF SUCH DAMAGES.
Third party services may be changed, suspended, removed, terminated or interrupted, or access may be disabled at any time, without notice, and
Samsung makes no representation or warranty that any content or service will remainavailable for any period of time. Content and services are
transmitted by third parties by means of networks and transmission facilities over which Samsung has no control. Without limiting the generality of this
disclaimer, Samsung expressly disclaims any responsibility or liability for any change, interruption, disabling, removal of or suspension of any content or
service made available through this device. Samsung may impose limits on the use of or access to certain services or content, in any case and without
notice or liability.
Samsung is neither responsible nor liable for customer service relatedto the content and services. Any question or request for service relatingto the
content or services should be made directly to the respective content and service providers.
Help Website
Accessing steps may be changed in the future.
It can be different links for special countries,
4 English
(_ MENUrm_ Application--_ContentView
AliShare--_ENTERI_
About AIIShare
AIIShare connects your TV and compatible Samsung mobile
phones/devices through a network. On your T_, you can
view call arrivals, SMS messages and schedules set on your
mobile phones. In addition, you can play media contents
including videos, photos and music saved on your mobile
phones or the other devices (such as your PC) by controlling
them on the TV via the network. Additionally, you can use
your TV for browsing web pages in your mobile phones.
For more information, visit "www.samsung.com" or
contact the Samsung call center. Mobile devices may
need additional software installation. For details, refer to
each device's user's guide.
Setting Up AIIShare
Setup
Ill Message (On / Off): Enables or disables the message
function (for call arrivals, SMS messages and schedules
set on your mobile phones).
Media (On / Off): Enables or disables the media
function. When the media function is on, it plays videos,
photos and music from a mobile phone or other device
that supports AIIShare.
ScreenShare (On / Off): Enables or disables the
ScreenShare function for using mobile phone as a
remote control.
m
m
m
-IV name: Sets the TV name so you can find it easily on
a mobile device.
If you select User Input, you can type on the TV
using the OSK (On Screen Keyboard).
Message / Media / ScreenShare ..............................................................
Shows a list of mobile phones or connected devices which
have been set up with this TV for using the Message,
Media, or ScreenShare function.
The Media function is available in all mobile devices
which support AIIShare.
Ill Allowed / Denied: Allows/Blocks the mobile phone.
Ill Delete: Deletes the mobile phone from the list.
This function only deletes the name of the mobile
from the list. If the deleted mobile device is turned
on or trys to connect to the TV, it may appear on
the list again.
Using the Message Function
Using this function, you view call arrivals, SMS messages
and schedules set on the mobile phone through the alarm
window while watching TM
NOTE
To disable the alarm window, set Message to Off in
Setup of AIIShare.
If OK is selected, or if OK is not selected after the
message has appeared three times, the message
will be deleted. The message is not deleted from the
mobile phone.
The alarm window can be displayed while using
some applications such as Media Play etc. To view
the contents of a message, switch to TV viewing
mode.
When a message from an unknown mobile phone is
displayed, select the mobile phone on the message
menu in AIIShare and select Denied to block the
phone.
Message View
If a new SMS message arrives while you are watching
T_, the alarm window appears. If you click the OK
button, the contents of the message are displayed.
You can configure the viewing settings for SMS
messages on your mobile phones. For the
procedures, refer to the mobile phone manual.
Some types of characters may be displayed as
blank or broken characters.
English 55
Advanced Features
Call Arrival Alarm
If a call arrives while you are watching T_, the alarm
window appears.
Schedule Alarm
While you are watching TV, the alarm window appears to
display the registered event.
You can configure viewing settings for schedule
contents on your mobile phones. For the
procedures, refer to the mobile phone manual.
Some special characters may be displayed as
blank or broken characters.
Using the Media Function
An alarm window appears informing the user that the media
contents (videos, photos, music) sent from a mobile phone
will be displayed on your W. The contents are played
automatically 3 seconds after the alarm window appears.
If you press the RETURN or EXiT button when the alarm
window appears, the media contents are not played.
NOTE
If the media function executes for the first time,
the warning popup window appears. Press the
ENTERE_ button to select Allow, then you can use
Media function on that device.
o
o
o
To turn off the media contents transmission from
the mobile phone, set Media to Off in the AIIShare
setup.
Contents may not be played on your TV depending
on their resolution and format,
The ENTERC_ and _1 / I_ buttons may not work
depending on the type of media content.
Using the mobile device, you can control the media
playing. For details, refer to each mobile's user's
guide.
When you want to play media contents from
your PC, select the PC icon on the main display
of AIIShare. Then the TV's Media Play menu
automatically changes. For more detail information,
refer to "Media Play" (p. 87).
Using ScreenShare Function
Using ScreenShare, you can browse various web contents
provided by the mobile phone. For example, the image
below displays an access page for contents on a mobile.
You can read the mobile's files and view the phone book and
calendar on the TV. Also, in the phone book, you can make a
call to another person, or send to SMS.
NOTE
You must have ScreenShare installed on your
Samsung Mobile phone/device to use this feature.
Doc Viewer can read files in doc format, but cannot
modify them.
The screen display may differ depending on the
connected device.
Using your Samsung phone to control your TV Simply
Before you can use this feature, you must connect to
a Samsung mobile phone that supports ScreenShare
functions. When operating the TV with your mobile phone,
only the POWER, --VOL+, v CH A and MUTE buttons
are supported.
Even if you keep pressing down on a control button
(channel or volume) on the mobile phone, the value will
only go up or down by one unit.
6 English
Other Information
Stand Type
Enclose the cables in the Cable Tie so that the cables are not visible through the transparent stand.
@
@
O
® ®
Wall-Mount Type
® ®
r ..........
.......... ( i i;: II .................II ,
,","i',/_' _- /J,_'_
I: _iL ....i'Yt '
Do not pull the cables too hard when arranging them. This may cause damage to the product's connection terminals.
English 57
Other Information
Attaching the Blanking Bracket
When installing the TV onto a wall, attach the Blanking Bracket as shown.
BlankingBracket oo°°
Preparing before installing Wall-Mount
To install a wall-mount from another manufacturer, use the Holder-Ring.
/
/
Installing the Wall Mount Kit
The wall mount kit (sold separately) allows you to mount the TV on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for
assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or
injury to yourself or others if you elect to install the TV on your own.
Wail Mount Kit Specifications (VESA)
The wall mount kit is not supplied, but sold separately.
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact
your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
NOTE
* Standard dimensions for wall mount kits are shown in the table below.
* When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
* Do not use screws that do not comply with the VESA standard screw specifications.
* Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the TV set.
* For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ
depending on the wall mount specifications.
* Do not fasten the screws too strongly; this may damage the product or cause the product to fall, leading to personal
injury. Samsung is not liable for these kinds of accidents.
* Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or
the consumer fails to follow the product installation instructions.
* Do not mount the TV at more than a 15 degree tilt.
* Always use two people to mount the TV to a wall.
8 English
LED-TV
[Ultra-Slim]
19-22 75X75
23-29 200X100
32-37 200X200
40-55 400X400
56-65 600X400
M4
M8
///_ Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to
electric shock.
The Kensington Lock is not supplied by Samsung. It is a device used to
physically fix the system when using it in a public place, The appearance and
locking method may differ from the illustration depending on the manufacturer.
Refer to the manual provided with the Kensington Lock for additional
information on proper use,
Please find a "8" icon on the rear of the TV. A kensington slot is beside
the "8" icon,
1. Insert the locking device into the Kensington slot O on the LED TV and
turn it as shown O.
2. Connect the Kensington Lock cable _.
3. Fix the Kensington Lock to a desk or a heavy stationary object.
The locking device has to be purchased separately.
The location of the Kensington slot may be different depending on the TV model.
m : J
<Optional>
ng,,sh59
Other Information
Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children
do not hang over or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or
death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the
anti-fall device for safety purposes, as follows.
Accessories
To prevent the -iV from failing
1. Remove the screw attached to the back of your TV, then connect the Holder-TV to the TV with the screw.
Make sure to only use the supplied screw.
2,
Firmly fasten the screw to the wall or cabinet where the TV is to be installed. Tie the W-Holder attached to the TV and the
screw fastened on the wall or cabinet so that the TV is fixed.
Only the screw needed to attach the holder to the TV is supplied. The screw to attach the Holder to the wall or
cabinet must be purchased separately. We recommend purchasing a size M4xL20 wood screw.
Install the TV close to the wall so that it does not fall.
When attaching the TV to the wall, tie the cord level with the ground or slanted downwards for safety purposes.
Check the cord occasionally to make sure it is secure.
Before moving the TV, separate the connected cord first.
3,
\
Verify all connections are properly secured. Periodically check connections for any sign of fatigue or failure. If you have any
doubt about the security of your connections, contact a professional installer.
0 English
If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips
apply, visit "www.samsung,com," then click on Support, or call Samsung customer service at 1-800-SAMSUNG.
iii iliii t iii i i 'iii i iiiii
Poor picture Eirst of all, please perform the Picture Test and confirm that your TV is properly displaying the test image.
(go to MENU - Support - Self Diagnosis - Picture Test) (p. 28)
Ifthe test image is properly displayed, the poor picture may be caused by the source or signal.
Tile TV image does not look as good as it • If you have an analog cable/satellite box, upgrade to an HD digital set top box. Use HDMI or
did in the store. Component cables to deliver HD (high definition) picture quality.
• Cable/Satellite subscribers: Try HD stations from the channel lineup.
• Antenna connection: Try HD stations after performing Auto program.
Many HD channels are up scaled from SD(Standard Definition) contents.
• Adjust the Cable/Sat box video output resolution to 1080i or 720p.
Tile picture is distorted: macro block error, • Compression of video contents may cause picture distortion, especially in fast moving pictures such
small block, dots, )ixelization. as sports and action movies.
• Low signal level carscause picture distortion. This is not a TV problem.
• Mobile phones used close to the TV (cca up to lm) may cause noise in picture on analog and digital
T_L
Color is wrong or missing. • If you're using Component connection, make sure tile component cables are connected to the
correct jacks. Incorrect or loose connections may cause color problems or a blank screen.
Ttlere is poor color or brightness. • Adjust the Picture options in the TV menu (go to Picture mode / Color / Brightness / Sharpness)
(p. 16)
• Adjust Energy Saving option in the TV menu (go to MENU - Picture - Eco Solution - Energy
Saving) (p. 16)
• Try resetting tile picture to view the default picture settings (go to MENU - Picture - Picture Reset)
(p. 22)
Ttlere is a dotted line on the edge of the • If the picture size is set to Screen Fit, change it to 16:9 (p. 18).
screen. • Change cable/satellite box resolution.
The picture is black and white. • If you are using an AV composite input, connect the video cable (yellow)to the Green jack of
component input 1 on tile T_L
When changing channels, tile picture • If connected to a cable box, please try to reset it. (reconnect tile AC cord and wait until tile cable box
freezes or is distorted or delayed, reboots. It may take up to 20 minutes)
• Set the output resolution of tile cable box to 1080i or 720p.
Sound Problem Eirst of all, please Performthe Sound Test to confirm that your TV audio is properly operating.
(go to MENU 4Support _-Self Diagnosis" Sound Test)(p. 28)
Ifthe audio is OK, the sound problem may caused by the source or signal.
There is no sound or tlqesound istoo low • Pleasecheck tlqevolume of tlqedevice (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV.
at maximum volume.
Ttqepicture is good but tlqereis no sound.
Ttqespeakers are making an inappropriate
noise.
• Set the Speaker Select option to TV Speaker in the Sound menu (p. 23).
• if you are using an external device, make sure the audio cables areconnected to the correct audio
input jacks on the T_L
• if you are using an external device, check the device's audio output option (ex.you may need to
change your cable box's audio option to HDMI when you have a HDMI connected to your _.
• if you are using a DVI to HDMI cable, a separate audio cable is required.
• if your TV has a headphone jack, make sure there is nothing plugged into it.
• Reboot the connected device by reconnecting the device's power cable.
• Check cane connections. Make sure a video cable is not connected to an audio input.
• For antenna or Cable connections, check the signal strength. Low signal level maycause sound
distortion.
• Perform the Sound Test as explained above.
Eng,,sh6::[
Other Information
No Picture, No Video
The TV won't turn on.
• Make surethe AC power cord b securely plugged in to the wall outbt and the T_
• Make surethe wall outlet is working.
• Try pressing the POWER button on the TVto make sure the probbm is not the remote, if the TVturns
on, refer to "Remote control does not work" below.
The TV turns off automatically. • Ensure the Sleep Timer is set to Off in the Setup menu (p. 24).
• if your PC b connected to the T_, check your PC power settings.
• Make surethe AC power cord b plugged in securely to the wall outbt and the TV.
• When watching TV from an antenna or cabb connection, the TV will turn off after 10 - 15 minutes if
there is no signal.
There b no pbture/video. • Check cabb connections (remove and reconnect all cabbs connected to the TV and external
devices).
• Set your external devbe's (Cabb/Sat Box, DVD, Blu-ray etc) video outputs to match the connections
to the TV input. For exampb, if an external device's output is HDMI, it should be connected to an
HDMI input on the T_
• Make sureyour connected devices are powered on.
• Be sure to select the TV's correct source by pressing the SOURCE button on the remote control.
• Reboot the connected device by reconnecting the device's power cable.
RF(Cable/Antenna)Connection
The TV is not receiving all channeb. • Make surethe coaxial cable is connected securely.
• Phase try Auto Program to add availabb channels to the channel list.Go to MENU - ChanneJ -
Auto Program then select Auto and make sure the correct Cable TV signal type isset inthe menu.
There are 3 options (STD, HRC and IRC) (p. 14)
• Verifythe Antenna is positioned correctly.
No Caption on digital channels. • Check Caption Setup menu. Try changing Caption Mode Service1 to OO1 (p. 26).
• Some channels may not have caption data.
The picture is distorted: macro block error, • Compression of video contents may cause picture distortion, especially with fast moving pictures
small block, dots, pixelization, such as sports and action movies.
• A low signal can cause picture distortion. This is not a TV problem.
PC Connection
A "Mode Not Supported" message • Set your PC's output resolution so it matches the resolutions supported by the TV (p. 12).
appears.
"PC" is always shown on the source list, • This is normal; "PC" is always shown on the source list, regardbss of whether a PC is connected.
even if a PC is not connected.
The video is OK but there is no audio. • if you are using an HDMI connection, check the audio output setting on your PC.
Network Connection
The wirebss network connection faibd. • The Samsung Wireless USB dongb is required to use a wireless network.
• Make surethe Network Connection is set to Wireless (p. 32).
• Make surethe TV is connected to a wireless IP sharer (router).
Software Upgrade over the network fail • Try network test in Setup menu (p. 27).
• if you have latestSW version, SW upgrade will not proceed.
Others
Purpldgreen rolling horizontal bars and • Remove the left and right audio connections from the set-top-box. If the buzzing stops, this indicates
buzzing noisefrom the TV speakers with that the set-top-box has a grounding issue. Replace the Component video cabbs with an HDMI
Component cable connection, connection.
The picture won't display in full screen. • HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3)
contents.
• Black bars on the Top & Bottom will be shown on movies that have aspect ratios different from your
T_
• Adjust the picture size options on your external device or TV to full screen.
The remote control does not work. • Replace the remote control batteries with the poles (+/-) in the right direction.
• Cban the sensor's transmission window on the remote.
• Try pointing the remote directly at the TV from 5-_6feet away.
The cabb/set top box remote control • Pregram the CabldSet remote control to operate the T_ Referto the Cabb/Set user manual for the
doesn't turn the TV on or off, or adjust the SAMSUNG TV code.
volume.
2 English
Can not turn off the Light Effect on the • Adjust the Light Effect option in the setup menu. Options are : Off, In Standby, Watching "IV and
front bezel. (BelowSAMSUNG Logo) Always.
• Light Effect is not availableon all models.
A "Mode Not Supported" message • Check the supported resolution of the T_, and adjust the external device's output resolution
appears, accordingly. Refer to the resolution settings on page 12 of this manual.
Caption on TV menu is greyed out. • Caption can not be selected in the TV menu when connected via HDMI or Component (p. 26).
• Caption must be activated on the external device (p. 26).
There is a plastic smell from the T_ • This smell is normal and will dissipate over time.
The TV Signal Information is unavailaUe • This function is only availablewkh digital channels from an Antenna / RF/Coax connection (p. 28).
in the Self Diagnostic Test menu.
The TV is tilted to the side. • Remove the base stand from the TV and reassemble it.
The channel menu is greyed out • The Channel menu is only available when the TV source is selected.
(unavailable).
Your settings are lost after 30 minutes or • If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change
every time the TV is turned off. the settings from Store Demo mode to Home Use mode in the Plug & Play procedure. Pressthe
SOURCE button to select "IV mode, and go to MEHU -_ Setup _ Plug & Play _ ENTER _ (p. 8).
You have intermittent loss of audio or • Check the cable connections and reconnect them.
video. • Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are
flexible enough for long term use. Ifmounting the TV to a wall, we recommend using cableswith 90
degree connectors.
You see small particles when you look • This is part of the product's design and is not a defect.
closely at the edge of the frame of the T_
The PiP menu is not available. • PIP functionality is only availablewhen you are using a HDMI, PC or Component source.
POP (TV'sinternal banner ad) appears on • Select Home Use under Plug & Play mode. For details, refer to Plug & Play Feature (p. 8).
the screen.
This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce, However,
there may be a few bright or dark pixele on the screen, These pixels will have no impact on the performance of the
product,
English 63
Other Information
S rS TheaterSound, SRS and the _ symbol are trademarks of SRS Labs, Inc.
TheaterSound technology is incorporated under license form SRS Lab, Inc,
TheaterSound
E_ _OL_Y_. Manufactured under license from Dolby Laboratories, Dolby and the double-D symbol are
DIGITAL PLUS ] trademarks of Dolby Laboratories.
PULSE ]
Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
_i111"_ 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol
are
2.0+DigitalOut registered trademarks. & DTS 2.0+ Digital Out and the DTS Iogos are trademarks of DTS, Inc.
Product Includes software. @ DTS, Inc. All Rights Reserved.
liD
m
DivX Certified to play DivX video up to HD 1080p, including premium content.
ABOUT DIVXVIDEO: DivX® is a digital vkJeoformat created by DivX,lnc. Ttqisis an official DivX Certified device tlqatplays DivX video. Visit www.divx.
com for more information and software toob to convert your fibs into DivXvideo.
ABOUT DIVXVIDEO-ON-DEMAND:Ttqis DivXCertified@device must be registered in order to play DivXVideo-on-Demand (VOD) content.
To generate the registration code, locatetlqeDivXVOD section in tlqedevice setup menu.
Go to vod.divx.com wkll this code to compbte the registration process and learnmore about DivXVOD. Pat. 7,295,673; 7,460,688; 7,519,274
Open Source License Notice
In the case of using open source software, Open Source Licenses are available on the product menu.
Open Source Licence Notice is written only English.
Panel native 1920 x 1080 @ 60 Hz
Environmental Consideratiens
Operating Temperature 50°F to 104°F (10°C to 40°C)
Operating Humidity 10% to 80 %, non-condensing
Storage Temperature -4°F to 113°F (-20°C to 45°C)
Storage Humidity 5% to 95%, non-condensing
Stand Swivel (Left/ Right) -20° - 20°
46 inches
(45.9 inches measured diagonally)
Screen Size
(Diagonal)
Sound
(Output) 10 W X 2 15 W X 2
Dimensions (WxDxH)
42.9 X 0.9 X 26.1 inches 50.5 X 0.9 X 30.4 inches
(1090.8 X 23.9 X 662.8 mm) (1282.0 X 23.9 X 772.0 mm)
Withstand 42.9 X 11.9 X 28.5 inches 50.5 X 11.9 X 32.8 inctses
(1090.8 X 303.0 X 723.8 mm) (1282.0 X 303.0 X 832.7 mm)
Without Stand 37.5 Ibs (17.0 kg) 48.5 bs (22.0 kg)
With Stand 42.3 Ibs (19.2 kg) 53.4 bs (24.2 kg)
55 incises
(54.6 inches measured diagonally)
Design and specifications are subject to change without prior notice.
This device is a Class B digital apparatus.
For information about power supply, and more about power consumption, refer to the label attached to the product.
4 English
Frontview/ Side view
0
O
O
o
O
in
(Unit: inches)
0.9 11.9
0.9 11.9
Ill Jack panel detail / Rear view
@,
(Unit: inches)
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the
dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.
© 2010 Samsung Electronics America, Inc
English 65
Other Information
A F R
AIIShare 55 FA_L,OH button 7, 14 Receiver 46
Amplify 22 Favorite Channel 14 Recording 46
Antenna 14 Film Mode 19 Remote Control 7
Anynet+ 44 Fine Tune 16 Repeat Mode 43
AUDIO OUT 11 Flesh Tone 17 RGB Only Mode 17
Auto Adjustment 22 Frequency 12 Rotate 43
Auto Volume 23
H S
B
.................................................................................................................................................................................HDMI 9, 44 Select All 16
Background Music 43 Home Theater 11,44
Balance L/R 22
Basic View 42 I
Batteries 7
Installation Space 2
Black Tone 17
Internet@TV 48
Blanking Bracket 58
Brightness 16
L
C Language 26
License 64
Cable Tie 4, 57
Change PIN 26
Channel Menu 14 M
Clock 24 Media Play
Color Tone 18 Melody
Component 10 Menu Transparency
Connecting to a PC 12 Mono
Connecting to an Audio Device 11 Music
Self Diagnosis 28
Sharpness 16
Signal Information 28
Sleep Timer 24
Slide Show 42
Software Upgrade 29
Source List 13
Speaker Select 23
Specifications 64
Standby mode 6
Symbol 3
D N
DIGITAL AUDIO OUT 11,44 Navigate 13
DivX® VOD 43 Network Connection 30
D-sub 12 Network Setup 31
Dynamic 16
Dynamic Contrast 17 O
E ON/OFF button 7
U
USB Drive 29, 37
V
Video Formats 40
Videos 39
..................................................................................................................................................................................Optimal resolution
Eco Sensor 16
Edit Name 13
Editing Channels 15
Energy Saving 16
Equalizer 22
External Speaker 23
P
Password 49
Photos 42
Picture Size 18, 43
PIP (Picture in Picture) 28
Plug & Play 8
Power Indicator 6
12 Volume
W
Wall Mount 58
Warm 18
White Balance 17
Widget 53
6 English
