94% CONDENSING
TANKLESS
WATER HEATER
AP15896-1(11/10)
Printed in USA
*All models available for natural gas (N) or
propane gas (P) usage.
Do not destroy manual. Please
read carefully and keep in a
safe place for future reference.
CERTIFIED
R
Direct Vent
Models
Rheem/EcoSense
RTGH-95DV*
RTGH-84V*
ECOH200DV*
ECOH160DV*
Paloma/Wai Wela
PHH-32RDV*
PHH-25RDV*
Ruud
RUTGH-95DV*
RUTGH-84DV*
Richmond
RMTGH95DV*
RMTGH84DV*
Outdoor
Models
Rheem/EcoSense
RTGH-95X*
RTGH-84X*
ECOH200X*
ECOH160X*
Paloma/Wai Wela
PHH-32ROF*
PHH-25ROF*
Ruud
RUTGH-95X*
RUTGH-84X*
Richmond
RMTGH95X*
RMTGH84X*
WARNING:
If the information in these
instructions is not followed
exactly, a fire or explosion
may result, causing death,
personal injury, or property
damage.
For Your Safety!
• Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
To do so may result in an
explosion or fire.
• Installation and service
must be performed by a
qualified installer, service
agency, or the gas supplier.
What to Do If
You Smell Gas
• Do not try to light any
appliance.
• Do not touch any electrical
switch; do not use any
phone in your building.
• Immediately call your gas
supplier from a neighbor’s
phone. Follow the gas
supplier’s instructions.
• If you cannot reach your
gas supplier, call the fire
department.
• Do not return to your home
until authorized by the gas
supplier or fire department.
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
®
USE AND CARE MANUAL
With Installation Instructions
for the Installer
Water Heaters for Other Than
Recreational Vehicle Installation Only
Important Safety Information
Safety Precautions .................................................. 2–8
Product Information
Product Information .................................................... 8
Specifications ........................................................ 9, 10
General Descriptions ............................................11, 12
Using Your Water Heater
Setting the Water Temperature ............................ 13, 14
Caring for Your Water Heater
Water Heater Inspections .................................... 15, 16

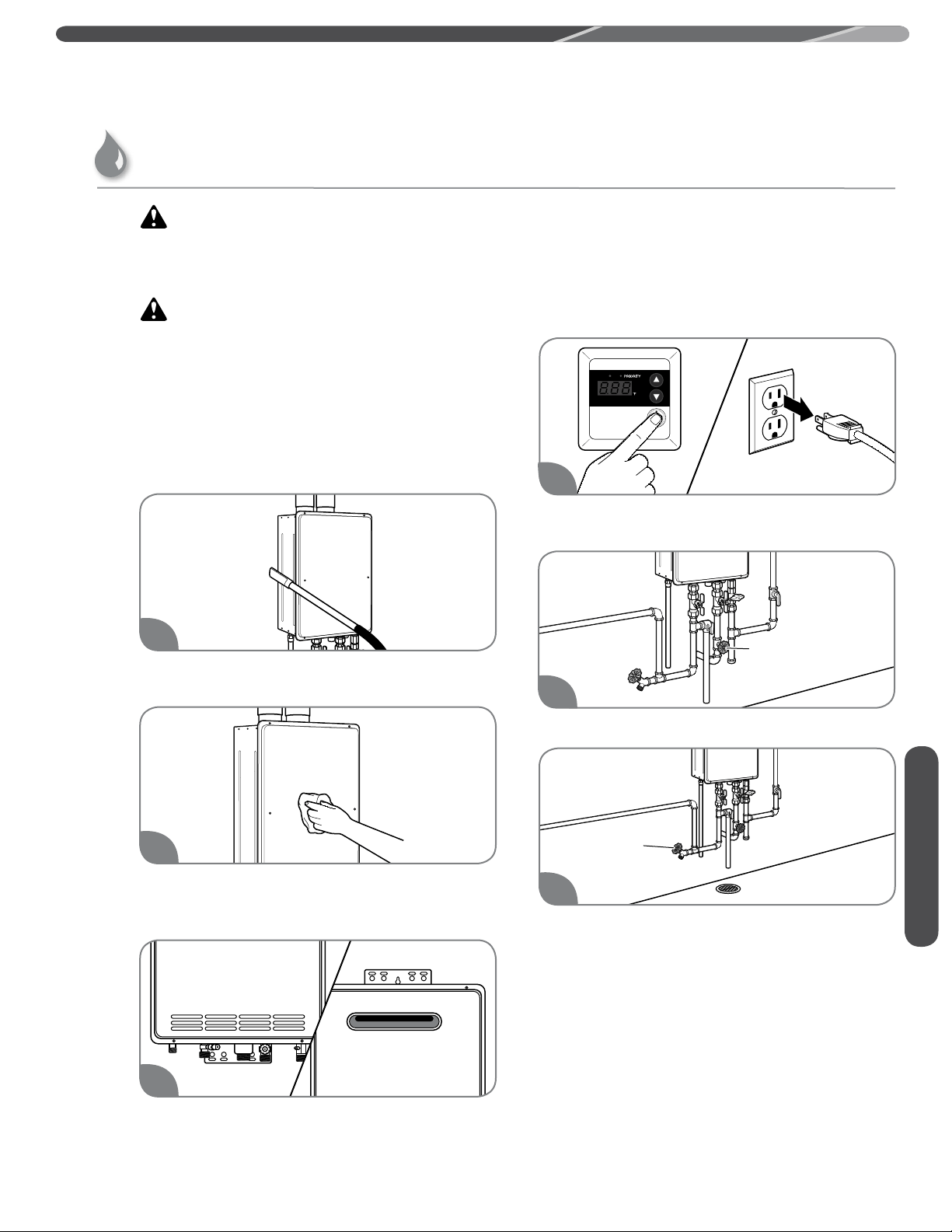

Care and Cleaning ................................................17, 18
Preventive Maintenance ............................................ 19

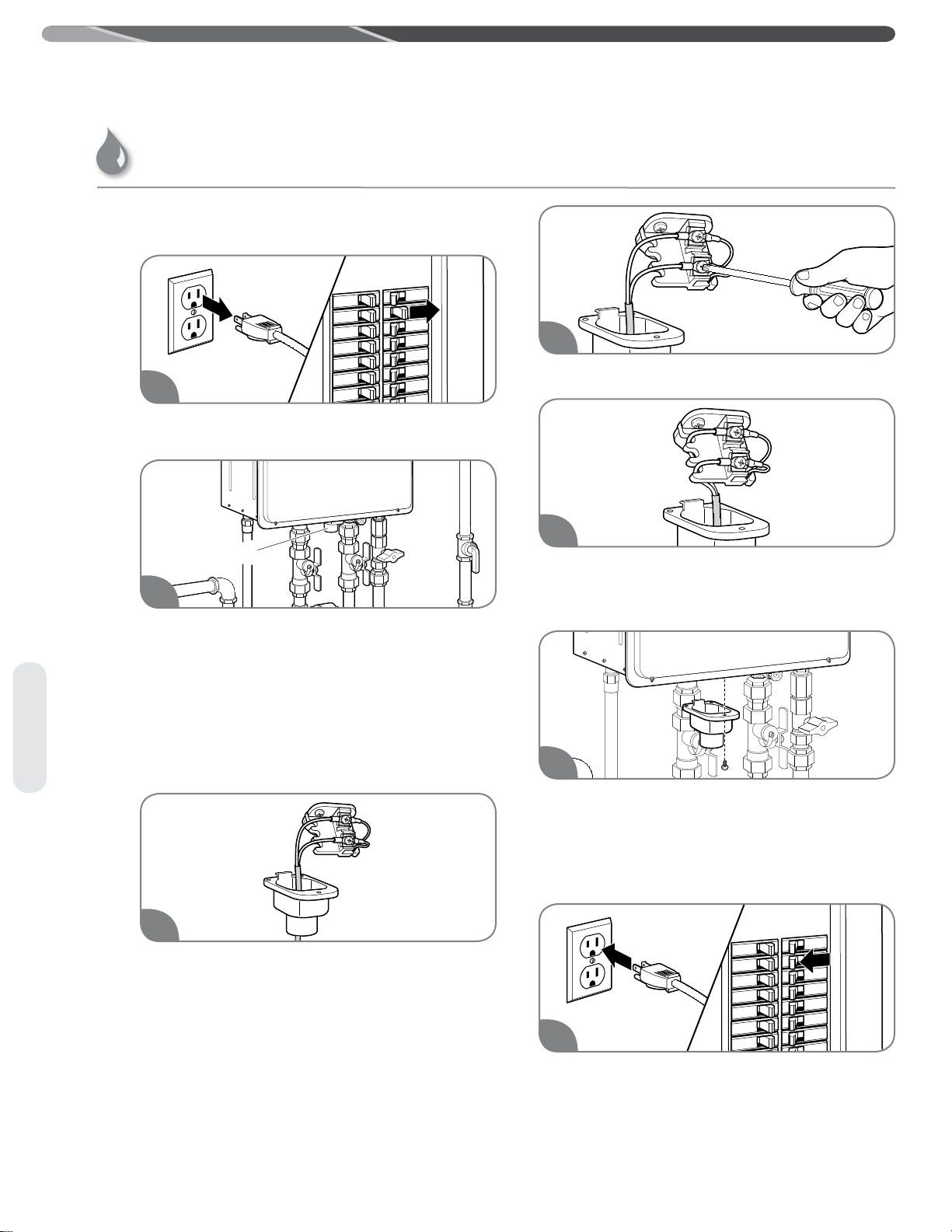

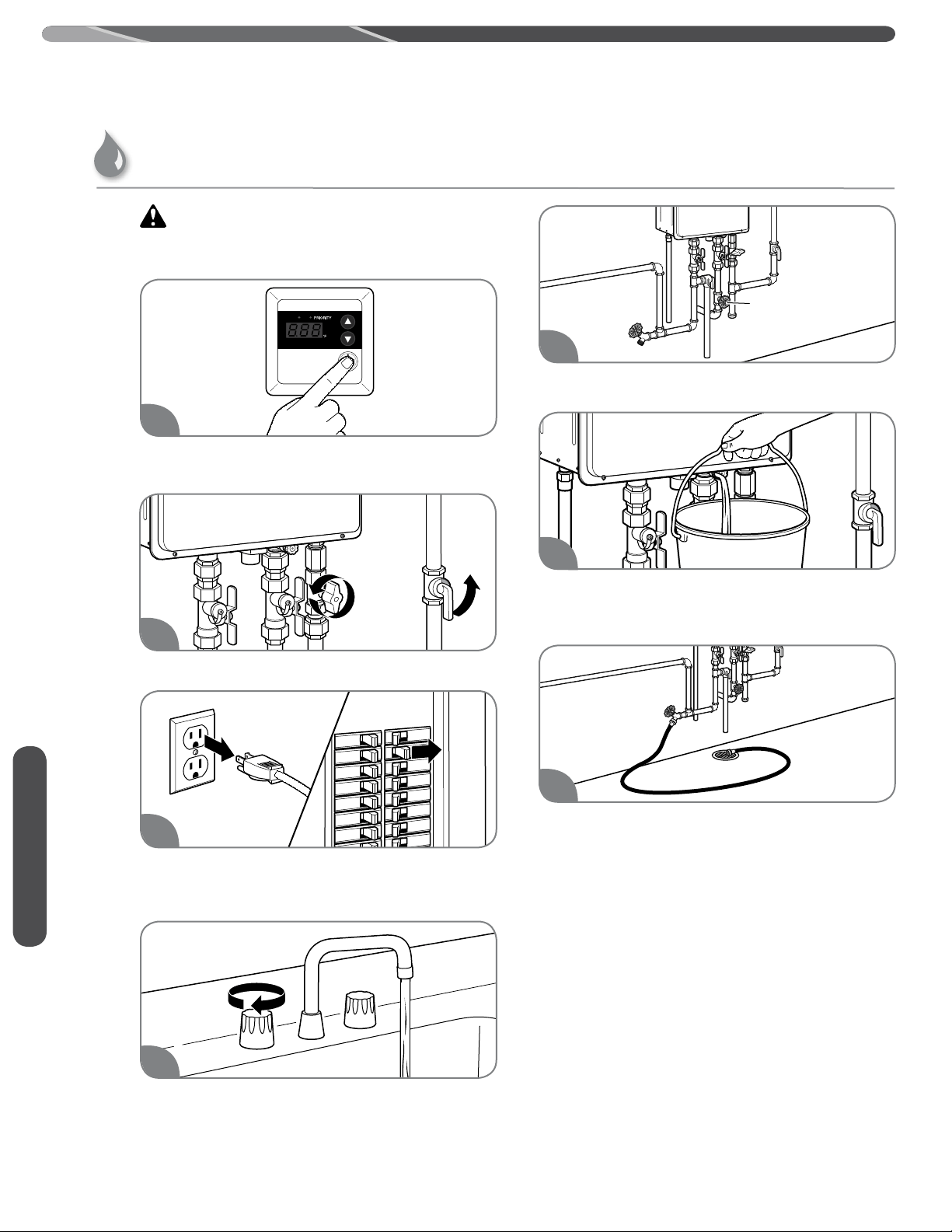

Draining the Water Heater .....................................20–22
Freeze Protection ...................................................... 22
Vacation and Extended Shutdown ........................... 23
Troubleshooting Chart ......................................... 23, 24
Service Error Code Chart .................................... 25, 26
Safety
If You Need Service
Call for Assistance .................................................... 26
Installation Instructions
Standards Compliance ...............................................28
Choosing a Location ............................................ 28, 29
Product Inspection .................................................... 30

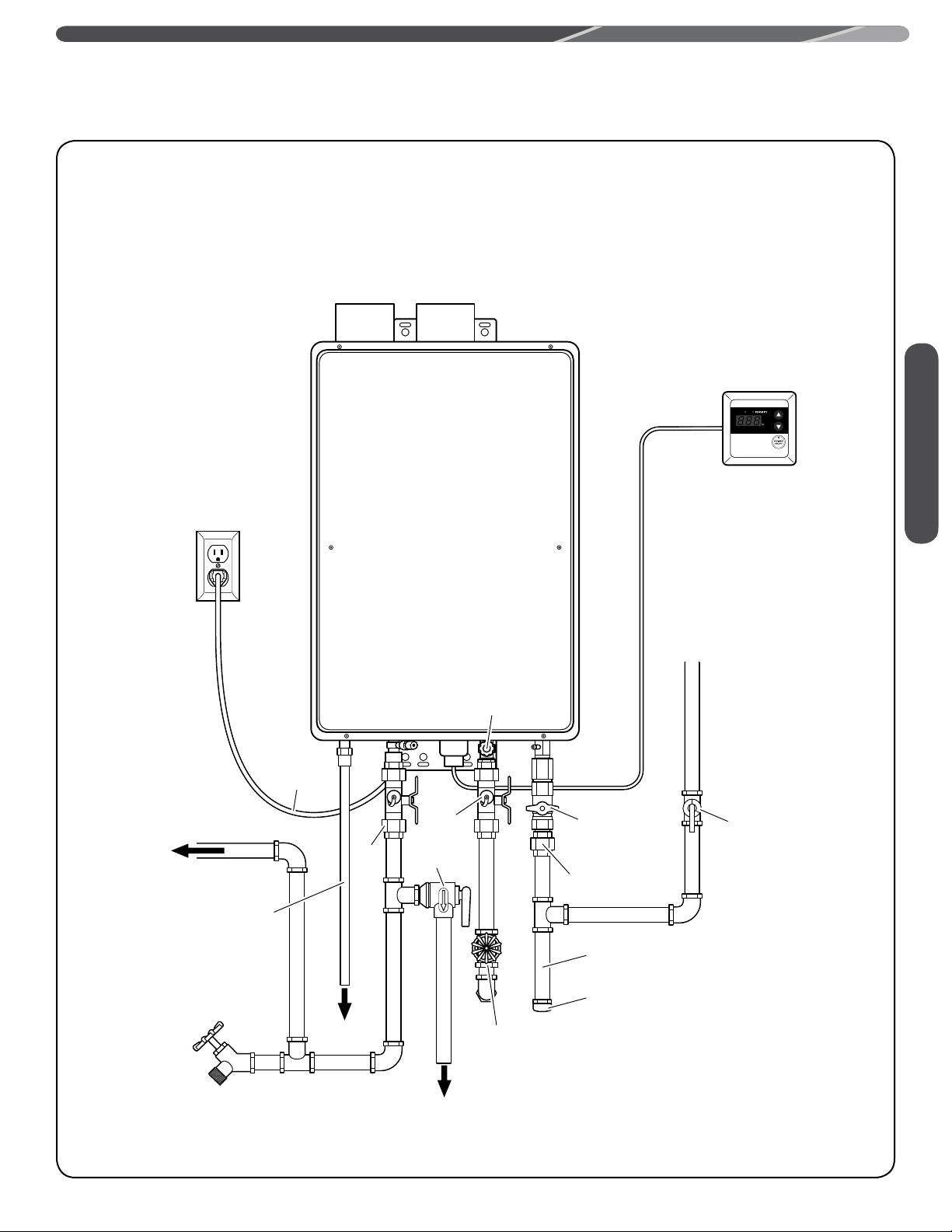

Water Heater Installation ...................................... 30–33

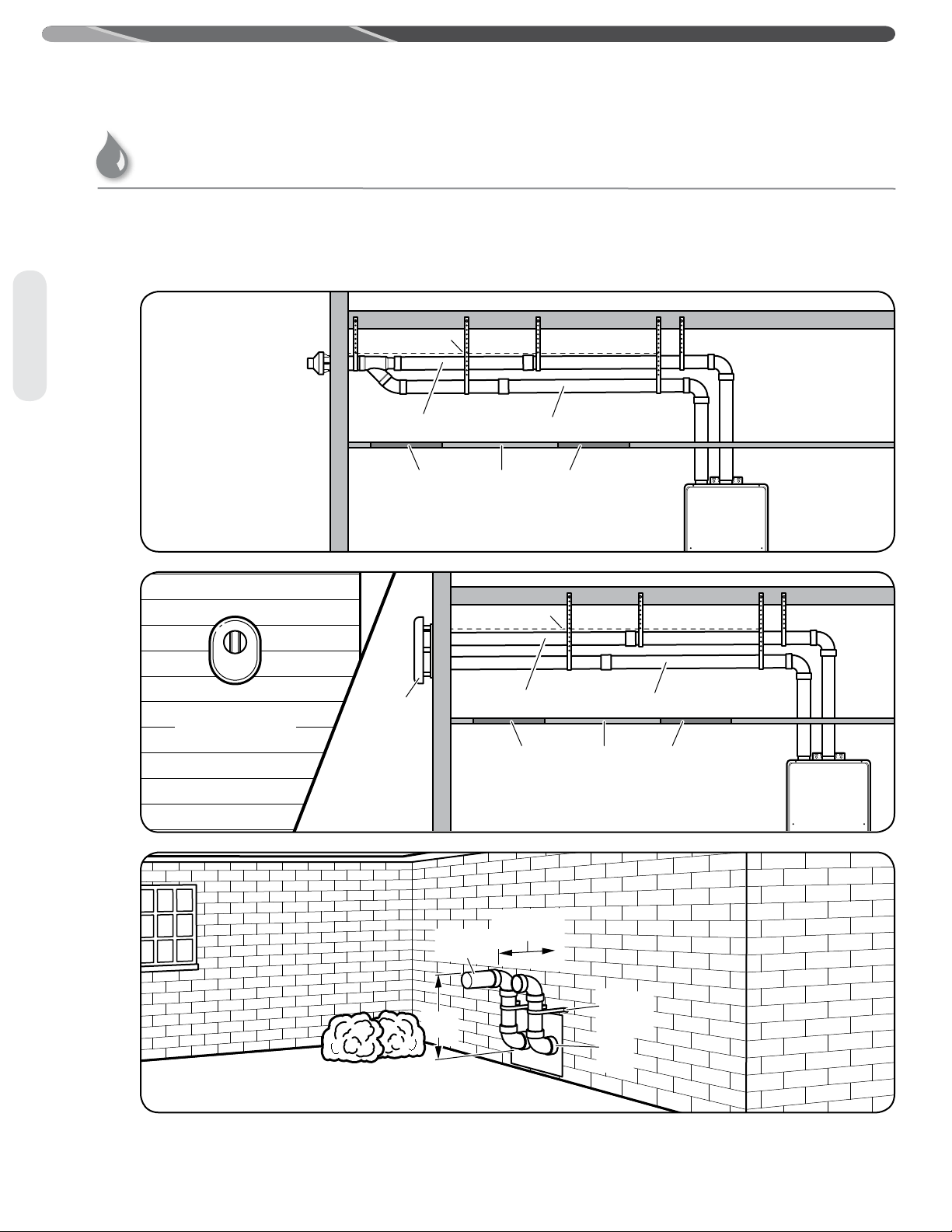

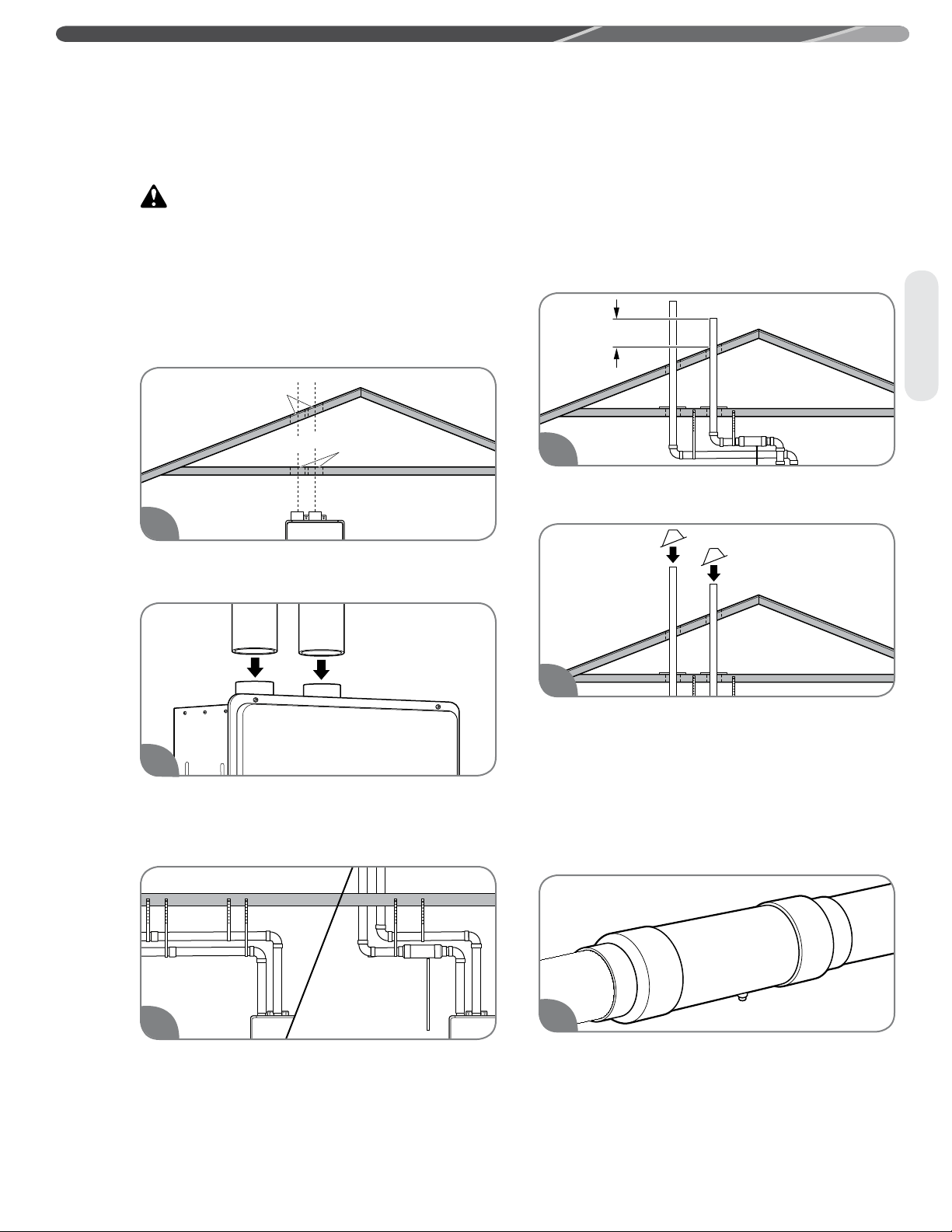

Venting .................................................................. 34–46
Water Supply ........................................................ 47–51
Condensate ................................................................51
Gas Supply ........................................................... 52–56

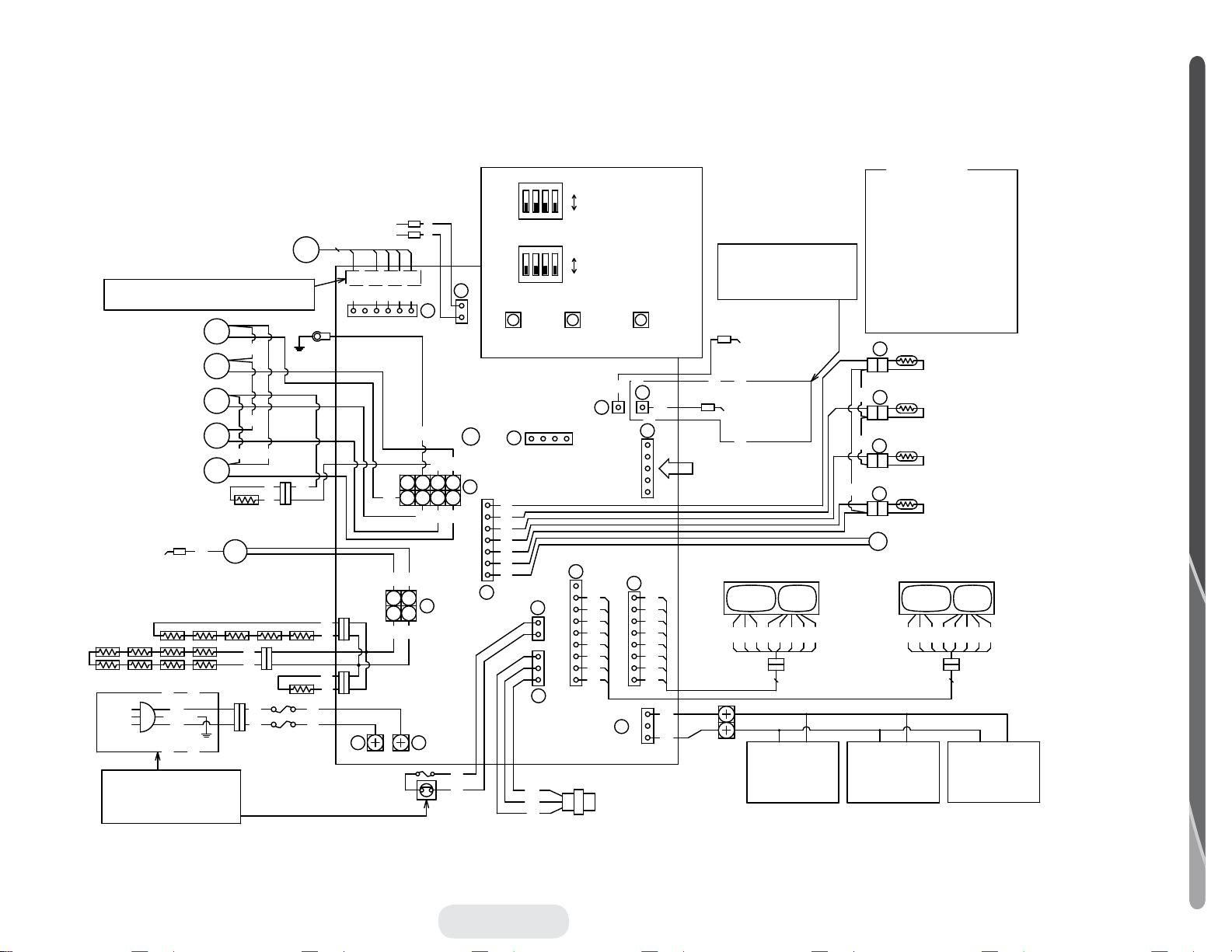

Electrical Wiring ....................................................56–60
Remote Control Installation .................................. 59, 60
Insulation Blankets .....................................................61
Installation Checklist ..................................................62
Lighting the Water Heater ....................................63, 64
Setting the Water Temperature .............................65–68
High-Altitude Adjustments ...................................67, 68

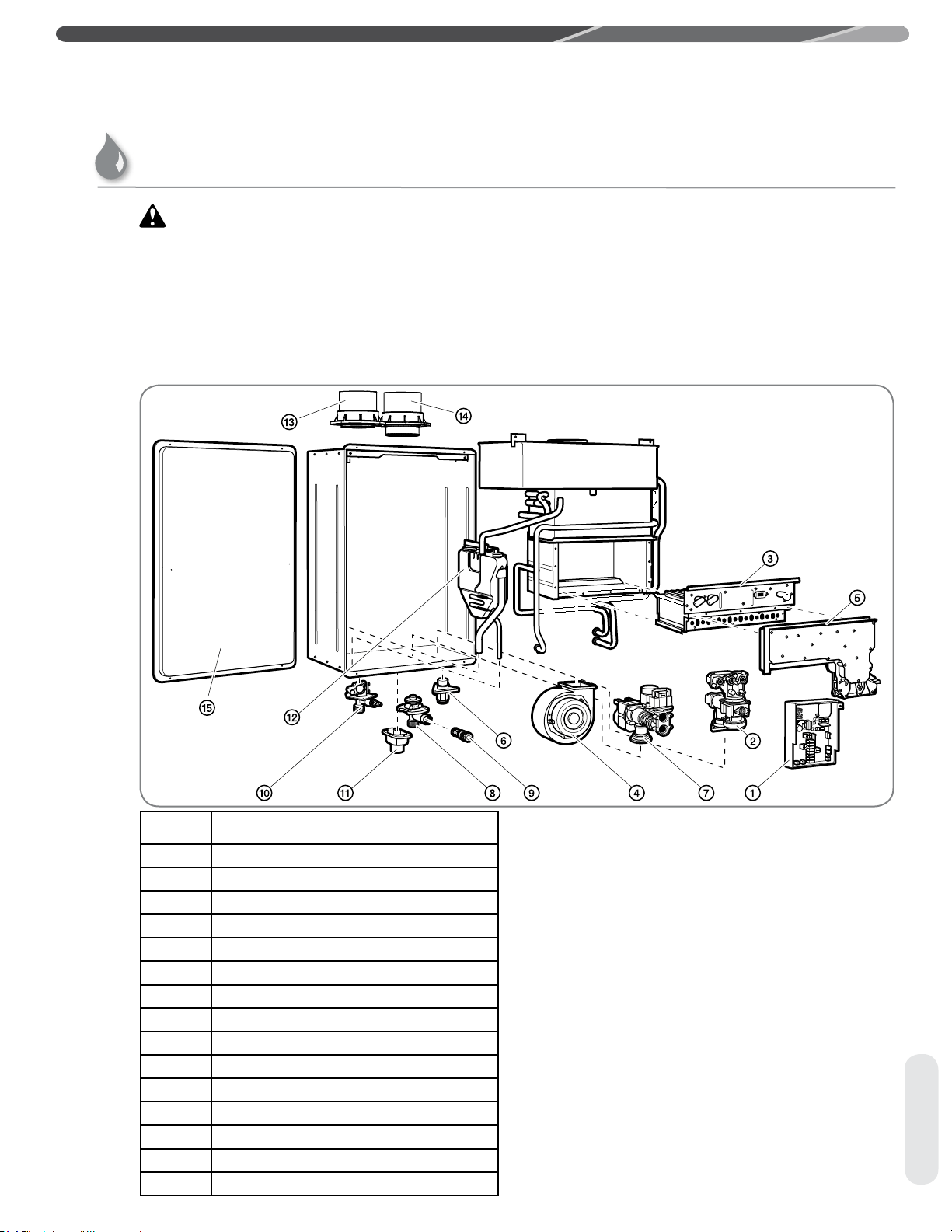

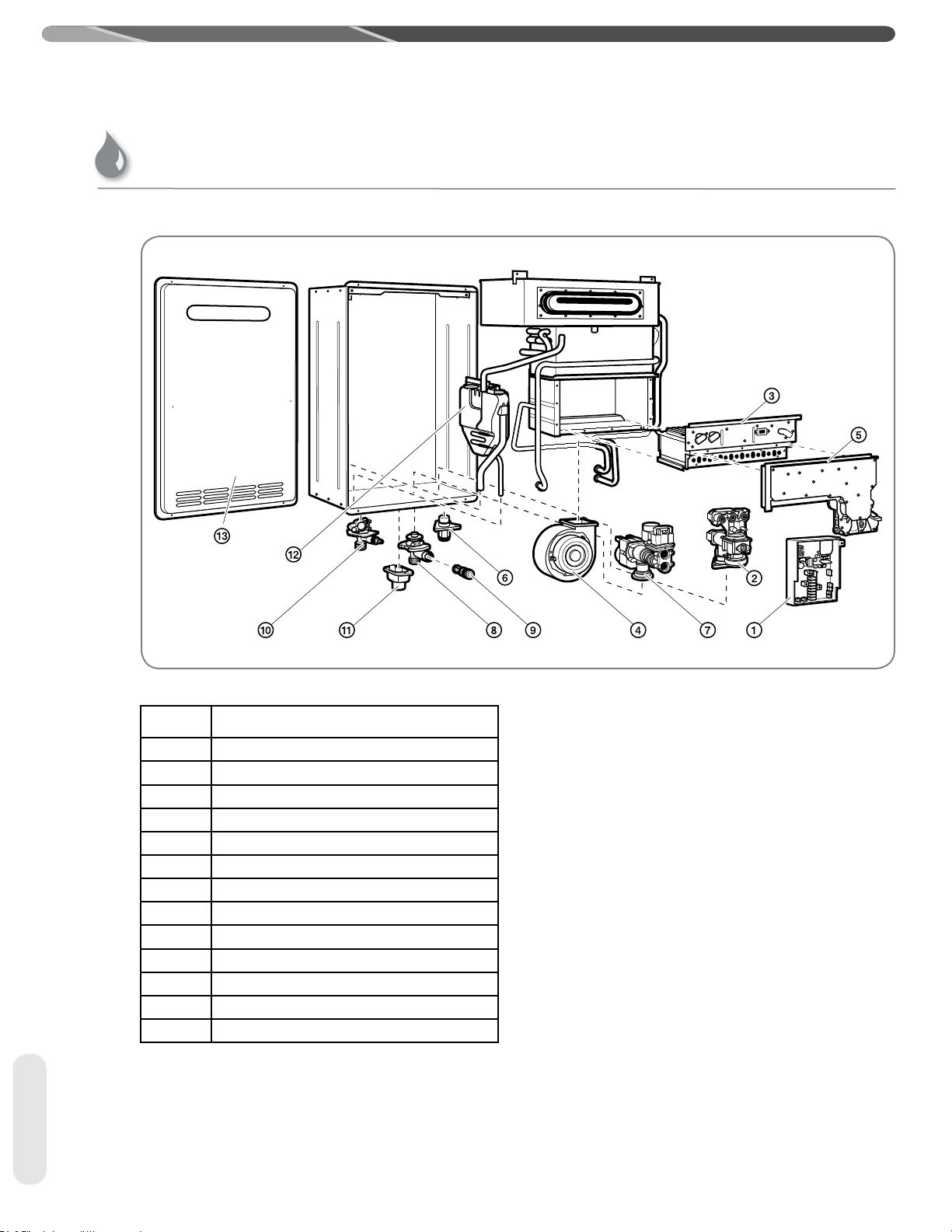

Parts Replacement ...........................................69, 70
2
CONTENTS
READ THE SAFETY INFORMATION
Your safety and the safety of others are very
important. There are many important safety
messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol.
Recognize this symbol as an indication
of Important Safety Information! This
symbol alerts you to potential hazards
that can kill or hurt you and others.
All safety messages will follow the safety
alert symbol and either the word “DANGER,”
“WARNING,” “CAUTION,” or “NOTICE.”
2
These words mean:
IMPORTANT SAFETY INFORMATION
• This water heater is not suitable for use in
manufactured (mobile) homes!
• Improper installation, adjustment, alteration,
service, or maintenance can cause death,
personal injury, or property damage. Refer to
this manual.
READ ALL INSTRUCTIONS
BEFORE USING.
Be sure to read and understand the entire Use and
Care Manual before attempting to install or operate
this water heater. It may save you time and money.
Pay particular attention to the Safety Instructions.
Failure to follow these warnings could result in
death or serious bodily injury. Should you have
problems understanding the instructions in this
manual, or have any questions, STOP and get help
from a qualified service technician or the local gas
utility.
WARNING:
California Proposition 65
This product contains chemicals known to the state
of California to cause cancer, birth defects, or other
reproductive harm.
WARNINGS:
DANGER: An imminently hazardous
situation that will result in death or serious injury.
NOTICE: Attention is called to observe a
specified procedure or maintain a specific condition.
CAUTION: A potentially hazardous
situation that may result in minor or moderate injury.
WARNING: A potentially hazardous
situation that can result in death or serious injury
and/or damage to property.
Safety
3

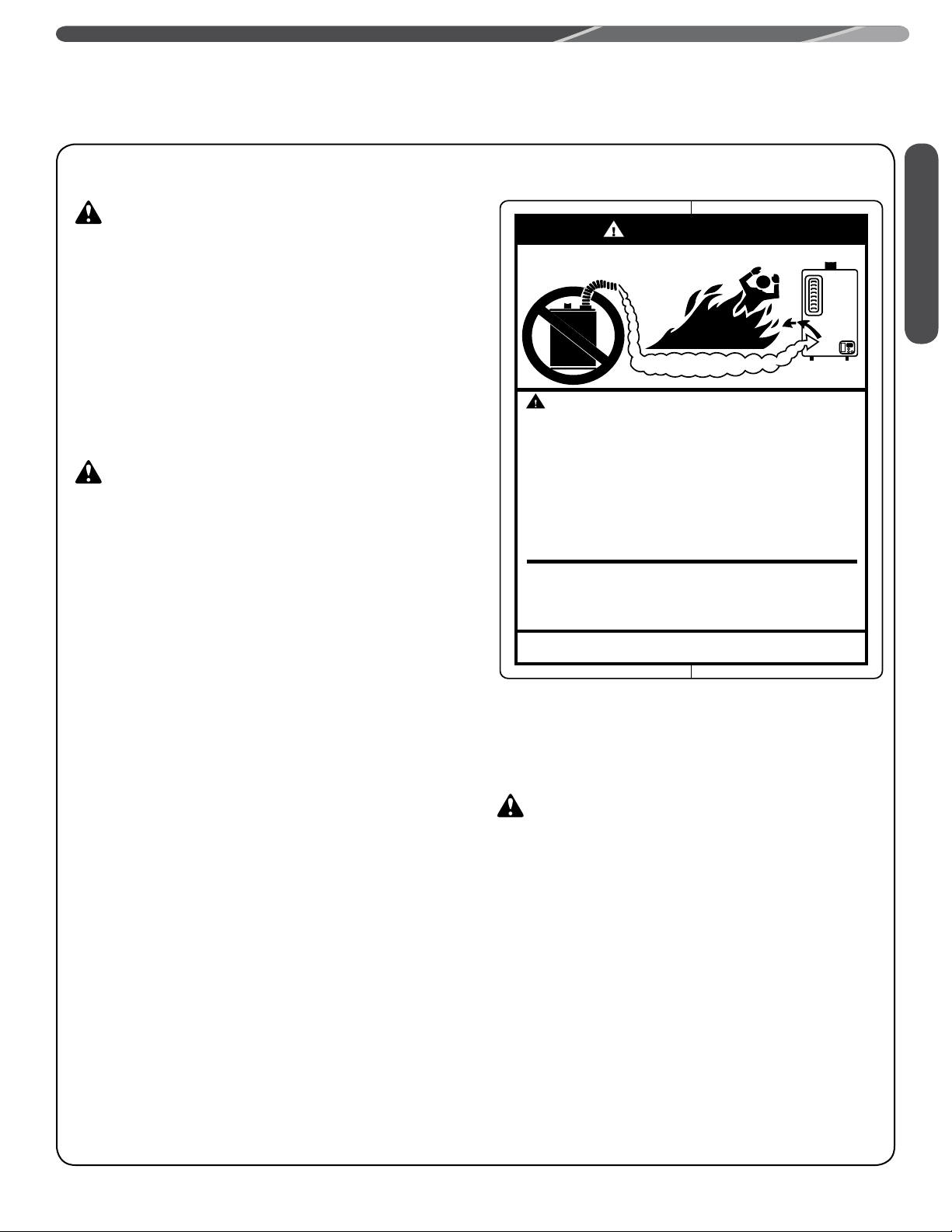

IMPORTANT SAFETY INFORMATION
D A N G E R
FLAMMABLES
Flammable Vapors
Water heater has a main
burner flame.
The main burner flame:
1. which can come on
at any time and
2. will ignite flammable
vapors.
Vapors:
1. cannot be seen,
2. are heavier than air,
3. go a long way on the
floor and
4. can be carried from
other rooms to the
main burner flame by
air currents.
Vapors from flammable
liquids will explode and
catch fire causing death or
severe burns.
Do not use or store flammable
products such as gasoline,
solvents or adhesives in the
same room or area near the
water heater.
Keep flammable products:
1. far away from heater,
2. in approved containers,
3. tightly closed and
4. out of children's reach.
Installation:
Do not install water heater
where flammable produ
cts will
be stored or used unless the
main burner flame is at least
18" above the floor. This will
reduce, but not eliminate, the
risk of vapors being ignited
by the main burner flame.
Read and follow water heater warnings and instructions. If
owners manual is missing, contact the retailer or manufacturer.
Water Heater Venting Safety
3
DANGER: Failure to install and properly
vent the water heater to the outdoors as outlined in
the “Venting” section of the Installation Instructions in
this manual will result in death from fire, explosion, or
asphyxiation from carbon monoxide. NEVER operate
this water heater unless it is properly vented and has
an adequate air supply for proper operation.
Be sure to inspect the vent terminal, the air intake,
and the vent system on the water heater for proper
installation at initial start-up and at least annually
thereafter. Refer to the “Care and Cleaning” section
of this manual for more information regarding vent
system inspection.
WARNINGS:
• Gasoline and other flammable liquids, materials,
and vapors (including paint thinners, solvents,
and adhesives) are extremely dangerous. DO NOT
handle, use, or store gasoline or other flammable or
combustible materials anywhere in the vicinity of a
water heater or any other appliance. Be sure to read
and follow the labels on the water heater, as well
as the warnings printed in this manual. Failure to
do so can result in death, bodily injury, or property
damage.
• Combustible construction refers to adjacent walls
and ceilings and should not be confused with
combustible or flammable products and materials.
Combustible materials, such as clothing, cleaning
materials, or flammable liquids, should never be
stored in the vicinity of this or any gas appliance.
Fire or explosion can occur causing death, personal
injury, and/or product damage. See page 29 for
clearances to combustible materials.
• Follow vent manufacturer’s instructions for venting
installation, including additional clearances from
combustibles, to avoid conditions that can lead to
death, personal injury, and/or property damage.
• Use tankless water heater manufacturer-approved
Schedule 40 PVC (foam core is not permitted at
any time), Schedule 80 PVC, CPVC, ABS, or UL
1738-listed Category III Stainless Steel. No other
vent material is permitted.
• Moisture in the flue gas will condense as it leaves
the vent terminal. In cold weather this condensate
can freeze on the exterior wall, under the eaves, and
on surrounding objects. Some discoloration to the
exterior of the building is to be expected. However,
improper location or installation can result in severe
damage to the structure or exterior finish of the
building.
• For multiple-unit installation, a minimum distance
between vent terminations must be maintained to

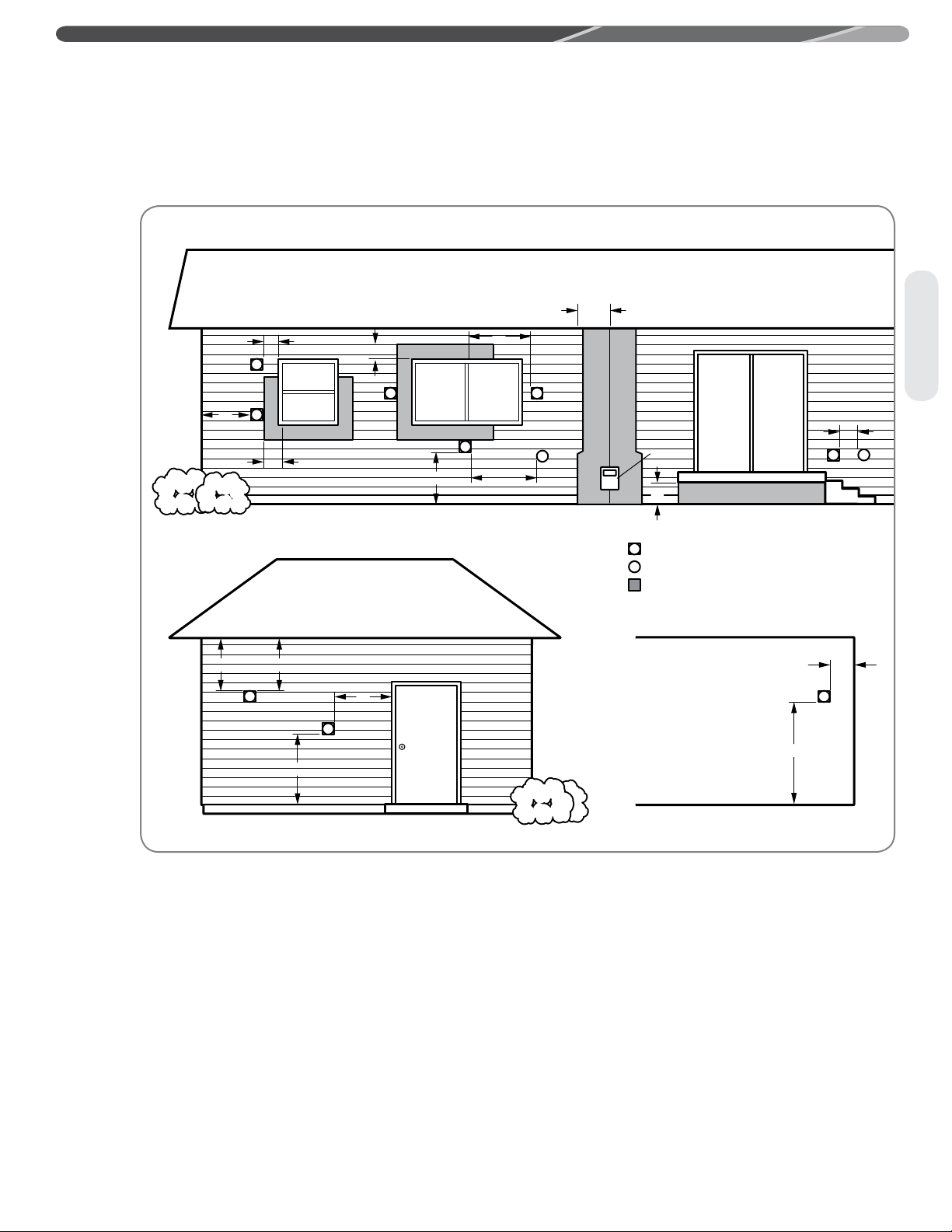

prevent recirculation of vent gases. See page 39 for
information on venting and clearances to multiple
terminations.
CAUTIONS:
• Ensure that the appliance vent is securely glued and
attached to the vent connection on the top of the
water heater. DO NOT USE SCREWS.
• Do not operate without the condensate drain
connected and routed to the proper drain.
4
IMPORTANT SAFETY INFORMATION

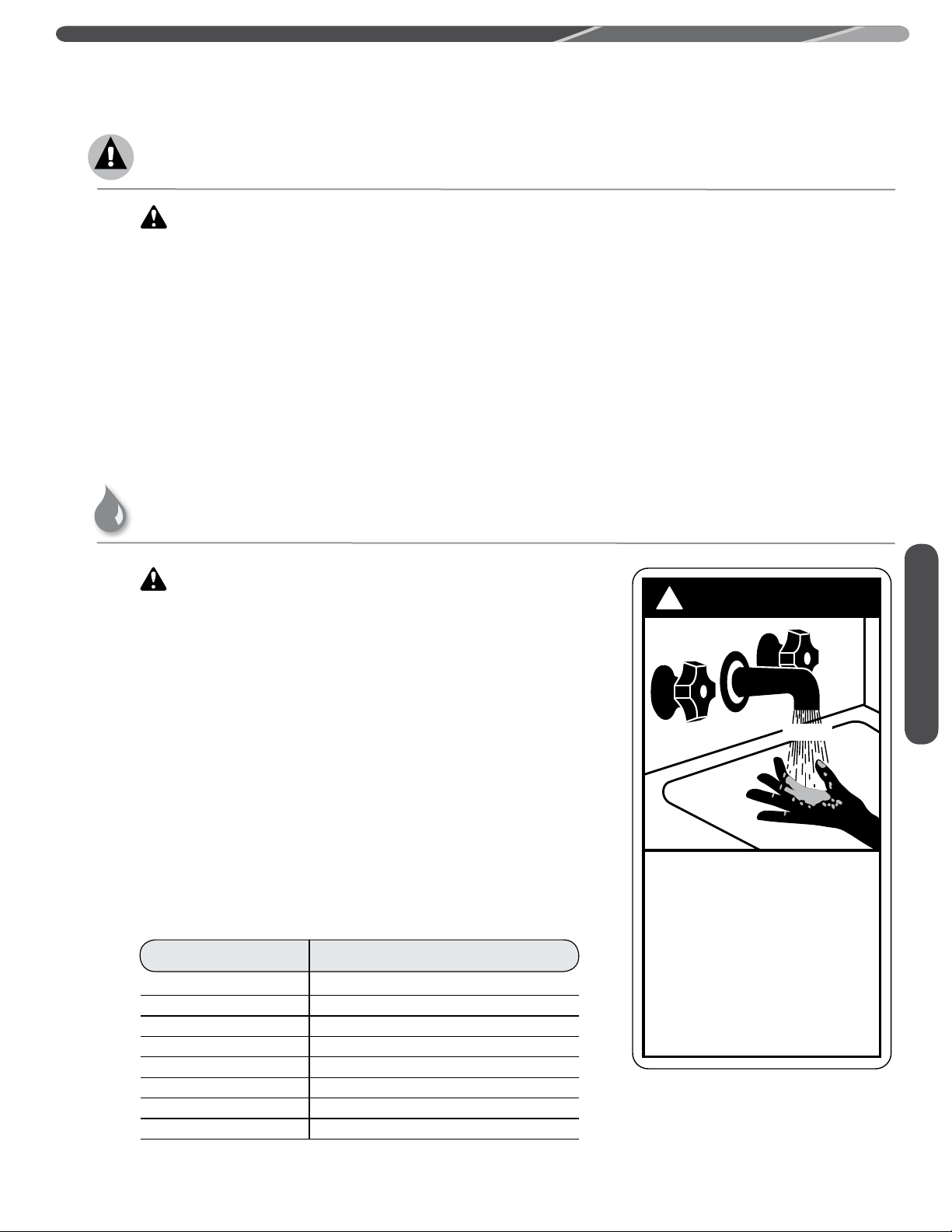

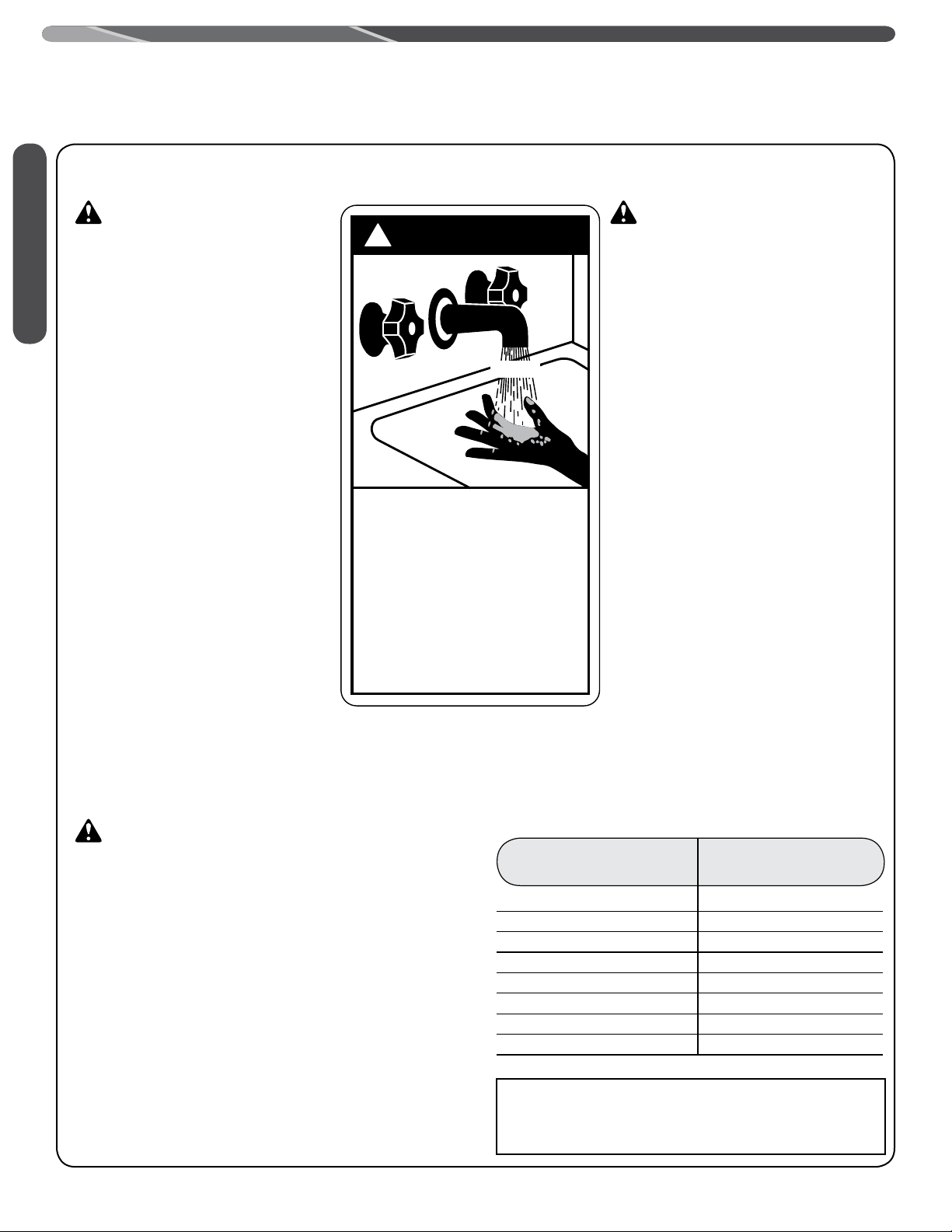

Water Supply Safety
DANGERS:
• WATER TEMPERATURE
SETTINGS – Safety and energy
conservation are factors to be
considered when selecting the
water temperature setting of a
water heater’s remote control.
Water temperatures above 125°F
(52°C) can cause death or severe
burns from scalding. Be sure to
read and follow the warnings
outlined on the pictured label.
• There is a hot water scald potential
if the water temperature is set
too high. Households with small
children, the disabled, or elderly
persons may require a 120°F
(49°C) or lower temperature setting
to prevent contact with “HOT”
water.
• Before manually operating the relief
valve, make certain no one will be
exposed to the danger of the hot
water released by the valve. The
water may be hot enough to create
a scald hazard. The water should
be released into a suitable drain to
prevent injury or property damage.
• Failure to perform the recom-
D A N G E R
!
HOT
Water temperature over 125°F (52°C)
can cause severe burns instantly or
death from scalds.
Children, disabled and elderly are
at highest risk of being scalded.
See instruction manual before
setting temperature at water
heater.
Feel water before bathing or
showering.
Temperature limiting valves are
available, see manual.
BURN
CAUTIONS:
•
This water heater must only be used
with the following water supply system
conditions:
– With clean, potable water free of
corrosive chemicals, sand, dirt, or
other contaminants.
– With inlet water temperatures above
32°F (0°C), but not exceeding 120°F
(49°C).
– DO NOT reverse the hot and cold
water connections. The water heater
will not operate.
•
Even when drained properly, a small
amount of water will remain in the water
heater. In cold weather conditions, this
water can freeze. If this happens, allow the
defrost protection on the heater at least
30 minutes to melt the frozen water or the
water heater may not work properly.

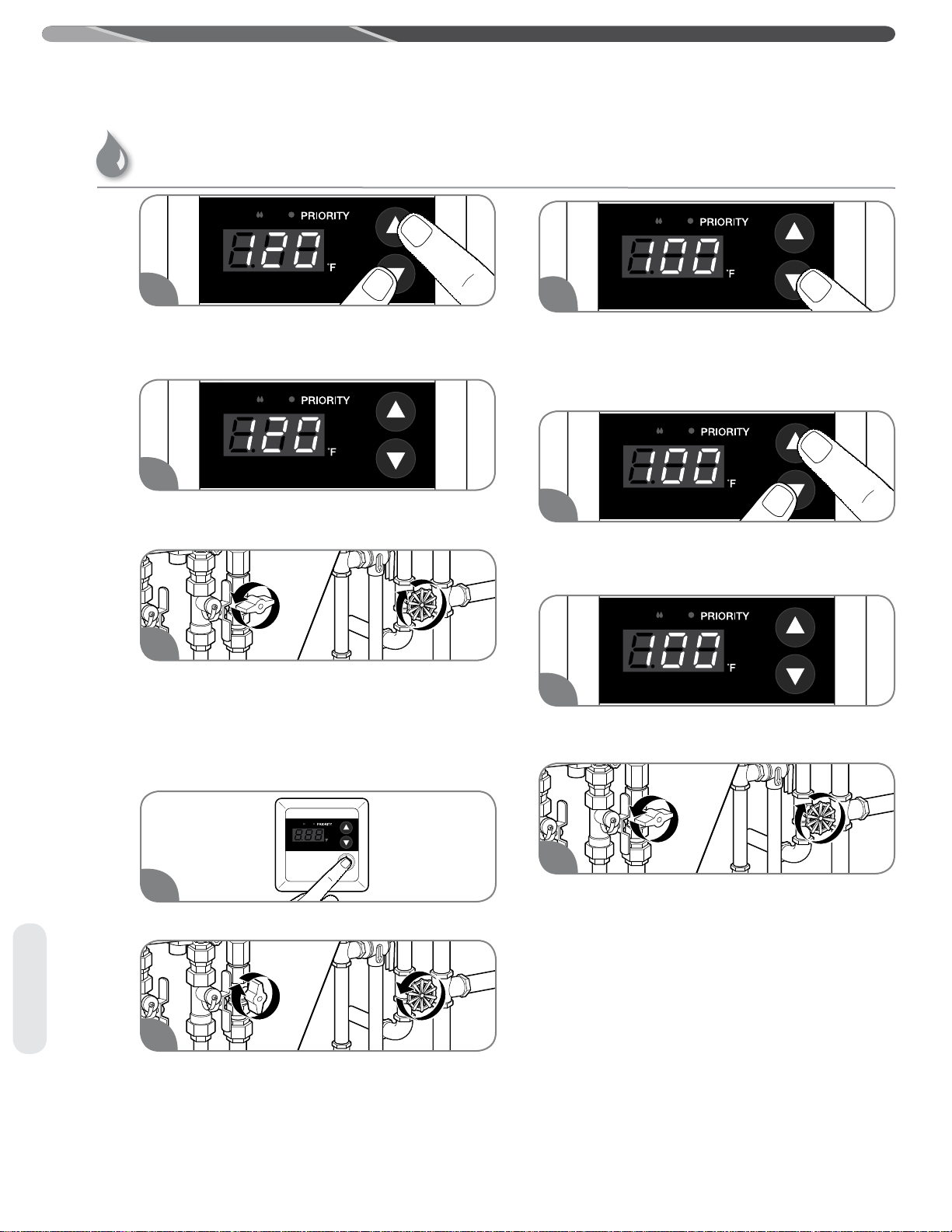

NOTICE:

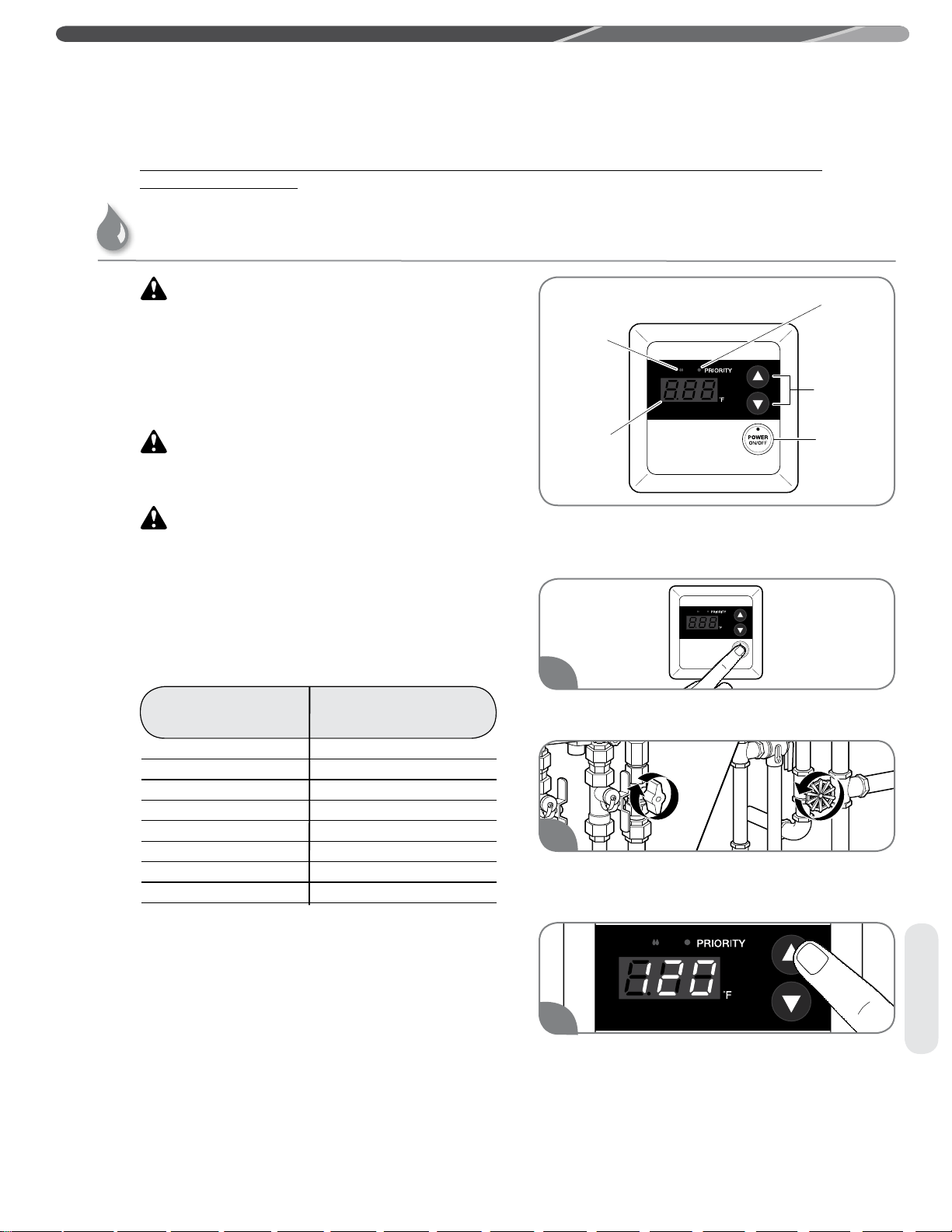

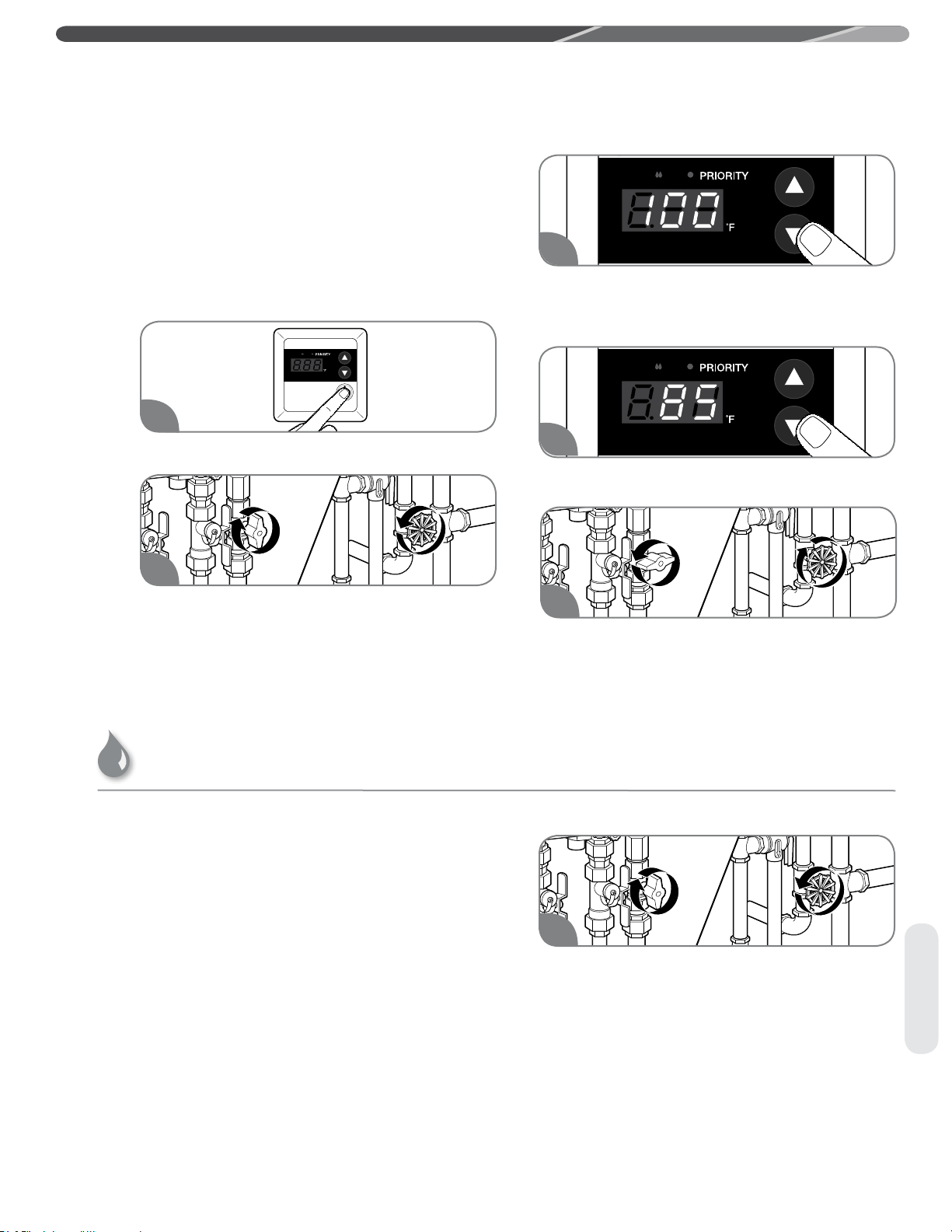

The factory setting
allows operating temperatures between
100°F (38°C) and 120°F (49°C).
Temperatures of 85°F (29°C) and up
to 140°F (60°C) can be achieved with

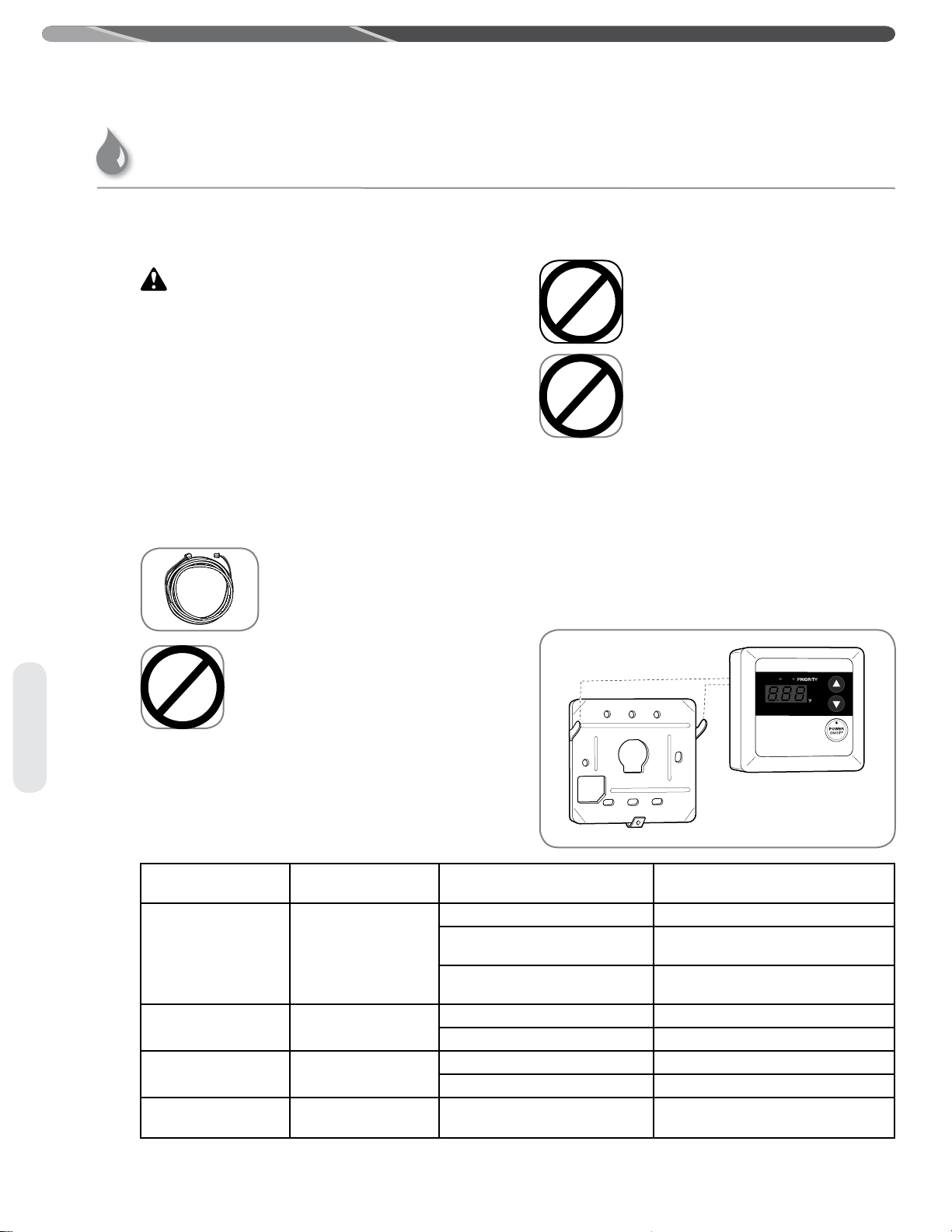

the MAIN (UMC-117) remote control.
Temperatures of 85°F (29°C) can be
achieved with the Bath (USC-117 or
USC2-117) remote control. Only qualified
service personnel should perform this
adjustment. Only factory-authorized
remote control(s) should be used.
• mended Routine Preventive Maintenance can harm
the proper operation of this water heater, which can
cause carbon monoxide dangers, excessive hot
water temperatures, and other potentially hazardous
conditions.
WARNINGS:
• IMPORTANT: Do not apply heat to the HOT or
COLD water connections. If sweat connections are
used, sweat tubing to adapter before fitting adapter
to the water connections on heater. Any heat
applied to the water supply fittings will permanently
damage the internal components of the water
heater.
• In case the pipe insulation is not rated for the
appropriate weather conditions, install electric
heat tracing or equivalent to prevent freezing of
the pipes. Do not insulate or block the drain valve
on the hot outlet fitting. If the pipes are allowed
to freeze, the water heater and the pipes may
malfunction or leak due to freezing water.

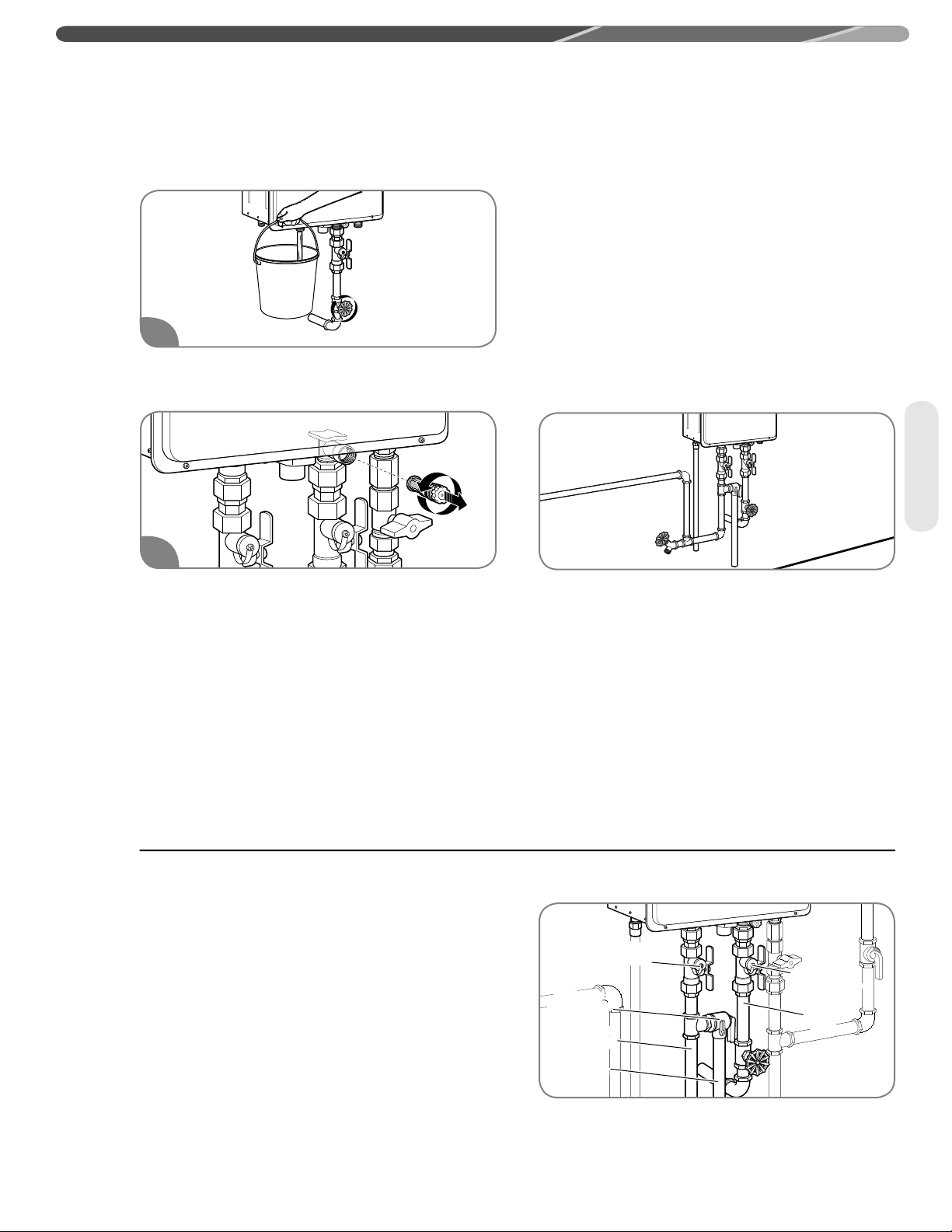

• Failure to drain the water heater as described on
page 20 can cause serious personal injuries from
scalding and/or damage the water heater.
Time/Temperature
Relationship in Scalds
120°F (49°C) More than 5 minutes
125°F (52°C) 1 1/2 to 2 minutes
130°F (54°C) About 30 seconds
135°F (57°C) About 10 seconds
140°F (60°C) Less than 5 seconds
145°F (63°C) Less than 3 seconds
150°F (66°C) About 1 1/2 seconds
155°F (68°C) About 1 second
Table courtesy of Shriners Burn Institute
Water Temperature Time to Produce
a Serious Burn
Temperature Conversion Chart °F/°C
85 100 102 104 106 108 110 112 114 116 118 120 125 130 140 °F
29 38 39 40 41 42 43 44 46 47 48 49 52 54 60 °C
Safety
5
IMPORTANT SAFETY INFORMATION
WARNINGS:
• The installation of gas piping must conform to local
utility company requirements and/or in the absence
of local codes, use the latest edition of National Fuel
Gas Code (NFGC), ANSI Z223.1/NFPA 54, or CSA
B149.1, Natural Gas and Propane Installation Code.
• Install a gas pressure regulator in the gas supply
line. The regulator should not exceed the maximum
supply pressure. DO NOT use an industrial-type gas
regulator.
• Should overheating occur or the gas supply fail to
shut off, turn off the manual gas control valve to the
water heater.
CAUTIONS:
• Do not attempt repair of electrical wiring, gas piping,
remote control, burners, vent connectors, or other
safety devices. Refer repairs to qualified service
personnel.
• Turn off the manual gas shut-off valve if the water
heater has been subjected to overheating, fire,
flood, physical damage, or if the gas supply fails
to shut off.
• Do not turn on the water heater unless the water
and gas supplies are completely opened.
Natural Gas and Liqueed Petroleum Safety
DANGERS:
• Never attempt to convert the water heater from
natural gas to LP. The water heater should only
use the fuel type in accordance with listing on data
plate—natural gas for natural gas units and LP for
LP units. Any other fuel usage will result in death or
serious personal injury from fire and/or explosion.
This water heater is not certified for any other fuel
type.
• Both natural gas and propane (LP) have an odorant
added to aid in detecting a gas leak. Some people
may not physically be able to smell or recognize
this odorant. If you are unsure or unfamiliar with
the smell of natural gas or LP, ask the gas supplier.
Other conditions, such as “odorant fade,” which
causes the odorant to diminish in intensity, can also
hide or camouflage a gas leak.
• Water heaters using LP gas are different from
natural gas models. A natural gas water heater will
not function safely on LP and vice versa.
• LP water heaters should not be installed below
grade (for example, in a basement) if such
installation is prohibited by federal, state, and/or
local laws, rules, regulations, or customs.
• LP must be used with great caution. It is heavier
than air and will collect first in lower areas, making it
hard to detect at nose level.
• Before attempting to light the water heater, make
sure to look and smell for gas leaks. Use a soapy
solution to check all gas fittings and connections.
Bubbling at a connection indicates a leak that must
be corrected. When smelling to detect a gas leak,
be sure to also sniff near the floor.
• Gas detectors are recommended in LP and natural
gas applications and their installation should be
in accordance with the detector manufacturer’s
recommendations and/or local laws, rules,
regulations, or customs.
• Combustible materials, such as clothing, cleaning
materials, or flammable liquids, must not be placed
in the vicinity of the water heater.
• If a gas leak is present or suspected:
– Do not attempt to find the cause yourself.
– Never use an open flame to test for gas leaks. The
gas can ignite resulting in death, personal injury,
or property damage.
– Follow the steps listed under “What to Do If
You Smell Gas” found on the front cover of this
manual.
Safety
6
IMPORTANT SAFETY INFORMATION

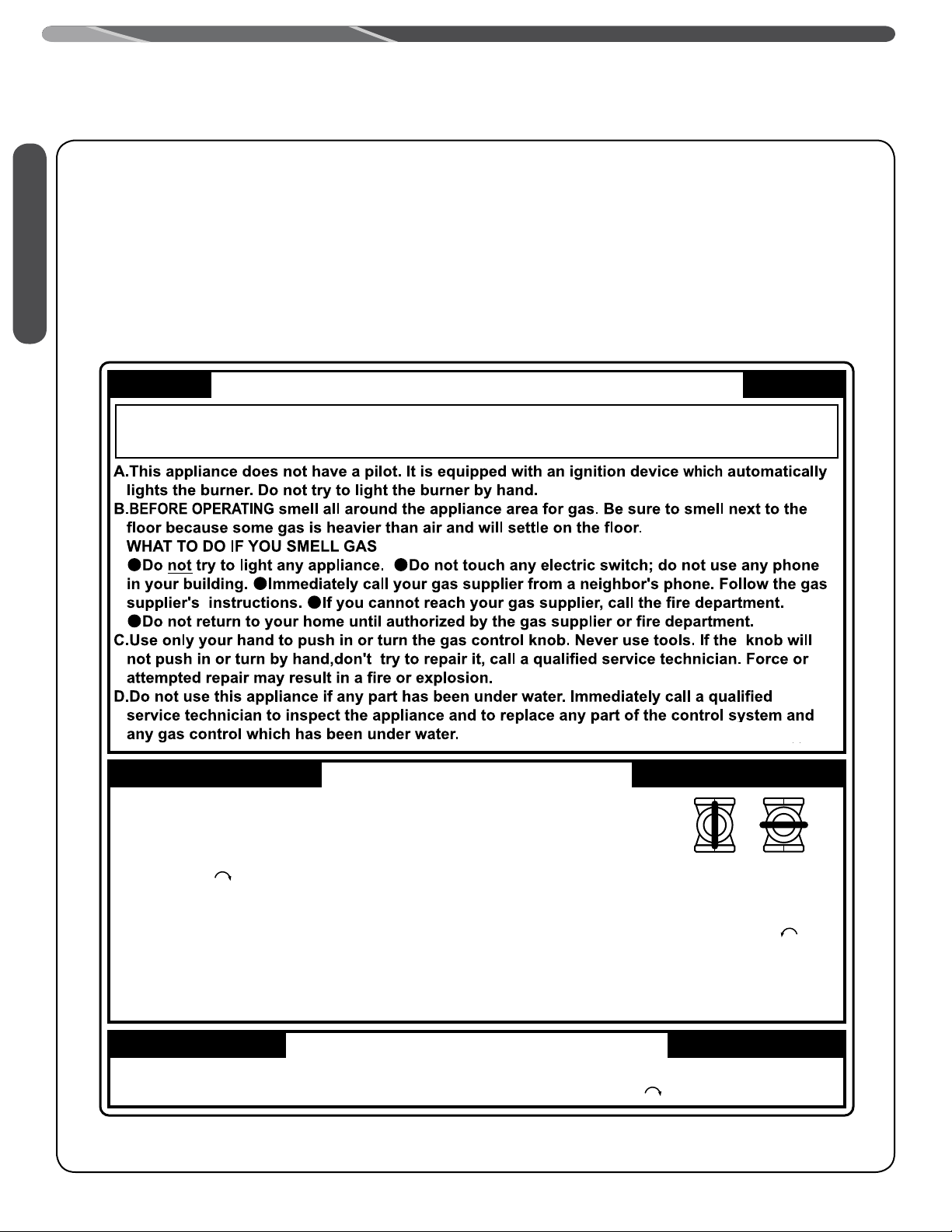

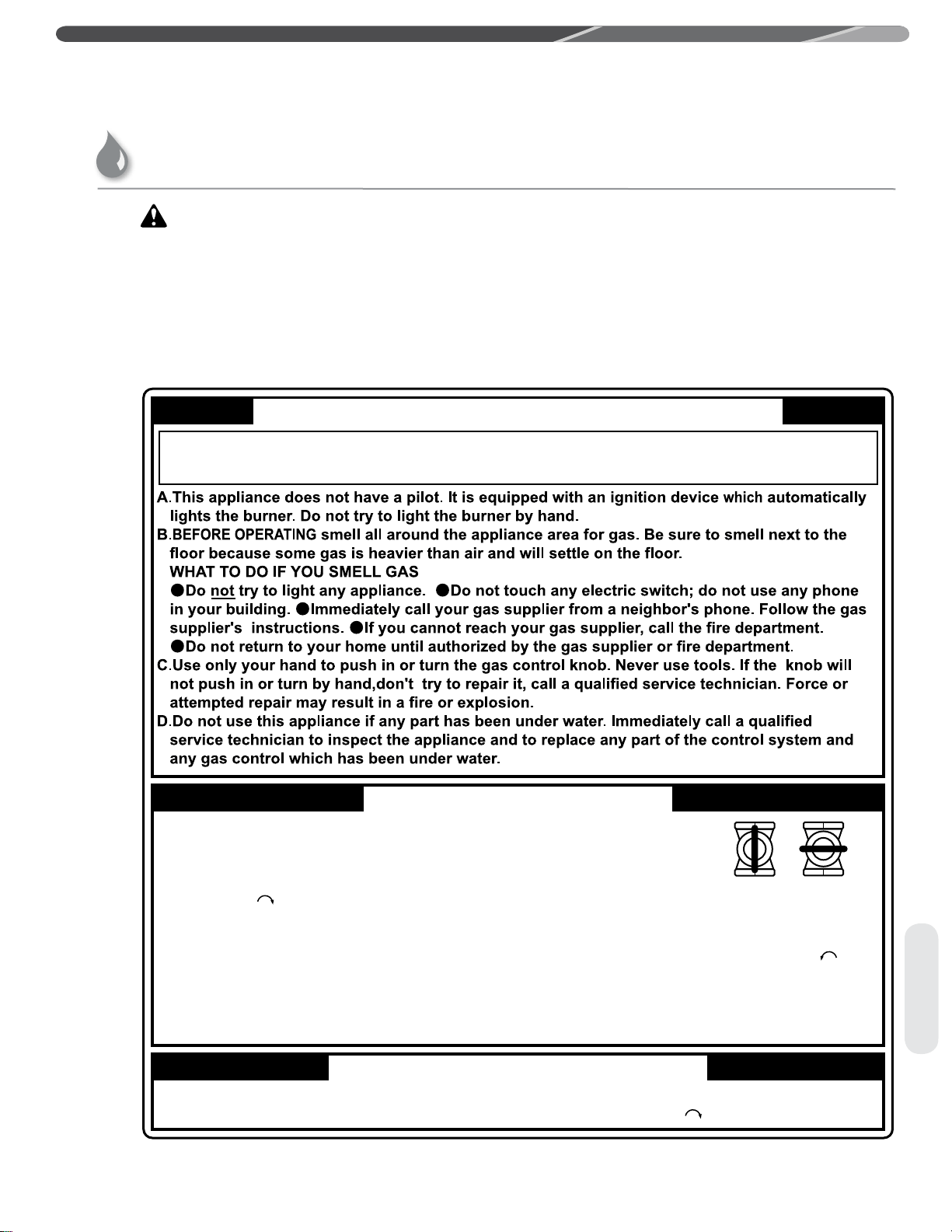

Before operating this water heater, be sure to read
and follow the instructions on the label pictured
below and all other labels on the water heater,
as well as the warnings printed in this manual.
Failure to do so can result in unsafe operation
of the water heater, resulting in death, personal
injury, or property damage. Should you have any
problems reading or following the instructions in
this manual, STOP and get help from a qualified
service technician.
WARNING : If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
FOR YOUR SAFETY READ BEFORE OPERATING
1.STOP! Read the safety information above on this label.
2.Turn off all electric power to the appliance.
3.Do not attempt to light the burner by hand.
4.Turn the Gas Shutoff Valve located on the outside of the unit
clockwise to the "OFF" position.
5.Wait five (5) minutes to clear out any gas. If you then smell gas, STOP! Follow "B" in
the safety information above on this label. If you don't smell gas, go to the next step.
6.Turn the Gas Shutoff Valve located on the outside of the unit counterclockwise to
the "ON" position.
7.Turn on all electric power to the appliance.
8.If the appliance will not operate, follow the instructions "To Turn Off Gas To Appliance"
and call your service technician or gas supplier.
TO TURN OFF GAS TO APPLIANCE
1
.
Turn off all electric power to the appliance if service is to be performed.
2
.
Turn
the
Gas
Shutoff
Valve
located
on
the
outside
of
the
unit
clockwise to
the
"OFF"
position.
GAS SHUTOFF
VALVE
OPEN CLOSE
OPERATING INSTRUCTIONS
Safety
7
IMPORTANT SAFETY INFORMATION
Electrical Safety
DANGER: Shock Hazard – Make sure
the electrical power to the water heater is off to avoid
electric shock that will result in death or serious
personal injury.
WARNINGS:
• For your safety, the information in this manual must
be followed to minimize the risk of fire, explosion,
or electric shock that can result in death, personal
injury, and/or property damage.
• Field wiring connections and electrical grounding
must comply with local codes or, in the absence of
local codes, with the latest edition of the National
Electrical Code, ANSI/NFPA 70, or in Canada,
Canadian Electrical Code, CSA C22.1, Part 1.
CAUTIONS:
• Label all wires prior to disconnecting for service.
Wiring errors can cause dangerous and improper
operation. Verify correct operation after servicing.
• For your safety, burner inspection and cleaning
should be performed only by qualified service
personnel.
• Make certain the power to the water heater is OFF
before removing the unit cover panel. Exposed
electrical components and moving parts can cause
personal injuries.
• For your safety, DO NOT attempt repair of electrical
wiring, gas piping, remote control, burners, vent
connectors, or other safety devices. Refer repairs to
qualified service personnel.
California law requires that water heaters must
be braced, anchored, or strapped to resist falling
or horizontal displacement due to earthquake
motions. For water heaters up to 52-gallon
capacity, a brochure with generic earthquake
bracing instructions can be obtained from: Office
of the State Architect, 1102 Q Street, Suite 5100,
Sacramento, CA 95814, or you may call
916-445-8100 or ask a water heater dealer.
However, applicable local codes shall govern
installation. For residential water heaters of a
capacity greater than 52 gallons or tankless-style,
consult the local building jurisdiction code for
acceptable bracing procedures.
FOR INSTALLATIONS IN THE STATE OF CALIFORNIA
Safety
8
IMPORTANT SAFETY INFORMATION
General Installation and Maintenance Safety
WARNINGS:
• This water heater must be installed in accordance
with these instructions, local codes, utility
company requirements and/or in the absence of
local codes, use the latest edition of the American
National Standard/National Fuel Gas Code
(NFGC), ANSI Z223.1 and National Fire Protection
Association, NFPA 54, or in Canada, CSA B149.1,
Natural Gas and Propane Installation Code, and
the latest edition of the National Electrical Code,
ANSI/NFPA 70, or in Canada, Canadian Electrical
Code, CSA C22.1, Part 1.
• If local codes require the application of external
insulation blanket kits, carefully follow the
manufacturer’s installation instructions included
with the kit. Only use blanket kits that are
approved for use with your water heater.
• For your safety, DO NOT attempt to disassemble
this water heater for any reason. Improper
adjustments, alterations, service, or maintenance
can cause death, personal injury, or property
damage.
SAVE THESE
INSTRUCTIONS
SAFETY PRECAUTIONS:
• Read this manual entirely before installing and/or
operating the water heater.
• Use this water heater only for its intended purpose
as described in this Use and Care Manual.
• Have the installer show you the location of the gas
shut-off valve and how to shut it off if necessary.
Turn off the manual shut-off valve if the water heater
has been subjected to overheating, fire, flood,
physical damage, or if the gas supply fails to
shut off.
• Be sure your water heater is properly installed in
accordance with local codes and the provided
installation instructions.
• Do not attempt to repair or replace any part of your
water heater unless it is specifically recommended
in this manual. All other servicing should be referred
to a qualified service technician.
PRODUCT INFORMATION
For Your Records
Write down and save the following product
information along with the original sales slip and/or
cancelled check. The model and serial numbers
can be found on the top label on the right side of
the water heater.
MODEL NUMBER:
SERIAL NUMBER:
DATE OF INSTALLATION:
INSTALLING COMPANY/PHONE NUMBER:
PLUMBING CONTRACTOR/PHONE NUMBER:
See page 26 for additional service information.
Read This Manual
Inside you will find many helpful hints on how to use and
maintain your water heater properly. A little preventive
care on your part can save you time and money over the
life of your water heater.
You’ll find many answers to common problems in the
Troubleshooting Chart on pages 23 and 24. Always refer
to this chart before calling for service. Referring to this
chart before calling may answer your question(s) and
eliminate the need for service.
Preoperating Checklist
Is the main gas valve to the water heater turned on?
Does the water heater have its own circuit breaker
or fuse?
Does the water heater’s electronic ignition light?
Is the water temperature set to a safe temperature?
Is the water heater connected to a floor drain?
Is the water heater properly vented to the outside?
Is the water heater installed in a safe location away
from flammable materials and/or freezing conditions?
Product Information Safety
9
PRODUCT INFORMATION
Product Information
30
3
/8"
(772 mm)
27
5
/8"
(702 mm)
3
3
/8"
(86 mm)
5
1
/2"
(140 mm)
6
1
/4"
(159 mm)
17
7
/8"
(454 mm)
18
5
/8"
(473 mm)
9
3
/4"
(248 mm)
2
1
/4"
(59 mm)
5
1
/2"
(140 mm)
6
1
/8"
(156 mm)
2
1
/8"
(54 mm)
3
7
/8"
(98 mm)
2
7
/8"
(73 mm)
4
1
/8"
(105 mm)
9
1
/2"
(241 mm)
1
1
/2"
(38 mm)

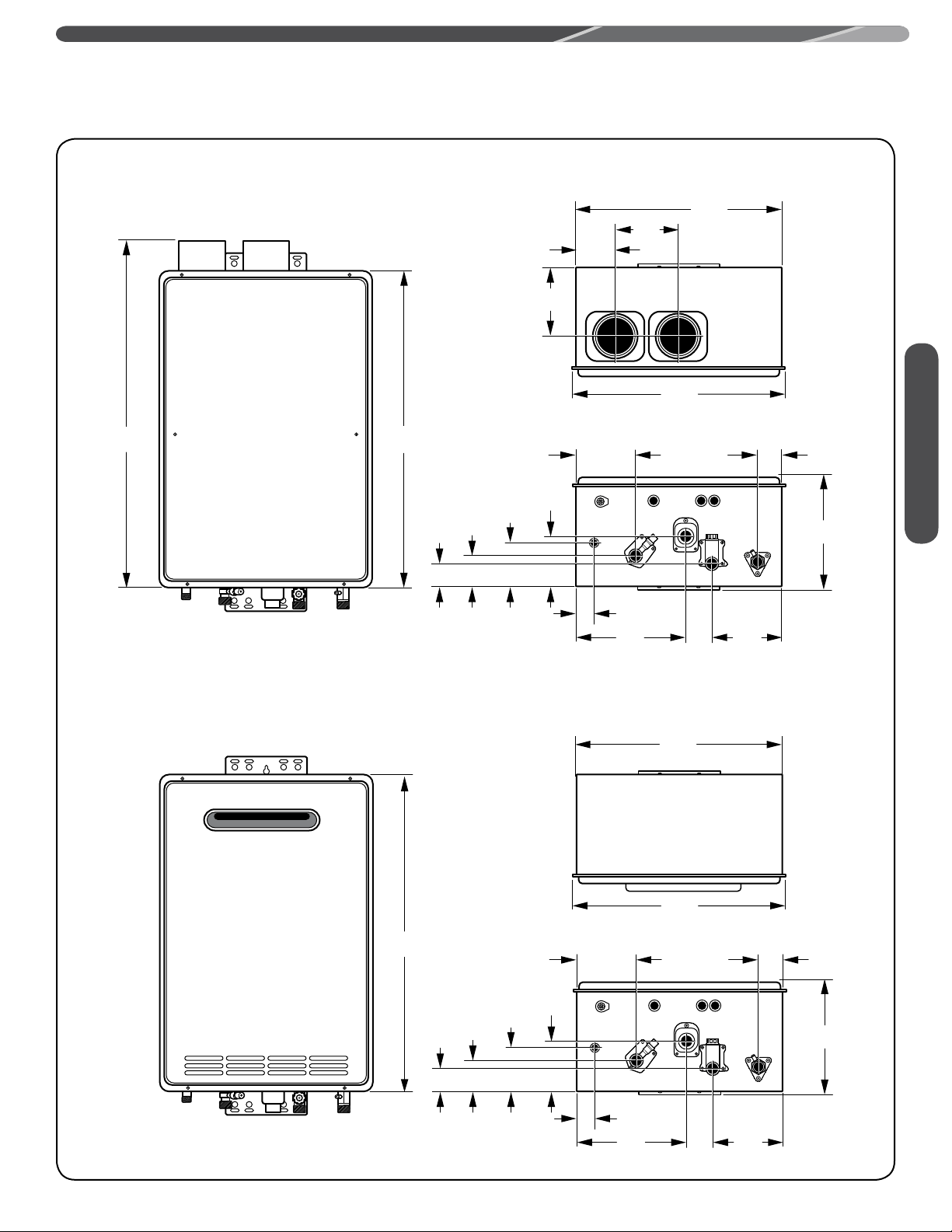

Specications – Direct-Vent Models
17
7
/8"
(454 mm)
18
5
/8"
(473 mm)
27
5
/8"
(702 mm)
9
3
/4"
(248 mm)
2
1
/4"
(59 mm)
5
1
/2"
(140 mm)
6
1
/8"
(156 mm)
2
1
/8"
(54 mm)
3
7
/8"
(98 mm)
2
7
/8"
(73 mm)
4
1
/8"
(105 mm)
9
1
/2"
(241 mm)
1
1
/2"
(38 mm)
Specications – Outdoor Models
10
PRODUCT INFORMATION
Specications
MANUFACTURER 157k BTU MODELS 199.9k BTU MODELS
Rheem
EcoSense
Paloma/Wai Wela
Ruud
Richmond
RTGH-84DV* and RTGH-84X*
ECOH160DV* and ECOH160X*
PHH-25RDV* and PHH-25ROF*
RUTGH-84DV* and RUTGH-84X*
RMTGH84DV* and RMTGH84X*
RTGH-95DV* and RTGH-95X*
ECOH200DV* and ECOH200X*
PHH-32RDV* and PHH-32ROF*
RUTGH-95DV* and RUTGH-95X*
RMTGH95DV* and RMTGH95X*
Appliance Type Indoor (DV) & Outdoor (X) Indoor (DV) & Outdoor (X)
Electrical Rating 120V/60Hz 120V/60Hz
Type of Gas* NG LP NG LP
Inlet Gas Pressure
Max. (in. of w.c.)
10.5 13.0 10.5 13.0
Inlet Gas Pressure
Min. (in. of w.c.)
4.0 8.0 4.0 8.0
Manifold Pressure
(
in. of w.c. at max. input)
2.5 Indoor
2.6 Outdoor
3.1
3.9 Indoor
4.2 Outdoor
4.6 Indoor
4.7 Outdoor
Maximum Water Supply Pressure (psi) 150 150
Maximum Input Rate (btu/hr) 157,000 199,900
Minimum Input Rate (btu/hr) 11,000 11,000
Recover Rating (gal/hr) 178 226
Shipping Weight (lbs) 81 81
Minimum Activation Flow Rate (gpm) 0.40 0.40
Extinction Flow Rate (gpm) 0.25 0.25
Hot Water Capacity (gpm @ 35°F rise) 8.5 9.5
Hot Water Capacity (77°F rise) 3.9 4.9
Default Temperature Setting (no controller) 120 120
Temperature Default Setting 100 100
Minimum Temperature Setting (°F) 85 85
Efficiency Rating (Energy Factor) 0.94 0.94
Electrical Consumption
Normal 100 W 100 W
Standby 3–5 W 3–5 W
Antifreeze Protection 200 W 200 W
Vent Size (Indoor Only) 2" or 3" 2" or 3"
Water Connections 3/4" NPT 3/4" NPT
Gas Connection 3/4" NPT 3/4" NPT
Water Supply Pressure 14-150 PSI 14-150 PSI
High Altitude (up to 10,000 ft.) Yes Yes
Multiple-Unit Installation Yes Yes
Safety Devices
Overheat Film Wrap, Flame Rod, Water Temperature High-Limit
Switch, Flue Temperature High-Limit Switch
Accessories
Remote Control, Service Valves, Vent Kits, Pipe Cover, EZ Link, MIC-6,
MIC-185, Recess Box**
*N or NG = natural gas and P or LP = liquefied petroleum
** = Outdoor Only
Product Information
11
PRODUCT INFORMATION
General Descriptions
Typical Direct-Vent Water Heater
(Venting Required)
Product Information
Remote Control
With Power Switch
To Hot Water
Faucet(s)
Drain Valve
Water
Filter
Cold Water Supply
Shut-Off Valve
*Note: A flexible drain tube can be used
To Suitable
Drain
To Suitable
Drain
Power
Supply
Cord
Union
Union
Manual Gas
Supply Line
Shut-Off Valve
Manual Gas
Shut-Off Valve
Condensate
Pipe*
Cap
Sediment Trap
Service
Valve
Relief
Valve
Relief
Valve
12
PRODUCT INFORMATION

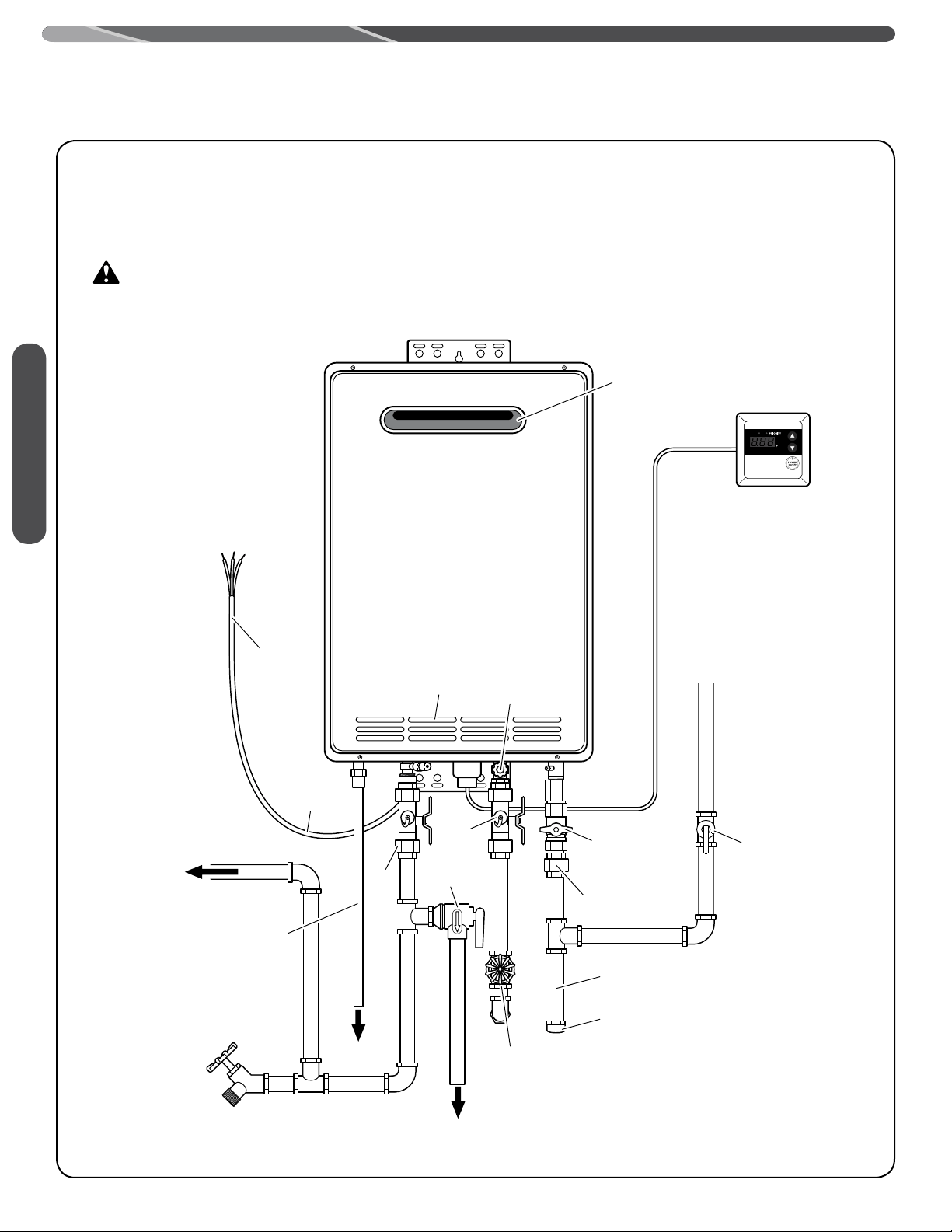

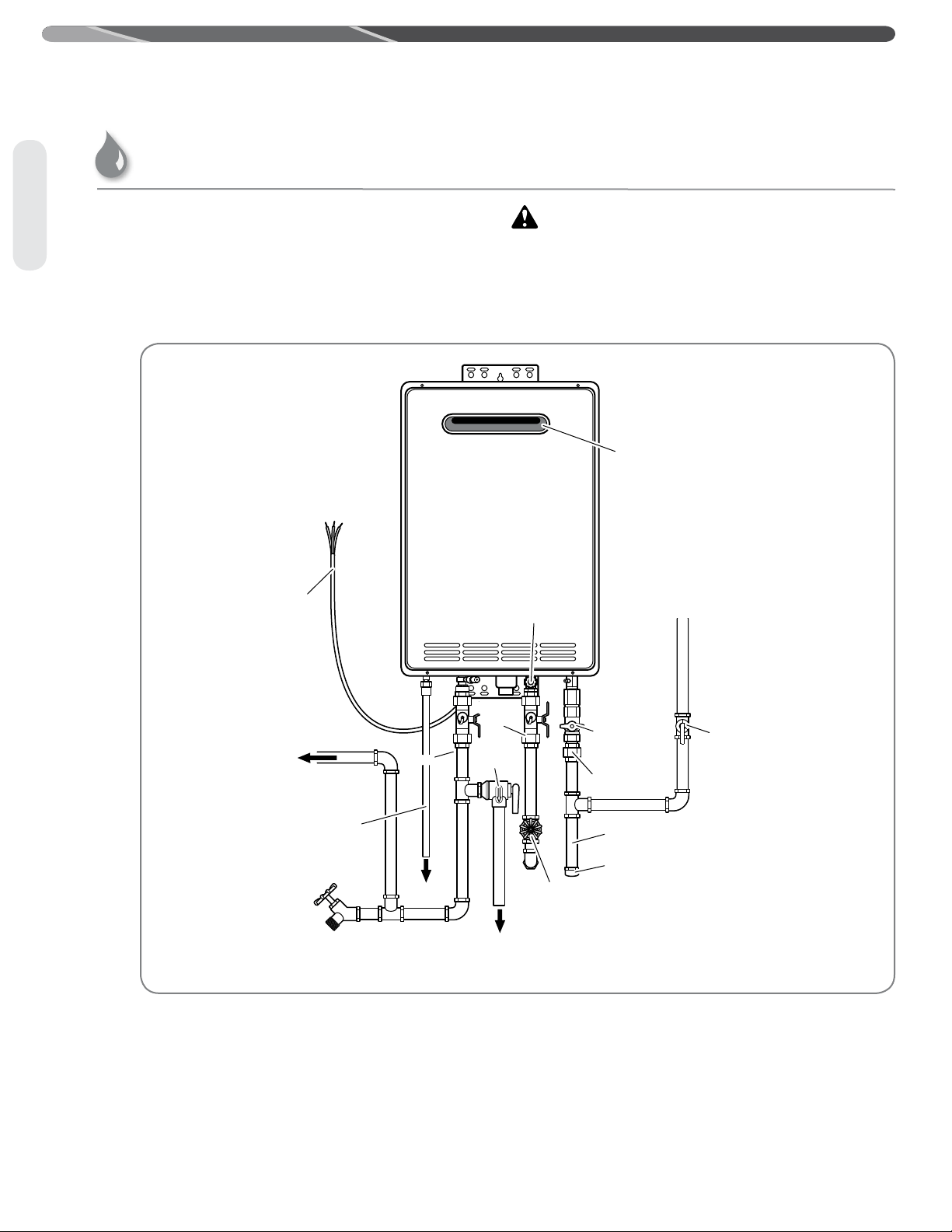

Typical Outdoor Water Heater
(No Venting Required)
Remote Control
With Power Switch
To Hot Water
Faucet(s)
Drain Valve
Water
Filter
Air Inlet
Hard-Wire
Flue
Terminal
Cold Water Supply
Shut-Off Valve
Power Supply
Cord
(not supplied)
Union
Union
Manual Gas
Supply Line
Shut-Off Valve
Manual Gas
Shut-Off Valve
Cap
Sediment Trap
Service
Valve
Relief
Valve
Relief
Valve
*Note: A flexible drain tube can be used
To Suitable
Drain
To Suitable
Drain
Condensate
Pipe*
This water heater is for OUTDOOR installation only.
DANGER: DO NOT install this water heater indoors or in an enclosure. It is designed for
outdoor installation only. Any other type of installation will result in death or serious personal injury.
Product Information
13
Use Instructions
USING YOUR WATER HEATER
WARNING: Flammable vapors can
be drawn by air currents from surrounding areas to
the water heater. Vapors can ignite causing death,
personal injury, or product damage.
• DO NOT store or use flammable or combustible
materials (gasoline, paint thinner, adhesives,
newspapers, rags, mops, etc.) in the vicinity of
the water heater or any other gas appliance. If
they must be used, open doors and windows
for ventilation, and shut off all gas-burning
appliances, including their pilot lights.
• DO turn off manual gas shut-off valve if water
heater has been subjected to overheating, fire,
flood, physical damage, or if the gas supply fails
to shut off.
• DO NOT turn on water heater unless water and
gas supplies are completely opened.
• DO NOT turn on water heater if cold water
supply shut-off valve is closed.
• If there is any difficulty in understanding or
following the operating and care instructions in
this manual, it is recommended that you contact
a qualified service technician to perform the work.
Safety Precautions
Setting the Water Temperature
D A N G E R
!
HOT
Water temperature over 125°F (52°C)
can cause severe burns instantly or
death from scalds.
Children, disabled and elderly are
at highest risk of being scalded.
See instruction manual before
setting temperature at water
heater.
Feel water before bathing or
showering.
Temperature limiting valves are
available, see manual.
BURN
Time/Temperature
Relationship in Scalds
Water Temperature Time to Produce a Serious Burn
120°F (49°C) More than 5 minutes
125°F (52°C) 1 1/2 to 2 minutes
130°F (54°C) About 30 seconds
135°F (57°C) About 10 seconds
140°F (60°C) Less than 5 seconds
145°F (63°C) Less than 3 seconds
150°F (66°C) About 1 1/2 seconds
155°F (68°C) About 1 second
Table courtesy of Shriners Burn Institute
DANGER: Water temperatures above 125°F (52°C)
will result in death and/or severe burns from scalding.
Safety and energy conservation are factors to be considered
when selecting the water temperature setting. The temperature
of the water in the water heater can be regulated by setting the
temperature on the front of the remote control. Be sure to read
and follow the warnings outlined on the pictured label.
The recommended setting for the water temperature is 100°F
(38°C). The remote control has been preset and shipped at the
recommended temperature setting.
Safety factors should be considered whenever altering the water
temperature setting. The chart below may be used as a guide in
determining the proper water temperature for your home.
14
Use Instructions
USING YOUR WATER HEATER

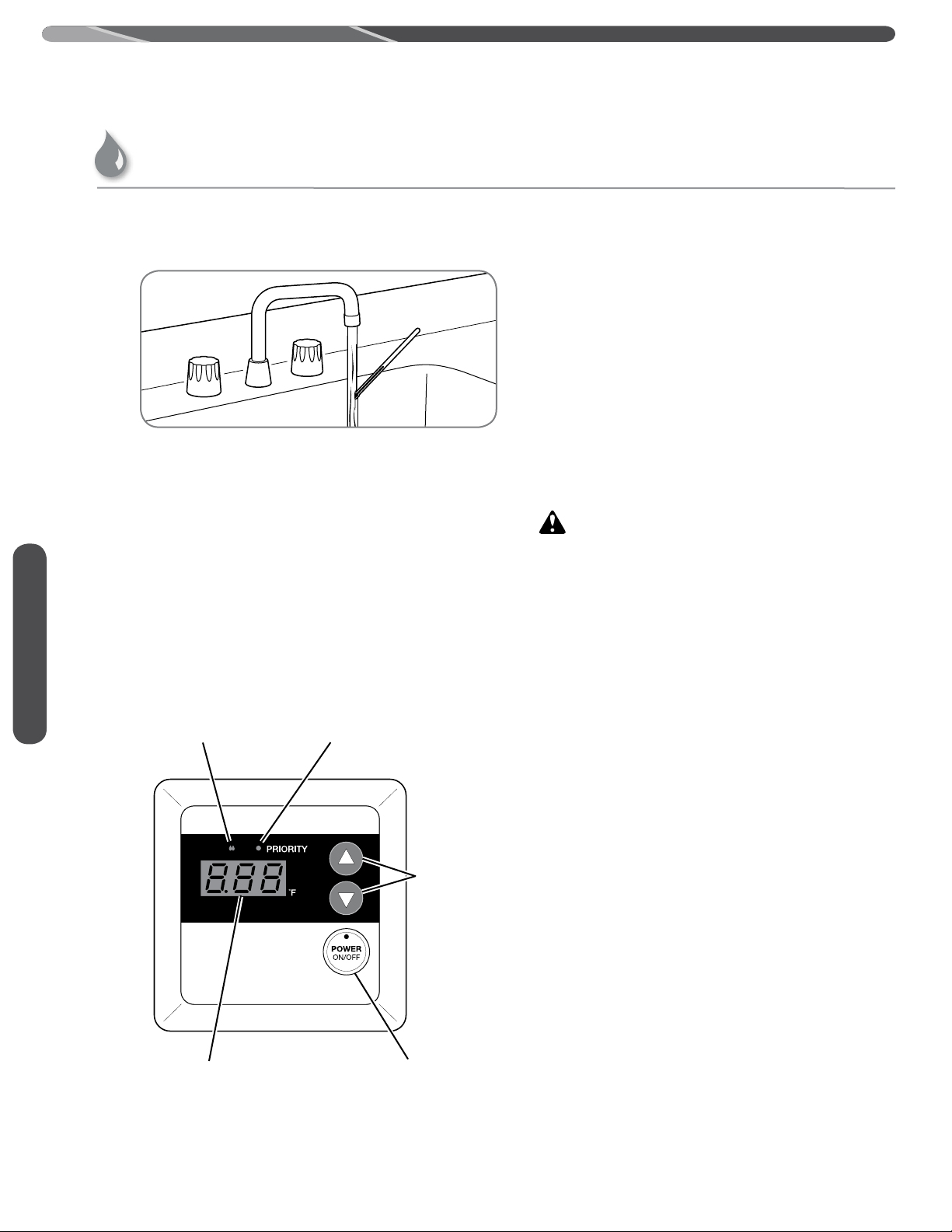

Maximum water temperature occurs while the
water heater burner is on. To determine the water
temperature:
Turn on the hot water faucet and place a
thermometer in the water stream.
NOTICE: Water temperature at the faucet
may vary depending on the season and the length
of pipe from the water heater.

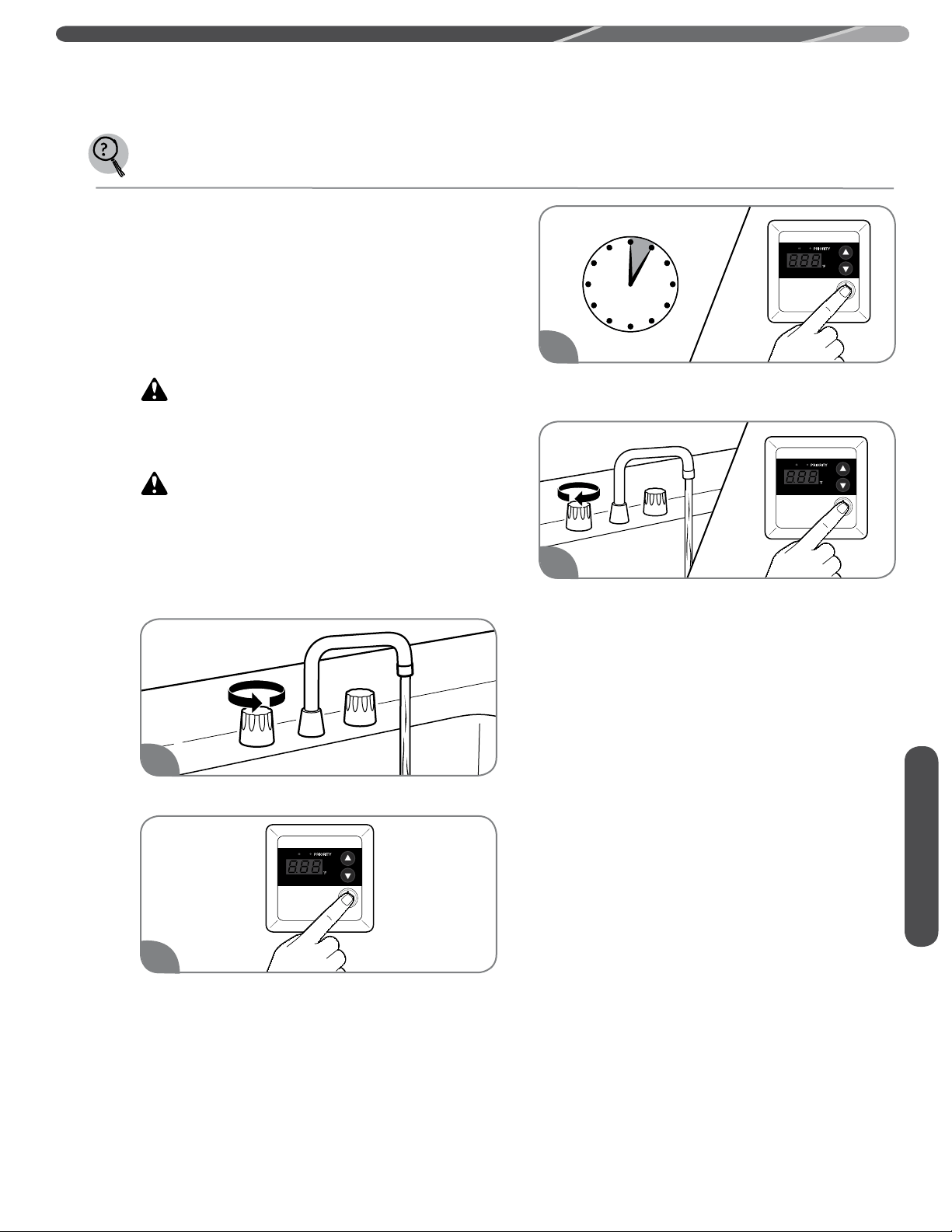

The remote control temperature range is between
100°F (38°C) and 120°F (49°C). To adjust the
temperature to a desired setting, press the UP
or DOWN adjustment button on the face of the
remote control. The new temperature set point will
show on the LED display.
NOTICES:
• The temperature set point on the standard
remote control cannot be increased above
112°F (44°C) when a hot water faucet is in the
open position. To achieve temperatures above
120°F (49°C) or 85°F (29°C), contact a qualified
service technician. Only factory-authorized
remote control(s) should be used.
• The water heater may not operate with a
small water flow. Increase the water flow and
recheck. If it still does not operate with the hot
water faucet completely open, increase the
temperature setting on the remote control.
Water Heater Facts
DANGER: Water temperatures above
125°F (52°C) will result in death and/or severe
burns from scalding.
• The hottest-temperature water will be at the
faucet closest to the water heater.
• Always remember to test the water temperature
with your hand before use.
• Always supervise young children or others who
are incapacitated.
• The water heater is equipped with a device
that will shut off the gas supply to the burner
if the water heater exceeds normal operating
temperatures.
• Any water heater that has been subjected to fire,
flood, physical damage, or been under water
should be turned off at the manual gas shut-off
valve and not used until it has been checked by
qualified service personnel.
Temperature
Adjustment
Buttons
Power On/Off
Button and
Indicator
LED Temperature
and Error Code
Display
In-Use Indicator
(Lit during operation)
Priority
Indicator
Setting the Water Temperature (cont.)
15
CARING FOR YOUR WATER HEATER
Water Heater Inspections
Venting System
(Direct Vent Only)
The venting system should be inspected annually
to ensure all of the vent sections are secure and
airtight. Qualified service personnel are familiar
with vent system inspections.
WARNING: Do not operate the
water heater if the vent system shows signs of
leaking exhaust. Leaking exhaust could lead to
death, personal injury, and/or product failure.
For outdoor models, check the air intake and
vent outlet for blockage and/or debris.

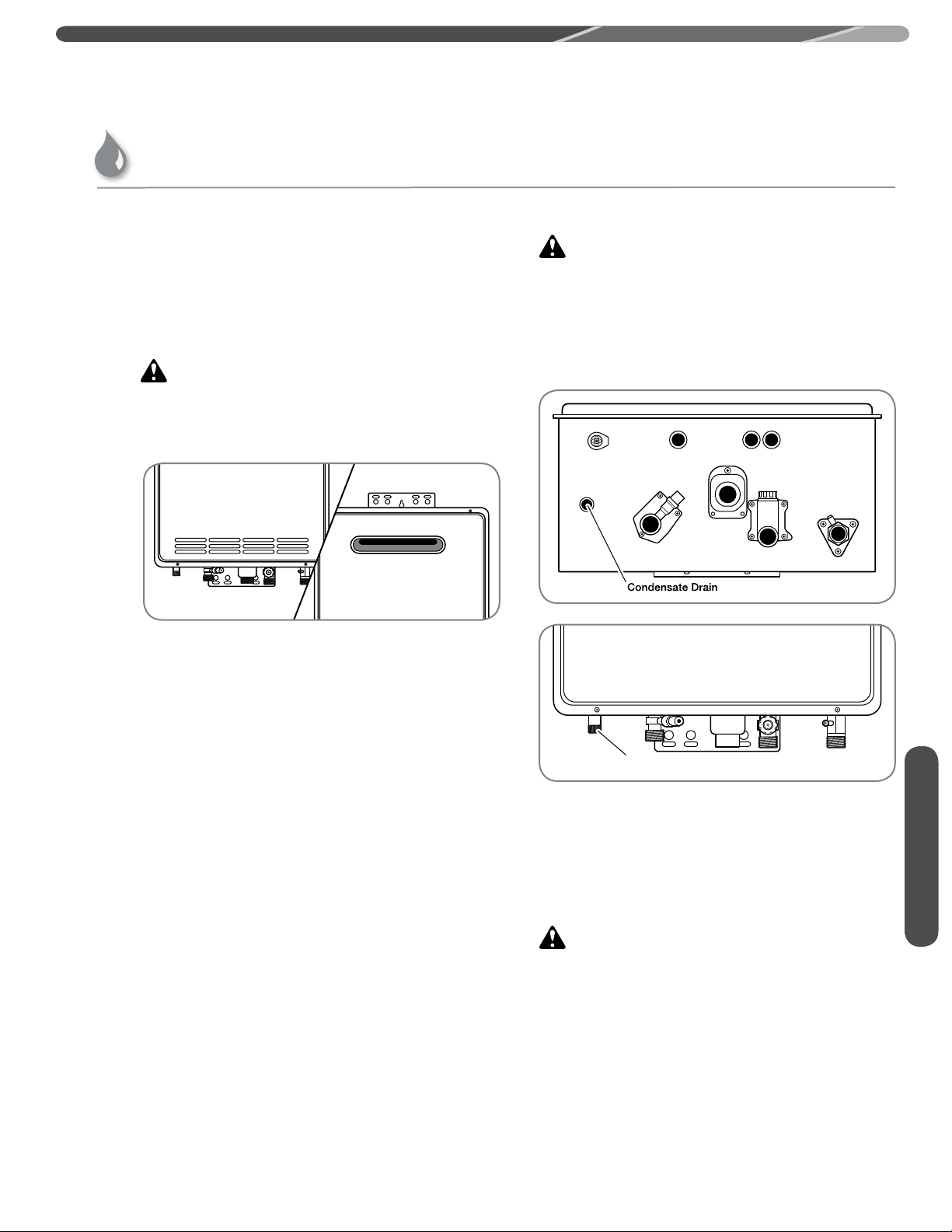

Condensate Collector
CAUTIONS:
• Condensate is known to be acidic; refer to
federal, state (provincial), and local codes for
proper handling and discharge methods.
• Do not operate without the condensate collector
drain connected and routed to the proper drain.
This could cause the system to malfunction or fail.
On a regular basis, inspect the condensate drain
line to ensure the condensate is draining properly.
The condensate coming from the water heater is
known to be acidic. The heater features a built-in
condensate neutralizer that uses CaCO
3
(calcium
carbonate) in rock form as a medium.
DANGER: Shock Hazard – Make
sure the electrical power to the water heater is off
to avoid electric shock that will result in death or
serious personal injury.
Periodically check the medium visually to ensure
that it is not depleted and refill accordingly. It is
recommended that you contact a qualified service
technician to perform the work.
Condensate Drain
Outdoor models
Care Instructions
16
CARING FOR YOUR WATER HEATER

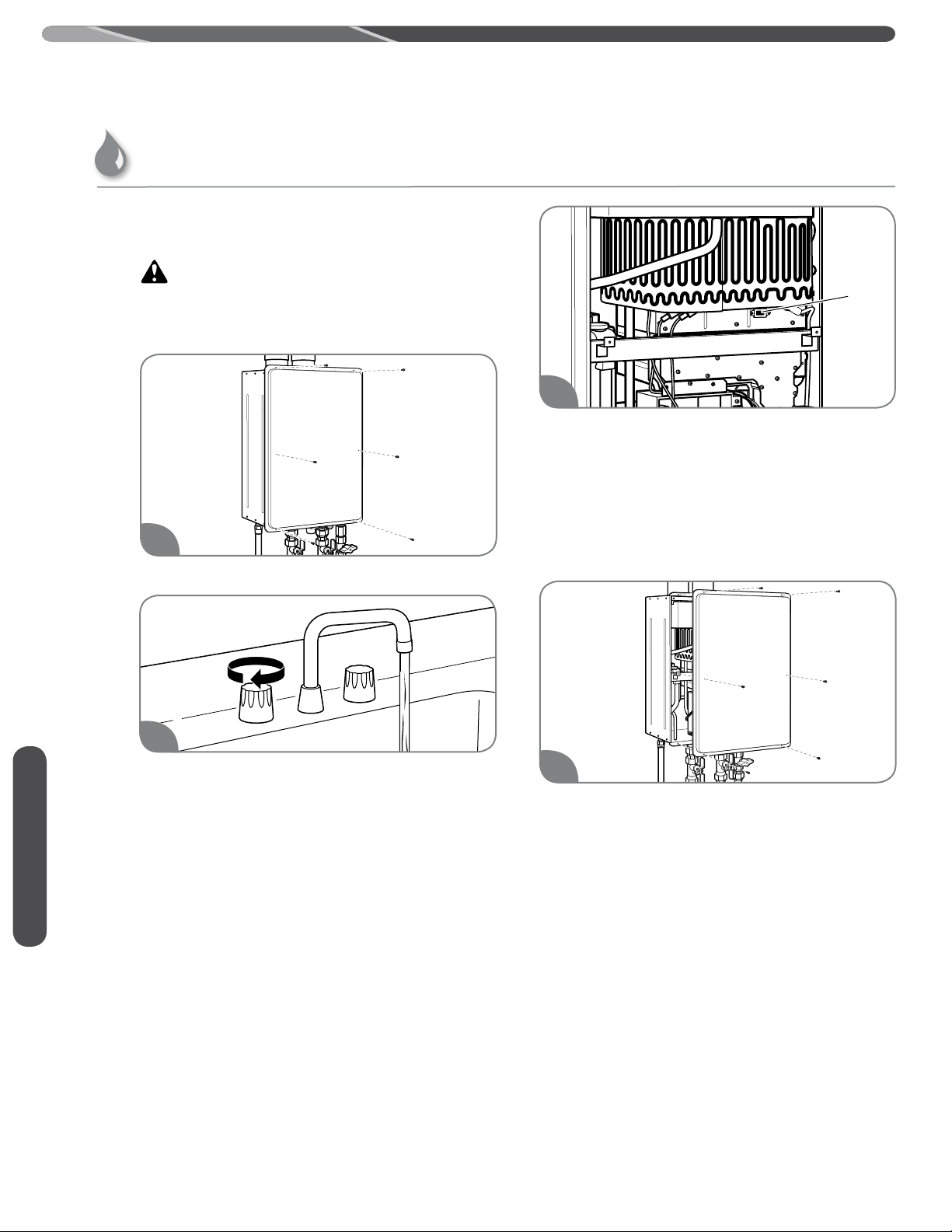

Burner
Visually inspect the main burner annually.
DANGER: Shock Hazard –
Removing the front cover panel exposes you to
live electricity. Electric shock will cause death or
serious personal injury.
Remove 6 screws and the unit cover panel.
Turn on a hot water faucet.
While the water heater is operating, inspect the
main burner flames through the burner sight
glass. The flames should be blue when the main
burner is firing.
NOTICE: If the flames are not blue or
you observe unusual burner operation, shut off
the water heater and contact a qualified service
technician.
Turn off the hot water faucet and reinstall the
unit cover panel.
4
2
1
Burner
Sight
Glass
3
Water Heater Inspections (cont.)
Care Instructions
17
CARING FOR YOUR WATER HEATER
Care and Cleaning
DANGER: Shock Hazard – Make
certain power to the water heater is OFF before
removing protective cover for any reason. Electric
shock will cause death or serious personal injury.
WARNING: Combustible materials,
such as clothing, cleaning materials, or flammable
liquids, must not be placed against or next to the
water heater. Fire or explosion can occur causing
death, personal injury, and/or product damage.
All care and cleaning to and around the water
heater should only be performed with the water
heater turned off and the electrical power
supply disconnected.
Vacuum around the water heater to remove any
dust, dirt, and/or lint buildup.
Clean the water heater and the remote control
with a damp soft cloth and mild detergent.
Gently wipe and completely dry all surfaces.
Check the air intake and vent outlet for
blockage and/or debris.
NOTICE: The air intake requires a
minimum of 12 in. (30 cm) of clearance between
the air intake opening and any obstruction.
Clean the water filter monthly, as described below.
Water Filter Cleaning
Turn off the water heater and disconnect the
electrical power supply.
Turn off the water supply to the water heater.
Drain the water heater. See page 20.
1
2
1
Drain Valve
3
Cold Water Supply
Shut-Off Valve
2
3
Outdoor models
Care Instructions
18
CARING FOR YOUR WATER HEATER
CAUTION: Do not tap or force
the filter during removal. This can deform and/or
damage the filter.
Unscrew the water filter from the base of the
cold water inlet line and carefully slide it out
of the line.
Clean the water filter under running water. To
remove severe sediment and dirt, use a soft
brush.
CAUTION: Do not overtighten the
water filter. Overtightening can deform and/or
damage the filter.
Replace the filter in the cold water inlet line and
tighten until it is snug.
Turn on the water supply, reconnect the
electrical supply, and turn on the water heater.
4
7
5
6
Care and Cleaning (cont.)
Care Instructions
19
CARING FOR YOUR WATER HEATER

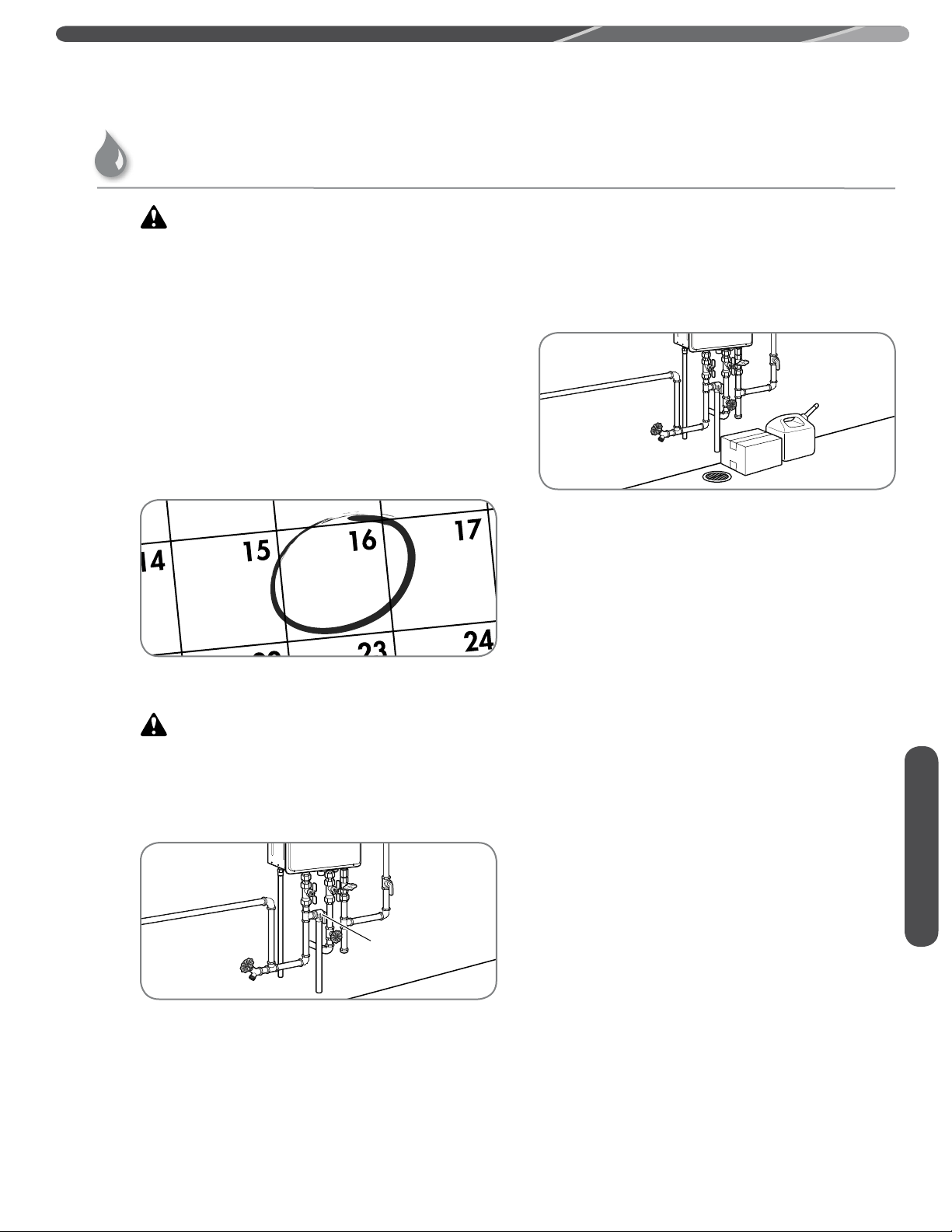

Preventive Maintenance
WARNING: Failure to perform
routine preventive maintenance can prevent the
water heater from operating properly. Improper
operation can cause carbon monoxide dangers,
excessive water temperatures, and other
potentially hazardous conditions resulting in death,
personal injury, and/or product damage.
Properly maintaining your water heater will ensure
dependable, trouble-free service.
User Preventive Maintenance
Establish and follow a routine preventive
maintenance program. The following suggested
items should be included in your program.
• Monthly check and clean the water filter. See
“Water Filter Cleaning” on page 17.
WARNING: Hot water is released
during manual operation of the relief valve. Make
sure all people and animals are clear from the area
before performing this check to prevent death,
personal injury, and/or property damage from hot
drain water.
• Annually check the operation of the pressure-
relief valve. Lifting the lever handle on the
pressure-relief valve opens the valve to flush hot
water through the discharge line to the drain.
After several gallons have drained, release the
lever handle to close the valve and stop draining.
NOTICE: If the pressure relief valve on
the hot water heater discharges periodically, this
may indicate a problem in the water system.
Contact the water supplier or a plumbing
contractor to correct the problem. DO NOT
plug the relief valve outlet.
• Inspect and keep the area around the water
heater clear and free of flammable materials,
such as gasoline and other flammable vapors
and liquids.
• Visually inspect the water heater for damage
and/or denting. If present, contact a service
personnel to verify proper operation.
• Check for abnormal sound during normal
operation (e.g., hissing or banging noises).
Contact a qualified service technician or
plumbing contractor.
• Check all gas and water pipes for leaks. See
page 55.
NOTICES:
– DO NOT operate the water heater if you feel
something is wrong with the unit.
– DO NOT allow children to operate or handle
the unit.
• After inspections, maintenance, and/or cleaning,
ensure proper operation by turning on a hot
water faucet.
Professional
Preventive Maintenance
It is recommended that a periodic inspection of
the water heater burner, relief valve, air intake filter,
water filter, and venting system be made by a
qualified service technician.
Relief
Valve
Care Instructions
20
Care Instructions
CARING FOR YOUR WATER HEATER

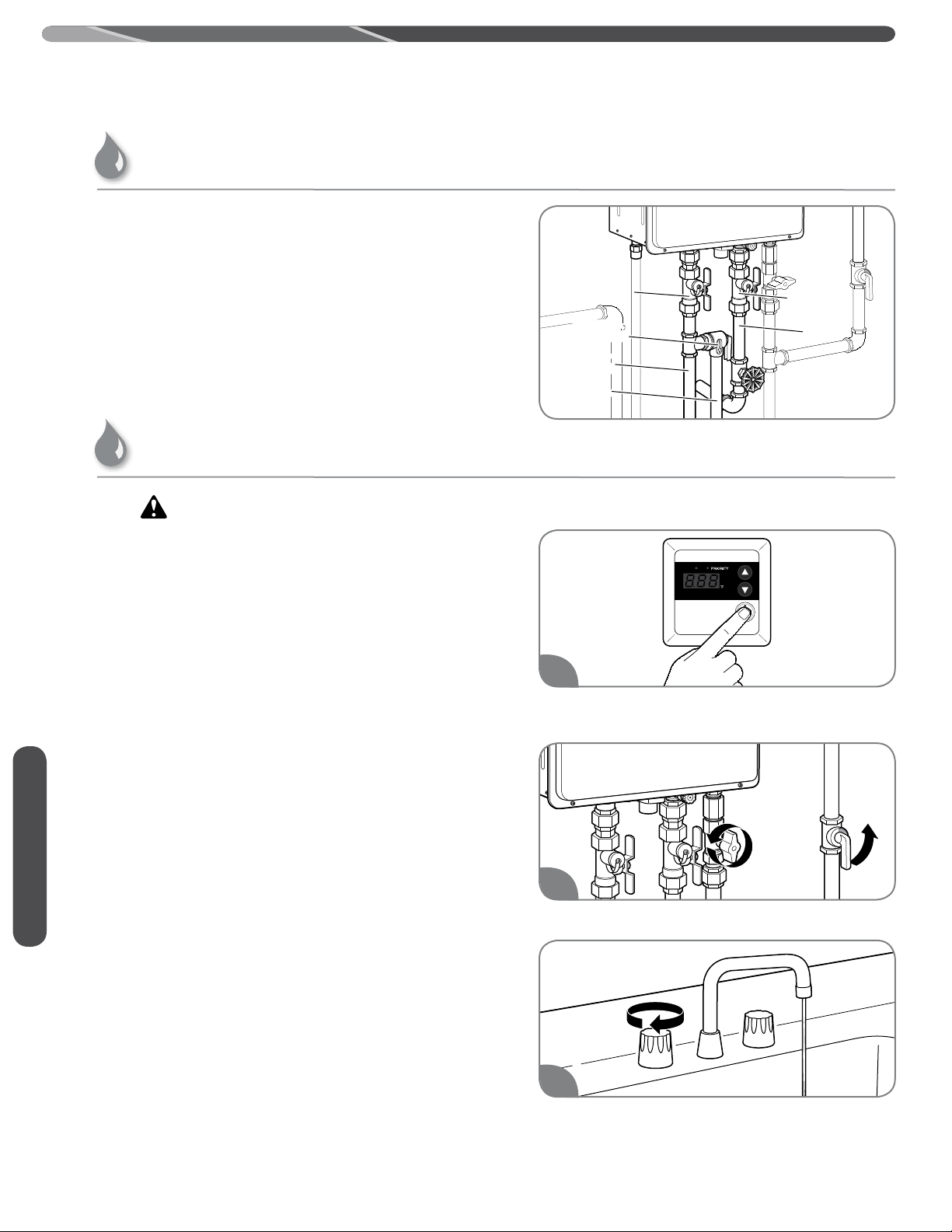

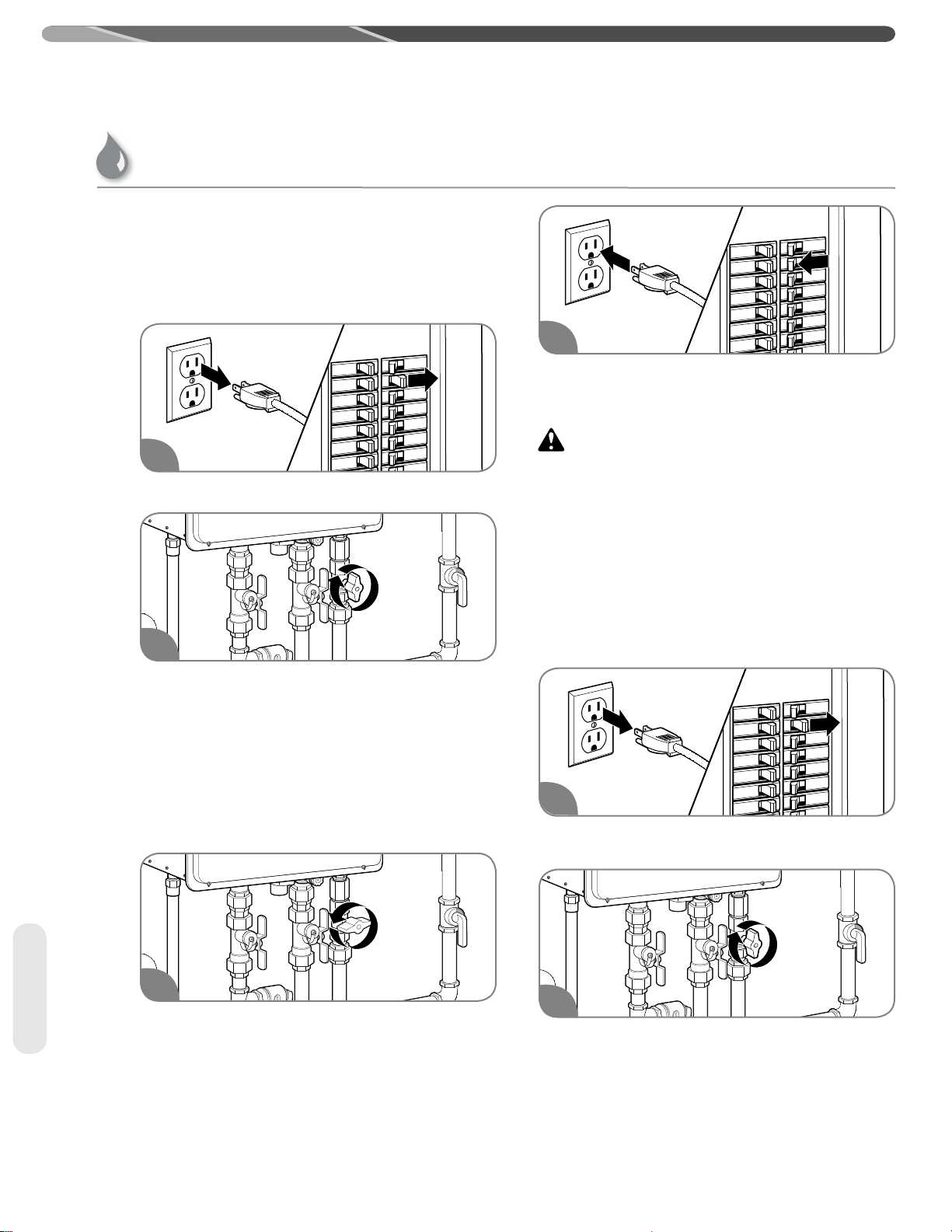

Draining the Water Heater
WARNING: Failure to follow these
draining instructions can cause serious personal
injury from scalding and/or product damage.
Turn off the water heater by pressing the
POWER ON/OFF button on the control panel.
Close the gas shut-off valve(s).
At least 10 seconds after Step 1, unplug the
water heater or disconnect the power supply at
the circuit breaker box.
Open all hot water faucets. Run the water until it
is COLD; then shut off the faucet.
Close the water shut-off valve.
Using a suitable container to catch the water,
remove the water filter from the base of the cold
water inlet line.
Connect a garden hose to the drain valve in the
hot water outlet line and place the other end in
a suitable drain. Open the drain valve until all
the water has drained from the water heater.
Leave water heater as is until placed back in
service.
1
2
3
4
Cold Water Supply
Shut-Off Valve
5
6
7
21
Care Instructions
CARING FOR YOUR WATER HEATER
CAUTION: Even when drained
properly, a small amount of water will remain in
the water heater. In cold weather conditions, this
water can freeze. If this happens, allow the defrost
protection on the water heater at least 30 minutes
to melt the frozen water. The water heater will not
work properly until this water is thawed.

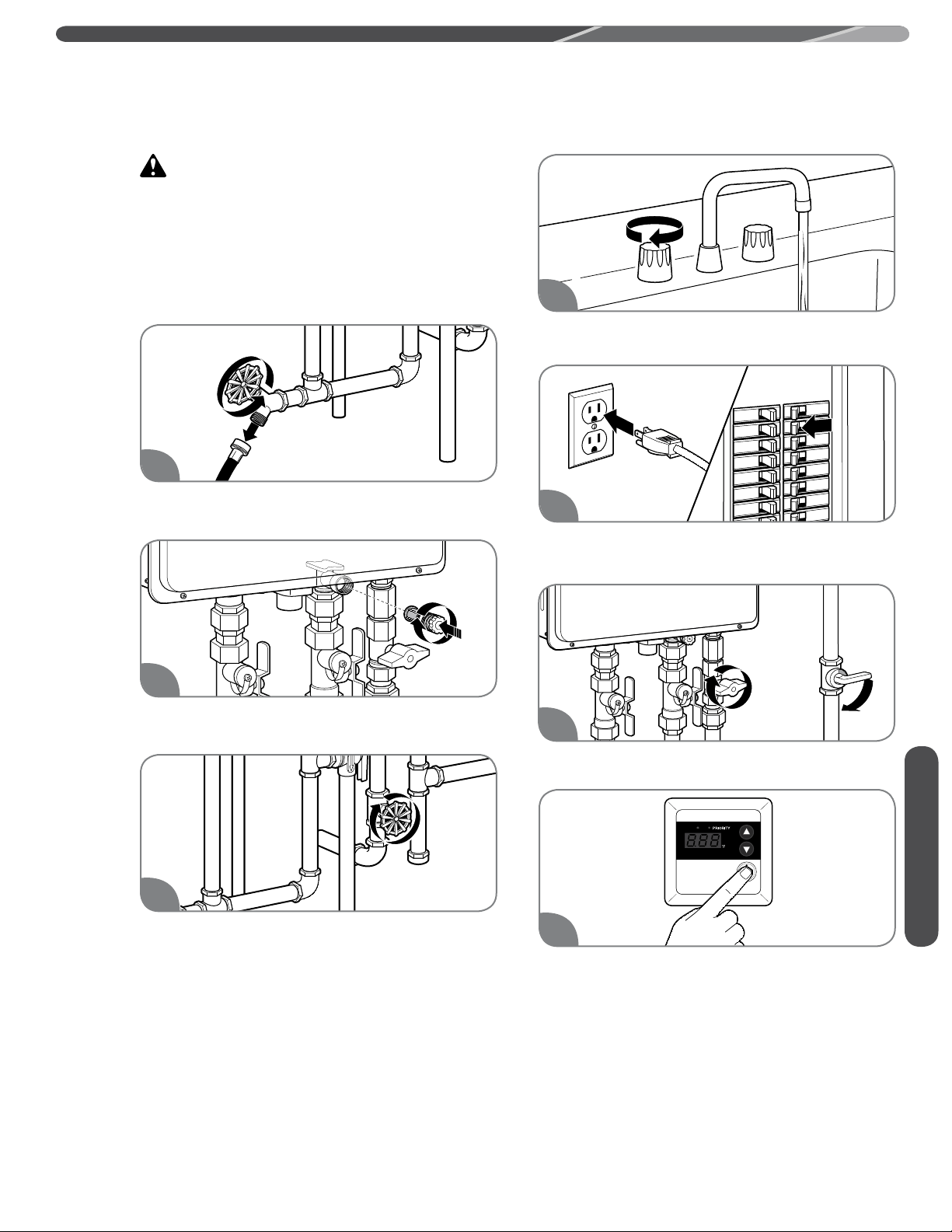

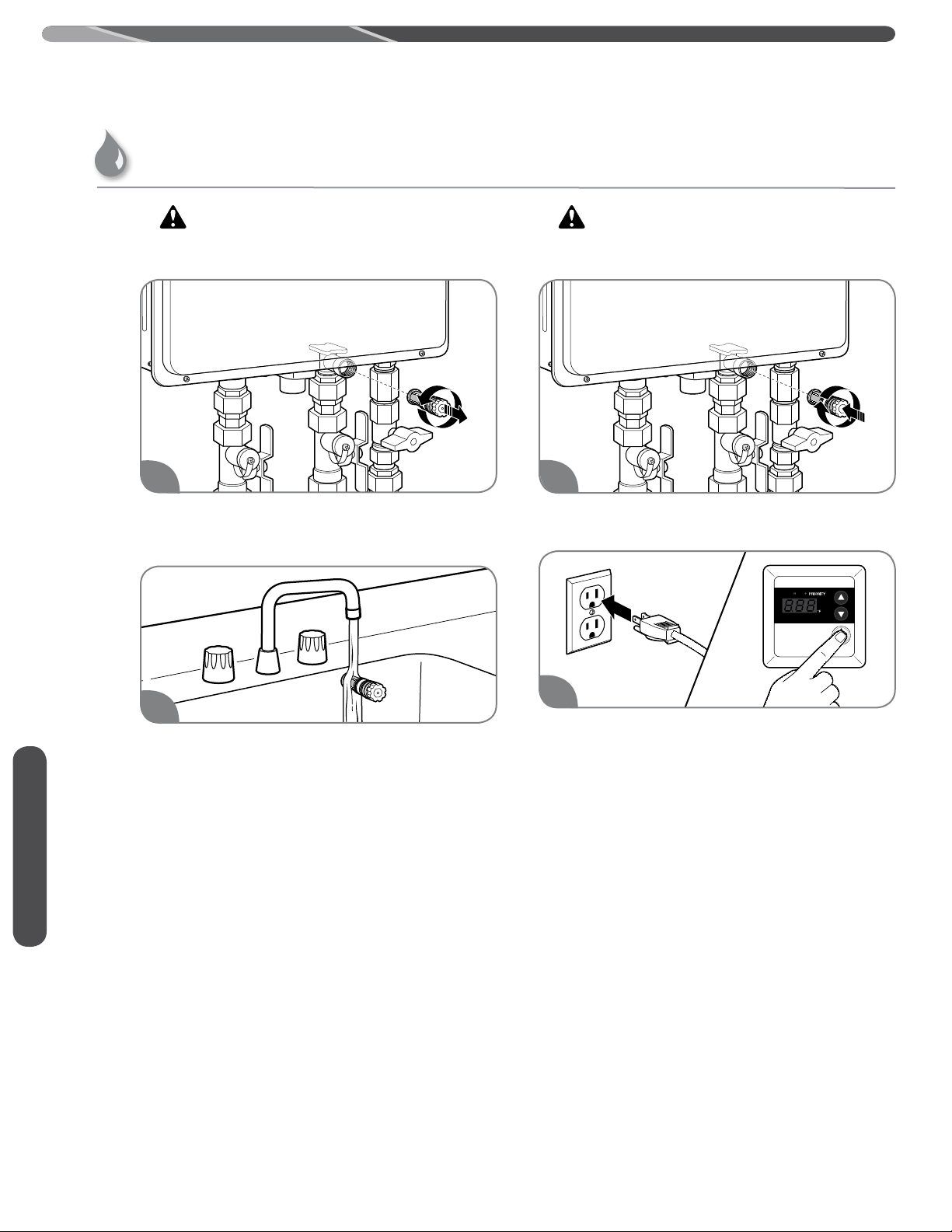

To put the water heater back in service:
Disconnect drain hose. Make sure the drain
valve is closed.
Reinstall the water filter in the base of the cold
water inlet line.
Open the water shut-off valve.
Open all hot water faucets and let run until all
air has been purged from the lines.
Plug in the power cord or reconnect the power
supply at the circuit breaker box.
Open the gas shut-off valve(s).
Press the POWER ON/OFF button on the
control panel to restart the unit.
1
2
3
4
5
6
7
22
CARING FOR YOUR WATER HEATER
Draining the Water Heater (cont.)

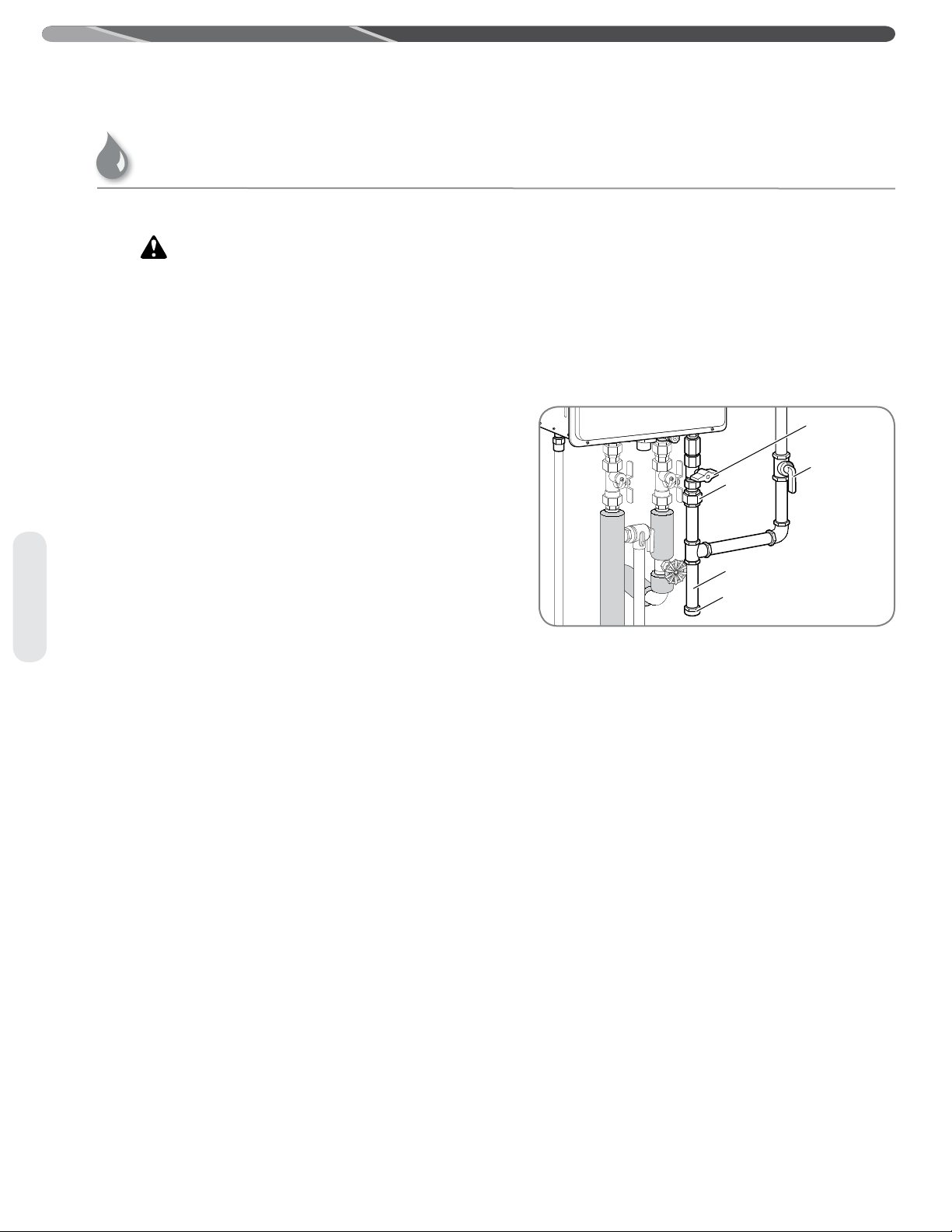

Standard Drain Method
Service isolator valve kits may be purchased from
the manufacturer, distributor, or place of purchase.
The kits include two full-port isolation valves to
be used in the inlet and outlet water lines. These
kits provide a means for full diagnostic testing and
ease of system flushing.

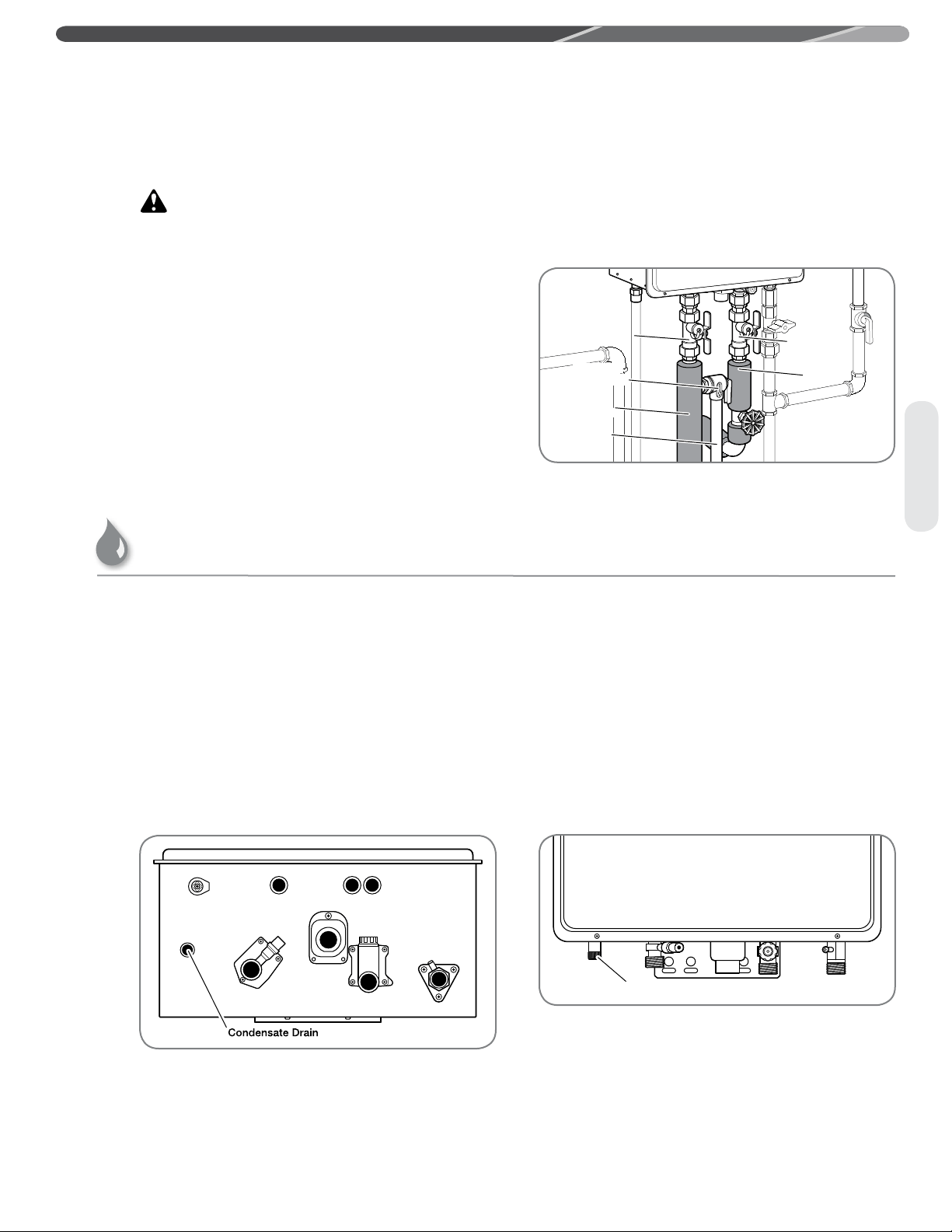

Freeze Protection
WARNING: Failure to drain the
water heater can cause serious personal injury
from scalding and/or product damage.
Whenever the water heater may be exposed to
freezing conditions, make sure to completely drain
the water from the unit. See page 20.
Freezing conditions come from the ventilation
system on direct-vent models and from exposure
to cold air on outdoor models.
All of these water heaters are equipped with
a freeze protection electric heater. This heater
prevents freezing inside the water heater down to
an ambient temperature of approximately -30°F
(-34°C). These temperatures are all based on
temperatures without wind.
The heater only protects the internal components
of the water heater.
NOTICE: Unplugging or disconnecting
the power supply to the water heater will also
disconnect the power to the heater.
External piping and valves require additional
freeze protection. One method is to wrap
insulation around the piping and valves.
Another method is to turn on a hot water faucet
and leave a small amount of water running at a
faucet. This will protect the water heater, piping,
and valves from freezing.
Running Water Freeze Protection
Turn off the water heater by pressing the
POWER ON/OFF button on the control panel.
Close the gas shut-off valve(s).
Open a hot water faucet slightly until the water
stream is approximately 1/8 in. (0.3 cm). Be sure
to check the flow periodically.
Cold Water
Service Valve
Hot Water
Service Valve
Pressure
Relief Valve
Pressure
Relief Valve
Water
Outlet
Water
Outlet
Water
Inlet
Water
Inlet
Drain
Drain
1
2
3
Care Instructions
23
CARING FOR YOUR WATER HEATER
Vacation and Extended Shutdown
WARNING: Failure to drain the
water heater can cause serious personal injury
from scalding and/or product damage.
If the water heater is to remain idle for an
extended period of time, the power and water to
the heater should be turned off.
The water heater and piping should be drained if
they might be subjected to freezing temperatures.
See “Freeze Protection” section on page 22.
After an extended shutdown, the water heater’s
operation and controls should be checked by a
qualified service technician.

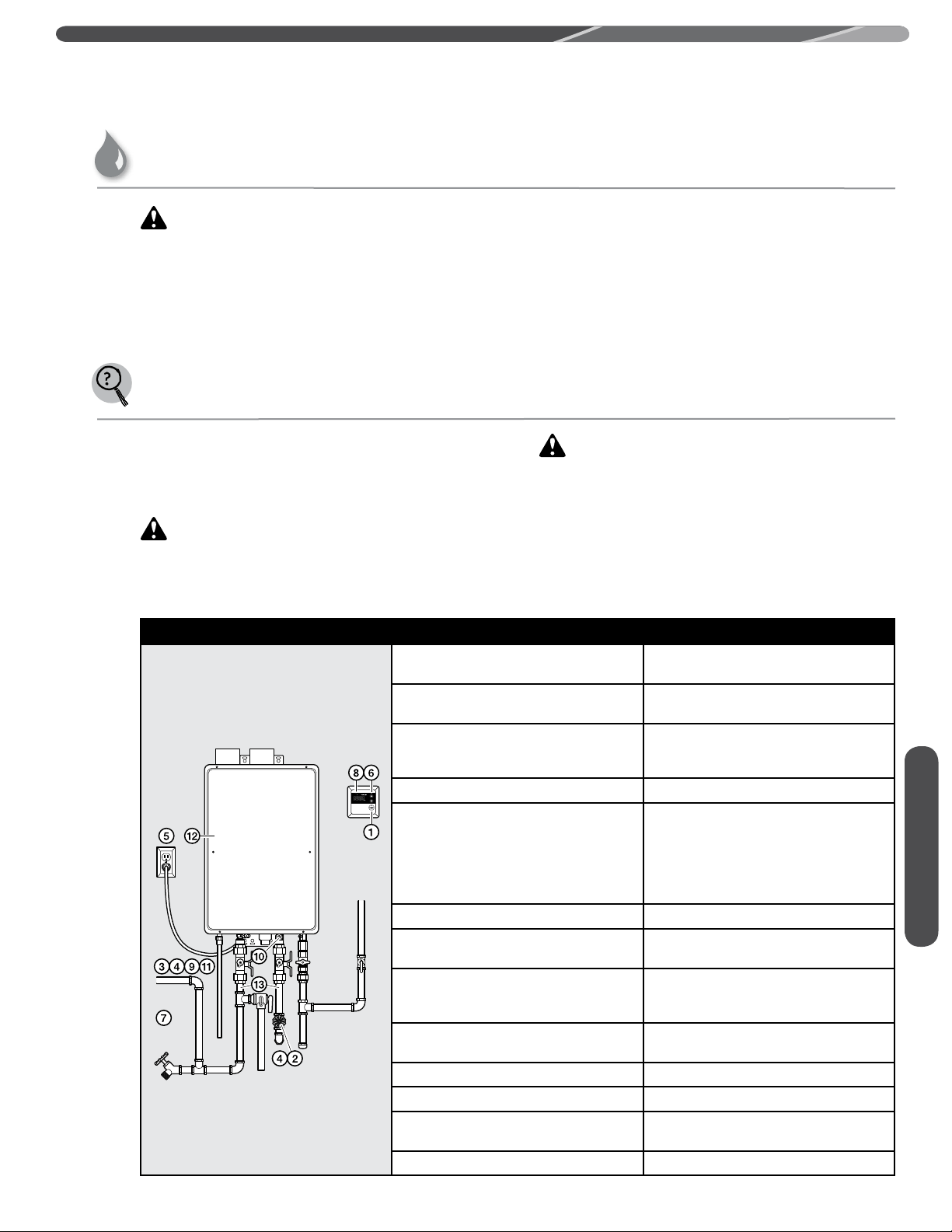

Troubleshooting Chart
The information in the following troubleshooting
chart may help you diagnose and/or fix a problem
you may be experiencing. Please review this chart
before calling for service assistance.
DANGER: Shock Hazard – Make
certain power to the water heater is OFF before
removing protective cover for any reason. Electric
shock will cause death or serious personal injury.
WARNING: For Your Safety, DO
NOT attempt repair of electrical wiring, gas piping
remote control, burners, vent connectors, or other
safety devices. Refer repairs to a qualified service
technician.
Problem Possible Cause Solution
Not enough or no hot water.
1. Unit is not ON. 1. Turn on the unit by pressing the
POWER ON/OFF button.
2. Water shut-off valve is not completely
opened.
2. Check shut-off valve and open
completely.
3. Hot water faucet is not completely
opened.
3. Open hot water faucet completely.
(The main burner goes off when in-
coming water volume is inadequate.)
4. Water piping is frozen. 4. Allow piping to thaw.
5. Electrical power is disconnected or
water supply is shut off.
5a. Plug in the power cord or reconnect
the power supply at the circuit
breaker box.
5b. Completely open the water supply
valve. (Inadequate water volume will
cause the main burner to turn off.)
6. The temperature may be set too low. 6. Increase the temperature setting.
7. Mixing valve malfunctions (if
applicable).
7. Check and replace the mixing valve.
8. Error code displayed on the remote
control.
8. See “Service Error Code Chart” on
page 26. If required, contact a
qualified service technician.
9. Not enough water demand. 9. Increase the hot water flow at the
faucet.
10. Water filter is clogged or dirty. 10. Clean the water filter. (See page 17.)
11. Fixture aerator is clogged or dirty. 11. Clean the aerator.
12. Scale buildup in the heat exchanger. 12. Check for error code. If required,
contact a qualified service technician.
13. Hot and cold water lines reversed. 13. Reverse the water lines.
Care Instructions
24
Care Instructions
CARING FOR YOUR WATER HEATER
Problem Possible Cause Solution

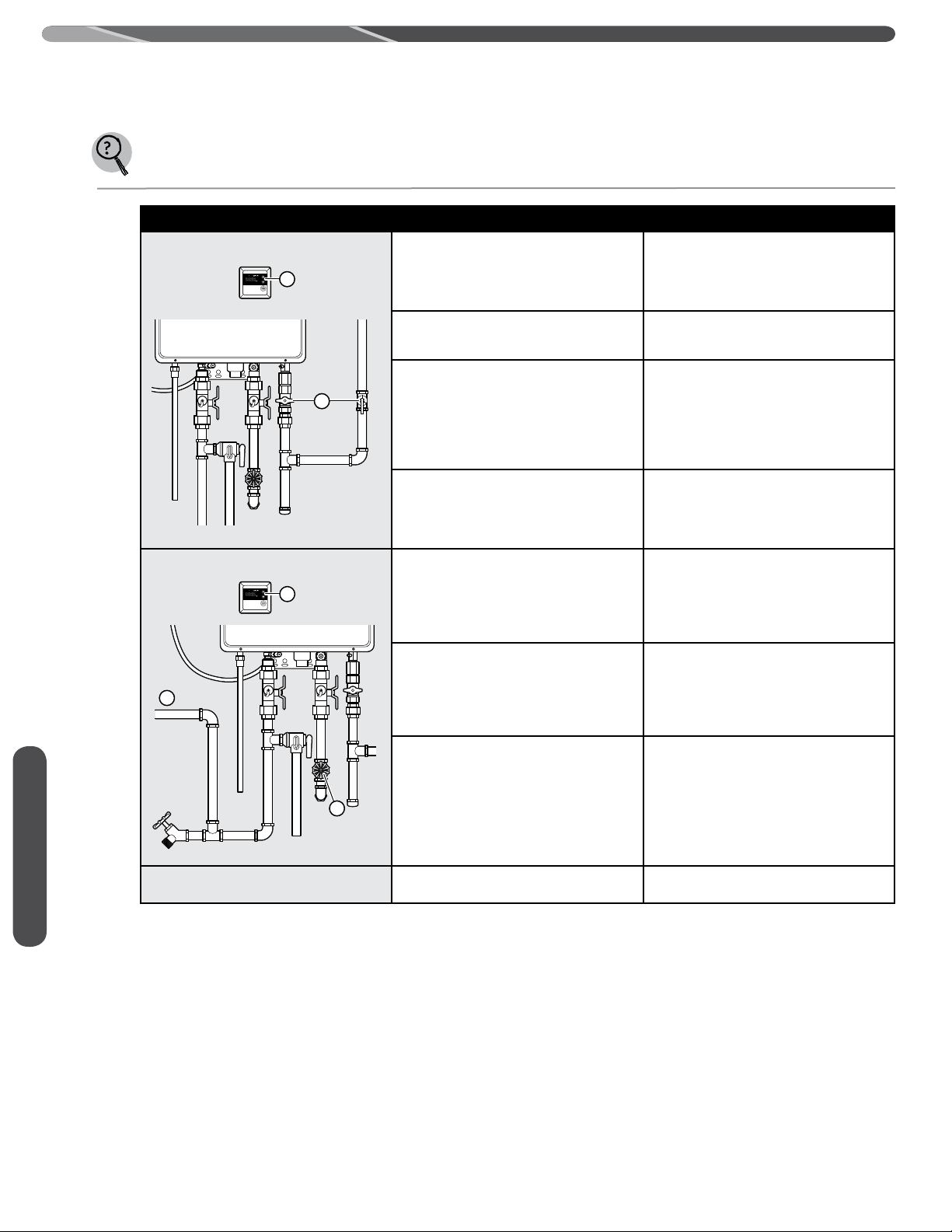

Water not hot enough.
1. The temperature may be set too low. 1. Increase the temperature setting at
the remote control.
2. The gas valve is not completely
opened.
2. Check and completely open the gas
valve.
3. Gas supply pressure is low. 3. Contact your gas utility company or
gas contractor to verify the gas meter
and gas piping size.
4. Bleed-over in one of the hot water
fixtures.
4. Contact a dealer or a qualified service
technician.
Water too hot.
1. Temperature is set too high. 1. Decrease the temperature setting at
the remote control.
2. Water shut-off valve is not completely
opened.
2. Check and completely open the water
shut-off valve.
3. Small amount of water has been
heated.
3. Increase the hot water flow at the
faucet to allow more water to flow
through the water heater.
Fan continues to rotate after the hot water
faucet is closed.
The post-purge cycle clears flue gases. Normal operation.
1
2
3
1
2
Troubleshooting Chart (cont.)
25
Care Instructions
CARING FOR YOUR WATER HEATER
Service Error Code Chart
Your water heater has an electronic diagnostic
system built into it. When the water heater finds
a problem, it displays an error code in the LED
display on the remote control. The following chart
lists the error codes along with their possible
problem and solution. Using this chart may help
you diagnose and/or fix a problem you may be
experiencing. Please refer to this chart before
calling for service assistance.
DANGER: Shock Hazard – Make
certain power to the water heater is OFF before
removing protective cover for any reason. Electric
shock will cause death or serious personal injury.
WARNING: For Your Safety, DO
NOT attempt repair of electrical wiring, gas piping,
remote control, burners, vent connectors, or other
safety devices. Refer repairs to a qualified service
technician.
When an error code is displayed:
Turn off all the hot water faucets.
Turn off the water heater by pressing the
POWER ON/OFF button on the remote control.
Wait about 5 minutes; then restart the water
heater by pressing the POWER ON/OFF button.
Turn on a hot water faucet and recheck the
remote control display.
If the error code remains in the display:
1. Turn off the hot water faucet.
2. Turn off the water heater.
3. Follow the error code chart information.
4. Restart the water heater, turn on a hot water
faucet, and recheck the remote control display.
If the error code is still shown:
1. Turn off the hot water faucet.
2. Turn off the water heater.
3. Make note of the displayed error code and call
for service assistance. See “Call for Assistance”
section on page 26.
NOTICE: If the displayed error code is not
listed in the chart, immediately turn off the water
heater and call for service assistance.
1
2
3
4
26
Error Code Possible Cause Solution
1L
Water heater has buildup of lime deposits. Contact a dealer or qualified service
technician.
05
Air intake or vent exhaust opening may be
blocked.
Remove any blockage. (Air intake requires
12 in. [30 cm] of clearance.)
The vent pipes on the vent termination
may not be connected properly.
Contact a dealer or qualified service
technician.
11
The gas shut-off valve is not fully opened. Check shut-off valve and open completely.
12
Gas service has been interrupted. Contact your gas utility company.
LP gas is running low (LP models only). Refill or replace your LP gas container.
13
If this code is still displayed after taking
the numbered steps above.
Contact a dealer or qualified service
technician.
14
Water heater is overheating. Contact a dealer or qualified service
technician.
15
The heat exchanger is too hot. Check for blockage in the vent. Contact a
dealer or qualified service technician.
29
Neutralizer is clogged. Contact a dealer or qualified service
technician.
31
Faulty inlet thermistor. Contact a dealer or qualified service
technician.
33
Faulty outlet thermistor. Contact a dealer or qualified service
technician.
61 or 99
Faulty blower motor. Contact a dealer or qualified service
technician.
65
Faulty water flow solenoid. Contact a dealer or qualified service
technician.
92
The neutralizer needs to be replaced soon. The unit can be used for a while, but
contact a dealer or qualified service
technician.
93
The neutralizer must be replaced. The unit cannot be used until the neutral-
izer is replaced. Contact a dealer or quali-
fied service technician.
P1
Not enough water flow to operate the unit. Increase the water flow from the fixtures.
Service Information
Service Error Code Chart (cont.)
Care Instructions
CARING FOR YOUR WATER HEATER
1. All questions, adjustments, repairs, and/or
routine maintenance should be directed to
your installer, plumbing contractor, or licensed
service agent. If your contacts have moved or
are not available, please refer to the telephone
directory, commercial listings, or local utility
company for qualified service assistance.
2. If your problem has not been solved to your
satisfaction, contact the Rheem National
Service Department at the following address:
Rheem
National Service Department
1241 Carwood Court
Montgomery, Alabama 36117
Phone: 1-800-432-8373
When contacting the manufacturer, the
following information will be requested:
A. Model and serial number. (See page 8 or the
ratings plate on the front of the water heater.)
B. Address where the water heater is located.
C. Name and address of installation contractors
(page 8) and all qualified service companies
that have worked on the water heater.
D. Original installation date. (See page 8.)
E. Dates any service or preventive maintenance
was performed.
F. Details of the persisting problem.
G. List of businesses that have tried to fix this
problem, along with dates of service.
Call for Assistance
IF YOU NEED SERVICE
INSTALLATION
INSTRUCTIONS
FOR THE CONTRACTOR
Installation
28
INSTALLATION INSTRUCTIONS
Exhaust Vent Pipe
Air Intake Pipe
0" min.
(0 mm)
0" min.
(0 mm)
0" min.
(0 mm)
12"
(300 mm)
Standards Compliance
This water heater must be installed in
accordance with these instructions, local
codes, and utility company requirements.
In the United States where local codes are not
available, use the latest edition of the American
National Standard/National Fuel Gas Code. A
copy of the Fuel Gas Code can be purchased
from either the American Gas Association, 400
North Capitol Street Northwest, Washington,
DC 20001, as ANSI standard Z223.1, or National
Fire Protection Association, 1 Batterymarch
Park, MA 02269 as NFPA 54.
In Canada, use the latest edition of the CSA
B149.1 Natural Gas and Propane Installation
Code and the Canadian Electrical Code,
CSA C22.1, Part 1.
Choosing a Location
WARNING: Fire Hazard –
Combustible construction refers to adjacent walls
and ceilings and should not be confused with
combustible or flammable products and materials.
Combustible materials, such as clothing, cleaning
materials, or flammable liquids, must not be
placed against or next to the water heater. Fire or
explosion could occur causing death, personal
injury, and/or product damage.
A gas-fired water heater should never be
installed in a space or room where liquids with
flammable vapors are used or stored. Such liquids
include gasoline, LP gas (butane or propane),
paint, adhesives and their thinners, solvents, or
removers. Flammable vapors carry long distances
from where they are used or stored. The open
flame of the water heater’s main burner can ignite
these vapors causing an explosion or fire.
NOTICE: Elevating a gas-fired water
heater will reduce but NOT eliminate the possibility
of lighting the vapor of flammable liquids which
may be improperly stored or accidentally spilled.
NOTICE: This water heater should not
be located in an area where leakage of the heat
exchanger or connections will result in damage
to the area adjacent to it or to lower floors of the
structures. When such areas cannot be avoided,
install a suitable catch pan with an adequate drain
under the water heater. This drain pan must not
restrict the combustion airflow.
The following requirements will ensure a safe
installation:
• The water heater must be located in an area
where it won’t sustain damaged from moving
vehicles, flooding, etc. If the water heater is
installed in a garage, the direct ignition system
and main burner should be no less than 18 in.
(45 cm) above the garage floor.
• The water heater should be installed as close as
possible to the vent exhaust and air intake. This
minimizes the vent length and the number of
elbows and joints required for venting.
• The water heater should be installed with the
proper venting and exhaust materials.
General
29

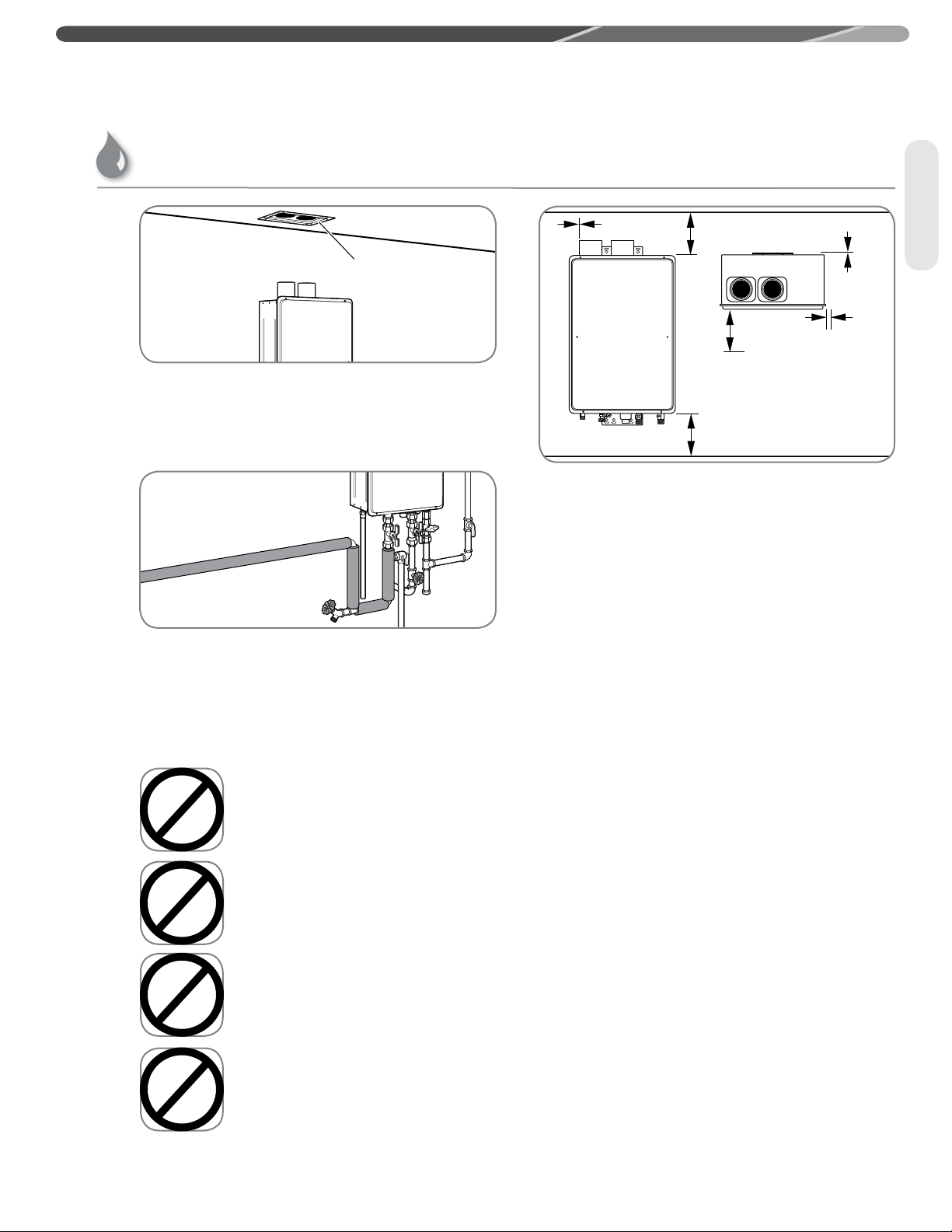

INSTALLATION INSTRUCTIONS
General
• Every penetration of a floor or ceiling should be
sealed.
• Failure to install and properly vent the water
heater to the outdoors as outlined on pages 33
through 46 can result in unsafe operation.
• Long hot water lines should be insulated to
conserve water and energy.
• The water heater and water lines should
be protected from exposure to freezing
temperatures.
• Minimum water heater clearances from
combustible and noncombustible construction
are as follows:
– 1/2 in. (1.3 cm) for sides
– 0 in. (0 cm) for rear with support bracket(s)
– 12 in. (30 cm) from the bottom, top, and front
12" min.
(300 mm)
12" min.
(300 mm)
1/2" min.
(13 mm)
12" min.
(300 mm)
0"
(0 mm)
0" min.
(0 mm)
Sealed
• Do not install the water heater
outdoors or in bathrooms,
bedrooms, or any occupied rooms
normally kept closed.
• Do not install the water heater
where it is subject to vibrations.
• Do not install the water heater in a
recreational vehicle, mobile home,
boat, or other watercraft.
• Do not install the water heater
near vents for heating and cooling.
If necessary, maintain a minimum
clearance of 4 ft. (1.2 m).
Choosing a Location (cont.)
30
INSTALLATION INSTRUCTIONS
General
Product Inspection
• Visually inspect the water heater for any possible
damage.
•
Check the rating plate on the water heater to
make sure the water heater was designed to be
used with the supplied type of gas (natural or LP).

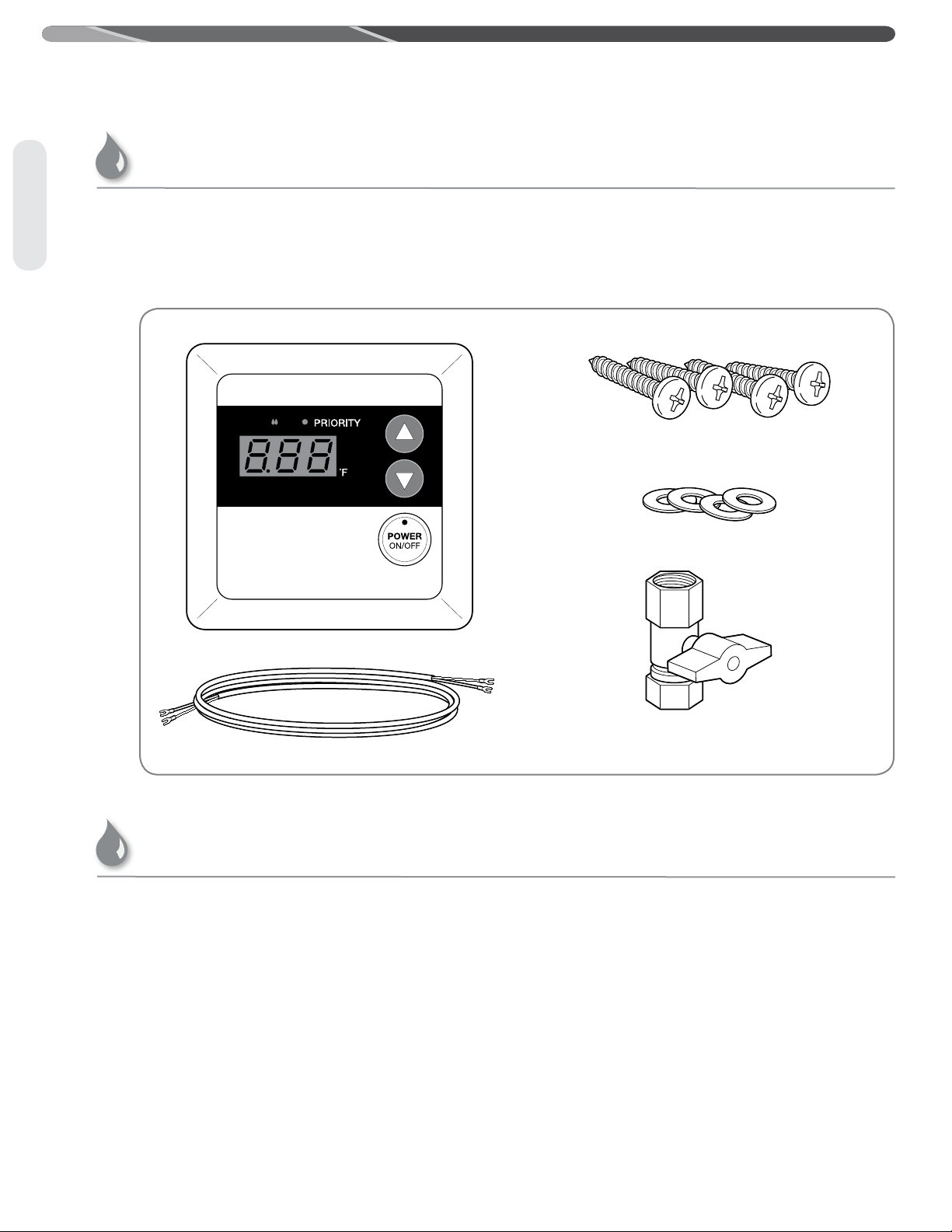

• Verify that all included supplied parts are present
as shown.
Water Heater Installation
Corrosive Atmosphere
NOTICE: The water heater should not be
installed near an air supply containing halogenated
hydrocarbons.
Avoid installing a water heater in any of the
following locations: beauty shops, dry-cleaning
establishments, photo processing labs, and
storage areas for liquid and powdered bleaches or
swimming pool chemicals. These locations often
contain such halogenated hydrocarbons.
The air supply containing halogenated
hydrocarbons is safe to breathe, but when
passed through a gas flame, corrosive elements
are released that will shorten the life of any
gas-burning appliance.
Propellants from common spray cans or gas leaks
from A/C and refrigeration equipment are highly
corrosive after passing through a flame.
The water heater warranty is void when the failure
is due to operation in corrosive conditions.
31
INSTALLATION INSTRUCTIONS
General
NOTICE: The National Fuel Gas Code (NFGC) and CSA B149.1 mandate a manual gas
shut-off valve. See NFGC/B149.1 for complete instructions. Local codes or plumbing authority
requirements may vary from the instructions or diagrams provided and take precedence over
these instructions.

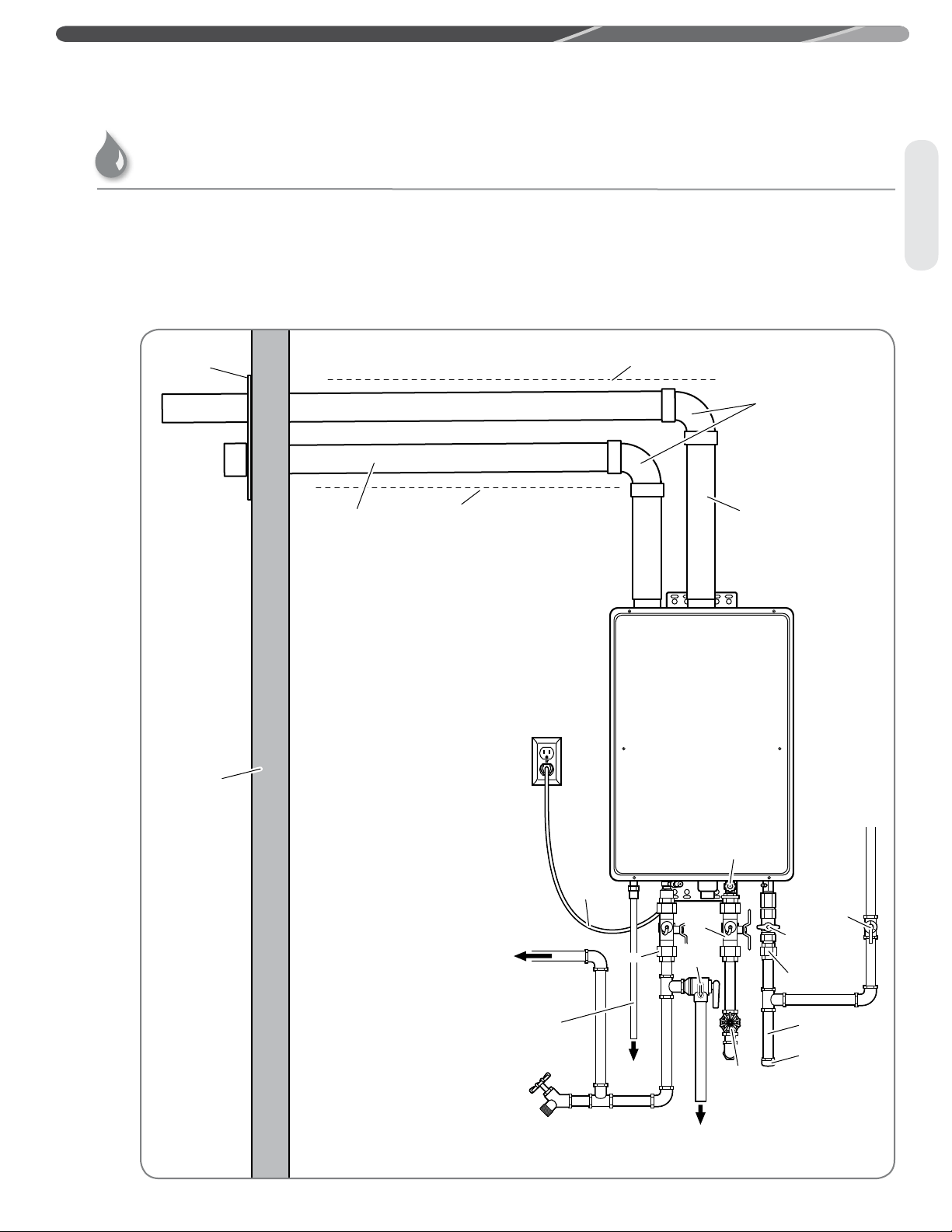

Typical Installation of Direct-Vent Water Heater (Venting Required)
To Hot Water
Faucet(s)
Drain Valve
Wall
Plate
Water
Filter
Cold Water Supply
Shut-Off Valve
Power
Supply
Cord
Union
Union
Union
Manual Gas
Supply Line
Shut-Off Valve
Downward Slope
Downward Slope
Manual Gas
Shut-Off Valve
Cap
Sediment Trap
Outside
Wall
91˚
Elbow
Service
Valve
Service
Valve
Relief
Valve
Relief
Valve
*Note: A flexible drain tube can be used
To
Suitable
Drain
To
Suitable
Drain
Condensate
Drain*
Air Intake Pipe
Exhaust Vent Pipe
Water Heater Installation (cont.)
32
General
INSTALLATION INSTRUCTIONS
Water Heater Installation (cont.)
Typical Installation of
Outdoor Water Heater
(No Venting Required)
This water heater is for OUTDOOR
installation only.
*Note: A flexible drain tube can be used
To Suitable
Drain
To Suitable
Drain
To Hot Water
Faucet(s)
Drain Valve
Cold Water Supply
Shut-Off Valve
Hard-Wire
Union
Manual Gas
Supply Line
Shut-Off Valve
Flue
Terminal
Cap
Sediment Trap
Manual Gas
Shut-Off Valve
Water
Filter
Union
Union
Service
Valve
Service
Valve
Relief
Valve
Relief
Valve
Condensate
Drain*
WARNING: DO NOT install this water
heater indoors or in an enclosure. It is designed for
outdoor installation only. Any other type of installation
can result in death, personal injury, and/or damage to
the product or property.
33
General
INSTALLATION INSTRUCTIONS

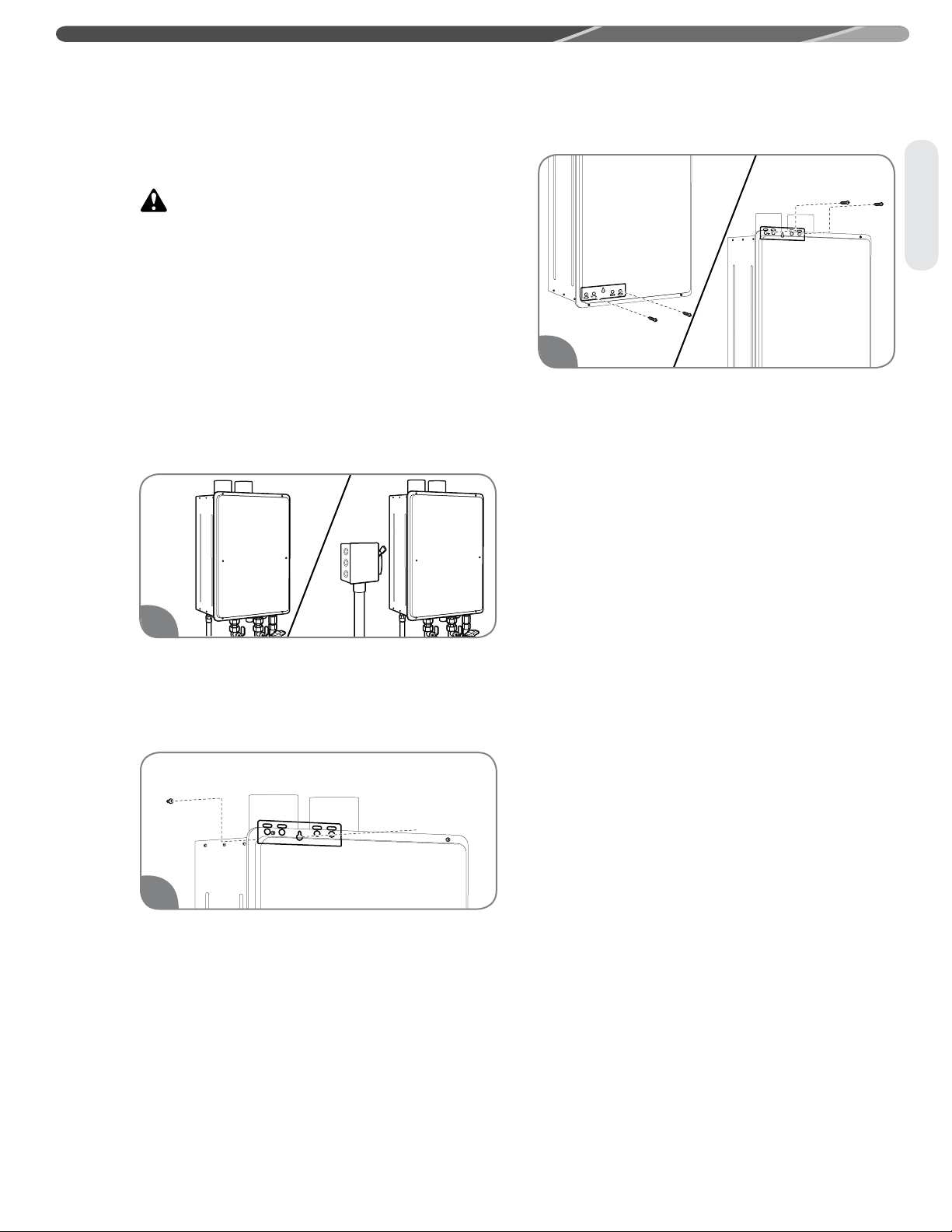

Mounting the Water Heater
CAUTION: Reinforcement of the
wall is required in case the wall is not strong
enough to hold the water heater. Failure to do
so could result in personal injury and/or product
damage.
The mounting location for the water heater should
allow for easy access and operation.
Always mount the water heater at the wall studs,
or into a suitable piece of wood that spans the
distance between the wall studs. This piece of
wood can be installed inside or outside of the wall.
Use wood screws to secure brackets to wall. If
mounting to dry wall or concrete wall, use drywall
anchors or lag bolts.
Make sure the proper electrical outlet or supply
(120 VAC/60 Hz) is available and located near
the unit. Direct-vent models come with a 6-ft.
(1.8-m) power cord, while the outdoor models
require hard-wiring or the addition of a plug.
Position the upper mounting bracket and
partially install the center mounting screw. The
clearance between the screw head and the
wall should be about 1/8 in. (0.3 cm). Hang the
upper bracket on the screw.
NOTICE: The image above may differ
in appearance from your water heater.
Using two mounting screws and washers,
secure the lower mounting bracket to the wall.
Then, secure the upper mounting bracket to the
wall with two mounting screws and washers.
2
1
3
34
INSTALLATION INSTRUCTIONS
Venting for Direct-Vent Water Heater
DANGER: Failure to properly vent
the water heater to the outdoors as outlined in
this Venting section will result in death or serious
personal injury. To avoid the risk of fire, explosion,
or asphyxiation from carbon monoxide, NEVER
operate the water heater unless it is properly
vented and has adequate air supply for proper
operation as outlined in this Venting section.
WARNING:
Refer to page 29 for required clearances to
combustible materials. Improper clearances can
cause explosion or fire resulting in death, personal
injury, and/or product damage.
CAUTIONS:
•
Check to make sure flue gases do not recirculate
into the air intake terminal when using direct
venting. If the water heater is having service issues,
flue recirculation may be a contributing factor.
• Even when the minimum vent terminal separation
distances are followed, recirculation may still
occur depending upon the location outside
the building, the distance from other buildings,
proximity to corners, weather conditions, wind
patterns, and snow depth.
• Periodically check to make sure that flue
recirculation is not occurring. Signs of flue gas
recirculation include frosted or frozen intake
terminals and condensate in the intake terminal
and venting system.
• Correction to flue recirculation may involve
angling the intake away from the exhaust
terminal and increasing the distance between
them. Check to be sure the intake and exhaust
terminals are not obstructed, especially during
periods of below-freezing weather.
Venting Requirements
The installation of venting must comply with
national codes, local codes, and the vent
manufacturer’s instructions.
The vent exhaust and air intake must be vented
outside as described in these instructions. DO NOT
vent this water heater through a chimney. It must be
vented separately from all other appliances.
NOTICE: The unit can be vented using
only the following recommended pipe material.
Use only 2- or 3-inch diameter pipe. Refer to local
codes for restrictions on the use of PVC, CPVC, or
ABS pipe and fittings. All exhaust venting materials
for product installed in Canada must meet ULC-S636.
Acceptable materials or equivalent:
PVC (Schedule 40, ASTM D-1785)
CPVC (Schedule 40, ASTM F-441)
ABS (Schedule 40, ASTM D-2661) (Not permitted
in Canada)
The fittings, other than the VENT TERMINAL,
should be equivalent to the following:
PVC (Schedule 40 DWV, ASTM D-2665)
CPVC (Schedule 40 DWV, ASTM F-438)
ABS (Schedule 40 DWV, ASTM D-2661) (Not
permitted in Canada)
Category III Stainless Steel
DO NOT USE Schedule 20, Cell Core, Drain Pipe,
Galvanized, Aluminum, or B-Vent.
Recommended Vent Lengths
Before starting the vent installation, careful
planning should be given to the routing and
termination of the vent pipes. The length of the
vent pipes (inlet and outlet) should be kept to a
minimum. Also, see pages 37–38 and 44 for vent
terminal placement. Refer to the maximum and
minimum vent length charts for the pipe sizes that
can be used and the total equivalent length of pipe
that can be used. Do not exceed equivalent length
of pipe in maximum vent length chart.
Maximum Vent Length (intake/outlet):
Number
of 90°
Elbows
Maximum
Length of 2"
Straight Pipe
Maximum
Length of 3"
Straight Pipe
0 or 1 5.0 ft. (1.5 m) 38.0 ft. (11.6 m)
2 3.5 ft. (1.0 m) 36.5 ft. (11.1 m)
3 2.0 ft. (0.6 m) 35.0 ft. (10.6 m)
4 Not available 33.5 ft. (10.2 m)
5 Not available 32.0 ft. (9.8 m)
6 Not available 30.5 ft. (9.3 m)
The system will not operate if there is excessive
restriction (pressure drop) in the venting system.
Use the chart above to calculate the maximum
pipe run length with the required number of
elbows (e.g., a maximum 38 ft. [12 m] of 3" vent
pipe may be used provided there is only one 90°
elbow in the system).
A 90° elbow is equivalent to 1 ft. 6 in. (0.5 m) of
straight pipe.
The vent termination does not count as part of the
straight pipe equivalent when determining the total
vent length.
Minimum Vent Length:
Number
of 90°
Elbows
Minimum
Length of 2"
Straight Pipe
Minimum
Length of 3"
Straight Pipe
1 1.0 ft. (0.3 m) 1.0 ft. (0.3 m)
Venting
35
INSTALLATION INSTRUCTIONS
Venting
NOTICE: To use 2-inch vent pipe, a
reducing adapter or bushing will be required.
Depending on the size of pipe that is chosen for
venting the water heater, it might be necessary
to use a fitting for stepping down in pipe size, to
connect to the water heater.
All intake and exhaust venting components
must have the same diameter size. Do not use a
different size on the intake and exhaust venting.
The unit may be vented horizontally through a
wall or vertically through the roof. Pipe runs must
be adequately supported along both vertical and
horizontal runs. Maximum unsupported span is
recommended to be no more than 4 feet (1.2 m).
It is imperative that the first hanger be located on
the horizontal runs immediately adjacent to the
first 90-degree elbow from the vertical rise. Only
use support isolation hanging bands. DO NOT use
wire to support pipe runs.
Stress levels in the pipe and fittings can be
significantly increased by improper installation.
If rigid pipe clamps are used to hold the pipe in
place, or if the pipe cannot move freely through a
wall penetration, the pipe may be directly stresses,
or high thermal stresses may be formed when the
pipe heats up and expands. Install accordingly to
minimize such stresses.
Preexisting Venting Notes:
If the water heater is being installed as a
replacement for an existing water heater, a thorough
inspection of the existing venting and air intake
system must be performed prior to any installation
work. Verify that the correct materials, vent lengths,
and terminal locations as described in this manual
have been met. Carefully inspect the entire venting
and air intake system for any signs of cracks or
fractures, particularly at the joints between elbows
or other fittings and the straight runs of vent pipe.
Check the system for signs of sagging or other
stresses in the joints as a result of misalignment
of any components in the system. If any of these
conditions are found, they must be corrected in
accordance with the venting instructions in this
manual before completing the installation and
putting the water heater into service.
NOTICES:
• It is recommended that the air intake and
exhaust pipes have a 1/4" per foot downward
slope toward the end of the pipes.
• Maintain the proper clearance between the
vent pipe and combustible or noncombustible
materials as described on page 29.
• Maintain a 0-in. (0-cm) minimum clearance
required between the air intake pipes and
combustible material.
• Use proper support for the vent and air intake
pipes.
• Support method used should isolate the
vent pipe from floor joists or other structural
members. This helps prevent transmission of
noise and vibration.
• Do not support, pin, or otherwise secure the
venting system in a way that restricts the normal
thermal expansion and contraction of the chosen
venting material.
See page 36 for additional requirements for the
Commonwealth of Massachusetts.
36
Venting
INSTALLATION INSTRUCTIONS
Venting for Direct-Vent Water Heater (cont.)
In the Commonwealth of
Massachusetts
The Commonwealth of Massachusetts requires
compliance with regulation 248 CMR 4.00 and 5.00 for
installation of through-the-wall vented gas appliances as
follows:
5.08: Modifications to NFPA–54, Chapter 10
(1) Revise NFPA–54 section 10.5.4.2 by adding a second
exception as follows:
Existing chimneys shall be permitted to have their use
continued when a gas conversion burner is installed,
and shall be equipped with a manual reset device that
will automatically shut off the gas to the burner in the
event of a sustained back-draft.
(2) Revise 10.8.3 by adding the following additional
requirements:
(a) For all side-wall, horizontally vented, gas-fueled
equipment installed in every dwelling, building,
or structure used in whole or part for residential
purposes, including those owned or operated by the
Commonwealth and where the side-wall exhaust vent
termination is less than seven (7) feet above finished
grade in the area of the venting, including but not limited
to decks and porches, the following requirements shall
be satisfied.
1. INSTALLATION OF CARBON MONOXIDE
DETECTORS. At the time of installation of the side-wall,
horizontally vented, gas-fueled equipment, the installing
plumber or gas fitter shall observe that a hard-wired
carbon monoxide detector with an alarm and battery
backup is installed on the floor level where the gas
equipment is to be installed. In addition, the installing
plumber or gas fitter shall observe that a battery-
operated or hard-wired carbon monoxide detector
with an alarm is installed on each additional level of
the dwelling, building, or structure served by the side-
wall, horizontally vented, gas-fueled equipment. It shall
be the responsibility of the property owner to secure
the services of qualified licensed professionals for the
installation of hard-wired carbon monoxide detectors.
a. In the event that the side-wall, horizontally vented,
gas-fueled equipment is installed in a crawl space or
an attic, the hard-wired carbon monoxide detector with
alarm and battery backup may be installed on the next
adjacent floor level.
b. In the event that the requirements of this subdivision
cannot be met at the time of completion of installation,
the owner shall have a period of thirty (30) days to
comply with the above requirements, provided, however,
that during said thirty (30) day period, a battery-
operated carbon monoxide detector with an alarm shall
be installed.
2. APPROVED CARBON MONOXIDE DETECTORS.
Each carbon monoxide detector as required in
accordance with the above provisions shall comply with
NFPA 720 and be ANSI/UL 2034-listed and IAS-certified.
3. SIGNAGE. A metal or plastic identification plate
shall be permanently mounted to the exterior of the
building at a minimum height of eight (8) feet above
grade directly in line with the exhaust vent terminal for
the horizontally vented, gas-fueled heating appliance
or equipment. The sign shall read, in print size no less
than one-half (1/2) inch in size, “GAS VENT DIRECTLY
BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS.”
4. INSPECTION. The state or local gas inspector of the
side-wall, horizontally vented, gas-fueled equipment
shall not approve the installation unless, upon
inspection, the inspector observes carbon monoxide
detectors and signage installed in accordance with the
provisions of 248 CMR 5.08 (2)(a)(1 through 4).
(b) EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08 (2)(a)(1 through 4):
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the most
current edition of NFPA 54 as adopted by the Board,
and
2. Product-approved side-wall, horizontally vented,
gas-fueled equipment installed in a room or structure
separate from the dwelling, building, or structure used in
whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS – GAS
EQUIPMENT VENTING SYSTEM PROVIDED. When
the manufacturer of product-approved side-wall,
horizontally vented, gas-fueled equipment provides a
venting system design or venting system components
with the equipment, the instructions provided by the
manufacturer for installation of the equipment and the
venting system shall include:
1. Detailed instructions for the installation of the venting
system design or the venting system components; and
2. A complete parts list for the venting system design or
venting system.
(d) MANUFACTURER REQUIREMENTS – GAS
EQUIPMENT VENTING SYSTEM NOT PROVIDED.
When the manufacturer of product-approved side-
wall, horizontally vented, gas-fueled equipment does
not provide the parts for venting the flue gases, but
identifies “special venting systems,” the following
requirements shall be satisfied by the manufacturer:
1. The referenced “special venting systems” instructions
shall be included with the appliance or equipment
installation instructions, and
2. The “special venting systems” shall be product-
approved by the Board, and the instructions for that
system shall include a parts list and detailed installation
instructions.
(e) A copy of all installation instructions for all
product-approved side-wall, horizontally vented,
gas-fueled equipment, all venting instructions, all
parts lists for venting instructions, and/or all venting
design instructions shall remain with the appliance or
equipment at the completion of the installation.
37
Venting
INSTALLATION INSTRUCTIONS
Horizontal Vent Terminal Location
Outside Walls
Fixed
Closed
Fixed
Closed
Operable
Operable
V
V
V
V
V
V
X
X
V
V
Interior Wall
Vent Terminal
Air Supply Inlet
Area Where Terminal is Not Permitted
B
B
A J
I
B
MM
F
C
K
H
V
V
D E
B
L
G
A
X
38
INSTALLATION INSTRUCTIONS
Venting
Venting for Direct-Vent Water Heater (cont.)
Location
U.S. Installation
Requirements
1
Canadian Installation
Requirements
2
A = Clearance above grade, veranda, porch,
deck, or balcony.
12 in. (30 cm) above anticipated snow
level.
12 in. (30 cm) above anticipated snow
level.
B = Clearance to window or door that may be
opened.
• 6 in. (15 cm) for water heaters less
than or equal to 10,000 Btuh (3 kW).
• 9 in. (23 cm) for water heaters greater
than 10,000 Btuh (3 kW) and less
than or equal to 50,000 Btuh (15 kW).
• 12 in. (30 cm) for water heaters
greater than 50,000 Btuh (15 kW).
• 6 in. (15 cm) for water heaters less
than or equal to 10,000 Btuh (3 kW).
• 12 in. (30 cm) for water heaters
greater than 10,000 Btuh (3 kW) and
less than or equal to 100,000 Btuh
(30 kW).
• 36 in. (91 cm) for water heaters
greater than 100,000 Btuh (30 kW).
C = Clearance to permanently closed window.
D = Vertical clearance to ventilated soffit lo-
cated above the terminal within a horizontal
distance of 2 ft. (61 cm) from the centerline
of the terminal.
E = Clearance to unventilated soffit.
F = Clearance to outside corner.
G = Clearance to corner.
H = Clearance to each side of centerline ex-
tended above meter/regulator assembly.
3 ft. (91 cm) within a height of 15 ft.
(4,57 m) above the meter/regulator
assembly.
I = Clearance to service regulator vent outlet.
3 ft. (91 cm)
J = Clearance to nonmechanical air supply inlet
to the combustion air inlet to any building or
other appliance.
• 6 in. (15 cm) for water heaters less
than or equal to 10,000 Btuh (3 kW).
• 9 in. (23 cm) for water heaters greater
than 10,000 Btuh (3 kW) and less
than or equal to 50,000 Btuh (15 kW).
• 12 in. (30 cm) for water heaters
greater than 50,000 Btuh (15 kW).
• 6 in. (15 cm) for water heaters less
than or equal to 10,000 Btuh (3 kW).
• 12 in. (30 cm) for water heaters
greater than 10,000 Btuh (3 kW) and
less than or equal to 100,000 Btuh
(30 kW).
• 36 in. (91 cm) for water heaters
greater than 100,000 Btuh (30 kW).
K = Clearance to mechanical air supply inlet. 3 ft. (91 cm) above if within 10 ft. (3 m)
horizontally.
6 ft. (1,83 m)
L = Clearance above paved sidewalk or paved
driveway located on public property.
7 ft. (2,13 m)
†
M = Clearance under veranda, porch, deck, or
balcony.
Not Allowed Not Allowed
1 In accordance with current ANSI Z223.1/NFPA 54 National Fuel Gas Code.
2 In accordance with current CSA B149.1 Installation Codes.
For clearances not specified in ANSI 223.1/NFPA 54 or CSA B149.1, one of the following shall be indicated:
a) A minimum clearance value determined by testing in accordance with section 2.20, or
b) A reference to the following footnote: “Clearance in accordance with local installation codes and the requirements of the
gas supplier.”
†
A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single-family dwellings and
serves both dwellings.
The following chart details the minimal dimensional information needed to determine the proper location of
the vent terminal for direct vent and outdoor tankless water heaters. See corresponding letter reference in
the illustration at left.
39
INSTALLATION INSTRUCTIONS
Venting

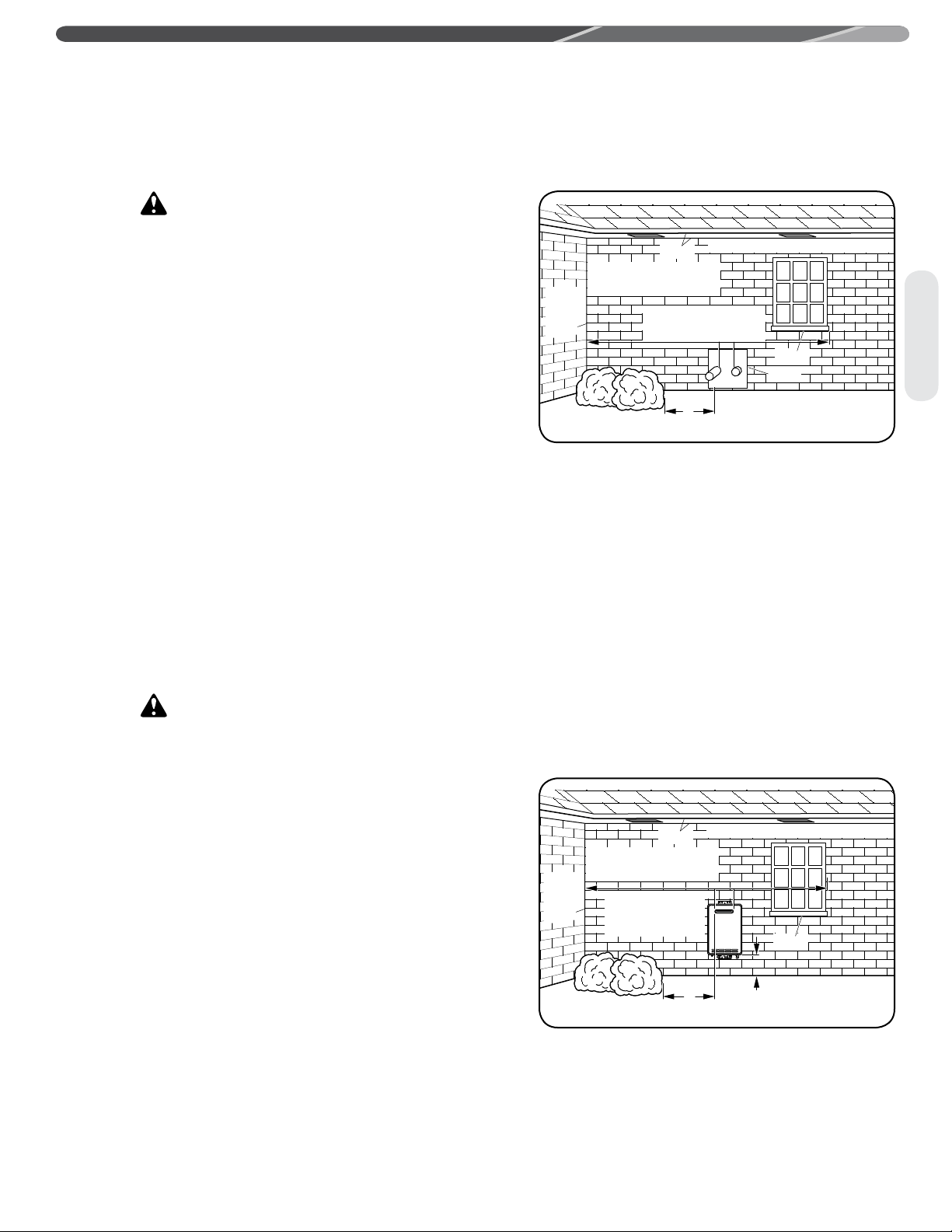

Horizontal Vent Considerations
WARNING: Moisture in the flue gas
will condense as it leaves the vent terminal. In cold
weather this condensate can freeze on the exterior
wall, under the eaves, and on surrounding objects.
Some discoloration to the exterior of the building
is to be expected. However, improper location
or installation can result in severe damage to the
structure or exterior finish of the building.
– Do not install vent terminals under any patio or
deck.
– Do not locate vent terminal on the side of a
building with prevailing winter winds. This will
help prevent water lines from freezing and
moisture from freezing on walls and under
eaves.
– Do not locate vent terminal too close to
shrubbery, since flue gases may damage them.
– All painted surfaces should be primed to
lessen the chance of physical damage. Painted
surfaces will require maintenance.
– Guard against accidental contact with people
and pets.
INDOOR TANKLESS WATER
HEATERS
WARNING: For multiple-unit
installation, a minimum distance between vent
terminations must be maintained to prevent
recirculation of vent gases. Maintain a center-
to-center distance between each pair of vent
terminations of 24 in. (61 cm) for a two-unit
installation; 24 in. (61 cm) and 36 in. (91.4 cm) for
an installation of three units; and 24 in. (61 cm),
36 in. (91.4 cm), and 24 in. (61 cm) for an
installation of four units.
– Do not terminate vent directly on brick or
masonry surfaces. Use rust-resistant, sheet-
metal backing plate of 1 sq. ft. (30 sq. cm)
behind the vent.
– Caulk all cracks, seams, and joints within
6 ft. (1.8 m) of the vent terminal.
– Caulk around wall faceplate for weather-tight
seal.
– Do not extend exposed vent pipe of indoor
water heaters outside of the building.
– This water heater requires its own separate
venting system. Do not connect the exhaust
vent to an existing vent pipe or chimney.
OUTDOOR TANKLESS WATER
HEATERS
– Install outdoor water heater such that air inlet
and flue outlet are above anticipated snow level.
Rising moisture will collect under eaves.
Inside
Corner
Caulk
Caulk
Caulk
Caulk
If soffit vent is too close,
block off and install new
vent at another location.
6' (1.8 m) Caulk zone or
to edge of window etc.,
starting within 6' (1.8 m)
4'
(1.2 m)
Rising moisture will collect under eaves.
Inside
Corner
Caulk
Caulk
Caulk
If soffit vent is too close,
block off and install new
vent at another location.
6' (1.8 m) Caulk zone
or to edge of window
etc., starting within
6' (1.8 m)
4'
(1.2 m)
12"
(300 mm)
40
Venting
INSTALLATION INSTRUCTIONS
Venting for Direct-Vent Water Heater (cont.)
Exhaust Vent Pipe
Air Intake Pipe
Wall Plate
Inspection
Access Panel
(Optional)
Inspection
Access Panel
(Optional)
Ceiling
Downward Slope
12"
(300 mm)
Horizontal Vent Installation
WARNING: Danger of fire or bodily
injury – Solvent cements and primers are highly
flammable. Provide adequate ventilation and do
not assemble near heat source or open flame. Do
not smoke. Avoid skin or eye contact. Observe all
cautions and warnings on material containers.
CAUTION: Use tankless water
heater manufacturer-approved Schedule 40 PVC
(foam core is not permitted at any time), Schedule
80 PVC, CPVC, ABS, or UL 1738-listed Category
III Stainless Steel. No other vent material is
permitted.
Joining Pipes and Fittings
All pipe, fittings, solvent cement, primers, and
procedures, for the U.S., must conform to American
National Standards Institute and American Society
for Testing and Materials (ANSI/ASTM) standards.
For Canada, all pipe, fittings, solvent cement,
primers, and procedures must conform to ULC-
S636 and vent manufacture specifications.
CAUTIONS:
• Do NOT use solvent cement that has become
curdled, lumpy, or thickened.
• Do NOT thin solvent cement. Observe shelf
precautions printed on the containers.
• For applications below 32°F, use only lower
temperature-type solvent cement.
• Appropriate solvent and cleaner must be used
for the type of vent pipe used (PVC, CPVC, or
ABS).
Cleaner-Primer and Medium-Body
Solvent Cement
All joints in vent piping must be properly sealed,
and we recommend using the following material:
PVC materials should use ASTM D-2564-grade
cement.
CPVC materials should use ASTM F-493-grade
cement.
ABS materials should use ASTM D-2235-grade
cement (ABS is not allowed in Canada).
Cementing Joints
1. Cut pipe end square; remove jagged edges and
burrs. Chamfer end of pipe; then clean fitting
socket and pipe joint area of all dirt, grease, or
moisture.
2. After checking pipe and socket for proper fit,
wipe socket and pipe with cleaner-primer. Apply
a liberal coat of primer to inside surface of
socket and outside of pipe.
3. Apply a thin coat of cement evenly in the
socket. Quickly apply a heavy coat of cement to
the pipe and insert pipe into fitting with a slight
twisting motion until it bottoms out.
4. Hold the pipe fitting for 30 seconds to prevent
the tapered socket from pushing the pipe out of
the fitting.
5. Wipe all excess cement from the joint with a
rag. Allow 15 minutes before handling. Cure
time will vary according to fit, temperature, and
humidity.
NOTICES:
• Cement must be fluid; if not, recoat.
• Stir the solvent frequently while using. Use a
natural bristle brush or the dauber supplied with
the can. The proper brush size is one inch.
41
Venting
INSTALLATION INSTRUCTIONS

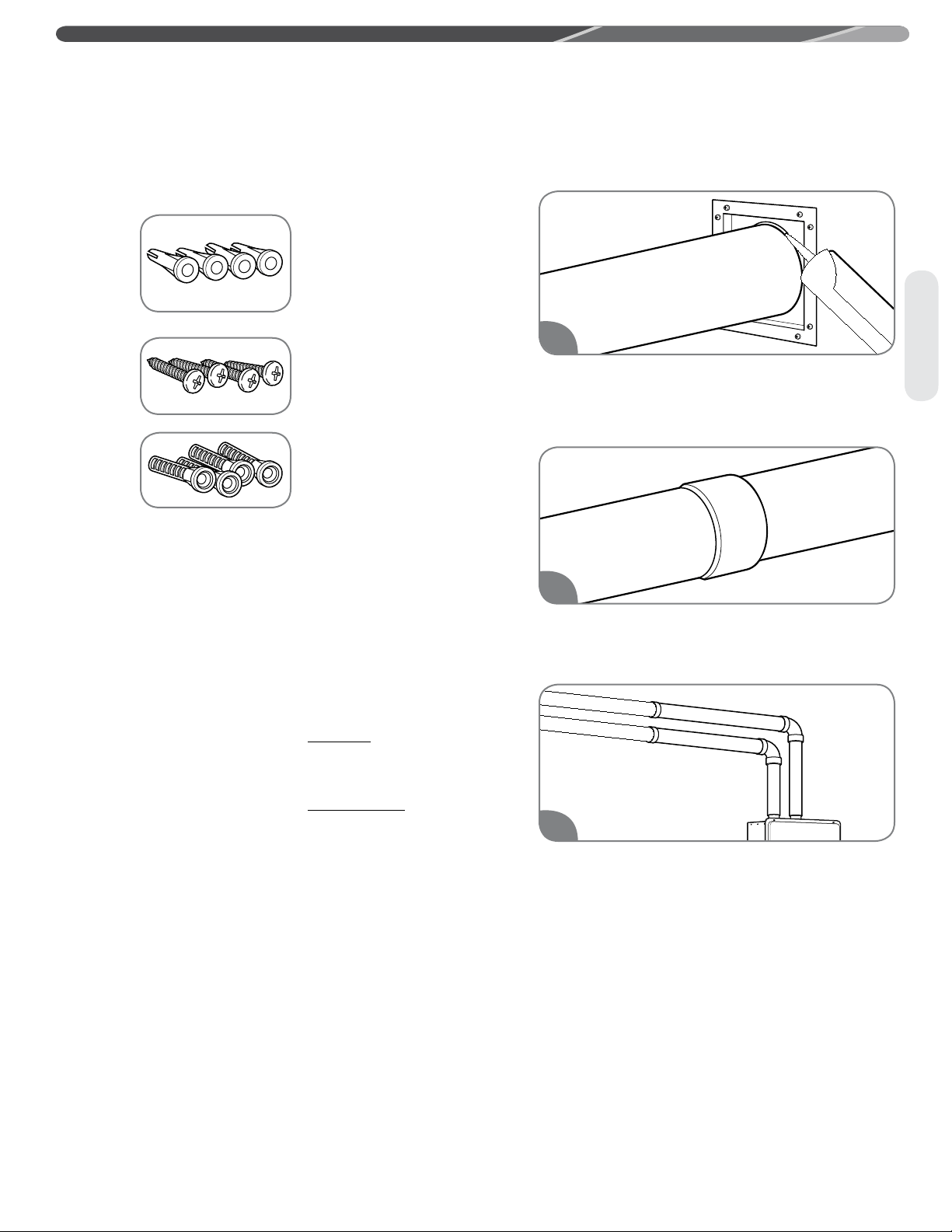

Horizontal Vent Installation (cont.)
Fasteners will vary depending on the wall type.
For particle board or
composite sheathing, use
4 hollow wall anchors. The
anchors should be at least
1/8 in. (0.3 cm) in diameter
and the appropriate length
for the sheathing thickness.
For plywood or solid
wood sheathing or
members, use 4 #10 x
1 1/4-in. wood screws.
For masonry walls, use
suitable masonry anchors
long enough to pass
through the wall.
NOTICES:
• The distance between the back edge of the
exhaust vent terminal and the exterior wall must
be 12 inches (30.5 cm) more for the exhaust vent
terminal than the air intake terminal.
• To prevent possibility of condensate freeze-up,
do not install vent kits one above the other.
Once the vent terminal location has been
determined, make holes through the exterior wall
to accommodate the vent pipes. Vent pipes must
exit exterior wall horizontally only.
The standard horizontal air intake termination is
a 2-inch or 3-inch pipe which terminates at the
exterior wall and uses a coupling to prevent the
pipe from being pushed back into the structure.
The standard horizontal exhaust outlet termination
is a 2-inch or 3-inch pipe which terminates 12
inches from the air intake termination. Insert a
small length of vent pipe through the wall and
connect the coupling. Connect vent cap or terminal
to the vent pipe on the exterior of the building.
1. Use the vent plate as a template to locate air
intake holes and four mounting holes. Observe
minimum clearances. Vent terminals must be a
minimum of 5.5 inches (14 cm) and a maximum
of 24 inches (61 cm) apart horizontally.
2. Cut two 2 1/2" (6.4 cm) diameter holes (for a
2" [5.1-cm] diameter pipe) or 3 1/2" (8.9 cm)
diameter holes (for a 3" [7.6-cm] diameter pipe)
for the exhaust vent and air intake openings.
Reinstall the decorative sheathing around the
faceplate. The decorative sheathing may be
painted to match the exterior decor.
Apply silicone sealant or silicone/latex caulk to
seal the vent pipe to the vent cap to permit field
disassembly for annual inspection and cleaning.
Completely seal where it passes through the wall
plate and where it is attached to the structure.
Attach the female end of the next vent pipe
section to the male end of the 2-in./3-in.
(5.1-cm/7.6-cm) vent pipe. See “Cementing
Joints” on page 40.
Complete the rest of the vent pipe installation to
the water heater
’
s flue outlet and air intake.
1
3
2
42
Venting
INSTALLATION INSTRUCTIONS
Venting for Direct-Vent Water Heater (cont.)
Alternative Horizontal Vent Installations
Exhaust Vent Pipe
Air Intake Pipe
Inspection
Access Panel
(Optional)
Inspection
Access Panel
(Optional)
Ceiling
Downward Slope
Exhaust Vent Pipe
Air Intake Pipe
Wall Plate
Inspection
Access Panel
(Optional)
Inspection
Access Panel
(Optional)
Ceiling
Downward Slope
Alternative horizontal vent termination kits are commercially available. Please refer to the instruction sheet
packaged with the kit for complete installation instructions.
Air
Inlet
Exhaust
Outlet
Pipe
Support
Strap
24"
Max.
12"
From Wall
Concentric vent
termination kit
Flat horizontal
termination kit
For information about termination kits, refer to "If You Need Service" on page 26, "Call for
Assistance" for the telephone number to speak to Customer Service Representative.
43
Venting
INSTALLATION INSTRUCTIONS
Vertical Vent Installation
WARNING: Improper vent
installation can result in death, personal injury,
product damage, and/or poor performance.
NOTICES:
• Only Rheem-approved termination and parts
should be used during installation.
• Maintain the recommended air space clearance
to combustible materials and building insulation.
Cut a hole through the roof and interior ceiling to
accommodate the vent pipes.
Complete the vent pipe installation to the water
heater’s vent connector fittings. Use cleaner-
primer and PVC cement where the vent pipes
join the water heater.
Support vertical and horizontal runs as
described on page 35. Vertical supports are
required every 4 ft. (1.2 m) along a vertical pipe
route, after every transition to vertical, and after
every offset elbow.
NOTICE: Free-standing vent pipe that
penetrates a roof/ceiling requires another means of
support from a second location.
Determine the vent terminal height and install
the vent pipe accordingly. Refer to “Vertical Vent
Terminal Location” on page 44 for clearance
requirements.
Install adequate flashing where the vent pipe
passes through the roof.
Air Intake Condensate Trap
For vertical terminations or where the air intake
pipe slops down towards the water heater, it is
recommended to install a drain tee assembly. This
is to prevent any condensate or liquid water from
entering the intake of the water heater. Connect
the trap drain line to a suitable drain. Do not
connect it directly to the condensate drain line
from the water heater.
One trap method: Glue a 3” by 4” adapter
coupling to each end of a 4” PVC pipe length.
Drill a ½” hole in the side of the larger diameter
pipe. Tap and thread for a ½” barbed fitting,
install fitting. Install the collector with the fitting
facing down. Connect a drain hose to the fitting
and clamp, run hose to a suitable drain.
Hole
Through Roof
C
L
Hole
Through Ceiling
C
L
1
2
A, B, C, D
4
5
3
1
44

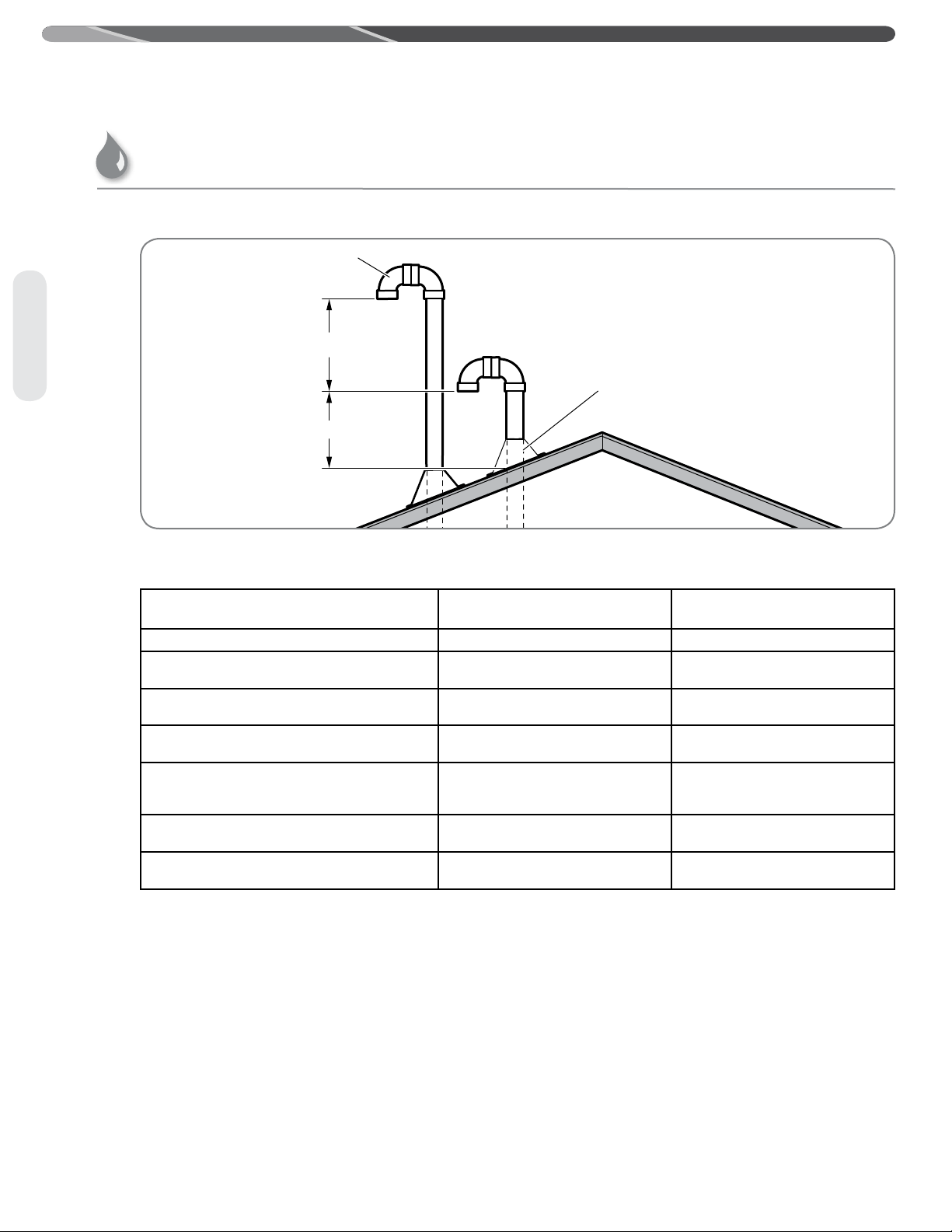

Vertical Vent Terminal Location
A, B, C, D
12" Min.
(300 mm)
Vent Pipe
Through Roof
Optional
The following chart with diagrams details the minimum dimensional information needed to determine the
proper location of the vertical vent terminal for direct-vent indoor tankless water heaters:
Location
U.S. Installation
Requirements
1
Canadian Installation
Requirements
2
A = Minimum clearance above the roof level. 12 in. (30.5 cm) above roof level. 18 in. (45.7 cm) above roof level.
B = Minimum clearance above anticipated snow
level.
12 in. (30.5 cm) above anticipated
snow level.
12 in. (30.5 cm) above anticipated
snow level.
C = Maximum clearance above roof level (without
additional support for vent pipe).
24 in. (61 cm) above roof level. 24 in. (61 cm) above roof level.
D = Maximum clearance above anticipated snow
level (requires additional vent support).
24 in. (61 cm) above anticipated snow
level.
24 in. (61 cm) above anticipated
snow level.
E = Required vent clearance from any gable,
dormer, or other roof structure with building
interior access (i.e., vent, window).
4 ft. (1.2 m) 4 ft. (1.2 m)
F = Required vent clearance from any forced air
inlet, including dryer and furnace air inlets.
10 ft. (3 m) 6 ft. (1.8 m)
G = Minimum/maximum horizontal distance
between vent terminals
5.5 in. (14 cm)/24 in. (61 cm) 5.5 in. (14 cm)/24 in. (61 cm)
1 In accordance with current ANSI Z223.1/NFPA 54 National Fuel Gas Code.
2 In accordance with current CSA B149.1 Installation Codes.
The vertical intake air termination requires a
return bend or two short or long sweep radius 90°
elbows to keep the inlet downward and prevent
entry of rain. Refer to figure above for the proper
location of the air intake with respect to the
exhaust outlet termination. The vertical exhaust
outlet termination is a 2-inch or 3-inch pipe which
terminates at least 12 inches above the air intake
termination. The air intake and exhaust outlet
terminations must be at least 12 inches above the
roof line or anticipated snow levels.
Venting
INSTALLATION INSTRUCTIONS
Venting for Direct-Vent Water Heater (cont.)
45
Venting
INSTALLATION INSTRUCTIONS
Adjustable Roof Flashing
Support Clamp
Upward Slope
Support Hanger
Air Intake
Pipe
Exhaust Vent
Pipe
Condensate
Drain
Optional

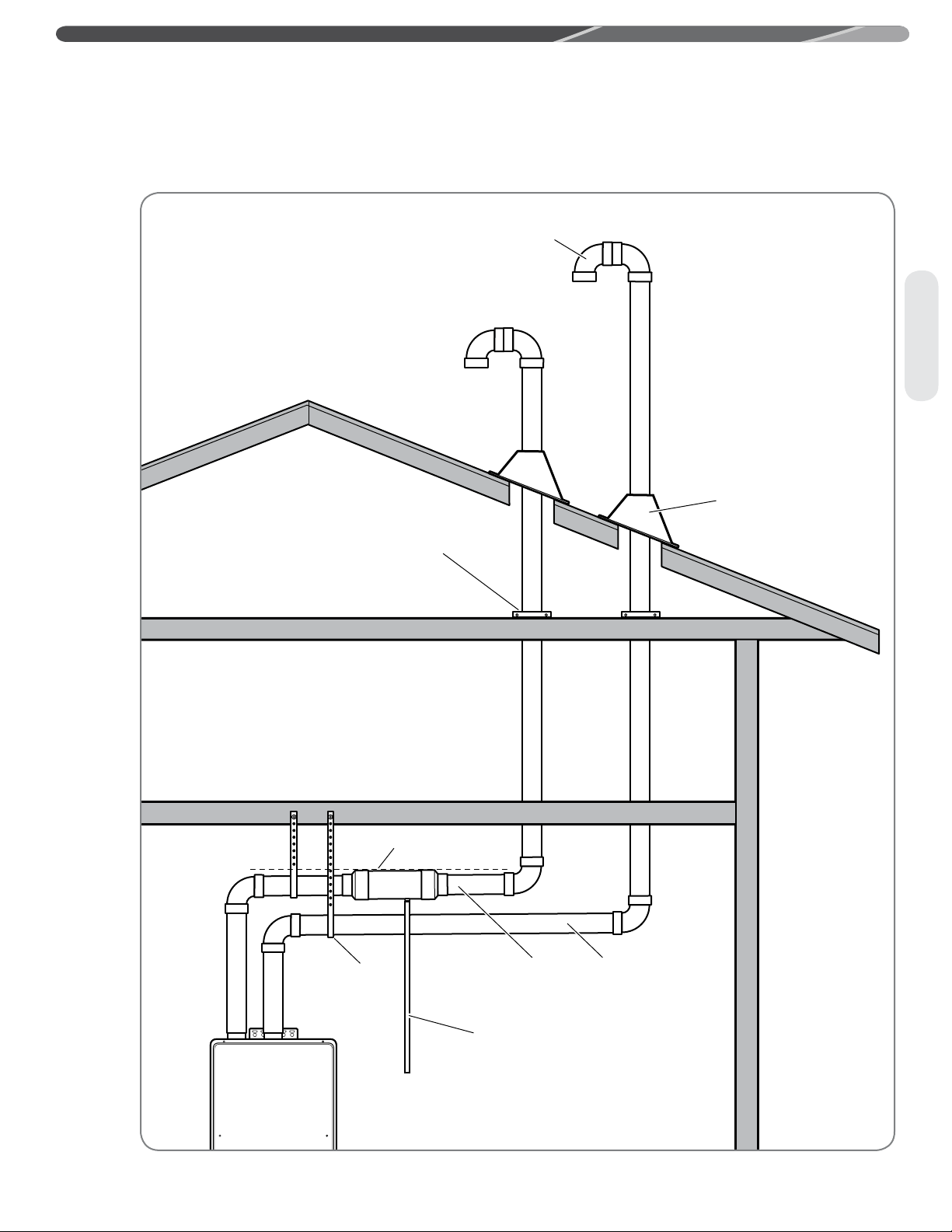

Standard Vertical Vent Termination
46
Support Hanger
Adjustable Roof Flashing
Support Clamp
Upward Slope
Air Intake
Pipe
Exhaust Vent
Pipe
Minimum Clearance Above
Anticipated Snow Level
Condensate
Drain

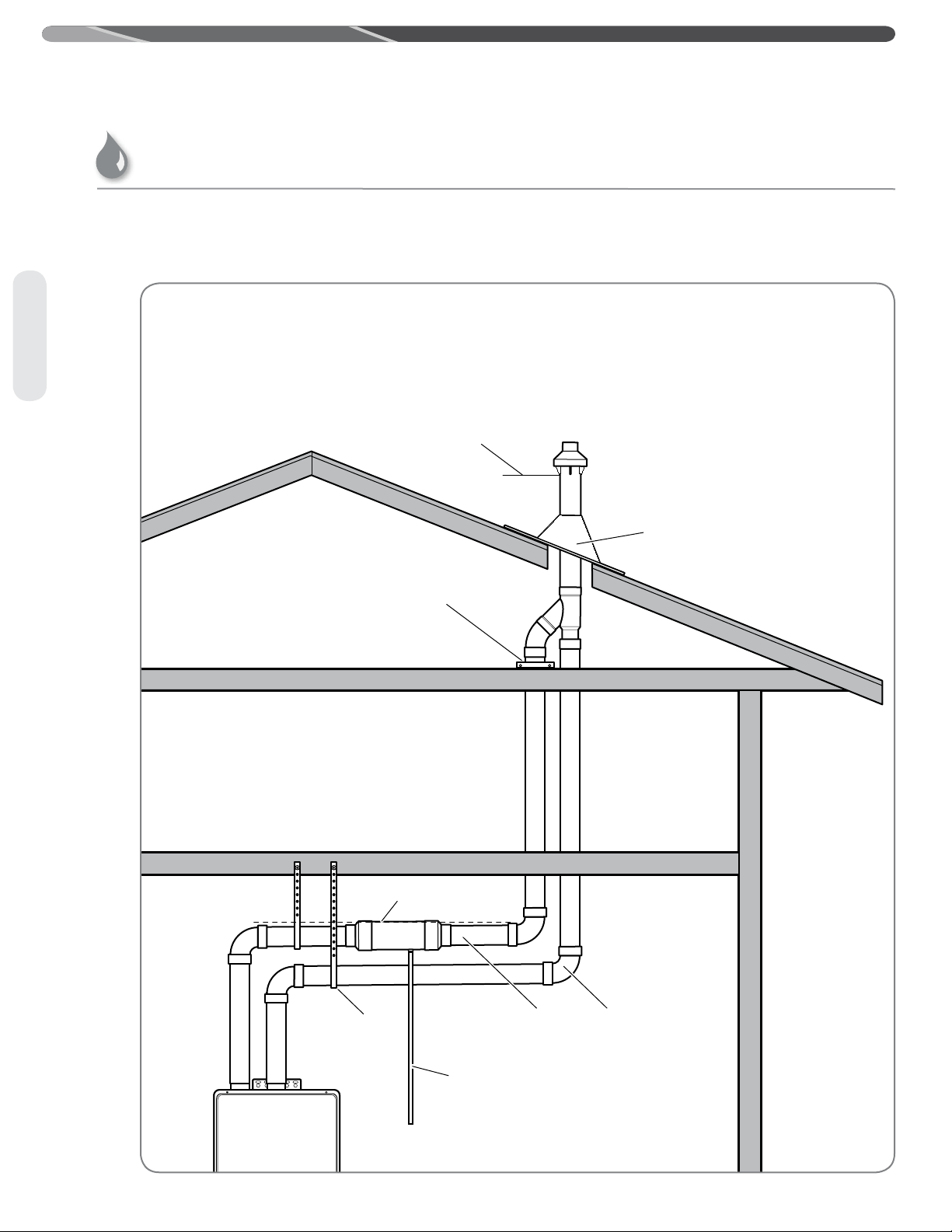

Alternative Vertical Vent Termination
INSTALLATION INSTRUCTIONS
Venting for Direct-Vent Water Heater (cont.)
Venting
Alternative vertical vent termination kits are commercially available. Please refer to the instruction sheet
packaged with the kit for complete installation instructions.
47
INSTALLATION INSTRUCTIONS
CAUTION: This water heater
MUST ONLY be used with the following water
supply conditions to prevent product damage and
operation failure.
• Clean, potable water free of corrosive chemicals,
sand, dirt, or other contaminates.
• Inlet water temperatures above 32°F (0°C), but
not exceeding 120°F (49°C).
• DO NOT reverse the HOT and COLD water
connections.
• DO NOT connect this water heater to water lines
previously used for space heating. All water
piping and components shall be suitable for
potable water.
• With recommended water quality (see chart).
Thermal Expansion
A thermal expansion tank will be required if the
water heater is installed in a recirculation system.
This prevents damage to the heater, related piping,
and the relief valve.
NOTICE: Replacing the relief valve will
not correct the problem!
The expansion tank is designed with a built-in air
cushion that compresses as the system pressure
increases. This relieves the over-pressure condition
and eliminates the repeat operation of the relief
valve.
For other approved methods of thermal expansion,
contact an installing contractor, water supplier, or
plumbing inspector.
Water Supply Connections
CAUTION: IMPORTANT—Do
not apply heat to the HOT or COLD water
connections. If sweat connections are used, sweat
tubing to the adapter before fitting the adapter
to the water connections on the water heater.
Any heat applied to the water supply fittings will
permanently damage the internal components of
the water heater.
NOTICE: In cold environments, ice can
accumulate in the water heater’s connectors. Plug
in the water heater power cord for approximately
10 minutes before making these connections. This
will melt any ice buildup.
Plumbing should be carried out by a qualified
plumbing contractor in accordance with local
codes.
Only use approved plumbing materials.
The minimum diameter of all water pipes should
be 3/4 in. (1.9 cm).
To conserve energy and to prevent freezing,
insulate both COLD and HOT water supply lines.
Do not insulate the drain line or pressure-relief
valve.
Chart for Recommended Water Quality Levels
pH
TDS (Total
Dissolved Solids)
Free Carbon
Dioxide (CO
2
)
Total
Hardness
Aluminum Chlorides Copper Iron Manganese Zinc
6.5–8.5 Up to 500 mg/L Up to 15 mg/L
Up to
200 mg/L
Up to
0.2 mg/L
Up to
200 mg/L
Up to
1.0 mg/L
Up to
0.3 mg/L
Up to
0.05 mg/L
Up to
1.0 mg/L
Water Supply
Plumbing
48
INSTALLATION INSTRUCTIONS
Water Supply
Plumbing

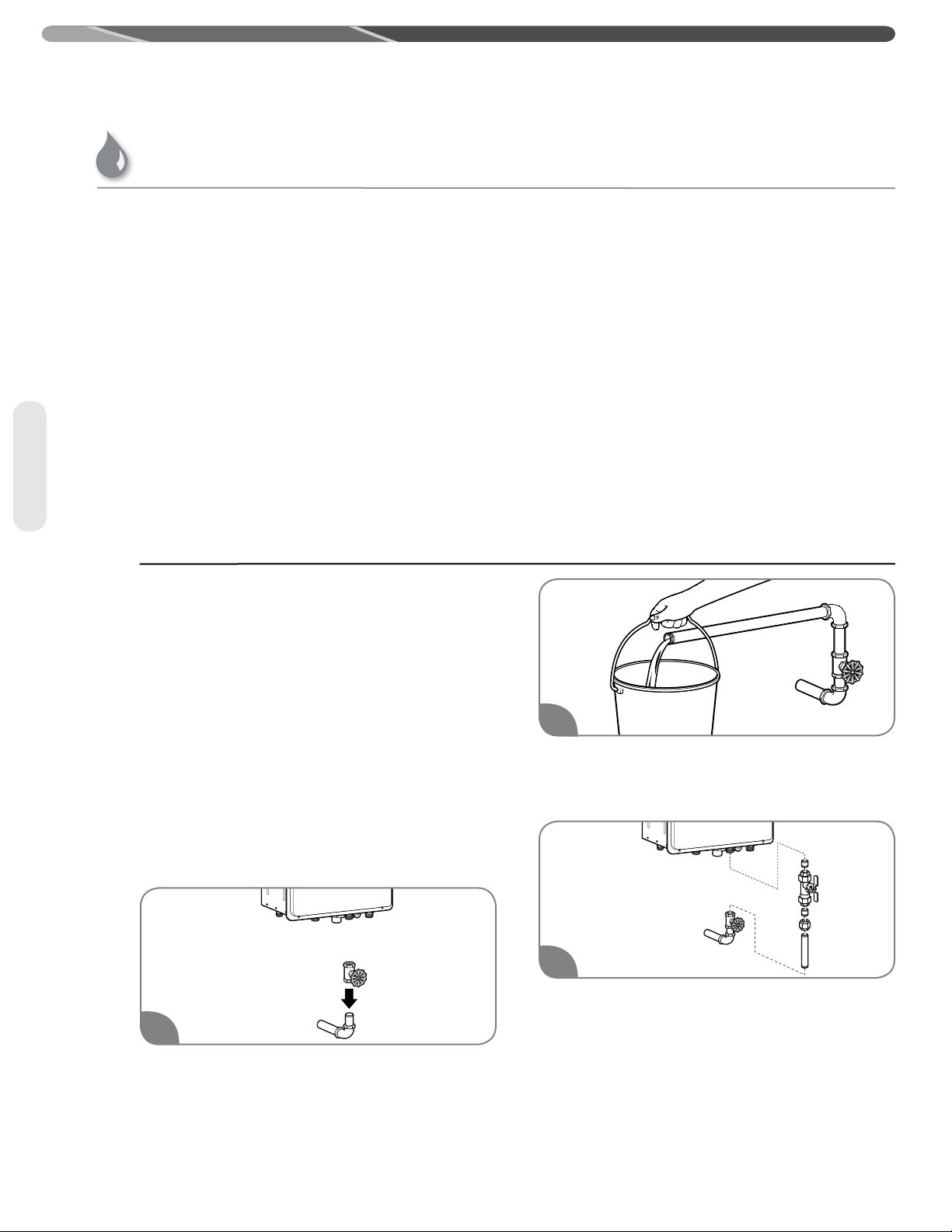

Water Supply Installation
NOTICES:
• Use only Teflon tape on all COLD and HOT water
connections.
• If the water flow resistance of a showerhead is
too high, the burner in the water heater will fail to
ignite. Keep all showerheads clean from debris
that could cause additional pressure drop.
• If using mixing valves on the outlet, choose
one that prevents COLD water pressure from
overcoming HOT water pressure.
• If multiple water heaters are installed in a
manifold system, the water piping MUST be in
“parallel” and the water pressure at each water
heater should be 40 psi (276 kPa).
Install a COLD water shut-off valve near the
inlet line on the water heater. This valve will be
used for servicing and draining purposes.
NOTICE: It is not recommended to
use pipes with smaller diameters than the water
supply connection of the water heater.
Before attaching the water line to the water
heater, open the shut-off valve. Run the water
until it has purged all contaminants (sand,
debris, air, caulking, etc.).
Install a service valve on the end of the COLD
water supply line and connect it to the water
inlet on the water heater.
To ensure proper operation of the water heater,
follow these water pressure guidelines.
• Operation of the water heater requires a
minimum water pressure of 14 psi (97 kPa) and a
minimum water flow rate of 0.4 gpm (1.5 lpm).
• Water pressure of 40 psi (276 kPa) is required to
achieve maximum flow rate.
• To maintain proper performance, there must be
sufficient water supply pressure.
Required Water Pressure =
Min. Operating Water Pressure
(14 psi [97 kPa])
+ Pipe Pressure Loss
+ Faucet Pressure Loss
+ Safety Margin
(more than 5 psi [34 kPa]).
• To supply HOT water to upper floors, additional
water pressure will be required (0.44 psi [3 kPa]
per foot of height). Calculate the distance
between the water inlet of the water heater
(ground level) to the HOT water faucet farthest
away from the water heater (upper floor level).
• Well water systems should be set to ensure a
minimum system pressure of 40 psi (276 kPa).
The pressure should remain constant and stable
during the operation of the water heater.
• Gravity water pressure is not recommended.
When the water is supplied from a water supply
tank, the height of the tank, the diameter of the
supply pipes, and their relation to water pressure
need to be taken into consideration.
1

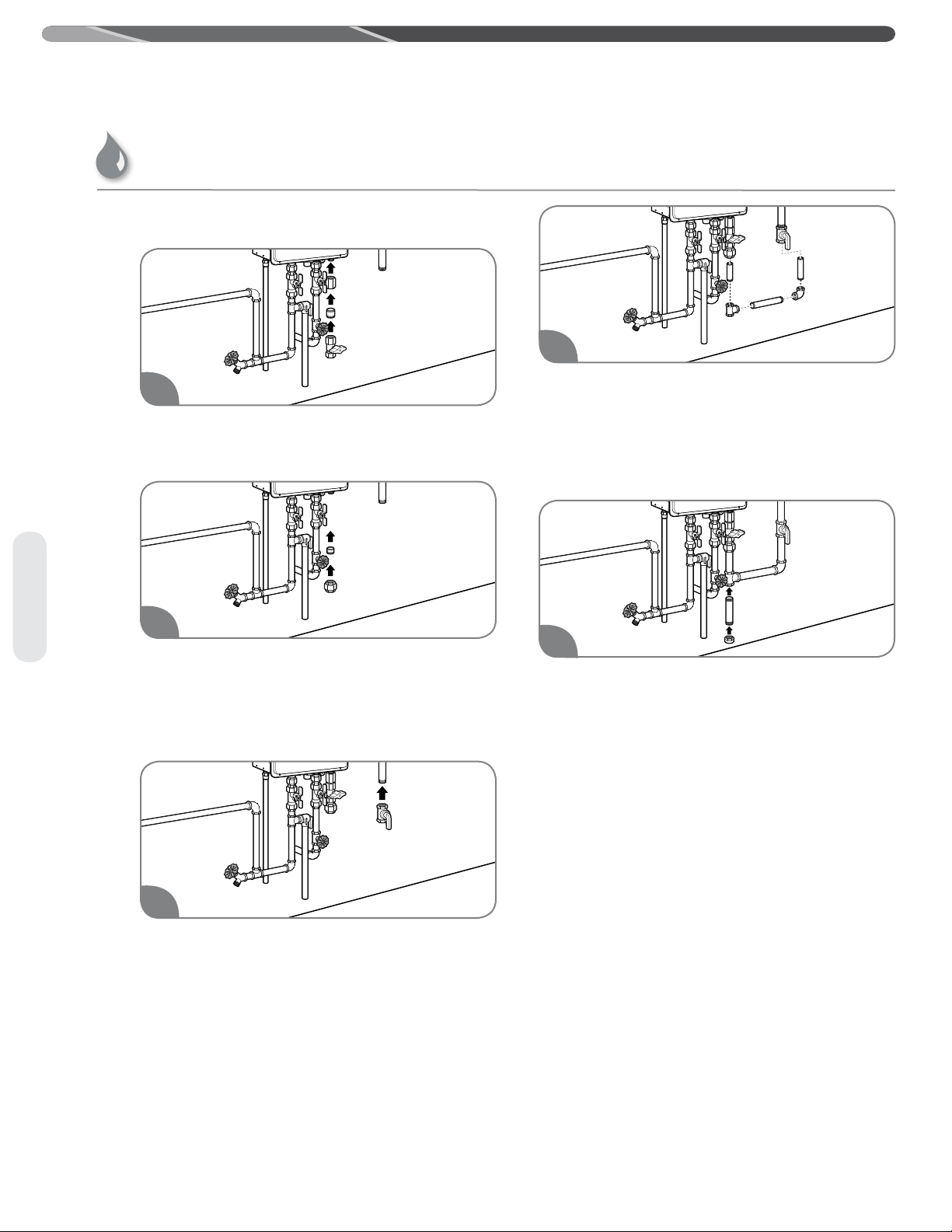

Water Supply Connections (cont.)
2
3
49
INSTALLATION INSTRUCTIONS
Plumbing
Open the shut-off valve in the COLD water Inlet
line to check the water flow through the water
heater.
Close the shut-off valve and remove, clean, and
replace the water filter.
NOTICES:
• Be sure to connect the COLD water inlet and the
HOT water outlet as shown on the water heater.
If reversed, the water heater will not function.
• The flow rate of HOT water may vary when more
than two faucets (appliances, fixtures, etc.) are
being used simultaneously.
• The pipes MUST be completely drainable. If the
HOT water faucets are located at a point higher
than the water heater, place a drain valve at the
lowest point.
It is recommended to use unions and flexible
copper connections at the COLD and HOT
water lines. They allow the water heater to be
disconnected easily for servicing.
Use the following guidelines when connecting
the HOT WATER OUTLET:
• Connections between the water heater and
point(s) of use should be as short as possible.
• Local codes shall govern the piping used for
water connections.
• To conserve energy and to prevent freezing,
insulate both COLD and HOT water supply lines.
Do not insulate drain line or pressure-relief valve.
5
4
Pressure
Relief Valve
Pressure
Relief Valve
Cold Water
Service Valve
Cold Water
Service Valve
Water
Inlet
Water
Inlet
Water
Outlet
Water
Outlet
Hot Water
Service Valve
Hot Water
Service Valve
Drain
Drain
Water Piping Arrangement With Service Valve Kit
Service valve kits are available on all tankless
water heater systems. All kits include two full-port
isolation valves to be used in the COLD and HOT
water lines. When installed, these valves allow
one person full diagnostic testing and ease of
flushing the system. Contact your distributor or
place of purchase for availability and installation
information.
Water Supply Installation (cont.)
50
INSTALLATION INSTRUCTIONS
Plumbing
Water Supply (cont.)

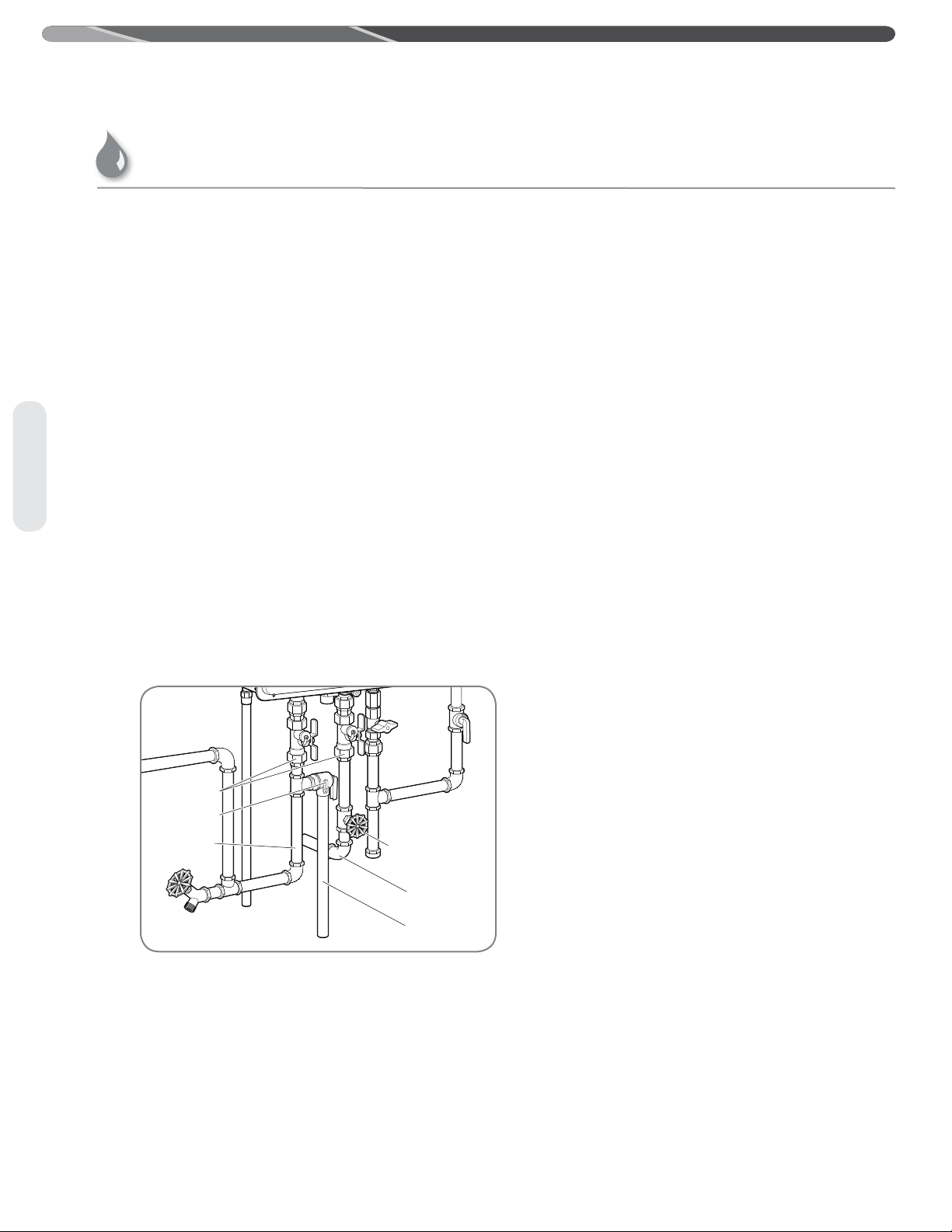

Relief Valve
A new pressure-relief valve, complying with the
Standard for Relief Valves and Automatic Gas
Shut-Off Devices for Hot Water Supply Systems,
ANSI Z21.22/CSA 4.4, must be installed at the
HOT water outlet connection of the water heater
during installation. Local codes shall govern the
installation of any relief valves or place of purchase
for availability and installation information.
NOTICES:
• The following drawing illustrates a pressure-only
relief valve. If local codes require a combination
temperature and pressure-relief valve, you may
need to install an extension piece to ensure that
the valve probe is not directly in the flow path of
the water.
•
If local codes require that a temperature and
pressure-relief valve be installed, the manufacturer
recommends a type 40XL Watts temperature and
pressure-relief valve or equivalent model be used.
• Manual operation of relief valves should be
performed at least once a year.
• If the relief valve on the system discharges
periodically, a problem exists. Turn off the water
heater, unplug the unit, and call for service.
One end of the relief valve discharge line connects
to the HOT water outlet pipe as shown above.
The other end of the pipe should be routed to a
suitable drain to eliminate potential water damage.
For safe operation of the water heater, be sure
that:
• The pressure rating of the relief valve must not
exceed 150 psi (1,034 kPa) or the maximum
working pressure of the water heater. (See the
rating plate on the water heater.)
• The BTUH rating of the relief valve must equal or
exceed the BTUH input of the water heater. (See
the rating plate on the water heater.)
• No valve of any type should be installed between
the relief valve and the water heater.
• Discharge from the relief valve should be piped
to a suitable drain. Piping used should be of a
type approved for the distribution of hot water.
• HOT and COLD water lines should be insulated
up to the water heater. See page 51.
• The discharge line must be NO SMALLER than
the outlet of the relief valve. The drain line must
pitch downward to allow for complete drainage
of the line and the valve.
• The end of the discharge line should not be
threaded or concealed and should be protected
from freezing. No valve of any type, restriction,
or reducer coupling should be installed in the
discharge line.
Relief
Valve
Union
Union
Cold Water Supply
Shut-Off Valve
Cold Water
Supply Inlet
Hot Water
Supply Outlet
Relief Valve
Discharge Line
51
INSTALLATION INSTRUCTIONS
Plumbing
WARNINGS:
• When pipe insulation is not rated for the
appropriate weather conditions, install electric
heat tracing or equivalent to prevent freezing of
the pipes.
• Do not insulate or block drain valve on the hot
outlet fitting.
• If pipes are allowed to freeze, the water heater
and the pipes may malfunction or leak due to
freezing water.
NOTICE: The hot and cold water supply
pipes should be insulated to provide additional
freeze protection.
For increased energy efficiency, use pipe insulation
as shown in the diagram. Insulate the pipes all
the way to the top. DO NOT cover any drain or
pressure-relief valve(s).
Hot and Cold Pipe Insulation Installation
Cold Water
Service Valve
Hot Water
Service Valve
Pressure
Relief Valve
Pressure
Relief Valve
Water
Outlet
Water
Outlet
Water
Inlet
Water
Inlet
Drain
Drain
Condensate Drainage
Be sure the condensate runs freely to a drain and
does not accumulate inside the water heater. In
cold climates, precautions may need to be taken to
ensure that the condensate drain does not freeze.
• All condensation must drain and dispose of per
local code.
• If the condensate drain gets blocked, an error
code will display on the remote control. If this
occurs, the condensate drain must be cleared.
• Use only PVC or CPVC pipe or flexible tube for
the condensate drain line.
• The drain pipe (along its entire length) must be at
least the same diameter as the drain line.
• The drain line should be as short as possible and
have a downward slope toward the end.
• The end of the drain pipe should be open to the
atmosphere. The end should not be under water
or other substances.
• Do not connect the drain pipe directly to the
drain sewer.
• Do not connect the drain pipe with an air-
conditioning evaporator coil drain.
Condensate
Condensate Drain
52
INSTALLATION INSTRUCTIONS
Gas Supply Connections
WARNING: Do not attempt to
convert this water heater for use with a different
type of gas other than the type shown on the
rating plate. Doing so could result in death,
personal injury, explosion or fire, product damage,
and/or poor operating conditions or performance.
NOTICES:
• Gas piping shall be in accordance with local
utility company requirements and/or in the
absence of local codes, use the latest edition of
National Fuel Gas Code (NFGC), ANSI Z223.1.
In Canada, use the latest edition of CSA B149.1,
National Gas and Propane installation code.
• Apply a thin coat of pipe compound to all
threaded male ends. Compound must be of the
type resistant to the action of LP gas.
• To ensure proper water heater operation, the gas
pipe and gas meter must be sized correctly.
• If flexible connectors are used, the minimum
inside diameter must be 3/4" or greater and the
rated capacity of the connector must be equal
to or greater than the BTU capacity of the water
heater. See manufacturer information for the
gas connector. Lengths over 36 inches are not
recommended.
• Do not use excessive force (over 31.5 ft. lbs.
[42,7 Nm]) when tightening the pipe sections.
Excessive force can damage the water heater,
especially when Teflon pipe compound is used.
Gas Supply
Union
Manual Gas
Supply Line
Shut-Off Valve
Cap
Sediment Trap
Manual Gas
Shut-Off Valve
Gas Supply
53
INSTALLATION INSTRUCTIONS
Gas Supply
Gas Piping
Pipe-Sizing Procedure – Example
The gas supply must be capable of handling the
entire gas load at the location. Gas line sizing
is based on gas type, the pressure drop in the
system, the gas pressure supplied, and gas line
type. For gas pipe sizing in the United States,
refer to the National Fuel Gas Code, NFPA 54. For
Canadian gas pipe sizing, refer to the Natural Gas
and Propane Installation Code CAN/CSA B149.1.
The information below is provided as an example.
The appropriate table from the applicable code
must be used.
1. Determine the cubic feet per hour of gas
required by dividing the gas input (on the rating
plate) by the heating value of the gas (available
from the local gas company). The gas input
needs to include all gas products at the location
and the maximum BTU usage at full load when
all gas products are in use.
2. Use the table for your gas type to find the pipe
size required for your cubic feet per hour of gas
and your pipe length.
Example: The heating value of propane gas for
your location is 2500 BTU/FT
3
. The gas input
of the tankless water heater is 199,900 BTU/
HR. Additional appliances at the location require
75,000 BTU/HR. Therefore, the cubic feet per
hour = (199,900 + 75,000)/2500 = 109 FT
3
/HR.
If the pipe length is 100 ft., then the 3/4-inch
pipe size capable of supplying 197 FT
3
/HR of
propane gas will be adequate.
Gas Input of
Cubic Feet Water Heater (BTU/HR)
Per Hour (CFH) = Heating Value of Gas (BTU/FT
3
)
Pipe-Sizing Table – Natural Gas
Schedule 40 Metallic Pipe
Inlet Pressure: Less than 2 psi (55 inches W.C.)
Pressure Drop: 0.3 inches W.C.
Specific Gravity: 0.60
(Capacity in cubic feet per hour)
Length
Pipe Size (inches)
3/4 1 1 1/4 1 1/2
10
273 514 1060 1580
20
188 353 726 1090
30
151 284 583 873
40
129 243 499 747
50
114 215 442 662
60
104 195 400 600
70
95 179 368 552
80
89 167 343 514
90
83 157 322 482
100
79 148 304 455
125
70 131 269 403
150
63 119 244 366
175
58 109 224 336
200
54 102 209 313
Pipe-Sizing Table – Propane Gas
Schedule 40 Metallic Pipe
Inlet Pressure: 11.0 inches W.C.
Pressure Drop: 0.5 inches W.C.
Specific Gravity: 1.50
(Capacity in cubic feet per hour)
Length
Pipe Size (inches)
1/2 3/4 1 1 1/4
10
291 608 1150 2350
20
200 418 787 1620
30
160 336 632 1300
40
137 287 541 1110
50
122 255 480 985
60
110 231 434 892
80
101 212 400 821
100
94 197 372 763
125
89 185 349 716
150
84 175 330 677
175
74 155 292 600
200
67 140 265 543
Refer to current National Fuel Gas Code, NFPA 54.
54
INSTALLATION INSTRUCTIONS
Gas Supply
Gas Supply Installation
Install the manual gas appliance shut-off valve
to the gas connection at the water heater. The
shut-off is supplied with the water heater.
Install a ground joint union or ANSI design-
certified semi-rigid or flexible gas appliance
connector to the open end of the manual gas
appliance shut-off valve. The (NFGC) ANSI
Z223.1 and CSA B149.1 codes mandate the
use of manual gas shut-off valves.
Install a manual gas supply line shut-off valve
to the end of the gas supply line.
NOTICE: Lever-type gas shut-offs
should all be T-handle type.
Using the proper-size piping, fittings, and
components, build the gas supply line to the
water heater.
NOTICE: The gas supply line should
be a minimum of 3/4-in. (1.9-cm) black steel
pipe or other approved gas piping material.
Install a sediment trap at the lowest portion of
the gas line.
The inlet gas pressure to the water heater must
NOT exceed 10.5 in. w.c. (2.6 kPa) for natural
gas and 14 in. w.c. (3.5 kPa) for LP gas. For
purposes of input adjustment, the minimum inlet
gas pressure (with main burner on) is shown on
the water heater rating plate. If high or low gas
pressures are present, contact your gas supplier
for correction.
1
2
4
3
5
Gas Supply (cont.)
55
INSTALLATION INSTRUCTIONS
Gas Supply

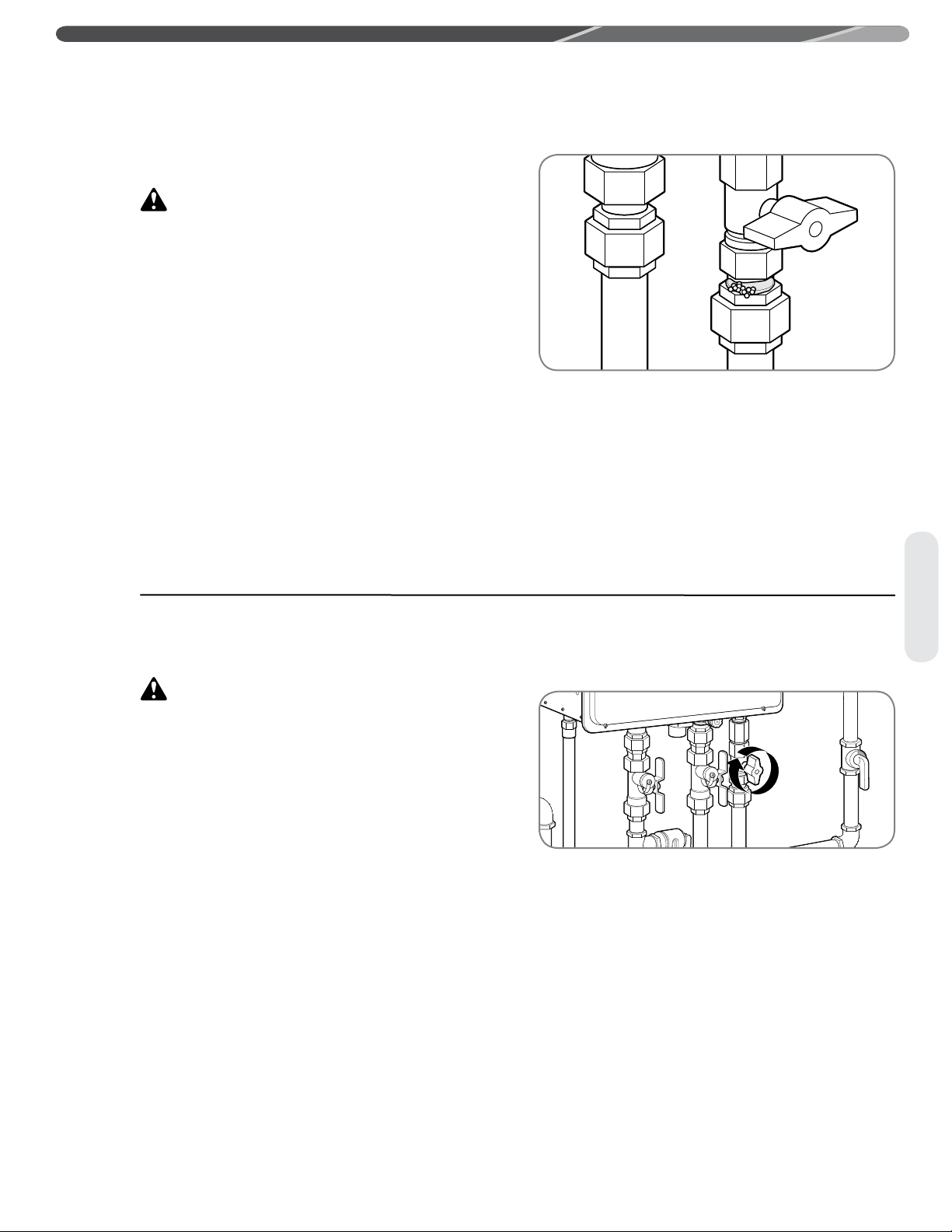

Leak Testing
WARNING: Never use an open
flame to test for gas leaks, because death,
personal injury, and/or property damage can result.
The water heater and its gas connections MUST
be leak-tested at normal operating pressures
before the unit is placed in operation. These tests
should also include all factory connections.
Turn on the gas shut-off valve(s) to the water
heater.
Use a soapy water solution to test for leaks at all
the connections and fittings. If bubbles are seen,
it indicates a gas leak that must be corrected.
Contact a qualified service technician.
Pressure Testing the Gas Supply
System
CAUTION: Install a gas pressure
regulator in the gas supply line. This regulator
should not exceed the maximum supply pressure.
DO NOT use an industrial-type gas regulator.
The water heater and its manual gas shut-off valve
must be disconnected from the gas supply piping
system whenever the pressure testing will exceed
1/2 psi (14 in. w.c. [3.5 kPa]).
The water heater must be isolated from the gas
piping system whenever the pressure testing
will be less than and/or up to 1/2 psi (14 in. w.c.
[3.5 kPa]). Closing the manual gas shut-off valve
will isolate the water heater from the gas piping
system.
56
Gas Supply
INSTALLATION INSTRUCTIONS
Gas Supply (cont.)
Electrical Wiring
DANGER: Shock Hazard – Before
servicing the water heater, turn off the electrical
power to the water heater at the main disconnect
or circuit breaker. Failure to do so will result in
death or serious personal injury.
WARNING: Field wiring connections
and electrical grounding must comply with local
codes or, in the absence of local codes, with the
latest edition of the National Electrical Code, ANSI/
NFPA 70, in the U.S., or Canadian Electrical Code,
CSA C22.1, Part 1, in Canada.
CAUTION:
Label all wires prior to
disconnecting. Wiring errors can cause personal
injury, product damage, and/or dangerous operating
conditions. Verify correct operation after servicing.
NOTICES:
• Do not connect power until venting installation is
complete (see Venting Installation pages 34–46).
• Wait ninety (90) seconds after power is
connected for the first time to initiate operation
of the water heater.
Power Cord
• The electric power supply requirement for this
water heater is 120 VAC/60 Hz, 2 amps.
• A dedicated circuit is recommended for the water
heater. Do not connect to a GFCI or AFCI circuit.
Multiple units may be connected to a single
circuit up to the circuit rating.
• Do not use 3-prong to 2-prong adapters. Do not
use power strips or multiple outlet adapters.
• All direct-vent gas models come with a three-
prong power cord. Only use this power cord and
a matching grounded electrical outlet.
• All outdoor gas models do not come with a
power cord. Only hard-wire to an appropriate
power outlet with a ground terminal.
• Keep any excess length of the power supply
cord on the outside of the water heater.
• If local codes require hard-wiring, see
instructions for “Hard-Wiring the Electrical
Connections” below.
Hard-Wiring the Electrical Connections
• Wiring should be performed by a qualified
electrician in accordance with local codes.
• The water heater requires a properly grounded
120 VAC/60 Hz dedicated power supply. Multiple
water heaters may be connected to a single
circuit up to that circuit’s rating.
•
DO NOT connect grounding wire to water pipes,
gas pipes, telephone cables, lighting conductor
circuits, or to any other grounding circuits that
require a GFCI or AFCI (arc fault circuit interrupter).
• An ON/OFF switch must be provided and
installed for the incoming 120 VAC power supply.
• Wire the water heater exactly as shown in the
wiring diagram. This wiring diagram can also be
found inside the water heater cover panel.
• The green screw is provided in the enclosure for
a grounding connection.
• Connect the live wire to the black wire and
neutral wire to the white neutral wire.
High-Altitude Installation
The water heater is certified for installations up
to 3,280 ft. (1,000 m) above sea level. The input
rating of this water heater is based on sea level
operation. At higher elevations, the actual input
rate may be lower than the value listed on the
rating label.
NOTICES:
• For installations above 3,280 ft. (1,000 m)
elevation, contact a qualified service technician
to make the proper altitude adjustments. See
pages 67 and 68 for additional information.
• Do not install this water heater at elevations
above 3,280 ft. (1,000 m) without the proper
adjustments. Please contact your installer, local
gas supplier, place of purchase, or the Rheem
Customer Service phone number listed on
page 26 in the “Call for Assistance” section.
Electrical
57
INSTALLATION INSTRUCTIONS
Electrical
Wiring Diagram
FLAME ROD 2
ÉLECTRODE DE
DÉTECTION
DE FLAMME 2
31-98419 2
NEUTRALIZER WATER
LEVEL ELECTRODE
R
R
ÉLECTRODE DE NIVEAU
D’EAU DE NEUTRALISANT
2
1
P
G
RÉSISTANCE
VERT/JAUNE
G/Y: GREEN/ YELLOW,
AC
120V
O: ORANGE, ORANGE
USUALLY
DISCONNECTED
NORMALEMENT
DÉCONNECTÉ
CODE DE COULEUR
COLOR CODE
MIN BUTTON
BOUTON MIN.
G/Y or G
W
BK
BOUTON MAX.
BL
BL
BL
LED
G
G
MAX BUTTON ADJUSTER BUTTON
BL
BOUTON DE RÉGLAGE
BL
GG BL BL
1
2
3
4
5
A
`
FOR INDOOR, DIRECT-VENT
MODEL ONLY
POUR MODELE INTERIÉUR À
ÉVENT DIRECT SEULEMENT
4 3 2 1
YWR BK BL
W BL R O Y
`
FOR DIRECT-VENT MODEL ONLY
POUR MODELE À ÉVENT DIRECT SEULEMENT
W
SW3SW2SW1
GND
BK
U
2
1
S
1
3
2
W
W
1
2
3
4
IJ
H
F
R Y O WBR
W
W
2
3
4
1
8
B
R
Y
O
W
BR
BK
1
2
3
4
5
6
7
8
R
Y
O
W
BR
BK
1
2
3
4
5
6
7
8
C
9
BK R Y O WBR
R
BR
BK
BK
W
GND
BK
W
1
2
3
4
YW
BK
1
23
K
SV0
SV1
SV2
SV3
W BK
W
G/Y
GY
BK
IG
W
W
W
123456
G
FM
5
GY
W
R
R
BK
BK
R
1
2
3
4
5
6
7
PSV
R1
R2
R3
R4
BK
BK
−
+
MOTEUR DU
VENTILATEUR
FAN MOTOR
RESISTOR
ELECTRODE
IGNITER
FUSE (3A)
(UMC-117)
CIRCUIT BOARD
PLAQUE DE CIRCUIT
SOLENOID VALVE 3
ÉLECTROVALVE 3
SOLENOID VALVE 2
ÉLECTROVALVE 2
ÉLECTROVALVE 1
SOLENOID VALVE 1
ÉLECTROVALVE DANS
ADMISSION DE GAZ
SOLENOID VALVE 0
ELECTRODE
ALLUMEUR
ANTI-FROST HEATER
CHAUFFAGE ANTI-GIVRE
FUSIBLE (3A)
OVER HEAT LIMITER
LIMITEUR DE SURCHAUFFE
WATER FLOW SENSOR
CAPTEUR DE DÉBIT D’EAU
P.G.F.R VALVE
ON
MARCHE
OFF
ARRÊT
CONTACTEUR DIP 1
DIP SWITCH 1
DIP SWITCH 2
CONTACTEUR DIP 2
ON
MARCHE
OFF
ARRÊT
ÉLECTROVALVE DE DÉRIVATION D’EAU
WATER VOLUME CONTROL MOTORWATER BY-PASS CONTROL MOTOR
AMBIENT AIR
THERMISTOR
THERMISTOR
DE SORTIE D’EAU CHAUDE
HOT WATER OUTLET
THERMISTOR
THERMISTOR
D’ECHANGEUR DE CHALEUR
HEAT EXCHANGER
THERMISTOR
THERMISTOR
D’ADMISSION D'EAU
WATER INLET
THERMISTOR
THERMISTOR
D’AIR AMBIANT
GAS TYPE
CIRCUIT BOARD
PLAQUE DE CIRCUIT
IMPRIMÉ DE TYPE Â GAZ
MOTEUR DE CONTRÔLE DU VOLUME D’EAU
R: RED, ROUGE
W: WHITE, BLANC
BR: BROWN, BRUN
BL: BLUE, BLEU
BK: BLACK, NOIR
MAIN REMOTE
CONTROL
GY: GRAY, GRIS
TÉLÉCOMMANDE
G: GREEN, VERT
Y: YELLOW, JAUNE
« MAIN »
BK
BATH REMOTE
CONTROL 1
BATH REMOTE
CONTROL 2
TÉLÉCOMMANDE 1
TÉLÉCOMMANDE 2
« BATH »
« BATH »
(USC1-117)
(USC2-117)
( )
WW
LIMITER
LIMITEUR
MOTOR
MOTEUR
8
LIMITER
LIMITEUR
MOTOR
MOTEUR
4
5678
GY
R
BL
SV4
SOLENOID VALVE 4
ÉLECTROVALVE 4
BK
BK
BK
BK
1
2
3
V
T
BL
M
W
FLAME ROD 1
ÉLECTRODE DE
DÉTECTION
DE FLAMME 1
FOR INDOOR, DIRECT-VENT
MODEL ONLY
POUR MODÈLE INTÉRIEUR À
ÉVENT DIRECT SEULEMENT
58
INSTALLATION INSTRUCTIONS
Electrical
Remote Control Selection and
Location
WARNING: Field wiring connections
and electrical grounding must comply with local
codes or, in the absence of local codes, with the
latest edition of the National Electrical Code, ANSI/
NFPA 70, in the U.S., or Canadian Electrical Code,
CSA C22.1, Part 1, in Canada.
NOTICES:
•
The provided remote control will allow maximum
temperature settings of 120°F (49°C). Temperatures
up to 140°F (60°C) for residential applications and
up to 185°F (85°C) for commercial applications*
can be achieved with the MAIN (UMC-117) remote
control. Only qualified service personnel should
perform this adjustment.
• An optional cable (EZ Link
Cable
TM
) can be purchased
separately to manifold two
water heaters together.
• Do not attempt to disassemble
a remote control. All controls are
sealed and calibrated for accurate
water heater control and operation.
One remote control is provided with the water
heater. Additional remote controls may be
purchased separately. The available remote
controls are listed in the following chart. Up to
three remote controls can be used with the water
heater. No other manufacturer’s controls are
suitable for use with this water heater.
Review the following considerations before
determining the location of the remote
control(s):
• Do not install any remote control
outdoors or where it can come in
contact with water.
•
Avoid installing the remote control in
the following areas and/or conditions:
– area exposed to heat.
– area exposed to steam.
– area exposed to oil.
– area exposed to direct sunlight.
– areas near stored or used
flammable products.
• Place remote control out of children’s reach.
• The remote control should be installed in a
convenient location (e.g., kitchen, laundry room,
utility room, or directly next to the water heater).
• The maximum distance between the water
heater and the remote control installation
location is limited to 195 ft. (59 m) of wire.
Remote Control
Model Number
Remote Control
Description
Temperature
Set Point Range Availability
UMC-117 MAIN
100°F–120°F (38°C–49°C) Factory Default
85°F (29°C)
125°F–140°F (52°C–60°C)
Qualified Technician
Adjustment for Residential Products
85°F (29°C)
125°F–185°F (52°C–85°C)
Qualified Technician
Adjustment for Commercial Products*
USC1-117
BATH 1
100°F–120°F (38°C–49°C) Optional (Sold Separately)
85°F (29°C) Qualified Technician Adjustment
USC2-117 BATH 2
100°F–120°F (38°C–49°C) Optional (Sold Separately)
85°F (29°C) Qualified Technician Adjustment
MIC-6 or MIC-185**
Manifold System
Manifold System Optional (Sold Separately)
*A commercial conversion kit can be purchased to achieve temperatures up to 185°F (85°C).
**When a manifold system is installed, the main remote control connected to the manifold controller
(MIC-6 or MIC-185) has priority over the remote controls connected to the water heater.
Electrical Wiring (cont.)
59
INSTALLATION INSTRUCTIONS
Electrical

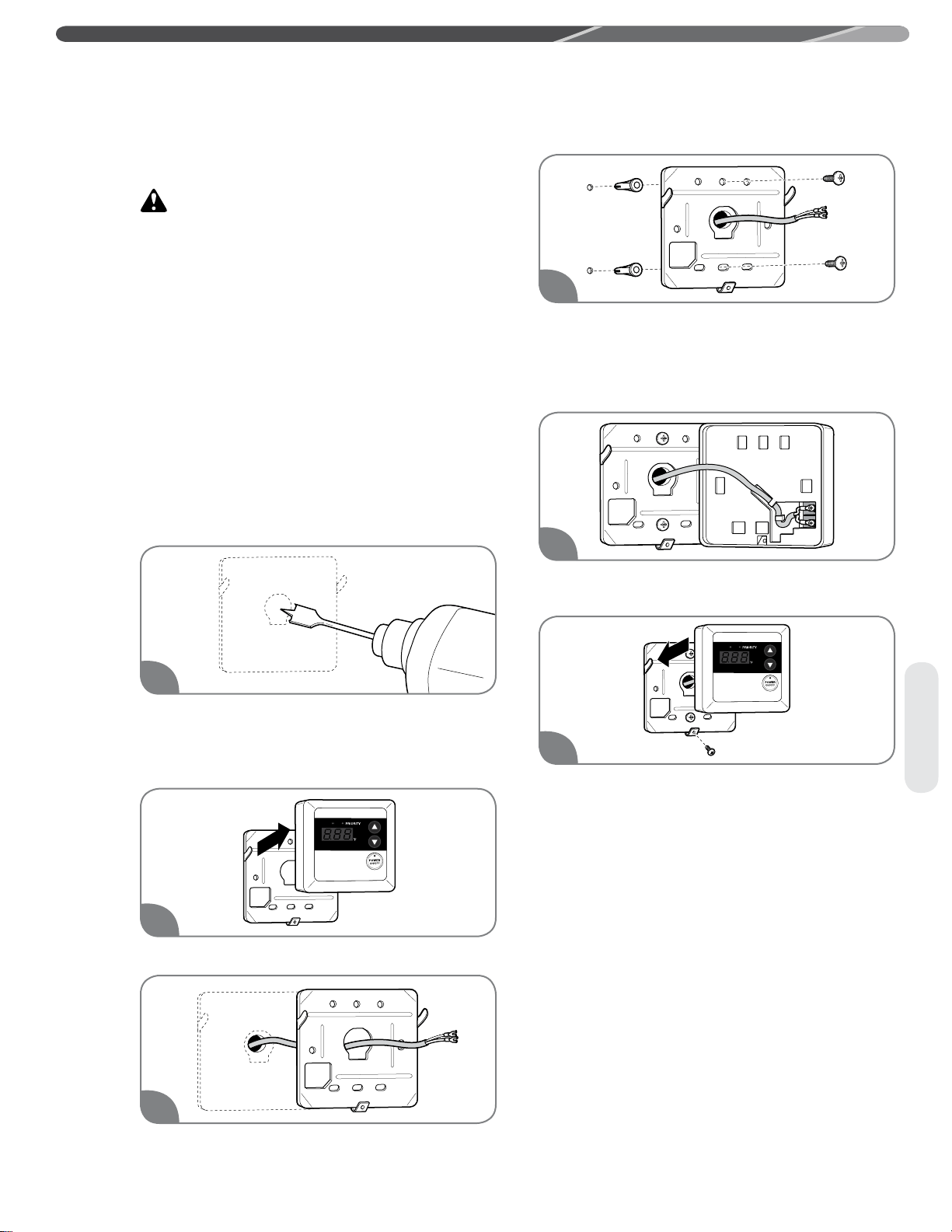

Remote Control Installation
WARNING: Field wiring connections
and electrical grounding must comply with local
codes or, in the absence of local codes, with the
latest edition of the National Electrical Code, ANSI/
NFPA 70, in the U.S., or Canadian Electrical Code,
CSA C22.1, Part 1, in Canada.
NOTICES:
• Remote control cable can be any Type–T 18
AWG wire similar to a thermostat wire and need
not be polarity-sensitive.
• It is not recommended to have wiring exposed.
• Do not apply sealant to remote control cable.
• Do not use network cable, telephone wire, or
any twisted-pair cable.
Connecting the MAIN (UMC-117) Remote
Control to a Wall:
Drill a 1- to 1 1/2-in. (2.5/3.8-cm) hole at the
proposed control location. Install the remote
control cable between the location of the
remote control and the water heater.
Remove the remote control from the base plate.
Feed the remote control cable through the large
center hole in the base plate.
Install the base plate to the wall using suitable
screws and wall anchors.
NOTICE: The tabs on the base plate
should always point out.
Connect the remote control to the remote
control cable.
Position the remote control on the base plate.
NOTICE: The tabs on the base plate
should line up with the slots on the back of the
control panel.
Secure the control panel to the base plate with
one screw into the bottom tab.
NOTICE: Do not attempt to connect the
remote control or control wire to the water heater
while the water heater has power applied to it.
Damage to the water heater will occur. Do not
cut or strip the wiring while it is connected to the
water heater or while the water heater has power
applied to it.
2
3
4
5
6
1
60
INSTALLATION INSTRUCTIONS
Electrical
Connecting the Remote Control to the Water
Heater:
Ensure that the power to the water heater has
been disconnected.
Loosen the one screw located on the remote
control connection cover. The connection cover
is made of white plastic.
NOTICE: DO NOT REMOVE FRONT
PANEL. Remote control wires are connected on
the bottom of the unit.
There are no accessible remote control
terminals inside the water heater.
Connect the remote control extension cables
from the remote control to the remote control
connection terminals.
NOTICE: The remote control wire
connection terminals are not polarity-sensitive.
Firmly tighten the terminal screws by hand.
Secure the remote control extension cable on
the hook located on the side of the remote
control connection base.
Reinstall the remote control connection cover
and secure with the one screw.
NOTICE: Do not connect power until
venting installation is complete.
Switch on the power supply to the water heater.
Check for proper operation of the remote
control and the water heater.
1
3
4
Remote Control
Connection Cover
Remote Control
Connection Cover
2
5
6
7
Electrical Wiring (cont.)
61
INSTALLATION INSTRUCTIONS
Electrical
Insulation Blankets
In general, insulation blankets for external use
on gas water heaters are not necessary. The
purpose of an insulation blanket is to reduce the
standby heat loss from the water heater’s storage
tank. Since these water heaters do not store water,
they eliminate the need for the insulation blanket.
WARNINGS:
• If local codes require the application of external
insulation blanket kits, carefully follow the
manufacturer’s installation instructions included
with the kit. Only use blanket kits that are
approved for use with your water heater.
• NEVER cover the air inlet, flue outlet, or
operating and warning labels attached to the
water heater. Operating and warning labels
should not be relocated to the exterior of an
insulation blanket. Covering these components
will cause dangerous operating conditions that
can lead to death, personal injury, property
damage, and/or product damage.
The manufacturer’s warranty does not cover any
damage or defect caused by insulation, insulation
attachment, or use of any type of energy-saving
or other unapproved devices (unless authorized
by the manufacturer). The use of unauthorized
energy-saving devices can result in death,
personal injury, and/or property damage. The
manufacturer disclaims any responsibility for
such loss or injury resulting from the use of such
unauthorized devices.
Installation Precautions
• Follow all installation instructions covered in this
manual.
• Check the inlet gas pressure to make sure it is
within the range specified on the rating plate.
• Make sure there is adequate air for combustion
and ventilation as described on pages 37–38 or
page 44 in this manual.
• Maintain proper clearances to combustibles and
noncombustibles as specified on the rating plate.
• Make sure the venting system complies with
local codes, National Fuel Gas Codes (ANSI
Z223.1/NFPA 54) or CSA B149.1, and the
guidelines found on pages 34 through 46 in this
manual.
• Contact the local gas company to make sure the
gas meter and gas piping are adequately sized.
• Use only Teflon tape on all male water line
connections and fittings.
• Do not block or restrict any air intake openings.
• Do not remove the front cover unless absolutely
necessary. This should only be done by a
qualified service technician.
• Do not install this product where standing water
may occur.
• Do not use pipe dope on water line connections
and fittings.
62
INSTALLATION INSTRUCTIONS
Condensate drain is properly installed.
F. Condensate
Installation Checklist
Indoor water heaters must be installed
indoors.
Outdoor water heaters must be installed
outdoors.
Close to area of ventilation termination
(indoor models).
Protected from freezing temperatures.
Proper clearance from combustible material
observed.
Sufficient fresh air supply for proper operation
of water heater.
Air supply free of corrosive elements and
flammable vapors.
Provisions made to protect area from water
damage.
Sufficient room to service heater.
Combustible materials, such as clothing,
cleaning materials, and rags, clear of the
heater and vent piping.
Water heater is properly attached to the wall.
A. Water Heater Location
B. Vent (Indoor Models)
Vent pipe material is PVC and is
manufacturer-approved.
Horizontal air intake and exhaust pipes have
a 1/4" per foot DOWNWARD slope toward the
vent terminal.
Vertical venting is installed as described on
pages 43 and 44.
Connection(s) securely fastened together with
cement and airtight.
All vent runs are properly installed.
Vent terminal is properly installed.
Maximum vent length is observed.
Water supply has sufficient pressure.
Air has been purged from the water heater
and the piping.
Water connections tight and free from leaks.
Water filter is clean and in place.
All piping has been assembled as described
on pages 48 and 49.
Water pipes are insulated and protected from
freezing, if necessary.
Pressure-relief valve properly installed with
discharge line running to open drain.
Discharge line protected from freezing, if
necessary.
C. Water Supply/Relief Valve
Gas type matches listing on rating plate.
Gas supply pressure is sufficient for the water
heater.
Gas line equipped with shut-off valve, union
and sediment trap as described on page 54.
Approved pipe-joint compound has been
used on all gas pipe connections.
All connections and fittings have been
checked for leaks with a soapy water
solution.
Gas company inspected installation (if
required).
D. Gas Supply
Supply cord and/or wiring meets all local
codes, National Electrical Code, ANSI/NFPA
70, in the U.S., or Canadian Electrical Code,
CSA C22.1, Part 1, in Canada.
Voltage matches listing on rating plate.
Water heater is properly grounded.
E. Electrical Wiring
Checklist
63
INSTALLATION INSTRUCTIONS
Start/Adjust
Lighting the Water Heater
WARNING: Before operating
this water heater, be sure to read and follow
the instructions on the following label, all labels
on the water heater, and the “Important Safety
Information” section in this manual. Failure to
do so can result in unsafe operating conditions
that can result in death, personal injury, property
damage, and/or product damage.
NOTICE: If you have any problems
reading or following the instructions in this manual,
STOP and call a qualified service technician or
contractor.
WARNING : If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
FOR YOUR SAFETY READ BEFORE OPERATING
1.STOP! Read the safety information above on this label.
2.Turn off all electric power to the appliance.
3.Do not attempt to light the burner by hand.
4.Turn the Gas Shutoff Valve located on the outside of the unit
clockwise to the "OFF" position.
5.Wait five (5) minutes to clear out any gas. If you then smell gas, STOP! Follow "B" in
the safety information above on this label. If you don't smell gas, go to the next step.
6.Turn the Gas Shutoff Valve located on the outside of the unit counterclockwise to
the "ON" position.
7.Turn on all electric power to the appliance.
8.If the appliance will not operate, follow the instructions "To Turn Off Gas To Appliance"
and call your service technician or gas supplier.
TO TURN OFF GAS TO APPLIANCE
1
.
Turn off all electric power to the appliance if service is to be performed.
2
.
Turn
the
Gas
Shutoff
Valve
located
on
the
outside
of
the
unit
clockwise to
the
"OFF"
position.
GAS SHUTOFF
VALVE
OPEN CLOSE
OPERATING INSTRUCTIONS
64
INSTALLATION INSTRUCTIONS
Start/Adjust
Operating Instructions
Read, understand, and follow the safety
information listed on the operating label
on page 63 and in the “Important Safety
Information” section in this manual.
Disconnect all electric power to the water heater.
Turn the gas shut-off valve clockwise to the OFF
position. This valve is located on the outside of
the water heater. Wait 5 minutes to clear any
gas. If you don’t smell gas, proceed to Step 3.
NOTICE: If you smell gas, STOP and
follow the safety instructions listed under B on
the operating label or on the front cover of this
manual.
Turn the gas shut-off valve counterclockwise to
the ON position.
Turn on all electric power to the water heater.
The water heater burner will automatically light
when there is a demand for hot water.
WARNING: Do not attempt to light
the burner by hand. Lighting the burner by hand
is an unsafe operating condition that can result in
death, personal injury, property damage, and/or
product damage.
If the water heater burner will not light, turn off
the water heater as described below and call
your service technician or gas supplier.
Shutting Off the Water Heater
Disconnect all electric power to the water heater.
Turn the gas shut-off valve clockwise to the
OFF position.
1
2
3
4
1
2
Lighting the Water Heater
65
INSTALLATION INSTRUCTIONS
Start/Adjust
Setting the Water Temperature
WARNING: Improper adjustment,
alteration, service, or maintenance can result in
death, personal injury, property damage, and/or
product damage.
Maximum Temperature Adjustment by
the Main Remote Control (UMC–117)
DANGER: Water temperatures above
125°F (52°C) will result in death and/or severe
burns from scalding.
WARNING: Refer to chart below
and the scald potential warnings on page 4 on this
manual before making an adjustment. Changing
this setting is done at your own risk.
Residential water heater temperatures can be
adjusted up to 140°F (60°C). Do not perform the
following adjustment if a setting of up to 140°F
(60°C) is not required.
To change the temperature settings up to
140°F (60°C):
T
urn on the remote control.
Turn off the gas and water to the water heater
by closing the shut-off valves.
Press the UP adjustment button repeatedly until
120°F (49°C) shows in the LED display. Hold the
UP button until the “120” on the display starts
to blink.
NOTICE: LED display only shows °F.
Time/Temperature
Relationship in Scalds
Water Time to Produce
Temperature a Serious Burn
120°F (49°C) More than 5 minutes
125°F (52°C) 1 1/2 to 2 minutes
130°F (54°C) About 30 seconds
135°F (57°C) About 10 seconds
140°F (60°C) Less than 5 seconds
145°F (63°C) Less than 3 seconds
150°F (66°C) About 1 1/2 seconds
155°F (68°C) About 1 second
Table courtesy of Shriners Burn Institute
The contents on pages 65 through 68 should only be performed by qualified
service personnel.
In-Use
Indicator
(Lit during
operation)
Priority
Indicator
Temperature
Adjustment
Buttons
ON/OFF
Button and
Indicator
LED Display
(Displays
water
temperature
and error
codes)
1
2
3
66
Start/Adjust
INSTALLATION INSTRUCTIONS
While “120” is blinking, press the UP and
DOWN adjustment buttons at the same time.
“120” will stop blinking.
Press the UP or DOWN adjustment button to
set the desired temperature.
Turn on the gas and water to the water heater
by opening the shut-off valves.
To limit maximum water temperature setting
to 120°F (49°C):
Turn on the remote control.
Turn off the gas and water to the water heater
by closing the shut-off valves.
Press the DOWN adjustment button repeatedly
until 100°F (38°C) or 85°F (29°C) shows in the
LED display. Hold the DOWN button until the
number on the display starts to blink.
While the number is blinking, press the UP and
DOWN adjustment buttons at the same time.
The number will stop blinking.
Press the UP or DOWN adjustment button to
set the desired temperature.
Turn on the gas and water to the water heater
by opening the shut-off valves.
4
5
6
1
2
3
4
5
6
Setting the Water Temperature (cont.)
67
Minimum Temperature Adjustment by
the Main Remote Control (UMC–117,
USC1–117, and USC2–117)
Residential water heater temperatures can be
adjusted down to 85°F (29°C), when required.
To change the temperature settings down to
85°F (29°C):
Turn on the remote control.
Turn off the gas and water to the water heater
by closing the shut-off valves.
Press the DOWN adjustment button repeatedly
until 100°F (38°C) shows in the LED display.
NOTICE: LED display only shows °F.
Press the DOWN adjustment button 3 times
within 5 seconds. The display will show “85.”
Turn on the gas and water to the water heater
by opening the shut-off valves.
NOTICE: The maximum flow rate at 85°F
(29°C) is 1.3 gpm (5.0 L/m).
INSTALLATION INSTRUCTIONS
Start/Adjust
When the water heater is installed above 3,280 ft.
(1,000 m), the settings on the DIP switch located
on the printed circuit board (PCB) need to be
changed. If these settings are not changed, the
water heater may not function properly.
NOTICE: If the water heater is installed
under 3,280 ft. (1,000 m) altitude, no action is
required.
Verify the altitude that the water heater is installed.
Turn off the gas and water to the water heater
by closing the shut-off valves. The OFF position
is DOWN.
1
2
4
5
High-Altitude DIP Switch Adjustments
1
3
68

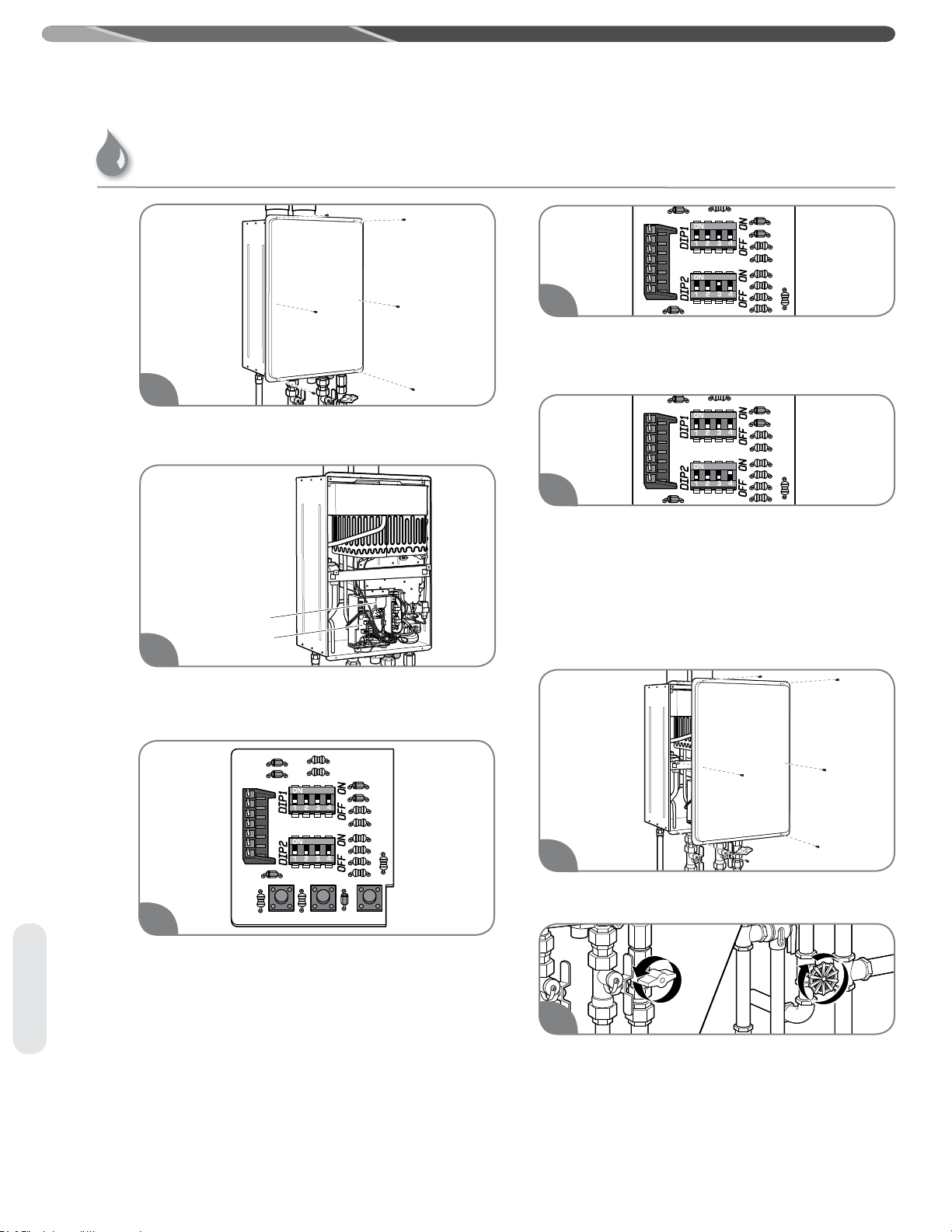

INSTALLATION INSTRUCTIONS
Start/Adjust
High-Altitude DIP Switch Adjustments (cont.)
Printed Circuit
Board (PCB)
Dip Switches
3
Dip switch
adjustment
3,280 feet
(1,000 m)
thru
6,560 feet
(2,000 m)
5
2
Remove the front cover panel on the water
heater.
Find DIP Switch 2 located in the top-right
portion of the PCB. The switch labeled “DIP 2”
is the bottom switch.
The factory settings for this switch should all be
in the OFF position (DOWN).
If altitude is above 3,280 ft. (1,000 m) and
below 6,560 ft. (2,000 m), change the third
switch on “DIP 2” to the ON position (UP).
If altitude is above 6,560 ft. (2,000 m) and
below 9,840 ft. (3,000 m), change the fourth
switch to the ON position (UP).
NOTICE: Do not alter any other DIP
switch settings. The manifold pressure will be
reduced accordingly.
Replace the front cover panel.
Turn on the gas and water to the water heater
by opening the shut-off valves.
7
As set
from factory
4
Dip switch
adjustment
6,560 feet
(2,000 m)
thru
9,840 feet
(3,000 m)
5
6
69
PARTS REPLACEMENT
Parts
Parts Ordering
WARNING: For your safety, do not
attempt to disassemble, repair, or replace any
portion of this unit. Refer all repairs, service, and/
or adjustments to qualified service personnel.
Address all parts orders to the distributor or store
where the water heater was purchased. All parts
orders should include:
1. The model and serial number of the water
heater from the rating plate.
2. Specify the gas type (natural or LP) as marked
on the rating plate.
3. Parts description (as shown below) and number
of parts desired.
Direct-Vent Gas Components
Ref # Description
1 Control Board
2 Gas Valve
3 Burner Assembly
4 Blower Motor
5 Burner Manifold
6 Gas Inlet Connector
7 Water Control Body
8 Water Inlet Connector 3/4"
9 Drain Relief Valve
10 Hot Outlet Connector
11 Remote Control Terminal Block
12 Neutralization kit
13 Air Intake Connector
14 Flue Connector
15 Front Cover
70
PARTS REPLACEMENT
Parts Ordering (cont.)
Parts
Outdoor Gas Components
Ref # Description
1 Control Board
2 Gas Valve
3 Burner Assembly
4 Blower Motor
5 Burner Manifold
6 Gas Inlet Connector
7 Water Control Body
8 Water Inlet Connector 3/4"
9 Drain Relief Valve
10 Hot Outlet Connector
11 Remote Control Terminal Block
12 Neutralization kit
13 Front Cover
71
NOTES
72
NOTES
