Mountfield 1736H Twin 2T0440483/M20 Lawn Tractor User Manual

171505756/9A 10/2019

NJ 92 series

NJ 102 series

Tosaerba con conducente a bordo seduto

- MANUALE DI ISTRUZIONI

ATTENZIONE: prima di usare la macchina, leggere attentamente il presente libretto.

Aufsitzmäher (Rasenmäher mit Fahrersitz mit sitzendem Benutzer)

GEBRAUCHSANWEISUNG

ACHTUNG: Vor Inbetriebnahme des Gerätes die Bedienungsanleitung aufmerksam lesen.

Ride-on lawnmower with seated operator

- OPERATOR’S MANUAL

WARNING: read thoroughly the instruction booklet before using the machine.

Tondeuse à gazon à conducteur assis

MANUEL D’UTILISATION

ATTENTION: lire attentivement le manuel avant d’utiliser cette machine.

Grasmaaier met zittende bediener

- GEBRUIKERSHANDLEIDING

LET OP: vooraleer de machine te gebruiken, dient men deze handleiding aandachtig te lezen.

ITALIANO -

Istruzioni Originali ...................................................................................................

БЪЛГАРСКИ - Инструкция за експлоатация

...........................................................................

BOSANSKI - Prijevod originalnih uputa

........................................................................................

ČESKY - Překlad původního návodu k používání

..........................................................................

DANSK - Oversættelse af den originale brugsanvisning

...............................................................

DEUTSCH - Übersetzung der Originalbetriebsanleitung

...............................................................

ΕΛΛΗΝΙΚΑ - Μεταφραση των πρωτοτυπων οδηγιων

.....................................................................

ENGLISH - Translation of the original instruction

..........................................................................

ESPAÑOL - Traducción del Manual Original

................................................................................

EESTI - Algupärase kasutusjuhendi tõlge

.....................................................................................

SUOMI - Alkuperäisten ohjeiden käännös

....................................................................................

FRANÇAIS - Traduction de la notice originale

..............................................................................

HRVATSKI - Prijevod originalnih uputa

.........................................................................................

MAGYAR - Eredeti használati utasítás fordítása

...........................................................................

LIETUVIŠKAI - Originalių instrukcijų vertimas

...............................................................................

LATVIEŠU - Instrukciju tulkojums no oriģināl valodas

...................................................................

МАКЕДОНСКИ - Превод на оригиналните упатства

...............................................................

NEDERLANDS - Vertaling van de oorspronkelijke gebruiksaanwijzing

....................................................

NORSK - Oversettelse av den originale bruksanvisningen

...........................................................

POLSKI - Tłumaczenie instrukcji oryginalnej

.................................................................................

PORTUGUÊS - Tradução do manual original

...............................................................................

ROMÂN - Traducerea manualului fabricantului

.............................................................................

РУССКИЙ - Перевод оригинальных инструкций

......................................................................

SLOVENSKY - Preklad pôvodného návodu na použitie

...............................................................

SLOVENŠČINA - Prevod izvirnih navodil

......................................................................................

SRPSKI - Prevod originalnih uputstva

...........................................................................................

SVENSKA - Översättning av bruksanvisning i original

..................................................................

TÜRKÇE - Orijinal Talimatların Tercümesi ....................................................................................

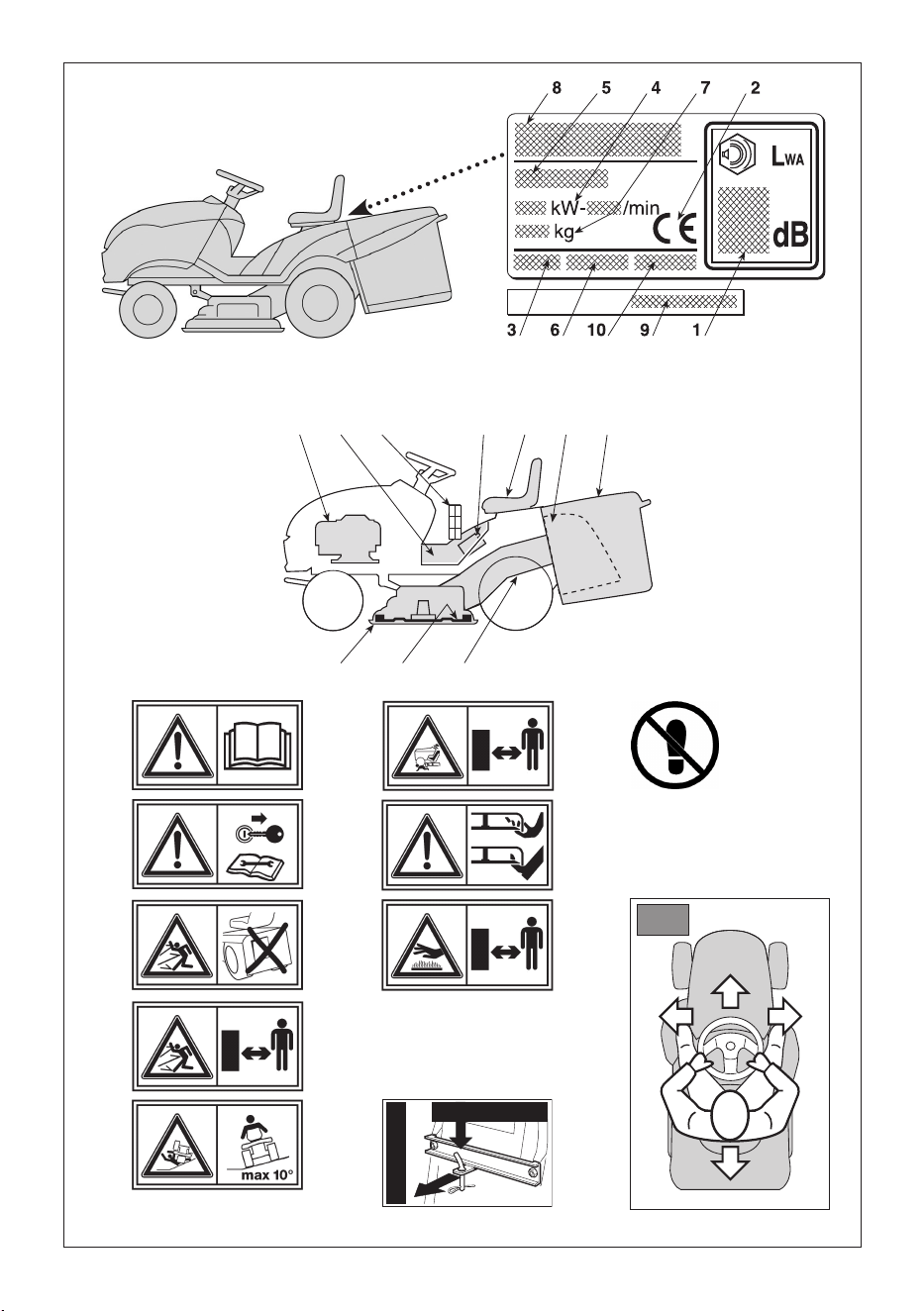

Tr ansmission

16 20 17 18 15 14

11 12 13

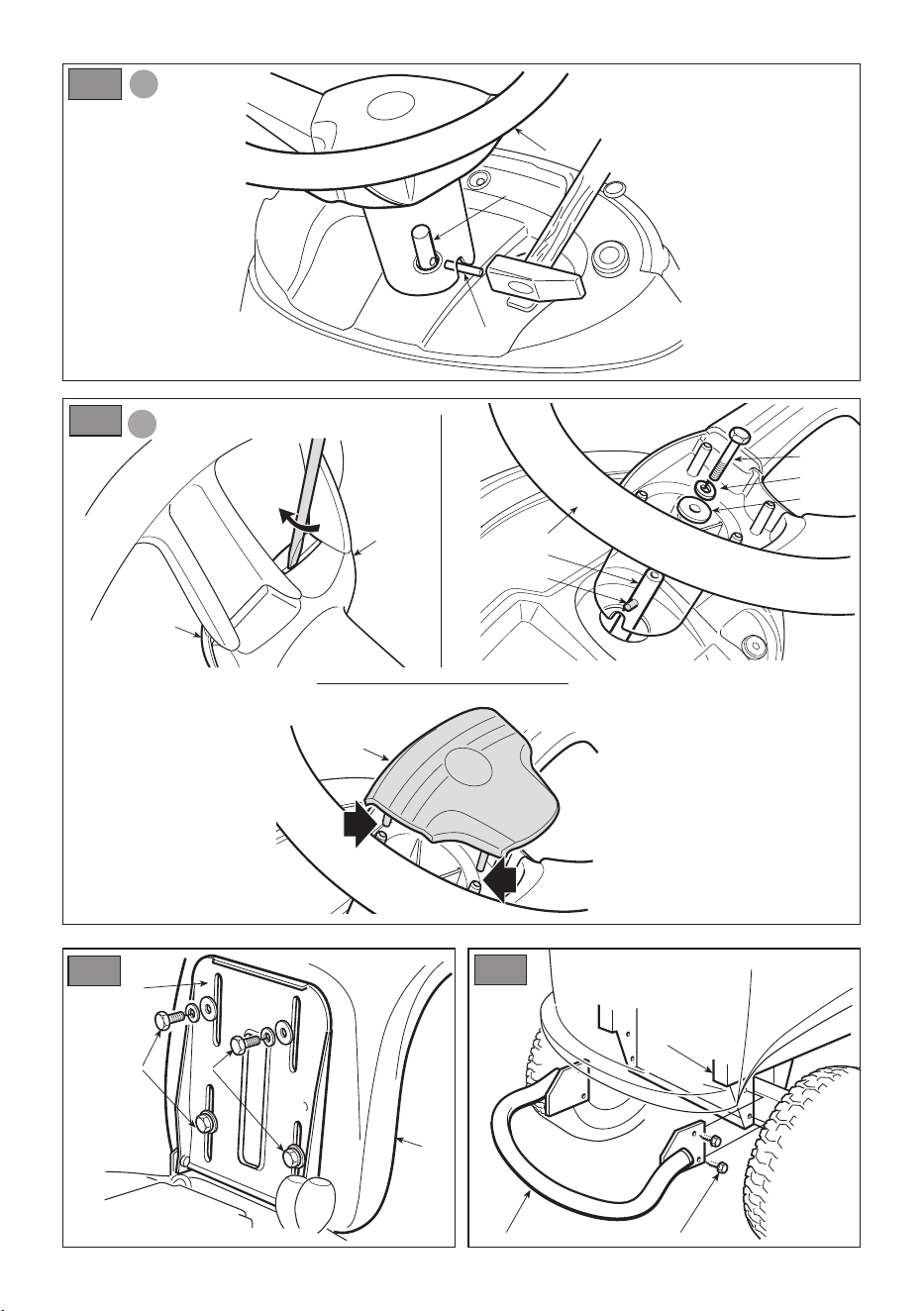

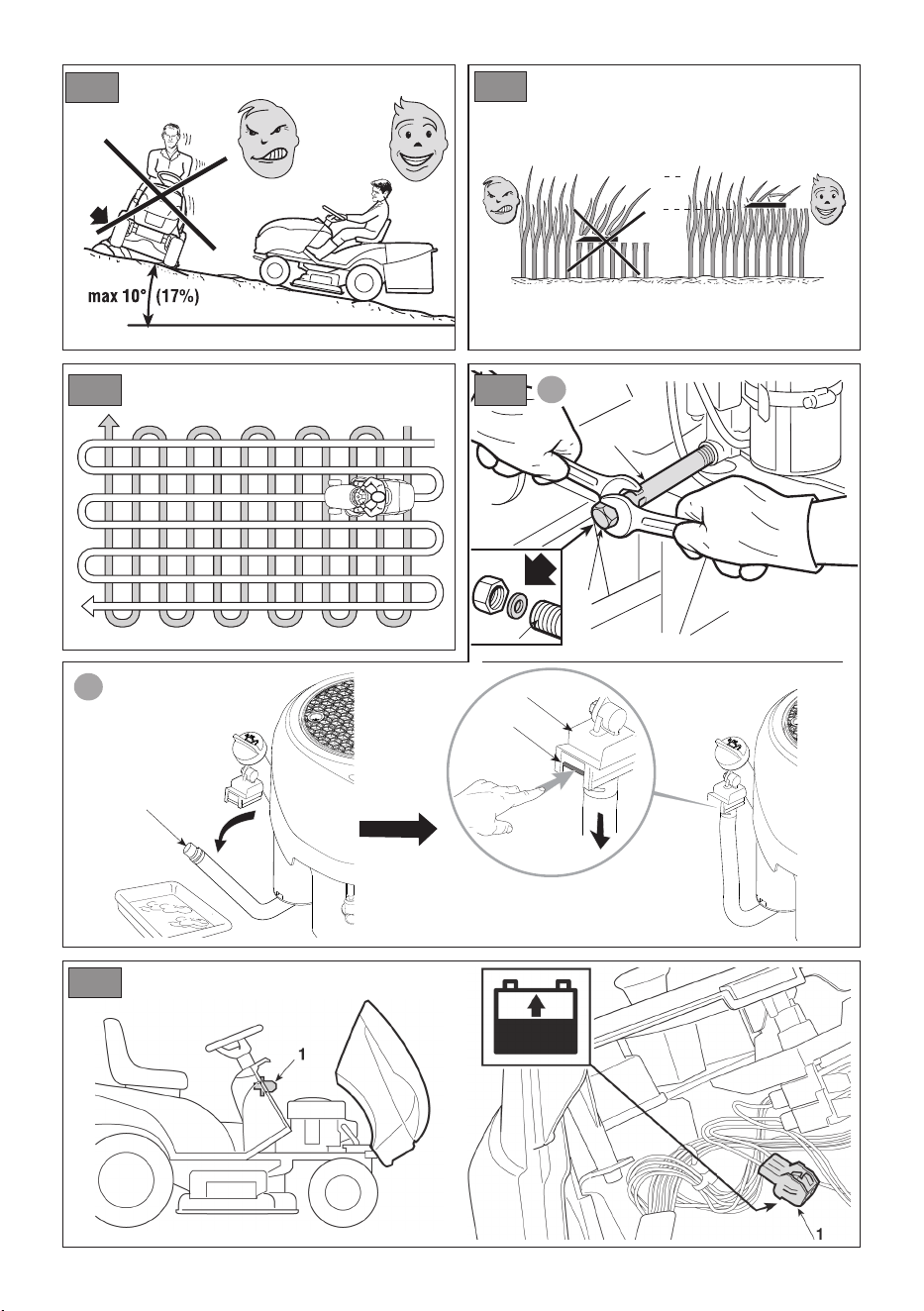

1.1

max 245 N (25 kg)

max 980 N (100 kg)

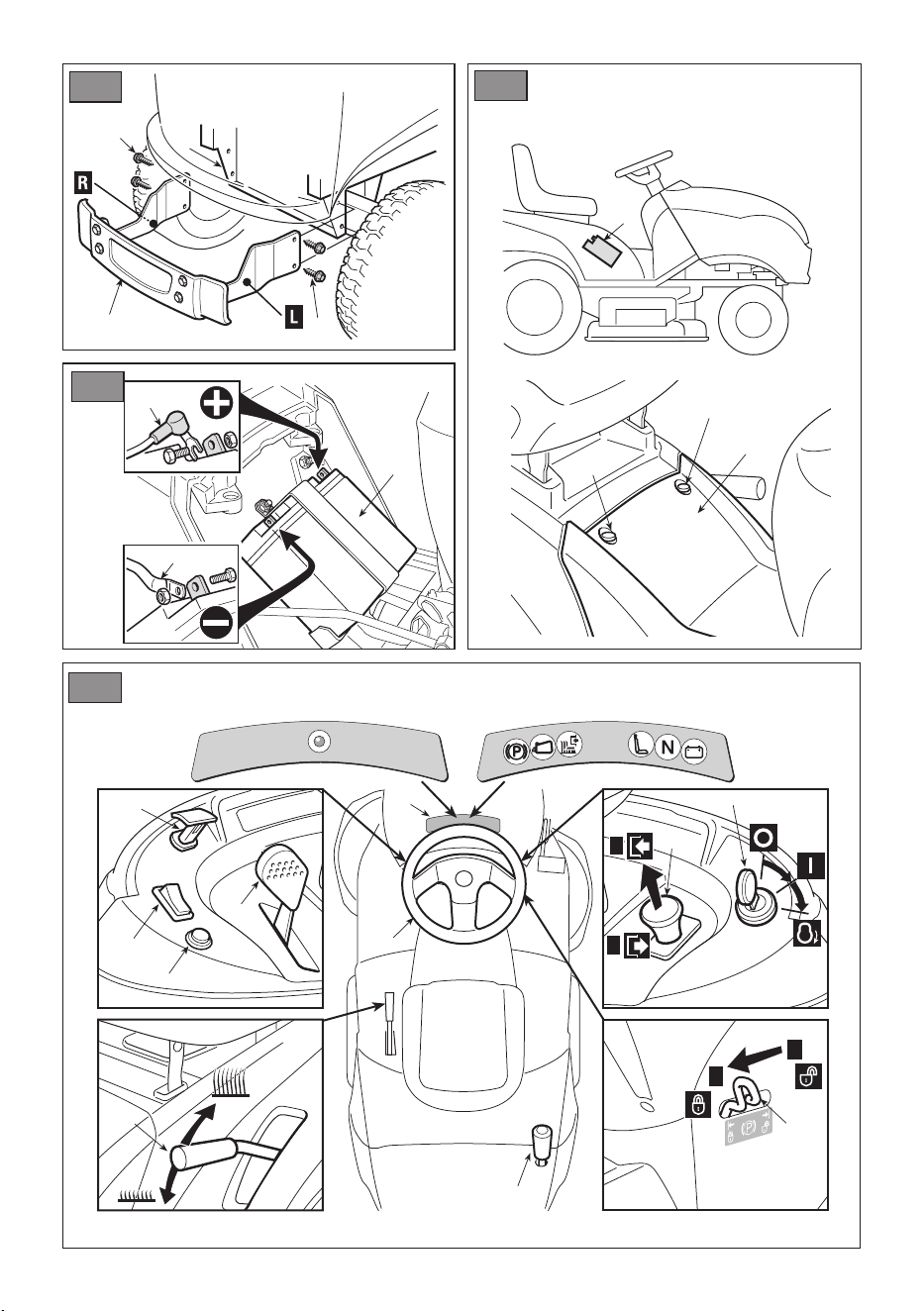

3.1

3.2

3 3

1 3

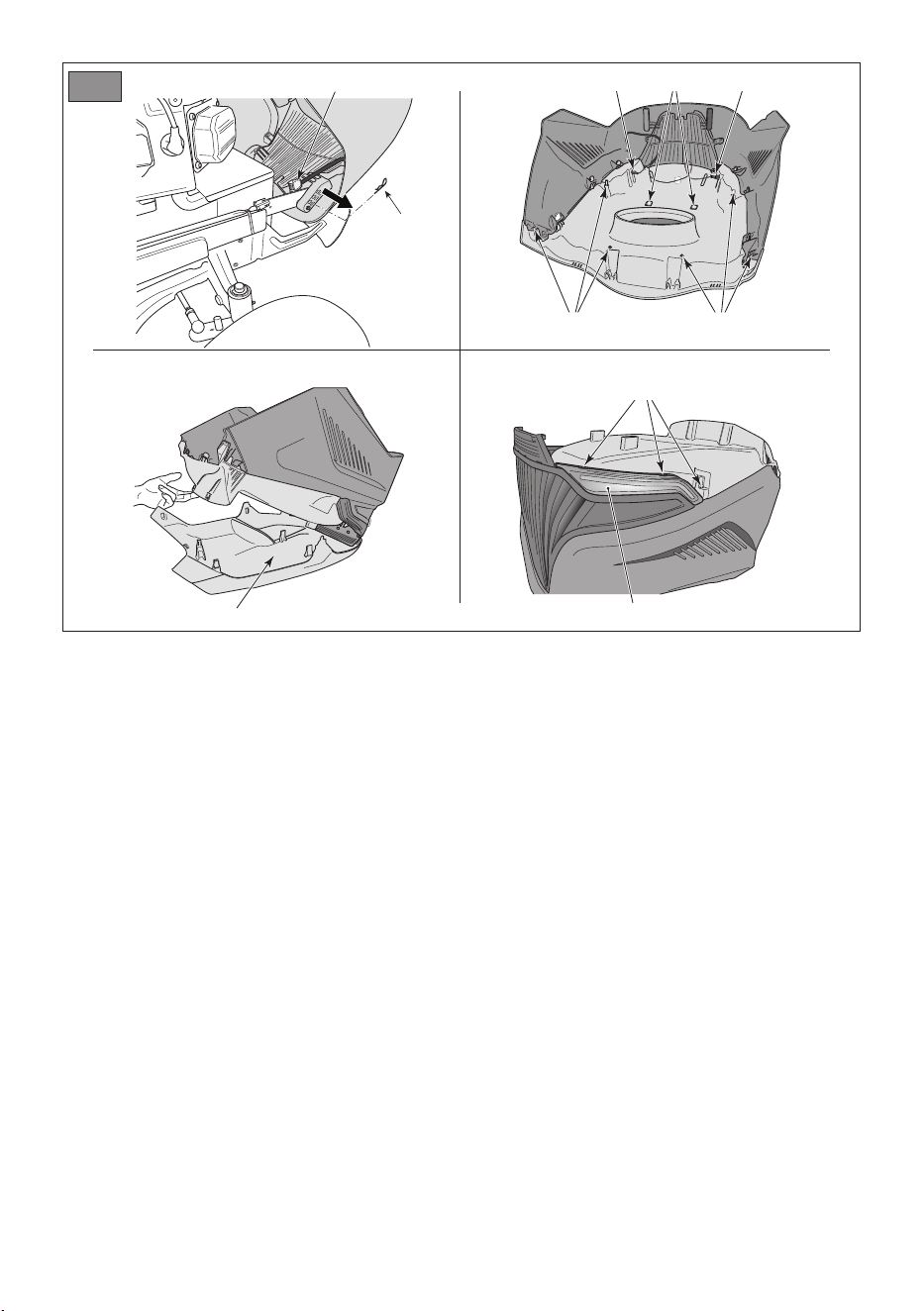

3.4

3.3







3.6

3.5

3.7



































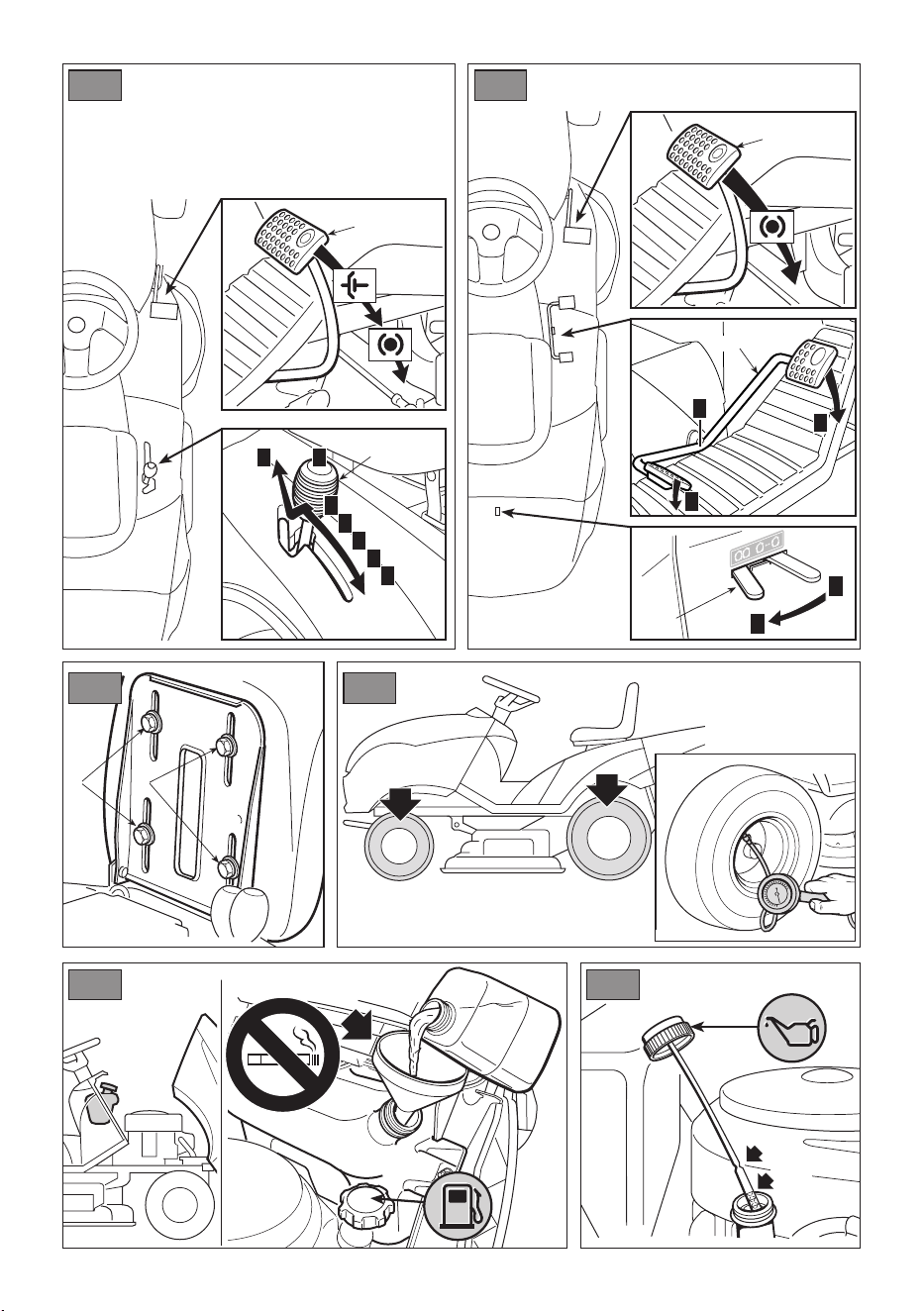

4.1





4.2







4.3

1 1

5.1 5.2

MAX

MIN

5.3 5.4

A = 30 mm

A = 10 mm

A = 20 mm

A = 0 mm

5.5

5.7

5.8

5.6

 

2 3 1

5.9

5.12 5.13

5.10 5.11

1/3

5.15

5.14

5.16

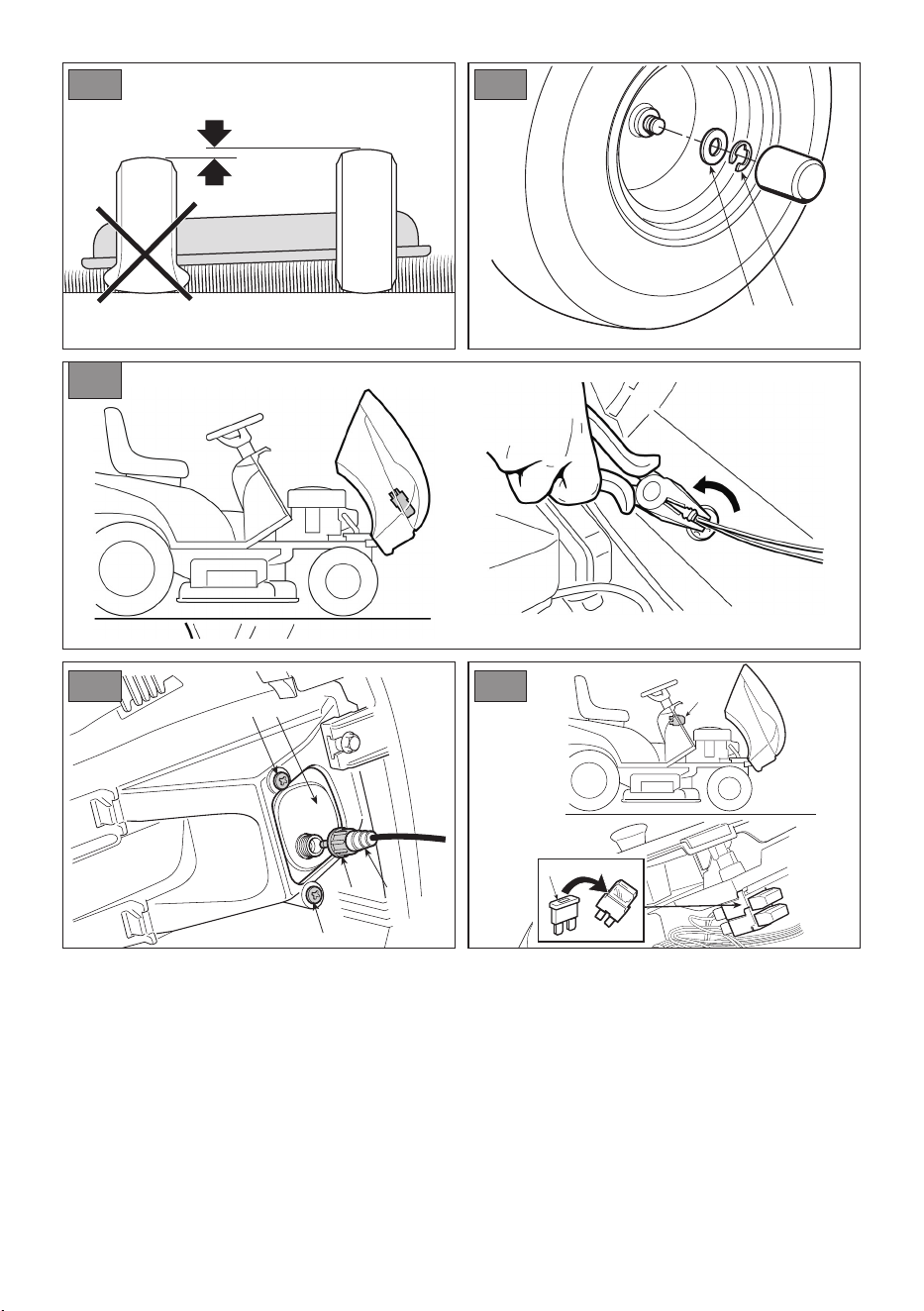

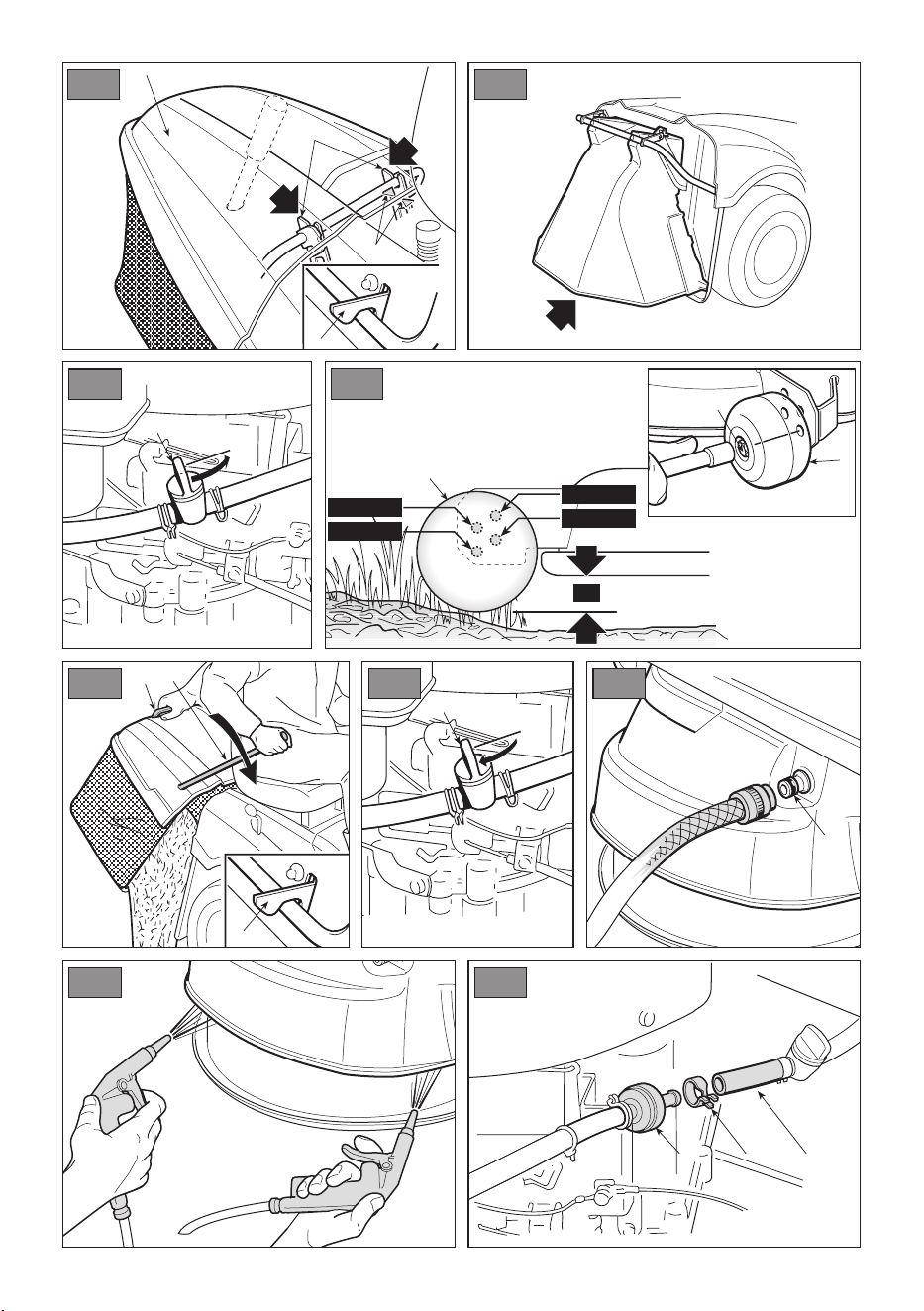

6.2

6.1

6.5

 



 

6.6 6.8

2 1

6.3 6.4

4 4

33 5

6.7

8.1

�1� DATI TECNICI NJ 92 Series NJ 102 Series

�2� Potenza nominale * kW 5,4 ÷ 11,2 5,8 ÷ 10,3

�3� Giri al minuto * min

-1

2500 ± 100 ÷

2700 ± 100

2300 ± 100 ÷

2700 ± 100

�4� Impianto elettrico V 12 12

�5� Pneumatici anteriori 15 x 5,00-6 15 x 5,00-6

�6� Pneumatici posteriori 18 x 8,50-8 18 x 8,50-8

�7� Pressione gonaggio anteriore bar 1,0 1,0

�8� Pressione gonaggio posteriore bar 1,2 1,2

�9� Massa * kg 184 - 225 185 - 240

�10� Raggio minimo di erba non tagliata cm 80 87,5

�11� Altezza di taglio cm 3 - 8 3 - 8

�12� Larghezza di taglio cm 91 101

�13�

Trasmissione meccanica

Velocità di avanzamento (indicativa)

a 3000 min

-1

km/h 2,2 - 9,7 2,2 - 9,7

�14�

Trasmissione idrostatica

Velocità di avanzamento (indicativa)

a 3000 min

-1

km/h 0 - 8,8 0 - 8,8

�15�

Limite di velocità con catene da neve

(se accessorio previsto)

km/h 9,7 9,7

�16� Lunghezza mm

�17�

Lunghezza con sacco

(Lunghezza senza sacco)

mm 2379 ÷ 2491 (1795) 2379 ÷ 2491 (1795)

�18� Larghezza mm 959 1050

�19� Altezza mm 1113 1143

�20� Codice dispositivo di taglio

82004345/1-82004344/1

82004354/0-82004353/0

82004341/1-82004340/1

82004348/0-82004347/0

�21� Capacità del serbatoio carburante l 4,5 ÷ 5,5 5,5

�22�

Limite di carico per dispostivo di traino

(Forza verticale massima)

N (kg) 245 (25) 245 (25)

�23�

Limite di carico per dispostivo di traino

(Peso massimo rimorchiabile)

N (kg) 980 (100) 980 (100)

�24� Inclinazione massima consentita 10° (17%) 10° (17%)

�25�

�26�

Livello di pressione acustica

Incertezza di misura

dB(A)

1,1

1,85

�27�

�26�

Livello di potenza acustica misurato

Incertezza di misura

dB(A)

100

0,35

100

0,71

�28� Livello di potenza acustica garantito dB(A) 100 100

�29�

�26�

Livello di vibrazioni al posto di guida

Incertezza di misura

m/s

0,98

1,1

0,53

�30�

�26�

Livello di vibrazioni al volante

Incertezza di misura

m/s

1,28

3,7

0,99

* Per il dato specico, fare riferimento a quanto indicato nell’etichetta di identicazione della macchina.

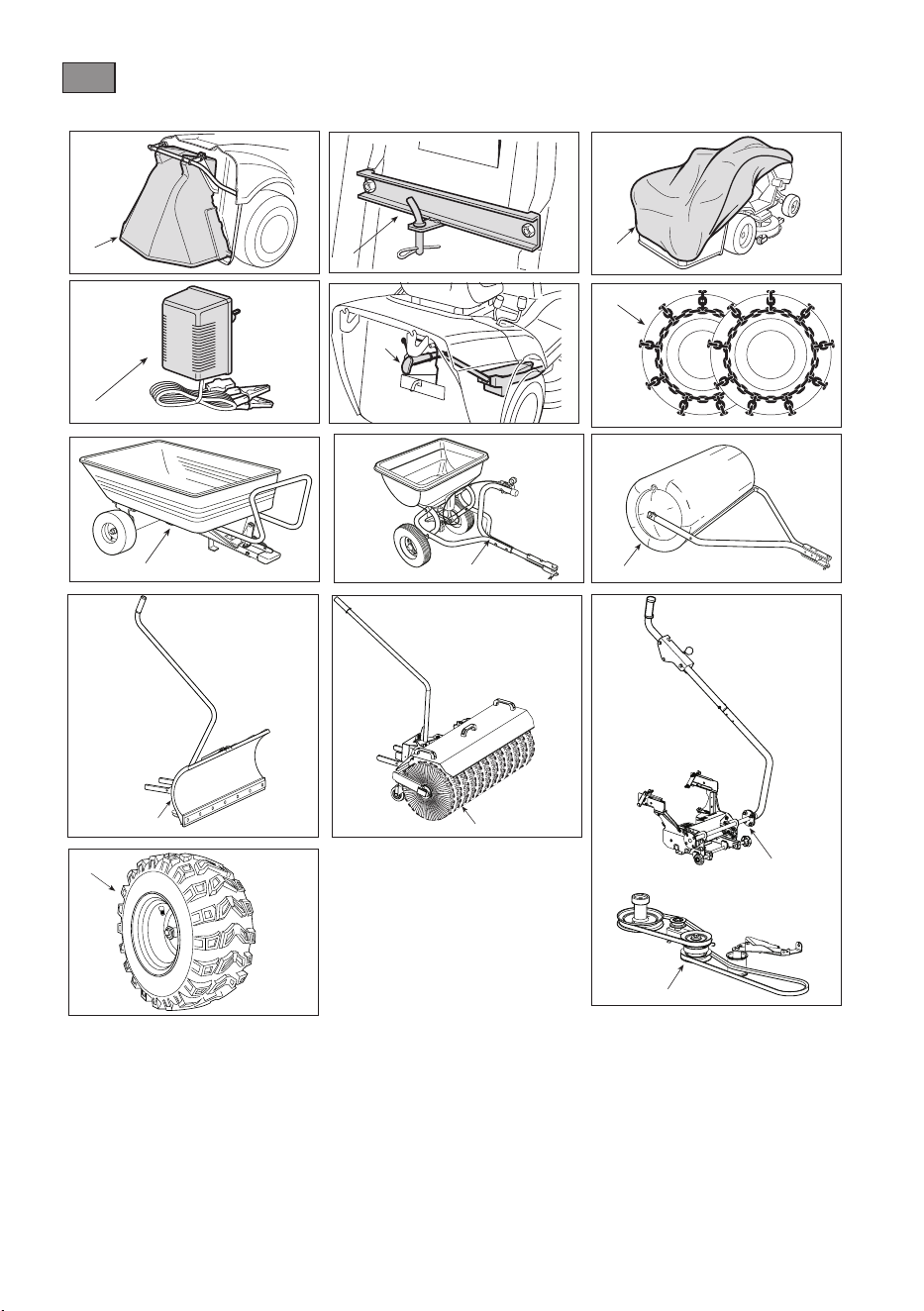

�32� ACCESSORI A RICHIESTA NJ 92 Series NJ 102 Series

�33� Kit di protezione scarico posteriore

 

�34� Kit traino

 

�35� Telo di copertura

 

�36� Carica batteria di mantenimento

 

�37� Kit “mulching”

 

�38� Catene da neve (18”)



�39� Rimorchio 45-03453-997 45-03453-997

�40� Spargitore 45-03153-997 45-03153-997

�41� Rullo per erba

45-0267

45-02681

45-0267

45-02681

�42� Spalaneve a lama

ST-1401

SNB 1502

ST-1401

SNB 1502

�43� Ruote da fango/neve (18”)

 

�44� Spazzatrice frontale

SWR 1401 (+ KIT 1503)

�45� Interfaccia di sollevamento KIT 1503 KIT 1503

�46� Presa di potenza (PTO) KIT 1503 KIT 1503

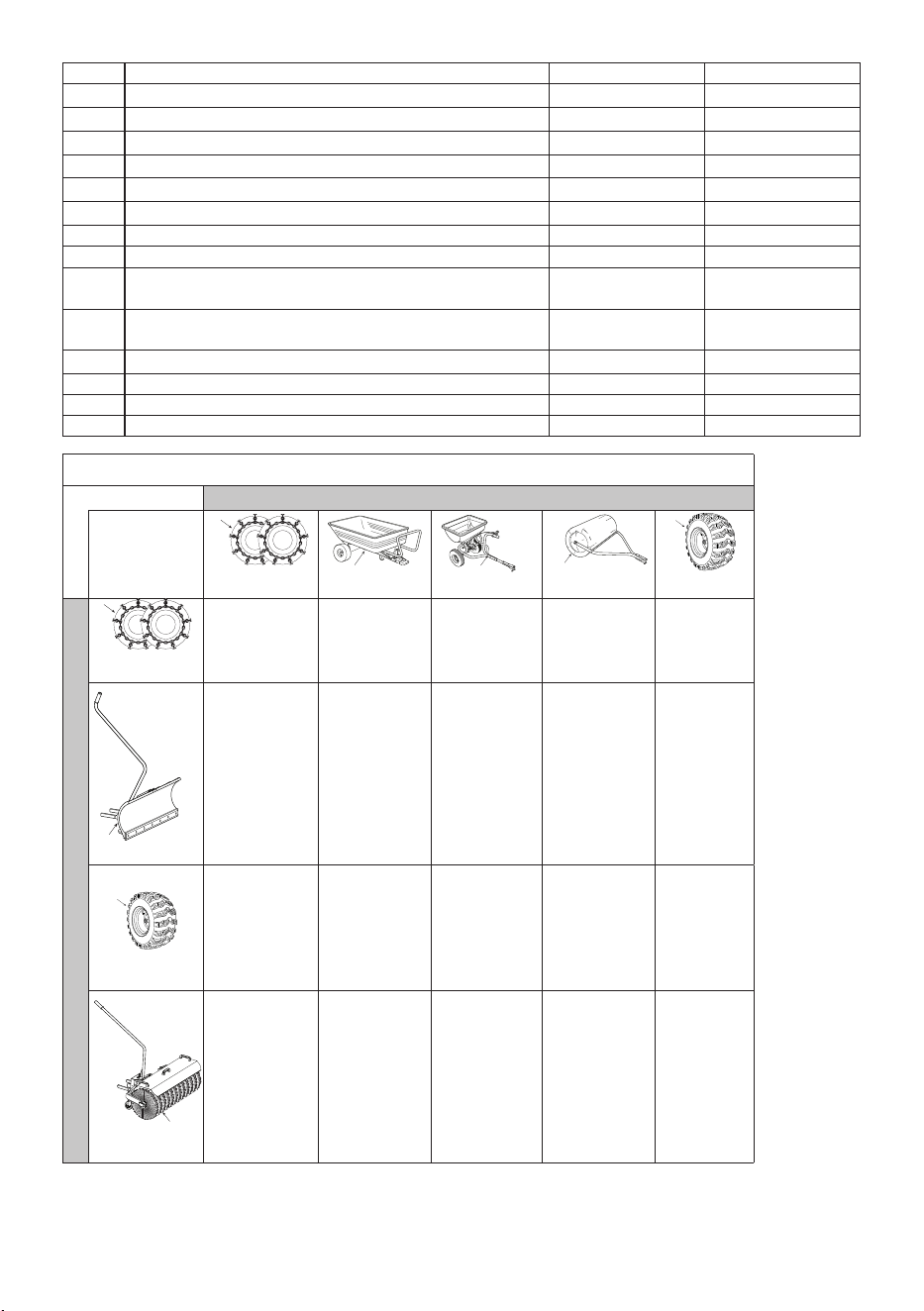

�47� TABELLA PER LA CORRETTA COMBINAZIONE DEGLI ACCESSORI

�48� ACCESSORI POSTERIORI

�38�

�39�

�40� �41� �43�

�49� ACCESSORI FRONTALI

�38�

 

- -

�42�



�43�

 

- -

�44�



[1] BG - ТЕХНИЧЕСКИ ДАННИ

[2] Номинална мощност *

[3] Обороти в минута (*)

[4] Електрическа система

[5] Предни гуми

[6] Задни гуми

[7] Налягане предно напомпване

[8] Налягане задно напомпване

[9] Маса (*)

[10] Минимален радиус на

неподрязана трева

[11] Височина на косене

[12] Ширина на косене

[13]

Механична трансмисия - Скорост на

напредване (индикативна) - 3000 min

-1

[14] Хидростатична трансмисия

- Скорост на напредване

(индикативна) - 3000 min

-1

[15]

Граница на скоростта с верига за сняг

(ако тази принадлежност е

предвидена)

[16] Размери

[17] Дължина с торбата за събиране

на трева (дължина без торбата

за събиране на трева)

[18] Ширина

[19] Височина

[20] Код на инструмента за рязане

[21]

Вместимост на резервоара за гориво

[22] Ограничение на товара

за теглещото устройство

(максимална вертикална сила)

[23] Ограничение на товара

за теглещото устройство

(максимално тегло за теглене)

[24] Максимално допустим наклон

[25] Ниво на звуково налягане

[26] Несигурност на измерване

[27] Измерено ниво на акустична

мощност

[28] Гарантирано ниво на акустична

мощност

[29] Ниво на вибрации в мястото за

управление

[30] Ниво на вибрации на волана

[32] принадлежности по поръчка

[33] Набор защита на задно

разтоварване

[34] Набор за теглене

[35] Покривен брезент

[36] Зарядно устройство за

поддържане

[37] Hабор за “mulching”

[38] Вериги за сняг 18”

[39] Ремарке

[40] Приспособление за разсейване

на пясък или чакъл

[41] Ролка за трева

[42] Снегорин с острие

[43] Колела за кал / сняг

[44] Метачна машина с фронтално

почистване

[45] Интерфейс за повдигане

[46]

Вал за отвеждане на мощност (вом)

[47]

Таблица за правилното комбиниране

на принадлежностите

[48] задни принадлежности

[49] челни принадлежности

* За специфични данни, вижте

посоченото на идентификационния

етикет на машината

[1] BS - TEHNIČKI PODACI

[2] Nazivna snaga (*)

[3] Obrtaji u minuti (*)

[4] Električna instalacija

[5] Prednje gume

[6] Zadnje gume

[7] Pritisak vazduha u prednjim

gumama

[8] Pritisak vazduha u zadnjim

gumama

[9] Masa (*)

[10] Minimalan radijus nepokošene

trave

[11] Visina košenja

[12] Širina košenja

[13] Mehanički prijenos Brzina kretanja

(orijentaciono) na 3000 min

-1

[14]

Hidrostatički prijenos

Brzina kretanja (orijentaciono) na 3000 min

-1

[15]

Ograničenje brzine s lancima za snijeg

(ako su oni predviđena dodatna

oprema)

[16] Dimenzije

[17] Dužina s vrećom (dužina bez vreće)

[18] Širina

[19] Visina

[20] Šifra rezne glave

[21] Kapacitet spremnika goriva

[22] Granica nosivosti uređaja za vuču

(maksimalna vertikalna sila)

[23]

Granica nosivosti uređaja za vuču

(maksimalna težina koja se smije vući)

[24] Maksimalni dozvoljen nagib

[25] Razina zvučnog pritiska

[26] Mjerna nesigurnost

[27] Izmjerena razina zvučne snage

[28] Garantirana razina zvučne snage

[29] Razina vibracija na mjestu vozača

[30] Razina vibracija na volanu

[32] Dodatna oprema na zahtjev

[33] Komplet štitnika za izbacivanje

odotraga

[34] Komplet za vuču

[35] Pokrovna cerada

[36] Punjač akumulatora za održavanje

[37] Komplet za malčiranje

[38] Lanci za snijeg 18”

[39] Prikolica

[40] Rasipač

[41] Valjak za travu

[42] Plug za snijeg s nožem

[43] Točkovi za blato / snijeg

[44] Frontalni čistač

[45] Priključni mehanizam za dizanje

[46] Priključno vratilo (pto)

[47] Tablica za pravilno kombinovanje

dodatne opreme

[48] Zadnja dodatne oprema

[49] Prednja dodatne oprema

* Za specični podatak, pogledajte

što je navedeno na identikacijskoj

naljepnici mašine

[1]

CS - TECHNICKÉ PARAMETRY

[2] Jmenovitý výkon (*)

[3] Otáčky za minutu (*)

[4] Elektroinstalace

[5] Přední pneumatiky

[6] Zadní pneumatiky

[7] Tlak huštění předních pneu-

matik

[8] Tlak huštění zadních pneu-

matik

[9] Hmotnost (*)

[10] Minimální poloměr

neposečené trávy

[11] Výška sekání

[12] Šířka sekání

[13] Mechanická převodovka

Rychlost pojezdu (přibližná) při

3000 min

-1

[14] Hydrostatická převodovka

Rychlost pojezdu (přibližná) při

3000 min

-1

[15] Mezní rychlost se sněhovými

řetězy

(pokud se jedná o určené

příslušenství)

[ 1 6 ] R o z m ě r y

[17]

Délka s košem (Délka bez koše)

[ 1 8 ] Š í ř k a

[ 1 9 ] V ý š k a

[20] Kód sekacího zařízení

[21] Kapacita palivové nádržky

[22] Mezní zatížení tažného zařízení

(max. svislá síla)

[23] Mezní zatížení tažného zařízení

(max. tažená hmotnost)

[24] Maximální povolené naklonění

[25] Úroveň akustického tlaku

[26] Nepřesnost měření

[27] Úroveň naměřeného aku-

stického výkonu

[28] Úroveň zaručeného aku-

stického výkonu

[29] Úroveň vibrací na místě řidiče

[30] Úroveň vibraci na volantu

[32] Příslušenství na požádaní

[33] Sada ochranného krytu

zadního výhozu

[34] Sada tažného zařízení

[35] Krycí plachta

[36]

Udržovací nabíječka akumulátoru

[37] Sada pro mulčování

[38] Sněhové řetězy 18”

[39] Přívěs

[40] Posypávač

[41] Válec pro válcování trávy

[42] Sněhová radlice

[43] Kola do bláta / sněhu

[44] Čelní zametač

[45] Zvedací

[46] Vývodový hřídel (pto)

[47] Tabulka pro správnou kombina-

ci příslušenství

[48] Zadní příslušenství

[49] Fřední příslušenství

* Ohledně uvedeného údaje

vycházejte z hodnoty uvedené na

identikačním štítku stroje.

[1] DA - TEKNISKE DATA

[2] Nominel eekt (*)

[3] Omdrejninger pr. minut (*)

[4] Elektrisk anlæg

[5] Forhjulsdæk

[6] Baghulsdæk

[7] Pumpetryk for fordæk

[8] Pumpetryk for bagdæk

[9] Vægt (*)

[10] IMinimumsradius af ikke klippet

græs

[11] Klippehøjde

[12] Klippebredde

[13] Mekanisk transmission

Fremdriftshastighed (vejleden-

de) ved 3000 min

-1

[14] Hydrostatisk transmission

Fremdriftshastighed (vejleden-

de) ved 3000 min

-1

[15] Fartgrænse med snekæder

(hvis tilbehøret er forudset)

[16] Mål

[17] Længde med opsamlingspo-

(længde uden pose)

[18] Bredde

[19] Højde

[20] Skæreanordningens varenr.

[21] Brændstofstankens kapacitet

[22]

Belastningsgrænse for træka-

nordning (maksimal, vertikal eekt)

[23]

Belastningsgrænse for træka-

nordning (maksimal anhængervægt)

[24] Maksimal tilladt hældning

[ 2 5 ] L y d t r y k s n i v e a u

[26] Måleusikkerhed

[27] Målt lydeektniveau

[28] Garanteret lydeektniveau

[29] Vibrationsniveau på fører-

sædet

[30] Vibrationsniveau ved rattet

[32] Ekstraudstyr

[33] Sæt til beskyttelse på ba-

gudkast

[34] Sæt til bugsering

[35] Presenning

[36] Udligningsbatterilader

[37] Sæt til “mulching”

[38] Snekæder 18”

[39] Anhænger

[40] Fordeler

[41] Græsvalse

[42] Sneplov med kniv

[43] Mudder- og snehjul

[44] Forreste fejemaskine

[45] Hævningsgrænseade

[46] Kraftudtag (pto)

[47] Tabel over udstyrets korrekte

kombination

[48] Bagmonteret tilbehør

[49] Formonteret tilbehør

* For disse data henvises til hvad

der er angivet på maskinens

identikationsmærkat.

[1] DE - TECHNISCHE DATEN

[2] Nennleistung (*)

[3] Umdrehungen pro Minute (*)

[4] Elektrische Anlage

[5] Reifen Vorderräder

[6] Reifen Hinterräder

[7] Reifendruck vorne

[8] Reifendruck hinten

[9] Gewicht (*)

[10]

Mindestradius nicht geschnitte-

nes Gras

[11] Schnitthöhe

[12] Schnittbreite

[13] Mechanischer Antrieb -

Vorschubgeschwindigkeit

(Richtwert) bei 3000 min

-1

[14] Hydrostatischer Antrieb -

Vorschubgeschwindigkeit

(Richtwert) bei 3000 min

-1

[15] Geschwindigkeitsgrenze mit

Schneeketten

(falls als Zubehör vorgesehen)

[16] Abmessungen

[17]

Länge mit Grasfangeinrichtung

(Länge ohne Grasfangeinrichtung)

[18] Breite

[19] Höhe

[20] Code Schneidwerkzeug

[21] Inhalt des Kraftstotanks

[22] Lastgrenze für Zugvorrichtung

(max. senkrechte Kraft)

[23] Lastgrenze für Zugvorrichtung

(max. Zuggewicht)

[24] Max. zulässige Neigung

[25] Schalldruckpegel

[26] Messungenauigkeit

[27]

Gemessener Schallleistungspegel

[28]

Garantierter Schallleistungspegel

[29] Vibrationspegel am Fahrersitz

[30] Vibrationspegel am Lenkrad

[32] Sonderzubehör

[33] Kit hinterer auswurfschutz

[34] Zugvorrichtung

[35] Abdeckung

[36] Batterieladegerät

[37] “Mulching”-kit

[38] Schneeketten 18”

[39] Anhänger

[40] Streuer

[41] Rasenwalze

[42] Schneepug

[43] M+S-Räder (Matsch- und

Schneeräder)

[44] Frontkehrer

[45] Anbaugerätehalter für

hubgeräte

[46] Zapfwelle (pto)

[47] übersicht für die korrekte

zubehörkombination

[48] Heckseitiges zubehör

[49] Frontseitiges zubehör

* Für die genaue Angabe nehmen

Sie bitte auf das Typenschild der

Maschine Bezug.

EL - ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

[2] Ονομαστική ισχύς (*)

[3] Στροφές ανά λεπτό (*)

[4] Ηλεκτρικό σύστημα

[5] Εμπρόσθια ελαστικά

[6] Πίσω ελαστικά

[7] Πίεση εμπρόσθιων ελαστικών

[8] Πίεση πίσω ελαστικών

[9] Βάρος (*)

[10] Ελάχιστη ακτίνα μη κομμένου

χόρτου

[11] Ύψος κοπής

[12] Πλάτος κοπής

[13] Μηχανικό σύστημα μετάδοσης

Ταχύτητα κίνησης (ενδεικτική)

στις 3000 σ.α.λ.

[14]

Υδροστατικό σύστημα μετάδοσης

Ταχύτητα κίνησης (ενδεικτική)

στις 3000 σ.α.λ.

[15]

Όριο ταχύτητας με αλυσίδες

χιονιού (αν προβλέπεται ως αξεσουάρ)

[16] Διαστάσεις

[17] Μήκος με κάδο (μήκος χωρίς

κάδο)

[18] Πλάτος

[19] Ύψος

[20] Κωδικός συστήματος κοπής

[21]

Χωρητικότητα του ντεπόζιτου καυσίμου

[22]

Όριο φορτίου για το σύστημα

ρυμούλκησης (μέγιστη κάθετη δύναμη)

[23]

Όριο φορτίου για το σύστημα

ρυμούλκησης (μέγιστη ρυμουλκούμενο

βάρος)

[24] Μέγιστη επιτρεπόμενη γωνία

[25] Στάθμη ακουστικής πίεσης

[26] Αβεβαιότητα μέτρησης

[27] Μετρημένη στάθμη

ακουστικής ισχύος

[28] Εγγυημένη στάθμη

ακουστικής ισχύος

[29] Επίπεδο κραδασμών στη θέση

του οδηγού

[30] Επίπεδο κραδασμών στο

τιμόνι

[32] αιτουμενα παρελκομενα

[37] Σετ “mulching”

[36]

Φορτιστής συντήρησης μπαταρίας

[34] Σετ ρυμουλκησης

[35] Κάλυμμα προστασίας

[33]

Σετ προστασιας οπισθιας αποβολης

[38] Αλυσιδες χιονιου 18”

[43] Τροχοί για λάσπη / χιόνι

[39] Ρυμουλκουμενο

[40] Διανομεας

[41] Κυλινδρος για χλοη

[42] Εκχιονιστικό με λάμα

[44] Μετωπικο σαρωθρο

[45] Συστημα ανυψωσης

[46] Παρτικοφ (pto)

[47]

σωστος πινακας για το σωστο

συνδυασμο των παρελκομενων

[48] οπισθια παρελκομενα

[49] εμπροσθια παρελκομενα

* Για το συγκεκριμένο στοιχείο,

ελέγξτε τα όσα αναγράφονται

στην ετικέτα προσδιορισμού του

μηχανήματος

[1] EN - TECHNICAL DATA

[2] Nominal power (*)

[3] RPM (*)

[4] Electrical system

[5] Front tyres

[6] Rear tyres

[7] Front tyre pressure

[8] Rear tyre pressure

[9] Mass (*)

[10] Minimum radius of uncut grass

[11] Cutting height

[12] Cutting width

[13] Mechanical transmission

Forward speed (approximate)

at 3000 min

-1

[14] Hydrostatic transmission

Forward speed (approximate)

at 3000 min

-1

[15] Speed limit with snow chains (if

available)

[16] Dimensions

[17] Length with grass catcher

(length without grass catcher)

[18] Width

[19] Height

[20] Cutting means code

[21] Fuel tank capacity

[22] Admissible load on towing devi-

ce (maximum vertical weight)

[23] Admissible load for towing devi-

ce (maximum towing weight)

[24] Maximum admissible tilt

[25] Acoustic pressure level

[26] Measurement uncertainty

[27] Measured acoustic power level

[28]

Guaranteed acoustic power level

[29] Operator position vibration level

[30] Steering wheel vibration level

[32]

Accessories available on request

[33] Rear discharge guard kit

[34] Towing kit

[35] Cloth cover

[36] Maintenance battery charger

[37] “Mulching” kit

[38] Snow chains 18”

[39] Trailer

[40] Sprinkler

[41] Lawn roller

[42] Snow shovel

[43] Mud / Snow wheels

[44] Front sweeper

[45] Lifting interface

[46] Power take o (pto)

[47] Table for correct accessory

combinations

[48] Rear accessories

[49] Front accessories

* Please refer to the data indicated

on the machine’s identication

plate for the exact gure.

[1] ES - DATOS TÉCNICOS

[2] Potencia nominal (*)

[3] Revoluciones por minuto (*)

[4] Instalación eléctrica

[5] Neumáticos anteriores

[6] Neumáticos posteriores

[7] Presión neumático anterior

[8] Presión neumático posterior

[9] Masa (*)

[10] Radio mínimo de hierba no

cortada

[11] Altura de corte

[12] Anchura de corte

[13] Transmisión mecánica

Velocidad de avance (indicati-

va) a 3000 min

-1

[14] Transmisión hidrostática

Velocidad de avance (indicati-

va) a 3000 min

-1

[15] Límite de velocidad con cade-

nas de nieve

(si estuviera previsto el acce-

sorio)

[16] Dimensiones

[17] Longitud con bolsa (longitud

sin bolsa)

[18] Anchura

[19] Altura

[20] Código dispositivo de corte

[21]

Capacidad del depósito carburante

[22] Límite de carga para dispositivo

de remolque (fuerza vertical

máxima)

[23] Límite de carga para dispositivo

de remolque (peso máximo de

remolque)

[24] Inclinación máxima permitida

[25] Nivel de presión acústica

[26] Incertidumbre de medida

[27] Nivel de potencia acústica

medido

[28] Nivel de potencia acústica

garantizado

[29] Nivel de vibraciones en el

puesto de conductor

[30] Nivel de vibraciones al volante

[32] Accesorios bajo pedido

[33] Kit sistema de seguridad de

descarga posterior

[34] Kit remolque

[35] Lona de cubierta

[36] Cargador de bateria de mante-

nimiento

[37] Kit para “mulching”

[38] Cadenas de nieve 18”

[39] Remolque

[40] Esparcidor

[41] Rodillo para hierba

[42] Quitanieves de cuchilla

[43] Ruedas para fango y nieve

[44] Barredora frontal

[45] Interfaz de elevación

[46] Agarre de potencia (pto)

[47]

Tabla para combinar accesorios

[48] Accesorios traseros

[49] Aaccesorios frontales

* Para el dato especíco, hacer

referencia a lo indicado en la

etiqueta de identicación de la

máquina.

[1] ET - TEHNILISED ANDMED

[2] Nominaalvõimsus (*)

[3] Pöörded minutis (*)

[4] Elektrisüsteem

[5] Eesmised rehvid

[6] Tagumised rehvid

[7] Pumpamise rõhk ees

[8] Pumpamise rõhk taga

[9] Mass (*)

[10] Lõikamata rohu minimaalne

raadius

[11] Lõikekõrgus

[12] Lõikelaius

[13] Mehaaniline jõuülekanne

Edasiliikumise kiirus (ligi-

kaudne) 3000 min

-1

[14] Hüdrostaatiline jõuülekanne

Edasiliikumise kiirus (ligi-

kaudne) 3000 min

-1

[15] Kiiruspiirang lumekettidega

(kui on ettenähtud lisaseade)

[16] Mõõtmed

[17] Pikkus korviga (pikkus ilma

korvita)

[18] Laius

[19] Kõrgus

[20] Lõikeseadme kood

[21] Kütusepaagi maht

[22] Veoseadme suurim koormus

(suurim vertikaalne koormus)

[23] Veoseadme suurim koormus

(suurim veetav mass)

[24] Suurim lubatud kalle

[25] Helirõhu tase

[26] Mõõtemääramatus

[27] Mõõdetud müravõimsuse tase

[28] Garanteeritud müravõimsuse

tase

[29] Vibratsioonitase juhiistmel

[30] Vibratsioonide tase roolis

[32] Tellimusel lisatarvikud

[33] Tagumise väljaviske kaitse

komplekt

[34] Järelhaagise vedamise

komplekt

[35] Katteriie

[36] Hooldus akulaadija

[37] „Multsimis“ komplektt

[38] Lumeketid 18”

[39] Järelhaagis

[40] Puistur

[41] Mururull

[42] Teraga lumesahk

[43] Lume- ja mudarattad

[44] Eesmine pühkimismasin

[45] Tõstmise liides

[46] Jõuvõtuvõll (pto)

[47] Tarvikute õige kombineerimise

tabel

[48] Tagumised tarvikud

[49] Eesmised tarvikud

* Konkreetse info jaoks viidata

masina identitseerimisetiketil

märgitule

[1] FI - TEKNISET TIEDOT

[2] Nimellisteho (*)

[3] Kierrosta minuutissa (*)

[4] Sähkölaitteisto

[5] Eturenkaat

[6] Takarenkaat

[7] Eturenkaiden täyttöpaine

[8] Takarenkaiden täyttöpaine

[9] Massa (*)

[10] Leikkaamattoman ruohon

minimisäde

[11] Leikkuukorkeus

[12] Leikkuuleveys

[13] Mekaaninen voimansiirto

Etenemisnopeus (suuntaa-

antava) 3000 min

-1

[14] Hydrostaattinen voimansiirto

Etenemisnopeus (suuntaa-

antava) 3000 min

-1

[15] Nopeusrajoitus lumiketjuilla

(jos kuuluu lisävarusteisiin)

[16] Mitat

[17] Pituus säkin kanssa (pituus

ilman säkkiä)

[18] Leveys

[19] Korkeus

[20] Leikkuuvälineen koodi

[21] Polttoainesäiliön tilavuus

[22] Vetolaitteen kuormituksen raja-

arvo (enimmäispystyvoima)

[23] Vetolaitteen kuormituksen raja-

arvo (kiinnitettävä enimmäi-

spaino)

[24] Suurin sallittu kaltevuus

[25] Akustisen paineen taso

[26] Mittauksen epävarmuus

[27] Mitattu äänitehotaso

[28] Taattu äänitehotaso

[29] Tärinätaso kuljettajan paikalla

[30] Tärinätaso ohjauspyörässä

[32] Tilattavat lisävarusteet

[33] Takatyhjennyksen suojussarja

[34] hinaussarja

[35] Suojakangas

[36] Ylläpitoakkulaturi

[37] Silppuamisvarusteet

[38] Lumiketjut 18”

[39] Perävaunu

[40] Levitin

[41] Nurmikkojyrä

[42] Lumiaura

[43] Muta-/talvipyörät

[44] Eteen asennettava lakaisukone

[45] Nostoliitos

[46] Voiman ulosotto (pto)

[47] Lisävarusteiden oikeaoppisen

yhdistelyn taulukko

[48] Takavaruste

[49] Etuvaruste

* Määrättyä arvoa varten, viittaa lait-

teen tunnuslaatassa annettuihin

tietoihin.

[1] FR - CARACTÉRISTIQUES

TECHNIQUES

[2] Puissance nominale (*)

[3] Tours par minute (*)

[4] Installation électrique

[5] Pneus avant

[6] Pneus arrière

[7] Pression de gonage avant

[8] Pression de gonage arrière

[9] Masse (*)

[10] Rayon minimal de l’herbe non

taillée

[11] Hauteur de coupe

[12] Largeur de coupe

[13] Transmission mécanique

Vitesse d’avancement (indicati-

ve) à 3000 min

-1

[14] Transmission hydrostatique

Vitesse d’avancement (indicati-

ve) à 3000 min

-1

[15] Limite de vitesse avec chaînes

à neige (si accessoire prévu)

[16] Dimensions

[17] Longueur avec sac (longueur

sans sac)

[18] Largeur

[19] Hauteur

[20] Code organe de coupe

[21]

Capacité du réservoir de carburant

[22] Limite de charge pour dispositif

de remorquage (force verticale

maximale)

[23] Limite de charge pour dispositif

de remorquage (poids maxi-

mum remorquable)

[24] Pente maximale admise

[25] Niveau de pression acoustique

[26] Incertitude de mesure

[27] Niveau de puissance acousti-

que mesuré

[28] Niveau de puissance acousti-

que garanti

[29] Niveau de vibration au poste de

conduite

[30] Niveau de vibration au volant

[32] Accessoires sur demande

[33] Kit protectur d’éjetion arrière

[34] Kit remorquage

[35] Housse de protection

[36] Chargeur de batterie

[37] Kit pour “mulching”

[38] Chaîne à neige 18”

[39] Remorque

[40] Éparpilleur

[41] Rouleau à gazon

[42] Chasse neige à lame

[43]

Roues complètes boue / neige

[44] Balayeuse frontale

[45] Interface de levage

[46] Prise de force (pto)

[47] Tableau pour la correcte combi-

naison des accessoires

[48] Accessoires arrière

[49] Accessoires frontaux

* Pour la valeur spécique, se

référer à ce qui est indiqué sur

la plaque signalétique de la

machine.

[1] HR - TEHNIČKI PODACI

[2] Nazivna snaga (*)

[3] Broj okretaja u minuti (*)

[4] Električni sustav

[5] Prednje gume

[6] Stražnje gume

[7] Tlak zraka u prednjim gumama

[8] Tlak zraka u stražnjim gumama

[9] Masa (*)

[10] Minimalni promjer nepokošene

trave

[11] Visina košnje

[12] Širina košnje

[13] Mehanički prijenos

Brzina napredovanja (indika-

tivno) pri 3.000 min

-1

[14] Hidrostatski prijenos

Brzina napredovanja (indika-

tivno) pri 3.000 min

-1

[15] Ograničenje brzine s lancima

predviđenom dijelu dodatne

opreme)

[16] Dimenzije

[17] Dužina s košarom (dužina bez

košare)

[18] Širina

[19] Visina

[20] Šifra noža

[21] Zapremnina spremnika goriva

[22]

Granica nosivosti uređaja za

vuču (maksimalna vertikalna sila)

[23]

Granica nosivosti uređaja za vuču

(maksimalna težina koja se smije vući)

[24] Maksimalni dozvoljen nagib

[25] Razina zvučnog tlaka

[26] Mjerna nesigurnost

[27] Izmjerena razina zvučne snage

[28]

Zajamčena razina zvučne snage

[29]

Razina vibracija na vozačkom mjestu

[30] Razina vibracija na upravljaču

[32] Dodatni pribor na upit

[33] Komplet za štitnik stražnjeg

otvora za izbacivanje

[34] Komplet za vuču

[35] Zaštitna cerada

[36] Punjač baterija za održavanje

[37] Komplet za “malčiranje”

[38] Lanci za snijeg 18”

[39] Prikolica

[40] Rasipač

[41] Valjak za travu

[42] Nož za čišćenje snijega

[43] Kotači za blato/snijeg

[44] Prednja čistilica

[45] Podizni sustav priključivanja

[46] Priključno vratilo (pto)

[47] Tablica za pravilno kombiniranje

dodatnog pribora

[48] Zadnji dodatni pribog

[49] Prednji dodatni pribog

* Specični podatak pogledajte na

identikacijskoj etiketi stroja.

[1] HU - MŰSZAKI ADATOK

[2] Névleges teljesítmény (*)

[3] Percenkénti fordulatszám (*)

[4] Elektromos rendszer

[5] Elülső gumiabroncsok

[6] Hátsó gumiabroncsok

[7] Elülső abroncsok légnyomása

[8] Hátsó abroncsok légnyomása

[9] Tömeg (*)

[10] Nem levágott fű minimális

sugara

[11] Nyírási magasság

[12] Munkaszélesség

[13]

Mechanikus erőátvitel

Haladási sebesség

(hozzávetőlegesen)

3000 ford./perces fordulatszámon

[14]

Hidrosztatikus erőátvitel

Haladási sebesség

(hozzávetőlegesen)

3000 ford./perces fordulatszámon

[15] Sebességkorlát hólánccal (ha

tartozék)

[16] Méretek

[17] Hosszúság zsákkal (hosszúság

zsák nélkül)

[18] Szélesség

[19] Magasság

[20] Vágóegység kódszáma

[21] Üzemanyagtartály kapacitása

[22]

Vontatóberendezés maximális

terhelése (maximális függőleges

erőhatás)

[23]

Vontatóberendezés maximális

terhelése (maximális vontatható súly)

[24] Megengedett legnagyobb dőlés

[25] Hangnyomásszint

[26] Mérési bizonytalanság

[27] Mért zajteljesítmény szint.

[28] Garantált zajteljesítmény szint

[29]

A vezetőállásnál mért vibrációszint

[30]

A kormánynál mért vibrációszint

[32] Rendelhető tartozékok

[33]

Hátsó kidobás védőrész készlet

[34] Vontató készlet

[35] Takaró ponyva

[36] Fenntartó akkumulátortöltő

[37] “Mulcsozó készlet”

[38] Hóláncok 18”

[39] Utánfutó

[40] Szóró

[41] Gyephenger

[42] Hótolólap

[43] Sár- és hókerekek

[44] Homlok seprőgép

[45] Emelő csatlakozó

[46] Kihajtás (pto)

[47] Tartozékok helyes kom-

binációja táblázat

[48] Hátsó tartozékok

[49] Front tartozékok

* A pontos adatot lásd a gép azo-

nosító adattábláján.

1] LT - TECHNINIAI DUOMENYS

[2] Vardinė galia (*)

[3] Apsisukimai per minutę (*)

[4] Elektros instaliacija

[5] Priekinės padangos

[6] Užpakalinės padangos

[7] Priekinių padangų oro slėgis

[8] Užpakalinių padangų oro slėgis

[9] Svoris (*)

[10] Pjovimo plotis

[11] Pjovimo aukštis

[12] Pjovimo plotis

[13] Mechaninė transmisija

Eigos greitis (apytikslis) per

3000 min

-1

[14] Hidrostatinė transmisija

Eigos greitis (apytikslis) per

3000 min

-1

[15] Greičio riba su sniego

grandinėmis (jei šis prie-

das numatytas)

[16] Matmenys

[17] Ilgis su maišu (ilgis be maišo)

[18] Plotis

[ 1 9 ] A u k š t i s

[20] Pjovimo įtaiso kodas

[21] Alyvos bako talpa

[22] Tempimo prietaiso svorio

limitas (maksimali, vertikaliai

veikianti vilkimo įrenginį jėga)

[23] Tempimo prietaiso svorio

limitas (maksimalus pakrautos

priemonės svoris)

[24] Maksimalus leistinas pokrypis

[25] Garso slėgio lygis

[26] Matavimo paklaida

[27] Išmatuotas garso galios lygis

[28] Garantuotas garso galios lygis

[29] Vibracijų lygis, sėdynė

[30] Vibracijų lygis, vairas

[32]

Priedai, kuriuos galima užsisakyti

[37] Rinkinys mulčiavimui

[36] Akumuliatoriaus palaikymo

[34] Rinkinys vilkimui

[35] Apdangalas

[33] Galinio išmetimo apsaugos

įtaiso rinkinys

[38] Sniego grandinės 18”

[43] Ratai purvui / sniegui

[39] Priekaba

[40] Barstytuvas

[41] Vejos volas

[42] Peilinis sniego valytuvas

[44] Priešakinis šluotuvas

[45] Kėlimo sąsaja

[46] Elektros tinklo lizdas (pto)

[47] Teisingos priedų kombinacijos

lentelė

[48] Galiniai priedai

[49] Priekiniai priedai

* Konkretūs speciniai duomenys

yra pateikti įrenginio identikavi-

mo etiketėje

[1] LV - TEHNISKIE DATI

[2] Nominālā jauda (*)

[3] Apgriezieni minūtē (*)

[4] Elektroiekārta

[5] Priekšējās riepas

[6] Aizmugurējās riepas

[7] Priekšējo riepu spiediens

[8] Aizmugurējo riepu spiediens

[9] Masa (*)

[10] Minimālais nenopļautās zāles

rādiuss

[11] Pļaušanas augstums

[12] Pļaušanas platums

[13] Mehāniskā transmisija

Kustības ātrums (aptuvens) pie

3000 min

-1

[14] Hidrostatiskā transmisija

Kustības ātrums (aptuvens) pie

3000 min

-1

[15] Ātruma ierobežojums sniega

ķēžu izmantošanas gadījumā

(ja šis piederums ir paredzēts)

[16] Izmēri

[17]

Garums ar maisu (garums bez maisa)

[18] Platums

[19] Augstums

[20] Griezējierīces kods

[21] Degvielas tvertnes tilpums

[22] Jūgierīces slodze limits

(maksimālais vertikālais spēks)

[23] Jūgierīces slodze limits

(maksimālais piekabes svars)

[24]

Maksimālais pieļaujamais slīpums

[25] Skaņas spiediena līmenis

[26] Mērījumu kļūda

[27]

Izmērītais skaņas intensitātes līmenis

[28] Garantētais skaņas intensitātes

līmenis

[29] Vibrāciju līmenis vadītāja vietā

[30] Stūres vibrāciju līmenis

[32] Piederumi pēc pieprasījuma

[33] Aizmugurējās izmešanas

aizsarga komplekts

[34] Vilkšanas komplekts

[35] Pārvalks

[36]

Akumulatoru atbalsta lādētājs

[37]

Mulčēšanas komplekts

[38] Sniega ķēdes 18”

[39] Piekabe

[40] Izkliedētājs

[41] Zāles rullis

[42] Sniega tīrītājs ar vērstuvi

[43] Dubļu/sniega riteņi

[44] Frontālā slaucīšanas mašīna

[45] Pacelšanas sakabe

[46] Jaudas noņēmējs (pto)

[47] Tabula pareizai piederumu

kombinācijai

[48] Aizmugures piederumi

[49] Priekšējie piederumi

* Precīza vērtība ir norādīta

mašīnas identikācijas datu

plāksnītē.

[1] MK - ТЕХНИЧКИ ПОДАТОЦИ

[2] Номинална моќност (*)

[3] Вртежи во минута (*)

[4] Електрична инсталација

[5] Предни пневматици

[6] Задни пневматици

[7] Притисок за полнење напред

[8] Притисок за полнење назад

[9] Тежина (*)

[10] Минимален радиус на

некосена трева

[11] Висина на косење

[12] Ширина на косење

[13] Механички пренос

Брзина на движење

(индикативна) до 3000 мин

-1

[14] Хидростатички пренос

Брзина на движење

(индикативна) до 3000 мин

-1

[15] Ограничување на брзината

со синџири за снег (ако

дополнителната опрема е

предвидена)

[16] Димензии

[17] Должина со вреќата

(должина без вреќата)

[18] Ширина

[19] Висина

[20] Код на уредот со сечивото

[21]

Капацитет на резервоарот за гориво

[22] Допуштено оптеретување на

уредот за влечење (најголема

тежина во вертикала)

[23] Допуштено оптеретување за

уредот за влечење (најголема

тежина за влечење)

[24] Најголема вредност на

наведнување

[25] Ниво на акустичен притисок

[26] Отстапување од мерењата

[27]

Измерено ниво на акустична моќност

[28] Гарантирано ниво на

акустична моќност

[29] Ниво на вибрации на местото

за управување

[30] Ниво на вибрации на воланот

[32]

додатоци достапни на барање

[33] Ккомплет за заштита на

страничен испуст

[34] Комплет за приколка

[35] Платно за покривање

[36] Полнач за акумулаторот со

издржливоср

[37]

Kомплет за „мелење

[38] Синџири за снег 18”

[39] Приколка

[40] Дробалка

[41] Валјак за трева

[42] Сечиво за снег

[43] Гуми за кал/снег

[44] Преден листат за снег

[45] Приклучок за подигање

[46] Приклучок за напојување

(рто)

[47] табела за соодветна

комбинација на додатоците

[48] задни додатоци

[49] предни додатоци

* За одреден податок, проверете

дали истиот е посочен на

етикетата за идентификација на

машината.

[1]

NL - TECHNISCHE GEGEVENS

[2] Nominaal vermogen (*)

[3] Omwentelingen per minuut

[4] Elektrische installatie

[5] Voorbanden

[6] Achterbanden

[7] Bandenspanning vooraan

[8] Bandenspanning achteraan

[9] Massa (*)

[10] Minimum straal ongemaaid

gras

[11] Maaihoogte

[12] Maaibreedte

[13] Mechanische aandrijving

(Indicatieve) voortbewe-

gingssnelheid bij 3000 min

-1

[14] Hydrostatische aandrijving

(Indicatieve) voortbewe-

gingssnelheid bij 3000 min

-1

[15]

Snelheidslimiet met sneeuwket-

tingen (indien dit toebehoren

voorzien is)

[16] Afmetingen

[17]

Lengte met zak (lengte zonder zak)

[18] Breedte

[19] Hoogte

[20] Code snij-inrichting

[21]

Vermogen van het brandstofreservoir

[22] Belastingslimiet voor trekinrich-

ting (maximale verticale kracht)

[23] Belastingslimiet voor trekin-

richting (maximaal gewicht dat

getrokken kan worden)

[24] Maximaal toegestane helling

[25] Niveau geluidsdruk

[26] Meetonzekerheid

[27] Gemeten akoestisch vermogen

[28]

Gewaarborgd akoestisch vermogen

[29] Niveau trillingen op de bestuur-

dersplaats

[30] Niveau trillingen aan het stuur

[32] Optionele accessoires

[33] Kit achterste aaatbeveiliging

[34] Kit tractie

[35] Afdekzeil

[36] Batterij-oplader voor behoud

[37] Kit voor “mulching”

[38] Sneeuwkettingen 18”

[39] Aanhangwagen

[40] Verspreider

[41] Grasrol

[42] Sneeuwschuiver

[43] Modderwielen/sneeuwwielen

[44] Frontale veegmachine

[45] Henterface

[46] Krachtafnemer (pto)

[47] Tabel voor de juiste combinatie

van accessoires

[48] Accessoires achterzijde

[49] Accessoires voorzijde

* Voor het speciek gegeven,

verwijst men naar wat aangegeven

is op het identicatielabel van de

machine.

[1] NO - TEKNISKE DATA

[2] Nominell eekt (*)

[3] Omdreininger pr. minutt (*)

[4] Elektrisk system

[5] Fordekk

[6] Bakdekk

[7] Lufttrykk foran

[8] Lufttrykk bak

[9] Vekt (*)

[10] Minste radius til ikke klippet

gress

[11] Klippehøyde

[12] Klippebredde

[13] Mekanisk transmisjon

Fremdriftshastighet (ca.) ved

3 000 o/min.

[14] Hydrostatisk transmisjon

Fremdriftshastighet (ca.) ved

3 000 o/min.

[15] Hastighetsgrense med snøkjet-

tinger (hvis nnes)

[16] Mål

[17] Lengde med oppsamler (leng-

de uten oppsamler)

[18] Bredde

[19] Høyde

[20] Artikkelnummer for klippeinn-

retning

[21] Drivstotankens volum

[22] Belastningsgrense for hengera-

nordning (maks. vertikal kraft)

[23] Belastningsgrense for hengera-

nordning (maks. hengervekt)

[24] Maks. tillatt helling

[25] Lydtrykknivå

[26] Måleusikkerhet

[27] Målt lydeektnivå

[28] Garantert lydeektnivå

[29]

Vibrasjonsnivå ved førerplassen

[30] Vibrasjonsnivå ved rattet

[32] Tilleggsutstyr på forespørsel

[33] Sett med vern for utkast bak

[34] Sett med tilhengerfeste

[35] Presenning

[36] Batterilader

[37] Mulching-sett

[38] Snøkjettinger 18”

[39] Tilhenger

[40] Spreder

[41] Gressrulle

[42] Snøplog

[43] Gjørme-/snøhjul

[44] Feiemaskin foran

[45] Tilpasningsdel for løfting

[46] Kraftuttak (pto)

[47] Tabell for korrekt kombinert

bruk av tilbehør

[48] Bakmontert tilbehør

[49] Frontmontert tilbehør

* For spesikk informasjon, se

referansen på maskinens identi-

kasjonsetikett.

[1] PL - DANE TECHNICZNE

[2] Moc znamionowa (*)

[3] Liczba obrotów na minutę (*)

[4] Instalacja elektryczna

[5] Koła przednie

[6] Koła tylne

[7] Ciśnienie powietrza kół pr-

zednich

[8] Ciśnienie powietrza kół tylnych

[9] Masa (*)

[10] Minimalny promień nieskoszo-

nej trawy

[11] Wysokość koszenia

[12] Szerokość koszenia

[13] Napęd mechaniczny

Szybkość postępu

(przybliżona) przy 3000 min

-1

[14] Napęd hydrostatyczny

Szybkość postępu

(przybliżona) przy 3000 min

-1

[15] Limit prędkości z łańcuchami

(jeżeli przewidziane)

[16] Wymiary

[17] Długość z pojemnikiem

(długość bez pojemnika)

[18] Szerokość

[19] Wysokość

[20] Kod agregatu tnącego

[21] Pojemność zbiornika paliwa

[22] Dopuszczalne obciążenie dla

urządzenia ciągnącego (maksy-

malna siła pionowa)

[23] Dopuszczalne obciążenie dla

urządzenia ciągnącego (maksy-

malny holowany ciężar)

[24]

Maksymalne dopuszczalne nachylenie

[25] Poziom ciśnienia akustycznego

[26] Błąd pomiaru

[27]

Poziom mocy akustycznej zmierzony

[28] Gwarantowany poziom mocy

akustycznej

[29] Poziom drgań na stanowisku

kierowcy

[30] Poziom drgań na kierownicy

[32]

Akcesoria dostępne na zamówienie

[33]

Zestaw osłony tylnego wyrzutu trawy

[34] Zestaw do holowania

[35] Pokrowiec

[36] Ładowarka akumulatora

[37] Zestaw mulczujący

[38]

Łańcuchy przeciwśniegowe 18”

[39] Przyczepa

[40] Rozrzutnik

[41] Walec do trawy

[42] Pług śnieżny

[43] Koła błotne / śnieżne

[44] Zamiatarka czołowa

[45] Złącze podnoszące

[46] Wał odbioru mocy (pto)

[47] Tabela właściwego łączenia

akcesoriów

[48] Akcesoria tylne

[49] Akcesoria przednie

* W celu uzyskania konkretnych

danych, należy się odnieść do

wskazówek zamieszczonych na

tabliczce identykacyjnej maszyny.

[1] PT - DADOS TÉCNICOS

[2] Potência nominal (*)

[3] Rotações por minuto (*)

[4] Instalação elétrica

[5] Pneus dianteiros

[6] Pneus traseiros

[7] Pressão dos pneus dianteiros

[8] Pressão dos pneus traseiros

[9] Massa (*)

[10] Raio mínimo da relva não

cortada

[11] Altura de corte

[12] Largura de corte

[13] Transmissão mecânica

Velocidade de avanço (indica-

tiva) a 3000 min

-1

[14] Transmissão hidrostática

Velocidade de avanço (indica-

tiva) a 3000 min

-1

[15] Limite de velocidade com

correntes de neve

(se o acessório for previsto)

[16] Dimensões

[17] Comprimento com saco (com-

primento sem saco)

[18] Largura

[19] Altura

[20] Código dispositivo de corte

[21] Capacidade do tanque de

combustível

[22]

Limite de carga por dispositivo de

tração (força vertical máxima)

[23] Limite de carga por disposi-

tivo de tração (peso máximo

rebocável)

[24] Inclinação máxima autorizada

[25] Nível de pressão acústica

[26] Incerteza de medição

[27]

Nível de potência acústica medido

[28]

Nível de potência acústica

garantido

[29] Nível de vibrações no local de

condução

[30] Nível de vibrações no volante

[32] Acessórios a pedido

[33]

Kit proteção de descarga traseira

[34] Kit tração

[35] Lona de cobertura

[36] Carregador de baterias de

manutenção

[37] Kit para “mulching”

[38] Correntes para neve 18”

[39] Reboque

[40] Espalhador

[41] Rolo para relva

[42] Limpa-neves com lâmina

[43] Rodas para lama / neve

[44] Varredora frontal

[45] Interface de elevação

[46] Tomada de potência (pto)

[47] Tabela para a correta combi-

nação dos acessórios

[48] Acessórios posteriores

[49] Acessórios frontais

* Para o dado especíco, consulte

a etiqueta de identicação da

máquina.

[1] RO - DATE TEHNICE

[2] Putere nominală (*)

[3] Rotații pe minut (*)

[4] Instalație electrică

[5] Pneuri față

[6] Pneuri spate

[7] Presiune roți față

[8] Presiune roți spate

[9] Masă (*)

[10] Raza minimă de iarbă netăiată

[11] Înălțime de tăiere

[12] Lățime de tăiere

[13]

Transmisie mecanică - Viteza de

avans (indicativă) la 3000 min

-1

[14]

Transmisie hidrostatică- Viteză de

avans (indicativă) la 3000 min

-1

[14] Limită de viteză cu lanțuri de

zăpadă (dacă acest accesoriu

este prevăzut)

[15] Dimensiuni

[17]

Lungime cu sac (lungime fără sac)

[ 1 8 ] L ă ț i m e

[19] Înălțime

[20] Codul dispozitivului de tăiere

[21] Capacitate rezervor carburant

[22] Limita de încărcare a dispoziti-

vului de tracțiune (forță verticală

maximă)

[23] Limita de încărcare a dispozi-

tivului de tracțiune (greutatea

maximă care poate  tractată)

[24] Înclinația maximă admisă

[25] Nivel de presiune acustică

[26] Nesiguranță în măsurare

[27]

Nivel de putere acustică măsurat

[28]

Nivel de putere acustică garantat

[29] Nivel de vibrații la locul

conducătorului

[30] Nivel de vibrații la volan

[32] Accesorii la cerere

[33] Set de protecție pentru evacua-

re posterioară

[34] Kit de remorcare

[35] Prelată pentru acoperire

[36]

Încărcător de baterie de întreținere

[37] Kit pentru „mulching”

[38] Lanțuri de zăpadă 18”

[39] Remorcă

[40] Distribuitor

[41] Rolă pentru iarbă

[42] Utilaj de deszăpezire cu lamă

[43] Roți de noroi / zăpadă

[44] Măturătoare frontală

[45] Sistem de ridicare

[46] Priză de putere (pto)

[47] Tabel pentru combinarea

corectă a accesoriilor

[48] Accesorii posterioare

[49] Accesorii frontale

* Pentru informația specică,

consultați datele de pe eticheta

de identicare a mașinii.

[1]

RU - ТЕХНИЧЕСКИЕ

ХАРАКТЕРИСТИКИ

[2] Номинальная мощность (*)

[3] Число оборотов в минуту (*)

[4] Электропроводка

[5] Передние шины

[6] Задние шины

[7] Давление в передних шинах

[8] Давление в задних шинах

[9] Масса (*)

[10] Минимальный радиус

нескошенной травы

[11] Высота скашиваемой травы

[12] Ширина скашивания

[13] Механическая трансмиссия

- Скорость передвижения

(ориентировочная) при 3000

мин

-1

[14] Гидростатическая трансмиссия

- Скорость передвижения

(ориентировочная) при 3000

мин

-1

[15] Предел скорости с цепями

противоскольжения

(если предусмотрено это

дополнительное оборудование)

[16] Габариты

[17] Длина с контейнером (длина без

контейнера)

[18] Ширина

[19] Высота

[20] Код режущего приспособления

[21] Объем топливного бака

[22] Максимальная нагрузка,

которая может быть приложена

к буксировочному устройству

(макс. вертикальная нагрузка)

[23]

Максимальная нагрузка, которая

может быть приложена к

буксировочному устройству (макс.

буксируемый вес)

[24] Допустимый максимальный

наклон

[25] Уровень звукового давления

[26] Погрешность измерения

[27] Измеренный уровень звуковой

мощности

[28] Гарантируемый уровень звуковой

мощности

[29]

Уровень вибрации на месте

водителя

[30] Уровень вибрации на руле

[32] принадлежности – навесные

орудия по заказу

[33]

Комплект защиты заднего

выброса

[34] Прицепное устройство

[35] Защитный чехол

[36]

поддерживающее зарядное

устройство

[37] Комплект для мульчирования

[38] Цепи противоскольжения 18”

[39] Прицеп

[40] Разбрасыватель

[41] Валок для травы

[42] Шнекороторный снегоочиститель

[43] Колеса для грязи / снега

[44] Фронтальное подметально-

уборочное

[45] Приспособление интерфейс

подъема

[46] Отбор мощности (pto)

[47]

таблица правильного сочетания

принадлежностей – навесных

орудий

[48] задние навесные орудия

[49] фронтальные навесные орудия

* Точное значение см. на

идентификационном ярлыке

машины

[1] SK - TECHNICKÉ PARAMETRE

[2] Menovitý výkon (*)

[3] Otáčky za minútu (*)

[4] Elektroinštalácia

[5] Predné pneumatiky

[6] Zadné pneumatiky

[7] Tlak hustenia predných pneumatík

[8] Tlak hustenia zadných pneumatík

[9] Hmotnosť (*)

[10] Minimálny akčný rádius

otáčania

[11] Výška kosenia

[12] Šírka orezávania

[13]

Mechanická prevodovka - Rýchlosť

pohybu (približná) pri 3000 min

-1

[14]

Hydrostatická prevodovka

Rýchlosť pohybu (približná) pri

3000 min

[17]

Hraničná rýchlosť so snehovými

reťazami

(ak sa jedná o určené príslušenstvo)

[18] Rozmery

[17] Dĺžka s košom (dĺžka bez koša)

[18] Šírka

[19] Výška

[20] Kód kosiaceho zariadenia

[21] Kapacita palivovej nádržky

[22]

Maximálne zaťaženie ťažného za-

riadenia (max. zvisle pôsobiaca sila)

[23]

Maximálne zaťaženie ťažného za-

riadenia (max. hmotnosť ťahaného

nákladu)

[24] Maximálny povolený náklon

[25] Úroveň akustického tlaku

[26] Nepresnosť merania

[27] Úroveň nameraného akustického

výkonu

[28] Úroveň zaručeného akustického

výkonu

[29] Úroveň vibrácií na mieste vodiča

[30] Úroveň vibrácií na volante

[32]

Prídavné zariadenia na požiadanie

[33] Súprava ochranného krytu

zadného vyhadzovania

[34] Súprava ťažného zariadenia

[35] Krycia plachta

[36] Udržiavacia nabíjačka aku-

mulátora

[37] Súprava pre mulčovanie

[38] Snehové reťaze 18”

[39] Príves

[40] Posypávač

[41] Valec na valcovanie trávy

[42] Snehová radlica

[43] Kolesá do blata / snehu

[44] Čelný zametač

[45] Zdvíhacie rozhranie

[46] Vývodový hriadeľ (pto)

[47] Tabuľka pre správnu kom-

bináciu prídavných zariadení

[48] Zadné prídavné zariadenia

[49] Predné prídavné zariadenia

* Ohľadne uvedeného parametra

vychádzajte z hodnoty uvedenej

na identikačnom štítku stroja.

[1] SL - TEHNIČNI PODATKI

[2] Nazivna moč (*)

[3] Vrtljaji na minuto (*)

[4] Električna napeljava

[5] Prednje pnevmatike

[6] Zadnje pnevmatike

[7] Tlak v prednjih pnevmatikah

[8] Tlak v zadnjih pnevmatikah

[9] Masa (*)

[10] Najmanjše področje

nepokošene trave

[11] Višina košnje

[12] Širina reza

[13] Mehanski menjalnik

Hitrost vožnje (približna) pri

3000 min

-1

[14] Hidrostatični menjalnik

Hitrost vožnje (približna) pri

3000 min

-1

[15] Omejitev hitrosti ob montiranih

snežnih verigah (če so predvi-

dene kot oprema)

[16] Dimenzije

[17] Dĺžka s košom (dĺžka bez koša)

[18] Širina

[19] Višina

[20] Šifra rezalne naprave

[21] Prostornina rezervoarja za gorivo

[22] Omejitev obremenitve za

vlečno napravo (maksimalna

vertikalna sila)

[23] Omejitev obremenitve za

vlečno napravo (maksimalna

teža pri vleki)

[24] Maksimalni dovoljen naklon

[25] Raven zvočnega tlaka

[26] Merilna negotovost

[27] Izmerjena raven zvočne moči

[28] Zajamčena raven zvočne moči

[29] Stopnja vibracij na voznikovem

sedežu

[30] Nivo vibracij na volanu

[32] Dodatni priključki na zahtevo

[33] Komplet ščitnika zadnjega

izmeta

[34] Komplet za vleko

[35] Prekrivno platno

[36] Polnilnik akumulatorja za

vzdrževanje

[37] Komplet za mulčenje

[38] Snežne verige 18”

[39] Prikolica

[40] Trosilec

[41] Valj za travo

[42] Snežni plug z nožem

[43] Kolesa za blato / sneg

[44] Čelni pometač

[45] Priključek za dviganje

[46] Odjem moči (pto)

[47] Tabela za pravilno kombinacijo

dodatnih priključkov

[48] Zadnji priključki

[49] Sprednji priključki

* Za specični podatek glej identi-

kacijsko nalepko stroja.

[1] SR - TEHNIČKI PODACI

[2] Nazivna snaga (*)

[3] Obrtaji u minuti (*)

[4] Električna instalacija

[5] Prednje gume

[6] Zadnje gume

[7] Pritisak vazduha u prednjim

gumama

[8] Pritisak vazduha u zadnjim

gumama

[9] Masa (*)

[10] Minimalni poluprečnik

nepokošene trave

[11] Visina košenja

[12] Širina košenja

[13] Mehanički prenos Brzina

kretanja (orijentaciono) na

3000 min

-1

[14] Hidrostatički prenos

Brzina kretanja (orijentaciono)

na 3000 min

-1

[15] Ograničenje brzine s lancima

za sneg (ukoliko su oni

redviđeni kao dodatna oprema)

[16] Dimenzije

[17] Dužina s vrećom (dužina bez

vreće)

[18] Širina

[19] Visina

[20] Šifra rezne glave

[21] Kapacitet rezervoara goriva

[22]

Granica nosivosti uređaja za

vuču (maksimalna vertikalna sila)

[23] Granica nosivosti uređaja za

vuču (maksimalna težina koja

sme da se vuče)

[24] Maksimalni dozvoljen nagib

[25] Nivo zvučnog pritiska

[26] Merna nesigurnost

[27] Izmereni nivo zvučne snage

[28] Garantovani nivo zvučne snage

[29] Nivo vibracija na mestu vozača

[30] Nivo vibracija na volanu

[32] Dodatna oprema na zahtev

[33] Komplet štitnika za izbacivanje

otpozadi

[34] Komplet za vuču

[35] Pokrovna cerada

[36] Punjač akumulatora za

održavanje

[37]

Komplet za malčiranje

[38] Lanci za sneg 18”

[39] Prikolica

[40] Posipač

[41] Valjak za travu

[42] Plug za sneg s nožem

[43] Točkovi za blato / sneg

[44] Prednji čistač

[45] Priključni mehanizam za

dizanje

[46] Priključno vratilo (pto)

[47] Tablica za pravilno kombino-

vanje dodatne opreme

[48] Zadnja dodatne oprema

[49] Prednja dodatne oprema

* Za specični podatak, pogledajte

podatke navedene na identika-

cijskoj nalepnici mašine.

[1] SV - TEKNISKA SPECIFIKATIONER

[2] Nominell eekt (*)

[3] Varv i minuten (*)

[4] Elanläggning

[5] Framdäck

[6] Backdäck

[7] Däcktryck fram

[8] Däcktryck bak

[9] Vikt (*)

[10] Minimiradie på oklippt gräs

[11] Klipphöjd

[12] Klippbredd

[13] Mekanisk transm ission

Körhastighet (indikativ) vid

3 000 min

-1

[14] Hydrostatisk transmission

Körhastighet (indikativ) vid

3 000 min

-1

[15] Hastighetsgräns med

snökedjor

(om tillbehör förutses)

[16] Dimensioner

[17] Längd med påse (längd utan

påse)

[18] Bredd

[19] Höjd

[22] Skärenhetens kod

[21] Bränsletankens kapacitet

[22] Belastningsgräns för drag

(max. vertikal belastning)

[23] Belastningsgräns för drag

(max. bogserbar vikt)

[24] Max. tillåten lutning

[25] Ljudtrycksnivå

[26] Tvivel med mått

[27] Uppmätt ljudeektnivå

[28] Garanterad ljudeektnivå

[29] Vibrationsnivå på förarplatsen

[32] Vibrationsnivå på ratten

[32] Fillvalstillbehör

[33]

Sats med bakre tömningsskydd

[34] Sats för bogsering

[35] Presenning

[36] Batteriladdare för utjäm-

ningsladdning

[37] Sats för “mulching”

[38] Snökedjor 18”

[39] Spridare

[40] Släp

[41] Vals för gräs

[42] Snöröjare med blad

[43] Hjul för lera/snö

[44] Främre sopmaskin

[45] Anslutning för lyftning

[46] Kraftuttag (pto)

[47] Tabell över korrekt kombination

av tillbehör

[48] Bakre tillbehör

[49] Främre tillbehör

* För specik information, se

uppgifterna

på maskinens märkplåt.

[1] TR - TEKNİK VERİLER

[2] Nominal güç (*)

[3] Dakikadaki devir sayısı (*)

[4] Elektrik tesisi

[5] Ön tekerlekler

[6] Arka tekerlekler

[7] Ön şişirme basıncı

[8] Arka şişirme basıncı

[9] Kütle (*)

[10] Minimum kesilmemiş çim

yarıçapı

[11] Kesim yüksekliği

[12] Kesim genişliği

[13] Mekanik transmisyon

3000 dak

-1’

de ilerleme hızı

(yaklaşık)

[14] Hidrostatik transmisyon

3000 dak

-1’

de ilerleme hızı

(yaklaşık)

[15] Kar zincirleri ile (aksesuar

öngörülmüş ise) hız limiti

[16] Ebatlar

[17] Sepetli uzunluk (sepetsiz

uzunluk)

[18] Genişlik

[19] Yükseklik

[20] Kesim düzeni kodu

[21] Yakıt deposu kapasitesi

[22] Çekme tertibatı için yük limiti

(maksimum dikey kuvvet)

[23] Çekme tertibatı için yük limiti

(çekilebilir maksimum ağırlık)

[24] İzin verilen maksimum eğim

[25] Ses basınç seviyesi

[26] Ölçü belirsizliği

[27] Ölçülen ses gücü seviyesi

[28] Garanti edilen ses gücü

seviyesi

[29] Sürücü mahalinde titreşim

seviyesi

[30] Direksiyonda titreşim seviyesi

[32] Talep üzerine aksesuarlar

[33] Arka tahlıye koruma kıtı

[34] Çekış Kıtı

[35] Kaplama Kıtı

[36] Koruma batarya şarjö

[37] “Malçlama” Kıtı

[38] Kar zıncırlerı 18”

[39] Römork

[40] Serpıcı

[41] Çım sılındırı

[42] Biçakli kar temızleme makınesı

[43] Çamur / kar tekerleri

[44] Ön süpürücü

[45] Kaldırma arabirimi

[46] Güç prizi (pto)

[47] Aksesuarlarin doğru kombi-

nasyonu için tablo

[48] Arka aksesuarlar

[49] ön aksesuarlar

* Spesik değer için, makine

belirleme etiketinde belirtilenleri

referans alın

WARNING: READ THOROUGHLY THE INSTRUCTION BOOKLET BEFORE

USING THE MACHINE. Keep for future reference

For information on the engine and the bat-

tery, read the relevant owner manuals.

TABLE OF CONTENTS

1. SAFETY REGULATIONS .......................... 1

2. GETTING TO KNOW THE MACHINE ....... 4

3. UNPACKING AND ASSEMBLY ................. 6

4. CONTROLS AND INSTRUMENTS ........... 7

5. OPERATING INSTRUCTIONS .................. 9

5.1 Safety recommendations ................... 9

5.2 Why the safety devices cut in ............. 9

5.3 Preliminary operations before

starting work ....................................... 9

5.4 Using the machine ........................... 10

5.5 Using on slopes ................................ 13

5.6 Suggestions for maintaining

a nice lawn ........................................ 13

6. MAINTENANCE ...................................... 14

6.1 Safety recommendations ................. 14

6.2 Routine maintenance ....................... 14

6.3 Interventions on the machine ........... 16

7. TROUBLESHOOTING ............................. 17

8. ATTACHMENTS ...................................... 19

HOW TO READ THE MANUAL

Some paragraphs in the manual contain impor-

tant information regarding safety and operation

and are emphasized in this manner:

NOTE or IMPORTANT

These give details or further information on what

has already been said, and aims to prevent dam-

age to the machine.

WARNING! Non-observance will result

in the risk of injury to oneself or others.

DANGER! Non-observance will result in

the risk of serious injury or death to oneself

or others.

The manual describes several machine models

that can mainly dier in:

– type of transmission: with mechanical gear-

change or with hydrostatic continuous speed

adjustment. The models with hydrostatic

transmission are identied by the word “HY-

DRO” on the identication label (see 2.2);

– the inclusion of components or attachments

which are not widely available;

– special equipment tted.

The symbol “ ” highlights all the dierences

in usage and is followed by the indication of the

version to which it refers.

NOTE Whenever reference is made to a posi-

tion on the machine “front”, “back”, “left” or “right”

hand side, this is determined from where the

operator is seated (Fig. 1.1).

IMPORTANT For all operations regarding the

use and maintenance of the engine or the battery

not described in this manual, refer to the relevant

manuals which form an integral part of all the

documentation supplied with the machine.

1. SAFETY REGULATIONS

to be a followed scrupulously

A) TRAINING

1) WARNING! Read these instructions care-

fully before operating the machine. Become

acquainted with the controls and the proper use

of the machine. Learn how to stop the engine

quickly. Failure to follow the warnings and in-

structions may result in re and/or serious injury.

Save all warnings and instructions for future

reference.

2) Never allow children or persons unfamiliar

with these instructions to use the machine. Lo-

cal laws can restrict the minimum age of the

operator.

3) Never mow while people, especially children,

or pets are nearby.

4) Never use the machine if the user is tired or

unwell, or has taken medicine, drugs, alcohol or

any substances which may slow his reexes and

compromise his judgement.

5) Bear in mind that the operator or user is re-

sponsible for accidents or unexpected events

occurring to other people or their property. It is

the user’s responsibility to assess the potential

risk of the area where work is to be carried out,

and to take all the necessary precautions to en-

sure his own safety and that of others, particu-

larly on slopes or rough, slippery and unstable

ground.

6) If the machine is sold or lent to others, make

sure that the operator looks over the user in-

structions contained in this manual.

7) Do not allow children or other passengers to

ride on the machine as they could fall o and

injure themselves or compromise safe driving by

the operator.

8) The machine operator must follow the driving

instructions carefully and, in particular:

– Avoid distractions and maintain concentration

whilst working;

– Bear in mind that control of a machine sliding

on a slope will not be regained by the applica-

tion of the brake. The main reasons for loss of

control are:

• Insucient wheel grip;

• Excessive speed;

• Inadequate braking;

• Type of machine unsuitable for its task;

• Lack of awareness of the eect of ground

conditions, especially slopes;

• Incorrect use as a towing machine.

9) The machine is supplied with a series of

micro-switches and safety devices which must

never be tampered with or removed; this will

invalidate the warranty and relieve the manufac-

turer from all responsibility. Always check that

the safety devices are working properly before

using the machine.

B) PRELIMINARY OPERATIONS

1) While using the machine, always wear anti-

slip and resistant work footwear and long pants.

Do not operate the machine when barefoot or

wearing open sandals. Avoid wearing chains,

bracelets, clothing that is loose tting or has

hanging cords or ties. Tie hair back if it is long.

Always wear protective earplugs.

2) Thoroughly inspect the entire work area and

remove anything that could be thrown by the

machine or damage the cutting-means as-

sembly or engine (stones, branches, iron wire,

bones, etc.).

3) WARNING: DANGER! Petrol is highly am-

mable.

– Store the fuel in special containers;

– add fuel, using a funnel, only outdoors; do not

smoke during this operation and each time

fuel is handled;

– Top-up with fuel before igniting the engine;

never remove the tank cap or add fuel while

the engine is running or when it is hot;

– if you have spilled some fuel, do not attempt

to ignite the engine but move the machine

away from the area of spillage and avoid cre-

ating any source of ignition until the fuel has

evaporated and fuel vapours have dissipated:

– Always put the tank and fuel container caps

back on and tighten well;

4) Replace faulty silencers.

5) Before using the machine, check its general

condition and in particular:

the appearance of the cutting means, and check

that the screws and cutting-means assembly

are not worn or damaged. Replace the entire

cutting means and all damaged or worn screws

to preserve balance. Any repairs must be done

at a specialised centre.

6) Check the battery status regularly, and re-

place it if there is any damage to the casing,

cover or terminals.

7) Before starting work, always t the exit

guards (grass catcher, side discharge guard or

rear discharge guard).

C) DURING USE

1) Do not operate the engine in a conned space

where dangerous carbon monoxide fumes can

develop. All ignition operations have to be ef-

fected in an open or well-ventilated area. Always

remember that exhaust fumes are toxic.

2) Work only in daylight or with good articial

light in good visibility conditions. Keep persons,

children and animals away from the working

area.

3) If possible, avoid mowing wet grass. Avoid

working in the rain and when there is a risk of

a thunderstorm risk. Do not use the machine in

bad weather conditions, especially when there

is risk of lightening.

4) Before igniting the engine, disengage the cut-

ting means or the power socket and put the gear

in neutral.

5) Pay special attention when approaching ob-

stacles that could compromise visibility.

6) Engage the parking brake when parking the

machine.

7) The machine must not be used on slopes of

over 10° (17%), regardless of the mowing direc-

tion.

8) Remember there is no such thing as a “safe”

slope. Driving on grass slopes requires particu-

lar care. To prevent overturning or loss of control

over the machine:

– Do not stop or start suddenly when going up

or downhill;

– Engage the drive slowly and always keep the

machine in transmission, especially when

travelling downhill;

– Machine speeds should be kept low on slopes

and during tight turns;

– Watch out for humps, hollows and other hid-

den hazards;

– Never mow across the face of the slope.

Lawns on a slope have to be mowed moving

up and down and never across them. When

changing direction, take great care that the

wheels facing the slope do not hit any obsta-

cles (such as stones, branches, roots, etc.)

that may cause the machine to slide side-

ways, tip over or make you lose control.

Reduce speed before any change of direction

on slopes, and always apply the parking brake

before leaving the machine at a standstill and

unattended.

10) Be very careful near ravines, ditches or

embankments. The machine could overturn if a

wheel slides over the edge or if the earth gives

way.

11) Pay maximum attention when working in re-

verse gear. Look behind you to make sure there

are no obstacles before and during operations

in reverse gear.

12) Use care when pulling loads or using heavy

equipment:

– Use approved drawbar hitch points only when

towing;

– Limit loads to those you can safely control;

– Do not turn sharply. Take care when revers-

ing;

– Use counterweight(s) or wheel weights when-

ever advised in the instructions manual.

13) Disengage the cutting means or the power

socket when crossing areas with no grass, when

moving to or from areas that require mowing,

and move the cutting-means assembly to its

highest position.

14) Pay attention to trac when using the ma-

chine near roads.

15) WARNING! The machine has not been ap-

proved for use on public roads. It must be used

(as indicated by the highway code) in private

areas closed to trac.

16) Never operate the machine with damaged

guards or without the grass catcher, side dis-

charge guards or rear discharge guards.

17) Never place your hands and feet near or

under rotating parts. Keep away from the dis-

charge opening.

18) Do not leave the machine stationary on high

grass with the engine running to avoid the risk of

starting a re.

19) When using the attachments, never direct

the opening towards people.

20) Use manufacturer-recommended attach-

ments only.

21) Don’t use the machine if the attachments/

tools are not installed in their seats.

22) Pay attention when using the grass catcher

and attachments that can alter the stability of

the machine, especially on slopes.

23) Do not change the engine settings or over-

rev the engine.

24) Do not touch the engine parts as they get

very hot when running. Danger of burns.

25) Disengage the cutting means or power

socket, put in neutral and engage the parking

brake, turn o the engine and remove the igni-

tion key (checking that all moving parts are com-

pletely stationary):

– Whenever the machine is left unattended or

the operator dismounts from the driving seat:

– Before clearing blockages or unclogging the

discharge chute;

– Before checking, cleaning or working on the

machine;

– After striking a foreign object. Inspect the

machine for damage and make repairs before

using it again.

26) Disengage the cutting means or the power

socket and switch o the engine (making sure

that all moving parts are stationary):

– Before refuelling;

– Whenever you remove or reattach the grass

catcher;

– Whenever you remove or reattach the side

discharge chute;

– Before adjusting the cutting height, if this op-

eration cannot be performed from the driving

seat.

27) Disengage the cutting device or the power

socket during transport and whenever it is not

in use.

28) Reduce the throttle setting before stopping

the engine. Shut o the fuel supply on complet-

ing the work, following the instructions in the

engine manual.

29) Pay attention to cutting means assemblies

with more than one cutting means, as a rotat-

ing cutting means can trigger the rotation of the

others,

30) WARNING – If something breaks or an ac-

cident occurs whilst working, turn o the engine

immediately and move the machine away to pre-

vent further damage; if an accident occurs with

injuries or third parties are injured, carry out the

rst aid measures most suitable for the situation

immediately and contact the medical authorities

for any necessary health care. Carefully remove

any debris that might cause damage or harm

persons or animals should it not be seen.

31) WARNING - The noise and vibration levels

shown in these instructions are the maximum

levels for use of the machine. The use of an

unbalanced cutting means, excessive speed of

movement, or lack of maintenance have a sig-

nicant inuence on noise emissions and vibra-

tions. Consequently, it is necessary to take pre-

ventive steps to eliminate possible damage due

to high levels of noise and stress from vibration.

Maintain the machine well, wear ear protection

devices, and take breaks while working.

D) MAINTENANCE AND STORAGE

1) WARNING! - Before cleaning or doing main-

tenance work, take out the ignition key and read

the relevant instructions. Wear proper clothing

and protective gloves whenever your hands are

at risk.

2) WARNING! – Never use the machine with

worn or damaged parts. Faulty or worn-out parts

must always be replaced and not repaired. Use

original spare parts only: the use of non-original

and/or incorrectly tted parts will jeopardize the

safety of the machine, may cause accidents or

personal injuries for which the Manufacturer is

under no circumstance liable or responsible.

3) Any adjustments or maintenance operations

not described in this manual must be carried out

by your Dealer or a specialized Service Centre

with the necessary knowledge and equipment to

ensure that the work is done correctly maintain-

ing the machine’s original safety level. Any op-

erations performed in unauthorized centres or

by unqualied persons will totally invalidate the

Warranty and all obligations and responsibilities

of the Manufacturer.

4) After each use, remove the ignition key and

check for damage.

5) Keep all nuts, bolts and screws tight to be

sure the equipment is in safe working condition.

Routine maintenance is essential for safety and

for maintaining a high performance level.

6) Check that the cutting means screws are

properly tightened on a regular basis.

7) Wear work gloves when handling, disassem-

bling and reassembling all cutting means.

8) Keep the cutting means well balanced during

sharpening. All works on the cutting means (dis-

assembly, sharpening, balancing, reassembly

and/or replacing) are demanding jobs that re-

quire special skills as well as special tools. For

safety reasons, these jobs are best carried out

at a specialised centre.

9) Check that the brakes work properly on a

regular basis. It is vital for brakes to undergo

regular maintenance and, where necessary,

repair work.

10) Check the side discharge guard, the rear

discharge guard, the grass catcher and the

intake grille frequently. Replace them if they are

damaged.

11) Replace any instruction or warning message

stickers, if damaged.

12) When the machine is to be stored or left un-

attended, lower the cutting-means assembly.

13) Store the machine out of the reach of chil-

dren.

14) Do not store the machine with fuel in the tank

in an area where the fuel vapours could reach

an open ame, a spark or a strong heat source.

15) Allow the engine to cool down before storing

in any enclosure.

16) To reduce re hazards, keep the engine, si-

lencer, battery compartment and petrol storage

area free of grass, leaves, or excessive grease.

Always empty the grass catcher and do not

leave containers full of cut grass inside storage

areas.

17) To reduce re hazards, check there are no

oil and/or fuel leaks on a regular basis.

18) If the fuel tank has to be emptied, this should

be done outdoors once the engine has cooled

down.

19) Never leave the keys in the ignition or within

reach of children or unauthorised persons. Al-

ways remove the ignition key before doing any

maintenance.

E) TRANSPORT

1) WARNING! - If the machine must be trans-

ported on a truck or trailer, use ramps with

suitable resistance, width and length. Load the

machine with the engine switched o, without

a driver and pushed by an adequate number of

people. During transport, close the fuel stop-

cock (if tted), lower the cutting-means assem-

bly or attachment, engage the parking brake

and fasten the machine securely with ropes or

chains to the hauling device.

F) ENVIRONMENTAL PROTECTION

1) Environmental protection should be a priority

of considerable importance when using the ma-

chine, for the benet of both social coexistence

and the environment in which we live. Try not to

cause any disturbance to the surrounding area.

2) Scrupulously comply with local regulations

and provisions for the disposal of packaging,

oils, petrol, lters, damaged parts or any ele-

ments which have a strong impact on the envi-

ronment; this waste must not be disposed of as

normal waste, it must be separated and taken

to specied waste disposal centres where the

material will be recycled.

3) Scrupulously comply with local regulations for

the disposal of waste materials after mowing.

4) At the time of decommissioning, do not pol-

lute the environment with the machine, but hand

it over to a disposal centre, in accordance with

the local laws in force.

2. GETTING TO KNOW THE MACHINE

2.1 DESCRIPTION OF THE MACHINE AND

ITS RANGE OF USE

This machine is a garden tool and precisely a

ride-on lawnmower with seated operator.

The machine is equipped with an engine which

drives a cutting unit protected by a casing, as

well as a transmission unit that moves the ma-

chine.

The operator is able to operate the machine and

use the main controls, always seated in the op-

erator’s position.

The devices tted on the machine stop the

engine and the cutting means within a few sec-

onds, should the operator behave in a manner

that does not comply with the necessary safety

precautions.

Intended use

This machine was designed and built to cut

grass.

The use of special attachments provided for

by the Manufacturer as original equipment or

which may be purchased separately, allows this

work to be done in various operating modes,

illustrated in this manual or the instructions that

accompany the single attachments.

Likewise, the intended use can be extended to

include other functions by applying supplemen-

tary attachments (if provided for by the Manu-

facturer), abiding by the restrictions and condi-

tions indicated in the instructions accompanying

the attachment.

User types

This machine is intended for use by consumers,

i.e. non-professional operators. The machine is

intended for “DIY” use only.

Improper use

Any other usage not in keeping with the above-

mentioned ones may be hazardous and harm

persons and/or damage things. Examples of im-

proper use may include, but are not limited to:

– transporting people, children or animals on

the machine or on a trailer;

– towing or pushing loads without the use of the

specied attachment for towing;

– use of the machine for riding over unstable,

slippery, icy, stony, rough, marshy ground or

puddles that do not allow the consistency of

the ground to be assessed;

– using the cutting means on surfaces other

than grass.

– use of the machine for leaf or debris collec-

tion;

Improper use of the machine will invalidate the

warranty, relieve the Manufacturer from all li-

abilities, and the user will consequently be liable

for all and any damage or injury to himself or

others.

2.2 IDENTIFICATION LABEL AND

MACHINE COMPONENTS

(see gures on page ii)

1. Acoustic power level

2. CE conformity marking

3. Year of manufacture

4. Operating engine power and speed

5. Type of machine

6. Serial number

7. Weight in kg

8. Name and address of Manufacturer

9. Type of transmission (if indicated)

10. Article code

The example of the Declaration of Conformity is

provided on the penultimate page of the manual.

/–––/–––/–––/–––/–––/–––/–––/

Write the serial number of your machine (6)

here.

As soon as you have purchased the machine,

do not forget to write the identication numbers

(3 - 5 - 6) in the spaces on the last page of the

manual.

The machine is composed of a series of main

components that have the following functions:

11. Cutting -means assembly: this is the cas-

ing that houses the rotating cutting means.

12. Cutting means: these are what cut the

grass; the ns at the ends help convey the

cut grass towards the collector channel.

13. Collector channel: this is the part con-

necting the Cutting-means assembly to the

grass catcher.

14. Gras s catcher: as well as collecting the

grass cuttings, this is also a safety element

that stops any objects drawn up by the cut-

ting devices from being hurled away from

the machine.

15. Rear discharge guard (available upon

request): this can be tted in place of the

grass catcher and prevents objects from

being drawn up by the cutting means and

hurled away from the machine.

16. Engine: this moves the cutting means and

drives the wheels. Its specications and

regulations for use are described in a spe-

cic manual.

17. Battery: provides the energy for starting the

engine. Its specications and regulations for

use are described in a specic manual.

18. Driving seat: this is where the machine

operator sits. It has a sensor connected to

safety devices for detecting the presence of

the operator.

19. Warning and safety labels: these give

reminders on the main regulations for work-

ing in safety.

20. Inspection hatch: for access to the bat-

tery; it is xed by a screw and should always

be closed while the machine is in use.

2.3 SAFETY REQUIREMENTS

Your machine should be used with due care and

attention. Therefore, labels have been placed

on the machine to remind you pictorially of the

main precautions to take during use. These

labels are to be considered an integral part of

the machine. If a label should fall o or become

illegible, contact your Retailer to replace it. Their

meaning is explained below.

31. Warning: Read the instructions before op-

erating the machine.

32. Warning: Disconnect the key and read the

instructions before carrying out any mainte-

nance or repair work.

33. Danger! Ejected objects: Do not operate

without either the rear discharge guard or

the grass catcher being in place.

34. Danger! Ejected objects: Keep bystand-

ers away.

35. Danger! Machine rollover: Do not use this

machine on slopes greater than 10°.

36. Danger! Dismemberment: Make sure that

children stay clear of the machine all the

time when engine is running.

37. Danger of cutting yourself. Cutting

means in motion. Do not put hands or feet

near or under the opening of the cutting

means housing.

38. Warning! Keep away from hot surfaces.

39. Do not climb onto the machine putting your

feet on the cutting-means assembly.

2.4 REGULATIONS FOR TOWING

A kit for towing a small trailer is available on re-

quest. This attachment must be tted following

the instructions provided.

41. When using the towing kit, do not exceed

the recommended loads stated on the label

and follow the safety instructions.

NOTE The images corresponding to the texts

in chapters 3 et seq., can be found on pages iii et

seq. of this manual.

3. UNPACKING AND ASSEMBLY

For storage and transport purposes, some com-

ponents of the machine are not installed in the

factory and have to be assembled after unpack-

ing. Follow the instructions below.

IMPORTANT The machine is supplied without

engine oil or fuel. Before starting up the engine,

fill with oil and fuel following the instructions given

in the engine manual.

WARNING! Unpacking and completing

the assembly should be done on a flat and

stable surface, with enough space for mov-

ing the machine and its packaging, always

making use of suitable equipment.

3.1 UNPACKING

When unpacking the machine, take care to

gather all individual parts and ttings, and do

not damage the cutting-means assembly when

taking the machine o the pallet.

The packaging contains:

– the machine;

– the steering wheel;

– the seat;

– the front bumper (if provided);

– the battery;

– the grass catcher (with instructions);

– an envelope containing:

– the instruction manuals and documents,

– nuts and bolts including a pin for locking the

steering wheel,

– 2 ignition keys and a spare 10A fuse.

NOTE To avoid damaging the cutting-means

assembly when getting the machine down from

the pallet, take it to the maximum height and be

very careful.

Hydrostatic transmission:

– To make it easier to get the machine o

the pallet and to move it, the rear drive dis-

engage lever should be put in position «B»

(see 4.33).

Disposal of the packaging should be done in ac-

cordance with the local regulations in force.

3.2 FITTING THE STEERING WHEEL

• Steering wheel Type “I” (Fig. 3.1)

Put the machine on a at surface and straighten

the front wheels.

Fit the steering wheel (1) onto the protruding

shaft (2) with the spokes directed towards the

seat.

Line up the hole on the steering wheel hub with

the hole on the shaft and insert the pin (3) us-

ing a hammer. Make sure the end comes right

through to the opposite side.

NOTE To avoid damaging the steering wheel,

use a punch or a screw-driver of the same size

as the pin when hammering it in the last part.

• Steering wheel Type “II” (Fig. 3.2)

Put the machine on a at surface and straighten

the front wheels.

Use a screwdriver to remove the central cover

(1a) of the steering wheel (1).

Fit the steering wheel (1) onto the protruding

shaft (2) and rotate it so the spokes point to-

wards the seat and push it in until the steering

wheel hub attaches to the protruding ends of the

pin (3).

Fasten the steering wheel in place using the

screw (6) and the washers supplied (4) and (5),

in the indicated order.

Tighten down the screw (6) with a socket span-

ner.

Fit the steering wheel cover (1a) by clicking the

fasteners into place.

3.3 FITTING THE SEAT (Fig. 3.3)

Fit the seat (1) onto the plate (2) using the

screws (3).

3.4 MOUNTING THE FRONT BUMPER

(if provided)

• Bumper Type “I” (Fig. 3.4)

• Bumper Type “Il” (Fig. 3.5)

Mount the front bumper (1) on the bottom of the

frame (2) using the four screws (3).

3.5 ASSEMBLY AND CONNECTING

THE BATTERY (Fig. 3.6 - 3.7)

To access the battery (1), remove the inspection

hatch (2), which is xed with a latch (3).

First connect the red wire (4) to the positive pole

(+) and then the black wire (5) to the negative

pole (–), using the screws supplied as shown.

Apply silicone grease to the terminals and

check that the protective cap for the red wire (4)

is in place.

Reassemble the inspection hatch (2), xing it in

place with the latch (3).

IMPORTANT Always fully charge the bat-

tery according to the instructions in the battery

booklet.

IMPORTANT To prevent the safety device in

the electronic circuit board from cutting in, never

start the engine until the battery is fully charged!

4. CONTROLS AND INSTRUMENTS

4.1 STEERING WHEEL (Fig. 4.1 no.1)

Turns the front wheels.

4.2 THROTTLE LEVER (Fig. 4.1 no.2)

Regulates the engine’s r.p.m. The positions are

indicated on the plate showing the following

symbols:

«CHOKE» cold start

«SLOW» for minimum engine speed

«FAST» for maximum engine speed

– The «CHOKE» position enriches the mixture

so it must only be used for the time necessary

for cold starts.

– When moving from one area to another, put

the lever in a position between «SLOW» and

«FAST».

– When cutting, shift into «FAST».

4.2a CHOKE CONTROL (if tted)

(Fig. 4.1 no.2a)

It enriches the mixture and must only be used

for the necessary time for cold starts.

4.3 KEY IGNITION SWITCH

(Fig. 4.1 no.3)

This key operated control has three positions:

«OFF» everything is switched o;

«ON» activates all parts;

«START» engages the starter motor.

- On being released at the «START» position,

the key will automatically return to «ON».

4.4 PARKING BRAKE (Fig. 4.1 no.4)

This lever stops the machine from moving when

it has been parked. There are two positions:

«A» = Brake disengaged

«B» = Brake engaged

– The brake is applied by pressing the pedal

right down (4.21 or 4.31) and moving the lever

to position “B”. When you take your foot o

the pedal it will be blocked by the lever in the

lowered position.

– To disengage the parking brake, press the

pedal (4.21 or 4.31). The lever will return to

position «A».

4.5 LIGHTS SWITCH (if tted)

(Fig. 4.1 no.5)

For turning on the lights when the key (4.3) is in

the «ON» position.

4.6 INDICATOR LIGHTS AND AUDIBLE

WARNING DEVICE ON THE DASH-

BOARD (Fig. 4.1 no.6).

– The sound warning signals that the grass

catcher is full (see 5.4.6).

Machine with one indicator light

(Fig. 4.1 no.6a).

This lamp comes on when the key (4.3) is

in the «ON» position and stays on while the

machine is running.

– When it ashes, it means that it is not

ready to be started (see 5.2).

Machine with 6 indicator light panel

(Fig. 4.1 no.6b)

The dashboard has a series of indicator

lights that are enabled with the ignition key

(4.3) in the «ON» position.

– When a warning light comes on, it indi-

cates:

a) Hand brake enabled;

b) grass catcher or rear discharge guard

missing;

c) cutting means engaged;

d) no operator present;

e) Gear in “neutral”;

f) fault in battery charger (with engine run-

ning).

4.7 CUTTING MEANS ENGAGE AND

BRAKE CONTROLS (Fig. 4.1 no.7)

The mushroom switch allows you to engage the

cutting means using the electromagnetic clutch:

«A» Pressed = Cutting means

disengaged

«B» Pulled = Cutting means engaged

– If you engage the cutting means without tak-

ing the necessary safety precautions, the

engine shuts down and cannot be restarted

(see 5.2).

– In disengaging the cutting means (Pos. «A»),

a brake is simultaneously activated which

stops their rotation within a few seconds.

4.8 CUTTING HEIGHT ADJUSTMENT

LEVER (Fig. 4.1 no.8)

There are seven positions for this lever, shown

as «1» to «7» on the label, which correspond to

various heights between 3 and 8 cm.

– To go from one height to another, press the

release button at the end of the lever.

4.9 GRASS CATCHER TIPPING LEVER

(if tted) (Fig. 4.1 no.9)

This pull-out lever tips and empties the grass

catcher. This means less work for the operator.

4.10 REVERSE GEAR CUTTING

CONSENT BUTTON (Fig. 4.1 no. 10)

By pressing and holding this button, it is pos-

sible to switch to reverse gear with the cutting

means engaged without causing the engine to

stop.

Mechanical transmission

4.21 CLUTCH / BRAKE PEDAL

(Fig. 4.2 no.21)

This pedal has two functions: during the rst

part of its travel it acts as a clutch, engaging

and disengaging drive to the wheels, and in

the second part it acts as a brake on the rear

wheels

IMPORTANT Do not keep the pedal half

way between clutch engagement or disen-

gagement, as this can cause overheating and

damage the transmission belt.

NOTE When the machine is in movement,

keep your foot off the pedal.

4.22 SPEED CHANGE LEVER

(Fig. 4.2 no.22)

This lever has seven positions for the 5 for-

ward speeds, the neutral position «N», and

reverse «R».

To go from one speed to another, press the

pedal (4.21) halfway and shift the lever as

shown on the label.

WARNING! Gear must be engaged

when the machine has stopped.

WARNING! Reverse must be en-

gaged when the machine has stopped.

Hydrostatic transmission:

4.31 BRAKE PEDAL (Fig. 4.3 no.31)

This pedal works the brake on the rear

wheels.

4.32 CLUTCH PEDAL (Fig. 4.3 no.32)

This pedal engages drive in the wheels and

controls the machine’s forward and reverse

speed.

– To engage forward gear just press it in the

«F» direction with the tip of your foot, not-

ing that increasing the pressure on the

pedal progressively increases the speed

of the machine.

– Reverse is engaged by pressing the pedal

with the heel towards «R».

– The pedal automatically goes into neutral

«N» when released.

WARNING! Reverse must be en-

gaged when the machine has stopped.

NOTE If the drive pedal is used, wheth-

er forwards or for reverse, when the parking

brake (4.4) is engaged, the engine stops.

4.33 HYDROSTATIC TRANSMISSION

DISENGAGEMENT LEVER

(Fig. 4.3 no.33)

This lever has two positions as shown on the

label:

«A» = Transmission engaged: for all uses,

when moving and during cutting;

«B» = Transmission disengaged: this

makes it much easier to move the

machine by hand, with the engine

turned off.

IMPORTANT To avoid damaging the

transmission unit, this operation must be car-

ried out only when the engine has stopped

with the pedal (4.32) at position «N”.

5. OPERATING INSTRUCTIONS

5.1 SAFETY RECOMMENDATIONS

WARNING! If the machine is likely to

be used mostly on sloping ground (never

steeper than 10°), fit counterweights (sup-

plied on request (see 8.1) beneath the cross-

member of the front wheels. These improve

stability at the front and reduce the chances

of tipping over.

IMPORTANT All the references relating to

the positions of controls are those described in

chapter 4.

5.2 WHY THE SAFETY DEVICES CUT IN

The safety devices work in two ways:

– they prevent the engine from starting if all the

safety requirements have not been met;

– by stopping the engine if even just one of the

safety requirements is lacking.

a) To start the engine, it is necessary that:

– the transmission is in “neutral”;

– all the cutting means are disengaged;

– the operator is seated.

b) The engine stops when:

– the operator leaves his seat;

– the grass catcher is lifted or the rear dis-

charge guard removed without disengaging

the cutting means;

– the parking brake is engaged without disen-

gaging the cutting means;

– the speed change (see 4.22) or the drive

pedal (see 4.32) is activated with the parking

brake on.

5.3 PRELIMINARY OPERATIONS BEFORE

STARTING WORK

Before starting to mow, it is necessary to carry

out several checks and operations to ensure

you can work eciently and in maximum safety.

5.3.1 Seat adjustment (Fig. 5.1)

To change the seat position, loosen the four x-

ing bolts (1) and slide it along the slots.

Once you have found the right position, tighten

the four screws (1) thoroughly.

5.3.2 Tyre pressure (Fig. 5.2)

Having the right tyre pressure is the main condi-

tion for ensuring that the cutting-means assem-

bly is horizontal and mows evenly.

Unscrew the valve caps and connect a com-

pressed air line with a gauge to the valves and

adjust the pressure to the indicated values.

5.3.3 Filling with oil and fuel

NOTE The type of oil and fuel to use is given

in the engine manual.

With the engine o, check the oil level. Accord-

ing to the instructions in the engine manual, this

must be between the MIN and MAX marks on

the dipstick. Fig. 5.3)

Refuel using a funnel, but do not completely ll

the tank. (Fig. 5.4)

DANGER! Refuelling should be carried

out in an open or well-ventilated area with

engine stopped. Always remember that pet-

rol fumes are inflammable. DO NOT TAKE A

NAKED FLAME TO THE TANK’S OPENING

IN ORDER TO SEE THE TANK’S CONTENTS

AND DO NOT SMOKE WHEN REFUELLING.

IMPORTANT Do not drip petrol onto the plas-

tic parts to avoid ruining them. In the event of ac-

cidental leaks, rinse immediately with water. The

warranty does not cover for damage to plastic

parts of the bodywork or the engine caused by

petrol.

5.3.4 Fitting the discharge guards (grass

catcher or rear discharge guard)

WARNING! Never use the machine with-

out having fitted the discharge guards!

Fasten the grass catcher (1) onto the supports

(2) and centre it up with the rear plate, so that

the two reference marks (3) coincide.

Centring is ensured by using the right bracket as

lateral support.

Make sure that the lower pipe of the grass

catcher opening is attached to the pawl (4). Fig.

5.5)

If you decide to work without the grass catcher,

a rear discharge guard kit is available upon re-

quest (see 8.1). This has to be attached to the

rear plate as indicated in the instructions. (Fig.

5.6)

5.3.5 Checking machine safety

and

eciency

1. Check that the safety devices function as de-

scribed (see 5.2).

2. Check that the brake is in perfect working

order.

3. Do not start mowing if the cutting means

vibrate or if you are unsure whether they are

sharp enough. Always remember that:

– A badly sharpened cutting means pulls at

the grass and causes the lawn to turn yel-

low.

– A loose cutting means causes abnormal

vibrations and can be dangerous.

WARNING! Do not use the machine if

you are unsure whether it is working safely

or efficiently. If in doubt, contact your Dealer

immediately to make the necessary checks

or repairs.

5.4 USING THE MACHINE

5.4.1 Ignition

To start the engine (Fig. 5.7):

– open the fuel stopcock (1) ( if tted);

– put the drive into neutral («N») (see 4.22 or

4.32);

– disengage the cutting means (see 4.7);

– apply the parking brake on sloping ground;

– for a cold start, use the choke (see 4.2 or

4.2a);

– if the engine is already warm, just put the lever

between «SLOW» and «FAST»;

– insert the ignition key and turn to «ON» to

make electrical contact, then turn to «START»

to start the engine;

– release the ignition key once the engine has

started.

When the engine has started, put the accelera-

tor in the «SLOW» position.

IMPORTANT The choke must be closed as

soon as the engine is running smoothly. Using

it when the engine is already warm can foul the

spark plugs and cause the engine to run errati-

cally.

NOTE If there are engine starting problems,

do not insist as you can risk running the battery

flat and flooding the engine. Turn the key to the

«OFF» position, wait for a few seconds and then

repeat the operation. If the malfunction persists,

refer to the engine manual and chapter «7» in

this manual.

IMPORTANT Always bear in mind that the

safety devices prevent the engine from starting

if safety requirements have not been met (see

5.2). In these cases, once the situation has been

corrected, the key must first be turned back to

«OFF» before the engine can be restarted.

5.4.2 Forward gear and riding without

mowing

When moving the machine:

– disengage the cutting means;

– bring the cutting-means assembly to the high-

est position (position «7»);

– put the accelerator control between the

«SLOW» and «FAST» positions.

Mechanical transmission

Push the pedal down as far as possible (see

4.21) and move the gear change lever into

1st gear (see 4.22).

Keep the pedal pressed down and disen-

gage the parking brake. Slowly release

the pedal which will turn from «brake» to

«clutch», thus operating the rear wheels

(see 4.21).

WARNING! The pedal has to be re-

leased gradually, as a sudden engage-

ment may cause the vehicle to tip over

and the driver to lose control.

Gradually reach the desired speed using

the throttle and gear lever. To change gear,

press the clutch halfway down (see 4.21).

IMPORTANT Gear must only be engaged

when the machine has stopped.

Hydrostatic transmission:

Disengage the parking brake and release

the brake pedal (see 4.31).

Press the drive pedal (see 4.32) in direction

«F» and reach the required speed by pro-

gressively increasing pressure on the pedal

and moving the accelerator.

WARNING! Drive must be engaged

as described below (see 4.32) to prevent

sudden engagement from causing tipping

up and loss of control of the vehicle, par-

ticularly on slopes.

5.4.3 Braking

First reduce the machine’s speed by reducing

the engine’s r.p.m., and then press the brake

pedal (see 4.21 or 4.31) to slow down the ma-

chine until it stops.

Hydrostatic transmission:

The machine already slows down consider-

ably by just releasing the drive pedal.

5.4.4 Reverse

IMPORTANT Reverse must only be engaged

when the machine has stopped.

IMPORTANT To proceed in reverse gear with

the cutting means engaged, it is necessary to

press and hold the consent button (see 4.7) so

as not to cause the engine to stop.

Mechanical transmission

Press the pedal until the machine stops and

then switch into reverse by shifting the lever

sideways and into position «R» (see 4.22).

Gradually release the pedal to engage the

clutch and then begin moving in reverse.

Hydrostatic transmission:

When the machine is stopped, start the re-

verse movement by pressing the drive pedal

in the «R» direction (see 4.32).

5.4.5 Grass cutting

Model 102

(Fig. 5.8) Adjust the position of the anti-

chipping wheels (1) whose function is to re-

duce the risk of tearing up sections of lawn,

which can occur when the edge of the cut-

ting-means assembly drags over irregular

ground.

The four dierent heights of the wheels allow

you to maintain a safe distance «A» between

the cutting-means assembly and the ground.

To change position, unscrew and extract

the pin (1) and reposition the wheel (2) in

the hole higher or lower than the row corre-

sponding to the wheel diameter.

WARNING! This should always be

performed on both wheels, position-

ing them at the same height WITH THE

ENGINE OFF AND CUTTING MEANS

DISENGAGED.

To start cutting:

– move the throttle to «FAST»;

– bring the cutting-means assembly to the high-

est position;

– engage the cutting means (see 4.7) only on

grass lawns; avoid engaging them on stony

ground or when the grass is very high;

– start moving forwards on the grass very

slowly and with utmost caution, as already

described;

– regulate the cutting height and speed (see

4.8) considering the conditions of the lawn

(the height, density and dampness of the

grass).

WARNING! When cutting on sloping

ground, the forward speed must be reduced

to ensure safe conditions (see 1A-C7-8-9).

Whatever the conditions, always reduce the

speed if you notice a drop in engine speed – if

you travel too fast compared to the amount of

grass being cut, you will not be able to mow the

grass well.

Disengage the cutting means and raise the

cutting-means assembly as high as possible

whenever you need to get past an obstacle.

5.4.6 Emptying the grass catcher

(Fig. 5.8)

NOTE The emptying of the grass catcher can

only be done with the cutting means disengaged,

otherwise the engine stops.

Do not let the grass catcher become too full as

this may block the collection channel.

When the grass catcher is full you will hear a

warning sound; at this point:

– disengage the cutting means (see 4.7) and

the warning sound will stop;

– lower the engine speed;

– shift into neutral (N) (see 4.22 – Mechanical

transmission or 4.32 - Hydrostatic transmis-

sion) and stop moving forward;

– engage the parking brake on slopes;

– pull out the lever (1 - if tted) or grasp the rear

handle (1a) and tip up the grass catcher to

empty it;

– close up the grass catcher so that it hooks

onto the pawl (2).

5.4.7 Unblocking the collector channel

Cutting very tall or wet grass, particularly at ex-

cessively high speed, can clog up the collector

channel. If this happens proceed as follows:

– stop forward movement immediately, disen-

gage the cutting means and stop the engine;

– remove the grass catcher or the rear dis-

charge guard;

– remove the grass cuttings; you can reach

them from the channel discharge opening.

WARNING! This job must only be per-

formed with the engine turned off.

5.4.8 End of mowing

When you have nished mowing, disengage the

cutting means, reduce the engine speed and

ride the machine with the cutting-means assem-

bly in the highest position.

5.4.9 End of work

Stop the machine, put the accelerator lever in

the «SLOW» position and turn o the engine by

putting the ignition key into the «OFF» position.

When the engine has stopped, close the fuel

stopcock (1) (if tted). Fig. 5.10)

WARNING! To avoid backfire, put the

accelerator in the «SLOW» position for 20

seconds before stopping the engine.

IMPORTANT To keep the battery charged,

do not leave the ignition key in the «ON» position

when the engine is not running.

5.4.10 Cleaning the machine

After each mowing session, clean the outside

of the machine, empty the grass catcher and

shake it to remove residual grass and earth.

Clean the plastic parts of the body with a damp

sponge using water and detergent, taking care

not to wet the engine, the electrical parts or the

electronic circuit board located under the dash-

board.

IMPORTANT Never use hose-nozzles or

harsh detergents for cleaning the body and en-

gine!

WARNING! Do not let debris and dried

grass accumulate in the upper part of the

cutting-means assembly in order to maintain

maximum machine efficiency and safety

levels.

After each use, clean the cutting-means as-

sembly thoroughly to remove any grass remains

or debris.

WARNING! Wear eye protection and

keep people or animals away from the sur-

rounding area when cleaning the cutting-

means assembly.

a) When washing the inside of the cutting-

means assembly and the collector channel, the

machine must be on rm ground with:

– the grass catcher or the rear discharge guard

tted in place;

– the operator seated;

– the cutting-means assembly in position «1»;

– the engine running;

– the transmission in neutral;

– the cutting means engaged.

Connect a water hose to its pipe tting (1), and

run water through it. Engage the cutting means

and allow it to run idle for a few minutes. Fig.

5.11)

IMPORTANT In order not to compromise the

efficiency of the electromagnetic clutch:

– do not let the clutch come into contact with oil;

– do not spray pressurised water directly on the

clutch unit;

– do not clean the clutch with petrol.

Now remove the grass catcher, empty and rinse

it, then place it where it can dry quickly.

b) To clean the upper part of the cutting-

means assembly:

– lower the cutting-means assembly completely

(position «1»);

– blow a jet of compressed air through the right

and left guard openings. Fig. 5.12)

5.4.11 Storage and inactivity

for long periods

If you intend not to use the machine for a long

period (more than 1 month), disconnect the

battery cables and follow the instructions in the

engine instruction manual.

Fig. 5.13) Empty the fuel tank by disconnecting

the tube (1) situated at the inlet of the fuel lter

(2), and collect the fuel in a suitable container.

Reconnect the tube (1) making sure you position

the clamp properly (3).

Put the machine away in a dry, sheltered place

and preferably covered with a cloth (see 8.4).

IMPORTANT The battery must be kept in a

cool and dry place. Before a long storage period

(more than 1 month), always charge the bat-

tery, and then recharge before using again (see

6.2.3).

The next time the machine is used, check that

there are no fuel leaks from the tubes, fuel stop-

cock or carburettor.

5.4.12 Circuit board protection device

The electronic circuit board has a self-resetting

protector which breaks the circuit if there is a

fault in the electrical system. This causes the

engine to shutdown and is indicated by the

indicator light going our (machine with indica-

tor light) or by the complete shutdown of the

dashboard (machine with 6 indicator light dash-

board).

The circuit automatically resets after a few sec-

onds but the cause of the fault should be ascer-

tained and dealt with to avoid reactivating the

protection device.

IMPORTANT To avoid activating the protec-

tion device:

– do not invert the leads on the battery terminals;

– do not use the machine without its battery or

damage may be caused to the charge regula-

tor;

– be careful not to cause short-circuits.

5.5 USING ON SLOPES (Fig. 5.14)

Observe the indicated limits (max 10° - 17%).

WARNING! Take care when beginning

forward movement on sloping ground to

prevent the risk of tipping up. Reduce the

forward speed before going on a slope, par-

ticularly downhill.

DANGER! Never switch to reverse gear

to decrease speed when going downhill: this

could cause loss of control of the machine,

especially on slippery ground.

Mechanical transmission

DANGER! Never ride the machine on

slopes in neutral or with the clutch out!

Always shift into a low gear before leav-

ing the machine at a standstill and unat-

tended.

Hydrostatic transmission:

Drive down slopes with your foot o the drive

pedal (see 4.32) to use the braking eect of

the hydrostatic transmission when the trans-

mission is not engaged.

5.6 SUGGESTIONS FOR MAINTAINING A

NICE LAWN

1. To keep a lawn green and soft with a good

appearance, it should be cut regularly with-

out damaging the grass. A lawn can be com-

posed of dierent types of grass. If the lawn

is cut frequently, grass and roots grow more

vigorously, forming a solid grassy bed. If the

lawn is cut is less frequently, higher grass

and weeds start growing (clover and daisies,

etc.).

2. It is always better to cut the grass when dry.

3. The cutting means must be in good condition

and well sharpened so that the grass is cut

straight without a ragged edge that leads to

yellowing at the ends.

4. The engine must run at full speed, both to

ensure a sharp cut of the grass and to get the

necessary thrust to push the cuttings through

the collector channel.

5. The frequency of mowing should be in rela-

tion to the rate of growth of the grass, which

should not be left to grow too much between

one cut and the next.

6. During hot and dry periods, the grass should

be cut a little higher to prevent the ground

from drying out.

7. The best height of the grass on a well-kept

lawn is approx. 4-5 cm. and with one mowing,

you do not need to remove more than a third

of the total height. If the grass is very tall,

it should be cut twice in a twenty-four hour

period. The rst time with the cutting means

at maximum cutting height, possibly reducing

the cutting width and the second cut at the

height desired. Fig. 5.15)

8. The appearance of the lawn will improve if

you alternate the cutting in both directions.

Fig. 5.16)

9. If the collector system tends to get blocked

with grass, you should reduce the forward

speed as it may be too high for the condi-

tion of the grass. If the problem persists, the

probable causes are either badly sharpened

cutting means or deformed ns.

10. Be very careful when mowing near bushes

or kerbs as these could distort the horizon-

tal position of the cutting-means assembly

and damage its edge as well as the cutting

means.

6. MAINTENANCE

6.1 SAFETY RECOMMENDATIONS

WARNING! You must go to a special-

ized Service Centre or contact your Dealer if

the following are malfunctioning:

– the brake;

– the cutting means engage and disengage

functions,

– switching the drive to forward or reverse

gears.

6.2 ROUTINE MAINTENANCE

The table will help you maintain your machine’s

safety and performance. It summarises the main

interventions to be made and the frequency ap-

plicable to each of them.

The boxes at the side are for you to mark the

date or number of working hours at which the

intervention was made.

Operation

Hours

Completed (Date or Hours)

1. MACHINE

1.1

Cutting means positioning and sharpening

check

1.2

Replacing cutting means

100

1.3

Transmission belt check

1.4

Transmission belt replacement

2) 3)

–

1.5

Cutting means control belt check

1.6

Replacing the cutting means control belt

check

2) 3)

–

1.7

Brake regulation and check

1.8

Drive regulation and check

1.9

Cutting means engage and brake check

1.10

Complete bolt and screw check 25

1.11

General lubrication

2. ENGINE

2.1

Replacement of the engine oil …

Operation

Hours

Completed (Date or Hours)

2.2

Air lter cleaning and check …

2.3

Air lter replacement …

2.4

Fuel lter check …

2.5

Fuel lter replacement …

2.6

Spark plug points cleaning and check …

2.7

Replace spark plug …

See the engine manual for the full list and frequency.

At the rst signs of any malfunction, contact your Dealer.

The operation must be carried out by your Dealer or a specialized Service Centre.

General lubrication of all joints should also be carried out whenever the machine is to be left un-

used for a long period.

6.2.1 Draining (Fig. 6.1)

IMPORTANT Follow all the instructions in the

engine manual.

Type “I”:

To empty the oil from the engine, hold the ex-

tension tube (1) rmly in place and unscrew the

drain plug (2).

When retting the plug (2) make sure the seal

(3) is positioned correctly and tighten it as far as

possible, holding the extension tube (1) rmly in

place.

Type “II”:

Place the machine on a at surface.

Place a suitable container under the extension

tube (1).

Press the cotter (2)

Release the extension tube from the support by

moving it downwards;

Bend the extension tube and drain the oil into a

suitable container.

Ret the extension tube (1) on the support (3)

before topping up the oil.

Clean up any spills.

6.2.2 Rear axle

This is a sealed single unit that does not require

maintenance. It is permanently lubricated and

its lubricant does not need changing or topping

up.

6.2.3 Battery (Fig. 6.2)

To ensure long life to the battery it is essential to

keep it carefully maintained.

The machine battery must always be charged:

– before using the machine for the rst time

after purchase;

– before leaving the machine disused for a long

period;

– before starting up the machine after a pro-

longed period of inactivity.

Carefully read and observe the battery recharg-

ing instructions in the booklet provided with the

battery. Failure in following the procedure or in

charging the battery could permanently damage

the battery elements.

A at battery must be recharged as soon as

possible.

IMPORTANT Recharging must be done us-

ing a battery charger at constant voltage. Other

recharging systems can irreversibly damage the

battery.

The machine comes with a connector (1) for re-

charging; this is connected to the corresponding

connector for the special maintenance battery-

charger supplied (if included) or available on

request (see 8.5).

IMPORTANT This connector must only be

used for connection to the maintenance battery-

charger indicated by the Manufacturer. For its

use:

– follow the indications given in the relative in-

structions manual;

– follow the instructions in the battery manual.

screws (4) and release the tabs (5).

Raise and release the upper part of the bonnet

(6).

Undo the screws (7) and replace the LED head-

lights (8).

To replace the bonnet, repeat the above proce-

dure in reverse order.

6.3.5 Replacing a fuse (Fig. 6.8)

The machine is tted with fuses (1) with dierent

capacities and functions. Specically:

– 10 A fuse = protects the main and power cir-

cuits of the electronic circuit board. When it

blows, the machine stops and the dashboard

light switches o.

– 25 A fuse = protects the battery recharge cir-

cuit. When it blows, the battery gradually runs

down and the machine will have problems

starting.The fuse capacity is indicated on the

fuse.

IMPORTANT A blown fuse must always be

replaced by one of the same type and ampere

rating, and never with one of another rating.

If you are unable to understand why it has

blown, contact Your Dealer.

6.3.6 Removing, replacing and

reassembling of cutting means

WARNING! Always wear strong protec-

tive gloves to handle the cutting means.

WARNING! Always replace damaged or

bent cutting means; never attempt to repair

them! ALWAYS USE ORIGINAL CUTTING

MEANS!

Only cutting means bearing the code indicated

in the table on page ii must be used on this ma-

chine.

Given product evolution, the above mentioned

cutting means may be replaced in time with oth-

ers having similar interchangeable and operat-

ing safety features.

IMPORTANT Cutting means should be

replaced in pairs, especially when there are

marked differences in wear.

6.3 INTERVENTIONS ON THE MACHINE

6.3.1 Aligning the cutting-means

assembly (Fig. 6.3)

The cutting-means assembly should be prop-

erly adjusted to obtain an evenly mown lawn.

If mowing is uneven, check the tyre pressure.

If this is not sucient to achieve an even cut,

please contact your Dealer to adjust the align-

ment of the cutting-means assembly.

6.3.2 Replacing the wheels (Fig. 6.4)

Stop the machine on at ground and put a block

under a load-bearing part of the frame on the

side that the wheel is to be changed.

The wheels are held by a snap ring (1) which

can be removed with a screwdriver.

NOTE If you have to replace one or both rear

wheels, make sure that any differences in their

external diameter does not exceed 8-10 mm; on

the contrary, you must adjust the cutting-means

assembly alignment to prevent uneven mowing.

IMPORTANT Before remounting the wheel,

apply grease to the axle. Put the snap ring (1)

and shoulder washer (2) back in place.

6.3.3 Repairing or replacing tyres

The tyres are “Tubeless” and must be replaced

or repaired if punctured by a specialized tyre

repairer following the procedures required for

this kind of tyre.

6.3.4 Replacing bulbs ( if tted)

• Type “I” bulbs (incandescent) (Fig. 6.5)

The bulbs (18W) have a bayonet tting and are

installed in the bulb holder which can be taken

out by turning it anti-clockwise with pliers.

• Type “II” bulbs (LED) (Fig. 6.6)

Unscrew the ring-nut (1) and remove the con-

nector (2).

Remove the LED illuminator (3), secured by

screws (4).

• Type “III” bulbs (LED) (Fig. 6.7)

Raise the bonnet and remove the connector (1).

Detach the cotter pin (2) and slide the bonnet o

laterally.

Detach the LED light bulb cables (3), undo the

7. TROUBLESHOOTING

PROBLEM LIKELY CAUSE SOLUTION

1. When the ignition key is turned

to «ON», the indicator light or the

dashboard remain switched o

The safety device of the electronic

circuit board has cut in due to:

– badly connected battery

– battery terminals crossed

– at battery

– blown fuse

– wet circuit board

Turn the ignition key to the «STOP»

position and look for the cause of

the problem:

– check connections (see 3.4)

– recharge the battery (see 6.2.3)

– replace the fuse (10 A)

(see 6.3.5)

– dry using warm air

2. With the ignition key turned to

«START» the light ashes and

the starter motor does not run

– starting conditions have not

been met

– check that all starting conditions

are met (see 5.2.a)

3. With the ignition key turned

to «START» the light or the

dashboard come on, but the

starter motor does not run

– insuciently charged battery

– malfunction on the starter relay

– recharge the battery (see 6.2.3)

– contact your Dealer

4. With the ignition key turned to

«START» the starter motor runs

but the engine does not start

– insuciently charged battery

– faulty fuel supply

– faulty ignition

– recharge the battery (see 6.2.3)

– check the level in the tank

(see 5.3.3)

– open the fuel stopcock (if tted)

(see 5.4.1)

– check the fuel lter

– check that spark plug cap is

securely tted

– check that the electrodes are

clean and have the correct gap

between them

5. Starting is dicult or the engine

runs erratically

– faulty carburetion – clean or replace the air lter

– empty the fuel tank and rell with

fresh fuel

– check and replace the fuel lter if

necessary

6. Weak engine performance

during cutting

– forward speed too high in relation

to cutting height

– reduce the forward speed and/or

raise the cutting height

(see 5.4.5)

7. The engine shuts down whilst

working.

The safety device of the electronic

circuit board has cut in due to:

– the safety devices have cut in

Turn the ignition key to «STOP»

and look for the cause of the

problem:

– check that all starting conditions

are met (see 5.2.b)

8. The cutting means do not

engage or do not stop promptly

when they are disengaged

– problems with the engagement

mechanism

– contact your Dealer

PROBLEM LIKELY CAUSE SOLUTION

9. Uneven mowing and poor grass

collection

– cutting-means assembly is not

parallel to the ground

– inecient cutting means;

– forward speed too high

compared to the height of grass

being cut

– collector channel is blocked

– check the tyre pressure

(see 5.3.2)

– reinstate the alignment of the

cutting-means assembly in

relation to the ground (see 6.3.1)

– contact your Dealer

– reduce the forward speed and/

or raise the cutting-means

assembly (see 5.4.5)

– wait for the grass to dry

– remove the grass catcher and

empty the collector channel

(see 5.4.7)

10. Unusual vibrations while

working

– cutting-means assembly is full

of grass

– the cutting means are

unbalanced or loose

– loose bolts and screws

– clean the cutting-means

assembly (see 5.4.10)

– contact your Dealer

– check and tighten all the engine

and frame bolts

11. Uncertain or ineective braking – the brake is not adjusted

correctly

– contact your Dealer

12. Erratic forward movement,

poor drive when going uphill or

if the machine has a tendency

to rear up

– problems with the belt or the

engagement device

– contact your Dealer

13. With the engine running, the

machine does not move when

the drive pedal is pressed

(hydrostatic transmission

models)

– release lever in position «B» – move to pos. «A» (see 4.33)

14. The machine starts to vibrate

abnormally

– damaged or loose parts – stop the machine and disconnect

the spark plug cable

– inspect for damage

– check for and tighten any loose

parts.

– Have all checks, repair work and

replacements carried out by a

specialized Centre only.

If problems persist after having performed the above operations, contact your dealer.

WARNING! Do not take on complicated repair work without the necessary equipment and

technical knowledge. The guarantee is automatically revoked and the manufacturer declines

all responsibility for any poorly effected repairs.

8. ATTACHMENTS

8.1 REAR DISCHARGE GUARD KIT

(Fig. 8.1 no. 33)

Used instead of the grass catcher when the cut-

tings are not collected.

8.2 TOWING KIT (Fig. 8.1 no. 34)

For towing a small trailer.

8.3 CLOTH COVER (Fig. 8.1 no. 35)

Protects the machine from dust when not in use.

8.4 MAINTENANCE BATTERY CHARGER

(Fig. 8.1 no. 36)

This keeps the battery in good working order

when the machine is in storage, guaranteeing

an optimum level of charge and longer battery

life.

8.5 “MULCHING” KIT (Fig. 8.1 no. 37)

It chops the grass cuttings nely and leaves

them on the lawn, instead of collecting them in

the grass catcher.

8.6 SNOW CHAINS 18” (Fig. 8.1 no. 38)

These improve front wheel adherence on snow-

covered sections of road and allow the snow

shovel equipment to be used.

8.7 TRAILER (Fig. 8.1 no. 39)

For transporting tools and other objects within

the allowed load limits.

8.8 SPRINKLER (Fig. 8.1 no. 40)

To sprinkle salt or fertilisers.

8.9 LAWN ROLLER (Fig. 8.1 no. 41)

To make the soil compact after seeding or to

atten the grass.

8.10 SNOW SHOVEL (Fig. 8.1 no. 42)

Shovels and accumulates removed snow to the

side.

8.11 MUD / SNOW WHEELS

(Fig. 8.1 no. 43)

Snow wheels are designed and manufactured to

improve traction performance in snow and mud

conditions.

8.12 FRONT SWEEPER (Fig. 8.1 no. 44)

To clean paths and solid surfaces removing

leaves, dirt and thin layers of fresh snow.

8.13 LIFTING INTERFACE (Fig. 8.1 no. 45)

This is used to assemble supplementary front

attachments that do not require a power take o.

8.14 POWER TAKE OFF (PTO)

(Fig. 8.1 no. 46)

This allows the transfer of power from the en-

gine to the controlled attachment. It requires the

lifting interface.
