E-1
Air Cleaning System
Model No. AC4300BPT
3-Year Limited Warranty
www.guardiantechnologies.com
1.866.603.5900
REV1215
English E - 1
French F - 1
Spanish S - 1
Date Purchased
month ________
year _________
USE & CARE INSTRUCTIONS
Replacement Filter/A4300BPT: Filter PET (FLT4825PT)
To Order Contact Customer Service
1.866.603.5900 or log on to www.guardiantechnologies.com
B
Guardian Technologies LLC
26251 Bluestone Blvd. | Euclid, Ohio 44132
1.866.603.5900 | www.guardiantechnologies.com
©2015 Guardian Technologies LLC
READ AND SAVE THESE INSTRUCTIONS
WARNINGS
Failure to comply with the warnings listed below may
result in electric shock or serious injury.
This product should be used only in accordance with the specifications
outlined in this manual. Usage other than what has been specified here
may result in serious injury.
When using electrical appliances, basic precautions should always be followed to
reduce the risk of fire, electric shock and injury to persons, including the following:
• Read all instructions before using appliance.
• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only
one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician. Do not attempt to defeat this safety feature.
• To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord
under rugs, near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids.
Do not use near water.
• Children cannot recognize the hazards associated with the usage of electrical
appliances. For this reason, always supervise children when they are near the unit.
• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning
or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
• DO NOT run cord under carpeting.
• DO NOT cover cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area
and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate,
after the appliance malfunctions, or if it has been dropped or damaged in any manner.
Call Customer Service at 1.866.603.5900 for assistance.
• Use appliance only for intended household use as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electric shock or injury to persons.
• DO NOT use outdoors.
• DO NOT place anything on top of unit.
WARNING: THE CORDS, WIRES AND/OR CABLE SUPPLIED WITH THIS
PRODUCT CONTAIN CHEMICALS, INCLUDING LEAD OR LEAD COMPOUNDS,
KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANER AND BIRTH
DEFECTS OR OTHER REPRODUCTIVE HARM. WASH HANDS AFTER USING.
(CALIFORNIA CODE OF REGULATION PROPOSITION 65)
E-2
READ AND SAVE THESE INSTRUCTIONS
WARNINGS
Failure to comply with the warnings listed below may
result in electric shock or serious injury.
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or
sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit.
Doing so will void your warranty. The inside of the unit contains no user serviceable parts.
All servicing should be performed by qualified personnel only.
• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any
solid-state speed control device.
PRODUCT SPECIFICATIONS AND PARTS
E-3
MODEL NUMBER.....................................AC4300BPT
DIMENSIONS........................8.88”L x 6.38”W x 22”H
WEIGHT......................................................9.45 pounds
INPUT VOLTAGE...........120 V, 60Hz, 55W, 0.5 Amps
REPLACEMENT FILTER
FILTER B PET (FLT4825PT)
REPLACEMENT BULB
LB4000
BULB..........5W
LAMP CONTAINS MERCURY
Manage in accordance with Spills, Disposal and Site Cleanup
Requirements. In case of breakage, follow clean-up procedures
provided by contacts below.
www.epa.gov/cflcleanup
1-866-284-4010
PRODUCT SPECIFICATIONS AND PARTS
E-4
E-5
CONTROLS
Control Panel
Air Outlet
Base
Unit Body
Carrying
Handle
Lock & Release
Button
(for accessing
filter & bulb)
Filter Access
Cover
Front of Unit
Back of Unit
POWER
ON/OFF
Button
AIR CLEANING SYSTEM
Improve your indoor air quality with your new germguardian® Air Cleaning System.
Multiple levels of cleaning include a combination True HEPA filter that captures allergens,
and Charcoal filter to remove odors. UV-C light technology enhances germ-killing.
Pre-Filter*
Captures initial dust and allergen particles.
Activated Carbon Filter
Activated Carbon Filter traps and controls household odors.
Pet Pure™ True HEPA Filter
Captures 99.97% of dust and allergens. Pet Pure™ treatment inhibits the growth of mold
and mildew and odor causing bacteria on the surface of the filter.
UV-C Light
UV-C light technology works with Titanium Dioxide (TiO2) to enhance the elimination of
airborne germs. TiO2 is activated by the UV-C light to decompose remaining odor molecules
caused by smoking, cooking and pets.
*Pre-Filter and Carbon Filter are combined into one layer that attaches to the HEPA Filter.
UV-C
Blue Ring
Air Inlet
AC4300 Series Control Panel
FAN SPEED
SELECTION
Light
REPLACE HEPA
Light
UV-C
ON/OFF
Button
AIR CLEANING LAYERS
Combination
FILTER B Pet
Includes Pre/Carbon Filter
and Pet Pure
™True HEPA Filter
Rear Cover
with Air Inlet Grill
Lock & Release
Button
UV-C TiO2 Treated
Metal Shield
UV-C Bulb
Main Unit
E-6
E-7
OPERATING INSTRUCTIONS
BEFORE OPERATING THE AIR PURIFIER:
1. Select a firm, level and flat location for the air purifier.
* For proper air flow, locate the unit at least 1 foot from any wall or furniture.
* Make sure none of the grills are blocked.
2. Plug the power cord into a 120V AC outlet.
IMPORTANT: When moving the air purifier, always lift unit by the carrying
handle located on back.
OPERATING THE AIR PURIFIER (AC4300 SERIES):
1. Turn off and unplug
the unit.
2. Press the lock and
release button and
remove the rear
cover from the unit.
3. Remove the
combination filter.
1. Turn unit power ON. To turn OFF, press and hold button for 3 seconds.
2. Select fan speed MODE 1 - 3
1 = low, ultra quiet sleep mode
3 = high
3. Select UV-C ON or OFF using UV-C Mode Button.
*Filter Replacement Indicator: The Replace HEPA light on the control
panel will illuminate and flicker indicating that it is time to replace your
filter. Replace the filter according to directions (E-8) then press and
hold the UV Mode button for 3 seconds to reset the system.
*UV Bulb Replacement Indicator: The circular blue light on the front
panel of the purifier will flicker when it’s time to replace the bulb.
Replace the bulb according to directions (E- 9), then press
and hold UV Mode button for 3 seconds to reset the system.
CLEANING & MAINTAINING AIR PURIFIER
AIR PURIFIER
Use a clean, dry, soft cloth to wipe the external surface of the unit.
CLEANING & MAINTAINING COMBINATION FILTER
ACCESSING COMBINATION FILTER
Filter package includes:
• 1 Piece True HEPA Filter
• 1 Piece Pre/Carbon Filter
Filter last approximately 6-8
months depending on use.
True HEPA and Pre/Carbon
Filter create
ONE COMBINATION FILTER
Pre/Carbon Filter Maintenance
Clean weekly with the brush attachment of your vacuum cleaner.
This will remove lint and dirt and extend the life of your filter.
Genuine Carbon Filter Replacements can be purchased directly
at www.guardiantechnologies.com. Part number FLT22CB4.
Pet Pure True HEPA Filter Replacement
Filter Replacement Indicator:
The Replace HEPA light on the control panel
will illuminate and flicker indicating that it is time to replace your filter.
INSTALLING & REMOVING UV-C BULB
E-8
E-9
1. Turn off and unplug unit.
Press the lock and release
button and remove the
rear cover from the unit.
2. Remove the
combination filter.
3. Use a Philips head
screwdriver to remove
2 screws and detach the
UV-C Metal Shield.
UV Bulb Replacement Indicator: The circular blue light on the front panel of the purifier will flicker
when it’s time to replace the bulb.
4. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling
the bulb straight out of the unit.
5. The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots at the top of the unit.
6. To reset the UV-C Replacement Indicator, press and hold the UV Mode button for 3 seconds.
Bulb is NOT visible
until the UV-C METAL
SHIELD has been
removed.
CLEANING & MAINTAINING COMBINATION FILTER
Check and Replacing HEPA Filter:
Remove the Pre-Carbon Filter to expose the Pet Pure HEPA Filter. When the HEPA Filter
turns from white to grey or black (about every 6 months depending on use and environmental
conditions) it should be replaced with a new one. If the HEPA filter is still white, it does NOT
need to be replaced.
Important: Do NOT try to wash and re-use the Combination Filter.
1. Replace combination filter. Consult the arrow on the filter for correct installation direction.
2. Reattach the rear cover of the unit and securely latch into place.
3. Press and hold the UV Mode button for 3 seconds to reset the system.
Important: To maintain warranty and the performance of the air cleaner, use Guardian
Technologies Genuine Replacement Parts only.
Genuine Filter Replacements can be purchased directly at www.guardiantechnologies.com.
FILTER (FLT4825) OR FILTER PET (FLT4850PT).
NOTE: Do NOT stick any foreign objects or your fingers inside of the unit.
CAUTION: Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in
the unit while cleaning as they will damage the product.
NEVER use alcohol or other solvents.
Clean Air Delivery Rate
From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer
to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.
This air cleaner is suggested for use in a single, closed room up to 155 square feet.
Higher CADR rates provide improved performance in all room sizes. Portable air cleaners will be much
more effective in rooms when all the doors and windows are closed.
TOBACCO SMOKE: 100+
This value represents performance that can be expected within the first 72 hours of operation.
Subsequent use may vary with use.
Tested per ANSI/AHAM AC-1 National Standard
What is CADR?
CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by
an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing
fine particles from things like tobacco smoke and plant pollens from the room.
Check out our
Filter Replacement Program
www.guardiantechnologies.com
™
B B
Replacement bulb: LB4000
available at 866.603.5900 or
www.guardiantechnologies.com
E-10
E-11
TROUBLESHOOTING GUIDE
PROBLEM SOLUTION
Unit does not operate. Check that the unit is plugged in.
Check that filter is in place.
Confirm that filter is Genuine Replacement Filter
Call Customer Service 1.866.603.5900.
Unit shuts off unexpectedly. Check that unit is plugged into a working
electrical outlet.
Check that HEPA filter is firmly in place.
Check that the Rear Cover is latched firmly in place.
Call Customer Service 1.866.603.5900.
No air circulating from unit. Unplug unit. Check Pre-/Carbon and HEPA Filters.
Clean Pre-/Carbon Filter if necessary.
Replace HEPA Filter if necessary.
Increase in noise level. Make sure the filters are clean. Replace if necessary.
Red light is flashing. Replace filter and reset system. See E-7, E-8.
Blue ring on product is flashing. Replace UV-C bulb and reset system. See E-9.

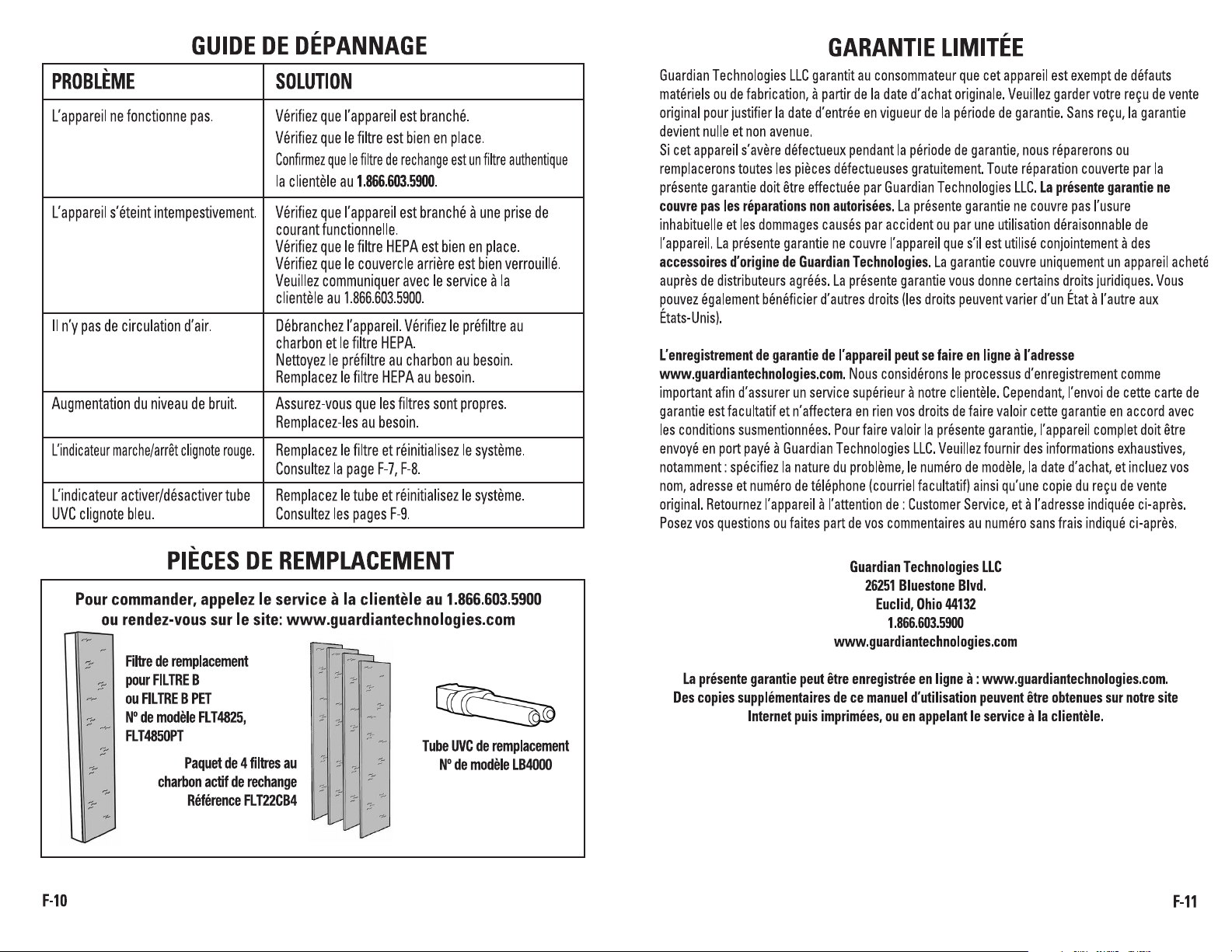

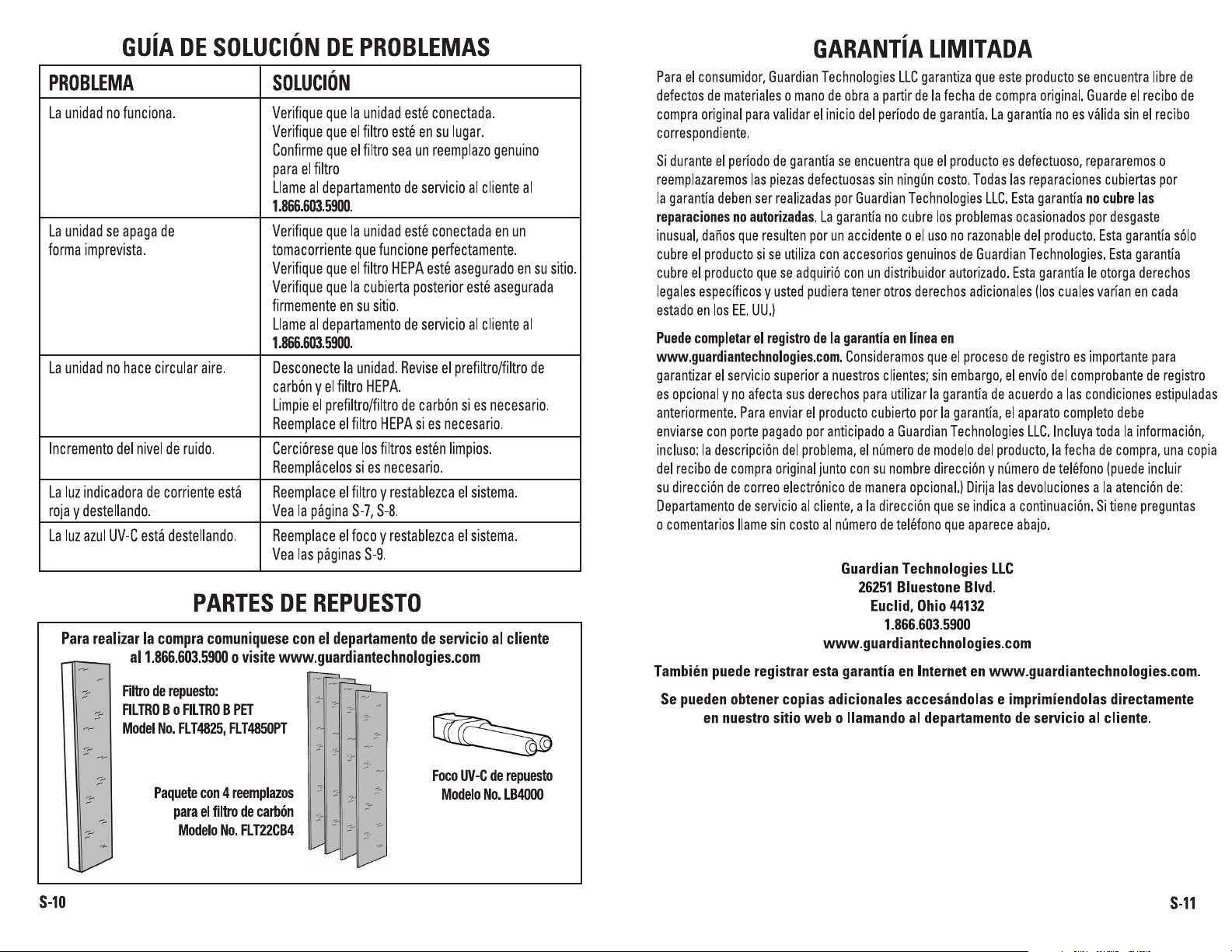

REPLACEMENT PARTS
To Purchase Contact Customer Service at 1.866.603.5900
or visit www.guardiantechnologies.com
FILTER B or FILTER B PET
Replacement Combo Filter
Model No. FLT4825, FLT4850PT
Replacement UV-C Bulb
Model No. LB4000
Replacement Carbon Filter
4 Pack
Model No. FLT22CB4
LIMITED WARRANTY
To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials
or workmanship commencing upon the date of the original purchase. Save your original sales
receipt to validate start of warranty period. Warranty is not valid without receipt.
If this product should become defective within the warranty period, we will repair or replace any
defective parts free of charge. All warranty repairs must be completed by Guardian Technologies
LLC. This warranty does not cover unauthorized repairs. The warranty does not include unusual
wear, damage resulting from accident, or unreasonable use of the product. This warranty only
covers the product when used with genuine Guardian Technologies accessories. This warranty
covers product that was purchased from authorized distributors. This warranty gives you specific
legal rights and you may also have other rights (other rights may vary from state to state in
the U.S.A.)
The product warranty registration can be completed online at
www.guardiantechnologies.com. We consider the registration process important to ensuring
superior service to our customers, however submitting the warranty registration is optional and
does not affect your rights to utilize this warranty according to the conditions stated above. To
submit product under warranty the complete machine must be delivered pre-paid to Guardian
Technologies LLC. Please include complete information including: the problem, the model number
of the product, the day of purchase, and a copy of the original sales receipt along with your name,
address, and telephone (email optional). Address returns to the attention of: Customer Service,
at the address below. Additional questions or comments can be made toll free to the number
listed below.
Guardian Technologies LLC
26251 Bluestone Blvd.
Euclid, Ohio 44132
1.866.603.5900
www.guardiantechnologies.com
Additional copies of the instruction manual can be obtained by accessing and
printing directly from our website or calling customer service.
