PORTABLE AIR CONDITIONER(Local Air Conditioner)
Owner’s Manual &
Installation Manual
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.
Safety Precautions
. ...........................................................................................................................................................
Safety Precautions
Installation Instructions
Operating Instructions
Maintenance
Table of Contents

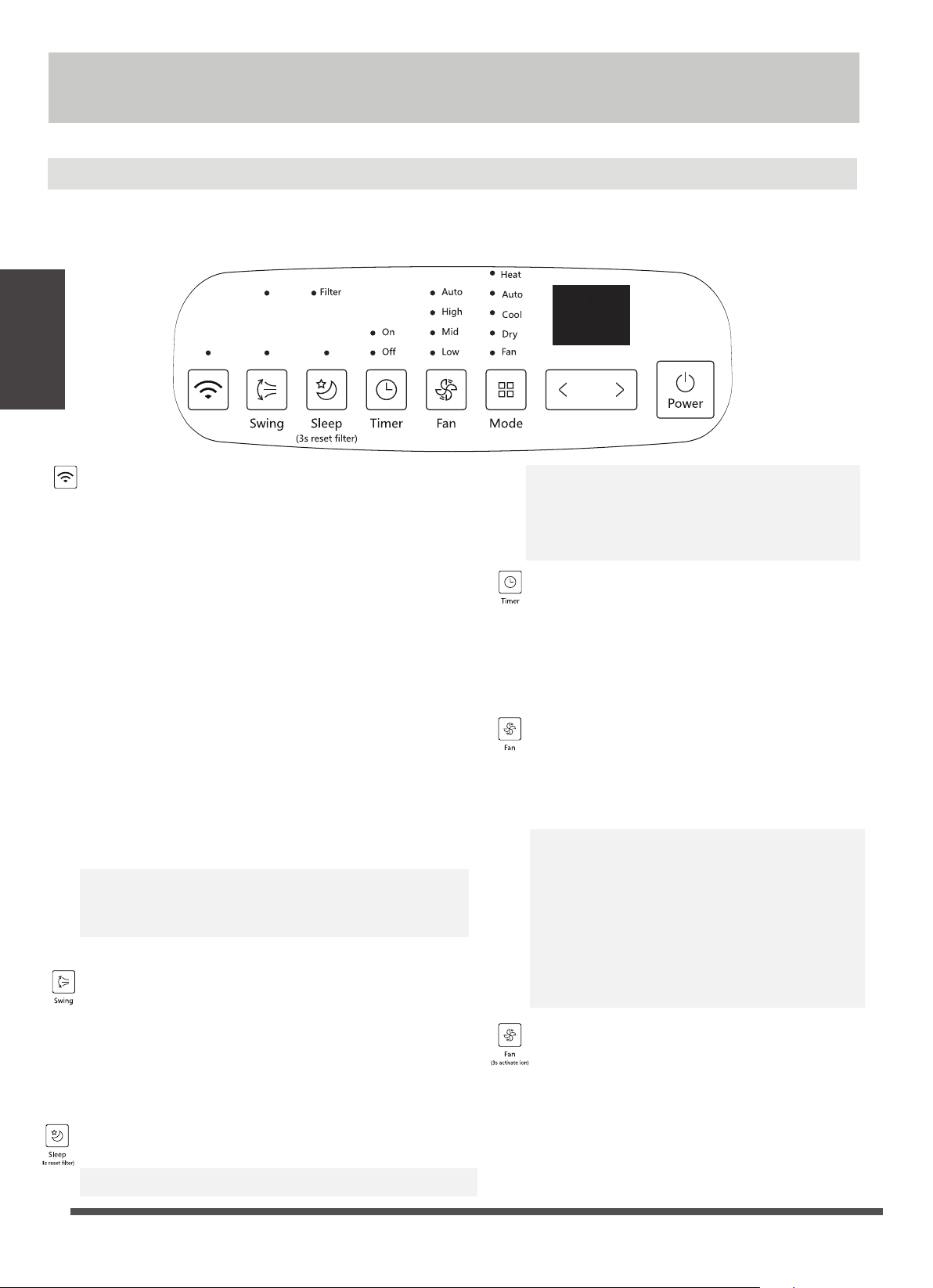

Control Panel Features......................................................................................................................................................
Operation Instructions......................................................................................................................................................
Other features......................................................................................................................................................................
Safety Precautions..............................................................................................................................................................

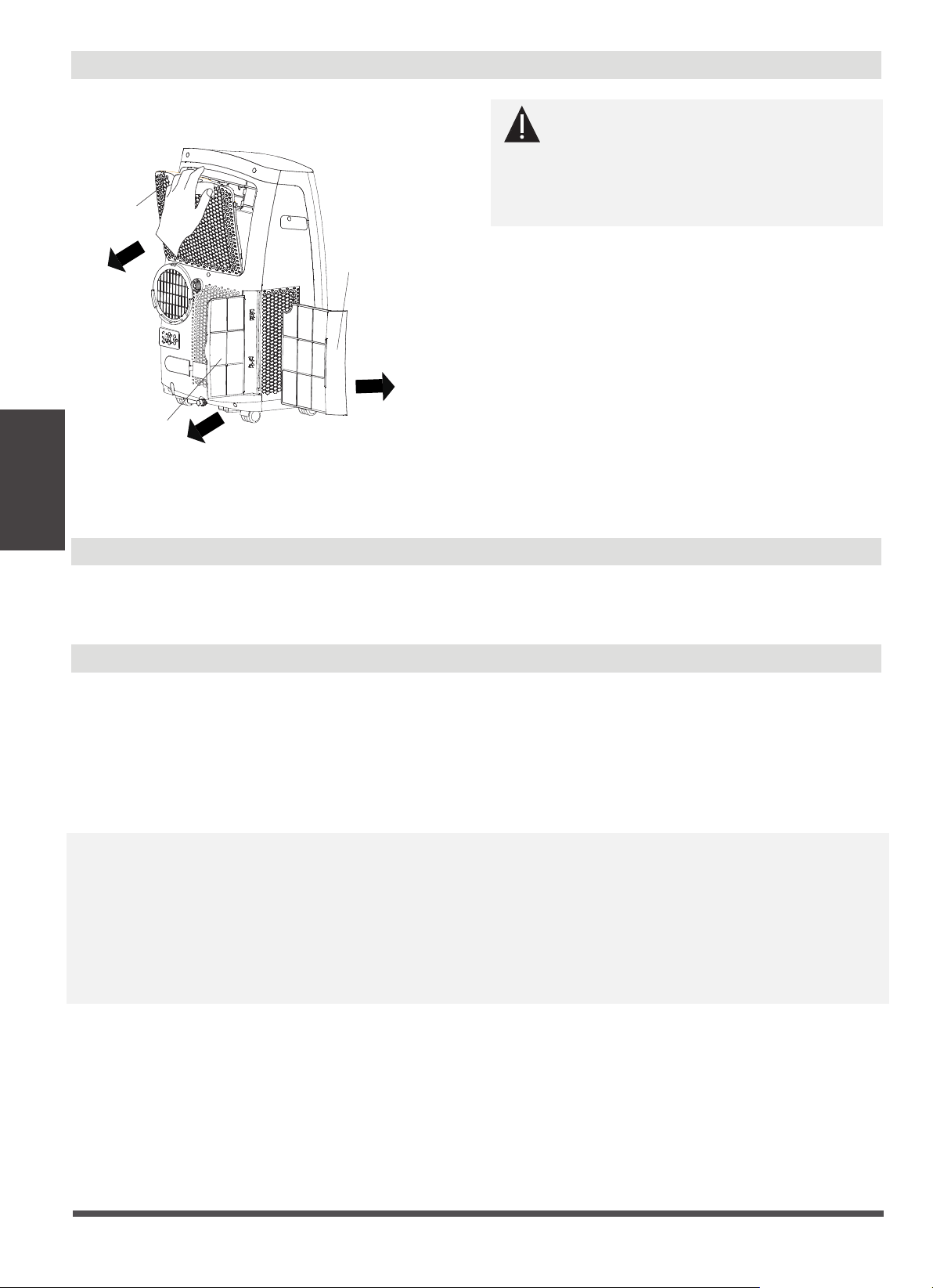

Air Filter Cleaning ..............................................................................................................................................................
Troubleshooting Tips .......................................................................................................................................................
Unit Cleaning ......................................................................................................................................................................
Store the unit when not in use .....................................................................................................................................
Preparation............................................................................................................................................................................
Design Notice.......................................................................................................................................................................
Ambient Temperature Range For Unit Operating..................................................................................................

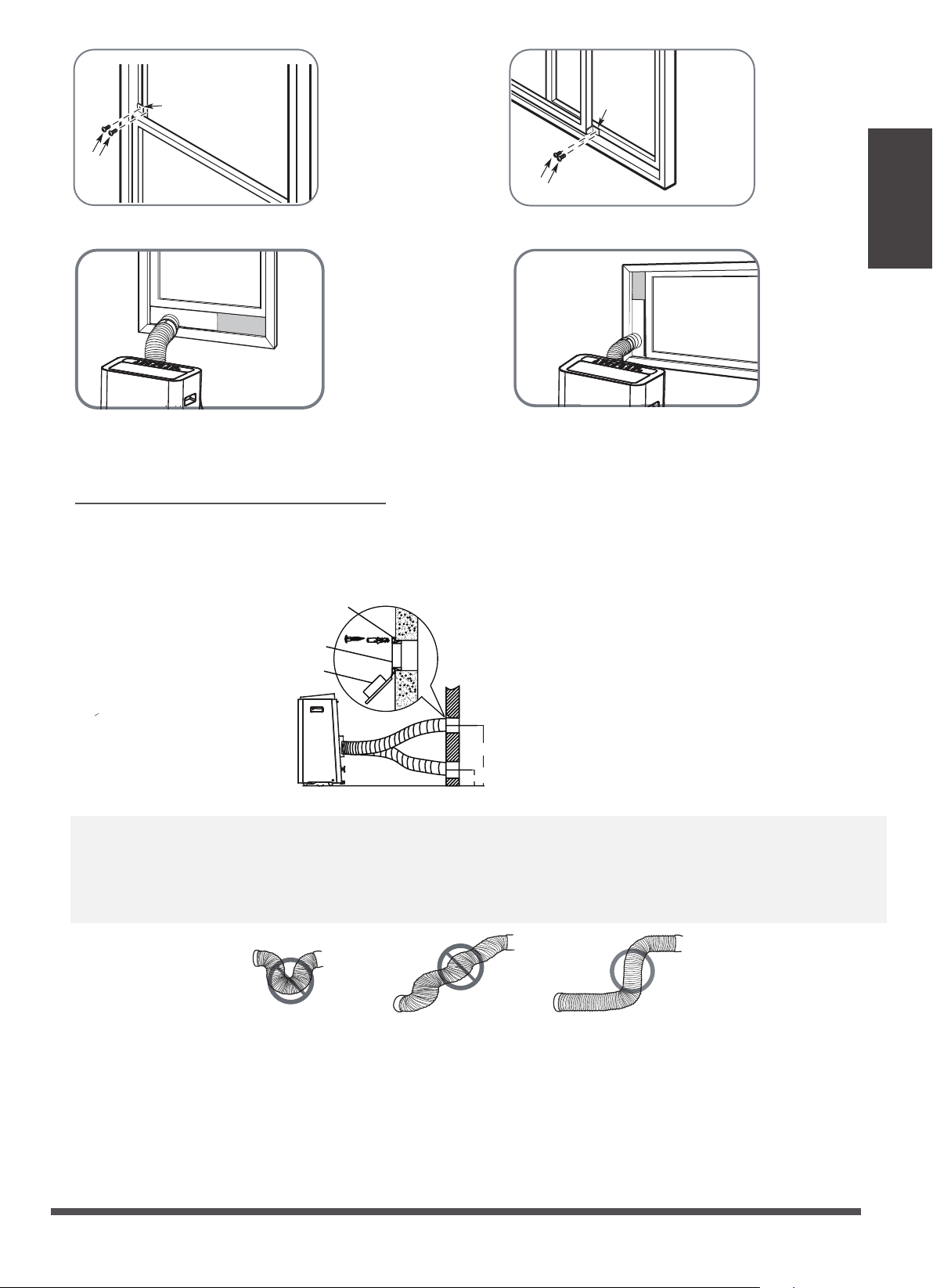

Exhaust Hose Installation.................................................................................................................................................
Choosing The Right Location..........................................................................................................................................
Tools Needed........................................................................................................................................................................

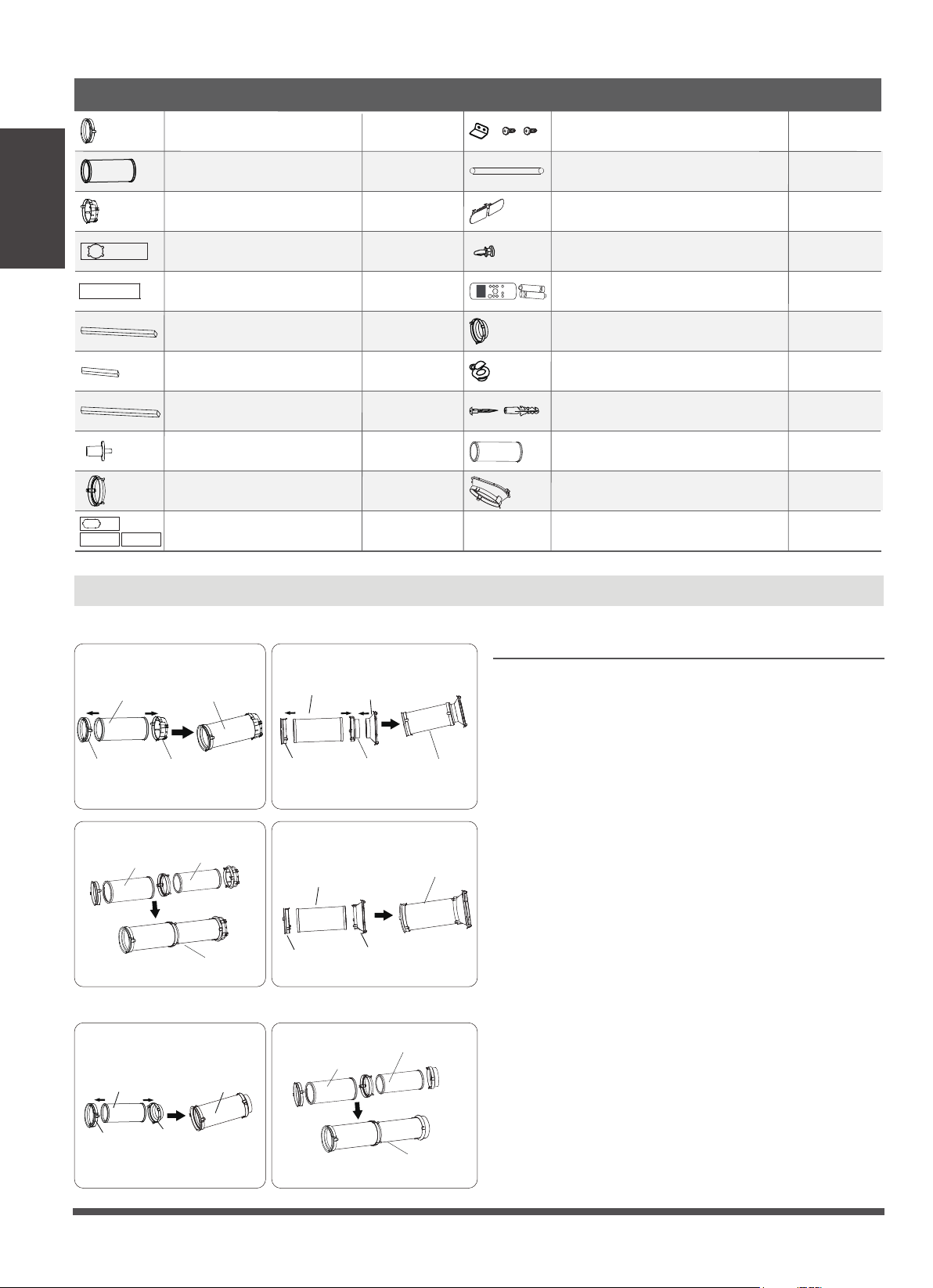

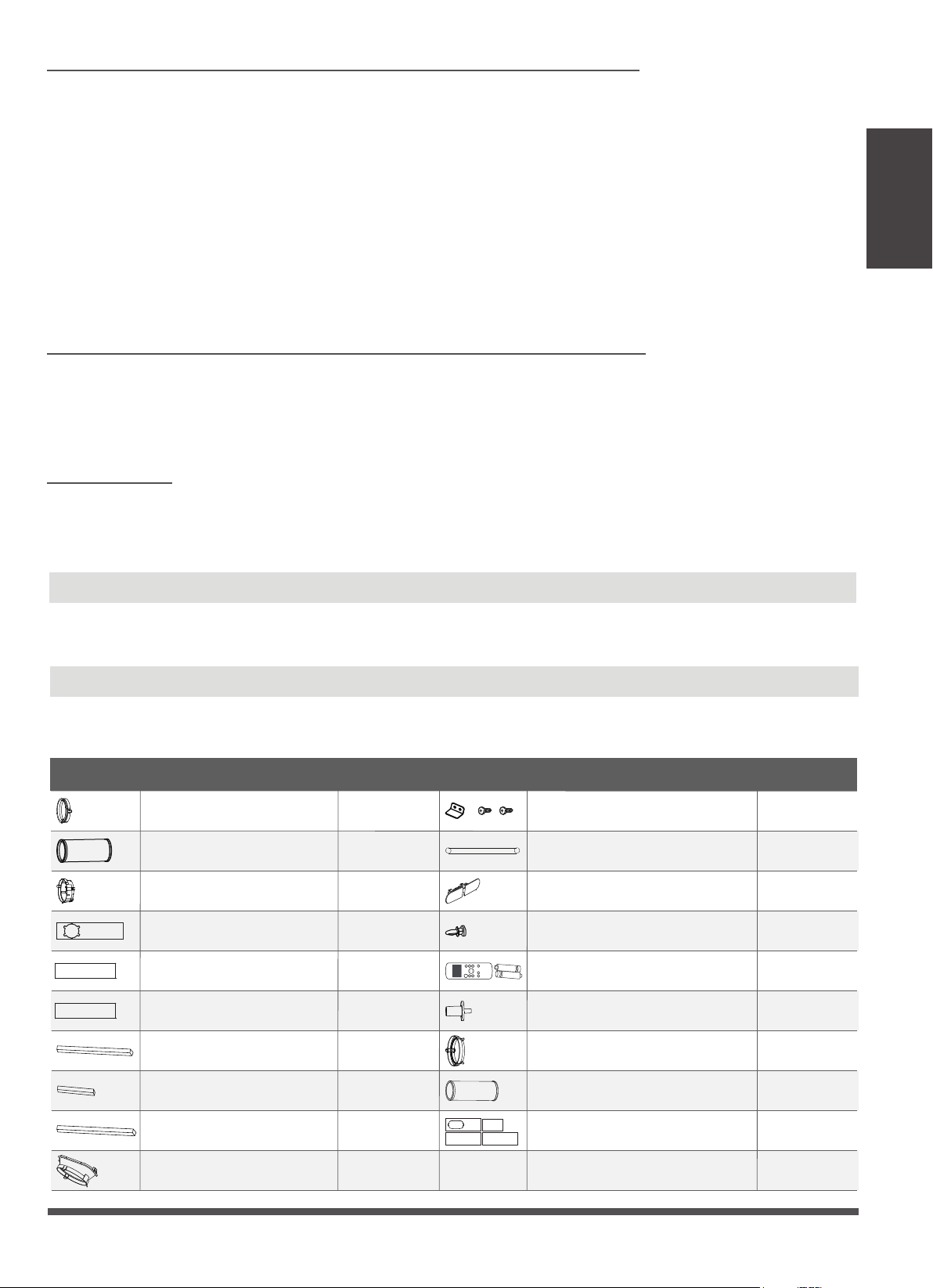

Accessories.............................................................................................................................................................................

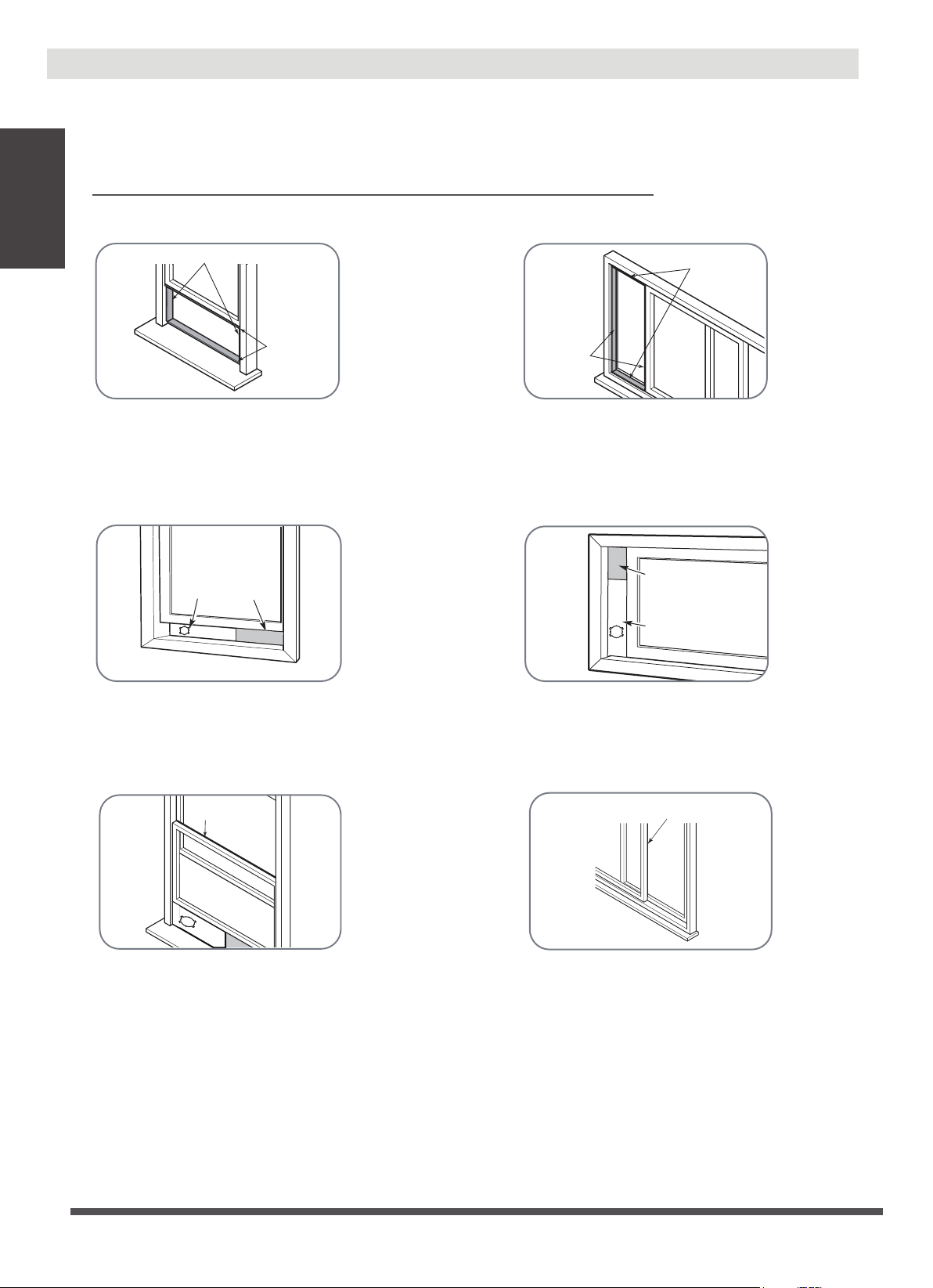

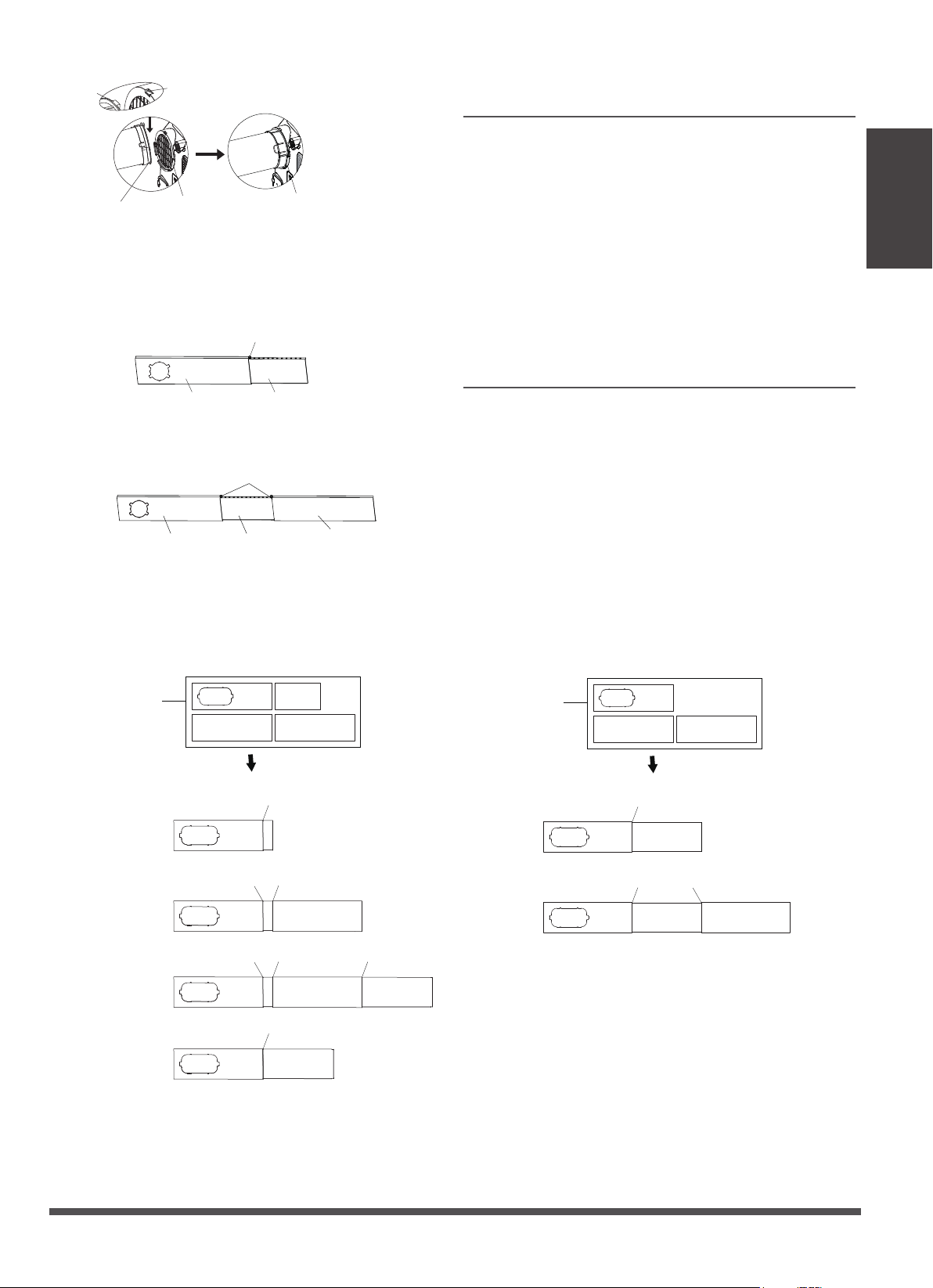

Window Installation Kit.....................................................................................................................................................
Installation..............................................................................................................................................................................
Troubleshooting Tips
03
11
11
Energy Rating Information ............................................................................................................................................. 12
11
12
12
13
13
14
16
18
19
20
21
22
22
22
23
Safety
Precautions
Read Safety Precautions Before Operation and Installation
To prevent death or injury to the user or other people and property damage, the
following instructions must be followed. Incorrect operation due to ignoring of
instructions may cause death, harm or damage.
WARNING
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Safety Precautions
Do not operate a unit that it has been dropped or damaged.
The appliance with electric heater shall have at least 1 meter space to the combustible
materials.
Do not touch the unit with wet or damp hands or when barefoot.
If the air conditioner is knocked over during use, turn off the unit and unplug it from the main
power supply immediately. Visually inspect the unit to ensure there is no damage. If you
suspect the unit has been damaged, contact a technician or customer service for assistance.
Page 3
WARNING
CAUTION
This symbol indicates the possibility of
property damage or serious consequences.
Installation must be performed according to the installation instructions. Improper installation
can cause water leakage, electrical shock, or fire.
Use only the included accessories and parts, and specified tools for the installation. Using non-
standard parts can cause water leakage, electrical shock, fire, and injury or property damage.
Make sure that the outlet you are using is grounded and has the appropriate voltage.
The power cord is equipped with a three-prong grounding plug to protect against shock.
Voltage information can be found on the nameplate of the unit.
Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you
intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker
(the fuse or circuit breaker needed is determined by the maximum current of the unit. The
maximum current is indicated on the nameplate located on unit), have a qualified electrician
install the proper receptacle.
Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive
noise and vibration.
The unit must be kept free from obstruction to ensure proper function and to mitigate safety
hazards.
Do not modify the length of the power cord or use an extension cord to power the unit.
Do not share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
Do not install your air conditioner in a wet room such as a bathroom or laundry room. Too
much exposure to water can cause electrical components to short circuit.
Do not install the unit in a location that may be exposed to combustible gas, as this could
cause fire.
The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or to
roll over objects, as these could cause tipping.
This symbol indicates the possibility of
personnel injury or loss of life.
Safety
Precautions
Page 4
•
•
•
•
•
In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
Your air conditioner should be used in such a way that it is protected from moisture.
e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can
fall or be pulled into water or any other liquid. Unplug immediately if it occurs.
All wiring must be performed strictly in accordance with the wiring diagram located inside of
the unit.
The unit's circuit board(PCB) is designed with a fuse to provide overcurrent protection. The
specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.
When the water drainage function is not in use, keep the upper and the lower drain plug firmly
to the unit to get rid of choking. When the drain plug is not in use, keep it carefully to prevent
children from choking.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
This appliance can be used by children aged from 8 years and above and person with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision. (be applicable for the European Countries)
This appliance is not intended for use by persons (including childern) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
Children must be supervised around the unit at all times.(be applicable for other countries
except the European Countries )
If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
CAUTION
•
•
•
•
Disconnect the power if strange sounds, smell, or smoke comes from it.
Do not press the buttons on the control panel with anything other than your fingers.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has
been dropped or damaged.
Do not operate or stop the unit by inserting or pulling out the power cord plug.
Do not use this product for functions other than those described in this instruction manual.
Before cleaning, turn off the power and unplug the unit.
Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has
been dropped or damaged.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area
and where it will not be tripped over.
Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or
return to an authorized service facility for examination and/or repair.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
The appliance shall be installed in accordance with national wiring regulations.
Contact the authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
Do not cover or obstruct the inlet or outlet grilles.
Safety
Precautions
Page 5
Note about Fluorinated Gasses(Not applicable to the unit using R290 Refrigerant)
1.
Fluorinated greenhouse gases are contained in hermetically sealed equipment. For specific
information on the type, the amount and the CO2 equivalent in tonnes of the fluorinated
greenhouse gas(on some models), please refer to the relevant label on the unit itself.
2.
Installation, service, maintenance and repair of this unit must be performed by a certified
technician.
3.
Product uninstallation and recycling must be performed by a certified technician.
Sociable Remark
DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
When using this dehumidifier in the European countries, the following information must be followed:
· The municipality has established collection systems, where electronic waste can be disposed
of at least free of charge to the user.
· When buying a new product, the retailer will take back the old product at least free of charge.
· The manufacture will take back the old appliance for disposal at least free of charge to the user.
· As old products contain valuable resources, they can be sold to scrap metal dealers. Wild
disposal of waste in forests and landscapes endangers your health when hazar do us
substances leak into the ground-water and find their way into the food chain.
•
•
•
•
•
Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit
in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol,etc.
Always transport your air conditioner in a vertical position and stand on a stable, level surface
during use.
Always contact a qualified person to carry out repairs. If the damaged power supply cord must
be replaced with a new power supply cord obtained from the product manufacturer and not
repaired.
Hold the plug by the head of the power plug when taking it out.
Turn off the product when not in use.
WARNING for Using R32/R290 Refrigerant
Do not use means to accelerate the defrosting process or to clean, other than those recommended by
the manufacturer.
The appliance shall be stored in a room without continuously operating ignition sources (for example:
open flames, an operating gas appliance or an operating electric heater).
Do not pierce or burn.
Be aware that the refrigerants may not contain an odour.
Appliance should be installed, operated and stored in a room with a floor area according to the amount
of refrigerant to be charged. For specific information on the type of gas and the amount, please refer
to the relevant label on the unit itself. When there are differences between the lable and the manual on
the Min. room area description, the description on label shall prevail.
Safety
Precautions
Page 6
For R290
amount of refrigerant (kg)
4
4
4
8
9
10
Min. room area(m²)
0.0836 and 0.1045
≥
<
0.1045 and 0.1254
≥
<
0.1254 and 0.1520
≥
<
0.1520 and 0.1672
≥
<
0.1672 and 0.1881
≥
<
0.1881 and 0.2090
≥
<
amount of refrigerant (kg)
11
12
13
14
Min. room area(m²)
0.2090 and 0.2299
≥
<
0.2299 and 0.2508
≥
<
0.2508 and 0.2717
≥
<
0.2717 and 0.2926
≥
<
15 0.2926 and 0.3040
≥
<
Compliance with national gas regulations shall be observed.
Keep ventilation openings clear of obstruction.
The appliance shall be stored so as to prevent mechanical damage from occurring.
A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds
to the room area as specified for operation.
Any person who is involved with working on or breaking into a refrigerant circuit should hold a current
valid certificate from an industry-accredited assessment authority, which authorises their competence
to handle refrigerants safely in accordance with an industry recognised assessment specification.
Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance
and repair requiring the assistance of other skilled personnel shall be carried out under the supervision
of the person competent in the use of flammable refrigerants.
AVERTISSEMENT
Ne pas utiliser de produits permettant d’accélérer le dégel ou de produits de nettoyage autres que
ceux recommandés par le fabricant.
L’appareil doit être entreposé dans un endroit sans source d’allumage fonctionnant en continu (par
exemple : flamme nue, appareil au gaz en marche ou radiateur électrique en marche).
Ne pas percer ni bruler.
Attention : les frigorigènes peuvent être inodores.
Please follow the instruction carefully to handle, install, clear, service the air conditioner to avoid any
damage or hazard. Flammable Refrigerant R32 is used within air conditioner. When maintaining or
disposing the air conditioner, the refrigerant (R32 or R290) shall be recovered properly, shall not
discharge to air directly.
No any open fire or device like switch which may generate spark/arcing shall be around air conditioner
to avoid causing ignition of the flammable refrigerant used.
Please follow the instruction carefully to store or maintain the air conditioner to prevent
mechanical damage from occurring.
Flammable refrigerant -R32 is used in air conditioner. Please follow the instruction carefully to avoid
any hazard.For speci-c information on the type of gas and the amount,please to the relevant label on
the unit itself.
Safety
Precautions
Page 7
precautions shall be complied with prior to conducting work on the system.
2)Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or
vapour being present while the work is being performed.
6.Information on servicing
1)Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to
ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following
1.Transport of equipment containing flammable refrigerants
See transport regulations
2.Marking of equipment using signs
See local regulations
3.Disposal of equipment using flammable refrigerants
See national regulations.
4.Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
5.Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the equipment
inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of
equipment permitted to be stored together will be determined by local regulations.
3)General work area
All maintenance staff and others working in the local area shall be instructed on the nature of work
being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be
sectioned off. Ensure that the conditions within the area have been made safe by control of flammable
material.
4)Checking for presence of refrigerant
Explanation of symbols displayed on the unit(For the unit adopts R32/R290 Refrigerant only):
WARNING
CAUTION
CAUTION
CAUTION
This symbol shows that this appliance used a flammable refrigerant. If the refrigerant
is leaked and exposed to an external ignition source, there is a risk of fire.
This symbol shows that the operation manual should be read carefully.
This symbol shows that a service personnel should be handling this equipment
with reference to the installation manual.
This symbol shows that information is available such as the operating manual or
installation manual.
Caution: Risk of fire/
flammable materials
(Required for R32/R290 units only)
Safety
Precautions
Page 8
7)Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or
conducting any hot work. A degree of ventilation shall continue during the period that the work is carried
out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into
the atmosphere.
Repair and maintenance to electrical components shall include initial safety checks and component
inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be
connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately
but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be
reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include:
That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
That there no live electrical components and wiring are exposed while charging, recovering or purging
the system; That there is continuity of earth bonding.
8)Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose and to the correct
specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in
doubt consult the manufacturer's technical department for assistance. The following checks shall be
applied to installations using flammable refrigerants:
The charge size is in accordance with the room size within which the refrigerant containing parts are
installed;
The ventilation machinery and outlets are operating adequately and are not obstructed;
If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence
of refrigerant; Marking to the equipment continues to be visible and legible. Markings and signs that
are illegible shall be corrected;
Refrigeration pipe or components are installed in a position where they are unlikely to be exposed
1)During repairs to sealed components, all electrical supplies shall be disconnected from the equipment
9)Checks to electrical devices
7.Repairs to sealed components
to any substance which may corrode refrigerant containing components, unless the components are
constructed of materials which are inherently resistant to being corroded or are suitably protected
against being so corroded.
The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure
the technician is aware of potentially flammable atmospheres. Ensure that the leak detection
equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately
sealed or intrinsically safe.
5)Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate
fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher
adjacent to the charging area.
6)No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing any pipe
work that contains or has contained flammable refrigerant shall use any sources of ignition in such a
manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette
smoking, should be kept sufficiently far away from the site of installation, repairing, removing and
disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior
to work taking place, the area around the equipment is to be surveyed to make sure that there are no
flammable hazards or ignition risks. No Smoking signs shall be displayed.
Safety
Precautions
Page 9
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will
not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe
components are the only types that can be worked on while live in the presence of a flammable
atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts
specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere
from a leak.
8.Repair to intrinsically safe components
and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 %
maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of
detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and
corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/ extinguished.
If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from
the system, or isolated (by means of shut off valves) in a part of the system remote from the leak.
Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the
brazing process.
When breaking into the refrigerant circuit to make repairs or for any other purpose conventional
procedures shall be used. However, it is important that best practice is followed since flammability is a
consideration. The following procedure shall be adhered to:
Remove refrigerant; Purge the circuit with inert gas; Evacuate; Purge again with inert gas; Open the
circuit by cutting or brazing.
The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed
with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or
10.Detection of flammable refrigerants
The following leak detection methods are deemed acceptable for systems containing flammable
refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity
may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a
refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for
the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant
11.Leak detection methods
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or
any other adverse environmental effects. The check shall also take into account the effects of aging or
continual vibration from sources such as compressors or fans.
9.Cabling
12.Removal and evacuation
Under no circumstances shall potential sources of ignition be used in the searching for or detection
of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.
being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an
electrical supply to equipment during servicing, then a permanently operating form of leak detection
shall be located at the most critical point to warn of a potentially hazardous situation.
2)Particular attention shall be paid to the following to ensure that by working on electrical components,
the casing is not altered in such a way that the level of protection is affected. This shall include damage
to cables, excessive number of connections, terminals not made to original specification, damage to
seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or
sealing materials have not degraded such that they no longer serve the purpose of preventing the
ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's
specifications.
NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection
equipment. Intrinsically safe components do not have to be isolated prior to working on them.
Safety
Precautions
Page 10
cylinders. (No more than 80 % volume liquid charge). i) Do not exceed the maximum working
pressure of thecylinder, even temporarily. j) When the cylinders have been filled correctly and the
process completed, make sure that the cylinders and the equipment are removed from site promptly
and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged
into another refrigeration system unless it has been cleaned and checked.
15.Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The
label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment
contains flammable refrigerant.
16.Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is recommended
good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders,
ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct
number of cylinders for holding the total system charge is available. All cylinders to be used are
designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off
valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before
Before carrying out this procedure, it is essential that the technician is completely familiar with the
equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely.
Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is
required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before
the task is commenced.
14.Decommissioning
a) Become familiar with the equipment and its operation. b) Isolate system electrically. c) Before
attempting the procedure ensure that: Mechanical handling equipment is available, if required, for
handling refrigerant cylinders;All personal protective equipment is available and being used correctly;
The recovery process is supervised at all times by a competent person; Recovery equipment and
cylinders conform to the appropriate standards. d) Pump down refrigerant system, if possible. e) If a
vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the
system. f) Make sure that cylinder is situated on the scales before recovery takes place. g) Start the
recovery machine and operate in accordance with manufacturer's instructions. h) Do not overfill
13.Charging procedures
In addition to conventional charging procedures, the following requirements shall be followed. Ensure
that contamination of different refrigerants does not occur when using charging equipment. Hoses or
lines shall be as short as possible to minimise the amount of refrigerant contained in them.
Cylinders shall be kept upright.
Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
Label the system when charging is complete (if not already).
Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it
shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior
to commissioning. A follow up leak test shall be carried out prior to leaving the site.
oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system
with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and
finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system.
When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable
work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take
place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is
ventilation available.
Page 11

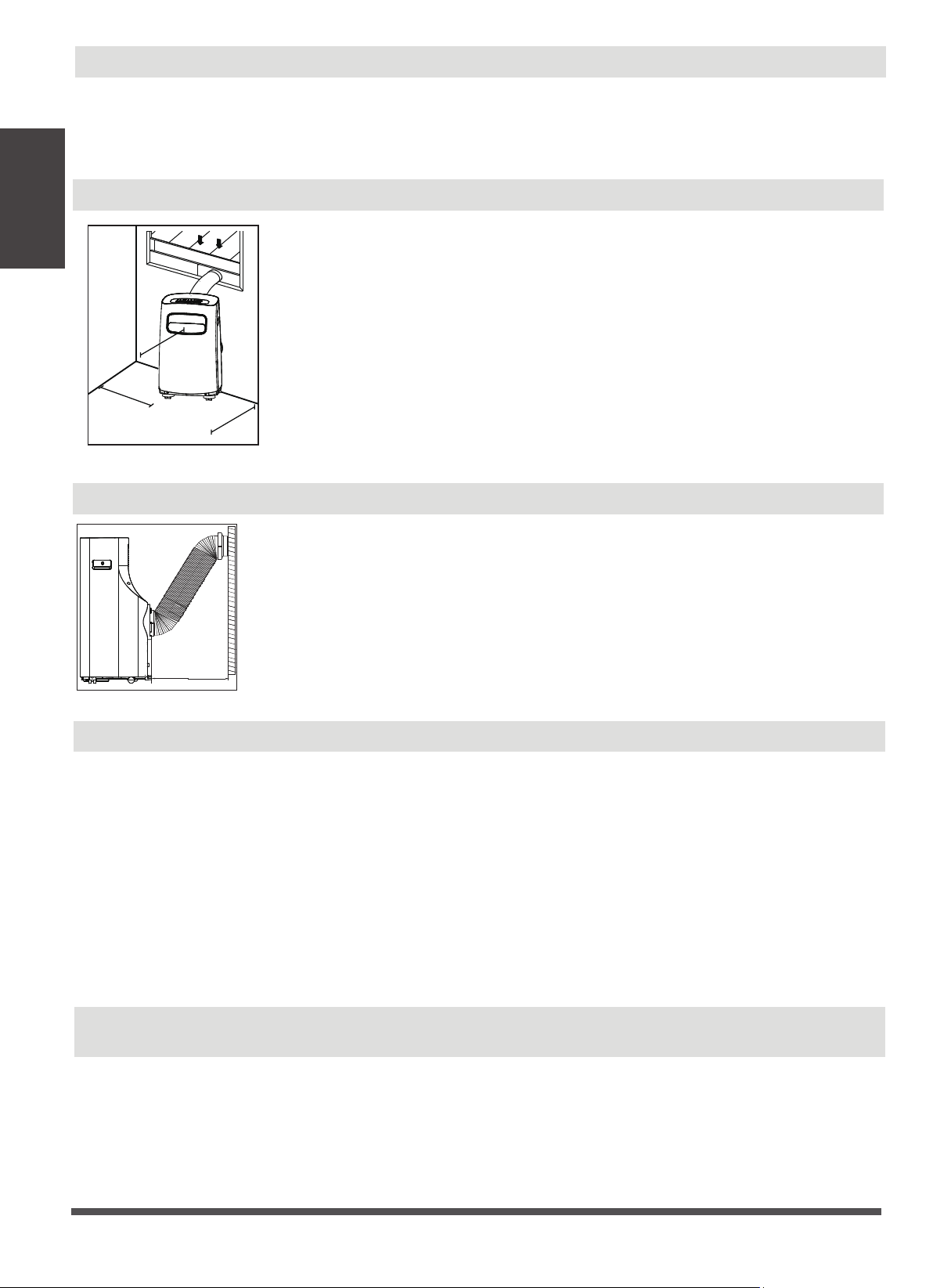

Installation Instructions
Preparation
CThe unit can be controlled by the unit control panel alone or with the remote
controller. This manual does not include Remote Controller Operations, see the <<Remote Controller
Instruction>> packed with the unit for details.
Installation
Instructions

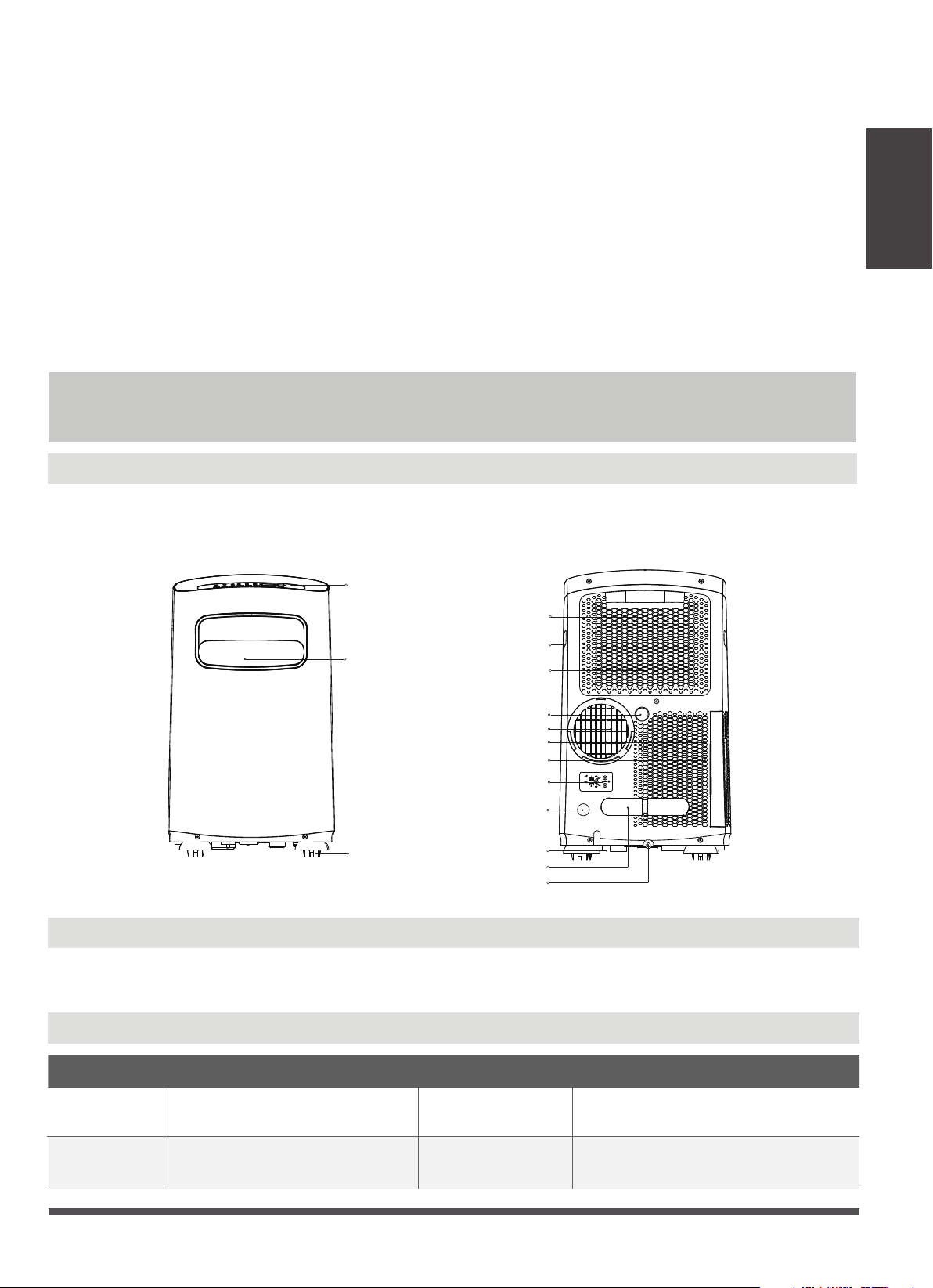

rearfront
control panel
horizontal louver
blade
Caster
handle
(both sides)
power plug socket
power cord buckle
bottom tray
drain outlet
power cord outlet
drain outlet
(only for pump
heating mode)
upper air filter
upper air intake
air outlet
lower air filter
lower air intake
drain outlet
MODE Temperature Range MODE Temperature Range
Design Notice
Ambient Temperature Range For Unit Operating
In order to ensure the optimal performance of our products, the design specifications of the unit
and remote control are subject to change without prior notice.
Cool 17-35°C (62-95°F)
Dry
Heat(pump heat
mode)
Heat(electrical
heat mode)
13-35°C (55-95°F)
5-30°C (41-86°F)
30°C (86°F)
≥
recovery occurs. The recovery equipment shall be in good working order with a set of instructions
concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.
In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall
be complete with leak-free disconnect couplings and in good condition. Before using the recovery
machine, check that it is in satisfactory working order, has been properly maintained and that any
associated electrical components are sealed to prevent ignition in the event of a refrigerant release.
Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier
in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants
in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed,
ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant
does not remain within the lubricant. The evacuation process shall be carried out prior to returning the
compressor to the suppliers. Only electric heating to the compressor body shall be employed to
accelerate this process. When oil is drained from a system, it shall be carried out safely.
Page 12
50cm
50cm
19.7inch
50cm
19.7inch
19.7inch
Installation
Instructions
Exhaust hose installation
The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For
COOL,HEAT(heat pump type) or AUTO mode must be installed exhaust hose. For FAN, DRY or HEAT
(electrical heat type) mode must be removed exhaust hose.
Choosing The Right Location
Recommend Installation
Your installation location should meet the following requirements:
-Make sure that you install your unit on an even surface to minimize noise and
vibration.
-The unit must be installed near a grounded plug, and the Collection Tray Drain
(found on the back of the unit) must be accessible.
-The unit should be located at least 30cm (12”) from the nearest wall to ensure
proper air conditioning. The horizontal louver blade should be at least 50cm
(19.7”) away from obstacles.
-DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the unit, as this
could cause damage to the unit.
50cm
19.7 inch
Energy Rating Information
How to Stay Cool with a New Portable Air Conditioner(For the models comply with the
requirements of Department Of Energy in US)
Because of a new federal test procedure for Portable Air Conditioners, you may notice that the
cooling capacity claims on portable air conditioner packaging are significantly lower than that of
models produced prior to 2017. This is due to changes in the test procedure, not to the portable
air conditioners themselves.
The unit with 3 meters extended exhaust duct is running by using 2 exhaust ducts(Diameter:150mm, Length:1.5m
+ Diameter: 130mm, Length: 1.5m) .The Energy rating and noise information for unit with 3 meters extended
exhaust duct is not assessed.(For some models)
NOTE：
We recommend that operating the unit at room temperature below 35
°C
. Since there is a risk that the unit with 3
meters extended exhaust duct would not work at room temperature above 35
°C
under some extreme conditions,
such as the lower air intake be blocked for 50%.
The energy rating and noise information for this unit is based on the standard installation using an un-extended
exhaust duct (Diameter:150mm, Length:1.5m) without window slider adaptor or wall exhaust adaptor A.
NOTE: Items with (*) are on some models. Slight variations in design may occur.
Page 13
Accessories
Tools Needed
-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;
-Saw (On some models, to shorten window adaptor for narrow windows)
Installation
Instructions
North America
Name of Accessories
Qty.
Shape
Name of Accessories
Qty.
Shape
1 pc(*)Window Slider A Bolt
1 pc 1 setUnit Adaptor Security Bracket and 2 Screws
1 pc 1 pcExhaust Hose Drain Hose
1 pc(*) 1 pcWindow Slider Adaptor Power Cord Buckle
ON /OF F
TEM P
SHO R T
CU T
TIME R
ON
TIME R
OFF
MO DE
FAN
SLE EP
SW ING
LED
1 set(*)1 pc(*)Window Slider B
Remote Controller and Battery
(only for remote control models)
1 pc(*)Window Slider C
2 pc/4 pc(*)
1 pc/2 pc(*)
Foam Seal A (Adhesive)
2 pc Foam Seal B (Adhesive)
1 pc/2 pc/3 pc(*)
Foam Seal C (Non-adhesive)
1 pc(*)
Drain Hose Adaptor
(only for heat pump mode)
1 pc(*)
1 pc(*)
Exhaust Hose Adaptor
Extended Exhaust Hose
1 set(*)Window Sliders
1 pc(*)Air exhaust passage
What should I look for first when purchasing a portable air conditioner?
The right air conditioner helps you cool a room efficiently. An undersized unit won't cool adequately
while one that's too large will not remove enough humidity, leaving the air feeling damp. To find
the proper air conditioner, determine the square footage of the room you want to cool by
multiplying the room length by its width. You also need to know the air conditioner's BTU (British
Thermal Unit) rating, which indicates the amount of heat it can remove from a room. A higher
number means more cooling power for a larger room. (Be sure you are comparing only newer
models to each other- older models may appear to have a higher capacity, but are actually the
same). Be sure to “size up” if your portable air conditioner will be placed in a very sunny room, in a
kitchen, or in a room with high ceilings. After you’ve found the right cooling capacity or your
room, you can look at other features.
Why is the cooling capacity lower on newer models than on older units?
Federal regulations require manufacturers to calculate cooling capacity based on a specific test
procedure, which was changed just this year. Models manufactured before 2017 were tested under
a different procedure and cooling capacity is measured differently than in prior years’models. So,
while the BTUs may be lower, the actual cooling capacity of the air conditioners has not changed.
What is SACC ?
SACC is the representative value of Seasonally Adjusted Cooling Capacity, in Btu/h, as determined
in accordance with the DOE test procedure at title 10 Code of Federal Regulations (CFR) 430,
subpart B, appendix CC and applicable sampling plans.
Page 14
Installation
Instructions
Other Regions
Name of Accessories
Qty.
Shape
Name of Accessories
Qty.
Shape
1 pc(*)Window Slider A Bolt
1 pc 1 set(*)Unit Adaptor Security Bracket and 2 Screws
1 pc 1 pcExhaust Hose Drain Hose
1 pc(*) 1 pcWindow Slider Adaptor Power Cord Buckle
ON /OF F
TEM P
SHO R T
CU T
TIME R
ON
TIME R
OFF
MO DE
FAN
SLE EP
SW ING
LED
1 set(*)1 pc(*)Window Slider B
Remote Controller and Battery
(only for remote control models)
1 pc(*)
Wall Exhaust Adaptor A
(only for wall installation models)
2 pc(*)Foam Seal A (Adhesive)
1 pc(*)
Wall Exhaust Adaptor B(with cap)
(only for wall installation models)
2 pc(*)Foam Seal B (Adhesive)
4 set(*)
Screw and anchor
(only for wall installation models)
1 pc(*)Foam Seal C (Non-adhesive)
1 pc(*)
Drain Hose Adaptor
(only for heat pump mode)
1 pc(*)
1 pc/2 pc(*)
1 pc(*)
Exhaust Hose Adaptor
Extended Exhaust Hose
1 pc(*)Air exhaust passage
Window Installation Kit
Press the exhaust hose(or extended exhaust hose)
into the window slider adaptor(or wall exhaust
adaptor) and unit adaptor, clamp automatically by
elastic buckles of the adaptors.
Step One: Preparing the Exhaust Hose assembly
Window slider
adaptor
Exhaust hose
assembly
Exhaust hose
Air exhaust
passage
Unit adaptor
Exhaust hose
assembly
Exhaust hose
Unit adaptor
Air exhaust
passage
Unit adaptor
Exhaust hose
Exhaust hose
assembly
Window slider
adaptor
Model D
Type window installation:
Exhaust hose
Extended
Exhaust hose
Exhaust hose
assembly
Model C
Type wall installation:
Exhaust hose assembly
Wall exhaust adaptor A
Exhaust hose
Unit adaptor
Exhaust hose
Extended Exhaust
hose
Exhaust hose
assembly
Model A Model B
Model A Model B
1 set(*)Window Sliders
Page 15
Installation
Instructions
Hook
Hole Seat
Lower groove
adaptor
Make sure the adaptor
is inserted into the lower
groove of the air outlet.
Step Two: Install the Exhaust hose assembly to
the unit
Insert unit adaptor of the Exhaust hose assembly
into the lower groove of the air outlet of the unit
while the hook of the adaptor is aligned with the
hole seat of the air outlet and slide down the
Exhaust hose assembly along the arrow direction
for installation.
Step Three: Preparing the Adjustable Window
Slider
or
or
Window slider A Window slider B
Bolt
MODEL B
1+2：
MODEL A
Window slider A Window slider B
Window slider C
Bolts
Bolt
1+2+3：
Bolt
Bolt
1+2+3+4：
Bolt
BoltBolt
1+4：
Bolt
Window Sliders
After assembly
Before assembly
MODEL C
Bolt
Bolt
1+2：
1+2+3：
Bolt
Window Sliders
After assembly
Before assembly
1. Choose the window sliders according the size of
your window. Sometimes, it needs to be cut short
to meet the window size, please take extra care to
cut it properly.
2. Use bolts to fasten the window sliders once they
are adjusted to the Proper length.
Installation
NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of
the following two installation methods.
Installation
Instructions
Or
Window
slider A
Window slider
B(if required)
Type 1: Hung Window or Sliding Window Installation(For some models)
1. Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash
and frame as shown.
3. Cut the non-adhesive foam seal C strip to match the width(or height) of the window. Insert the seal
between the glass and the window frame to prevent air and insects from getting into the room.
2. Insert the window slider assembly into the window opening.
Or
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
Or
Foam seal C
(Non-adhesive type)
Foam seal C
(Non-adhesive type)
Page 16
Page 17
NOTE: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle
around the air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works
properly. All the illustrations in this manual are for explanation purpose only. Your air conditioner may be
slightly different. The actual shape shall prevail.
NOTE: Cover the hole using the
adaptor cap when not in use.
max 120cm or 47 inch
min 30cm or 12 inch
Expansion anchor
position
Adaptor cap
Wall Exhaust
Adaptor B
Installation
Instructions
Or
Or
2 Screws
Security Bracket
4. If desired, install the security bracket with 2 screws as shown.
5. Insert the window slider adaptor into the hole of the window slider.
2 Screws
Security
Bracket

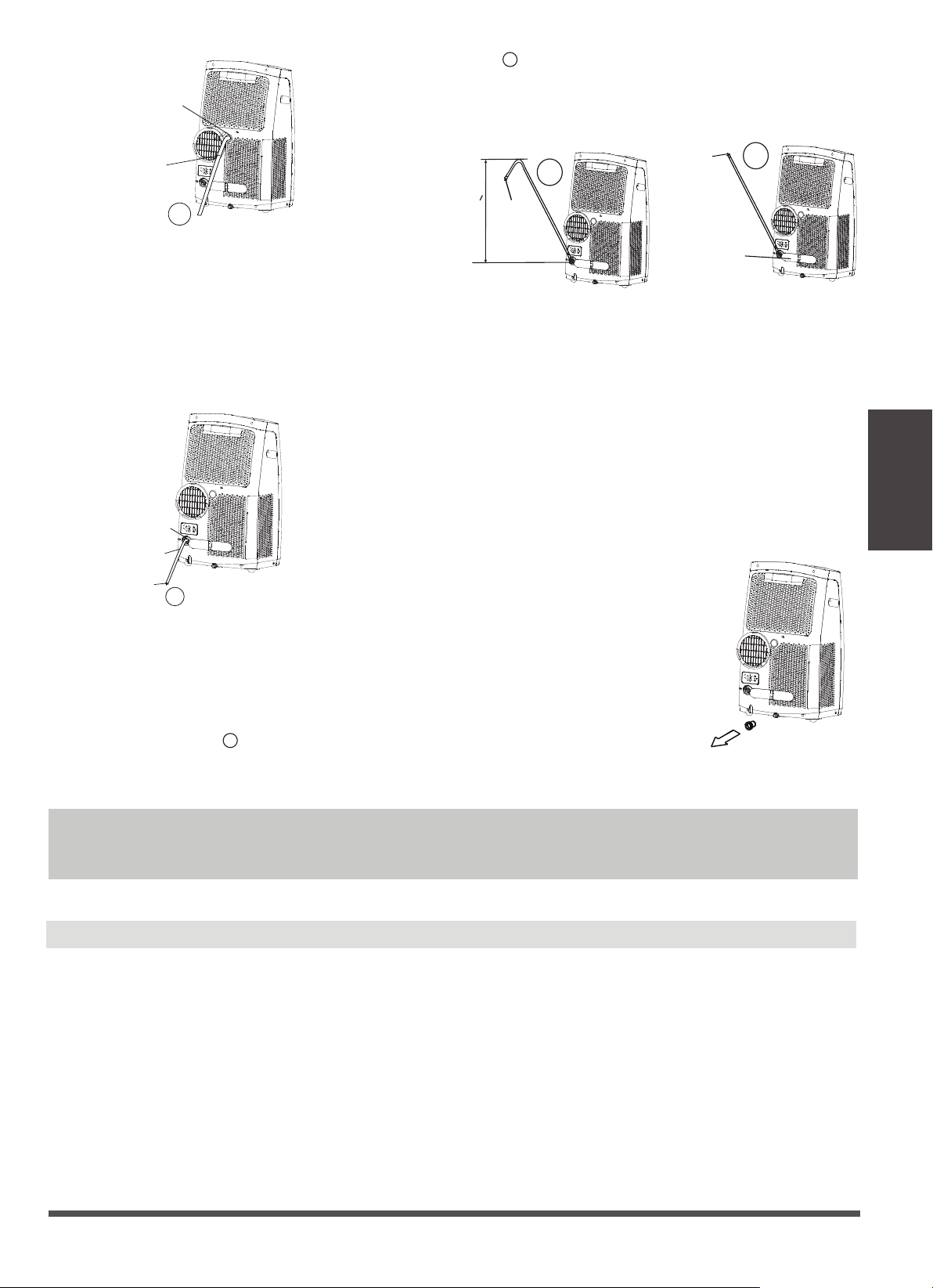

Type 2: Wall Installation(For some models)
1. Cut a 125mm (4.9inch) hole into the wall for the Wall Exhaust Adaptor B.
2. Secure the Wall Exhaust Adaptor B to the wall using the four Anchors and Screws provided in the kit.
3. Connect the Exhaust Hose Assembly(with Wall Exhaust Adaptor A) to the Wall Exhaust Adaptor B.
Operating Instructions
Control Panel Features
Operating
Instructions
Wireless
Swing button(On some models)
(Applicable to the models with auto swing feature
only)
Used to initiate the Auto swing feature. When the
operation is ON, press the SWING button can stop the
louver at the desired angle.
Sleep(Eco)/Filter button
NOTE: After 250 hours of operation, the filter indicator
Used to initiate the SLEEP/ECO operation.
Fan/Constant fan(On some models) button
On some models Ion light is instead of
constant fan light.
light illuminates. This feature is a reminder to
clean the Air Filter for more efficient operation.
Press this button for 3 seconds to cancel the
reminder.
Timer button
Used to initiate the AUTO ON start time and
AUTO OFF stop time program, in conjuction
with the + & - buttons. The timer on/off
indicator light illuminates under the timer
on/off settings.
Control the fan speed. Press to select the fan
speed in four steps-LOW, MID(MED), HIGH
and AUTO. The fan speed indicator light
illuminates under different fan settings.
NOTE: In cooling or Dry mode, press the button
for 3 seconds to turn on or off the constant fan
function. When the function is turned on, the
constant fan light will illuminate, identifying
the fan continuous run for cooling. When the
function is turned off, the constant fan light
will go out, identifying the fan cycle run with
compressor stop.
Press the button for 3 seconds, the Ionizer is
energized and will help to remove pollen
and impurities from the air.
Wireless button(On some models)
Used to initiate the wireless connection mode. For
the first time to use wireless function, press the
wireless button for 3 seconds to initiate the wireless
connection mode. The LED DISPLAY shows 'AP' to
indicate you can set wireless connection. If
connection(router) is successful within 8 minutes,
the unit will exit wireless connection mode
automatically and the wireless indicator illuminates.
If connection is failure within 8 minutes, the unit
exits wireless connection mode automatically. After
Wireless connection is successful, for some models
you can press Wireless and DOWN (-) buttons at
the same time for 0.5 seconds to turn off Wireless
function and the LED DISPLAY shows 'OF' for 3
seconds, press Wireless button to turn on Wireless
function and the LED DISPLAY shows 'ON' for 3
seconds.
NOTE: When you restart the wireless function, it may
take a period of time to connect to the network
automatically.
Wireless
Page 18
NOTE: The following control panels
are for explanation purpose only. The control panel of the unit you
purchased may be slightly different according to the models. Your machine may not contain some indicators or
buttons. The actual shape shall prevail.
Constant fan
(Press 3s)
Constant fan
(Press 3s)
Constant
fan
Page 19
Operating
Instructions
Mode button
Selects the appropriate operating mode. Each
time you press the button, a mode is selected
in a sequence that goes from AUTO, COOL,
DRY, FAN and HEAT (cooling only models
without).The mode indicator light illuminates
under the different mode settings.
Operation Instructions
Power button
Power switch on/off.
NOTE: The control is capable of displaying
temperature in degrees Fahrenheit or degrees
Celsius. To convert from one to the other, press
and hold the Up and Down buttons at the same
time for 3 seconds.
Up (+) and Down (-) buttons
Used to adjust (increasing/decreasing)
temperature settings in 1°C/1°F (or 2°F)
increments in a range of 17°C/62°F to 30°C/86°F
(or 88°F) or the TIMER setting in a range of 0~
24hrs.
LED display
Shows the set temperature in °C or °F and the
Auto-timer settings. While on DRY and FAN
modes, it shows the room temperature.
Shows Error codes and protection code:
Note: When one of the above malfunctions occurs,
turn off the unit, and check for any obstructions.
Restart the unit, if the malfunction is still present,
turn off the unit and unplug the power cord. Contact
the manufacturer or its service agents or a similar
qualified person for service.
COOL operation
· Press the "MODE" button until the "COOL" indicator
light comes on.
· Press the ADJUST buttons "+" or "-" to select your
desired room temperature. The temperature can be
set within a range of 17°C~30°C/62°F~88°F(or 86°F).
· Press the "FAN SPEED" button to choose the fanspeed.
HEAT operation(cooling only models without)
· Press the "MODE" button until the "HEAT" indicator
light comes on.
· Press the ADJUST buttons "+" or " - " to select your
desired room temperature. The temperature can be
set within a range of 17°C~30°C/62°F~88°F (or 86°F).
· Press the "FAN SPEED" button to choose the fan
speed.
Note: For some models, the fan speed can not be
adjusted under HEAT mode.
DRY operation
· Press the "MODE" button until the "DRY" indicator
light comes on.
· Under this mode, you cannot select a fan speed or
adjust the temperature. The fan motor operates at
LOW speed.
· Keep windows and doors closed for the best
dehumidifying effect.
· Do not put the duct to window.
AUTO operation
· When you set the air conditioner in AUTO mode, it
will automatically select cooling, heating(cooling
only models without), or fan only operation
depending on what temperature you have selected
and the room temperature.
· The air conditioner will control room temperature
automatically round the temperature point set by you.
· Under AUTO mode, you can not select the fan speed.
NOTE: Under AUTO mode, both the AUTO mode and
the actual operation mode indicator lights illuminate
for some models.
FAN operation
· Press the "MODE" button until the"FAN " indicator
light comes on.
· Press the "FAN SPEED" button to choose the fan
speed. The temperature can not be adjusted.
· Do not put the duct to window.
TIMER operation
· When the unit is on, press the Timer button will
initiate the Auto-off stop program, the TIMER OFF
indicator light illuminates. Press the UP or down
button to select the desired time. Press the TIMER
button again within 5 seconds, the Auto-on start
program is initiated. And the TIMER ON indicator
E1-Room temperature sensor error.
E2-Evaporator temperature sensor error.
E3-Condenser temperature sensor error (on some
models).
E4-Display panel communication error.
EC-Refrigerant leakage detection malfunction(on
some models).
E7-Zero-crossing malfunction.
P1-Bottom tray is full--Connect the drain hose and
drain the collected water away.If protection
repeats, call for service.
Page 20
Other features
Operating
Instructions
light illuminates. Press the up or down button to
select the desired Auto-on start time.
· When the unit is off, press the Timer button to initiate
the Auto-on start program, press it again within five
seconds will initiate the Auto-off stop program.
· Press or hold the UP or DOWN button to change the
Auto time by 0.5 hour increments, up to 10 hours,
then at 1 hour increments up to 24 hours. The control
will count down the time remaining until start.
SLEEP/ECO operation
· Press this button, the selected temperature will
increase(cooling) or decrease(heating) by 1°C/2°F(or
1°F) 30 minutes.The temperature will then increase
(cooling) or decrease (heating) by another 1°C/2°F(or
1°F) after an additional 30 minutes. This new
temperature will be maintained for 7 hours before it
returns to the originally selected temperature. This
ends the Sleep/Eco mode and the unit will continue
to operate as originally programmed.
NOTE: This feature is unavailabe under FAN or DRY
mode.
· The system will automatically revert back to display
the previous temperature setting if there is no
operation in a 5 seconds period.
· Turning the unit ON or OFF at any time or adjusting
the timer setting to 0.0 will cancel the Auto Start/Stop
timer program.
· When the malfunctionoccurs, the Auto Start/Stop
timed program will also be cancelled.
FOLLOW ME/TEMP SENSING feature(On some models)
NOTE:This feature can be activated from the remote
control ONLY. The remote control serves as a remote
thermostat allowing for the precise temperature
control at its location.
To activate the Follow Me/Temp Sensing feature, point
the remote control towards the unit and press the
Follow Me/Temp Sensing button. The remote control
will send this signal to the air conditioner until press
the Follow Me/Temp Sensing button again. If the unit
does not receive the Follow Me/Temp Sensing signal
during any 7 minutes interval, the unit will exit the
Follow Me/Temp Sensing mode.
NOTE: This feature is unavailabe under FAN or DRY
mode.
AUTO-RESTART
If the unit breaks off unexpectedly due to the power
cut, it will restart with the previous function setting
automatically when the power resumes.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
After the unit has stopped, it can not be restarted
operation in the first 3 minutes. This is to protect the
unit. Operation will automatically start after 3 minutes.
the louver can be adjusted manually only)
· When the Power is ON, the louver opens fully.
· Press the SWING button on the panel or remote
controller to initiate the Auto swing feature. The
louver willl swing up and down automatically.
· Please do not adjust the louver manually.
AIR FLOW DIRECTION ADJUSTMENT
The louver can be adjusted automatically. Adjust the
air flow direction automatically :(NOTE:On some models
Water drainage
· During dehumidifying modes, remove the upper
drain plug from the back of the unit, install the drain
connector(5/8" universal female mender) with 3/4"
hose(locally purchased). For the models without drain
connector, just attach the drain hose to the hole.
Place the open end of the hose directly over the drain
area in your basement floor.
POWER MANAGEMENT feature(On some models)
Under cooling operation, when the ambient
temperature is lower than the setting temperature for
a period of time, the unit will be automatically operate
power management feature. The compressor and fan
motor stop. When the ambient temperature is higher
than the setting temperature, the unit will be
automatically quit the power management feature.
The compressor and (or) fan motor run.
Page 21
Safety Precautions
Maintenance
· Always unplug the unit before cleaning or servicing.
· DO NOT use flammable liquids or chemicals to clean the unit.
· DO NOT wash the unit under running water. Doing so causes electrical danger.
· DO NOT operate the machine if the power supply was damaged during cleaning. A damaged
power cord must be replaced with a new cord from the manufacturer.
Maintenance
· During heating pump mode, remove the lower drain
plug from the back of the unit, install the drain
connector(5/8"universal female mender) with 3/4"
hose(locally purchased). For the models without
drain connector, just attach the drain hose to the
hole. Place the open end of the Hose adaptor directly
over the drain area in your basement floor.
Press the power
cord buckle into
the rear cover.
√
delivery lift <1.8m
drain hose
adaptor
drain hose
adaptor
NOTE: Make sure the hose is secure so there are no
leaks. Direct the hose toward the drain, making sure
that there are no kinks that will stop the warter flowing.
Place the end of the hose into he drain and make sure
the end of the hose is down to let the water flow
smoothly.(See Figs with . Do never let it up.(See Figs
with ).When the continuous drain hose is not used,
ensure that the corresponding drain plug and knob are
installed firmly to prevent leakage.
√
X
X
plug and let the water drain away. Reinstall the
bottom drain plug and restart the machine until the
"P1" symbol disappears. If the error repeats, call for
service.
· When the water level of the bottom tray reaches a
predetermined level, the unit beeps 8 times, the
digital display area shows "P1" . At this time the air
conditioning/dehumidification process will
immediately stop. However, the fan motor will
continue to operate(this is normal). Carefully move
the unit to a drain location, remove the bottom drain
NOTE: Be sure to reinstall
the bottom drain plug
firmly to prevent leakage
before using the unit.
Remove the
upper drain
plug
√
Continuous
drain hose
√
drain hose
adaptor
Continuous
drain hose
Remove the
lower drain plug
Page 22
Air Filter Cleaning
Unit Cleaning
Store the unit when not in use
CAUTION
DO NOT operate the unit without filter
because dirt and lint will clog it and reduce
performance.
Remove the air filter
Maintenance Tips
· Be sure to clean the air filter every 2 weeks for
optimal performance.
· The water collection tray should be drained
immediately after P1 error occurs, and before
storage to prevent mold.
· In households with animals, you will have to
periodically wipe down the grill to prevent
blocked airflow due to animal hair.
Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free
cloth.
· Drain the unit’s water collection tray according to the instructions in the following section.
· Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.
· Turn off the appliance and unplug it.
· Clean the air filter according to the instructions in the previous section. Reinstall the clean, dry
filter before storing.
· Remove the batteries from the remote control.
Maintenance
Upper filter
(take out)
lower filter B
(take out)
lower filter A
(Press the grill down
slightly and pull the lower
filter A out at the same time)
NOTE: Be sure to store the unit in a cool, dark place. Exposure to direct sunshine or extreme heat
can shorten the lifespan of the unit.
NOTE: The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened
in a solution of warm water and mildliquid dishwashing detergent. Rinse thoroughly and wipe dry.
Never use harsh cleansers, wax or polish on the cabinet front. Be sure to wring excess water from
the cloth before wiping around the controls. Excess water in or around the controls may cause
damage to the unit.
Page 23
Troubleshooting
Tips
Troubleshooting Tips
Problem Possible Causes Solution
Unit does not turn
on when pressing
ON/OFF button
P1 Error Code
In COOL mode: room
temperature is lower than
the set temperature
Reset the temperature
The Water Collection Tray is full. Turn off the
unit, drain the water from the Water Collection
Tray and restart the unit.
The air filter is blocked with
dust or animal hair
The unit is low on
refrigerant
Temperature setting is too
high
The windows and doors in
the room are open
The room area is too large
Unit does not cool
well
Exhaust hose is not
connected or is blocked
There are heat sources
inside the room
Turn off the unit and clean the filter according
to instructions
Call a service technician to inspect
the unit and top off refrigerant
Decrease the set temperature
Make sure all windows and doors are closed
Double-check the cooling area
Turn off the unit, disconnect the hose, check for
blockage and reconnect the hose
Remove the heat sources if possible
The unit is noisy
and vibrates too
much
The unit makes a
gurgling sound
The ground is not level Place the unit on a flat, level
surface
The air filter is blocked with
dust or animal hair
Turn off the unit and clean the filter according
to instructions
This sound is caused by the
flow of refrigerant inside
the unit
This is normal
Impedance Information
To be in compliance EN 61000-3-11, the product MPPFB-12CRN1-QC1 shall be connected only to
a supply of the system impedance: | Zsys|=0.452 ohms or less, the product MPPFB-12CRN7-QB6
shall be connected only to a supply of the system impedance: | Zsys|=0.371 ohms or less. Before
connect the product to public power network, please consult your local power supply authority
to ensure the power network meet above requirement.
The model MPPFB-11CRN7-QB6 should be connected only to a supply with the relevant system
impedance no more than 0.373 ohm. Restrictions to connection may be imposed by the supply
authority on the use of equipment in the actual relevant system impedance at the interface point
on the user’s premise exceeds 0. 373 ohm.
CP007UI-PFTY
16120600001150
20190905
The design and specifications are subject to change without prior notice for
product improvement. Consult with the sales agency or manufacturer for details.
Any updates to the manual will be uploaded to the service website, please check
for the latest version.
