Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
USER MANUAL
Cooker Hood
0
02
1
07
1 0
1 0
1 2
1 3
1 3
1 4
04
05
CO
NTENTS
THANK YOU LETTER
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLESHOOTING
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
01
02
Danger
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Read these operating
instructions carefully and attentively before using/commissioning
the unit and keep them in the immediate vicinity of the installation site or unit for later use!
Contact an authorized service technician for repair or maintenance of this unit.
The installation of this appliance must comply with national building or installation laws
and regulations. Installation must be carried out by authorized personnel or specialists.
Failure to follow these guidelines could result in hazardous conditions.
Intended Use
Explanation of Symbols
SAFETY INSTRUCTIONS
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
on arrival to make sure everything is intact to ensure safe operation. If you find any
damage, please contact the retailer or dealer. Please note modifications or alterations to
the appliance are not allowed for your safety concern. Unintended use may cause
hazards and loss of warranty claims.
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
03
WARNING
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
The instructions for Use apply to several versions of this appliance. Accordingly, you
may find descriptions of individual features that do not apply to your specific appliance.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. (EN 60335-1 & EN 60335-2-31)
Children shall not play with the appliance. (EN 60335-1 & EN 60335-2-31)
Cleaning and user maintenance shall not be made by children without supervision.
(EN 60335-1 & EN 60335-2-31)
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in orderto avoid a hazard.
This appliance incorporates an earth connection for functional purposes only.
There shall be adequate ventilation of the room when the range hood is used at the
same time as appliances burning gas or other fuels (not applicable to appliances that
only discharge the air back into the room).
There is a fire risk if cleaning is not carried out in accordance with the instructions;
Do not flame under the range hood.
CAUTION: Accessible parts may become hot when used with cooking appliances.
The air must not be discharged into a flue that is used for exhausting fumes from
appliances burning gas or other fuels (not applicable to appliances that only discharge
the air back into the room).
The minimum distance between the supporting surface for the cooking vessels on the
hob and the lowest part of the range hood. (When the range hood is located above a
gas appliance, this distance shall be at least 65 cm. If the instructions for installation
for the gas hob specify a greater distance, this has to be taken into account. The
distance ofl 65cm can be reduced for
non-combustible parts of range hoods, and
parts operating at safety extra low voltage,
provided these parts do not give access to live parts if deformed)
Regulations concerning the discharge of air have to be fulfilled.
The appliance uses 4 hob elements at most.
The manufacturer will not be held liable for any damages resulting from incorrect or
improper installation.
Check that the mains voltage corresponds to that indicated on the rating plate fixed
to the hood.
For Class I appliances,check that the domestic power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm.
●
●
●
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not immerse the unit, cord or plug in
water or other liquid.
Please unplug before cleaning and maintenance the appliance .
Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.
●
04
SPECIFICATIONS
/
Model
220V-240V~/50Hz
116.5W
1.5W
115W
150mm
400m
3
/h
≤67dB(A)
Rated voltage/Rated frequency
Rated power
Lamp power
Motor power
Diameter of air tube
Air flow
Noise
The route of the flue must be as short as possible.
The air must not be discharged into a flue that is used for exhausting fumes from
appliances burning gas or other fuels (not applicable to appliances that only discharge
the air back into the room).
If the instructions for installation for the gas hob specify a greater distance specified
above, this has to be taken into account.
The extractor hood has been designed exclusively for domestic use to eliminate
kitchen smells.
Never use the hood for purposes other than for which it has been designed.
Never leave high naked flames under the hood when it is in operation.
Adjust the flame intensity to direct it onto the bottom of the pan only, making sure
that it does not engulf the sides.
Deep fat fryers must be continuously monitored during use: overheated oil can burst
into flames.
The cooker hood and its filter should be cleaned regularly according to the instruction.
maintenance work.
Clean the hood using a damp cloth and a neutral liquid detergent.
Extension sockets are forbidden.
This appliance has been designed for home use only, and may cause danger if used in
special occasions.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
The cooker hood and its filter should be cleaned regularly according to the instruction.
maintenance work.
Clean the hood using a damp cloth and a neutral liquid detergent.
CAUTION
ATTENTIION
05
PRODUCT OVERVIEW

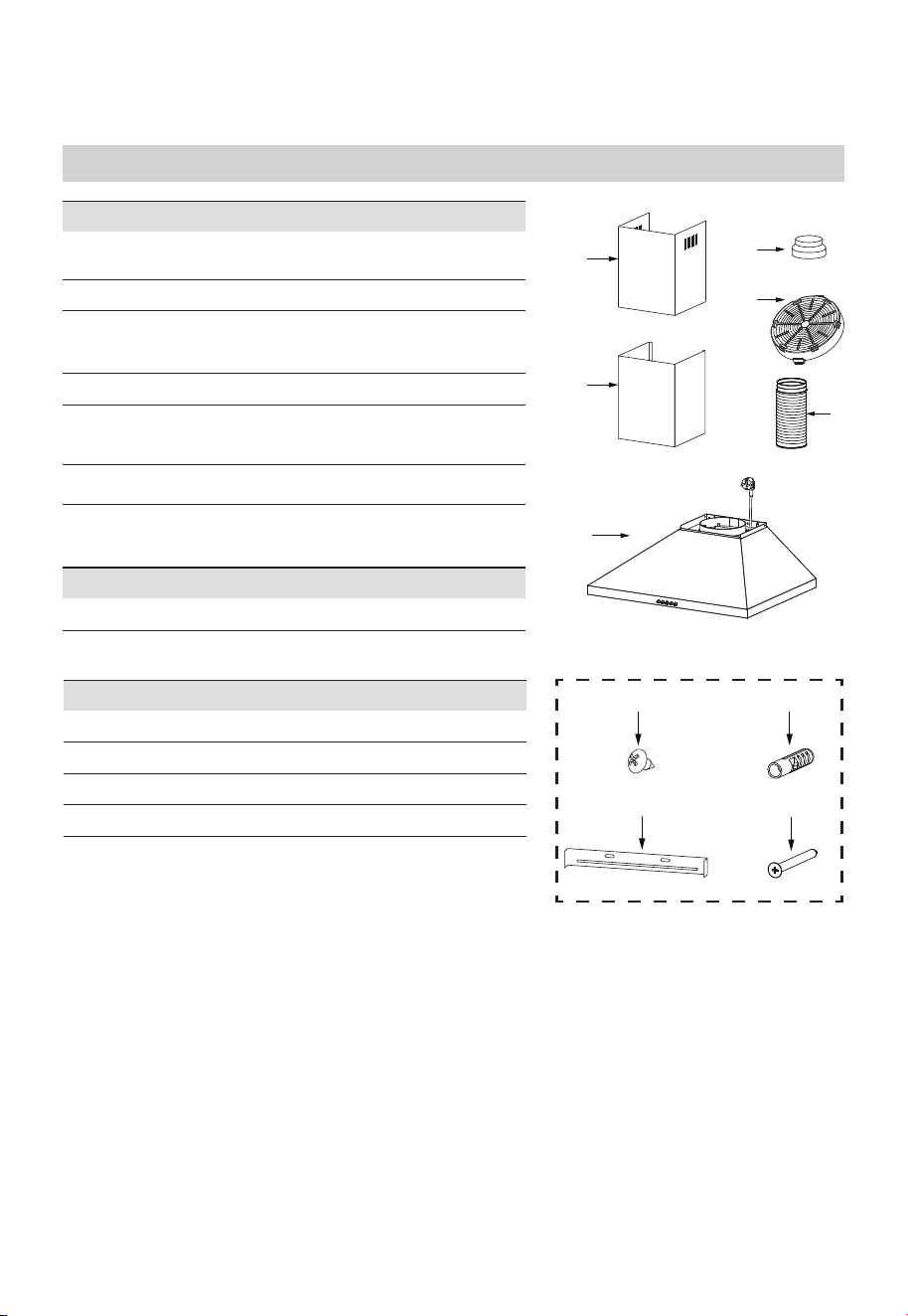

Components
1
Ref. Qty.
1
2.1
Light, Blower,Filter.
Hood Body,complete with: Controls,
1 Lower Decorative Chimney
2.2 1
Upper Decorative Chimney
( optional )
3 1 Flange ( optional )
5 2
The Activated Charcoal filter
( optional )
1
2.1
2.2
1 Instruction Manual
Product Components
Qty. Documentation
10
7
11
Screws 5 x 50
Chimney fixing bracket ( optional )
7
Wall Plugs
12 6 Screws 4,2 x 9,5 / Screws 4 x8
21 1
Ref. Qty. Optional Installation Components
3
5
11
12
10
21
6
6
1
Exhaust Pipe (optional)
06

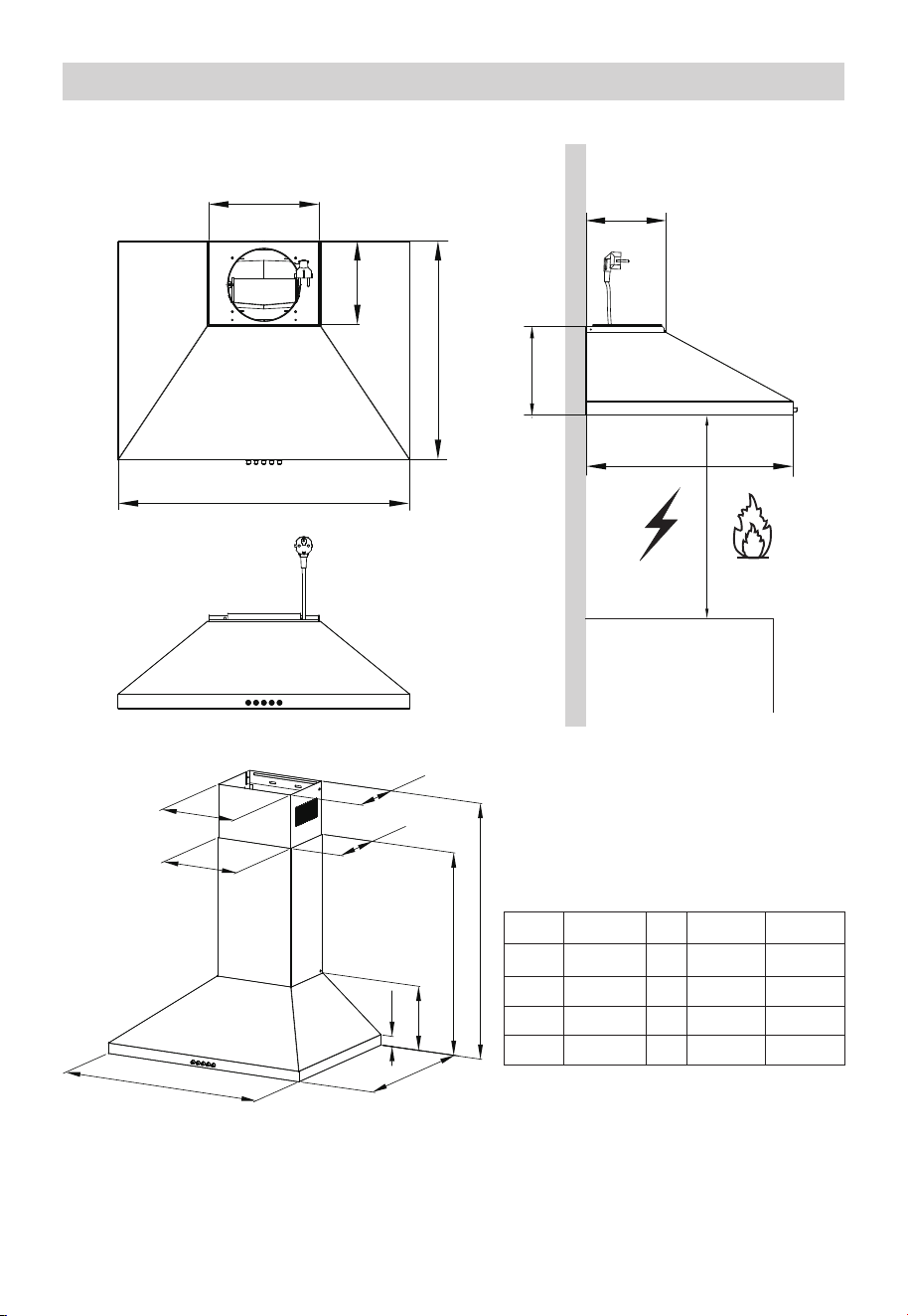

Dimensions
unit：mm
Min.
650mm
Min.
650mm
Option A B
1
569 /
2
569 610-850
569
569-850
Chimney Height
400+0
400+300
3
569 610-940 569-940400+390
4
669 710-1140 669-1140400+490
225
598/898
171
171
179
448
448
30
179
A
B
226
229
598/898
170
172
448
07
PRODUCT INSTALLATION
Option X
1
/
2
410-650
Chimney
400+0
400+300
3
410-740400+390
4
510-940500+490
Wall Drilling And Bracket Fixing
As a first step, proceed with the following drawings:
●
●
●
●
A vertical line up to the ceiling or up to the upper limit, at the center of the area in
which the hood is to be fitted.
A horizontal line A at 835-935 mm above the cooker top.
A horizontal line B at a X mm above the horizontal line A.
A horizontal line C at a 116mm below the horizontal line A.
Mark Points:
●
●
●
●
●
●
Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
Repeat this operation on the other side , checking that the two marks are leveled.
Mark a point (2) on the horizontal line B, 40 mm to the vertical reference line.
Repeat this operation on the other side , checking that the two marks are leveled.
Mark a point (3) on the horizontal line C, 155 mm to the vertical reference line.
Repeat this operation on the other side , checking that the two marks are leveled.
Vertical reference line
80
80
40
40
835-935
A
B
(1)
(2)
X
C
155
155
(3)
116
08
●
●
●
●
Fix the brackets (Optional):
Drill holes at the marked points with a 10 mm drill bit.
Insert the Wall Plugs 11 into the holes.
Screw 2 screws 10 (5 x 50) to Wall Plugs 11 at the horizontal line A; approximately
the four fifth length of the screws 10 (5 x 50) was screwed into the Wall Plugs 11, used
for hook the hood.
Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.
●
●
●
Hook the hood body
Right
Wrong
Hook the hood body to the 2 screws 10 (5 x 50) at the horizontal line A.
Level the hood body itself.
Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11
at the points (3).
09
●
Fix the upper chimney onto the bracket 21 with 2 screws 12 (4.2 x 9.5) supplied with
the hood.
●
Fix the Lower Decorative Chimney to the hood body with 2
screws 12 (4.2 x 9.5) supplied with the hood.
●
●
●

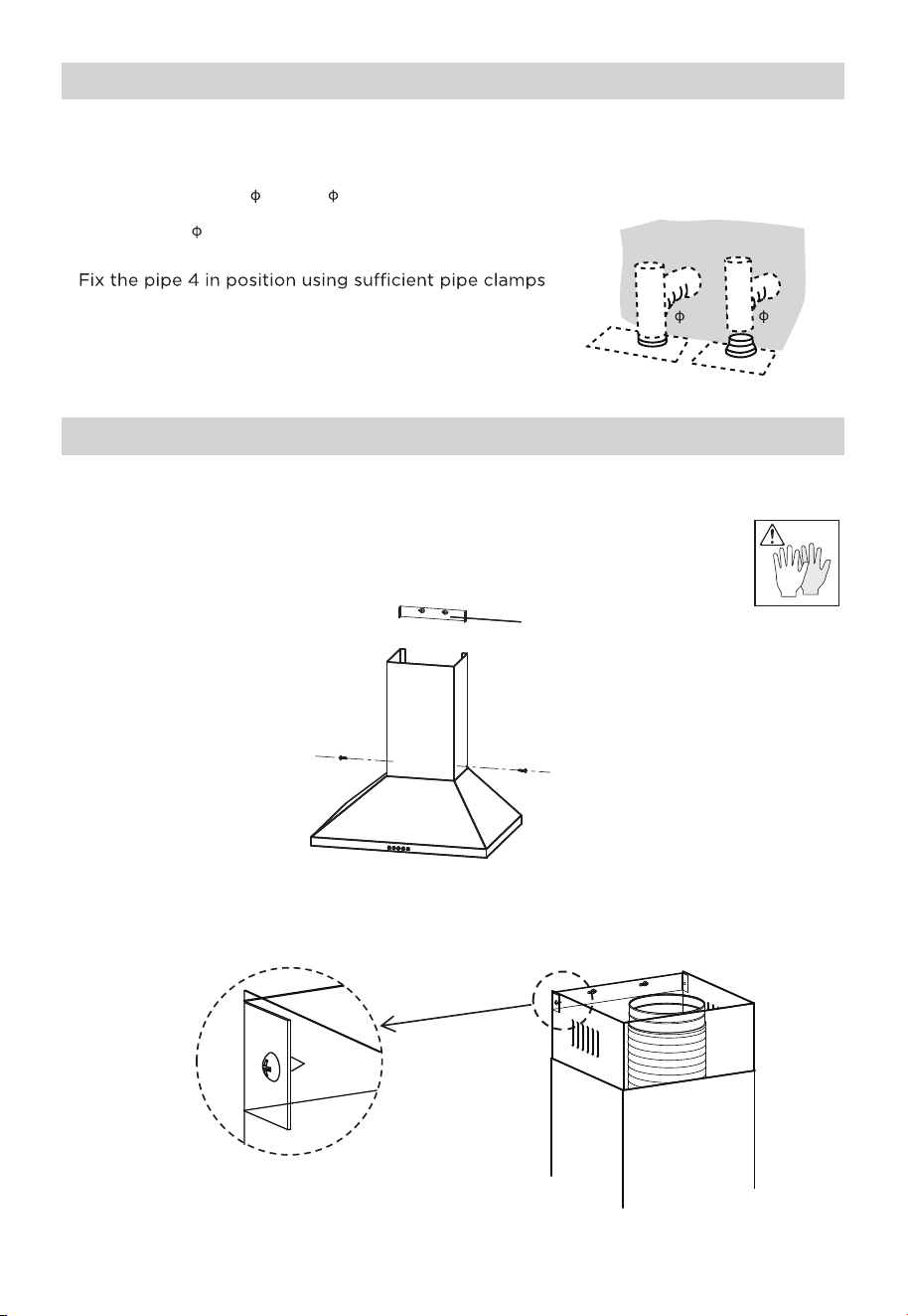

Connections
Ducted Version Air Exhaust System
Chimney Assembly
The chimney can only be installed with exhausting hood.
Lower Decorative Chimney
Upper Decorative Chimney
If to install a 120 mm air exhaust connection, insert the
reducer flange 3 on the hood body outlet.
(not supplied).
Remove possible charcoal filters.
When installing the ducted version, connect the hood to the chimney using either a
flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.
B
120 150
10
OPERATION INSTRUCTIONS

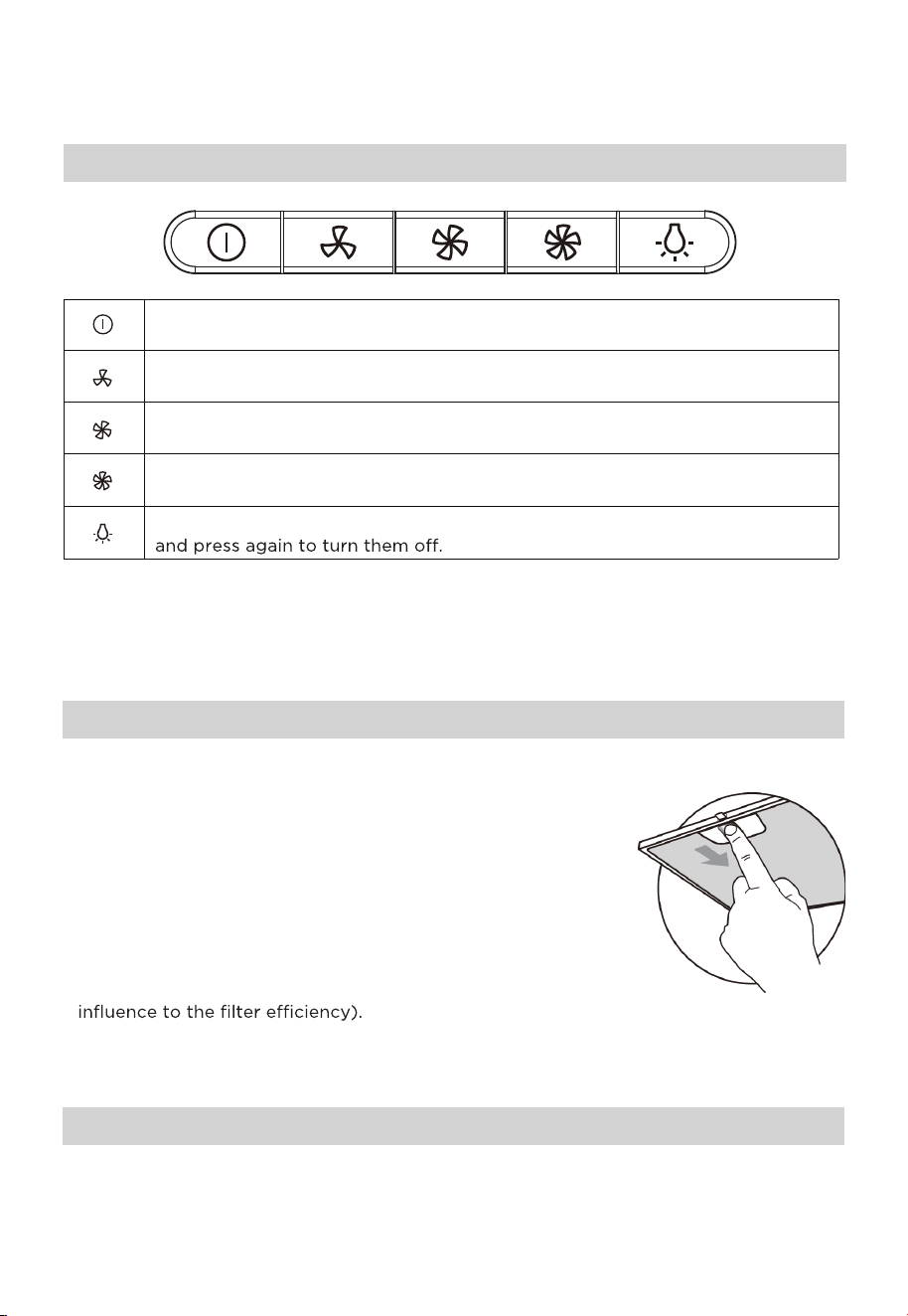

Speed Adjustment
ON/OFF LIGHTING SWITCH: Press on this switch to turn on the lights,
OFF MOTOR SWITCH: Press on this switch to stop the motor operation.
SPEED SWITCH: Press on this switch, the motor runs at LOW speed.
SPEED SWITCH: Press on this switch, the motor runs at MEDIUM speed.
SPEED SWITCH: Press on this switch, the motor runs at HIGH speed.
CLEANING AND MAINTENANCE
●
●
●
●
Grease Filters
CLEANING METAL SELF-SUPPORTING GREASE FILTERS
The filters must be cleaned every 2 months of operation, or
more frequently for particularly heavy usage, and can be
washed in a dishwasher.
Remove the filters one by one pushing them towards the back
side of the hood unit and simultaneously pulling downwards.
Any kind of bending of the filters has to be avoided when
washing them. Before fitting them again into the hood make
sure that they are completely dry. (The color of the filter
surface may change throughout the time but this has no
When fitting the filters into the hood pay attention that they
are mounted in correct position , the handle facing outwards.
●
These filters are not washable and cannot be regenerated, and must be replaced
approximately every 4 months of operation, or more frequently with heavy usage.

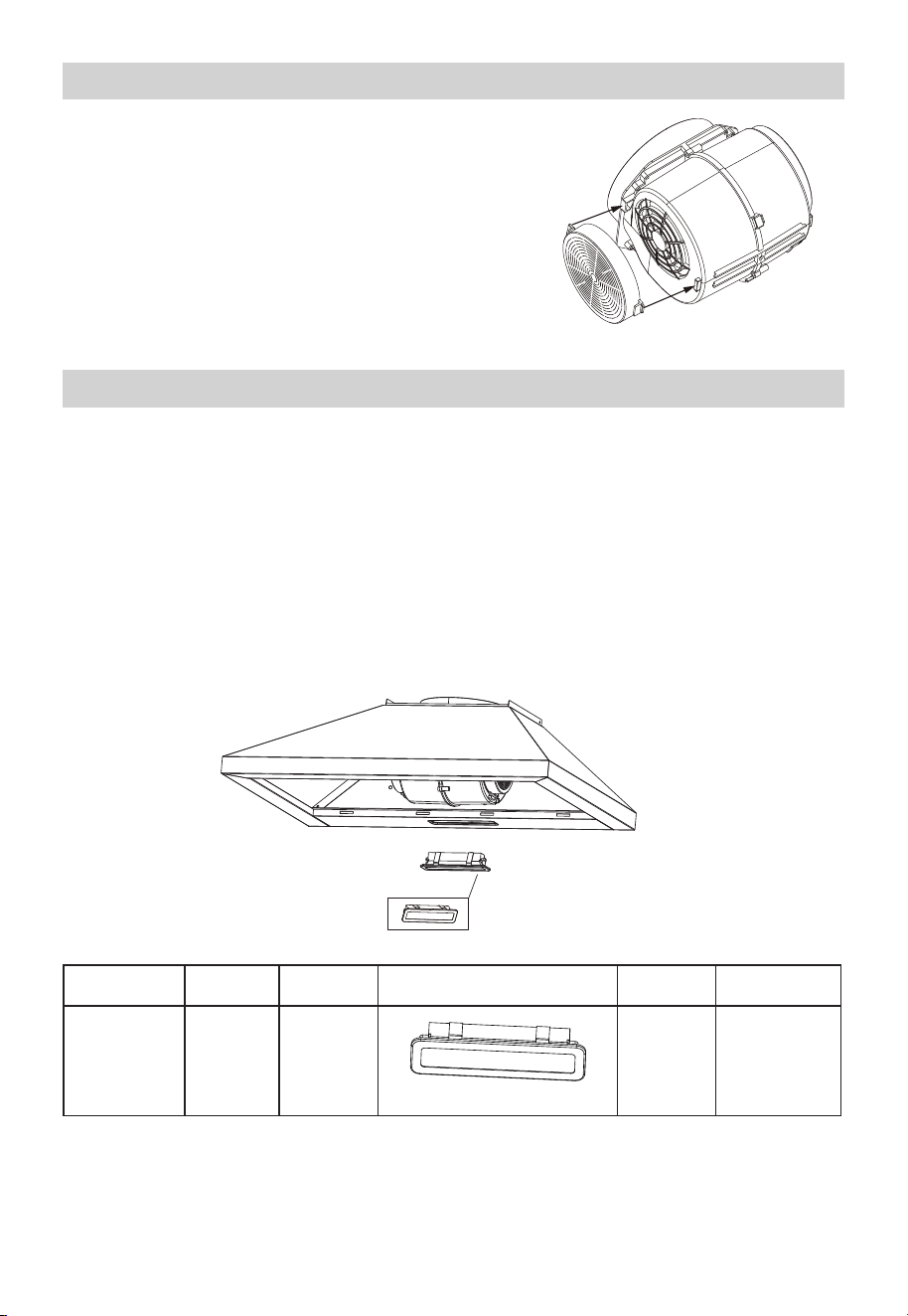

Activated Charcoal Filter (Recirculation Version)
11
●
●
●
●
Replacing The Activated Charcoal Filter
Remove the metal grease filters.
Remove the saturated activated charcoal filter.
Fit the new filters.
Replace the metal grease filters.
Lighting
LIGHT REPLACEMENT
Max PowerLamp type Voltage Picture Lamp Cap ILCOS D code
Self-ballasted
LED modules
1,5W
——
DBS-1.5-
H-33.2/120
Square/Dimesion:33.2mmx120mm
●
●
●
Remove the grease filter.
Remove the light by levering its fitting from the hood body (this may require pressure
or force to be applied).
Disconnect the connector of the light.
Replace the light with a new one of the same type,making sure that you connect the
light with the light cable correctly.
Reconnect the power by inserting the mains plug or by switching on the fuse.
Replacing the light modules (For rectangular LED)
220V-240V~
12
TROUBLESHOOTING
Possible reason SolutionProblem
Light on, but motor
does not work
Both light andmotor
do notwork
●
●
●
●
●
●
●
The internal wiring of motor
unpleasant smell may be
produced.
The blades are blocked.
The capacitor is damaged.
The motor is damaged.
Replace capacitor.
Replace motor.
Replace motor.
Check the blades
Apart from the above mentioned, check the following:
Light damaged. Replace lights.
Power cord loose. Connect the wires as the
electric diagram.
Oil leakage
Outlet and the air ventilation
entrance are not tightly
sealed.
Take down the outlet and seal
with glue.
●
●
●
●
●
●
●
Vibration
The blade, if damaged, can
cause vibrating.
Replace the blade.
Fasten the motor tightly.
Fixed the cooker hood tightly.
The motor is not tightly
fastened.
The cooker hood is not tightly
fixed.
The distance between the
cooker hood and the cooker top
is too large.
Readjust the distance.
Too much ventilation from
open doors or windows.
Choose a new place to install
the appliance or close some
doors / windows.
The machine inclines
The fixing screws are not tight
enough.
Tighten the fixing screw and
make it horizontal.
The hanging screws are not
tightenough
Tighten the hanging screw
and make it horizontal.
13
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT
DISPOSAL AND RECYCLING
Important instructions for environment
Compliance with the WEEE Directive and Disposing of the Waster Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a
classification symbol for waster electrical and electronic equipment (WEEE).
logo, word marks, trade name, trade dress and all versions thereof are
valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns
trademarks, copyrights and other intellectual property rights, and all goodwill derived
from using any part of an Midea trademark. Use of Midea trademark for commercial
purposes without the prior written consent of Midea may constitute trademark
infringement or unfair competition in violation of relevant laws.
This manual is created by Midea and Midea reserves all copyrights thereof. No entity or
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written consent of Midea.
All the described functions and instructions were up to date at the time of printing this
manual. However, the actual product may vary due to improved functions and designs.
This symbol indicates that this product shall not be disposed
with other household wastes at the end of its service life. Used
device must be returned to official collection point for
recycling of electrical electronic devices. To find these
collection systems please contact to your local authorities or
retailer where the product was purchased. Each household
performs important role in recovering and recycling of old
appliance. Appropriate disposal of used appliance helps
prevent potential negative consequences for the environment
and human health.
14
Compliance with RoHS Directive
DATA PROTECTION NOTICE
For the provision of the services agreed with the customer, we agree to comply without
restriction with all stipulations of applicable data protection law, in line with agreed
countries within which services to the customer will be delivered, as well as, where
applicable, the EU General Data Protection Regulation (GDPR).
Generally, our data processing is to fulfil our obligation under contract with you and for
product safety reasons, to safeguard your rights in connection with warranty and
product registration questions. In some cases, but only if appropriate data protection is
ensured, personal data might be transferred to recipients located outside of the
European Economic Area.
Further information are provided on request. You can contact our Data Protection
[email protected]. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
[email protected]. To find further information, please follow the QR Code.
Package information
Packaging materials of the product are manufactured from
recyclable materials in accordance with our National Environ-
ment Regulations. Do not dispose of the packaging materials
together with the domestic or other wastes. Take them to the
packaging material collection points designated by the local
authorities.
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does
not contain harmful and prohibited materials specified in the Directive.
www.midea.com
