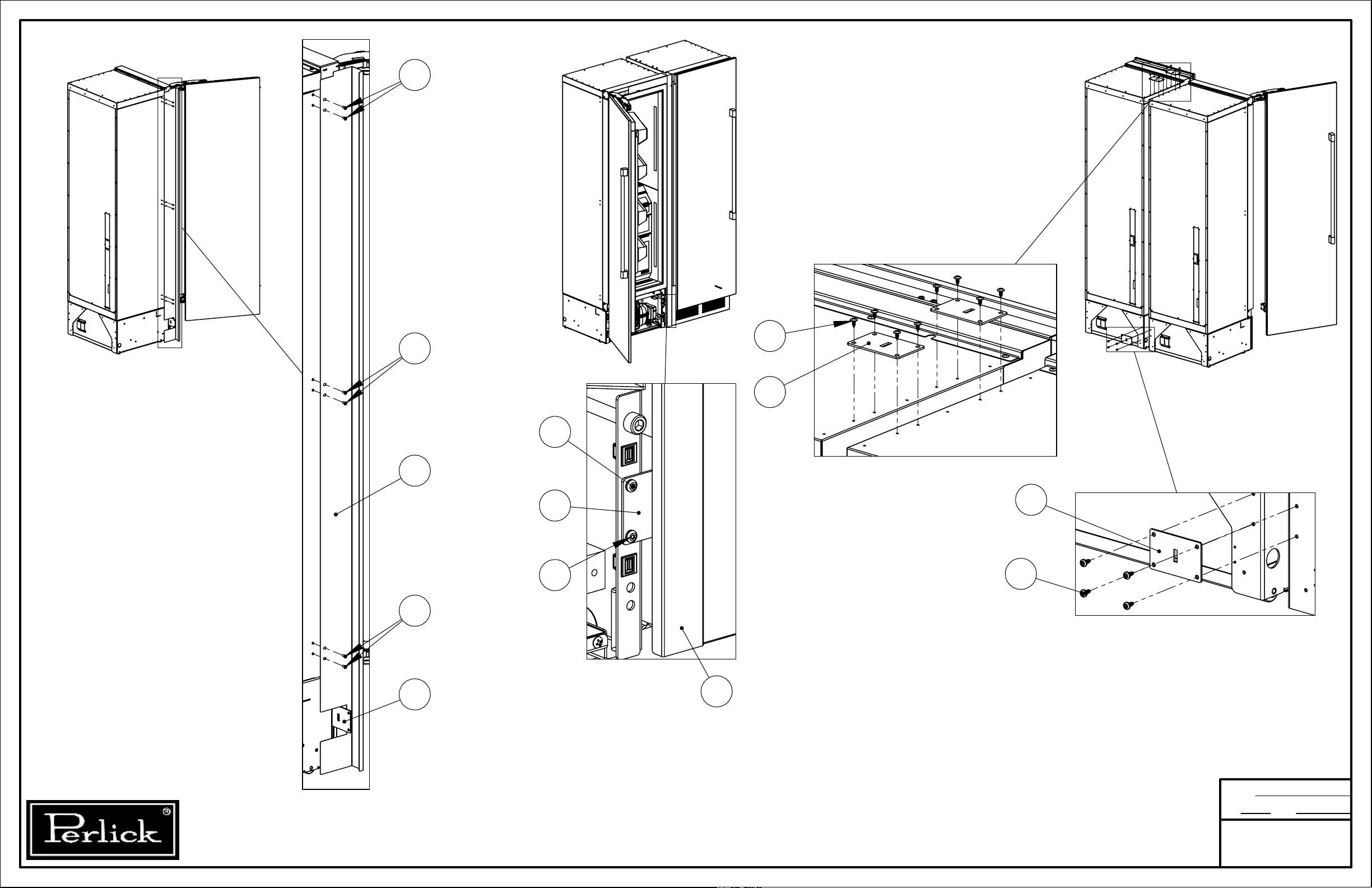

PERLICK ACCESSORY KIT INSTRUCTIONS FOR CR-ACC-D2N
2" TRIM KIT INSTRUCTIONS, HINGE TO HANDLE
PULL POINTS
STEP #1
: OPEN THE DOORS TO THE CABINETS.
GRAB BOTH SIDES OF THE FRONT GRILL PLATE
AND PULL STRAIGHT OUT IN ORDER TO POP
THE CLIPS OUT OF THE LATCHS.
DO THIS TO BOTH CABINETS.
STEP #2
: SELECT THE CABINET THAT
WILL BE PLACED ON THE RIGHT SIDE.
SECURE (1) ATTACHING BRACKET
(1017862-1) TO THE FRONT BASE WITH
(2) 1008781 SCREWS
3
3
2
49.5"
ITEM NO.
PART NUMBER
DESCRIPTION
Default/QTY.
1
1017861-1
CENTER TRIM, 2" SIDE BY SIDE, COLUMN
1
2
1017862-1
BRACKET, 2" ATTACHING, COLUMN, FOR SIDE BY SIDE INSTALLS
4
3 1008781
SCREW, M6 X 12MM, THRD
8
4
M50050-466
#10 X 1/2" PH Truss Head SMS #410 S.S., Type "AB",
8
5 1010546
M5x10 MACH SCR, LOW HEAD, NBK PART NO: SSH-M5-10
6
PERLICK CORPORATION
MILWAUKEE, WI 53223
PROPERTY OF THE PERLICK CORP.
NOT TO BE COPIED OR USED DETRIMENTAL TO OUR INTERESTS
DR.:
DATE:
5/26/2018
KDS
SCALE: 1:50
D:\perlick\engineering\projects\refrigeration\1601802\cad files\1017884.slddrw
SHEET 1 OF 2
1017884
REVISIONS
5/26/2018
NEW RELEASE
A
KDS
KDS
2/06/2019
B
ADDED TITLE & HINGE VIEWS
