PERLICK ACCESSORY KIT INSTRUCTIONS FOR CR-ACC-D1
DUAL INSTALLATION INSTRUCTIONS WITH HEATER PANEL (HANDLE TO HANDLE)
47.750

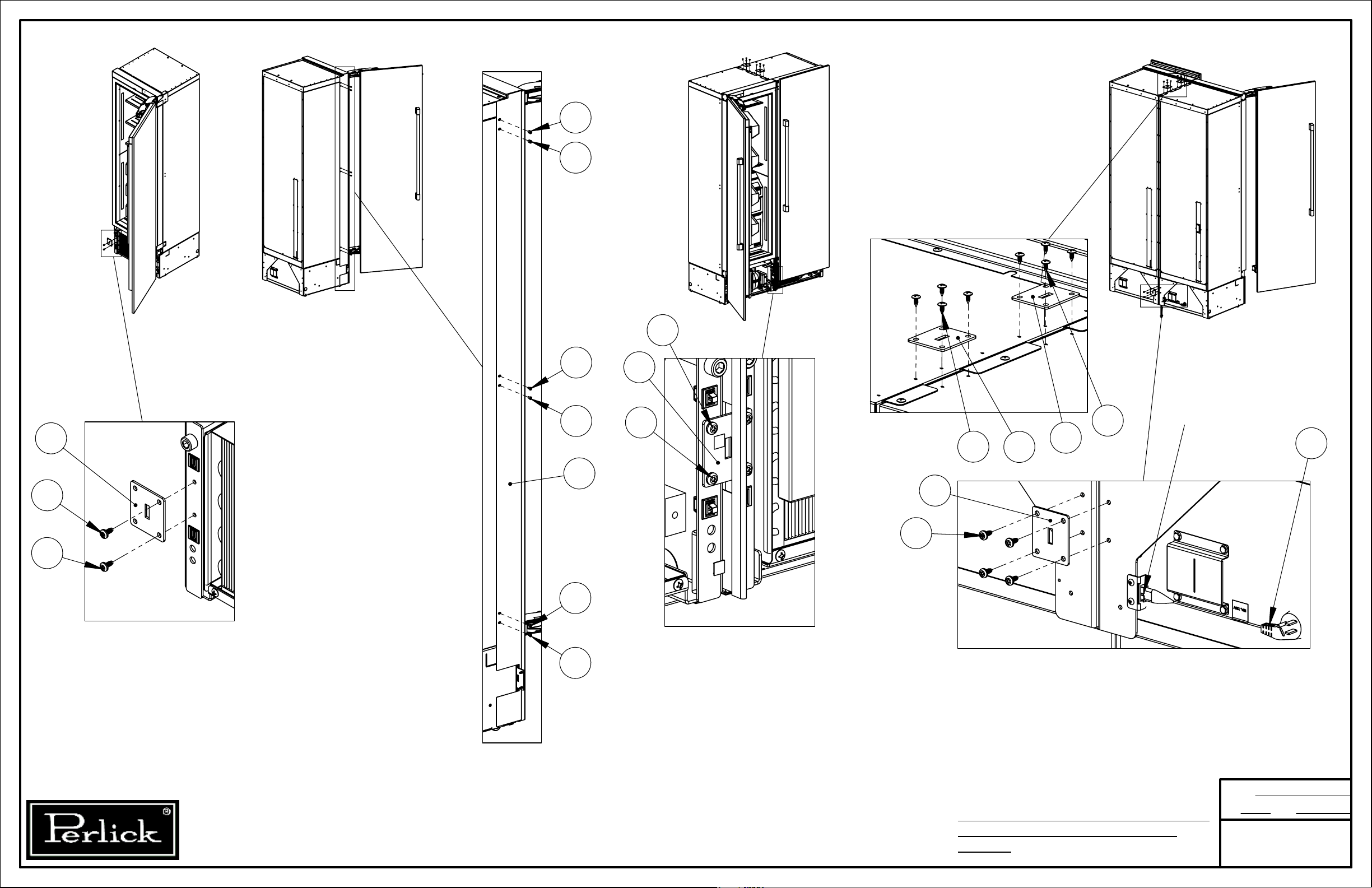

STEP #1: OPEN THE DOORS TO THE CABINETS.
GRAB BOTH SIDES OF THE FRONT GRILL PLATE
AND PULL STRAIGHT OUT IN ORDER TO POP
THE CLIPS OUT OF THE LATCHS.
DO THIS TO BOTH CABINETS.
STEP #2: DETERMINING WHICH CABINET WILL BE ON
THE LEFT SIDE. ATTACH THE "SIDE BY SIDE HEATER
ASSEMBLY" (1010469) TO THE RIGHT SIDE OF THE LEFT
CABINET WITH (3) M50050-466.
STEP #3: ONCE THE HEATER ASSEMBLY
IS ATTACHED, SNAP (1) 1-1/4" BUSHING
INTO THE SIDE OF THE CABINET.
STEP#4: RUN THE WIRES FROM THE
HEATING ASSEMBLY THROUGH THE 1-
1/4" BUSHING AND SNAP THE END
CONNECTOR INTO THE CUT OUT OF
BRACKET 1009975-1
STEP #5: ATTACH BRACKET 1009975-1
WITH (2) M50095-122. CAUTION: DO
NOT PINCH WIRES FROM HEATING
ASSEMBLY.
311 11 11
SNAP
CONNECTOR
INTO BRACKET
5
12
12
2
ITEM NO.
PART NUMBER
DESCRIPTION
Default/QTY.
1 1008781
SCREW, M6 X 12MM, THRD
8
2
1009975-1
BRACKET, MOUNTING, MACHINE COMP. WIRE HARNESS, COLUMN
1
3 1010469
SIDE BY SIDE HEATER ASSEMBLY, COLUMN
1
4 1010546
M5x10 MACH SCR, LOW HEAD, NBK PART NO: SSH-M5-10
6
5 1010667
BUSHING, SPLIT, 1-1/4" HOLE, BLACK, HEYCO 2881
1
6 1012862
POWER CORD KIT
1
7
1013719-1
BRACKET, ATTACHING, COLUMN, FOR SIDE BY SIDE INSTALLS
4
8
1015035-1
CENTER TRIM, SIDE BY SIDE INSTALL, COLUMN
1
11
M50050-466
#10 X 1/2" PH Truss Head SMS #410 S.S., Type "AB",
11
12
M50095-122
Screw, Sheet Metal, #10-16 x 1/2" Thin-Lock TM, PH Undercut Pan
2
PERLICK CORPORATION
MILWAUKEE, WI 53223
PROPERTY OF THE PERLICK CORP.
NOT TO BE COPIED OR USED DETRIMENTAL TO OUR INTERESTS
DR.:
DATE:
12/12/2017
UO
SCALE: 1:50
D:\Perlick\Engineering\Projects\Refrigeration\1601802\CAD Files\1014974.slddrw
SHEET 1 OF 2
1014974
REVISIONS
5/30/2018
UPDATE
INSTRUCTION
LAYOUT
C
C
UPDATE
INSTRUCTION
LAYOUT
5/30/2018
D
47.75" WAS 49"
