User Manual for Gas Range

Overview

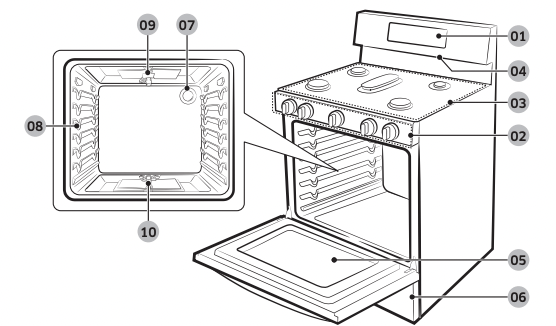

01 Display

02 Surface burner knobs (5 pcs)

03 Surface burners

04 Oven Vent

05 Removable oven door

06 Storage drawer

07 Oven light *

08 Oven rack system

09 Broil oven burner

10 Bake oven burner

NOTE If you need a part marked with a "*", you can buy it from the Samsung Contact Center (1-800-726-7864).

What’s included

Surface burner grates (3) *

Surface burners and caps (5) *

Flat rack (2) *

NOTE If you need an accessory marked with an * (asterisk), please contact the Samsung Call Center at 1-800-726-7864 or visit our on-line parts web site at samsungparts.

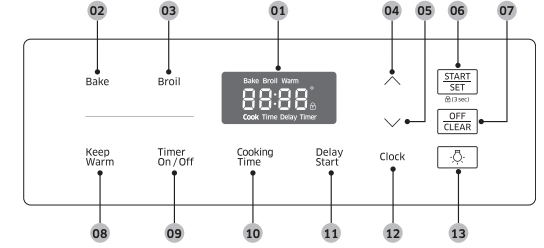

Control panel

01 Display: Shows the time of day, oven temperature, whether the oven is in the bake or broil mode, and displays the time set for the timer or for automatic oven operations.

02 Bake: Bake food using the oven burner.

03 Broil: Broil food using the upper oven burner only.

04 (Up): Set the cooking temperature and time.

05 (Down): Set the cooking temperature and time.

06 START/SET (Lock): Start a function or set the time. Lock the control panel to prevent accidents.

07 OFF/CLEAR: Cancel the current operation but not the timer.

08 Keep Warm: Keep cooked food warm at lower temperatures.

09 Timer On/Off: Activate or deactivate the timer.

10 Cooking Time: Set the cooking time.

11 Delay Start: Set the oven to start at a certain time.

12 Clock: Set the clock time.

13 Oven Light: Turn on/Turn off the oven light.

NOTES

• The Door Lock function is not available on this model. Only the Control Lock function is provided.

• To change the cooking temperature rapidly 10 degrees at a time, press and hold the up or down arrow button.

Clock

You must set the clock correctly to ensure the automatic features work properly. Only a 12-hour clock is available on this model.

NOTE You can set/change the clock or the kitchen timer before you start a cooking mode or while most cooking modes are operating. However, you cannot set or change the time if a time based function is operating (Time Bake, for example) or the Sabbath option is enabled.

Kitchen timer

The kitchen timer gives you an extra timer you can use to time cooking tasks such a boiling eggs. It does not, however, start or stop any cooking operation. You can set the timer from 1 minute to 9 hours and 59 minutes.

Gas range

General cooktop instructions

Oven vent/cooling vent

The oven vent is located under the oven Control panel. Proper air circulation prevents oven burner combustion problems and ensures good performance.

• Do not block the vent or the area around the vent.

• Use caution when placing items near the vent. Hot steam can cause them to overheat or melt.

Cookware

Requirements

• Flat bottom and straight sides.
• Tight-fitting lid.
• Well-balanced with the handle weighing less than the main portion of the pot or pan.

Material characteristics

• Aluminum: An excellent heat conductor. Some types of food may cause the aluminum to darken. However, anodized aluminum cookware resists staining and pitting.
• Copper: An excellent heat conductor but discolors easily.
• Stainless steel: A slow heat conductor with uneven cooking performance but is durable, easy to clean, and resists staining.
• Cast-Iron: A poor conductor but retains heat very well.
• Enamelware: Heating characteristics depend on the base material.
• Glass: A slow heat conductor. Use only glass cookware that is specified for range top cooking or oven use.

Size limitations

CAUTION

• Do not place a small pan or pot with a bottom diameter of about 6 inches or less on the center grate. This cookware may tip over. Use the rear burners for this smallsized cookware.

* : 6 inches or less

• Always make sure cookware handles are turned to the side or rear of the cooktop and not over other surface burners. This will minimize the chance of burns, spillovers, and the ignition of flammable materials that can be caused if pots or pans are bumped accidently.
• When using glass cookware, make sure it is designed for top-of-range cooking.
• Never leave plastic items on the cooktop. Hot air from the vent can melt or ignite plastic items or cause a building up of dangerous pressure in closed plastic containers.
• Make sure you hold the handle of a wok or a small one-handled pot while cooking.

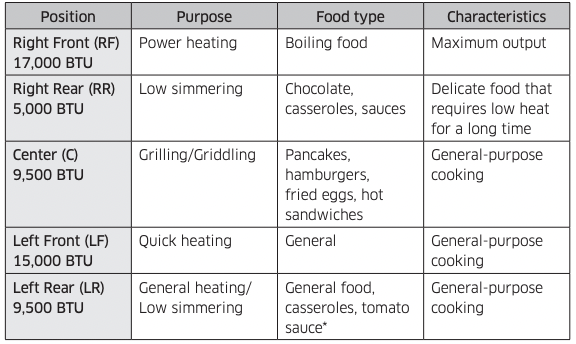

Gas burners

Each burner has a corresponding knob that lets you to set the flame level from LO to HI. In addition, each burner knob has a LITE setting. Turning a knob to LITE ignites the corresponding burner. The burner indicators are located above each knob, showing which burner the knob controls. Each burner is designed for specific cooking purposes. See the table below.

* Tomato sauce needs to be stirred while it is simmering.

Ignition

Manual ignition

If there is a power failure, you can ignite the burner manually. Use caution when doing this.

1. Hold a long gas grill lighter to the surface burner you want to light.
2. Push in the control knob for that burner, and then turn it to the LITE position. Turn on the grill lighter to ignite the burner.
3. After the burner is lit, turn the control knob to adjust the flame level.

Flame level

The flames on the burners should always stay under the cookware, and should not extend beyond the cookware bottom at any time.

WARNING

• Flames larger than the cookware bottom may result in a fire or physical injury.
• When you set a burner to simmer, do not turn the burner knob quickly. Watch the flame to make sure it stays on.
• After turning on a surface burner, check to make sure that the burner has ignited. Adjust the level of the flame by turning the burner knob.
• Always turn off the surface burner controls before removing cookware. All surface burner controls should be turned OFF when you are not cooking.
• Always turn the burners off before you go to sleep or go out.
• If you smell gas, turn off the gas to the range and call a qualified service technician. NEVER use an open flame to locate a leak.

Gas oven

General oven instructions

Cooking mode

• Make sure to close the door before you start cooking.

• If you leave the door open for 20-30 seconds while the oven is in the baking or broiling modes, the oven burner shuts off. To restart the burner, close the door.

Baking

1. Press the Bake button.

2. If necessary, use the arrow buttons to change the default temperature (350 °F). You can set the oven to any temperature from 175 °F to 550 °F.

3. Press the START/SET button.

• The oven preheats until it reaches the temperature you set.

• When preheating is complete, place the food in the oven, and then close the door.

4. When cooking is complete, press the OFF/CLEAR button, and then take out the food.

NOTES

• To change the temperature during cooking, repeat steps 1 through 3 above.
• When pre-heating is complete, the oven beeps 6 times.
• To change the cooking temperature rapidly 10 degrees at a time, press and hold the up or down arrow button.

Broiling

Broiling uses the oven broil burner at the top of the oven to cook and brown food. Meat or fish must be put on a broiling grid in a broiling pan. Preheating for 5 minutes before broiling is recommended.

1. Put food on a broiling grid in a broiling pan.

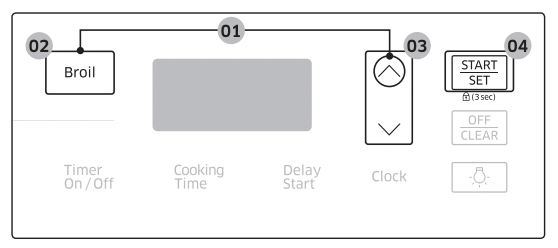

2. Press the Broil button once for HI temperature broiling or twice for LO.
3. Press the START/SET button to start the broiler.
4. Let the oven pre-heat for 5 minutes.
5. Place the pan on the desired rack, and then close the oven door.
6. When one side of the food is browned, turn it over, close the oven door, and start cooking the other side.
7. When cooking is complete, press the OFF/CLEAR button.

NOTE For a detailed broil rack guide, see page 16.

Temperature Limitations by Mode

Using the oven racks

Your gas oven range comes with 3 racks and 7 rack positions. The rack positions are delineated by rack guides which support the racks. Each rack guide has a stop that prevents racks from loosening during the oven’s operation. Each rack has stoppers that need to be placed correctly on the rack guides. The stoppers prevent the racks from accidently coming out of the oven completely when you pull the racks out.

CAUTION

• Do not cover an oven rack with aluminum foil. This will hamper heat circulation, resulting in poor baking.
• Do not place aluminum foil on the oven bottom. The aluminum can melt and damage the oven.
• Arrange the oven racks only when the oven is cool.
• When placing an oven rack in the topmost rack position (position 7), make sure the rack is situated stably on the embossed stop.

NOTE

This table is for reference only

Inserting and removing an oven rack

Rack and Pan Placement

Cooking options

CAUTION Food that can easily spoil, such as milk, eggs, fish, poultry, and meat, should be chilled in a refrigerator before they are placed in the oven. Even when chilled, they should not stand for more than 1 hour before cooking begins and should be removed promptly when cooking is completed.

Timed Cook

Timed cooking sets the oven to cook foods at a set temperature for a set length of time. The oven automatically turns off when it finishes.

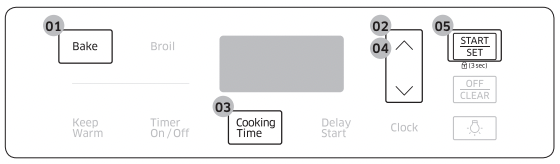

1. Press the Bake button.
2. If necessary, change the temperature using the arrow buttons.
3. Press the Cooking Time button.
4. Set the cooking time between 1 minute and 9 hours and 59 minutes (9:59) using the arrow buttons.
5. Press the START/SET button. The oven will automatically light and start preheating. The temperature will increase until it reaches the temperature you set.
6. When preheating is complete, put the container with the food on a rack, and then close the door. The oven starts cooking for the amount of time you set.
7. When the cooking time has elapsed, the oven will automatically shut off and then beep.

NOTE To change the programmed cooking time, press the Cooking Time button, and then enter a different time. Then, press the START/SET button.

Delay Start

The Delay Start function lets you use the kitchen timer to automatically start and stop another cooking program. Delay Start can be set before other cooking operations for up to 12 hours.

1. Place the container with the food on a rack, and then close the door.

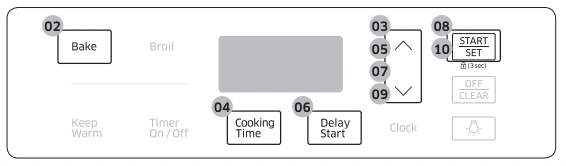

2. Press the Bake button.
3. If necessary, change the temperature using the arrow buttons.
4. Press the Cooking Time button.
5. Set the cooking time between 1 minute and 9 hours and 59 minutes (9:59) using the arrow buttons
6. Press the Delay Start button.
7. Set the starting hour using the arrow buttons.
8. Press the START/SET button.
9. Set the starting minutes using the arrow buttons.
10. Press the START/SET button.
11. The oven starts cooking at the set time, and turns off automatically when it completes cooking.

NOTES

• To change the starting time, press the Delay Start button, enter a new starting time, and then press the START/SET button.
• To change the programmed cooking time, press the Cooking Time button, enter a different time, and then press the START/SET button.

Keep Warm

Keep cooked food warm at a low temperature up to 3 hours.

1. Place the container with the food on a rack, and then close the door.
2. Press the Keep Warm button.
3. Press the START/SET button. The oven heats up to 170 °F (77 °C).

NOTES

• You can cancel warming at any time by pressing the OFF/CLEAR button.
• To set the warming function during a timed cooking, press the Keep Warm button in timed cooking mode. When the timed cooking is complete, the oven will lower the temperature to the warming default, and keep that temperature until the warming mode ends or is canceled.

Oven Light

Press the Oven Light button to turn the oven light on and off.

The Sabbath Option

• The oven temperature can be set higher or lower after you have set this option.
• The display doesn’t change and no beep sounds when you change the temperature.
• Once the oven is properly set for baking with the Sabbath option active, the oven will remain continuously on until the Sabbath feature is cancelled. This will override the factory preset 12 hour energy saving feature.
• If the oven light is needed during the Sabbath, press OVEN LIGHT before activating the Sabbath feature. Once the oven light is turned on and the Sabbath option is active, the oven light will remain on until the Sabbath option is turned off.
• If you want the oven light off, be sure to turn it off before activating the Sabbath feature.
• Do not use the surface cooktop when the Sabbath option is on.

To enable the Sabbath option

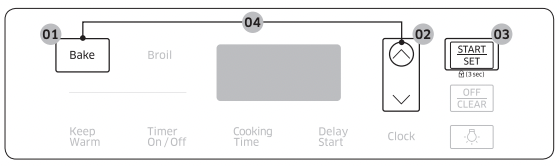

1. Press the Bake button.
2. Enter a desired temperature using the arrow buttons. The default temperature is 350 °F.
3. Press the START/SET pad. The display temperature changes after the oven temperature reaches 175 °F.
4. Press the Bake and (Up) buttons simultaneously for 3 seconds to display "SAb". Once "SAb" appears, the oven control no longer beeps or displays any further changes

NOTES

• You can change the oven temperature once baking starts, but the display will not change or beep. After changing the temperature, it takes 15 seconds before the oven recognizes the change.
• You can turn off the oven at any time by pressing OFF/CLEAR. However, this doesn’t deactivate the Sabbath option.
• To deactivate the Sabbath option, hold down Bake and (Up) simultaneously for seconds.
• You can set the cooking time before activating the Sabbath option.
• After a power failure, the oven will not resume operation automatically. "SAb" will appear in the control panel, but the oven will not go back on. Food can be safely removed from the oven, but you should not turn off the Sabbath option and turn the oven back on until after the Sabbath/Holidays.
• After the Sabbath observance, turn off the Sabbath option by pressing and holding Bake and (Up) simultaneously for at least 3 seconds.

CAUTION

• Do not attempt to activate any other functions except for Bake when the Sabbath option is on. Only the following buttons will function properly: the Arrow buttons, Bake, Oven START/SET, and Oven OFF/CLEAR.
• Do not open the oven door or change the oven temperature for about minutes after you have started the Sabbath option. Let the oven reach the set temperature. The oven fan operates only when the oven temperature increases.

Non-Cooking functions

Temperature adjust

The oven temperature has been calibrated at the factory. When first using the oven, follow the recommended recipe times and temperatures. If it appears that the oven is too hot or too cool, you can recalibrate the oven temperature. Before recalibrating, test a recipe by using a temperature setting that is higher or lower than recommended. The baking results should help you decide how much of an adjustment is needed. The oven temperature can be adjusted by ±35 °F (±19 °C).

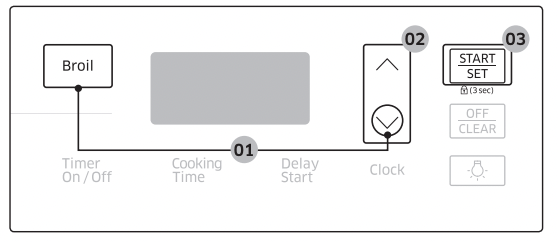

1. Press the Broil button and (Up) button simultaneously for 3 seconds.
2. Press the Broil button to select a higher(+) or lower(-) temperature.
3. Enter an adjusting temperature value using the arrow buttons.
4. Press the START/SET button to save the changes.

NOTE

This adjustment does not affect the broiling temperature, and is retained in memory after a power failure.

Sound

Mute/unmute the oven.

1. Press the Broil button and (Down) button simultaneously for 3 seconds.

2. Press the arrow buttons to select unmute or mute.

3. Press the START/SET button to save the changes.

Maintenance

Cleaning

Control panel

First, lock the control panel to prevent accidental operations and/or product tipping.

1. Press and hold the START/SET button for 3 seconds to lock the control panel.
2. Clean the control panel using a soft cloth dampened with plain water, warm soapy water, or glass cleaner. Do not spray cleansers directly onto the control panel.
3. When done, press and hold the START/SET button again for 3 seconds.

WARNING

• Make sure the control panel turns off and all surfaces of the gas oven are cool before cleaning. Otherwise, you can get burned.
• If the gas oven has been moved away from the wall, make sure the anti-tip device is reinstalled properly when the gas oven has been put into place again. Otherwise, the gas oven may tip over, causing physical injuries.
• Do not use steel-wool or abrasive cleansers of any kind. These can scratch or damage the surface.

Stainless steel surface

1. Remove any spills, spots, and grease stains using a soft, wet cloth.
2. Apply an approved stainless steel cleanser to a cloth or paper towel.
3. Clean one small area at a time, rubbing with the grain of the stainless steel if applicable.
4. When done, dry the surface using a soft, dry cloth.
5. Repeat steps 2 through 4 as many times as necessary.

CAUTION

• Do not use a steel-wool pad or abrasive cleanser on stainless steel surfaces. It will scratch the surface.
• Do not spray any type of cleanser into the manifold holes. The ignition system is located in those holes and must be kept free of moisture.

Racks

To keep the racks clean, remove them from the cavity, and soak them in lukewarm soapy water. Then, scour impurities off the racks using a plastic scouring pad. If the racks do not slide in and out smoothly after you have cleaned them, rub the side rail guides with wax paper or a cloth containing a few drops of cooking oil. This will help the racks glide more easily on their tracks.

NOTES

• Do not use a dishwasher to clean the racks.
• If a rack does not slide in and out smoothly, apply a few drops of cooking oil to the oven rack guides.
• If a rack becomes too difficult to slide in or out, lubricate the rack.
• To purchase the graphite lubricant, contact us at 1-800-SAMSUNG (726-7864).
• For online shopping, visit samsungparts and search for part DG81-01629A.

Door

Do not remove the inner gasket of the oven door for cleaning.

Inner side

• Inner surface: Clean the inner side of the door manually using a soapy plastic scouring pad, and then wipe with a dry cloth. Take care not to get the gasket wet or allow moisture into the door.

Outer side

• Outer surface: Follow the cleaning instructions for the stainless steel surface in the previous section.
• Outer glass: Clean the outer glass using a glass cleanser or soapy water. Rinse and dry thoroughly. Take care not to get the gasket wet or allow moisture into the door.

CAUTION

• Do not let moisture enter the door or contact the door gasket (*). Moisture may reduce the gasket’s performance.

• Do not let moisture or water enter the burner, electrical controls, or switches.

Surface burners

Burner controls

Make sure all surface burner knobs are in the OFF position.

CAUTION

• Do not clean the control knobs in a dish washer.
• Do not spray cleansers directly onto the control panel. Moisture entering the electric circuits may cause electric shock or product damage.

Cooktop surface

The porcelain-enameled cooktop surface needs to be kept clean. We recommend that you remove food spills immediately after they take place.

CAUTION

• Do not use a steel-wool pad or abrasive cleaner, which can scratch or damage the enamel surface.

• Do not remove the cooktop surface to clean it. The gas lines leading to the burner manifolds can be damaged, resulting in a fire or system failure.

Burner grates and components

Turn off all surface burners and make sure they have all cooled down

CAUTION

• The starter electrodes are not removable. Do not attempt to remove them by force.
• Make sure all burner components (heads and caps) are reinstalled properly. They are stable and rest flat when installed properly.
• To avoid chipping, do not bang grates and caps against each other or against hard surfaces such as cast iron cookware.

Replacement

Oven light

The oven light is a standard 40-watt appliance bulb. It comes on when you open the oven door.

1. Turn off the oven.

2. Make sure the oven and oven light are cool.

3. Open the door, and remove the glass cover by turning it counterclockwise.

4. Remove the oven light from the socket by turning it counterclockwise.

5. Insert a new 40-watt appliance bulb into the socket, and then turn it clockwise to tighten.

6. Reinsert the glass cover, and then turn it clockwise to tighten.

CAUTION

To prevent electric shock, make sure the gas oven is turned off and cool before replacing the oven light.

NOTE

Remove the racks if they prevent you from accessing the oven light.

Reinstallation

Oven door

To remove the oven door

WARNING

• The door is very heavy. Be careful when removing and lifting the door. Do not lift the door by the handle.

• Take care when moving the oven door. Improper handling could result in physical injury.

• To prevent electric shock, make sure the oven is turned off before removing the oven door.

To re-install the oven door

Storage drawer

Troubleshooting

If you encounter a problem with the range, check the tables starting below, and then try the suggested actions.

Checkpoints

Gas safety

Surface burner

Oven

Others

Information codes
