User Manual Haier HBF55W WH Bar Refrigerator

Haier HBF55W WH Bar Refrigerator - Use Manual - Use Guide PDF.
Documents: Go to donwload!
  • Owner's manual - (English)



  • Ensure there is obstruction free ventilation if the appliance is installed in an enclosure or in a built-in structure. WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer WARNING
  • Do not damage the refrigerant circuit.
  • Do not store electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction con -cerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance if the supply cord is damaged, it must be replaced by the manufacturer, its sernerce agent or similarly qualified persons in order to avoid a hazard.
  • This appliance may contain a small quantity of environmentally friendly, but flammable, non-synthetic R600a refrigerant:
  • Upon opening and installing your product, check that the tubing of the ref -rigerant circuit is not damaged during transportation.
  • Leaking refrigerant may cause eye injuries or ignite. The room for installing appliance must be at least 1m3 per 8g of refrigerant.
  • The amount of refrigerant in the appliance can be found on the rating plate the back of the unit.
  • Keep ventilation openings in the appliance enclosure or in the built-in struc -ture clear of obstruction.
  • Do not damage the refrigeration circuit.
  • If you are unsure of the refrigerant type check the rating plate on the back of the unit.


  • The power supply for appliance is 220-240V.60Hz single phase. It is not –≥econnended to use any extension cords. Connect the appliance with a properly earthed three-wire plug and socket with a special use.
  • Never store anything dangerous in the appliance, such as combustibles, exposives, strong acid and alkali. etc. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

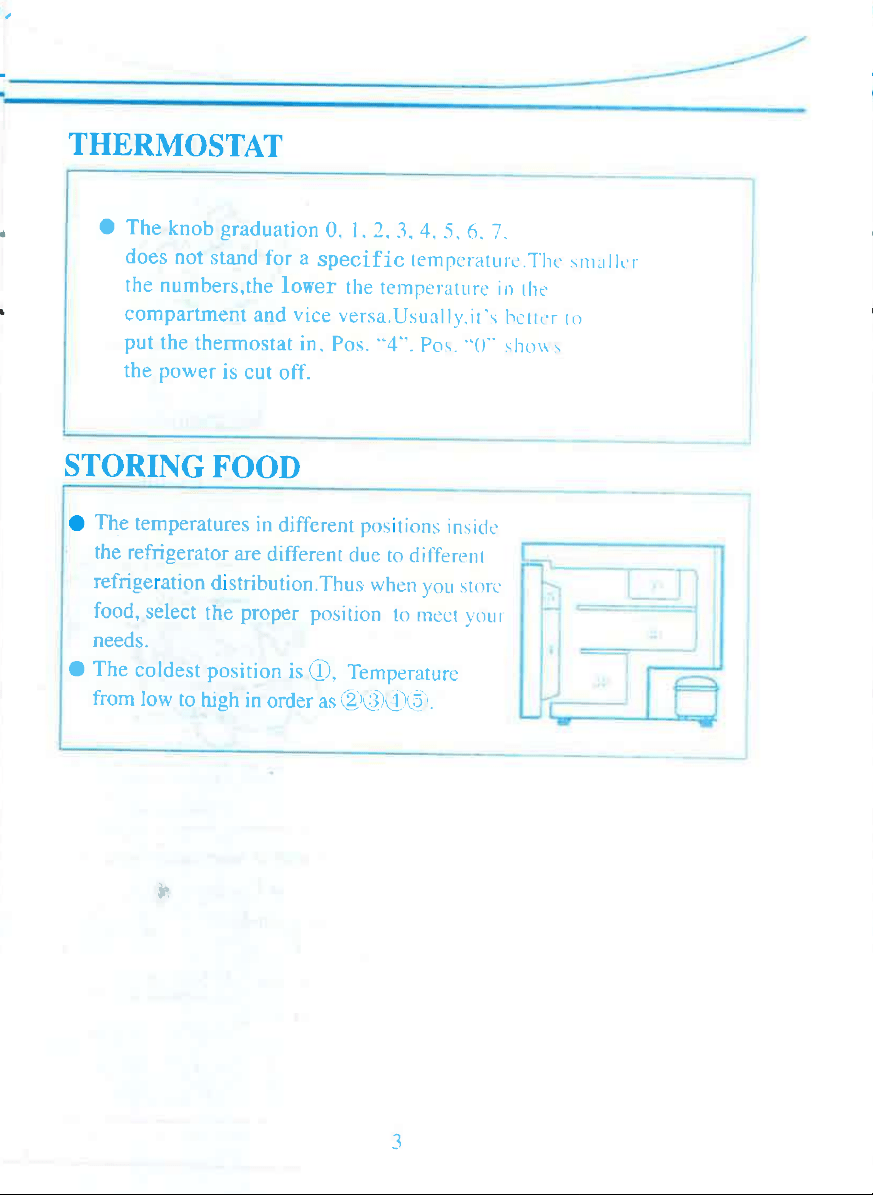

  • • The knob graduation 0, 1, 2, 3, 4, 5, 6, 7. does not stand for a specific temperature. The smaller the numbers, the lower the temperature in the compartment and vice versa. Usually,it's better in put the thermostat in, Pos. “4”. Pos. "()" shows the power is cut off. recontended


  •  The appliance can be placed with its rear panel directly against the wall. For a good air circulation, the vent grille at the back of the worktop must not be blocked. It should be placed on that and firm ground to eliminate excess vibration.
  • Poorly ventilated rooms are unsuitable. Avoid positioning the appliance in direct sunshine or exposed to similar sources of heat.


  • The temperatures in different positions inside the refrigerator are different due to different refrigeration distribution. Thus when you store food, select the proper position to meet your needs.
  • The coldest position is (1), Temperature from low to high in order as 23:25).
