GB
User manual
Washing machine
HW70-BP14636
HW80-BP14636
HW100-BP14636
Thank You
GB
2
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
oce.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
Risk of injury or suocation!
Disconnect the appliance from the mains supply. Cut o the mains cable and dispose
of it. Remove the door catch to prevent children and pets to get closed in the appliance.
GB
Content
3
1-Safety information ............................................................................................................................ 4
2-Productdescription ..........................................................................................................................7
3-Control panel .....................................................................................................................................8
4-Programmes ................................................................................................................................... 11
5-Consumption .................................................................................................................................. 12
6-Daily use ........................................................................................................................................... 13
7-Eco-friendly washing .................................................................................................................... 18
8-Care and cleaning .......................................................................................................................... 19
9-Troubleshooting ............................................................................................................................. 22
10-Installation ..................................................................................................................................... 25
11-Technical data ............................................................................................................................... 29
12-Customer service ........................................................................................................................ 31
1-Safety information
GB
4
Before switching on the appliance for the rst time read the follow-
ing safety hints!:
WARNING!
Before rst use
▶ Make sure there is no transport damage.
▶ Make sure all transport bolts are removed.
▶ Remove all packaging and keep out of children´s reach.
▶ Handle the appliance always with at least two persons because it
is heavy.
Daily use
▶ This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶ Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
▶ Children shall not play with the appliance.
▶ Do not let children or pets come close to the appliance when the
door is open.
▶ Store washing agents out of reach of children.
▶ Pull up zips, x loose threads and take care for small items to pre-
vent laundry from being entangled. If necessary, use an appropri-
ate bag or net.
▶ Do not touch or use the appliance when barefoot or with wet or
damp hands or feet.
▶ Do not cover or encase the appliance during operation or after-
wards to allow any moisture or dampness to evaporate.
▶ Do not place heavy objects or sources of heat or damp on top of
the appliance.
▶ Do not use or store flammable detergent or dry cleaning agent in
close vicinity to the appliance.
▶ Do not use any flammable sprays in close vicinity to the appliance.
▶ Do not wash any garments treated with solvents in the appliance
without having dried them previously in the air.
GB
1-Safety information
5
WARNING!
Daily use
▶ Do not remove or insert the plug in the presence of flammable
gas
▶ Do not hot wash foam rubber or sponge-like materials.
▶ Do not wash any laundry which is polluted with flour.
▶ Do not open detergent drawer during any wash cycle.
▶ Do not touch the door during the washing process, it gets hot.
▶ Do not open the door if the water level is visibly over the porthole.
▶ Do not force the door to open. The door is tted with a self-lock
device and will open shortly after the washing procedure is ended.
▶ Switch o the appliance after each wash programme and before
undertaking any routine maintenance and disconnect the appli-
ance from the electrical supply to save electricity and for safety.
▶ Hold the plug, not the cable, when unplugging the appliance.
Maintenance / cleaning
▶ Make sure children are supervised if they carry out cleaning and
maintenance.
▶ Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance.
▶ Keep the lower part of the porthole clean and open door and de-
tergent drawer if appliance is not in use to prevent odours.
▶ Do not use water spray or steam to clean the appliance.
▶ Replace a damaged supply cord only by the manufacturer, its ser-
vice agent or similarly qualied persons in order to avoid a hazard.
▶ Do not try to repair the appliance by yourself. In case of repair
please contact our customer service.
Installation
▶ The appliance should be placed in a well-ventilated place. Ensure
a location which allows opening the door fully.
▶ Never install the appliance outdoors in a damp place, or in an area
which may be prone to water leaks such as under or near a sink
unit. In the event of a water leak cut power supply and allow the
machine to dry naturally.
1-Safety information
GB
6
Intended use
This appliance is intended for washing machine-washable laun-
dry only. Anytime follow the instructions given on the label of each
garment label. It is designed exclusively for domestic use inside the
house. It is not intended for commercial or industrial use.
Changes or modications to the device are not allowed. Unintended
use may cause hazards and loss of of all warranty and liability claims.
WARNING!
Installation
▶ Install or use the appliance only where the temperature is above
5 °C.
▶ Do not place the appliance directly on a carpet, or close to a wall
or furniture.
▶ Do not install the appliance in direct sunlight or in the near of heat
sources(e.g. stoves, heaters).
▶ Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an electri-
cian.
▶ Do not use multi-plug adapters and extension cables.
▶ Make sure only the delivered electric cable and hose set are used.
▶ Make sure not to damage the electric cable and the plug. If dam-
aged have it replaced by an electrician.
▶ Use a separate earthed socket for the power supply which is easy
accessible after installation. The appliance must be earthed.
Only for UK: The appliance’s power cable is tted with 3-cord
(grounding) plug that ts a standard 3-cord (grounded) socket.
Never cut o or dismount the third pin (grounding). After the ap-
pliance is installed, the plug should be accessible.
▶ Make sure the hose joints and connections are rm and there is
no leakage.
GB
2-Product description
7
2.1 Picture of appliance
Front (Fig. 2-1): Rear side (Fig. 2-2):
6
7
5
Temp.
Speed Intense
Delay
Start/Pause
Extra rinse
HW80-BP14636
BLDC motor
+++
A
Auto weightCapacityEnergy
8kg
Self Clean
1
4
3
2
Temp.
Speed Intense
Delay
Start/Pause
Extra rinse
R
+++
A
Energy Capacity
7kg
rpm
1400
HW70-BP14636
1000
T1
T2
T3
S1
S2
S4
S3
T4
1
3
4
2
65
1 Detergent /Softener drawer
2 Display
3 Worktop
4 Programme selector
5 Rating plate
6 Sevice flap
7 Adjustable feet
1 Transportation bolts (T1-T4)
2 Back cover
3 Back cover screws (S1-S4)
4 Power cord
5 Water inlet vave
6 Drain hose
2-1 2-2
2.2 Accessories
Check the accessories and literature in accordance with this list (Fig.:2-3):
Inlet hose-
assembly
1)
5 Blanking
plugs
Drain hose
bracket
User manual
Warranty-card
Note:
-
2-3
1)
Type of inlet hose depends on model.
2)
Felt only available for model HW80-... and HW100-...
botton cover
with felt
2)
3-Control panel
GB
8
1 “
2 Programme selector
3 Display
4 Detergent /Softener drawer
Press this button (Fig. 3-2) gently to switch on, the dis-
play is shining, the indicator of the “Start/Pause” button
is flashing. Press it again for about 2 seconds to switch
-
ter a while machine will shut down automatically.
3.2 Programme selector
By turning the knob (Fig. 3-3) one of 16 programmes
can be selected, related LED will light up, its default
settings will be displayed.
3.3 Display
The display (Fig. 3-4) shows following information:
▶ Washing time
▶ End time delay
▶ Error codes and service information
3-4
5 Function buttons
6 “Delay” button
7 “Start/Pause“ button
3-1
Note : Acoustic signal
In following cases an acoustic signal sounds:
▶ when pressing a button
▶ when turning the programme selector
▶ at the end of programme
▶ in case of failures
The acoustic signal can be deselected if necessary ; see DAILY USE.
Temp.
Speed Intense
Delay
Start/Pause
Extra rinse
R
+++
A
Energy Capacity
7kg
rpm
1400
HW70-BP14636
4
1
2
5 6 7
3
3-3
R
3-2
GB
3-Control panel
9

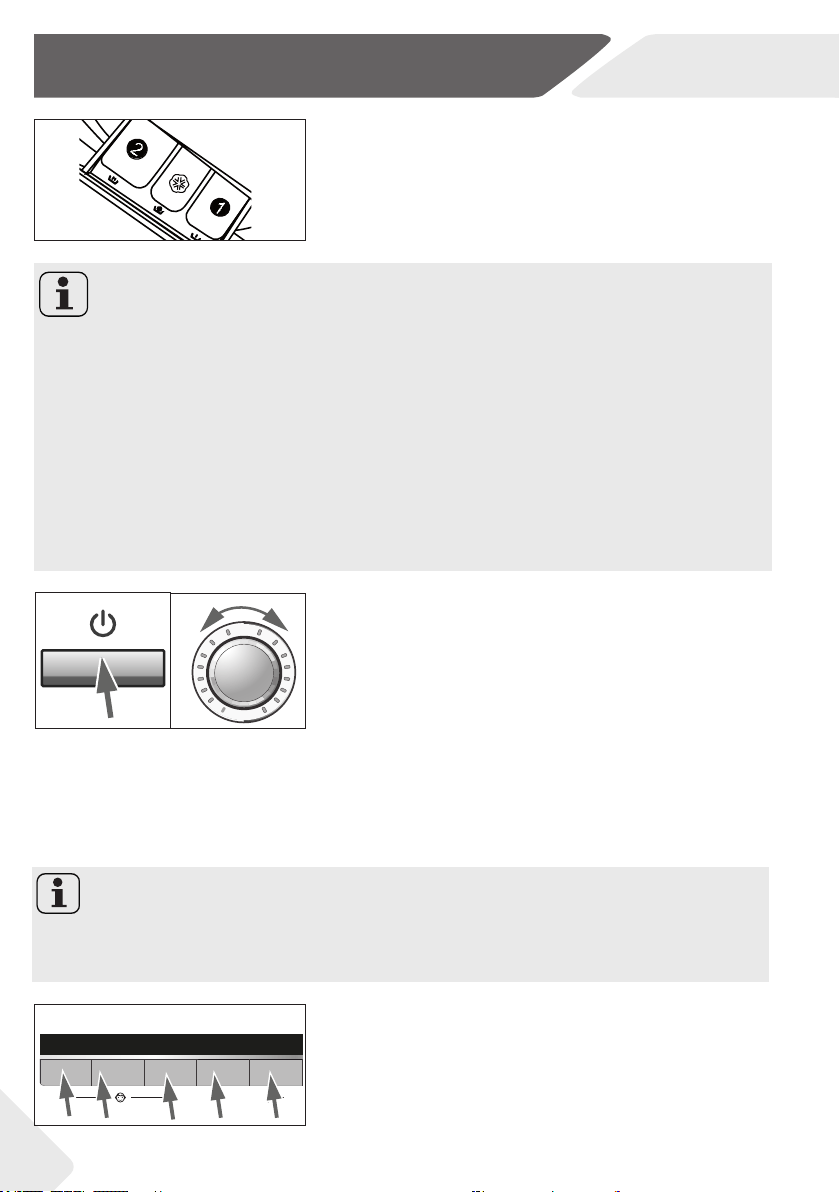

3.5 Function buttons
The function buttons (Fig. 3-6) enables additional op-
tions in the selected programme before programme
start. The related indicators are displayed.
By switching o the appliance or setting a new pro-
gramme, all options are disabled.
If a button has multiple options, the desired option can
be selected by pressing the button sequentially.
To delete the setting or to cancel the setting process,
press the function button until the desired LED lights
or -in case of only one option- the LED switches o.
3.5.1-Function button „Temp.“
Press this button (Fig. 3-7) to change the washing
temperature of the programme. If no value is illumi-
nated the water will not heated.
In conjunction with the “Intense” button, the child lock
function can be switch on/o (see CHILD LOCK).
3.5.2-Function button “Speed”
Press this button (Fig. 3-8) to change or deselect the
spin of the programme. If no value is illuminated the
laundry will not spun.
Note: Factory settings
To get best results in each programme Haier has well dened specic default settings. If
there is no special requirement default settings are recommended.
3.4 Detergent drawer
Open the drawer, three compartments can be
seen (Fig. 3-5):
Compartment 1 : Water inlet only, no detergent
Compartment 2 : Detergent for programme
Compartment
: Softener, Conditioning agent etc.
The recommendation on the type of detergents is
suitable for the various washing temperatures, please
refer to the manual of detergent.
3-5
3.5.3-Function button “Intense“
This function (Fig. 3-9) intensies cleaning results.
Preferable if laundry is heavily soiled. This extends the
washing time in the main wash cycle.
In conjunction with the “Temp.” button, the child lock
function can be switch on/o (see CHILD LOCK).
Intense
3-9
3-7 3-8
Temp.
Speed
Temp.
Speed Intense
Delay
Start/Pause
Extra rinse
3.5.1 3.5.2 3.5.3 3.5.4 3.5.5
3-6
3-Control panel
GB
10
3.5.4 Function button“Extra rinse“
Press this button (Fig. 3-10) to rinse the laundry more
intense with fresh water. This is recommended for
people with sensitive skin.
By pressing the button several times one to three ad-
ditional cycles can be selected. They appear in the dis-
play with P--1/P--2/P--3.
3.5.5 Function “Speed up“
This function saves time and energy. Preferable if laun-
dry is slightly soiled. Press simultaneously button „Ex-
tra rinse.“ and ”Delay” (Fig. 3-11) for about 3 seconds
to activate the “Speed up” function; SPEEd
uP is dis-
played. This function is not available in all programmes
(see PROGRAMMES).
3.7 „Start/Pause“ button
Press this button (Fig. 3-13) gently to start or inter-
rupt the currently displayed programme. During pro-
gramme setting and during programme run the LED
above the button is shining, or if interrupted blinking.
3.6 “Delay” button
Press this button (Fig. 3-12) to start the programme
with a delay. End time delay could be increased in steps
of 30 minutes from 0,5-24h. For example display o
6:30 means end of programme cycle will be in 6 hours
and 30 minutes. Press “Start/Pause” button to activate
the time delay. It is not applicable to programme SPIN.
Note: Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
3.8 Child lock
Press button „Temp.“ and ”Intense” (Fig. 3-14) for 3
seconds simultaneously to block all panel elements
against activation. For unlocking please press again
the two buttons.
The display shows cLo
I- (Fig. 3-15) if a button will be
pressed, when the child lock is activated. The change
is not running.
3-15
Extra rinse
3-10
Delay
3-12
Start/Pause
3-13
DelayExtra rinse
Speed up
3-11
3-14
Temp.
Speed Intense
GB
4-Programmes
11
1)
Relating to dry laundry.
2)
Choose 90 °C wash temperature only for special hygienic requirements. *: water will not heated (no
value is iluminated).
3)
Reduce detergent amount because programme duration is short.
Max. load Temperature Preset
spin speed
in rpm
Function
in kg
in °C
Preset
Intensive
Extra rinse
Speed up
Programme
HW70/80/
100
seletable
range 2 1 Fibre type
Cotton
7.0/ 8.0 /10.0 * to 90 30
•
º
/
Cotton 1400
• • •
Synthetic
3.5/4.0/5.0 * to 60 30
•
º
/
Synthetic or
mixed fabric
1200
• • •
Mix
3.5/4.0/5.0 * to 60 30
•
º
/
Lightly soiled
mixed-laundry
of cotton and
synthetic
1000
• • •
Wool
1.0/1.0/1.0 * to 40 *
•
º
/
Machine-washa-
ble fabric made of
wool or with wool
content
800
/
•
/
Underwear 3.5/4.0/5.0 * to 60 40
•
º
/
Underwear 1000
• • •
Sport
3.5/4.0/5.0 * to 40 20
•
º
/
Sports wear 800
• •
/
Jeans 3.5/4.0/5.0 * to 60 30
•
º
/
Jeans 1000
• • •
Hygienic
3.5/4.0/5.0 90 90
•
º
/
Cotton 1000
• • •
Fast
3)
3.5/4.0/5.0 * to 40 40
•
º
/
Lightly soiled laun-
dry made of cot-
ton or synthetic
1000
/
•
/
Express
15 min
3)
1.0/1.0/1.0 * to 40 *
•
º
/
Cotton / Syn-
thetic
1000
/
•
/
Daily Wash
3.5/4.0/5.0 * to 60 30
•
º
/
Cotton fabrics 1000
• • •
Baby Care
3.5/4.0/5.0 * to 90 40
•
º
/
Cotton/Synthetic 1000
• • •
Delicate/
Silk
2.0/2.0/2.5 * to 30 30
•
º
/
Delicate laundry
and silk
800
/
•
/
Hand Wash 2.0/2.0/2.5 * to 30 30
•
º
/
Laundry marked
with symbol for
handwash
400
/
•
/
Duvet
2.0/2.0/2.5 * to 40 40
•
º
/
Cotton 800
• • •
Spin
7.0/8.0/10.0
/ / / / /
all fabrics 1000
/ / /
1)
2)
2)
Detergent compartment for:
1
Water inlet only, no deter-
gent
2
Detergent
Softener or care product
•
Yes,
º
Optional, / No
5-Consumption
GB
12
Programme
Temper-
ature
in °C
Max. load
in kg
HW70/80/100
Energy
in kWh
HW70/80/100
Water
in L
HW70/80/100
Washing time
in h:min
HW70/80/100
Spin
drying
perfor-
mance
in %
Cotton *
40°C 3,5/4,0/5,0 0,37/0,45/0,40 30/36/42 4:25/4:25/3:55 53
60°C 3,5/4,0/5,0 0,41/0,50/0,59 30/38/43 4:28/4:28/3:58 53
60°C
7,0/8,0/10,0
0,42/0,50/0,59 45/52/59 4:28/4:28/3:58 53
Synthetic
30 3,5/4,0/5,0 -/ 0,37/ 0,41 -/54/56 -/1:56/ 2:00 49
The indicated consumption values may accordingly dier to local conditions.
* Standard programme for the Energy Labelling according to 2010/30 EU:
Cotton 60°C / 40°C with max. spin speed setting and activated “Intense” function.
The standard 60°C and 40°C cotton programmes are suitable to clean normally soiled
cotton laundry. They are the most ecient programmes in terms of combined energy and
water consumption for cotton laundry. Used water temperature may dier from declared
cycle temperature.
Note: Auto Weight
The appliance is equipped with a loading recognition. At low loading, energy, water and
washing time will be reduced automatically in some programs.
GB
6-Daily use
13
6.3 Preparing laundry
▶ Sort out clothes according to fabric (cotton, syn-
thetics, wool or silk) and to how dirty they are (Fig.
6-3). Pay attention to the care labelling of wash-
ing labels.
▶ Separate white clothes from coloured ones.
Wash coloured textiles rst by hand to check if
they fade or run.
▶ Empty pockets (keys, coins, etc.) and remove
harder decorative objects (e.g. brooches).
▶ Garments without hems, delicates and nely wo-
ven textile such as ne curtains are to be put into
a wash bag to care for this delicate laundry (hand
or dry cleaning would be better).
▶ Close zippers, velco fastener and hooks, make
sure the buttons are sewn on tightly.
▶ Place sensitive items like laundry without rm
hem, delicate underwear (Dessous) and small
items such as socks, belts, bras, etc. in a wash
bag.
▶ Unfold large pieces of fabric such as bed sheets,
bedspreads etc.
▶ Turn jeans and printed, decorated or color-inten-
sive textiles inside out; possibly wash separately.
6-3
6.1 Power supply
Connect the washing machine to a power supply
(220V to 240V~/50Hz; Fig. 6-1). Please refer also to
section INSTALLATION.
6.2 Water connection
▶ Before connecting check the cleanliness and clar-
ity of the water inlet.
▶ Tun on the tap (Fig.6-2).
Note: Tightness
Before use check for leakage in the joints between the tap and the inlet hose by turning
on the tap.
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and
damage of clothes and appliance.
6-1 6-2
6-Daily use
GB
14
Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
Washable up to 40°C
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal process
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Any bleaching allowed Only oxygen/
non -chlorine
Do not bleach
Drying
Tumble drying possible
normal temperature
Tumble drying possible
lower temperature
Do not tumble dryr
Line drying Flat drying
Ironing
Iron at a maximum
temperature
up to 200 °C
Iron at a medial tem-
perature
up to 150°C
Iron at a low temper-
ature up to 110 °C;
without steam (steam
ironing may cause irre-
versible damage)
Do not iron
Professional Textile Care
Dry cleaning in tetra-
chloroethene
Dry cleaning in hy-
drocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
6.4 Loading the appliance
▶ Put in the laundry piece by piece
▶ Don‘t overload. Note the dierent maximum load according to programmes! Rule of
thumb for maximum load: Keep six inches between load and drum top.
▶ Close the door carefully. Make sure that no pieces of laundry are pinched.
GB
6-Daily use
15
6.5 Selecting detergent
▶ Washing eciency and performance is determined by used detergent quality.
▶ Use only machine wash approved detergent.
▶ If needed use specic detergents, e.g. for synthetic and woolen fabric.
▶ Mind always detergent manufacturer recommendations.
▶ Do not use dry cleaning agents such as trichloroethylene and similar products.
Choose the best detergent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
Cotton
L/P L/P - - o
Synthetic L/P L/P L - o
Mix
L/P L/P - - o
Wool - - - L o
Underwear
L/P L/P - - o
Sport
- - - L o
Jeans L/P L/P L - o
Hygienic
L/P L/P L - o
Fast L L - - o
Express 15 min
L L - - o
Daily Wash L/P L/P L - o
Baby Care L/P L/P - - o
Delicate/Silk
- - L - o
Hand Wash
- - - L o
Duvet
- - L L -
L = gel-/liquid detergent P = powder detergent O = optional
_
= no
If using liquid detergent, it is not recommended to activate the time delay.
We recomment by using:
▶ Laundry powder: 20°C to 90°C* (best use:: 40-60°C)
▶ Color detergent: 20°C to 60°C (best use: 30-60°C)
▶ Wool/delicate detergent: 20°C to 30°C (= best use:)
* Choose 90 °C wash temperature only for special hygienic requirements.
6-Daily use
GB
16
6.7 Switch on the appliance
Press the „on/o“- button to switch on the appliance
(Fig. 6-4). The LED of the „Start/Pause“ button is flas-
hing.
6.6 Adding detergent
1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding
compartments (Fig. 6-3)
3. Push back the drawer gently.
Note:
▶ Remove detergent residues before next wash cycle from the detergent drawer.
▶ Do not overuse detergent or softener.
▶ Please follow the instruction on the detergent package.
▶ Always ll the detergent just before the beginning of the wash cycle.
▶ Concentrated liquid detergent should be diluted before adding into compartment 2.
▶ The best use of liquid detergent is by using a dosing ball, which is given with the laun-
dry into the washing machine.
▶ Do not use liquid detergent if „end time delay“ is selected.
▶ Carefully choose the programme settings according to the care symbols on all laun-
dry labels and according to the programme table.
6.8 Select a programme
To get the best washing results, select a programme
which ts the degree of soiling and sort of laundry
type.
Turn the programme knob (Fig. 6-5) to select the right
programme. Related programme LED lights up and
the default settings are displayed.
6.9 Add individual selections
Select required options and settings (Fig. 6-5); refer to
CONTROL PANEL.
Temp.
Speed Intense
Delay Start/PauseExtra rinse
Speed up
6-6
6-3
Note: Odour removal
Before rst use we recommended to run programme HYGIENIC with no load and small
amount of detergent in washing agent compartment (2) or special machine cleaner to
remove possibly corruptive residues.
6-4 6-5
GB
6-Daily use
17
1. At programme cycle end END is displayed.
2. The appliance switches o automatically.
3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.
4. Turn o the water supply.
5. Unplug the power cord.
6. Open the door to prevent formation of moisture and odours. Let it open while not used.
6.13 Activate or deactivate the buzzer
The acoustic signal can be deselected if necessary:
1. Switch on the appliance.
2. Select the SPIN programme.
3. Press the “Delay “button and “Extra rinse” button at the same time for about 3 sec-
onds. “bEEP OFF” will be displayed and the buzzer will be deactivated.
For activating the buzzer press these two buttons at the same time again. “bEEP ON” will
be displayed.
To interrupt a running programme press gently “Start/Pause“. The LED above the button
is flashing. Press it again to resume operation.
To cancel a running programme and all its individual settings
1. Press “Start/Pause” button to interrupt the running programme.
2. Press „On/O“ button for about 2 seconds to switch the appliance o.
3. Run programme SPIN and select “no Speed” (all lights are o ) to drain the water.
4. Select a new programme and start it.
6.12 After washing
Note: Door lock
▶ For safety reasons the door is locked partially during the washing cycle. It is only pos-
sible to open the door at the end of the programme or after the programme was can-
celled correctly (see description above).
▶ In case of high water level, high water temperature and during spinning it is not pos-
sible to open the door; Loc1- is displayed
Note: Standby mode / energy-saving mode
The switched on appliance will go into standby-mode if it will not be activated within 2
minutes before starting the program or at the end of program. The display switsches o.
This saves energy. To interrupt the standby mode push “Start/Pause“ button.
6.10 Start wash programme
Press “Start/Pause“ button (Fig. 6-7) to start. The LED
of the „Start/Pause“ button stops flashing and lights
up continuously
Appliance operates according to present settings.
Changes are only possible by cancelling the programme.
6.11 Interrupt - cancel wash programme
Start/Pause
6-7
7-Eco-friendly washing
GB
18
Environmentally responsible use
▶ To achieve best use of energy, water, detergent and time you should use the recom-
mended maximum load size.
▶ Do not overload (hand width clearance above laundry).
▶ For slightly soiled laundry select the Quick Wash programme.
▶ Apply exact dosages of each washing agent.
▶ Choose the lowest adequate washing temperature - modern detergents are ef-
ciently cleaning below 60°C.
▶ Raise default settings only due to heavy staining.
▶ Select max. spinning speed if a domestic dryer is used.
GB
8-Care and cleaning
19
8.1 Cleaning the detergent drawer
Take always care there are no detergent residues.
Clean the drawer regularly (Fig. 8-1):
1. Pull out the drawer until it stops.
2. Press the release button and remove the drawer.
3. Flush the drawer with water until it is clean and
insert the drawer back in the appliance.
8.2 Cleaning the machine
▶ Unplug the machine during cleaning and mainte-
nance.
▶ Use a soft cloth with soap liquid to clean the ma-
chine case (Fig. 8-2) and rubber components.
▶ Do not use organic chemicals or corrosive sol-
vents.
8-2
Temp.
Speed Intense
Delay
Start/Pause
Extra rinse
+++
A
Energy Capacity
7kg
rpm
1400
HW70-BP14636
Note: Hygiene
For regular maintenance we recommend to run programme HYGIENIC with no load in
order to remove possible corruptive residues quarterly. Add a small amount of deter-
gent in washing agent compartment (2) - or use a special machine cleaner
To prevent blockage of water supply by solid substanc-
▶
supply.
▶ Unscrew the water inlet hose at the back (Fig.
8-3) of the appliance as well as on the tap.
▶
▶
8.4 Cleaning the drum
▶ Remove accidentally washed metal parts such as
pins, coins, etc. from the drum (Fig. 8-5) because
they cause rust stains and damage.
▶ Use a non-chloride cleaner for removing rust
stains. Observe the warning hints of the cleaning
agent manufacturer.
▶ Do not use any hard objects or steel wool for clean-
ing.
8-3 8-4
8-5
8-1
1
2
8-Care and cleaning
GB
20
1. Turn o and unplug the machine (Fig. 8-8).
2. Open service flap. You can either use a coin or a
screwdriver (Fig. 8-9).
3. Provide a flat container to catch leach water
(Fig. 8-10). There could be bigger amounts!
4. Pull the drainhose out and hold its end above the
container (Fig. 8-10).
5. Take the sealing plug out of the drainhose (Fig.
8-10).
6. After complete drainage close drainhose (Fig.
8-11). and push it back into the machine.
7. Unscrew and remove counter clockwise the pump
lter (Fig. 8-12).
8. Remove contaminants and dirt (Fig. 8-13).
8.5 Long periods of disuse
If the appliance is left idle for a longer period:
1. Pull out the electrical plug (Fig. 8-6).
2. Turn o water supply (Fig. 8-7).
3. Open the door to prevent formation of moisture
and odours. Let door open while not used.
Before next usage check carefully power cord, water
inlet and drain hose. Make sure everything is properly
installed and without leackage.
WARNING!
Scalding Risk! Water in the pump lter can be very
hot! Before any action please ensure water has
cooled down.
Note: Hygiene
After long periods of disuse we recommended to run programme HYGIENIC with no
load and small amount of detergent in washing agent compartment (2) or special ma-
chine cleaner to remove possibly corruptive residues.
8.6 Pump lter
Clean the lter once a month and check the pump lter
for instanvce if the appliance:
▶ doesn´t drain the water.
▶ doesn´t spin.
▶ cause unusual noise while running.
8-8 8-9
8-6 8-7
8-10 8-11
8-12 8-13
GB
8-Care and cleaning
21
CAUTION!
▶ Pump lter sealing has to be clean and unhurt. If the lid is not full tightened, water
can escape.
▶ The lter must be in place, or it may lead to leakage.
9. Clean carefully pump lter, e.g. using running water
(Fig. 8-14).
10. Rex it thoroughly (Fig. 8-15).
11. Close service flap.
8-14 8-15
9-Troubleshooting
GB
22
9.2 Troubleshooting with display code
Problem Cause Solution
E1
• Drainage error, water is not fully drained
within 6 minutes
• Clean pump lter.
• Check drain hose installation.
E2
• Lock - error. • Shut the door properly.
E4
• Water level not reached after 8 minutes.
• Drain hose is self-syphoning..
• Make sure that tap is fully opened and water
pressure is normal.
• Check drain hose installation.
E8
• Water protective level - error.. • Contact the After sales service..
Many occuring problems could be solved by yourself without specic expertise. In case
of a problem please check all shown possibilities and follow below instructions before you
contact an after sales service. See CUSTOMER SERVICE.
WARNING!
▶ Before maintenance, deactivate the appliance and disconnect the mains plug from
the mains socket.
▶ Electrical equipment should be serviced only by qualied electrical experts, because
improper repairs can cause considerable consequential damages..
▶ A damaged power cable should only be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
9.1 Information codes
Following codes are displayed only for information referring to the washing cycle. No
measures must be performed.
Code Message
1:25
The remaining wash cycle time will be 1 hour and 25 minutes
6:30
The remaining wash cycle time including chosen end-time delay will be 6 hours and 30 min-
utes
P--1/2/3
1/2/3 additional rinses are choosen (see FUNCTION BUTTONS „Extra rinse“).
End
The washing cycle is nished. The appliance shuts o automatically.
cLo1-
Function child lock is activated
LocI-
Door is closed because of high water level, high water temperature or spinning cy-
cle.
bEEP OFF
The buzzer is deactivated
bEEP ON
The buzzer is activated
SPEEd uP
Function “Sped up” is activated
GB
9-Troubleshooting
23
Problem Cause Solution
F3
• Temperature sensor - error.. • Contact the After sales service..
F4
• Heating error
• Contact the After sales service..
F7
• Motor - error.. • Contact the After sales service..
FA
• Water level sensor - error
• Contact the After sales service..
FC1 or
FC2
• Abnormal communication error
• Contact the After sales service..
UNB
• Unbalanced load - error.. • Check and balance laundry load in the drum.
Reduce the load.
Problem Cause Solution
Washing machine fails
to operate.
• Programme is not yet started. • Check programme and start it.
• Door is not properly closed. • Close the door properly.
• Machine has not been switched on. • Switch the machine on.
• Power failure. • Check power supply.
• Child lock is activated. • Deactivate child lock.
Washing machine
will not be lled with
water.
• No water. • Check water tap.
• Inlet hose is kinked. • Check inlet hose.
• Inlet hose lter is blocked. • Unblock inlet hose lter.
• Water pressure is less than 0.03 MPa.
• Check water pressure.
• Door is not properly closed. • Close the door properly.
• Water supply failure. • Ensure the water supply.
Machine is draining
while being lled.
• Height of drain hose is below 80 cm.
• Make sure that drain hose is
properly installed.
• Drain hose end could reach into
water.
• Make sure the drain hose is not
in water.
Drainage failure. • Drain hose is blocked. • Unblock drain hose.
• Pump lter is blocked. • Clean pump lter.
• Drain hose end is higher than 100 cm
above floor level.
• Make sure that drain hose is
properly installed.
Strong vibration while
spinning.
• Not all transportation bolts have
been removed.
• Remove all transportation bolts
.
• Appliance has no solid position.
• Ensure solid ground and a levelled
position.
• Machine load is not correct. • Check load weight and balance.
Operation stops
before completing
wash cycle.
• Water or electric failure. • Check power and water supply.
Operation stops for
a period of time.
• Appliance displays error code. • Consider display codes.
• Problem due to load pattern. • Reduce or adjust load.
• Programme performs soaking cycle.
• Cancel programme and restart.
9.3 Troubleshooting without display code
9-Troubleshooting
GB
24
Should the error messages reappear even after the taken measures, switch o the appli-
ance, disconnect the power supply and contact the customer service.
9.4 In case of power failure
The current programme and its setting will be saved.
When power supply is restored operation will be re-
sumed.
In case of power failure during programme run door
opening is mechanically blocked. If the laundry is to
be removed, the water level must not be visible in the
glass door. - Danger of scalding!
▶ Lower the water level according to step 1 to 6 of
chapter CARE AN CLEANING (PUMP FILTER).
▶ Pull lever (A) beneath service flap (Fig. 9-1) until
door is unlocked by a gentle click.
▶ Fix all parts and close the service flap.
A
9-1
Note: Foam formation
If too much foam is inspected during spin cycle, motor stops and drain pump will be ac-
tivated for 90 seconds. If that elimination of foam fails up to 3 times, programme ends
without spinning.
Problem Cause Solution
Excessive foam floats
drum and/or deter-
gent drawer.
• Detergent is not a appropriate. • Check detergent recommen-
dations.
• Excessive use of detergent. • Reduce amount of detergent.
Automatic adjust-
ment of washing
time.
• Washing programme duration will
be adjusted.
• This is normal and doesn‘t af-
fect functionality.
Spinning fails. • Unbalance of laundry. • Check machine load and laun-
dry and run a spinning pro-
gramme again.
Unsatisfactory wash-
ing result.
• Degree of pollution does not agree
with selected programme.
• Select an other programme.
• Detergent quantitiy was not suf-
cient.
• Choose the detergent acc. to
the degree of pollution and acc.
to manufaturer specications.
• Maximum load has been exceeded. • Reduce loading.
• Laundry was unevenly distributed
in the drum.
• Loose the laundry.
Washing powder
residues are on the
laundry.
• Insoluble particles of detergent can
remain as white spots on the laun-
dry.
• Perform extra rinse.
• Try to brush the points from the
dry laundry.
• Choose an other detergent.
Laundry has grey
patches.
• Caused by fats such as oils, creams
or ointments.
• Pretreat the laundry with a spe-
cial cleaner.
GB
10-Installation
25
10.1 Preparation
▶ Take the appliance out of the packaging.
▶ Remove all packaging material including polystyrene base, keep them out of childrens
reach. While opening the package, water drops may be seen on plastic bag and port-
hole. This normal phenomenon results from water tests in the factory.
10.3 Dismantle the transportation bolts
The transportation bolts are designed for clamping
anti-vibration components inside the appliance during
transportation to prevent inner damage.
1. Remove the back cover (Fig. 10-3).
2. Remove all 4 bolts on the rear side and take out
plastic spacers (A) from inner side of the machine
(Fig. 10-4).
10-410-3
Note: Packaging disposal
Keep all packaging materials out of children´s reach and dispose them in an environmen-
tally friendly manner.
10.2. OPTIONAL: Adjusting the bottom cover
board
When opening the shrink package, you will nd a calci-
um-plastic board (A) (Fig. 10-1). The board is used for
reducing noise after covering the bottom of the cabi-
net.
2. Lay the washing machine down to its side, port-
hole pointing upwards, bottom side towards op-
erator and screw o the four bolts (Fig. 10-2).
3. Place the calcium-plastic board.
Screw the bolts through the four holes on the
board on to the tub rmly. Finally set the machine
upright again.
Only Model HW80-/HW100:
There is also a felt (B) in the package.
1. Past the felt on one side of the calcium-plastic
board (Fig. 10-1).
Only Model HW80-/HW100:
The felt is pointing inside the appliance.
10-1
A
B
1.
2.
3.
10-2
A
10-Installation
GB
26

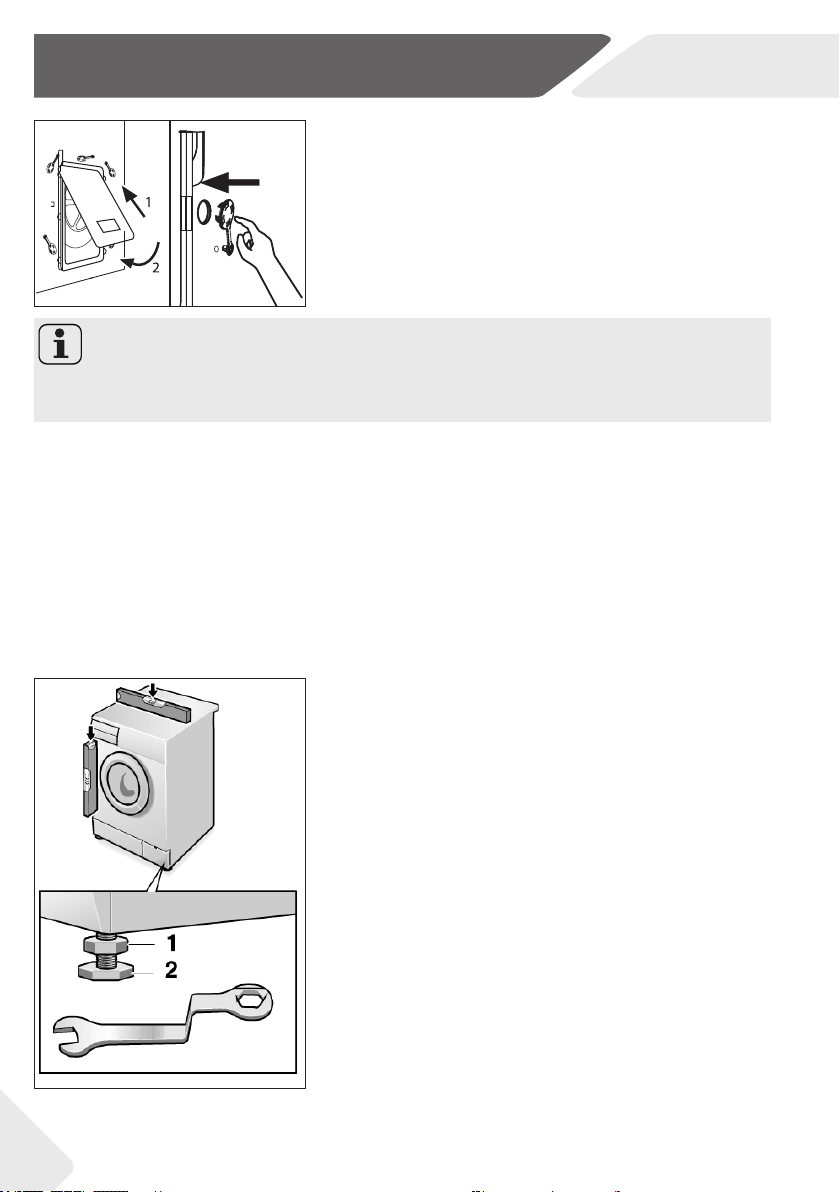

10.5 Aligning the appliance
Adjust all feet (Fig. 10-7) to achieve a complete level
position. This will minimize vibrations and thus noise
during use. It will also reduce wear and tear. We recom-
mend to use a spirit level for adjustment. Floor should
be as stable and flat as possible.
1. Loose the locknut (1) by using a wrench.
2. Adjust the high by turning the foot (2).
3. Tighten lock ut (1) against the housing.
10-7
3. Replace back cover by inserting it in the two gaps
its convexity is facing out (Fig. 10-5).
4. Fill left holes with blanking plugs (Fig. 10-6).
10-5
10-6
Note: Keep in safe place
Keep the transportation bolts in a safe place for later use. Whenever the appliance is to
be moved at rst reinstall the bolts.
10.4 Moving the appliance
If the machine is to be moved to a distant location, replace the transportation bolts re-
moved before installation to prevent damage:
1. Remove the blanking plugs.
2. Remove the back cover
3. Insert the plastic spacers and the transportation bolts.
4. Tighten the bolts with a spanner.
5. Replace the back cover.
GB
10-Installation
27
Following connections are possible:
10.6.1 Drain hose to sink
▶ Hang the drain hose with the U-support over the
edge of a sink with adequate size (Fig. 10-8).
▶ Protect the U-support suciently against slip-
ping.
10.6.2 Drain hose to waste water connection
▶ The internal diameter of the stand pipe with
vent-hole must be minimum 40 mm.
▶ Put the drain hose for approx. 80 mm in the
wastewater pipe.
▶ Attach the U-support and secure it suciently
(Fig. 10-9).
10-8
10-9
10.6 Drain Water Connection
Fix the water drain hose properly to the piping. The hose has to reach at one point a height
between 80 and 100 cm above the appliance bottom line! If possible keep always drain
hose xed to the clip at the appliance back.
WARNING!
▶ Use only the supplied hose set for the connection.
▶ Never reuse old hose sets!
▶ Only connect to cold water supply.
▶ Before connection, check whether the water is clean and clear.
CAUTION!
▶ The drain hose should not be submerged in water and should be securely xed and
leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less
than 80 cm, the washing machine will continuously drain while being lled (self-si-
phoning).
▶ Drain hose is not to be extended. If necessary contact after sales service.
10.6.3 Drain hose to sink connection
▶ The junction must lie above the siphon
▶ A spigot connection is usually closed by a pad (A).
That must be removed to prevent any disfunc-
tion (Fig. 10-10).
▶ Secure the drain hose with a clamp.
10-10
10-Installation
GB
28
10.8 Electrical Connection
Before each connection check if:
▶ power supply, socket and fusing are appropriate to
the rating plate.
▶ the power socket is earthed and no multi-plug or
extension are used.
▶ the power plug and socket are strictly according.
▶ Only UK: The UK plug meets BS1363A standard.
Put the plug into the socket (Fig. 10-13).
WARNING!
▶ Ensure always that all connections (power supply, drain and fresh water hose) are rm,
dry and leack free!
▶ Take care these parts are never to be crushed, kinked, or twisted
▶ If the supply cord is damaged, it must be replaced by the service agent (see warranty
card) in order to avoid a hazard. .
Note: Hygiene
After each installation or long periods of disuse, before rst use and for regular mainte-
nance run programme HYGIENIC with no load and small amount of detergent in wash-
ing agent compartment (2) or with special machine cleaner to remove possibly corrup-
tive residues.
10-13
10.7 Fresh Water Connection
10-1210-11
Make sure that the gaskets are inserted.
1. Connect the water inlet hose with the angled
end to the appliance (Fig. 10-11). Tighten the
screw joint by hand.
2. The other end connect to a water tap with a
3/4“ thread (Fig. 10-12).
Note: Aqua-stop-system:
Some models are equipped with an aqua-stop inlet hose (B).The aqua-stop system
protects against water damage by automatically cutting the fresh water supply in case
of a leaking hose. This is indicated by a red marker (C). The hose must be replaced.
GB
11-Technical data
29
11.1 Product che according to regulation EU No. 1061/2010
Suppliers name or trade mark Haier
Supplier´s model identier
HW70-
BP14636
HW80-
BP14636
HW100-
BP14636
Rated capacity (kg)
7 8 10
Energy eciency class
A+++
Energy consumption per year (AE
C
in kWh/year)
1)
99 115 125
Energy consumption of standard cotton pro-
gramme 60 °C, full load (kWh/cycle)
0.42 0.504 0.588
Energy consumption of standard cotton pro-
gramme 60 °C, partial load (kWh/cycle)
0.41 0.504 0.588
Energy consumption of standard cotton pro-
gramme 40 °C, partial load (kWh/cycle)
0.37 0.452 0.399
Weighted power consumption of the o mode (W)
0,48 0.44
Weighted power consumption of the left-on mode (W)
0,48 0.52
Water consumption per year (AW
C
in L/year)
2)
7854 9800 11500
Spin-drying eciency class
3)
B
Max. spin speed (rpm)
4)
1400
Remaining moisture content (%)
4)
53
Standard 60°C cotton programme
5)
Cotton + 60°C + “Intense” + max. spin
Standard 40°C cotton programme
5)
Cotton + 40°C + “Intense” + max. spin
Programme time of cotton 60°C full load (min)
268 268 238
Programme time of cotton 60°C partial load (min)
268 268 238
Programme time of cotton 40°C partial load (min)
265 265 235
Duration of the left-on mode (T
I
in min)
6)
not applicable
Airborne accustical noise (washing/spinning)
in dB(A) re 1pW
7)
56/75 56/72 56/75
Type freestanding
1) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and par-
tial load, and the consumption of the low-power modes. Actual energy consumption will de-
pend on how the appliance is used.
2) Based on 220 standard washing cycles for cotton programmes at 60 °C and 40 °C at full and
partial load. Actual water consumption will depend on how the appliance is used
.
3) Class G is the least eciency and Class A is the most ecient.
4) Based on the standard 60 °C cotton programme at full load and the standard 40 °C cotton pro-
gramme at partial load
.
5) “Standard 60 °C cotton programme“ and “standard 40 °C cotton programme“ are standard
washing programmes to which the information in the label and che relates. These programmes
are suitable to clean normally soiled cotton laundry and they are the most ecient programmes
in terms of combined energy and water consumption
.
6) In case there is a power management system.
7) Based on the standard 60°C cotton programme at full load.
11-Technical data
GB
30
HW70-BP14636
HW80-BP14636 HW100-BP14636
Dimension (HxWxD in mm) 850x595x460 850x595x550 850x595x600
Voltage in V 220-240 V~/50Hz
Current in A 10
Max power in W 1900
Water pressure in MPa 0.03≤P ≤1
Netto weight in kg 64 72 74
11.2 Additional technical data
11.3 Standards and Directives
This product meets the requirements of all applicable EC directives with the correspon-
ding harmonised standards, which provide for CE marking.
GB
12-Customer service
We recommend our Haier Customer Service and the use of original spare parts.
If you have a problem with your appliance, please rst check section TROUBLESHOOTING.
If you cannot nd a solution there, please contact
▶ your local dealer or
▶ the Service & Support area at www.haier.com where you can nd telephone numbers
and FAQs and where you can activate the service claim.
To contact our Service, ensure that you have the following data available.
The information can be found on the rating plate.
Model ____________________ Serial No. _____________________
Also check the Warranty Card supplied with the product in case of warranty.
For general business enquiries please nd below our addresses in Europe:
European Haier addresses
Country* Postal address Country* Postal address
Italy
Haier Europe Trading SRL
Via De Cristoforis, 12
21100 Verese
ITALY
France
Haier France SAS
3-5 rue des Graviers
92200 Neuilly sur Seine
FRANCE
Spain
Portugal
Haier Iberia SL
Pg. Garcia Faria, 49-51
08019 Barcelona
SPAIN
Belgium-FR
Belgium-NL
Netherlands
Luxembourg
Haier Benelux SA
Anderlecht
Route de Lennik 451
BELGIUM
Germany
Austria
Haier Deutschland GmbH
Hewlett-Packard-Str. 4
D-61352 Bad Homburg
GERMANY
Poland
Czechia
Hungary
Greece
Romania
Russia
Haier Poland Sp. zo.o.
Al. Jerozolimskie 181B
02-222 Warszawa
POLAND
United
Kingdom
Haier Appliances UK Co.Ltd.
One Crown Square
Church Street East
Woking, Surrey, GU21 6HR
UK
*For more information please refer to www.haier.com
31
HW70-80-100-BP14636 GB V06_032017
0020506943DZ
