• Page 1 - English - : Register your product and get support at Always there to help you HTL1177B wwwphilipscomsupport User manual EN For further assistance call the customer support service in your country To obtain assistance in the USA Canada Puerto Rico or the US Virgin Islands contact Philips Customer Care Center at 1 866 2266074 To obtain assistance in Mexico contact Philips Customer Care Center at 01 800 839 1989 Mexico city 58879736 For Product recycling information please visit wwwrecyclephilipscom Question Contact Philips
• Page 3 - English - : 1EN Contents 1 Important 2 Help and support 2 Important safety instructions 2 Care for your product 4 Care of the environment 4 2 Your SoundBar 4 Main unit 4 Remote control 5 Connectors 6 3 Connect 6 Placement 6 Connect audio from TV and other devices 7 4 Use your SoundBar 8 Adjust the volume 8 Choose your sound 8 MP3 player 9 USB storage devices 9 Play audio through Bluetooth 10 Apply factory settings 10 Update software 10 5 Wall mount 11 6 Productspecications 11 7 Troubleshooting 12 8 Notice 13
• Page 4 - English - : 2 EN 1 Important Read and understand all instructions before you use your product If damage is caused by failure to follow instructions the warranty does not apply Help and support For extensive online support visit wwwphilipscomsupport to download the user manual and the quick start guide watch video tutorials available only for selected models nd answers to frequently answered questions FAQs email us a question chat with our support representative Follow the instructions on the website to select your language and then enter your product model number Alternatively you can contact Consumer Care in your country Before you contact note down the model number and serial number of your product You can nd this information on the back or bottom of your product Important safety instructions Read these instructions Keep these instructions Heed all warnings Follow all instructions Do not use this apparatus near water Clean only with dry cloth Do not block any ventilation openings Install in accordance with the manufacturers instructions Do not install near any heat sources such as radiators heat registers stoves or other apparatus including ampliers that produce heat Do not defeat the safety purpose of the polarized or groundingtype plug A polarized plug has two blades with one wider than the other A grounding type plug has two blades and a third grounding prong The wide blade or the third prong are provided for your safety If the provided plug does not t into your outlet consult an electrician for replacement of the obsolete outlet Protect the power cord from being walked on or pinched particularly at plugs convenience receptacles and the point where they exit from the apparatus Only use attachmentsaccessories specied by the manufacturer Use only with the cart stand tripod bracket or table specied by the manufacturer or sold with the apparatus When a cart is used use caution when moving the cartapparatus combination to avoid injury from tipover Unplug this apparatus during lightning storm or when unused for long periods of time Refer all servicing to qualied service personnel Servicing is required when the apparatus has been damaged in any way such as powersupply cord or plug is damaged liquid has been spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture does not operate normally or has been dropped
• Page 5 - English - : 3EN Battery usage CAUTION To prevent battery leakage which may result in bodily injury property damage or damage to the unit Install all batteries correctly and as marked on the unit Do not mix batteries old and new or carbon and alkaline etc Remove batteries when the unit is not used for a long time The batteries shall not be exposed to excessive heat such as sunshine re or the like Perchlorate Material special handling may apply See wwwdtsccagov hazardouswasteperchlorate The productremote control may contain a coinbutton type battery which can be swallowed Keep the battery out of reach of children at all times If swallowed the battery can cause serious injury or death Severe internal burns can occur within two hours of ingestion If you suspect that a battery has been swallowed or placed inside any part of the body seek immediate medical attention When you change the batteries always keep all new and used batteries out of reach of children Ensure that the battery compartment is completely secure after you replace the battery If the battery compartment cannot be completely secured discontinue use of the product Keep out of reach of children and contact the manufacturer Apparatus shall not be exposed to dripping or splashing Do not place any sources of danger on the apparatus for example liquid lled objects lighted candles This apparatus may contain lead and mercury Dispose according to local State or Federal laws For disposal or recycling information please contact your local authorities For additional assistance on recycling options please contact wwwmygreenelectronicscom or wwweiaeorg or wwwrecyclephilipscom Where the MAINS plug or an appliance coupler is used as the disconnect device the disconnect device shall remain readily operable Do not place this apparatus on the furniture that is capable of being tilted by a child and an adult leaning pulling standing or climbing on it A falling apparatus can cause serious injury or even death This apparatus should not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided Make sure to leave a space of 78 inches 20cm or more around this apparatus Class II equipment symbol This symbol indicates that the unit has a double insulation system This bolt of lightning indicates uninsulated material within your unit may cause an electrical shock For the safety of everyone in your household please do not remove product covering The exclamation point calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems WARNING To reduce the risk of re or electric shock this apparatus should not be exposed to rain or moisture and objects lled with liquids such as vases should not be placed on this apparatus
• Page 6 - English - : 4 EN CAUTION To prevent electric shock match wide blade of plug to wide slot fully insert Care for your product Use only microber cloth to clean the product Care of the environment Disposal of your old product and battery Your product is designed and manufactured with high quality materials and components which can be recycled and reused This product may contain lead and mercury Disposal of these materials may be regulated due to environmental considerations For disposal or recycling information please contact your local authorities or visit wwwrecyclephilipscom This product contains batteries Dispose of batteries properly Do not incinerate Batteries may explode if overheated Do not wrap in metal or aluminum foil Wrap in newspaper before discarding It is suggested that you contact your local town or city to determine proper battery redemption sites in your area Please visit wwwcall2recycleorg for additional information on a recycling center in your area for rechargeable batteries 2 Your SoundBar Congratulations on your purchase and welcome to Philips To fully benet from the support that Philips offers register your SoundBar at wwwphilipscomwelcome Main unit This section includes an overview of the main unit a Switch the SoundBar on or to standby b SOURCE Select an input source for the SoundBar c Volume Increase or decrease volume d LED indicators STANDBY Lights up when the SoundBar is in standby COAXIAL Lights up when you switch to coaxial input source OPTICAL Lights up when you switch to optical input source AUX Lights up when you switch to analog input source AUDIO IN Lights up when you switch to audio input source 35mm jack ab c d

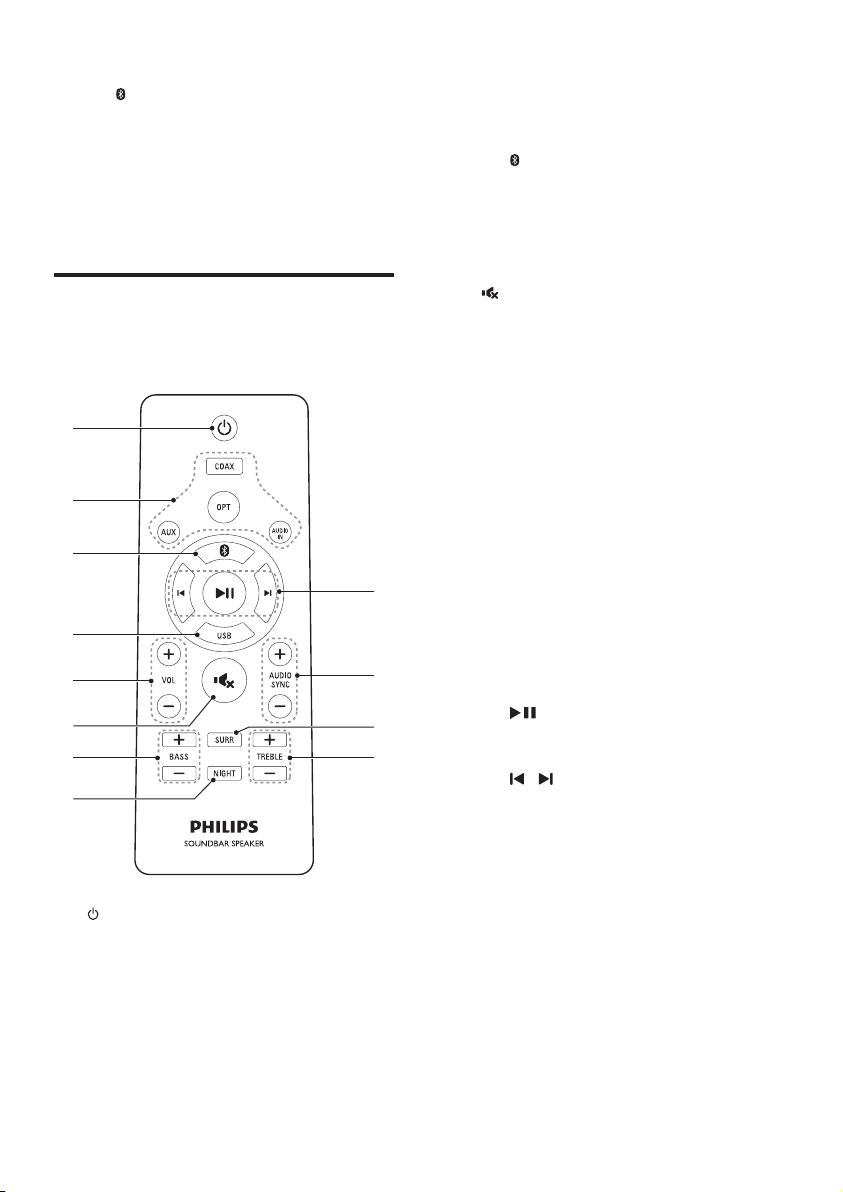

• Page 7 - English - : 5EN USB Lights up you switch to USB source Lights up when you switch to Bluetooth mode and Bluetooth devices are paired Blinks when you switch to Bluetooth mode and Bluetooth devices are not paired Remote control This section includes an overview of the remote control a StandbyOn Switch the SoundBar on or to standby b Source buttons COAX Switch your audio source to the coaxial connection OPT Switch your audio source to the optical connection a b b b c d f e g h i j AUX Switch your audio source to the AUX connection AUDIO IN Switch your audio source to the MP3 connection 35mm jack Switch to Bluetooth mode USB Switch your audio source to the USB connection c Volume Increase or decrease volume d Mute or restore volume e BASS Increase or decrease bass f NIGHT Turn night mode on or off g TREBLE Increase or decrease treble h SURR Toggle between stereo and virtual surround sound i AUDIO SYNC Applicable to COAXIAL COAX and OPTICAL OPT sources only Increase or decrease audio delay j Play buttons Play pause or resume play in USB mode and Bluetooth mode only for AVRCPsupported Bluetooth devices Skip to the previous or next track in USB mode and Bluetooth mode only for AVRCPsupported Bluetooth devices

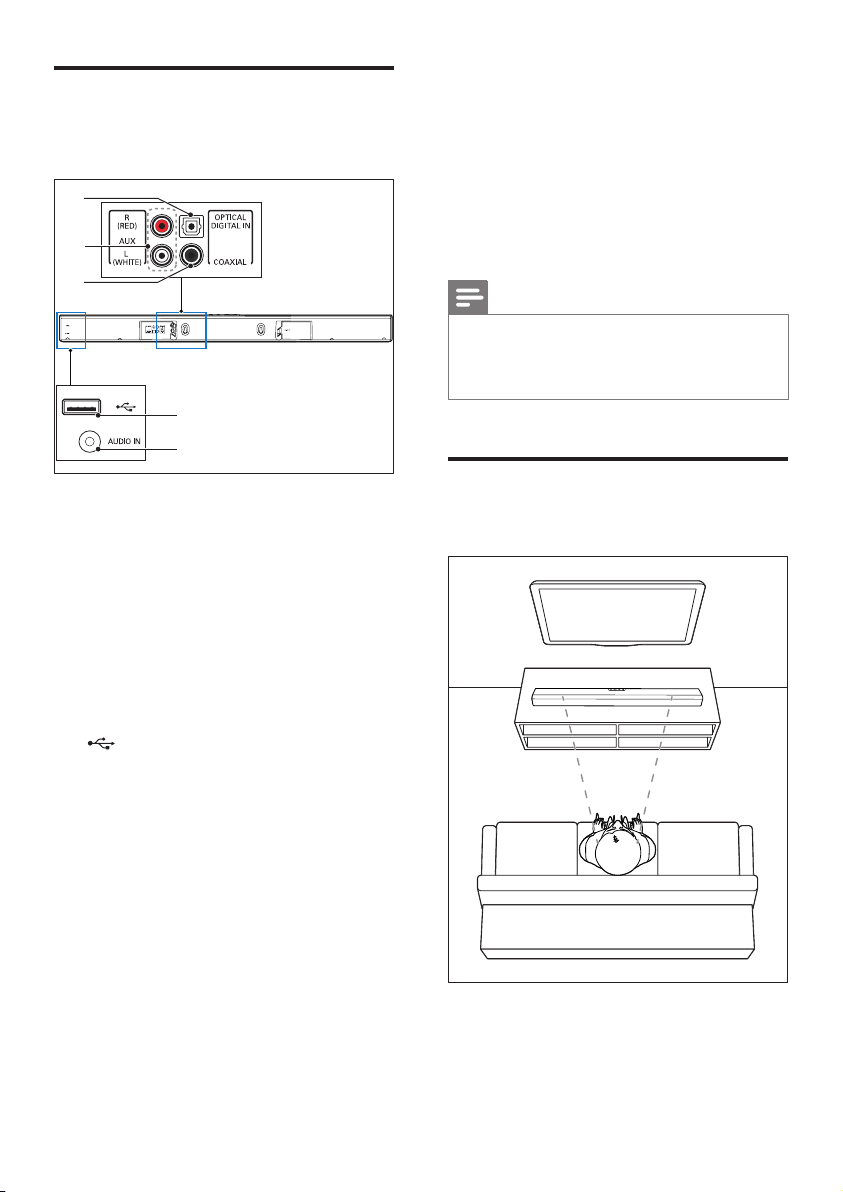

• Page 8 - English - : 6 EN Connectors This section includes an overview of the connectors available on your SoundBar a DIGITAL INOPTICAL Connect to an optical audio output on the TV or a digital device b AUX Connect to an analog audio output on the TV or an analog device c COAXIAL Connect to a coaxial audio output on the TV or a digital device d Audio input from a USB storage device e AUDIO IN Audio input from for example an MP3 player 35mm jack b a c d e 3 Connect This section helps you connect your SoundBar to a TV and other devices For information about the basic connections of your SoundBar and accessories see the quick start guide Note For identication and supply ratings refer to the type plate at the back or bottom of the product Before you make or change any connections make sure that all devices are disconnected from the power outlet Placement Place your Soundbar as shown below
• Page 9 - English - : 7EN Connect audio from TV and other devices Play audio from TV or other devices through your Soundbar Use the best quality connection available on your TV and other devices Option 1 Connect audio through a digital optical cable Best quality audio 1 Using an optical cable connect the OPTICAL connector on your SoundBar to the OPTICAL OUT connector on the TV or other device The digital optical connector might be labeled SPDIF or SPDIF OUT Option 2 Connect audio through a digital coaxial cable Best quality audio 1 Using a coaxial cable connect the COAXIAL connector on your SoundBar to the COAXIALDIGITAL OUT connector on the TV or other device The digital coaxial connector might be labeled DIGITAL AUDIO OUT TV Option 3 Connect audio through analog audio cables Basic quality audio 1 Using an analog cable connect the AUX connectors on your SoundBar to the AUDIO OUT connectors on the TV or other device DVD
• Page 10 - English - : 8 EN 4 Use your SoundBar This section helps you use the SoundBar to play audio from connected devices Before you start Make the necessary connections described in the Quick Start Guide or download the User Manual from wwwphilipscomsupport Switch the SoundBar to the correct source for other devices Adjust the volume 1 Press Volume to increase or decrease a volume level To mute sound press To restore the sound press again or press Volume Volume indicator The higher volume level you change to the more LED indicators light up If you do not press the volume button for three seconds the volume indicators light off All the LED indicators blink three times when a volume level is set to the maximum or minimum When sound is muted the current source indicator blinks Choose your sound This section helps you choose the ideal sound for your video or music Surround sound mode Experience an immersive audio experience with surround sound modes 1 Press SURR to turn surround mode on or off On Create a surround listening experience Off Twochannel stereo sound Ideal for listening to music Sound mode indicator If surround mode is turned on all the LED indicators light up one by one with all the LED indicators on for three seconds Finally the current source indicator stays on If surround mode is turned off all the LED indicators light up then light off one by one Finally the current source indicator stays on Equalizer Change the high frequency treble and low frequency bass settings of the SoundBar 1 Press TREBLE or BASS to change the treble or bass Treblebass indicator The more treblebass you change to the more LED indicators light up If you do not press the treblebass button for three seconds the treblebass indicators light off All the LED indicators blink three times when treble or bass is set to the maximum or minimum value Synchronize video and sound If the audio and video are not synchronized delay the audio to match the video 1 Press AUDIO SYNC to synchronize the audio with the video AUDIO SYNC increases the sound delay and AUDIO SYNC decreases the sound delay Sound delay indicator The more delay you change to the more LED indicators light up If you do not press the sound delay button for three seconds the sound delay indicators light off
• Page 11 - English - : 9EN Note This feature is only applicable to COAXIAL COAX and OPTICAL OPT sources Night mode For quiet listening night mode decreases the volume of loud sounds when audio is played Night mode is only available for Dolby Digital soundtracks 1 Press NIGHT to turn night mode on or off Night mode indicator If night mode is turned on all the LED indicators light up one by one with all the LED indicators on for three seconds Finally the current source indicator stays on If night mode is turned off all the LED indicators light up then light off one by one Finally the current source indicator stays on MP3 player Connect your MP3 player to play your audio les or music What you need An MP3 player A 35mm stereo audio cable 1 Using the 35mm stereo audio cable connect the MP3 player to the AUDIO IN connector on your SoundBar 2 Press AUDIO IN on the remote control 3 Press the buttons on the MP3 player to select and play audio les or music USB storage devices Enjoy audio on a USB storage device such as an MP3 player and USB ash memory etc What you need A USB storage device that is formatted for FAT or NTFS le systems and complies with the Mass Storage Class An MP3 le on a USB storage device 1 Connect a USB storage device to the SoundBar 2 Press USB on the remote control 3 Use the remote control to control play Button Action Start or pause or resume play Skip to the previous or next track USB During play press to toggle repeat one track and repeat off Repeat play indicator If repeat mode is turned on all the LED indicators light up for one second then the current source indicator stays on If repeat mode is turned off all the LED indicators light up then light off one by one Finally the current source indicator stays on Note This product may not be compatible with certain types of USB storage device If you use a USB extension cable USB HUB or USB multireader the USB storage device may not be recognized Digital camera PTP and MTP protocols are not supported Do not remove the USB storage device while it is being read DRMprotected music les MP3 are not supported Support a USB port 5V 1A
• Page 12 - English - : 10 EN Play audio through Bluetooth Through Bluetooth connect the SoundBar with your Bluetooth device such as an iPad iPhone iPod touch Android phone or laptop and then you can listen to the audio les stored on the device through your SoundBar speakers What you need A Bluetooth device which supports Bluetooth prole A2DP and with Bluetooth version as 21 EDR The operational range between the SoundBar and a Bluetooth device is approximately 10 meters 30 feet 1 Press on the remote control to switch the SoundBar to Bluetooth mode The indicator blinks at a fast rate 2 On the Bluetooth device switch on Bluetooth search for and select Philips HTL1177B to start connection see the user manual of the Bluetooth device on how to enable Bluetooth When prompted for a password enter quot0000quot During connection the indicator blinks at a lower rate 3 Wait until the indicator lights up If the connection fails the indicator blinks continually at a lower rate 4 Select and play audio les or music on your Bluetooth device During play if a call is coming music play is paused If your Bluetooth device supports AVRCP prole on the remote control you can press to skip to a track or press to pauseresume play 5 To exit Bluetooth select other source When your switch back to Bluetooth mode Bluetooth connection remains active Note The music streaming may be interrupted by obstacles between the device and SoundBar such as wall metallic casing that covers the device or other devices nearby that operate in the same frequency If you want to connect your SoundBar with another Bluetooth device press and hold on the remote control to disconnect the currently connected Bluetooth device Apply factory settings You can reset your SoundBar to the default setting mode 1 In mute mode quickly press AUX two times The factory settings is restored Update software To continually improve the product software upgrade may be offered Visit wwwphilipscomsupport to check if the latest software version is available
• Page 13 - English - : 11EN 5 Wall mount Note Improper wall mounting may result in accident injury or damage If you have any query contact Consumer Care in your country Before wall mounting make sure the wall can support the weight of your SoundBar Screw lengthdiameter Depending on the type of wall mounting your SoundBar make sure that you use screws of a suitable length and diameter See the illustration in the quick start guide on how to wall mount the SoundBar 1 Drill two holes on the wall 2 Secure the dowels and screws in the holes 3 Hang the SoundBar on the fastening screws 3035mm012014 4mm 016 gt25mm098 6 Product specifications Note Specications and design are subject to change without notice Amplier FTC total output power 30W Left Right 30W 1THD 8ohm 100Hz20kHz RMS total output power 40W RMS 05 dB 10 THD Frequency response 20 Hz20 kHz 3 dB Signaltonoise ratio gt 65 dB CCIR Aweighted Input sensitivity AUX 2Vrms AUDIO IN 1Vrms Audio SPDIF Digital audio input Coaxial IEC 609583 Optical TOSLINK Sampling frequency MP3 8 kHz 11 kHz 12 kHz 16 kHz 22 kHz 24 kHz 32 kHz 441 kHz 48 kHz Constant bit rate MP3 8 kbps320 kbps USB Compatibility HiSpeed USB 20 Class support USB Mass Storage Class MSC File system FAT16 FAT32 NTFS Supports MP3 le formats
• Page 14 - English - : 12 EN Bluetooth Bluetooth proles A2DP AVRCP Bluetooth version 21 EDR Main unit Power supply 120 V 60 Hz Power consumption 25 W Standby power consumption 05 W Speaker impedance 4 ohm full range Speaker drivers 4 x 545 mm 2quot Dimensions W x H x D 865 x 678 x 855 mm 341quot x 27quot x 34quot Weight 18 kg 396 lbs Remote control batteries 1 x AAAR0315 V 7 Troubleshooting Warning Risk of electric shock Never remove the casing of the product To keep the warranty valid never try to repair the product yourself If you have problems using this product check the following points before you request service If you still have a problem get support at wwwphilipscomsupport Main unit The buttons on the SoundBar do not work Disconnect the SoundBar from the power supply for a few minutes then reconnect Sound No sound from SoundBar speakers Connect the audio cable from your SoundBar to your TV or other devices Reset your SoundBar to its factory settings On the remote control select the correct audio input Make sure that the SoundBar is not muted Distorted sound or echo If you play audio from the TV through the SoundBar make sure that the TV is muted Bluetooth A device cannot connect with the SoundBar The device does not support the compatible proles required for the SoundBar You have not enabled the Bluetooth function of the device See the user manual of the device on how to enable the function
• Page 15 - English - : 13EN The device is not correctly connected Connect the device correctly see Play audio through Bluetooth on page 10 The SoundBar is already connected with another Bluetooth device Disconnect the connected device then try again Quality of audio play from a connected Bluetooth device is poor The Bluetooth reception is poor Move the device closer to the SoundBar or remove any obstacle between the device and the SoundBar The connected Bluetooth device connects and disconnects constantly The Bluetooth reception is poor Move the device closer to the SoundBar or remove any obstacle between the device and the SoundBar Turn off WiFi function on the Bluetooth device to avoid interference For some Bluetooth the Bluetooth connection can be deactivated automatically to save power This does not indicate any malfunction of the SoundBar 8 Notice This section contains the legal and trademark notices Notice of compliance The device complies with the FCC rules Part 15 Operation is subject to the following two conditions a This device may not cause harmful interference and b This device must accept any interference received including interference that may cause undesired operation FCC rules This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications However there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more of the following measures Relocate the receiving antenna Increase the separation between equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radioTV technician for help
• Page 16 - English - : 14 EN FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body This transmitter must not be colocated or operated in conjunction with any other antenna or transmitter Warning Any changes or modications made to this device that are not expressly approved by Gibson Innovations may void the users authority to operate the equipment Model number HTL1177BF7 Trade Name Philips Responsible PartyPampF USA Inc PO Box 2248 Alpharetta GA 300232248 1 866 2266074 Canada CAN ICES3BNMB3B This device complies with Industry Canada licenceexempt RSS standards Operation is subject to the following Two conditions 1 this device may not cause harmful interference and 2 this device must accept any interference received including interference that may cause undesired operation The device meets the exemption from the routine evaluation limits in section 25 of RSS 102 and compliance with RSS102 RF exposure users can obtain Canadian information on RF exposure and compliance This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body
• Page 17 - English - : Manufactured under license from Dolby Laboratories Dolby and the doubleD symbol are trademarks of Dolby Laboratories The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG Inc and any use of such marks by Gibson Innovations Ltd is under license Other trademarks and trade names are those of their respective owners
• Page 18 - English - : PampF USA Inc PO Box 2248 Alpharetta GA 300232248 ONE 1 YEAR LIMITED WARRANTY WARRANTY COVERAGE This warranty obligation is limited to the terms set forth below WHO IS COVERED This product is warranted to the original purchaser or the per son receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase Warranty Period from an Authorized Dealer The original sales receipt showing the product name and the purchase date from an authorized retailer is considered such proof WHAT IS COVERED This warranty covers new products if a defect in material or workmanship occurs and a valid claim is received within the Warranty Period At its option the company will either 1 repair the product at no charge using new or refurbished replacement parts or 2 exchange the product with a product that is new or which has been manufactured from new or ser viceable used parts and is at least functionally equivalent or most comparable to the original product in current inventory or 3 refund the original purchase price of the product The company warrants replacement products or parts provided under this warranty against defects in materials and workmanship from the date of the replacement or repair for ninety 90 days or for the remaining portion of the original products warranty whichever provides longer coverage for you When a product or part is exchanged any replacement item becomes your property and the replaced item becomes the company property When a refund is given your product becomes the company property Note Any product sold and identified as refurbished or renewed carries a ninety 90 day limited warranty Replacement product can only be sent if all warranty requirements are met Failure to follow all requirements can result in delay WHAT IS NOT COVERED EXCLUSIONS AND LIMI TATIONS This Limited Warranty applies only to the new products that can be identified by the trademark trade name or logo affixed to it This Limited Warranty does not apply to any nonPhilips hardware product or any software even if packaged or sold with the product NonPhilips manufacturers suppliers or publishers may provide a separate warranty for their own products packaged with the bundled product The company is not liable for any damage to or loss of any programs data or other information stored on any media contained within the product or any nonPhilips product or part not covered by this warranty Recovery or reinstallation of programs data or other information is not covered under this Limited Warranty This warranty does not apply a to damage caused by accident abuse misuse neglect misapplication or nonPhilips product b to damage caused by service performed by anyone other than an Authorized Service Location c to a product or a part that has been modified without written permission or d if any serial number has been removed or defaced or e product accessories or consumables sold AS IS without warranty of any kind by including refurbished Philips product sold AS IS by some retailers This Limited Warranty does not cover Shipping charges to return defective product Labor charges for installation or setup of the product adjust ment of customer controls on the product and installation or repair of antennasignal source systems outside of the product Product repair andor part replacement because of improper installation or maintenance connections to improper voltage supply power line surge lightning damage retained images or screen markings resulting from viewing fixed stationary con tent for extended periods product cosmetic appearance items due to normal wear and tear unauthorized repair or other cause not within the control of the company Damage or claims for products not being available for use or for lost data or lost software Damage from mishandled shipments or transit accidents when returning product A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed manufactured approved andor authorized or repair of products damaged by these modifications A product used for commercial or institutional purposes including but not limited to rental purposes Product lost in shipment and no signature verification receipt can be provided Failure to operate per Owners Manual TO OBTAIN ASSISTANCE IN THE USA CANADA PUERTO RICO OR US VIRGIN ISLANDS Contact Customer Care Center at 1 866 2266074 REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON SUMER PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDEN TAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PROD UCT EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY Some states do not allow the exclusions or limitation of inciden tal or consequential damages or allow limitations on how long an implied warranty lasts so the above limitations or exclusions may not apply to you This warranty gives you specific legal rights You may have other rights which vary from stateprovince to stateprovince
• Page 20 - English - : HTL1177BF7 120V 60Hz 25W Reproductor de Barra de Sonido 1875 Wh 048 Wh Specicationsaresubjecttochangewithoutnotice 2015 Gibson Innovations Limited All rights reserved This product has been manufactured by and is sold under the responsibility of Gibson Innovations Ltd and Gibson Innovations Ltd is the warrantor in relation to this product Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips NV and are used under license from Koninklijke Philips NV HTL1177BF7UMV30 PampF USA Inc PO Box 2248 Alpharetta GA 300232248
