Povasee A1 5000A Car Jump Starter with Air Compressor 150PSI Tire Inflator

Overview

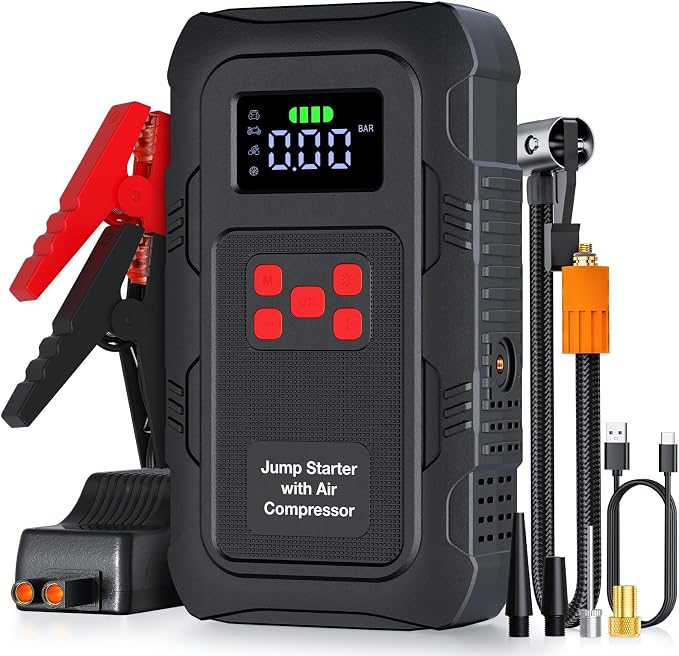

The Povasee A1 is a multi-function portable power device designed for automotive use. It combines a 5000A peak current jump starter with a 150 PSI air compressor. The unit includes an LCD display, an 800-lumen flashlight, and provides multiple power outputs for charging devices.

Features & Specifications

Core Functions

• Jump Starter: 5000A peak current for starting 12V vehicles with up to 10L gasoline or 8L diesel engines.
• Air Compressor: 150 PSI maximum pressure with a flow rate of 35L per minute.
• Flashlight: 800-lumen LED light with multiple modes.
• Portable Power Bank: Charges USB devices.
• 12V Accessory Power: Can power other 12V vehicle accessories.
• SOS Signaling Mode: Integrated into the flashlight function.

Technical Specifications

• Battery Type: Lithium Ion
• Battery Capacity: 24000 Milliamp Hours
• Voltage: 12V
• Peak Output Current: 5000 Amps
• Item Weight: 1.4 Pounds (approx. 1.5 lbs as noted elsewhere)
• Operating Temperature: -22°F to 140°F (-30°C to 60°C)
• Air Compressor Runtime: Up to 25 minutes
• Jump Start Capacity: Up to 60 starts per full charge
• Battery Recharge Cycles: 1500+
• Standby Time: Approximately 24 months

What's in the Box

• 1 x Jump Starter with Air Compressor (A1 Unit)
• 1 x Smart Jumper Cable
• 1 x USB-C Cable (for charging the unit)
• 1 x Pump Hose
• 4 x Air Nozzles
• 1 x User Manual
• 1 x Storage Case

Use Guide

Initial Charging

Fully charge the device using the provided USB-C cable before first use. The LCD display will indicate charging status and battery level.

Using the Jump Starter

1. Safety Check: Ensure the jump starter is powered on and has sufficient charge (check LCD).
2. Connect Cables: Plug the smart jumper cable firmly into the unit's output port.
   • Connect the RED clamp to the POSITIVE (+) terminal of the car battery.
   • Connect the BLACK clamp to a clean, unpainted metal part of the engine block or chassis (ground), away from the battery.

3. Start Vehicle: Turn the ignition key to start the vehicle. The unit features a Force Start function for completely dead batteries.
4. Disconnect: Once the vehicle starts, remove the clamps in reverse order: Black clamp first, then Red clamp. Unplug the cable from the unit.

Using the Air Compressor

1. Attach Hose & Nozzle: Connect the pump hose to the unit's air outlet. Select and attach the appropriate air nozzle for your item (tire, ball, etc.).
2. Set Pressure (if using preset): The unit offers 4 preset inflation modes. Use the buttons to select the desired mode or set a custom pressure.
3. Connect to Item: Attach the nozzle securely to the tire valve or item you are inflating.
4. Inflate: Press the power button to start inflation. The LCD will show current pressure.
   • The compressor features an AUTO-STOP function. It will automatically shut off when the preset pressure is reached.

5. Disconnect: Once inflation is complete and the unit has stopped, remove the nozzle from the valve and then disconnect the hose from the unit.

Using the Flashlight

Press the dedicated light button to cycle through modes: High Beam > Low Beam > SOS Strobe > Off. The light is 800 lumens.

Charging Devices

Use the USB-A output port(s) on the unit to charge mobile phones, tablets, or other USB devices. The unit acts as a power bank.

Safety & Protection Features

The device incorporates 10 intelligent protection systems to ensure safe operation:

• Reverse Polarity Protection
• Reverse Charge Protection
• Over-Discharge Protection
• Reverse Connection Protection
• Short Circuit Protection
• Over-Charge Protection
• Over-Current Protection
• Over-Heat Protection
• Spark Resistance

These protections help prevent damage to the unit, your vehicle, and the user in case of incorrect operation.

Care & Maintenance

• Recharge the unit every 3-6 months during storage to maintain battery health.
• Store in the provided case in a cool, dry place.
• Keep the air compressor nozzle and hose clean and free of debris.
• Do not expose the unit to water or extreme temperatures outside its rated range.
• Inspect jumper cable clamps and insulation for damage before each use.

Troubleshooting

• Unit won't turn on: Recharge the device fully.
• Vehicle doesn't start:
  • Verify cable connections are correct, secure, and clean.
  • Ensure the unit has sufficient charge.
  • Try the Force Start function if the vehicle battery is completely dead.
  • Check that the vehicle's problem is related to the battery and not another issue (e.g., starter, fuel).
• Air compressor doesn't start or stops quickly:
  • Check that the hose and nozzles are connected securely.
  • Ensure the unit is not overheated. Allow it to cool down.
  • Verify the battery level is not too low.
• LCD display shows an error icon: Refer to the protection features list. Disconnect all cables, turn the unit off, and attempt the operation again correctly.
