OFF
ON
LED
up to 150 W
1
2
3
Ground
‘snap’
1
2
2
2
1
2
2
2
On
Off
Darker
Brighter (with raised icon)
FASS
™
Front Accessible
Service Switch
In-wall dimmer
On
Off
Darker
Favorite
Brighter
Incandescent
up to 600 W
Halogen
up to 600 W
3
5
1
4
6
7
2
3
3
4
4
2
2
55
3

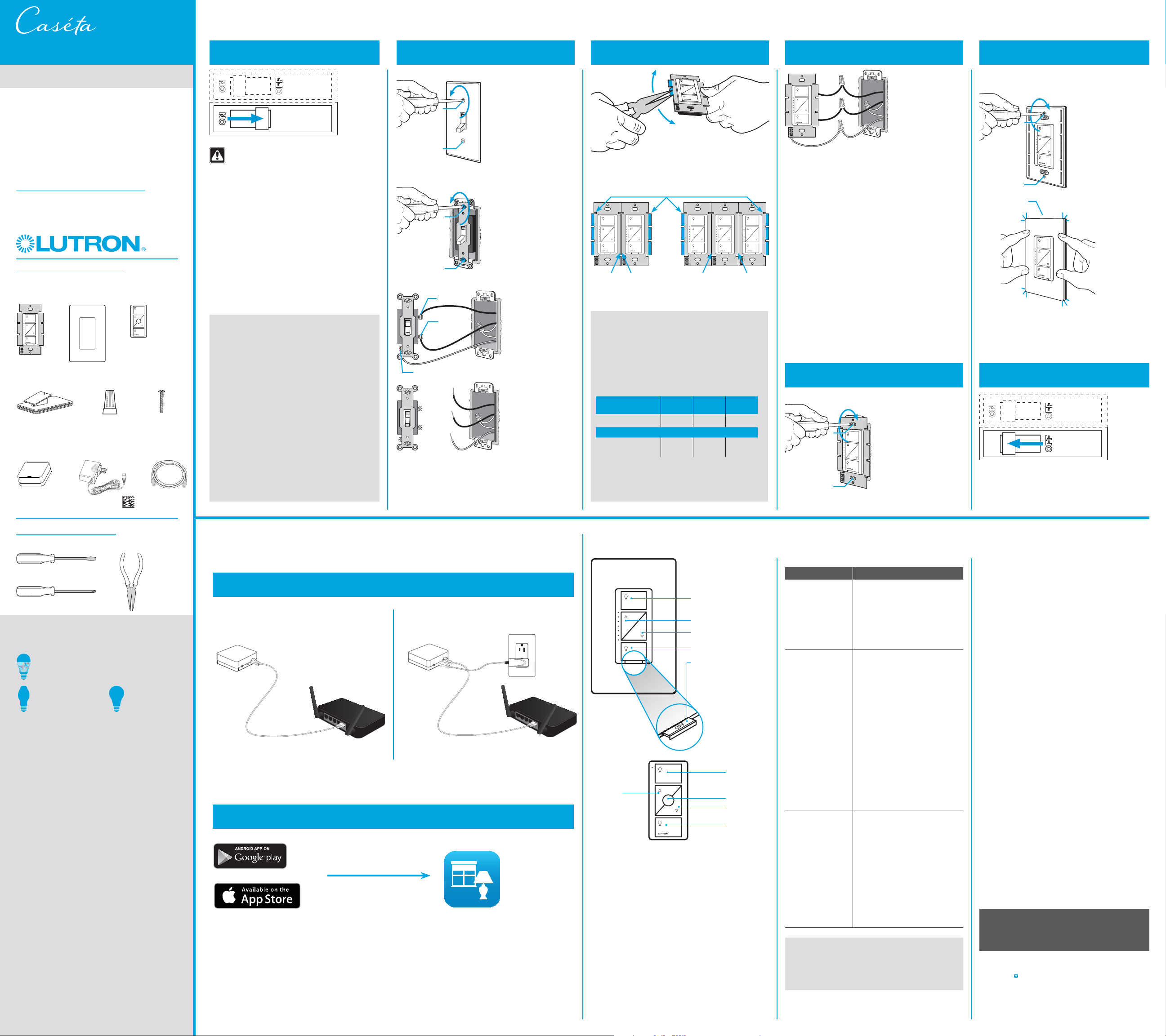

quick-start guide
Lutron® Smart Bridge,
Pico® remote controls & in-wall dimmers
Welcome—and thank you for purchasing a Caséta®
Wireless dimming kit.
Before you install the dimmers, please watch the
installation video at
www.casetawireless.com/support
We hope you enjoy the convenience of Caséta® Wireless!
NOTE: You can mix and match dimmable LED,
halogen, and incandescent light bulbs with Caséta®
Wireless dimmers.
Dimmable LED light bulbs vary in their dimming
performance. If you’re using these bulbs and they
flicker or turn off, please visit
www.casetawireless.com/lowend for information
on adjusting the dimmer for best bulb performance.
For a complete list of compatible dimmable LEDs,
please visit www.casetawireless.com/bulblist
Compatible light bulbs include:
Cree
®
CR6-575L
EcoSmart
®
ECS BR30 W27 FL 120
ECS 20 WW FL 50WE 120
Feit
®
A19/OM/LED
Philips®
9290002295
Sylvania
®
LED12A19/DIM/O/827
LED21PAR38/DIM/P/930/FL30
Double your warranty
Works with energy efficient
dimmable light bulbs:
Tools you’ll need
Flat-head screwdriver
Phillips-head screwdriver
Pliers
Installation for lights with one wall switch (single-pole)
Installing your dimmers
Some lights have one wall switch, while others
have two or more wall switches (such as stair lights,
which have a switch at both the top and bottom
of the stairs). We’ve included instructions for lights
with one wall switch (called a single-pole). If your
light has more than one switch (called a 3-way),
please visit www.casetawireless.com/3way
for complete installation instructions and how-to
videos.
WARNING: SHOCK HAZARD.
May result in serious injury or death. Turn off
power at cir
cuit breaker or fuse before installing.
1
Turn power off at circuit breaker!
4
Connect the dimmer
5
Mount the dimmer
6
Attach the wallplate
7
Turn power on at circuit breaker
2
Remove existing switch from wall
Remove the wallplate from switch.
3
Remove side sections (if necessary)
Remove the switch and pull it away from the wall.
* If your switch has more than 3 wires attached, see
“Installing Caséta
® Wireless in a 3-way switch application”
video at www.casetawireless.com/3way
Bend back
and forth.
Ground
Ground
Disconnect all three wires* from the switch.
1 Connect the bare copper (or green) “ground” wire
from the wallbox to the green wire on the dimmer
using a wire connector.
2 Connect either of the remaining wires from the
wallbox to either of the remaining wires on the
dimmer using a second wire connector.
3 Connect the remaining wire from the wall to
the remaining wire on the dimmer using a third
wire connector.
Do not remove outside side sections
on dimmers at the end of gang.
Each dimmer
has inside side
sections r
emoved.
Dimmer at middle has all
side sections removed.
Attach the adapter to the dimmer using the
screws provided and snap on the wallplate.
(If you installed the dimmer next to other dimmers
or switches, you’ll need to install a wallplate with the
correct size/number of openings to accommodate all
the devices.)
Repeat Steps 1 through 7 to install the second
dimmer.
Use the screws provided.
Go to www.casetawireless.com/support for
additional tr
oubleshooting suggestions.
Symptoms Probable cause and action
Light does
not turn on or
in-wall dimmer
LEDs do not
light up.
• Light bulb(s) burned out.
• Breaker is OFF or tripped.
• Light not properly installed.
• Wiring error.
• FASST switch on the dimmer
is in the Off position.
Light does
not respond
to PicoR remote
control.
• The dimmer is not properly
paired with the PicoR remote
control;
The PicoR remote control can
be paired with the dimmer
using the LutronR app.
• The dimmer is already at the
light level the PicoR remote
control is sending.
• The PicoR remote control
is outside the 30 ft (9 m)
operating range.
• The PicoR remote control
battery is low.
• The PicoR remote control
battery is installed incorrectly.
• Bulbs turn off
while being
dimmed.
• Bulbs turn on at
high light level
but do not turn
on at a low
light level.
• Bulbs flicker
or flash when
dimmed to a low
light level.
Verify bulbs are marked
dimmable and visit
www.casetawireless.com/
lowend for information on
adjusting the dimmer for best
bulb performance.
Love Caséta
® Wireless dimmers? Have ideas
for making them better? Tell us what you think
and we’ll extend your warranty by 1 year.
www.casetawireless.com/register
CAUTION
Use only with permanently installed fixtures with
dimmable LED, halogen, or incandescent lamps.
T
o avoid overheating and possible damage to other
equipment, do not use to control receptacles, motor-
driven appliances, or transformer-supplied appliances.
Codes
Install in accordance with all national and local
electrical codes.
Grounding
When no “grounding means” exist in wallbox, the
National Electrical Code (NEC®) allows a control to
be installed as a replacement if 1) a nonmetallic,
noncombustible faceplate is used with nonmetallic
attachment screws or 2) the circuit is protected by a
ground fault circuit interrupter (GFCI). When installing
a control according to these methods, cap or remove
green wire before screwing control into wallbox.
Use of the HomeKit logo means that an electronic
accessory has been designed to connect specifically
to iPod, iPhone, or iPad, respectively, and has been
certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of
this device or its compliance with safety and regulatory
standards. Please note that the use of this accessory
with iPod, iPhone, or iPad may affect wireless
performance.
FCC/IC Information
For FCC/IC information, please visit:
www.lutron.com/fcc-ic
Warranty
For warranty information, please visit
www
.casetawireless.com/warranty
)Lutron, Lutron, Caséta, Claro, and Pico are registered trademarks
and FASS and
Lutron
are trademarks of Lutron Electronics Co., Inc.
NEC is a registered trademark of the National Fire Protection
Association, Quincy, Massachusetts.
Google and the Google logo are registered trademarks of Google Inc.,
used with permission.
© 2015 Lutron Electronics Co., Inc.
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299, U.S.A.
Important note (3-Way):
Troubleshooting
Important note:
Removing side sections reduces the dimmer’s
maximum wattage rating. See the chart below
for maximum wattage information.
* For maximum wattage information when
mixing light bulb types see
www.casetawireless.com/ganging
Maximum* wattage derating chart
(120 V~ 50/60 Hz)
Side sections
removed
None 1 side 2 sides
LED 150 W 150 W 150 W
or
*
Incandescent &
Halogen
600 W 500 W 400 W
Device Ratings
In-wall dimmer
PD-6WCL
120 V~ 50/60 Hz
LutronR Smart Bridge *
L-BDG2 or L-BDGPRO2
5 V- 300 mA
PicoR remote control
PJ2-3BRL
3 V- 10 mA
(1) CR2032 battery
(included)
Power supply
T
-5DC-USB
Input: 100–240 V~
50/60 Hz 100 mA
Output: 5 V- 550 mA
Important notes:
1. For indoor use only
2. Operate between 32 ˚F (0 ˚C) and 104 ˚F (40 ˚C)
P/N 0301803 REV A
Wireless
Replacing light
bulbs using FASST
Pull the FASST
switch out on the
in-wall dimmer to
remove power at the
light socket.
Pico® remote control
* Connected to a Class 2, LPS, or SELV, limited energy (<15 W)
power source only.
Using your controls
Using your Caséta® Wireless kit
Contents supplied
In-wall
dimmers
(PD-6WCL)
Claro®
wallplates
(CW-1)
Pico® remote
controls
(PJ2-3BRL)
Wire
connectors
Screws
Lutron®
Smart Bridge
(L-BDG2 or
L-BDGPRO2)
Power Supply
(T-5DC-USB)
Ethernet
Cable
Tabletop pedestals
(L-PED1)
(×2)(×2)(×2)
(×2) (×6) (×4)
Lutron
A. Connect the Smart Bridge to your Wi-Fi router
using the Ethernet cable.
B. Connect the power cord to the Smart Bridge
and plug it into an outlet.
Smart
Bridge
Smart
Bridge
Ethernet cable
Router
Router
Power
cord
Outlet
1 Press and hold “off” button on dimmer
2
Press and hold “off” button on remote
Install the Lutron® Smart Bridge
www.casetawireless.com/LutronApp
Download the Lutron® app and walk through setup
Search for “Lutron Caseta”
Apple is a trademark of Apple Inc., registered in the U.S. and other countries. HomeKit is a trademark of Apple Inc.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
