release tab down to secure in position. To remove the guide, gently
push up on the release tab and slide the assembly away from the
trimmer. Adjust the trimming length by pressing on the thumb lever
and moving the comb forward or backward to the desired setting.

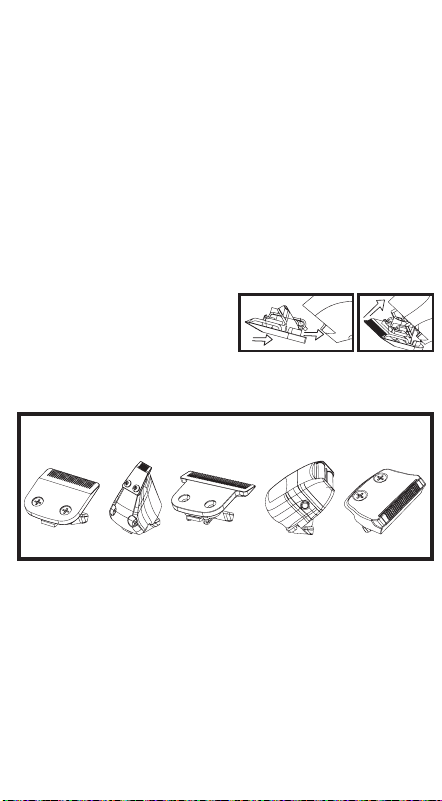

A Detachable Blade System enables you to quickly change from
a standard-width blade for full grooming to a narrow-width blade
for detail trimming around a mustache, goatee, or anywhere to
define the hair line and clip any stray whiskers.
To remove attachment, simply pull top edge of blade away from
body unit. To attach, align back tab of attachment head to cavity on
the inner edge of trimmer unit and
push down on top of blade.
Should blades become damaged
or dull or if you want additional attachment heads for your
trimmer, you may purchase them from Wahl. Be sure to ask for the
following attachment with part number from our service and repair
department (see last page for contact information):
The trimmer you purchased may not have all of these heads, but
they will all work with your trimmer if you wish to purchase them.
The vacuum may not capture trimmings as effectively with some of
these heads. You may order additional heads online at
grooming.wahl.com.
Self-Sharpening Blades are made to maintain
their shape and sharpness for extended periods.
Blade Guard/Vac Attachment protects blade
when storing and can also be used to vacuum
up stray hairs after trimming.
SAVE THESE
INSTRUCTIONS
For Household Use Only
LITHIUM-ION BATTERY
REPLACEMENT, TRIMMER DISPOSAL
AND RECYCLING:
• For battery replacement send the entire, intact trimmer unit to:
Wahl Annex 3001 North Locust, P.O. Box 578, Sterling, IL 61081
• Do not attempt to remove the battery. Lithium-Ion batteries can
explode, catch fire, and/or cause burns if disassembled, damaged,
or exposed to water or high temperatures.
• If you choose not to replace the battery, the entire, intact trimmer
unit must be disposed. Do not attempt to remove the battery for
disposal. Lithium-Ion batteries may be subject to local disposal
regulations. Many locations prohibit disposal in standard waste
receptacles. Check your local laws and regulations.
• For recycling contact a government recycling agency, waste
disposal service, retailer, or visit online recycling sources, such as
www.batteryrecycling.com or www.rbrc.org.
RECHARGING
The trimmer cannot be overcharged, so you may charge it as often
as desired. However, periodic recharging of the trimmer, rather than
continuous recharging, will prolong battery life.
Charge when trimmer seems to lose power or run slower. The
charging LED will pulse while charging. LED will stay lit when
charging is complete.
1. This trimmer is conveniently designed for household use. It
should be allowed to charge 90 minutes before first use.
2. Remove the trimmer, recharging transformer and accessories
from the packing material.
3. Connect the transformer to the trimmer. BE SURE TRIMMER IS
CARING FOR YOUR TRIMMER
OILING BLADES
For best results, put one or two drops of Wahl Clipper Oil on
the blades only when necessary, or approximately once a month.
Motor bearings are permanently lubricated—do not attempt to oil.
When oiling your trimmer, hold the unit with the blades facing
DOWN and squeeze one or two drops of oil onto the blades. Wipe
off excess oil with soft cloth.
NOTICE—DO NOT OVER OIL!
Excessive oiling or application of liquids will cause damage if
allowed to seep back into motor.
BLADE CARE
Trimmer blades have
precision-hardened, ground
and lapped cutting teeth.
Blades should be handled
carefully and never bumped
or used to cut dirty or
abrasive material. Clean with
the included brush.
CLEANING/
STORAGE

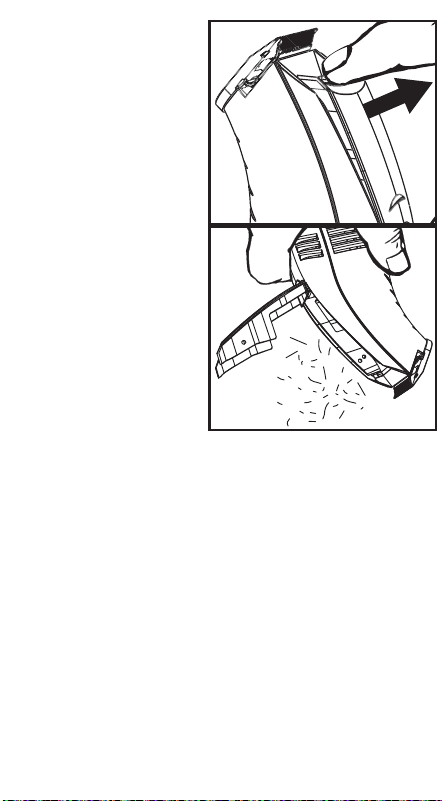

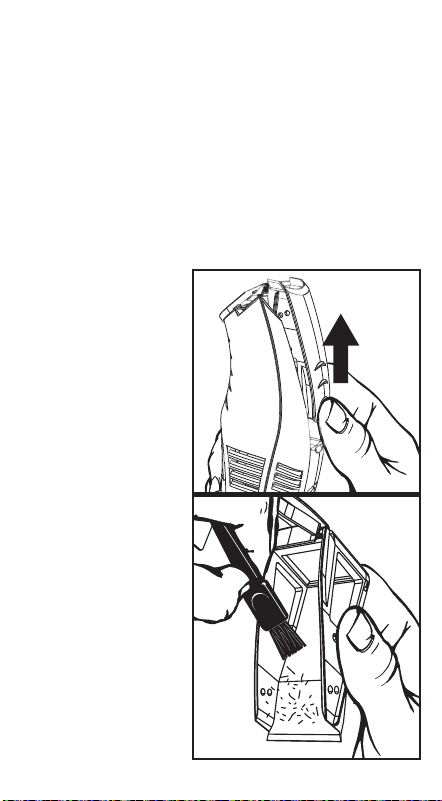

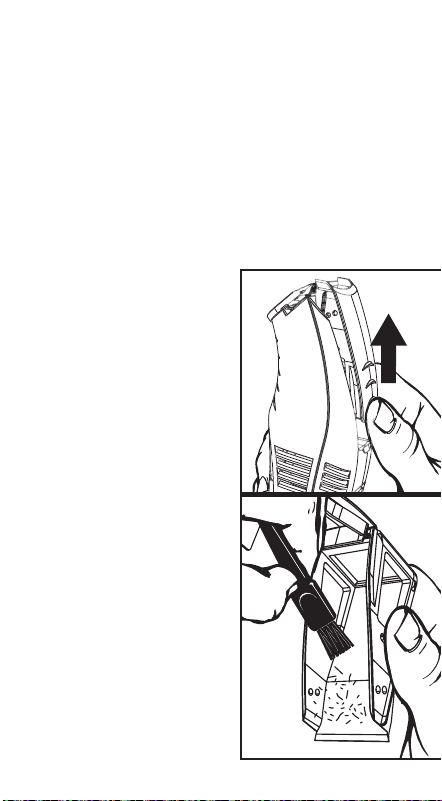

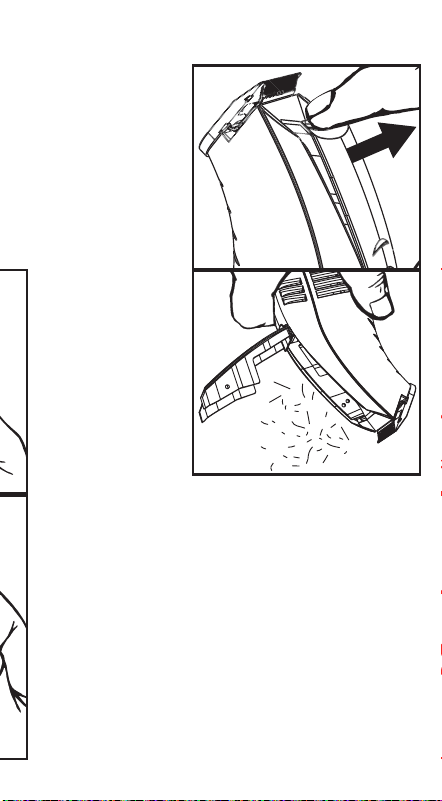

To Clean Hair Collection
Chamber: Holding the unit
upright, slide the collection
chamber out. With the hair
chamber lid open, tip the
chamber up, and gently
brush or rinse the trimmings
from both the chamber and
the screen. Should the filter
become detached, it can be
easily snapped back into
place. Be sure components
TRIMMING AND EDGING YOUR
BEARD
The following are suggested trimming steps and trimmer positions.
You may find different procedures work better for you.
1. Comb your beard in the direction that it grows to help reveal
stray hairs that may be longer than the others.
2. Attach the 6-position trimming guide to trim and taper your
beard. Begin with the guide set at a long trimming length.
Trim toward your chin in smooth,
overlapping strokes, following the
lay of your beard. If you trim against
the way your beard naturally lays, the
trimmer will cut the hair much shorter
than the marked length.
Improved capture of trimmings by the
vacuum may be achieved by working upward from the base of
your beard to the top. Some experimentation will help you find
the best technique to maximize your style and the trimmer’s
vacuum feature.
Adjust the trimming guide to
progressively shorter settings until you
reach the desired length of beard. You
may wish to set the trimming guide
attachment to cut closer near the ear
and down under the chin, changing to a longer setting toward
the front of the face and point of your chin. When the trimming
guide is removed, it will remain at its last length setting until
you change it.
Always be sure the trimming guide is locked solidly into the
desired position before you start to trim.

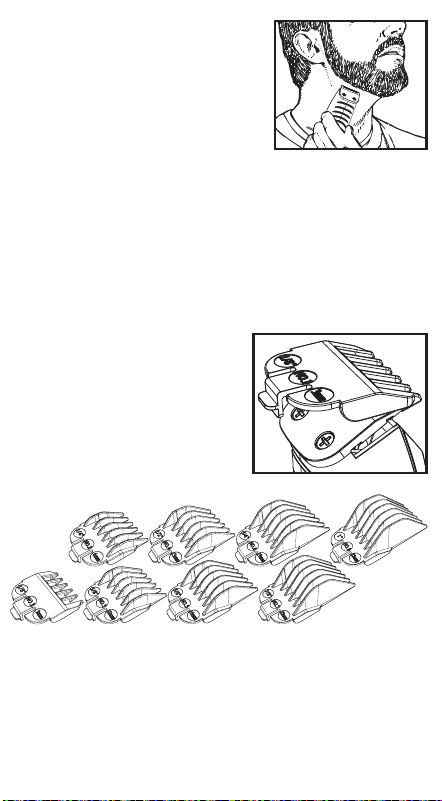

3. To cut the outline of your beard, remove the trimming
guide. Starting under your chin and working back toward
your jawbone and ears, cut the outer perimeter of your beard
underneath the jawbone. Continue the line all the way up to
grooming.wahl.com
© 2017 Wahl Clipper Corporation
Part No. 92550
Printed in U.S.A.
For more information or Product Registration, visit grooming.wahl.com
5-YEAR LIMITED WARRANTY
Valid in U.S.A. Only
If your Wahl product fails to operate satisfactorily within five
(5) years from the date of original purchase or receipt as a gift,
Wahl will, at our option, repair or replace it and return it to you
FREE OF CHARGE. Do not return this product to store where
purchased. Products needing repair under this warranty should
be returned with postage prepaid to:
Wahl Clipper Corp.
Attn: Repair Department
3001 Locust Street
Sterling, Illinois 61081
Include a note describing the defect and the date of original
purchase or receipt as a gift (if in warranty). Products out of
warranty will be repaired at our standard repair charges.
This warranty is void and no repair or replacement will be made
under this warranty or otherwise if: (1) The product is modified
in any manner or repaired by anyone other than Wahl Clipper
Corporation or Wahl authorized service center. (2) The product
has been used commercially or subjected to unreasonable use.
This warranty gives you specific legal rights and you may
also have other rights which may vary from state to state. No
other written express warranty is given. Any implied warranty,
including any warranty of merchantability which may arise from
purchase or use, is limited to the year period provided in this
express warranty. Some states may not allow such limitation,
so it may not apply to you. No responsibility is assumed for
incidental or consequential damages of any type, or for the use
of unauthorized attachments. Some states may not allow the
exclusion or limitation of incidental or consequential damages, so
the limitation or exclusion may not apply to you. Outside U.S.A.,
check with store for Wahl authorized distributor’s warranty.
IN THE “OFF - 0” POSITION WHEN CHARGING.
4. Plug the recharging transformer into any convenient electrical
outlet at the correct voltage.
5. When trimmer is low in power, it should be connected to the
transformer and plugged into an outlet to assure maximum
power is available when it is next used. This transformer
is designed to completely charge the battery without
overcharging.
6. The battery will take approximately 90 minutes to charge.
7. Insert only recharging transformer plug supplied by the
manufacturer into charger receptacle.
8. This is a rechargeable cord/cordless trimmer, it can be used
with the cord so you can trim even if the charge is low. The
trimmer cannot be overcharged, so you may charge it as often
as desired. We recommend that the battery be “worked” or
discharged by trimming without the cord and by not recharging
after every use.
TROUBLESHOOTING
If your Trimmer does not seem to take a charge, check the
following before returning it for repair:
1. Check outlet to make sure it is working by plugging in another
appliance.
2. Make sure the outlet simply is not connected to a light switch
which turns the power at the outlet off when lights are turned
off.
3. Be sure the trimmer is properly connected to the recharging
transformer, all connections are secure and the switch on the
trimmer is turned “OFF - 0.”
4. If your electricity is connected to a master power switch, we
suggest the trimmer be disconnected from the charger anytime
the master switch is off.
5. If trimmer does not run and it is completely charged, turn the
unit “ON - I” and pinch or push the blades manually. (Oil may
have dried out between the blades, so they may be temporarily
stuck together.)
the ears and hairline.
4. Accentuate your beard line by using
the trimmer in a downward motion.
Start at the line you’ve created and,
working from the chin back toward the
ears, trim the area right under your
beard line.
5. Define the upper part of your beard using the same technique.

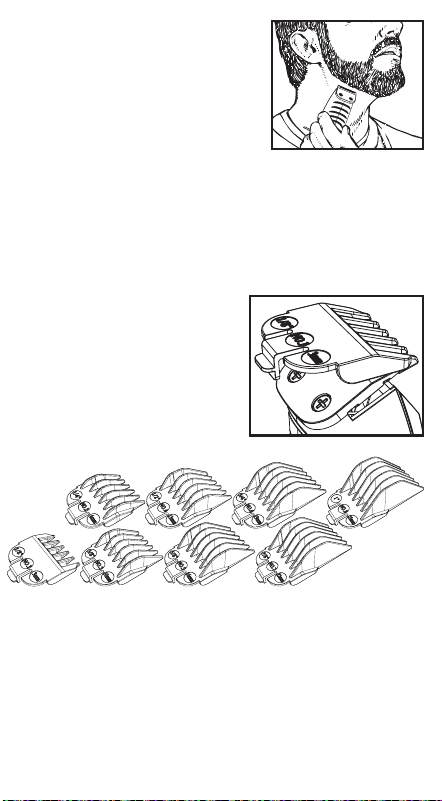

TRIMMING WITH ATTACHMENT
COMBS
Your trimmer includes eight trimming attachments ranging from
1/8" to 1" in length. These attachments are ideal for blending,
tapering and defining beards, as well
as for achieving a “close trim” stubble
look around the face. To use the
attachments, use the same techniques
described for the 6-position guide,
starting with a longer comb and
working down to your desired length.
Lithium•Ion
™
Operating Instructions for the
9870 Lithium Ion Trimmer
Instrucciones de Funcionamiento para
la Recortadora 9870 de Litio Ion
Detachable Blade Trimmer
Recortadora con láminas
desmontable
SERVICE AND REPAIR
If you have problems with your shaver, send it prepaid
with a note explaining the problem to:
Wahl Clipper Corporation
Attn: Repair Department
3001 Locust Street
Sterling, IL 61081
Telephone (800) 767-9245
For products purchased outside the United States, contact your distributor.
If for any reason within 60 days of purchase of your Wahl
®
trimmer you are not satisfied with your trimmer and would like a
refund, just return your trimmer, together with the sales receipt,
to the retailer from whom you purchased it. Wahl will reimburse
all retailers who accept trimmers within 60 days of purchase. If
you have any questions regarding this money-back guarantee,
please call 1-800-767-9245 in the United States.
60 Day Money Back Guarantee!
SPECIAL FEATURES:
Your trimmer has been designed with several advanced features
to help you get perfect results every time you trim. Your trimmer
may be used to neatly trim goatees, beards, mustaches, neckline,
sideburns around the ears and eyebrows, or anywhere you may
need grooming. It also makes a great all-around family trimmer for
mini haircuts and touch ups between trips to the barber or to clean
up the shape of the neck.
A Self-Contained Vacuum System captures virtually all the facial
hair as it is cut. The trimmings are vacuumed into an
easy-to-empty collection chamber. Trimmings
are filtered from the air as it passes through
the trimmer. Any trimmings which may fall
into your sink or onto your countertop can
also be vacuumed up by the trimmer
with the blade guard/vac attachement.
Should you need a replacement hair
chamber, you may purchase one from Wahl.
Contact our service and repair department and ask
for part number #88252 (see last page for
contact information):
A Multi-Position Hair-Chute allows you to
adjust the vacuum stream to get the best results
for your beard.
A 6-Position Trimming Guide makes
achieving a consistent trim easy every time.
The guide can be removed (providing a seventh
cutting position) and reattached without
changing the preset cutting length, so once
you have found the perfect length, there’s
no guesswork in achieving it every trim. The
trimming guide is a two-piece assembly,
consisting of a base and a comb. It should not
be disassembled. To attach the guide, simply
slide it on at a slight angle and press the
Charging
Light
Intake Port
On/Off Switch
Collection
Chamber
Exhaust
Ports
are completely dry before
replacing in trimmer body.
Alternate Method to Empty
Hair Collection Chamber:
Pop open the collection
chamber door, and dump
trimmings into waste basket.
Whisk away any remaining
trimmings with cleaning
brush.
Before storing your trimmer,
use the cleaning brush to
whisk any trimmings from
the unit and the blades.
For units with a soft-touch
grip, use a damp cloth to
wipe down the body of the
trimmer. Store unit in such
a manner so that blades are
protected from damage.
When the trimmer is not
in use, the trimmer blade guard attachment should be in place to
protect the blades.
This appliance should be stored in a manner where it is not
subjected to Crushing, Heating above 100°C (212°F), or
Incineration.
CAUTION!
When hair chamber is removed vacuum fan
is exposed. To reduce the risk of injury do not
place or insert any object including fingers
into fan. Always have vacuum chamber in
place when using trimmer.
1 3 5 7
2 4 6 8
#1 Stubble Length (2 mm)
#2 Short (4 mm)
#3 Medium Short (6 mm)
#4 Medium (8 mm)
#5 Medium Long (10 mm)
#6 Long (12 mm)
11
2
2
#59307#59300
Detailer
Dual
Shaver
Detail
Shaver
#59301 #59302 #59303
Trimmer T-Blade
Loading ...
