USER’S MANUAL
Model No. NTEL71620.1
Serial No.
Write the serial number in the space
above for reference.
nordictrack.com
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Serial
Number
Decal
To register your product and
activate your warranty today,
go to my.nordictrack.com.
For service at any time, go to
support.nordictrack.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE
2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover
of this manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE ELLIPTICAL ..............................................................14
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
MAINTENANCE AND TROUBLESHOOTING .....................................................28
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
EXERCISE GUIDELINES ....................................................................30
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth
®
word mark
and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trade-
mark of Google LLC. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi
Alliance.
3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 4 ft. (1.2 m) of clearance in the front of
the elliptical, 6 ft. (1.8 m) in the rear, and 2 ft.
(0.6 m) on each side. To protect the floor or
carpet from damage, place a mat under the
elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. When connecting the power cord (see
page 14), plug the power cord into a
grounded circuit.
10. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
11. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
12. DANGER: Always unplug the power
cord and switch the power switch to the off
position when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should be
performed by an authorized service repre-
sentative only.
13. Keep children under age 16 and pets away
from the elliptical at all times.
14. The elliptical should not be used by persons
weighing more than 375 lbs. (170 kg).
15. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
16. Hold the handlebars when mounting, dis-
mounting, or using the elliptical. Before
mounting or dismounting, bring the pedals
to a stop with the pedal on the mounting or
dismounting side in its lowest position.
4
SAVE THESE INSTRUCTIONS
17. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
18. Keep your back straight while using the
elliptical; do not arch your back.
19. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
5
all
STANDARD SERVICE PLANS
6
Thank you for selecting the revolutionary
NORDICTRACK
®
FREESTRIDE TRAINER FS14I
elliptical. The FREESTRIDE TRAINER FS14I elliptical
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

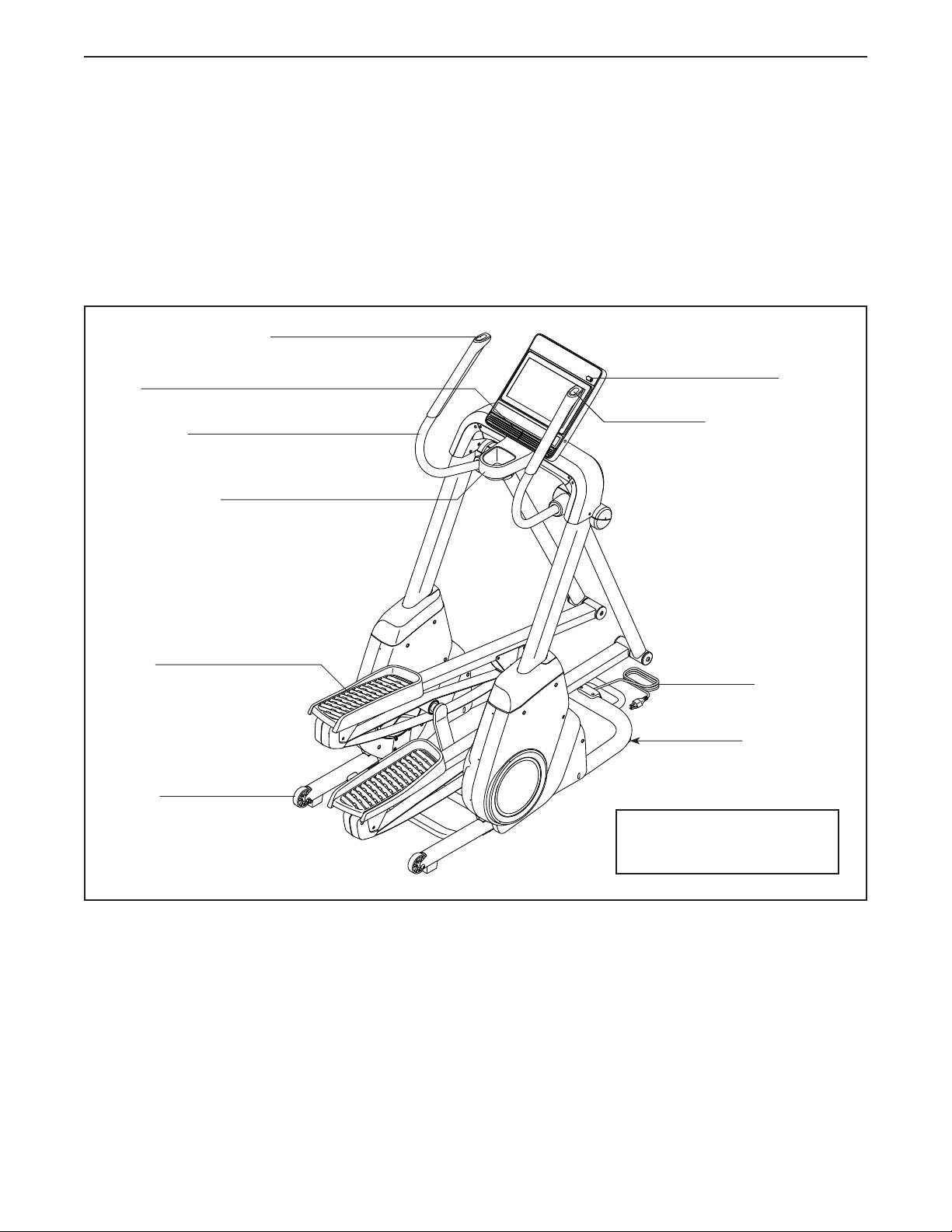

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handlebar
Fan
Incline/Decline Control
Resistance Control
Accessory Tray
Console
BEFORE YOU BEGIN
Wheel
Leveling Foot
Power Cord
Length: 4 ft. 11 in. (150 cm)
Width: 2 ft. 6 in. (76 cm)
Pedal
7
PART IDENTIFICATION CHART

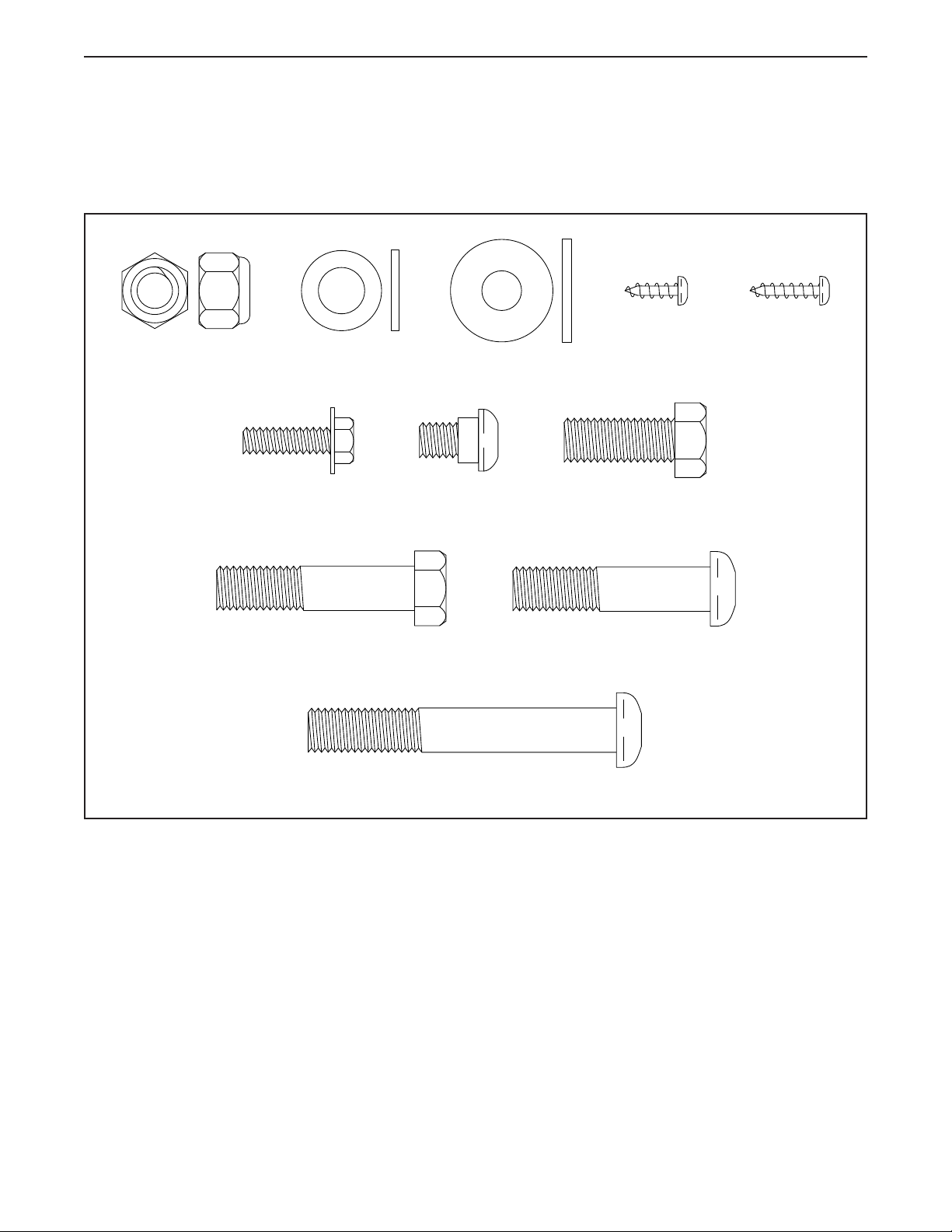

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M4 x 16mm
Screw
(141)–22
M10 Locknut
(133)–2
M10 x 18mm
Washer (138)–4
M4 x 12mm
Screw
(148)–2
Axle Washer
(31)–2
M10 x 45mm Hex Bolt
(119)–4
M10 x 45mm Screw
(124)–4
M10 x 70mm Bolt (130)–2
M8 x 14mm
Shoulder Screw
(122)–2
M6 x 20mm
Screw
(118)–6
M10 x 25mm Screw
(123)–8
8
• Assembly requires two or three persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
1. Go to my.nordictrack.com on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
3
130
53
53
133
2. Attach a Wheel (53) to one side of the Stabilizer
(3) with an M10 x 70mm Bolt (130) and an M10
Locknut (133); do not overtighten the Locknut;
the Wheel should turn freely.
Attach the other Wheel (53) in the same way.
2
9
3. Tip: Avoid pinching the wires. With the help of
one or two other people, set the Upright (4) on
the pins (A) on the Frame (2).
Attach the Upright (4) with eight M10 x 25mm
Screws (123); start all the Screws, and then
tighten them.
Then, connect the 41" Wire (52) in the Upright
(4) to the 17" Wire (51) in the Frame (2).
4. Identify the Right Shield Cover (36) and the
Right Front Shield Cover (47). Attach them
around the right side of the Upright (4) with
two M4 x 16mm Screws (141). Then, press the
Shield Covers into place.
Tip: Avoid pinching the wires. Attach the Left
Shield Cover (35) and the Left Front Shield
Cover (43) around the left side of the Upright
(4) in the same way.
4
35
36
47
141
43
3
4
4
2
2
A
52
51
123
123
Avoid
pinching
the wires
Avoid
pinching
the wires
A
10
12
14
15
13
23
21
22
14
19
31
30
122
Grease
5
6
118
5. Identify the Right Pedal Arm (15). Using a plastic
bag to keep your fingers clean, apply a generous
amount of the included grease to the axle on the
Right Pedal Arm.
Next, insert the axle on the Right Pedal Arm (15)
into the Right Pivot Leg (13) from the direction
shown.
Attach the Right Pedal Arm (15) with an
M8 x 14mm Shoulder Screw (122), an Axle
Cover (30), and an Axle Washer (31).
Attach the Left Pedal Arm (14) to the Left
Pivot Leg (12) in the same way.
6. Identify the Strap (21) on the Right Pedal Arm
(15). Route the Strap under the Roller (89);
make sure that the Strap is not twisted.
Make sure that the Glide Belt (19) on the
Right Pedal Arm (15) is resting on top of the
Roller (89) and that the Strap (21) is routed
under the Roller.
Tip: It may be helpful to have a second
person press downward on the Right Pedal
Arm (15) while you perform the following
action.
Orient a Strap Clamp (23) as shown in the
inset drawing. Attach the Strap (21) to the Strap
Bracket (22) on the Right Pedal Arm (15) with
three M6 x 20mm Screws (118) and the Strap
Clamp; start all the Screws, and then tighten
them.
Repeat this step for the Left Pedal Arm (14).
19
89
23
21
15
89
11
141
141
153
50
7
8
Avoid pinching
the wires
24
25
14
17
16
17
13
40
40
44
44
119
138

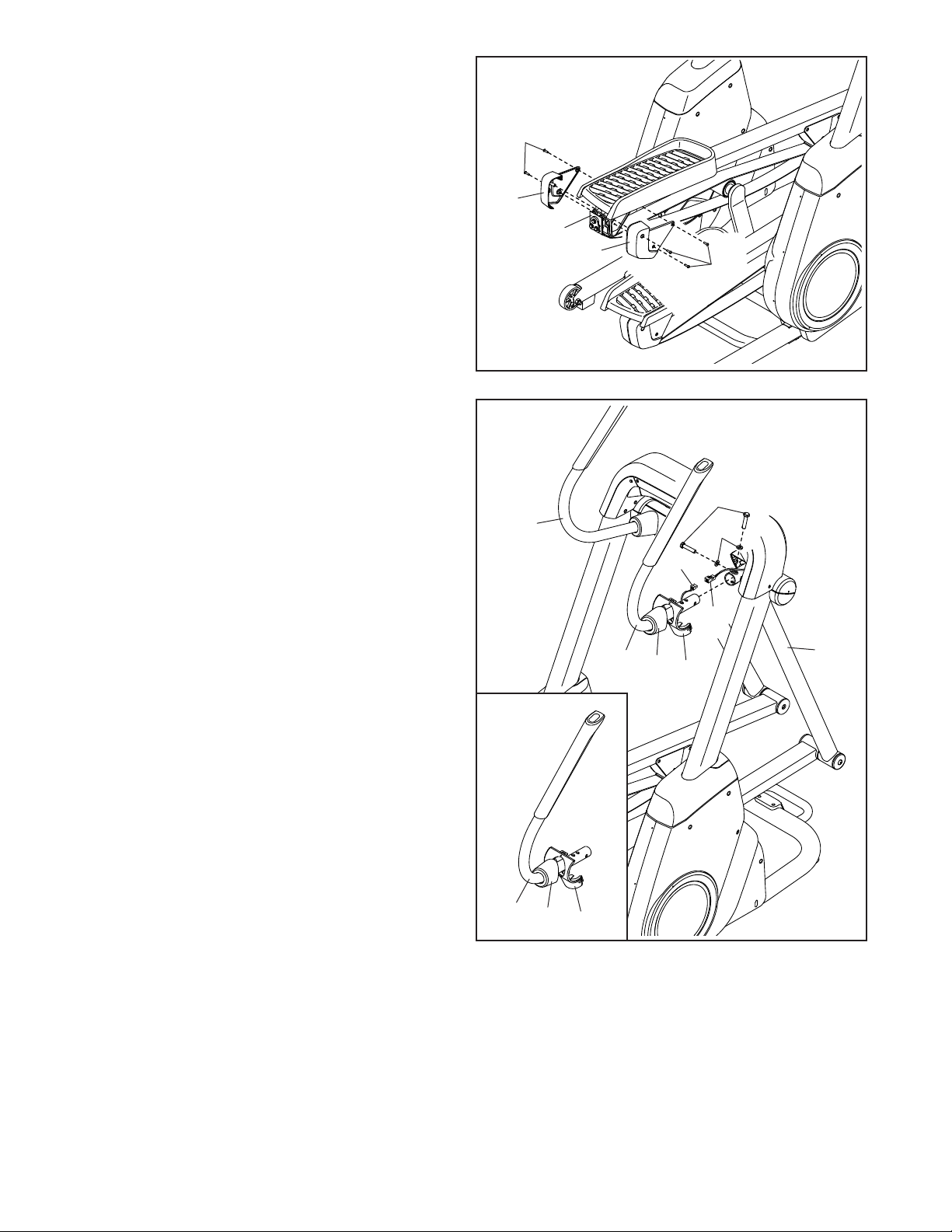

8. See the inset drawing. Identify the Right
Handlebar (17). Then, identify a Handlebar
Cover (40) and the Right Rear Leg Cover (44),
and slide them onto the Right Handlebar as
shown.
While a second person holds the Right
Handlebar (17) near the Upright (4), connect
the Right Control Wire (50) to the Right Control
Extension Wire (153).
Tip: Avoid pinching the wires. Insert the Right
Handlebar (17) into the Right Pivot Leg (13), and
attach it with two M10 x 45mm Hex Bolts (119)
and two M10 x 18mm Washers (138).
Tip: Avoid pinching the wires. Press the Right
Rear Leg Cover (44) into place. Then, press the
Handlebar Cover (40) into place.
Repeat this step for the Left Handlebar (16).
7. Identify a Left Rear Belt Cover (24) and a Right
Rear Belt Cover (25). Attach them to the Left
Pedal Arm (14) with five M4 x 16mm Screws
(141); start all the Screws, and then tighten
them.
Repeat this step on the other side of the
elliptical.
12
11
10
124
153
124
148
B
C
9
5
141
111
9
9. Attach the Accessory Tray (111) to the
Upright (4) from below with two M4 x 16mm
Screws (141).
Then, attach the Accessory Tray (111) to the
Upright (4) from above with two M4 x 12mm
Screws (148).
4
10. While a second person holds the Console
Bracket (5) near the Upright (4), insert the Wires
(57, 58, 153) upward through the holes in the
right and left sides of the Console Bracket as
shown.
Tip: Avoid pinching the wires. Attach the
Console Bracket (5) to the Upright (4) with
four M10 x 45mm Screws (124); start all the
Screws, and then tighten them.
11. While a second person holds the Console (9)
near the Console Bracket (5), connect the wires
(B) on the Console to the matching wires (C) in
the Console Bracket; make sure to press the
connectors on the wires together firmly.
Insert the excess wire into the Console
Bracket (5).
Avoid pinching
the wires
4
5
57, 58
13
14. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.
48
141
12
13
13. Tip: Avoid pinching the wires. Attach the
Console Bracket Cover (48) to the Accessory
Tray (111) with two M4 x 16mm Screws (141).
Avoid pinching
the wires
12. Tip: Avoid pinching the wires. Attach the
Console (9) to the Console Bracket (5) with four
M4 x 16mm Screws (141); start all the Screws,
and then tighten them.
Avoid pinching
the wires
9
5
111
141
14
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The power cord has a plug with a
grounding pin.
Plug the power
cord (A) into
an appropriate
outlet (B) that is
properly installed
and grounded in
accordance with
all local codes and
ordinances. The
outlet must be
on a nominal 120-volt circuit.
A temporary
adapter (C) may
be used to con-
nect the power
cord to a 2-pole
receptacle (D)
as shown at the
right if a properly
grounded outlet is
not available.
The lug (E) or wire extending from the adapter must
be connected with a metal screw (F) to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a
qualied electrician to determine whether the out-
let box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualied electrician.
B
A
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug—if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
D
C
E
F
15
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the ellipti-
cal and lift the handle (G) until the elliptical will roll on
the wheels. Carefully move the elliptical to the desired
location, and then lower it to the floor.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars (H) and
step onto the pedal (I) that is in the lower position.
Then, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion. Note:
The pedals can turn in either direction. It is recom-
mended that you turn the pedals in the direction
shown by the arrow; however, for variety, you can
turn the pedals in the opposite direction.
To dismount the elliptical, wait until the pedals (I) come
to a complete stop. Note: The elliptical does not
have a freewheel; the pedals will continue to move
until the flywheel stops. When the pedals are station-
ary, step off the higher pedal first. Then, step off the
lower pedal.
G
I
H
16
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your
floor during use,
turn one or both of
the leveling feet (J)
beneath the front of
the base until the
rocking motion is
eliminated.
THE OPTIONAL TABLET HOLDER
The optional tablet
holder (K) will hold
your tablet securely
in place and enable
you to use your tablet
while you exercise. The
optional tablet holder is
designed for use with
most full-size tablets.
To purchase a tablet
holder, please see
the front cover of this
manual.
J
K
17
Rat
ELNT71620
NTEL71620
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
resistance of the pedals and the incline of the frame as
it guides you through an effective exercise session.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the frame with the touch of a button.
While you exercise, the console will display continuous
exercise feedback. You can even measure your heart
rate using a compatible heart rate monitor.
You can also listen to your favorite workout music or
audio books with the console sound system while you
exercise.
To turn on the power, see page 18. To learn how
to use the touch screen, see page 18. To set up
the console, see page 18.
HOW TO USE THE CONSOLE
CONSOLE DIAGRAM
18
HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console or other
electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE POWER
CORD on page 14). Next,
locate the power switch on the
frame near the power cord.
Press the power switch to the
reset position (A).
The console will then turn on and be ready for use.
Note: When you turn on the power for the rst time,
the incline system may calibrate automatically. The
frame will move upward and downward as it calibrates.
When the frame stops moving, the incline system is
calibrated.
IMPORTANT: If the incline system does not
calibrate automatically, see step 6 on page 18
and manually calibrate the incline system.
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you use the
touch screen:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout.
• To type information into a text box, first touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch ?123. To view
more characters, touch ~[<. Touch ?123 again to
return to the number keyboard. To return to the letter
keyboard, touch ABC. To use a capital character,
touch the shift button (upward-facing arrow symbol).
To use multiple capital characters, touch the shift
button again. To return to the lowercase keyboard,
touch the shift button a third time. To clear the last
character, touch the clear button (backward-facing
arrow with an X symbol).
HOW TO SET UP THE CONSOLE
Before you use the elliptical for the first time, set up the
console.
1. Connect to your wireless network.
To use iFit workouts and to use several other
features of the console, the console must be con-
nected to a wireless network. Follow the prompts
on the screen to connect the console to your wire-
less network.
2. Customize settings.
Follow the prompts on the screen to set the desired
unit of measurement and your time zone.
Note: To change these settings later, see HOW TO
CHANGE CONSOLE SETTINGS on page 25.
3. Log into or create an iFit account.
Follow the prompts on the screen to log into your
iFit account or to create an iFit account.
4. Tour the console.
The first time you use the console, a tour
presentation will guide you through the features of
the console.
5. Check for firmware updates.
First, touch the menu button (three horizontal lines
symbol), touch Settings, touch Maintenance, and
then touch Update. The console will check for firm-
ware updates. For more information, see HOW TO
CHANGE CONSOLE SETTINGS on page 25.
6. Calibrate the incline system.
First, touch the menu button (three horizontal lines
symbol), touch Settings, touch Maintenance, and
then touch Calibrate Incline. The frame will rise
and lower as it calibrates. For more information,
see HOW TO CHANGE CONSOLE SETTINGS on
page 25.
A
19
The console is now ready for you to begin working out.
The following pages explain the workouts and other
features that the console offers.
To use the manual mode, see page 19. To use
a featured workout or an onboard workout, see
page 21. To create a draw-your-own-map work-
out, see page 23. To use an iFit workout, see
page 24.
To change console settings, see page 25. To
connect to a wireless network, see page 26. To
use the sound system, see page 27.
Note: If there is a sheet of plastic on the screen,
remove the plastic.
HOW TO USE THE MANUAL MODE
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18. Note: It may take a few moments for
the console to be ready for use.
2. Select the main menu.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
3. Change the resistance of the pedals and the
incline of the frame as desired.
Touch Manual Start and begin pedaling.
You can change the resistance of the pedals by
pressing the Resistance increase and decrease
buttons on the console or by pressing the
Resistance increase and decrease buttons on the
right handlebar.
To vary the motion of the pedals, you can change
the incline of the frame by pressing the Incline/
Decline increase and decrease buttons on the
console, or by pressing the Incline/Decline increase
and decrease buttons on the left handlebar.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resis-
tance level or for the frame to reach the selected
incline level.
4. Follow your progress.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown.
Drag upward on the screen to enter the fullscreen
display mode. Drag downward on the screen to
view the workout information displays.
Touch the various workout information displays
to view more options. Touch the more button
(+ symbol) to view statistics or charts. Touch the
center of the screen to view even more display
mode options.
20
If desired, adjust the
volume level by pressing
the volume increase and
decrease buttons on the
console.
To pause the workout, simply touch the screen
or stop pedaling. To continue the workout, simply
resume pedaling.
To end the workout session, touch the screen to
pause the workout, and then follow the prompts
on the screen to end the workout and return to the
main menu.
5. Wear a compatible heart rate monitor and
measure your heart rate if desired.
You can wear a compatible heart rate monitor to
measure your heart rate. Note: The console is
compatible with all Bluetooth
®
Smart heart rate
monitors.
A compatible chest heart rate monitor is included
with some models. If a chest heart rate monitor
is included, see THE CHEST HEART RATE
MONITOR in this manual to learn how to use it.
If this model does not include a compatible heart
rate monitor, see page 27 for information about
ordering one.
The console will connect to your compatible heart
rate monitor automatically. When your heartbeat is
detected, your heart rate will be shown.
6. Turn on the fan if desired.
The fan has several speed
settings, including an auto
mode. While the auto mode
is selected, the speed of
the fan will automatically
increase or decrease as your pedaling speed
increases or decreases. Press the fan increase and
decrease buttons repeatedly to select a fan speed
or to turn off the fan.
Note: If the pedals are not moved for a while when
the main menu is selected, the fan will turn off
automatically.
7. When you are finished exercising, unplug the
power cord.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components of the elliptical may wear
prematurely.
21
HOW TO USE A FEATURED WORKOUT OR AN
ONBOARD WORKOUT
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18. Note: It may take a few moments for
the console to be ready for use.
2. Select the main menu or the workout library.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
Touch the buttons at the bottom of the screen to
select either the main menu (Home button) or the
workout library (Browse button).
3. Select a workout.
To select a workout from the main menu or the
workout library, simply touch the desired workout
button on the screen. Slide or flick the screen to
scroll upward or downward if necessary.
Note: To use a featured workout, the console must
be connected to a wireless network (see HOW
TO CONNECT TO A WIRELESS NETWORK on
page 26).
The featured workouts on your console will change
periodically. To save one of the featured workouts
for future use, you can add it as a favorite by touch-
ing the favorites button (heart symbol). You must
be logged into your iFit account to save a featured
workout (see step 3 on page 24).
To draw your own map for a workout, see HOW TO
CREATE A DRAW-YOUR-OWN-MAP WORKOUT
on page 23.
When you select a workout, the screen will show
an overview of the workout that includes details
such as the duration and distance of the workout
and the approximate number of calories you will
burn during the workout.
4. Start the workout.
Touch Start Workout to start the workout.
The workout will function in the same way as the
manual mode (see page 19).
During some workouts, an iFit coach will guide you
through a video workout. Touch the sound button
(music notes symbol) to select music, trainer voice,
and volume options for the workout.
During some workouts, the screen will show a map
of the route and a marker indicating your prog-
ress. Touch the buttons on the screen to select the
desired map options.
During some workouts, the screen may show a
target speed. As you exercise, keep your pedaling
speed near the target speed shown on the screen.
A message may appear prompting you to increase,
decrease, or maintain your pedaling speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
22
If the resistance level and/or incline level is too high
or too low, you can manually override the setting
by pressing the Resistance buttons or the Incline/
Decline buttons. If you press a Resistance but-
ton, you can then manually control the resistance
level (see step 3 on page 19). If you press an
Incline/Decline button, you can then manually
control the incline level (see step 3 on page 19).
To return to the programmed resistance and/or
incline settings of the workout, touch Follow
Workout.
Note: The calorie goal shown in the workout
description is an estimate of the number of
calories that you will burn during the workout.
The actual number of calories that you burn
will depend on various factors, such as your
weight. In addition, if you manually change the
resistance level or incline level of the frame
during the workout, the number of calories you
burn will be affected.
To pause the workout, simply touch the screen
or stop pedaling. To continue the workout, simply
resume pedaling.
To end the workout, touch the screen to pause the
workout, and then follow the prompts on the screen
to end the workout and return to the main menu.
When the workout ends, a workout summary will
appear on the screen. If desired, you can select
options such as adding the workout to your sched-
ule (see HOW TO USE AN IFIT WORKOUT on
page 24) or adding the workout to your favorites
list. Then, touch Save Workout to return to the main
menu.
5. Follow your progress.
See step 4 on page 19.
6. Wear a compatible heart rate monitor and
measure your heart rate if desired.
See step 5 on page 20.
7. Turn on the fan if desired.
See step 6 on page 20.
8. When you are finished exercising, unplug the
power cord.
See step 7 on page 20.
23
HOW TO CREATE A DRAW-YOUR-OWN-MAP
WORKOUT
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18. Note: It may take a few moments for
the console to be ready for use.
2. Select a draw-your-own-map workout.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
To select a draw-your-own-map workout, touch the
Create button at the bottom of the screen.
3. Draw your map.
Navigate to the area on the map where you want
to draw your workout by typing in the search box
or by sliding your fingers on the screen. Touch
the screen to add the start point for your workout.
Then, touch the screen to add the end point for
your workout.
If you want to start and end your workout at the
same point, touch Close Loop or Out & Back in the
map options. You can also select whether you want
your workout to snap to the road.
If you make a mistake, touch Undo in the map
options.
The screen will display the elevation and distance
statistics for your workout.
4. Save your workout.
Touch Save New Workout to save your workout. If
desired, enter a title and description for your work-
out. Then, touch the continue button (> symbol).
5. Start the workout.
Touch Start Workout to start the workout. The
workout will function in the same way as a featured
workout or an onboard workout (see page 21).
6. Follow your progress.
See step 4 on page 19.
7. Wear a compatible heart rate monitor and
measure your heart rate if desired.
See step 5 on page 20.
8. Turn on the fan if desired.
See step 6 on page 20.
9. When you are finished exercising, unplug the
power cord.
See step 7 on page 20.
24
HOW TO USE AN IFIT WORKOUT
To use an iFit workout, the console must be connected
to a wireless network (see HOW TO CONNECT TO A
WIRELESS NETWORK on page 26). An iFit account
is also required.
1. Add workouts to your schedule on iFit.com.
On your computer, smartphone, tablet, or other
device, open an internet browser, go to iFit.com,
and log in to your iFit account.
Next, navigate to Menu > Library on the website.
Browse the workout programs in the library and join
the desired workouts.
Then, navigate to Menu > Schedule to view your
schedule. All of the workouts that you have joined
will appear on your schedule; you can arrange or
delete the workouts on your schedule as desired.
Take time to explore the iFit.com website before
you log out.
2. Select the main menu.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
If you are in a workout, touch the screen and follow
the prompts to end the workout and return to the
main menu. If you are in the settings menus, touch
the back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
3. Log in to your iFit account.
If you have not already done so, touch the menu
button (three horizontal lines symbol) on the screen
and then touch Log in to log in to your iFit account.
Follow the prompts on the screen to enter your
username and password.
To switch users within your iFit account, touch
the menu button, touch Settings, and then touch
Manage Accounts. If more than one user is associ-
ated with the account, a list of users will appear.
Touch the name of the desired user.
4. Select an iFit workout that you have previously
added to your schedule on iFit.com.
IMPORTANT: Before iFit workouts will load, you
must add them to your schedule on iFit.com
(see step 1).
To load an iFit workout from iFit.com to the
console, touch the calendar button (calendar
symbol) at the bottom of the screen.
When you load a workout, the screen will show an
overview of the workout that includes details such
as the duration and distance of the workout and
the approximate number of calories you will burn
during the workout.
5. Start the workout.
Touch Start Workout to start the workout. The
workout will function in the same way as a featured
workout or an onboard workout (see page 21).
6. Follow your progress.
See step 4 on page 19.
7. Wear a compatible heart rate monitor and
measure your heart rate if desired.
See step 5 on page 20.
8. Turn on the fan if desired.
See step 6 on page 20.
9. When you are finished exercising, unplug the
power cord.
See step 7 on page 20.
For more information about iFit, go to iFit.com.
25
HOW TO CHANGE CONSOLE SETTINGS
IMPORTANT: Some of the settings and features
described may not be enabled. Occasionally, a
firmware update may cause your console to function
slightly differently.
1. Select the settings main menu.
First, turn on the power (see HOW TO TURN ON
THE POWER on page 18). Note: It may take a
few moments for the console to be ready for use.
Next, select the main menu (Home button). When
you turn on the console, the main menu will appear
on the screen after the console boots up. If you
are in a workout, touch the screen and follow the
prompts to end the workout and return to the main
menu. If you are in the settings menus, touch the
back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
Then, touch the menu button (three horizontal lines
symbol) on the screen, and then touch Settings.
The settings menu will appear on the screen.
2. Navigate the settings menus and change
settings as desired.
Slide or flick the screen to scroll upward or down-
ward if necessary. To view a settings menu, simply
touch the menu name. To exit a menu, touch the
back button (arrow symbol). You may be able to
view and change settings in the following settings
menus:
Account
• My Prole
• In Workout
• Manage Accounts
Equipment
• Equipment Info
• Equipment Settings
• Maintenance
• Wi-Fi
About
• Legal
3. Customize the unit of measurement and other
settings.
To customize the unit of measurement, the time
zone, or other settings, touch Equipment Info or
Equipment Settings, and then touch the desired
settings.
The console can display speed and distance in
either standard or metric units of measurement.
4. View machine information or console app
information.
Touch Equipment Info, and then touch Machine
Info or App Info to view information about your
elliptical or about the console app.
5. Update the console firmware.
For the best results, regularly check for
firmware updates. Touch Maintenance, and
then touch Update to check for firmware updates
using your wireless network. The update will begin
automatically. IMPORTANT: To avoid damaging
the elliptical, do not turn off the power while the
firmware is being updated.
The screen will show the progress of the update.
When the update is complete, the elliptical will turn
off and then turn back on. If it does not, press the
power switch into the off position. Wait for several
seconds, and then press the power switch into the
reset position. Note: It may take a few minutes for
the console to be ready for use.
Note: Occasionally, a firmware update may cause
the console to function slightly differently. These
updates are always designed to improve your
exercise experience.
26
6. Calibrate the incline system.
To calibrate the incline system, touch Maintenance,
touch Calibrate Incline, and then touch Begin. The
frame will automatically rise to the maximum incline
level, lower to the minimum incline level, and then
return to the starting position. This will calibrate
the incline system. When the incline system is
calibrated, touch Finish.
IMPORTANT: Keep pets, feet, and other objects
away from the elliptical while the incline system
is calibrating.
7. Exit the settings main menu.
If you are in a settings menu, touch the back
button. Then, touch the close button (x symbol) to
exit the settings main menu.
HOW TO CONNECT TO A WIRELESS NETWORK
To use iFit workouts and to use several other features
of the console, the console must be connected to a
wireless network.
1. Select the main menu.
First, turn on the power (see HOW TO TURN ON
THE POWER on page 18). Note: It may take a
few moments for the console to be ready for use.
Next, select the main menu (Home button). When
you turn on the console, the main menu will appear
on the screen after the console boots up. If you
are in a workout, touch the screen and follow the
prompts to end the workout and return to the main
menu. If you are in the settings menus, touch the
back button (arrow symbol) and then touch the
close button (x symbol) to return to the main menu.
2. Select the wireless network menu.
Touch the menu button (three horizontal lines
symbol), and then touch Wi-Fi to select the wire-
less network menu.
3. Enable Wi-Fi.
Make sure that Wi-Fi
®
is enabled. If it is not
enabled, touch the Wi-Fi toggle to enable it.
4. Set up and manage a wireless network
connection.
When Wi-Fi is enabled, the screen will show a
list of available networks. Note: It may take a few
moments for the list of wireless networks to appear.
Note: You must have your own wireless network
and an 802.11b/g/n router with SSID broadcast
enabled (hidden networks are not supported).
When a list of networks appears, touch the desired
network. Note: You will need to know your network
name (SSID). If your network has a password, you
will also need to know the password.
Follow the prompts on the screen to enter your
password and connect to the selected wireless
network. (To use the keyboard, see HOW TO USE
THE TOUCH SCREEN on page 18.)
When the console is connected to your wireless
network, a checkmark will appear next to the
wireless network name.
If you are having problems connecting to an
encrypted network, make sure that your password
is correct. Note: Passwords are case-sensitive.
Note: The console supports unsecured and
secured (WEP, WPA™, and WPA2™) encryption.
A broadband connection is recommended; perfor-
mance depends on connection speed.
Note: If you have questions after following
these instructions, go to support.iFit.com for
assistance.
5. Exit the wireless network menu.
To exit the wireless network menu, touch the back
button (arrow symbol).
27
HOW TO USE THE SOUND SYSTEM
Connect with an Audio Cable
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
audio jack on the console and into a jack on your per-
sonal audio player; make sure that the audio cable is
fully plugged in. Note: To purchase an audio cable,
see your local electronics store.
Next, press the play but-
ton on your personal audio
player. Adjust the volume level
using the volume increase
and decrease buttons on the
console or the volume control on your personal audio
player.
Connect Your Device with Bluetooth
If the console has a Bluetooth Audio button, you can
connect your Bluetooth-compatible device to play
audio through the console sound system.
1. Place or hold your Bluetooth-compatible device
near the console.
2. Enable the Bluetooth setting on your device.
3. Pair your device to the console.
Press and hold the Bluetooth Audio button on the
console for 3 seconds. The Bluetooth Audio button
will begin flashing and the console will enter pair-
ing mode. When your device and the console pair
successfully, the audio from your device will play
through the console sound system.
Note: The console can save 8 devices in its
memory. If you have previously paired your device
to the console, you can simply press the Bluetooth
Audio button to connect your device to the console.
4. Erase the console device memory if necessary.
If you need to erase all the Bluetooth-compatible
devices saved in the console memory, press and
hold the Bluetooth Audio button for 10 seconds.
Connect Your Headphones
If the console has a headphones jack, you can plug
your headphones into the headphones jack to listen to
audio from the console through your headphones.
Connect Your Headphones with Bluetooth
If the console is enabled with this feature, you can
connect your Bluetooth-compatible headphones
to listen to audio from the console through your
headphones.
To connect your headphones to the console, first turn
on your headphones and place them near the console.
Next, select a featured workout (see page 21) or
an iFit workout (see page 24). Then, touch Connect
Bluetooth Headphones when this option appears on
the screen.
To pair your headphones to the console, select
your headphones from the list on the screen. When
your headphones and the console pair successfully,
the audio from the console will play through your
headphones.
THE OPTIONAL CHEST HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during your
workouts. The optional chest heart rate monitor will
enable you to continuously monitor your heart rate
while you exercise, helping you to reach your personal
fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
Note: The console is compatible with all Bluetooth
Smart heart rate monitors.
28
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the elliptical is used.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power cord is fully plugged in and that the power
switch is in the reset position. If there are exterior wires
on the console, make sure that the connectors on the
wires are oriented correctly and are connected firmly.
If you are having problems connecting the console
to a wireless network or if you are having problems
with your iFit account or iFit workouts, go to
support.iFit.com.
If the console does not boot
up properly, or if the con-
sole freezes and does not
respond, reset the console
to the factory default set-
tings. IMPORTANT: Doing
this will erase all custom settings you have made
to the console. Resetting the console requires two
people. First, press the power switch and unplug the
power cord. Next, locate the small reset opening (A) on
the back or the side of the console. Using a bent paper
clip, press and hold the reset button inside the open-
ing, and have a second person plug in the power cord
and press the power switch. Continue holding the reset
button until the console turns on. When the reset oper-
ation is complete, the console will turn off and then turn
back on. If it does not, press the power switch off and
then on again. Once the console turns on, check for
firmware updates (see HOW TO CHANGE CONSOLE
SETTINGS on page 25). Note: It may take a few
minutes for the console to be ready for use.
INCLINE SYSTEM TROUBLESHOOTING
If the frame does not adjust to the selected incline
level, see HOW TO CHANGE CONSOLE SETTINGS
on page 25 and calibrate the incline system.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest level, the drive
belt may need to be adjusted. To adjust the drive belt,
first press the power switch and unplug the power
cord.
Next, remove the M4 x 16mm Screw (141) and the
Access Cover (110) from the Right Inner Shield (101).
Then, tighten the M10 Locknut (133) until the Drive Belt
A (61) is tight.
When you have properly adjusted the Drive Belt A (61),
reattach the Access Cover (110) and plug in the power
cord.
A
110
141
61
133
101
29
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first press the power switch and unplug the
power cord.
Next, use a standard screwdriver and pry the Shield
Disc (97) off the Left Outer Shield (98).
See the drawing at the right. Locate the Reed Switch
(55). Turn the Right Inner Disc (107) until a Magnet
(113) is aligned with the Reed Switch.
Then, slightly loosen the two M4 x 25mm Screws (10)
and slide the Reed Switch (55) slightly closer to or
away from the Magnet (113).
Plug in the power cord, press the power switch, and
rock the Right Inner Disc (107) forward and backward
so that the Magnet (113) passes the Reed Switch (55)
repeatedly. Repeat these actions until the console
displays correct feedback.
When the reed switch is correctly adjusted, retighten
the two M4 x 25mm Screws (10), reattach the Shield
Disc (97), and plug in the power cord.
98
97
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate this equipment.
IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the console
must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or
transmitter.
Note: The console contains FCC ID: OMC415321.
55
10
113
107
30
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only
after the first few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training zone. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, exer-
cise for at least four
minutes. Then, stop
exercising and place
two fingers on your
wrist as shown.
Take a six-second
heartbeat count, and
multiply the result by 10 to find your heart rate. For
example, if your six-second heartbeat count is 14, your
heart rate is 140 beats per minute.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete
three workouts each week, with at least one day of
rest between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
EXERCISE GUIDELINES
31
1 1 Base
2 1 Frame
3 1 Stabilizer
4 1 Upright
5 1 Console Bracket
6 1 Brace
7 1 Control Bracket
8 1 Control Board
9 1 Console
10 8 M4 x 25mm Screw
11 1 Left Control Grip/Wire
12 1 Left Pivot Leg
13 1 Right Pivot Leg
14 1 Left Pedal Arm
15 1 Right Pedal Arm
16 1 Left Handlebar
17 1 Right Handlebar
18 4 Belt Clamp
19 2 Glide Belt
20 4 Wedge
21 2 Strap
22 4 Strap Bracket
23 4 Strap Clamp
24 2 Left Rear Belt Cover
25 2 Right Rear Belt Cover
26 2 Left Front Belt Cover
27 2 Right Front Belt Cover
28 1 Left Pedal
29 1 Right Pedal
30 4 Axle Cover
31 7 Axle Washer
32 4 Leg Bearing
33 2 Flex Spacer
34 1 Left Pivot Spacer
35 1 Left Shield Cover
36 1 Right Shield Cover
37 2 Pivot Cover A
38 2 Pivot Cover B
39 1 Left Rear Leg Cover
40 2 Handlebar Cover
41 1 Left Front Leg Cover
42 1 Right Pivot Spacer
43 1 Left Front Shield Cover
44 1 Right Rear Leg Cover
45 1 Right Front Leg Cover
46 4 Pivot Bushing
47 1 Right Front Shield Cover
48 1 Console Bracket Cover
49 1 Accelerometer Sensor
50 1 Right Control Grip/Wire
51 1 17" Wire
52 1 41" Wire
53 2 Wheel
54 2 Foot
55 1 Reed Switch/Wire
56 1 Reed Switch Clamp/Screw
57 1 Left Control Extension Wire
58 1 32" Wire
59 1 Power Cord
60 2 Leveling Foot
61 1 Drive Belt A
62 1 Left Inner Disc
63 1 Crank
64 1 Flywheel
65 1 Large Crank Pulley
66 1 Large Idler Pulley
67 1 Crank Pulley Bracket
68 1 Crank Bracket
69 1 Idler Hub
70 1 Idler Bracket
71 1 Idler Adjustment Bolt
72 1 Lift Motor
73 1 Power Cover
74 1 Lower Lift Axle
75 1 Magnet Bracket
76 1 Resistance Motor
77 1 Resistance Rod
78 1 Resistance Disc
79 1 Resistance Block
80 1 Crank Washer
81 4 Crank Bearing
82 1 Small Crank Spacer
83 1 Large Crank Spacer
84 1 Bracket Weld Spacer
85 1 Large Spacer
86 2 Roller Spacer
87 2 Flex Spacer
88 4 Roller Bearing
89 2 Roller
90 2 Roller Weld Spacer
91 1 Upper Lift Axle
92 1 Small Idler Pulley
93 1 Idler Flex Spacer
94 2 Idler Bearing
95 2 Lift Bushing
96 2 Accent Ring
97 2 Shield Disc
98 1 Left Outer Shield
99 1 Left Inner Shield
100 1 Right Outer Shield
Key No. Qty. Description Key No. Qty. Description
PART LIST
Model No. NTEL71620.1 R0520A
32
101 1 Right Inner Shield
102 1 Left Outer Cover
103 1 Left Inner Cover
104 1 Right Outer Cover
105 1 Right Inner Cover
106 2 Disc Cap
107 1 Right Inner Disc
108 1 Left Slot Cover
109 1 Right Slot Cover
110 1 Access Cover
111 1 Accessory Tray
112 1 Upper Upright Cover
113 2 Magnet
114 1 Left Upright Cover
115 1 Right Upright Cover
116 1 Lower Upright Cover
117 12 M10 x 30mm Screw
118 6 M6 x 20mm Screw
119 4 M10 x 45mm Hex Bolt
120 2 M10 x 95mm Bolt
121 2 M10 x 20mm Hex Screw
122 6 M8 x 14mm Shoulder Screw
123 8 M10 x 25mm Screw
124 4 M10 x 45mm Screw
125 2 M10 x 60mm Screw
126 2 M10 x 35mm Screw
127 2 M10 x 100mm Bolt
128 6 M8 x 18mm Screw
129 13 M6 x 12mm Hex Screw
130 2 M10 x 70mm Bolt
131 4 Standoff
132 1 M10 x 68mm Bolt
133 8 M10 Locknut
134 4 M8 x 12mm Screw
135 1 M10 Small Washer
136 2 M5 Locknut
137 2 M10 Washer
138 4 M10 x 18mm Washer
139 5 M6 Washer
140 11 Clip
141 103 M4 x 16mm Screw
142 1 Drive Belt B
143 1 Idler Spacer
144 3 M3 x 6mm Screw
145 8 M4 x 16mm Truss Screw
146 1 M3.5 x 10mm Screw
147 6 M6 x 20mm Shoulder Screw
148 2 M4 x 12mm Screw
149 4 M8 Locknut
150 1 Ground Wire
151 1 Power Switch
152 1 Strain Relief
153 1 Right Control Extension Wire
154 2 Snap Ring
155 1 M8 Snap Ring
156 3 Ground Screw
157 8 M6 x 12mm Flat Head Screw
158 2 M12 x 62mm Bolt
159 2 M12 Locknut
160 1 M5 Washer
161 1 M8 x 16mm Flange Screw
162 1 M8 x 19mm Washer
163 2 Thrust Washer
164 1 M8 x 38mm Washer
165 1 M5 x 7mm Screw
166 14 M4 x 10mm Screw
* – User’s Manual
* – Assembly Tool
* – Grease Packet
Key No. Qty. Description Key No. Qty. Description
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
33
EXPLODED DRAWING A
157
129
12
5
4
50
18
18
19
13
15
17
20
20
21
23
23
28
30
25
22
22
24
27
36
39
35
37
40
40
41
43
48
44
49
51
117
117
11
24
27
19
21
124
144
141
141
141
141
141
156
141
129
141
141
141
141
141
141
129
123
123
141
147
118
118
138
119
57
150
153
154
157
30
32
31
122
46
34
33
121
137
30
30
32
32
31
122
122
154
52
58
16
38
141
138
119
14
37
38
47
45
42
26
29
25
9
141
Model No. NTEL71620.1 R0520A
34
EXPLODED DRAWING B
142
159
162
163
164
152
155
151
1
6
7
54
54
56
59
53
53
55
60
60
61
63
66
68
65
64
67
69
70
72
71
74
76
78
79
73
75
77
80
81
81
81
81
83
86
88
88
85
82
84
87
89
90
92
91
94
94
93
95
95
143
8
120
158
128
122
128
31
122
132
133
133
125
125
133
135
133
145
126
126
136
136
146
131
131
10
156
141
133
134
130
127
145
129
129
165
129
129
129
160
139
139
139
139
139
159
161
2
3
149
149
128
158
31
Model No. NTEL71620.1 R0520A
35
EXPLODED DRAWING C
141
141
141
96
96
98
99
97
97
100
101
103
105
102
104
106
106
62
107
108
110
112
114
115
116
109
111
113
113
141
141
141
141
141
141
141
141
141
141
141
141
141
141
141
141
141
141
166
166
141
10
10
10
166
141
166
141
166
10
141
10
10
166
166
141
141
148
148
140
140
141
141
141
141
141
141
141
Model No. NTEL71620.1 R0520A
