USER’S MANUAL
Model No. NTEL71625-INT.0
Serial No.
Write the serial number in the space
above for reference.
iconeurope.com
Serial
Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
UNITED KINGDOM
Website: iFITsupport.eu
E-mail: [email protected]
Write:
iFIT Health & Fitness Limited
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iFIT.com
Write:
iFIT Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE ELLIPTICAL ..............................................................14
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
MAINTENANCE AND TROUBLESHOOTING .....................................................26

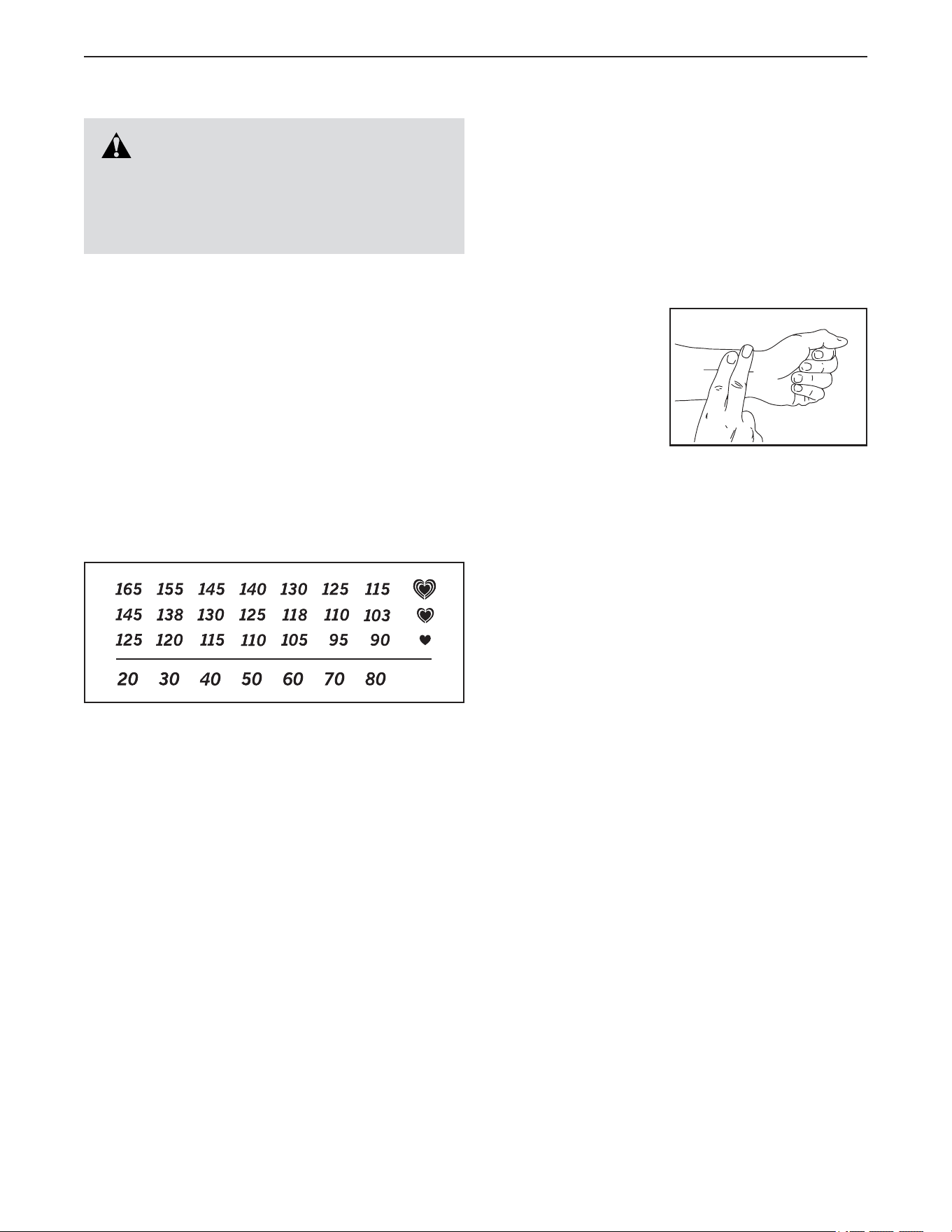

EXERCISE GUIDELINES ....................................................................28
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

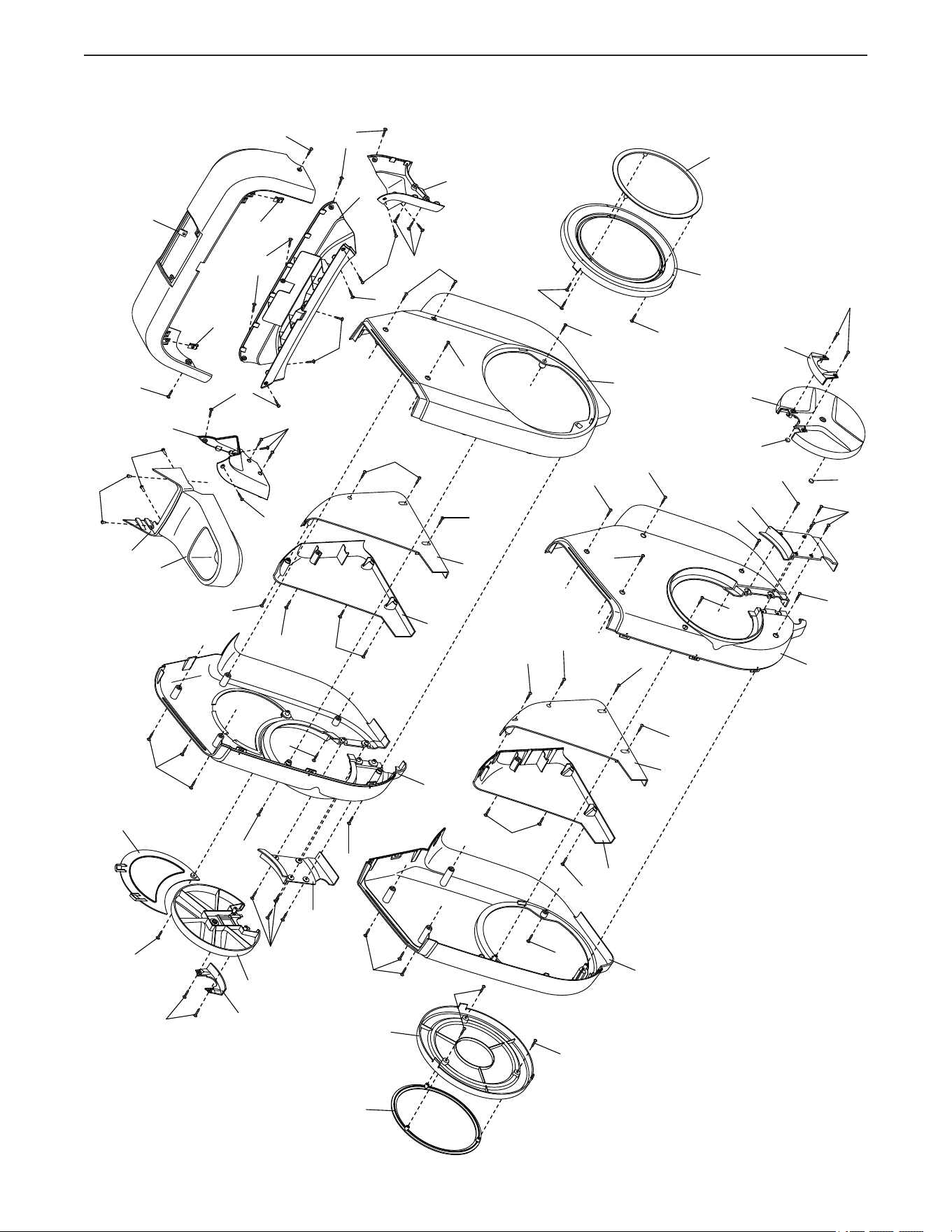

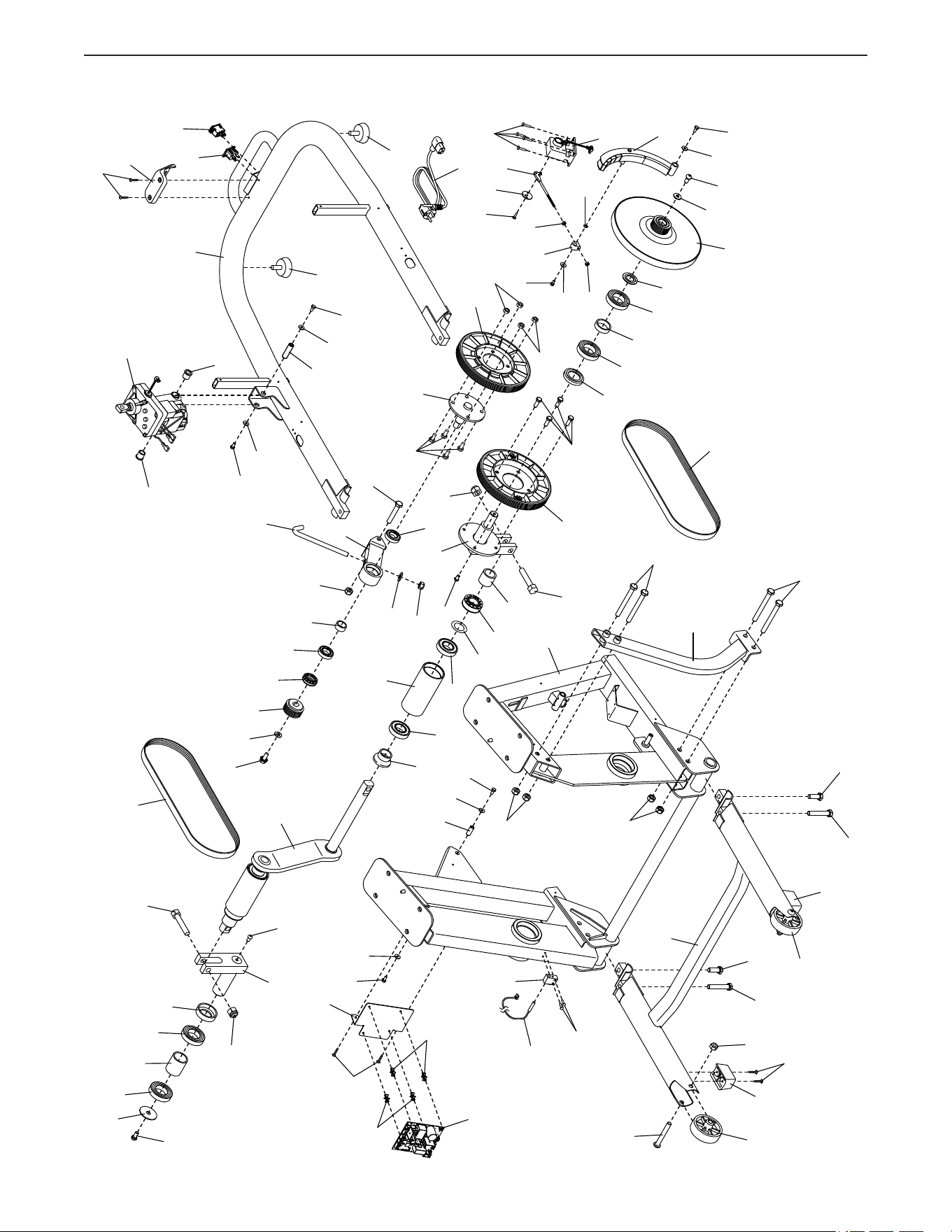

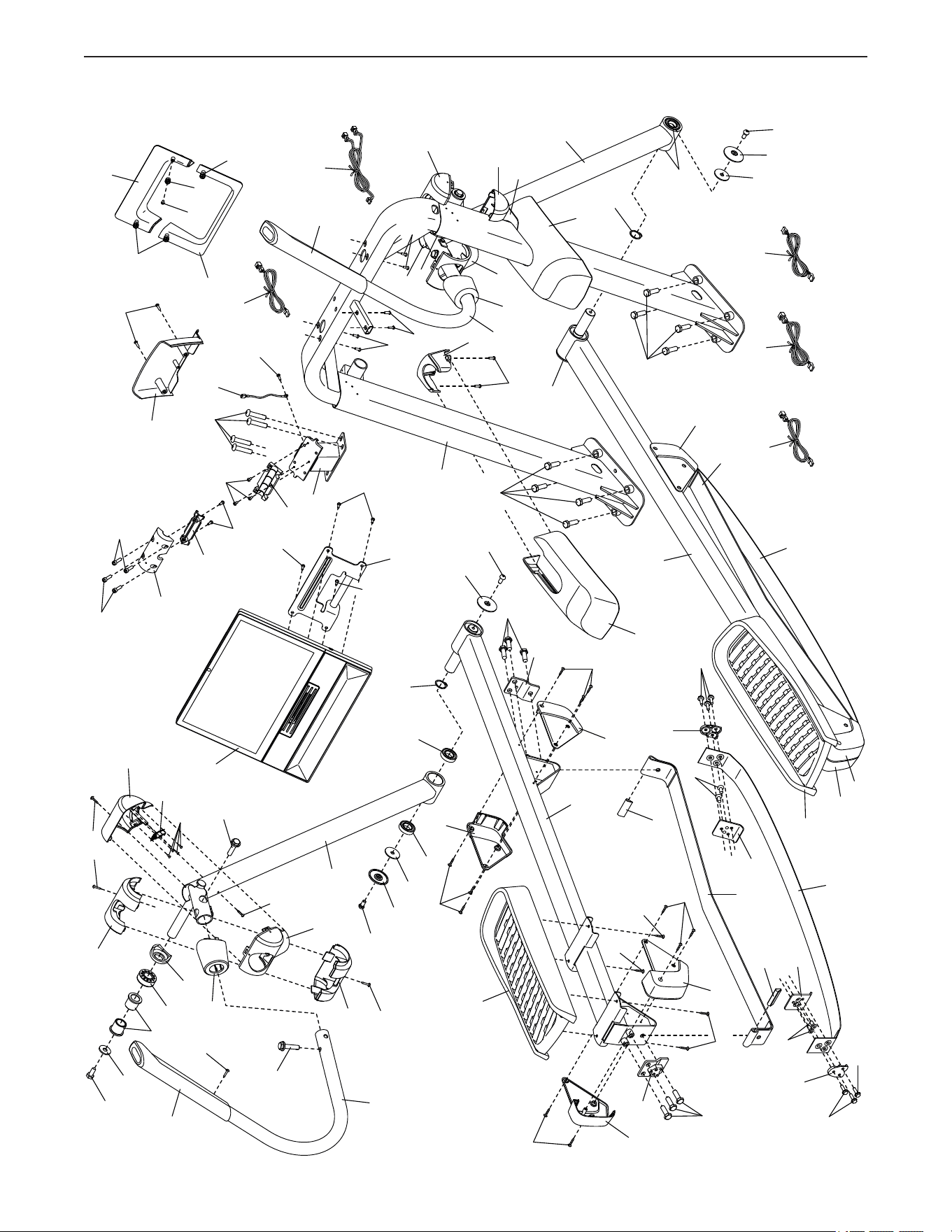

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
ORDERING REPLACEMENT PARTS .................................................. Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
UK/EU DECLARATION OF CONFORMITY .............................................. Back Cover
NORDICTRACK and IFIT are registered trademarks of iFIT Inc. The Bluetooth
®
word mark and logos are regis-
tered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trademark of Google LLC.
Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance.

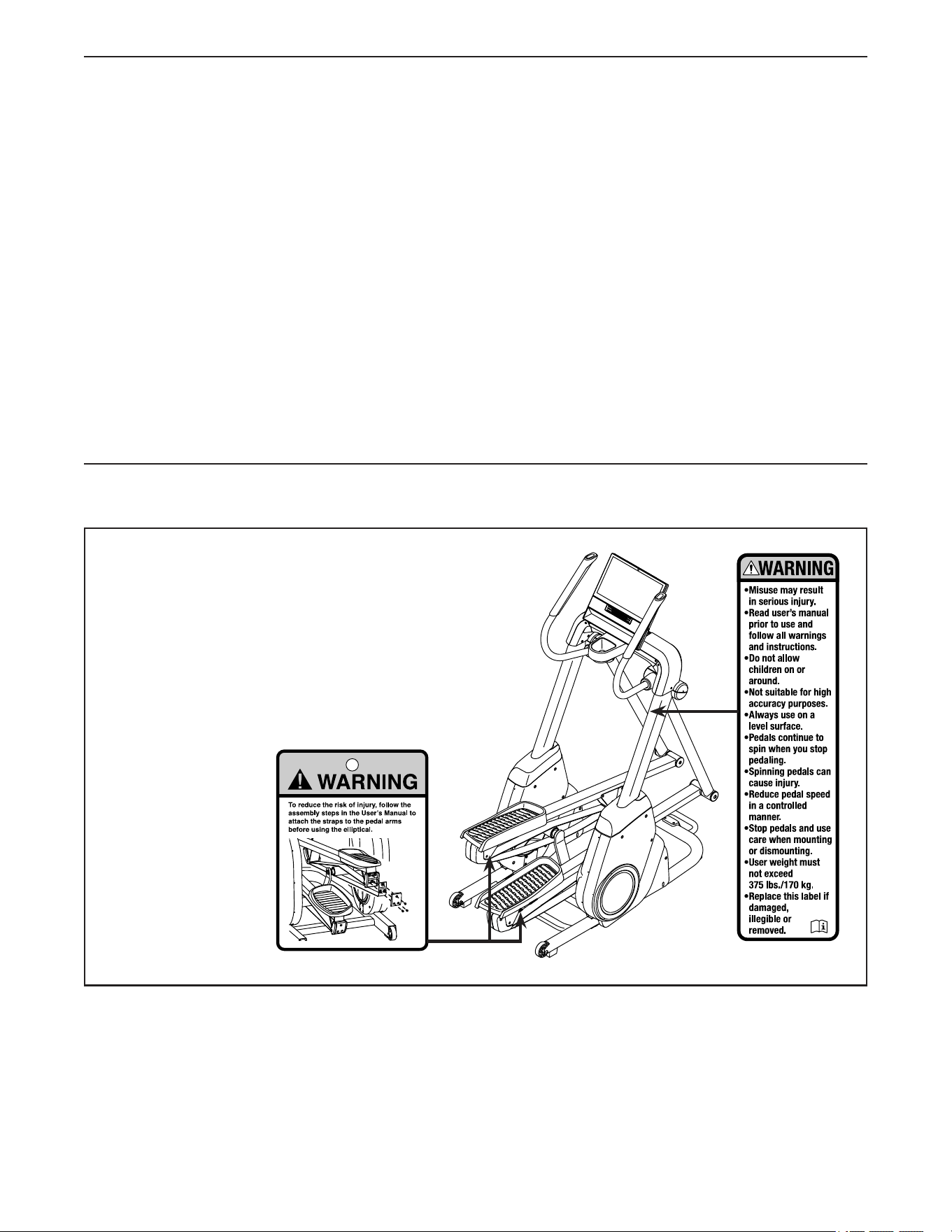

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover
of this manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.
3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. iFIT assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Keep children under age 16 and pets away
from the elliptical at all times.
3. Consult your health care provider before
beginning any exercise program. This is
especially important for persons over age 35
or persons with pre-existing health problems.
4. Consult your health care provider before
beginning or continuing any exercise pro-
gram during pregnancy. Use the elliptical
only as authorized by your health care
provider.
5. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
6. Use the elliptical only as described in this
manual.
7. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
8. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
9. Place the elliptical on a level surface, with at
least 4 ft. (1.2 m) of clearance in the front of
the elliptical, 6 ft. (1.8 m) in the rear, and 2 ft.
(0.6 m) on each side. To protect the floor or
carpet from damage, place a mat under the
elliptical.
10. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.

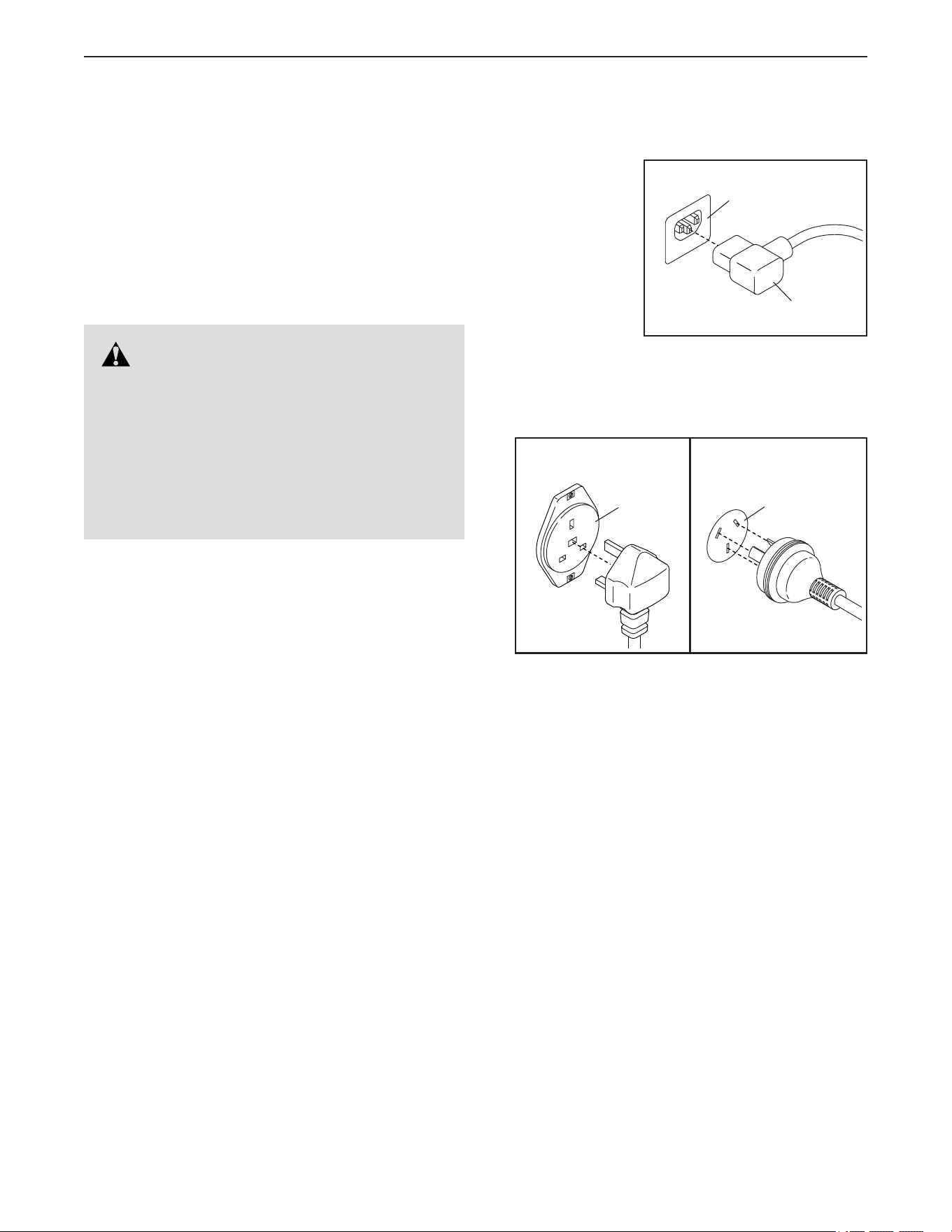

11. When connecting the power cord (see
page 14), plug the power cord into a
grounded circuit.
12. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
13. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
14. DANGER: Always unplug the power
cord and switch the power switch to the off
position when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should be
performed by an authorized service repre-
sentative only.
15. The elliptical should not be used by persons
weighing more than 375 lbs. (170 kg).
16. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
4
17. Hold the handlebars when mounting, dis-
mounting, or using the elliptical. Before
mounting or dismounting, bring the pedals
to a stop with the pedal on the mounting or
dismounting side in its lowest position.
18. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
19. Keep your back straight while using the
elliptical; do not arch your back.
20. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS
5
Thank you for selecting the revolutionary
NORDICTRACK
®
X16 elliptical. The X16 elliptical pro-
vides a large selection of features designed to make
your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us (see
the front cover of this manual).

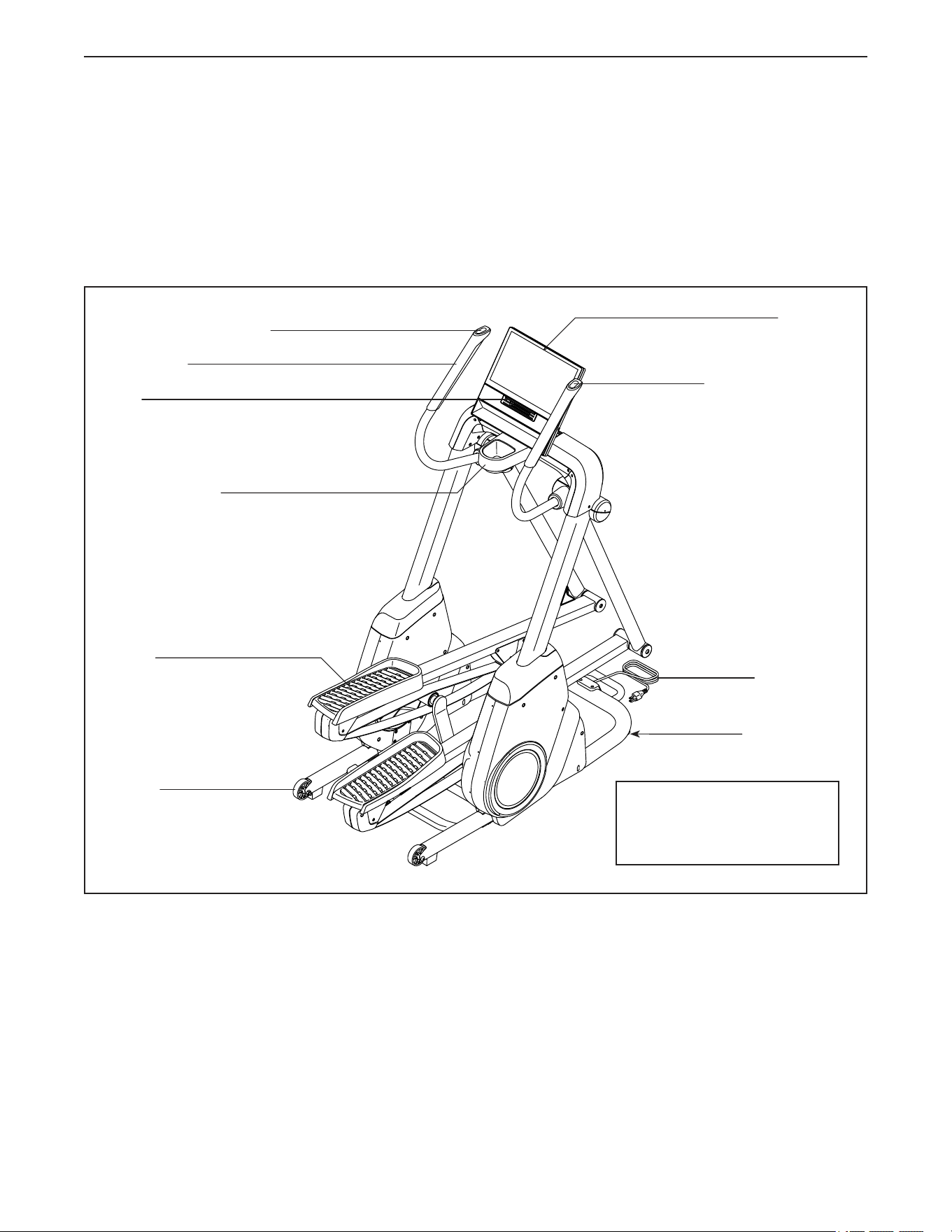

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handlebar
Fan
Incline/Decline Control
Resistance Control
Accessory Tray
Console
BEFORE YOU BEGIN
Wheel
Leveling Foot
Power Cord
Length: 4 ft. 11 in. (150 cm)
Width: 2 ft. 6 in. (76 cm)
Weight: 240 lbs. (109 kg)
Pedal
6

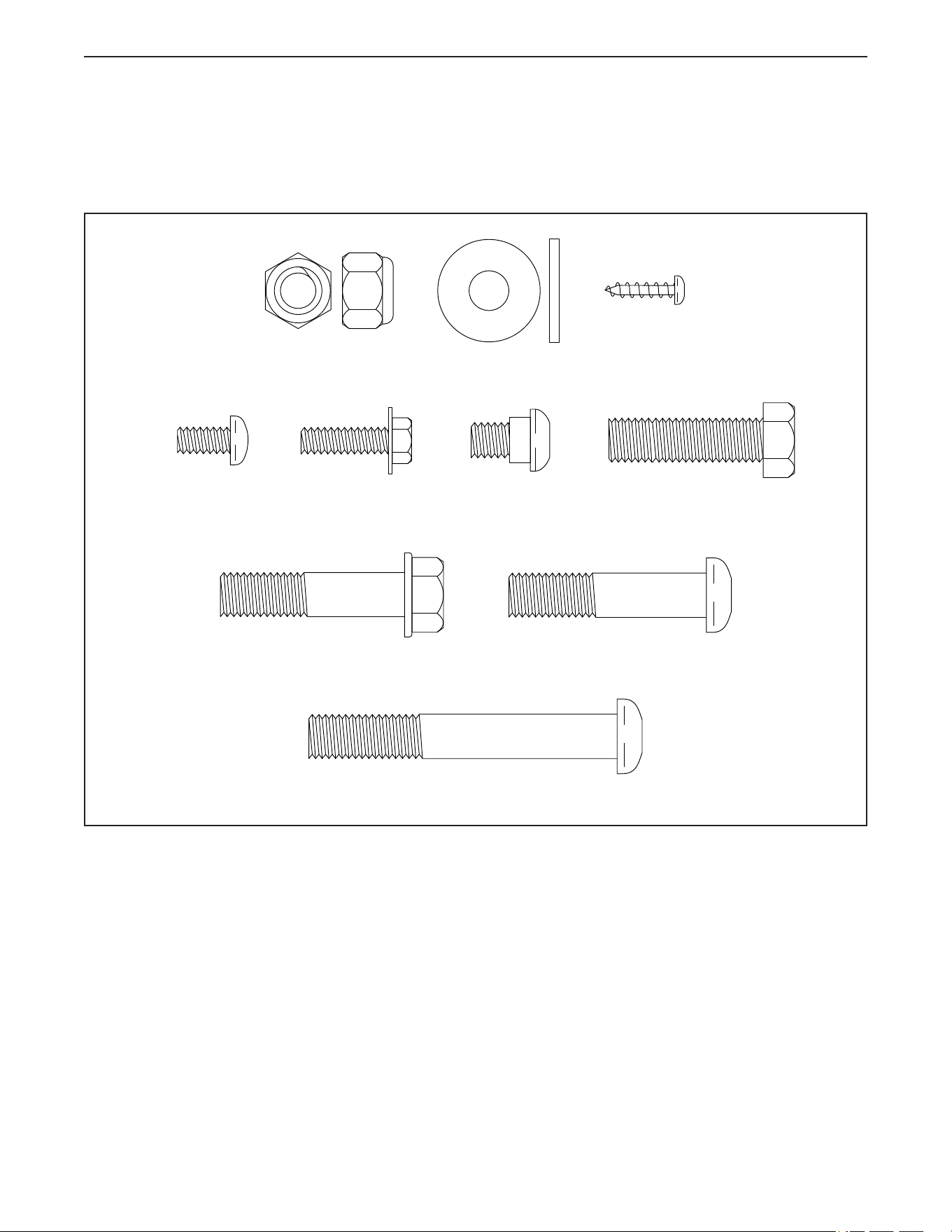

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number after the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it
has been preassembled. Extra parts may be included.
M4 x 16mm
Screw
(141)–20
M10 Locknut
(133)–2
Axle Washer
(31)–2
M10 x 45mm Screw
(124)–4
M10 x 70mm Bolt (130)–2
M8 x 14mm
Shoulder Screw
(122)–2
M6 x 20mm
Screw
(118)–6
M10 x 35mm Screw
(123)–8
M6 x 12mm
Pan Head Screw
(138)–4
M10 x 42mm Bolt
(119)–4
7
• Assembly requires two or three persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• Assembly can be completed using the included
tools. Note: Your own rubber mallet may also be
helpful; however, be careful to not break plastic
parts with the rubber mallet.
ASSEMBLY
3
130
53
53
133

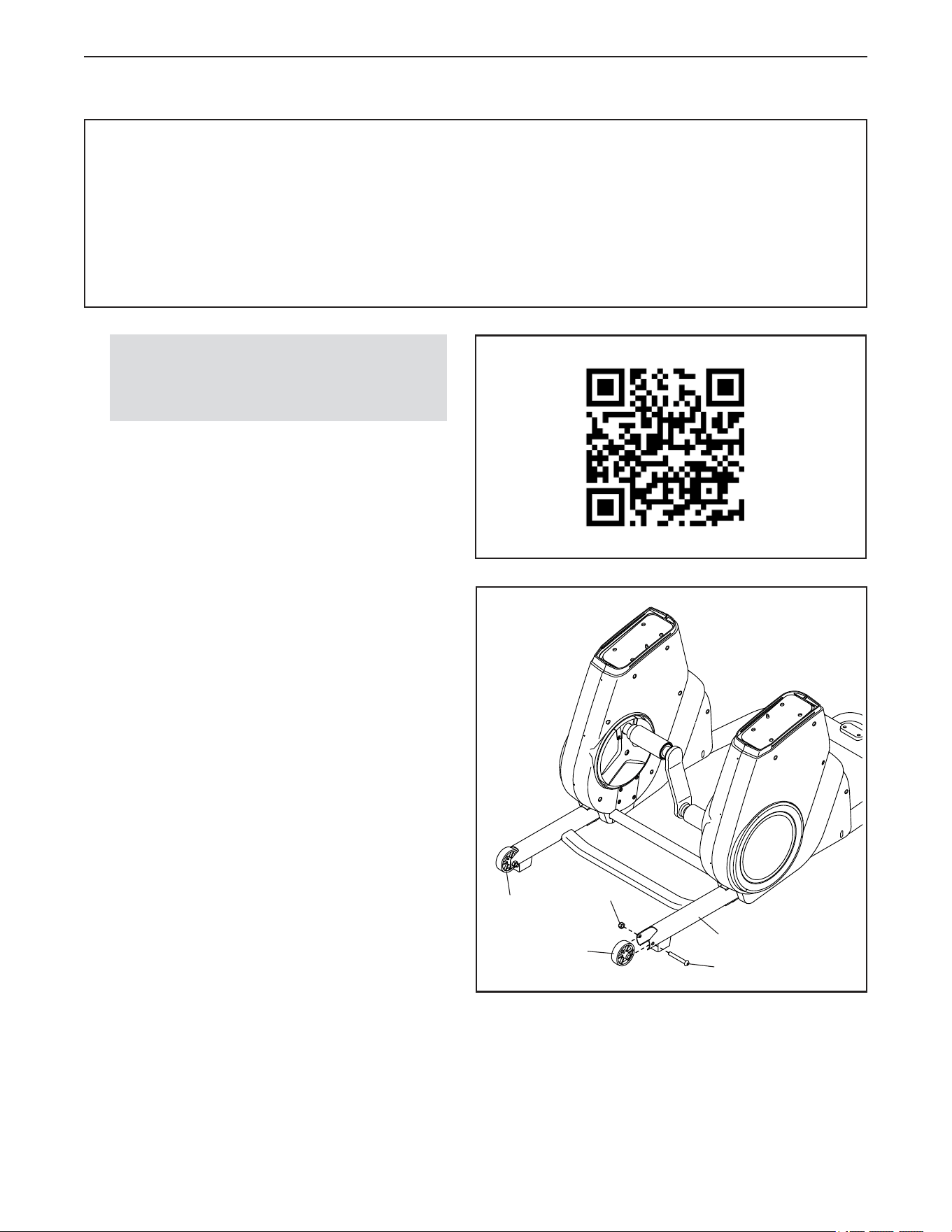

2. Attach a Wheel (53) to the Stabilizer (3) with an
M10 x 70mm Bolt (130) and an M10 Locknut
(133); do not overtighten the Locknut; the
Wheel should turn freely.
Attach the other Wheel (53) in the same way.
2
1.
For assistance with assembly, scan
the QR code at the right and watch the
assembly video.
1
8
3. Do not pinch the wires. With the help of one or
two other people, set the Upright (4) on the pins
(A) on the Frame (2).
Attach the Upright (4) with eight M10 x 35mm
Screws (123); start all eight Screws, and then
tighten them.
Then, connect the 41" Wire (52) in the Upright
(4) to the 17" Wire (51) in the Frame (2).
IMPORTANT: The wire connectors should
slide together easily and snap into place
with an audible click. You must connect the
wires properly for your console to function
properly.

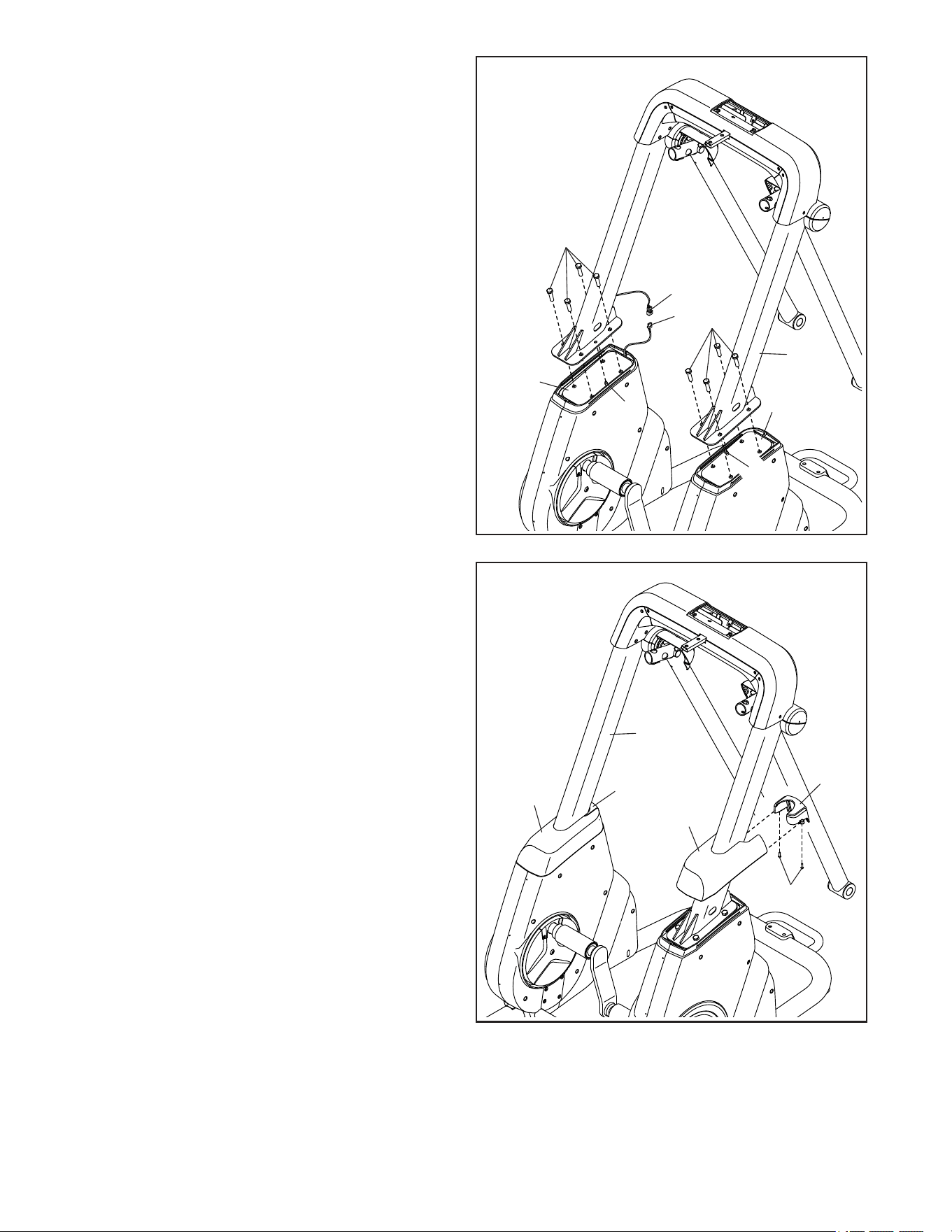

4. Identify the Right Shield Cover (36) and the
Right Front Shield Cover (47). Attach them
around the right side of the Upright (4) with
two M4 x 16mm Screws (141). Then, press the
Shield Covers into place.
Do not pinch the wires. Attach the Left Shield
Cover (35) and the Left Front Shield Cover
(43) around the left side of the Upright (4) in
the same way.
4
35
36
47
141
43
3
4
4
2
2
A
52
51
123
123
A
Do not
pinch the
wires
Do not
pinch the
wires
9
12
14
15
13
23
21
22
14
19
31
30
122
Grease
5
6
118

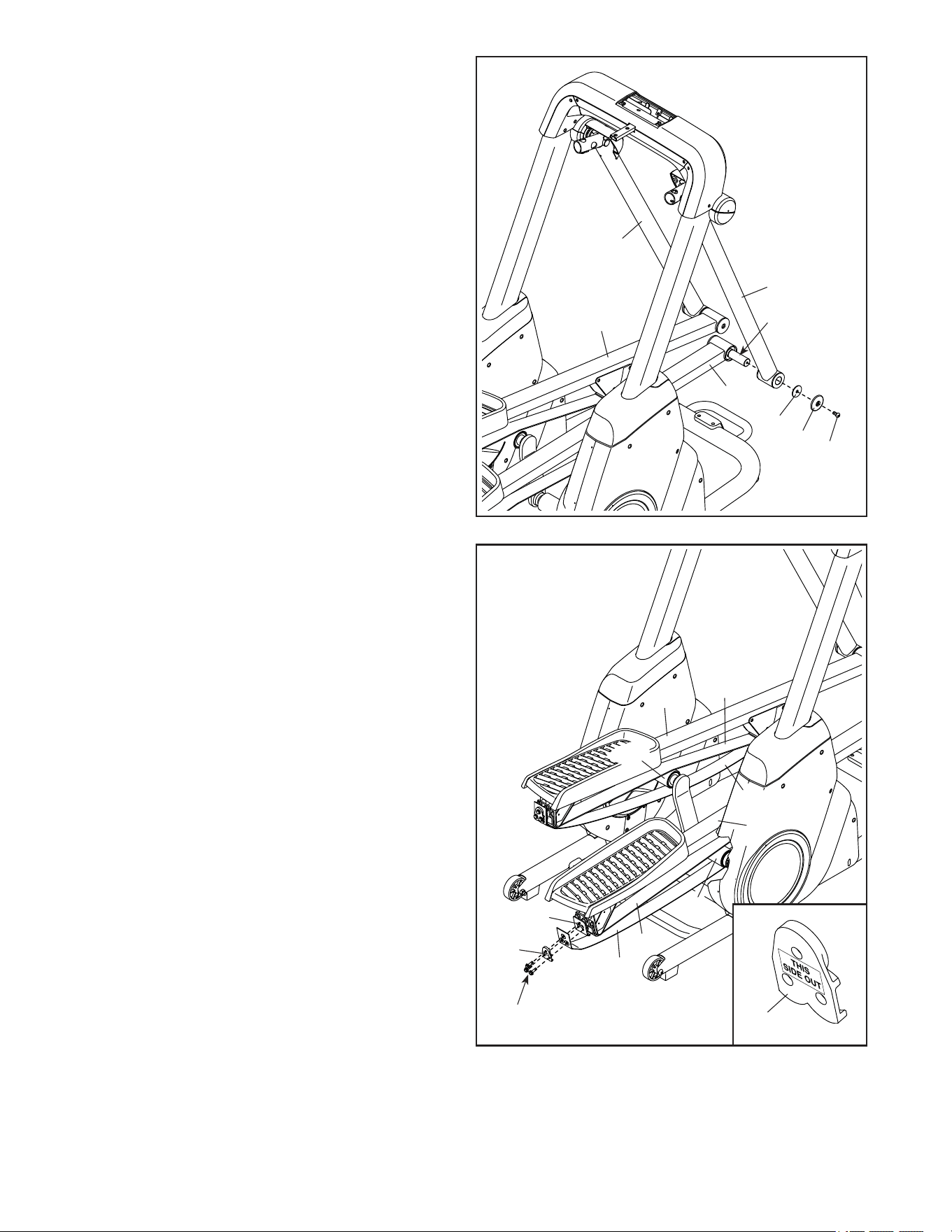

5. Identify the Right Pedal Arm (15). Using a plastic
bag to keep your fingers clean, apply a generous
amount of the included grease to the axle on the
Right Pedal Arm.
Next, insert the axle on the Right Pedal Arm (15)
into the Right Pivot Leg (13) from the direction
shown.
Attach the Right Pedal Arm (15) with an
M8 x 14mm Shoulder Screw (122), an Axle
Cover (30), and an Axle Washer (31).
Attach the Left Pedal Arm (14) to the Left
Pivot Leg (12) in the same way.
6. Identify the Strap (21) on the Right Pedal Arm
(15). Route the Strap under the Roller (89);
make sure that the Strap is not twisted.
Make sure that the Glide Belt (19) on the
Right Pedal Arm (15) is resting on top of the
Roller (89) and that the Strap (21) is routed
under the Roller.
Note: It may be helpful to have a second
person press downward on the Right Pedal
Arm (15) while you perform the following
action.
Orient a Strap Clamp (23) as shown in the
inset drawing. Attach the Strap (21) to the
Strap Bracket (22) on the Right Pedal Arm (15)
with three M6 x 20mm Screws (118) and the
Strap Clamp; start all three Screws, and then
tighten them.
Repeat this step for the Left Pedal Arm (14).
19
89
23
21
15
89
10
141
141
57
50
7
8
24
25
14
17
16
17
40
40
44
45
44
119
119

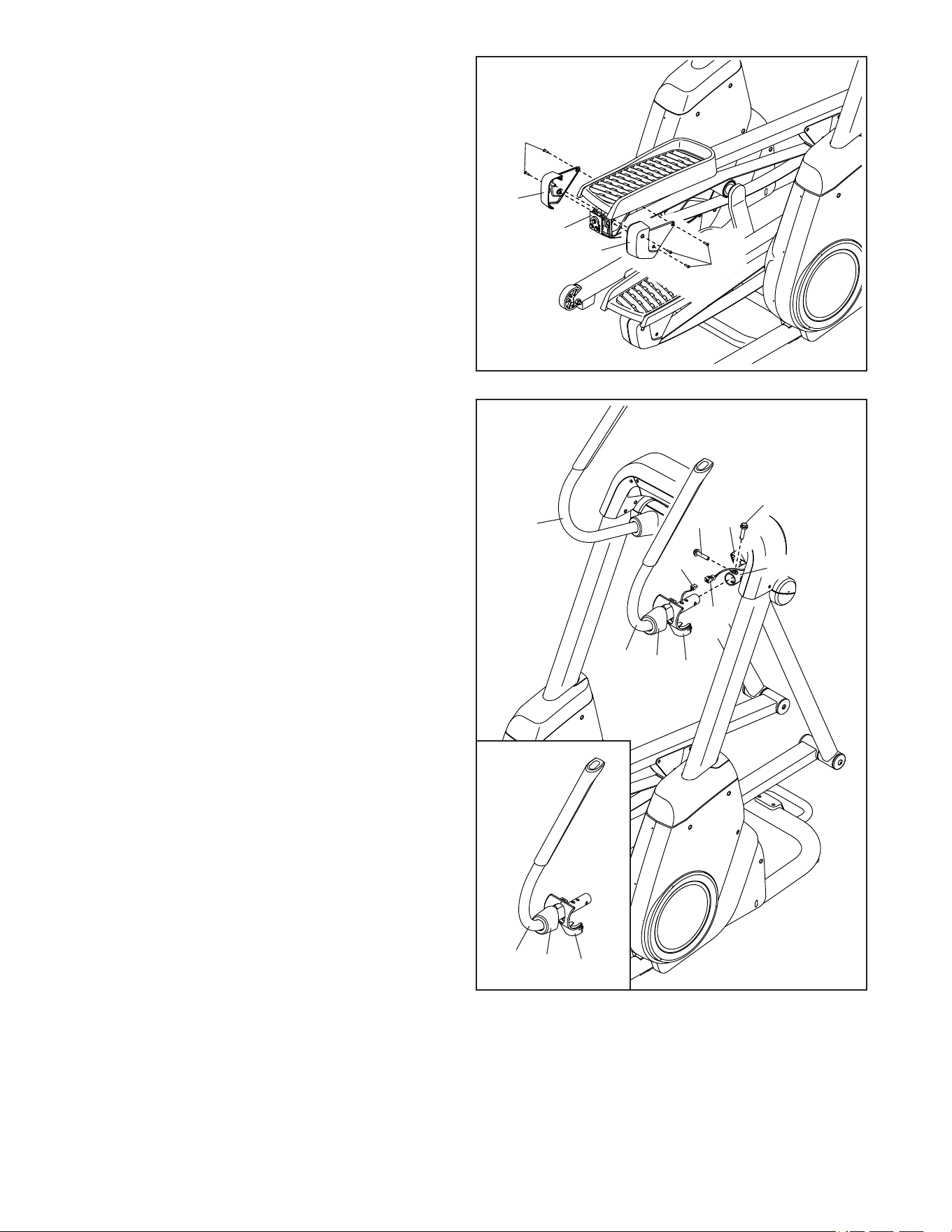

8. See the inset drawing. Identify the Right
Handlebar (17), a Handlebar Cover (40), and the
Right Rear Leg Cover (44). Slide the Handlebar
Cover and the Right Rear Leg Cover onto the
Right Handlebar.
While a second person holds the Right
Handlebar (17) in the position shown, con-
nect the Right Control Wire (50) to the Control
Extension Wire (57). IMPORTANT: The wire
connectors should slide together easily and
snap into place with an audible click. You
must connect the wires properly for your
elliptical to function properly.
Avoid pinching the wires. Insert the Right
Handlebar (17) into the Right Pivot Leg (13),
and attach it with two M10 x 42mm Bolts (119);
firmly tighten the Bolts.
Then, press the Right Rear Leg Cover (44) onto
the Right Front Leg Cover (45), and insert the
connectors on the Wires (50, 57) into the
Covers. Then, slide the Handlebar Cover (40)
into place.
Repeat this step for the Left Handlebar (16).
7. Identify a Left Rear Belt Cover (24) and a Right
Rear Belt Cover (25). Attach these parts to the
Left Pedal Arm (14) with five M4 x 16mm Screws
(141); start all five Screws, and then tighten
them.
Repeat this step on the right side of the
elliptical.
Do not pinch
the wires
13
11
11
10
124
169
174
141
141
111
9

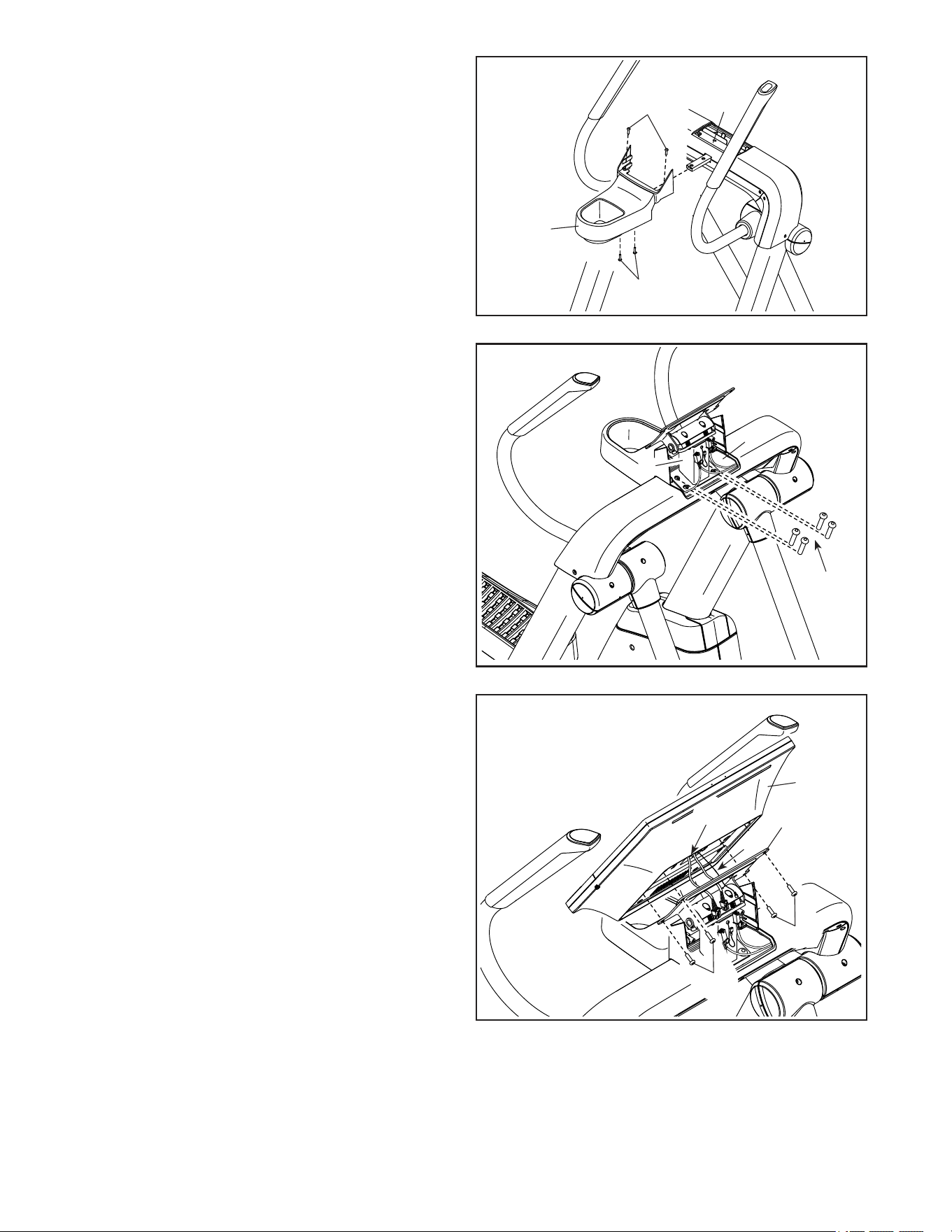

9. Attach the Accessory Tray (111) to the Upright
(4) with two M4 x 16mm Screws (141) from
below.
Then, finish attaching the Accessory Tray (111)
with two more M4 x 16mm Screws (141).
4
10. Do not pinch the wires. Orient the Console
Mount (5) as shown, and set it on the Upright
(4). Attach the Console Mount with four M10 x
45mm Screws (124); start all four Screws, and
then tighten them.
11. Hold the Console (174) near the Console
Bracket (169). Insert the two console wires (B)
and the console ground wire (C) through the
opening in the Console Bracket.
Do not pinch the wires. Attach the Console
(174) to the Console Bracket (169) with four
M6 x 12mm Pan Head Screws (138); start all
four Pan Head Screws, and then tighten
them.
4
C
B
138
138
5
12

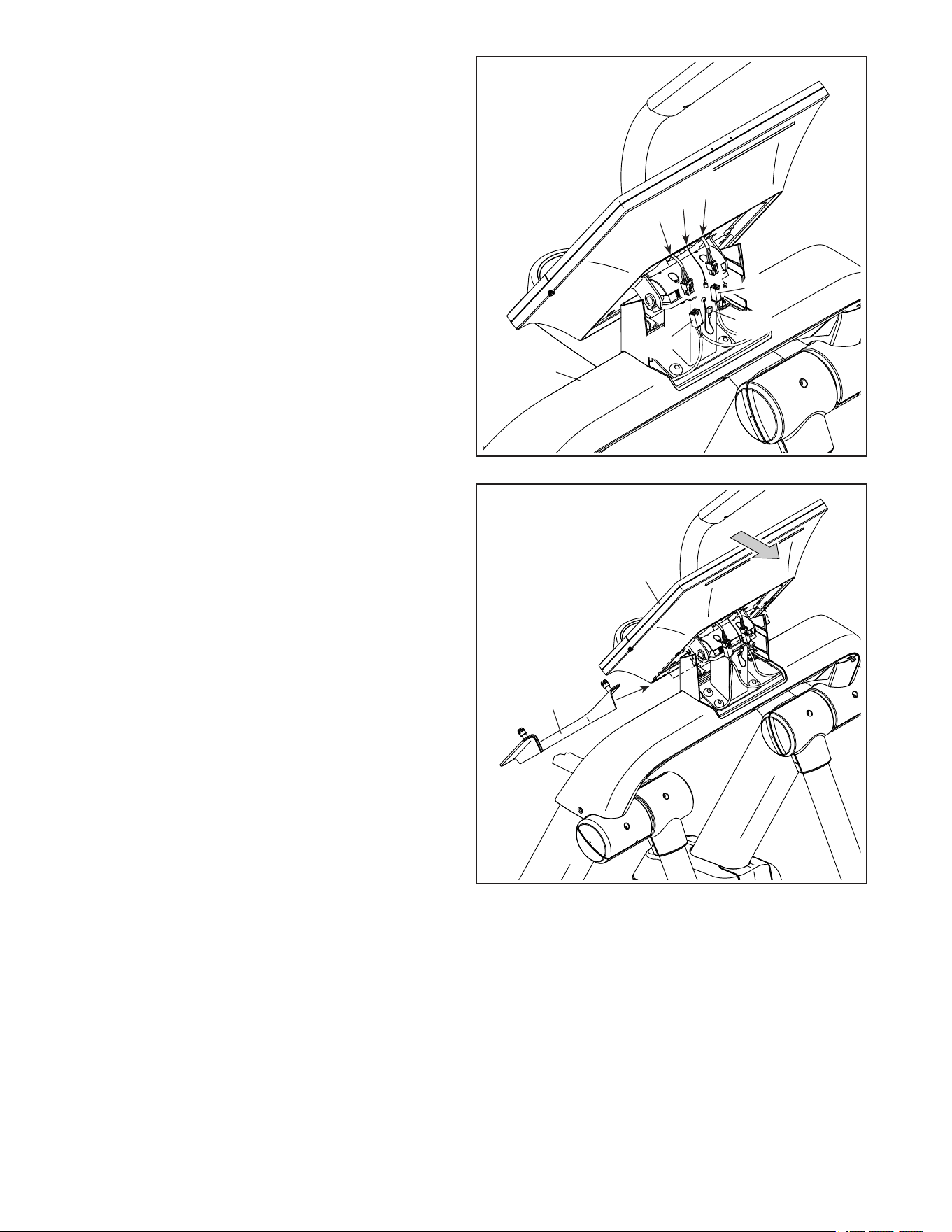

12. Connect the console ground wire (C) to the
Ground Wire (150).
Next, connect the two console wires (B) to the
Control Extension Wire (57) and the Upright
Wire (153). IMPORTANT: The wire connectors
should slide together easily and snap into
place with an audible click. You must connect
the wires properly for your elliptical to func-
tion properly.
Then, insert the excess wire into the Upper
Upright Cover (112).
12
B
C
B
57
112
153
150
13. Tilt the top of the Console (174) forward, and
then press the Lower Console Cover (176) onto
the back of the Console (174).
13
176
174
13
16. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor. To avoid damage to the console, keep the console out
of direct sunlight. Keep the included tools in a secure place; one or more of the tools may be needed to make
adjustments in the future.

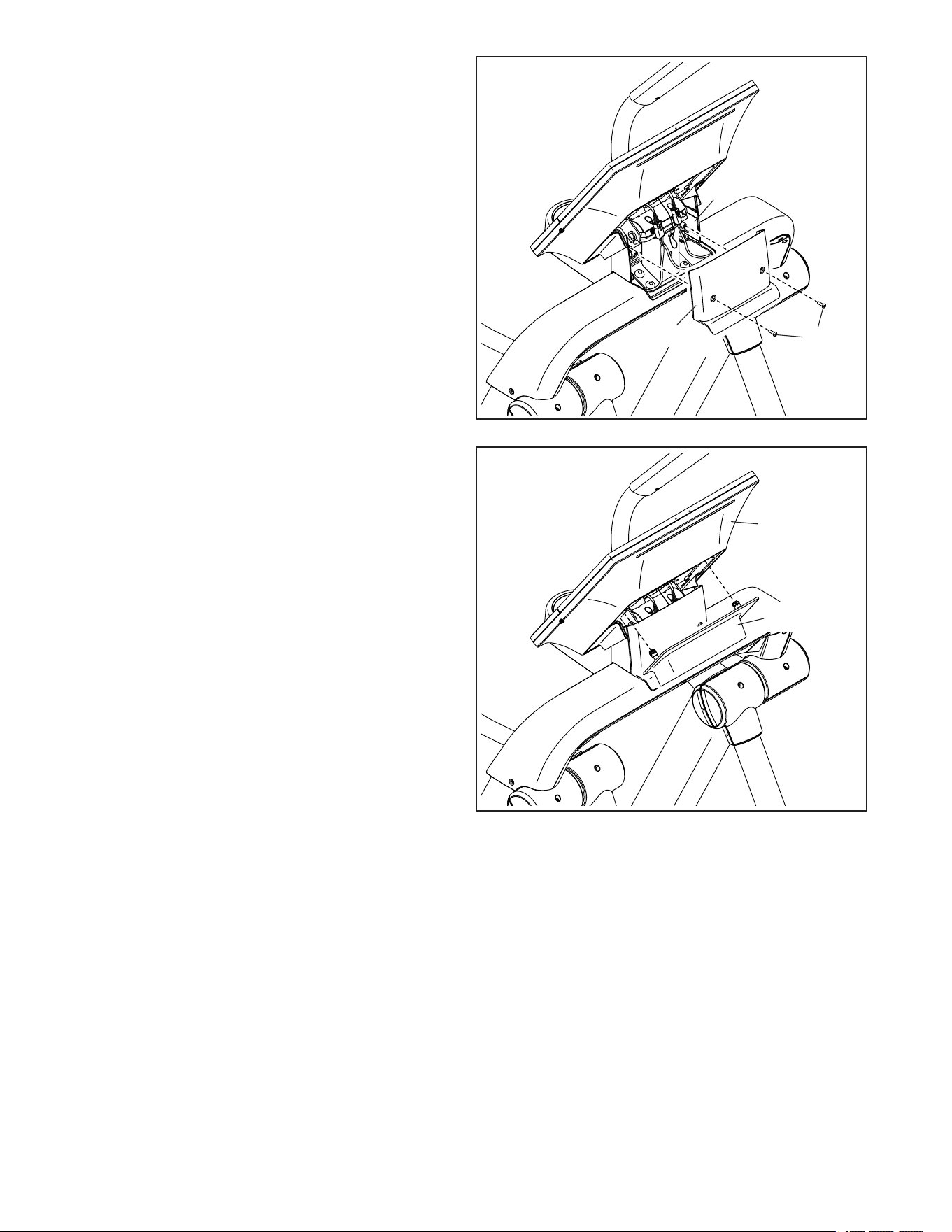

14. Do not pinch the wires. Attach the Large Mount
Cover (48) to the Small Mount Cover (178) with
two M4 x 16mm Screws (141).
14
141
178
15. Press the Upper Console Cover (175) onto the
back of the Console (174).
15
174
48
175
Do not
pinch the
wires
14
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should
malfunction or break down, earthing provides a path of
least resistance for electric current to reduce the risk
of electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.
1. Plug the
indicated end
of the power
cord (A) into
the receptacle
(B) on the
frame.
2. Plug the power cord into an appropriate outlet (C)
that is properly installed and earthed in accordance
with all local codes and ordinances.
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
B
A
C
UK
Australia
C
15

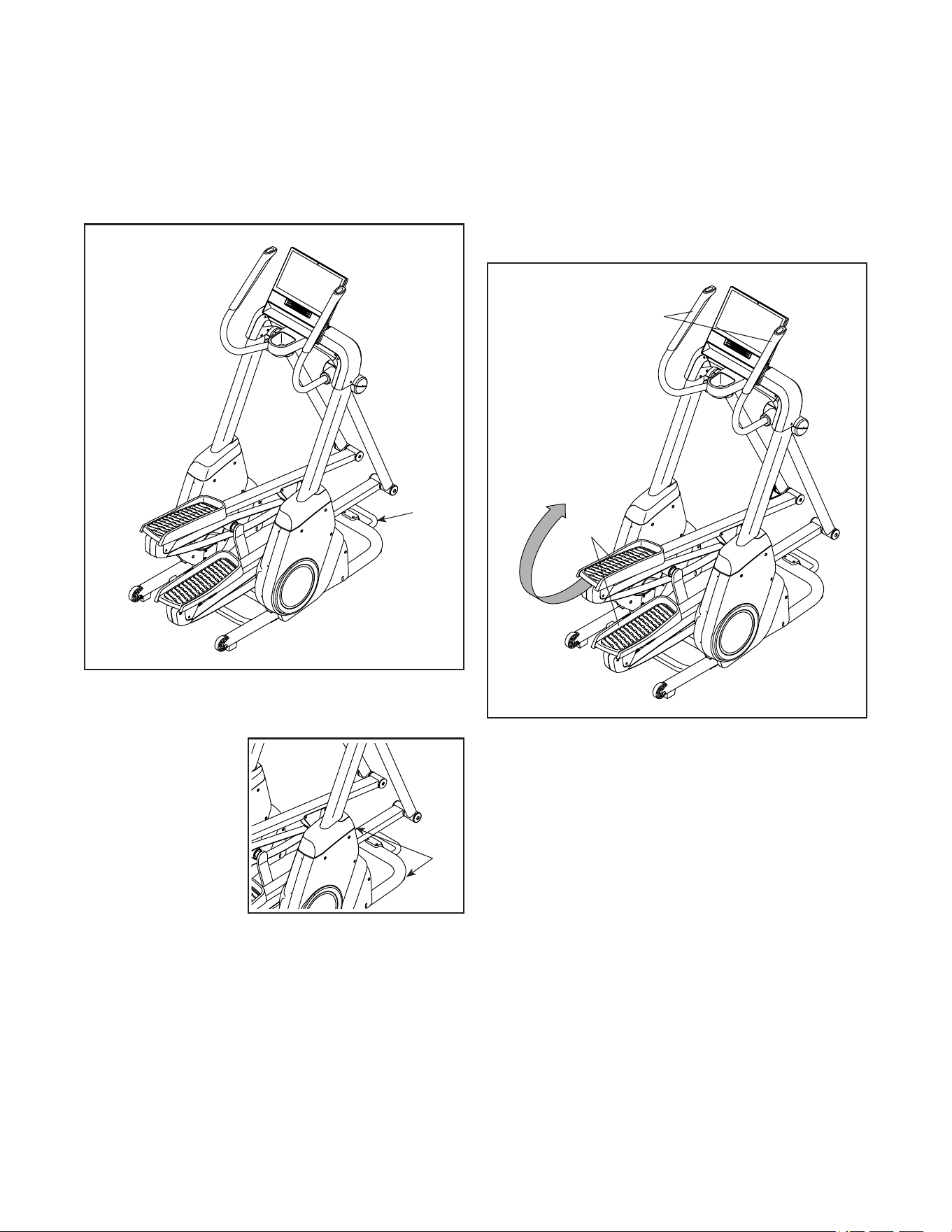

HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Take any necessary mea-
sures to avoid damaging your floor. Stand in front of
the elliptical and lift the handle (G) until the elliptical will
roll on the wheels. Carefully move the elliptical to the
desired location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your
floor during use,
turn one or both of
the leveling feet (J)
beneath the front of
the base until the
rocking motion is
eliminated.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars (H) and
step onto the pedal (I) that is in the lower position.
Then, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion. Note:
The pedals can turn in either direction. It is recom-
mended that you turn the pedals in the direction
shown by the arrow; however, for variety, you can
turn the pedals in the opposite direction.
To dismount the elliptical, wait until the pedals (I) come
to a complete stop. Note: The elliptical does not
have a freewheel; the pedals will continue to move
until the flywheel stops. When the pedals are station-
ary, step off the higher pedal first. Then, step off the
lower pedal.
G
J
I
H
16
HOW TO USE THE CONSOLE
IMPORTANT: iFIT will periodically update your
console’s software to improve your workout expe-
rience. After a software update, some settings and
features described in this manual may no longer apply
to your console, and your console may have new set-
tings and features. Take time to explore your console’s
settings and features. If you have questions, please
visit my.iFIT.com or contact Member Care.

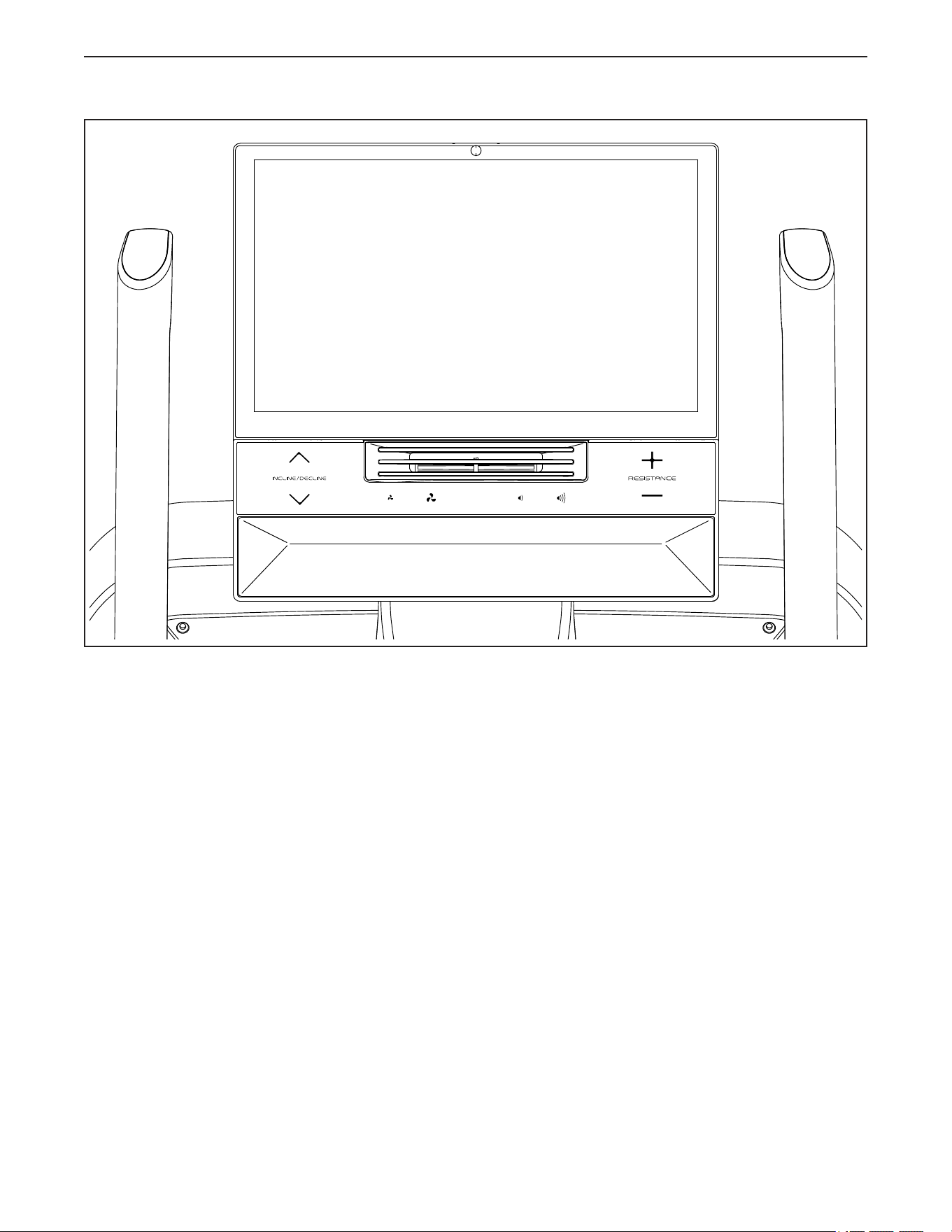

FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the
incline of the frame with a touch of a button. While you
exercise, the console will display continuous exercise
feedback.
The console also features wireless technology that
enables the console to connect to iFIT
®
. With iFIT,
you can choose from a changing selection of featured
workouts that automatically control the resistance of
the pedals and the incline of the frame as iFIT trainers
guide you through immersive exercise sessions.
With an iFIT subscription, you can access a library
of thousands of on-demand destination and studio
workouts, create your own workouts, track your work-
out results, and access many other features. Go to
iFIT.com to learn more.
To turn on and turn off the console, see page 17. To
learn how to use the touch screen, see page 17. To
set up the console, see page 18.
17
HOW TO TURN ON THE CONSOLE
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the console. If you do
not do this, you may damage the console or other
electrical components.
Plug in the power cord (see
page 14). Next, locate the power
switch on the frame near the
power cord. Press the power
switch to the reset position (A).
The console will then turn on.
Note: It may take a moment
for the console to be ready
for use. When you turn on the console for the rst
time, the incline system may calibrate automati-
cally. The frame will move upward and downward as
it calibrates. When the frame stops moving, the incline
system is calibrated.
IMPORTANT: If the incline system does not
calibrate automatically, see step 5 on page 18 and
manually calibrate the incline system.
HOW TO TURN OFF THE CONSOLE
When you are finished exercising, press the power
switch to the off position and unplug the power cord.
IMPORTANT: If you do not do this, the electrical
components of the elliptical may wear prematurely.
HOW TO USE THE TOUCH SCREEN
The console features an advanced tablet with a full-
color touch screen. You can slide or flick your finger
against the screen to move images on the screen,
such as the displays in a workout. Note: The screen is
not pressure sensitive; you do not need to press hard.
To type information into a text box, touch the text box
to view the keyboard. To use numbers or other charac-
ters, touch ?123. To view more characters, touch ~[<.
To return to the letter keyboard, touch ABC. To use a
capital character, touch the shift button (upward-facing
arrow symbol). To clear text, touch the clear button
(backward-facing arrow with an X).
A
18
HOW TO SET UP THE CONSOLE
Before you use the elliptical for the first time, set up the
console.
1. Connect to your wireless network.
To use iFIT workouts and to use several other
features of the console, the console must be con-
nected to a wireless network. Follow the prompts
on the screen to connect the console to your wire-
less network.
2. Customize settings.
Follow the prompts on the screen to set the desired
unit of measurement and your time zone.
Note: To change these settings or other settings
later, see page 23.
3. Create or log in to your iFIT account.
Follow the prompts on the screen to create an iFIT
account or to log in to your iFIT account. Available
subscription options will be shown.
4. Check for firmware updates.
Touch the menu button (three horizontal lines
symbol), touch Settings, touch Maintenance, and
then touch Update. The console will check for firm-
ware updates. For more information, see HOW TO
CHANGE CONSOLE SETTINGS on page 23.
Firmware updates are always designed to
improve your exercise experience. As a result,
new settings and features may not be described
in this manual. Take time to explore the console
to learn how new settings and features work.
Also, some settings and features described in this
manual may no longer be enabled.
5. Calibrate the incline system.
Touch the menu button (three horizontal lines
symbol), touch Settings, touch Maintenance, and
then touch Calibrate Incline. The frame will rise
and descend as it calibrates. For more information,
see HOW TO CHANGE CONSOLE SETTINGS on
page 23.
The console is now ready for you to begin working out.
The following pages explain the workouts and other
features that the console offers.
To use the manual mode, see page 19. To use a
featured workout, see page 20. To create a draw-
your-own-map workout, see page 21. To use an iFIT
workout, see page 22.
To change console settings, see page 23. To
connect to a wireless network, see page 24.
Note: If there is a sheet of plastic on the screen,
remove the plastic.
19
HOW TO USE THE MANUAL MODE
1. Select the home screen.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
2. Get ready for the workout.
Touch Manual Start and begin pedaling. A warm-up
period will begin.
To use the fan, see page 25.
To use a heart rate monitor, see page 25.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
Touch End Warmup or pedal until the warm-up
period ends to start the workout.
You can change the resistance of the pedals in the
following ways:
• Press the Resistance increase and decrease
buttons on the console.
• Press the Resistance increase and decrease
buttons on the right handlebar.
• Touch the resistance sliders on the screen.
You can vary the motion of the pedals in the
following ways.
• Press the Ramp increase and decrease buttons
on the console.
• Press the Ramp increase and decrease buttons
on the left handlebar.
• Touch the incline sliders on the screen.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resis-
tance level or for the ramp to reach the selected
incline level.
Note: To view the resistance or incline sliders on
the screen, touch the screen in any open space
and then touch the controls options to enable this
feature.
4. Follow your progress.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown.
Drag upward on the screen to enter the fullscreen
display mode. Drag downward on the screen to
view the workout information displays.
Touch the various workout information displays
to view more options. Touch the more button
(
+
symbol) to view statistics or charts. Touch the
screen in any open space to view even more dis-
play mode options.
If desired, adjust the vol-
ume level by pressing the
Vol increase and decrease
buttons.
5. Pause or end the workout.
To pause the workout, touch the screen and touch
the pause icon or simply stop pedaling. To continue
the workout, touch the start icon or simply resume
pedaling.
To end the workout session, touch the screen,
touch the pause icon, and then follow the prompts
on the screen to end the workout and return to the
home screen.
6. When you are finished exercising, turn off the
console (see page 17).
20
HOW TO USE A FEATURED WORKOUT
To use a featured workout, the console must be con-
nected to a wireless network (see page 24).
1. Select the home screen or the workout library.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
To select the workout library, touch Browse.
2. Select a workout.
To select a workout from the home screen or the
workout library, simply touch the desired workout
button on the screen. Slide or flick the screen to
scroll as necessary.
The featured workouts on your console will change
periodically. To save one of the featured workouts
for future use, you can add it as a favorite by touch-
ing the favorites button (heart symbol). You must
be logged into your iFIT account to save a featured
workout (see step 3 on page 21).
To draw your own map for a workout, see HOW TO
CREATE A DRAW-YOUR-OWN-MAP WORKOUT
on page 21.
When you select a workout, the screen will show
an overview of the workout that includes details
such as the duration and distance of the workout
and the approximate number of calories you will
burn during the workout.
3. Get ready for the workout.
Touch Start Workout and begin pedaling. A
warm-up period will begin.
To use the fan, Bluetooth headphones, or a
heart rate monitor, see page 25.
4. Start the workout.
Touch End Warmup or pedal until the warm-up
period ends to start the workout.
During some workouts, an iFIT trainer will guide
you through an immersive video workout. Touch
the screen in any open space to view and select
music, trainer voice, and volume options for the
workout.
During some workouts, the screen will show a map
of the route and a marker indicating your prog-
ress. Touch the buttons on the screen to select the
desired map options.
During some workouts, you may be prompted to
maintain a target speed. As you exercise, keep
your pedaling speed near the target speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
If the resistance level is too high or too low, you
can manually override the setting by pressing the
Resistance buttons or the Ramp buttons (see step
3 on page 19).
To return to the programmed resistance settings of
the workout, touch Follow Workout.
If the smart adjust feature is enabled, the console
will scale the intensity level of the workout auto-
matically based on your manual overrides of the
resistance settings.
To enable the smart adjust feature, touch the
screen in any open space and then touch the smart
adjust toggle.
IMPORTANT: The calorie goal shown in the
workout description is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories that
you burn will depend on various factors, such as
your weight. In addition, if you manually change the
resistance level or incline level of the ramp during
the workout, the number of calories you burn will
be affected.
21
If the active pulse feature is enabled, the console
will scale the intensity level of the workout auto-
matically based on your heart rate when you wear
a compatible heart rate monitor (see page 25).
To enable the active pulse feature, see HOW TO
CHANGE CONSOLE SETTINGS on page 23.
To follow your progress with the display
modes, see step 4 on page 19.
To pause or end the workout, see step 5 on
page 19.
5. When you are finished exercising, turn off the
console (see page 17).
HOW TO CREATE A DRAW-YOUR-OWN-MAP
WORKOUT
To use a draw-your-own-map workout, you must be
logged in to your iFIT account (see step 2 on page
22) and the console must be connected to a wireless
network (see page 24).
1. Select a draw-your-own-map workout.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
To select a draw-your-own-map workout, touch
Create at the bottom of the screen.
2. Draw a workout on the map.
Navigate to the area on the map where you want
to draw a workout by typing in the search box
or by sliding your fingers on the screen. Touch
the screen to add the start point for the workout.
Then, touch the screen to add the end point for the
workout.
If you want to start and end the workout at the
same point, touch Close Loop or Out & Back in the
map options. You can also select whether you want
the workout to snap to the road.
If you make a mistake, touch Undo in the map
options.
The screen will display the elevation and distance
statistics for the workout.
3. Save the workout.
Touch the options on the screen to save the
workout. If desired, enter a title and description for
the workout.
4. Get ready for the workout.
Touch Start Workout and begin pedaling. A
warm-up period will begin.
To use the fan, Bluetooth headphones, or a
heart rate monitor, see page 25.
5. Start the workout.
Touch End Warmup or pedal until the warm-up
period ends to start the workout. The workout will
function in the same way as a featured workout
(see step 4 on page 20).
6. When you are finished exercising, turn off the
console (see page 17).
22
HOW TO USE AN IFIT WORKOUT
To use an iFIT workout, you must be logged in to your
iFIT account (see step 2 below) and the console must
be connected to a wireless network (see page 24). For
more information about iFIT, go to iFIT.com.
1. Select the home screen.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
2. Log in to your iFIT account.
If you have not already done so, touch the menu
button (three horizontal lines symbol) on the screen
and then touch Log in to log in to your iFIT account.
Follow the prompts on the screen to enter your
username and password.
To switch users within your iFIT account, touch
the menu button, touch Settings, and then touch
Manage Accounts. If more than one user is associ-
ated with the account, a list of users will appear.
Touch the name of the desired user.
3. Select an iFIT workout from the home screen or
the workout library.
Touch the buttons at the bottom of the screen to
select either the home screen (Home button) or the
workout library (Browse button).
To select an iFIT workout from the home screen or
the workout library, simply touch the desired work-
out button on the screen. Slide or flick the screen to
scroll as necessary.
The featured iFIT workouts shown on the home
screen will change periodically.
The workout library contains all of the iFIT work-
outs available for the elliptical, organized into
categories. To search the workout library, touch
the search button (magnifying glass symbol), and
select the desired filtering options.
When you select an iFIT workout, the screen will
show an overview of the workout that includes
details such as the duration of the workout and the
approximate number of calories you will burn dur-
ing the workout.
You can also select options such as adding the
workout to your schedule (see step 5) or marking
the workout as a favorite (see step 6).
4. Schedule an iFIT workout on the calendar if
desired.
If desired, you can schedule an iFIT workout for
a future date. Simply view the overview or work-
out summary of the desired iFIT workout, touch
Schedule, and then select the desired date on
the calendar. When the selected date arrives, the
iFIT workout that you scheduled will appear on the
home screen.
5. Create a list of favorite iFIT workouts if desired.
To mark an iFIT workout as a favorite, simply view
the overview or workout summary of the desired
iFIT workout and touch the favorites button (heart
symbol).
To view a list of iFIT workouts that you have
marked as your favorites, select the workout library
(Browse button), and then touch My List.
6. Get ready for the workout.
Touch Start Workout and begin pedaling. A warm-
up period will begin.
To use the fan, Bluetooth headphones, or a
heart rate monitor, see page 25.
7. Start the workout.
Touch End Warmup or pedal until the warm-up
period ends to start the workout. The workout will
function in the same way as a featured workout
(see step 4 on page 20).
8. When you are finished exercising, turn off the
console (see page 17).
23
HOW TO CHANGE CONSOLE SETTINGS
1. Select the settings main menu.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
Then, touch the menu button (three horizontal lines
symbol) on the screen and then touch Settings.
2. Navigate the settings menus and change
settings as desired.
Slide or flick the screen to scroll as necessary.
To view a settings menu, simply touch the menu
name. To exit a menu, touch the back button (arrow
symbol). You may be able to view and change set-
tings in the following settings menus:
Account
• My Prole
• In Workout
• Manage Accounts
Equipment
• Equipment Info
• Equipment Settings
• Maintenance
• Wi-Fi
About
• Legal
3. Customize workout settings.
To customize workout settings and enable work-
out features, touch In Workout and then touch the
desired settings.
When the active pulse feature is enabled, the
console will scale the intensity level of workouts
based on your heart rate when you wear a compat-
ible heart rate monitor. To enable the active pulse
feature, touch the active pulse toggle. Then, select
your resting and maximum heart rates and adjust
related settings as desired.
4. Customize the unit of measurement and other
settings.
To customize the unit of measurement, the time
zone, or other settings, touch Equipment Info or
Equipment Settings and then touch the desired
settings.
The console can display speed and distance in
either standard or metric units of measurement.
5. View machine information or console app
information.
Touch Equipment Info and then touch Machine Info
or App Info to view information about your elliptical
or about the console app.
6. Update the console firmware.
For the best results, regularly check for firm-
ware updates. Touch Maintenance and then touch
Update to check for firmware updates using your
wireless network. The update will begin auto-
matically. IMPORTANT: To avoid damaging the
elliptical, do not turn off the console while the
firmware is being updated.
The screen will show the progress of the update.
When the update is complete, the console will turn
off and then turn back on. If it does not, press the
power switch into the off position. Wait for several
seconds, and then press the power switch into the
reset position. Note: It may take a moment for the
console to be ready for use.
Note: As a result of a firmware update, some
settings and features may change. Take time to
explore the console to learn how new settings
and features work. Firmware updates are always
designed to improve your exercise experience.
24
7. Calibrate the incline system.
To calibrate the incline system, touch Maintenance,
touch Calibrate Incline, and then touch Begin. The
ramp will automatically rise to the maximum incline
level, descend to the minimum incline level, and
then return to the starting position. This will cali-
brate the incline system. When the incline system
is calibrated, touch Finish.
IMPORTANT: Keep pets, feet, and other objects
away from the elliptical while the incline system
is calibrating.
8. Exit the settings main menu.
To exit the settings main menu, touch the back
button (arrow symbol).
HOW TO CONNECT TO A WIRELESS NETWORK
To use iFIT workouts and to use several other features
of the console, the console must be connected to a
wireless network.
1. Select the settings main menu.
When you turn on the console, the home screen
will appear after the console boots up. If you have
already selected a workout, touch the screen and
follow the prompts to end the workout and return to
the home screen.
Then, touch the menu button (three horizontal lines
symbol) on the screen and then touch Settings.
The settings menu will appear on the screen.
2. Set up and manage a wireless network
connection.
Touch Wi-Fi to select the wireless network menu.
If Wi-Fi is not enabled, touch the Wi-Fi toggle to
enable it. When Wi-Fi is enabled, the screen will
show a list of available networks. Note: It may take
a few moments for the list of wireless networks to
appear.
Note: You must have your own wireless network
and an 802.11b/g/n router with SSID broadcast
enabled (hidden networks are not supported). The
console supports unsecured and secured (WEP,
WPA™, and WPA2™) encryption. A broadband
connection is recommended; performance depends
on connection speed.
When a list of networks appears, touch the desired
network. Note: You will need to know your network
name (SSID). If your network has a password,
you will also need to know the password. Follow
the prompts on the screen to enter your password
and connect to the selected wireless network.
Passwords are case-sensitive.
When the console is connected to your wireless
network, a confirmation message will appear on the
screen.
If you are having problems connecting to an
encrypted network, make sure that your password
is correct. If you have questions after following
these instructions, go to my.iFIT.com for
assistance.
3. Exit the wireless network menu.
To exit the wireless network menu, touch the back
button (arrow symbol).
25
HOW TO USE THE FAN
The fan has several speed
settings, including an auto
mode. While the auto mode
is selected, the speed of
the fan will automatically
increase or decrease as the pedaling speed increases
or decreases. Press the fan increase and decrease
buttons on the console repeatedly to select a fan
speed or to turn off the fan.
Note: If the pedals are not moved for a while when
the home screen is selected, the fan will turn off
automatically.
HOW TO USE THE CHARGING PORT
The console features a charging port to charge USB-C
compatible devices, such as smartphones and tablets,
while you exercise.
To use the charging port, plug a USB-C charging cable
(not included) into the receptacle on your device and
into the charging port on the right side of the console;
make sure that the USB-C charging cable is fully
plugged in. Note: The charging port cannot be used
to view or transfer data or to play music through the
console sound system.
HOW TO CONNECT HEADPHONES
To connect your Bluetooth headphones to the console,
first turn on your headphones, place them in pairing
mode, and place them near the console. Then, start
a workout. Next, touch the screen in any open space,
touch the option to connect your headphones, and
select your headphones from the list on the screen.
When your headphones and the console pair
successfully, the audio from the console will play
through your headphones.
HOW TO USE AN OPTIONAL HEART RATE
MONITOR
Whether your goal is to burn
fat or to strengthen your car-
diovascular system, the key
to achieving the best results
is to maintain the proper
heart rate during your work-
outs. The optional heart rate
monitor will enable you to
continuously monitor your
heart rate while you exer-
cise, helping you to reach your personal fitness goals.
The console is compatible with all Bluetooth
®
Smart
heart rate monitors. To purchase an optional heart
rate monitor, please see the front cover of this
manual.
When your compatible heart rate monitor is turned on
and placed in pairing mode, the console will connect to
it automatically. When your heartbeat is detected, your
heart rate will be shown on the screen.
26
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the elliptical is used.
Replace any worn parts immediately. Use only
manufacturer-supplied parts.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power cord is fully plugged in and that the power
switch is in the reset position.
If you are having problems connecting the console
to a wireless network or if you are having problems
with your iFIT account or iFIT workouts, go to
support.iFIT.com.
If the console does not
boot up properly, or if
the console freezes and
does not respond, reset
the console to the fac-
tory default settings.
IMPORTANT: Doing this
will erase all custom
settings you have made
to the console. Resetting
the console requires two people. First, press the power
switch and unplug the power cord. Next, locate the
small reset opening (A) on the left side of the con-
sole. Using a bent paper clip (B), press and hold the
reset button inside of the opening, and have a second
person plug in the power cord and press the power
switch. Continue holding the reset button until the
console turns on. When the reset operation is com-
plete, the console will turn off and then turn back on.
If it does not, press the power switch off and then on
again. Once the console turns on, check for firmware
updates (see page 18). Note: It may take a moment for
the console to be ready for use.
INCLINE SYSTEM TROUBLESHOOTING
If the frame does not adjust to the selected incline
level, see HOW TO CHANGE CONSOLE SETTINGS
on page 23 and calibrate the incline system.

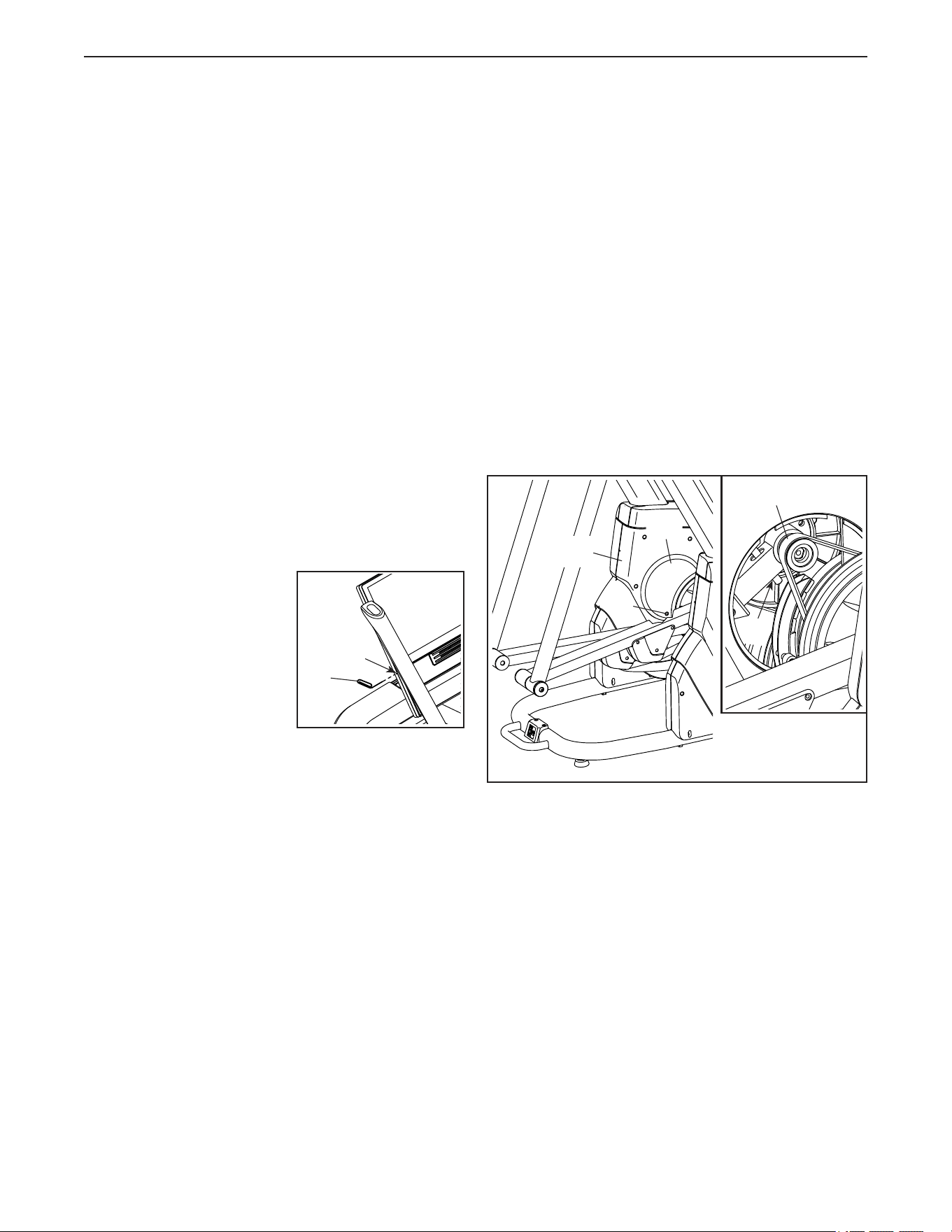

HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest level, the drive
belt may need to be adjusted. To adjust the drive belt,
first press the power switch and unplug the power
cord.
Next, remove the M4 x 16mm Screw (141) and the
Access Cover (110) from the Right Inner Shield (101).
Then, tighten the M10 Locknut (133) until the Drive
Belt A (61) is tight.
When you have properly adjusted the Drive Belt A (61),
reattach the Access Cover (110) and plug in the power
cord.
A
B
110
141
61
133
101
27

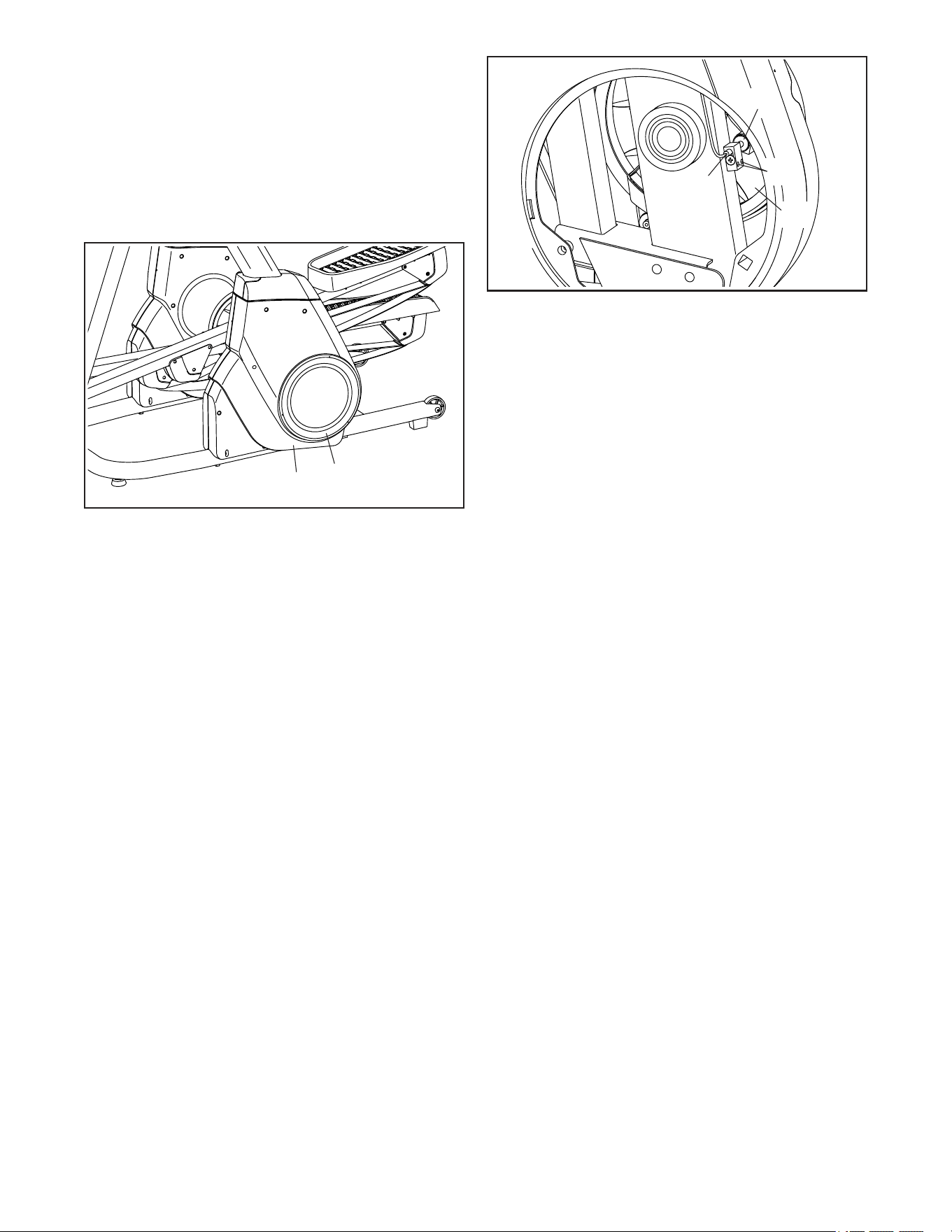

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first press the power switch and unplug the
power cord.
Next, use a standard screwdriver and pry the Shield
Disc (97) off the Left Outer Shield (98).
See the drawing at the right. Locate the Reed Switch
(55). Turn the Right Inner Disc (107) until a Magnet
(113) is aligned with the Reed Switch.
Then, slightly loosen the two M4 x 25mm Screws (10)
and slide the Reed Switch (55) slightly closer to or
away from the Magnet (113).
Plug in the power cord, press the power switch, and
rock the Right Inner Disc (107) forward and backward
so that the Magnet (113) passes the Reed Switch (55)
repeatedly. Repeat these actions until the console
displays correct feedback.
When the reed switch is correctly adjusted, retighten
the two M4 x 25mm Screws (10), reattach the Shield
Disc (97), and plug in the power cord.
98
97
55
10
113
107
28
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only
after the first few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training zone. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, exer-
cise for at least four
minutes. Then, stop
exercising and place
two fingers on your
wrist as shown.
Take a six-second
heartbeat count, and
multiply the result by 10 to find your heart rate. For
example, if your six-second heartbeat count is 14, your
heart rate is 140 beats per minute.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete
three workouts each week, with at least one day of
rest between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
EXERCISE GUIDELINES
29

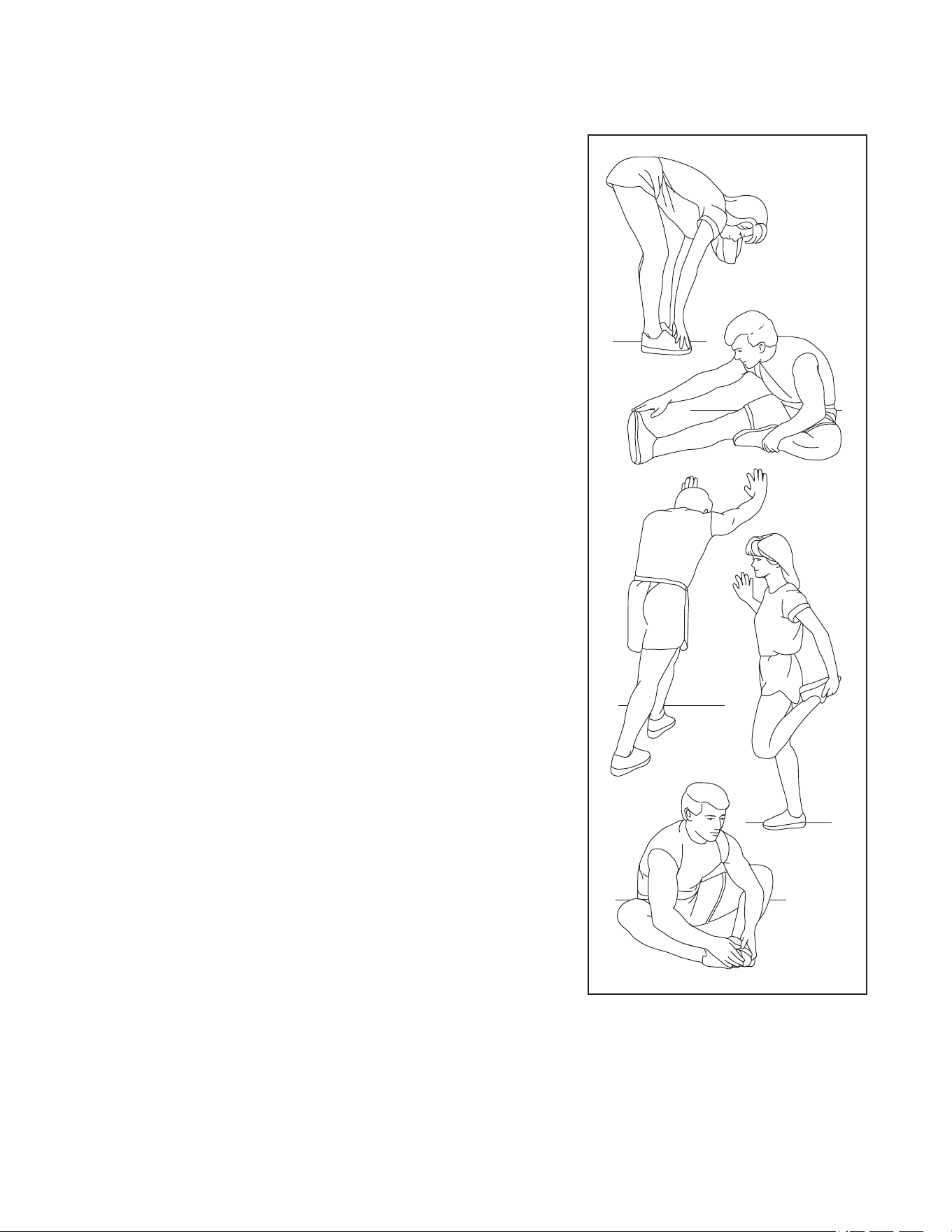

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back foot
flat on the floor. Bend your front leg, lean forward and move your
hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times
for each leg. To cause further stretching of the achilles tendons,
bend your back leg as well. Stretches: Calves, achilles tendons and
ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
1
2
3
4
5
30
NOTES
31
1 1 Base
2 1 Frame
3 1 Stabilizer
4 1 Upright
5 1 Console Mount
6 1 Brace
7 1 Control Bracket
8 1 Control Board
9 4 Mushroom Fastener
10 2 M4 x 25mm Screw
11 1 Left Control Grip/Wire
12 1 Left Pivot Leg
13 1 Right Pivot Leg
14 1 Left Pedal Arm
15 1 Right Pedal Arm
16 1 Left Handlebar
17 1 Right Handlebar
18 4 Belt Clamp
19 2 Glide Belt
20 4 Wedge
21 2 Strap
22 4 Strap Bracket
23 4 Strap Clamp
24 2 Left Rear Belt Cover
25 2 Right Rear Belt Cover
26 2 Left Front Belt Cover
27 2 Right Front Belt Cover
28 1 Left Pedal
29 1 Right Pedal
30 4 Axle Cover
31 3 Axle Washer
32 4 Leg Bearing
33 2 Flex Spacer
34 1 Left Pivot Spacer
35 1 Left Shield Cover
36 1 Right Shield Cover
37 2 Pivot Cover A
38 2 Pivot Cover B
39 1 Left Rear Leg Cover
40 2 Handlebar Cover
41 1 Left Front Leg Cover
42 1 Right Pivot Spacer
43 1 Left Front Shield Cover
44 1 Right Rear Leg Cover
45 1 Right Front Leg Cover
46 4 Pivot Bushing
47 1 Right Front Shield Cover
48 1 Large Mount Cover
49 1 Accelerometer Sensor
50 1 Right Control Grip/Wire
51 1 17" Wire
52 1 41" Wire
53 2 Wheel
54 2 Foot
55 1 Reed Switch/Wire
56 1 Reed Switch Clamp/Screw
57 1 Control Extension Wire
58 1 32" Wire
59 1 Power Cord
60 2 Leveling Foot
61 1 Drive Belt A
62 1 Left Inner Disc
63 1 Crank
64 1 Flywheel
65 1 Large Crank Pulley
66 1 Large Idler Pulley
67 1 Crank Pulley Bracket
68 1 Crank Bracket
69 1 Idler Hub
70 1 Idler Bracket
71 1 Idler Adjustment Bolt
72 1 Lift Motor
73 1 Power Cover
74 1 Lower Lift Axle
75 1 Magnet Bracket
76 1 Resistance Motor
77 1 Resistance Rod
78 1 Resistance Disc
79 1 Resistance Block
80 1 Crank Washer
81 4 Crank Bearing
82 1 Small Crank Spacer
83 1 Large Crank Spacer
84 1 Bracket Weld Spacer
85 1 Large Spacer
86 2 Roller Spacer
87 2 Flex Spacer
88 4 Roller Bearing
89 2 Roller
90 2 Roller Weld Spacer
91 1 Upper Lift Axle
92 1 Small Idler Pulley
93 1 Idler Flex Spacer
94 2 Idler Bearing
95 2 Lift Bushing
96 2 Accent Ring
97 2 Shield Disc
98 1 Left Outer Shield
99 1 Left Inner Shield
100 1 Right Outer Shield
Key No. Qty. Description Key No. Qty. Description
PART LIST
Model No. NTEL71625-INT.0 R0125A
32
101 1 Right Inner Shield
102 1 Left Outer Cover
103 1 Left Inner Cover
104 1 Right Outer Cover
105 1 Right Inner Cover
106 2 Disc Cap
107 1 Right Inner Disc
108 1 Left Slot Cover
109 1 Right Slot Cover
110 1 Access Cover
111 1 Accessory Tray
112 1 Upper Upright Cover
113 2 Magnet
114 1 Left Upright Cover
115 1 Right Upright Cover
116 1 Lower Upright Cover
117 12 M10 x 30mm Screw
118 6 M6 x 20mm Screw
119 4 M10 x 42mm Bolt
120 2 M10 x 95mm Bolt
121 2 M10 x 20mm Hex Screw
122 6 M8 x 14mm Shoulder Screw
123 8 M10 x 35mm Screw
124 4 M10 x 45mm Screw
125 2 M10 x 60mm Screw
126 2 M10 x 35mm Screw
127 2 M10 x 100mm Bolt
128 6 M8 x 20mm Screw
129 4 M6 x 12mm Hex Screw
130 2 M10 x 70mm Bolt
131 4 Standoff
132 1 M10 x 65mm Bolt
133 8 M10 Locknut
134 4 M8 x 13mm Screw
135 1 M6 x 10mm Screw
136 2 M5 Locknut
137 3 M10 Washer
138 4 M6 x 12mm Pan Head Screw
139 5 M6 Washer
140 11 Clip
141 54 M4 x 16mm Screw
142 1 Drive Belt B
143 59 M4 x 16mm Self-tapping Screw
144 4 M3 x 6mm Screw
145 8 M4 x 16mm Truss Screw
146 1 M3.5 x 10mm Screw
147 8 M4 x 12mm Screw
148 10 M4 x 10mm Screw
149 4 M8 Locknut
150 1 Ground Wire
151 1 Power Switch
152 1 Receptacle
153 1 Upright Wire
154 2 Snap Ring
155 1 M8 Snap Ring
156 3 Ground Screw
157 8 M6 x 12mm Flat Head Screw
158 2 M12 x 60mm Bolt
159 2 M12 Locknut
160 1 M5 Washer
161 1 M8 x 16mm Flange Screw
162 1 M8 x 19mm Washer
163 2 Thrust Washer
164 1 M8 x 38mm Washer
165 1 M5 x 10mm Screw
166 1 Idler Spacer
167 6 M6 x 20mm Shoulder Screw
168 8 M6 x 12mm Screw
169 1 Console Bracket
170 1 Large Saddle Bracket
171 1 Small Saddle Bracket
172 1 Pivot Cover
173 4 M6 x 25m Screw
174 1 Console
175 1 Upper Console Cover
176 1 Lower Console Cover
177 5 M4 x 10mm Machine Screw
178 1 Small Mount Cover
* – Assembly/Adjustment Tool Kit
* – Grease Packet
* – User’s Manual
Key No. Qty. Description Key No. Qty. Description
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
33
EXPLODED DRAWING A
157
168
12
5
4
50
18
18
19
13
15
17
20
20
21
23
23
28
30
25
22
22
24
27
36
39
35
37
40
40
41
43
48
44
49
117
117
11
24
27
19
21
124
144
141
141
141
138
138
138
156
141
168
141
141
143
143
141
143
168
123
123
141
167
118
118
119
57
169
171
173
173
170
172
175
177
177
176
174
150
153
154
157
30
32
31
122
46
34
33
121
137
30
30
32
32
31
122
122
154
52
58
16
38
143
119
14
37
38
47
45
42
26
29
25
9
9
148
9
141
51
Model No. NTEL71625-INT.0 R0125A
34
EXPLODED DRAWING B
142
159
162
163
164
152
155
151
1
6
7
54
54
56
59
53
53
55
60
60
61
63
66
68
65
64
67
69
70
72
71
74
76
78
79
73
75
77
80
81
81
81
81
83
86
88
88
85
82
84
87
89
90
92
91
94
94
93
95
95
166
8
120
158
128
122
128
31
122
132
133
133
125
125
133
137
133
145
126
126
136
136
146
131
131
10
156
143
133
134
130
127
145
129
135
165
129
129
129
160
139
139
139
139
139
159
161
2
3
149
149
128
158
Model No. NTEL71625-INT.0 R0125A
35
EXPLODED DRAWING C
141
143
141
96
96
98
99
97
97
100
101
103
105
102
104
106
106
62
107
108
110
112
114
115
116
109
111
178
113
113
143
143
143
143
143
143
143
143
143
143
143
143
143
143
143
143
141
141
148
148
143
141
141
141
147
141
147
143
147
141
143
141
141
148
148
143
143
141
140
140
143
141
141
143
141
143
143
141
Model No. NTEL71625-INT.0 R0125A
Part No. 456473 R0125A Printed in China © 2025 iFIT Inc.
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
ORDERING REPLACEMENT PARTS
This electronic product must not be disposed of in municipal waste. To
preserve the environment, this product must be recycled after its useful life
as required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or
the establishment where you purchased this product.
RECYCLING INFORMATION
UK/EU DECLARATION OF CONFORMITY
NTEL71625-INT contains the MP16-Xenon-C or MP16-Xenon-V Tablet
.
Hereby, iFIT Health & Fitness declares that the radio equipment type MP16-Xenon-C or MP16-Xenon-V is in compliance with Directive
2014/53/EU and Radio Equipment Regulation 2017.
iFIT Health & Fitness, 1500 S 1000 W, Logan, UT 84320, USA
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Object of the declaration: FCCID OMC453084 or OMC453584V - Broadcast Frequency Bands and Maximum EIRP power: 2.4G
WIFI:25.02dBm; 5G WIFI:22.89dBm; 2.4G BT:10.12dBm.
Operations in the 5.15-5.35GHz band are restricted to indoor usage only in
following Countries:
Certification: Article 3.1a - Safety EN 62479:2010, EN 62368-1:2014/AC:2015,
Article 3.1b – EMC EN 301 489-1, 2.2.3, EN 301 489-17 V3.2.4, Article 3.2 –
Radio parameters EN 300 328 V2.2.2, EN 301 893 V2.1.1
UK Representative: ICON Health & Fitness Ltd, Unit 1D The Gateway,
Fryers Way, Silkwood Park, Ossett, WF5 9TJ, United Kingdom
EU Representative: iFIT Health & Fitness SAS Business Park, 5 rue Alfred de Vigny, 78112 Fourqueux, France
