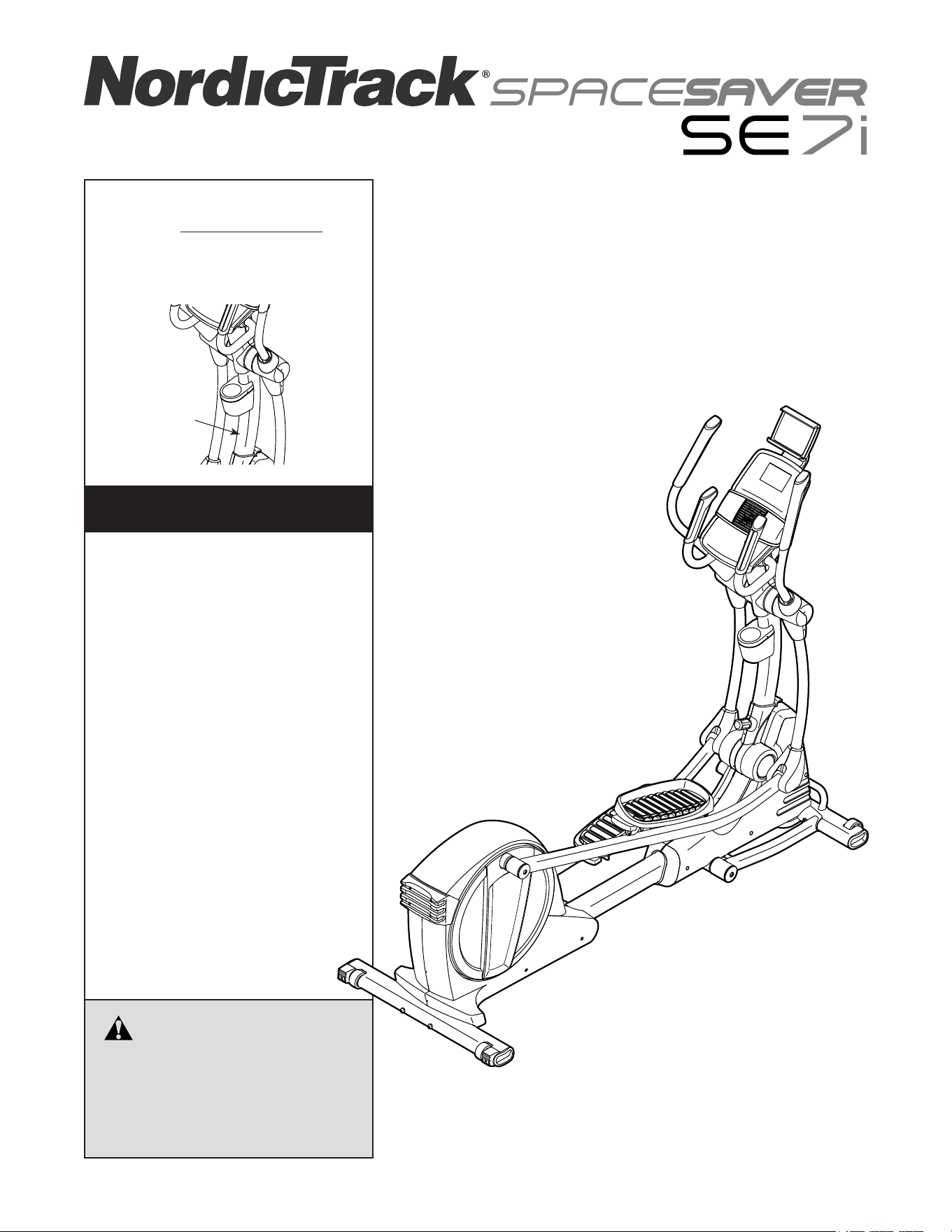

Serial
Number
Decal
USER’S MANUAL
Model No. NTEVEL90917.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
iconeurope.com
2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL ...............................................................9
MAINTENANCE AND TROUBLESHOOTING .....................................................20
EXERCISE GUIDELINES ....................................................................22
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

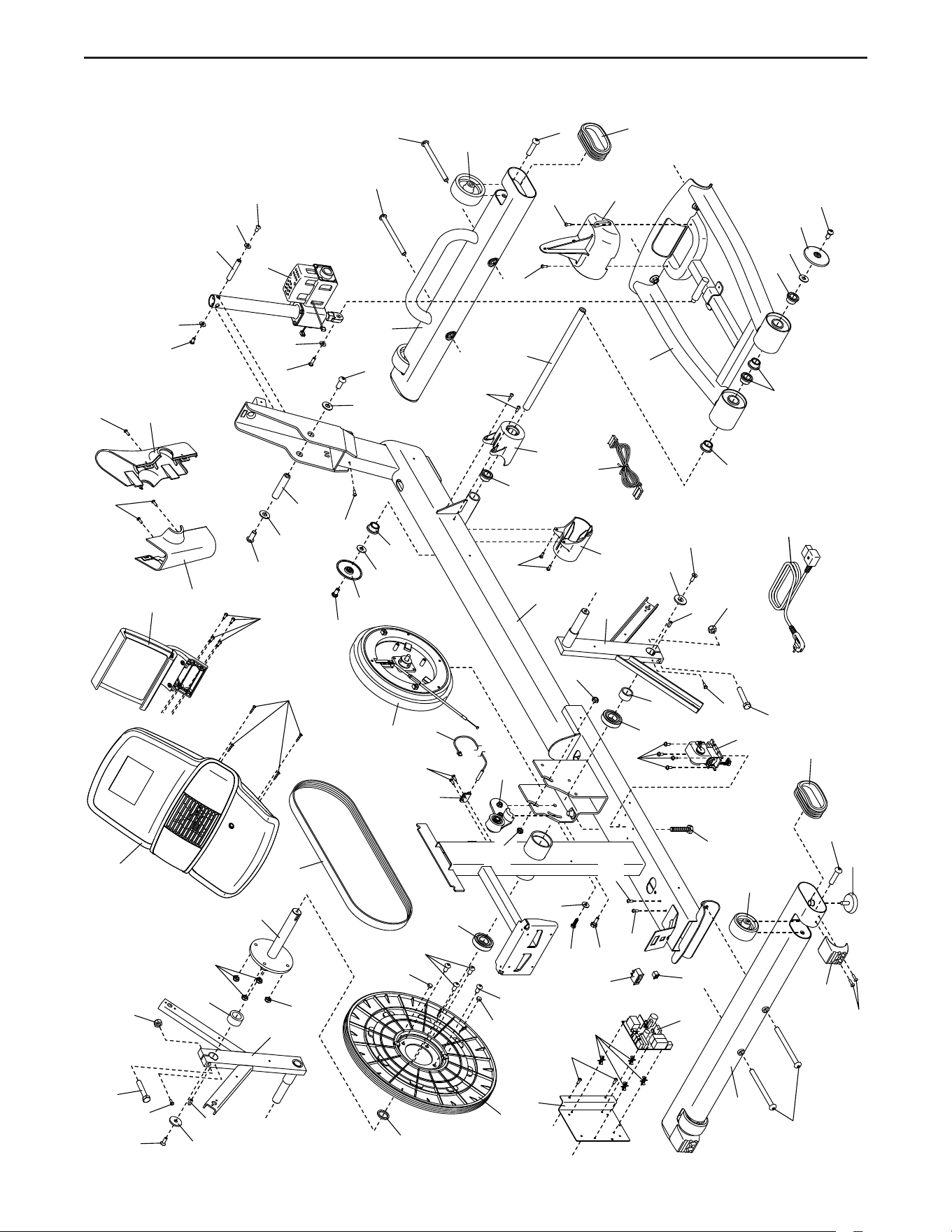

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
WARNING DECAL PLACEMENT
383106

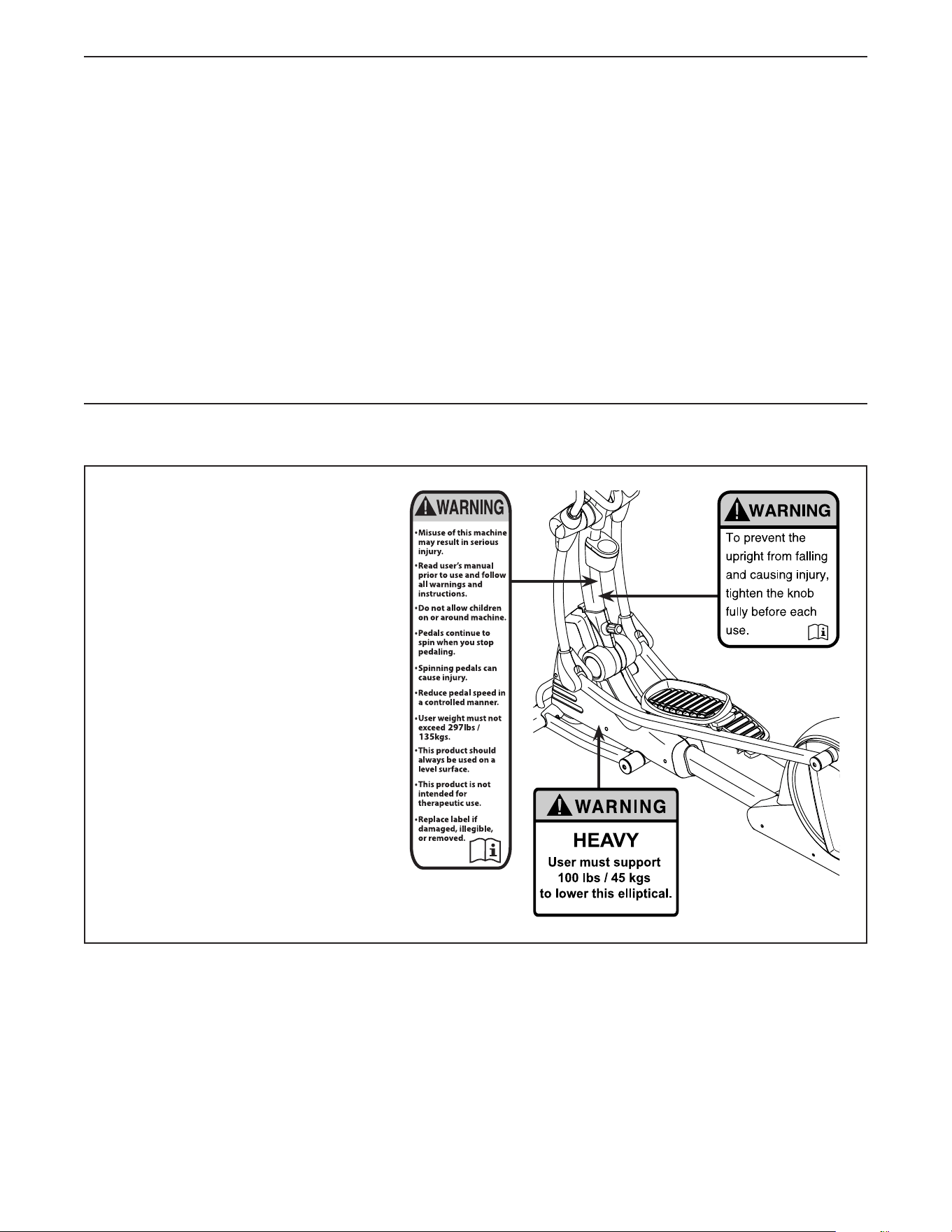

This drawing shows the location(s)
of the warning decal(s). If a decal is
missing or illegible, see the front
cover of this manual and request
a free replacement decal. Apply
the decal in the location shown.
Note: The decal(s) may not be
shown at actual size.
TABLE OF CONTENTS
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of
Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The
BLUETOOTH
®
word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
3
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the elliptical at all times.
10. When connecting the power cord (see page
9), plug the power cord into a grounded
circuit.
11. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
12. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
13. DANGER: Always unplug the power
cord and switch the power switch to the off
position when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should
be performed by an authorized service repre-
sentative only.
14. Do not attempt to place the elliptical in the
storage position until it is properly assem-
bled and the upright is folded. You must
be able to safely support 100 lbs. (45 kg) to
place the elliptical in the storage position.
15. The elliptical should not be used by persons
weighing more than 297 lbs. (135 kg).
16. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
17. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
IMPORTANT PRECAUTIONS
4
SAVE THESE INSTRUCTIONS
18. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
19. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
20. Keep your back straight while using the
elliptical; do not arch your back.
21. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
5
BEFORE YOU BEGIN
Heart Rate Monitor
Handlebar
Small Storage Foot
Large
Storage Foot
Wheel
Pedal
Pedal Handle
Accessory Tray
Upright Knob
Console
Tablet Holder
Upper Body Arm
Handle
Leveling Foot
Thank you for selecting the revolutionary
NORDICTRACK
®
SPACESAVER SE 7I elliptical. The
SPACESAVER SE 7I elliptical provides an impressive
selection of features designed to make your workouts
at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

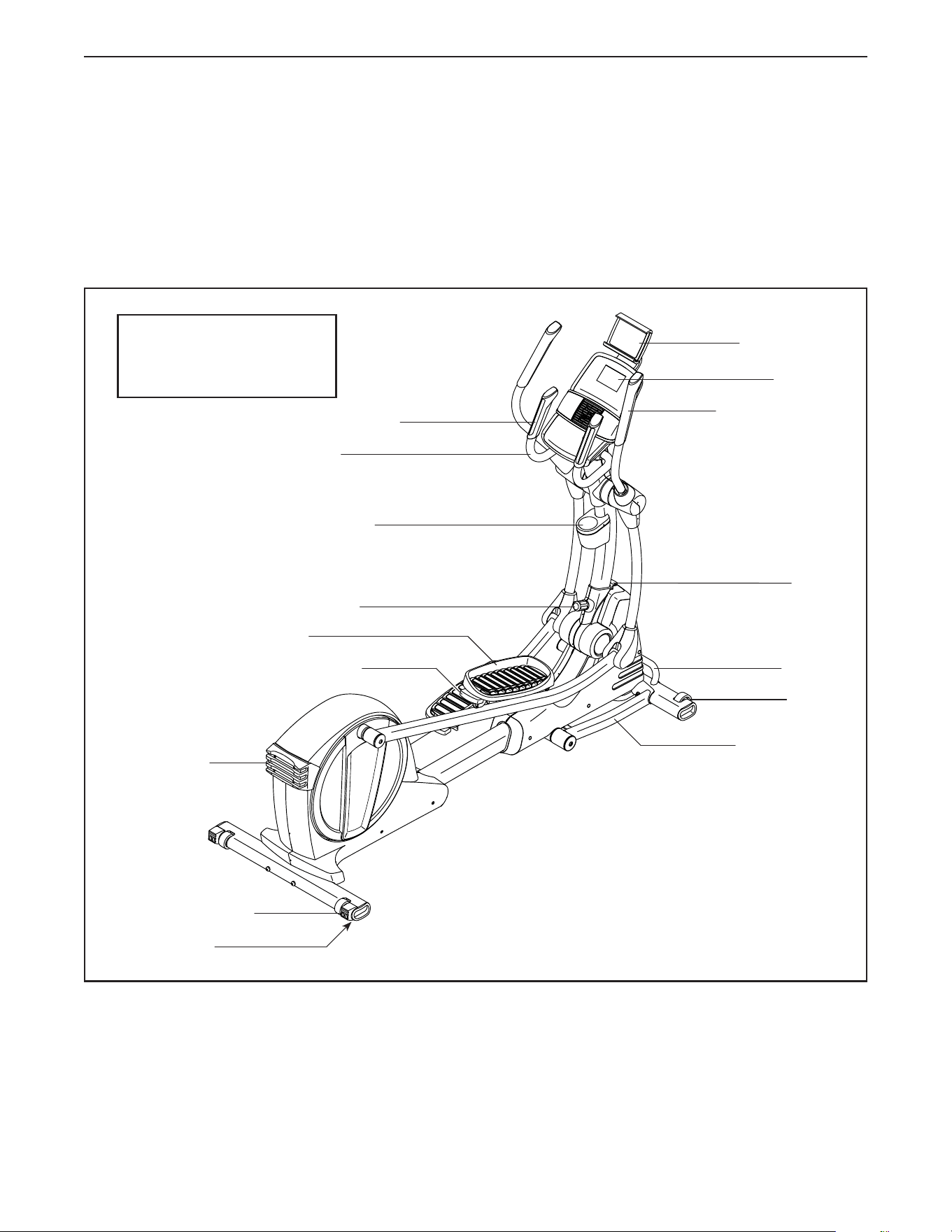

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Latch
Incline Frame
Length: 6 ft. 8 in. (203 cm)
Width: 2 ft. 8 in. (81 cm)
Weight: 203 lbs. (92 kg)
6
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
2. With the help of another person, place some
packing inserts from the packing material under
the rear of the Frame (1) so that the Frame is
lifted off the floor. Have another person hold
the elliptical to prevent it from moving from
side to side until this step is completed.
If there are shipping supports attached to the
rear of the Frame (1), remove the screws from
the shipping supports, and discard the screws
and the shipping supports.
Attach the Rear Stabilizer (70) to the Frame
(1) with two M10 x 120mm Screws (84). Then,
remove the packing inserts and lower the Rear
Stabilizer.
2
84
70
1

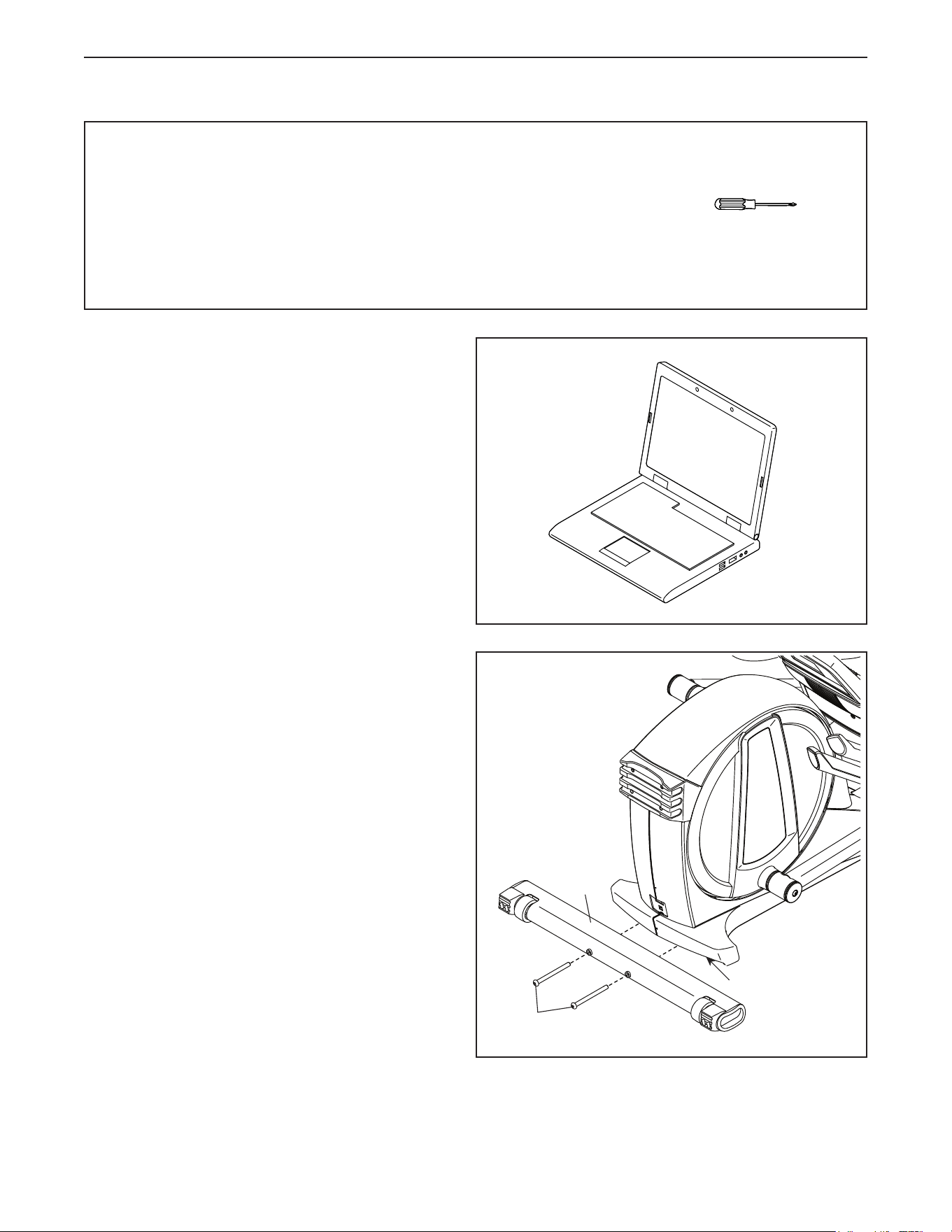

1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)
7
3. With the help of another person, place some
packing inserts from the packing material under
the Frame (1) so that the Frame is lifted off the
floor. Have another person hold the elliptical
to prevent it from moving from side to side
until this step is completed.
If there are shipping supports attached to the
front of the Frame (1), remove the screws from
the shipping supports, and discard the screws
and the shipping supports.
Attach the Front Stabilizer (73) to the Frame
(1) with two M10 x 120mm Screws (84). Then,
remove the packing inserts and lower the Front
Stabilizer.
3

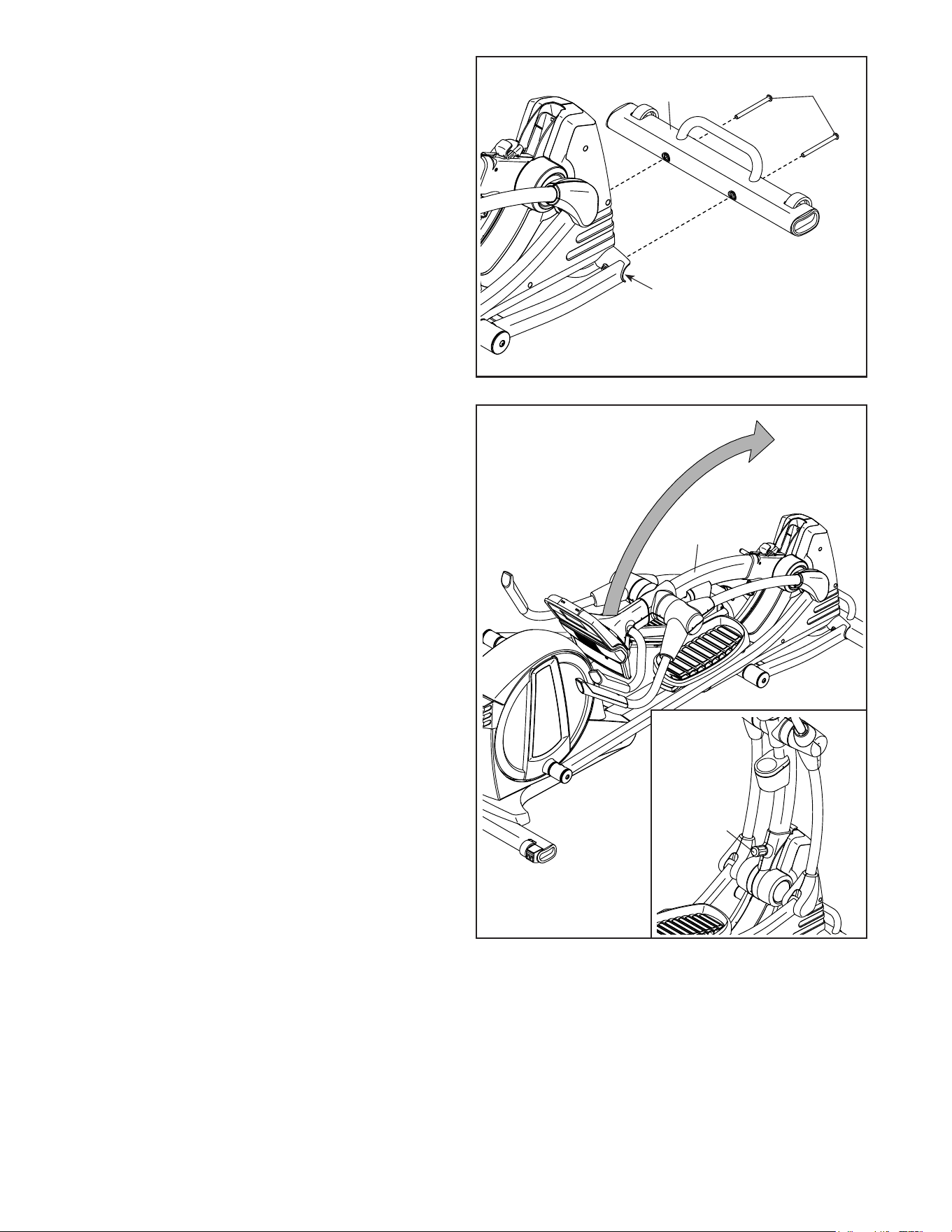

4. With the help of a second person, raise the
Upright (2) to the vertical position.
See the inset drawing. Tighten the Upright
Knob (85).
4
1
84
73
2
85
8

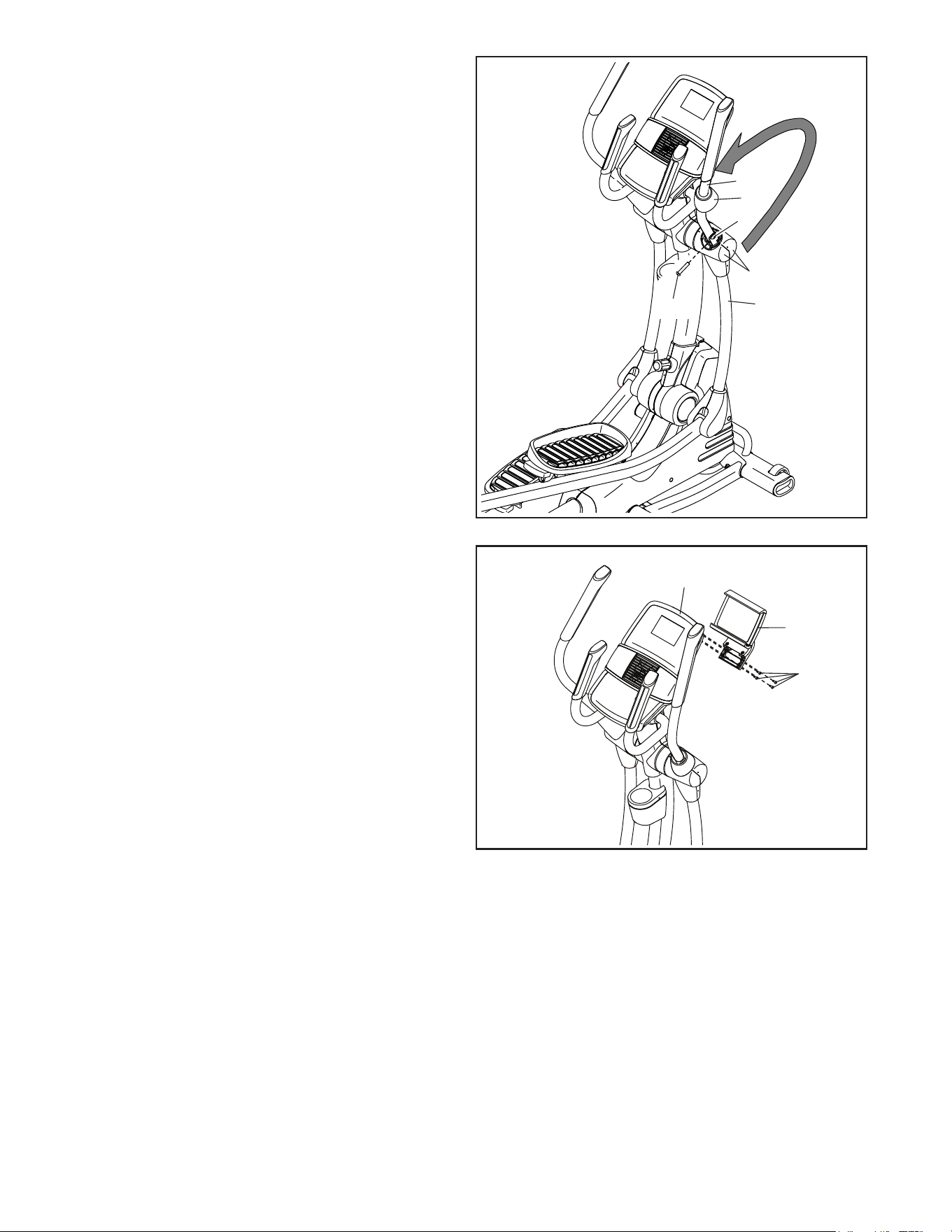

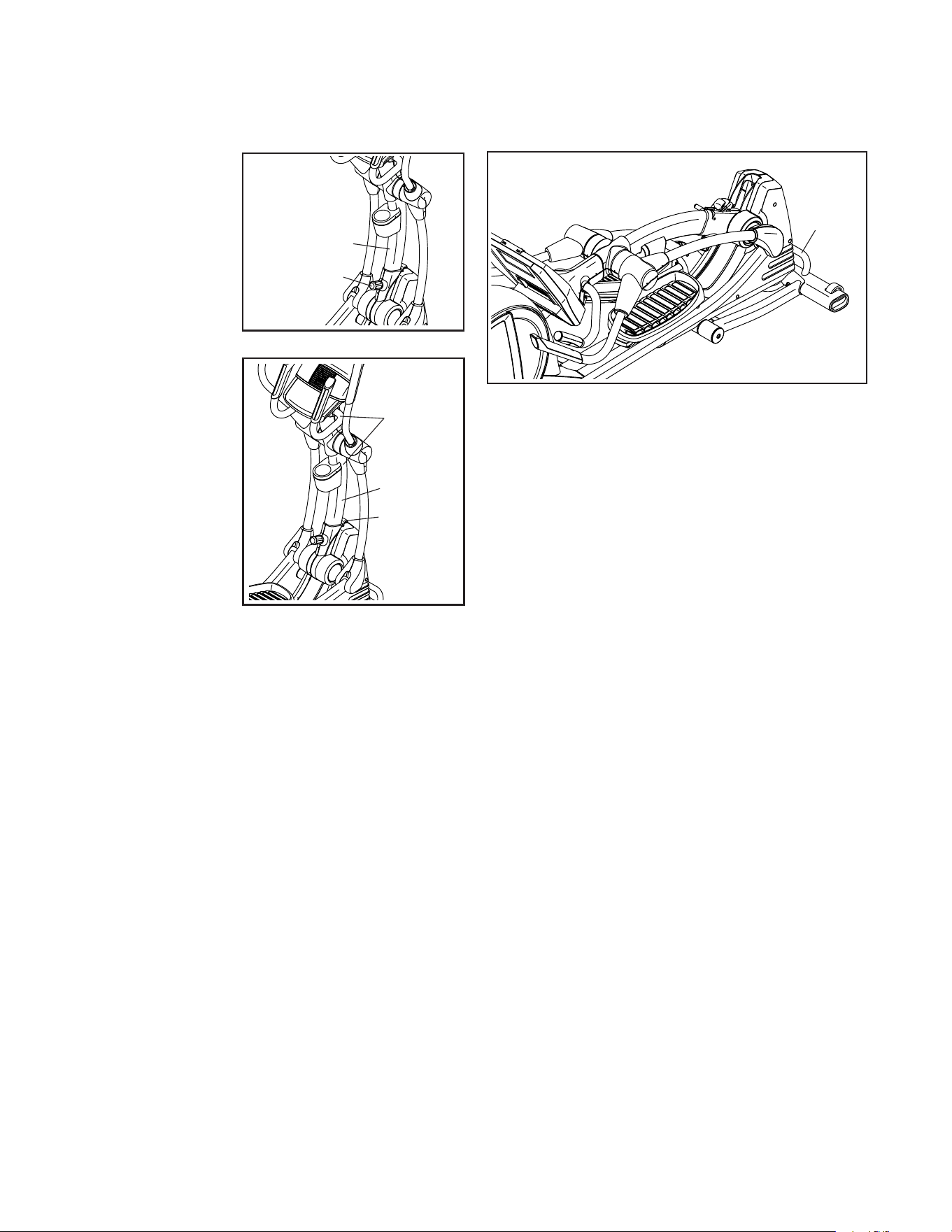

5. Rotate the Right Upper Body Arm (9) to the posi-
tion shown.
Attach the Right Upper Body Arm (9) to the
Right Upper Body Leg (6) with an M10 x 50mm
Screw (95).
Next, tighten the indicated M10 x 45mm
Hex Screw (78).
Then, press the Upper Body Arm Cover (20)
downward and turn it so that it is flush with the
Right Leg Front and Rear Covers (11, 15).
Repeat this step on the other side of the
elliptical.
5
9
78
95
20
11, 15
6
7. Make sure that all parts of the elliptical are properly tightened. Extra parts may be included. Place a mat
beneath the elliptical to protect the floor.
6. Attach the Tablet Holder (130) to the Console (4)
with four Tablet Holder Screws (110); start all
the Tablet Holder Screws, and then tighten
them.
6
110
130
4
9
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should
malfunction or break down, earthing provides a path of
least resistance for electric current to reduce the risk
of electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.

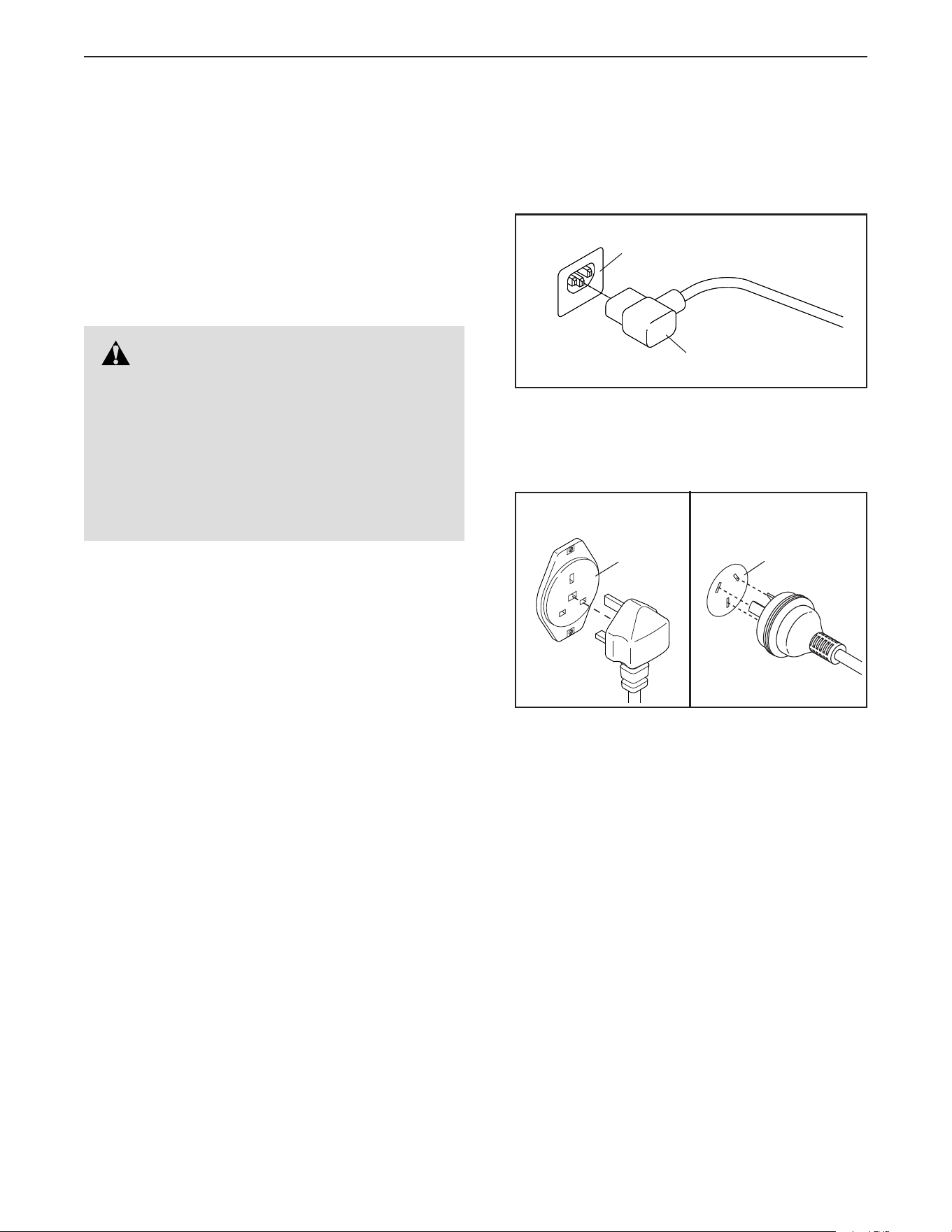

1. Plug the indicated end of the power cord into the
socket on the frame.
2. Plug the power cord into an appropriate outlet that
is properly installed and earthed in accordance with
all local codes and ordinances.
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician
IT
FR/SP
UK
GR
RU
HU
AUS
Socket on Frame
IT
FR/SP
UK
GR
RU
HU
AUS
IT
FR/SP
UK
GR
RU
HU
AUS
Outlet
UK
Australia
Outlet
Power Cord
10
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons.
First, loosen the
upright knob.
Next, pull the
upright knob, pull
the upright back-
ward until the latch
stops the upright,
and then release
the upright knob.
Next, pull the
upright forward
slightly, lift the
latch, and then
lower the upright
to the folded posi-
tion. Hold the
upright in one
of the indicated
locations while
you lower the
upright; do not
hold the upper
body arms.

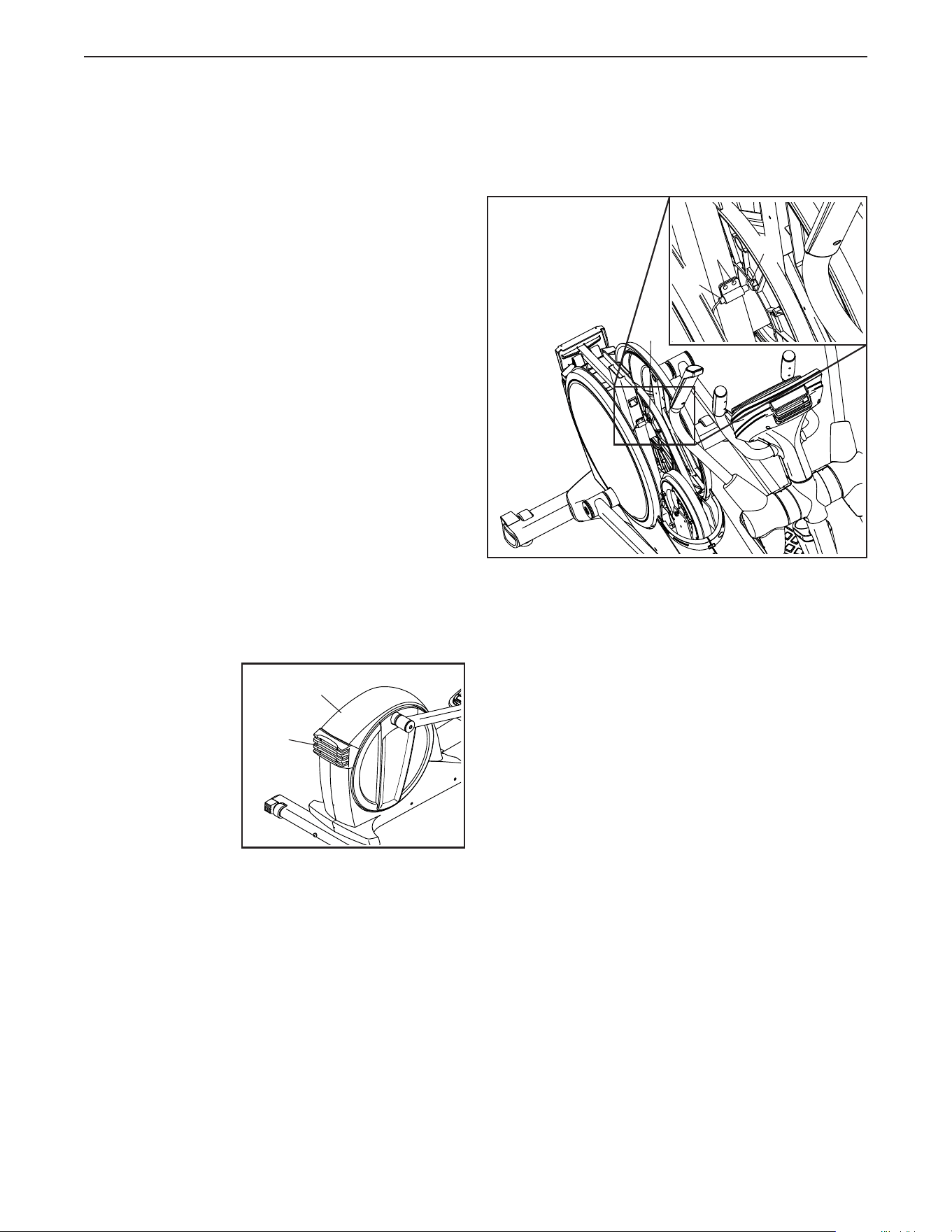

Next, hold the handle on the front stabilizer and lift the
elliptical until it will roll on the wheels (not shown) on
the rear stabilizer. Then, carefully move the elliptical to
the desired location, and lower it to the floor.
When you are finished moving the elliptical, lift the
upright to the vertical position and tighten the upright
knob.
Pull knob
Pull
backward
Pull
forward
Hold to
lower
Lift latch
Lift
handle
11

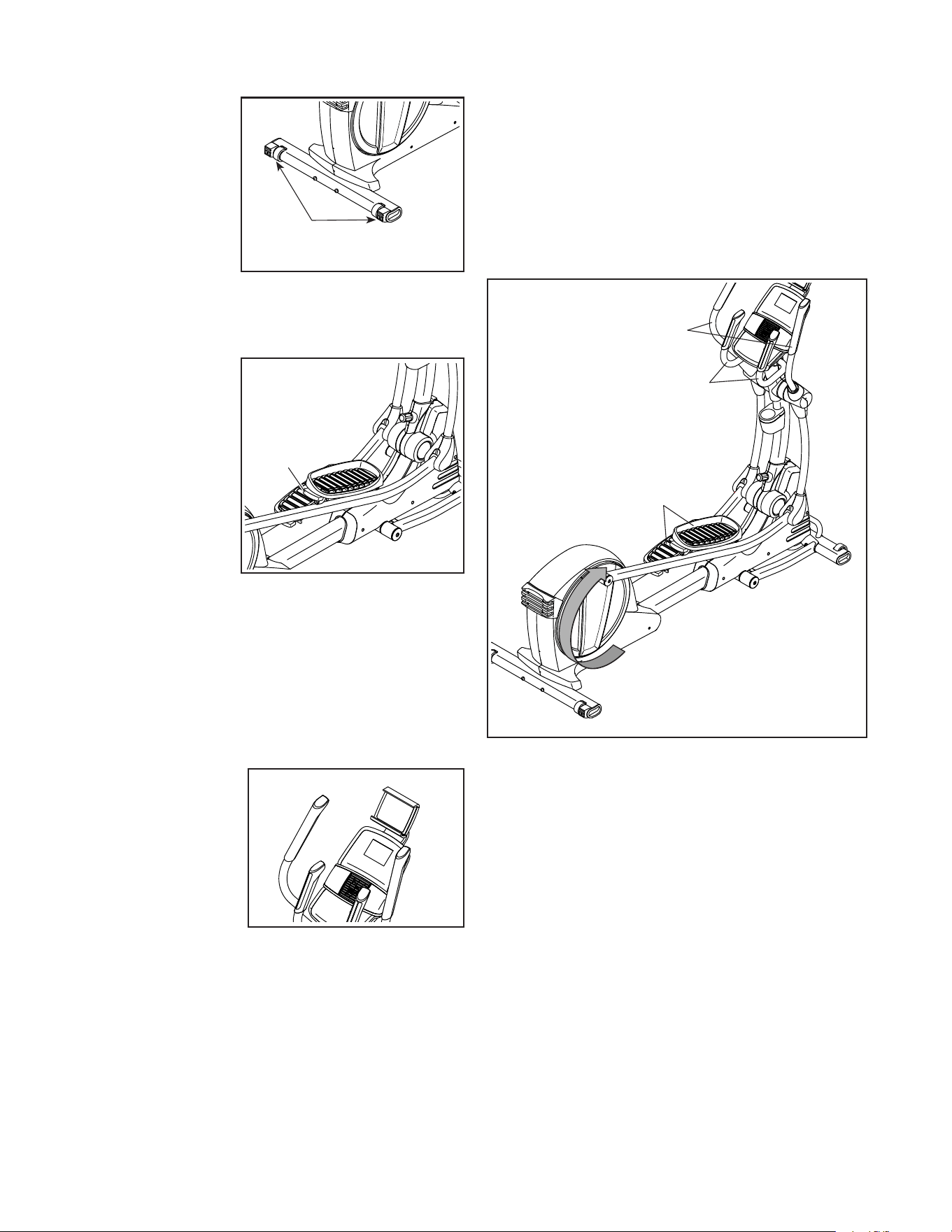

HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor dur-
ing use, turn
one or both of
the leveling feet
beneath the rear
stabilizer until the
rocking motion is
eliminated.
HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal can
be adjusted to
several positions.
To adjust each
pedal, simply pull
the pedal handle
outward, move
the pedal to the
desired position,
and then release
the pedal handle
into an adjustment
hole beneath the
pedal. Make sure to adjust both pedals to the same
position.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder is designed for use
with most full-size tablets. Do not place any other
electronic device or object in the tablet holder.
To insert a tab-
let into the tablet
holder, set the
bottom edge of
the tablet in the
tray. Then, pull the
clip over the top
edge of the tablet.
Make sure that
the tablet is firmly
secured in the tablet holder. Rotate the tablet holder
to the desired angle. Reverse these actions to remove
the tablet from the tablet holder.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars or the
upper body arms and step onto the pedal that is in the
lower position. Then, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The pedals can turn in either direc-
tion. It is recommended that you turn the pedals
in the direction shown by the arrow; however, for
variety, you can turn the pedals in the opposite
direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Leveling
Feet
Handle
Pedals
Handlebars
Upper
Body Arms
12
HOW TO STORE THE ELLIPTICAL
Due to the size and weight of the elliptical, storing
it requires two persons. CAUTION: You must be
able to safely lift 100 lbs. (45 kg) to lift, store, and
lower the elliptical.
See HOW TO MOVE THE ELLIPTICAL on page 10
and lower the upright to the folded position.
Next, hold the handle (not shown) on the front stabi-
lizer and lift the elliptical to the upright position so that it
is resting on the small and large storage feet.
To lower the elliptical for use, first hold the handle on
the lift frame with one hand and hold the front stabilizer
with your other hand. Next, pull the frame towards you
and lower it until you can reach the handle on the front
stabilizer. Then, hold the handle on the front stabilizer
with both hands and finish lowering the elliptical to the
floor.

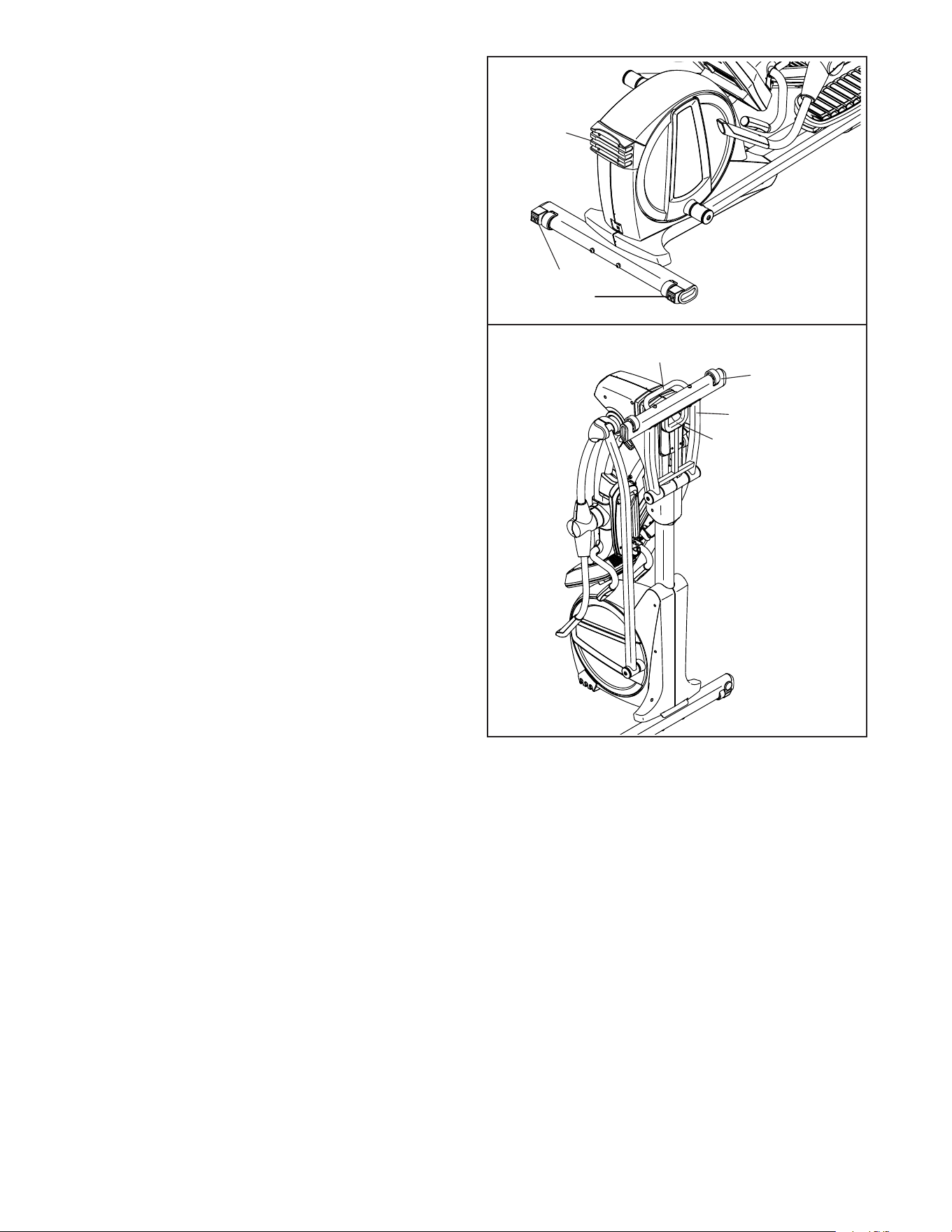

Stabilizer
Handle
Handle
Lift Frame
Storage
Feet
Storage
Foot
13

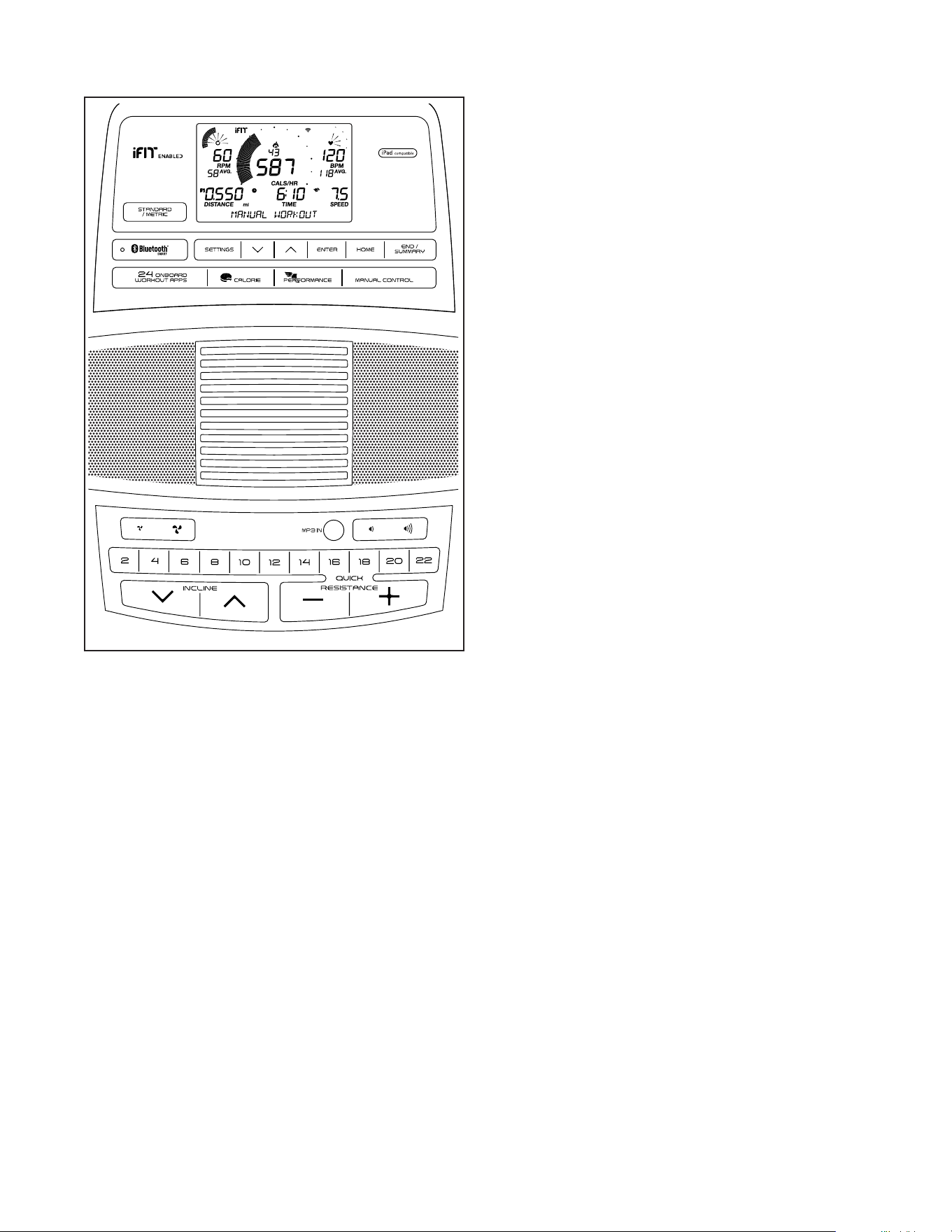

CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the frame with the touch of a button.
While you exercise, the console will display continu-
ous exercise feedback. You can even measure your
heart rate using the handgrip heart rate monitor or
a compatible heart rate monitor. See page 18 for
information about purchasing an optional chest
heart rate monitor.
You can also connect your tablet to the console and
use the iFit
®
Bluetooth Tablet app to record and track
your workout information.
The console also offers a selection of onboard
workouts. Each workout automatically changes the
resistance of the pedals as it guides you through an
effective workout.
You can even connect your personal audio player to
the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 14. To use the
manual mode, see page 14. To use an onboard
workout, see page 16. To connect your tablet to
the console, see page 17. To connect your heart
rate monitor to the console, see page 18. To use
the sound system, see page 18. To change con-
sole settings, see page 19.
Note: If there is a sheet of plastic on the display,
remove the plastic.
Note: The console can display speed and distance in
either miles or kilometers. To change the unit of mea-
surement, press the Standard/Metric button repeatedly.
For simplicity, all instructions in this section refer to
miles.
Giant
ELNT99416
NTEL99416
14
HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord
(see HOW TO PLUG IN
THE POWER CORD on
page 9). Next, locate the
power switch on the frame
near the power cord. Press
the power switch to the

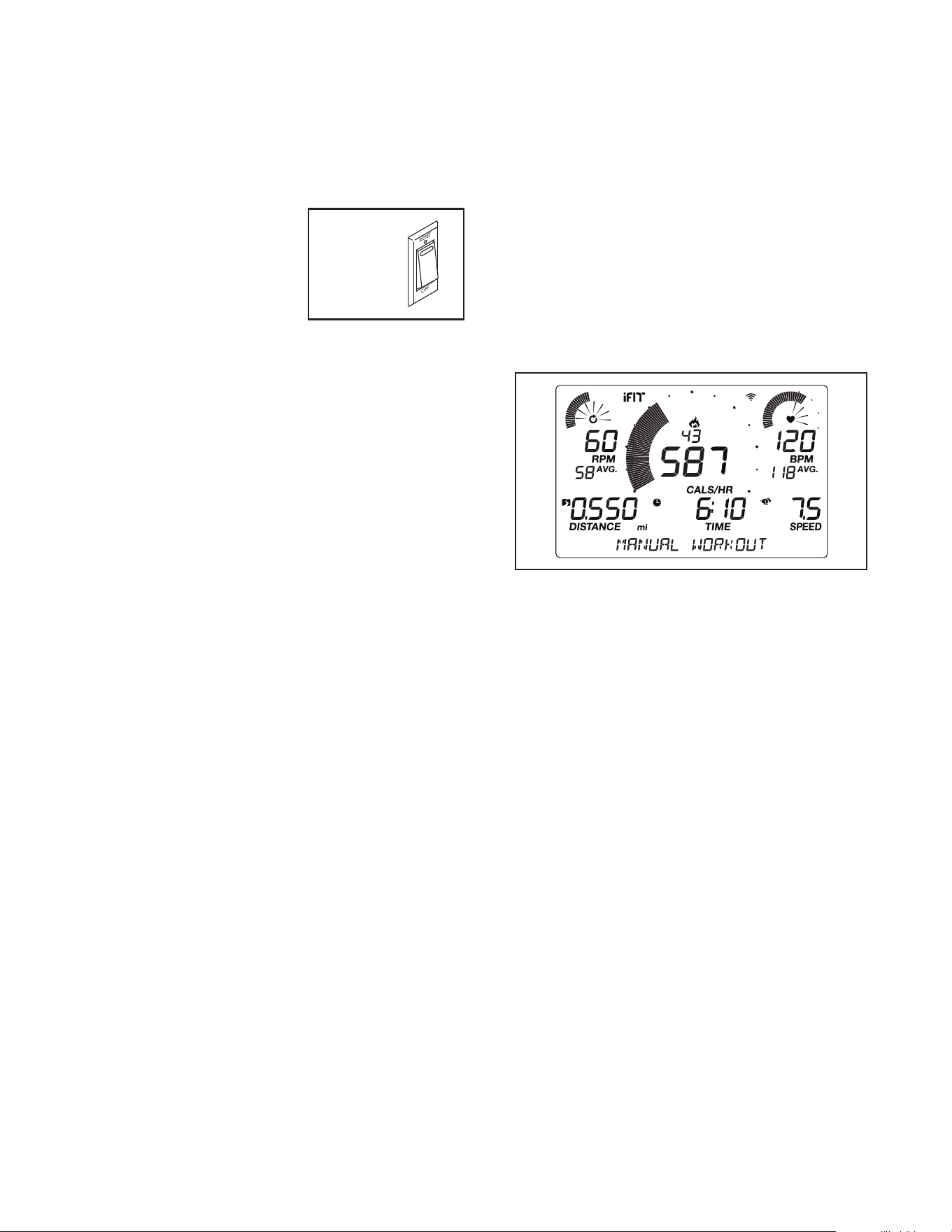

reset position.
The display will then turn on and the console will be
ready for use.
Note: When you turn on the power for the rst time,
the incline system may calibrate automatically. The
frame will move upward and downward as it calibrates.
When the frame stops moving, the incline system is
calibrated.
IMPORTANT: If the incline system does not
calibrate automatically, see step 3 on page 19
and manually calibrate the incline system.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 14.
2. Select the manual mode.
Press the Manual Control button to select the
manual mode.
3. Change the resistance of the pedals and the
incline of the frame as desired.
As you pedal, change the resistance of the pedals
by pressing the Quick Resistance increase and
decrease buttons or by pressing one of the num-
bered Quick Resistance buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
To vary the motion of the pedals, you can change
the incline of the frame. To change the incline level,
press the Incline increase and decrease buttons.
Note: After you press a button, it will take a
moment for the frame to reach the selected incline
level.
4. Follow your progress with the displays.
The display can show the following workout
information:
Calories (flame icon)—This display will show the
approximate number of calories you have burned.
Calories per Hour (Cals/Hr)—This display will
show the approximate number of calories you are
burning per hour.
Distance—This display will show the distance that
you have pedaled in miles (mi) or kilometers (km).
Incline—This display will show the incline level of
the frame.
Pulse (BPM)—This display will show your heart
rate in beats per minute (bpm) when you use the
handgrip heart rate monitor or the optional chest
heart rate monitor (see step 5).
Reset
Position
15

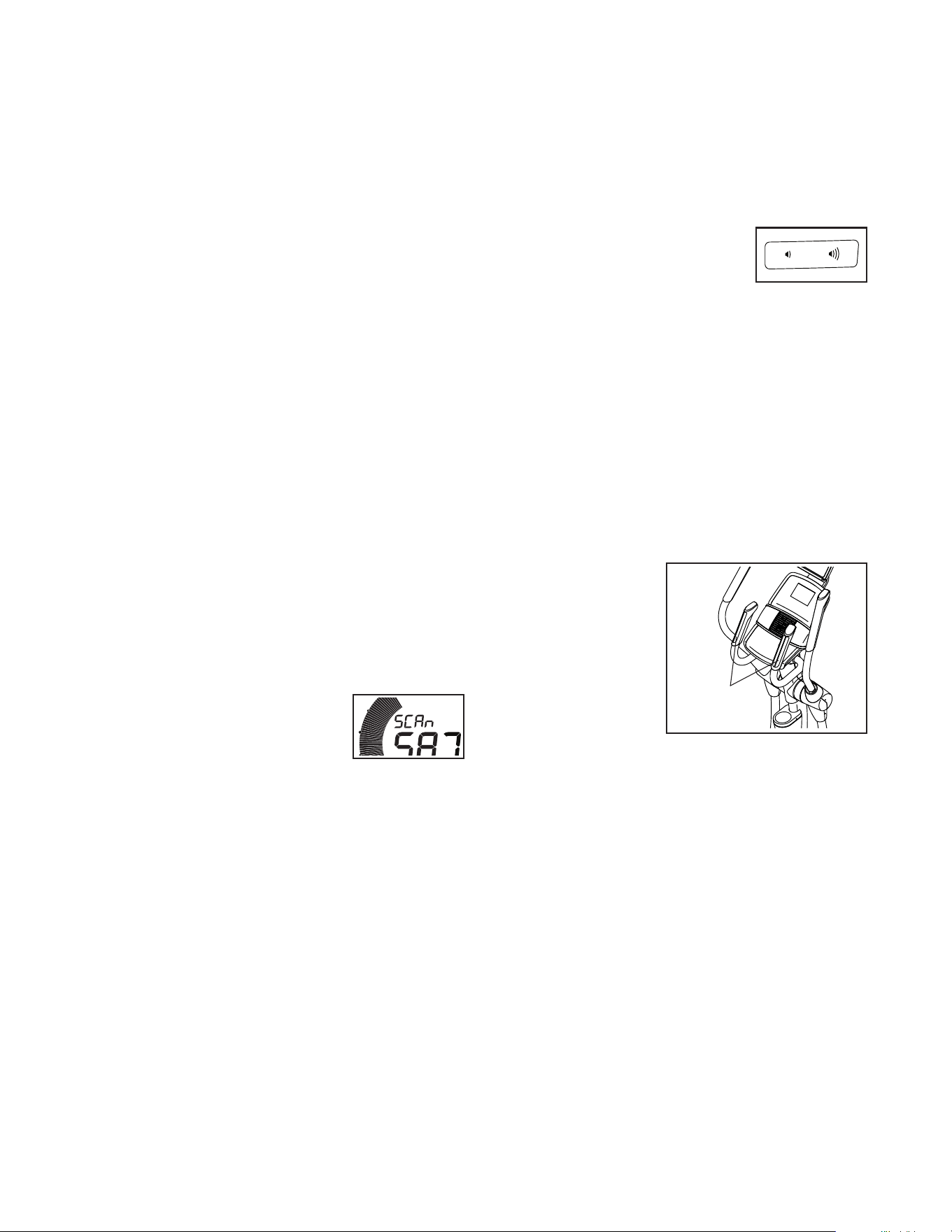

Pulse Average (BPM AVG)—This display will
show your average heart rate in beats per minute
(bpm) when you use the handgrip heart rate moni-
tor or the optional chest heart rate monitor (see
step 5).
Resistance—This display will show the resistance
level of the pedals for a few seconds each time the
resistance level changes.
RPM—This display will show your pedaling speed
in revolutions per minute (rpm).
RPM Average (RPM AVG)—This display will show
your average pedaling speed in revolutions per
minute (rpm).
Speed—This display will show your pedaling
speed in miles per hour or kilometers per hour.
To change the unit of measurement, press the
Standard/Metric button repeatedly.
Time—When the manual mode is selected, this
display will show the elapsed time. When an
onboard workout is selected, this display will show
the time remaining in the workout.
Watts—This display will show your approximate
power output in watts.
Average Watts (AVG)—This display will show your
approximate average power output in watts for the
workout.
Scan Mode and Priority
Mode—The calories and watts
displays will appear in an
alternating cycle (scan mode).
To select either the calories
display or the watts display for continuous display
(priority mode), press the increase or decrease
button next to the Enter button repeatedly until
the desired display appears. To return to the scan
mode, press the increase button repeatedly until
the word SCAN appears.
Press the Home button to exit the workout and
return to the main menu. If necessary, press the
Home button again.
Press the End/Summary button to end the work-
out and view a workout summary. The workout
summary will appear in the displays for several
seconds.
Change the volume level of
the console by pressing the
volume increase and decrease
buttons.
5. Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip heart rate monitor or an optional chest
heart rate monitor (see page 18 for infor-
mation about the optional chest heart rate
monitor). Note: The console is compatible with
BLUETOOTH
®
Smart heart rate monitors.
Note: If you use both heart rate monitors at the
same time, the chest heart rate monitor will
have priority.
If there are
sheets of plas-
tic on the metal
contacts on the
handgrip heart
rate monitor,
remove the plas-
tic. To measure
your heart rate,
hold the handgrip
heart rate monitor
with your palms resting against the contacts. Avoid
moving your hands or gripping the contacts
tightly.
When your pulse is detected, your heart rate will
appear in the display. For the most accurate
heart rate reading, hold the contacts for at least
15 seconds.
Contacts
16

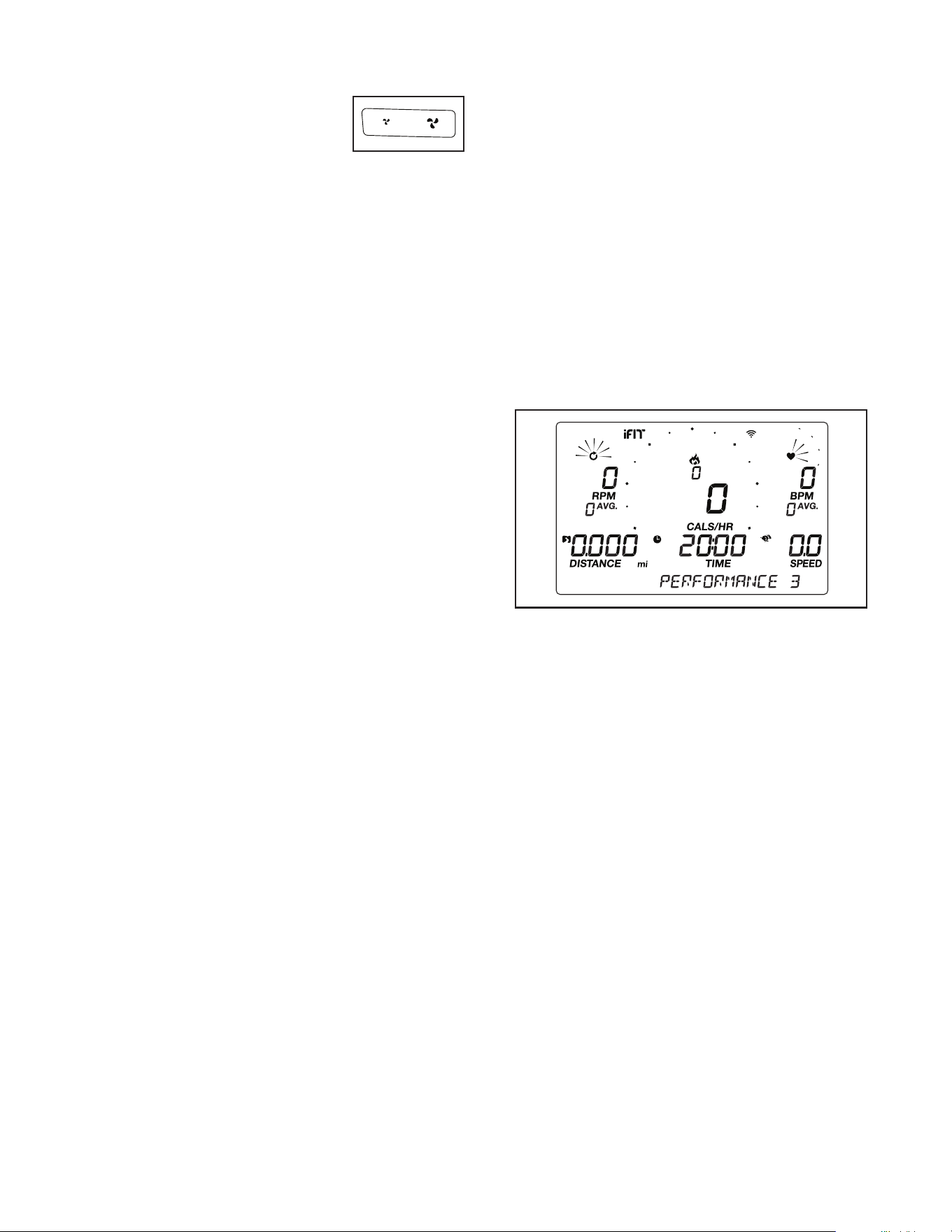

6. Turn on the fan if desired.
The fan has several speed
settings, including an auto
mode. While the auto mode
is selected, the speed of the
fan will automatically increase or decrease as your
exercise intensity increases or decreases. Press
the fan increase and decrease buttons repeatedly
to select a fan speed or to turn off the fan.
Note: If the pedals do not move for about 30
seconds, the fan will turn off automatically.
7. When you are finished exercising, unplug the
power cord.
If the pedals do not move for several seconds, a
tone will sound, the console will pause, and the
time will flash in the display. To resume your work-
out, simply resume pedaling.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components on the elliptical may
wear prematurely.
HOW TO USE AN ONBOARD WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 14.
2. Select an onboard workout.
To select an onboard workout, press the desired
Workout Apps button repeatedly until the desired
workout appears in the display.
When you select an onboard workout, the display
will show the name of the workout and the dura-
tion of the workout or the number of calories to be
burned.
The maximum speed and the maximum resistance
level for the workout will also appear in the display.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute segments.
One resistance level, one incline level, and one
target speed are programmed for each segment.
Note: The same resistance level, incline level,
and/or target speed may be programmed for con-
secutive segments. Some onboard workouts may
not have incline levels programmed.
At the end of each segment of the workout, a
series of tones will sound. If a different resistance
level, incline level, and/or target speed is pro-
grammed for the next segment, the resistance
level, incline level, and/or target speed will appear
in the display for a few seconds to alert you. The
resistance of the pedals and/or the incline level of
the frame will then change.
17
As you exercise, keep your pedaling speed near
the target speed for the current segment.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
If the resistance level or the incline level for the
current segment is too high or too low, you can
manually override the setting by pressing the
Quick Resistance buttons or the Incline buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals and the frame will
automatically adjust to the resistance level
and the incline level programmed for the next
segment.
The workout will continue in this way until the last
segment ends. To pause the workout at any time,
stop pedaling. The time will flash in the display. To
resume the workout, simply resume pedaling.
To end the workout, press the End/Summary but-
ton. A summary of the workout will appear in the
displays for several seconds.
4. Follow your progress with the displays.
See step 4 on page 14.
5. Measure your heart rate if desired.
See step 5 on page 15.
6. Turn on the fan if desired.
See step 6 on page 16
7. When you are finished exercising, unplug the
power cord.
See step 7 on page 16.
HOW TO CONNECT YOUR TABLET TO THE
CONSOLE
The console supports BLUETOOTH connections to
tablets via the iFit Bluetooth Tablet app and to compat-
ible heart rate monitors. Note: Other BLUETOOTH
connections are not supported.
1. Download and install the iFit Bluetooth Tablet
app on your tablet.
On your iOS
®
or Android™ tablet, open the App
Store℠ or the Google Play™ store, search for
the free iFit Bluetooth Tablet app, and then install
the app on your tablet. Make sure that the
BLUETOOTH option is enabled on your tablet.
Then, open the iFit Bluetooth Tablet app and follow
the instructions to set up an iFit account and cus-
tomize settings.
2. Connect your heart rate monitor to the console
if desired.
If you are connecting both your heart rate monitor
and your tablet to the console, you must connect
your heart rate monitor before you connect
your tablet. See HOW TO CONNECT YOUR
HEART RATE MONITOR TO THE CONSOLE
page 18.
3. Connect your tablet to the console.
Press the Bluetooth Smart button on the console;
the console pairing number will appear in the
display. Then, follow the instructions in the iFit
Bluetooth Tablet app to connect your tablet to the
console.
When a connection is established, the LED on the
console will turn solid blue.
18
4. Record and track your workout information.
Follow the instructions in the iFit Bluetooth Tablet
app to record and track your workout information.
5. Disconnect your tablet from the console if
desired.
To disconnect your tablet from the console, first
select the disconnect option in the iFit Bluetooth
Tablet app. Then, press and hold the Bluetooth
Smart button on the console until the LED on the
console turns solid green.
Note: All BLUETOOTH connections between
the console and other devices (including any
tablets, heart rate monitors, and so forth) will be
disconnected.
HOW TO CONNECT YOUR HEART RATE MONITOR
TO THE CONSOLE
The console is compatible with all BLUETOOTH Smart
heart rate monitors.
To connect your BLUETOOTH Smart heart rate moni-
tor to the console, press the Bluetooth Smart button on
the console; the console pairing number will appear in
the display. When a connection is established, the LED
on the console will flash red twice.
Note: If there is more than one compatible heart rate
monitor near the console, the console will connect to
the heart rate monitor with the strongest signal.
To disconnect your heart rate monitor from the console,
press and hold the Bluetooth Smart button on the con-
sole until the LED on the console turns solid green.
Note: All BLUETOOTH connections between the
console and other devices (including any tablets, heart
rate monitors, and so forth) will be disconnected.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play button on
your personal audio player. Adjust
the volume level using the volume
increase and decrease buttons on
the console or the volume control
on your personal audio player.
THE OPTIONAL CHEST HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during your
workouts. The optional chest heart rate monitor will
enable you to continuously monitor your heart rate
while you exercise, helping you to reach your personal
fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
Note: The console is compatible with all BLUETOOTH
Smart heart rate monitors.
19
HOW TO CHANGE CONSOLE SETTINGS
1. Select the settings mode.
To select the settings mode, press the Settings
button. The settings information will appear in the
display.
2. Navigate the settings mode.
While the settings mode is selected, the display will
show several optional screens. Press the increase
and decrease buttons near the Enter button
repeatedly to select the desired optional screen.
The lower section of the display will show
instructions for the selected screen. Make sure to
follow the instructions shown in the lower part
of the display.
3. Change settings as desired.
Units—The currently selected unit of measurement
will appear in the display. To change the unit of
measurement, press the Enter button repeatedly.
To view distance in miles, select ENGLISH. To view
distance in kilometers, select METRIC.
Incline System Calibration— If the incline sys-
tem is not functioning properly, it may need to be
calibrated. To calibrate the incline system, press
the Incline increase or decrease button. The frame
will move upward and downward as it calibrates.
When the frame stops moving, the incline system is
calibrated.
Contrast Level—The currently selected contrast
level will appear in the display. Press the Quick
Resistance increase and decrease buttons to
adjust the contrast level.
Usage Information—The display will show the
total number of hours that the elliptical has been
used and the total distance (in miles or kilometers)
that has been pedaled on the elliptical.
4. Exit the settings mode.
Press the Settings button to exit the settings mode.
20
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the elliptical is used.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power cord is fully plugged in.
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the
displayed heart rate appears to be too high or too low,
see step 5 on page 15.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first press the power switch to the off posi-
tion and unplug the power cord.
Next, remove the
four M4 x 16mm
Screws (not
shown) from the
Large Storage
Foot (27), and
then remove the
Large Storage
Foot. Then,
remove the two
M4 x 16mm
Screws (not
shown) from the Top Shield (37), and use a stan-
dard screwdriver to pry the Top Shield upward off the
elliptical.
Then, look into the access opening and locate the
Reed Switch (58). Rotate the Pulley (66) until a
Magnet (41) is aligned with the Reed Switch.
Slightly loosen the two indicated M4 x 16mm Screws
(61). Slide the Reed Switch (58) slightly toward or
away from the Magnet (41), and then retighten the
Screws.
Then, plug in the power cord, press the power switch
to the reset position, and rotate the pulley for a
moment. Repeat these actions until the console dis-
plays correct feedback.
When the reed switch is correctly adjusted, press the
power switch to the off position, unplug the power cord
and reattach the top shield and the large storage foot.
Then, plug in the power cord.
37
27
66
58
41
61
MAINTENANCE AND TROUBLESHOOTING
21
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while the
resistance is adjusted to the highest setting, the drive
belt may need to be adjusted. To adjust the drive belt,
first press the power switch to the off position and
unplug the power cord.
Next, remove the indicated M4 x 16mm Screw (61),
the Left Leg Inner Cover (39), and the Left Leg Outer
Cover (92).
Then, remove the two M8 x 16mm Hex Screws (76)
and the two M8 Washers (33) from the Left Upper
Body Leg (101) and the Left Pedal Arm (14).
Next, remove
the M8 x 14mm
Shoulder Screw
(81) from the Left
Pedal Arm (14),
and remove the
Left Pedal Arm
from the elliptical.
Next, remove the
four M4 x 16mm
Screws (not
shown) from the Large Storage Foot (27), and remove
the Large Storage Foot. Remove the two M4 x 16mm
Screws (not shown) from the Top Shield (37), and
then use a standard screwdriver to pry the Top Shield
upward off the elliptical. Then, pry the left Pedal Disc
(36) off the elliptical.

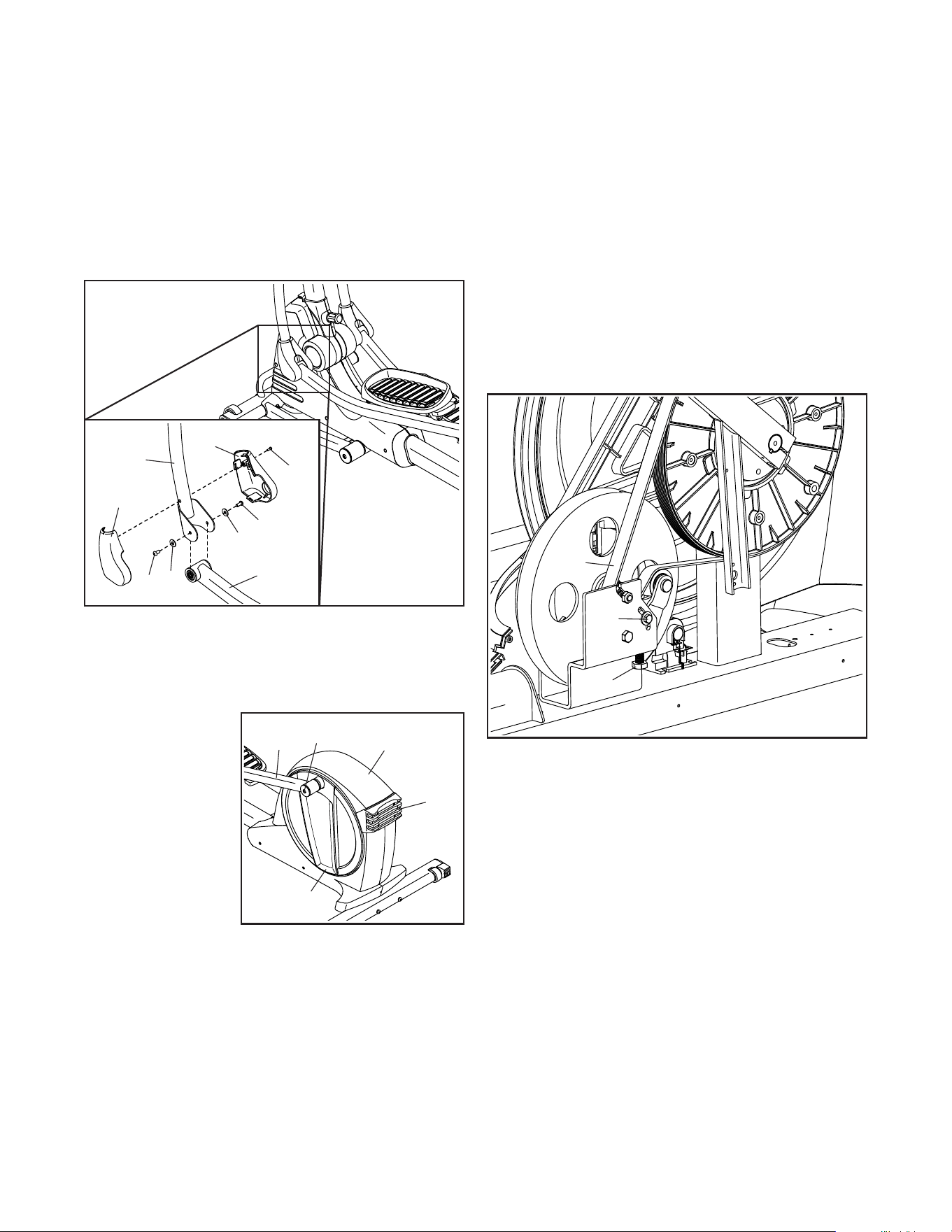

See EXPLODED DRAWING C on page 27. Identify
the Left and Right Shields (44, 45). Remove all of the
M4 x 16mm Screws (61) and 3/16" x 1 1/2" Screws
(64) from the Left and Right Shields. Make sure to
note which size Screws come from which holes.
Then, carefully remove the Left Shield.
Next, loosen the Idler Screw (97). Tighten the Idler
Adjustment Screw (72) until the Drive Belt (46) is tight,
and then retighten the Idler Screw.
When you are finished, reattach all of the parts that
you removed. Then, plug in the power cord.
39
33
33
92
101
76
14
76
61
37
14
81
36
27
46
72
97
22
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

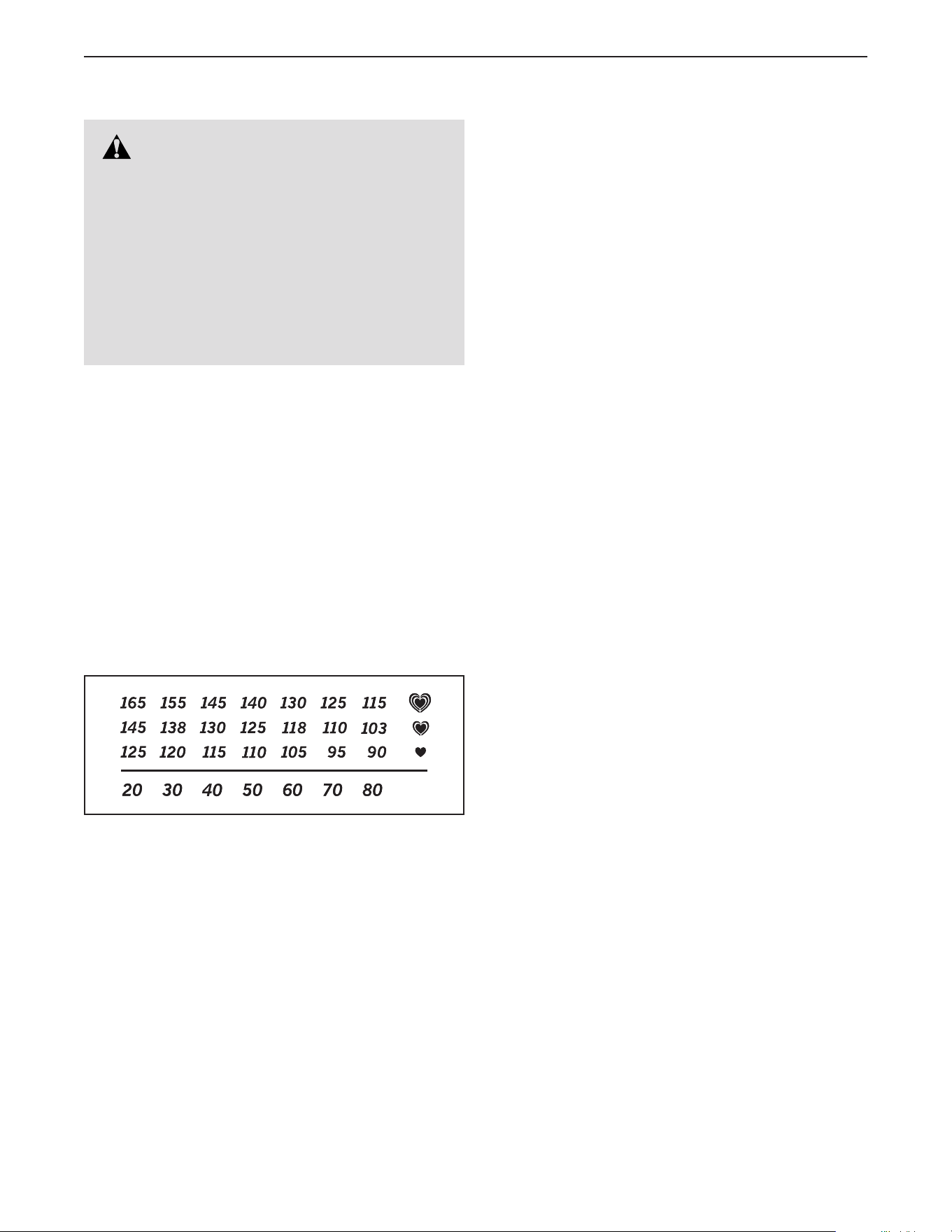

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise ; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
23
1 1 Frame
2 1 Upright
3 1 Rear Upright Cover
4 1 Console
5 1 Accessory Tray
6 1 Right Upper Body Leg
7 1 Eddy Mechanism
8 1 Left Upper Body Arm
9 1 Right Upper Body Arm
10 2 Grip
11 1 Right Leg Front Cover
12 1 Left Pedal
13 1 Right Pedal
14 1 Left Pedal Arm
15 1 Right Leg Rear Cover
16 1 Front Upright Cover
17 6 Pivot Bushing
18 1 Left Leg Front Cover
19 1 Left Leg Rear Cover
20 2 Upper Body Arm Cover
21 1 Tray Housing
22 1 Right Leg Outer Cover
23 4 Pedal Arm Bushing
24 1 Crank
25 2 Crank Arm
26 2 Pedal Disc Insert
27 1 Large Storage Foot
28 1 Main Wire Harness
29 4 Pedal Arm Bearing
30 2 Pedal Arm Cap
31 2 Pedal Arm Axle
32 1 Right Leg Inner Cover
33 10 M8 Washer
34 1 Left Front Shield
35 1 Right Front Shield
36 2 Pedal Disc
37 1 Top Shield
38 2 Frame Bearing
39 1 Left Leg Inner Cover
40 1 Large Spacer
41 2 Magnet
42 1 Power Cord
43 2 Crank Arm Washer
44 1 Left Shield
45 1 Right Shield
46 1 Drive Belt
47 2 Leveling Foot
48 4 Stabilizer Cap
49 1 Right Pedal Arm
50 2 Small Wheel
51 2 Small Storage Foot
52 1 Idler
53 1 Small Spacer
54 1 Resistance Motor
55 2 Axle Cover
56 4 M4 x 12mm Washer Head Screw
57 1 Clamp
58 1 Reed Switch/Wire
59 2 M10 x 20mm Hex Screw
60 2 Key
61 76 M4 x 16mm Screw
62 2 M4 x 30mm Screw
63 2 Pulse Grip
64 6 3/16" x 1 1/2" Screw
65 7 3/16" x 3/4" Screw
66 1 Pulley
67 2 M4 x 15mm Screw
68 1 M4 x 16mm Ground Screw
69 1 Pulse Wire
70 1 Rear Stabilizer
71 2 M4 x 12mm Screw
72 1 Idler Adjustment Screw
73 1 Front Stabilizer
74 2 M6 x 12mm Flat Head Screw
75 10 M6 x 12mm Screw
76 6 M8 x 16mm Hex Screw
77 4 M10 x 60mm Screw
78 2 M10 x 45mm Hex Screw
79 2 Crank Arm Bolt
80 1 M6 x 25mm Shoulder Screw
81 4 M8 x 14mm Shoulder Screw
82 2 Crank Arm Nut
83 2 M10 Washer
84 4 M10 x 120mm Screw
85 1 Upright Knob
86 1 Right Upright Cover
87 1 Left Upright Cover
88 1 M5 x 5mm Screw
89 1 Latch Release
90 1 Latch
91 1 Power Switch
92 1 Left Leg Outer Cover
93 1 Front Console Cover
94 1 Rear Console Cover
95 2 M10 x 50mm Screw
96 1 Pivot Screw
97 1 Idler Screw
98 8 M6 Washer
99 6 M8 Locknut
100 4 Standoff
Key No. Qty. Description Key No. Qty. Description
PART LIST
Model No. NTEVEL90917.0 R0517A
24
101 1 Left Upper Body Leg
102 1 Upright Axle
103 4 M8 x 20mm Hex Bolt
104 1 Lift Frame
105 1 Lift Motor
106 1 Control Board
107 1 Control Board Bracket
108 1 Lift Frame Axle
109 2 Large Wheel
110 4 Tablet Holder Screw
111 1 Left Lift Motor Cover
112 2 Incline Frame Cap
113 14 Mount/Screw
114 1 Lift Frame Cover
115 1 Grommet
116 2 M10 x 140mm Bolt
117 2 M10 Locknut
118 1 M6 x 16mm Screw
119 1 Right Pedal Pad
120 1 Left Pedal Pad
121 1 Right Pedal Handle
122 1 Left Pedal Handle
123 1 Right Pedal Plate
124 1 Left Pedal Plate
125 1 Lift Motor Axle
126 2 Spring
127 2 M6 Acorn Nut
128 2 Pin
129 1 Right Lift Motor Cover
130 1 Tablet Holder
131 4 Lift Frame Bushing
132 1 Crank Spacer
* – User’s Manual
* – Assembly Tool
Key No. Qty. Description Key No. Qty. Description
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
25
1
7
28
25
24
102
38
38
40
41
41
43
43
46
48
50
52
47
51
42
54
25
58
59
59
53
61
57
60
60
56
61
61
66
61
70
72
71
71
74
74
103
103
79
79
77
83
83
82
82
61
107
100
91
115
106
84
96
68
98
99
97
99
132
99
73
84
109
84
77
99
61
112
112
55
105
118
98
61
61
61
114
108
55
104
33
33
81
81
131
131
131
48
17
17
61
75
98
125
98
75
110
130
4
61
61
94
93
EXPLODED DRAWING A
Model No. NTEVEL90917.0 R0517A
26
101
6
8
10
10
12
120
124
122
9
11
14
18
19
127
98
126
116
117
128
121
123
15
17
17
20
20
23
23
30
32
22
29
29
31
39
33
33
61
61
61
49
76
61
61
76
33
33
76
78
81
81
92
95
61
61
75
3
5
2
16
21
61
61
61
63
62
67
80
86
87
88
85
89
90
61
13
119
75
69

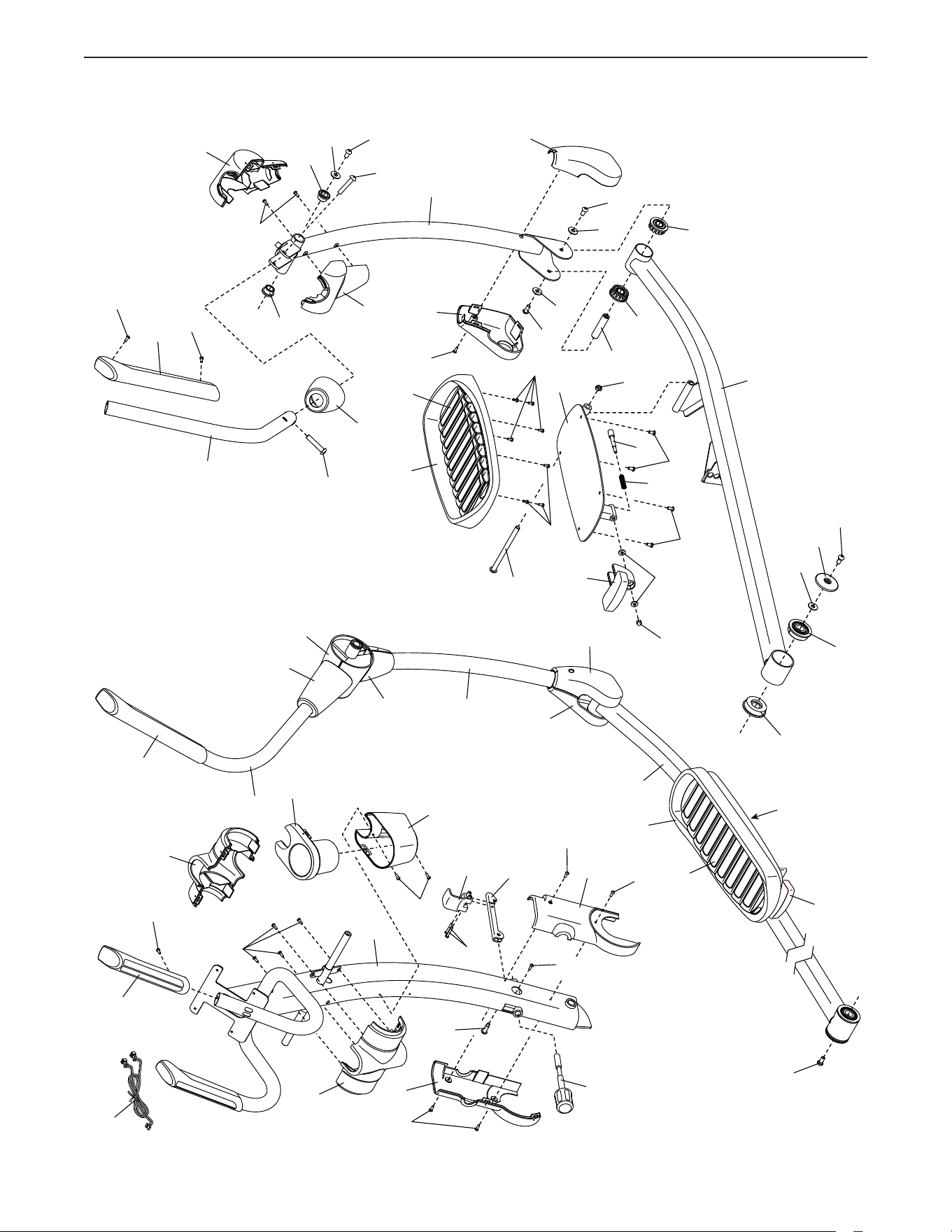

EXPLODED DRAWING B
Model No. NTEVEL90917.0 R0517A
27
26
26
27
36
36
37
45
44
113
113
113
113
113
113
61
61
61
61
61
61
61
61
61
61
64
64
64
64
64
64
65
35
65
65
34
65
111
129
65
65
65
61
113
113

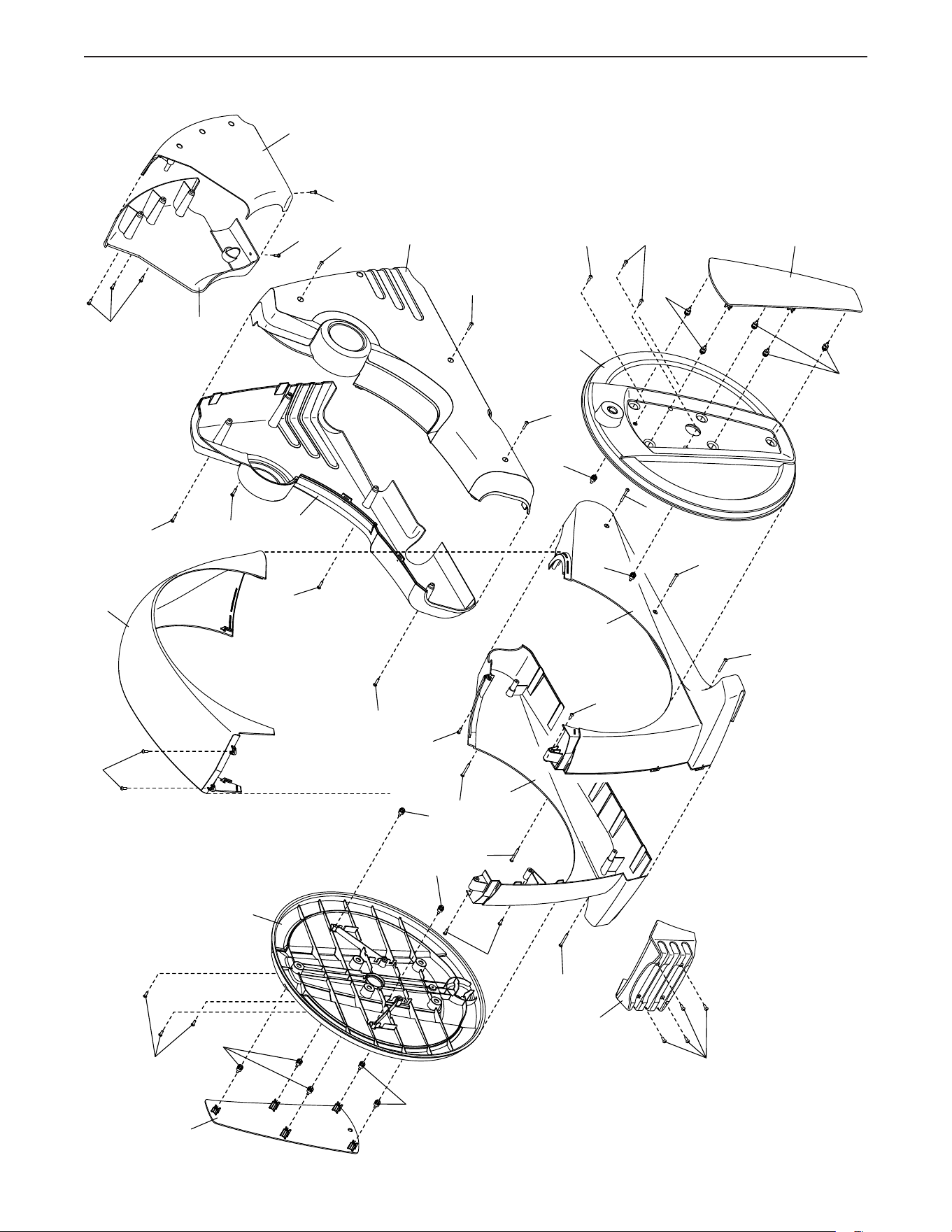

EXPLODED DRAWING C
Model No. NTEVEL90917.0 R0517A
Part No. 390176 R0517A Printed in China © 2017 ICON Health & Fitness, Inc.
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
ORDERING REPLACEMENT PARTS
This electronic product must not be disposed of in municipal waste. To
preserve the environment, this product must be recycled after its useful life
as required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or the
establishment where you purchased this product.
RECYCLING INFORMATION
