USER MANUAL
PLEASE READ THIS USER MANUAL CAREFULLY BEFORE USING THE MACHINE.
Register your product and get support at
www.philips.com/welcome
English
Type HD8953 / HD8954
EN
02
02
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse
cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair
or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into wall outlet. To
disconnect, turn any control to “off”, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Save these instructions.
SAVE THESE INSTRUCTIONS
CAUTION
This appliance is for household use only. Any servicing, other than cleaning
and user maintenance, should be performed by an authorized service center.
Do not immerse machine in water. To reduce the risk of fire or electric shock,
do not disassemble the machine. There are no parts inside the machine
serviceable by the user. Repair should be done by authorized service personnel
only.
1. Check voltage to be sure that the voltage indicated on the nameplate
corresponds with your voltage.
2. Never use warm or hot water to fill the water tank. Use cold water only.
3. Keep your hands and the cord away from hot parts of the appliance during
operation.
4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft
cloth dampened with water.
5. For optimal taste of your coffee, use purified or bottled water. Periodic
descaling is still recommended every 2-3 months.
6. Do not use caramelized or flavored coffee beans.
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A. A short power-supply cord (or detachable power-supply cord) is to be
provided to reduce risks resulting from becoming entangled in or tripping
over a longer cord.
B. Longer detachable power-supply cords or extension cords are available
and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,
1. The marked electrical rating of the detachable power-supply cord or
extension cord should be at least as great as the electrical rating of the
appliance
2. If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord, and
3. The longer cord should be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or tripped
over.
2
ENGLISH
Congratulations on your purchase of a Saeco Xelsis EVO full
automatic espresso machine!
To fully bene t from the support that Saeco o ers, please
register your product at www.philips.com/welcome.
This user manual applies to HD8953 and HD8954.
The machine is suitable for preparing espresso co ees using
whole co ee beans. It is supplied with a milk carafe so you
can prepare perfect cappuccino or latte macchiato in a
quick and easy way. In this user manual you will nd all the
information you need to install, use, clean and descale your
machine.
CONTENTS
IMPORTANT..................................................................................................... 4
Safety instructions ....................................................................................................................................4
Warning ....................................................................................................................................................4
Caution .....................................................................................................................................................5
Compliance with standards ......................................................................................................................7
INSTALLATION ................................................................................................. 8

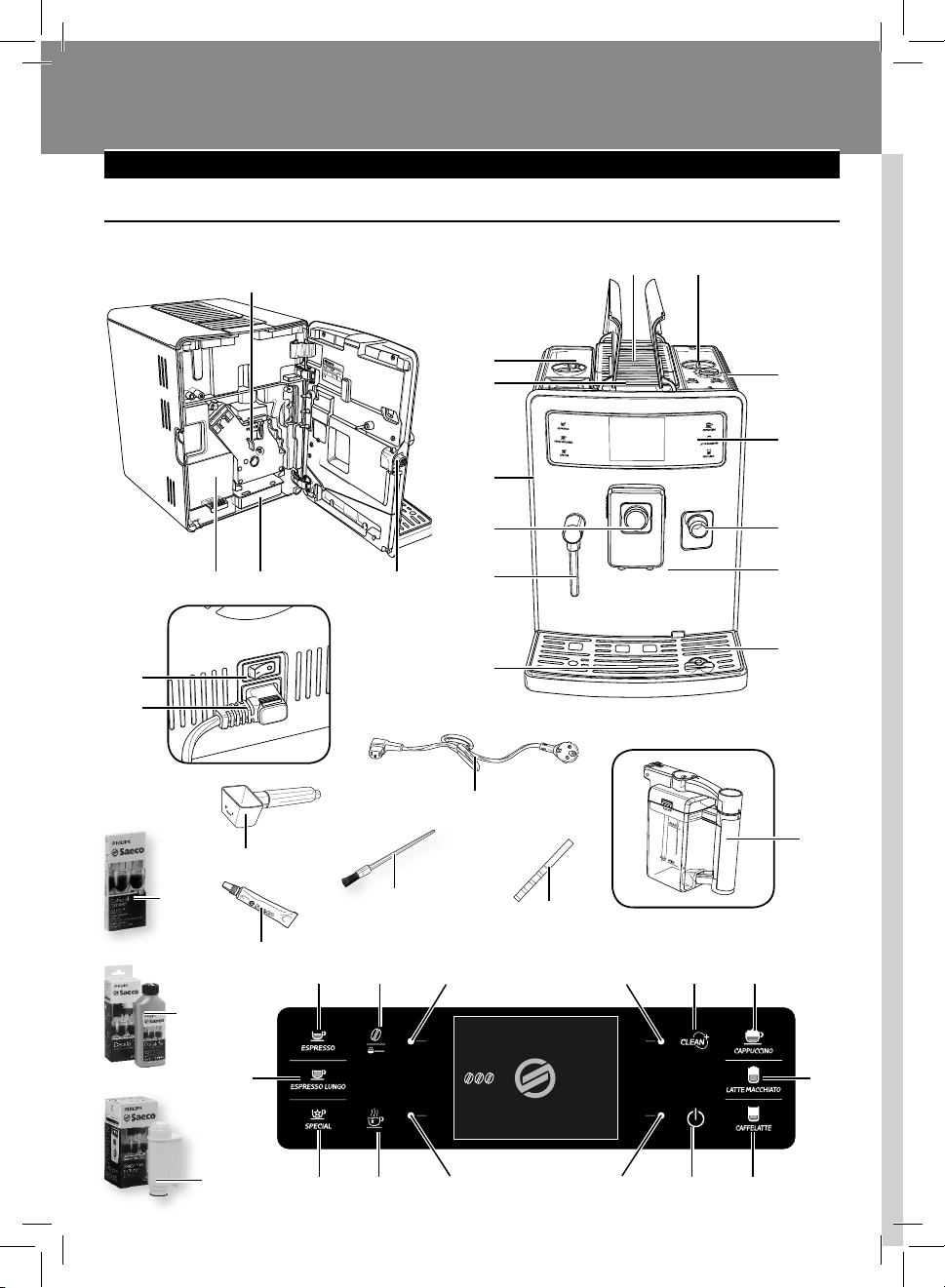

Product overview ......................................................................................................................................8
General description ...................................................................................................................................9
PREPARING FOR USE .......................................................................................10
Machine packaging .................................................................................................................................10

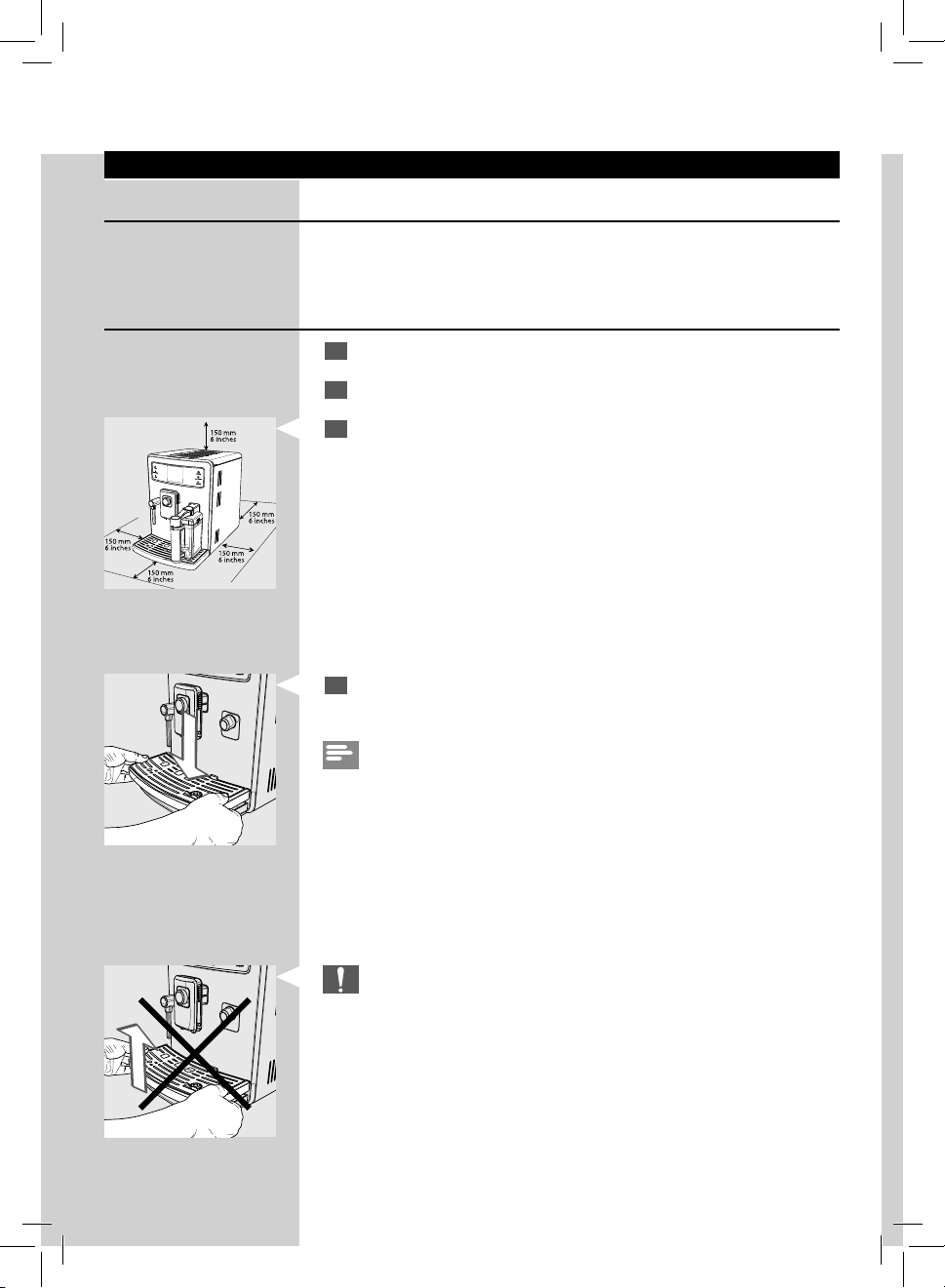

Machine installation ...............................................................................................................................10
USING THE MACHINE FOR THE FIRST TIME ........................................................13
Automatic rinse/self-cleaning cycle ........................................................................................................13
Manual rinse cycle...................................................................................................................................13

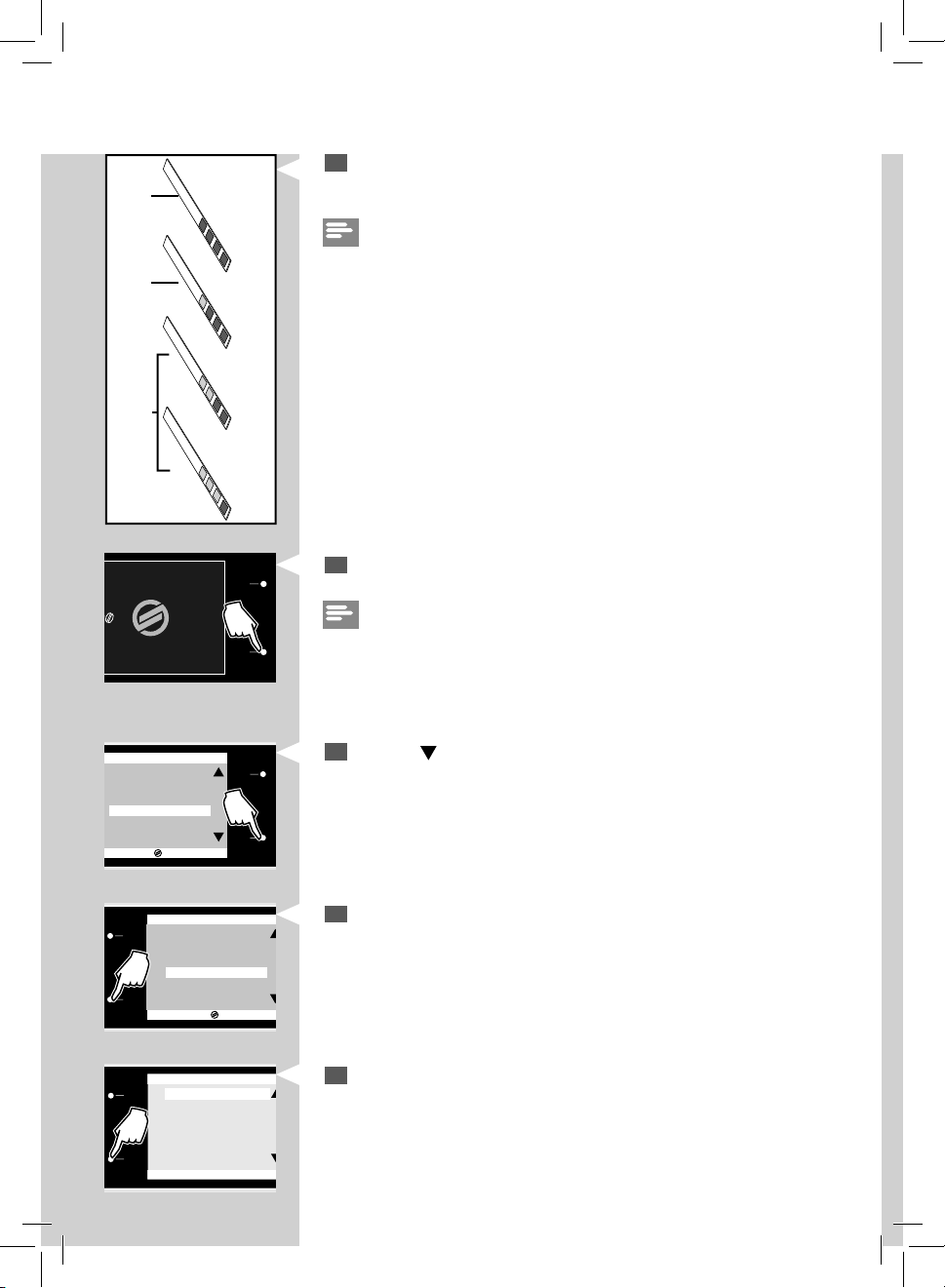

Measuring and programming water hardness ........................................................................................15

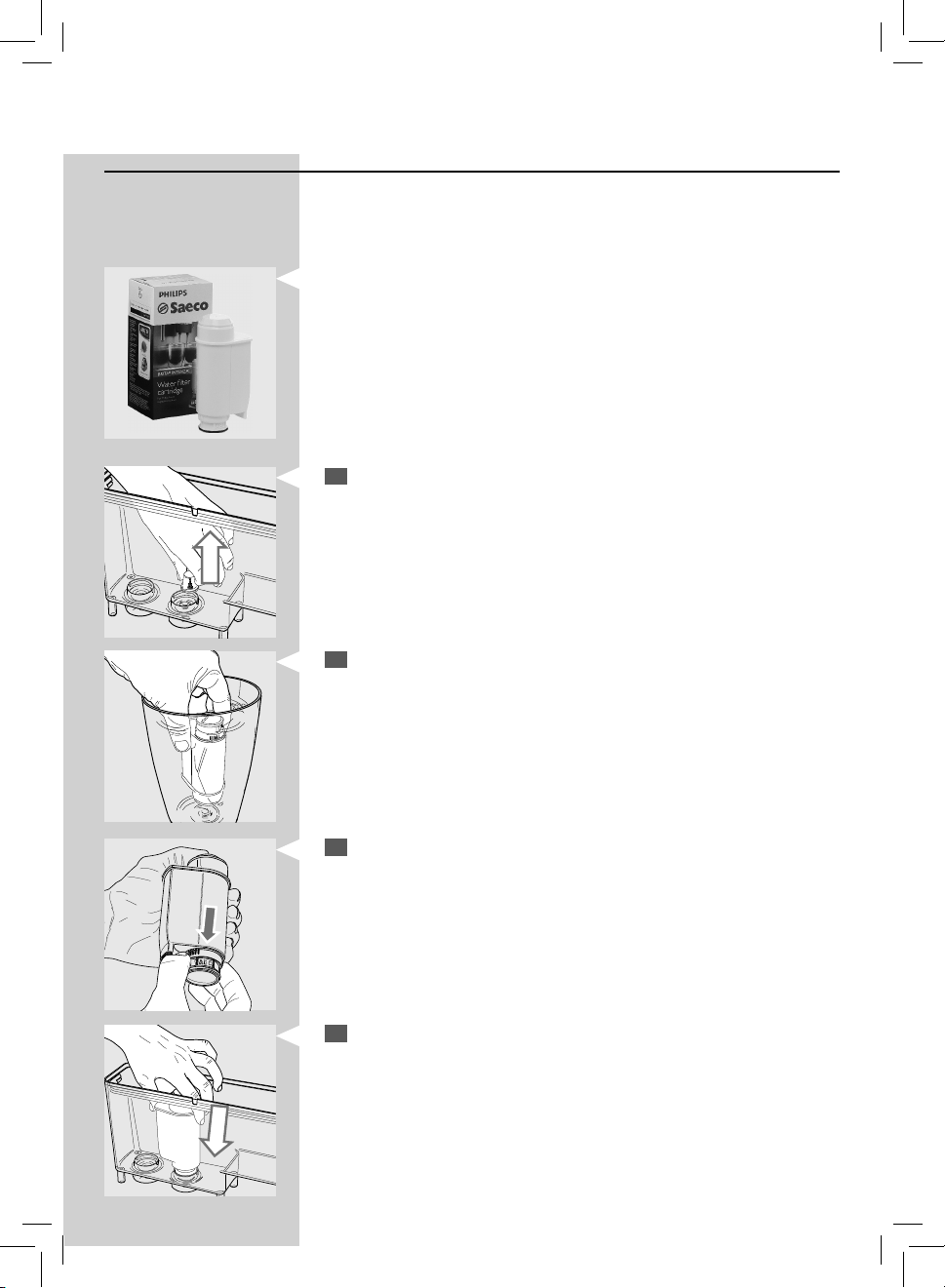

“INTENZA+” water lter installation .......................................................................................................17
Replacing the “INTENZA+” water lter ....................................................................................................19
ADJUSTMENTS ................................................................................................20
User pro le selection ...............................................................................................................................20
Creating a new user pro le ........................................................................ 20
Deleting an user pro le ............................................................................. 21
Saeco Adapting System ...........................................................................................................................22
Adjusting the ceramic co ee grinder.......................................................................................................22
Adjusting co ee crema and intensity (Saeco Brewing System) ...............................................................23
Adjusting the aroma (co ee strength) ....................................................................................................24
Adjusting the dispensing spout ...............................................................................................................24
Adjusting the co ee length ....................................................................................................................26
3
ENGLISH
ESPRESSO, AND ESPRESSO LUNGO BREWING ....................................................27
Espresso, and espresso lungo brewing using co ee beans ......................................................................27
Espresso, and espresso lungo brewing using pre-ground co ee..............................................................28
MILK CARAFE..................................................................................................30
Filling the milk carafe ..............................................................................................................................30
Inserting the milk carafe .........................................................................................................................31
Removing the milk carafe .......................................................................................................................32
Emptying the milk carafe ........................................................................................................................33
CAPPUCCINO BREWING ...................................................................................34
Adjusting the cappuccino length .............................................................................................................36
LATTE MACCHIATO BREWING ...........................................................................37
Adjusting the latte macchiato length ......................................................................................................40

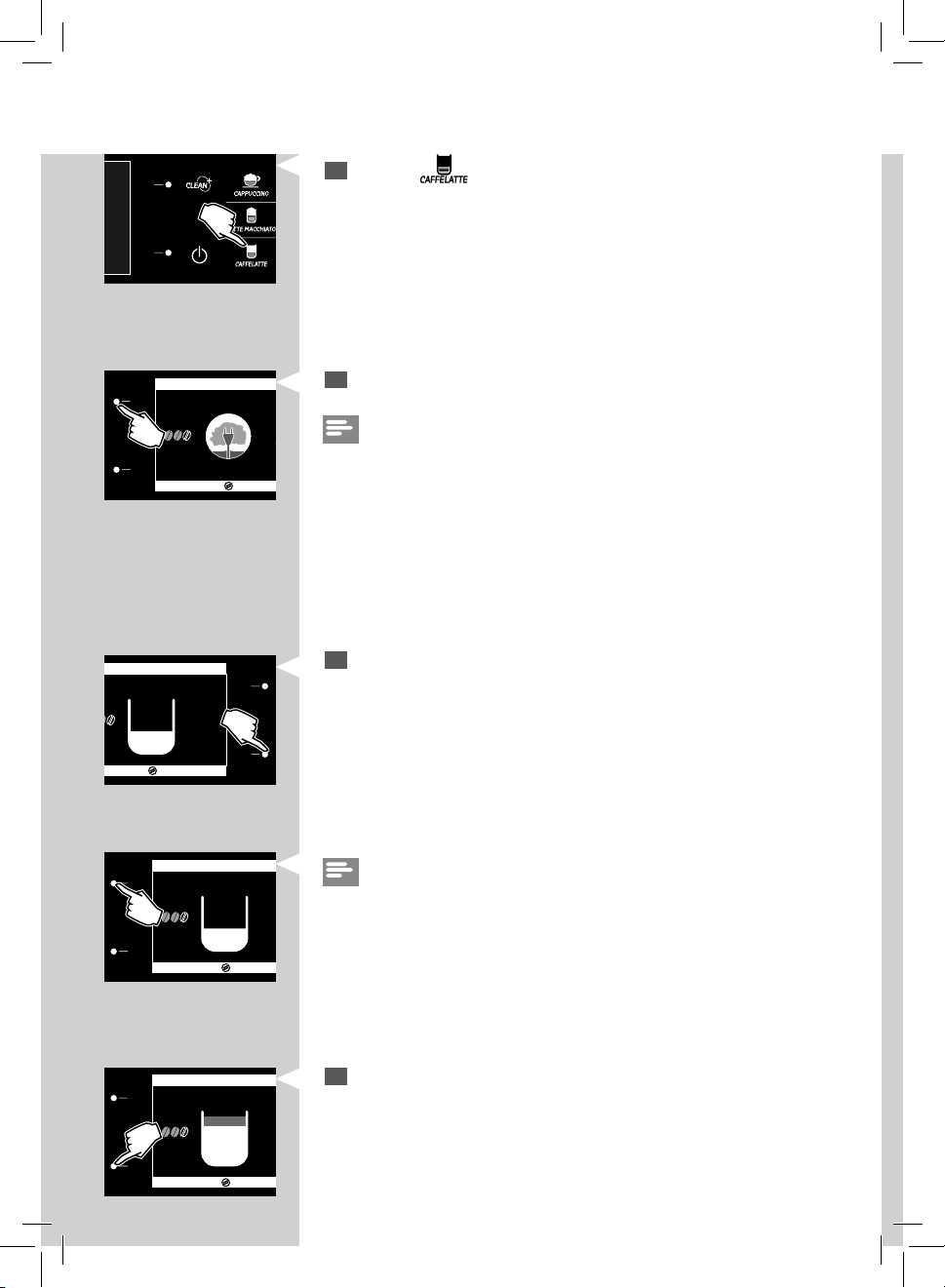

CAFFELATTE BREWING ....................................................................................41
Adjusting the ca elatte length ...............................................................................................................43
SPECIAL BEVERAGES .......................................................................................44
Hot milk .................................................................................................................................................45
Steam dispensing ....................................................................................................................................46
American co ee ......................................................................................................................................47
Espresso Macchiato .................................................................................................................................48
HOT WATER DISPENSING .................................................................................49
BEVERAGE PROGRAMMING .............................................................................50
Cappuccino programming .......................................................................................................................50
Hot water programming .........................................................................................................................52
MACHINE PROGRAMMING ...............................................................................53
General settings ......................................................................................................................................54
Display settings .......................................................................................................................................55
Calendar settings ....................................................................................................................................56
Water settings .........................................................................................................................................58
Maintenance settings ..............................................................................................................................59
Factory settings .......................................................................................................................................59
CLEANING AND MAINTENANCE ........................................................................60
Daily cleaning of the machine .................................................................................................................60
Daily cleaning of water tank ....................................................................................................................61
Daily cleaning of the milk carafe: AUTO CLEAN cycle (after each use) ......................................................62
Weekly cleaning of the machine ............................................................................................................62
Weekly cleaning of the milk carafe .........................................................................................................64
Weekly cleaning of the brew group .........................................................................................................66
Monthly cleaning of the milk carafe ........................................................................................................68
Monthly lubrication of the brew group...................................................................................................71
Monthly cleaning of the brew group with “Co ee Oil Remover” ..............................................................72
Monthly cleaning of the co ee bean hopper ...........................................................................................74
DESCALING .....................................................................................................75
MEANING OF THE DISPLAY ...............................................................................79
TROUBLESHOOTING ........................................................................................81
ENERGY SAVING ..............................................................................................84
Stand-by .................................................................................................................................................84
Disposal ..................................................................................................................................................85
TECHNICAL SPECIFICATION ..............................................................................86
GUARANTEE AND SERVICE ...............................................................................86
Guarantee ...............................................................................................................................................86
Service ....................................................................................................................................................86
ORDERING MAINTENANCE PRODUCTS .............................................................87
4
ENGLISH
IMPORTANT
Safety instructions
This machine is equipped with safety features. Nevertheless
read the safety instructions carefully and only use the machi-
ne as described in these instructions to avoid accidental injury
or damage.
Keep this user manual for future reference.
The term WARNING and this sign warn against possible seve-
re injuries, danger to life and/or damage to the machine.
The term CAUTION and this sign warn against slight injuries
and/or damage to the machine.
Warning
• Connect the machine to a wall socket which is properly
wired. Its main voltage should comply with the technical
data of the appliance.
• Do not let the mains cord hang over the edge of a table or
counter, or touch hot surfaces.
• Never immerse the machine, mains plug or mains cord in
water (danger of electrical shock).
• Never direct the hot water jet towards body parts (danger
of burning).
• Do not touch hot surfaces. Use handles and knobs.
5
ENGLISH
5
• Remove the mains plug from the wall socket:
- If a malfunction occurs.
- If the machine will not be used for a long time.
- Before cleaning the machine.
Pull on the plug, not on the mains cord. Do not touch the
mains plug with wet hands.
• Do not use the machine if the mains plug, the mains cord
or the machine itself is damaged.
• Do not make any modi cations to the machine or its mains
cord. Only have repairs carried out by a service centre
authorized by Philips to avoid a hazard.
• This machine is not intended for use by persons (including
children) with reduced physical, sensory or mental capa-
bilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use
of the machine by a person responsible for their safety.
• Children should be supervised to ensure that they do not
play with the machine.
• Never insert ngers or other objects into the co ee grin-
der.
Caution
• The machine is for household use only. It is not intended
for use in environments such as sta kitchens of shops,
o ces, farms or other work environments.
6
ENGLISH
• Always put the machine on a at and stable surface.
• Do not place the machine on a hot plate, directly next to a
hot oven, heater or similar source of heat.
• Only put co ee beans into the co ee bean hopper. If
ground co ee, instant co ee or any other substance is put
in, it may damage the machine.
• Allow the machine to cool before putting on or taking o .
• Never use warm or hot water to ll the water tank. Use
cold water only.
• Never clean with scrubbing powders or harsh cleaners.
Simply use a soft cloth dampened with water.
• Descale your machine regularly. The machine indicates
when descaling is needed. Not doing this will make your
appliance stop working properly. In this case repair is not
covered under your warranty!
• Do not keep the machine at temperature below 0 degree
Celsius. Residue water in the heating system may freeze
and cause damage.
• Do not leave water in the water tank when the machine
is not used over a longer period of time. The water can
become contaminated. Use fresh water every time you use
the machine.
7
ENGLISH
7
Compliance with standards
The machine complies with art.13 of the Italian Legislative
Decree dated 25 July 2005, no. 151 “Implementation of the
directives 2005/95/EC, 2002/96/EC and 2003/108/EC on the re-
striction of the use of certain hazardous substances in electrical
and electronic equipment, as well as waste disposal”.
This machine complies with EU directive 2002/96/EC.
8
INSTALLATION
Product overview
21/12/12
04:17 pm
USER
MENU
BEVERAGE
MENU
SETTINGS
MENU
SELECT
USER
22
23
21
25
24
35343332
26 27 29 3028
28
28
31 36
28
37
38
39
12
3
4
5
6
7
8
9
10
11
12
13
20
14
15 16 17
18
19
9
ENGLISH
9
General description
1. Cup-warming surface
2. Co ee bean hopper with lid
3. Water tank + cover
4. Pre-ground co ee compartment
5. Service door
6. Saeco Brewing System (SBS) dial knob
7. Hot water/steam wand
8. Full drip tray indicator
9. Grinder adjustment
10. Control panel
11. Carafe coupling cap
12. Dispensing spout
13. Drip tray (external)
14. Brew group
15. Co ee grounds drawer
16. Drip tray (internal)
17. Service door button
18. Power button
19. Power cord socket
20. Milk carafe
21. Power cord
22. Pre-ground co ee scoop
23. Grease for brew group
24. Cleaning brush
25. Water hardness test
26. Espresso button
27. “Aroma” - Pre-ground co ee button
28. “Function” buttons
29. Carafe cleaning cycle activation button (Clean)
30. Cappuccino button
31. Long Espresso button
32. “Special beverage” button
33. Hot water button
34. Stand-by button
35. Ca èlatte button
36. Latte macchiato button
37. Co ee oil remover – to be purchased separately
38. Descaling solution – to be purchased separately
39. INTENZA+ water lter – to be purchased separately
10
ENGLISH
PREPARING FOR USE
Machine packaging
The original packaging has been designed and constructed to protect the
machine during transport. We recommend keeping the packaging material
for possible future transport.
Machine installation
1
Remove the drip tray with grill from the packaging.
2
Remove the machine from the packaging.
3
For best use, it is recommended to:
• Choose a safe, level surface, where there will be no danger of over-
turning it or being injured.
• Choose a location that is su ciently well-lit, clean and near an
easily reachable socket.
• Allow for a minimum distance from the sides of the machine as
shown in the illustration.
4
Attach the drip tray (external) with grill to the machine. Make sure it is
placed correctly.
Note:
The drip tray collects the water that comes out of the dispensing spout
during each rinse/self-cleaning cycle as well as co ee that might be spilled
during beverage preparation. Empty and clean the drip tray daily and each
time the full drip tray indicator is raised.
Caution:
NEVER remove the drip tray when the machine has just been turned
on. Wait a couple of minutes, since the machine will carry out a rinse/
self-cleaning cycle.
11
ENGLISH
11
5

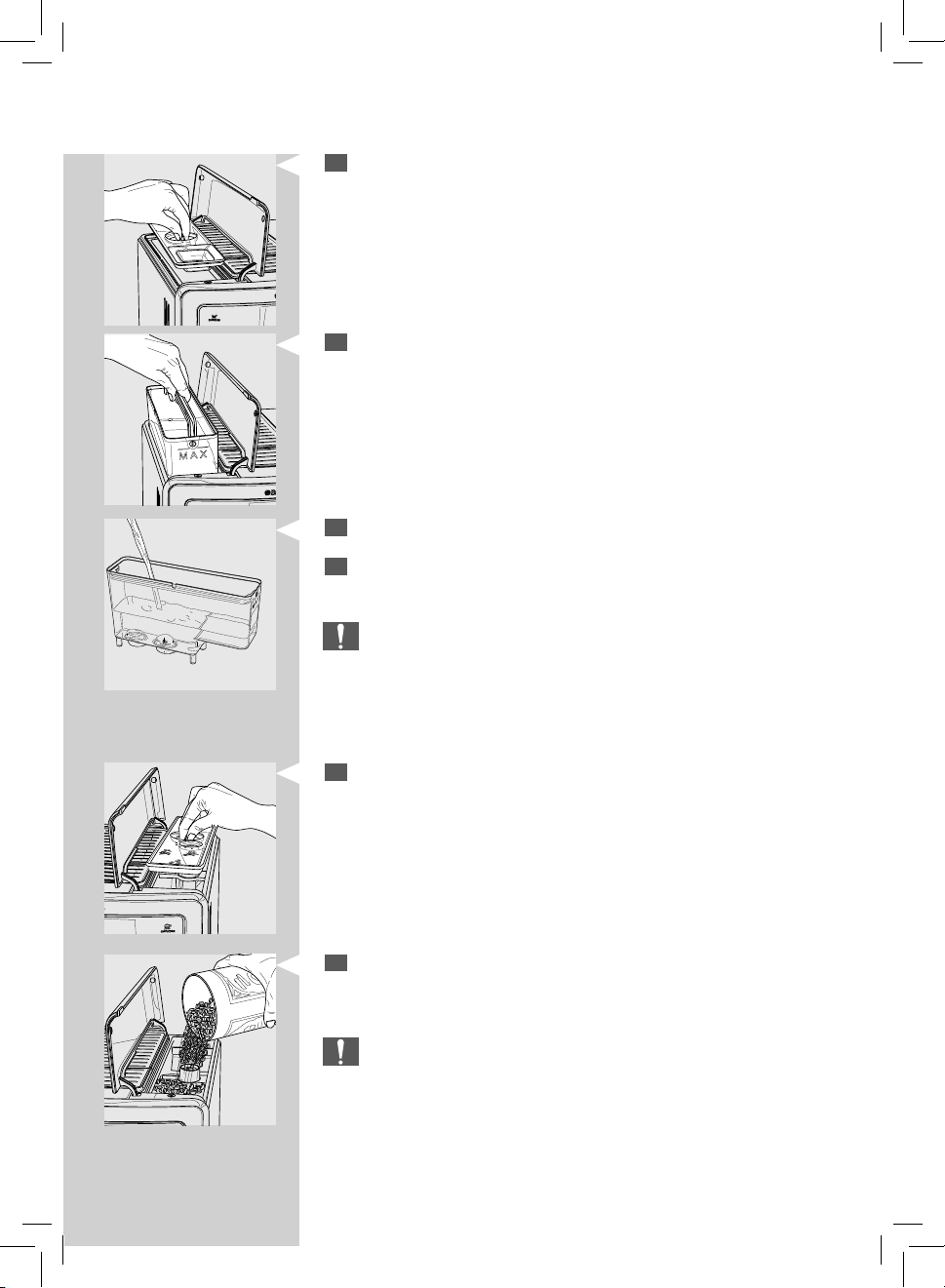

Lift the left outer lid and remove the inner lid.
7
Rinse the water tank under fresh water.
8
Fill the tank with fresh water up to the MAX level and re-insert it into
the machine. Make sure it is fully inserted.
Caution:
Never ll the water tank with warm, hot, sparkling water or any other
liquid, as this may cause damage to the water tank and the machine.
9
Open the lid of the co ee bean hopper and take out the inner lid.
10
Slowly pour co ee beans into the hopper. Put the inner lid back and
close the lid.
Caution:
Only co ee beans must be put into the co ee bean hopper. Ground
co ee, instant co ee, caramelized co ee or any other object may
damage the machine.
6
Remove the water tank by the handle.
12
ENGLISH
2.2.1. LINGUA
ITALIANO
ITALIANO CH
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
ESC
OK
2.2.1. LANGUAGE
ITALIANO
ITALIANO CH
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
HEATING UP…
11
Insert the plug into the socket located on the back of the machine.
12
Insert the plug on the other end of the power cord into a wall socket
with suitable power voltage.
13
Switch the power button to “I” to turn on the machine.
14
This page will be displayed. Select the desired language by pressing
the scrolling buttons “
” or “ ” .
15
Press the “OK” button to con rm.
Note:
If no language is selected, you will be requested to select it the next time
the machine is started.
16
The machine is heating-up.
13
ENGLISH
13
RISCALDAMENTO...
RINSING
STOP
RINSING
21/12/12
04:17 pm
USER
MENU
BEVERAGE
MENU
SETTINGS
MENU
SELECT
USER
USING THE MACHINE FOR THE FIRST TIME
Automatic rinse/self-cleaning cycle
When warm-up is completed, the machine automatically performs a rinse/
self-cleaning cycle of the internal circuit with fresh water. This takes less
than a minute.
16
Place a container under the dispensing spout to catch the small
amount of water which will be dispensed.
17
This page will be displayed. Wait for the cycle to nish automatically.
Note:
You can stop dispensing by pressing the “STOP RINSING” button.
18
When the above steps are completed, the machine shows this display.
Manual rinse cycle
You need to initiate this, when using the machine for the rst time.
During this process you activate the co ee brewing cycle and fresh water
ows through the dispensing spout. This takes a few minutes.
1
Place a container under the dispensing spout.
14
ENGLISH
21/12/
1
04:17
p
USER
MENU
SELECT
USER
USER
MEN
U
SELE
C
USER
21/12/1
2
04:17 p
m
USER
MENU
SELECT
USER
INSERT GROUND COFFEE
AND SELECT OK
OK
2

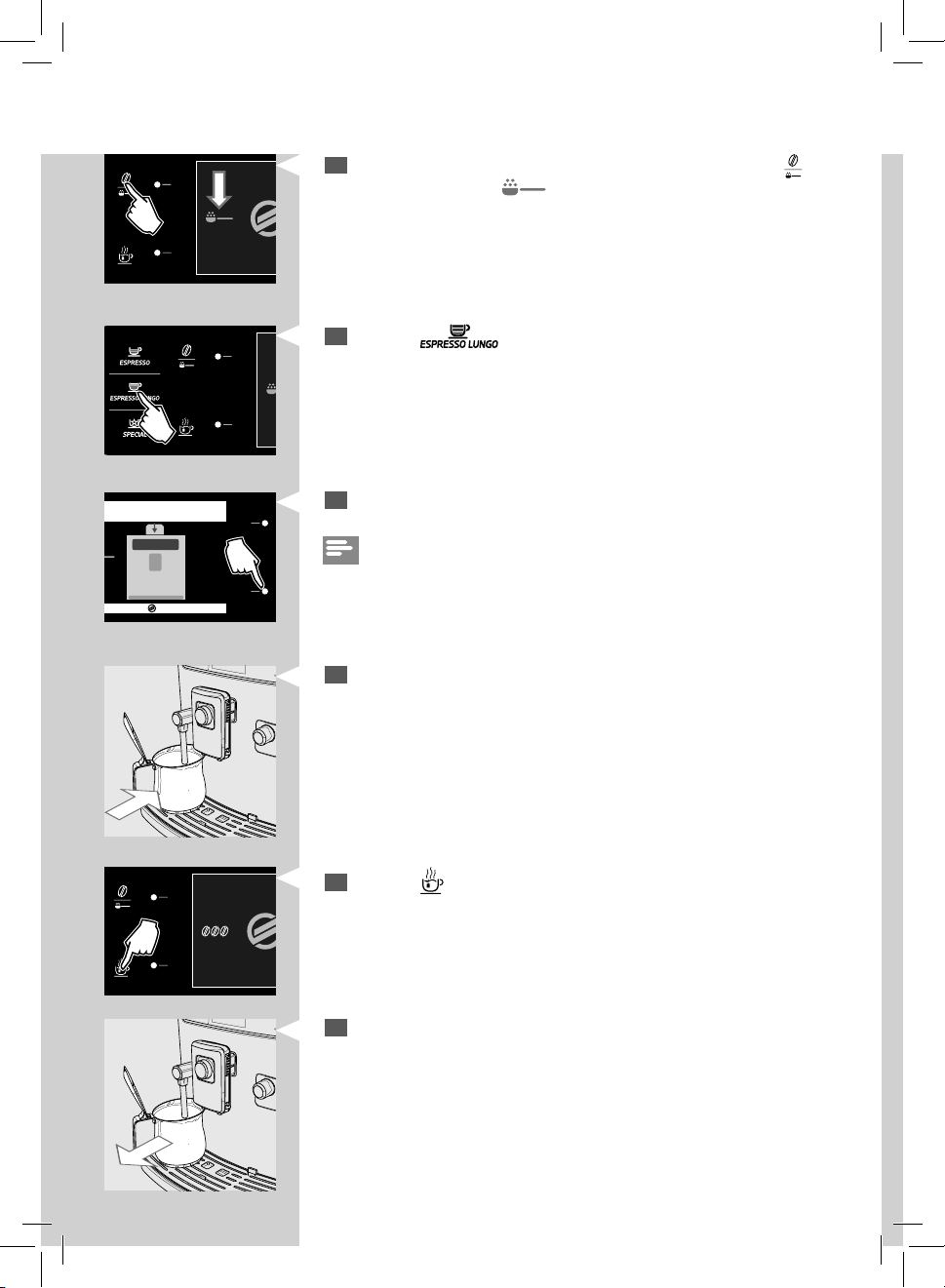

Select the pre-ground co ee brewing function by pressing the “ ”
button until
this icon “ ” is displayed.
3
Press the “ ” button.
4
Press the “OK” button. The machine starts dispensing water.
Note:
Do not add pre-ground co ee into the compartment.
5
When the dispensing has nished, empty the container and place it
under the hot water/steam wand.
6
Press the “ ” button.
7
Once the water has been dispensed, remove and empty the container.
15
ENGLISH
15
8
Repeat the process from step 5 to step 7 until the water tank is empty.
Then, continue with step 9.
9
At the end, ll the water tank again up to the MAX level. Now the ma-
chine is ready for brewing co ee.
Note:
When you haven’t used the machine for 2 or more weeks, the machine
will automatically perform an automatic rinse/self-cleaning cycle after
you switch it on. Thereafter you need to initiate the manual rinse cycle as
described above.
The automatic rinse/self-cleaning cycle is also initiated automatically when
starting up the machine (with cold boiler), when the machine is preparing
to go into stand-by mode or after you have pressed the “
” button to turn
o the machine (after a co ee has been brewed).
Measuring and programming water hardness
Measuring water hardness is very important for de ning the frequency in
which the machine has to be descaled and to install the “INTENZA+” water
lter (for more detail on the water lter see next chapter).
To measure the water hardness follow the steps below:
1
Immerse the water hardness test strip provided with the machine in
water for 1 second.
Note:
The test strip can only be used for one measurement.
2
Wait for one minute.
16
ENGLISH
3
Check how many squares have changed the colour to red and then
consult the table.
Note:
The numbers on the water hardness test strip correspond to the water
hardness adjustment settings.
More precisely:
1 = 1 (very soft water)
2 = 2 (soft water)
3 = 3 (hard water)
4 = 4 (very hard water)
The letters correspond to the references that are located at the base of the
“INTENZA+” water lter (see next chapter for this).
23 4
A
B
C
Intenza Aroma System
Machine water hardness setting
1
4
Now you can program the water hardness setting.
Press “SETTINGS MENU” button to access the machine main menu.
Note:
The machine is supplied with standard water hardness setting, suitable for
most of the type of water.
5
Press the “ ” button to select “WATER SETTINGS”.
6
Press “OK” to con rm.
7
Select “WATER HARDNESS” option by pressing the “OK” button and set
the water hardness value.
21/12/12
04:17 pm
BEVERAGE
MENU
SETTINGS
MENU
C
GENERAL SETTINGS
DISPLAY SETTINGS
CALENDAR SETTINGS
WATER SETTINGS
MAINTENANCE SETTINGS
FACTORY SETTINGS
2. MACHINE SETTINGS
ESC
OK
GENERAL SETTINGS
DISPLAY SETTINGS
CALENDAR SETTINGS
WATER SETTINGS
MAINTENANCE SETTINGS
FACTORY SETTINGS
2. MACHINE SETTINGS
ESC
OK
2.4. WATER SETTINGS
WATER HARDNESS
ENABLE FILTER
ACTIVATE FILTER
4
OFF
17
ENGLISH
17
“INTENZA+” water lter installation
We recommend you to install the “INTENZA+” water lter as this prevents
lime scale to build up in your machine and preserves a more intense aroma
to your espresso co ee.
You can purchase separately the INTENZA+ water lter. Please refer to the
ordering maintenance products chapter in this user manual for further
details.
Water is a crucial part of every espresso, so it’s most important to always
have it professionally ltered. Using the “INTENZA+” water lter will prevent
mineral deposits from building up and improve your water quality.
1
Remove the small white lter from the water tank and store it in a dry
place.
2
Remove the “INTENZA+” water lter from its packaging, immerse it ver-
tically (with the opening positioned upwards) in cold water and gently
press the sides so as to let the air bubbles out.
3
Set the lter according to the measurements performed (see previous
chapter) and indicated on the base of the lter:
A = Soft water – equals 1 or 2 on the test strip
B = Hard water (standard) – equals 3 on the test strip
C = Very hard water – equals 4 on the test strip
4
Put the lter into the empty water tank. Press it until it cannot move
further down.
18
ENGLISH
5
Fill the water tank up to MAX level with fresh water and reinsert it into
the machine.
6
Place a large container (1,5 lt) under the hot water / steam wand.
7
Press “SETTINGS MENU” button to access the machine main menu.
8
Press the “ ” button to select “WATER SETTINGS”.
9
Press “OK” to con rm.
10
Press the “ ” button to select “ACTIVATE FILTER”, and then press “OK”.
21/12/12
04:17 pm
BEVERAGE
MENU
SETTINGS
MENU
C
GENERAL SETTINGS
DISPLAY SETTINGS
CALENDAR SETTINGS
WATER SETTINGS
MAINTENANCE SETTINGS
FACTORY SETTINGS
2. MACHINE SETTINGS
ESC
OK
GENERAL SETTINGS
DISPLAY SETTINGS
CALENDAR SETTINGS
WATER SETTINGS
MAINTENANCE SETTINGS
FACTORY SETTINGS
2. MACHINE SETTINGS
ESC
OK
4
OFF
WATER HARDNESS
ENABLE FILTER
2.4. WATER SETTINGS
ACTIVATE FILTER
19
ENGLISH
19
11
Press the “OK” button to con rm that you want to start the lter activa-
tion procedure.
12
Press the “OK” button to con rm that you have inserted the water lter
and lled the water tank.
13
Press the “OK” button to con rm that a container is placed under the
water dispensing spout.
Replacing the “INTENZA+” water lter
When the “INTENZA+” water lter needs to be replaced with a new one,
this icon is displayed “
”.
1
Replace the lter as described in the previous chapter.
2
The machine is now programmed to manage a new lter.
ESC
OK
4
OFF
WATER HARDNESS
ENABLE FILTER
2.4. WATER SETTINGS
ACTIVATE FILTER
ESC
OK
ACTIVATE FILTER?
2.4.3. WATER SETTINGS
OKOK
INSERT WATER FILTER
AND FILL THE WATER TANK
OKOK
PLACE A CONTAINER UNDER THE
HOT WATER SPOUT
ACTIVATE FILTER
21/12/12
04:17 pm
USER
MENU
BEVERAGE
MENU
SETTINGS
MENU
SELECT
USER
14
The machine starts dispensing water. This page will be displayed. Once
the machine stops dispensing, remove the container.
Note:
If the lter is already installed and you want to remove - but not replace it,
select the “ENABLE FILTER” option and set it to “OFF”.
If there is no “INTENZA+” water lter installed, insert the small white lter
previously removed into the water tank.
20
ENGLISH
ADJUSTMENTS
The machine allows for certain adjustments so that you can brew the best
tasting co ee possible.
User pro le selection
This machine has been designed to accommodate the individual preferen-
ces and settings of up to 6 di erent users.
Di erent users can be added and deleted. Users are represented by an
unique icon for a fast reference. The default user is preset with the icon
shown on the left.
Factory settings have been preset in the machine based on consumer
feedback. These settings may be used as is, or adjusted to suit your indivi-
dual preference.
Creating a new user pro le
Once the beverage settings have been programmed, the user will be able
to quickly access their settings from the “SELECT USER” button on the
main menu and enjoy their favorite co ee beverage, the way they like to
best, with just the push of a button.
1
Press the “USER MENU”.
21/12/12
04:17 pm
USER
MENU
BEVERAGE
MENU
SETTINGS
MENU
SELECT
USER
21/12/12
04:17 pm
USER
MENU
BEV
E
M
SET
T
M
SELECT
USER
ESC
OK
CREATE NEW USER
DELETE USER
3. USER SETTINGS MENU
ESC
OK
CREATE NEW USER
DELETE USER
3. USER SETTINGS MENU
2
This page will be displayed.
3
Press the “OK” button to select “CREATE NEW USER”.
21
ENGLISH
21
5
The user has now been created and can be selected from the main
menu.
6
Select the desired user pro le by pressing the “SELECT USER” button
until the related icon is displayed.
Then press “BEVERAGE MENU” to program the beverage setting (see
chapter Beverage Programming).
Deleting an user pro le
You can delete an earlier created user pro le. In this case all related
settings are deleted as well. The icon becomes available again for being
programmed.
1
Press the “USER MENU”.
2
This page will be displayed.
Press the “
” or “ ”button to select “DELETE USER”.
Press the “OK” button to con rm.
21/12/12
04:17 pm
USER
MENU
BEV
E
M
SET
T
M
SELECT
USER
21/12/12
04:17 pm
USER
MENU
BEV
E
M
SET
T
M
SELECT
USER
21/12/12
04:17 pm
USER
MENU
BEV
E
M
SET
T
M
SELECT
USER
ESC
OK
CREATE NEW USER
DELETE USER
3. USER SETTINGS MENU
ESC
OK
3.2. DELETE USER
ESC
OK
3.1. CREATE NEW USER
4
This page will be displayed. Press the “ ” or “ ” button to select a user
icon. Press the “OK” button to con rm.
Note:
An icon can be used for a single user only. When an icon has already been
assigned, it is greyed out.
3
This page will be displayed.
Press the “
” or “ ”button to select an icon. Press the “OK” button to
con rm. The user is deleted.
22
ENGLISH
Saeco Adapting System
Co ee is a natural product and its characteristics may change according to
its origin, blend and roast. The machine is equipped with a self-adjusting
system that allows the use of all types of co ee beans available on the
market (not for caramelized beans).
The machine automatically adjusts itself after brewing several cups of
co ee to optimize the extraction of the co ee to the compactness of the
ground co ee.
Adjusting the ceramic co ee grinder
Ceramic co ee grinders always guarantee accurate grinding for every
co ee blend and prevent the beans from overheating.
This provides for full aroma preservation, delivering the truly Italian taste in
every cup.
Warning:
The ceramic co ee grinder contains moving parts that may be dange-
rous. Therefore, do not insert ngers and/or other objects. Turn o the
machine by pressing the ON/OFF button and remove the plug from
the socket before carrying out any type of operation inside the co ee
bean hopper.
You can adjust the ceramic grinders to set the co ee grinding to your
personal taste.
Warning:
The grinder adjustment knob, inside the co ee bean hopper, must be
turned only when the ceramic co ee grinder is working.
This adjustment can be carried out by pressing and turning the grinder
adjustment knob inside the co ee bean hopper.
1
Open the lid of the co ee bean hopper.
23
ENGLISH
23
2
Press and turn the grinder adjustment knob one notch at a time. You
will taste the di erence after brewing 2-3 cups of espresso.
3
The reference marks on the co ee bean hopper lid indicate the grind
setting. There are 8 di erent grind settings to choose from:
- Very coarse grind (
) : lighter taste, for dark roasted co ee blends
To
- Very ne grind (
) : bolder taste, for light roasted co ee blends
When you adjust the ceramic co ee grinder to a ner setting, your co ee
will taste stronger. For a milder co ee taste, adjust the ceramic co ee
grinder to a coarser setting.
Adjusting co ee crema and intensity (Saeco Brewing System)
The Saeco Brewing System (SBS) allows you to control the co ee crema
and taste intensity by adjusting the co ee ow speed during the brewing
cycle.
- By turning the dial knob counter clock wise you increase the ow
speed resulting in a milder co ee intensity and less crema.
- By turning the dial knob clock wise you reduce the ow speed resul-
ting in a stronger co ee intensity and more crema.
Note:
The co ee ow speed may be adjusted while brewing.
24
ENGLISH
Adjusting the dispensing spout
The height of the dispensing spout can be adjusted to better t the
dimensions of the cups that you wish to use.
Move the dispensing spout up or down with your ngers to adjust its
height as shown in the image.
Adjusting the aroma (co ee strength)
Choose your favorite co ee blend and adjust the amount of co ee to be
grounded until they meet your personal taste. You can also select the pre-
ground co ee function.
Note:
Selection must be made prior to selecting co ee.
The machine allows you to adjust the right quantity of ground co ee for
each product. The standard adjustment for each product can be set in
the “BEVERAGE MENU” (see the Beverage Programming chapter, Co ee
amount option).
1
To temporarily change the amount of co ee ground, press the “ ”
button on the control panel.
2
The aroma changes by one degree, according to the selected amount:
= mild dose
= medium dose
= strong dose
= The beverage is brewed by using pre-ground co ee
Note:
This adjustment is not available for American co ee.
ESC
OK
1.3. CAPPUCCINO
COFFEE AMOUNT
PREBREWING
COFFEE TEMPERATURE
COFFEE LENGTH
MILK LENGTH
MILK FOAM
RESTORE DEFAULT SETTINGS
21/12
/
04:17
p
USER
MENU
SELECT
USER
25
ENGLISH
25
The recommended positions are:
For the use of small cups;
For the use of large cups;
For the use of latte macchiato cups.
Note:
The dispensing spout can also be removed to allow the use of very large
containers.
Two cups can be placed under the dispensing spout to brew two cups of
co ee at the same time.
26
ENGLISH
Adjusting the co ee length
The machine allows you to adjust the amount of brewed co ee or milk
according to your taste and the size of your cups.
Each time one of the buttons “
” and “ ” is pressed, the machi-
ne brews a pre-set amount of product. Each button may be individually
programmed for a speci c brew setting.
The following procedure describes the programming of the “
” button.
1
Place a cup under the dispensing spout.
3
When the “STOP COFFEE” icon is displayed, press the button as soon
as the desired amount of co ee is reached.
Now the button “
” is programmed; each time it is pressed, the machi-
ne will brew the same amount of espresso that was just programmed.
Note:
To program the “
” and “ ” buttons, the same steps should be
followed.
You should always use the “STOP COFFEE” button to stop brewing co ee
when the desired amount of co ee is reached.
You can also adjust the beverage length through the “BEVERAGE MENU”
(see the Beverage Programming chapter, Co ee Length option).
2
Press and hold the “ ” button until the “MEMO” icon is displayed.
Then release the button. The machine is now programming.
The machine starts brewing co ee.
ESPRESSO
MEMO
ESPRESSO
STOP
COFFEE
MEMO
27
ENGLISH
27
ESPRESSO, AND ESPRESSO LUNGO BREWING
Before brewing co ee, make sure that there are no warnings shown on the
display, and that the water tank and co ee bean hopper are lled.
Espresso, and espresso lungo brewing using co ee beans
1
Place 1 or 2 cups under the dispensing spout.
2
Press the “ ” button for an espresso, the “ ” button for a
espresso lungo.
3
To brew 1 cup of espresso, espresso lungo, press the desired button
once. This page will be displayed.
4
To brew 2 cups of espresso, espresso lungo, press the desired button
twice consecutively. This page will be displayed.
Note:
In this operating mode, the machine automatically grinds and doses the
correct amount of co ee. Brewing two espressos requires two grinding
and brewing cycles, automatically carried out by the machine.
5
After the pre-brewing cycle, co ee begins to pour out of the dispen-
sing spout.
6
Co ee brewing stops automatically when the pre-programmed level
is reached; it is possible to stop earlier by pressing “STOP COFFEE”
button.
USER
MENU
SELEC
T
USER
ESPRESSO
ESPRESSO
STOP
COFFEE
DOUBLE ESPRESSO
28
ENGLISH
Espresso, and espresso lungo brewing using pre-ground co ee
This function allows to use pre-ground and deca einated co ee.
With the pre-ground co ee function you can only brew one co ee at a
time.
1
To select the pre-ground co ee function, press the “ ” button until
this icon “
” is displayed.
2
Place a cup under the dispensing spout.
3
Press the “ ” button for an espresso, the “ ” button for a
espresso lungo. The brewing cycle starts.
4
This page will be displayed.
21/12/
1
04:17
p
USER
MENU
SELECT
USER
USER
MENU
SELECT
USER
INSERT GROUND COFFEE
AND SELECT OK
ESC OK
4
Push to open the pre-ground co ee compartment lid.
29
ENGLISH
29
6
Press “OK” to con rm and start brewing.
7
After the pre-brewing cycle, co ee begins to pour out of the dispen-
sing spout.
8
Co ee brewing stops automatically when the pre-programmed level
is reached; it is possible to stop earlier by pressing the “STOP COFFEE”
button.
After brewing the product, the machine returns to the main menu.
Repeat the steps described above to brew more co ees using pre-ground
co ee.
Note:
If the “OK” button to start brewing is not pressed within 30 seconds the
machine will return to the main menu and discharge any inserted co ee
into the co ee grounds drawer.
If no pre-ground co ee is poured into the compartment, only water will be
dispensed.
If the dose is excessive and 2 or more measuring scoops of co ee are used,
the machine will not brew the product. Ground co ee will be discharged
into the co ee grounds drawer.

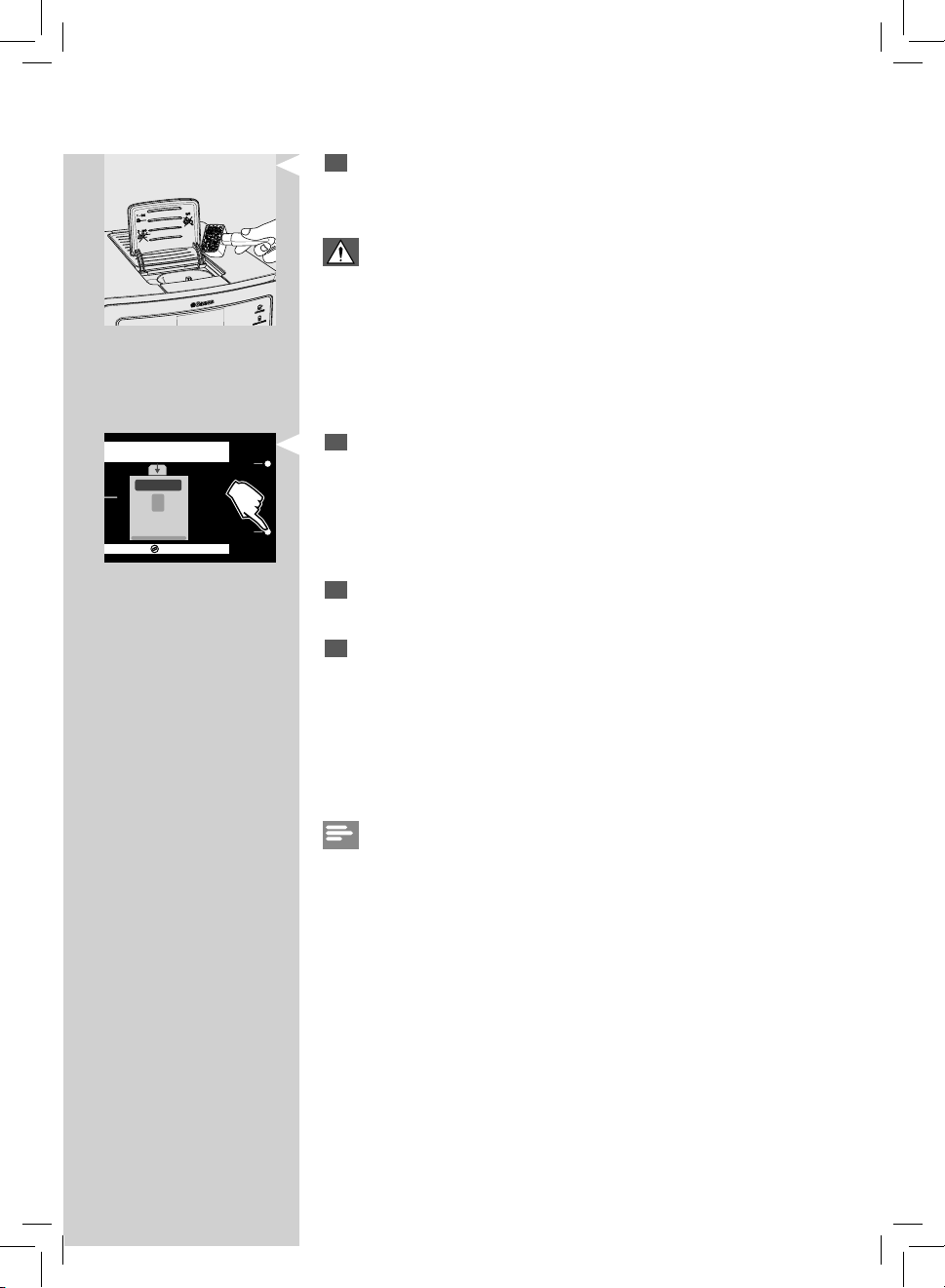

5
Add one scoop of pre-ground co ee to the compartment. Use only
the measuring scoop supplied with the machine. Then close the pre-
ground co ee compartment lid.
Warning:
Add only pre-ground co ee to the pre-ground co ee compartment.
Other substances and objects may cause severe damages to the ma-
chine. The repair of this is not covered by your warranty.
INSERT GROUND COFFEE
AND SELECT OK
OK
30
ENGLISH
MILK CARAFE
This chapter explains how to use a milk carafe to prepare a cappuccino,
latte macchiato or hot milk.
Note:
Before using the milk carafe, clean it thoroughly as described in the chap-
ter “Cleaning and Maintenance” chapter.
We recommend to ll it with cold milk (approx. 5°C). After use, put the cara-
fe back in the refrigerator. DO NOT leave the milk out of the refrigerator for
more than 15 minutes.
Warning:
Do not pour any other liquid than water for cleaning or milk into the
carafe.
Filling the milk carafe
The milk carafe needs be lled before use.
1
Open the milk carafe dispenser by turning it clockwise until it locks
into place.
2
Press the release buttons and lift the lid.
3
Pour the milk into the milk carafe: the milk level must be between the
minimum (MIN) and maximum (MAX) level indicator shown on the
milk carafe.
31
ENGLISH
31
4
Place back the lid and close the milk carafe dispenser by turning it
counter clockwise.
The milk carafe is now ready to use.

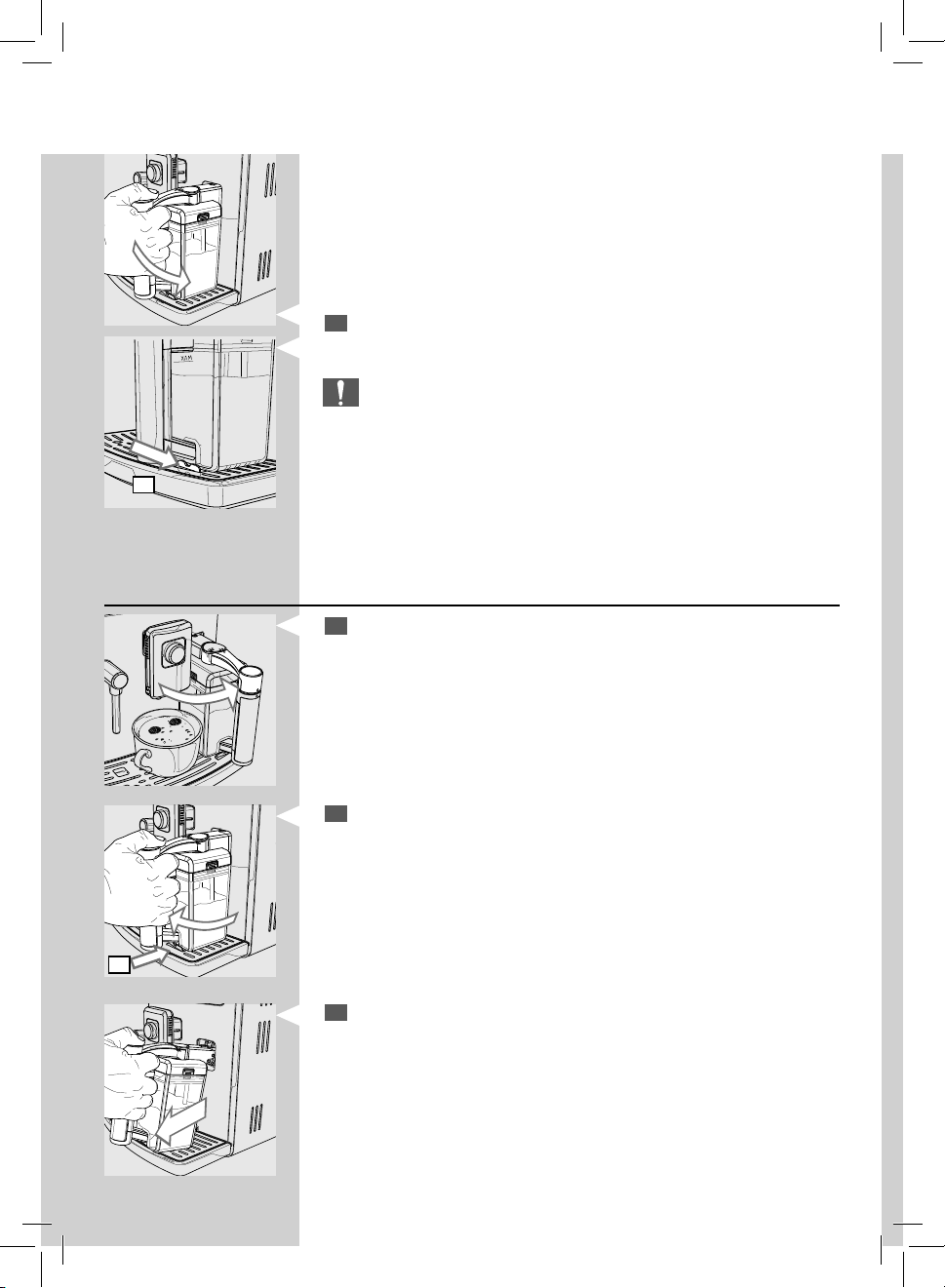

Inserting the milk carafe
1
Slightly tilt the milk carafe and then insert the front part into the ma-
chine.
C
D
A
B B
2
At this stage the carafe holes (A) are lower than the couplings (C). The
pins (B) are located at the same height of the guides (D).
32
ENGLISH
3
Push the carafe towards the bottom while rotating at the same time,
until it is locked at the (external) drip tray (E).
Caution:
Do not use force while inserting the carafe.
Removing the milk carafe
1
Close the milk carafe dispenser by turning it counter clockwise. Wait
few seconds. The machine starts the automatic cleaning process
(see the Cleaning and Maintenance chapter).
E
2
When the cleaning cycle is nished, rotate the carafe upwards until it
releases from the (external) drip tray (E).
3
Pull away from the machine until it is completely detached.
E
33
ENGLISH
33
Emptying the milk carafe
1
Open the milk carafe dispenser by turning it clockwise.
3
Lift the lid. Empty the milk carafe and clean it properly.
Note:
After each use, clean the milk carafe as described in the “Cleaning and
Maintenance” chapter.
2
Press the release buttons.
34
ENGLISH
CAPPUCCINO BREWING
Warning:
Danger of scalding! Dispensing may be preceded by short sprays of
milk and steam. Risk of burning.
Never seize the carafe handle during the cleaning cycle: risk of scal-
ding! Wait until the end of the cycle before removing the milk carafe.
4
Open the milk carafe dispenser by turning it clockwise.
1
Fill the milk carafe with milk. The level must be between the minimum
(MIN) and maximum (MAX) indication on the milk carafe.
Note:
Use cold (~5°C / 41°F) milk with a protein content of at least 3% to ensure
optimum results when preparing a cappuccino. You can use whole milk or
low-fat milk depending on your personal taste.
2
Place back the milk carafe lid and insert the carafe into the machine.
3
Place a cup under the co ee dispensing spout.
35
ENGLISH
35
5
Press the “ ” button to start the brewing process.
6

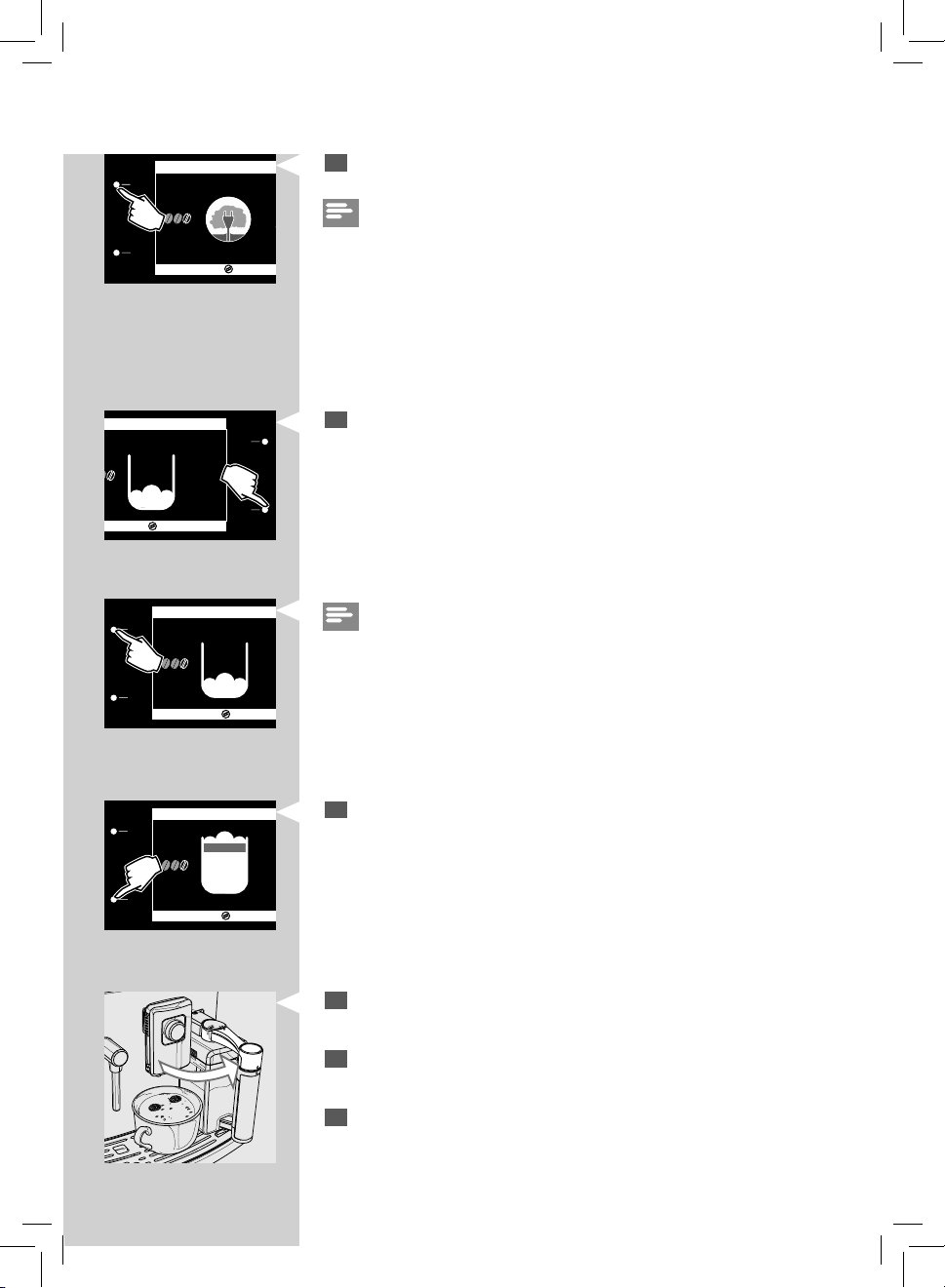

The machine is heating up.
Note:
The machine requires more waiting time for heating up if the “ECOMODE”
is activated.
If the “FAST MILK” button is pressed, the “ECOMODE” function is deactiva-
ted and set to “OFF”. In this case the system requires less time for warm-up.
However this results in increased energy consumption.
For further details see the chapter “MACHINE PROGRAMMING”.
Note:
Milk dispensing can be increased by pressing the button “MORE MILK”. The
extra hot milk that will be dispensed is not frothed.
7
When the machine shows the following page, the machine pours
frothed milk.
The pouring can be stopped earlier by pressing the “STOP MILK” but-
ton.
ERAGE
MENU
T
TINGS
MENU
CAPPUCCINO
STOP
MILK
CAPPUCCINO
MORE
MILK
CAPPUCCINO
FAST
MILK
HEATI
N
ECO MODE ON
36
ENGLISH
Adjusting the cappuccino length
Each time the “ ” button is pressed, the machine brews a pre-set quan-
tity of cappuccino into the cup.
The machine allows you to adjust the amount of cappuccino according to
your taste and the size of your cups.
1
Fill the milk carafe with milk and install it into the machine.
2
Place a cup under the dispensing spout and open the milk carafe
dispenser by turning it clockwise.
3
Press and hold the “ ” button until the “MEMO” notice appears on
the display. Then release the button.
The machine is now programming.
4
The machine is heating up.
9
Remove the cup and close the milk dispenser by turning it counter
clockwise.
10
Wait few seconds. The machine starts the automatic cleaning process
(see the Cleaning and Maintenance chapter).
11
When the cleaning cycle is nished, remove the milk carafe and put it
in the refrigerator.
CAPPUCCINO
FAST
MILK
HEATING UP…
ECO MODE ON
STOP
MILK
ERAGE
MENU
T
TINGS
MENU
8
Once the milk froth has been poured, the machine brews co ee. The
brewing can be stopped earlier by pressing the “STOP COFFEE” but-
ton.
CAPPUCCINO
STOP
COFFEE
37
ENGLISH
37
5
When the machine shows this display, it starts to pour milk froth into
the cup. Press “STOP MILK” as soon as the desired amount of milk is
reached.
6
Once the milk froth has been poured, the machine starts brewing
co ee. When the desired co ee quantity is reached, press the “STOP
COFFEE” button.
Now the “
” button is programmed. Every time it is pressed, the machi-
ne will brew the same amount that has just been set.
Note:
You can also adjust the beverage length through the “BEVERAGE MENU”
(see the Beverage Programming chapter).
CAPPUCCINO
STOP
MILK
MEMO
CAPPUCCINO
STOP
COFFEE
MEMO
LATTE MACCHIATO BREWING
Warning:
Danger of scalding! Dispensing may be preceded by short sprays of
milk and steam. Risk of burning.
Never seize the carafe handle during the cleaning cycle: risk of scal-
ding! Wait until the end of the cycle before removing the milk carafe.
1
Fill the milk carafe with milk. The level must be between the minimum
(MIN) and maximum (MAX) indication on the milk carafe.
Note:
Use cold (~5°C / 41°F) milk with a protein content of at least 3% to ensure
optimum results when preparing a Latte macchiato. You can use whole
milk or low-fat milk depending on your personal taste.
38
ENGLISH
2
Place back the milk carafe lid and insert the carafe into the machine.
3
Place a cup under the co ee dispensing spout.
4
Open the milk carafe dispenser by turning it clockwise.
5
Press the “ ” button to start the brewing process.
ERAGE
MENU
T
TINGS
MENU
39
ENGLISH
39
6
The machine is heating up.
Note:
The machine requires more waiting time for heating up if the “ECOMODE“
is activated. If the “FAST MILK” button is pressed, the “ECOMODE” function
is deactivated and set to “OFF”. In this case the system requires less time for
warm-up. However this results in increased energy consumption.
For further details see the chapter “MACHINE PROGRAMMING”.
7
When the machine shows the following page, the machine pours
frothed milk.
The pouring can be stopped earlier by pressing the “STOP MILK” but-
ton.
Note:
Milk dispensing can be increased by pressing the button “MORE MILK”. The
extra hot milk that will be dispensed is not frothed.
8
Once the milk froth has been poured, the machine brews co ee. The
brewing can be stopped earlier by pressing the “STOP COFFEE” but-
ton.
LATTE MACCHIATO
STOP
MILK
LATTE MACCHIATO
MORE
MILK
LATTE MACCHIATO
STOP
COFFEE
LATTE MACCHIATO
FAST
MILK
HEATI
N
ECO MODE ON
9
Remove the cup and close the milk dispenser by turning it counter
clockwise.
10
Wait a few seconds. The machine starts the automatic cleaning process
(see the Cleaning and Maintenance chapter).
11
When the cleaning cycle is nished, remove the milk carafe and put it
in the refrigerator.
40
ENGLISH
Adjusting the latte macchiato length
Each time the “ ” button is pressed, the machine brews a pre-set
quantity of latte macchiato into the cup.
The machine allows you to adjust the amount of latte macchiato according
to your taste and the size of your cup.
1
Fill the milk carafe with milk and install it into the machine.
2
Place a cup under the dispensing spout and open the milk carafe
dispenser by turning it clockwise.
3
Press and hold the “ ” button until the “MEMO” icon is display-
ed. Then release the button. The machine is now programming.
4
The machine is heating up.
5
When the machine shows this display, it starts to pour milk froth into
the cup. Press the “STOP MILK” button as soon as the desired amount
of milk is reached.
6
Once the milk froth has been poured, the machine starts brewing
co ee. When the desired co ee quantity is reached, press the “STOP
COFFEE” button.
Now the “
” button is programmed. Each time it is pressed, the
machine will brew the same amount that was just programmed.
Note:
You can also adjust the beverage length through the “BEVERAGE MENU”
(see the Beverage Programming chapter).
LATTE MACCHIATO
FAST
MILK
HEATING UP…
ECO MODE ON
STOP
MILK
LATTE MACCHIATO
STOP
MILK
MEMO
LATTE MACCHIATO
STOP
COFFEE
MEMO
ERAGE
MENU
T
TINGS
MENU
41
ENGLISH
41
CAFFELATTE BREWING
Warning:
Danger of scalding! Dispensing may be preceded by short sprays of
milk and steam. Risk of burning.
Never seize the carafe handle during the cleaning cycle: risk of scal-
ding! Wait until the end of the cycle before removing the milk carafe.
1
Fill the milk carafe with milk. The level must be between the minimum
(MIN) and maximum (MAX) indication on the milk carafe.
Note:
Use cold (~5°C / 41°F) milk with a protein content of at least 3% to ensure
optimum results when preparing a Ca elatte. You can use whole milk or
low-fat milk depending on your personal taste.
2
Place back the milk carafe lid and insert the carafe into the machine.
3
Place a cup under the co ee dispensing spout.
4
Open the milk carafe dispenser by turning it clockwise.
42
ENGLISH
ERAGE
MENU
T
TINGS
MENU
CAFFELATTE
STOP
MILK
CAFFELATTE
MORE
MILK
CAFFELATTE
STOP
COFFEE
5
Press the “ ” button to start the brewing process.
6
The machine is heating up.
Note:
The machine requires more waiting time for heating up if the “ECOMODE”
is activated. If the “FAST MILK” button is pressed, the “ECOMODE” function
is deactivated and set to “OFF”. In this case the system requires less time for
warm-up. However this results in increased energy consumption.
For further details see the chapter “MACHINE PROGRAMMING”.
7
When the machine shows the following page, the machine pours milk.
The pouring can be stopped earlier by pressing the “STOP MILK” but-
ton.
Note:
Milk dispensing can be increased by pressing the button “MORE MILK”.
8
Once the milk has been poured, the machine brews co ee. The
brewing can be stopped earlier by pressing the “STOP COFFEE” but-
ton.
CAFFELATTE
FAST
MILK
HEATI
N
ECO MODE ON
43
ENGLISH
43
9
Remove the cup and close the milk dispenser by turning it counter
clockwise.
10
Wait a few seconds. The carafe starts the automatic cleaning process
(see the Cleaning and Maintenance chapter).
11
When the cleaning cycle is nished, remove the milk carafe and put it
in the refrigerator.
Adjusting the ca elatte length
Each time the“ ” button is pressed, the machine brews a pre-set
quantity of ca elatte into the cup.
The machine allows you to adjust the amount of ca elatte according to
your taste and the size of your cup.
1
Fill the milk carafe with milk and install it into the machine.
2
Place a cup under the dispensing spout and open the milk carafe
dispenser by turning it clockwise.
3
Press and hold the “ ” button until the “MEMO” icon is displayed.
Then release the button. The machine is now programming.
ERAGE
MENU
T
TINGS
MENU
CAFFELATTE
FAST
MILK
HEATING UP…
ECO MODE ON
STOP
MILK
4
The machine is heating up.
CAFFELATTE
STOP
MILK
MEMO
5
The “MEMO” notice appears on the display. When the machine shows
this display, it starts to pour milk into the cup. Press the “STOP MILK”
button as soon as the desired amount of milk is reached.
44
ENGLISH
CAFFELATTE
STOP
COFFEE
MEMO
6
Once the milk froth has been poured, the machine starts brewing
co ee. When the desired co ee quantity is reached, press the “STOP
COFFEE” button.
Now the “
” button is programmed. Each time it is pressed, the ma-
chine will brew the same amount that was just programmed.
Note:
You can also adjust the beverage length through the “BEVERAGE MENU”
(see the Beverage Programming chapter).
SPECIAL BEVERAGES
The machine is designed to brew more products than the ones described
before. For this follow the steps below.
1
Press the “ ” button to enter the “SPECIAL BEVERAGES” menu.
2
Press the corresponding button to start the preparation.
Note:
When you press the “
” button, but do not select a product, the machi-
ne returns to the main menu after 10 seconds.
The Special products function allows you to brew only one beverage at a
time. To brew more beverages, just repeat steps 1-2.
USER
MEN
U
SELE
C
USER
SPECIAL BEVERAGES
ESPRESSO
MACCHIATO
STEAM
AMERICAN
COFFEE
HOT
MILK
45
ENGLISH
45
Hot milk
Warning:
Danger of scalding! Dispensing may be preceded by short sprays of
milk and steam. Risk of burning.
Never seize the carafe handle during the cleaning cycle: risk of scal-
ding! Wait until the end of the cycle before removing the milk carafe.
1
Insert the milk carafe and place the cup under the dispensing spout.
Open the milk dispenser by turning it clockwise.
2
Press the “ ” button to enter the “SPECIAL BEVERAGES” menu.
USER
MEN
U
SELE
C
USER
3
Press the button “HOT MILK” button to start the preparation.
4
The machine starts pouring hot milk. The pouring can be stopped
earlier by pressing the “STOP MILK” button.
SPECIAL BEVERAGES
ES
P
MA
C
STEAM
AM
C
O
HOT
MILK
HOT MILK
STOP
MILK
46
ENGLISH
Steam dispensing
Warning:
Danger of scalding! Dispensing may be preceded by short sprays of
hot water and steam. Risk of burning. Do not touch the hot water/ste-
am wand with bare hands.
1
Place a container under the hot water/steam wand.
USER
MEN
U
SELE
C
USER
SPECIAL BEVERAGES
ES
P
MA
C
STEAM
AM
C
O
HOT
MILK
2
Press the “ ” button to enter the “SPECIAL BEVERAGES” menu.
3
Press the button “STEAM” button to start the preparation.
4
Steam is dispensed. The dispensing can be stopped earlier by pressing
the ”STOP STEAM” button.
5
At the end, when steam dispensing complete remove the container
with the heated beverage.
47
ENGLISH
47
American co ee
1
Place the cup under the dispensing spout.
2
Press the “ ” button to enter the “SPECIAL BEVERAGES” menu.
USER
MEN
U
SELE
C
USER
SPECIAL BEVERAGES
ESPRESSO
MACCHIATO
M
AMERICAN
COFFEE
T
K
AMERICAN COFFEE
3
Press the button “AMERICAN COFFEE” button to start the preparation.
Note:
Completely turn the SBS dial counter-clockwise, as shown in the display.
4
After the brewing has nished, remove the cup.
Note:
Two co ee brewing cycles are performed to prepare this product.
48
ENGLISH
USER
MEN
U
SELE
C
USER
SPECIAL BEVERAGES
ESPRESSO
MACCHIATO
M
AMERICAN
COFFEE
T
K
Espresso Macchiato
Warning:
Danger of scalding! Dispensing may be preceded by short sprays of
milk and steam. Risk of burning.
Never seize the carafe handle during the cleaning cycle: risk of scal-
ding! Wait until the end of the cycle before removing the milk carafe.
1
Insert the milk carafe and place the cup under the dispensing spout.
Open the milk dispenser by turning it clockwise.
2
Press the “ ” button to enter the “SPECIAL BEVERAGES” menu.
3
Press the button “ESPRESSO MACCHIATO” button to start the prepara-
tion.
4
The machine starts brewing. The pouring can be stopped earlier by
pressing the “STOP MILK” or “STOP COFFEE” button.
49
ENGLISH
49
USER
MEN
U
SELE
C
USER
HOT WATER
HEATING UP…
STOP
HOT WATER
HOT WATER DISPENSING
Warning:
danger of burns! Dispensing may be preceded by small jets of hot
water. The steam/hot water wand may reach high temperatures: never
touch it with bare hands. Use the appropriate handle only.
Before dispensing hot water, make sure that the machine is ready to use
and the water tank is lled.
1
Place a container under the hot water/steam wand.
2
Press the “ ” button to start dispensing hot water.
3
The following icon is displayed during the preheating time required by
the machine.
4
Pour the desired amount of hot water. To stop the hot water dispen-
sing, press the “STOP HOT WATER” button.
5
Remove the container.
50
ENGLISH
BEVERAGE PROGRAMMING
You can program the machine to optimize the co ee taste to your personal
preferences. For each beverage it is possible to customize the settings.
1
Press the “BEVERAGE MENU” button to access the beverage main
menu.
2
Press the “ ” or “ ” scrolling button and con rm with “OK” to select
your beverage.
Cappuccino programming
The following procedure describes the programming of a cappuccino.
Below the settings of the each submenu are explained. You can select
these by pressing the “
” or “ ” scrolling button. Con rm your settings
with “OK”.
Press “OK” to select “CAPPUCCINO” from the beverage menu.
COFFEE AMOUNT
This setting adjusts the amount of co ee which will be ground.
= The beverage is brewed by using the pre-ground co ee
= mild dose
= medium dose
= strong dose
Press the “
” or “ ” scrolling buttons to select and press the “OK” button
to con rm.
21/12/12
04:17 pm
BEVERAGE
MENU
SETTINGS
MENU
ESC
OK
ESPRESSO
ESPRESSO LUNGO
CAPPUCCINO
LATTE MACCHIATO
CAFFELATTE
HOT WATER
SPECIAL BEVERAGES
1. BEVERAGE MENU
ESC
OK
1.3. CAPPUCCINO
COFFEE AMOUNT
PREBREWING
COFFEE TEMPERATURE
COFFEE LENGTH
MILK LENGTH
MILK FOAM
RESTORE DEFAULT SETTINGS
ESC
OK
ESPRESSO
ESPRESSO LUNGO
CAPPUCCINO
LATTE MACCHIATO
CAFFELATTE
HOT WATER
SPECIAL BEVERAGES
1. BEVERAGE MENU
51
ENGLISH
51
PREBREWING
COFFEE TEMPERATURE
This setting enables the pre-brewing function. During pre-brewing the
co ee is slightly dampened to bring out the aroma in full.
: prewbrewing function is active.
: prebrewing function is longer in order to bring out the co ee
taste.
: prewbrewing function is not performed.
Press the “
” or “ ” scrolling buttons to select and press the “OK” button
to con rm.
This setting adjusts the co ee temperature.
: low temperature.
: medium temperature.
: high temperature.
Press the “
” or “ ” scrolling buttons to select and press the “OK” button
to con rm.
ESC
OK
1.3.4. CAPPUCCINO
COFFEE LENGTH
ESC
OK
1.3.5. CAPPUCCINO
MILK LENGTH
COFFEE LENGTH
By adjusting the bar on the display by pressing the “ ” or “ ” scrolling
button, you can choose the quantity of water used for co ee brewing.
Press “OK” to con rm the adjustment.
By adjusting the bar on the display by pressing the“
” or “ ” scrolling
button, you can choose the quantity of milk to be used for the selected
beverage. Press “OK” to con rm the adjustment.
Note:
The milk managing option are only shown for beverages with milk.
MILK LENGTH
52
ENGLISH
For each beverage it is possible to reset the original factory settings. After
selecting this function, the customized settings are deleted.
To exit programming, press the “ESC” button one or more times until the
main menu is displayed.
RESTORE DEFAULT VALUES
Hot water programming
The following procedure describes the programming of hot water.
MILK FOAM
This section allows you to program the milk frothing method.
= minimum frothing
= medium frothing
= maximum frothing
= no frothing (only available for hot milk and ca elatte)
Press the “
” or “ ” scrolling buttons to select and press the “OK” button
to con rm.
Note:
when the frothing option is disabled, the temperature of the dispensed
milk might be lower. The beverage can be then warmed up by dispensing
steam from the steam wand.
ESC
OK
ESPRESSO
ESPRESSO LUNGO
CAPPUCCINO
LATTE MACCHIATO
CAFFELATTE
HOT WATER
SPECIAL BEVERAGES
1. BEVERAGE MENU
ESC
OK
1.6. HOT WATER
RESTORE DEFAULT SETTINGS
WATER LENGTH
1
Select “HOT WATER” from the beverage menu by pressing the
“
” or “ ” scrolling button. Press “OK” to con rm.
ESC
OK
1.3. CAPPUCCINO
COFFEE AMOUNT
PREBREWING
COFFEE TEMPERATURE
COFFEE LENGTH
MILK LENGTH
MILK FOAM
RESTORE DEFAULT SETTINGS
ESC
OK
MINIMUM
NORMAL
MAXIMUM
1.3.6. CAPPUCCINO
MILK FOAM
53
ENGLISH
53
RESTORE DEFAULT VALUES
WATER LENGHT
By adjusting the bar on the display by pressing the “ ” or “ ” scrolling
button, you can choose the quantity of hot water to be dispensed.
Press “OK” to con rm the adjustment.
MACHINE PROGRAMMING
The machine allows you to customize the machine settings. These settings
apply to all user pro les.
1
Press the “SETTINGS MENU” button to access the machine main menu.
ESC
OK
1.6.1. HOT WATER
WATER LENGTH
ESC
OK
2. MACHINE SETTINGS
GENERAL SETTINGS
DISPLAY SETTINGS
CALENDAR SETTINGS
WATER SETTINGS
MAINTENANCE SETTINGS
FACTORY SETTINGS
Reset the original factory settings. After selecting this function, the custo-
mized settings are deleted.
21/12/12
04:17 pm
BEVERAGE
MENU
SETTINGS
MENU
54
ENGLISH
General settings
The general settings allow you to change the operation settings.
GENERAL SETTINGS
CUP WARMER
ECOMODE FUNCTION
ACOUSTIC TONE
This function allows you to switch on/o the warming function of the cup-
warming surface located on the upper part of the machine.
The ECOMODE FUNCTION enables you to save energy by limiting the
boiler activation to one when the machine starts up. If you want to brew
more milk beverages, the heating time may be longer.
The function is set ON by default.
This function activates/deactivates the acoustic alarms.
55
ENGLISH
55
Display settings
The display settings allow you to set the language and the display bright-
ness.
DISPLAY SETTINGS
LANGUAGE
BRIGHTNESS
This setting is important to automatically adjust the parameters of the
machine according to your country.
This setting allows you to adjust the brightness of the display.
56
ENGLISH
CALENDAR SETTINGS
TIME
DATE
STAND-BY SETTINGS
Calendar settings
This function allows you to set time, calendar, stand-by time and power-on
timer.
For setting hour, minutes and time format (24h or AM/PM).
For setting year/month/day/format
The STAND-BY SETTINGS set the time interval for the machine when to go
into stand-by mode after the last brewing. The stand-by time varies from
15, 30, 60 and 180 minutes.
The default time value is 30 minutes.
57
ENGLISH
57
CALENDAR SETTINGS
POWER-ON TIMER
TIMER 1 00:00
TIMER 2 00:00
TIMER 3 00:00
HOUR 00
MINUTES 00
DAY OF THE WEEK
The power-on timer function automatically activates the machine at the
weekday and time selected by you. The machine performs this function
only if the power button is switched to on. It is possible to set 3 di erent
power-on times, which can be managed independently.
Note:
the switch-o time is programmed through the Stand-By setting function.
This menu allows you to adjust and set the rst power-on time.
To set the hour for power-on.
To set the minutes of the power-on time.
To select the weekday for which the timer should be activated.
Select a day using the “
” or “ ” buttons and con rm by pres-
sing the “OK” button.
ON = Time activated
OFF = Time deactivated
ESC
OK
2.3.4.1.3 TIMER 1 00:00
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
SUNDAY
OFF
OFF
OFF
OFF
OFF
OFF
OFF
This menu allows you to adjust and set the second power-on
time.
This menu allows you to adjust and set the third power-on time.
58
ENGLISH
Water settings
The WATER SETTINGS allow adjusting the water parameters for optimal
co ee.
WATER SETTINGS
WATER HARDNESS
ENABLE FILTER
ACTIVATE FILTER
Under “WATER HARDNESS”, you can set the level of water hardness.
To measure water hardness, refer to chapter “MEASURING AND PROGRAM-
MING WATER HARDNESS”
By enabling the lter, the machine noti es the user when the water lter
needs to be replaced.
OFF: warning disabled.
ON: warning enabled (the warning is automatically set when the lter is
activated).
To activate the lter after its installation or replacement. Refer to the chap-
ter “INTENZA+ Water Filter Installation”.
59
ENGLISH
59
Maintenance settings
The MAINTENANCE SETTINGS allow setting all the functions for correct
machine maintenance.
MAINTENANCE SETTINGS
PRODUCT COUNTERS
DESCALING CYCLE
BREW GROUP CLEANING CYCLE
CARAFE WASH CYCLE
CARAFE AUTO CLEAN
The PRODUCT COUNTERS function shows how many products have been
brewed for every single type of co ee since the last reset.
The DESCALING CYCLE function activates the descaling cycle (please see
chapter “Descaling”).
The BREW GROUP CLEANING CYCLE function enables the monthly clea-
ning of the brew group (please see chapter “Monthly cleaning of the brew
group”).
The CARAFE WASH CYCLE function enables the monthly cleaning of the
milk carafe (please see chapter “Monthly cleaning of the milk carafe”).
The CARAFE AUTO CLEAN function activates the automatic self-cleaning
of the milk carafe. The function is set ON by default.
Factory settings
Activating the FACTORY SETTINGS will restore all machine settings to
their default values. In this case all the personal parameters will be lost.
FACTORY SETTINGS
60
ENGLISH
CLEANING AND MAINTENANCE
Daily cleaning of the machine
Caution:
Timely cleaning and maintenance of your machine is very important
as it prolongs the life of your machine. Your machine gets exposed to
moist, co ee and lime scale continuously!
In this chapter it is described in detail which activities you need to
perform at which frequency. Not doing this will ultimately make
your machine stop working properly. This repair is NOT covered by
your warranty!
Note:
- Use a soft, dampened cloth to clean the machine.
- Do not wash any of its parts in the dishwasher.
- Do not use alcohol, solvents, and/or abrasive objects to clean the
machine.
- Do not immerse the machine in water.
- Do not dry the machine and/or its components using a microwave
and/or standard oven.
Empty and clean the co ee ground drawer and (internal) drip tray daily
with the machine turned on. Please follow the steps below:
1
Press the button and open the service door.
2
Remove the (internal) drip tray and co ee grounds drawer.
61
ENGLISH
61
3
Empty the co ee grounds drawer and wash it with fresh water.
4
Empty and wash the (internal) drip tray and the cover with fresh water.
5
Correctly reinstall all the components.
6
Insert the tray and the co ee grounds drawer and close the service
door.
Note:
If the co ee ground drawer is emptied when the machine is o , the co ee
grounds counter is not reset. In this case the machine might display the
“EMPTY COFFEE GROUNDS DRAWER” message too soon.
Daily cleaning of water tank
1
Remove the small white lter or the “INTENZA+” water lter (if instal-
led) from the water tank and wash it with fresh water.
2
Put the small white lter back or the “INTENZA+” water lter (if instal-
led) in its housing by gently pressing and turning it at the same time.
3
Fill the water tank with fresh water.
62
ENGLISH
Daily cleaning of the milk carafe: AUTO CLEAN cycle (after each
use)
After each brewing of a milk beverage the machine performs an automatic
cleaning cycle by routing shots of steam through the milk dispenser.
This cycle may also be manually activated by pressing the “
” button on
the control panel. This can be done at any time.
1
Insert the milk carafe into the machine as described in the milk carafe
chapter. Close the milk dispenser.
2
Press the “ ” button to start the cleaning cycle.
Weekly cleaning of the machine
1
Turn o the machine and unplug it.
2
Take out the (external) drip tray.
RAGE
M
ENU
T
INGS
M
ENU
63
ENGLISH
63
3
Remove the grill and wash it thoroughly.
4
Remove the support under the grill. Wash the support and the drip
tray.
5
Dry, reassemble and reinsert it in the machine.
6
Remove the dispensing spout and wash it with water.
7
Clean the pre-ground co ee compartment with a brush or a dry cloth.
64
ENGLISH
8
Clean the hot water/steam wand and the display with a dry cloth.
Weekly cleaning of the milk carafe
The weekly cleaning is more thorough as it removes any milk residues from
the milk dispenser of the carafe.
1
The carafe must be removed from the machine and emptied before
cleaning.
2
Open the milk dispenser by rotating it clockwise.
3
Press on the sides and lift the lid.
4
Rotate the handle counter-clockwise to the unlock position up to the
“
” symbol.
65
ENGLISH
65
5

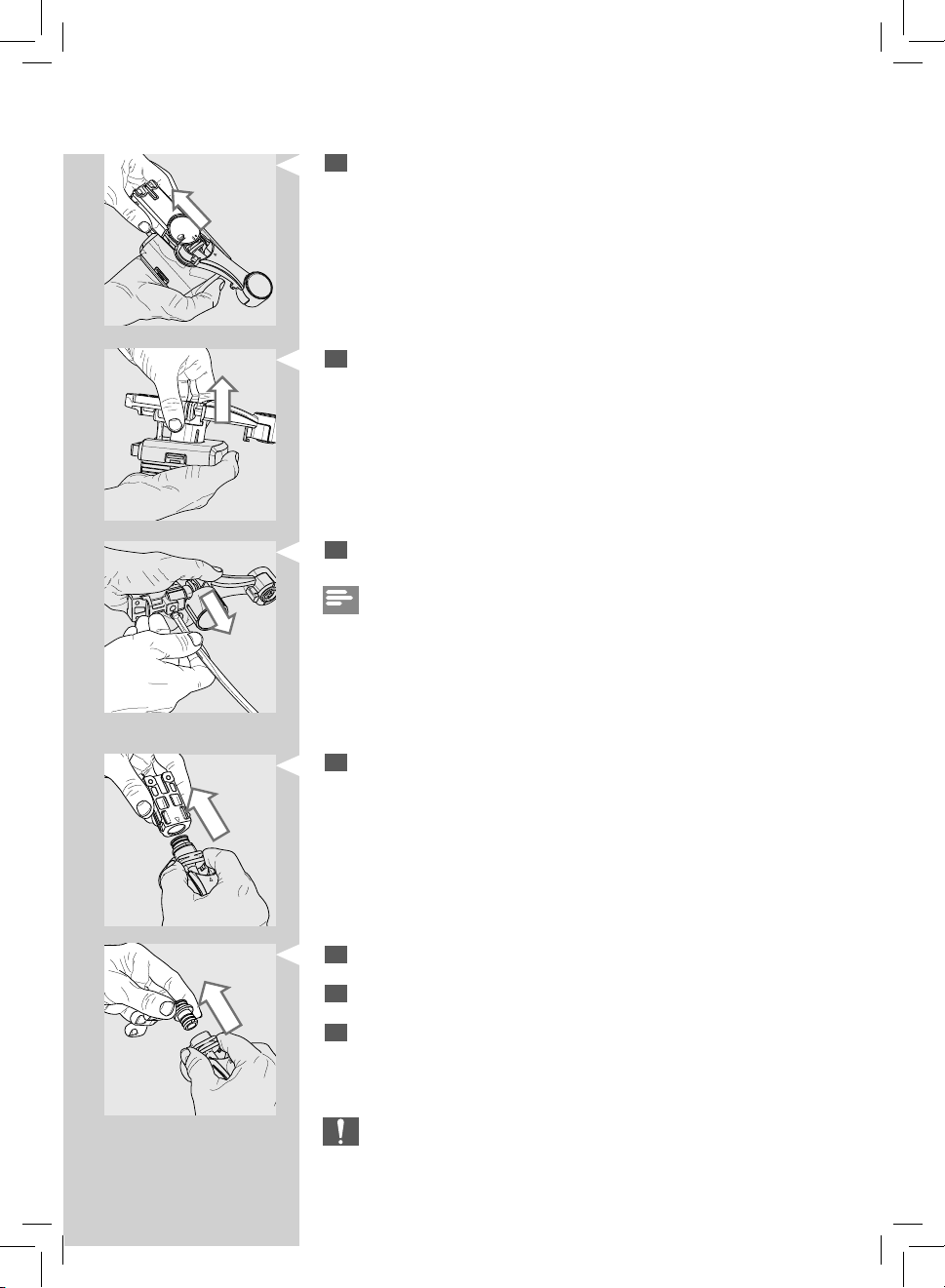

Remove the connector which is in contact with the machine.
6
Remove the handle with the suction tube.
7
Remove the suction tube.
Note:
Make sure the suction tube is fully inserted. If it is not tted up to its limit,
the carafe might not operate correctly since no milk is sucked.
8
Pull out the external tting.
9
Remove the internal tting.
10
Clean all the parts thoroughly with lukewarm water.
11
Reassemble the parts following the reverse order.
Caution:
Do NOT wash the carafe components in the dishwasher.
66
ENGLISH
Weekly cleaning of the brew group
The brew group should be cleaned every time the co ee bean hopper is
lled or at least once a week.
1
Press the button and open the service door.
2
Remove the (internal) drip tray and co ee grounds drawer.
3
To remove the brew group, press the «PUSH» button and pull it by the
handle.
4
Thoroughly wash the brew group with fresh, lukewarm water and
carefully clean the upper lter.
Caution:
Do not use detergent/soap to clean the brew group.
5
Let the brew group air-dry thoroughly.
6
Thoroughly clean the inside of the machine using a soft, dampened
cloth.
7
Make sure the brew group is in the rest position; the two reference
signs must match. If they do no match, proceed as described in step
(8).
67
ENGLISH
67
8
Gently pull down the lever until it is in contact with the brew group
base and the two reference signs on the side of the brew group do
match.
9
Make sure the hook to lock the brew group is in the correct position
by rmly pressing the “PUSH” button until you hear a click. Check if the
hook is at the top end position. If it is not, please try again.
10
Insert the brew group in its seat again until it locks into place without
pressing the “PUSH” button.
11
Insert the (internal) drip tray and co ee grounds drawer and close the
service door.
68
ENGLISH
Monthly cleaning of the milk carafe
In the monthly cleaning cycle we use the Saeco Milk Circuit Cleaner to
keep the entire circuit clean of milk residues. You can purchase separately
the Milk Circuit Cleaner. Please refer to the maintenance products page for
further details.
Warning:
Danger of scalding! Dispensing may be preceded by short sprays of
hot water and steam. Risk of burning. Do not touch the hot water/ste-
am wand with bare hands.
3
Press the “OK” button to con rm.
4
Fill the tank with fresh water up to the MAX level. Press the “OK” but-
ton.
5
Fill the milk carafe with fresh drinking water up to the MAX level. Pour
one milk cleaner bag into the milk carafe and let it dissolve completely.
ESC
OK
2.5. MAINTENANCE SETTINGS
ON
PRODUCT COUNTERS
DESCALING CYCLE 59(I)
BREW GROUP CLEANING CYCLE
CARAFE WASH CYCLE
CARAFE AUTO CLEAN
ESC
OK
2.5.4. MAINTENANCE SETTINGS
START MILK CARAFE
WASH CYCLE?
REFILL WATER TANK
OK
1
Select the “MAINTENANCE SETTINGS” option in the machine menu.
2
Select “CARAFE WASH CYCLE” and press the “OK” button to con rm.
69
ENGLISH
69
6
Put the lid back on.
7
Rotate the milk dispenser counter-clockwise to the lock position.
8
Insert the milk carafe into the machine.
9
Place a large container (1,5 lt ) under co ee the dispensing spout.
Open the milk dispenser by turning it clockwise.
70
ENGLISH
10
Press the “OK” button to start the cycle. The machine starts dispensing
the cleaning solution through the milk dispenser.
11
This icon is displayed. The bar shows the cycle progress.
Warning:
Never drink the solution dispensed during the procedure.
12
When the machine stops dispensing, ll the tank with fresh water up to
the MAX level. Press the “OK” button to con rm.
13
Remove the milk carafe and the container from the machine.
14
Wash the milk carafe thoroughly and ll it with fresh water. Insert the
milk carafe into the machine. Press the “OK” button to con rm.
15
Empty the container and place it back under the co ee dispensing
spout. Open the milk dispenser by turning it clockwise.
POUR THE DETERGENT INTO THE CARA
F
AND FILL THE CARAFE WITH FRESH WA
T
OK
CARAFE WASH CYCLE
STEP 1/2
WASH CYCLE…
REFILL WATER TANK
OK
FILL THE MILK CARAFE
WITH FRESH WATER
OK
71
ENGLISH
71
16
The machine starts dispensing water from both the co ee and the milk
dispensing spout. The bar shows the cycle progress.
17
At the end of the cycle, the machine returns to the product brew menu
page.
18
Disassemble and wash the milk carafe as described in the “Weekly
cleaning of the milk carafe” chapter.
Monthly lubrication of the brew group
Lubricate the brew group after approximately 500 cups of co ee or once a
month.
You can purchase separately the Saeco grease to lubricate the brew group.
Please refer to the maintenance products page in this user manual for
further details.
Caution:
Before lubricating the brew group, clean it under fresh water and dry
it, as described in the “Weekly Cleaning of the Brew Group” chapter.
1
Apply the lubricant evenly on both side guides.
CARAFE WASH CYCLE
STEP 2/2
RINSING CYCLE...
72
ENGLISH
2
Lubricate the shaft too.
3
Insert the brew group in its seat until it locks into place (see “Weekly
Cleaning of the Brew Group” chapter).
4
Insert the (internal) drip tray and co ee grounds drawer and close the
service door.
Monthly cleaning of the brew group with “Co ee Oil Remover”
Besides weekly cleaning, we recommend running this cleaning cycle with
the “Co ee Oil Remover” after approximately 500 cups of co ee or once
a month. This operation completes the maintenance process of the brew
group.
You can purchase separately the “Co ee Oil Remover” and the “Maintenan-
ce Kit”. Please refer to the maintenance products page for further details.
Caution:
The “Co ee Oil Remover” tablets are to be used for cleaning only and
do not have a descaling function. For the descaling procedure use the
Saeco descaling solution and follow the procedure described in the
“Descaling” chapter.
1
Select the “MAINTENANCE SETTINGS” option in the machine menu.
2
Select “BREW GROUP CLEANING CYCLE”. Press the “OK” button.
ESC
OK
2.5. MAINTENANCE SETTINGS
ON
PRODUCT COUNTERS
DESCALING CYCLE 59(I)
BREW GROUP CLEANING CYCLE
CARAFE WASH CYCLE
CARAFE AUTO CLEAN
73
ENGLISH
73
3
Press the “OK” button to con rm.
4
Fill the water tank with fresh water up to the MAX level. Press the “OK”
button.
5
Put a “Co ee Oil Remover” tablet in the pre-ground co ee com-
partment. Press the “OK” button.
6
Place a container (1,5 lt) under the co ee dispensing spout.
Press the “OK” button to start the cleaning cycle.
Note:
Turn the SBS dial all the way to the left, counter-clockwise before starting
the cycle.
ESC
OK
PERFORM BREW GROUP
CLEANING CYCLE?
2.5.3. MAINTENANCE SETTINGS
REFILL WATER TANK
OK
INSERT BREW GROUP
CLEANING TABLET
OK
PLACE A CONTAINER UNDER
THE DISPENSING SPOUT
OK
74
ENGLISH
7
This icon is displayed. The bar shows the cycle progress.
Warning:
Never drink the solution dispensed during the procedure.
8
When the machine stops dispensing, remove and empty the container.
9
Clean the brew group as described in the chapter “Weekly Cleaning of
the Brew Group.
Monthly cleaning of the co ee bean hopper
Clean the co ee bean hopper once a month when it is empty with a damp
cloth to remove co ee oil. Thereafter re ll it with co ee beans.
BREW GROUP CLEANING CYCLE
75
ENGLISH
75
DESCALING
The descaling process takes approx. 35 minutes.
Lime scale builds up inside the machine during use. It needs to be remo-
ved regularly as it may clog the water and co ee circuit of your machine.
The machine indicates when descaling is needed.
Caution:
Not doing this will ultimately make your machine stop working pro-
perly, and in this case repair is NOT covered by your warranty.
Use the Saeco decalci er only. Its formula has been designed to ensure
better machine performance.
You can purchase separately the Saeco decalci er. Please refer to chapter
“Ordering Maintenance Products” for further information.
Warning:
Never drink the decalci er or any products dispensed until the cycle
has been carried out to the end. Never use vinegar as a decalci er.
Note:
During the descaling cycle do not switch o the machine. If this has happe-
ned, you need to restart the descaling cycle from the very beginning.
To execute the descaling cycle, follow the steps below:
1
In the “SETTINGS MENU”, select the “MAINTENANCE SETTINGS”
option.
2
Select “DESCALING CYCLE” and con rm with “OK” .
Note:
If you press the “OK” button by mistake, press the “ESC” button to quit.
3
Press “OK” button to con rm.
21/12/12
04:17 pm
USER
MENU
BEVERAGE
MENU
SETTINGS
MENU
SELECT
USER
ESC
OK
ON
PRODUCT COUNTERS
DESCALING CYCLE 59(I)
BREW GROUP CLEANING CYCLE
CARAFE WASH CYCLE
CARAFE AUTO CLEAN
2.5. MAINTENANCE SETTINGS
ESC
OK
2.5.2. MAINTENANCE SETTINGS
START DESCALING
CYCLE?
76
ENGLISH
4
Remove the water tank, and if installed, remove the INTENZA+ water
lter. Pour the entire content of the Saeco decalci er.
Then ll the water tank with fresh water up to the MAX level. Press the
“OK”
button.
5
Empty the (internal) / (external) drip tray. Press the “OK” button.
6
Fill half the milk carafe with fresh water. Insert the carafe and open the
milk dispenser by turning it clockwise. Press the “OK” button.
7
Place a large container (1,5 lt) under the hot water/steam wand and
milk dispenser spout of the carafe. Press the “OK” button.
8
The machine will start dispensing the descaling solution at intervals.
The bar on the display shows the cycle progress.
Note:
To empty the container during the process, the descaling cycle may be
paused by pressing the “PAUSE” button. To resume the cycle, press the
“START” button.
9
The message indicates the end of the rst step. The water tank needs
to be rinsed. Fill the water tank with fresh water up to the MAX level.
Press the “OK” button.
REFILL WATER TANK
WITH DESCALING SOLUTION
OK
EMPTY DRIP TRAY PLACED
UNDER THE BREW GROUP
OK
FILL THE CARAFE HALFWAY
WITH FRESH WATER AND INSERT
IT IN BREWING POSITION
OK
PLACE A CONTAINER UNDER HOT
WATER & CARAFE DISP. SPOUTS
OK
RINSE THE WATER TANK AND
FILL WITH FRESH WATER
DESCALING CYCLE
PAUSE
STEP 1/2
DESCALING CYCLE...
77
ENGLISH
77
FILL THE CARAFE HALFWAY
WITH FRESH WATER AND INSERT
IT IN BREWING POSITION
OK
10
Empty the (internal) drip tray and place it back. Then, press the “OK”
button.
11
Empty the milk carafe and ll it with fresh water. Insert it back in the
machine. Press the “OK” button.
12
Empty the container and place it back under the hot water/steam
wand and milk dispensing spout of the carafe. Press the “OK” button.
13
The rinsing cycle is activated. The bar shows the cycle progress.
14
When the amount of water needed for the rinse cycle has been
completely dispensed, the machine automatically ends the descaling
process by showing this display after a short heating up phase.
15
Remove and empty the container.
16
Disassemble and wash the milk carafe as described in the “Weekly
cleaning of the milk carafe” chapter.
17
Empty the (internal) drip tray and place it back.
18
Place back the “INTENZA+” water lter into the water tank if it was
installed.
EMPTY DRIP TRAY PLACED
UNDER THE BREW GROUP
OK
PLACE A CONTAINER UNDER HOT
WATER & CARAFE DISP. SPOUTS
OK
DESCALING CYCLE
PAUSE
STEP 2/2
RINSING CYCLE...
21/12/12
04:17 pm
USER
MENU
BEVERAGE
MENU
SETTINGS
MENU
SELECT
USER
78
ENGLISH
19
The descaling cycle is now complete.
Note:
At the end of the descaling cycle, wash the brew group as described in the
“Weekly Cleaning of the Brew Group” chapter.
The rinsing cycle is performed in order to have the circuit cleaned with
a preset amount of water to ensure proper machine performance. If the
water tank is not lled up to MAX level, the machine might require two or
more cycles.
79
ENGLISH
79
MEANING OF THE DISPLAY
Help Message Displayed Meaning of the message
CLOSE HOPPER DOOR
Close the bean hopper inner cover.
ADD COFFEE
Fill the co ee beans hopper.
INSERT BREW GROUP
The brew group must be inserted into the machine.
INSERT GROUNDS DRAWER
AND DRIP TRAY
Insert the co ee grounds drawer and the internal drip tray.
EMPTY COFFEE GROUNDS DRAWER
Empty the co ee grounds drawer.
Note:
The used grounds drawer must be emptied only when the machine
requires it and with the machine on. If you empty the drawer with the
machine turned o it will not record the emptying operation.
CLOSE FRONT DOOR
Close the service door.
REFILL WATER TANK
Remove the water tank and ll it.
EMPTY DRIP TRAY
Open the service door and empty the internal drip tray.
Note:
If this operation is performed when the machine is on, it will record the
used grounds drawer emptying and will reset the counter; therefore, it is
necessary to empty the co ee ground drawer as well.
80
ENGLISH
Help Message Displayed Meaning of the message
ESC
ROTATE THE MILK CARAFE DISPENSING
SPOUT INTO BREWING POSITION
Open the milk dispenser of the carafe to brew products.
Press the button “ESC” to exit.
ESC
ROTATE THE MILK CARAFE DISPENSING
SPOUT INTO RINSING POSITION
Close the milk dispenser of the carafe to start the rinsing cycle of the
carafe.
Press the button “ESC” to exit.
ESC
PLACE MILK CARAFE
IN ITS HOUSING
Insert the milk carafe to start brewing. Press “ESC” to exit.
21/12/12
04:17 pm
USER
MENU
BEVERAGE
MENU
SETTINGS
MENU
SELECT
USER
The machine needs to be descaled. Follow the steps described in the
“Descaling” chapter of this manual.
Please note that not descaling your machine will ultimately make it stop
working properly. In this case repair is NOT covered under your warranty.
21/12/12
04:17 pm
USER
MENU
BEVERAGE
MENU
SETTINGS
MENU
SELECT
USER
The machine needs the “INTENZA+” water lter to be replaced.
BEVERAGE
MENU
SETTINGS
MENU
Red light ashes. Press the “ ” button to exit the stand-by mode.
(E xx)
RESTART TO SOLVE
THE PROBLEM
Take note of the code (E xx) shown in the display at the bottom.
Turn o the machine. After 30 seconds, turn it on again. Try this 2 or 3
times.
If the machine does not start, contact the Philips SAECO hotline in your
country and tell them the code shown in the display. You can nd its
contact details in the warranty booklet by-packed separately or on
www.philips.com/support.
81
ENGLISH
81
TROUBLESHOOTING
This chapter summarizes the most common problems you could en-
counter with your machine. If you are unable to solve the problem with the
information below, visit www.philips.com/support for a list of frequently
asked questions or contact the Philips Saeco hotline in your country. You
nd its contact details in the warranty booklet by-packed separately or on
www.philips.com/support.
Machine actions Causes Solutions
The machine does not
switch on.
The machine is not connected to
the electric network.
Connect the machine to the electric
network.
The power button is set on “0”. Check that the power button is set to
“I”.
The drip tray gets lled
although no water is
drained.
Sometimes water is drained auto-
matically by the machine into the
drip tray to manage the rinsing of
the circuits and ensure optimum
machine performance.
This is seen as normal machine beha-
vior.
Co ee is not hot enough. The cups are cold. Preheat the cups with hot water or use
the hot water dispenser.
Beverage temperature in the pro-
gramming menu is set to low.
Ensure that the temperature is set to
Normal or High in the beverage pro-
gramming menu.
Cold milk is being added to the
co ee.
Cold milk will reduce the temperature
of the end product. Therefore please
pre-heat the milk before adding it.
No hot water is dispensed. The hot water/steam wand is clog-
ged or dirty.
Clean the hot water/steam wand
(please refer to chapter “Cleaning and
maintenance”).
Check if it is clogged by looking into
the spout. Use a pin or needle to make
a hole through the limestone.
The machine is not lling
the cup.
The machine has not been pro-
grammed.
Enter the beverage programming
menu and adjust the co ee length set-
ting to your liking for every beverage.
Co ee has not enough
crema.
(See note)
The blend is unsuitable, co ee is
not freshly roasted or the grind is
too coarse.
Change co ee blend or adjust the
grind as explained in chapter “Adju-
sting the Ceramic Co ee Grinder”.
The co ee beans or the pre-
ground co ee are too old.
Ensure that fresh co ee beans or pre-
ground co ee are being used.
The milk was not frothed. The Carafe is dirty or not inserted
correctly.
Verify the correct cleaning of the carafe
and its insertion.
82
ENGLISH
Machine actions Causes Solutions
The machine takes a
long time to warm up or
the amount of water dis-
pensed from the wand is
too little.
The machine circuit is clogged by
limescale.
Descale the machine.
The brew group cannot
be removed.
The brew group is out of place. Turn the machine on. Close the ser-
vice door. The brew group automati-
cally returns to the initial position.
The co ee grounds drawer is
inserted.
Remove the co ee grounds drawer
before removing the brew group.
The brew group cannot be
inserted.
The brew group is not in rest
position.
Ensure that the brew group is in
rest position. Both arrows must look
towards each other. Please refer to
chapter “Monthly Lubrication of the
Brew Group” how to do that.
Gear is not in initial position. Insert the drip tray with the co ee
grounds drawer and then close the
service door. Turn the machine on. The
gear automatically returns to the initial
position so the brew group can be
inserted.
There is a lot of co ee
ground under or on the
brew group.
The co ee you are using may not
be suitable for automatic machi-
nes.
It may be necessary to change the type
of co ee or the co ee grinder settings
(please refer to chapter “Adjusting the
ceraminc co ee grinder”).
The machine is adjusting the
grinder due to new co ee beans or
pre-ground co ee.
The machine automatically adjusts
itself after brewing several cups of
co ee to optimize the extraction of
the co ee to the compactness of the
ground co ee.
It may take to up to 2-3 products until
the grinder is adjusted.
This is not a failure of your machine.
The machine produces
co ee grounds that are
either too wet or too dry.
The grinder needs to be adjusted. By adjusting the ceramic co ee grinder,
the quality of the puck can be adjusted.
When the pucks are too wet, make the
grind coarser.
When the pucks are too dry, make the
grind ner.
Please refer to chapter “Adjusting the
Ceramic Co ee Grinder”.
83
ENGLISH
83
Machine actions Causes Solutions
The machine grinds the
co ee beans but no co ee
comes out.
(See note)
There is no water. Fill the water tank and prime the circuit
(please refer to chapter “Manual rinse
cycle”).
The brew group is dirty. Clean the brew group (“Weekly clea-
ning of brew group” chapter).
This might occur when the machi-
ne is automatically adjusting the
dose.
Brew a few co ees as described in
chapter “Saeco Adapting System”.
The dispensing spout is dirty. Clean the dispensing spout.
Co ee is too weak.
(See note)
This might occur when the machi-
ne is automatically adjusting the
dose.
Brew a few co ees as described in
chapter “Saeco Adapting System”.
The co ee is too coarse. Change co ee blend or adjust the
grind as explained in chapter “Adju-
sting the ceramic co ee grinder”.
Co ee is brewed slowly.
(See note)
The co ee grind is too ne. Change co ee blend or adjust the
grind as explained in chapter “Adju-
sting the ceraminc co ee grinder”.
Circuits are clogged. Perform a descaling cycle.
The brew group is dirty. Clean the brew group (please refer to
chapter “Weekly cleaning of the brew
group”).
Co ee leaks out of the
dispensing spout.
The dispensing spout is clogged. Clean the dispensing spout and its
holes.
Note:
These problems can be considered normal if the co ee blend has been
changed or if the machine has just been installed. In this case wait until
the machine performs a self-adjusting operation as described in chapter
“Saeco Adapting System”.
84
ENGLISH

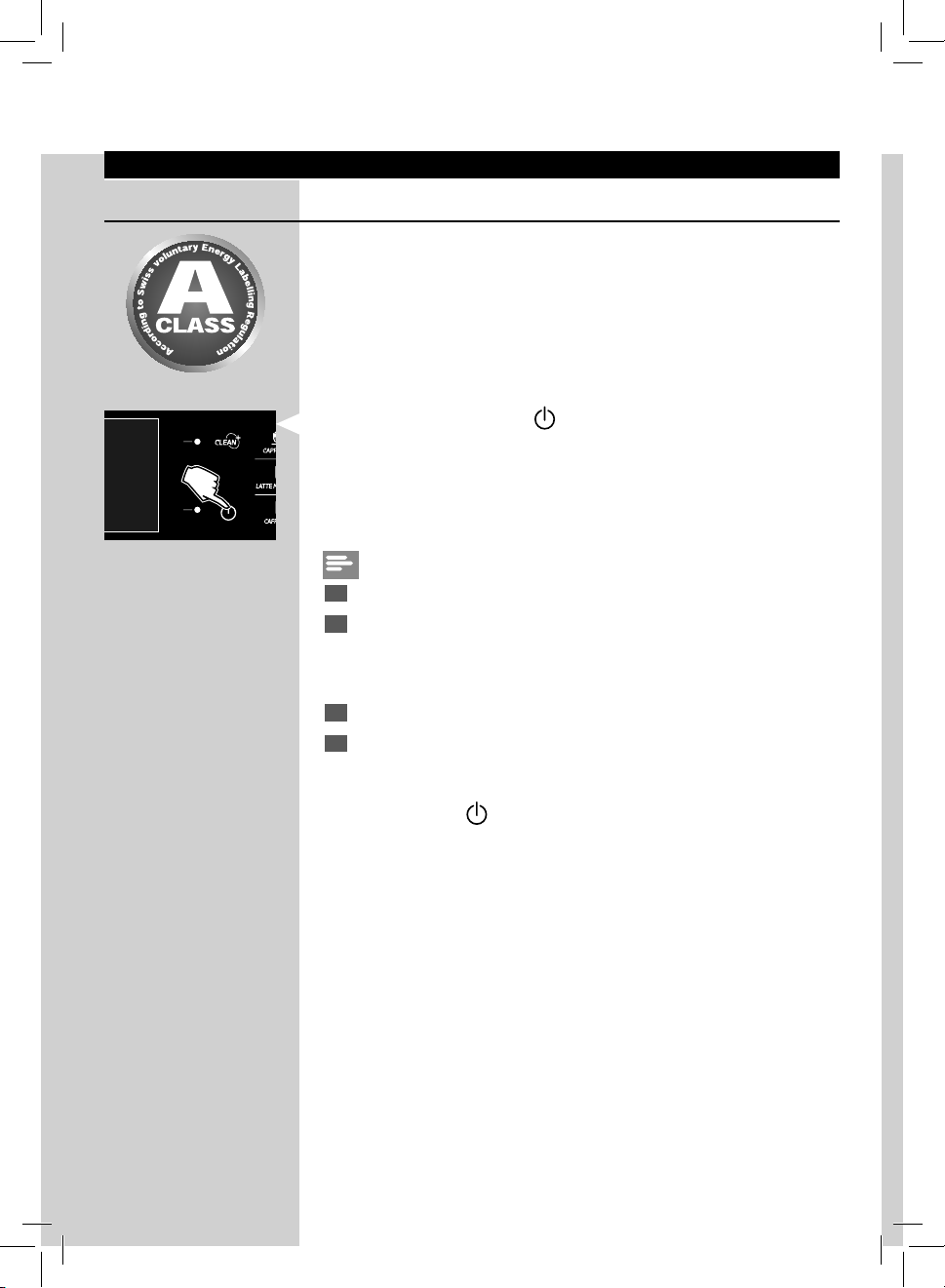

ENERGY SAVING
Stand-by
The Saeco full automatic espresso machine is designed for energy saving-
proven by the Class A energy label.
After a certain time of inactivity that can be programmed individually (see
chapter “Machine Programming”), the machine turns o automatically. If a
product has been brewed, the machine performs a rinsing cycle.
In stand-by mode, the energy consumption is below 1Wh.
To turn on the machine, press “
” button (if power button on the back of
the machine is set to “I”). If the boiler is cold the machine performs a rinsing
cycle.
The machine status can be manually changed to stand-by mode by hol-
ding the STAND-BY button for 3 seconds.
Note:
1
The stand-by mode cannot be activated if the service door is left open.
2
When the stand-by mode is activated, the machine may perform a
rinse cycle. The cycle can be interrupted by pressing the “STOP” button.
The machine can be turned on again by
1
pressing any of the control panel buttons.
2
opening the service door (when closing the door the machine goes
back to standby mode).
The red light on the “
” button ashes when the machine is in stand-by
mode.
BEVERAGE
MENU
SETTINGS
MENU
85
ENGLISH
85
Disposal
Do not throw away the machine with the normal household waste at the
end of its life, but hand it in at an o cial collection point for recycling. By
doing this, you help to preserve the environment.
- The packing materials can be recycled.
- Machine: unplug the machine and cut the power cord
- Deliver the appliance and power cord to a service center or public
waste disposal facility.
This product complies with EU directive 2002/96/EC.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the
recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling of this product,
please contact your local city o ce, your household waste disposal service
or the shop where you purchased the product.
86
ENGLISH
TECHNICAL SPECIFICATION
The manufacturer reserves the right to make changes to the technical
speci cations of the product
Nominal Voltage - Power Rating -
Power Supply
See label on the appliance
Housing material Thermoplastic material
Size (w x h x d) 280 x 370 x 420 mm
Weight 17 Kg
Power Cord Length 1200 mm
Control Panel On the front
Size of cup 110 mm
Water Tank 1.6 liters – Removable type
Co ee bean hopper capacity 350 gr
Co ee grounds drawer capacity 15
Pump pressure 15 bar
Boiler Stainless steel type
Safety mechanisms Boiler pressure safety valve –
Double safety thermostat. Thermal
fuse.
GUARANTEE AND SERVICE
Guarantee
For detailed information on your warranty and related conditions, please
read the warranty booklet by-packed separately.
Service
We want to ensure that you remain satis ed with your machine. If not done
already, please register your product on www.philips.com/welcome so
that we can stay in contact with you and send you cleaning and descaling
reminders.
If you need service or support, please visit the Philips website at
www.philips.com/support or contact the Philips Saeco hotline in
your country. You nd its phone number in the warranty booklet by
packed separately or on www.philips.com/support.
87
ENGLISH
87
ORDERING MAINTENANCE PRODUCTS
For cleaning and descaling, use Saeco maintenance products only.
You can purchase these at the Philips online shop at www.shop.philips.com/
service, your local dealer or at authorised service centers.
If you have any di culties obtaining maintenance products for your machi-
ne, please contact the Philips Saeco hotline in your country.
You nd its contact details in the warranty booklet by-packed separately or
on www.philips.com/support.
Overview of maintenance products
- Decalci er CA6700
- INTENZA+ Water Filter CA6702
- Grease HD5061
- Co ee Oil Remover CA6704
88
ENGLISH
- Maintenance Kit CA 6706
- Milk Circuit Cleaner CA6705
89
www.philips.com/saeco
The manufacturer reserves the right to make changes without prior notice.
Rev.00 del 15-01-13
