Operating instructions
DSTS9
Range hood
Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarise yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make tech-
nical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Type Product family Size system
DSTS9 64004 90
Variations depending on the model are noted in the text.
© V-ZUG AG, CH-6301 Zug, 2016
2
Contents
2
1 Safety precautions 5
1.1
Symbols used .............................................................................................5
1.2
General safety precautions ......................................................................6
1.3
Before using for the first time ..................................................................7
1.4
Correct use..................................................................................................7
1.5
Children in the home .................................................................................7
1.6
Note on use.................................................................................................8
2 Disposal 10
3 Appliance description 11
3.1
Appliance description............................................................................. 11
3.2
Extraction model...................................................................................... 11
3.3
Recirculation model with long-life activated charcoal filter ............. 11
3.4
Operating and display elements .......................................................... 12
3.5
Recirculation model with recirculation box ........................................ 12
3.6
Features .................................................................................................... 13
3.7
Construction ............................................................................................. 14
4 Operating the appliance 15
4.1
Operation .................................................................................................. 15
4.2
Illumination................................................................................................ 15
4.3
Changing the light intensity................................................................... 16
4.4
Intensive level........................................................................................... 16
4.5
After-running time .................................................................................... 17
4.6
Wipe protection........................................................................................ 17
4.7
CleanAir..................................................................................................... 18
4.8
Saturation indicators............................................................................... 19
5 Care and maintenance 20
5.1
Cleaning the housing ............................................................................. 20
5.2
Metal grease filters.................................................................................. 21
5.3
Long-life activated charcoal filter.......................................................... 23
5.4
Long-life activated charcoal filter display............................................ 24
5.5
Cleaning the long-life activated charcoal filter................................... 24
5.6
Recirculation box with activated charcoal filters (Option) ............... 25
6 Trouble-shooting 26
3
6.1
What to do if … ........................................................................................ 26
7 Accessories and spare parts 28
8 Technical data 29
8.1
Product fiche ............................................................................................ 29
9 Index 31
10 Notes 33
11 Service & Support 35
4
1 Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in dam-
age to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
▸ Indicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
▪ Indicates a list.
5
1 Safety precautions
1.2 General safety precautions
▪ Read the operating instructions before using the appliance for
the first time!
▪ This appliance can be used by children aged 8 and above
and by persons with reduced physical, sensory or mental cap-
abilities, or lack of experience and/or knowledge, provided
they are supervised or have been instructed on the safe use
of the appliance and have understood the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be undertaken by children without su-
pervision.
▪ If an appliance is not equipped with a mains cable and a plug
or other means for disconnecting from the mains with a con-
tact opening on each pole complying with the conditions of
overvoltage category III for full isolation, an isolating device
must be incorporated into the permanently installed electrical
installation in accordance with the installation regulations.
▪ If the mains cable of this appliance is damaged, it must be re-
placed by the manufacturer or its Customer Services or a sim-
ilarly qualified person in order to avoid hazard.
6
1 Safety precautions
1.3 Before using for the first time
▪ The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
▪ Dispose of the packaging material in accordance with local regulations.
1.4 Correct use
▪ The appliance is designed for use in the home for extracting cooking
odours from above a cooking area.
▪ Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Cus-
tomer Services or a similarly qualified person. Repairs if carried out incor-
rectly could cause serious injury or damage to the appliance and fittings as
well as affect the functioning of the appliance. If the appliance is not work-
ing properly or in case of a repair order, follow the instructions given in the
'Service & Support' section. If necessary, please contact our Customer Ser-
vices.
▪ Use original spare parts only.
▪ Retain these operating instructions for future reference. If you sell the appli-
ance or pass it on to a third party, please ensure these operating instruc-
tions accompany the appliance, together with the instructions on installation.
In this way, the new owner can inform themselves about how to use the ap-
pliance correctly and read the pertinent safety precautions.
1.5 Children in the home
▪ Packaging material, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from chil-
dren.
▪ The appliance is designed for use by adults who are familiar with these op-
erating instructions. Children are often unable to recognize the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance – there is a danger that children could hurt them-
selves.
7
1 Safety precautions
1.6 Note on use
▪ If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
▪ If the appliance is not functioning properly, disconnect it from the power
supply immediately.
▪ If the mains cable of the appliance is damaged, it must be replaced by Cus-
tomer Services in order to avoid hazard.
▪ Caution: Accessible parts may become hot when used with cooking appli-
ances.
▪ Do not flambé food underneath the appliance. Metal grease filters if laden
with grease could catch fire.
▪ When frying on the cooking surface, do not leave the appliance unattended.
The cooking oil in the frying appliance could overheat and catch fire. Con-
stantly monitor the temperature of the cooking oil, keeping it below the tem-
perature at which it can catch fire. Change the cooking oil regularly – dirty
oil catches fire more easily than clean oil.
▪ Observe the cleaning intervals. Failure to do so can increase the fire hazard
due to the build-up of grease in the metal grease filters.
▪ Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a build-up of heat. Avoid open fires
with oil, gas, wood and coal fired cookers.
▪ Ensure there is adequate ventilation when the extractor fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve op-
timal air extraction.
▪ Avoid a cross-current of air, which could blow the cooking vapours over the
cooking area.
▪ If other appliances – fuelled by gas or other fuels – are being used at the
same time, ensure that there is a sufficient supply of fresh air. This does not
apply to air recirculation appliances.
▪ If other firing systems are being used at the same time (e.g. wood, gas, oil
or coal fired heating appliances), safe operation is only possible providing a
room negative pressure of 4Pa (0.04mbar) is not exceeded at the location
of the appliance. Risk of toxic fumes! An adequate flow of fresh air must be
guaranteed e.g. via non-closable openings in doors or windows and in com-
bination with an air-intake/exhaust-air wall box or by other technical means.
8
1 Safety precautions
▪ When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance: remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply.
▪ When cleaning the appliance make sure no water gets inside the appliance.
Use a moderately damp cloth. Do not spray the inside or outside of the ap-
pliance with water. Do not use a steam cleaner. If water gets inside the ap-
pliance, it can cause damage.
9
2 Disposal
Packaging
▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
▪ Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
▪ Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
▪ Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
Disposal
▪ The old appliance should not be discarded as worthless rubbish. If dis-
posed of correctly, the raw materials can be recovered for recycling.
▪ The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
▪ The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recyc-
ling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
10
3 Appliance description

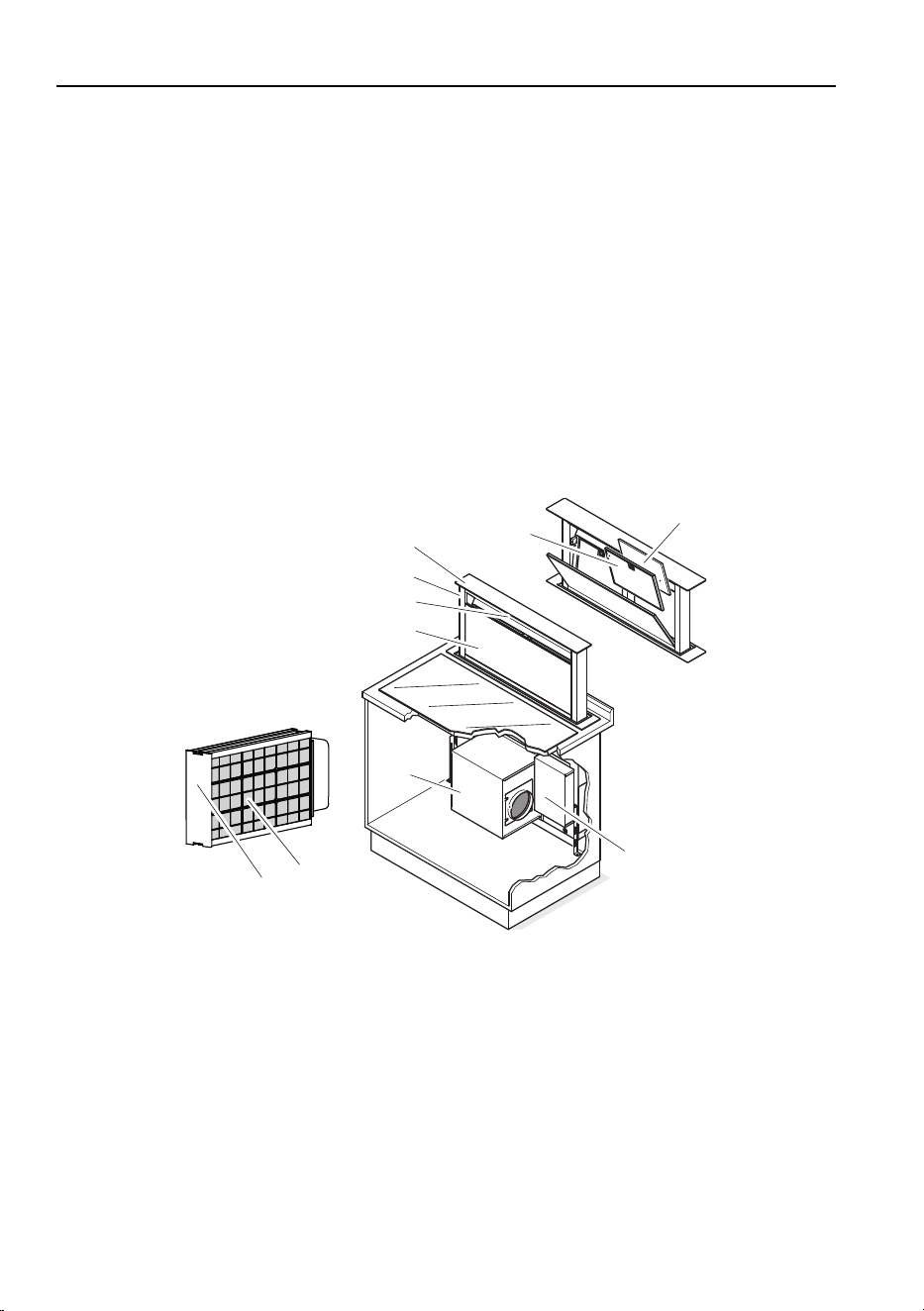

3.1 Appliance description
The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface.
The model can be used to extract or recirculate air.
3.2 Extraction model
A fan draws cooking fumes and smells from above the cooking area. The
metal grease filters clean the extracted air, which is passed through a connect-
ing pipe fitted with an integrated non-return valve and through the air duct to
the outside.
When in use, ensure there is a sufficient supply of fresh air to replace the
air that is being extracted.

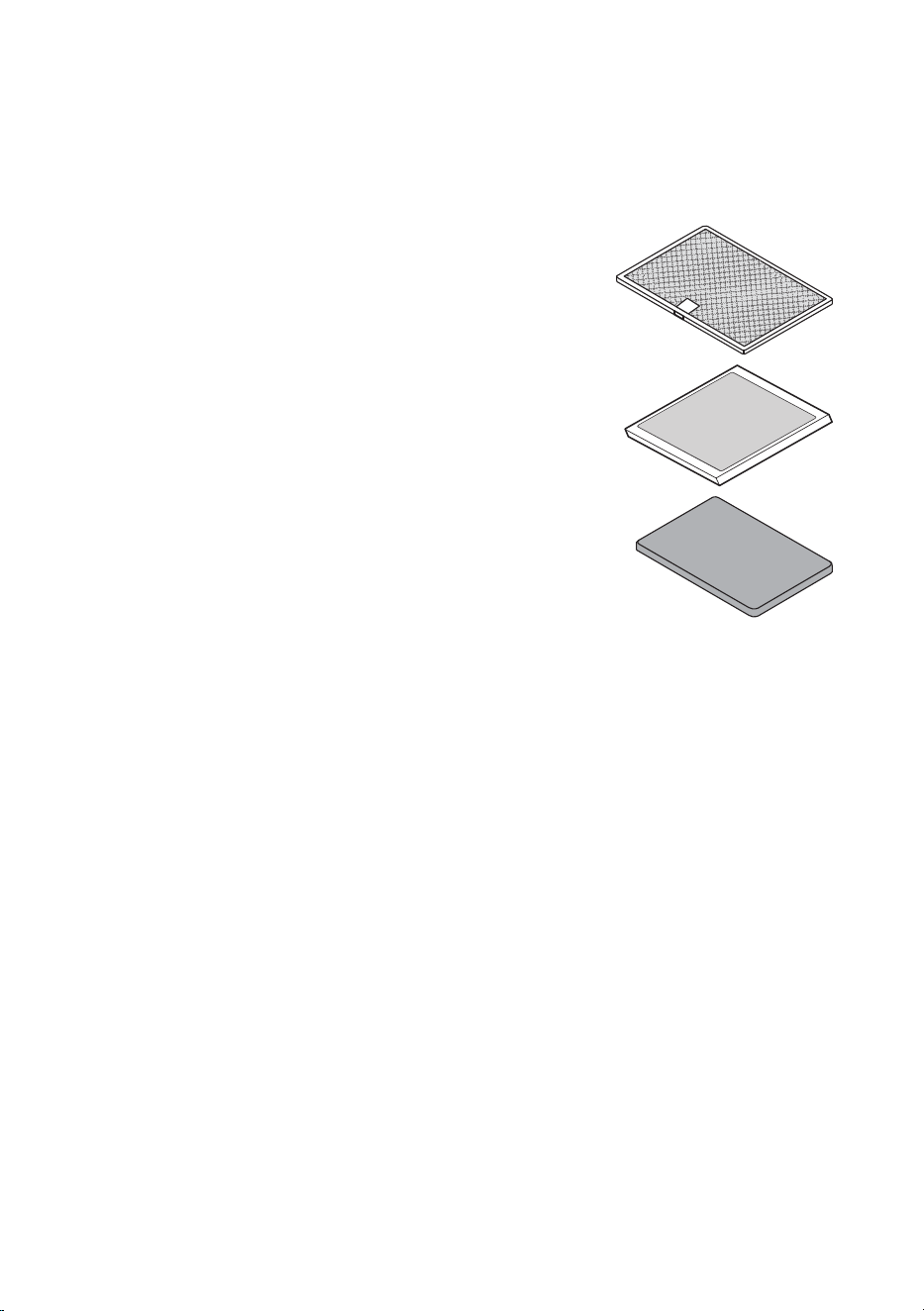

3.3 Recirculation model with long-life activated charcoal
filter
The cooking fumes and smells above the cooking area are passed through
the metal grease filters and long-life activated charcoal filters, the odours are
largely removed from the air and it is then circulated back into the room.
11
3 Appliance description
3.4 Operating and display elements
Switch on/off, extend/retract hood body
Power level 1
Power level 2, activate/deactivate wipe protection
Power level 3
Intensive level
CleanAir function (air extraction every hour for 10 minutes)
After-running time (delays switching-off of appliance by 15
minutes)
Touch button, switch illumination on at maximum intensity
and off.
Depress the button for two seconds to switch the illumina-
tion on at medium intensity.
/
Flashing Clean the metal grease filters, reactivate or replace the
long-life activated charcoal filters
/
Flashing Replacing the activated charcoal filter
Depending on the model and features, the specification of the appliance
may differ from the standard specification described herein.

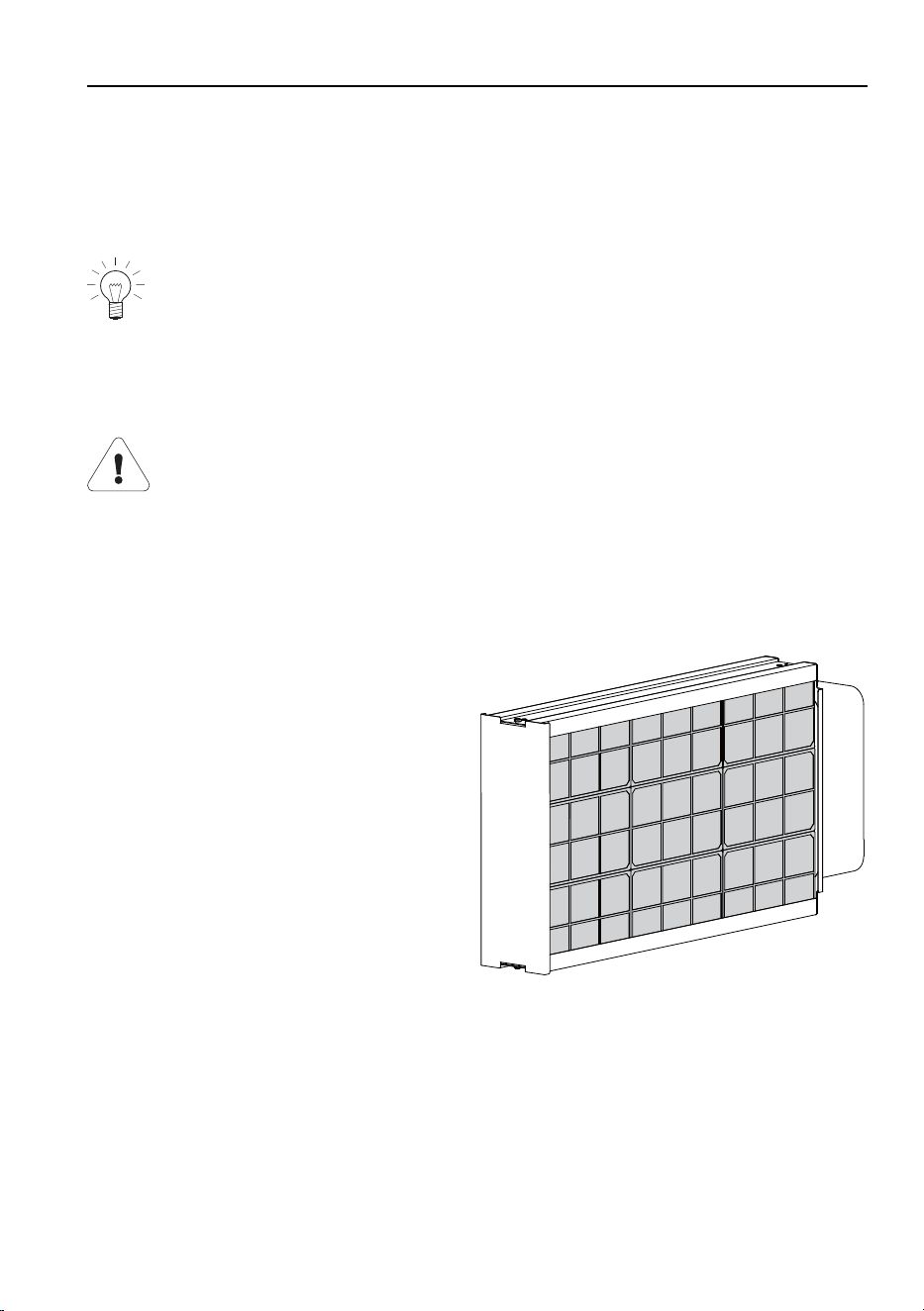

3.5 Recirculation model with recirculation box
After being filtered through the metal grease filters, the cooking fumes and
smells above the cooking area are passed through a recirculation box with in-
tegrated activated charcoal filters, the odours are largely removed from the air
and it is then circulated back into the room.
12
3 Appliance description
3.6 Features
▪ 1 extractor fan with 4 power levels:
▪ 1 = low, 2 = medium, 3 = high, and intensive level.
▪ Power levels 1–3 are suitable for continuous operation.
▪ The intensive level is used for short bursts of intensive extraction of cooking
fumes and smells, e.g. when searing meat. The intensive level runs for 5
minutes.
▪ 2 metal grease filters (extraction/recirculation model)
▪ 2 long-life activated charcoal filters (recirculation model)
▪ 1 optional, separate recirculation box with activated charcoal filters (recircu-
lation model)
▪ 1 panel
▪ 1 mains cable
▪ 2 holders, bottom
▪ 2 holders, top
▪ 2 angle brackets
▪ Illumination
13
3 Appliance description
3.7 Construction
Options
1. Operating and display elements 8. Long-life activated charcoal filter (for
recirculation air)
2. Extendable/retractable hood
body
9. Activated charcoal filter for recircula-
tion box
3. Illumination 10. Recirculation box (optional)
4. Panel
5. Metal grease filter
6. Motor housing
7. Electronic control
7
6
5
1
2
3
4
8
9
10
14
4 Operating the appliance
4.1 Operation
Extending and switching on the appliance
▸ Hold the button depressed for three seconds.
– The hood body is extended and the appliance switches on at power
level .
▸ Touching the / / or button switches the appliance on at power level 1,
2, 3 or intensive.
– The corresponding button illuminates to indicate which power level is
being used.
We recommend switching the appliance on at power level 2 some five
minutes before starting to cook. Use a low power level for normal cook-
ing smells and a higher power level for very strong cooking fumes and
smells.
Switching off the appliance and retracting the hood
▸ Touching the button switches the appliance off.
▸ Hold the button depressed for three seconds.
– The hood is retracted.
After you have finished cooking, allow the appliance to run for another 15
minutes (see page 17) so that the cooking fumes and smells can be
extracted.
4.2 Illumination
▸ Touch the button.
– The illumination switches on at maximum intensity.
▸ Touch the button again.
– The illumination switches off.
15
4 Operating the appliance
4.3 Changing the light intensity
▸ When the illumination is switched on, hold the button depressed for two
seconds.
– The light intensity lowers.
▸ When the light intensity is low, press the button.
– The light intensity increases.
▪ The illumination switches off if, prior to this, the button has been held
depressed for two seconds when the light intensity is low or if it is pressed
when the light intensity is normal.
4.4 Intensive level
▸ Touch the button.
– The button flashes.
– The intensive level switches on.
▪ If another power level had been running beforehand, then the appliance will
automatically revert to this power level after six minutes has elapsed.
▪ If the appliance had not been switched on beforehand, then the appliance
will automatically switch off after the six minutes has elapsed.
▸ Touch the or button.
– The button stops flashing.
– The intensive level switches off before time.
16
4 Operating the appliance
4.5 After-running time
In the after-running time, the motor, fan blades and illumination run for
another 15 minutes and then switch off automatically.
▸ Touch the / or button and select the desired power level.
▸ Touch the button.
– The after-running time switches on.
– The button illuminates for 15minutes.
▸ Touch the button again.
– The button no longer illuminates.
– The after-running time switches off before time.
4.6 Wipe protection
Activating wipe protection
▸ With the appliance is switched off, hold the button depressed for five
seconds.
– Wipe protection is activated, all the buttons flash in sequence from left
to right.
Wipe protection is useful when cleaning the appliance.
Deactivating wipe protection
▸ Hold the button depressed for five seconds.
– Wipe protection is deactivated.
17
4 Operating the appliance
4.7 CleanAir
Switching the CleanAir function on/off
▸ Touch the button.
– The level illuminates.
– The button flashes.
– The appliance switches on every hour for 10 minutes.
▸ Touch the or button.
– The button and the level no longer illuminate.
– The CleanAir function switches off.
18
4 Operating the appliance
4.8 Saturation indicators
Saturation indicator for metal grease filters and long-life activated
charcoal filters
The and buttons flashes after 100 operating hours.
The saturation level has been reached and the metal grease filters
and long-life activated charcoal filters must be cleaned.
Activating/deactivating the saturation indicator (recirculation models)
▸ Hold the button depressed for five seconds.
– The recirculation mode is activated.
▸ Hold the button depressed for five seconds to deactivate the recircula-
tion mode.
– The recirculation mode is deactivated.
Saturation indicator for activated charcoal filters in recirculation box
The and buttons flash after 550 operating hours.
The saturation level has been reached and the activated charcoal fil-
ters must be replaced.
Resetting the saturation indicator
ü The metal grease filters have been cleaned.
ü The activated charcoal filters have been replaced.
ü The long-life activated charcoal filters have been cleaned or replaced.
▸ With the appliance switched off, hold the button depressed until all the
LEDs flash three times.
19
5 Care and maintenance
5.1 Cleaning the housing
Take care that no water gets into the housing of the appliance! If
water gets into the housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool, etc. for
cleaning, as the surface could otherwise be damaged.
Remove the screw fuse or switch off the circuit breaker.
Cleaning the outside/inside
▸ With the appliance switched off, hold the button depressed for five
seconds.
– Wipe protection is activated, all the buttons flash in sequence from left
to right.
▸ Clean the outside with a slightly damp cloth and neutral cleaning agent,
then wipe dry.
Grease and condensate water can build up on the inside around the metal
grease filters.
▸ Clean the inside with a slightly damp cloth and neutral cleaning agent, then
wipe dry.
▸ After cleaning, hold the button depressed for five seconds.
– Wipe protection is deactivated.
20
5 Care and maintenance

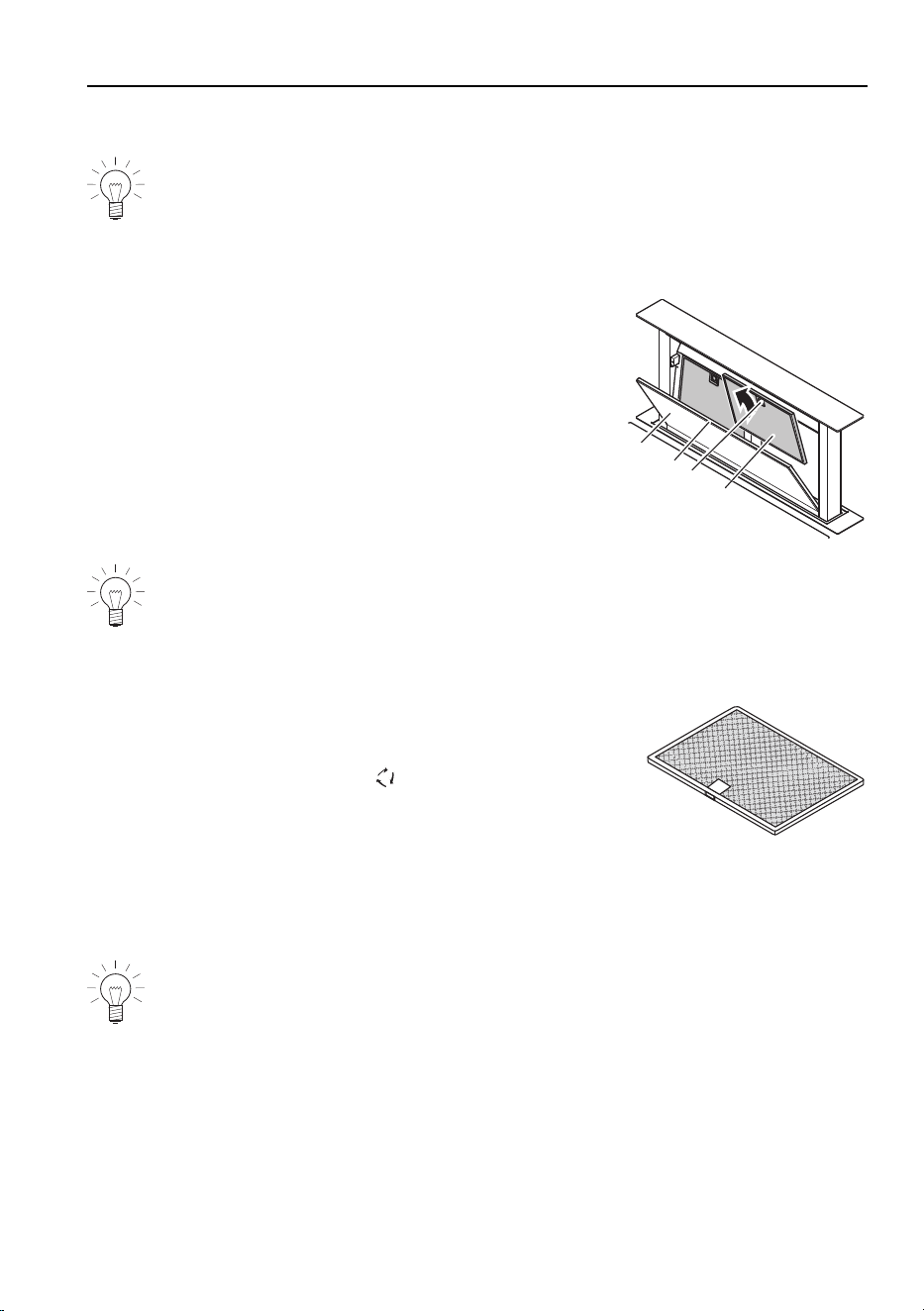

5.2 Metal grease filters
The metal grease filters can be cleaned.
Removing the metal grease filters
▸ Hold the panel 1 at the top 2 and
pull forwards.
▸ Pull the handle 3 down and take out
the metal grease filters 4.
4
3
2
1
Do not drop or damage the metal grease filters.
Cleaning the metal grease filters
The metal grease filters 4 must be
cleaned at least once a month with
normal use or whenever the indic-
ator light flashes.
▸ Clean the metal grease filters 4 in the dishwasher.
▸ Select an «intensive» – or «heavy» – wash programme with a warm pre-
wash.
Cleaning may cause the metal grease filters to become discoloured. This
will not affect the functioning of the filters in any way.
If no dishwasher is available:
▸ Clean the metal grease filters in hot water and detergent.
▸ Soak the metal grease filters in hot water and detergent for about two
hours, then clean with a washing-up brush and rinse well with cold water.
21
5 Care and maintenance

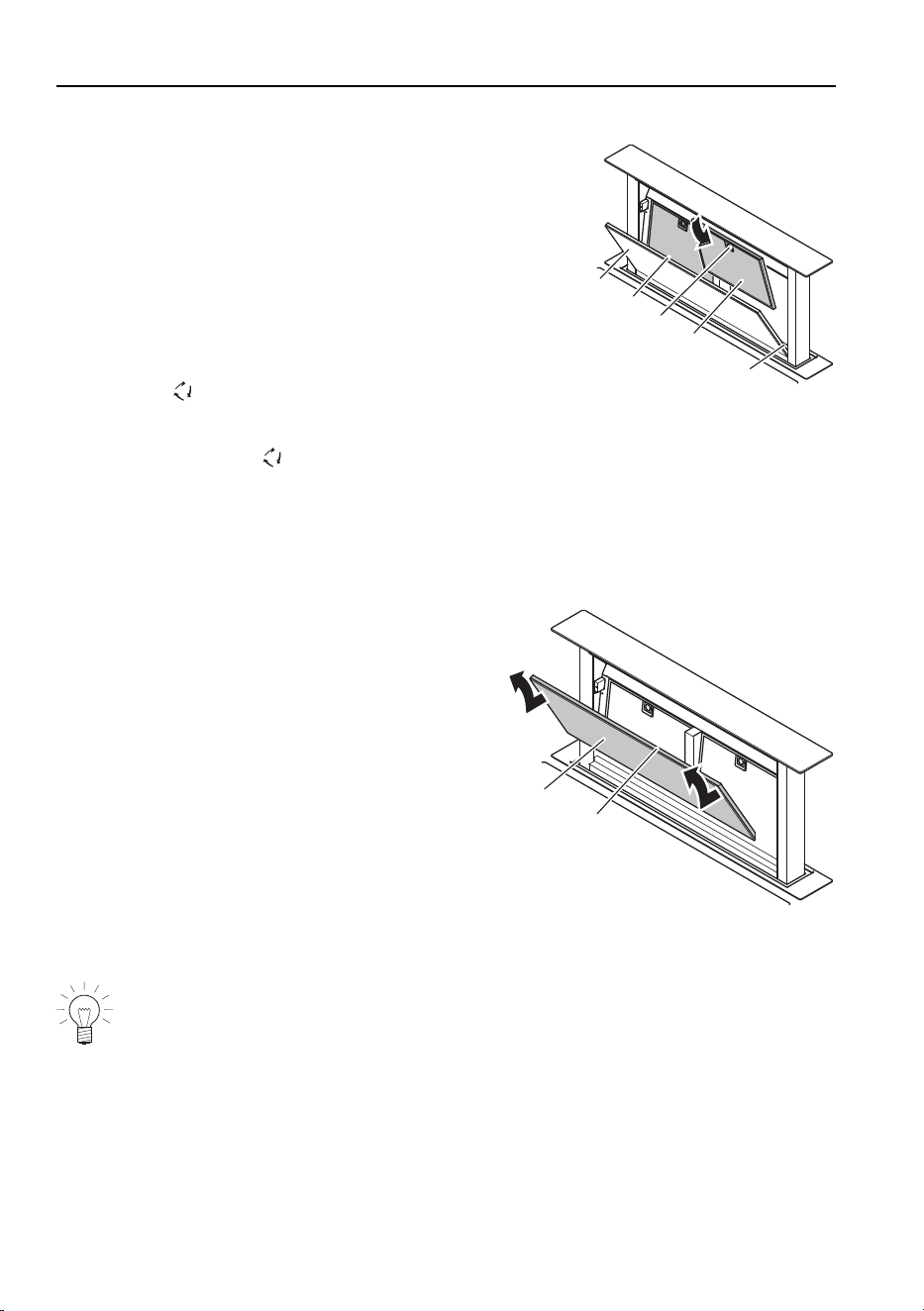

Installing the metal grease filters
▸ Insert each of the metal grease fil-
ters 4 into the holder 5.
▸ Pull handle 3 down and allow the
metal grease filter 4 to engage.
▸ Hold the panel 1 at the top 2 and
push to.
▸ With the appliance switched off,
hold the button depressed until
all the LEDs flash three times.
– The flashing button goes
out.
4
3
5
2
1
Removing the panel
The panel is kept in place by magnets.
▸ Hold the panel 1 at the top 2 and
pull forwards.
▸ Unhook the panel at the bottom and
pull it out.
2
1
Cleaning the panel
The panel is not suitable for washing in a dishwasher.
▸ Wash the panel with a slightly damp cloth and neutral cleaning agent, then
wipe dry.
22
5 Care and maintenance

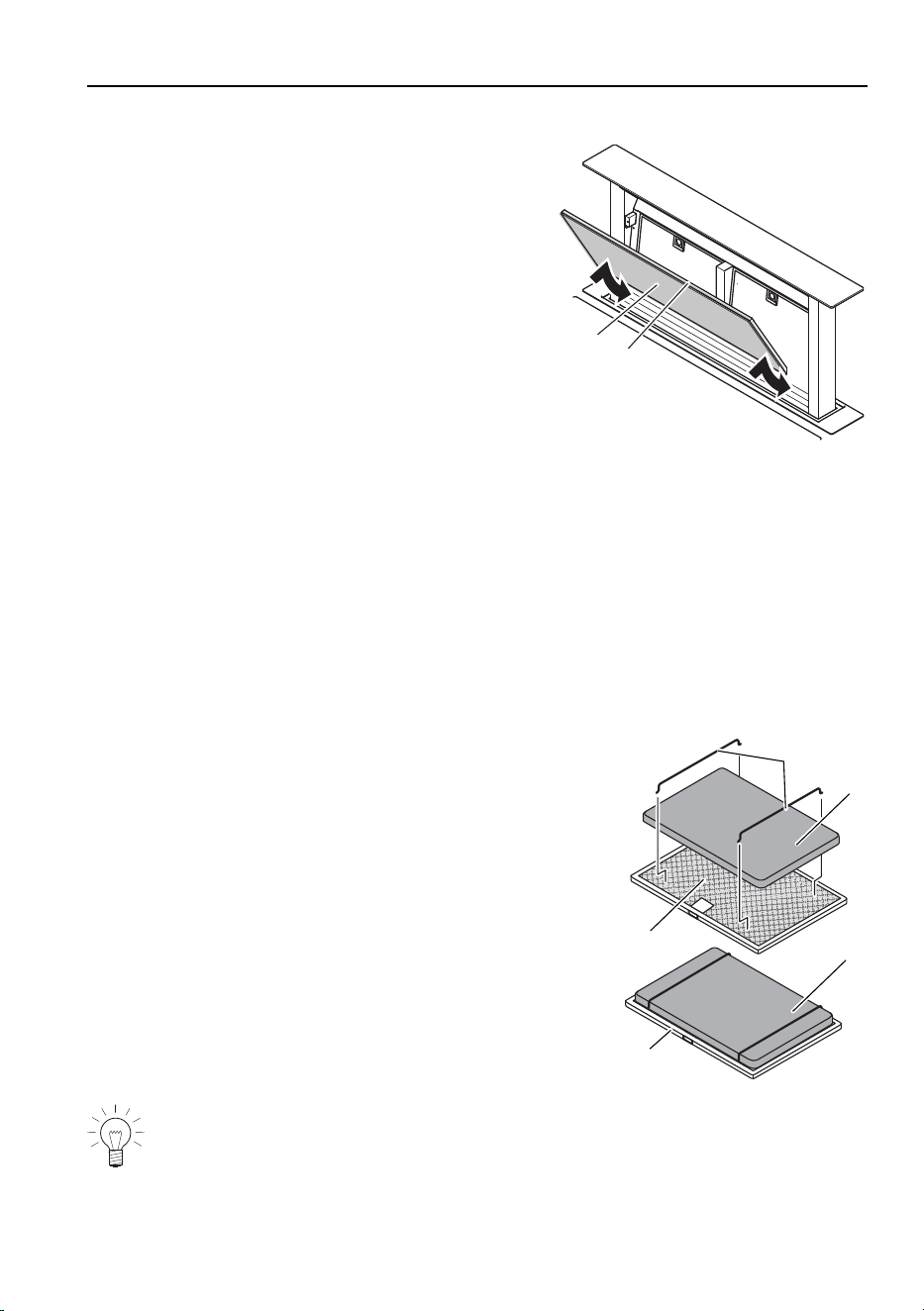

Installing the panel
▸ Hold the panel 1 at the top 2, hook
in at the bottom and insert into posi-
tion.
2
1
5.3 Long-life activated charcoal filter
The long-life activated charcoal filters should be reactivated every other month
or whenever the cooking fumes and smells are no longer being filtered effect-
ively.
After about three years the long-life activated charcoal filter must be replaced
because its ability to absorb odours will be reduced.
Installing/removing the long-life activated charcoal filters
▸ Release the holder 4 on the back of
the metal grease filter 3 and remove
the long-life activated charcoal filter
5.
▸ Clean/reactivate.
▸ Insert the new long-life activated
charcoal filter 5 and fasten with the
holder 4 on the back of the metal
grease filter 3.
3
3
4
5
5
Dispose of long-life activated charcoal filters that are spent and can no
longer be reactivated in the household waste.
23
5 Care and maintenance
5.4 Long-life activated charcoal filter display
Activating the long-life activated charcoal filter display
This function must only be activated with the recirculation model.
▸ With the appliance switched off, hold the button depressed for five
seconds.
– All LEDs flash twice.
– The long-life activated charcoal filter display is activated.
Deactivating the long-life activated charcoal filter display
▸ With the appliance switched off, hold the button depressed for five
seconds.
– All LEDs flash once.
– The long-life activated charcoal filter display is deactivated.
5.5 Cleaning the long-life activated charcoal filter
Long-life activated charcoal filters are only used in the recirculation
model.
The long-life activated charcoal filter can be cleaned and reactivated. With nor-
mal use the long-life activated charcoal filter should be cleaned every other
month or whenever the indicator light flashes. It can be cleaned in a dish-
washer at 65°C (select an «intensive» or «heavy soiling» wash programme).
Wash the filter separately so that it does not become clogged with food
particles. If it is not possible to wash the filter in a dishwasher, soak it in 60°C
water with a little washing-up liquid for one hour. Then rinse well. To reactivate
the activated charcoal, dry the filter without the frame in the oven.
▸ Select top/bottom heat or hot air and set the temperature to 100 °C. Place
the filter on a wire shelf and allow to dry for 60 minutes.
After about three years the long-life activated charcoal filter must be re-
placed because its ability to absorb odours will be reduced. The spent
long-life activated charcoal filter can be disposed of in the household
waste.
24
5 Care and maintenance
5.6 Recirculation box with activated charcoal filters
(Option)
Recirculation mode with recirculation box
Activated charcoal filters are only used in the recirculation model.
An activated charcoal filter becomes less effective with use. With normal use,
the activated charcoal filters have to be changed every 3 years. They cannot
be washed or regenerated.
Take care that no water gets into the housing of the appliance! If
water gets into the housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool, etc. for
cleaning, as they can damage the surface.
Remove the screw fuse or switch off the circuit breaker.
Recirculation box with integrated activ-
ated charcoal filters.
▸ Clean the outside with a slightly
damp cloth and neutral cleaning
agent, then wipe dry.
Grease and condensate water can
build up on the inside around the ac-
tivated charcoal filters.
▸ Clean the inside with a slightly
damp cloth and neutral cleaning
agent, then wipe dry.
25
6 Trouble-shooting
6.1 What to do if …
… the illumination is not working
Possible cause Solution
▪ Fuse or automatic circuit
breaker for electrical in-
stallations in the home is
defective.
▸ Replace the fuse.
▸ Reset the automatic circuit breaker.
▪ An interruption in the
power supply.
▸ Check the power supply.
▪ LED is defective.
▸ Inform Customer Services.
… the appliance is not extracting enough air
Possible cause Solution
▪ The metal grease filters
are dirty.
▸ Clean the metal grease filters.
▪ Only for recirculation
model with long-life activ-
ated charcoal filter or: The
long-life activated charcoal
filters are saturated.
▸ Reactivate the long-life activated charcoal
filters or replace them after three years.
▪ Only for recirculation
model with recirculation
box: The activated char-
coal filters are saturated.
▸ Replace the activated charcoal filters.
26
6 Trouble-shooting
… Saturation indicator illuminates
Possible cause Solution
▪ The metal grease filters
are dirty.
▸ Clean the metal grease filters.
▪ Only for recirculation
model with long-life activ-
ated charcoal filter or: The
long-life activated charcoal
filters are saturated.
▸ Reactivate the long-life activated charcoal
filters or replace them after three years.
▪ Only for recirculation
model with recirculation
box: The activated char-
coal filters are saturated.
▸ Replace the activated charcoal filters.
Valid for all three filter models.
▸ After cleaning, hold the button depressed
for at least five seconds.
▸ The display goes out.
27
7 Accessories and spare parts
Please give model number of the appliance and exact designation of the ac-
cessory or spare part when ordering parts.
Metal grease filter
Long-life activated charcoal filter
Activated charcoal filter for the recircu-
lation box
28
8 Technical data
Electrical connection
▸ See identification plate.
▸ Remove the metal grease filters.
– The identification plate is located on the inside of the appliance.
8.1 Product fiche
Description Abbrevi-
ations
Unit Value
Brand S - V-ZUG Ltd
Model identifier M - 64004
Annual energy consump-
tion
AEC
hood
kWh/a 62.1
Energy Efficiency Index EEI
hood
- 60.1
Energy efficiency class EEC - B
Fluid Dynamic Efficiency FDE
hood
- 27.05
Fluid Dynamic Efficiency
Class
FDEC - B
Lighting Efficiency LE
hood
lux/W 28.1
Lighting Efficiency Class LEC - A
Grease Filtering Efficiency GFE
hood
% 70.0
Grease Filtering Efficiency
Class
GFEC - D
Air flow at minimum
speed
Q
min
m
3
/h 280
Air flow at maximum
speed (intensive or boost
excluded)
Q
max
m
3
/h 420
Air flow at intensive or
boost setting
Q
boost
m
3
/h 670
29
8 Technical data
Airborne acoustical A-
weighted Sound Power
Emissions at minimum
speed
SPE
min
dBA 49
Airborne acoustical A-
weighted Sound Power
Emissions at maximum
speed
SPE
max
dBA 57
Airborne acoustical A-
weighted Sound Power
Emissions at intensive or
boost setting
SPE
boost
dBA 69
Measured power con-
sumption of off mode
P
0
W 0.85
Measured power con-
sumption of standby
mode
P
s
W 0.0
Time increase factor f - 1.0
Measured air flow rate at
the best efficiency point
Q
BEP
m
3
/h 348.0
Measured air pressure at
the best efficiency point
P
BEP
PA 431.0
Measured value of the
electric power input at the
best efficiency point
W
BEP
W 154.0
Nominal power consump-
tion of the lighting system
W
L
W 6.0
Average illumination of
the lighting system on the
cooking surface
E
middle
lux 170
Sound power level L
wa
dBA 57
30
9 Index
A
Accessories and spare parts ................ 28
After-running time..................................... 17
Appliance
Extending ............................................ 15
Operating ............................................ 15
Switching on/off................................. 15
Appliance description ............................. 11
C
Care and maintenance ........................... 20
Children in the home.................................. 7
CleanAir ..................................................... 18
Cleaning the inside.................................. 20
Cleaning the outside ............................... 20
Construction.............................................. 14
D
Disconnection........................................... 10
Display elements...................................... 12
Disposal..................................................... 10
E
Electrical connection ............................... 29
Extended warranty ................................... 35
Extraction model ...................................... 11
F
Features..................................................... 13
H
Housing
Cleaning.............................................. 20
I
Identification plate.................................... 29
Illumination ................................................ 15
Intensive level ........................................... 16
L
Light intensity
Changing ............................................ 16
Long-life activated charcoal filter
Cleaning.............................................. 24
Installing .............................................. 23
Removing............................................ 23
Replacing............................................ 24
Long-life activated charcoal filter display
Activating ............................................ 24
Deactivating........................................ 24
M
Malfunction
Illumination not working ................... 26
Metal grease filter
Cleaning.............................................. 21
Installing .............................................. 22
Removing............................................ 21
Metal grease filter saturation indicator
Resetting ............................................. 19
Model number ............................................. 2
N
Notes.......................................................... 33
O
Operating elements ................................. 12
P
Packaging ................................................. 10
Panel
Cleaning.............................................. 22
Installing .............................................. 23
Removing............................................ 22
Product family.............................................. 2
Product fiche............................................. 30
R
Recirculation box ..................................... 25
Recirculation model
Recirculation box........................ 11, 12
S
Safety ......................................................... 10
Safety precautions
31
Before using for the first time ............7
Children in the home ...........................7
Correct use............................................7
General...................................................6
Note on use...........................................8
Saturation indicator
Activating ............................................ 19
Deactivating........................................ 19
Metal grease filter.............................. 19
Service & Support.................................... 35
Symbols ........................................................ 5
T
Technical data .......................................... 29
Technical enquiries.................................. 35
Type............................................................... 2
V
Validity........................................................... 2
W
What to do if
The illumination is not working ....... 26
The saturation indicator illuminates
....................................................... 27
Wipe protection
Activating ............................................ 17
Deactivating........................................ 17
32
33
10 Notes
34
11 Service & Support
The «Troubleshooting» chapter provides valuable information for dealing with
minor operating faults. This saves you the time, effort and potential cost of having
to call out a service technician.
Information on the V-ZUG warranty can be found at www.vzug.com →Service →Warranty in-
formation. Please read this information carefully.
Please register your V-ZUG appliance online immediately at www.vzug.com→Service→War-
ranty registration. This will allow you to take advantage of the best possible support in the
event of an fault in the appliance during the warranty period. You will require the serial
number (FN) and appliance designation to complete the registration process. This informa-
tion can be found on the identification plate for your appliance.
My appliance information:
FN: ___________________ Appliance: _____________________
Always have this appliance information to hand when you contact V-ZUG. Thank you.
▸ Remove the metal grease filter.
– The identification plate is located on the inside of the appliance.
Requesting repairs
You can find the telephone number for your nearest V-ZUG service centre at
www.vzug.com→Service→Service hotline.
Technical enquiries, accessories, extended warranty
V-ZUG is happy to help with your general administrative and technical enquiries, orders for
accessories and spare parts, or information relating to advanced service agreements.
35
Quick instructions
Switch on/off, extend/retract hood body
Power level 1
Power level 2, activate/deactivate wipe protection
Power level 3
Intensive level
CleanAir function (air extraction every hour for 10 minutes)
After-running time (delays switching-off of appliance by 15
minutes)
Touch button, switch illumination on at maximum intensity and
off.
Depress the button for two seconds to switch the illumination
on at medium intensity.
/
Flashing Clean the metal grease filters, reactivate or replace the long-
life activated charcoal filters
/
Flashing Replacing the activated charcoal filter
V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug
[email protected], www.vzug.com
1017006-R02
