Brother INNOV-IS 500D Sewing machine User Manual

Easy Thread Cassette System

Operation Manual

CPS5XV[Y

GETTING READY

SEWING BASICS

UTILITY STITCHES

EMBROIDERY

APPENDIX

SE-BrotherE_sgml.book Page 1 Monday, June 30, 2003 3:44 PM

Cover A

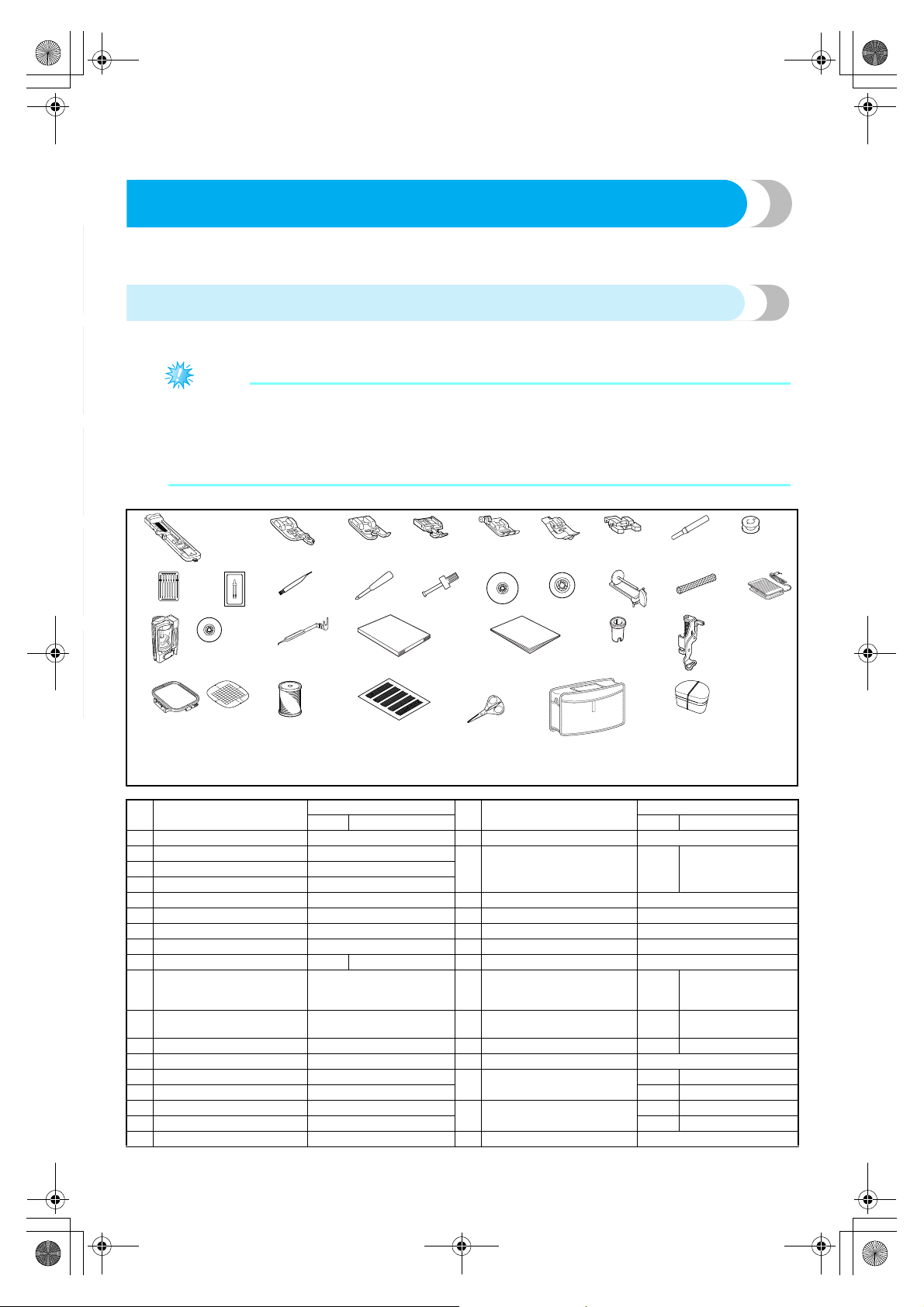

Included Accessories

After opening the box, check that the following accessories are included. If any item is missing or dam-

aged, contact your retailer.

Accessories

Note

(For U.S.A. only)

z Foot controller: Model N5V

This foot controller can be used on this machine model 500D/500, HE-120.

z The screw of the presser foot holder is available through your authorized dealer.

(Part code: XA4813-051)

1. 2. 3. 4.

6. 7.

10.* 11. 12. 13. 14. 15. 16. 17. 18. 19.

20.

21. 22. 23. 24. 25.

26. 27.

28.

29. 30. 31.

*75/11 2 needles

90/14 2 needles

90/14 2 needles: Ball point needle (gold colored)

No. Part Name

Part Code

No. Part Name

Part Code

U.S.A. Others U.S.A. Others

1 Buttonhole foot "A" XC2691-051 19 Foot controller XC1154-021

2 Overcasting foot "G" XC3098-051

Thread cassette set

(1 set: on machine

1set: in carton)

SA250 TC1:XC4716-0233 Monogramming foot "N" X53840-351

4 Zipper foot "I" X59370-051

5 Zigzag foot "J" (on machine) XC3021-051 21 Needle-changing tool XC4551-020

6 Blind stitch foot "R" XC4051-051 22 Operation manual XC6369-121

7 Button fitting foot "M" X59375-151 23 Quick reference guide XC6375-021

8 Seam ripper X54243-001 24 Spool cap (special) XA5752-021

9 Bobbin (4) SA156 SFB:XA5539-151 25 Embroidery foot "Q" XC3829-021

10 Needle set X58358-051 26

Embroidery set (medium)

H 10 cm X W 10 cm

(H 4 inch X W 4 inch)

SA432 EF62:XA6628-002

11 Twin needle X59296-151 27

Embroidery bobbin thread

(white)

SA-

EBT

EBT-CE:XC8375-001

12 Cleaning brush X59476-051 28 Grid sheet set SA527 GS4:XC4549-051

13 Eyelet punch 135793-051 29 Scissors XC1807-121

14 Screwdriver XC4237-021

30 Soft cover

500D XC4530-023

15 Spool cap (large) 130012-054 500 XC3839-023

16 Spool cap (small) 130013-154

31 Accessory case

500D XC5370-023

17 Extra spool pin XC3834-021 500 XC5370-024

18 Spool net XA5523-050

Cover B

Names of Machine Parts and Their Functions

The names of the various parts of the sewing machine and their functions are described below. Before

using the sewing machine, carefully read these descriptions to learn the names of the machine parts.

Front view

a Thread cassette compartment cover

b Thread cassette compartment

Insert a thread cassette into the thread cassette

compartment.

c Thread cassette eject lever

Press this lever to eject the installed thread cassette.

d Thread tension dial

Use the thread tension dial to adjust the tension of the

upper thread.

e Thread cutter

Pass the threads through the thread cutter to cut them.

f Arm

Plug in the connector for the embroidery unit.

g Embroidery unit connector slot

Plug in the connector for the embroidery unit.

h Flap

Use the flap to create a table. When the sewing

machine is not being used, store the machine with the

flap folded up. Remove the flap to sew cylindrical

pieces such as sleeve cuffs.

i Sliding leg

Pull out the sliding leg during free-arm sewing.

j Operation buttons

Use the operation buttons to start the sewing machine

and raise and lower the needle. (page Cover D)

k Operation panel

Select a stitch from those that appear in the operation

panel. (page Cover E)

l Bobbin winder

Use the bobbin winder when winding the bobbin.

m Bobbin thread spool pin

Place the spool of thread for the bobbin onto this spool

pin in order to wind the bobbin.

n Bobbin storage compartment

Store the bobbins designed specifically for this sewing

machine in this compartment.

o Bobbin winder cover

Open this cover when winding the bobbin.

p Thread guide for bobbin winding

Pass the thread around this thread guide when winding

the bobbin thread.

SE-BrotherE_sgml.book Page B Monday, June 30, 2003 3:44 PM

Cover C

Needle and presser foot section

a Buttonhole lever

Lower the buttonhole lever when sewing buttonholes

and bar tacks.

b Needle bar thread hooks

Pass the upper thread through the needle bar thread

hooks.

c Needle plate

The needle plate is marked with guides for sewing

straight seams.

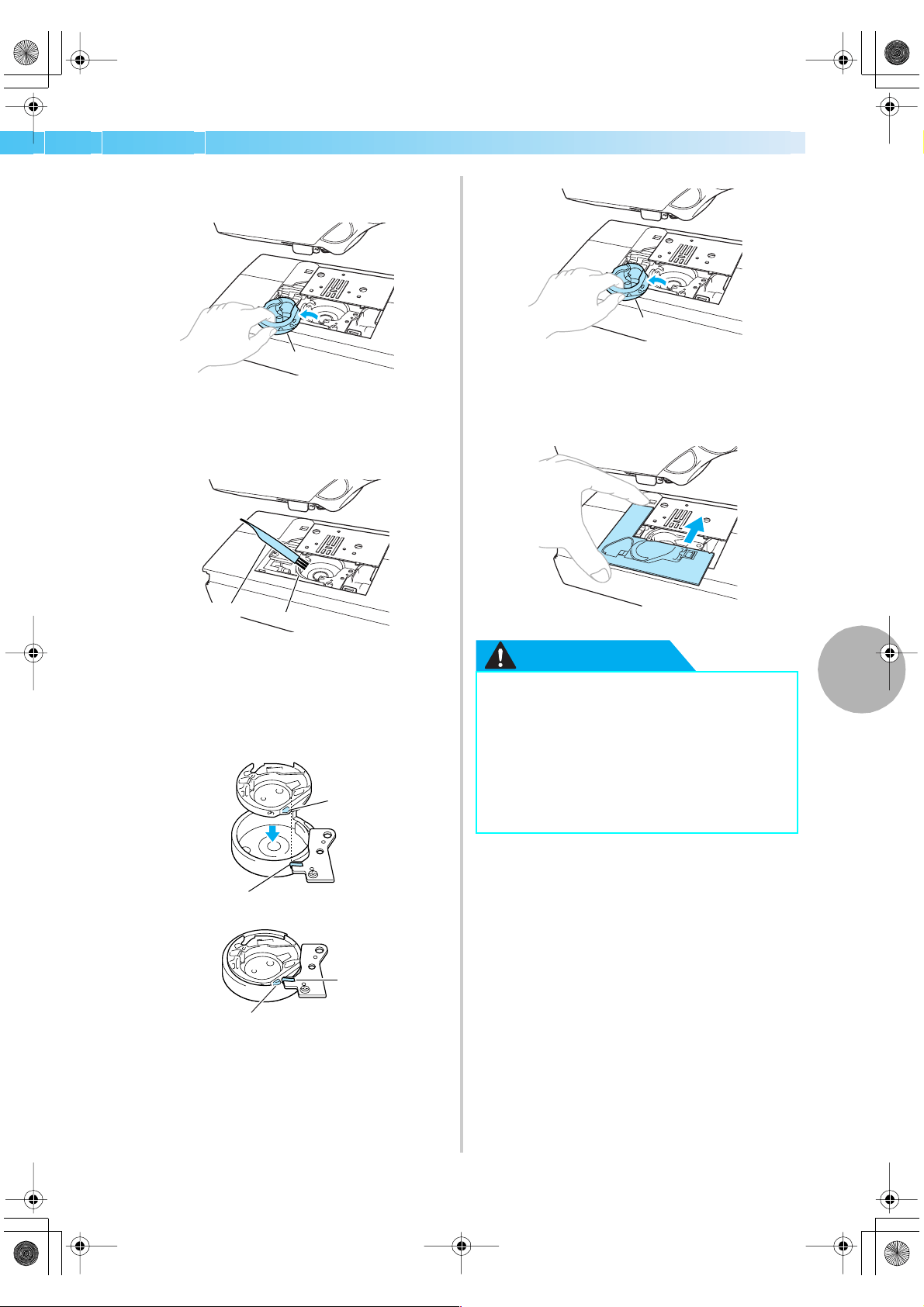

d Bobbin cover/Shuttle

Remove the bobbin cover, and then insert the bobbin

into the shuttle.

e Feed dogs

The feed dogs feed the fabric in the sewing direction.

f Presser foot

The presser foot applies pressure consistently on the

fabric as the sewing takes place. Attach the appropriate

presser foot for the selected stitching.

g Presser foot holder

The presser foot is installed onto the presser foot holder.

Right-side/rear view

a Handle

Carry the sewing machine by its handle when

transporting the machine.

b Balance wheel

Turn the balance wheel toward you to raise and lower

the needle to sew one stitch.

c Embroidery card slot

Insert the embroidery card.

d Main power switch

Use the main power switch to turn the sewing machine

on and off.

e Power supply jack

Insert the plug on the power supply cord into the power

supply jack.

f Foot controller jack

Insert the plug on the end of the foot controller cable

into the foot controller jack.

g Air vent

The air vent allows the air surrounding the motor to be

exchanged. Do not cover the air vent while the sewing

machine is being used.

h Feed dog position switch

Use the feed dog position switch to lower the feed dogs.

Memo

z Refer to Cover B, C, D or E pages while you

are learning to use your machine.

SE-BrotherE_sgml.book Page C Monday, June 30, 2003 3:44 PM

Cover D

Operation buttons

The operation buttons help you to easily perform various basic sewing machine operations.

a Thread cassette indicator

The indicator lights up or goes off depending on the

condition of the sewing machine.

b Thread cutter button

Press the thread cutter button after sewing is stopped to

cut both the upper and the bobbin threads. For details,

refer to "Cutting the thread" (page 52).

c Needle position button

Press the needle position button to raise or lower the

needle. Pressing the button twice sews one stitch.

d Start/stop button

Press the start/stop button to start or stop sewing. The

machine sews at a slow speed at the beginning of

sewing while the button is depressed. When sewing is

stopped, the needle is lowered in the fabric. For details,

refer to "Starting to sew" (page 49).

The button changes color according to the machine’s

operation mode.

e Presser foot lever

Raise and lower the presser foot lever to raise and lower

the presser foot.

f Reverse/reinforcement stitch button

Press the reverse/reinforcement stitch button to sew

reverse stitches or reinforcement stitches. Reverse

stitches are sewn by keeping the button pressed down to

sew in the opposite direction. Reinforcement stitches

are sewn by sewing 3 to 5 stitches on top of each other.

For details, refer to "Securing the stitching" (page 51).

g Sewing speed controller

Slide the sewing speed controller to adjust the sewing

speed.

CAUTION

Note

z Do not press the thread cutter button if there

is no fabric under the presser foot or while

the machine is sewing, otherwise damage to

the machine may occur.

z When cutting thread thicker than #30, nylon

thread or other special threads, use the

thread cutter on the side of the machine. For

details, refer to "Cutting the thread" (page

52).

Green: A thread cassette can be inserted.

Red: A thread cassette cannot be inserted.

Off: The sewing machine has been turned

off or a thread cassette is already

inserted.

Green: The machine is ready to sew or is

sewing.

Red: The machine can not sew.

Orange: The machine is winding the bobbin

thread, or the bobbin winder shaft is

moved to the right side.

● Do not press the thread cutter button

after the threads have already been cut,

otherwise the needle may break, the

threads may become tangled or damage

to the machine may occur.

SE-BrotherE_sgml.book Page D Monday, June 30, 2003 3:44 PM

Cover E

Operation panel

The front operation panel has an LCD (liquid crystal display) and operation keys.

a LCD (liquid crystal display) (touch panel)

Selected pattern settings and messages are displayed.

Touch the keys displayed on the LCD to perform

operations.

For details, refer to "LCD (liquid crystal display)

operation" (page 14).

b Back key

Press to return to the previous LCD display.

c Previous page key

Displays the previous screen when there are items that

are not displayed on the LCD.

d Next page key

Displays the next screen when there are items that are

not displayed on the LCD.

e Menu key

Select pattern group; and when it is in embroidery,

returns to the initial embroidery screen.

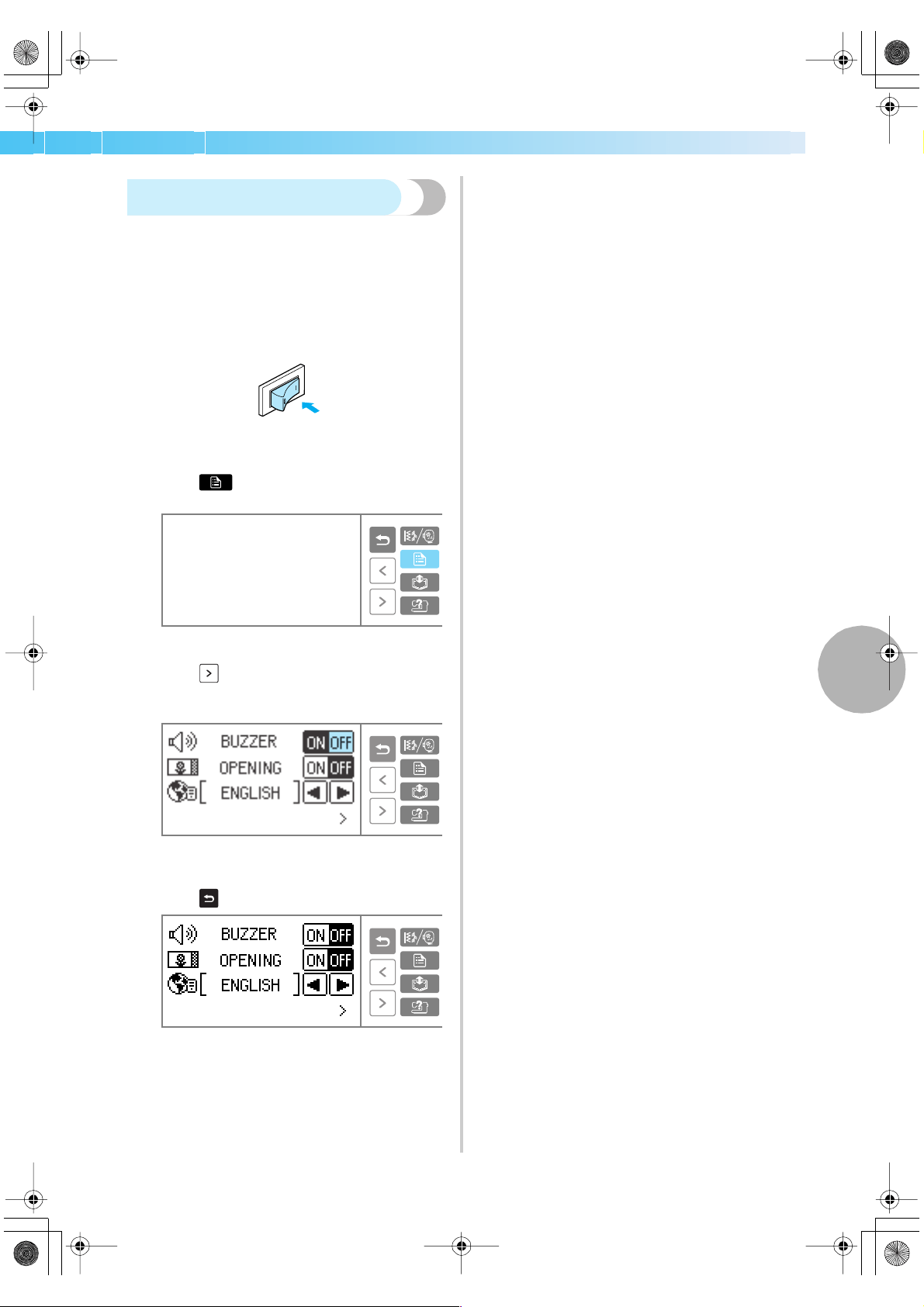

f Settings key

Press to set the needle stop position, the buzzer sound,

and more.

g Memory key

Press to enter character embroidery, combined stitch

patterns, My Custom Stitch patterns, etc into the sewing

machine memory.

h Sewing machine help key

Press to get help on using the sewing machine.

Displays simple explanations of setting upper thread /

bobbin winding / setting bobbin thread / needle

replacement / embroidery unit attachment / embroidery

frame attachment / embroidery foot attachment / presser

foot replacement.

SE-BrotherE_sgml.book Page E Monday, June 30, 2003 3:44 PM

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — O p t i o n a l A c c e s s o r ies

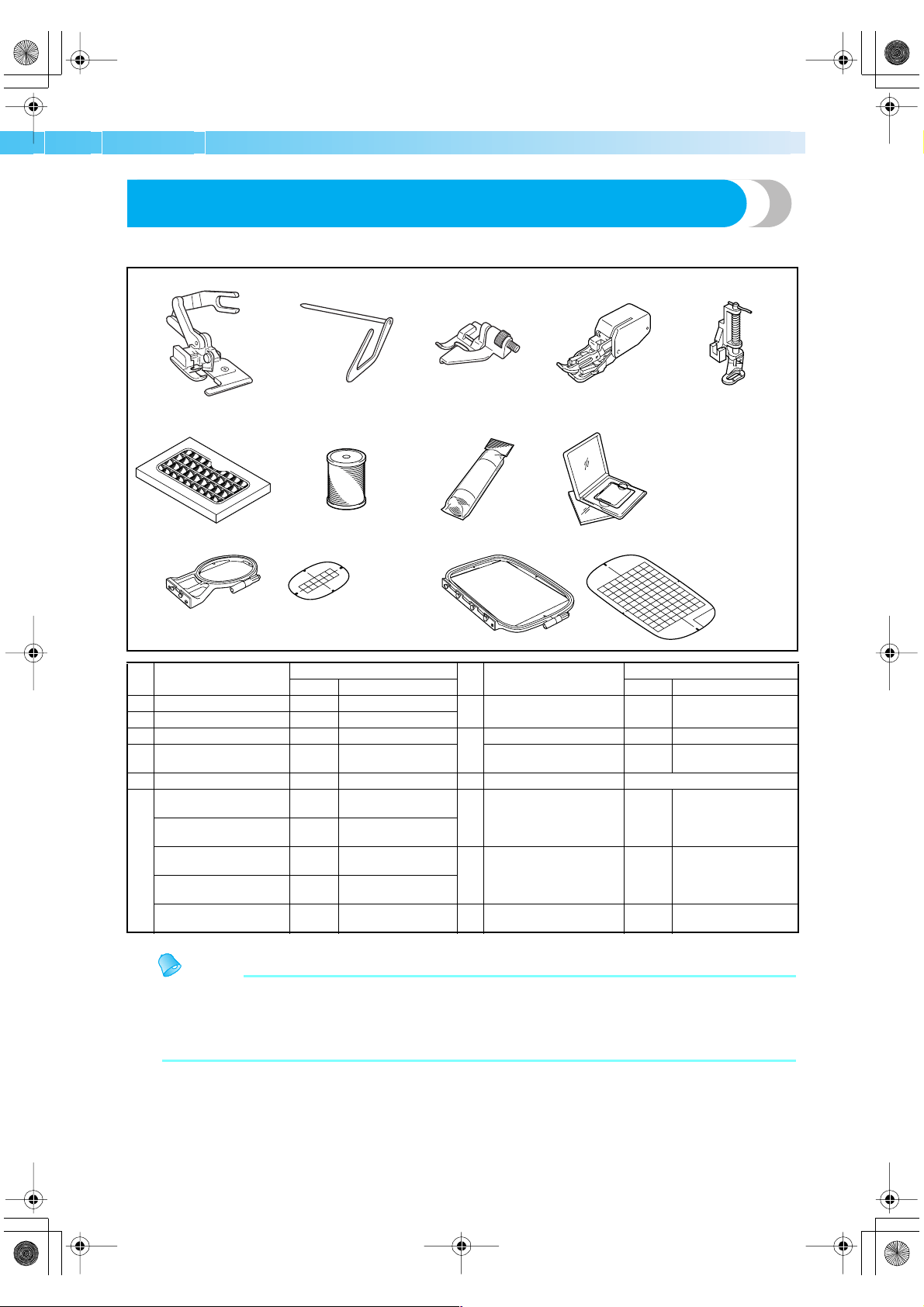

Optional Accessories

The following are available as optional accessories.

Memo

z To obtain optional accessories or parts, contact your sales representative or the nearest authorized

service center.

z All specifications are correct at the time of printing. The part codes are subject to change without

notice.

1. 2. 3. 4. 5.

6. 7. 8. 9.

10. 11.

No. Part Name

Part Code

No. Part Name

Part Code

U.S.A. Others U.S.A. Others

1 Side cutter "S" SA177 F054:XC3879-002

Embroidery bobbin

thread (black)

SAEBT

999

EBT-CEB:XC1376-001

2 Quilting guide SA132 F016N:XC2215-002

3 Guide foot SA133 F017N:XC1957-002

Water soluble stabilizer SA520 BM4:X81267-001

4 Walking foot SA140 F033N:XC2214-002

Stabilizer material for

embroidery

SA519 BM3:X81175-001

5 Quilting foot SA129 F005N:XC1948-002 9 Embroidery card (Refer to next page.)

40 colors embroidery

threads

SA740 ETS-40:X80928-100

Embroidery set (small)

H 2 cm X W 6 cm

(H 1 inch X W 2-1/2

inch)

SA431 EF61:XA6630-002

40 colors country

threads

CYT-40 CYT-40:X81078-102

22 colors embroidery

threads

SA741 ETS-22:X81276-102

Embroidery set (large)

H 17 cm X W 10 cm

(H 6-7/10 inch X W 4 inch)

SA434 EF71:XC2026-002

21 colors country

threads

CYT-41 CYT-21:X81269-102

12 colors embroidery

threads

SAETTS ETS-12:X81359-002

SE-BrotherE_sgml.book Page 1 Monday, June 30, 2003 3:44 PM

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

■ List of Embroidery Cards

Memo

z Embroidery cards purchased in foreign countries may not work with your machine.

No. Part Name

Part Code

No. Part Name

Part Code

U.S.A. Others U.S.A. Others

1 Alphabet SA298 X58317-001 37 Appliqué Alphabet SA337 XA5753-001

2 Flower SA299 X58321-001 38 Angel SA338 XA5781-001

3 Dinosaur SA300 X58362-001 39 Doll Face SA339 XA5978-001

6 Moskowitz’s World SA303 X58497-001 40 Sports 3 SA340 XA6111-001

7 Country Life SA304 X59322-001 41 Renaissance Alphabet SA341 XA6586-001

8 Holiday SA305 X59357-001 42 Farm SA342 XA6733-001

9 Hobby Craft SA306 X59511-001 43 Victorian SA343 XA6769-001

10 Monogram Emblem SA307 X59567-001 44 Lace2 SA344 XA6849-001

11 Frame SA311 XA0257-001 45 Fancy Work SA345 XA7770-001

12 Transportation SA312 XA0275-001 46 Australian Animals SA346 XA7893-001

13 Sports Emblem SA313 XA0517-001 47 Butterfly SA347 XA8206-001

14 Large Floral SA314 XA1223-001 48 Australian Flowers SA348 XA8250-001

15 Cute Kids SA315 XA1325-001 49 Folk Art SA349 XA8348-001

16 Dogs & Cats SA316 XA1406-001 50 Fairy & Floral SA350 XA8414-001

19 Marine SA319 XA2452-001 52 Bear Collections SA352 XA8511-001

20 Petite Designs SA320 XA2869-001 53 Scene SA353 XA8936-001

21 Needlework SA321 XA2873-001 54 Tea Time SA354 XA9129-001

25 Horse SA325 XA3791-001 55 Gardening SA355 XA9348-001

27 Birds SA327 XA4289-001 56 Asian SA356 XC0025-001

28 Christmas SA328 XA4502-001 60 Summer Fun SA360 XC1168-001

29 Lace SA329 XA4664-001 61 Blouse Embellishment SA361 XC1304-001

30 Wildlife Animals SA330 XA4771-001 62 Zodiac Signs SA362 XC1502-001

31 Large Flower II SA331 XA5037-001 63 Bunny SA363 XC1646-001

32 Musical Instrument SA332 XA5386-001 64 Grand Mom SA364 XC2176-001

33 Trees SA333 XA5567-001 65 Red Work SA365 XC4220-001

35 Cats & Dogs II SA335 XA5629-001 66 Pop Mix SA366 XC4819-001

36 Fruits & Vegetables SA336 XA5659-001

SE-BrotherE_sgml.book Page 2 Monday, June 30, 2003 3:44 PM

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — Introduction

Introduction

Thank you for purchasing this sewing machine. Before using this sewing machine, carefully read the

"Important Safety Instructions" (page 8), and then study this manual for the correct operation of the various

functions. In addition, after you have finished reading this manual, store it where it can quickly be

accessed for future reference.

Sewing Machine Features

a Thread cassette

Easily thread the upper thread by loading a spool of thread into the thread cassette. Then, simply insert the thread cassette

into the compartment to thread the needle. (page 24)

b Simple bobbin-winding

The bobbin can quickly and easily be wound with thread. (page 18)

c Built-in stitches

You can select from the built-in stitches available, including utility stitches and decorative stitches. (page 66)

d One-touch lower threading

You can start sewing without pulling up the bobbin thread. (page 21)

e Automatic thread cutting

The thread can be cut automatically after sewing. (page 60)

f Embroidery

You can embroider built-in embroidery patterns, characters, framed decorations, and designs from optional embroidery

cards. (page 127)

SE-BrotherE_sgml.book Page 3 Monday, June 30, 2003 3:44 PM

Contents

Included Accessories............................................................................................... Cover A

Accessories ............................................................................................................................................ Cover A

Names of Machine Parts and Their Functions ......................................................... Cover B

Front view...............................................................................................................................................Cover B

Needle and presser foot section ............................................................................................................ Cover C

Right-side/rear view .............................................................................................................................. Cover C

Operation buttons .................................................................................................................................. Cover D

Operation panel...................................................................................................................................... Cover E

Optional Accessories...........................................................................................................1

Introduction ........................................................................................................................3

Sewing Machine Features....................................................................................................3

Important Safety Instructions ..............................................................................................8

GETTING READY 11

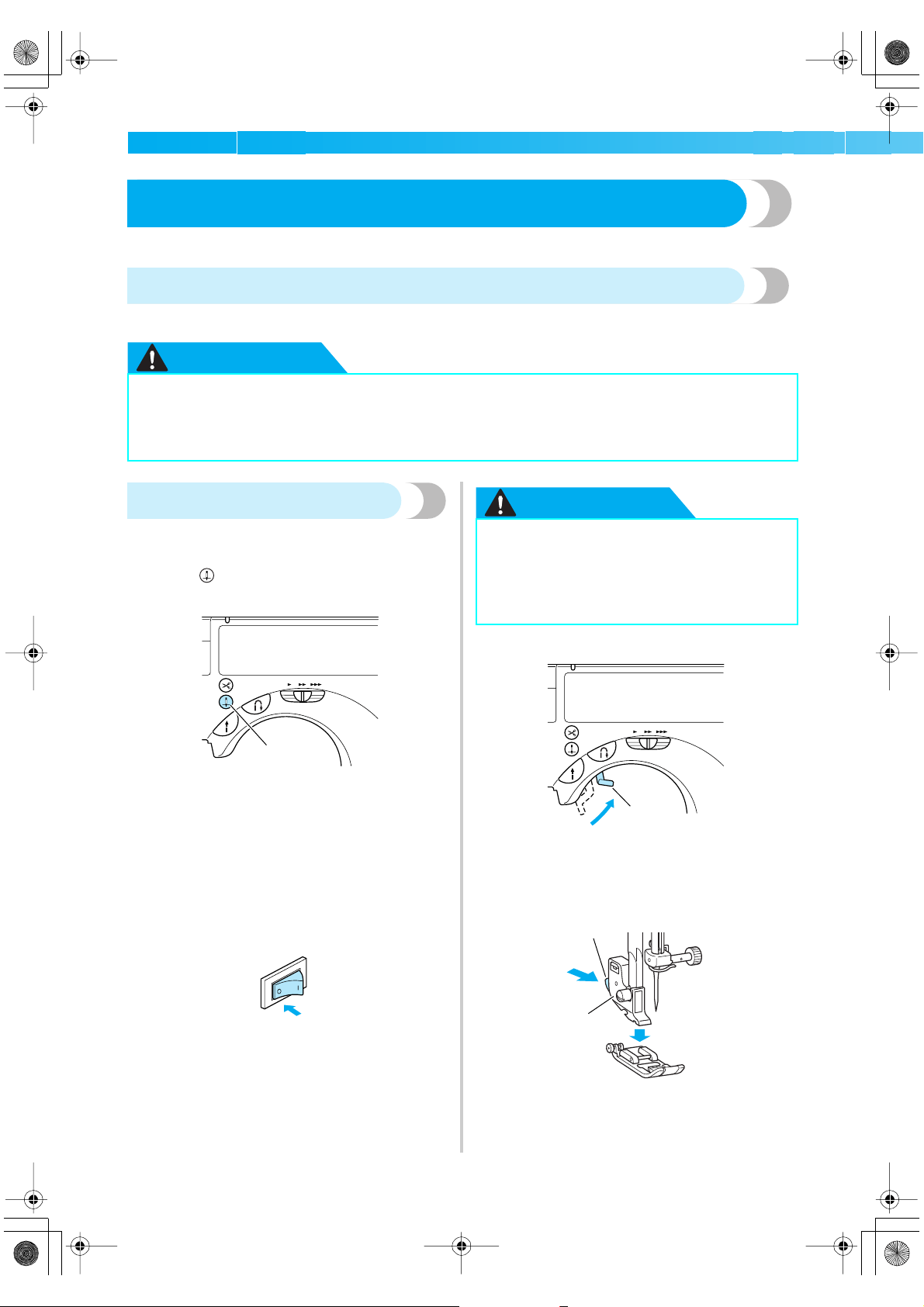

Turning the Machine On/Off.............................................................................................12

Power supply precautions ............................................................................................................................... 12

Turning on the machine ..................................................................................................................................13

Turning off the machine .................................................................................................................................. 13

LCD (liquid crystal display) operation ...............................................................................14

Viewing the LCD............................................................................................................................................. 14

Changing the Machine Settings ....................................................................................................................... 15

Checking machine operating procedures ........................................................................................................ 17

Winding/Installing the Bobbin...........................................................................................18

Bobbin precautions ......................................................................................................................................... 18

Winding the bobbin ........................................................................................................................................ 18

Installing the bobbin ....................................................................................................................................... 21

Upper Threading ...............................................................................................................23

About the spool of thread ................................................................................................................................ 23

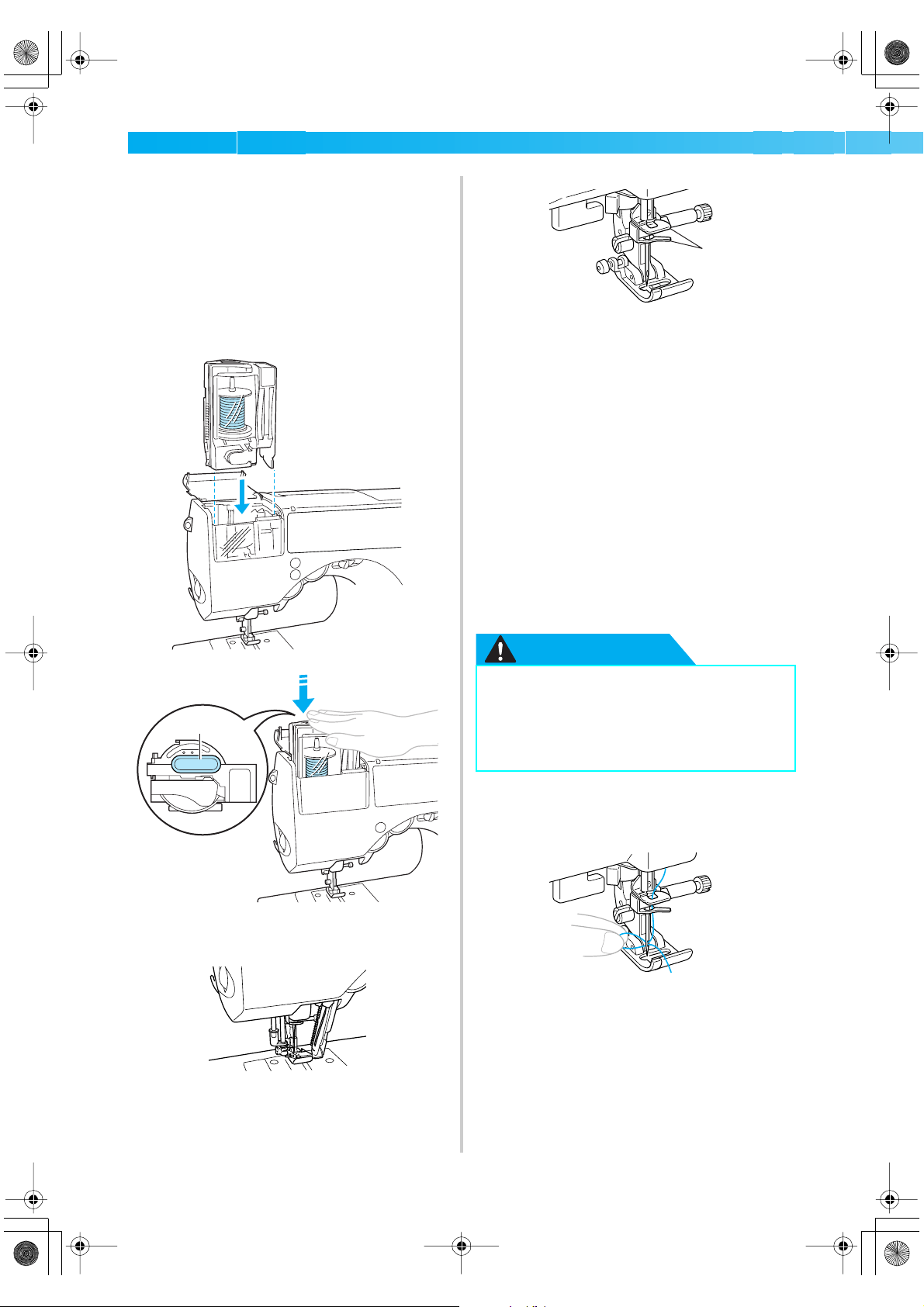

Loading the spool into the thread cassette .......................................................................................................24

Threading the needle ......................................................................................................................................27

Using the extra spool pin ................................................................................................................................29

Thread the needle manually (without using the needle threader).....................................................................30

Using the twin needle ..................................................................................................................................... 31

Pulling up the bobbin thread........................................................................................................................... 33

Replacing the Needle ........................................................................................................35

Needle precautions ......................................................................................................................................... 35

Needle types and their uses............................................................................................................................. 36

Checking the needle ....................................................................................................................................... 37

Replacing the needle.......................................................................................................................................37

Replacing the Presser Foot ................................................................................................40

Presser foot precautions .................................................................................................................................. 40

Replacing the presser foot ............................................................................................................................... 40

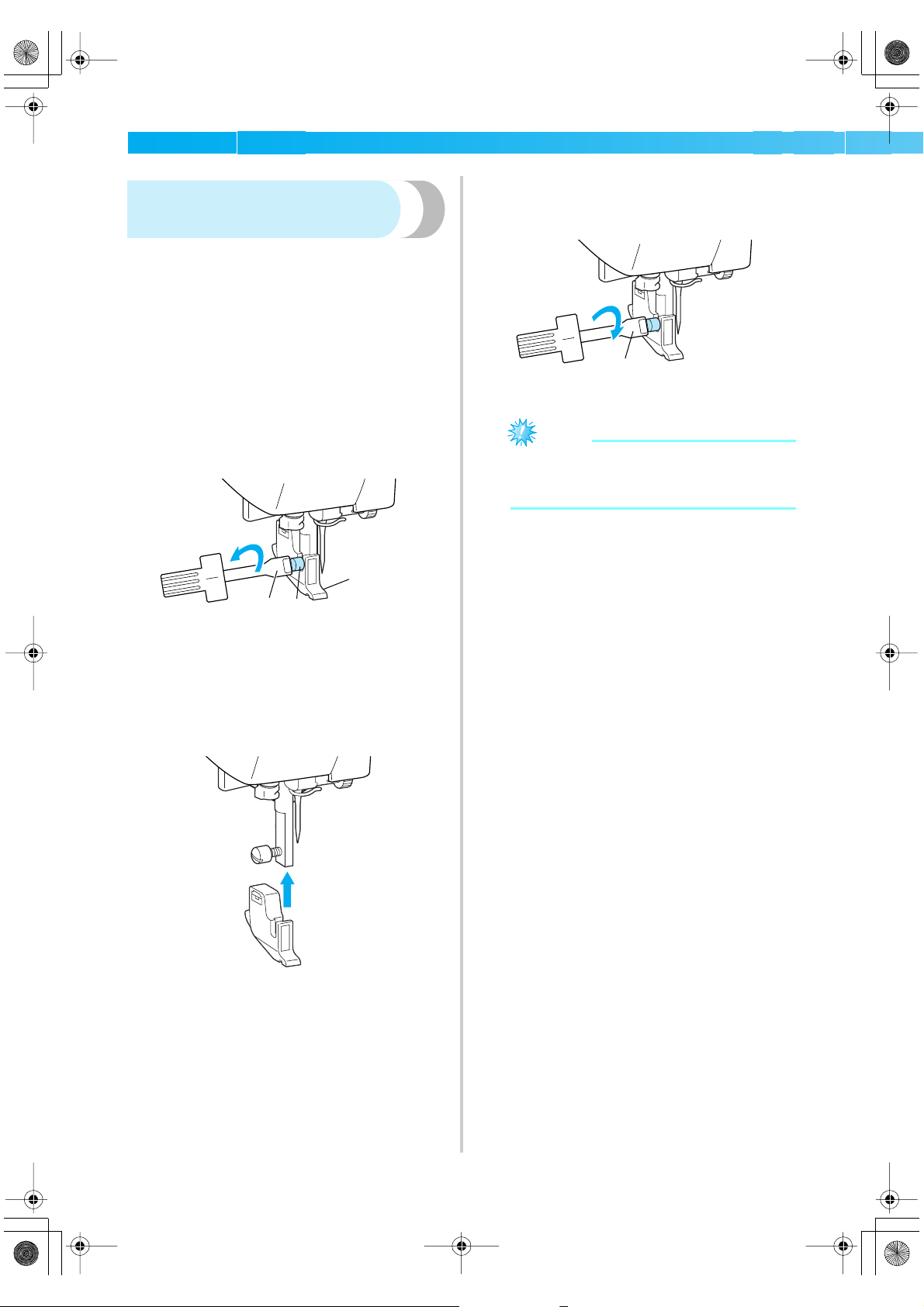

Removing the presser foot holder .................................................................................................................... 42

Sewing Cylindrical Pieces..................................................................................................43

Free-arm sewing.............................................................................................................................................. 43

SEWING BASICS 45

Sewing...............................................................................................................................46

General sewing procedure .............................................................................................................................. 46

Selecting stitching ........................................................................................................................................... 47

Positioning the fabric ...................................................................................................................................... 48

Starting to sew.................................................................................................................................................49

Securing the stitching ...................................................................................................................................... 51

SE-BrotherE_sgml.book Page 4 Monday, June 30, 2003 3:44 PM

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Cutting the thread ........................................................................................................................................... 52

Adjusting the Thread Tension ............................................................................................54

Thread tension ................................................................................................................................................ 54

Changing the upper thread tension.................................................................................................................. 55

Adjusting the Stitch Width and Length ..............................................................................56

Adjusting the stitch width ................................................................................................................................56

Adjusting the stitch length ...............................................................................................................................57

Useful Functions................................................................................................................59

Automatically sewing reverse/reinforcement stitches.......................................................................................59

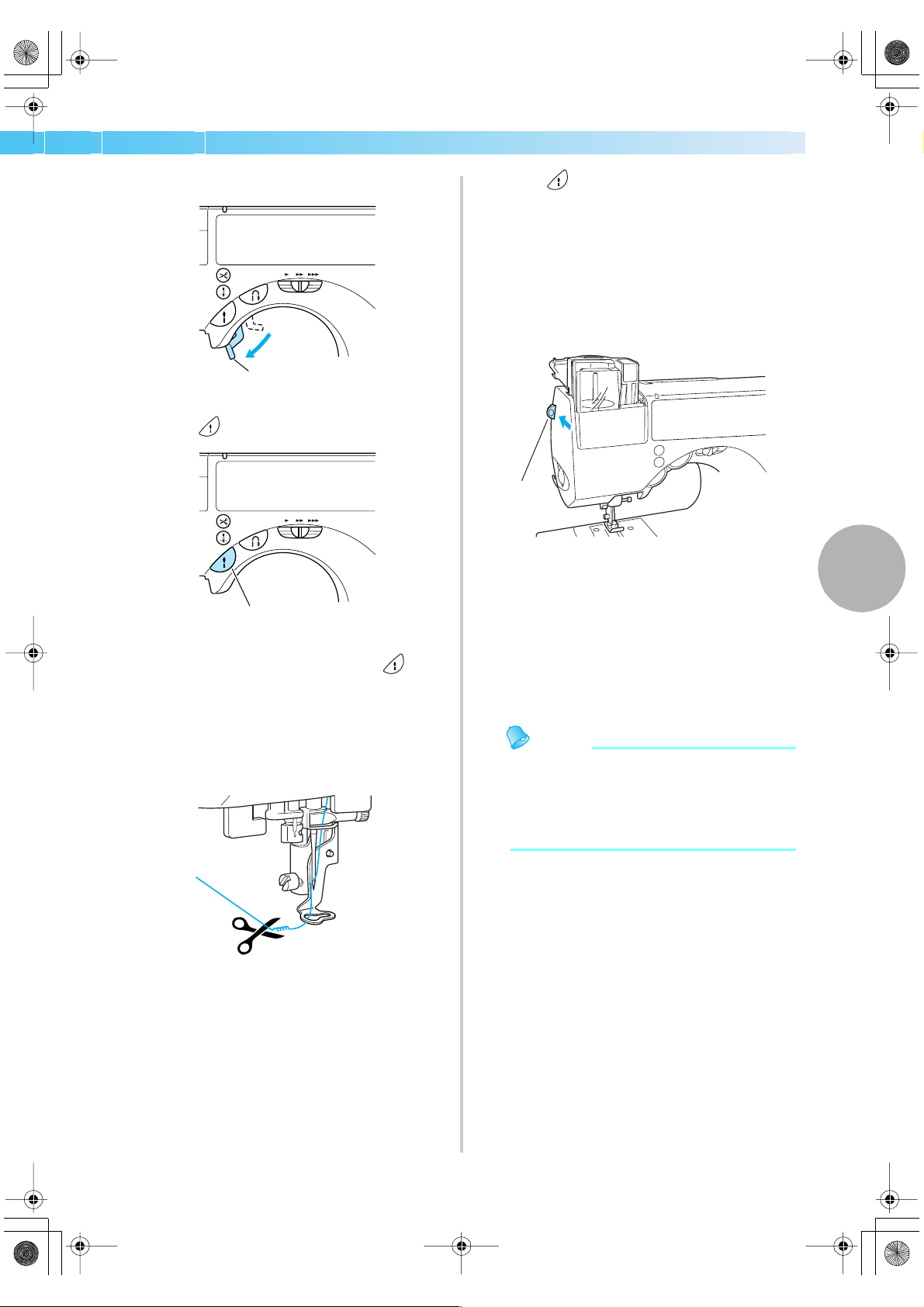

Automatically cutting the thread ..................................................................................................................... 60

Mirroring stitches ............................................................................................................................................ 61

Useful Sewing Tips ............................................................................................................62

Trial sewing ....................................................................................................................................................62

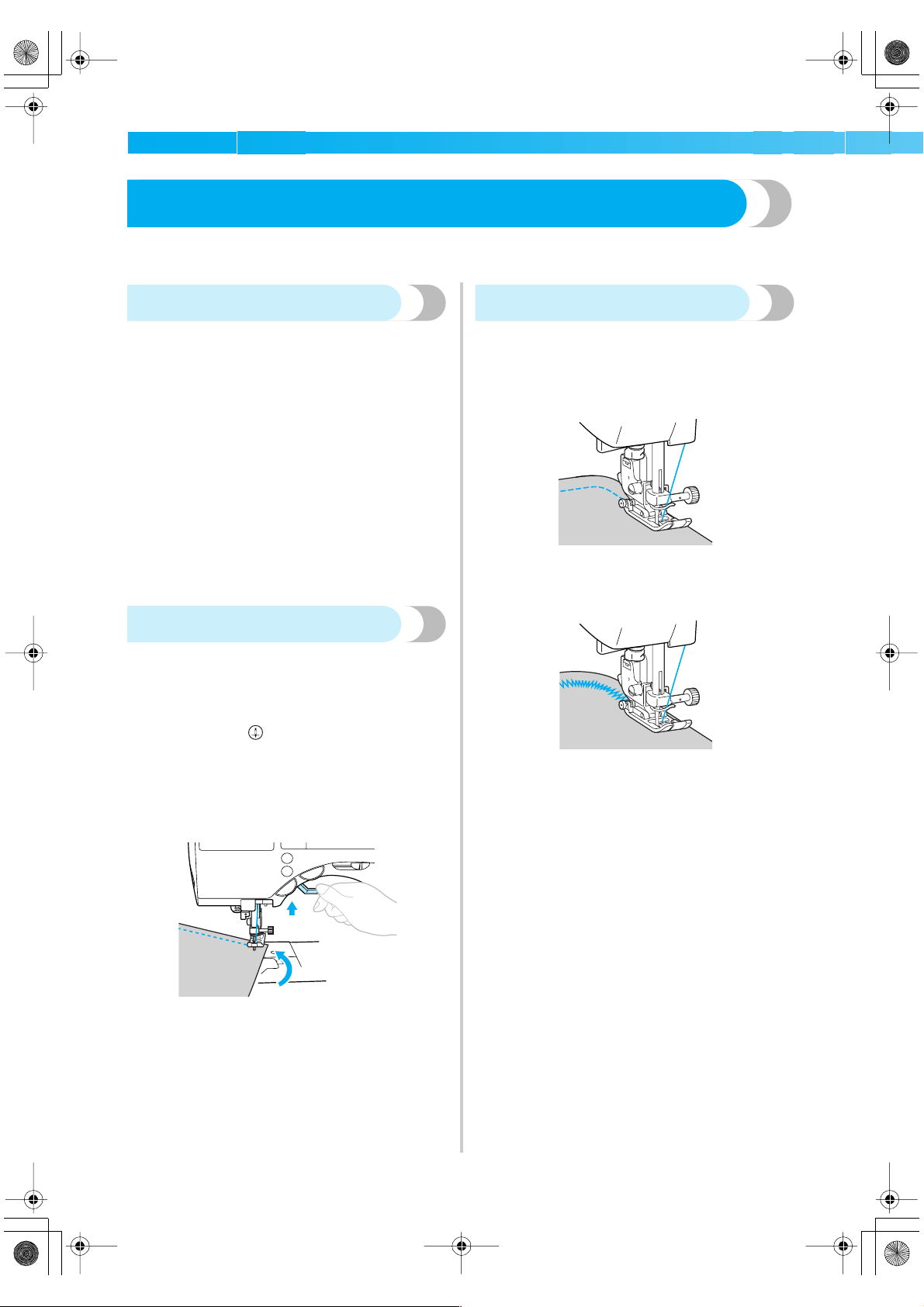

Changing the sewing direction ........................................................................................................................ 62

Sewing curves .................................................................................................................................................62

Sewing thick fabrics ........................................................................................................................................ 63

Sewing thin fabrics.......................................................................................................................................... 63

Sewing stretch fabrics......................................................................................................................................63

Sewing an even seam allowance..................................................................................................................... 64

UTILITY STITCHES 65

Stitch Settings....................................................................................................................66

Utility stitches .................................................................................................................................................66

Other stitches.................................................................................................................................................. 71

Selecting Stitching .............................................................................................................72

Stitch types...................................................................................................................................................... 72

Selecting stitching ........................................................................................................................................... 72

Overcasting Stitches..........................................................................................................74

Sewing overcasting stitches using overcasting foot "G" .................................................................................... 74

Sewing overcasting stitches using zigzag foot "J" .............................................................................................75

Sewing overcasting stitches using the side cutter .............................................................................................76

Basic Stitching ...................................................................................................................78

Basting ............................................................................................................................................................ 78

Basic stitching ................................................................................................................................................. 78

Blind Hem Stitching ..........................................................................................................80

Buttonhole Stitching..........................................................................................................82

Buttonhole sewing .......................................................................................................................................... 83

Button sewing ................................................................................................................................................. 87

Zipper Insertion.................................................................................................................89

Inserting a centered zipper .............................................................................................................................. 89

Inserting a side zipper .....................................................................................................................................91

Sewing Stretch Fabrics and Elastic Tape ............................................................................94

Stretch stitching............................................................................................................................................... 94

Elastic attaching .............................................................................................................................................. 94

Appliqué, Patchwork and Quilt Stitching ..........................................................................96

Appliqué stitching ........................................................................................................................................... 96

Patchwork (crazy quilt) stitching ..................................................................................................................... 98

Piecing ............................................................................................................................................................98

Quilting ..........................................................................................................................................................99

Free-motion quilting...................................................................................................................................... 101

Satin stitching................................................................................................................................................ 102

Reinforcement Stitching ..................................................................................................103

Triple stretch stitching ................................................................................................................................... 103

Bar tack stitching........................................................................................................................................... 103

Darning......................................................................................................................................................... 105

Eyelet Stitching................................................................................................................107

Decorative Stitching........................................................................................................108

Fagoting ........................................................................................................................................................ 109

SE-BrotherE_sgml.book Page 5 Monday, June 30, 2003 3:44 PM

Scallop stitching............................................................................................................................................110

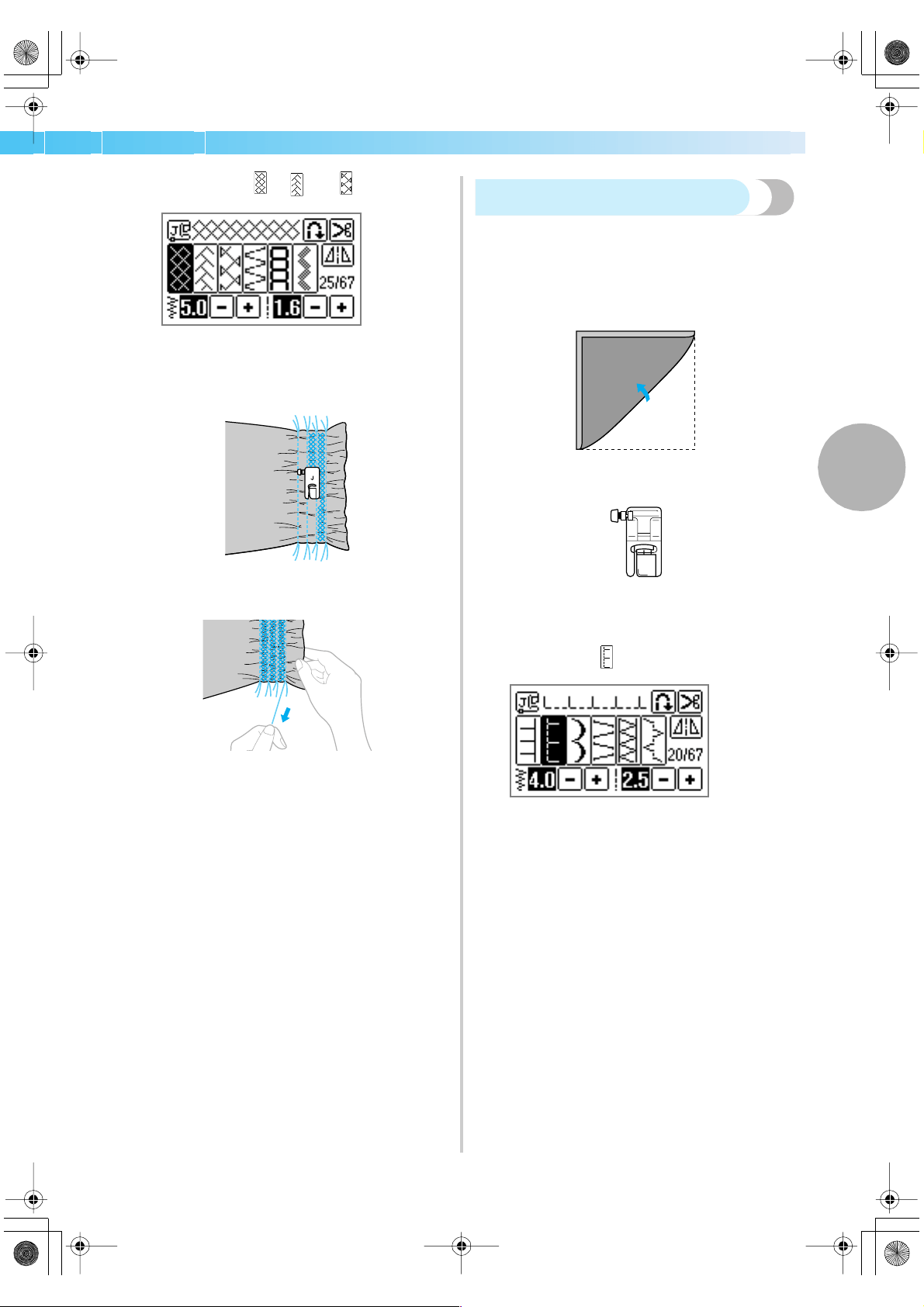

Smocking ...................................................................................................................................................... 110

Shell tuck stitching ........................................................................................................................................111

Joining .......................................................................................................................................................... 112

Heirloom stitching ........................................................................................................................................ 113

Sewing the Various Built-In Decorative Patterns.............................................................116

Sewing beautiful patterns .............................................................................................................................. 116

Sewing patterns............................................................................................................................................. 116

Changing satin stitch length .......................................................................................................................... 117

Realigning the pattern ...................................................................................................................................117

Sewing combined patterns ..............................................................................................119

Combining patterns ....................................................................................................................................... 119

Storing a pattern............................................................................................................................................ 121

Designing a Pattern (My Custom Stitch)..........................................................................123

Drawing a sketch of the pattern..................................................................................................................... 123

Entering the pattern data ............................................................................................................................... 124

Examples of designs ......................................................................................................................................126

EMBROIDERY 127

Embroidering neatly ........................................................................................................128

What to prepare ............................................................................................................................................ 128

Embroidery step by step ................................................................................................................................130

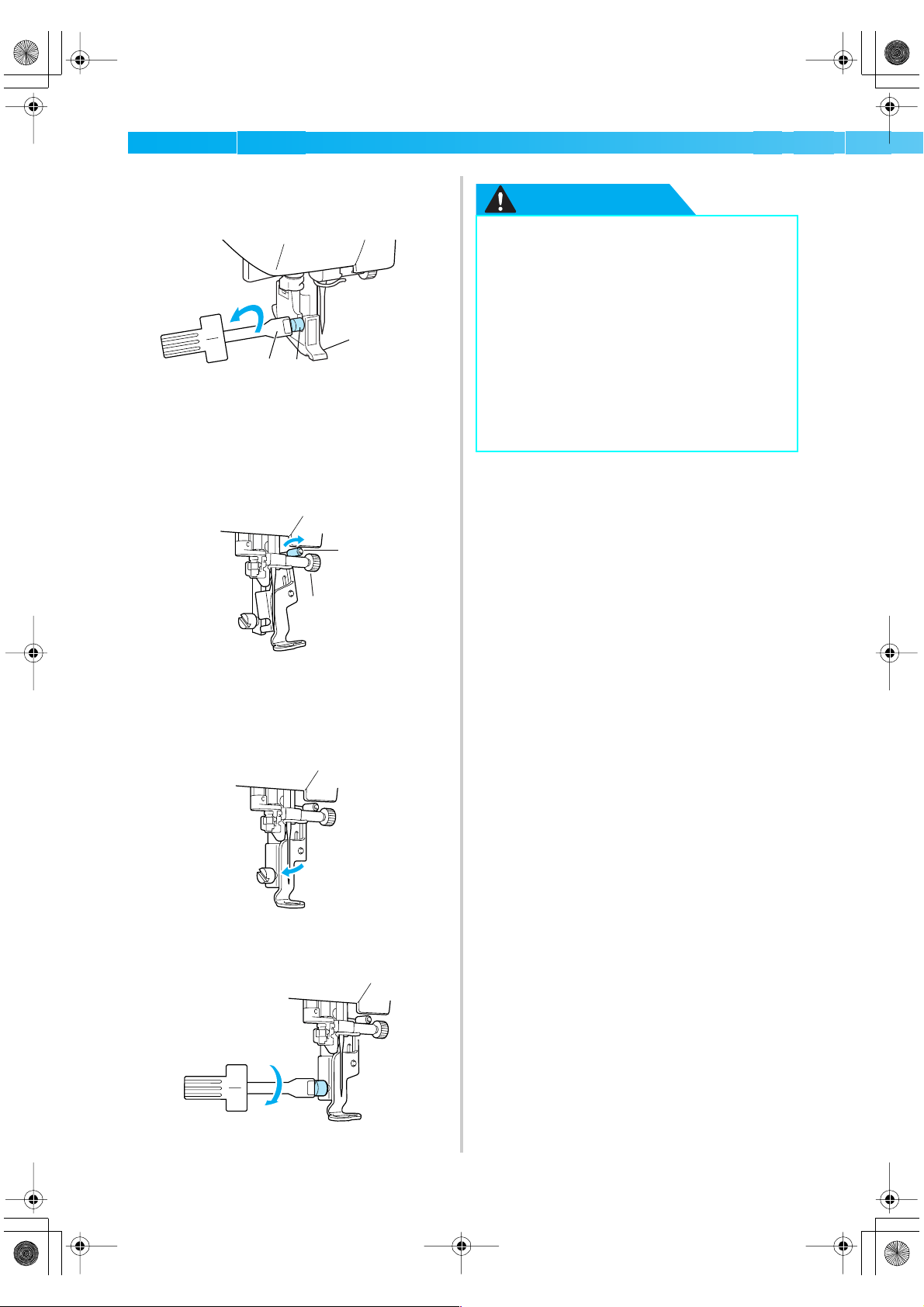

Attaching the embroidery foot ........................................................................................131

Attaching the embroidery foot ....................................................................................................................... 131

Removing the embroidery foot ...................................................................................................................... 133

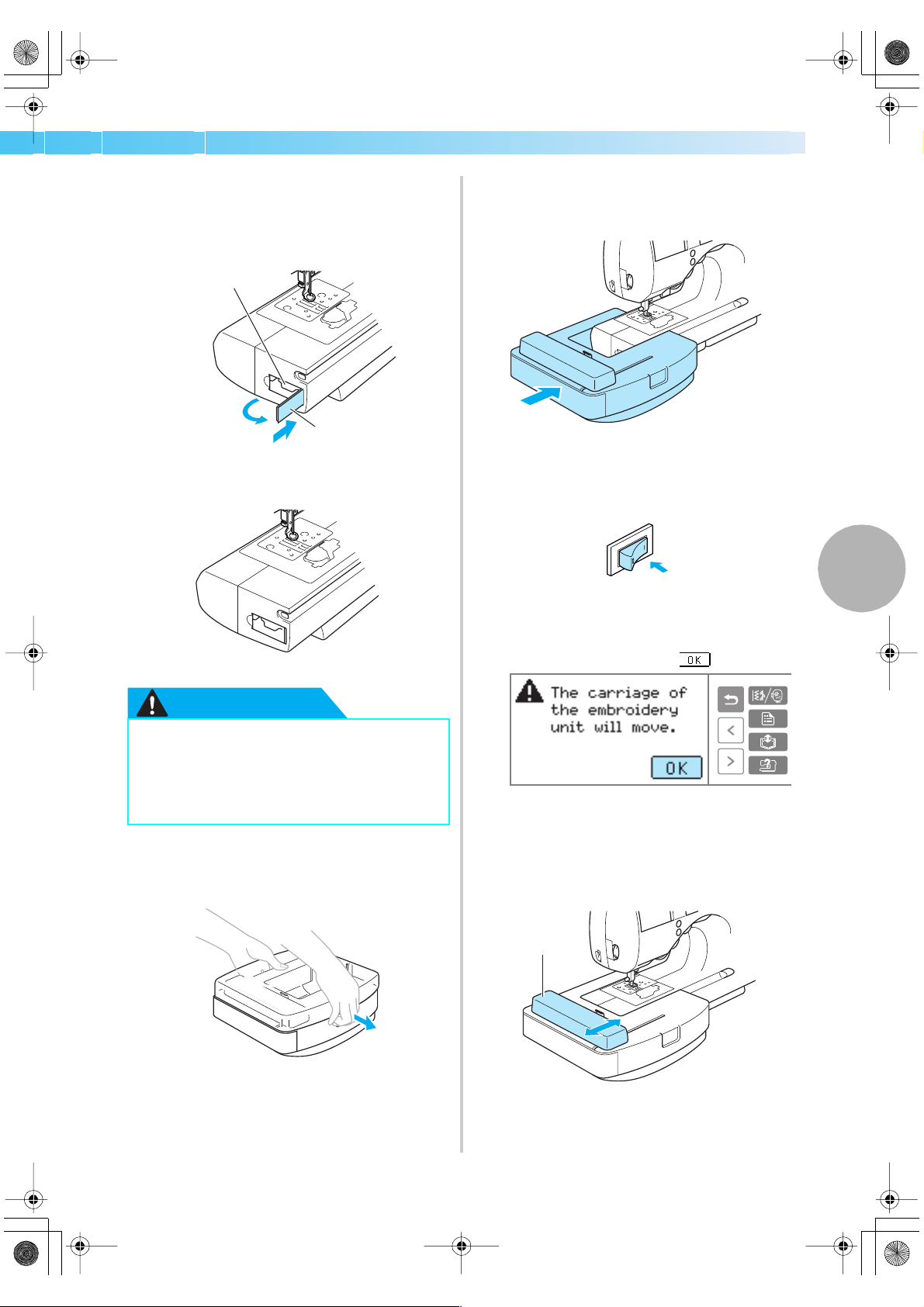

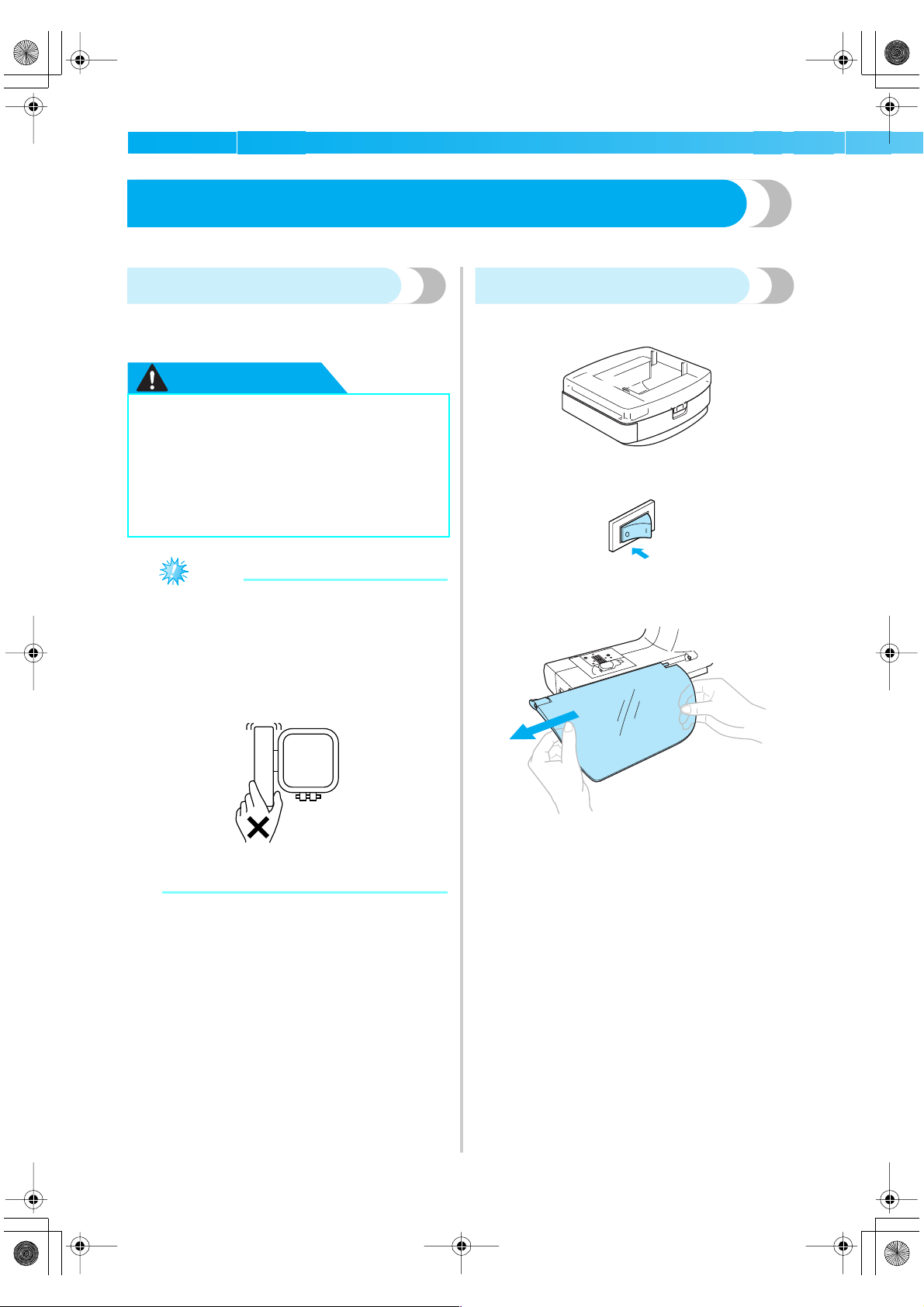

Attaching the embroidery unit ........................................................................................134

Embroidery unit precautions .........................................................................................................................134

Attaching the embroidery unit ....................................................................................................................... 134

Removing the embroidery unit ...................................................................................................................... 136

Preparing the fabric.........................................................................................................138

Attaching a stabilizer material to the fabric ................................................................................................... 138

Setting the fabric in the embroidery frame.....................................................................................................139

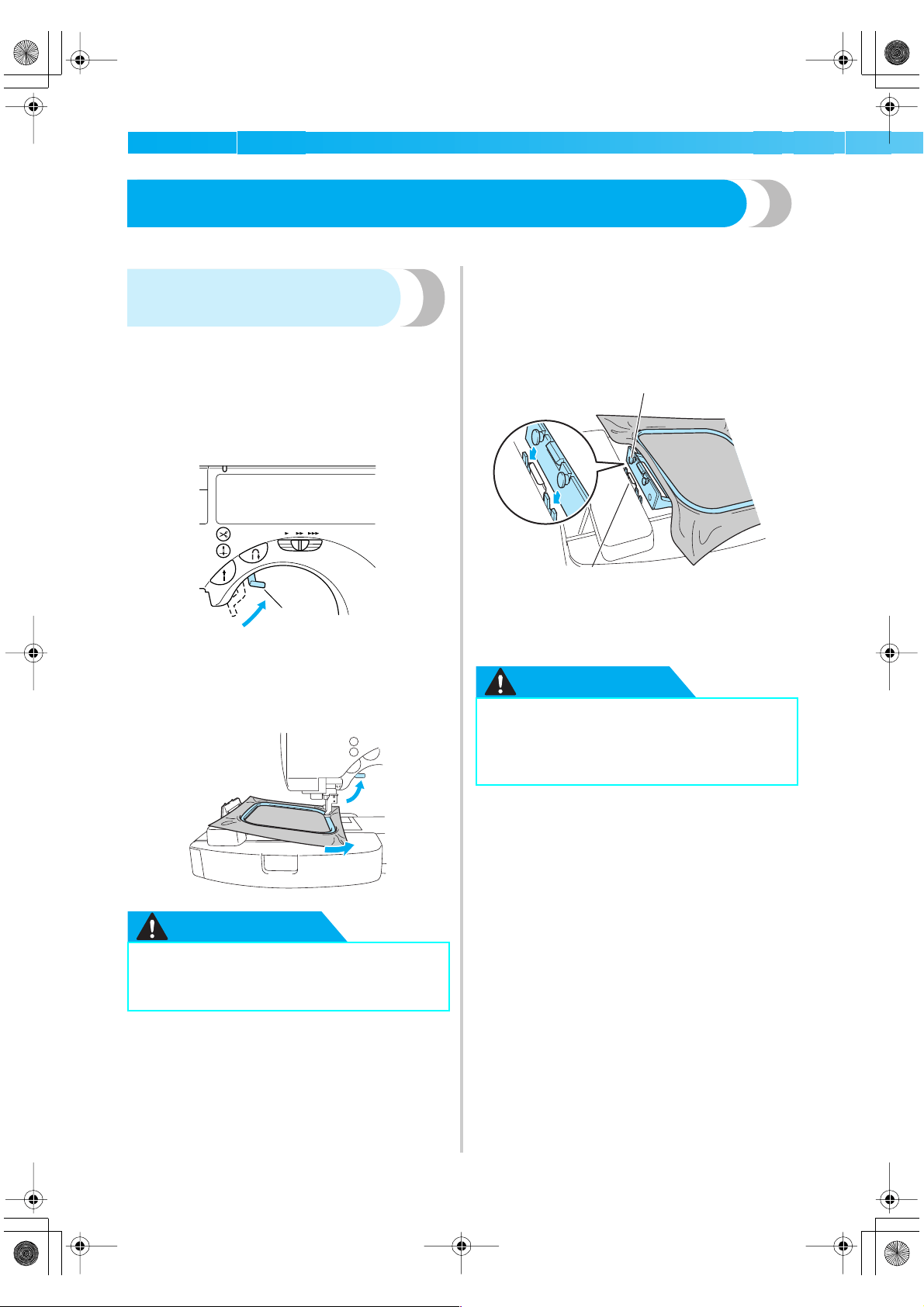

Attaching the embroidery frame .....................................................................................142

Attaching the embroidery frame .................................................................................................................... 142

Removing the embroidery frame ................................................................................................................... 143

Selecting embroidery patterns.........................................................................................144

Copyright Information ..................................................................................................................................144

Embroidery pattern types............................................................................................................................... 144

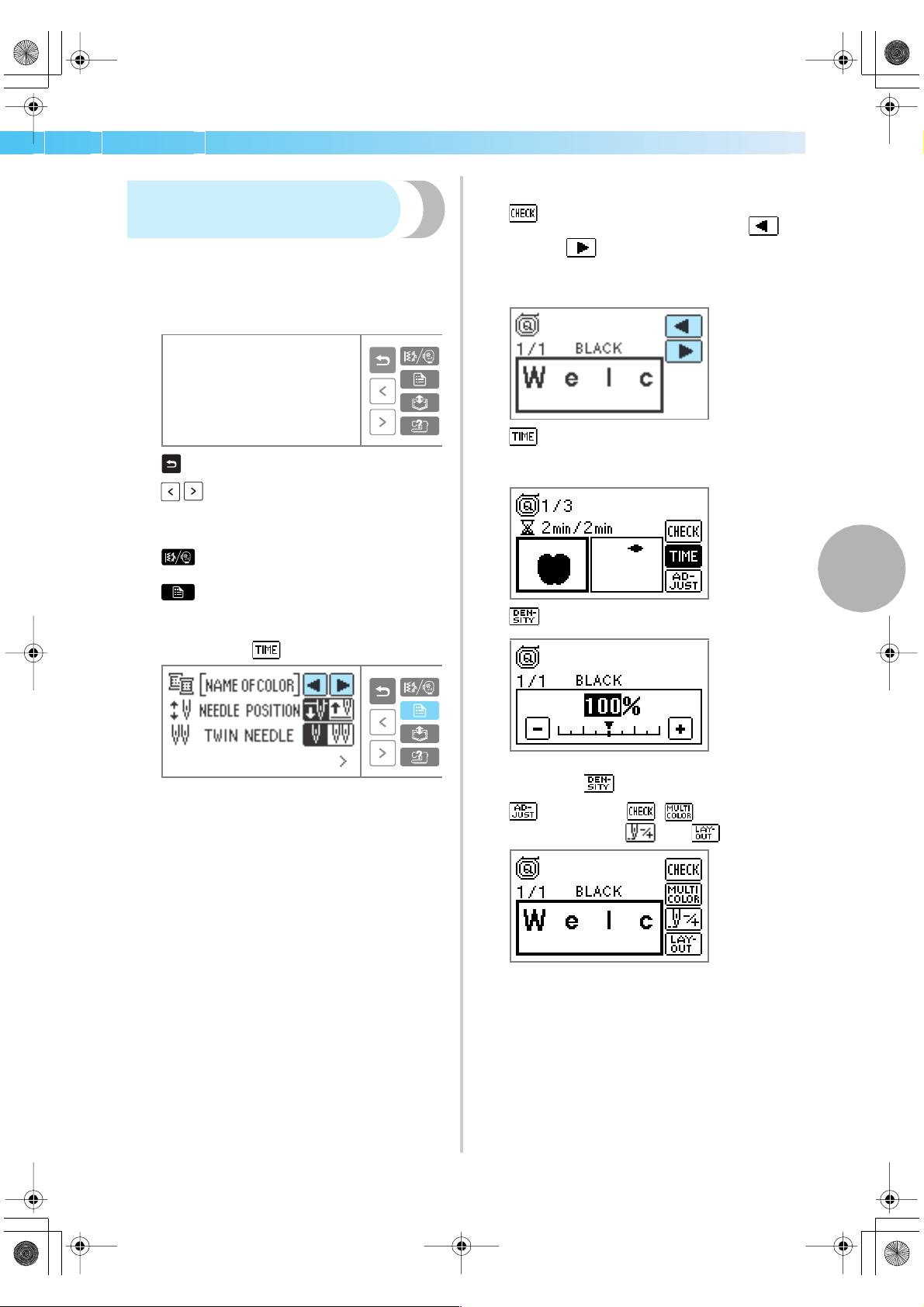

LCD (liquid crystal display) operation ........................................................................................................... 145

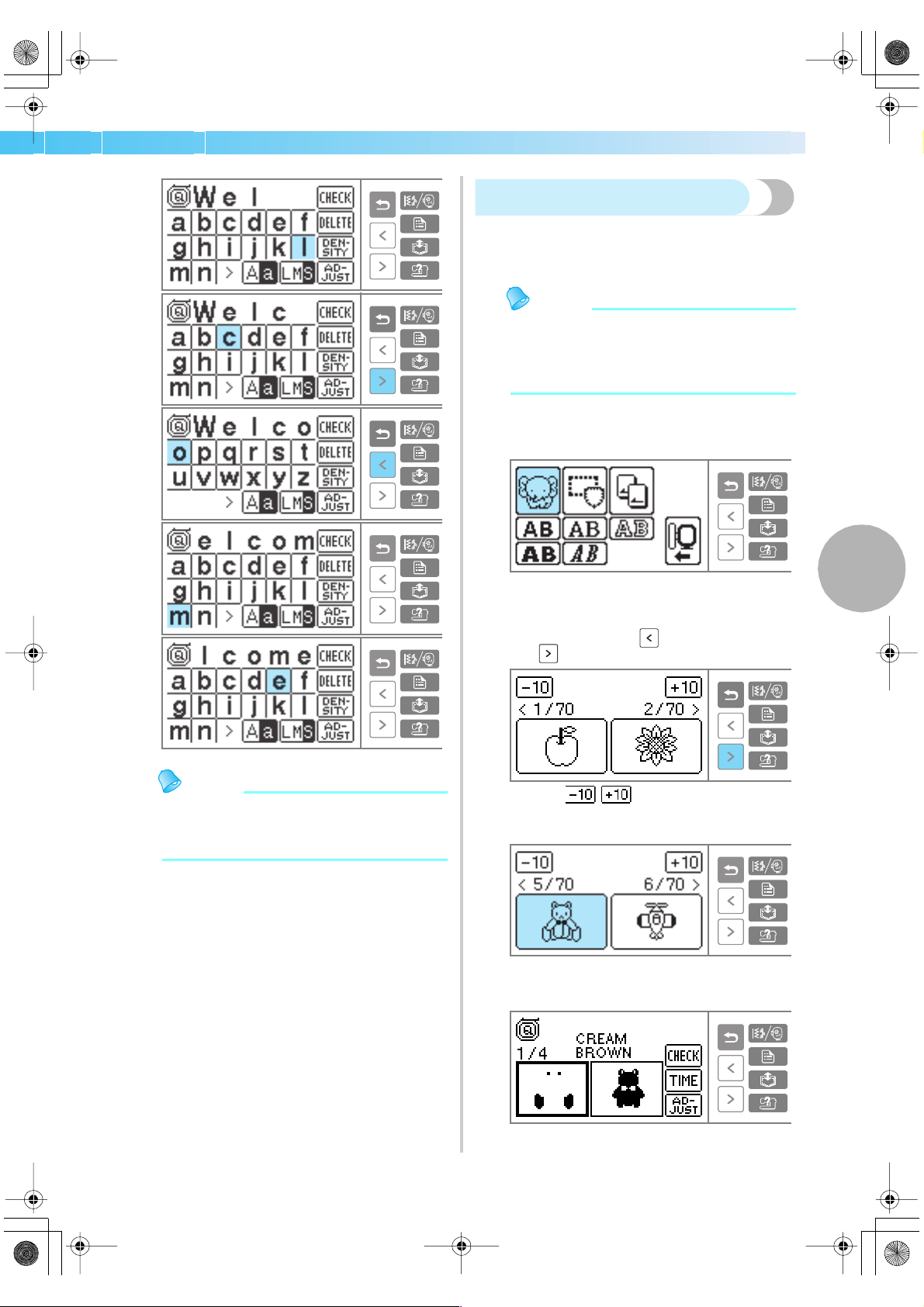

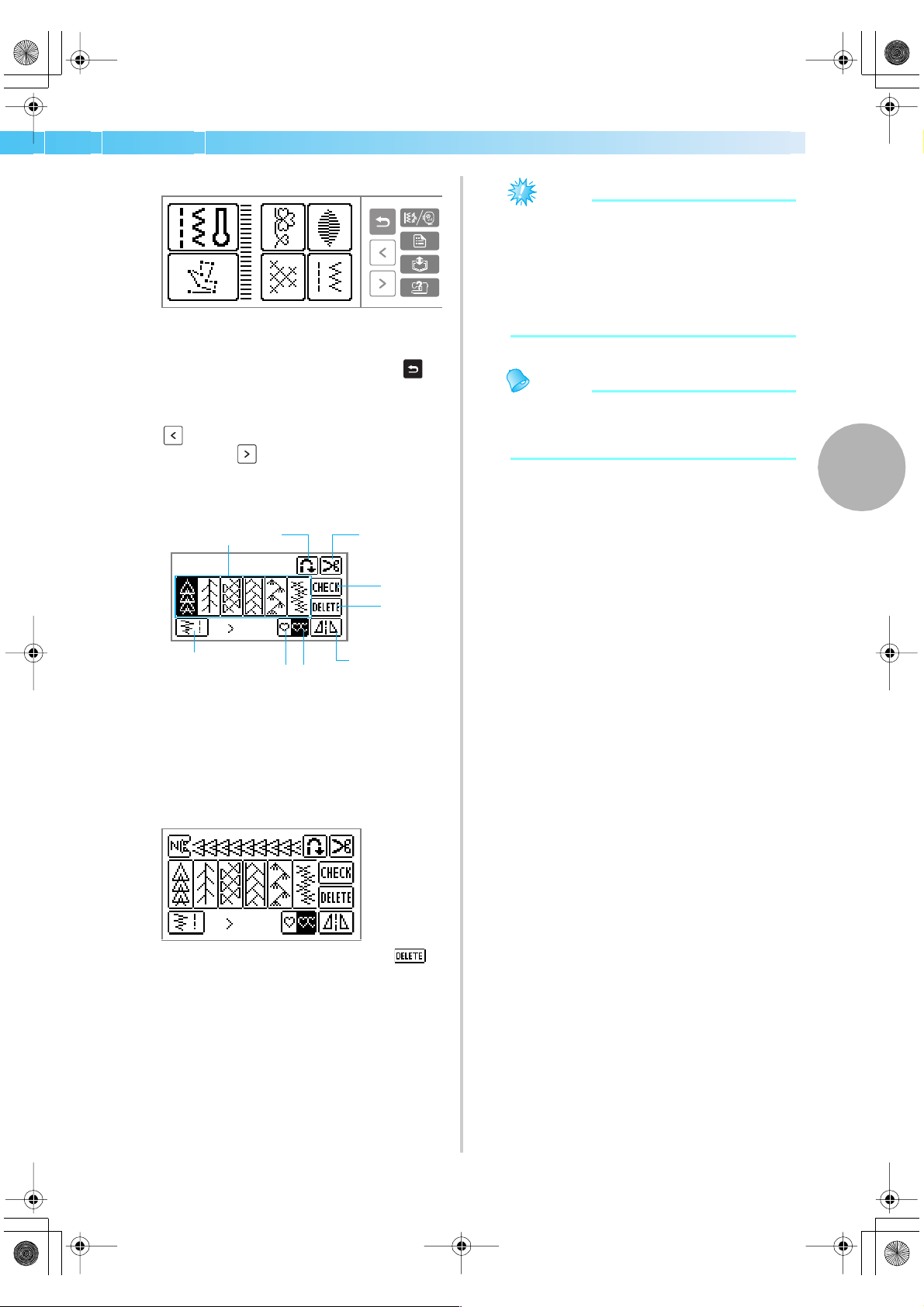

Selecting characters ...................................................................................................................................... 146

Selecting embroidery patterns .......................................................................................................................147

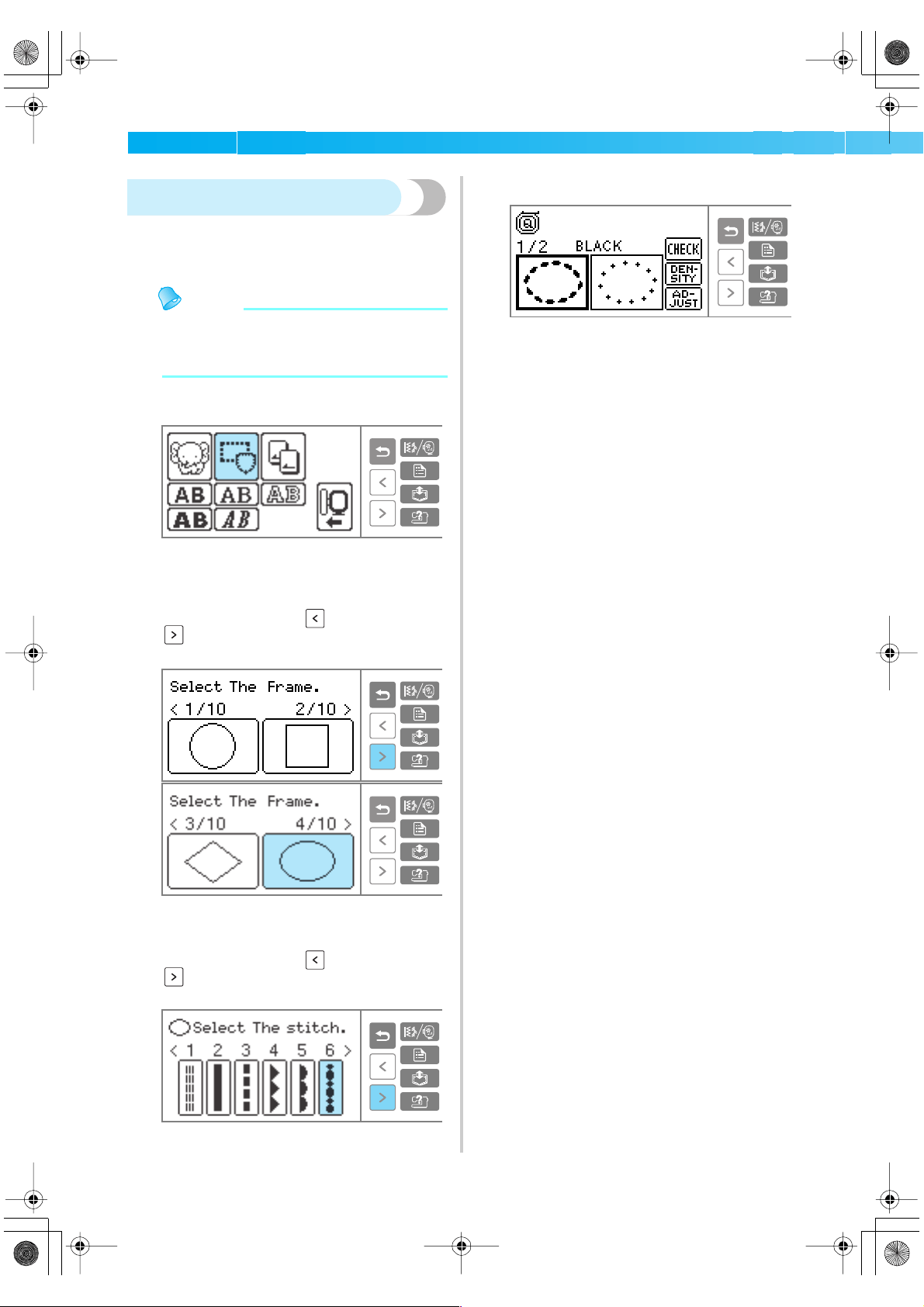

Selecting a frame pattern ...............................................................................................................................148

Using an embroidery card ............................................................................................................................ 149

Embroidering...................................................................................................................150

Embroidering a pattern.................................................................................................................................. 150

Appliquéing ................................................................................................................................................. 152

Convenient Functions......................................................................................................154

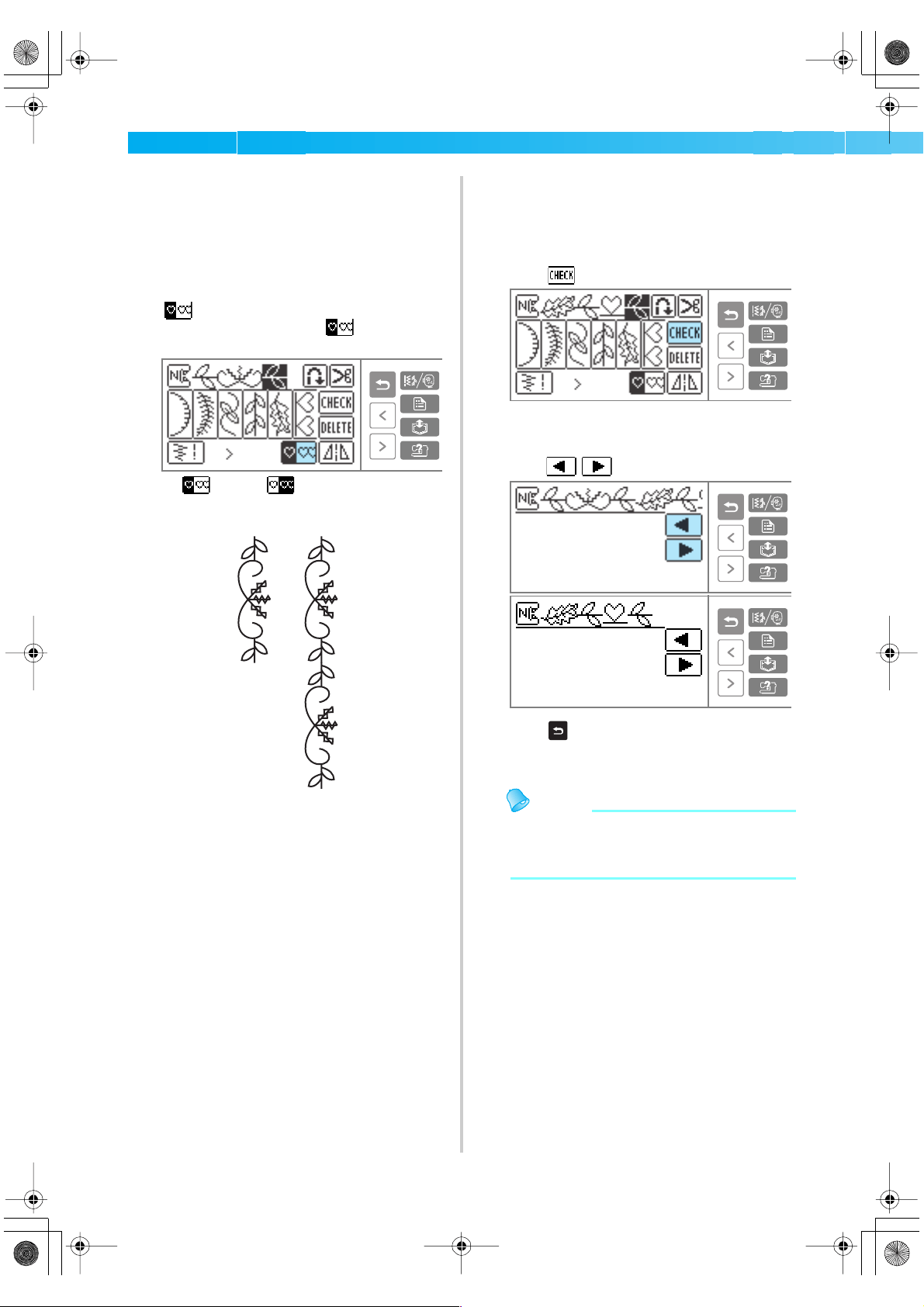

Adjusting the layout ...................................................................................................................................... 154

Storing characters.......................................................................................................................................... 155

Adjusting the thread tension.......................................................................................................................... 157

Resewing ...................................................................................................................................................... 157

Thread runs out partway through a design.....................................................................................................158

Stopping while embroidering ........................................................................................................................158

APPENDIX 161

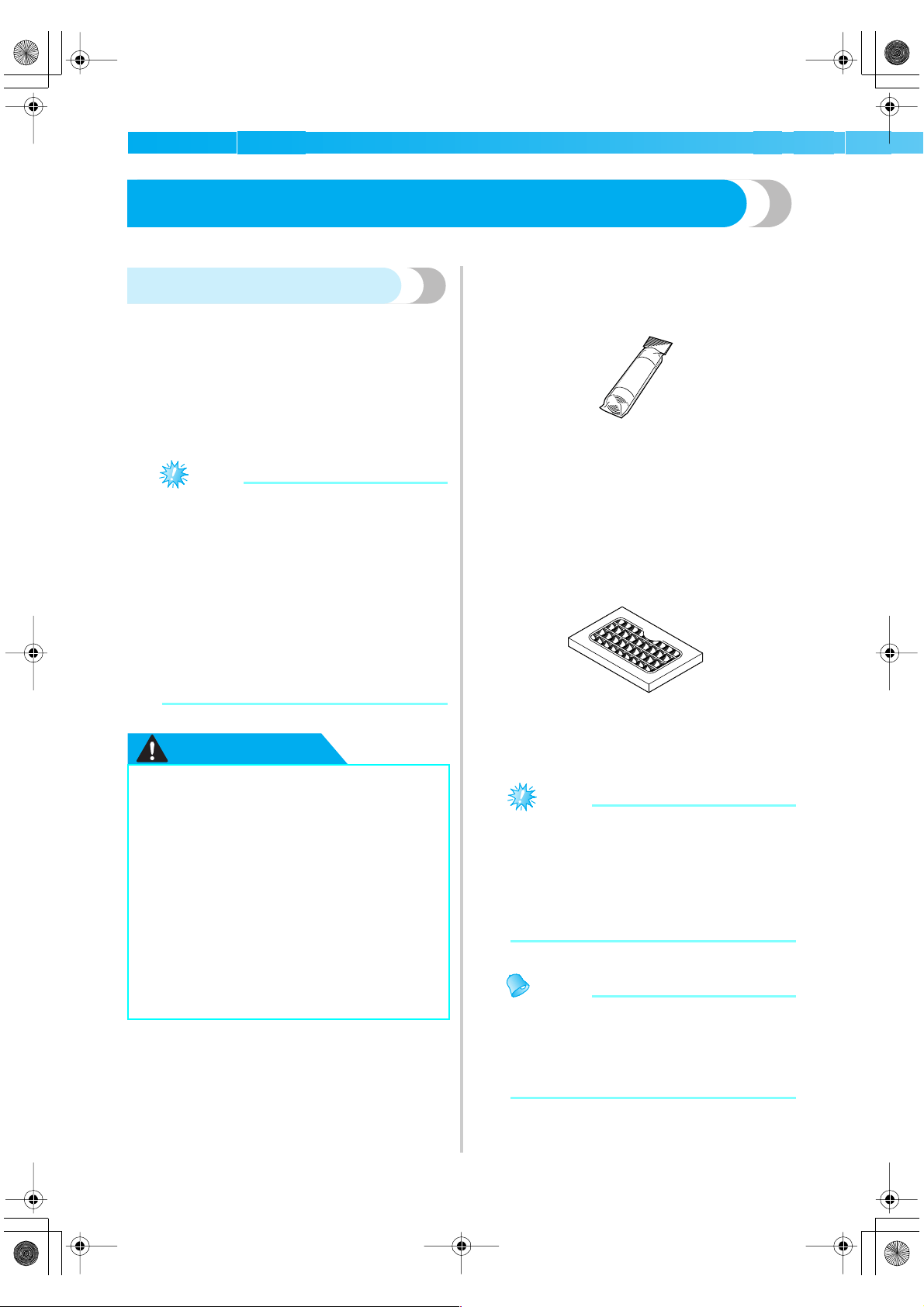

Maintenance....................................................................................................................162

Cleaning the machine surface .......................................................................................................................162

Cleaning the shuttle ...................................................................................................................................... 162

SE-BrotherE_sgml.book Page 6 Monday, June 30, 2003 3:44 PM

Troubleshooting ..............................................................................................................164

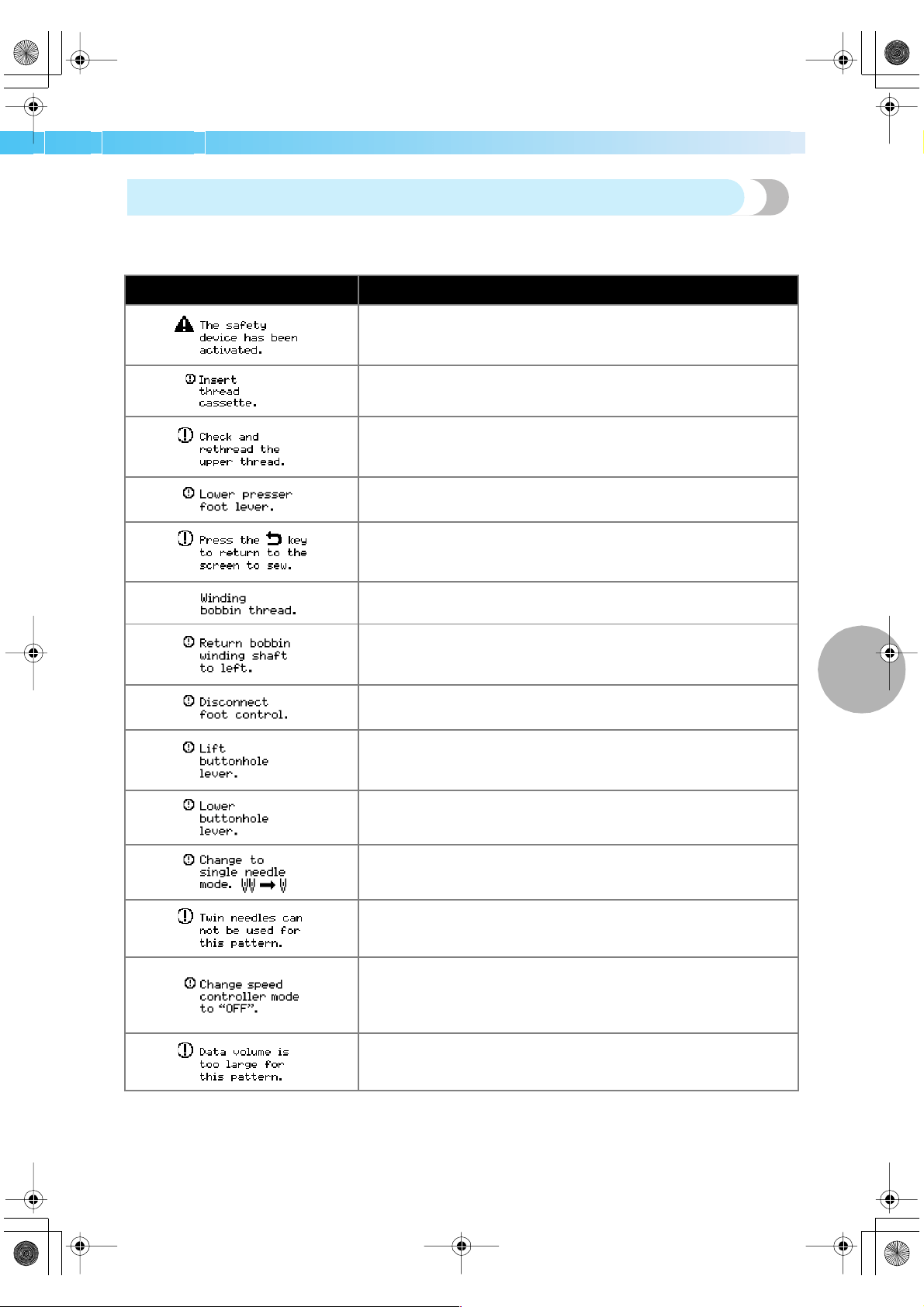

Error messages .............................................................................................................................................. 169

Nothing appears in the LCD.......................................................................................................................... 172

Operation beep.............................................................................................................................................172

Cancelling the operation beep ...................................................................................................................... 173

Index ................................................................................................................................174

SE-BrotherE_sgml.book Page 7 Monday, June 30, 2003 3:44 PM

Important Safety Instructions

When using this machine, basic safety precautions should always be taken, including the following:

Read all instructions before using.

DANGER - To reduce the risk of electric shock:

1. The machine should never be left unattended while plugged in. Always unplug the machine from

the electrical outlet immediately after using and before cleaning.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Do not allow this machine to be used as a toy. Close attention is necessary when the machine is

used by or near children.

2. Use this machine only for its intended use as described in this manual. Use only accessories

recommended by the manufacturer as contained in this manual.

3. Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has

been dropped or damaged, or dropped into water. Return the machine to the nearest authorized

dealer or service center for examination, repair, electrical or mechanical adjustment.

4. Never operate the machine with any air openings blocked. Keep ventilation openings of the

machine and foot control free from the accumulation of lint, dust, and loose cloth.

5. Never drop or insert any object into any opening.

6. Do not use outdoors.

7. Do not operate where aerosol (spray) products are being used or where oxygen is being

administered.

8. To disconnect, turn the main switch to the symbol " " position which represents off, then

remove plug from outlet.

9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

10.Keep fingers away from all moving parts. Special care is required around the machine needle.

11.Always use the proper needle plate. The wrong plate can cause the needle to break.

12.Do not use bent needles.

13.Do not pull or push fabric while stitching. It may deflect the needle causing it to break.

14.Switch the machine to the symbol " " position when making any adjustments in the needle

area, such as threading needle, changing needle, threading bobbin, or changing presser foot, and

the like.

15.Always unplug the machine from the electrical outlet when removing covers, lubricating, or

when making any other user servicing adjustments mentioned in the instruction manual.

16.This sewing machine is not intended for use by young children or infirm persons without

supervision.

17.Young children should be supervised to ensure that they do not play with this machine.

18.If the Light unit is damaged, it must be replaced by authorized dealer.

SAVE THESE INSTRUCTIONS

This machine is intended for household use.

SE-BrotherE_sgml.book Page 8 Monday, June 30, 2003 3:44 PM

FOR USERS IN THE UK, EIRE, MALTA AND CYPRUS ONLY

If this machine is fitted with a three-pin non-rewireable BS plug then please read the following.

IMPORTANT

If the available socket outlet is not suitable for the plug supplied with this equipment, it should be cut

off and an appropriate three-pin plug fitted. With alternative plugs an approved fuse must be fitted in

the plug.

NOTE

The plug served from the main lead must be destroyed as a plug with bared flexible cords is

hazardous if engaged in a live socket outlet. In the event of replacing the plug fuse, use a fuse

approved by ASTA to BS 1362, i.e. carrying the mark, rating as marked on plug.

Always replace the fuse cover, never use plugs with the fuse cover omitted.

WARNING

DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE

LETTER ‘E’, BY THE EARTH SYMBOL OR COLOURED GREEN OR GREEN AND YELLOW.

The wires in this main lead are colored in accordance with the following code:

As the colors of the wiring in the main lead of this appliance may not correspond with the colored

markings identifying the terminals in your plug, proceed as follows.

The wire which is colored blue must be connected to the terminal which is marked with the letter

‘N’ or colored black or blue.

The wire which is colored brown must be connected to the terminal which is marked with the letter

‘L’ or colored red or brown.

Blue Neutral

Brown Live

SE-BrotherE_sgml.book Page 9 Monday, June 30, 2003 3:44 PM

CONGRATULATIONS ON CHOOSING OUR MACHINE

Your machine is one of the most advanced computerized household sewing machines. To fully

enjoy all the features, we suggest that you study the manual before using the machine.

PLEASE READ BEFORE USING THIS MACHINE

For safe operation

1. Be sure to keep your eye on the needle while sewing. Do not touch the balance wheel, thread

take-up lever, needle, or other moving parts.

2. Remember to turn off the power switch and unplug the cord when:

• Operation is completed

• Replacing or removing the needle or any other parts

• A power failure occurs during use

• Maintaining the machine

• Leaving the machine unattended

3. Do not store anything on the foot controller.

4. Plug the machine directly into the wall. Do not use extension cords.

For a longer service life

1. When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store

the machine near a space heater, iron, halogen lamp, or other hot objects.

2. Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders

can damage the case and machine, and should never be used.

3. Do not drop or hit the machine.

4. Always consult the operation manual when replacing or installing any assemblies, the presser

feet, needle, or other parts to assure correct installation.

For repair or adjustment

In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table in

the back of the operation manual to inspect and adjust the machine yourself. If the problem persists,

please consult your local authorized Brother dealer.

For additional product information and updates, visit our web site at www.brother.com

SE-BrotherE_sgml.book Page 10 Monday, June 30, 2003 3:44 PM

1 GETTING READY

The various preparations required before starting to sew are described in this chapter.

Turning the Machine On/Off ..................................................................................12

LCD (liquid crystal display) operation.....................................................................14

Winding/Installing the Bobbin.................................................................................18

Upper Threading .....................................................................................................23

Replacing the Needle ..............................................................................................35

Replacing the Presser Foot ......................................................................................40

Sewing Cylindrical Pieces........................................................................................43

SE-BrotherE_sgml.book Page 11 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Turning the Machine On/Off

This section explains how to turn the sewing machine on and off.

Power supply precautions

Be sure to observe the following precautions concerning the power supply.

WARNING

CAUTION

● Use only regular household electricity for the power source. Using other power sources may

result in fire, electric shock, or damage to the machine.

● Turn off the main power and remove the plug in the following circumstances:

• When you are away from the machine

• After using the machine

• When the power fails during use

• When the machine does not operate correctly due to a bad connection or a disconnection

• During electrical storms

● Do not use extension cords or multi-plug adapters with many other appliances plugged in to

them. Fire or electric shock may result.

● Do not touch the plug with wet hands. Electric shock may result.

● When unplugging the machine, always turn off the main power first. Always grasp the plug to

remove it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric

shock.

● Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted,

or bundled. Do not place heavy objects on the cord. Do not subject the cord to heat. These

things may damage the cord and cause fire or electric shock. If the cord or plug is damaged,

take the machine to your authorized dealer for repairs before continuing use.

● Unplug the power cord if the machine is not to be used for a long period of time. Otherwise a

fire may result.

SE-BrotherE_sgml.book Page 12 Monday, June 30, 2003 3:44 PM

Turning the Machine On/Off 13

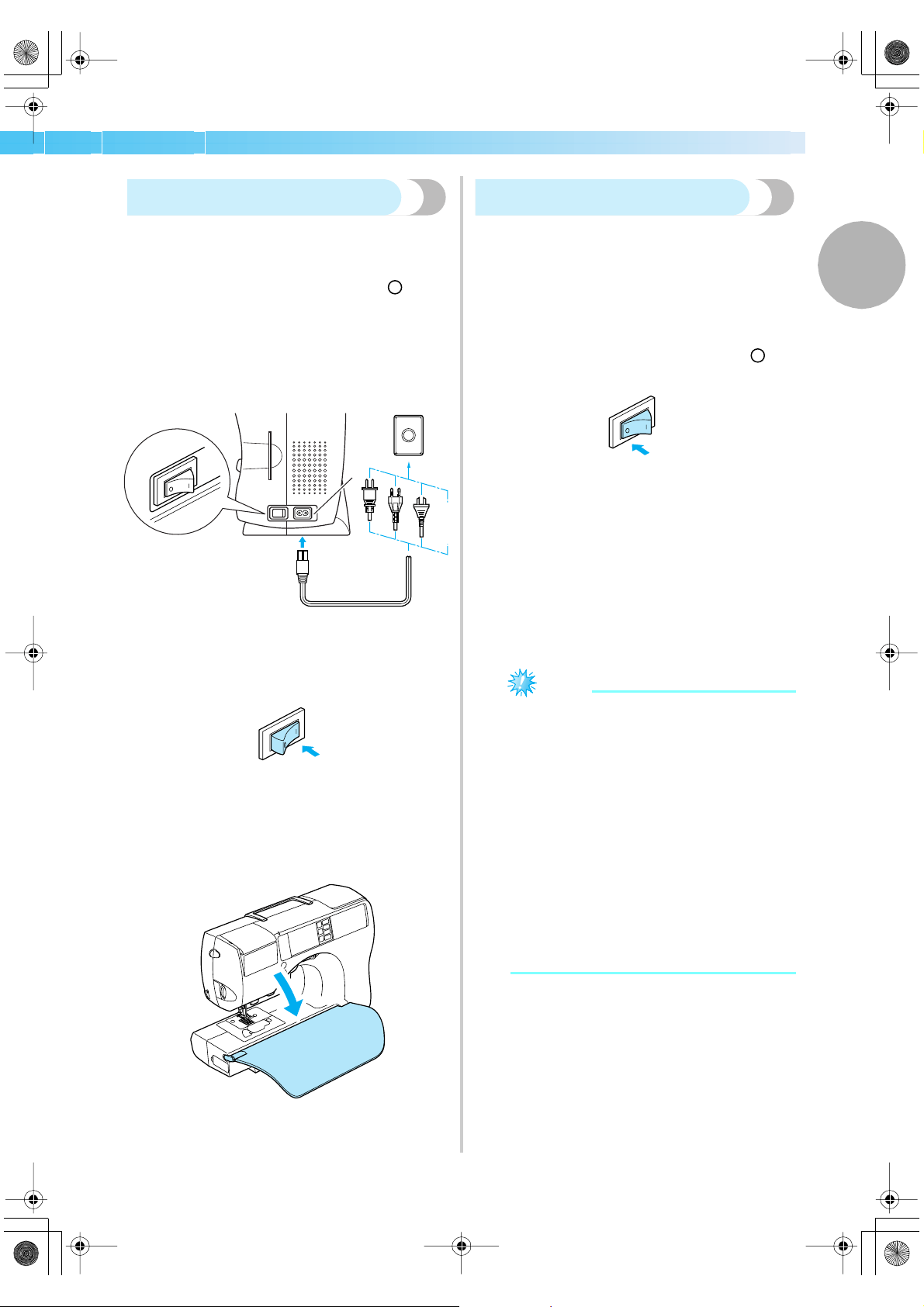

Turning on the machine

Prepare the included power cord.

Make sure that the sewing machine is turned

off (the main power switch is set to " "), and

then plug the power supply cord into the

power supply jack on the right side of the

machine.

Insert the plug of the power supply cord into a

household electrical outlet.

a Power supply jack

Press the right side of the main power switch

on the right side of the machine (set it to "|").

X The sewing lamp comes on when the

machine is turned on.

Fold the flap at the front of the sewing

machine down toward you.

Turning off the machine

When you are finished using the sewing machine,

turn it off. In addition, before transporting the sewing

machine to another location, be sure to turn it off.

Make sure that the machine is not sewing.

Press the left side of the main power switch on

the right side of the machine (set it to " ").

X The sewing lamp goes off when the machine

is turned off.

Unplug the power supply cord from the

electrical outlet.

Grasp the plug when unplugging the power

supply cord.

Unplug the power supply cord from the power

supply jack.

Note

z If a power outage occurs while the sewing

machine is being operated, turn off the

sewing machine and unplug the power

supply cord. When restarting the sewing

machine, follow the necessary procedure to

correctly operate the machine.

(For U.S.A. only)

z This appliance has a polarized plug (one

blade wider than the other). To reduce the

risk of electrical shock, this plug is intended

to fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet,

reverse the plug. If it still does not fit, contact

a qualified electrician to install the proper

outlet. Do not modify the plug in any way.

SE-BrotherE_sgml.book Page 13 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

LCD (liquid crystal display) operation

Selected stitch, pattern settings and messages are displayed on the LCD (liquid crystal display) on the front

of the sewing machine.

Viewing the LCD

When the power is turned on, the LCD comes on, and the following screen is displayed.

The LCD display is changed using the keys on the right, and operations

performed by directly touching the LCD.

■ Utility stitch selection screen

a Selected stitch

b Presser foot to be used

c Stitches

d Stitch width (mm)

e Stitch length (mm)

f Automatic reverse/reinforcement

g Automatic thread cutting

h Horizontal mirror image key

i Number of stitches in group

j Number of the selected stitch

k Increase value

l Decrease value

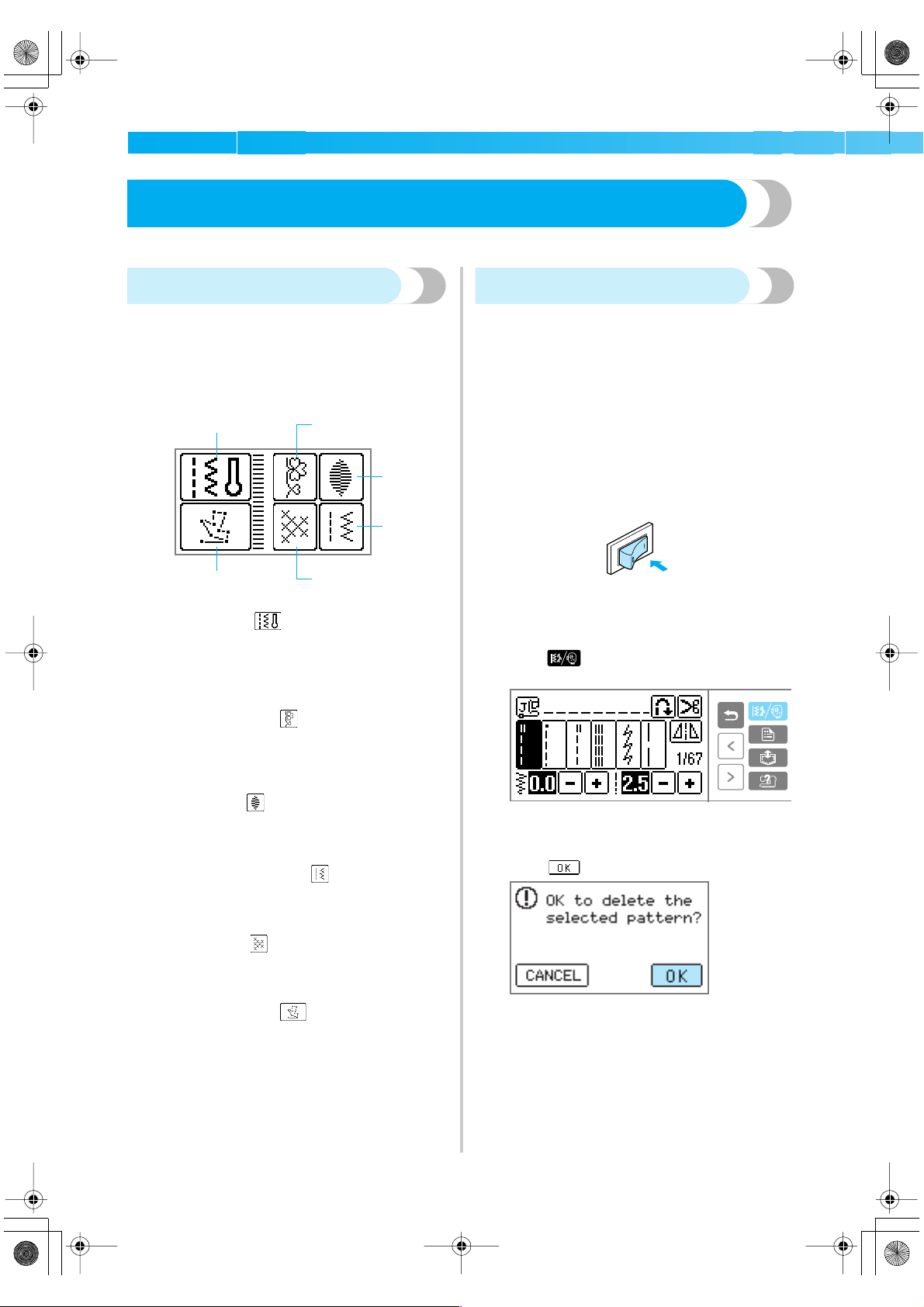

■ Stitch group selection screen

Press (Menu key) to display the screen for selecting the stitch group. The details are explained in

"Selecting stitching" (page 47).

Memo

z A different screen is displayed when the embroidery unit is attached.

z Refer to "Error messages" (page 169) for messages displayed on the LCD.

z Depending on the model of sewing machine, an animation may be displayed when the power is turned

on. When an animation is displayed, the screen above will be displayed if you touch the LCD with

your finger.

SE-BrotherE_sgml.book Page 14 Monday, June 30, 2003 3:44 PM

LCD (liquid crystal display) operation 15

Changing the Machine Settings

Various sewing machine operations and sewing settings can be changed.

The stitch or machine attributes that can be set are listed below.

Turn on the sewing machine.

X The LCD comes on.

Press (Settings key) on the display panel.

Attribute Icon Details Settings

Thread color/

needle count

You can switch among thread color/thread

number/needle count when embroidering.

Thread color/Embroidery thread

number/Country Embroidery thread

number/Needle count/Time to

Embroider (after is pressed)

Needle

position

Specifies where the needle is positioned

when the sewing machine is stopped.

Down Up

Twin needle

sewing

Specifies the twin needle.

Normal needle Twin needle

Thread color

index

When embroidery data containing custom

thread colors specified with the PE-DESIGN

Ver.5.0 is saved on a blank card, the stored

custom thread colors are displayed on the

machine, if "ON" is selected for this setting.

Automatic

thread cutting

for embroidery

Press this key to use the automatic thread

cutting function when embroidering.

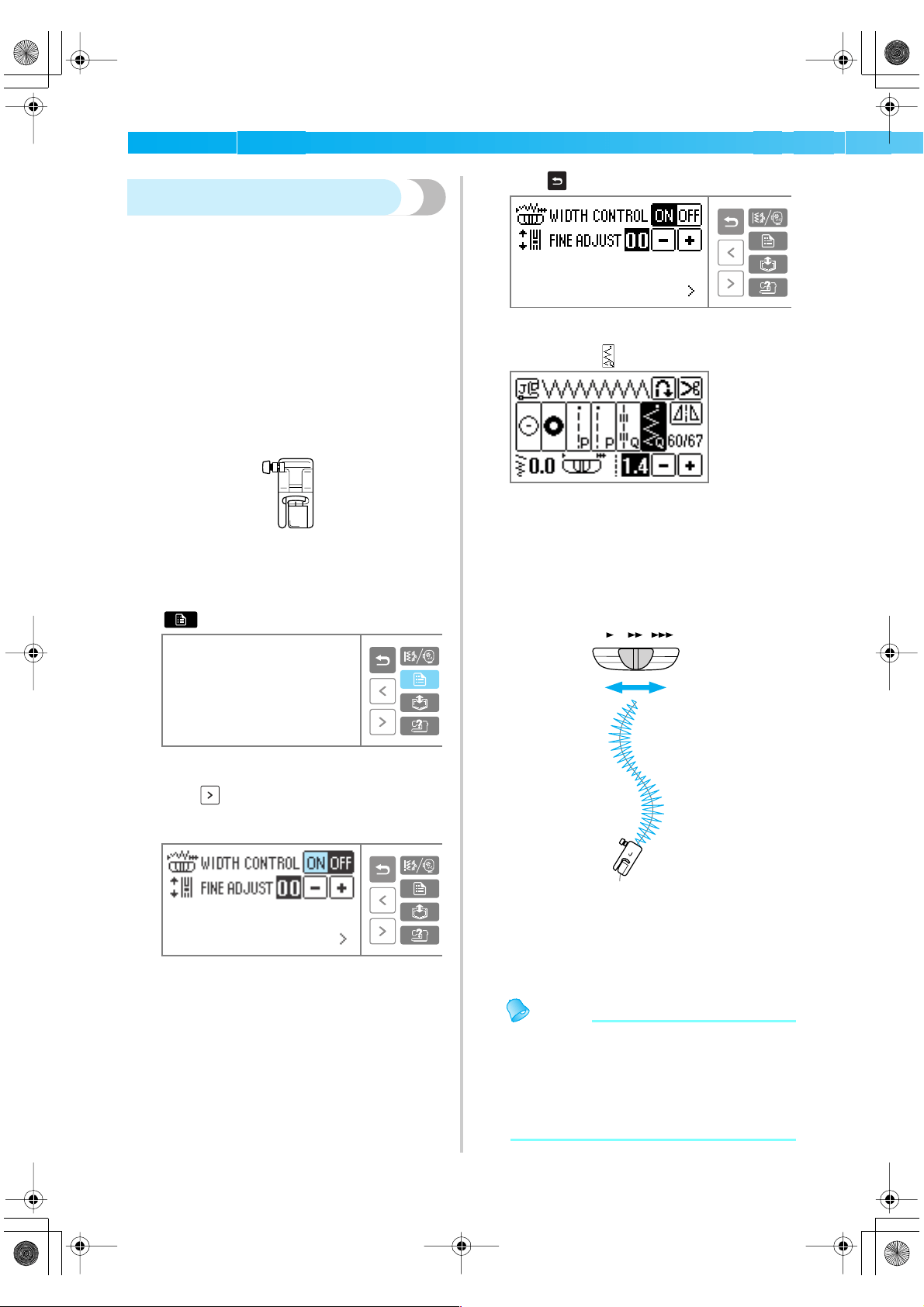

Stitch width

control

Allows the stitch width to be adjusted with

the sewing speed controller.

Vertical pattern

adjustment

Adjusts the up and down position of the

pattern (page 117).

-9 to +9

Buzzer

Specifies whether or not a beep is sounded

with each operation (page 173).

Opening

screen

Sets whether or not to display the opening

screen when the power is turned on.

(There are models where this cannot be

changed.)

Language

Allows the language used in the screens to

be changed.

English, French, German, Dutch,

Spanish, Italian, Danish,

Norwegian, Finnish, Swedish,

Portuguese, Russian, Japanese,

Korean or others

LCD brightness

Adjusts the brightness of the LCD.

Lighter Darker

SE-BrotherE_sgml.book Page 15 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

X The settings screen appears.

Press the item to be set.

Switch screens using (Previous page key)

and (Next page key).

• The items shown in reverse highlighting are

the settings at the time of purchase.

 Example: Changing the needle stop position

When settings are complete, press (Back

key).

X The initial screen appears again.

Note

z The "Thread color index" is the color

number display used when embroidery

cards made by "PE-Design" are used.

z The "NO." is the number for the sewing

machine.

z Settings that are changed are not lost when

the power is turned off.

SE-BrotherE_sgml.book Page 16 Monday, June 30, 2003 3:44 PM

LCD (liquid crystal display) operation 17

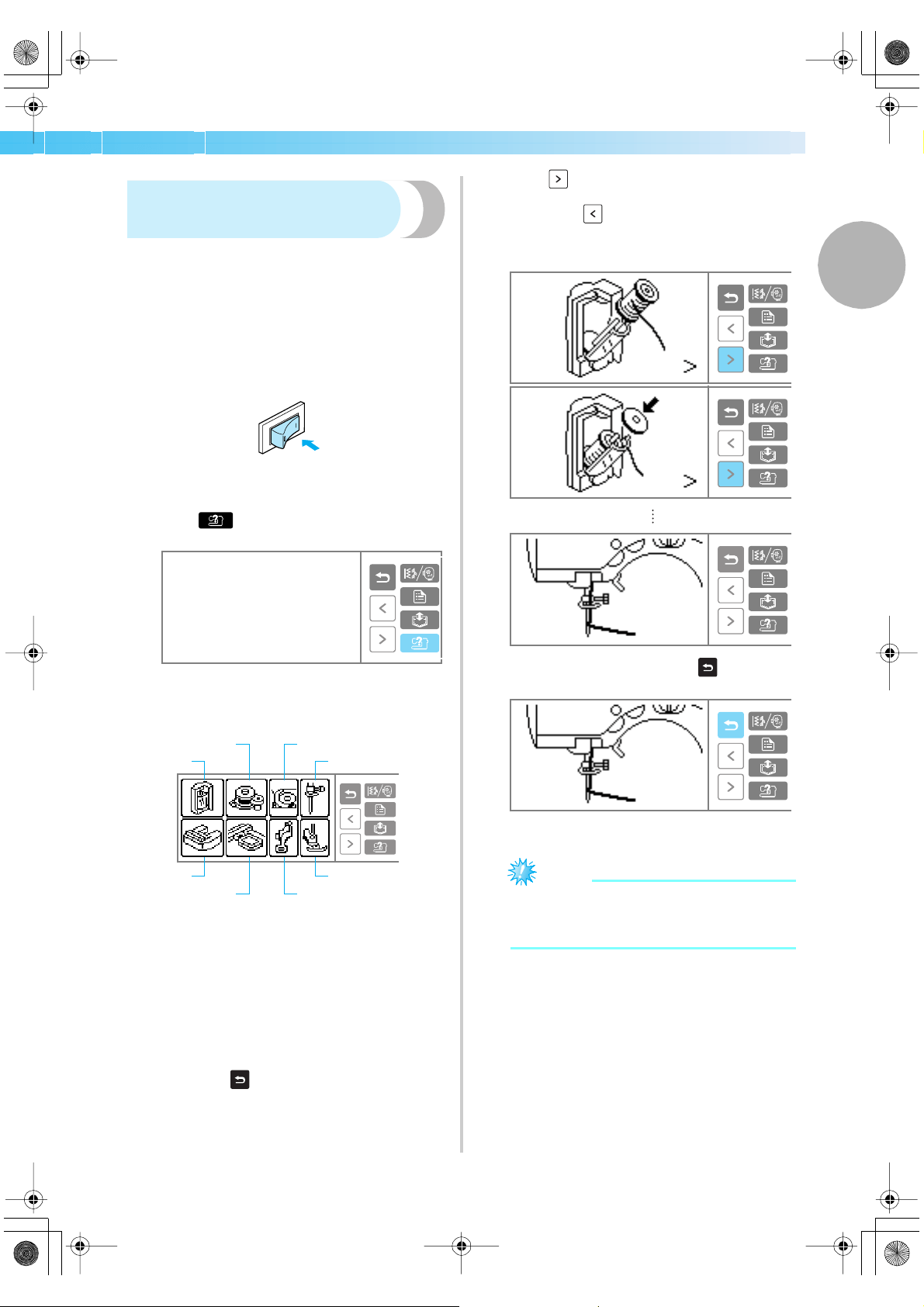

Checking machine operating

procedures

Displays simple explanations of setting upper thread /

bobbin winding / setting bobbin thread / needle

replacement / embroidery unit attachment /

embroidery frame attachment / embroidery foot

attachment / presser foot replacement on the LCD.

Turn on the sewing machine.

X The LCD comes on.

Press (Sewing machine help key) on the

display panel.

X The sewing machine help screen appears.

Press the item to be displayed.

a Threading the upper thread

b Winding the bobbin

c Installing the bobbin

d Needle replacement

e Embroidery unit attachment

f Embroidery frame attachment

g embroidery foot attachment

h Replacing the presser foot

X The first screen describing the procedure for

the selected topic appears.

• Pressing (Back key), returns you to the

item selection screen.

Press (Next page key) to switch to the

next page.

If you press (Previous page key), you return

to the previous page.

 Example: Upper threading

After you finish looking, press (Back key)

two times.

X The initial stitch screen appears again.

Note

z For details on each topic, refer to the

corresponding page in this Operation

Manual.

SE-BrotherE_sgml.book Page 17 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Winding/Installing the Bobbin

This section describes how to wind the thread onto the bobbin, and then insert the bobbin thread.

Bobbin precautions

Be sure to observe the following precautions

concerning the bobbin.

CAUTION

Winding the bobbin

Wind the thread around the bobbin to prepare the

bobbin thread.

Turn on the sewing machine.

Open the bobbin winder cover at the top on

the right side of the sewing machine.

Raise until it stops with a click.

Swing up the bobbin thread spool pin.

Move the bobbin thread spool pin up as far as

possible.

a Bobbin thread spool pin

● Only use the Bobbin (part code: SA156,

SFB:XA5539-151) designed specifically

for this sewing machine. Use of any other

bobbin may result in injuries or damage

to the machine.

● The included bobbin was designed

specifically for this sewing machine. If

bobbins from older models are used, the

machine will not operate correctly. Use

only the included bobbin or bobbins of

the same type (part code: SA156,

SFB:XA5539-151).

11.5 mm

Actual size

This model

Older model

(7/16 inch)

SE-BrotherE_sgml.book Page 18 Monday, June 30, 2003 3:44 PM

Winding/Installing the Bobbin 19

Place the bobbin on the bobbin winder shaft so

that the spring on the shaft fits into the notch

in the bobbin.

a Notch

b Bobbin winder shaft spring

Slide the bobbin winder shaft to the right.

Place the spool of thread for the bobbin onto

the bobbin thread spool pin.

• Use the special Brother embroidery bobbin

thread when embroidering.

Slide the spool cap onto the bobbin thread

spool pin.

With the rounded side of the spool cap

positioned toward the left, slide the spool cap

onto the bobbin thread spool pin as far as

possible until the right side of the spool touches

the right end of the bobbin thread spool pin.

CAUTION

Note

z If a spool of thread 12 mm (1/2 inch) in

diameter and 75 mm (3 inch) high is inserted

onto the bobbin thread spool pin, use the

special spool cap.

a 12 mm (1/2 inch)

b 75 mm (3 inch)

● Two spool cap sizes are available,

allowing you to choose a spool cap that

best fits the size of spool being used. If the

spool cap is too small for the spool being

used, the thread may catch on the slit in

the spool or the needle may break.

●

SE-BrotherE_sgml.book Page 19 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Memo

z When using thread that winds off quickly,

such as transparent nylon thread or metallic

thread, place the spool net over the spool

before placing the spool of thread onto the

spool pin.

If the spool net is too long, fold it to fit the

size of the spool.

a Spool net

b Spool

c Spool pin

d Spool cap

Pull out some thread, and then thread the

thread guide for bobbin winding.

Be sure that the thread is fully in the two thread

guides for bobbin winding.

a Thread guide for bobbin winding

b Two slits

Wind the thread that was pulled out onto the

bobbin.

Wind the thread that was pulled clockwise five

or six times without any slack.

Pull the thread to the right and pass it through

the slit in the bobbin winder seat.

a Slit in bobbin winder seat (with built-in cutter)

X The thread is cut to a suitable length.

CAUTION

Slide the sewing speed controller to the right

(so that the speed will be fast).

a Sewing speed controller

Press (Start/stop button) once.

a Start/stop button

• If it does not start when the start/stop button

is pressed, an animation is displayed on the

LCD. Press the start/stop button after

touching the LCD.

● Be sure to cut the thread as described. If

the bobbin is wound without cutting the

thread using the cutter built into the slit in

the bobbin winder seat, the thread may

become tangled in the bobbin or the

needle may bend or break when the

bobbin thread starts to run out.

SE-BrotherE_sgml.book Page 20 Monday, June 30, 2003 3:44 PM

Winding/Installing the Bobbin 21

X The bobbin starts spinning and winding the

thread, and "Winding bobbin thread..."

appears on the LCD.

X When winding is complete, the bobbin stops

spinning or spins freely.

When the bobbin either stops spinning or spins

freely, press (Start/stop button).

X The sewing machine stops, and the

"Winding bobbin thread..." display

disappears from the LCD.

Use scissors to cut the end of the thread

wound around the bobbin.

Slide the bobbin winder shaft to the left.

Remove the bobbin from the shaft.

Remove the spool cap and spool.

Swing down the bobbin thread spool pin, close

the bobbin winder cover, and then slide the

sewing speed controller back to its original

position.

Memo

z When the sewing machine is started or the

balance wheel is turned after winding the

bobbin, the machine will make a clicking

sound; this is not a malfunction.

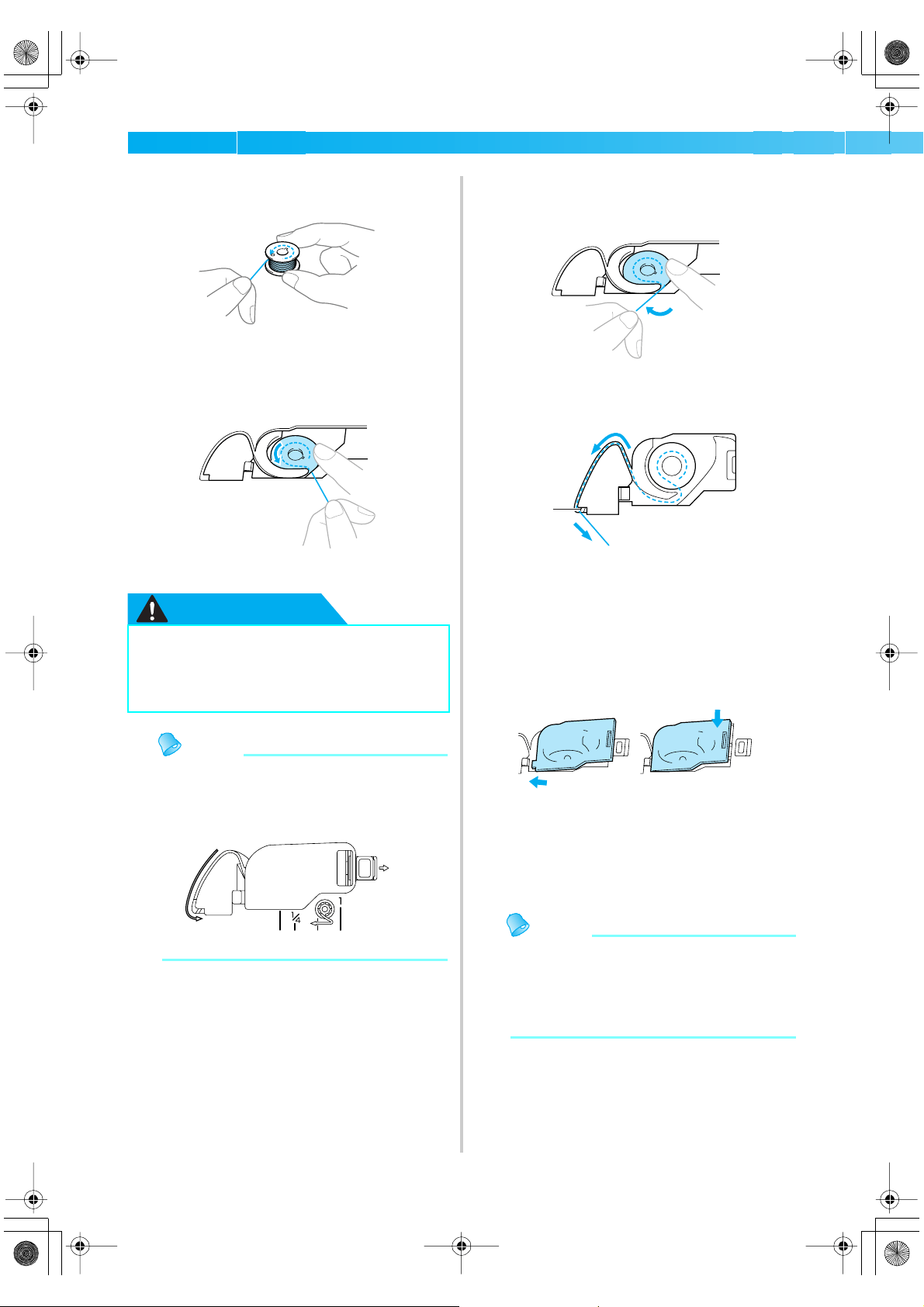

Installing the bobbin

Install the bobbin wound with thread.

CAUTION

Slide the bobbin cover latch to the right.

a Bobbin cover

b Latch

X The bobbin cover opens.

Remove the bobbin cover.

● Use a bobbin that has been correctly

wound with thread, otherwise the needle

may break or the thread tension will be

incorrect.

● The bobbin was designed specifically for

this sewing machine. If bobbins from

older models are used, the machine will

not operate correctly. Use only the

included bobbin or bobbins of the same

type (part code: SA156, SFB:XA5539-

151).

Actual size

11.5 mm

This model Older model

(7/16 inch)

SE-BrotherE_sgml.book Page 21 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Hold the bobbin with your right hand and hold

the end of the thread with your left.

• Be careful not to drop the bobbin.

Insert the bobbin into the shuttle so that the

thread unrolls to the left.

• Be sure to insert the bobbin correctly.

CAUTION

Memo

z The order that the bobbin thread should be

passed through the shuttle is indicated by

marks around the shuttle. Be sure to thread

the machine as indicated.

Lightly hold down the bobbin with your right

hand, and then guide the thread as shown with

your left hand.

Pass the thread through the slot as shown, and

then pull the thread out toward the front.

a Cutter

X The cutter cuts the thread.

Reattach the bobbin cover.

Insert the tab in the lower-left corner of the

bobbin cover, and then lightly press down on

the right side.

X The bobbin threading is finished.

Next, thread the upper thread. Continue with

the procedure in "Upper Threading" (on the

next page).

Memo

z You can begin sewing without pulling up the

bobbin thread. If you wish to pull up the

bobbin thread before starting to sew, pull up

the thread according to the procedure in

"Pulling up the bobbin thread" (page 33).

● Be sure to hold down the bobbin with

your finger and unroll the bobbin thread

correctly, otherwise the thread may break

or the thread tension will be incorrect.

SE-BrotherE_sgml.book Page 22 Monday, June 30, 2003 3:44 PM

Upper Threading 23

Upper Threading

In this section, the procedures for positioning the spool for the upper thread and threading the needle are

described.

CAUTION

About the spool of thread

With this sewing machine, a spool of thread can be

loaded into the thread cassette, and then the thread

cassette can be threaded. Information about the

spools of thread is described below.

■ Spools that can be loaded into the thread

cassette

Normally, a spool of thread is loaded into the

thread cassette and used. The spools that can be

loaded must have a diameter smaller than the

orange spool cap and a height shorter than the

mark on the cover of the thread cassette.

a Spool cap (orange)

b Spool

c Mark on thread cassette compartment cover

■ Spools that cannot be loaded into the thread

cassette

When using spools that cannot be loaded into the

thread cassette, use the extra spool pin.

When using the extra spool pin, attach either the

large or small white spool cap, depending on the

size of the spool. Use the spool cap with a

diameter that is slightly larger than the diameter

of the spool.

a Spool cap (large)

b Spool cap (small)

c Spool

Memo

z For details on using the extra spool pin, refer

to "Using the extra spool pin" (page 29).

z When using a spool of cross-wound thread,

install the small white spool cap with some

space between the cap and the spool.

a Spool cap (small)

b Gap

c Spool

● When threading the upper thread, carefully follow the instructions. If the upper threading is

not correct, the thread may become tangled or the needle may bend or break.

SE-BrotherE_sgml.book Page 23 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

CAUTION

Loading the spool into the

thread cassette

Load the spool of thread into the thread cassette to

prepare the upper thread.

Memo

z The order for threading the thread cassette is

indicated on the thread cassette. Also check

the markings on the thread cassette while

threading it.

Turn on the sewing machine.

Open the thread cassette compartment cover

at the top on the left side of the machine.

● Two spool cap sizes are available,

allowing you to choose a spool cap that

best fits the size of spool being used. If

the spool cap is too small for the spool

being used, the thread may catch on the

slit in the spool or the needle may break.

SE-BrotherE_sgml.book Page 24 Monday, June 30, 2003 3:44 PM

Upper Threading 25

Push the thread cassette eject lever on the left

side of the machine toward the back.

a Thread cassette eject lever

X The thread cassette is raised.

• If the sewing machine is turned off, the

thread cassette will not be ejected correctly.

Remove the thread cassette.

Pull the cover of the thread cassette out

toward you, and then pull off the spool cap

that is inserted onto the spool pin.

a Spool cap (orange)

b Spool pin

c Cover

Place the spool for the upper thread onto the

spool pin.

Slide the spool onto the spool pin so that the

thread unwinds from the left, as seen from the

top.

a Spool

Slide the spool cap onto the spool pin.

With the rounded side of the spool cap

positioned toward the top, slide the spool cap

onto the spool pin as far as possible until the

down side of the spool touches the down end

of the spool pin.

• Only the orange spool cap should be placed

on the spool pin in the thread cassette.

SE-BrotherE_sgml.book Page 25 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

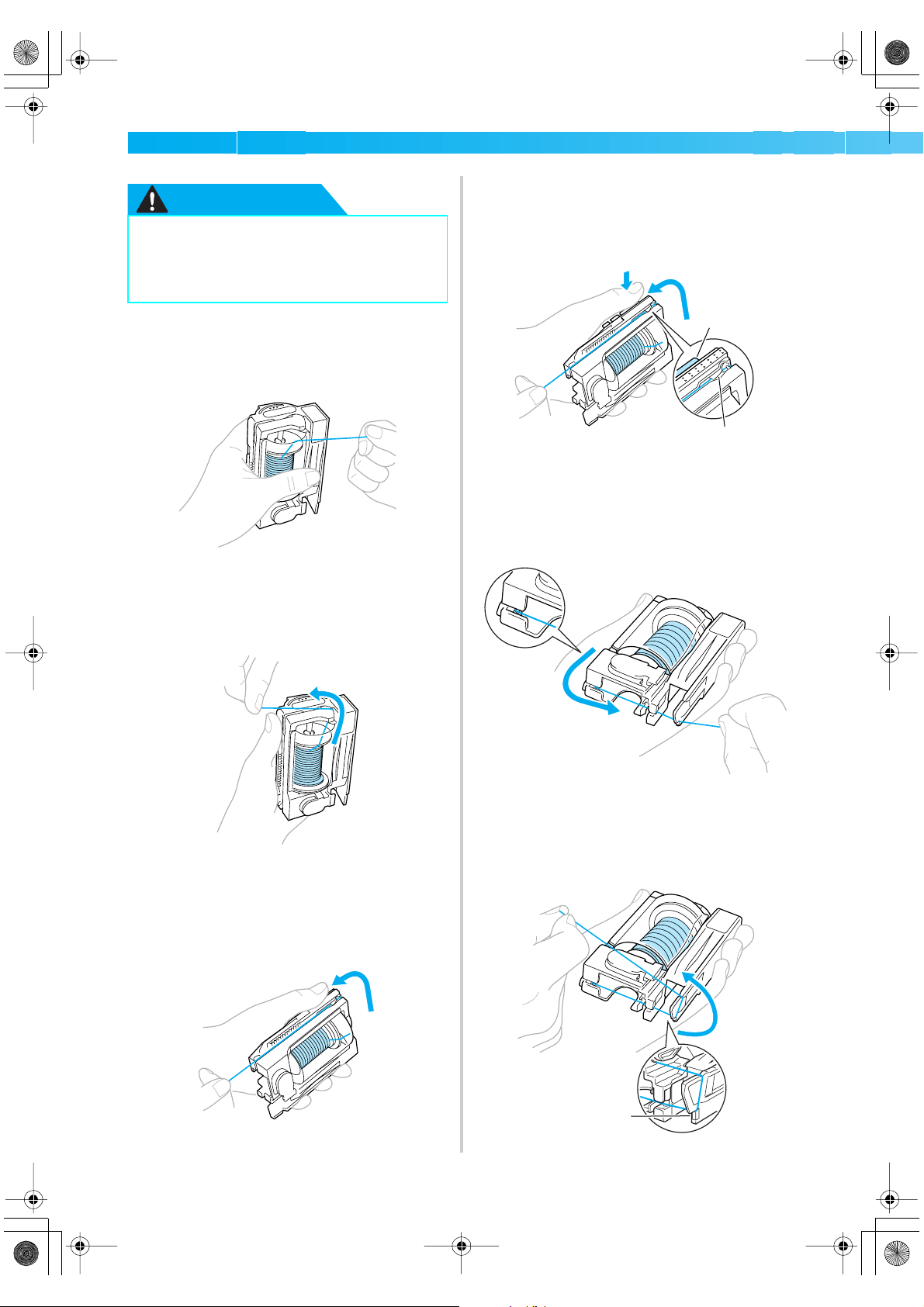

CAUTION

While holding the end of the thread with your

right hand and the thread cassette with your

left hand, close the cover.

Close until it clicks.

Pass the thread through the slit in the top of

the thread cassette.

Follow arrow 2 indicated on the thread

cassette.

Pull the thread to the left and pass it through

the slit along the left side of the thread

cassette.

Follow arrow 3 indicated on the thread

cassette.

• When using special thread such as metallic

thread, use the thumb of your left hand to

lightly press down on the area indicated in

the illustration to create an opening that

allows for easier threading.

a Push

b Gap

Pass the thread along the bottom of the thread

cassette.

Follow arrow 4 indicated on the thread

cassette.

Pass the thread through the notch in the

lower-right corner of the thread cassette, and

then pull the thread to the left.

Follow arrow 5 indicated on the thread

cassette.

a Notch

● If the spool or the spool cap is not

positioned correctly, the thread may

become tangled around the spool pin or

the needle may break.

SE-BrotherE_sgml.book Page 26 Monday, June 30, 2003 3:44 PM

Upper Threading 27

Pull the thread under the disc at the front in

the lower-left corner and around to the right,

and then the thread will be cut with the cutter.

Follow arrow 6 indicated on the thread

cassette.

a Disc

b Cutter

X The spool of thread is now loaded in the

thread cassette.

Note

z Be sure the thread is cut as described above,

otherwise the needle threader cannot be

used to thread the needle.

Threading the needle

In this section, the procedures for installing the thread

cassette and threading the needle are described. The

needle threader is used to thread the needle at the

same time that the thread cassette is inserted.

Memo

z The needle threader can be used with

sewing machine needles 75/11 through

100/16.

z Thread with a thickness of 130/20 or thicker

cannot be used with the needle threader.

z The needle threader cannot be used with the

wing needle or the twin needle.

z If the needle threader cannot be used, refer

to "Thread the needle manually (without

using the needle threader)" (page 30).

Check that the thread cassette indicator is lit

up in green.

a Thread cassette indicator

• If the thread cassette indicator is lit up in red,

the needle has not been raised to the correct

position. Press (Needle position button)

once to raise the needle.

a Needle position button

SE-BrotherE_sgml.book Page 27 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

• If the needle is not raised to the correct posi-

tion, the needle cannot be threaded with the

needle threader. Be sure to check that the

thread cassette indicator is lit up in green

before inserting the thread cassette.

Insert the thread cassette into the thread

cassette compartment.

Slowly press down on the thread cassette until

it clicks into place.

a Push here

a Needle bar thread hooks

X At the same time that the thread cassette is

inserted, the needle is threaded.

X The thread cassette indicator goes off.

• If the needle could not be threaded or the

thread was not passed through the needle bar

thread hook, refer to "Loading the spool into

the thread cassette" (page 24) and perform

the procedure again starting from step

• The thread cassette can be inserted whenever

the presser foot lever is raised or lowered.

However, when the side cutter is attached,

be sure to lower the presser foot lever before

installing the thread cassette. For more

details, refer to "Sewing overcasting stitches

using the side cutter" (page 76).

CAUTION

Carefully pull on the loop of thread passed

through the eye of the needle to pull out the

end of the thread.

• When embroidering, go to

● The needle threader will automatically

thread the needle when the thread

cassette is pushed down. Be sure to keep

your hands and other items away from

the needle, otherwise injuries may occur.

SE-BrotherE_sgml.book Page 28 Monday, June 30, 2003 3:44 PM

Upper Threading 29

Pass the thread through the presser foot, and

then pull out about 10-15 cm (3/8-5/8 inch) of

thread toward the rear of the machine.

a 10-15 cm (3/8-5/8 inch)

X The upper threading is finished.

Close the thread cassette compartment cover.

X Now that the upper threading and the lower

threading are finished, you are ready to

begin sewing.

• When embroidering, go to

c in

"Embroidering a pattern" (page 150).

Note

z When inserting the thread cassette into its

compartment, slowly press it down.

z If the sewing machine could not be

threaded, try performing the procedure

again starting from loading the spool of

thread into the thread cassette.

Using the extra spool pin

When using spools with a size that cannot be loaded

into the thread cassette, use the extra spool pin.

Place the spool of thread onto the extra spool

pin.

a Extra spool pin

b Spool

Slide the spool cap for the size of the spool

onto the spool pin.

a Spool cap

• For more details, refer to "About the spool of

thread" (page 23).

Insert the tabs on the extra spool pin into the

holes on the top of the thread cassette.

SE-BrotherE_sgml.book Page 29 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

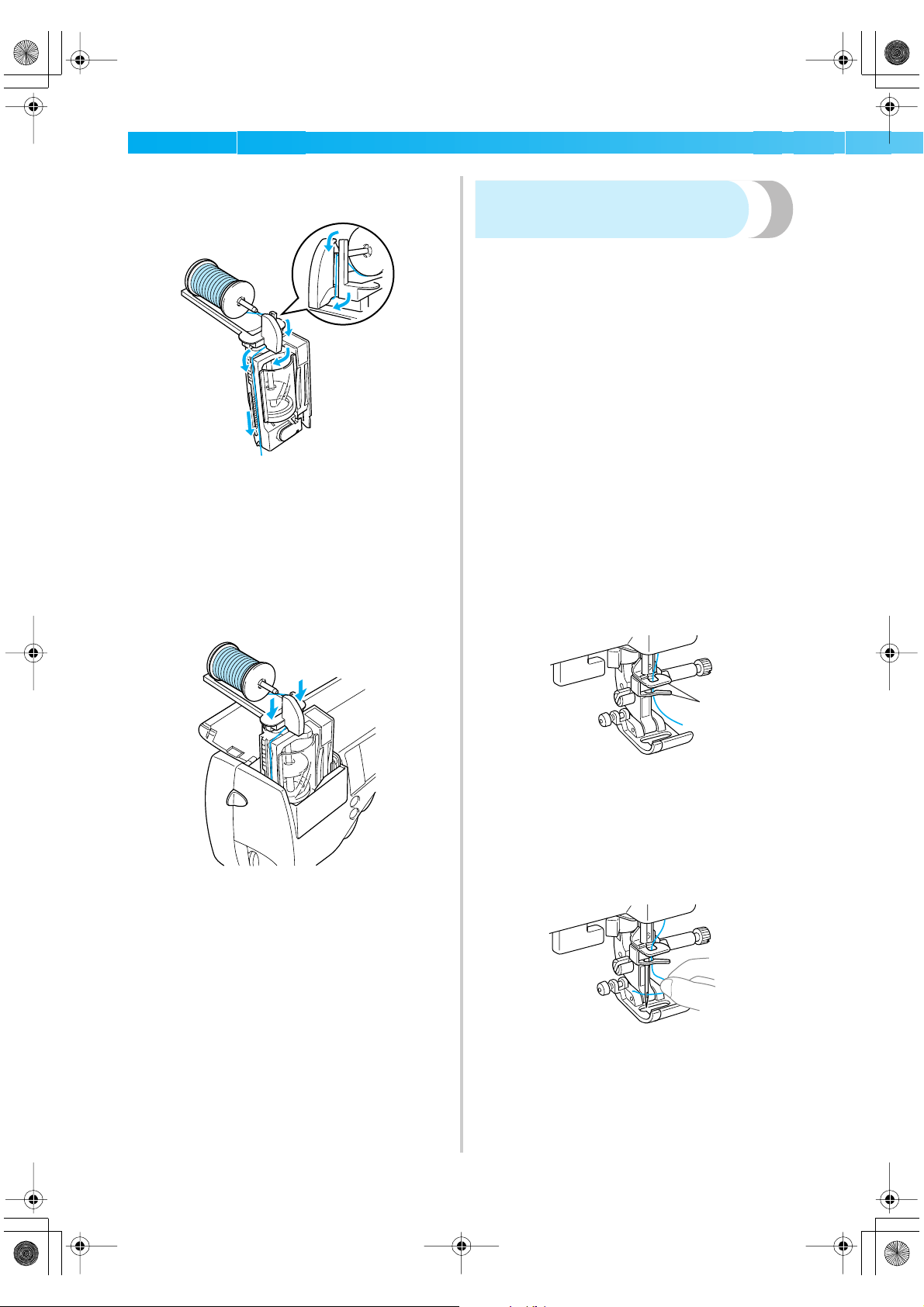

Thread the thread cassette with the thread

from the spool on the extra spool pin.

• For more details, refer to "Loading the spool

into the thread cassette" (page 24).

Check that the thread cassette indicator is lit

up in green, and insert the thread cassette

(with the extra spool pin attached) into the

thread cassette compartment.

Use both hands to press down on both sides of

the extra spool pin.

X At the same time that the thread cassette is

inserted, the needle is threaded.

X The extra spool pin is now installed.

Thread the needle manually

(

without using the needle threader

)

When using special thread, thread with a thickness of

130/20 or thicker, the wing needle or the twin needle

which cannot be used with the needle threader,

thread the needle as described below.

Remove the needle.

• Refer to "Replacing the needle" (page 37).

• When using the wing needle, the twin needle

or thread that cannot be used with the needle

threader, be sure to remove the needle,

otherwise the machine may be damaged.

Check that the thread cassette indicator is lit

up in green, and then insert the thread cassette

into the thread cassette compartment.

• For details, refer to

a through b

(page 27).

X Pass the thread through the needle bar

thread hooks.

a Needle bar thread hooks

Replace the needle.

• Refer to "Replacing the needle" (page 37).

Pass the thread through the eye of the needle

from front to back.

SE-BrotherE_sgml.book Page 30 Monday, June 30, 2003 3:44 PM

Upper Threading 31

Using the twin needle

Using the twin needle, you can sew two parallel lines

of the same stitch with two different colors. Both

upper threads should have the same thickness and

quality. Be sure to use the twin needle and the extra

spool pin.For details on the stitches that can be sewn

with the twin needle, refer to "Stitch Settings" (page

66).

CAUTION

Remove the needle.

• For details, refer to "Replacing the needle"

(page 37).

Load the spool for the first thread color into

the thread cassette.

Thread the thread cassette up to arrow 2,

indicated on the thread cassette.

• For more details, refer to steps

a through i

in "Loading the spool into the thread cassette"

(page 24).

Load the spool for the second thread color

onto the extra spool pin.

• For more details, refer to steps

a through d

in "Using the extra spool pin" (page 29).

Use the two threads to thread the thread

cassette, and then cut the threads.

Thread the thread cassette along arrows 3

through 6, indicated on the thread cassette.

• For more details, refer to steps

j through m

in "Loading the spool into the thread cassette"

(page 24).

● Only use the twin needle (Part code :

X59296-051).

Use of any other needle may bend the

needle or damage the machine.

● Never use bent needles. Bent needles can

easily break, possibly resulting in injuries.

● Do not try installing the twin needle while

the thread cassette is not installed,

otherwise the needle may break or

damage to the machine may result.

SE-BrotherE_sgml.book Page 31 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Insert the thread cassette (with the extra spool

pin attached) into the thread cassette

compartment.

• For more details, refer to step

e in "Using

the extra spool pin" (page 29).

X Pass both threads through the needle bar

thread hooks.

• If the thread cassette is inserted with the twin

needle attached, the sewing machine may be

damaged.

Install the twin needle.

• For details, refer to "Replacing the needle"

(page 37).

Manually thread the left needle with the

thread for the left side of the stitch.

• For details, refer to "Thread the needle

manually (without using the needle threader)"

(page 30).

Remove the thread for the right side of the

stitch from only the lower hook of the needle

bar thread hooks, and then use it to thread the

right needle.

Attach zigzag foot "J".

• For details on changing the presser foot, refer

to "Replacing the Presser Foot" (page 40).

CAUTION

Turn on the sewing machine and select a

stitch.

• For stitch selection see "Selecting stitching"

(page 47).

• See "Stitch Settings" (page 66) for stitches that

use a twin needle.

CAUTION

Press (Settings key) in the operation

panel.

X The settings screen appears.

Press .

X displays in reverse highlight.

• If pressed again, it returns to .

X The twin needle can now be used.

● When using the twin needle, be sure to

attach zigzag foot "J", otherwise the

needle may break or the machine may be

damaged.

● When using the twin needle, be sure to

select an appropriate stitch, otherwise the

needle may break or the machine may be

damaged.

SE-BrotherE_sgml.book Page 32 Monday, June 30, 2003 3:44 PM

Upper Threading 33

Press (Back key).

X The initial screen appears again, and

appears.

CAUTION

Start sewing.

• For details on starting to sew, refer to

"Starting to sew" (page 49).

X Two lines of stitching are sewn parallel to

each other.

Note

z When changing the sewing direction, press

(Needle position button) to raise the

needle from the fabric, and then raise the

presser foot lever and turn the fabric.

CAUTION

Pulling up the bobbin thread

When making gathers or before free-motion quilting,

first pull up the bobbin thread as described below.

Insert the bobbin into the shuttle.

• Refer to steps

a through e of "Installing the

bobbin" (page 21).

Pass the bobbin thread through the slot.

Do not cut the thread with the cutter.

While lightly holding the upper thread with

your left hand, press (Needle position

button) twice to raise the needle.

a Needle position button

X The bobbin thread is looped around the

upper thread and can be pulled up.

Carefully pull the upper thread upward to pull

out the end of the bobbin thread.

● When using the twin needle, be sure to

select the twin needle setting, otherwise

the needle may break or the machine may

be damaged.

● Do not try turning the fabric with the

twin needle left down in the fabric,

otherwise the needle may break or the

machine may be damaged.

● When the twin needle mode is selected

( ), do not turn the balance wheel

after removing the thread cassette.

Otherwise the needle may break or the

machine may be damaged.

SE-BrotherE_sgml.book Page 33 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Pull out about 10-15 cm (4-5 inches) of the

bobbin thread under the presser foot toward

the rear of the machine.

Reattach the bobbin cover.

Insert the tab in the lower-left corner of the

bobbin cover, and then lightly press down on

the right side.

SE-BrotherE_sgml.book Page 34 Monday, June 30, 2003 3:44 PM

Replacing the Needle 35

Replacing the Needle

This section provides information on sewing machine needles.

Needle precautions

Be sure to observe the following precautions concerning the handling of the needle. Failure to observe these

precautions is extremely dangerous, for example, if the needle breaks and fragments are dispersed. Be sure to

read and carefully follow the instructions below.

CAUTION

● Only use home sewing machine needles. Use of any other needle may bend the needle or

damage the machine.

● Never use bent needles. Bent needles can easily break, possibly resulting in injuries.

SE-BrotherE_sgml.book Page 35 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Needle types and their uses

The sewing machine needle that should be used depends on the fabric and thread thickness. Refer to the

following table when choosing the thread and needle appropriate for the fabric that you wish to sew.

■ Thread and needle number

The lower the thread number is, the larger the

thread, and the larger the needle number, the

larger the needle.

■ Ball point needle (gold colored)

To avoid skipped stitches use ball point needles

with stretch fabrics.

■ Transparent nylon thread

Use a 90/14 to 100/16 needle, regardless of the

fabric or thread.

■ Embroidery needles

Use a 75/11 home sewing machine needle. When

embroidering on thick fabrics such as denim, use

a 90/14 or 100/16 home sewing machine needle.

• A 75/11 needle is already installed when the

sewing machine is purchased.

CAUTION

Fabric Type/Application

Thread

Size of Needle

Type Size

Medium weight

fabrics

Broadcloth Cotton thread

60–80

75/11–90/14

Taffeta Synthetic thread

Flannel, Gabardine Silk thread 50–80

Thin fabrics

Lawn Cotton thread

60–80

65/9–75/11

Georgette Synthetic thread

Challis, Satin Silk thread 50–80

Thick fabrics

Denim Cotton thread 30–50

90/14–100/16

Corduroy Synthetic thread

Tweed Silk thread

Stretch fabrics

Jersey

Thread for knits 50–60

Ball point needle

(golden colored)

75/11–90/14

Tricot

Easily frayed fabrics

Cotton thread

50–80 65/9–90/14Synthetic thread

Silk thread

For top-stitching

Synthetic thread

30 90/14–100/16

Silk thread

● The appropriate fabric, thread and needle

combinations are shown in the table

above. If the combination of the fabric,

thread and needle is not correct,

particularly when sewing thick fabrics

(such as denim) with thin needles (such as

65/9 to 75/11), the needle may bend or

break. In addition, the stitching may be

uneven or puckered or there may be

skipped stitches.

SE-BrotherE_sgml.book Page 36 Monday, June 30, 2003 3:44 PM

Replacing the Needle 37

Checking the needle

Sewing with a bent needle is extremely dangerous

since the needle may break while the machine is

being operated.

Before using the needle, place the flat side of the

needle on a flat surface and check that the distance

between the needle and the flat surface is even.

a Flat side

b Needle type marking

■ Correct needle

a Flat surface

■ Incorrect needle

If the distance between the needle and the flat

surface is not even, the needle is bent. Do not use

a bent needle.

a Flat surface

Replacing the needle

Replace the needle as described below. Use the

screwdriver and a needle that has been determined to

be straight according to the instructions in "Checking

the needle".

Press (Needle position button) once or

twice to raise the needle.

a Needle position button

Turn off the sewing machine.

CAUTION

Lower the presser foot lever.

a Presser foot lever

● Before replacing the needle, be sure to

turn off the sewing machine, otherwise

injuries may occur if the start/stop button

is accidentally pressed and the machine

starts sewing.

SE-BrotherE_sgml.book Page 37 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Hold the needle with your left hand, and then

use a screwdriver to turn the needle clamp

screw counterclockwise to remove the needle.

a Screwdriver

b Needle clamp screw

• Do not apply a strong force when loosening

or tightening the needle clamp screw,

otherwise certain parts of the sewing

machine may be damaged.

With the flat side of the needle toward the rear

of the machine, insert the needle until it

touches the needle stopper.

a Needle stopper

While holding the needle with your left hand,

use the screwdriver to tighten the needle

clamp screw.

Install the twin needle in the same way.

CAUTION

■ Using the needle-changing tool

Use the needle-changing tool to replace the

needle as described below.

Place the needle in the hole in the needle-

changing tool.

Lift up the needle-changing tool so that the

fork hooks onto the needle clamp screw.

● Be sure to insert the needle until it

touches the needle stopper and securely

tighten the needle clamp screw with the

screwdriver, otherwise the needle may

break or damage may result.

SE-BrotherE_sgml.book Page 38 Monday, June 30, 2003 3:44 PM

Replacing the Needle 39

Using the screwdriver, loosen the needle

clamp screw.

Lower the needle-changing tool.

X The needle can be removed from the needle

bar.

Insert the new needle into the hole in the

needle-changing tool.

Insert the needle with the flat side of the needle

toward the rear of the machine.

Lift up the needle-changing tool so that the

fork hooks onto the needle clamp screw.

Insert the needle until it touches the needle

stopper, and then use the screwdriver to

tighten the needle clamp screw.

X The needle is installed.

Lower the needle-changing tool off of the

needle.

Note

z The needle-changing tool can not be used

for the twin needle.

SE-BrotherE_sgml.book Page 39 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Replacing the Presser Foot

The presser foot presses down on the fabric.

Presser foot precautions

Be sure to observe the following precautions concerning the presser feet.

CAUTION

Replacing the presser foot

Replace the presser foot as described below.

Press (Needle position button) once or

twice to raise the needle.

a Needle position button

• If the needle does not move when the needle

position button is pressed, an animation is

displayed on the LCD. Press the needle

position button after touching the LCD.

X The needle is raised.

Turn off the sewing machine.

CAUTION

Raise the presser foot lever.

a Presser foot lever

X The presser foot is raised.

Press the black button at the back of the

presser foot holder.

a Black button

b Presser foot holder

X The presser foot holder releases the presser

foot.

● Use the presser foot appropriate for the type of stitch that you wish to sew, otherwise the

needle may hit the presser foot, causing the needle to bend or break.

● Only use presser feet designed specifically for this sewing machine. Use of any other presser

foot may result in injuries or damage to the machine.

● Before replacing the presser foot, be sure

to turn off the sewing machine, otherwise

injuries may occur if the start/stop button

is accidentally pressed and the machine

starts sewing.

SE-BrotherE_sgml.book Page 40 Monday, June 30, 2003 3:44 PM

Replacing the Presser Foot 41

Place a different presser foot below the holder

so that the presser foot pin is aligned with the

notch in the holder.

Position the presser foot so the letter indicating

the presser foot type (A, G, I, J, M, N or R) is

positioned to be read.

a Presser foot holder

b Notch

c Pin

Slowly lower the presser foot lever so that the

presser foot pin snaps into the notch in the

presser foot holder.

a Presser foot lever

X The presser foot is attached.

Raise the presser foot lever to check that the

presser foot is securely attached.

Note

z When a stitch is selected, the icon for the

presser foot that should be used appears in

the screen. Check that the correct presser

foot is attached before starting to sew. If the

wrong presser foot is installed, turn off the

sewing machine, attach the correct presser

foot, and then select the desired stitch again.

z For details on the presser foot that should be

used with the selected stitch, refer to "Stitch

Settings" (page 66).

Buttonhole foot "A"

Overcasting foot "G"

Zigzag foot "J"

Button fitting foot "M"

Monogramming foot "N"

Blind stitch foot "R"

Side cutter "S"

Embroidery foot "Q"

SE-BrotherE_sgml.book Page 41 Monday, June 30, 2003 3:44 PM

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Removing the presser foot

holder

Remove the presser foot holder when cleaning the

sewing machine or when installing a presser foot that

does not use the presser foot holder, such as the

embroidery foot and quilting foot. Use the

screwdriver to remove the presser foot holder.

Remove the presser foot.

• For details, refer to "Replacing the presser

foot" (page 40).

Use the screwdriver to loosen the presser foot

holder screw.

a Screwdriver

b Presser foot holder

c Presser foot holder screw

■ Attaching the presser foot holder

Align the presser foot holder with the lower-

left side of the presser bar.

Hold the presser foot holder in place with your

right hand, and then tighten the screw using

the screwdriver in your left hand.

a Screwdriver

Note

z If the presser foot holder is not correctly

installed, the thread tension will be

incorrect.

SE-BrotherE_sgml.book Page 42 Monday, June 30, 2003 3:44 PM

Sewing Cylindrical Pieces 43

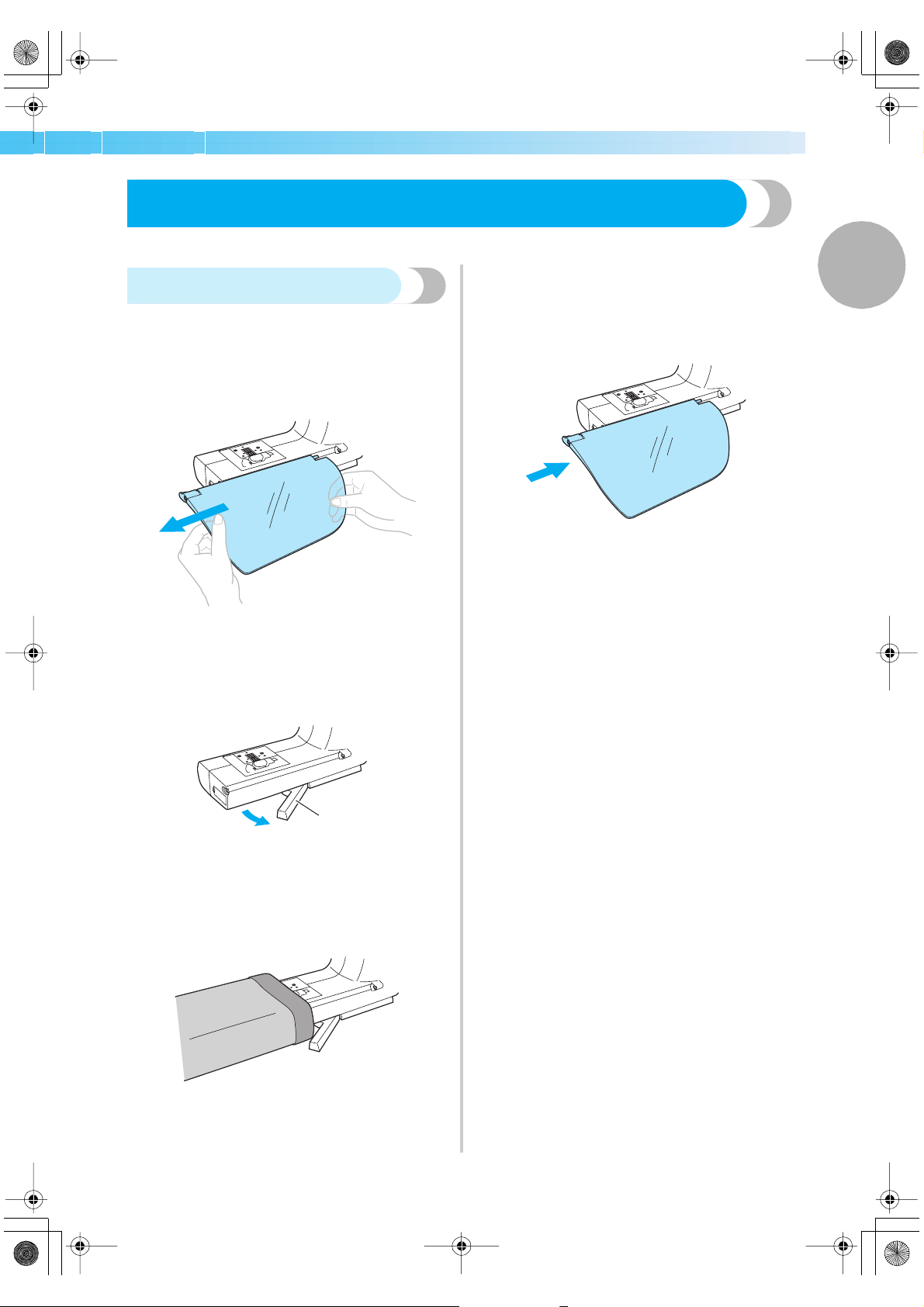

Sewing Cylindrical Pieces

Free-arm sewing makes sewing cylindrical pieces easy.

Free-arm sewing

Removing the flap allows for free-arm sewing,

making it easier to sew cylindrical pieces such as

sleeve cuffs and pant legs.

Slide the flap off to the left.

X With the flap removed, free-arm sewing is

possible.

Pull the sliding leg (at the bottom of the

machine) out toward you.

a Sliding leg

• During free-arm sewing, be sure to pull out

the sliding leg.

Slide the part that you wish to sew onto the

arm, and then sew from the top.

When you are finished with free-arm sewing,

push the sliding leg back into position.

Then, install the flap back to its original

position.

SE-BrotherE_sgml.book Page 43 Monday, June 30, 2003 3:44 PM

SE-BrotherE_sgml.book Page 44 Monday, June 30, 2003 3:44 PM

2 SEWING BASICS

The necessary preparations for sewing are described in this chapter.

Sewing.....................................................................................................................46

Adjusting the Thread Tension..................................................................................54

Adjusting the Stitch Width and Length....................................................................56

Useful Functions......................................................................................................59

Useful Sewing Tips ..................................................................................................62

SE-BrotherE_sgml.book Page 45 Monday, June 30, 2003 3:44 PM

SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Sewing

Basic sewing operations are described below.

Before operating the sewing machine, read the following precautions.

CAUTION

General sewing procedure

Follow the basic procedures below to sew.

↓

● While the machine is in operation, pay special attention to the needle location. In addition,

keep your hands away from all moving parts such as the needle and balance wheel, otherwise

injuries may occur.

● Do not pull or push the fabric too hard while sewing, otherwise injuries may occur or the

needle may break.

● Never use bent needles. Bent needles can easily break, possibly resulting in injuries.

● Make sure that the needle does not strike basting pins, otherwise the needle may break or

bend.

1 Turn on the machine.

Turn on the sewing machine. For details on turning on the machine,

refer to "Turning on the machine" (page 13).

2 Select the stitch..

Select the stitch appropriate for the area to be sewn. For details on

selecting a stitch, refer to "Selecting stitching" (page 47).

3 Attach the presser foot.

Attach the presser foot appropriate for the stitch. For details on replacing

the presser foot, refer to "Replacing the presser foot" (page 40).

4 Position the fabric..

Place the area to be sewn under the presser foot. Be sure that the fabric

pieces are sewn in the correct order and that the right and wrong sides of

the fabric are aligned correctly. For details on positioning the fabric,

refer to "Positioning the fabric" (page 48).

5 Start sewing..

Start sewing. For details on starting to sew, refer to "Starting to sew" (page

49).

6 Cut the thread..

Cut the thread at the end of sewing. For details on cutting the thread,

refer to "Cutting the thread" (page 52).

SE-BrotherE_sgml.book Page 46 Monday, June 30, 2003 3:44 PM

Sewing 47

Selecting stitching

Stitches are selected using LCD operations. There are

67 utility stitches. Right after turning the power on,

the straight stitch (left needle position) is selected.

Determine the stitch to be used, and get the

matching presser foot ready.

• Refer to "Stitch Settings" (page 66).

Attach the presser foot.

The machine comes with zigzag foot "J"

attached.

• For details, refer to "Replacing the presser

foot" (page 40).

CAUTION

Turn on the sewing machine.

X The straight stitch (left needle position) is

shown selected in the LCD.

Press the stitch selection.

(Previous page key) displays the previous

screen, and (Next page key) displays the

next screen.

 Example:

is selected:

X The stitch is selected, and the stitch number

and settings are displayed.

If necessary, specify the setting for automatic

reverse/reinforcement stitching and adjust the

stitch length, etc.

Memo

z Uses of stitches and other stitch selections

are explained in "UTILITY STITCHES" (page

65).

z Automatic reverse/reinforcement stitching

and other settings are explained in "Useful

Functions" (page 59).

Note

z When a stitch is selected, the icon for the

presser foot that should be used appears in

the screen. For details, refer to "Replacing

the Presser Foot" (page 40). Check that the

correct presser foot is attached before

starting to sew. If the wrong presser foot is

installed, turn off the sewing machine, attach

the correct presser foot, and then select the

desired stitch again.

● Use the presser foot appropriate for the

stitch. If the wrong presser foot is used,

the needle may hit the presser foot and

break or bend.

SE-BrotherE_sgml.book Page 47 Monday, June 30, 2003 3:44 PM

SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Positioning the fabric

Be sure that the fabric pieces are sewn in the correct

order and that the right and wrong sides of the fabric

are aligned correctly.

Turn on the sewing machine.

Press (Needle position button) once or

twice to raise the needle.

a Needle position button

Place the fabric under the presser foot.

• If the seam allowance is positioned on the

right side, sewing in a straight line is easier

and the extra fabric does not get in the way.

While holding the end of the thread and the

fabric with your left hand, turn the balance

wheel toward you with your right hand to

lower the needle to the starting point of the

stitching.

Lower the presser foot lever.

a Presser foot lever

X The fabric is now positioned to be sewn.

SE-BrotherE_sgml.book Page 48 Monday, June 30, 2003 3:44 PM

Sewing 49

Starting to sew

Once you are ready to start sewing, you can start the

sewing machine. The sewing speed can be adjusted

using either the sewing speed controller or the foot

controller.

Note

z When the foot controller is plugged in, the

start/stop button cannnot be used to start or

stop sewing.

■ Using the operation button

Sewing can be started and stopped using the

operation button (Start/stop button).

Slide the sewing speed controller to the left or

right to select the desired sewing speed.

Slide the sewing speed controller to the left to

sew at a slower speed, or slide the speed

controller to the right to sew at a faster speed.

a Sewing speed controller

Press (Start/stop button) once.

a Start/stop button

X The machine starts sewing.

• If you continue to hold the start/stop button

pressed immediately after the sewing starts,

the machine will sew at a slow speed.

When the end of the stitching is reached, press

(Start/stop button) once.

X The machine stops sewing with the needle

down (in the fabric).

When you have finished sewing, press

(Needle position button).

X The needle is raised.

Cut the threads.

• For details, refer to "Cutting the thread" (page

52).

■ Using the foot controller

Sewing can be started and stopped using the foot

controller.

Turn off the sewing machine.

When connecting the foot controller, be sure to

turn off the sewing machine in order to prevent

the machine from accidentally being started.

Insert the foot controller plug into its jack on

the back side of the sewing machine.

a Foot controller jack

SE-BrotherE_sgml.book Page 49 Monday, June 30, 2003 3:44 PM

SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Note

(For U.S.A. only)

z Foot controller: Model N5V

This foot controller can be used on this

machine model 500D/500, HE-120.

Turn on the sewing machine.

Slide the sewing speed controller to the left or

right to select the desired sewing speed.

Slide the sewing speed controller to the left to

sew at a slower speed, or slide the speed

controller to the right to sew at a faster speed.

a Sewing speed controller

• The speed set using the sewing speed

controller is the foot controller’s maximum

sewing speed.

Once you are ready to start sewing, slowly

press down on the foot controller.

Pressing down on the foot controller increases

the sewing speed; releasing the pressure on the

foot controller decreases the sewing speed.

• Slowly press down on the foot controller.

Pressing it down hard starts sewing too

quickly.

X The machine starts sewing.

When the end of the stitching is reached,

completely release the foot controller.

X The machine stops sewing with the needle

lowered (in the fabric).

When you have finished sewing, press

(Needle position button).

X The needle is raised.

Cut the threads.

• For details, refer to "Cutting the thread" (page

52).

Memo

z When the foot controller is plugged in, the

start/stop button cannot be used to start or

stop sewing.

z When sewing is stopped, the needle remains

lowered (in the fabric). The machine can be

set so that the needle will stay up when

sewing is stopped. For details on setting the

machine so that the needle stays up when

sewing is stopped, refer to "Changing the

Machine Settings" (page 15).

CAUTION

Slower

Faster

● Do not allow thread or dust to

accumulate in the foot controller,

otherwise a fire or an electric shock may

occur.

● Do not place objects on the foot

controller, otherwise damage to the

machine or injuries may occur.

● If the machine is not to be used for a long

period of time, unplug the foot controller,

otherwise a fire or an electric shock may

occur.

Sewing 51

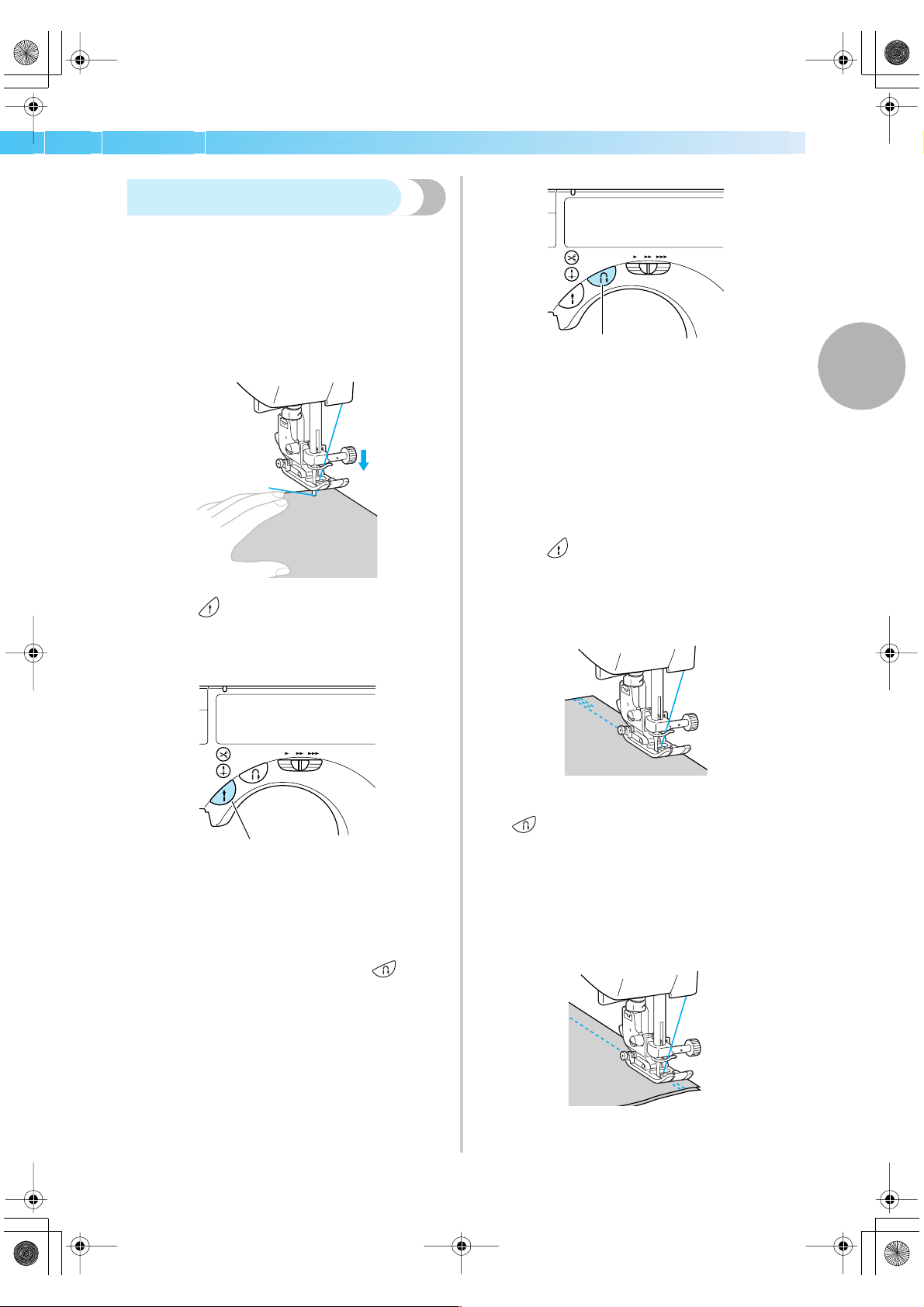

Securing the stitching

When sewing with the straight stitch, for example, at

the end of an opening or where seams do not

overlap, use reverse stitching or einforcement

stitching to secure the end of the thread.

Lower the needle into the fabric at the

beginning of the stitching, and then lower the

presser foot lever.

Press (Start/stop button) or press down on

the foot controller.

At this time, if the start/stop button is held

pressed, the machine sews at a low speed.

a Start/stop button

• For details, refer to "Starting to sew" (page

49).

X The machine starts sewing.

After sewing 3 to 5 stitches, press

(Reverse/reinforcement stitch button).

Keep the reverse/reinforcement stitch button

held down until you reach the beginning of the

stitching.

• The machine sews at a slow speed when the

reverse/reinforcement stitch button is held

down.

a Reverse/reinforcement stitch button

X While the reverse/reinforcement stitch

button is held pressed, reverse stitches are

sewn.

After sewing back to the beginning of the

stitching, release the reverse/reinforcement

stitch button.

X The machine stops sewing.

Press (Start/stop button), or press down

on the foot controller.

X The machine starts sewing in the normal

sewing direction.

When the end of the stitching is reached, press

(Reverse/reinforcement stitch button).

Keep the reverse/reinforcement stitch button

held down until 3 to 5 reverse stitches are

sewn.

X While the reverse/reinforcement stitch

button is depressed, reverse stitches are

sewn.

SE-BrotherE_sgml.book Page 51 Monday, June 30, 2003 3:44 PM

SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

After 3 to 5 reverse stitches have been sewn,

release (Reverse/reinforcement stitch

button).

X The machine stops sewing.

Press (Start/stop button), or press down

on the foot controller.

At this time, if the start/stop button is held

pressed, the machine sews at a low speed.

X The machine starts sewing in the normal

sewing direction.

After sewing to the end of the stitching, the

sewing machine stops.

Release the start/stop button or foot controller.

a Beginning of stitching

b End of stitching

■ Sewing stitches

Reverse stitches are set for the

and

stitches.

When (Reverse/reinforcement stitch button)

is pressed with stitches other than these,

reinforcement stitches are used. Reinforcement

stitches are 3 to 5 stitches sewn on top of each

other in one place.

a Reverse stitching

b Reinforcement stitching

Memo

z The sewing machine can be set to

automatically sew reverse or reinforcement

stitches at the beginning and end of the

stitching. For details, refer to "Automatically

sewing reverse/reinforcement stitches" (page

59).

Cutting the thread

When you have finished sewing, cut the threads.

■ Using the thread cutter button

When you wish to finish the stitching, press

(Thread cutter button) once.

a Thread cutter button

X The threads are cut and the needle is raised.

Raise the presser foot lever, then remove the

fabric.

a Presser foot lever

CAUTION

● Do not press the thread cutter button

after the threads have already been cut,

otherwise the needle may break, the

threads may become tangled or damage

to the machine may occur.

● Do not press the thread cutter button if

there is no fabric under the presser foot or

while the machine is sewing, otherwise

damage to the machine may occur.

SE-BrotherE_sgml.book Page 52 Monday, June 30, 2003 3:44 PM

Sewing 53

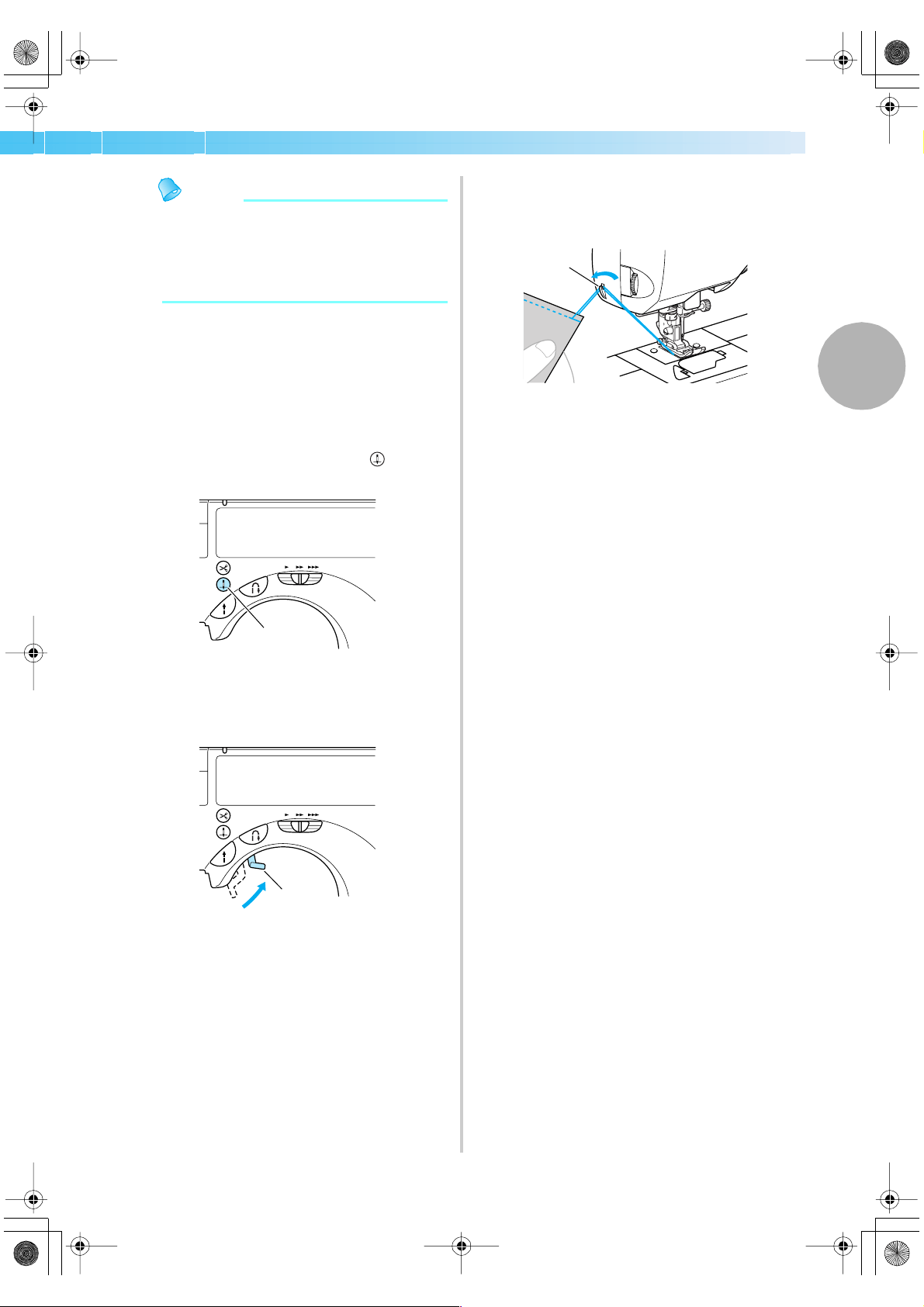

Memo

z The machine can be set so that the threads

will be cut when sewing is finished. For

details on setting the machine so that the

threads are cut automatically, refer to "Auto-

matically cutting the thread" (page 60).

■ Using the thread cutter

When sewing with thread thicker than #30, nylon

or metallic threads, or other special threads, use

the thread cutter on the side of the machine to cut

the threads.

When you wish to finish the stitching and the

sewing machine is stopped, press (Needle

position button) once.

a Needle position button

X The needle is raised.

Raise the presser foot lever.

a Presser foot lever

Pull the fabric to the left side of the machine,

and then pass the threads through the thread

cutter to cut them.

a Thread cutter

SE-BrotherE_sgml.book Page 53 Monday, June 30, 2003 3:44 PM

SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

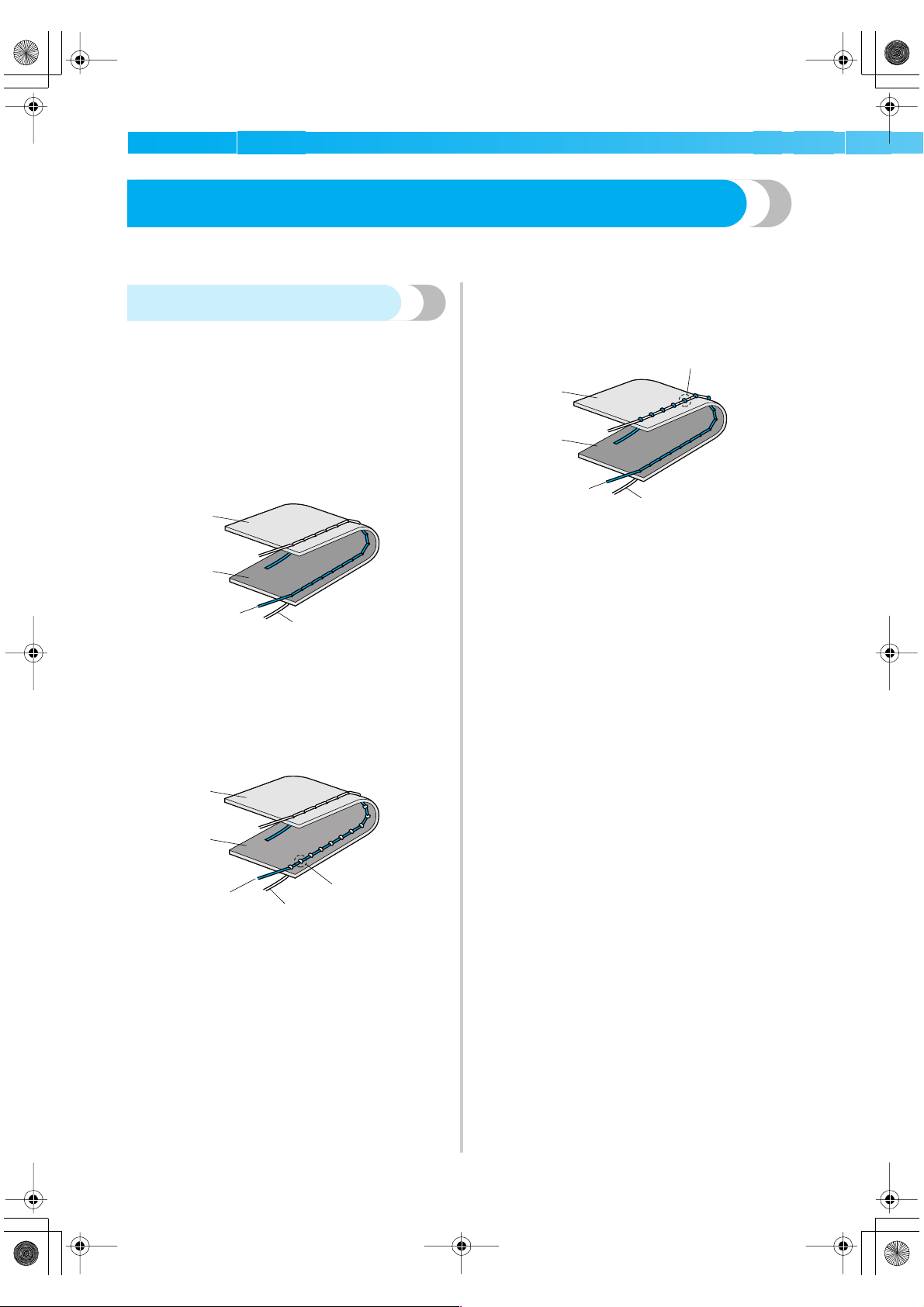

Adjusting the Thread Tension

The tensions of the upper thread and of the bobbin thread (thread tension) should be adjusted so that they

are equal.

Thread tension

You may need to change the thread tension,

depending on the fabric and thread being used.

■ Correct thread tension

The upper thread and the bobbin thread should

cross near the center of the fabric. Only the upper

thread should be visible from the right side of the

fabric, and only the bobbin thread should be

visible from the wrong side of the fabric.

a Wrong side of fabric

b Right side of fabric

c Upper thread

d Bobbin thread

■ Upper thread is too tight

If the bobbin thread is visible from the right side

of the fabric, the upper thread is too tight.

a Wrong side of fabric

b Right side of fabric

c Upper thread

d Bobbin thread

e The bobbin thread is visible from the right side of

the fabric.

Turn the thread tension dial downward to a lower

number to loosen the upper thread.

■ Upper thread is too loose

If the upper thread is visible from the wrong side

of the fabric, the upper thread is too loose.

a Wrong side of fabric

b Right side of fabric

c Upper thread

d Bobbin thread

e The upper thread is visible from the wrong side of

the fabric.

Turn the thread tension dial upward to a higher

number to tighten the upper thread.

SE-BrotherE_sgml.book Page 54 Monday, June 30, 2003 3:44 PM

Adjusting the Thread Tension 55

Changing the upper thread

tension

The tension is changed using the thread tension dial

on the left side of the sewing machine.

Test the stitching using a scrap of the actual

fabric to be used.

Referring to the illustration below, turn the

thread tension dial on the left side of the

sewing machine.

The larger the number is, the greater the upper

thread tension.

a Thread tension dial

Test it until the thread tension is suitable.

Memo

z Recommended tension setting for normal

stitching is 3-4-5 within the shaded area of

the upper tension dial.

Tight

Loose

SE-BrotherE_sgml.book Page 55 Monday, June 30, 2003 3:44 PM

SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

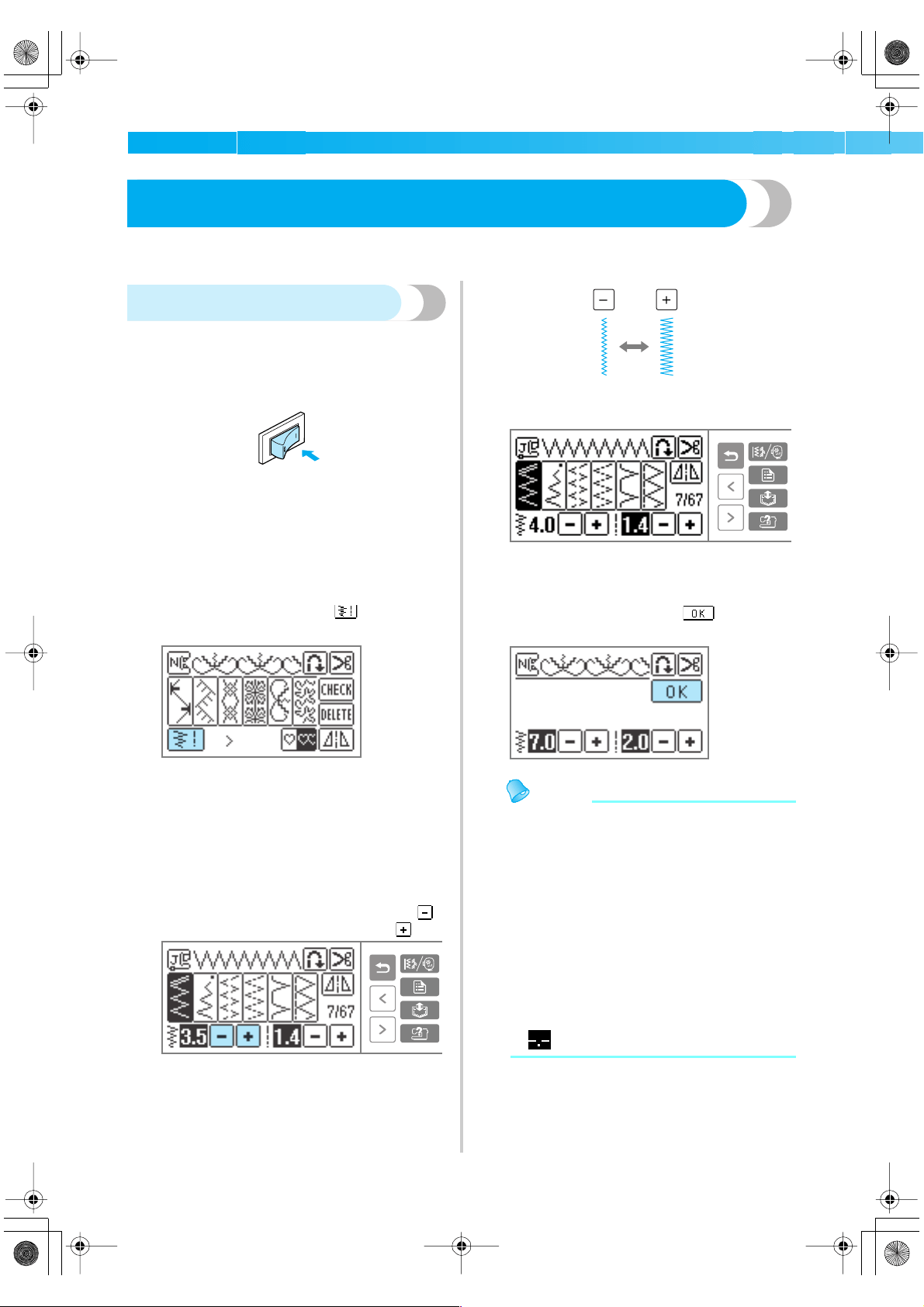

Adjusting the Stitch Width and Length

The stitch width and length can be adjusted. Normally, when a stitch is selected, the appropriate width

and length are automatically selected.

Adjusting the stitch width

The zigzag width can be adjusted on the LCD.

Turn on the sewing machine.

X The LCD comes on.

Select a stitch.

■ For groups other than utility stitches

When selecting stitches in the decorative

stitch, satin stitch, cross-stitch and combined

utility stitch groups, press after selecting

the stitch.

X A screen containing settings for the selected

stitch appears.

• For details on selecting a stitch, refer to

"Selecting stitching" (page 47).

• Immediately after the stitch is selected, the

standard settings (highlighted) appear.

To make the stitch width narrower, press .

To make the stitch width wider, press .

X The stitch width is changed.

• If the setting is changed, the highlighted

value is erased.

■ For groups other than utility stitches

When selecting stitches in the decorative

stitch, satin stitch, cross-stitch and combined

utility stitch groups, press after making

the setting.

Memo

z To reset the stitch width to its standard

setting, select the same stitch again or

change the setting to the highlighted value.

z If the straight stitch (left needle position or

triple stretch stitch) was selected, changing

the stitch width changes the needle position.

Increasing the width moves the needle to the

right; reducing the width moves the needle

to the left.

z The sewing machine can be set so that the

stitch width can easily be changed with the

sewing speed controller. For details, refer to

"Satin stitching" (page 102).

z means the setting cannot be adjusted.

SE-BrotherE_sgml.book Page 56 Monday, June 30, 2003 3:44 PM

Adjusting the Stitch Width and Length 57

CAUTION

Adjusting the stitch length

The stitch length can be adjusted on the LCD.

Turn on the sewing machine.

X The LCD comes on.

Select a stitch.

■ For groups other than utility stitches

When selecting stitches in the decorative

stitch, satin stitch, cross-stitch and combined

utility stitch groups, press after selecting

the stitch.

X A screen containing settings for the selected

stitch appears.

• For details on selecting a stitch, refer to

"Selecting stitching" (page 47).

• Immediately after the stitch is selected, the

standard settings (highlighted) appear.

To make the stitch length shorter, press .

To make the stitch length longer, press .

X The stitch length is changed.

• If the setting is changed, the highlighted

value is erased.

● After adjusting the stitch width, slowly

turn the balance wheel toward you and

check that the needle does not touch the

presser foot. If the needle hits the presser

foot, the needle may bend or break.

SE-BrotherE_sgml.book Page 57 Monday, June 30, 2003 3:44 PM

SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

■ For groups other than utility stitches

When selecting stitches in the decorative

stitch, satin stitch, cross-stitch and combined

utility stitch groups, press after

making the setting.

Memo

z To reset the stitch length to its standard

setting, select the same stitch again or

change the setting to the highlighted value.

z means the setting cannot be adjusted.

CAUTION

● If the stitches are bunched together,

increase the stitch length. Continuing to

sew with the stitches bunched together

may result in the needle bending or

breaking.

SE-BrotherE_sgml.book Page 58 Monday, June 30, 2003 3:44 PM

Useful Functions 59

Useful Functions

Functions useful in improving sewing efficiency are described below.

Automatically sewing reverse/

reinforcement stitches

The sewing machine can be set to automatically sew

reverse or reinforcement stitches at the beginning and

end of the stitching.Whether reverse stitches or

reinforcement stitches are sewn depends on the stitch

that is selected. For details, refer to "Stitch Settings"

(page 66).

Turn on the sewing machine.

X The LCD comes on.

Select a stitch.

• For details on selecting a stitch, refer to

"Selecting stitching" (page 47).

Press on the LCD.

X It turns to , and the sewing machine is set

for automatic reverse/reinforcement

stitching.

• To turn automatic reverse/reinforcement

stitching off, press .

• When the sewing machine is turned off, the

automatic reverse/reinforcement stitching

setting is cancelled.

Position the fabric under the presser foot, and

then press (Start/stop button) once.

a Start/stop button

X After reverse/reinforcement stitches are

sewn, the machine starts sewing.

After reaching the end of the stitching, press

(Reverse/reinforcement stitch button)

once.

This step is not necessary if a stitch such as

those for sewing buttonholes and bar tacks is

selected where reinforcement stitches are

automatically sewn.

a Reverse/reinforcement stitch button

X After reverse/reinforcement stitches are

sewn, the sewing machine stops.

SE-BrotherE_sgml.book Page 59 Monday, June 30, 2003 3:44 PM

SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Memo

z Reverse/reinforcement stitches will not be

sewn if the start/stop button is pressed at the

end of the stitching. Be sure to press the

reverse/reinforcement stitch button at the

end of the stitching.

Automatically cutting the

thread

The sewing machine can be set to automatically cut

the threads at the end of the stitching. This is called

"programmed thread-cutting". If programmed thread-

cutting is set, automatic reverse/reinforcement

stitching is also set.

Turn on the sewing machine.

X The LCD comes on.

Select a stitch.

• For details on selecting a stitch, refer to

"Selecting stitching" (page 47).

Press on the LCD.

X You get , and the sewing machine is

set for programmed thread-cutting and

automatic reverse/reinforcement stitching.

• To turn programmed thread cutting off, press

SE-BrotherE_sgml.book Page 60 Monday, June 30, 2003 3:44 PM

Useful Functions 61

Set the fabric in place, and press (Start/

stop button) once.

X Stitching starts after reverse stitching or

reinforcement stitching.

Once you have reached the end of the

stitching, press (Reverse/reinforcement

stitch button) once.

If stitching, such as buttonholes and bar

tacking, that includes reinforcement stitching

has been selected, this operation is

unnecessary.

X After the reverse stitching or reinforcement

stitching has been done, the sewing machine

stops, and the thread is cut.

Memo

z Programmed thread-cutting will not be

performed if the start/stop button is pressed

while sewing. Press the reverse/

reinforcement stitch button at the end of the

stitching.

z If the power is turned off, programmed

thread-cutting will be turned off.

Mirroring stitches

You can sew the mirror image of a stitch horizontally

(left and right).

Turn on the sewing machine.

X The LCD comes on.

Select a stitch.

• For details on selecting a stitch, refer to

"Selecting stitching" (page 47).

Press on the LCD.

■ For groups other than utility stitches

X It turns to , and the pattern is mirrored.

• To turn the mirrored stitching off, press .

Memo

z Mirroring is not possible for buttonholes and

other stitches where shows.

z When the sewing machine is turned off, the

mirroring setting is cancelled.

The thread is cut here.

SE-BrotherE_sgml.book Page 61 Monday, June 30, 2003 3:44 PM

SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Useful Sewing Tips

Various ways to achieve better results for your sewing projects are described below. Refer to these tips

when sewing your project.

Trial sewing

After you have set up the machine with the thread

and needle appropriate for the type of fabric being

sewn, the machine automatically sets the thread

tension and stitch length and width for the stitch that

is selected. However, a trial piece of fabric should be

sewn since, depending on the type of fabric and

stitching being sewn, the desired results may not be

achieved.

For the trial sewing, use a piece of fabric and thread

that are the same as those used for your project, and

check the thread tension and stitch length and width.

Since the results differ depending on the type of

stitching and the number of layers of fabric sewn,

perform the trial sewing under the same conditions

that will be used with your project.

Changing the sewing direction

When the stitching reaches a corner, stop the

sewing machine.

Leave the needle lowered (in the fabric). If the

needle remained up when the machine stopped

sewing, press (Needle position button) to

lower the needle.

Raise the presser foot lever, and then turn the

fabric.

Turn the fabric using the needle as a pivot.

Lower the presser foot lever and continue

sewing.

Sewing curves

Stop sewing, and then slightly change the sewing

direction to sew around the curve. For details on

sewing with an even seam allowance, refer to

"Sewing an even seam allowance" (page 64).

When sewing along a curve while using a zigzag

stitch, select a shorter stitch length in order to obtain

a finer stitch.

SE-BrotherE_sgml.book Page 62 Monday, June 30, 2003 3:44 PM

Useful Sewing Tips 63

Sewing thick fabrics

■ If the fabric does not fit under the presser foot

If the fabric does not fit easily under the presser

foot, raise the presser foot lever even higher to

bring the presser foot to its highest position.

■ If thick seams are being sewn and the fabric does

not feed at the beginning of stitching

Zigzag foot "J" is equipped with a feature that

keeps the presser foot level.

a Sewing direction

When you encounter a seam that is too thick

to feed under the foot, raise the presser foot

lever.

Press the black button (Presser foot holding

pin) on the left side of zigzag foot "J". Keep the

button held in and lower the presser foot.

a Presser foot holding pin

X Release the button. The foot will lock in

place level with the seam, allowing the

fabric to feed.

X Once the trouble spot has been passed, the

foot will return to its normal position.

CAUTION

Sewing thin fabrics

When sewing thin fabrics, the stitching may become

misaligned or the fabric may not feed correctly. If this

occurs, place thin paper or stabilizer material under

the fabric and sew it together with the fabric. When

you have finished sewing, tear off any excess paper.

a Stabilizer material or paper

Sewing stretch fabrics

First, baste the pieces of fabric together, and then sew

without stretching the fabric.

a Basting

Besides, using the stretch stitching or the thread for

knits gives an attractive finishes.

● If fabric more than 6 mm (15/64 inch)

thick is sewn or if the fabric is pushed

with too much force, the needle may

bend or break.

SE-BrotherE_sgml.book Page 63 Monday, June 30, 2003 3:44 PM

SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Sewing an even seam

allowance

To sew an even seam, start sewing so that the seam

allowance is to the right of the presser foot, and the

edge of the fabric is aligned with either the right edge

of the presser foot or a marking on the needle plate.

■ Aligning the fabric with the presser foot

Sew while keeping the right edge of the presser

foot a fixed distance from the edge of the fabric.

a Seam

b Presser foot

■ Aligning the fabric with a needle plate marking

The markings on the needle plate show the

distance from the needle position of a seam sewn

with the straight stitch (left needle position). Sew

while keeping the edge of the fabric aligned with

a marking in the needle plate. The distance

between the markings in the upper scale is

1/8 inch (3 mm) and the distance between the

markings in the grid is 5 mm (3/16 inch).

a Seam

b Presser foot

c Centimeters

d Inches

e Needle plate

f 16 mm (5/8 inch)

■ Aligning the fabric with the guide foot

Sew while keeping the right edge of the fabric

aligned with a desired position of markings on the

guide foot.

SE-BrotherE_sgml.book Page 64 Monday, June 30, 2003 3:44 PM

3 UTILITY STITCHES

The various stitches and their applications are described in this chapter.

Stitch Settings..........................................................................................................66

Selecting Stitching...................................................................................................72

Overcasting Stitches................................................................................................74

Basic Stitching.........................................................................................................78

Blind Hem Stitching ................................................................................................80

Buttonhole Stitching................................................................................................82

Zipper Insertion.......................................................................................................89

Sewing Stretch Fabrics and Elastic Tape..................................................................94

Appliqué, Patchwork and Quilt Stitching ................................................................96

Reinforcement Stitching ........................................................................................103

Eyelet Stitching......................................................................................................107

Decorative Stitching..............................................................................................108

Sewing the Various Built-In Decorative Patterns...................................................116

Sewing combined patterns ....................................................................................119

Designing a Pattern (My Custom Stitch)................................................................123

SE-BrotherE_sgml.book Page 65 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Stitch Settings

Applications, stitch lengths and widths and whether the twin needle can be used are listed for utility

stitches in the following table.

Utility stitches

Stitch Name Pattern

Presser Foot

Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Twin Needle

Reverse/

Reinforcement

Stitching

Walking Foot

Auto Manual Auto Manual

Straight

stitch

Left

Basic stitching, sewing gathers

or pintucks, etc.

0.0

(0)

0.0–7.0

(0–1/4)

2.5

(3/32)

0.2–5.0

(1/64–3/16)

Yes Reverse No

Basic stitching and sewing

gathers or pintucks

0.0

(0)

0.0–7.0

(0–1/4)

2.5

(3/32)

0.2–5.0

(1/64–3/16)

Yes Reinforcement Yes

Center

J/I

Attaching zippers, basic

stitching, sewing gathers or

pintucks, etc.

––

2.5

(3/32)

0.2–5.0

(1/64–3/16)

Yes Reverse No

Triple stretch stitch

Attaching sleeves, sewing

inseams, sewing stretch fabrics

and decorative stitching

0.0

(0)

0.0–7.0

(0–1/4)

2.5

(3/32)

1.5–4.0

(1/16–3/16)

Yes Reinforcement No

Stretch stitch

Sewing stretch fabrics and

decorative stitching

1.0

(1/16)

1.0–3.0

(1/16–1/8)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

Yes Reinforcement No

Basting stitch

J Temporarily securing

0.0

(0)

0.0–7.0

(0–1/4)

– – No Reinforcement No

Zigzag

stitch

Center

Overcasting and attaching

appliqués

3.5

(1/8)

0.0–7.0

(0–1/4)

1.4

(1/16)

0.0–4.0

(0–3/16)

Yes Reverse No

Right

Beginning sewing from the right

needle position

3.5

(1/8)

2.5–5.0

(3/32–3/16)

1.4

(1/16)

0.3–4.0

(1/64–3/16)

Yes Reinforcement Yes

2-point

zigzag stitch

Overcasting on mediumweight

or stretch fabrics, attaching

elastic, darning, etc.

5.0

(3/16)

1.5–7.0

(1/16–1/4)

1.0

(1/16)

0.2–4.0

(1/64–3/16)

Yes Reinforcement Yes

3-point

zigzag stitch

Overcasting on mediumweight

or stretch fabrics, attaching

elastic, darning, etc.

5.0

(3/16)

1.5–7.0

(1/16–1/4)

1.0

(1/16)

0.2–4.0

(1/64–3/16)

Yes Reinforcement No

Overcasting stitch

Overcasting on thin or

mediumweight fabrics

3.5

(1/8)

2.5–5.0

(3/32–3/16)

2.0

(1/16)

1.0–4.0

(1/16–3/16)

No Reinforcement No

G Overcasting on thick fabrics

5.0

(3/16)

2.5–5.0

(3/32–3/16)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

No Reinforcement No

Overcasting on thick fabrics and

decorative stitching

5.0

(3/16)

3.5–5.0

(1/8–3/16)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

No Reinforcement No

J Overcasting on stretch fabrics

5.0

(3/16)

0.0–7.0

(0–1/4)

2.5

(3/32)

0.5–4.0

(1/32–3/16)

Yes Reinforcement No

Overcasting on thick or stretch

fabrics

5.0

(3/16)

0.0–7.0

(0–1/4)

2.5

(3/32)

0.5–4.0

(1/32–3/16)

Yes Reinforcement No

Overcasting on stretch fabrics

and decorative stitching

4.0

(3/16)

0.0–7.0

(0–1/4)

4.0

(3/16)

1.0–4.0

(1/16–3/16)

Yes Reinforcement No

SE-BrotherE_sgml.book Page 66 Monday, June 30, 2003 3:44 PM

Stitch Settings 67

Blind hem stitch

Blind hem stitching on

mediumweight fabrics

0.0

(0)

3← – 3→

2.0

(1/16)

1.0–3.5

(1/16–1/8)

No Reinforcement No

Blind hem stitching on stretch

fabrics

0.0

(0)

3← – 3→

2.0

(1/16)

1.0–3.5

(1/16–1/8)

No Reinforcement No

Appliqué stitch

J Appliqué stitching

3.5

(1/8)

2.5–5.0

(3/32–3/16)

2.5

(3/32)

1.6–4.0

(1/16–3/16)

Yes Reinforcement No

Shell tuck stitch

J Shell tuck stitching

4.0

(3/16)

0.0–7.0

(0–1/4)

2.5

(3/32)

0.2–4.0

(1/64–3/16)

Yes Reinforcement No

Satin scallop stitch

N Scallop stitching

5.0

(3/16)

2.5–7.0

(3/32–1/4)

0.5

(1/32)

0.1–1.0

(1/64–1/16)

Yes Reinforcement No

Joining stitch

Patchwork stitching and

decorative stitching

4.0

(3/16)

0.0–7.0

(0–1/4)

1.2

(1/16)

0.2–4.0

(1/64–3/16)

Yes Reinforcement No

Patchwork stitching, decorative

stitching and sewing overcasting

on both pieces of fabric, such as

with tricot

5.0

(3/16)

2.5–7.0

(3/32–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

Yes Reinforcement No

Patchwork stitching and

decorative stitching

5.0

(3/16)

0.0–7.0

(0–1/4)

1.2

(1/16)

0.2–4.0

(1/64–3/16)

Yes Reinforcement No

Smocking stitch

Smocking stitching and

decorative stitching

5.0

(3/16)

0.0–7.0

(0–1/4)

1.6

(1/16)

1.0–4.0

(1/16–3/16)

Yes Reinforcement No

Fagoting stitch

Fagoting and decorative

stitching

5.0

(3/16)

0.0–7.0

(0–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

Yes Reinforcement No

Fagoting and decorative

stitching

5.0

(3/16)

2.5–7.0

(3/32–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

Yes Reinforcement No

Elastic-attaching

stitch

Attaching elastic to stretch

fabrics

4.0

(3/16)

0.0–7.0

(0–1/4)

1.0

(1/16)

0.2–4.0

(1/64–3/16)

Yes Reinforcement No

Stitch Name Pattern

Presser Foot

Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Twin Needle

Reverse/

Reinforcement

Stitching

Walking Foot

Auto Manual Auto Manual

SE-BrotherE_sgml.book Page 67 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Decorative stitch

J Decorative stitching

4.0

(3/16)

0.0–7.0

(0–1/4)

3.0

(1/8)

2.0–4.0

(1/16–3/16)

No Reinforcement No

J Decorative stitching

4.0

(3/16)

0.0–7.0

(0–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

Yes Reinforcement No

J Decorative stitching

5.5

(7/32)

0.0–7.0

(0–1/4)

1.6

(1/16)

1.0–4.0

(1/16–3/16)

Yes Reinforcement No

Decorative stitching and elastic-

attaching

5.0

(3/16)

1.5–7.0

(1/16–1/4)

1.0

(1/16)

0.2–4.0

(1/64–3/16)

Yes Reinforcement No

Lace sewing, decorative

hemming, heirloom stitching,

etc.

3.5

(1/8)

1.5–7.0

(1/16–1/4)

2.5

(3/32)

1.6–4.0

(1/16–3/16)

No Reinforcement No

Decorative hemming, heirloom

stitching, etc.

6.0

(15/64)

1.5–7.0

(1/16–1/4)

3.0

(1/8)

1.5–4.0

(1/16–3/16)

No Reinforcement No

Decorative hemming on thin,

mediumweight and plain weave

fabrics, heirloom stitching, etc.

5.0

(3/16)

1.5–7.0

(1/16–1/4)

3.5

(1/8)

1.5–4.0

(1/16–3/16)

No Reinforcement No

Decorative hemming on thin,

mediumweight and plain weave

fabrics, heirloom stitching, etc.

5.0

(3/16)

1.5–7.0

(1/16–1/4)

4.0

(3/16)

1.5–4.0

1/16–3/16)

Yes Reinforcement No

Decorative hemming on thin,

mediumweight and plain weave

fabrics, heirloom stitching, etc.

5.0

(3/16)

1.5–7.0

(1/16–1/4)

2.5

(3/32)

1.5–4.0

(1/16–3/16)

Yes Reinforcement No

Decorative hemming on thin,

mediumweight and plain weave

fabrics, heirloom stitching, etc.

5.0

(3/16)

1.5–7.0

(1/16–1/4)

2.0

(1/16)

1.5–4.0

(1/16–3/16)

Yes Reinforcement No

Decorative hemming, ribbon

threading, heirloom stitching,

etc.

5.0

(3/16)

1.5–7.0

(1/16–1/4)

3.0

(1/8)

1.5–4.0

(1/16–3/16)

Yes Reinforcement No

Decorative stitching, smocking

stitching, heirloom stitching, etc.

6.0

(15/64)

1.5–7.0

(1/16–1/4)

1.6

(1/16)

1.0–4.0

(1/16–3/16)

No Reinforcement No

Decorative stitching, smocking

stitching, heirloom stitching, etc.

5.0

(3/16)

1.5–7.0

(1/16–1/4)

1.6

(1/16)

1.0–4.0

(1/16–3/16)

No Reinforcement No

Stitch Name Pattern

Presser Foot

Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Twin Needle

Reverse/

Reinforcement

Stitching

Walking Foot

Auto Manual Auto Manual

SE-BrotherE_sgml.book Page 68 Monday, June 30, 2003 3:44 PM

Stitch Settings 69

Buttonhole stitch

Horizontal buttonholes on thin

and mediumweight fabrics

5.0

(3/16)

3.0–5.0

(1/8–3/16)

0.4

(1/64)

0.2–1.0

(1/64–1/16)

Automatic

reinforcement

Horizontal buttonholes on areas

that are subject to strain

5.0

(3/16)

3.0–5.0

(1/8–3/16)

0.4

(1/64)

0.2–1.0

(1/64–1/16)

Automatic

reinforcement

Horizontal buttonholes on thick

fabrics

5.0

(3/16)

3.0–5.0

(1/8–3/16)

0.4

(1/64)

0.2–1.0

(1/64–1/16)

Automatic

reinforcement

Secured buttonholes for fabrics

that have backings

5.0

(3/16)

3.0–5.0

(1/8–3/16)

0.4

(1/64)

0.2–1.0

(1/64–1/16)

Automatic

reinforcement

Buttonholes for stretch or knit

fabrics

6.0

(15/54)

3.0–6.0

(1/8–15/64)

1.0

(1/16)

0.5–2.0

(1/32–1/16)

Automatic

reinforcement

A Buttonholes for stretch fabrics

6.0

(15/54)

3.0–6.0

(1/8–15/64)

1.5

(1/16)

1.0–3.0

(1/16–1/8)

Automatic

reinforcement

A Bound buttonholes

5.0

(3/16)

0.0–6.0

(0–15/64)

2.0

(1/16)

0.2–4.0

(1/64–3/16)

Automatic

reinforcement

Keyhole buttonholes for thick or

furry fabrics

7.0

(1/4)

3.0–7.0

(1/8–1/4)

0.5

(1/32)

0.3–1.0

(1/64–1/16)

Automatic

reinforcement

Keyhole buttonholes for

mediumweight and thick fabrics

7.0

(1/4)

3.0–7.0

(1/8–1/4)

0.5

(1/32)

0.3–1.0

(1/64–1/16)

Automatic

reinforcement

Horizontal buttonholes for thick

or furry fabrics

7.0

(1/4)

3.0–7.0

(1/8–1/4)

0.5

(1/32)

0.3–1.0

(1/64–1/16)

Automatic

reinforcement

Darning stitch

A Darning mediumweight fabrics

7.0

(1/4)

2.5–7.0

(3/32–1/4)

2.0

(1/16)

0.4–2.5

(1/64–3/32)

Automatic

reinforcement

A Darning thick fabrics

7.0

(1/4)

2.5–7.0

(3/32–1/4)

2.0

(1/16)

0.4–2.5

(1/64–3/32)

Automatic

reinforcement

Bar tack stitch

Reinforcing openings and areas

where the seam easily comes

loose

2.0

(1/16)

1.0–3.0

(1/16–1/8)

0.4

(1/64)

0.3–1.0

(1/64–1/16)

Automatic

reinforcement

Button-sewing stitch

M Button sewing

3.5

(1/8)

2.5–4.5

(3/32–3/16)

– – No Reinforcement No

Eyelet stitch

Sewing eyelets, for example, on

belts

7.0

(1/4)

7.0, 6.0,

5.0 (1/4,

15/64,

3/16)

7.0

(1/4)

7.0, 6.0,

5.0 (1/4,

15/64,

3/16)

Automatic

reinforcement

Piecing straight

stitch

Piecing straight stitching (with a

seam allowance of 6.5 mm from

the right edge of the presser foot)

5.5

(7/32)

0.0–7.0

(0–1/4)

1.6

(1/16)

0.2–5.0

(1/64–3/16)

No Reinforcement No

Piecing straight stitching (with a

seam allowance of 6.5 mm from

the left edge of the presser foot)

1.5

(1/16)

0.0–7.0

(0–1/4)

1.6

(1/16)

0.2–5.0

(1/64–3/16)

No Reinforcement Yes

Straight stitch that

looks hand-sewn

(for quilting)

Straight stitch quilting that looks

hand-sewn

0.0

(0)

0.0–7.0

(0–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

No Reinforcement No

Zigzag stitch

(for quilting)

Appliqué quilting, free-motion

quilting, satin stitching

3.5

(1/8)

0.0–7.0

(0–1/4)

1.4

(1/16)

0.0–4.0

(0–3/16)

No Reinforcement Yes

Appliqué stitch

(for quilting)

J Attaching appliqués and binding

1.5

(1/16)

0.5–5.0

(1/32–3/16)

1.2

(1/16)

1.0–4.0

(1/16–3/16)

No Reinforcement No

Stitch Name Pattern

Presser Foot

Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Twin Needle

Reverse/

Reinforcement

Stitching

Walking Foot

Auto Manual Auto Manual

SE-BrotherE_sgml.book Page 69 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Quilting stitch

(for stippling)

Quilting background stitching

(stippling)

7.0

(1/4)

1.0–7.0

(1/16–1/4)

1.6

(1/16)

1.0–4.0

(1/16–3/16)

No Reinforcement No

Side cutter

Sewing straight stitches while

cutting the fabric

0.0

(0)

0.0–2.5

(0–3/32)

2.5

(3/32)

0.2–5.0

(1/64–3/16)

No Reinforcement No

Sewing zigzag stitches while

cutting the fabric

3.5

(1/8)

3.5–5.0

(1/8–3/16)

1.4

(1/16)

0.0–4.0

(0–3/16)

No Reinforcement No

Overcasting on thin and

mediumweight fabrics while

cutting the fabric

3.5

(1/8)

3.5–5.0

(1/8–3/16)

2.0

(1/16)

1.0–4.0

(1/16–3/16)

No Reinforcement No

Overcasting on thick fabrics

while cutting the fabric

5.0

(3/16)

3.5–5.0

(1/8–3/16)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

No Reinforcement No

Overcasting on mediumweight

and thick fabrics while cutting

the fabric

5.0

(3/16)

3.5–5.0

(1/8–3/16)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

No Reinforcement No

Stitch Name Pattern

Presser Foot

Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Twin Needle

Reverse/

Reinforcement

Stitching

Walking Foot

Auto Manual Auto Manual

SE-BrotherE_sgml.book Page 70 Monday, June 30, 2003 3:44 PM

Stitch Settings 71

Other stitches

* Pattern for making adjustment

Stitch Type Pattern

Presser Foot

Twin Needle

Adjustable Pattern

Length/width

Left/Right Flipping

Decorative stitches

12345678910

NNoYesYes

11 12 13 14 15 16 17 18 19 20

21 22 23 24 25 26 27 28 29 30

31*

Satin stitches

12345678910

N Yes Yes Yes

11 12 13 14 15 16

Cross-stitches

12345678910

NNoYesYes

11 12 13 14

SE-BrotherE_sgml.book Page 71 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Selecting Stitching

You can select any of the various types of stitching available.

Stitch types

There are utility stitch, decorative stitch, satin stitch,

cross-stitch, combined utility stitch and my custom

stitches groups.

For details on the types of stitches available, refer to

"Stitch Settings" (page 66).

a Utility stitches

You can select from 67 types of utility stitches,

including straight line stitching, overcasting, button

holes and basic decorative stitches. If this is

selected, the screen that appears right after the

power is turned on is displayed.

b Decorative stitches

(Can be combined)

You can select from 31 decorative stitches,

including, leaves, flowers and hearts. You can sew

combinations of multiple decorative stitches.

c Satin stitches

(Can be combined)

There are 16 satin stitches. You can sew

combinations of multiple decorative stitches.

d Combined utility stitches

(Can be combined)

You can sew with combinations from 39 utility

stitches.

e Cross-stitches

(Can be combined)

There are 14 types of cross-stitches. You can sew

combinations of multiple decorative stitches.

f My custom stitches

You can design original stitches. (For details, refer

to "Designing a Pattern (My Custom Stitch)" (page

123).)

Selecting stitching

Determine which presser foot should be used

with the selected stitch.

• Refer to "Stitch Settings" (page 66).

Attach the presser foot.

• For details, refer to "Replacing the presser

foot" (page 40).

Turn on the sewing machine.

X The straight stitch (left needle position) is

shown selected in the LCD.

Press (Menu key) on the operation

panel.

X The screen for checking the stitching is

displayed.

Press .

X The screen containing the various stitches in

the selected stitch type appears.

SE-BrotherE_sgml.book Page 72 Monday, June 30, 2003 3:44 PM

Selecting Stitching 73

Select the stitch type.

X The screen containing the various types of

stitches appears.

• To select a different stitch type, press

(Back key).

Press the stitch selection.

(Previous page key) displays the previous

screen, and (Next page key) displays the

next screen.

 When a decorative stitch is selected

a Automatic reverse/reinforcement stitch

b Decorative stitch selection

c Set width and length

d Automatic thread cutting

e Check combined pattern

f Delete a selected pattern

g Horizontal mirror image

h Single stitch sewing

i Repeat sewing

• To select a different stitch, press the to

remove a selected pattern.

If necessary, specify the setting for automatic

reverse/reinforcement stitching and adjust the

stitch length, etc.

• For details on sewing with each of the utility

stitches, refer to the following pages.

Note

z When a stitch is selected, the icon for the

presser foot that should be used appears in

the screen. Check that the correct presser

foot is attached before starting to sew. If the

wrong presser foot is installed, turn off the

sewing machine, attach the correct presser

foot, and then select the desired stitch again.

Memo

z For details on adjusting the stitch width and

length, refer to "Adjusting the Stitch Width

and Length" (page 56).

SE-BrotherE_sgml.book Page 73 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

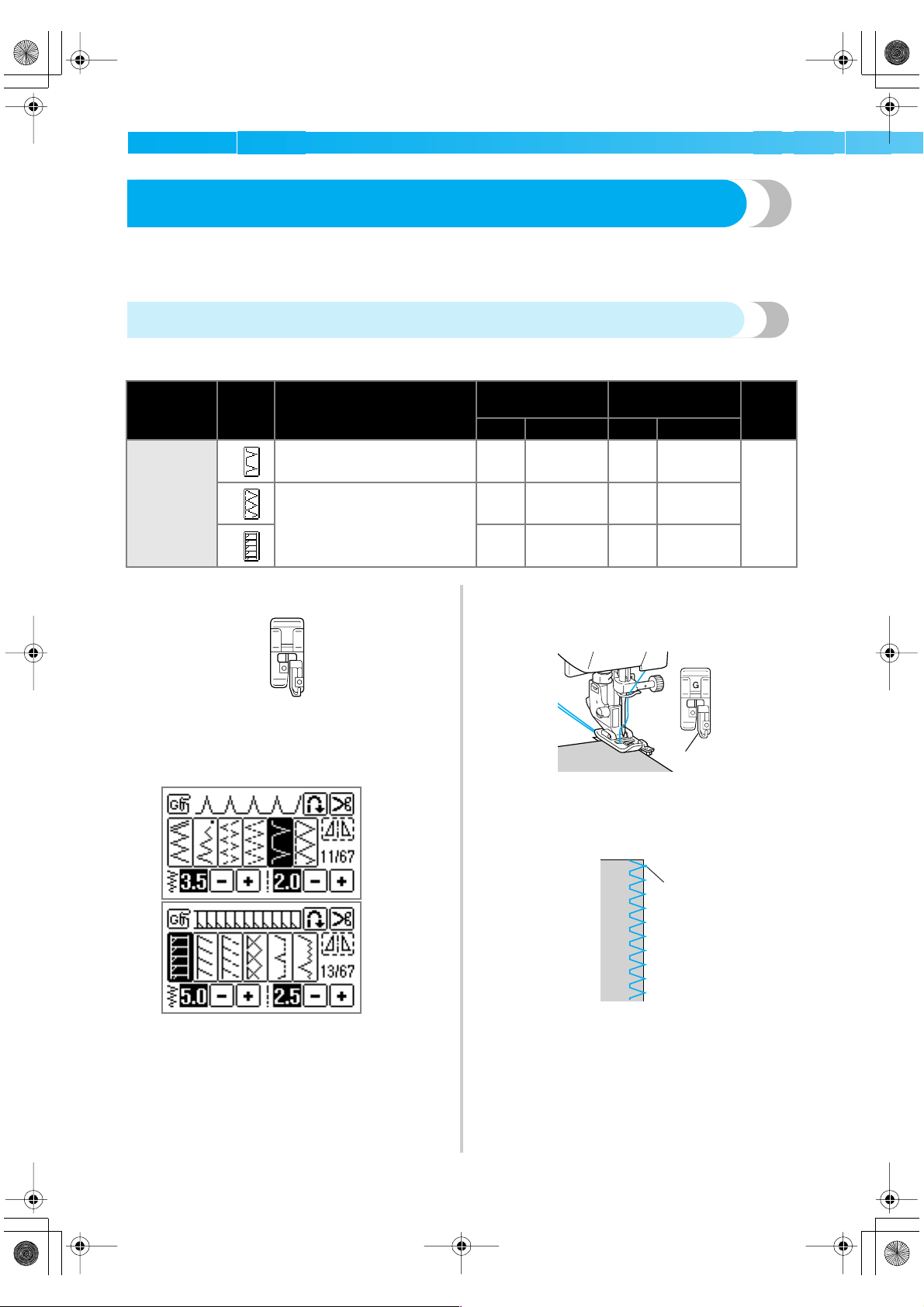

Overcasting Stitches

Sew overcasting stitches along the edges of cut fabric to prevent them from fraying. Fifteen stitches are

available for overcasting. The procedure for sewing overcasting stitch is explained according to the

presser foot that is used.

Sewing overcasting stitches using overcasting foot "G"

Three stitches can be used to sew overcasting with overcasting foot "G".

Attach overcasting foot "G".

• For details, refer to "Replacing the presser

foot" (page 40).

Select a stitch.

• For details, refer to "Selecting stitching" (page

47).

Position the fabric with the edge of the fabric

against the guide of the presser foot, and then

lower the presser foot lever.

a Guide

Sew with the edge of the fabric against the

presser foot guide.

a Needle drop point

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Overcasting

stitch

Preventing fraying in medium

weight and thin fabrics

3.5

(1/8)

2.5–5.0

(3/32–3/16)

2.0

(1/16)

1.0–4.0

(1/16–3/16)

Preventing fraying in thick

fabrics and fabrics that fray

easily

5.0

(3/16)

2.5–5.0

(3/32–3/16)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

5.0

(3/16)

3.5–5.0

(1/8–3/16)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

SE-BrotherE_sgml.book Page 74 Monday, June 30, 2003 3:44 PM

Overcasting Stitches 75

Sewing overcasting stitches using zigzag foot "J"

Seven stitches can be used to sew overcasting stitches with zigzag foot "J".

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Select a stitch.

• For details, refer to "Selecting stitching" (page

47).

Sew along the edge of the fabric with the

needle dropping off the edge at the right.

a Needle drop point

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Zigzag stitch

(center

needle

position)

Preventing fraying (center

baseline/reverse stitching)

3.5

(1/8)

0.0–7.0

(0–1/4)

1.4

(1/16)

0.0–4.0

(0–3/16)

Zigzag stitch

(right needle

position)

Preventing fraying (right

baseline/reinforcement stitching)

3.5

(1/8)

2.5–5.0

(3/32–3/16)

1.4

(1/16)

0.3–4.0

(1/64–3/16)

2-point

zigzag stitch

Preventing fraying in thick

fabrics and stretch fabrics

5.0

(3/16)

1.5–7.0

(1/16–1/4)

1.0

(1/16)

0.2–4.0

(1/64–3/16)

3-point

zigzag stitch

5.0

(3/16)

1.5–7.0

(1/16–1/4)

1.0

(1/16)

0.2–4.0

(1/64–3/16)

Overcasting

stitch

Preventing fraying in stretch

fabrics

5.0

(3/16)

0.0–7.0

(0–1/4)

2.5

(3/32)

0.5–4.0

(1/32–3/16)

Preventing fraying in thick

fabrics and stretch fabrics

5.0

(3/16)

0.0–7.0

(0–1/4)

2.5

(3/32)

0.5–4.0

(1/32–3/16)

Preventing fraying in stretch

fabrics

4.0

(3/16)

0.0–7.0

(0–1/4)

4.0

(3/16)

1.0–4.0

(1/16–3/16)

SE-BrotherE_sgml.book Page 75 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Sewing overcasting stitches using the side cutter

Using the side cutter, seam allowances can be finished while the edge of the fabric is cut off. Five stitches can be

used to sew overcasting stitches with the side cutter.

Remove the presser foot.

• For details, refer to "Replacing the presser

foot" (page 40).

Hook the connecting fork of the side cutter

onto the needle clamp screw.

a Connecting fork

b Needle clamp screw

Position the side cutter so that side cutter pin

is aligned with the notch in the presser foot

holder, and then slowly lower the presser foot

lever.

a Notch in presser foot holder

b Pin

X The side cutter is attached.

Raise the presser foot lever to check that the

side cutter is securely attached.

CAUTION

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Overcasting

stitch

Sewing straight stitches while

cutting the fabric

0.0

(0)

0.0–2.5

(0–3/32)

2.5

(3/32)

0.2–5.0

(1/64–3/16)

Sewing zigzag stitches while

cutting the fabric

3.5

(1/8)

3.5–5.0

(1/8–3/16)

1.4

(1/16)

0.0–4.0

(0–3/16)

Preventing fraying in thin and

mediumweight fabrics while

cutting the fabric

3.5

(1/8)

3.5–5.0

(1/8–3/16)

2.0

(1/16)

1.0–4.0

( 1/16–3/16)

Preventing fraying in thick

fabrics while cutting the fabric

5.0

(3/16)

3.5–5.0

(1/8–3/16)

2.5

(3/32)

1.0–4.0

( 1/16–3/16)

Preventing fraying in thick

fabrics while cutting the fabric

5.0

(3/16)

3.5–5.0

(1/8–3/16)

2.5

(3/32)

1.0–4.0

( 1/16–3/16)

● If the thread cassette is to be installed

with the side cutter attached, be sure to

lower the presser foot lever. If the presser

foot lever remains raised, the needle

threader will hit the presser foot, which

may result in damages.

SE-BrotherE_sgml.book Page 76 Monday, June 30, 2003 3:44 PM

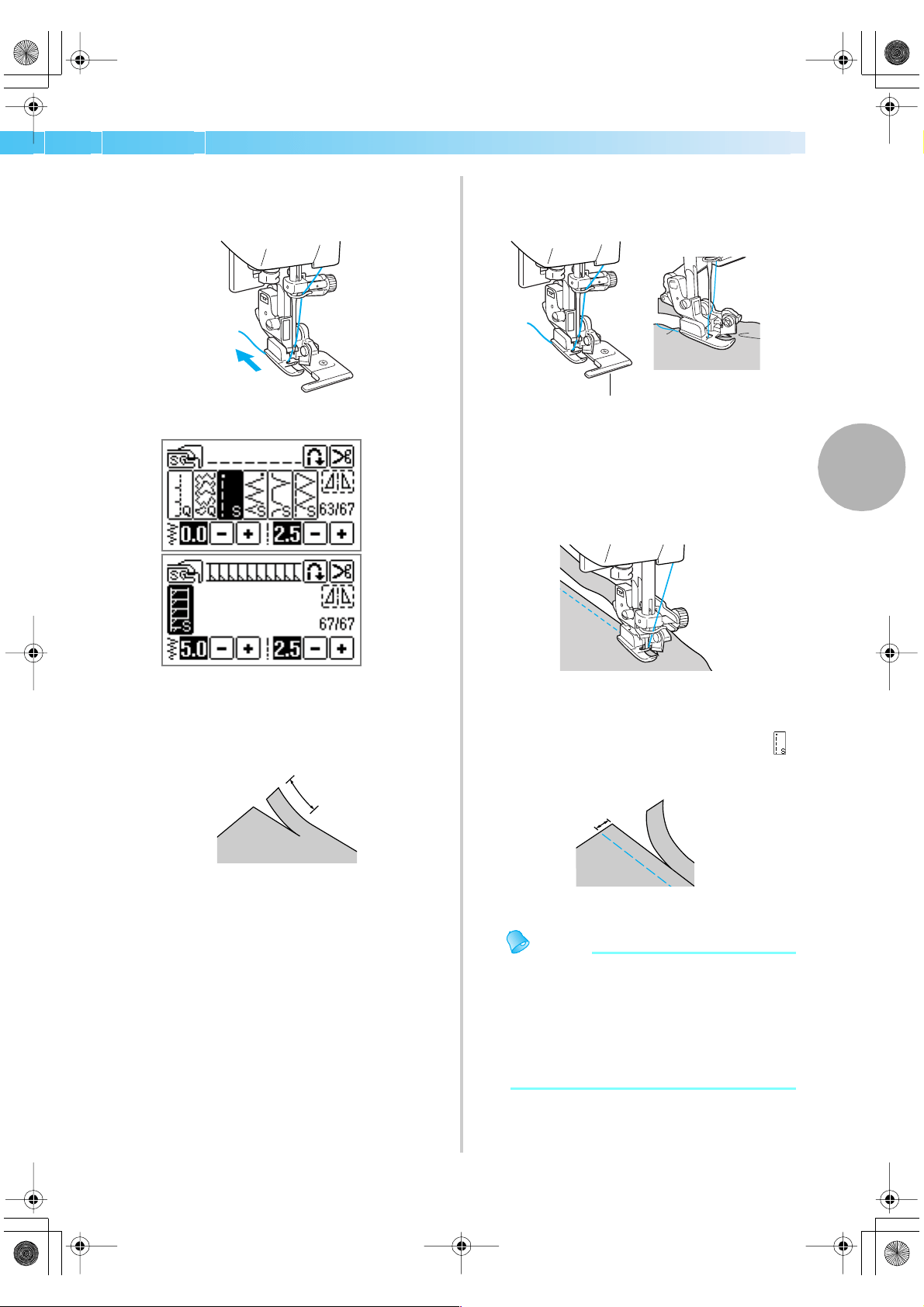

Overcasting Stitches 77

Pass the upper thread under the side cutter,

and then pull it out toward the rear of the

sewing machine.

Select a stitch.

• For details, refer to "Selecting stitching" (page

47).

Make a cut of about 2 cm (3/4 inch) long in

the fabric at the beginning of the stitching.

a 2 cm (3/4 inch)

Position the fabric in the side cutter.

The cut in the fabric should be positioned over

the guide plate of the side cutter.

a Guide plate

• If the fabric is not positioned correctly, the

fabric will not be cut.

Lower the presser foot lever, and then start

sewing.

X A seam allowance is cut while the stitching

is sewn.

• If the stitching is sewn in a straight line

the seam allowance will be about 5 mm

(3/16 inch).

a 5 mm (3/16 inch)

Memo

z The side cutter can cut as much as one layer

of 13-oz. denim.

z After using the side cutter, clean it by

removing any lint or dust.

z If the side cutter can no longer cut fabric,

use a rag to apply a small amount of oil to

the cutting edge of the cutter.

SE-BrotherE_sgml.book Page 77 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Basic Stitching

Straight stitches are used for sewing plain seams. Five stitches are available for basic stitching.

Basting

Sew basting with a stitch length between 5 mm (3/16

inch).

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

Start sewing.

•

For details, refer to

"Starting to sew" (page 49)

Basic stitching

Baste or pin together the fabric pieces.

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Select a stitch.

• For details, refer to "Selecting stitching" (page

47).

Lower the needle into the fabric at the

beginning of the stitching.

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Basting stitch

Temporarily securing

0.0

(0)

0.0–7.0

(0–1/4)

––

Straight stitch

(left needle

position)

Basic stitching and sewing

gathers or pintucks (left baseline/

reverse stitching)

0.0

(0)

0.0–7.0

(0–1/4)

2.5

(3/32)

0.2–5.0

(1/64–3/16)

Basic stitching and sewing

gathers or pintucks (left baseline/

reinforcement stitching)

0.0

(0)

0.0–7.0

(0–1/4)

2.5

(3/32)

0.2–5.0

(1/64–3/16)

Straight stitch

(center

needle

position)

Basic stitching and sewing

gathers or pintucks (center

baseline/reverse stitching)

––

2.5

(3/32)

0.2–5.0

(1/64–3/16)

Triple stretch

stitch

Reinforcing seams and sewing

stretch fabrics

0.0

(0)

0.0–7.0

(0–1/4)

2.5

(3/32)

1.5–4.0

(1/16–3/16)

SE-BrotherE_sgml.book Page 78 Monday, June 30, 2003 3:44 PM

Basic Stitching 79

Start sewing.

• For details, refer to "Starting to sew" (page

49).

• For details on sewing reverse/reinforcement

stitches, refer to "Securing the stitching" (page

51).

When sewing is finished, cut the thread.

• For details, refer to "Cutting the thread" (page

52).

■ Changing the needle position

The needle position used as the baseline is

different for the straight stitch (left needle

position) and the straight stitch (center needle

position).

a Straight stitch (left needle position)

b Straight stitch (center needle position)

When the stitch width of the straight stitch (left

needle position) is set to its standard setting

(0.0 mm), the distance from the needle position to

the right side of the presser foot is 12 mm

(1/2 inch). If the stitch width is changed (between

0 and 7.0 mm (1/4 inch)), the needle position will

also change. By changing the stitch width and

sewing with the right side of the presser foot

aligned with the edge of the fabric, a seam

allowance can be sewn with a fixed width.

a Stitch width

b Distance from the needle position to the right side

of the presser foot

c 12.0 mm (1/2 inch)

d 10.0 mm (3/8 inch)

e 6.5 mm (1/4 inch)

f 5.0 mm (3/16 inch)

• For details, refer to "Adjusting the stitch width"

(page 56).

0.0 2.0 5.5 7.0

34 5

SE-BrotherE_sgml.book Page 79 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Blind Hem Stitching

Secure the bottoms of skirts and pants with a blind hem. Two stitches are available for blind hem stitching.

Sew a blind hem according to the following procedure.

Fold the fabric along the desired edge of the

hem, and then baste it about 5 mm (3/16 inch)

from the edge of the fabric.

a Wrong side of fabric

b Basting stitching

c Desired edge of hem

d 5 mm (3/16 inch)

Fold back the fabric along the basting, and

then position the fabric with the wrong side

facing up.

a Wrong side of fabric

b Basting

Attach blind hem foot "R".

• For details, refer to "Replacing the presser

foot" (page 40).

Select a stitch.

• For details, refer to "Selecting stitching" (page

47).

Position the fabric with the edge of the folded

hem against the guide of the presser foot, and

then lower the presser foot lever.

a Wrong side of fabric

b Fold of hem

c Guide

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Blind hem

stitch

Blind hem stitching on

mediumweight fabrics

0.0

(0)

3← – 3→

2.0

(1/16)

1.0–3.5

(1/16–1/8)

Blind hem stitching on stretch

fabrics

0.0

(0)

3← – 3→

2.0

(1/16)

1.0–3.5

(1/16–1/8)

SE-BrotherE_sgml.book Page 80 Monday, June 30, 2003 3:44 PM

Blind Hem Stitching 81

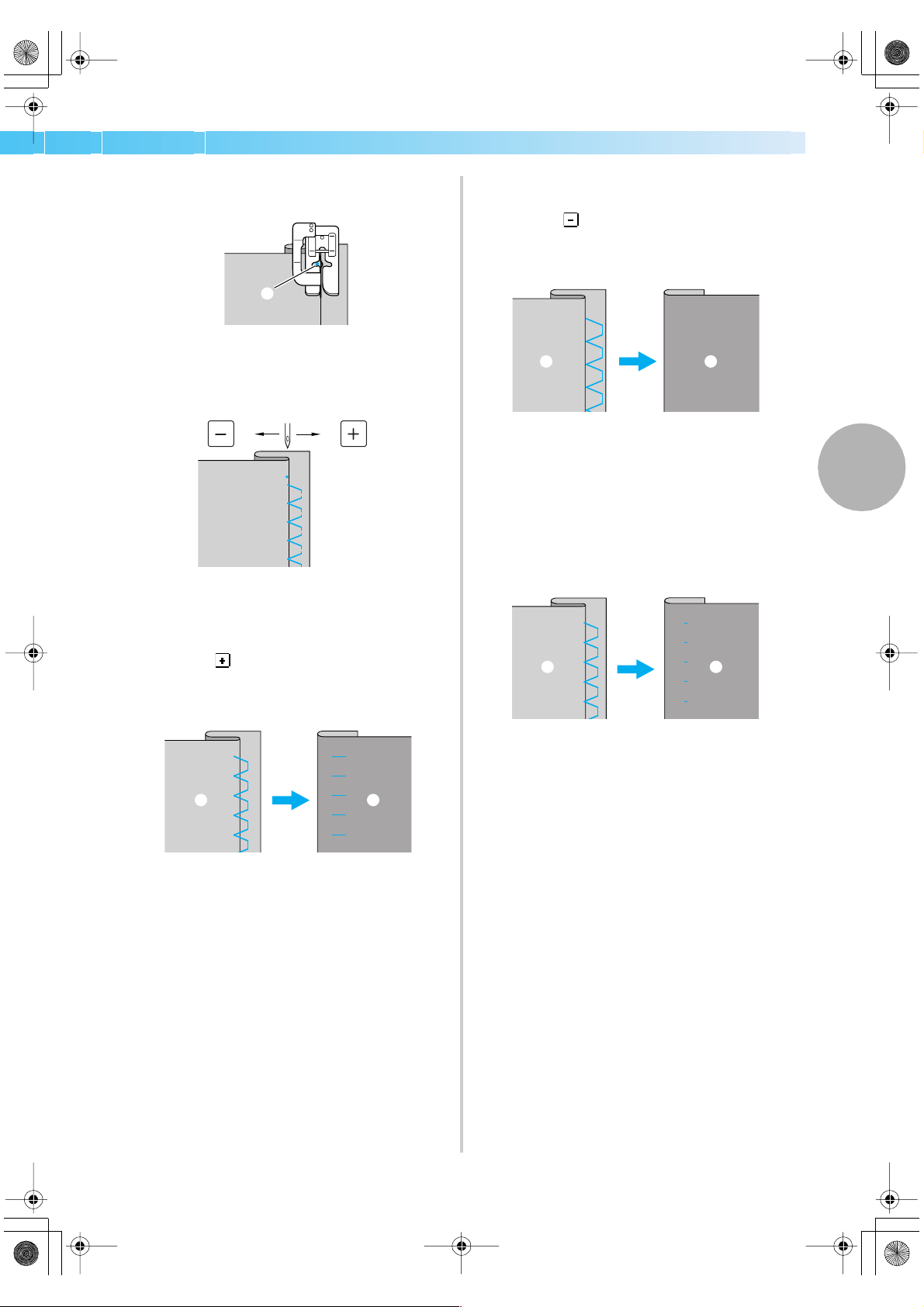

Adjust the stitch width until the needle slightly

catches the fold of the hem.

a Needle drop point

When you change the needle drop point, raise

the needle, and then change the stitch width.

a Stitch width

■ If the needle catches too much of the hem

fold

The needle is too far to the left.

Press to decrease the stitch width so that

the needle slightly catches the fold of the

hem.

a Wrong side of fabric

b Right side of fabric

■ If the needle does not catch the hem fold

The needle is too far to the right.

Press to increase the stitch width so that

the needle slightly catches the fold of the

hem.

a Wrong side of fabric

b Right side of fabric

• For details, refer to "Adjusting the stitch

width" (page 56).

Sew with the fold of the hem against the

presser foot guide.

Remove the basting stitching.

a Wrong side of fabric

b Right side of fabric

1 2

SE-BrotherE_sgml.book Page 81 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Buttonhole Stitching

Buttonholes can be sewn and buttons can be sewn on. Ten stitches are available for sewing one-step

buttonholes, one for sewing on buttons.

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Buttonhole

stitch

Horizontal buttonholes on thin

and mediumweight fabrics

5.0

(3/16)

3.0–5.0

(1/8–3/16)

0.4

(1/64)

0.2–1.0

(1/64–1/16)

Horizontal buttonholes on areas

that are subject to strain

5.0

(3/16)

3.0–5.0

(1/8–3/16)

0.4

(1/64)

0.2–1.0

(1/64–1/16)

Horizontal buttonholes on thick

fabrics

5.0

(3/16)

3.0–5.0

(1/8–3/16)

0.4

(1/64)

0.2–1.0

(1/64–1/16)

Buttonholes with bar tacks on

both ends for stabilized fabrics

5.0

(3/16)

3.0–5.0

(1/8–3/16)

0.4

(1/64)

0.2–1.0

(1/64–1/16)

Buttonholes for stretch or knit

fabrics

6.0

(15/64)

3.0–6.0

(1/8–15/64)

1.0

(1/16)

0.5–2.0

(1/32–1/16)

Buttonholes for stretch fabrics

6.0

(15/64)

3.0–6.0

(1/8–15/64)

1.5

(1/16)

1.0–3.0

(1/16–1/8)

Bound buttonholes

5.0

(3/16)

0.0–6.0

(0–15/64)

2.0

(1/16)

0.2–4.0

(1/64–3/16)

Keyhole buttonholes for thick or

plush fabrics

7.0

(1/4)

3.0–7.0

(1/8–1/4)

0.5

(1/32)

0.3–1.0

(1/64–1/16)

Keyhole buttonholes for

mediumweight and thick fabrics

7.0

(1/4)

3.0–7.0

(1/8–1/4)

0.5

(1/32)

0.3–1.0

(1/64–1/16)

Horizontal buttonhole for thick

or plush fabrics

7.0

(1/4)

3.0–7.0

(1/8–1/4)

0.5

(1/32)

0.3–1.0

(1/64–1/16)

Button-

sewing stitch

Button sewing

3.5

(1/8)

2.5–4.5

(3/32–3/16)

––M

SE-BrotherE_sgml.book Page 82 Monday, June 30, 2003 3:44 PM

Buttonhole Stitching 83

Buttonhole sewing

The maximum buttonhole length is about 28 mm (1-1/8 inch) (diameter + thickness of the button).

Buttonholes are sewn from the front of the presser foot to the back, as shown below.

a Reinforcement stitching

The names of parts of buttonhole foot "A", which is

used for sewing buttonholes, are indicated below.

a Button guide plate

b Presser foot scale

c Pin

d Marks on buttonhole foot

e 5 mm (3/16 inch)

Use chalk to mark on the fabric the position

and length of the buttonhole.

a Marks on fabric

Pull out the button guide plate of buttonhole

foot "A", and then insert the button that will be

put through the buttonhole.

SE-BrotherE_sgml.book Page 83 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

■ If the button does not fit in the button guide

plate

Add together the diameter and thickness of

the button, and then set the button guide

plate to the calculated length. (The distance

between the markings on the presser foot

scale is 5 mm (3/16 inch).)

a Presser foot scale

b Length of buttonhole (Diameter + thickness of

button)

c 5 mm (3/16 inch)

Example: For a button with a diameter of

15 mm (9/16 inch) and a thickness of 10 mm

(3/8 inch), the button guide plate should be set

to 25 mm (1 inch) on the scale.

a 10 mm (3/8 inch)

b 15 mm (9/16 inch)

X The size of the buttonhole is set.

Attach buttonhole foot "A".

• For details, refer to "Replacing the presser

foot" (page 40).

Select a stitch.

• For details, refer to "Selecting stitching" (page

47).

Position the fabric with the front end of the

buttonhole mark aligned with the red marks on

the sides of the buttonhole foot, and then

lower the presser foot lever.

a Mark on fabric (front)

b Red marks on buttonhole foot

Pass the upper thread down through the hole in

the presser foot.

• When lowering the presser foot, do not push

in the front of the presser foot.

a Do not reduce the gap.

Pull down the buttonhole lever as far as

possible.

a Buttonhole lever

SE-BrotherE_sgml.book Page 84 Monday, June 30, 2003 3:44 PM

Buttonhole Stitching 85

The buttonhole lever is positioned behind the

bracket on the buttonhole foot.

a Buttonhole lever

b Bracket

Gently hold the end of the upper thread in

your left hand, and then start sewing.

X Once sewing is completed, the machine

automatically sews reinforcement stitches,

then stops.

Raise the presser foot lever, remove the fabric,

and then cut the thread.

Raise the buttonhole lever to its original

position.

Insert a pin along the inside of one bar tack at

the end of the buttonhole stitching to prevent

the stitching from being cut.

a Pin

Use the seam ripper to cut towards the pin and

open the buttonhole.

a Seam ripper

For keyhole buttonholes, use the eyelet punch

to make a hole in the rounded end of the

buttonhole, and then use the seam ripper to cut

open the buttonhole.

a Eyelet punch

• When using the eyelet punch, place thick

paper or some other protective sheet under

the fabric before punching the hole in the

fabric.

CAUTION

■ Changing the density of the stitching

Adjust the stitch length.

• For details, refer to "Adjusting the stitch

length" (page 57).

• If the fabric does not feed (for example, if it is

too thick), decrease the density of the

stitching.

● When opening the buttonhole with the

seam ripper, do not place your hands in

the cutting direction, otherwise injuries

may result if the seam ripper slips.

SE-BrotherE_sgml.book Page 85 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

■ Changing the stitch width

Adjust the stitch width.

• For details, refer to "Adjusting the stitch

width" (page 56).

Memo

z Before sewing buttonholes, check the stitch

length and width by sewing a trial

buttonhole on a scrap piece of fabric.

■ Sewing buttonholes on stretch fabrics

When sewing buttonholes on stretch fabrics, use

a gimp thread.

Hook the gimp thread onto the part of

buttonhole foot "A" shown in the illustration.

It fits into the grooves, and then loosely tie it.

Attach buttonhole foot "A".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

Adjust the stitch width to the thickness of the

gimp thread.

Lower the presser foot lever and the

buttonhole lever, and then start sewing.

When sewing is finished, gently pull the gimp

thread to remove any slack.

Use a handsewing needle to pull the gimp

thread to the wrong side of the fabric, and

then tie it.

SE-BrotherE_sgml.book Page 86 Monday, June 30, 2003 3:44 PM

Buttonhole Stitching 87

Button sewing

Buttons can be sewn on with the sewing machine.

Buttons with 2 or with 4 holes can be attached.

Measure the distance between the holes in the

button to be attached.

Raise the presser foot lever, and then slide the

drop feed lever, located at the rear of the

machine on the base, to (to the left as

seen from the rear of the machine).

a Drop feed lever (as seen from the rear of the

machine)

X The feed dogs are lowered.

Attach button-sewing foot "M".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

• Since the end of the thread will be tied off

later, do not set the sewing machine for

programmed-thread cutting.

Adjust the stitch width so that it is the same as

the distance between the holes in the button.

Place the button in the position where it will

be sewn, and lower the presser foot lever.

a Button

X The button is held in place.

• When attaching four-hole buttons, first sew

the two holes closest to you. Then, slide the

button so that the needle goes into the two

holes toward the rear of the sewing machine,

and then sew them in the same way.

Turn the balance wheel toward you to check

that the needle correctly goes into the two

holes of the button.

Adjust the stitch width to the distance between

the button holes.

CAUTION

● When sewing, be sure that the needle

does not touch the button, otherwise the

needle may bend or break.

SE-BrotherE_sgml.book Page 87 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Start sewing.

Set the sewing speed controller to the left (so

that the speed will be slow).

X The sewing machine automatically stops

after sewing reinforcement stitches.

• Do not press the thread cutter button.

Pull the upper thread at the end of the

stitching to the wrong side of the fabric, and

then tie it with the bobbin thread.

Use scissors to cut the upper thread and the

bobbin thread at the beginning of the stitching.

When you are finished attaching the button,

slide the drop feed lever to (to the right

as seen from the rear of the machine) to raise

the feed dogs.

Memo

z The feed dog position switch is normally set

to the right side.

z The feed dogs come up when you start

sewing again.

SE-BrotherE_sgml.book Page 88 Monday, June 30, 2003 3:44 PM

Zipper Insertion 89

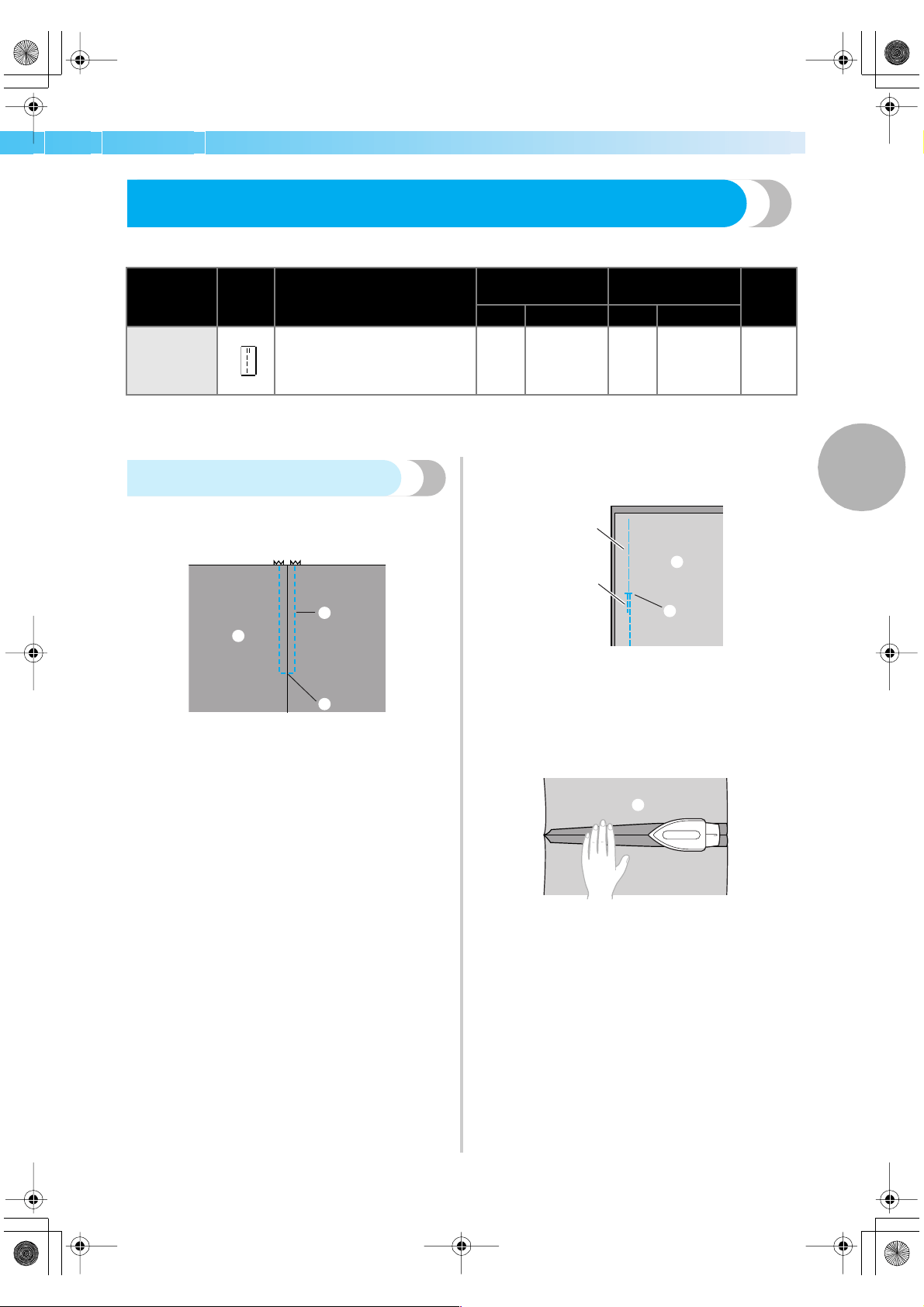

Zipper Insertion

A zipper can be sewn in place.

There are many methods for inserting zippers. The procedures for inserting a centered zipper and a side

zipper are described below.

Inserting a centered zipper

Stitching is sewn on both pieces of fabric butted

against each other.

a Right side of fabric

b Stitching

c End of zipper opening

Attach zigzag foot "J".

Sew straight stitches up to the zipper opening.

With the right sides of the fabric facing each

other, sew reverse stitches after reaching the

zipper opening.

• For details, refer to "Basic stitching" (page

78).

Using a basting stitch, continue sewing to the

edge of the fabric.

a Basting stitching

b Reverse stitches

c Wrong side of fabric

d End of zipper opening

Press open the seam allowance from the

wrong side of the fabric.

a Wrong side of fabric

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Straight stitch

(center

needle

position)

Attaching zippers

Sewing concealed seams and

pintucks

––

2.5

(3/32)

0.2–5.0

(1/64–3/16)

SE-BrotherE_sgml.book Page 89 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Align the seam with the center of the zipper,

and then baste the zipper in place.

a Wrong side of fabric

b Basting stiching

c Zipper

Remove about 5 cm (2 inch) from the end of

the basting on the outside.

a Wrong side of fabric

b Zipper basting

c Outside basting

d 5 mm (2 inch)

Attach the presser foot holder to the right pin

of zipper foot "I".

a Pin on the right side

b Needle drop point

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

CAUTION

Topstitch around the zipper.

a Stitching

b Right side of fabric

c Basting stitching

d End of zipper opening

CAUTION

Remove the basting stitching.

● When using zipper foot "I", be sure to

select the straight stitch (center needle

position), and slowly turn the balance

wheel toward you to check that the

needle does not touch the presser foot. If

a different stitch is selected or the needle

hits the presser foot, the needle may bend

or break.

● When sewing, be sure that the needle

does not touch the zipper, otherwise the

needle may bend or break.

SE-BrotherE_sgml.book Page 90 Monday, June 30, 2003 3:44 PM

Zipper Insertion 91

Inserting a side zipper

Stitching is sewn on only one piece of fabric. Use this

type of zipper for side openings and back openings.

a Stitching

b Right side of fabric

c End of zipper opening

The following procedure will describe how to stitch

on the left side, as shown in the illustration.

Attach zigzag foot "J".

Sew straight stitches up to the zipper opening.

With the right sides of the fabric facing each

other, sew reverse stitches after reaching the

zipper opening.

• For details, refer to "Basic stitching" (page

78).

Using a basting stitch, continue sewing to the

edge of the fabric.

a Basting stitching

b Reverse stitches

c Wrong side of fabric

d End of zipper opening

Press open the seam allowance from the

wrong side of the fabric.

a Wrong side of fabric

Press the seam allowance so that the right side

(the side that will not be stitched) has an extra

3 mm (1/8 inch).

a Wrong side of fabric

b 3 mm (1/8 inch)

Align the zipper teeth with the pressed edge of

the fabric having the extra 3 mm (1/8 inch),

and then baste or pin the zipper in place.

a Zipper teeth

b Basting stitching

Attach the presser foot holder to the right pin

of zipper foot "I".

If the stitching will be sewn on the right side,

attach the presser foot holder to the left pin of

the zipper foot.

a Pin on the right side

b Needle drop point

• For details, refer to "Replacing the presser

foot" (page 40).

SE-BrotherE_sgml.book Page 91 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Select stitch

• For details, refer to "Selecting stitching" (page

47).

CAUTION

Sew the zipper to the piece of fabric with the

extra 3 mm (1/8 inch), starting from the base

of the zipper.

CAUTION

When you are about 5 cm (2 inch) from the

end of the zipper, stop the sewing machine

with the needle lowered (in the fabric), raise

the presser foot lever.

Open the zipper and continue sewing.

Close the zipper, turn over the fabric, and then

baste the other side of the zipper to the fabric.

a Basting stitching

Attach the presser foot holder to the other pin

of zipper foot "I".

If the presser foot holder was attached to the

right pin in step

g, change it to the left pin.

a Pin on the left side

b Needle drop point

● When using zipper foot "I", be sure to

select the straight stitch (center needle

position), and slowly turn the balance

wheel toward you to check that the

needle does not touch the presser foot. If

a different stitch is selected or the needle

hits the presser foot, the needle may bend

or break.

● When sewing, be sure that the needle

does not touch the zipper, otherwise the

needle may bend or break.

SE-BrotherE_sgml.book Page 92 Monday, June 30, 2003 3:44 PM

Zipper Insertion 93

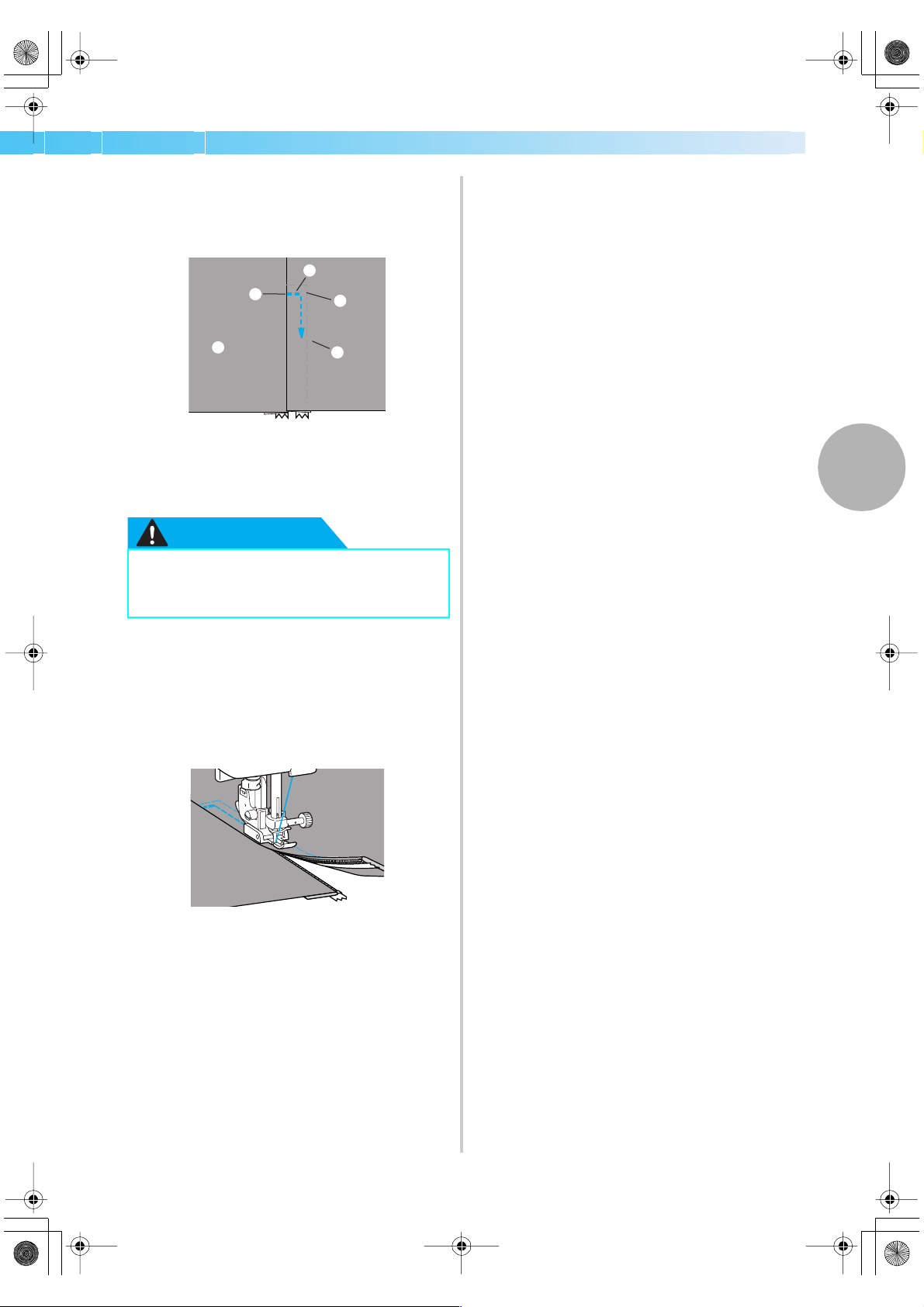

Topstitch around the zipper.

Sew reverse stitches at the end of the zipper

opening and align the zipper teeth with the side

of the presser foot.

a Right side of fabric

b End of zipper opening

c Reverse stitches

d Beginning of stitching

e Basting stitching

CAUTION

When you are about 5 cm (2 inch) from the

end of the zipper, stop the sewing machine

with the needle lowered (in the fabric), and

then raise the presser foot lever.

Remove the basting stitching, open the zipper,

and then continue sewing.

● When sewing, be sure that the needle

does not touch the zipper, otherwise the

needle may bend or break.

SE-BrotherE_sgml.book Page 93 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

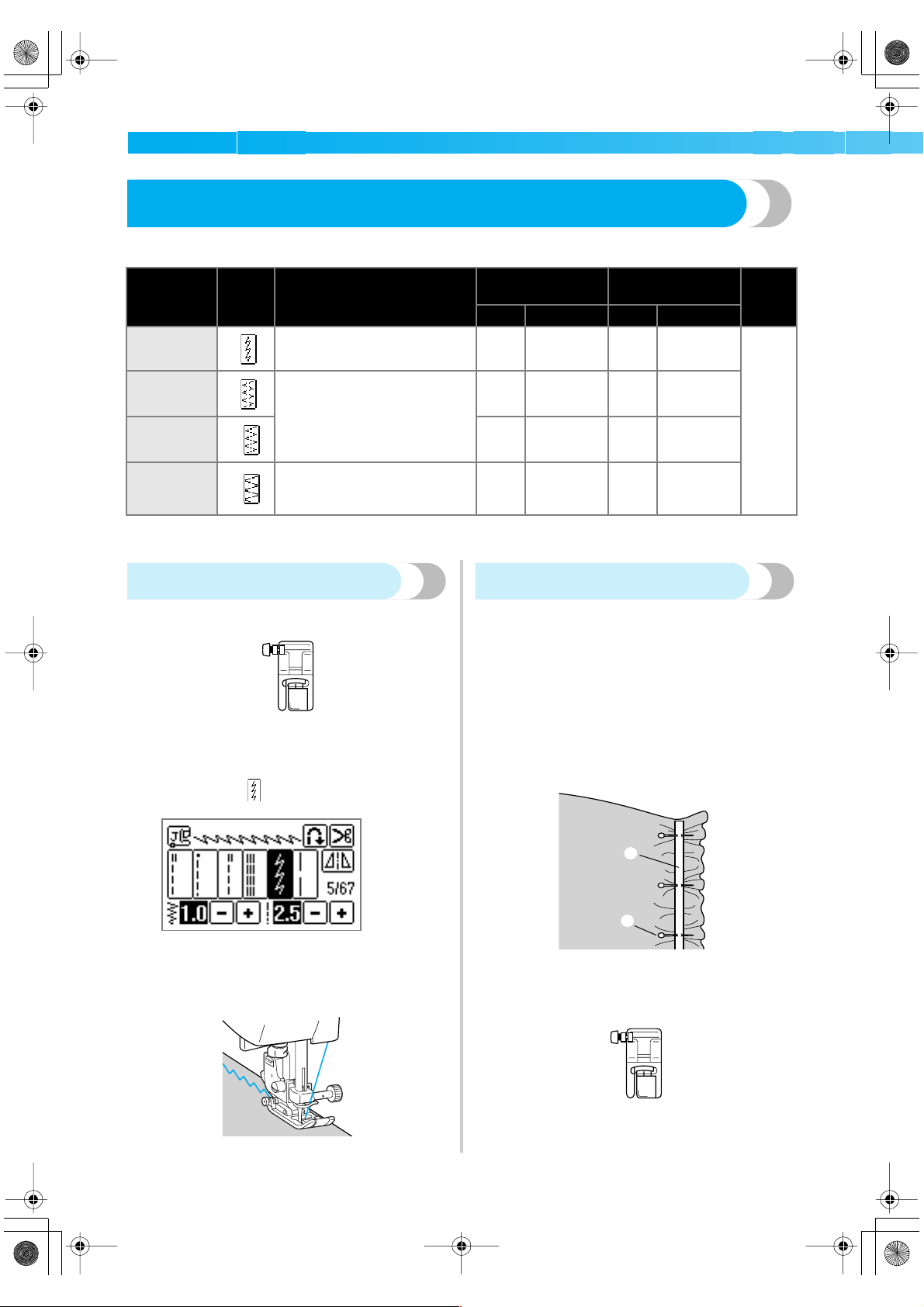

Sewing Stretch Fabrics and Elastic Tape

Stretch fabrics can be sewn and elastic tape can be attached.

Observe the corresponding precautions when performing each of the following stitching operations.

Stretch stitching

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

Sew the fabric without stretching it.

Elastic attaching

When elastic tape is attached to the cuff or waist of a

piece of clothing, the finished dimensions will be that

of the stretched elastic tape. Therefore, it is necessary

that a suitable length of the elastic tape be used.

Pin the elastic tape to the wrong side of the

fabric.

Pin the elastic tape to the fabric at a few points

to make sure that the tape is uniformly

positioned on the fabric.

a Elastic tape

b Pin

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Stretch stitch

Stretch fabrics

1.0

(1/16)

1.0–3.0

(1/16–1/8)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

2-point

zigzag stitch

Attaching elastic

5.0

(3/16)

1.5–7.0

(1/16–1/4)

1.0

(1/16)

0.2–4.0

(1/64–3/16)

3-point

zigzag stitch

5.0

(3/16)

1.5–7.0

(1/16–1/4)

1.0

(1/16)

0.2–4.0

(1/64–3/16)

Elastic-

attaching

stitch

Attaching elastic to stretch

fabrics

4.0

(3/16)

0.0–7.0

(0–1/4)

1.0

(1/16)

0.2–4.0

(1/64–3/16)

SE-BrotherE_sgml.book Page 94 Monday, June 30, 2003 3:44 PM

Sewing Stretch Fabrics and Elastic Tape 95

Select a stitch.

• For details, refer to "Selecting stitching" (page

47).

Sew the elastic tape to the fabric while

stretching the tape so that it is the same length

as the fabric.

While pulling the fabric behind the presser foot

with your left hand, pull the fabric at the pin

nearest the front of the presser foot with your

right hand.

CAUTION

● When sewing, be sure that the needle

does not touch any pins, otherwise the

needle may bend or break.

SE-BrotherE_sgml.book Page 95 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Appliqué, Patchwork and Quilt Stitching

The stitches that can be used for sewing appliqués, patchwork and quilts are described below.

Memo

z Patterns showing a "Q" on the LCD are for

quilting and those showing a "P" are for

piecing.

Appliqué stitching

Cut out the appliqué, leaving a seam

allowance of between 3 and 5 mm (1/8 and

3/16 inch).

a Seam allowance

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Zigzag stitch

Attaching appliqués (center

baseline/reverse stitching)

3.5

(1/8)

0.0–7.0

(0–1/4)

1.4

(1/16)

0.0–4.0

(0–3/16)

Appliqué quilting, free-motion

quilting, satin stitching

3.5

(1/8)

0.0–7.0

(0–1/4)

1.4

(1/16)

0.0–4.0

(0–3/16)

Appliqué

stitch

Attaching appliqués

3.5

(1/8)

2.5–5.0

(3/32–3/16)

2.5

(3/32)

1.6–4.0

(1/16–3/16)

Attaching appliqués and binding

1.5

(1/16)

0.5–5.0

(1/32–3/16)

1.2

(1/16)

1.0–4.0

(1/16–3/16)

Piecing

straight stitch

Piecing straight stitching (with a

seam allowance of 7 mm from

the right edge of the presser foot)

5.5

(7/32)

0.0–7.0

(0–1/4)

1.6

(1/16)

0.2–5.0

(1/64–3/16)

Piecing straight stitching (with a

seam allowance of 7 mm from

the left edge of the presser foot)

1.5

(1/16)

0.0–7.0

(0–1/4)

1.6

(1/16)

0.2–5.0

(1/64–3/16)

Joining stitch

Patchwork stitching

4.0

(3/16)

0.0–7.0

(0–1/4)

1.2

(1/16)

0.2–4.0

(1/64–3/16)

5.0

(3/16)

2.5–7.0

(3/32–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

5.0

(3/16)

0.0–7.0

(0–1/4)

1.2

(1/16)

0.2–4.0

(1/64–3/16)

Mock hand

quilting stitch

Straight stitch quilting that looks

hand quilting

0.0

(0)

0.0–7.0

(0–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

Quilting

stippling

Stippling

7.0

(1/4)

1.0–7.0

(1/16–1/4)

1.6

(1/16)

1.0–4.0

(1/16–3/16)

SE-BrotherE_sgml.book Page 96 Monday, June 30, 2003 3:44 PM

Appliqué, Patchwork and Quilt Stitching 97

Place a pattern made of thick paper on the

back of the appliqué, and then fold over the

seam allowance using an iron.

Turn the fabric over, and then baste or fuse it

onto the fabric that it will be attached to.

a Basting stitching

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Select a stitch.

• For details, refer to "Selecting stitching" (page

47).

Turn the balance wheel toward you, and then

begin sewing around the edge of the appliqué,

making sure that the needle drops just outside

of the appliqué.

When sewing around corners, stop the

machine with the needle in the fabric just

outside of the appliqué, raise the presser foot

lever, and then turn the fabric as needed to

change the sewing direction.

SE-BrotherE_sgml.book Page 97 Monday, June 30, 2003 3:44 PM

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

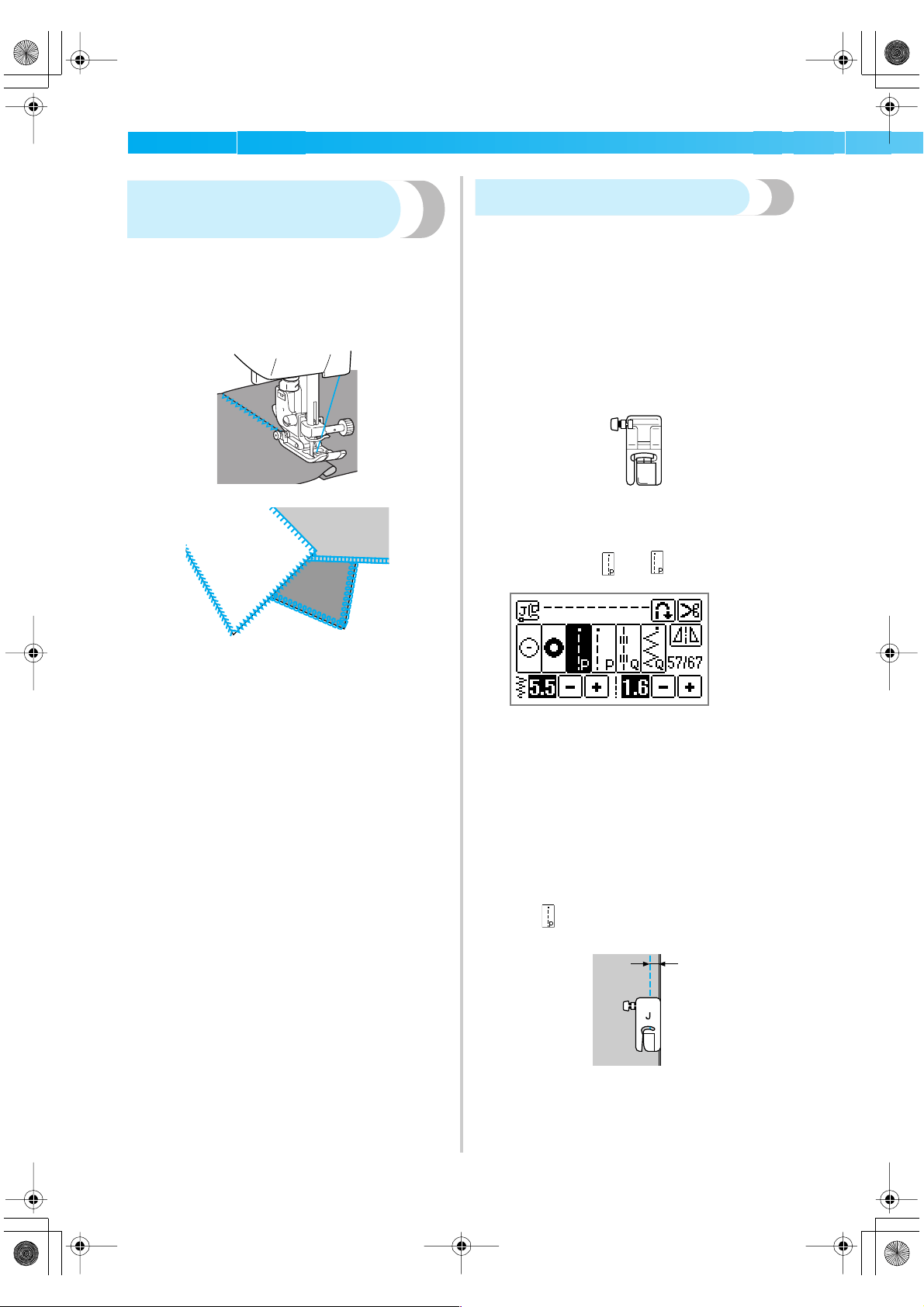

Patchwork (crazy quilt)

stitching

Fold the edge of the top piece of fabric and

place it over the lower piece.

Sew the two pieces of fabric together so the

pattern spans over both pieces.

Piecing

Sewing together two pieces of fabric is called

"piecing". The fabric pieces should be cut with a

7 mm (1/4 inch) seam allowance.

Sew a piecing straight stitch 7 mm (1/4 inch) from

either the right side or the left side of the presser foot.

Baste or pin along the seam allowance of the

fabric that you wish to piece together.

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

• The piecing straight stitch shows a "P" on the

LCD.

Sew with the side of the presser foot aligned

with the edge of the fabric.

■ For a seam allowance on the right side

Align the right side of the presser foot with

the edge of the fabric, and sew using stitch

a 7 mm (1/4 inch)

SE-BrotherE_sgml.book Page 98 Monday, June 30, 2003 3:44 PM

Appliqué, Patchwork and Quilt Stitching 99

■ For a seam allowance on the left side

Align the left side of the presser foot with the

edge of the fabric, and sew using stitch

a 7 mm (1/4 inch)

Memo

z To change the width of the seam allowance

(The needle position), adjust the stitch width.

For details, refer to "Adjusting the stitch

width" (page 56).

Quilting

Sandwiching batting between the top and bottom

layers of fabric is called "quilting". Quilts can easily

be sewn using the walking foot and the quilting

guide.

Baste the fabric to be quilted.

Remove the presser foot holder.

• For details, refer to "Removing the presser

foot holder" (page 42).

Hook the connecting fork of the walking foot

onto the needle clamp screw.

a Connecting fork

b Needle clamp screw

Lower the presser foot lever, insert the presser

foot holder screw, and then tighten the screw

with the screwdriver.

a Presser foot holder screw

X The walking foot is attached.

SE-BrotherE_sgml.book Page 99 Monday, June 30, 2003 3:44 PM

100

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

CAUTION

Select a stitch.

• For details, refer to "Selecting stitching" (page

47).

Place one hand on each side of the presser

foot, and then evenly guide the fabric while

sewing.

Note

z When sewing with the walking foot, sew at a

speed between slow and medium.

z When quilting, use a 90/14 home sewing

machine needle.

■ Using the quilting guide

Use the quilting guide to sew parallel stitches that

are equally spaced.

Insert the stem of the quilter into the hole at

the rear of the walking foot or presser foot

holder.

 Walking foot

 Presser foot holder

Adjust the stem of the quilter so that the quilt

guide aligns with the seam that has already

been sewn.

● Be sure to securely tighten the screws

with the screwdriver, otherwise the

needle may touch the presser foot,

causing it to bend or break.

● Before starting to sew, slowly turn the

balance wheel toward you and check that

the needle does not touch the presser

foot. If the needle hits the presser foot,

the needle may bend or break.

SE-BrotherE_sgml.book Page 100 Monday, June 30, 2003 3:44 PM

Appliqué, Patchwork and Quilt Stitching 101

Free-motion quilting

With free-motion quilting, the feed dogs can be

lowered (using the drop feed lever) so that the fabric

can be moved freely in any direction.

When using free-motion quilting, use the quilting foot

or the embroidery foot "Q".

Remove the presser foot and the presser foot

holder.

• Refer to "Removing the presser foot holder"

(page 42).

Secure the quilting foot with the presser foot

folder screw.

The pin on the quilting foot should be

positioned over the needle clamp screw.

a Pin on quilting foot

b Presser foot holder screw

c Needle clamp screw

Hold the quilting foot in place with your right

hand, and then tighten the presser foot holder

screw using the screwdriver in your left hand.

a Presser foot holder screw

CAUTION

Slide the drop feed lever, located at the rear of

the machine on the base, to (to the left as

seen from the rear of the machine).

a Feed dog position switch (as seen from the rear of

the machine)

X The feed dogs are lowered.

Turn on the sewing machine, and then select a

stitch.

• For details, refer to "Selecting stitching" (page

47).

Use both hands to hold the fabric taut, and

then move the fabric to follow the pattern.

Reinforcement stitches are sewn at the

beginning and end of sewing.

a Pattern

After sewing is finished, slide the drop feed

lever to (to the right as seen from the rear

of the machine) to raise the feed dogs.

• Normally, the drop feed lever is positioned at

the right.

● Be sure to securely tighten the screws

with the screwdriver, otherwise the

needle may touch the presser foot,

causing it to bend or break.

SE-BrotherE_sgml.book Page 101 Monday, June 30, 2003 3:44 PM

102

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Satin stitching

A decorative stitch can be sewn by changing the

stitch width of a satin stitch. If the sewing machine is

set so that the stitch width can be adjusted using the

sewing speed controller, the stitch width can quickly

and easily be adjusted. In this case, the sewing speed

is adjusted with the foot controller.

Connect the foot controller.

• For details, refer to "Starting to sew" (page

49).

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Turn on the sewing machine, and then press

(Settings key) in the operation panel.

X The settings screen appears.

Press (Next page key) until "WIDTH

CONTROL" is on LCD screen, and the press

ON for stitch width control setting.

X The machine is now set so that the stitch

width can be controlled with the sewing

speed controller.

Press (Back key).

X The initial screen appears again.

Select stitch

• For details, refer to "Selecting stitching" (page

47).

While sewing, slide the sewing speed

controller to adjust the stitch width.

Slide the controller to the left to make the width

narrower. Slide the controller to the right to

make the width wider.

• Adjust the sewing speed with the foot

controller.

When you are finished sewing, set the stitch

width control setting back to OFF.

Memo

z Although the stitching result differs

depending on the type of fabric being sewn

and the thickness of the thread being used,

for best results, adjust the stitch length to

between 0.3 and 0.5 mm (1/64 and 1/32

inch).

WiderNarrower

SE-BrotherE_sgml.book Page 102 Monday, June 30, 2003 3:44 PM

Reinforcement Stitching 103

Reinforcement Stitching

Reinforce points that will be subject to strain, such as sleeve holes, inseams and pocket corners.

Triple stretch stitching

Use triple stretch stitching to reinforce sleeve holes

and inseams.

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

Start sewing.

• For details, refer to "Starting to sew" (page

49).

Bar tack stitching

Bar tacks are used to reinforce points subject to

strain, such as pocket corners and openings.

As an example, the procedure for sewing bar tacks at

pocket corners is described below.

Determine the desired length of the bar tack.

Set the button guide plate on buttonhole foot

"A" to the desired length. (The distance between

the markings on the presser foot scale is 5 mm

(3/16 inch).)

a Presser foot scale

b Length of bar tack

c 5 mm (3/16 inch)

• A bar tack with a maximum length of about

28 mm (1–1/8 inch) can be sewn.

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Triple stretch

stitch

Reinforcing the seams of sleeves

and inseams

0.0

(0)

0.0–7.0

(0–1/4)

2.5

(3/32)

1.5–4.0

(1/16–3/16)

Bar tack

stitch

Reinforcing the ends of

openings, such as the corners of

pockets

2.0

(1/16)

1.0–3.0

(1/16–1/8)

0.4

(1/64)

0.3–1.0

(1/64–1/16)

Darning

stitch

Darning mediumweight fabrics

7.0

(1/4)

2.5–7.0

(3/32–1/4)

2.0

(1/16)

0.4–2.5

(1/64–3/32)

Darning thick fabrics

7.0

(1/4)

2.5–7.0

(3/32–1/4)

2.0

(1/16)

0.4–2.5

(1/64–3/32)

SE-BrotherE_sgml.book Page 103 Monday, June 30, 2003 3:44 PM

104

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

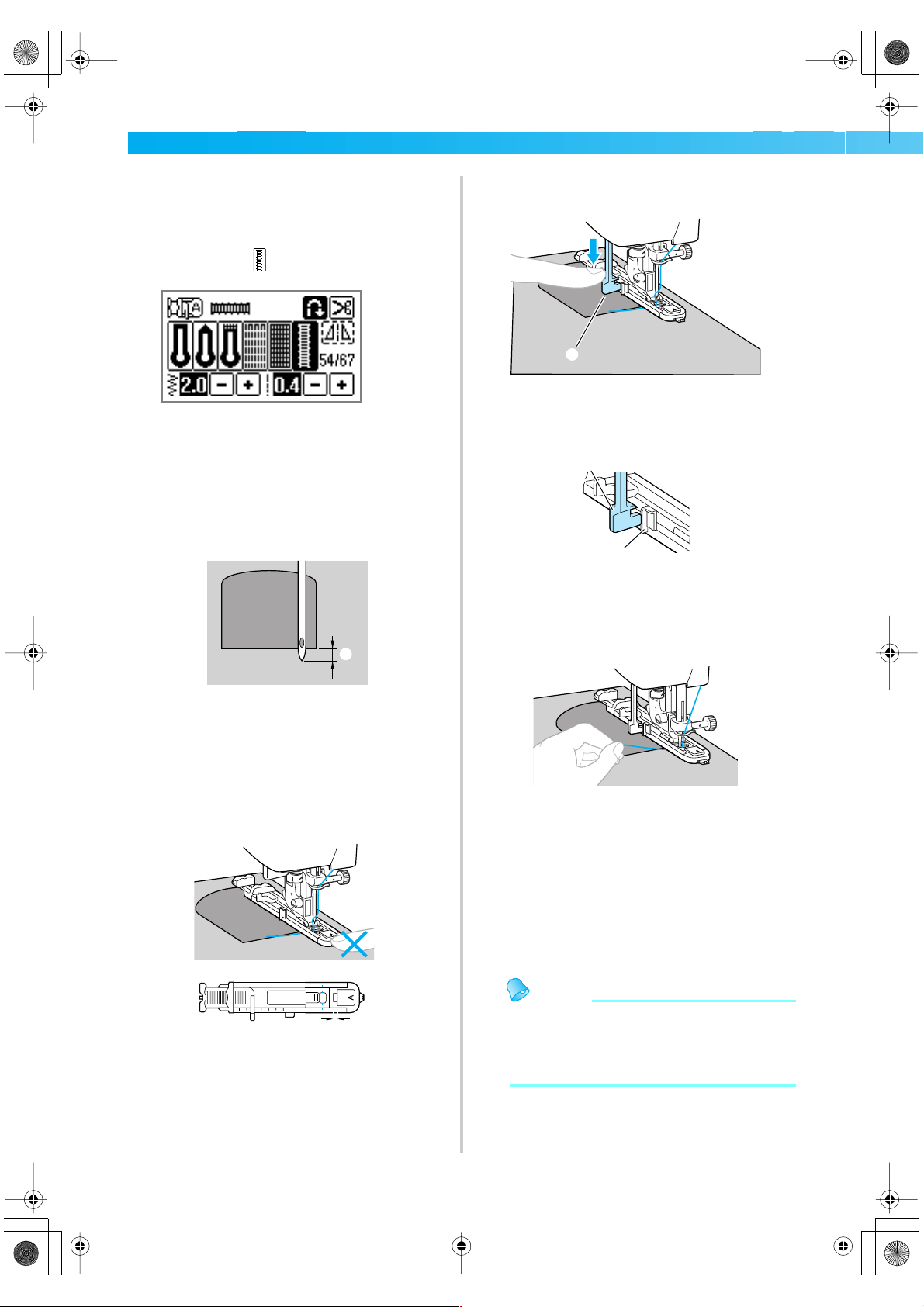

Attach buttonhole foot "A".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

Position the fabric so that the opening of the

pocket faces toward you, and then lower the

presser foot lever so that the needle drops

2 mm (1/16 inch) in front of the pocket

opening.

a 2 mm (1/16 inch)

Pass the upper thread down through the hole in

the presser foot.

• When lowering the presser foot, do not push

in the front of the presser foot, otherwise the

bar tack will not be sewn with the correct

size.

a Do not reduce the gap.

Pull down the buttonhole lever as far as

possible.

a Buttonhole lever

The buttonhole lever is positioned behind the

bracket on the buttonhole foot.

a Buttonhole lever

b Bracket

Gently hold the end of the upper thread in

your left hand, and then start sewing.

X Once sewing is completed, the machine

automatically sews reinforcement stitches,

then stops.

Raise the presser foot lever, remove the fabric,

and then cut the threads.

Raise the buttonhole lever to its original

position.

Memo

z If the fabric does not feed, for example,

because it is too thick, increase the stitch

length. For details, refer to "Adjusting the

stitch length" (page 57).

SE-BrotherE_sgml.book Page 104 Monday, June 30, 2003 3:44 PM

Reinforcement Stitching 105

Darning

Fabric that has been torn can be darned.

Darning is sewn as shown below.

a Reinforcement stitching

Determine the desired length of the darning.

Set the button guide plate on buttonhole foot

"A" to the desired length. (The distance between

the markings on the presser foot scale is 5 mm

(3/16 inch).)

a Presser foot scale

b Length of darning

c 5 mm (3/16 inch)

d 7 mm (1/4 inch)

• A bar tack with a maximum length of about

28 mm (1-1/8 inch) can be sewn.

Attach buttonhole foot "A".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

Position the fabric so that the needle is 2 mm

(1/16 inch) in front of the area to be darned,

and then lower the presser foot lever.

a Tear

b 2 mm (1/16 inch)

Pass the upper thread down through the hole in

the presser foot.

• When lowering the presser foot, do not push

in the front of the presser foot, otherwise the

darning will not be sewn with the correct

size.

SE-BrotherE_sgml.book Page 105 Monday, June 30, 2003 3:44 PM

106

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

a Do not reduce the gap.

Pull down the buttonhole lever as far as

possible.

a Buttonhole lever

The buttonhole lever is positioned behind the

bracket on the buttonhole foot.

a Buttonhole lever

b Bracket

Gently hold the end of the upper thread in

your left hand, and then start sewing.

X Once sewing is completed, the machine

automatically sews reinforcement stitches,

then stops.

Raise the presser foot lever, remove the fabric,

and then cut the threads.

Raise the buttonhole lever to its original

position.

Memo

z If the fabric does not feed, for example,

because it is too thick, increase the stitch

length. For details, refer to "Adjusting the

stitch length" (page 57).

SE-BrotherE_sgml.book Page 106 Monday, June 30, 2003 3:44 PM

Eyelet Stitching 107

Eyelet Stitching

Eyelets, such as those on belts, can be sewn. Three sizes of eyelets are possible: 7 mm, 6 mm and 5 mm

(1/4, 15/64 and 3/16 inch).

Attach monogramming foot "N".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

Adjust either the stitch width or the stitch

length to select the desired eyelet size.

a 7mm

b 6mm

c 5mm

• For details, refer to "Adjusting the Stitch

Width and Length" (page 56).

Lower the needle into the fabric at the

beginning of the stitching, and then lower the

presser foot lever.

Start sewing.

X Once sewing is completed, the machine

automatically sews reinforcement stitches,

then stops.

Use the eyelet punch to cut a hole in the

center of the eyelet.

• When using the eyelet punch, place thick

paper or some other protective sheet under

the fabric before punching the hole in the

fabric.

Memo

z If thin thread is used, the stitching may be

too open. If this occurs, sew the eyelet twice

before removing the fabric, one on top of the

other.

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Eyelet stitch

Sewing eyelets, for example, on

belts

7.0

(1/4)

7.0, 6.0 or

5.0

(1/4, 15/64

or 3/16)

7.0

(1/4)

7.0, 6.0 or

5.0

(1/4, 15/64

or 3/16)

SE-BrotherE_sgml.book Page 107 Monday, June 30, 2003 3:44 PM

108

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Decorative Stitching

The utility stitch group contains the following decorative stitches.

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

Fagoting

stitch

Sewing two pieces of fabric

together across an open seam

5.0

(3/16)

0.0–7.0

(0–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

5.0

(3/16)

2.5–7.0

(3/25–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

Joining stitch

Decorative bridging stitches

4.0

(3/16)

0.0–7.0

(0–1/4)

1.2

(1/16)

0.2–4.0

(1/64–3/16)

5.0

(3/16)

2.5–7.0

(3/32–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

5.0

(3/16)

0.0–7.0

(0–1/4)

1.2

(1/16)

0.2–4.0

(1/64–3/16)

Shell tuck

stitch

Shell tuck stitching on collars

and curves

4.0

(3/16)

0.0–7.0

(0–1/4)

2.5

(3/32)

0.2–4.0

(1/64–3/16)

Smocking

stitch

Smocking fabrics to add texture

and elasticity

5.0

(3/16)

0.0–7.0

(0–1/4)

1.6

(1/16)

1.0–4.0

(1/16–3/16)

5.0

(3/16)

0.0–7.0

(0–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

5.0

(3/16)

2.5–7.0

(3/32–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

Scallop stitch

Satin scallop stitching

5.0

(3/16)

2.5–7.0

(3/32–1/4)

0.5

(1/32)

0.1–1.0

(1/64–1/16)

Decorative

stitch

Lace sewing, decorative

hemming, heirloom stitching,

etc.

3.5

(1/8)

1.5–7.0

(1/16–1/4)

2.5

(3/32)

1.6–4.0

(1/16–3/16)

6.0

(15/64)

1.5–7.0

(1/16–1/4)

3.0

(1/8)

1.5–4.0

(1/16–3/16)

Decorative hemming and

heirloom stitching, etc. on thin,

mediumweight and plain weave

fabrics

5.0

(3/16)

1.5–7.0

(1/16–1/4)

3.5

(1/8)

1.5–4.0

(1/16–3/16)

5.0

(3/16)

1.5–7.0

(1/16–1/4)

4.0

(3/16)

1.5–4.0

(1/16–3/16)

5.0

(3/16)

1.5–7.0

(1/16–1/4)

2.5

(3/32)

1.5–4.0

(1/16–3/16)

5.0

(3/16)

1.5–7.0

(1/16–1/4)

2.0

(1/16)

1.5–4.0

(1/16–3/16)

Decorative hemming, ribbon

threading, heirloom stitching,

etc.

5.0

(3/16)

1.5–7.0

(1/16–1/4)

3.0

(1/8)

1.5–4.0

(1/16–3/16)

SE-BrotherE_sgml.book Page 108 Monday, June 30, 2003 3:44 PM

Decorative Stitching 109

Fagoting

Stitching across an open seam is called "fagoting". It

is used on blouses and children's clothing. This stitch

is more decorative when thicker thread is used.

Use an iron to fold the two pieces of fabric

along their seams.

Baste the two pieces of fabric, separated by

about 4 mm (3/16 inch), onto thin paper or a

sheet of water-soluble stabilizer.

If you draw a line down the middle of the thin

paper or water-soluble stabilizer, sewing is

easier.

a Thin paper or water soluble stabilizer

b Basting stitching

c 4 mm (3/16 inch)

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

Set the stitch width to 7.0 mm (1/4 inch).

• For details, refer to "Adjusting the stitch

width" (page 56).

Sew with the center of the presser foot aligned

along the center of the two pieces of fabric.

After sewing is finished, remove the paper.

Decorative

stitch

Heirloom stitching, etc.

6.0

(15/64)

1.5–7.0

(1/16–1/4)

1.6

(1/16)

1.0–4.0

(1/16–3/16)

5.0

(3/16)

1.5–7.0

(1/16–1/4)

1.6

(1/16)

1.0–4.0

(1/16–3/16)

Decorative stitching

4.0

(3/16)

0.0–7.0

(0–1/4)

3.0

(1/8)

2.0–4.0

(1/16–3/16)

4.0

(3/16)

0.0–7.0

(0–1/4)

2.5

(3/32)

1.0–4.0

(1/16–3/16)

5.5

(7/32)

0.0–7.0

(0–1/4)

1.6

(1/16)

1.0–4.0

(1/16–3/16)

5.0

(3/16)

1.5–7.0

(1/16–1/4)

1.0

(1/16)

0.2–4.0

(1/64–3/16)

Stitch Name Pattern Application

Stitch Width

[mm (inch.)]

Stitch Length

[mm (inch.)]

Presser

Foot

Auto Manual Auto Manual

SE-BrotherE_sgml.book Page 109 Monday, June 30, 2003 3:44 PM

110

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Scallop stitching

The wave-shaped repeating pattern that looks like

shells is called "scalloping". It is used on the collars of

blouses and to decorate the edges of projects.

Attach monogramming foot "N".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

Stitch along the edge of the fabric, making sure

not to sew directly on the edge of the fabric.

• For better results, apply spray starch onto the

fabric and press with a hot iron before it is

sewn.

Trim along the stitches.

• Be careful not to cut the stitches.

Smocking

The decorative stitch created by stitching or

embroidering over gathers is called "smocking". It is

used to decorate the front of blouses or cuffs.

The smocking stitch adds texture and elasticity to

fabric.

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Select the straight stitch, and then adjust the

stitch length to 4.0 mm (3/16 inch) and loosen

the thread tension.

• For details, refer to "Adjusting the stitch

length" (page 57) and "Thread tension" (page

54).

• Pull up the bobbin thread. For details, refer to

"Pulling up the bobbin thread" (page 33).

Sew parallel stitching at intervals of 1 cm

(3/8 inch).

a 1 cm (3/8 inch)

• Do not use reverse/reinforcement stitching or

thread cutting.

• At the end of the stitching, the thread is

pulled out about 5 cm (2 inch).

Pull the bobbin threads to create gathers.

Smooth the gathers by ironing them.

SE-BrotherE_sgml.book Page 110 Monday, June 30, 2003 3:44 PM

Decorative Stitching 111

Select stitch

• For details, refer to "Selecting stitching" (page

47).

Stitch between the straight stitches.

Pull out the threads for the straight stitches.

Shell tuck stitching

The gathers that look like shells are called "shell

tucks". They are used to decorate trims, the front of

blouses or cuffs made of thin fabrics.

Fold the fabric along the bias.

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

, and then increase the thread

tension.

• For details, refer to "Selecting stitching" (page

47) and "Changing the upper thread tension"

(page 55).

SE-BrotherE_sgml.book Page 111 Monday, June 30, 2003 3:44 PM

112

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Sew while making sure that the needle drops

slightly off the edge of the fabric.

a Needle drop point

Unfold the fabric, and then iron the tucks

down to one side.

Joining

Decorative bridging stitches can be sewn over the

seam allowance of joined fabrics. This is used when

making a crazy quilt.

Attach zigzag foot "J".

• For details, refer to "Replacing the presser

foot" (page 40).

Sew together the right sides of the two pieces

of fabric, and then open up the seam

allowances.

a Wrong side of fabric

b 7 mm (1/4 inch) seam allowance

c Straight stitch

Select stitch

• For details, refer to "Selecting stitching" (page

47).

Turn the fabric over so that the right side faces

up, and then sew over the seam with the

center of the presser foot aligned with the

seam.

a Right side of fabric

SE-BrotherE_sgml.book Page 112 Monday, June 30, 2003 3:44 PM

Decorative Stitching 113

Heirloom stitching

When sewing with the wing needle, the needle holes

are enlarged, creating a lace-like decorative stitch.

This is used to decorate hems and tablecloths on thin

or mediumweight fabrics in addition to plain weave

fabrics.

Install the wing needle.

• Use a 130/705H 100/16 wing needle.

• For details on installing a needle, refer to

"Replacing the needle" (page 37).

• The needle threader cannot be used with the

wing needle, otherwise the sewing machine

may be damaged. Manually pass the thread

through the eye of the needle from the front

to the back.

For details, refer to "Thread the needle

manually (without using the needle threader)"

(page 30).

Attach monogramming foot "N".

• For details, refer to "Replacing the presser

foot" (page 40).

Select a stitch.

The stitches that can be used are

• For details, refer to "Selecting stitching" (page

47).

• When sewing with the wing needle, select a

stitch width of 6.0 mm (15/64 inch) or less.

Start sewing.

CAUTION

Partially removing threads is called "drawnwork".

This gives a beautiful result with fabrics that have a

loose weave.

Two ways to create drawnwork are described below.

● When sewing with the wing needle, select

a stitch width of 6.0 mm (15/64 inch) or

less, otherwise the needle may bend or

break.

● After adjusting the stitch width, slowly

turn the balance wheel toward you and

check that the needle does not touch the

presser foot. If the needle hits the presser

foot, the needle may bend or break.

SE-BrotherE_sgml.book Page 113 Monday, June 30, 2003 3:44 PM

114

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

■ Drawnwork (Example 1)

Pull out several threads from the fabric.

Attach monogramming foot "N".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

With the right side of the fabric facing up, sew

along the right edge of the frayed section.

Press on the LCD.

X The pattern is flipped.

Sew along the other edge of the frayed section

so that it looks like the previous stitching.

Press , and set the horizontal mirror

image key back to OFF.

SE-BrotherE_sgml.book Page 114 Monday, June 30, 2003 3:44 PM

Decorative Stitching 115

■ Drawnwork (Example 2)

Pull out several threads from two sections of

the fabric, separated by an unfrayed section of

about 4 mm (3/16 inch).

a 4 mm (3/16 inch)

Attach monogramming foot "N".

• For details, refer to "Replacing the presser

foot" (page 40).

Select stitch

• For details, refer to "Selecting stitching" (page

47).

Sew along the center of the unfrayed section.

SE-BrotherE_sgml.book Page 115 Monday, June 30, 2003 3:44 PM

116

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Sewing the Various Built-In Decorative Patterns

Besides utility stitches, you can sew decorative stitches, satin stitches and cross-stitches. All are sewn with

monogramming foot "N".

Sewing beautiful patterns

In order to sew the patterns correctly, the following

must be considered.

■ Fabric

Before sewing stretch or thin fabrics or fabrics

with a coarse weave, affix stabilizer material to

the wrong side of the fabric or place a thin sheet

of paper, such as tracing paper, under the fabric.

Since material puckering or bunched stitches may

occur when satin stitches are sewn, be sure to

affix stabilizer material to the fabric.

■ Needles and threads

When sewing thin, mediumweight or stretch

fabrics, use the ball point needle. When sewing

thick fabrics, use a 90/14 home sewing machine

needle. In addition, #50 to #60 thread should be

used.

■ Trial sewing

Depending on the type and thickness of the fabric

being sewn and whether or not stabilizer material

is used, the desired result may not be achieved.

Be sure to sew a trial piece of fabric before

sewing your project. In addition, while sewing, be

sure to guide the fabric with your hands in order

to prevent the fabric from slipping.

Sewing patterns

Attach monogramming foot "N".

• For details, refer to "Replacing the presser

foot" (page 40).

Select a stitch.

• For details, refer to steps

c through h of

"Selecting stitching" (page 66).

Start sewing.

• The stitching is sewn in the direction

indicated by the arrow.

Sew reinforcement stitches.

• When sewing a pattern, it is useful to first set

the automatic reverse/reinforcement stitching

setting. For details, refer to "Automatically

sewing reverse/reinforcement stitches" (page

59).

When you are finished sewing, use scissors to

trim off any excess threads at the beginning of

the stitching and between the patterns.

Memo

z For details on adjusting the stitch width and

length, refer to "Adjusting the Stitch Width

and Length" (page 56).

SE-BrotherE_sgml.book Page 116 Monday, June 30, 2003 3:44 PM

Sewing the Various Built-In Decorative Patterns 117

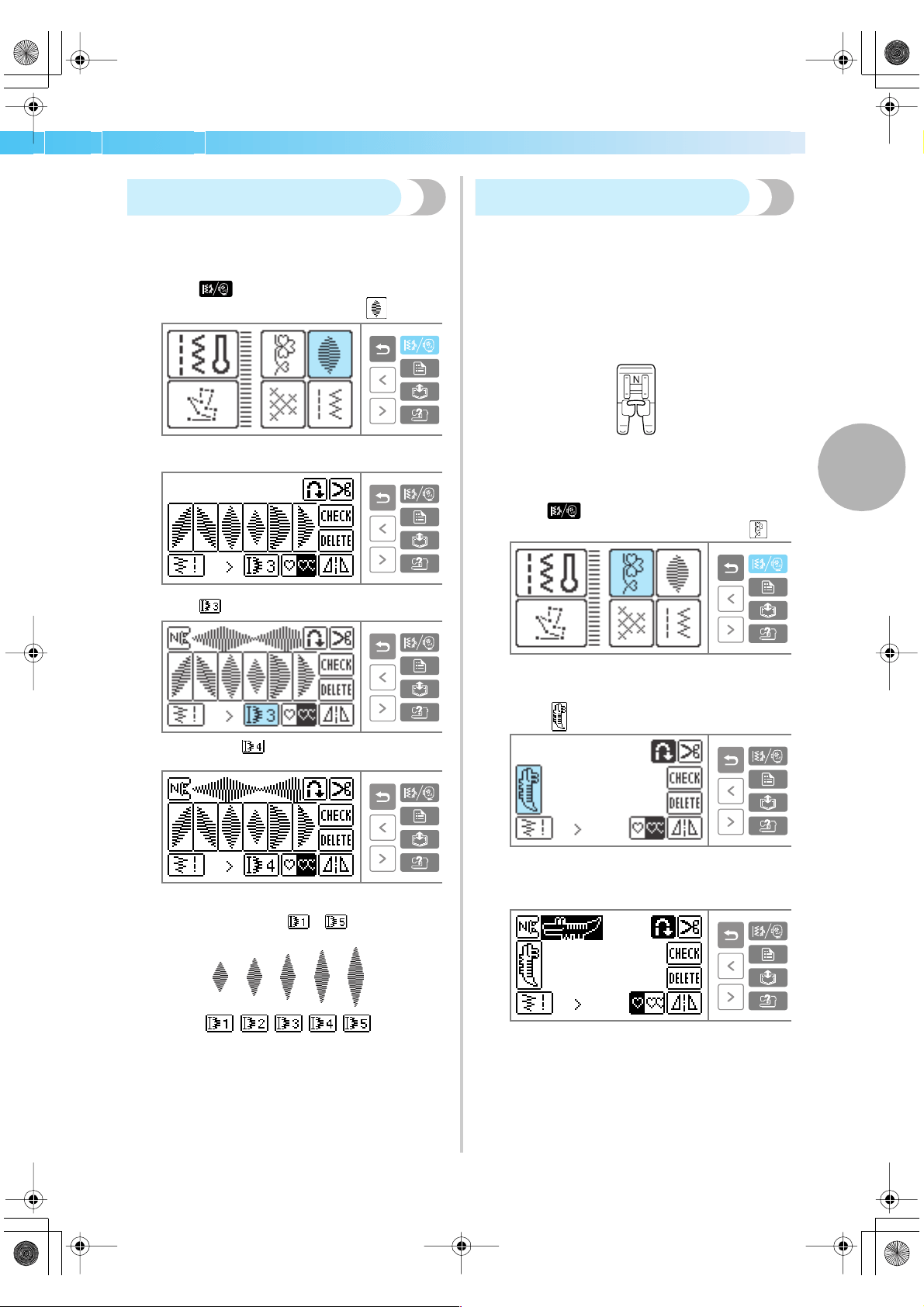

Changing satin stitch length

The length for one satin stitch can be changed in five

gradations.

Press (Menu key) on the display panel,

and select the satin stitch group ( ).

Select a satin stitch pattern.

Press .

X It turns to .

Each time you press it the number changes.

You can select from - .

Realigning the pattern

The pattern may not be sewn correctly, depending on

the type of fabric being sewn or the sewing speed. If

this occurs, adjust the pattern while sewing on a

piece of scrap fabric that is the same as that used for

your project.

Attach monogramming foot "N".

• For details, refer to "Replacing the presser

foot" (page 40).

Press (Menu key) on the display panel,

and select the decorative stitch group ( ).

X The screen containing the various types of

stitches appears.

Select .

X The pattern alignment stitch is selected.

Start sewing.

X The pattern for making the adjustment is

sewn.

X The sewing machine stops after it has

finished sewing the pattern.

SE-BrotherE_sgml.book Page 117 Monday, June 30, 2003 3:44 PM

118

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Check the sewn pattern.

If the part of the pattern indicated in the

illustration is sewn uniformly, the pattern is

correctly aligned.

If the pattern is not sewn correctly, follow the

steps below to adjust the sewing.

Press (Settings key) in the operation

panel.

X The settings screen appears.

Press (Next page key) twice.

X The screen for adjusting the pattern appears.

Press or .

X Make the necessary adjustments according

to how the pattern is sewn.

Press to increase the adjustment setting.

Press to decrease the adjustment setting.

Press (Back key).

X It returns to the adjustment pattern screen.

Select once again, start the sewing

machine and check the stitching.

Continue adjusting the pattern until it is sewn

correctly.

SE-BrotherE_sgml.book Page 118 Monday, June 30, 2003 3:44 PM

Sewing combined patterns 119

Sewing combined patterns

You can combine and sew multiple patterns, and you can store the combined patterns in the sewing

machine memory.

Combining patterns

You can sew with combinations of stitches from the

decorative stitch, satin stitch, cross-stitch and

combined utility stitch groups. Up to 35 patterns can

be combined.

Touch (Menu key) on the operation

panel, and select the stitch type.

Select any one of the decorative stitch, satin

stitch, cross-stitch or combined utility stitch

types.

Select the first pattern.

X The first pattern is selected and appears in

the LCD.

• When the sewing is started, the selected

pattern is sewn repeatedly until the sewing

machine is stopped.

Select the next pattern.

X The combined patterns appear in the LCD.

• To remove a selected pattern, press in

the LCD. The pattern that was selected last is

removed.

• To combine patterns from different groups,

press (Back key), and after selecting the

group, select the next pattern.

After all of the desired patterns are selected,

start sewing.

X The order that the patterns appear in the

LCD is the order that they will be sewn.

SE-BrotherE_sgml.book Page 119 Monday, June 30, 2003 3:44 PM

120

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

■ Repeating patterns

When multiple stitches are combined, the sewing

machine stops when the pattern displayed on the

LCD has been completed. Use the following

operations to sew a combined pattern repeatedly.

After the patterns have been combined, press

If pressed again, it turns to (single

sewing).

X turns to , and you can now sew

the specified pattern repeatedly.

■ Checking the pattern

When the specified pattern is not displayed on

the LCD, check the pattern using the following

steps.

Press .

X The screen for checking the pattern is

displayed.

Press , and confirm the pattern.

Press (Back key).

X The initial screen appears again.

Memo

z The combined pattern can be stored for later

use. For details, refer to "Storing a pattern"

(page 121).

SE-BrotherE_sgml.book Page 120 Monday, June 30, 2003 3:44 PM

Sewing combined patterns 121

Storing a pattern

Combined patterns can be stored for later use. Since

stored patterns are not lost after the sewing machine

is turned off, they can be recalled at any time. Up to

five patterns can be stored.

■ Storing a pattern

Create the combined pattern that you wish to

store.

• For details, refer to "Combining patterns"

(page 119).

Press (Memory key) in the operation

panel.

X The screen for selecting the storage location

(pocket) appears.

Select the pocket for storage from pockets 1 -

indicates an empty pocket. indicates a

pocket where a pattern is already stored.

X The selected pocket is shown in reverse

highlighting.

Press .

X "Saving…" appears while the pattern is being

stored in the pocket.

• Do not turn off the sewing machine while a

pattern is being stored, otherwise the pattern

data may be lost.

■ Recalling a pattern

Press (Memory key) in the operation

panel.

Recall the stored pattern.

X The screen for selecting a pocket appears.

Select the pocket (1 - 5) where the combined

pattern you wish to recall are stored.

indicates an empty pocket. indicates a

pocket where a pattern is already stored.

X The selected pocket is shown in reverse

highlighting, and the stored patterns are

displayed.

Check the contents, and then press .

Press to check a pattern that is not

displayed completely.

X The stored pattern is recalled.

X The pattern selection screen appears, and

you can sew the pattern you have recalled.

SE-BrotherE_sgml.book Page 121 Monday, June 30, 2003 3:44 PM

122

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

■ Deleting a stored pattern

Stored pattern in the pockets can be deleted.

Select one of the stitch groups (except ).

• When embroidery unit is attached, select one

of the character groups.

Press (Memory key) in the operation

panel.

• Be sure that no pattern is selected on the

display.

Select the pocket where the pattern you wish

to delete is stored.

indicates an empty pocket. indicates a

pocket where a pattern is already stored.

X The selected pocket key is shown in reverse

highlighting, and the stored patterns is

displayed.

Check the contents if they can be deleted, then

press .

X The stored pattern is deleted, and turns to

SE-BrotherE_sgml.book Page 122 Monday, June 30, 2003 3:44 PM

Designing a Pattern (My Custom Stitch) 123

Designing a Pattern (My Custom Stitch)

With the My Custom Stitch function, you can sew stitch patterns that you design yourself.

Drawing a sketch of the

pattern

Prepare a grid sheet set.

Draw a sketch of the pattern on the grid sheet

set.

Draw the pattern as one continuous line and

with the start point and the end point of the

design at the same height.

If the pattern will be repeated, determine the

space between the repeating patterns.

Mark the points in the pattern that are

positioned at intersections in the grid, and

then link those points with a continuous

straight line.

Determine the sewing order.

For a more attractive stitch, close the pattern by

intersecting the line.

SE-BrotherE_sgml.book Page 123 Monday, June 30, 2003 3:44 PM

124

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Entering the pattern data

Follow the pattern drawn on the grid sheet and

program the pattern into the sewing machine.

Attach monogramming foot "N".

• For details, refer to "Replacing the presser

foot" (page 40).

Press (Menu key) on the operation

panel, and then press .

X The screen for selecting pattern types is

displayed.

Select .

X The screen for entering a pattern appears.

Check the grid sheet set, and specify the

coordinates of the first point.

Specify the coordinates using , and

press .

Specify whether single stitching or triple

stitching will be sewn between the points.

is single stitching, and gives triple

stitching.

Specify the coordinates of the second point,

and then press .

Repeat steps e through f to specify each

point.

• If you make a mistake entering a point, press

, and the previous point is erased.

• To correct the content entered, press .

You can insert, delete and move points.

After all points have been entered, press .

X The embroidery screen appears.

SE-BrotherE_sgml.book Page 124 Monday, June 30, 2003 3:44 PM

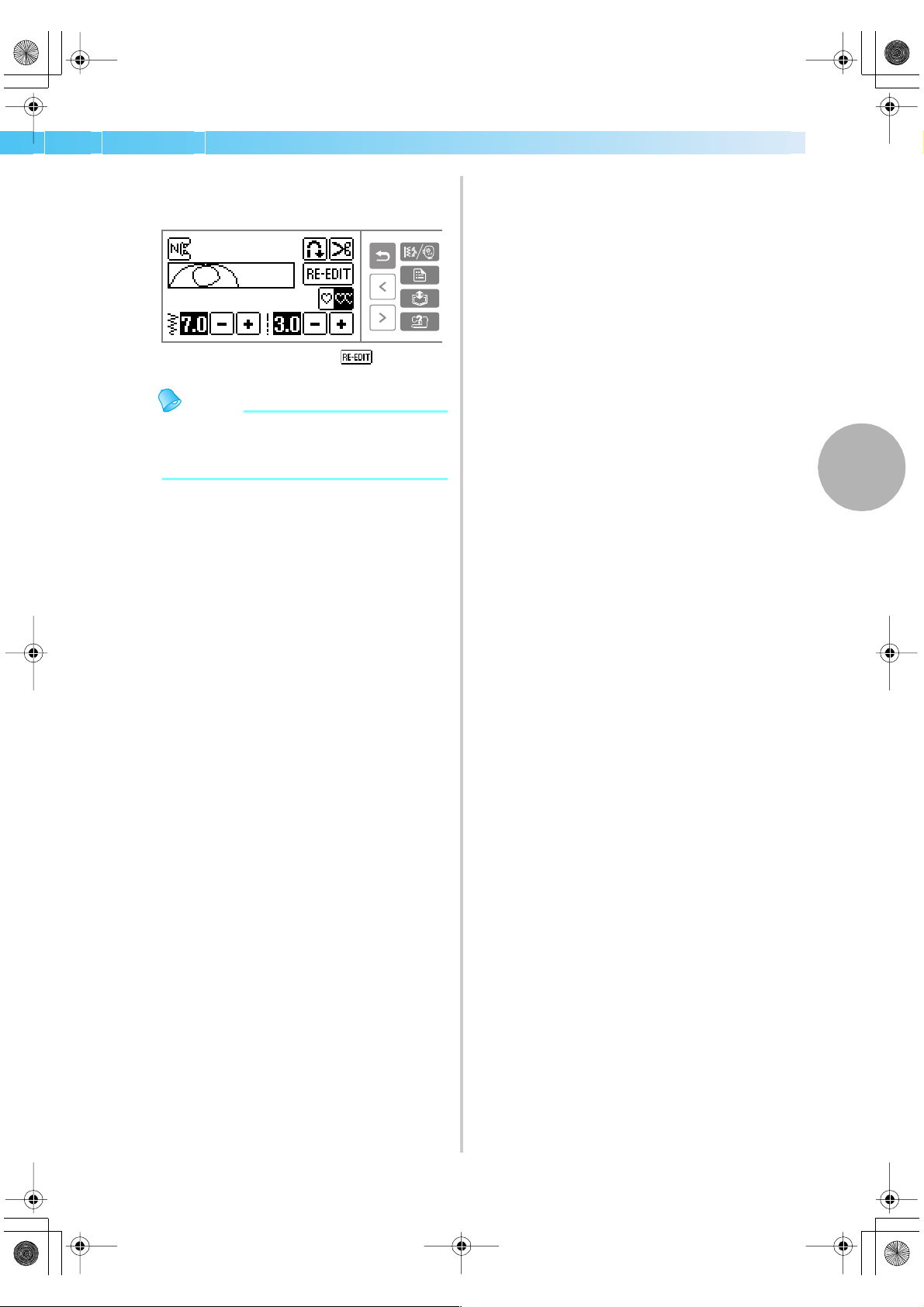

Designing a Pattern (My Custom Stitch) 125

Specify the various stitching settings, such as

reverse/reinforcement stitching, in the same

way as with other stitches.

• To revise the pattern, press .

Memo

z The pattern you entered can be stored for

later use. For details, refer to "Storing a

pattern" (page 121).

SE-BrotherE_sgml.book Page 125 Monday, June 30, 2003 3:44 PM

126

UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Examples of designs

Enter each of the points indicated in the table to sew the sample stitch.

Point Point

0 0020 38 13

1 12 0 21 35 14

2 18 3 22 32 13

3 22 6 23 30 10

4 23 10 24 32 6

5 21 13 25 35 3

6 17 14 26 41 0

7 14 13 27 45 0

8 12 11 28 47 4

9 91329 44 7

10 61430 45 11

11 31331 47 13

12 11032 50 14

13 3633 54 13

14 6334 56 10

15 12 0 35 55 6

16 41 0 36 51 3

17 43 4 37 45 0

18 40 7 38 70 0

19 41 11

Point Point

0 0020 10 11

1 30 0 21 12 10

2 32 1 22 89

3 32 7 23 12 8

4 32 10 24 76

5 33 12 25 12 6

6 35 11 26 63

7 35 8 27 10 2

8 37 12 28 50

9 35 14 29 10 2

10 32 14 30 16 1

11 30 11 31 19 0

12 30 5 32 23 0

13 29 3 33 22 6

14 26 8 34 17 10

15 24 10 35 22 6

16 18 13 36 23 0

17 13 14 37 19 0

18 12 14 38 42 0

19 13 12

Point Point

0 0020 16 10

1 3521 18 12

2 5822 21 13

3 81123 25 14

4 12 13 24 28 14

5 17 14 25 33 13

6 20 14 26 37 11

7 24 13 27 41 8

8 27 12 28 43 5

9 29 11 29 44 0

10 31 9

11 32 6

12 30 3

13 27 1

14 24 0

15 21 0

16 18 1

17 16 3

18 15 5

19 15 8

Point Point

0 0720 20 11

1 5721 21 7

2 4322 24 7

3 5723 23 14

4 8724 24 7

5 7025 27 7

6 8726 27 11

7 11 7 27 27 7

8 11 3 28 32 7

9 11 7 29 27 11

10 16 7 30 23 14

11 11 3 31 20 11

12 7032 16 7

13 4333 20 3

14 0734 23 0

15 41135 27 3

16 71436 32 7

17 11 11

18 16 7

19 21 7

SE-BrotherE_sgml.book Page 126 Monday, June 30, 2003 3:44 PM

4 EMBROIDERY

The steps for embroidering will be explained here.

Embroidering neatly ..............................................................................................128

Attaching the embroidery foot ..............................................................................131

Attaching the embroidery unit ..............................................................................134

Preparing the fabric...............................................................................................138

Attaching the embroidery frame ...........................................................................142

Selecting embroidery patterns...............................................................................144

Embroidering.........................................................................................................150

Convenient Functions............................................................................................154

SE-BrotherE_sgml.book Page 127 Monday, June 30, 2003 3:44 PM

128

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Embroidering neatly

What is necessary before embroidering will be explained here.

What to prepare

The following is necessary for embroidering.

■ Fabric

Prepare the fabric for embroidery. Prepare a piece

of fabric a little larger than the embroidery frame

that matches the size of the pattern you want to

sew.

Note

z Always use stabilizer when sewing

embroidery projects, especially when

embroidering on lightweight or stretch

fabrics. Not using a stabilizer may result in

poor quality embroidery designs.

z When embroidering on large pieces of

fabric, arrange the fabric so that it does not

hang off the table where the sewing machine

is placed. If embroidery is done with the

fabric hanging off, the embroidery unit

movement may be impaired, this could

cause the pattern to sew incorrectly.

CAUTION

■ Stabilizer material

Attach a stabilizer material for embroidery to the

fabric to prevent poor quality embroidery designs.

We recommend stabilizer material for

embroidery. Use a water soluble sheet on thin

materials like organdy and fabrics with a nap like

towels. For details, refer to "Optional Accessories"

(page 1).

■ Embroidery thread

For the upper thread, use the embroidery thread

or country thread.

For the bobbin thread, use the embroidery bobbin

thread. For details, refer to "Optional Accessories"

(page 1).

Note

z For good quality embroidery designs be sure

to use embroidery thread designed for

embroidery machines.

z Before starting to sew, be sure there is

enough bobbin thread. If you continue

embroidering when the bobbin thread is

low, the thread may become tangled.

Memo

z Two thread cassettes for setting up

embroidery thread are included. It is

convenient if the next color to embroider is

set up in another embroidery thread cassette

while the one is embroidering.

● Do not embroider fabrics that are too

thick. To check the fabric thickness,

attach the embroidery frame to the

embroidery unit, and use the "Needle

Position" button to raise the needle. If

there is space between the presser foot

and the fabric, the fabric can be

embroidered. If there is not space, do not

embroider the fabric. Otherwise, the

needle may break, resulting in injury.

● Be careful when sewing overlapping

patterns. The needle may not easily pierce

the fabric, causing the needle to break.

SE-BrotherE_sgml.book Page 128 Monday, June 30, 2003 3:44 PM

Embroidering neatly 129

■ Needle

Use a 75/11 home sewing machine needle. When

embroidering on thick fabrics such as denim, use

a 90/14 home sewing machine needle.

Memo

z A 75/11 needle is already installed when the

sewing machine is purchased.

z When replacing the needle, refer to

"Replacing the needle" (page 37).

CAUTION

■ Other

Embroidery frames "small" and "large" are

optional. For details, refer to "Optional

Accessories" (page 1).

● Since ball point needles (gold colored) are

needles for fabrics where stitches are

easily skipped, such as pattern stitching

and stretch fabrics, be absolutely sure not

to use them for embroidery. The needle

may be broken or bent.

SE-BrotherE_sgml.book Page 129 Monday, June 30, 2003 3:44 PM

130

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Embroidery step by step

The basic steps for embroidery are as follows.

↓

1 Presser foot attachment

Attach the embroidery foot "Q".

For details on attaching the embroidery foot, refer to "Attaching the

embroidery foot" (on the next page)

2 Checking the needle

Use a needle matched to the fabric.

For details on replacing the needle, refer to "Replacing the needle" (page

37).

Embroidery unit

attachment

Attach the embroidery unit.

For details on attaching the embroidery unit, refer to "Attaching the

embroidery unit" (page 134).

4 Bobbin thread setup

For the bobbin thread, wind embroidery bobbin thread and set it in

place.

For details on setting up the bobbin thread, refer to "Winding/Installing

the Bobbin" (page 18).

5 Fabric preparation

Attach a stabilizer material to the fabric, and hoop it in an embroidery

frame.

For details on preparing the fabric, refer to "Preparing the fabric" (page

138).

Embroidery frame

attachment

Attach the embroidery frame to the embroidery unit.

For details on attaching the embroidery frame, refer to "Attaching the

embroidery frame" (page 142).

7 Pattern selection

Turn the power on, and select an embroidery pattern.

For details on selecting embroidery patterns, refer to "Selecting

embroidery patterns" (page 144).

8 Checking the layout

Check and adjust the size and position of the embroidery.

For details on ajusting the layout, refer to "Adjusting the layout" (page

154).

9 Embroidery thread setup

Set up embroidery thread according to the pattern.

For details on the thread setup steps, refer to "Upper Threading" (page

23).

SE-BrotherE_sgml.book Page 130 Monday, June 30, 2003 3:44 PM

Attaching the embroidery foot 131

Attaching the embroidery foot

Attachment of the embroidery foot is explained here.

Attaching the embroidery foot

Attach the embroidery foot when embroidering.

Have the included embroidery foot "Q" and a

screwdriver ready.

a Embroidery foot bar

b Caught by the presser foot holder

CAUTION

Press (Needle position button) once or

twice to raise the needle.

a The needle goes up.

Turn off the sewing machine.

CAUTION

Raise the presser foot lever.

X The presser foot is raised.

• At the time of purchase, the presser foot lever

is up.

Press and hold the black button on the back of

the presser foot holder to release it.

a Black button

b Presser foot holder

X Detach the presser foot from the presser foot

holder.

● Always use the embroidery foot "Q" when

embroidering. If the wrong presser foot is

used, the needle may hit the presser foot

and break or bend.

● Before replacing the presser foot, be sure

to turn off the sewing machine, otherwise

injuries may occur if the start/stop button

is accidentary pressed and the machine

starts sewing.

SE-BrotherE_sgml.book Page 131 Monday, June 30, 2003 3:44 PM

132

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Loosen the presser foot holder screw and

remove the presser foot holder.

Turn the screwdriver toward the back.

a Screwdriver

b Presser foot holder

c Presser foot holder screw

X Remove the presser foot holder.

Set the bar on the embroidery foot onto the

needle clamp screw bar.

a Embroidery foot bar

b Needle clamp screw

Secure the embroidery foot with the presser

foot holder screw.

Set the embroidery foot perpendicular.

Tighten the presser foot holder screw.

Turn the screwdriver toward the front.

CAUTION

● Do not hit the needle with your finger or

the embroidery foot "Q" when attaching

it. The needle might break or cause injury.

● Be sure to tighten the screw with the

included screwdriver. If the screw is

loose, the needle might hit the presser

foot and break or bend.

● Before sewing, always turn the balance

wheel toward you slowly, and check to be

sure that the needle does not hit the

presser foot. The needle could be broken

or bent.

SE-BrotherE_sgml.book Page 132 Monday, June 30, 2003 3:44 PM

Attaching the embroidery foot 133

Removing the embroidery foot

Press (Needle position button) once or

twice to raise the needle.

X The needle is raised.

Turn off the sewing machine.

Raise the presser foot lever.

a Presser foot lever

X The presser foot is raised.

Loosen the presser foot holder screw and

remove the embroidery foot "Q".

Turn the screwdriver toward the back.

Attach the presser foot holder.

• For details, refer to "Attaching the presser foot

holder" (page 42).

SE-BrotherE_sgml.book Page 133 Monday, June 30, 2003 3:44 PM

134

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Attaching the embroidery unit

Attach the embroidery unit for embroidering.

Embroidery unit precautions

Cautions for the embroidery unit will be explained

here.

CAUTION

Note

z Do not touch the connector in the

embroidery unit connector slot. The

connector could be damaged, and it could

be a cause of malfunctions.

z Do not lift up on the embroidery carriage,

and do not forcefully move it. It could be the

cause of malfunctions.

z Put the cover on the embroidery unit for

storage.

Attaching the embroidery unit

Get the included embroidery unit ready.

Turn off the sewing machine.

Pull the flap to the left and remove it.

● Do not move the sewing machine with the

embroidery unit in place. The embroidery

unit may be dropped and cause injury.

● Do not bring your hands or anything else

close when the embroidery carriage and

embroidery frame are moving. It could

cause injury.

SE-BrotherE_sgml.book Page 134 Monday, June 30, 2003 3:44 PM

Attaching the embroidery unit 135

Open the cover of the embroidery unit con-

nector slot, which is on the left side of the sew-

ing machine arm.

Pull the cover open toward you and then push

it all the way back into the slot.

a Embroidery unit connector slot

b Cover

CAUTION

Remove the embroidery unit cover.

Open the tabs on the side of the cover and lift it

up to remove it.

Slide the embroidery unit onto the sewing

machine arm.

Push it in until it clicks and stops.

X The embroidery unit is attached.

Turn on the sewing machine.

X A message will be displayed on the LCD.

Be sure that no objects or hands are near the

embroidery unit and touch on the LCD.

• When an animation is displayed on the LCD,

the message above will be displayed if you

touch the LCD with your finger.

X The embroidery unit carriage moves to its

initial position.

a Carriage

● Push the cover all the way back into the

slot. If the embroidery unit is attached

without the cover being pushed all the

way in, it could be the cause of

malfunctions.

SE-BrotherE_sgml.book Page 135 Monday, June 30, 2003 3:44 PM

136

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

CAUTION

Note

z If the initial settings are made with hands or

objects near the carriage, the LCD may

return to the initial display. In such a case,

turn the power on again after removing

whatever is near the carriage.

X The screen for selecting the embroidery

pattern group is displayed.

• For details on Embroidery patterns, refer to

"Selecting embroidery patterns" (page 144).

Memo

z Utility stitches cannot be selected when the

embroidery unit is attached.

Removing the embroidery unit

After removing the embroidery frame, turn off the

machine and remove the embroidery unit.

Be sure that the sewing machine is stopped.

Remove the embroidery frame.

• For details on removing the embroidery

frame, refer to "Removing the embroidery

frame" (page 143).

Press on the LCD.

X The embroidery carriage moves into a

position where it can be stored.

Turn off the sewing machine.

CAUTION

● Do not put your hands or anything else

near the carriage. It could cause injury.

● Always turn off the sewing machine

before removing the embroidery unit.

It could cause malfunctions if removed

when the machine was turned on.

SE-BrotherE_sgml.book Page 136 Monday, June 30, 2003 3:44 PM

Attaching the embroidery unit 137

Hold the removal lever on the bottom left of

the embroidery unit, and slowly pull the

embroidery unit to the left.

a Removal lever

X The embroidery unit separates from the

sewing machine.

Close the cover on the embroidery unit

connector slot on the sewing machine.

After the cover is pulled out, snap it shut.

a Embroidery unit connector slot

b Cover

Install the flap back to its original position.

Put the cover on the embroidery unit and store

it.

Memo

z The embroidery unit can be stored with

embroidery frame (medium) or (small)

attached.

SE-BrotherE_sgml.book Page 137 Monday, June 30, 2003 3:44 PM

138

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Preparing the fabric

After attaching a stabilizer material to the embroidery fabric, it is stretched on an embroidery frame.

Attaching a stabilizer material

to the fabric

Attach a stabilizer material for embroidery to the

fabric to prevent poor quality embroidery designs.

Memo

z We recommend the stabilizer material for

embroidery. Use a water soluble stabilizer

on thin materials like organdy and fabrics

with a nap like towels. For details, refer to

"Optional Accessories" (page 1).

Note

z Always use stabilizer material for

embroidery with stretch fabrics, thin fabrics,

fabrics with a loose weave and fabrics where

stitches easily contract.

CAUTION

Prepare stabilizer material that is larger than

the embroidery frame being used.

a Fabric

b Size of embroidery frame

c Stabilizer material

If you are using stabilizers with adhesive, place

the adhesive surface of the stabilizer material

against the back of the fabric, and iron it with

a steam iron.

a Stabilizer material

b Fabric (reverse side)

c Attached surface

 When it cannot be ironed or placed in the

hoop.

For fabrics, such as towels, which cannot be

ironed or for embroidering in places where

ironing is difficult, place the stabilizer

material under the fabric, and stretch it on the

embroidery frame without attaching it.

● Always use stabilizer material when

sewing embroidery projects. The needle

may break or bend if you embroider

without using a stabilizer material for thin

fabrics or stretch fabrics. Furthermore,

the pattern may be sewn incorrectly.

SE-BrotherE_sgml.book Page 138 Monday, June 30, 2003 3:44 PM

Preparing the fabric 139

Setting the fabric in the

embroidery frame

The fabric is stretched on the embroidery frame. If the

fabric is loose, the quality of the embroidery pattern

may be poor. Put the fabric in the frame without slack

following the steps below. Have a fabric with a

stabilizer material attached and the embroidery frame

(medium), (small) and (large) ready.

■ Embroidery frame (medium)

Patterns with a height of up to 10 cm (4 inch) and

a width of up to 10 cm (4 inch) can be sewn.

■ Embroidery frame (small)

Patterns with a height of up to 2 cm (1 inch) and a

width of up to 6 cm (2-1/2 inch) can be sewn.

This is used for letters and other small

embroidery.

• There are patterns for which embroidery

frame (small) cannot be used.

■ Embroidery frame (large)

Embroidery can be done in an area with a height

of up to 17 cm (6-7/10 inch) and a width of up to

10 cm (4 inch) . This is used to embroider

multiple patterns without changing the fabric

position in the frame.

CAUTION

Loosen the embroidery frame adjustment

screw and remove the inner and outer frames,

placing the outer frame on a flat surface.

Separate the inner and outer frame by removing

inner frame upward.

a Inner frame

b Outer frame

c Adjustment screw

Place the fabric with the stabilizer material on

top of the outer frame.

Have the front side of the cloth up.

a Front

Press the inner frame in from the top of the

fabric.

Line up on the inner frame and on

outer frame.

Tighten the adjustment screw by hand just

enough to secure the fabric.

● Use the embroidery frame that matches

the size of the pattern being embroidered.

If the wrong size embroidery frame is

used, the embroidery frame may be hit by

the presser foot and cause injury or

needle breakage.

SE-BrotherE_sgml.book Page 139 Monday, June 30, 2003 3:44 PM

140

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Gently remove the fabric from the frame

without loosening the adjustment screw.

Memo

z This precautionary step will help reduce

pattern distortion while embroidering.

Press the inner frame in from the top of the

fabric again, lining up on the inner frame

and on outer frame.

a Outer frame

b Inner frame

c Fabric (front)

d Stabilizer material

e Ledge of outer frame

• Press down firmly until the inner frame is

securely pressed against the ledge of the

outer frame.

Tighten the adjustment screw while removing

any slack in the fabric by hand. The goal is to

have a drum-like sound when the stretched

fabric is struck lightly.

■ Using embroidery sheets

If the embroidery sheet attached to the

embroidery frame is used, the embroidery can be

sewn in exactly the right position on the fabric.

Make a mark with a chalk pen at the center of

the position for the pattern to be embroidered.

a Embroidery pattern

b Mark

SE-BrotherE_sgml.book Page 140 Monday, June 30, 2003 3:44 PM

Preparing the fabric 141

Place the embroidery sheet on the inner frame.

a Embroidery sheet

b Inner frame

Line the mark on the fabric up with the base

line on the embroidery sheet.

Place the inner frame with the fabric on the

outer frame and stretch the fabric.

• For details, refer to page 139.

Remove the embroidery sheet.

■ Embroidery on fabrics that cannot be stretched

on an embroidery frame

When small pieces of fabric that cannot be

stretched on an embroidery frame or thin pieces

like ribbon are being embroidered, use stabilizer

material as a base to stretch on the frame.

We recommend stabilizer material for

embroidery.

a Stabilizer material

b Tack or spray glue

c Fabric

After completing the embroidery, remove the

stabilizer material carefully.

SE-BrotherE_sgml.book Page 141 Monday, June 30, 2003 3:44 PM

142

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Attaching the embroidery frame

The embroidery frame with the stretched fabric is attached to the embroidery unit.

Attaching the embroidery

frame

Wind the embroidery bobbin thread onto the

bobbin and set it into the shuttle.

• For details, refer to "Winding/Installing the

Bobbin" (page 18).

Raise the presser foot lever.

a Presser foot lever

Pass the embroidery frame under the presser

foot while raising the presser foot lever even

further.

CAUTION

Firmly insert the embroidery frame guide into

the embroidery carriage frame holder from the

top.

Line up the embroidery frame guide tabs and

the embroidery carriage frame holder slots and

push in until it clicks and stops.

a Embroidery frame guide tabs

b Embroidery carriage frame holder slots

X The embroidery frame is attached.

CAUTION

● Do not hit the needle with your finger or

the embroidery frame. It could result in

injury or the breaking of the needle.

● Correctly set the embroidery frame into

the embroidery frame holder. If it is not

set in correctly, the presser foot may hit

the embroidery frame, resulting in injury.

SE-BrotherE_sgml.book Page 142 Monday, June 30, 2003 3:44 PM

Attaching the embroidery frame 143

Removing the embroidery

frame

Be sure that the sewing machine is stopped.

Raise the presser foot lever.

a Presser foot lever

Press the part of the embroidery frame holder

in the figure to the left side, and raise the

embroidery frame.

a Press here to remove

X The embroidery frame will separate from the

embroidery frame holder.

Pass the embroidery frame under the presser

foot while raising the presser foot lever even

further.

X Remove the embroidery frame.

CAUTION

● Do not hit the needle with your finger or

the embroidery frame. It could result in

injury or the breaking of the needle.

SE-BrotherE_sgml.book Page 143 Monday, June 30, 2003 3:44 PM

144

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Selecting embroidery patterns

The pattern for the embroidery is selected.

The patterns stored in the sewing machine and

embroidery cards are intended for private use only.

Any public or commercial use of copyrighted

patterns is an infringement of copyright law and is

strictly prohibited.

Embroidery pattern types

These are the following groups of patterns.

a Embroidery patterns

b Frame patterns

c Embroidery card

d Character (sans serif)

e Character (bold)

f Character (serif)

g Character (italics)

h Character (outline style)

■ Character pattern (sans serif/serif/bold/italics/

outline style)

There are uppercase/lowercase/numbers/symbols

(11 characters)/European characters.

25 continuous characters can be specified.

• For details, refer to "Selecting characters"

(page 146).

■ Embroidery patterns

There are 70 patterns from fruit to animals, etc.

The patterns are completed by changing the

upper thread according to the instructions

displayed on the LCD.

• For details, refer to "Selecting embroidery

patterns" (page 147).

■ Frame patterns

Ten shapes, such as squares and circles, can be

combined with 12 stitch types.

• For details, refer to "Selecting a frame pattern"

(page 148).

■ Embroidery card

Press when selecting patterns from an embroidery

card.

• For details, refer to "Using an embroidery

card" (page 149).

6 87

2 3

SE-BrotherE_sgml.book Page 144 Monday, June 30, 2003 3:44 PM

Selecting embroidery patterns 145

LCD (liquid crystal display)

operation

The LCD (liquid crystal display) is operated using the

operation keys on the display panel. The use of the

keys for embroidery will be explained here.

■ Operation keys

■ LCD button

• When the density of the pattern cannot be

changed, is not displayed.

Returns to the previous screen.

When there are patterns that are not

displayed on the screen (when < or >

is displayed), the previous patterns/

subsequent patterns are displayed.

Returns to the group selection screen.

The selected pattern is cancelled.

Under embroidery, information to be

displayed on the LCD can be selected

from thread color/thread number/

needle count/time to embroider

(after is pressed).

NAME OF COLOR: Typical color name

EMBROIDERY: Embroidery thread

color number

COUNTRY: Country thread color

number

When one of above two settings is selected,

number of the next thread will be also

displayed when embroidering.

(example; 001 —> 800)

NEEDLE COUNT: Needle progress

number

When a specific pattern is selected,

touch this key and then, press

to switch the display. The

sewing settings such as the specified

character string and color are

confirmed.

When an embroidery pattern has

been selected, the time to completion

of the embroidery and the elapsed

time can be checked.

The characters and frame pattern

density can be changed.

There are , (for character

patterns), , and keys.

SE-BrotherE_sgml.book Page 145 Monday, June 30, 2003 3:44 PM

146

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

• For details, refer to "Resewing" (page 157).

• For details, refer to "Adjusting the layout"

(page 154).

Memo

z When an LCD button has dashed lines

around it (i.e.: ), that button cannot be

selected.

Selecting characters

Specify the characters for embroidery. A maximum of

25 continuous characters from the same group can be

combined.

Memo

z When "The pattern is too large for the

embroidery frame." is displayed, no more

characters can be input.

z Characters from different groups (sans serif

and serif, etc.) cannot be combined.

Select the type of characters.

Select the characters for embroidery.

If a character is pressed by mistake, press .

 Example: Welcome

Press when you want to change the

color character by character in

character embroidery. Since the

sewing machine stops at the end of

each character, the upper thread is

changed as you sew.

The needle progresses one color or

one stitch (if pressed continuously, 9

stitches to 20 stitches) at a time and

changes the position for starting the

embroidery. This is used when a

specific color is not sewn or when

restarting the sewing machine after

power has been turned off in the

middle of the operation.

Back one color Forward one

color

Back one stitch Forward one

stitch

The position of the pattern within the

embroidery frame can be checked,

and the size and angle can be

changed.

Switch between uppercase/lowercase

Switch among large/medium/small sizes

SE-BrotherE_sgml.book Page 146 Monday, June 30, 2003 3:44 PM

Selecting embroidery patterns 147

Memo

z The characters you entered can be stored for

later use. For details, refer to "Storing

characters" (page 155).

Selecting embroidery patterns

There are 70 embroidery patterns, such as fruit and

animals, stored in the machine's computer memory.

Memo

z Refer to "Embroidery Pattern Color Change

Table" in the Quick reference guide for

samples of completed patterns and the

thread used.

Press embroidery pattern.

X The pattern selection screen is displayed.

Select the pattern.

Switch screens using (Previous page key)

and (Next page key).

• When / is pressed, the display of

patterns moves backward/forward 10

patterns.

X If a pattern is selected, it can be

embroidered.

SE-BrotherE_sgml.book Page 147 Monday, June 30, 2003 3:44 PM

148

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Selecting a frame pattern

Ten shapes, such as squares and circles, can be

combined with 12 stitch types.

Memo

z Refer to "Frame patterns" in the Quick

reference guide for frame pattern shapes and

stitches.

Press the frame pattern.

X The frame shape selection screen is

displayed.

Select the frame shape.

Switch the screen using (Previous page key)

(Next page key), and select from the ten

types.

X The stitch selection screen is displayed.

Select the stitch.

Switch the screen using (Previous page key)

(Next page key), and select from the 12

stitches.

X If a stitch is selected, it can be embroidered.

SE-BrotherE_sgml.book Page 148 Monday, June 30, 2003 3:44 PM

Selecting embroidery patterns 149

Using an embroidery card

If an embroidery card is used, you can embroider

patterns other than the patterns stored in the sewing

machine. There are various cards with different

themes.

Note

z Always turn off the sewing machine to insert

and remove embroidery cards.

z Insert the embroidery card into the

embroidery card slot, facing it in the right

direction.

z Do not put anything other than an

embroidery card in the embroidery card slot.

z When embroidery cards are not in use, keep

them in their storage cases.

z Use only embroidery cards manufactured for

this machine. Using unauthorized cards may

cause your machine to operate incorrectly.

z Embroidery cards purchased in foreign

countries may not work with your machine.

Turn off the sewing machine.

Insert the embroidery card in the embroidery

card slot on the right side of the sewing

machine.

Face the arrow on the embroidery card toward

you, and insert it in the direction of the arrow.

Turn on the sewing machine.

Press the embroidery card on the LCD.

X The selection screen for the patterns stored

in the card is displayed.

Select a pattern.

The operation is the same as in "Selecting

embroidery patterns" (page 147).

SE-BrotherE_sgml.book Page 149 Monday, June 30, 2003 3:44 PM

150

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Embroidering

After the preparations are done, you can try embroidering. An example of the steps for an embroidery

pattern will be given here.

Embroidering a pattern

Embroidery patterns are embroidered with a change

of thread after each color.

Prepare embroidery thread of the color shown

on the LCD.

a Embroidery foot "Q" (recommended presser foot)

b Current color step/Number of colors in design

c Current name of color

d Current color part

e Next color part

• Typical color names, embroidery thread/

country thread color number, needle count ,

and time to sew (after is pressed) can be

displayed on the LCD. When switching the

display, press (Settings key) to change

it. Refer to "LCD (liquid crystal display)

operation" (page 145).

 Example: Embroidery thread number selected

Set the embroidery thread in the thread

cassette, and thread the needle.

• Refer to "Loading the spool into the thread

cassette" (page 24) and "Threading the

needle" (page 27).

Pass the thread through the embroidery foot

hole, and hold it gently in your left hand.

Give the thread a little slack.

CAUTION

● If the thread is pulled too tight, the needle

may break or bend.

● Do not let hands or objects hit the

carriage while sewing. The pattern may

misalign.

SE-BrotherE_sgml.book Page 150 Monday, June 30, 2003 3:44 PM

Embroidering 151

Lower the presser foot lever.

a Presser foot lever

Press (Start/stop button).

a Start/stop button

After progressing 5-6 stitches, press (Start/

stop button), and the sewing machine will

stop.

Use scissors to cut the thread at the beginning

of the stitching.

Cut the thread at the edge of the stitching.

• If the thread is left at the beginning of the

stitching, it will be sewn into the pattern, and

it cannot be taken care of neatly. Take care of

the thread at the beginning of the stitch for

each color.

Press (Start/stop button) again.

X The embroidery begins again.

X Stitching stops automatically with

reinforcement after one color has been

completed. When automatic thread cutting

is set, the thread is cut.

Remove the thread cassette.

a Thread cassette eject lever

Set up embroidery thread for the next color,

and repeat steps

a-i.

X When the final color is complete, it returns

to the initial screen.

Cut the excess thread.

Memo

z It is convenient if the next color is set up in

another thread cassette while the sewing is

going on.

z For the automatic cutting setting, refer to

"Changing the Machine Settings" (page 15).

SE-BrotherE_sgml.book Page 151 Monday, June 30, 2003 3:44 PM

152

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Appliquéing

With embroidery patterns that display "APPLIQUE",

you can appliqué. Prepare the base fabric and the

appliqué fabric (appliqué piece).

Select an appliqué pattern.

When "APPLIQUE MATERIAL" is displayed on

the LCD, apply the stabilizer material to the

back of the appliqué piece fabric, and stretch

it on the embroidery frame.

Lower the presser foot lever, and press

(Start/stop button).

X The cut-out for the appliqué piece is sewn,

and the sewing machine stops.

a Cut-out line

b Appliqué piece fabric

X "APPLIQUE POSITION" will be displayed on

the LCD.

Remove the fabric from the embroidery frame,

and cut it out along the stitching.

Cut carefully along the stitching and remove

the thread.

• If it is not cut right on the stitching, it will not

be finished neatly.

Stretch the base fabric on the embroidery

frame.

Set up the thread for appliquéing.

Lower the presser foot lever, and press

(Start/stop button).

X The position for the appliqué is stitched, and

the sewing machine stops.

a Appliqué position

b Base fabric

X "APPLIQUE" will be displayed on the LCD.

Apply a thin layer of fabric glue or spray

adhesive to the back of the appliqué piece, and

attach it in the appliqué position.

SE-BrotherE_sgml.book Page 152 Monday, June 30, 2003 3:44 PM

Embroidering 153

Lower the presser foot lever, and press

(Start/stop button).

Follow the instructions on the LCD, and

change thread colors as you sew.

SE-BrotherE_sgml.book Page 153 Monday, June 30, 2003 3:44 PM

154

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Convenient Functions

Ways for fixing problems when there are mistakes in adjustments and colors for the pattern and

convenient functions will be explained here.

Adjusting the layout

The pattern is normally positioned in the center of the

embroidery frame.

You can check the layout before starting embroidery

and change the position and the size.

After selecting the embroidery pattern, press

X The screen for changing the pattern is

displayed.

Press .

X The layout screen is displayed.

Check and adjust the layout.

a Layout within the frame

b Embroidery frame (M/S) used

c 90 degree rotation key

d Size key

e Horizontal mirror image key

f Stitch beginning key

g Trial key

h Change position key

i Pattern size/position switching key

j Embroidery size (cm)

• If you make a note of the values in the lower

left when you change the size and position,

you can sew with the same size and layout

even if you have to turn the power back on in

the middle of your work.

Embroidery frame size

The size of embroidery frame that can

be used is displayed. When the

smaller mark is grayed out in the

display, embroidery frame (small)

cannot be used.

Size key

Increases/decreases the size of the

embroidery. If is pressed, it

returns to the previous screen.

Decrease size

Return to original size

Increase size

Pattern size/position switching key

Switches between pattern size and

position displays. When it is , the

pattern size is displayed in the lower

left (Example: ). When it

is , the distance moved is

displayed (Example: ).

Change position key

Moves the embroidery position up,

down, left and right.

Return to center position (when the

pattern was moved with the change

position key)

90 degree rotation key

Rotates the embroidery 90° each

time. The direction of the arrow

points to the top of design.

SE-BrotherE_sgml.book Page 154 Monday, June 30, 2003 3:44 PM

Convenient Functions 155

CAUTION

Press (Back key) to return to the original

screen.

Memo

z When the power is turned off, the layout

returns to the original setting.

Storing characters

The characters you entered can be stored in the

sewing machine memory.

Since the stored characters will not be erased when

the power is turned off, you can always recall them

for embroidery. This is convenient for storing names

and the like. You can store up to five groups.

■ Storing characters

After inputting the characters to be stored,

press (Memory key).

X The screen for selecting the storage location

(pocket) is displayed.

Select the pocket for storage from pockets 1 -

indicates an empty pocket. indicates a

pocket where a character is already stored.

X The selected pocket is shown in reverse

highlighting.

Press .

X "Saving..." appears while the character is

being stored in the pocket.

• Do not turn off the sewing machine while a

character is being stored, otherwise the

character data may be lost.

Horizontal mirror image key

Mirrors the embroidery left and right.

When it is , it cannot be used.

Stitch beginning key

Switches the position for beginning

stitching between center/lower left of

the design.

Trial key

Moves the embroidery unit carriage,

and checks the embroidery range.

● Never lower the needle when the

embroidery frame is moving. The needle

could be broken or bent.

● If the movement for the stitching position

exceeds the range where embroidery can

be done, you can not use that size

embroidery frame. Check the display for a

frame that can be used and use it. If a

frame other than the ones displayed is

used, it could result in injury.

SE-BrotherE_sgml.book Page 155 Monday, June 30, 2003 3:44 PM

156

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

■ Recalling stored characters.

Recall stored characters.

Press (Memory key).

This can be pressed no matter what screen is

being displayed.

X The pocket selection screen is displayed.

Select the pocket (1 - 5) where the characters

you wish to recall are stored.

indicates an empty pocket. indicates a

pocket where a character is already stored.

X The selected pocket is shown in reverse

highlighting, and the stored characters are

displayed.

After checking the content, press .

Press to check a pattern that is not

displayed completely.

X The stored characters are recalled.

X The screen for inputting characters appears,

and you can embroider the recalled

characters.

Memo

z The stored characters can be deleted. For

details, refer to "Storing a pattern" (page

121).

Note

z Only characters (not designs) can be stored

in the machine memory.

z Characters saved from an embroidery card

must have the embroidery card inserted in

the machine in order to retrieve the memory

saved from the embroidery card.

SE-BrotherE_sgml.book Page 156 Monday, June 30, 2003 3:44 PM

Convenient Functions 157

Adjusting the thread tension

If embroidery fails, it is difficult to undo the thread

and the fabric may be damaged. Before

embroidering, use a scrap of the same fabric to check

the adjustment of the thread tension, etc.

Thread tension adjustment will be explained here.

The upper thread tension is changed using the thread

tension dial on the left side of the sewing machine.

a Thread tension dial

■ Correct thread tension

The thread tension is correct when upper thread

is just visible on back of the fabric.

a right side

b wrong side

■ Upper thread is too tight

The lower thread will be visible on the front of the

fabric. In this instance, decrease the upper thread

tension.

a right side

b wrong side

■ Upper thread is too loose

The upper thread has slack. In this instance,

increase the upper thread tension.

a right side

b wrong side

Resewing

When the wrong color upper thread has been sewn,

it can be resewn with the correct color.

Press (Start/stop button) to stop the

sewing machine.

Press .

Press (Back one color) to return to the

beginning of the mistaken color. Press

one more time to go to previous color.

Set up the correct color for the upper thread.

Tight

Loose

SE-BrotherE_sgml.book Page 157 Monday, June 30, 2003 3:44 PM

158

EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Thread runs out partway

through a design

When the upper thread or the bobbin thread runs out

while sewing, the sewing machine stops. Move the

needle back about ten stitches and resume sewing.

Set up the upper or bobbin thread.

Press .

Press (Back one stitch) to move the

needle back about 10 stitches.

(Forward one stitch) increases the stitch

number.

Restart the embroidery.

Stopping while embroidering

If the embroidery is stopped before it is complete,

check the current needle count before turning off the

sewing machine.

Memo

z When the sewing machine is turned off, the

embroidery size and layout return to the

original setting.

Press (Start/stop button) to stop the

sewing machine.

Check the current needle count on the LCD

and make a note of it.

If the needle count is not displayed, press

(Settings key) to switch the display.

Press (Back key) to return to the embroidery

screen.

Press (Menu key).

X The screen for checking the pattern is

displayed.

SE-BrotherE_sgml.book Page 158 Monday, June 30, 2003 3:44 PM

Convenient Functions 159

Press .

X The selected pattern is turned off, and it

returns to the initial embroidery screen.

Turn off the sewing machine.

• Always detach the embroidery unit when you

move the sewing machine.

Turn on the sewing machine and select the

pattern.

Press .

Press (Forward one color) to move to the

beginning of the color you want to sew.

Press (Forward one stitch) to increase

the needle count.

If is pressed continuously, it moves

forward 1 —> 9 —> 20 stitches.

Move forward to about ten stitches before the

total number of stitches confirmed in

Restart the embroidery.

SE-BrotherE_sgml.book Page 159 Monday, June 30, 2003 3:44 PM

160

SE-BrotherE_sgml.book Page 160 Monday, June 30, 2003 3:44 PM

5 APPENDIX

The various maintenance and troubleshooting procedures are described in this chapter.

Maintenance..........................................................................................................162

Troubleshooting ....................................................................................................164

Index .....................................................................................................................174

SE-BrotherE_sgml.book Page 161 Monday, June 30, 2003 3:44 PM

162

APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Maintenance

Simple sewing machine maintenance operations are described below.

Cleaning the machine surface

If the surface of the machine is dirty, lightly soak a

cloth in neutral detergent, squeeze it out firmly, and

then wipe the surface of the machine. After cleaning

it once with a wet cloth, wipe it again with a dry

cloth.

CAUTION

Cleaning the shuttle

Sewing performance will suffer if dust collects in the

shuttle; therefore, it should be cleaned periodically.

Turn off the sewing machine.

Unplug the power cord from the power supply

jack on the right side of the sewing machine.

CAUTION

Grasp both sides of the needle plate cover, and

then slide it toward you.

a Needle plate cover

X The needle plate cover is removed.

● Unplug the power supply cord before

cleaning the machine, otherwise injuries

or an electric shock may occur.

● Unplug the power supply cord before

cleaning the machine, otherwise injuries

or an electric shock may occur.

SE-BrotherE_sgml.book Page 162 Monday, June 30, 2003 3:44 PM

Maintenance 163

Remove the shuttle.

Grasp the shuttle, and then pull it out.

a Shuttle

Use the cleaning brush or a vacuum cleaner to

remove any lint and dust from the race and its

surrounding area.

a Cleaning brush

b Shuttle race

• Do not apply oil to the shuttle.

Insert the shuttle so that the projection on the

shuttle aligns with the spring.

a Projection

b Spring

a Shuttle

Insert the tabs on the needle plate cover into

the needle plate, and then slide the cover back

on.

CAUTION

● Never use a shuttle that is scratched,

otherwise the upper thread may become

tangled, the needle may break or sewing

performance may suffer. For a new

shuttle (part code: XC3153-051), contact

your nearest authorized service center.

● Be sure that the shuttle is correctly

installed, otherwise the needle may break.

SE-BrotherE_sgml.book Page 163 Monday, June 30, 2003 3:44 PM

164

APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Troubleshooting

If the machine stops operating correctly, check the following possible problems before requesting service.

If the problem persists, contact your retailer or the nearest authorized service center.

Symptom Probable Cause Remedy Reference

The sewing

machine does not

operate.

The machine is not turned on. Turn on the machine. page 13

The start/stop button was not

pressed.

Press the start/stop button. page 49

The presser foot lever is raised. Lower the presser foot lever. page 48

The start/stop button was pressed,

even though the foot controller is

connected.

Do not use the start/stop button when

the foot controller is connected. To

use the start/stop button, disconnect

the foot controller.

page 49

The needle breaks.

The needle is incorrectly installed. Correctly install the needle.

page 37The needle clamp screw is loose.

Use the screwdriver to firmly tighten

the screw.

The needle is bent or blunt. Replace the needle.

The combination of fabric, thread

and needle is not correct.

Select a thread and needle that are

appropriate for the type of fabric

being sewn.

page 36

The presser foot that is used is not

appropriate for the type of stitch

that you wish to sew.

Attach the presser foot that is

appropriate for the type of stitch that

you wish to sew.

page 66

The upper thread tension is too

tight.

Loosen the upper thread tension. page 54

The fabric is pulled too much. Lightly guide the fabric. –

The spool is incorrectly installed. Correctly install the spool. page 23

The area around the hole in the

needle plate is scratched, or has a

burr on it.

Replace the needle plate. Contact

your retailer or the nearest authorized

service center.

–

The area around the hole in the

presser foot is scratched, or has a

burr on it.

Replace the presser foot. Contact

your retailer or the nearest authorized

service center.

–

The shuttle is scratched, or has a

burr on it.

Replace the shuttle. Contact your

retailer or the nearest authorized

service center.

–

A bobbin designed specifically for

this machine is not used.

Incorrect bobbins will not work

properly. Only use a bobbin

designed specifically for this

machine.

page 18

SE-BrotherE_sgml.book Page 164 Monday, June 30, 2003 3:44 PM

Troubleshooting 165

The upper thread

breaks.

The upper thread was not

threaded correctly (for example,

the spool is not installed correctly,

the spool cap is too big for the

spool being used, or the thread

has come out of the needle bar

thread hook).

Correct the upper threading. page 23

There are knots or tangles in the

thread.

Remove any knots or tangles. –

The selected needle is not

appropriate for the thread being

used.

Select a needle that is appropriate for

the type of thread being used.

page 36

The upper thread tension is too

tight.

Loosen the upper thread tension. page 54

The thread is tangled, for example,

in the shuttle.

Remove the tangle thread. If the

thread is tangled in the shuttle, clean

the shuttle.

page 162

The needle is bent or blunt. Replace the needle.

page 37

The needle is incorrectly installed. Correctly install the needle.

The area around the hole in the

needle plate is scratched, or has a

burr on it.

Replace the needle plate. Contact

your retailer or the nearest authorized

service center.

–

The area around the hole in the

presser foot is scratched, or has a

burr on it.

Replace the presser foot. Contact

your retailer or the nearest authorized

service center.

–

The shuttle is scratched, or has a

burr on it.

Replace the shuttle. Contact your

retailer or the nearest authorized

service center.

–

A bobbin designed specifically for

this machine is not used.

Incorrect bobbins will not work

properly. Only use a bobbin

designed specifically for this

machine.

page 18

Bobbin thread

does not wind

neatly on the

bobbin.

Bobbin winder cover is not open.

Open the bobbin winder cover until

it clicks.

page 18

Spool pin has not been raised. Raise the spool pin until it stops. page 18

The thread that was pulled out

was not wound onto the bobbin

correctly.

Wind the thread that was pulled off

around the bobbin five or six times

clockwise.

page 20

Bobbin spins slowly.

Move the sewing speed controller to

the right (so that the speed will be

fast).

page 20

Symptom Probable Cause Remedy Reference

SE-BrotherE_sgml.book Page 165 Monday, June 30, 2003 3:44 PM

166

APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

The lower thread

is tangled or

breaks.

The bobbin thread is incorrectly

installed.

Correctly install the bobbin thread. page 21

The bobbin is scratched or does

not rotate smoothly, or has a burr

on it.

Replace the bobbin. –

The thread is tangled.

Remove the tangled thread and clean

the shuttle.

page 162

A bobbin designed specifically for

this machine is not used.

Incorrect bobbins will not work

properly. Only use a bobbin

designed specifically for this

machine.

page 18

The thread tension

is incorrect.

The upper thread was not

threaded correctly.

Correct the upper threading. page 23

The bobbin thread is incorrectly

installed.

Correctly install the bobbin thread. page 21

The combination of fabric, thread

and needle is not correct.

Select a thread and needle that are

appropriate for the type of fabric

being sewn.

page 36

The presser foot holder is

incorrectly installed.

Correctly install the presser foot

holder.

page 42

The thread tension is incorrect.

Adjust the tension of the upper

thread.

page 54

A bobbin designed specifically for

this machine is not used.

Incorrect bobbins will not work

properly. Only use a bobbin

designed specifically for this

machine.

page 18

The fabric is

wrinkled.

The upper thread was not

threaded correctly, or the bobbin

is incorrectly installed.

Correctly thread the upper thread and

correctly install the bobbin thread.

page 21,

page 23

The spool is incorrectly installed. Correctly install the spool. page 23

The combination of fabric, thread

and needle is not correct.

Select a thread and needle that are

appropriate for the type of fabric

being sewn.

page 36

The needle is bent or blunt. Replace the needle. page 37

If thin fabrics are being sewn, the

stitch is too coarse.

Shorten the stitch length or sew with

stabilizer material under the fabric.

page 57

The thread tension is incorrect.

Adjust the tension of the upper

thread.

page 54

Symptom Probable Cause Remedy Reference

SE-BrotherE_sgml.book Page 166 Monday, June 30, 2003 3:44 PM

Troubleshooting 167

Stitches are

skipped.

The upper thread was not

threaded correctly.

Correct the upper threading. page 23

The combination of fabric, thread

and needle is not correct.

Select a thread and needle that are

appropriate for the type of fabric

being sewn.

page 36

The needle is bent or blunt. Replace the needle. page 37

The needle is incorrectly installed. Correctly install the needle. page 37

Dust has accumulated under the

needle plate or in the shuttle.

Remove the needle plate cover and

clean the shuttle.

page 162

A high-pitched

noise is made

while sewing.

Dust has accumulated in the feed

dogs or in the shuttle.

Clean the shuttle. page 162

The upper thread was not

threaded correctly.

Correct the upper threading. page 23

The shuttle is scratched, or has a

burr on it.

Replace the shuttle. Contact your

retailer or the nearest authorized

service center.

–

A bobbin designed specifically for

this machine is not used.

Incorrect bobbins will not work

properly. Only use a bobbin

designed specifically for this

machine.

page 18

The thread does

not pass through

the eye of the

needle.

The needle has not been raised to

the correct position. The thread

cassette indicator is lit in red.

Press the needle position button. The

thread cassette indicator lights up in

green.

page 27

The needle is incorrectly installed. Correctly install the needle. page 37

The stitch is not

sewn correctly.

The presser foot that is used is not

appropriate for the type of stitch

that you wish to sew.

Attach the presser foot that is

appropriate for the type of stitch that

you wish to sew.

page 66

The thread tension is incorrect.

Adjust the tension of the upper

thread.

page 54

The thread is tangled, for example,

in the shuttle.

Remove the tangle thread. If the

thread is tangled in the shuttle, clean

the shuttle.

page 162

The fabric does

not feed.

The feed dogs are lowered. Slide the drop feed lever to the left. page 101

The stitch is too fine. Lengthen the stitch length. page 57

The presser foot that is used is not

appropriate for the type of stitch

that you wish to sew.

Attach the presser foot that is

appropriate for the type of stitch that

you wish to sew.

page 66

The thread is tangled, for example,

in the shuttle.

Remove the tangle thread. If the

thread is tangled in the shuttle, clean

the shuttle.

page 162

The sewing lamp

does not come on.

The sewing lamp is damaged.

Contact your retailer or the nearest

authorized service center.

–

Symptom Probable Cause Remedy Reference

SE-BrotherE_sgml.book Page 167 Monday, June 30, 2003 3:44 PM

168

APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Nothing appears

in the LCD.

The brightness of the LCD is either

too light or too dark.

Adjust the brightness of the LCD. page 172

Machine does not

operate when

button is pressed.

An animation is displayed on the

LCD.

Touch the LCD with your finger, and

the animation will disappear.

page 20,

page 40

Embroidery unit

does not move.

No pattern selected. Select a pattern. page 144

The embroidery unit is not set up

correctly.

Set the embroidery unit up correctly. page 134

The embroidery

unit cannot be

attached.

The flap is still attached. Remove the flap. page 134

The embroidery unit connector

slot is closed.

Pull the embroidery unit connector

slot cover toward you and then push

it all the way in.

page 135

Embroidery not

neatly done.

The fabric is not fully stretched on

the embroidery frame. The fabric

is loose.

Stretch the fabric properly on the

embroidery frame.

page 139

No stabilizer material is attached.

Always use stabilizer material for

embroidery with stretch fabrics, thin

fabrics, fabrics with a loose weave

and fabrics where stitches easily

contract.

page 138

The thread is tangled and the

shuttle, etc., is plugged up.

Remove the tangled thread. When

the shuttle is plugged up, clean it out.

page 162

The thread tension is incorrect.

Adjust the tension of the upper

thread.

page 54

Objects are placed near the

carriage or embroidery frame.

If the embroidery unit carriage or

embroidery frame bumps into

objects, the pattern will be messed

up. Do not place objects within the

range of embroidery frame motion.

page 135

Material coming out of the

embroidery frame is causing

problems.

Stretch the fabric on the frame once

again so that the material coming out

of the embroidery frame does not

cause problems, rotate the pattern

and embroider.

–

A heavy fabric is being

embroidered, and the fabric is

hanging off the table.

If embroidery is done with the fabric

hanging off the table, the embroidery

unit movement will be impaired. Fix

it so the fabric does not hang off.

–

The fabric is catching. It is

pinched.

Stop the sewing machine and set the

fabric up correctly.

–

The carriage was moved while the

embroidery frame was being

removed or attached during

embroidery.

If the carriage is moved during the

process, the pattern may be messed

up. Be careful when removing or

attaching the embroidery frame.

–

Symptom Probable Cause Remedy Reference

SE-BrotherE_sgml.book Page 168 Monday, June 30, 2003 3:44 PM

Troubleshooting 169

Error messages

When erroneous operations are performed messages and advice on operation will be displayed on the LCD.

Follow what is displayed.

Error Message Probable Cause

The upper thread has become tangled around the shuttle, and the

needle is bent and hitting the needle plate, etc., so the sewing machine

stops (refer to page 164).

The start/stop button, reverse/reinforcement stitch button or the thread

cutter button was pressed while no thread cassette was installed.

Upper thread broken.

Upper thread not set up correctly.

Upper thread has run out.

The start/stop button, reverse/reinforcement stitch button or thread

cutter button was pressed while the presser foot was raised.

Either the start/stop button or the reverse/reinforcement stitch button

was pushed at a screen other than the sewing screen.

The bobbin winder is winding the bobbin.

The reverse/reinforcement stitch button, needle position button or

thread cutter button was pressed while the bobbin winder shaft is

moved to the right.

The start/stop button was pressed while the foot controller was

connected. You tried to use the foot controller for embroidery.

A stitch other than the buttonhole, bar tack or darning stitch was

selected and the start/stop button was pressed while the buttonhole

lever is lowered.

The buttonhole, bar tack or darning stitch was selected and the start/

stop button was pressed while the buttonhole lever is raised.

The twin needle setting is selected while a pattern that cannot be sewn

with the twin needle is selected.

A twin needle was set up with a pattern where a twin needle cannot be

selected.

The start/stop button was pressed without connecting the foot controller

while the setting for adjusting the stitch width using the sewing speed

controller is set to [ON]. You have selected a pattern for which width

control cannot be used.

You tried to create a design with too many points with the My Custom

Stitch function.

SE-BrotherE_sgml.book Page 169 Monday, June 30, 2003 3:44 PM

170

APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

The start/stop button was pressed before the editing was completed

with the My custom stitch function.

When the embroidery unit is attached.

You pressed the Back key or the Menu key while a pattern was

selected.

The start/stop button or reverse/reinforcement stitch button was pressed

when no pattern is selected.

You tried a function that cannot be used when the embroidery unit is

attached.

You tried to select an embroidery pattern or change the layout when

the needle was down.

You tried to start sewing while the needle is lowered without the thread

cassette.

You tried to set a number of characters that will not fit within the frame.

You tried to combine more than 35 decorative stitches, satin stitches,

cross-stitches or combined utility stitches.

You tried to combine more than 25 character patterns.

Bobbin thread has run out.

Little bobbin thread remains.

You tried to select a pattern that cannot be used with this sewing

machine.

A pattern is being stored.

The time for completion of the embroidery is being calculated.

[Card] on the LCD was pressed when no card was inserted.

You tried to recall a saved card pattern without having the embroidery

card in place.

A card that cannot be used with this product has been inserted, and you

tried to select a pattern from the card.

Error Message Probable Cause

SE-BrotherE_sgml.book Page 170 Monday, June 30, 2003 3:44 PM

Troubleshooting 171

You tried to recall a pattern not saved on the card with an embroidery

card in place.

Error Message Probable Cause

SE-BrotherE_sgml.book Page 171 Monday, June 30, 2003 3:44 PM

172

APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Nothing appears in the LCD

If nothing appears in the LCD when the sewing

machine is turned on, the brightness of the LCD is

either too light or too dark. If this is the case, perform

the following operation.

Turn off the sewing machine.

Turn the power on while pressing any of the

display panel buttons.

Press or .

Turn off the sewing machine, then turn it on

again.

Operation beep

Each time a key is pressed or an incorrect operation is

performed, a beep is sounded.

■ For a correct operation

One beep is sounded.

■ If an incorrect operation is performed

Two or four beeps are sounded.

■ If the machine locks up, for example, because

the thread is tangled

The sewing machine continues to beep for four

seconds. The machine automatically stops.

Be sure to check for the cause of the error, and

correct it before continuing to sew.

SE-BrotherE_sgml.book Page 172 Monday, June 30, 2003 3:44 PM

Troubleshooting 173

Cancelling the operation beep

When the sewing machine is purchased, it is set to

beep each time an operation panel key is pressed.

This setting can be changed so that the machine does

not beep.

Turn on the sewing machine.

X The LCD comes on.

Press (Settings key) in the operation

panel.

X The settings screen appears.

Press (Next page key).

Press OFF for the buzzer.

X The screen for changing the beep setting

appears.

Press (Back key).

X The initial stitch screen appears again.

SE-BrotherE_sgml.book Page 173 Monday, June 30, 2003 3:44 PM

174

APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Index

accessories .......................................................Cover A, 1

accessory case

..................................................... Cover A

adjusting layout ..........................................................154

adjusting stitch length ...................................................57

adjusting stitch width

....................................................56

adjusting thread tension ................................................54

air vent ................................................................ Cover C

appliqué .......................................................................96

appliqué pattern selection ...........................................152

appliqué stitch ..............................................................96

attaching presser foot holder

.........................................42

attaching stabilizer material ........................................ 138

attributes .......................................................................15

automatic reverse/reinforcement stitches

.......................59

automatic thread cutting ...............................................60

back key ...............................................................Cover E

balance wheel ........................................Cover C

, 48, 87

bar tack stitch .............................................................103

basic sewing .................................................................46

basic stitching ...............................................................78

basting stitch .................................................................78

beep ...........................................................................172

blind hem stitch ............................................................80

bobbin ................................................................. Cover A

bobbin installation ........................................................21

bobbin shuttle ...................................................... Cover C

bobbin storage compartment ............................... Cover B

bobbin thread spool pin ................................................18

bobbin thread, pulling up .............................................33

bobbin threading

..........................................................22

bobbin winder ..................................................... Cover B

bobbin winding

............................................................18

bobbin winding thread guide

........................................20

button guide plate .........................................................84

button sewing

...............................................................87

buttonhole lever ................................................... Cover C

buttonhole sewing ........................................................83

buttonhole stitching

......................................................82

buzzer ........................................................................172

changing sewing direction ............................................62

character storage .........................................................155

characters, recalling ....................................................156

checking needle ............................................................37

cleaning brush ..................................................... Cover A

cleaning machine surface ...........................................162

cleaning shuttle ...........................................................162

color country threads ......................................................1

color embroidery threads ................................................1

combining patterns .....................................................119

concealed seams ...........................................................89

country threads ...............................................................1

crazy quilt stitching .......................................................98

cross-stitches ...............................................................116

cuffs ..............................................................................43

curve sewing .................................................................62

custom stitches ...........................................................123

cutting thread ................................................................52

cutting thread automatically ..........................................60

cylindrical pieces ..........................................................43

darning .......................................................................105

darning stitch

..............................................................103

decorative stitches ......................................................108

decorative stitches & patterns ......................................116

deleting stored pattern

................................................122

design examples .........................................................126

designing stitch patterns

..............................................123

eject lever ............................................................ Cover B

eject lever, thread cassette ............................................25

elastic tape ....................................................................94

embroidering ..................................................... 128

, 150

embroidering pattern ..................................................150

embroidering steps ......................................................130

embroidery bobbin thread ................................... Cover A

embroidery card slot ............................................ Cover C

embroidery cards ................................................... 2

, 149

embroidery character selection ...................................146

embroidery fabric preparation .....................................138

embroidery foot installation ........................................131

embroidery foot removal

.............................................133

embroidery frame

....................................... Cover A

, 139

embroidery frame installation .....................................142

embroidery frame removal

..........................................143

embroidery pattern selection

.............................. 144

, 147

embroidery pattern types ............................................144

embroidery sets

...............................................................1

embroidery sheets .......................................................140

embroidery threads ................................................ 1

, 128

embroidery unit connector slot

............................ Cover B

embroidery unit installation ........................................134

embroidery unit removal .............................................136

error messages ............................................................169

even seam allowance ....................................................64

examples of designs ....................................................126

extra spool pin ....................................................... 29

, 31

eyelet punch ........................................................ Cover A

eyelet stitching ............................................................107

SE-BrotherE_sgml.book Page 174 Monday, June 30, 2003 3:44 PM

Index 175

fabric positioning ..........................................................48

fagoting .......................................................................109

fagoting stitch .............................................................108

feed dog position switch ...................................... Cover C

feed dogs ............................................................. Cover C

foot controller

................................................Cover A

, 49

foot controller jack ............................................... Cover C

frame pattern selection ................................................148

fraying, preventing

........................................................74

free-arm sewing ............................................................43

free-motion quilting ....................................................101

front view ............................................................ Cover B

general sewing procedures ............................................46

grid sheet set ........................................................ Cover A

guide foot .......................................................................1

handle ................................................................. Cover C

heirloom stitching .......................................................113

help key ......................................................... Cover E

, 17

inserting thread cassette ................................................28

installing bobbin ...........................................................21

joining ........................................................................112

joining stitch ........................................................ 96

, 108

layout adjustment ....................................................... 154

LCD ......................................................................Cover E

LCD button .................................................................145

LCD messages .............................................................169

LCD operation ..................................................... 14

, 145

legs ...............................................................................43

loading spool ................................................................24

machine surface cleaning ...........................................162

main power switch ........................................Cover C

, 13

maintenance ...............................................................162

manual needle threading ..............................................30

memory key ..........................................................Cover E

menu key ..............................................................Cover E

mirroring stitches ..........................................................61

My Custom Stitch ........................................................123

needle bar thread hooks ....................................... Cover C

needle condition ...........................................................37

needle plate ......................................................... Cover C

needle plate marking ....................................................64

needle position button .........................................Cover D

needle position, changing

.............................................79

needle replacement ......................................................37

needle set ............................................................ Cover A

needle threader

.............................................................27

needle threading .................................................... 23

, 27

needle types, sizes & uses .............................................36

needle-changing tool .................................... Cover A

, 38

needles .........................................................................35

next page key ........................................................Cover E

operation beep ............................................................172

operation buttons ...........................................Cover B

, 49

operation controls ................................................Cover D

operation keys ............................................................145

operation keys & panel .........................................Cover E

operation manual ................................................. Cover A

operation panel .................................................... Cover B

operation problems ..................................................... 164

operations .....................................................................17

optional accessories ........................................................1

overcasting stitches .......................................................74

pant legs .......................................................................43

parallel stitches .............................................................31

part names & functions

........................................ Cover B

patchwork .............................................................. 96

, 98

pattern combinations ..................................................119

pattern embroidery

.....................................................150

pattern realignment .....................................................117

pattern recall ...............................................................121

pattern repetition

........................................................120

pattern sewing ............................................................116

pattern storage ............................................................121

pattern, deleting

..........................................................122

piecing ..........................................................................98

piecing straight stitch ....................................................96

plain seams

...................................................................78

plug ..............................................................................13

positioning fabric ..........................................................48

power cord, jack, switch & supply ................................13

power supply jack ................................................ Cover C

power switch ....................................................... Cover C

preparations for embroidering .....................................128

presser foot .......................................................... Cover C

presser foot holder installation ......................................42

presser foot holder removal & installation .....................42

presser foot lever .................................................. Cover D

presser foot replacement ...............................................40

previous page key .................................................Cover E

problem-solving ..........................................................164

pulling up bobbin thread ..............................................33

SE-BrotherE_sgml.book Page 175 Monday, June 30, 2003 3:44 PM

176

APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

quick reference guide .......................................... Cover A

quilt stitching ................................................................96

quilting .........................................................................99

quilting foot ....................................................................1

quilting guide ......................................................... 1

, 100

quilting stippling

...........................................................96

quilting stitch ................................................................96

realigning pattern ........................................................117

recalling pattern ..........................................................121

recalling stored characters ..........................................156

reinforcement stitching ........................................ 51

, 103

removing presser foot holder .........................................42

repeated patterns ........................................................120

replacing needle ...........................................................37

replacing presser foot ....................................................40

resewing .....................................................................157

reverse stitching ............................................................51

reverse/reinforcement stitch button ............... Cover D

, 51

reverse/reinforcement stitches, automatic ......................59

safety instructions ...........................................................8

satin stitch length, changing ........................................ 117

satin stitches

...............................................................116

satin stitching ..............................................................102

scallop stitch ...............................................................108

scallop stitching

..........................................................110

scissors ................................................................ Cover A

screwdriver .......................................................... Cover A

seam allowance, even

...................................................64

seam ripper ....................................................Cover A

, 85

securing stitching ..........................................................51

selecting embroidery patterns

.....................................144

selecting stitches .................................................... 47

, 72

settings key ...........................................................Cover E

settings, changing

......................................................... 15

sewing basics ................................................................46

sewing direction change ...............................................62

sewing speed controller

................................ Cover D

, 49

shell tuck stitch .................................................. 108

, 111

shuttle ...........................................................................22

shuttle cleaning

........................................................... 162

shuttle removal ........................................................... 163

side cutter .....................................................................76

sleeve cuffs ...................................................................43

sliding leg ......................................................Cover B

, 43

smocking ....................................................................110

smocking stitch ...........................................................108

soft cover ............................................................. Cover A

solving operation problems .........................................164

spool cap ................................................Cover A

, 19, 21

spool loading ................................................................24

spool net ........................................................Cover A

, 20

spool of thread ..............................................................23

spool pin .......................................... Cover A

, 25, 29, 31

stabilizer material .......................................................138

start/stop button ............................................ Cover D

, 49

stippling ........................................................................96

stitch group selection screen .........................................14

stitch length adjustment ................................................57

stitch selection ....................................................... 47

, 72

stitch settings ................................................................66

stitch types ....................................................................72

stitch width adjustment .................................................56

stopping embroidering ................................................158

storing characters

........................................................155

storing patterns ...........................................................121

straight stitch ................................................... 66

, 78, 89

stretch fabrics ......................................................... 63

, 94

stretch stitch ..................................................................94

thick fabrics ..................................................................63

thin fabrics

....................................................................63

thread cassette .............................................. Cover A

, 24

thread cassette compartment & cover .................. Cover B

thread cassette eject lever

..............................Cover B

, 25

thread cassette indicator ............................... Cover D

, 27

thread cutter ..................................................Cover B

, 53

thread cutter button ...................................... Cover D

, 52

thread cutting ................................................................52

thread cutting, automatic ..............................................60

thread guide for bobbin winding ....................Cover B

, 20

thread spools ................................................................23

thread tension adjustment .................................... 54

, 157

thread tension dial .........................................Cover B

, 55

threading bobbin ..........................................................22

threading needle .................................................... 23

, 27

threading needle manually ............................................30

threads ............................................................................ 1

tips ................................................................................62

touch panel ...........................................................Cover E

trial sewing ...................................................................62

triple stretch stitch ................................................ 78

, 103

troubleshooting ...........................................................164

turning machine on/off

..................................................13

twin needle ................................................... Cover A

, 31

two threads

...................................................................31

upper thread .................................................................23

upper thread spool

........................................................25

upper thread tension .....................................................54

utility stitch selection screen .........................................14

utility stitches ....................................................... 72

, 108

walking foot ....................................................................1

winding bobbin ............................................................18

wing needle ................................................................113

zigzag stitches ................................................. 75, 94, 96

zigzag width adjustment ...............................................56

zipper sewing ...............................................................89

SE-BrotherE_sgml.book Page 176 Monday, June 30, 2003 3:44 PM

English

885-S15/S14

XC6369-1211

Printed in China

Brother INNOV-IS 500D Sewing machine

Product's Documents

User Manual

Specifications

Brother INNOV-IS 500D Questions and Answers

Related Products

Brother CE1155 Sewing Machine

Brother PQ1600S Sewing machine

Brother ULT2003D sewing machine

Brother CP2160R Sewing Machine

Brother SE630 Sewing Machine

Brother CE1150 Sewing Machine
