OWNER'S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully. This
will simplify installation and ensure that the product is installed
correctly and safely. Leave these instructions near the product after
installation for future reference.
MFL69962072
Rev.00_021218
EN ENGLISH
FH6G1BCH(0-9)N
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
TABLE OF CONTENTS
This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS ....................................................... 4
IMPORTANT SAFETY INSTRUCTIONS .....................................................4
Disposal of Your Old Appliance .................................................................10
INSTALLATION ...................................................................... 11
Parts ..........................................................................................................11
Accessories ...............................................................................................11
Specifications ............................................................................................12
Installation Place Requirements ................................................................13
Unpacking and Removing Transit Bolts ..................................................... 14
Using Anti-Slip Sheets (Optional) ..............................................................15
Wooden Floors (Suspended Floors) ..........................................................15
Leveling the Appliance ...............................................................................16
Connecting the Water Supply Hose...........................................................16
Installing the Drain Hose ...........................................................................19
OPERATION ........................................................................... 20
Using the Washing Machine ......................................................................20
Sorting Laundry .........................................................................................21
Adding Cleaning Products .........................................................................22
Control Panel .............................................................................................24
Programme Table ......................................................................................25
Option Programme ....................................................................................30
Dry ( ) ...................................................................................................34
SMART FUNCTIONS ............................................................. 36
Using Smart ThinQ Application .................................................................. 36
Using Smart Diagnosis™ ..........................................................................38
MAINTENANCE ...................................................................... 39
Cleaning Your Washing Machine ............................................................... 39
Cleaning the Water Inlet Filter ...................................................................39
Cleaning the Drain Pump Filter .................................................................40
Cleaning the Dispenser Drawer ................................................................. 41
Tub Clean (Optional) .................................................................................41
Caution on Freezing During Winter ...........................................................42
TROUBLESHOOTING ........................................................... 44
Diagnosing Problems ................................................................................44
Error Messages .........................................................................................48
WARRANTY ............................................................................ 50
OPERATING DATA ................................................................ 53
4
SAFETY INSTRUCTIONS
EN
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect operation
of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, re, death, electric shock,
injury or scalding to persons when using this product, follow
basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
5
EN
For use in Europe:
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
Children of less than 3 years should be kept away unless
continuously supervised.
Installation
•Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.
•This appliance should only be transported by two or more people
holding the appliance securely.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that
is subject to weathering conditions such as direct sunlight, wind, or
rain or temperatures below freezing.
•Tighten the drain hose to avoid separation.
•If the power cord is damaged or the hole of the socket outlet is
loose, do not use the power cord and contact an authorized service
centre.
•Do not plug multiple socket outlets, an extension power cable or
adapter with this appliance.
6
EN
•This appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the appliance, in such a way that a full opening of the appliance
door is restricted.
•This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current.
•This appliance is equipped with a power cord having an equipment-
grounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate socket outlet that is installed
and grounded in accordance with all local codes and ordinances.
•Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualied electrician or
service personnel if you are in doubt as to whether the appliance is
properly grounded.
•Do not modify the power plug provided with the appliance. If it
does not t the outlet, have a proper outlet installed by a qualied
electrician.
•Do not lay the appliance completely when moving or installing the
appliance. It may cause noise or appliance damage.
Operation
•Do not attempt to separate any panels or disassemble the
appliance. Do not apply any sharp objects to the control panel in
order to operate the appliance.
•Do not repair or replace any part of the appliance. All repairs
and servicing must be performed by qualied service personnel
unless specically recommended in this Owner’s Manual. Use only
authorized factory parts.
7
EN
•Do not put animals, such as pets into the appliance.
•Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.
•Do not leave the appliance door open. Children may hang on the
door or crawl inside the appliance, causing damage or injury.
•Use new hose or hose-set supplied with the appliance. Reusing old
hoses can cause a water leak and subsequent property damage.
•Do not put in, wash or dry articles that have been cleaned in,
washed in, soaked in, or spotted with combustible or explosive
substances (such as waxes, wax removers, oil, paint, gasoline,
degreasers, drycleaning solvents, kerosene, petrol, spot removers,
turpentine, vegetable oil, cooking oil, acetone, alcohol, etc.).
Improper use can cause re or explosion.
•Never reach into the appliance while it is operating. Wait until the
drum has completely stopped.
•In case of ood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Do not push down the door excessively, when the appliance door is
open.
•Do not touch the door during a high temperature programme.
•Do not use ammable gas and combustible substances (benzene,
gasoline, thinner, petroleum, alcohol, etc.) near the appliance.
•If the drain hose or inlet hose is frozen during winter, use it only
after thawing.
•Keep all washing detergents, softener and bleach away from
children.
8
EN
•Do not touch the power plug or the appliance controls with wet
hands.
•Do not bend the power cable excessively or place a heavy object
on it.
•Do not wash rugs, mats, shoes or pet blankets, or any other items
other than clothes or sheets, in this machine.
•This appliance must only be used for domestic household purposes
and should not be used in mobile applications.
•If there is a gas leakage (isobutane, propane, natural gas, etc.),
do not touch the appliance or power plug and ventilate the area
immediately.
Technical Safety for Using the Dryer
•Do not dry unwashed items in the appliance.
•Items that have been soiled with substances such as cooking
oil, vegetable oil, acetone, alcohol, petroleum, kerosene, spot
removers, turpentine, waxes and wax removers should be washed
in hot water with an extra amount of detergent before being dried in
the appliance.
•Never stop the appliance before the end of the drying cycle unless
all items are quickly removed and spread out so that the heat is
dissipated.
•Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows tted with
foam rubber pads should not be dried in the appliance.
•Fabric softeners, or similar products, should be used as specied
by the fabric softener instructions.
•Remove all objects from pockets such as lighters and matches.
•The appliance is not to be used if industrial chemicals have been
used for cleaning.
9
EN
Maintenance
•Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
•Disconnect the appliance from the power supply before cleaning
the appliance. Setting the controls to the OFF or stand by position
does not disconnect this appliance from the power supply.
•Do not spray water inside or outside the appliance to clean it.
•Never unplug the appliance by pulling on the power cable. Always
grip the power plug rmly and pull straight out from the socket
outlet.
Disposal
•Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
•Remove the door before disposing of or discarding this appliance to
avoid the danger of children or small animals getting trapped inside.
10
EN
Disposal of Your Old Appliance
• This crossed-out wheeled bin symbol indicates that waste electrical and electronic
products (WEEE) should be disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances so correct disposal of your
old appliance will help prevent potential negative consequences for the environment
and human health. Your old appliance may contain reusable parts that could be
used to repair other products, and other valuable materials that can be recycled to
conserve limited resources.
• You can take your appliance either to the shop where you purchased the product,
or contact your local government waste ofce for details of your nearest authorised
WEEE collection point. For the most up to date information for your country please
see www.lg.com/global/recycling.
11
INSTALLATION
EN

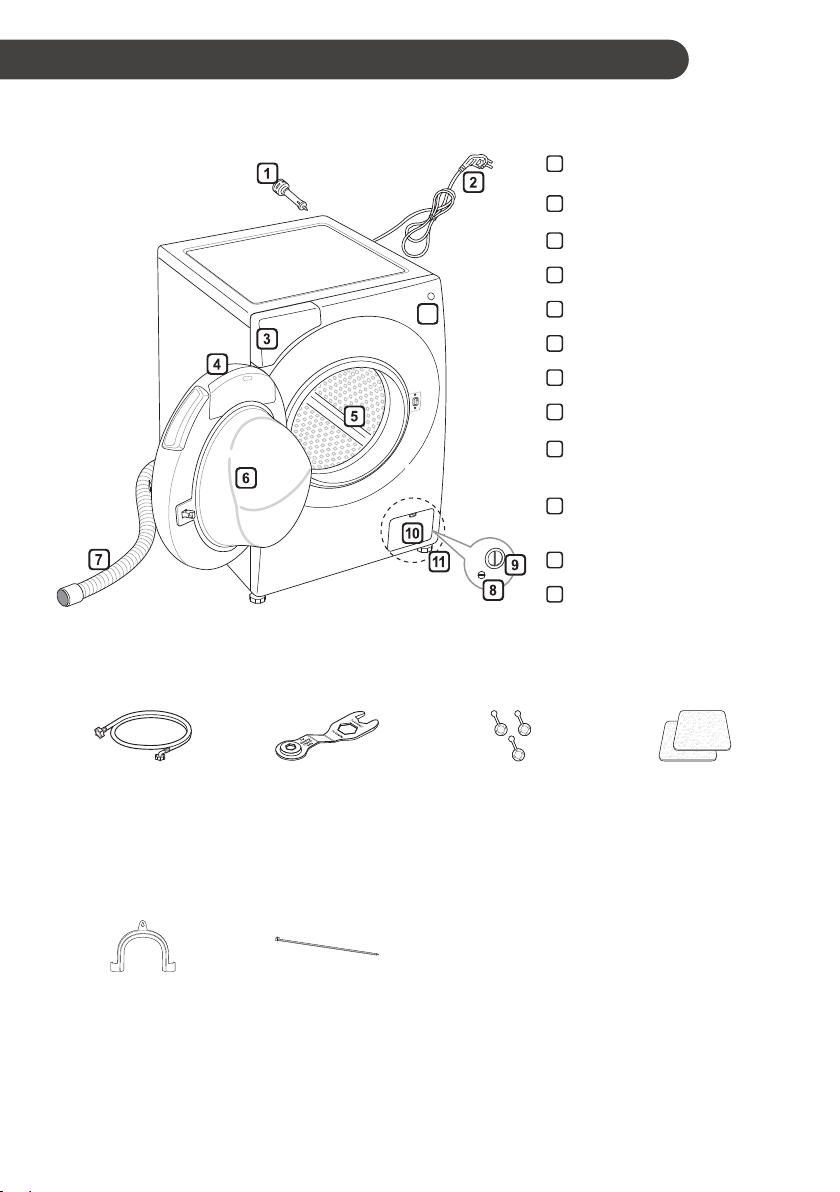

Parts
12
1
Transit bolts
2
Power plug
3
Drawer
4
Control panel
5
Drum
6
Door
7
Drain hose
8
Drain plug
9
Drain pump lter
10
Cover cap (Location may
vary depending on products)
11
Adjustable feet
12
Power button
Accessories
Cold supply hose (1 EA)
(Option: Hot (1 EA))
Spanner Caps for covering
transit bolt holes
(Optional)
Anti–slip sheets (2 EA)
(Optional)
Elbow bracket for
securing drain hose
(Optional)
Tie strap (Optional)
12
EN
Specications
Model FH6G1BCH(0-9)N
Wash Capacity 12 kg (Wash) / 8 kg (Dry)
Power Supply 220 - 240 V~, 50 Hz
Size 600 mm (W) x 610 mm (D) x 850 mm (H)
Product Weight 76 kg
Permissible Water pressure 0.1 - 1.0 MPa (1.0 - 10.0 kgf / cm²)
• Appearance and specications may change without notice to improve the quality of the product.
• No further backow protection required for connection to the water supply.
13
EN
Installation Place
Requirements
Location
2 cm
0.5 cm
2 cm10 cm
Level oor : Allowable slope under the entire
appliance is 1°.
Power outlet : Must be within 1 meter of either
side of the location of the appliance.
• Do not overload the outlet with more than one
appliance.
Additional Clearance : For the wall, 10 cm:
rear/2 cm: right & left side
• Do not place or store laundry products on top
of the appliance at any time. These products
may damage the nish or controls.
WARNING
• The plug must be plugged into an appropriate
outlet that is properly installed and grounded
in accordance with all local codes and
ordinances.
Positioning
• Install the appliance on a at hard oor.
• Make sure that air circulation around the
appliance is not impeded by carpets, rugs, etc.
• Never try to correct any unevenness in the
oor with pieces of wood, cardboard or similar
materials under the appliance.
• If it is impossible to avoid positioning the
appliance next to a gas cooker or coal burning
stove, an insulation (85x60 cm) covered with
aluminum foil on the side facing the cooker
or stove must be inserted between the two
appliances.
• Do not install the appliance in rooms where
freezing temperatures may occur. Frozen
hoses may burst under pressure. The reliability
of the electronic control unit may be impaired
at temperatures below freezing point.
• Ensure that when the appliance is installed, it
is easily accessible for an engineer in the event
of a breakdown.
• With the appliance installed, adjust all four
feet using the transit bolt spanner provided to
ensure the appliance is stable, and a clearance
of approximately 5 mm is left between the
top of the appliance and the underside of any
worktop
• If the appliance is delivered in winter and
temperatures are below freezing, place the
appliance at room temperature for a few hours
before putting it into operation.
WARNING
• This equipment is not designed for maritime
use or for use in mobile installations such as
caravans, aircraft etc.
Electrical Connection
• Do not use an extension cord or double
adapter.
• Always unplug the appliance and turn off the
water supply after use.
• Connect the appliance to an earthed socket in
accordance with current wiring regulations.
• The appliance must be positioned so that the
plug is easily accessible.
• Repairs to the appliance must only be carried
out by qualied personnel. Repairs carried out
by inexperienced persons may cause injury
or serious malfunctioning. Contact your local
service centre.
14
EN
Unpacking and Removing
Transit Bolts
1
Lift the appliance off the foam base.
• If you must lay the appliance down to
remove the carton base, always protect the
side of the appliance and lay it carefully on
its side. Do not lay the appliance on its front
or back.
• After removing the carton and shipping
material, lift the appliance off the foam
base. Make sure the tub support comes off
with the base and is not stuck to the bottom
of the appliance.
Tub Support
(Optional)
Carton base
2
Remove the bolt assemblies.
• Starting with the bottom two transit
bolts, use the spanner (included) to fully
loosen all transit bolts by turning them
counterclockwise. Remove the bolt
assemblies by wiggling them slightly while
pulling them out.
3
Install the hole caps.
• Locate the hole caps included in the
accessory pack or attached on the back.
Cap
NOTE
• Save the bolt assemblies for future use. To
prevent damage to internal components, Do
not transport the washing machine without
reinstalling the transit bolts.
• Failure to remove transit bolts and retainers
may cause severe vibration and noise, which
can lead to permanent damage to the washing
machine. The cord is secured to the back of
the washing machine with a transit bolt to help
prevent operation with transit bolts in place.
15
EN
Using Anti-Slip Sheets
(Optional)
If you install the appliance on a slippery surface,
it may move because of excessive vibration.
Incorrect leveling may cause malfunction
through noise and vibration. If this occurs, install
the anti-slip sheets under the leveling feet and
adjust the level.
1
Clean the oor to attach the anti-slip sheets.
• Use a dry rag to remove and clean foreign
objects and moisture. If moisture remains,
the anti-slip sheets may slip.
2
Adjust the level after placing the appliance in
the installation area.
3
Place the adhesive side of the anti-slip
sheets on the oor.
• It is most effective to install the anti-slip
sheets under the front legs. If it is difcult to
place the pads under the front legs, place
them under the back legs.
This side up
Adhesive side
4
Ensure the appliance is level.
• Push or rock the top edges of the appliance
gently to make sure that the appliance does
not rock. If the appliance rocks, level the
appliance again.
NOTE
• You can obtain anti-slip sheets from the LG
Service Centre.
Wooden Floors (Suspended
Floors)
• Wooden oors are particularly susceptible to
vibration.
• To prevent vibration we recommend you place
rubber cups at least 15 mm thick of the each
foot of the appliance, secured to at least two
oor beams with screws.
Rubber Cup
• If possible install the appliance in one of the
corners of the room, where the oor is more
stable.
• Fit the rubber cups to reduce vibration.
NOTE
• Proper placement and leveling of the washing
machine will ensure long, regular, and reliable
operation.
• The washing machine must be 100%
horizontal and stand rmly in position.
• It must not ‘Seesaw’ across corners under the
load.
• The installation surface must be clean, free
from oor wax and other lubricant coatings.
• Do not let the feet of the washing machine get
wet. Failure to do so may cause vibration or
noise.
• You can obtain rubber cups
(p/no.4620ER4002B) from the LG Service
Centre.
16
EN
Leveling the Appliance

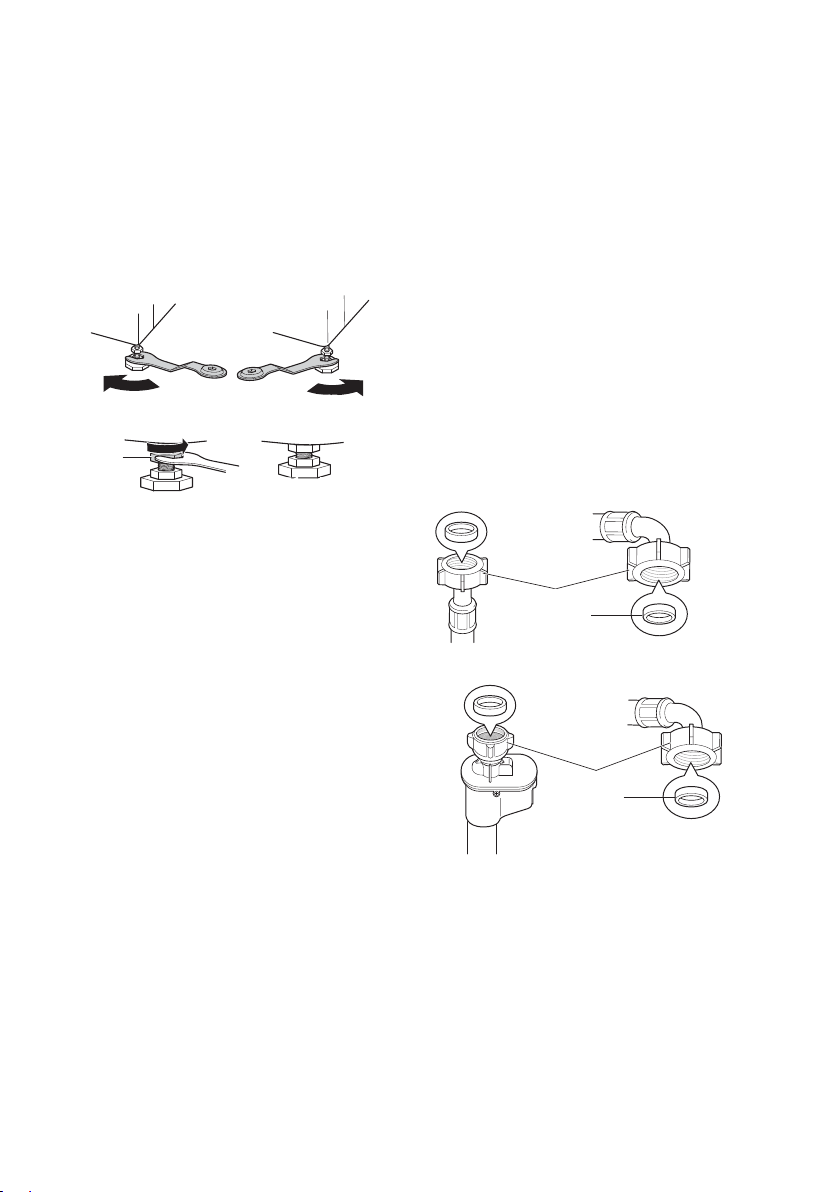

If the oor is uneven, turn the adjustable feet as
required (Do not insert pieces of wood etc. under
the feet). Make sure that all four feet are stable
and resting on the oor and then check that the
appliance is perfectly level (Use a spirit level).
• Once the appliance is level, tighten the lock
nuts up towards the base of the appliance. All
lock nuts must be tightened.
Raise Lower
Lock nut
Tighten all 4
lock nuts securely
Diagonal Check
• When pushing down the edges of the top plate
diagonally, the appliance should not move up
and down at all (check both directions). If the
appliance rocks when pushing the machine top
plate diagonally, adjust the feet again.
NOTE
• Timber or suspended type ooring may
contribute to excessive vibration and
unbalance.
• If the washing machine is installed on a raised
platform, it must be securely fastened in order
to eliminate the risk of falling off.
Connecting the Water Supply
Hose
• Water pressure must be between 0.1 MPa and
1.0 MPa (1.0‒10.0 kgf/cm
2
).
• Do not strip or crossthread when connecting
supply hose to the valve.
• If the water pressure is more than 1.0 MPa, a
decompression device should be installed.
• Periodically check the condition of the hose
and replace the hose if necessary.
Checking the Rubber Seal on the
Water Supply Hose
Two rubber seals are supplied with the water
inlet hoses. They are used for preventing water
leaks. Make sure the connection to taps is
sufciently tight.
Hose connector
Rubber seal
Hose connector
Rubber seal
17
EN

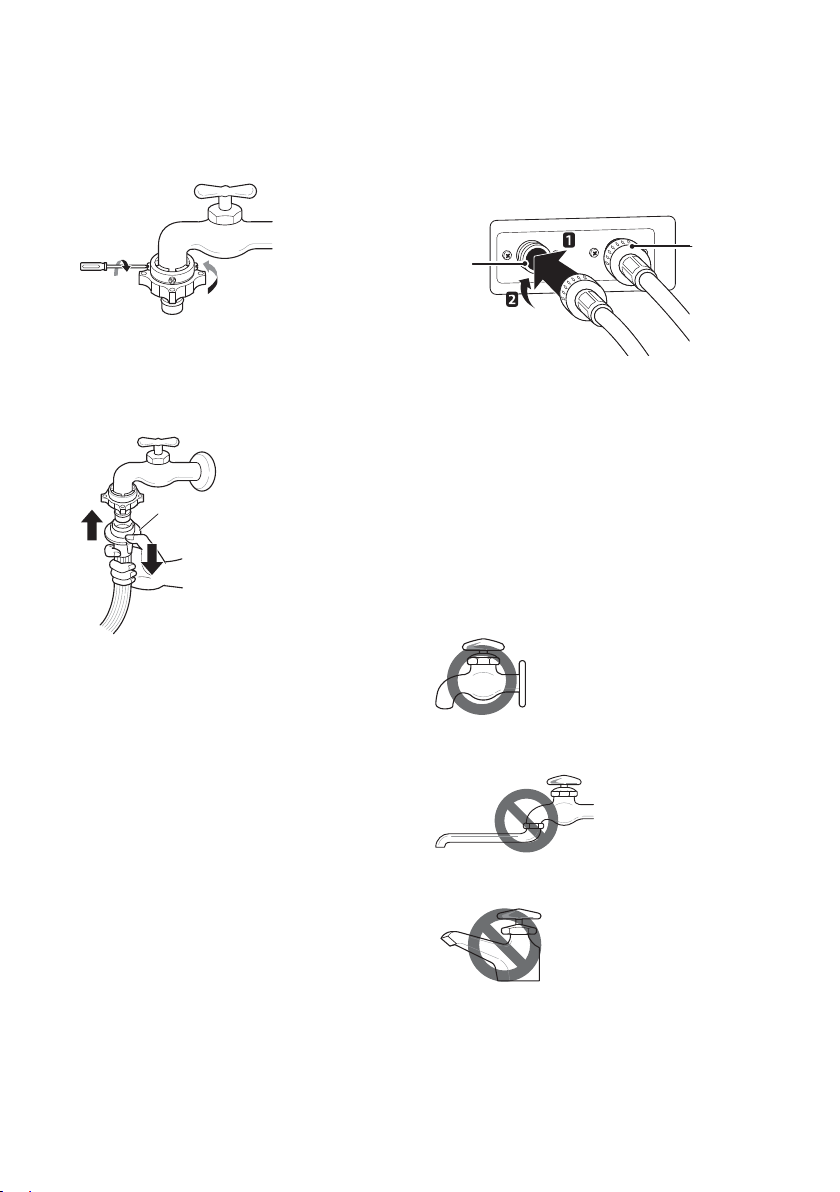

Connecting Hose to Water Tap
Connecting Screw-Type Hose to Tap
with Thread
Screw the hose connector onto the water supply
tap.
Connecting Screw-Type Hose to Tap
Without Thread
1
Loose the four xing screws.
Upper
connector
Rubber
seal
Fixing screw
2
Remove the guide plate if the tap is too large
to t the adapter.
Guide plate
3
Push the adapter onto the end of the tap
so that the rubber seal forms a watertight
connection. Tighten the four xing screws.
4
Push the supply hose vertically upwards
so that the rubber seal within the hose can
adhere completely to the tap and then tighten
it by screwing it to the right.
Plate
Supply
hose
Connecting One Touch Type Hose to
Tap Without Thread
1
Unscrew the adapter ring plate and loose the
four xing screws.
Ring plate
2
Remove the guide plate if the tap is too large
to t the adapter.
Guide plate
18
EN
3
Push the adapter onto the end of the tap
so that the rubber seal forms a watertight
connection. Tighten the four xing screws
and the adapter ring plate.
4
Pull the connector latch plate down, push the
supply hose onto the adapter, and release
the connector latch plate. Make sure the
adapter locks into place.
Latch plate
NOTE
• Before connecting the supply hose to the water
tap, turn on the water tap to ush out foreign
substances (dirt, sand, sawdust, and etc.)
in the water lines. Let the water drain into a
bucket, and check the water temperature.
Connecting Hose to Appliance
Attach the hot water line to the hot water supply
on the back of the washer. Attach the cold water
line to the cold water supply on the back of the
washer.
Cold water
supply
Hot water
supply
NOTE
• After completing connection, if water leaks
from the hose, repeat the same steps. Use
the most conventional type of tap for the water
supply. In case the tap is square or too big,
remove the guide plate before inserting the tap
into the adaptor.
Using the Horizontal Tap
Horizontal tap
Extension tap
Square tap
19
EN

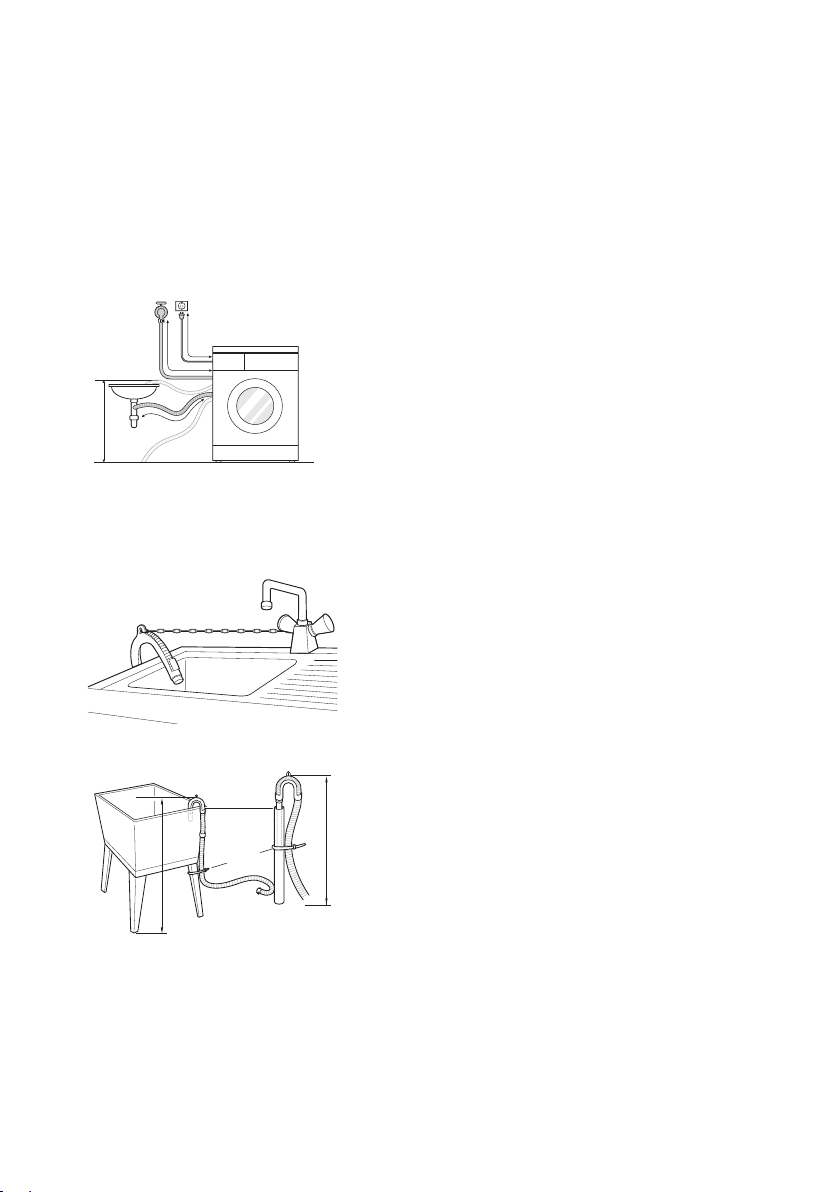

Installing the Drain Hose
• The drain hose should not be placed higher
than 100 cm above the oor. Water in the
appliance may not drain or may drain slowly.
• Securing the drain hose correctly will protect
the oor from damage due to water leakage.
• If the drain hose is too long, do not force
it back into the appliance. This will cause
abnormal noise.
max. 100 cm
~ 100 cm
~ 145 cm
~ 105 cm
• When installing the drain hose to a sink, secure
it tightly with string.
• Securing the drain hose correctly will protect
the oor from damage due to water leakage.
max. 100 cm
max. 100 cm
Laundry tub
Hose retainer
Tie strap
20
OPERATION
EN
Using the Washing Machine
Before the rst wash, select a washing
programme, allow the washing machine to wash
without clothing. This will remove residue and
water from the drum that may have been left
during manufacturing.
1
Sort laundry and load items.
• Sort laundry by fabric type, soil level, colour
and load size as needed. Open the door
and load items into the washing machine.
2
Add cleaning products and/or detergent and
softener.
• Add the proper amount of detergent to the
detergent dispenser drawer. If desired, add
bleach or fabric softener to the appropriate
areas of the dispenser.
3
Turn on the washing machine.
• Press the Power button to turn on the
washing machine.
4
Choose the desired washing cycle.
• Press the cycle button repeatedly or turn
the cycle selector knob until the desired
cycle is selected.
5
Begin cycle.
• Press the Start/Pause button to begin the
cycle. The washing machine will agitate
briey without water to measure the weight
of the load. If the Start/Pause button is not
pressed within 15 minutes, the washing
machine will shut off and all settings will be
lost.
6
End of cycle.
• When the cycle is nished, a melody will
sound. Immediately remove your clothing
from the washing machine to reduce
wrinkling. Check around the door seal when
removing the load for small items that may
be caught in the seal.
NOTE
• The button cannot be recognized when the
door is open. Press again after closing the
door.
21
EN
Sorting Laundry
1
Look for a care label on your clothes.
• This will tell you about the fabric content of
your garment and how it should be washed.
• Symbols on the care labels.
Wash temperature
Normal machine wash
Permanent press
Delicate
Hand wash
Do not wash
2
Sorting laundry.
• To get the best results, sort clothes into
loads that can be washed with the same
wash cycle.
• Different fabrics need to be washed at
varying temperatures and spin speeds.
• Always sort dark colours from pale colours
and whites. Wash separately as dye and lint
transfer can occur causing discolouration of
white and pale garments. If possible, do not
wash heavily soiled items with lightly soiled
ones.
− Soil (Heavy, Normal, Light) :
Separate clothes according to amount of
soil.
− Colour (White, Lights, Darks):
Separate white fabrics from coloured
fabrics.
− Lint (Lint producers, Collectors):
Wash lint producers and lint collectors
separately.
3
Caring before loading.
• Combine large and small items in a load.
Load large items rst.
• Large items should not be more than half
the total wash load. Do not wash single
items. This may cause an unbalanced load.
Add one or two similar items.
• Check all pockets to make sure that they
are empty. Items such as nails, hair clips,
matches, pens, coins and keys can damage
both your washing machine and your
clothes.
• Close zippers, hooks and strings to make
sure that these items don’t snag on other
clothes.
• Pre-treat dirt and stains by brushing a small
amount of detergent dissolved water onto
stains to help lift dirt.
CAUTION
• Check inside the drum and remove any items
from a previous wash.
22
EN
Adding Cleaning Products
Detergent Dosage
• Detergent should be used according to the
instruction of the detergent manufacturer and
selected according to type, colour, soiling of
the fabric and washing temperature.
• If too much detergent is used, too many suds
can occur and this will result in poor washing
results or cause heavy load to the motor.
• If you wish to use liquid detergent follow
the guidelines provided by the detergent
manufacturer.
• You can pour liquid detergent directly into the
main detergent drawer if you are starting the
cycle immediately.
• Do not use liquid detergent if you are using
Time delay, or if you have selected Pre Wash,
as the liquid may harden.
• If too many suds occur, reduce the detergent
amount.
• Detergent usage may need to be adjusted for
water temperature, water hardness, size and
soil level of the load. For best results, avoid
oversudsing.
• Refer to the label of the clothes, before
choosing the detergent and water temperature.
• When using the washing machine, use
designated detergent for each type of clothing
only:
− General powdered detergents for all types of
fabric
− Powdered detergents for delicate fabric
− Liquid detergents for all types of fabric or
designated detergents only for wool
• For better washing performance and whitening,
use detergent with the general powdered
bleach.
• Detergent is ushed from the dispenser at the
beginning of the cycle.
NOTE
• Do not let the detergent harden. Doing so may
lead to blockages, poor rinse performance or
odour.
• Full load : According to manufacturer’s
recommendation.
• Part load : 3/4 of the normal amount
• Minimum load : 1/2 of full load
Adding Detergent and Fabric
Softener
Adding Detergent
• Main wash only →
• Pre wash+Main wash →
NOTE
• Too much detergent, bleach or softener may
cause an overow.
• Be sure to use the appropriate amount of
detergent.
Adding Fabric Softener
• Do not exceed the maximum ll line. Overlling
can cause early dispensing of the fabric
softener, which may stain clothes. Close the
dispenser drawer slowly.
23
EN
• Do not leave the fabric softener in the
detergent drawer for more than 2 days (Fabric
softener may harden).
• Softener will automatically be added during the
last rinse cycle.
• Do not open the drawer when water is being
supplied.
• Solvents (benzene, etc.) must not be used.
NOTE
• Do not pour fabric softener directly on the
clothes.
Adding Water Softener
• A water softener, such as anti-limescale (e.g.
Calgon) can be used to cut down on the use
of detergent in extremely hard water areas.
Dispense according to the amount specied
on the packaging. First add detergent and then
the water softener.
• Use the quantity of detergent required for soft
water.

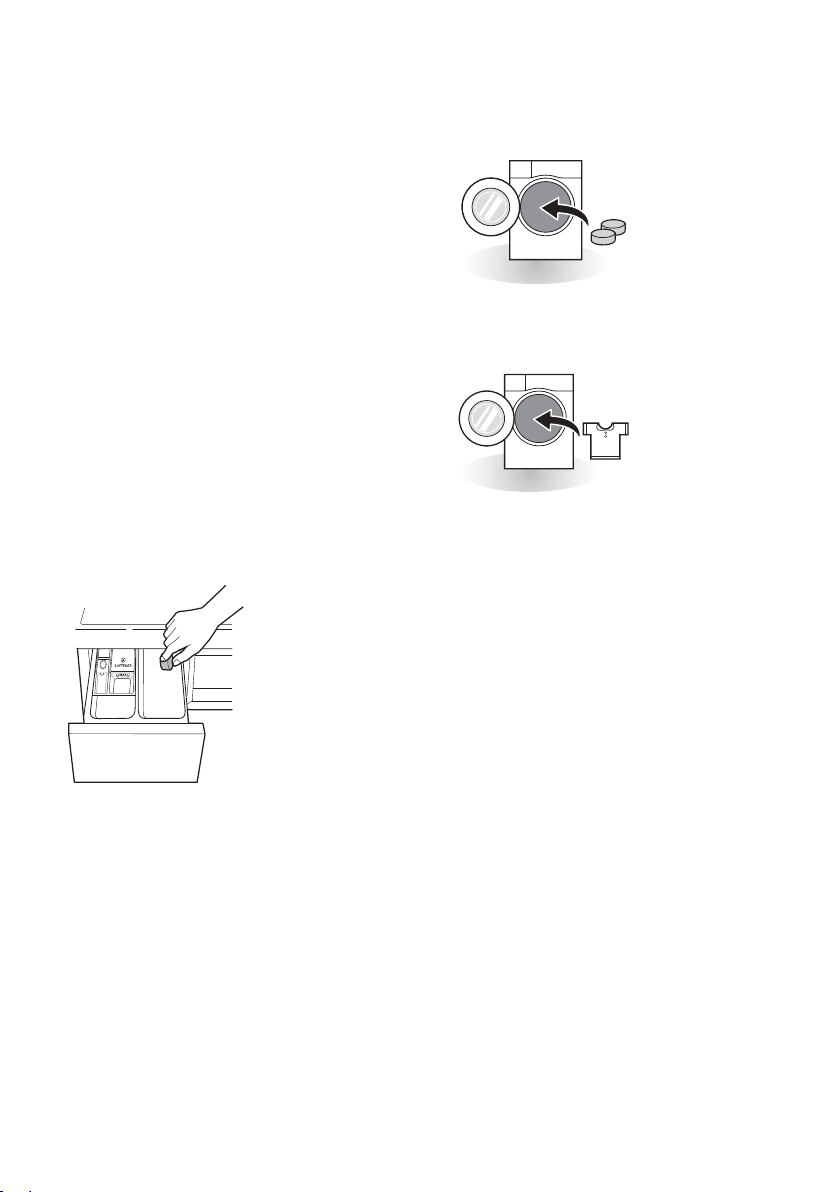

Using Tablet
1
Open the door and put tablets into the drum.
2
Load the laundry into the drum and close the
door.
24
EN

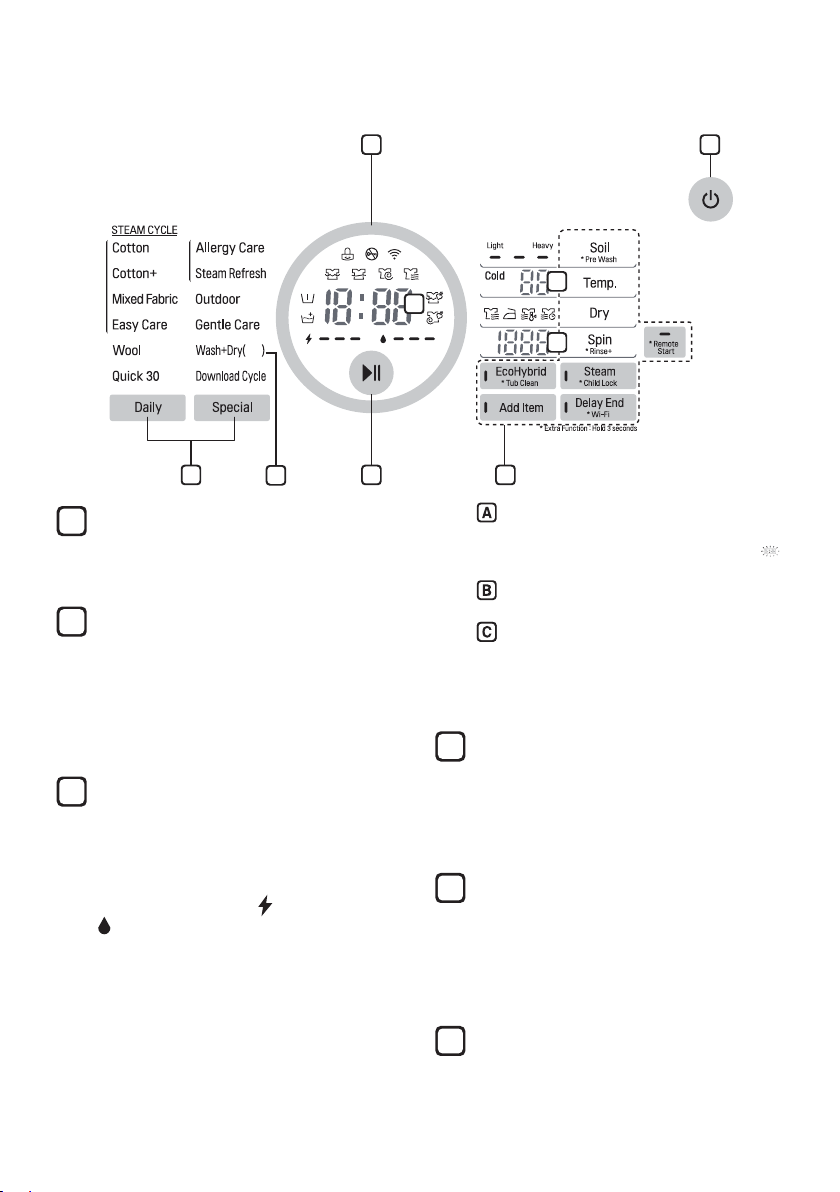

Control Panel
1
54
3
2
A
B
C
6
1
Power Button
• Press the Power button to turn the
washing machine on.
2
Start/Pause Button
• This Start/Pause button is used to start
the wash cycle or pause the wash cycle.
• If a temporary stop of the wash cycle is
needed, press the Start/Pause button.
3
Display
• The display shows the settings, estimated
time remaining, options, and status
messages. When the product is turned
on, the default settings in the display will
illuminate.
• The estimated energy(
) and water(
) consumptions are displayed before
washing and the actual consumptions after
washing.
•
: The display shows estimate time
remaining. While the size of the load is
being calculated automatically, blinking
or ‘Detecting’ appears.
•
: The water temperature is displayed
when pressing the Temp. button.
•
: The spin speed level is displayed
when pressing the Spin button.
4
Programme Button
• Programmes are available according to
laundry type.
• Lamp will light up to indicate the selected
programme.
5
Options
• This allows you to select an additional
programme and will light when selected.
• Use these buttons to select the desired
programme options for the selected cycle.
6
Wash+Dry( )
• ( ) indicates the drying capacity, which
varies on the models.
25
EN
Programme Table
Washing Programme
Programme Description Fabric Type Proper Temp. Maximum Load
Cotton
Provides better
performance by
combining various
drum motions.
Coloured fast
garments (shirts,
nightdresses,
pajamas, etc.)
and normally
soiled cotton load
(underwear).
40 °C
(Cold to 95 °C)
Rating
Cotton+
Provides
optimised washing
performance for
large amount
of laundry with
less energy
consumption.
60 °C
(Cold to 60 °C)
Easy Care
Suitable for casual
shirts that do not
need ironing after
washing.
Polyamide, acrylic,
polyester.
40 °C
(Cold to 60 °C)
5 kg
Mixed Fabric
Enables
various fabrics
to be washed
simultaneously.
Various kind of
fabrics except
special garments
(silk/delicate,
sports wear, dark
clothes, wool,
duvet/ curtains).
40 °C
(Cold to 40 °C)
4.5 kg
Allergy Care
Helps to remove
allergens such
as house mites,
pollen, and cat fur.
Cotton,
underwear, pillow
covers, bed
sheets, baby wear
60 °C
(60 °C to 95°C)
Wool
Enables to wash
wool fabrics. (Use
detergent for
machine-washable
woolens).
Machine washable
woolens with pure
new wool only.
30 °C
(Cold to 40 °C)
3 kg
Steam Refresh
Helps to remove
wrinkles within 20
mins with steam
(Clothes may be
wet. You can put
them on after
hang out to dry for
10‒30 min).
Cotton mixed,
polyester mixed
dress shirts,
blouses
No choice 3 items
26
EN
Programme Description Fabric Type Proper Temp. Maximum Load
Outdoor
Suitable for sports
wear such as
jogging clothes
and running wear.
Coolmax, gore-
tex, eece and
sympatex
30 °C
(Cold to 40 °C)
3 kg
Quick 30
Provides fast
washing time
for small loads
and lightly soiled
clothes.
Lightly soiled
colour laundry.
20 °C
(Cold to 40 °C)
Gentle Care
For hand and
machine washable
delicate clothes
such as washable
wool, lingerie,
dresses etc. (Use
detergent for
machine washable
woolens).
Wool, hand
washable clothes,
delicate, easily
damaged laundry.
20 °C
(Cold to 30 °C)
1.5 kg
Wash+Dry
Provides a
nonstop process
of washing and
drying in the same
cycle.
A small amount of
laundry which can
be dried.
40 °C
(Cold to 95 °C)
8 kg
Download Cycle
For downloadable programmes. If you did not download any programmes, the
default is Rinse+Spin.
• Water Temperature: Select the appropriate water temperature for chosen wash programme. Always
follow garment manufacturer’s care label or instructions when washing.
NOTE
• Neutral detergent is recommended.
27
EN
Drying Programme
Programme Description Fabric Type Maximum Load
Normal (
)
For cottons. Select this
programme to reduce
cycle time and energy
usage during the dry
cycle.
Cotton or linen fabrics
such as cotton towels,
t-shirts, and linen
laundries.
Rating
Iron (
)
For easy iron, nish
drying in damp
condition.
Cotton or linen fabrics,
ready to iron at the end
of programme.
Rating
Low Temp. (
)
For less clothes
damage, it dries in low
temperature.
Easy care textiles,
synthetic fabrics
suitable for Easy
Care, Mix programme
washable clothes
3.5 kg
Time 30 min. (
)
You can change the
drying time according to
the maximum load.
Cotton, towel
0.5 kg
Time 60 min. (
)
1 kg
Time 120 min. (
)
3 kg
• Set programme at ‘Wash: Cotton+, 60 °C, 1600 rpm', 'Dry: Normal and Soil: Heavy’ to test in
accordance with EN 50229.
NOTE
• Select maximum selectable spin speed of washing programme to ensure drying results.
• Where the amount of laundry to be washed and dried in one programme does not exceed the
maximum weight permitted for the drying programme, washing and drying in one continuous
sequence is recommended.
28
EN
Extra Options
Programme Pre Wash
Steam
Wash
Steam
Softener
Delay
End
Rinse+
EcoHybrid
Dry
Cotton ● ● ● ● ● ●
Cotton+ ● ● ● ● ● ●
Easy Care ● ● ● ● ● ●
Mixed Fabric ● ● ● ● ● ●
Allergy Care ●
*
● ● ●
Wool ● ●
Steam
Refresh
●
*
Outdoor ● ● ●
Quick 30 ● ● ●
Gentle Care ● ●
Wash+Dry ● ● ● ● ● ●
*
* : This option is automatically included in the cycle and can not be deleted.
29
EN
Operating Data
Programme
Max RPM
1600
Cotton 1600
Cotton+ 1600
Easy Care 1200
Mixed Fabric 1600
Allergy Care 1600
Wool 800
Steam Refresh -
Outdoor 800
Quick 30 1600
Gentle Care 800
Wash+Dry 1600
30
EN
Option Programme
Delay End
You can set a time delay so that the washing
machine will start automatically and nish after a
specied time interval.
1
Press the Power button.
2
Select a washing programme.
3
Press the Delay End button and set the
estimated end time required.
4
Press the Start/Pause button.
NOTE
• The delay time is the time to the end of the
programme, not the start. The actual running
time may vary due to water temperature, wash
load and other factors.
• To cancel the Time Delay function, the power
button should be pressed.
• Avoid using liquid detergent for this option.
EcoHybrid
Use for air condensing dry without water
consumption used for condensing.
1
Press the Power button.
2
Select a drying programme.
3
Press the EcoHybrid button.
4
Press the Start/Pause button.
NOTE
• Available with the Normal or Iron programme.
Steam (Optional)
Steam Wash features enhanced washing
performance with low energy consumption.
Steam Softener sprays steam after a spinning
cycle to reduce creases and make the laundry
uffy.
1
Press the Power button.
2
For Steam Wash option, select steam
programmes. For Steam Softener option,
select Cotton or Cotton+, Mixed Fabric, Easy
Care.
3
The following programme is selected
depending on the number of times you press
the Steam button.
• Once: Steam Wash
• Twice: Steam Softener
• Three times: Steam Wash and Steam
Softener
4
Press the Start/Pause button.
Steam Wash ( )
• For heavily stained clothes, underwear or baby
clothes.
• Available with the Cotton, Cotton+, Mixed
Fabric, Easy Care, Allergy Care, Steam
Refresh, Wash+Dry programmes.
• Do not use Steam Wash for easily discoloured
clothes and delicates such as wool, silk.
Steam Softener ( )
• Good to soften and uff fabrics after air drying.
• Available with the Cotton, Cotton+, Mixed
Fabric, Easy Care programmes.
• Do not use Steam Softener for easily
discoloured clothes and delicates such as
wool, silk.
• Depending on the kind of fabric, softening
performance may be different.
31
EN
Add Item
Laundry can be added or removed after the
washing programme is started.
1
Press the Add Item button when the LED is
turned on.
2
Open the door after door lock is released.
3
Add or remove laundry.
4
Press the Start/Pause button again to
continue the cycle. The cycle continues
automatically.
NOTE
• For safety reasons, the door remains locked
when the water level or temperature is high. It
is not possible to add laundry during this time.
• If the water temperature in the drum is high,
wait until it cools down.
CAUTION
• When adding laundry, make sure to completely
push it into the drum. If laundry gets stuck in
the door latch hole, the rubber packing may
be damaged, causing water leakage and
malfunction.
• Forcing the door open may cause part
damage, destruction, or safety problems.
• If you open the door while there are a lot of
suds and water in the drum, the suds or water
may ow, causing burn injury or wet oor.
Remote Start
Use a smart phone to control your appliance
remotely. You can also monitor your cycle
operation so you know how much time is left in
the cycle.
NOTE
• You must rst connect to a gateway and
register your appliance in order to use the
Remote Start function. (Refer to 'SMART
FUNCTIONS')
To Use Remote Start:
1
Press the Power button.
2
Put the laundry in drum.
3
Press and hold Remote Start button for 3
seconds to enable Remote Start function.
4
Start a cycle from the LG SmartThinQ
application on your smart phone.
NOTE
• If you do not start your appliance, it will wait to
start a cycle until you turn off your appliance
from the application or disable the Remote
Start function.
• When Remote Start is turned on, the door is
automatically locked.
To Disable Remote Start:
When the Remote Start is activated, press and
hold Remote Start button for 3 seconds.
NOTE
• If the door is open, Remote Start is disabled.
32
EN
Pre Wash ( )
If the laundry is heavily soiled, the Pre Wash
programme is recommended.
1
Press the Power button.
2
Select a washing programme.
3
Press and hold the Pre Wash button for 3
seconds.
4
Press the Start/Pause button.
Soil
1
Press the Power button.
2
Select a washing programme.
3
Press the Soil button.
4
Press the Start/Pause button.
Temp.
The Temp. button selects the wash and rinse
temperature combination for the selected
programme. Press this button until the desired
setting is lit. All rinses use cold tap water.
• Select the water temperature suitable for
the type of load you are washing. Follow the
garment fabric care labels for best results.
Rinse+ ( )
Add rinse once.
1
Press the Power button.
2
Select a washing programme.
3
Press and hold the Rinse+ button for 3
seconds.
4
Press the Start/Pause button.
Spin
• Spin speed level can be selected by pressing
the Spin button repeatedly.
• Spin Only
1
Press the Power button.
2
Press the Spin button to select RPM.
3
Press the Start/Pause button.
NOTE
• When you select No Spin (0), it will still rotate
for a short time to drain quickly.
33
EN
Child Lock ( )
Use this option to disable the controls. This
feature can prevent children from changing
cycles or operating the appliance
Locking the Control Panel
1
Press and hold the Child Lock button for
three seconds.
2
A beeper will sound, and will appear on
the display.
When the Child Lock is set, all buttons are
locked except the Power button.
NOTE
• Turning off the power will not reset the child
lock function. You must deactivate child lock
before you can access any other functions.
Unlocking the Control Panel
Press and hold the Child Lock button for three
seconds.
• A beeper will sound and the remaining time for
the current programme will reappear on the
display.
Beep On / Off
1
Press the Power button.
2
Press the Start/Pause button.
3
Press and hold the Soil and Temp. button
simultaneously for 3 seconds to set the Beep
on/off function.
NOTE
• Once the Beep on/off function is set, the
setting is memorized even after the power is
turned off.
• If you want to turn the Beeper off, simply
repeat this process.
Wi-Fi( )
Set the Wi-Fi connection. When Wi-Fi is
connected, the Wi-Fi icon on the control panel
is lit.
34
EN
Dry ( )
Use the automatic programmes to dry most
loads. Electronic sensors measure the
temperature of the exhaust to increase or
decrease drying temperatures for faster reaction
time and tighter temperature control.
• Cold water tap must be left on during drying
cycles.
• This washing machine’s automatic process
from washing to drying can be selected easily.
• For most even drying, make sure all articles
in the clothes load are similar in material and
thickness.
• Do not overload the washing machine by
stufng too many articles into the drum. Items
must be able to tumble freely.
• If you open the door and remove the load
before the washing machine has nished its
cycle, remember to press the Start/Pause
button.
• By pressing the Dry button, you can select:
Normal-Iron-Low Temp.-Time (30-60-120).
• After the end of dry, '
' is displayed. ' '
means crease decreasing. The drying cycle is
already done. Press any buttons and take out
clothes. If you do not press the Start/Pause
button, the programme ends after about 4
hours.
NOTE
• When you turn the washing machine off of
the drying cycle, the drying fan motor can be
operated to save itself for 60 seconds. Then
the washing machine will display ' ' on the
panel. ' ' means cooling fan.
• Be careful when removing your clothing from
the washing machine, as the clothing or
washing machine may be hot.
Woolen Articles
• Do not tumble dry woolen articles. Pull them to
their original shape and dry them at.
Woven and Loopknit Materials
• Some woven and loopknit materials may
shrink, by varying amounts, depending on their
quality.
• Always stretch these materials out immediately
after drying.
Permanent Press and Synthetics
• Do not overload your washing machine.
• Take out permanent press articles as soon as
the washing machine stops to reduce wrinkles.
Baby Clothes and Night Gowns
• Always check the manufacturer’s instructions.
Rubber and Plastics
• Do not dry any items made from or containing
rubber or plastics, such as:
− aprons, bibs, chair covers
− curtains and table cloths
− bathmats
Fiber Glass
• Do not dry berglass articles in your washing
machine. Glass particles left in the washing
machine may be picked up by your clothes the
next time you use the washing machine and
cause skin irritation.
35
EN
Drying Time Guide
• Drying programme can last up to about 7
hours.
• These drying times are given as a guide to
help you set your washing machine for manual
drying.
• If the temperature of the drying system is
not enough to complete to dry, drying time is
modied automatically, and inform it by pop-up
window.
NOTE
• The estimated drying time varies from the
actual drying time during the Automatic
programme. The type of fabric, size of the load,
and the dryness selected affect drying time.
• When you select drying only, spinning runs
automatically for energy efciency.
36
SMART FUNCTIONS
EN
Using Smart ThinQ
Application
Installing Smart ThinQ
Search for the LG SmartThinQ application from
the Google Play Store or Apple App Store on a
smart phone. Follow instructions to download
and install the application.
Wi-Fi Function
• For appliances with the or logo
Communicate with the appliance from a smart
phone using the convenient smart features.
Washer Cycle (Remote Start, Download
Cycle)
Set or download any preferred cycle and operate
by remote control.
Tub Clean Coach
Check the appropriate Tub Clean period by
washing frequency.
Energy Monitoring
Check the energy consupmtion of the recently
used cycles and monthly average.
Smart Diagnosis
This function provides useful information for
diagnosing and solving issues with the appliance
based on the pattern of use.
Settings
Various functions are available.
Push Alert
Turn on the Push Alerts to receive appliance
status notications. The notications are
triggered even if the LG SmartThinQ application
is off.
NOTE
• To verify the Wi-Fi connection, check that Wi-Fi
icon on the control panel is lit.
• LG SmartThinQ is not responsible for any
network connection problems or any faults,
malfunctions, or errors caused by network
connection.
• The machine supports 2.4 GHz Wi-Fi networks
only.
• If the security protocol of the router is set
to WEP, you may fail to set up the network.
Please change it to other security protocols
(WPA2 is recommended) and register the
product again.
• For the router's SSID (the name of the
wireless router that appears when searching
for Wi-Fi), please use only English alphabets
and numbers. Other characters may not be
supported.
• If the appliance is having trouble connecting
to the Wi-Fi network, it may be too far from
the router. Purchase a Wi-Fi repeater (range
extender) to improve the Wi-Fi signal strength.
• The Wi-Fi connection may not connect or may
be interrupted because of the home network
environment.
• The network connection may not work properly
depending on the internet service provider.
• The surrounding wireless environment can
make the wireless network service run slowly.
• The application is subject to change for
appliance improvement purposes without
notice to users.
• Functions may vary by model.
Wireless LAN Module Specications
Model LCW-003
Frequency
Range
2412~2472 MHz
Output Power
(Max.)
IEEE 802.11 b : 18.37 dBm
IEEE 802.11 g : 17.67 dBm
IEEE 802.11 n : 17.67 dBm
Wireless function S/W version : V 1.0
For consideration of the user, this device should
be installed and operated with a minimum
distance of 20 cm between the device and the
body.
37
EN
Declaration of Conformity
Hereby, LG Electronics declares that the
radio equipment type Washing machine is in
compliance with Directive 2014/53/EU. The
full text of the EU declaration of conformity is
available at the following internet address:
http://www.lg.com/global/support/cedoc/cedoc#
LG Electronics European Shared Service Centre
B.V.
Krijgsman 1
1186 DM Amstelveen
The Netherlands
Open Source Software Notice
Information
To obtain the source code under GPL, LGPL,
MPL, and other open source licenses, that is
contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred
license terms, warranty disclaimers and
copyright notices are available for download.
LG Electronics will also provide open source
code to you on CD-ROM for a charge covering
the cost of performing such distribution (such as
the cost of media, shipping, and handling) upon
email request to [email protected]. This
offer is valid for three (3) years from the date on
which you purchased the product.
Standby power consumption 0.5 W
Network standby power
consumption
3.0 W
The period of time after which
the power management
function, or a similar function,
switches the equipment
automatically into standby
and/or off mode and/or
the condition providing
networked standby
20 min.
Smart Diagnosis™ Using a Smart
Phone
• For appliances with the or logo
Use this function if you need an accurate
diagnosis by an LG Electronics customer
information centre when the appliance
malfunctions or fails.
Smart Diagnosis™ can not be activated
unless the appliance is connected to power.
If the appliance is unable to turn on, then
troubleshooting must be done without using
Smart Diagnosis™.
38
EN
Using Smart Diagnosis™
Smart Diagnosis™ Through the
Customer Information Centre
Use this function if you need an accurate
diagnosis by an LG Electronics customer
information center when the appliance
malfunctions or fails. Use this function only to
contact the service representative, not during
normal operation.
1
Press the Power button to turn on the
washing machine. Do not press any other
buttons or turn the programme knob.
2
When instructed to do so by the call center,
place the mouthpiece of your phone close to
the Power button.
Max.
10 mm
3
Press and hold the Temp. button for 3
seconds, while holding the phone mouthpiece
to the icon or Power button.
4
Keep the phone in place until the tone
transmission has nished. Time remaining for
data transfer is displayed.
• For best results, do not move the phone
while the tones are being transmitted.
• If the call centre agent is not able to get an
accurate recording of the data, you may be
asked to try again.
5
Once the countdown is over and the tones
have stopped, resume your conversation with
the call centre agent, who will then be able to
assist you using the information transmitted
for analysis.
NOTE
• The Smart Diagnosis™ function depends on
the local call quality.
• The communication performance will improve
and you can receive better service if you use
the home phone.
• If the Smart Diagnosis™ data transfer is poor
due to poor call quality, you may not receive
the best Smart Diagnosis™ service.
39

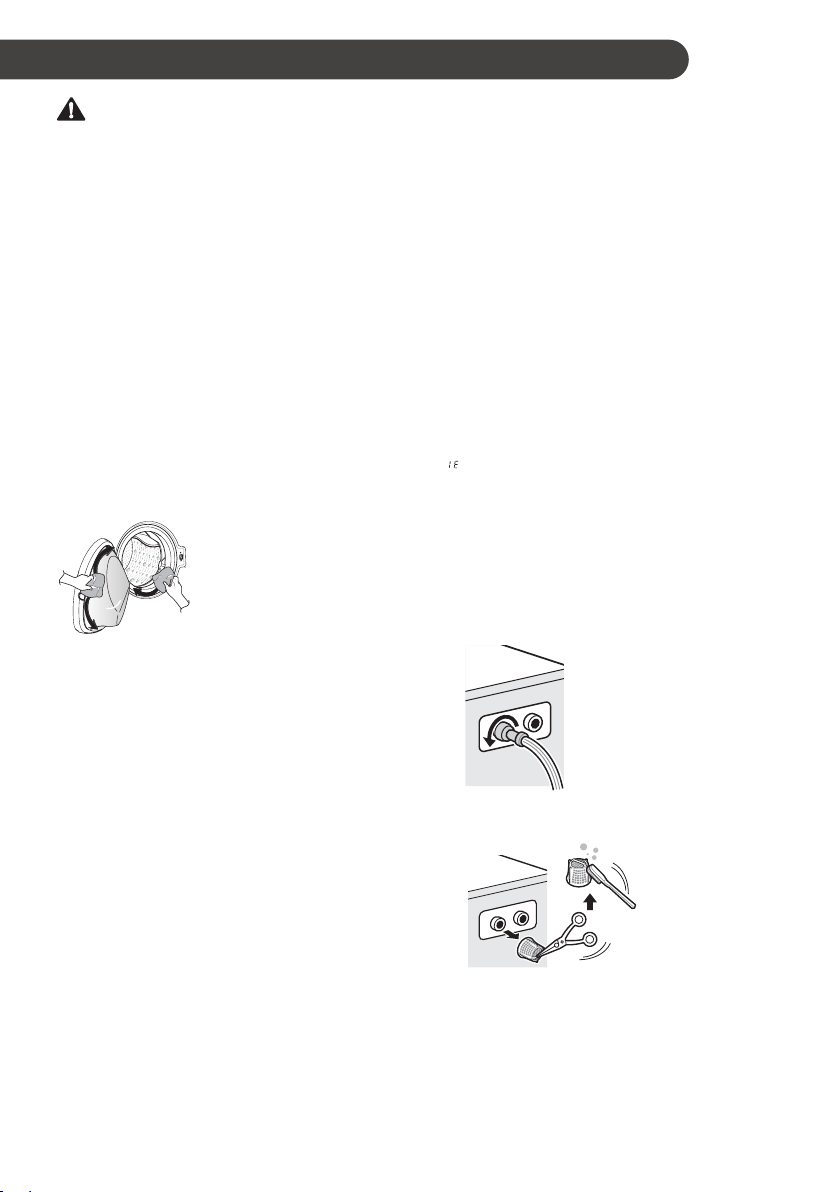

MAINTENANCE
EN
WARNING
• Unplug the washing machine before cleaning
to avoid the risk of electric shock. Failure to
follow this warning may result in serious injury,
re, electric shock, or death.
• Never use harsh chemicals, abrasive cleaners,
or solvents to clean the washing machine.
They may damage the nish.
Cleaning Your Washing
Machine
Care After Wash
• After the cycle is nished, wipe the door and
the inside of the door seal to remove any
moisture.
• Leave the door open to dry the drum interior.
• Wipe the body of the washing machine with a
dry cloth to remove any moisture.
Cleaning the Exterior
Proper care of your washing machine can
extend its life.
Door:
• Wash with a damp cloth on the outside and
inside and then dry with a soft cloth.
Exterior:
• Immediately wipe off any spills.
• Wipe with a damp cloth.
• Do not press the surface or the display with
sharp objects.
Cleaning the Interior
• Use a towel or soft cloth to wipe around the
washing machine door opening and door glass.
• Always remove items from the washing
machine as soon as the cycle is complete.
Leaving damp items in the washing machine
can cause wrinkling, colour transfer, and odour.
• Run the Tub Clean programme once a month
(or more often if needed) to remove detergent
buildup and other residue
Cleaning the Water Inlet Filter
• Turn off the supply taps to the machine if the
washing machine is to be left for any length of
time (e.g. holiday), especially if there is no oor
drain (gully) in the immediate vicinity.
•
icon will be displayed on the control panel
when water is not entering the detergent
drawer.
• If water is very hard or contains traces of lime
deposit, the water inlet lter may become
clogged. It is therefore a good idea to clean it
occasionally.
1
Turn off the water tap and unscrew the water
supply hose.
2
Clean the lter using a hard bristle brush.
40
EN

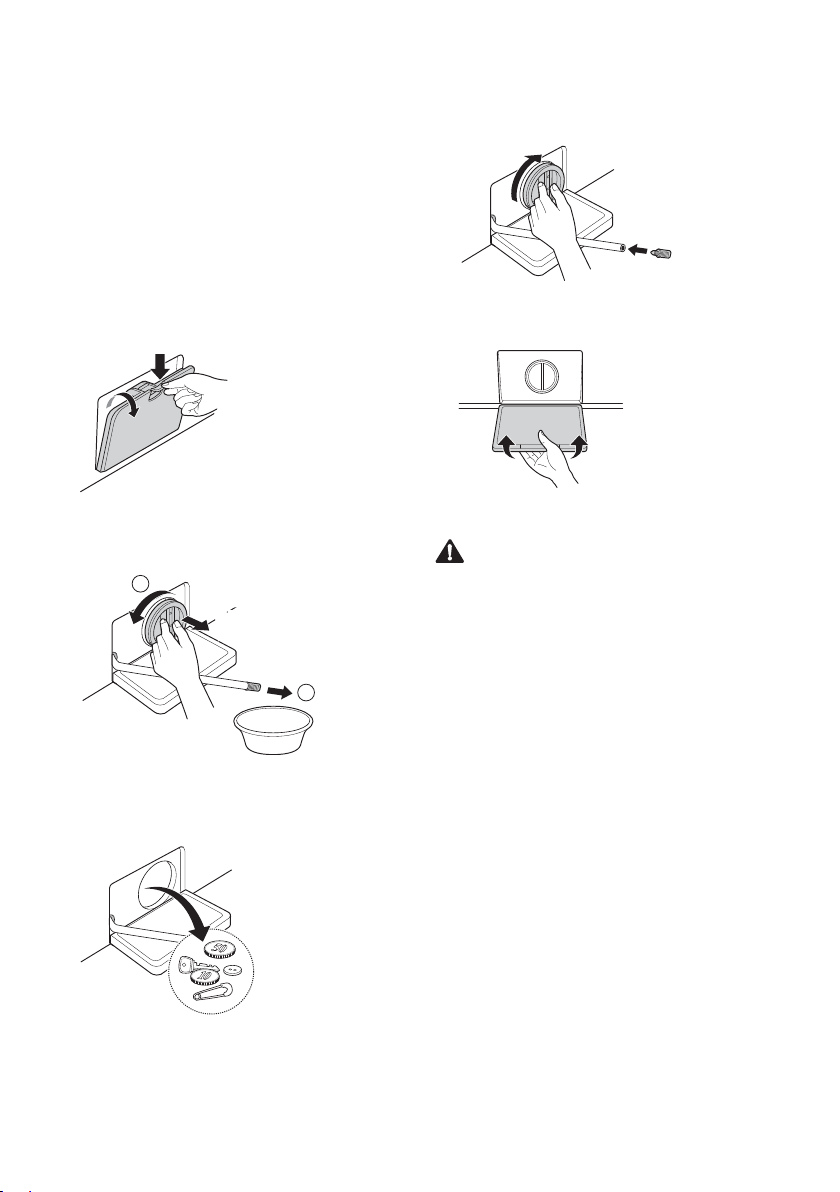

Cleaning the Drain Pump
Filter
• The drain lter collects threads and small
objects left in the laundry. Check regularly that
the lter is clean to ensure smooth running of
your washing machine.
• Allow the water to cool down before cleaning
the drain pump, carrying out emergency
emptying, or opening the door in an
emergency.
1
Open the cover cap and pull out the hose.
2
Unplug the drain plug and open the lter by
turning it to the left.
1
2
Container to
collect the drained
water.
3
Remove any extraneous matter from the
pump lter.
4
After cleaning, turn the pump lter and insert
the drain plug.
5
Close the cover cap.
CAUTION
• First drain using the drain hose and then
open the pump lter to remove any threads or
objects.
• Be careful when draining, as the water may be
hot.
41
EN
Cleaning the Dispenser
Drawer
Detergent and fabric softener may build up in
the dispenser drawer. Remove the drawer and
inserts and check for buildup once or twice a
month.
1
Remove the detergent dispenser drawer by
pulling it straight out until it stops.
• Press down hard on the disengage button
and remove the drawer.
2
Remove the inserts from the drawer.
• Rinse the inserts and the drawer with
warm water to remove buildup from
laundry products. Use only water to clean
the dispenser drawer. Dry the inserts and
drawer with a soft cloth or towel.
3
To clean the drawer opening, use a cloth or
small, non-metal brush to clean the recess.
• Remove all residue from the upper and
lower parts of the recess.
4
Wipe any moisture off the recess with a soft
cloth or towel.
5
Return the inserts to the proper
compartments and replace the drawer.
Tub Clean (Optional)
Tub Clean is a special programme to clean the
inside of the washing machine.
A higher water level is used in this programme
at higher spin speed. Perform this programme
regularly.
1
Remove any clothing or items from the
washing machine and close the door.
2
Open the dispenser drawer and add anti-
limescale (e.g. Calgon) to the main wash
compartment.
• For tablets put into the drum.
3
Close the dispenser drawer slowly.
4
Power on and then press and hold Tub
Clean button for 3 seconds. Then will be
displayed on the display.
5
Press the Start/Pause button to start.
6
After the programme is complete, leave the
door open to allow the washing machine door
opening, gasket and door glass to dry.
CAUTION
• If there is a child, be careful not to leave the
door open for too long.
NOTE
• Do not add any detergent to the detergent
compartments. Excessive suds may generate
and leak from the washing machine.
42
EN

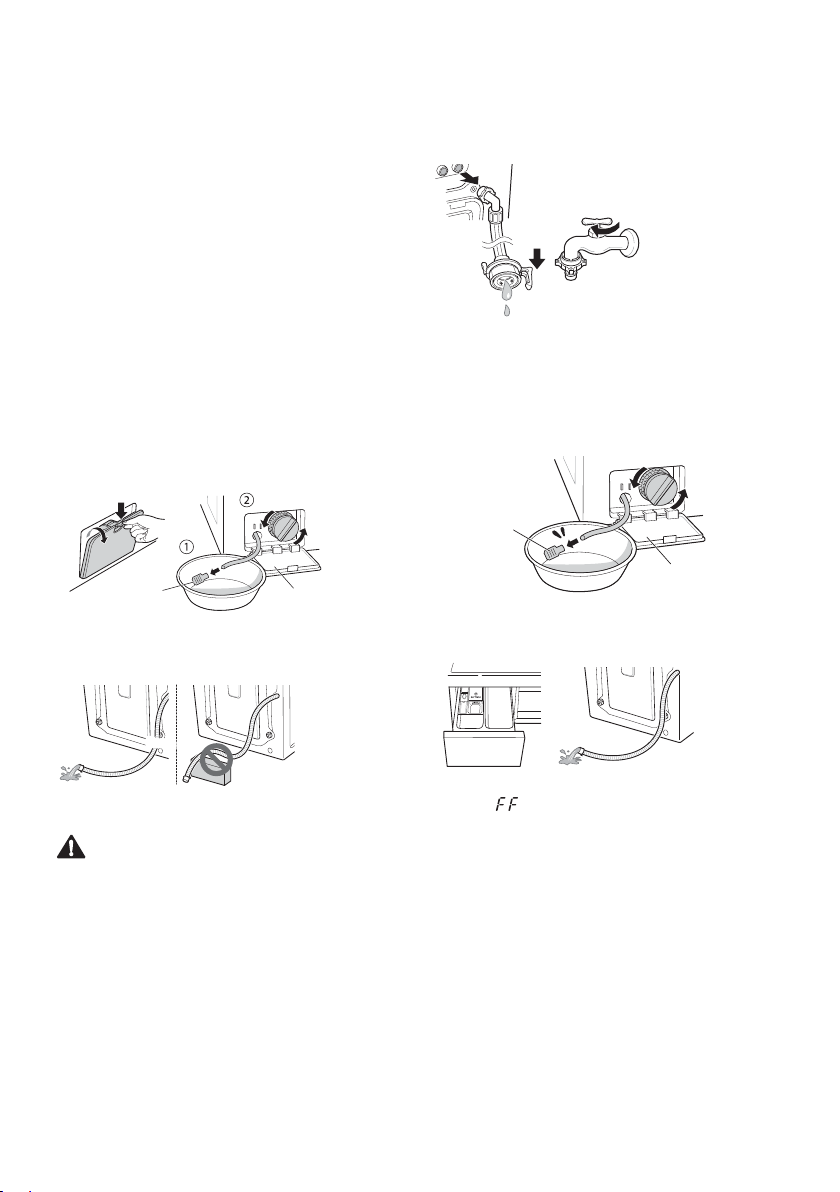

Caution on Freezing During
Winter
• When frozen, the product does not operate
normally. Make sure to install the product
where it will not freeze during winter.
• In case the product must be installed outside
on a porch or in other outdoor conditions, make
sure to check the following.
How to Keep the Product from
Freezing
• After washing, remove water remaining inside
the pump completely with the opening hose
plug used for removal of residual water. When
the water is removed completely, close the
hose plug used for removal of residual water
and cover cap.
Drain plug
Cover cap
• Hang down drain hose to pull out water inside
the hose completely.
Drain hose
CAUTION
• When the drain hose is installed in a curved
shape, the inner hose may freeze.
• After closing the tap, disconnect the cold
supply hose from the tap, and remove water
while keeping the hose facing downwards.
Supply hose
Check for Freezing
• If water does not drain when opening the hose
plug used for removal of residual water, check
the drainage unit.
Drain plug
Cover cap
• Turn the power on, choose a washing
programme, and press the Start/Pause button.
Drain hoseDetergent drawer
• When ' ' is shown in display window while
the product is in operation, check water supply
unit and drainage unit (Some models do not
have an alarm function that indicates freezing).
NOTE
• Check that water is coming into the detergent
drawer while rinsing, and water is draining
through the drain hose while spinning.
43
EN

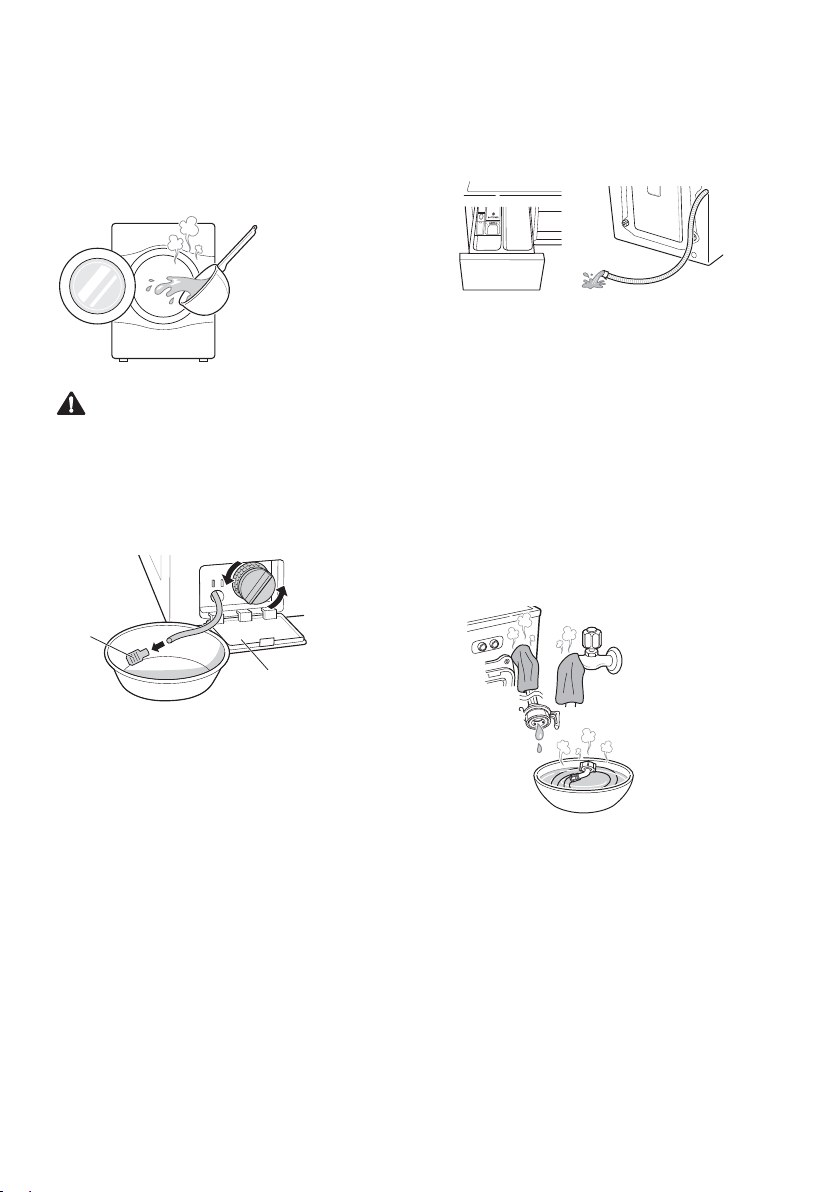

How to Handle Freezing
• Make sure to empty the drum, pour warm
water of 50–60 °C up to the rubber part inside
the drum, close the door, and wait for 1–2
hours.
50-60 °C
CAUTION
• When the drain hose is installed in a curved
shape, the inner hose may freeze.
• Open the cover cap and hose plug used for
removal of residual water to extract water
completely.
Drain plug
Cover cap
NOTE
• If water does not drain, this means the ice is
not melted completely. Wait more.
• When water is removed completely from the
drum, close the hose plug used for removal of
residual water, choose a washing programme,
and press the Start/Pause button.
Drain hoseDetergent drawer
NOTE
• Check that water is coming into the detergent
drawer while rinsing, and water is draining
through the drain hose while spinning.
• When water supply problems occur, take the
following measures.
− Turn off the tap, and thaw out the tap and
both connection areas of inlet hose of the
product using a hot water cloth.
− Take out inlet hose and immerse in warm
water below 50–60 °C.
Supply hose 50-60 °C
44
TROUBLESHOOTING
EN
• Your washing machine is equipped with an automatic error-monitoring system to detect and
diagnose problems at an early stage. If your washing machine does not function properly or does not
function at all, check the following before you call for service:
Diagnosing Problems
Symptoms Reason Solution
Rattling and clanking noise
Foreign objects such as coins
or safety pins may be in drum
or pump.
• Check all pockets to make
sure that they are empty. Items
such as clips, matches, pens,
coins, and keys can damage
both your washer and your
clothes.
• Close zippers, hooks, and
drawstrings to prevent these
items from snagging or
tangling on other clothes.
Thumping sound
Heavy wash loads may
produce a thumping sound.
This is usually normal.
• If sound continues, washing
machine is probably out of
balance. Stop and redistribute
wash load.
Vibrating noise
Have all the transit bolts and
tub support been removed?
• If not removed during
installation, refer to Installation
guide for removing transit
bolts.
Are all the feet resting rmly
on the ground?
• Make sure the washing
machine is level and tighten
the lock nuts up towards the
base of the appliance.
Have you ever laid down the
appliance when moving or
installing it?
• Please contact the customer
information center.
Water leaks
Supply hoses or drain hose
are loose at tap or washing
machine.
• Check and tighten hose
connections.
House drain pipes are
clogged.
• Unclog drain pipe. Contact
plumber if necessary.
Oversudsing
Too much detergent or
unsuitable detergent may
cause excessive foaming
which may result in water
leaks.
• Make sure that the suggested
amount of detergent is used
per the manufacturer's
recommendations.
45
EN
Symptoms Reason Solution
Water does not enter washing
machine or it enters slowly
Water supply is not adequate
in that location.
• Check another tap in the
house.
Water supply tap is not
completely open.
• Fully open tap.
Water supply hose(s) are
kinked.
• Straighten hose.
The lter of the supply
hose(s) clogged.
• Check the lter of the supply
hose.
Water in the washing machine
does not drain or drains
slowly
Drain hose is kinked or
clogged.
• Clean and straighten the drain
hose.
The drain lter is clogged. • Clean the drain lter.
Washing machine does not
start
Electrical power cord may not
be plugged in or connection
may be loose.
• Make sure plug ts tightly in
wall outlet.
House fuse blown, circuit
breaker tripped,or a power
outage has occurred.
• Reset circuit breaker or
replace fuse. Do not increase
fuse capacity. If problem
is a circuit overload, have
it corrected by a qualied
electrician.
Water supply tap is not turned
on.
• Turn on water supply tap.
Washing machine will not
spin
Check that the door is rmly
shut.
• Close the door and press
the Start/Pause button. After
pressing the Start/Pause
button, it may take a few
moments before the washing
machine begins to spin. The
door must be locked before
spin can be achieved. Add 1 or
2 similar items to help balance
the load. Rearrange load to
allow proper spinning.
Door does not open
Once washing machine has
started, the door cannot be
opened for safety reasons.
• Check if the ‘Door Lock’ icon
is illuminated. You can safely
open the door after the ‘Door
Lock’ icon turns off.
Wash cycle time delayed
If an imbalance is detected
or if the suds removing
programme is on, the wash
time will increase.
• This is normal. The time
remaining shown in the display
is only an estimate. Actual
time may vary.
46
EN
Symptoms Reason Solution
Fabric softener overow
Too much softener may cause
an overow.
• Follow softener guidelines to
ensure appropriate amount
is used. Do not exceed the
maximum ll line.
Softeners dispensed too early
Too much softener may cause
an premature dispensing.
• Follow the guidelines provided
by the detergent manufacturer.
• Close the dispenser drawer
slowly. Do not open the drawer
during the wash cycle.
The buttons may not function
properly.
The button cannot be
recognized when the door is
open.
• Press again after closing the
door.
Dry problem Check water supply tap.
• Do not overload. Check
that the washing machine is
draining properly to extract
adequate water from the load.
Clothes load is too small to
tumble properly. Add a few
towels.
• Turn off water supply tap.
Odor
This odor is caused by
the rubber attached to the
washing machine.
• It is the normal odor of new
rubber and will disappear after
the machine has been run a
few times.
If the rubber door gasket
and door seal area are not
cleaned regularly, odors can
occur from mold or foreign
substances.
• Be sure to clean the gasket
and door seal regularly and
check under the door seal for
small items when unloading
the washer.
Odors can occur if foreign
substances are left in the
drainage pump lter.
• Be sure to clean the drainage
pump lter regularly.
Odors can occur if the
drainage hose is not properly
installed, causing siphoning
(water owing back inside the
washing machine).
• When installing the drainage
hose, be sure that it doesn’t
become kinked or blocked.
Using the dry function, odors
can occur from lint and other
laundry matter sticking to the
heater. (Dryer model only)
• This is not a malfunction.
A particular odor can occur
from drying wet clothes with
hot air. (Dryer model only)
• The odor will disappear after a
short while.
47
EN
Symptoms Reason Solution
Your home appliance and
smartphone is not connected
to the Wi-Fi network.
The password for the Wi-Fi
that you are trying to connect
to is incorrect.
• Find the Wi-Fi network
connected to your smartphone
and remove it, then register
your appliance on LG
SmartThinQ.
Mobile data for your
smartphone is turned on.
• Turn off the Mobile data of
your smartphone and register
the appliance using the Wi-Fi
network.
The wireless network name
(SSID) is set incorrectly.
• The wireless network
name (SSID) should be a
combination of English letters
and numbers. (Do not use
special characters.)
The router frequency is not
2.4 GHz.
• Only a 2.4 GHz router
frequency is supported. Set
the wireless router to 2.4 GHz
and connect the appliance
to the wireless router. To
check the router frequency,
check with your Internet
service provider or the router
manufacturer.
The distance between the
appliance and the router is
too far.
• If the distance between the
appliance and the router is too
far, the signal may be weak
and the connection may not be
congured correctly. Move the
location of the router so that it
is closer to the appliance.
48
EN
Error Messages
Symptoms Reason Solution
Water supply is not adequate in
area.
• Check another tap in the house.
Water supply taps are not
completely open.
• Fully open tap.
Water supply hose(s) are kinked. • Straighten hose(s).
The lter of the supply hose(s) are
clogged.
• Check the lter of the supply
hose.
If water leakage occurred in the
aqua stop supply hose, indicator
will become red.
May vary depending on the model.
• Use the aqua stop supply hose.
Load is too small.
• Add 1 or 2 similar items to help
balance the load.
Load is out of balance.
• Add 1 or 2 similar items to help
balance the load.
The appliance has an imbalance
detection and correction system. If
individual heavy articles are loaded
(e.g. bath mat, bath robe, etc.) this
system may stop spinning or even
interrupt the spin cycle altogether.
• Rearrange load to allow proper
spinning.
If the laundry is still too wet at
the end of the cycle, add smaller
articles of laundry to balance the
load and repeat the spin cycle.
• Rearrange load to allow proper
spinning.
Drain hose is kinked or clogged.
• Clean and straighten the drain
hose.
The drain lter is clogged. • Clean the drain lter.
49
EN
Symptoms Reason Solution
Ensure door is not open.
• Close the door completely.
If
, , , is not
released, call for service.
dE4
Door sensor has
malfunctioned.
Control error.
• Unplug the power plug and
call for service.
Water overlls due to the
faulty water valve.
• Close the water tap.
• Unplug the power plug.
• Call for service.
Malfunction of water level
sensor.
• Close the water tap.
• Unplug the power plug.
• Call for service.
Over load in motor.
• Allow the washing machine to
stand for 30 minutes to allow
the motor to cool, then restart
the cycle.
Water leaks. • Call for service.
Is supply/drain hose or drain
pump frozen?
• Supply warm water into the
drum and unfreeze drain hose
and drain pump. Wet a towel
in warm water and apply to
supply hose.
Does not dry. • Call for service.
50
WARRANTY
EN
THIS LIMITED WARRANTY DOES NOT COVER:
• Service trips to deliver, pick up, or install or repair the product; instruction to the customer on
operation of the product; repair or replacement of fuses or correction of wiring or plumbing, or
correction of unauthorized repairs/installation.
• Failure of the product to perform during power failures and interruptions or inadequate electrical
service.
• Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines,
inadequate or interrupted water supply or inadequate supply of air.
• Damage resulting from operating the Product in a corrosive atmosphere or contrary to the
instructions outlined in the Product’s owner’s manual.
• Damage to the Product caused by accidents, pests and vermin, lightning, wind, re, oods, or acts of
God.
• Damage or failure caused by unauthorized modication or alteration, or if it is used for other than the
intended purpose, or any water leakage where the unit was not properly installed.
• Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial
or industrial use, or use of accessories, components, or consumable cleaning products that are not
approved by LG.
• Damage caused by transportation and handling, including scratches, dents, chips, and/or other
damage to the nish of your product, unless such damage results from defects in materials or
workmanship and is reported within one (1) week of delivery.
• Damage or missing items to any display, open box, discounted, or refurbished Product.
• Products with original serial numbers that have been removed, altered, or cannot be readily
determined. Model and Serial numbers, along with original retail sales receipt, are required for
warranty validation.
• Increases in utility costs and additional utility expenses.
• Repairs when your Product is used in other than normal and usual household use (e.g. commercial
use, in ofces and recreational facilities) or contrary to the instructions outlined in the Product’s
owner’s manual.
• Costs associated with removal of your Product from your home for repairs.
• The removal and reinstallation of the Product if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions, including LG’s owner’s and installation
manuals.
• Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair
includes use of parts not approved or specied by LG.
51
EN

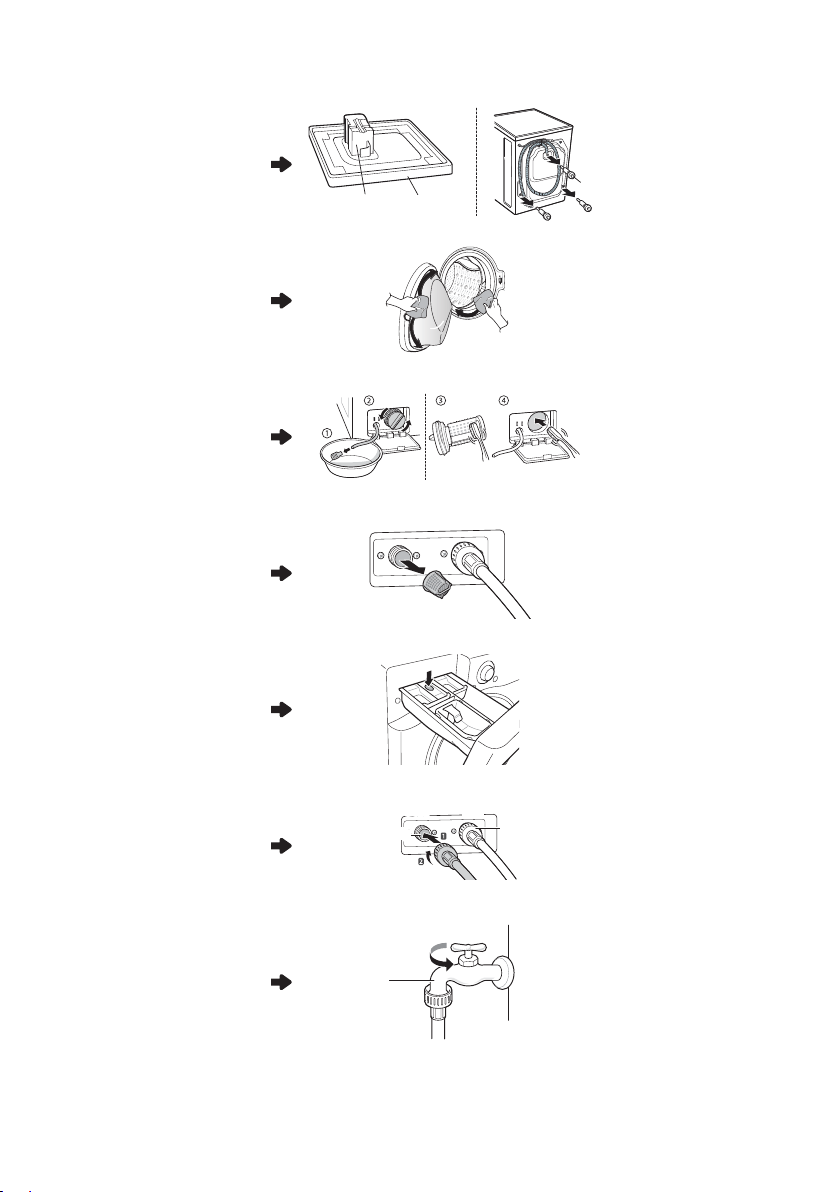

Strange vibration or noise
caused by not removing
transit bolts or tub support.
Tub
support
Carton
base
Transit
bolt
Remove the transit bolts
& tub support.
Leakage caused by dirt (hair,
lint) on gasket and door
glass.
Clean the gasket & door
glass.
Not draining caused by
clogging of pump lter.
Clean the pump lter.
Water is not coming because
water inlet valve lters are
clogged or water supply
hoses are kinked.
Inlet Filter
Clean the inlet valve
lter or reinstall the
water supply hoses.
Water is not coming because
too much detergent use.
Dispenser
Clean the detergent
dispenser drawer.
Laundry is hot or warm after
nished washing because the
supply hoses are installed in
reverse.
Cold Water supply
Hot Water supply
Cold Hot
Reinstall the supply
hoses.
Water is not supplied
because the water tap is not
turned on.
Water tap
Turn on the water tap.
52
EN
Leakage caused by improper
installation of drain hose or
clogged drain hose.
Elbow Bracket
Tie Strap
Reinstall the drain hose.
Leakage caused by improper
installation of water supply
hose or using other brand
supply hoses.
Reinstall the supply
hose.
No power problem caused
by loose connection of power
cord or electrical outlet
problem.
Reconnect the power
cord or change the
electrical outlet.
Service trips to deliver, pick
up, install the product or
for instruction on product
use. The removal and
reinstallation of the product.
Level
The warranty covers
manufacturing
defects only. Service
resulting from improper
Installation is not
covered.
If all screws are not installed
properly, it may cause
excessive vibration (Pedestal
model only).
Install 4 screws at each
corner (Total 16EA).
Water hammering (banging)
noise when washing machine
is lling with water.
High
pressure
water
Hit Loud noise
Natural
water ow
Sudden
stopping
water ow
Adjust the water
pressure by turning
down the water valve or
water tap in the home.
53
OPERATING DATA
EN
Product che_Commission Directive 96/60/EC
Supplier’s trade mark LG
Supplier’s model identier
FH6G1BCH(0~9)
N
The energy efciency class of the model is determined in accordance
with Annex IV. Expressed as ‘Energyefciency class… on a scale
of A (more efcient) to G (less efcient)’. Where this information is
provided in a table this may be expressed by other means providing it
is clear that the scale is from A (more efcient) to G (less efcient).
A
Where the information is provided in a table, and where some of the
appliances listed in the table have been granted a ‘Community Eco-
label’ pursuant to Regulation (EEC) No 880/92, this information may
be included here. In this case the row heading shall state ‘Community
Eco-label’, and the entry shall consist of a copy of the Eco-label mark.
This provision is without prejudice to any requirements under the EU
Eco-label scheme.
No
Energy consumption for washing, spinning, and drying, in kWh per
complete operating cycle as dened in Annex I note V.
7.97 kWh /cycle
Energy consumption for washing and spinning only, in kWh per
washing cycle as dened in Annex I note VI.
1.26 kWh /cycle
Washing performance class determined in accordance with Annex IV.
Expressed as ‘Washing performance class … on a scale of A (higher)
to G (lower)’. This may be expressed by other means provided it is
clear that the scale is from A (higher) to G (lower).
A
Water extraction efciency for a standard 60 °C cotton washing cycle,
determined in accordance with the test procedures of the harmonised
standards referred to in Article 1 (2). Expressed as ‘Water remaining
after spin … % (as proportion of dry weight of the wash)’.
44 %
Maximum spin speed attained as dened in Annex I note VIII. 1600 rpm
54
EN
Product che_Commission Directive 96/60/EC
Washing capacity of appliance for a standard 60 °C cotton washing
cycle, as dened in Annex I note IX.
12 kg
Drying capacity of appliance for a standard ‘dry cotton’ drying cycle,
as dened in Annex I note X.
8 kg
Water consumption for washing, spinning and drying, in litres per
complete operating cycle as dened in Annex I note XI.
131 litres / cycle
Water consumption for washing and spinning only, in litres, per
standard 60 °C cotton washing (and spinning) cycle determined in
accordance with the test procedures of the harmonized standards
referred to in Article 1 (2).
68 litres / cycle
Washing and drying time. Programme time for complete operating
cycle (60 °C cotton washing and ‘dry cotton’ drying). For rated
washing capacity, determined in accordance with the test procedures
of the harmonised standards referred to in Artlicle 1 (2).
725 min.
The consumption of energy and water equal to 200 times the
consumption expressed in points 5 (energy) and 12 (water). This shall
be expressed as ‘estimated annual consumption for a four-person
household, always using the drier (200 cycles)’.
1594 kWh / year
26200 litres / year
The consumption of energy and water equal to 200 times the
consumption expressed in points 6 (energy) and 13 (water). This shall
be expressed as ‘estimated annual consumption for a four-person
household, never using the drier (200 cycles)’.
252 kWh / year
13600 litres / year
Memo
