Computerized Sewing and Embroidery Machine
Operation Manual
CPS5XV[Y
GETTING READY
SEWING BASICS
UTILITY STITCHES
EMBROIDERY
APPENDIX
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Federal Communications Commission (FCC)
Declaration of Conformity (For USA Only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The included interface cable should be used in order to ensure compliance with the limits for a
Class B digital device.
• Changes or modifications not expressly approved by Brother Industries, Ltd. could void the user's
authority to operate the equipment.
Responsible Party: Brother International Corporation
100 Somerset Corporate Boulevard
Bridgewater, NJ 08807-0911 USA
TEL : (908) 704-1700
declares that the product
Product Name:
Model Number:
Brother Sewing Machine
NV1200
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Important Safety Instructions
Please read these safety instructions before attempting to use the machine.
This machine is intended for household use.
DANGER - To reduce the risk of electric shock:
1Always unplug the machine from the electrical outlet immediately after using, when cleaning,
when making any user servicing adjustments mentioned in this manual, or if you are leaving the
machine unattended.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons.
2Always unplug the machine from the electrical outlet when removing covers, lubricating, or
when making any adjustments mentioned in the instruction manual:
• To unplug the machine, switch the machine to the symbol “O” position to turn it off, then grasp
the plug and pull it out of the electrical outlet. Do not pull on the cord.
• Plug the machine directly into the electrical outlet. Do not use an extension cord.
• Always unplug your machine if the power is cut.
3 Never operate this machine if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or water is spilled on the unit. Return the machine to the nearest
authorized dealer or service center for examination, repair, electrical or mechanical adjustment.
While the machine is stored or in use if you notice anything unusual, such as an odor, heat,
discoloration or deformation, stop using the machine and immediately unplug the power cord.
4 Always keep your work area clear:
• Never operate the machine with any air openings blocked. Keep ventilation openings of the
sewing machine and foot control free from the build up of lint, dust, and loose cloth.
• Do not store objects on the foot controller.
• Do not use extension cords. Plug the machine directly into the electrical outlet.
• Never drop or insert any object into any opening.
•
Do not
operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use the machine near a heat source, such as a stove or iron; otherwise, the machine,
power cord or garment being sewn may ignite, resulting in fire or an electric shock.
5Special care is required when sewing:
• Always pay close attention to the needle. Do not use bent or damaged needles.
• Keep fingers away from all moving parts. Special care is required around the machine needle.
• Switch the sewing machine to the symbol “O” position to turn it off when making any adjustments
in the needle area.
• Do not use a damaged or incorrect needle plate, as it could cause the needle to break.
• Do not push or pull the fabric when sewing, and follow careful instruction when freehand
stitching so that you do not deflect the needle and cause it to break.
2
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
6This machine is not a toy:
• Your close attention is necessary when the machine is used by or near children.
• Do not use outdoors.
7For a longer service life:
• When storing this machine, avoid direct sunlight and high humidity locations. Do not use or store
the machine near a space heater, iron, halogen lamp, or other hot objects.
• Use only neutral soaps or detergents to clean the case. Benzene, thinner, and scouring powders
can damage the case and machine, and should never be used.
• Always consult the operation manual when replacing or installing any assemblies, the presser feet,
needle, or other parts to assure correct installation.
8For repair or adjustment:
• If the Light unit (light-emitting diode) is damaged, it must be replaced by authorized dealer.
• In the event a malfunction occurs or adjustment is required, first follow the troubleshooting table
in the back of the operation manual to inspect and adjust the machine yourself. If the problem
persists, please consult your local authorized Brother dealer.
Use this machine only for its intended use as described in this manual.
Use accessories recommended by the manufacturer as contained in this manual.
Use only the interface cable (USB cable) included with this machine.
Save these instructions.
The contents of this manual and specifications of this product are subject to change without notice.
For additional product information, visit our web site at www.brother.com
FOR USERS IN THE UK, EIRE, MALTA AND CYPRUS ONLY
IMPORTANT
• In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the
mark, rating as marked on plug.
• Always replace the fuse cover. Never use plugs with the fuse cover omitted.
• If the available electrical outlet is not suitable for the plug supplied with this equipment, you
should contact your authorized dealer to obtain the correct lead.
FOR USERS IN AUSTRALIA AND NEW ZEALAND
This sewing machine is not intended to be used by young children, and assistance may be required if
used by a person with a disability.
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Contents
Important Safety Instructions ..............................................................................................1
Introduction ........................................................................................................................7

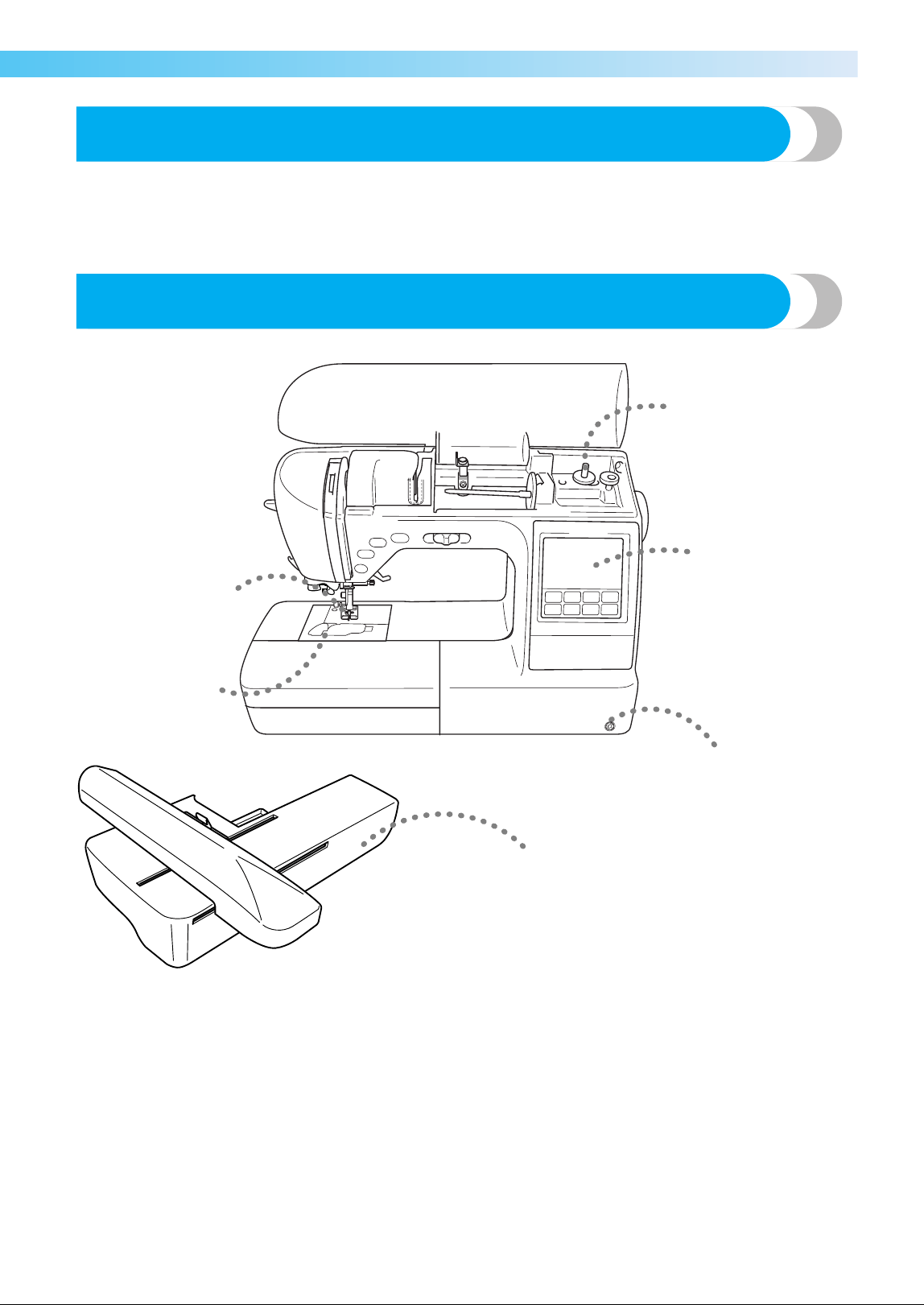

Sewing Machine Features ....................................................................................................7

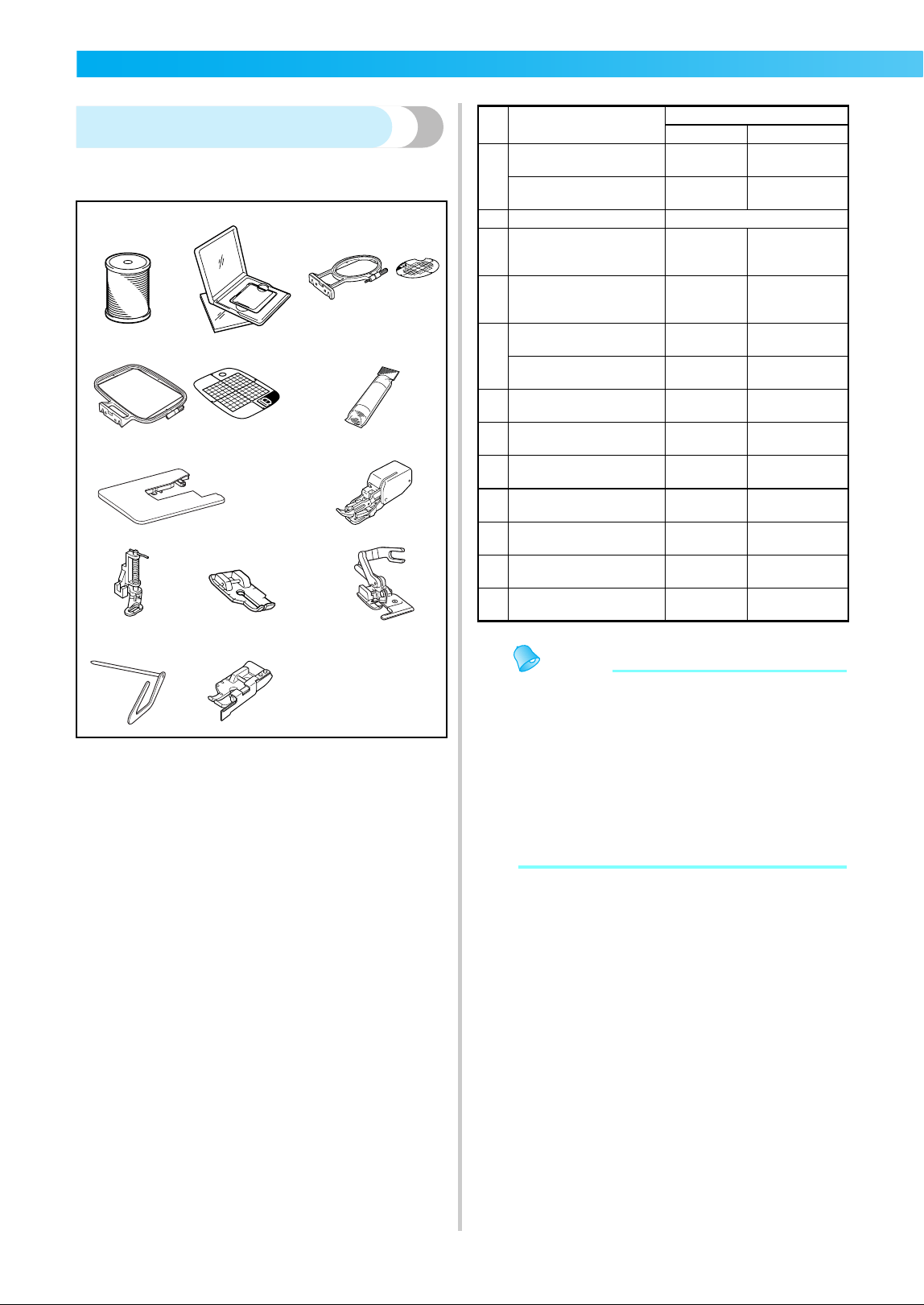

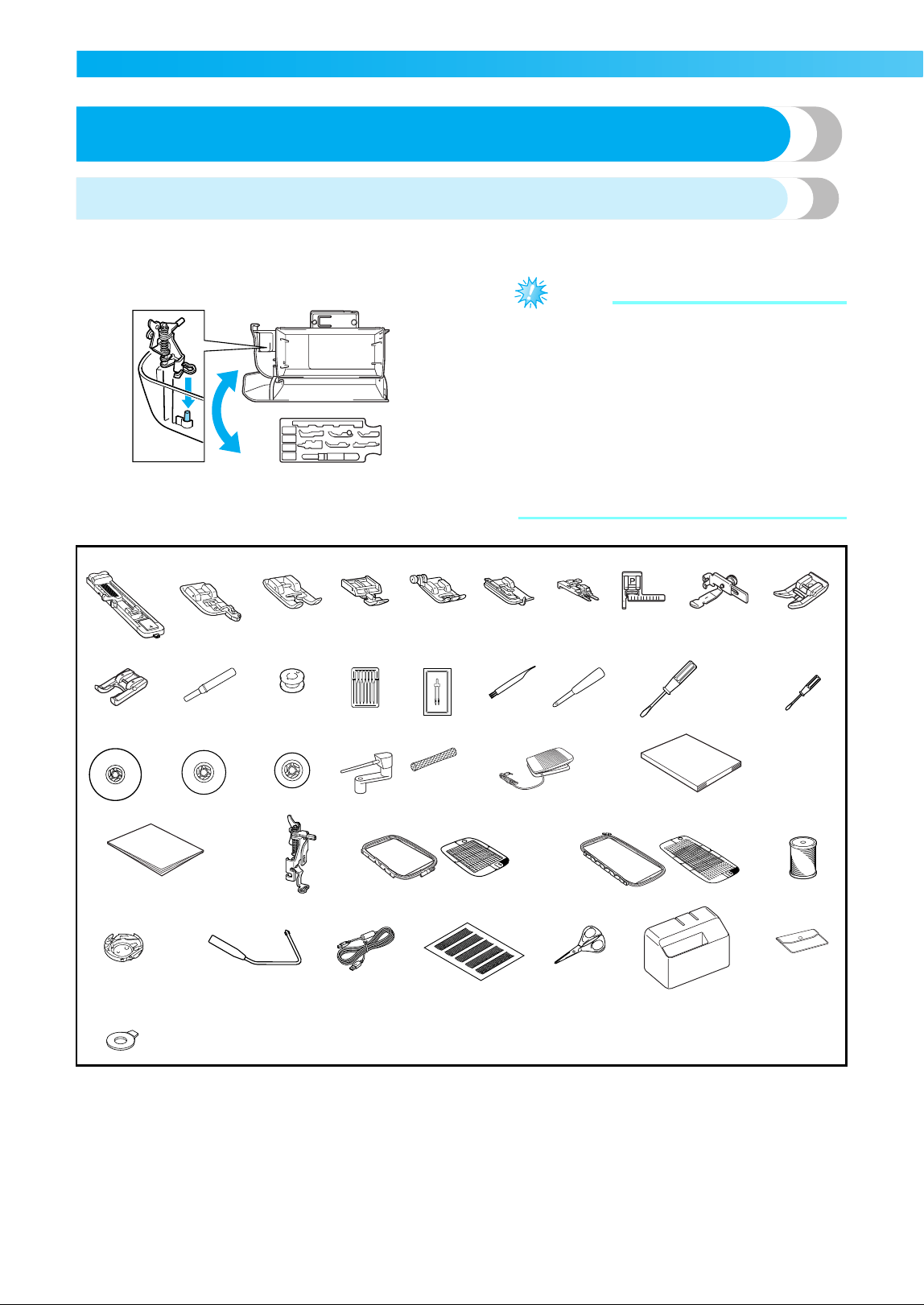

Accessories..........................................................................................................................8
Included accessories .........................................................................................................................................8
Optional accessories .......................................................................................................................................10
Names of Machine Parts and Their Functions ...................................................................11
Front view.......................................................................................................................................................11
Needle and presser foot section ......................................................................................................................12
Right-side/rear view ........................................................................................................................................12

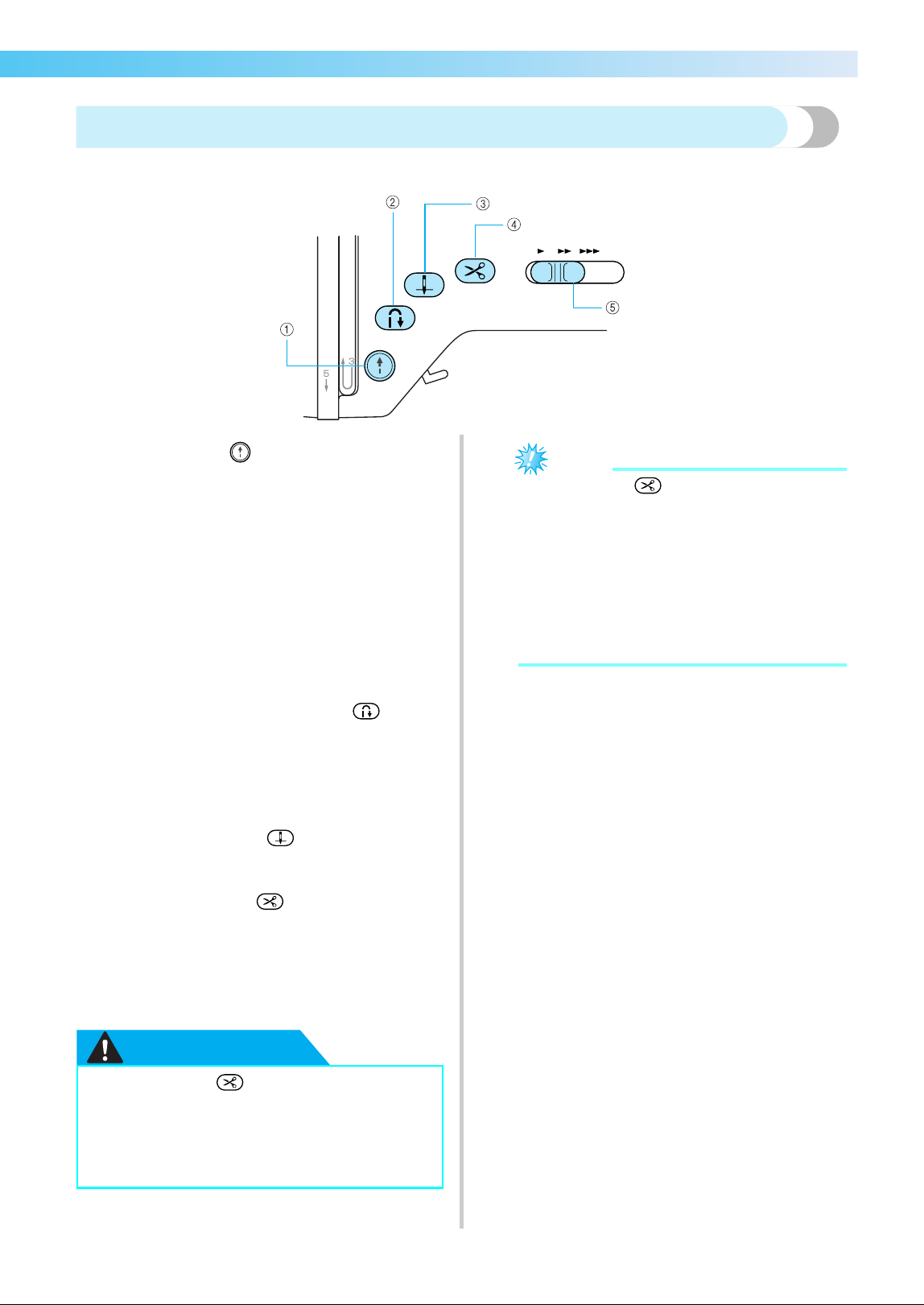

Operation buttons...........................................................................................................................................13
Operation panel..............................................................................................................................................14
GETTING READY 15

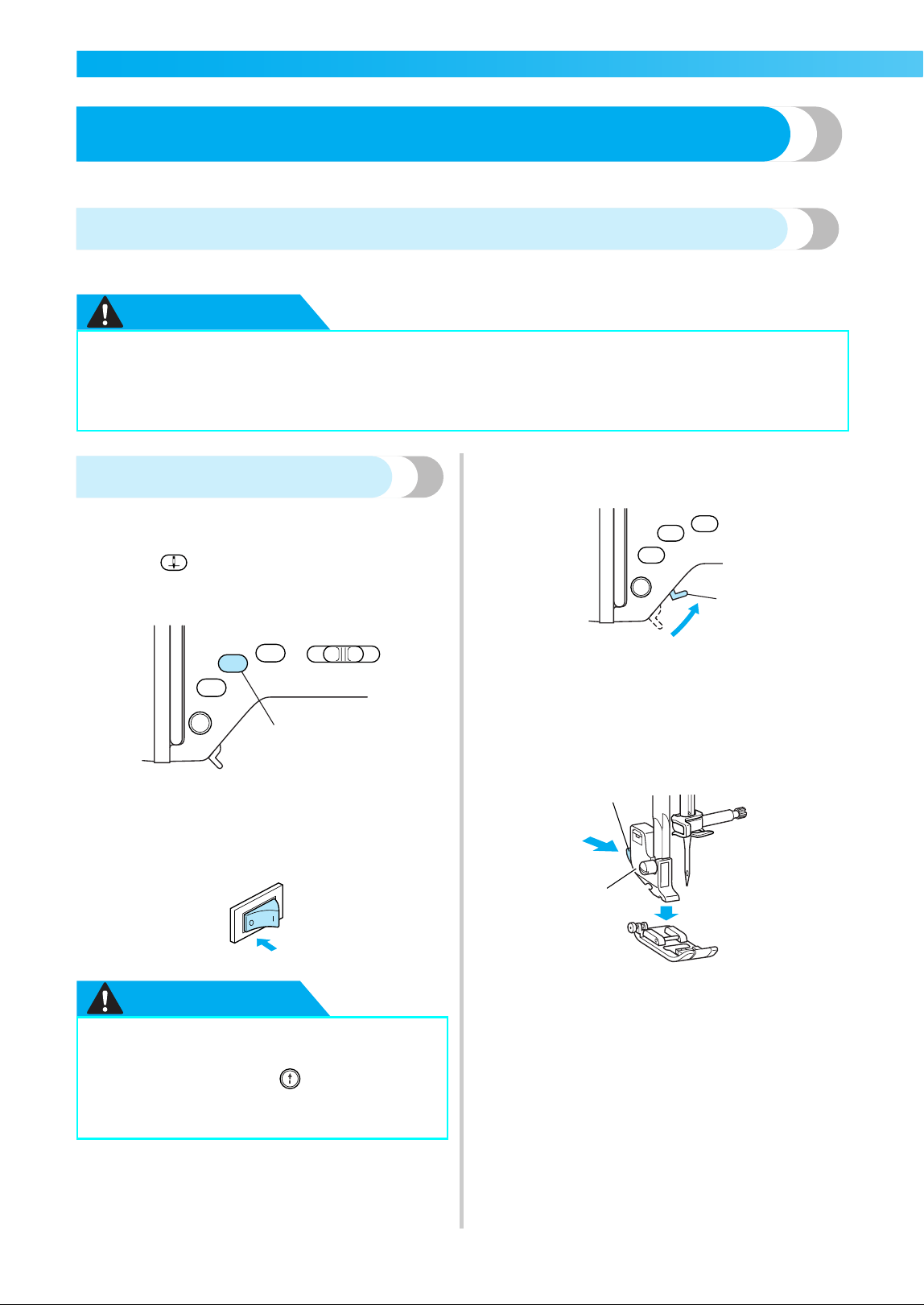

Turning the Machine On/Off.............................................................................................16
Power supply precautions ...............................................................................................................................16
Turning on the machine.................................................................................................................................. 17
Turning off the machine ..................................................................................................................................17
LCD (Liquid Crystal Display) Operation............................................................................18
Viewing the LCD.............................................................................................................................................18

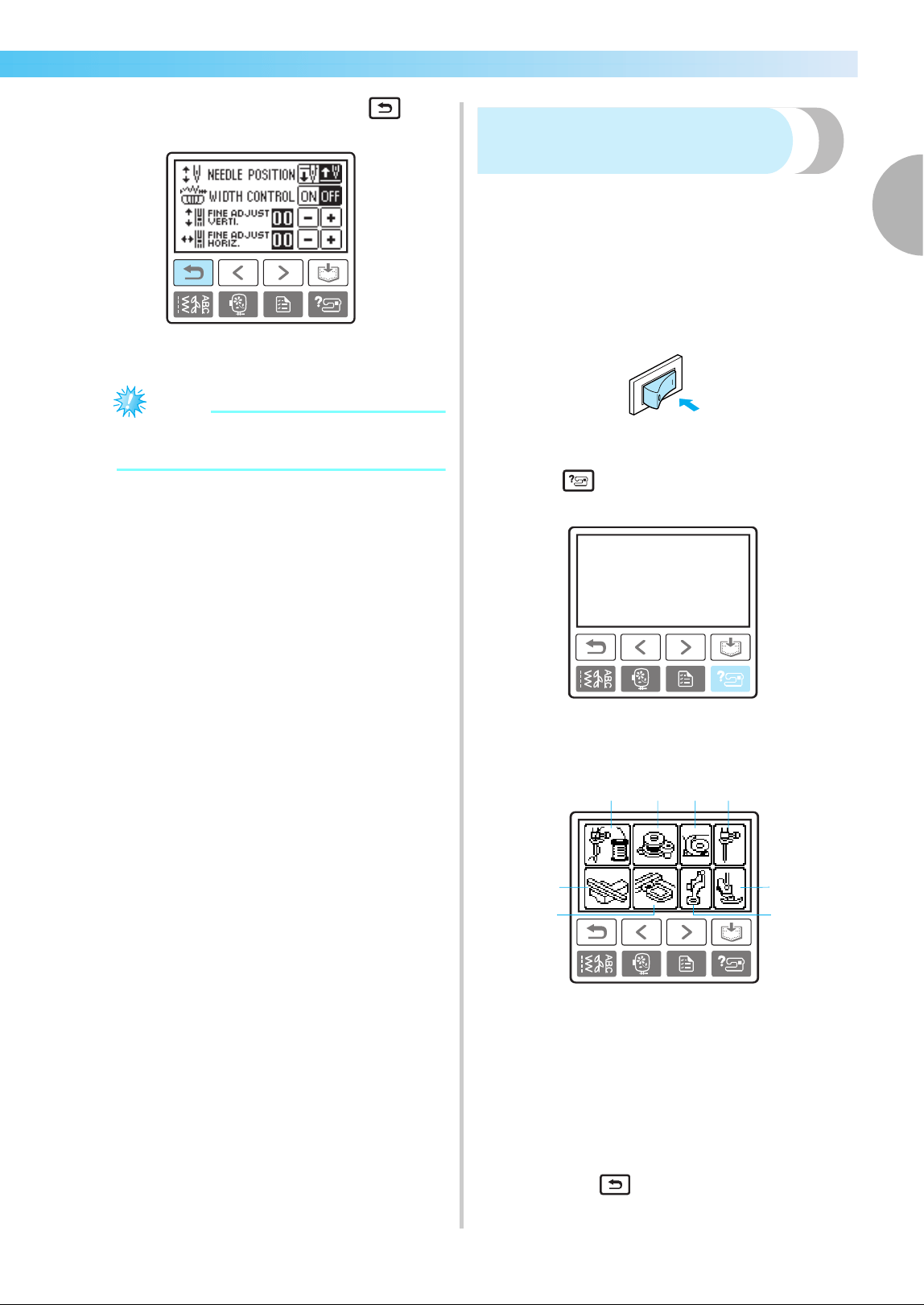

Changing the machine settings........................................................................................................................19
Checking machine operating procedures ........................................................................................................21
Winding/Installing the Bobbin...........................................................................................23
Bobbin precautions .........................................................................................................................................23

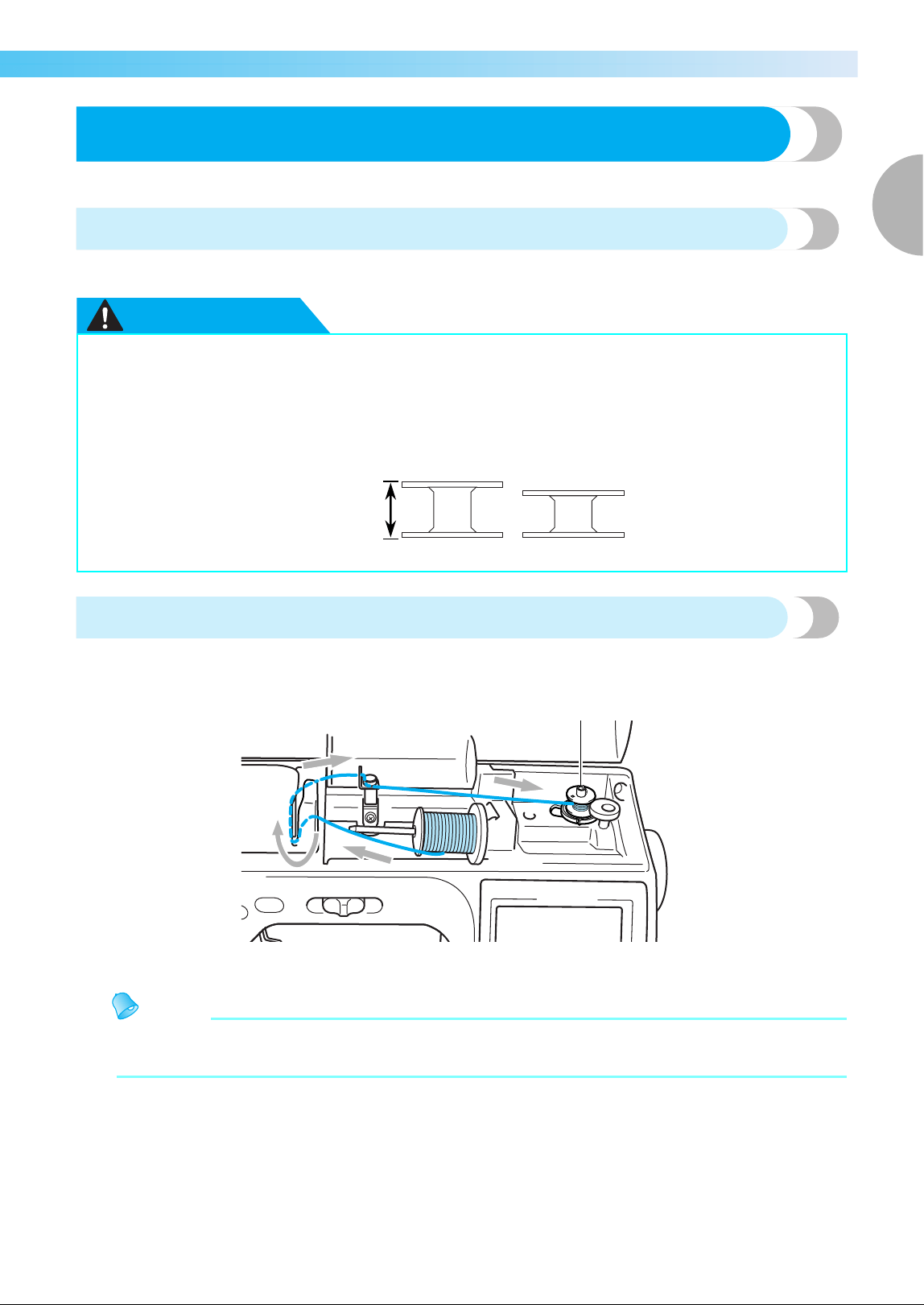

Winding the bobbin ........................................................................................................................................ 23
Installing the bobbin .......................................................................................................................................27

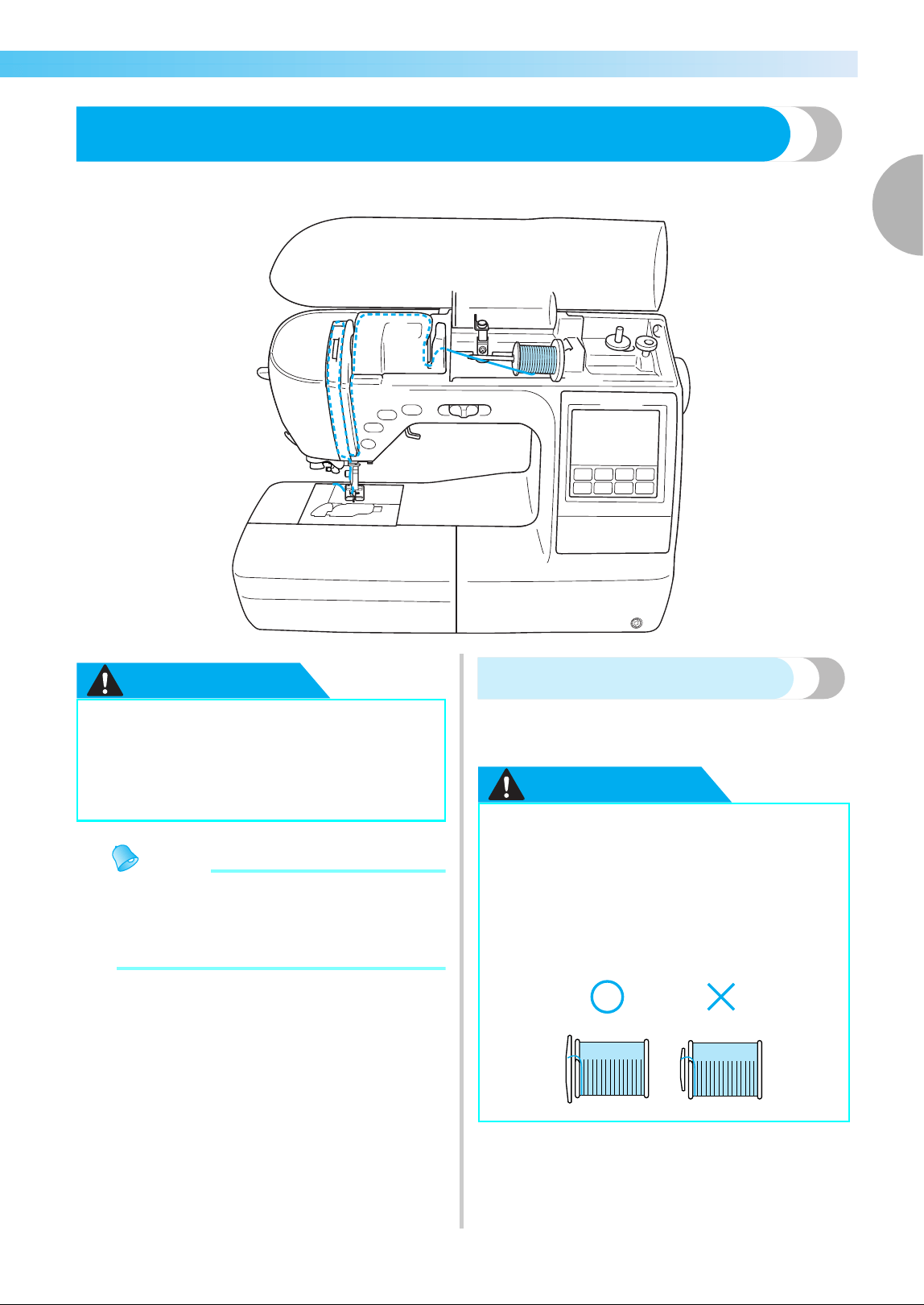

Upper Threading ...............................................................................................................29
About the spool of thread................................................................................................................................29
Threading the upper thread .............................................................................................................................30
Threading the needle ...................................................................................................................................... 32
Threading the needle manually (without using the needle threader) ................................................................ 33

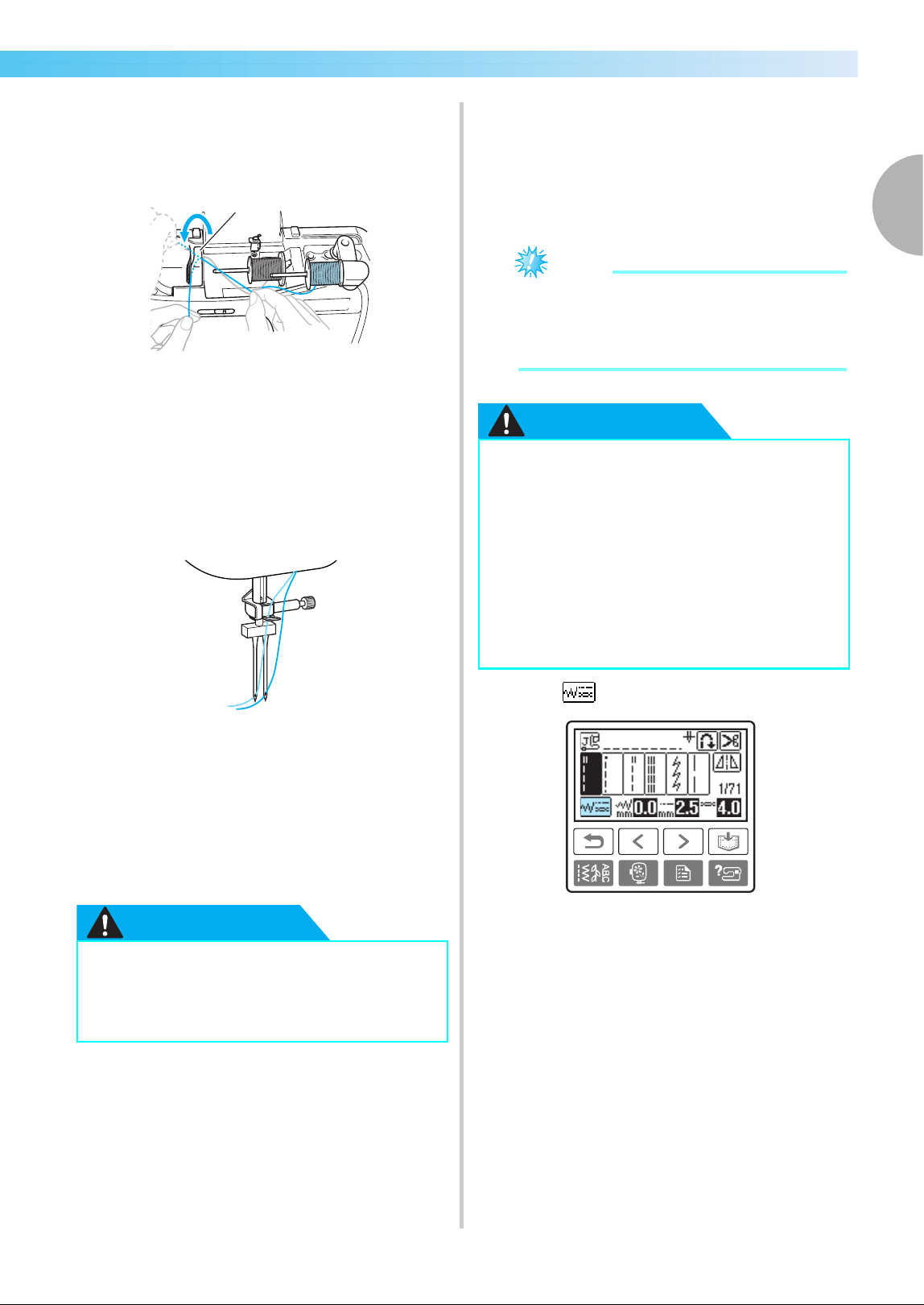

Using the twin needle ..................................................................................................................................... 34
Pulling up the bobbin thread...........................................................................................................................37
Replacing the Needle ........................................................................................................38
Needle precautions .........................................................................................................................................38
Needle types and their uses............................................................................................................................. 39
Checking the needle ....................................................................................................................................... 40
Replacing the needle.......................................................................................................................................40
Replacing the Presser Foot ................................................................................................42
Presser foot precautions .................................................................................................................................. 42
Replacing the presser foot ...............................................................................................................................42

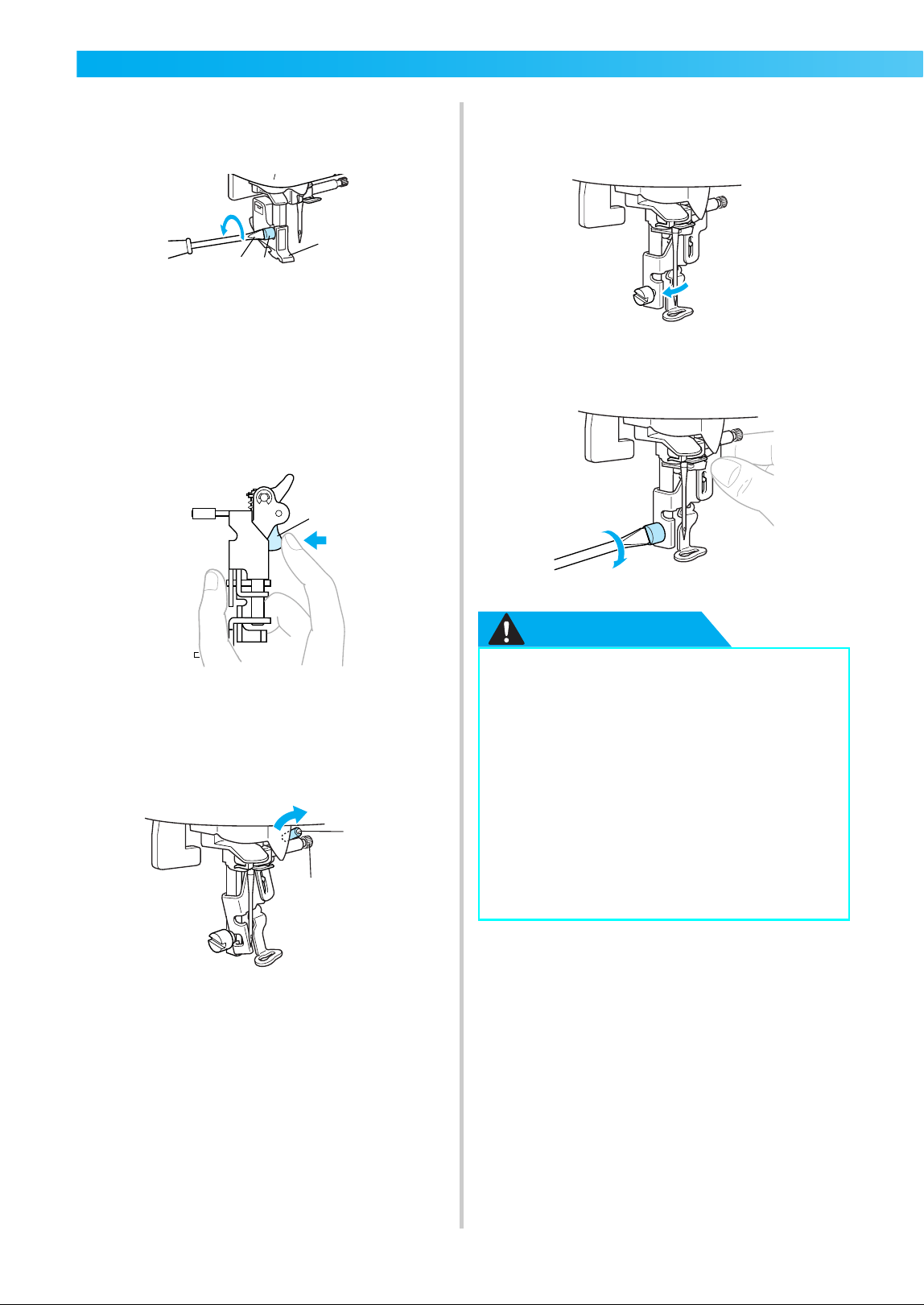

Removing and attaching the presser foot holder ..............................................................................................44
Sewing Cylindrical Pieces..................................................................................................45
Free-arm sewing..............................................................................................................................................45
SEWING BASICS 47
Sewing...............................................................................................................................48
General sewing procedure .............................................................................................................................. 48
Selecting stitching ...........................................................................................................................................49
Positioning the fabric ......................................................................................................................................50
Starting to sew.................................................................................................................................................51
Securing the stitching......................................................................................................................................53
Cutting the thread ...........................................................................................................................................54

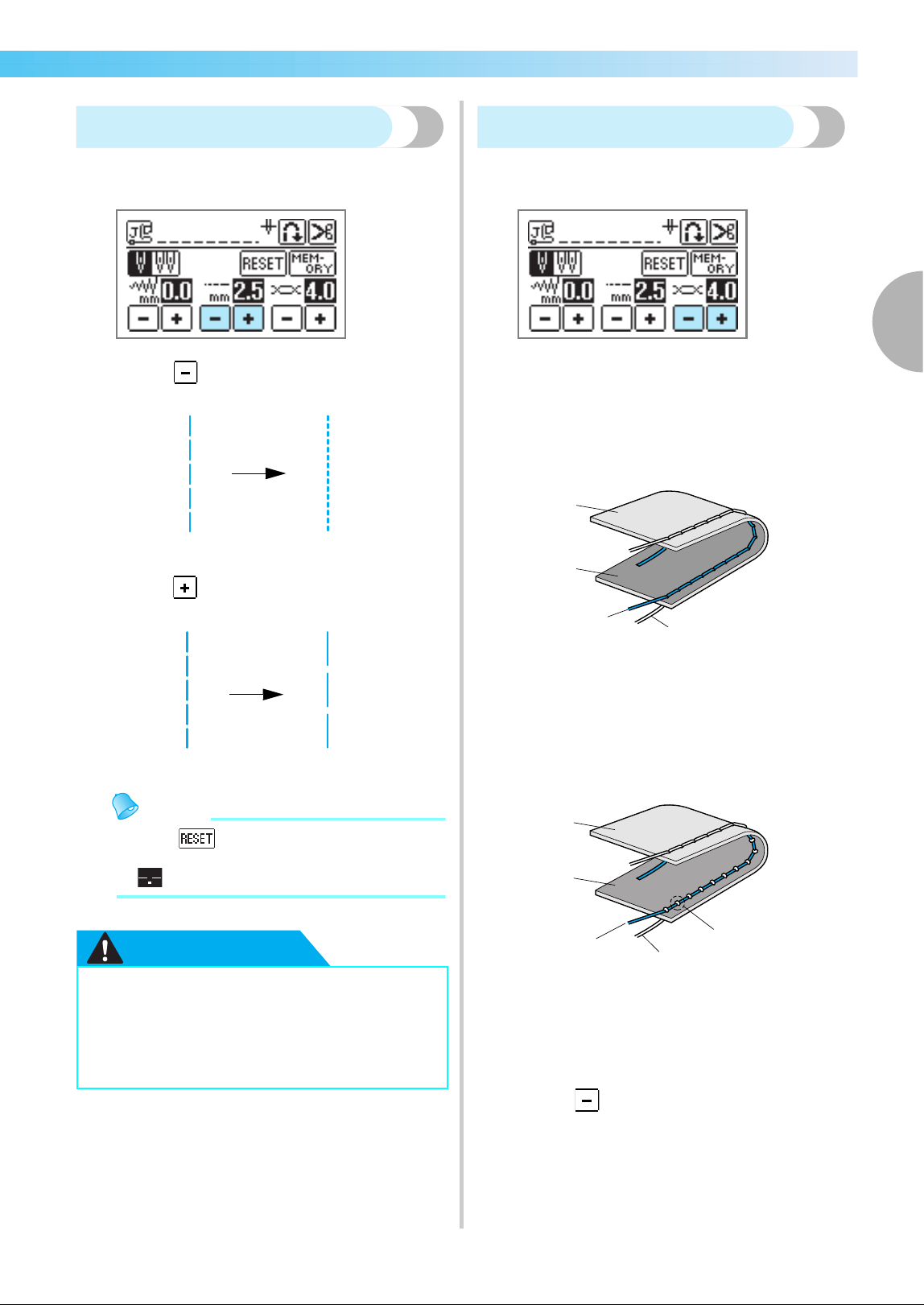

Setting the Stitch ...............................................................................................................56
Adjusting the stitch width................................................................................................................................ 56
Adjusting the stitch length ...............................................................................................................................57
Adjusting the thread tension............................................................................................................................ 57
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Useful Functions................................................................................................................59
Automatically sewing reverse/reinforcement stitches.......................................................................................59
Automatically cutting the thread .....................................................................................................................60

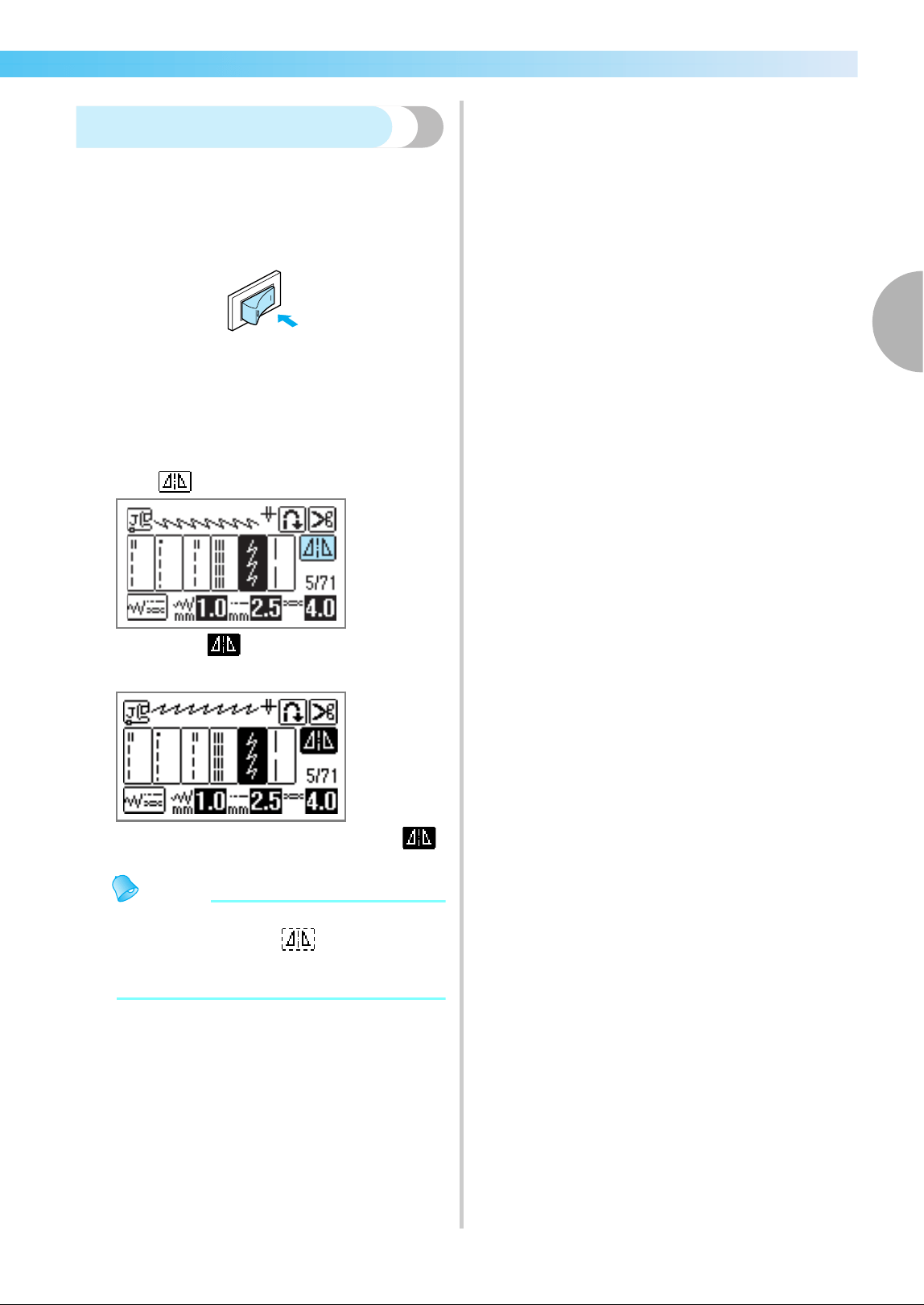

Mirroring stitches ............................................................................................................................................61
Useful Sewing Tips ............................................................................................................62
Trial sewing ....................................................................................................................................................62
Changing the sewing direction........................................................................................................................62
Sewing curves .................................................................................................................................................62
Adjusting the presser foot pressure ..................................................................................................................62
Sewing thick fabrics ........................................................................................................................................63
Sewing thin fabrics..........................................................................................................................................64
Sewing stretch fabrics......................................................................................................................................64
Sewing leathers or vinyl fabrics .......................................................................................................................64
Sewing an even seam allowance..................................................................................................................... 64
Hands-free raising and lowering of the presser foot .........................................................................................65
UTILITY STITCHES 67

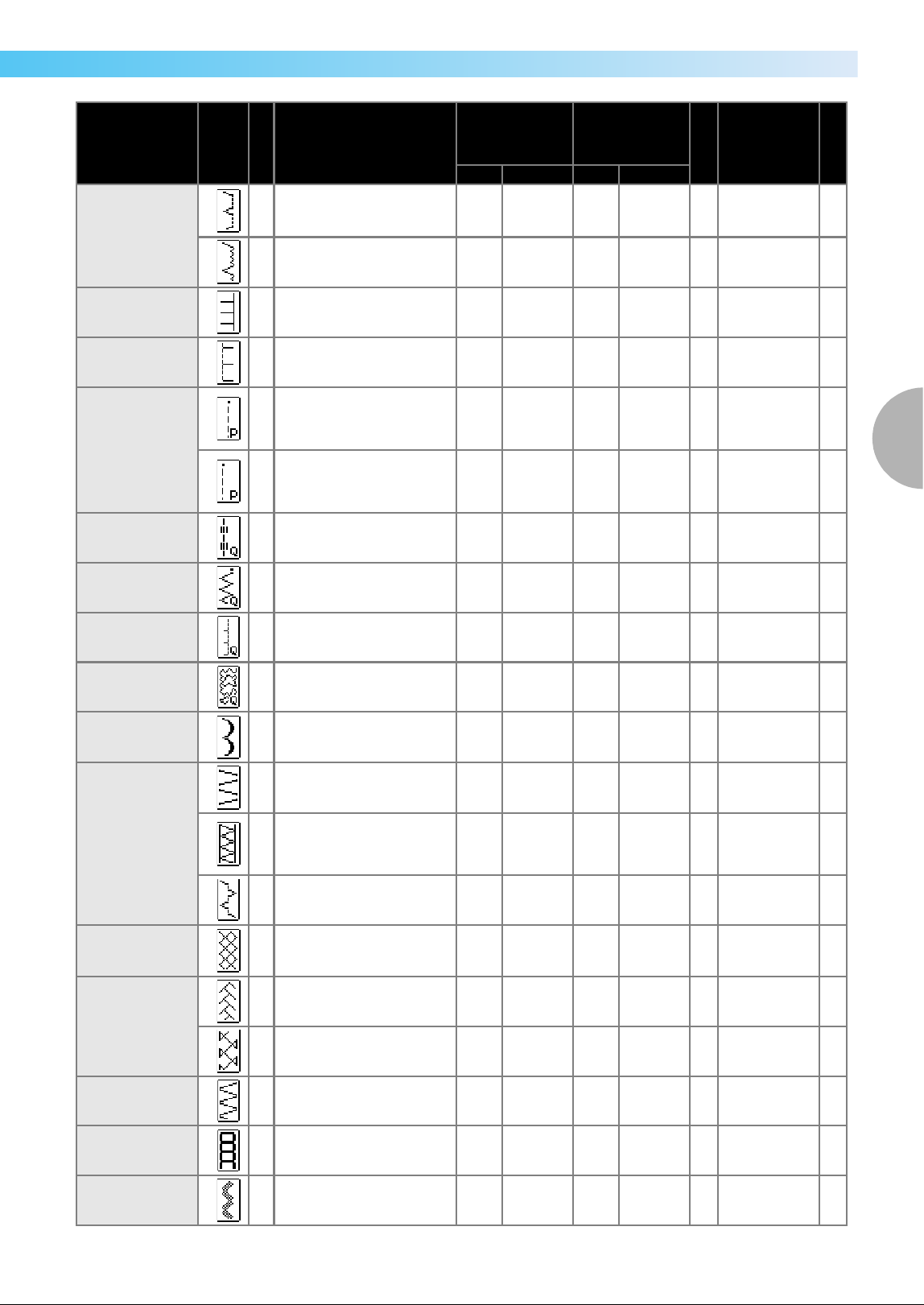

Stitch Setting Chart ...........................................................................................................68
Utility stitches .................................................................................................................................................68
Other stitches..................................................................................................................................................72
Selecting Stitching .............................................................................................................75
Stitch types......................................................................................................................................................75
Selecting stitching ...........................................................................................................................................75
Saving stitch settings .......................................................................................................................................77
Overcasting Stitches..........................................................................................................79
Sewing overcasting stitches using overcasting foot “G” ...................................................................................79
Sewing overcasting stitches using zigzag foot “J”.............................................................................................80
Sewing overcasting stitches using the optional side cutter ...............................................................................81
Basic Stitching ...................................................................................................................83
Basting............................................................................................................................................................83

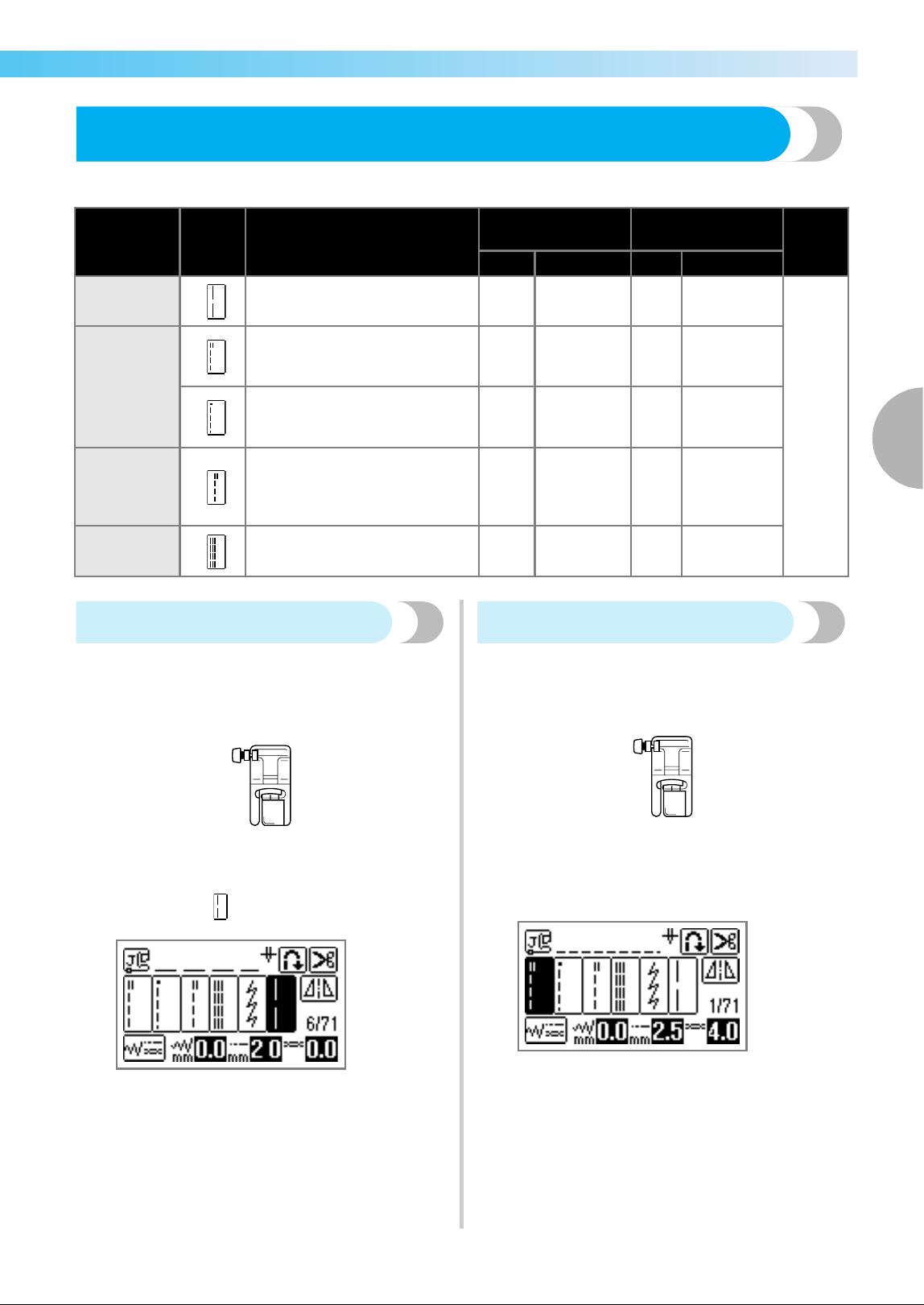

Basic stitching .................................................................................................................................................83

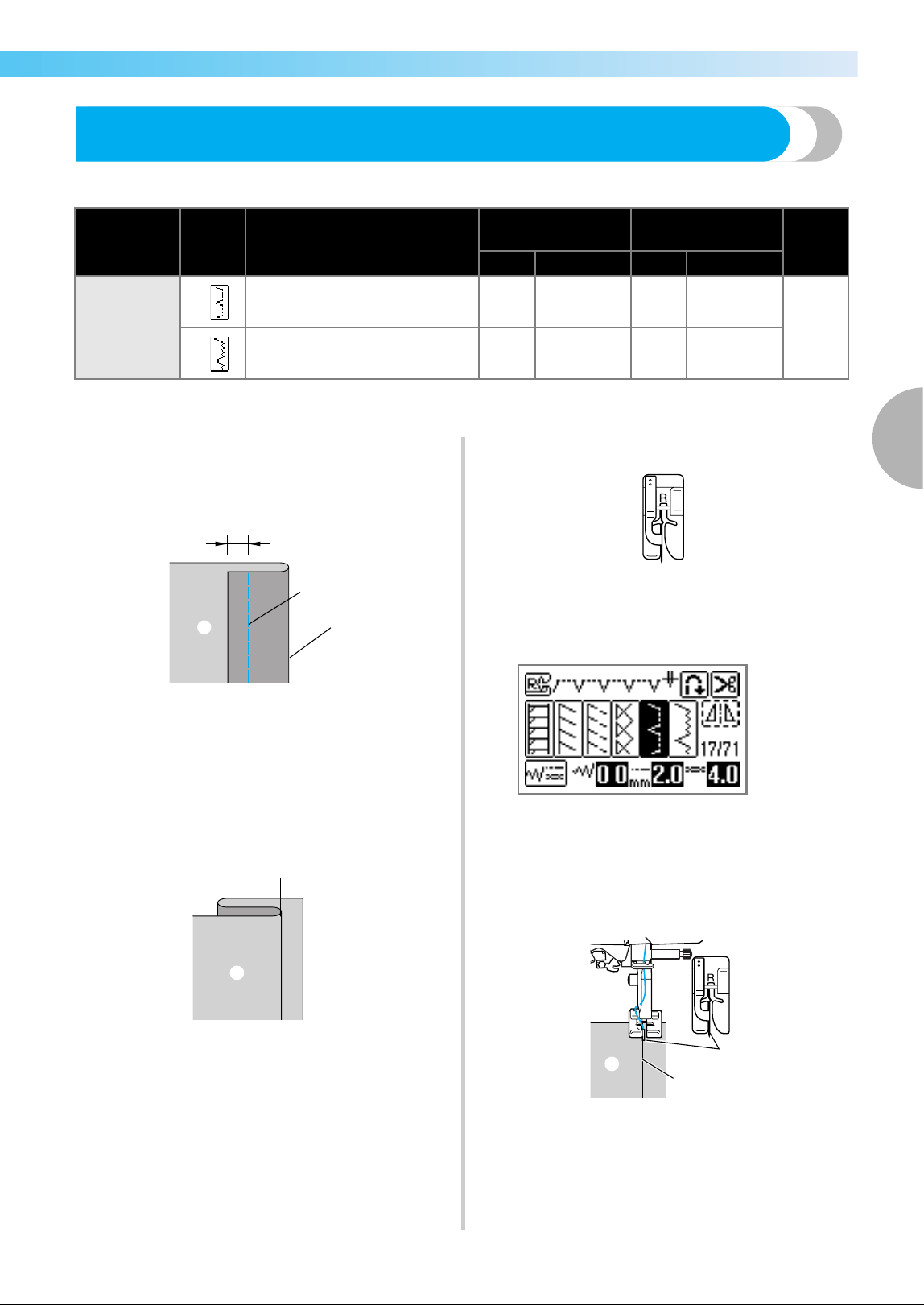

Blind Hem Stitching ..........................................................................................................85

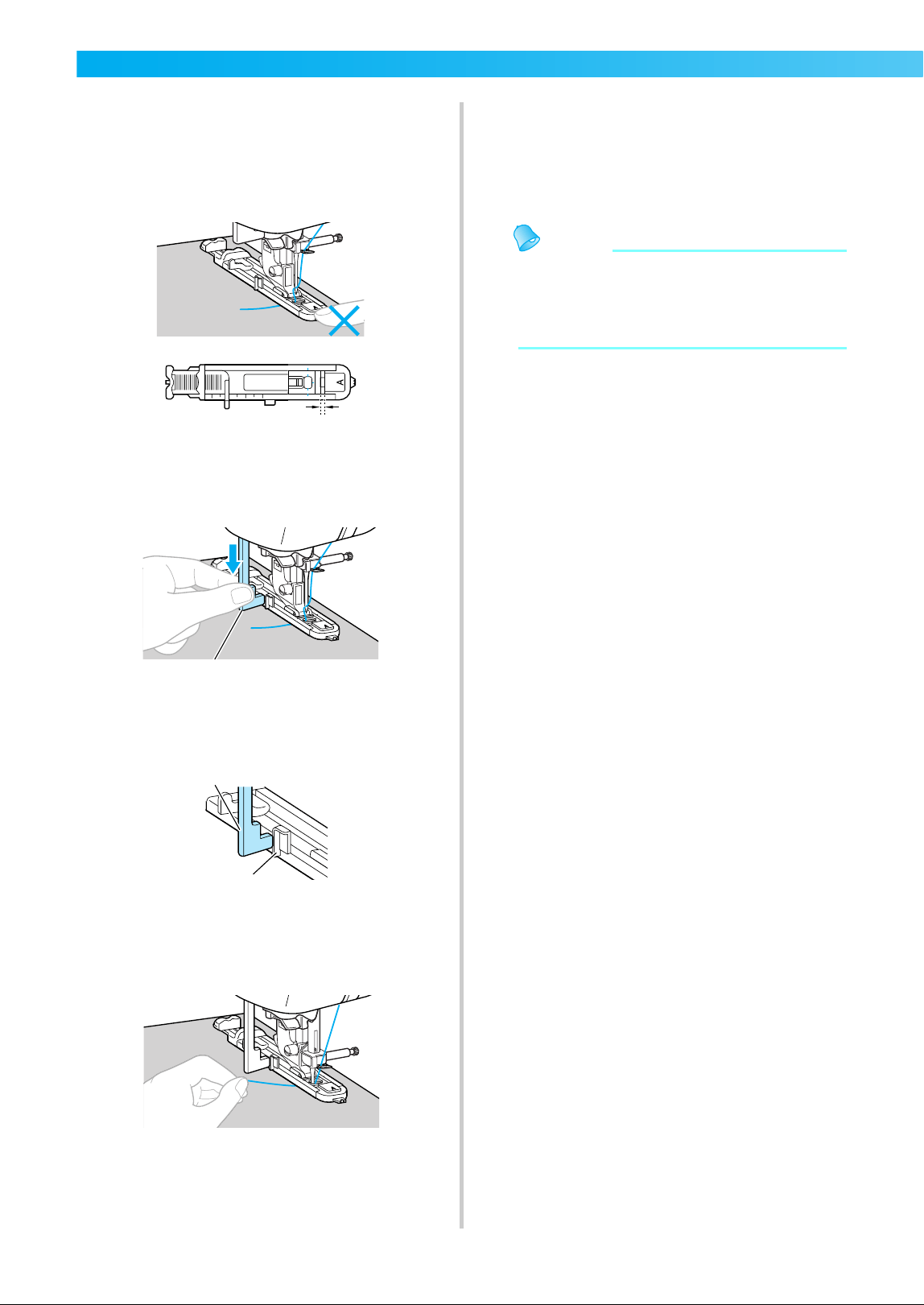

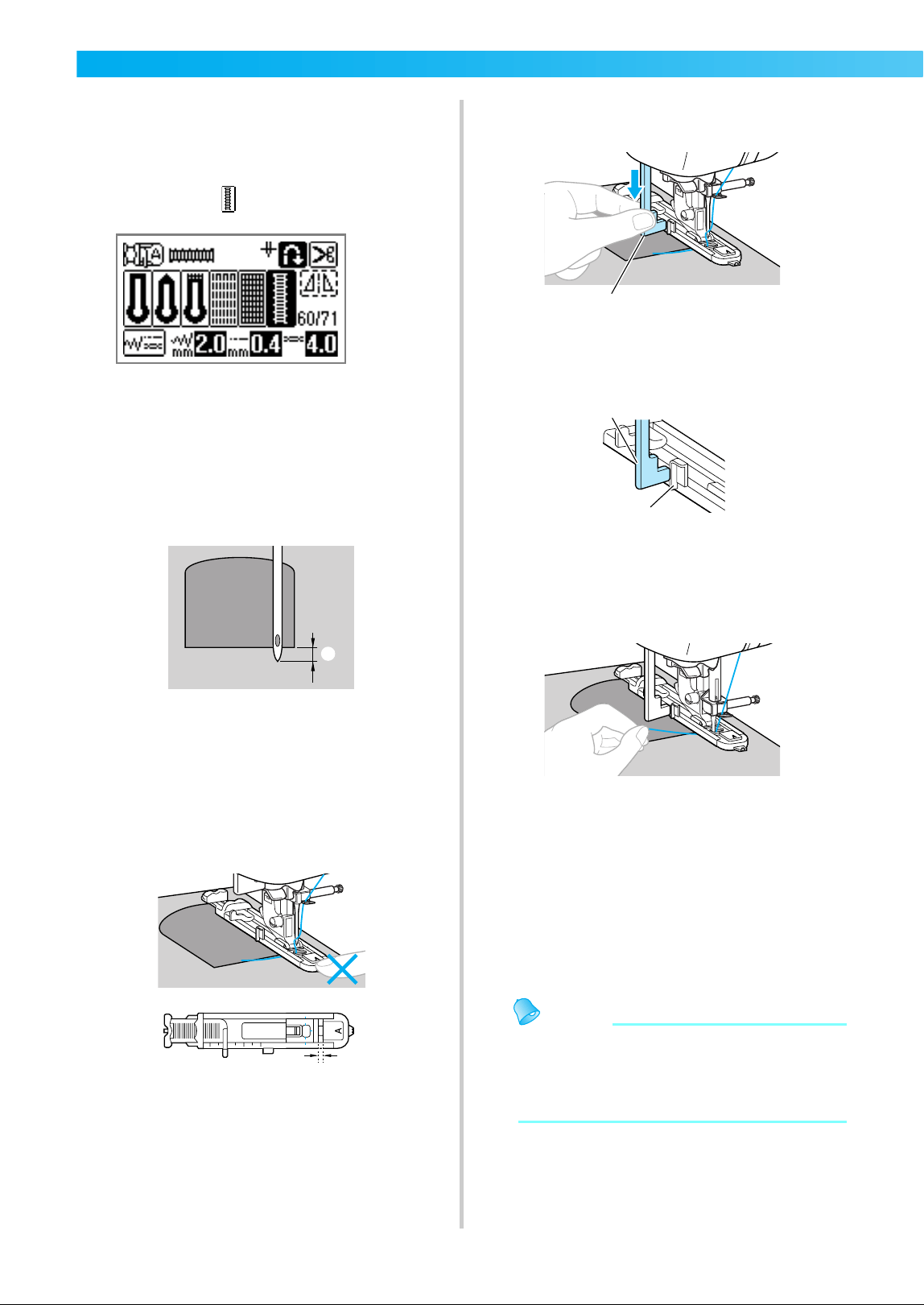

Buttonhole Stitching/Button Sewing..................................................................................87
Buttonhole sewing ..........................................................................................................................................88
Button sewing .................................................................................................................................................92
Zipper Insertion.................................................................................................................94
Inserting a centered zipper..............................................................................................................................94
Inserting a side zipper .....................................................................................................................................96
Zipper/piping Insertion .....................................................................................................99
Inserting a centered zipper..............................................................................................................................99
Inserting a piping ..........................................................................................................................................100

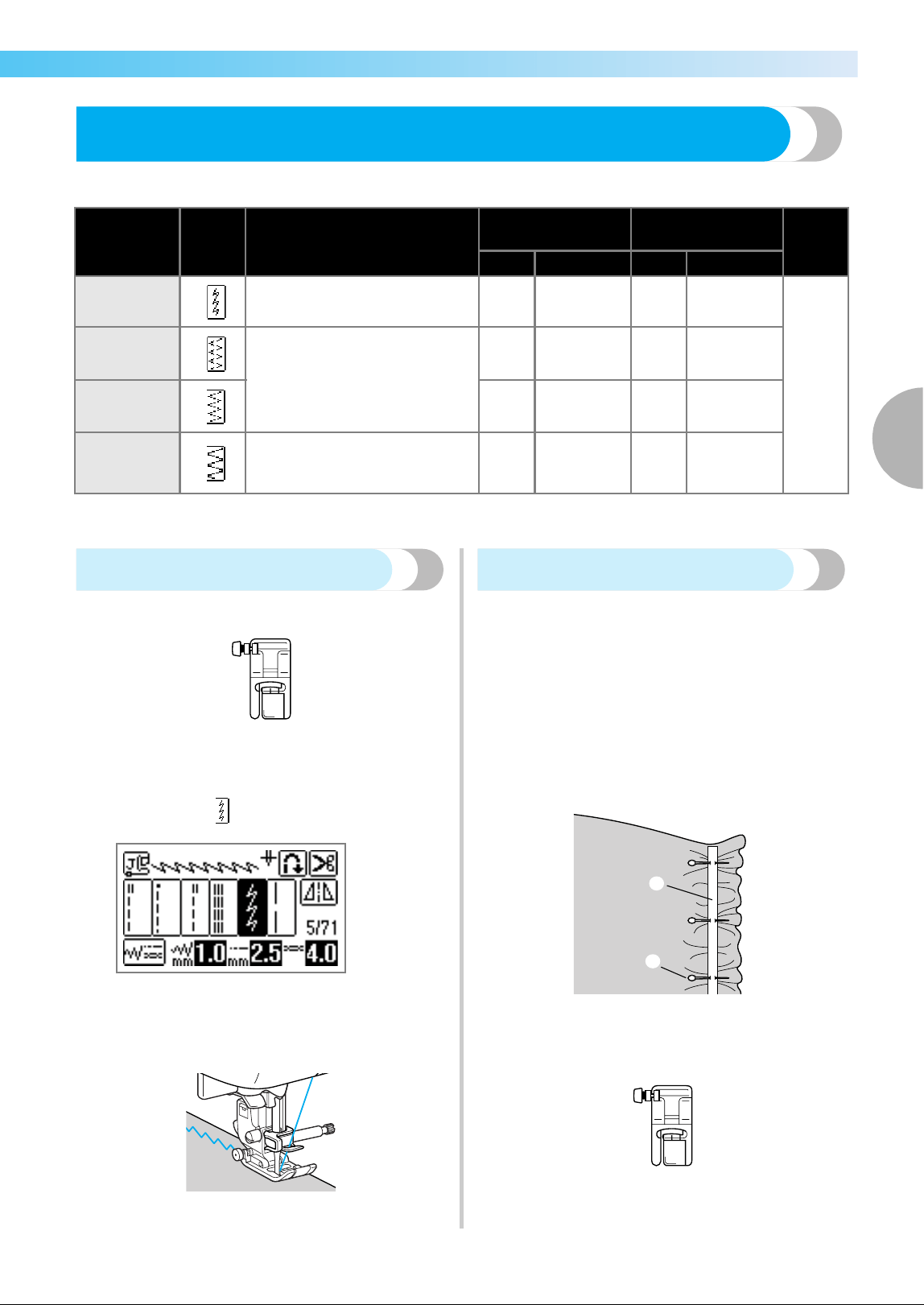

Sewing Stretch Fabrics and Elastic Tape ..........................................................................101
Stretch stitching.............................................................................................................................................101
Elastic attaching ............................................................................................................................................101
Appliqué, Patchwork and Quilt Stitching ........................................................................103
Appliqué stitching .........................................................................................................................................104
Patchwork (crazy quilt) stitching ................................................................................................................... 105
Piecing..........................................................................................................................................................105
Quilting ........................................................................................................................................................107
Free-motion quilting......................................................................................................................................108

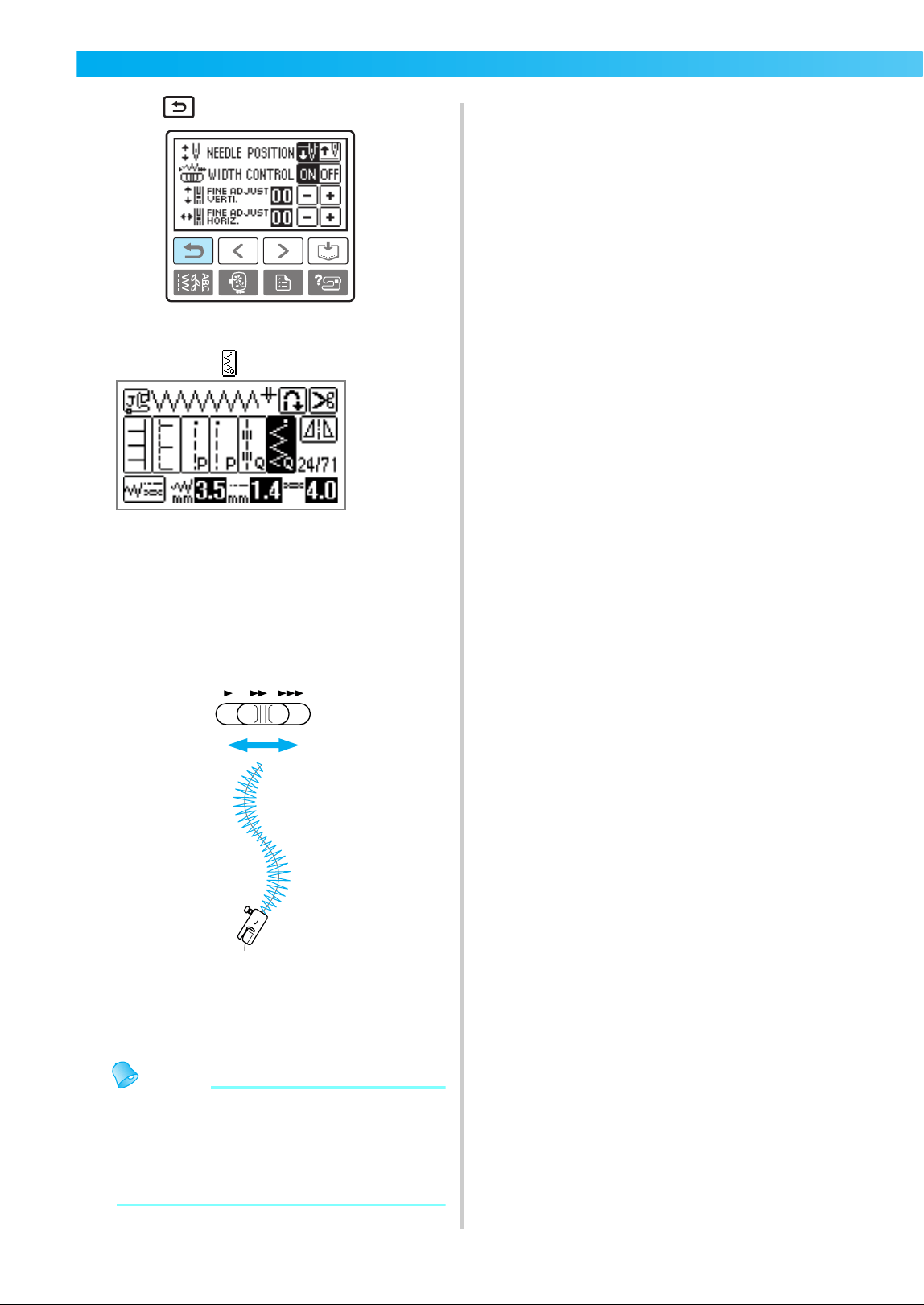

Satin stitching using the sewing speed controller........................................................................................... 109

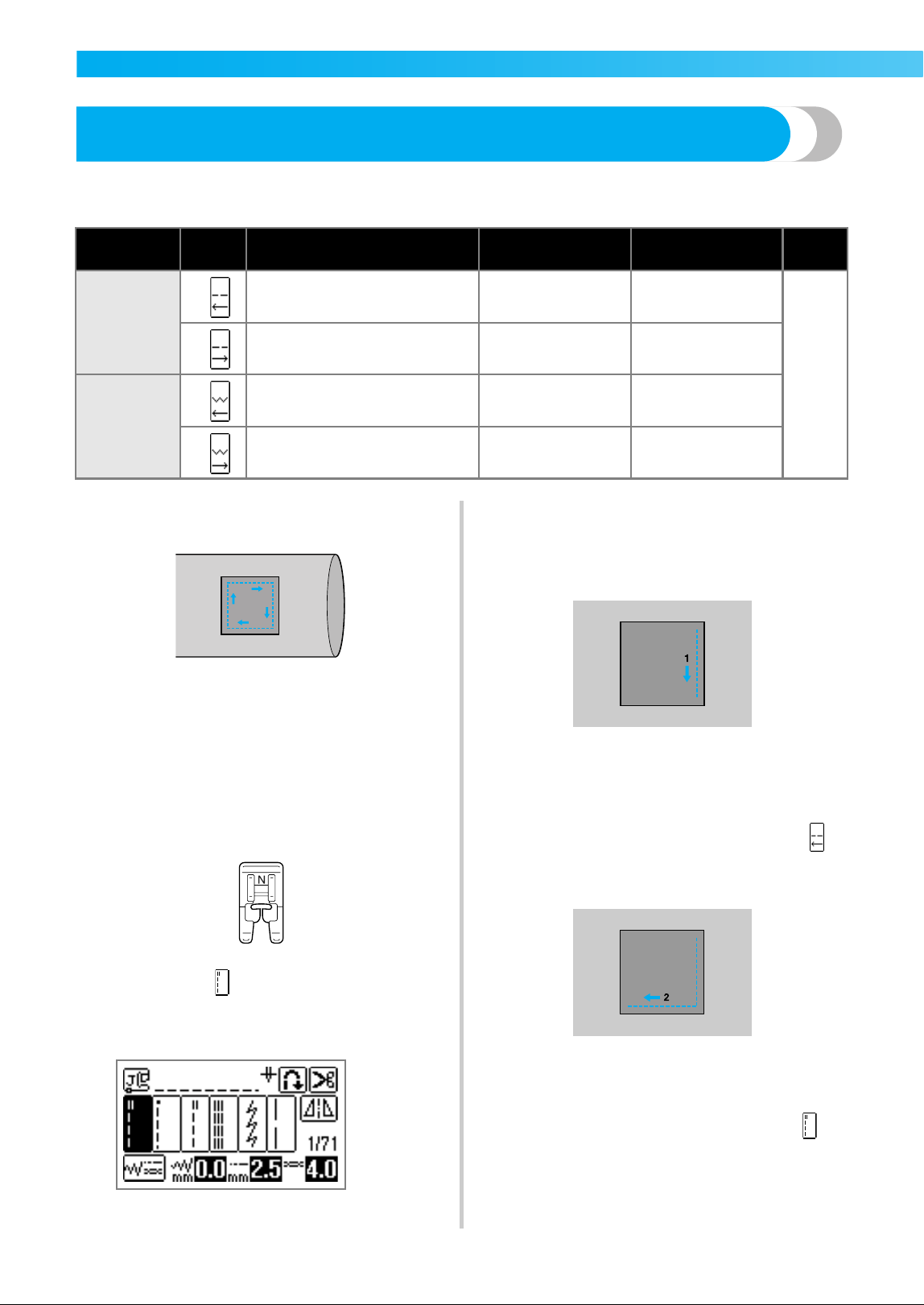

Reinforcement Stitching ..................................................................................................111
Triple stretch stitching ...................................................................................................................................111
Bar tack stitching...........................................................................................................................................111
Darning......................................................................................................................................................... 113

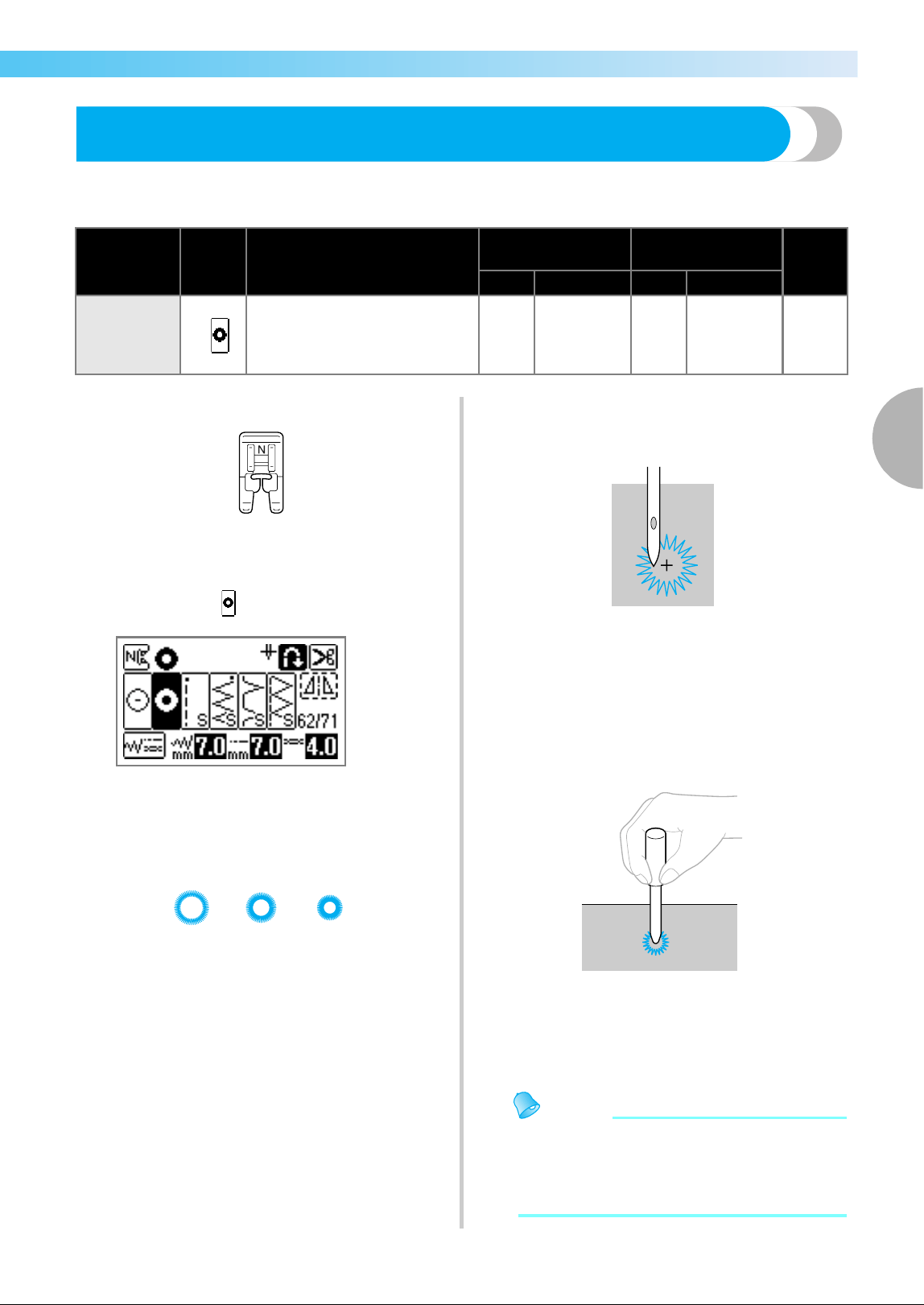

Eyelet Stitching................................................................................................................115
Horizontal Stitching ........................................................................................................116
Decorative Stitching........................................................................................................118
Fagoting ........................................................................................................................................................119

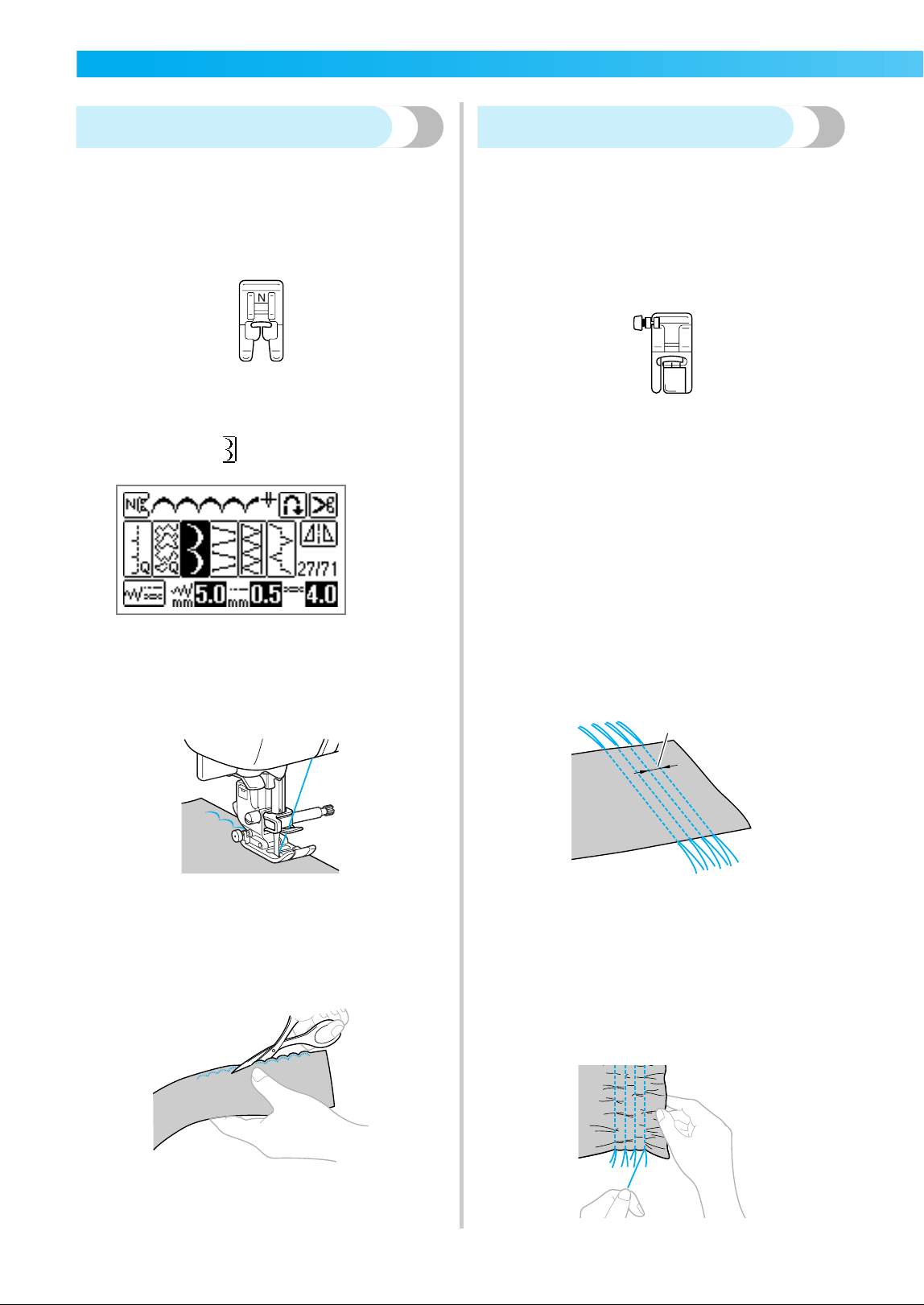

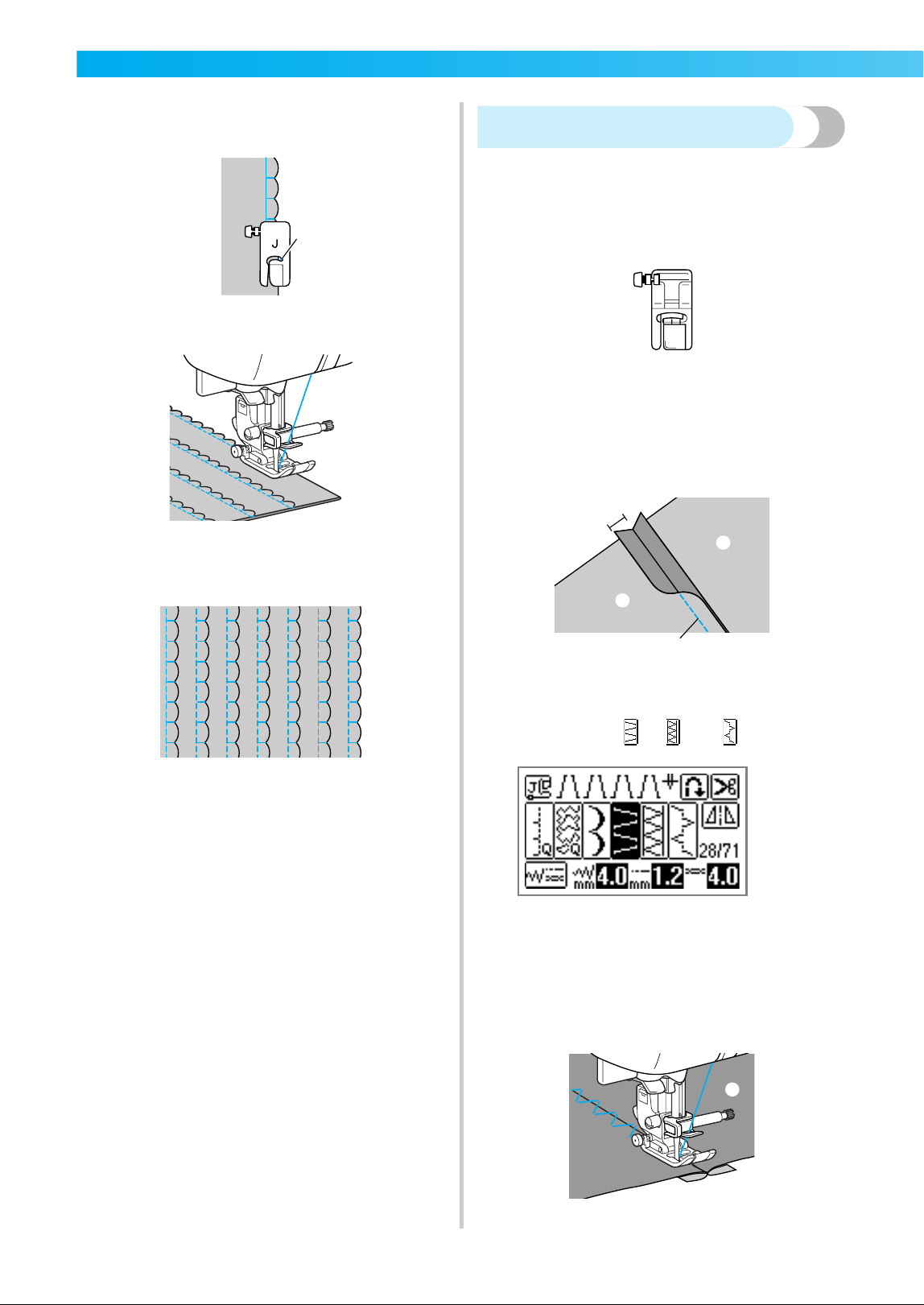

Scallop stitching............................................................................................................................................120

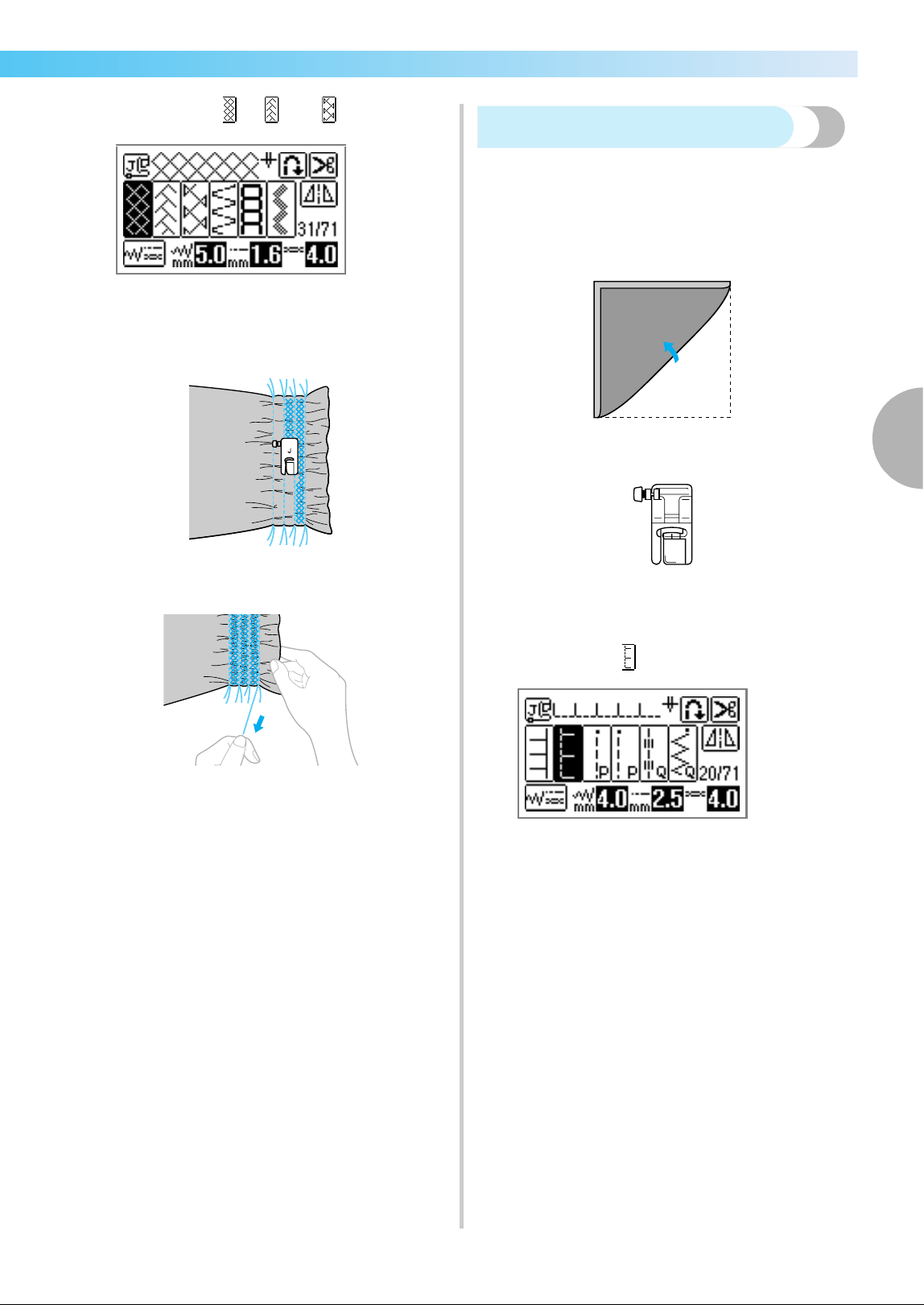

Smocking......................................................................................................................................................120
Shell tuck stitching ........................................................................................................................................121
Joining ..........................................................................................................................................................122
Heirloom stitching ........................................................................................................................................123
5
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Sewing the Various Built-in Decorative Patterns .............................................................126
Sewing beautiful patterns ..............................................................................................................................126
Sewing patterns.............................................................................................................................................126
Changing the pattern size..............................................................................................................................127
Changing the stitch density ........................................................................................................................... 127
Changing the length for satin stitches ............................................................................................................ 128
Shifting patterns ............................................................................................................................................129
Combining patterns.......................................................................................................................................130
Saving patterns..............................................................................................................................................133
Realigning the pattern ...................................................................................................................................134

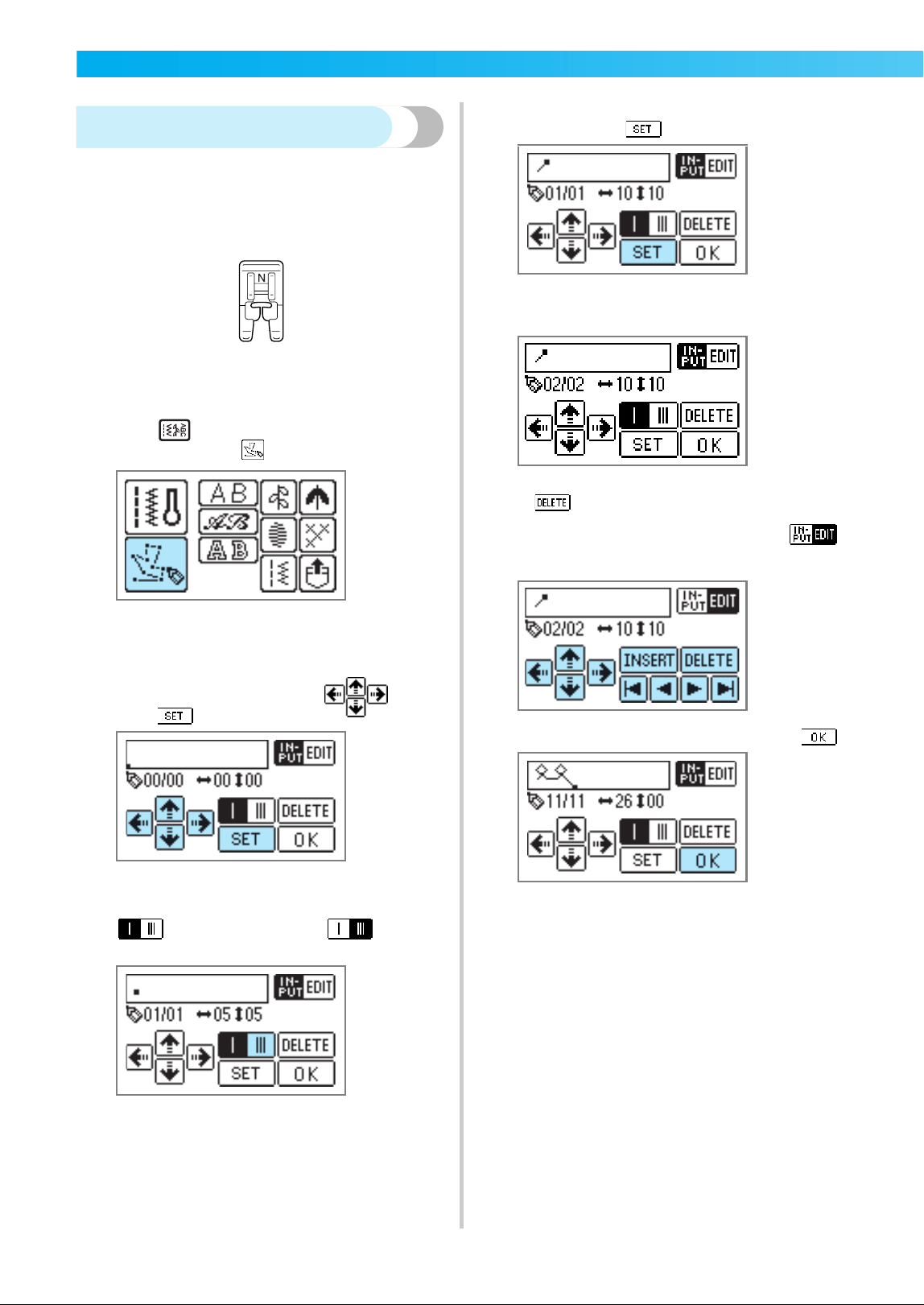

Designing a Pattern (My Custom Stitch)..........................................................................137

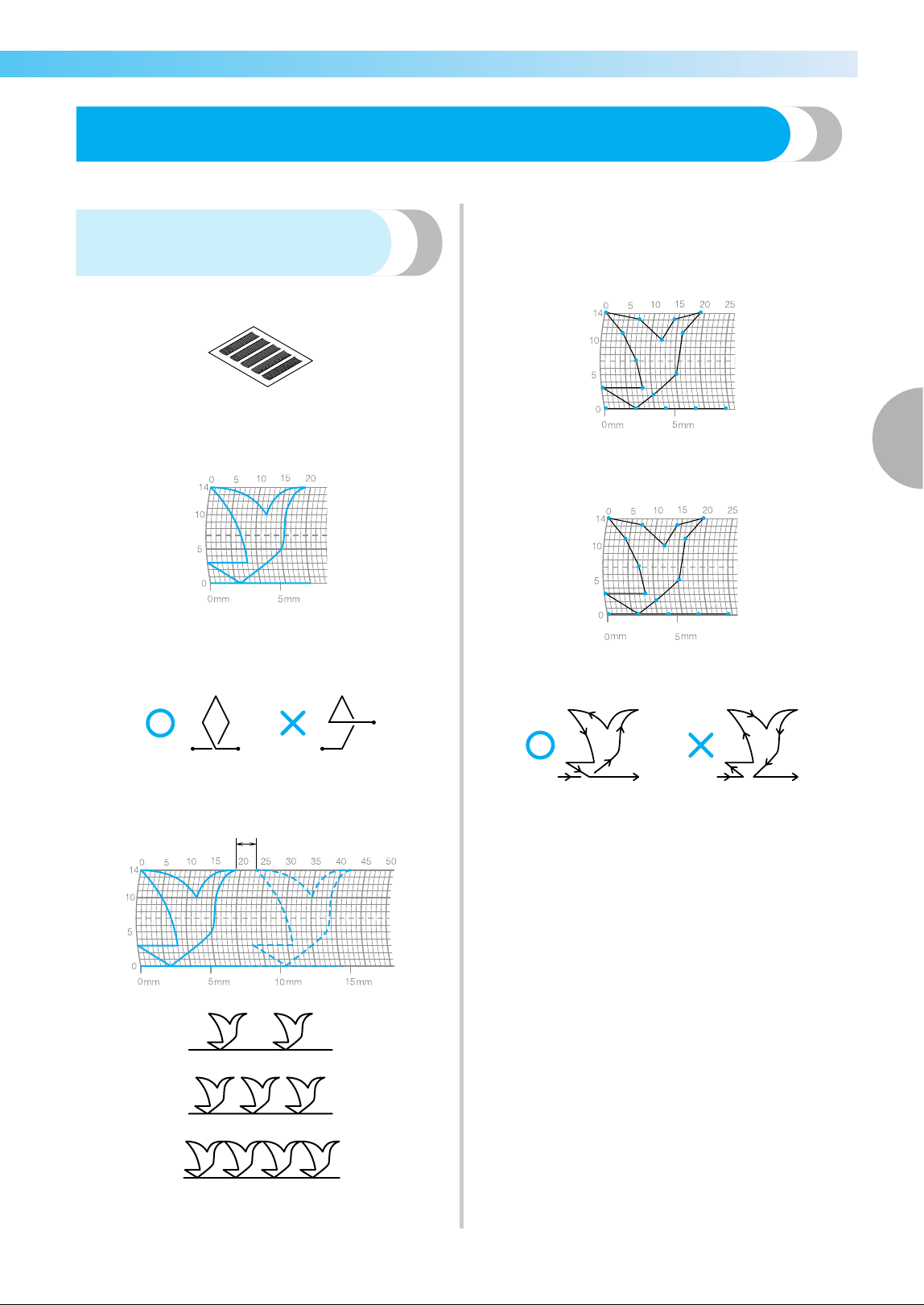

Drawing a sketch of the pattern.....................................................................................................................137
Entering the pattern data ...............................................................................................................................138
Examples of designs ......................................................................................................................................140
EMBROIDERY 141
Embroidering Neatly .......................................................................................................142
What to prepare ............................................................................................................................................142
Embroidery step by step ................................................................................................................................144

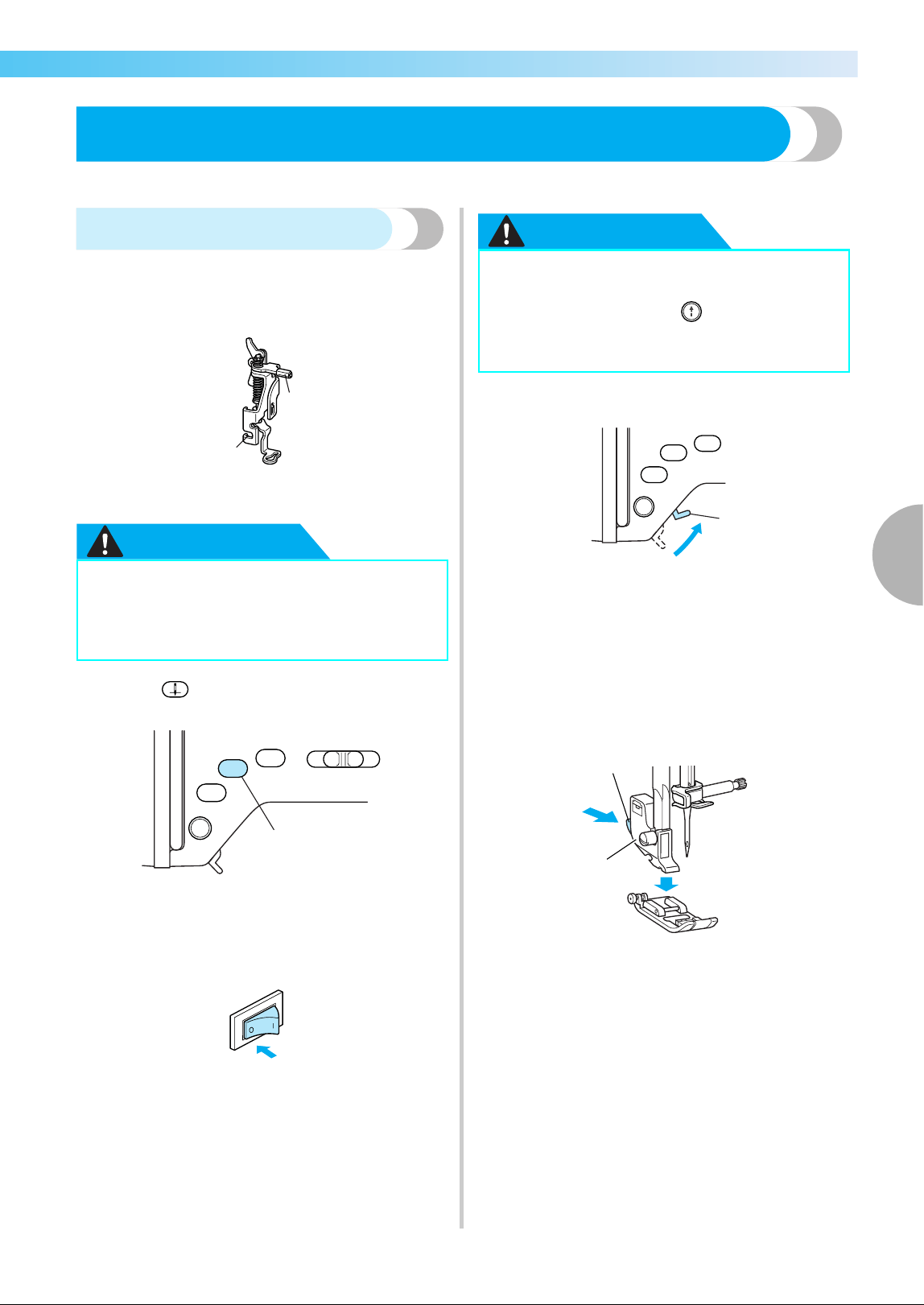

Attaching the Embroidery Foot........................................................................................145
Attaching the embroidery foot.......................................................................................................................145
Removing the embroidery foot...................................................................................................................... 147

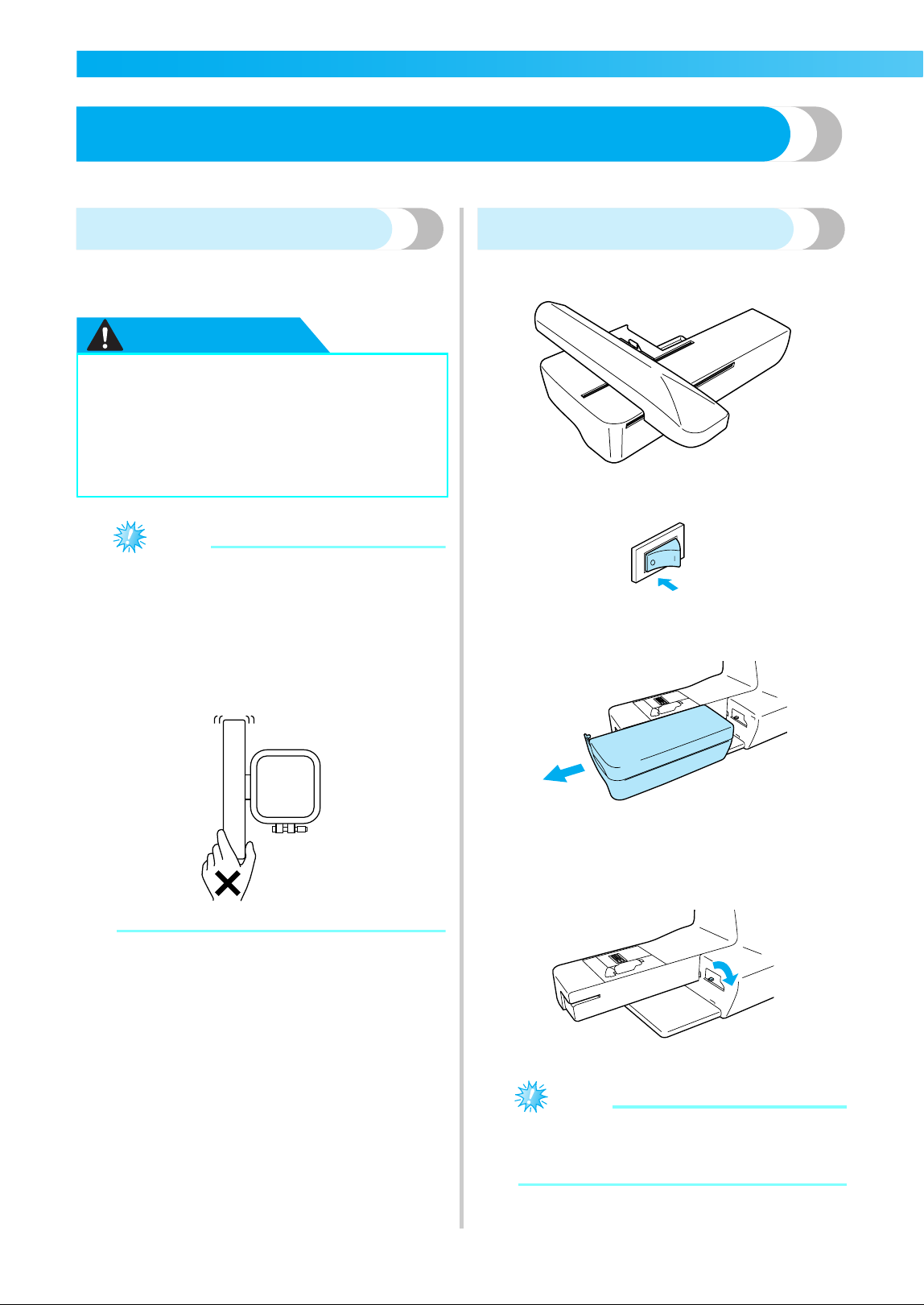

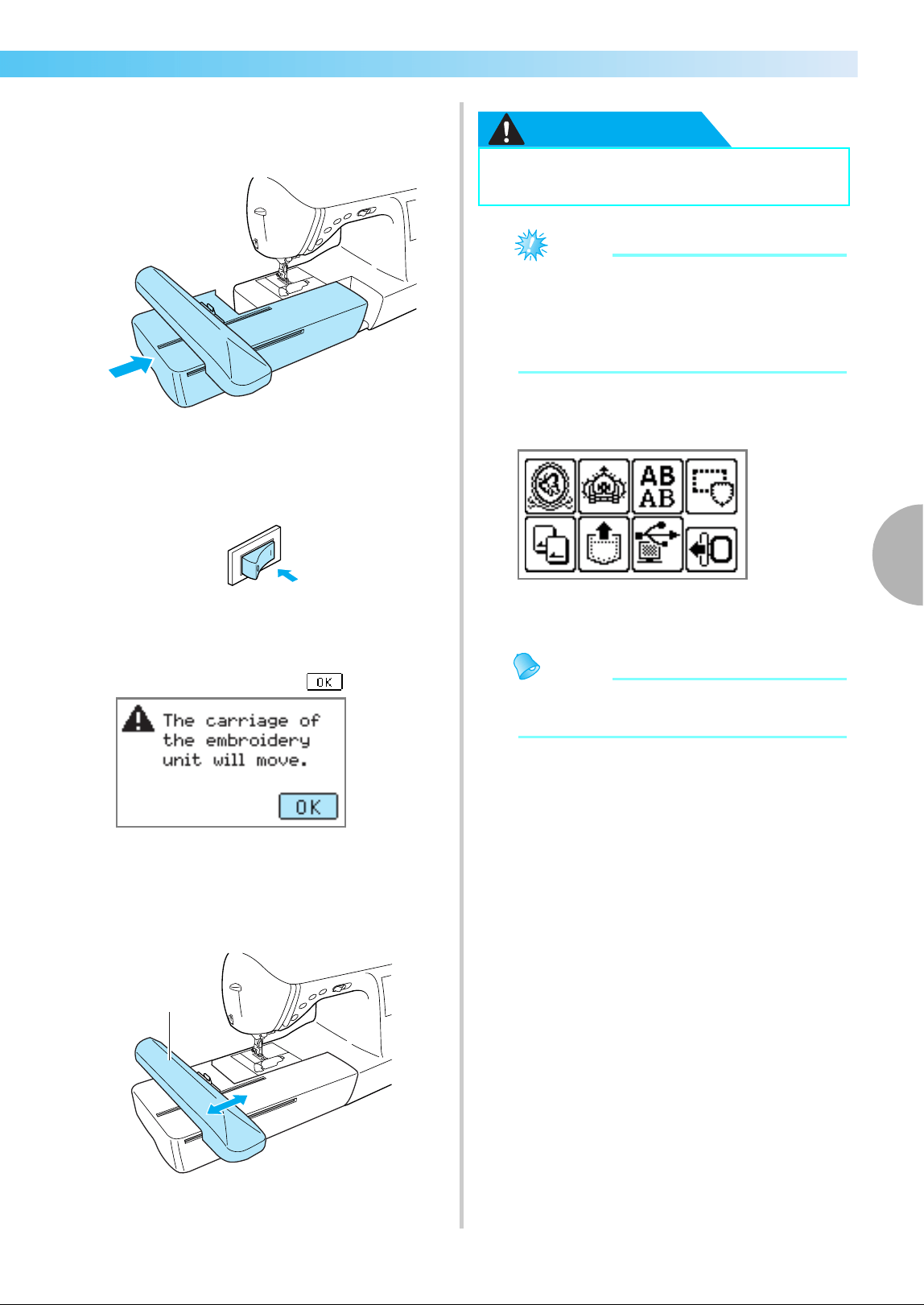

Attaching the Embroidery Unit........................................................................................148
Embroidery unit precautions .........................................................................................................................148
Attaching the embroidery unit.......................................................................................................................148
Removing the embroidery unit...................................................................................................................... 150
Preparing the Fabric ........................................................................................................151

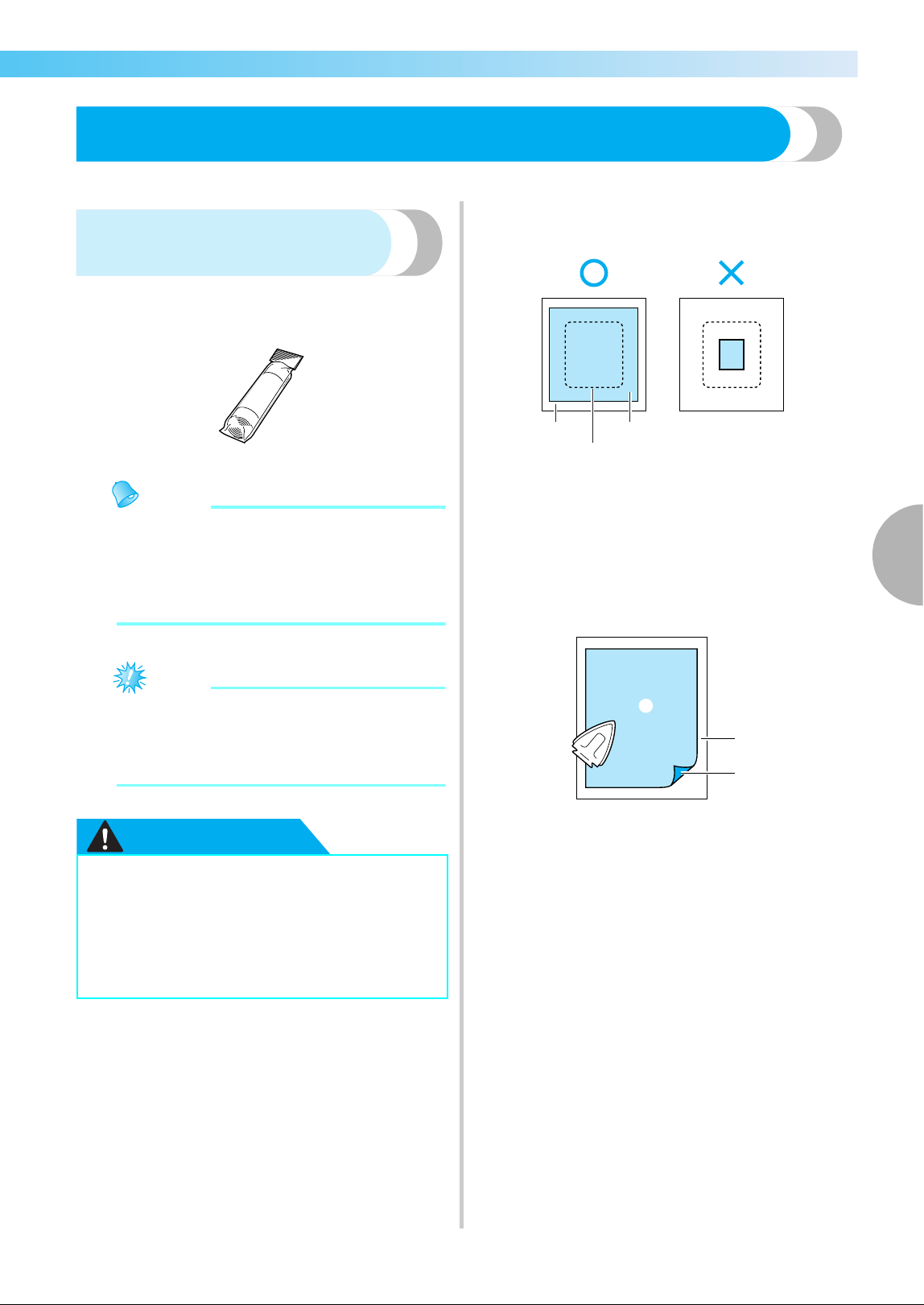

Attaching an optional stabilizer material to the fabric....................................................................................151

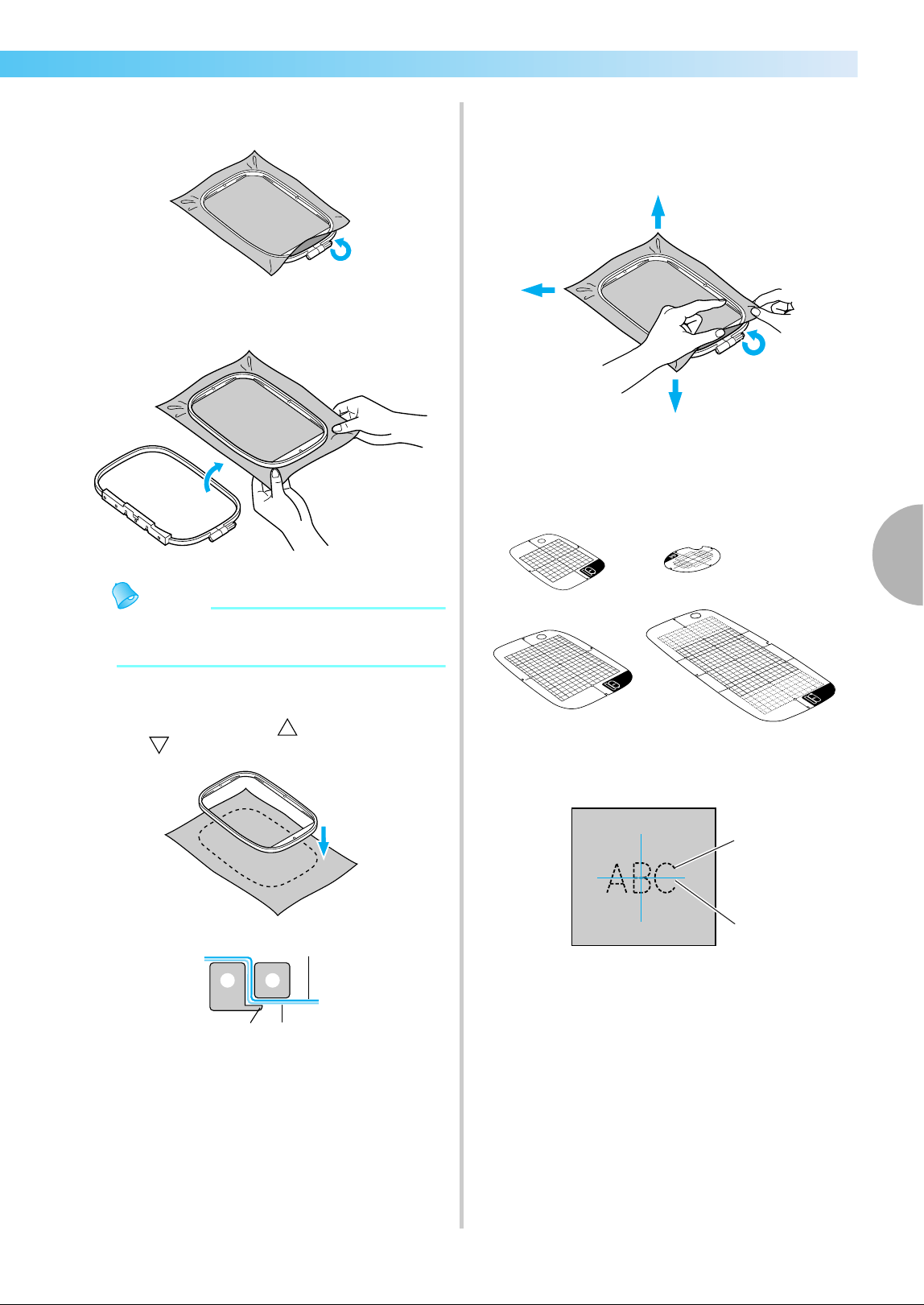

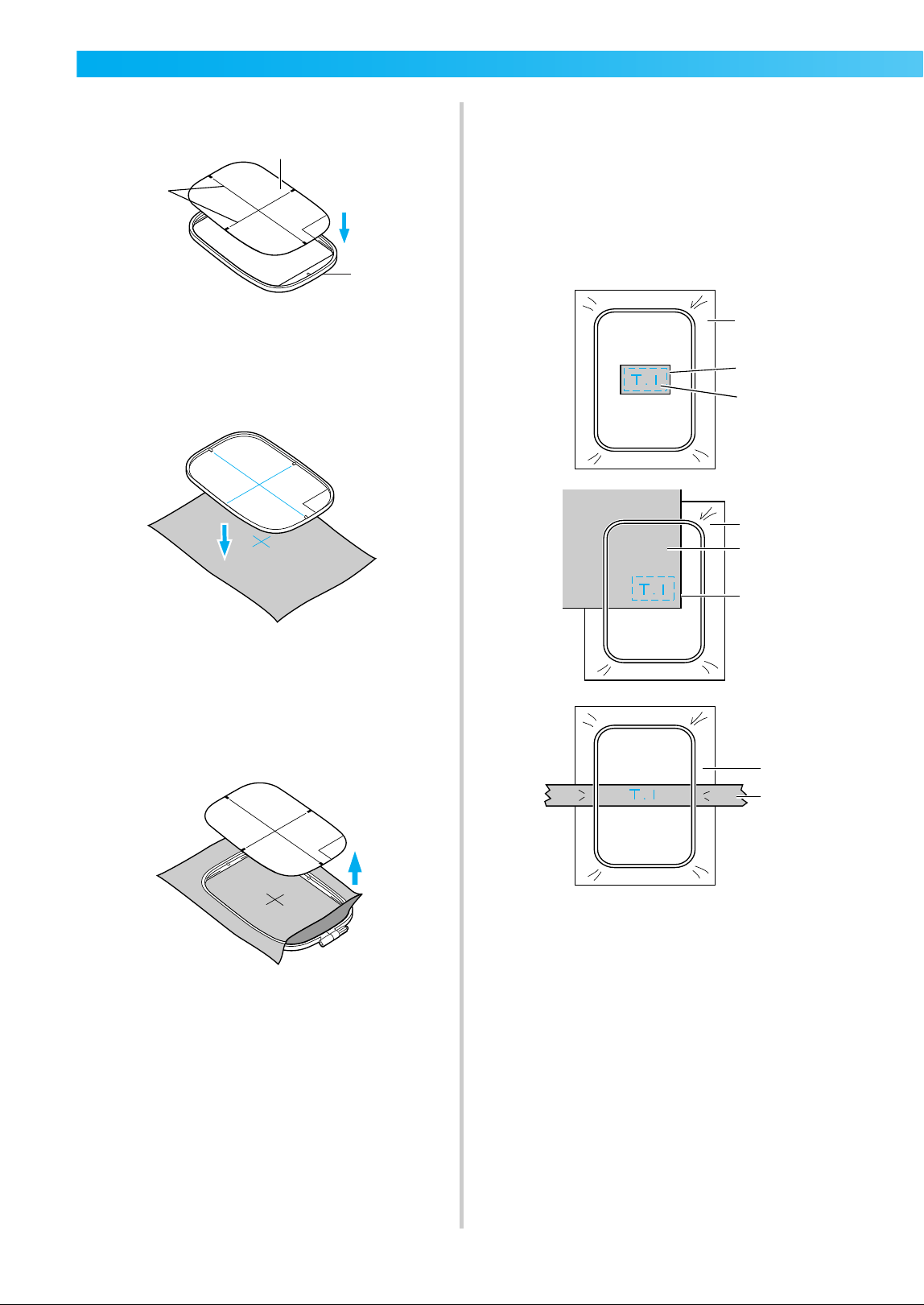

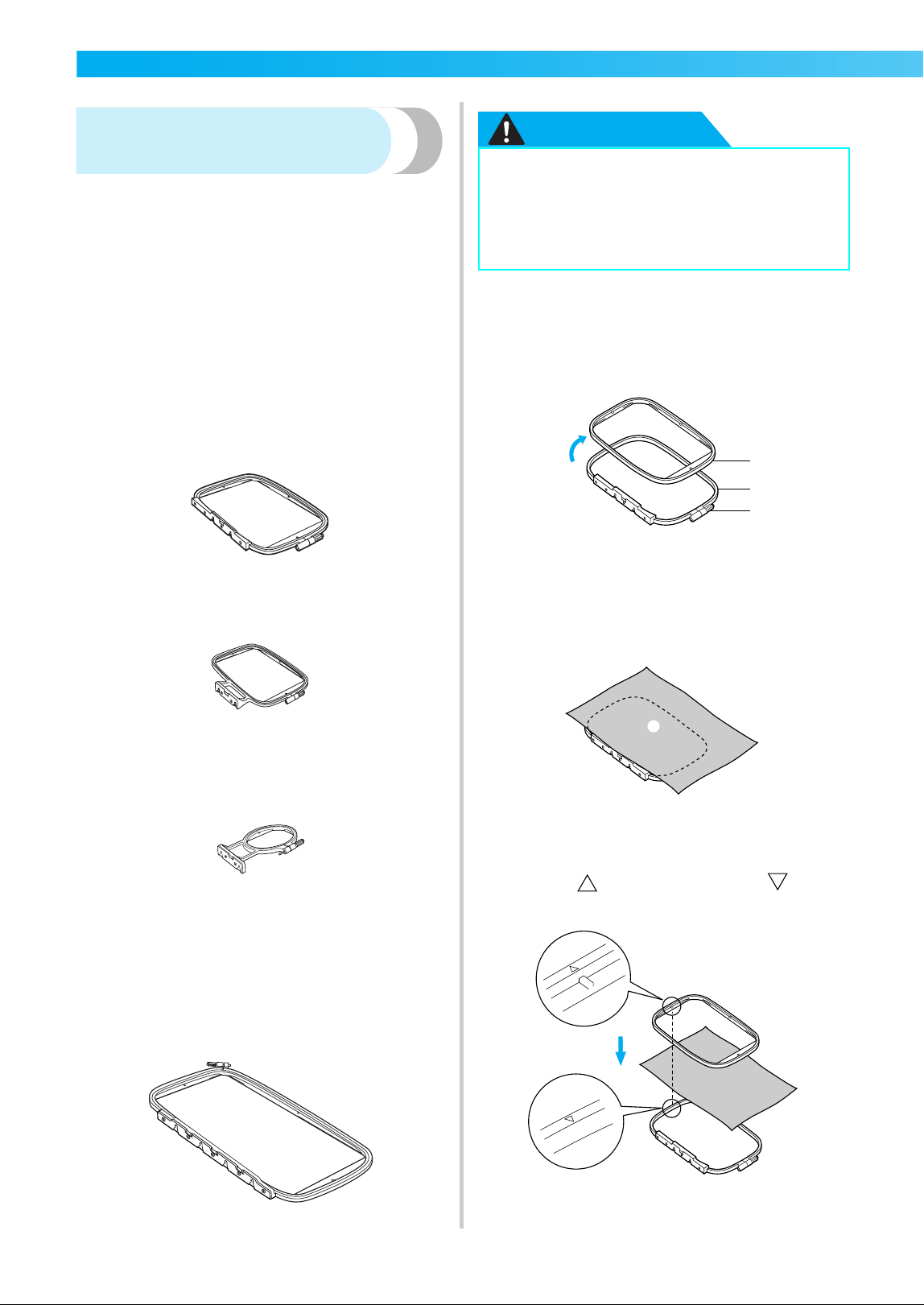

Setting the fabric in the embroidery frame.....................................................................................................152
Attaching the Embroidery Frame.....................................................................................155
Attaching the embroidery frame.................................................................................................................... 155
Removing the embroidery frame ................................................................................................................... 156
Selecting Embroidery Patterns.........................................................................................157
Copyright information .................................................................................................................................. 157
Embroidery pattern types...............................................................................................................................157
LCD (liquid crystal display) operation ...........................................................................................................158

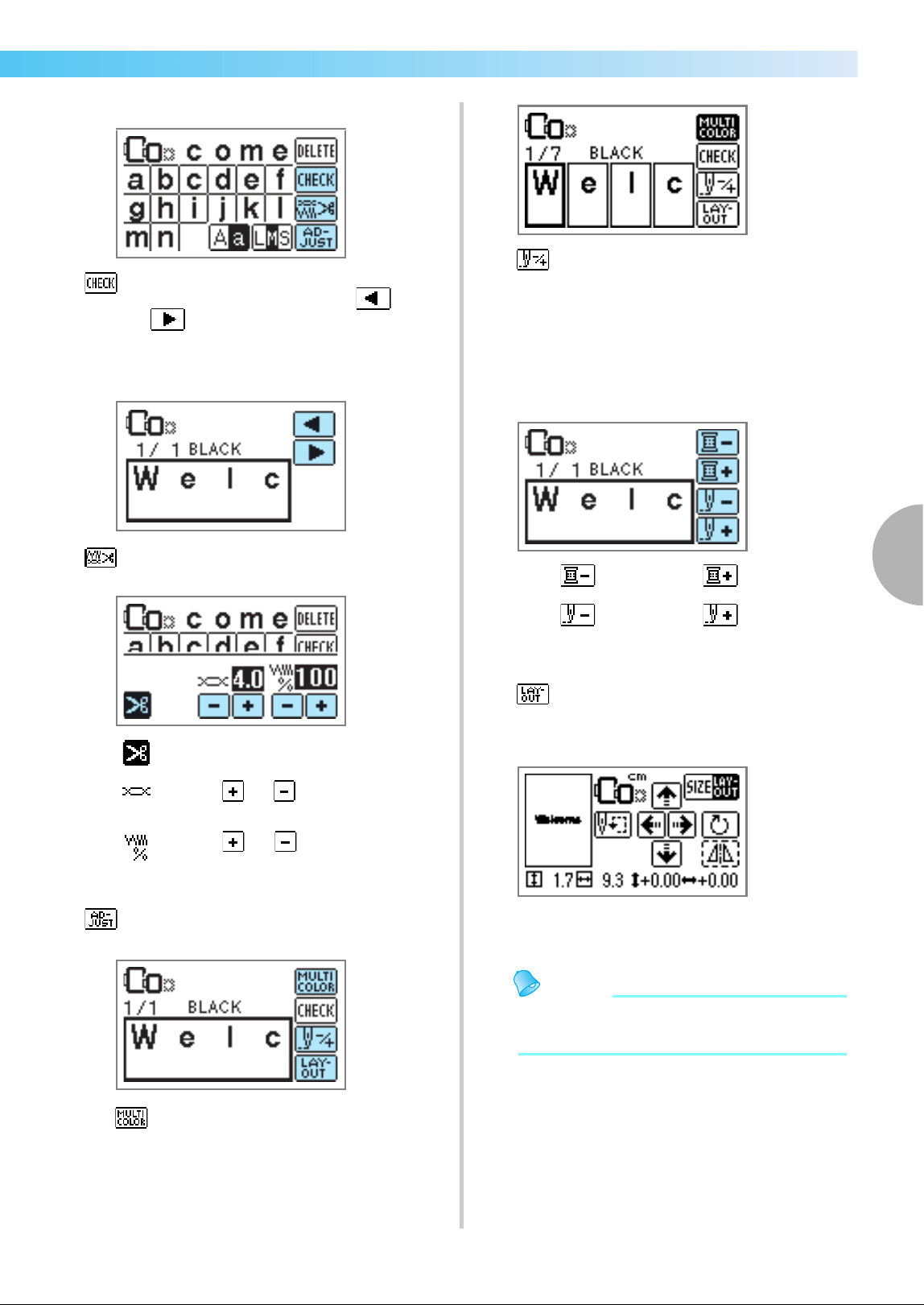

Selecting characters ......................................................................................................................................160
Selecting an embroidery pattern....................................................................................................................161
Selecting a frame pattern............................................................................................................................... 162

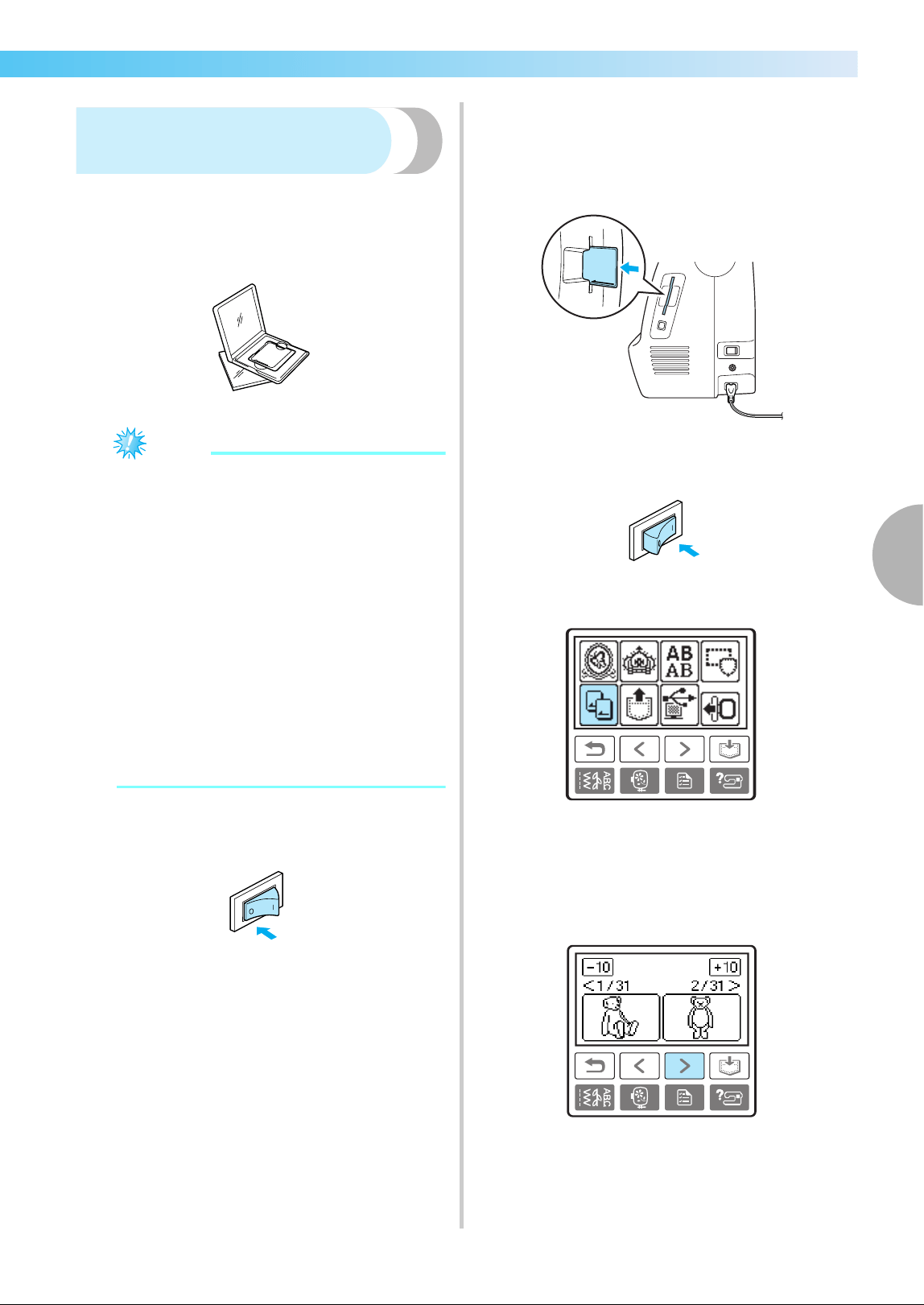

Using an embroidery card (sold separately)...................................................................................................163
Embroidering...................................................................................................................164
Sewing attractive finishes .............................................................................................................................. 164
Embroidering a pattern.................................................................................................................................. 165

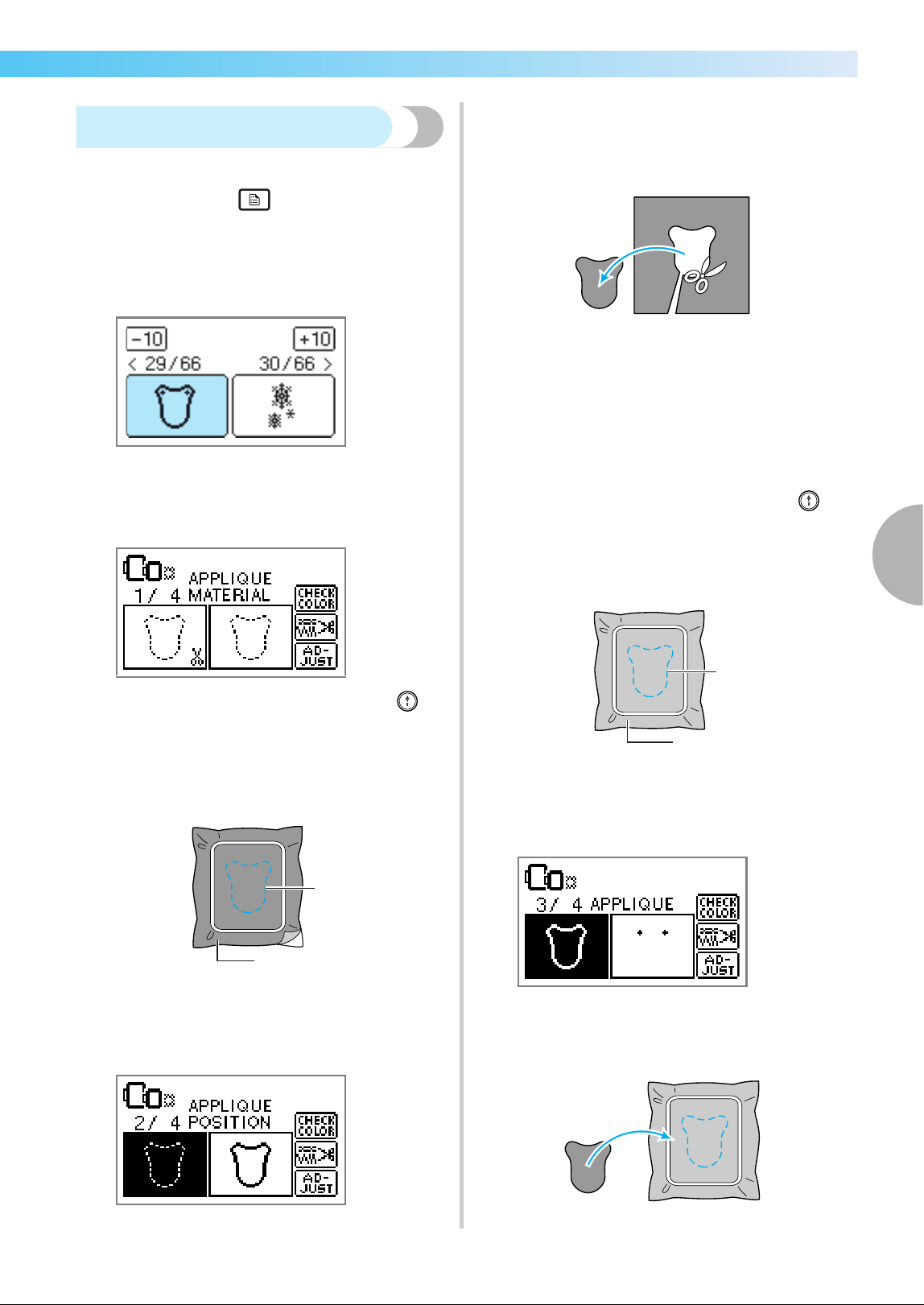

Appliquéing .................................................................................................................................................167
Editing Patterns ...............................................................................................................169

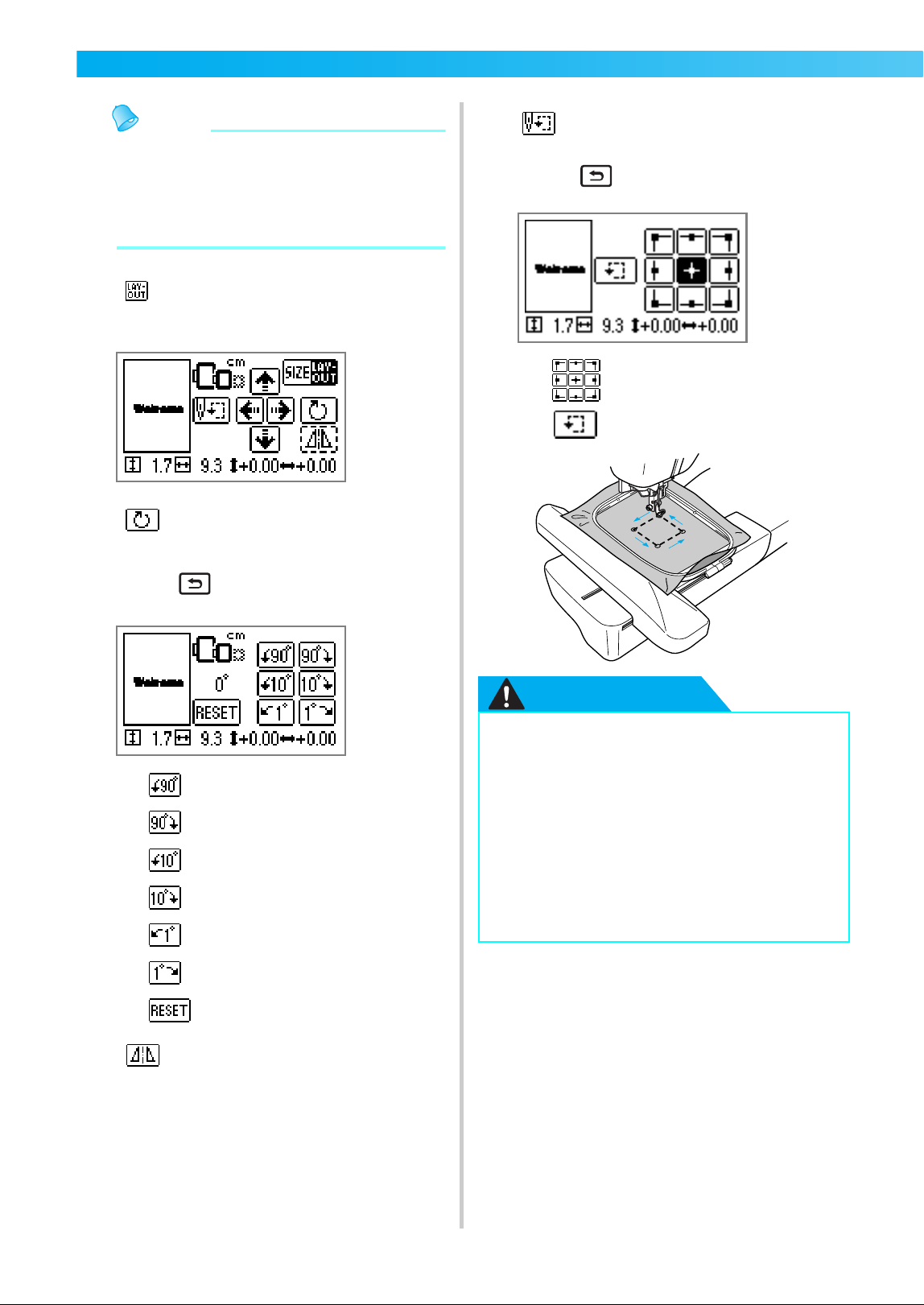

Adjusting the layout ......................................................................................................................................169

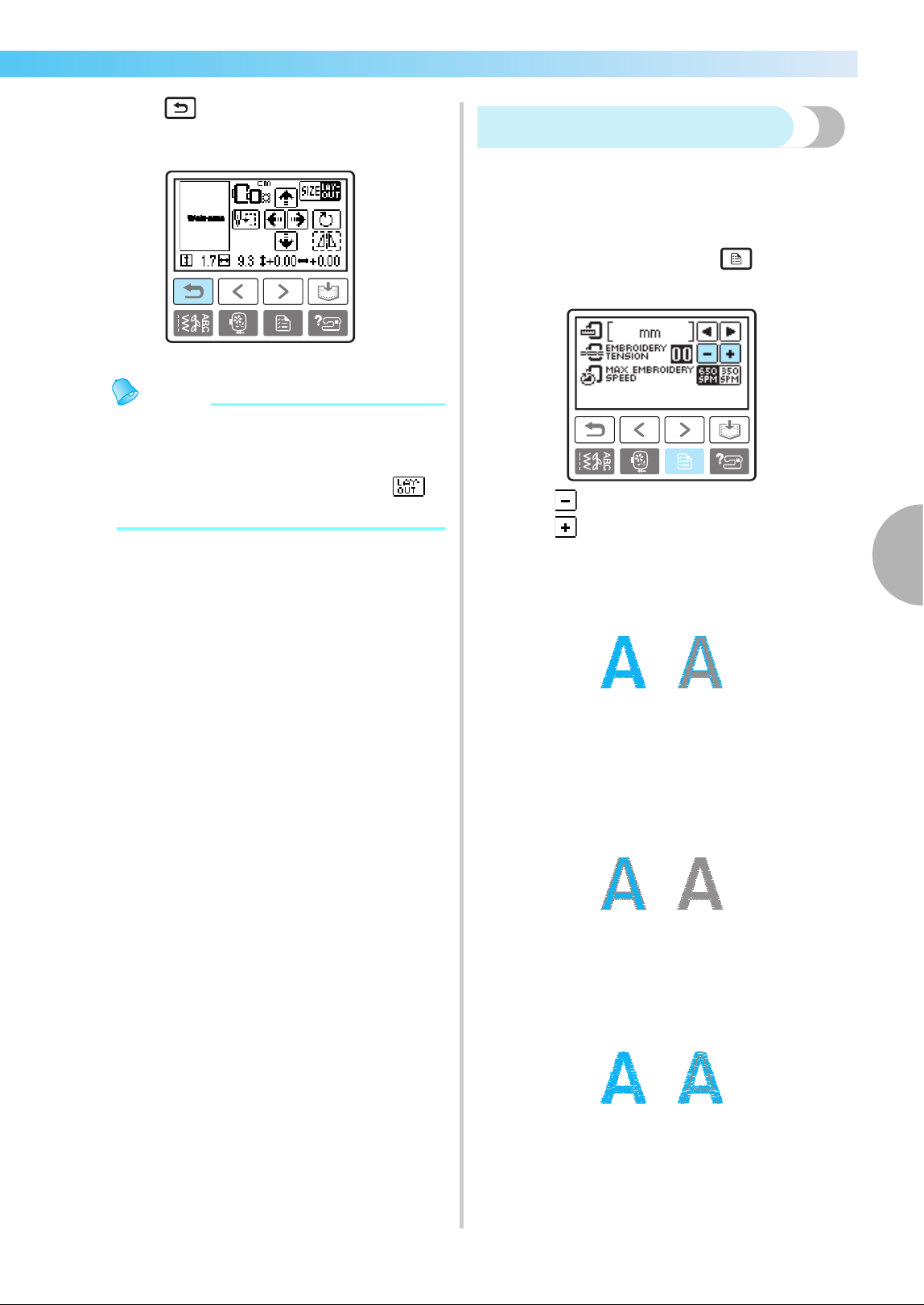

Adjusting the thread tension.......................................................................................................................... 171
Resewing ......................................................................................................................................................172
Thread runs out partway through a design.....................................................................................................172
Stopping while embroidering ........................................................................................................................173
Using the Memory Function ............................................................................................175
Embroidery data precautions.........................................................................................................................175

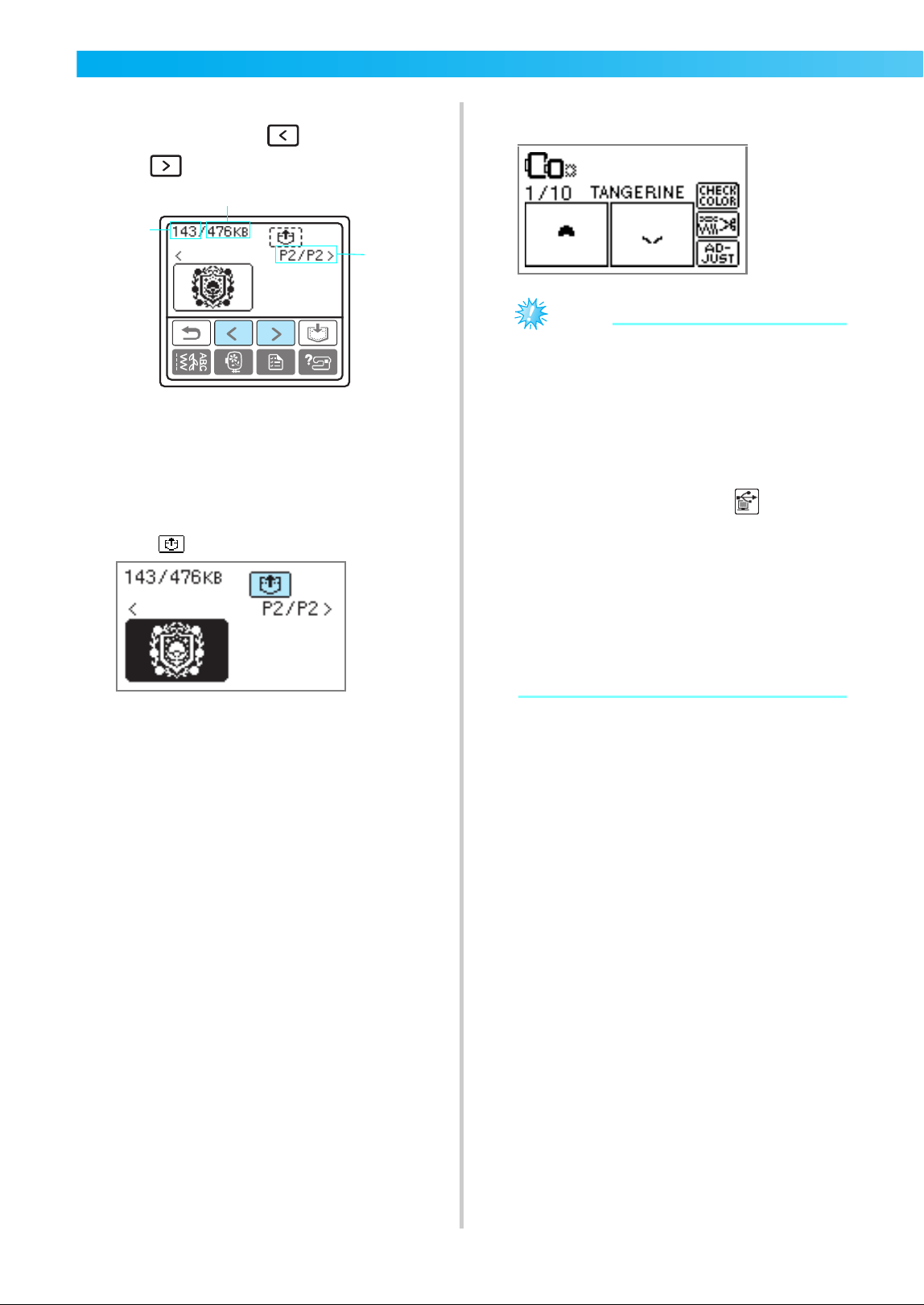

Saving patterns..............................................................................................................................................176

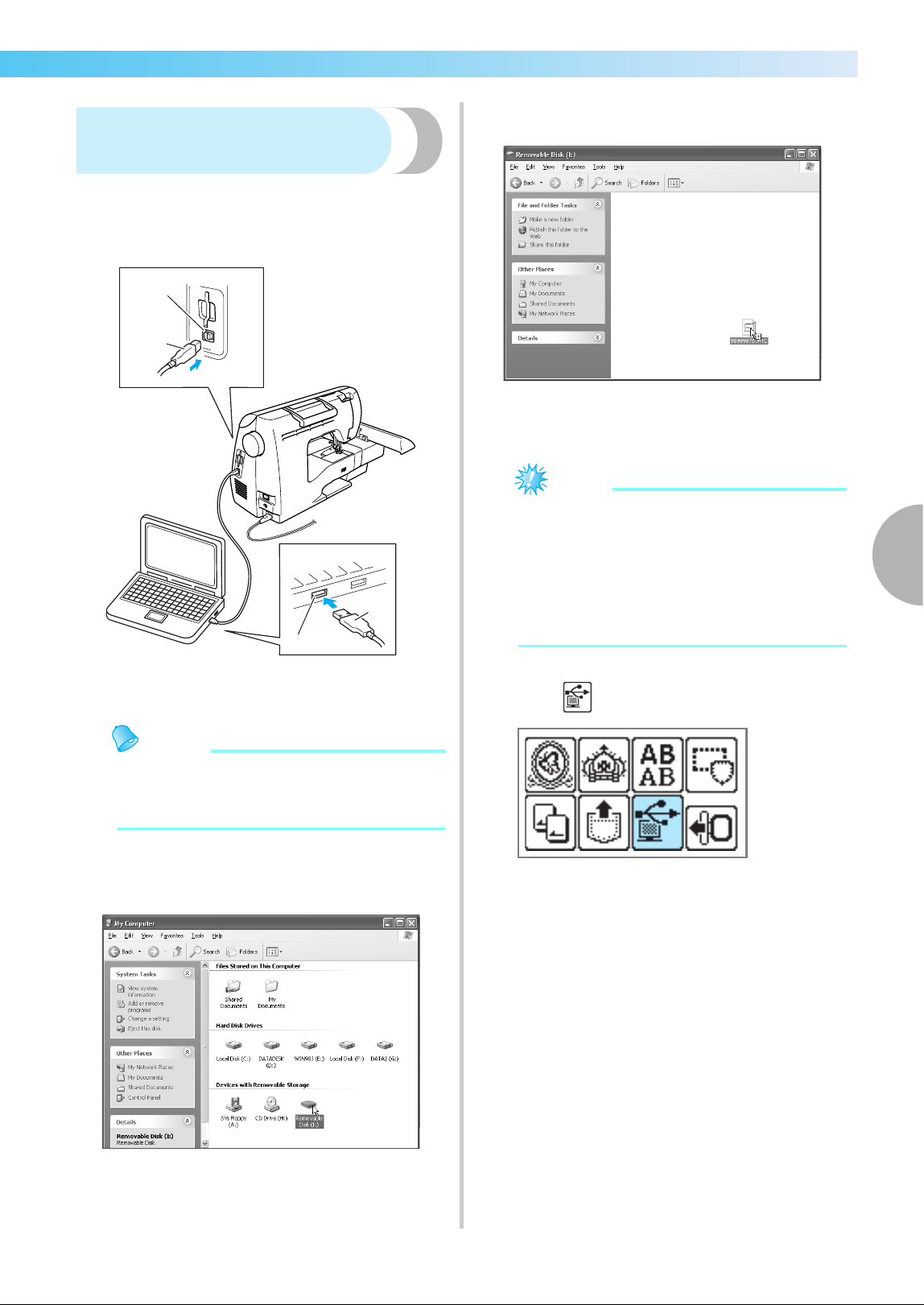

Retrieving embroidery patterns from the computer........................................................................................177
6
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
APPENDIX 179
Care and Maintenance ....................................................................................................180
Cleaning the machine surface .......................................................................................................................180

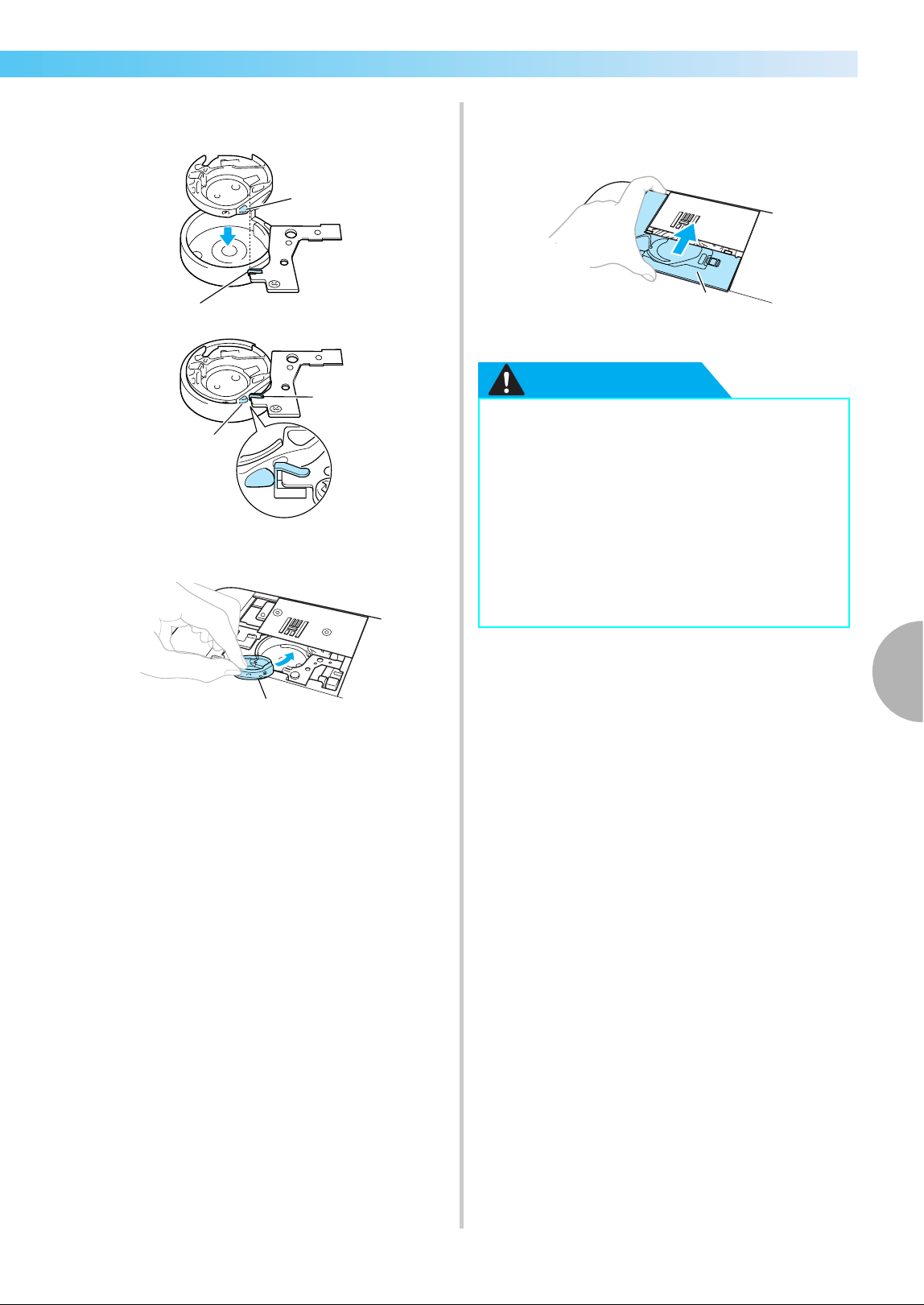

Cleaning the race..........................................................................................................................................180
Troubleshooting ..............................................................................................................182

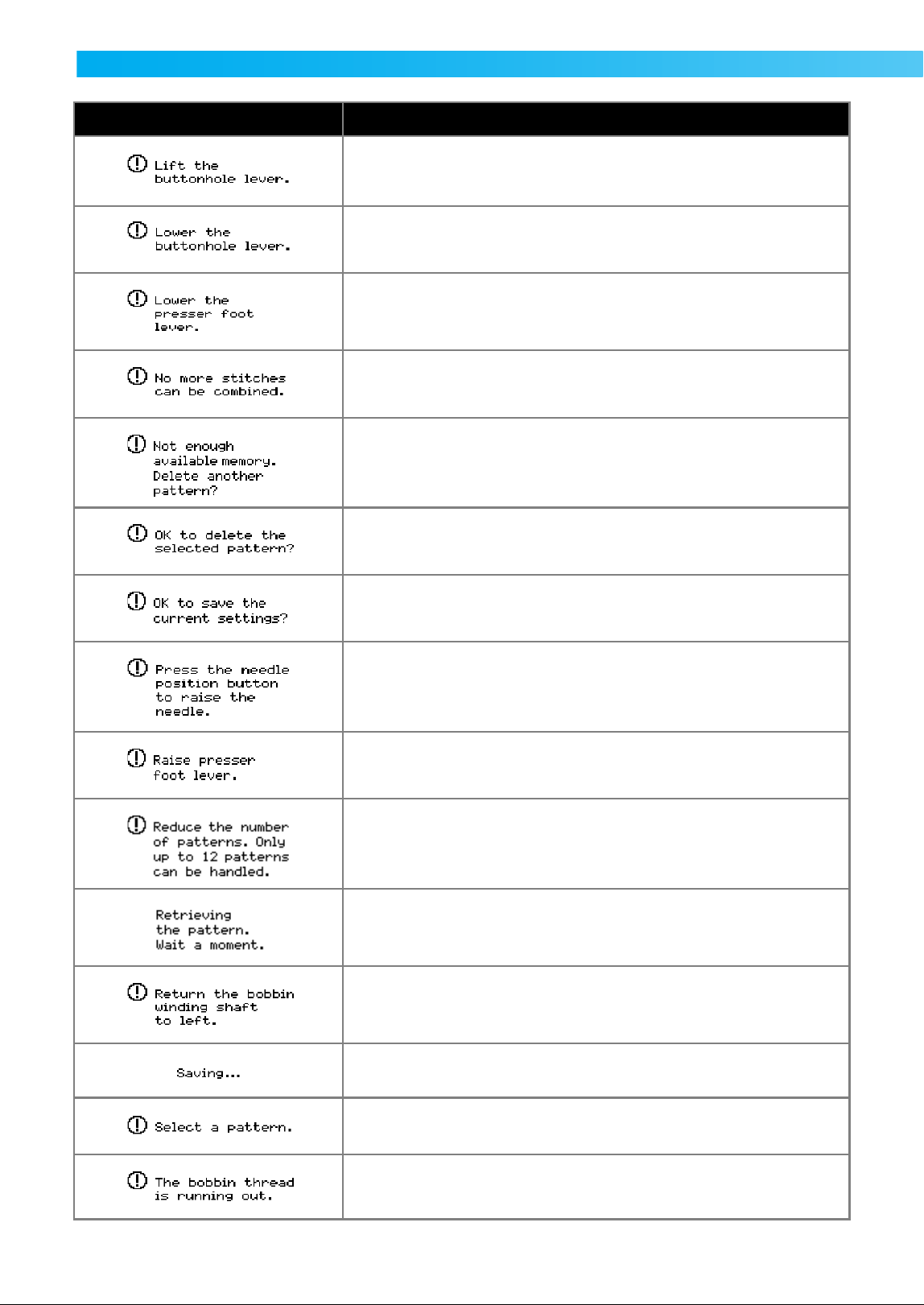

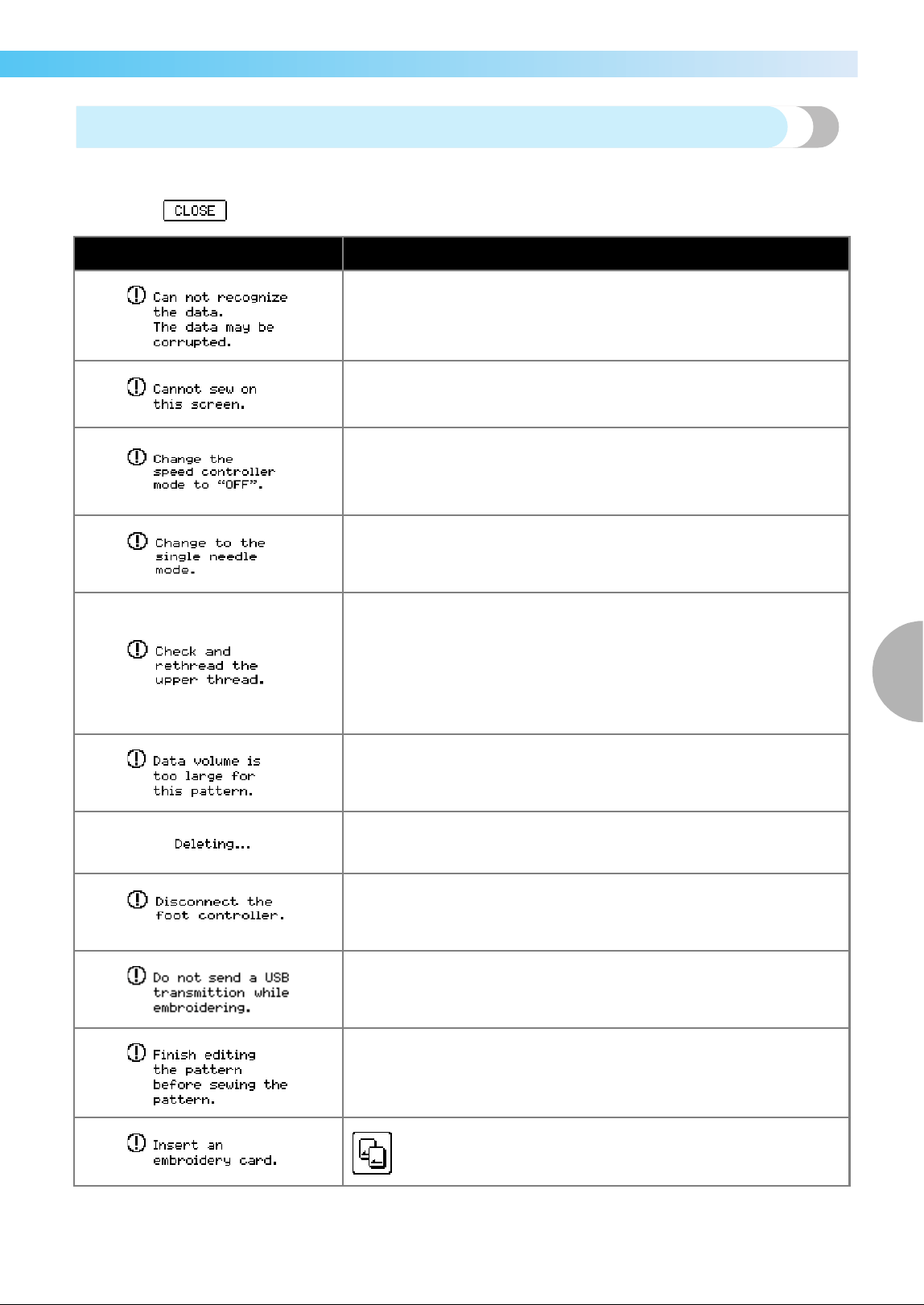

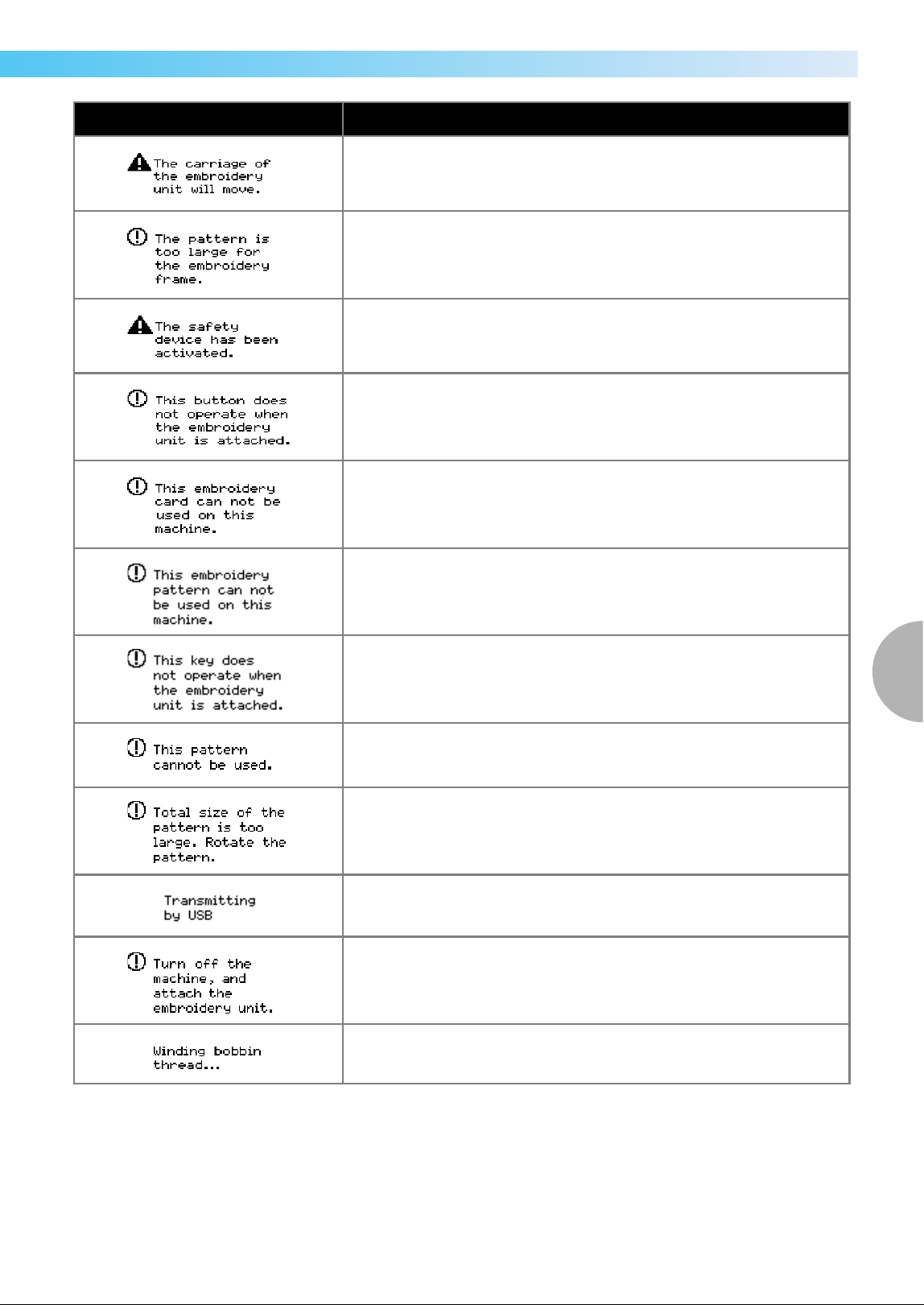

Error messages ..............................................................................................................................................187
Adjusting the LCD.........................................................................................................................................190
Operation beep.............................................................................................................................................190
Canceling the operation beep .......................................................................................................................191
Upgrading Your Machine’s Software...............................................................................192
Index ................................................................................................................................193
Introduction / Sewing Machine Features 7
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Introduction
Thank you for purchasing this sewing machine. Before using this sewing machine, carefully read the
“Important Safety Instructions” (page 1), and then study this manual for the correct operation of the
various functions. In addition, after you have finished reading this manual, store it where it can quickly be
accessed for future reference.
Sewing Machine Features

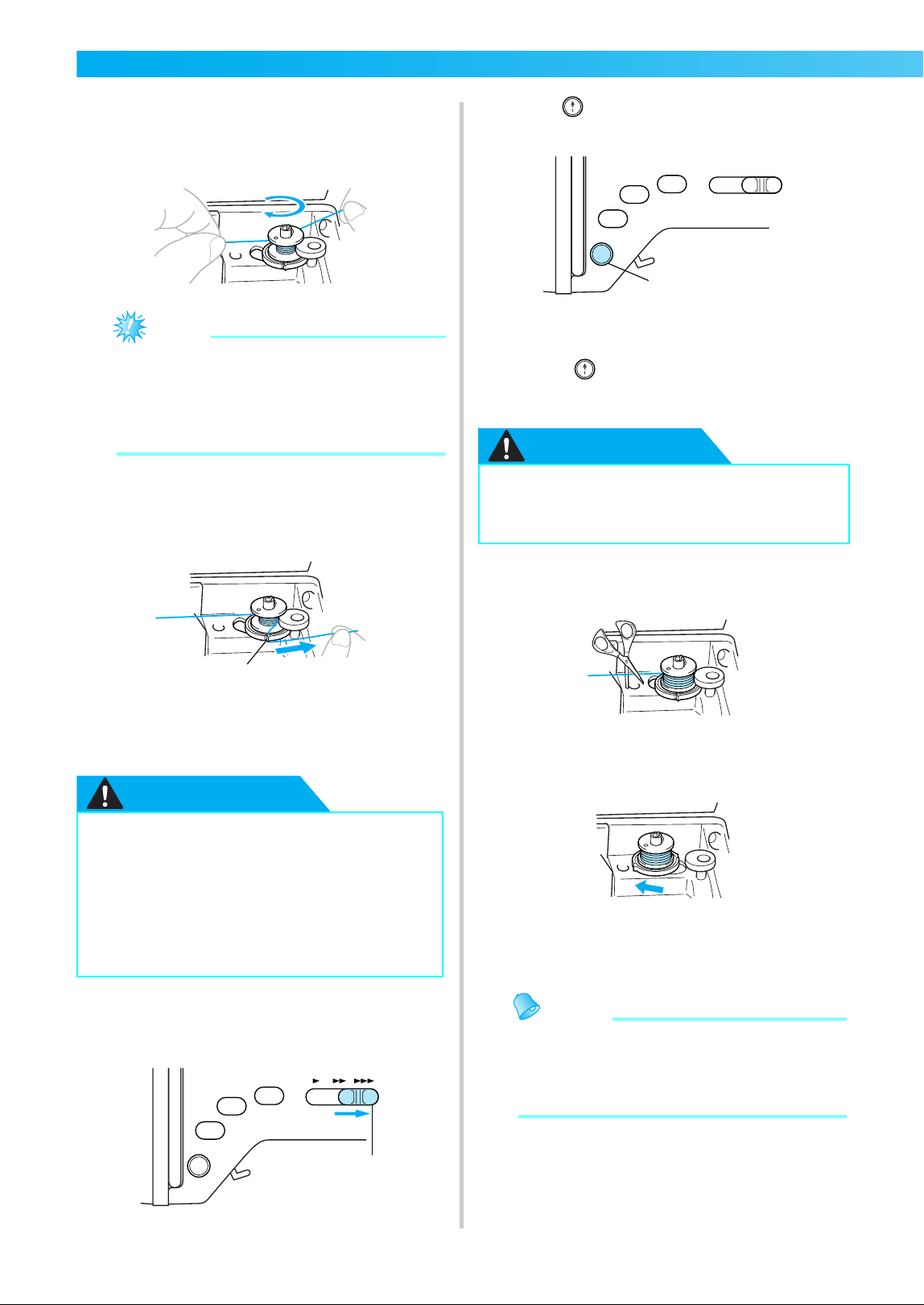

a Simple bobbin-winding
The bobbin can quickly and easily be wound with thread (page 23).
b Built-in stitches
You can select from the built-in stitches available, including utility stitches and decorative stitches (page 68).

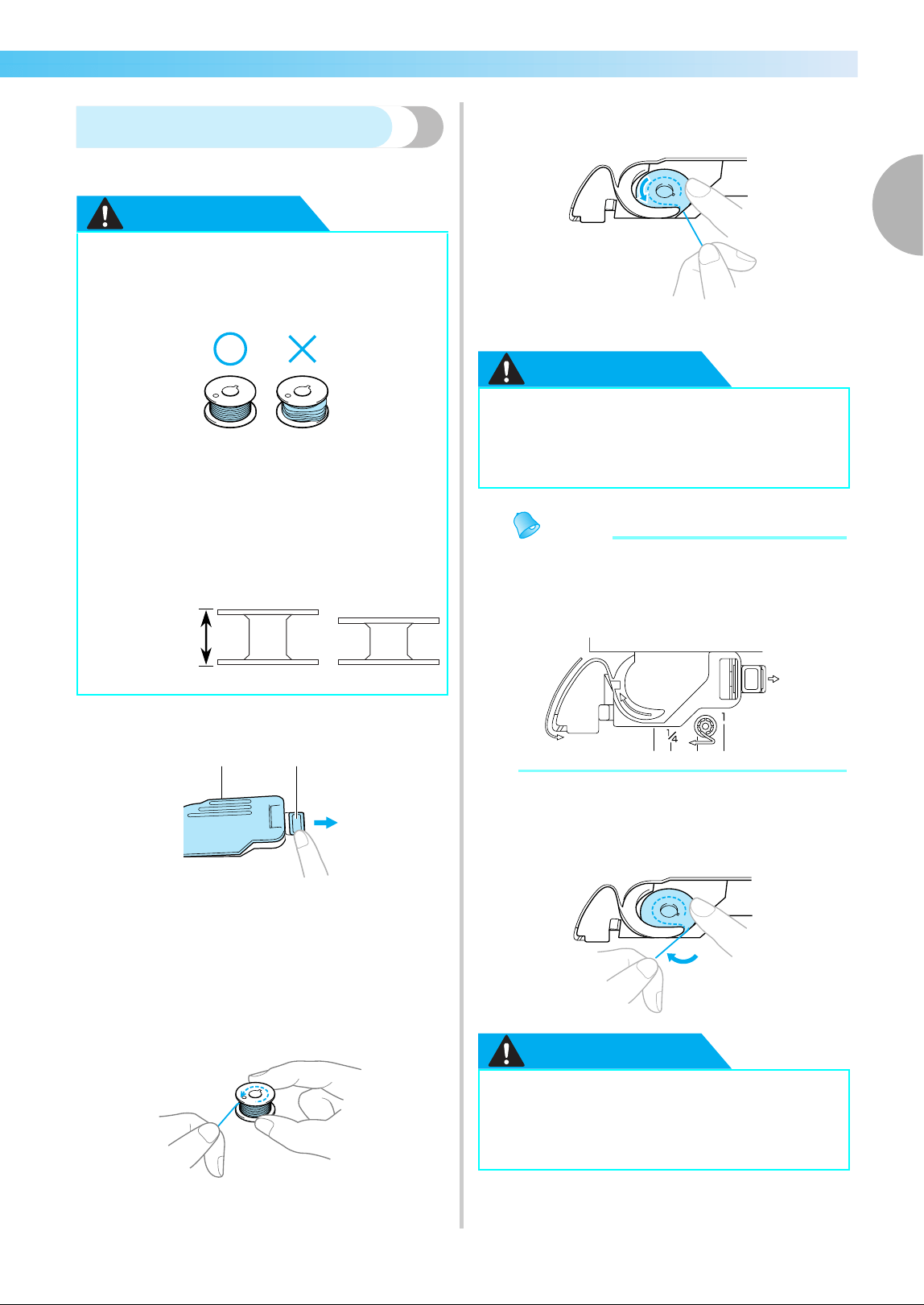

c Quick-set bobbin
You can start sewing without pulling up the bobbin thread (page 27).
d Automatic thread cutting
The thread can be cut automatically after sewing (page 60).
e Embroidery
You can embroider built-in embroidery patterns, characters, framed decorations, and designs from optional embroidery
cards (page 141).

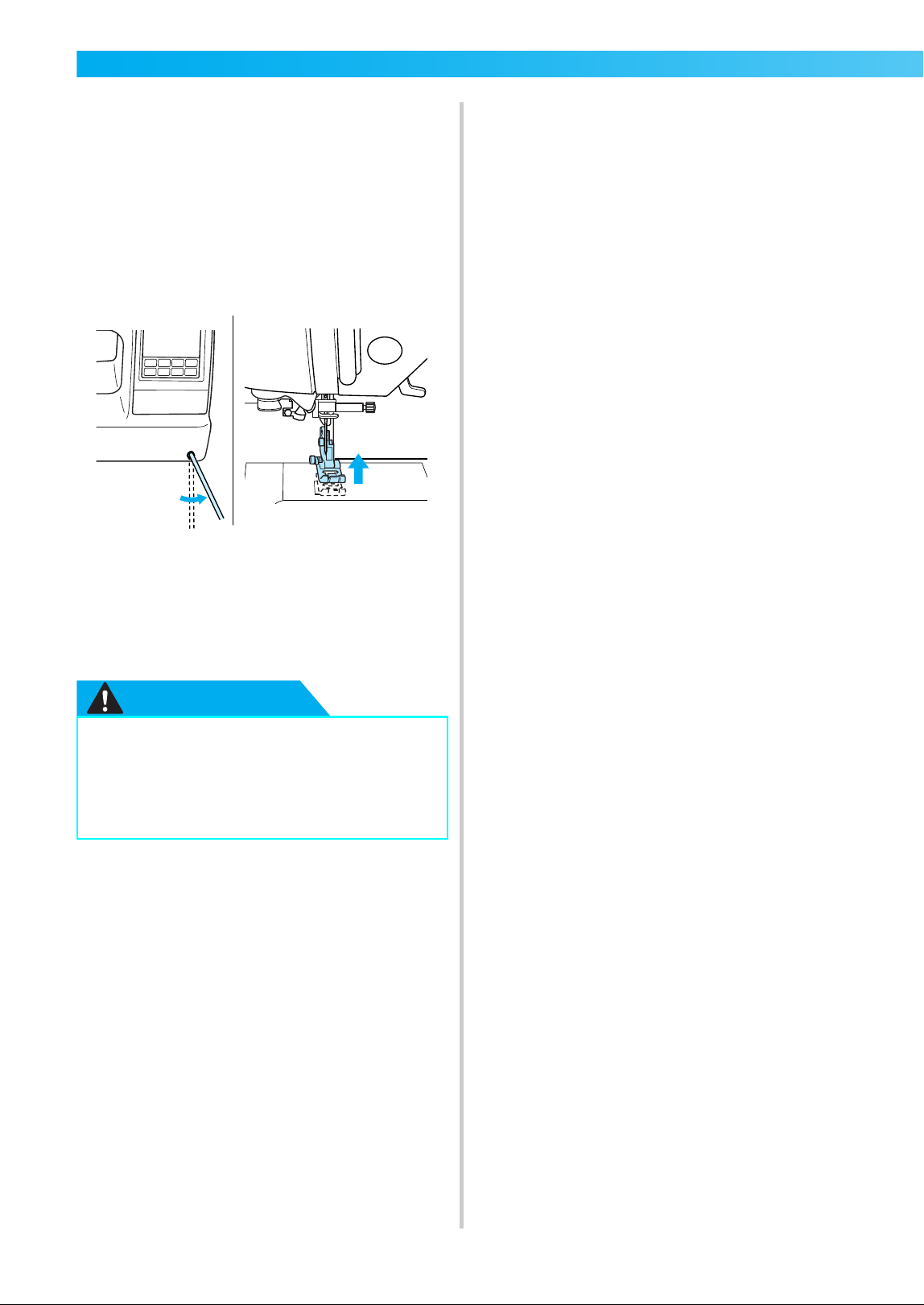

f Knee lifter
Use the knee lifter to raise and lower the presser foot with your knee, leaving both hands free to handle the fabric (
page 65
).
5
4
3
2
1
6
8
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Accessories
Included accessories
After opening the box, check that the following accessories are included. If any item is missing or damaged,
contact your dealer.
Note
(For U.S.A. only)
z Foot controller: Model T
This foot controller can be used on this
machine model NV1200.
z The screw for the presser foot holder is
available through your authorized dealer.
(Part code: XA4813-051)
z The organized accessory tray is available
through your authorized dealer.
(Part code: XC4489-051)
1. 2. 3. 4. 5. 6. 7. 8. 9. 10.
11. 12. 13. 14.* 15. 16. 17. 18. 19.
20. 21. 22. 23. 24. 25. 26.
27.
28.
29. 30. 31.
32. 33. 34. 35. 36.
37.
38.
39. *75/11 2 needles
90/14 2 needles
90/14 2 needles: Ball point needle
(gold colored)
Accessories 9
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
No. Part Name
Part Code
No. Part Name
Part Code
U.S.A. / Canada
Others
U.S.A. / Canada
Others
1 Buttonhole foot “A” XC2691-053 23 Extra spool pin XC4654-051
2 Overcasting foot “G” XC3098-051 24 Spool net XA5523-050
3 Monogramming foot “N” X53840-351
25 Foot controller
XD0501-021(EU area)
XC8816-021(other areas)
4 Zipper foot “I” X59370-051
5 Zigzag foot “J”
(on machine)
XC3021-051 26 Operation manual XE0535-001
6 Blind stitch foot “R” X56409-051 27 Quick reference guide XD1237-021
7 Button fitting foot “M” 130489-001 28 Embroidery foot “Q” XD0474-051
8 Stitch guide foot “P” SA160
F035N:
XC1969-002
29
Embroidery set (large)
H 18 cm
×
W 13 cm
(H 7 inches
×
W 5 inches)
SA444/EF84
EF84:
XD0600-002
9
Adjustable zipper/piping
foot
SA161
F036N:
XC1970-002
30
Embroidery set (extra large
(multi-position))
H 30 cm
×
W 13 cm
(H 12 inches
×
W 5 inches)
SA445/EF85
EF85:
XD0601-002
10 Non stick foot SA114
F007N:
XC1949-002
11 Open toe foot SA147
F027N:
XC1964-002
31
Embroidery bobbin thread
(white)
SA-EBT
X81164-001
EBT-CEN
12 Seam ripper X54243-051
13 Bobbin (4) SA156
SFB:
XA5539-151
32
Alternate bobbin case
(pink marking)
XC8167-251
14 Needle set X58358-051 33 Knee lifter XA6941-052
15 Twin needle X59296-151 34 USB cable XD0745-051
16 Cleaning brush X59476-051
35 Grid sheet set SA527
GS4:
XC4549-050
17 Eyelet punch 135793-001
18 Screwdriver (large) XC8349-051 36 Scissors XC1807-121
19 Screwdriver (small) X55468-051 37 Hard case XC9701-052
20 Spool cap (large) 130012-054 38 Accessory bag XC4487-051
21 Spool cap (medium) (2) X55260-153 39 Disc-shaped screwdriver XC1074-051
22 Spool cap (small) 130013-154
10
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Optional accessories
The following are available as optional accessories.
Memo
z To obtain optional accessories or parts,
contact your sales representative or the
nearest authorized service center.
z
All specifications are correct at the time of
printing. The part codes are subject to
change without notice.
z Visit your nearest authorized retailer for a
complete listing of optional accessories
available for your machine.
1. 2. 3.
4. 5.
6. 7.
8. 9. 10.
11. 12.
No. Part Name
Part Code
U.S.A. / Canada
Others
1
Embroidery bobbin
thread (white)
SA-EBT
EBT-CEN
X81164-001
Embroidery bobbin
thread (black)
SAEBT999
EBT-CEBN
XC5520-001
2 Embroidery card
3
Embroidery set (small)
H 2 cm
×
W 6 cm
(H 1 inch
×
W 2-1/2 inches)
SA442/
EF82
EF82:
XD0598-002
4
Embroidery set (medium)
H 10 cm
×
W 10 cm
(H 4 inches
×
W 4 inches)
SA443/
EF83
EF83:
XD0599-002
5
Water solude stabilizer SA520
BM4:
X81267-101
Stubilizer material for
embroidery
SA519
BM3:
X81175-101
6 Wide table SA551
WT5:
XC9567-152
7 Walking foot SA140
F033N:
XC2214-002
8 Quilting foot SA129
F005N
:
XC1948-002
9 1/4 inch quilting foot SA125
F001N:
XC1944-052
10 Side cutter “S” SA177
F054:
XC3879-002
11 Quilting guide SA132
F016N:
XC2215-002
12
1/4 inch quilting foot
with guide
SA185
F057:
XC7416-252
Names of Machine Parts and Their Functions 11
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Names of Machine Parts and Their Functions
The names of the various parts of the sewing machine and their functions are described below. Before
using the sewing machine, carefully read these descriptions to learn the names of the machine parts.

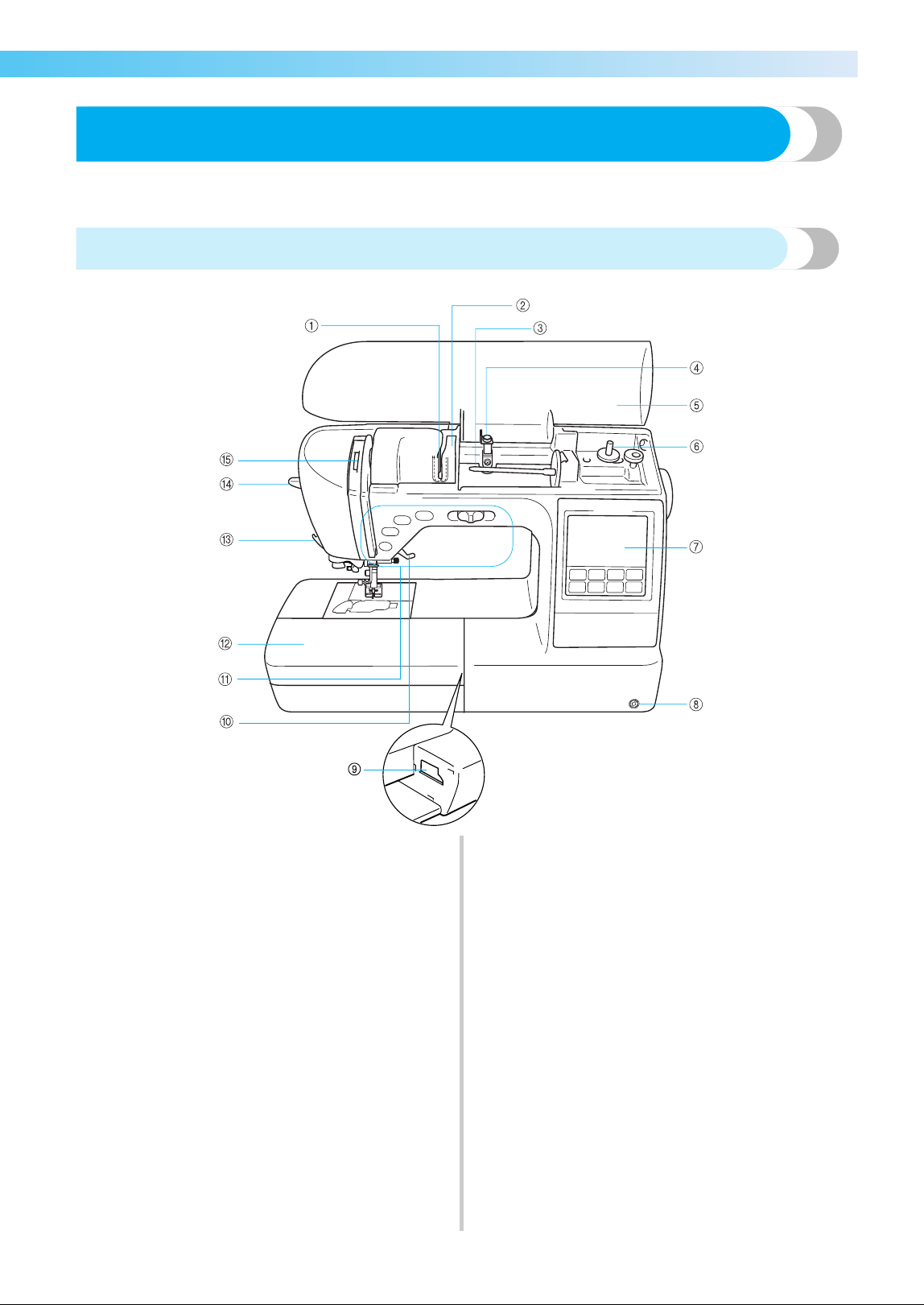

Front view
a Thread guide plate
Pass the thread under the thread guide plate.
b Thread guide cover
Pass the thread behind the thread guide cover when
threading the upper thread.
c Spool pin
Place a spool of thread on the spool pin.
d Bobbin winding thread guide and pretension disk
Pass the thread under this thread guide and around the
pretension disk when winding the bobbin thread.
e Top cover
Open the top cover to place the spool of thread on the
spool pin.
f Bobbin winder
Use the bobbin winder when winding the bobbin.
g Operation panel
From the operation panel, stitch settings can be viewed
and edited, and operations for using the machine can be
displayed (page 14).
h Knee lifter mounting slot
Insert the knee lifter into the knee lifter mounting slot.
i Embroidery unit connector slot
Plug in the connector for the embroidery unit.
j Presser foot lever
Raise and lower the presser foot lever to raise and lower
the presser foot.
k Operation buttons and sewing speed controller
Use these buttons and the slide to operate the sewing
machine (page 13).

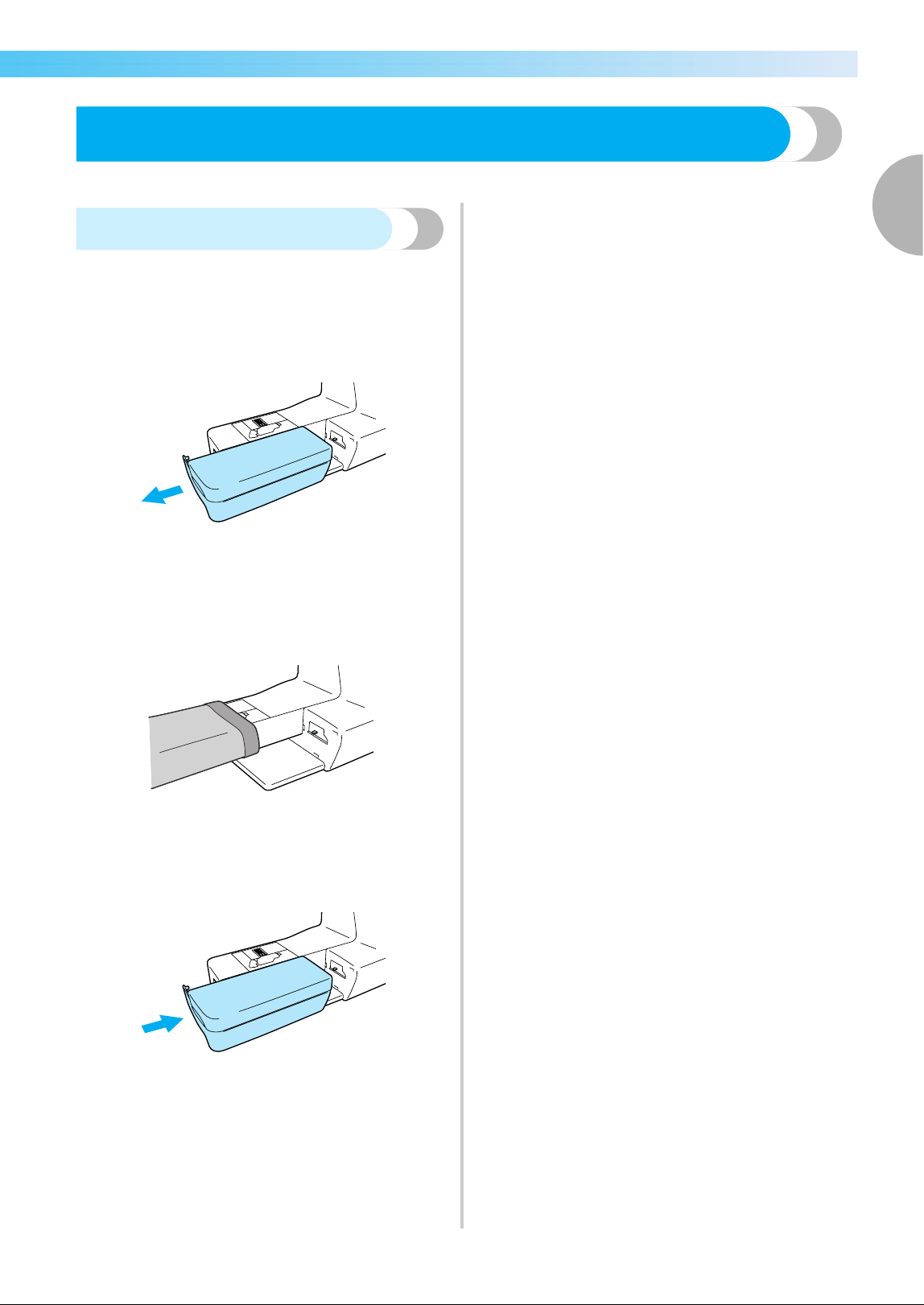

l Flat bed attachment
Insert the accessories tray into the accessory
compartment of the flat bed attachment. Remove the
flat bed attachment when sewing cylindrical pieces
such as sleeve cuffs.
m Thread cutter
Pass the threads through the thread cutter to cut them.
n Needle threader lever
Use the needle threader lever to thread the needle.
o Thread take-up lever check window
Look through the window to check the position of the
take-up lever.
12
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

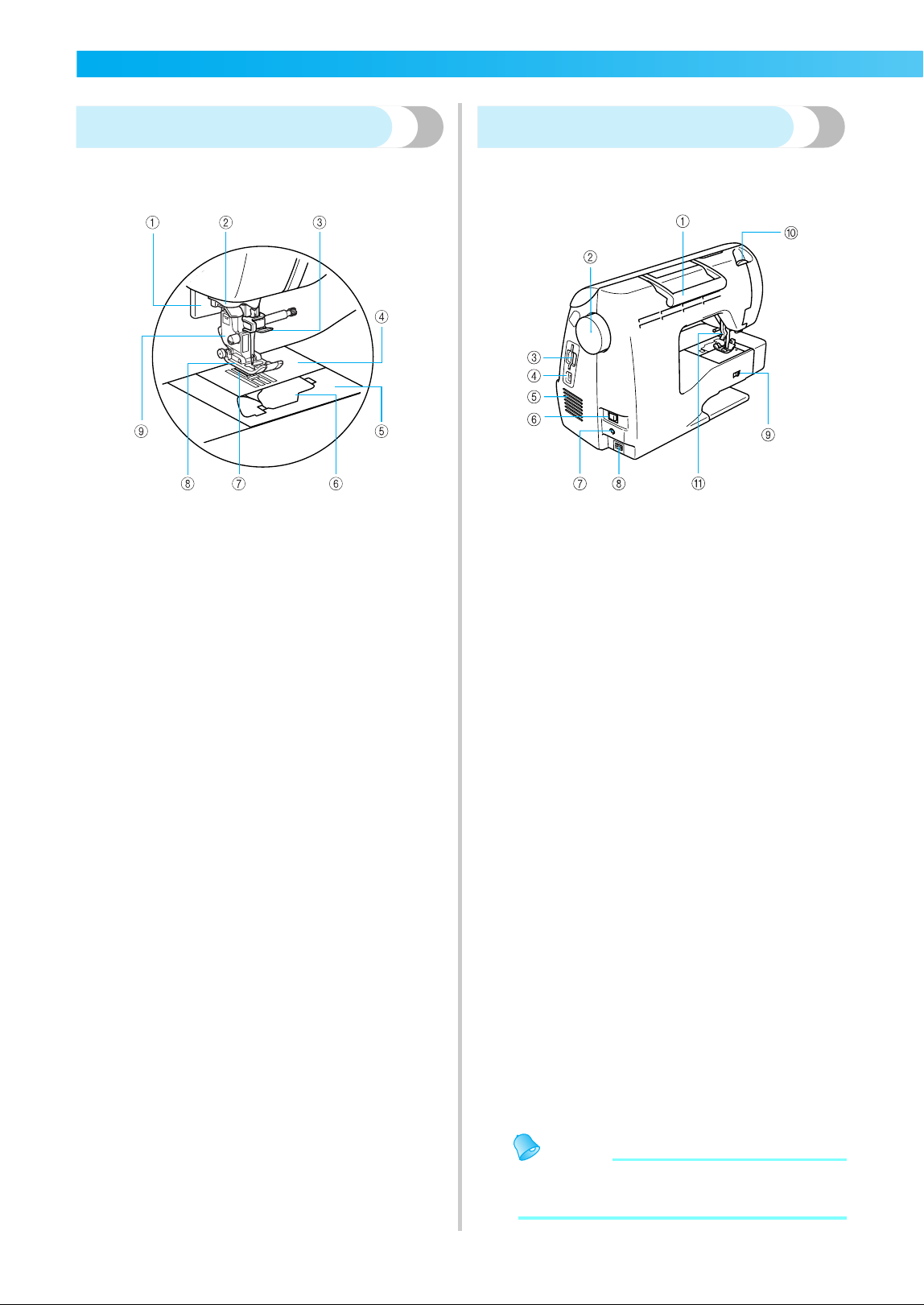

Needle and presser foot section
a Buttonhole lever
The buttonhole lever is used with the one-step
buttonhole foot to create buttonholes.
b Thread guide disk
Pass the thread through the thread guide disk when
using the needle threader to thread the needle.
c Needle bar thread guide
Pass the upper thread through the needle bar thread
guide.
d Needle plate
The needle plate is marked with guides to help sew
straight seams.
e Needle plate cover
Remove the needle plate cover to clean the bobbin case
and race.
f Bobbin cover
Open the bobbin cover to set the bobbin.
g Feed dogs
The feed dogs feed the fabric in the sewing direction.
h Presser foot
The presser foot applies pressure consistently on the
fabric as sewing takes place. Attach the appropriate
presser foot for the selected stitch.
i Presser foot holder
The presser foot is attached onto the presser foot holder.
Right-side/rear view
a Handle
Carry the sewing machine by its handle when
transporting the machine.
b Handwheel
Turn the handwheel toward you to raise and lower the
needle. The handwheel should be turned towards you
(counterclockwise).
c Embroidery card slot
Insert the embroidery card.
d USB port connector
Plug the USB cable into the USB port connector.
e Air vent
The air vent allows the air surrounding the motor to
circulate. Do not cover the air vent while the sewing
machine is being used.
f Main power switch
Use the main power switch to turn the sewing machine
ON and OFF.
g Foot controller jack
Insert the plug on the end of the foot controller cable
into the foot controller jack.
h Power supply jack
Insert the plug on the power cord into the power supply
jack.
i Feed dog position switch
Use the feed dog position switch to lower the feed dogs.
j Presser foot pressure dial
Use the presser foot pressure dial to adjust the amount
of pressure that the presser foot applies.
k Presser foot lever
Raise and lower the presser foot lever to raise and lower
the presser foot.
Memo
z Refer to pages 11 through 14 while you are
learning to use your machine.
Names of Machine Parts and Their Functions 13
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Operation buttons
The operation buttons help you to easily perform various basic sewing machine operations.
a “Start/Stop” button
Press the “Start/Stop” button to start or stop sewing. The
machine sews at a slow speed at the beginning of
sewing while the button is pressed. When sewing is
stopped, the needle is lowered in the fabric. For details,
refer to “Starting to sew” (page 51).
The button changes color according to the machine’s
operation mode.
b “Reverse/Reinforcement Stitch” button
Press the “Reverse/Reinforcement Stitch” button to sew
reverse stitches or reinforcement stitches. Reverse
stitches are sewn by keeping the button pressed down to
sew in the opposite direction. Reinforcement stitches
are sewn by sewing 3 to 5 stitches on top of each other.
For details, refer to “Securing the stitching” (page 53).
c “Needle Position” button
Press the “Needle Position” button to raise or lower the
needle. Pressing the button twice sews one stitch.
d “Thread Cutter” button
Press the “Thread Cutter” button after sewing is stopped
to cut both the upper and the bobbin threads. For
details, refer to “Cutting the thread” (page 54).
e Sewing speed controller
Slide the sewing speed controller to adjust the sewing
speed.
CAUTION
Note
z Do not press (“Thread Cutter” button)
if there is no fabric under the presser foot or
while the machine is sewing, otherwise
damage to the machine may occur.
z When cutting thread thicker than #30, nylon
thread or other special threads, use the
thread cutter on the side of the machine. For
details, refer to “Using the thread cutter”
(page 55).
Green: The machine is ready to sew or is
sewing.
Red: The machine can not sew.
Orange: The machine is winding the bobbin
thread, or the bobbin winder shaft is
moved to the right side.
● Do not press (“Thread Cutter”
button) after the threads have already
been cut, otherwise the needle may
break, the threads may become tangled
or damage to the machine may occur.
14
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

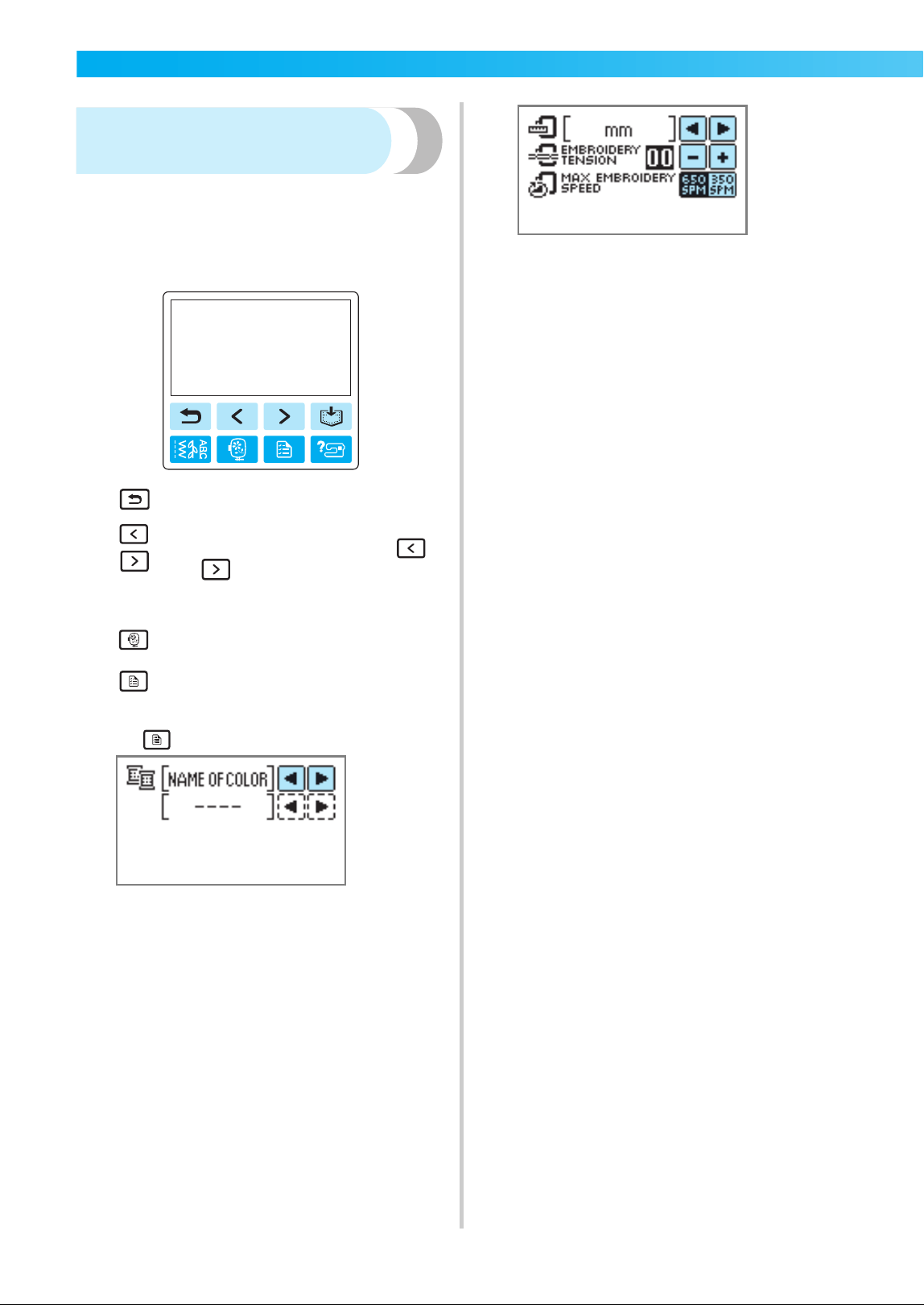

Operation panel
The front operation panel has an LCD (liquid crystal display) and operation keys.
a LCD (liquid crystal display) (touch panel)
Selected pattern settings and messages are displayed.
Touch the keys displayed on the LCD to perform
operations.
For details, refer to “LCD (Liquid Crystal Display)
Operation” (page 18).
b Back key
Press to return to the previous screen.
c Previous page key
Displays the previous screen when there are items that
are not displayed on the LCD.
d Next page key
Displays the next screen when there are items that are
not displayed on the LCD.
e Memory key
Press to enter character embroidery, combined stitch
patterns, My Custom Stitch patterns, etc into the sewing
machine memory.
f Utility stitch key
Press this key to select a utility stitch or decorative stitch
or to design a stitch pattern using the My Custom Stitch
function.
g Embroidery key
Press this key to sew embroidery.
h Settings key
Press to set the needle stop position, the buzzer sound,
and more.
i Sewing machine help key
Press to get help on using the sewing machine.
Displays simple explanations of setting upper thread /
bobbin winding / setting bobbin thread / needle
replacement / embroidery unit attachment / embroidery
frame attachment / embroidery foot attachment / presser
foot replacement.
a
c
b
f
gh
d
e
i
1 GETTING READY
The various preparations required before starting to sew are described in this chapter.
Turning the Machine On/Off ..................................................................................16
Power supply precautions ..................................................................................16
Turning on the machine .....................................................................................17
Turning off the machine .....................................................................................17

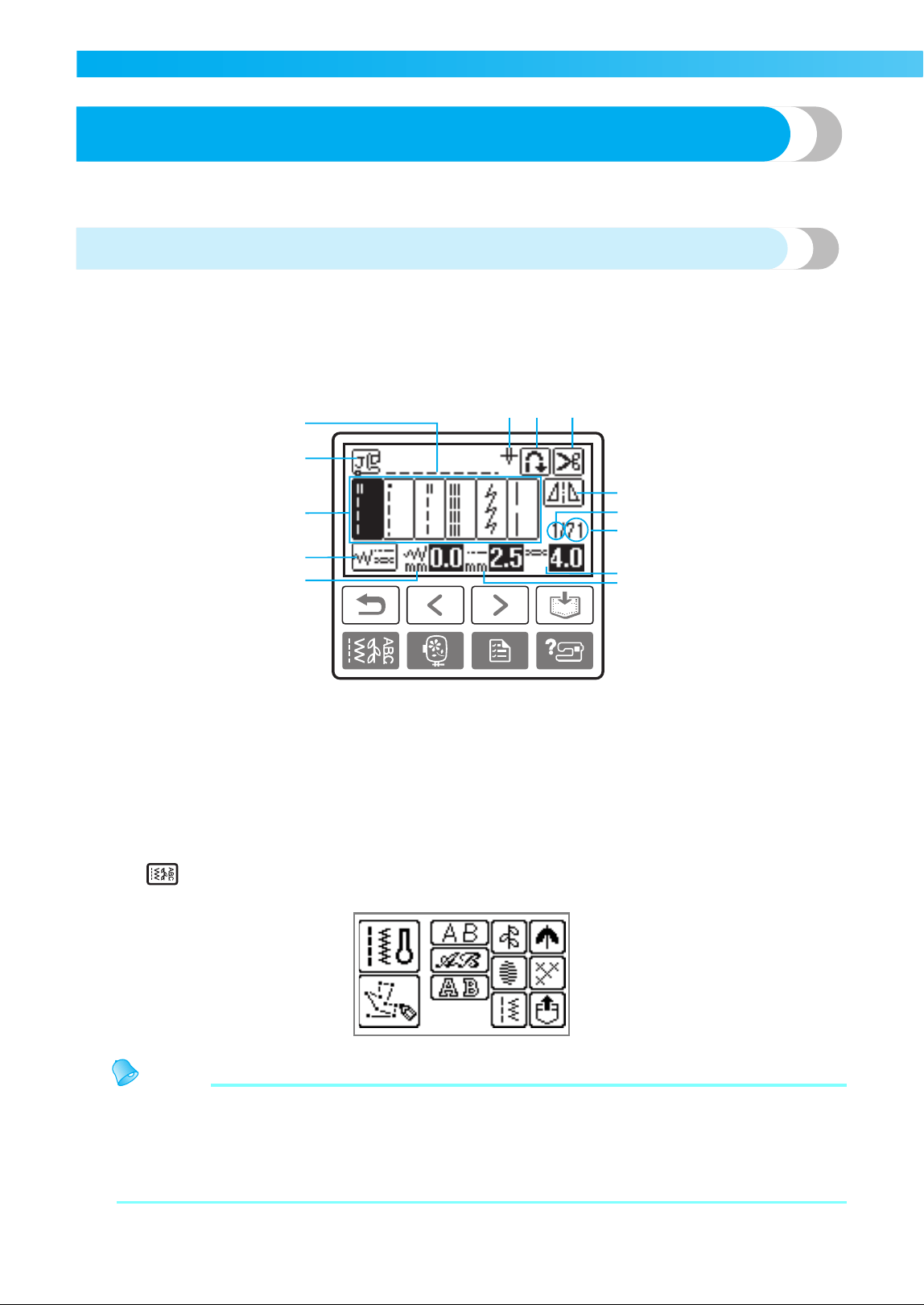

LCD (Liquid Crystal Display) Operation..................................................................18
Viewing the LCD ................................................................................................18
Changing the machine settings...........................................................................19
Checking machine operating procedures ...........................................................21
Winding/Installing the Bobbin.................................................................................23
Bobbin precautions ............................................................................................23
Winding the bobbin ...........................................................................................23
Installing the bobbin ..........................................................................................27
Upper Threading .....................................................................................................29
About the spool of thread ..................................................................................29
Threading the upper thread................................................................................30
Threading the needle..........................................................................................32
Threading the needle manually (without using the needle threader)..................33
Using the twin needle ........................................................................................34
Pulling up the bobbin thread..............................................................................37
Replacing the Needle ..............................................................................................38
Needle precautions ............................................................................................38
Needle types and their uses................................................................................39
Checking the needle...........................................................................................40
Replacing the needle ..........................................................................................40
Replacing the Presser Foot ......................................................................................42
Presser foot precautions .....................................................................................42
Replacing the presser foot ..................................................................................42
Removing and attaching the presser foot holder ................................................44
Sewing Cylindrical Pieces........................................................................................45
Free-arm sewing.................................................................................................45
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
16

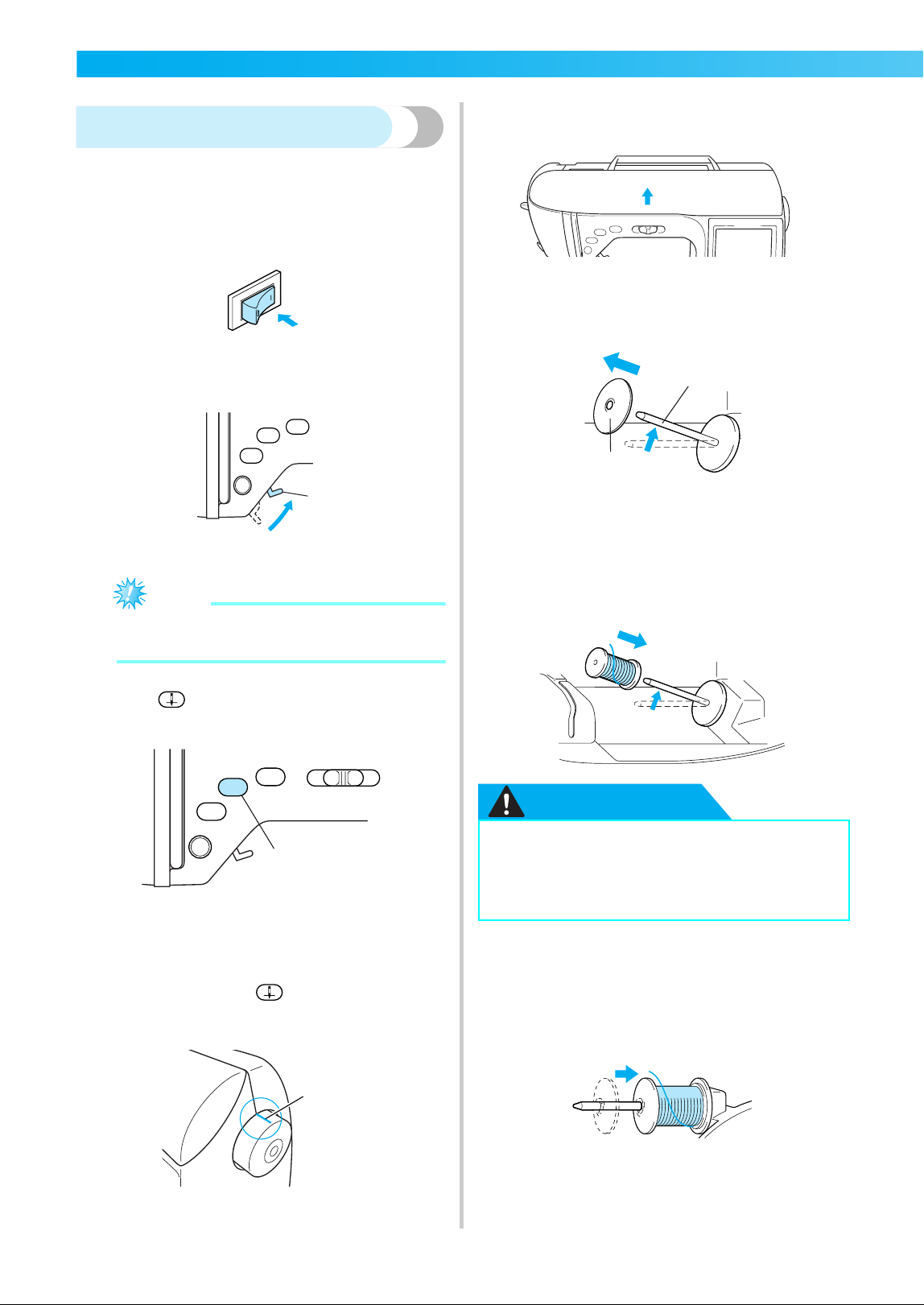

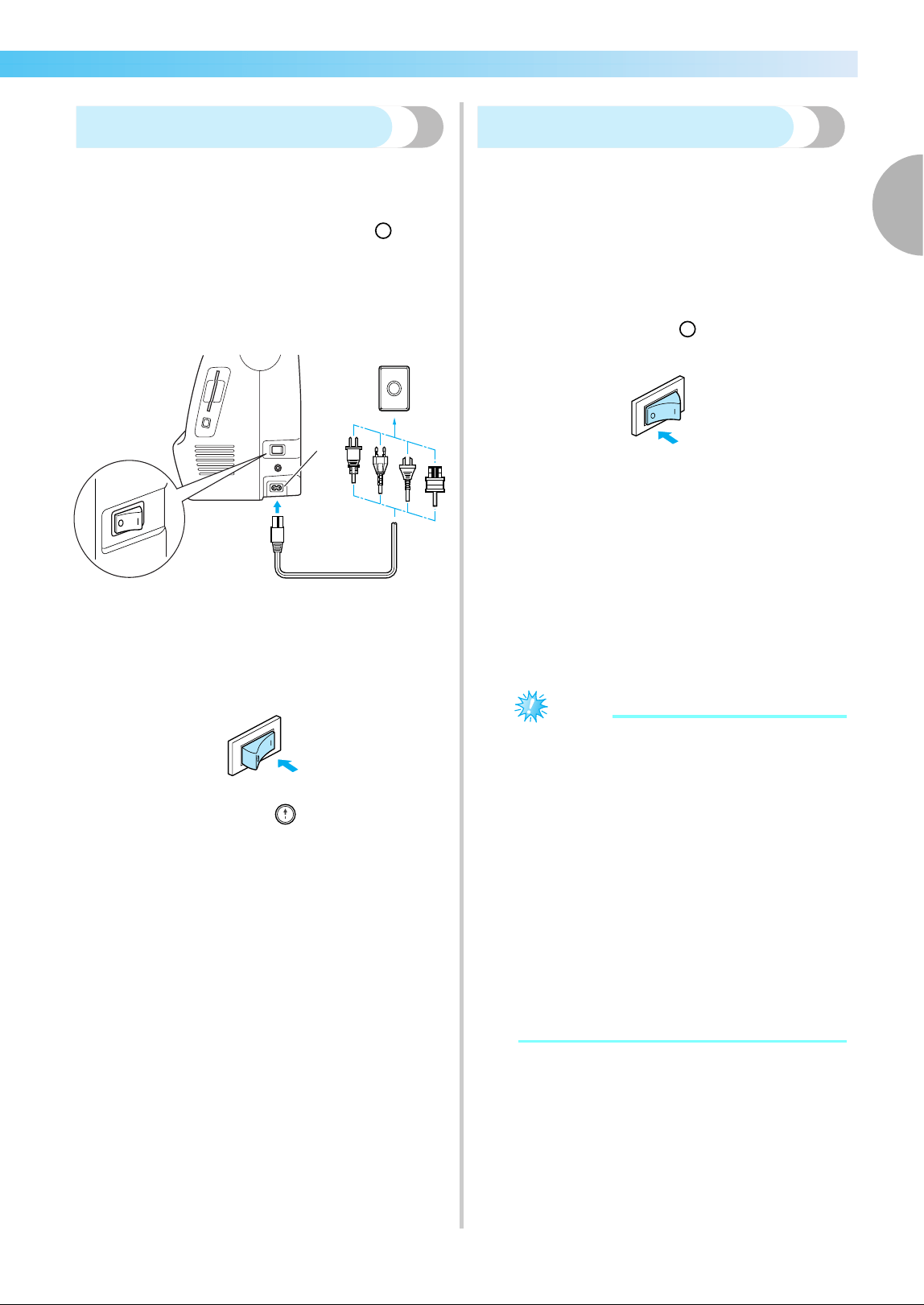

Turning the Machine On/Off
This section explains how to turn the sewing machine on and off.
Power supply precautions
Be sure to observe the following precautions concerning the power supply.
WARNING
CAUTION
● Use only regular household electricity for the power source. Using other power sources may
result in fire, electric shock, or damage to the machine.
• Make sure that the plugs on the power cord are firmly inserted into the electrical outlet
and the power supply jack on the machine.
• Do not insert the plug on the power cord into an electrical outlet that is in poor condition.
● Turn off the main power and remove the plug in the following circumstances:
• When you are away from the machine
• After using the machine
• When the power fails during use
• When the machine does not operate correctly due to a bad connection or a disconnection
• During electrical storms
● Use only the power cord included with this machine.
● Do not use extension cords or multi-plug adapters with many other appliances plugged in to
them. Fire or electric shock may result.
● Do not touch the plug with wet hands. Electric shock may result.
● When unplugging the machine, always turn off the main power first. Always grasp the plug to
remove it from the outlet. Pulling on the cord may damage the cord, or lead to fire or electric
shock.
● Do not allow the power cord to be cut, damaged, modified, forcefully bent, pulled, twisted,
or bundled. Do not place heavy objects on the cord. Do not subject the cord to heat. These
things may damage the cord and cause fire or electric shock. If the cord or plug is damaged,
take the machine to your authorized dealer for repairs before continuing use.
● Unplug the power cord if the machine is not to be used for a long period of time. Otherwise a
fire may result.
Turning the Machine On/Off 17
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Turning on the machine
Prepare the included power cord.
a
Make sure that the sewing machine is turned
off (the main power switch is set to “ ”), and
then plug the power cord into the power
supply jack on the right side of the machine.
b
Insert the plug of the power cord into a
household electrical outlet.
a Power supply jack
c
Press the right side of the main power switch
on the right side of the machine to turn the
machine on (set it to “I”).
X The light, LCD and (“Start/Stop” button)
light up when the machine is turned on.
Turning off the machine
When you are finished using the sewing machine,
turn it off. In addition, before transporting the sewing
machine to another location, be sure to turn it off.
a
Make sure that the machine is not sewing.
b
Press the left side of the main power switch on
the right side of the machine to turn the
machine off (set it to “ ”).
X The sewing lamps and the LCD go off when
the machine is turned off.
c
Unplug the power cord from the electrical
outlet.
Grasp the plug when unplugging the power
cord.
d
Unplug the power cord from the power supply
jack.
Note
z If a power outage occurs while the sewing
machine is being operated, turn off the
sewing machine and unplug the power cord.
When restarting the sewing machine, follow
the necessary procedure to correctly operate
the machine.
(For U.S.A. only)
z This appliance has a polarized plug (one
blade wider than the other). To reduce the
risk of electrical shock, this plug is intended
to fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact
a qualified electrician to install the proper
outlet. Do not modify the plug in any way.
1
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
18
LCD (Liquid Crystal Display) Operation
Selected stitch, pattern settings and messages are displayed on the LCD (liquid crystal display) on the front
of the sewing machine.
Viewing the LCD
When the power is turned on, the LCD comes on, and the following screen is displayed.
The screen is changed using the keys below the screen, and operations performed by directly touching the icons
on the LCD screen.
■ Utility stitch selection screen
a Selected stitch
b Presser foot to be used
c Stitches
d Stitch settings and twin needle sewing
e Stitch width (mm)
f Stitch length (mm)
g Thread tension
h Number of the selected stitch
i Number of stitches contained in the selected stitch
type
j Horizontal mirror image
k Automatic thread cutting
l Automatic reverse/reinforcement
m Single/twin needle sewing and needle stop position
■ Stitch type selection screen
Press (Utility stitch key) to display the screen for selecting the stitch type. The details are explained in
“Selecting stitching” (page 49).
Memo
z A different screen is displayed when the embroidery unit is attached.
z Refer to “Error messages” (page 187) for messages displayed on the LCD.
z Depending on the model of sewing machine, an animation may be displayed when the power is turned
on. When an animation is displayed, the screen above will be displayed if you touch the LCD with
your finger.
a
b
c
d
e
f
j
h
i
g
klm
LCD (Liquid Crystal Display) Operation 19
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

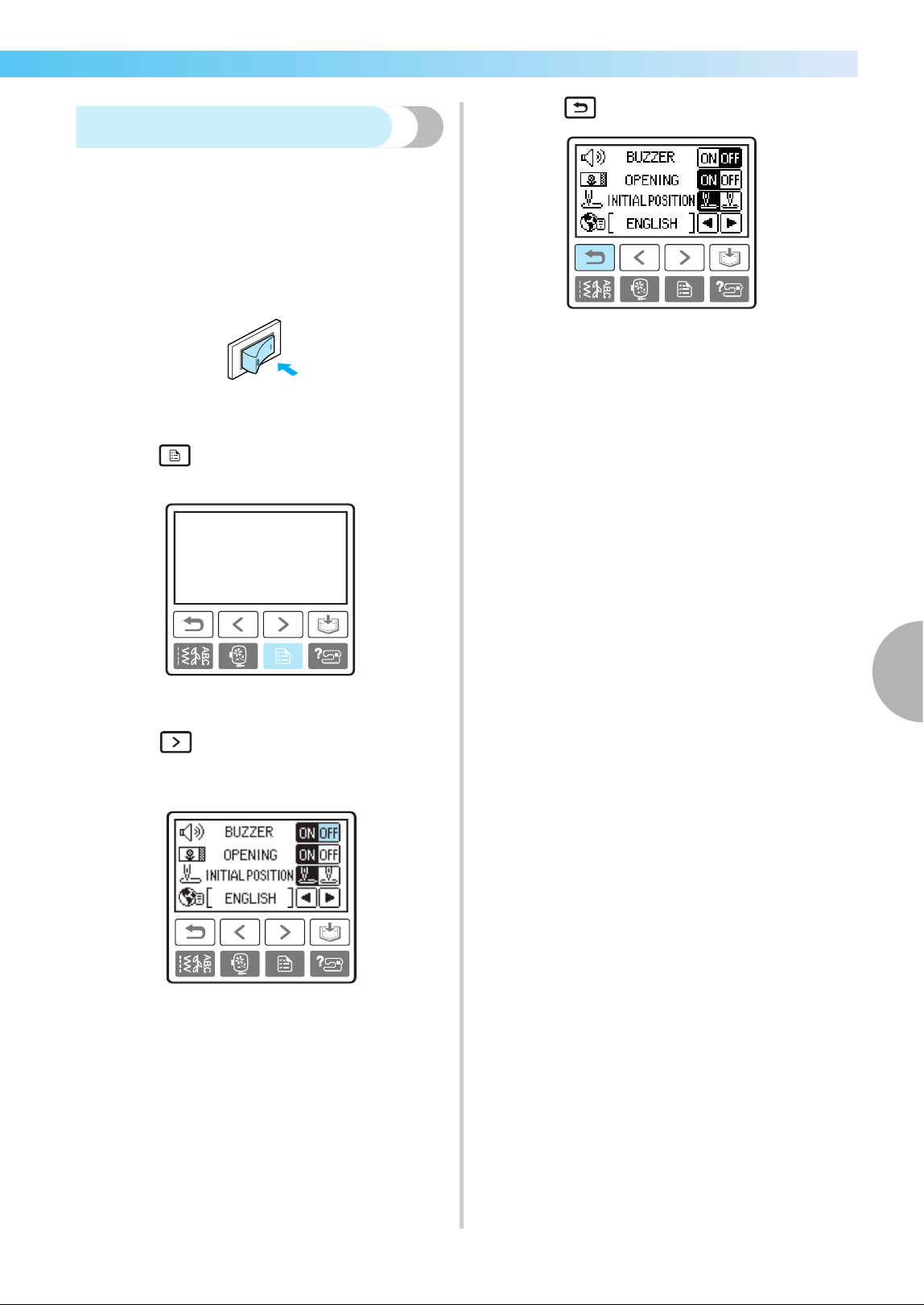

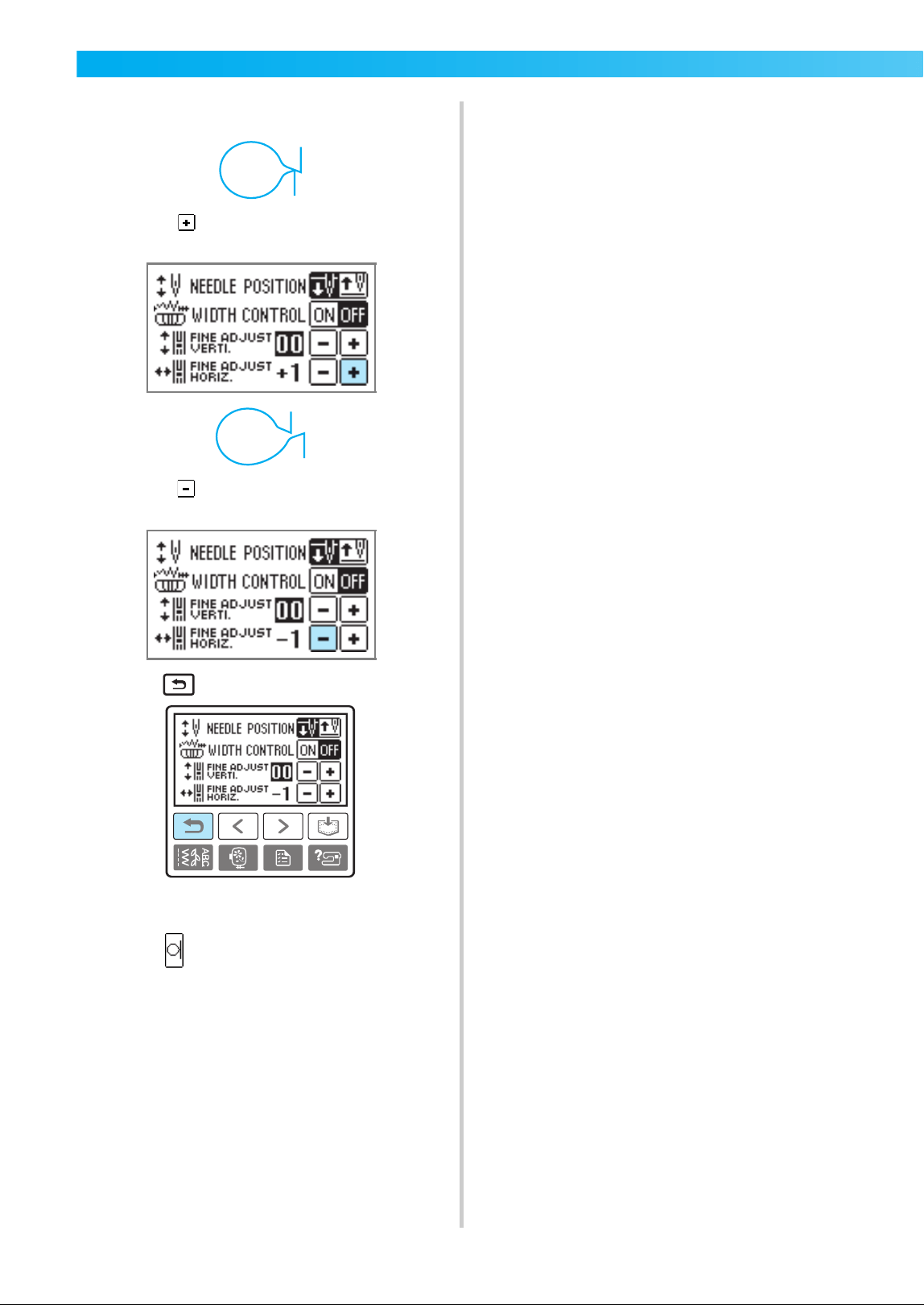

Changing the machine settings
Various sewing machine operations and sewing settings can be changed.
The stitch or machine attributes that can be set are listed below.
Attribute Icon Details Settings
Needle
position
Specifies where the needle is positioned
when the sewing machine is stopped.
Down Up
Stitch width
control
Allows the stitch width to be adjusted with
the sewing speed controller.
Vertical pattern
adjustment
Adjusts the up and down position of the
pattern (page 134).
-9 to +9
Horizontal
pattern
adjustment
Adjusts the left and right position of the
pattern (page 134).
-9 to +9
Thread color
display
Changes the thread color display on the
embroidery screen.
Thread color/Time to embroider/
Needle count/Thread number (#123)
(When “Thread No. #123” is selected)
Embroidery/Country/Madeira poly/
Madeira rayon/Sulky/Robison anton
Display unit
Selects the measurement units that are
displayed (only for embroidering).
mm/INCH
Embroidery
tension
Adjusts the thread tension for embroidering
(only for embroidering).
-8 to +8
Max embroidery
speed
Specifies the maximum embroidering
speed.
Buzzer
Specifies whether or not a beep is sounded
with each operation (page 191).
Opening
screen
Sets whether or not to display the opening
screen when the power is turned on.
(There are models where this cannot be changed.)
Initial needle
position
Select the straight stitch that is automatically
selected when the machine is turned on.
Language
Allows the language used in the screens to
be changed.
English/German/French/Italian/Dutch/
Spanish/Japanese/Danish/Norwegian/
Finnish/Swedish/Portuguese/Russian/
Korean/Thai/others
LCD brightness
Adjusts the brightness of the LCD.
Lighter Darker
Stitch counter
Display the service count and the total
number of embroidery stitches. The service
count is a reminder to take your machine in
for regular servicing. (Contact your
authorized dealer for details.)
Product
number
NO.:
The “NO.” is the number for the sewing
and embroidery machine.
Program version
VERSION
: Display the program version.
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
20

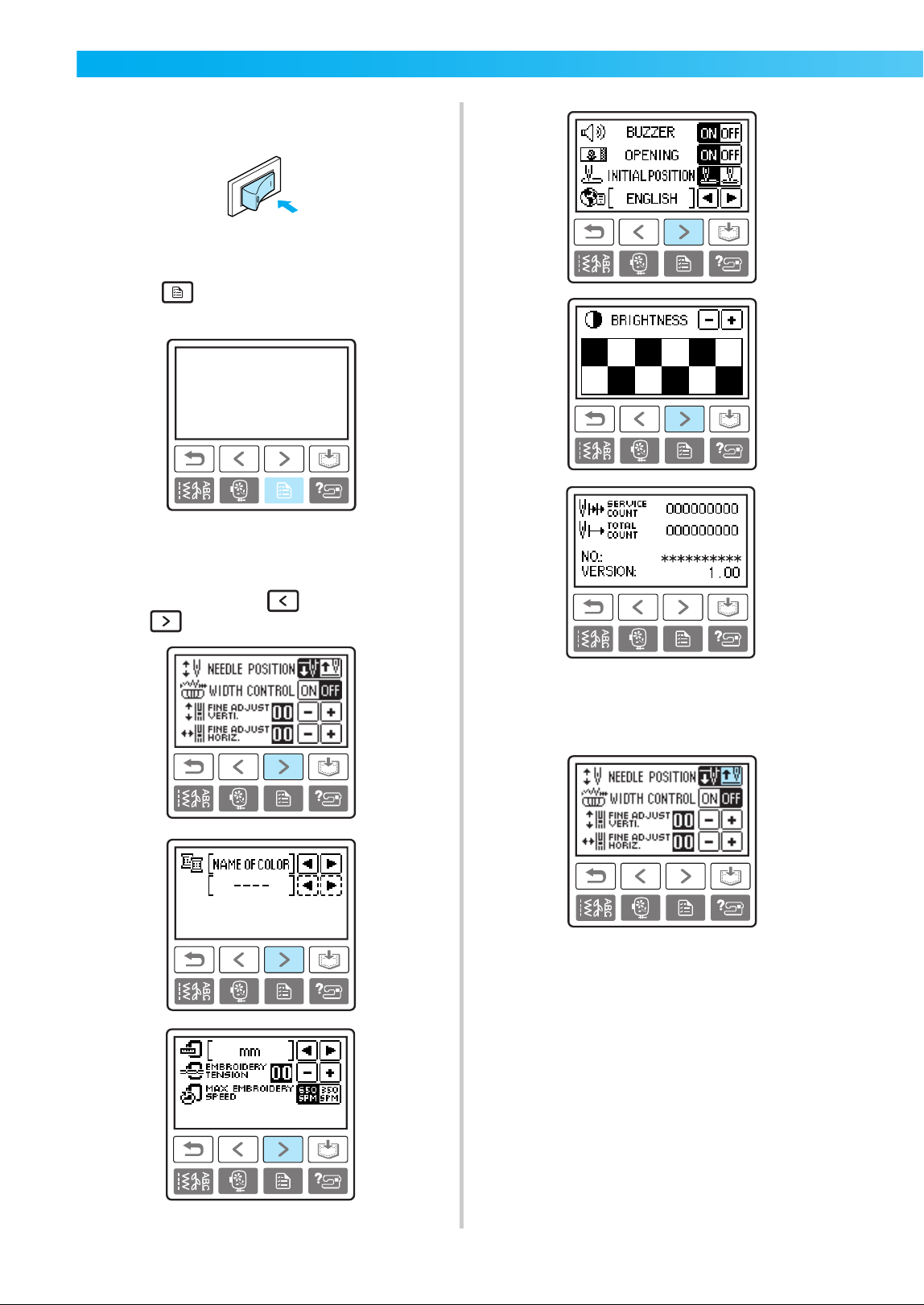

a
Turn on the sewing machine.
X The LCD comes on.
b
Press (Settings key) on the operation
panel.
X The settings screen appears.
c
Press the item to be set.
Switch screens using (Previous page key)
and (Next page key).
• The items shown in reverse highlighting are
the settings at the time of purchase.
Example: Changing the needle stop position
LCD (Liquid Crystal Display) Operation 21
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
d
When settings are complete, press
(Back key).
X The initial screen appears again.
Note
z Settings that are changed are not lost when
the power is turned off.
Checking machine operating
procedures
Displays simple explanations of setting upper thread /
bobbin winding / setting bobbin thread / needle
replacement / embroidery unit attachment /
embroidery frame attachment / embroidery foot
attachment / presser foot replacement on the LCD.
a
Turn on the sewing machine.
X The LCD comes on.
b
Press (Sewing machine help key) on the
operation panel.
X The sewing machine help screen appears.
c
Press the item to be displayed.
a Upper threading
b Bobbin winding
c Bobbin installation
d Needle replacement
e Embroidery unit attachment
f Embroidery frame attachment
g Embroidery foot attachment
h Presser foot replacement
X The first screen describing the procedure for
the selected topic appears.
• Pressing (Back key), returns you to the
item selection screen.
6
5
1
234
8
7
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
22

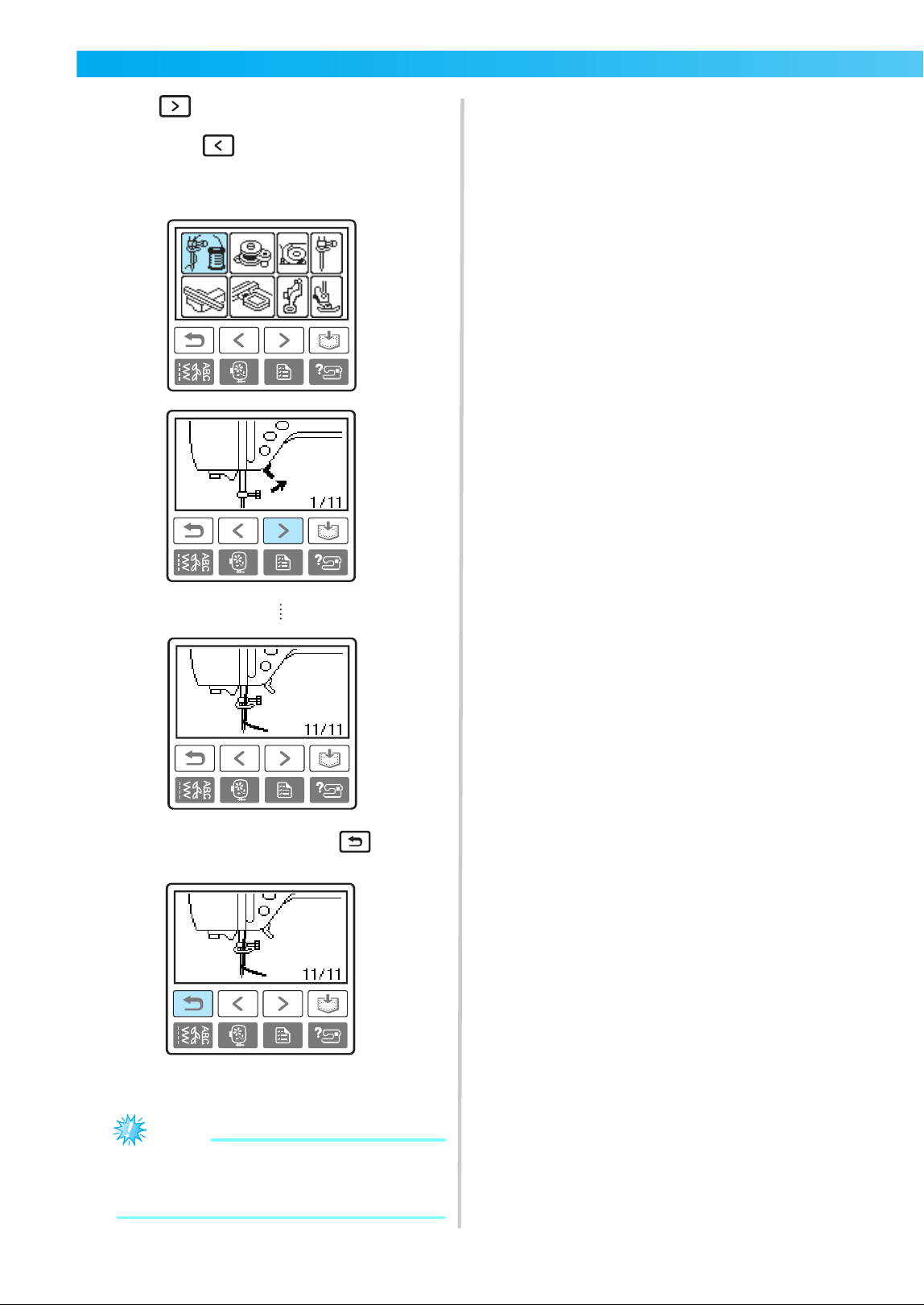

d
Press (Next page key) to switch to the
next page.
If you press (Previous page key), you
return to the previous page.
Example: Upper threading
e
After you finish looking, press (Back
key) two times.
X The initial stitch screen appears again.
Note
z For details on each topic, refer to the
corresponding page in this Operation
Manual.
Winding/Installing the Bobbin 23
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Winding/Installing the Bobbin
This section describes how to wind the thread onto the bobbin, and then insert the bobbin thread.
Bobbin precautions
Be sure to observe the following precautions concerning the bobbin.
CAUTION
Winding the bobbin
Wind the thread around the bobbin to prepare the bobbin thread.
a Bobbin winder
Memo
z The order that the machine should be threaded for winding the bobbin is indicated by a broken line on
the sewing machine. Be sure to thread the machine as indicated.
● Only use the Bobbin (part code: SA156, SFB: XA5539-151) designed specifically for this
sewing machine. Use of any other bobbin may result in injuries or damage to the machine.
● The included bobbin was designed specifically for this sewing machine.
If bobbins from other models are used, the machine will not operate correctly. Use only the
included bobbin or bobbins of the same type (part code: SA156, SFB: XA5539-151).
11.5 mm
Actual size
This model
Other model
(7/16 inch)
1
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
24
a
Turn on the sewing machine.
b
Open the top cover.
c
Place the bobbin on the bobbin winder shaft so
that the spring on the shaft fits into the notch
in the bobbin
.
Press down on the bobbin until it snaps into
place.
a Notch
b Bobbin winder shaft spring
d
Slide the bobbin winder in the direction of the
arrow until it snaps into place.
• (“Start/Stop” button) lights up in orange.
e
Remove the spool cap that is inserted onto the
spool pin.
a Spool pin
b Spool cap
f
Place the spool of thread for the bobbin onto
the spool pin.
Slide the spool onto the pin so that the spool is
horizontal and the thread unwinds to the front at the
bottom.
• If the spool is not positioned so that the
thread unwinds correctly, the thread may
become tangled around the spool pin.
g
Slide the spool cap onto the spool pin.
Slide the spool cap as far as possible to the right, as
shown, with the rounded side on the left.
CAUTION
2
1
1
2
● If the spool or the spool cap is not
positioned correctly, the thread may
become tangled around the spool pin and
the needle may break.
● Three spool cap sizes are available
(large,medium and small), allowing you to
choose a spool cap that best fits the size
of spool being used. If the spool cap is too
small for the spool being used, the thread
may catch on the slit in the spool and the
needle may break.
●
Winding/Installing the Bobbin 25
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

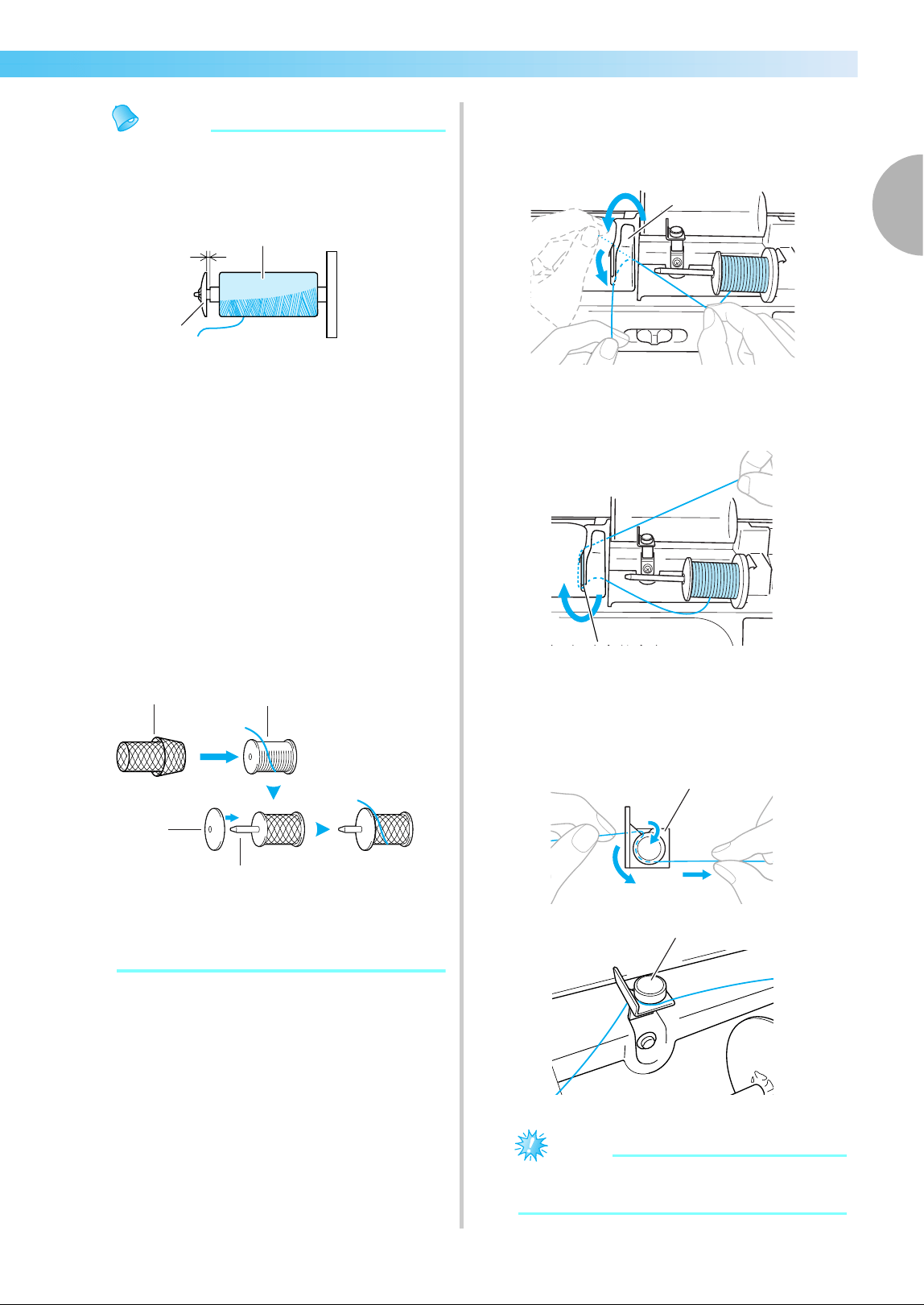

Memo
z When sewing with fine, cross-wound thread,
use the small spool cap, and leave a small
space between the cap and the spool.
a Spool cap (small)
b Spool (cross-wound thread)
c Space
z When using thread that winds off quickly,
such as transparent nylon thread or metallic
thread, place the spool net over the spool
before placing the spool of thread onto the
spool pin.
If the spool net is too long, fold it to fit the
size of the spool.
z When the spool net is used, the tension of
the upper thread will slightly increase. Be
sure to check the thread tension. For details,
refer to “Adjusting the thread tension” (page
57)".
a Spool net
b Spool
c Spool cap
d Spool pin
h
While holding the thread near the spool with
your right hand, as shown, pull the thread with
your left hand, and then pass the thread
behind the thread guide cover and to the front.
a Thread guide cover
i
Pass the thread under the thread guide plate,
and then pull it to the right.
a Thread guide plate
j
Pass the thread under the hook on the thread
guide, and then wind it counterclockwise
under the pretension disk.
a Thread guide and pretension disk
Note
z Make sure that the thread passes under the
pretension disk.
a
c
b
2
1
4
3
1
1
1
1
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
26
k
While holding the thread with your left hand,
wind the thread that was pulled out clockwise
around the bobbin five or six times with your
right hand.
Note
z Make sure that the thread between the spool
and the bobbin is pulled tight.
z
Be sure to wind the thread clockwise around
the bobbin, otherwise the thread will become
wrapped around the bobbin winder shaft.
l
Pass the end of the thread through the guide
slit in the bobbin winder seat, and then pull
the thread to the right to cut it.
a Guide slit in bobbin winder seat
(with built-in cutter)
X The thread is cut to a suitable length.
CAUTION
m
Slide the sewing speed controller to the right
to increase the bobbin winding speed and slide
to left to decrease.
a Speed controller
n
Press (“Start/Stop” button) once to start
winding the bobbin.
a “Start/Stop” button
• When the bobbin winding becomes slow,
press (“Start/Stop” button) once to stop
the machine.
CAUTION
o
Use scissors to cut the end of the thread
wound around the bobbin.
p
Slide the bobbin winder shaft to the left, and
then remove the bobbin from the shaft.
q
Remove the spool for the bobbin thread from
the spool pin, and then close the top cover.
Memo
z When the sewing machine is started or the
handwheel is turned after winding the
bobbin, the machine will make a clicking
sound; this is not a malfunction.
● Be sure to cut the thread as described. If
the bobbin is wound without cutting the
thread using the cutter built into the slit
in the bobbin winder seat, the thread
may become tangled in the bobbin and
the needle may bend or break when the
bobbin thread starts to run out.
1
1
● When the bobbin winding becomes slow,
stop the machine, otherwise the sewing
machine may be damaged.
1
Winding/Installing the Bobbin 27
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Installing the bobbin
Install the bobbin wound with thread.
CAUTION
a
Slide the bobbin cover latch to the right.
a Bobbin cover
b Latch
X The bobbin cover opens.
b
Remove the bobbin cover.
c
Hold the bobbin with your right hand and hold
the end of the thread with your left.
• Be careful not to drop the bobbin.
d
Insert the bobbin into the bobbin case so that
the thread unrolls to the left.
• Be sure to insert the bobbin correctly.
CAUTION
Memo
z The order that the bobbin thread should be
passed through the bobbin case is indicated
by marks around the bobbin case. Be sure to
thread the machine as indicated.
e
Lightly hold down the bobbin with your right
hand, and then guide the thread as shown with
your left hand.
CAUTION
● Use a bobbin that has been correctly
wound with thread, otherwise the needle
may break or the thread tension will be
incorrect.
●
The bobbin was designed specifically for
this sewing machine. If bobbins from other
models are used, the machine will not
operate correctly. Use only the included
bobbin or bobbins of the same type (part
code: SA156, SFB: XA5539-151).
Actual size
11.5 mm
This model Other model
(7/16 inch)
2
1
● Be sure to install the bobbin so that the
thread unwinds in the correct direction,
otherwise the thread may break or the
thread tension will be incorrect.
●
When installing the bobbin, be sure to hold
it down with your finger. If the bobbin is
not correctly installed, the thread tension
will be incorrect.
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
28

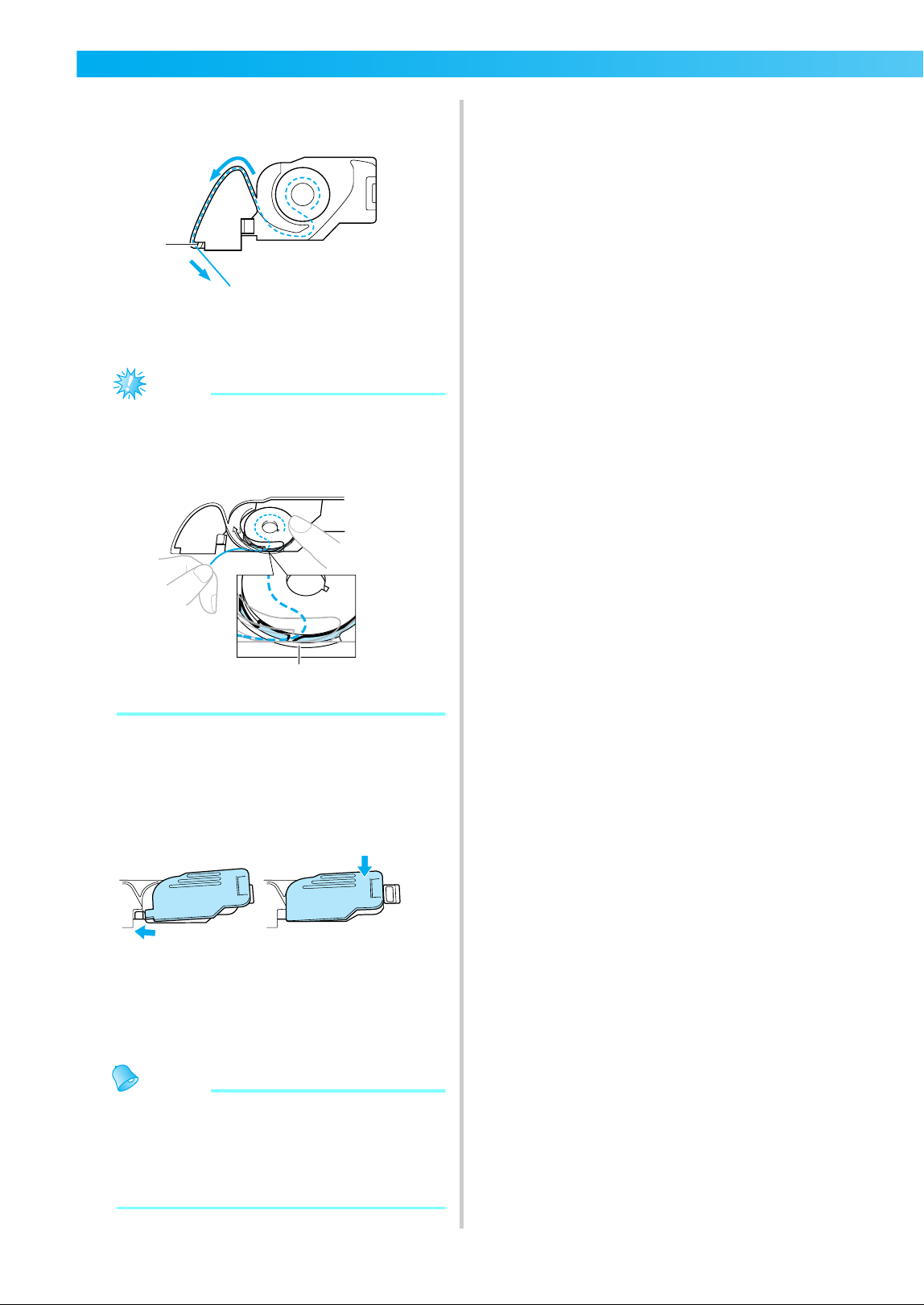

f
Pass the thread through the slot as shown, and
then pull the thread out toward the front.
a Cutter
X The cutter cuts the thread.
Note
z Make sure that the thread is correctly
inserted through the tension-adjusting spring
of the bobbin case. If it is not inserted
correctly, reinsert the thread.
a Tension-adjusting spring
g
Reattach the bobbin cover.
Insert the tab in the lower-left corner of the
bobbin cover, and then lightly press down on
the right side.
X The bobbin threading is finished.
Next, thread the upper thread. Continue with
the procedure in “Upper Threading” (page 29).
Memo
z You can begin sewing without pulling up the
bobbin thread. If you wish to pull up the
bobbin thread before starting to sew, pull up
the thread according to the procedure in
“Pulling up the bobbin thread” (page 37).
1
1
1
2
Upper Threading 29
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Upper Threading
This section describes how to position the spool for the upper thread, and then thread the needle.
CAUTION
Memo
z The order that the machine should be
threaded is indicated by a solid line on the
sewing machine. Be sure to thread the
machine as indicated.
About the spool of thread
Information about the spools of thread is described
below.
CAUTION
● When threading the upper thread,
carefully follow the instructions. If the
upper threading is not correct, the thread
may become tangled and the needle may
bend or break.
● Three spool cap sizes are available (large,
medium and small), allowing you to
choose a spool cap that best fits the size
of spool being used. If the spool cap is too
small for the spool being used, the thread
may catch on the slit in the spool and the
needle may break.
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
30
Threading the upper thread
Set the spool of thread on the spool pin, and then
thread the machine.
a
Turn on the sewing machine.
b
Raise the presser foot lever to raise the presser
foot.
a Presser foot lever
Note
z If the presser foot is not raised, the sewing
machine cannot be threaded.
c
Press (“Needle Position” button) once or
twice to raise the needle.
a “Needle Position” button
X The needle is correctly raised when the mark on
the handwheel is at the top, as shown below.
Check the handwheel and, if this mark is not at
this position, press (
“Needle Position”
button
) until it is.
a Mark on handwheel
d
Open the top cover.
e
Remove the spool cap that is inserted onto the
spool pin.
a Spool pin
b Spool cap
f
Place the spool of thread onto the spool pin.
Slide the spool onto the pin so that the spool is
horizontal and the thread unwinds to the front
at the bottom.
CAUTION
g
Slide the spool cap onto the spool pin.
Slide the spool cap as far as possible to the
right, as shown, with the rounded side on the
left.
a
1
1
● If the spool or the spool cap is not
positioned correctly, the thread may
become tangled around the spool pin and
the needle may break.
1
2
Upper Threading 31
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

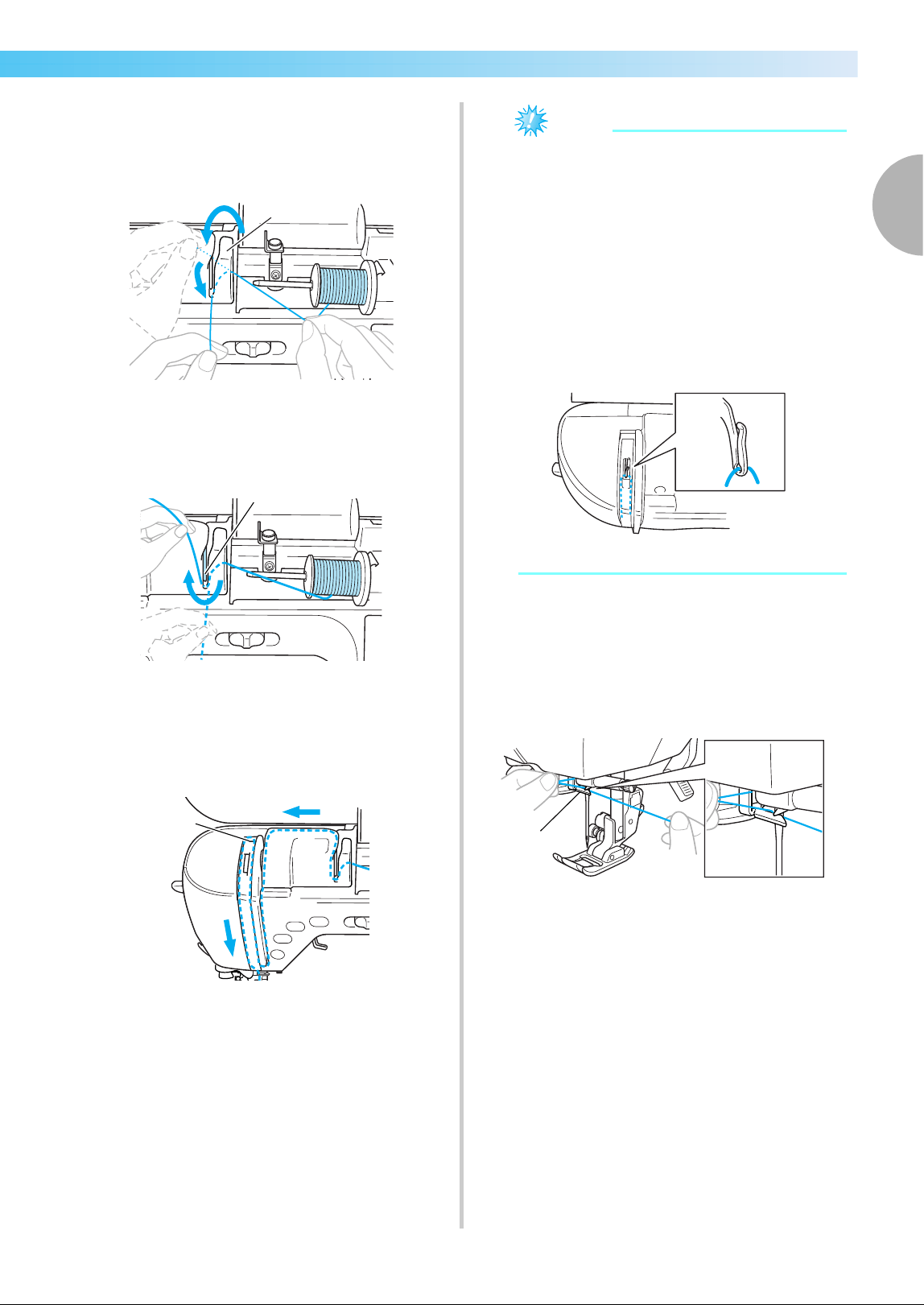

h
While holding the thread lightly with your
right hand, pull the thread with your left hand,
and then pass the thread behind the thread
guide cover and to the front.
a Thread guide cover
i
Pass the thread under the thread guide plate,
and then pull it up.
a Thread guide plate
j
While using your right hand to lightly hold the
thread passed under the thread guide plate,
pass the thread through the thread path in the
order shown below.
a Shutter
Note
z If the presser foot has been lowered and the
shutter is closed, the machine cannot be
threaded. Be sure to raise the presser foot
and open the shutter before threading the
machine. In addition, before removing the
upper thread, be sure to raise the presser foot
and open the shutter.
z This machine is equipped with a window
that allows you to check the position of the
take-up lever. Look through this window and
check that the thread is correctly fed through
the take-up lever.
k
Pass the thread behind the needle bar thread
guide.
The thread can easily be passed behind the
needle bar thread guide by holding the thread
in your left hand, then feeding the thread with
your right hand, as shown.
a Needle bar thread guide
Next, use the needle threader to thread the
needle. Continue with the procedure in
“Threading the needle” (page 32).
1
1
1
1
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
32
Threading the needle
This section describes how to thread the needle.
Memo
z
The needle threader can be used with sewing
machine needles 75/11 through 100/16.
z Thread with a thickness of 130/20 or thicker
cannot be used with the needle threader.
z The needle threader cannot be used with the
wing needle or the twin needle.
z If the needle threader cannot be used, refer
to “Threading the needle manually (without
using the needle threader)” (page 33).

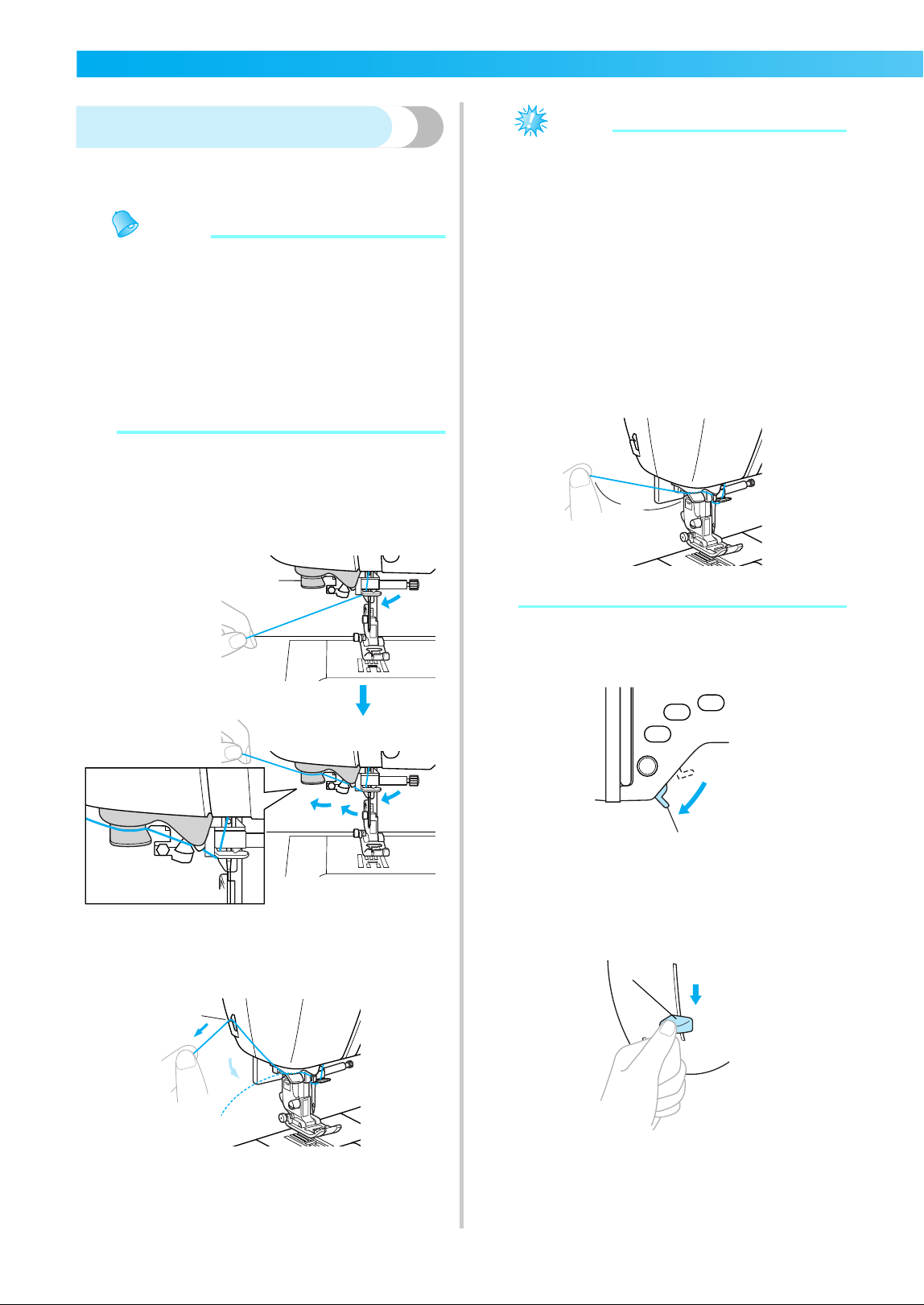

a
Pull the end of the thread passed through the
needle bar thread guide to the left, and then
pass the thread through the thread guide disk
from the front.
a Thread guide disk
b
Cut the thread with the thread cutter on the
left side of the machine.
a Thread cutter
Note
z If the thread is pulled through and cannot be
cut correctly, lower the presser foot so that
the thread is held in place before cutting the
thread. If this operation is performed, skip
step
c.
z When using thread that quickly winds off the
spool, such as metallic thread, it may be
difficult to thread the needle if the thread is
cut.
Therefore, instead of using the thread cutter,
pull out about 80 mm (approx. 3 inches) of
thread after passing it through the thread
guide disks (marked “7”).
a 80 mm (3 inches) or more
c
Lower the presser foot lever to lower the
presser foot.
a Presser foot lever
d
Lower the needle threader lever on the left
side of the machine until it clicks, and then
slowly return the lever to its original position.
a Needle threader lever
X The thread is passed through the eye of the
needle.
1
1
1
1
1
Upper Threading 33
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

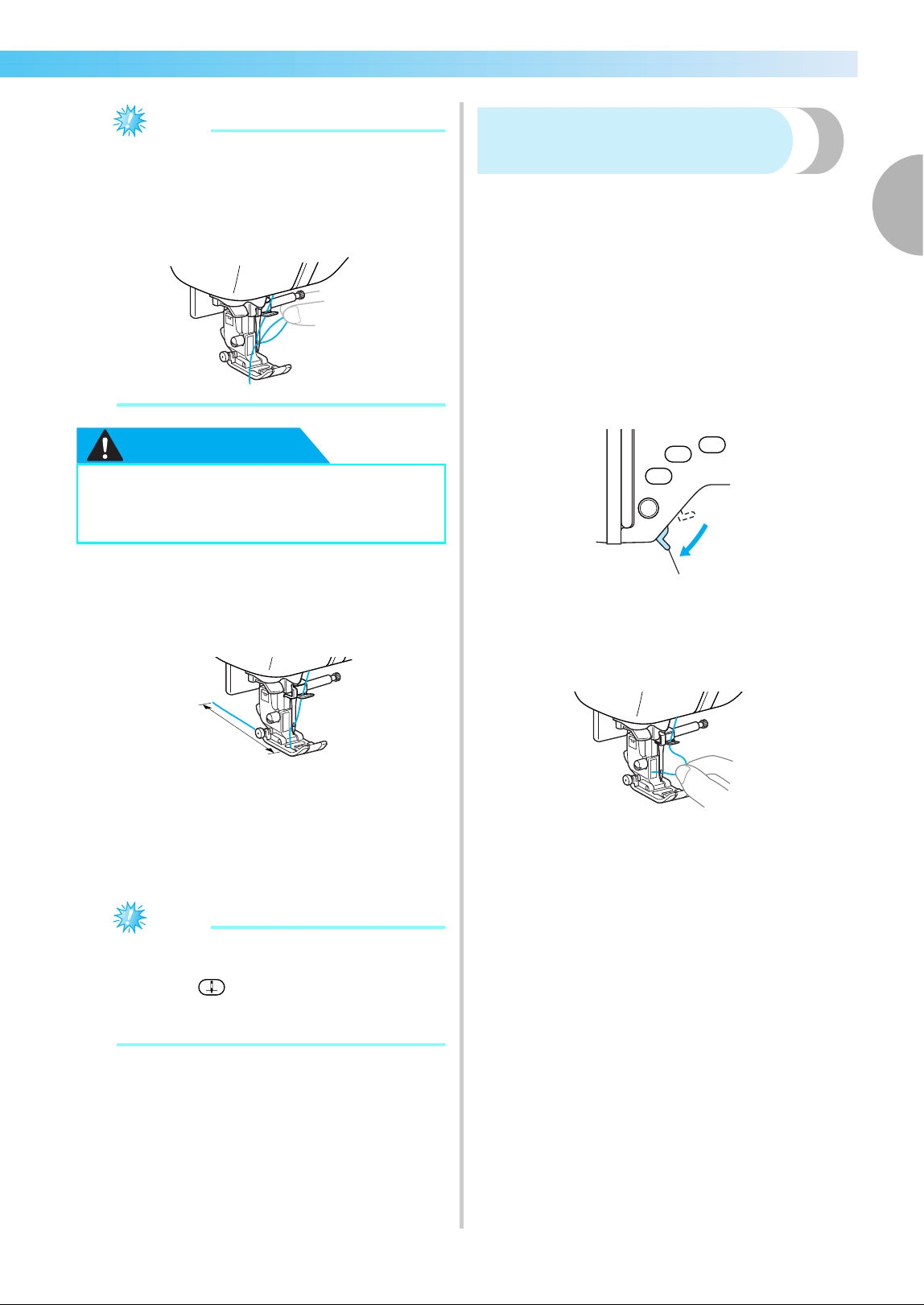

Note
z If the needle was not completely threaded,
but a loop in the thread was formed in the
eye of the needle, carefully pull the loop
through the eye of the needle to pull out the
end of the thread.
CAUTION
e
Raise the presser foot lever, pass the end of the
thread through the presser foot, and then pull
out about 5 cm (2 inches) of thread toward the
rear of the machine.
a 5 cm (2 inches)
X The upper threading is finished.
Now that the upper threading and the lower
threading are finished, you are ready to
begin sewing.
Note
z If the needle is not raised, the needle
threader cannot thread the needle. Be sure
to press (“Needle Position” button) to
raise the needle before using the needle
threader.
Threading the needle manually
(
without using the needle threader
)
When using special thread, thread with a thickness of
130/20 or thicker, the wing needle or the twin needle
which cannot be used with the needle threader,
thread the needle as described below.
a
Thread the machine to the needle bar thread
guide.
• For details, refer to “Upper Threading” (page
29).
b
Lower the presser foot lever.
a Pressor foot lever
c
Pass the thread through the eye of the needle
from front to back.
d
Raise the presser foot lever, pass the end of the
thread through the presser foot, and then pull
out about 5 cm (2 inches) of thread toward the
rear of the machine.
● When pulling out the thread, do not pull
it with extreme force, otherwise the
needle may break or bend.
1
1
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
34

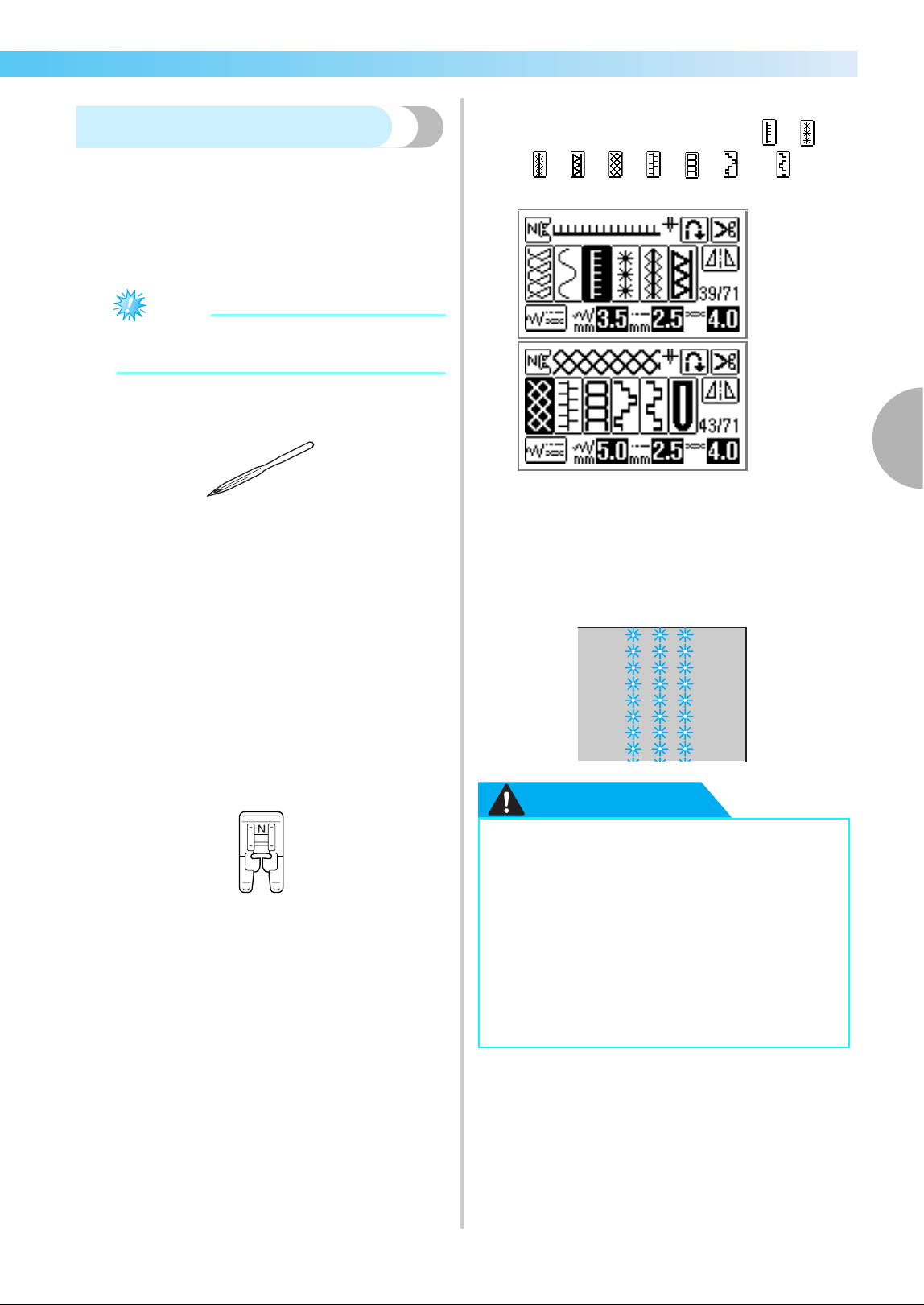

Using the twin needle
With the twin needle, you can sew two parallel lines
of the same stitch with two different threads. Both
upper threads should have the same thickness and
quality. Be sure to use the twin needle, the extra
spool pin and the spool cap.
For details on the stitches that can be sewn with the
twin needle, refer to “Stitch Setting Chart” (page 68).
CAUTION
a
Install the twin needle.
• For details on installing a needle, refer to
“Replacing the needle” (page 40).
b
Thread the upper thread for the left needle
eye.
• For details, refer to steps
a through k of
“Threading the upper thread” (page 30).
c
Manually thread the left needle with the upper
thread.
Pass the thread through the eye of the needle
from the front.
• The needle threader cannot be used with the
twin needle. If the needle threader is used
with the twin needle, the sewing machine
may be damaged.
d
Insert the extra spool pin onto the bobbin
winder shaft.
Insert the extra spool pin so that it is
perpendicular to the bobbin winder shaft.
a Bobbin winder shaft
e
Swing down the spool pin so that it is
horizontal.
f
Place the upper thread spool for the needle on
the right side onto the extra spool pin, and
then secure it with the spool cap.
The thread should unroll from the top front of
the spool.
a Spool cap
b Spool
● Only use the twin needle (part code:
X59296-151). Use of any other needle
may bend the needle or damage the
machine.
● Never use bent needles. Bent needles can
easily break, possibly resulting in injuries.
1
12
Upper Threading 35
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
g
Thread the upper thread for the right side in the
same way that the upper thread for the left side
was threaded.
a Thread guide cover
• For details, refer to steps h through j of
“Threading the upper thread” (page 31).
h
Without passing the thread through the needle
bar thread guide, manually thread the right
needle.
Pass the thread through the eye of the needle
from the front.
• The needle threader cannot be used with the
twin needle. If the needle threader is used
with the twin needle, the sewing machine
may be damaged.
i
Attach zigzag foot “J”.
• For details on changing the presser foot, refer
to “Replacing the Presser Foot” (page 42).
CAUTION
j
Turn on the sewing machine and select a stitch.
• For stitch selection see “Selecting stitching”
(page 49).
• See “Stitch Setting Chart” (page 68) for
stitches that use a twin needle.
Note
z When using the pintuck foot (sold
separately) to sew straight pintucks with the
twin needle, select the stitch with the center
needle position.
CAUTION
k
Press .
X The screen for setting the twin needle
appears.
● When using the twin needle, be sure to
attach zigzag foot “J”. If bunched stitches
occur, use presser foot “N” or attach
stabilizer material.
1
● When using the twin needle, be sure to
select an appropriate stitch, otherwise the
needle may break or the machine may be
damaged.
● After adjusting the stitch width, slowly
turn the handwheel toward you
(counterclockwise) and check that the
needle does not touch the presser foot. If
the needle hits the presser foot, the
needle may bend or break.
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
36

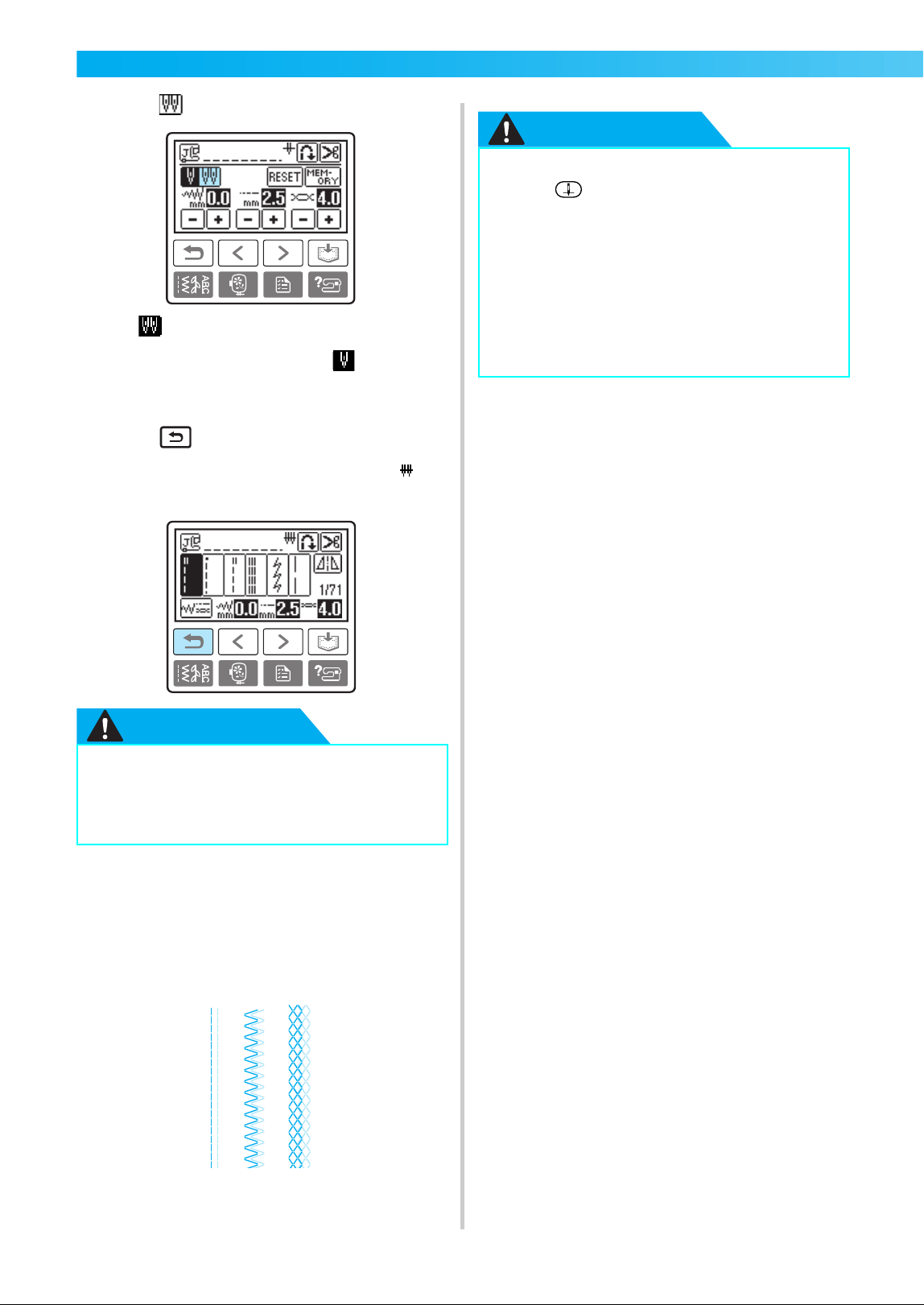

l
Press .
X displays in reverse highlight.
• If pressed again, it returns to .
The twin needle can now be used.
m
Press (Back key).
X The initial screen appears again, and
appears.
CAUTION
n
Start sewing.
• For details on starting to sew, refer to
“Starting to sew” (page 51).
X Two lines of stitching are sewn parallel to
each other.
CAUTION
● When using the twin needle, be sure to
select the twin needle setting, otherwise
the needle may break or the machine may
be damaged.
● When changing the sewing direction,
press (“Needle Position” button) to
raise the needle from the fabric, and then
raise the presser foot lever and turn the
fabric. Otherwise the needle may break
or the machine may be damaged.
● Do not try turning the fabric with the
twin needle left down in the fabric,
otherwise the needle may break or the
machine may be damaged.
Upper Threading 37
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

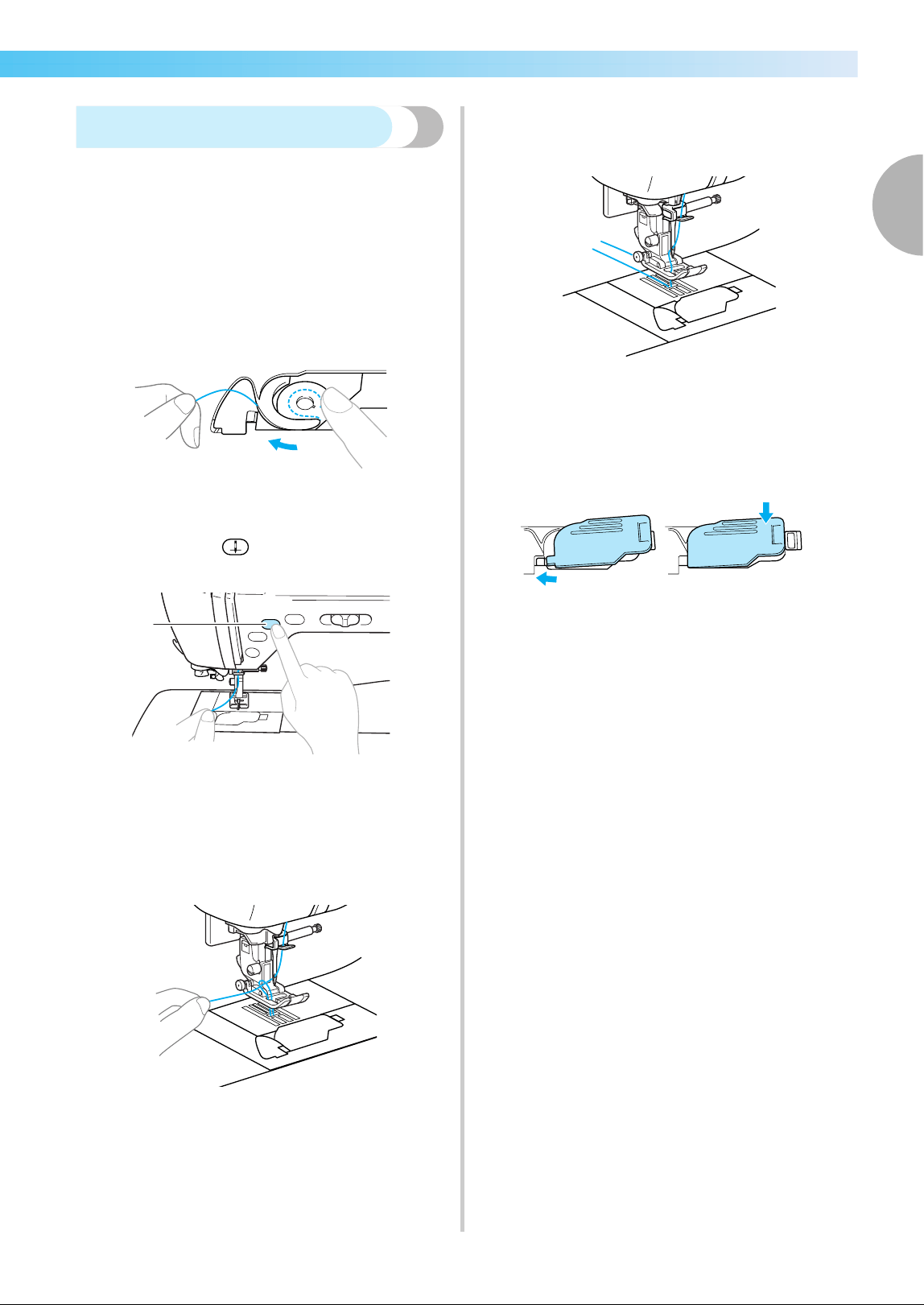

Pulling up the bobbin thread
When making gathers or before free-motion quilting,
first pull up the bobbin thread as described below.
a
Insert the bobbin into the bobbin case.
• Refer to steps
a through e of “Installing the
bobbin” (page 27).
b
Pass the bobbin thread through the slot.
Do not cut the thread with the cutter.
c
While lightly holding the upper thread with
your left hand with the needle in the up-
position, press (“Needle Position” button)
twice to lower and raise the needle.
a “Needle Position” button
X The bobbin thread is looped around the
upper thread and can be pulled up.
d
Carefully pull the upper thread upward to pull
out the end of the bobbin thread.
e
Pull out about 10-15 cm (4-5 inches) of the
bobbin thread under the presser foot toward
the rear of the machine.
f
Reattach the bobbin cover.
Insert the tab in the lower-left corner of the
bobbin cover, and then lightly press down on
the right side.
1
1
2
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
38
Replacing the Needle
This section describes how to replace the needle.
Needle precautions
Be sure to observe the following precautions concerning the handling of the needle. Failure to observe these
precautions is extremely dangerous, for example, if the needle breaks and fragments are dispersed. Be sure to
read and carefully follow the instructions below.
CAUTION
● Only use home sewing machine needles. Use of any other needle may bend the needle or
damage the machine.
● Never use bent needles. Bent needles can easily break, possibly resulting in injuries.
Replacing the Needle 39
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Needle types and their uses
The sewing machine needle that should be used depends on the fabric and thread thickness. Refer to the
following table when choosing the thread and needle appropriate for the fabric that you wish to sew.
■ Thread and needle number
The lower the thread number is, the larger the
thread, and the larger the needle number, the
larger the needle.
■ Ball point needle (gold colored)
To avoid skipped stitches use ball point needles
with stretch fabrics.
■ Transparent nylon thread
Use a 90/14 to 100/16 needle, regardless of the
fabric or thread.
■ Embroidery needles
Use a 75/11 home sewing machine needle. When
embroidering on thick fabrics such as denim, use
a 90/14 or 100/16 home sewing machine needle.
• A 75/11 needle is already installed when the
sewing machine is purchased.
CAUTION
Fabric Type/Application
Thread
Size of Needle
Type Weight
Medium weight
fabrics
Broadcloth Cotton thread
60–80
75/11–90/14Taffeta Synthetic thread
Flannel, Gabardine Silk thread 50
Thin fabrics
Lawn Cotton thread
60–80
65/9–75/11Georgette Synthetic thread
Challis, Satin Silk thread 50
Thick fabrics
Denim Cotton thread 30–50
90/14–100/16Corduroy Synthetic thread
50
Tweed Silk thread
Stretch fabrics
Jersey
Thread for knits 50–60
Ball point needle
(gold colored)
75/11–90/14
Tricot
Easily frayed fabrics
Cotton thread
50–80
65/9–90/14Synthetic thread
Silk thread 50
For top-stitching
Synthetic thread
30 90/14–100/16
Silk thread
● The appropriate fabric, thread and needle
combinations are shown in the table
above. If the combination of the fabric,
thread and needle is not correct,
particularly when sewing thick fabrics
(such as denim) with thin needles (such as
65/9 to 75/11), the needle may bend or
break. In addition, the stitching may be
uneven or puckered or there may be
skipped stitches.

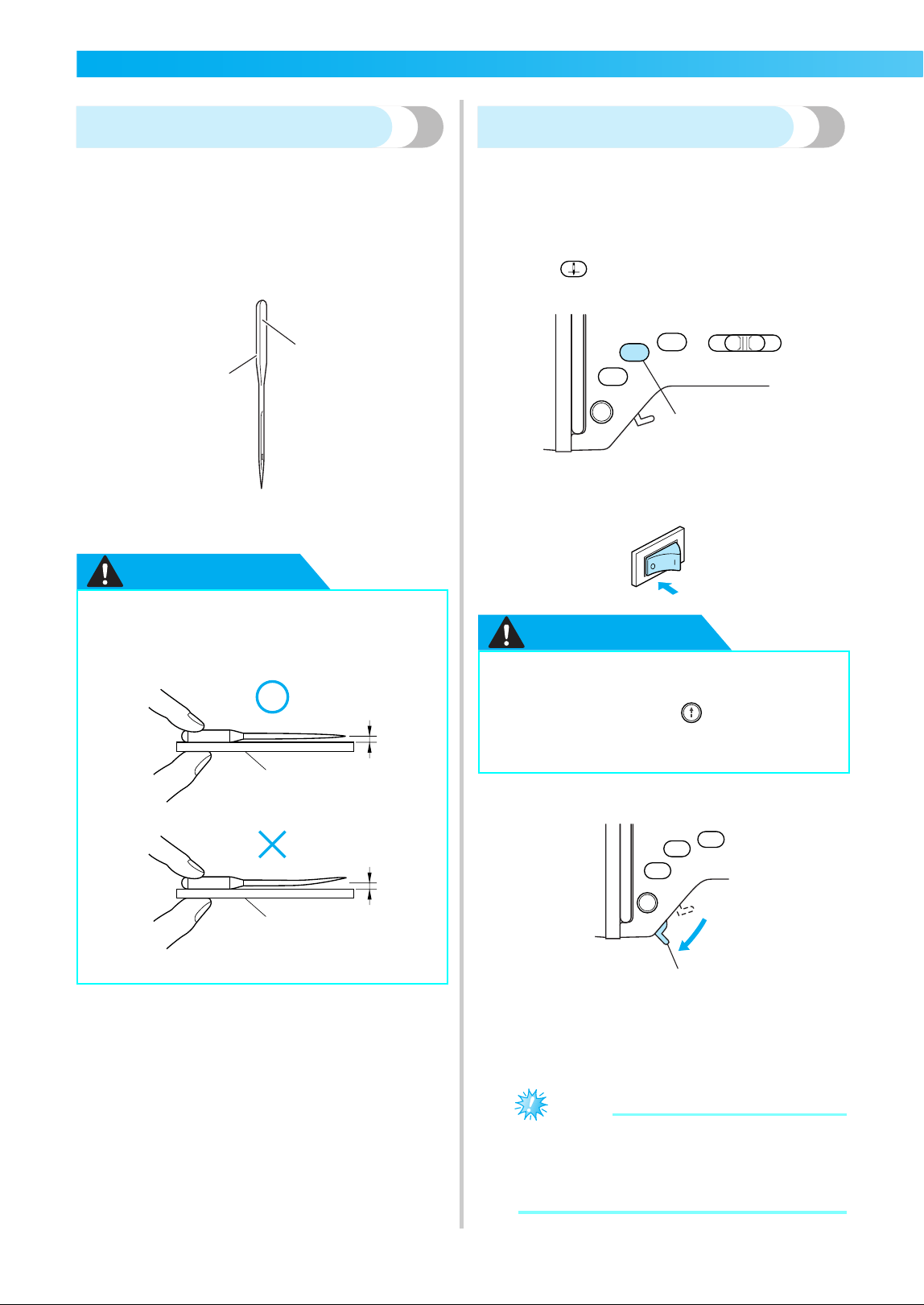

GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
40
Checking the needle
Sewing with a bent needle is extremely dangerous
since the needle may break while the machine is
being operated.
Before using the needle, place the flat side of the
needle on a flat surface and check that the distance
between the needle and the flat surface is even.
a Flat side
b Needle type marking
CAUTION

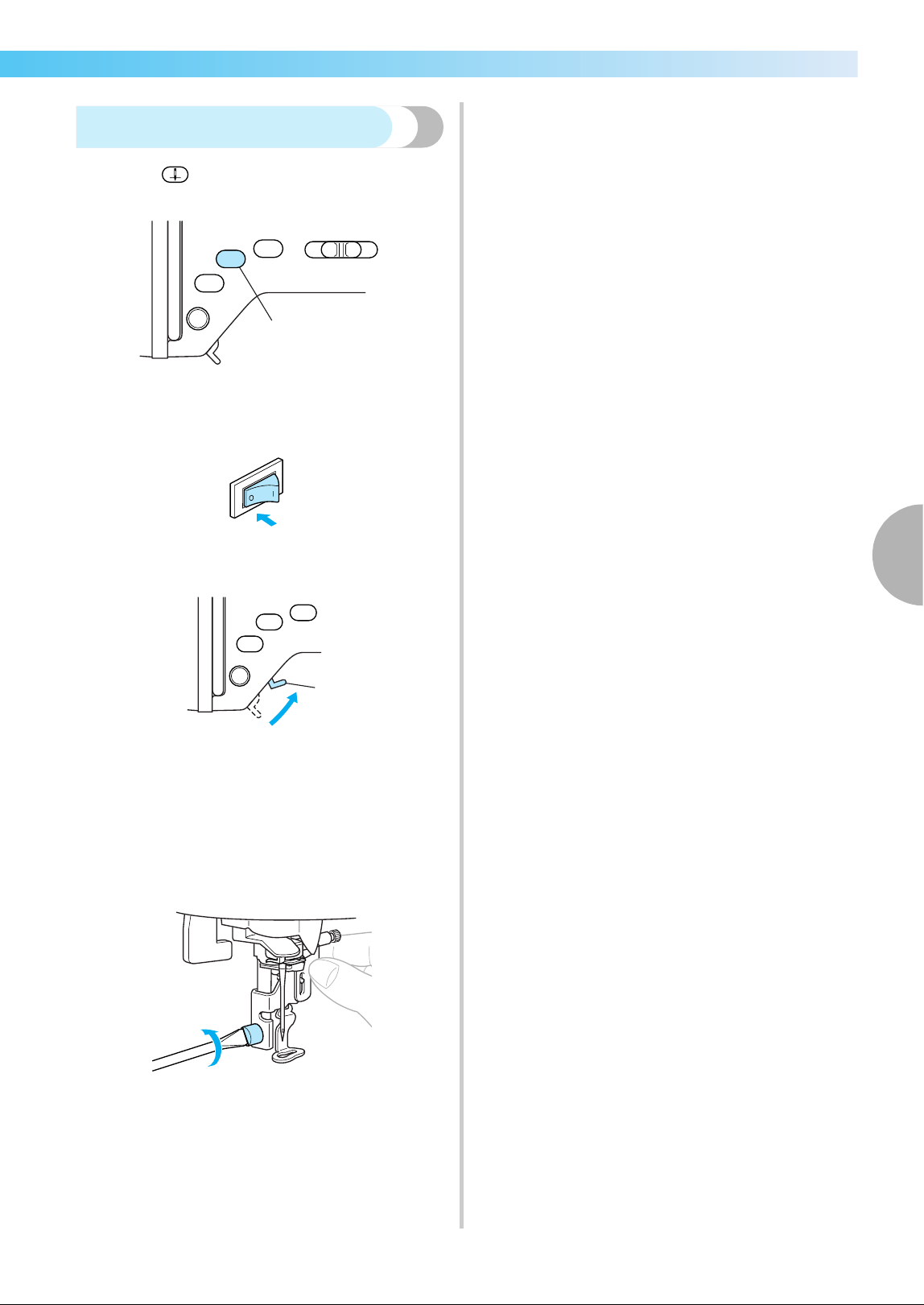

Replacing the needle
Replace the needle as described below. Use the
screwdriver and a needle that has been determined to
be straight according to the instructions in “Checking
the needle”.
a
Press (“Needle Position” button) once or
twice to raise the needle.
a “Needle Position” button
b
Turn off the sewing machine.
CAUTION
c
Lower the presser foot lever.
a Presser foot lever
d
Place fabric or paper under the presser foot to
cover the hole in the needle plate.
Note
z Before replacing the needle, cover the hole
in the needle plate with fabric or paper to
prevent the needle from falling into the
machine.
● If the distance between the needle and
the flat surface is not even, the needle is
bent. Do not use a bent needle.
a Flat surface
1
2
1
1
● Before replacing the needle, be sure to
turn off the sewing machine, otherwise
injuries may occur if (“Start/Stop”
button) is accidentally pressed and the
machine starts sewing.
1
1
Replacing the Needle 41
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

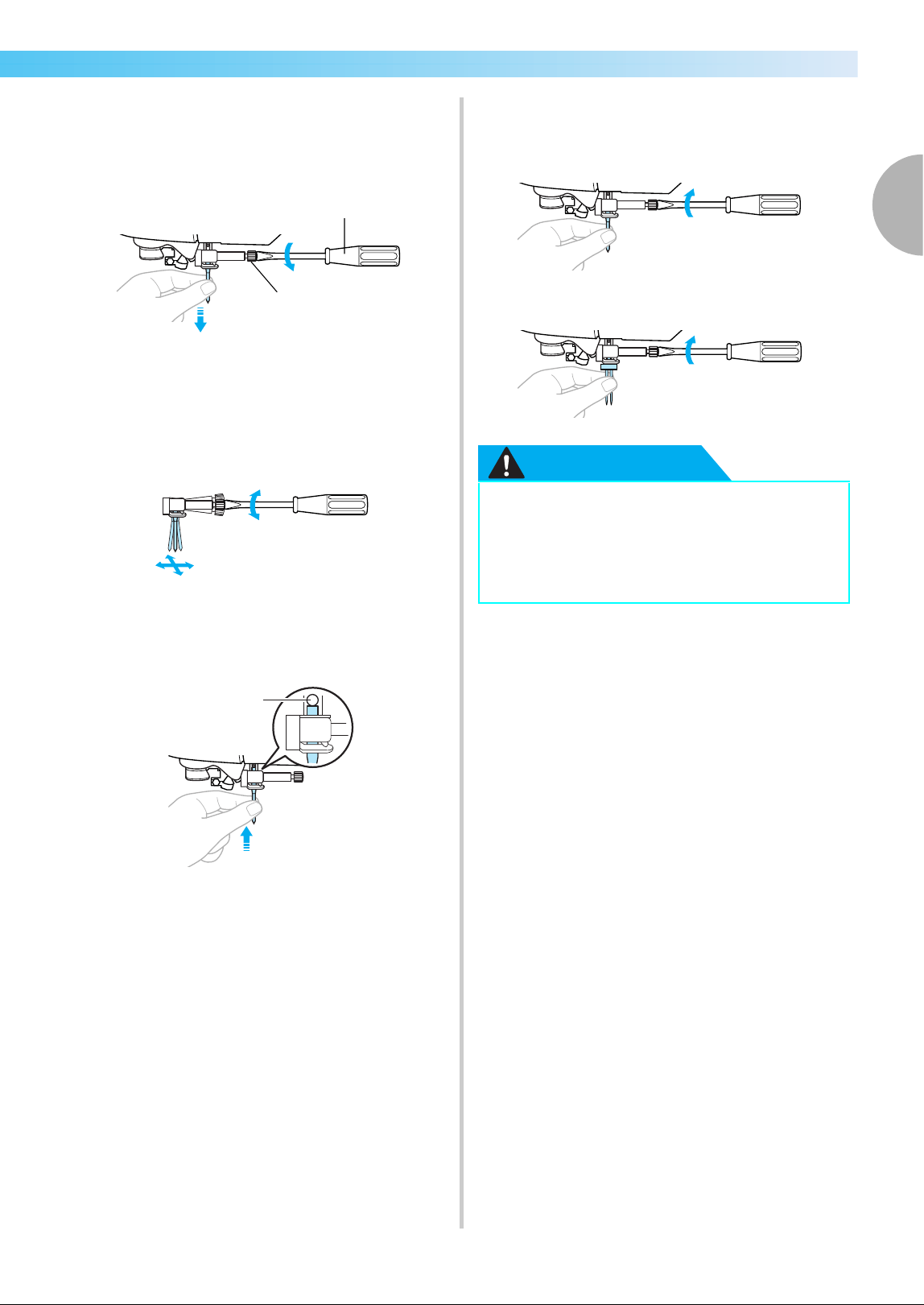

e
Hold the needle with your left hand, and then
use a screwdriver to turn the needle clamp
screw toward you (counterclockwise) to
remove the needle.
a Screwdriver
b Needle clamp screw
• Do not apply a strong force when loosening
or tightening the needle clamp screw,
otherwise certain parts of the sewing
machine may be damaged.
f
With the flat side of the needle toward the rear
of the machine, insert the needle until it
touches the needle stopper.
a Needle stopper
g
While holding the needle with your left hand,
use the screwdriver to tighten the needle clamp
screw.
Install the twin needle in the same way.
CAUTION
2
1
1
● Be sure to insert the needle until it
touches the needle stopper and securely
tighten the needle clamp screw with the
screwdriver, otherwise the needle may
break or damage may result.
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
42
Replacing the Presser Foot
This section describes how to replace the presser foot.
Presser foot precautions
Be sure to observe the following precautions concerning the presser feet.
CAUTION
Replacing the presser foot
Replace the presser foot as described below.
a
Press (“Needle Position” button) once or
twice to raise the needle.
a “Needle Position” button
b
Turn off the sewing machine.
CAUTION
c
Raise the presser foot lever.
a Presser foot lever
X The presser foot is raised.
d
Press the black button at the back of the
presser foot holder.
a Black button
b Presser foot holder
X The presser foot holder releases the presser
foot.
● Use the presser foot appropriate for the type of stitch that you wish to sew, otherwise the
needle may hit the presser foot, causing the needle to bend or break.
● Only use presser feet designed specifically for this sewing machine. Use of any other presser
foot may result in injuries or damage to the machine.
● Before replacing the presser foot, be sure
to turn off the sewing machine, otherwise
injuries may occur if (“Start/Stop”
button) is accidentally pressed and the
machine starts sewing.
1
a
a
b

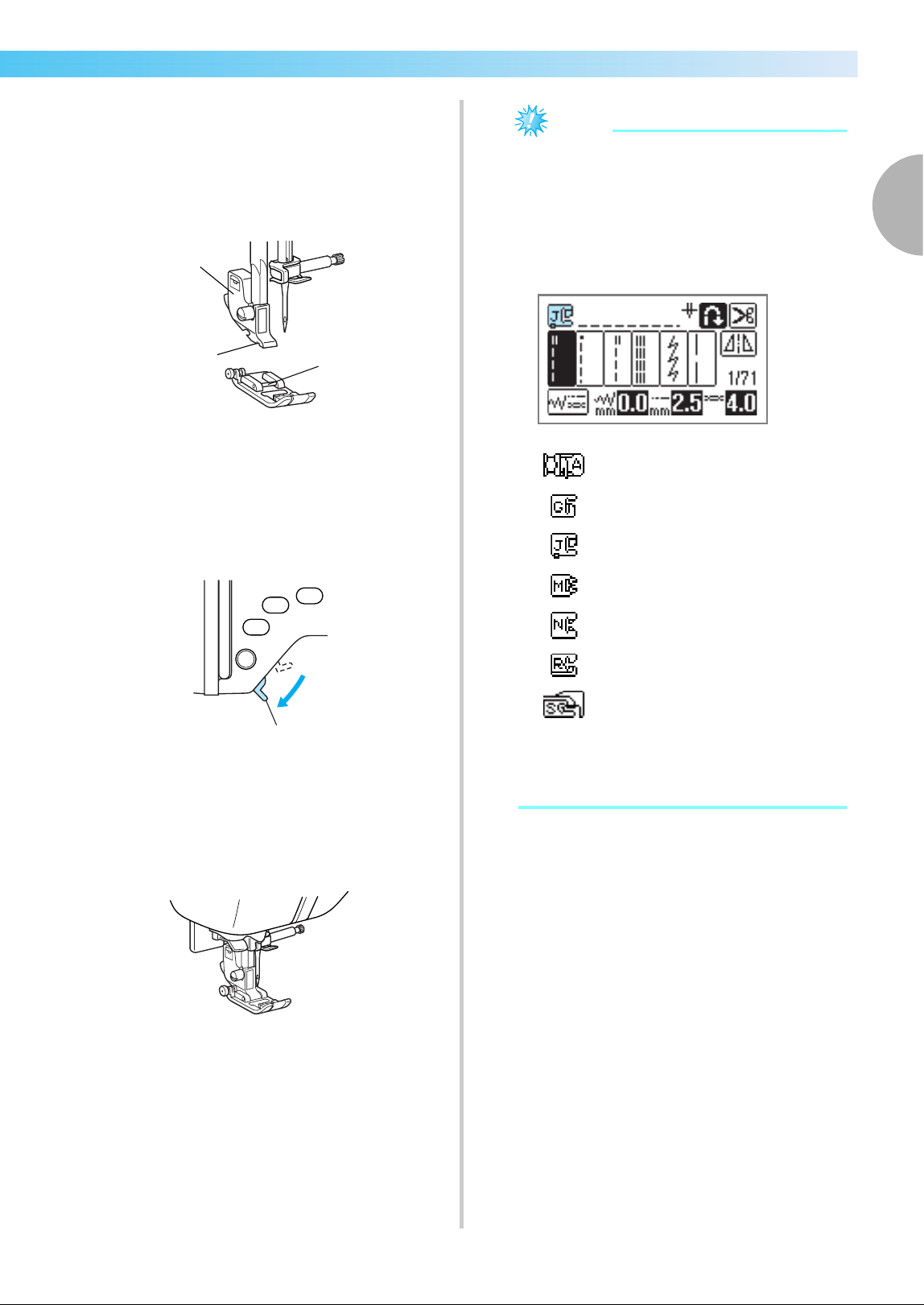

Replacing the Presser Foot 43
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
e
Place a different presser foot below the holder
so that the presser foot pin is aligned with the
notch in the holder.
Position the presser foot so the letter indicating
the presser foot type (A, G, I, J, M, N or R) is
positioned to be read.
a Presser foot holder
b Notch
c Pin
f
Slowly lower the presser foot lever so that the
presser foot pin snaps into the notch in the
presser foot holder.
a Presser foot lever
X The presser foot is attached.
g
Raise the presser foot lever to check that the
presser foot is securely attached.
Note
z When a stitch is selected, the icon for the
presser foot that should be used appears in
the screen. Check that the correct presser
foot is attached before starting to sew. If the
wrong presser foot is installed, turn off the
sewing machine, attach the correct presser
foot, and then select the desired stitch again.
z For details on the presser foot that should be
used with the selected stitch, refer to “Stitch
Setting Chart” (page 68).
a
b
c
1
Buttonhole foot “A”
Overcasting foot “G”
Zigzag foot “J”
Button fitting foot “M”
Monogramming foot “N”
Blind stitch foot “R”
Side cutter “S”
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
44

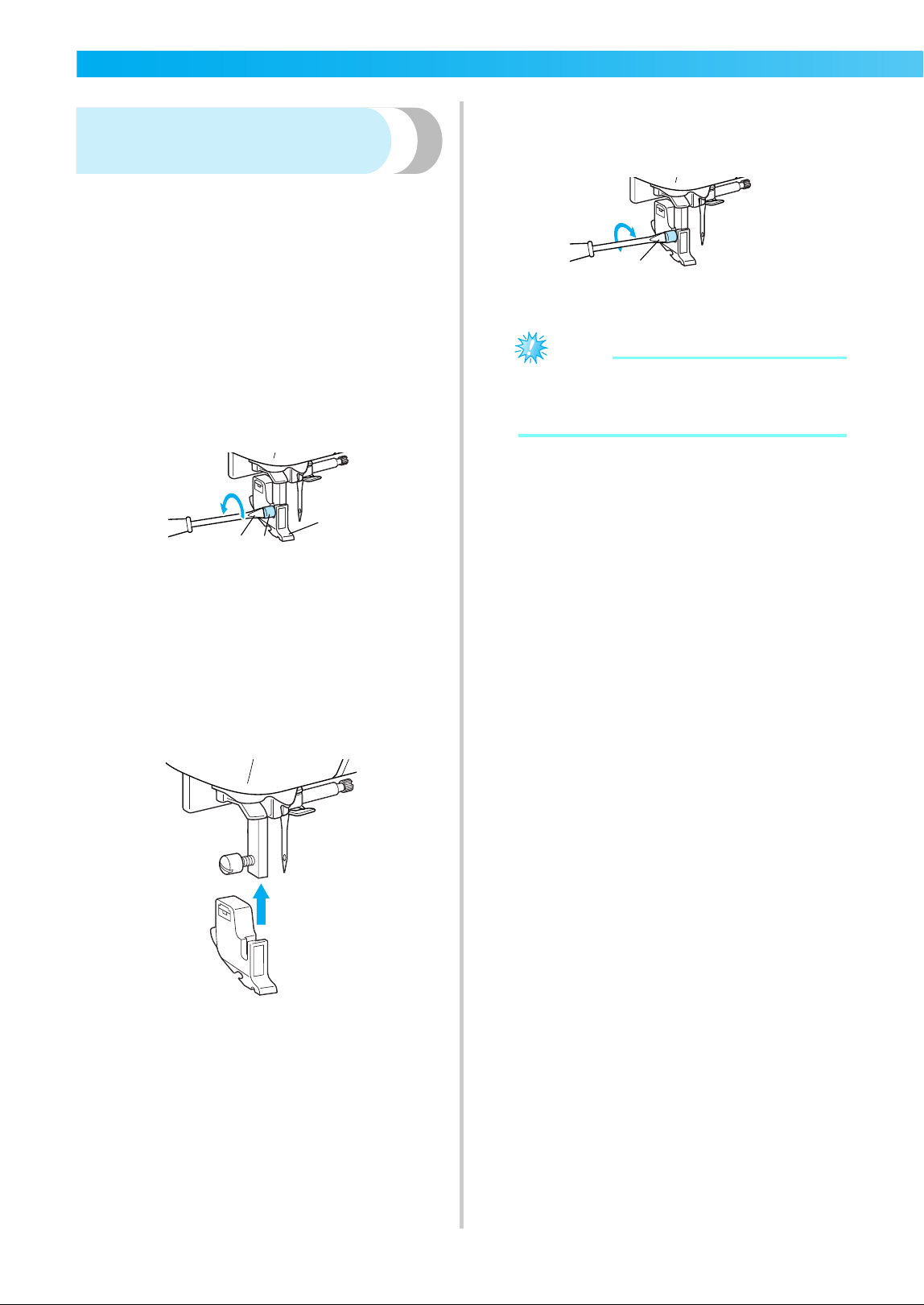

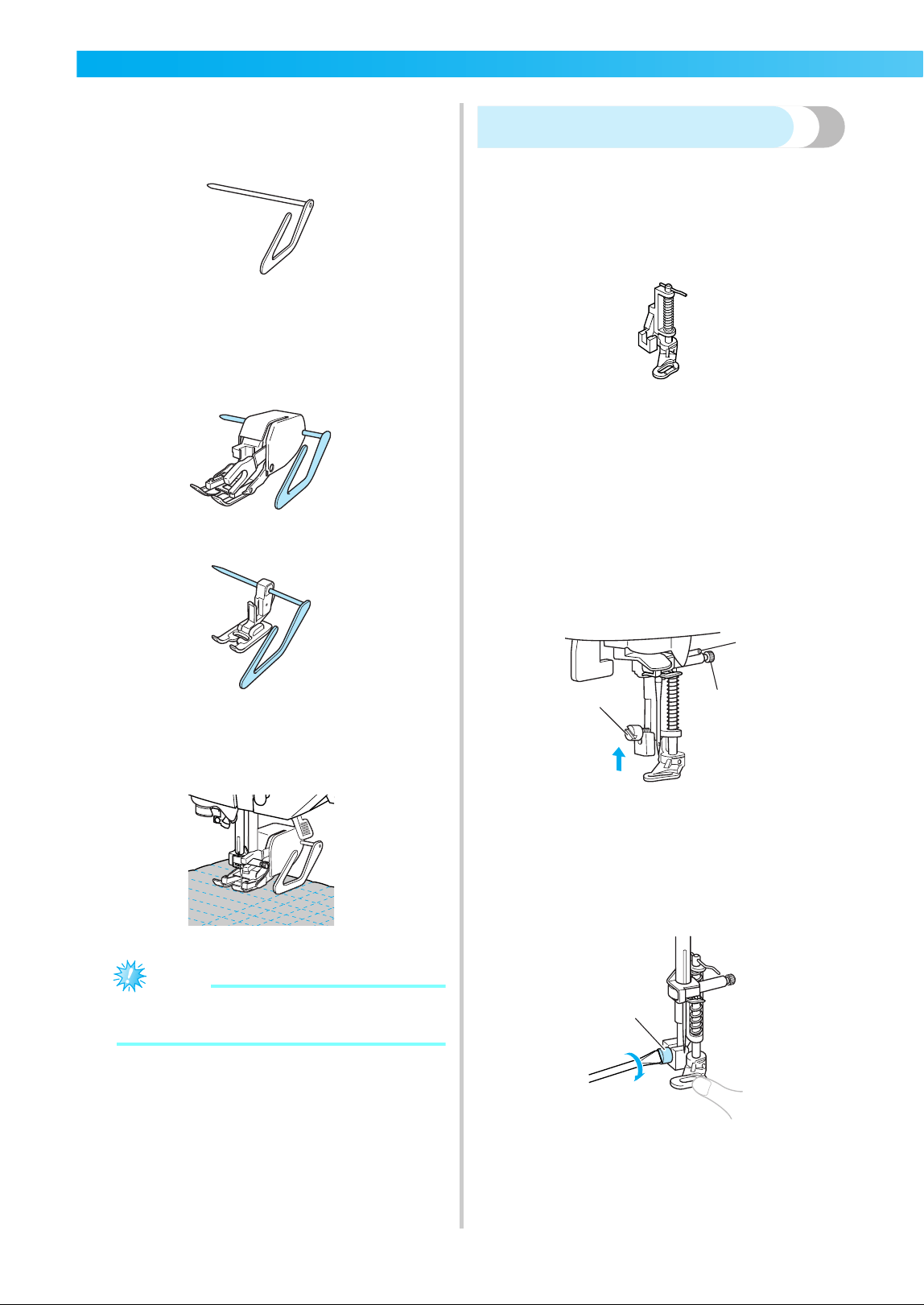

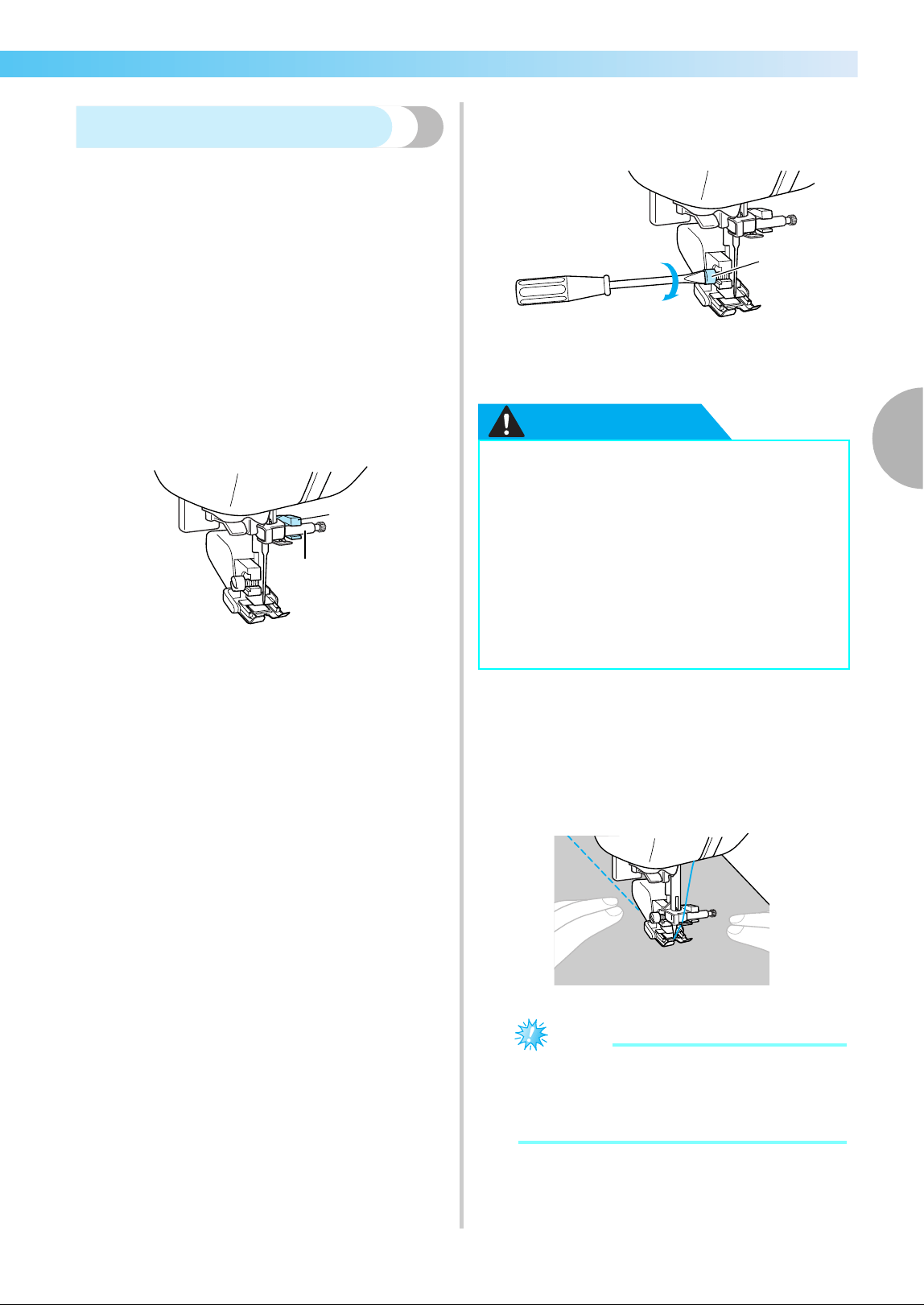

Removing and attaching the
presser foot holder
Remove the presser foot holder when cleaning the
sewing machine or when installing a presser foot that
does not use the presser foot holder, such as the
embroidery foot and optional quilting foot. Use the
screwdriver to remove the presser foot holder.
a
Remove the presser foot.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Use the screwdriver to loosen the presser foot
holder screw.
a Screwdriver
b Presser foot holder
c Presser foot holder screw
■ Attaching the presser foot holder
a
Raise the presser foot lever.
b
Align the presser foot holder with the lower-
left side of the presser bar.
c
Hold the presser foot holder in place with your
right hand, and then tighten the screw using
the screwdriver in your left hand.
a Screwdriver
Note
z If the presser foot holder is not correctly
installed, the thread tension will be
incorrect.
a
b
c
1
Sewing Cylindrical Pieces 45
1
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Sewing Cylindrical Pieces
Free-arm sewing makes sewing cylindrical pieces easy.
Free-arm sewing
Removing the flat bed attachment allows for free-arm
sewing, making it easier to sew cylindrical pieces
such as sleeve cuffs and pant legs.
a
Pull the flat bed attachment off to the left.
X With the flat bed attachment removed, free-
arm sewing is possible.
b
Slide the part that you wish to sew onto the
arm, and then sew from the top.
c
When you are finished with free-arm sewing,
install the flat bed attachment back in its
original position.
GETTING READY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
46
2 SEWING BASICS
The necessary preparations for sewing are described in this chapter.
Sewing.....................................................................................................................48
General sewing procedure .................................................................................48
Selecting stitching ..............................................................................................49
Positioning the fabric .........................................................................................50
Starting to sew ...................................................................................................51
Securing the stitching.........................................................................................53
Cutting the thread ..............................................................................................54
Setting the Stitch .....................................................................................................56
Adjusting the stitch width ..................................................................................56
Adjusting the stitch length..................................................................................57
Adjusting the thread tension ..............................................................................57
Useful Functions......................................................................................................59
Automatically sewing reverse/reinforcement stitches ........................................59
Automatically cutting the thread........................................................................60
Mirroring stitches...............................................................................................61
Useful Sewing Tips ..................................................................................................62
Trial sewing........................................................................................................62
Changing the sewing direction ...........................................................................62
Sewing curves ....................................................................................................62
Adjusting the presser foot pressure ....................................................................62
Sewing thick fabrics ...........................................................................................63
Sewing thin fabrics .............................................................................................64
Sewing stretch fabrics ........................................................................................64
Sewing leathers or vinyl fabrics..........................................................................64
Sewing an even seam allowance ........................................................................64
Hands-free raising and lowering of the presser foot...........................................65
SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
48
Sewing
Basic sewing operations are described below.
Before operating the sewing machine, read the following precautions.
CAUTION
General sewing procedure
Follow the basic procedures below to sew.
↓
↓
↓
↓
↓
● While the machine is in operation, pay special attention to the needle location. In addition,
keep your hands away from all moving parts such as the needle and handwheel, otherwise
injuries may occur.
● Do not pull or push the fabric too hard while sewing, otherwise injuries may occur or the
needle may break.
● Never use bent needles. Bent needles can easily break, possibly resulting in injuries.
● Make sure that the needle does not strike basting pins, otherwise the needle may break or
bend.
1 Turn on the machine.
Turn on the sewing machine. For details on turning on the machine,
refer to “Turning on the machine” (page 17).
2 Select the stitch.
Select the stitch appropriate for the area to be sewn. For details on
selecting a stitch, refer to “Selecting stitching” (page 49).
3 Attach the presser foot.
Attach the presser foot appropriate for the stitch. (Be sure to turn off the
machine before replacing the presser foot.) For details on replacing the
presser foot, refer to “Replacing the presser foot” (page 42).
4 Position the fabric.
Place the area to be sewn under the presser foot. Be sure that the fabric
pieces are sewn in the correct order and that the right and wrong sides of
the fabric are aligned correctly. For details on positioning the fabric,
refer to “Positioning the fabric” (page 50).
5 Start sewing.
Start sewing. For details on starting to sew, refer to “Starting to sew”
(page 51).
6 Cut the thread.
Cut the thread at the end of sewing. For details on cutting the thread,
refer to “Cutting the thread” (page 54).
2
Sewing 49
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

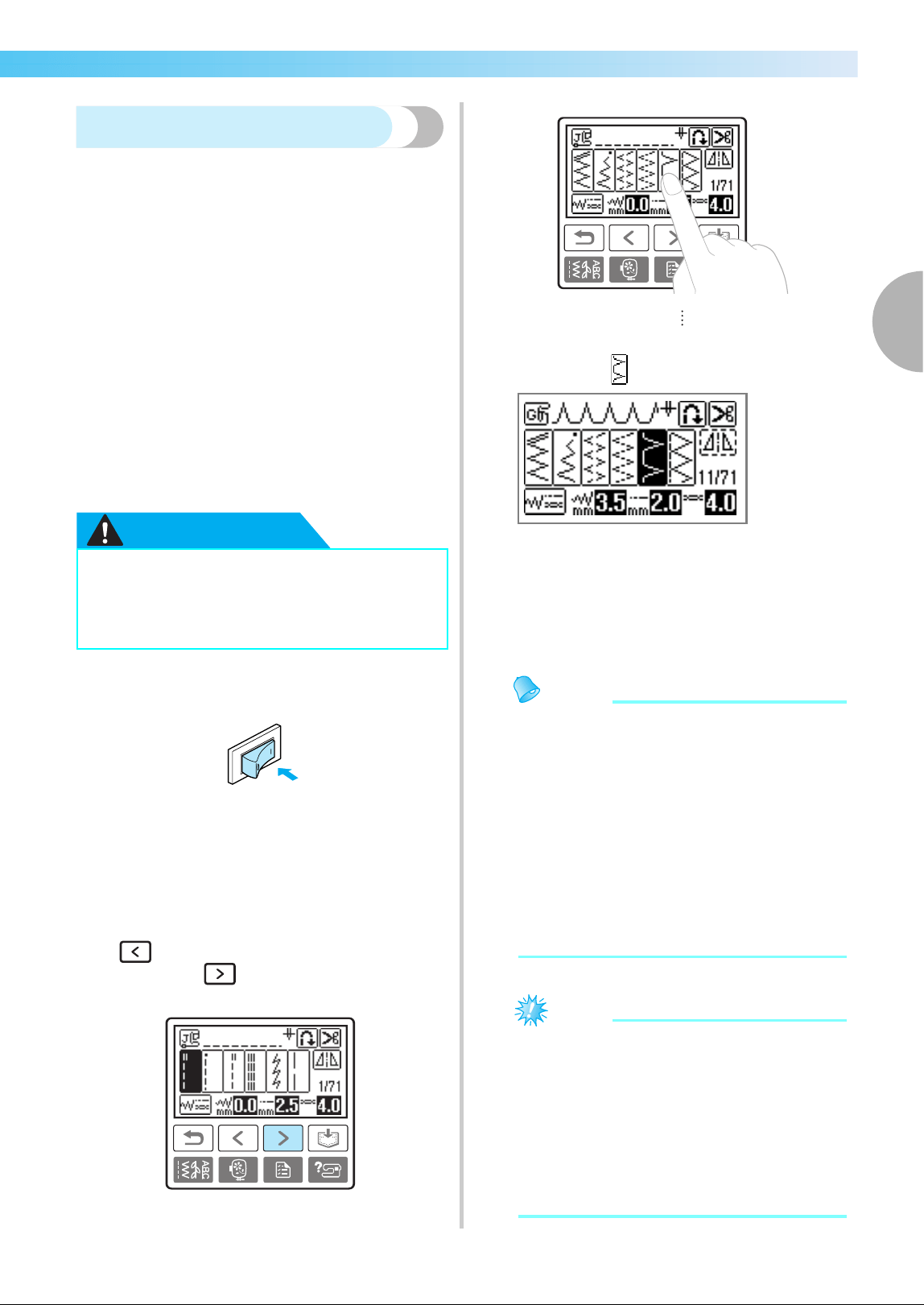

Selecting stitching
Stitches are selected using LCD operations. There are
71 utility stitches. Right after turning the power on,
the straight stitch (left needle position) is selected.
The machine can also be set to select the straight
stitch (center needle position). For details on
changing the setting, refer to page 19.
a
Determine the stitch to be used, and get the
matching presser foot ready.
• Refer to “Stitch Setting Chart” (page 68).
b
Attach the presser foot.
The machine comes with zigzag foot “J”
attached.
• For details, refer to “Replacing the presser
foot” (page 42).
CAUTION
c
Turn on the sewing machine.
X The straight stitch (left needle position) is
shown selected in the LCD.
• When an animation is displayed on the
screen, touch the screen with your finger.
d
Select a stitch.
(Previous page key) displays the previous
screen, and (Next page key) displays the
next screen.
Example:
11
is selected:
X The stitch is selected, and the stitch number
and settings are displayed.
e
If necessary, specify the setting for automatic
reverse/reinforcement stitching and adjust the
stitch length, etc.
Memo
z
Uses of stitches and other stitch selections are
explained in “UTILITY STITCHES” (page 67).
z Automatic reverse/reinforcement stitching
and other settings are explained in “Useful
Functions” (page 59).
z The procedures for specifying the thread
tension are described in “Adjusting the
thread tension” (page 57).
z Procedures for changing the stitch width and
length are described in “Adjusting the stitch
width” (page 56) and “Adjusting the stitch
length” (page 57).
Note
z When a stitch is selected, the icon for the
presser foot that should be used appears on
the screen. For details, refer to “Replacing
the presser foot” (page 42). Check that the
correct presser foot is attached before
starting to sew. If the wrong presser foot is
installed, turn off the sewing machine, attach
the correct presser foot, and then select the
desired stitch again.
● Use the presser foot appropriate for the
stitch. If the wrong presser foot is used,
the needle may hit the presser foot and
break or bend.
SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
50
Positioning the fabric
Be sure that the fabric pieces are sewn in the correct
order and that the right and wrong sides of the fabric
are aligned correctly.
a
Turn on the sewing machine.
b
Press (“Needle Position” button) once or
twice to raise the needle.
a “Needle Position” button
c

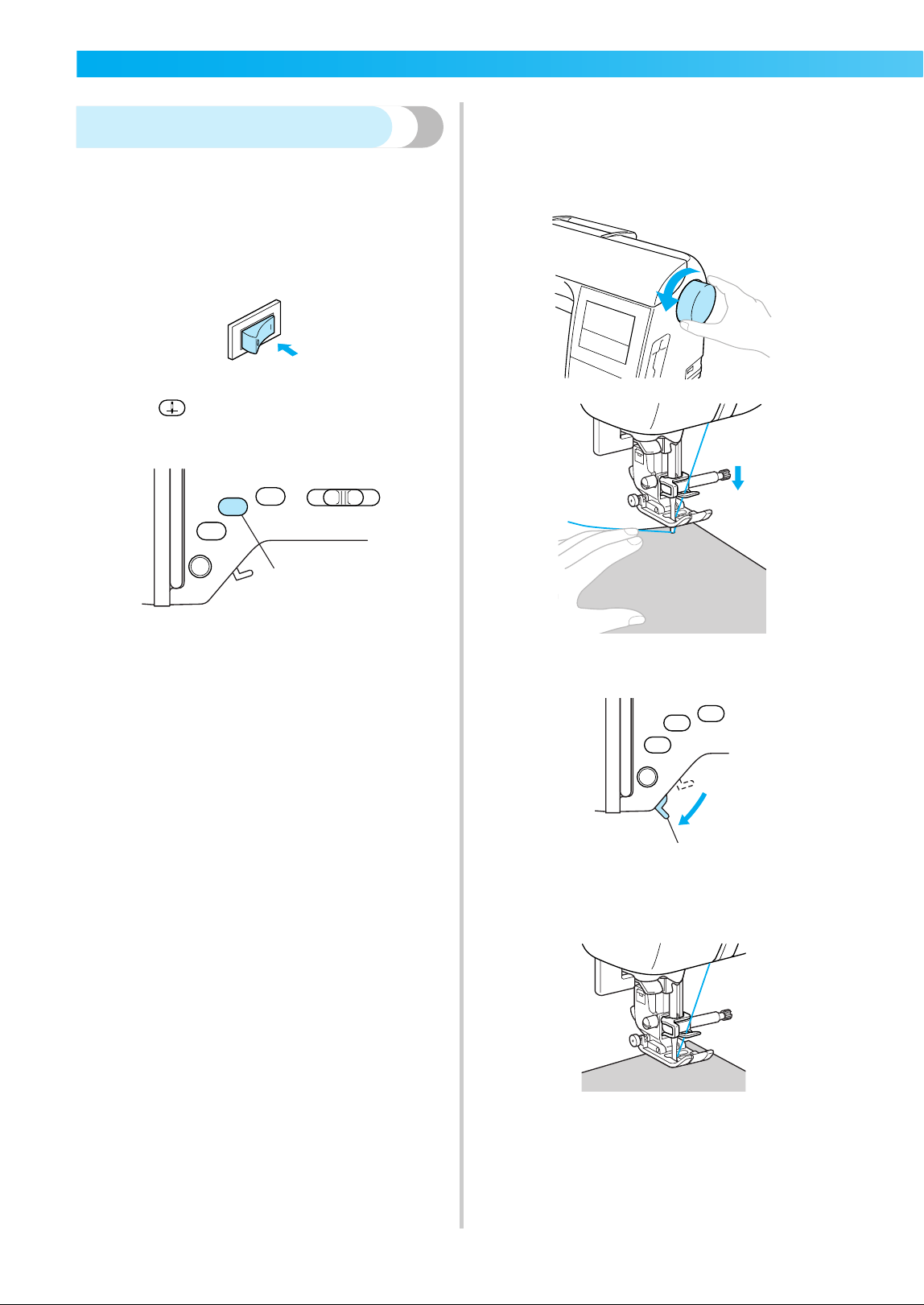

Place the fabric under the presser foot.
• If the seam allowance is positioned on the
right side, sewing in a straight line is easier
and the extra fabric does not get in the way.
d
While holding the end of the thread and the
fabric with your left hand, turn the handwheel
toward you (counterclockwise) with your right
hand to lower the needle to the starting point
of the stitching.
e
Lower the presser foot lever.
a Presser foot lever
X The fabric is now positioned to be sewn.
1
1
2
Sewing 51
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

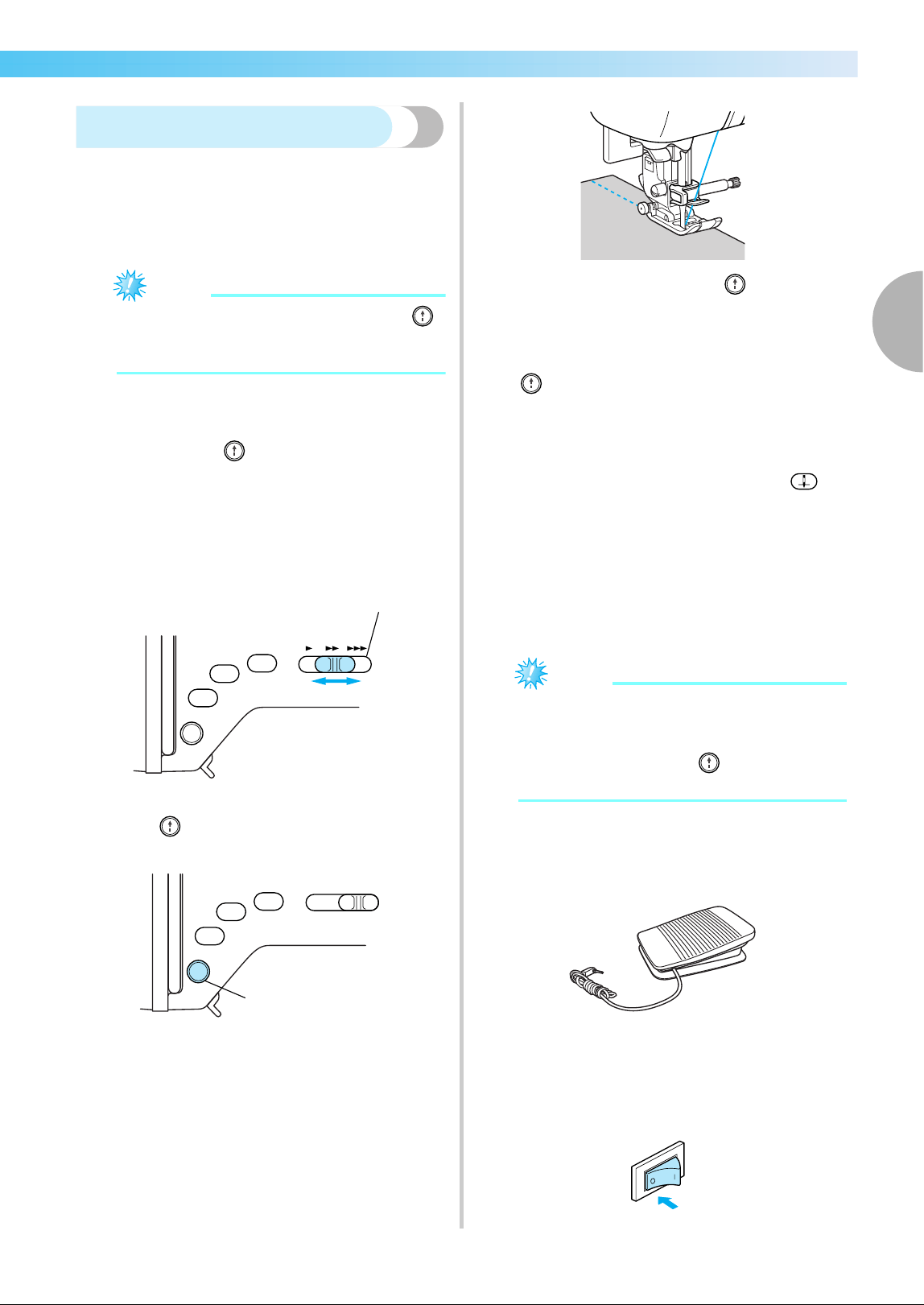

Starting to sew
Once you are ready to start sewing, you can start the
sewing machine. The sewing speed can be adjusted
using either the sewing speed controller or the foot
controller.
Note
z When the foot controller is plugged in,
(“Start/Stop” button) cannot be used to start
or stop sewing.
■ Using the operation button
Sewing can be started and stopped using the
operation button (“Start/Stop” button).
a
Slide the sewing speed controller to the left or
right to select the desired sewing speed.
Slide the sewing speed controller to the left to
sew at a slower speed, or slide the speed
controller to the right to sew at a faster speed.
a Sewing speed controller
b
Press (“Start/Stop” button) once.
a “Start/Stop” button
X The machine starts sewing.
• If you continue to hold the (“Start/Stop”
button) pressed immediately after the sewing
starts, the machine will sew at a slow speed.
c
When the end of the stitching is reached, press
(“Start/Stop” button) once.
X The machine stops sewing with the needle
down (in the fabric).
d
When you have finished sewing, press
(“Needle Position” button).
X The needle is raised.
e
Cut the threads.
• For details, refer to “Cutting the thread” (page
54).
Note
z This machine will automatically stop when
the bobbin becomes almost empty. When
the machine stops, replace the bobbin
thread, and then press (“Start/Stop”
button) to begin sewing again.
■ Using the foot controller
Sewing can be started and stopped using the foot
controller.
a
Turn off the sewing machine.
When connecting the foot controller, be sure to
turn off the sewing machine in order to prevent
the machine from accidentally being started.
1
1
SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
52

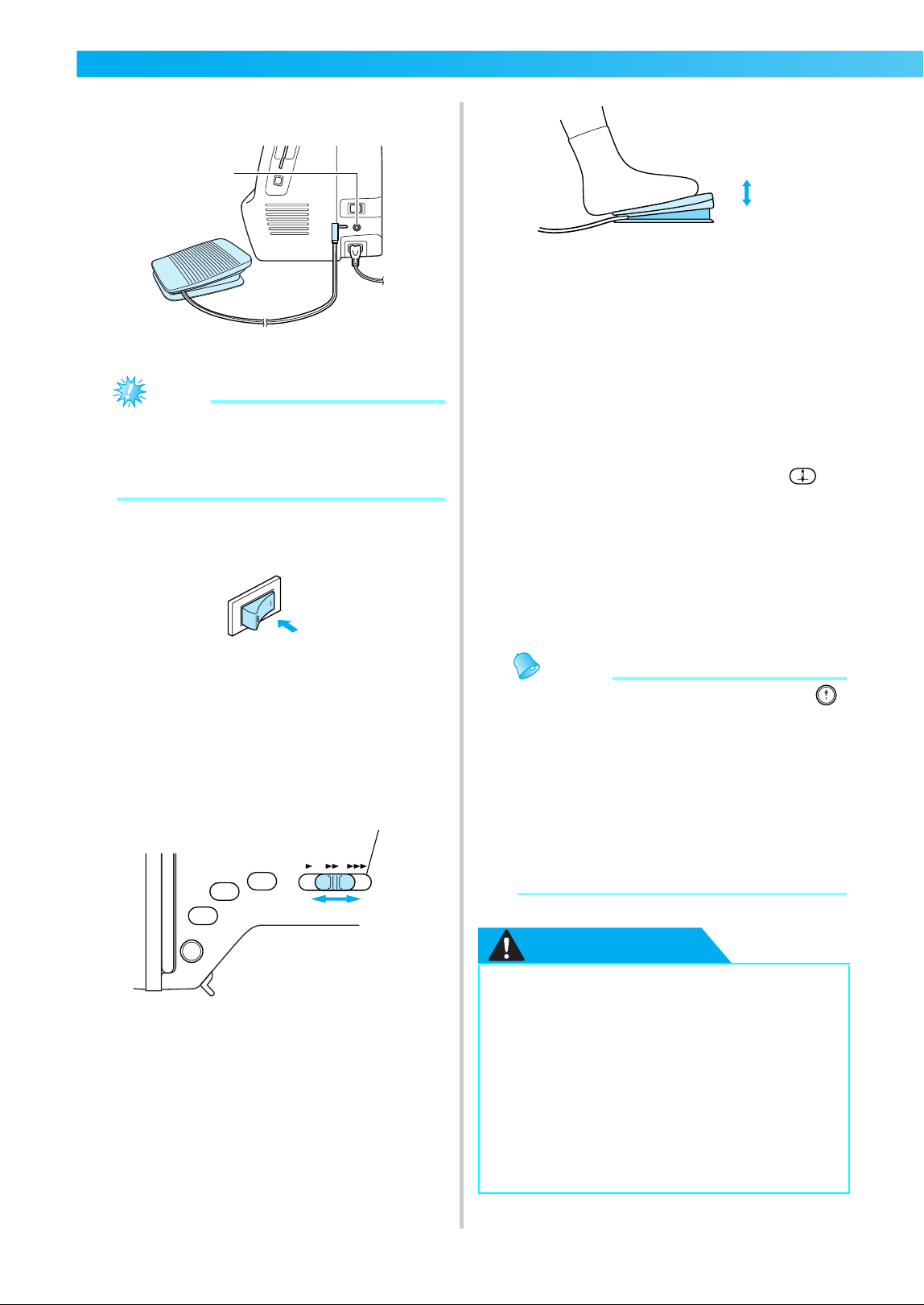

b
Insert the foot controller plug into its jack on
the right side of the sewing machine.
a Foot controller jack
Note
(For U.S.A. only)
z Foot controller: Model T
This foot controller can be used on this
machine model NV1200.
c
Turn on the sewing machine.
d
Slide the sewing speed controller to the left or
right to select the foot controller's maximum
sewing speed.
Slide the sewing speed controller to the left to
select a lower maximum sewing speed, or slide
the speed controller to the right to select a
higher maximum sewing speed.
a Sewing speed controller
• The speed set using the sewing speed
controller will be the foot controller’s
maximum sewing speed.
e
Once you are ready to start sewing, slowly
press down on the foot controller.
Pressing down on the foot controller increases
the sewing speed; releasing the pressure on the
foot controller decreases the sewing speed.
• Slowly press down on the foot controller.
Pressing it down hard starts sewing too
quickly.
X The machine starts sewing.
f
When the end of the stitching is reached,
completely release the foot controller.
X The machine stops sewing with the needle
lowered (in the fabric).
g
When you have finished sewing, press
(“Needle Position” button).
X The needle is raised.
h
Cut the threads.
•
For details, refer to
“Cutting the thread” (page
54)
.
Memo
z When the foot controller is plugged in,
(“Start/Stop” button) cannot be used to start
or stop sewing.
z When sewing is stopped, the needle remains
lowered (in the fabric). The machine can be
set so that the needle will stay up when
sewing is stopped. For details on setting the
machine so that the needle stays up when
sewing is stopped, refer to “Changing the
machine settings” (page 19).
CAUTION
1
1
●
Do not allow thread or dust to accumulate
in the foot controller, otherwise a fire or
an electric shock may occur.
● Do not place objects on the foot
controller, otherwise damage to the
machine or injuries may occur.
● If the machine is not to be used for a long
period of time, unplug the foot controller,
otherwise a fire or an electric shock may
occur.
Slower
Faster
2

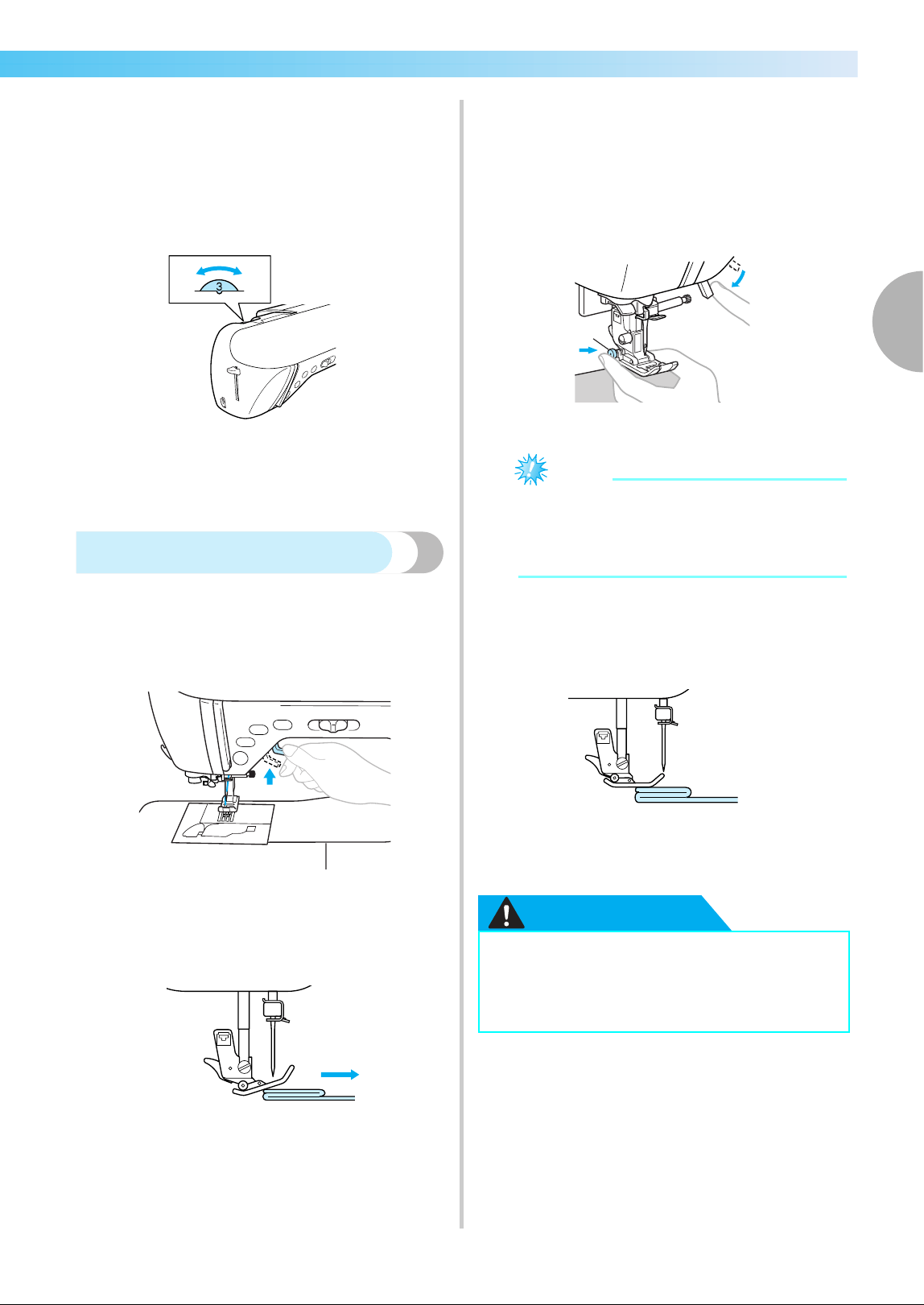

Sewing 53
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

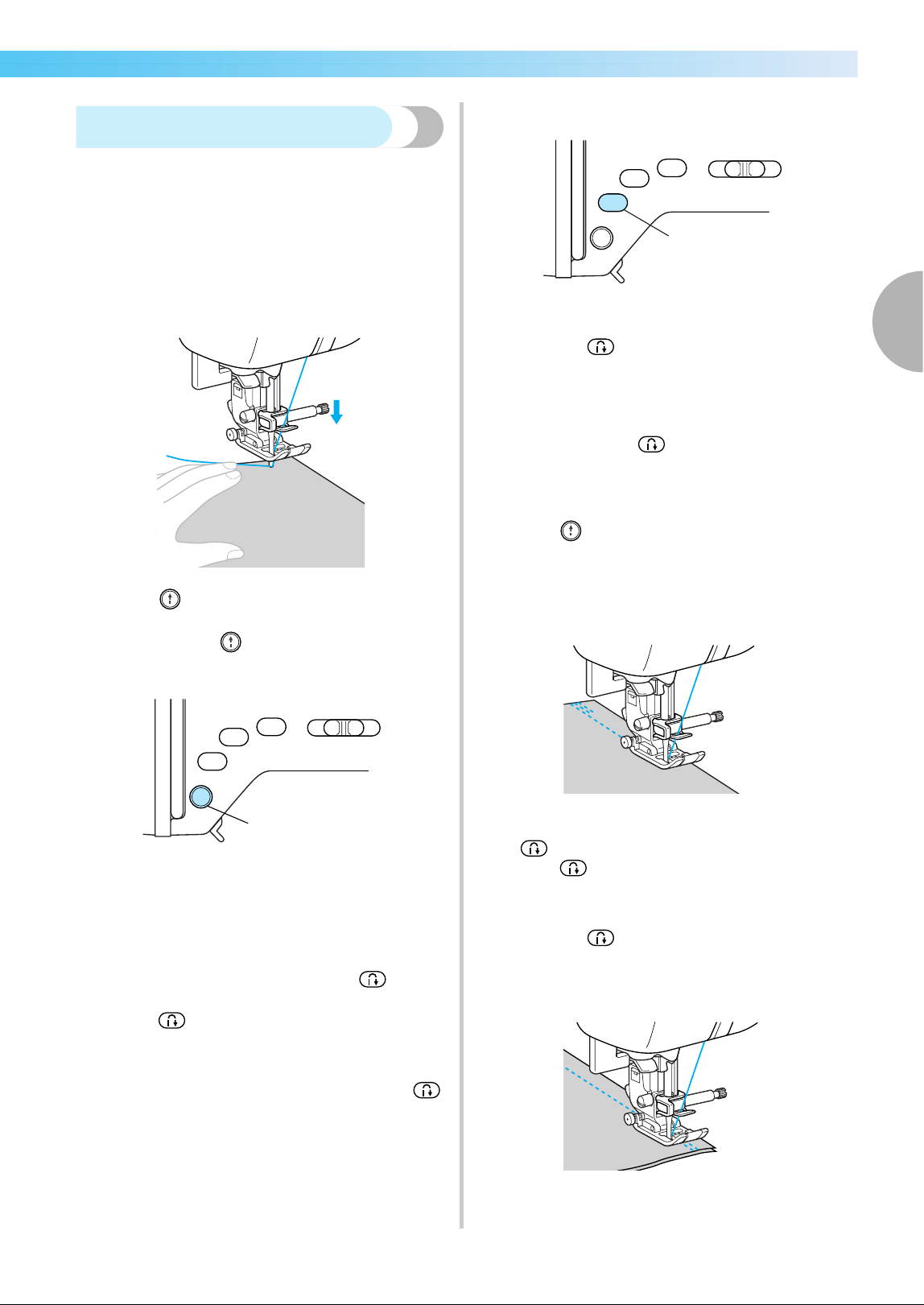

Securing the stitching
When sewing with the straight stitch, for example, at
the end of an opening or where seams do not
overlap, use reverse stitching or reinforcement
stitching to secure the end of the thread.
a
Lower the needle into the fabric at the
beginning of the stitching, and then lower the
presser foot lever.
b
Press (“Start/Stop” button) or press down
on the foot controller.
At this time, if (“Start/Stop” button) is held
down, the machine sews at a slow speed.
a “Start/Stop” button
• For details, refer to “Starting to sew” (page
51).
X The machine starts sewing.
c
After sewing 3 to 5 stitches, press
(“Reverse/Reinforcement Stitch” button).
Keep (“Reverse/Reinforcement Stitch”
button) held down until you reach the
beginning of the stitching.
• The machine sews at a slow speed when
(“Reverse/Reinforcement Stitch” button) is
held down.
a “Reverse/Reinforcement Stitch” button
X While (“Reverse/Reinforcement Stitch”
button) is held down, reverse stitches are
sewn.
d
After sewing back to the beginning of the
stitching, release (“Reverse/Reinforcement
Stitch” button).
X The machine stops sewing.
e
Press (“Start/Stop” button), or press down
on the foot controller.
X The machine starts sewing in the normal
sewing direction.
f
When the end of the stitching is reached, press
(“Reverse/Reinforcement Stitch” button).
Keep (“Reverse/Reinforcement Stitch”
button) held down until 3 to 5 reverse stitches
are sewn.
X While (“Reverse/Reinforcement Stitch”
button) is held down, reverse stitches are
sewn.
1
1
SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
54

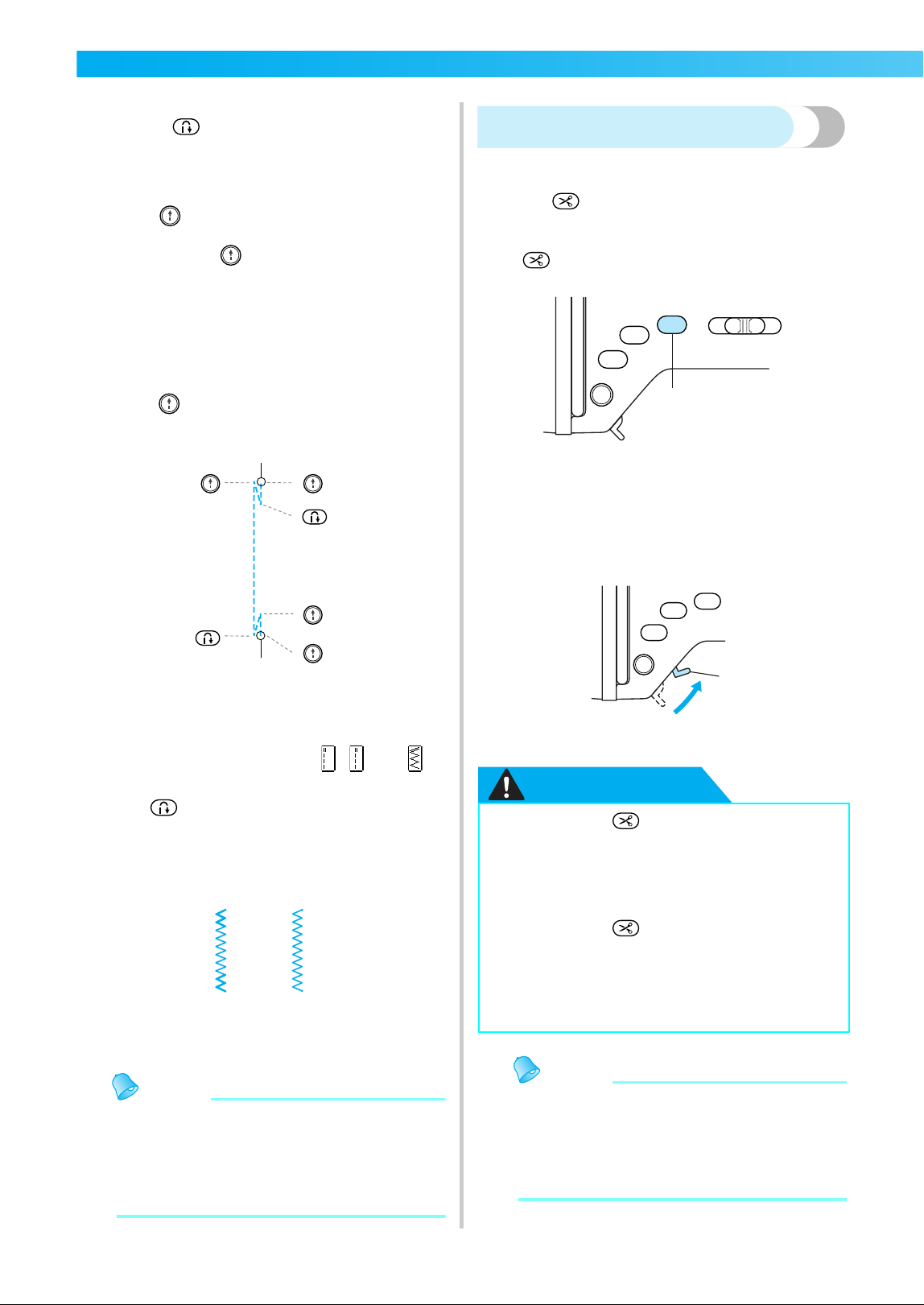

g
After 3 to 5 reverse stitches have been sewn,
release (“Reverse/Reinforcement Stitch”
button).
X The machine stops sewing.
h
Press (“Start/Stop” button), or press down
on the foot controller.
At this time, if (“Start/Stop” button) is held
down, the machine sews at a slow speed.
X The machine starts sewing in the normal
sewing direction.
i
After sewing to the end of the stitching, the
sewing machine stops.
Press (“Start/Stop” button) or release foot
controller.
a Beginning of stitching
b End of stitching
■ Sewing stitches
Reverse stitches are set for the
1
3
and
7
stitches.
When (“Reverse/Reinforcement Stitch”
button) is pressed with stitches other than these,
reinforcement stitches are used. Reinforcement
stitches are 3 to 5 stitches sewn on top of each
other in one place.
a Reverse stitching
b Reinforcement stitching
Memo
z
The sewing machine can be set to automatically
sew reverse or reinforcement stitches at the
beginning and end of the stitching. For details,
refer to
“Automatically sewing reverse/
reinforcement stitches” (page 59)
.

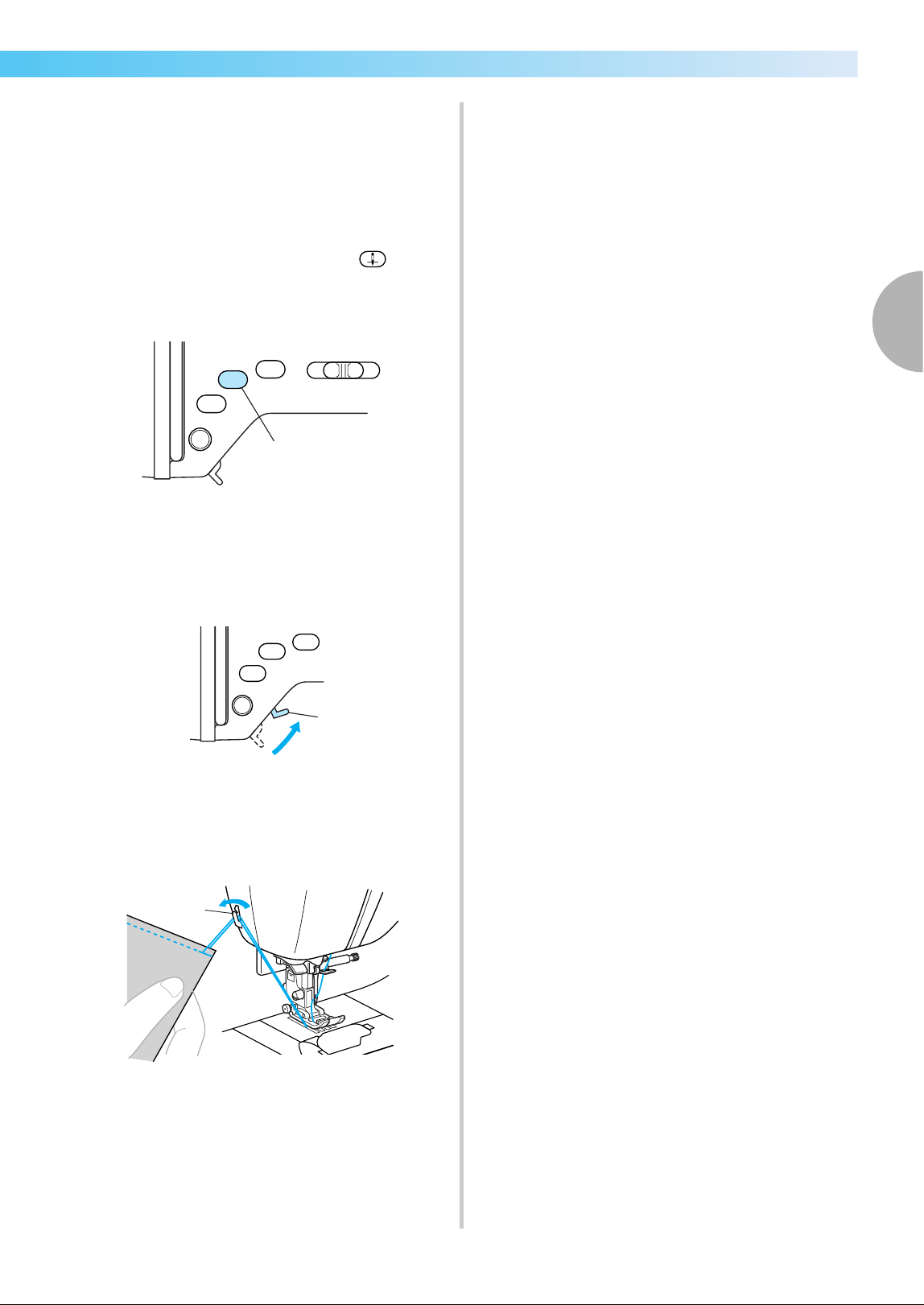

Cutting the thread
When you have finished sewing, cut the threads.
■ Using (“Thread Cutter” button)
a
When you wish to finish the stitching, press
(“Thread Cutter” button) once.
a “Thread Cutter” button
X The threads are cut and the needle is raised.
b
Raise the presser foot lever, then remove the
fabric.
a Presser foot lever
CAUTION
Memo
z
The machine can be set so that the threads will
be cut when sewing is finished. For details on
setting the machine so that the threads are cut
automatically, refer to
“Automatically cutting
the thread” (page 60)
.
1
1
2
5
6
4
3
2
1
2
●
Do not press (
“Thread Cutter”
button
) after threads have already been
cut, otherwise the needle may break, the
threads may become tangled or damage to
the machine may occur.
●
Do not press (
“Thread Cutter”
button
) if there is no fabric under the
presser foot or while the machine is sewing,
otherwise damage to the machine may
occur.
1
a
2
Sewing 55
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

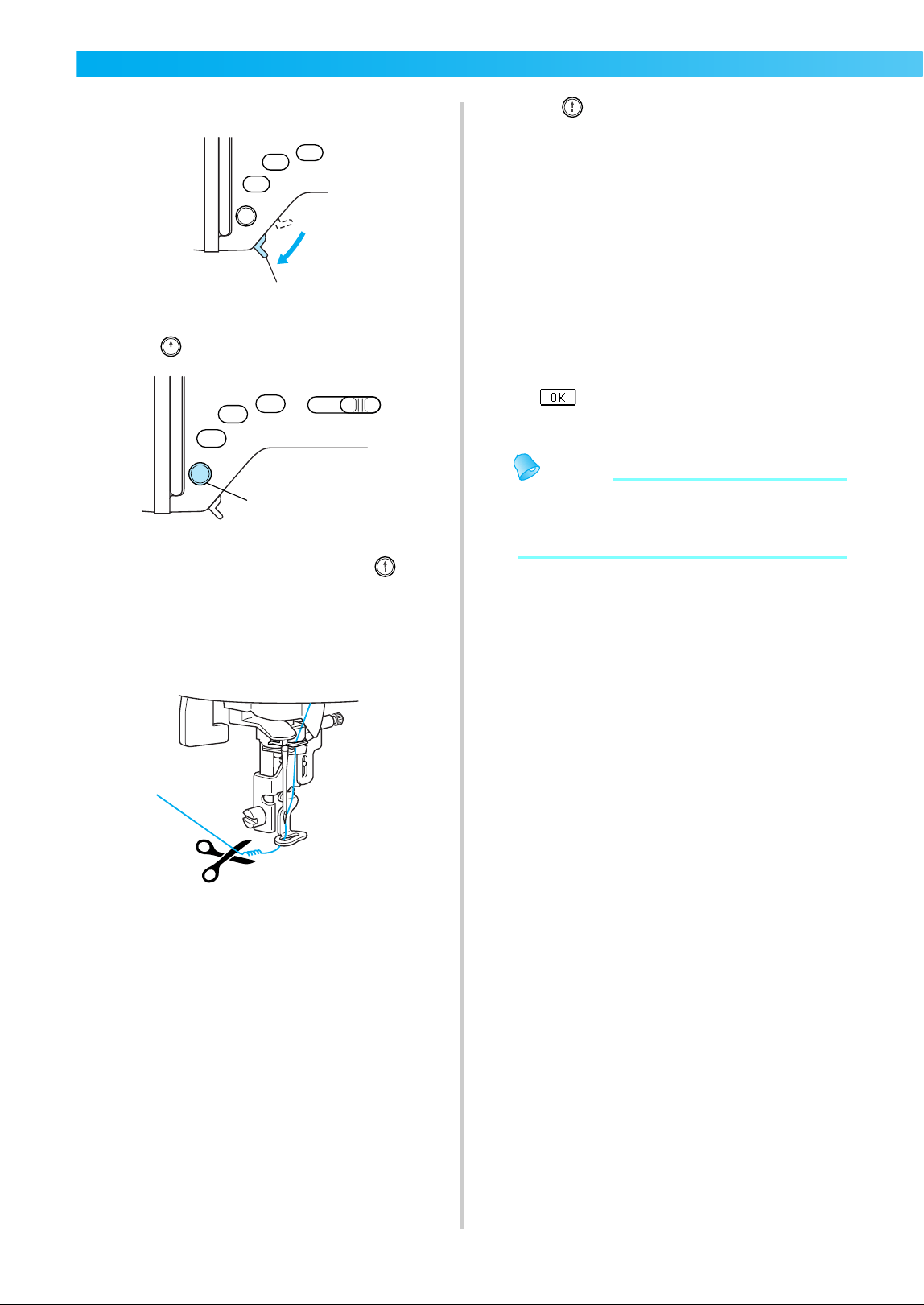

■ Using the thread cutter
When sewing with thread thicker than #30, nylon
or metallic threads, or other special threads, use
the thread cutter on the side of the machine to cut
the threads.
a
When you wish to finish the stitching and the
sewing machine is stopped, press
(“Needle Position” button) once to raise the
needle.
a “Needle Position” button
X The needle is raised.
b
Raise the presser foot lever.
a Presser foot lever
c
Pull the fabric to the left side of the machine,
and then pass the threads through the thread
cutter to cut them.
a Thread cutter
1
a
1
SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
56

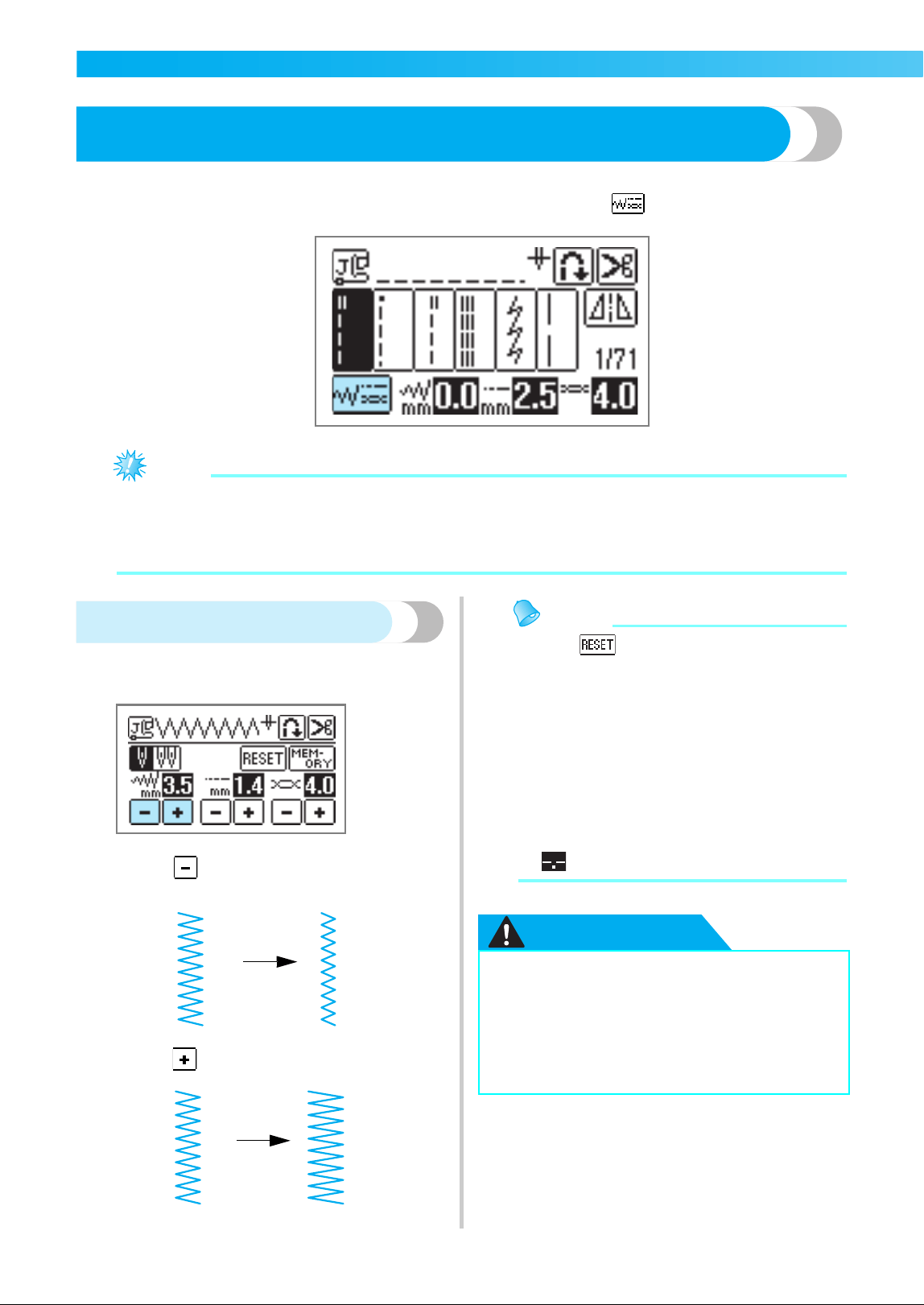

Setting the Stitch
This machine is preset with the default settings for the stitch width, stitch length, and upper thread tension
for each stitch.However, you can change any of the settings by pressing in the screen, then
following the procedure described in this section.
Note
z If the thread tension cannot be adjusted as desired, refer to “Troubleshooting” (page 184).
z Settings for some stitches cannot be changed. For details, refer to “Stitch Setting Chart” (page 68).
z Stitch settings return to their defaults if they are changed, when the machine is turned off or a different
stitch is selected before the stitch setting is saved.
Adjusting the stitch width
The stitch width (zigzag width) can be adjusted to
make the stitch wider or narrower.
Each press of makes the zigzag stitch narrower.
Each press of
makes the zigzag stitch wider.
Memo
z
Press to return the setting to its default.
z
If the straight stitch (left needle position or triple
stretch stitch) was selected, changing the stitch
width changes the needle position. Increasing
the width moves the needle to the right;
reducing the width moves the needle to the left.
z The sewing machine can be set so that the
stitch width can easily be changed with the
sewing speed controller. For details, refer to
“Satin stitching using the sewing speed
controller” (page 109).
z means the setting cannot be adjusted.
CAUTION
● After adjusting the stitch width, slowly
turn the handwheel toward you
(counterclockwise) and check that the
needle does not touch the presser foot. If
the needle hits the presser foot, the
needle may bend or break.
2
Setting the Stitch 57
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Adjusting the stitch length
The stitch length can be adjusted to make the stitch
longer or shorter.
Each press of
makes the stitch shorter.
Each press of makes the stitch longer.
Memo
z Press to return the setting to its
default.
z means the setting cannot be adjusted.
CAUTION
Adjusting the thread tension
You may need to change the thread tension,
depending on the fabric and thread being used.
■ Correct thread tension
The upper thread and the bobbin thread should
cross near the center of the fabric. Only the upper
thread should be visible from the right side of the
fabric, and only the bobbin thread should be
visible from the wrong side of the fabric.
a Wrong side of fabric
b Right side of fabric
c Upper thread
d Bobbin thread
■ Upper thread is too tight
If the bobbin thread is visible from the right side
of the fabric, the upper thread is too tight.
a Wrong side of fabric
b Right side of fabric
c Upper thread
d Bobbin thread
e The bobbin thread is visible from the right side of
the fabric.
Each press of makes the thread tension looser.
● If the stitches are bunched together,
increase the stitch length. Continuing to
sew with the stitches bunched together
may result in the needle bending or
breaking.
1
2
3
4
1
2
3
4
5
SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
58

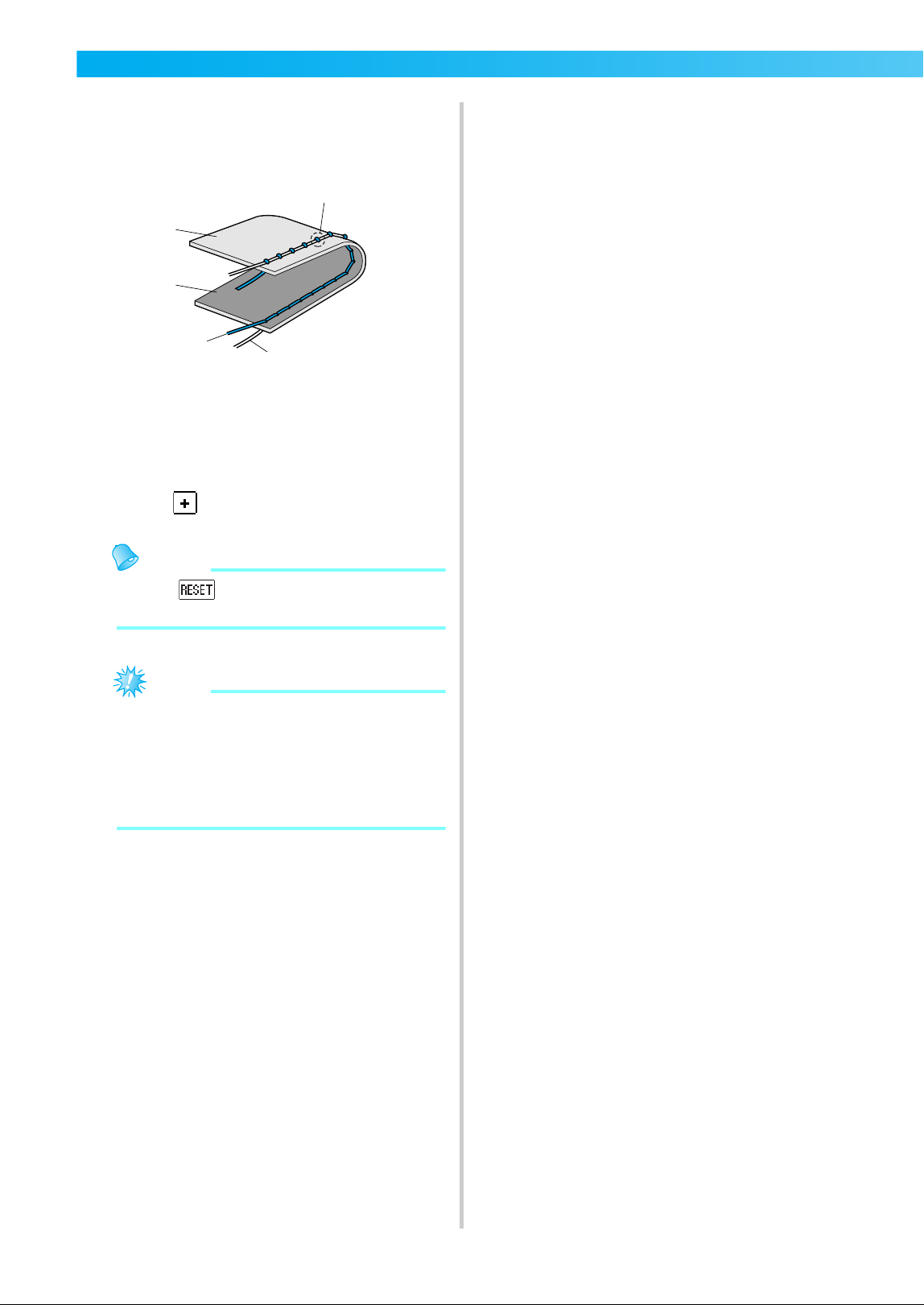

■ Upper thread is too loose
If the upper thread is visible from the wrong side
of the fabric, the upper thread is too loose.
a Wrong side of fabric
b Right side of fabric
c Upper thread
d Bobbin thread
e The upper thread is visible from the wrong side of
the fabric.
Each press of makes the thread tension tighter.
Memo
z Press to return the setting to its
default.
Note
z If the upper thread is not threaded correctly
or the bobbin is not installed correctly, it
may not be possible to set the correct thread
tension. If the correct thread tension cannot
be achieved, rethread the upper thread and
insert the bobbin correctly.
5
1
2
3
4
2
Useful Functions 59
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

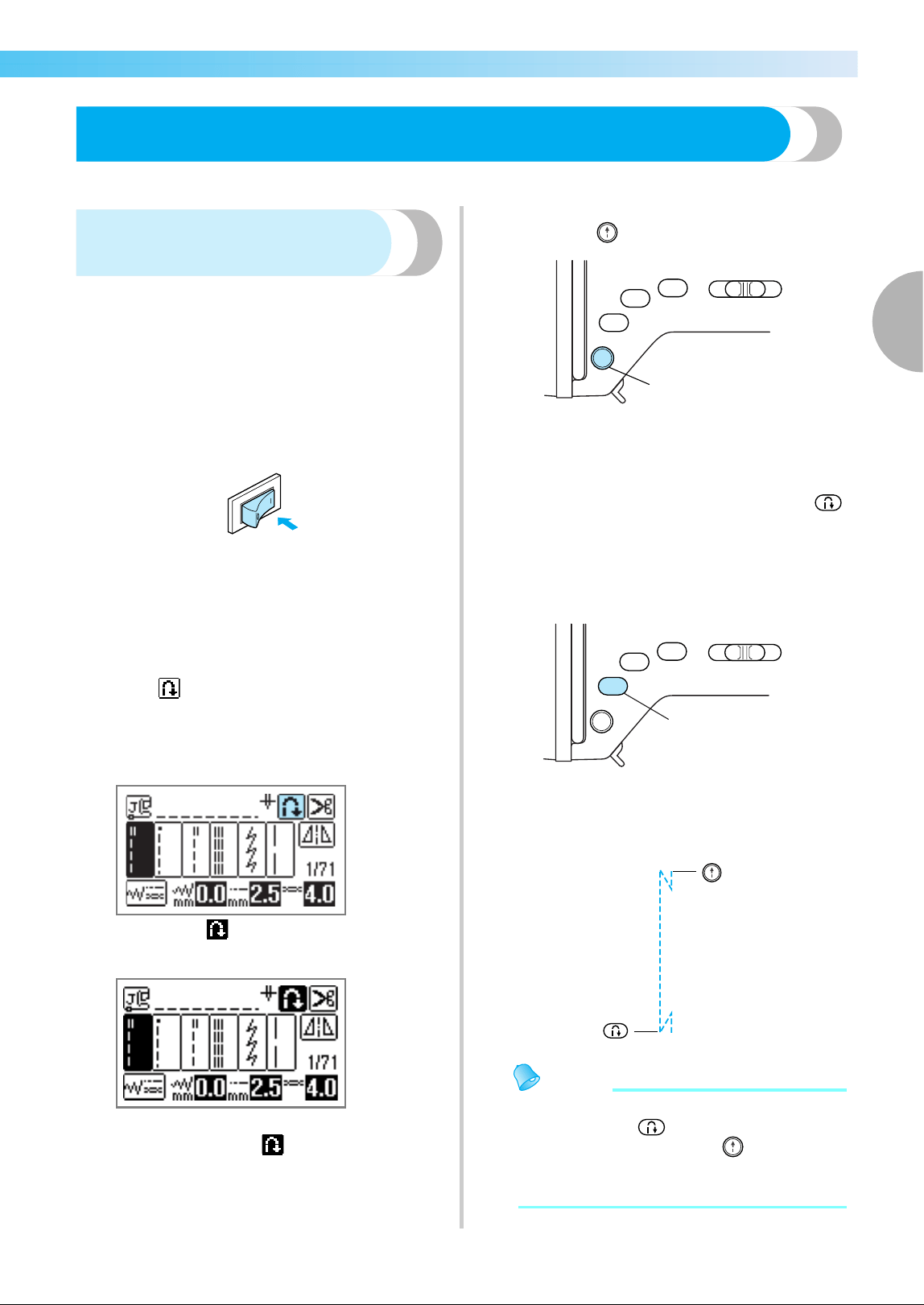

Useful Functions
Functions useful in improving sewing efficiency are described below.
Automatically sewing reverse/
reinforcement stitches
The sewing machine can be set to automatically sew
reverse or reinforcement stitches at the beginning and
end of the stitching. Whether reverse stitches or
reinforcement stitches are sewn depends on the stitch

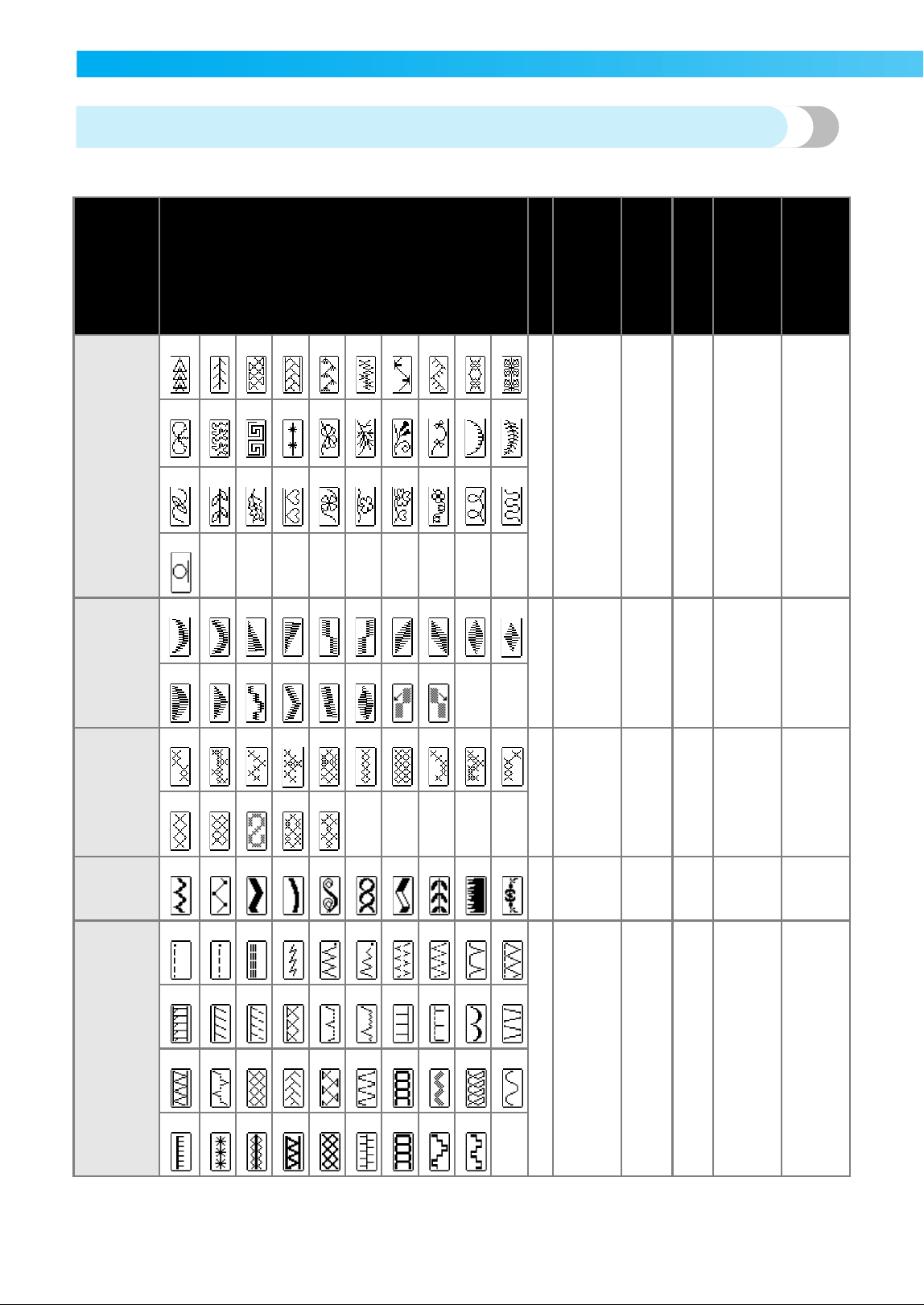

that is selected. For details, refer to “Stitch Setting
Chart” (page 68).
a
Turn on the sewing machine.
X The LCD comes on.
b
Select a stitch.
• For details on selecting a stitch, refer to
“Selecting stitching” (page 49).
c
Press on the LCD.
This step is not necessary if a stitch such as
those for sewing buttonholes and bar tacks is
selected where reinforcement stitches are
automatically sewn.
X
It turns to , and the sewing machine is set
for automatic reverse/reinforcement stitching.
• To turn automatic reverse/reinforcement
stitching off, press .
• When the sewing machine is turned off, the
automatic reverse/reinforcement stitching
setting is cancelled.
d
Position the fabric under the presser foot, and
then press (“Start/Stop” button) once.
a “Start/Stop” button
X After reverse/reinforcement stitches are
sewn, the machine starts sewing.
e
After reaching the end of the stitching, press
(
“Reverse/Reinforcement Stitch” button
) once.
This step is not necessary if a stitch such as
those for sewing buttonholes and bar tacks is
selected where reinforcement stitches are
automatically sewn.
a “Reverse/Reinforcement Stitch” button
X After reverse/reinforcement stitches are
sewn, the sewing machine stops.
Memo
z Reverse/reinforcement stitches WILL NOT
be sewn until (“Reverse/Reinforcement
Stitch” button) is pressed. (“Start/Stop”
button) may be pressed to stop stitching
when needed such as for pivoting corners.
1
1
SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
60

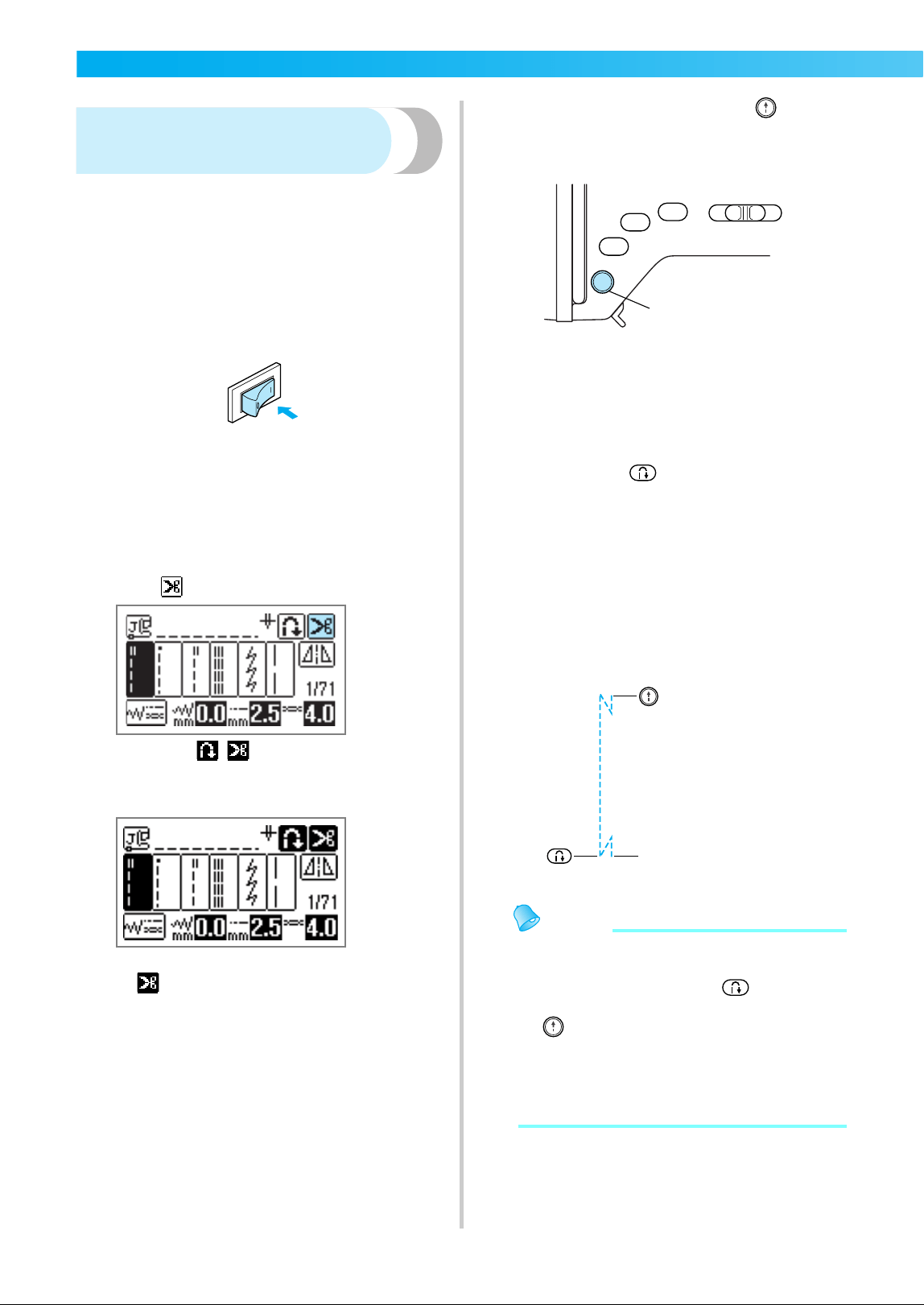

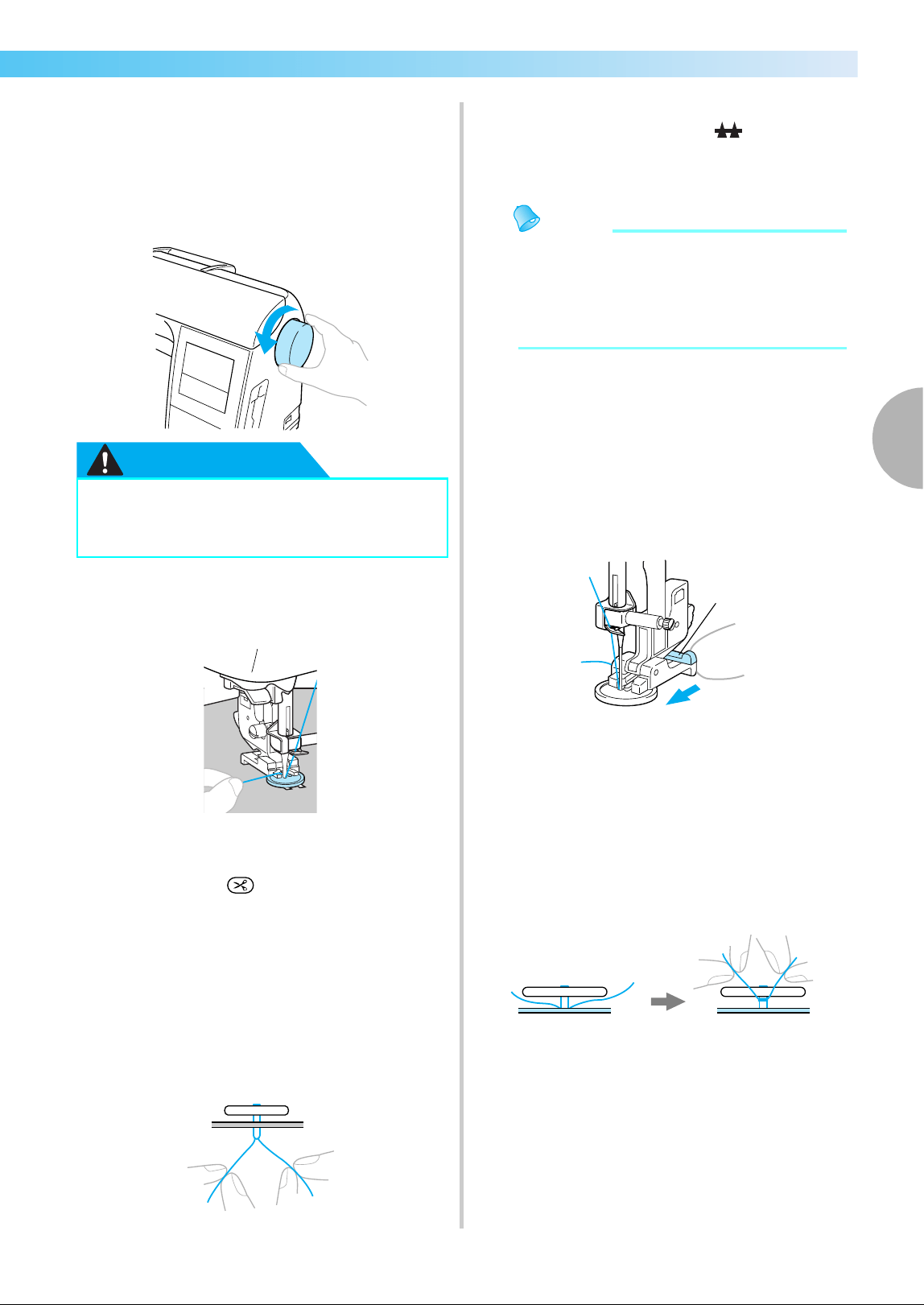

Automatically cutting the
thread
The sewing machine can be set to automatically cut
the threads at the end of the stitching. This is called
“programmed thread-cutting”. If programmed thread-
cutting is set, automatic reverse/reinforcement
stitching is also set.
a
Turn on the sewing machine.
X The LCD comes on.
b
Select a stitch.
• For details on selecting a stitch, refer to
“Selecting stitching” (page 49).
c
Press on the screen.
X You get , and the sewing machine is
set for programmed thread-cutting and
automatic reverse/reinforcement stitching.
• To turn programmed thread cutting off, press
.
d
Set the fabric in place, and press (“Start/
Stop” button) once.
a “Start/Stop” button
X Stitching starts after reverse stitching or
reinforcement stitching.
e
Once you have reached the end of the
stitching, press (“Reverse/Reinforcement
Stitch” button) once.
If stitching, such as buttonholes and bar
tacking, that includes reinforcement stitching
has been selected, this operation is
unnecessary.
X After the reverse stitching or reinforcement
stitching has been done, the sewing machine
stops, and the thread is cut.
Memo
z Reverse/reinforcement stitches WILL NOT
be sewing and the thread will not
automatically be cut until (“Reverse/
Reinforcement Stitch” button) is pressed.
(“Start/Stop” button) may be pressed to
stop stitching when needed such as for
pivoting corners.
z If the power is turned off, programmed
thread-cutting will be turned off.
1
The thread is cut here.
2
Useful Functions 61
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

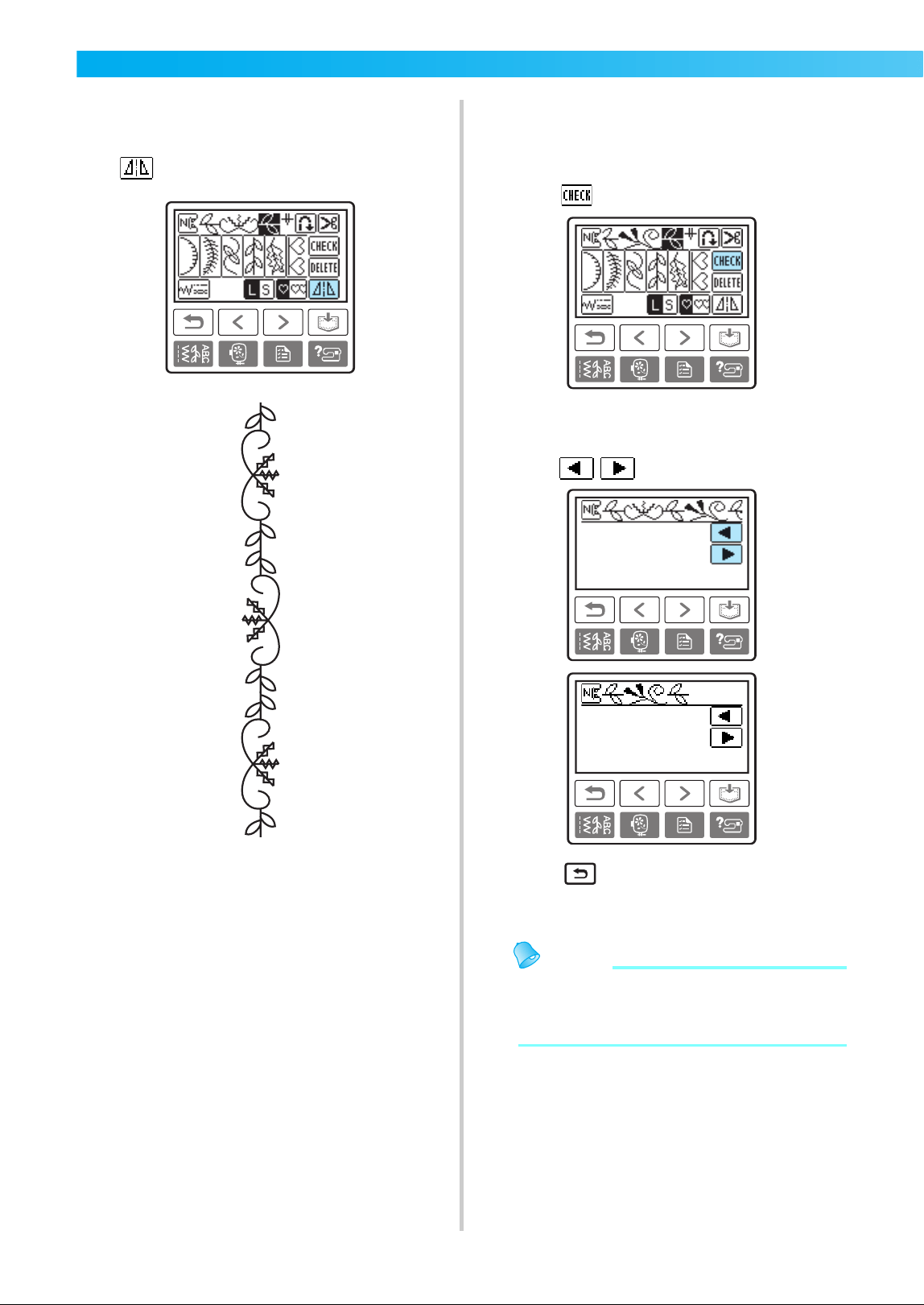

Mirroring stitches
You can sew the mirror image of a stitch horizontally
(left and right).
a
Turn on the sewing machine.
X The LCD comes on.
b
Select a stitch.
• For details on selecting a stitch, refer to
“Selecting stitching” (page 49).
c
Press on the screen.
X It turns to , and the pattern displayed at
the top of the screen is mirrored.
• To turn the mirrored stitching off, press .
Memo
z Mirroring is not possible for buttonholes and
other stitches where shows.
z When the sewing machine is turned off, the
mirroring setting is cancelled.
SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
62

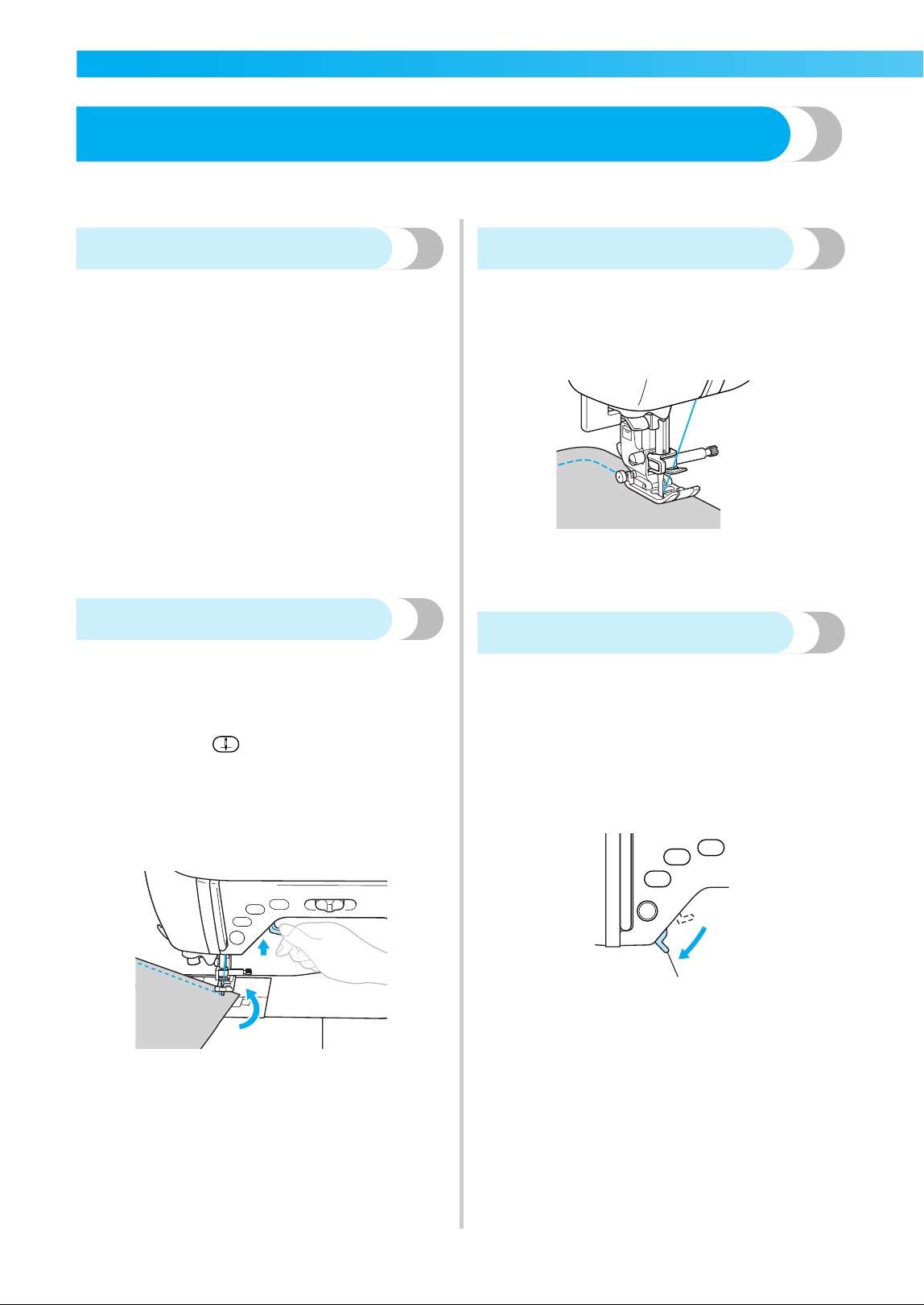

Useful Sewing Tips
Various ways to achieve better results for your sewing projects are described below. Refer to these tips
when sewing your project.
Trial sewing
After you have set up the machine with the thread
and needle appropriate for the type of fabric being
sewn, the machine automatically sets the thread
tension and stitch length and width for the stitch that
is selected. However, a trial piece of fabric should be
sewn since, depending on the type of fabric and
stitching being sewn, the desired results may not be
achieved.
For the trial sewing, use a piece of fabric and thread
that are the same as those used for your project, and
check the thread tension and stitch length and width.
Since the results differ depending on the type of
stitching and the number of layers of fabric sewn,
perform the trial sewing under the same conditions
that will be used with your project.
Changing the sewing direction
a
When the stitching reaches a corner, stop the
sewing machine.
Leave the needle lowered (in the fabric). If the
needle remained up when the machine stopped
sewing, press (“Needle Position” button) to
lower the needle.
b
Raise the presser foot lever, and then turn the
fabric.
Turn the fabric using the needle as a pivot.
c
Lower the presser foot lever and continue
sewing.
Sewing curves
Stop sewing, and then slightly change the sewing
direction to sew around the curve. For details on
sewing with an even seam allowance, refer to
“Sewing an even seam allowance” (page 64).
When sewing along a curve while using a zigzag
stitch, select a shorter stitch length in order to obtain
a finer stitch.
Adjusting the presser foot pressure
The presser foot pressure (the amount of pressure
applied to the fabric by the presser foot) can be
adjusted. For best results, increase the pressure when
sewing thin fabrics, and decrease the pressure when
sewing thick fabrics.
a
Lower the presser foot lever to lower the
presser foot.
a Presser foot lever
1
2
Useful Sewing Tips 63
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
b
Turn the presser foot pressure dial at the back
of the machine to adjust the pressure of the
presser foot.
The presser foot pressure can be set to one of
four levels (between 1 and 4). The larger the
setting, the stronger the pressure. Use setting 1
or 2 for thick fabrics, use setting 3 or 4 for
thinner fabrics.
a Strong
b Weak
c
When you are finished sewing, reset the dial to
3 (standard).
Sewing thick fabrics
■ If the fabric does not fit under the presser foot
If the fabric does not fit easily under the presser
foot, raise the presser foot lever even higher to
bring the presser foot to its highest position.
■ If thick seams are being sewn and the fabric does
not feed at the beginning of stitching
Zigzag foot “J” is equipped with a feature that
keeps the presser foot level.
a Sewing direction
a
When you encounter a seam that is too thick
to feed under the foot, raise the presser foot
lever.
b
Press the black button (presser foot holding
pin) on the left side of zigzag foot “J”. Keep
the button held in and lower the presser foot.
a Presser foot holding pin
Note
z The presser foot needs to be in a level
position before pressing the black button
(presser foot holding pin) on the left side of
zigzag foot “J”.
c
Release the button. The foot will lock in place
level with the seam, allowing the fabric to
feed.
X Once the trouble spot has been passed, the
foot will return to its normal position.
CAUTION
12
a
● If fabric more than 6 mm (15/64 inch)
thick is sewn or if the fabric is pushed
with too much force, the needle may
bend or break.
1
SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
64

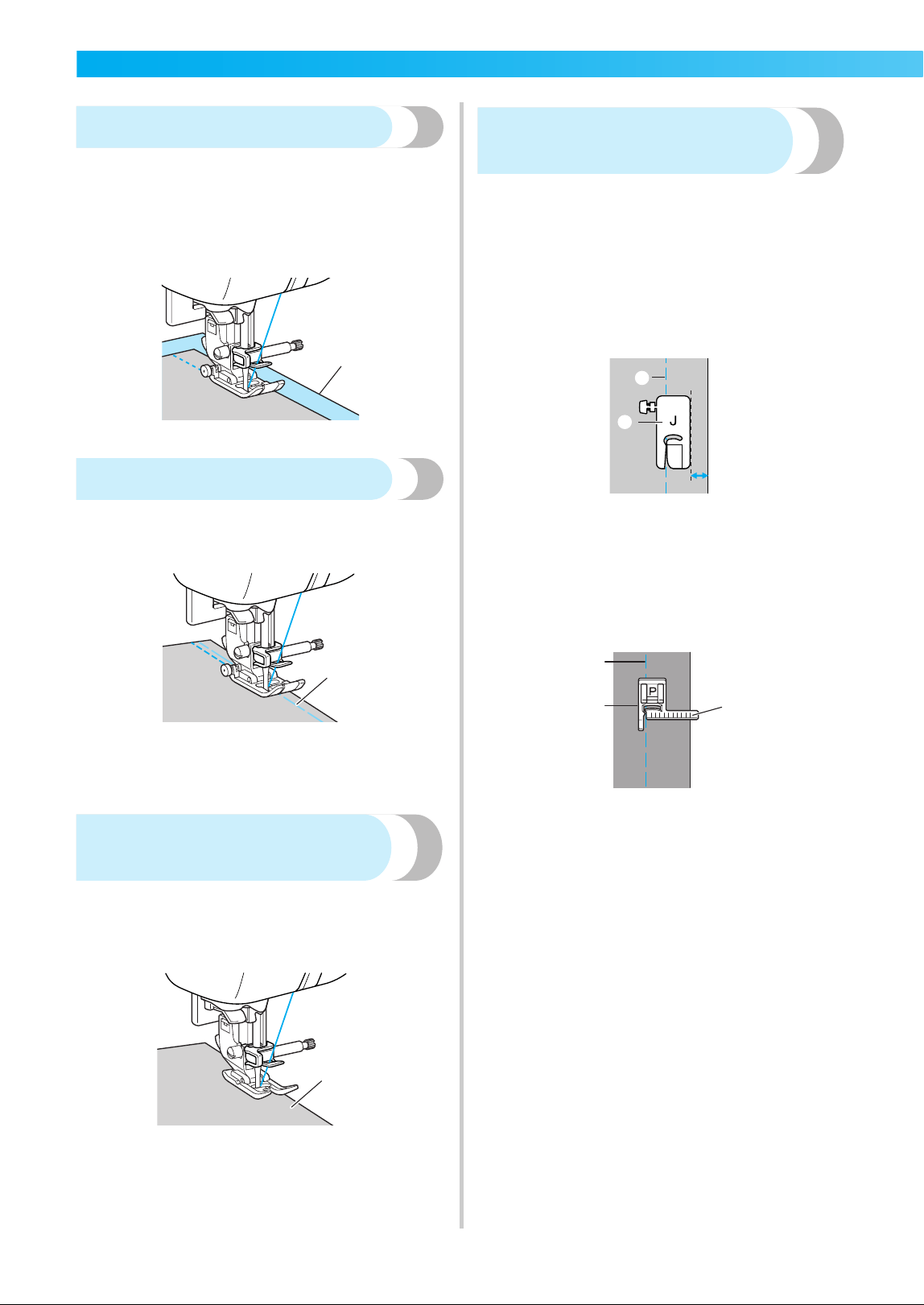

Sewing thin fabrics
When sewing thin fabrics, the stitching may become
misaligned or the fabric may not feed correctly. If this
occurs, place thin paper or stabilizer material under
the fabric and sew it together with the fabric. When
you have finished sewing, tear off any excess paper.
a Stabilizer material or paper
Sewing stretch fabrics
First, baste the pieces of fabric together, and then sew
without stretching the fabric.
a Basting
Besides, using the stretch stitching or the thread for
knits gives an attractive finishes.
Sewing leathers or vinyl
fabrics
When sewing the fabrics that may stick to the presser
foot such as leathers or coated fabrics, change the
presser foot to the non stick foot.
a Leather

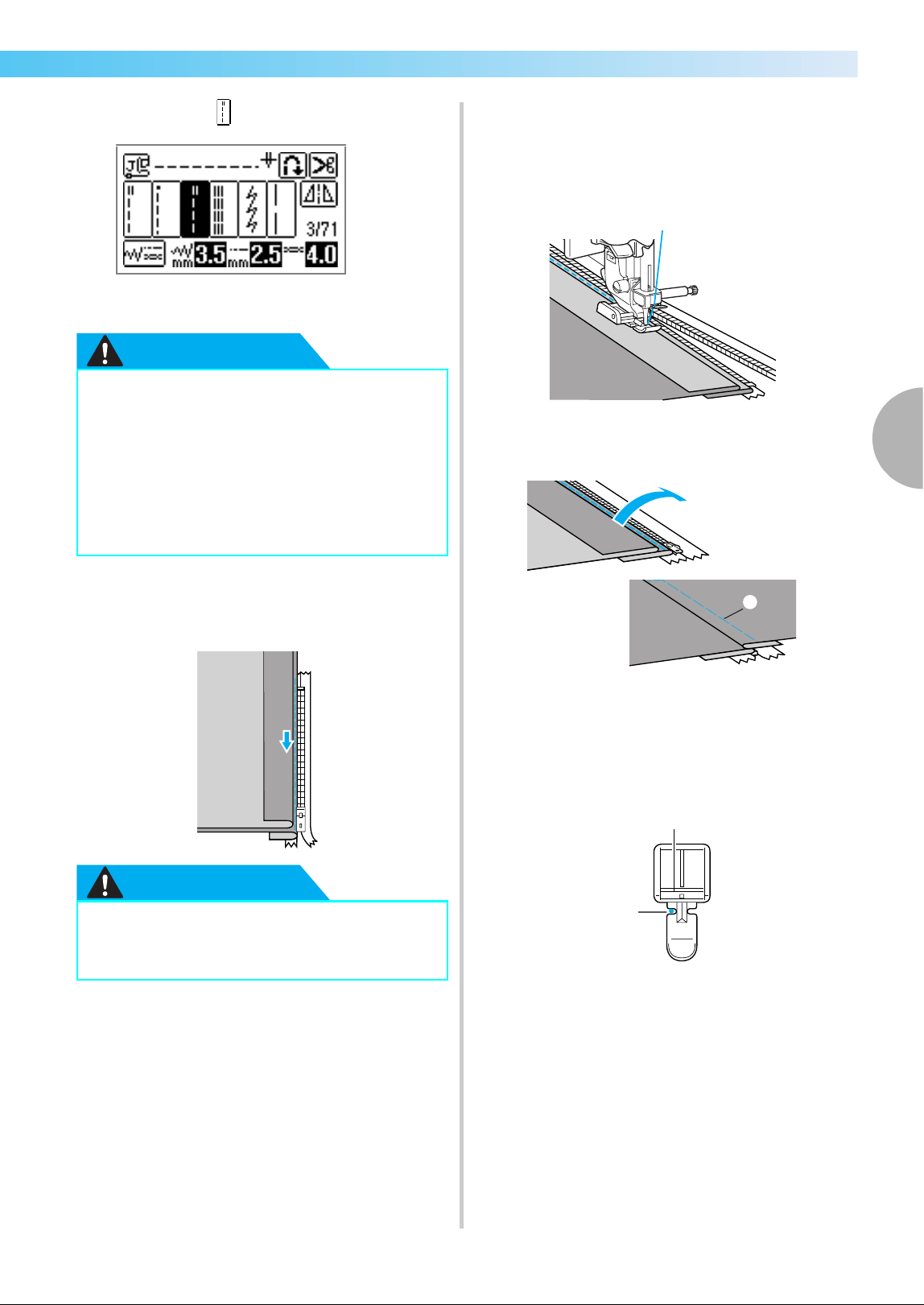

Sewing an even seam
allowance
To sew an even seam, start sewing so that the seam
allowance is to the right of the presser foot, and the
edge of the fabric is aligned with either the right edge
of the presser foot or a marking on the needle plate.
■ Aligning the fabric with the presser foot
Sew while keeping the right edge of the presser
foot a fixed distance from the edge of the fabric.
a Seam
b Presser foot
■ Aligning the fabric with the stitch guide foot
Sew while keeping the right edge of the fabric
aligned with a desired position of markings on the
stitch guide foot.
a Seam
b Stitch guide foot
c Markings
1
1
1
1
2
1
2
3
2
Useful Sewing Tips 65
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

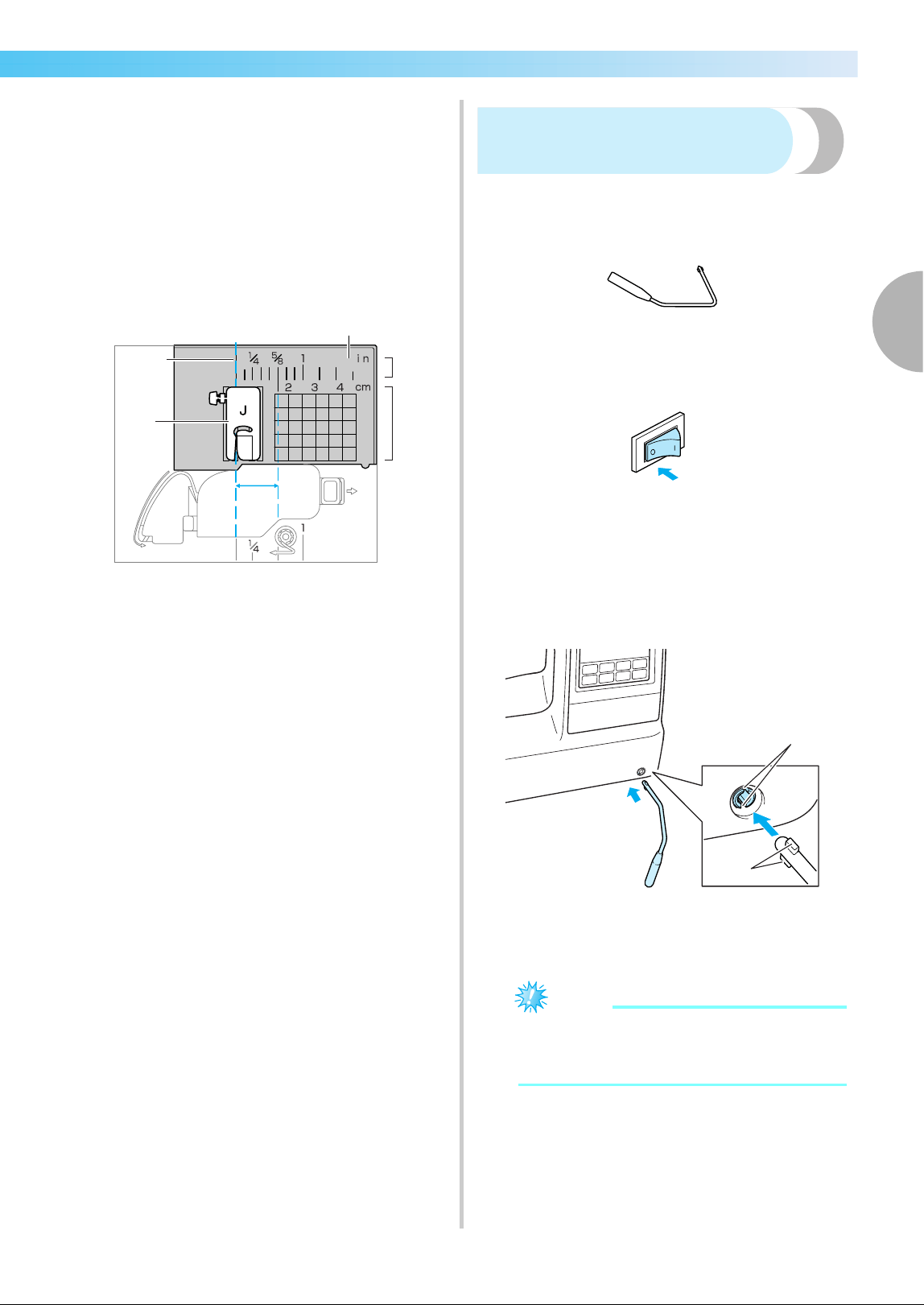

■ Aligning the fabric with a needle plate marking
The markings on the needle plate show the
distance from the needle position of a seam sewn
with the straight stitch (left needle position). Sew
while keeping the edge of the fabric aligned with
a marking in the needle plate. The distance
between the markings in the upper scale is
1/8 inch (3 mm) and the distance between the
markings in the grid is 5 mm (3/16 inch).
a Seam
b Presser foot
c Centimeters
d Inches
e Needle plate
f 1.6 cm (5/8 inch)
Hands-free raising and
lowering of the presser foot
Using the knee lifter, you can raise and lower the
presser foot with your knee, leaving both hands free
to handle the fabric.
■ Installing the knee lifter
a
Turn off the sewing machine.
b
Insert the knee lifter into the mounting slot on
the front of the sewing machine in the lower-
right corner.
Align the tabs on the knee lifter with the
notches in the mounting slot, and then insert
the knee lifter as far as possible.
a Tabs
b Notches
Note
z If the knee lifter is not fully inserted into the
mounting slot, it may fall out while the
sewing machine is operating.
6
4
3
5
2
1
1
2
SEWING BASICS — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
66
■ Using the knee lifter
a
Stop the sewing machine.
• Do not use the knee lifter while the sewing
machine is operating.
b
With your knee, press the knee lifter to the
right.
Keep the knee lifter pressed to the right.
X The presser foot is raised.
c
Release the knee lifter.
X The presser foot is lowered.
CAUTION
● While sewing, keep your knee away from
the knee lifter. If the knee lifter is pressed
while the sewing machine is operating,
the needle may break or the machine may
be damaged.
3 UTILITY STITCHES
The various stitches and their applications are described in this chapter.
Stitch Setting Chart .............................68
Utility stitches ................................ 68
Other stitches.................................72
Selecting Stitching...............................75
Stitch types.....................................75
Selecting stitching ..........................75
Saving stitch settings ......................77
Overcasting Stitches............................79
Sewing overcasting stitches
using overcasting foot “G” .............79
Sewing overcasting stitches
using zigzag foot “J” ......................80
Sewing overcasting stitches
using the optional side cutter .........81
Basic Stitching.....................................83
Basting ...........................................83
Basic stitching ................................ 83
Blind Hem Stitching ............................85
Buttonhole Stitching/Button Sewing....87
Buttonhole sewing..........................88
Button sewing ................................ 92
Zipper Insertion...................................94
Inserting a centered zipper ............94
Inserting a side zipper ....................96
Zipper/piping Insertion .......................99
Inserting a centered zipper ............99
Inserting a piping ......................... 100
Sewing Stretch Fabrics and
Elastic Tape
..........................................
101
Stretch stitching ...........................101
Elastic attaching ...........................101
Appliqué, Patchwork and
Quilt Stitching
....................................
103
Appliqué stitching ........................104
Patchwork (crazy quilt) stitching..105
Piecing..........................................105
Quilting ........................................107
Free-motion quilting.....................108
Satin stitching using the sewing
speed controller ...........................109
Reinforcement Stitching ....................111
Triple stretch stitching..................111
Bar tack stitching..........................111
Darning .............................................113
Eyelet Stitching..................................115
Horizontal Stitching ..........................116
Decorative Stitching..........................118
Fagoting........................................119
Scallop stitching ...........................120
Smocking......................................120
Shell tuck stitching .......................121
Joining ..........................................122
Heirloom stitching........................123
Sewing the Various Built-in
Decorative Patterns...........................126
Sewing beautiful patterns .............126
Sewing patterns ............................126
Changing the pattern size.............127
Changing the stitch density ..........127
Changing the length
for satin stitches ...........................128
Shifting patterns ...........................129
Combining patterns ......................130
Saving patterns .............................133
Realigning the pattern ..................134
Designing a Pattern
(My Custom Stitch)............................137
Drawing a sketch of the pattern ...137
Entering the pattern data..............138
Examples of designs......................140
68
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Stitch Setting Chart
Applications, stitch lengths and widths and whether the twin needle can be used are listed for utility
stitches in the following table.
Utility stitches
Stitch Name Pattern
Presser Foot
Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Twin Needle
Reverse/
Reinforcement
Stitching
Walking Foot
Auto Manual Auto Manual
Straight
stitch
Left
1
J
Basic stitching, sewing gathers
or pintucks, etc.
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–5.0
(1/64–3/16)
Yes
(J)
Reverse No
2
J
Basic stitching and sewing
gathers or pintucks
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–5.0
(1/64–3/16)
Yes
(J)
Reinforcement Yes
Center
3
J/I
Attaching zippers, basic
stitching, sewing gathers or
pintucks, etc.
3.5
(1/8)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–5.0
(1/64–3/16)
Yes
(J)
Reverse No
Triple stretch stitch
4
J
Attaching sleeves, sewing
inseams, sewing stretch fabrics
and decorative stitching
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.5–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
Stretch stitch
5
J
Sewing stretch fabrics and
decorative stitching
1.0
(1/16)
1.0–3.0
(1/16–1/8)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
Basting stitch
6
J Temporarily securing
0.0
(0)
0.0–7.0
(0–1/4)
20
(3/4)
5–30
(3/16–1-3/16)
No Reinforcement No
Zigzag
stitch
Center
7
J
Overcasting and attaching
appliqués
3.5
(1/8)
0.0–7.0
(0–1/4)
1.4
(1/16)
0.0–4.0
(0–3/16)
Yes
(J)
Reverse No
Right
8
J
Beginning sewing from the right
needle position
3.5
(1/8)
2.5–5.0
(3/32–3/16)
1.4
(1/16)
0.3–4.0
(1/64–3/16)
Yes
(J)
Reinforcement Yes
2-point
zigzag stitch
9
J
Overcasting on medium weight
or stretch fabrics, attaching
elastic, darning, etc.
5.0
(3/16)
1.5–7.0
(1/16–1/4)
1.0
(1/16)
0.2–4.0
(1/64–3/16)
Yes
(J)
Reinforcement Yes
3-point
zigzag stitch
10
J
Overcasting on medium weight
or stretch fabrics, attaching
elastic, darning, etc.
5.0
(3/16)
1.5–7.0
(1/16–1/4)
1.0
(1/16)
0.2–4.0
(1/64–3/16)
Yes
(J)
Reinforcement No
Overcasting stitch
11
G
Overcasting on thin or medium
weight fabrics
3.5
(1/8)
2.5–5.0
(3/32–3/16)
2.0
(1/16)
1.0–4.0
(1/16–3/16)
No Reinforcement No
12
G Overcasting on thick fabrics
5.0
(3/16)
2.5–5.0
(3/32–3/16)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
No Reinforcement No
13
G
Preventing fraying in thick fabrics
and fabrics that fray easily
5.0
(3/16)
3.5–5.0
(1/8–3/16)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
No Reinforcement No
14
J Overcasting on stretch fabrics
5.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.5–4.0
(1/32–3/16)
Yes
(J)
Reinforcement No
15
J
Overcasting on thick or stretch
fabrics
5.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.5–4.0
(1/32–3/16)
Yes
(J)
Reinforcement No
16
J
Overcasting on stretch fabrics
and decorative stitching
4.0
(3/16)
0.0–7.0
(0–1/4)
4.0
(3/16)
1.0–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
Stitch Setting Chart 69
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Blind hem stitch
17
R
Blind hem stitching on medium
weight fabrics
00
(0)
3← – →3
2.0
(1/16)
1.0–3.5
(1/16–1/8)
No Reinforcement No
18
R
Blind hem stitching on stretch
fabrics
00
(0)
3← – →3
2.0
(1/16)
1.0–3.5
(1/16–1/8)
No Reinforcement No
Appliqué stitch
19
J Appliqué stitching
3.5
(1/8)
2.5–7.0
(3/32–1/4)
2.5
(3/32)
1.6–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
Shell tuck stitch
20
J Shell tuck stitching
4.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–4.0
(1/64–3/16)
Yes
(J)
Reinforcement No

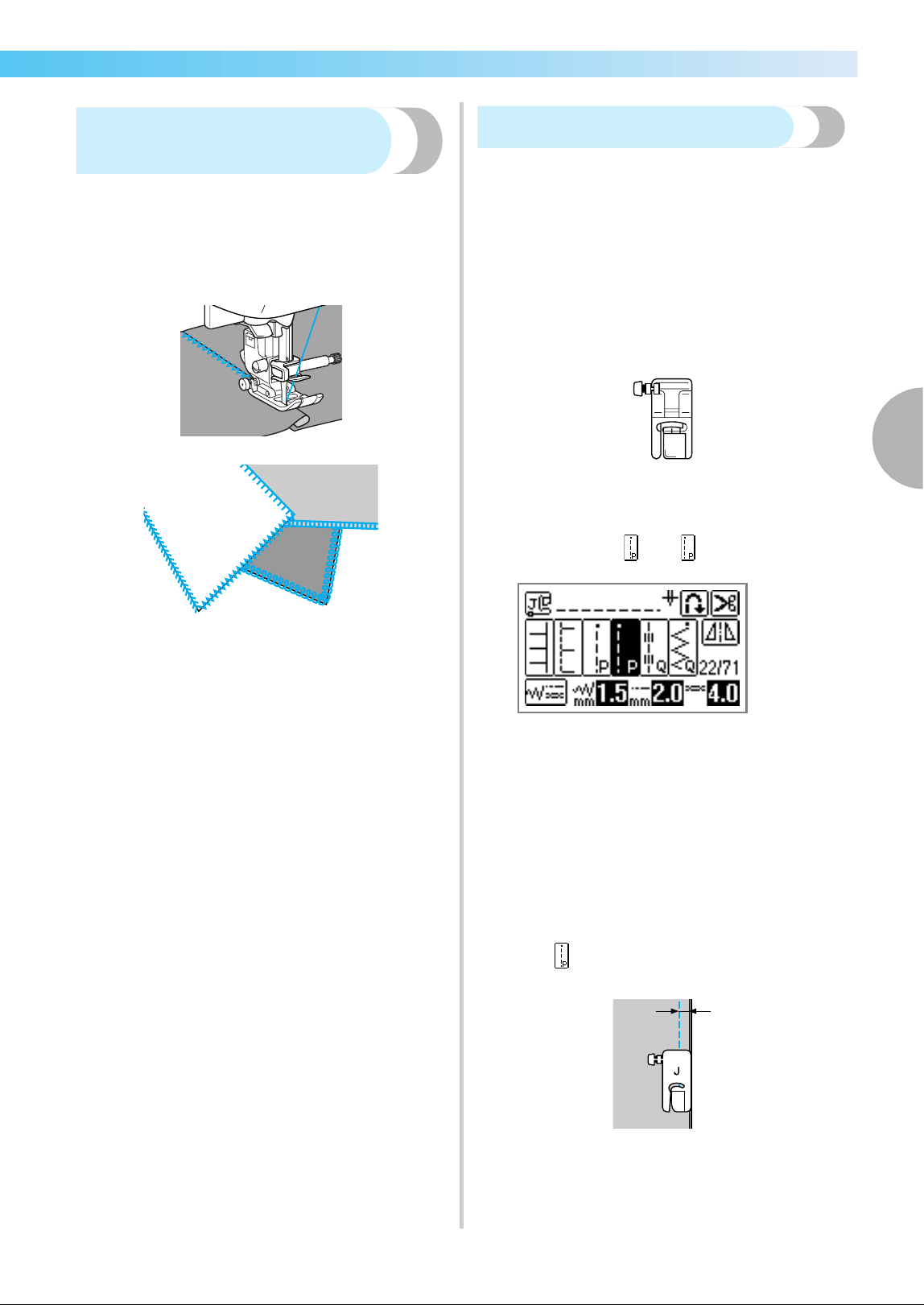

Piecing straight
stitch
21
J
Piecing straight stitching (with a
seam allowance of 6.5 mm (1/4
inch) from the right edge of the
presser foot)
5.5
(7/32)
0.0–7.0
(0–1/4)
2.0
(1/16)
0.2–5.0
(1/64–3/16)
No Reinforcement No
22
J
Piecing straight stitching (with a
seam allowance of 6.5 mm (1/4
inch) from the left edge of the
presser foot)
1.5
(1/16)
0.0–7.0
(0–1/4)
2.0
(1/16)
0.2–5.0
(1/64–3/16)
No Reinforcement Yes
Straight stitch that
looks hand-sewn
(for quilting)
23
J
Straight stitch quilting that looks
hand-sewn
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
No Reinforcement No
Zigzag stitch
(for quilting)
24
J
Appliqué quilting, free-motion
quilting, satin stitching
3.5
(1/8)
0.0–7.0
(0–1/4)
1.4
(1/16)
0.0–4.0
(0–3/16)
No Reinforcement Yes
Appliqué stitch
(for quilting)
25
J Attaching appliqués and binding
1.5
(1/16)
0.5–5.0
(1/32–3/16)
1.8
(1/16)
1.0–4.0
(1/16–3/16)
No Reinforcement No
Quilting stitch
(for stippling)
26
J
Quilting background stitching
(stippling)
7.0
(1/4)
1.0–7.0
(1/16–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
No Reinforcement No
Satin scallop stitch
27
N Scallop stitching
5.0
(3/16)
2.5–7.0
(3/32–1/4)
0.5
(1/32)
0.1–1.0
(1/64–1/16)
Yes
(J)
Reinforcement No
Joining stitch
28
J
Patchwork stitching and
decorative stitching
4.0
(3/16)
0.0–7.0
(0–1/4)
1.2
(1/16)
0.2–4.0
(1/64–3/16)
Yes
(J)
Reinforcement No
29
J
Patchwork stitching, decorative
stitching and sewing overcasting
on both pieces of fabric, such as
with tricot
5.0
(3/16)
2.5–7.0
(3/32–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
30
J
Patchwork stitching and
decorative stitching
5.0
(3/16)
0.0–7.0
(0–1/4)
1.2
(1/16)
0.2–4.0
(1/64–3/16)
Yes
(J)
Reinforcement No
Smocking stitch
31
J
Smocking stitching and
decorative stitching
5.0
(3/16)
0.0–7.0
(0–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
Fagoting stitch
32
J
Fagoting and decorative
stitching
5.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
33
J
Fagoting and decorative
stitching
5.0
(3/16)
2.5–7.0
(3/32–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
Elastic-attaching
stitch
34
J
Attaching elastic to stretch
fabrics
4.0
(3/16)
0.0–7.0
(0–1/4)
1.0
(1/16)
0.2–4.0
(1/64–3/16)
Yes
(J)
Reinforcement No
Ladder stitch
35
J Decorative stitching
4.0
(3/16)
0.0–7.0
(0–1/4)
3.0
(1/8)
2.0–4.0
(1/16–3/16)
No Reinforcement No
Rick-rack stitch
36
J Decorative stitching
4.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
Stitch Name Pattern
Presser Foot
Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Twin Needle
Reverse/
Reinforcement
Stitching
Walking Foot
Auto Manual Auto Manual
70
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Decorative stitch
37
J Decorative stitching
5.5
(7/32)
0.0–7.0
(0–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
Serpentine stitch
38
N
Decorative stitching and elastic-
attaching
5.0
(3/16)
1.5–7.0
(1/16–1/4)
1.0
(1/16)
0.2–4.0
(1/64–3/16)
Yes
(J)
Reinforcement No
Hemstitching
39
N
Lace sewing, decorative
hemming, heirloom stitching,
etc.
3.5
(1/8)
1.5–7.0
(1/16–1/4)
2.5
(3/32)
1.6–4.0
(1/16–3/16)
No Reinforcement No
40
N
Decorative hemming, heirloom
stitching, etc.
6.0
(15/64)
1.5–7.0
(1/16–1/4)
3.0
(1/8)
1.5–4.0
(1/16–3/16)
No Reinforcement No
41
N
Decorative hemming on thin,
medium weight and plain weave
fabrics, heirloom stitching, etc.
5.0
(3/16)
1.5–7.0
(1/16–1/4)
3.5
(1/8)
1.5–4.0
(1/16–3/16)
No Reinforcement No
42
N
Decorative hemming on thin,
medium weight and plain weave
fabrics, heirloom stitching, etc.
5.0
(3/16)
1.5–7.0
(1/16–1/4)
4.0
(3/16)
1.5–4.0
1/16–3/16)
Yes
(J)
Reinforcement No
43
N
Decorative hemming on thin,
medium weight and plain weave
fabrics, heirloom stitching, etc.
5.0
(3/16)
1.5–7.0
(1/16–1/4)
2.5
(3/32)
1.5–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
44
N
Decorative hemming on thin,
medium weight and plain weave
fabrics, heirloom stitching, etc.
5.0
(3/16)
1.5–7.0
(1/16–1/4)
2.0
(1/16)
1.5–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
45
N
Decorative hemming, ribbon
threading, heirloom stitching,
etc.
5.0
(3/16)
1.5–7.0
(1/16–1/4)
3.0
(1/8)
1.5–4.0
(1/16–3/16)
Yes
(J)
Reinforcement No
46
N
Decorative stitching, smocking
stitching, heirloom stitching, etc.
6.0
(15/64)
1.5–7.0
(1/16–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
No Reinforcement No
47
N
Decorative stitching, smocking
stitching, heirloom stitching, etc.
5.0
(3/16)
1.5–7.0
(1/16–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
No Reinforcement No
Buttonhole stitch
48
A
Horizontal buttonholes on thin
and medium weight fabrics
5.0
(3/16)
3.0–5.0
(1/8–3/16)
0.4
(1/64)
0.2–1.0
(1/64–1/16)
No
Automatic
reinforcement
No
49
A
Horizontal buttonholes on areas
that are subject to strain
5.0
(3/16)
3.0–5.0
(1/8–3/16)
0.4
(1/64)
0.2–1.0
(1/64–1/16)
No
Automatic
reinforcement
No
50
A
Horizontal buttonholes on thick
fabrics
5.0
(3/16)
3.0–5.0
(1/8–3/16)
0.4
(1/64)
0.2–1.0
(1/64–1/16)
No
Automatic
reinforcement
No
51
A
Secured buttonholes for fabrics
that have backings
5.0
(3/16)
3.0–5.0
(1/8–3/16)
0.4
(1/64)
0.2–1.0
(1/64–1/16)
No
Automatic
reinforcement
No
52
A
Buttonholes for stretch or knit
fabrics
6.0
(15/54)
3.0–6.0
(1/8–15/64)
1.0
(1/16)
0.5–2.0
(1/32–1/16)
No
Automatic
reinforcement
No
53
A Buttonholes for stretch fabrics
6.0
(15/54)
3.0–6.0
(1/8–15/64)
1.5
(1/16)
1.0–3.0
(1/16–1/8)
No
Automatic
reinforcement
No
54
A Bound buttonholes
5.0
(3/16)
0.0–6.0
(0–15/64)
2.0
(1/16)
0.2–4.0
(1/64–3/16)
No
Automatic
reinforcement
No
Stitch Name Pattern
Presser Foot
Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Twin Needle
Reverse/
Reinforcement
Stitching
Walking Foot
Auto Manual Auto Manual
Stitch Setting Chart 71
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Buttonhole stitch
55
A
Keyhole buttonholes for thick or
furry fabrics
7.0
(1/4)
3.0–7.0
(1/8–1/4)
0.5
(1/32)
0.3–1.0
(1/64–1/16)
No
Automatic
reinforcement
No
56
A
Keyhole buttonholes for
medium weight and thick fabrics
7.0
(1/4)
3.0–7.0
(1/8–1/4)
0.5
(1/32)
0.3–1.0
(1/64–1/16)
No
Automatic
reinforcement
No
57
A
Horizontal buttonholes for thick
or furry fabrics
7.0
(1/4)
3.0–7.0
(1/8–1/4)
0.5
(1/32)
0.3–1.0
(1/64–1/16)
No
Automatic
reinforcement
No
Darning stitch
58
A Darning medium weight fabrics
7.0
(1/4)
2.5–7.0
(3/32–1/4)
2.0
(1/16)
0.4–2.5
(1/64–3/32)
No
Automatic
reinforcement
No
59
A Darning thick fabrics
7.0
(1/4)
2.5–7.0
(3/32–1/4)
2.0
(1/16)
0.4–2.5
(1/64–3/32)
No
Automatic
reinforcement
No
Bar tack stitch
60
A
Reinforcing openings and areas
where the seam easily comes
loose
2.0
(1/16)
1.0–3.0
(1/16–1/8)
0.4
(1/64)
0.3–1.0
(1/64–1/16)
No
Automatic
reinforcement
No
Button-sewing stitch
61
M Button sewing
3.5
(1/8)
2.5–4.5
(3/32–3/16)
––No
Automatic
reinforcement
No
Eyelet stitch
62
N
Sewing eyelets, for example, on
belts
7.0
(1/4)
7.0, 6.0,
5.0 (1/4,
15/64,
3/16)
7.0
(1/4)
7.0, 6.0,
5.0 (1/4,
15/64,
3/16)
No
Automatic
reinforcement
No
Side cutter
63
S
Sewing straight stitches while
cutting the fabric
0.0
(0)
0.0–2.5
(0–3/32)
2.5
(3/32)
0.2–5.0
(1/64–3/16)
No Reinforcement No
64
S
Sewing zigzag stitches while
cutting the fabric
3.5
(1/8)
3.5–5.0
(1/8–3/16)
1.4
(1/16)
0.0–4.0
(0–3/16)
No Reinforcement No
65
S
Overcasting on thin and
medium weight fabrics while
cutting the fabric
3.5
(1/8)
3.5–5.0
(1/8–3/16)
2.0
(1/16)
1.0–4.0
(1/16–3/16)
No Reinforcement No
66
S
Overcasting on thick fabrics
while cutting the fabric
5.0
(3/16)
3.5–5.0
(1/8–3/16)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
No Reinforcement No
67
S
Overcasting on medium weight
and thick fabrics while cutting
the fabric
5.0
(3/16)
3.5–5.0
(1/8–3/16)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
No Reinforcement No
Horizontal straight
stitch
68
N
Attaching appliqués to sleeves
(straight stitch sewn to the left)
– – – – No Reinforcement No
69
N
Attaching appliqués to sleeves
(straight stitch sewn to the right)
– – – – No Reinforcement No
Horizontal zigzag
stitch
70
N
Attaching appliqués to sleeves
(zigzag stitch sewn to the left)
– – – – No Reinforcement No
71
N
Attaching appliqués to sleeves
(zigzag stitch sewn to the right)
– – – – No Reinforcement No
Stitch Name Pattern
Presser Foot
Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Twin Needle
Reverse/
Reinforcement
Stitching
Walking Foot
Auto Manual Auto Manual
72
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Other stitches
** Pattern for making adjustment
Stitch Type Pattern
Presser Foot
Twin Needle
Pattern Size
Adjustable
Stitching Density
Adjustable Pattern
Length/width
Left/Right Flipping
Decorative
stitches
1 2345678910
NNo
Large,
Small
No
Large:
No
Small:
Yes
(*Not
possible)
Yes
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29* 30*
31**
Satin
stitches
1 2345678910
N
Yes
(*Not
possible)
Large No
Yes
(*Not
possible)
Yes
(*Not
possible)
11 12 13 14 15 16 17* 18*
Cross-
stitches
1 2345678910
NNoLargeNo
Yes
(*Not
possible)
Yes
11* 12* 13* 14* 15*
Decorative
satin
stitches
1 2345678910
NNo
Large,
Small
Yes
Yes
(length
only)
Yes
Combined
utility
stitches
1 2345678910
N No Large No Yes Yes
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
31 32 33 34 35 36 37 38 39
Stitch Setting Chart 73
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Stitch Type Pattern
Presser Foot
Twin Needle
Pattern Size
Adjustable
Stitching Density
Adjustable Pattern
Length/width
Left/Right Flipping

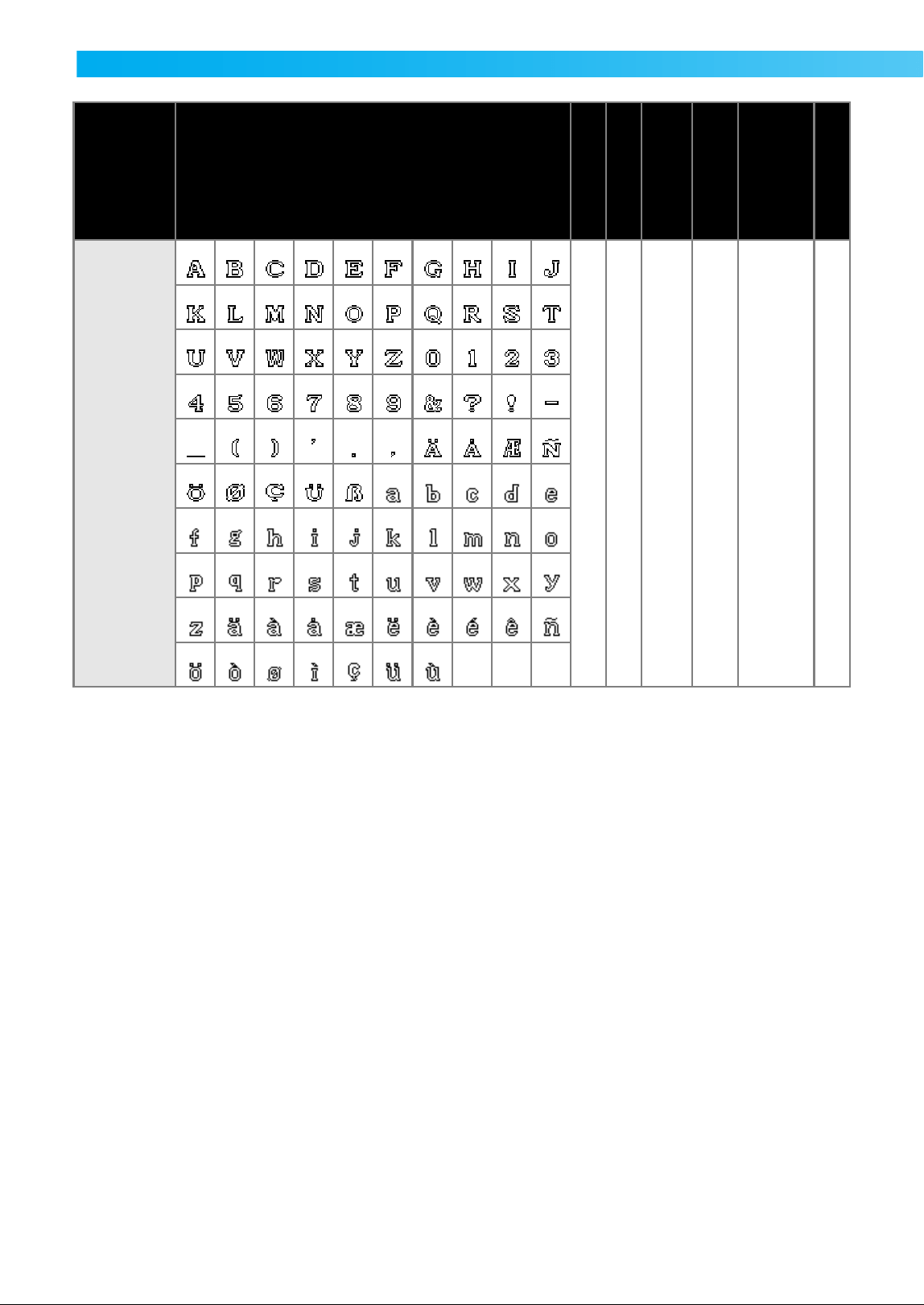

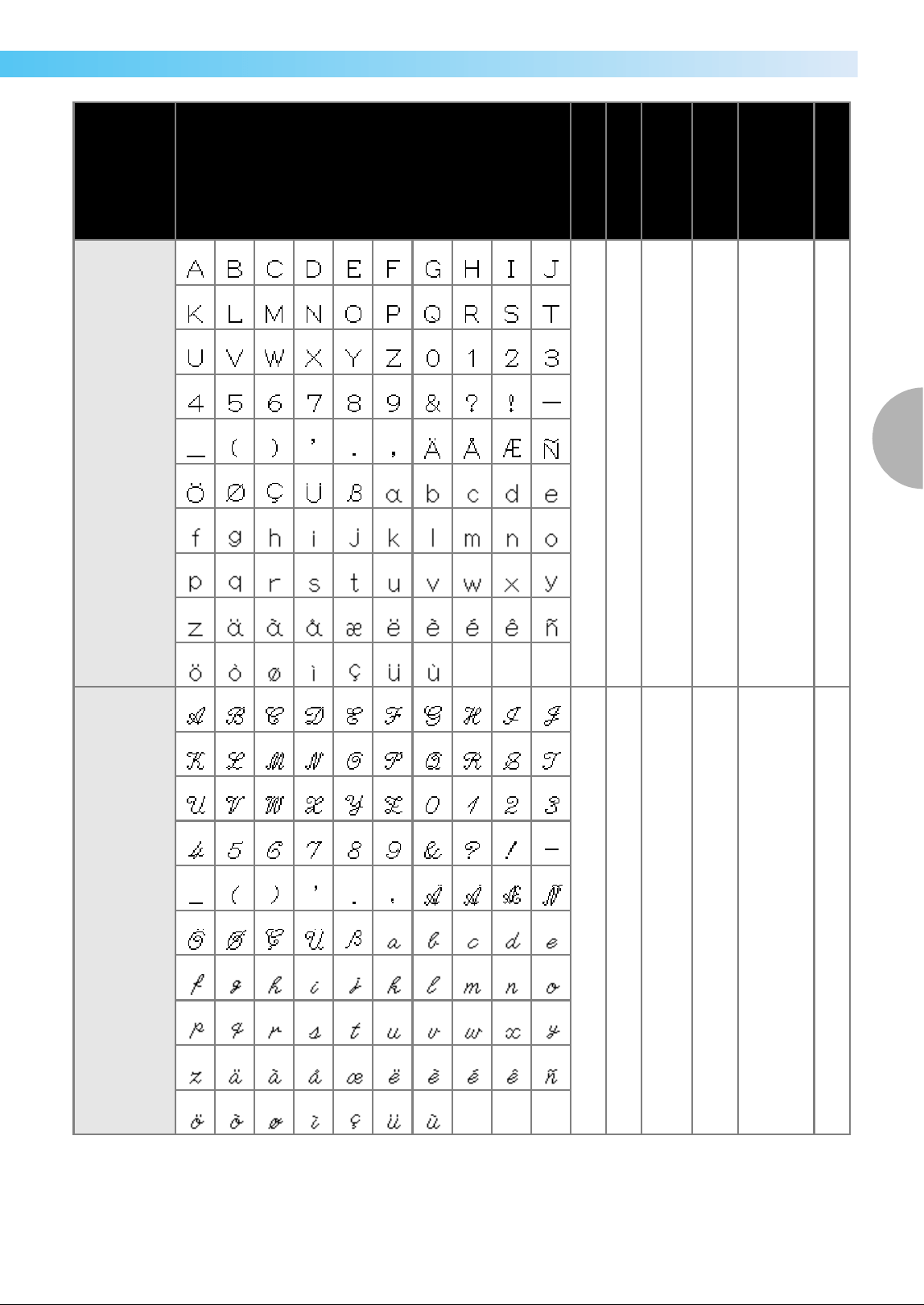

Character
stitches
(Gothic font)
12345678910
NNo
Large,
Small
No No Yes
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
31 32 33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48 49 50
51 52 53 54 55 56 57 58 59 60
61 62 63 64 65 66 67 68 69 70
71 72 73 74 75 76 77 78 79 80
81 82 83 84 85 86 87 88 89 90
91 92 93 94 95 96 97
Character
stitches
(Script font)
12345678910
N No Large No No Yes
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
31 32 33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48 49 50
51 52 53 54 55 56 57 58 59 60
61 62 63 64 65 66 67 68 69 70
71 72 73 74 75 76 77 78 79 80
81 82 83 84 85 86 87 88 89 90
91 92 93 94 95 96 97
74
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Character
stitches
(Outline
style)
12345678910
NNo
Large,
Small
No No Yes
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
31 32 33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48 49 50
51 52 53 54 55 56 57 58 59 60
61 62 63 64 65 66 67 68 69 70
71 72 73 74 75 76 77 78 79 80
81 82 83 84 85 86 87 88 89 90
91 92 93 94 95 96 97
Stitch Type Pattern
Presser Foot
Twin Needle
Pattern Size
Adjustable
Stitching Density
Adjustable Pattern
Length/width
Left/Right Flipping
Selecting Stitching 75
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

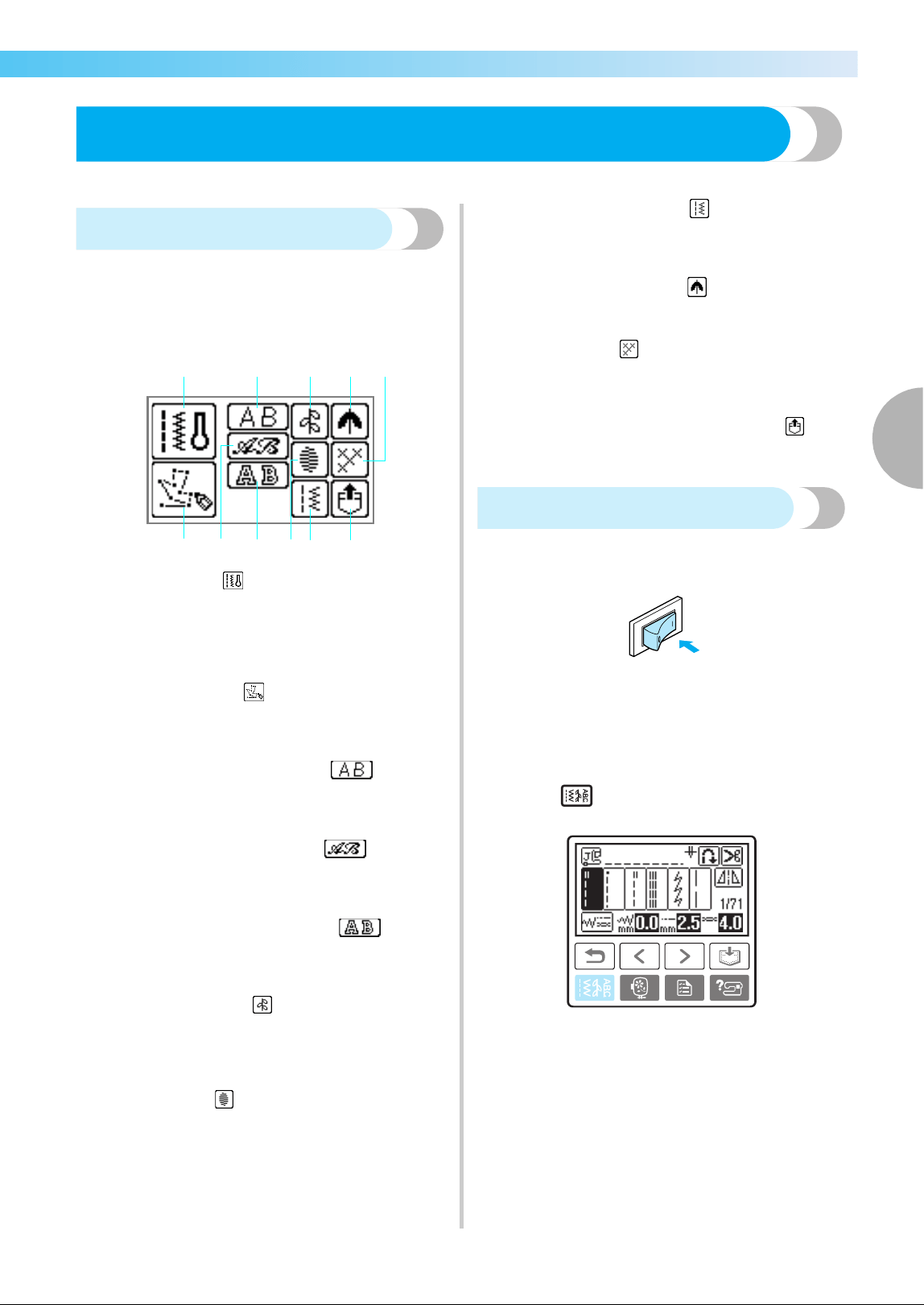

Selecting Stitching
This section provides details on the various types of stitches available and the procedure for selecting a stitch.
Stitch types
A stitch can be selected from the following types
available.
For details on the various stitches, refer to “Stitch
Setting Chart” (page 68).
a Utility stitches
You can select from 71 utility stitches, including
straight line stitching, overcasting, button holes and
basic decorative stitches. If this is selected, the
utility stitch selection appears right after the power
is turned on.
b My Custom Stitch
You can design original stitches. (For details, refer
to “Designing a Pattern (My Custom Stitch)” (page
137).)
c Character stitches—Gothic font
(Can be combined)
There are 97 characters, including letters, symbols
and numbers, in the Gothic font.
d Character stitches—Script font
(Can be combined)
There are 97 characters, including letters, symbols
and numbers, in the Script font.
e Character stitches—Outline style
(Can be combined)
There are 97 characters, including letters, symbols
and numbers, in the outline style.
f Decorative stitches
(Can be combined)
You can select from 31 decorative stitches,
including leaves, flowers and hearts. You can sew
combinations of multiple decorative stitches.
g Satin stitches
(Can be combined)
You can select from 18 satin stitches. You can sew
combinations of multiple decorative stitches.
h Combined utility stitches
(Can be combined)
You can sew with combinations from 39 utility
stitches.
i Decorative satin stitches
(Can be combined)
There are 10 decorative satin stitches.
j Cross stitches
(Can be combined)
You can select from 15 cross stitches. You can sew
combinations of multiple decorative stitches.
k Patterns saved in the machine's memory
You can retrieve a saved pattern. (For details, refer
to “Saving patterns” (page 133).)
Selecting stitching
a
Turn on the sewing machine.
• When an animation is displayed on the
screen, touch the screen with your finger.
X The straight stitch (left needle position) is
shown selected on the screen.
b
Press (Utility stitch key) on the operation
panel.
X The screen containing the various types of
stitches appears.
a
b
c
d e
f
g k
ij
h
76
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
c

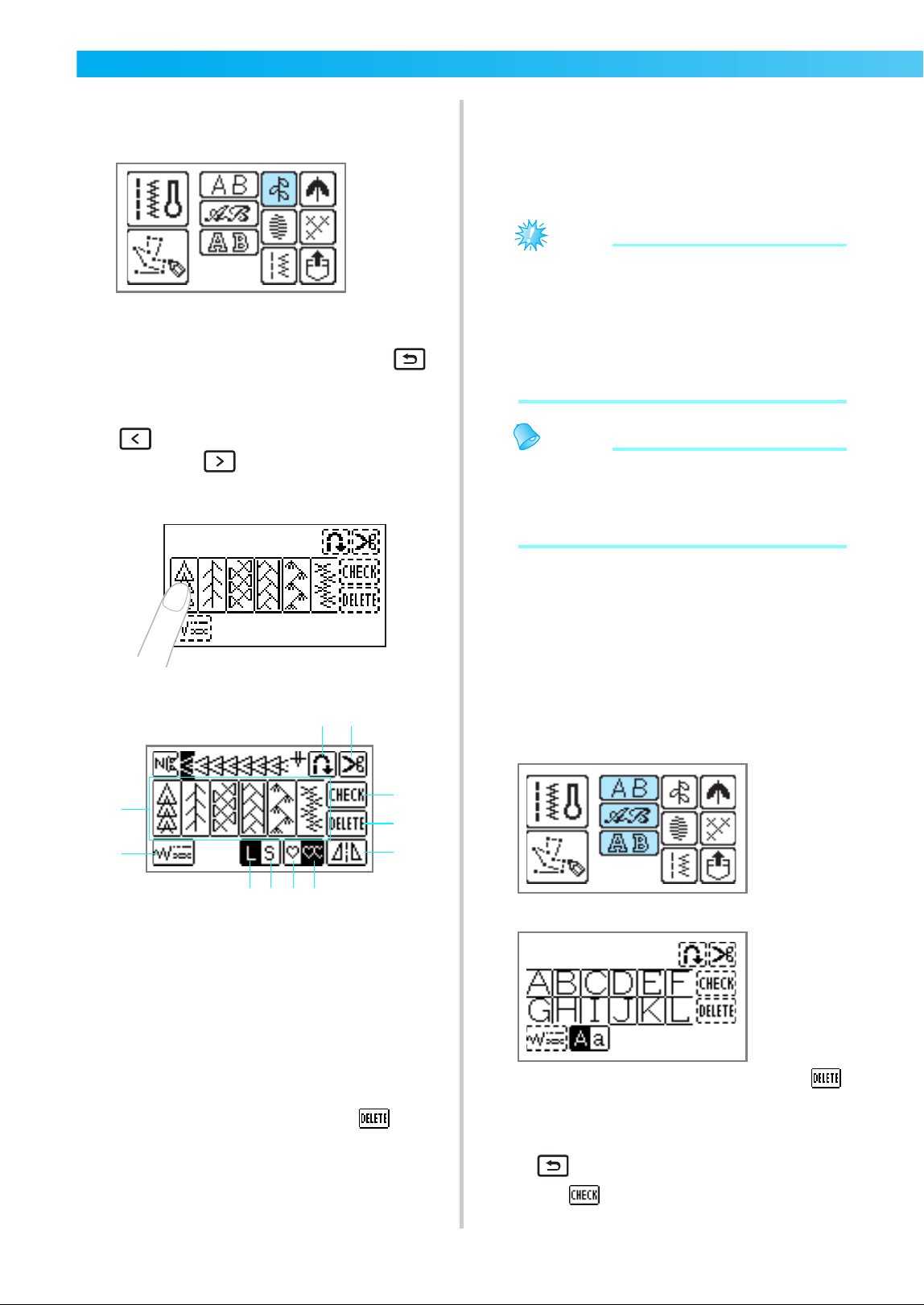

Select the stitch type.
When a decorative stitch is selected
X The screen containing the various stitches in
the selected stitch type appears.
• To select a different stitch type, press
(Back key).
d
Press the stitch selection.
(Previous page key) displays the previous
screen, and (Next page key) displays the
next screen.
a Decorative stitch selection
b Set width, length and tension
c Large pattern size
d Small pattern size
e Single stitch sewing
f Repeat sewing
g Horizontal mirror image
h Delete a selected pattern
i Check combined pattern
j Automatic thread cutting
k Automatic reverse/reinforcement stitch
• To select a different stitch, press to
remove the selected pattern.
e
If necessary, specify the setting for automatic
reverse/reinforcement stitching and adjust the
stitch length, etc.
• For details on sewing with each of the utility
stitches, begin on page 79.
Note
z When a stitch is selected, the icon for the
presser foot that should be used appears on
the screen. Check that the correct presser
foot is attached before starting to sew. If the
wrong presser foot is installed, turn off the
sewing machine, attach the correct presser
foot, and then select the desired stitch again.
Memo
z For details on adjusting the stitch width and
length, refer to “Adjusting the stitch width”
(page 56) and “Adjusting the stitch length”
(page 57).

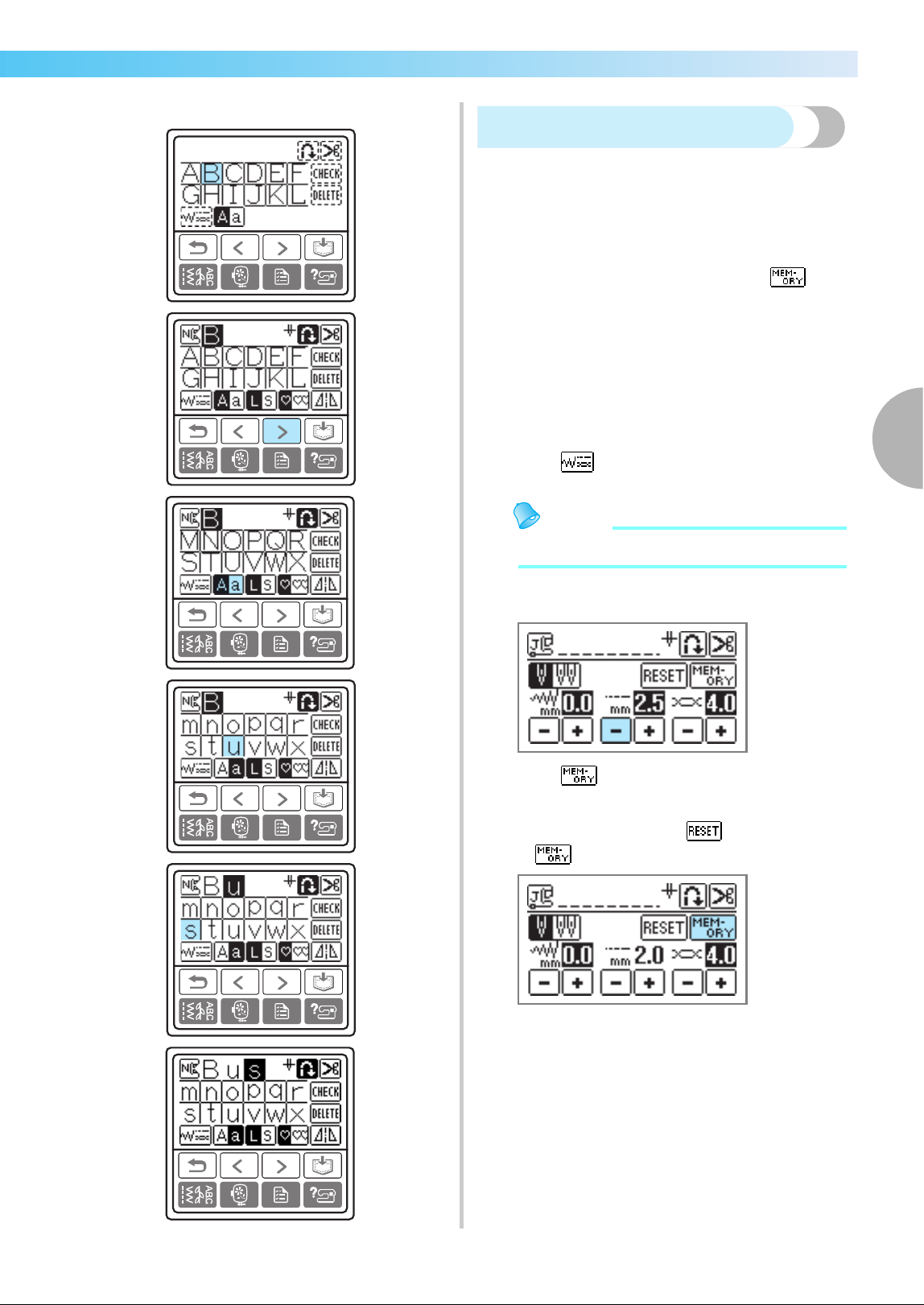

■ Selecting characters
Three styles of character stitches are available.
The procedure for selecting a character is the
same with all styles.
a
Follow steps a and b in “Selecting stitching”
(page 75) to display the screen where a stitch
type can be selected.
b
Select the character style.
c
Select the characters.
• If a wrong character was selected, press
to erase the character, and then select the
correct character.
•
To select a different character style, press
, and then select the new character style.
•
Press to view a sample of the selected pattern.
a
k j
i
e
f
b
h
g
c d
Selecting Stitching 77
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Example: Bus
Saving stitch settings
This machine is preset with the default settings for the
stitch width (zigzag width), stitch length, thread
tension, programmed thread cutting, and automatic
reverse/reinforcement stitching for each stitch.
However, if you wish to save specific settings for a
stitch so that they can be used later, press after
changing the settings to save the new settings with
the selected stitch.
This feature can be used only with utility stitches.
To use a stitch length of 2.0 mm for the
straight stitch
a
Select a straight stitch.
b
Press .
Memo
z The default stitch length is 2.5 mm.
c
Set the stitch length to 2.0 mm.
d
Press .
• To reset the selected stitch pattern to its
default settings, press , and then press
.
X The confirmation message is displayed.
78
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
e
Press .
Note
z The next time that the same straight stitch is
selected, the stitch length is set to 2.0 mm.
z All stitch settings (stitch width (zigzag
width), stitch length, thread tension,
programmed thread cutting, and automatic
reverse/reinforcement stitching, etc.) are
saved, not just the setting that was changed.
When the same stitch pattern is selected, the
last settings saved are displayed even if the
machine was turned off. If the settings are
changed again, or if is pressed to reset
the setting to its default, the new settings are
not saved unless is pressed another
time.
Even if is pressed, the settings for
programmed thread cutting and automatic
reverse/reinforcement stitching cannot be
reset.
Overcasting Stitches 79
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

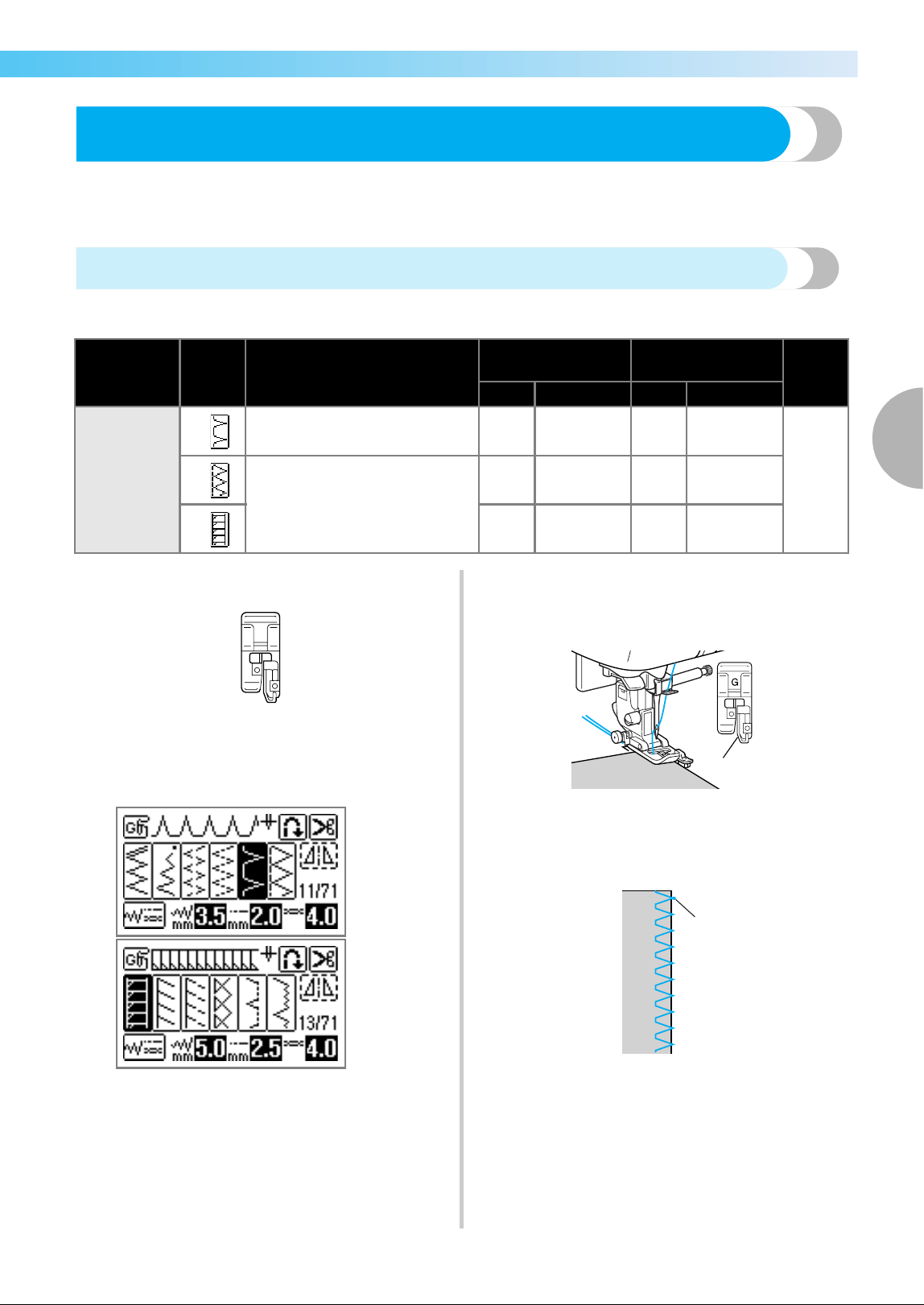

Overcasting Stitches
Sew overcasting stitches along the edges of cut fabric to prevent fabric from fraying. 15 stitches are
available for overcasting. The procedure for sewing overcasting stitch is explained according to the
presser foot that is used.
Sewing overcasting stitches using overcasting foot “G”
Three stitches can be used to sew overcasting with overcasting foot “G”.
a
Attach overcasting foot “G”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Select a stitch.
• For details, refer to “Selecting stitching” (page
49).
c
Position the fabric with the edge of the fabric
against the guide of the presser foot, and then
lower the presser foot lever.
a Guide
d
Sew with the edge of the fabric against the
presser foot guide.
a Needle drop point
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Overcasting
stitch
11
Preventing fraying in medium
weight and thin fabrics
3.5
(1/8)
2.5–5.0
(3/32–3/16)
2.0
(1/16)
1.0–4.0
(1/16–3/16)
G
12
Preventing fraying in thick
fabrics and fabrics that fray
easily
5.0
(3/16)
2.5–5.0
(3/32–3/16)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
13
5.0
(3/16)
3.5–5.0
(1/8–3/16)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
G
a
1
80
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

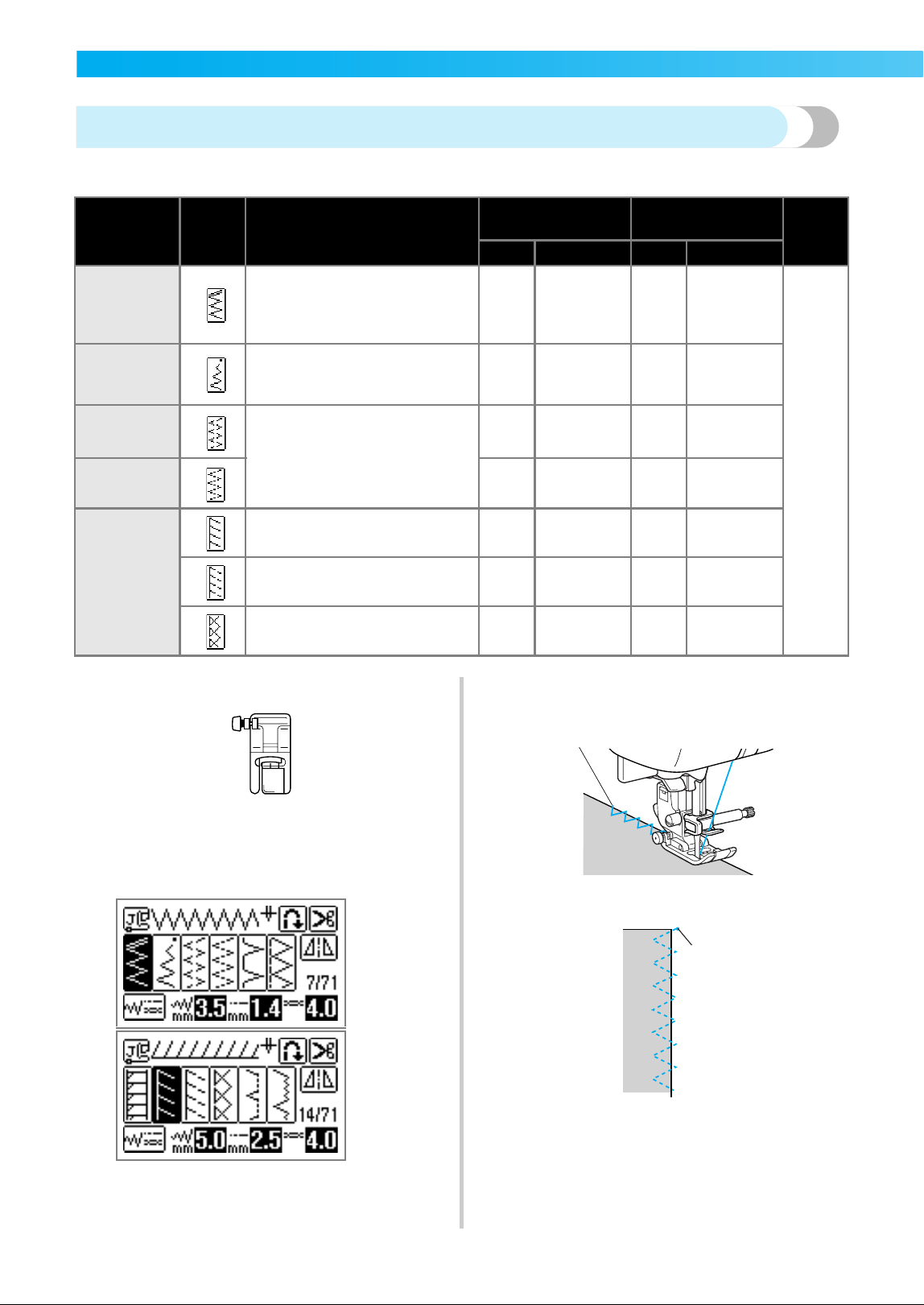

Sewing overcasting stitches using zigzag foot “J”
Seven stitches can be used to sew overcasting stitches with zigzag foot “J”.
a
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Select a stitch.
• For details, refer to “Selecting stitching” (page
49).
c
Sew along the edge of the fabric with the
needle dropping off the edge at the right.
a Needle drop point
a Needle drop point
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Zigzag stitch
(center
needle
position)
7
Preventing fraying (center
baseline/reverse stitching)
3.5
(1/8)
0.0–7.0
(0–1/4)
1.4
(1/16)
0.0–4.0
(0–3/16)
J
Zigzag stitch
(right needle
position)
8
Preventing fraying (right
baseline/reinforcement stitching)
3.5
(1/8)
2.5–5.0
(3/32–3/16)
1.4
(1/16)
0.3–4.0
(1/64–3/16)
2-point
zigzag stitch
9
Preventing fraying in thick
fabrics and stretch fabrics
5.0
(3/16)
1.5–7.0
(1/16–1/4)
1.0
(1/16)
0.2–4.0
(1/64–3/16)
3-point
zigzag stitch
10
5.0
(3/16)
1.5–7.0
(1/16–1/4)
1.0
(1/16)
0.2–4.0
(1/64–3/16)
Overcasting
stitch
14
Preventing fraying in stretch
fabrics
5.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.5–4.0
(1/32–3/16)
15
Preventing fraying in thick
fabrics and stretch fabrics
5.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.5–4.0
(1/32–3/16)
16
Preventing fraying in stretch
fabrics
4.0
(3/16)
0.0–7.0
(0–1/4)
4.0
(3/16)
1.0–4.0
(1/16–3/16)
J
a
1
Overcasting Stitches 81
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

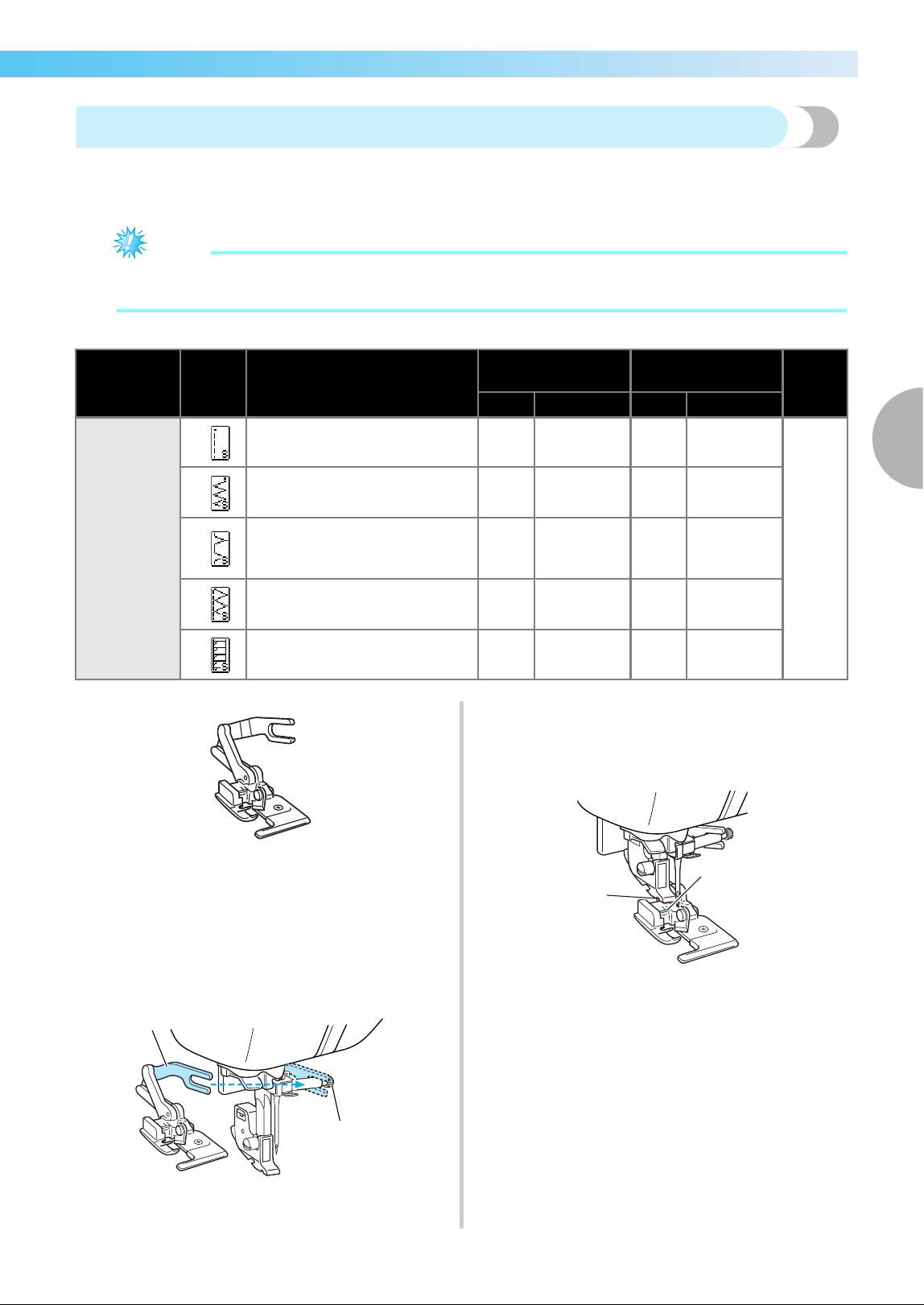

Sewing overcasting stitches using the optional side cutter
Using the side cutter, seam allowances can be finished while the edge of the fabric is cut off. Five stitches can be
used to sew overcasting stitches with the side cutter.
Note
z Thread the needle manually when using the side cutter, or only attach the side cutter after threading the
needle using the needle threader.
a
Remove the presser foot.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Hook the connecting fork of the side cutter
onto the needle clamp screw.
a Connecting fork
b Needle clamp screw
c
Position the side cutter so that side cutter pin
is aligned with the notch in the presser foot
holder, and then slowly lower the presser foot
lever.
a Notch in presser foot holder
b Pin
X The side cutter is attached.
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Side Cutter
63
Sewing straight stitches while
cutting the fabric
0.0
(0)
0.0–2.5
(0–3/32)
2.5
(3/32)
0.2–5.0
(1/64–3/16)
S
64
Sewing zigzag stitches while
cutting the fabric
3.5
(1/8)
3.5–5.0
(1/8–3/16)
1.4
(1/16)
0.0–4.0
(0–3/16)
65
Preventing fraying in thin and
medium weight fabrics while
cutting the fabric
3.5
(1/8)
3.5–5.0
(1/8–3/16)
2.0
(1/16)
1.0–4.0
( 1/16–3/16)
66
Preventing fraying in thick
fabrics while cutting the fabric
5.0
(3/16)
3.5–5.0
(1/8–3/16)
2.5
(3/32)
1.0–4.0
( 1/16–3/16)
67
Preventing fraying in thick
fabrics while cutting the fabric
5.0
(3/16)
3.5–5.0
(1/8–3/16)
2.5
(3/32)
1.0–4.0
( 1/16–3/16)
b
a
b
a
82
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

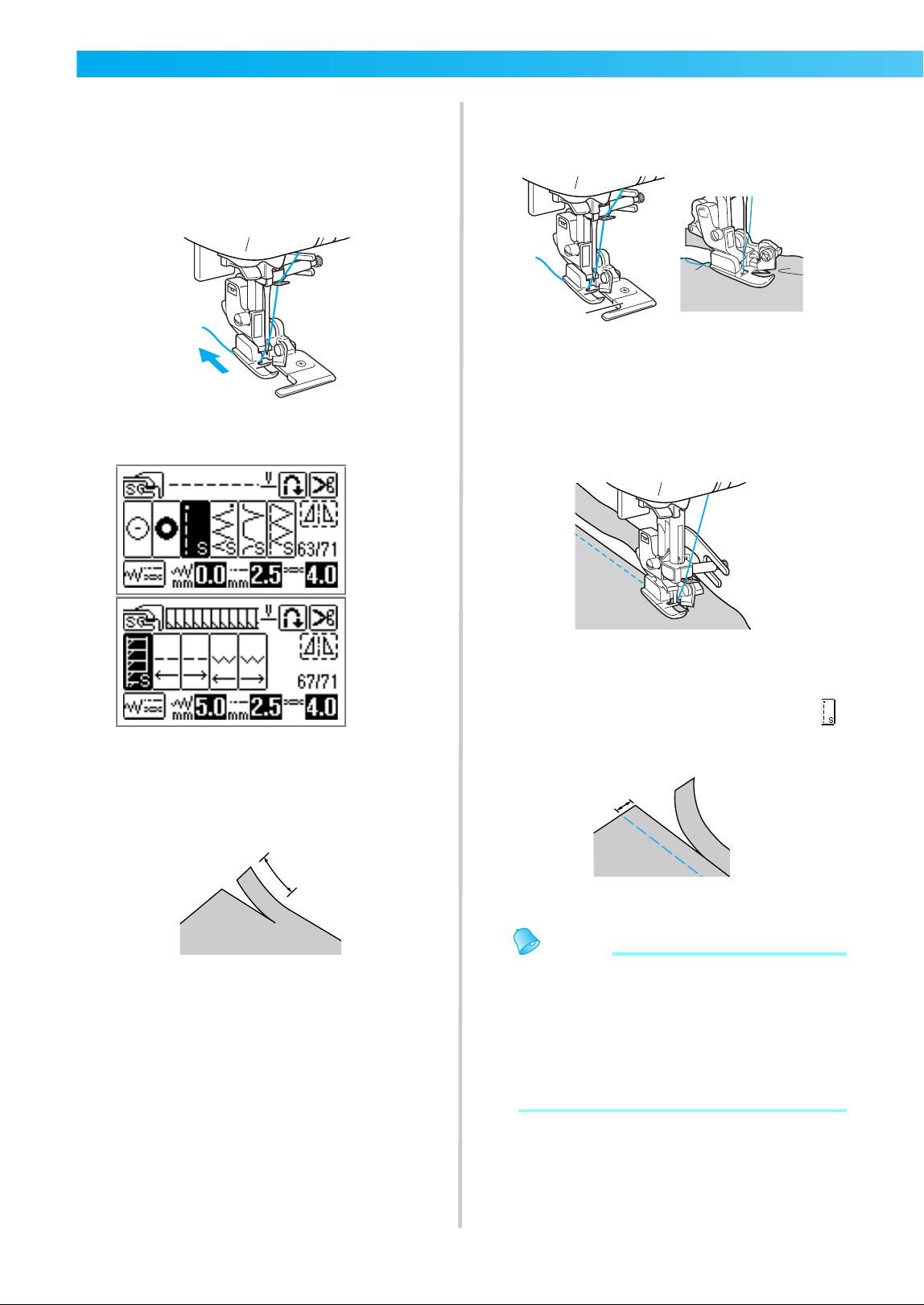

d
Raise the presser foot lever to check that the
side cutter is securely attached.
e
Pass the upper thread under the side cutter,
and then pull it out toward the rear of the
sewing machine.
f
Select a stitch.
• For details, refer to “Selecting stitching” (page
49).
g
Make a cut of about 2 cm (3/4 inch) long in
the fabric at the beginning of the stitching.
a 2 cm (3/4 inch)
h
Position the fabric in the side cutter.
The cut in the fabric should be positioned over
the guide plate of the side cutter.
a Guide plate
• If the fabric is not positioned correctly, the
fabric will not be cut.
i
Lower the presser foot lever, and then start
sewing.
X A seam allowance is cut while the stitching
is sewn.
• If the stitching is sewn in a straight line
63
,
the seam allowance will be about 5 mm
(3/16 inch).
a 5 mm (3/16 inch)
Memo
z The side cutter can cut as much as one layer
of 13-oz. denim.
z After using the side cutter, clean it by
removing any lint or dust.
z If the side cutter can no longer cut fabric,
use a rag to apply a small amount of oil to
the cutting edge of the cutter.
1
a
1
Basic Stitching 83
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Basic Stitching
Straight stitches are used for sewing plain seams. Five stitches are available for basic stitching.
Basting
Sew basting with a stitch length between 5 mm
(3/16 inch) and 30 mm (1-3/16 inches).
a
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Select stitch
6
.
• For details, refer to “Selecting stitching” (page
49).
c
Start sewing.
•
For details, refer to
“Starting to sew” (page
51)
.
Basic stitching
a
Baste or pin together the fabric pieces.
b
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
c
Select a stitch.
• For details, refer to “Selecting stitching” (page
49).
d
Lower the needle into the fabric at the
beginning of the stitching.
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Basting stitch
6
Temporarily securing
0.0
(0)
0.0–7.0
(0–1/4)
20
(3/4)
5–30
(3/16–1-3/16)
J
Straight stitch
(left needle
position)
1
Basic stitching and sewing
gathers or pintucks (left baseline/
reverse stitching)
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–5.0
(1/64–3/16)
2
Basic stitching and sewing
gathers or pintucks (left baseline/
reinforcement stitching)
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–5.0
(1/64–3/16)
Straight stitch
(center
needle
position)
3
Basic stitching and sewing
gathers or pintucks (center
baseline/reverse stitching)
3.5
(1/8)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–5.0
(1/64–3/16)
Triple stretch
stitch
4
Reinforcing seams and sewing
stretch fabrics
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.5–4.0
(1/16–3/16)
J
J
84
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

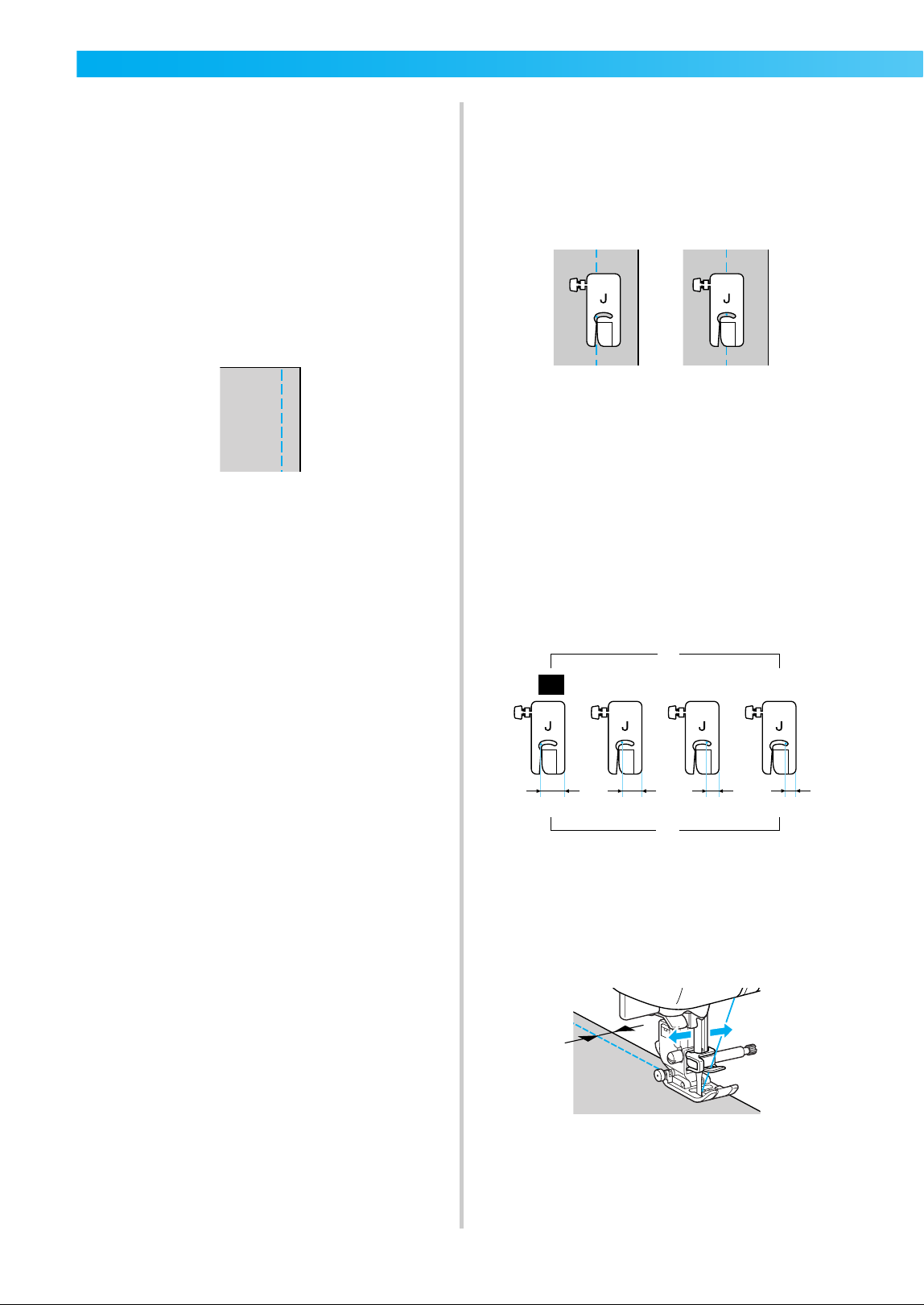

e
Lower the presser foot lever, and then start
sewing.
• For details, refer to “Starting to sew” (page
51).
• For details on sewing reverse/reinforcement
stitches, refer to “Securing the stitching”
(page 53).
f
When sewing is finished, cut the thread.
• For details, refer to “Cutting the thread” (page
54).
■ Changing the needle position
The needle position used as the baseline is
different for the straight stitch (left needle
position) and the straight stitch (center needle
position).
a Straight stitch (left needle position)
b Straight stitch (center needle position)
When the stitch width of the straight stitch (left
needle position) is set to its standard setting
(0.0 mm), the distance from the needle position to
the right side of the presser foot is 12 mm
(1/2 inch). If the stitch width is changed (between
0 and 7.0 mm (1/4 inch)), the needle position will
also change. By changing the stitch width and
sewing with the right side of the presser foot
aligned with the edge of the fabric, a seam
allowance can be sewn with a fixed width.
a Stitch width setting
b Distance from the needle position to the right side
of the presser foot
c 12.0 mm (1/2 inch)
d 10.0 mm (3/8 inch)
e 6.5 mm (1/4 inch)
f 5.0 mm (3/16 inch)
• For details, refer to “Adjusting the stitch
width” (page 56).
12
0.0 2.0 5.5 7.0
34 5
6
1
2
Blind Hem Stitching 85
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Blind Hem Stitching
Secure the bottoms of skirts and pants with a blind hem. Two stitches are available for blind hem stitching.
Sew a blind hem according to the following procedure.
a
Fold the fabric along the desired edge of the
hem, and then baste it about 5 mm (3/16 inch)
from the edge of the fabric.
a Wrong side of fabric
b Basting stitching
c Desired edge of hem
d 5 mm (3/16 inch)
b
Fold back the fabric along the basting, and
then position the fabric with the wrong side
facing up.
a Wrong side of fabric
b Basting
c
Attach blind hem foot “R”.
• For details, refer to “Replacing the presser
foot” (page 42).
d
Select a stitch.
• For details, refer to “Selecting stitching” (page
49).
e
Position the fabric with the edge of the folded
hem against the guide of the presser foot, and
then lower the presser foot lever.
a Wrong side of fabric
b Fold of hem
c Guide
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Blind hem
stitch
17
Blind hem stitching on medium
weight fabrics
00
(0)
3← – →3
2.0
(1/16)
1.0–3.5
(1/16–1/8)
R
18
Blind hem stitching on stretch
fabrics
00
(0)
3← – →3
2.0
(1/16)
1.0–3.5
(1/16–1/8)
3
4
1
2
2
1
1
2
3
86
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
f
Adjust the stitch width until the needle slightly
catches the fold of the hem.
a Needle drop point
When you change the needle drop point, raise
the needle, and then change the stitch width.
a Stitch width
■ If the needle catches too much of the hem
fold
The needle is too far to the left.
Press to decrease the stitch width so that
the needle slightly catches the fold of the
hem.
a Wrong side of fabric
b Right side of fabric
■ If the needle does not catch the hem fold
The needle is too far to the right.
Press to increase the stitch width so that
the needle slightly catches the fold of the
hem.
a Wrong side of fabric
b Right side of fabric
• For details, refer to “Adjusting the stitch
width” (page 56).
g
Sew with the fold of the hem against the
presser foot guide.
h
Remove the basting stitching.
a Wrong side of fabric
b Right side of fabric
1
1
1 2
1 2
1 2
Buttonhole Stitching/Button Sewing 87
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Buttonhole Stitching/Button Sewing
Buttonholes can be sewn and buttons can be sewn on. 10 stitches are available for sewing one-step
buttonholes and one stitch for sewing on buttons.
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Buttonhole
stitch
48
Horizontal buttonholes on thin
and medium weight fabrics
5.0
(3/16)
3.0–5.0
(1/8–3/16)
0.4
(1/64)
0.2–1.0
(1/64–1/16)
A
49
Horizontal buttonholes on areas
that are subject to strain
5.0
(3/16)
3.0–5.0
(1/8–3/16)
0.4
(1/64)
0.2–1.0
(1/64–1/16)
50
Horizontal buttonholes on thick
fabrics
5.0
(3/16)
3.0–5.0
(1/8–3/16)
0.4
(1/64)
0.2–1.0
(1/64–1/16)
51
Buttonholes with bar tacks on
both ends for stabilized fabrics
5.0
(3/16)
3.0–5.0
(1/8–3/16)
0.4
(1/64)
0.2–1.0
(1/64–1/16)
52
Buttonholes for stretch or knit
fabrics
6.0
(15/64)
3.0–6.0
(1/8–15/64)
1.0
(1/16)
0.5–2.0
(1/32–1/16)
53
Buttonholes for stretch fabrics
6.0
(15/64)
3.0–6.0
(1/8–15/64)
1.5
(1/16)
1.0–3.0
(1/16–1/8)
54
Bound buttonholes
5.0
(3/16)
0.0–6.0
(0–15/64)
2.0
(1/16)
0.2–4.0
(1/64–3/16)
55
Keyhole buttonholes for thick or
plush fabrics
7.0
(1/4)
3.0–7.0
(1/8–1/4)
0.5
(1/32)
0.3–1.0
(1/64–1/16)
56
Keyhole buttonholes for medium
weight and thick fabrics
7.0
(1/4)
3.0–7.0
(1/8–1/4)
0.5
(1/32)
0.3–1.0
(1/64–1/16)
57
Horizontal buttonhole for thick
or plush fabrics
7.0
(1/4)
3.0–7.0
(1/8–1/4)
0.5
(1/32)
0.3–1.0
(1/64–1/16)
Button-
sewing stitch
61
Button sewing
3.5
(1/8)
2.5–4.5
(3/32–3/16)
––M
88
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

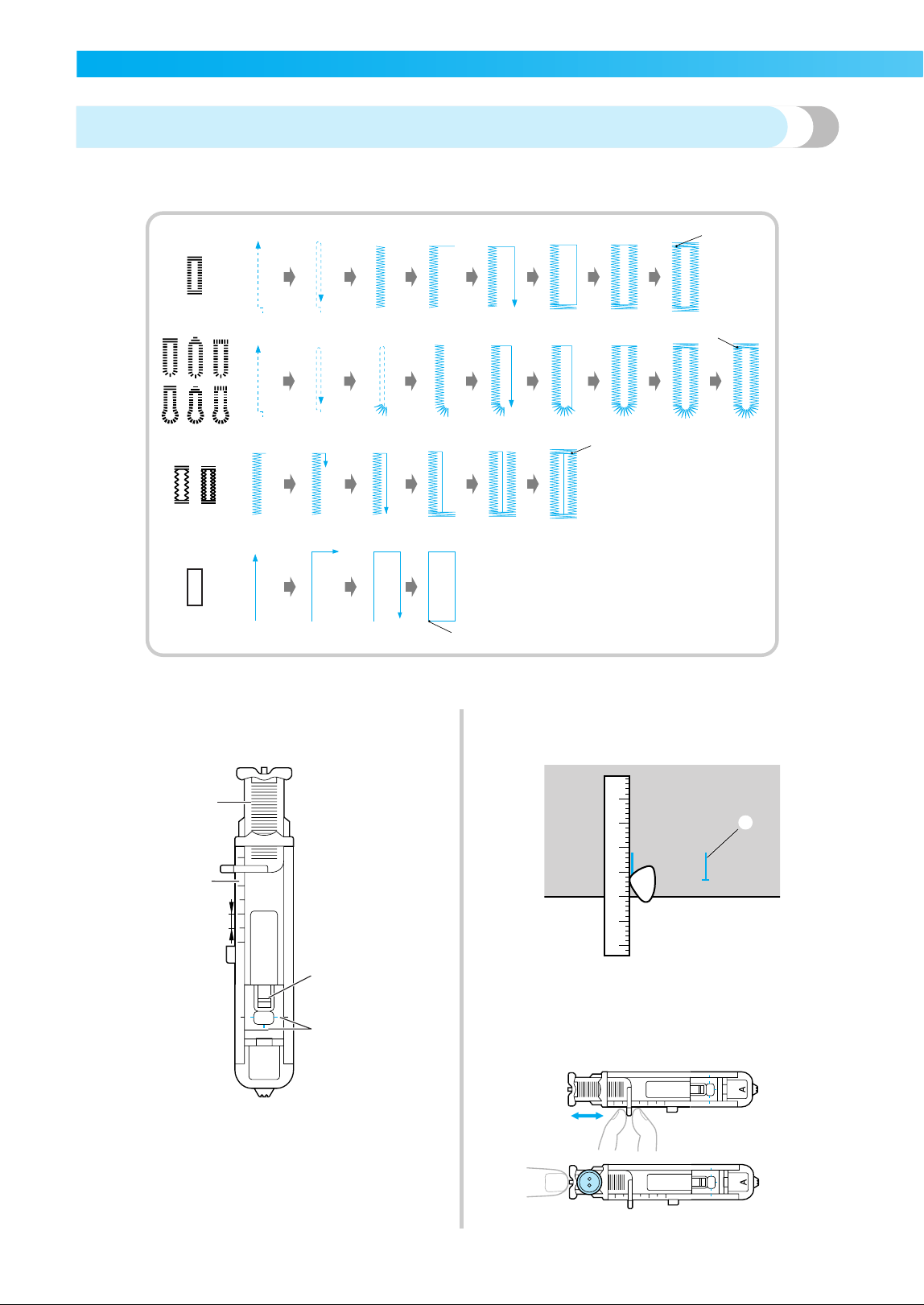

Buttonhole sewing
The maximum buttonhole length is about 28 mm (1-1/8 inches) (diameter + thickness of the button).
Buttonholes are sewn from the front of the presser foot to the back, as shown below.
a Reinforcement stitching
The names of parts of buttonhole foot “A”, which is
used for sewing buttonholes, are indicated below.
a Button guide plate
b Presser foot scale
c Pin
d Marks on buttonhole foot
e 5 mm (3/16 inch)
a
Use chalk to mark on the fabric the position
and length of the buttonhole.
a Marks on fabric
b
Pull out the button guide plate of buttonhole
foot “A”, and then insert the button that will
be put through the buttonhole.
1
1
1
1
5
2
1
3
4
A
1
Buttonhole Stitching/Button Sewing 89
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ If the button does not fit in the button guide
plate
Add together the diameter and thickness of
the button, and then set the button guide
plate to the calculated length. (The distance
between the markings on the presser foot
scale is 5 mm (3/16 inch).)
a Presser foot scale
b Length of buttonhole (diameter + thickness of
button)
c 5 mm (3/16 inch)
Example: For a button with a diameter of
15 mm (9/16 inch) and a thickness of 10 mm
(3/8 inch), the button guide plate should be set
to 25 mm (1 inch) on the scale.
a 10 mm (3/8 inch)
b 15 mm (9/16 inch)
X The size of the buttonhole is set.
c
Attach buttonhole foot “A”.
• For details, refer to “Replacing the presser
foot” (page 42).
d
Select a stitch.
• For details, refer to “Selecting stitching” (page
49).
e
Position the fabric with the front end of the
buttonhole mark aligned with the red marks on
the sides of the buttonhole foot, and then
lower the presser foot lever.
a Mark on fabric (front)
b Red marks on buttonhole foot
Pass the upper thread down through the hole in
the presser foot.
• When lowering the presser foot, do not push
in the front of the presser foot.
a Do not reduce the gap.
3
2
1
2
1
A
1
2
a
90
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
f
Pull down the buttonhole lever as far as
possible.
a Buttonhole lever
The buttonhole lever is positioned behind the
bracket on the buttonhole foot.
a Buttonhole lever
b Bracket
g
Gently hold the end of the upper thread in
your left hand, and then start sewing.
X Once sewing is completed, the machine
automatically sews reinforcement stitches,
then stops.
h
Raise the presser foot lever, remove the fabric,
and then cut the thread.
i
Raise the buttonhole lever to its original
position.
j
Insert a pin along the inside of one bar tack at
the end of the buttonhole stitching to prevent
the stitching from being cut.
a Pin
k
Use the seam ripper to cut towards the pin and
open the buttonhole.
a Seam ripper
For keyhole buttonholes, use the eyelet punch
to make a hole in the rounded end of the
buttonhole, and then use the seam ripper to cut
open the buttonhole.
a Eyelet punch
• When using the eyelet punch, place thick
paper or some other protective sheet under
the fabric before punching the hole in the
fabric.
CAUTION
a
2
1
● When opening the buttonhole with the
seam ripper, do not place your hands in
the cutting direction, otherwise injuries
may result if the seam ripper slips.
1
1
1
Buttonhole Stitching/Button Sewing 91
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

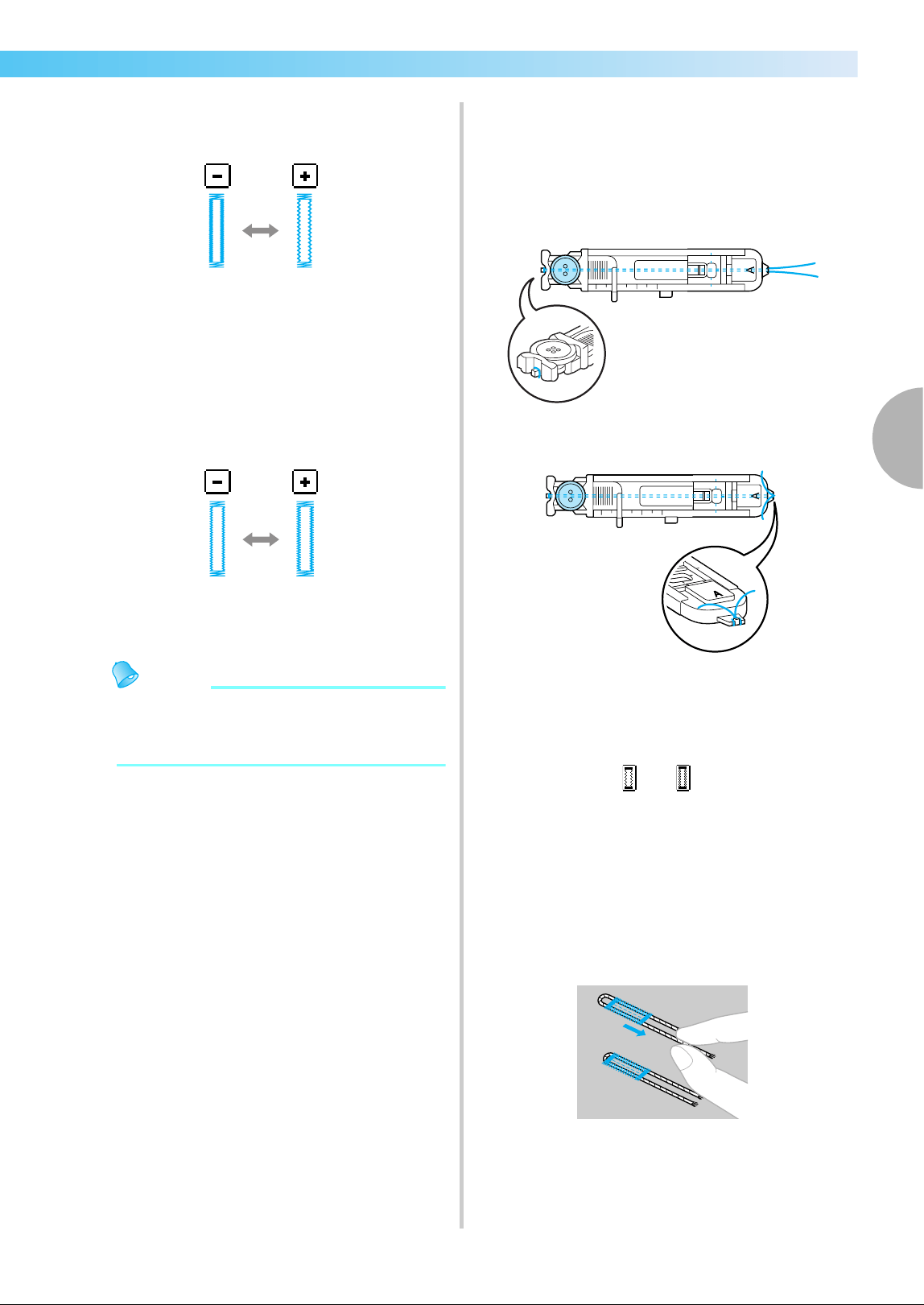

■ Changing the density of the stitching
Adjust the stitch length.
• For details, refer to “Adjusting the stitch
length” (page 57).
• If the fabric does not feed (for example, if it is
too thick), decrease the density of the
stitching.
■ Changing the stitch width
Adjust the stitch width.
• For details, refer to “Adjusting the stitch
width” (page 56).
Memo
z Before sewing buttonholes, check the stitch
length and width by sewing a trial
buttonhole on a scrap piece of fabric.
■ Sewing buttonholes on stretch fabrics
When sewing buttonholes on stretch fabrics, use
a gimp thread.
a
Hook the gimp thread onto the part of
buttonhole foot “A” shown in the illustration.
b
It fits into the grooves, and then loosely tie it.
c
Attach buttonhole foot “A”.
• For details, refer to “Replacing the presser
foot” (page 42).
d
Select stitch
52
or
53
.
e
Adjust the stitch width to the thickness of the
gimp thread.
f
Lower the presser foot lever and the
buttonhole lever, and then start sewing.
g
When sewing is finished, gently pull the gimp
thread to remove any slack.
h
Use a handsewing needle to pull the gimp
thread to the wrong side of the fabric, and
then tie it.
92
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

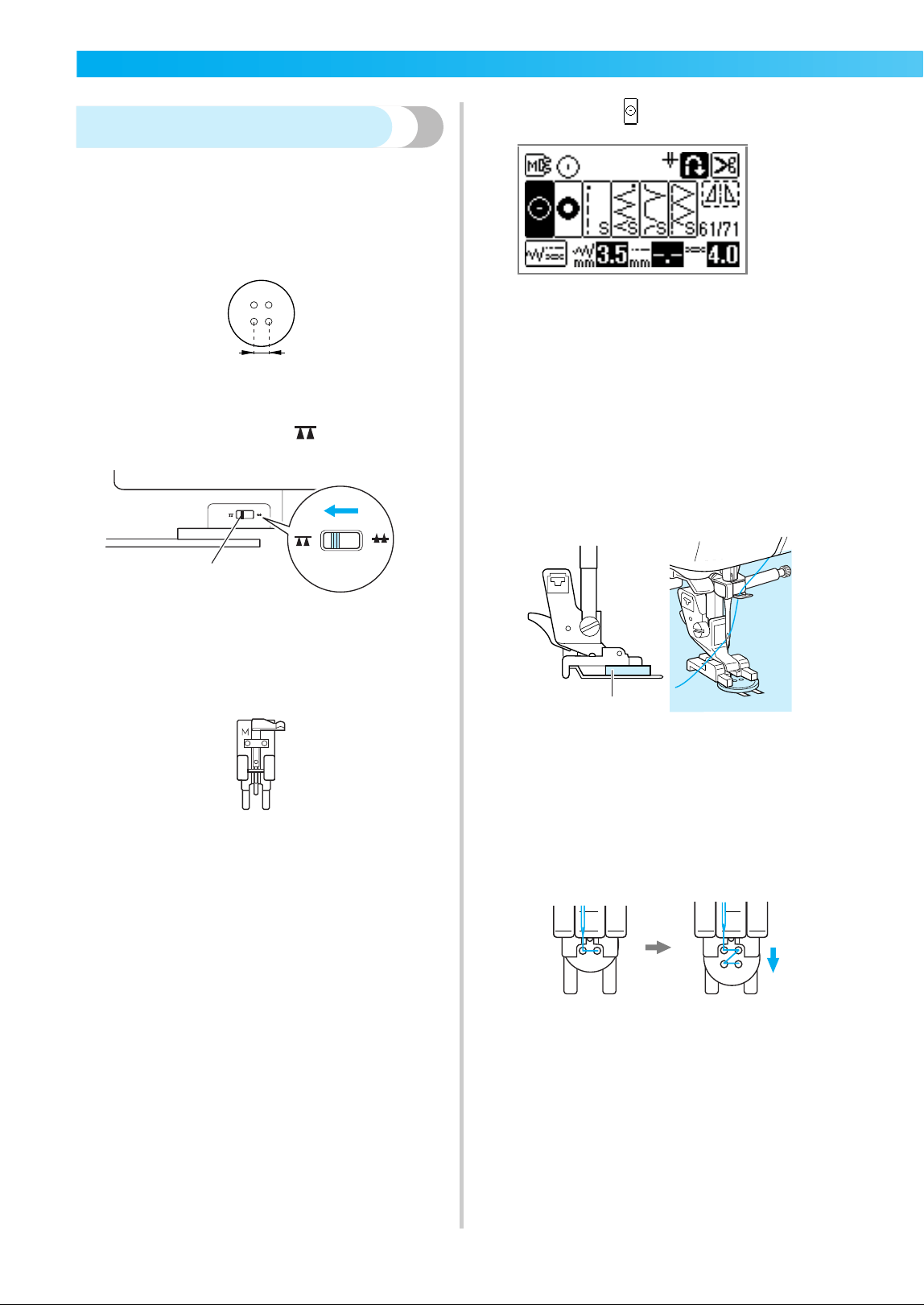

Button sewing
Buttons can be sewn on with the sewing machine.
Buttons with two or with four holes can be attached.
a
Measure the distance between the holes in the
button to be attached.
b
Raise the presser foot lever, and then slide the
drop feed lever, located at the rear of the
machine on the base, to (to the left as
seen from the rear of the machine).
a Drop feed lever (as seen from the rear of the
machine)
X The feed dogs are lowered.
c
Attach button-sewing foot “M”.
• For details, refer to “Replacing the presser
foot” (page 42).
d
Select stitch
61
.
• For details, refer to “Selecting stitching” (page
49).
• Since the end of the thread will be tied off
later, do not set the sewing machine for
programmed-thread cutting.
e
Adjust the stitch width so that it is the same as
the distance between the holes in the button.
f
Place the button in the position where it will
be sewn, and lower the presser foot lever.
a Button
X The button is held in place.
• When attaching four-hole buttons, first sew
the two holes closest to you. Then, slide the
button so that the needle goes into the two
holes toward the rear of the sewing machine,
and then sew them in the same way.
a
a
Buttonhole Stitching/Button Sewing 93
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
g
Turn the handwheel toward you
(counterclockwise) to check that the needle
correctly goes into the two holes of the button.
If it seems as if the needle will hit the button,
remeasure the distance between the holes in
the button. Adjust the stitch width to the
distance between the button holes.
CAUTION
h
Start sewing.
Set the sewing speed controller to the left (so
that the speed will be slow).
X The sewing machine automatically stops
after sewing reinforcement stitches.
• Do not press (“Thread Cutter” button).
• If additional strength is needed to secure the
button, perform the button-sewing operation
twice.
i
Use scissors to cut the upper thread and the
bobbin thread at the beginning of the stitching.
Pull the upper thread at the end of the stitching
to the wrong side of the fabric, and then tie it
with the bobbin thread.
j
When you are finished attaching the button,
slide the drop feed lever to (to the right
as seen from the rear of the machine) to raise
the feed dogs.
Memo
z The feed dog position switch is normally set
to the right side (as seen from the rear of
machine).
z The feed dogs come up when you start
sewing again.
■ Attaching a shank to a button
To sew the button with a shank, attach the button
with space between it and the fabric, and then
wind the thread by hand. This attaches the button
securely.
a
Place the button into button-sewing foot “M”,
and then pull the shank lever toward you.
a Shank lever
b
After sewing is finished, cut the upper thread
with plenty of excess, wind it around the
thread between the button and the fabric, and
then tie it to the upper thread at the beginning
of the stitching.
Tie together the ends of the bobbin thread at
the end and at the beginning of the stitching on
the wrong side of the fabric.
c
Cut off any excess thread.
● When sewing, be sure that the needle
does not touch the button, otherwise the
needle may bend or break.
1
94
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

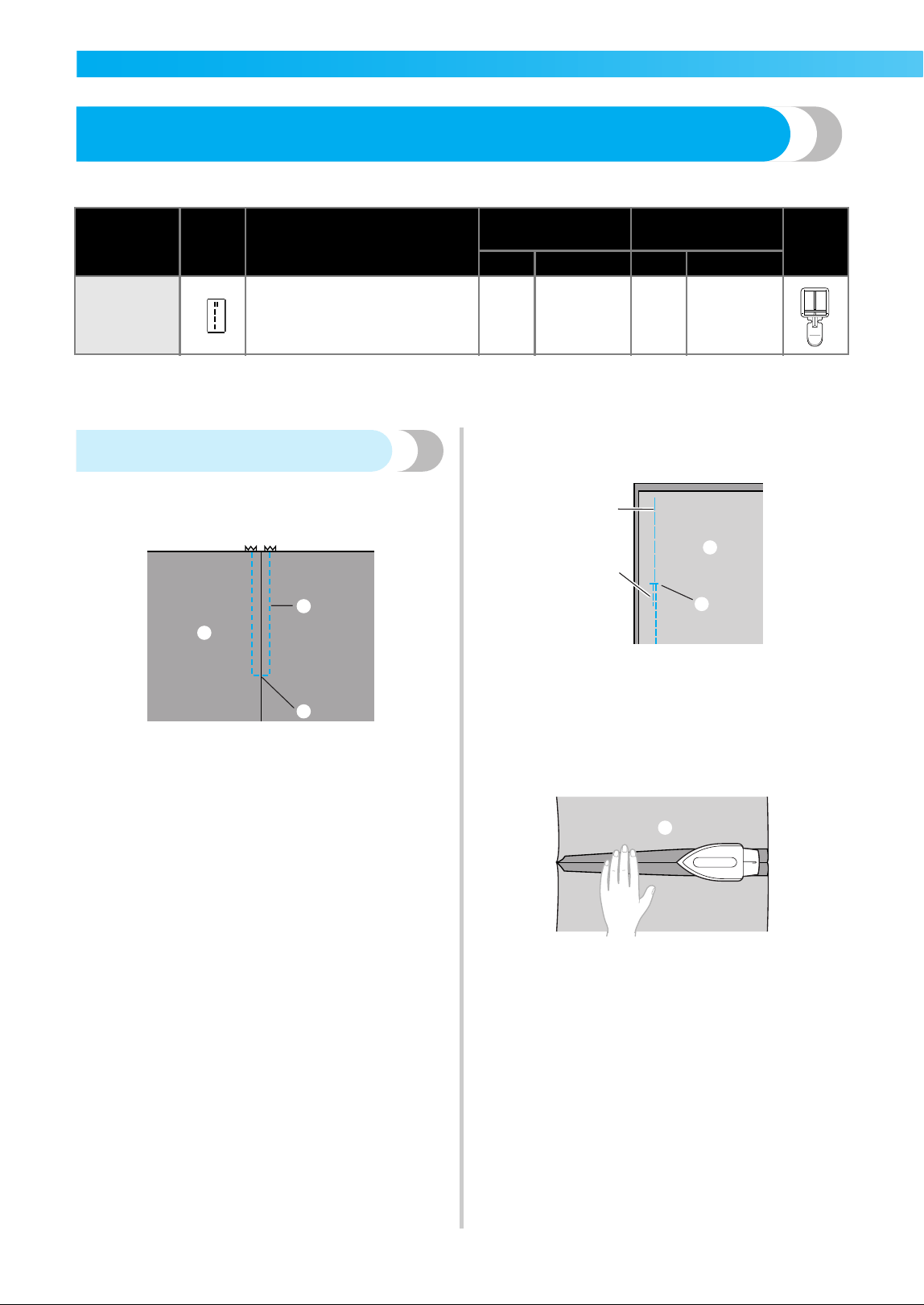

Zipper Insertion
A zipper can be sewn in place.
There are many methods for inserting zippers. The procedures for inserting a centered zipper and a side
zipper are described below.
Inserting a centered zipper
Stitching is sewn on both pieces of fabric butted
against each other.
a Right side of fabric
b Stitching
c End of zipper opening
a
Attach zigzag foot “J”.
b
Sew straight stitches up to the zipper opening.
With the right sides of the fabric facing each
other, sew reverse stitches after reaching the
zipper opening.
• For details, refer to “Basic stitching” (page
83).
c
Using a basting stitch, continue sewing to the
edge of the fabric.
a Basting stitching
b Reverse stitches
c Wrong side of fabric
d End of zipper opening
d
Press open the seam allowance from the
wrong side of the fabric.
a Wrong side of fabric
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Straight stitch
(center
needle
position)
3
Attaching zippers
Sewing concealed seams and
pintucks
3.5
(1/8)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–5.0
(1/64–3/16)
I
1
2
3
1
2
3
4
1
Zipper Insertion 95
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

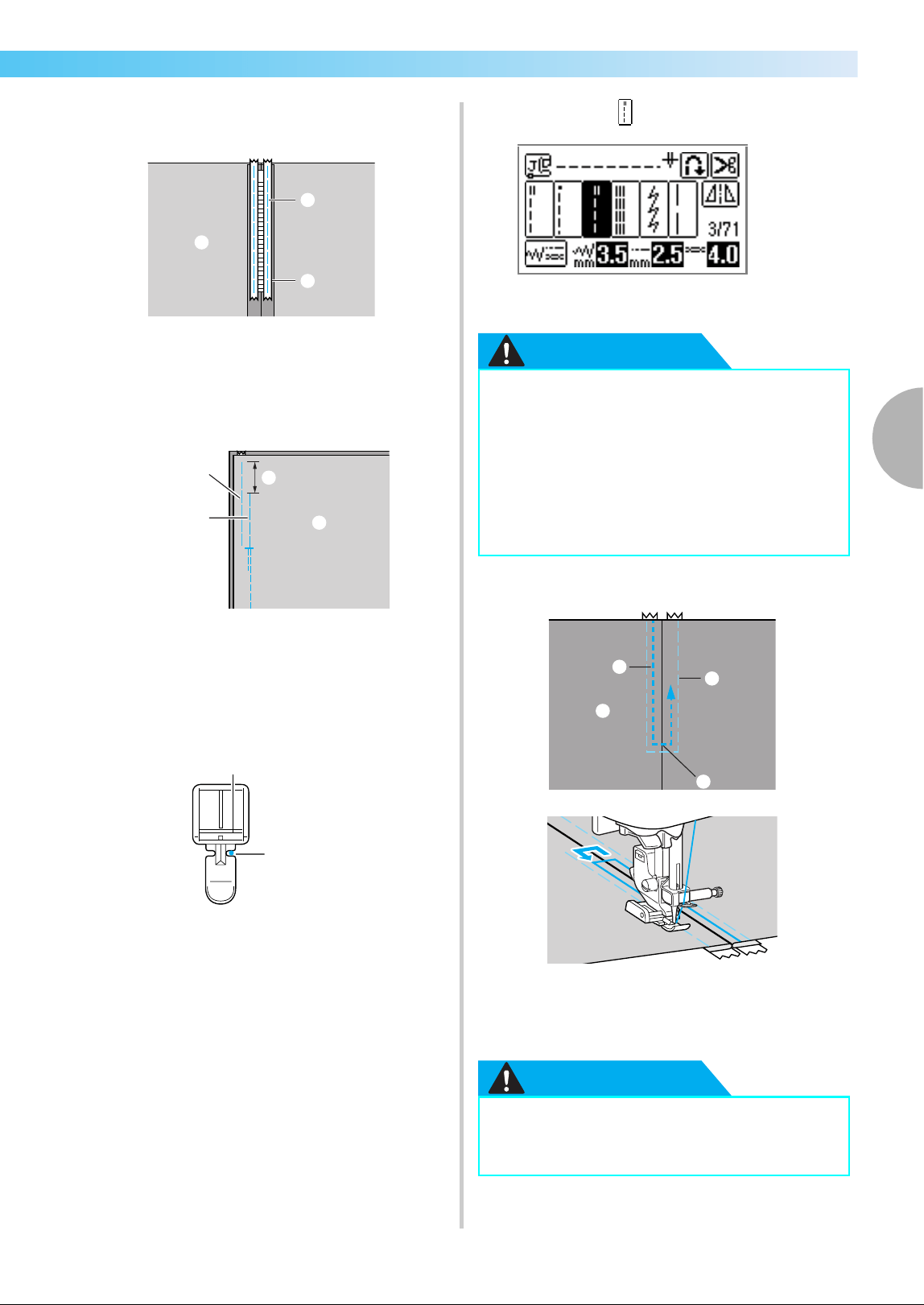

e
Align the seam with the center of the zipper,
and then baste the zipper in place.
a Wrong side of fabric
b Basting stiching
c Zipper
f
Remove about 5 cm (2 inches) from the end of
the basting on the outside.
a Wrong side of fabric
b Zipper basting
c Outside basting
d 5 cm (2 inches)
g
Attach the presser foot holder to the right pin
of zipper foot “I”.
a Pin on the right side
b Needle drop point
• For details, refer to “Replacing the presser
foot” (page 42).
h
Select stitch
3
.
• For details, refer to “Selecting stitching” (page
49).
CAUTION
i
Topstitch around the zipper.
a Stitching
b Right side of fabric
c Basting stitching
d End of zipper opening
CAUTION
j
Remove the basting stitching.
1
2
3
4
1
2
3
2
1
I
● When using zipper foot “I”, be sure to
select the straight stitch (center needle
position), and slowly turn the handwheel
toward
you (counterclockwise) to check
that the needle does not touch the presser
foot. If a different stitch is selected or the
needle hits the presser foot, the needle
may bend or break.
● When sewing, be sure that the needle
does not touch the zipper, otherwise the
needle may bend or break.
1
2
3
4
96
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

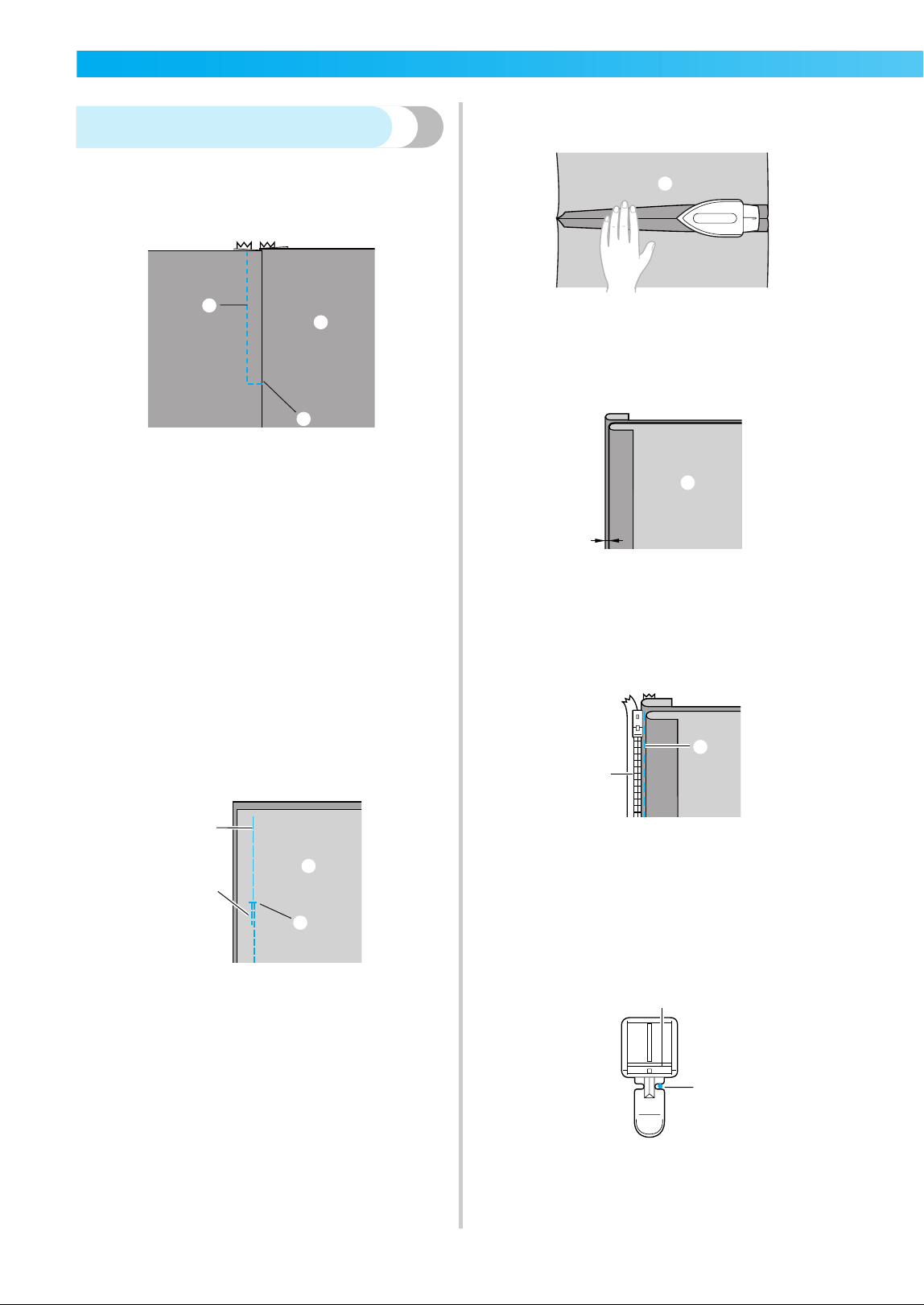

Inserting a side zipper
Stitching is visible on only one piece of fabric. Use
this type of zipper application for side openings and
back openings.
a Stitching
b Right side of fabric
c End of zipper opening
The following procedure will describe how to stitch
on the left side, as shown in the illustration.
a
Attach zigzag foot “J”.
b
Sew straight stitches up to the zipper opening.
With the right sides of the fabric facing each
other, sew reverse stitches after reaching the
zipper opening.
• For details, refer to “Basic stitching” (page
83).
c
Using a basting stitch, continue sewing to the
edge of the fabric.
a Basting stitching
b Reverse stitches
c Wrong side of fabric
d End of zipper opening
d
Press open the seam allowance from the
wrong side of the fabric.
a Wrong side of fabric
e
Press the seam allowance so that the right side
(the side that will not be stitched) has an extra
3 mm (1/8 inch).
a Wrong side of fabric
b 3 mm (1/8 inch)
f
Align the zipper teeth with the pressed edge of
the fabric having the extra 3 mm (1/8 inch),
and then baste or pin the zipper in place.
a Zipper teeth
b Basting stitching
g
Attach the presser foot holder to the right pin
of zipper foot “I”.
If the stitching will be sewn on the right side,
attach the presser foot holder to the left pin of
the zipper foot.
a Pin on the right side
b Needle drop point
• For details, refer to “Replacing the presser
foot” (page 42).
1
2
3
1
2
3
4
1
1
2
2
1
2
1
I
Zipper Insertion 97
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
h
Select stitch
3
.
• For details, refer to “Selecting stitching” (page
49).
CAUTION
i
Sew the zipper to the piece of fabric with the
extra 3 mm (1/8 inch), starting from the base
of the zipper.
CAUTION
j
When you are about 5 cm (2 inches) from the
end of the zipper, stop the sewing machine
with the needle lowered (in the fabric), raise
the presser foot lever.
k
Open the zipper and continue sewing.
l
Close the zipper, turn over the fabric, and then
baste the other side of the zipper to the fabric.
a Basting stitching
m
Attach the presser foot holder to the other pin
of zipper foot “I”.
If the presser foot holder was attached to the
right pin in step
g, change it to the left pin.
a Pin on the left side
b Needle drop point
● When using zipper foot “I”, be sure to
select the straight stitch (center needle
position), and slowly turn the handwheel
toward you (counterclockwise) to check
that the needle does not touch the presser
foot. If a different stitch is selected or the
needle hits the presser foot, the needle
may bend or break.
● When sewing, be sure that the needle
does not touch the zipper, otherwise the
needle may bend or break.
1
I
1
2

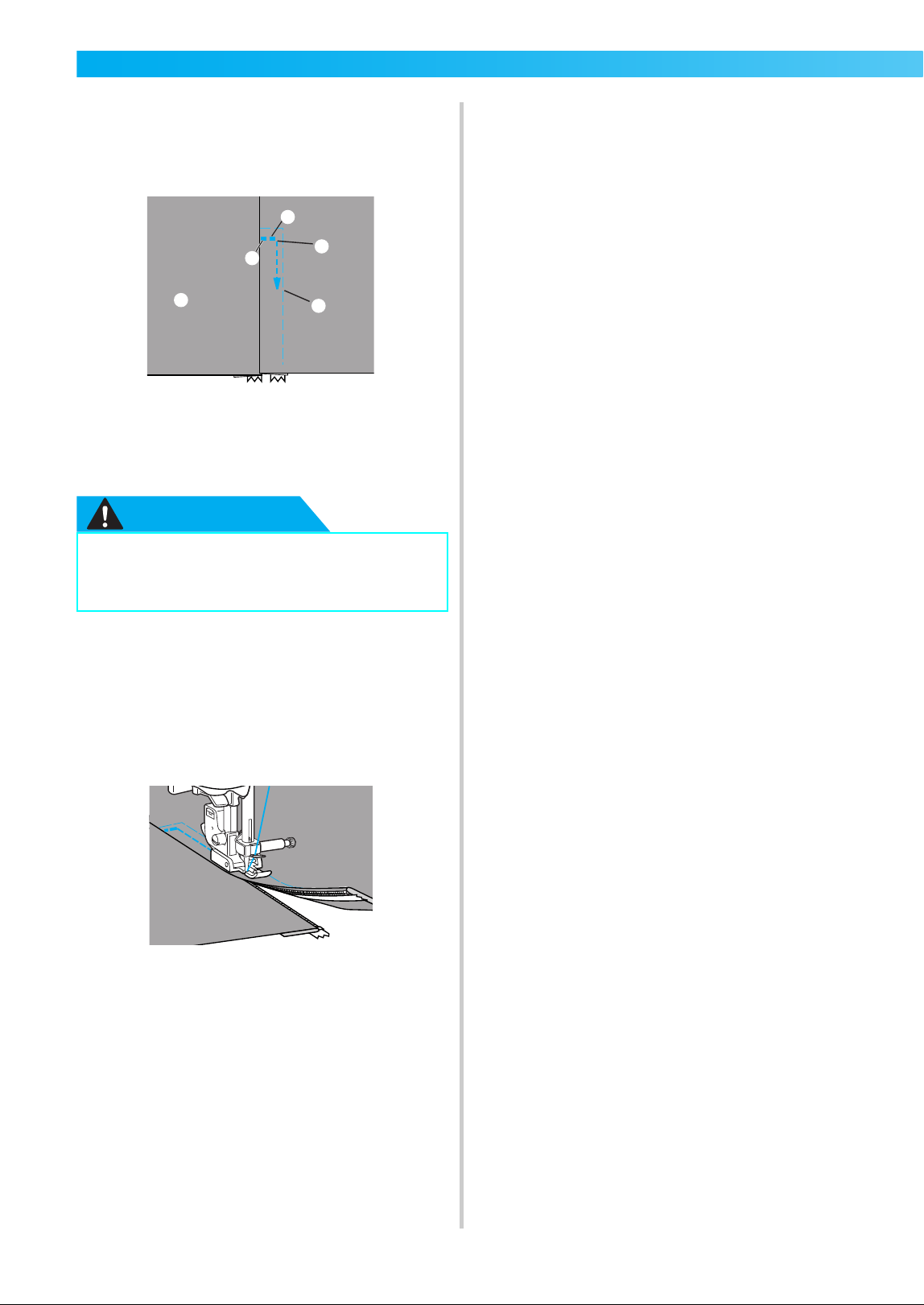

98
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
n
Topstitch around the zipper.
Sew reverse stitches at the end of the zipper
opening and align the zipper teeth with the side
of the presser foot.
a Right side of fabric
b End of zipper opening
c Reverse stitches
d Beginning of stitching
e Basting stitching
CAUTION
o
When you are about 5 cm (2 inches) from the
end of the zipper, stop the sewing machine
with the needle lowered (in the fabric), raise
the presser foot lever, and then open the
zipper and continue sewing.
p
Remove the basting stitching.
● When sewing, be sure that the needle
does not touch the zipper, otherwise the
needle may bend or break.
1
2
3
4
5

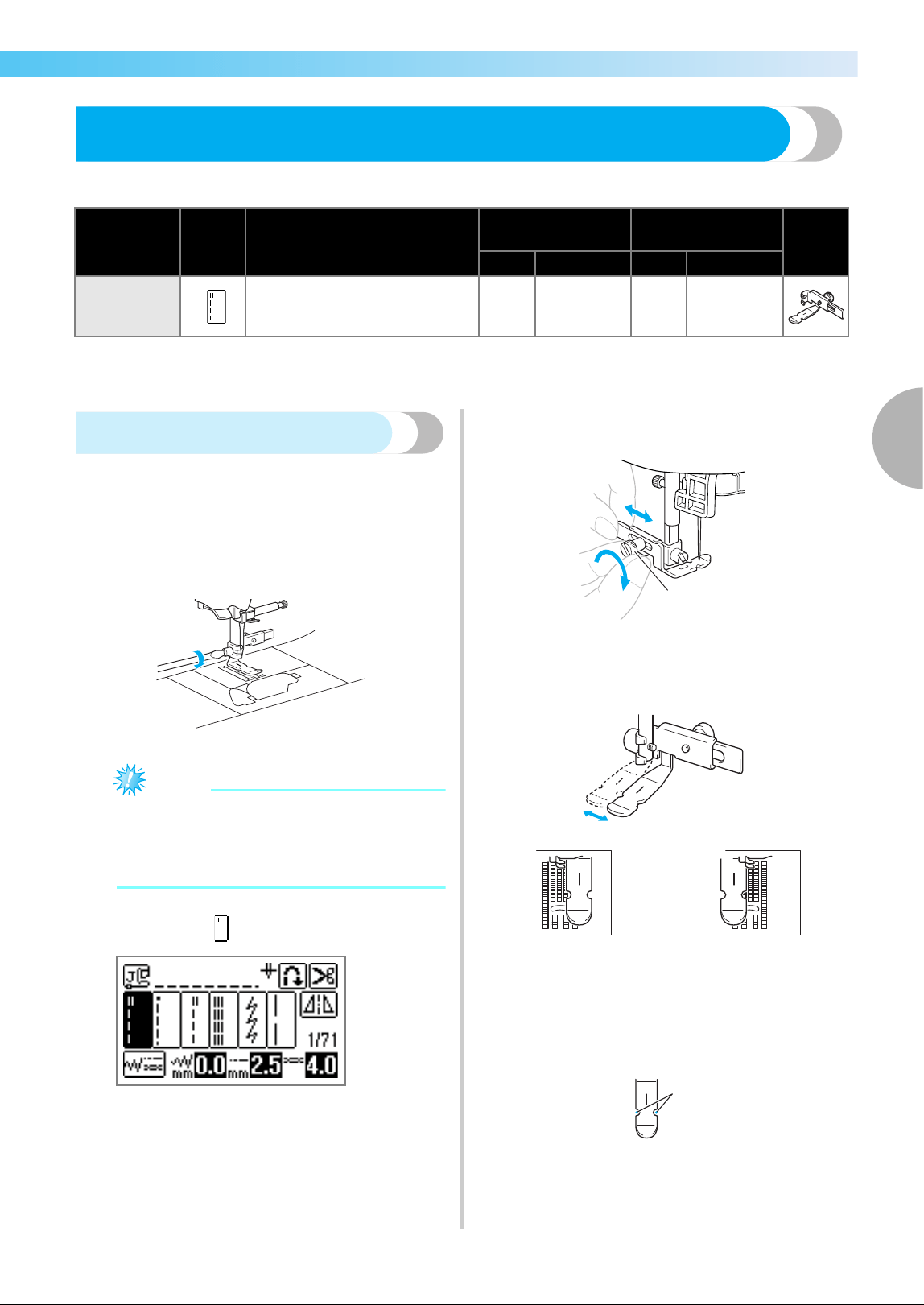

Zipper/piping Insertion 99
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Zipper/piping Insertion
A zipper and piping can be sewn in place.
There are many methods for inserting zippers and pipings. The procedures for inserting a centered zipper
and a piping are described below, with the adjustable zipper/piping foot.
Inserting a centered zipper
a
Refer to step a–e of “Inserting a centered
zipper” (page 94).
b
Remove the presser foot and presser foot
holder (page 44) to attach the screw-on
adjustable zipper/piping foot.
Note
z Use a screw driver to securely tighten the
screw that holds the presser foot. If the screw
is loose, the needle may break and cause
injures.
c
Select stitch
1
.
d
Loosen the positioning screw on the back of
the presser foot.
a Positioning screw
e
Slide the presser foot over either the left or
right feed dog.
f
Change the needle position so that the needle
does not touch the presser foot.
For details, refer to “Adjusting the stitch width”
(page 56).
a Needle drop point
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Straight stitch
(left needle
position)
1
Attaching zippers Sewing
concealed seams and piping
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–5.0
(1/64–3/16)
1
Left sewing position
Right sewing position
1
100
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

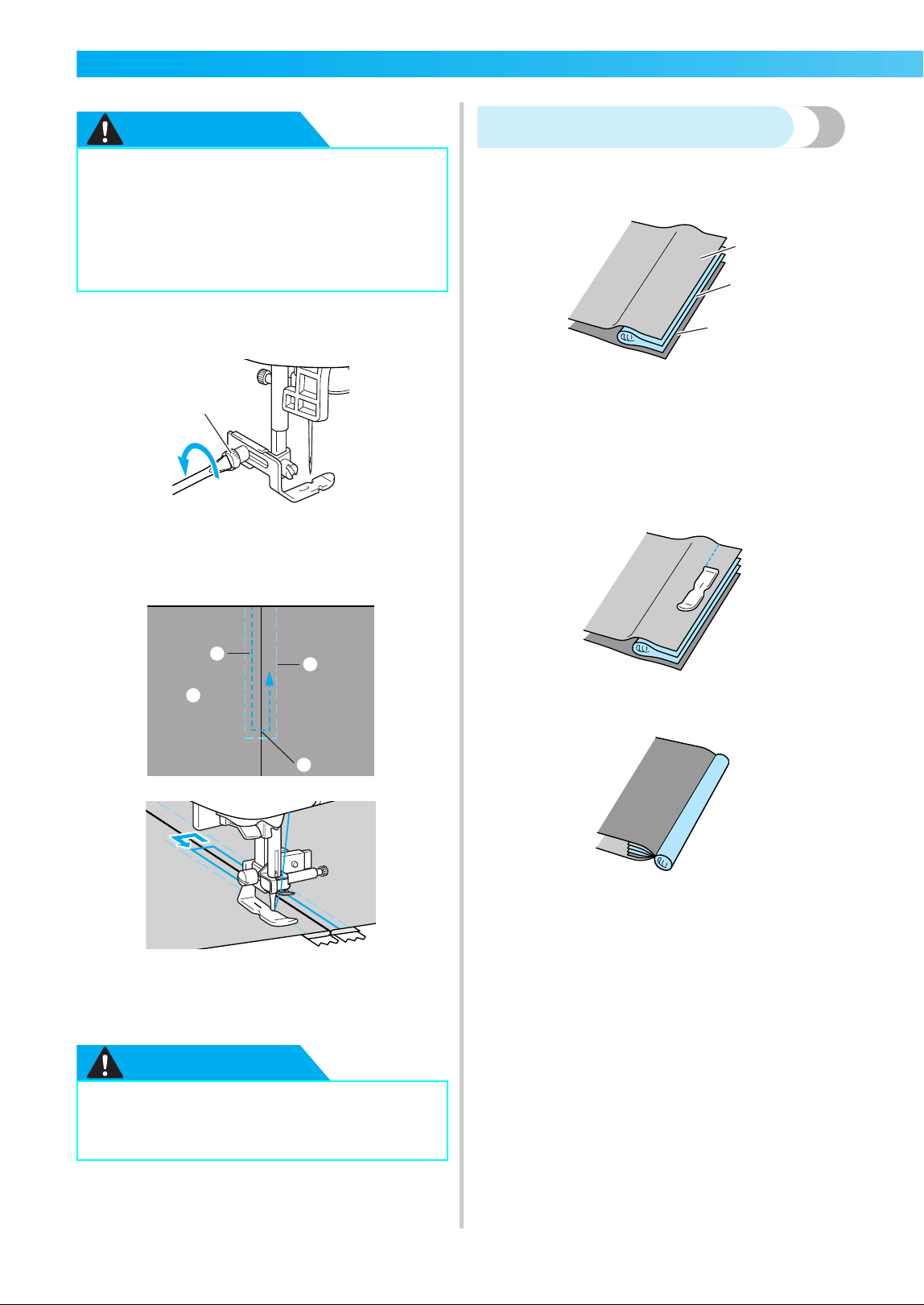

CAUTION
g
Securely tighten the positioning screw with a
screwdriver.
a Positioning screw
h
Topstitch around the zipper.
a Stitching
b Right side of fabric
c Basting stitching
d End of zipper opening
CAUTION
i
Remove the basting stitching.
Inserting a piping
a
Place the piping between two fabric pieces
turned inside out, as shown below.
a Fabric
b Piping
c Fabric
b
Refer to the steps of attaching the adjustable
zipper/piping foot on the previous page.
c
Sew along the piping.
d
After sewing, turn fabric pieces.
● After adjusting the needle position, slowly
turn the handwheel toward you and
check the needle does not touch
(counterclockwise) the presser foot. If the
needle hits the presser foot, the needle
may bend or break.
● When sewing, be sure that the needle
does not touch the zipper, otherwise the
needle may bend or break.
1
1
2
3
4
1
2
3
Sewing Stretch Fabrics and Elastic Tape 101
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Sewing Stretch Fabrics and Elastic Tape
Stretch fabrics can be sewn and elastic tape can be attached.
Observe the corresponding precautions when performing each of the following stitching operations.
Stretch stitching
a
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Select stitch
5
.
• For details, refer to “Selecting stitching” (page
49).
c
Sew the fabric without stretching it.
Elastic attaching
When elastic tape is attached to the cuff or waist of a
piece of clothing, the finished dimensions will be that
of the stretched elastic tape. Therefore, it is necessary
that a suitable length of the elastic tape be used.
a
Pin the elastic tape to the wrong side of the
fabric.
Pin the elastic tape to the fabric at a few points
to make sure that the tape is uniformly
positioned on the fabric.
a Elastic tape
b Pin
b
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Stretch stitch
5
Stretch fabrics
1.0
(1/16)
1.0–3.0
(1/16–1/8)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
J
2-point
zigzag stitch
9
Attaching elastic
5.0
(3/16)
1.5–7.0
(1/16–1/4)
1.0
(1/16)
0.2–4.0
(1/64–3/16)
3-point
zigzag stitch
10
5.0
(3/16)
1.5–7.0
(1/16–1/4)
1.0
(1/16)
0.2–4.0
(1/64–3/16)
Elastic-
attaching
stitch
34
Attaching elastic to stretch
fabrics
4.0
(3/16)
0.0–7.0
(0–1/4)
1.0
(1/16)
0.2–4.0
(1/64–3/16)
J
1
2
J
102
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

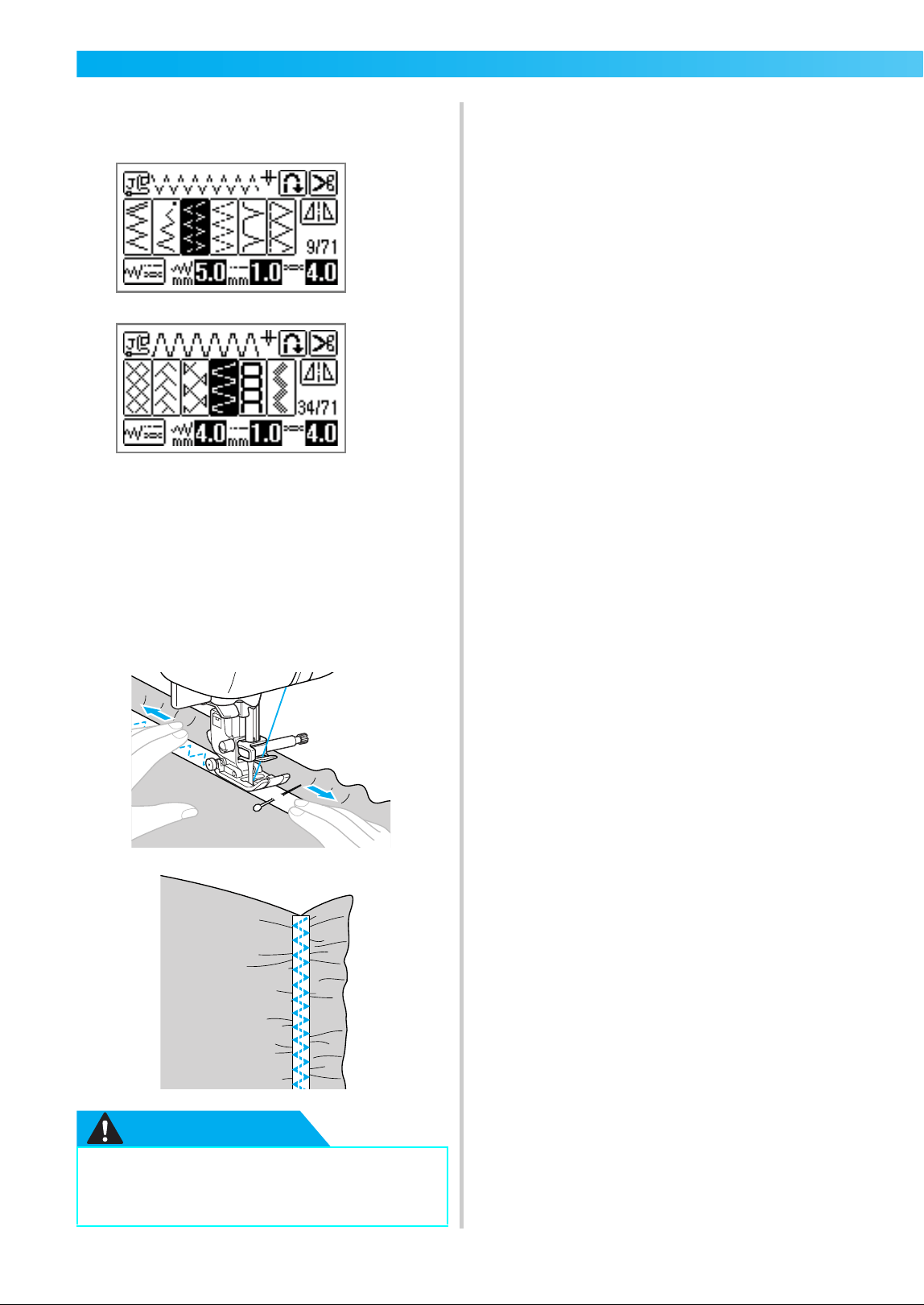

c
Select a stitch.
Example: 2-point zigzag stitch
Example: Elastic-attaching stitch
• For details, refer to “Selecting stitching” (page
49).
d
Sew the elastic tape to the fabric while
stretching the tape so that it is the same length
as the fabric.
While pulling the fabric behind the presser foot
with your left hand, pull the fabric at the pin
nearest the front of the presser foot with your
right hand.
CAUTION
● When sewing, be sure that the needle
does not touch any pins, otherwise the
needle may bend or break.
Appliqué, Patchwork and Quilt Stitching 103
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

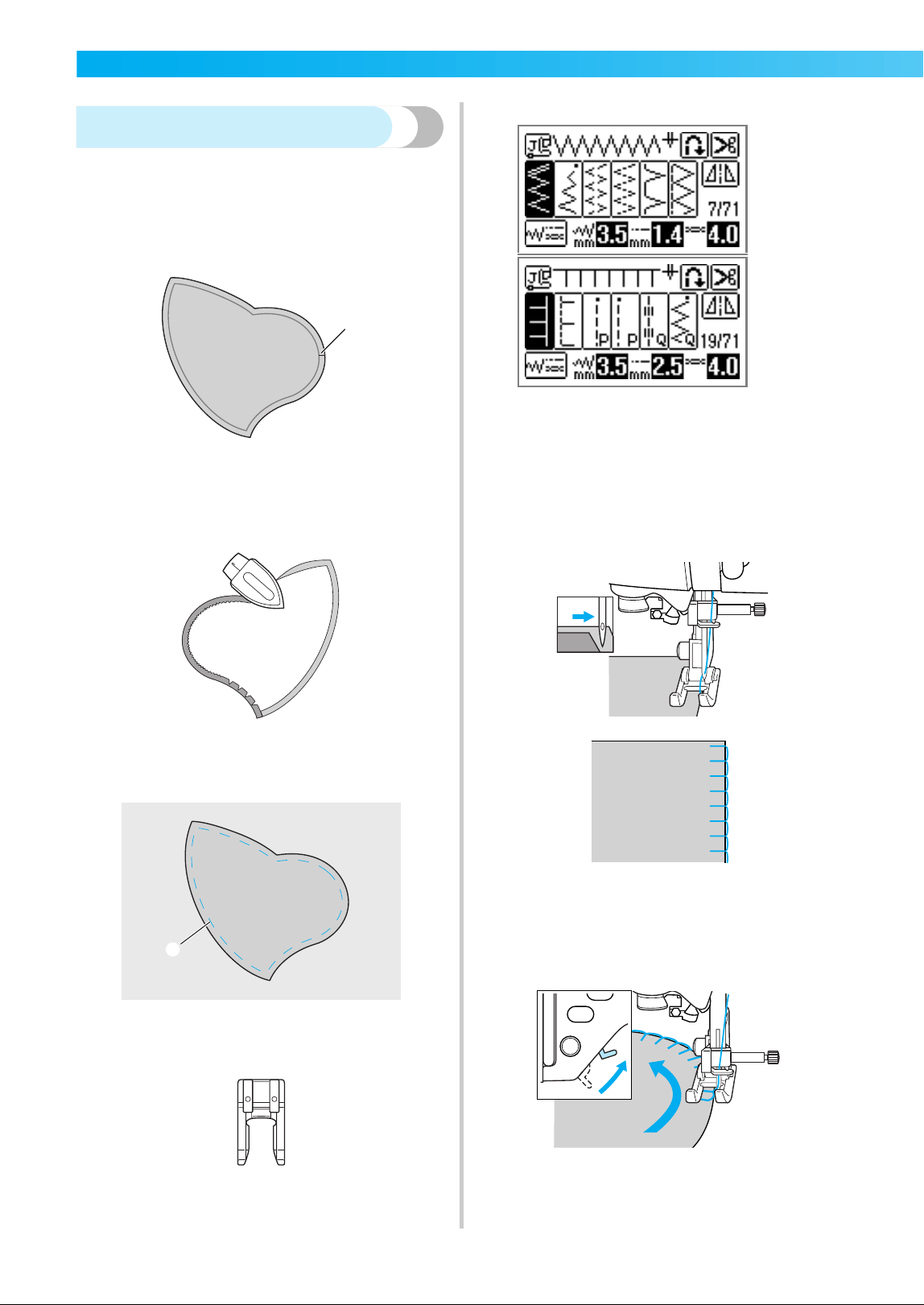

Appliqué, Patchwork and Quilt Stitching
The stitches that can be used for sewing appliqués, patchwork and quilts are described below.
Memo
z Patterns showing a “Q” on the LCD are for quilting and those showing a “P” are for piecing.
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Zigzag stitch
7
Attaching appliqués (center
baseline/reverse stitching)
3.5
(1/8)
0.0–7.0
(0–1/4)
1.4
(1/16)
0.0–4.0
(0–3/16)
J
24
Appliqué quilting, free-motion
quilting, satin stitching
3.5
(1/8)
0.0–7.0
(0–1/4)
1.4
(1/16)
0.0–4.0
(0–3/16)
Appliqué
stitch
19
Attaching appliqués
3.5
(1/8)
2.5–7.0
(3/32–1/4)
2.5
(3/32)
1.6–4.0
(1/16–3/16)
25
Attaching appliqués and binding
1.5
(1/16)
0.5–5.0
(1/32–3/16)
1.8
(1/16)
1.0–4.0
(1/16–3/16)
Piecing
straight stitch
21
Piecing straight stitching (with a seam
allowance of 6.5 mm (1/4 inch) from
the right edge of the presser foot)
5.5
(7/32)
0.0–7.0
(0–1/4)
2.0
(1/16)
0.2–5.0
(1/64–3/16)
22
Piecing straight stitching (with a
seam allowance of 6.5 mm (1/4 inch)
from the left edge of the presser foot)
1.5
(1/16)
0.0–7.0
(0–1/4)
2.0
(1/16)
0.2–5.0
(1/64–3/16)
Joining stitch
28
Patchwork stitching
4.0
(3/16)
0.0–7.0
(0–1/4)
1.2
(1/16)
0.2–4.0
(1/64–3/16)
29
5.0
(3/16)
2.5–7.0
(3/32–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
30
5.0
(3/16)
0.0–7.0
(0–1/4)
1.2
(1/16)
0.2–4.0
(1/64–3/16)
Mock hand
quilting stitch
23
Straight stitch quilting that looks
hand quilting
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
Quilting
stippling
26
Stippling
7.0
(1/4)
1.0–7.0
(1/16–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
104
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Appliqué stitching
For best results, use the included open toe foot.
a
Cut out the appliqué, leaving a seam
allowance of between 3 and 5 mm (1/8 and
3/16 inch).
a Seam allowance
b
Place a pattern made of thick paper or
stabilizer on the back of the appliqué, and then
fold over the seam allowance using an iron.
c
Turn the fabric over, and then baste or fuse it
onto the fabric that it will be attached to.
a Basting stitching
d
Attach the open toe foot.
• For details, refer to “Replacing the presser
foot” (page 42).
e
Select a stitch.
• For details, refer to “Selecting stitching” (page
49).
f
Turn the handwheel toward you
(counterclockwise), and then begin sewing
around the edge of the appliqué, making sure
that the needle drops just outside of the
appliqué.
When sewing around corners, stop the
machine with the needle in the fabric just
outside of the appliqué, raise the presser foot
lever, and then turn the fabric as needed to
change the sewing direction.
1
1
Appliqué, Patchwork and Quilt Stitching 105
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Patchwork (crazy quilt)
stitching
a
Fold the edge of the top piece of fabric and
place it over the lower piece.
b
Sew the two pieces of fabric together so the
pattern spans over both pieces.
Piecing
Sewing together two pieces of fabric is called
“piecing”. The fabric pieces should be cut with a
7 mm (1/4 inch) seam allowance.
Sew a piecing straight stitch 7 mm (1/4 inch) from
either the right side or the left side of the presser foot.
a
Baste or pin along the seam allowance of the
fabric that you wish to piece together.
b
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
c
Select stitch
21
or
22
.
• For details, refer to “Selecting stitching” (page
49).
• The piecing straight stitch shows a “P” on the
LCD.
d
Sew with the side of the presser foot aligned
with the edge of the fabric.
■ For a seam allowance on the right side
Align the right side of the presser foot with
the edge of the fabric, and sew using stitch
21
.
a 7 mm (1/4 inch)
J
1
106
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ For a seam allowance on the left side
Align the left side of the presser foot with the
edge of the fabric, and sew using stitch
22
.
a 7 mm (1/4 inch)
Memo
z To change the width of the seam allowance
(needle position), adjust the stitch width. For
details, refer to “Adjusting the stitch width”
(page 56).
■ Using the optional 1/4 inch quilting foot
If the 1/4 inch quilting foot is used, seams can be
sewn with a seam allowance of 6.4 mm (1/4 inch).
a
Baste or pin along the seam allowance of the
fabric that you wish to piece together.
b
Attach the 1/4 inch quilting foot.
• For details, refer to “Replacing the presser
foot” (page 42).
c
Select stitch
3
.
d
Align the mark at the upper edge of the 1/4
inch quilting foot with the upper edge of the
fabric.
Align the right edge of the fabric with the right
edge of the narrow part of the 1/4 inch quilting
foot.
a Mark on 1/4 inch quilting foot
b Beginning of stitching
When sewing with a seam allowance, align the
left edge of the narrow part of the 1/4 inch
quilting foot with the fabric edge.
a Seam (3.2 mm (1/8 inch))
e
Start sewing.
f
When the end of the stitching is reached, stop
the sewing machine.
Sew until the mark at the lower edge of the 1/4
inch quilting foot aligns with the lower edge of
the fabric.
a 6.4mm (1/4 inch)
b End of stitching
c Mark on 1/4 inch quilting foot
1
1
2
1
2
3
1
Appliqué, Patchwork and Quilt Stitching 107
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Quilting
Sandwiching batting between the top and bottom layers
of fabric is called “quilting”. Quilts can easily be sewn
using the optional walking foot and the optional
quilting guide.
a
Baste the fabric to be quilted.
b
Remove the presser foot and the presser foot
holder.
• For details, refer to “Removing and attaching
the presser foot holder” (page 44).
c
Hook the connecting fork of the walking foot
onto the needle clamp screw.
a Connecting fork
b Needle clamp screw
d
Lower the presser foot lever, insert the presser
foot holder screw, and then tighten the screw
with the screwdriver.
a Presser foot holder screw
X The walking foot is attached.
CAUTION
e
Select a stitch.
• For details, refer to “Selecting stitching” (page
49).
f
Place one hand on each side of the presser
foot, and hold fabric taut while sewing.
Note
z When sewing with the walking foot, sew at a
speed between slow and medium.
z When quilting, use a 90/14 home sewing
machine needle.
a
b
● Be sure to securely tighten the screws
with the screwdriver, otherwise the
needle may touch the presser foot,
causing it to bend or break.
● Before starting to sew, slowly turn the
handwheel toward you
(counterclockwise)
and check that the
needle does not touch the presser foot. If
the needle hits the presser foot, the
needle may bend or break.
a
108
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ Using the optional quilting guide
Use the quilting guide to sew parallel stitches that
are equally spaced.
a
Insert the stem of the quilting guide into the
hole at the rear of the walking foot or presser
foot holder.
Walking foot
Presser foot holder
b
Adjust the stem of the quilting guide so that
the guide aligns with the seam that has already
been sewn.
Note
z The optional quilting guide is available
through brother dealer.
Free-motion quilting
With free-motion quilting, lower the feed dogs (using
the drop feed lever) so that the fabric can be moved
freely in any direction.
When free-motion quilting, use the following
instructions with the optional quilting foot.
a
Remove the presser foot and the presser foot
holder.
• Refer to “Removing and attaching the presser
foot holder” (page 44).
b
Secure the quilting foot with the presser foot
holder screw.
The pin on the quilting foot should be
positioned over the needle clamp screw.
a Pin on quilting foot
b Presser foot holder screw
c Needle clamp screw
c
Hold the quilting foot in place with your right
hand, and then tighten the presser foot holder
screw using the screwdriver in your left hand.
a Presser foot holder screw
3
1
2
1
Appliqué, Patchwork and Quilt Stitching 109
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

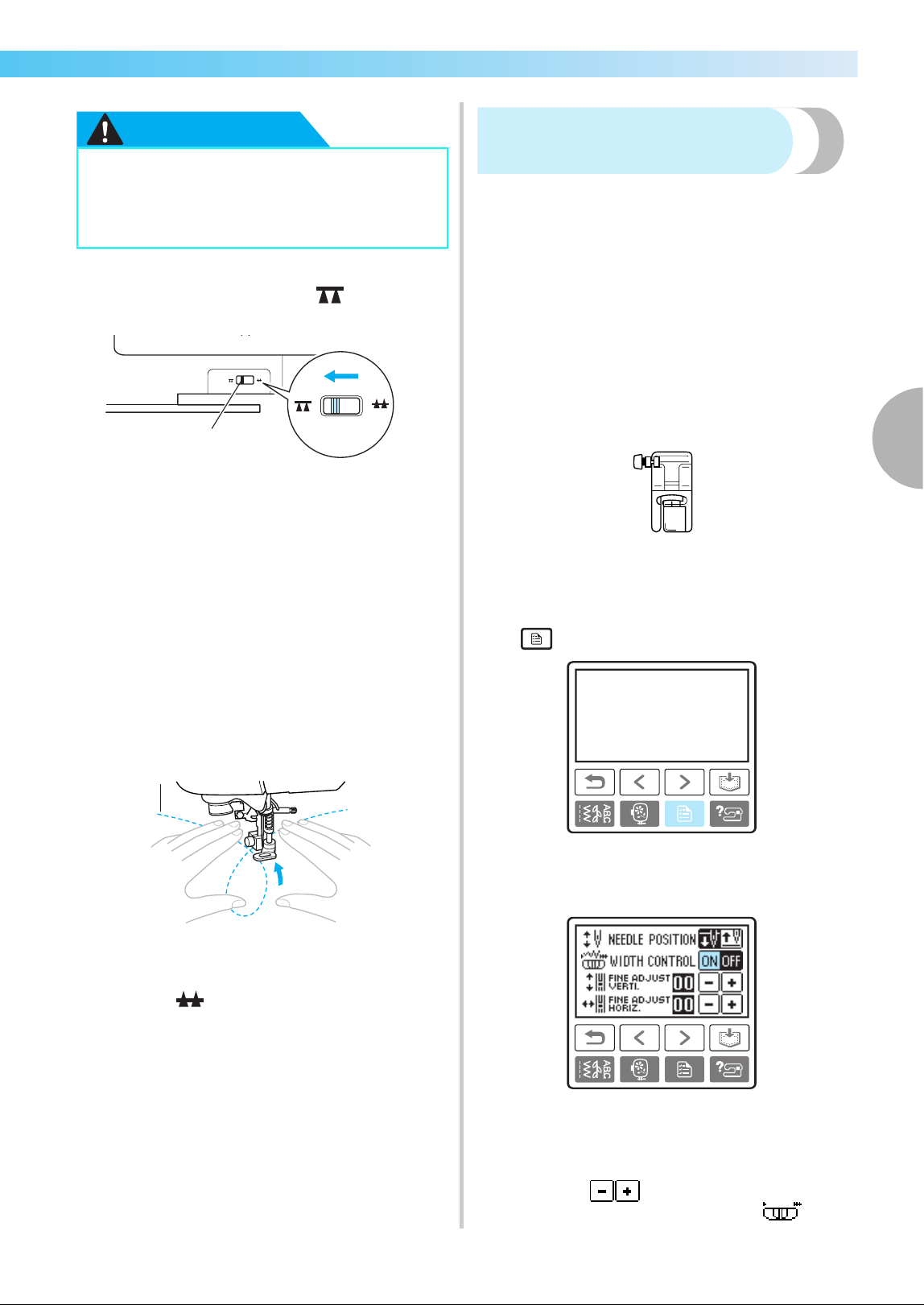

CAUTION
d
Slide the drop feed lever, located at the rear of
the machine on the base, to (to the left as
seen from the rear of the machine).
a Feed dog position switch (as seen from the rear of
the machine)
X The feed dogs are lowered.
e
Turn on the sewing machine, and then select a
stitch.
• For details, refer to “Selecting stitching” (page
49).
f
Use both hands to hold the fabric taut, and
then move the fabric to follow the pattern.
Reinforcement stitches are sewn at the
beginning and end of sewing.
a Pattern
g
After sewing is finished, slide the drop feed
lever to (to the right as seen from the rear
of the machine) to raise the feed dogs.
• Normally, the drop feed lever is positioned at
the right.
Satin stitching using the
sewing speed controller
A decorative stitch can be sewn by changing the
stitch width of a satin stitch. If the sewing machine is
set so that the stitch width can be adjusted using the
sewing speed controller, the stitch width can quickly
and easily be adjusted. In this case, the sewing speed
is adjusted with the foot controller.
a
Connect the foot controller.
• For details, refer to “Starting to sew” (page
51).
b
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
c
Turn on the sewing machine, and then press
(Settings key) on the operation panel.
X The settings screen appears.
d
Press ON for stitch width control setting.
X The machine is now set so that the stitch
width can be controlled with the sewing
speed controller.
If the stitch width control setting is set to
“ON”, for stitch width will change
to sewing speed controller icon .
● Be sure to securely tighten the screws
with the screwdriver, otherwise the
needle may touch the presser foot,
causing it to bend or break.
a
1
J
110
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
e
Press (Back key).
X The initial screen appears again.
f
Select stitch
24
.
• For details, refer to “Selecting stitching” (page
49).
g
While sewing, slide the sewing speed
controller to adjust the stitch width.
Slide the controller to the left to make the width
narrower. Slide the controller to the right to
make the width wider.
•
Adjust the sewing speed with the foot controller.
h
When you are finished sewing, set the stitch
width control setting back to OFF.
Memo
z
Although the stitching result differs depending
on the type of fabric being sewn and the
thickness of the thread being used, for best
results, adjust the stitch length to between 0.3
and 0.5 mm (1/64 and 1/32 inch).
WiderNarrower
Reinforcement Stitching 111
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

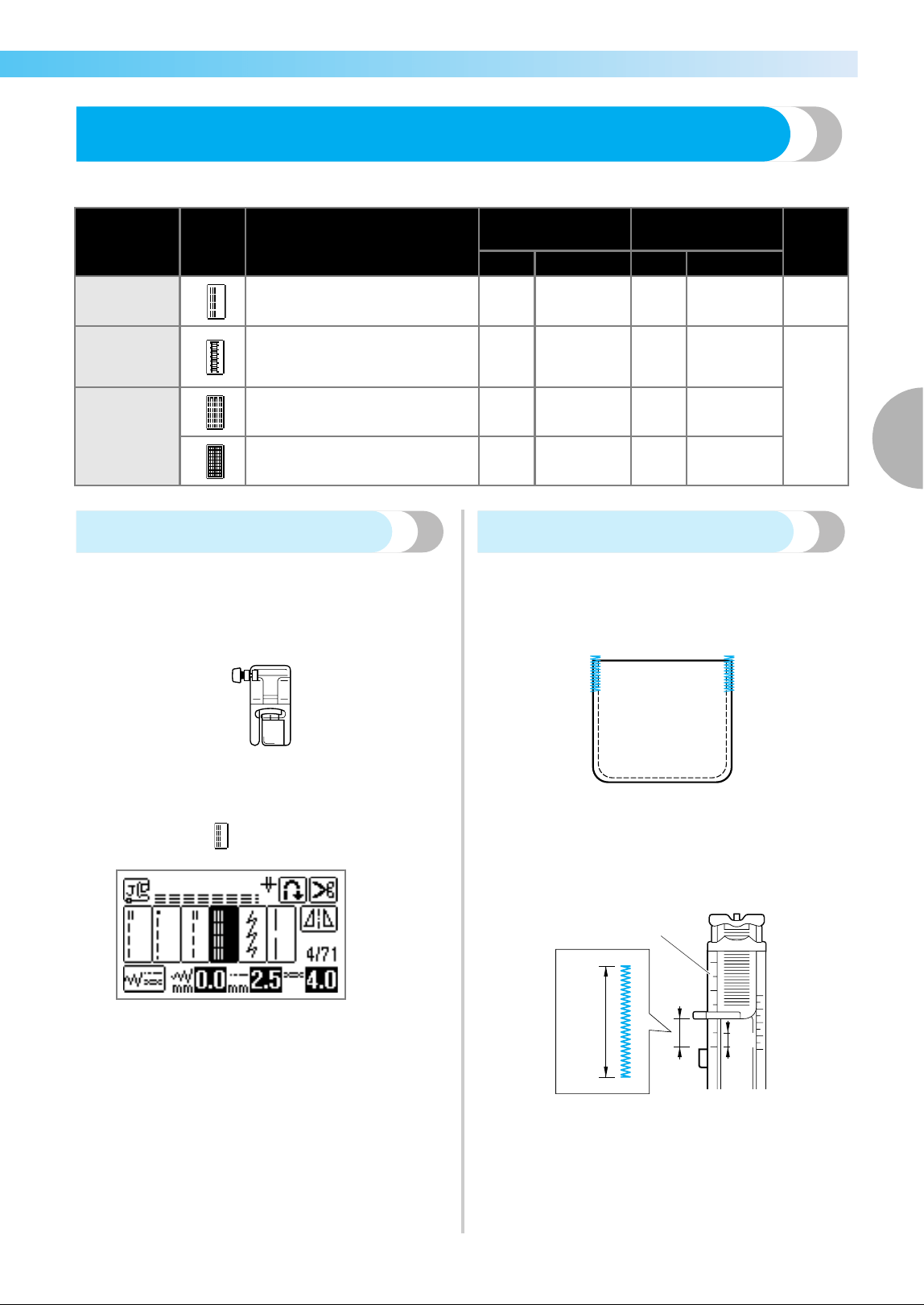

Reinforcement Stitching
Reinforce points that will be subject to strain, such as sleeve holes, inseams and pocket corners.
Triple stretch stitching
Use triple stretch stitching to reinforce sleeve holes
and inseams.
a
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Select stitch
4
.
• For details, refer to “Selecting stitching” (page
49).
c
Start sewing.
• For details, refer to “Starting to sew” (page
51).
Bar tack stitching
Bar tacks are used to reinforce points subject to
strain, such as pocket corners and openings.
As an example, the procedure for sewing bar tacks at
pocket corners is described below.
a
Determine the desired length of the bar tack.
Set the button guide plate on buttonhole foot
“A” to the desired length. (The distance
between the markings on the presser foot scale
is 5 mm (3/16 inch).)
a Presser foot scale
b Length of bar tack
c 5 mm (3/16 inch)
• A bar tack with a maximum length of about
28 mm (1–1/8 inches) can be sewn.
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Triple stretch
stitch
4
Reinforcing the seams of sleeves
and inseams
0.0
(0)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.5–4.0
(1/16–3/16)
J
Bar tack
stitch
60
Reinforcing the ends of
openings, such as the corners of
pockets
2.0
(1/16)
1.0–3.0
(1/16–1/8)
0.4
(1/64)
0.3–1.0
(1/64–1/16)
A
Darning
stitch
58
Darning medium weight fabrics
7.0
(1/4)
2.5–7.0
(3/32–1/4)
2.0
(1/16)
0.4–2.5
(1/64–3/32)
59
Darning thick fabrics
7.0
(1/4)
2.5–7.0
(3/32–1/4)
2.0
(1/16)
0.4–2.5
(1/64–3/32)
J
3
1
2
112
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
b
Attach buttonhole foot “A”.
• For details, refer to “Replacing the presser
foot” (page 42).
c
Select stitch
60
.
• For details, refer to “Selecting stitching” (page
49).
d
Position the fabric so that the opening of the
pocket faces toward you, and then lower the
presser foot lever so that the needle drops
2 mm (1/16 inch) in front of the pocket
opening.
a 2 mm (1/16 inch)
Pass the upper thread down through the hole in
the presser foot.
• When lowering the presser foot, do not push
in the front of the presser foot, otherwise the
bar tack will not be sewn with the correct
size.
a Do not reduce the gap.
e
Pull down the buttonhole lever as far as
possible.
a Buttonhole lever
The buttonhole lever is positioned behind the
bracket on the buttonhole foot.
a Buttonhole lever
b Bracket
f
Gently hold the end of the upper thread in
your left hand, and then start sewing.
X Once sewing is completed, the machine
automatically sews reinforcement stitches,
then stops.
g
Raise the presser foot lever, remove the fabric,
and then cut the threads.
h
Raise the buttonhole lever to its original
position.
Memo
z If the fabric does not feed, for example,
because it is too thick, increase the stitch
length. For details, refer to “Adjusting the
stitch length” (page 57).
1
a
a
2
1
Reinforcement Stitching 113
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

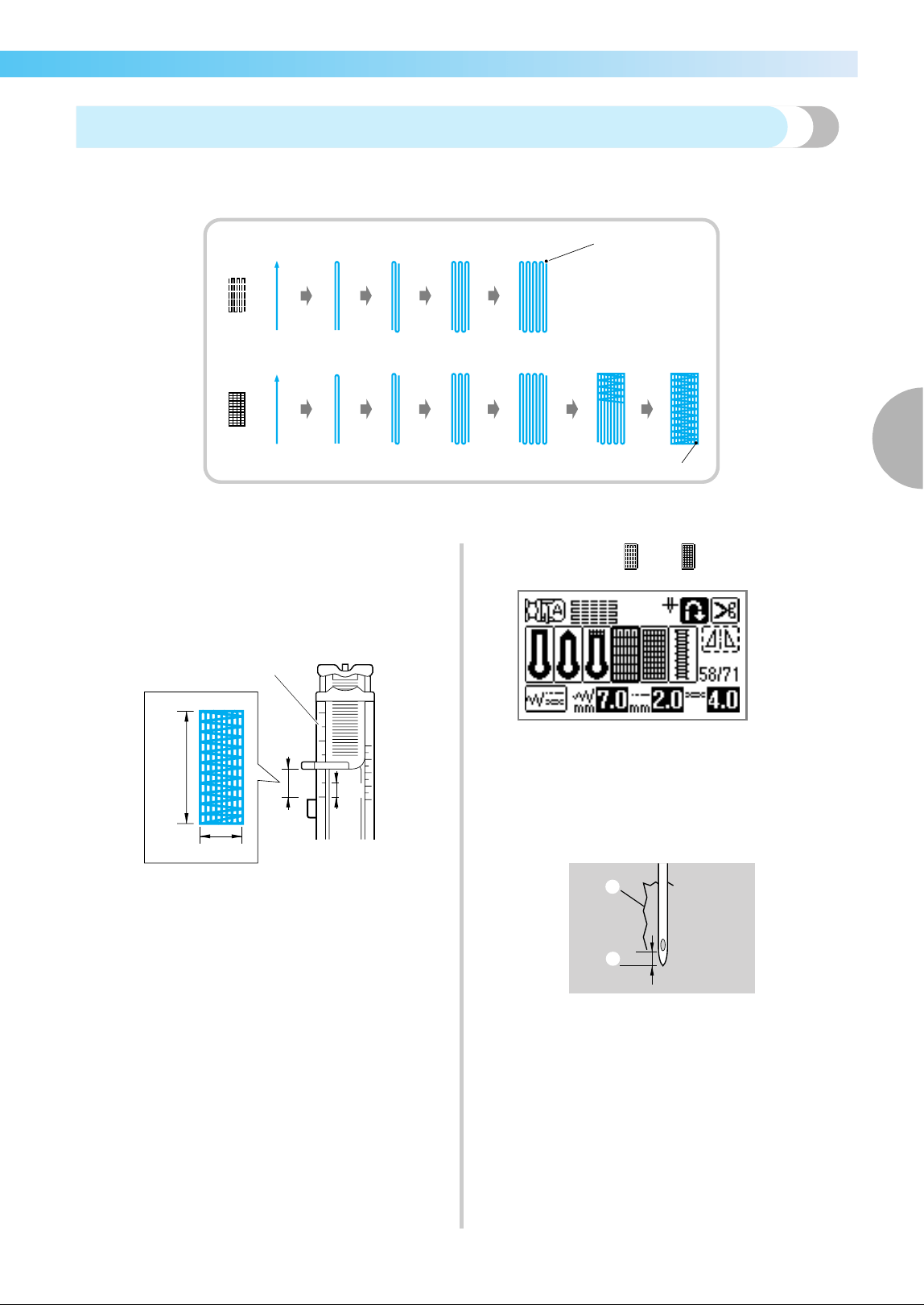

Darning
Fabric that has been torn can be darned.
Darning is sewn as shown below.
a Reinforcement stitching
a
Determine the desired length of the darning.
Set the button guide plate on buttonhole foot
“A” to the desired length. (The distance
between the markings on the presser foot scale
is 5 mm (3/16 inch).)
a Presser foot scale
b Length of darning
c 5 mm (3/16 inch)
d 7 mm (1/4 inch)
b
Attach buttonhole foot “A”.
• For details, refer to “Replacing the presser
foot” (page 42).
c
Select stitch
58
or
59
.
• For details, refer to “Selecting stitching” (page
49).
d
Position the fabric so that the needle is 2 mm
(1/16 inch) in front of the area to be darned,
and then lower the presser foot lever.
a Tear
b 2 mm (1/16 inch)
1
1
1
2
4
3
2
1
114
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Pass the upper thread down through the hole in
the presser foot.
•
When lowering the presser foot, do not push
in the front of the presser foot, otherwise the
darning will not be sewn with the correct size.
a Do not reduce the gap.
e
Pull down the buttonhole lever as far as
possible.
a Buttonhole lever
The buttonhole lever is positioned behind the
bracket on the buttonhole foot.
a Buttonhole lever
b Bracket
f
Gently hold the end of the upper thread in
your left hand, and then start sewing.
X Once sewing is completed, the machine
automatically sews reinforcement stitches,
then stops.
g
Raise the presser foot lever, remove the fabric,
and then cut the threads.
h
Raise the buttonhole lever to its original
position.
Memo
z If the fabric does not feed, for example,
because it is too thick, increase the stitch
length. For details, refer to “Adjusting the
stitch length” (page 57).
a
a
2
1
Eyelet Stitching 115
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Eyelet Stitching
Eyelets, such as those on belts, can be sewn. Three sizes of eyelets are possible: 7 mm, 6 mm and 5 mm
(1/4, 15/64 and 3/16 inch).
a
Attach monogramming foot “N”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Select stitch
62
.
• For details, refer to “Selecting stitching” (page
49).
c
Adjust either the stitch width or the stitch
length to select the desired eyelet size.
a 7mm
b 6mm
c 5mm
• For details, refer to “Adjusting the stitch
width” (page 56) and “Adjusting the stitch
length” (page 57).
d
Lower the needle into the fabric at the
beginning of the stitching, and then lower the
presser foot lever.
e
Start sewing.
X Once sewing is completed, the machine
automatically sews reinforcement stitches,
then stops.
f
Use the eyelet punch to cut a hole in the
center of the eyelet.
• When using the eyelet punch, place thick
paper or some other protective sheet under
the fabric before punching the hole in the
fabric.
Memo
z If light weight thread is used, the stitching
may be sparse. If this occurs, sew the eyelet
twice before removing the fabric, one on top
of the other.
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Eyelet stitch
62
Sewing eyelets, for example, on
belts
7.0
(1/4)
7.0, 6.0 or
5.0
(1/4, 15/64
or 3/16)
7.0
(1/4)
7.0, 6.0 or
5.0
(1/4, 15/64
or 3/16)
N
1
2
3
116
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Horizontal Stitching
Horizontal stitching is used to attach appliqués to fabric that cannot be moved around, such as cylindrical
pieces. Straight stitches and zigzag stitches that sew to either the left or right are available.
The illustration below shows the sewing order for
the following explanation.
a
Remove the flat bed attachment.
• For details, refer to “Free-arm sewing” (page
45).
b
Attach monogramming foot “N”.
• For details, refer to “Replacing the Presser
Foot” (page 42).
c
Select stitch
1
.
• For details, refer to “Selecting stitching” (page
49).
d
Lower the needle into the fabric at the
beginning of the stitching, and then start
sewing.
Lower the needle at the upper-right corner.
X The fabric is fed toward the back of the
machine, as usual.
e
After you have sewn to the corner, stop the
sewing machine, and then select stitch
68
.
f
Start sewing.
X The fabric is fed to the right.
g
After you have sewn to the corner, stop the
sewing machine, and then select stitch
1
.
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Horizontal
straight stitch
68
Attaching appliqués to sleeves
(straight stitch sewn to the left)
––
N
69
Attaching appliqués to sleeves
(straight stitch sewn to the right)
––
Horizontal
zigzag stitch
70
Attaching appliqués to sleeves
(zigzag stitch sewn to the left)
––
71
Attaching appliqués to sleeves
(zigzag stitch sewn to the right)
––
13
4
2
Horizontal Stitching 117
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
h
Press (“Reverse/Reinforcement Stitch”
button).
Hold (“Reverse/Reinforcement Stitch”
button) pressed until the stitching reaches the
upper-left corner.
X The fabric is fed forward.
i
After you have sewn to the corner, stop the
sewing machine, and then select stitch
69
.
j
Start sewing.
X The fabric is fed to the left.
k
After you have sewn to the corner, stop the
sewing machine, and then select stitch
1
again.
l
After sewing 3 to 5 stitches at the beginning of
the stitching, stop the sewing machine.
Memo
z The feeding direction of the fabric differs
depending on the stitch that is selected. Be
sure to guide the fabric while it is sewn.
118
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Decorative Stitching
The utility stitches contain the following decorative stitches.
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
Fagoting
stitch
32
Sewing two pieces of fabric
together across an open seam
5.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
J
33
5.0
(3/16)
2.5–7.0
(3/25–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
Joining stitch
28
Decorative bridging stitches
4.0
(3/16)
0.0–7.0
(0–1/4)
1.2
(1/16)
0.2–4.0
(1/64–3/16)
29
5.0
(3/16)
2.5–7.0
(3/32–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
30
5.0
(3/16)
0.0–7.0
(0–1/4)
1.2
(1/16)
0.2–4.0
(1/64–3/16)
Shell tuck
stitch
20
Shell tuck stitching on collars
and curves
4.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
0.2–4.0
(1/64–3/16)
Smocking
stitch
31
Smocking fabrics to add texture
and elasticity
5.0
(3/16)
0.0–7.0
(0–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
32
5.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
33
5.0
(3/16)
2.5–7.0
(3/32–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
Scallop stitch
27
Satin scallop stitching
5.0
(3/16)
2.5–7.0
(3/32–1/4)
0.5
(1/32)
0.1–1.0
(1/64–1/16)
N
Hemstitching
39
Lace sewing, decorative
hemming, heirloom stitching,
etc.
3.5
(1/8)
1.5–7.0
(1/16–1/4)
2.5
(3/32)
1.6–4.0
(1/16–3/16)
40
6.0
(15/64)
1.5–7.0
(1/16–1/4)
3.0
(1/8)
1.5–4.0
(1/16–3/16)
41
Decorative hemming and
heirloom stitching, etc. on thin,
medium weight and plain weave
fabrics
5.0
(3/16)
1.5–7.0
(1/16–1/4)
3.5
(1/8)
1.5–4.0
(1/16–3/16)
42
5.0
(3/16)
1.5–7.0
(1/16–1/4)
4.0
(3/16)
1.5–4.0
(1/16–3/16)
43
5.0
(3/16)
1.5–7.0
(1/16–1/4)
2.5
(3/32)
1.5–4.0
(1/16–3/16)
44
5.0
(3/16)
1.5–7.0
(1/16–1/4)
2.0
(1/16)
1.5–4.0
(1/16–3/16)
45
Decorative hemming, ribbon
threading, heirloom stitching,
etc.
5.0
(3/16)
1.5–7.0
(1/16–1/4)
3.0
(1/8)
1.5–4.0
(1/16–3/16)
Decorative Stitching 119
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

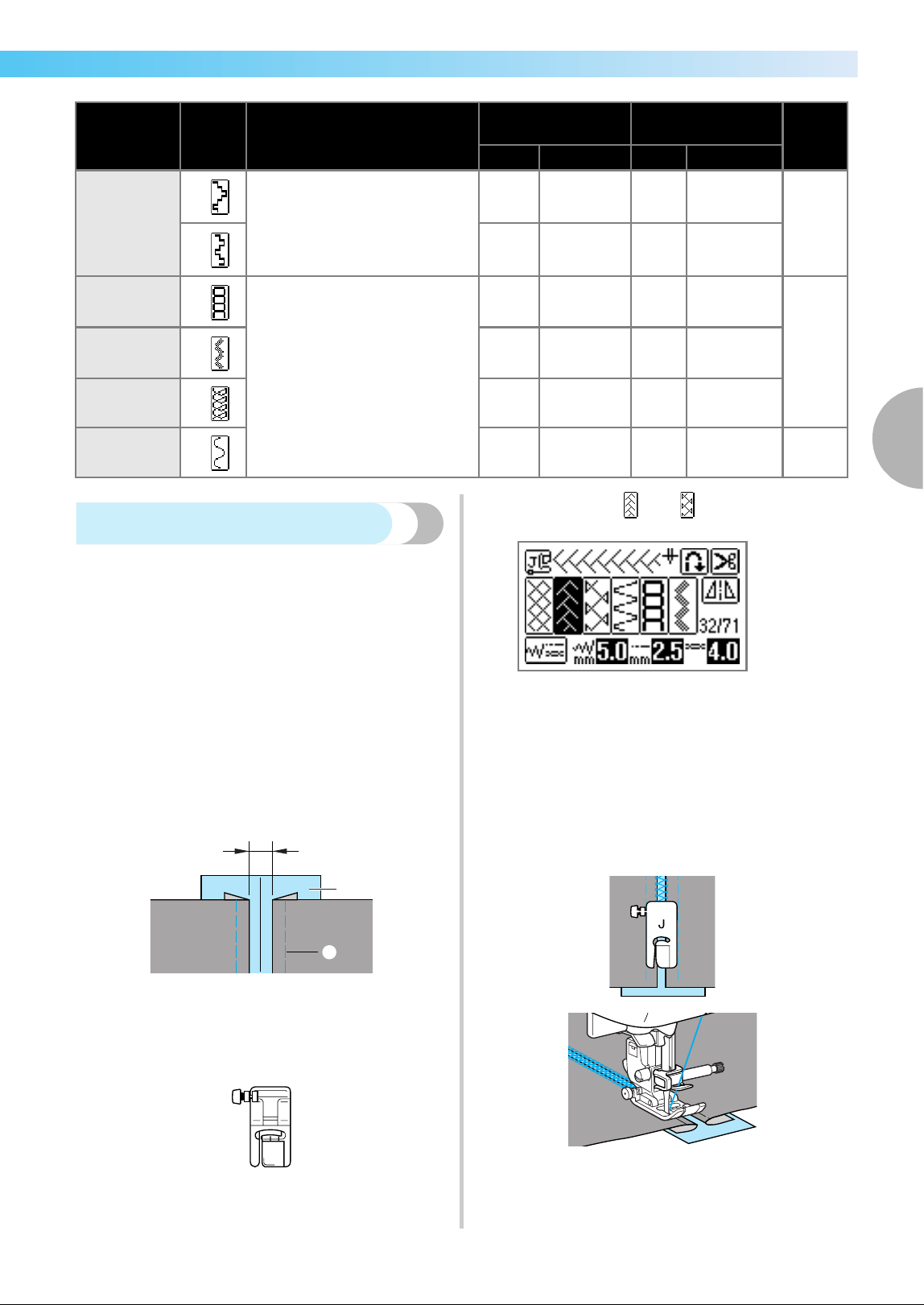

Fagoting
Stitching across an open seam is called “fagoting”. It
is used on blouses and children's clothing. This stitch
is more decorative when thicker thread is used.
a
Use an iron to fold the two pieces of fabric
along their seams.
b
Baste the two pieces of fabric, separated by
about 4 mm (3/16 inch), onto thin paper or a
sheet of water-soluble stabilizer.
If you draw a line down the middle of the thin
paper or water-soluble stabilizer, sewing is
easier.
a Thin paper or water soluble stabilizer
b Basting stitching
c 4 mm (3/16 inch)
c
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
d
Select stitch
32
or
33
.
• For details, refer to “Selecting stitching” (page
49).
e
Set the stitch width to 7.0 mm (1/4 inch).
• For details, refer to “Adjusting the stitch
width” (page 56).
f
Sew with the center of the presser foot aligned
along the center of the two pieces of fabric.
g
After sewing is finished, remove the paper.
Hemstitching
46
Heirloom stitching, etc.
6.0
(15/64)
1.5–7.0
(1/16–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
N
47
5.0
(3/16)
1.5–7.0
(1/16–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
Ladder stitch
35
Decorative stitching
4.0
(3/16)
0.0–7.0
(0–1/4)
3.0
(1/8)
2.0–4.0
(1/16–3/16)
J
Rick-rack
stitch
36
4.0
(3/16)
0.0–7.0
(0–1/4)
2.5
(3/32)
1.0–4.0
(1/16–3/16)
Decorative
stitch
37
5.5
(7/32)
0.0–7.0
(0–1/4)
1.6
(1/16)
1.0–4.0
(1/16–3/16)
Serpentine
stitch
38
5.0
(3/16)
1.5–7.0
(1/16–1/4)
1.0
(1/16)
0.2–4.0
(1/64–3/16)
N
Stitch Name Pattern Application
Stitch Width
[mm (inch)]
Stitch Length
[mm (inch)]
Presser
Foot
Auto Manual Auto Manual
2
1
3
J
120
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Scallop stitching
The wave-shaped repeating pattern that looks like
shells is called “scalloping”. It is used on the collars
of blouses and to decorate the edges of projects.
a
Attach monogramming foot “N”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Select stitch
27
.
• For details, refer to “Selecting stitching” (page
49).
c
Stitch along the edge of the fabric, making sure
not to sew directly on the edge of the fabric.
• For better results, apply spray starch the
fabric and press with a hot iron before it is
sewn.
d
Trim along the stitches.
• Be careful not to cut the stitches.
Smocking
The decorative stitch created by stitching or
embroidering over gathers is called “smocking”. It is
used to decorate the front of blouses or cuffs.
The smocking stitch adds texture and elasticity to
fabric.
a
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Select the straight stitch, and then adjust the
stitch length to 4.0 mm (3/16 inch) and loosen
the thread tension.
• For details, refer to “Adjusting the stitch
length” (page 57) and “Adjusting the thread
tension” (page 57).
• Pull up the bobbin thread. For details, refer to
“Pulling up the bobbin thread” (page 37).
c
Sew parallel stitching at intervals of 1 cm
(3/8 inch).
a 1 cm (3/8 inch)
• Do not use reverse/reinforcement stitching or
thread cutting.
• At the end of the stitching, the thread is
pulled out about 5 cm (2 inches).
d
Pull the bobbin threads to create gathers.
Smooth the gathers by ironing them.
J
1
Decorative Stitching 121
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
e
Select stitch
31
,
32
or
33
.
• For details, refer to “Selecting stitching” (page
49).
f
Stitch between the straight stitches.
g
Pull out the threads for the straight stitches.
Shell tuck stitching
The gathers that look like shells are called “shell
tucks”. They are used to decorate trims, the front of
blouses or cuffs made of thin fabrics.
a
Fold the fabric along the bias.
b
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
c
Select stitch
20
, and then increase the thread
tension.
• For details, refer to “Selecting stitching” (page
49) and “Adjusting the thread tension” (page
57).
J
122
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
d
Sew while making sure that the needle drops
slightly off the edge of the fabric.
a Needle drop point
e
Unfold the fabric, and then iron the tucks
down to one side.
Joining
Decorative bridging stitches can be sewn over the
seam allowance of joined fabrics. This is used when
making a crazy quilt.
a
Attach zigzag foot “J”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Sew together the right sides of the two pieces
of fabric, and then open up the seam
allowances.
a Wrong side of fabric
b 7 mm (1/4 inch) seam allowance
c Straight stitch
c
Select stitch
28
,
29
or
30
.
• For details, refer to “Selecting stitching” (page
49).
d
Turn the fabric over so that the right side faces
up, and then sew over the seam with the
center of the presser foot aligned with the
seam.
a Right side of fabric
1
J
1
1
2
3
a
Decorative Stitching 123
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Heirloom stitching
When sewing with the wing needle, the needle holes
are enlarged, creating a lace-like decorative stitch.
This is used to decorate hems and tablecloths on thin
or medium weight fabrics in addition to plain weave
fabrics.
Note
z If the thread becomes tangled, use stabilizer
material.
a
Install the wing needle.
• Use a 130/705H 100/16 wing needle.
• For details on installing a needle, refer to
“Replacing the needle” (page 40).
• The needle threader cannot be used with the
wing needle, otherwise the sewing machine
may be damaged. Manually pass the thread
through the eye of the needle from the front
to the back.
For details, refer to “Threading the needle
manually (without using the needle
threader)” (page 33).
b
Attach monogramming foot “N”.
• For details, refer to “Replacing the presser
foot” (page 42).
c
Select a stitch.
The stitches that can be used are
39
,
40
,
41
,
42
,
43
,
44
,
45
,
46
or
47
.
• For details, refer to “Selecting stitching” (page
49).
• When sewing with the wing needle, select a
stitch width of 6.0 mm (15/64 inch) or less.
d
Start sewing.
CAUTION
● When sewing with the wing needle, select
a stitch width of 6.0 mm (15/64 inch) or
less, otherwise the needle may bend or
break.
● After adjusting the stitch width, slowly
turn the handwheel toward you
(counterclockwise) and check that the
needle does not touch the presser foot. If
the needle hits the presser foot, the
needle may bend or break.
124
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Partially removing threads is called “drawnwork”.
This gives a beautiful result with fabrics that have a
loose weave.
Two ways to create drawnwork are described below.
■ Drawnwork (Example 1)
a
Pull out several threads from the fabric.
b
Attach monogramming foot “N”.
• For details, refer to “Replacing the presser
foot” (page 42).
c
Select stitch
39
.
• For details, refer to “Selecting stitching” (page
49).
d
With the right side of the fabric facing up, sew
along the right edge of the frayed section.
e
Press on the LCD.
X The pattern displayed at the top of the screen
is mirrored.
f
Sew along the other edge of the frayed section
so that it looks like the previous stitching.
g
Press , and set the horizontal mirror
image key back to OFF.
N
N
Decorative Stitching 125
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

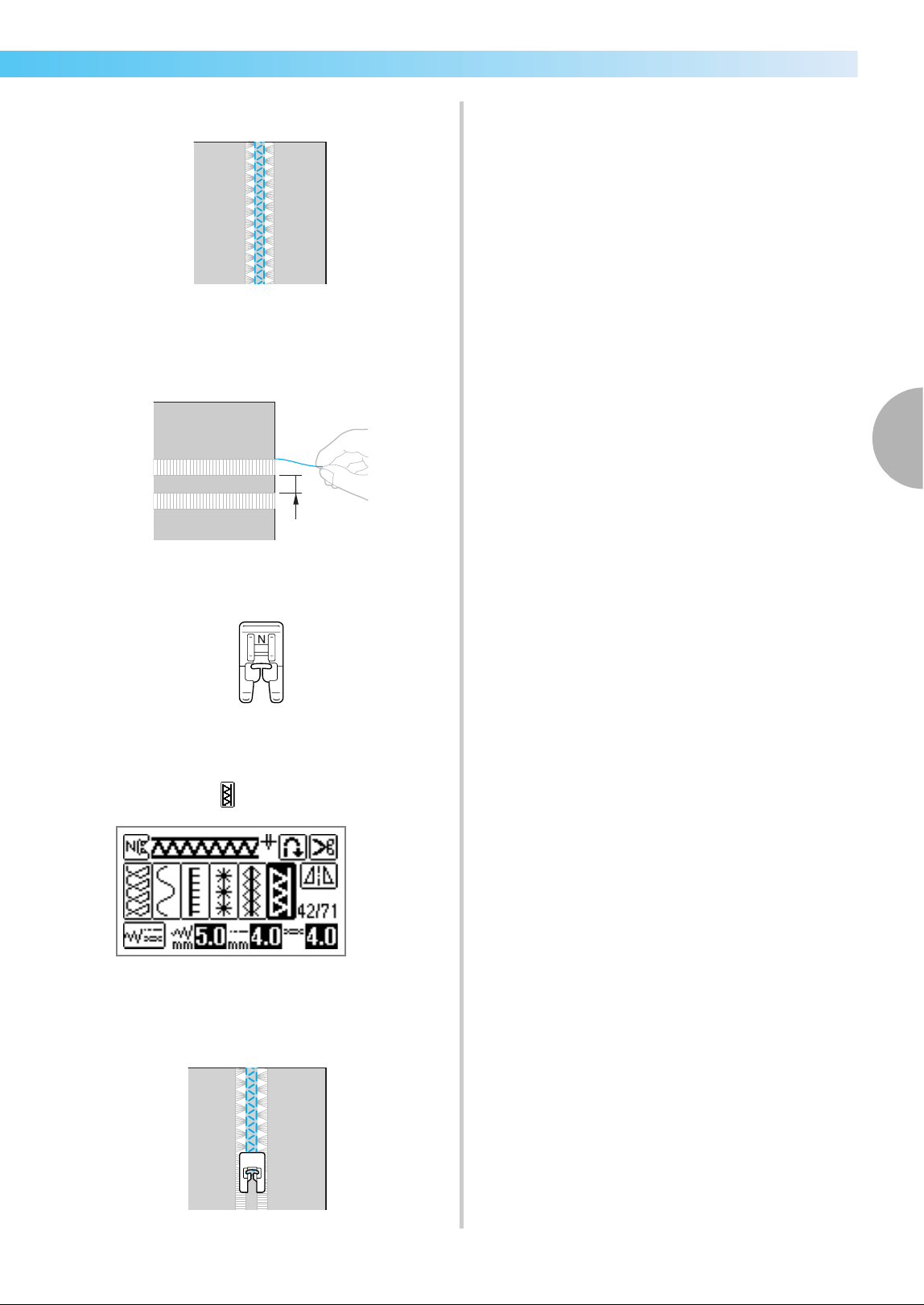

■ Drawnwork (Example 2)
a
Pull out several threads from two sections of
the fabric, separated by an unfrayed section of
about 4 mm (3/16 inch).
a 4 mm (3/16 inch)
b
Attach monogramming foot “N”.
• For details, refer to “Replacing the presser
foot” (page 42).
c
Select stitch
42
.
• For details, refer to “Selecting stitching” (page
49).
d
Sew along the center of the unfrayed section.
1
N
126
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

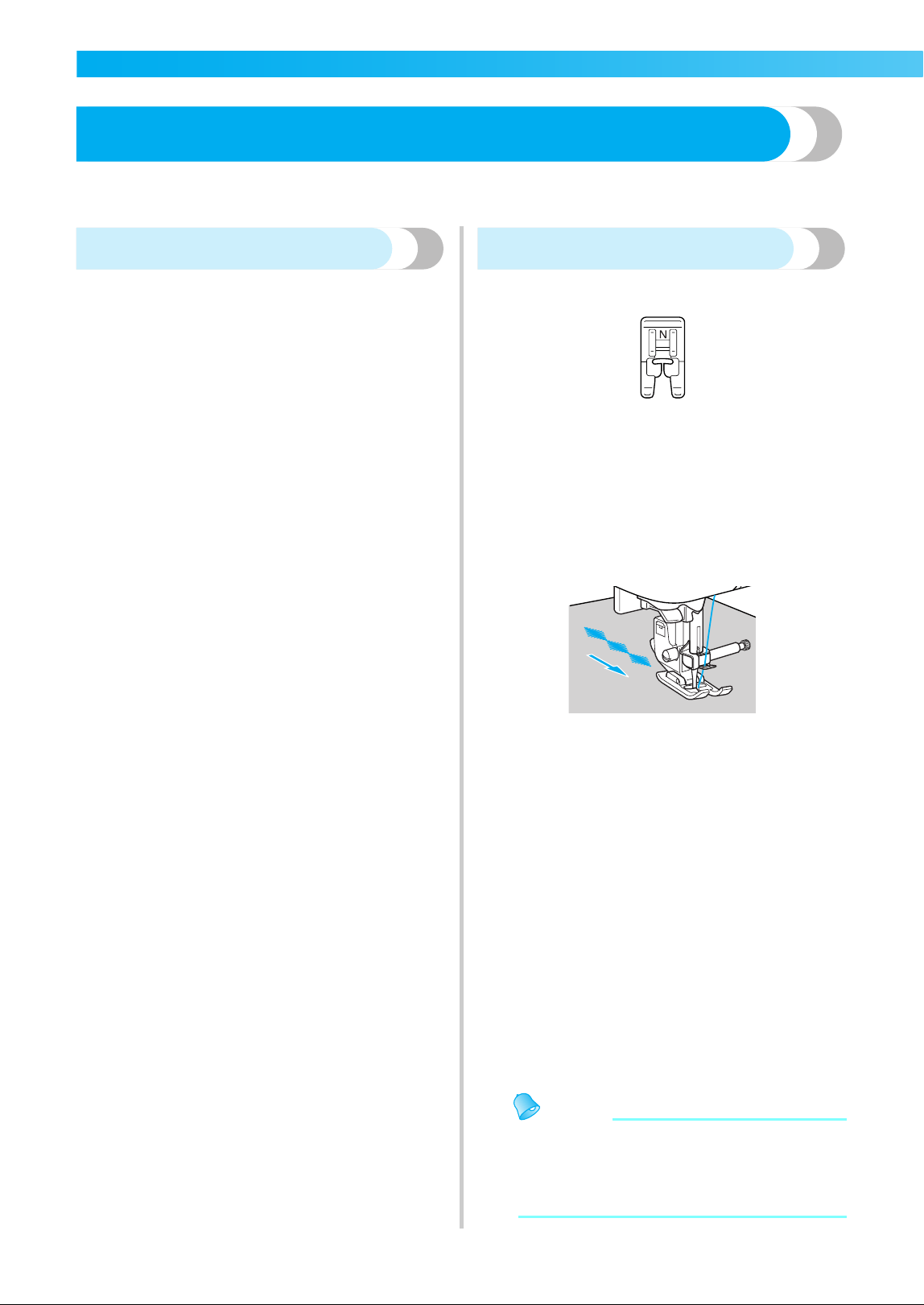

Sewing the Various Built-in Decorative Patterns
You can sew decorative stitches, satin stitches, cross stitches, decorative satin stitches, combined utility
stitches and 3 types of character stitches. All are sewn with monogramming foot “N”.
Sewing beautiful patterns
In order to sew the patterns correctly, the following
must be considered.
■ Fabric
Before sewing stretch or thin fabrics or fabrics
with a coarse weave, affix stabilizer material to
the wrong side of the fabric or place a thin sheet
of paper, such as tracing paper, under the fabric.
Since material puckering or bunched stitches may
occur when satin stitches are sewn, be sure to
affix stabilizer material to the fabric.
■ Needles and threads
When sewing thin, medium weight or stretch
fabrics, use the ball point needle. When sewing
thick fabrics, use a 90/14 home sewing machine
needle. In addition, #50 to #60 thread should be
used.
■ Trial sewing
Depending on the type and thickness of the fabric
being sewn and whether or not stabilizer material
is used, the desired result may not be achieved.
Be sure to sew a trial piece of fabric before
sewing your project. In addition, while sewing, be
sure to guide the fabric with your hands in order
to prevent the fabric from slipping.
Sewing patterns
a
Attach monogramming foot “N”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Select a stitch.
• For details, refer to steps a through e of
“Selecting stitching” (page 75).
c
Start sewing.
• The stitching is sewn in the direction
indicated by the arrow.
d
Sew reinforcement stitches.
When sewing with a character stitch,
reinforcement stitches are automatically sewn
after each character.
• When sewing a pattern with a stitch other
than a character stitch, it is useful to first set
the automatic reverse/reinforcement stitching
setting. For details, refer to “Automatically
sewing reverse/reinforcement stitches” (page
59).
e
When you are finished sewing, use scissors to
trim off any excess threads at the beginning of
the stitching and between the patterns.
Memo
z For details on adjusting the stitch width and
length, refer to “Adjusting the stitch width”
(page 56) and “Adjusting the stitch length”
(page 57).
Sewing the Various Built-in Decorative Patterns 127
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

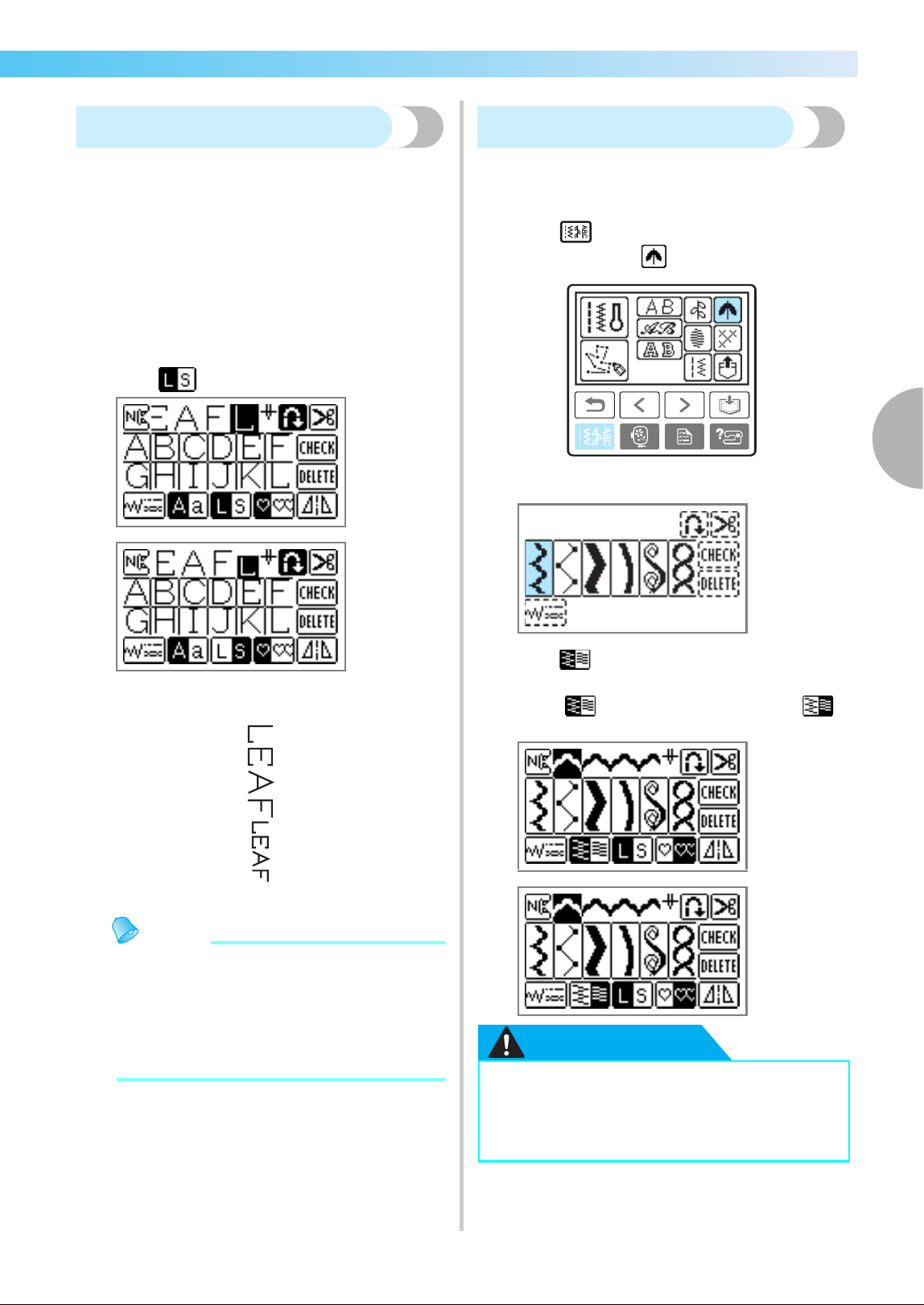

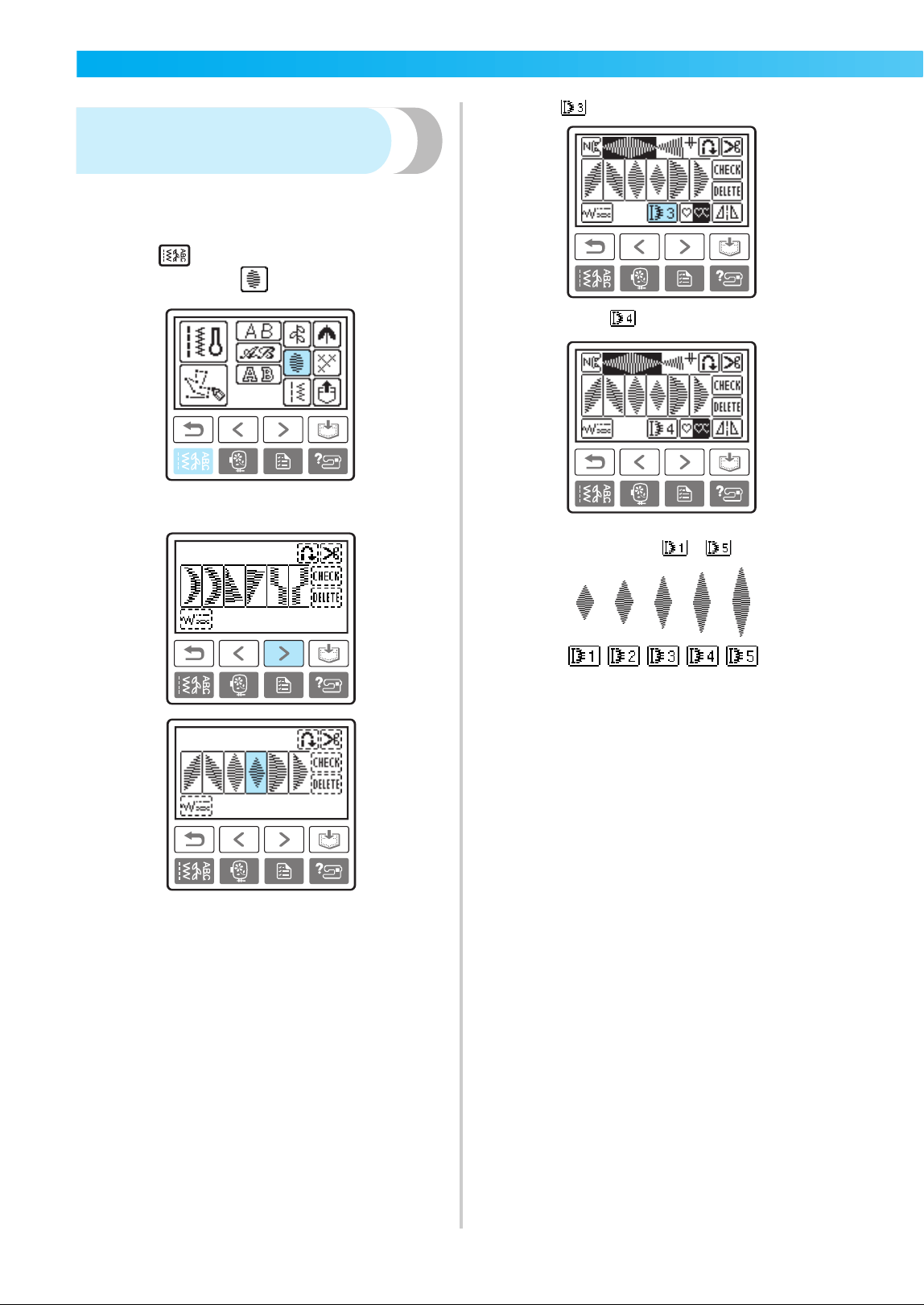

Changing the pattern size
The size of character stitches in the Gothic font and
outline style, decorative stitches, and decorative satin
stitches can be switched between large and small.
However, the size of other patterns cannot be
changed.
a
Select a stitch.
• For details on selecting a stitch, refer to
“Selecting stitching” (page 75).
b
Press until the desired size is selected.
c
Repeat steps a and b.
Memo
z The large pattern size is the default. If the
small pattern size is selected, small patterns
can be combined and connected.
z If multiple patterns have been combined, the
size of each selected pattern can be
specified.
Changing the stitch density
If a decorative satin stitch has been selected, the
stitch density can be changed.
a
Press (Utility stitch key) on the operation
panel, and select (Decorative satin stitch).
b
Select a decorative satin stitch pattern.
c
Press until the desired stitch density is
selected.
Select for sparse stitching, or select
for compact stitching.
CAUTION
● If the stitching density is too compacted,
depending on the needle, the stitches may
be bunched together, causing the needle
to break.
128
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Changing the length for satin
stitches
The length for one satin stitch can be changed in five
gradations.
a
Press (Utility stitch key) on the operation
panel, and select (Satin stitch).
b
Select a satin stitch pattern.
c
Press .
X It turns to and the pattern is longer.
Each time you press it the number changes.
You can select from - .
Sewing the Various Built-in Decorative Patterns 129
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Shifting patterns
Satin stitches can be shifted to the left or right by half
the width of the pattern, allowing you to create a step-
shaped pattern. This is called a “step pattern”. Select
once to move the stitch pattern to the left by half
the width of the stitch pattern. Select once to move
the stitch pattern to the right by half the width of the
stitch pattern. As an example, the procedure for
creating the following pattern is described below.
a
Press (Utility stitch key) on the operation
panel, and select (Satin stitch).
b
Select a satin stitch pattern.
c
Press .
X The next pattern selected is moved half a
width to the right.
d
Select the same pattern.
130
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
e
Press .
X The next pattern selected is moved half a
width to the left.
f
Specify that the patterns will be sewn
repeatedly.
• For details, refer to “Repeating patterns”
(page 131).
■ Examples of step patterns
Combining patterns
You can sew with combinations of stitches from
character stitches, decorative stitches, satin stitches,
combined utility stitches, decorative satin stitches
and cross stitches.
a
Touch (Utility stitch key) on the
operation panel, and select the stitch type.
b
Select the first pattern.
X The first pattern is selected and appears in
on the screen.
• When the sewing is started, the selected
pattern is sewn repeatedly until the sewing
machine is stopped.
Sewing the Various Built-in Decorative Patterns 131
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
c
Select the next pattern.
X The combined pattern appears on the screen.
• To remove a selected pattern, press on
the screen. The pattern that was selected last
is removed.
• To combine patterns from different types,
press (Back key), and after selecting the
type, select the next pattern.
d
After all of the desired patterns are selected,
start sewing.
X The order that the patterns appear on the
screen is the order that they will be sewn.
Memo
z Up to 70 patterns can be combined.
z If multiple patterns have been combined, the
sewing machine stops once all the selected
patterns displayed in the LCD have been
sewn. To repeatedly sew the combined
pattern, refer to “Repeating patterns”.
z The combined pattern can be saved for later
use. For details, refer to “Saving patterns”
(page 133).
■ Repeating patterns
When multiple stitches are combined, the sewing
machine stops when the pattern displayed on the
screen has been completed. Use the following
operations to sew a combined pattern repeatedly.
a
After the patterns have been combined, press
.
If pressed again, it turns to (single sewing).
X turns to , and you can now sew
the specified pattern repeatedly.
a Single
b Repeated
Note
z If repeated sewing is set, the pattern is
repeatedly sewn until the sewing machine is
stopped.
z If the sewing machine is turned off, the
repeated/single sewing setting returns to its
default setting.
12
132
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ Mirroring a pattern image
a
After a single pattern has been selected, press
to mirror the pattern image horizontally.
■ Checking the pattern
When the specified pattern is not displayed on the
screen, check the pattern using the following steps.
a
Press .
X The screen for checking the pattern is
displayed.
b
Press , and confirm the pattern.
c
Press (Back key).
X The initial screen appears again.
Memo
z The combined pattern can be saved for later
use. For details, refer to “Saving patterns”
(page 133).
Sewing the Various Built-in Decorative Patterns 133
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Saving patterns
Combined patterns can be saved for later use. Since
saved patterns are not lost after the sewing machine is
turned off, they can be retrieved at any time. Up to 10
patterns can be saved.
■ Saving a pattern
a
Create the combined pattern that you wish to
save.
• For details, refer to “Combining patterns”
(page 130).
b
Press (Memory key) on the operation
panel.
X “Saving...” appears while the pattern is being
saved. After the pattern is saved, the initial
screen appears again.
• Do not turn off the sewing machine while the
pattern is being saved, otherwise the pattern
data may be lost.
■ Retrieving a pattern
a
Press .
Retrieve the saved pattern.
X The screen for selecting a pocket appears.
b
Select the pocket where the combined pattern
you wish to retrieve is stored.
indicates pockets where patterns are
already saved.
X The selected pocket is shown in reverse
highlighting, and the saved pattern is
displayed.
c
Check the contents, and then press .
Press to check a pattern that is not
displayed completely.
X The saved pattern is retrieved.
X The pattern selection screen appears, and
you can sew the pattern you have retrieved.
134
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ Deleting a saved pattern
Saved pattern in the pockets can be deleted.
a
Press .
b
Select the pocket where the pattern you wish
to delete is stored.
indicates pockets where patterns are
already saved.
X The selected pocket is shown in reverse
highlighting, and the saved pattern is
displayed.
c
Check the contents, then press .
X The confirmation message is displayed.
d
Press .
X
The saved pattern and the pocket are deleted.
Realigning the pattern
The pattern may not be sewn correctly, depending on
the type of fabric being sewn or the sewing speed. If
this occurs, adjust the pattern while sewing on a
piece of scrap fabric that is the same as that used for
your project.
a
Attach monogramming foot “N”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Press (Utility stitch key) on the operation
panel, and select (Decorative stitch).
X The screen containing the various decorative
stitches appears.
c
Select .
X The pattern alignment stitch is selected.
Sewing the Various Built-in Decorative Patterns 135
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
d
Start sewing.
X The pattern for making the adjustment is
sewn.
X The sewing machine stops after it has
finished sewing the pattern.
e
Check the sewn pattern.
If the part of the pattern indicated in the
illustration is sewn uniformly, the pattern is
correctly aligned.
If the pattern appears as shown below, the
stitching is misaligned in the vertical direction.
If the pattern appears as shown below, the
stitching is misaligned in the horizontal
direction.
If the pattern is not sewn correctly, follow the
steps below to adjust the sewing.
f
Press (Settings key) on the operation panel.
X The settings screen appears.
g
Press .
To adjust the vertical position, press for
vertical pattern adjustment.
To adjust the horizontal position, press
for horizontal pattern adjustment.
X Make the necessary adjustments according
to how the pattern is sewn.
■ Vertical pattern adjustment
Press to increase the vertical space in the
design.
Press to decrease the vertical space in the
design.
136
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ Horizontal pattern adjustment
Press to increase the horizontal space in
the design.
Press to decrease the horizontal space in
the design.
h
Press (Back key).
X It returns to the screen for adjusting the
pattern.
i
Select once again, start the sewing
machine and check the stitching.
Continue adjusting the pattern until it is sewn
correctly.
Designing a Pattern (My Custom Stitch) 137
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Designing a Pattern (My Custom Stitch)
With the My Custom Stitch function, you can sew stitch patterns that you design yourself.
Drawing a sketch of the
pattern
Prepare a grid sheet set.
a
Draw a sketch of the pattern on the grid sheet
set.
Draw the pattern as one continuous line and
with the start point and the end point of the
design at the same height.
b
If the pattern will be repeated, determine the
space between the repeating patterns.
c
Mark the points in the pattern that are
positioned at intersections in the grid, and
then link those points with a continuous
straight line.
d
Determine the sewing order.
For a more attractive stitch, close the pattern by
intersecting the line.
17
16
15
14
1
0
2
13
12
11
3
10
9
8
6
7
4
5
138
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Entering the pattern data
Follow the pattern drawn on the grid sheet and
program the pattern into the sewing machine.
a
Attach monogramming foot “N”.
• For details, refer to “Replacing the presser
foot” (page 42).
b
Press (Utility stitch key) on the operation
panel, and select .
X The screen for entering a pattern appears.
c
Check the grid sheet set, and specify the
coordinates of the first point.
Specify the coordinates using , and
press .
d
Specify whether single stitching or triple
stitching will be sewn between the points.
is single stitching, and gives
triple stitching.
e
Specify the coordinates of the second point,
and then press .
f
Repeat steps d through e to specify each
point.
• If you make a mistake entering a point, press
, and the previous point is erased.
• To correct the content entered, press .
You can insert, delete and move points.
g
After all points have been entered, press .
X The sewing screen appears.
Designing a Pattern (My Custom Stitch) 139
3
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
h
Specify the various stitching settings, such as
reverse/reinforcement stitching, in the same
way as with other stitches.
• To revise the pattern, press .
Memo
z The pattern you entered can be saved for
later use. For details, refer to “Saving
patterns” (page 133).
140
UTILITY STITCHES — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Examples of designs
Enter each of the points indicated in the table to sew the sample stitch.
Point Point
1 0021 38 13
2 12 0 22 35 14
3 18 3 23 32 13
4 22 6 24 30 10
5 23 10 25 32 6
6 21 13 26 35 3
7 17 14 27 41 0
8 14 13 28 45 0
9 12 11 29 47 4
10 91330 44 7
11 61431 45 11
12 31332 47 13
13 11033 50 14
14 3634 54 13
15 6335 56 10
16 12 0 36 55 6
17 41 0 37 51 3
18 43 4 38 45 0
19 40 7 39 70 0
20 41 11
Point Point
1 0021 10 11
2 30 0 22 12 10
3 32 1 23 89
4 32 7 24 12 8
5 32 10 25 76
6 33 12 26 12 6
7 35 11 27 63
8 35 8 28 10 2
9 37 12 29 50
10 35 14 30 10 2
11 32 14 31 16 1
12 30 11 32 19 0
13 30 5 33 23 0
14 29 3 34 22 6
15 26 8 35 17 10
16 24 10 36 22 6
17 18 13 37 23 0
18 13 14 38 19 0
19 12 14 39 42 0
20 13 12
Point Point
1 0021 16 10
2 3522 18 12
3 5823 21 13
4 81124 25 14
5 12 13 25 28 14
6 17 14 26 33 13
7 20 14 27 37 11
8 24 13 28 41 8
9 27 12 29 43 5
10 29 11 30 44 0
11 31 9
12 32 6
13 30 3
14 27 1
15 24 0
16 21 0
17 18 1
18 16 3
19 15 5
20 15 8
Point Point
1 0721 20 11
2 5722 21 7
3 4323 24 7
4 5724 23 14
5 8725 24 7
6 7026 27 7
7 8727 27 11
8 11 7 28 27 7
9 11 3 29 32 7
10 11 7 30 27 11
11 16 7 31 23 14
12 11 3 32 20 11
13 7033 16 7
14 4334 20 3
15 0735 23 0
16 41136 27 3
17 71437 32 7
18 11 11
19 16 7
20 21 7
4EMBROIDERY
The steps for embroidering are described in this chapter.
Embroidering Neatly .........................142
What to prepare...........................142
Embroidery step by step ...............144
Attaching the Embroidery Foot.......... 145
Attaching the embroidery foot ..... 145
Removing the embroidery foot..... 147
Attaching the Embroidery Unit.......... 148
Embroidery unit precautions ........148
Attaching the embroidery unit ..... 148
Removing the embroidery unit..... 150
Preparing the Fabric..........................151
Attaching an optional stabilizer
material to the fabric ...................151
Setting the fabric
in the embroidery frame ..............152
Attaching the Embroidery Frame....... 155
Attaching the embroidery frame ..155
Removing the embroidery frame..156
Selecting Embroidery Patterns...........157
Copyright information..................157
Embroidery pattern types .............157
LCD (liquid crystal display)
operation
..........................................
158
Selecting characters .....................160
Selecting an embroidery pattern ..161
Selecting a frame pattern .............162
Using an embroidery card
(sold separately) ...........................163
Embroidering.....................................164
Sewing attractive finishes .............164
Embroidering a pattern.................165
Appliquéing ..................................167
Editing Patterns .................................169
Adjusting the layout .....................169
Adjusting the thread tension.........171
Resewing ......................................172
Thread runs out partway
through a design...........................172
Stopping while embroidering .......173
Using the Memory Function ..............175
Embroidery data precautions........175
Saving patterns .............................176
Retrieving embroidery patterns
from the computer .......................177
142
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Embroidering Neatly
This section describes the preparations and basic procedures for embroidering.
What to prepare
The following is necessary for embroidering.
■ Fabric
Prepare the fabric for embroidery. Prepare a piece
of fabric a little larger than the embroidery frame
that matches the size of the pattern you want to
sew.
Note
z Always use stabilizer when sewing
embroidery projects, especially when
embroidering on lightweight or stretch
fabrics. Not using a stabilizer may result in
poor quality embroidery designs.
z When embroidering on large pieces of
fabric, arrange the fabric so that it does not
hang off the table where the sewing machine
is placed. If embroidery is done with the
fabric hanging off, the embroidery unit
movement may be impaired, this could
cause the pattern to sew incorrectly.
CAUTION
■ Stabilizer material
Attach a stabilizer material for embroidery to the
fabric to prevent poor quality embroidery designs.
We recommend stabilizer material for
embroidery. Use a water soluble sheet on thin
materials like organdy and fabrics with a nap like
towels. For details, refer to “Optional accessories”
(page 10).
■ Embroidery thread
For the upper thread, use the embroidery thread
or country thread.
For the bobbin thread, use the embroidery bobbin
thread. For details, refer to “Optional accessories”
(page 10).
Note
z For good quality embroidery designs be sure
to use embroidery thread designed for
embroidery machines.
z Before starting to sew, be sure there is
enough bobbin thread. If you continue
embroidering when the bobbin thread is
low, the thread may become tangled.
● Do not embroider fabrics that are too
thick. To check the fabric thickness,
attach the embroidery frame to the
embroidery unit, and use (“Needle
Position” button) to raise the needle. If
there is space between the presser foot
and the fabric, the fabric can be
embroidered. If there is not space, do not
embroider the fabric. Otherwise, the
needle may break, resulting in injury.
● Be careful when sewing overlapping
patterns. The needle may not easily pierce
the fabric, causing the needle to break.
Embroidering Neatly 143
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ Needle
Use a 75/11 home sewing machine needle. When
embroidering on thick fabrics such as denim, use
a 90/14 home sewing machine needle.
Memo
z A 75/11 needle is already installed when the
sewing machine is purchased.
z When replacing the needle, refer to
“Replacing the needle” (page 40).
CAUTION
■ Other
Embroidery frames “small” and “medium” are
optional. For details, refer to “Optional
accessories” (page 10).
● Since ball point needles (gold colored) are
needles for fabrics where stitches are
easily skipped, such as pattern stitching
and stretch fabrics, be absolutely sure not
to use them for embroidery. The needle
may break or bend.
144
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Embroidery step by step
The basic steps for embroidery are as follows.
↓
↓
↓
↓
↓
↓
↓
↓
↓
1 Presser foot attachment
Attach the embroidery foot “Q”.
For details on attaching the embroidery foot, refer to “Attaching the
embroidery foot” (page 145).
2 Checking the needle
Use a needle matched to the fabric.
For details on replacing the needle, refer to “Replacing the needle” (page
40).
3
Embroidery unit
attachment
Attach the embroidery unit.
For details on attaching the embroidery unit, refer to “Attaching the
embroidery unit” (page 148).
4 Replacing the bobbin case
When using other kinds of embroidery bobbin thread, use the optional
alternate bobbin case (pink marking).
For details on replacing the bobbin case, refer to “Cleaning the race”
(page 180).
5 Bobbin thread setup
For the bobbin thread, wind embroidery bobbin thread and set it in
place.
For details on setting up the bobbin thread, refer to “Winding/Installing
the Bobbin” (page 23).
6 Fabric preparation
Attach a stabilizer material to the fabric, and hoop it in an embroidery
frame.
For details on preparing the fabric, refer to “Preparing the Fabric” (page
151).
7
Embroidery frame
attachment
Attach the embroidery frame to the embroidery unit.
For details on attaching the embroidery frame, refer to “Attaching the
Embroidery Frame” (page 155).
8 Pattern selection
Select an embroidery pattern.
For details on selecting embroidery patterns, refer to “Selecting
Embroidery Patterns” (page 157).
9 Checking the layout
Check and adjust the size and position of the embroidery.
For details on adjusting the layout, refer to “Adjusting the layout” (page
169).
10 Embroidery thread setup
Set up embroidery thread according to the pattern.
For details on setting up the thread, refer to “Upper Threading” (page
29).
Attaching the Embroidery Foot 145
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Attaching the Embroidery Foot
This section describes how to attach the embroidery foot.
Attaching the embroidery foot
Attach the embroidery foot when embroidering. Have
the included embroidery foot “Q” and a screwdriver
ready.
a Embroidery foot bar
b Caught by the presser foot holder screw
CAUTION
a
Press (“Needle Position” button) once or
twice to raise the needle.
a “Needle Position” button
X The needle goes up.
b
Turn off the sewing machine.
CAUTION
c
Raise the presser foot lever.
a Presser foot lever
X The presser foot is raised.
• At the time of purchase, the presser foot lever
is up.
d
Press and hold the black button on the back of
the presser foot holder to detach the presser
foot.
a Black button
b Presser foot holder
● Always use the embroidery foot “Q”
when embroidering. If the wrong presser
foot is used, the needle may hit the
presser foot and break or bend.
2
1
1
● Before replacing the presser foot, be sure
to turn off the sewing machine, otherwise
injuries may occur if (“Start/Stop”
button) is accidentally pressed and the
machine starts sewing.
a
a
b
146
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
e
Loosen the presser foot holder screw and
remove the presser foot holder.
Turn the screwdriver toward the back.
a Screwdriver
b Presser foot holder
c Presser foot holder screw
f
Hold the embroidery foot with your right
hand, as shown.
Hold the embroidery foot with your index
finger wrapped around the lever at the back of
the foot.
a Lever
g
While pressing in the lever with your finger, fit
the embroidery foot bar over the needle clamp
screw to attach the embroidery foot to the
presser foot bar.
a Embroidery foot bar
b Needle clamp screw
h
Secure the embroidery foot with the presser
foot holder screw.
Set the embroidery foot perpendicular.
i
Firmly tighten the presser foot holder screw.
Turn the screwdriver toward the front.
CAUTION
a
b
c
a
1
2
● Do not hit the needle with your finger or
the embroidery foot “Q” when attaching
it. The needle may break or cause injury.
● Be sure to tighten the screw with the
included screwdriver. If the screw is
loose, the needle may hit the presser foot
and break or bend.
● Before sewing, always turn the handwheel
toward you (counterclockwise) slowly to
make sure that the needle does not hit the
presser foot. Otherwise, the needle may
break or bend.
Attaching the Embroidery Foot 147
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Removing the embroidery foot
a
Press (“Needle Position” button) once or
twice to raise the needle.
a “Needle Position” button
b
Turn off the sewing machine.
c
Raise the presser foot lever.
a Presser foot lever
X The presser foot is raised.
d
While pressing in the lever at the back of the
embroidery foot with your finger, loosen the
presser foot holder screw, and then remove
embroidery foot “Q”.
Turn the screwdriver toward the back.
e
Attach the presser foot holder.
• For details, refer to “Attaching the presser
foot holder” (page 44).
1
a
148
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Attaching the Embroidery Unit
This section describes how to attach the embroidery unit.
Embroidery unit precautions
Cautions for the embroidery unit will be explained
below.
CAUTION
Note
z Do not touch the connector in the
embroidery unit connector slot. The
connector could be damaged, and it may
cause malfunctions.
z Do not lift up on the embroidery carriage,
and do not forcefully move it. It may cause
malfunctions.
Attaching the embroidery unit
Get the included embroidery unit ready.
a
Turn off the sewing machine.
b
Pull the flat bed attachment off to the left.
c
Slide the tab on the cover of the connection
port in the direction of the arrow to open the
cover.
Note
z Be sure to close the cover of the connection
port when the embroidery unit is not being
used.
● Do not move the sewing machine with the
embroidery unit in place. The embroidery
unit may be dropped and cause injury.
● Keep your hands and other objects away
from the embroidery carriage and frame.
Otherwise injury may result.
Attaching the Embroidery Unit 149
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
d
Slide the embroidery unit onto the sewing
machine arm.
Push it in until it clicks and stops.
X The embroidery unit is attached.
e
Turn on the sewing machine.
X The confirmation message is displayed.
f
Be sure that no objects or hands are near the
embroidery unit and press .
• When an animation is displayed on the
screen, the message above will be displayed
if you touch the screen with your finger.
X The carriage moves to its initial position.
a Carriage
CAUTION
Note
z If the machine is initialized with hands or
objects near the carriage, the screen may
return to the initial display. After removing
whatever is near the carriage, turn the power
on again.
X The screen for selecting the embroidery
pattern type is displayed.
•
For details on the embroidery patterns, refer to
“Selecting Embroidery Patterns” (page 157)
.
Memo
z Utility stitches cannot be selected when the
embroidery unit is attached.
a
● Do not put your hands or other objects
near the carriage. It may cause injury.
150
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Removing the embroidery unit
Make sure that the sewing machine is completely
stopped and follow the instructions below.
a
Remove the embroidery frame.
• For details on removing the embroidery
frame, refer to “Removing the embroidery
frame” (page 156).
b
Press , and then press .
X The embroidery carriage moves into a
position where it can be stored.
c
Turn off the sewing machine.
CAUTION
d
Hold the release button on the bottom left of
the embroidery unit, and slowly pull the
embroidery unit to the left.
a Release button
X The embroidery unit separates from the
sewing machine.
CAUTION
● Always turn off the sewing machine
before removing the embroidery unit.
It may cause malfunctions if removed
when the machine is turned on.
● Do not carry the embroidery unit by
holding the release button compartment.
a
Preparing the Fabric 151
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Preparing the Fabric
After attaching a stabilizer material to the embroidery fabric, it is stretched on an embroidery frame.
Attaching an optional stabilizer
material to the fabric
Attach a stabilizer material for embroidery to the
fabric to prevent poor quality embroidery designs.
Memo
z We recommend the stabilizer material for
embroidery. Use a water soluble stabilizer
on thin materials like organdy and fabrics
with a nap like towels. For details, refer to
“Optional accessories” (page 10).
Note
z Always use stabilizer material for
embroidery with stretch fabrics, thin fabrics,
fabrics with a loose weave and fabrics where
stitches easily contract.
CAUTION
a
Prepare stabilizer material that is larger than
the embroidery frame being used.
a Fabric
b Size of embroidery frame
c Stabilizer material
b
If you are using stabilizers with adhesive, place
the adhesive surface of the stabilizer material
against the wrong side of the fabric, and iron it
with a steam iron.
a Stabilizer material
b Fabric (wrong side)
c Attached surface
When it cannot be ironed or placed in the
hoop.
For fabrics, such as towels, which cannot be
ironed or for embroidering in places where
ironing is difficult, place the stabilizer
material under the fabric, and stretch the
fabric in the embroidery frame without
attaching the stabilizer.
● Always use stabilizer material when
sewing embroidery projects. The needle
may break or bend if you embroider
without using a stabilizer material for thin
fabrics or stretch fabrics. Furthermore,
the pattern may be sewn incorrectly.
2
3
1
2
3
1
152
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Setting the fabric in the
embroidery frame
The fabric is stretched in the embroidery frame. If the
fabric is loose, the quality of the embroidery pattern
may be poor. Put the fabric in the frame without slack
following the steps below. Have a fabric with a
stabilizer material attached and the embroidery frame
(medium, small, large or extra large (multi-position))
ready.
■ Embroidery frame (large)
Embroidery can be done in an area with a height of
up to 18 cm (7 inches) and a width of up to 13 cm
(5 inches). This is used to embroider multiple
patterns without changing the fabric position in the
frame.
■ Embroidery frame (medium)[option]
Patterns with a height of up to 10 cm (4 inches)
and a width of up to 10 cm (4 inches) can be sewn.
■ Embroidery frame (small)[option]
Patterns with a height of up to 2 cm (1 inch) and a
width of up to 6 cm (2-1/2 inches) can be sewn.
This is used for letters and other small embroidery.
• There are patterns for which embroidery
frame (small) cannot be used.
■ Embroidery frame (extra large (multi-position))
Embroidery can be done in an area with a height of
up to 30 cm (12 inches) and a width of up to 13 cm
(5 inches). This is used to embroider connected or
combined characters or patterns, or large patterns.
CAUTION
a
Loosen the embroidery frame adjustment
screw and remove the inner and outer frames,
placing the outer frame on a flat surface.
Separate the inner and outer frame by removing
inner frame upward.
a Inner frame
b Outer frame
c Adjustment screw
b
Place the fabric with the stabilizer material on
top of the outer frame.
Have the right side of the cloth up.
a Right side
c
Press the inner frame in from the top of the
fabric.
Line up on the inner frame and on
outer frame.
● Use the embroidery frame that matches
the size of the pattern being embroidered.
Otherwise, the embroidery frame may be
hit by the presser foot and cause injury or
needle breakage.
1
2
3
1
Preparing the Fabric 153
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
d
Tighten the adjustment screw by hand just
enough to secure the fabric.
e
Gently remove the fabric from the frame
without loosening the adjustment screw.
Memo
z This precautionary step will help reduce
pattern distortion while embroidering.
f
Press the inner frame in from the top of the
fabric again, lining up on the inner frame
and on outer frame.
a Outer frame
b Inner frame
c Fabric (right
side)
d Stabilizer material
e Ledge of outer frame
• Press down firmly until the inner frame is
securely pressed against the ledge of the
outer frame.
g
Tighten the adjustment screw while removing
any slack in the fabric by hand. The goal is to
have a drum-like sound when the stretched
fabric is struck lightly.
■ Using embroidery sheets
If the embroidery sheet attached to the
embroidery frame is used, the embroidery can be
sewn in exactly the right position on the fabric.
a
Make a mark with a chalk pen at the center of
the position for the pattern to be embroidered.
a Embroidery pattern
b Mark
3
45
21
2
1
154
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
b
Place the embroidery sheet on the inner frame.
a Embroidery sheet
b Inner frame
c Embroidery sheet base lines
c
Line the mark on the fabric up with the base
line on the embroidery sheet.
d
Place the inner frame with the fabric on the
outer frame and stretch the fabric.
• For details, refer to page 152.
e
Remove the embroidery sheet.
■ Embroidery on fabrics that cannot be stretched
on an embroidery frame
When small pieces of fabric that cannot be
stretched on an embroidery frame or thin pieces
like ribbon are being embroidered, use stabilizer
material as a base to stretch on the frame.
We recommend stabilizer material for all
embroidery.
a Stabilizer material
b Tack or spray glue
c Fabric
After completing the embroidery, remove the
stabilizer material carefully.
2
1
3
1
3
2
1
3
2
1
3
Attaching the Embroidery Frame 155
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Attaching the Embroidery Frame
This section describes how to attach the embroidery frame.
Attaching the embroidery
frame
a
Wind the embroidery bobbin thread onto the
bobbin and set it into the bobbin case.
• For details, refer to “Winding/Installing the
Bobbin” (page 23).
b
Raise the presser foot lever.
a Presser foot lever
c
Pass the embroidery frame under the presser
foot while raising the presser foot lever even
further.
CAUTION
d
While lightly holding the lever on the frame
holder to the left, align the two pins on the
embroidery frame holder with the mounting
brackets on the frame, and then press the
frame into the embroidery frame holder until a
click is heard.
After pressing the front mounting bracket onto
the pin so that it clicks into place, press the
back mounting bracket into place.
a Lever
a Mounting brackets
b Pins
Note
z Be sure to insert both pins. If only the
forward or the back pin is inserted, the
pattern may not turn out correctly.
CAUTION
● Do not hit the needle with your finger or
the embroidery frame. It may cause injury
or needle breakage.
a
● Correctly set the embroidery frame into
the embroidery frame holder. Otherwise,
the presser foot may hit the embroidery
frame, resulting in injury.
1
1
2
1
2
3
156
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Removing the embroidery
frame
Make sure that the sewing machine is completely
stopped and follow the instructions below.
a
Raise the presser foot lever.
a Presser foot lever
b
While pushing the lever of the embroidery
frame holder to the left, lift the embroidery
frame up to remove it.
Remove the back mounting bracket from the
pin, and then remove the front mounting
bracket from the pin.
a Lever
a Mounting brackets
b Pins
c
Pass the embroidery frame under the presser
foot while raising the presser foot lever even
further.
CAUTION
a
1
1
2
1
2
3
● Do not hit the needle with your finger or
the embroidery frame. It may cause injury
or needle breakage.
Selecting Embroidery Patterns 157
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Selecting Embroidery Patterns
This section provides details on the various types of embroidery patterns available and the procedure for
selecting a pattern.
Copyright information
The patterns saved in the sewing machine and
embroidery cards are intended for private use only.
Any public or commercial use of copyrighted
patterns is an infringement of copyright law and is
strictly prohibited.
Embroidery pattern types
An embroidery pattern can be selected from the
following types available.
a Embroidery patterns
b Additional embroidery patterns
c Alphabet patterns
d Frame patterns
e Embroidery card
f Patterns saved in the machine's memory
g Patterns retrieved from the computer
■ Embroidery patterns (Embroidery patterns/
Additional embroidery patterns)
There are total 136 patterns. The patterns are
completed by changing the upper thread
according to the instructions displayed on the
screen.
• For details, refer to “Selecting an embroidery
pattern” (page 161).
■ Alphabet patterns
There are 6 types of characters (European
characters); upper case/lower case/numbers/
symbols.
• For details, refer to “Selecting characters”
(page 160).
■ Frame patterns
10 shapes, such as squares and circles, can be
combined with 12 stitch types.
• For details, refer to “Selecting a frame
pattern” (page 162).
■ Embroidery card (sold separately)
Patterns from an embroidery card can be
embroidered.
• For details, refer to “Using an embroidery
card (sold separately)” (page 163).
■ Patterns saved in the machine's memory
Patterns, such as frequently used character
combinations, can be saved in the machine’s
memory to be retrieved later and embroidered.
Patterns consisting of up to 12 patterns or 512 KB
can be saved.
• For details, refer to “Saving patterns” (page
176).
■ Patterns retrieved from the computer
Patterns retrieved from a computer can be
embroidered.
• For details, refer to “Retrieving embroidery
patterns from the computer” (page 177).
ad
e
f
bc
g
158
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
LCD (liquid crystal display)
operation
The LCD (liquid crystal display) is operated using the
operation keys on the operation panel. The use of the
keys for embroidery will be explained below.
■ Operation keys
Press (Settings key).
NAME OF COLOR: Typical color name
TIME: Time required for embroidering
NEEDLE COUNT: Needle progress number
#123: Select from the following thread color
number sets
• EMBROIDERY (POLYESTER) THREAD#
• COUNTRY (COTTON) THREAD#
• MADEIRA POLY THREAD#
• MADEIRA RAYON THREAD#
• SULKY POLY THREAD#
• ROBISON-ANTON POLY THREAD#
DISPLAY UNIT
The measurement units that are displayed can be
selected. [mm/inch]
EMBROIDERY TENSION
The thread tension for embroidering can be
adjusted. [-8 to +8]
MAX EMBROIDERY SPEED (SPM)
The maximum embroidering speed can be
selected. [650SPM/350SPM]
Returns to the previous screen.
When there are patterns that are not
displayed on the screen (when
or is displayed), the previous
patterns/subsequent patterns are
displayed.
Returns to the type selection screen.
The selected pattern is cancelled.
Press this key to adjust language or
change the thread color display or
other settings.
Selecting Embroidery Patterns 159
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
■ LCD button
• For details, refer to “Resewing” (page 172).
• For details, refer to “Adjusting the layout”
(page 169).
Memo
z Keys that appear surrounded with a dotted
line cannot be used.
When a specific pattern is selected,
press this key and then, press
to switch the display. The
sewing settings such as the specified
alphabet character string and color
are confirmed.
Press this key to change the thread
settings.
Press this key to select or cancel
programmed thread cutting.
Press or to adjust the thread
tension.
Press or to change the
thread density (character patterns
only).
Press this key to adjust the pattern.
Press this key when you want to
change the color character by
character in character embroidery.
Since the sewing machine stops at
the end of each character, the upper
thread is changed as you sew.
Press this key again to cancel multi-color.
The needle progresses one color or
one stitch (if pressed continuously, 9
stitches to 20 stitches) at a time and
changes the position for starting the
embroidery. This is used when a
specific color is not sewn or when
restarting the sewing machine after
power has been turned off in the
middle of the operation.
Back one
color
Forward
one color
Back one
stitch
Forward
one stitch
The position of the pattern within the
embroidery frame can be checked,
and the size and angle can be
changed.
160
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Selecting characters
Specify the characters for embroidery.
Memo
z When “The pattern is too large for the
embroidery frame.“ is displayed, no more
characters can be input.
z Characters of different styles (sans serif, serif,
and outline, etc.) cannot be combined.
a
Select the character stitches.
b
Select the character style.
c
Select the characters.
If a wrong character was selected, press .
Example: Welcome
Switch between uppercase/lowercase
Switch among large/medium/small sizes
Selecting Embroidery Patterns 161
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Memo
z The character pattern that you created can
be saved for later use. For details, refer to
“Saving patterns” (page 176).
Selecting an embroidery pattern
There are total of 136 embroidery patterns, such as
fruits and animals, saved in the machine's memory.
Memo
z Refer to “Embroidery Pattern Color Change
Table“ in the Quick reference guide for
samples of completed patterns and the
thread used.
a
Select the type of the embroidery pattern.
X The pattern selection screen is displayed.
b
Select the pattern.
Switch the screen using (Previous page
key) and (Next page key).
•
When / is pressed, the display of
patterns moves backward/forward 10 patterns.
X When a pattern is selected, it can be
embroidered.
70 Embroidery patterns
66 Embroidery patterns
162
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Selecting a frame pattern
10 shapes, such as squares and circles, can be
combined with 12 stitch types.
Memo
z Refer to “Frame patterns“ in the Quick
reference guide for frame pattern shapes and
stitches.
a
Press the frame pattern.
X The frame shape selection screen is
displayed.
b
Select the frame shape.
Switch the screen using (Previous page
key) (Next page key), and select from the
ten types.
X The stitch selection screen is displayed.
c
Select the stitch.
Switch the screen using (Previous page
key) (Next page key), and select from the
12 stitches.
X When a stitch is selected, it can be
embroidered.
Selecting Embroidery Patterns 163
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Using an embroidery card
(sold separately)
If an embroidery card is used, you can embroider
patterns other than the patterns saved in the sewing
machine. There are various cards with different
themes.
Note
z Always turn off the sewing machine to insert
and remove embroidery cards.
z Insert the embroidery card into the
embroidery card slot, facing it in the right
direction.
z Do not put anything other than an
embroidery card in the embroidery card slot.
z When embroidery cards are not in use, keep
them in their storage cases.
z Use only embroidery cards manufactured for
this machine. Using unauthorized cards may
cause your machine to operate incorrectly.
z Embroidery cards purchased in foreign
countries may not work with your machine.
z Large patterns supplied on embroidery cards
may be difficult to view on the screen.
a
Turn off the sewing machine.
b
Insert the embroidery card in the embroidery
card slot on the right side of the sewing
machine.
Face the arrow on the embroidery card toward
you, and insert it in the direction of the arrow.
c
Turn on the sewing machine.
d
Press the embroidery card on the screen.
X The selection screen for the patterns saved in
the card is displayed.
e
Select a pattern.
The operation is the same as in “Selecting
Embroidery Patterns” (page 157).
164
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Embroidering
After the preparations are done, you can try embroidering. This section describes the steps for
embroidering and appliquéing.
Sewing attractive finishes
There are many factors that go into sewing beautiful embroidery. Using the appropriate stabilizer (page 151) and
hooping the fabric in the frame (page 152) are two important factors mentioned earlier. Another important point
is the appropriateness of the needle and thread being used. See the explanation of threads below. Included with
this machine are two bobbin cases. Follow the explanation below.
Memo
z If you use threads other than those listed above, the embroidery may not sew out correctly.
For details on how to remove the bobbin case, refer to “Cleaning the race” (page 180).
Note
z Before embroidering, check that there is enough thread in the bobbin. If you continue sewing without
enough thread in the bobbin, the thread may tangle.
z Do not leave objects in the range of motion of the embroidery frame. The frame may strike the object
and cause a poor finish to the embroidery pattern.
z When embroidering on large garments (especially jackets or other heavy fabrics), do not let the fabric
hang over the table. Otherwise, the embroidery unit cannot move freely, and the pattern may not turn
out as planned.
Thread
Upper thread
Use embroidery thread, or country embroidery thread intended for use with
this machine.
Other embroidery threads may not yield optimum results.
Bobbin thread Use embroidery bobbin thread intended for use with this machine.
Bobbin case
1 Marking Green/Pink
Standard bobbin case (green marking on the screw) is in the machine for
sewing and embroidery. The bobbin case originally installed in the machine
has a green screw.
Alternate bobbin case (pink marking on the screw) is set with tighter tension
for embroidery with different weights of bobbin threads and a variety of
embroidery techniques.
a
Embroidering 165
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Embroidering a pattern
Embroidery patterns are embroidered with a change
of thread after each color.
a
Prepare embroidery thread of the color shown
on the screen.
a Embroidery frames that can be used for
embroidering
b Current color step/Number of colors in design
c Current name of color
d Current color part
e Next color part
• The thread color number set displayed for the
thread colors can be changed. Press
(Settings key), and then change the setting in
the settings screen. For details, refer to “LCD
(liquid crystal display) operation” (page 158).
Example: Embroidery thread number selected
b
Set the embroidery thread, and thread the
needle.
• Refer to “Threading the upper thread” (page
30) and “Threading the needle” (page 32).
Note
z Before using the needle threader, be sure to
lower the presser foot.
c
Pass the thread through the embroidery foot
hole, and hold it lightly in your left hand.
Give the thread a little slack.
CAUTION
a
b
c
d e
● If the thread is pulled too tight, the needle
may break or bend.
● Do not let hands or objects hit the
carriage while sewing. The pattern may
misalign.
166
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
d
Lower the presser foot lever.
a Presser foot lever
e
Press (“Start/Stop” button).
a “Start/Stop” button
f
After progressing 5-6 stitches, press
(“Start/Stop” button) to stop the machine.
g
Use scissors to cut the thread at the beginning
of the stitching.
Cut the thread at the edge of the stitching.
• If the thread is left at the beginning of the
stitching, it may be sewn over as you
continue embroidering the pattern, making it
very difficult to deal with the thread after the
pattern is finished. Trim the thread at the
beginning.
h
Press (“Start/Stop” button) again.
X The embroidery begins again.
X Stitching stops automatically with
reinforcement after one color has been
completed. When automatic thread cutting
is set, the thread is cut.
i
Set up embroidery thread for the next color,
and repeat steps
a through h.
j
Cut the excess thread.
X When the last color is sewn, “Finished
sewing.” will appear on the display. Press
, and the display will return to the
initial screen.
Memo
z For the automatic cutting setting, refer to
“LCD (liquid crystal display) operation”
(page 158).
1
1
Embroidering 167
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Appliquéing
Prepare the base fabric and the appliqué fabric
(appliqué piece). Press (Settings key), and set
the thread color display to NAME OF COLOR, so
“APPLIQUE MATERIAL”, “APPLIQUE POSITION”
and “APPLIQUE” are displayed on the screen.
a
Select an appliqué pattern.
b
When “APPLIQUE MATERIAL“ is displayed on
the screen, apply iron-on stabilizer to the back
of the appliqué piece fabric, and stretch it on
the embroidery frame.
c
Lower the presser foot lever, and press
(“Start/Stop” button).
X The cut-out for the appliqué piece is sewn,
and the sewing machine stops.
a Cut-out line
b Appliqué piece fabric
X “APPLIQUE POSITION“ will be displayed
on the screen.
d
Remove the fabric from the embroidery frame,
and cut it out along the cut-out line.
Cut carefully along the stitching and remove
the thread.
• If it is not cut right on the stitching, it will not
be finished neatly.
e
Stretch the base fabric on the embroidery
frame.
f
Set up the thread for appliquéing.
g
Lower the presser foot lever, and press
(“Start/Stop” button).
X The position for the appliqué is stitched, and
the sewing machine stops.
a Appliqué position
b Base fabric
X “APPLIQUE“ will be displayed on the
screen.
h
Apply a thin layer of fabric glue or spray
adhesive to the back of the appliqué piece, and
attach it in the appliqué position.
1
2
1
2
168
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
i
Lower the presser foot lever, and press
(“Start/Stop” button).
Note
z When “APPLIQUE MATERIAL”, “APPLIQUE
POSITION” and “APPLIQUE” are displayed,
a specific color thread does not appear. Use
a proper color thread to match the appliqué
piece.
j
Follow the instructions on the screen, and
change thread colors as you sew.
Editing Patterns 169
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Editing Patterns
This section describes ways to edit, adjust, and reposition patterns.
Adjusting the layout
The pattern is normally positioned in the center of the
embroidery frame.
You can check the layout before starting embroidery
and change the position and the size.
Memo
z Keys that appear surrounded with a dotted
line cannot be used.
a
After selecting the embroidery pattern, press
.
X The embroidery screen is displayed.
b
Press .
X The layout screen is displayed.
c
Check and adjust the layout.
a Layout within the frame
b Available embroidery frames
c Display unit (cm/INCH)
d Change position keys
e Size key
f Layout key
g Rotation key
h Horizontal mirror image key
i Distance from the center
j Embroidery size
k Starting point key
Embroidery frame size
These flash if the pattern was resized,
the layout was adjusted, or the
recommended embroidery frame size
was changed. Embroidery frame icons
that appear in gray cannot be used.
Size key
Increases/decreases the size of the
pattern. Press to return to the
previous screen.
Decreases size
Returns to original size
Returns to center position (when the
pattern was moved with the change
position key)
Increases size
Change position keys
Moves the embroidery position up,
down, left and right.
k
j
a b c d e f
g
h
i
170
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Memo
z If you make a note of the values in the lower
part of screen when you change the size and
position, you can sew with the same size
and layout even if you have to turn the
power back on in the middle of your work.
• Press (Back key) to return to the
previous screen.
• Press to return to the previous screen.
CAUTION
Layout key
Press this key to move to rotation
screen.
Rotation key
Rotates the pattern one degree, 10
degrees or 90 degrees at a time.
Rotates the pattern 90 degrees to the
left
Rotates the pattern 90 degrees to the
right
Rotates the pattern 10 degrees to the
left
Rotates the pattern 10 degrees to the
right
Rotates the pattern 1 degree to the
left
Rotates the pattern 1 degree to the
right
Returns the pattern to its original
position
Horizontal mirror image key
Mirrors the pattern left and right.
Starting point key
Moves the needle start position to align
the needle with the pattern position.
Moves the needle to the position of
the selected needle start position.
Moves the frame to check the pattern
position.
● Never lower the needle when the
embroidery frame is moving. The needle
may break or bend.
● When you have revised the pattern, check
the display of available embroidery
frames and use an appropriate frame. If
you use an embroidery frame not
displayed as available for use, the presser
foot may strike the frame and possibly
cause injury.
Editing Patterns 171
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
d
Press (Back key) to return to the
original screen.
Memo
z When the power is turned off, the layout
returns to the original setting.
z You can also check the pattern size and
distance from the center by pressing
after beginning embroidering.
Adjusting the thread tension
If embroidery fails, it is difficult to undo the thread
and the fabric may be damaged. Before
embroidering, use a scrap of the same fabric to check
the adjustment of the thread tension, etc.
To adjust the thread tension, press (Settings
key).
Press to weaken the thread tension.
Press to tighten the thread tension.
■ Correct thread tension
The thread tension is correct when upper thread
is just visible on back of the fabric.
a Right side
b Wrong side
■ Upper thread is too tight
The lower thread will be visible on the front of the
fabric. In this instance, decrease the upper thread
tension.
a Right side
b Wrong side
■ Upper thread is too loose
The upper thread has slack. In this instance,
increase the upper thread tension.
a Right side
b Wrong side
12
12
12
172
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Resewing
When the wrong upper thread color has been sewn,
it can be resewn with the correct color.
a
Press (“Start/Stop” button) to stop the
sewing machine.
b
Press .
c
Press .
d
Press (Back one color) to return to the
beginning of the mistaken color.
e
Set up the correct color for the upper thread.
f
Press (“Start/Stop” button) to continue
the design.
Thread runs out partway
through a design
When the upper thread or the bobbin thread runs out
while sewing, the sewing machine stops. Move the
needle back about 10 stitches and resume sewing.
a
Set up the upper or bobbin thread.
b
Press .
c
Press .
d
Press (Back one stitch) to move the
needle back about 10 stitches.
(Forward one stitch) increases the stitch
number.
e
Restart the embroidery.
Editing Patterns 173
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Stopping while embroidering
If the embroidery is stopped before it is complete,
check the current needle count before turning off the
sewing machine.
Memo
z When the sewing machine is turned off, the
embroidery size and layout return to the
original setting.
a
Press (“Start/Stop” button) to stop the
sewing machine.
b
Check the current needle count on the screen
and make a note of it.
If the needle count is not displayed, press
(Settings key), and then use to display
the following screen.
Press (Back key) to return to the
embroidery screen.
c
Press (Embroidery key).
X The confirmation message is displayed.
d
Press .
X The selected pattern is deleted, and the
screen for selecting the embroidery pattern
type is displayed.
e
Turn off the sewing machine.
• Always detach the embroidery unit when you
move the sewing machine.
f
Turn on the sewing machine and select the
pattern.
g
Press .
174
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
h
Press .
i
Press (Forward one color) to move to
the beginning of the color you want to
embroider.
j
Press (Forward one stitch) to increase
the needle count.
If is pressed continuously, it moves
forward 1 —> 9 —> 30 stitches.
Move forward to about 10 stitches before the
total number of stitches confirmed in
b.
k
Restart the embroidery.
Using the Memory Function 175
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Using the Memory Function
Embroidery data precautions
Observe the following precautions when using embroidery data other than that created and saved in this machine.
CAUTION
■ Types of Embroidery Data that can be Used
• Only .pes and .dst embroidery data files can be used with this machine. Using data other than that saved
using our data design systems or sewing machines may cause the embroidery machine to malfunction.
■ Computers and Operating Systems with the Following Specifications can be Used
• Compatible models:
IBM PC with a USB port as standard equipment
IBM PC-compatible computer equipped with a USB port as standard equipment
• Compatible operating systems:
Microsoft Windows Me/2000/XP
(Windows 98SE requires a driver. Download the driver from our web site (www.brother.com).)
■ Precautions on Using the Computer to Create and Save Data
• If the file name of embroidery data cannot be identified, for example, because the name contains special
characters, the file is not displayed. If this occurs, change the name of the file. We recommend using the
26 letters of the alphabet (uppercase and lowercase), the numbers 0 through 9, “-”, and “_”.
• If .pes embroidery data larger than 30 cm (H) × 13 cm (W) is selected, a message appears asking if you
wish to rotate the pattern 90 degrees.
Embroidery data larger than 30 cm (H) × 13 cm (W), even after being rotated 90 degrees, cannot be used
(All designs must be within the 30 cm (H) × 13 cm (W) design field size.)
• .pes files saved with the number of stitches, the number of colors and the number of combined patterns
exceeding the specified limits cannot be displayed. Use one of our original data design systems to edit the
embroidery pattern so that it meets the specifications.
• Embroidery data stored in a folder created in USB media can be retrieved.
• Do not create folders in “Removable Disk” on a computer. If embroidery data is stored in a folder in
“Removable Disk”, that embroidery data cannot be retrieved by the machine.
• Even if the embroidery unit is not attached, the machine will manage embroidery data.
■ Tajima (.dst) Embroidery Data
• .dst data is displayed in the pattern list screen by file name (the actual image cannot be displayed). Only
the first eight characters of the file name can be displayed.
• Since Tajima (.dst) data does not contain specific thread color information, it is displayed with our default
thread color sequence. Check the preview and change the thread colors as desired.
■ Trademarks
• IBM is a registered trademark or a trademark of International Business Machines Corporation.
• Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation.
Each company whose software title is mentioned in this manual has a Software License Agreement specific
to its proprietary programs.
All other brands and product names mentioned in this manual are registered trademarks of their respective
companies. However, the explanations for markings such as
®
and
™
are not clearly described within the text.
● When using embroidery data other than our original patterns, the thread or needle may break
when sewing with a stitch density that is too fine or when sewing three or more overlapping
stitches. In that case, use one of our original data design systems to edit the embroidery data.
176
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Saving patterns
The embroidery patterns and the alphabet characters
you have customized can be saved in the sewing
machine's memory.
Since the saved patterns will not be erased when the
power is turned off, you can always retrieve them for
embroidery. This is convenient for saving names and
the like. You can save up to 12 patterns or 512 KB of
data.
■ Saving a pattern
a
After selecting the pattern to be saved, press
(Memory key).
X After the pattern is saved, the initial screen
appears again.
Note
z Do not turn off the sewing machine while
the pattern is being saved, otherwise the
pattern data may be lost.
■ Retrieving a pattern.
a
Press .
X The saved patterns are displayed.
b
Select the pattern you wish to retrieve.
Switch screens using (Previous page key)
and (Next page key).
a Total amount of memory used
b Total amount of memory space
c Number of the currently displayed page from the
total number of pages
X The selected pattern is shown in reverse
highlighting.
c
Press .
To delete the saved pattern, press .
X The saved pattern is retrieved.
X The embroidery screen appears, and you
can embroider the retrieved pattern.
Note
z Characters saved from an embroidery card
must have the embroidery card inserted in
the machine in order to retrieve the memory
saved from the embroidery card.
c
b
a
Using the Memory Function 177
4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Retrieving embroidery
patterns from the computer
a
Plug the USB cable connectors into the
corresponding USB port connectors on the
computer and on the machine.
a USB port connector for computer
b USB cable connector
Memo
z The USB cable can be plugged into the USB
port connectors on the computer and
machine whether or not they are turned on.
b
The “Removable Disk” icon appears in “My
Computer” on the computer.
c
Copy the pattern data to “Removable Disk”.
X Pattern data in “Removable Disk” is written
to the machine.
Note
z While data is being written, do not
disconnect the USB cable.
z
Do not create folders within “Removable
Disk”. Since folders are not displayed, pattern
data within folders cannot be retrieved.
z
While the machine is sewing, do not write
data to or delete data from “Removable Disk”.
d
Press .
X The saved patterns are displayed.
a
b
a
b
178
EMBROIDERY — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
e
Select the pattern you wish to retrieve.
Switch screens using (Previous page key)
and (Next page key).
a Total amount of memory used
b Total amount of memory space
c Number of the currently displayed page from the
total number of pages
X The selected pattern is shown in reverse
highlighting.
f
Press .
X The saved pattern is retrieved.
X The embroidery screen appears, and you
can embroider the retrieved pattern.
g
Adjust the pattern as desired, and then begin
embroidering.
Note
z If there are 13 or more patterns saved in
“Removable Disk”, the patterns cannot be
displayed. When the message “Reduce the
number of patterns. Only up to 12 patterns
can be handled.” appears, delete patterns
from “Removable Disk” so that it contains
no more than 12 patterns. Then, close the
error message, repeat the procedure starting
from step
d and then press to retrieve
the pattern.
z If patterns copied to “Removable Disk” are
not saved in the machine's memory, their
data is lost when the machine is turned off.
In order to retrieving patterns directly from
the machine the next time that they are
needed, save the data in the machine's
memory before turning off the machine. For
details, refer to “Saving patterns” (page 176).
c
b
a
5 APPENDIX
The various maintenance and troubleshooting procedures are described in this chapter.
Care and Maintenance ..........................................................................................180
Cleaning the machine surface ..........................................................................180
Cleaning the race .............................................................................................180
Troubleshooting ....................................................................................................182
Error messages .................................................................................................187
Adjusting the LCD ............................................................................................190
Operation beep ................................................................................................190
Canceling the operation beep ..........................................................................191
Upgrading Your Machine’s Software.....................................................................192
Index .....................................................................................................................193
180
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Care and Maintenance
Simple sewing machine maintenance operations are described below.
Cleaning the machine surface
If the surface of the machine is dirty, lightly soak a
cloth in neutral detergent, squeeze it out firmly, and
then wipe the surface of the machine. After cleaning
it once with a damp cloth, wipe it again with a dry
cloth.
CAUTION
Cleaning the race
Sewing performance will suffer if dust collects in the
bobbin case, therefore, it should be cleaned
periodically.
a
Turn off the sewing machine.
b
Unplug the power cord from the power supply
jack on the right side of the sewing machine.
CAUTION
c
Remove the flat bed attachment or the
embroidery unit if either is attached.
d
Grasp both sides of the needle plate cover, and
then slide it toward you.
a Needle plate cover
X The needle plate cover is removed.
e
Remove the bobbin case.
Grasp the bobbin case, and then pull it out.
a Bobbin case
f
Use the cleaning brush or a vacuum cleaner to
remove any lint and dust from the race and its
surrounding area.
a Cleaning brush
b Race
• Do not apply oil to the bobbin case.
● Unplug the power cord before cleaning
the machine, otherwise injuries or an
electric shock may occur.
● Unplug the power cord before cleaning
the machine, otherwise injuries or an
electric shock may occur.
a
1
a
b
Care and Maintenance 181
5
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
g
Insert the bobbin case so that the projection
on the bobbin case aligns with the spring.
a Projection
b Spring
a Bobbin case
h
Insert the tabs on the needle plate cover into
the needle plate, and then slide the cover back
on.
a Needle plate cover
CAUTION
a
b
1
2
1
● Never use a bobbin case that is scratched,
otherwise the upper thread may become
tangled, the needle may break or sewing
performance may suffer. For a new
bobbin case (part code: XC3153-151
(green marking), XC8167-251(pink
marking)), contact your nearest
authorized service center.
● Be sure that the bobbin case is correctly
installed, otherwise the needle may break.
a
182
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Troubleshooting
If the machine stops operating correctly, check the following possible problems before requesting service.
If the problem persists, contact your retailer or the nearest authorized service center.
Symptom Probable Cause Remedy Reference
The sewing
machine does not
operate.
The machine is not turned on. Turn on the machine. page 17
The “Start/Stop” button was not
pressed.
Press the “Start/Stop” button. page 51
The presser foot lever is raised. Lower the presser foot lever. page 50
The “Start/Stop” button was
pressed, even though the foot
controller is connected.
Do not use the “Start/Stop” button
when the foot controller is
connected. To use the “Start/Stop”
button, disconnect the foot
controller.
page 51
The needle breaks.
The needle is incorrectly installed. Correctly install the needle.
page 40The needle clamp screw is loose.
Use the screwdriver to firmly tighten
the screw.
The needle is bent or blunt. Replace the needle.
The combination of fabric, thread
and needle is not correct.
Select a thread and needle that are
appropriate for the type of fabric
being sewn.
page 39
The presser foot that is used is not
appropriate for the type of stitch
that you wish to sew.
Attach the presser foot that is
appropriate for the type of stitch that
you wish to sew.
page 68
The upper thread tension is too
tight.
Loosen the upper thread tension. page 57
The fabric is pulled too much. Lightly guide the fabric. –
The spool is incorrectly installed. Correctly install the spool. page 29
The area around the hole in the
needle plate is scratched, or has a
burr on it.
Replace the needle plate. Contact
your retailer or the nearest authorized
service center.
–
The area around the hole in the
presser foot is scratched, or has a
burr on it.
Replace the presser foot. Contact
your retailer or the nearest authorized
service center.
–
The bobbin case is scratched, or
has a burr on it.
Replace the bobbin case. Contact
your retailer or the nearest authorized
service center.
–
A bobbin designed specifically for
this machine is not used.
Incorrect bobbins will not work
properly. Only use a bobbin
designed specifically for this
machine.
page 23
Troubleshooting 183
5
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
The upper thread
breaks.
The upper thread was not
threaded correctly (for example,
the spool is not installed correctly,
the spool cap is too big for the
spool being used, or the thread
has come out of the needle bar
thread guide).
Correct the upper threading. page 29
There are knots or tangles in the
thread.
Remove any knots or tangles. –
The selected needle is not
appropriate for the thread being
used.
Select a needle that is appropriate for
the type of thread being used.
page 39
The upper thread tension is too
tight.
Loosen the upper thread tension. page 57
The thread is tangled, for example,
in the bobbin case.
Remove the tangled thread. If the
thread is tangled in the bobbin case,
clean the race.
page 180
The needle is bent or blunt. Replace the needle.
page 40
The needle is incorrectly installed. Correctly install the needle.
The area around the hole in the
needle plate is scratched, or has a
burr on it.
Replace the needle plate. Contact
your retailer or the nearest authorized
service center.
–
The area around the hole in the
presser foot is scratched, or has a
burr on it.
Replace the presser foot. Contact
your retailer or the nearest authorized
service center.
–
The bobbin case is scratched, or
has a burr on it.
Replace the bobbin case. Contact
your retailer or the nearest authorized
service center.
–
A bobbin designed specifically for
this machine is not used.
Incorrect bobbins will not work
properly. Only use a bobbin
designed specifically for this
machine.
page 23
Bobbin thread
does not wind
neatly on the
bobbin.
The thread that was pulled out
was not wound onto the bobbin
correctly.
Wind the thread that was pulled off
around the bobbin five or six times
clockwise.
page 25
Bobbin spins slowly.
Move the sewing speed controller to
the right (so that the speed will be
fast).
page 26
Symptom Probable Cause Remedy Reference
184
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
The lower thread
is tangled or
breaks.
The bobbin thread is incorrectly
installed.
Correctly install the bobbin thread. page 27
The bobbin is scratched or does
not rotate smoothly, or has a burr
on it.
Replace the bobbin. –
The thread is tangled.
Remove the tangled thread and clean
the race.
page 180
A bobbin designed specifically for
this machine is not used.
Incorrect bobbins will not work
properly. Only use a bobbin
designed specifically for this
machine.
page 23
The thread tension
is incorrect.
The upper thread was not
threaded correctly.
Correct the upper threading. page 29
The bobbin thread is incorrectly
installed.
Correctly install the bobbin thread. page 27
The combination of fabric, thread
and needle is not correct.
Select a thread and needle that are
appropriate for the type of fabric
being sewn.
page 39
The presser foot holder is
incorrectly installed.
Correctly install the presser foot
holder.
page 44
The thread tension is incorrect.
Adjust the tension of the upper
thread.
page 57
A bobbin designed specifically for
this machine is not used.
Incorrect bobbins will not work
properly. Only use a bobbin
designed specifically for this
machine.
page 23
The fabric is
wrinkled.
The upper thread was not
threaded correctly, or the bobbin
is incorrectly installed.
Correctly thread the upper thread and
correctly install the bobbin thread.
page 27,
page 29
The spool is incorrectly installed. Correctly install the spool. page 29
The combination of fabric, thread
and needle is not correct.
Select a thread and needle that are
appropriate for the type of fabric
being sewn.
page 39
The needle is bent or blunt. Replace the needle. page 40
If thin fabrics are being sewn, the
stitch is too long.
Shorten the stitch length or sew with
stabilizer material under the fabric.
page 57,
page 64
The thread tension is incorrect.
Adjust the tension of the upper
thread.
page 57
Symptom Probable Cause Remedy Reference
Troubleshooting 185
5
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Stitches are
skipped.
The upper thread was not
threaded correctly.
Correct the upper threading. page 29
The combination of fabric, thread
and needle is not correct.
Select a thread and needle that are
appropriate for the type of fabric
being sewn.
page 39
The needle is bent or blunt. Replace the needle. page 40
The needle is incorrectly installed. Correctly install the needle. page 40
Dust has accumulated under the
needle plate or in the bobbin case.
Remove the needle plate cover and
clean the race.
page 180
A high-pitched
noise is made
while sewing.
Dust has accumulated in the feed
dogs or in the bobbin case.
Clean the race. page 180
The upper thread was not
threaded correctly.
Correct the upper threading. page 29
The bobbin case is scratched, or
has a burr on it.
Replace the bobbin case. Contact
your retailer or the nearest authorized
service center.
–
A bobbin designed specifically for
this machine is not used.
Incorrect bobbins will not work
properly. Only use a bobbin
designed specifically for this
machine.
page 23
The thread does
not pass through
the eye of the
needle.
The needle has not been raised to
the correct position.
Press the “Needle Position” button. page 32
The needle is incorrectly installed. Correctly install the needle. page 40
The stitch is not
sewn correctly.
The presser foot that is used is not
appropriate for the type of stitch
that you wish to sew.
Attach the presser foot that is
appropriate for the type of stitch that
you wish to sew.
page 68
The thread tension is incorrect.
Adjust the tension of the upper
thread.
page 57
The thread is tangled, for example,
in the bobbin case.
Remove the tangle thread. If the
thread is tangled in the bobbin case,
clean the race.
page 180
The fabric does
not feed.
The feed dogs are lowered.
Slide the drop feed lever to the right
(as seen from the rear of machine).
page 108
The stitch is too short. Lengthen the stitch length. page 57
The presser foot that is used is not
appropriate for the type of stitch
that you wish to sew.
Attach the presser foot that is
appropriate for the type of stitch that
you wish to sew.
page 68
The thread is tangled, for example,
in the bobbin case.
Remove the tangled thread. If the
thread is tangled in the bobbin case,
clean the race.
page 180
Symptom Probable Cause Remedy Reference
186
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
The sewing lamp
does not come on.
The sewing lamp is damaged.
Contact your retailer or the nearest
authorized service center.
–
The machine is not turned on. Turn on the machine. page 17
Nothing appears
in the LCD.
The brightness of the LCD is either
too light or too dark.
Adjust the brightness of the LCD. page 190
Machine does not
operate when
button is pressed.
An animation is displayed on the
LCD.
Touch the LCD with your finger, and
the animation will disappear.
page 18
Embroidery unit
does not move.
No pattern selected. Select a pattern. page 157
The embroidery unit is not set up
correctly.
Set the embroidery unit up correctly. page 148
Embroidery not
neatly done.
The fabric is not fully stretched on
the embroidery frame. The fabric
is loose.
Stretch the fabric properly on the
embroidery frame.
page 152
No stabilizer material is attached.
Always use stabilizer material for
embroidery with stretch fabrics, thin
fabrics, fabrics with a loose weave
and fabrics where stitches easily
contract.
page 151
The thread is tangled and the
bobbin case, etc., is plugged up.
Remove the tangled thread. When
the bobbin case is plugged up, clean
the race.
page 180
The thread tension is incorrect.
Adjust the tension of the upper
thread.
page 171
Objects are placed near the
carriage or embroidery frame.
If the embroidery unit carriage or
embroidery frame bumps into objects,
the pattern will be misaligned.
Do not
place objects within the range of
embroidery frame motion.
page 149
Material coming out of the
embroidery frame is causing
problems.
Stretch the fabric on the frame once
again so that the material coming out
of the embroidery frame does not
cause problems, rotate the pattern
and embroider.
–
A heavy fabric is being
embroidered, and the fabric is
hanging off the table.
If embroidery is done with the fabric
hanging off the table, the embroidery
unit movement will be impaired.
Support the fabric while embroidering.
–
The fabric is catching. It is
pinched.
Stop the sewing machine and set the
fabric up correctly.
–
The carriage was moved while the
embroidery frame was being
removed or attached during
embroidery.
If the carriage is moved during the
process, the pattern may be misaligned.
Be careful when removing or
attaching the embroidery frame.
–
Symptom Probable Cause Remedy Reference
Troubleshooting 187
5
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Error messages
When erroneous operations are performed messages and advice on operation will be displayed on the LCD.
Follow what is displayed. The message may disappear if the operation is performed correctly. The message will
disappear if is pressed while the message is displayed.
Error Message Probable Cause
There is a possibility that the data for the selected pattern is corrupted.
Either the “Start/Stop” button or the “Reverse/Reinforcement Stitch”
button was pressed at a screen other than the sewing screen.
The “Start/Stop” button was pressed without connecting the foot
controller while the setting for adjusting the stitch width using the
sewing speed controller is set to “ON”. You have selected a pattern for
which width control cannot be used.
The twin needle setting is selected while a pattern that cannot be sewn
with the twin needle is selected.
Upper thread broken.
Upper thread not set up correctly.
Upper thread has run out.
CAUTION
Be sure to rethread the machine. If you press the “Start/Stop” button
without rethreading the machine, the thread tension may be wrong or
the needle may break and cause injury.
You tried to create a design with too many points with the My Custom
Stitch function.
The machine is deleting a previously saved pattern while in embroidery
edit mode.
The “Start/Stop” button was pressed while the foot controller was
connected. You tried to use the foot controller for embroidery.
While embroidering, data is written to the “Removable Disk” in the
connected computer or data is deleted from the “Removable Disk”.
The “Start/Stop” button was pressed before the editing was completed
with the My custom stitch function.
on the LCD was pressed when no card was inserted.
188
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
A stitch other than the buttonhole, bar tack or darning stitch was
selected and the “Start/Stop” button was pressed while the buttonhole
lever is lowered.
The buttonhole, bar tack or darning stitch was selected and the “Start/
Stop” button was pressed while the buttonhole lever is raised.
The “Start/Stop” button, “Reverse/Reinforcement Stitch” button or
“Thread Cutter” button was pressed while the presser foot was raised.
You tried to combine more than 70 decorative stitches, satin stitches,
cross stitches or combined utility stitches.
The memory is full and the stitch or pattern cannot be saved.
You pressed the back key or the utility stitch key or the embroidery key
while a pattern was selected.
You changed the stitch pattern settings, and then tried to save them by
pressing the manual memory key.
You tried to select an embroidery pattern or change the layout when
the needle was down.
The machine is turned on while the needle is lowered and the
embroidery unit is attached.
This message is displayed when the embroidery unit is trying to
initialize while the embroidery foot is lowered.
When 13 or more patterns are in “Removable Disk”, a pattern was
being retrieved.
Retrieving the pattern
The “Reverse/Reinforcement Stitch” button, “Needle Position” button
or “Thread Cutter” button was pressed while the bobbin winder shaft is
moved to the right.
A pattern is being saved.
The “Start/Stop” button or “Reverse/Reinforcement Stitch” button was
pressed when no pattern is selected.
Bobbin thread has run out.
Little bobbin thread remains.
Error Message Probable Cause
Troubleshooting 189
5
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
When the embroidery unit is attached.
You tried to set a number of characters that will not fit within the frame.
The upper thread has become tangled around the bobbin case, and the
needle is bent and hitting the needle plate, etc., so the sewing machine
stops (refer to page 182).
You tried a function that cannot be used when the embroidery unit is
attached.
A card that cannot be used with this product has been inserted, and you
tried to select a pattern from the card.
An embroidery pattern incompatible with this machine was selected.
The utility stitch or character stitch key was pressed while the
embroidery unit is attached.
You try to retrieve a pattern downloaded as one for a different machine.
The machine is in embroidery mode and the combined character
pattern is too large for the embroidery frame. You can rotate the pattern
90 degrees and continue combining characters.
Transmitting by USB
The “Start/Stop” button, the embroidery key, or the memory key is
pressed in embroidery mode, but the embroidery unit is not attached.
The bobbin winder is winding the bobbin.
Error Message Probable Cause
190
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Adjusting the LCD
If nothing appears in the LCD when the sewing
machine is turned on, the brightness of the LCD is
either too light or too dark. In such a case, perform
the following operation.
a
Turn off the sewing machine.
b
Turn on the sewing machine while pressing
anywhere on the screen.
c
Press or .
d
Turn off the sewing machine, then turn it on
again.
Operation beep
Each time a key is pressed you will hear one beep. If
an incorrect operation is performed you will hear two
or four beeps.
■ If a key is pressed (correct operation)
One beep sounds.
■ If an incorrect operation is performed
Two or four beeps sound.
■ If the machine locks up, for example, because
the thread is tangled
The sewing machine beeps for four seconds and
the machine automatically stops.
Be sure to check for the cause of the error, and
correct it before continuing to sew.
Troubleshooting 191
5
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Canceling the operation beep
When the sewing machine is purchased, it is set to
beep each time an operation panel key is pressed.
This setting can be changed so that the machine does
not beep.
a
Turn on the sewing machine.
X The LCD comes on.
b
Press (Settings key) on the operation
panel.
X The settings screen appears.
c
Press (Next page key) three times.
d
Press OFF for the buzzer.
X The screen for changing the beep setting
appears.
e
Press (Back key).
X The initial screen appears again.
192
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Upgrading Your Machine’s Software
You can use a computer to download software upgrades for your sewing machine.
Visit our website at www.brother.com for notification of available updates.
Note
z There are two upgrade files. Be sure to download both files successively.
Memo
z When the machine's software is upgraded, saved combinations of character and decorative stitches are
erased. However, saved embroidery patterns are not erased.
z While the software is being upgraded, the buzzer will not sound when a key is pressed.
a
While holding (Settings key) pressed,
turn on the machine.
X The following screen appears.
b
Plug the USB cable connectors into the
corresponding USB ports on the computer and
on the machine.
X The “Removable Disk” icon appears in “My
Computer” on the computer.
c
Copy the first upgrade file to “Removable
Disk”.
X The message “Connected to PC. Do not
disconnect the USB cable.” appears.
d
When the screen shown in step a appears
again, press .
X The message “Saving the upgrade file. Do
not turn main power to OFF.” appears.
e
When the following screen appears, the first
upgrade file is downloaded.
f
Copy the second upgrade file to “Removable
Disk”.
g
When the screen shown in step e appears
again, press .
X The message “Saving the upgrade file. Do
not turn main power to OFF.” appears.
h
When the following screen appears, upgrading
is completed.
Note
z If an error occurred, an error message
appears. At this time, turn the machine off,
and then start the procedure again from step
a.
i
Disconnect the USB cable, and turn the
machine off, then on again.
Upgrading Your Machine’s Software / Index 193
5
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Index
Numerics
1/4 inch quilting foot ........................................... 10, 106
1/4 inch quilting foot with guide
...................................10
A
accessories ............................................................... 8, 10
adjustable zipper/piping foot
.................................... 9, 99
adjusting layout
..........................................................169
adjusting stitch length
...................................................57
adjusting stitch width
....................................................56
adjusting thread tension
................................................57
air vent
.........................................................................12
appliqué
.....................................................................103
appliqué pattern selection
...........................................167
appliqué stitch
............................................................103
attaching presser foot holder
.........................................44
attaching stabilizer material
........................................151
attributes
.......................................................................19
automatic reverse/reinforcement stitches
.......................59
automatic thread cutting
...............................................60
B
back key .......................................................................14
bar tack stitch
.............................................................111
basic sewing
.................................................................48
basic stitching
...............................................................83
basting stitch
.................................................................83
beep
...........................................................................190
blind hem stitch
............................................................85
bobbin
............................................................................9
bobbin case
........................................................... 9, 164
bobbin case removal
...................................................180
bobbin cover
................................................................12
bobbin installation
........................................................27
bobbin thread, pulling up
.............................................37
bobbin threading
..........................................................27
bobbin winder
..............................................................11
bobbin winding
............................................................23
bobbin winding thread guide and pretension disk
.. 11, 25
button guide plate
.........................................................89
button sewing
...............................................................92
buttonhole lever
............................................................12
buttonhole sewing
........................................................88
buttonhole stitching
......................................................87
buzzer
........................................................................190
C
care ............................................................................180
changing sewing direction
............................................62
character stitches
................................................. 75, 126
character storage
.........................................................176
characters, retrieving
...................................................176
checking needle
............................................................40
cleaning bobbin case
..................................................180
cleaning brush
................................................................9
cleaning machine surface
...........................................180
combining patterns
.....................................................130
concealed seams
...........................................................94
country thread
..............................................................19
crazy quilt stitching
.....................................................105
cross stitches
........................................................ 75, 126
cuffs
..............................................................................45
curve sewing
.................................................................62
custom stitches
...........................................................137
cutting thread
................................................................54
cutting thread automatically
..........................................60
cylindrical pieces
..........................................................45
D
darning .......................................................................113
darning stitch
..............................................................111
decorative satin stitches
....................................... 75, 126
decorative stitches & patterns
............................... 75, 126
deleting saved pattern
.................................................134
design examples
.........................................................140
designing stitch patterns
..............................................137
E
elastic tape ..................................................................101
embroidering
..................................................... 142, 165
embroidering pattern
..................................................165
embroidering steps
......................................................144
embroidery bobbin thread
....................................... 9, 10
embroidery card slot
.....................................................12
embroidery cards
........................................................163
embroidery character selection
...................................160
embroidery data
..........................................................175
embroidery fabric preparation
.....................................151
embroidery foot installation
........................................145
embroidery foot removal
.............................................147
embroidery frame
.......................................................152
embroidery frame installation
.....................................155
embroidery frame removal
..........................................156
embroidery key
.............................................................14
embroidery pattern selection
.......................................157
embroidery pattern types
............................................157
embroidery sets
........................................................ 9, 10
embroidery sheets
.......................................................153
embroidery threads
.....................................................142
embroidery unit connector slot
.....................................11
embroidery unit installation
........................................148
embroidery unit removal
.............................................150
error messages
............................................................187
even seam allowance
....................................................64
examples of designs
....................................................140
extra spool pin
......................................................... 9, 34
eyelet punch
...................................................................9
eyelet stitching
............................................................115
194
APPENDIX — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
F
fabric positioning ..........................................................50
fagoting
.......................................................................119
fagoting stitch
.............................................................118
feed dog position switch
...............................................12
feed dogs
......................................................................12
flat bed attachment
.......................................................11
foot controller
.......................................................... 9, 51
foot controller jack
........................................................12
frame pattern selection
................................................162
fraying, preventing
........................................................79
free-arm sewing
............................................................45
free-motion quilting
....................................................108
front view
.....................................................................11
G
general sewing procedures ............................................48
grid sheet set
...................................................................9
H
handle ..........................................................................12
handwheel
....................................................................12
hard case
........................................................................9
heirloom stitching
.......................................................123
help key
................................................................. 14, 21
horizontal stitching
.....................................................116
I
inserting a piping ........................................................100
installing bobbin
...........................................................27
J
joining ........................................................................122
joining stitch
...................................................... 103, 118
K
knee lifter ................................................................. 9, 65
knee lifter mounting slot
........................................ 11, 65
L
layout adjustment .......................................................169
LCD
..................................................................... 14, 158
LCD button
.................................................................159
LCD messages
.............................................................187
LCD operation
..................................................... 18, 158
leather/vinyl fabrics
.......................................................64
M
machine surface cleaning ...........................................180
main power switch
................................................ 12, 17
maintenance
...............................................................180
manual needle threading
..............................................33
memory key
..................................................................14
mirroring stitches
..........................................................61
My Custom Stitch
........................................................137
N
needle bar thread guide ................................................12
needle condition
...........................................................40
needle plate
..................................................................12
needle plate cover
........................................................12
needle plate marking
....................................................65
needle position button
..................................................13
needle position, changing
.............................................84
needle replacement
......................................................40
needle set
.......................................................................9
needle threader
.............................................................32
needle threader lever
....................................................11
needle threading
...........................................................32
needle types, sizes & uses
.............................................39
needles
.........................................................................38
next page key
................................................................14
non stick foot
........................................................... 9, 64
O
open toe foot ..................................................................9
operation beep
............................................................190
operation buttons
............................................ 11, 13, 51
operation keys
..................................................... 14, 158
operation panel
...................................................... 11, 14
operation problems
.....................................................182
operations
.....................................................................21
optional accessories
......................................................10
overcasting stitches
................................................79, 80
P
pant legs .......................................................................45
parallel stitches
.............................................................34
part names & functions
.................................................11
patchwork
.......................................................... 103, 105
pattern combinations
..................................................130
pattern embroidery
.....................................................165
pattern realignment
.....................................................134
pattern repetition
........................................................131
pattern retrieving
.........................................................133
pattern sewing
............................................................126
pattern size
.................................................................127
pattern storage
............................................................133
pattern, deleting
..........................................................134
piecing
........................................................................105
piecing straight stitch
..................................................103
piping inserting
...........................................................100
plug
..............................................................................17
positioning fabric
..........................................................50
power cord, jack, switch & supply
................................17
power supply jack
.........................................................12
power switch
................................................................12
preparations for embroidering
.....................................142
presser foot
...................................................................12
presser foot holder
........................................................12
presser foot holder installation
......................................44
presser foot holder removal
...........................................44
presser foot lever
.................................................... 11, 12
presser foot pressure dial
...............................................12
presser foot replacement
...............................................42
previous page key
.........................................................14
pulling up bobbin thread
..............................................37
Index 195
5
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Q
quick reference guide .....................................................9
quilt stitching
..............................................................103
quilting
.......................................................................107
quilting foot
..................................................................10
quilting guide
....................................................... 10, 108
quilting stippling
.........................................................103
quilting stitch
..............................................................103
R
race ............................................................................180
realigning pattern
........................................................134
reinforcement stitching
........................................ 53, 111
release button
.............................................................150
removing presser foot holder
.........................................44
repeating patterns
.......................................................131
replacing needle
...........................................................40
replacing presser foot
....................................................42
resewing
.....................................................................172
retrieving pattern
.........................................................133
reverse stitching
............................................................53
reverse/reinforcement stitch button
........................ 13, 53
reverse/reinforcement stitches, automatic
......................59
S
safety instructions ...........................................................1
satin stitch length, changing
........................................128
satin stitches
........................................................ 75, 126
satin stitching
..............................................................109
saving patterns
................................................... 133, 176
scallop stitch
...............................................................118
scallop stitching
..........................................................120
scissors
...........................................................................9
screwdriver
.....................................................................9
seam allowance, even
...................................................64
seam ripper
.............................................................. 9, 90
securing stitching
..........................................................53
selecting embroidery patterns
.....................................157
selecting stitches
............................................. 49, 68, 75
settings key
...................................................................14
sewing basics
................................................................48
sewing direction change
...............................................62
sewing machine help key
..............................................14
sewing speed controller
..........................11, 13, 51, 110
shell tuck stitch
.................................................. 118, 121
side cutter
.....................................................................81
size
.............................................................................127
smocking
....................................................................120
smocking stitch
...........................................................118
solving operation problems
.........................................182
spool cap
........................................................................9
spool net
.................................................................. 9, 25
spool of thread
..............................................................29
spool pin
.........................................................................9
stabilizer material
.......................................................151
start/stop button
..................................................... 13, 51
step pattern
.................................................................129
stippling
......................................................................103
stitch density
...............................................................127
stitch guide foot
....................................................... 9, 64
stitch length adjustment
................................................57
stitch selection
................................................ 49, 68, 75
stitch settings
................................................................68
stitch type selection screen
...........................................18
stitch types
....................................................................75
stitch width adjustment
.................................................56
stopping embroidering
................................................173
straight stitch
...........................................68, 83, 94, 105
stretch fabrics
....................................................... 64, 101
stretch stitch
................................................................101
T
thick fabrics ..................................................................63
thin fabrics
....................................................................64
thread cutter
.......................................................... 11, 55
thread cutter button
............................................... 13, 54
thread cutting
................................................................54
thread cutting, automatic
..............................................60
thread guide cover
........................................................11
thread guide disk
..........................................................12
thread guide plate
.........................................................11
thread spools
................................................................29
thread tension adjustment
.................................... 57, 171
Threading
.....................................................................30
threading bobbin
..........................................................27
threading needle
...........................................................32
threading needle manually
............................................33
tips
................................................................................62
top cover
......................................................................11
touch panel
...................................................................14
trial sewing
...................................................................62
triple stretch stitch
................................................ 83, 111
troubleshooting
...........................................................182
turning machine on/off
..................................................17
twin needle
.............................................................. 9, 34
twin needle sewing
.......................................................34
U
upgrading ...................................................................192
upper thread
.................................................................29
upper thread spool
........................................................29
upper thread tension
.....................................................57
USB cable
.............................................................. 9, 177
USB port connector
............................................. 12, 177
utility stitch key
.............................................................14
utility stitch selection screen
.........................................18
utility stitches
......................................................... 68, 75
W
walking foot ..................................................................10
winding bobbin
............................................................23
wing needle
................................................................123
Z
zigzag stitches ............................................. 80, 101, 103
zigzag width adjustment
...............................................56
zipper sewing
...............................................................94
zipper stitching
.............................................................99
