MP021-F10
I n s t r u c t i o n s
Dear customers:
Thanks for purchasing the product. Before using this
player, please read the "instructions" carefully, We are not
responsible for any damage for the hardware，program，
file and system of the player caused by improper use.
Please keep the manual as reference.
Remote Control
1.<POWER>: on/off key. When power off, the system goes to
standby model. It has to be unplugged to cut the power.
2.<MUTE>: Press this key sound off, press
again sound on
5..<REV> <FWD>: backward or forward
6.<Return>: Press this key to return back to
previous menu.
3.<Info>: press this key to see the
information of the playing video, audio or
photo.
4.<PREV><NEXT>：Previous or next.

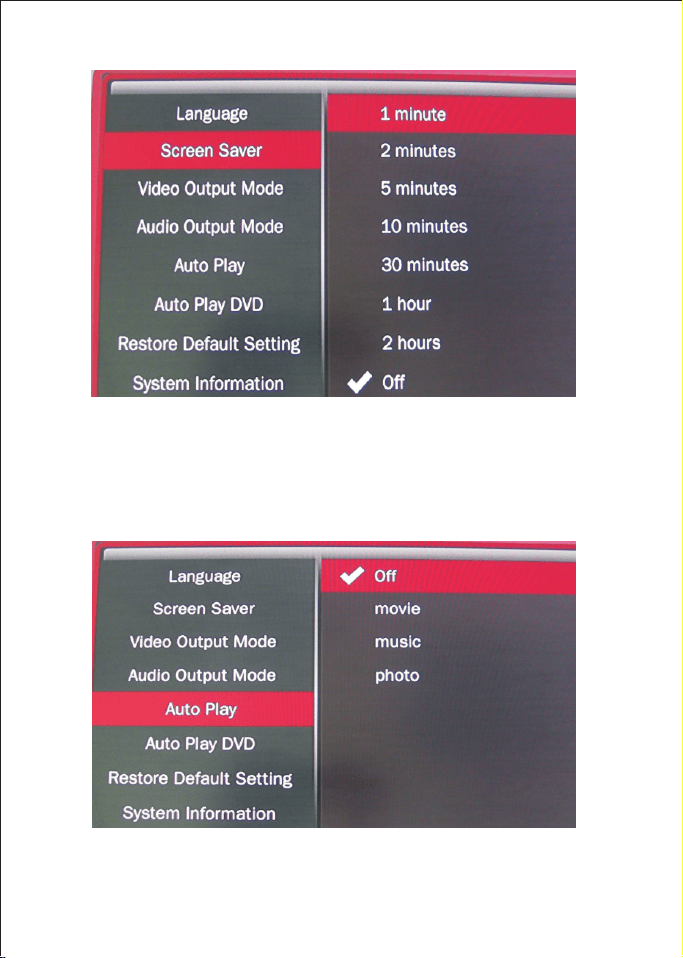

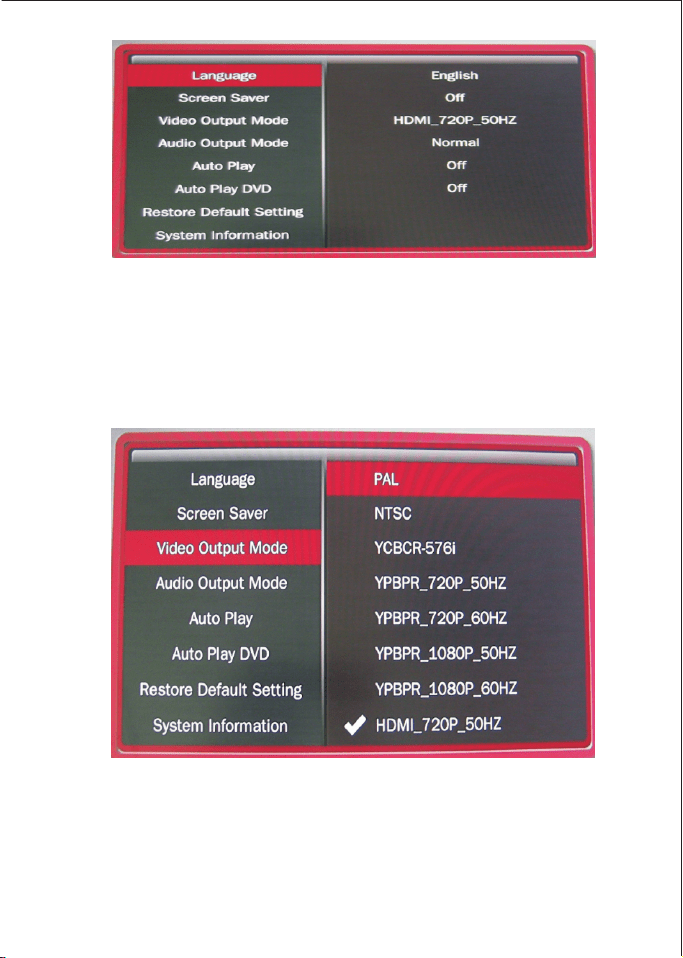

7.<Setup>: Shortcut of setting options.
8.<Ok>: Play or confirm key.
9.<Ratio>: Select screen ratios
10.<OSD>: Press this key, the screen will
display control menu when playing movies,
music or picture.
11.<Audio>: Select the sound track( for multi
-track movie files)
12.<VOL-> and <VOL+>: Adjust the volume.
13.<SUB-T>: Select the right subtitle when the movie has
multi-subtitle
14.<Zoom>: Zoom in the picture or video.
15.<Rotate>: Rotate the pictures
16.<GO-TO>: Set up the playing time for playing the local
video.
17.<Repeat>: Select the playback mode

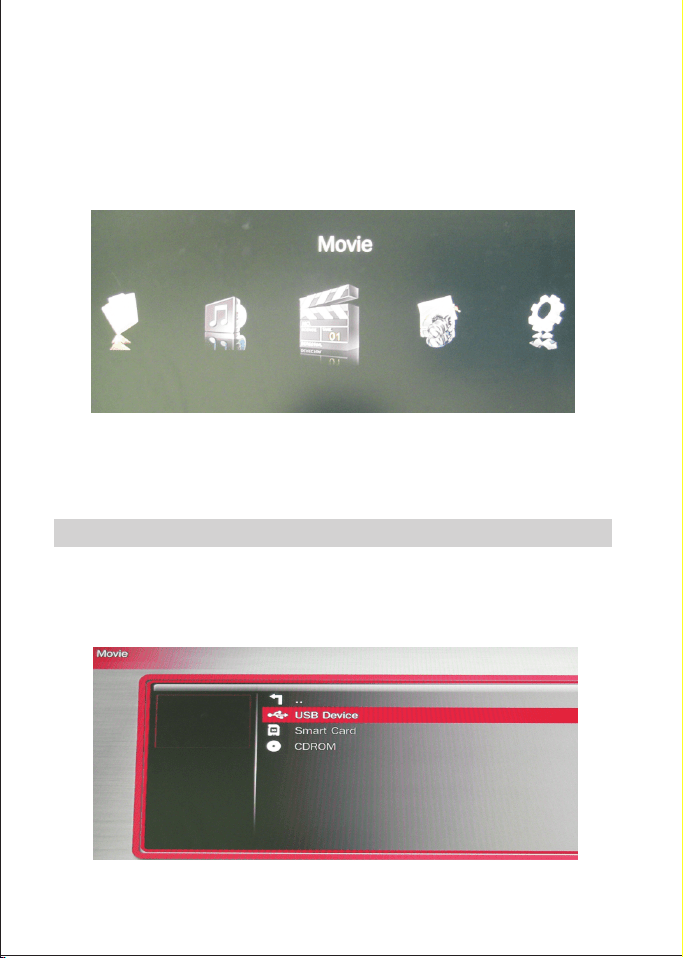

18.<Movie>, <Music>, <File>, <Photo>: Shortcut of movie,
music, file, and photo.
19.<CVBS>: Select AV output.
20.<YUV>: Select YUV output. Do not press this button as
the device does not have YUV output.
page2of14
page3of14
page4of14
Notes
Please pay attention to the following notes before using it.
1 To prevent the fire or electric shock accident; do not
expose this player in the rain or humid environment.
2 In order to reduce fire, electric shock or damage the
product,do not let the machine be affected with damp or
splash water drops.
3 Safety guide:
●. Please use with the enclosed adapters, May not be able to
share with other adapter.
●. Please do not let the cable or the plug for the adapter near
the heat source equipment.
●. Please do not put heavy object on top of the adapter.
●. Please do not overhaul the adapter and the power cord.
●. Do not open the machine in order to safety, please contact
the professional staff for repairing.
4 Maintenance Tips
●. Non-professionals shall not open the machine in case to
damage the complex machine.
●. Users shall not open the machine and remove any parts
otherwise the warranty expired.
●. If you need maintenance, please contact your local
department to arrange for repairing.
●. If you need to replace components or accessories,
it must be replaced with the original parts by manufacturer.
Front and Rear panel
1. USB interface: Supports external HDD or U disk
2. SD card interface: Supports SD card.
3. IR receiver.
4. HDMI: Through this interface it can get high-definition
720P or 1080P video output.
5. AV: Composite video and audio signal output
6. YUV: YUV signal output.
7. DC: Input 5.2V/1.5A power.
