aaxa
TECHNOLOGIES
User Guide
Caution!
WARNING: Please use this product as instructed. Misuse may cause
injury or death.
DO NOT use while driving
DO NOT expose to water or wet
surfaces. Electric shock may occur.
DO NOT expose the projected LED
image to your eyes or the eyes of
others
DO NOT block or restrict airow
from ventilation holes as this may
cause the projector to overheat
Keep the projector, battery, or
charger away from any heat sources
Caution for Battery Use
• Do not pierce or puncture the battery
with sharp objects
• Do not heat the product or expose it to
high temperature.
• Do not wet it or place it in any liquid
Caution for Headphone Use
• Prolonged use at high volume may
impair your hearing.
• High volume during walking or driving
may cause distractions and result in
injury or death
Table of Contents
Chapter 1: P5 at a Glance
P5 Introduction
Remote & Keypad
Accessories
Chapter 2: Getting Started
Powering On / OFF
Swappable Battery
Focus Adjustment / Throw
Distance
External Input/Outputs
Connecting to a Computer VGA
Connecting to a Computer HDMI
Connecting to Composite Video
Connecting to HDMI Video
Connecting to Speaker or
Headphones
Connecting a Micro SD Card
Connecting a USB Stick
Chapter 3: Menu Screens

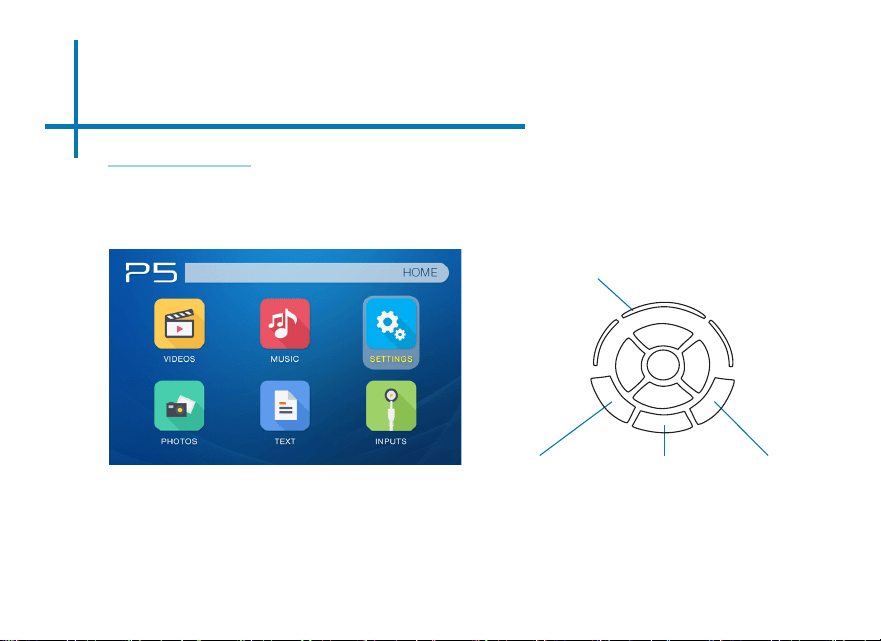

Main menu
Video Player Menu
Photo Viewer Menu
Music Player Menu

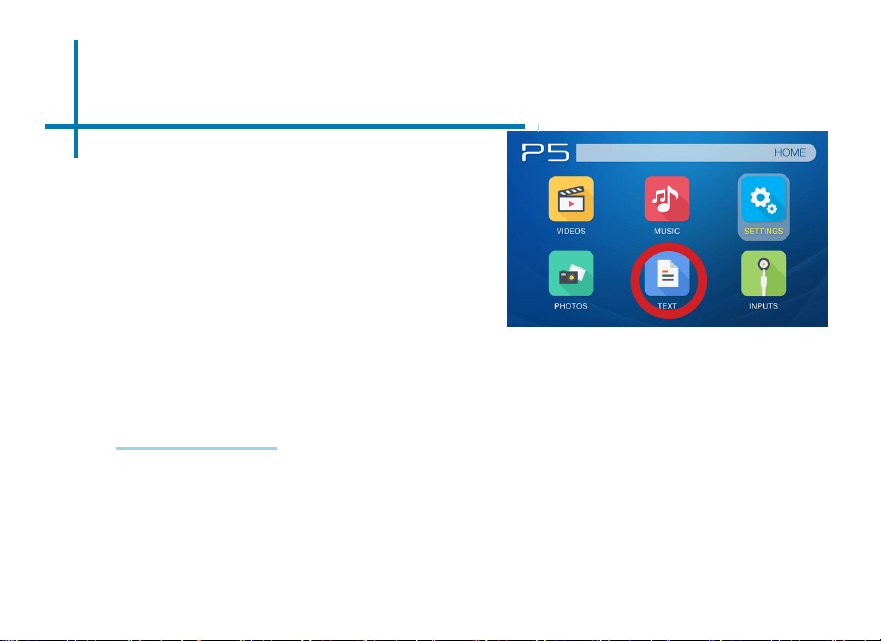

Ebook Viewer Menu

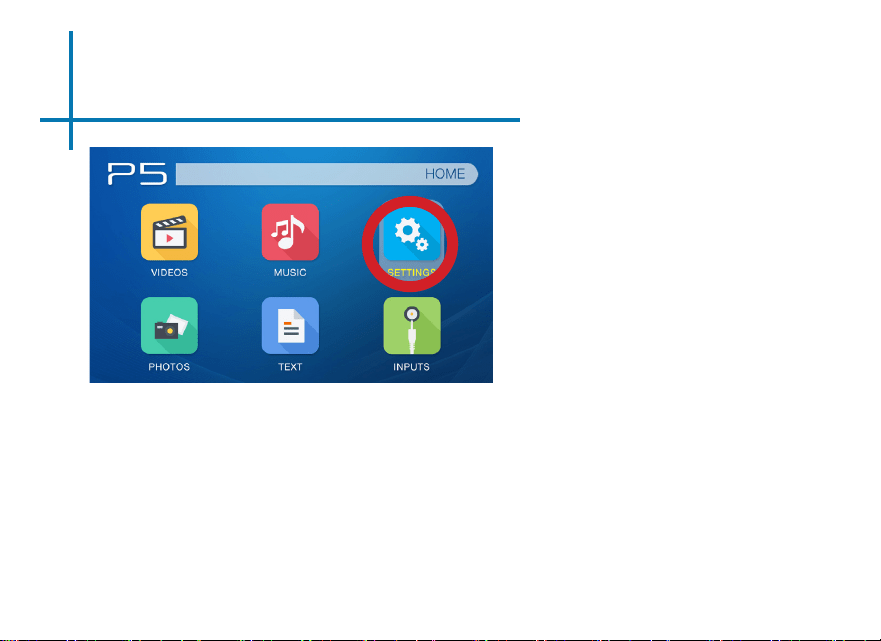

Chapter 4: Setup Menu

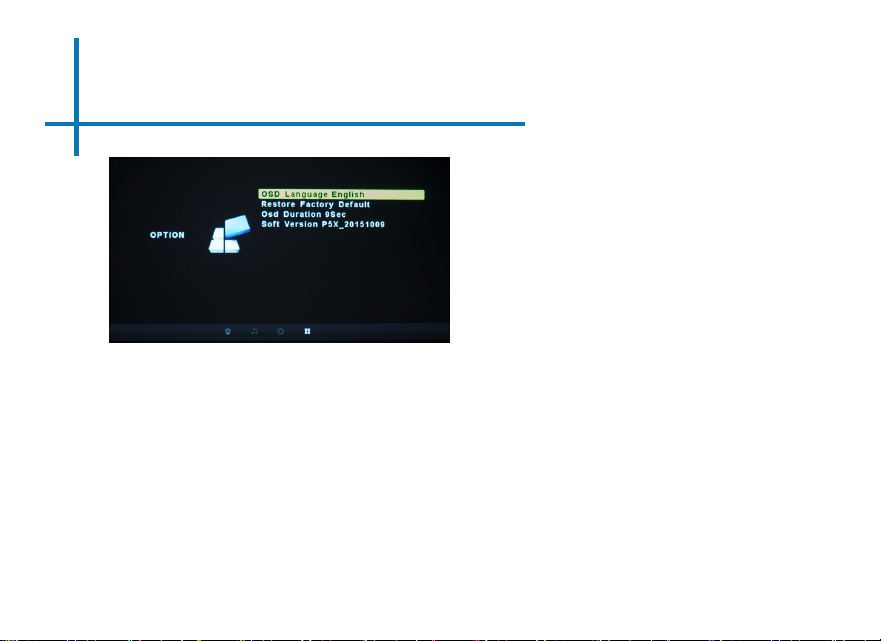

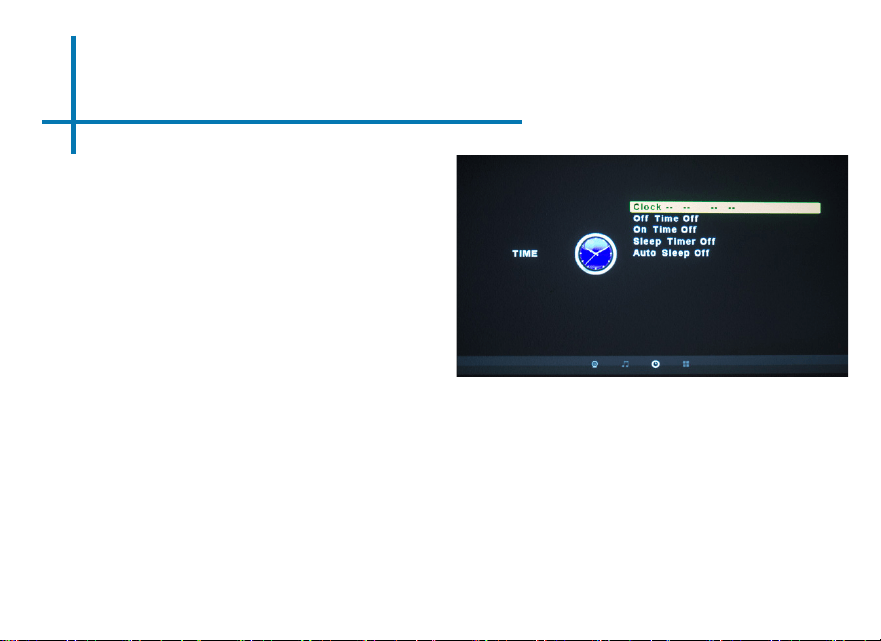

Settings
Brightness Feature

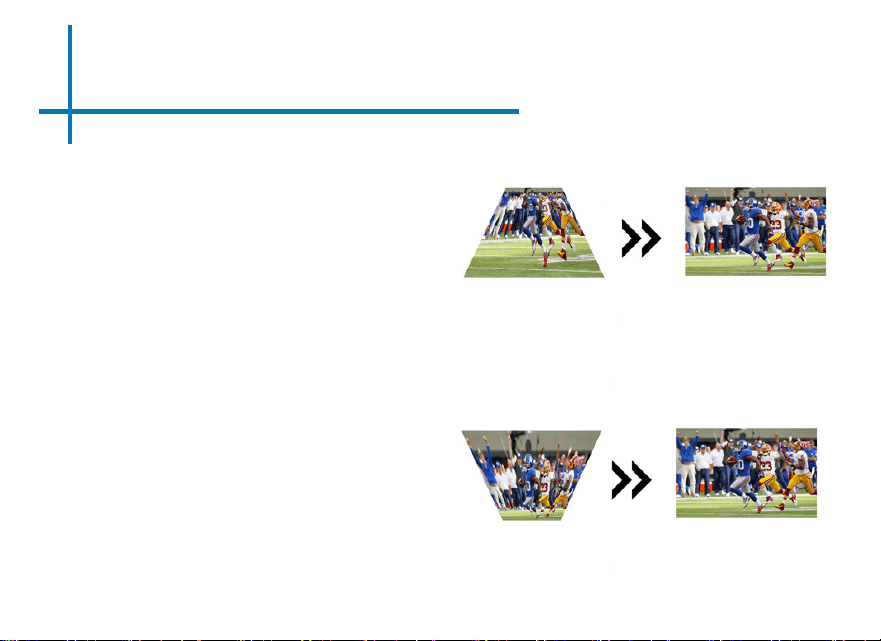

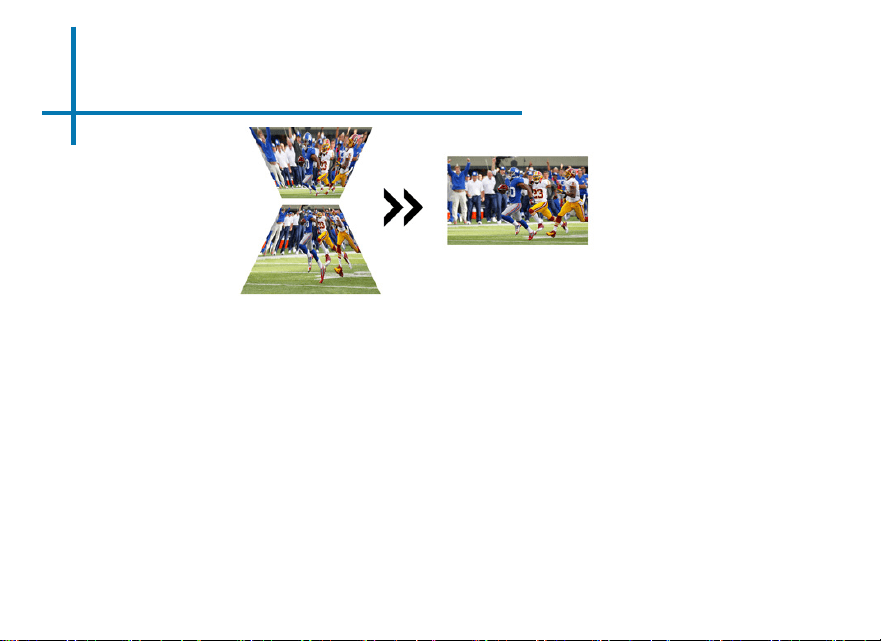

Keystone
Chapter 5: Technical Details
Troubleshooting
Specications
Notes
1
2
3
4
5
7
8
9
11
13
15
17
18
20
22
23
27
31
34
35
39
41
43
45
46

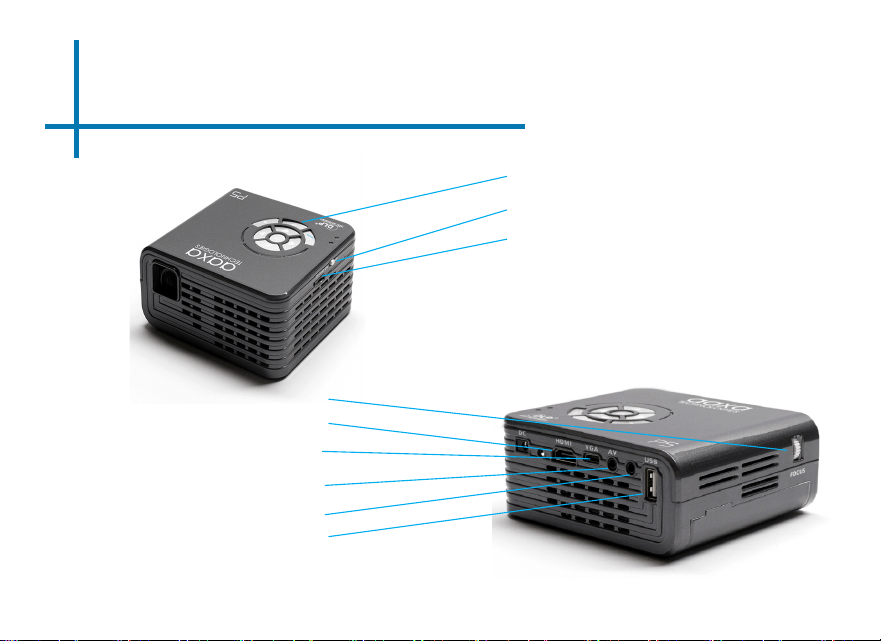

P5 at a Glance
1
Chapter 1
Power Switch
Micro SD Card
HDMI
USB Port
Main Unit Front/Back
VGA Port
Power Button
Focus Adjustment
AV Port
Headphone Out
Power On/Off

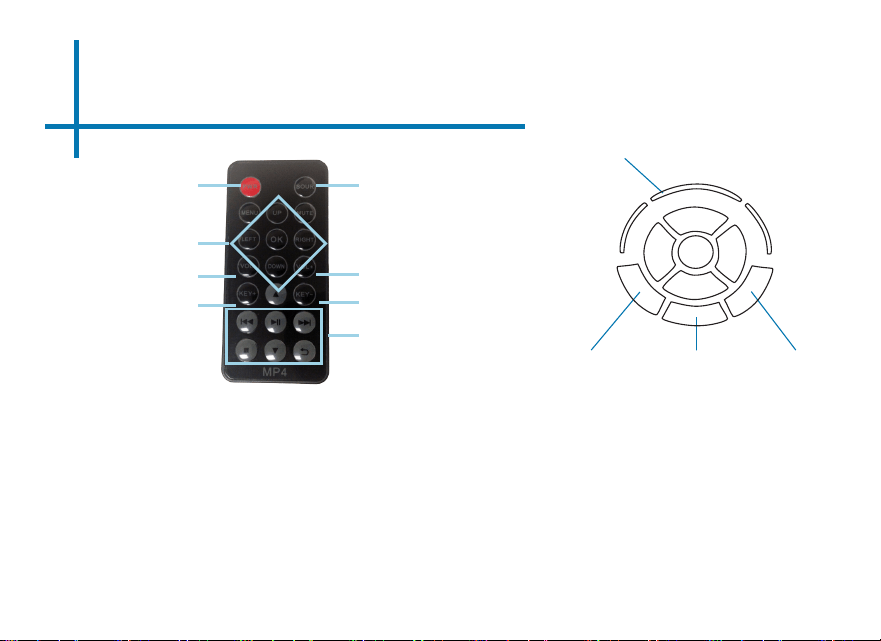

Remote & Keypad
2
NOTICE: Pressing power on the remote will only put the projector in STANDBY mode.
Toggle the “ON/OFF” switch on the side of the projector to fully turn the projector
off.
Power On/Off
Select Source
Input Exit/Back
Direction Pad
Both the keypad and remote can be used to navigate through the menus. The Main Menu
Navigation on the remote functions exactly the same as the directional pad on the P5 unit.
On / Off
LED Lights
OK
Main Menu
Navigation
Keystone
Media Player
Menu Navigation
Keystone
Volume Up
Volume Down
Remote

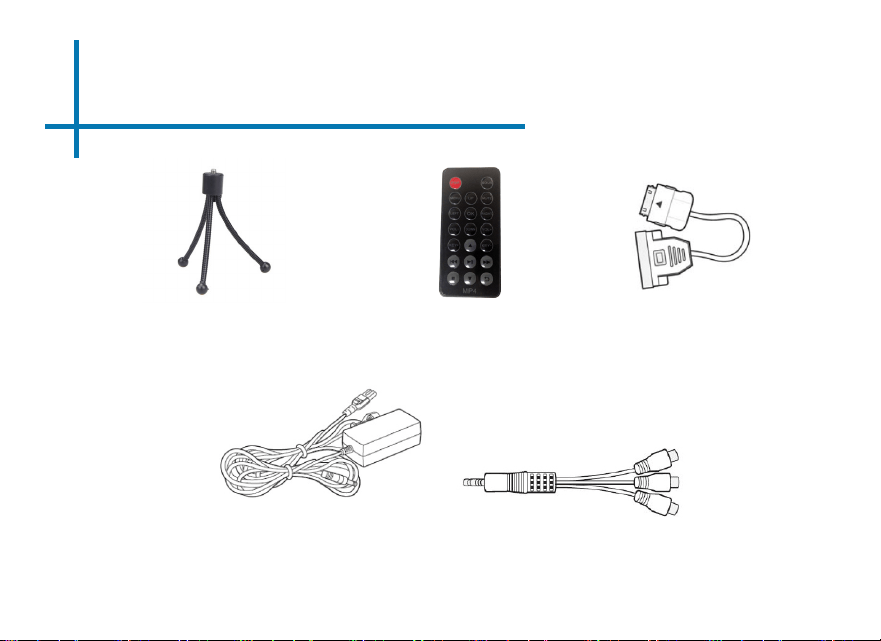

Accessories
3
*Under various circumstances, the actual accessories may be different from
those shown in the pictures above.
Tripod
Remote
Power Adapter
VGA Cable
A/V Cable
Getting Started
1. Connect the power cord to the P5.
2. Connect the other end of the power cord into the wall power source.
3. Toggle the On / Off switch on the side of the projector to the “ON” position --the
projector should automatically turn on.
4. If the projector does not automatically turn on with the “Power Switch” toggled to the
“ON” position, press the “ON/OFF POWER” button on the keypad and hold for
2-3 seconds to start the projector
4
Powering ON the projector
Chapter 2
Powering OFF the projector
Standby Mode
1. To transition to “STANDBY” mode, press the power button twice on the keypad or
the remote control.
2. The optical engine should power off and the fan should stop spinning. The projector
is now in “STANDBY” mode and can be turned on using the remote control.
*Note: Standby mode will still consume a small amount of power.
1. To turn off the projector, toggle the “Power Switch” to the “OFF” position. This will
fully turn off the projector.
Swappable Lithium Ion Battery
5
*CAUTION! Lithium Ion Battery Packs store a lot of energy and can be dangerous. Lithium
Ion Battery Packs should always be treated with care and properly disposed. Do not mis-
use, do not put near a heat source, do not open.
The P5 Features a 135 minute, 22 Watt, Swappable Lithium Ion Battery Pack.
This battery pack is designed to be interchangeable with spare battery packs and
can be removed and replaced as needed.
This battery pack can only be charged by connecting to the P5 projector while the
power supply is plugged in. This battery pack does NOT charge while the projec-
tor is in operation. Additional battery packs can be purchased at www.aaxatech.

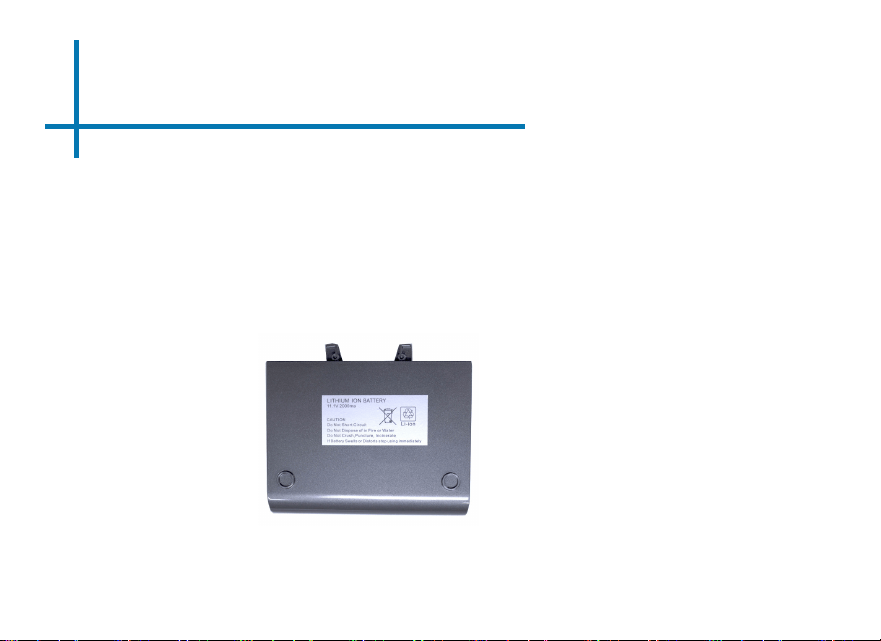

Shown: P5 Lithium Ion Battery

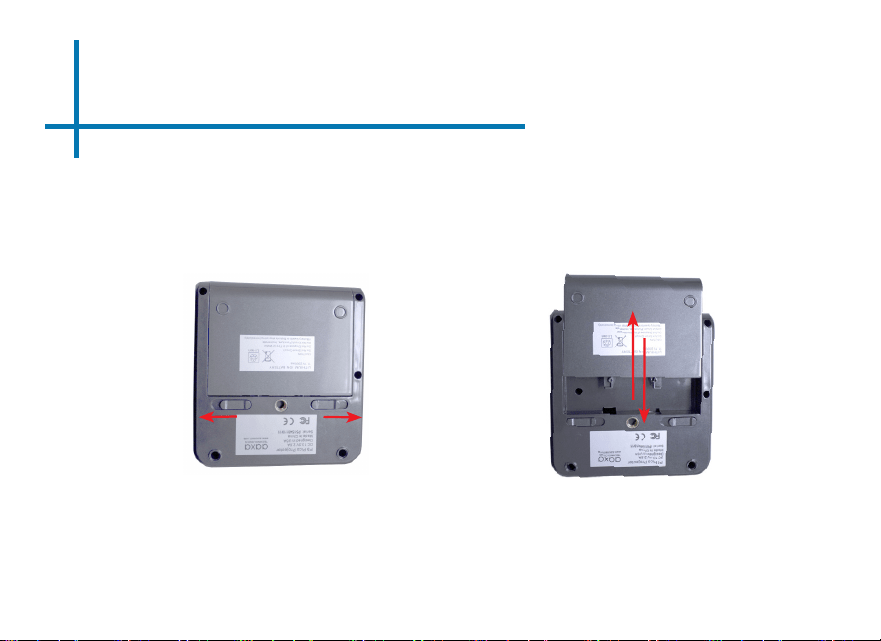

Battery Installation
1. Locate the battery locking mechanisms underneath the projector
2. Slide the two locking mechanisms outwards
3. Gently slide the Battery Pack out by pushing the battery pack away from the projec-
tor
6
Removing Battery
Installing the Battery
1. Reverse the removal instructions and ensure the battery is properly connected to the
guide clips
Focus Adjusment / Throw Distance
7
DIAGONAL SCREEN SIZE
16:9 Aspect Ratio
Throw Distance
Units: Inches
10
20
30
40
50
60
70
80
Diagonal Size
Units: Inches
8
16
23
31
39
47
55
62
• Spin the focus wheel up or down until the image becomes
clear.
Focus Adjustment
Throw Distance Chart
Throw Ratio 1.47
Projection Angle: 100% Offset
*minimum throw distance: 10 inches
8

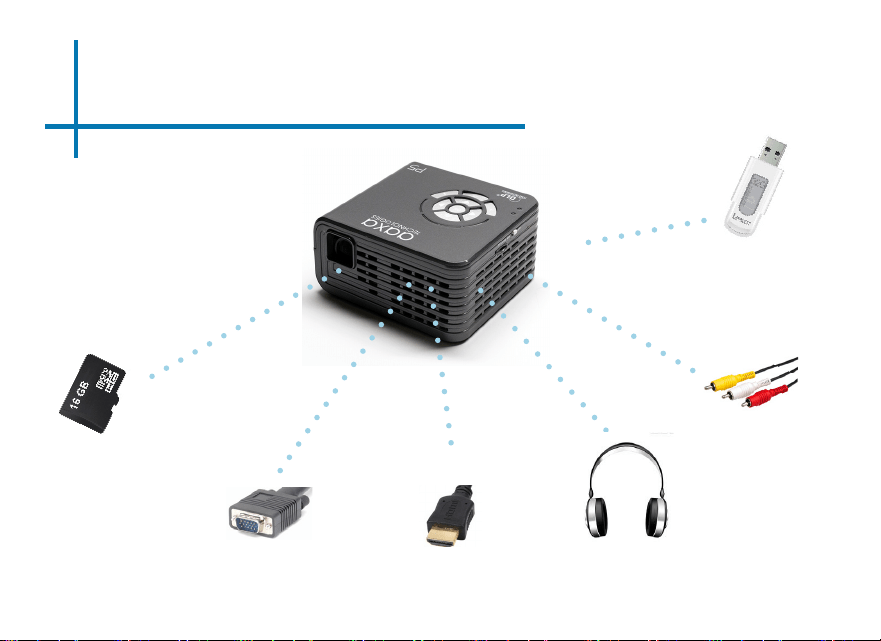

External Inputs and Outputs
Headphones/speakers
Composite Cable
HDMI
VGA
USB Stick
MicroSD

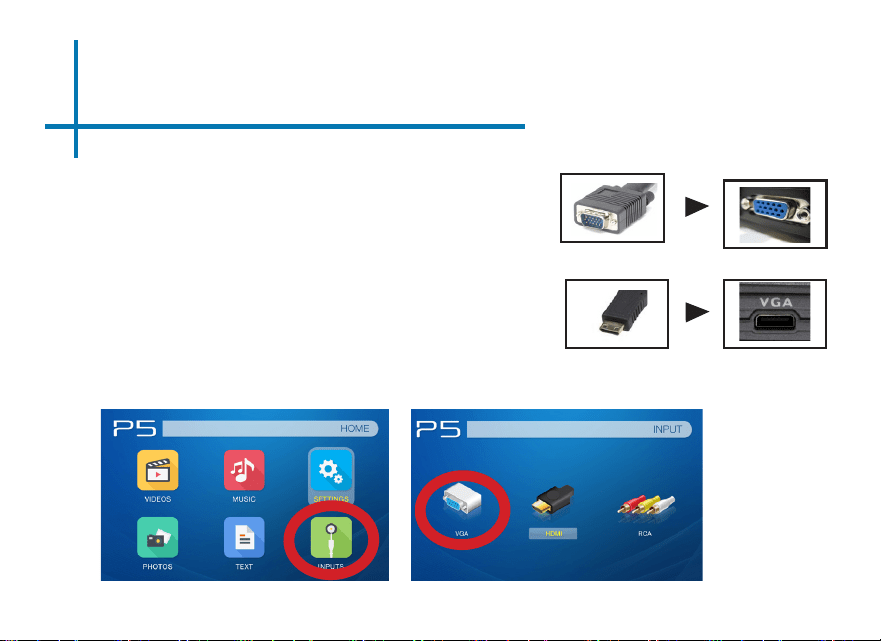

Connecting to a Computer via VGA
9
Connect one end of the VGA Cable
to your computer’s VGA Adapter.
Step 1:
Step 2:
Step 3:
In the Main Menu Select the “Inputs” icon and then the “VGA” Icon.
Connect the other end of the
VGA Cord to your P5’s VGA port.
Select “VGA” icon Select “INPUT” icon
Connecting to a Computer Cont.
Step 4:

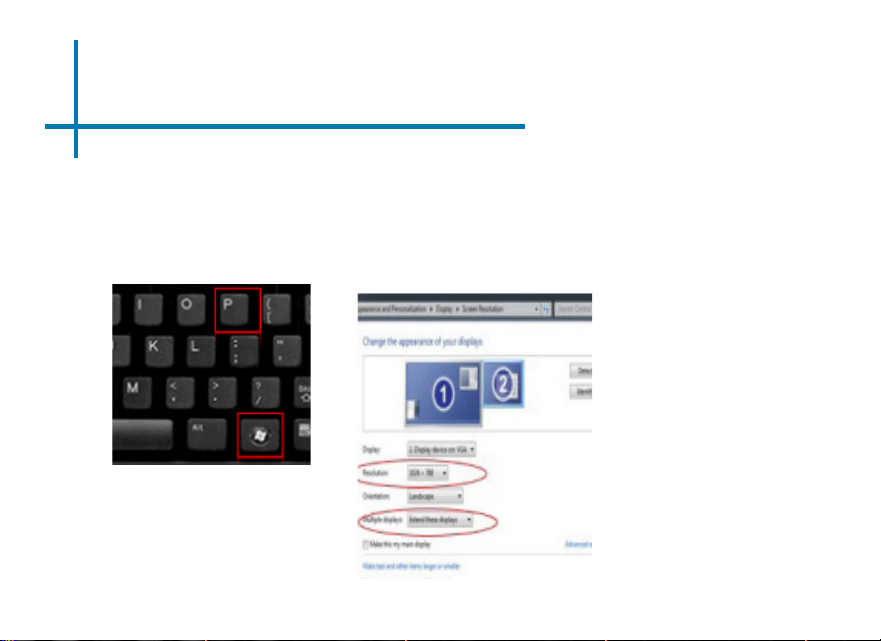

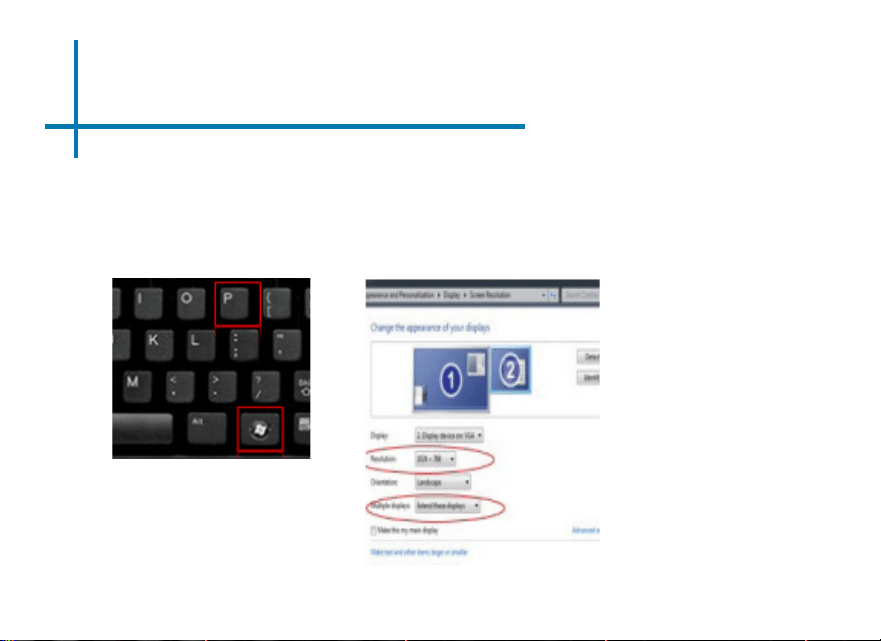

Enabling VGA or HDMI output on your Computer – To enable VGA or HDMI output on your com-
puter most computers require “turning on” the video output feature. Each computer is different.
Please consult your owner’s manual for instructions to enable VGA or HDMI output. Below are
standard instructions for a Windows 7 computer – not all systems are the same.
Press Windows+P to toggle
through display settings. Select
either “Duplicate” or “Extend” de-
pending on your viewing option.
*NOTE: different operating sys-
tems may differ
Step 5:
1. Right click on computer
desktop and select “Screen
Resolution”
2. Display Properties window
will pop up
3. If a secondary monitor is
grayed out, click on it and se-
lect “Extend these displays”
in the “Multiple Displays” drop
down
4. If the image is blurry or the
text is not legible, adjust
the screen resolution. We
recommend 1280x720.
Step 6:
10

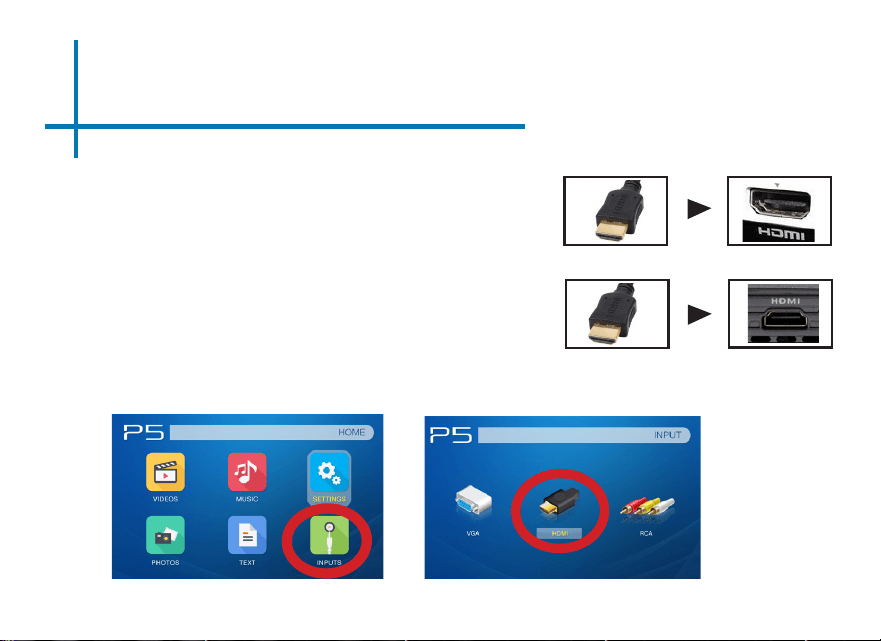

Connecting to a Computer via HDMI
11
Connect one end of the HDMI Cable
to your computer’s HDMI Adapter.
Step 1:
Step 2:
Step 3:
In the Main Menu Select the “Inputs” icon and then the “HDMI” Icon.
Connect the other end of the HDMI
Cord to your P5’s HDMI port.
Select “INPUT” icon
Select “HDMI” icon
Connecting to a Computer Cont.
Step 4:
Enabling VGA or HDMI output on your Computer – To enable VGA or HDMI output on your com-
puter most computers require “turning on” the video output feature. Each computer is different.
Please consult your owner’s manual for instructions to enable VGA or HDMI output. Below are
standard instructions for a Windows 7 computer – not all systems are the same.
Press Windows+P to toggle
through display settings. Select
either “Duplicate” or “Extend” de-
pending on your viewing option.
*NOTE: different operating sys-
tems may differ
Step 5:
1. Right click on computer
desktop and select “Screen
Resolution”
2. Display Properties window
will pop up
3. If a secondary monitor is
grayed out, click on it and se-
lect “Extend these displays”
in the “Multiple Displays” drop
down
4. If the image is blurry or the
text is not legible, adjust
the screen resolution. We
recommend 1280x720.
Step 6:
12

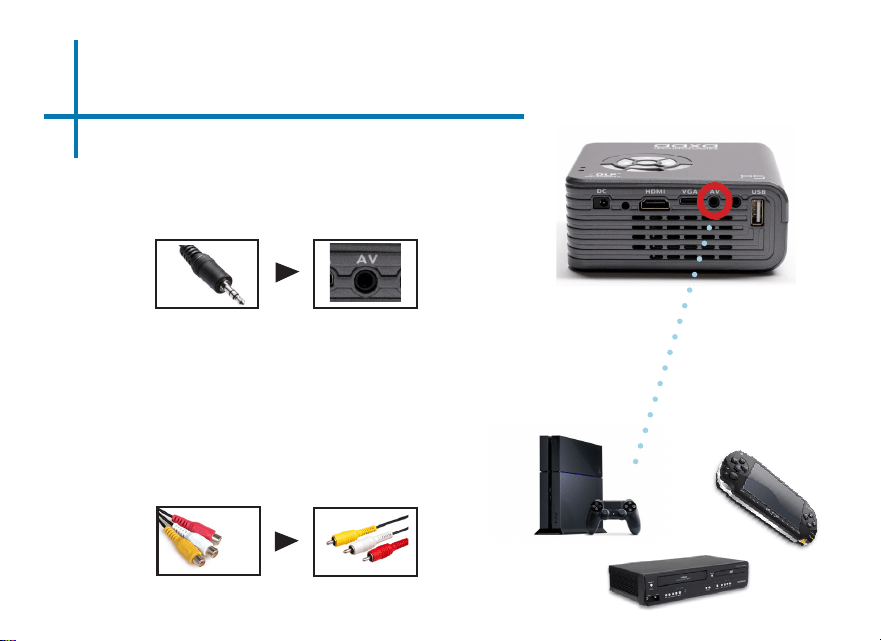

Connecting to Composite Video
13
Connect the 3.5mm Composite A/V
Cable to the back of the P5.
Connect the composite end of
the AV Cable (Red, White,Yellow)
to your device.
Step 1:
Step 2:
Connecting to Composite Video Cont.
Connectivity with multimedia devices
The P5 can connect to many media devices including: iPod, iPhone, iPad, VHS
players, DVD players, smart phones, cameras, video game consoles and other
peripherals with ease.
*Some smart phones require video out capabilities to be displayed with the P5. Check with
your phone manufacturer.
14
In the Main Menu
Turn on your multimedia device.
Select “INPUT” icon
Select “RCA”
Step 3:
Step 4:

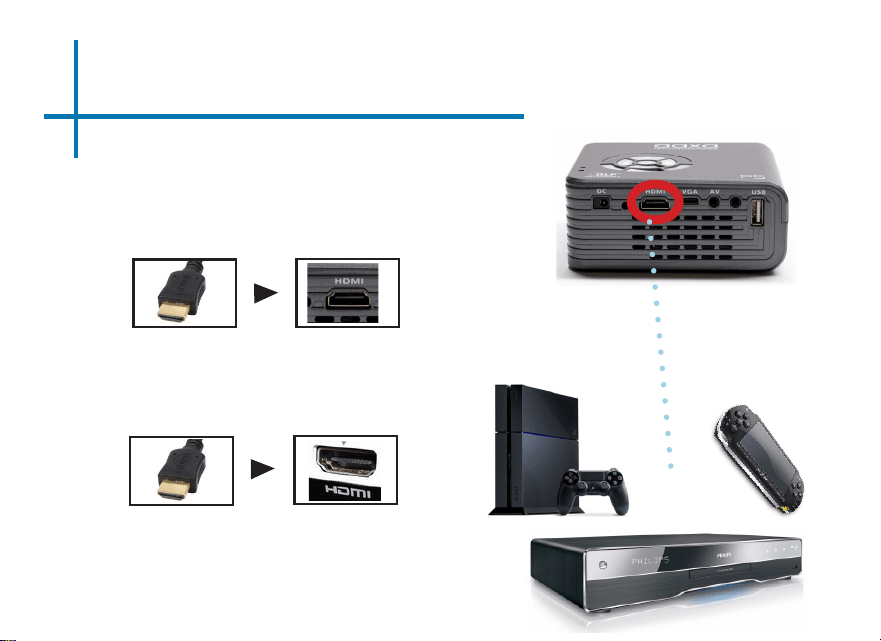

Connecting to HDMI Video
15
Connect one end of the HDMI to
your P5’s HDMI Adapter
Step 1:
Step 2:
Connect the opposite end of
the HDMI cable to your device.
Note: Apple devices require a specialized
HDMI adapter (Sold separately by
Apple)
Connecting to HDMI Video Cont.
Connectivity with multimedia devices
The P5 can connect to many media devices including: iPod, iPhone, iPad, VHS
players, DVD players, smart phones, cameras, video game consoles and other
peripherals with ease.
*Some smart phones require video out capabilities to be displayed with the P5. Check with
your phone manufacturer.
16

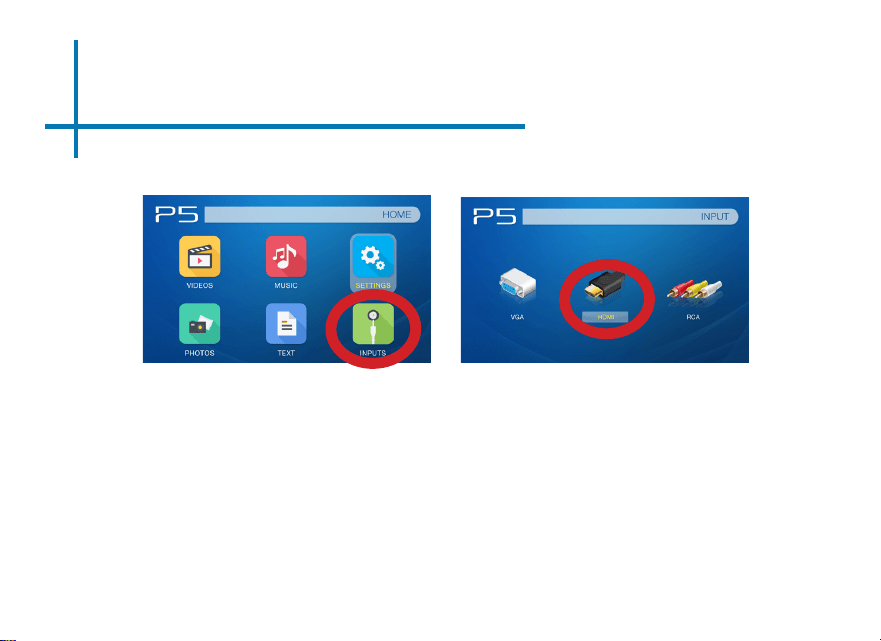

Step 3:
In the Main Menu
Turn on your multimedia device. If available select 1280x720 or 1920x1080.
Step 4:
Select “HDMI” iconSelect “INPUT” icon

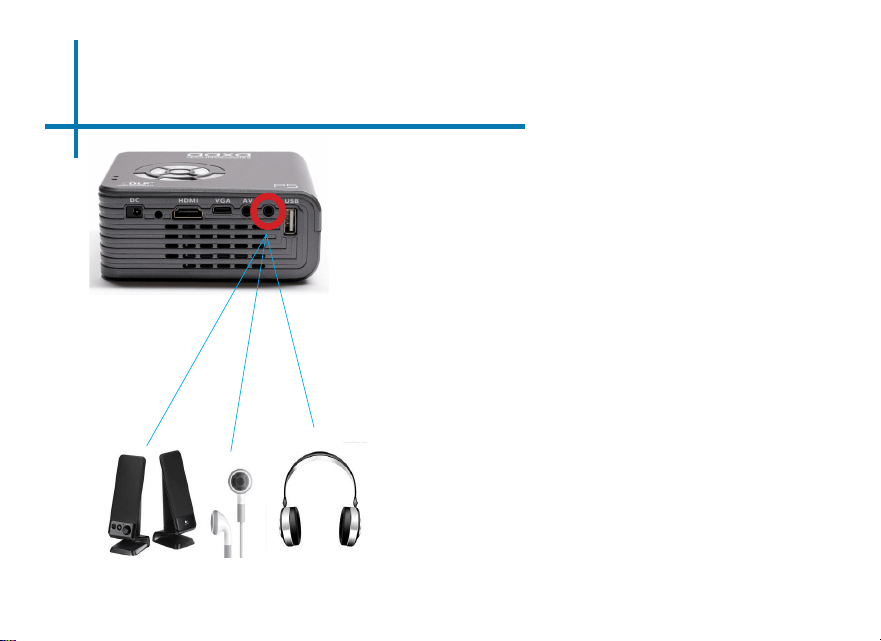

Connecting Speakers / Headphones
17
Connect your speakers/headphones
to the projector’s audio port.
Step 1:
Step 2:
*CAUTION: Prolonged use of headphones at a high
volume may impair hearing.
Ensure that the projector and/or
the headphones are powered on.
Step 3:
Place the headphones on and enjoy!
Connect your speakers/headphones
to the projector’s audio port.
Ensure that the projector and/or
the headphones are powered on.
Micro SD Card
18

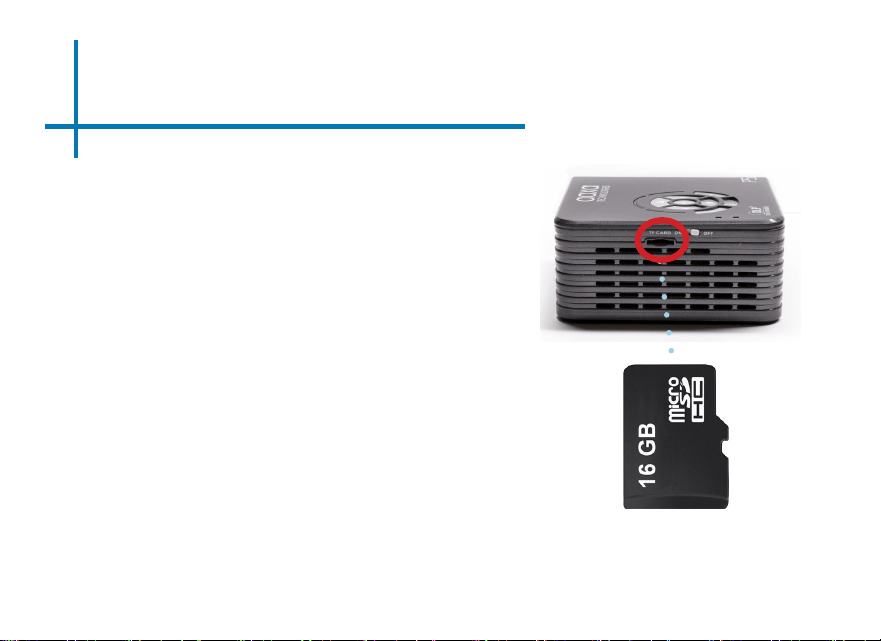

How to insert your Micro SD Card
• Slide in your SD card into the SD card
slot on the side of the P5.
(Facing down as shown in picture)
• Gently slide the SD card until it clicks
into place.
*Review the Specication
section of this manual to read
about the supported le
formats.
How to access your Micro SD Card
• Once your SD Card has been inserted,
you can navigate to any media content
in the main menu.
• After selecting the media content,
choose the SD card selection.
• You can now access the data on your
SD card through the onboard media
player
Microsoft Ofce and PDF le formats are not supported.
To view a slideshow convert your slideshow into JPEG
pictures rst.
Note:
19
Micro SD Card Cont.
Return: Brings you
back to the main
menu
File Menu System
• The P5 will show all folders and les
you have on your SD Card in the C:
drive.
• Use the directional buttons to navigate
to different folders or les.

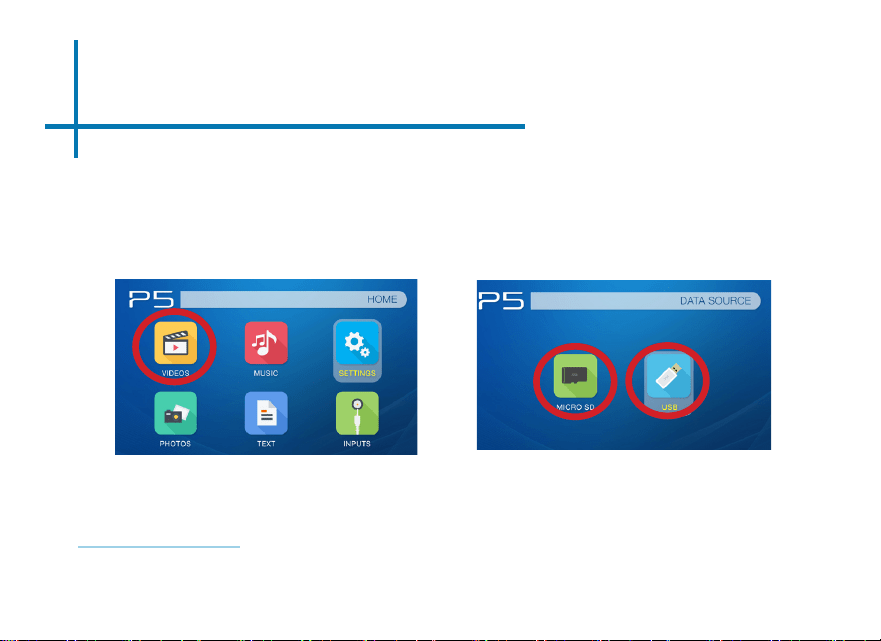

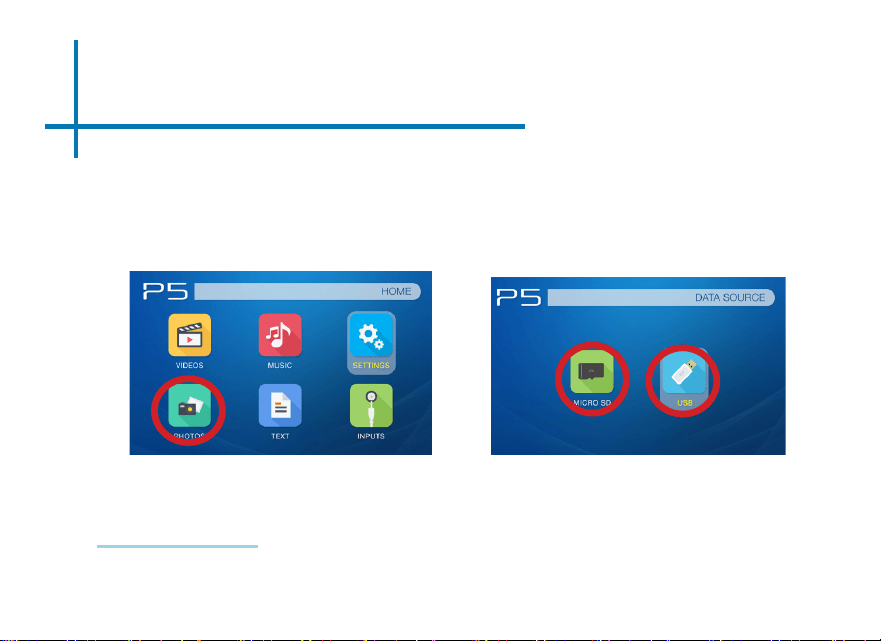

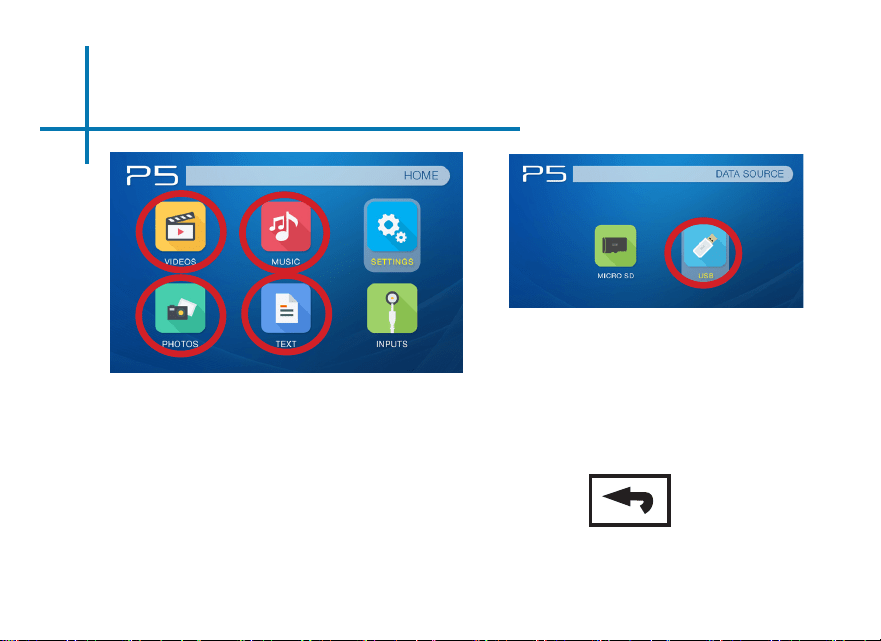

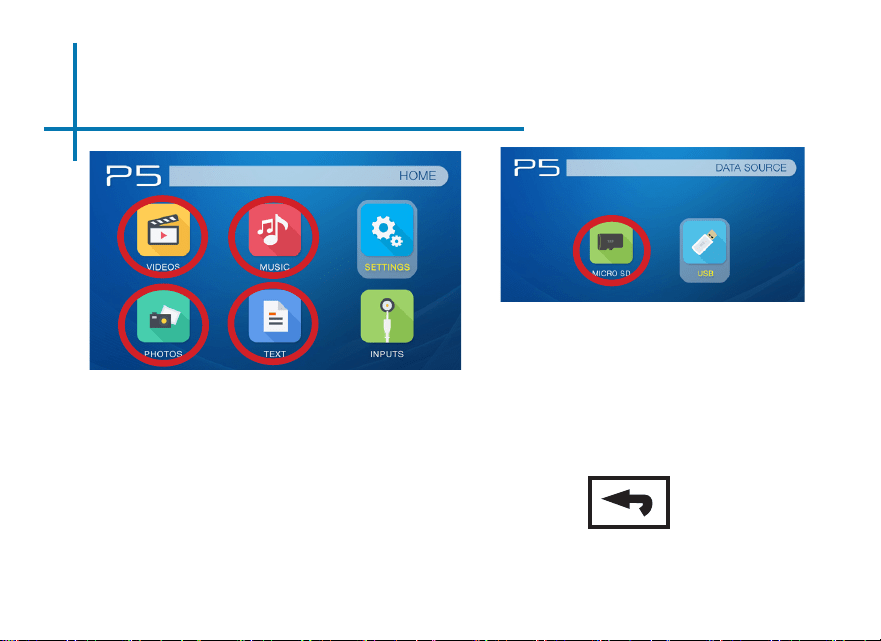

Media Player menu
• In the main menu select the type of le
you wish to play.
• Select the MicroSD icon to acess your
les.
USB Drive
20

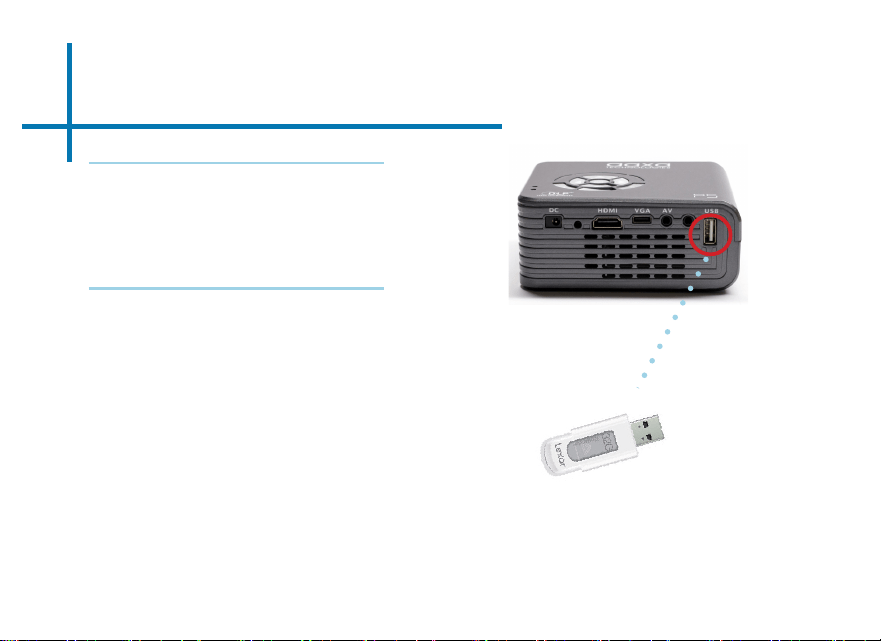

How to insert your USB Drive
How to access your USB Drive
• Insert your USB Drive into the
projector.
• Use the navigation pad to choose the
USB Drive icon from the main menu to
access your les.
• Choose your desired le.
• Slide your USB Drive into the USB
port. (as shown in picture)
• Gently slide the drive until it cannot
go in any further.
*Review the Specication
section of this manual to read
about the supported le
formats.
Microsoft Ofce and PDF le formats are not supported.
To view a slideshow convert your slideshow into JPEG
pictures rst.
Note:
21
USB Drive Cont.
Media Player menu
• In the main menu select the type of le
you wish to play.
• Select the USB Drive icon to access
your les.
Return: Brings you
back to the main
menu
File Menu System
• The P5 will show all folders and les
you have on your USB Drive.
• Use the directional buttons to navigate
to different folders or les.
Menu Screens
22
Chapter 3
Main Menu
The P5 features a built in PMP (Portable Media Player) function.
This function allows the projector to play videos, pictures, music les, and text directly
from your connected devices.
• Press the left and right directional buttons to choose an icon from the main menu.
• To select a menu option press the “OK” button in the middle of the navigation pad.
• To go back to the previous screen, press the “Back” button.
• To Jump back to the submenu press the “Menu” button once.
• To return to the main menu press and hold the “Return” button.
Input Exit/Back
Direction Pad
On / Off
LED
OK
Video Player Menu
23
Previewing Files:
• Press the directional keys to highlight the item of interest
• Wait 2-3 seconds and a preview of the video will show on the screen
The P5 will show all folders and les you have on your USB or MicroSD drive.
Use the navigation buttons to select folders or les.
Opening a le:
• Select the “Video” icon (Fig. 3.1)
• From the sub menu (Fig. 3.2), select the storage media with the stored les.
• Choose which le you wish to play.
Fig. 3.1
Fig. 3.2
24
Video Player Menu
While Playing Videos
While playing videos the volume and keystone is adjustable. Further controls
are available in the video player submenu - which is accessed through the “ok”
button.
Volume Up
Volume Down
OK
Positive Keystone Adjustment
Negative Keystone Adjustment
OK
Enter Video Player Submenu
• To open/hide the video playback menu, use the
“OK” and “Back” Buttons on the projector.
25
Video Player Sub-Menu
Playing Videos
The Video Player Sub-Menu can be accessed by pressing “OK” during video
playback. To exit the Video Player Sub-Menu press the “Back” button or wait
5 seconds. To navigate the playback menu use the directional buttons on the
navigation pad or remote to highlight the option you wish to choose (Fig 3.3).
Move selection left
Move selection right
• To open/hide the video playback menu, use the “OK” and “Back” Buttons on the projector.
OK
Fig. 3.3
Pause
FB
FF
Prev. Next Stop Aspect
00:00:59 / 00:04:20
Positive Keystone Adjustment
Negative Keystone Adjustment
Conrm selection
OK
Video Playback FAQ
How do I loop a video?
1. Choose either USB or SD Card
for playback
2. Navigate the folders until you
reach the le you wish to play.
3. Highlight the le you want to
play, then conrm the selection.
4. Move selection on video player
menu to “repeat”, and conrm
the selection.
5. The video will now loop after
playback is nished.
How do I preview a video?
1. Choose the “video” option from the
main menu
2. Navigate using either remote or
onboard buttons to the le you wish to
preview.
3. Highlight the le. *Do not select the
le, just highlight it.
4. Wait for 3-4 seconds.
5. A preview screen will pop up on the
lower right for the video.
26
Photo Menu
27
Previewing Files:
• Press the directional keys to highlight the desired le
• Wait 2-3 seconds and a preview of the picture will show on the screen
The P5 will show all folders and les you have on your USB or MicroSD drive.
Use the navigation buttons to select folders or les.
Opening A File:
• Select the “Photo” icon (Fig. 3.4)
• From the sub menu (Fig. 3.5), select the storage media with the stored les.
• Choose which le you wish to play.
Fig 3.4
Fig 3.5
28
Photo Menu
While Viewing Pictures
While viewing pictures the keystone is adjustable. Further controls are available
in the Photo Submenu - which is accessed through the “OK” button.
Previous Picture
Next Picture
OK
Positive Keystone Adjustment
Negative Keystone Adjustment
OK
Enter Photo Player Submenu
• To open/hide the Photo Playback menu, use
the “OK” and “Back” Buttons on the projector.
29
Photo Sub-Menu
Viewing Pictures:
The Photo Sub-Menu can be accessed by pressing “OK” during picture slide-
show playback.To exit the Photo Sub-Menu press the “Back” button or wait 5
seconds. To navigate the playback menu use the directional buttons on the
navigation pad or remote to highlight the option you wish to choose
(Fig 3.6).
• To open/hide the photo playback menu, use the “OK” and “Back” button on the projector.
Fig 3.6
Pause Prev. Next Stop Repeat N
00:00:59 / 00:04:20
Msc Off
Playlist
Move selection left
Move selection right
OK
Positive Keystone Adjustment
Negative Keystone Adjustment
Conrm selection
OK
Photo Slideshow FAQ
How do I play a slideshow?
1. Choose either USB or SD Card
for playback
2. Navigate to the folder that
contains the pictures you wish
to view in the slideshow
3. Conrm selection of the rst
picture.
4. Press “play” in the photo menu
5. Slideshow will now play.
6. NOTE: Selecting “repeat” will
loop slideshow.
How do I manually control the
slideshow?
1. After selecting the photo you wish to
be displayed, you can press “play” to
start the slideshow (as outlined in the
previous FAQ).
2. To manually control the slideshow,
you must stop the slideshow with the
“stop” button.
3. You may use either the controls on
your remote or on top of the projector
itself to ip through the pictures in the
current playlist.
4. You can change the SlideShow dura-
tion in the Settings Menu (Main Menu
-> Settings -> Picture
30
Music Player Menu
31
Previewing Files:
• Press the directional keys to highlight the desired le
• Wait 2-3 seconds and a preview of the audio will show on the screen
The P5 will show all folders and les you have on your USB or MicroSD drive.
Use the navigation buttons to select folders or les.
Opening A File:

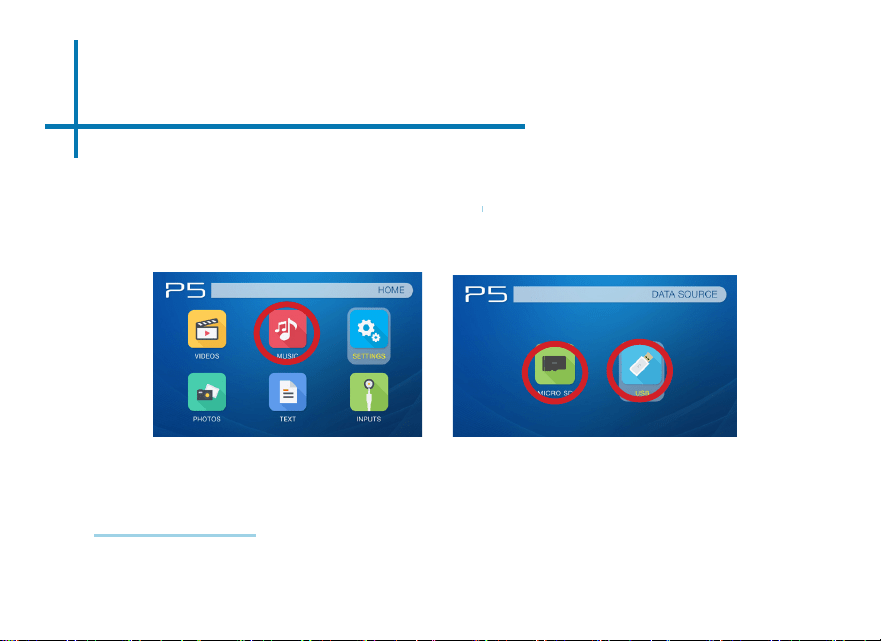

• Select the “Music” icon (Fig. 3.7)
• From the sub menu (Fig. 3.8), select the storage media with the stored les.
• Choose which le you wish to play.
Fig. 3.7
Fig. 3.8
32
Music Player Menu
Fig. 3.9
Listening To Audio:
To adjust the volume use the left and right button on the projector or the volumes
keys on the remote. To navigate the playback menu, push the “OK” button to
open the menu and use the directional buttons on the navigation pad or remote
highlight the option you wish to choose (Fig 3.9).
• To open/hide the music playerback menu, use the “OK” and “Back” button on the
projector.
OK
Pause
FB
FF
Prev. Next Stop R_ALL
Mute
00:00:59 / 00:04:20
Move selection left
Move selection right
Volume Up
Volume Down
Conrm selection
OK
Music Playback FAQ
How do I loop a song?
1. Choose either USB or SD Card
for playback
2. Navigate the folders until you
reach the le you wish to play.
3. Highlight the le you want to
play, then conrm the selection.
4. Move selection on music player
menu to “repeat”, and conrm
the selection.
5. The song will now loop after
playback is nished.
How do I create a song playlist?
1. Insert your media device (either mi-
croSD card or USB) into computer.
2. Make a new folder on media device
(folder name will be the name of the
playlist).
3. Transfer songs from computer to the
new folder, name accordingly.
4. Remove media device from computer
and insert into projector.
5. Navigate to Audio section, then
choose appropriate media device.
6. Navigate to your playlist folder.
7. Start at rst song.
8. Playback will follow each successive
song on the list.
*To create a special order for the list, add nu-
merical numbering to the beginning of each le.
33
EBook Viewer Menu
34
Viewing Text Files:
The P5 Pico Projector allows you to view text les. Select the le you want to view in
the le menu for the particular storage device on which the le is stored. You can press
the left and right arrow buttons on the directional pad or remote to ip through the pages
you have in the present folder.
The P5 will show all folders and les you have on your USB or MicoSD Drives.
Use the navigation buttons to select folders or les.
Opening A File:
• Select where the les are located from
the main menu.
• Select the “EBook” icon (Fig 3.10)
• Choose which le you wish to play.
Fig. 3.10
Microsoft Ofce and PDF le formats are not supported. To view a slideshow convert your slideshow
into JPEG pictures rst.
Note:
Setup Menu
35
The Settings Menu can be accessed by selecting “Settings”on the main menu
• Picture Mode
• Color Temperature
• Power Mode
• Slideshow Time
• Projection
• Aspect Ratio
Sound
• Sound Mode
• Balance
• Auto Volume
• Surround Sound
Time
• Clock
• Off Time
• On Time
• Sleep Timer
• Auto Sleep
Option
• OSD Language
• Restore Factory Default
• OSD Duration
Within the settings menu there are
four more submenus that allow you
to customize your P5 to the settings
you want.
Chapter 4
36

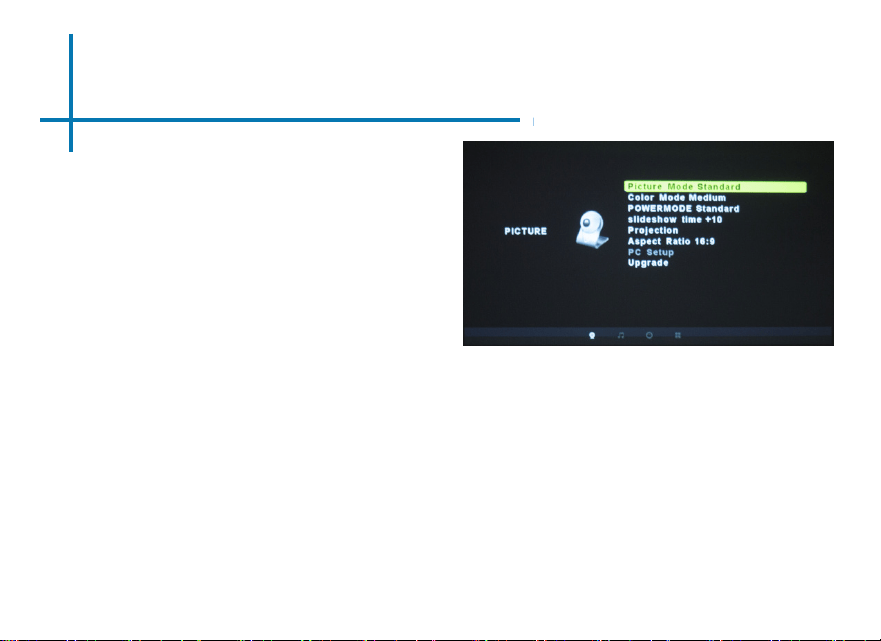

Picture Settings
Picture Mode
• Changes the picture mode to
different settings depending on
your usage.
Color Temperature
• Adjusts the color temperature
from hot to cool (red to blue).
Power Mode
• Adjusts the brightness on the
projector. (See Page 40)
Slideshow Time
• Changes how long the slideshow
stays on a picture.
Projection
• Flips the projected image.
Aspect Ratio
• Changes the aspect ratio of the
picture - 4:3, 16:9*
*Caution: Some pictures may be cut off
when aspect ratio is set incorrectly

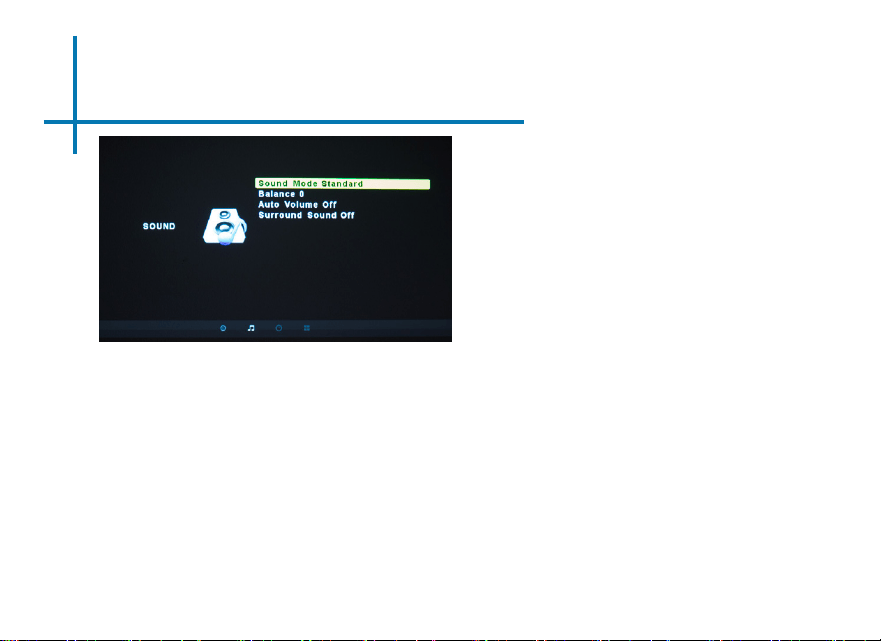

Sound Settings
37
Sound Mode
• Changes the sound mode depend-
ing on what is currently playing.
Balance
• Adjusts the balance of the sound,
from left to right.
Auto Volume
• Sets the projector to auto-detect
for the volume. The projector will
auto detect the appropriate sound
mode.
Surround Sound
• Adjusts the surround sound capa-
bilities of the projector.
Time Settings
38
Clock
• Adjust the time/date.
Off Time
• Sets when to turn off.
On Time
• Sets when to turn on.
Sleep Timer
• Sets when projector goes to
sleep.
Auto Sleep
• Sets auto sleep function.
Option Settings
39
OSD Language
• Changes the language of the
device. Options include English,
Spanish, Chinese, German,
French
Restore Factory Default
• Restores the projector to factory
settings.
OSD Duration
• Allows the projector to set a
duration for the selected OSD
language.
39

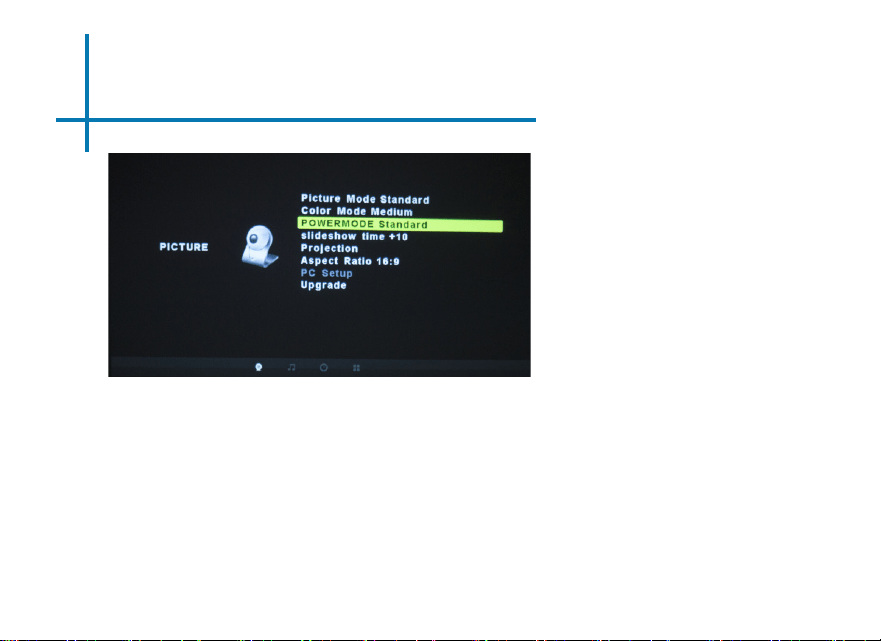

Brightness Feature
There are 3 different power modes for the P5: Bright, Standard, and Eco.
• Bright: The brightest mode. Only available while plugged in.
• Standard: A normal mode while running on battery that’s slightly less bright
and enables a 90 minute battery run time.
• Eco: A battery saving mode that reduces picture brightness. 135 minute bat-
tery run time.
40
Keystone Adjustments
Digital Keystone Adjustments
By adding a special, selectable algorithm to the scaling, some new projectors
are able to alter the image before it reaches the projection lens. The result is a
squared image, even at an angle.
What is Keystoning?
“Keystoning” occurs when a projector is aligned non-perpendicularly to a screen,
or when the projection screen has an angled surface. The image that results
from one of these misalignments will look trapezoidal rather than square.
41
Keystone Adjustments FAQ
How to Correct Keystone
• If the image looks trapezoidal with
the base larger (as pictured right),
press the bottom button on the di-
rectional pad on the top of the P5
until the keystone effect corrects
and the picture turns into a square
projection.
• If the image looks trapezoidal with
the top larger (as pictured right),
press the top button on the direc-
tional pad on the top of the P5
until the keystone effect corrects
and the picture turns into a square
projection.
42
Technical Details
Chapter 5
IMAGE IS BLURRED
Possible Causes Solution
The Projector is not in focus Adjust the focus with the focus adjustment dial
until the image comes into focus
The Projector is offset from plane / angle of
operation
Move the projector so that it is both 180 degrees
and on an evern plane with the screen.
No Sync, No Signal
Troubleshooting
1. Be sure to setup the computer to enable a video signal output. On some
laptops this is done by pressing and holding Function F5 key. If using the
P5 as an external monitor on Windows based systems, this can be done
by selecting “extend my desktop to this monitor”. The native resolution
of the P5 projector is 1280x720. Depending on the video driver different
resolutions may need to be selected for proper output.
43
44
Technical Details
THE PROJECTOR DOES NOT TURN ON
Possible Causes Solution
There is no power Check to ensure the power outlet source is good.
Check the power adapter to ensure a proper
connection with the wall outlet as well as the
projector. Conrm that the unit is charged and
has enough power
The power button was not held long enough To power on the projector, the power button
needs to be depressed for a full 3 seconds. Try
holding the power button until the optical engine
turns on
NO PICTURE / FILE NOT SUPPORTED
Possible Causes Solution
The video source is not properly connected or
selected
Check the video source signal to ensure that it
is properly connected. Select the current input
source by choosing the input desired from the
main menu
Incorrect le extension / Video is encoded with
incorrect codec
Please refer to “Specications” page to see which
le types and codex are supported. Verify that
the le was encoded properly.
Troubleshooting
45
Specications
Brightness:
Native Resolution:
Contrast Ratio:
Aspect Ratio:
Projection Lens:
Image Size:
Lamp:
Video in:
Audio Output:
SD Card:
USB:
Dimensions:
Weight:
Supported File Formats:
300 Lumens
1280x720
1000:1
16:9
Manual Focus
10~120 inches
Triple RGB LEDs with Vibrant Color
Technology Life 15,000hrs
Composite A/V
VGA(mini-VGA)
HDMI
1.0 W stereo speakers
3.5 mm audio jack
MicroSD Card Slot
(32GB maximum)
5 Pin USB 2.0 (Full Size)
(32GB maximum)
4.5” x 4.1” x 1.8”
0.88 lbs
MP3, WMA, OGG, WAV, AVI,
BMP, JPG,TXT
46
Notes
Please direct all customer service inquiries to:
AAXA Technologies, Inc.
1541 Parkway Loop
Tustin, CA 92780
(714) 957-1999
