aaxa
TECHNOLOGIES
User Guide
P6 ULTIMATE
Projector
Caution!
WARNING: Please use this product as instructed. Misuse may cause
injury or death.
• DO NOT use while driving.
• DO NOT expose to water or wet surfaces. Electric shock may occur.
• DO NOT expose the projected LED image to your eyes or the eyes of others.
• DO NOT block or restrict airow from ventilation holes as this may cause the
projector to overheat.
• Keep the projector, battery, or charger away from any heat sources.
Battery warning
This product includes a large array of lithium ion batteries. AAXA Technologies employs
only premium lithium ion batteries, the same type used in high-end Electric Vehicles.
Additionally we pay careful attention to battery design safety. That said Lithium Ion
batteries contain a tremendous amount of energy and must be handled with care!
WARNING: Large battery products contain a tremendous amount of energy.
WARNING: Users must handle this product with care. Battery systems are susceptible to
shock damage, vibration damage, punctures, and overheating.
WARNING: Please respect the internal large lithium ion battery. Please remember it
contains a tremendous amount of energy.
Battery warning
Do not keep the product in direct sunlight or near heat sources.
Do not keep the product inside hot environments such as automobiles
during the summer.
Do not attempt to charge in freezing environments, this will damage
batteries.
If damage is suspected DO NOT CHARGE, DO NOT USE.
Always Charge on safe, no-ammable surfaces, away from ammable
objects.
Do not carelessly throw or drop the product.
SUGGESTIONS
Solar Charging Warning
Warning: Do not expose the projector to direct sunlight!

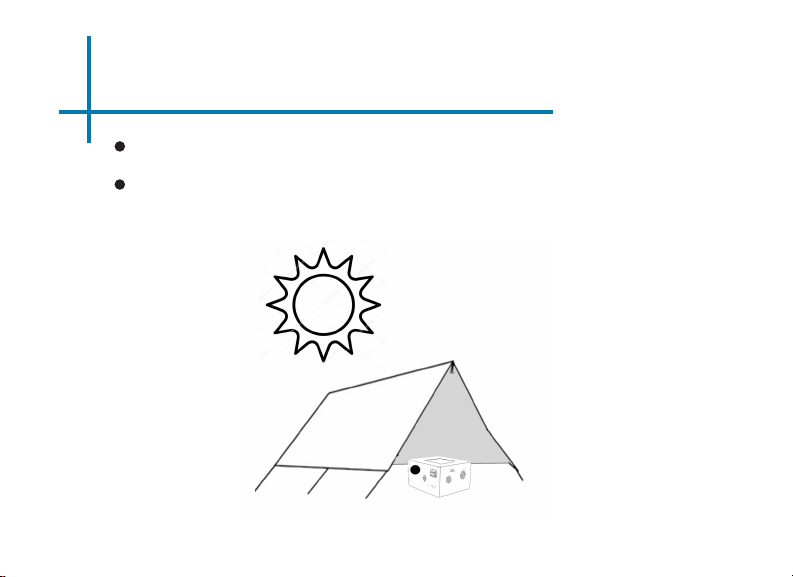

Caution: When using a solar panel to charge the projector makes sure
the projector is covered and / or not under direct sunlight. Monitor the
projector temperature to ensure it does not overheat.
Table of Contents
Chapter 1: P6U at a Glance
P6U Introduction
Remote & KeypadRemote & Keypad
Accessories
Chapter 2: Getting Started
Powering On / O
Charging the P6U
Focus Adjustment / Throw Distance
Bluetooth Mode / Lantern Mode
Connecting to Speakers/Headphone
Loading External Content
Chapter 3: Menu Screens
Main Menu
Streaming Services Menu
Files Menu
Wi Menu
Input Selection
Oce Menu
Mirroring Menu
3D Function
Browser Menu
Apps Menu
Chapter 4: Settings Menu
Brightness Menu
Advanced Settings

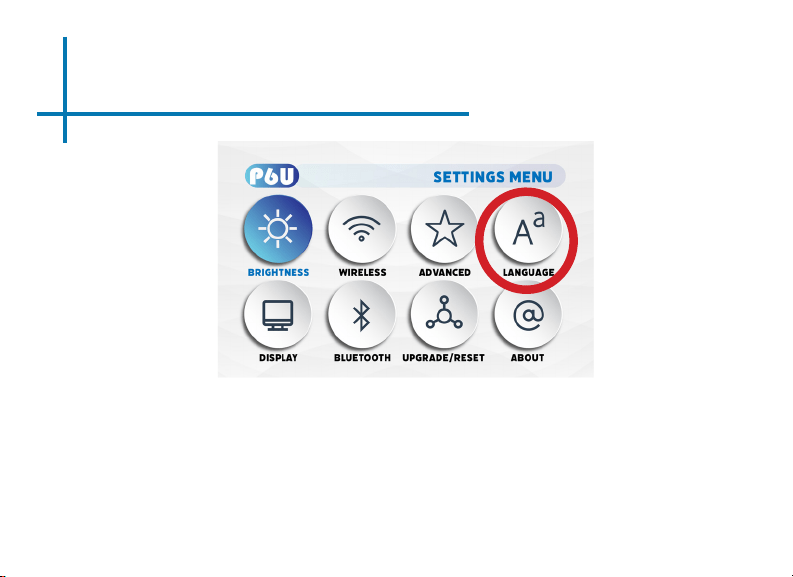

Language Settings
Display Settings
Keystone & Projection Direction
Bluetooth Menu

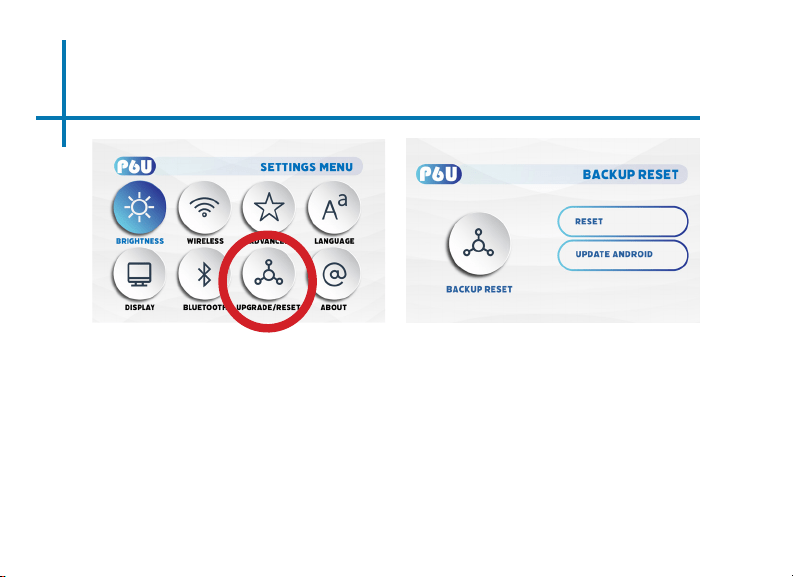

Upgrade/Reset
About Menu
Notes
1
3
4
5
6
7
8
11
12
16
17
19
20
21
22
24
27
28
29
30
31
32
33
34
35
39
40
41
42
1
P6U at a Glance
Chapter 1

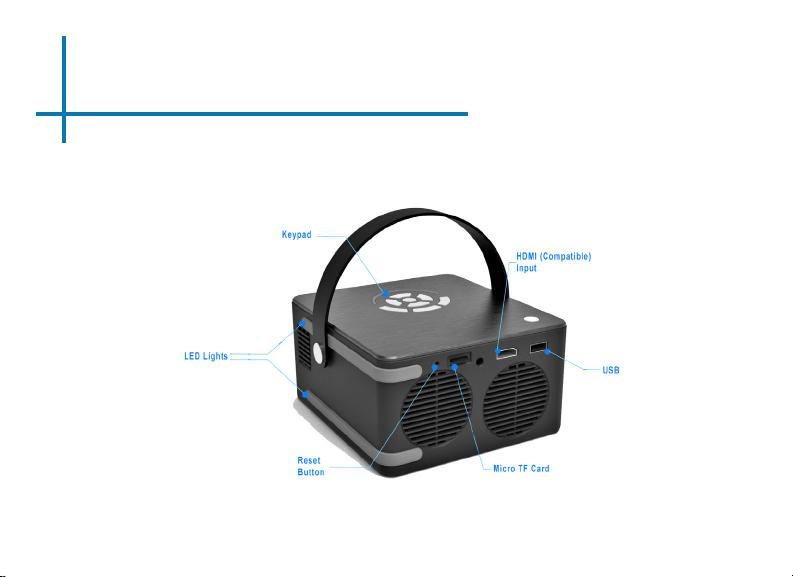

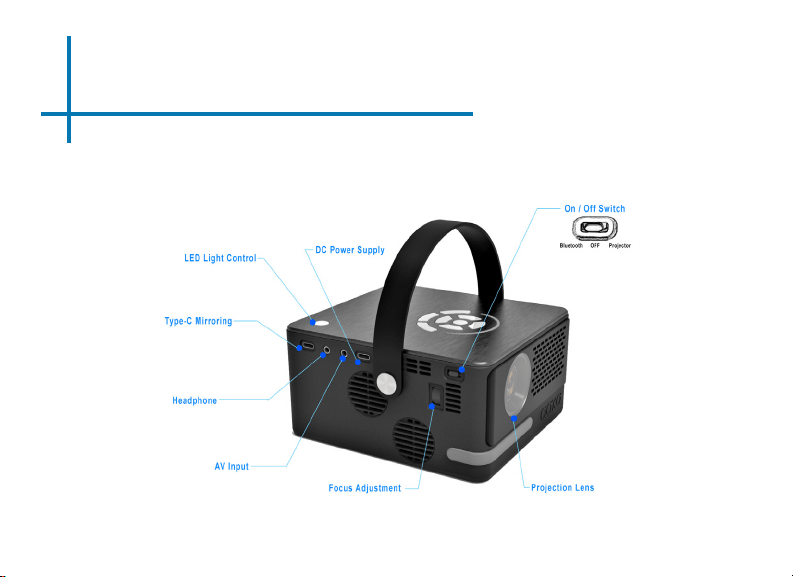

Main Unit
1 2
P6U at a Glance
Main Unit
2 3
Remote & Keypad

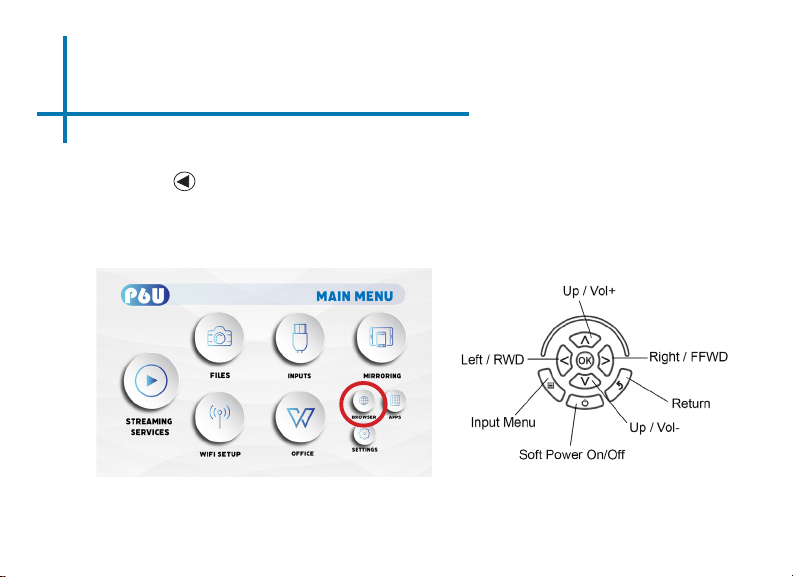

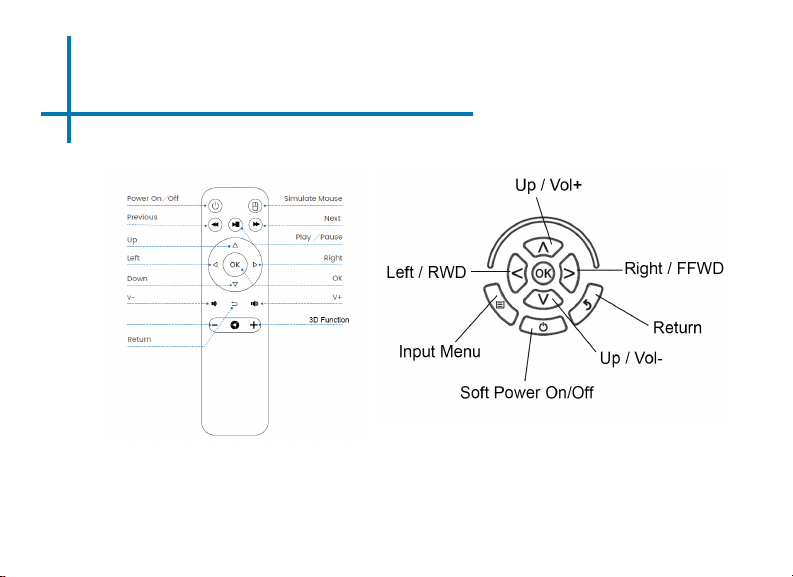

Direction Pad
Both the keypad and remote can be used to navigate through the menus. The remote control
has additional functionality including “mouse” feature that the onboard keypad does not.
Remote Control
4
Accessories

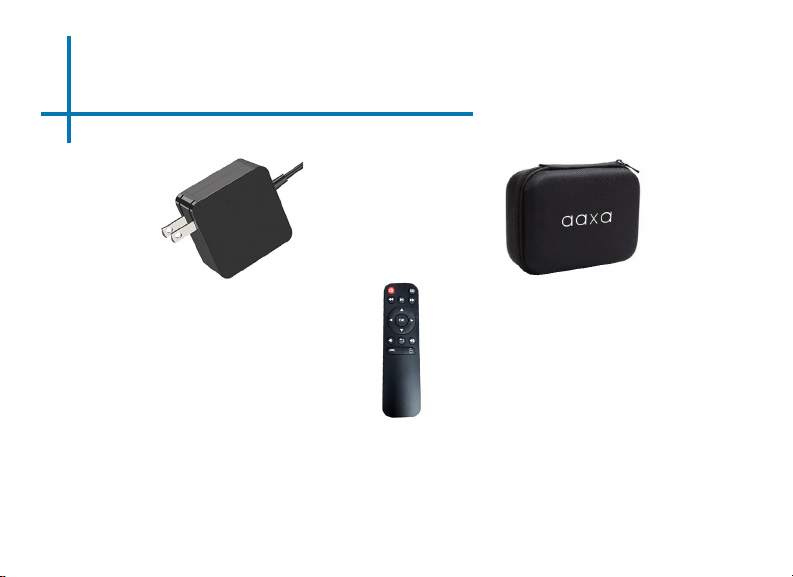

*Under various circumstances, the actual accessories may be dierent from
those shown in the pictures above.
Additional accessories are available for purchase at www.aaxatech.com
65W Fast Charger Carrying Case
Remote Control
4 5
Getting Started
Chapter 2
Powering ON the projector
Powering OFF the projector
Standby Mode
1. To transition to “STANDBY” mode, press the power button on the remote control.
2. The optical engine should power o and the fan should stop spinning. The projector
is now in “STANDBY” mode and can be turned on using the remote control.
*Note: Standby mode will still consume a small amount of power.

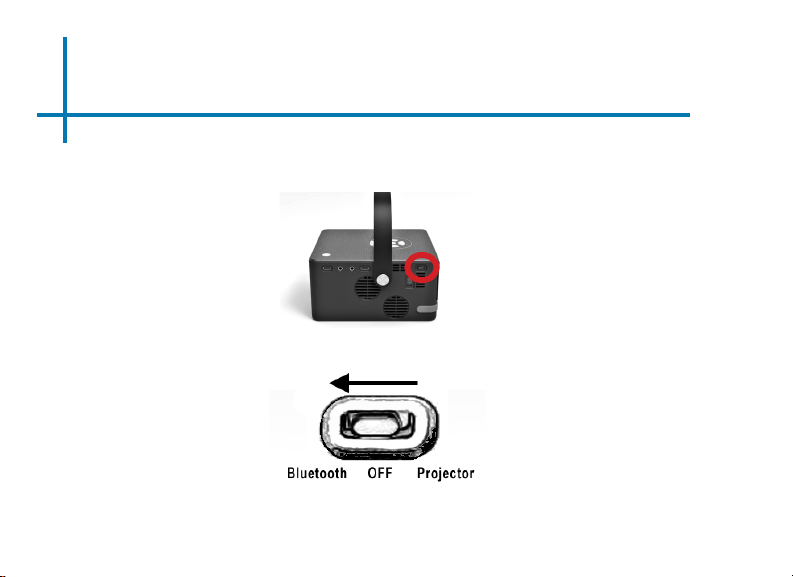

1. To turn o the projector, toggle the “Power Switch” to the “OFF” position. This will
fully turn o the projector. The unit can only charge when it is o.
1. The P6U should be fully charged before startup.

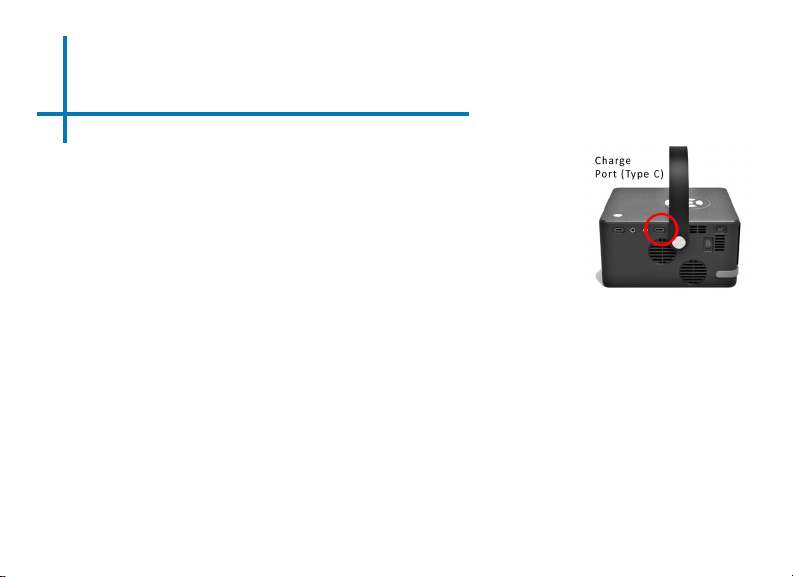

2. The P6U charges through the Type C power port found
under “Power Input” next to the carry handle.
3. Toggle the On / O switch to “On” and the projector
should automatically turn on.
6
Charging the P6U
1. Charge Mode – The P6U charges through a USBC Type C
(Compatible) charge port.This makes the P6U compatible with
most USB chargers and eliminates the need for a clunky power
adapter. A powerful 65W USBC compatible adapter is included
with the device. This charger is able to support the P6U at
maximum power consumption levels for extended operation.
2. Operating Power Load Balance In low power charging
conditions (when the power adapter is not high power) the
P6U will load bal ance rst from the power adapter then any power decit from the
onboard batteries. When the onboard batteries are depleted the P6U will shut down.
T h e i n c l u d e d p o w e r a d a p t e r i s s u c i e n t t o o p e r a t e t h e P 6 U f o r e x t e n d e d o p e r a t i o n .
NOTE: Most USB power adapters are not powerful to operate the P6U for extend-
ed operation.
3. Battery Pack – The P6U incorporates a large 74w (20000mah) battery pack. Please see
battery warnings for cautions. The battery system charges at 0.3C (3+ hours for a full
charge). The P6U incorporates a large battery. PLEASE SEE BATTERY WARNINGS
7
Focus Adjusment / Throw Distance
• Spin the focus wheel up or down until the image becomes
clear.
Focus Adjustment
DIAGONAL SCREEN SIZE
16:9 Aspect Ratio
Throw Distance
Units: Inches
20
30
40
50
60
70
80
90
Screen Diagonal
Units: Inches
19
29
38
48
57
67
76
86
Throw Distance Chart
• Throw Ratio: 1.2:1
• Projection Angle: 100% Oset
• Minimum Throw Distance: 14 inches
8
Bluetooth Mode / Lantern Mode
1. Bluetooth Mode – The P6U can operate as a Bluetooth Compatible Speaker and
Music Visualizer (LED eects). This mode is activated by hard-switching the power
button to “Bluetooth” mode. The projector will say “Bluetooth Mode”.
Connecting a Bluetooth compatible music source:
• Switch the Projector into “Bluetooth Mode”
• Select “AAXA Tech” in your Bluetooth connection screen on your device.
The devices should pair automatically.
9
Bluetooth Mode / Lantern Mode
2. Selecting Music Visualization (LED Special Eects) – The P6U’s onboard LED lights
will light up matching the volume, tempo, and type of music.
Controls for Music Visualization:
• Light Button - Toggle Music Visualization (while in Bluetooth mode)
a. Light Mode 1
b. Light Mode 2
c. Light Mode 3
d. Lantern Mode
e. O
Light Button
10
Bluetooth Mode / Lantern Mode

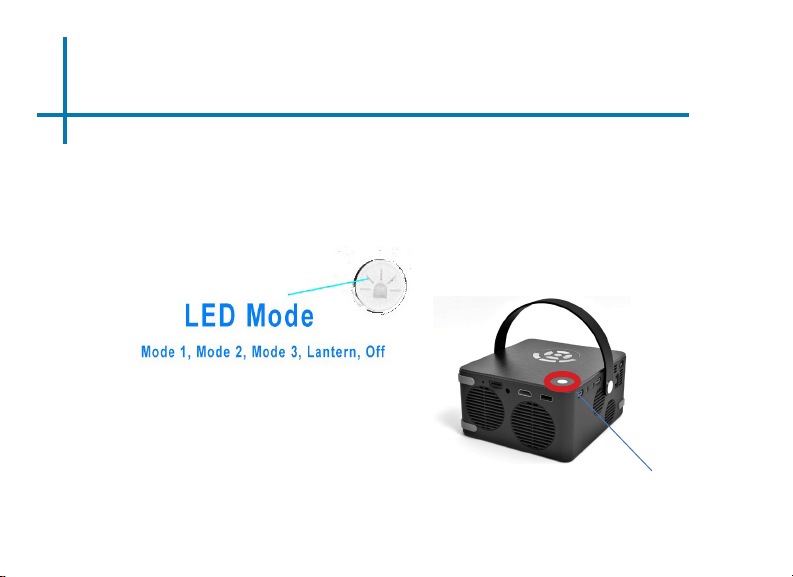

3. Lantern Mode: Lantern mode can be activated in Blue-
tooth mode and by toggling the “LED” button until the LED
lights stay on constantly. LED light color can be selected by
pressing the selection button.

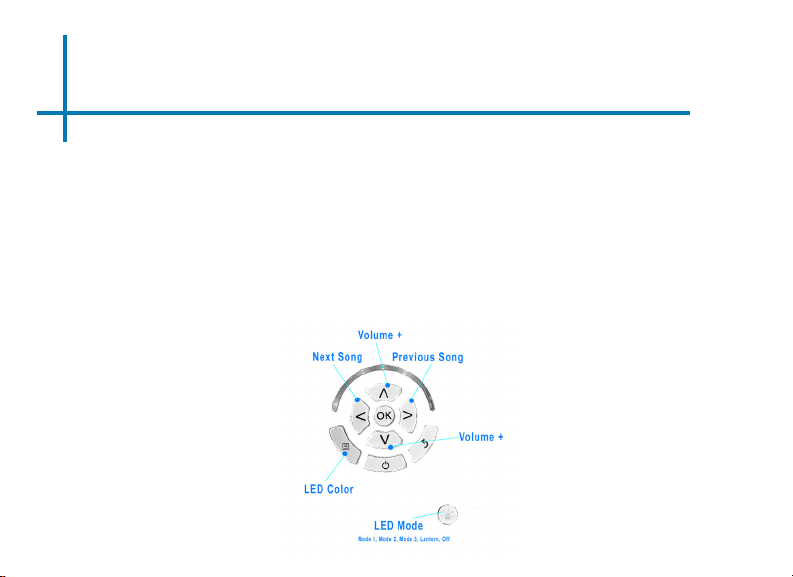

4. Bluetooth Mode Controls:
• Toggle Music Mode, Toggle Lantern On/O, LEDs O
• LED Color
• Volume Up / Down
• Next / Previous Song
11
Connecting Speakers / Headphones
*CAUTION:Prolonged use of headphones
at a high volume may impair hearing.

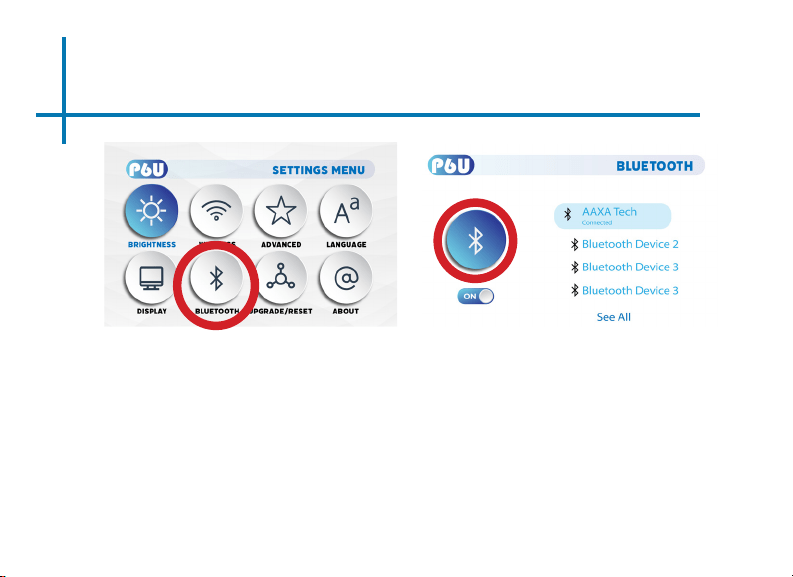

To connect a Bluetooth Speaker go to
the Bluetooth submenu found under
the settings menu. Please see page
(37) for more information.

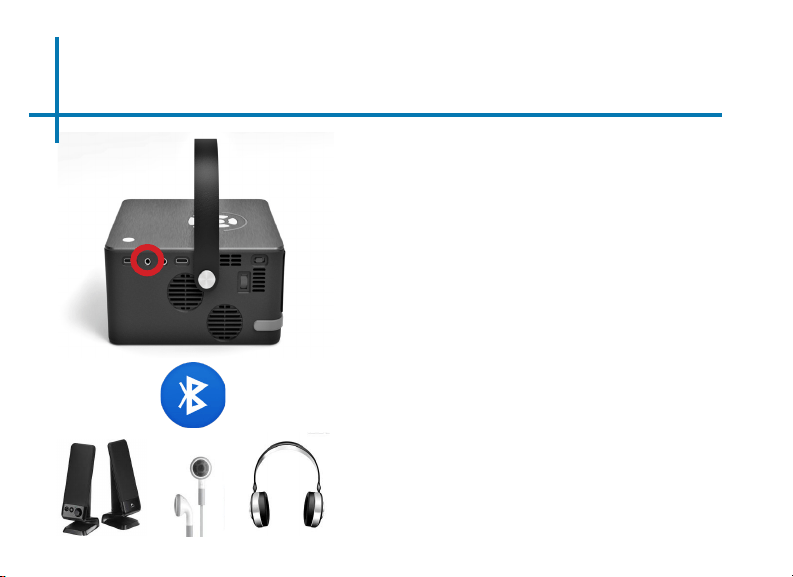

Connect your speakers/headphones
to the projector’s audio port.
Step 1:
Step 2:
Step 3:
Ensure that the projector and/or the
headphones are powered on.
Connecting Bluetooth Speakers:
Place the headphones on and enjoy!
12
Loading External Content
The P6U can read les directly from
both a TF Card and USB Drive.
Supported le types include:
MP3 / WMA / OGG / WAV
AVI / JPG / GIF/ BMP
(up to 64 GB)
(up to 64 GB)
12 13
Loading External Content Cont.
How to insert your TF Card

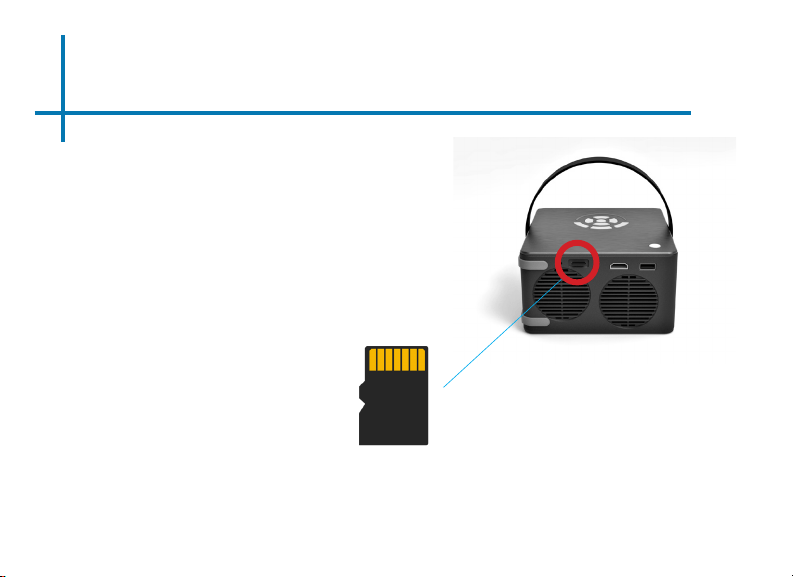

• Slide in your TF card into the TF card
slot on the side of the P6U (as shown
in picture).
• Gently slide the TF card until it clicks
into place.
(up to 64 GB)
14
Loading External Content Cont.

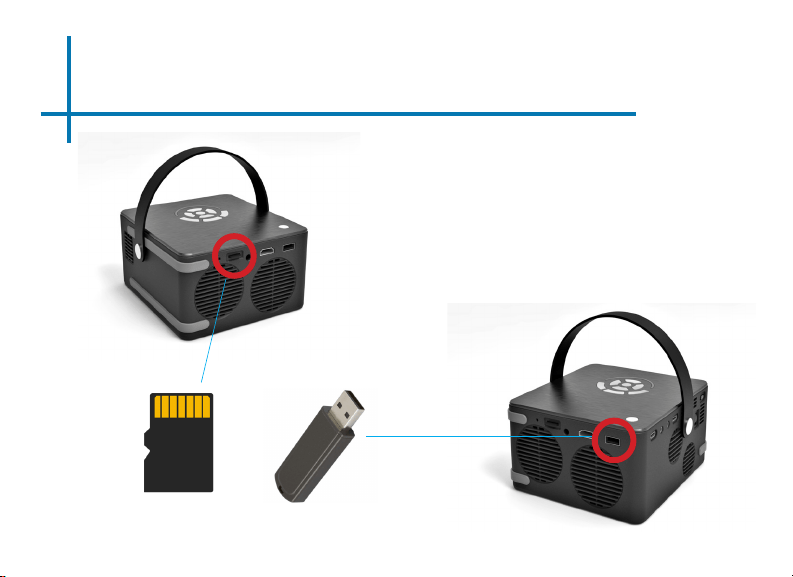

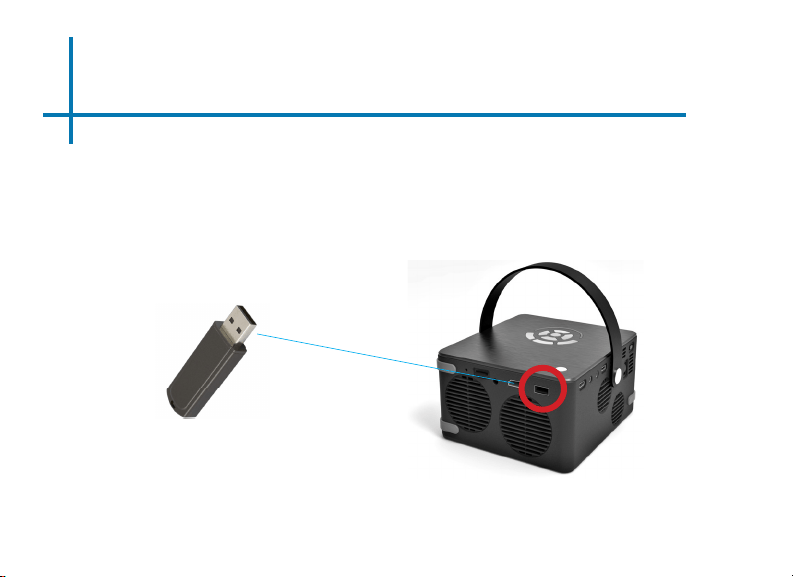

How to insert your USB Drive
• Slide your USB Drive into the USB port.
• Gently slide the drive until it cannot go in any further.
(up to 64 GB)
14 15
Loading External Content Cont.
Once your TF Card or USB Drive is inserted into the projector, the TF Card or USB
Drive Storage will be loaded automatically and the content can be found through
the Files icon on the Main Menu ( See Page 18 for File Viewer Submenu). To load
Text documents, select the Oce icon. ( See Page 21 to learn more)
16
Menu Screens
Chapter 3

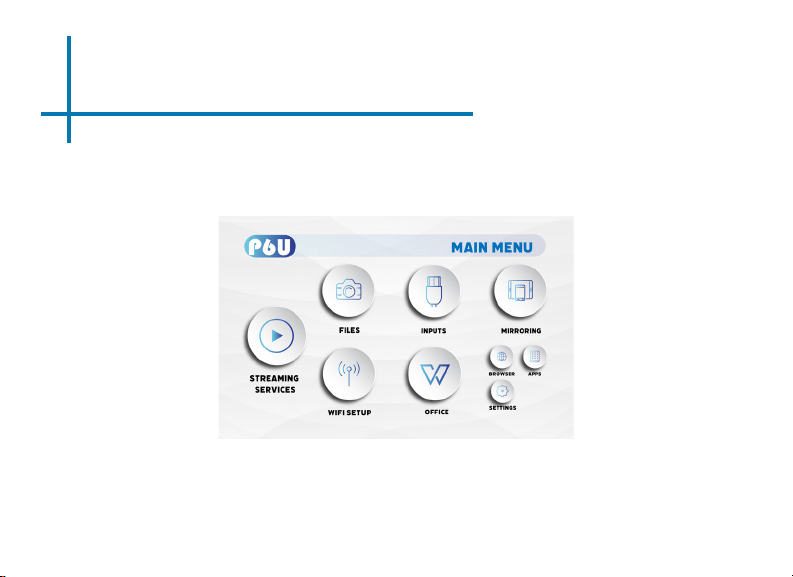

Main Menu
The P6U features an Android 9.0 Operating System. This powerful operating system allows
users to (1) Connect to WIFI (2) Stream Content (3) Play Videos/Pictures/Media (4) Mirror
Smartdevices (5) View and Edit MS Oce and PDF les (6) Browse internet (7) Load Apps.
• Press the left and right directional buttons to choose an icon from the main menu.
• To select a menu option, press the “OK” button in the middle of the navigation pad.
• To go back to the previous screen, press the “Back” button.
• To Jump back to the submenu, press the “Menu” button once.
• To return to the main menu, press the “Return” button twice.
16 17
Streaming Services Menu
• Streaming Services require subscription including paid subscription.Users
are responsible for their own subscriptions. Not all streaming apps are
compatible in all regions.
• The use of Streaming Apps requires a working WIFI internet connection.
• Some apps will require a mouse.

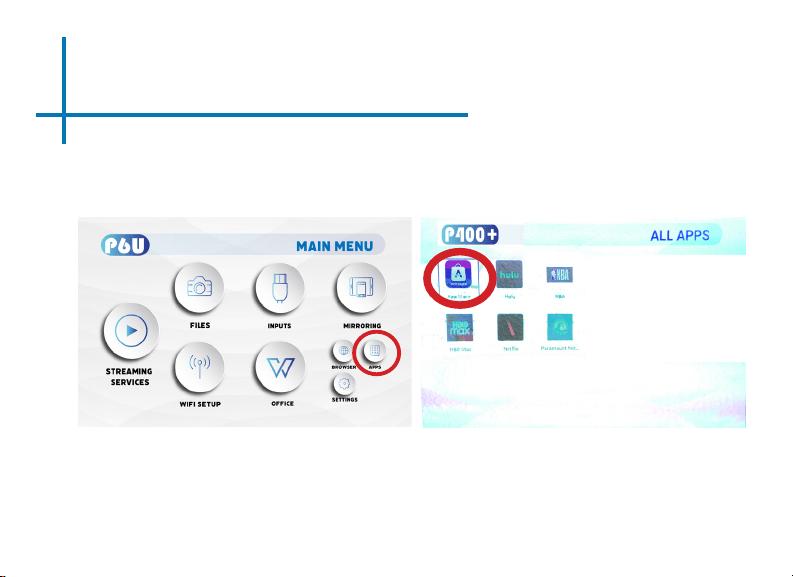

• To Access the App Store, please see “Apps Menu” Page (28).
18
Streaming Services Menu

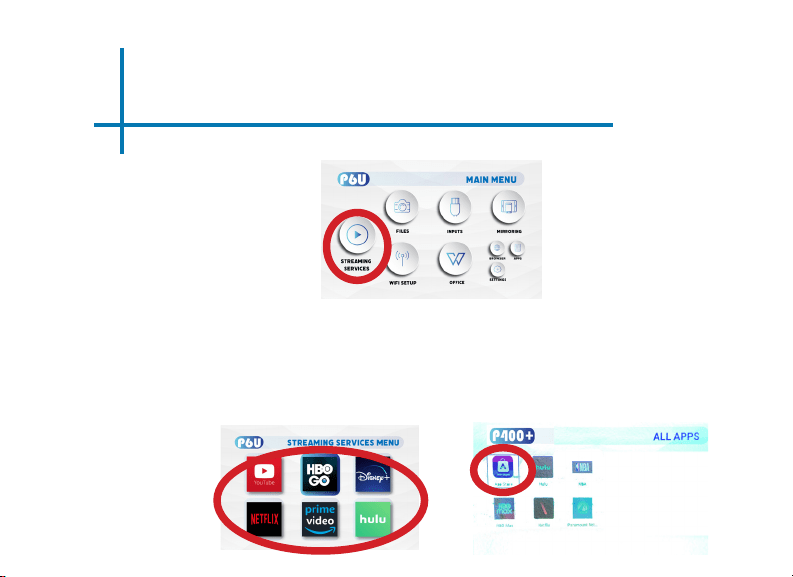

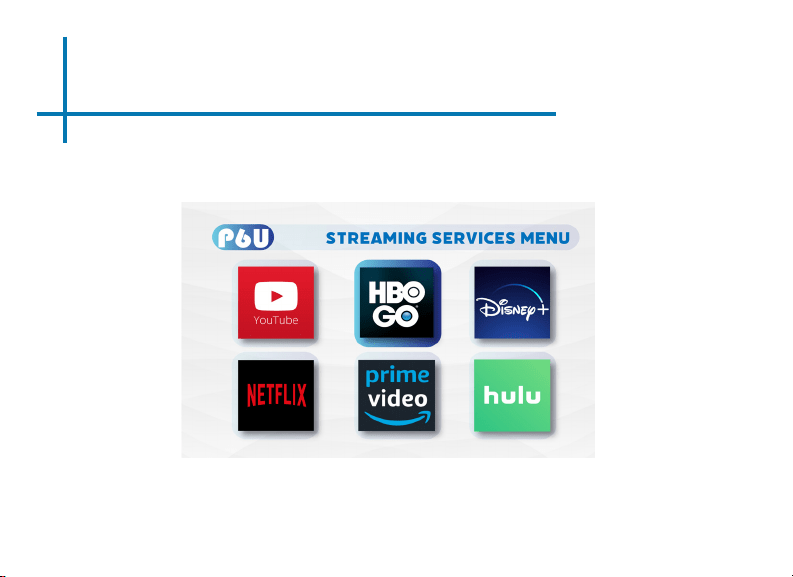

• Primary Streaming Services can be accessed through the Streaming Submenu.
Note: Dierent regions will feature dierent streaming apps.
• Additional Streaming Apps can be downloaded via the App Store.The App store
can be found under Apps and App Store.
Note: Not all regions support the App Store or the downloadable apps.Some regions
may not include App Store on the device.
19
The P6U will show all folders and les you have on your USB or TF Card drive. Use the
navigation buttons to select folders or les.
Opening A File:

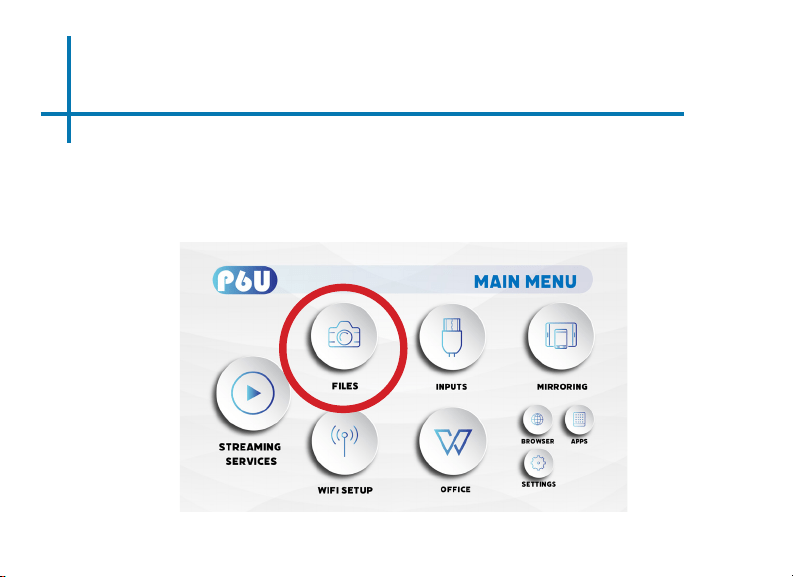

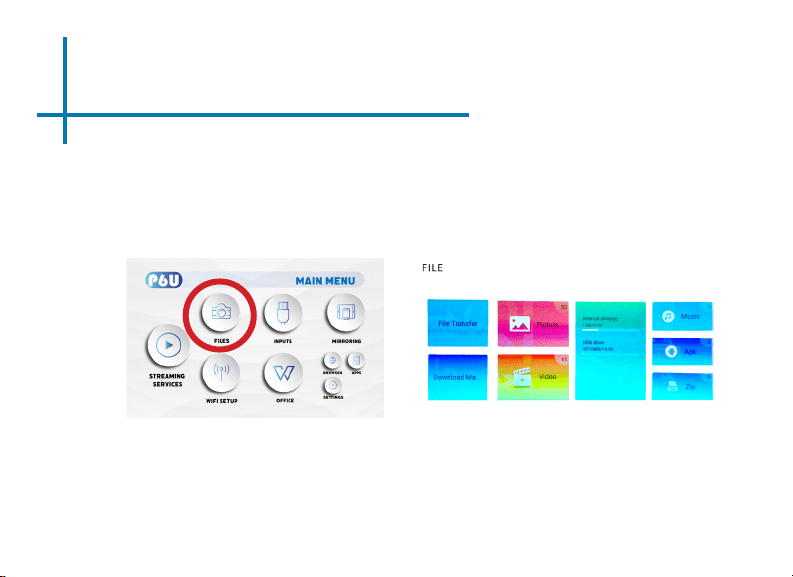

• Select the “Files” icon in the Main Menu ( Fig 3.8)
• In the Files Menu, select the external content device (USB/ Micro SD - TF Card) that
contains the le you wish to open (Fig 3.9)
Fig. 3.8
Fig. 3.9
Files Menu
20
Wi Menu (How to connect to Wi)
How to Connect to Wi:

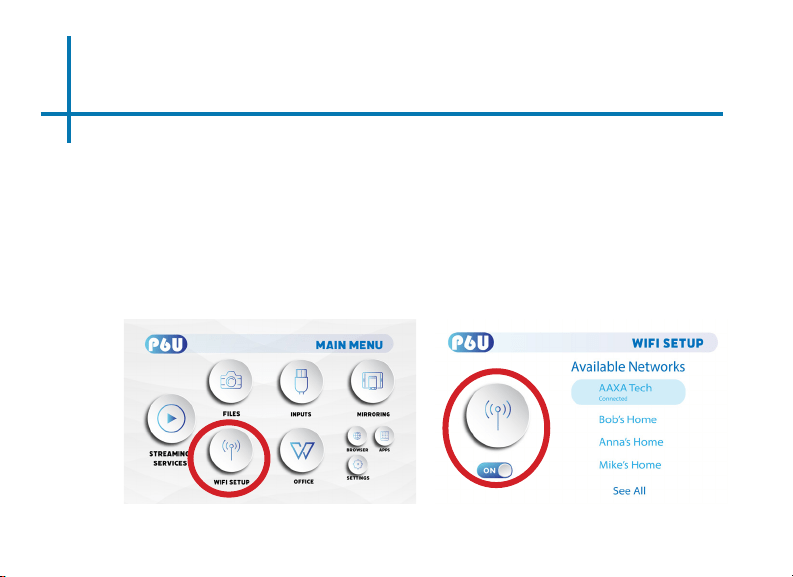

• In the Main Menu, choose the “Wi Setup” icon (Fig 3.4)
• In the Wi Menu, toggle the Wi icon to “On” and select the Wi network you
desire. Enter password and connect. (Fig 3.5)
• If you enter the password incorrectly, select “forget” the available network to
start over.
Fig. 3.4 Fig. 3.5
21
Input Selection

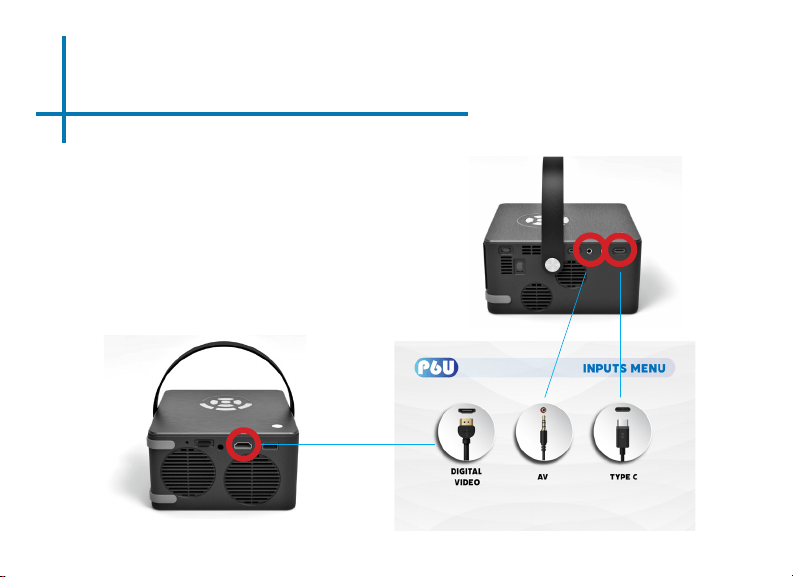

The P6 Ultimate has 3 hard wired Inputs;
i. Digital Video (HDMI Compatible)
ii. AV (Audio Visual)
iii. USB Type C (Compatible)
22
Ofce Menu

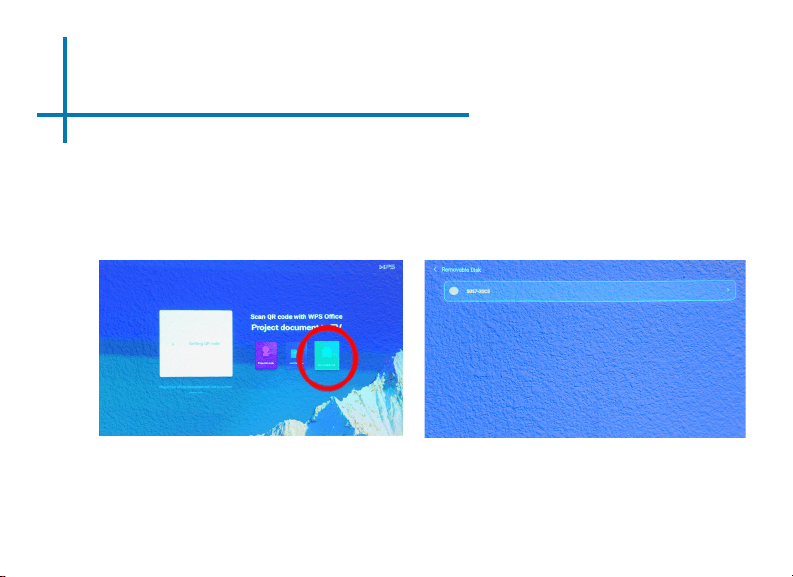

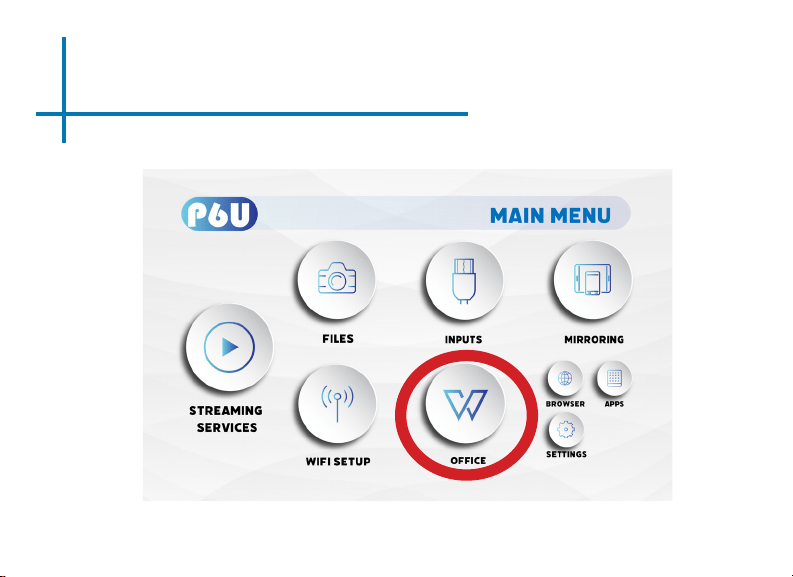

In the Main Menu, select the “Oce” icon to access the N Docs app.
23
Ofce Menu
• In the Main Oce Menu select “Removable Disk” Then select the le you
want to display. File formats can include PDF, DOC, PPT, XLS
• Use the arrow keys on the keypad or remote control to scroll through the le.
24
Mirroring Menu

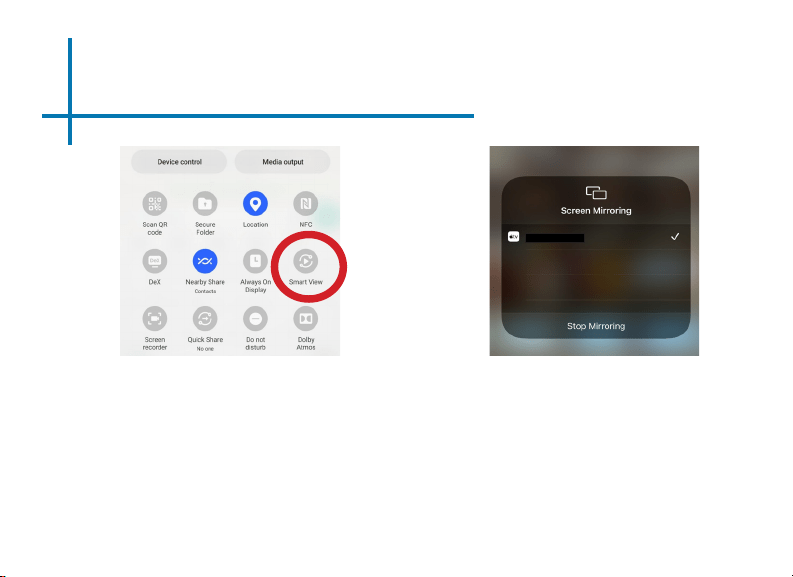

How To Screen Mirror Smartphone:
• The P6U allows screen mirroring of Android and Apple IOS smart devices. Android
mirroring is done through a direct P2P connection whereas Apple IOS devices
requires a router/network host for mirroring.

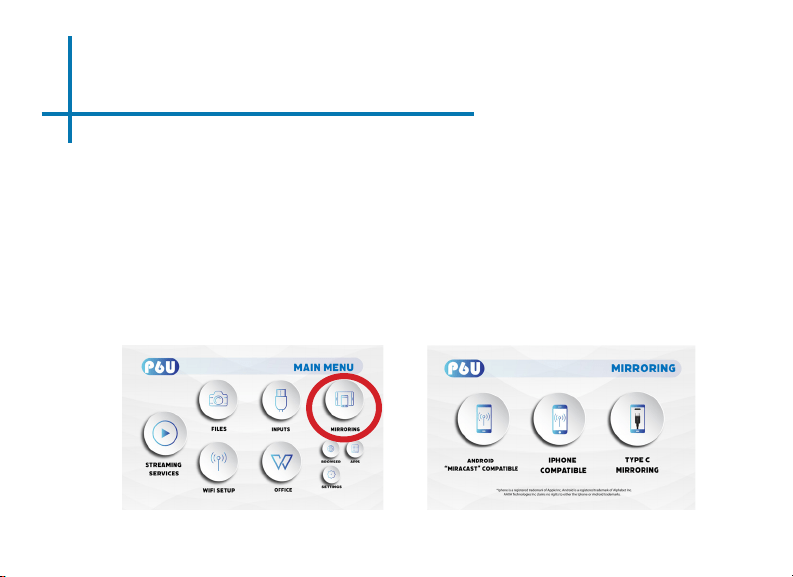

• After connecting the P6U to wi, in the Main Menu, choose “Mirroring” icon (Fig 3.6)
• In the Mirroring Menu, choose Android, Iphone or Type C. (Fig 3.7)
• Use built-in AirPlay, AirPinCast, AirPinPCSender to screen mirror from your iOS
devices. Android devices can use Smart Mirror or similar onboard casting functions.
Fig. 3.6 Fig. 3.7
25
Mirroring Menu

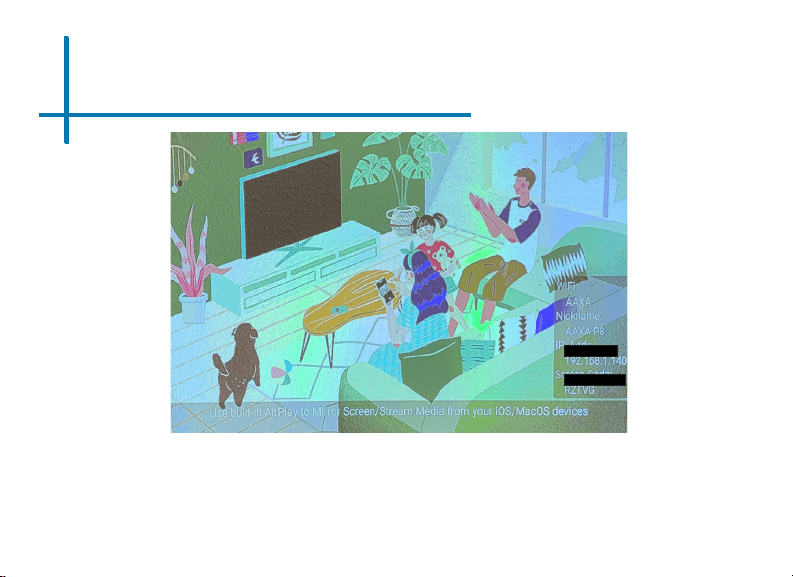

To screen mirror IOS devices, your devices and the P6U have to be connected to the same
Wi network. Note: DMCA (copyright) content cannot be wirelessly mirrored. This includes
content from streaming services such as Netix, Hulu, Disney+, etc.
AAXA P400+
25 26
Mirroring Menu
To screen mirror Android devices,
select the “Smart View” or similar
direct P2P function in your smart
phone. Select “P6U” as the display
source.
To screen mirror iOS device, after
connecting the P6U and your device
to the same WiFi network, please
select “AAXA Tech” in the Screen
Mirroring menu.
AAXA P400+AAXA P400+
27
3D Function
1. The P6U supports DLP 3D Projection Mode.
• Supported File Formats include Vertical and Horizontal 3D Mix. Youtube and other
streaming 3D content is not supported at this time.

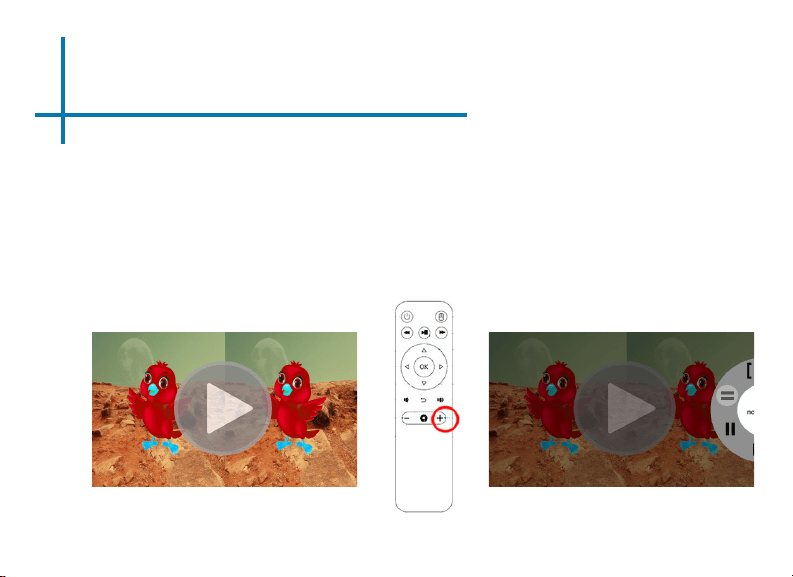

2. To Activate 3D mode rst begin playing a 3D le in the Video Player. Most 3D video les
will begin playing either horizontally or vertically (g 1).
3. After the le begins playing press the “+” button on the remote control (g 2).
4. A submenu will pop out (g 3) and the user can select the type of le 3D format (vertical,
horizontal, or other)
Fig. 1 Fig. 3
Fig. 2
*Note: DLP 3D Projection Mode requires DLP 3D Glasses.
28
Browser Menu
How to open an internet browser in the P6U:
In the Main Menu, select the “Browser” icon. Once the Chrome browser opens,
press the button on the navigation pad or the remote control to search or type
web address.
29
Apps Menu
Fig. 3.10 Fig. 3.11
Note: It is not recommended that users load their own apps onto the P6U.
Some versions of the P6U (depending on region) will feature an “app store”. This
app store can be accessed to download dierent apps. Many apps are region
dependent - not all apps are compatible – some may not work.
30

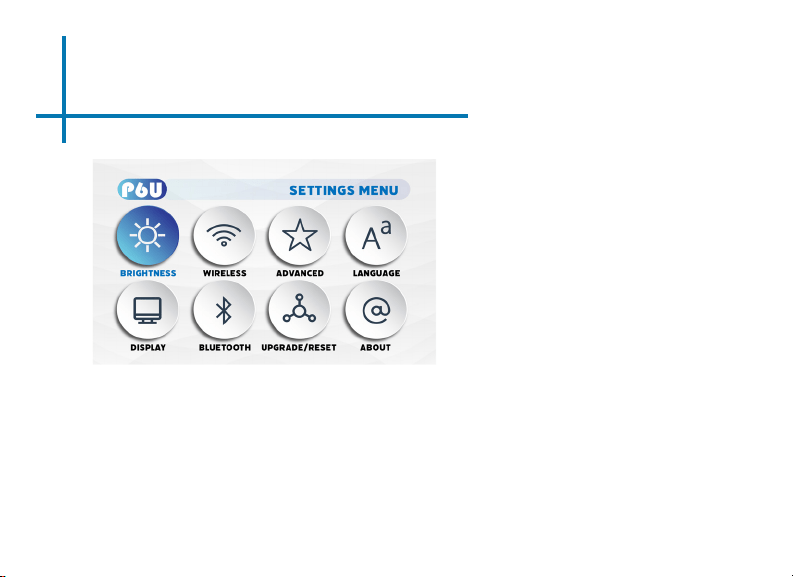

Settings Menu
The Settings Menu can be accessed by selecting “Settings” on the Main Menu.
Brightness
• Eco
• Standard
• Boost
Wireless (Wi Menu)
Advanced
• Network & Internet
• Bluetooth
• Accounts & Sign In
• Device Preference
Language
Display
• Keystone
• Projection Direction
• Mode image
• Color Temperature
Bluetooth
Upgrade/Reset
• Reset
• Update Android
About
Within the settings menu, there are eight more
submenus that allow you to customize your P6U
to the settings you want.
Chapter 4
31

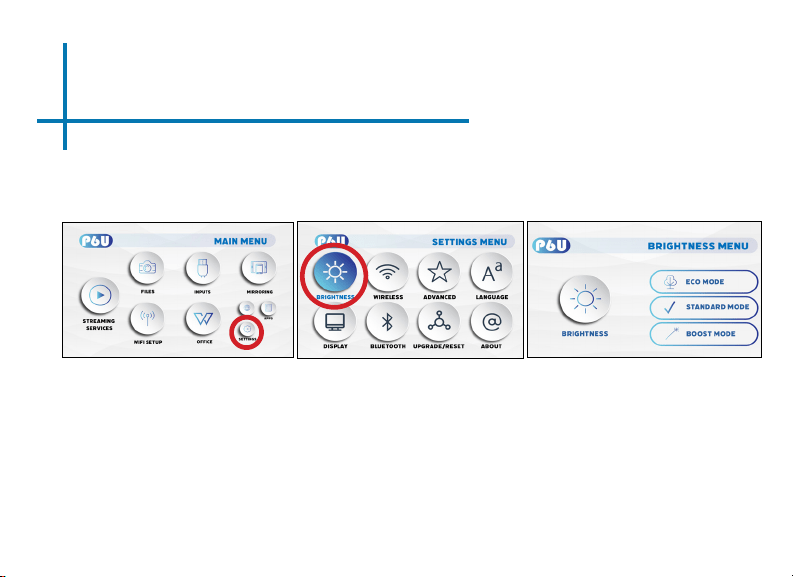

Brightness Menu
To change the brightness on your P6U:
• Select the “Settings” icon (Fig. 3.1) in the Main Menu then choose “Brightness” (Fig. 3.2)
• Select the brightness you wish (Fig. 3.3)
Eco Mode/ Standard Mode/ Boost Mode
Fig. 3.1 Fig. 3.2 Fig. 3.3
“Boost mode” should only be used in low temperature, low altitude environments with adequate
clearance of exhaust/intake vents. A tripod is highly recommended. DO NOT block vents while
operating in Boost mode.
*For Wi Menu please see Page (20).
32

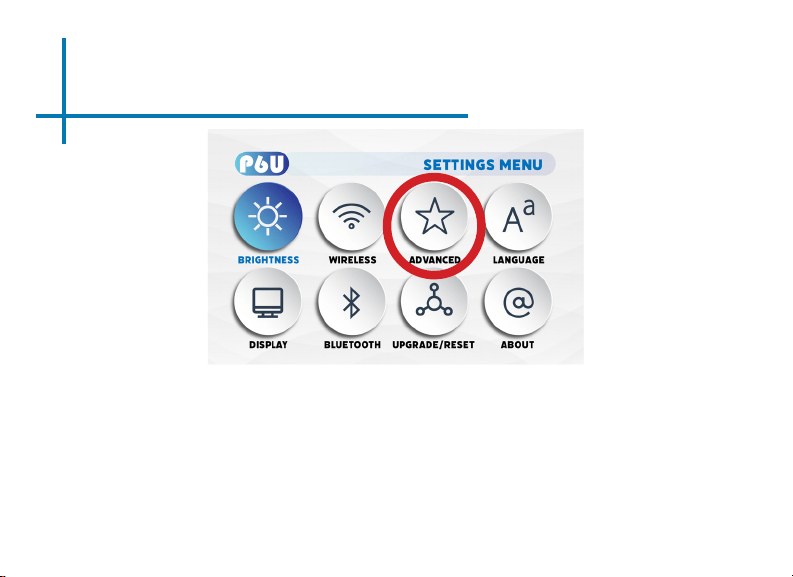

Advanced Settings
In the Advanced setting menu, you can set up:
• Network & Internet
• Bluetooth
• Accounts Sign in
• Apps
• Device Preferences: About, Date & Time, Language, Keyboard & Autoll, Mouse
Mode, Display, Inputs, Sound, Storage, Screen Saver, Developer Options, Location,
Security & Restrictions, Accessibility and Reset.
33
Language Settings
In the Language Settings menu, you can select your preferred language.
33 34

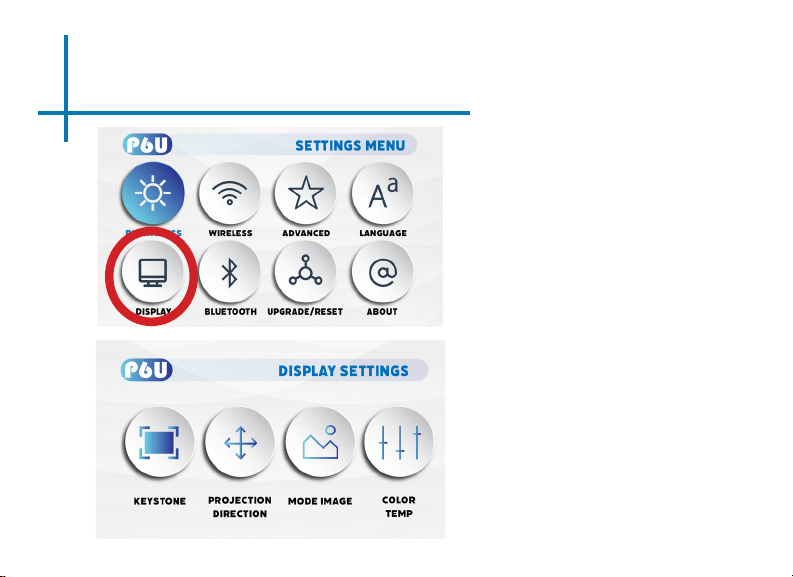

Display Settings
Keystone
• Change Image Keystone
Projection Direction
• Front Vertical, Rear Vertical, Rear
Inverted, Front Inverted
Mode Image
• Auto Mode, 4:3, 16:9
Color Temperature
• Medium, Cool, Warm
In the Display setting menu, you can
set up:
• Projection Direction
• Mode Image
• Color Temperature
35
Adjusting Keystone
1. The P6U features 4-way adjustable keystone.
2. Enter the Keystone submenu (g 1).
3. Keystone is adjusted by selection each corner of the screen and adjusting either
the X or Y coordinate. The adjustments will push or pull the screen at each
corner along the X or Y axis. The amount of correction can be selected with the
keypad or remote control.
4. User can “restore” to original.
Fig. 1
36

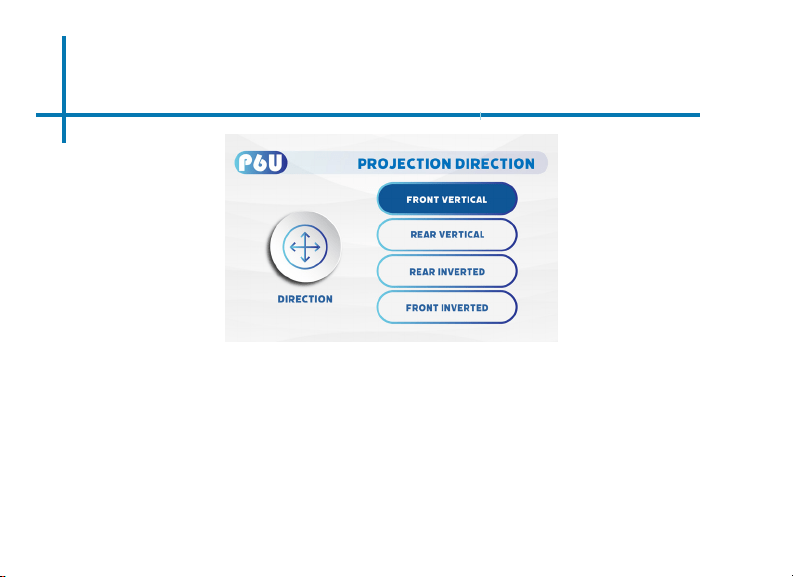

Projection Direction
• Front Vertical
• Rear Vertical
• Rear Inverted
• Front Inverted
37

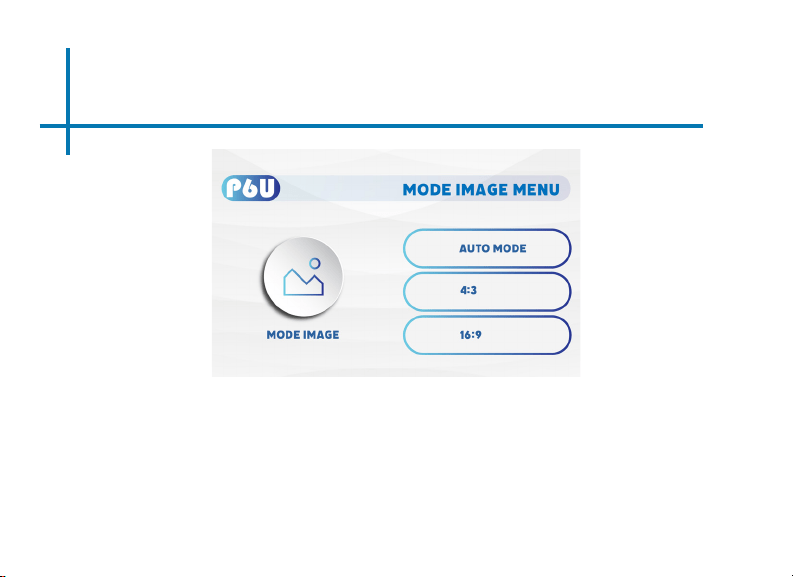

Mode Image Menu
• Set the image mode to Auto Mode
• Set the image mode to 4:3
• Set the image mode to 16:9
38

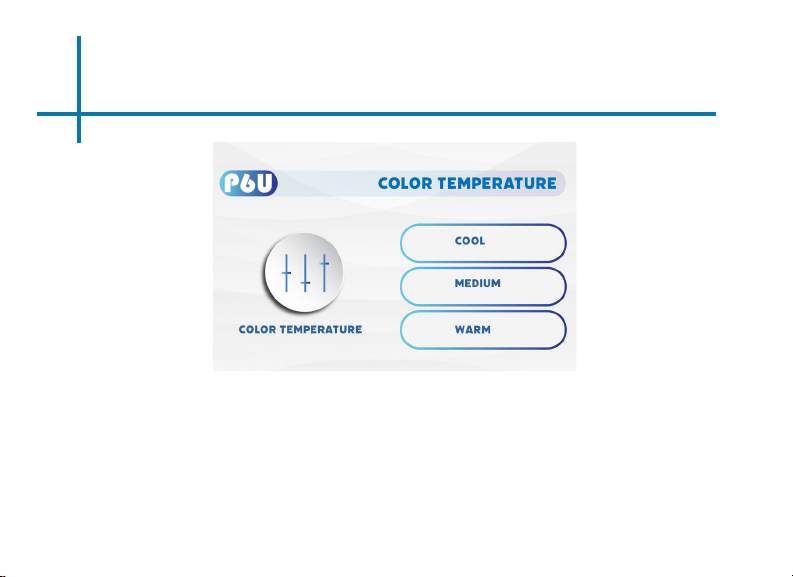

Color Temperature
Color TemperatureColor Temperature
• • Set the color temperature to CoolSet the color temperature to Cool
• • Set the color temperature to MediumSet the color temperature to Medium
• • Set the color temperature to WarmSet the color temperature to Warm
39
Bluetooth Menu
How to connect the P6U to bluetooth for audio out
• In the Settings Menu, go to the Bluetooth menu by selecting the bluetooth icon
• In the Bluetooth submenu, toggle the “On/O” switch beneath the bluetooth icon
to “On”
• Select the desired bluetooth device. Make sure that your device is not connected
to any other devices and it is placed near the P6U.
• Note: Bluetooth is for audio output only – does not accept audio input or video
streaming.
39 40
Backup/Reset Menu
How to reset the P6U
• In the Settings Menu, go to the Backup/Reset menu by selecting the Upgrade/Reset
icon.
• In the Backup Reset menu, you can choose to Reset the P6U, or Update Android.
41

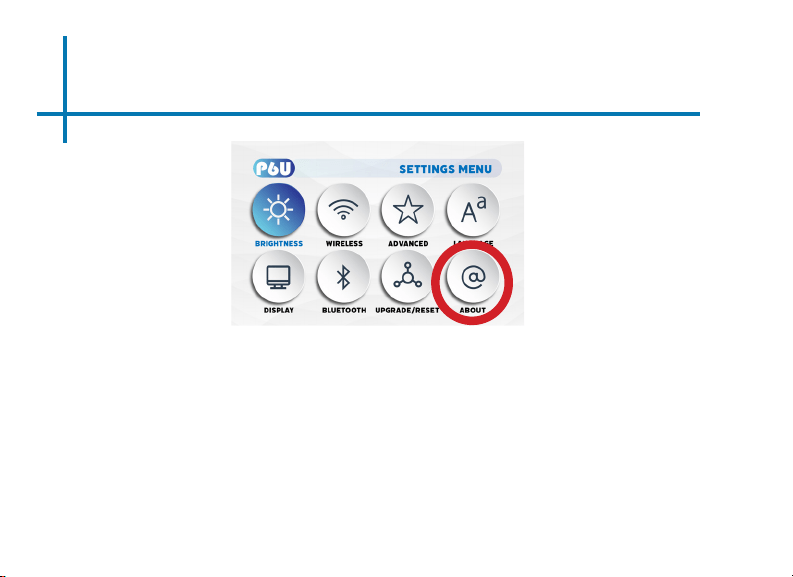

About Menu
How to view P6U “About” information
• In the Settings Menu, go to the About Menu by selecting the about icon
• In the About menu, you can Update System, check Device Name, Restart, Check Status
& Legal Information, check Model Name & Android Version, check Android Security
Patch Level, Kernel version and Build.
42
*HDMI™ is a registered trademark of HDMI Licensing LLC. AAXA Technologies is not aliated with HDMI Licensing LLC.
Notes
42
Please direct all customer service inquiries to:
AAXA Technologies, Inc.
17781 Sky Park Circle, Suite #F
Irvine, CA 92614
(714) 957-1999
