WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
2
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSES
4 INSTALLATION PROCEDURE
5 ASSEMBLING AND PREPARING
5 Unpacking
7 Parts and buttons
9 Lifting and moving the TV
10 Setting up the TV
10 - Attaching the Stand
12 - Mounting on a table
12 - Tidying cables
14 - Detaching the Stand
15 - Mounting on a wall
17 WATCHING TV
17 Turning the TV on for the first time
19 TV display (5:9 OSD)
19 - Program Guide
20 PIP function
22 MAKING CONNECTIONS

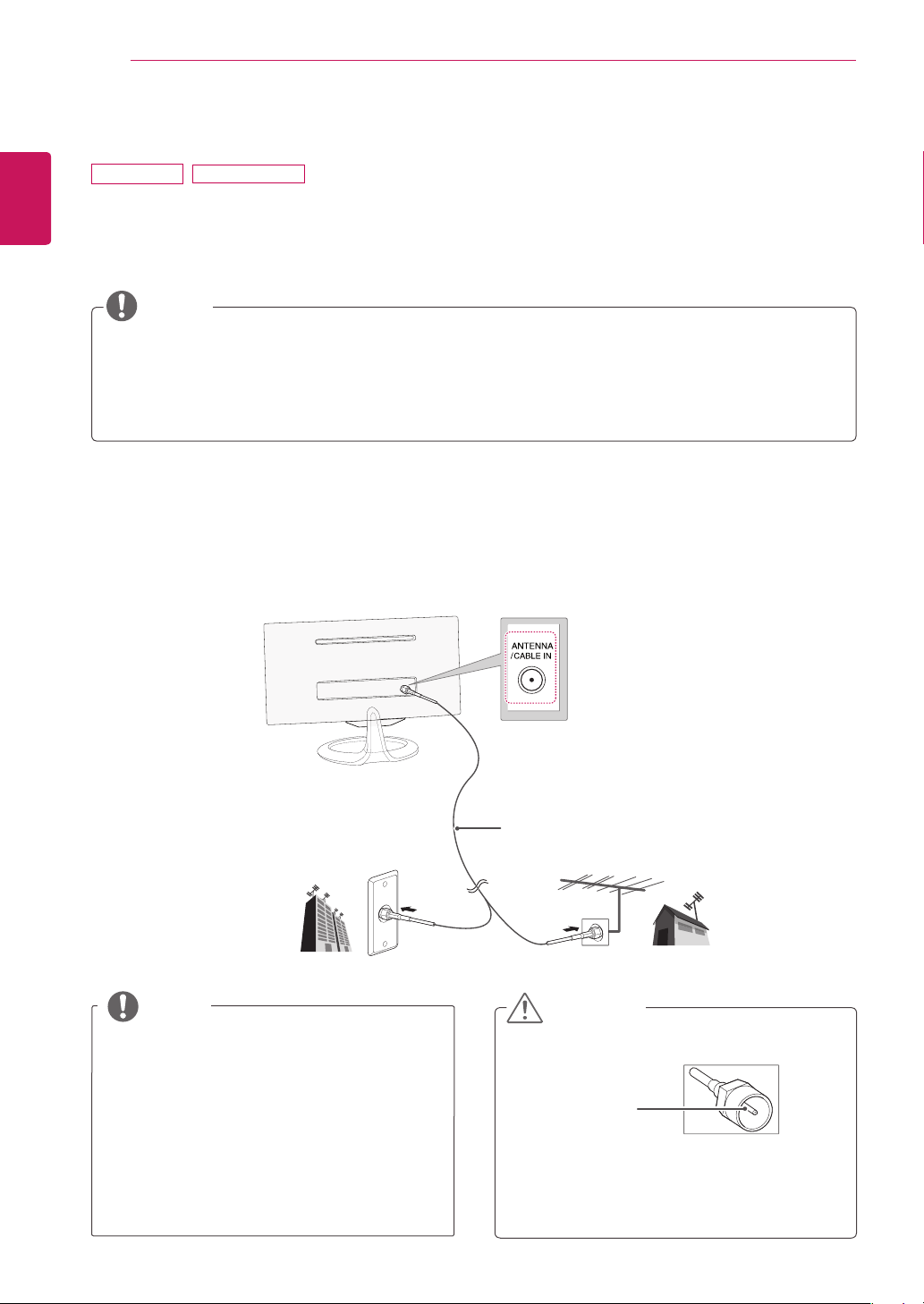

22 Connecting an antenna
23 Connecting to a HD receiver, DVD Player,
VCR or Gaming device

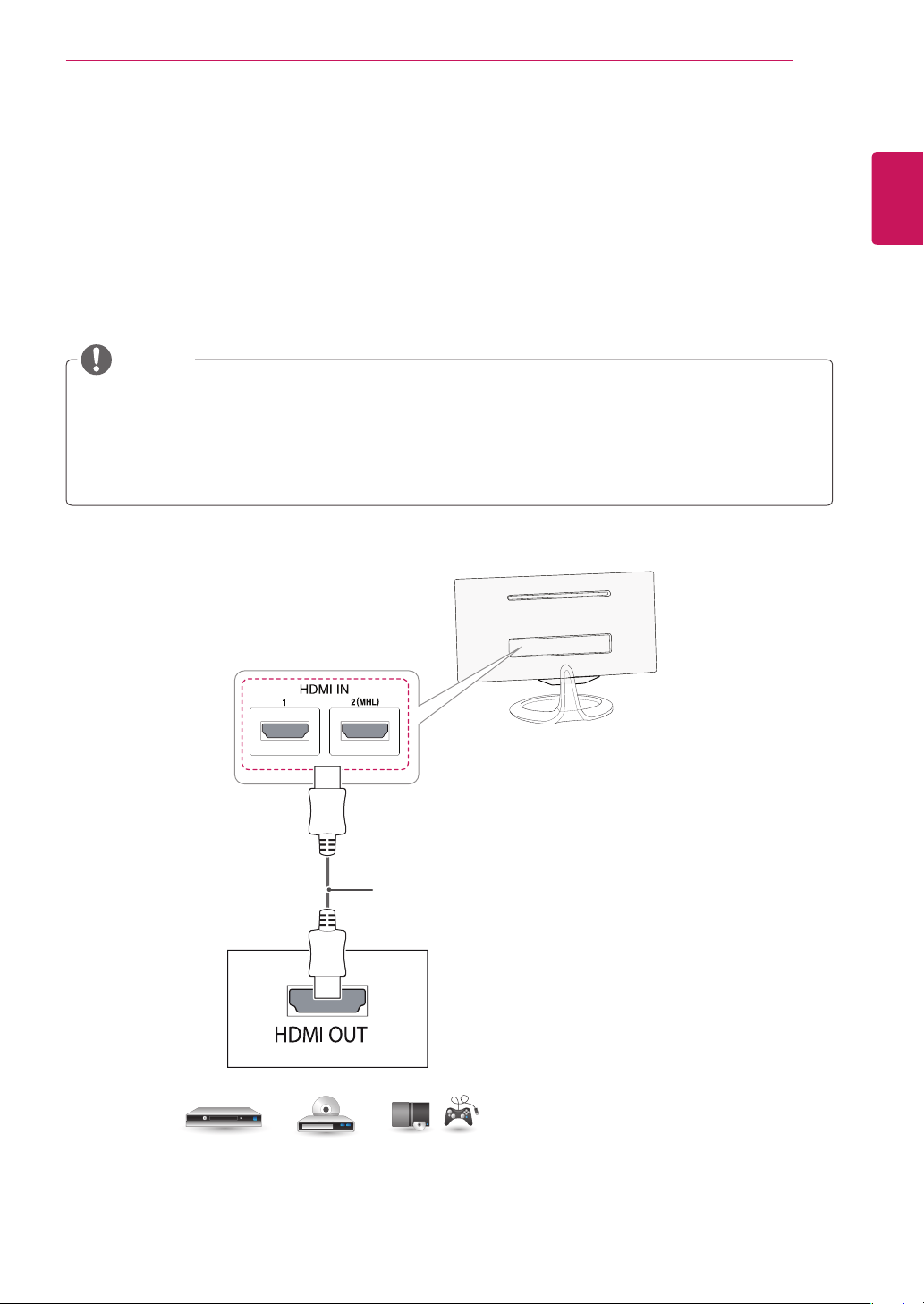

23 - HDMI connection

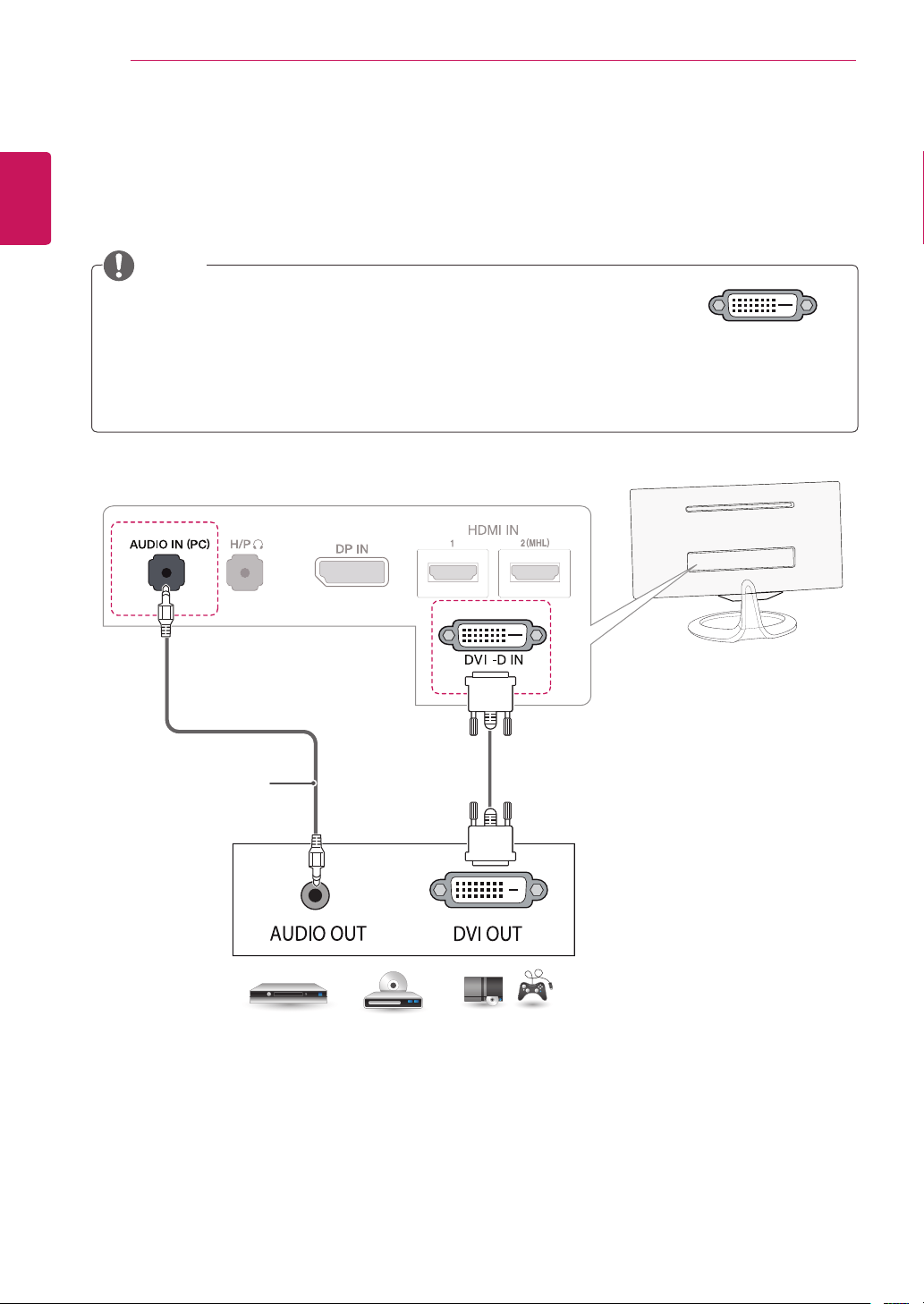

24 - DVI-D connection

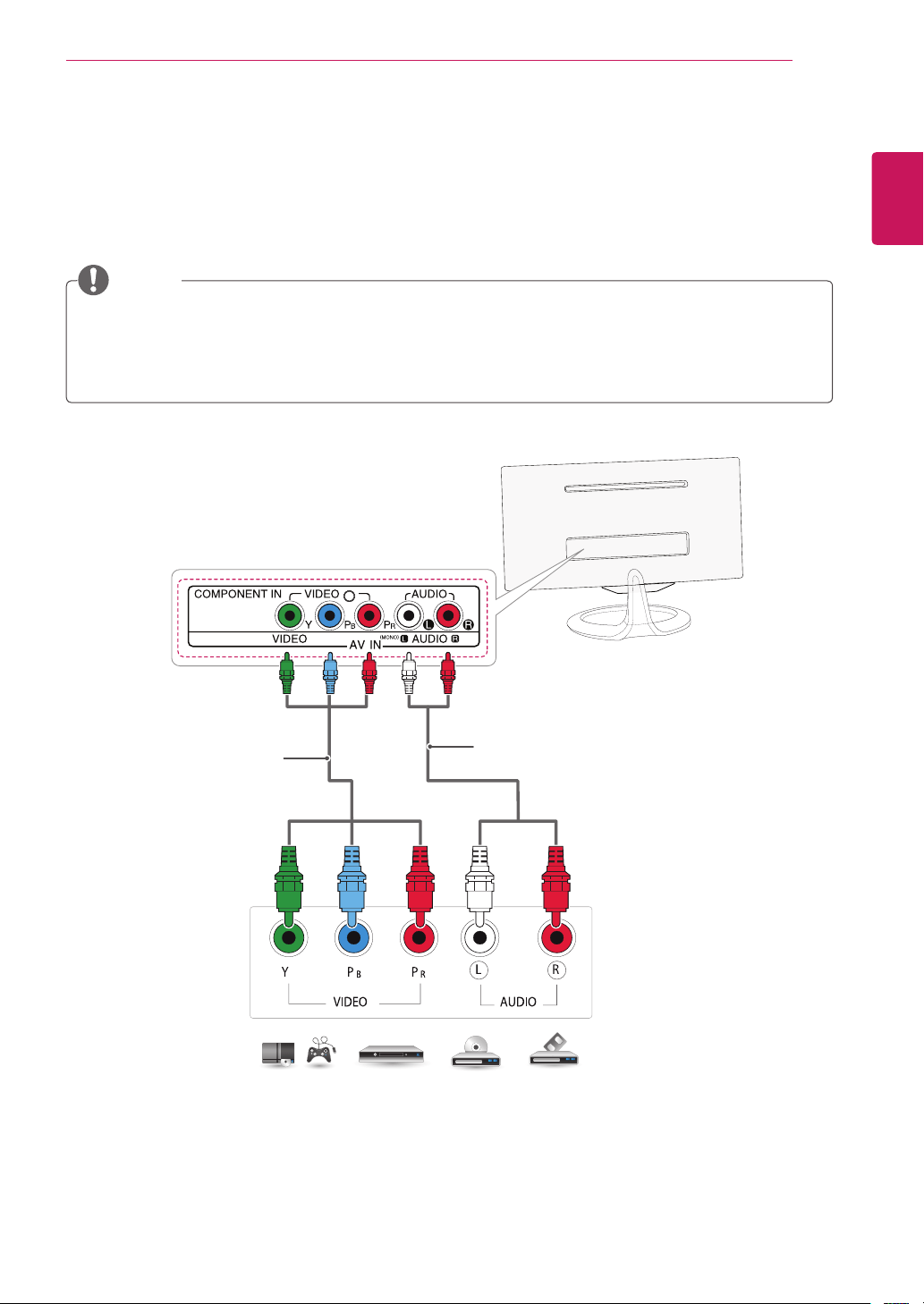

25 - Component connection
26 - Composite Connection
27 Headphone connection

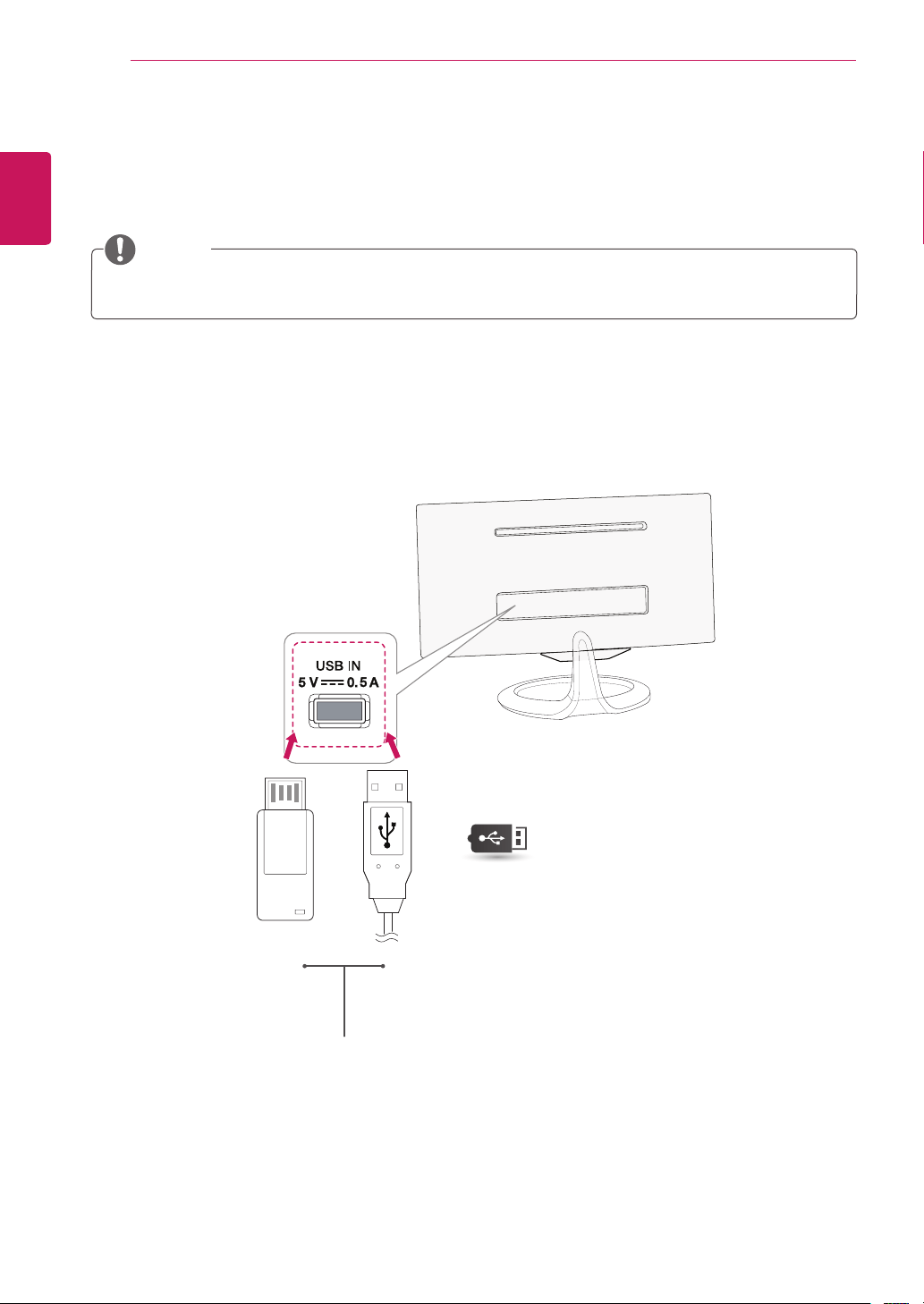

28 Connecting a USB Device
29 Smartphone (MHL) connection
30 Connecting to a PC

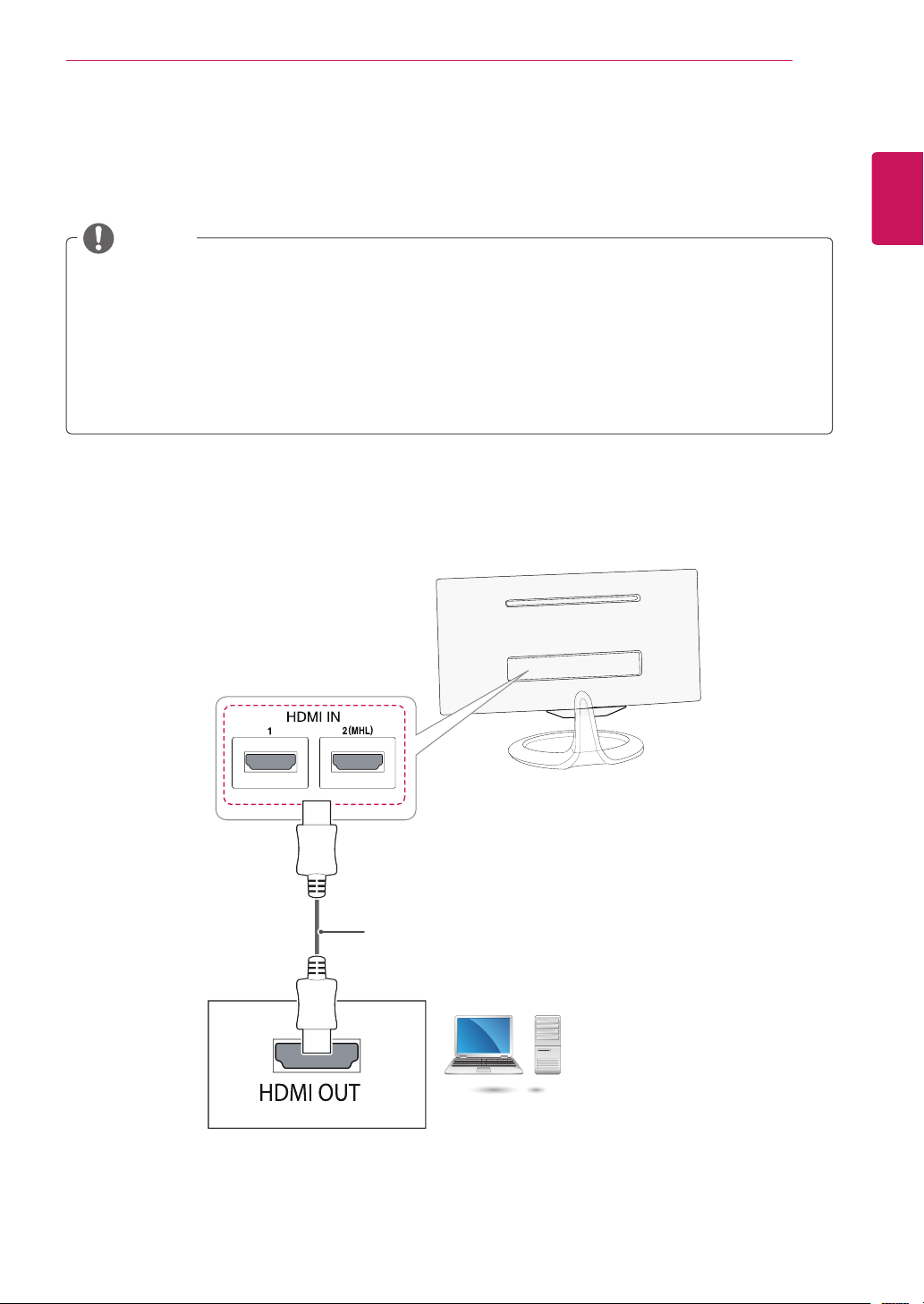

31 - HDMI connection
32 - DVI-D connection
33 - Display Port connection
34 REMOTE CONTROL
36 INSTALLING SCREEN SPLIT
37 CUSTOMIZING SETTINGS
37 Accessing the Main Menus
37 - TV, Component, AV
43 - DVI, HDMI1, HDMI2/MHL, DisplayPort
50 USING THE USER GUIDE
50 Accessing the On-Screen User Guide
51 MAINTENANCE
51 Cleaning Your TV
51 Screen and frame
51 Cabinet and stand
51 Power cord
52 Preventing “Image burn” or “Burn-in” on
your TV screen
53 TROUBLESHOOTING
54 SPECIFICATIONS
ENGLISH
3
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
VESA, VESA logo, Display Port Compliance Logo and Display Port Compliance
Logo for dual-mode source are all registered trademarks of the Video Electronics
Standards Association.
ENGLISH
4
INSTALLATION PROCEDURE
INSTALLATION PROCEDURE
1
Open the package and make sure all the accessories are included.
2
Attach the stand to the TV.
3
Connect an external device to the TV.
Image shown may differ from your TV.
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are
using.
New features may be added to this TV in the future.
NOTE
ENGLISH
5
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
The accessories supplied with your product may vary depending on the model.
Product specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
NOTE
Do not use any pirated items to ensure the safety and product life span.
Any damages or injuries by using unapproved or counterfeit parts or accessories are not covered
by the warranty.
CAUTION
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.
NOTE
*A 10 mm
*B
18 mm
A
B
A
B
ENGLISH
6
ASSEMBLING AND PREPARING
(See p.34, See p.35)
(See p.12) (See p.12)
(See p.24, See p.32)
(See p.12)
(See p.10, See p.14)
(See p.10, See p.14) (See p.10, See p.14)
(See p.10, See p.14)
Remote Control
Batteries (AAA)
Power Cord
Stand Base
CD (Owner's Manual)
Cards
Stand Body
Screw 2 ea Stand Screw cover
Cable Tie
AC-DC Adapter
DVI-D cable
29MA73D 29LN450W
ENGLISH
7
ASSEMBLING AND PREPARING

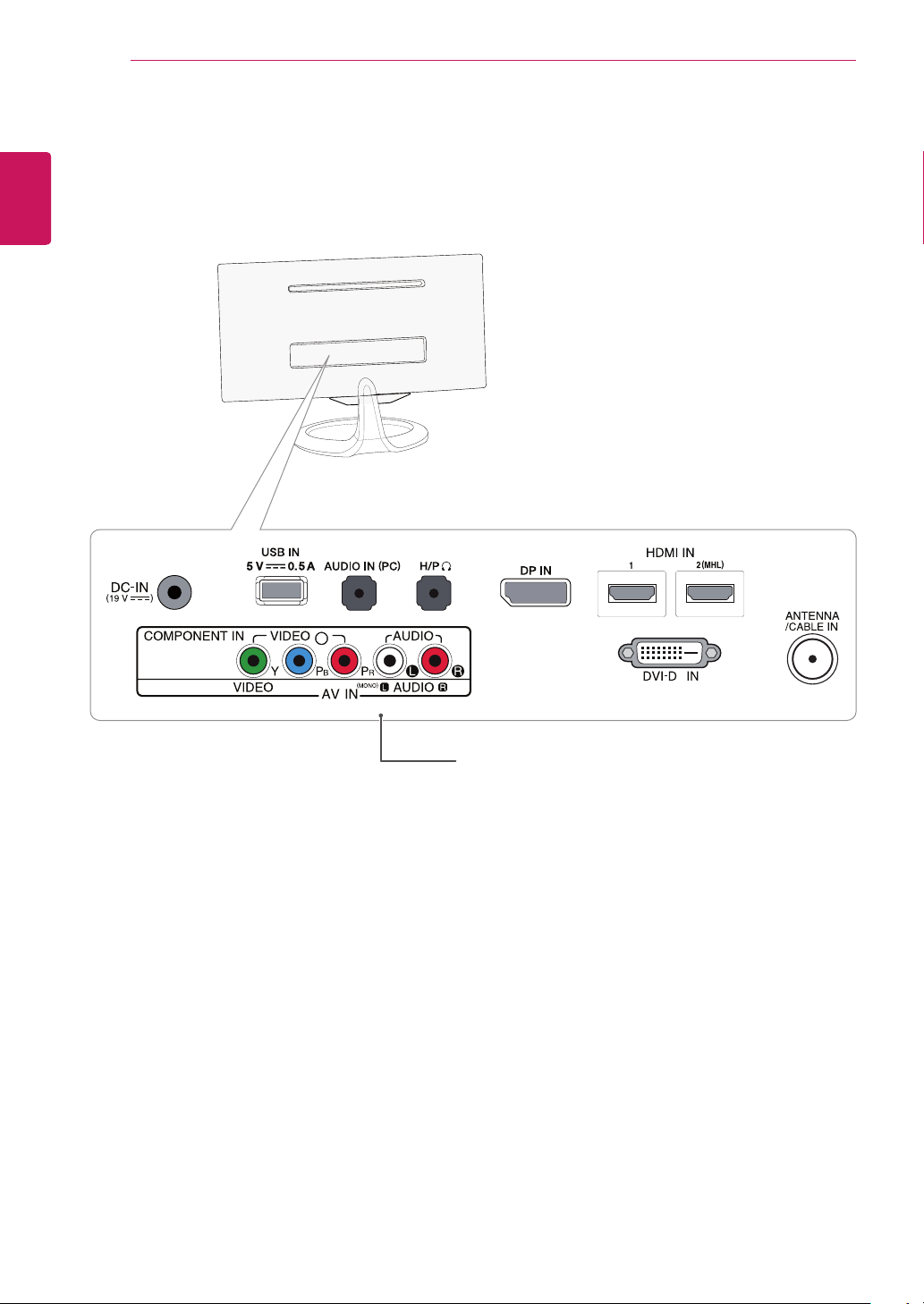

Parts and buttons
All of the buttons are touch sensitive and can be operated
through simple touch with your finger.
Power and control touch button are located on the bottom.
NOTE
Touch button Description
Scrolls through the saved programmes.
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
/ I
Turns the power on or off.
Touch Buttons
Remote Control Sensor
Standby Light
Lighting On :
When Power is turned off
Lighting Off :
When Power is turned on
29MA73D 29LN450W
ENGLISH
9
ASSEMBLING AND PREPARING
When holding the TV, the screen should face
away from you to prevent the screen from
scratches.
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
When transporting the TV, keep the TV
upright, never turn the TV on its side, or tilt
towards the left or right.

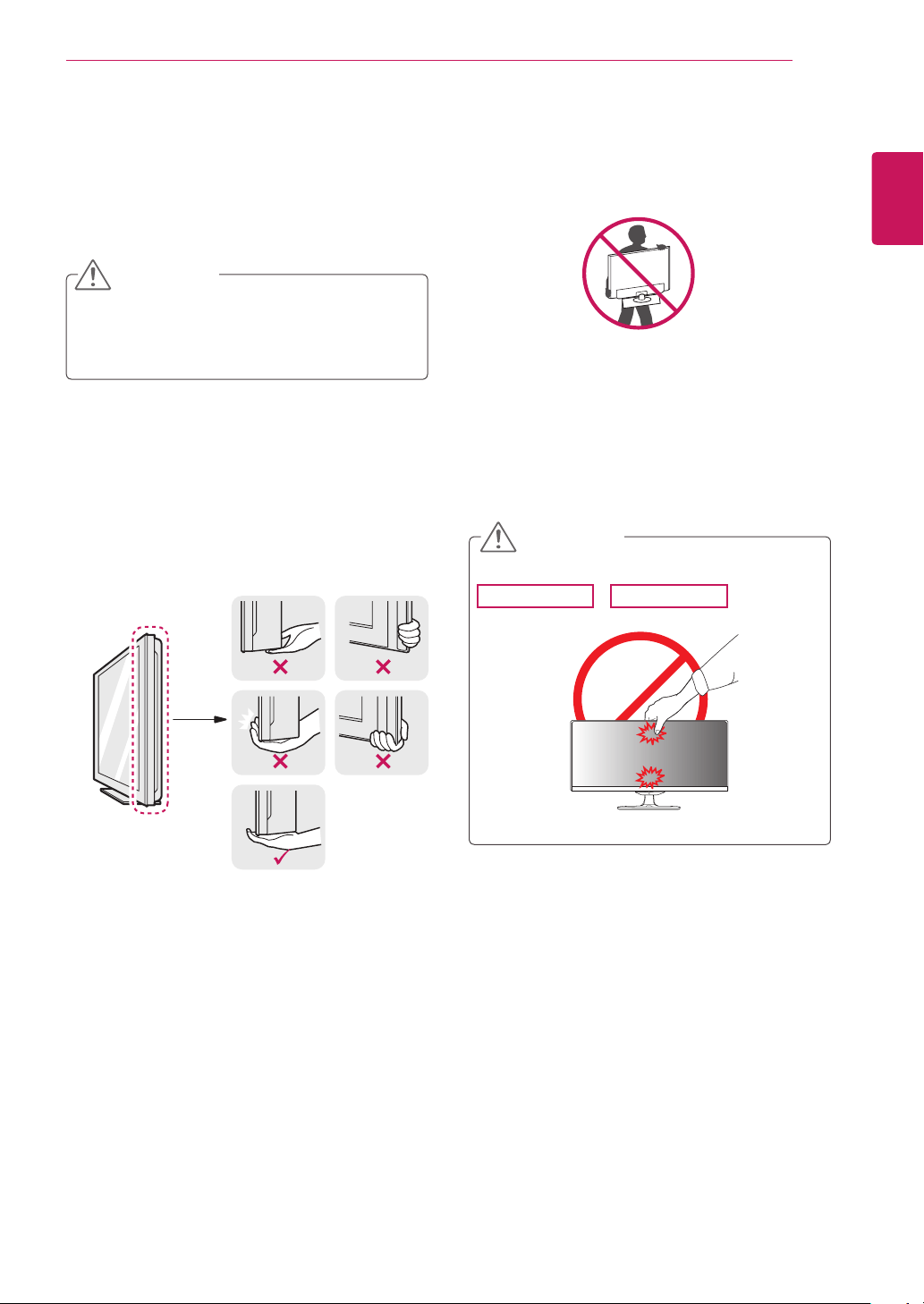

Lifting and moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for save transportation regardless of
its type and size.
Avoid touching the screen at all times, as
this may result in damage to the screen or
some of the pixels used to create images.
CAUTION
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
Before moving or lifting the TV, disconnect
the power cord and all cables.
Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
CAUTION
29MA73 29LN450
ENGLISH
10
ASSEMBLING AND PREPARING
4
Attach the Stand Base from the Stand Body by
turning the screw to the right with a Coin.
Setting up the TV
Attaching the Stand
1
Place the screen face down.
To protect the screen from scratches, cover
the surface with a soft cloth.
3
Fix two screws into the back of the stand base
and close the screw cover.
2
Check the orientation (front and rear) of the
stand base and mount the Stand Body to the
stand hinge as shown in the figure.
Stand Body
Stand Hinge
Stand Base
Stand Screw
Cover
CAUTION
ENGLISH
11
ASSEMBLING AND PREPARING
CAUTION
Do not carry the monitor upside-down by
holding the stand body as this may cause it
to fall off, resulting in damage or injury.
The illustration shows a general example of
installation and may look different from the
actual product.
Do not carry the monitor upside-down
as this may cause it to fall off its stand,
resulting in damage or injury.
The illustration shows a general example of
installation and may look different from the
actual product.
ENGLISH
12
ASSEMBLING AND PREPARING
Mounting on a table
1
Lift and tilt the TV into its upright position on a
table.
Leave a 10 cm (4 inches) (minimum) space
from the wall for proper ventilation.
Disconnect the power cord first, and then move
or install the TV. Otherwise electric shock may
occur.
CAUTION
10 cm
10 cm
10 cm
10 cm
2
Connect the AC-DC Adapter and Power Cord
to a wall outlet.
Do not place the TV near or on sources of
heat, as this may result in fire or other damage.
CAUTION
Tilt from -5 to +20 degrees up or down to
adjust the angle of the TV to suit your view.
NOTE
Front Rear
Tidying cables
Gather and bind the cables with the supplied
cable tie.
-5 20
:
ENGLISH
13
ASSEMBLING AND PREPARING
Using the Kensington security system
The Kensington security system connector is
located at the back of the TV. For more information
of installation and using, refer to the manual
supplied with the Kensington security system or
visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the TV and a table.
The Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
NOTE
Be careful not to touch or press the screen
area when adjusting the angle of the TV.
-520
-520
When you adjust the angle, do not hold
the buttom of the TV frame as shown on
the following illustration, as may injure your
fingers.
WARNING
-5 20
:
-5 20
:
-5 20
:
Be careful not to press the screen with your
fingers or palm.
ENGLISH
14
ASSEMBLING AND PREPARING
Detaching the Stand
1
Place the screen face down.
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
3
Open the screw cover on the back of the stand
body and use a screw driver to remove the two
screws.
Stand Screw
Cover
2
Turn the screw to the left, and then pull out the
Stand Base from the Stand Body.
ENGLISH
15
ASSEMBLING AND PREPARING
5
Please use VESA standard as below.
784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw :
Φ
4.0 mm x Pitch 0.7 mm x
Length 10 mm
787.4 mm (31.0 inch) and above
* Please use VESA standard wall mount pad
and screws.

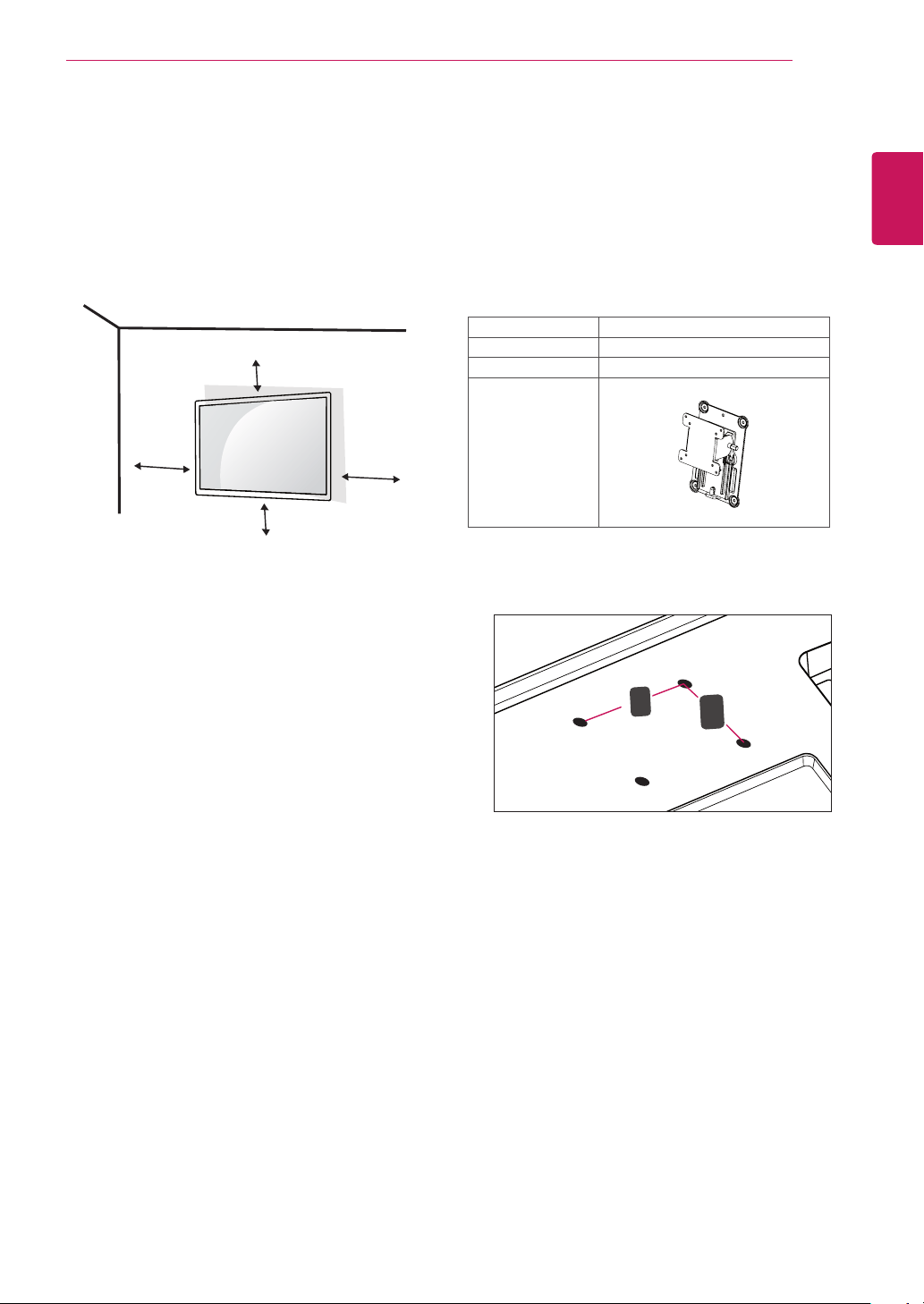

Mounting on a wall
For proper ventilation, allow a clearance of 10
cm on each side and from the wall. Detailed
installation instructions are available from your
dealer, see the optional Tilt Wall Mounting Bracket
Installation and Setup Guide.
If you intend to mount the TV to a wall, attach Wall
mounting interface (optional parts) to the back of
the TV.
When you install the TV using the wall mounting
interface (optional parts), attach it carefully so it
will not drop.
1
Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2
If you use screw longer than standard, the TV
might be damaged internally.
3
If you use improper screw, the product might
be damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
4
VESA compatible only with respect to screw
mounting interface dimensions and mounting
screw specifications.
VESA (A x B)
A
B
10 cm
10 cm
10 cm
10 cm
VESA (A x B) 100 x 100
Standard screw M4
Number of screws 4
Wall mount bracket
(optional)
RW120
ENGLISH
16
ASSEMBLING AND PREPARING
Disconnect the power cord first, and then
move or install the TV. Otherwise electric
shock may occur.
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
CAUTION
Use the screws that are listed on the VESA
standard screw specifications.
The wall mount kit includes an installation
manual and necessary parts.
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
For more information, refer to the instructions
supplied with the wall mount.
NOTE
ENGLISH
17
WATCHING TV
Turning the TV on for the first time
When you access the TV for the first time, the initial setting screen appears. Select a language and
customize the basic settings.
1
Connect the power cord to a power outlet.
2
Press on the TV or power button on the remote control to turn the TV on.
The Standby Light is turned off.
3
The initial setting screen appears if you access the TV for the first time.
When the TV is in Power saving mode, the Standby Light turns amber.
NOTE
If you do not operate the TV within 40 seconds when the setting menu screen appears, the setting
menus will disappear.
NOTE
WATCHING TV
4
Follow the on-screen instructions to customize your TV according to your preferences.
Language
Mode Setting
Power Indicator
Time Zone
Auto Tuning
Selects Home Use for the home environment.
Selects the time zone and daylight saving.
Selects the Standby Light. If you select On, the TV turns on the Standby Light in
the front panel when the TV is off.
Selects a language for the display.
Scans and saves available programs automatically.
ENGLISH
18
WATCHING TV
For those countries without confirmed DTV broadcasting standards, some DTV features might not
work, depending on the DTV broadcasting environment.
To display images in the best quality for your home environment, select Home Use mode.
Store Demo mode is suitable for the retail environment.
If you select Store Demo mode, the previously customized settings will switch to the default
settings of Store Demo mode in 5 minutes.
NOTE
You can also switch the TV from PC mode to TV mode, press TV/PC.
You can also access Initial Setting by accessing OPTION in the main menus.
NOTE
5
When the basic settings are complete, press OK.
6
To turn the TV off, press on the TV.
The Standby Light is turned on.
If you do not complete the initial setting, it will appear whenever you access the TV.
NOTE
Disconnect the power cord from the power outlet when you do not use the TV for a long period of
time.
CAUTION
ENGLISH
19
WATCHING TV
57
1. 1.
.0/0
1. 1.
1. 1.
1. 1.
"
J
%
#
$
%
&
8BUDI
: .PWF : 0,
▶
◀
4DIFEVMF 0UIFSDIBOOFMT
1. 1.
Press the INFO button on the remote control while you are watching TV.
- On the right-hand side (5:9 OSD) of the TV screen, the details of channel you are
currently watching and the channel organization information are displayed.
- For analogue TV, the message "No program information available" is displayed.
- Only digital TV channels are searched and displayed. If there is no channel available,
the message "No program information available" is displayed.
NO. Description
①
Displays the channel you are currently watching.
②
Displays the broadcasting type of the channel you are currently watching.
③
Displays the broadcasting type icon.
(e.g., HD, Dolly, Digital, etc.)
④
Displays the current date and time.
⑤
Displays the current channel or the entire channel list.
⑥
Broadcasting type icon area
⑦
Displays the name of program you are currently watching.
⑧
Displays the running time of the program.
- Displays the progress including start and end times of the program.
⑨
Displays the available functions.
- If the channel you are currently watching is focused, the Watch function is displayed.
- If the channel you are not currently watching is focused, the Schedule function is displayed.
TV display (5:9 OSD)
Program Guide
①
②
③
④
⑤
⑥
⑦
⑧
⑨
5$7,2
ENGLISH
20
WATCHING TV
Press the PIP button on the remote control while you are watching DVI, HDMI1,2, DisplayPort
PIP function
DVI
TV
1*14VC 1PTJUJPO
PIP 4FUUJOH
PIP Preview
4J[F
◀▶: .PWF OK : 4FMFDU
: &YJU
"VJEP
3BUJP
5SBOTQBSFODZ
&YJU
①
②
③
5$7,2
While watching PIP, press the PIP Settings button on the remote control to display the Sub Menu.
DVI
TV
57
PIP 4VC
PIP Preview
◀▶: .PWF OK : 4FMFDU
: &YJU
&YJU
..
%JTQMBZ1PSU
#BDL
ENGLISH
21
WATCHING TV
NO. Description
①
Displays the configured OSD icon and its name.
Input
Selects an option for PIP Sub. (See the PIP Map below.)
PIP Map PIP Sub
DVI HDMI1 HDMI2/
MHL
DisplayPort TV
current
input
DVI X X X O O
HDMI1 X X X O O
HDMI2/
MHL
X X X O O
DisplayPort O O O X O
TV X X X X X
Position
Sets the position of the PIP Sub window. (top left, top right, bottom left or bottom right
corner)
*This function is disabled when size is set to [Balanced].
Size Sets the size of the PIP Sub window. (Small / Medium / Large / Balanced)
Audio
Selects the audio input.
*Only the items that are available under the current combination are enabled (PIP Main/PIP
Sub or Audio in).
Ratio
Sets the aspect ratio of PIP Sub.
*This function is disabled when Size is set to [Balanced].
Transparency
Sets the opacity of PIP.
(OFF/25%/50%/75%)
*This function is disabled when Size is set to [Balanced].
③
Exit button
- Exits the OSD menu.
②
ENGLISH
22
MAKING CONNECTIONS
Connect various external devices to the TV and switch input modes to select an external device. For more
information about an external device’s connection, refer to the manual supplied with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
camcorders or cameras, gaming devices, and other external devices.
If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
manual supplied with the connected device.
The external device connection may differ from the model.
Connect external devices to the TV regardless of the order of the TV port.
MAKING CONNECTIONS
Connecting an antenna
Connect an antenna, cable or cable box to watch TV referring to the following. The illustrations may differ
from the actual accessories and an RF cable is optional.
Connect the TV to a wall antenna socket with an RF cable (75 Ω).
Use a signal splitter to use more than 2 TVs.
If the image quality is poor, install a signal
amplifier properly to improve the image
quality.
If the image quality is poor with an antenna
connected, aim the antenna to the proper
direction.
Visit
http://AntennaWeb.org
for more
information about the antenna and cable
connection.
NOTE
Make sure not to bend the copper wire of
the RF cable.
Complete all connections instructions
between devices, and then connect the
power cord to the power outlet to prevent
damages to your TV.
CAUTION
Copper wire
Wall Antenna Socket
Outdoor Antenna
VHF Antenna
UHF Antenna
(Not Provided)
NOTE
29MA73D 29LN450W
ENGLISH
23
MAKING CONNECTIONS
Outdoor Antenna
VHF Antenna
UHF Antenna
Connecting to a HD receiver, DVD Player, VCR or Gaming device
Connect a HD receiver, DVD Player, VCRor Gaming device to the TV and select an appropriate input mode.
HDMI connection
HDMI is the best way to connect a device.
Transmits the digital video and audio signals from an external device to the TV. Connect the external device
and the TV with the HDMI cable as shown on the following illustration.
HDMI cable to the HDMI input and a digital broadcast receiver, connect the HDMI output. Video, with
sound output.
Press the INPUT button on the remote control to select either HDMI1 or HDMI2/MHL.
Dolby Digital and DTS are not supported. If no sound is coming out, set the audio output of the
connected device to PCM.
NOTE
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
(Not Provided)
Choose any HDMI input port to connect.
It does not matter which port you use.
ENGLISH
24
MAKING CONNECTIONS
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
DVI-D connection
Transmits the digital video signal from an external device to the TV. Connect the external device and the
TV with an DVI-D dual cable as shown in the following illustration. To transmit an audio signal, connect an
optional audio cable.
Please use the DVI-D dual cable provided.
If you do not use DVI-D dual cable, this may result in distortion on the screen.
If you do not use an optional external speaker, connect the external device to the TV with an optional
audio cable.
Connect the signal input cable and tighten it by turning the screws clockwise.
Press the INPUT button on the remote control to select DVI.
NOTE
(Not Provided)
DVI-D ᯦ಆ
HDMI
᯦ಆ
AUDIO IN(PC)
༉י
1
2(
MHL
)
DP
᯦ಆ
H/
P
US
B
᯦ಆ
5 V 0.5 A
DC
-IN
(19 V )
ENGLISH
25
MAKING CONNECTIONS
Component connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the component cable as shown on the following illustration. To display images by
using progressive scan, make sure to use a component cable.
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
(Not Provided)
(Not Provided)
If cables are installed incorrectly, it could case the image to display in black and white or with distorted
color.
Check to ensure each cable is matched with the corresponding color connection.
Press the INPUT button on the remote control to select Component.
NOTE
ENGLISH
26
MAKING CONNECTIONS
Composite Connection
Transmits the analog video and audio signals from an external device to the TV. Connect the external
device and the TV with the composite cable as shown on the following illustration.
DVD / Blu-Ray / HD Cable Box /
HD STB / Gaming device
(Not Provided)
NOTE
Check to ensure each cable is matched with the corresponding color connection.
Press the INPUT button on the remote control to select AV.
ENGLISH
27
MAKING CONNECTIONS
Headphone connection
Transmits the headphone signal from the TV to an external device. Connect the TV with the headphone as
shown on the following illustration.
Headphone
(Not Provided)
AUDIO menu items are disabled when connecting a headphone.
Headphone impedance: 16
Max audio output of headphone: 2.5 mW to 5.5 mW
Headphone jack size: 0.35 cm
NOTE
ENGLISH
28
MAKING CONNECTIONS
Connecting a USB Device
Connect a USB storage device such as s USB flash memory, external hard drive, MP3 player or a USB
memory card reader to the TV and access the MY MEDIA to use various multimedia files.
or
USB
(Not Provided)
It may not work when USB 3.0 devices are connected.
NOTE
ENGLISH
29
MAKING CONNECTIONS
Mobile High-definition Link (MHL) is an interface
that allows you to play video and audio from your smartphone on the monitor by connecting the monitor
to your smartphone. Connect the smartphone to the HDMI2/MHL port of the monitor using the supplied
MHL signal cable and switch the input by pressing the input button on the monitor.
This function only works for smartphones that support MHL.
- There may be compatibility issues with other mobile phones.
NOTE
Mobile phone
(Not Provided)
Smartphone (MHL) connection
Use of the MHL remote control is not supported during the PIP operation.
ENGLISH
30
MAKING CONNECTIONS
Connecting to a PC
Your TV supports the Plug & Play* feature.
* Plug & Play: The function when a PC recognizes a connected device and requires no driver to be installed.
It is recommended to use an TV with the HDMI connection for the best image quality.
If you do not use an optional external speaker, connect the PC to the TV with the optional audio
cable.
If you turn the TV on when the set is cold, the screen may flicker. This is normal.
Some red, green, or blue spots may appear on the screen. This is normal.
Connect the signal input cable and tighten it by turning the screws clockwise.
Do not press the screen with your finger for a long time as this may result in temporary distortion on
the screen.
Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a
screensaver if possible.
When connecting the power cord to the outlet, use a grounded (3-hole) multi-socket or a grounded
power outlet.
To comply with the standard specifications of the product, make sure to use a shielded interface
cable made with a ferrite core for DVI-D and DVI-to-HDMI cables.
NOTE
ENGLISH
31
MAKING CONNECTIONS
HDMI connection
Transmits the digital video and audio signals from your PC to the TV. Connect the PC and the TV with an
HDMI cable as shown in the following illustrations.
(Not Provided)
Use a High Speed HDMI™ cable.
Please check your PC settings if you cannot hear any sound in HDMI mode.
Press the INPUT button on the remote control to select either HDMI1 or HDMI2/MHL.
Using a DVI to HDMI cable may cause compatibility issues.
HDMI PC may cause device compatibility issues.
Dolby Digital and DTS are not supported. If no sound is coming out, set the audio output of the
connected device to PCM.
NOTE
PC
Choose any HDMI input port to connect.
It does not matter which port you use.
Using a non-standard HdMi cable May caUse a probleM witH soMe of tHe fUnctions.
It is highly recommended to use a standard cable.
ENGLISH
32
MAKING CONNECTIONS
PC
DVI-D connection
Transmits the digital video signal from your PC to the TV. Connect the PC and an TV with an DVI-D dual
cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.
Please use the DVI-D dual cable provided.
If you do not use DVI-D dual cable, this may result in distortion on the screen.
If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.
Using a DVI to HDMI cable may cause compatibility issues.
Connect the signal input cable and tighten it by turning the screws clockwise.
Press the INPUT button on the remote control to select to DVI.
NOTE
(Not Provided)
DVI-D ᯦ಆ
HDMI
᯦ಆ
AUDIO IN(PC)
༉י
1
2(
MHL
)
DP
᯦ಆ
H/
P
US
B
᯦ಆ
5 V 0.5 A
DC
-IN
(19 V )
ENGLISH
33
MAKING CONNECTIONS
%1065
(Not Provided)
PC
Display Port connection
Transmits the digital video and audio signals from your PC to the TV. Connect your PC to the TV using the
display port cable as illustrated below.
Sound may not hear depending on the DP version of your PC.
Dolby Digital and DTS are not supported. If no sound is coming out, set the audio output of the
connected device to PCM.
Press the INPUT button on the remote control to select DisplayPort.
Using a DP-to-HDMI or DP-to-DVI cable may cause compatibility issues.
HDMI signals are not converted to DP signals.
If you use a DP-to-HDMI cable, you can watch your media on a PC or other device with DP
output by using the HDMI or DVI input port.
NOTE
(Depending on the country)
ENGLISH
34
REMOTE CONTROL
The descriptions in this manual are based on the buttons of the remote control. Please read this manual
carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
Make sure to point the remote control to the remote control sensor on the TV.
Image shown may differ from your TV.
REMOTE CONTROL
PAGE
(POWER)
Turns the TV on or off.
LIST
Displays the channel table.
INPUT
Selects the input mode.
TV/PC
Selects TV or PC mode.
FLASHBK
Alternates between the two last
channels selected (pressing
repeatedly).
CAPTION
On or Off.
(User Guide)
Accesses the User Guide menu.
AUDIO
Digital signal: Changes the
audio language.
Analog signal: Changes the
MTS sound.
Number buttons
Enters numbers.
FAV
Accesses your favorite channel list.
CH
Selects a channel.
PAGE
Moves to the previous or next
screen.
MUTE
Mutes all sounds.
VOL
Adjusts the volume level.
Adjusts the energy saving.
(Only available in DVI, HDMI or
DisplayPort input mode.)
CAUTION
Do not mix old and new batteries, as this may
damage the remote control.
CAUTION
Remote control
signal receiver
Make sure to point the
remote control at the sensor
on the TV.
ENGLISH
35
REMOTE CONTROL
5$7,2
EXIT
Clears all on-screen displays
and returns to TV viewing from
any menu.
Changes the image mode.
SOUND
Changes the sound mode.
RATIO
Adjusts the ratio.
PIP SIZE
Changes the size of the sub
screen in the PIP mode.
PIP
Turns the PIP mode on or off.
Control buttons
Controls the MY
MEDIA menus (USB).
Colored buttons
These access special
functions in some menus.
OK
Selects menus or options and
confirms your input.
Q.MENU
Accesses the quick menus.
SETTINGS
Accesses the main menu.
Navigation buttons
Scrolls through menus or
options.
BACK
Returns to the previous level.
INFO
ⓘ
Displays the program event
according to time scheduler.
Backlight
Adjusts the brightness of
the screen by controlling the
screen backlight.
PIP SETTINGS
PIP Displays the Menu screen
for the PIP mode.
ENGLISH
36
INSTALLING SCREEN SPLIT
INSTALLING SCREEN SPLIT
1
Check "I accept the terms of the agreement"
on the License Agreement screen and then
click the [Next] button.
Insert the the owner's manual CD included in the product package into your PC's CD driver and install the
screen split.
2
Select the program that you want to install.
NOTE
If you run Screen Split, the Screen Split icon [
] appears in the system tray at the right bottom
of the PC screen.
Right-click the Screen Split icon and select a
layout you want.
ENGLISH
37
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Accessing the Main Menus
The menus displayed on the TV screen may vary depending on the selected input mode.
TV, Component, AV
1
Press SETTINGS to access the main menus.
2
Press the Navigation buttons to scroll to one of the following menus and press OK.
3
Press the Navigation buttons to scroll to the setting or option you want and press OK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
Press OK( ) to set your picture settings.
Customer Support
Exit
Press RED button to access the Customer Support menus.
Customer Support
Using Customer Support feature.
Picture Test
Sound Test
Product/Service Info.
User Guide
Patent Information
LOCK
CHANNEL
AUDIO
OPTION
TIME
MY MEDIA
Adjusts the image size, quality or effect.
Locks or unlocks channels and programs.
Sets up and edit channels.
Adjusts the sound quality, effect or volume level.
Customizes the general settings.
Sets the time, date or Timer feature.
Using integrated media feature.
ENGLISH
38
CUSTOMIZING SETTINGS
To adjust Aspect Ratio
SETTINGS> PICTURE>
Aspect Ratio
Description
16:9 Resizes the image ratio to fit 16:9 screen.
21:9 Resizes the image ratio to fit 21:9 screen.
Just Scan Displays the input signal without any reformatting.
Select Just Scan at the input of DTV/Component.
Set by Program Depending on the input signal, screen aspect ratio changes to 4:3 or 16:9.
4:3 Resizes the image ratio to fit 4:3 screen.
Zoom Resizes the image to fit the screen width. The top and bottom parts of the image may be
cut off.
Cinema Zoom 1
Formats an image to the cinemascope ratio (2.35:1) and zooms in on the ratio.
To select Picture Mode
SETTINGS> PICTURE>
Picture Mode
Description
Select the picture mode optimized for the viewing environment or the program.
Depending on input signal, available range of picture modes may differ.
ꕋ
Expert mode is for picture tuning professionals to control and fine-tune using a specific image. For normal images,
the effects may not be drastic.
Vivid / Standard /
Cinema / Game
Select a Picture Mode of your choice.
Eco The Energy Saver feature changes settings on the TV to reduce power consumption.
ꕋ
Expert 1
ꕋ
Expert 2
Menu for adjusting picture quality that allows experts and amateurs to enjoy the best TV
viewing. This menu for adjustment is provided for ISF-certified picture tuning professionals.
(ISF logo can only be used on ISF-certified TVs.)
ISFccc: Imaging Science Foundation Certified Calibration Control
To fine-tune picture mode
SETTINGS> PICTURE> Picture
Mode> Backlight / Contrast /
Brightness / Sharpness / Color /
Tint / Color Temp.
Description
First select a Picture Mode of your choice.
Depending on the input signal or other picture settings, the range of detailed items for adjustment may differ.
Backlight Adjusts the screen brightness by changing the brightness of the panel.
Contrast
Adjusts the color contrast and brightness of the screen.
Brightness
Sharpness Adjusts the sharpness of the screen.
Color Adjusts the color depth of the screen.
Tint Adjusts the gamma, color temperature and color of the screen.
Color Temp. Adjusts the overall tint of the picture.
In Expert mode, you can fine-tune the picture using the Gamma or Method
options.
ENGLISH
39
CUSTOMIZING SETTINGS
To set Expert Control
SETTINGS> PICTURE>
Picture Mode> Advanced
Control
Description
For each picture mode, screen can be calibrated; or for a special screen, picture settings can be adjusted.
Select the desired Picture Mode. Depending on input signal or other picture settings, the range of detailed items for
adjustment may differ.
Dynamic Contrast Adjusts the contrast to the optimal level according to the image’s brightness.
Dynamic Color Adjusts colors to make the image appear in more natural colors.
Skin Color Skin color spectrum can be separately set to implement the skin color defined by the user.
Grass Color Natural color spectrum (meadows, hills, etc.) can be separately set.
Sky Color Sky color is set separately.
Gamma Sets the gradation curve according to the output of picture signal in relation to the input
signal.
SETTINGS> PICTURE>
Picture Mode>Expert
Control
Description
Dynamic Contrast Adjusts the contrast to the optimal level according to the image’s brightness.
Color Gamut Selects the range of colors that can be expressed.
Edge Enhancer Shows clearer and distinctive yet natural edges of the video.
Expert Pattern Patterns used for expert adjustment.
Color Filter Filters a specific color spectrum in RGB colors to fine-tune color saturation and hue
accurately.
Color Temperature Adjusts the overall tone of the screen as desired. In Expert mode, detailed fine-tuning can
be set via Gamma method, etc.
Color Management
System
This system is used by experts to adjust color with a test pattern. They can select from six
color areas (Red/ Green/Blue/Cyan/Magenta/Yellow) without affecting other colors. For
normal images, adjustments may not result in noticeable color changes.
To set Picture Option
SETTINGS> PICTURE>
Picture Mode>
Option
Description
Adjusts detailed setting for images.
Noise Reduction Reduces screen noise in the video.
MPEG Noise Reduction Eliminates noise generated while creating digital picture signals.
Black Level Adjusts the screen’s brightness and contrast to fit them to the input picture’s black level by
using the blackness (black level) of the screen.
Real Cinema Helps maintain the optimal state of the screen.
Motion Eye Care Saves power consumption by adjusting the brightness corresponding to the movement of
the image on the screen.
To set Picture Reset
SETTINGS> PICTURE>
Picture Mode>
Reset
Description
Initializes picture settings that the user customizes.
Each picture mode is reset. Select the desired picture mode to reset.
ENGLISH
40
CUSTOMIZING SETTINGS
To set various sound options
To use Virtual Surround feature
SETTINGS> AUDIO>
Virtual Surround
Description
LG’s proprietary audio processing technology allows 5.1ch-like surround sound from two speakers.
When Clear Voice II is set to On, Virtual Surround cannot be selected.
To adjust Clear Voice ll function
SETTINGS> AUDIO>
Clear Voice ll
Description
Boosts voice clarity from the TV.
To set Auto Volume
SETTINGS> AUDIO>
Auto Volume
Description
Sets Auto Volume to ON and volume output from channel to channel is automatically adjusted for convenient TV
watching when clicking through different channels.
To set sound out
SETTINGS> AUDIO>
Sound Out
Description
TV Speaker Sound is output through the TV speaker.
Headphone Sound is output through the headphone connected to the earphone/headphone port.
To set AV Sync
SETTINGS> AUDIO> AV
Sync. Adjust
Description
Synchronizes unmatched video and audio. Select AV Sync. Adjust to On to synchronize audio output (TV speaker) with
the video.
To adjust audio balance
SETTINGS> AUDIO>
Balance
Description
Adjusts left/right audio balance.
AUDIO
To use Sound Mode
SETTINGS> AUDIO>
Sound Mode
Description
Adjusts TV audio to an optimal level based on a selected sound mode.
Standard Suitable for all types of video.
Music / Cinema / Sport /
Game
Sets audio optimized for a specific genre.
To adjust User Setting function
SETTINGS> AUDIO>
Sound Mode> User
Setting
Description
Adjusts the volume to a level of your choice using the User EQ.
Reset Resets voice options that the user has changed.
AUDIO
ENGLISH
41
CUSTOMIZING SETTINGS
LOCK
To set the password
SETTINGS> LOCK>
Set Password
Description
Set or change the TV password.
The initial password is set as [0000].
To lock the system
SETTINGS> LOCK>
Lock System
Description
Permits only specific programs by blocking channels.
At first, select Lock System to ON.
Block Channel Blocks the channels that contain inappropriate contents for children.
To watch a locked channel, enter the password.
Rating 1. Blcok Channel : Blocks the channels that contain inappropriate contents for children.
The Channels can be selected but the screen is blank and the audio is muted.
To watch a locked channel, enter the password.
2. Movie Rating[Depending on model] : Blocks the movies that are only broadcasted on
the TV and contain inappropriate contents, based on the Motion Picture Association of
America(MPAA) rating.
• G : (Gerneral audiences) All ages admittd
• PG : (Parental guidance suggested) Some material may not be suitable for children.
• PG-13 : (Patents strongly cautioned) Some material may be inappropriate for children
under 13
• R : (Restricted) Under 17 requires accompanying parent or adult guardian
• NC-17 : No one 17 and under admitted.
• X : Adults only
3. TV Rating-Children [Depending on model] : Blocks the children's TV programs that
parents do not want their children to watch. To block other TV programs, you should set
the TV Rating-General feature.
• Age : TV-Y(All children, including children from ages 2-6), TV-Y7 (Directed to older
children, suitable for children age 6 and above)
• Fantasy Violence : TY-Y7 (Directed to older children - Fantasy violence, suitable for
children age 6 and above, containing more intense or combative
fantasy violence)
4. TV Rating-General : Blocks the TV programs that you want based on the ratings by using
the Parental Control Function(V-Chip).
☞
The V-Chip electronically reads TV program ratings and allows parents to block
program that are unsuitable for children.
• Age : TV-G(Gerneral audience, suitable for all ages)
• TV-PG(Parental guidance suggested, containing material that are unsuitable for
younger children)
• TV-14(Parents strongly cautioned, containing material that are unsuitable for
children age 14 and under)
• TV-MA(Mature audience only, unsuitable for children age under 17)
• Dialog : (suggestive dialogue) TV-PG, TV-14
• Language : (coarse language) TV-PG, TV-14, or TV-MA
• Violence : TV-PG, TV-14, or TV-MA
5. Downloadable Rating[In Digital mode Only] : This function operates only when TV has
received Ragion5 Rating data. The name of the rating option may differ.
To use Sound Optimizer function
SETTINGS> AUDIO>
Sound Optimizer
Description
Allows optimized sound for individual TV installation.
Normal General sound mode.
Wall Mount Type Optimizes sound for a wall-mounted TV.
Stand Type Optimizes sound for a stand-mounted TV.
LOCK
ENGLISH
42
CUSTOMIZING SETTINGS
SETTINGS> LOCK>
Key Lock
Description
Locks control buttons on the TV.
Key Lock function remains intact even in case of power outage or when the power cord is removed from the wall
socket.
Key Lock function can only be set by remote control, and not by the button on the TV.
Even with Key Lock ON, TV’s buttons can turn on the power.
To use Key Lock
ENGLISH
43
CUSTOMIZING SETTINGS
DVI, HDMI1, HDMI2/MHL, DisplayPort
1
Press SETTINGS to access the main menus.
2
Press the Navigation buttons to scroll to one of the following menus and press OK.
3
Press the Navigation buttons to scroll to the setting or option you want and press OK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
Each option is described below.
Brightness
Contrast Input Ratio Func. PIP
Menu Description
Brightness
Adjusts the brightness and contrast of the screen.
Contrast
Input Selects the current input mode.
Ratio Adjusts the screen ratio.
Func.
Adjusts SES and picture mode.
PIP Displays the screens of two input modes on one monitor.
Picture Adjusts the sharpness, black level, and response time of the screen.
Color Adjusts the gamma, color temperature and color balance of the screen.
Settings Sets the Language, PC/AV mode, Main Audio, Standby Light, DP 1.2 and Key Lock.
Reset Resets to the default settings as of the day of purchase.
Exit Exits the OSD menu.
Picture Color Settings Reset Exit
100 70 DVI Wide
All
ENGLISH
44
CUSTOMIZING SETTINGS
Each option is described below.
Menu > Ratio Description
Wide Displays the video in wide-screen, regardless of the video signal input.
Cinema1 Enlarges the screen with an aspect ratio of 21:9. (at 1080p)
Cinema2 Enlarges the screen with an aspect ratio of 21:9 including the black box area at the bottom for
subtitles. (at 1080p)
Original Displays a video according to the input video signal aspect ratio.
1:1
The aspect ratio is not adjusted from the original.
Back
Moves to the previous OSD screen.
Exit
Exits the OSD menu.
Ratio Settings
1
Press SETTINGS to access the main menus.
2
Press the Navigation buttons to scroll to one of the following menus and press OK.
3
Press the Navigation buttons to scroll to the setting or option you want and press
OK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
Sub Menu
Wide Original 1:1Cinema1 Cinema2 Back Exit
Ratio
NOTE
The display may look the same for Wide, Original and 1:1 options at the recommended resolution
(2560 x 1080).
The ratio is disabled in the interlaced signal.
ENGLISH
45
CUSTOMIZING SETTINGS
Each option is described below.
Menu > Func. Description
SES
(Super Energy
Saving)
On Enables the SES function, which allows you to save energy according to the SES
efficiency level.
Off Disables the SES function.
Picture Mode Changes depending on the value of PC/AV Mode in Menu > Settings.
PC Mode
Custom Allows the user to adjust each element. The color mode of the main menu can be
adjusted.
Text Optimizes the screen for document processing.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Game Optimizes the screen for gameplay.
AV Mode
Custom Allows the user to adjust each element. The color mode of the main menu can be
adjusted.
Standard Optimizes the screen to display normal picture quality.
VIVID 1 Optimizes the screen for vivid visual effects.
VIVID 2 Optimizes the screen for more vivid visual effects.
Cinema Optimizes the screen to improve the visual effects of a video.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
Func. Settings
1
Press SETTINGS to access the main menus.
2
Press the Navigation buttons to scroll to one of the following menus and press OK.
3
Press the Navigation buttons to scroll to the setting or option you want and press OK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
Sub Menu
SES Picture
Mode
Back Exit
Off Custom
Func.
ENGLISH
46
CUSTOMIZING SETTINGS
Each option is described below.
PIP settings
1
Press SETTINGS to access the main menus.
2
Press the Navigation buttons to scroll to one of the following menus and press OK.
3
Press the Navigation buttons to scroll to the setting or option you want and press OK.
4
When you are finished, press EXIT.
PIP
PIP Sub
Selects an option for PIP Sub. (See the PIP Map below.)
PIP Map PIP Sub
DVI HDMI1 HDMI2/
MHL
DisplayPort TV
current
input
DVI X X X O O
HDMI1 X X X O O
HDMI2/
MHL
X X X O O
DisplayPort O O O X O
TV X X X X X
DVI
TV
57
PIP 4VC
PIP Preview
◀▶: .PWF OK : 4FMFDU
: &YJU
&YJU
..
%JTQMBZ1PSU
#BDL
ENGLISH
47
CUSTOMIZING SETTINGS
1
Press SETTINGS to access the main menus.
2
Press the Navigation buttons to scroll to one of the following menus and press OK.
3
Press the Navigation buttons to scroll to the setting or option you want and press OK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
Each option is described below.
Sub Menu
Sharpness Black Level Response Time
Low5 Middle
Reset Back Exit
Menu > Picture Description
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
Offset: as a reference for a video signal, this is the darkest color the monitor can display.
High The picture of the screen gets brighter.
Low The picture of the screen gets darker.
Response Time Sets a response time for displayed pictures based on the speed of the screen. For a normal
environment, it is recommended that you use Normal. For a fast-moving picture, it is
recommended that you use High.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Reset Resets the Picture function to the default settings.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
ENGLISH
48
CUSTOMIZING SETTINGS
Color
1
Press SETTINGS to access the main menus.
2
Press the Navigation buttons to scroll to one of the following menus and press OK.
3
Press the Navigation buttons to scroll to the setting or option you want and press OK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
Each option is described below.
Menu > Color Description
Gamma Custom gamma setting: When using the gamma 0, gamma 1, and gamma 2 monitor settings, higher
gamma settings mean a brighter image is displayed and vice versa.
Color Temp Selects the factory default picture color.
Warm: Sets the screen color to a reddish tone.
Medium: Sets the screen color between a red and blue tone.
Cool: Sets the screen color to a bluish tone.
Custom You can customize the picture color.
Red / Green /
Blue
You can customize the picture color using Red, Green, and Blue colors.
Six Color Meets the user requirements for colors through adjusting the color and saturation of the six colors (red,
green, blue, cyan, magenta, yellow) and saving the settings.
Hue Adjusts tone of the screen.
Saturation Adjusts the saturation of the screen colors. The lower the value, less saturated and
bright the colors become. The higher the value, the more saturated and dark the colors
become.
Reset Returns the color settings to the default settings.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
Color
Sub Menu
Gamma
Color Temp
Red Green Blue
Six Color
CustomGamma 1 50 50 50
Color
Reset Back Exit
ENGLISH
49
CUSTOMIZING SETTINGS
Settings
1
Press SETTINGS to access the main menus.
2
Press the Navigation buttons to scroll to one of the following menus and press OK.
3
Press the Navigation buttons to scroll to the setting or option you want and press OK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
Each option is described below.
Menu > Settings Description
Language Sets the menu screen to the desired language.
PC/AV Mode Enabled in HDMI mode only.
Main Audio The sound coming through the Audio In port of the digital input signal (HDMI, HDMI2/MHL,
Display Port) can be heard through the monitor's speakers.
Stanby Light Turns the power indicator on the front side of the monitor on/off.
On The Stanby Light is automatically turned on.
Off The Stanby Light is turned off.
DP1.2
(DisplayPort1.2)
Activates or deactivates DisplayPort 1.2.
NOTE
Make sure to activate or deactivate according to the DisplayPort version supported by the
graphics card. Set it to off if it is not compatible with the graphics card.
On DisplayPort 1.2 is activated.
Off DisplayPort 1.2 is deactivated.
Key Lock Prevents incorrect key input.
On Key input is disabled.
Off Key input is enabled.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
Settings
Sub Menu
Language
PC/AV Mode
Stanby
Light
Key Lock
AV On
Off
Back Exit
Main Audio
DP
DP1.2
Off
ENGLISH
50
USING THE USER GUIDE
USING THE USER GUIDE
Accessing the On-Screen
User Guide
1
Press SETTINGS to access the main menus.
2
Press the RED button to access the Customer
Support menus.
3
Press the Navigation button to scroll to User
Guide and press OK.
4
Press the Navigation buttons to scroll to the
option you want and press OK.
5
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Image shown may differ from your TV.
User Guide
OPTION
CHANNEL Setting
PICTURE, SOUND Setting
Advanced Function
To set other options
To set language
To set caption
To set time options
Information
2
3
1
1
1
2
2
3
Allows to select the category you want.
Allows to select the item you want.
You can use
ꕌ
/
ꕍ
to move between pages.
Allows to browse the description of the
function you want from the index.
Shows the description of the selected menu.
You can use
ꕌ
/
ꕍ
to move between pages.
Zooms in or out the screen.
User Guide
OPTION > To set language
SETTINGS OPTION Language
You can select the language of the menu displayed on the screen and digital
sound broadcasting.
Menu Language : Selects a screen menu language.
Audio Language [In Digital Mode Only] : Select the desired language
when watching digital broadcasting containg several
voice languages.
Close
Zoom In
OPTION
CHANNEL Setting
PICTURE, SOUND Setting
Advanced Function
Information
Close
Zoom Out
SETTINGS OPTION Language
You can select the language of the menu displayed on the screen and digital
sound broadcasting.
Menu Language : Selects a screen menu language.
Audio Language [In Digital Mode Only] : Select the desired language when
watching digital broadcasting containg several voice languages.
1
2
2
This function is available only in TV, AV or
Component input mode.
NOTE
ENGLISH
51
MAINTENANCE
Image shown may differ from your TV.
MAINTENANCE
Cleaning Your TV
Clean your TV regularly to keep the best performance and to extend the product's lifespan.
Screen and frame
To remove dust, wipe the surface with a dry and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a clean and dry cloth.
Cabinet and stand
To remove dust, wipe the cabinet with a dry and soft cloth.
To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a
small amount of mild detergent.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
Make sure to turn the power off and disconnect the power cord and all other cables first.
When the TV is left unattended and unused for a long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning or power surges.
CAUTION
Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners,
lubricants, as these may damage the screen’s finish and cause discolorations.
CAUTION
Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
Do not use any chemicals as this may deteriorate the surface.
CAUTION
ENGLISH
52
MAINTENANCE
If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become
a permanent disfigurement on the screen. This is “image burn” or “burn-in” and not covered by the
warranty.
If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the
letterboxed area of the screen.
Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD)
to prevent image burn.
Preventing “Image burn” or “Burn-in” on your TV screen
ENGLISH
53
TROUBLESHOOTING
TROUBLE SHOOTING
Nothing is displayed on the screen.
Isthemonitor'spowercordplugged
in?
Checkifthepowercordiscorrectlypluggedintothepoweroutlet.
Isthepowerindicatoron?
Checkthepowercableconnectionandpressthepowerbutton.
Isthepowerindicatordisplaying
red?
Checkthattheconnectedinputisenabled(Menu-Input).
Isthepowerindicatorblinking?
Ifthemonitorisinpower-savingmode,movethemouseorpressany
keyonthekeyboardtoswitchthedisplayon.
Checkifthecomputeristurnedon.
Isthe"OUTOFRANGE"message
displayed?
ThisoccurswhensignalstransferredfromthePC(videocard)areout
ofthehorizontalorverticalfrequencyrangeofthemonitor.Please
seethe"ProductSpecification"sectionofthismanualtosetthe
appropriatefrequency.
Isthe"CHECKSIGNAL
CONNECTION"messageis
displayed?
ThisisdisplayedwhenthesignalcablebetweenthePCandthe
monitorismissingordisconnected.Checkthecableandreconnect.
The "OSD LOCKED" message is displayed.
Aresomefunctionsunavailable
whenpressingtheMenubutton?
TheOSDislocked.GotoMenu>Settingsandset"OSDLock"to
Unlock.
The screen retains an image.
Doesimagestickingoccureven
whenthemonitoristurnedoff?
Displayingastillimageforaprolongedtimemaycausedamagetothe
screen,resultingintheretentionoftheimage.
Useascreensavertoprotectthescreenwhenusingthemonitorfora
prolongedperiodoftime.
Vertical Frequency: In order to display an image, the screen must be refreshed dozens of times per
second like a fluorescent lamp.
Thenumberoftimesthescreenisrefreshedpersecondiscalledverticalfrequencyorrefreshrate
andisrepresentedbyHz.
Horizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle.
The number of horizontal lines displayed in one second
canbecalculatedbydividingonebythehori-
zontalcycle.ThisiscalledhorizontalfrequencyandisrepresentedbykHz.
NOTE
Check if the video card's resolution or frequency is within the range allowed by the monitor and set to
the recommended (optimal) resolution in Control Panel > Display > Settings.
Failing to set the video card to the recommended (optimal) resolution may result in blurred text, a
dimmed screen, a truncated display area or misalignment of the display.
The configuration procedure may differ depending on your computer and/or operating system. Also,
some video cards may not support certain resolutions. If this is the case, contact the manufacturer of
the computer or video card for assistance.
Some video cards may not support the 2560x1080 resolution.
If the resolution cannot be displayed, contact the manufacturer of your video card.
NOTE
The display color is abnormal.
Doesthedisplayappeardiscolored
(16color)?
Setthecolorto24bit(truecolor)orhigher.InWindows,gotoControl
Panel>Display>Settings>ColorQuality.
Doesthedisplaycolorappear
unstableorinmonochrome?
Checkifthesignalcableisconnectedproperly.Reconnectthecable
orreinsertthePC'svideocard.
Aretherespotsonthescreen?
Whenusingthemonitor,pixilatedspots(red,green,blue,whiteor
black)mayappearonthescreen.ThisisnormalfortheLCDscreen.
Itisnotanerrornorisitrelatedtothemonitor'sperformance.
ENGLISH
54
SPECIFICATIONS
SPECIFICATIONS
Television System NTSC-M, ATSC, 64 & 256 QAM
Program Coverage VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV
1-135
Panel Screen Type 29" class (28.7" / 73 cm diagonal)
Pixel Pitch 0.2628 mm (H) x 0.2628 mm (V)
Video Signal Max. Resolution 2560 × 1080 @ 60 Hz
Recommended Resolution 2560 × 1080 @ 60 Hz
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency 56 Hz to 75 Hz
Synchronization Type Separate Sync, Digital
Input Connector TV, PC Audio In, Component, AV(CVBS), HDMI*2, USB,
DP, DVI-D
Power Rated Voltage 19 V
3.2 A
Power Consumption On Mode : 52 W (typ.)
Off Mode
0.5 W
AC/DC Adapter Manufacturer : LG Innotek, Model : PSAB-L206A
Manufacturer : APD, Model : DA-65F19
Tilt Tilt Range -5 to 20°
Dimensions (Width x Depth x Height)
Weight
With Stand
699.7 mm x 197.2 mm x 404.5 mm
5.9 kg
Without Stand
699.7 mm x 68.5 mm x 327.5 mm
5.3 kg
Environmental
conditions
Operating Temperature
Operating Humidity
10 °C to 35 °C
20 % to 80 %
Storage Temperature
Storage Humidity
-10 °C to 60 °C
5 % to 90 %
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
29MA73D 29LN450W
ENGLISH
55
SPECIFICATIONS
DVI-D / HDMI / DisplayPort(PC) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
720 x 400 31.468 70.080
640 x 480 31.469 59.940
640 x 480 37.500 75.000
800 x 600 37.879 60.317
800 x 600 46.875 75.000
1024 x 768 48.363 60.004
1024 x 768 60.023 75.029
1152 x 864 67.500 75.000
1280 x 720 45.000 60.000
1280 x 1024 63.981 60.020
1280 x 1024 79.976 75.025
1600 x 900 60.000 60.000
1680 x 1050 65.290 59.954
1920 x 1080 67.500 60.000
2560 x 1080 66.700 60.000
HDMI / MHL(VIDEO) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
720 x 480 31.500 60.000
720 x 576 31.250 50.000
1280 x 720 37.500 50.000
1280 x 720 45.000 60.000
1920 x 1080 33.750 60.000
1920 x 1080 28.125 50.000
1920 x 1080 27.000 24.000
1920 x 1080 33.750 30.000
1920 x 1080 56.250 50.000
1920 x 1080 67.500 60.000
Component supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
720 x 480 15.730 59.940
720 x 480 15.750 60.000
720 x 576 15.625 50.000
720 x 480 31.470 59.940
720 x 480 31.500 60.000
720 x 576 31.250 50.000
1280 x 720 44.960 59.940
1280 x 720 45.000 60.000
1280 x 720 37.500 50.000
1920 x 1080 33.720 59.940
1920 x 1080 33.750 60.000
1920 x 1080 28.125 50.000
1920 x 1080 56.250 50.000
1920 x 1080 67.432 59.940
1920 x 1080 67.500 60.000
Avoid keeping a fixed image on the set’s screen
for prolonged periods of time. The fixed image
may become permanently imprinted on the
screen. Use a screen saver when possible.
There may be interference relating to resolution,
vertical pattern, contrast or brightness in
PC mode. Change the PC mode to another
resolution or change the refresh rate to another
rate or adjust the brightness and contrast on
the menu until the picture is clear. If the refresh
rate of the PC graphic card can not be changed,
change the PC graphic card or consult the
manufacturer of the PC graphic card.
The synchronization input waveform for
Horizontal and Vertical frequencies are separate.
Connect the audio cable from the PC to the
Audio input on the TV.
If using a sound card, adjust PC sound as
required.
The recommended resolution is
2560x1080/60Hz. However, it may not be
supported depending on your PC or AV
model.
NOTE
NOTE
Component port connecting information
Component ports on the
TV
Y P
B
P
R
Video output ports
on DVD player
Y P
B
P
R
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
Make sure to read the Safety Precautions
before using the product.
Keep the Owner’s Manual (CD) in an
accessible place for future reference.
The model and serial number of the TV is
located on the back and one side of the
TV. Record it below should you ever need
service.
To obtain the source code under GPL, LGPL,
MPL and other open source licenses, that is
contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred
license terms, warranty disclaimers and
copyright notices are available for download.
LG Electronics will also provide open source
code to you on CD-ROM for a charge covering
the cost of performing such distribution (such
as the cost of media, shipping and handling)
upon email request to opensource@lge.com.
This offer is valid for three (3) years from the
date on which you purchased the product.
Declaration of Conformity
Trade Name: LG
Model : 29MA73D / 29LN450W
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave.
Englewood Cliffs NJ 07632
U.S.A
TEL: 201-266-2534
MODEL
SERIAL
This product qualifies for ENERGY
STAR in the “factory default (Home
Use)” setting.
Changing the factory default settings
or enabling other features may
increase power consumption that
could exceed the limits necessary to
quality for ENERGY STAR.
Only for 29LN450W
P/NO : 3840TRL098E (0801-REV00)
www.lge.com
