ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
y
Always use genuine components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of counterfeit components.
y
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to im-
prove the performance of the product.
y
To purchase optional accessories, visit an electronics store or online shopping site or contact the
retail store where you purchased the product.
y
The DisplayPort cable may not be available in some areas.
CAUTION
NOTE
CD(Owner's Manual) /
Card
OPTIONAL ACCESSORIES
The DisplayPort cable may not be
available in some areas.
DisplayPort Cable
Stand Base Stand Body
Screws
HDMI Cable
( This cable is not in-
cluded in all countries. )
( Depending on the country )
( Depending on
the country )
Power Cord
AC-DC Adapter
AC-DC Adapter
or
DVI-D Dual Cable
( This cable is not included in
all countries. )
USB Cable
( This cable is not included
in all countries. )
Power Cord
Stand Base
Stand Body
Stand Base
Screws Screws
Cable HolderCable Holder
Clear sheet
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Component and Button Description
Power Indicator
y
On: power is on
y
Off: power is off
Joystick Button
Input Connector
6
ENG
ENGLISH
ASSEMBLING AND PREPARING
Joystick Button
Power LED
y
On: power is on
y
Off: power is off
Ports
Input Connector
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Power Indicator
y
On: power is on
y
Off: power is off
Ports
Joystick Button
Input Connector
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
)PXUP6TFUIF+PZTUJDL#VUUPO
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with
your finger.
Basic Functions
Power on
Press the joystick button once with your finger to turn on the
monitor.
Power off
Press and hold the joystick button once with your finger to turn off
the monitor.
Ż/Ź
Volume
Control
You can control the volume by moving the joystick button left/right.
y
The joystick button is located at the bottom of the monitor.
NOTE
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
y
As far as possible, avoid touching the moni-
tor screen.
This may result in damage to the
screen or some of the pixels used to create
images.
y
It is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
y
Before moving or lifting the monitor, discon-
nect the power cord and all cables.
y
Hold the top and bottom of the monitor frame
firmly
. Do not hold the panel itself.
y
When holding the monitor, the screen should
face away from you to prevent it being
scratched.
y
When moving the monitor, avoid any strong
shock or vibrations to the product.
y
When moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
CAUTION
y
If you use the monitor panel without the
stand base, its joystick button may cause
the monitor to become unstable and fall,
resulting in damage to the monitor or human
injury
. In addition, this may cause the joystick
button to malfunction.
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Applying excessive force when tightening
the screws may cause damage to the moni-
tor. Damage caused in this way will not be
covered by the product warranty.
CAUTION
It may hurt your foot off the stand, so be
careful.
CAUTION
Installing the Monitor
Assembling the stand base
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
2
First, please insert Stand Body to Stand Base,
Then tighten two screws into the back of the
stand base.
1
Place the screen face down.
29UM67
4
Tighten two screws into the back of the stand
body .
3
Check the direction of the stand body
(front, back) and then mount the stand
body onto the stand hinge.
Stand Body
Stand Body
Stand Base
(Silver)
(Black)
or
120 mm
100 mm
(Black)
Stand Hinge
y
You can disassemble the stand in the
reverse order of the assembly.
NOTE
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
1
Place the screen face down.
Stand Hinge
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
2
Mount the stand base onto the stand hinge as
shown in the illustration. Fix two screws into
the back of the stand base and close the screw
cover.
Stand Base
120 mm
Screw Cover
or
100 mm
y
The stand height is adjustable by 20 mm
y
When tightening the screws after mounting
the stand base onto the stand hinge, be sure
to hold the stand base with your hand. Other-
wise, the product may fall, causing personal
injury or damage to the product.
y
Be careful not to hurt your hand on the edges
of the screw covers.
y
Applying excessive force when tightening
screws may cause damage to the monitor.
Damage caused in this way will not be cov-
ered by the product warranty.
y
If you use the monitor panel without the
stand base, its joystick button may cause the
monitor to become unstable and fall, result-
ing in damage to the monitor or human injury.
In addition, this may cause the joystick button
to malfunction.
CAUTION
34UM67
y
You can disassemble the stand in the
reverse order of the assembly.
NOTE
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
2
1
Place the screen face down.
29UB67
34UB67
1
2
3
Remove a tape on the surface of stand body.
Use a tool to attach the stand body as shown
in the figure.
Check the position (at the front and rear) of
the stand body, then mount the stand base on
the stand body as shown in the figure.
Tighten the screw to the right.
It may hurt your foot off the stand, so be
careful.
CAUTION
Stand Body
Stand Body
Stand Base
Stand Base
Tape
y
You can disassemble the stand in the
reverse order of the assembly.
NOTE
13
ENG
ENGLISH
ASSEMBLING AND PREPARING
Using the cable holder
y
Illustrations in this document represent typi-
cal procedures, so they may look different
from the actual product.
y
Applying excessive force when tightening
screws may cause damage to the monitor
.
Damage caused in this way will not be cov-
ered by the product warranty.
y
Be careful not to hurt your hand on the edges
of the screw covers.
y
Do not carry the monitor upside down by just
holding the base.
This may cause the moni-
tor to fall off the stand and could result in
personal injury.
y
When lifting or moving the monitor, do not
touch the monitor screen.
The force applied
to the monitor screen may cause damage to
it.
CAUTION
29UM67
1
First, as shown in the illustration,push the
cable holder on the stand body, Second ,Fix
the cable holder to stand body.
2
Put the cables into the cable holder.
Stand Body
Tidy up cables using the cable holder on the stand
base as shown in the illustration.
34UM67
y
Cables can get caught in the hinge area as
shown in the illustration, so be careful when
organizing cables.
NOTE
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing onto a table
1
Lift the monitor and place it on the table in an
upright position.
Place at least 100 mm away from the wall to
ensure sufficient ventilation.
2
Connect the power adapter to the monitor and
then plug the power cord into the wall outlet.
29UB67:Press the knob in “ ” state.
(“ ” Open the power).
or
or
y
Unplug the power cord prior to moving or
installing the monitor
. There is risk of electric
shock.
CAUTION
3
Press the joystick button on the bottom of the
monitor to turn on the monitor.
100 mm
100 mm
100 mm
100 mm
100 mm
100 mm
100 mm
100 mm
15
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
Once the pin is removed, it is not necessary
to re-insert it to adjust the height.
Adjusting the stand height
2
Remove the tape attached to the bottom
back of the stand body and then pull out the
locking pin while pressing the head down-
ward.
3
The height can be adjusted up to 130.0 mm.
y
Do not put your fingers or
hand between the screen
and the base (chassis) when
adjusting the screen's height.
Ta
pe
Locking Pin
Stand Body
CAUTION
WARNING
1
Stand the monitor assembled with the stand
base in an upright position
34UB67
130.0 mm
29UB67
Locking Pin
Locking Pin
Head
Head
130.0 mm
16
ENG
ENGLISH
ASSEMBLING AND PREPARING
Adjusting the angle
1
Place the monitor in an upright position, mount-
ed on the stand base.
2
Adjust the angle of the screen. The angle of the
screen can be adjusted forwards or backwards
for a comfortable viewing experience.
Front Side
Rear Side
Front Side
Rear Side
Front Side
Rear Side
y
To avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below
.
WARNING
y
Be careful not to touch or press the screen
area when adjusting the angle of the monitor
.
17
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
To avoid scratching the stand base, make
sure that when rotating the monitor using
the pivot feature, the stand does not make
contact with the monitor
.
WARNING
Pivot feature
The pivot feature allows the monitor to rotate 90
clockwise.
29UB67
1
Raise the monitor up to the maximum height.
2
Adjust the angle of the monitor in the direction
of the arrow as shown in the figure.
3
Rotate the monitor clockwise as shown in the
figure.
4
Complete the installation by rotating the
monitor 90° as shown below.
y
Take care when rotating the monitor if the
cable is connected.
WARNING
y
An image displayed on the monitor's screen
does not rotate according to the screen
orientation.
NOTE
Head
Stand
WARNING
y
To avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below
.
18
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing the wall mount plate
This monitor supports the specification of the stan-
dard wall mount plate or compatible device.
1
Place the screen face down. To protect the
screen from scratches, cover the surface with a
soft cloth.
2
Attach the clear sheet to the back of the
monitor and align it with the screw holes.
(34UM67/34UB67)
3
Place the wall mount plate onto the monitor
and align it with the screw holes.
4
Tighten the four screws to fix the plate to the
monitor using a screwdriver.
y
The wall mount plate is sold separately.
y
For more information on installation, refer to
the wall mount plate's installation guide.
y
Be careful not to use excessive force when
mounting the wall mount plate, as this can
damage the monitor's screen.
NOTE
y
Use of the Kensington lock is optional.
The accessories can be purchased at
your
local electronics store.
NOTE

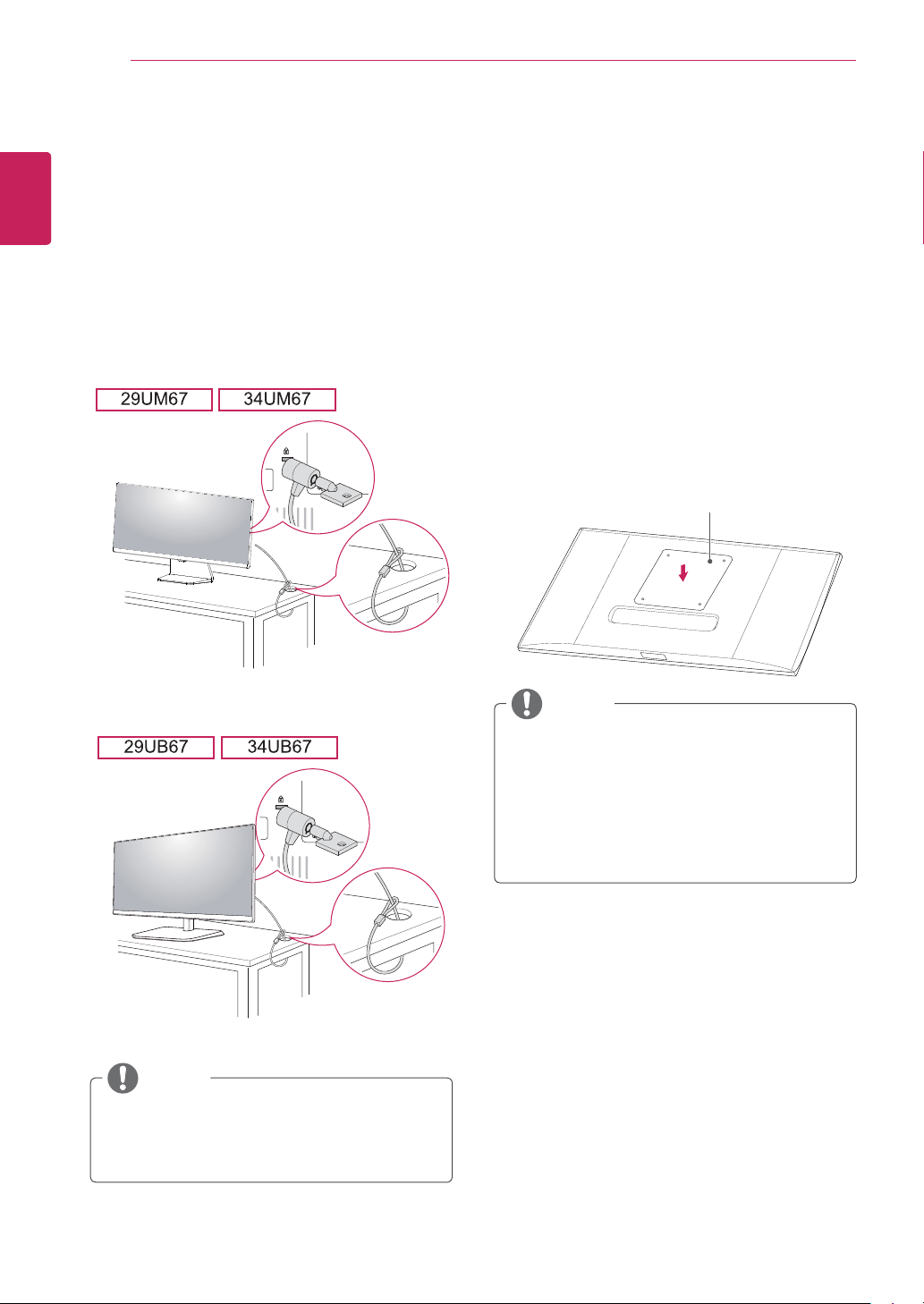

Using the Kensington lock
The Kensington security system connector is locat-
ed at the back of the Monitor set.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the Kensington security system cable
between the Monitor set and a table.
Clear sheet
(PET sheet)
19
ENG
ENGLISH
ASSEMBLING AND PREPARING
To install the monitor to a wall, attach a wall mount-
ing bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely
fixed to the monitor and to the wall.
1 If you use screw longer than standard, the moni-
tor might be damaged internally.
2 If you use improper screw, the product might be
damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
Installing to a wall
Install the monitor at least 100 mm away from the
wall and leave about 100 mm of space at each
side of the monitor to ensure sufficient ventilation.
Detailed installation instructions can be obtained
from your local retail store. Please refer to the
manual to install and set up a tilting wall mounting
bracket.
y
Unplug the power cord before moving or in-
stalling the monitor to avoid electric shocks.
y
Installing the monitor on the ceiling or on a
slanted wall may result in the monitor falling
of
f, which could lead to injury. Please use
the genuine LG wall mounting bracket. For
more information, contact your local retail
store or a qualified installer.
y
Applying excessive force when fastening
screws may cause damage to the moni-
tor
. Damage caused in this way will not be
covered by the product warranty.
y
Use the wall mounting bracket and screws
that conform to the VESA
standard. Dam-
age caused by the use or misuse of inap-
propriate components will not be covered
by the product warranty.
y
Screw length from outer surface of back
cover should be under 8mm.
y
Use the screws specified by the VESA stan-
dard.
y
The wall mount kit includes the installation
guide and all necessary parts.
y
The wall mounting bracket is optional. The
accessories can be purchased at your local
retail store.
y
The length of the screw may differ for each
wall mounting bracket. Ensure the correct
length screw is used.
y
For more information, please refer to the
user manual for the wall mounting bracket.
CAUTION
NOTE
Wall mount Pad
Wall mount Pad
Back Cover
Back Cover
Standard screw
Max.8mm
y
Wall Mount (A x B)
A
B
Model
Wall Mount
(A x B)
75 x 75 100 x 100 200 x 100
Standard
screw
M4 x L10 M4 x L10
Number of
screws
44
Wall Mount
Plate
(Optional)
RW120 LSW140
29UM67
29UB67
34UM67
34UB67
100 mm
100 mm
100 mm
100 mm
20
ENG
ENGLISH
USING THE MONITOR
USING THE MONITOR
Connecting to a PC
y
This monitor supports the *Plug and Play
feature.
*Plug and Play:
A feature that allows you to
add a device to your computer without having
to reconfigure anything or install any manual
drivers.
DVI connection
Transmits digital video signals to the monitor. Con-
nect the monitor using the DVI cable as illustrated
below.
Press the menu button and then select the input
option from the input menu.
To hear the sound in DVI input mode, connect the
PC's AUDIO OUT port to the monitor's AUDIO IN
(PC) port using the audio cable that came with the
product.
y
Connect the input signal cable and
turn in the direction of the arrow
.
To prevent disconnection secure
the cable tightly.
y
Do not press on the screen for a
prolonged period of time.
This may cause
image distortion.
y
Do not display a still image on the screen
for a prolonged period of time.
This may
cause image retention. If possible, use the
screen saver.
CAUTION
y
When connecting the power cord to the out-
let, use a grounded (3-hole) multi-socket or a
grounded power outlet.
y
The monitor may flicker when turned on in an
area of low temperature. This is normal.
y
Sometimes red, green, or blue spots may ap-
pear on the screen. This is normal.
y
Using a DVI to HDMI cable may cause com-
patibility issues.
NOTE
(sold separately)
21
ENG
ENGLISH
USING THE MONITOR
y
There may be no video or audio output de-
pending on the DP
version of the PC.
y
The DisplayPort cable may not be available
in some areas.
DisplayPort connection
Transmits the digital video and audio signals from
your PC to the monitor. Connect your PC to the
monitor using the DisplayPort cable as illustrated
below.
Press the menu button and then select the input
option from the input menu.
NOTE
(sold separately)
HDMI connection
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu button and then select the input
option from the input menu.
NOTE
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur
.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
22
ENG
ENGLISH
USING THE MONITOR
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu button and then select the input
option from the input menu.
NOTE
y
If you use HDMI PC, it can cause compatibility
problem.
y
Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur
.
y
Recommended HDMI cable types
- High-Speed HDMI
®
/
TM
Cable
- High-Speed HDMI
®
/
TM
Cable with Ethernet
23
ENG
ENGLISH
USING THE MONITOR
Connecting to External Devices
(sold separately)
(sold separately)
USB Cable connection - PC
The USB port on the product functions as a USB
hub.
y
Make sure to install the most recent Windows
OS service pack before using the product.
y
Peripheral devices are sold separately.
y
A keyboard, mouse, or USB device can be
connected to the USB port.
NOTE
Cautions When Using a USB Device
y
A USB device with an automatic recognition
program installed, or that uses its own driver,
may not be recognized.
y
Some USB devices may not be supported or
may not work properly.
y
It is recommended to use a USB hub or hard
disk drive with power supplied. (If the power
supply is not adequate, the USB device may
not be recognized properly.)
CAUTION
To use USB 3.0, connect the A-B type USB 3.0
cable of the product to the PC.
Peripheral devices connected to the USB IN port
can be controlled from the PC.
(sold separately)
Connecting Headphones
Connect peripherals to the monitor via the head-
phones port. Connect as illustrated.
y
Peripheral devices are sold separately.
y
If you use angled earphones, it may cause
a problem with connecting another external
device to the monitor
. Therefore, it is recom-
mended to use straight earphones.
Angled Straight
y
Depending on the audio settings of the PC
and external device, headphones and speaker
functions may be limited.
NOTE
34UB67
29UB67
24
ENG
ENGLISH
INSTALLING LG Monitor Software
INSTALLING THE LG MONITOR SOFTWARE
Installing The Screen Split
Set the default Web browser to Internet
Explorer.

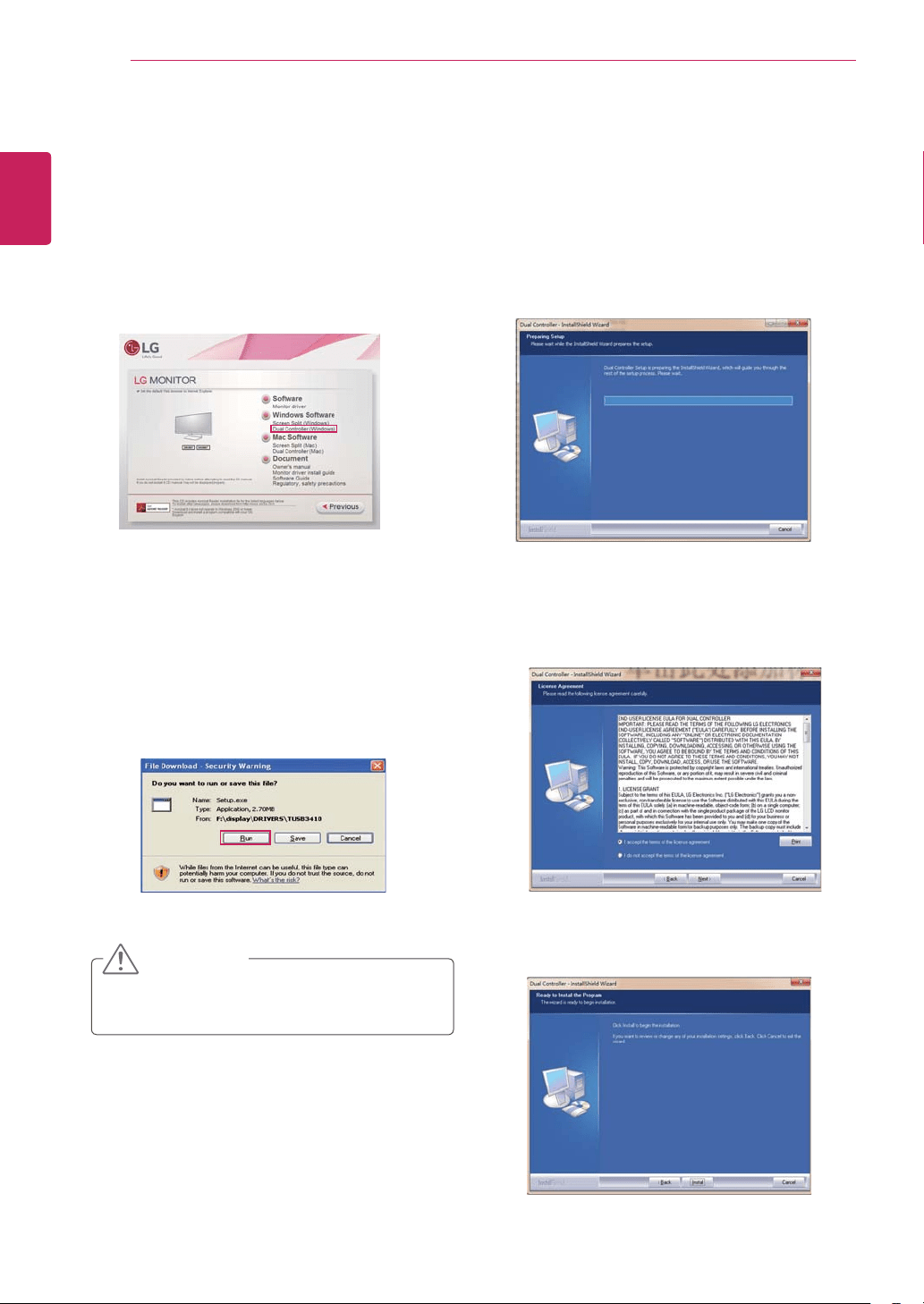

Insert the the owner's manual CD included in the product package into your PC's CD driver and install the
Screen Split.
The installation screen images are for reference only. The actual installation screen images may vary de-
pending on the model.
Click the "Screen Split" on the CD's main
screen. When the file download window
appears, click the Run button. (The file
download window may vary depending on the
operating system and the Internet Explorer
version, but the installation procedures are
same.)
y
Service Pack 1 or higher is required for
Windows 7 & Windows 8.
Follow the instructions to proceed with the
installation.
Check "I accept the terms of the agreement" on
the License Agreement screen and then click
the [Next] button.
CAUTION
29UM67
34UM67
25
ENG
ENGLISH
INSTALLING LG Monitor Software
NOTE

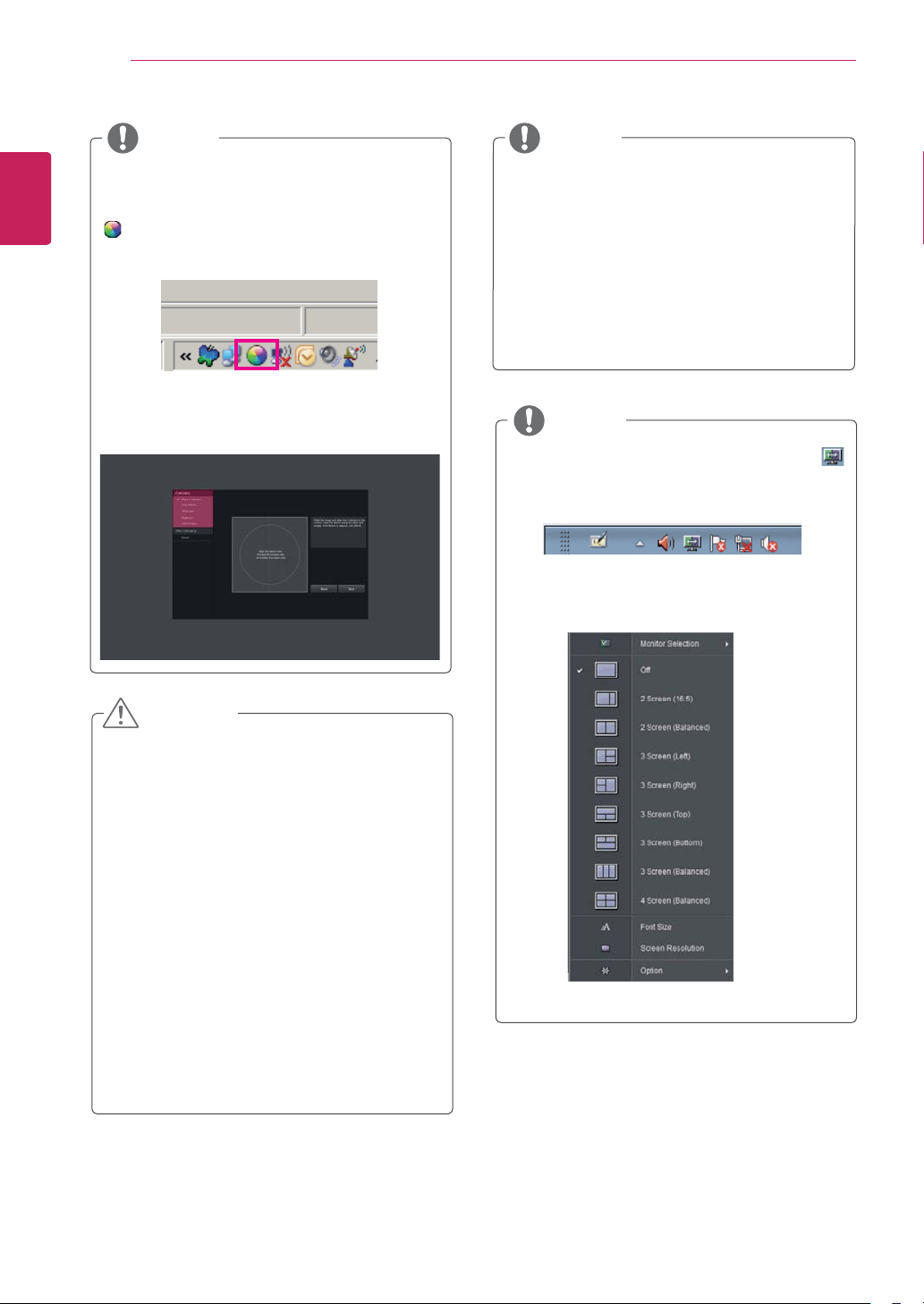

If you run Screen Split, the Screen Split icon [
] appears in the system tray at the right bottom of
the PC screen.
Right-click the Screen Split icon and select a
layout you want.
When the installation is complete, restart your
system.
The Screen Split installation starts as shown
below.
y
Screen Split: This program automatically
splits the program window as desired.
Monitor Selection only supported in extend
display.
This program supported Windows 7 &
Windows 8.
NOTE
26
ENG
ENGLISH
INSTALLING LG Monitor Software
Installing The Dual Controller
Set the default Web browser to Internet
Explorer.
Click the "Dual Controller" on the CD's main
screen. When the file download window
appears, click the Run button. (The file
download window may vary depending on the
operating system and the Internet Explorer
version, but the installation procedures are
same.)
y
Service Pack 1 or higher is required for
Windows 7 & Windows 8.1.
Follow the instructions to proceed with the
installation.
Check "I accept the terms of the agreement" on
the License Agreement screen and then click
the [Next] button.
CAUTION
Click the install button.
Insert the owner's manual CD included in the product package into your PC's CD driver and install the Dual
Con troller.
The installation screen images are for reference only. The actual installation screen images may vary de-
pending on the model.
27
ENG
ENGLISH
INSTALLING LG Monitor Software
NOTE
If you run Dual Controller, the Dual Controller icon
[ ] appears in the system tray.
Click the
Dual Controller
icon and select a layout
you want.
When the installation is complete, restart your
system.
The Dual Controller installation starts as shown
below.
28
ENG
ENGLISH
INSTALLING LG Monitor Software
INSTALLING LG Monitor Software
1
Set the default Web browser to Internet Explorer.
Insert the owner's manual CD included in the product package into your PC's CD driver and install the LG
Monitor Software.
2
Click the "LG Monitor Software" on the CD's
main screen. When the file download window
appears, click the Run button. (The file down-
load window may vary depending on the oper-
ating system and the Internet Explorer version,
but the installation procedures are same.)
y
Service Pack 1 or higher is required for
Windows 7.
3
Follow the instructions to proceed with the
installation.
4
Check "I accept the terms of the agreement" on
the License Agreement screen and then click
the [Next] button.
y
Screen Split: This program automatically
splits the program window as desired.
y
True Color Finder: This program calibrates
the precise color output of the monitor to suit
your needs.
5
Select the program that you want to install.
NOTE
CAUTION
29UB67
34UB67
29
ENG
ENGLISH
INSTALLING LG Monitor Software
6

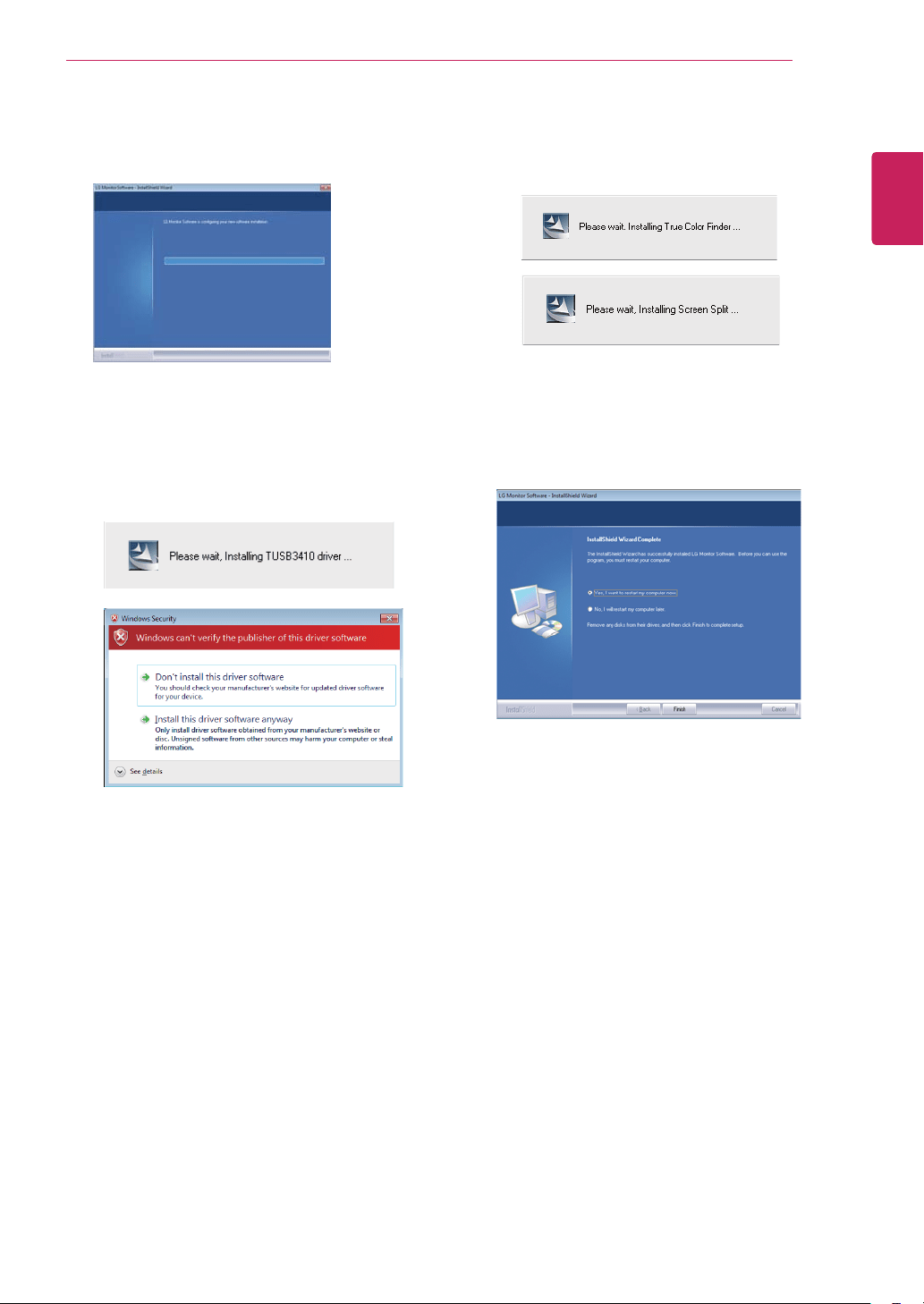

The LG Monitor Software installation starts as
shown below.
7
If the TUSB3410 driver has not been installed,
it will install automatically. Select "Install this
driver software anyway (I)" if the Windows
security message is displayed as below.
9
When the installation is complete, restart your
system.
8
The program you selected on the Select
Features page will install automatically.
30
ENG
ENGLISH
INSTALLING LG Monitor Software
NOTE
If you run Screen Split, the Screen Split icon [
] appears in the system tray at the right bottom of
the PC screen.
Right-click the Screen Split icon and select a
layout you want.
When you run the True Color Finder software, the
True Color Finder icon
[
] appears in the system tray at the right bottom
of the PC screen.
Right-click the True Color Finder icon and select
"Start Program" to start the program.
y
Once you have completed the monitor cali-
bration with the
True Color Finder software,
remove the calibrator from the monitor and
store it at room temperature away from direct
sunlight or put it in the box.
- If the calibrator's measuring part is exposed
to direct sunlight for a long time, this may
cause damage to the calibrator.
- Do not store it in an environment with too
low/high temperature and high humidity.
y
If any third-party calibration application is
already installed on your PC, the image qual-
ity may be af
fected by a conflict between the
two applications. For the best performance, it
is recommended to uninstall the other cali-
bration application.
y
To use the True Color Finder function, you
must purchase the supported calibrator
.
y
For details on supported calibrators and
graphic cards, see the
True Color Finder
user guide.
y
If you have changed the input port, it is
recommend that you calibrate the monitor's
picture quality again.
NOTENOTE
CAUTION
31
ENG
ENGLISH
INSTALLING LG Monitor Software
Installing The Dual Controller
1
Set the default Web browser to Internet
Explorer.
2
Click the "Dual Controller" on the CD's main
screen. When the file download window
appears, click the Run button. (The file
download window may vary depending on the
operating system and the Internet Explorer
version, but the installation procedures are
same.)
y
Service Pack 1 or higher is required for
Windows 7 & Windows 8.1.
3
Follow the instructions to proceed with the
installation.
4
Check "I accept the terms of the agreement" on
the License Agreement screen and then click
the [Next] button.
CAUTION
5
Click the install button.
Insert the owner's manual CD included in the product package into your PC's CD driver and install the Dual
Con troller.
The installation screen images are for reference only. The actual installation screen images may vary de-
pending on the model.
32
ENG
ENGLISH
INSTALLING LG Monitor Software
NOTE
If you run Dual Controller, the Dual Controller icon
[ ] appears in the system tray.
Click the
Dual Controller
icon and select a layout
you want.
7
When the installation is complete, restart your
system.
6
The Dual Controller installation starts as shown
below.
33
ENG
ENGLISH
User Settings
Button Menu Status Description
Main menu disabled Enables the main menu.
Main menu enabled
Exits the main menu.
(Holding down the button to turn off the monitor. You can turn off
the monitor this way at any time, including when the OSD is on.)
Ż
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the menu features.
Ź
Main menu disabled Adjusts the monitor volume level.
Main menu enabled Enters the PBP feature.
Ÿ
Main menu disabled Enables the main menu.
Main menu enabled
29UM67 34UM67
Enters the game mode feature.
29UB67 34UB67
Enters the picture mode feature.
ź
Main menu disabled Enables the main menu.
Main menu enabled Turns off the monitor.
Main Menu Features
Main Menu Description
Menu Configures the screen settings.
Game Mode
29UM67 34UM67
Optimizes the screen for game mode.
Picture Mode
29UB67 34UB67
Select picture mode to achieve the best display
effect.
PBP
Displays the screens of two input modes on one
monitor.
Monitor off Turns off the monitor.
Exit Exits the main menu.
USER SETTINGS
Activating the Main Menu
1
Press the joystick button on the bottom of the monitor.
2
0RYHWKHMR\VWLFNXSGRZQŸźDQGOHIWULJKWŻŹWRVHWWKHRSWLRQV
3
Press the joystick button once more to exit the main menu.
Joystick Button
Joystick Button
34
ENG
ENGLISH
User Settings
Each option is described below.
Customizing settings
Menu Settings
-Quick Settings
1
To view the OSD menu, press the joystick button at
the bottom of the monitor and then enter the Menu.
2
Go to Quick Settings >
Brightness
by moving the
joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
PRYHWKHMR\VWLFNWRŻRUSUHVVLQJ
/ OK) it.
5
If you want to exit the OSD menu, move the joystick
WRŻXQWLO\RXH[LW
Menu > Quick Settings Description
Brightness
Adjusts the color contrast and brightness of the screen.
Contrast
V
olume Adjusts the volume.
/05&
y
Jog joystick button down (
) in the Volume menu will
enable/disable the Mute function.
Input Selects the current input mode.
Ratio Adjusts the screen ratio.
Wide Displays the video in wide-screen, regardless of the video signal input.
Original Displays a video according to the input video signal aspect ratio.
Cinema 1 Enlarges the screen with an aspect ratio of 21:9. (at 1080p)
Cinema 2 Enlarges the screen with an aspect ratio of 21:9 including the black box area
at the bottom for subtitles. (at 1080p)
1:1 The aspect ratio is not adjusted from the original.
/05&
y
The display may look the same for Wide, Original options at the recommended resolution (2560 x
1080).
y
The ratio is disabled in the interlaced signal.
35
ENG
ENGLISH
User Settings
Each option is described below.
-PBP
1
To view the OSD menu, press the joystick button at
the bottom of the monitor and then enter the Menu.
2
Go to PBP by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
PRYHWKHMR\VWLFNWRŻRUSUHVVLQJ
/ OK) it.
5
If you want to exit the OSD menu, move the joystick
WRŻXQWLO\RXH[LW
Menu > PBP Description
Sub Selects the video signal input of the sub screen.
Sound Out Sound Out have four options.HDMI1, HDMI2, DP, Audio-In.
Swap Toggles between the main screen and sub screen in PBP mode.
Sub Full Converts the sub screen of PBP mode to the wide screen.
Ratio Adjusts the aspect ratio of the main screen or sub screen.
Main
Wide Displays the video to fit the PBP screen, regardless of the video signal input.
Original Displays the video in the aspect ratio of the video signal input on the PBP screen.
Sub Wide Displays the video to fit the PBP screen, regardless of the video signal input.
Original Displays the video in the aspect ratio of the video signal input on the PBP screen.
36
ENG
ENGLISH
User Settings
Menu > Picture Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be ad-
justed.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Game Optimizes the screen for gameplay.
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper
. If you want
screen more bright, you can control brightness in Menu OSD.
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want screen
more bright, you can control brightness in Menu OSD.
Calibration Applies the value calibrated by True Color Finder.
/05&
y
Run the True Color Finder program.
Game Mode
29UM6
7
34UM67
Gamer Brightness, Contrast, Sharpness, Gamma, Color Temp, Black Stabilizer, Response
Time, DAS Mode functions can be customized as Gamer.
FPS 1 Game Mode functions are optimized for FPS games.
FPS 2 The Black Stabilizer value is greater than that of FPS 1. It is suitable for very dark
FPS games.
RTS Game Mode functions are optimized for RTS games.
Off Turns Game Mode off.
Each option is described below.
-Picture
1
To view the OSD menu, press the joystick button at
the bottom of the monitor and then enter the Menu.
2
Go to
by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
PRYHWKHMR\VWLFNWRŻRUSUHVVLQJ
/ OK) it.
5
If you want to exit the OSD menu, move the joystick
WRŻXQWLO\RXH[LW
29UB67
34UB67
29UB67
34UB67
37
ENG
ENGLISH
User Settings
Picture Adjust Black Stabilizer
29UM67
34UM67
Black Stabilizer
: You can control the black contrast to have better visibility in dark
scenes.
Increasing the Black Stabilizer value brightens the low gray level area on
the screen. (You can easily distinguish objects on dark game screens.)
Reducing the Black Stabilizer value darkens the low gray level area and
increases the dynamic contrast on the screen.
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
y
Offset: as a reference for a video signal, this is the darkest color the
monitor can display
.
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white levels from the
current contrast ratio of the screen.
Response Time Sets a response time for displayed pictures based on the speed of the
screen.
For a normal environment, it is recommended that you use Middle.
For a fast-moving picture, it is recommended that you use High.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low
.
Off Sets the response time to Off.
Color Adjust Gamma Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on
the monitor
, high gamma values display whitish images and low gamma
values display blackish images.
Color Temp Custom Allows the user to adjust each element. The color mode of
the main menu can be adjusted.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Red You can customize the picture color using Red, Green, and Blue colors.
Green
Blue
Six Color Meets the user requirements for colors through adjusting the color and
saturation of the six colors(Red_Hue, Red_Saturation, Green_Hue,
Green_Saturation, Blue_Hue, Blue_Saturation, Cyan_Hue, Cyan_
Saturation, Magenta_Hue, Magenta_Saturation,
Yellow_Hue, Yel-
low_Saturation, Reset ) and saving the settings.
*Hue: Adjusts tone of the screen.
*Saturation: Adjusts the saturation of the screen colors. The lower the
value, less saturated and bright the colors become. The higher the value,
the more saturated and dark the colors become.
Reset Returns the color settings to the default settings.
38
ENG
ENGLISH
User Settings
-
4PVOE
1
To view the OSD menu, press the joystick button at
the bottom of the monitor and then enter the Menu.
2
Go to Sound by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
PRYHWKHMR\VWLFNWRŻRUSUHVVLQJ
/ OK) it.
5
If you want to exit the OSD menu, move the joystick
WRŻXQWLO\RXH[LW
Each option is described below.
Menu > Sound Description
Sound Out Sound Out have four options.HDMI1, HDMI2, DP, Audio-In.
39
ENG
ENGLISH
User Settings
Menu > General Description
Language To choose the language in which the control names are displayed.
SMART ENERGY
SAVING
High
Enables SMART ENERGY SAVING you can save energy with this energy- high
efficient function.
Low
Enables SMART ENERGY SAVING you can save energy with this energy- low
efficient function.
Off Disables SMART ENERGY SAVING .
DAS Mode
29UM67
34UM67
On You can enjoy faster game ensuring your commands appear onscreen with-
out delay. (The screen flickers when turning DAS Mode on/off.)
Off Turns DAS Mode off.
Power LED Turns the power indicator on the front side of the monitor on/off.
On The power indicator is automatically turned on.
Off The power indicator is turned off.
Automatic Standby The monitor will automatically switch to standby mode after a certain period.
FreeSync FreeSync is what gamers have been waiting for a solution that eliminates screen tearing
without all the usual lag and latency
.
On FreeSync function on.
Off FreeSync function off.
OSD Lock Prevents incorrect key input.
On Key input is disabled.
Off Key input is enabled.

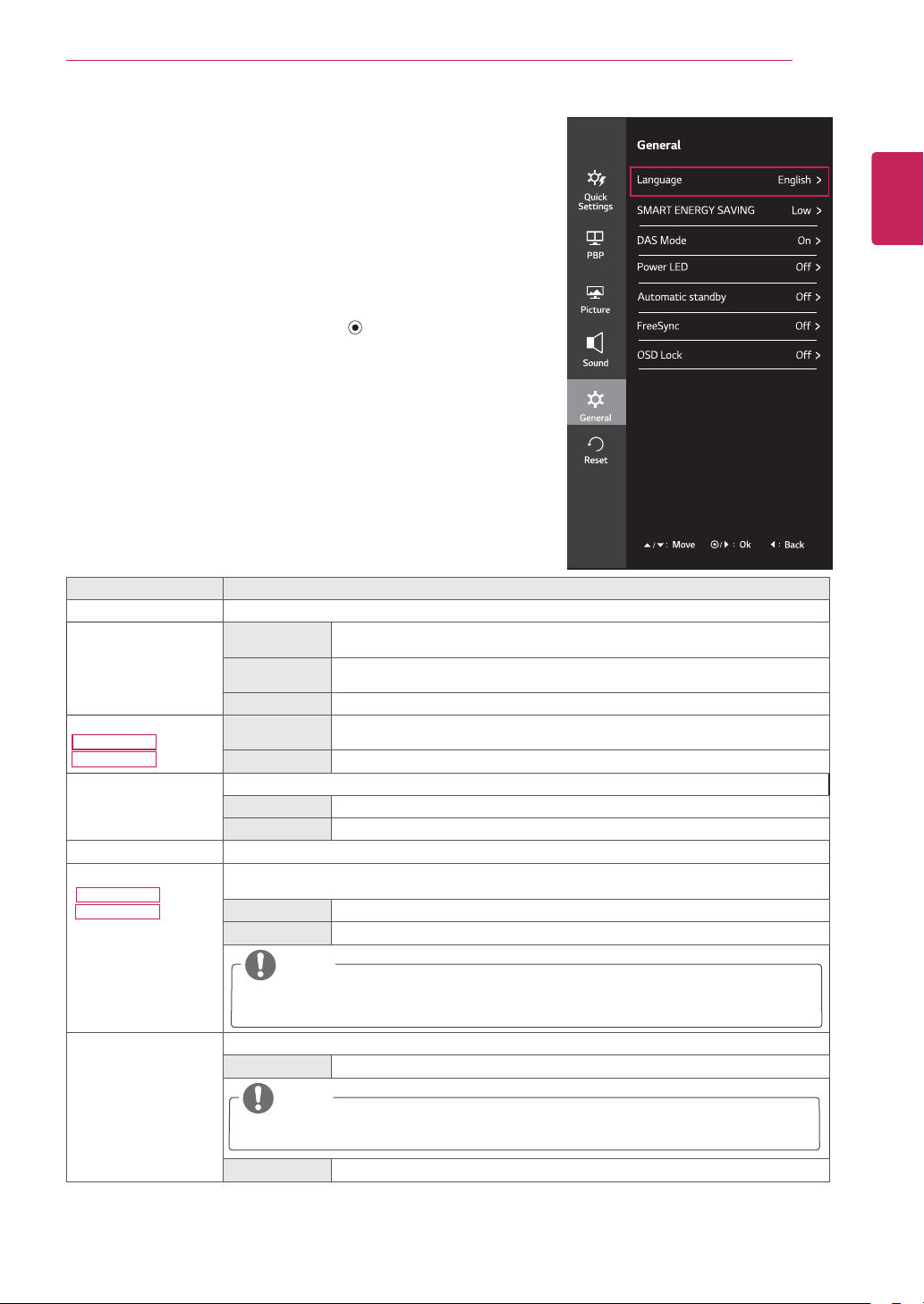

-General
1
To view the OSD menu, press the joystick but-
ton at the bottom of the monitor and then enter the
Menu.
2
Go to
General
by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
PRYHWKHMR\VWLFNWRŻRUSUHVVLQJ
/ OK) it.
5
If you want to exit the OSD menu, move the joystick
WRŻXQWLO\RXH[LW
Each option is described below.
NOTE
* It is recommended to use a video card that supports FreeSync function.
* Recommended Interface : DisplayPort
* For more information, refer to AMD website at http://www.amd.com/FreeSync
NOTE
All functions except for the OSD Lock mode and the Exit button for Brightness, Con-
trast, Volume, Input, and General are disabled.
29UM67
34UM67
40
ENG
ENGLISH
User Settings
-Reset
1
To view the OSD menu, press the joystick but-
ton at the bottom of the monitor and then enter the
Menu.
2
Go to
Reset
by moving the joystick.
3
Configure the options following the instructions that
appear in the bottom right corner.
4
To return to the upper menu or set other menu items,
PRYHWKHMR\VWLFNWRŻRUSUHVVLQJ
/ OK) it.
5
If you want to exit the OSD menu, move the joystick
WRŻXQWLO\RXH[LW
Each option is described below.
Menu > Reset Description
Do you want to reset your settings?
Reset Returns to the default settings.
Cancel Cancel the select.
41
ENG
ENGLISH
User Settings
-Picture mode
1
Press the joystick button on the bottom of the moni-
tor.
2
Go to Picture mode by moving the joystick button to
Ÿ
3
Configure the options following the instructions that
appear in the bottom.
Joystick Button >
Picture Mode
Description
Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be
adjusted.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Game Optimizes the screen for gameplay.
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper
. If you want
screen more bright, you can control brightness in Menu OSD.
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want
screen more bright, you can control brightness in Menu OSD.
Calibration Applies the value calibrated by True Color Finder.
/05&
y
Run the True Color Finder program.
Each option is described below.
29UB67
34UB67
42
ENG
ENGLISH
User Settings
-Game mode
1
Press the joystick button on the bottom of the monitor.
2
Go to Game modeE\PRYLQJWKHMR\VWLFNEXWWRQWRŸ
3
Configure the options following the instructions that appear in the
bottom.
29UM67
34UM67
43
ENG
ENGLISH
User Settings
Each option is described below.
Joystick
Button >
Game Mode
Description
Game Mode Gamer Brightness Adjusts the color contrast and brightness of the screen.
Contrast
Sharpness Adjusts the sharpness of the screen.
Gamma "Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on
the monitor
, high gamma values display whitish images and low gamma
values display blackish images.
If user don't want adjusted gamma, user can select Gamma off."
Color Temp Custom Allows the user to adjust each element. The color mode of the
main menu can be adjusted.
Warm Sets the screen color to a reddish tone.
Medium Sets the screen color between a red and blue tone.
Cool Sets the screen color to a bluish tone.
Black Stabilizer "Black Stabilizer:
Y
ou can control the black contrast to have better visibility in dark scenes.
Increasing the Black Stabilizer value brightens the low gray level area on the
screen. (You can easily distinguish objects on dark game screens.)Reducing
the Black Stabilizer value darkens the low gray level area and increases the
dynamic contrast on the screen."
Response Time "Sets a response time for displayed pictures based on the speed of the
screen.
For a normal environment,it is recommended that you use Middle. For a
fast-moving
picture, it is recom-mended that you use High.Setting the response time to
High may
cause image sticking."
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Off Does not use the response time improvement feature.
DAS Mode On Y
ou can enjoy faster game ensuring your commands appear
onscreen without delay. (The screen flickers when turning DAS
Mode on/off.)
Off Turns DAS Mode off.
FPS 1 Game Mode functions are optimized for FPS games.
FPS 2 The Black Stabilizer value is greater than that of FPS 1. It is suitable for very dark FPS games.
RTS Game Mode functions are optimized for R
TS games.
Off Turns Game Mode off.
44
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
y
Check and see if the power cord is connected properly to the power
outlet.
Is the power indicator light on?
y
Press the Power button.
Is the power indicator flickering?
y
If the display is in sleep mode, try moving the mouse or pressing any
key on the keyboard to bring up the screen.
y
Try to turn on the PC.
Do you see an "OUT OF RANGE"
message on the screen?
y
This message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
Do you see a "NO SIGNAL"
message on the screen?
y
This is displayed when the signal cable between the PC and the
monitor is missing or disconnected. Check the cable and reconnect it.
Can 't you control some functions in OSD?
Can't you select some menu in
OSD?
y
You can unlock the OSD controls at any time by entering the OSD
lock menu and changing items to off.
45
ENG
ENGLISH
TROUBLESHOOTING
Display image is incorrect
The screen color is mono or
abnormal.
y
Check if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
y
Make sure the video card is properly inserted in the slot.
y
Set the color setting higher than 24 bits (true color) at Control Panel
Ź Settings.
The screen blinks.
y
Check if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
y
Be sure to install the display driver from the display driver CD (or
diskette) that comes with your display. Or, you can also download the
driver from our web site: http://www.lg.com.
y
Make sure to check if the video card supports Plug&Play function.
y
Check &RQWURO3DQHOŹ'LVSOD\Ź6HWWLQJV and see if the frequency or the resolution were
changed. If yes, readjust the video card to the recommend resolution.
y
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
y
The setting method can differ by computer and O/S (Operation System), and resolution mentioned
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer
.
CAUTION
The screen is flickering.
Did you select the recommended
resolution?
y
If the selected resolution is HDMI 1080i 60/50 Hz, the screen may
be flickering. Change the resolution to the recommended resolution
1080P.
46
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
29UM67
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.2628 mm x 0.2628 mm
Resolution Maximum Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency DVI: 56Hz to 75 Hz
HDMI:(AV)25Hz to 60 Hz
(PC)56Hz to75 Hz
DP: 56 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector DVI-D IN, HDMI IN1, HDMI IN2 , DP(DisplayPort) IN, AUDIO IN(PC), H/P
Power Voltage 19 V
2.4 A
Power consumption (Typ.) On mode: 31 W (ENERGY STAR® standard)*
6OHHS0RGH:
2II0RGH:
AC/DC adaptor Type DA-48F19, Asian Power Devices Inc. production
Or type LCAP35, LIEN CHANG ELECTRONIC ENTERPRISE production
Output: 19 V
2.53 A
Environmental
Conditions
Operating Condition Temperature: 0°C to 40°C; Humidity: < 80%
Storing Condition Temperature: -10°C to 60°C; Humidity: < 85%
Stand Angle
Adjustment
Forwards/Backwards: -5° to 20° (Head)
Dimension Monitor Size (Width x Height x Depth)
With Stand 70.3 cm x 41.8 cm x 18.1 cm
Without Stand 70.3 cm x 32.8 cm x 6.4 cm
Weight (Without
Packaging)
6.2 kg
The specifications are subject to change without notice.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
* ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
47
ENG
ENGLISH
SPECIFICATIONS
29UB67
SPECIFICATIONS
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.2628 mm x 0.2628 mm
Resolution Maximum Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency DVI: 56 Hz to 75 Hz
HDMI: (AV)25 Hz to 60 Hz
(PC)56 Hz to 75 Hz
DP: 56 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector DVI-D IN, HDMI IN1, HDMI IN2, DP(DisplayPort) IN,AUDIO IN(PC), H/P, USB
Power consump-
tion
On Mode : 35.80 W Typ. (Outgoing condition) *
Sleep Mode<1.2 W **
Off Mode < 0.3 W
Power Input AC 100-240V ~ 50/60Hz 1.5 A
Environmental
Conditions
Operating Condition Temperature: 0°C to 40°C; Humidity: < 80%
Storing Condition Temperature: -10°C to 60°C; Humidity: < 85%
Stand Angle
Adjustment
Forwards/Backwards: -5° to 35° (Head)
Dimension Monitor Size (Width x Height x Depth)
With Stand 702.5 mm x 404.1 mm x 250 mm
Without Stand 702.5 mm x 322 mm x 63.8 mm
Weight (Without
Packaging)
8.6 kg
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum
resolution)
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
48
ENG
ENGLISH
SPECIFICATIONS
34UM67
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.312(H) mm x 0.310(V) mm
Resolution Maximum Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency DVI: 56Hz to 75 Hz
HDMI:(AV)25Hz to 60 Hz
(PC)56Hz to75 Hz
DP: 56 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector DVI-D IN, HDMI IN1, HDMI IN2 , DP(DisplayPort) IN, AUDIO IN(PC), H/P
Power Voltage 19 V
3.3 A
Power consumption (Typ.) On mode: 43 W (ENERGY STAR® standard)*
Sleep Mode ≤ 0.5 W
Off Mode ≤ 0.5 W
AC/DC adaptor Type DA-65G 19,
Asian Power Devices Inc.
production
Or type LCAP39,
LIEN CHANG ELECTRONIC ENTERPRISE
production
Output: 19 V
3.42 A
Environmental
Conditions
Operating Condition Temperature: 0°C to 40°C; Humidity: < 80%
Storing Condition Temperature: -10°C to 60°C; Humidity: < 85%
Stand Angle
Adjustment
Forwards/Backwards: -5° to 15° (Head)
Dimension Monitor Size (Width x Height x Depth)
With Stand 82.9 cm x 46.8 cm x 17.2 cm
Without Stand 82.9 cm x 37.9 cm x 8.2 cm
Weight (Without
Packaging)
7.3 kg
The specifications are subject to change without notice.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
* ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
SPECIFICATIONS
49
ENG
ENGLISH
SPECIFICATIONS
34UB67
SPECIFICATIONS
LCD Screen Type TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Pixel Pitch 0.312(H) mm x 0.310(V) mm
Resolution Maximum Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency DVI: 56 Hz to 75 Hz
HDMI: (AV)25 Hz to 60 Hz
(PC)56 Hz to 75 Hz
DP: 56 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector DVI-D IN, HDMI IN1, HDMI IN2 , DP(DisplayPort) IN, AUDIO IN(PC), H/P,USB
Power Voltage 19 V
3.3 A
Power consumption (Typ.) On Mode : 42 W Typ. (Outgoing condition) *
Sleep Mode < 1.2 W **
Off Mode < 0.3 W
AC/DC adaptor Type DA-65G 19, Asian Power Devices Inc. production
Or type LCAP39, LIEN CHANG ELECTRONIC ENTERPRISE production.
Output: 19 V
3.42 A
Environmental
Conditions
Operating Condition Temperature: 0°C to 40°C; Humidity: < 80%
Storing Condition Temperature: -10°C to 60°C; Humidity: < 85%
Stand Angle
Adjustment
Forwards/Backwards: -5° to 35° (Head)
Dimension Monitor Size (Width x Height x Depth)
With Stand 829.9 mm x 436.1 mm x 252.3 mm
Without Stand 829.9 mm x 379.8 mm x 49.2 mm
Weight (Without
Packaging)
8.3 kg
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum
resolution)
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
50
ENG
ENGLISH
SPECIFICATIONS
Factory support mode
(DVI-D/ HDMI/ DisplayPort)
Display Modes (Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V) Remarks
720 x 400 31.468 70.08 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.123 75.029 +/+
1152 x 864 67.5 75 +/+
1280 x 720 45 60 +/+
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.025 +/+
1600 x 900 60 60 +/+
1680 x 1050 65.290 59.954 -/+
1920 x 1080 67.5 60 +/-
2560 x 1080 66.7 60 -/+
1280 x 1080 (PBP only) 67.5 60 -/+
HDMI Timing (Video)
Factory support mode
(Preset Mode)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Remarks
480P 31.50 60
576P 31.25 50
720P 37.50 50
720P 45.00 60
1080P 56.25 50
1080P 67.50 60
Indicator
Mode LED Color
On Mode White
Sleep Mode Blinking White
Off Mode Off
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
